i AccessData FTK 3.0 User Guide
AccessData FTK 3.0 i
AccessData FTK 3.0
LEGAL INFORMATION
AccessData Corp. makes no representations or warranties with respect to the contents
or use of this documentation, and specifically disclaims any express or implied
warranties of merchantability or fitness for any particular purpose. Further, AccessData
Corp. reserves the right to revise this publication and to make changes to its content, at
any time, without obligation to notify any person or entity of such revisions or changes.
Further, AccessData Corp. makes no representations or warranties with respect to any
software, and specifically disclaims any express or implied warranties of merchantability
or fitness for any particular purpose. Further, AccessData Corp. reserves the right to
make changes to any and all parts of AccessData software, at any time, without any
obligation to notify any person or entity of such changes.
You may not export or re-export this product in violation of any applicable laws or
regulations including, without limitation, U.S. export regulations or the laws of the
country in which you reside.
© 2008 AccessData Corp. All rights reserved. No part of this publication may be
reproduced, photocopied, stored on a retrieval system, or transmitted without the
express written consent of the publisher.
AccessData Corp.
384 South 400 West
Suite 200
Lindon, Utah 84042
U.S.A.
www.accessdata.com
ii AccessData FTK 3.0 User Guide
ACCESSDATA TRADEMARKS
AccessData® is a registered trademark of AccessData Corp.
Distributed Network Attack® is a registered trademark of AccessData Corp.
DNA® is a registered trademark of AccessData Corp.
Forensic Toolkit® is a registered trademark of AccessData Corp.
FTK® is a registered trademark of AccessData Corp.
Password Recovery Toolkit® is a registered trademark of AccessData Corp.
PRTK® is a registered trademark of AccessData Corp.
Registry Viewer® is a registered trademark of AccessData Corp.
DOCUMENTATION CONVENTIONS
In AccessData documentation, a greater-than symbol (>) is used to separate actions
within a step. Where an entry must be typed in using the keyboard, the variable data is
set apart using [variable_data] format.
A trademark symbol (®, ™, etc.) denotes an AccessData trademark. All third-party
products are denoted with an (*). Third-party trademarks and copyrights are the
property of the trademark and copyright holders. AccessData claims no responsibility
for the function or performance of third-party products.
REGISTRATION
The AccessData product registration is tracked by the USB security device included
with your purchase, and is managed by AccessData.
SUBSCRIPTIONS
AccessData provides an annual licensing subscription with all new product purchases.
The subscription allows you to download and install the latest product releases for your
licensed products during the active license period. Following the initial licensing period,
a subscription renewal is required annually for updating your products. You can renew
your subscriptions through your AccessData Sales Representative.
AccessData FTK 3.0 iii
Use LicenseManager to view your current registration information, to check for
product updates and to download the latest product versions, where they are available
for download. You can also visit our website, www.accessdata.com anytime to find the
latest releases of our products.
For more information, see Managing Licenses in your product manual or on the
AccessData website.
ACCESSDATA CONTACT INFORMATION
Your AccessData Sales Representative is your main contact with AccessData Corp.
Also, listed below are the general AccessData telephone number and mailing address,
and telephone numbers for contacting individual departments.
MAILING ADDRESS AND GENERAL PHONE NUMBERS
You can contact AccessData in the following ways:
TABLE Front-1 Mailing Address, Hours, and Department Phone Numbers
Corporate Headquarters AccessData Corp.
384 South 400 West
Suite 200
Lindon, UT 84042 USA
Voice: 801.377.5410
Fax: 801.377.5426
General Corporate Hours: Monday through Friday, 8:00 AM – 5:00 PM (MST)
AccessData is closed on US Federal Holidays
State and Local
Law Enforcement Sales
Voice: 800.574.5199, option 1
Fax: 801.765.4370
Email: Sales@AccessData.com
Federal Sales Voice: 800.574.5199, option 2
Fax: 801.765.4370)
Email: Sales@AccessData.com
Corporate Sales Voice: 801.377.5410, option 3
Fax: 801.765.4370
Email: Sales@AccessData.com
iv AccessData FTK 3.0 User Guide
TECHNICAL SUPPORT
You can contact AccessData Customer and Technical Support in the following ways:
TABLE Front-2 AccessData Customer & Technical Support Contact
Information
Customer Service Hours: Monday through Friday, 7:00 AM – 6:00 PM (MST)
Customer/Technical Support
Free technical support is available on
all AccessData products.
Voice: 801.377.5410, option 5
Voice: 800.658.5199 (Toll-free North America)
Email: Support@AccessData.com
Website: http://www.AccessData.com/Support
The Support website allows access to Discussion Forums, Downloads, Previous Releases,
our Knowledgebase, a way to submit and track your “trouble tickets”, and in-depth contact
information.
DOCUMENTATION
Please e-mail any typos, inaccuracies, or other problems you find with the
documentation to:
documentation@accessdata.com
PROFESSIONAL SERVICES
The AccessData Professional Services staff comes with a varied and extensive
background in digital investigations including law enforcement, counter-intelligence,
and corporate security. Their collective experience in working with both government
and commercial entities, as well as in providing expert testimony, enables them to
provide a full range of computer forensic and eDiscovery services.
Training Voice: 801.377.5410, option 6
Fax: 801.765.4370
Email: Training@AccessData.com
Accounting Voice: 801.377.5410, option 4
Note: All support inquiries are typically answered within one business day. If there is an urgent need for
support, contact AccessData via phone during normal business hours.
TABLE Front-1 Mailing Address, Hours, and Department Phone Numbers
AccessData FTK 3.0 v
At this time, Professional Services provides support for sales, installation, training, and
utilization of FTK. They can help you resolve any questions or problems you may have
regarding FTK.
CONTACT INFORMATION FOR PROFESSIONAL SERVICES
• Washington DC: 410.703.9237
• North America: 800.574.5199
• International: +1.801.377.5410
Email: adservices@accessdata.com
vi AccessData FTK 3.0 User Guide
Table of Contents vii
Table of Contents
AccessData FTK 3.0..............................................................................................................................................i
Legal Information......................................................................................................................................i
AccessData Trademarks ........................................................................................................ii
Documentation Conventions....................................................................................................................ii
Registration...............................................................................................................................................ii
Subscriptions............................................................................................................................ii
AccessData Contact Information...........................................................................................................iii
Mailing Address and General Phone Numbers...................................................................iii
Technical Support ...................................................................................................................iv
Documentation........................................................................................................................iv
Professional Services .................................................................................................................................iv
Contact Information for Professional Services.........................................................................v
Table of Contents....................................................................................................................................................vii
Chapter 1 Introduction to AccessData Products .................................................................................................. 1
Audience...................................................................................................................................................1
Role of AccessData Forensic Investigation Tools.....................................................................................1
AccessData Forensic Products.................................................................................................................2
AccessData eDiscovery...........................................................................................................2
AccessData Enterprise .......................................................................................................... 3
viii AccessData FTK 3.0 User Guide
Forensic Toolkit...................................................................................................................... 3
FTK Imager........................................................................................................................... 4
Lab ......................................................................................................................................... 5
Language Selector ................................................................................................................... 5
Mobile Phone Examiner....................................................................................................... 5
Registry Viewer...................................................................................................................... 6
SilentRunner........................................................................................................................... 6
Password Discovery and File Decryption................................................................................................6
DNA and PRTK................................................................................................................. 6
Features Overview................................................................................................................... 7
DNA and PRTK Add-Ons............................................................................................... 7
Portable Office Rainbow Tables ........................................................................... 7
Rainbow (Hash) Tables ....................................................................................... 8
TACC Unit ........................................................................................................ 9
License Management................................................................................................................................9
CodeMeter Runtime...............................................................................................................9
LicenseManager....................................................................................................................10
Chapter 2 AccessData Forensic Toolkit 3.0 Overview......................................................................................11
Computer Forensic Investigation Overview............................................................................................11
Acquiring the Evidence ........................................................................................................12
Preserving the Evidence.........................................................................................................12
Analyzing the Evidence .......................................................................................................12
Indexing and Hashing ........................................................................................12
Searching .............................................................................................................14
Bookmarking........................................................................................................................14
Presenting Evidence ..............................................................................................................14
Managing Cases.....................................................................................................................................15
Chapter 3 AccessData ForensicToolkit Installation...........................................................................................17
Installation Information.........................................................................................................................17
Hardware Considerations ....................................................................................................18
Estimating Hard Disk Space Requirements......................................................................18
Configuration Options..........................................................................................................19
Table of Contents ix
Installing FTK.......................................................................................................................................19
Install CodeMeter.................................................................................................................20
Install Oracle.........................................................................................................................20
Single Computer Installation.................................................................................................................21
Install FTK..........................................................................................................................21
Install the Evidence Processing Engine................................................................................22
Install the KFF Library........................................................................................................................22
Installing on Separate Computers..........................................................................................................22
Additional Programs.............................................................................................................................23
Install Language Selector......................................................................................................23
Using Language Selector 2.................................................................................... 3
Licensing ..............................................................................................................24
Chapter 4 The FTK 3.0 User Interface.............................................................................................................25
About Evidence....................................................................................................................25
Acquiring and Preserving Static Evidence .........................................................25
Acquiring and Preserving Live Evidence ...........................................................26
Acquiring Remote Evidence ...............................................................................26
Create a Case........................................................................................................................26
Open an Existing Case .......................................................................................................27
Add Evidence.......................................................................................................................27
Work The Case....................................................................................................................27
Identify Meaningful Evidence .............................................................................27
Generate Reports ..................................................................................................................28
Moving Forward.....................................................................................................................................28
Using the CodeMeter Stick..................................................................................................29
Starting FTK.........................................................................................................................................29
Set Up the Application Administrator...............................................................................29
Basics of The FTK 3.0 User Interface..................................................................................................30
Using the Case Manager Window......................................................................................30
Case List...............................................................................................................................33
Create a New Case ............................................................................................33
Case Management..................................................................................................................................33

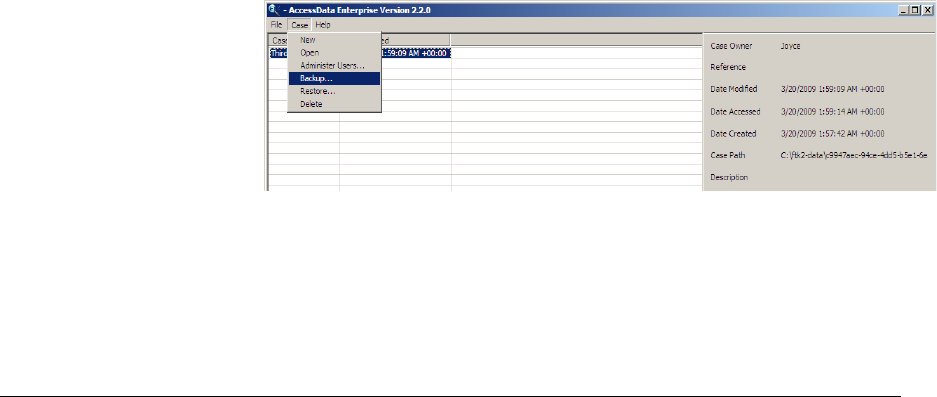

Backing Up the Case...........................................................................................................34
x AccessData FTK 3.0 User Guide
Archiving a Case..................................................................................................................35
Archive and Detach a Case.................................................................................................35
Attach a Case.......................................................................................................................36
Restore a Case ......................................................................................................................36
Delete a Case........................................................................................................................37
Storing Case Files.................................................................................................................37
The FTK User Interface........................................................................................................................37
Undocking ...........................................................................................................45
Toolbar Components.............................................................................................................45
File List Pane.......................................................................................................................46
File List Toolbar..................................................................................................................47
File List View Right-Click Menu ....................................................................48
QuickPicks Filter 50
The Data Processing Status Screen ....................................................................51
Chapter 5 Starting a New FTK 3.0 Case ........................................................................................................53
Launch FTK.........................................................................................................................................53
Assigning Roles ...................................................................................................56
Creating a Case......................................................................................................................................57
Selecting Evidence Processing Options..................................................................................58
Fuzzy Hashing ....................................................................................................................63
Creating a Fuzzy Hash Library .......................................................................64
Selecting Fuzzy Hash Options During Initial Processing .................................64
Additional Analysis Fuzzy Hashing ................................................................65
Comparing Files Using Fuzzy Hashing.............................................................................67
Viewing Fuzzy Hash Results.............................................................................................67
Selecting dtSearch* Text Indexing Options.........................................................................68
Indexing a Case ..................................................................................................68
dtSearch Indexing Space Requirements .............................................................68
New Case Indexing Options ..............................................................................68
Selecting Data Carving Options .........................................................................69
Explicit Material Identification ..........................................................................71
Selecting Evidence Discovery Options ..................................................................................72
Creating the Custom File Identification File ......................................................73
Table of Contents xi
Selecting Evidence Refinement (Advanced) Options............................................................74
Refining Evidence by File Status/Type .............................................................75
Refining Evidence by File Date/Size ................................................................77
Selecting Index Refinement (Advanced) Options ................................................................78
Refining an Index by File Status/Type .............................................................79
Refining an Index by File Date/Size ................................................................80
Creating the Case..................................................................................................................82
Adding Evidence to a New Case ........................................................................................82
Processing Evidence...............................................................................................................85
Viewing Processed Items.......................................................................................................86
The FTK User Interface........................................................................................................................86
Chapter 6 Adding and Processing Static Evidence..............................................................................................87
Static Evidence vs. Remote Evidence.....................................................................................................87
Acquiring and Preserving Static Evidence............................................................................................88
Opening an Existing Case....................................................................................................................88
Adding Evidence....................................................................................................................................88
Selecting a Language.............................................................................................................92
Additional Analysis.............................................................................................................93
Hashing ................................................................................................................................96
Data Carving.......................................................................................................................97
Data Carving Files When Processing a New Case ..........................................97
Data Carving Files in an Existing Case ..........................................................98
The FTK User Interface........................................................................................................................98
FTK Menus and Toolbars....................................................................................................................99
Menu Bar Components.........................................................................................................................99
File Menu Options ...........................................................................................100
Edit Menu Options ..........................................................................................107
View Menu Options ........................................................................................110
Evidence Menu Options ...................................................................................112
Filter Menu Options .........................................................................................112
Tools Menu Otions ...........................................................................................113
Help Menu Options .........................................................................................115
Toolbar Components...........................................................................................................................115
xii AccessData FTK 3.0 User Guide
QuickPicks Filter .............................................................................................116
File List Pane.....................................................................................................................118
File List Toolbar ...............................................................................................119
Using Tabs..........................................................................................................................................120
Chapter 7 Adding and Processing Remote Live Evidence...............................................................................121
Acquiring and Preserving Remote Evidence......................................................................................121
FTK Role Requirements....................................................................................................122
Acquiring Data Remotely..................................................................................................122
Provide Credentials ...........................................................................................123
Remote Disk Management System (RDMS) Additional Information..........................................126
RDMS Requirements for Manual Deployment ..............................................................126
Utilizing the Agent ...........................................................................................126
Chapter 8 Using Tabs to Explore & Refine Evidence...................................................................................129
Using Tabs to Explore and Refine Evidence....................................................................................129
Explore Tab.......................................................................................................................130
Viewer Pane ......................................................................................................133
Properties Tab ...................................................................................................134
Hex Interpreter Tab .........................................................................................137
File Content Tab................................................................................................................139
Hex Tab ...........................................................................................................139
Text Tab ...........................................................................................................141
Filtered Tab .......................................................................................................142
Natural Tab .....................................................................................................143
Overview Tab......................................................................................................................144
File Items Container .........................................................................................144
File Extension Container .................................................................................145
File Category Container ....................................................................................145
File Status Container ........................................................................................146
Bookmark Container .......................................................................................148
Email Tab..........................................................................................................................148
Email Status Tree ............................................................................................148
Email Tree ........................................................................................................148
Table of Contents xiii
Graphics Tab......................................................................................................................148
Using Thumbnails ............................................................................................149
Moving the Thumbnails Pane ..........................................................................149
The Bookmarks Tab..........................................................................................................................150
Creating a Bookmark........................................................................................................151
Viewing Bookmark Information .....................................................................154
Bookmarking Selected Text .............................................................................156
Adding to an Existing Bookmark ..................................................................158
Creating Email or Email Attachment Bookmarks .......................................159
Adding Email and Email Attachments to Bookmarks ................................160
Moving a Bookmark ........................................................................................162
Deleting a Bookmark .......................................................................................162
Deleting Files from a Bookmark .....................................................................163
Search Tabs.........................................................................................................................................163
Live Search Tab.................................................................................................................163
Index Search Tab .............................................................................................164
Volatile Tab .......................................................................................................................165
Creating Tabs......................................................................................................................................165
Chapter 9 Searching a Case ..............................................................................................................................175
Conducting a Live Search...................................................................................................................175
Customizing the Live Search Tab.....................................................................................179
Conducting a Pattern Search ..............................................................................................................179
Simple Pattern Searches ....................................................................................180
Complex Pattern Searches ................................................................................180
Predefined Regular Expressions .......................................................................182
Creating Custom Regular Expressions.............................................................................187
Conducting Hex Searches ..................................................................................................188
Conducting Text Searches ..................................................................................................188
Conducting an Index Search...............................................................................................................189
Search Terms......................................................................................................................191
Search Criteria....................................................................................................................192
Index Search Options.........................................................................................................192
Documenting Search Results...............................................................................................................195
xiv AccessData FTK 3.0 User Guide
Using Copy Special to Document Search Results .............................................................196
Bookmarking Search Results.............................................................................................199
Chapter 10 Using Filters....................................................................................................................................205
The Filter Toolbar...............................................................................................................................205
Using Filters........................................................................................................................................206
Predefined Filters ................................................................................................................206
Customizing Filters.............................................................................................................................209
Creating a Filter.................................................................................................................209
Refining a Filter..................................................................................................................209
Exporting a Filter..............................................................................................................210
Deleting a Filter..................................................................................................................210
Using the Known File Filter...............................................................................................................211
A Closer Look at the AccessData KFF Library...........................................................211
KFF Library Sources .......................................................................................211
Importing KFF Hashes.....................................................................................................213
Exporting KFF Hashes....................................................................................................215
Understanding How the KFF Database is Used 2 ..........................................16
Storing Hashes in the KFF Database..............................................................................216
Creating Sets and Groups..................................................................................................218
Chapter 11 Decrypting EFS and Other Encrypted Files...............................................................................225
Understanding EFS...........................................................................................................................225
Decrypting EFS Files and Folders....................................................................................................226
Decrypting Windows EFS Files.......................................................................................227
Understanding EFS .........................................................................................227
Windows 2000 and XP Systems Prior to SP1...............................................................227
Windows XP SP1 or Later .............................................................................................228
Viewing the Decrypted Files...............................................................................................................228
Decrypting Domain Account EFS Files from Live Evidence.........................................228
Decrypting Credant Files....................................................................................................................235
Using an Offline Key Bundle.............................................................................................236
Using an Online Key Bundle.............................................................................................236
Decrypting Safeguard Utimaco Files..................................................................................................238
Table of Contents xv
Decrypting SafeBoot Files..................................................................................................239
Decrypting Guardian Edge Files.......................................................................................................240
Decrypting an Image Encrypted With PGP® Whole Disk Encryption (WDE).......................240
About PGP® Corporation and PGP® Whole Disk Encryption...............................241
PGP® WDE Decryption in FTK 3.0..........................................................................241
Chapter 12 Working with Reports...................................................................................................................245
Creating a Report................................................................................................................................245
Saving Your Settings...........................................................................................................246
Entering Case Information ................................................................................................247
Managing Bookmarks in a Report...................................................................................249
Managing Graphics in a Report........................................................................................251
Selecting a File Path List ...................................................................................................253
Adding a File Properties List............................................................................................254
Registry Selections ...............................................................................................................255
Selecting the Report Output Options .................................................................................256
Customizing the Formatting of Reports.............................................................................257
Creating the Report ............................................................................................................259
Viewing and Distributing a Report...................................................................................................259
Modifying a Report.............................................................................................................................261
Printing a Report ................................................................................................................................261
Chapter 13 Customizing the FTK Interface ....................................................................................................263
Customizing Overview........................................................................................................................263
The View Menu.................................................................................................................................264
The Tab Layout Menu......................................................................................................265
Moving View Panes...........................................................................................................265
Creating Custom Tabs.......................................................................................................267
Customizing File List Columns........................................................................................268
Creating and Modifying Column Settings.........................................................................268
Available Columns.............................................................................................................269
Common Features .............................................................................................269
Disk Image Features ........................................................................................271
Email Features ................................................................................................. 271
xvi AccessData FTK 3.0 User Guide
Entropy Statistics ...............................................................................................................274
File Status Features............................................................................................................275
File System Features .........................................................................................275
DOS File Systems ............................................................................................276
ext2 File Systems ..............................................................................................277
HFS File Systems............................................................................................ 277
NTFS File Systems .........................................................................................278
Unix Security File Systems ..............................................................................278
Mobile Devices ..................................................................................................278
Zip-specific Features ..........................................................................................279
Temporary File Folder ......................................................................................279
Data Carving ....................................................................................................279
Appendix A File Systems and Drive Image Formats....................................................................................281
File Systems.........................................................................................................................................282
Hard Disk Image Formats................................................................................................................282
CD and DVD Image Formats........................................................................................................282
Appendix B Recovering Deleted Material........................................................................................................283
FAT 12, 16, and 32 ........................................................................................................................283
NTFS.................................................................................................................................................284
ext2......................................................................................................................................................284
ext3......................................................................................................................................................284
HFS....................................................................................................................................................284
Appendix C Program Files.............................................................................................................................285
Files and Folders for the Application.................................................................................................285
Files and Folders for the Database.....................................................................................................286
Changing Registry Options.................................................................................................................286
Appendix D Gathering Windows Registry Evidence .....................................................................................287
Understanding the Windows Registry................................................................................................287
Windows 9x Registry Files ...............................................................................................288
Table of Contents xvii
Windows NT and Windows 2000 Registry Files..........................................................289
Windows XP Registry Files..............................................................................................290
Possible Data Types ...........................................................................................................292
Additional Considerations .................................................................................................293
Seizing Windows Systems 294
Registry Quick Find Chart...............................................................................................................294
System Information.............................................................................................................295
Networking.........................................................................................................................296
User Data...........................................................................................................................296
User Application Data......................................................................................................297
Appendix E Managing Security Devices and Licenses....................................................................................299
NLS Support.....................................................................................................................................299
Installing and Managing Security Devices..........................................................................................299
Installing the Security Device..............................................................................................299
Installing the CodeMeter Runtime Software ....................................................300
Installing Keylok Dongle Drivers .....................................................................305
Installing LicenseManager..................................................................................................................308
Managing Licenses with LicenseManager..........................................................................................310
Starting LicenseManager ...................................................................................................312
The LicenseManager Interface............................................................................................314
The Installed Components Tab 3........................................................................14
The Licenses Tab ..............................................................................................316
Opening and Saving Dongle Packet Files..........................................................................................319
Adding and Removing Product Licenses ...........................................................................................320
Remove a License ..............................................................................................320
Add a License ...................................................................................................321
Adding and Removing Product Licenses Remotely...........................................................322
Add a License Remotely ...................................................................................322
Remove a License Remotely ..............................................................................323
Updating Products..............................................................................................................325
Check for Product Updates ..............................................................................325
Download Product Updates .............................................................................325
Purchase Product Licenses ................................................................................326
xviii AccessData FTK 3.0 User Guide
Send a Dongle Packet File to Support .............................................................326
AccessData Glossary..........................................................................................................................................327
Chapter 1 Introduction to AccessData Products 1
Chapter 1 Introduction to
AccessData Products
This chapter addresses the roles of the AccessData forensic investigation tools.
AUDIENCE
AccessData forensic investigation software tools are intended for law enforcement
officials and corporate security and IT professionals who need to access and evaluate
the evidentiary value of files, folders, and computers.
In addition, law enforcement and corporate security professionals should possess the
following competencies:
• Basic knowledge of and experience with personal computers
• Familiarity with the Microsoft Windows environment
• Basic knowledge of and training in forensic policies and procedures
• Familiarity with the fundamentals of collecting digital evidence and ensuring the
legal validity of the evidence
• Understanding of forensic images and how to acquire forensically sound images
• Experience with case studies and reports
ROLE OF ACCESSDATA FORENSIC INVESTIGATION TOOLS
AccessData provides world-class products to address every aspect and phase of
computer forensics investigations, including evidence gathering and imaging, analysis
2 AccessData FTK 3.0 User Guide
tools, password cracking and data decryption, and reporting. The following section
provides insight into the various products available to address various needs and
environments where digital evidence can be very useful. For more information on any
of these products, please visit our website, www.accessdata.com.
Note: FTK 2+ and FTK 2+-based products require the CodeMeter Runtime Kit and Wibu
CodeMeter USB device (CmStick). Some other AccessData products may still be run
using the Keylok dongle and related dongle drivers.
ACCESSDATA FORENSIC PRODUCTS
This section provides basic information about AccessData’s forensic investigation
products. The products are listed alphabetically, by product type.
ACCESSDATA EDISCOVERY
AccessData eDiscovery is truly a landmark technology that virtually walks you through
each and every step of the eDiscovery lifecycle. Fortune 500 companies are quickly
turning to eDiscovery, because it is the only true custodian-based, end-to-end
eDiscovery solution on the market today.
AccessData eDiscovery is a product designed to gather the data required to investigate
a legal matter. eDiscovery is designed to allow the tracking of multiple legal matters and
the groupings of their data, termed “collections.” Each collection can contain human,
share, or computer “custodians” (or combinations of the three) of data required for the
legal matter. Filters can be designed to exclude or include specific types of files. The
collection can be run across the entire network of a company or enterprise.
Furthermore, AD eDiscovery is by far the easiest to use with an intuitive dashboard
that conveys the real-time status of all collection activities. True custodian data
mapping, the ability to schedule and manage ongoing and periodic collections to better
address ongoing litigation matters, as well as powerful processing and reporting are just
a few of the reasons eDiscovery is the new revelation in the industry. Not only does it
give you the power to address each phase of the process in-house, but it allows you to
search and collect data from network shares, email servers, Documentum, SharePoint,
Open Text, databases and other structured data repositories. This gives you a level of
reach unmatched by any other e-discovery solution. Simply compare other solutions’
capabilities to eDiscovery and you will see why so many people are switching.
For more information about eDiscovery, see the AccessData Web site at (http://
www.accessdata.com/Products/eDiscovery.aspx).
Chapter 1 Introduction to AccessData Products 3
ACCESSDATA ENTERPRISE
AccessData Enterprise takes network-enabled digital investigations to the next level.
AD Enterprise is a powerful, enterprise-scale investigative solution built on our
industry-standard, court-validated FTK technology. With an integrated Oracle database
on the back-end, true multi-processor support and robust processing capabilities,
Enterprise provides the most powerful investigative solution on the market. It handles
larger data sets than other investigative solutions and processes data at greater speeds.
AccessData Enterprise delivers state-of-the-art incident response capabilities, deep
dive analysis of both volatile and static data, as well as superior threat detection
capabilities — all within an easy-to-use interface. A role-based permission system, an
intuitive incident response console, secure batch remediation capabilities, unsurpassed
searching and filtering, and comprehensive logging and reporting are just a few of the
reasons Enterprise is quickly being adopted by Fortune 500 companies.
Enterprise gives visibility into data and systems across an enterprise network. It enables
proactive or reactive location, preservation, and containment of confidential and
personal data leakage, as well as address the most sensitive employee issues.
It optimizes incident response by enabling easy and quick deep analysis to determine
the “who”, “what”, “when”, “where” and “how” of any given event and to zero-in on
all affected machines. With the seamless integration of static and volatile data,
examiners are able to analyze, collect, contain and report on any type of data.
For more information on Enterprise, see the AccessData Web site (http://
www.accessdata.com/Products/Enterprise.aspx).
FORENSIC TOOLKIT
AccessData Forensic Toolkit (FTK) provides award-winning technology that is used by
law enforcement and corporate security professionals to filter, analyze, investigate, and
report on acquired evidence.
FTK provides users with the ability to perform complete and thorough computer
forensic examinations. FTK features powerful file filtering and search functionality.
FTK customized filters allow you to sort through thousands of files so you can quickly
find the evidence you need. FTK is recognized as the leading forensic tool for
performing email analysis. In addition, outstanding bookmarking and reporting
functions add to the power and usability of the product.
AccessData Forensic Toolkit is recognized around the world as the standard in
computer forensic investigation technology. This court-validated platform delivers
cutting edge analysis, decryption and password cracking all within an intuitive,
4 AccessData FTK 3.0 User Guide
customizable and user-friendly interface. In addition, with FTK you have the option of
utilizing a back-end database to handle large data sets. You get the benefit of best-of-
breed technologies that can be expanded to meet your ever-changing needs. Known for
its intuitive functionality, email analysis, customizable data views and stability, FTK is
the smart choice for stand-alone forensic investigations.
For more information about FTK, or any other AccessData product, see the
AccessData website at www.accessdata.com.
FTK IMAGER
FTK Imager is an AccessData software evidence acquisition tool. It can quickly preview
evidence and, if the evidence warrants further investigation, create a forensically sound
image of the disk. It makes a bit-by-bit duplicate of the media, rendering a forensic
image identical in every way to the original, including file slack, and unallocated and
drive free space.
Imager performs the following tasks:
• Preview files and folders on local hard drives, network drives, floppy diskettes, Zip
disks, CDs, DVDs, SD cards, and USB storage devices.
• Create forensic images of local hard drives, floppy diskettes, Zip disks, CDs, DVDs,
USB storage devices, and othes.
• Preview the contents of forensic images stored on the local computer or on a
network drive.
• Export files and folders from forensic images.
• Generate hash reports for regular files and disk images (including files inside disk
images.)
Important: When using Imager to create a forensic image of a hard drive, use
a hardware-based write-blocking device as well. This ensures that the
operating system does not alter the hard drive data while attached to the
imaging computer.
Use Imager to create a hash of the original drive image that can be referenced later as a
benchmark to prove the integrity of the case evidence. Imager verifies that the drive
image hashs and the drive hash match when the drive image is created. Two hash
functionsare available in FTK Imager: Message Digest 5 (MD5), and Secure Hash
Algorighm (SHA-1 & SHA -256).
Chapter 1 Introduction to AccessData Products 5
After you create a drive image or custom image of the data, use FTK to perform a
complete and thorough forensic examination and create a report of your findings.
LAB
The AccessData Lab family of solutions enables labs of all sizes, facing an array of
challenges, to work more effectively. Single person labs can radically speed up the
processing of cases, utilizing the distributed processing in our FTK Pro solution. Labs
that have expanded a little can extend the distributed processing capabilities of Pro, and
add collaborative work and web-enabled case management. Finally large labs that either
utilize a distributed workforce or would like to collaborate with attorneys, HR
personnel or any other non-forensic investigators can step up to Lab, which adds
powerful and intuitive web-based review. Regardless of the size, scope or mission of
your lab, AccessData Lab has a solution that will meet your needs.
LANGUAGE SELECTOR
AccessData Language Selector is a utility that allows you to choose a language
codepage to view your cases in. Currently, FTK, Imager, and Registry Viewer are
localized. FTK currently supports only English, so Language Selector is not included
on the FTK installation discs. If you need Language Selector for the AccessData
programs that support additional languages, download it from the AccessData website,
www.accessdata.com/support. Select Downloads and find it in the list of Utilities.
MOBILE PHONE EXAMINER
Mobile Phone Examiner is an AccessData programthat reads and images data from cell
phones and cell phone data card readers. It can run as a standalone program or as an
add-on to FTK.
When run as a standalone, it reads and images the data. You then would add the image
file to a case in FTK.
When installed on a machine that also has FTK installed, the phone or device can be
detected when adding new evidence, and the data, when imaged, is automatically added
to the current FTK case.
6 AccessData FTK 3.0 User Guide
REGISTRY VIEWER
AccessData Registry Viewer® allows you to view the contents of Windows operating
system registry files. Unlike Windows Registry Editor, which only displays the registry
of the current system, Registry Viewer lets you examine registry files from any
Windows system. Registry Viewer also provides access to a registry’s protected storage,
which contains passwords, usernames, and other information not accessible in
Windows Registry Editor.
SILENTRUNNER
SilentRunner enables you to answer the difficult question of “What happened?” in the
aftermath of a security incident by tackling the complicated tasks of capturing,
analyzing and visualizing network data. It is a passive network monitoring solution that
visualizes network activity by creating a dynamic picture of communication flows,
swiftly uncovering break-in attempts, weaknesses, abnormal usage, policy violations
and misuse, and anomalies — before, during and after an incident. Operating like a
surveillance camera, SilentRunner can play back events from thousands of
communications to validate system threats and investigate security breaches. This
dramatically enhances your ability to identify offenders, determine root cause, and
mitigate the recurrence of the same security incident. In addition, it helps monitor
infractions to regulatory controls and policy violations, providing supporting reports
for auditing requirements and contributing to your ability to demonstrate compliance.
PASSWORD DISCOVERY AND FILE DECRYPTION
AccessData offers two superior programs for file decryption and password discovery.
In addition, AccessData offers add-ons that provide impressive enhancements to the
speed of these applications.
DNA AND PRTK
DNA and PRTK have essentially the same program interface and they work essentially
the same way. Both programs analyzes file signatures to find encryption types and
determine which recovery modules to use.
DNA and PRTK perform recoveries on protected files using various methods, including
decryption and dictionary attacks. For difficult password key values, PRTK performs
dictionary attacks using various types of dictionaries, including the Golden Dictionary
Chapter 1 Introduction to AccessData Products 7
(containing previously recovered passwords), as well as Biographical, Custom User, and
Default dictionaries.
FEATURES OVERVIEW
DNA and PRTK perform the following basic functions:
• Hash files
Hashing a file uses an algorithm that creates a unique hash value for a file,
allowing verification that the contents of a file remain unchanged. When a file is
added to PRTK or DNA for key or password recovery, it is hashed. When the
key or password is recovered, the file is automatically hashed again to verify that
the file itself has remained unchanged. This is particularly helpful to law
enforcement personnel who need to verify that a file has not been changed while
recovering a password.
• Recover passwords
PRTK can recover the password to files created in many popular industry
applications by using a variety of methods, including several types of dictionaries
used within profiles, in combination with rules to achieve the desired results.
PRTK can also recover multi-lingual passwords.
• Generate reports
You can now print job information reports for password recovery jobs in .PDF
format.
• Open encrypted files
You can use recovered keys or passwords to open recovered files, if the applications the
files originated from are available and installed on a computer you have access to.
Recovered files can be copied or moved to any location.
DNA AND PRTK ADD-ONS
The following add-ons are available to enhance the power and speed of password-
cracking with PRTK and/or DNA:
PORTABLE OFFICE RAINBOW TABLES
Rainbow Tables are also pre-computed, brute-force attacks. AccessData Portable
Office Rainbow Tables (PORT) are different from the full Hash tables set. A statistical
analysis is done on the file itself to determine the available keys. This takes far less
8 AccessData FTK 3.0 User Guide
space than the Hash Tables, but also takes somewhat more time and costs a small
percentage in accuracy.
As previously stated, a system set at 40-bit encryption has one trillion keys available. A
brute-force attack of 500,000 keys per second would take approximately 25 days to
exhaust the key space combinations of a single file using a single 3 Ghz Pentium 4
computer. With Portable Office Rainbow Tables, you can decrypt 40-bit encrypted files
Microsoft Word or Excel files, usually in seconds, minutes, or hours, rather than days or
weeks, depending on the power of the system you are using. DNA and PRTK
seamlessly integrate with PORT
Product Features
• 40-bit encrypted files decrypted in 5 minutes on average
• One table available: MS Word & Excel (MS Office)
• Completely portable, fits on your laptop
• 98.6% accuracy for MS Office Word and Excel files.
PORT for Word and Excel takes only about 3.7 GB of disc space. It is shipped on a
single DVD. You can carry it with you! Indispensable for on-site acquisitions and
investigations.
RAINBOW (HASH) TABLES
Rainbow Tables are pre-computed, brute-force attacks. In cryptography, a brute-force
attack is an attempt to recover a cryptographic key or password by trying every possible
key combination until the correct one is found. How quickly this can be done depends
on the size of the key, and the computing resources applied.
A system set at 40-bit encryption has one trillion keys available. A brute-force attack of
500,000 keys per second would take approximately 25 days to exhaust the key space
combinations using a single 3 GHz Pentium 4 computer. With a Rainbow Table,
because all possible keys in the 40-bit keyspace are already calculated, file keys are
found in a matter of seconds-to-minutes; far faster than by other means. DNA and
PRTK seamlessly integrate with Rainbow Tables.
Product Features
Three Rainbow Tables Hash Sets are available:
• MS Office Word and Excel
• Acrobat PDF
Chapter 1 Introduction to AccessData Products 9
• Windows LAN Hash
Each hash set takes nearly 3TB of disk space.
AccessData RainbowTables hash sets for Windows LAN Hash ship with their own
user-interface program, and that is the one that should be used for LAN Hash files.
The Rainbow Tables has sets for MS Office and Acrobat PDF, as well as the Portable
Office Rainbow Tables, (PORT) all run with AccessData Rainbow Tables stand-alone
user-interface program. Check for the latest version of RainbowTables.exe on the
AccessData Website, www.AccessData.com.
TACC UNIT
The Tableau TACC1441 Hardware Accellerator (TACC) is a specialized product that
reduces the dictionary-based password recovery times of PRTK and DNA. The TACC
accelerator performs massively parallel, high-speed computations of cipher-keys,
yielding a dramatic increase in the number of passwords per second that each host
computer generates. This results in a greater number of successful attacks in a
significantly shorter amount of time. For more information, contact your AccessData
sales representative, or contact Tableau, LLC; www.tableau.com.
LICENSE MANAGEMENT
The following products aid in the management of your AccessData product licenses
and license security devices. For more detailed information regarding licenses,
LicenseManager, and license security devices, see “Appendix E Managing Security
Devices and Licenses” on page 299.
CODEMETER RUNTIME
The CodeMeter Runtime Kit is a program that is designed to work with the Wibu
CodeMeter (CmStick) so AccessData programs can verify license information stored
on the CmStick. It must be installed prior to connecting the CmStick. The CmStick and
CodeMeter Runtime Kit software must be fully installed prior to running
LicenseManager. Either a CmStick, or a Keylok dongle with a current license is
required to fully utilize AccessData products. CodeMeter Runtime can be installed and
running on the same machine with the AccessData Dongle Drivers, but both hardware
devices cannot be connected to the same machine at the same time.
10 AccessData FTK 3.0 User Guide
LICENSEMANAGER
AccessData LicenseManager lets you manage product and license subscriptions stored
on your Wibu CodeMeter CmStick or Keylok dongle USB license security device.
LicenseManager communicates directly with AccessData’s license server, so when
license renewals take place, the information is readily and immediately accessible for
download to your license device.
LicenseManager checks for the newest releases of your installed products, and also tells
you when your license is near expiration.
Chapter 2 AccessData Forensic Toolkit 3.0 Overview 11
Chapter 2 AccessData Forensic
Toolkit 3.0 Overview
Welcome to AccessData® (AD) Forensic Toolkit® (FTK®). FTK enables law
enforcement and corporate security professionals to perform complete and thorough
computer forensic examinations. FTK features powerful file filtering and search
functionality, and is recognized as a leading forensic tool.
COMPUTER FORENSIC INVESTIGATION OVERVIEW
This section provides a synopsis of how FTK perfectly suits the needs of the computer
forensic investigator. FTK 3.0 can be used to acquire, preserve, analyze, and present
digital evidence. This section also covers how to manage a case with FTK. For
information on acquiring and preserving evidence, and beginning case analysis, see
“Chapter 5 Starting a New FTK 3.0 Case” on page 53.
Any forensic digital examination requires these basic steps:
1. Acquire — identify and secure the evidence.
2. Preserve — create and store a forensic image of the evidence.
3. Analyze — create a case in a program that provides the tools to properly investigate
the evidence.
4. Present — create a case report to document and synthesize the investigation results
of the case from the evidence.
5. Manage — Back-up (archive), restore, and delete cases and evidence.
12 AccessData FTK 3.0 User Guide
ACQUIRING THE EVIDENCE
The basics of acquiring evidence is discussed in“Chapter 1 Introduction to AccessData
Products” on page 1. In most cases, use AccessData FTK Imager to acquire exact
duplicates of electronic evidence, particularly when evidence is not part of your local
network. Some aspects of acquiring evidence is dependent on local or federal law. Be
aware of those requirements prior to acquiring the evidence.
FTK 3.0 enables you to acquire live remote evidence from computers on your network.
See “Chapter 6 Adding and Processing Static Evidence” on page 87, and “Chapter 7
Adding and Processing Remote Live Evidence” on page 121 for more detailed
information.
PRESERVING THE EVIDENCE
Preserving the evidence is accomplished both in the method of acquisition and the
storage of the acquired data. Creating an exact replica of the original source is critical in
forensic investigations. Keeping that replica safe from any source of corruption or
unauthorized access involves both physical and electronic security. Once a case is
created and the evidence is added to it, the case becomes just as critical.
ANALYZING THE EVIDENCE
Prior to analyzing evidence that has been acquired and preserved, you must have a
forensic investigation software program installed, and a case created.
Once you have FTK 3.0 installed and a case created, you are ready to add evidence for
analysis. Evidence to be added to FTK can include images of hard drives, floppy drives,
CDs and DVDs, portable media such as USB drives, and/or live (unimaged data from
any common source.
Defining evidence for analysis uses features such as indexing, hashing, searching, and
utilizing the Known File Filter (KFF) database. Bookmarking your findings improves
your efficiency in the anaysis process.
INDEXING AND HASHING
When you are preparing to create a case, or add evidence to an existing case, you have
options for creating an index of the data and for creating hashes of all files contained in
the data as it is added to the case.
Chapter 2 AccessData Forensic Toolkit 3.0 Overview 13
Indexing is simply the process of creating an index, or a searchable list of the discrete
words, or strings of characters in a case. The index instantaneously provides results.
However, it is sometimes necessary to use a live search to find things not contained in
the indes, and thus an index search cannot find.
Hashing a file or files refers to the process of using an algorithm to generate a unique
value based on a file’s contents. Hash values are used to verify file integrity and identify
duplicate and known files. (Known files can be standard system files that can be
ignored in the investigation or they can be files known to contain illicit or dangerous
materials. Ignore and alert statuses provide the investigator with valuable information
at a glance.)
Three hash functions are available in FTK: Message Digest 5 (MD5) and Secure Hash
Algorithms 1 and 256 (SHA-1 and SHA-256).
The following graphic shows a sample file with a list of MD5 and SHA hashes.
File List View Showing Generated Hashes
Typically, individual file hashes (each file is hashed as it is indexed and added to a case)
compare the results with a known database of hashes, such as the KFF. However, you
can also hash multiple files or a disk image to verify that the working copy is identical to
the original. Hashes can be generated with FTK Imager and with FTK. For information
on creating hashes with FTK, see “Creating a Case” on page 57
UTILIZING THE KNOWN FILE FILTER DATABASE
The Known File Filter (KFF) is an AccessData utility used to compare file hashes in a
case against a database of hashes from files known to be ignorable (such as known
system and program files), or those with alert status (such as known contraband or
illicit material). The KFF allows quick elimination or pinpointing of these files during an
investigation.
14 AccessData FTK 3.0 User Guide
Files which contain other files, such as ZIP, CAB, and email files with attachments, are
called container files. When KFF identifies a container file as ignorable or alert; the
component files are not extracted.
KFF includes the HashKeeper database, which is updated periodically and is available
for download on the AccessData Support website. For more information on the KFF,
see “Using the Known File Filter” on page 211“Using the Known File Filter” on
page 211
SEARCHING
As stated earlier, FTK can conduct live or index searches of the acquired images.
A live search is an item-by-item comparison with the search term, and can be very time-
consuming. Live searches allow you to search non-alphanumeric characters and to
perform pattern searches, such as regular expressions and hex values.
The indexed search uses an index file containing discrete words or number strings
found in both the allocated and unallocated space in the case evidence. The investigator
can choose to generate an index file during preprocessing.
AccessData products use dtSearch, one of the leading search tools available, in the
index search engine. dtSearch can quickly search gigabytes of text.
For more information on searching, see“Chapter 9 Searching a Case” on page 175.
BOOKMARKING
As important data is identified from the evidence in the case, bookmarking that data
enables you to quickly find and refer to it, add to it, and attach related files, even files
that are not processed into the case. These files are called “supplementary files.”
Bookmarks can be included in reports at any stage of the investigation and analysis.
PRESENTING EVIDENCE
AccessData FTK presents digital evidence by creating a case report containing the
evidence and investigation results in a readable, accessible format.
Use the report wizard to create and modify reports. A report can include bookmarks
(information selected during the examination), customized graphic references, and
Chapter 2 AccessData Forensic Toolkit 3.0 Overview 15
selected file listings. Selected files, such as bookmarked files and graphics, can be
exported to make them available with the report. The report can be generated in
several file formats, including HTML and PDF and can be generated in multiple formats
simultaneously.
For information about creating a report, see “Creating a Report” on page 245.
MANAGING CASES
As you work with cases, it is a best practice to backup the cases and the evidence.
Backup of evidence files is as easy as copying them to a secure location and media.
Backup of cases can be more complicated, but equally important in the case of a crash
or other catastrophic data loss.
Backup of a case requires the same amount of drive space as the case itself. This is an
important consideration when planning your network resources for investigations.
This version includes three new case management features: Archive, Archive and
Detach, and Attach. These allow you a wider focus of control over your cases
16 AccessData FTK 3.0 User Guide
Chapter 3 AccessData ForensicToolkit Installation 17
Chapter 3 AccessData
ForensicToolkit Installation
This chapter details the steps for the installation of the required components for the
operation of AccessData Forensic Toolkit (FTK) 3.0.
Additional AccessData programs are available to aid in processing cases. For more
information, see “AccessData Forensic Products” on page 2.
INSTALLATION INFORMATION
As with the AccessData FTK 2.3 version, FTK 3.0 can be installed with any one earlier
version of 2.x remaining on the same computer at the same time. Installation paths will
differ slightly from previous versions and registry entries will also be different. This
means you may not have to uninstall your earlier version of FTK 2.x and thus may not
have to convert cases to the newer version to maintain compatibility with the database.
This chapter details the steps for the installation of the required components for the
operation of AccessData FTK 3.0. The following components are required to run FTK:
• CodeMeter 3.30a Runtime software for the CodeMeter Stick:
• A CodeMeter Stick.
• Oracle 10g Database
• FTK 3.0 Program
• Evidence Processing Engine
18 AccessData FTK3.0 User Guide
These additional programs are available to aid in processing cases:
• FTK Known File Filter (KFF) Library
• AccessData Registry Viewer
• AccessData LanguageSelector
• AccessData LicenseManager
HARDWARE CONSIDERATIONS
The more powerful the available hardware, the faster FTK can analyze and prepare case
evidence. Larger evidence files require more processing time than smaller evidence
files. While the components can be installed on a single workstation, it is recommended
to install them on separate workstations in order to make more hardware resources
available to each.
The ideal configuration uses two workstations connected by a Gigabit ethernet
connection. The Oracle database can be installed on a separate computer, or on the
same computer as the FTK Program. If the KFF is installed, it must be installed on the
same computer as the Oracle database. Ideally, the CodeMeter Runtime 3.30a software,
LanguageSelector, and LicenseManager should be installed on the computer with the
FTK Program.
To further maximize performance, AccessData recommends the following:
• For both the single- and separate-workstation configurations, install Oracle to a
large hard disk drive that Oracle can use exclusively.
• Do not run other applications on these machines that will compete with FTK or
the Oracle database for hardware resources.
ESTIMATING HARD DISK SPACE REQUIREMENTS
The FTK Program requires a minimum of 500 megabytes of disk space for installation,
although 5 gigabytes is recommended. Oracle, where images are stored, requires a
minimum of 6 gigabytes (5 gigabytes for the basic installation) and additional room for
case processing. Additional space is required for cases and case data.
Important: If disk space depletes while processing a case, the case data is
erased.
Chapter 3 AccessData ForensicToolkit Installation 19
To estimate the amount of hard drive space needed, apply these suggested factors:
• Data: every 500,000 items require one gigabyte of space in the Oracle storage
location.
• Index: every 100 megabytes of text in the evidence requires 20 megabytes of space
for processing in the case storage folder.
CONFIGURATION OPTIONS
FTK can be set up in three different configurations, each with its own benefits and
advantages. The three configurations listed below are represented in the graphic
following:
• FTK and Oracle 10g can be installed on separate boxes or on the same box. If both
are installed on the same box, it is recommended that Oracle be installed either on
a separate drive, or on a separate partition fromFTK.
• If a compatible Oracle 10g database is already installed, you may be able to use it
with FTK. The installer runs a check for compatibility.
Note: AccessData recommends that you turn off firewalls and anti-virus software during
installation.
If installation is being done using remote desktop to Server 2003, the remote
connection needs to be established using the /admin or /console commands.
• Single Machine
• Separate Machines with a new Oracle install
• Separate Machines with an existing Oracle install
Note: AccessData recommends that you turn off firewalls and anti-virus software during
installation.
INSTALLING FTK
To install FTK 3, follow these steps:
1. Insert the FTK 3.0 DVD into the drive.
2. Click Install Forensic Toolkit 3.0.
20 AccessData FTK3.0 User Guide
INSTALL CODEMETER
Install the WIBU CodeMeter Runtime v3.30a software for the CodeMeter Stick. Click
Install CodeMeter Software to launch the CodeMeter installation wizard.Follow the
directions for installation, accepting all defaults, and click Finish to complete the
installation.
If the user attemps to install FTK 3.0 before installing the CodeMeter v3.30a software
and the Wibu CmStick, a message similar to the following error message will be
displayed.
Figure 3-1 CodeMeter Error
Note: To remedy, click OK, then cancel the FTK 3.0 install. Install CodeMeter Runtime 3.30a
software, and connect the CmStick. Then restart FTK 3.0 installation.
INSTALL ORACLE
FTK must link to an Oracle database. If a compatible one already exists in the network
or domain (with sufficient space for storage and processing) it can be leveraged for use
with FTK. If no Oracle database exists, it must be installed either on the same computer
as the FTK Program within the same network or domain, or a separate computer.
If you are not using a network with a domain controller, you can still use FTK. Check
the AccessData Knowledge Base on the AccessData website, www.accessdata.com..
Click Support > Knowledge Base, then search for the desired topic. One suggested search
may be for “mirrored local accounts”.
1. Launch the installer.
2. Click Next and follow the prompts.
3. Read and accept the license argeement, and click Next.
4. Choose the Destination folder. Click Next.
5. Choose the setup type to use. Most users will choose Typical..
Chapter 3 AccessData ForensicToolkit Installation 21
5a. If you choose Custom, type the SYS password into the text box, then click I agree
to remember this password and keep it safe indicating you understand the risks. Click
Next.
Important AccessData has no method of recovering lost SYS account
passwords.
6. Wait for the installer to configure the installation.
7. Select the installation drive letter.
Note: Select the appropriate drive where Oracle will reside, separate from all other programs.
8. Click Install.
9. Wait for the installation and configuration to finish.
Note: This step can take up to forty minutes.
10. Click Finish to finalize the Oracle installation process, and return to the main menu.
SINGLE COMPUTER INSTALLATION
The FTK Program can be installed on the same computer as the installed Oracle
database.
INSTALL FTK
From the FTK 3.0 New Install screen, perform the steps displayed in the following
figure.
1. Click Install FTK 3.0
2. Click Next.
3. Read and accept the AccessData License Agreement.
4. Click Next.
5. Select the location for the FTK components.
Note: If another directory is desired instead of the default, click Browse to navigate to or create
the folder using the Windows Browse functionality.
6. Click Next.
7. Click Install to continue with the installation.
8. Follow the prompts on the screens that follow.
9. When the installation is completed successfully mark the View Readme box to open
the Readme file when you finalize the installation. Otherwise, click Finish.
22 AccessData FTK3.0 User Guide
INSTALL THE EVIDENCE PROCESSING ENGINE
The Evidence Processing Engine is now installed separately. To install it, follow these
steps:
1. From the FTK 3 Installer Autorun Main Menu, click Install Engine.
2. Read and accept the License Agreement. Click Next.
3. Accept the default Destination Folder, or specify one of your choice. Click Next.
4. Click Install on the Ready to Install screen.
5. Click Next to continue the installation.
6. Click Finish when the installation is completed successfully.
INSTALL THE KFF LIBRARY
The FTK KFF Library can be installed to help shorten the investigation time on the
case. The KFF Library must be installed on the same volume as the Oracle database. To
perform step 4 and install the KFF, perform the following steps from the Install New
FTK window, as displayed in the following figure.
1. Click Install KFF Library
2. Click Next.
3. Accept the KFF license agreement.
4. Click Next.
5. Allow installation to progress.
6. When the screen indicates a successful installation, click Finish to finalize the
installation.
7. Click Back to Main Menu to return to the Main Menu and make other selections.
INSTALLING ON SEPARATE COMPUTERS
FTK 3.0 can be installed on two separate computers. The table explains the
recommended order for the installation tasks.
TABLE 3-1
Step Machine Task
1Oracle Install Oracle
2FTK Install CodeMeter
Chapter 3 AccessData ForensicToolkit Installation 23
ADDITIONAL PROGRAMS
To change to another supported language other than the default English (United
States) that ships with FTK, LanguageSelector must be installed.
INSTALL LANGUAGE SELECTOR
To install Language Selector follow these steps:
1. From the FTK 3.0 Autorun Main Menu, click Install Other Products, then click Install
Language Selector
2. The Language Selector Installer runs. Click Next to continue
3. Read and accept the License Agreement. Click Next to continue..
4. Click Finish.
USING LANGUAGE SELECTOR
Run Language Selector by clicking Start > All Programs > AccessData > Language Selector
> Language Selector.
OR
Click the Language Selector Icon on your desktop:
Language Selector has a very simple interface.
3FTK Install FTK 3
4FTK Install Evidence Processing Engine
5FTK Run FTK to initialize the database
6Oracle Install KFF
TABLE 3-1
Step Machine Task
24 AccessData FTK3.0 User Guide
Click the Select Languages dropdown to select the language to use. Languages to choose
from are as follows:
The Products supporting this language text box indicates the products that will be
affected by the language selection.
The File menu contains two choices:
• Select Language
• Exit
The Help menu contains one choice:
• About
LICENSING
If licenses need to be managed, LicenseManager must be installed. For more
information on LicenseManager, see “Appendix E Managing Security Devices and
Licenses” on page 299.
Also, make sure the current versions of any other programs required for the
investigation are installed, including AccessData Registry Viewer, and AccessData
Password Recovery Toolkit, or AccessData Distributed Network Attack.
TABLE 3-2 Language Selector Supported Languages
•Chinese (Simplified, PRC) •Japanese (Japan)
•Dutch (Netherlands) •Korean (Korea)
•English (United States) •Portuguese (Brazil)
•French (France) •Russian (Russia)
•German (Germany) •Spanish (Spain, Traditional Sort)
•Italian (Italy)
Chapter 4 The FTK 3.0 User Interface 25
Chapter 4 The FTK 3.0
User Interface
Before using AccessData Forensic Toolkit, an understanding of the basic features and
general flow of a case is helpful. This chapter focuses on the basics. The chapters that
follow give more detail.
ABOUT EVIDENCE
ACQUIRING AND PRESERVING STATIC EVIDENCE
For digital evidence to be valid, it must be preserved in its original form. The evidence
image must be forensically sound, in other words, identical in every way to the original.
Two types of tools can do this: hardware acquisition tools and software acquisition
tools.
• Hardware acquisition tools duplicate, or clone, disk drives and allow read-only
access to the hard drive. They do not necessarily use a CPU, and are often hand-
held.
• Software acquisition tools also create a disk image and in addition, give you a
choice regarding the file format, the compression level where available, and the
size of the data segments to use.
Important: Use a write-blocking device when using software tools, because some
operating systems, such as Windows, make changes to the drive as it reads the data
to be imaged.
26 AccessData FTK 3.0 User Guide
FTK Imager is a software acquisition tool. It can quickly preview evidence and, if the
evidence warrants further investigation, create a forensically sound image of the
evidence drive or source. It makes a bit-by-bit duplicate of the media, rendering a
forensic disk image identical in every way to the original, including file slack and
unallocated or free space.
New with this release: FTK can now see and preview evidence on CDs and DVDs.
ACQUIRING AND PRESERVING LIVE EVIDENCE
You can collect evidence from a live machine when you must. It is important to be
aware of the data compromises you will face in such a situation, however sometimes
there is no other choice. One such example is when the suspect drive is encrypted and
you must acquire the image in-place while the machine is running. Another example is
when imaging a RAID array; it must be live to be properly acquired.
For more information on acquiring and imaging “live” evidence gathered remotely
from outside of your network, see“Chapter 6 Adding and Processing Static Evidence”
on page 87
ACQUIRING REMOTE EVIDENCE
FTK now provides additional tools to acquire live evidence in a different way. Using
FTK you can gather many types of active information from network computers,
including information in RAM, and Drive data. In addition, using Remote Drive
Management System (RDMS), you can mount any drive throug a mapping, and browse
its contents, then make a custom image of what you find. This type of evidence is
known as remote evidence. These features are discussed in-depth in “Chapter 7 Adding
and Processing Remote Live Evidence” on page 121.
CREATE A CASE
1. From the Case Management window, click Case > New.
2. Specify the evidence options to apply to the evidence by clicking Detailed Options
in the New Case Options window.
3. Mark Open the Case, then click OK.
4. Wait while the case is being created. When case creation is complete, FTK opens and
the Manage Evidence dialog opens.
Chapter 4 The FTK 3.0 User Interface 27
OPEN AN EXISTING CASE
After cases are created, it is likely that you will need to shut down the case and the
program and return to it in the future. To do so,
1. Run FTK.
2. In the Case Management screen, highlight and double-click the case to open it.
Note: If you attempt to open a case you have not been assigned to, you will receive a
message saying, “You have not been assigned to work on this case.” This is because you
must be authenticated to open the case.
ADD EVIDENCE
To add evidence to any case, do the following:
1. Click Add.
2. Select the type of evidence to add, then click OK.
3. Type an ID or Name associated with the case, and a description if you wish.
4. Select the timezone for the original location of the selected evidence.
5. Select a language if other than English.
6. Click OK.
7. The Data Processing Status window appears and indicates the progress of the
evidence processing. When a process is complete, the bar turns green. When all
processes represented are green, the evidence processing is complete and you can
being working in the case.
Note: You can close the Data Processing Status window. Processing will continue until it is
complete. To view the Data Processing Status window at any time, click View > Progress
Window.
WORK THE CASE
Use FTK’s tools and features to effectively locate evidence.
IDENTIFY MEANINGFUL EVIDENCE
The purpose of FTK is to help investigators to identify meaningful evidence and to
make that evidence available to the appropriate parties in an easy-to-understand
medium.
The beginning of the evidence defining process involves the hashing of the data added
to a case. Another key to easily finding meaningful evidence is the indexing of case
28 AccessData FTK 3.0 User Guide
data. Through these two functions, FTK provides the foundation for successful
investigation and analysis.
Use Index and live searching, and filtering, including using the Known File Filter
Library (KFF) to isolate the information you are looking for. The results can then be
bookmarked and added to the report that summarizes the findings in the case.
Use the tabs to view basic evidence groups, and to get an idea where best to look for
the evidence you seek. In addition, you can run searches for specific words, names,
email addresses and so forth from the index, or you can run live searches. Look
through thumbnails of graphics, and look through emails and attachments. Narrow
your search to look through specific document types, or to look for items by status, or
by file extension. You can dig into the registry files to find websites visited, and the
passwords for those sites. The possibilities are nearly endless.
As you find items of interest, you can:
• Create Labels to see them easily in a sorted File List view.
• Use searches and filters to find helpful items.
• Create Bookmarks so you can easily group the items by topic, and then find those
items again, and to make the bookmarked items easy to add to reports.
• Export files as necessary for password cracking or decryption, then add them back
as evidence.
• Add external files, that are not otherwise part of the case, to bookmarks as
supplemental files.
GENERATE REPORTS
When you feel you have exhausted the resources within the case and are ready to create
your report, you can include your bookmarks, graphics, emails, documents, and registry
evidence. They can be arranged in the way that works best for you, or for your
audience.
A report can be generated in several formats to make it more useful to your audience.
MOVING FORWARD
The remainder of this chapter provides basics of the Case Management window and its
options.
Chapter 4 The FTK 3.0 User Interface 29
For more detailed information about features and how they are used, see “Chapter 5
Starting a New FTK 3.0 Case” on page 53.
USING THE CODEMETER STICK
AccessData provides a WIBU-SYSTEM AG*USB CodeMeter* Stick security license
device with FTK. The CodeMeter Stick (or CmStick) is a security compliance license
device. Insert the CmStick into the USB port prior to installation. It maintains your
product licensing and subscription information, and is required by FTK.
You can use the LicenseManager application to monitor your product subscription. For
more information, see “Appendix E Managing Security Devices and Licenses” on
page 299.
Note: FTK versions 2.0 and above do not work with the KEYLOK (green) dongle used with
FTK 1.x.
STARTING FTK
After you complete the installation, start FTK by selecting Start > Programs > AccessData
> Forensic Toolkit > FTK 3.0, or by selecting the Forensic Toolkit shortcut on the
desktop.
Important: Close any virus scanner while running FTK and processing evidence.
Virus scanners can slow performance significantly.
SET UP THE APPLICATION ADMINISTRATOR
On first launch, an Application Administrator must be created to manage the database.
The Add New User dialog box opens automatically. The first added user is the
Application Administrator, with rights for both database management and case
administration. The Application Administrator can add new users to the database to
administer cases (Case Administrator) or review cases (Case Reviewer) they are
assigned to, as needed. Click Database > Add User to open the Add New User dialog.
The following figure displays the Add New User dialog.
30 AccessData FTK 3.0 User Guide
Figure 4-1 Add New User Dialog
Complete the fields to assign a new user a role and a password. Every field is required.
Click OK to save the new user and close the dialog.
BASICS OF THE FTK 3.0 USER INTERFACE
This section discusses the features of the AccessData FTK 3.0 interface that are
common throughout the program.
USING THE CASE MANAGER WINDOW
AccessData FTK cases are managed from a central database. The following figure
displays the Case Manager window.
The Case Manager Window is the first screen that opens when FTK 3.0 is started. FTK
case and database administration is done from the Case Manager window. The
following figure displays the Case Manager window.
Chapter 4 The FTK 3.0 User Interface 31
Case Manager WindowAfter logging into FTK, the Case Management window appears
with the following menus:
The following tables show the available Case Manager menu options.
TABLE 4-1 Case Manager Menus
•File •Database
•Case •Tools
•Help
TABLE 4-2 Case Manager File Menu
Option Description
Exit Exits and closes FTK.
TABLE 4-3 Case Manager Database Menu
Option Description
Log In Opens the authentication dialog for users to log into the database.
Log Out Logs out the currently authenticated user without closing FTK.
Administer Users Manage user accounts. Options are:
•Add User: provide User Name, Role (Options are Application
Administrator, Case Administrator, or Case Reviewer), Full
Name, and Password. Application Administrator role can only
be created or assigned by an Application Administrator.
•Change Password: Provide and confirm the new password for the
selected user.
•Disable User: Click to disable the selected user account.
•Show Disabled: Mark to display all disabled user accounts.
The Application Administrator can change Users’ roles, in addition to
the options listed above.
32 AccessData FTK 3.0 User Guide
Manage KFF Opens the KFF Admin dialog. Edit or delete existing defined groups
or defined sets, or add new groups; import or export a selected group
or set.
Session Management Opens the Manage DB Sessions dialog. Click Refresh to update the
view of current sessions. Click Terminate to end sessions that are no
longer active.
Change my Password Opens a Change Password dialog for the currently authenticated user.
Provide original password, type new password, and type it again to
confirm the change.
TABLE 4-4 Case Manager Case Menu
Option Description
New Start a new case with the logged-in user as the Case Administrator.
Case Reviewers cannot create a new case.
Open Opens the highlighted case with its included evidence.
Assign Users Allows the Application Administrator or the Case Administrator to
adjust or control the rights of other users to access a particular case.
Backup Opens a dialog for specifying names and locations for backup of
selected cases. Options are:
•Backup
•Archive
•Archive and Detach
Restore Opens a Windows Explorer instance for locating and restoring a
selected, saved case. Options are:
•Restore an archived case
•Attach an archived and detached case
Delete Deletes the selected case. Pop-up appears to confirm deletion.
Copy from FTK 2.2 Copy a case from FTK 2.2 into the FTK 3.0 database.
TABLE 4-3 Case Manager Database Menu
Option Description
Chapter 4 The FTK 3.0 User Interface 33
CASE LIST
The Case List in the Case Manager lists all cases that are available to the currently
authenticated user. For each case, in the right side of the screen opposite the Case List,
information for the highlighted case is listed. Refer to “Case Manager” on page 54 to
see the details. Case File, Description File, and Description (of the case) are determined
by the either the Application Administrator or the Case Administrator.
CREATE A NEW CASE
When a case is created, the user who creates it becomes that case’s Administrator. To
create a new case, click Case > New from the Case Manager window.
For more information about creating a new case, see “Chapter 5 Starting a New FTK
3.0 Case” on page 53.
CASE MANAGEMENT
Case management includes creating new cases, as well as performing backup, archive,
detach, restore and attach functions for cases, deleting cases from the database, and
managing case and evidence files.
Case management tasks are performed from the Case Manager.
TABLE 4-5 Case Manager Tools Menu
Option Description
Preferences Opens Preferences dialog. Options are:
•Choose temporary file path
•Choose network security device location. Provide IP address and
port.
TABLE 4-6 Case Manager Help Menu
Option Description
User Guide Opens this User Guide in PDF format. The manual is formatted for
two-sided printing.
About Provides version and build information, copyright and trademark
information about FTK, and other copyright and trade
acknowledgements.
34 AccessData FTK 3.0 User Guide
Note: Multiple user names in a case are correctly automatically assigned to Original User Names
when a case is Archived, or Archived and Detached, and then restored. They can now
also be reassigned if necessary.
BACKING UP THE CASE
If a case is prematurely or accidentally deleted, or if it becomes corrupted, it can be
restored from the previous backup.
Backup your case from the Case Manager window.
When you backup a case, FTK copies case information and database files (but not
evidence) to a chosen folder. Keep copies of your drive images and other evidence
independent of the backed-up case. Individual files and folders processed into the case
are converted to an .AD1 (custom content) image and stored in the case folder.
Important: Case administrators back up cases and must maintain and protect the
library of backups against unauthorized restoration, because the user who restores
an archive becomes the case administrator.
Note: FTK does not compress the backup file. A backed-up case requires the same amount of
space as the database plus the case folder together.
To back up a case perform the following steps:
1. In the Case Manager window, select the case to backup.
2. Click Case > Backup,
OR
.Right-click on the case in the Cases list, and click Backup.
3. Select a Backup folder location on a drive with enough space to hold both the
database and the case folder.
4. Enter a filename indicating the relationship to the original, and click Save.
Note: Each case you backup should have its own backup folder to ensure all data is kept
together and not overwritten by another case backup. In addition, it is recommended that
Chapter 4 The FTK 3.0 User Interface 35
backups be stored on a separate drive or system from the case, to reduce space
consumption and to reduce the risk of total loss in the case of catastrophic failure (drive
crash, etc.).
ARCHIVING A CASE
When work on a case is completed and it is no longer necessary to access it, that case
can be archived.
Archive copies that case’s Oracle database tablespace file to the case folder. Look for
filename DB fn. Archive keeps up to four backups, DB f0, DB f1, DB f2, and DB f3.
To Archive a case, do the following:
1. In the Case Manager, click Case > Backup > Archive.
A message box displays informing you that the case is being archived. The box
closes automatically when the archive is complete.
To view the resulting list of files, do the following:
1. Open the FTK 3 cases folder.
2. Find and open the sub-folder for the archived case.
3. Find and open the sub-folder for the archive (DB fn).
4. You may view the file names as well as Date modified, Type, and Size.
ARCHIVE AND DETACH A CASE
When work on a case is not complete but it must be accessible from a different
computer, archive and detach that case.
Archive and Detach copies that case’s Oracle database tablespace file to the case folder,
then deletes it from the Oracle database. This prevents two people from making
changes to the case at the same time, preserving the integrity of the case, and the work
that has been done on it.
To Archive and Detach a case do the following:
1. In the Case Manager, click Case > Backup > Archive and Detach.
The case is archived.
36 AccessData FTK 3.0 User Guide
2. You will see a notice informing you that the specified case will be removed from the
database. Click OK to continue, or Cancel to abandon the removal and close the
message box.
3. If you click OK, the Please Wait box appears while the Detach is in progress. The box
closes when the Detach is complete.
To view the resulting list of files, do the following:
1. Open the FTK 3 cases folder.
2. Find and open the sub-folder for the archived case.
3. Find and open the sub-folder for the archive (DB fn).
You may view the file names as well as Date modified, Type, and Size.
ATTACH A CASE
Attaching a case is different from Restoring a case. Restore a case from a backup to its
original location, in the event of corruption or other data loss. Attach a case to the same
or a different machine/database than the one where it was archived and detached from.
The Attach feature copies that case’s Oracle database tablespace file into the Oracle
database on the local machine.
Note: The Oracle database must be compatible and contain the FTK schema.
To attach a detached case:
1. Click Case > Restore > Attach.
2. Browse to and select the case folder to be attached.
3. Click OK.
RESTORE A CASE
If a case is prematurely or accidentally deleted, or it becomes corrupted it can be
restored from the backup.
To restore a case:
1. In the Case Manager window, click Case > Restore.
OR
Chapter 4 The FTK 3.0 User Interface 37
Right-click on the case to restore, and click Restore.
2. Browse to and select the Backup folder to be restored.
3. Click OK.
DELETE A CASE
To delete a case from the database:
1. In the Case Manager window, highlight the folder of case to delete from the
database.
2. Click Case > Delete.
OR
Right-click on the folder of the case to delete, and click Delete.
3. Click Yes to confirm deletion.
STORING CASE FILES
Storing case files and evidence on the same drive substantially taxes the processors’
throughput. The system slows as it saves and reads huge files. For desktop systems in
laboratories, increase the processing speed by saving evidence files to a separate server.
For more information, see the “Configuration Options” on page 19.
If taking the case off-site, you can choose to compromise some processor speed for the
convenience of having your evidence and case on the same drive.
THE FTK USER INTERFACE
The FTK interface contains a menu bar, toolbars, main tabs, each tabbed page having a
specific focus. Most tabs also contain a common toolbar and file list with customizable
columns.
When a case is created and assigned a user, the Case window opens with the following
menus:
• File
• Edit
• View
• Evidence
• Filter
38 AccessData FTK 3.0 User Guide
• Tools
• Help
The following tables show the available options from the FTK User Interface menus.
Chapter 4 The FTK 3.0 User Interface 39
TABLE 4-7 File Menu
Option Description
Export Exports selected files and associated evidence to a designated folder.
File Options are:
•Append Item number to filename
•Append extension to filename if bad/absent
•Expand containers (email archives, email attachments, etc)
•Save HTML view (if available)
•Export emails as MSG
Choose File->Export to display the Export dialog. The dialog
provides a way to select the output format. If an email message is
selected, the .msg format will be enabled. Click Save to initiate writing
the message to disk. The name of the email item will be used as the
name of the file. For duplicates, the file names will have an “(1).msg”,
“(2).msg”, “(3).msg”, …, extension to the end of the name.
•Export directory as file
•Export children
•Include original path
•Export slack space as files
Items to Include Options are:
•All checked
•All Listed
•All Highlighted
•All
Select the destination base path by typing it in or clicking Browse.
Export to Image Exports one or more files as an AD1 image to a storage desination.
Options are:
•Add, Edit, or Remove desitnation.
•Verify images after they are created.
•Precalculate progress statistics.
•Add image to case when completed.
Click Start to create image.
40 AccessData FTK 3.0 User Guide
Export File List Info Exports selected file information to files formatted as the Column
List in .csv, .tsv, and .txt formats.
File List items to export Options are:
•All highlighted
•All checked
•Currently listed
•All
Choose Columns options can be selected from the drop-down list, or
click Column Settings to define a custom column setting.
Note: If you try to export File List info to part of a network/folder/etc.
where you do not have rights, the dialog and process will seem successful, but
the file isn't actually exported and sent anywhere. MS Windows Vista will
popup an error message. XP is unable to do so. Be sure to verify that the
exported information is sent to a place where you have rights.
Note: The File List loads more quickly in version 3.0 than in the past.
Export Word List Exports the descrete words from the registry as a text file from which
a dictionary for PRTK can be created. Options are:
•Select All
•Deselect All
•Export
•Cancel
Report Opens the Report Options dialog for creating a case report. For more
information, see “Creating a Report” on page 245.
Close Closes the Case window and returns to the Case Manager window.
Exit Closes both the Case and Case Manager windows.
Option Description
Chapter 4 The FTK 3.0 User Interface 41
Note: The Tree and Search views are exclusive settings, meaning that you can use only one of
these views per pane. For more information on using the View menu see, “The View
Menu” on page 264.
TABLE 4-8 Edit Menu
Option Description
Copy Special Duplicates information about the object copied as well as the
object itself, and places the copy in the clipboard. Options are:
Click OK to copy or Cancel to cancel.
•Columns (Select the columns to include, or click Column Set-
tings to define a new column setting.)
•Include header row
•File List items to copy
•All Highlighted
•All Checked
•Currently listed
•All
TABLE 4-9 View Menu
Option Description
Refresh Reloads the current view.
Filter Bar Inserts the filter toolbar into the current tab. These features are
available also from the Filter menu.
TimeZone Display Opens the Time Zone Display dialog. Select a time zone for
viewing the evidence, then click OK.
Thumbnail Size Selects the size of the thumbnails displayed from the Graphics
tab. Select from:
•Large-default
•Medium
•Small
•Tiny
42 AccessData FTK 3.0 User Guide
Tab Layout Manages tab settings: the user can lock an existing setting, add and
remove settings, save settings one tab at a time or all at once. The
user can also restore previous settings. or reset them to the default
settings. These options are in the following list:
•Lock
•Add (create a new tab -- provide a name, then click OK.)
•Remove
•Save
•Save All Layouts
•Restore
•Reset to Default
File Content Tabs
Switching
Choose Automatic or Manual switching of tabs based on the file
content.
Explore Tree Displays the Explore Tree in the upper-left pane.
Graphics Tree Displays the Graphics Tree in the upper-left pane.
Overview Tree Displays the Overview Tree in the upper-left pane.
Email Tree Displays the Email Tree in the upper-left pane.
Bookmark Tree Displays the Bookmark pane in the upper-left pane.
Indexed Searches Displays the Index Search Results pane in the upper-left pane.
Live Searches Displays the Live SearchResults pane in the upper-left pane.
Bookmark Information Inserts the Bookmark Information pane into the current tab.
File List Inserts the File List pane into the current tab.
Note: The File List loads more quickly now than in previous versions.
File Content Inserts the File Content pane into the current tab.
Email Attachments Displays the attachments to email objects found in the case
Displays from any tab. Selectable if it applies in the active tab.
Properties Inserts the Object Properties pane into the current tab view.
Hex Value Interpreter Displays a pane that provides an interpretation of Hex values
selected from the Hex View pane.
Thumbnails Displays a pane containing thumbnails of all graphics found in the
case.
Progress Window Opens the Progress dialog, from which you can monitor tasks
and/or cancel them.
TABLE 4-9 View Menu
Option Description
Chapter 4 The FTK 3.0 User Interface 43
TABLE 5-10 Evidence Menu
Add/Remove Opens the Manage Evidence dialog, used to add and remove
evidence. From Manage Evidence, choose from the following
•Refinement Options
•Language Setting
•Choose the local time zone for this evidence
•Select Case KFF Options
Add Remote Data Collect remote data from another computer on the network.
Provide the following:
•Remote IP or Address
•Remote Port
Select any or all of the following:
•Physical Drives
•Logical Drives
•Memory Analysis
Click OK or Cancel.
Additional Analysis Opens the Additional Analysis dialog with many of the same
processing options available when the evidence was added. Allows
the user to reprocess using options not selected previously. For
more information, see “Additional Analysis” on page 93.
TABLE 4-10 Filter Menu
Option Description
New Opens the Filter Definition dialog to define a filter. This feature is
also available from the Filter toolbar.
Duplicate Duplicates a selected filter. Use the duplicate as a basis for a new
filter. This feature is also available from the Filter toolbar.
Delete Deletes a selected filter. This feature is also available from the
Filter toolbar.
On Applies the global filter to the application. The file list changes
color to indicate that the filter is applied. This feature is also
available from the Filter toolbar.
Import Opens the system file manager allowing the user to import a pre-
existing filter. Filter files are in .XML format. This feature is also
available from the Filter toolbar.
TABLE 4-9 View Menu
Option Description
44 AccessData FTK 3.0 User Guide
Export Opens the system file manager allowing the user to save a filter.
This feature is also available from the Filter toolbar.
Tab Filter Allows the selection of a filter to apply to a current tab.
TABLE 4-11 Tools Menu
Option Description
KFF Known File Filter (KFF) sets and groups can be managed,
archived, and cleared. The following menu option is available:
Fuzzy Hash Allows you to
Decrypt Files Decrypts EFS and Office files passwords that matched those
entered.
Credant Decryption Opens the Credant Decryption dialog where you enter the
decryption information. See “Decrypting Credant Files” on
page 235, for more information.
Verify Image Integrity Generates hash values of the disk image file for comparison.
Disk Viewer Opens a viewer that allows you to see and search evidence items.
Other Applications Opens other AccessData tools to complement the investigational
analysis:
Final Carve Processing Provides a means to manually carve for data from the hex view of
files.
Execute SQL Provides the ability to execute SQL scripts directly from FTK.
You can type a script in, or browse to and execute a saved script.
•Manage
•Find Similar Files
•Manage Library
•Imager
•PRTK
•Registry Viewer
•LicenseManager
•Language Selector
TABLE 4-10 Filter Menu
Option Description
TABLE 4-12 Help Menu
Option Description
User Guide Provides a link to theFTK 3.0 User Guide.
About Provides information about the current FTK release.
Chapter 4 The FTK 3.0 User Interface 45
UNDOCKING
The File List, Properties/Hex Interpreter, and File Content panes can be undocked and
moved around the screen, even outside the FTK window. For information on
undocking moving, and customizing your FTK window view, see “Chapter 13
Customizing the FTK Interface” on page 263.
TOOLBAR COMPONENTS
The FTK interface provides a toolbar for applying QuickPicks and filters to the case.
The following section lists the toolbars and their components.
The following table shows the available components of the toolbar.
TABLE 4-13 Toolbar Components
Component Description
Turns the QuickPicks filter on or off. The QuickPicks
filter is used in the Explore tab to populate the file list
with only items the investigator wishes to analyze. When
active, or ON, the QuickPicks button is light blue. When
inactive, or OFF, the background is gray
Turns the filter on or off. Filtered data is shown in a
colored pane to indicate that it is filtered.
Applies the selected filter. A drop-down menu lists
defined filters.
Opens the filter definition dialogue to define the rules of
the current filter, or allows the creation of a new one.
Deletes the selected filter.
46 AccessData FTK 3.0 User Guide
FILE LIST PANE
The File List pane lists the files selected from the Evidence Items pane. In this pane the
user can choose which columns to display, as well as the order of those columns, create
bookmarks, create labels, copy or export file lists.
When viewing data in the File List, use the type-down control feature to locate sought
information. When the list is sorted by name, select an item in the list, then type the
first letter of the desired file. FTK will move down the list to the first file beginning with
that letter. For more information, see “Customizing File List Columns” on page 268.
Creates a new filter.
Creates a copy of the selected filter.
Imports the selected filter from an XML file.
Exports the selected filter to an XML file.
Locks the movable panes in the application, making them
immovable. When the lock is applied, the blue box turns
grey..
TABLE 4-13 Toolbar Components
Component Description
Chapter 4 The FTK 3.0 User Interface 47
FILE LIST TOOLBAR
The File List pane includes a toolbar containing these buttons for managing the File
List:
TABLE 4-14 File List Toolbar
Component Description
Checks all of the files in the current list.
Unchecks all of the files in the current list.
Unchecks all of the files in the current case.
Opens Create New Bookmark dialog box.
Opens Manage Labels dialog box.
Export File List allows the user to save selected files to
another folder.
Opens Copy Special dialog box.
Opens the Column Settings dialog box.
Sets the columns to a specific selection from the list of
defined column sets. Defaults are:
•Email
•File Listing
•Normal (default)
•Reports: File Path Section
•Reports: Standard
Displays the selected time zone from the local machine.
48 AccessData FTK 3.0 User Guide
FILE LIST VIEW RIGHT-CLICK MENU
When you right-click on any item in the File List view, a menu with the following
options appears. Some options are enabled or disabled, depending on the tab you are
in, the evidence that exists in the case, the item you have selected, or whether
bookmarks have been created.
Leave query running when switching tabs (May affect
performance of other tabs).
Cancel retrieving row data. This is not a pause button. To
retrieve row data after clicking Cancel, you must begin again.
There is no way to pause and restart the retrieval of row data.
Indicates Processing activity.
TABLE 4-15 File List View Right-Click Menu Options
Option Description
Open Opens the selected file.
Launch in Content
Viewer
Launches the file in the Content Viewer, formerly known as
Detached Viewer.
Open With Opens the file. Choose either Internet Explorer or an External
Program
Create Bookmark Opens the Create New Bookmark dialog for creating a new
bookmark.
Add to Bookmark Opens the Add to Bookmark dialog for selecting an existing
bookmark to add files to.
Remove from
Bookmark
Removes a file from a bookmark. From the Bookmarks tab, open
the bookmark containing the file to be removed, then select the file.
Right-click and select Remove from Bookmark
Manage Labels Opens the Manage Labels dialog. Create or Delete a label, or apply
labels to files.
Review Labels Opens the Label Information dialog to display all labels assigned to
the selected file or files.
TABLE 4-14 File List Toolbar
Component Description
Chapter 4 The FTK 3.0 User Interface 49
Add Decrypted File Right-click and select Add Decrypted File. Opens the Add
Decrypted File dialog. Browse to and select the file to add to the
case, click Add.
View File Sectors Opens a hex view of the selected file. Type in the file sector to view
and click Go To.
Find on Disk Opens the FTK Disk Viewer and shows where the file is found in
the disk/file structure.
Note: Find on disk feature won't find anything under 512 B physical size.
Files smaller than 1500 bytes may reside in the MFT and do not have a
start cluster. Find on disk depends on that to work. This is working as
designed
Add to Fuzzy Hash
Libarry
Opens Select Fuzzy Hash Group dialog. Click the drop-down list to
select the Fuzzy hash group to add to. The Fuzzy Hash group must
already have been created.
Find Similar Files Opens the Search for Similar Files dialog. The selected file’s hash
value is displayed. Click From File to see the filename the hash is
from. The Evidence items to search box shows all evidence items in
the case. Mark which ones to include in the search. Select the
Minimum match similarity you prefer, and click Search or Cancel.
Open in Registry
Viewer
Opens a registry file in AccessData’s Registry Viewer. Choose SAM,
SOFTWARE, SYSTEM, SECURITY, or NTUSER.dat.
Export Opens the Export dialog with all options for file export, and a
destination path selection.
Export to image Opens the Create Custom Content Image dialog.
Export File List Info Opens the Save As dialog. Choose *.txt, *.tsv, or *.csv. Default name
is FileList.txt.
Copy Special Opens the Copy Special dialog.
Check All Files Check-marks all files in the case.
Uncheck all Files in
Current List
Unchecks all files in the current list.
Uncheck All Files in
Case
Unchecks all files in the case.
Change “Flag as
Ignorable” Status
Change Flag Status of all files as either Ignorable or Not Ignorable
according to Selection Options.
Change “Flag as
Privileged” Status
Change Flag Status of all files as either Privileged or Not Privileged
according to Selection Options.
TABLE 4-15 File List View Right-Click Menu Options
Option Description
50 AccessData FTK 3.0 User Guide
QUICKPICKS FILTER
The QuickPicks feature is a type of filter that allows the selection of multiple folders
and files in order to focus analysis on specific content. The following figure represents
the Explore Evidence Items tree with a partially selected set of folders and sub-folders
using the QuickPicks feature.
Figure 4-2 QuickPicks Filter Folder Selection
The QuickPicks filter simultaneously displays open and unopened descendent
containers of all selected tree branches in the File List at once. The colors of the
compound icons indicate whether descendents are selected.
The icons are a combination of an arrow, representing the current tree level, and a
folder, representing any descendent.
Re-assign File Category Change File Category assignment. See File Categories under
Overview Tab.
View This Item In a
Different List
Changes the File List view from the current tab to that of the
selected tab from the pop-out.
TABLE 4-15 File List View Right-Click Menu Options
Option Description
Chapter 4 The FTK 3.0 User Interface 51
The icons’ colors indicate the levels and descendent selected. Green means all are
selected, yellow means some are selected, and white means none are selected.
Figure 4-3
In the illustration above, the decedent folder 10-1 Graphics is unselected. Its arrow icon
is white.
The folder icons for the folders above item “10-1 Graphics” are yellow to indicate that
not all descendent folders are selected. The top-most level item “Evidence” has a white
arrow icon, indicating that it is not selected, and a yellow folder icon, indicating that
some of its descendent folders are not selected.
The folder icon for “DT Search Stuff ” is green, indicating that all contents of the folder
have been selected.
THE DATA PROCESSING STATUS SCREEN
Also known as the Progress Dialog, the Data Processing Status screen reports the
status of any processing that is being done on the evidence in the case. Whenever the
user processes an evidence item or runs additional analysis, the Progress Dialog gives
an estimation of how tasks are progressing.
The Progress Dialog can be opened by clicking View > Progress Window. In FTK 3.0,
the Progress Window has changed.
There are four views to choose from, depending on the type of job(s) that are running:
52 AccessData FTK 3.0 User Guide
• Add Evidence Jobs
• Addational Analysis Jobs
• Live Search Jobs
• Other Jobs
Click on the type of job to expand the list of that job type. Click on an individual job to
see its status, as indicated in the following figure:
Figure 4-4 Data Processing Status
Different information is displayed for each job type. The evidence item currently being
reported on is listed by its Name and Path location.Task activity is shown by a blue bar.
Tasks are measured by:
TABLE 4-16 Data Processing Status Task Measurements
•Overall progress •Processed State
•Number of items Indexed •Finished
•Number of items Processed •Static
•Number of items Discovered •Processing
Chapter 5 Starting a New FTK 3.0 Case 53
Chapter 5 Starting a New
FTK 3.0 Case
This chapter explains how to create a new AccessData FTK case.
LAUNCH FTK
After FTK is installed, launchFTK by doing the following:
1. Click Start> All Programs > AccessData > Forensic Toolkit > FTK 3.0, or click the FTK
3.0 icon on the desktop:
Note: Please note that it may take a few moments forFTK to run. This is because it is also
launching the Oracle database.
2. Log in to FTK 3.0 providing your username and the case-sensitive password. The
first person to log in to FTK upon complete installation is the Application
Administrator.
54 AccessData FTK 3.0 User Guide
Figure 5-1 Please Authenticate
A successful login brings up the Case Management window, as in the following
figure:
Figure 5-2 Case Manager
The Case Manager menus are discussed in detail in “Basics of The FTK 3.0 User
Interface” on page 30.
The Application Administrator can add additional users from the Case Management
window. The following steps can be used by the Application Administrator to set up
new users as needed.
Chapter 5 Starting a New FTK 3.0 Case 55
3. Click Database > Administer Users > Add User to open the Add New User dialog
4. Enter a username.
5. Enter the full name of the user as it is to appear in reports.
6. Assign a role to limit or increase database and Administrative access
7. Enter a password.
8. Verify the password.
9. Click OK to save the new user and close the dialog.
The following table gives information on the fields available in the Add New User
dialog.
TABLE 5-1 Add New User Information Fields
Field Description
User Name Enter the name by which the user is known in program logs and other
system information.
Role Assign rights to the user name:
Full Name Enter the full name of the user as it is to appear on case reports.
Password Enter and verify a password for this user.
10. After completing the dialog, the log in prompt returns again for a login name and
password for the newly created user to login. The Case Management window shows
•Application Administrator: can perform all types of tasks, includ-
ing adding and managing users.
•Case Administrator: can process data and change settings to FTK,
although only the application administrator can add new users.
•Case Reviewer: cannot create cases; can only process cases.
56 AccessData FTK 3.0 User Guide
the name you just created, indicating that the user can login, view and modify cases
within that database.
ASSIGNING ROLES
New users require a role, or a set of permissions to perform specific sets of actions.
APPLICATION ADMINISTRATOR
An Application Administrator has permissions to all areas of the program and can
create and manage users..
CASE ADMINISTRATOR
A Case Administrator can perform all of the tasks an Application Administrator can
perform, with the exception of creating and managing users.
CASE REVIEWER
The following tasks are unavailable to a user having the Case Reviewer role:
TABLE 5-2 Permissions Denied Case Reviewer Users
•Create, Add, or Delete cases •Use FTK Imager
•Administer Users •Use Registry Viewer
•Data Carve •Use PRTK
•Manually data carve •Use Find on Disk
•Assign Users to cases •Use the Disk Viewer
•Add Evidence •View file sectors
•Access Credant Decryption from the
Tools Menu
•Define, Edit, Delete, Copy, Export, or
Import Filters
•Decrypt Files from the Tools Menu •Export files or folders
•Mark or View Items Flagged as
“Ignorable” or “Privileged.”
•Access the Additional Analysis Menu
•Manage the KFF •Backup or Restore Cases
•Manage Fuzzy Hash •Add a Database
•Enter Session Management
Chapter 5 Starting a New FTK 3.0 Case 57
CREATING A CASE
FTK stores each case in an Oracle database, and allows case administration as each new
case is created. When an authorized user creates a case, that user becomes that case’s
administrator. To start a new case from the Case Manager window, do the following:
1. Launch FTK 3.0 and login. This opens the Case Management window.
2. Click Case > New. The New Case Options dialog appears.
3. Enter a name for the case in the Case Name field.
4. Enter any optional specific reference information in the Reference field.
5. Enter an optional short description of the case in the Description field.
6. If you wish to specify a different location for the case, click the Browse button: .
Note: If the [drive]:\[ftk3_Cases] folder is not set as shared, an error occurs during case
creation.
58 AccessData FTK 3.0 User Guide
7. If you wish to create the case in Field Mode, mark the Field Mode box. Field Mode
disables the Detailed Options button when creating a case.
8. In addition to disabling Detailed Options, Field Mode bypasses file signature analysis
and the Oracle database communication queue. These things vastly speed the
processing.
Note: The Job Processing screen always shows 0 for Queued when Field Mode is enabled,
because items move directly from Active Tasks to Completed.
9. If you wish to open the case as soon as it is created, mark Open the case.
10. If you do not select Field Mode, click Detailed Options to specify how you wish the
evidence to be treated as it is processed and added to the case. The case creation
steps are continued in the following section.
11. When the case is defined and Detailed Options are selected, click OK to create the
new case.
SELECTING EVIDENCE PROCESSING OPTIONS
The Evidence Processing options allow selection of processing tasks to perform on the
current evidence. Select only those tasks that are relevant to the evidence being added
to the case.
After processing, the Evidence Processing options selected for this case can be found
in the case log. You can also view them by clicking Evidence > Add/Remove. Double-click
on any of the evidence item to open the Refinement Options dialog.
Chapter 5 Starting a New FTK 3.0 Case 59
Some pre-processing options require others to be selected. For example:
• Data Carving depends on Expand
• KFF depends on MD5 hashing
• Flag Duplicates depends on MD5 hashing
• Indexing depends on identification
• Flag bad extension depends on file signature analysis.
The following figure represents the detailed options dialog. Different processing
options can be selected and un-selected depending on the specific requirements of the
case.
At the bottom of every Refinement Options selection screen you will find five buttons:
• Reset: resets the current settings to the currently defined defaults.
• Save as My Defaults: saves current settings as the default for the current user.
• Reset to Factory Defaults: Resets current settings to the factory defaults.
• OK: accepts current settings without saving for future use.
• Cancel: cancels the entire Detailed Options dialog without saving settings or
changes, and returns to the New Case Options dialog.
If you choose not to index in the Processing Options page, but later find a need to
index the case, click Evidence > Additional Analysis. Choose All Items, and check dtSearch*
Index.
60 AccessData FTK 3.0 User Guide
Figure 5-3 Evidence Processing Options
Note: Another factor that may influence which processes to select is your schedule. If you
disable indexing, it shortens case processing time. The case administrator can return at a
later time and index the case if needed.
12. Click Detailed Options to choose settings for the case.
12a. Click the Evidence Processing icon in the left pane, and select the processing
options to run on the evidence. For more information, see “Selecting Evidence
Processing Options” on page 58.
Note: Select File Listing Database here in pre-processing to create an MDB database of the
evidence files.
12b. Click the Evidence Discovery icon to specify the location of the File
Identification File, if one is to be used. For more information, see “Evidence
Discovery Options” on page 73.
12c. Click the Evidence Refinement (Advanced) icon to select the custom file
identification file to use on this case. For more information, see “Selecting
Evidence Discovery Options” on page 72.
Chapter 5 Starting a New FTK 3.0 Case 61
12d. Click the Index Refinement (Advanced) icon to select which types of evidence to
not index. For more information, see “Selecting Evidence Refinement
(Advanced) Options” on page 74.
13. Click OK.
14. When you are satisfied with your evidence refinement options, Click OK to
continue to the Evidence Processing screen.
The following table outlines the Evidence Processing options:
TABLE 5-3 Evidence Processing Options
Process Description
MD5 Hash Creates a digital fingerprint using the Message Digest 5
algorithm, based on the contents of the file. This fingerprint can
be used to verify file integrity and to identify duplicate files.
For more information about MD5 hashes, see “Message Digest
5” on page 337.
SHA-1 Hash Creates a digital fingerprint using the Secure Hash Algorithm-1,
based on the contents of the file. This fingerprint can be used to
verify file integrity and to identify duplicate files.
For more information about SHA hashes, see “Secure Hash
Algorithm” on page 340.
SHA-256 Hash Creates a digital fingerprint using the Secure Hash Algorithm-
256, based on the contents of the file. This fingerprint can be
used to verify file integrity and to identify duplicate files. SHA-
256 is a hash function computed with 32-bit words, giving it a
longer digest than SHA-1.
For more information about SHA hashes, see “Secure Hash
Algorithm” on page 340.
Fuzzy Hash Fuzzy hashes are hash values that can be compared to
determine how similar two pieces of data are. Traditional
cryptographic hashes can only tell if two bitstreams are identical;
fuzzy hashes can tell how similar two bitstreams to each other.
The similarity value is expressed as a value 0-100, where 0 is not
similar and 100 is almost identicall. If selected, click Fuzzy Hash
Options to make file size limitations and Fuzzy Hash Group(s)
selections, and choose whether to Match fuzzy hash library.
Note: The Hash fields in the case may be empty for files carved from unallocated space
62 AccessData FTK 3.0 User Guide
Flag Duplicate Files Identifies files that are found more than once in the evidence.
This is done by comparing file hashes.
KFF Using a database of hashes from known files, this option flags
insignificant files as ignoreable files and flags known illicit or
dangerous files as alert files, alerting the examiner to their
presence in the case.
Both AD KFF Alert and AD KFF Ignore groups are selected by
default. If you have custom groups and you want them to be
enabled, specify them under the Case KFF Options.
For more information about Known File Filter (KFF), see
“Using the Known File Filter” on page 211.
Expand Compound Files Automatically opens and processes the contents of compound
files such as .ZIP, email, and OLE files.
File Signature Analysis
Flag Bad Extensions Identifies files whose types do not match their extensions, based
on the file header information.
Entropy Test Identifies files that are compressed or encrypted.
Compressed and encrypted files identified in the entropy test are
not indexed.
dtSearch* Text Index Stores the words from evidence in an index for quick retrieval.
Additional space requirement is approximately 25% of the space
required for all evidence in the case.
Click Indexing Options for extensive options for indexing the
contents of the case.
New in FTK 3.0: Generated text that is the result of a formula
in a document or spreadsheet is indexed, and can be filtered.
Generate Thumbnails for
Graphics
Creates thumbnails for all graphics in a case.
Note: Thumbnails are always .jpg format, regardless of the original
graphic file type.
HTML File Listing Creates an HTML version of the File Listing in the case folder.
CSV File Listing The File Listing Database is now created in .CSV format
instead of an MDB file and can be added to Microsoft Access.
TABLE 5-3 Evidence Processing Options
Process Description
Chapter 5 Starting a New FTK 3.0 Case 63
FUZZY HASHING
Fuzzy hashing is a tool which provides the ability to compare two distinctly different
files and determine a fundamental level of similarity. This similarity is expressed as
score from 1-100. The higher the score reported the more similar the two pieces of
data. A score of 100 would indicate that the files are close to identical. Alternatively a
score of 0 would indicate no meaningful common sequence of data between the two
files.
Traditional forensic hashes (MD5, SHA-1, SHA-256, etc.) are useful to quickly identify
known data and to ensure that files have been forensically preserved. However, these
types of hashes cannot indicate how closely two non-identical files match. This is when
fuzzy hashing is useful.
In AccessData applications fuzzy hashes are organized into a library. This library is
very similar in concept to the AccessData KFF library. The fuzzy hash library contains
of a set of hashes for known files that can be compared to evidence files in order to
determine if there are any files which may be relevant to a case. Fuzzy hash libraries are
organized into groups. Each group contains a set of hashes and a threshold. The group
threshold is a number the investigator chooses, to indicate how closely an evidence
item must match a hash in the group to be considered a match and to be included as
evidence.
Data Carve Carves data immediately after pre-processing. Click Carving
Options, then select the file types to carve. Uses file signatures to
identify deleted files contained in the evidence. All available file
types are selected by default.
For more information on Data Carving, see “Selecting Data
Carving Options” on page 69.
Meta Carve Carves deleted directory entries and other metadata. The deleted
directory entries often lead to data and file fragments that can
prove useful to the case, that could not be found otherwise.
Explicit Material
Identification
Click EMI Options to specify the EMI threshold for suspected
explicit material found in the case.
Registry Reports Creates RSR reports from case content automatically. Click RSR
Directory to specify the location of the RSR Templates. When
creating a report, click the RSR option in the Report Wizard to
include the RSR reports requested here.
TABLE 5-3 Evidence Processing Options
Process Description
64 AccessData FTK 3.0 User Guide
CREATING A FUZZY HASH LIBRARY
There are two ways to create a fuzzy hash library. The first way is to drag and drop a
file, or files, from a disk into the Fuzzy Hash Library screen. The second way is to right
click on the file and select, Add to Fuzzy Hash Library. To access the Fuzzy Hash
Library screen go to Tools > Fuzzy Hash > Manage Library.
SELECTING FUZZY HASH OPTIONS DURING INITIAL PROCESSING
Follow these steps to initialize fuzzy hashing during initial processing or when adding
additional evidence to a case:
1. After choosing to create a new case, click Detailed Options.
2. Select Fuzzy Hash.
2a. (Optional) If FTK already refers to a fuzzy hash library, you can select to match
the new evidence against the existing library by selecting Match Fuzzy Hash
Library.
Chapter 5 Starting a New FTK 3.0 Case 65
2b. Click Fuzzy Hash Options to set additional options for fuzzy hashing.
2c. Set the size limit of files to hash. The size defaults to 20 MB, 0 indicates no limit.
2d. Click OK to set the value.
3. Select OK to close the detailed options dialog.
ADDITIONAL ANALYSIS FUZZY HASHING
Fuzzy hashing can also be initialized on data already processed into the case by
performing the following steps:
66 AccessData FTK 3.0 User Guide
1. Click Evidence > Additional Analysis.
2. Select Fuzzy Hash.
3. (Optional) Select if the evidence needs to matched against the fuzzy hash library.
3a. Mark Fuzzy Hash under File Hashes. This activates the Fuzzy Hash options.
3b. (Optional) Click Fuzzy Hash Options to open the Fuzzy Hash Options dialog.
Chapter 5 Starting a New FTK 3.0 Case 67
3c. Set the file size limit on the files to be hashed.
3d. If you have created or imported other hash groups, select the ones to use from
the list of hash groups.
3e. Click OK.
4. Click OK to close the Additional Analysis dialog and begin the fuzzy hashing.
COMPARING FILES USING FUZZY HASHING
To compare a file to another file or group of files go to Tools > Fuzzy Hash > Find
Similar Files. This option allows you to select a file hash to compare against. You can
specify the minimum match similarity that you want in this screen. This screen can also
be accessed by right clicking on a file and selecting Find Similar Files.
VIEWING FUZZY HASH RESULTS
To view the fuzzy hash results in FTK, several pre-defined column settings can be
selected in the Column Settings field under the Common Features category. Those
settings are: Fuzzy Hash, Fuzzy Hash blocksize, Fuzzy Hash library group, Fuzzy Hash
library score, and Fuzzy Hash library status.
The following table shows the column settings and the description of each:
TABLE 5-4 Fuzzy Hash Column Settings
Column Setting Description
Fuzzy Hash blocksize Dictates which fuzzy hash values can be used to compare
against a file. Fuzzy hashes can only be compared to another
fuzzy hash value which is half the fuzzy hash value, equa.l to
the actual fuzzy hash value, or two times the fuzzy hash
value.
Fuzzy Hash Library Group The highest matching group value for a file. To find all of
the library groups which have been used to compare a file
against, double click on the value in column settings.
Fuzzy Hash The actual fuzzy hash value given to a file.
68 AccessData FTK 3.0 User Guide
SELECTING DTSEARCH* TEXT INDEXING OPTIONS
INDEXING A CASE
All evidence should be indexed to aid in searches. Index evidence when it is added to
the case by checking the dtSearch Text Index box on the Evidence Processing Options
dialog, or index after the fact by clicking and specifying indexing options.
Another factor that can determine which processes to select is schedule. Time
restraints may not allow for all tasks to be performed initially. For example, if you
disable indexing, it shortens the time needed to process a case. You can return at a later
time and index the case if needed.
DTSEARCH INDEXING SPACE REQUIREMENTS
To estimate the space required for a dtSearch Text index, plan on approximately 25%
of the space needed for each case’s evidence.
NEW CASE INDEXING OPTIONS
This new feature gives you almost complete control over what goes in your case index.
These options can be selected to apply globally from Case Management by clicking
Tools > Create Options File to bring up the Detailed Options dialog. In the Evidence
Processing screen, mark the dtSearch Text Index box, then click Indexing Options to bring
up the Indexing Options screen shown in the figure below.
Note: Search terms for pre-processing options support only ASCII characters.
Fuzzy Hash Library Score The value of the highest group score a file has been
compared against. To find all of the library scores, double
click on the value in the column settings.
Fuzzy Hash Library Status Set to either alert or ignore, which is similar to the KFF alert
or ignore settings.
TABLE 5-4 Fuzzy Hash Column Settings
Column Setting Description
Chapter 5 Starting a New FTK 3.0 Case 69
Figure 5-4 dtSearch Text Index: Indexing Options
To adjust these options for a single case, in Case Management, click Case > New >
Detailed Options. Again, in the Detailed Options: Evidence Processing dialog, mark the
dtSearch Text Index box, then click Indexing Options to bring up the Indexing Options
screen shown in the figure above.
Note: The Indexing Options dialog does not support some Turkish characters.
For more detailed information regarding the Indexing Options dialog, see “Chapter 9
Searching a Case” on page 175.
SELECTING DATA CARVING OPTIONS
Data Carving gives you the choice of which file types to carve, as seen in the following
figure:
70 AccessData FTK 3.0 User Guide
Figure 5-5 Data Caring Options
When you select to carve data, choose which types of data to carve according to the
information below:
1. Select Data Carve.
2. Click Carving Options.
3. Select the types of files you want carved.
• Click Select All to select all file types to be carved.
• Click Clear All to unselect all file types.
• Click on individual file types to toggle either selected or unselected.
Note: It may help to be aware of the duplicate files and the number of times they appear in
an evidence set to determine intent.
4. Define the optional limiting factors to be applied to each file:
• Define the minimum byte file size for the selected type.
• Define the minimum pixel height for graphic files.
• Define the minimum pixel width for graphic files
5. Click OK.
Chapter 5 Starting a New FTK 3.0 Case 71
EXPLICIT MATERIAL IDENTIFICATION
New in this version of FTK, Explicit Material Identification reads all graphics in a case
and assigns each one a score according to what it interprets as being possible
pornography.
When you add evidence to a case, in the Detailed Options > Evidence Processing dialog,
select Explicit Material Identification to activate EMI Options. The four EMI Options
are profiles that indicate the type of filtering each one does.
According to LTU Technologies, “Porn filtering rates pictures according to the
presence or absence of pornographic or adult-related content. Successfully filtered
pictures are issued a score between 0 and 100 (0 being non-pornographic or “clean”
content, 100 being clearly pornographic content). A score above 100 indicates that no
decision could be taken (see chapter 3.3). Users of the software then specify their own
acceptance threshold limit for images they consider inappropriate.” Negative scores
indicate an error in processing the file, or some other error.
Porn scores can be roughly interpreted as follows:
• 0 to 100 = CLEAN to PORN
• -1 = File not found
• -2 = License error
• -3 = Wrong file format
• -4 = No match found
• -5 = Folder not found
• -6 = Unknown error
• -7 = Cannot load Image (e.g., corrupt image)
• -8 = Not enough information
• -9 = Face detection profile path is null
• -10 = Can't open face detection directory
• -11 = Face detection file not found
• -12 = Input classifier not intiailized
• -13 = Init profile failed
• -14 = File path is empty
• -16 = Image data is empty
• -17 = Null matching handle
72 AccessData FTK 3.0 User Guide
• -18 = Missing retrieval result
• -100 = Unsupported file format.
• -101 = Unsupported black & white image.
• -102 = Unsupported grayscale image.
• -103 = Unsupported monochrome image.
• -1000 = Unknown error.
• -1001 = LTU score function threw an exception.
• -1002 = LTU score function threw an exception.
SELECTING EVIDENCE DISCOVERY OPTIONS
The Custom File Identification file is a text file that overrides the file types assigned by
FTK during preprocessing. With this file, FTK can assign custom file types to specific
files.
The Evidence Discovery Options dialog lets you select the Custom File Identification
file to apply to new case. This file is stored elsewhere on the system, and the location is
determined by the user. The following figure represents the Evidence Discovery
Options window in the detailed options dialog. The location can be browsed to, by
clicking Browse, or reset to the root drive folder by clicking Reset.
Chapter 5 Starting a New FTK 3.0 Case 73
Figure 5-6 Evidence Discovery Options
CREATING THE CUSTOM FILE IDENTIFICATION FILE
The Custom File Identification file, or Custom Identifier, creates the new branch “File
Category\User Types” on the Overview tab, under which the new file type assignments
appear.
The Custom File Identification file can be created in a text editor or similar utility. Each
line in the file represents a custom file type assignment. The general format is:
name, description, category[, offset:value [| offset:value]* ] +
For example, the line,
"MyGIF","Tim's GIF","Graphics",0:"47 49 46 38 37"|0:"47 49 46 38 39"
creates a branch called “MyGIF” under “File Category\User Types.” The offset:value
rules in this case look for the string “GIF87” or “GIF89” at offset 0.
74 AccessData FTK 3.0 User Guide
The following table describes the parameters for Custom File Identification files:
Note: You must use at least one offset:value pair (hence the [...]+), and use zero or more OR-ed
offset:value pairs (the [...]*). All of the offset:value conditions in an OR-ed group are OR-
ed together, then all of those groups are AND-ed together.
For example, the following line creates a branch called “MyGIF” under “File
Category\User Types.” The offset:value rules in this case look for the string “GIF87” or
“GIF89” at offset 0.
"MyGIF", "Tim's GIF", "Graphics",0:"47 49 46 38 37"|0:"47 49 46 38 39".
SELECTING EVIDENCE REFINEMENT (ADVANCED) OPTIONS
The Evidence Refinement Options dialogs allow you to specify how the evidence is
sorted and displayed. The Evidence Refinement (Advanced) option allows you to
exclude specific data from being added to the case when found in an individual
evidence item type.
Many factors can affect which processes to select. For example, if you have specific
information otherwise available, you may not need to perform a full text index. Or, if it
is known that compression or encryption are not used, an entropy test may not be
needed.
Important: After data is excluded from an evidence item in a case, the same
evidence cannot be added back into the case to include the previously
excluded evidence. If data that was previously excluded is found
necessary, the user must remove the related evidence item from the case,
TABLE 5-5 Custom File Identification File Parameters
Parameter Description
Name The file type displayed in the Overview Container tree branch. It also
appears in the Category column.
Description Accompanies the Overview Container’s tree branch name.
Category The Overview Container tree branch under which the file would normally
appear relative to “File Category\user types\”.
Offset A decimal representation of the offset into the file (the first byte of the file
is 0). This allows you to find and verify data in a hex view.
Value An even number of hex bytes or characters with arbitrary white space.
Chapter 5 Starting a New FTK 3.0 Case 75
then add the evidence again, using options that will include the desired
data.
Use the following steps for refining case evidence:
1. Click the Evidence Refinement (Advanced) icon in the left pane.
The Evidence Refinement (Advanced) menu is organized into two dialog tabs:
• Refine Evidence by File Status/Type
• Refine Evidence by File Date/Size
2. Click the corresponding tab to access each dialog.
3. Set the needed refinements for the current evidence item.
4. To reset the menu to the default settings, click Reset.
5. To accept the refinement options you have selected and specified, click OK.
REFINING EVIDENCE BY FILE STATUS/TYPE
Refining evidence by file status and type allows you to focus on specific files needed for
a case.
Figure 5-7 Evidence Refinement (Advanced) by File Status/Type
76 AccessData FTK 3.0 User Guide
The following table outlines the options in the Refine Evidence by File Status/Type
dialog:
TABLE 5-6 Refine by File Status/Type Options
Options Description
Include File Slack Mark to include file slack space in which evidence may be
found.
Include Free Space Mark to include unallocated space in which evidence may be
found.
Include KFF Ignorable Files (Recommended) Mark to include files flagged as ignorable in
the KFF for analysis
Deleted Specifies the way to treat deleted files.
Options are:
•Ignore Status
•Include Only
•Exclude
Defaults to “Ignore Status.”
Encrypted Specifies the way to treat encrypted files.
Options are:
•Ignore Status
•Include Only
•Exclude
Defaults to “Ignore Status.”
From Email Specifies the way to treat email files.
Options are:
•Ignore Status
•Include Only
•Exclude
Defaults to “Ignore Status.”
Include OLE Streams Includes Object Linked or Embedded (OLE) files found
within the evidence.
File Types Specifies which types of files to include and exclude
Match using both File Type
and File Status criteria
Applies selected criteria from both File Status and File Types
tabs to the refinement.
Chapter 5 Starting a New FTK 3.0 Case 77
REFINING EVIDENCE BY FILE DATE/SIZE
Refine evidence further by making the addition of evidence items dependent on a date
range or file size that you specify. However, once in the case, filters can also be applied
to accomplish this.
The following figure shows an example of the options in the Evidence Refinement
(Advanced) page:
Figure 5-8 Evidence Refinement (Advanced) Options by File Date/Size
78 AccessData FTK 3.0 User Guide
The following table outlines the options in the Refine Evidence by File Date/Size
dialog:
SELECTING INDEX REFINEMENT (ADVANCED) OPTIONS
The Index Refinement (Advanced) feature allows you to specify types of data that you
do not want to index. You may choose to exclude data to save time and resources, or to
increase searching efficiency.
Note: AccessData strongly recommends that you use the default index settings.
To refine an index, in the Detailed Options dialog perform the following steps:
1. Click Index Refinement (Advanced) in the left pane.
The Index Refinement (Advanced) menu is organized into two dialog tabs:
• Refine Index by File Status/Type
• Refine Index by File Date/Size
2. Click the corresponding tab to access each dialog.
3. Define the refinements you want for the current evidence item.
4. Click Reset to reset the menu to the default settings.
5. Click OK when you are satisfied with the selections you have made.
TABLE 5-7 Refine by File Date/Size Options
Exclusion Description
Refine Evidence
by File Date
To refine evidence by file date:
1. Check Created, Last Modified, and/or Last Accessed.
2. In the two date fields for each date type selected, enter beginning
and ending date ranges.
Refine Evidence
by File Size
To refine evidence by file size:
1. Check At Least and/or At Most (these are optional settings).
2. In the corresponding size box(es), specify the applicable file size.
3. In the drop-down lists, to the right of each, select Bytes, KB, or MB.
Chapter 5 Starting a New FTK 3.0 Case 79
REFINING AN INDEX BY FILE STATUS/TYPE
Refining an index by file status and type allows the investigator to focus attention on
specific files needed for a case through a refined index defined in a dialog as contained
in the following figure.
At the bottom of the two Index Refinement tabs you can choose to mark the box for
Only index items that match both File Status AND File Types criteria, if that suits your needs.
Figure 5-9 Index Refinement (Advanced) Dialog
The following table outlines the Refine the Index by File Status/Type dialog options:
TABLE 5-8 Refine Index by File Status/Type Options
Options Description
Include File Slack Mark to include free space between the end of the file footer,
and the end of a sector, in which evidence may be found.
Include Free Space Mark to include both allocated (partitioned) and unallocated
(unpartitioned) space in which evidence may be found.
Include KFF Ignorable Files Mark to include files flagged as ignorable in the KFF for
analysis.
80 AccessData FTK 3.0 User Guide
REFINING AN INDEX BY FILE DATE/SIZE
Refine index items dependent on a date range or file size you specify, as displayed in the
following figure:
Deleted Specifies the way to treat deleted files. Options are:
•Ignore status
•Include only
•Exclude
Encrypted Specifies the way to treat encrypted files. Options are:
•Ignore status
•Include only
•Exclude
From Email Specifies the way to treat email files. Options are:
•Ignore status
•Include only
•Exclude
Include OLE Streams Includes Object Linked or Embedded (OLE) files found
within the evidence.
File Types Specifies types of files to include and exclude.
Match using both File Type
and File Status criteria
Applies selected criteria from both File Status and File Types
tabs to the refinement.
TABLE 5-8 Refine Index by File Status/Type Options
Options Description
Chapter 5 Starting a New FTK 3.0 Case 81
Figure 5-10 Index Refinement by File Date/Size
The following table outlines the options in the Refine by File Date/Size dialog:
TABLE 5-9 Refine Index by File Date/Size Options
Exclusion Description
Refine Index by File Date To refine index content by file date:
1. Select Created, Last Modified, or Last Accessed.
2. In the date fields, enter beginning and ending dates within
which to include files.
Refine Index by File Size To refine evidence by file size:
1. Click in either or both of the size selection boxes.
2. In the two size fields for each selection, enter minimum and
maximum file sizes to include.
3. In the drop-down lists, select whether the specified
minimum and maximum file sizes refer to Bytes, KB, or MB.
82 AccessData FTK 3.0 User Guide
CREATING THE CASE
When you have finished selecting all the initial case options, you are ready to create the
case. No evidence has been added to the case yet. Click OK >OK to begin case creation.
FTK indicates that it is creating the case and asks you to please wait.
Figure 5-11 Please Wait While the Case is Being Created.
ADDING EVIDENCE TO A NEW CASE
When case creation is complete, the Manage Evidence dialog appears. Evidence items
added here will be processed using the options you selected in pre-processing.
Note: You can repeat this process as many times as you need to, for the number of evidence
items and types you wish to add.
To add evidence to a case, do the following:
1. Click Add. The Select Evidence Type dialog appears.
2. Select the type of evidence item(s) to add to the case at this time.
Chapter 5 Starting a New FTK 3.0 Case 83
3. Click OK.
4. Browse to the evidence item(s) to add. Select the item(s). Click Open.
5. If you are in Field Mode the Manage Evidence dialog will indicate Field Mode below
the Time Zone Selection, and you will not be able to specify any detailed evidence
options. You will still be able to change the Language Setting however, as shown in
the figure below:
If you are not creating this case in Field Mode, the Detailed Options button will be
available. Click Detailed Options to override settings that were previously selected for
evidence added to this case. If you do not click Detailed Options here, the options that
were specified when you created the case will be used.
6. Complete the Manage Evidence dialog based on information in the following table:
TABLE 5-10 Manage Evidence Options
Option Description
Add Opens the Select Evidence Type dialog. Click to select the evidence
type, and a Windows Explorer instance will open, allowing you to
navigate to and select the evidence you choose
Remove Displays a caution box and asks if you are sure you want to remove
the selected evidence item from the case. Removing evidence items
that are referenced in bookmarks and reports will remove references
to that evidence and they will no longer be available. Click Yes to
remove the evidence, or click No to cancel the operation.
Display Name The filename of the evidence being added.
84 AccessData FTK 3.0 User Guide
7. When you are satisfied with the evidence options selected, click OK.
State The State of the evidence item:
•“ ” (empty) indicates that processing is complete.
•“+” indicates the item is to be added to the case
•“–” indicates the item is to be removed from the case.
•“*” indicates the items is processing.
•“!” Indicates there was a failure in processing the item.
If you click Cancel from the Add Evidence Dialog, the state is
ignored and the requested processing will not take place.
Note: If the State field is blank and you think the item is still processing,
from any tab view, click View > Progress Window to verify.
Path The full pathname of the evidence file.
Note: Use universal naming convention (UNC) syntax in your evidence path
for best results.
ID/Name The optional ID/Name of the evidence being added.
Description The options description of the evidence being added. This can be the
source of the data, or other description that may prove helpful later.
Time Zone The time zone of the original evidence. Select a time zone from the
drop-down list.
Language Setting Select the code page for the language to view the case in. The
Language Selection dialog contains a drop-down list of available code
pages. Select a code page and click OK.
Case KFF Options Opens the KFF Admin box for managing KFF libraries, groups, and
sets for this case.
Refinement Options Displays the Refinement Options for Evidence Processing. This
dialog has limited options compared to the Refinement Options
selectable prior to case creation. You cannot select Save as My
Dafaults, nor can you select Reset to reset these options to the Factory
Defaults.
Select the options to apply to the evidence being added, then click OK
to close the dialog.
TABLE 5-10 Manage Evidence Options
Option Description
Chapter 5 Starting a New FTK 3.0 Case 85
PROCESSING EVIDENCE
When all evidence has been added and all options have been chosen, click OK. The
Data Processing Status window appears and processing begins.
As you watch the Data Processing Status progress and complete, if you
compare the numbers in the Data Processing Status screen with the numbers
shown in Overview tab > Case Overview > File Category, for example, you may notice
that the numbers are not the same. If there is a difference, the numbers in the
case are accurate; the numbers in the Data Processing Screen on the progress
bar items are not.
FTK shows the Data Processing Status screen similar to that shown in the following
figure:
Figure 5-12 Data Processing Status: Finished
Each task is listed individually on the left. A blue progress bar measures percentage
complete by a ratio, or simply by a moving bar as each task progresses. When the task
is complete, the Process State shows Finished.
• Click the different Job types to see other tasks or jobs that have been created, and
their status.
• Click Remove when finished to remove a task or job from the list when it is complete.
• Click Close to close the Data Processing Status Dialog.
• Click the Close button to close the Data Processing Status Window. This closes
only the display and does not cancel any current tasks.
86 AccessData FTK 3.0 User Guide
VIEWING PROCESSED ITEMS
It is not necessary to wait for the program to finish processing the case to begin
viewing data. The metadata—the information about the evidence—can be viewed in
several modes before the disk image has completed processing.
Important: Do not attempt to do any search prior to processing completion.
You can view processed items from the tabbed views, but searching
during indexing may corrupt the index and render the case useless.
THE FTK USER INTERFACE
When a case has been created, before evidence has been added you will see the FTK
User Interface. The FTK User Interface is described in detail in Chapter 5. For more
information, see “Chapter 6 Adding and Processing Static Evidence” on page 87.
Chapter 6 Adding and Processing Static Evidence 87
Chapter 6 Adding and Processing
Static Evidence
After creating a case in AccessData Forensic Toolkit (FTK) Case Manager, open the
case. Investigate the case by running searches, bookmarking, exporting relevant files
when necessary, verifying the drive image integrity, identifying meaningful evidence,
and performing other tasks. For more information regarding creating a new case, see
“Chapter 5 Starting a New FTK 3.0 Case” on page 53.
STATIC EVIDENCE VS. REMOTE EVIDENCE
Static evidence describes evidence that has been captured to an image before being added
to the case.
Live evidence describes data that is acquired in-person to an image from a machine that
is running. For example, a suspect’s computer—whether because a password is not
known, or to avoid the suspect’s knowing that he or she is under suspicion—may be
imaged live if the computer has not yet been or will not be confiscated.
Remote evidence describes data that is acquired from remote live computers belonging
to the FTK network after the case has been created. That evidence is added directly to
the case as it is acquired.
This chapter covers working with static evidence. For more informaiton regarding
acquisition and utilization of remote evidence, see “Chapter 7 Adding and Processing
Remote Live Evidence” on page 121.
88 AccessData FTK 3.0 User Guide
ACQUIRING AND PRESERVING STATIC EVIDENCE
For digital evidence to be valid, it must be preserved in its original form. The evidence
image must be forensically sound, in other words, identical in every way to the original.
Two types of tools can do this: hardware acquisition tools and software acquisition
tools.
• Hardware acquisition tools duplicate, or clone, disk drives and allow read-only
access to the hard drive. They do not necessarily use a CPU, and are often hand-
held.
• Software acquisition tools also create a disk image and in addition, give you a
choice regarding the file format, the compression level where available, and the
size of the data segments to use.
Important: Use a write-blocking device when using software tools, because
some operating systems, such as Windows, make changes to the drive as
it reads the data to be imaged.
Important: If the Mozilla Firefox directory is added as evidence while in use,
history, downloads, etc are identified as zero-legth files.
FTK Imager is a software acquisition tool. It can quickly preview evidence and, if the
evidence warrants further investigation, create a forensically sound image of the
evidence drive or source. It makes a bit-by-bit duplicate of the media, rendering a
forensic disk image identical in every way to the original, including file slack and
unallocated or free space.
OPENING AN EXISTING CASE
Open an existing case from FTK Case Manager. To open an existing case, perform the
following steps:
1. Log on to FTK 3.0.
2. Double-click on the case you want to open, or highlight the case and click Case >
Open.
ADDING EVIDENCE
After setting up a case, evidence must be added to it for processing. After evidence has
been added, you can perform some processing tasks that were not performed initially.
You can also add more evidence to the case after the initial processing of evidence is
Chapter 6 Adding and Processing Static Evidence 89
complete. Additional evidence files and images can be added and processed later, if
needed.
Note: After processing, the Evidence Processing selected options can be found in the case log.
You can also view them by clicking Evidence > Add/Remove. Double-click on any of the
evidence item to open the Refinement Options dialog.
To add static evidence (an exact image, or “snapshot” of electronic data found on a
hard disk or other data storage device) to an existing case, select Evidence > Add/Remove
from the menu bar and continue as shown below.
Note: Use universal naming convention (UNC) syntax in your evidence path for best results.
Figure 6-1 Managing Evidence
To add new evidence to the case perform the following steps.
Note: To remove evidence from the list either before processing, or after it has been added to
the case, select the evidence item in the list, then click Remove.
90 AccessData FTK 3.0 User Guide
1. Click Add to choose the type of evidence items to add into a new case.
Note: Evidence taken from any physical source that is removable, whether it is a “live” drive or
an image, will become inaccessible to the case if the drive letters change or the evidence-
bearing source is moved. Instead, create a disk image of this drive, save it either locally, or
to the drive you specified during installation, then add the disk image to the case.
Otherwise, be sure the drive will be available whenever working on the case.
2. Mark the type of evidence to add, then click OK.
3. Browse to and select the evidence item from the stored location.
4. Click OK.
Note: Folders and files not contained in an image when added to the case will be imaged in
the AD1 format and stored in the case folder. If you select AD1 as the image type, you
can add these without creating an image from the data.
4a. (Optional) Click the Browse button at the end of the Path field to browse
to another path.
5. Fill in the ID/Name field with any specific ID or Name data applied to this evidence
for this case.
6. Use the Description field to enter an optional description of the evidence being
added.
7. Select the Time Zone of the evidence where it was seized in the Time Zone field.
This is required to save the added evidence.
After selecting an Evidence Type, and browsing to and selecting the evidence item,
the selected evidence displays under Display Name. The Status column shows a plus
(+) symbol to indicate that the file is being added to the case.
8. Click Refinement Options to open the Refinement Options dialog with a set similar to
the Refinement Options set at case creation. Refinement Options are much the
same as Detailed Options. For this reason, only the main Refinement Options
Chapter 6 Adding and Processing Static Evidence 91
screen is included here. For more extensive information, see“Chapter 5 Starting a
New FTK 3.0 Case” on page 53.
Figure 6-2 Refinement Options for Adding Evidence After Case Creation
The sections available are:
• Evidence Processing
• Evidence Refinement (Advanced)
• Index Refinement (Advanced)
For more information on Evidence Processing options, see “Selecting Evidence
Processing Options” on page 58.
For more information on Evidence Refinement (Advanced) options, see “Selecting
Evidence Refinement (Advanced) Options” on page 74.
For more information on Index Refinement (Advanced), see “Selecting Index
Refinement (Advanced) Options” on page 78.
9. Click OK to accept the settings and to exit the Manage Evidence dialog.
10. Select the KFF Options button to display the KFF Admin dialog.
92 AccessData FTK 3.0 User Guide
Note: The AD Alert and the AD Ignore Groups are selected by default.
See “Using the Known File Filter” on page 211 for detailed information about the
KFF.
11. Click Done to accept settings and return to the Manage Evidence dialog.
12. Click Language Settings to select the codepage for the language to be used for viewing
the evidence. More detail is given in the following section.
13. Click OK to add and process the evidence.
SELECTING A LANGUAGE
If you are working with a case including evidence in another language, or you are
working with a different language OS, click Language Settings from the Manage Evidence
dialog.
Figure 6-3 Select a Language CodePage Setting
The Language Setting dialog appears, allowing you to select a code page from a drop-
down list. When the setting is made, click OK.
Chapter 6 Adding and Processing Static Evidence 93
ADDITIONAL ANALYSIS
After evidence has been added to a case and processed, you may wish to perform other
analysis tasks. To further analyze selected evidence, click Evidence > Additional Analysis.
The following figure represents the Additional Analysis dialog.
Figure 6-4 Additional Analysis Dialog
Most of the tasks available during the initial evidence processing remain available with
Additional Analysis. Specific items can also be targeted. Multiple processing tasks can
be performed at the same time.
94 AccessData FTK 3.0 User Guide
Make your selections based on the information in the table below. Click OK when you
are ready to continue.
TABLE 6-1 Additional Analysis Options
Field Description
File Hashes These options create file hashes for the evidence. The Options are:
•MD5 Hash: This hash option creates a digital fingerprint based on the
contents of the file. This fingerprint can be used to verify file integrity
and to identify duplicate files (“Message Digest 5” on page 337).
•SHA-1 Hash: This hash option creates a digital fingerprint based on
the contents of the file. This fingerprint can be used to verify file
integrity and to identify duplicate files (see “Secure Hash Algorithm”
on page 340).
•SHA-256: This hash option creates a digital fingerprint based on the
contents of the file. This fingerprint can be used to verify file integrity
and to identify duplicate files (see “Secure Hash Algorithm” on
page 340).
•Fuzzy Hash: Mark to enable Fuzzy Hash options, described below.
For more information on Fuzzy Hashes, see “Fuzzy Hashing” on
page 63.
•Flag Duplicates: Mark to flag duplicate files. This applies to all files in
the case, regardless of the Target Items selected
Note: A blank hash field appears for unallocated space files, the same as if the files
had not been hashed at all. To notate in the hash field the reason for it being blank
would slow the processing of the evidence into the case.
Search Indexes Choose dtSearch® Index to create a dtSearch index that enables index
searches. Marking dtSearch Index activates the Entropy Test check box.
Note: Select Entropy Test to exclude compressed or encrypted items from the
index.
Field Mode Choose to do File Signature Analysis, which is not normally done in Field
Mode.
Note: The Job Processing screen will always show 0 for Queued when Field Mode
is enabled, because items move directly from Active Tasks to Completed.
Note: In addition to disabling Detailed Options, Field Mode bypasses file signature
analysis and the Oracle database communication queue. These things vastly speed
the processing.
KFF KFF: Filters targeted files in the KFF. Select KFF to filter targeted files in
the KFF. When KFF is selected, the user can select to Recheck previously
processed items when searching for new information, or when a KFF
group is added or changed.
Chapter 6 Adding and Processing Static Evidence 95
Fuzzy Hashing Choose either Fuzzy Hash, or both Fuzzy Hash and Match Fuzzy Hash
Library; marking Fuzzy Hash activates Match Fuzzy Hash Library.
Click Fuzzy Hash Options to select Fuzzy Hash groups, and specify file
limitations for matching. For more information on Fuzzy Hashes, see
“Fuzzy Hashing” on page 63.
Carving Choose to run the MetaCarve process, and if you also choose Expand
Compound Files under Miscellany, you can also choose to run Data
Carving, and select which Carving Options to use.
Target Items Select the items on which to perform the additional analysis. Highlighted,
and Checked items will be unavailable if no items in the case are
highlighted or checked. The following list shows the available options:
•Highlighted Items: Performs the additional analysis on the items
highlighted in the File List pane when you select Additional
Analysis.
•Checked Items: Performs the additional analysis on the checked evi-
dence items in the File List pane when you select Additional Analysis.
•Currently Listed Items: Performs the additional analysis on all the
evidence items currently listed in the File List pane when you select
Additional Analysis.
•All Items: Performs the additional analysis on all evidence items in the
case.
Miscellany •Expand Compound Files (Email, OLE, Zip, etc.): expands and
indexes files that contain other files.
•Generate Thumbnails: Generates thumbnails for graphic files found
in the evidence. Thumbnails are always .JPG format, regardless of the
original graphic format.
•Flag Bad Extensions: Flags files that have extensions that do not
match the file headers.
•HTML File Listing: Generate a list of files contained in the case, in
HTML format.
•Explicit Material Identification: Enables EMI Options button.
EMI license is purchased separately. This item will be disabled unless
the license is detected on your CmStick.
•Registry Reports: Enables Registry Summary Reports (RSRs) to be
used directly from Registry Viewer if it is installed. Specify the loca-
tion of any RSR templates you have saved or downloaded from the
AccessData website.
TABLE 6-1 Additional Analysis Options
Field Description
96 AccessData FTK 3.0 User Guide
HASHING
Hashing a file refers to the process of generating a unique value based on a file’s
contents. Use hash values to verify file integrity and to identify duplicate files as well as
“known” files
Known files include standard system and program files that can be flagged as
“ignorable”, as well as known illicit or dangerous files for which program alerts call the
attention of the investigator if found in the case. More details are given in the table
above. The following figure shows the hash values for files in the File List view.
Figure 6-5 File List View Showing the Hashes Column
Typically, you hash individual files to compare the results with a known database of
hashes, such as the KFF Library. However, you can also hash multiple files or a disk
image to verify that the working copy remains identical to the original.
You can also use hashes to eleiminate data from your case, once you identify files not
interesting, or pertinent, to the case. Export the hash list for those files and add them to
your KFF, then reprocess the case. Despite the time required, this technique proves
highly effective when necessary.
Chapter 6 Adding and Processing Static Evidence 97
DATA CARVING
AccessData FTK has the ability to carve data. Data carving is the process of locating
files and objects that have been deleted or that are embedded in other files.
Because embedded items and deleted files can contain information that may be helpful
in forensic investigations, FTK simplifies the process of recovering these items and
adding them to the case.
The data carving feature allows the recovery of previously deleted files located in
unallocated space. Users can also carve directory entries to find information about data
or metadata.
Note: You can manually carve for any file type for which you have the correct header/footer/
file length information, then save that file and add it to the case.
To recover embedded or deleted files, FTK searches the case evidence for specific file
headers. Using the data from a file header for a recognized file type, FTK determines
the length of that file, or looks for the file footer, and “carves” the associated data, then
saves it as a distinct file. A child object is created with a name reflecting the type of
object carved and its offset into the parent object’s data stream. FTKcan find any
embedded or deleted item as long as the file header still exists.
Data carving can be done when adding evidence to a case, or by clicking Evidence >
Additional Analysis > Data Carve from within a case. You can search all items for the
following file types:
You can set additional options to refine the data carving process for the selected file
types.
DATA CARVING FILES WHEN PROCESSING A NEW CASE
Choose to data carve when a case is created by following theses steps:
TABLE 6-2 Recognized File Types for Data Carving
•AOL Bag Files •LNK Files
•BMP Files •OLE Archive Files (Office Documents)
•EMF Files •PDF Files
•GIF Files •PDF Files
•HTML Files •PNG Files
•JPEG Files
98 AccessData FTK 3.0 User Guide
1. Selecting Data Carve in CaseManager
Click Case > New > Detailed Options.
2. In the Evidence Processing dialog select Expand Compound Files to enable Data Carve.
3. Click Data Carve.
4. Click Carving Options.
5. Mark the file types to carve.
6. Click OK.
For more information, see “Selecting Evidence Processing Options” on page 58.
DATA CARVING FILES IN AN EXISTING CASE
Data carving can be performed on previously processed data.
To data carve files in an existing case:
1. From the Evidence > Additional Analysis.
2. In the Evidence Processing dialog select Expand Compound Files to enable Data Carve.
3. Check Data Carve.
4. Click Carving Options.
5. Set the data carving options to use.
6. Click OK to close the Carving Options dialog.
7. Select the target items to carve data from.
8. Click OK.
The carved objects and files are automatically added to the case, and can be searched,
bookmarked, and organized along with the existing files. For more information, see
“Chapter 8 Using Tabs to Explore & Refine Evidence” on page 129.
THE FTK USER INTERFACE
The FTK user interface is comprised of several components. There is a Menu Bar, a
ToolBar, UI Tabs, and various panes. The user interface has many customizable
features. For example, Tab views can be customized, to suit your needs. For more
information on customizing the FTK3.0 user interface, see “Chapter 13 Customizing
the FTK Interface” on page 263.
Chapter 6 Adding and Processing Static Evidence 99
FTK MENUS AND TOOLBARS
The FTK user interface is comprised of several components. Common throughout the
interface is a Menu Bar, a Toolbar and a Tab bar. Wherever a File List pane is found,
there is also a File List ToolBar. These elements are discussed in this section.
MENU BAR COMPONENTS
When a case is created and assigned a user, the FTK Case window opens with the
following menus:
TABLE 6-3 FTK 3.0 Menu Bar Items
The following tables show the available options from the FTK 3.0 user interface
window menus. Details on some items are found below the table in which they are
introduced.
•File •Filter
•Edit •Tools
•View •Help
•Evidence
100 AccessData FTK 3.0 User Guide
FILE MENU OPTIONS
TABLE 6-4 FTK3.0 File Menu
Option Description
Export Exports selected files and associated evidence to a designated folder.
Export to Image Exports one or more files as AD1 files to a storage desination.
Export File List Info Exports selected file information to files formatted as the Column
List in .csv, .tsv, and .txt formats.
Export Word List Exports the index as a text file from which a dictionary for PRTK can
be created.
Report Opens the Report Options window for creating a case report.
Volatile Data Report Opens a report of the Volatile Data that has been collected in this
case.
Close Closes the FTK Window and returns to the Case Management
window.
Exit Closes both theFTK and Case Management windows.
EXPORT FILE LIST INFO
The Export File List Info dialog, as displayed in the following figure, provides the copy
special options with the ability to save the information to a file. This file can be saved in
.tsv, .txt, or .csv format. Text files of this sort are .txt files that displayed in a text editor
program like Notepad. Files saved in .tsv or .csv display in the default spreadsheet
program.
Chapter 6 Adding and Processing Static Evidence 101
Figure 6-6 Export File List Info Dialog
To export a list containing column headings and other information from the File List
perform the following steps:
1. Select File > Export File List Info, or click Export File List on the File List pane, or
right-click on a file in the File List pane and select Export File List Info.
2. Select the File List Items to Export. Choose from All Highlighted, All Checked, All
Listed, or All,
3. Choose whether to include a header row in the exported file.
4. From the Choose Columns dropdown, select the column template to use.
Click Column Settings to customize a column template to use for this export.
5. Specify the filename for the exported information.
6. Choose a file type for the exported file.
7. Browse to and select the destination folder for the exported file.
8. Click Save.
102 AccessData FTK 3.0 User Guide
EXPORTING FILES
FTK allows the export of files found in the investigation. Files can be exported for
additional processing or for distribution to other parties. For example, encrypted files
can be exported to decrypt using Password Recovery Toolkit (PRTK). Similarly, registry
files can be exported to analyze them using the Registry Viewer. (Neither PRTK nor
Registry Viewer can read files within a drive image.) The following figure represents the
Export dialog.
Figure 6-7 Export Dialog
To export files do the following:
1. Click File > Export, or right click on a file in the File List pane and choose Export.
2. Select the export options you want from the Export dialog based on the table below.
TABLE 6-5 Export Files Dialog Options
Option Description
Append Item number to Filename Appends the FTK unique File ID to a filename.
Append extension to filename if
bad/absent
Adds the extension to a filename if it is bad or missing,
based on the file’s header information.
Expand containers (email archives,
email attachments, etc.)
Expands container-type files and exports their
contents.
Chapter 6 Adding and Processing Static Evidence 103
3. Select the Items to Include based on the following table:
TABLE 6-6 Export Files Selection Options
Target Item Description
All Checked All items checked in all file lists. You can check files in
multiple lists.
All Listed All items in the current file list.
All Highlighted All items highlighted in the current file list. Items
remain highlighted only as long as the same tab is
displayed.
All All items in the case.
Each item displays its filename and path.
4. In the Destination Path field, browse to and select the export file location.
The default path is [Drive}:\case_folder\Report\Export\.
5. Click OK to begin the export.
EXPORTING TO IMAGE
You can export selected files to an AccessData Custom Content Image (.AD1). To do
so, follow these steps:
Save HTML view (if available) If a file can be exported and saved in HTML format, it
will be done.
Export emails as MSG Exports emails to MSG format for broader
compatibility.
Export directory as file Creates a file containing the binary data of the directory
being exported.
Export children Exports all child files of a parent folder.
Include original path Includes the full path from the root to the file;
maintains folder structure for exported files.
Export slack space as files Exports slack space from files and saves it as files for
easier viewing.
TABLE 6-5 Export Files Dialog Options
Option Description
104 AccessData FTK 3.0 User Guide
1. Click File > Export to Image.
2. Select the Image Source for your AD1 file.
3. Click OK.
4. In the Create Image Dialog, click Add. This brings up the Select Image Destination
dialog.
5. Verify the Image Source.
6. Specify the Image destination. This opens a new dialog box, Select Image
Destination.
Chapter 6 Adding and Processing Static Evidence 105
6a. Specify Evidence Item information:
6b. Case Number
6c. Evidence Number
6d. Unique Description
6e. Examiner
6f. Notes
6g. Select the Image Destination Type. Default is AD1.
6h. Specify the Image Destination.
6i. Image can be saved locally or remotely.
6j. Specify the path for the image on the target machine.
106 AccessData FTK 3.0 User Guide
6k. If the file will be saved remotely, specify the Domain and Username required to
access that machine.
6l. Specify the password of the user on the remote machine
6m. Specify a filename for the image, but do not include an extension.
6n. Specify the Image Fragment Size in MB. RAW and E01 format file types can be
saved in a single segment by specifying 0 in the Image Fragment Size box.
6o. Specify the compression level to use.
6p. Click OK to close this dialog and return to the Create Image dialog.
7. Choose whether to Verify Images after they are created.
8. Choose whether to Precalculate progress statistics. This gives you an estimate of the
progress of the task as it is running.
9. Choose whether to Add image to case when completed.
10. Specify the Time Zone of the evidence.
11. When you are satisfied that the information you have provided is accurate, click OK.
12. Select the processing options you wantSpecify the Time Zone of the evidene.
13. Click Start to begin the image creation, or click Cancel to return to the main FTK
3.0 user interface window.
EXPORTING THE WORD LIST
The contents of the case index can be exported to use as the basis for a custom
dictionary to aid in the password recovery process.
Important: You must have indexed the case to export the word list. If you
have not done so, click Evidence > Additional Analysis. In the Additional
Analysis dialog, under Search Indexes, mark the dtSearch Index check box,
then click OK.
When the index is complete, you can export the word list by doing the following:
Chapter 6 Adding and Processing Static Evidence 107
1. Select File > Export Word List.
2. Select the Registry Keys to export to the word list.
3. Click Export.
4. Select the filename and location for the exported word list. Click Browse Folders to
select the folder location for the wordlist file.
The default filename is Ftk2WordList.txt. If you intend to use the wordlist as the
basis for a custom dictionary in DNA or PRTK, it is a good idea to name the
wordlist by the casename. For example, ADEE3.0_PreciousWordList.txt
5. Click Save.
EDIT MENU OPTIONS
TABLE 6-7 FTK 3.0 Edit Menu
Option Description
Copy Special Duplicates information about the object copied as well as the object
itself, and places the copy in the clipboard.
COPYING INFORMATION FROM FTK
The Copy Special dialog allows you to copy information about the files in your case to
the clipboard. The file information can include any or all column items, such as
filename, file path, file category and so forth. The data is copied in a tab-delimited
format.
To copy file information perform the following steps:
1. In the File List on any tab, select the files that you want to copy information about.
108 AccessData FTK 3.0 User Guide
2. Select Edit > Copy Special, click the Copy Special button on the file list pane, or right-
click the file in the file list and click Copy Special.
3. In the Copy Special dialog, select from the options based on the following table:
TABLE 6-8 Copy Special Dialog Options
Choose Columns From the drop-down, select the column template to use, or click
Column Settings to create a custom template.
Include header row Mark box to include a header row that uses the column headings you
selected. Leave box empty to export the data with no header row.
All Highlighted All items highlighted in the current file list.
All Checked All items checked in all file lists. You can check files in multiple lists.
Checked items remain checked until you uncheck them.
Currently Listed All items in the current file list.
All All items in the case.
4. In the Choose Columns drop-down list, select the column template that contains the
file information that you want to copy.
5. To define a new column settings template click Column Settings to open the Column
Settings manager.
5a. Create the column settings template you need.
Item Description
Note: Items remain highlighted only as long as the same tab is displayed.
Note: Selecting All Items can create a very large TSV or .CSV file, and can
exceed the 10,000 item capacity of the clipboard.
Chapter 6 Adding and Processing Static Evidence 109
5b. Click Save to save the changes.
5c. Close the Column Settings manager.
5d. Select the new columns setting template from the drop-down list.
For more information about Column Settings, see “Creating and Modifying Column
Settings” on page 268.
6. Click OK to initiate the Copy Special task.
110 AccessData FTK 3.0 User Guide
VIEW MENU OPTIONS
TABLE 6-9 FTK 3.0 View Menu
Option Description
Refresh Reloads the current view.
Filter Bar Inserts the filter toolbar into the current tab. These features are
available also from the Filter menu.
Timezone Display Opens the Time Zone Display dialog.
Thumbnail Size Selects the size of the thumbnails displayed from the Graphics tab.
Select from:
•Large-default
•Medium
•Small
•Tiny
Tab Layout Manages tab settings: the user can lock an existing setting, add and
remove settings, save settings one tab at a time or all at once. The
user can also restore previous settings. or reset them to the default
settings. These options are in the following list:
•Lock
•Add
•Remove
•Save
•Save All Layouts
•Restore
•Reset to Default
FIle List Columns Specifies how to treat the current File List Options are:
•Save As Default
•SaveAll as Default
•Reset to Factory Default
•Reset All To Factory Default
File Content Tabs
Switching
Specifies the behavior of file content when a different tab is
selected. Options are:
•Auto •Manual
Explore Tree Displays the Explore Tree in the upper-left pane.
Graphics Tree Displays the Graphics Tree in the upper-left pane.
Overview Tree Displays the Overview Tree in the upper-left pane.
Email Tree Displays the Email Tree in the upper-left pane.
Bookmark Tree Displays the Bookmark pane in the upper-left pane.
Indexed Searches Displays the Index Search Results pane in the upper-left pane.
Live Searches Displays the Live Search Results pane in the upper-left pane.
Bookmark Information Adds the Bookmark Information pane into the current tab.
Chapter 6 Adding and Processing Static Evidence 111
The tree and search views are exclusive settings, meaning that you can use only one tree
view per tab pane, and only one search view per tab pane.
File List Adds the File List pane into the current tab.
File Content Adds the File Content pane into the current tab.
Email Attachments Displays the attachments to email object found in the case.
Available only in the Email and Overview tabs.
Properties Inserts the Object Properties pane into the current tab view.
Hex Value Interpreter Displays a pane that provides an interpretation of Hex values
selected from the Hex View pane.
Thumbnails Displays a pane containing thumbnails of all graphics found in the
case.
Progress Window Opens the Progress dialog, from which you can monitor tasks
and/or cancel them.
TABLE 6-9 FTK 3.0 View Menu
Option Description
112 AccessData FTK 3.0 User Guide
EVIDENCE MENU OPTIONS
TABLE 6-10 FTK 3.0 Evidence Menu
Option Description
Add/Remove Opens the Manage Evidence dialog, used to add and remove
evidence.
Add Remote Data Opens the Add Remote Data dialog from which you can remotely
access volatile, memory, and/pr drive data and add it to the case.
Import Memory Dump Opens the Import Memory Dump File dialog wihch allows you to
select memory dumps from other case files or remote data
acquisitions, and import them into the current case.
Additional Analysis Opens the Additional Analysis dialog with many of the same
processing options available when the evidence was added. Allows
the user to reprocess using options not selected the previous time.
FILTER MENU OPTIONS
TABLE 6-11 FTK 3.0 Filter Menu
Option Description
New Opens the Filter Definition dialog to define a filter. This feature is
also available from the Filter toolbar.
Duplicate Duplicates a selected filter. This feature is also available from the
Filter toolbar.
Delete Deletes a selected filter. This feature is also available from the Filter
toolbar.
On Applies the global filter to the application. The File List changes
color to indicate that the filter is applied. This feature is also
available from the Filter toolbar.
Import Opens the system file manager allowing the user to import a pre-
existing filter. This feature is also available from the Filter toolbar.
Export Opens the System File Manager allowing the user to save a filter.
This feature is also available from the Filter toolbar.
Tab Filter Allows the selection of a filter to apply in the current tab.
Note: The name of the filter cannot have any special or invalid characters
or the export will not work.
Chapter 6 Adding and Processing Static Evidence 113
TOOLS MENU OTIONS
TABLE 6-12 FTK 3.0 Tools Menu
Option Description
KFF Known File Filter (KFF) sets and groups can be managed,
archived, and cleared. The following menu option is available:
Fuzzy Hash Options are:
Decrypt Files Decrypts EFS and Microsoft Office files passwords that match
those added to the password list.
Credant Decryption Opens the tools for Credant* decryption. Credant is a third party
encryption tool that encrypts files, folders, partitions, or entire
disks.
Verify Image Integrity Generates hash values of the disk image file for comparison.
Disk Viewer Opens a viewer that allows you to see and search evidence items.
Other Applications Opens other AccessData tools to complement the investigational
analysis:
Unmount Agent Allows you to unmount an agent from a remote machine
Final Carve Processing
Execute SQL Provides the ability to execute an SQL script from within FTK.
Launch ‘oradjuster.exe’ Launches the OrAdjuster utility to optimize memory use for
Oracle.
VERIFYING DRIVE IMAGE INTEGRITY
A drive image can be altered or corrupted due to bad media, bad connectivity during
image creation, or by deliberate tampering. This feature works with file types that store
the hash within the drive image itself, such as EnCase andSMART images.
To verify an evidence image’s integrity, FTK generates a hash of the current file and
allows you to compare that to the hash of the originally acquired drive image.
To verify that a drive image has not changed, do the following steps:
•Manage: Opens the KFF Admin dialog.
•Find Similar Files •Manage Fuzzy Hash Library
•Imager
•PRTK
•Registry Viewer
•LicenseManager
•Language Selector
114 AccessData FTK 3.0 User Guide
1. Select Tools > Verify Image Integrity to open the Verify Image Integrity dialog.
In case the image file does not contain a stored hash, FTK can calculate one. The
Verify Image Integrity dialog provides the following information:
TABLE 6-13 Verify Image Integrity
Column Description
Image Name Displays the filename of the evidence image to be verified.
Path Displays the path to the location of the evidence image file.
Command Click Verify to begin hashing the evidence image file.
2. Click either Calculate, or Verify according to what displays in the Command column,
to begin hashing the evidence file.
The Progress Dialog appears and displays the status of the verification. If the image file
has a stored hash, when the verification is complete, the dialog shows and compares
Chapter 6 Adding and Processing Static Evidence 115
both hashes. Completing the processes may take some time, depending on the size of
the evidence, the processor type, and the amount of available RAM.
HELP MENU OPTIONS
TABLE 6-14 FTK3.0 Help Menu
Option Description
User Guide Provides a link to the FTK 3.0 User Guide.
About Provides information about the current FTK release.
TOOLBAR COMPONENTS
The FTK interface provides a toolbar for applying QuickPicks and filters to the case.
The following section lists the toolbars and their components.
Figure 6-8 FTK Filter Toolbar
The following table shows the available components of the toolbar.
TABLE 6-15 Toolbar Components
Component Description
Turns the selected filter on or off. Filtered data is shown in a
colored pane to indicate that it is filtered.
Applies the selected filter. A drop-down menu lists defined
filters.
Opens the filter definition dialogue to define the rules of the
current filter, or allows the creation of a new one.
Deletes the selected filter
Creates a new filter
116 AccessData FTK 3.0 User Guide
QUICKPICKS FILTER
The QuickPicks feature is a type of filter that allows the selection of multiple folders
and files in order to focus analysis on specific content. The following figure represents
the Explore Evidence Items tree with a partially selected set of folders and sub-folders
using the QuickPicks feature.
Creates a copy of the selected filter
Imports the selected filter from an XML file
Exports the selected filter to an XML file
Turns Quick Picks On or Off. The white background and
blue border indicates QuickPicks is On. The gray
background and lack of a border indicates QuickPicks is Off.
Locks the movable panes in the application, making them
immovable. When the lock is applied, the blue box turns
grey.
Final Carve Processing processes the data that you have
selected and saved to files, and adds them to the case.
TABLE 6-15 Toolbar Components
Component Description
Chapter 6 Adding and Processing Static Evidence 117
Figure 6-9 QuickPicks Filter Folder Selection
The QuickPicks filter simultaneously displays open and closed descendent containers
of all selected tree branches in the File List at once. The colors of the compound icons
indicate whether descendents are selected.
The icons are a combination of an arrow, representing the current tree level, and a
folder, representing any descendent.
In the illustration above, the decendent folder 10-1 Graphics is unselected. Its arrow
icon is white.
TABLE 6-16 QuickPicks Icons
Icon Description
A dark green arrow behind a bright green folder means all descendents
are selected.
a dark green arrow behind a yellow folder means that although the
folder itself is not selected, some of its descendents are selected.
a white arrow with no folder means neither that folder, nor any of its
descendents is selected.
A white arrow behind a bright green folder means tht all descendents
are selected, but the folder is not.
118 AccessData FTK 3.0 User Guide
The folder icons for the folders above item “10-1 Graphics” are yellow to indicate that
not all descendent folders are selected. The top-most level item “Evidence” has a white
arrow icon, indicating that it is not selected, and a yellow folder icon, indicating that
some of its descendent folders are not selected.
The folder icon for “DT Search Stuff ” is green, indicating that all contents of the folder
have been selected.
When QuickPicks is turned off, the tree view displays as shown in the figure below:
Figure 6-10 Evidence Items List with QuickPicks Off
FILE LIST PANE
The File List pane lists the files available in the current tabbed view. In this pane the
user can choose which columns to display, as well as the order of those columns, create
bookmarks, create labels, copy or export file lists. The File List pane is displayed by
default in all default tabs.
When viewing data in the File List, use the type-down control feature to locate specific
files. When the list is sorted by name, select an item in the list, then type the first letter
of the desired file. FTK will move down the list to the first file beginning with that
letter. The more letters you type, the closer the match will be to the file you are looking
for.
For more information, see “Customizing File List Columns” on page 268.
Chapter 6 Adding and Processing Static Evidence 119
FILE LIST TOOLBAR
The File List pane includes a toolbar containing these buttons for managing the File
List::
TABLE 6-17 File List Toolbar
Component Description
Checks all of the files in the current list.
Unchecks all of the files in the current list.
Unchecks all of the files in the current case.
Opens Create New Bookmark dialog box.
Opens Manage Labels dialog box.
Opens Copy Special dialog box.
Opens the Export File List, allowing the user to save
selected files to another folder..
Opens the Column Settings dialog box.
Sets the displayed columns to a specific set from the
following list
•Normal (Default)
•Email
•File Listing
•Normal (default)
•Reports: File Path Section
•Reports: Standard
Displays the selected time zone from the local machine.
120 AccessData FTK 3.0 User Guide
USING TABS
The FTK2.x user interface is organized into tabbed pages to make organization and
navigation easier. For a detailed description of the FTK 3 tabbed pages, see “Chapter
8 Using Tabs to Explore & Refine Evidence” on page 129.
Leave query running when switching tabs (May affect
performance of other tabs).
Cancel retreiving row data. This is not a pause button. To
retreive row data after clicking Cancel, you must begin again.
There is no way to pause and restart the retreival of row
data.
Indicates processing activity.
TABLE 6-17 File List Toolbar
Component Description
Chapter 7 Adding and Processing Remote Live Evidence 121
Chapter 7 Adding and
Processing Remote Live Evidence
You can add more types of evidence to an FTK case than you could in the past. FTK
can utilize various types of static images, such as .00l, .E01, .S01, and .AD1. In addition,
FTK can now acquire remote live evidence from network comptuers. Adding and using
remote evidence is covered in this chapter. For more information regarding adding
static evidence to a case, see “Chapter 6 Adding and Processing Static Evidence” on
page 87.
ACQUIRING AND PRESERVING REMOTE EVIDENCE
Using FTK Imager, you can create a static forensic image of evidence from a “live”
machine when you must. It is important to be aware of the data compromises you will
face in such a situation, such as file stamps being inaccurate, or data changing while the
image is being collected; however sometimes there is no other choice. One such
example is when the suspect drive is encrypted and you must acquire the image in-place
while the machine is running. Another example is when imaging a RAID array; it must
be live to be properly acquired.
FTK 3 can now acquire live evidence remotely from Agent machines on the network.
You can specify by IP address which machine to acquire data from, and you can choose
to acquire data from Physical Drives, Logical Drives, or Memory (RAM) for Analysis.
You can acquire remote data from only one machine at a time.
The installation of this feature is discussed in-depth in the installation chapter. The use
of it is explained here.Types of Remote Information
122 AccessData FTK 3.0 User Guide
FTK ROLE REQUIREMENTS
To use Remote Data Acquisition in FTK 3, meet the following requirements:
• FTK 3 must be installed using a current license.
• You must have the Application Administrator or Case Administrator role to be
able to access the Add Remote Evidence dialog.
• You must have Administrator rights on the remote machine you wish to acquire
data from.
• You must have an FTK Agent. on the target computer.
ACQUIRING DATA REMOTELY
Remote Data Acquisition is accomplished through a new feature called Remote Disk
Management System (RDMS). RDMS gives examiners the ability to acquire a forensic
image of the physical or logical drive(s), acquire a non-proprietary image of memory ,
and forensically mount the physical devices or logical volumes on the examiners
machine from a single live system. SSL is used to ensure communication between the
agent and examiner is protected using either a self signed certificate or one signed by a
Certificate Authority (CA).
Because FTK’s ability to acquire data remotely is so tightly integrated with RDMS, the
two are covered here together. Thus the differentiation between the two features may
be vague. For a more specific discussion of the RDMS, see the RDMS Quick Start
Guide.
To acquire remote live data in FTK, you can use an existing Agent, such as from FTK,
on the remote machine. If no Agent exists on the remote machine, a Temporary Agent
can be “pushed” to the remote machine, or you can manually install an agent using self-
signed certificates, or certificates signed by a Certificate Authority (CA). To push a
Temporary Agent, do the following:
Chapter 7 Adding and Processing Remote Live Evidence 123
1. From the Case UI, click Evidence > Add Remote Data.
2. Enter the IP Address of the Remote Machine.
3. Ensure that a port is designated. The default port is 3999. Use this port unless it is
already in use and produces an error or conflict. If there is a conflict, select another
port that is not in use.
4. Choose Install a Temporary Agent,
5. Click OK.
PROVIDE CREDENTIALS
When Install Temporary Agent is selected, the Credentials dialog opens. The
Credentials dialog stores a list of all the sets of credentials to try when connecting to a
remote machine.
124 AccessData FTK 3.0 User Guide
1. In the Credentials dialog, enter the credentials required to authenticate to the remote
machine:
1a. Enter the Domain name, if the network uses a Domain Controller. If installing
in a workgroup, or non-domain network, enter the IP address of the workgroup
machine, or the local host name using the syntax: [machinename\username].
1b. Enter the Username, that is, the name assigned to the user account having
Admin rights on the remote computer.
1c. Password of the user account name given above.
1d. Confirm the password.
1e. Click Add to add this set of credentials to the list in the box.
1f. Click Add to create additional sets of credentials.
OR
Click Remove to remove a set of credentials from the list.
1g. Click OK.
Note: On XP systems, Simple File Sharing must be turned off for Temporary Agent
deployment.
2. In the Remote Data dialog, select which type(s) of data to acquire. There are three
options, each has its own dialog with options and requirements.Options are:
Chapter 7 Adding and Processing Remote Live Evidence 125
• Image Drives: Creates an E01 image of the selected drive. You are given a list of
the drives on the remote system. This list includes the Drive, all Partitions, and
other devices, such as memory cards that are connected. There is no drive
preview available. Output is to .E01, using only default options.
Note: This options consumes a large amount of bandwidth, and is slow.
• Acquire RAM: Allows you to acquire the memory contents from the target
machine. RAM data is viewable from the Volatile tab in FTK. You will be
prompted for a filename to save the RAM data to. You specify the base name
and FTK provides the extension.
Note: Mark Page File to also acquire the data in page files on the remote computer. This
is the only way you will see the contents of the page file.
• Mount device: Mounts and connects to a device on the remote computer. You
can then map to that device, and browse the contents in Windows Explorer.
You are given a list of remote devices to map to. For the selected item on the
left, the available information about that device is displayed on the right. While
this is live data, it reads from the disk, not from the cache. This means that if
there is activity on the screen while you are viewing the mounted device data,
you will not see it.
2a. Make your selections from any or all of the Remote Data options during your
session.
2b. Click OK
3. The Remote Data acquisition job begins and the Data Processing Status window
opens. Acquire Remote Data jobs are displayed under Other Jobs.
Once you disconnect from the remote system, the Agent stays “alive” for
approximately five minutes before self-deleting. In addition, if you do not disconnect
from the remote system, the Agent will complete its assigned tasks and when there are
no running tasks, it will also self-delete after about five minutes. To avoid waiting for
the FTKAgent to expire, kill the FTKAgent in Task Manager on the Target machine.
Once disconnected, you must push the agent again to establish a new connection and
acquire additional data, or follow the directions that follow to create a Manual
126 AccessData FTK 3.0 User Guide
Deployment with either a self-signed certificate, or one from a Certificate Authority
(CA).
REMOTE DISK MANAGEMENT SYSTEM (RDMS) ADDITIONAL
INFORMATION
In FTK 3.0 AccessData offers a new feature called Remote Disk Management System
(RDMS). It gives examiners the ability to acquire a forensic image of the physical or
logical drive(s), acquire a non-proprietary image of memory , and forensically mount
the physical devices or logical volumes on the examiners machine from a single live
system. SSL is used to ensure communication between the agent and examiner is
protected using either a self signed certificate or one signed by a Certificate Authority
(CA).
RDMS REQUIREMENTS FOR MANUAL DEPLOYMENT
• FTK 3 installed with a license
• Either a self signed certificate or a CA signed certificate if you want to want to use
the manual deployment on a thumb drive.
• FTK agent
• Admin privileges on the target node
• Network connectivity to the target node
UTILIZING THE AGENT
There are two different agent deployment methods:
• Auto Deployment: Using the one time agent where FTK deploys the agent with a
onetime certificate. This method was discussed in the previous Add Remote Data
discussion.
• Manual Deployment: Using the agent binary (FTKagent.exe) and pre-created
certificate running on the target machine.
Assuming FTK 3 is installed and you want be able to leverage both the manual and
automatic agent deployment methods, complete the following:
Note: You only need to create one cert of keys
1. Create the certificates. The certman utility, which ships with FTK 3, can create a
self-signed certificate or the certificates needed for an existing self signed certificate.
Chapter 7 Adding and Processing Remote Live Evidence 127
2. Create a new folder on your examiner machine for example C:\Agent (it can be
called anything).
3. Copy the certman utility from C:\Program Files\AccessData\Forensic
Toolkit\3.0\bin to the C:\Agent
4. Copy the FTKagent.exe from C:\Program Files\AccessData\Forensic
Toolkit\3.0\bin to the C:\Agent
5. Create the certificates to be used during manual deployment.
To create a self signed certificate, do the following:
1. Open a command box and tyep the following command line:
Certman –n [name of issuer] [base name of cert]
Example:
Certman -n DellComputer.domainname.com InvestigatorCert
Which generates the following certificates:
InvestigatorCert.crt <public>
InvestigatorCert.p12 <private>
128 AccessData FTK 3.0 User Guide
Chapter 8 Using Tabs to Explore & Refine Evidence 129
Chapter 8 Using Tabs to Explore
& Refine Evidence
Changing tabs helps the investigation team to explore and refine evidence. The
following sections look at each of the tabs in more detail.
USING TABS TO EXPLORE AND REFINE EVIDENCE
The FTK interface contains nine main tabs and there may be other optional tabs if
their correlating product is installed, each with a specific focus. Most tabs also contain a
common toolbar and file list with customizable columns.
Changing tabs helps the investigator to explore and refine evidence. The following lists
the nine default tabs of FTK.
TABLE 8-1 FTK UI Main Tabs
The following pages contain more details for each tab. You can also create additional,
customized tabs to meet your needs.
•Explore Tab •Live Search Tab
•Overview Tab •Index Search Tab
•Email Tab •Volatile Tab
•Graphics Tab •Sawmill Tab (When installed)
•Bookmarks Tab •Mobile Phone Examiner (When installed)
130 AccessData FTK 3.0 User Guide
EXPLORE TAB
The Explore tab displays all the contents of the case evidence files and drives as the
original user would have seen them. The following figure displays the FTK window
with the Explore Tab selected showing the path from the Evidence to the root (boot
partition) in the Evidence Items tree.
Chapter 8 Using Tabs to Explore & Refine Evidence 131
Figure 8-1 The Explore Tab
132 AccessData FTK 3.0 User Guide
The Explore tab contains the following panes:
TABLE 8-2 Explore Tab Panes
Pane Description
Explorer Tree Pane Lists directory structure of each evidence item, similar to the way
one would view directory structure in Windows Explorer. An
evidence item is a physical drive, a logical drive or partition, or
drive space not included in any partitioned drive, as well as any file,
folder, or image of a drive.
File List Displays case files and pertinent information about files, such as
filename, file path, file type and many more properties as defined in
the current filter.
Note: The File List loads more quickly now than in previous versions.
Chapter 8 Using Tabs to Explore & Refine Evidence 133
Note: The Find on Disk feature (in File List view, right-click an item) won't find anything under
512 B physical size. Files smaller than 1500 bytes may reside in the MFT and do not have
a start cluster. Find on disk depends on the start cluster information to work.
Note: In the File List view of any tab, a much-greater-than symbol (>>) now denotes that the
path is not an actual path, but that the file came from another file or source, such as a
zipped, compressed, or linked (OLE) file, or that it was carved. This is displayed in the
figure below:
Figure 8-2 File List View Showing Virtual Path to Files From Another Sourch
VIEWER PANE
The Viewer pane now contains the File Content, Properties, and Hex Interpreter tabs,
at the bottom of the pane. The File Content, Properties, and Hex Interpreter tabs
default to the bottom left of the File Content pane in any program tab where it is used.
The three tabs can be re-ordered by clicking on a tab and dragging-and-dropping it to
the position in the linear list where you want it. Click any of these tabs to switch
between them. The information displayed applies to the currently selected file in the
File List pane.
Viewer Pane Displays the contents of the currently selected file from the File
List. The Viewer toolbar allows the choice of different view
formats. Choices are:
•File Content Tab
The File content tab has a Default tab and a Web tab for each
of the following tabbed views:
•HexTab
•Text Tab
•Filterd Tab
•Natural Tab
•Properties Tab
•Hex Interpreter Tab
TABLE 8-2 Explore Tab Panes
Pane Description
134 AccessData FTK 3.0 User Guide
PROPERTIES TAB
The Properties tab displays information about a selected file. The following figure
displays the information contained in the Properties tab. This information corresponds
to the file selected in the File List pane.
Figure 8-3 Properties Pane
Chapter 8 Using Tabs to Explore & Refine Evidence 135
The following table highlights the components of the Properties pane:
TABLE 8-3 Properties Pane Components
Option Description
Name The filename of the selected file.
Item Number The arbitrary number assigned to the item by FTK 3.0 during case
processing.
File Type The type of selected file, such as an HTML file or a Microsoft Word 98
document.
The file header is used to identify each item’s file type.
Path The path from the evidence source down to the selected file.
General Info General information about the selected file:
File Size: Lists the size attributes of the selected file as follows:
•Physical size of the file, including file slack
•Logical size of the file, excluding file slack.
File Dates: Lists the Dates and Times of the following activities for
that file on the imaged source system:
•Created
•Last accessed
•Last modified
Note: All dates are listed in UTC fime.
File Attributes The attributes of the file:
General:
•Actual File: True if an actual file; False if derived from an actual
file.
•From Recycle Bin: True if the file was found in the Recycle Bin.
False otherwise.
•Start Cluster: Start cluster of the file on the disk
•Compessed: True if compressed. False otherwise.
•Original Name: Path and filename of the original file.
•Start Sector: Start sector of the file on the disk.
•File has been examined for slack: True if the file has been
examined for slack. False otherwise.
•File has been examined for carving: True if the file has been
examined ffor carving. False otherwise.
136 AccessData FTK 3.0 User Guide
DOS Attributes:
•Hidden: True if Hidden attribulte was set on the file. False other-
wise.
•System: True if this is a DOS system file. False otherwise.
•Read Only: True or False value
•Archive: True if Read Only attribute was set on the file. False
otherwise.
•8.3 Name: Name of the file in the DOS 8.3 naming convention,
such as [filename.ext]
Verification Hashes: True if Verification hashes exist.
False otherwise.
NTFS Information
•NTFS Record Number: The number of the file in the NTFS
MFT record.
•Record Date: UTC time and date record was created.
•Resident: True if the item was Resident, meaning it was stored in
the MFT and the entire file fit in the available space. False oth-
erwise. (If false, the file would be stored FAT fashion, and its
record would be in the $I30 file in the folder where it was saved.)
•Offline: True or False value
•Sparse: True or False value
•Temp orar y : True if the item was a temporary file, False other-
wise.
•Owner SID: The Windows-assigned security identifier of the
owner of the object.
•Owner Name: Name of the owner of that file on the source sys-
tem.
•Group SID: The Windows-assigned security identifier of the
group that the owner of the object belongs to.
File Content Info The content information and verification information of the file:
•MD5 Hash: The MD5 (16 bytes) hash of the file (default).
•SHA-1 Hash: The SHA-1 (20) bytes hash of the file (default).
•SHA-256 Hash: the SHA-256 (32bytes) hash of the file (default).
TABLE 8-3 Properties Pane Components
Option Description
Chapter 8 Using Tabs to Explore & Refine Evidence 137
The information displayed in the Properties tab is file-type-dependent, so the selected
file determines what displays. Additional information, if available and depending on file
type, also displays.
HEX INTERPRETER TAB
The Hex Interpreter tab interprets hexadecimal values selected in the Hex tab viewer
on the File Content tab in the Viewer pane into decimal integers and possible time and
date values as well as unicode strings.
Figure 8-4 The Hex Interpreter Tab
The Hex tab displays file contents in hexadecimal format. Use this view together with
the Hex Interpreter pane.
This feature is most useful if the investigator is familiar with the internal code structure
of different file types, and knows exactly where to look for specific data patterns or for
time and date information.
The following figure shows the Hex tab selected, with a portion of the code selected
and interpreted in the Hex Interpreter pane.
Fuzzy hash Lists the following Fuzzy Hash information
•Hash •Fuzzy Hash Block Size
TABLE 8-3 Properties Pane Components
Option Description
138 AccessData FTK 3.0 User Guide
Note: The bar symbol indicates that the character in that font is not available, or that an
unassigned space is not filled.
Figure 8-5 Hex Interpreter Tab and Corresponding File Content Pane Hex View Tab
To convert hexadecimal values do the following:
1. Highlight one to eight contiguous bytes of hexadecimal code in the File Content pane
> File Content tab viewer > Hex tab. (Select two or more bytes for the Unicode string,
depending on the type of data you wish to interpret and view.)
2. Switch to the Hex Interpreter tab at the bottom of the File Content Viewer > Hex tab,
or open it next to, or below the File Content tab > Hex tab view.
3. The possible valid representations, or interpretations, of the selected code
automatically display in the Hex Value Interpreter.
Little-endian and big-endian refer to which bytes are most significance in multi-byte
data types, and describe the order in which a sequence of bytes is stored in a computer’s
Chapter 8 Using Tabs to Explore & Refine Evidence 139
memory. Microsoft Windows generally runs as Little Endian, because it was developed
on and mostly runs on Intel-based, or Intel-compatible machines.
In a big-endian system, the most significant bit value in the sequence is stored first (at
the lowest storage address). In a little-endian system, the least significant value in the
sequence is stored first. These rules apply when reading from left to right, as we do in
the English language. As a rule, Intel based computers store data in a little-endian
fashion, where RISC-based systems such as Macintosh, store data in a big-endian
fashion. This would be fine, except that a) AccessData’s products image and process
data from both types of machines, and b) there are many applications that were
developed on one type of system, and are now “ported” to the other system. You can’t
always just apply one rule and automatically know which it is.
FTK 3.0 uses Little-endian as the default setting. If you view a data selection in the Hex
Interpreter and it does not seem right, try choosing Big endian to see if the data
displayed makes more sense.
For further information on using the Hex Interpreter pane, see “Hex Interpreter Tab”
on page 137.
FILE CONTENT TAB
HEX TAB
The Hex tab shows the file content in Hex view. It is different from the Hex
Interpreter tab at the bottom of the screen, which was shown in the previous section in
this chapter.
140 AccessData FTK 3.0 User Guide
Figure 8-6 The File Content Hex View Tab.
Note: The bar symbol indicates that the character font is not available, or that an unassigned
space is not filled.
The following table lists the available options and their descriptions:
Click Save selection as carved file to manually carve data from files, and the Go to Offset
dialog to specify offset amounts and origins. Click OK to close Go To Offset dialog.
TABLE 8-4 File Content Hex View Right-click Menu Options
•Select all •Show decimal offsets
•Copy text •Show text only
•Copy hex •Fit to windows
•Copy Unicode •Save current settings
•Copy raw data •Got to offset
•Save Selection •Save selection as carved file
Chapter 8 Using Tabs to Explore & Refine Evidence 141
Figure 8-7 Go to Offset Dialog
After Go to Offset has taken you to the desired offset, select the Hex data you wish to
save as a separate file to add to you case, perhaps in a bookmark. Right-click and select
Save Selection as Carved File from the menu. Name the file and click OK.
TEXT TAB
The Text tab displays the file’s context as text from the code page selected from the
drop-down menu. The following figure represents a portion of the drop-down
selection list.
Figure 8-8 Text View Drop-Down Menu
The File Content pane currently provides many code pages from which to choose.
When the desired code page is selected, the Text tab will present the view of the
selected file in text using the selected code page, as shown below:
142 AccessData FTK 3.0 User Guide
Figure 8-9 The File Content Text View Tab with the Code Page Dropdown
FILTERED TAB
The Filtered tab shows the file text created during indexing. The following figure
represents content displayed in the filtered tab.
Figure 8-10 Filtered Tab
Chapter 8 Using Tabs to Explore & Refine Evidence 143
The text is taken from an index created for the current FTK session if indexing was not
previously selected.
NATURAL TAB
The Natural tab displays a file’s contents as it would appear normally. This viewer uses
the Oracle Stellent INSO filters for viewing hundreds of file formats without the native
application being installed.
Figure 8-11
Note: Viewing large items in their native applications is often faster than waiting for them to be
rendered in an FTK viewer.
The Natural Tab has two tabs on the right-top border for viewing the file’s contents in
either the Default view, or the Web view.
In addition, the Natural tab has two additional buttons in the Web tab view. These are
described below, under Web Tab.
DEFAULT TAB
The Default Tab displays documents or files in a viewer that uses Oracle Outside In
Technology, according to their file type. Case audio and video files play using an
embedded Windows Media Player.
144 AccessData FTK 3.0 User Guide
WEB TAB
The Web view uses Internet Explorer to display the contents of the selected file in a
contained field.
In the Web view, the top-left border of the pane holds two toggle buttons for enabling
or disabling HTML content: Disable CSS Formatting, and Disable External Hyperlinks.
FTK displays the view (Web or Default) that is best for the selected file. The following
figure displays an email displayed in a web tab.
Figure 8-12 File Content, Natural Tab, Web Tab
OVERVIEW TAB
The Overview tab provides a general view of a case. The number of items in various
categories, view lists of items, and look at individual files by category, status, and
extension are displayed, as in the following figure.
Figure 8-13 Overview Tab
Evidence categories are represented by trees in the upper-left Case Overview pane of
the application.
FILE ITEMS CONTAINER
The File Items container itemizes files by whether they have been checked and lists in a
tree view the evidence files added to the case.
TABLE 8-5 Natural Tab: Web Tab Toggle Buttons
Component Description
Enable or Disable CSS Formatting. CSS formatting displays any fonts,
colors, and layout from cascading style sheets. HTML formatting not
part of a cascading style sheet might remain. Enabled feature is
indicated by a blue background; disabled feature is indicated by a gray
background.
Enable or Disable External Hyperlinks. Enabled hyperlinks in the file
will link to active internet pages. Enabled feature is indicated by a blud
background; disabled feature is indicated by a gray background.
Chapter 8 Using Tabs to Explore & Refine Evidence 145
FILE EXTENSION CONTAINER
The File Extension container itemizes files by their extensions, such as .txt, .mapimail,
and .doc and lists them in a tree view.
The File Extension Container content numbers do not synchronize or match up with
the overall number of case items. This is because case items, such as file folders, do not
have extensions and, therefore, are not listed in the File Extension Container.
FILE CATEGORY CONTAINER
File Category Container itemizes files by function, such as a word processing
document, graphic, email, executable (program file), or folder, and lists them in a tree
view.
The statistics for each category are automatically listed. Expand the category tree view
to see the file list associated with it.
The following table provides more detail for File Categories:
TABLE 8-6 File Categories
Category Description
Archives Archive files include Email archive files, Zip, Stuffit ,Thumbs.db
thumbnail graphics, and other archive formats.
Databases A list of MS Access, Lotus Notes NSF, and other types of
databases.
Documents Includes most word processing, HTML, WML, HTML, or text
files.
Email Includes Email messages from Outlook, Outlook Express, AOL,
Endoscope, Yahoo, Rethink, Udder, Hotmail, Lotus Notes, and
MSN.
Executables Includes Win32 executables and DLLs, OS/2, Windows VxD,
Windows NT, JavaScript, and other executable formats.
Folders Folders or directories that are located in the evidence.
Graphics Includes the standard graphic formats such as .tif, .gif, .jpeg, and
.bmp.
Internet/Chat Files Lists Microsoft Internet Explorer cache and history indexes.
Mobile Phone Data Lists data acquired from supported mobile phone device(s).
Multimedia Lists .aif, .wav, .asf, and other audio and video files.
146 AccessData FTK 3.0 User Guide
FILE STATUS CONTAINER
File Status covers a number of file categories that can alert the investigator to problem
files or help narrow down a search.
The statistics for each category are automatically listed. Click the category button to see
the file list associated with it. The following table displays the file status categories.
OS/File System Files Partitions, file systems, registry files, and so forth.
Other Encryption Files Found encrypted files, as well as files needed for decryption such
as EFS search strings, SKR files, and so forth.
Other Known Types A miscellaneous category that includes audio files, help files,
dictionaries, clipboard files, link files, and alternate data stream
files such as those found in Word .doc files, etc.
Presentations Lists multimedia file types such as MS PowerPoint or Corel
Presentation files.
Slack/Free Space Files, or fragments of files that are no longer seen by the file
system, but have not been completely overwritten.
Spreadsheets Includes spreadsheets from Lotus, Microsoft Excel, QuattroPro,
and others.
Unknown Types File types that FTK 3.0 cannot identify.
User Types User-defined file types such as those defined in a custom
File Identification File.
TABLE 8-7 File Status Categories
Category Description
Bad Extensions Files with an extension that does not match the file type identified
in the file header, for example, a .gif image renamed as graphic.txt.
Data Carved Files The results of data carving when the option was chosen for
preprocessing.
Decrypted Files The files decrypted by applying the option in the Tools menu.
Note: Decrypted status means FTK Decrypted the file from evidence
added to the case in its original form. FTK has had control of the file and
knows it was originally encrypted, that it was contained in the original
evidence, and thus, is relevant to the case..
TABLE 8-6 File Categories
Category Description
Chapter 8 Using Tabs to Explore & Refine Evidence 147
Deleted Files Complete files or folders recovered from slack or free space that
were deleted by the owner of the image, but not yet written over by
new data.
Duplicate Items Any items that have an identical hash.
Because the filename is not part of the hash, identical files may
actually have different filenames.
The primary item is the first one found by FTK.
Email Attachments Files attached to the email in the evidence.
Encrypted Files Files that are encrypted or have a password. This includes files that
have a read-only password; that is, they may be opened and viewed,
but not modified by the reader.
If the files have been decrypted with EFS and you have access to
the user’s login password, you can decrypt these files. See
“Decrypting EFS Files and Folders” on page 226.
Flagged Ignore Files that are flagged to be ignored are probably not important to
the case.
Flagged Privileged Files that are flagged as privileged cannot be viewed by the case
reviewer.
From Email All email related files including email messages, archives, and
attachments.
From Recycle Bin Files retrieved from the Windows Recycle Bin.
KFF Alert Files Files identified by the HashKeeper Web site as contraband or illicit
files.
KFF Ignorable Files identified by the HashKeeper and NIST databases as common,
known files such as program files.
OLE Subitems Items or pieces of information that are embedded in a file, such as
text, graphics, or an entire file. This includes file summary
information (also known as metadata) included in documents,
spreadsheets, and presentations.
User Decrypted Files you’ve previously decrypted yourself and added to the case.
Note: A user can add any file using Add Decrypted File, and it will be set as
decrypted by user. This status indicates that FTK had nothing to do with the
decryption of this file, and cannot guarantee its validity or that such a file has
anything to do with the case.
TABLE 8-7 File Status Categories
Category Description
148 AccessData FTK 3.0 User Guide
BOOKMARK CONTAINER
The Bookmark Container lists bookmarks as they are nested in the shared and the user-
defined folders. Bookmarks are defined by the investigator as the case is being
investigated and analyzed.
EMAIL TAB
The Email tab displays email mailboxes and their associated messages and attachments.
The display is a coded HTML format. The following figure represents the email tab.
Figure 8-14 Email Tab
EMAIL STATUS TREE
The Email Status tree lists information such the sender of th email, and whether an
email has attachments. They are listed according to the groups they belong to.
EMAIL TREE
The Email tree lists message counts, AOL DBX counts, PST counts, NSF counts, MBOX
counts, and other such counts.
Exchange and PST Emails can now be exported in MSG format. In addition, MSG files
resulting from an export of internet email look the way they should.
Note: You can also export Tasks, Contacts, Appointments, Stickynotes, and Journal Entries to
MSG files.
Important: If the Mozilla Firefox directory is added as evidence while in use,
history, downloads, etc are identified as zero-legth files.
When an email-related item is selected in the File List, right-click and choose View this
item in a different list > Email to see the file in Email context.
GRAPHICS TAB
The Graphics tab displays the case in photo-album style. Each graphic file is shown in a
thumbnail view. A graphic displays in the Graphics Tab Thumbnail view when its
thumbnail is checked in the File Contents pane.
Chapter 8 Using Tabs to Explore & Refine Evidence 149
Before a graphic is fully loaded you will see the following icon:
If a graphic cannot be displayed, you will see the following icon:
The following figure displays the Graphics tab with a selected thumbnail graphic.
Figure 8-15 Graphics Tab
Beneath each thumbnail image is a checkbox. When creating a report, choose to
include all of the graphics in the case or only those graphics that are checked. For more
information on selecting graphics, see “Managing Graphics in a Report” on page 251.
The Evidence Items pane shows the Overview tree by default. Use the View menu to
change the tree. Only graphic files appear in the File List when the tab filter is applied.
Shut the tab filter off to view additional files.
USING THUMBNAILS
The thumbnail settings allow large amounts of graphic data to be displayed for
evidence investigation. The investigator does not need to see details to pick out
evidence; scan the thumbnails for flesh tones, photographic-type graphics, and perhaps
particular shapes. Once found, the graphics can be inspected more closely in the
Content Viewer.
MOVING THE THUMBNAILS PANE
The thumbnail feature is especially useful when you move the undocked graphics pane
to a second monitor, freeing your first monitor to display the entire data set for the
graphics files being analyzed. Do the following to move the Thumbnails pane to
maximize space usage.
150 AccessData FTK 3.0 User Guide
1. Undock the Thumbnails pane, and expand it across the screen.
2. Open the Thumbnails Settings sub-menu, and scale the thumbnails down to fit as
many as possible in the pane.
THE BOOKMARKS TAB
A bookmark contains a group of files that you want to reference in your case. These are
user-created and the list is stored for use in the report output.
Bookmarks help organize the case evidence by grouping related or similar files. For
example, you can create a bookmark of graphics that contain similar or related graphic
images. The bookmark information pane is highlighted in the following figure.
Figure 8-16 Bookmark Information Pane
The Bookmarks tab lists all bookmarks that have been created in the current case.
Chapter 8 Using Tabs to Explore & Refine Evidence 151
Figure 8-17 Bookmark Tab
CREATING A BOOKMARK
TABLE 8-8 Bookmarks Tab
Features Description
Bookmark Name Displays the name given to the bookmark when it was created.
Bookmark Comment Displays notes included with a bookmark.
File Comment Displays notes included with a file.
Selection Comment Displays notes included with a selection.
•Save Changes •Clear Changes
Selection(s) Remembers the highlighted text in the bookmarked file and
automatically highlights it when the bookmark is retrieved. The
highlighted text also prints in the report.
This can be done for multiple files with multiple selections.
Use this option to Add and Remove Selections.
152 AccessData FTK 3.0 User Guide
Files can be bookmarked from any tab in FTK. To create a bookmark use the
information from the table above and follow these steps:
•Add Selection •Remove Selection
Creator Name Name of the user who created the bookmark.
Supplementary Files Lists additional files attached to the bookmark. Options:
•Attach File •Remove File
File List View New with version 3.0: Both the Sort options and Column Settings
can now be unique for each bookmark.
Save Changes Saves changes to the bookmark.
Clear Changes Removes comments that have not been saved.
TABLE 8-8 Bookmarks Tab
Features Description
Chapter 8 Using Tabs to Explore & Refine Evidence 153
1. Right-click the files or thumbnails you want to bookmark, and click Create Bookmark
or click the Bookmark button on the File List Toolbar to open the Create New
Bookmark dialog.
2. Enter a name for the bookmark in the Bookmark Name field.
3. (Optional) In the Bookmark Comment field, type comments about the bookmark or
its contents.
4. Click one of the following options to specify which items to add to the bookmark:
• All Highlighted: Highlighted items from the current file list. Items remain
highlighted only as long as the same tab is displayed.
• All Checked: All items checked in the case.
• All Listed: Bookmarks the contents of the File List.
5. (Optional) Type a description for each file in the File Comment field.
6. Click Attach to add files external to the case that should be referenced from this
bookmark. The files appear in the Supplementary Files pane, and are copied to the
case folder.
154 AccessData FTK 3.0 User Guide
7. For FTK to remember the highlighted text in a file and automatically highlight it
when the bookmark is re-opened, check Bookmark Selection in File. The highlighted
text also prints in the report.
8. Select the parent bookmark under which you would like to save the bookmark.
FTK provides a processed tree for bookmarks available to all investigators, and a
bookmark tree specific to the case owner.
If the bookmark is related to an older bookmark it can be added under the older
bookmark, with the older bookmark being the parent.
9. Click OK.
Applying filters to a group of listed files for bookmarking can speed the process. The
All Highlighted setting does not work in this instance. Enabling this feature would
significantly slow the response of the program. Instead, use either the Checked Files
filter, or the All Files Listed filter.
VIEWING BOOKMARK INFORMATION
The Bookmark Information pane displays information about the selected bookmark
and the selected bookmark file. The data in this pane is editable by anyone with
sufficient rights.
Select a bookmark in the Bookmarks view of the Bookmarks tab, or in the Bookmarks
node in the tree of the Overview tab to view information about a bookmark. The
Overview tab view provides limited information about the bookmarks in the case. The
Bookmark tab provides all information about all bookmarks in the case. In the
Bookmark tab, the Bookmark Information pane displays the Bookmark Name, Creator
Name, Bookmark Comment, and Supplementary files. When selected, a list of files
contained in the bookmark displays in the File List. If you select a file from the File List
the comment and selection information pertaining to that file displays in the Bookmark
Information pane.
Bookmarked files appear in the File List in a different color than non-bookmarked files
for easy identification
Chapter 8 Using Tabs to Explore & Refine Evidence 155
Figure 8-18 File List View Shows Bookmarks are a Different Color.
The Bookmark Information pane contains these fields:
TABLE 8-9 Bookmark Information Pane Information
Field Description
Bookmark Name The name of the bookmark. Click Save Changes to store any changes
made to this field.
Creator Name The user who created the bookmark.
Bookmark Comment The investigator can assign a text comment to the bookmark. Click
Save Changes to store any changes made to this field at any time.
Supplementary Files Displays a list of external, supplementary files associated with the
bookmark. Options are:
•Attach: Allows the investigator to add external supplementary
files to the bookmark, these files are copied to a subdirectory
within the case folder and referenced from there.
•Remove: Removes a selected supplementary file from the
bookmark.
File Comment The investigator can assign a different comment to each file in the
bookmark. Click Save Changes to store any changes made to this
field.
156 AccessData FTK 3.0 User Guide
Change any of the information displayed from this pane. Changes are automatically
saved when you change the bookmark selection, but you must manually save your
changes if you plan on closing FTK before selecting a different bookmark. It may be
best to make a habit of saving changes everytime you make a change, to avoid
forgetting and losing your changes.
Note: Both the Sort options and Column Settings can now be unique for each bookmark.
Note: In the File List, bookmarked items display in a different color for easy identification. You
may need to refresh the view to force a rewrite of the screen for the different color to
display. Forcing a rewrite would impact the overall performance of the program.
BOOKMARKING SELECTED TEXT
Bookmarked selections are independent of the view in which they were made. Select
hex data in the Hex view of a bookmarked file and save it; bookmark different text in
the Filtered view of the same file and save that selection as well.
To add selected text in a bookmark perform the following steps:
1. Open the file containing the text you want to select.
2. From the Natural, Text, Filtered or Hex views, make your selection.
Selection Comment Each file within the bookmark may contain an unlimited number
of selections, each of which the investigator may assign a
comment. Click Save Changes to store any changes made to this
field. These notes can be edited.
•Save Changes: Stores the changes made to the bookmark
information.
•Clear Changes: Clears any unsaved changes made to the
bookmark information.
Selection(s) Displays a list of stored selections within the selected file.
•Add Selection: Stores the cursor position, selection
boundaries, and tab selection of the swept text in the File
Content pane. This button does not store selection
information for the Media or Web tabs.
•Remove Selection: Removes the highlighted selection from
the Selections list.
TABLE 8-9 Bookmark Information Pane Information
Field Description
Chapter 8 Using Tabs to Explore & Refine Evidence 157
Note: If the file is a graphic file, you will not see, nor be able to make selections in the Text
or the Natural views.
3. Click Create Bookmark in the File List toolbar to open the Create New Bookmark
dialog.
4. When creating your bookmark, check Bookmark Selection in File
5. To save selected content, choose the view that shows what you want to save, then
highlight the content to save.
6. Right-click on the selected content. Click Save As.
7. Name the selection and click Save.
158 AccessData FTK 3.0 User Guide
The selection remains in the bookmark.
ADDING TO AN EXISTING BOOKMARK
Sometimes additional information or files are desired in a bookmark. To add to an
existing bookmark, follow these steps:
1. Right-click the new file.
2. Click Add to Bookmark.
3. Select the parent bookmark.
4. Select the child bookmark to add the file or information to.
5. Click OK.
Chapter 8 Using Tabs to Explore & Refine Evidence 159
CREATING EMAIL OR EMAIL ATTACHMENT BOOKMARKS
When bookmarking an email FTK allows the addition of any attachments. FTK also
allows the inclusion of a parent email when bookmarking attachments to an email.
To create a bookmark for an email, follow the steps for creating a bookmark. Select the
email to include in the bookmark. Right-click and choose Create Bookmark. Note that by
default, the Email Attachments box is active, but unmarked. If only the parent email is
needed the Email Attachments box should remain unselected. The following figure
displays the Create New Bookmark dialog for an email with the Email Attachments
checkbox selected.
Figure 8-19 Crete New Bookmark with Email Attachment
If you need to bookmark only an attachment of the email, select and right-click on the
attachment. Choose Create Bookmark. For more information on creating bookmarks,
see, “Creating a Bookmark” on page 151.
160 AccessData FTK 3.0 User Guide
Note that the Parent Email box is automatically active, allowing you to include the
parent email. If the Parent Email box is checked, and there is more than one
attachment, the Email Attachments box becomes active, allowing you to also include
all attachments to the parent email. To add only the originally selected attachment to
the bookmark, do not check the Parent Email box. The following figure displays the
Create New Bookmark dialog with the Parent Email checkbox selected.
Figure 8-20 Create New Bookmark with Parent Email Selected
ADDING EMAIL AND EMAIL ATTACHMENTS TO BOOKMARKS
To add an email to a bookmark, select the email to add, then right-click on the email
and choose Add To Bookmark. (For more information see, “Adding to an Existing
Bookmark” on page 158). Note that the Email Attachments box is active, but not
marked. If only the parent email is needed the Email Attachments box can remain
unselected. To include the attachment’s parent email, mark the box. The following
Chapter 8 Using Tabs to Explore & Refine Evidence 161
figure displays the Add Files to Bookmark dialog with the Email Attachments
checkbox selected.
Figure 8-21 Add Files to Bookmark with Email Attachments Selected
If only an attachment of an email is needed to be added to the bookmark, select the
attachment and follow the instructions for adding to a bookmark. For more
information on adding to bookmarks, see, “Adding to an Existing Bookmark” on
page 158.
Note that the Parent Email box is automatically active, but not selected, giving the
opportunity to select the parent email if you wish to include it with the attachment to
the bookmark.The following figure displays the Add Files to Bookmark dialog with the
Parent Email checkbox selected.
162 AccessData FTK 3.0 User Guide
Figure 8-22 Add Files to Bookmark with Parent Email Selected
MOVING A BOOKMARK
The following steps detail how to move a bookmark:
1. From either the Bookmark or the Overview tab, select the bookmark you want to
move.
2. Using the left or right mouse button, drag the bookmark to the desired location and
release the mouse button.
DELETING A BOOKMARK
Use the following steps to delete a bookmark:
1. In the Bookmark tab, expand the bookmark list and highlight the bookmark to be
removed.
Chapter 8 Using Tabs to Explore & Refine Evidence 163
2. Press the Delete key.
OR
3. Right-click on the bookmark to delete, and choose Delete.
DELETING FILES FROM A BOOKMARK
Use the following steps to delete files from bookmarks:
1. From either the Overview tab or the Bookmarks tab, open the bookmark containing
the file you wish to delete.
1. Right-click the file in the Bookmark File List.
2. Select Remove from Bookmark.
Note: Deleting a file from a bookmark does not delete the file from the case.
The following table describes the features of the Bookmark tab.
SEARCH TABS
The Search Tabs allow the user to conduct an indexed search or a live search on the
evidence. An indexed search is faster, while a live search is more flexible and powerful.
The results of each search appear as line items in the search results list. Click the plus
icon (+) next to a search line to expand the search results branch. To view a specific
item, select the file in the search results or file lists. All search terms are highlighted in
the file. For information on searching, see “Chapter 9 Searching a Case” on page 175.
LIVE SEARCH TAB
The live search is a process involving an item-by-item comparison with the search term.
The following figure represents a selected Live Search tab.
164 AccessData FTK 3.0 User Guide
Figure 8-23 Live Search Tab
A live search is flexible because it can find non-alphanumeric character patterns.
Comparatively, an Index search is confined to the index of the alphanumeric patterns
created with the index when the case is initially processed.
INDEX SEARCH TAB
The indexed search uses the index file generally created in pre-processing or through
additional analysis to find the search term. The following figure represents the Index
Search being performed.
Figure 8-24 Index Search Tab
Evidence items can be indexed when they are first added to the case or at a later time.
Chapter 8 Using Tabs to Explore & Refine Evidence 165
VOLATILE TAB
The Volatile tab provides tools for viewing, finding, and comparing data gathered from
live agent systems in your network.Volatile Tab
CREATING TABS
Create custom tabs by selecting View > Tab Layout > Add to bring up the Create Tab
dialog, as in the following figure.
Figure 8-25 Create Tab Dialog
For more information on tab creation, see “Creating Custom Tabs” on page 267.
166 AccessData FTK 3.0 User Guide
Chapter 9 Searching a Case 175
Chapter 9 Searching a Case
Searching evidence for information pertaining to a case can be one of the most crucial
steps in the examination. AccessData FTK provides an index search that gives rapid
results, as well as three different live search modes: hexadecimal, pattern (“regular
expression”, known commonly as regex), and text. Search results, or “hits,” are easily
viewed from the Search Tab File List and File Contents views.
CONDUCTING A LIVE SEARCH
The live search takes more time than an index search because it involves a bit-by-bit
comparison of the search term to the evidence. A live search is flexible because it can
find patterns of non-alphanumeric characters that are not generally indexed. It is
powerful because you can define those patterns to meet your needs in an investigation.
Live search supports Regular Expression (Regex) searches. In Live Search you can use
Regex to create pattern searches—precise character strings formatted as mathematical-
style statements that describe a data pattern such as a credit card or social security
number. Pattern searches allow the discovery of data items that conform to the pattern
described by the expression, rather than knowing and entering what you are looking for
by content.
For more information about regular expressions and syntax, see “Conducting a Pattern
Search” on page 179
AccessData recommends live searching for items an index search cannot find.
To perform a live search:
1. In the Live Search tab, click the Text, Pattern, or Hex tab.
176 AccessData FTK 3.0 User Guide
In the Text or Pattern tabs, check the character sets to include in the search. If you
want to include sets other than ANSI and Unicode, check Other Code Pages and click
Select.
2. Select CodePages to SearchSelect the needed sets.
3. Click to include EBCDIC, Mac, and Multibyte as needed.
Chapter 9 Searching a Case 177
4. Click OK to close the dialog.
5. Check Case Sensitive if you want to search specifically uppercase or lowercase letters.
ignores case if this box is not checked.
6. Enter the term in the Search Term field.
7. Click Add to add the term to the Search Terms window.
8. Click Clear to remove all terms from the Search Terms window.
9. In the Max Hits Per File field, enter the maximum number of times you want a
search hit to be listed per file. The default is 200. The range is 1 to 65,535.If you want
to apply a filter, do so from the Filter drop-down list in the bar below the Search
Terms list. Applying a filter speeds up searching by eliminating items that do not
match the filter. The tab filter menu has no effect on filtering for searches.
10. Click Search.
11. Click Cancel in the progress dialog to stop the search before it is complete.
12. Select the results to view from the Live Search Results pane. Click the plus icon (+)
next to a search line to expand the branch. Individual search results are listed in the
Live Search Results pane, and the corresponding files are listed in the File List. To
178 AccessData FTK 3.0 User Guide
view a specific item, select the file in the search results. All search results are
highlighted in the Hex View tab.
Note: Searching before the case has finished processing will return incomplete results. Wait until
the case has finished processing and the entire body of data is available.
Important: Right-click on a search result in the Live Search Results pane to display
more options. The available right-click options are as follows:
TABLE 9-1 Right-Click Options in Live Search Results Pane
Option Description
Create Bookmark Opens the Create New Bookmark dialog.
Copy to Clipboard Opens a new context-sensitive menu. Options are:
Export to File Opens a new context-sensitive menu. Options are:
Set Context Data Width Opens the Data Export Options window. Allows you to set a
context width from 32 to 2000 characters within which to find
and display the search hit.
Delete All Search Results Deletes all search results from the Live Search Results pane.
Delete this Line Deletes only the highlighted search results line from the Live
Search Results pane.
Searching before
the case has finished processing will return incomplete results. Wait to
search until the case has finished processing and the entire body of data
is available.
Note: Search terms for pre-processing options only support ASCII characters.
•All Hits In Case
•All Hist In Search
•All File Stats In Case
•All File Stats In Search
•All Hits In Case
•All Hist In Search
•All File Stats In Case
•All File Stats In Search
•
Chapter 9 Searching a Case 179
CUSTOMIZING THE LIVE SEARCH TAB
Change the order of the Live Search tabs by dragging and dropping them with your
mouse.
Figure 9-1 Customizing the Live Search Tab
For more information on customizing the FTK user interface, see “Chapter 13
Customizing the FTK Interface” on page 263 .
CONDUCTING A PATTERN SEARCH
Regex can be used to create pattern searches, allowing forensics analysts to search
through large quantities of text information for repeating strings of data such as:
• Telephone Numbers
• Social Security Numbers
• Computer IP Addresses
• Credit Card Numbers
These pattern searches are similar to arithmetic expressions that have operands,
operators, sub-expressions, and a value. For example, the following table identifies the
mathematical components in the arithmetic expression, 5/ ( ( 1 + 2 ) * 3 ) :
Like the arithmetic expression in this example, pattern searches have operands,
operators, sub-expressions, and a value.
Note: Unlike arithmetic expressions, which can only have numeric operands, operands in
pattern searches can be any characters that can be typed on a keyboard, such as
alphabetic, numeric, and symbol characters.
TABLE 9-2 Regex Pattern Search Components
Component Example
Operands 5, 1, 2, 3
Operators /, ( ), +, *
Sub-Expressions (1+2), ((1+2)*3)
Value Approximately 0.556
180 AccessData FTK 3.0 User Guide
SIMPLE PATTERN SEARCHES
A simple pattern search can be made up entirely of operands. For example, the pattern
search dress causes the search engine to return a list of all files that contain the sequence
of characters d r e s s. The pattern search dress corresponds to a very specific and
restricted pattern of text, that is, sequences of text that contain the sub-string dress. Files
containing the words “dress,” “address,” “dressing,” and “dresser,” are returned in a
search for the pattern search dress.
The search engine searches left to right. So in searching the pattern search dress, the
search engine opens each file and scans its contents line by line, looking for a d,
followed by an r, followed by an e, and so on.
COMPLEX PATTERN SEARCHES
Operators allow regular expressions to search patterns of data rather than specific
values. For example, the operators in the following expression enables the FTK search
engine to find all Visa and MasterCard credit card numbers in case evidence files:
\<((\d\d\d\d)[\– ]){3}\d\d\d\d\>
Without the use of operators, the search engine could look for only one credit card
number at a time.
The following table identifies the components in the Visa and MasterCard regular
expression:
As the pattern search engine evaluates an expression in left-to-right order, the first
operand it encounters is the backslash less-than combination (<). This combination is
also known as the begin-a-word operator. This operator tells the search engine that the
TABLE 9-3 Visa and MasterCard Regular Expressions
Example Operands
Operands \–, spacebar space
Operators \, <, ( ), [ ], {3}, \>
Sub-expressions (\d\d\d\d), ((\d\d\d\d)[\– ])
Value Any sequence of sixteen decimal digits that is delimited by three
hyphens and bound on both sides by non-word characters
(xxxx–xxxx–xxxx–xxxx).
Chapter 9 Searching a Case 181
first character in any search hit immediately follows a non-word character such as white
space or other word delimiter.
Note: A precise definition of non-word characters and constituent-word characters in regular
expressions is difficult to find. Consequently, experimentation by FTK users may be the
best way to determine if the forward slash less-than (\<) and forward slash greater-than
(\>) operators help find the data patterns relevant to a specific searching task. The
hyphen and the period are examples of valid delimiters or non-word characters.
The begin-a-word operator illustrates one of two uses of the backslash or escape
character ( \ ), used for the modification of operands and operators. On its own, the
left angle bracket (<) would be evaluated as an operand, requiring the search engine to
look next for a left angle bracket character. However, when the escape character
immediately precedes the (<), the two characters are interpreted together as the begin-
a-word operator by the search engine. When an escape character precedes a hyphen (-)
character, which is normally considered to be an operator, the two characters (\-)
require the search engine to look next for a hyphen character and not apply the hyphen
operator (the meaning of the hyphen operator is discussed below).
The parentheses operator ( ) groups together a sub-expression, that is, a sequence of
characters that must be treated as a group and not as individual operands.
The \d operator, which is another instance of an operand being modified by the escape
character, is interpreted by the search engine to mean that the next character in search
hits found may be any decimal digit character from 0-9.
The square brackets ([ ]) indicate that the next character in the sequence must be one of
the characters listed between the brackets or escaped characters. In the case of the
credit card expression, the backslash-hyphen-spacebar space ([\-spacebar space]) means
that the four decimal digits must be followed by either a hyphen or a spacebar space.
The {3} means that the preceding sub-expression must repeat three times, back to
back. The number in the curly brackets ({ }) can be any positive number.
Finally, the backslash greater-than combination (\>), also know as the end-a-word
operator, means that the preceding expression must be followed by a non-word
character.
Sometimes there are ways to search for the same data using different expressions. It
should be noted that there is no one-to-one correspondence between the expression
and the pattern it is supposed to find. Thus the preceding credit card pattern search is
not the only way to search for Visa or MasterCard credit card numbers. Because some
pattern search operators have related meanings, there is more than one way to compose
182 AccessData FTK 3.0 User Guide
a pattern search to find a specific pattern of text. For instance, the following pattern
search has the same meaning as the preceding credit card expression:
\<((\d\d\d\d)(\–| )){3}\d\d\d\d\>
The difference here is the use of the pipe (|) or union operator. The union operator
means that the next character to match is either the left operand (the hyphen) or the
right operand (the spacebar space). The similar meaning of the pipe (|) and square
bracket ([ ]) operators give both expressions equivalent functions.
In addition to the previous two examples, the credit card pattern search could be
composed as follows:
\<\d\d\d\d(\–| )\d\d\d\d(\–| )\d\d\d\d(\–| )\d\d\d\d\>
This expression explicitly states each element of the data pattern, whereas the {3}
operator in the first two examples provides a type of mathematical shorthand for more
succinct regular expressions.
PREDEFINED REGULAR EXPRESSIONS
FTK provides many predefined regular expressions for pattern searching, including the
following:
TABLE 9-4 A Small Sampling of FTK Predefined Regular Expressions
Select regular expressions from drop-down lists under the arrows:
• Click the black arrow to see a list of the basic components for regular
expressions. You can create your own pattern by combining these components
into a longer expression.
•U.S. Social Security Numbers •IP Addresses
•U.S. Phone Numbers •Visa and MasterCard Numbers
•U.K. Phone Numbers
Chapter 9 Searching a Case 183
Figure 9-2 Regular Expressions Basic Components
• Click the white arrow to see a list of predefined expressions.
184 AccessData FTK 3.0 User Guide
Figure 9-3 Live Search Tab Predefined Regular Expressions
The Social Security Number, U.S. Phone Number, and IP Address expressions are
discussed in the following sections.
SOCIAL SECURITY NUMBER
The pattern search for Social Security numbers follows a relatively simple model:
Chapter 9 Searching a Case 185
\<\d\d\d[\– ]\d\d[\– ]\d\d\d\d\>
This expression reads as follows: find a sequence of text that begins with three decimal
digits, followed by a hyphen or spacebar space. This sequence is followed by two more
decimal digits and a hyphen or spacebar space, followed by four more decimal digits.
This entire sequence must be bounded on both ends by non-word characters.
U.S. PHONE NUMBER
The pattern search for U.S. phone numbers is more complex:
((\<1[\–\. ])?(\(|\<)\d\d\d[\)\.\–/ ] ?)?\<\d\d\d[\.\– ]\d\d\d\d\>
The first part of the above expression,
((\<1[\–\. ])?(\(|\<)\d\d\d[\)\.\–/ ] ?)?,
means that an area code may or may not precede the seven digit phone number. This
meaning is achieved through the use of the question mark (?) operator. This operator
requires that the sub-expression immediately to its left appear exactly zero or one times
in any search hits. This U.S. Phone Number expression finds telephone numbers with
or without area codes.
This expression also indicates that if an area code is present, a number one (1) may or
may not precede the area code. This meaning is achieved through the sub-expression
(\<1[\–\. ])?, which says that if there is a “1” before the area code, it will follow a non-
word character and be separated from the area code by a delimiter (period, hyphen, or
spacebar space).
The next sub-expression, (\(|\<)\d\d\d[\)\.\–/ ] ?, specifies how the area code must
appear in any search hits. The \(|\<) requires that the area code begin with a left
parenthesis or other delimiter. The left parenthesis is, of necessity, escaped. The initial
delimiter is followed by three decimal digits, then another delimiter, a right parenthesis,
a period, a hyphen, a forward slash, or a spacebar space. Lastly, the question mark (?)
means that there may or may not be one spacebar space after the final delimiter.
The latter portion of this expression, \<\d\d\d[\.\– ]\d\d\d\d\>, requests a seven-digit
phone number with a delimiter (period, hyphen, or spacebar space) between the third
and fourth decimal digit characters. Note that typically, the period is an operator. It
means that the next character in the pattern can be any valid character. To specify an
actual period (.), the character must be escaped ( \ .). The backslash period
combination is included in the expression to catch phone numbers delimited by a
period character.
186 AccessData FTK 3.0 User Guide
IP ADDRESS
An IP address is a 32-bit value that uniquely identifies a computer on a TCP/IP
network, including the Internet. Currently, all IP addresses are represented by a numeric
sequence of four fields separated by the period character. Each field can contain any
number from 0 to 255. The following pattern search locates IP addresses:
\<[1-2]?[0-9]?[0-9]\.[1-2]?[0-9]?[0-9]\.[1-2]?[0-9]?[0-9]\.[1-2]?[0-9]?[0-9]\>
The IP Address expression requires the search engine to find a sequence of data with
four fields separated by periods (.). The data sequence must also be bound on both
sides by non-word characters.
Note that the square brackets ([ ]) still behave as a set operator, meaning that the next
character in the sequence can be any one of the values specified in the square brackets
([ ]). Also note that the hyphen (-) is not escaped; it is an operator that expresses ranges
of characters.
Each field in an IP address can contain up to three characters. Reading the expression
left to right, the first character, if present, must be a 1 or a 2. The second character, if
present, can be any value 0–9. The square brackets ([ ]) indicate the possible range of
characters and the question mark (?) indicates that the value is optional; that is, it may
or may not be present. The third character is required; therefore, there is no question
mark. However, the value can still be any number 0–9.
You can begin building your own regular expressions by experimenting with the default
expressions. You can modify the default expressions to fine-tune your data searches or
to create your own expressions. Visit the AccessData Website, www.accessdata.com,
to find a technical document on Regular Expressions. Click Support > Downloads >
Regular Expressions.
Chapter 9 Searching a Case 187
CREATING CUSTOM REGULAR EXPRESSIONS
Create your own customized regular expressions using the following list of common
operators
TABLE 9-5 Common Regular Expression Operators
Operator Description
+Matches the preceding sub-expression one or more times. For example,
“ba+” will find all instances of “ba,” “baa,” “baaa,” and so forth; but it
will not find “b.”
$Matches the end of a line.
*Matches the preceding sub-expression zero or more times. For example,
“ba*” will find all instances of “b,” “ba,” “baa,” “baaa,” and so forth.
?Matches the preceding sub-expression zero or one times.
[ ] Matches any single value within the square brackets. For example,
“ab[xyz]” will find “abx,” “aby,” and “abz.”
A hyphen (-) specifies ranges of characters within the brackets. For
example, “ab[0-3]” will find “ab0,” “ab1,” “ab2,” and “ab3.” You can also
specify case specific ranges such as [a-r], or [B-M].
`(Back quote) Starts the search at the beginning of a file.
'(Single quote) Starts the search at the end of a file.
\< Matches the beginning of a word. In other words, the next character in
any search hit must immediately follow a non-word character.
\> Matches the end of a word.
|Matches either the sub-expression on the left or the right. For example,
A|u requires that the next character in a search hit be “A” or “u.”
\b Positions the cursor between characters and spaces.
\B Matches anything not at a word boundary. For example, will find Bob in
the name Bobby.
\d Matches any single decimal digit.
\l Matches any lowercase letter.
\n Matches a new line.
\r Matches a return.
\s Matches any whitespace character such as a space or a tab.
\t Matches a tab.
\u Matches any uppercase letter.
\w Matches any whole character [a-z A-Z 0-9].
188 AccessData FTK 3.0 User Guide
CONDUCTING HEX SEARCHES
Click the Hex (Hexadecimal) Search tab to enter a term by typing it directly into the
search field, by clicking the Hexadecimal character buttons provided, or by copying hex
content from the hex viewer of another file and pasting it into the search box. Click
Add to add the hex string to the search terms list.
Figure 9-4 The Hex Tab in Live Search
The instructions for conducting a live search on the hex tab are similar to conducting
searches on the Pattern tab. Remember, when searching for hexadecimal values, a single
alphabetic or numeric text character is represented by hex characters in pairs.
CONDUCTING TEXT SEARCHES
The difference between a Pattern search and a Text search is that a text search searches
for the exact typed text, there are no operands so the results return exactly as typed. For
example, a Pattern search allows you to find all strings that match a certain pattern,
such as for any 10-digit phone number (nnn-nnn-nnnn), or a nine-digit social security
number (nnn-nn-nnnn). A Text search finds all strings that match an exact entry, such as
a specific phone number (801-377-5410). When conducting a Live Text Search, there
are no arrows to click for operand selection, as displayed in the following graphic.
Figure 9-5 The Text Tab in Live Search
Otherwise apply the instructions for the pattern search to this search.
^Matches the start of a line.
[[:alpha:]] Matches any alpha character (short for the [a-z A-Z] operator).
[[:alnum:]] Matches any alpha numerical character (short for the [a-z A-Z 0-9]
operator).
[[:blank:]] Matches any whitespace, except for line separators.
{n,m}Matches the preceding sub-expression at least n times, but no more than
m times.
TABLE 9-5 Common Regular Expression Operators
Operator Description
Chapter 9 Searching a Case 189
For more information on conducting a pattern search see “Conducting a Pattern
Search” on page 179.
CONDUCTING AN INDEX SEARCH
The index search uses the index to find the search term. Evidence items may be
indexed when they are first added to the case or at a later time. Whenever possible,
AccessData recommends indexing a case before beginning analysis.
Index searches are instantaneous. In addition, the Index Search Results File List loads
more quickly in version 3.0 than in past versions. In addition, in the Index Search
Results List, the offset of the data in the hit is no longer listed in the hit. You will see it
when you look at the hit file in Hex view.
Running an Index search on large files or Index Searches resulting in a large number of
hits may make the scroll bar appear not to work.
For more information about indexing an evidence item, see “Indexing a Case” on
page 68. The following figure displays the FTK window with the Index Seach tab
selected.
Figure 9-6 The Index Search Tab
The index file contains all discrete words or number strings found in both the allocated
and unallocated space in the case evidence. It does not capture spaces or symbols,
including the following:
. , : ; " ’ ~ ! # $ ^ & + .
now indexes special characters. One benefit is that you can easily search on a nearly
exact email address using username@isp (the extension, such as .com or .net, is not
included automatically because a period (.) is not indexed). The following figure shows
the Indexing Options dialog available prior to creating a case:
190 AccessData FTK 3.0 User Guide
Figure 9-7 Indexing Options Dialog
These options must be set prior to case creation. In the Evidence Processing screen,
mark the dtSearch Text Index box, then click Indexing Options to bring up the Indexing
Options screen shown in the figure above. Set the options using the information in the
following table:.
TABLE 9-6 dtSearch Indexing Options
Option Description
Letters Specifies the letters and numbers to index. Specifies Original,
Lowercase, Uppercase, and Unaccented. Choose Add or Remove
to customize the list.
Noise Words A list of words to be considered “noise” and ignored during
indexing. Choose Add or Remove to customize the list.
Hyphens Specifies which characters are to be treated as hyphens. You can
add standard keyboard characters, or control characters. You can
remove items as well.
Hyphen Treatment Specifies how hyphens are to be treated in the index. Options
are:
•Ignore
•Hyphen
•Space
•All
Chapter 9 Searching a Case 191
When finished setting Detailed Options, click OK to close the dialog, complete the New
Case Options dialog, then click OK to create the case.
In addition to performing searches within the case, you can also use the index to export
a word list to use as a source file for custom dictionaries to improve the likelihood of
and speed of password recovery related to case files when using the Password Recovery
Toolkit (PRTK). You can export the index by selecting File > Export Word List.
SEARCH TERMS
Type the word or term in the Search Term field. The term and terms like it appear in
the Indexed Words column displaying the number of times that particular term was
found in the data. Click Add to place the term in the Search Terms list, or double-click
the term in the indexed words column to add it to the Search Terms list.
Spaces Specifies which special characters should be treated as spaces.
Remove characters from this list to have them indexed as any
other text. Choose Add or Remove to customize the list.
Ignore Specifies which control characters or other characters to ignore.
Choose Add or Remove to customize the list.
Max. Word Length Allows you to set a maximum word length to be indexed
Index Binary Files Specify how binary files will be indexed. Options are
•Index all
•Skip
•Index all (Unicode)
Enable Date Recognition Choose to enable or disable this option
Presumed Date Format
For Ambiguous Dates
If date recognition is enables, specify how ambiguous dates
should be formatted when enountered during indexing. Options
are:
•MM/DD/YY
•DD/MM/YY
•YY/MM/DD
Set Max. Memory Allows you to set a maximum size for the index.
Auto-Commit Interval
(MB)
Allows you to specify an Auto-Commit Interval while indexing
the case. When the index reaches the specified size, the indexed
data is saved to the index. The size resets, and indexing continues
until it reaches the maximum size, and saves again, and so forth.
TABLE 9-6 dtSearch Indexing Options
Option Description
192 AccessData FTK 3.0 User Guide
SEARCH CRITERIA
Refine a search even more by using the Boolean operators AND and OR. You can
specify the terms to use in an index search by selecting specific entries, or by searching
against all entries.
You can import a list of search terms to save having to type them multiple times. This
is especially helpful if the list is long, or the terms are complex. When you create a
search terms document, each term begins on a new line, and is followed immediately by
a hard return. Save the file in .txt format in any text editor, or create the list in FTK and
save it for future use.
Important: When creating your search criteria, try to focus your search to
bring up the smallest number of meaningful hits per search.
You can export a list of search terms you have added to the list of search terms to save
having to find them, or type them again.
To export a set of search terms for later use, or for documentation purposes:
1. Highlight the search terms to export to a file.
2. Click Export.
3. Provide a filename and location for the file (the .txt extension is added automatically.
4. Click Save.
To import a saved search terms file:
1. Click Import to import a set of search terms.
2. Select the search terms file you previously saved.
3. Click Open.
INDEX SEARCH OPTIONS
To refine an index search, from the Index Search tab, in the Search Criteria area, click
Options.
Chapter 9 Searching a Case 193
Figure 9-8 Indexed Search Options
The following tables review the individual index search and index result options:
TABLE 9-7 Index Search Options
Option Result
Stemming Words that contain the same root, such as raise and raising.
Phonic Words that sound the same, such as raise and raze.
Synonym Words that have similar meanings, such as raise and lift.
Fuzzy Words that have similar spellings, such as raise and raize.
Click the arrows to increase or decrease the number of letters in a
word that can be different from the original search term. Use this
feature carefully; too many letter differences may make the search
less useful.
194 AccessData FTK 3.0 User Guide
TABLE 9-8 Index Result Options
Option Result
Max Files to List Maximum number of files with hits that are to be listed in the
results field. You can change this maximum number in the field.
Searches limited in this way will be indicated by an asterisk (*) and
the text “(files may be limited by “Max files to list” option)” which
may be cut off if the file name exceeds the allowed line length. The
maximum number of possible files with hits per search is 65,535. If
you exceed this limit, the remaining hits will be truncated, and your
search results will be unreliable. Narrow your search to limit the
number of files with hits.
Max Hits per File Maximum number of hits per file. You can change the maximum
number in this field. Searches limited in this way will be indicated
by an asterisk (*) and the text “(files may be limited by “Max hits
per file” option)” which may be cut off if the file name and this text
together exceed the allowed line length. The maximum number of
possible hits per file is 10,000.
Max Words to Return The maximum number of words to be returned by the search.
TABLE 9-9 Files to Search
Option Description
All Files Searches all the files in the case.
File Name Pattern Limits the search to files that match the filename pattern.
Operand characters can be used to fill-in for unknown characters.
The asterisk (*) and question-mark (?) operands are the only special
characters allowed in an index search. The pattern can include “?”
to match any single character or “*” to match an unknown number
of contiguous characters.
For example, if you set the filename pattern to “d?ugl*”, the search
could return results from files named “douglas”, “douglass”, or
“druglord.”
To enter a filename pattern:
1. Check the box.
2. In the field, type the filename pattern.
Chapter 9 Searching a Case 195
Click Search Now when search criteria are prepared and you are ready to perform the
search.
DOCUMENTING SEARCH RESULTS
Once a search is refined and complete, it is often useful to document the results.
Right-click an item in the Search Results list to open the quick menu with the following
options:
Copy to Clipboard: Copies the selected data to the clipboard (buffer) where it can be
copied to another Windows application, such as an Excel (2003 or earlier) spreadsheet.
Note: The maximum number of lines of data that can be copied to the clipboard is 10,000.
Export to File: Copies information to a file. Select the name and destination folder for
the information file.
Files Saved Between Beginning and ending dates for the timeframe of the last time a file
was saved.
1. Check the box.
2. In the date fields, type the beginning and ending dates that you
want to search between.
Files Created Between Beginning and ending dates for the timeframe of the creation of a
file on the suspect system.
1. Check the box.
2. In the date fields, enter the beginning and ending dates that
you want to search between.
File Size Between Minimum and maximum file sizes, specified in bytes.
1. Check the box.
2. In the size fields, enter the minimum and maximum file size in
bytes that you want to search between.
Save as Default Check this box to make your settings apply to all index searches.
TABLE 9-9 Files to Search
Option Description
196 AccessData FTK 3.0 User Guide
Copy or export the hits and the statistics of a search result using the options on the
following table:
After the information is copied to the clipboard, it can be pasted into a text editor or
spreadsheet and saved. Choose Export to File to save the information directly to a file.
Specify a filename and destination folder for the file, then click OK
Search results can then be added to the case report as supplementary files.
Important: With FTK 3.0, when exporting Index Search result hits to a
spreadsheet file, the hits are exported as a .csv file in UTF-16LE data
format. When opening in Excel, use the Text to Columns function to
separate the Index Search hit values into columns.
USING COPY SPECIAL TO DOCUMENT SEARCH RESULTS
The Copy Special feature copies specific information about files to the clipboard.
To copy information about the files in your search results:
1. Click in the search results list.
2. From the Menu Bar, Select Edit > Copy Special.
OR
TABLE 9-10 Copy or Export Search Results
Option Description
All Hits in Case Saves all the current search terms’ hits found from the entire case.
All Hits in Search Saves all the search hits found in each search branch.
All Hits in Term (Live search only) saves the instances of individual terms found
from the list of search terms.
For example, if a live search consisted of the list “black,” “hole,”
“advent,” and “horizon,” this option would copy information on
each of the terms individually.
All Hits in File Records the instances of the search term in the selected file only.
All File Stats in Case Creates a .csv file of all information requested in the case.
All File Stats in Search Creates a .csv file of the information requested in the search.
All File Stats in Term (Live search only) Creates a .csv file of the instances of individual
terms found from the list of search terms.
Chapter 9 Searching a Case 197
2a. Find that file highlighted in the File List view.
2b. Right-click on the desired file.
2c. Select Copy Special.
Figure 9-9 Copy Special Options
198 AccessData FTK 3.0 User Guide
3. Choose the column settings template to use from the drop-down list. Click Column
Settings to define a new column settings template.
3a. Modify the column template in the Column Settings Manager. For more
information on customizing column templates, see “Customizing File List
Columns” on page 268.
3b. Click Apply to return to the Copy Special dialog.
4. Select the customized column template if you created one.
5. Choose whether you want to include the header row in the file.
6. Under File List Items to Copy, select the option that best fits your needs:
• All Highlighted to copy only the items currently highlighted in the list.
• All Checked to copy all the checked files in the case.
• Currently Listed to copy only currently listed items.
• All to copy all items in the case.
7. The dialog states the number of files that your selection contains. If this meets your
approval,
8. Click OK.
Chapter 9 Searching a Case 199
BOOKMARKING SEARCH RESULTS
To keep track of particular search results, add them to new or existing bookmarks.
Bookmarks of the search results in the file list can be created or added to an existing
bookmark as with any other data.
To create a bookmark from the file list:
1. Select the files you want to include in the bookmark.
2. Right-click any of the selected files then choose Create Bookmark.
3. Complete the Create New Bookmark dialog.
For more information, see “Creating a Bookmark” on page 151.
4. Click OK.
The bookmark now appears in the Bookmark tab.
200 AccessData FTK 3.0 User Guide
Chapter 10 Using Filters 205
Chapter 10 Using Filters
AccessData FTK can filter files by their metadata to find specific evidence. For
example, FTK can filter a large number of graphics by creation date to see only those
created on the suspect machine during a certain time frame.
Note: Filters do not work on the Volatile tab.
The interface for the Filter function is intended to work as a handy side-utility. It can be
dragged to any part of the screen and used at any time.
THE FILTER TOOLBAR
The Filter toolbar contains the tools you need to create and manage filters for viewing
your case data.
Below is a graphic of the Filter toolbar:
Figure 10-1 Filter Toolbar
For an explanation of the filter toolbar and its components, see “Toolbar Components”
on page 45.
206 AccessData FTK 3.0 User Guide
USING FILTERS
Use predefined filters, create your own, or edit filters to make them more general or
more precise to fit your needs.
PREDEFINED FILTERS
FTK contains the following predefined filters:
TABLE 10-1 Predefined Filters
Filter Description
Actual Files Shows the actual files, as opposed to All Files. All Files is
the default and includes metadata, OLE files, and alternate
data stream files.
Alternate Data Streams Shows files with alternate data streams (additional data
associated with a file object).
Archive Files Shows only archive-type file items, such as .Zip and
thumbs.db.
Bad Extension Files Shows only the files with extensions that don’t match the file
header.
Bookmarked Shows only the items that are contained in a bookmark.
Carved Files Shows only the items that have been carved.
Checked Files Shows only the items that you have selected with a
checkmark.
Decrypted Files Shows only the items that have been decrypted by
AccessData tools within the case. This indicates that FTK
has had control of this file and its decryption since it was
added to the case in its original encrypted form.
Deleted Files Shows only those items that have the deleted status.
Duplicate Files Shows only one instance of all duplicate items.
Email Attachments Shows all email items that are not email messages.
Email Files Shows only those items that have the email status.
Email Files and Attachments Shows all email items, both messages and attachments.
Encrypted Files Shows only those items flagged as EFS files or other
encrypted files.
Evidence Items Shows all evidence items added to the case.
Chapter 10 Using Filters 207
Files with Alternate Data
Streams
Shows files that contain Alternate Data Streams (additional
data associated with a file system object).
Flagged Ignorable Shows only those items you have identified as Ignorable.
Flagged Privileged Shows only those items you have identified as Privileged.
Folders Shows only folder items.
From Free Space Shows only those items found in (carved from) free space.
From Recycle Bin Shows only those items taken from the recycle bin.
Graphic Files Shows only those items that have been identified as graphics.
Indexed Shows items that have been indexed.
KFF Alert Files Shows all files with KFF Alert status that are in a case.
KFF Ignore Files Shows all files with KFF Ignore status that are in a case.
Labeled Files Shows files that have a Label assigned to them.
Microsoft Office Files Shows Word, Access, PowerPoint, and Excel files.
Mobile Phone: Call Shows call information acquired from a mobile phone.
Mobline Phone: Contact Shows contact information acquired from a mobile phone.
Mobile Phone: Event Shows event information acquired from a mobile phone.
Mobile Phone: SMS Shows SMS information acquired from a mobile phone.
Mobile Phone Files Shows files and data from mobile devices added to the case
using AccessData Mobile Phone Examiner.
No Deleted Shows all except deleted items.
No Duplicate Shows all except duplicate items.
No File Slack Shows all except files found in (carved from) file slack.
No Files with Duplicates Shows only files that have no duplicates in the case.
No KFF Ignore Files Shows all items except KFF ignore files.
No KFF Ignore or OLE
Subitems
Shows all items except KFF ignore files or OLE subitems.
No KFF Ignore or OLE
Subitems or Duplicates
Shows all items except KFF ignore files, OLE subitems, or
duplicate items.
No OLE Subitems Shows all items except OLE subitems.
No Unimportant OLE Data
Streams
Shows all items including OLE subitems, except that
unimpportant OLE data streams are not shown.
Not Flagged Ignorable Shows all items except those you indicated Ignorable.
TABLE 10-1 Predefined Filters
Filter Description
208 AccessData FTK 3.0 User Guide
To apply an existing filter, use the Filter drop-down list on the Filter toolbar, shown
below. Click to select the desired filter. Click the Filter button to the left of the Filter
drop-down to toggle the filtered view on or off.
Figure 10-2 Selecting a Defined Filter
Not Flagged Privileged Shows all items except those you flagged Privileged.
OLE Subitems Shows only OLE archive items and archive contents.
Reclassified Files Shows only those items whose classification you have
changed.
Registry Files Shows Windows 9x, NT, and NTFS registry files.
Thumbs.db Files Shows Thumbs.db files.
Unchecked Files Shows only those items that you have not checked.
Unimportant OLE Stream
Categories
Shows only Unimportant OLE Stream Categories
Unimportant OLE Streams Shows only Unimportant OLE Streams
User-decrypted Files Shows only those items that you have decrypted and added
to the case. Decrypted by User status is always applied to
filed added using the Add Decrypted Files feature. FTK
cannot confirm validity, content, or origin of such files.
Web Artifacts Shows HTML, Index.dat, and empty Index.dat files.
TABLE 10-1 Predefined Filters
Filter Description
Chapter 10 Using Filters 209
CUSTOMIZING FILTERS
CREATING A FILTER
You can create or modify your own filters. These custom filters are saved with the case
in which they were created. You can create a filter from scratch, copy an existing filter
to use as a basis for a new filter, export a filter to an .xml file, and import a filter that
has been exported/saved to .xml format.
Filters consist of a name, a description, and as many rules as you need. A filter rule
consists of a property, an operator, and one or two criteria. (You may have two criteria
in something like a date range.)
To create a new filter, do the following:
1. Click Filter > New, or click the New Filter button on the Filter toolbar.
2. Type a name and a short description of the filter.
3. Select a property from the drop-down menu.
4. Select an operator from the Properties drop-down menu.
5. Select the applicable criteria from the Properties drop-down menu.
Each property has its own set of operators, and each operator has its own set of
criteria. The possible combinations are vast.
6. Select the Match Any operator to filter out data that satisfies any one of the filter
rules or the Match All operator to filter out data that satisfies all rules of the filter.
7. Click Save.
You can test the filter without having to save it first. Check the Live Preview box to test
the filter as you create it.
REFINING A FILTER
As your investigation progresses, you will become more familiar with patterns and file
types in the case and can adjust your filters to find this specific data
210 AccessData FTK 3.0 User Guide
Figure 10-3 Refining a Filter.
To modify an existing filter:
1. Select the filter to modify from the Filter drop-down list.
2. Click Define.
3. To make your filters more precise, click the Plus (+) button to add a rule, or the
Minus (–) button to remove one.
4. When you are satisfied with the filter you have created or modified, click Save, then
Close.
5. Select the newly created filter from the Filter drop-down in the toolbar to apply it.
EXPORTING A FILTER
Filters can be exported for use in other cases. The name of the filter cannot have any
special or invalid characters or the export will not work.
DELETING A FILTER
You can delete a custom filter if you no longer need it. Predefined system filters cannot
be deleted.
Chapter 10 Using Filters 211
To delete a filter:
1. Select the filter you want to delete from the Filter drop-down menu list.
2. Click Filter > Delete
OR
Click the Delete Filter button on the Filter toolbar .
3. Confirm the deletion.
USING THE KNOWN FILE FILTER
The Known File Filter (KFF) uses a collection of hash values of known files used to
filter the files found in the evidence. When you add evidence to the case, you can
compare all the files in the case to the hash values contained in the KFF Library
database.
FTK records the hashes of the files it discovers in the evidence in order to demonstrate
that the files have not been modified and to quickly determine if two files have the
same contents.
FTK computes the hash based on the contents of the file only. Attributes such as
filename and time stamp do not affect the hash computed, nor are they affected by the
hashing of the file.
A CLOSER LOOK AT THE ACCESSDATA KFF LIBRARY
KFF LIBRARY SOURCES
This section includes a description of the hash collections that make up the AccessData
KFF Library.
All of the hash sets currently within the KFF come from one of three federal
government agencies:
• NDIC HashKeeper
• NIST NSRL
• DHS
Use the following rules of thumb to identify the origin of any hash set within the KFF:
212 AccessData FTK 3.0 User Guide
1. All HashKeeper Alert sets begin with “ZZ”, and all HashKeeper Ignore sets begin
with “Z”. (There are a few exceptions. See below.) These prefixes are often followed
by numeric characters (“ZZN*” or “ZN*” where N is any single digit, or group of
digits, 0-9), and then the rest of the hash set name. Here are two examples of
HashKeeper Alert sets: “ZZ00001 Suspected child porn” and “ZZ14W”. Here’s a
HashKeeper Ignore set: “Z00048 Corel Draw 6”.
2. The NSRL hash sets do not begin with “ZZN*” or “ZN*”. In addition, in the FTK
3.0 KFF, all the NSRL hash set names are appended (post-fixed) with multi-digit
numeric identifier. This is discussed later in this chapter.
3. The DHS collection is broken down as follows:
• In FTK 1.81.4 there are two sets named “DHS-ICE Child Exploitation JAN-1-08
CSV” and “DHS-ICE Child Exploitation JAN-1-08 HASH”.
• In FTK 3.0 there is just one such set, and it is named “DHS-ICE Child
Exploitation JAN-1-08”.
Once an investigator has identified the vendor from which a hash set has come, he/she
may then need to consider the vendor’s philosophy on categorizing hash sets, and the
methods used by the vendor to gather hash values into sets, in order to determine the
relevance of Alert (and Ignore) hits to his/her case. The following commentary on each
of the three vendors should assist the investigator in making these considerations.
NDIC/HASHKEEPER
NDIC’s HashKeeper collection uses the Alert/Ignore designation. The Alert sets are
hash values contributed by law enforcement agents working in various jurisdictions
within the US - and a few that apparently come from Luxemberg. All of the Alert sets
were contributed because they were believed by the contributor to be one form of child
pornography or another. The Ignore sets within HashKeeper are computed from files
belonging to application software.
During the creation of the KFF, AccessData staff retains the Alert and Ignore
designations given by the NDIC, with the following exceptions. AccessData labels the
following sets Alert even though HashKeeper had assigned them as Ignore: “Z00045
PGP files”, “Z00046 Steganos”, “Z00065 Cyber Lock”, “Z00136 PGP Shareware”,
“Z00186 Misc Steganography Programs”, “Z00188 Wiping Programs”. The names of
these sets may suggest the intent to conceal on the part of the suspect, and AccessData
marks them Alert with the assumption that investigators using AccessData products
would want to be “alerted” to the fact that data obfuscation or elimination software
had been installed/loaded by the suspect. NIST NSRL
Chapter 10 Using Filters 213
The NIST NSRL collection is being actively expanded. See its website: http://
www.nsrl.nist.gov/index.html. This collection is much larger than HashKeeper in
terms of the number of sets and the total number of hashes. It is composed entirely of
hash sets being generated from application software. So, all of its hash sets are given
Ignore status by AD staff except for those whose names make them sound as though
they could be used for illicit purposes.
The NSRL collection divides itself into many sub-collections of hash sets with similar
names. In addition, many of these hash sets are “empty”, i.e. they are not accompanied
by any hash values. The size of the NSRL collection, combined with the similarity in set
naming and the problem of empty sets, gives AccessData motive to take a certain
liberty in modifying (or selectively altering) NSRL’s own set names to remove ambiguity
and redundancy.
In previous FTK 2.x releases, the NSRL sets can be identified as those that don’t start
with “Z” or “ZZ” in the manner of HashKeeper. Lastly, please note that, according to
http://www.nsrl.nist.gov/nsrl-faqs.html#faq17, the NSRL team does not install the
software packages that they hash. They run the installer programs for those packages
through their own tools that decompress and extract the individual files, and then
compute hash values on the extracted files. This is not a foolproof method for isolating
files.
Find contact info at http://www.nsrl.nist.gov/Contacts.htm.
DHS
The DHS collection is new to AccessData. It is being released for the first time with
FTK 1.81.4 and FTK 3.0. The DHS sets are marked Alert in both 1.81.4 and 3.0.
IMPORTING KFF HASHES
When using the Import KFF Hashes feature, you can import hashes from several
supported formats.
To import hashes to the KFF database:
1. Click Tools > KFF > Manage to open the KFF Administration dialog.
Note: Both the AD Alert group and the AD Ignore group are marked by default.
214 AccessData FTK 3.0 User Guide
Figure 10-4 KFF Administration
2. Click Import to open the KFF Hash Import dialog.
3. Click Add File and select one of the following file types:
• AccessData Hash Database (.hdb)
• FTK Imager Hash List (.csv)
• Hashkeeper Hash Set (.hke, hke.txt)
• Tab Separated Value (.tsv)
Chapter 10 Using Filters 215
• National Software Reference Library (.nsrl)
• Hash (.hash)
• FTK(.KFF)
3a. Click the Status drop-down list to select either Alert or Ignore status for the list
you are importing.
3b. Browse to the path where the new source file is found.
3c. Type a name for the new source.
3d. Include a description of the new source file.
3e. Mark the Import Entire Directory box if all the files in the source path are to be
included in this import.
3f. Click OK to close this dialog and return to the KFF Hash Import dialog keeping
the new source files, or click Cancel to close this dialog without adding the new
source files.
4. Close the dialogs back to the KFF Administration dialog. Verify the information, and
click Import. The imported hash set is merged into the existing hash set and saved.
Note: Duplicate hashes are not added.
EXPORTING KFF HASHES
To export a KFF hash file, follow these steps:
1. Click Tools > KFF > Manage.
2. Click Export.
3. Select the location to which you want to save the exported KFF file. FTK saves the
file as .kff by default.
4. Click Save.
216 AccessData FTK 3.0 User Guide
UNDERSTANDING HOW THE KFF DATABASE IS USED
FTK divides hashes into three tables: AccessData, Case Specific, and Shared.
When setting the status of sets or groups it is important to be mindful of other
examiners or cases which may be using the KFF database. Remember that all cases will
have access to the AccessData and user tables so if you want to adjust statuses for your
case without interfering with other investigations, you should create case specific sets
or groups.
STORING HASHES IN THE KFF DATABASE
The KFF database organizes hashes into sets and groups.
A set represents a related collection of hashes. For example, a group of hashes from a
particular case, from a particular provider such as NIST, or from a particular known
program.
A group represents a collection of related sets. For example, legitimate software,
known child pornography, or known hacker tools.
Sets and groups allow examiners to rapidly specify to which type of files they want to
be alerted, to more easily comply with search warrant limitations by rapidly
disregarding files outside the warrant, to eliminate useless information from the case,
reducing the data set that needs analysis, and to make the KFF more manageable and
easier to use.
TABLE 10-2 Hash Tables
Table Description
AccessData These tables contain the hashes, sets, and groups which are
distributed with FTK. You can create groups from these sets, but
the sets are read-only.
Case Specific Create your own sets and groups. You should create non-case
specific hash sets and groups here.
Shared Sets or groups in these tables are accessible to anyone using the
same KFF database instance (cases are stored in the same Oracle*
database). Groups in these tables may include sets from the
AccessData or shared tables but not from the case specific tables.
Chapter 10 Using Filters 217
Each set or group is assigned a status so that FTK can respond when it encounters
hashes that belong to the set or group.
Assign any of the following statuses to a set or group:
The group’s status supersedes the statuses of any of its sets, but does not actually
change the sets’ statuses. You can manually change the status of thousands of sets that
don’t apply to your case, or you can simply organize all of those sets into related groups
and change each group’s status. Any time you dissolve a group, each set in that group
retains the status it had prior to forming the group.
Only groups are analyzed. The two default groups: Alert and Ignore update
dynamically as a user modifies sets.
If you include the same set in two different groups, FTK prioritizes the status and
returns the highest priority status as follows:
1. Alert
2. Ignore
3. Disregard
TABLE 10-3 Set or Group Statuses
Status Description
Alert Selecting this status indicates that you want to be alerted to the existence
of any matching file in the set or group.
Disregard This case specific status allows you to avoid violating search warrant
limitations. You can mark a group with the disregard status to treat any
matching files as if they were unknown. The files will still be indexed,
carved, and can be searched, but they will not automatically alert you to
their presence in the suspect’s drive image.
Ignore This status is used to identify files that are without forensic significance
(known software packages or shared DLLs, for example). When you
have chosen to add KFF Ignorable files to the case, utilizing this status
allows the FTK to sift these uninteresting files away from view.
218 AccessData FTK 3.0 User Guide
CREATING SETS AND GROUPS
The toolkit also provides a mechanism for you to add your own hashes to the KFF
database. When you select a hash set inFTK, generally, the source reporting agency is
displayed in a text box.
Note: It is good practice when creating sets to put your own agency in the source field so that
other examiners know where the hashes came from.
To create sets and organize them into groups, follow these steps:
1. Select Tools > KFF > Manage.
2. Click New.
3. Name the group.
4. Assign the group a status.
5. Select the sets you want in the group from the Available Sets list and move them to
the Items in Group list by clicking the double-arrow button.
6. Click Apply to create the group without closing the Create New KFF dialog.
7. Click OK to save the group and close.
Chapter 11 Decrypting EFS and Other Encrypted Files 225
Chapter 11 Decrypting EFS and
Other Encrypted Files
Windows 2000, XP Professional, 2003, and Vista include the ability to encrypt files and
folders. AccessData FTKcan break file encryption so that additional evidence can be
uncovered.
This section contains the information that allows you to understand the Encrypting
File System (EFS) and how FTK breaks the encryption.
UNDERSTANDING EFS
EFS is built in to Windows 2000, XP Professional, 2003, and Vista. It is not supported in
Windows XP Home Edition.
In Windows, EFS files or folders can be viewed only by the user who encrypted them
or by the user who is the authorized Recovery Agent. When the user logs in, encrypted
files and folders are decrypted and the files are automatically displayed.
Note: There are certain files that cannot be encrypted, including system files, NTFS compressed
files, and files in the C:\Windows_System_Root and its subdirectories.
Important: :When a user marks an encrypted file as privileged and that file is
later decrypted, all associated data with the newly decrypted file are able
to be found in an index search as hits. When a user attempts to view the
hits in a different list, an error is displayed that the path is invalid.
226 AccessData FTK 3.0 User Guide
DECRYPTING EFS FILES AND FOLDERS
AccessData FTK 3.0 is designed to decrypt EFS, Microsoft® Office, and Lotus®
Notes (NSF) files and folders. To do so, the password must already be known.
To find the passwords, export encrypted files and add them as jobs in PRTK or DNA.
When passwords are found, you are ready to decrypt the encrypted files in .
Click Tools > Decrypt Files to begin decryption. The following sections review the
requirements to decrypt EFS files on Windows systems.
Figure 11-1 Decrypt Files Dialog
To use the decryption menu, do the following:
1. Type a password in the Password box.
1a. Confirm the password by typing it again in the Confirm Password box
2. Mark Permanently Mask to display the password in the Saved Passwords list as
asterisks, hiding the actual password.
3. Click Save Password to save the password into the Saved Password List.
Chapter 11 Decrypting EFS and Other Encrypted Files 227
4. Mark Attempt Blank Password to decrypt files with no password, or whose password is
blank.
Note: FTK 3.0 will automatically detect encrypted files in the case. Decrypt File Types will
automatically be marked according to the file types found. Unselect any file types you
wish not to decrypt.
5. Click Decrypt to begin the decryption process.
Note: The Decrypt button is disabled until at least one password is entered, or until Attempt
Blank Password is marked.
Click Cancel to return to the case.
DECRYPTING WINDOWS EFS FILES
Windows 2000, XP Professional, 2003, and Vista include the ability to encrypt files and
folders through the Encrypting File System (EFS). AccessData FTK can break file
encryption so that additional evidence can be uncovered.
UNDERSTANDING EFS
EFS is built in to Windows 2000, XP Professional, 2003, and Vista. It is not supported in
Windows XP Home Edition.
EFS can be used to encrypt files or folders. Within Windows, EFS files or folders can be
viewed only by the user who encrypted them or by the user who is the authorized
Recovery Agent. When the user logs in, encrypted files and folders are seamlessly
decrypted and the files are automatically displayed.
There are certain files that cannot be encrypted, including system files, NTFS
compressed files, and files in the [drive]:\[Windows_System_Root] and its
subdirectories.
Note: All EFS decryption requires either the user’s or the Recovery Agent’s password.
WINDOWS 2000 AND XP SYSTEMS PRIOR TO SP1
FTK automatically decrypts EFS files on Windows 2000 prior to Service Pack 4 and
Windows XP systems prior to Service Pack 1. Simply select the Decrypt EFS Files option
when adding evidence to a case and FTK uses PRTK technology to decrypt the EFS
files.
228 AccessData FTK 3.0 User Guide
WINDOWS XP SP1 OR LATER
For systems running Windows XP Service Pack 1 or later, or Windows 2000 Service
Pack 4 or later, FTK needs the user’s or the Recovery Agent’s password before it can
decrypt EFS files.
VIEWING THE DECRYPTED FILES
The decrypted files are displayed in the Overview tree, in the File Status > Decrypted
container. Click on an individual file in the File List to view the file in the File Content
pane.
Figure 11-2 Decrypted Files in the File List View
Note: Regardless of the encryption type, once decrypted, the files will appear in the File List
Name column as “Decrypted copy of [filename],” as seen in the following figure:
DECRYPTING DOMAIN ACCOUNT EFS FILES FROM LIVE EVIDENCE
The following steps describe how to decrypt and view EFS files taken from live
evidence:
1. Create a new case with no evidence added.
Chapter 11 Decrypting EFS and Other Encrypted Files 229
2. In the main menu, click Evidence > Add/Remove.
3. Click Add.
Figure 11-3 Add / Remove Evidence
4. Select Individual File(s) and click OK.
5. Navigate to the PFX file (domain recovery key).
OR
Type the file’s full path including the filename into the File Name field of the Open
dialog.
230 AccessData FTK 3.0 User Guide
Figure 11-4 The Open Dialog
6. Click Open.
7. Click No when asked if you want to create an image of the evidence you are adding.
8. Select the proper time zone for the PFX file from the Time Zone drop-down list in
the Manage Evidence Dialog.
9. Click OK.
10. FTK begins processing the PFX file and the progress dialog appears.
11. Remote Preview (Add Remote Data) the computer that contains the EFS files you
want to decrypt or view (you can also preview multiple machines simultaneously).
12. In the Explore Tab navigate to the desired drive or drives.
Chapter 11 Decrypting EFS and Other Encrypted Files 231
13. Use Quick Picks on the [ROOT] folder of the target system. This shows the evidence
items on that system.
14. In the Filter drop-down list, click Encrypted Files.
232 AccessData FTK 3.0 User Guide
The file list now displays only the encrypted files found on the target system.
15. From the main menu, select Evidence > Additional Analysis.
16. In the Additional Analysis window, select Listed Items and File Signature Analysis.
17. Click OK.
Figure 11-5 Choosing File Signature Analysis for EFS Decryption
The Data Processing Status dialog appears. A blue bar indicates status and activity.
Chapter 11 Decrypting EFS and Other Encrypted Files 233
Figure 11-6 Data Processing Status
When all items are added to the queue, a checkmark to the left of the process bar
indicates that the process was completed successfully
18. When all processing has completed, go to the main menu and click Tools > Decrypt
Files.
19. In the Add Passwords window, enter <EFS recovery password(s)> in the Passwords
text box. Select the EFS checkbox (if it not selected by default), and click OK.
Figure 11-7 Add Passwords Dialog
234 AccessData FTK 3.0 User Guide
FTK begins to decrypt the files and a decryption process dialog appears.
Figure 11-8 Decryption Progress Screen
20. When decryption completes, click OK.
21. Apply Quick Picks on the [ROOT] folder of the target system.
22. Select the files you want to view.
• To view only the decrypted files, choose Decrypted files in the Filter drop-down
list.
• If you want to see all files (not just decrypted files), choose -unfiltered- from the
Filter drop-down list.
23. Click OK to close the dialog. Decryption will continue.
Note: When completed, decrypted files will appear in the File List Name column as “Decrypted
copy of <file name>.”
The following graphic illustrates the File List view of decrypted files:
Chapter 11 Decrypting EFS and Other Encrypted Files 235
Figure 11-9 Viewing Decrypted Files using the Filter Drop-down List
DECRYPTING CREDANT FILES
Credant encryption is file-based and works much like EFS. Process drives with Credant
encryption normally. The Credant Decryption option in the tools menu is unavailable
unless the image contains Credant encryption.
The integration with FTK allows two options for decryption: offline, and online. For a
key bundle located on the user’s local machine or network, use the offline option. For a
key bundle located on a remote server use the online option.
Important: If you click Cancel to process the evidence without decrypting, you
will not be able to decrypt at a later time. You will have to create a new
case to decrypt and process this evidence
Click Tools > Credant Decryption to open the Credent decryption options, as displayed in
the figures that follow below.
236 AccessData FTK 3.0 User Guide
USING AN OFFLINE KEY BUNDLE
Offline decryption is a quicker and more convenient option if the key bundle can be
placed on the investigator’s local computer. Perform the following steps to decrypt a
encrypted image offline: select the key bundle file and enter the password used to
decrypt it. This is detailed in the following steps:
1. Click Tools > Decryption to open the Credant decryption options dialog.
2. Select the key bundle file by entering its location or browsing to it.
3. Enter the password.
4. Re-enter the password.
5. Click OK.
USING AN ONLINE KEY BUNDLE
Online decryption can occur only when the machine processing the image can directly
access the server over the network. The following figure displays the online tab:
Chapter 11 Decrypting EFS and Other Encrypted Files 237
Figure 11-10 Decryption Online Tab Options
Usually FTK auto-populates the Machine ID and Shield ID fields. The Machine ID can be
found on the server as the Unique ID on the Properties tab. The Shield ID can be found as
the “Recovery ID” on the “Shield” tab. It looks similar to this: “ZE3HM8WW”.
The Server Data group box contains information on how to contact the server. It
includes the Credant Server user name, password, and IP address. The port should be
8081, and is auto-populated.
Offline decryption requires you to get a key bundle file from the server. Then select
the key bundle file and enter the password used to decrypt it. Get the key bundle file by
executing the CFGetBundle.exe file with a command like that looks like this:
CFGetBundle -Xhttps://10.1.1.131:8081/xapi -asuperadmin -Achangeit
-dxp1.accessdata.lab -sZE3HM8WW -oKeyBundle.bin -ipassword
-X for the server address
-a for administrator name
-A for the administrator password
-d for the Machine ID
-s for the Shield ID
238 AccessData FTK 3.0 User Guide
-o for the output file
-i for the password used to encrypt the keybundle
Note: All command line switches are case sensitive. Also, as in the example above, there is no
space between the switch and the datatype.
Once you have used either the online or the offline method, the files will be decrypted
immediately and the decrypted file will become a child of the encrypted file. After
decryption, the files will be processed with the same settings last used to process a file.
DECRYPTING SAFEGUARD UTIMACO FILES
Safeguard Utimaco is a full-disk encryption program.
Figure 11-11 Provide the Safeguard Encryption Credentials
The Safeguard dialog box appears only when FTK 3.0 reads a valid Utimaco-encrypted
image.
The username and password used to create the encrypted image are required for
decryption.Once the credentials have been added, click OK to return to the Manage
Evidence dialog. Select a time zone from the Time Zone drop-down, then click OK to
begin processing.
Important: Type the User Name and Password carefully and verify both
before clicking OK. If this information is entered incorrectly, FTK 3.0
checks the entire image for matching information before returning with
an error message. Each wrong entry results in a longer wait.
Chapter 11 Decrypting EFS and Other Encrypted Files 239
Important: If you click Cancel to process the evidence without decrypting, you
will not be able to decrypt at a later time. You will have to create a new
case to decrypt and process this evidence
DECRYPTING SAFEBOOT FILES
SafeBoot is a program that encrypts drives and/or partitions. When FTK 3.0 detects a
SafeBoot-encrypted drive or partition, the following dialog is displayed.
Figure 11-12 SafeBoot Encryption Key Entry
The encryption key must be available to enter into the Key field. All recognized
partitions are selected by default, up to a maximum of eight. You can unselect any
partition you wish not to add to the case.
Important: If you click Cancel to process the evidence without decrypting, you
will not be able to decrypt at a later time. You will have to create a new
case to decrypt and process this evidence.
Once the key has been added and the appropriate partitions selected, click OK to return
to the Manage Evidence dialog. Select a time zone from the Time Zone drop-down,
then click OK to begin processing.
240 AccessData FTK 3.0 User Guide
DECRYPTING GUARDIAN EDGE FILES
When a GuardianEdge-encrypted image is added to FTK 3.0, FTK 3.0 automatically
detects that it is a GuardianEdge image and a dialog will appear asking for credentials.
The dialog has a drop-down list box with the user names that have been found to be
associated with the image. Select the user name for which you have a password and
then enter the password. Enter the password in one of two ways:
• Enter it twice with dots appearing for each character (if you don't want someone to
see what it is)
OR
• Check the Show in plain text box and enter it once.
Important: If you click Cancel to process the evidence without decrypting, you
will not be able to decrypt at a later time. You will have to create a new
case to decrypt and process this evidence
Figure 11-13 Guardian Edge Decryption Credentials Box
DECRYPTING AN IMAGE ENCRYPTED WITH PGP® WHOLE
DISK ENCRYPTION (WDE)
FTK 3.0 now supports the processing of acquired images from disks that have been
protected with PGP® Whole Disk Encryption. This section describes this support and
the process of specifying the credentials necessary to decrypt the image. Note that
decryption is only possible if an existing credential, such as a user passphrase or a
previously-configured Whole Disk Recovery Token, is available
Chapter 11 Decrypting EFS and Other Encrypted Files 241
ABOUT PGP® CORPORATION AND PGP® WHOLE DISK ENCRYPTION
PGP® Corporation’s origins date back to the early 1990’s, when Phil Zimmermann
released his seminal encryption program, “Pretty Good Privacy.” PGP® Corporation is
now a world leader in encryption solutions, with products for securing email, network
files, removable media, and hard disks, all centrally managed by the PGP® Universal™
Server console.
Individuals and organizations typically use PGP® Whole Disk Encryption (PGP®
WDE) to protect the information on their laptop computers in case of loss or theft.
Encrypted disks prompt for a user’s passphrase before Windows loads, allowing data to
be decrypted on the fly as it is read into memory or encrypted just before being written
to disk. Disks remain encrypted at all times.
Administrators can instruct PGP® WDE devices that are managed by a PGP®
Universal™ Server to automatically secure an encrypted disk to additional credentials
based on a company’s central policy. These could include a WDE Administrator key
(for IT support purposes), an Additional Decryption Key (also called a corporate
recovery key) and/or a Whole Disk Recovery Token (“WDRT”). WDRTs are
commonly used to reset a forgotten passphrase and, in FTK 3.0, can also be used by
authorized administrators or examiners to decrypt an acquired image of a PGP® WDE
encrypted drive.
PGP® WDE DECRYPTION IN FTK 3.0
FTKFTK 3.0 support for PGP® WDE functions similarly to Access Data’s support
for other full-disk encryption products.
1. After creating a case, click Evidence > Add Evidence > Acquired Image > Add.
2. Browse to the location of the image files and select the first of the set to add to this
case.
3. You may enter any user’s boot password or passphrase, or use the Whole Disk
Recovery Token (WDRT) to decrypt a drive or image.
Boot passwords: The users for the drive are displayed in the drop-down list in the
PGP® Encryption Credentials box. Select the user and enter that user’s boot
password.
OR
Whole Disk Recovery Token (WDRT): Obtain the WDRT by doing the
following:
3a. Log into the PGP® Universal™ Server
3b. Select the Users tab
242 AccessData FTK 3.0 User Guide
3c. Click on the User Name with a recovery icon for the system being examined.
3d. In the popup that appears, you will find a list of computers. The far right
column contains a link for the WDRT. Click the link to display a popup that
shows the WDRT. The WDRT will look similar to this:
ULB53-UD7A7-1C4QC-GPDZJ-CRNPA-X5A
3e. You can enter the key, with or without the dashes, in the Passphrase/WDRT
field as the credential to decrypt a drive or image. The WDRT can be copied
and pasted into the text field to avoid errors.
3f. Click OK.
Important: If you click Cancel to process the evidence without decrypting, you
will not be able to decrypt at a later time. Also, the evidence cannot be
added to the same case a second time. You will have to create a new case
to decrypt and process this evidence
4. Verify that the PGP® WDE encrypted image is added to the case Manage Evidence
list.
Chapter 11 Decrypting EFS and Other Encrypted Files 243
5. Select the options to use for this evidence, including Case KFF Options, Refinement
Options, and Language Setting, if different from the global/default options that
were selected prior to case creation.
6. Choose the Processing Manager to use, if different from localhost.
7. Enter an ID or Name for the Evidence, and a Description if you desire.
8. Specify the time zone for the evidence being added.
When all options have been selected, click OK to begin processing the evidence into the
case, or click Cancel to abandon the addition of this evidence.
Note: PGP® WDE decryption was developed using version 9.9 of the product.
244 AccessData FTK 3.0 User Guide
Chapter 12 Working with Reports 245
Chapter 12 Working with Reports
At any time during or after the investigation and analysis of a case, you can have
AccessData FTK create a report that summarizes the relevant evidence of the case.
The final report is made available in several formats, including HTML and PDF format
including one that is viewable in a standard Web browser.
CREATING A REPORT
Use the Report Wizard to create a report. Access the Report Wizard by selecting File >
Report. The Report Wizard is displayed in the following figure:
246 AccessData FTK 3.0 User Guide
Figure 12-1 Report Creation Wizard Options
To create a report run the Report Wizard and do the following:
1. Enter basic case information.
2. Select the properties of bookmarks.
3. Decide how to handle graphics.
4. Decide whether you want a file path list.
5. Decide whether you want a file properties list.
5a. Select the properties for the file properties list.
6. Add the Registry Viewer sections.
Each step is discussed in detail in the following sections.
SAVING YOUR SETTINGS
When you finish specifying the report settings, the selected settings are automatically
saved when you click OK to generate the report.
Export report settings at any time, while creating a report, and after you finish
specifying the report settings. Import and reapply those settings to a new report in the
same case, or to a report in a new case, as desired.
To export report settings do the following:
Chapter 12 Working with Reports 247
1. Click Export. The Export Sections dialog opens.
2. Check the sections for which you want to save the settings.
3. Click OK.
4. Type a name for the setting file, with no extension.
5. Click OK to save the settings as an .XML file.
To apply saved settings to a new report:
1. Click Import.
2. Browse to the settings file you want to apply, then select it.
3. Click Open to import the settings file to your current report.
ENTERING CASE INFORMATION
The Case Information dialog provides fields for basic case information, such as the
investigator and the organization that analyzed the case. The following figure displays
the Report Options dialog with the case information displayed.
248 AccessData FTK 3.0 User Guide
Figure 12-2 Report Options Case Information
To include basic case information in the report, do the following:
1. Check the Case Information box in the Report Outline on the left side of the screen.
2. In the Default Entries pane, check the entries to include in the report (all are
checked by default).
3. Double-click the Value field to enter the required information.
Add and remove entries with the Add and Remove buttons below Default Entries. Mark
the Include File Extensions box to include a File Extensions List and count in the File
Overview portion of the report.
Important: Below the Case Information Pane there is a new button, Include
File Extensions. This box is unmarked by default. If you wish to include in the
report a list of file extensions such as is found in Overview > File Extensions,
mark the Include File Extensions box. The list of file extensions will appear
in the report under Case Information, after File Items and File Category, and
before File Status.
The File Extensions List is long and may span many pages. If you intend to
print the Report, this may not be desirable.
To add a Case Information entry do the following:
1. Click Add. A new entry line appears at the bottom of the list.
2. Provide a label and a value for the new entry.
Chapter 12 Working with Reports 249
To remove a Case Information entry, do the following:
1. Highlight the entry line to be removed.
2. Click Remove.
MANAGING BOOKMARKS IN A REPORT
The Bookmarks dialog allows you to create a section in the report that lists the
bookmarks that were created during the case investigation. You can also choose not to
create a bookmark section by unselecting the Bookmarks checkbox. To customize the
Bookmarks settings, do the following:
Figure 12-3 Bookmarks Report Options
1. If you wish to apply a filter to the bookmarked data, do the following:
1a. Click Filter for the dropdown Filters list.
1b. Select any filter from the list
OR
Select the blank line at the top of the list if you decide not to apply a filter.
2. Mark the boxes to indicate which bookmarks to include. Choose Shared and/or
User bookmarks by group, or individually.
3. For each bookmark you choose to include, you can choose options from the
Bookmark box on the right. Options are:
• Include email attachments
250 AccessData FTK 3.0 User Guide
• Export files & include links
• Include thumbnail for each object
4. Choose options for Thumbnail Arrangement for each bookmark or bookmark
group. Options are:
• Number of thumbnails per row
• Include all thumbnails at end of each bookmark section
• Group all file paths at the end of thumbnails
5. Choose whether to export the files and include links to them in the report when it is
generated.
6. Choose whether to include graphic thumbnails that may be part of any bookmarks.
Note: If you want to create links to original files in the report, choose both to export the
original files and to include graphic thumbnails when the report is generated.
7. To sort bookmark information by columns, do the following:
7a. Click Sort Options. The Sort Options dialog appears.
7b. Click the plus (+) to add a criterion, or click minus (-) to delete a criterion.
7c. Click the down arrow button on the right side of each line to open the
dropdown of available sort columns.
7d. Click OK to save the selected Sort Options and close the dialog.
8. To customize the properties columns to display in the report, do the following:
Chapter 12 Working with Reports 251
8a. Click Columns.
8b. Select or customize the properties columns to include in the report. You can
import an existing column template and use it here if the template you want is
not readily available or would take too long to create again.
8c. When you are done defining the columns settings to use, click Apply.
9. To apply all settings for this bookmark to child files, do the following:
9a. Click Apply these settings to children.
9b. You will be prompted to confirm this action. Click Yes to confirm and apply.
OR
Click No to abandon the selection. For more information on customizing
columns, see “Customizing File List Columns” on page 268.
MANAGING GRAPHICS IN A REPORT
The Graphics dialog allows you to create a section in the report that displays thumbnail
images of the case graphics and can link them to original graphics if desired.
252 AccessData FTK 3.0 User Guide
Figure 12-4 Graphics Reporting Options.
To apply a filter to your graphics files, do the following:
1. Click Filter to open the Filter dropdown list.
2. Select a filter.
To view full-sized graphics in the report, do the following:
1. Mark the box for “Export and link full-size graphics to thumbnails.”
2. Select a radio button:
Include Checked graphics only
OR
Include all graphics in the case
To specify the Thumbnail Arrangement, do the following:
1. Specify the number of graphics to display per row
2. Mark the Group all filenames at end of report box to group all the graphics filenames at
the end of the report.
OR
Leave the Group all filenames at end of report box unmarked to show the graphics
filenames with the graphics in the report.
To sort the graphics by Name or by Path, do the following:
Chapter 12 Working with Reports 253
1. Click Sort Options.
2. Click Plus (+) to add a sort option.
OR
Click Minus (-) to remove a sort option
3. .Click the dropdown arrow on the right side of the line to select either Name or
Path.
4. Click OK to save the sort options and close the dialog.
SELECTING A FILE PATH LIST
The File Paths dialog allows you to create a section in the report that lists the file paths
of files in selected categories. The File Paths section simply displays the files and their
file paths; it does not contain any additional information.Defining File Paths for the
Report
To customize the File Path List, do the following:
1. Select a filter from the Filter dropdown, or leave the Filter box blank.
The Available Categories list contains the same categories as in the Overview Tab in
FTK.
2. Select from the Available Categories list to include the category or categories in the
report by dragging the category to the Selected Categories list.
Any category item or sub-item can be dragged back to the Available Categories list if
you change your mind about what to include.
254 AccessData FTK 3.0 User Guide
3. Export and link to selected files in the File Path list by checking the box next to the
items in the Selected Categories box.
If the box is left empty in the Selected Categories list, the File Path will be included,
but the files themselves will not be exported and linked to the File Path in the
report.
ADDING A FILE PROPERTIES LIST
The File Properties dialog allows you to create a section in the report that lists the file
properties of files in selected categories.
To customize a File Properties list in your report, do the following:
1. Under Report Outline, click File Properties.
2. Choose a filter for the File Properties list by clicking the Filter dropdown arrow and
selecting the desired filter.
OR
Choose no filter by selecting the blank entry at the top of the Filter dropdown list.
3. Drag and drop the categories you want to include from the Available Categories
window to the Selected Categories window.
4. Check a category in the Selected Categories window to export related files and link
them to the File Properties list in the report. Checking an item automatically selects
the files and folders under it.
Chapter 12 Working with Reports 255
5. To modify your Sort Options, click Sort Options. For more information on modifying
the Sort Options, see “Selecting the Report Output Options” on page 256.
6. To modify your column settings, click Columns. The Column Settings dialog opens.
For more information on setting columns, see “Customizing File List Columns” on
page 268.
REGISTRY SELECTIONS
If your drive image contains registry files, you can include them in your report.
Figure 12-5 Including Registry Files in the Report
To customize the list of Registry information in the report, do the following:
1. In the Registry File Types window, check the file types for which you want headings
in your report.
2. In the right window, check the registry file paths you want included in your report.
3. Mark the box Include user generated reports (if any) if you have generated Registry
Reports using Registry Viewer, and you want to include them in this report.
4. Mark the box Select Auto Reports, to view and select which Registry Reports to
include in the report from those that were generated automatically based on the
Registry Reports selection in Case Manager > Case > New > Detailed Options > Evidence
Refinement.
256 AccessData FTK 3.0 User Guide
5. When you have completed defining the report, click OK to open the Report Output
options dialog.
SELECTING THE REPORT OUTPUT OPTIONS
The Report Output dialog allows you to select the location of the report. You can also
recreate the directory structure of exported items.
Figure 12-6 Report Output Options
To select the report output options:
1. Type the folder in which to save the report, or use the Browse button to locate and
select a location.
2. Use the drop-down arrow to select the language for the written report. Options are:
TABLE 12-1 Available Report Languages
•Chinese (Simplified, PRC) •English (United States)
•German (Germany) •Japanese (Japan)
•Korean (Korea) •Portuguese (Brazil)
•Russian (Russia) •Spanish (Spain, Traditional Sort)
•Swedish (Sweden)
Chapter 12 Working with Reports 257
3. Indicate the formats for publishing the report. You can choose any or all of the
output formats. Options are:
TABLE 12-2 Available Report Output Formats
4. Under Export Options,
4a. Check the Use object identification number for filename to shorten the paths to data in
the report. Links are still created for proper viewing of the files.
Note: The unique File ID numbers, when used in a report, keep the pathnames shorter.
This makes burning the report to a CD or DVD more reliable.
4b. Check the Append extension to filename if bad/absent box to add the correct
extension where it is not correct, or is missing.
5. Under HTML Report Customization, choose from the following options:
5a. If you wish to use your own custom graphic or logo, mark the Use custom logo
graphic box, then browse to the file and select it. Use .GIF, .JPG, .JPEG, .PNG, or
.BMP file types.
5b. If you wish to use a custom CSS file, mark the Use custom CSS box. Select the
folder where the custom CSS files have been saved. Click OK. The folder you
selected displays in the Use Custom CSS text box. See “Customizing the
Formatting of Reports” on page 257.
6. Click OK to run the report.
If the report folder you selected is not empty, you will see the following error
message:
Choose to Delete or Archive the contents of the folder, or cancel the report.
CUSTOMIZING THE FORMATTING OF REPORTS
The formatting of FTK Reports can be customized by someone who is very familiar
with Cascading Style Sheets. FTK Reports stores a file path you select (default or
•PDF •HTML
•XML •RTF
•WML •DOCX
•ODF •
258 AccessData FTK 3.0 User Guide
custom) to the folder containing the custom CSS files. When CSS is not selected, FTK
Reports uses its default settings.
The CSS file code has been reorganized and rewriten for clarification and is easy to
modify for someone with an intimate knowledge of CSS.
For reports to utilize the cascading style sheets, three CSS files are necessary, and must
all be located in the specified CSS folder:
• Common.css
• Bookmarks.css
• Navigation.css
The original CSS files are found in the following path if no changes were made to the
default:
c:\Program Files\AccessData\Forensic Toolkit\3.0\bin\ReportResources
Copy the *.CSS files to a different directory. Do not make changes to the original files.
When CSS is selected, FTK Reports checks for those files in the specified directory. If
any of the three files is missing you are notified and the report does not proceed.
The UI option consists of a checkbox and a text path string. The path string points to
the path directory that contains the 3 needed css files.
Chapter 12 Working with Reports 259
Note: The UI options settings are persistent per Windows login user. Thus, it will be persistent
across case list the custom graphic feature.
CREATING THE REPORT
The progress bar dialog indicates the progress of the report.
The report displays after it has finished processing. You can process only one report at
a time.
If you start another report too soon, you will be prompted to wait.
Figure 12-7 A Report is Already Processing.
VIEWING AND DISTRIBUTING A REPORT
The report contains the information that you selected in the Report Wizard. When
included in the report, files appear in both raw data and in the report format.
An example of the main page of the report (index.htm) is shown below:
260 AccessData FTK 3.0 User Guide
Figure 12-8 Viewing the Report in HTML Format
Figure 12-9 The Report in PDF Format
To view the report, click Yes.
Chapter 12 Working with Reports 261
To view the report outside of FTK, browse to the report file and click on the report
file:
• Click on index.htm to open an HTML document in your Web browser.
• Click on the file [report].pdf to open the report in a PDF viewer.
After creating the report, burn only the contents from the root of the report folder, and
not the report folder itself, to a CD or DVD. The autorun automatically launches the
report’s main page (index.htm) using the default browser when the CD is read on a
Windows computer.
Note: The Windows computer must be configured to automatically execute autorun files
Note: If you burn the folder that contains the report to the CD or DVD, the autorun will not be
at the root of the disk, and will not work properly.
MODIFYING A REPORT
Modify the report by recreating it. Add the new evidence or change report settings to
modify the report to meet your needs. Change the report settings for each report as
needed. All previously distributed reports should be retracted to keep all recipients
current.
PRINTING A REPORT
Print the report from the program used to view it. The PDF report is designed
specifically for printing hard copies with preserved formatting and correct
organization. The HTML report is better for electronic distribution.
262 AccessData FTK 3.0 User Guide
Chapter 13 Customizing the FTK Interface 263
Chapter 13 Customizing the
FTK Interface
The AccessData FTK interface provides a highly visual user interface to make evidence
more recognizable and easier to process. Customize the interface to further
accommodate the current case and your personal style.
CUSTOMIZING OVERVIEW
You can adjust the size of the panes in the tabs by clicking on a border and dragging it
to a new size. You can also rearrange the order of the tabs by dragging and dropping.
You can add or remove panes from the current tab using the View menu. Click View
and click the pane you would like to add to the current view.
To save the new arrangement, Click View > Tab Layout > Save.
264 AccessData FTK 3.0 User Guide
THE VIEW MENU
Use the View menu to control the pane views displayed in each tab. FTK provides
several tabs by default, but you can create an interface view that best suits your needs.
The View menu allows you to do the following:
• Refresh the current view’s data
• View the Filter Bar
• Display the Timezone for the evidence
• Choose the display size for graphic thumbnails
• Manage Tabs
• Select Trees and viewing panes to include in various tabs
• Open the Progress Window
Chapter 13 Customizing the FTK Interface 265
THE TAB LAYOUT MENU
Use the options in the Tab Layout menu to save changes to tabs, restore original
settings, and lock settings to prevent changes.
The following table describes the options in the Tab Layout menu.
MOVING VIEW PANES
Move view panes on the interface by placing the cursor on the title of the pane,
clicking, dragging, and dropping the pane on the location desired. Holding down the
mouse button undocks the pane. Use the guide icons to dock the pane in a pre-set
location. The pane can be moved outside of the interface frame.
TABLE 13-1 Tab Layout Menu Options
Option Description
Lock Locks the panes in place so that they cannot be moved.
Add Adds a blank tab to the Enterprise window. The new tab will be like
the one selected when this option is used.
Remove Removes the selected tab from the Enterprise window.
Save Saves the changes made to the current tab.
Save All Layouts Saves the changes made to all tabs.
Restore Restores the Enterprise window to the settings from the last saved
layout. Custom settings can be restored.
Reset to Default Sets the Enterprise window to the setting that came with the
program. Custom settings will be lost.
266 AccessData FTK 3.0 User Guide
Figure 13-1 Moving View Panes
To place the view pane at a specific location on the application:
1. Place the mouse (while dragging a view pane) onto a docking icon. The icon changes
color.
2. Release the mouse button and the pane seats in its new position.
The following table indicates the docking options available:
TABLE 13-2 Docking Icons
Docking Icon Description
Docks the view pane to the top half of the tab.
Docks the view pane to the right half of the tab.
Docks the view pane to the left half of the tab.
Chapter 13 Customizing the FTK Interface 267
CREATING CUSTOM TABS
Create a custom tab to specialize an aspect of an investigation, add desired features, and
apply filters as needed to accommodate conditions specific to a case.
To create a custom tab, do the following:
1. Select the tab that is most like the tab you want to create.
2. Click View > Tab Layout > Add.
3. Enter a name for the new tab and click OK. The resulting tab is a copy of the tab you
were on when you created the new one.
4. From the View menu, select the features you need in your new tab.
Note: Features marked with diamonds are mutually exclusive, only one can exist on a tab at a
time. Features with check marks can co-exist in more than one instance on a tab.
5. When you are satisfied with your new tab’s design, click Save to save this new tab’s
settings, or View > Tab Layout > Save.
6. (Optional) Click View > Tab Layout > Save All to save all changes and added features
on all tabs.
7. To remove tabs, highlight the tab to remove, then click View > Tab Layout > Remove.
Docks the view pane to the bottom half of the tab.
Docks the view pane to the top, right, left, bottom, or center of the
pane. When docked to the center, the new pane overlaps the original
pane, and both are indicated by tabs on the perimeter of the pane.
Docks the view pane to the top, right, left, or bottom of the tree pane.
The tree panes cannot be overlapped.
Locks the panes in the application in place, making them immovable.
When the lock is applied, the blue box turns grey. This button is
found on the toolbar.
TABLE 13-2 Docking Icons
Docking Icon Description
268 AccessData FTK 3.0 User Guide
CUSTOMIZING FILE LIST COLUMNS
The Column Settings dialog allows the modification or creation of new definitions for
the information that displays in the File List, and in what order. Column settings are
also used to define which file information appears in the Bookmark and File List
Properties sections of case reports.
Using custom column settings allows you to narrow the information provided in the
File List and case reports. Columns display specific information about, or properties of,
the displayed files.
Figure 13-2 Column Settings
Note: Custom column settings can be exported as an .XML file, and imported for use in other
cases.
CREATING AND MODIFYING COLUMN SETTINGS
To modify or create column settings:
1. Right-click a heading in the File List, or click the Manage Columns button on the
File List toolbar. The Manage Columns context menu opens.
2. Click Column Settings. The Column Settings dialog opens.
Chapter 13 Customizing the FTK Interface 269
3. From the Available Columns pane, select a category from which you want to take a
column heading. You can add the entire contents of a category or expand the
category to select individual headings.
Note: Column widths in most view panes can be adjusted by hovering the cursor over the
column heading borders, and dragging the column borders wider or narrower.
Click on a column heading in the file list view to sort on that column. Hold down the
Shift key while clicking a different column header to make the newly selected column
the primary sorted column, while the previous primary-sorted column becomes the
secondary sorted column. There are only two levels of column sorting, primary and
secondary.
To undo a secondary sort, click on a different column header to make it the primary
sorted column.
AVAILABLE COLUMNS
The following tables describe all available columns in the File List. The columns you
actually see depend on which tab and which columns category you are in.
Note: When viewing data in the File List, use the type-down control feature to locate the
information you are looking for. Sort the column, then select the first item in the list.
Type the first letter of the filename you are searching for. Enterprise will move down the
list to the first filename beginning with that letter.
COMMON FEATURES
These column headings tend to be most shared among objects.
TABLE 13-3 Common Column Headings
Column Description
Accessed Date The timestamp showing when the object was last accessed.
Accessed Date (FAT)The date the object was last accessed.
Actual File The actual file in the file system, not from an archive such as .zip,
.pst, etc.
Bad Extension Indicates if the file type does not match its header.
Carved Indicates whether the object has been carved.
Compressed File Size Displays the size of the compressed files. Only displays on
compressed files.
270 AccessData FTK 3.0 User Guide
Compressed Indicates whether the object is compressed. Only displays on
compressed files.
Container Indicates whether the object has child objects.
Created Date Indicates the date the object was created on the source system.
Decrypted Indicates that the object has been decrypted.
Decrypted by User Indicates that the object was decrypted by the user before being
added to the case.
Deleted A string representing the object and its parents by their IDs.
Duplicate File The file is a duplicate of another file in the case.
Encrypted Indicates whether the object is encrypted. Only displays on files.
Extension Displays the object’s extension.
File Class Matches a container on the Overview tree.
File Type An ID reflecting the identified or reclassified type of a file.
Flagged Ignorable Indicates that the object was marked as ignorable. Not accessible
to a reviewer.
Flagged Privileged Indicates that the object was marked as privileged. Not accessible
to a reviewer.
From Recycle Bin Displays a Recycle Bin index file, or a recycled file still in the
Recycle Bin folder.
Item Number Displays the unique File ID number assigned to the object by
Enterprise during processing.
Logical Size Displays the logical size of an object.
MD5 Hash Displays the MD5 hash of the object’s contents.
Modified Date Displays the date the object was last modified.
Name Displays the name of the object.
Object Type Indicates the type of the object.
Original File Type Indicates the original type of an object whose type has been
changed.
Path Displays the full path of an object.
Physical Size Indicates the amount of space the object takes up on a disk.
Recycle Bin Original
Name
Displays the name of a file in the Recycle Bin folder before the
file was recycled.
TABLE 13-3 Common Column Headings
Column Description
Chapter 13 Customizing the FTK Interface 271
DISK IMAGE FEATURES
The following table displays the stored hashes for the logical
TABLE 13-4 Disk Image Headings
Column Description
Validate MD5 Displays the validated MD5 hash of the object. This is the internal
stored hash of an image such as E01 or Smart (S01).
Validate SHA-1 Hash Indicates the validated SHA-1 hash of the object. This is the
internal stored hash of an image such as E01 or Smart (S01).
image.
EMAIL FEATURES
These column headings list features specific to email in general, and specifically to
Microsoft Outlook/Exchange, and to Outlook Express.
TABLE 13-5 Email Headings
Column Description
BCC Displays addresses in the Blind Carbon Copy field.
CC Displays addresses in the Carbon Copy field.
Delivery Time For outgoing email, it indicates the time the object was sent; for
incoming email, it indicates the time the object was received.
From Lists the sender’s addresses in the object’s From field.
From Email Indicates whether the object came from an email or an email
archive.
Has Attachment Indicates whether the object has an attachment.
Subject Displays the text in the object’s Subject field.
To Lists the addresses in the object’s To field.
Unread Indicates whether the object is marked as Unread.
Unsent Indicates whether the object is marked as Sent.
SHA*-1 Hash Indicates the SHA-1 hash of the object’s contents.
SHA-256 Hash Indicates the SHA-256 hash of the object’s contents.
TABLE 13-3 Common Column Headings
Column Description
272 AccessData FTK 3.0 User Guide
MICROSOFT OUTLOOK EXPRESS HEADINGS
These email headings are specific to Microsoft Outlook Express only:
TABLE 13-6 Outlook Express Headings
Column Description
Account Name Displays the name of the account associated with the object.
Account Registry Key Displays the registry key associated with the object’s account.
Answered Indicates whether the object was answered.
Answered Message ID Displays the ID of the object’s answered message.
Digitally Signed Indicates whether the object was digitally signed.
Email Size Displays the size of the object.
Has Attachment (Outlook
Express)
Indicates whether the object has an attachment.
Hotmail Message ID Displays the ID of a Hotmail object.
Marked Indicates whether the object has been marked.
Message ID Displays the message ID.
Message Offset Displays the block of memory occupied by the object.
News Indicates whether the object was a news item.
Priority Displays the priority assigned to the object.
Recipient Address Lists the addresses in the object’s recipient field.
Recipient Name Lists the names in the object’s recipient field.
Sender Address Displays the address in the object’s sender field.
Sender Address and Name Displays the address and name in the object’s sender field.
Sender Name Displays the name in the object’s sender field.
Server Displays the server used to send the object.
Server Info Displays the server information of the object.
Subject (Outlook Express) Displays the text on the object’s subject field.
Subject Without Prefix Displays the text without the prefix on the object’s subject field.
Thread Ignored Indicates whether a thread was marked as Ignore.
Thread Watched Indicates whether a thread was marked as Watch.
Time Message Saved
(Outlook Express)
Displays the time an object was Saved.
Chapter 13 Customizing the FTK Interface 273
MICROSOFT OUTLOOK/EXCHANGE HEADINGS
These email headings are set for Microsoft Outlook/Exchange only:
Time Received (Outlook
Express)
Displays the time an incoming object was received.
Time Sent (Outlook
Express)
Displays the time an outgoing object was sent.
TABLE 13-7 Outlook / Exchange Headings
Column Description
Attachment MIME Tag Lists the attachment MIME tag of the object.
Client Submit Time Indicates the time the client submitted the email.
Comment Displays any comment associated with the email.
Content Count Indicates the content count of the object.
Content Unread Indicates whether the object is marked Unread.
Conversation Topic Displays the object’s conversation topic.
Delete After Submit Indicates whether the object was marked for deletion after it was
submitted.
Display Name Displays the object’s display name.
From Me Indicates whether the object was marked From Me.
Importance Indicates the object’s assigned importance.
Message Class Indicates the class assigned to the message in the object.
Message Size Displays the size of the object.
Originator Delivery
Report Requested
Indicates whether an Originator Delivery Report was requested.
Provider Submit Time Displays the time at which the provider submitted the object.
Read Receipt Requested Indicates whether the email sent requested confirmation of the
email.
Received By Email
Address
Displays the time at which the addressee received the object.
Received By Name Lists the names of the addresses that received the object.
TABLE 13-6 Outlook Express Headings
Column Description
274 AccessData FTK 3.0 User Guide
ENTROPY STATISTICS
These column headings list information that may indicate possible encryption or
compression.
Received Representing
Email Address
Displays the address of a Representing Email recipient.
Reply Recipient Names Displays the addresses in the Reply To: field.
Resend Indicates whether the object was marked Resend.
Sender Email Address Displays the address in the object’s Sender field.
Sensitivity Indicates the sensitivity assigned the object.
Sent Representing Email
Addresses
Displays the address of a Representing Email sender.
Sent Representing Name Displays the name of the Representing Email sender.
Submitted Indicates whether the object was marked as Submit.
Transport Message
Headers
Lists the Simple Mail Transfer Protocol (SMTP) headers.
Unmodified Indicates whether the object has been marked as Modified.
TABLE 13-8 Entropy Statistics Headings
Column Description
Arithmetic Mean The result of summing all the bytes and dividing by the file
length. If random, the value should be about 1.75; if the mean
departs from this value, the values are consistently high or low.
Chi Squared Error Percent This distribution is calculated for the stream of bytes in the file
and expressed as an absolute number. This percentage indicates
how frequently a truly random number would exceed the value
calculated.
Entropy Shows the information density of a file in bits per character.
Amounts close to 8 indicate randomness.
TABLE 13-7 Outlook / Exchange Headings
Column Description
Chapter 13 Customizing the FTK Interface 275
FILE STATUS FEATURES
The file status columns show hash set names that match the file and its status.
TABLE 13-9 File Status Features
Column Description
Hash Group Indicates the set from which the hash came. Lists the sequence
entered into the database, or the program that generated the hash.
KFF Status Lists the status of the hash set that Enterprise matches (Alert or
Ignore).
Not KFF Ignore or OLE
Subitem
Indicates that the hash is neither in the KFF Ignore List nor a
OLE subitem.
Not KFF Ignore or
Duplicate
Indicates that the hash is neither in the KFF Ignore List nor a
duplicate file.
If a file has matches from more that one set, the status with the height value is used.
For more information, see “Chapter 10 Using Filters” on page 205.
FILE SYSTEM FEATURES
These column headings list information specific to a particular file system.
MCPI Error Percent Monte Carlo algorithm, named after Monte Carlo, Monaco, is a
method involving statistical techniques for finding solutions to
problems.
This heading shows the result of using a Monte Carlo algorithm
to approximate Pi.
Serial Correlation
Coefficient
Indicates the amount to which each byte in an object relies on the
previous byte. Amounts close to 0 indicate randomness.
TABLE 13-10 File System Headings
Column Description
DOS Features See below
ext2 Features See below
TABLE 13-8 Entropy Statistics Headings
Column Description
276 AccessData FTK 3.0 User Guide
DOS FILE SYSTEMS
These column headings list information specific to DOS.
TABLE 13-11 DOS Headings
Column Description
8.3 Name Displays the 8.3 format name of the object.
Archive Indicates whether the Archive attribute was set on the object.
Hidden Indicates whether the Hidden attribute was set on the object.
Read Only Indicates whether the Read Only attribute was set on the object.
System Indicates whether the System attribute was set on the object.
HFS Features See below
NTFS Features See below
Unix Security Features See below
Start Cluster Indicates the starting cluster where a file begins from the
beginning of a disk or volume.
Start Sector Indicates the starting sector where a file begins from the beginning
of a disk or volume.
TABLE 13-10 File System Headings
Column Description
Chapter 13 Customizing the FTK Interface 277
EXT2 FILE SYSTEMS
These column headings list information specific to Unix ext2.
TABLE 13-12 ext2 Headings
Column Description
Deleted Date Lists the date on which the object was deleted. Set on Unix
objects only.
inode Number Lists the inode Number of an object. Displays on Unix objects
only. Data structures contain information about files in Unix file
systems that are created when a file system is created. Each file
has an inode and is identified by an inode number (i-number) in
the file system where it resides. User and group ownership, access
mode (read, write, execute permissions) and type inodes provide
important information about files.
There is a set number of inodes, which indicates the maximum
number of files the system can hold.
A file's inode number can be found using the [ls -i] command,
while the [ls -l] command will retrieve inode information.
HFS FILE SYSTEMS
These column headings list information specific to Apple Macintosh HFS and HFS+.
TABLE 13-13 HFS Headings
Column Description
Backup Date Displays the date on which the object was backed up.
Catalog Node ID Displays the catalog node ID of the object.
Color (HFS)Indicates the color of the object.
File Creator (HFS)Displays the object’s creator.
File Locked (HFS)Indicates whether the object was locked.
File Type (HFS)Indicates the object’s file type.
Folder Valence (HFS)Displays the number of files and folders directly contained in any
given object.
Invisible (HFS)Indicates whether the object is invisible.
Name Locked (HFS)Indicates whether the object’s file name is locked.
Put Away Folder ID (HFS)Displays the ID of the object’s Put Away folder.
278 AccessData FTK 3.0 User Guide
NTFS FILE SYSTEMS
These column headings list information specific to Microsoft NTFS.
TABLE 13-14 NTFS Headings
Column Description
Alternate Data Stream
Count
Displays the number of alternate data streams.
Group Name Displays the Group Name of the object’s owner.
Group SID Displays the group SID of the object’s owner.
MFT Record Number Displays the object’s Master File Table (MFT) record number and
indicates what metadata is needed to retrieve an object.
Offline Indicates whether the object’s Offline attribute is set.
Owner Name Displays the name of the object’s owner.
Owner SID Displays the SID of the object’s owner.
Record Date Displays the record date of the object.
Resident Indicates whether the Resident attribute is set for the object.
Sparse Indicates whether the Sparse attribute is set for the object.
Temporary Indicates whether the Temporary attribute is set for the object.
UNIX SECURITY FILE SYSTEMS
These column headings list information specific to the Unix security file system.
TABLE 13-15 Unix Security Headings
Column Description
GID Displays the Group ID of the object.
Group Name (Unix) Displays the Group Name of the object.
Permissions Lists the Permission settings for the object.
UID Displays the User ID of the object.
Username Displays the Username of the object.
MOBILE DEVICES
For documentation of the Mobile Phone Examiner, please see the Mobile Phone
Examiner User guide.
Chapter 13 Customizing the FTK Interface 279
ZIP-SPECIFIC FEATURES
These column headings list information specific to files zipped or compressed into a
single file.
TABLE 13-16 Zip Headings
Column Description
Checksum Displays the checksum value of the object.
Compression Method Displays the compression method of the object.
Extract Version Displays the extract version of the object.
TEMPORARY FILE FOLDER
The temporary file folder stores temporary files, including files extracted from Zip and
email archives. The folder is also used as scratch space during text filtering and
indexing. Enterprise frequently uses the temporary file folder.
DATA CARVING
If you decide not to include Data Carving or Meta Carving in the case pre-processing
options, you can run Data Carving and Meta Carving from the Additional Analysis
Options screen.
280 AccessData FTK 3.0 User Guide
Figure 13-3 .Additional Analysis: Data Carving
• Data carving extracts a collection of data from the unallocated file system space
using file-type-specific header and footer values.
• Meta carving searches unallocated clusters for metadata that is no longer
referenced by the file system. Unlike traditional undelete methods, meta carving
can recover deleted folders, and also the names and contents of files and folders
that existed prior to reformatting the volume.
For more information on Data Carving, see “Data Carving” on page 97.
Appendix A File Systems and Drive Image Formats 281
Appendix A File Systems and
Drive Image Formats
This appendix lists the file systems and image formats that FTK 3.0 analyzes.
282 AccessData FTK 2.3 User Guide
FILE SYSTEMS
TABLE A-1 Recognized File System
HARD DISK IMAGE FORMATS
TABLE A-2 Supported Hard Disk Image Formats
CD AND DVD IMAGE FORMATS
TABLE A-3 Supported CD and DVD Image Formats
•FAT 12, FAT 16, FAT 32 •NTFS
•Ext2, Ext3 •HFS, HFS+
•ReiserFS 3 •
•Encase •SnapBack
•Safeback 2.0 and under •Expert Witness
•Linux DD •ICS
•Ghost (forensic images only) •SMART
•AccessData Logical Image (AD1) •
•Alcohol (*.mds) •CloneCD (*.ccd)
•ISO •IsoBuster CUE
•Nero (*.nrg) •Pinnacle (*.pdi)
•PlexTools (*.pxi) •Roxio (*.cif)
•Virtual CD (*.vc4) •
Appendix B Recovering Deleted Material 283
Appendix B Recovering Deleted
Material
FTK 2.3 finds deleted files on supported file systems by their file header.
FAT 12, 16, AND 32
When parsing FAT directories, FTK 2.3 identifies deleted files by their names. In a
deleted file, the first character of the 8.3 filename is replaced by the hex character 0xE5.
The file’s directory entry provides the files’s starting cluster (C) and size. From the size
of the file and the starting cluster, FTK 2.3 computes the total number of clusters (N)
occupied by the file.
FTK 2.3 then examines the File Allocation Table (FAT) and counts the number of
unallocated clusters starting at C (U). It then assigns the recovered file [min (N, U)]
clusters starting at C.
If the deleted file was fragmented, the recovered file is likely to be incorrect and
incomplete because the information that is needed to find subsequent fragments was
wiped from the FAT system when the file was deleted.
FTK 2.3 uses the long filename (LFN) entries, if present, to recover the first letter of the
deleted file’s short filename. If the LFN entries are incomplete or absent, it uses an
exclamation mark (“!”) as the first letter of the filename.
FTK 2.3 meta carves, or searches the volume free space for deleted directories that have
been orphaned. An orphaned directory is a directory whose parent directory or whose
entry in its parent directory has been overwritten.
284 AccessData FTK 2.3 User Guide
NTFS
FTK 2.3 examines the Master File Table (MFT) to find files that are marked deleted
because the allocation byte in a record header indicates a deleted file or folder. It then
recovers the file’s data using the MFT record’s data attribute extent list if the data is
non-resident.
If the deleted file’s parent directory exists, the recovered file is shown in the directory
where it originally existed. Deleted files whose parent directories were deleted are
shown in their proper place as long as their parent directory's MFT entry has not been
recycled.
EXT2
FTK 2.3 searches to find inodes that are marked deleted: the link count is zero and the
deletion timestamp is nonzero.
For each deleted inode, FTK 2.3 processes the block pointers as it does for a normal file
and adds blocks to the deleted file. However, if an indirect block is marked allocated or
references an invalid block number, the recovered file is truncated at that point because
the block no longer contains a list of blocks for the file that the application is
attempting to recover.
FTK 2.3 does not recover the filenames for files deleted on ext2 systems. Instead,
deleted files are identified by inode number because ext2 uses variable-length directory
entries organized in a linked list structure. When a file is deleted, its directory entry is
unlinked from the list, and the space it occupied becomes free to be partially or
completely overwritten by new directory entries. There is no reliable way to identify and
extract completely deleted directory entries.
EXT3
FTK 2.3 does not recover deleted files from ext3 volumes because ext3 zeroes out a
file’s indirect block pointers when it is deleted.
HFS
FTK 2.3 does not recover deleted files from HFS.
Appendix C Program Files 285
Appendix C Program Files
The following tables list key FTK 2.3 files and folders, their functions, and their
locations.
FILES AND FOLDERS FOR THE APPLICATION
These files and folders exist on the computer running FTK 2.3.
TABLE C-1 FTK 2.3 Folders and File Locations
File or Folder Location Function
FTK2-Data (shared) Root of system drive or partition
[drive]:\ftk2-data\
Contains all case data not
stored in the database.
summary_install_log_2.3
.txt
[drive]:\Program Files\
AccessData\Forensic Toolkit\
2.3\logs\
Points to a set of log files
including a summary
installation log to help
Technical Support with
troubleshooting.
KFF Logs [drive]:\Program Files\
AccessData\KFF Library FTK 2.3
Records whether the Known
File Filter was added to the
schema.
FTK.exe [drive]:\Program Files\
AccessData\Forensic Toolkit\
2.3\bin\
Program executable
286 AccessData FTK 2.3 User Guide
FILES AND FOLDERS FOR THE DATABASE
These files and folders exist on the computer running the Oracle database.
TABLE C-2 Oracle Database File Locations
File or Folder Location Function
ftk2 [drive]:\Oracle Contains files FTK 2.3 uses to work with the
Oracle database, such as JRE, libraries,
configuration scripts, etc.
logs [drive]:\Program
Files\Oracle\Inventory
Contains installation logs intended to help
Technical Support with installation
troubleshooting.
FTK2_KFF.DBF [drive]:\Oracle\ftk2\databas
e
Contains the hashes that make up the
AccessData Known File Filter.
CHANGING REGISTRY OPTIONS
The following sections cover small changes that can be made to items in the registry to
aid in the functionality and desired efficiency of FTK.
FTK2_log.txt [drive]:\Program Files\
AccessData\ Forensic Toolkit\
2.3\
Log file recording information
specific to the application.
FTK2crash[timestamp].dmp [drive]:\Program
Files\AccessData\AccessData
Forensic Toolkit\2. 2\
Dump file with the timestamp
from an FTK crash.
TABLE C-1 FTK 2.3 Folders and File Locations
File or Folder Location Function
Appendix D Gathering Windows Registry Evidence 287
Appendix D Gathering Windows
Registry Evidence
This appendix contains information about the Windows Registry and what information
can be gathered for evidence.
UNDERSTANDING THE WINDOWS REGISTRY
For forensic work, registry files are particularly useful because they can contain
important information such as the following:
• Usernames and passwords for programs, email, and Internet sites
• A history of Internet sites accessed, including dates and times
• A record of Internet queries (i.e., searches performed on Internet search engines
like Google, Yahoo, etc.)
• Lists of recently accessed files (e.g., documents, images, etc.)
• A list of all programs installed on the system
AccessData Registry Viewer allows you to view the contents of Windows operating
system registries. Unlike the standard Windows Registry Editor, which only displays the
current system’s registry, Registry Viewer lets you examine registry files from any
system or user. Registry Viewer also provides access to a registry’s protected storage,
which contains passwords, usernames, and other information not accessible from
within Windows Registry Editor.
288 AccessData FTK 2.3 User Guide
The files that make up the registry differ depending on the version of Windows. The
tables below list the registry files for each version of Windows, along with their
locations and the information they contain.
WINDOWS 9X REGISTRY FILES
The following table describes each item on the Windows 9x registry files:
TABLE D-1 Windows 9x Registry files
Filename Location Contents
system.dat \Windows •Protected storage for all users on the sys-
tem. Protected Storage is an access-
restricted area of the registry that stores
confidential user information including
usernames and passwords for Internet
Web sites, email passwords for Microsoft
Outlook or Outlook Express, and a record
of Internet queries (i.e., searches per-
formed on Internet search engines like
Google, Yahoo, etc.), including the time
and date when they were performed.
•Lists installed programs, their settings, and
any usernames and passwords associated
with them.
•Contains the System settings.
user.dat \Windows
If there are multiple user
accounts on the system,
each user has a user.dat file
located in
\Windows\profiles\user
account
•MRU (Most Recently Used) list of files.
MRU Lists maintain a list of files so users
can quickly re-access files. Registry
Viewer allows you to examine these lists
to see what files have been recently used
and where they are located. Registry
Viewer lists each program’s MRU files in
order from most recently accessed to
least recently accessed.
•User preference settings (desktop configu-
ration, etc.).
Appendix D Gathering Windows Registry Evidence 289
WINDOWS NT AND WINDOWS 2000 REGISTRY FILES
The following table describes each item in the Windows NT and Windows 2000 registry
files:
TABLE D-2 Windows NT and Windows 2000 Registry Files
Filename Location Contents
NTUSER.DAT \Documents and
Settings\[user account]
If there are multiple user
accounts on the system, each
user has an ntuser.dat file.
default \Winnt\system32\config System settings
SAM \Winnt\system32\config User account management and security
settings
SECURITY \Winnt\system32\config Security settings
software \Winnt\system32\config All installed programs, their settings, and any
usernames and passwords associated with
them
system \Winnt\system32\config System settings
•Protected storage for all users on the sys-
tem. Protected Storage is an access-
restricted area of the registry that stores
confidential user information including
usernames and passwords for Internet
Web sites, email passwords for Microsoft
Outlook or Outlook Express, and a
record of Internet queries (i.e., searches
performed on Internet search engines
like Google, Yahoo, etc.), including the
time and date when they were per-
formed.
•All installed programs, their settings, and
any usernames and passwords associated
with them.
•User preference settings (desktop config-
uration, etc.)
290 AccessData FTK 2.3 User Guide
WINDOWS XP REGISTRY FILES
The following table describes each item in the Windows XP registry files:
TABLE D-3 Windows XP Registry Files
Filename Location Contents
NTUSER.DAT \Documents and
Settings\[user account]
If there are multiple user
accounts on the system, each
user has an ntuser.dat file.
default \Winnt\system32\config System settings
SAM \Winnt\system32\config User account management and security
settings
SECURITY \Winnt\system32\config Security settings
software \Winnt\system32\config All installed programs, their settings, and any
usernames and passwords associated with
them
system \Winnt\system32\config System settings
The logical registry is organized into the following tree structure:
The top level of the tree is divided into hives. A hive is a discrete body of keys, subkeys,
and values that is rooted at the top of the registry hierarchy. On Windows XP systems,
the registry hives are as follows:
• HKEY_CLASSES_ROOT (HKCR)
•Protected storage for all users on the sys-
tem. Protected Storage is an access-
restricted area of the registry that stores
confidential user information including
usernames and passwords for Internet
Web sites, email passwords for Microsoft
Outlook or Outlook Express, and a
record of Internet queries (i.e., searches
performed on Internet search engines
like Google, Yahoo, etc.), including the
time and date when they were per-
formed.
•All installed programs, their settings, and
any usernames and passwords associated
with them.
•User preference settings (desktop config-
uration, etc.)
Appendix D Gathering Windows Registry Evidence 291
• HKEY_CURRENT_USER (HKCU)
• HKEY_LOCAL_MACHINE (HKLM)
• HKEY_USERS (HKU)
• HKEY_CURRENT_CONFIG (HKCC)
• HKEY_DYN_DATA (HKDD)
HKEY_LOCAL_MACHINE and HKEY_USERS are the root hives. They contain
information that is used to create the HKEY_CLASSES_ROOT, HKEY_CURRENT_USER,
and HKEY_CURRENT_CONFIG hives.
HKEY_LOCAL_MACHINE is generated at startup from the system.dat file and contains
all the configuration information for the local machine. For example, it might have one
configuration if the computer is docked, and another if the computer is not docked.
Based on the computer state at startup, the information in HKEY_LOCAL_MACHINE is
used to generate HKEY_CURRENT_CONFIG and HKEY_CLASSES_ROOT.
HKEY_USERS is generated at startup from the system User.dat files and contains
information for every user on the system.
Based on who logs in to the system, the information in HKEY_USERS is used to
generate HKEY_CURRENT_USER, HKEY_CURRENT_CONFIG, and
HKEY_CLASSES_ROOT.
Keys and sub-keys are used to divide the registry tree into logical units off the root.
When you select a key, Registry Editor displays the key’s values; that is, the information
associated with that key. Each value has a name and a data type, followed by a
representation of the value’s data. The data type tells you what kind of data the value
contains as well as how it is represented. For example, values of the REG_BINARY type
contain raw binary data and are displayed in hexadecimal format.
292 AccessData FTK 2.3 User Guide
POSSIBLE DATA TYPES
The following table lists the Registry’s possible data types:
TABLE D-4 Possible Data Types
Data Type Name Description
REG_BINARY Binary Value Raw binary data. Most hardware component
information is stored as binary data and is
displayed in hexadecimal format.
REG_DWORD DWORD
Value
Data represented by a number that is 4 bytes long
(a 32-bit integer). Many parameters for device
drivers and services are this type and are displayed
in binary, hexadecimal, or decimal format. Related
values are REG_DWORD_LITTLE_ENDIAN
(least significant byte is at the lowest address) and
REG_DWORD_BIG_ENDIAN (least
significant byte is at the highest address).
REG_EXPAND_SZ Expandable
String Value
A variable-length data string. This data type
includes variables that are resolved when a
program or service uses the data.
REG_MULTI_SZ Multi-String
Value
A multiple string. Values that contain lists or
multiple values in a format that people can read
are usually this type. Entries are separated by
spaces, commas, or other marks.
REG_SZ String Value A text string of any length.
REG_RESOURCE_LIST Binary Value A series of nested arrays designed to store a
resource list used by a hardware device driver or
one of the physical devices it controls. This data is
detected by the system and is displayed in
hexadecimal format as a Binary Value.
REG_RESOURCE_
REQUIREMENTS_LIST
Binary Value A series of nested arrays designed to store a device
driver’s list of possible hardware resources that it,
or one of the physical devices it controls, can use.
This data is detected by the system and is
displayed in hexadecimal format as a Binary Value.
REG_FULL_RESOURCE_
DESCRIPTOR
Binary Value A series of nested arrays deigned to store a
resource list used by a physical hardware device.
This data is displayed in hexadecimal format as a
Binary Value.
Appendix D Gathering Windows Registry Evidence 293
ADDITIONAL CONSIDERATIONS
If there are multiple users on a single machine, you must be aware of the following
issues when conducting a forensic investigation:
• If there are individual profiles for each user on the system, you need to locate the
USER.DAT file for the suspect(s).
• If all the users on the system are using the same profile, everyone’s information is
stored in the same USER.DAT file. Therefore, you will have to find other
corroborating evidence because you cannot associate evidence in the USER.DAT
file with a specific user profile.
• On Windows 9x systems, the USER.DAT file for the default user is used to create
the USER.DAT files for new user profiles. Consequently, the USER.DAT files for new
profiles can inherit a lot of junk.
To access the Windows registry from an image of the suspect’s drive, you can do any of
the following:
• Load the suspect’s drive image and export his or her registry files to view them in
Registry Editor.
• Mount a restored image as a drive, launch Registry Editor at the command line
from your processing machine, export the registry files from the restored image,
then view them in a third-party tool.
Note: The problem with this method is that you can only view the registry as text. Registry
Editor displays everything in ASCII so you can’t see hex or binary values in the
registry.
• Use Registry Viewer. Registry Viewer integrates seamlessly with FTK 2.3 to display
registry files within the image and create reports.
Important: Registry Viewer shows everything you normally see in live systems
using the Windows Registry Editor. However, unlike Registry Editor and
other tools that use the Windows API, Registry Viewer decrypts
REG_NONE None Data with no particular type. This data is written
to the registry by the system or applications and is
displayed in hexadecimal format as a Binary Value.
REG_LINK Link A Unicode string naming a symbolic link.
REG_QWORD QWORD
Value
Data represented by a number that is a 64-bit
integer.
TABLE D-4 Possible Data Types
Data Type Name Description
294 AccessData FTK 2.3 User Guide
protected storage information so it displays values in the Protected
Storage System Provider key (PSSP). Registry Viewer also shows
information that is normally hidden in null-terminated keys.
SEIZING WINDOWS SYSTEMS
Information stored in the registry—Internet Messenger sessions, Microsoft Office
MRU lists, usernames and passwords for Internet Web sites accessed through Internet
Explorer, and so forth—are temporarily stored in HKEY_CURRENT_USER. When the
user closes an application or logs out, the hive’s cached information is pulled out of
memory and written to the user’s corresponding USER.DAT.
Note: Passwords and MRU lists are not saved unless these options are enabled.
Important: Because normal seizure procedures require that there be no
alteration of the suspect’s computer in any way, you must be able to
articulate why you closed any active applications before pulling the plug
on the suspect’s computer. Sometimes it is better to simply pull the plug
on the computer; other times, it makes more sense to image the
computer in place while it is on. It may depend on what is the most
important type of data expected to be found on the computer.
For example, Windows updates some program information in the registry
when the changes are made. Other information is not updated
until a program is closed. Also, if the computer’s drive is
encrypted and you cannot decrypt it or don’t have the Key or
password, you may have no choice except to image the live drive.
The Registry Quick Find Chart gives more information.
REGISTRY QUICK FIND CHART
The following charts discuss common locations where you can find data of forensic
interest in the Windows Registry.
Appendix D Gathering Windows Registry Evidence 295
SYSTEM INFORMATION
TABLE D-5 System Information From HKLM
Information File or Key Location Description
Registered Owner Software Microsoft\Windows NT\
CurrentVersion
This information is entered during
installation, but can be modified later.
Registered Organization Software Microsoft\Windows NT\
CurrentVersion
This information is entered during
installation, but can be modified later.
Run Software Microsoft\Windows\Current
Version\Run
Programs that appear in this key run
automatically when the system boots.
Logon Banner Message Software Microsoft\Windows\Current
Version\Policies\System\Legal
NoticeText
This is a banner that users must click
through to log on to a system.
Mounted Devices System MountedDevices Database of current and prior mounted
devices that received a drive letter.
Current Control Set System Select Identifies which control set is current.
Shutdown Time System ControlSetXXX\Control\Windows System shutdown time.
Event Logs System ControlSetXXX\Services\Eventlog Location of Event logs.
Dynamic Disk System ControlSetXXX\Services\DMIO\
Boot Info\Primary Disk Group
Identifies the most recent dynamic disk
mounted in the system.
Pagefile System ControlSetXXX\Control\
Session Manager\Memory
Management
Location, size, set to wipe, etc.
Last User Logged In Software Microsoft\Windows NT\
CurrentVersion\Winlogon
Last user logged in - can be a local or
domain account.
Product ID Software Microsoft\Windows NT\
CurrentVersion
O\S Version Software Microsoft\Windows NT\
CurrentVersion
Logon Banner Title Software Microsoft\Windows\Current
Version\Policies\System\Legal
NoticeCaption
User-defined data.
Logon Banner Message Software Microsoft\Windows\Current
Version\Policies\System\Legal
NoticeCaption
User-defined data.
Time Zone System ControlSet001(or002)\Control\
TimeZoneInformation\Standard
Name
This information is entered during
installation, but can be modified later.
296 AccessData FTK 2.3 User Guide
NETWORKING
TABLE D-6 Registry Networking Information
Information File or Key Location Description
USER DATA
Map Network Drive
MRU
NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Explorer\Map
Network Drive MRU
Most recently used list of mapped network
drives.
TCP\IP data System ControlSetXXX\Services\
TCPIP\Parameters
Domain, hostname data.
TCP\IP Settings of
a Network Adapter
System ControlSetXXX\Services\
adapter\Parameters\TCPIP
IP address, gateway information.
Default
Printer
NTUSER.DAT Software\Microsoft\Windows
NT\CurrentVersion\Windows
Current default printer.
Default
Printer
NTUSER.DAT \printers Current default printer.
Local Users SAM Domains\Account\Users\
Names
Local account security identifiers.
Local Groups SAM Domains\Builtin\Aliases\
Names
Local account security identifiers.
Profile list Software Microsoft\Windows NT\
CurrentVersion\ProfileList
Contains user security identifiers (only
users with profile on the system).
Network Map NTUSER.DAT Documents and
Settings\username
Browser history and last-viewed lists
attributed to the user.
TABLE D-7 Registry User Data Information
Information File or Key Location Description
Run NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Run
Programs that appear in this key run
automatically when the user logs on.
Media Player Recent List NTUSER.DAT Software\Microsoft\Media
Player\Player\ RecentFileList
This key contains the user's most recently
used list for Windows Media Player.
O\S Recent
Docs
NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Explorer\
RecentDocs
MRU list pointing to shortcuts located in
the recent directory.
Run MRU NTUSER.DAT \Software\Microsoft\Windows\
CurrentVersion\Explorer\RunMR
U
MRU list of commands entered in the
“run” box.
Appendix D Gathering Windows Registry Evidence 297
USER APPLICATION DATA
Open And Save As Dialog
Boxes MRU
NTUSER.DAT \Software\Microsoft\Windows\
CurrentVersion\Explorer\
ComDlg32
MRU lists of programs\files opened with
or saved with the “open” or “save as”
dialog box(es).
Current Theme NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Themes
Desktop theme\wallpaper.
Last Theme NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Themes\Last
Theme
Desktop theme\wallpaper.
File Extensions\
Program Association
NTUSER.DAT Software\Microsoft\Windows\
CurrentVersion\Explorer\
FileExts
Identifies associated programs with file
extensions.
TABLE D-8 Registry User Application Data Information
Information File or Key Location Description
Word User Info
NTUSER.DAT
Software\Microsoft\office\
version\Common\UserInfo
This information is entered during
installation, but can be modified later.
Word Recent Docs
NTUSER.DAT
Software\Microsoft\office\
version\Common\Data
Microsoft word recent documents.
IE Typed URLs
NTUSER.DAT
Software\Microsoft\Internet
Explorer\TypedURLs
Data entered into the URL address bar.
IE Auto- Complete
Passwords NTUSER.DAT
\Software\Microsoft\
Internet Explorer\IntelliForms
Web page auto complete password-
encrypted values.
IE Auto-Complete
Web Addresses NTUSER.DAT
\Software\Microsoft\Protected
Storage System Provider
Lists Web pages where auto complete was
used.
IE Default Download
Directory NTUSER.DAT
Software\Microsoft\Internet
Explorer
Default download directory when utilizing
Internet Explorer.
Outlook Temporary
Attachment Directory NTUSER.DAT
Software\Microsoft\office\
version\Outlook\Security
Location where attachments are stored
when opened from Outlook.
AIM
NTUSER.DAT
Software\America Online\AOL
Instant Messenger\
CurrentVersion\Users\username
IM contacts, file transfer information, etc.
TABLE D-7 Registry User Data Information
Information File or Key Location Description
298 AccessData FTK 2.3 User Guide
Word User Info
NTUSER.DAT
Software\Microsoft\office\
version\Common\UserInfo
This information is entered during
installation, but can be modified later.
ICQ NTUSER.DAT \Software\Mirabilis\ICQ\* IM contacts, file transfer information, etc.
MSN Messenger
NTUSER.DAT
Software\Microsoft\MSN
Messenger\ListCache\.NET
MessngerService\*
IM contacts, file transfer information, etc.
Kazaa
NTUSER.DAT Software\Kazaa\*
Configuration, search, download, IM data,
etc.
Yahoo NTUSER.DAT Software\Yahoo\Pager\ Profiles\* IM contacts, file transfer information, etc.
Google Client History
NTUSER.DAT
Software\Google\NavClient\
1.1\History
Adobe NTUSER.DAT Software\Adobe\* Acrobat, Photo deluxe, etc.
TABLE D-8 Registry User Application Data Information
Information File or Key Location Description
Appendix E Managing Security Devices and Licenses 299
Appendix E Managing Security
Devices and Licenses
This chapter acquaints you with the managing AccessData product licenses. Here you
will find details regarding the LicenseManager interface and how to manage licenses
and update products using LicenseManager.
NLS SUPPORT
Beginning with the PRTK 6.4 and DNA 3.4 release, AccessData’s Network License
Service (NLS)is supported. If you have NLS, you should also have documentation on
how to install and implement it.
INSTALLING AND MANAGING SECURITY DEVICES
Before you can manage licenses with LicenseManager, you must install the proper
security device software and/or drivers. This section explains installing and using the
Wibu CodeMeter Runtime software and USB CmStick, as well as the Keylok USB
dongle drivers and dongle device.
INSTALLING THE SECURITY DEVICE
As discussed previously, AccessData products require a licensing security device that
communicates with the program to verify the existence of a current license. The device
can be the older Keylok dongle, or the newer Wibu CmStick. Both are USB devices,
and both require specific software to be installed prior to connecting the devices and
running your AccessData products. You will need:
300 AccessData FTK 2.3 User Guide
• The Wibu CodeMeter Runtime software with a Wibu CodeMeter (CmStick)
• The Wibu CodeMeter Runtime software, and the AccessData Dongle Drivers with
a Keylok dongle
Note: The Codemeter Runtime software and either a silver Wibu CmStick or a green
Keylok dongle are required to run PRTK or DNA. Without them, you can run PRTK
or DNA in Demo mode only.
The CmStick or dongle should be stored in a secure location when not in use.
You can install PRTK and the CodeMeter software from the shipping CD or from
downloadable files available on the AccessData website at www.accessdata.com. Click
Support > Downloads, and browse to the product to download. Click the download link
and save the file locally prior to running the installation files.
For solutions to commonly asked installation questions, see “Chapter 11
Troubleshooting” on page 189.
INSTALLING THE CODEMETER RUNTIME SOFTWARE
When you purchase the full PRTK package, AccessData provides a USB CmStick with
the product package. The green Keylok dongles are no longer provided, but can be
purchased separately through your AccessData Sales Representative.
To use the CmStick, you must first install the CodeMeter Runtime software, either from
the shipping CD, or from the setup file downloaded from the AccessData Web site.
LOCATING THE SETUP FILE
To install the CodeMeter Runtime software from the CD, you can browse to the setup
file, or select it from the Autorun menu.
To download the CodeMeter Runtime software, go to www.accessdata.com and do the
following:
1. Click Support > Downloads.
2. Find
2a. CodeMeter Runtime 3.30a (32 bit)
MD5: 9F299EC832152E593D9E8D76F199C723
(MD5 hash applies only to this version)
OR
2b. CodeMeter Runtime 3.30a (64 bit)
Appendix E Managing Security Devices and Licenses 301
MD5: 1140085cbbd0f15ade393f632b56d00c
(MD5 hash applies only to this version)
3. Click the Download link.
4. Save the file to your PC and run after the download is complete.
When the download is complete, double-click on the CodeMeterRuntime32-3.30.exe
or the CodeMeterRuntime64-3.30.exe.
RUNNING THE CODEMETER RUNTIME SETUP
Whichever way you choose to access the CodeMeter Runtime setup file, when you run
it you will see the following:
1. The CodeMeter Runtime Open File Security Warning will appear to allow you to
verify that you really want to open this file.
302 AccessData FTK 2.3 User Guide
2. Click Run.
3. On the Welcome screen, click Next.
4. Accept the License Agreement.
Appendix E Managing Security Devices and Licenses 303
5. Click Next.
6. In the User Information screen, enter your name and your company name.
7. Specify whether this application should be available only when you log in, or for
anyone who uses this computer.
8. Click Next.
9. Select the features you want to install.
304 AccessData FTK 2.3 User Guide
10. Click Next.
11. When you are satisfied with the options you have selected, click Next.
12. Installation will run its course. When complete, you will see the “CodeMeter
Runtime Kit v3.30 has been successfully installed” screen. Click Finish to exit the
installation.
THE CODEMETER CONTROL CENTER
When the CodeMeter Runtime installation is complete, the CodeMeter Control Center
pops up. This is a great time to connect the CmStick and verify that the device is
recognized and is Enabled. Once verified, you can close the control center and run
your AccessData product(s).
For the most part there is nothing you need to do with this control center, and you
need make no changes using this tool with very few exceptions. If you have problems
Appendix E Managing Security Devices and Licenses 305
with your CmStick, contact AccessData Support and an agent will walk you through
any troubleshooting steps that may need to be performed.
INSTALLING KEYLOK DONGLE DRIVERS
To install the Keylok USB dongle drivers do the following:
1. If installing from CD, insert the CD into the CD-ROM drive and click Install the Dongle
Drivers.
If auto-run is not enabled, select Start > Run. Browse to the CD-ROM drive and
select Autorun.exe.
OR
1. If installing from a file downloaded from the AccessData Web site, locate the
Dongle_driver_1.6.exe setup file, and double-click it.
2. Click Next.
306 AccessData FTK 2.3 User Guide
3. Select the type of dongle to install the drivers for.
4. Click Next.
5. If you have a USB dongle, verify that it is not connected.
6. Click Next.
7. Click Finish.
8. Connect the USB dongle. Wait for the Windows Found New Hardware wizard, and
follow the prompts.
Important: If the Windows Found New Hardware wizard appears, complete
the wizard. Do not close without completing, or the dongle driver will
not be installed.
WINDOWS FOUND NEW HARDWARE WIZARD
When you connect the dongle after installing the dongle drivers, you should wait for the
Windows Found New Hardware Wizard to come up. It is not uncommon for users to
disregard this wizard, and then find that the dongle is not recognized and their
AccessData software will not run.
When the Found New Hardware Wizard pops up, do the following:
Appendix E Managing Security Devices and Licenses 307
1. When prompted whether to connect to Windows Update to search for software,
choose, “No, not this time”.
2. Click Next.
3. When prompted whether to install the software automatically or to install from a list
of specific locations, choose, “Install the software automatically (Recommended)”.
4. Click Next.
308 AccessData FTK 2.3 User Guide
5. Click Finish to close the wizard.
Once you have installed the dongle drivers and connected the dongle and verified that
Windows recognizes it, you can use LicenseManager to manage product licenses.
INSTALLING LICENSEMANAGER
LicenseManager lets you manage product and license subscriptions using a security
device or device packet file.
To install LicenseManager from the downloadable file:
1. Go to the AccessData download page at
http://www.accessdata.com/downloads.htm.
2. On the download page, click the LicenseManager Download link.
3. Save the installation file (currently lm-license_manager-2.2.4.exe) to a temporary
directory on your drive.
4. To launch the installation program, go to the temporary directory and double-click
the installation file you downloaded in step 3.
Appendix E Managing Security Devices and Licenses 309
5. Click Next on the Welcome screen.
6. Click Yes to accept the license agreement.
7. Wait while the installation completes.
310 AccessData FTK 2.3 User Guide
8. If you want to launch LicenseManager after completing the installation, select
Run LicenseManager.
Run LicenseManager later by selecting
Start >Programs > AccessData > LicenseManager > LicenseManager
or by double-clicking the LicenseManager icon on your desktop .
MANAGING LICENSES WITH LICENSEMANAGER
LicenseManager manages AccessData product licenses on a Keylok dongle or Wibu
CodeMeter Stick security device, or in a security device packet file. LicenseManager and
the CodeMeter Stick installation are no longer integrated with FTK2 installation.
LicenseManager displays license information, allows you to add or remove existing
licenses to a dongle or CmStick. LicenseManager can also be used to export a security
device packet file. Packet files can be saved and reloaded onto the dongle or CmStick,
or sent via email to AccessData support.
In addition, you can use LicenseManager to check for product updates and download
the latest product versions.
LicenseManager displays CodeMeter Stick information (including packet version and
serial number) and licensing information for all AccessData products. The Purchase
Licenses button connects directly to the AccessData website and allows you to browse
the site for information about products you may wish to purchase. Contact AccessData
by phone to speak with a Sales Representative for answers to product questions, and to
purchase products and renew licenses and subscriptions.
Appendix E Managing Security Devices and Licenses 311
LicenseManager provides information as displayed in the following figures:
Figure 5-1 LicenseManager Installed Components Tab
312 AccessData FTK 2.3 User Guide
Figure 5-2 LicenseManager Licenses Tab
STARTING LICENSEMANAGER
LicenseManager.exe is located in C:\Program Files\AccessData\Common
Files\AccessData LicenseManager\. You can execute the program from this location
if you wish.
Click Start > All Programs > AccessData > LicenseManager > LicenseManager,
OR
Click or double-click (depending on your Windows settings) the LicenseManager icon on
your desktop .
OR
From some AccessData programs, you can run LicenseManager from the Tools > Other
Applications menu. This option is not available in PRTK or DNA.
The LicenseManager program opens.
Appendix E Managing Security Devices and Licenses 313
When starting LicenseManager, License Manager reads licensing and subscription
information from the installed and connected Wibu CodeMeter Stick, or Keylok
dongle.
If using a Keylok dongle, and LicenseManager either does not open or displays the
message, “Device Not Found”, do the following:
1. Make sure the correct dongle driver is installed on your computer.
2. With the dongle connected, check in Windows Device Manager to make sure the
device is recognized. If it has an error indicator, right click on the device and choose
Uninstall.
3. Remove the dongle after the device has been uninstalled.
4. Reboot your computer.
5. After the reboot is complete, and all startup processes have finished running,
connect the dongle.
6. Wait for Windows to run the Add New Hardware wizard. If you already have the
right dongle drivers installed, do not browse the internet, choose, “No, not this
time.”
7. Click Next to continue.
8. On the next options screen, choose, “Install the software automatically
(Recommended)
9. Click Next to continue.
10. When the installation of the dongle device is complete, click Finish to close the
wizard.
11. You still need the CodeMeter software installed, but will not need a CodeMeter
Stick to run LicenseManager.
If using a CodeMeter Stick, and LicenseManager either does not open or displays the
message, “Device Not Found”, do the following:
1. Make sure the CodeMeter Runtime 3.30a software is installed. It is available at
www.accessdata.com/support. Click Downloads and browse to the product. Click
on the download link. You can Run the product from the Website, or Save the file
locally and run it from your PC. Once the CodeMeter Runtime software is installed
and running, you will see a gray icon in your system tray: .
2. Make sure the CodeMeter Stick is connected to the USB port. When the CmStick is
then connected, you will see the icon change to look like this: .
314 AccessData FTK 2.3 User Guide
If the CodeMeter Stick is not connected, LicenseManager still lets you to manage
licenses using a security device packet file if you have exported and saved the file
previously.
To open LicenseManager without a CodeMeter Stick installed:
1. Click Tools > LicenseManager.
LicenseManager displays the message, “Device not Found”.
2. Click OK, then browse for a security device packet file to open.
Note: Although you can run LicenseManager using a packet file, FTK 2.3 will not run with a
packet file alone. You must have the CmStick connected to the computer to run FTK 2.3.
THE LICENSEMANAGER INTERFACE
The LicenseManager interface consists of two tabs that organize the options in the
LicenseManager window: the Installed Components tab and the Licenses tab.
THE INSTALLED COMPONENTS TAB
The Installed Components tab lists the AccessData programs installed on the machine.
The Installed Components tab is displayed in the following figure.
Appendix E Managing Security Devices and Licenses 315
Figure 5-3 LicenceManager Installed Components
The following information is displayed on the Installed Components tab:
TABLE 5-1 LicenseManager Installed Components Tab Features
Item Description
Program Lists all AccessData products installed on the host.
Installed Version Displays the version of each AccessData product installed on the
host.
Newest Version Displays the latest version available of each AccessData product
installed on the host. Click Newest to refresh this list.
Product Notes Displays notes and information about the product selected in the
program list.
AccessData Link Links to the AccessData product page where you can learn more
about AccessData products.
316 AccessData FTK 2.3 User Guide
The following buttons provide additional functionality from the Installed Components
tab:
Use the Installed Components tab to manage your AccessData products and stay up to
date on new releases.
THE LICENSES TAB
The Licenses tab displays CodeMeter Stick information for the current security device
packet file and licensing information for AccessData products available to the owner of
the CodeMeter Stick, as displayed in the following figure.
TABLE 5-2 LicenseManager Installed Components Buttons
Button Function
Help Opens the LicenseManager Help web page.
Install Newest Installs the newest version of the programs checked in the product
window, if that program is available for download. You can also get
the latest versions from our website using your Internet browser.
Newest Updates the latest version information for your installed products.
About Displays the About LicenseManager screen. Provides version,
copyright, and trademark information for LicenseManager.
Done Closes LicenseManager.
Appendix E Managing Security Devices and Licenses 317
Figure 5-4 LicenseManager Licenses Tab
The Licenses tab provides the following information:
TABLE 5-3 LicenseManager Licenses Tab Features
Column Description
Program Shows the owned licenses for AccessData products.
Expiration Date Shows the date on which your current license expires.
Status Shows these status of that product’s license:
•None: the product license is not currently owned
•Days Left: displays when less than 31 days remain on the
license.
•Never: the license is permanently owned. This generally applies
to Hash Tables and Portable Office Rainbow Tables.
Name Shows the name of additional parameters or information a product
requires for its license.
Value Shows the values of additional parameters or information a product
contained in or required for its license.
Show Unlicensed When checked, the License window displays all products, whether
licensed or not.
318 AccessData FTK 2.3 User Guide
The following license management actions can be performed using buttons found on
the License tab:
TABLE 5-4 License Management Options
Button Function
Remove License Removes a selected license from the Licenses window and from
the CodeMeter Stick or dongle. Opens the AccessData License
Server web page to confirm success.
Refresh Device Connects to the AccessData License Server. Downloads and
overwrites the info on the CodeMeter Stick or dongle with the
latest information on the server..
Reload from Device Begins or restarts the service to read the licenses stored on the
CodeMeter Stick or dongle.
Release Device Click to stop the program reading the dongle attached to your
machine, much like Windows’ Safely Remove Hardware feature.
Click this button before removing a dongle.
This option is disabled for the CodeMeter Stick.
Open Packet File Opens Windows Explorer, allowing you to navigate to a .pkt file
containing your license information.
Save to File Opens Windows Explorer, allowing you to save a .pkt file
containing your license information. The default location is My
Documents.
Finalize Removal Finishes the removal of licenses in the unbound state. Licenses
must be unbound from the CmStick or dongle before this button
takes effect.
View Registration Info Displays an HTML page with your CodeMeter Stick number and
other license information.
Add Existing License Allows you to bind an existing unbound license to your CodeMeter
Stick, through an internet connection to the AccessData License
Server.
Purchase License Brings up the AccessData product page from which you can learn
more about AccessData products.
About Displays the About LicenseManager screen. Provides version,
copyright, and trademark information for LicenseManager.
Done Closes LicenseManager.
Appendix E Managing Security Devices and Licenses 319
OPENING AND SAVING DONGLE PACKET FILES
You can open or save dongle packet files using LicenseManager. When started,
LicenseManager attempts to read licensing and subscription information from the
dongle. If you do not have a dongle installed, LicenseManager lets you browse to open
a dongle packet file. You must have already created and saved a dongle packet file to be
able to browse to and open it.
To save a security device packet file:
1. Click the Licenses tab, then under License Packets, click Save to File.
2. Browse to the desired folder and accept the default name of the .pkt file; then click
Save.
Note: In general, the best place to save the .pkt files is in the AccessData LicenseManager
folder. The default path is C:\Program Files\AccessData\Common Files\AccessData
LicenseManager\.
To open a security device packet file:
1. Select the Licenses tab, then under License Packets, click Open Packet File.
2. Browse for a dongle packet file to open. Select the file, then click Open.
320 AccessData FTK 2.3 User Guide
Figure 5-5 LicenseManager Open Packet File
ADDING AND REMOVING PRODUCT LICENSES
On a computer with an Internet connection, LicenseManager lets you add available
product licenses to, or remove them from, a dongle.
To move a product license from one dongle to another dongle, first remove the
product license from the first dongle. You must release that dongle, and connect the
second dongle before continuing. When the second dongle is connected and
recognized by Windows and LicenseManager, click on the Licenses tab to add the
product license to the second dongle.
REMOVE A LICENSE
To remove (unassociate) a product license:
1. From the Licenses tab, mark the program license to remove. This action activates
the Remove License button below the Program list box.
2. Click Remove License. This connects your machine to the AccessData License Server
through the Internet.
Appendix E Managing Security Devices and Licenses 321
3. You will be prompted to confirm the removal of the selected license(s) from the
device.
Click Yes to continue, or No to cancel.
4. You will see some screens indicating the connection and activity on the License
Server, and when the license removal is complete, you will see the following screen:
Figure 5-6 Packet Update Successful
5. Click OK to close the message box. You will then see an Internet browser screen
from LicenseManager with a message that says, “The removal of your license(s)
from Security Device was successful!” You may close this box at any time.
ADD A LICENSE
To add a new or released license:
1. From the Licenses tab, under Browser Options, click Add Existing License.
The AccessData LicenseManager Web page opens, listing the licenses currently
bound to the connected security device, and below that list, you will see the licenses
that currently are not bound to any security device. Mark the box in the Bind
column for the product you wish to add to the connected device, then click Submit.
2. An AccessData LicenseManager Web page will open, displaying the following
message, “The AccessData product(s) that you selected has been bound to the
record for Security Device nnnnnnn within the Security Device Database.
322 AccessData FTK 2.3 User Guide
“Please run LicenseManager’s “Refresh Device” feature in order to complete the
process of binding these product license(s) to this Security Device.” You may close
this window at any time.
3. Click Yes if LicenseManager prompts, “Were you able to associate a new product
with this device?”
4. Click Refresh Device in the Licenses tab of LicenseManager. Click Yes when prompted.
You will see the newly added license in the License Options list.
ADDING AND REMOVING PRODUCT LICENSES REMOTELY
While LicenseManager requires an Internet connection to use some features, you can
add or remove licenses from a dongle packet file for a dongle that resides on a
computer, such as a forensic lab computer, that does not have an Internet connection.
If you cannot connect to the Internet, the easiest way to move licenses from one dongle
to another is to physically move the dongle to a computer with an Internet connection,
add or remove product licenses as necessary using LicenseManager, and then physically
move the dongle back to the original computer. However, if you cannot move the
dongle—due to organization policies or a need for forensic soundness—then transfer
the packet files and update files remotely.
ADD A LICENSE REMOTELY
To remotely add (associate) a product license:
Appendix E Managing Security Devices and Licenses 323
1. On the computer where the security device resides:
1a. Run LicenseManager.
1b. From the Licenses tab, click Reload from Device to read the dongle license
information.
1c. Click Save to File to save the dongle packet file to the local machine.
2. Copy the dongle packet file to a computer with an Internet connection.
3. On the computer with an Internet connection:
3a. Remove any attached security device.
3b. Launch LicenseManager. You will see a notification, “No security device
found”.
3c. Click OK.
3d. An “Open” dialog box will display. Highlight the .pkt file, and click Open.
3e. Click on the Licenses tab.
3f. Click Add Existing License.
3g. Complete the process to add a product license on the Website page.
3h. Click Yes when the LicenseManager prompts, “Were you able to associate a new
product with this dongle?”
3i. When LicenseManager does not detect a dongle or the serial number of the
dongle does not match the serial number in the dongle packet file, you are
prompted to save the update file, [serial#].wibuCmRaU.
3j. Save the update file to the local machine.
4. After the update file is downloaded, copy the update file to the computer where the
dongle resides:
5. On the computer where the dongle resides:
5a. Run the update file by double-clicking it. (It is an executable file.)
5b. After an update file downloads and installs, click OK.
5c. Run LicenseManager.
5d. From the Licenses tab, click Reload from Device to verify the product license has
been added to the dongle.
REMOVE A LICENSE REMOTELY
To remotely remove (unassociate) a product license:
1. On the computer where the dongle resides:
1a. Run LicenseManager.
324 AccessData FTK 2.3 User Guide
1b. From the Licenses tab, click Reload from Device to read the dongle license
information.
1c. Click Save to File to save the dongle packet file to the local machine.
2. Copy the file to a computer with an Internet connection.
3. On the computer with an Internet connection:
3a. Launch LicenseManager. You will see a notification, “No security device
found”.
3b. Click OK.
3c. An “Open” dialog box will display. Highlight the .pkt file, and click Open.
3d. Click on the Licenses tab.
3e. Mark the box for the product license you want to unassociate; then click Remove
License.
3f. When prompted to confirm the removal of the selected license from the
dongle, click Yes.
When LicenseManager does not detect a dongle or the serial number of the
dongle does not match the serial number in the dongle packet file, you are
prompted save the update file.
3g. Click Yes to save the update file to the local computer.
The Step 1 of 2 dialog details how to use the dongle packet file to remove the
license from a dongle on another computer.
3h. Save the update file to the local machine.
4. After the update file is downloaded, copy the update file to the computer where the
dongle resides.
5. On the computer where the dongle resides:
5a. Run the update file by double-clicking it. This runs the executable update file
and copies the new information to the security device.
5b. Run LicenseManager
5c. On the Licenses tab, click Reload from Device in LicenseManager to read the
security device and allow you to verify the product license is removed from the
dongle.
5d. Click Save to File to save the updated dongle packet file to the local machine.
6. Copy the file to a computer with an Internet connection.
Appendix E Managing Security Devices and Licenses 325
UPDATING PRODUCTS
You can use LicenseManager to check for product updates and download the latest
product versions.
For more information on the general features of the subscription service, see the
AccessData Website at http://www.accessdata.com/subscription_renewal.htm.
CHECK FOR PRODUCT UPDATES
To check for product updates, on the Installed Components tab, click Newest. This
refreshes the list to display what version you have installed, and the newest version
available.
DOWNLOAD PRODUCT UPDATES
To install the newest version, mark the box next to the product to install, then click
Install Newest.
Note: Some products, such as FTK 2.x, Enterprise, and others, are too large to download, and
are not available. A notification displays if this is the case.
To download a product update:
1. Ensure that LicenseManager displays the latest product information by clicking the
Installed Components tab. Click Newest to refresh the list showing the latest
releases, then compare your installed version to the latest release.
If the latest release is newer than your installed version, you may be able to install
the latest release from our Website.
2. Ensure that the program you want to install is not running.
3. Mark the box next to the program you want to download; then click Install Newest.
4. When prompted, click Yes to download and install the latest install version of the
product.
5. If installing the update on a remote computer, copy the product update file to
another computer.
6. Install the product update.
For information about installing the product update, refer to the installation
information for the product. You may need to restart your computer after the update is
installed.
326 AccessData FTK 2.3 User Guide
PURCHASE PRODUCT LICENSES
Use LicenseManager to link to the AccessData Web site to find information about all
our products.
Purchase product licenses through your AccessData Sales Representative. Call 801-377-
5410 and follow the prompt for Sales, or send an email to sales@accessdata.com.
Note: Once a product has been purchased and appears in the AccessData License Server, add
the product license to a CodeMeter Stick, dongle, or security device packet file by clicking
Refresh Device.
SEND A DONGLE PACKET FILE TO SUPPORT
Send a security device packet file only when specifically directed to do so by AccessData
support.
To create a dongle packet file, do the following:
1. Run LicenseManager
2. Click on the Licenses tab.
3. Click Load from Device.
4. Click Refresh Device if you need to get the latest info from AD’s license server.
5. Click Save to File, and note or specify the location for the saved file.
6. Attach the dongle packet file to an e-mail and send it to:
support@accessdata.com.
Note: For a more complete list of AccessData Corporation’s contact information, see
“AccessData Contact Information” on page iii.
AccessData Glossary 327
AccessData Glossary
A
AccessData Recovery Session
In PRTK, selecting one or more files and starting the password recovery process is
called an AccessData Recovery (ADR) session. Typically, each case has one session
unless you have a large number of encrypted files.
Address
A location of data, usually in main memory or on a disk. You can think of computer
memory as an array of storage boxes, each of which is one byte in length. Each cstorage
box has an address (a unique number) assigned to it. By specifying a memory address,
programmers can access a particular byte of data. Disks are divided into tracks and
sectors, each of which has a unique address.
Advanced Encryption Standard
A common symmetric encryption system that has replaced Data Encryption Standard
as the encryption standard. It uses a 128, 192, or 256-bit key.
Application Administrator
The first user created in an AccessData FTK2 system. The Application Administrator
has all rights within the application, including adding users and assigning roles.
Application Administrators can assign the role of Application Administrator to new
users as they are created.
328 AccessData FTK 3.0 User Guide
Asymmetric Encryption
A type of encryption in which the encryption and decryption keys are different.
Asymmetric encryption uses a public key (which can be posted on an Internet site or
made “public” through other means) and a private key, which remains secret. In this
system, something that has been encrypted with the private key can be decrypted only
by the public key, and vice versa. Asymmetric algorithms are slower than symmetric
algorithms, but can nonetheless be very useful. They are often used in combination
with symmetric algorithms, as with EFS Encryption.
The number of possible key values refers to the actual number of different key words or
passwords that can exist, based on the particular algorithm used to create the key value
in question. A n-bit key has 2n possible values. For example, a 40-bit key has 240 possible
values, or 1,099,511,627,776 possibilities.
The security of an algorithm should rely on the secrecy of the key only, not the secrecy
of the algorithm.
Do not compare key sizes between symmetric and asymmetric algorithms. For example,
a 128-bit symmetric key is approximately as strong as a 512-bit asymmetric key.
B
BestCrypt
A common symmetric encryption system that can be used with any of the following
hash functions and encryption algorithms:
TABLE Glossary-1 BestCrypt Hash Functions and Encryption Algorithms
Binary
Pertaining to a number system that has just two unique digits. Computers are based on
the binary numbering system, which consists of just two unique numbers, 0 and 1. All
•GOST •CAST
•SHA-1 Hash •AES
•Blowfish •RC6
•IDEA •3DES encryption
•Twofish •
AccessData Glossary 329
operations that are possible in the decimal system (addition, subtraction, multiplication,
and division) are equally possible in the binary system.
BIOS
Acronym for Basic Input/Output System. The BIOS is built-in software that
determines what a computer can do without accessing programs from a disk. On PCs,
the BIOS contains all the code required to control the keyboard, display screen, disk
drives, serial communications, and a number of miscellaneous functions.
Bit-stream Image
See “Forensic Image” on page 334.
Bookmark
A menu entry or icon on a computer that is most often created by the user and that
serves as a shortcut to a previously viewed location (as an Internet address). The term
“bookmark” as used in a Computer Crimes Unit report refers to locating a file, folder
or specific item of interest to the examiner or to the investigator. The location of the
data (file name, file location, relative path, and hardware address) is identified. Other
data can be addressed as well.
Boot
To load the first piece of software that starts a computer. Because the operating system
is essential for running all other programs, it is usually the first piece of software loaded
during the boot process.
Boot Record
All the three types of FAT have a boot record, which is located within an area of
reserved sectors. The DOS format program reserves 1 sector for FAT12 and FAT16 and
usually 32 sectors for FAT32.
C
Chunk Size
330 AccessData FTK 3.0 User Guide
The number of passwords the supervisor machine can process in the amount of time
specified.
Cluster
Fixed-length blocks that store files on the FAT media. Each cluster is assigned a unique
number by the computer operating system. Only the part of the partition called the
“data area” is divided into clusters. The remainder of the partition are defined as
sectors. Files and directories store their data in these clusters. The size of one cluster is
specified in a structure called the Boot Record, and can range from a single sector to
128 sectors. The operating system assigns a unique number to each cluster and the
keeps track of files according to which cluster they use.
CMOS
Short for Complementary Metal Oxide Semiconductor. Pronounced SEE-moss, CMOS
is a widely used type of semiconductor. CMOS semiconductors use both NMOS
(negative polarity) and PMOS (positive polarity) circuits. Since only one of the circuit
types is on at any given time, CMOS chips require less power than chips using just one
type of transistor. This makes them particularly attractive for use in battery-powered
devices, such as portable computers. Personal computers also contain a small amount
of battery-powered CMOS memory to hold the date, time, and system setup
parameters.
CRC
Short for Cyclical Redundancy Check. It performs a complex calculation on every byte
in the file, generating a unique number for the file in question. If so much as a single
byte in the file being checked were to change, the cyclical redundancy check value for
that file would also change. If the CRC value is known for a file before it is downloaded,
you can compare it with the CRC value generated by this software after the file has been
downloaded to ascertain whether the file was damaged in transit. The odds of two files
having the same CRC value are even longer than the odds of winning a state-run
lottery—along the lines of one in 4,294,967,296.
Cylinder
A single-track location on all the platters making up a hard disk. For example, if a hard
disk has four platters, each with 600 tracks, then there will be 600 cylinders, and each
cylinder will consist of 8 tracks (assuming that each platter has tracks on both sides).
AccessData Glossary 331
D
dd
(Linux) Makes a copy of a input file (STDIN) using the specified conditions, and sends
the results to the output file (STDOUT).
Data Carving
Data carving is the process of extracting a collection of data from a larger data set. Data
carving techniques frequently occur during a digital investigation when the unallocated
file system space is analyzed to extract files. The files are “carved” from the unallocated
space using file type-specific header and footer values. File system structures are not
used during the process.
Data Encryption Standard
A 56-bit symmetric encryption system that is considered weak by current standards. It
has been broken in a distributed environment.
Device
Any machine or component that attaches to a computer. Examples of devices include
disk drives, printers, mice, and modems. These particular devices fall into the category
of peripheral devices because they are separate from the main computer.
Most devices, whether peripheral or not, require a program called a device driver that
acts as a translator, converting general commands from an application into specific
commands that the device understands.
Disk
A round plate on which data can be encoded. There are two basic types of disks:
magnetic disks and optical disks.
E
332 AccessData FTK 3.0 User Guide
Encrypting File System (EFS)
EFS is a file system driver that provides filesystem-level encryption in Microsoft
Windows (2000 and later ) operating systems, except Windows XP Home Edition,
Windows Vista Basic, and Windows Vista Home Premium. The technology enables
files to be transparently encrypted on NTFS file systems to protect confidential data
from attackers with physical access to the computer.
EnScript (also “e script”)
EnScript is a language and API that has been designed to operate within the EnCase
environment. EnScript is compatible with the ANSI C++ standard for expression
evaluation and operator meanings but contains only a small subset of C++ features. In
other words, EnScript uses the same operators and general syntax as C++ but classes
and functions are organized differently.
Evidence Item
A physical drive, a logical drive or partition, or drive space not included in any
partitioned virtual drive.
F
File Allocation Table (FAT)
A table that the operating system uses to locate files on a disk. A file may be divided
into many sections that are scattered around the disk. The FAT keeps track of all these
pieces.
There is a field in the Boot Record that specifies the number of FAT copies. With
FAT12 and FAT16, MS-DOS uses only the first copy, but the other copies are
synchronized. FAT32 was enhanced to specify which FAT copy is the active one in a 4-
bit value part of a Flags field.
Think of the FAT as a singly linked list. Each of the chains in the FAT specify which
parts of the disk belong to a given file or directory.
A file allocation table is a simple array of 12-bit, 16-bit, or 32-bit data elements. Usually
there will be two identical copies of the FAT.
AccessData Glossary 333
FAT12: The oldest type of FAT uses a 12-bit binary number to hold the cluster number.
A volume formatted using FAT12 can hold a maximum of 4,086 clusters, which is 212
minus a few values (to allow for reserved values to be used in the FAT). FAT12 is most
suitable for very small volumes, and is used on floppy disks and hard disk partitions
smaller than about 16 MB (the latter being rare today.)
FAT16: The FAT used for older systems, and for small partitions on modern systems,
uses a 16-bit binary number to hold cluster numbers. When you see someone refer to a
FAT volume generically, they are usually referring to FAT16, because it is the de facto
standard for hard disks, even with FAT32 now more popular than FAT16. A volume
using FAT16 can hold a maximum of 65,526 clusters, which is 216 less a few values (again
for reserved values in the FAT). FAT16 is used for hard disk volumes ranging in size
from 16 MB to 2,048 MB. VFAT is a variant of FAT16.
FAT32: The newest FAT type, FAT32 is supported by newer versions of Windows,
including Windows 95’s OEM SR2 release, as well as Windows 98, Windows ME, and
Windows 2000. FAT32 uses a 28-bit binary cluster number—not 32 because 4 of the 32
bits are reserved. 28 bits is still enough to permit very large volumes—FAT32 can
theoretically handle volumes with over 268 million clusters, and will theoretically
support drives up to 2 TB in size. To do this, however, the size of the FAT grows very
large.
VFAT features the following key improvements compared to FAT12 and FAT16:
• Long File Name Support: Prior to Windows 95, FAT was limited to the eleven-
character (8.3) file name restriction. VFAT’s most important accomplishment
enabled the use of long file names by the Windows 95 operating system and
applications written for it, while maintaining compatibility with older software
that had been written before VFAT was implemented.
• Improved Performance: The disk access and file system management routines
for VFAT were rewritten using 32-bit protected-mode code to improve
performance. At the same time, 16-bit code was maintained, for use when
required for compatibility.
• Better Management Capabilities: Special support was added for techniques like
disk locking to allow utilities to access a disk in exclusive mode without fear of
other programs using it in the meantime.
File Header
The data at the beginning of a file that identifies the file type: .gif, .doc, .txt, etc.
334 AccessData FTK 3.0 User Guide
File Footer
The data at the end of the file signifying the file is complete and allows the file to be
understood by the operating system.
File Item
Any item FTK can parse from the evidence. This includes complete files as well as sub-
elements such as graphics, files, or OLE objects embedded in other files; deleted items
recovered from unallocated space; and so forth.
File Slack
Unused space. Operating systems store files in fixed-length blocks called clusters.
Because few files are a size that is an exact multiple of the cluster size, there is typically
unused space between the end of the file and the end of the last cluster used by that file.
Forensic Image
A process where all areas of a physical disk are copied, sector by sector, to storage
media. This image may be a raw file, as in the case of the Linux utility DD, or it may be
a forensically correct copy, such as SPADA provides. These images replicate exactly all
sectors on a given storage device. All files, unallocated data areas, and areas not
normally accessible to a user are copied.
Forensically Prepared Media
Digital media (such as a diskette, tape, CD, hard drive) that is sanitized (wiped clean) of
all data. This means computer media that may be sanitized up to the Department of
Defense standards 5220.22-M (National Industrial Security Program Operating Manual
Supplement) using software wipe utilities such as Dan Mares (Maresware) Declassify,
New Technologies Inc (NTI) Disk Scrub or M-Sweep Pro or Symantec (Norton)
WipeInfo to remove all data by overwriting the existing data with random or pre-
defined characters. The Linux OS may also be used to write out a value of zero (0) to a
device.
The media is then examined using tools to determine that no data exists (MD5, SHA-1
or Diskedit). The partition information is removed and the media is sanitized from the
physical address of (cylinder/head/sector) 0/0/1 to the physical (versus logical) end of
the media.
AccessData Glossary 335
This process involves using a program such as I-wipe, Encase, Linux, Drivespy, SPADA
or any program capable of writing multiple passes of a single character over the entire
drive.
Checksum is a form of redundancy check, a very simple measure for protecting the
integrity of data by detecting errors in data. It works by adding up the basic
components of a message, typically the bytes, and storing the resulting value. Later,
anyone can perform the same operation on the data, compare the result to the
authentic checksum and (assuming that the sums match) conclude that the message was
probably not corrupted.
Redundancy check is extra data added to a message for the purposes of error detection
and error correction.
The value of the checksum of forensically prepared media will be zero (0) provided the
write process is done using zeros.
G
Graphic Image Files
Computer graphic image files such as photos, drawings, etc. Come in various standard
formats. Some of the most common file types include but are not limited to Joint
Photographic Experts Group (JPEG, JPG), Bitmap (BMP), Graphics Interchange Format
(GIF, JFIF) and AOL image file (ART).
Golden Dictionary
The Golden Dictionary file, ADPasswords.dat, contains all recovered passwords for all
PRTK sessions on the current computer. It is stored in the AccessData program
directory (C:\Program Files\AccessData\Recovery\). Recovered passwords are used as
the first level of attack in all password recovery sessions. Most people use the same
password for different files, so recovering the password for a simple file often opens
the door to more difficult files.
Graphic Interchange Format (GIF)
336 AccessData FTK 3.0 User Guide
A common graphics format that can be displayed on almost all Web browsers. GIFs
typically display in 256 colors and have built-in compression. Static or animated GIF
images are the most common form of banner creation.
H
Hard Disk (Drive)
A magnetic disk on which you can store computer data. The term hard is used to
distinguish it from a soft or floppy disk. Hard disks hold more data and are faster than
floppy disks. A hard disk, for example, can store anywhere from 10gigabytes to several
terabytes, whereas most floppies have a maximum storage capacity of 1.4 megabytes.
Hashing
Generating a unique alphanumeric value based on a file’s contents. The alphanumeric
value can be used to prove that a file copy has not been altered in any way from the
original. It is statistically impossible for an altered file to generate the same hash
number.
Head
The mechanism that reads data from or writes data to a magnetic disk or tape. Hard
disk drives have many heads, usually two for each platter.
Hexadecimal
The base-16 number system, which consists of 16 unique symbols: the numbers zero
through nine and the letters A to F. For example, the decimal number 15 is represented
as F in the hexadecimal numbering system. The hexadecimal system is useful because it
can represent every byte (eight bits) as two consecutive hexadecimal digits. It is easier
for humans to read hexadecimal numbers than binary numbers.
K
Known File Filter (KFF)
AccessData Glossary 337
The KFF is a database utility that compares the hash values of case files to a database
of hash values from known files. The KFF can significantly reduce the amount of time
you spend analyzing files by eliminating unimportant files such as system and
application files, or identifying alert files such as known child pornograhy images. After
you compare case files to the KFF database, FTK and Enterprise place unimportant
files (known system and application files) in the KFF Ignorable container and alert files
(known criminal files) in the KFF Alert Files container within the Overview tab.
M
Markov Permutation
The Markov permutation records the times certain words, letters, punctuation, and
spaces occur together in a given amount of text, then generates random output that has
the same distribution of groups.
For example: if you were to scan through the text and create a huge frequency table of
what words come after the words “up the,” you might find “tree,” “ladder,” and
“creek” most often. You would then generate output from the words “up the,” and get
the results “up the tree,” “up the creek,” and “up the ladder” randomly.
If the words “up the” were followed most frequently by the word “creek” in your
sample text, the phrase “up the creek” would occur most frequently in your random
output.
Andrey Andreyevich Markov (June 14, 1856–July 20, 1922) was a Russian
mathematician.
Memory
Internal storage areas in the computer. The term memory identifies data storage that
comes in the form of chips; the word storage is used for memory that exists on tapes or
disks. Moreover, the term memory is usually used as shorthand for physical memory,
which refers to the actual chips capable of holding data.
Message Digest 5
A 128-bit digital fingerprint based on a file's content. An algorithm created in 1991 by
Professor Ronald Rivest of RSA that is used to create digital signatures, or a 128-bit
338 AccessData FTK 3.0 User Guide
digital fingerprint based on a file's content. Message Digest 5 (MD5) takes as input an
arbitrary-length file and outputs a fixed-length number referred to as a hash or digest. It
is intended for use with 32 bit machines and is safer than the MD4 algorithm, which has
been broken. MD5 is a one-way hash function, meaning that it takes a message and
converts it into a fixed string of digits, also called a message digest. When using a one-
way hash function, one can compare a calculated message digest against the message
digest that is decrypted with a public key to verify that the message hasn’t been
changed. This comparison is called a hash check. The number is derived from the input
in such a way that it is computationally infeasible to derive any information about the
input from the hash. It is also computationally infeasible to find another file that will
produce the same output.
MD5 hashes are used by the KFF to identify known files.
Metadata
Literally data about data. Metadata describes how, when, and by whom a particular set
of data was collected and how the data is formatted. Metadata is essential for
understanding information stored in data warehouses and has become increasingly
important in XML-based Web applications.
Mount
To make a mass storage device available to the OS, or to a user or user group. In may
also mean to make a device physically accessible. In a Unix environment, the mount
command attaches discs or directories logically rather than physically. The Unix mount
command makes a directory accessible by attaching a root directory of one file system
to another directory, which makes all the file systems usable as if they were
subdirectories of the file system they are attached to. Unix recognizes devices by their
location, while Windows recognizes them by their names (C: drive, for example). Unix
organizes directories in a tree-like structure in which directories are attached by
mounting them on the branches of the tree. The file system location where the device
is attached is called a mount point. Mounts may be local or remote. A local mount
connects disk drives on one machine so that they behave as one logical system. A
remote mount uses Network File System (NFS) to connect to directories on other
machines so that they can be used as if they were all part of the user’s file system.
N
AccessData Glossary 339
NT File System (NTFS)
One of the file systems for the Windows NT operating system (Windows NT also
supports the FAT file system). NTFS has features to improve reliability, such as
transaction logs to help recover from disk failures. To control access to files, you can set
permissions for directories or individual files. NTFS files are not accessible from other
operating systems, such as DOS. For large applications, NTFS supports spanning
volumes, which means files and directories can be spread out across several physical
disks.
P
Pagefile (.sys)
The paging file is the area on the hard disk that Windows uses as if it were random
access memory (RAM). This is sometimes known as virtual memory. By default,
Windows stores this file on the same partition as the Windows system files.
Parallel Framework Extensions (PFX)
PFX is a managed concurrency library being developed by a collaboration between
Microsoft Research and the CLR team at Microsoft. It is composed of two parts:
Parallel LINQ (PLINQ) and Task Parallel Ligary (TPL).
Pretty Good Privacy
A common symmetric encryption system used for exchanging files and email. It
provides both privacy and authentication.
R
RC4
RC4, or ARC4, is a variable key-length stream cipher designed by RSA. Stream ciphers
are key-dependent, pseudo-random number generators whose output is XORed with
the data <plaintext> XOR <random-looking stream> = <random-looking
ciphertext>. Because XOR is symmetric (in other words, [A XOR B] XOR B = A),
340 AccessData FTK 3.0 User Guide
XORing the ciphertext with the stream again returns the plaintext. Microsoft Word and
Excel use RC4 and a 40-bit key to encrypt their files. An exhaustive key space attack has
a much better chance at succeeding with a 40-bit key space.
S
Sector
A sector is a group of bytes within a track and is the smallest group of bytes that can be
addressed on a drive. There are normally tens or hundreds of sectors within each track.
The number of bytes in a sector can vary, but is almost always 512. The maximum
number of sectors in a cluster is 64. CDROMS normally have 2048 bytes per sector.
Sectors are numbered sequentially within a track, starting at 1. The numbering restarts
on every track, so that “track 0, sector 1” and “track 5, sector 1” refer to different
sectors. Modern drives use a system known as Logical Block Addressing (LBA) instead
of CHS to track sectors.
During a low-level format, hard disks are divided into tracks and sectors. The tracks are
concentric circles around the disk and the sectors are segments within each circle. For
example, a formatted disk might have 40 tracks, with each track divided into ten sectors.
Physical sectors are relative to the entire drive. Logical sectors are relative to the
partition.
Secure Hash Algorithm
A 160-bit digital fingerprint based on a file’s content. Designed by the National Institute
of Standards and Technology (NIST), Secure Hash Algorithm (SHA) takes as input an
arbitrary-length file and outputs a fixed-length number referred to as a hash or digest.
The number is derived from the input in such a way that it is computationally
impossible to derive any information about the input from the hash. It is also
computationally impossible to find another file that will produce the same output.
SHA-1 hashes are used by the KFF to identify known files.
FTK uses SHA-1 and SHA-256. The KFF library contains some A hashes.
SHA
AccessData Glossary 341
The SHA (Secure Hash Algorithm) family is a set of related cryptographic hash
functions. The most commonly used function in the family, SHA-1, is employed in a
large variety of popular security applications and protocols, including TLS, SSL, PGP,
SSH, S/MIME, and IPSec. SHA-1 is considered to be the successor to MD5, an earlier,
widely-used hash function. The SHA algorithms were designed by the National Security
Agency (NSA) and published as a US government standard.
The first member of the family, published in 1993, is officially called SHA; however, it is
often called SHA-0 to avoid confusion with its successors. Two years later, SHA-1, the
first successor to SHA, was published. Four more variants have since been issued with
increased output ranges and a slightly different design: SHA-224, SHA-256, SHA-384, and
SHA-512—sometimes collectively referred to as SHA-2.
Attacks have been found for both SHA-0 and SHA-1. No attacks have yet been reported
on the SHA-2 variants, but since they are similar to SHA-1, researchers are worried, and
are developing candidates for a new, better hashing standard.
Spool (spooling, print spool)
Acronym for Simultaneous Peripheral Operations On-Line, spooling refers to putting
jobs in a buffer, a special area in memory or on a disk where a device can access them
when it is ready. Spooling is useful because devices access data at different rates. The
buffer provides a waiting station where data can rest while the slower device catches up.
The most common spooling application is print spooling. In print spooling, documents
are loaded into a buffer (usually an area on a disk), and then the printer pulls them off
the buffer at its own rate. Because the documents are in a buffer where they can be
accessed by the printer, you can perform other operations on the computer while
printing takes place in the background. Spooling also lets you place a number of print
jobs on a queue instead of waiting for each one to finish before specifying the next one.
Slack (File and RAM)
Files are created in varying lengths depending on their contents. DOS, Windows and
Windows NT-based computers store files in fixed length blocks of data called clusters.
Rarely do file sizes exactly match the size of one or multiple clusters perfectly. The data
storage space that exists from the end of the file to the end of the last cluster assigned
to the file is called file slack. Cluster sizes vary in length depending on the operating
system involved and, in the case of Windows 95, the size of the logical partition
involved. Larger cluster sizes mean more file slack and also the waste of storage space
when Windows 95 systems are involved.
342 AccessData FTK 3.0 User Guide
File slack potentially contains randomly selected bytes of data from computer memory.
This happens because DOS/Windows normally writes in 512 byte blocks called sectors.
Clusters are made up of blocks of sectors. If there is not enough data in the file to fill
the last sector in a file, DOS/Windows makes up the difference by padding the
remaining space with data from the memory buffers of the operating system. This
randomly selected data from memory is called RAM Slack because it comes from the
memory of the computer.
RAM Slack can contain any information that may have been created, viewed, modified,
downloaded or copied during work sessions that have occurred since the computer was
last booted. Thus, if the computer has not been shut down for several days, the data
stored in file slack can come from work sessions that occurred in the past.
RAM slack pertains only to the last sector of a file. If additional sectors are needed to
round out the block size for the last cluster assigned to the file, then a different type of
slack is created. It is called drive slack and it is stored in the remaining sectors which
might be needed by the operating system to derive the size needed to create the last
cluster assigned to the file. Unlike RAM slack, which comes from memory, drive slack is
padded with what was stored on the storage device before. Such data could contain
remnants of previously deleted files or data from the format pattern associated with
disk storage space that has yet to be used by the computer.
For example, take a file that is created by writing the word “Hello.” Assuming that this
is the only data written in the file and assuming a two sector cluster size for the file, the
data stored to disk and written in file slack could be represented as follows:
________________________________________
Hello+++++++|————(EOC)
RAM Slack is indicated by "+"
Drive Slack is indicated by "–"
________________________________________
File Slack is created at the time a file is saved to disk. When a file is deleted under DOS,
Windows, Windows 95, Windows 98 and Windows NT/2000/XP, the data associated
with RAM slack and drive slack remains in the cluster that was previously assigned to the
end of the deleted file. The clusters which made up the deleted file are released by the
operating system and they remain on the disk in the form of unallocated storage space
until the space is overwritten with data from a new file.
File slack potentially contains data dumped randomly from the computer’s memory. It
is possible to identify network login names, passwords, and other sensitive information
AccessData Glossary 343
associated with computer usage. File slack can also be analyzed to identify prior uses of
the subject computer and such legacy data can help the computer forensics investigator.
File slack is not a trivial item. On large hard disk drives, file slack can involve several
hundred megabytes of data. Fragments of prior email messages and word processing
documents can be found in file slack. From a computer forensic standpoint, file slack is
very important as both a source of digital evidence and security risks
String Searches
A string search is a data string containing standard text or non-text data. The term may
be a word, phrase or an expression. Keyword searches are designed to aid in the
identification of potentially relevant data on the examined media.
Superuser Administrator
Aperson with unlimited access privileges who can perform any and all operations on
the computer and within the operating system and file system. These privileges do not
necessarily transfer to the applications installed on the computer.
Symmetric Encryption
A type of encryption in which the encryption and decryption keys are the same. Some
common symmetric encryption systems are Data Encryption Standard, Triple-DES,
Pretty Good Privacy, BestCrypt, and Advanced Encryption Standard.
T
Thumbnail
A smaller-sized version of a graphics image.
U
Unallocated Space
Also called free space, it consists of all the clusters on a drive that are not currently
assigned to a file. Some of these clusters may still contain data from files that have been
deleted but not yet overwritten by other files.
344 AccessData FTK 3.0 User Guide
Until the first file is written to the data storage area of a computer storage device, the
clusters are unallocated by the operating system in the File Allocation Table (FAT). These
unallocated clusters are padded with format pattern characters and the unallocated
clusters are not of interest to the computer forensics specialist until data is written to the
clusters. As the computer user creates files, clusters are allocated in the File Allocation
Table (FAT) to store the data. When the file is deleted by the computer user, the clusters
allocated to the file are released by the operating system so new files and data can be
stored in the clusters when needed. However, the data associated with the deleted file
remains behind. This data storage area is referred to as unallocated storage space and it
is fragile from an evidence preservation standpoint. However, until the unallocated
storage space is reassigned by the operating system, the data remains behind for easy
discovery and extraction by the computer forensics specialist. Unallocated file space
potentially contains intact files, remnants of files and subdirectories and temporary files,
which were transparently created and deleted by computer applications and also the
operating system. All of such files and data fragments can be sources of digital evidence
and also security leakage of sensitive data and information.
URL
Abbreviation of Uniform Resource Locator, the global address of documents and
other resources on the World Wide Web. The first part of the address indicates what
protocol to use and the second part specifies the IP address or the domain name where
the resource is located.
V
Volume
A volume refers to a mounted partition. There may be only one volume on a disk, such
as a floppy disk or a zip disk. There may be several volumes on a disk as on a
partitioned hard drive. A volume is a logical structure, not a physical device. There can
be up to 24 of these logical volumes on a disk and they show up as drive “c,” “d,” or “e”
in DOS.
Volume Boot Sector
Since every partition may contain a different file system, each partition contains a
volume boot sector which is used to describe the type of file system on the partition
and usually contains boot code necessary to mount the file system.
AccessData Glossary 345
