1 Overview
1.1 Introduction
Note: This document has not yet been certified for GPP V4.6; therefore, there may be inaccuracies in
this document that may require amendments in the future. For more information, please contact your
Finastra Project Manager.
GPP has two proprietary message structures:
A single transaction structure known as the Fndt (FuNDs Transfer) message
A batch transaction structure known as the Fndt batch message
Both structures contain all the message attributes of the PAIN and PACS ISO standards, plus an
extension that contains additional attributes that are not in the ISO standards but are essential for the
effective communication of complex financial information.
The structure extension contains a number of system-wide fields that implement GPP’s core
extensions for rules, Queue view filter criteria, and data represented by a column in a queue view.
The structure extension also contains a financial institution’s own Custom Message Fields (CMF) aka
user-defined fields (UDF). These CMFs extend the GPP data model without requiring any changes in
GPP code or table structures. This enables GPP to remain stable and unchanged, even though each
financial institution adds its own specific attributes to the core data structure. In some cases, the code
for a financial institution’s specific interface may refer to that financial institution’s CMFs.
For an example of how to use CMFs in a request or response, see Extn section.
1.2 About This Guide
This document is aimed at operational team members who need to create and maintain interfaces
based on GPP’s proprietary message structure, so that the financial institution’s special procedures
can be easily performed by GPP.
1.3 Background
Standard interfaces were defined based on the Fndt Message structure to streamline the process of
integrating GPP with various existing systems in a bank or financial institution. In addition to providing
additional fields for GPP processing, this structure supports the use of ISO 20022 messages
embedded in the structure.
1.4 Scope
This document provides a description of the GPP structures that support handling single and multiple
messages.
1.5 References
For information about defining custom fields, see Creating Custom Fields Overview in the GPP User
Guide.
2 Interface Structures
2.1 Overview
When interfacing with a financial institution’s systems, various structures are supported for the
exchange of messages. These include:
1. Standard industry structures based on ISO 20022 that are defined and controlled by ISO.
GPP PAYplus | Fndt Message Format | Page 6
Note: With the Fndt (FuNDs Transfer) message, changes in the ISO and also in GPP attributes
do not require changes in the message structure since the creation of the transaction XML is
database driven (LOGICAL_FIELDS_XPATH) and is constructed according to the required ISO
structure per message.
2. Extension fields which are attributes that are not part of the ISO transaction but are required for
transaction processing, transaction hand-off and business rules assessment.
This document provides a description of the GPP specific structures used for message interchange.
Note: Throughout this document when a sub-tree tag is marked with * - the elements underneath it
can appear in any order. That is the XSD definition of the list of elements is ’all’ and not ’sequence.’
2.2 Structure Types
2.2.1 FndtMsg
Level 1
Level 2
Level 3
Level 4
Description
FndtMsg
Header
General identifying attributes
Msg
Transaction message and extensions
Pmnt
Pmnt quotes the transaction message (whether it is
ISO based pain/pacs or a SWIFT message embedded
within the GPP proprietary XML structure (see structure
examples and SQL in C.1 Structure of the Fndt SWIFT
XML).
Extn*
GPP proprietary transaction attributes
MsgFees
Message Fees. Multiple transaction fee details as
computed by GPP.
MsgNotes*
Message Notes. Operator internal notes
MsgRates
Message Rates. Multiple transaction contract/dealer
rate details used for currency conversion for this
transaction, if FX was involved in its processing.
Advising
Advising. Multiple transaction advices details’ as
created by GPP
MsgErrors
Message Errors. Multiple transaction processing errors
that occurred and were logged during processing
AuditTrail
Audit Trail. Multiple transaction processing audit lines
logged during processing
PostingRestrict
ions
Posting Restrictions. Multiple posting restrictions
entries logged per this transaction
SpecialInstructi
ons
Special Instructions. Multiple special instructions entries
caught per this transaction
ProcessingPer
sistentInfo*
Processing Persistent Info. Transaction derived
attributes relevant to the transaction information
GPP PAYplus | Fndt Message Format | Page 7
Level 1
Level 2
Level 3
Level 4
Description
XMLPersistentI
nfo*
XML Persistent Info. Relevant transaction persistent
data stored in XML format, either original as received or
enriched for sending out, (as opposed to MINF columns
for the information in ProcessingPersistentInfo).
CutoffInfo*
Cut-off Info. Cutoff entries associated with this
transaction - latest time/s for the transaction to be
processed
OperationalSec
tion*
Operational Section. Action attributes to perform on
transactions by services.
BalanceCheckI
nf
Balance Check Information. Multiple entries with
balance information for the transaction (on different
accounts and per different debit type – Principal or Fee)
Memopost
Memo Post (aka Posting Information – Older Design)
not in use in Roadmap version
MsgPosting
Message Posting (aka Posting Information – New
Design). Multiple posting entries calculated per this
transaction.
UserDefinedFi
elds*
User Defined Fields aka custom message fields.
System level and client/financial institution level defined
fields.
InterfacesSecti
on
Interface specific elements.
QaInfo
Internal QA department information.
WsResult
Web Services Result. GPP Web services result
information.
ProcessingTra
nsientInfo*
Processing Transient Info. Internal transient or
temporary transaction attributes.
Monitors*
Monitors. User/Services/Interface tracking monitors.
ReferenceData
*
Reference Data. Transaction-related profile reference
data.
BinrayContent
Binary Content. Any type of an image that may be
associated with the transaction such as fax, agreement
etc. The image is deconstructed into base 64 encoding
(so that it will have a character presentation). It is also
possible to reconstruct it into the original image file
when required.
Note that mimeType element describes the targeted
image format (for example TIFF, JPEG)
OrigMsg
Original transaction and extensions, if provided with
original.
Transaction can be pain or pacs or even SWIFT within
the GPP proprietary XML structure (see structure
GPP PAYplus | Fndt Message Format | Page 8
Level 1
Level 2
Level 3
Level 4
Description
examples and SQL in Appendix C: Additional Fndt
Message Related Information.
Response
Details
Applicable for Interface Responses and include result
information.

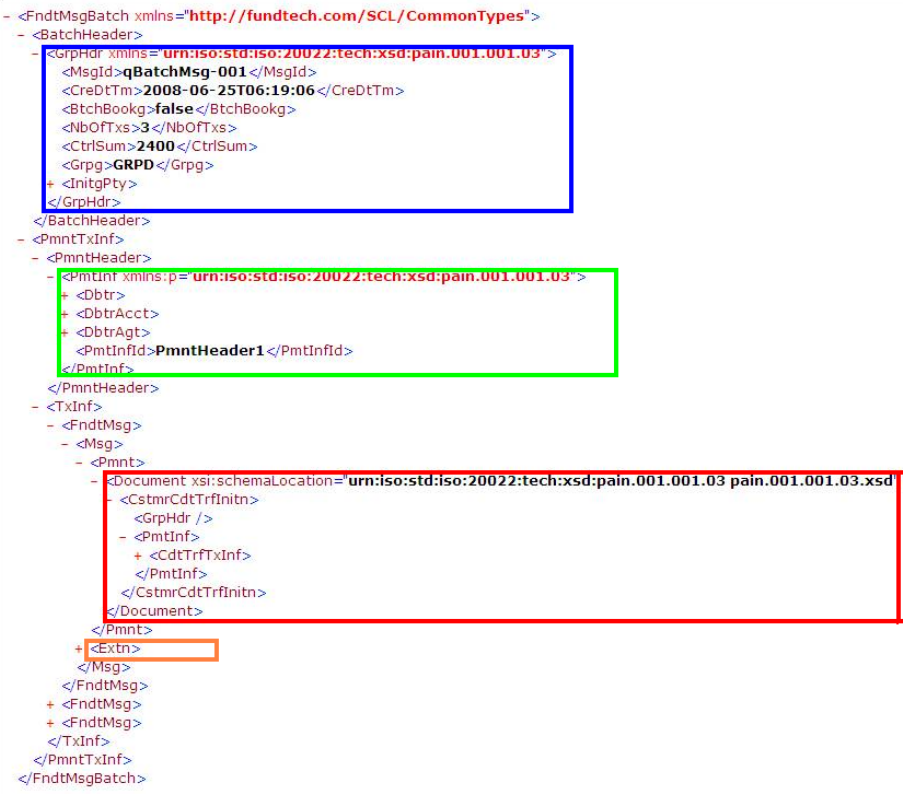

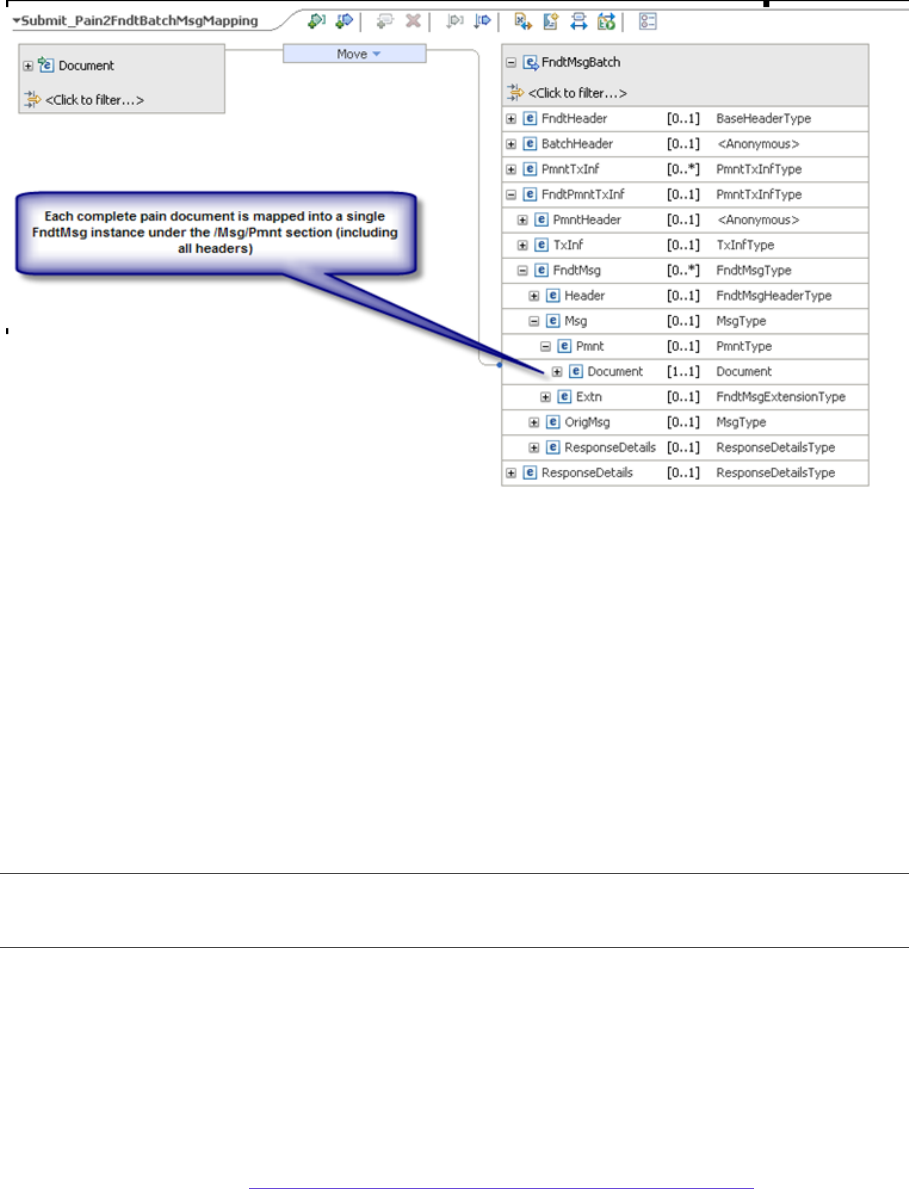

The FndtMsgBatch consists of the following sections:
FndtHeader – Base header that includes context information and credentials
BatchHeader – Header that contains the Pain’s GrpHdr element
PmntTxInfo –Transaction Information that can include one debit (in the header) with multiple
credit transfers that logically correspond to the /Document/CstmrCdtTrfInitn/PmtInf.
Note: This section can be repeated multiple times.
PmntHeader – One debit wrapper that contains a /Document/CstmrCdtTrfInitn/PmtInf element but
excludes the CdtTrfTxInf elements
TxInf – A multiple credits section that contains a list of FndtMsg elements, one for each credit
CdtTrfTxInf element.
Population instructions:
Create an FndtMsg element for each CdtTrfTxInf element in the ISO document.
The above is the full structure and set of sections of the Fndt Message. There is an option in GPP to
configure per each usage of the Fndt Message structure – per interface type – a subset of the full
structure.
The Inclusion and exclusion of specific tags and/or sub-tees of the full Fndt Message per such specific
usage is done using system configuration in the XML_FORMAT_TYPE_RELATIONS table.
For Example:
In a Posting Request – the configuration may exclude all the sub-trees under the Ext section, but the
MsgPosting sub-tree – the section that includes the posting entries details.
2.3 Structure Components
2.3.1 Header
The header section has these optional components:
Field Name
Taken From
contextName
Generic optional field to add information regarding the specific
usage, for example, if the Fndt Message is used in the context of
a Balance Inquiry - the contextName can be populated with the
string BalanceInquiry or BalanceInquiry_with_Earmark,
depending on the mode and functionality required.
contextLocalName
Generic optional field to add regarding the specific usage, but
using the financial institution system terminology naming, in case
such a local name exists and is required for the identification on
the financial institution side
GPP PAYplus | Fndt Message Format | Page 9
Field Name
Taken From
Credentials
User ID and its GPP credentials when required
Note: The usage of this section, if populated, is allowing to filter
results returned in the Fndt Message structure, based on the
credentials (permissions) of the quoted GPP User. For example
filtering out details of transactions belonging to an Office the
quoted user does not have permissions for.
This section is mainly used when Fndt Message structure is used
within SOA services, but can also be applied, if filtering is
required, when using it in interface structures.
If left empty – no filtering will occur
D_SKIP_PERSIST_ON_ERROR
An indication whether to store the transaction details where an
error or errors were found.
Workflow
Defined for mass processing. The valid values are Template, File
or Swift
P_MID
The MID of the related message for which this request/response
was invoked. Can be added to header to uniquely identify the
transaction related to the request/response. Can be used for
matching between request and response
deliveryTimestamp
The Timestamp when the request/response was created
P_INIT_SRC_ID
The ID of the source system initiating the request/response
EventID
Unique 16 character event ID generated for each interface
request
This ID is used to identify a resent request (EventID is as in the
original request), from a new request issued due to force or retry
(EventID quotes a new value).
This ID is generated only for interface requests that are
configured to be stored in
MESSAGE_EXTERNAL_INTERACTION, and only for those for
which the INTERFACE_TYPES.EVENT_ID_GENERATION is
configured with 1 in the INTERFACE_TYPE entry defined for this
request
2.3.2 Pmnt
In this section, GPP includes the transaction (whether it is ISO based pain or pacs with all its tags, or
whether it is a SWIFT message embedded within the GPP proprietary XML structure (see structure
examples and SQL in Appendix C: Additional Fndt Message Related Information).
In the case of a SWIFT message, the GPP proprietary XML structure includes:
The /Original_Swift/Message tag - quoting the original text of the SWIFT message as it was
received into the system
Additional specific tags holding specific attributes from within this SWIFT message to allow direct
access to them, rather than searching within the full text. Examples of such attributes are:
- F57a/Identifier_Code – holding the BIC quoted in field 57
- F32A/Amount – holding the amount quoted in field 32A
GPP PAYplus | Fndt Message Format | Page 10
Note: The text of the SWIFT message is available when an incoming SWIFT transaction is received,
or if a SWIFT format in an Outgoing message from Feeder is received. For an outgoing message, the
full SWIFT text string is only available after GPP performs the formatting outgoing to a SWIFT
transaction (when a transaction is created by the user via the user interface, it is created as a pacs
message).
The definition of the XML structure is based on the following three system tables:
1. XML_DOCUMENT_TYPES - Defines the available Xml Document Types supported by the GPP
Application.
2. XML_FORMAT_TYPE_RELATIONS - Used as an extension of the LOGICAL_FIELDS_XPATH
table for SWIFT parsing, to identify which logical fields are included or excluded from the parsing
from the different Swift message types. In this case, the XML_Type is SWIFT and the
Format_Type is the SWIFT message type.
3. LOGICAL_FIELDS_XPATH - Defines the physical location of the logical fields for different XML
document types.
SWIFT example:
F57 in SWIFT message has its correlated logical field X_CDTR_AGT.
For each component of F57 there is a specific logical field such as, X_CDTR_AGT_ACCT,
X_CDTR_AGT_BIC_2AND.
These fields are defined in the LOGICAL_FIELDS table.
To know where in the XML of a SWIFT MT103 this field is mapped to, look in the
LOGICAL_FIELDS_XPATH table:
select * from logical_fields_xpath t where t.field_logical_id like 'X_CDTR_AGT%' and t.xml_type =
'SWIFT'
In the result of this query, the field FIELD_PATH provides the path to each of F57 components in
the XML of SWIFT transactions.
Note: Some attributes are defined as tree hierarchy (for example, all the Creditor Agent (57) IBAN
and account details are defined under the tree of X_CDTR_AGT_ACCT, and the path retrieved in
the FIELD_PATH from this query is the relative path from the parent tag.
To see all the logical fields that are included in the parsing of MT103 (and in the GPP proprietary XML
structure included in the pmnt tag for a SWIFT 103 message), see the
XML_FORMAT_TYPE_RELATIONS table (using the SQL in Appendix C: Additional Fndt Message
Related Information).
2.3.3 Extn
In this section, the sub-sections are available as an extension to the transaction details.
2.3.3.1 Message Fees
Field Name
Description
Occurrences
M_MSG_FEES_LINE
Message fees record.
{0..n}
GPP PAYplus | Fndt Message Format | Page 11
2.3.3.1.1 Message Fees Line
Field Name
Taken From
MANUAL_FEE
F_MSG_FEES_MANUAL_FEE
DEDUCT_FROM
F_MSG_FEES_DEDUCT_FROM
FEE_ACC_AMOUNT
F_MSG_FEES_FEE_ACC_AMOUNT
FEE_AMOUNT
F_MSG_FEES_FEE_AMOUNT
FEE_AMOUNT_IN_PMT_CCY
F_MSG_FEES_FEE_AMT_IN_PMT_CCY
APPLY
F_MSG_FEES_FEE_APPLY
FEE_BASE_AMOUNT
F_MSG_FEES_FEE_BASE_AMOUNT
FEE_CURRENCY
F_MSG_FEES_FEE_CURRENCY
FEE_FORMULA_UID
F_MSG_FEES_FEE_FORMULA_UID
FEE_MONITOR
F_MSG_FEES_FEE_MONITOR
FEE_PNL_ACCOUNT_CURRENCY
F_MSG_FEES_FEE_PNL_ACC_CUR
FEE_PNL_ACC_NO
F_MSG_FEES_FEE_PNL_ACC_NO
FEE_PNL_AMOUNT
F_MSG_FEES_FEE_PNL_AMOUNT
FEE_TYPE_UID
F_MSG_FEES_FEE_TYPE_UID
ORIG_FEE_AMOUNT
F_MSG_FEES_ORIG_FEE_AMOUNT
PAYING_PARTY
F_MSG_FEES_PAYING_PARTY
FEE_PNL_ACC_OFFICE
F_MSG_FEES_PNL_ACC_OFFICE
PNL_POSTING_STS
F_MSG_FEES_PNL_POSTING_STS
UNWIND_FEE
F_MSG_FEES_UNWIND_FEE
TAX_AMOUNT
TAX_AMOUNT
TAX_PNL_AMOUNT
F_MSG_FEES_TAX_AMT_PNL_CCY
TAX_ACC_AMOUNT
F_MSG_FEES_TAX_ACC_AMOUNT
TAX_PNL_ACCOUNT_NO
F_MSG_FEES_TAX_PNL_ACCT
TAX_PNL_ACCOUNT_CURRENCY
F_MSG_FEES_TAX_PNL_ACCT_CCY
TAX_PNL_ACCOUNT_OFFICE
F_MSG_FEES_TAX_PNL_ACCT_OFFICE
TAX_BASE_AMOUNT
F_TAX_BASE_AMOUNT
TAX_ON_TAX_AMOUNT
F_TAX_ON_TAX_AMOUNT
TAX_ON_TAX_ACC_AMOUNT
F_TAX_ON_TAX_ACC_AMOUNT
TAX_ON_TAX_PNL_AMOUNT
F_TAX_ON_TAX_PNL_AMOUNT
GPP PAYplus | Fndt Message Format | Page 12
2.3.3.2 Message Notes
Field Name
Description
Occurrences
M_MSG_NOTES_GRID*
Message notes record. See Message Rates Line
{0..n}
2.3.3.2.1 Message Notes Line
Field Name
Taken From
TIME_STAMP
F_MSG_NOTES_TIMESTAMP
USER_ID
F_MSG_NOTES_USER_ID
CREATE_DATE
F_MSG_NOTES_CREATE_DATE
TEXT
F_MSG_NOTES_TEXT
EXTERNAL_NOTE_IND
F_MSG_NOTES_EXTERNAL_NOTE_IND
REC_STATUS
F_MSG_NOTES_REC_STATUS
UPDATED_USER_ID
F_MSG_NOTES_UPDATED_USER_ID
UPDATED_DATE
F_MSG_NOTES_UPDATED_DATE
UPDATED_DATE_ZONE_CODE
F_MSG_NOTES_UPDATED_DATE_ZONE_CODE
ATTACHED_FILE_LINK
F_MSG_NOTES_ATTACHED_FILE_LINK
2.3.3.3 Message Rates
Field Name
Description
Occurrences
M_FC_LINE
Forward contract line record.
{0..n}
2.3.3.3.1 Message Rates Line
Field Name
Taken from
CONTRACT
F_FC_CONTRACT
AMOUNT
F_FC_AMOUNT
RATE
F_FC_RATE
CCY1
F_FC_CURRENCY1
CCY2
F_FC_CURRENCY2
SPREAD
F_FC_SPREAD
SPREAD_UNITS
F_FC_SPREAD_UNITS
GPP PAYplus | Fndt Message Format | Page 13
Field Name
Taken from
MID
F_FC_MID
CONVERSION_TYPE
F_FC_CONVERSION_TYPE
FORWARD_CONTRACT
F_FC_FORWARD_CONTRACT
CUSTOMER_ID
F_FC_CUSTOMER_ID
MANUAL_SPREAD
F_FC_MANUAL_SPREAD
TARGET_RATE
F_FC_TARGET_RATE
2.3.3.4 Advising
Field Name
Description
Occurrences
M_ADVISING_LINE
Advising Record. See Advising Line
{0..n}
2.3.3.4.1 Advising Line
Field Name
Taken from
UID_ADVISING
F_ADVISING_UID_ADVISING
CONTACT_DETAILS
F_ADVISING_CONTACT_DETAILS
CONTACT_TYPE
F_ADVISING_CONTACT_TYPE
CONTACT_NAME
F_ADVISING_CONTACT_NAME
MIN_AMT
F_ADVISING_MIN_AMT
ADVICE_SUB_TYPE
F_ADVISING_ADVICE_SUB_TYPE
ADVICE_TYPE
F_ADVISING_ADVICE_TYPE
FEE_ADVICE_IND
F_ADVISING_FEE_ADVICE_IND
CR_ADVICE_IND
F_ADVISING_CR_ADVICE_IND
DR_ADVICE_IND
F_ADVISING_DR_ADVICE_IND
TEMP_ID
F_ADVISING_TEMP_ID
ADVC_VEHICLE
F_ADVISING_ADVC_VEHICLE
2.3.3.5 Message Errors
Field Name
Description
Occurrences
M_MSGERR_LINE
Message error records. See Message Errors Line
{0..n}
GPP PAYplus | Fndt Message Format | Page 14
2.3.3.5.1 Message Errors Line
Field Name
Description
Occurrences
F_MSGERR_CODE
Error code
{1..1}
F_MSGERR_TIME_STAMP
Time stamp
{1..1}
F_MSGERR_SEVERITY
Severity
{0..1}
F_MSGERR_CREATE_DATE
Create date
{1..1}
F_MSGERR_TIME_ZONE
Time zone
{1..1}
F_MSGERR_FAULT
Fault indicator
{0..1}
F_MSGERR_PARAMS
Binding parameters
{0..1}
F_MSGERR_DISPLAY
Display
{0..1}
F_MSGERR_FIELD_LOGICA
L_ID
Field ID
{0..1}
2.3.3.6 Audit Trail
Field Name
Description
Occurrences
M_AUDIT_TRAIL
Audit Trail Record. See Audit Trail Line
{0..n}
2.3.3.6.1 Audit Trail Line
Field Name
Description
Occurrences
F_AUDIT_ERROR_CODE
Error code
{1..1}
F_AUDIT_USER_NAME
Name of the Audit user. If received via
an external service, the audit user is
part of the input data.
{1..1}
F_AUDIT_TIME_STAMP
Audit occurrence time
{1..1}
F_AUDIT_END_DATE
Audit occurrence end time
{0..1}
F_AUDIT_UPDATE_DATE
Audit occurrence update time
{0..1}
F_AUDIT_ZONE_CODE
Audit occurrence time zone
{0..1}
F_AUDIT_HIT_INFO
Audit zoon info indication
{0..1}
F_AUDIT_ERROR_PARAMS
Audit binding parameters
{0..1}
F_AUDIT_RELATED_FIELDS_DATA
For Compliance and Fraud only
{0..1}
GPP PAYplus | Fndt Message Format | Page 15
2.3.3.7 Posting Restrictions
Field Name
Description
Occurrences
M_MSG_STOP_FLAGS_LINE
Posting restriction record. See Posting
Restrictions Line
{0..n}
2.3.3.7.1 Posting Restrictions Line
Field Name
Description
Occurrences
F_STOP_FLAGS_UID
Stop flag unique identification
{1..1}
F_STOP_FLAGS_STATUS
Stop flag status
{1..1}
F_STOP_FLAGS_OBJECT_TYPE
Stop flag associated object
{1..1}
F_STOP_FLAGS_DIR
Stop flag directory
{1..1}
F_STOP_FLAGS_OBJCET_UID
Stop flag object unique ID
{1..1}
2.3.3.8 Special Instructions
Field Name
Description
Occurrences
M_MSG_SPECIAL_INSTR_LINE
Special instruction Record. See
Special Instructions Line
{0..n}
2.3.3.8.1 Special Instructions Line
Field Name
Description
Occurrences
F_SI_ERROR_CODE
Special instruction entry error code
{1..1}
F_SI_ERROR_PARAMS
Special instruction entry binding
parameters
{1..1}
F_SI_STATUS
Special instruction entry status
{1..1}
F_SI_PARTY_TYPE
Special instruction entry party type
(whether associated with a Dr or Cr
party)
{1..1}
F_SI_OBJECT_ID
{1..1}
F_SI_CREATE_DT
Special instruction entry create date
{1..1}
F_SI_ZONE_CODE
Special instruction entry time zone
{1..1}
F_SI_TIME_STAMP
Special instruction entry time stamp
{1..1}
F_SI_PREVENT_STP_UID
Special instruction entry unique ID
{1..1}
GPP PAYplus | Fndt Message Format | Page 16
2.3.3.9 Processing Persistent Info*
Field Name
Comment
Occurrences
P_OFFICE
Selection of a valid office
String{0..1}
P_DEPARTMENT
String {0..1}
P_MSG_CLASS
String {0..1}
P_TEMPLATE_MID
Length : 16
String {0..1}
P_PRODUCT_CD
String {0..1}
P_MSG_TYPE
String {0..1}
P_USER_MSG_TYPE
Boolean{0..1}
P_DISPLAY_MSG_TYPE
String {0..1}
P_MSG_SUB_TYPE
String {0..1}
P_BATCH_MSG_TP
String {0..1}
P_BASE_MSG_STS
String {0..1}
P_MSG_STS
Length : 25
String {0..1}
P_ORIG_MSG_SUB_TYPE
String {0..1}
P_CHRG_BR
Possible values:
DEBT
CRED
SHAR
SLEV
String {0..1}
P_ORIG_MSG_TYPE
String {0..1}
P_ORIG_STTLM_CCY
String {0..1}
P_ORIG_STTLM_AMT
String {0..1}
P_ORIG_STTLM_DT
String {0..1}
P_CHARGES_PAID
Boolean{0..1}
P_BA_CD
String {0..1}
P_BASE_AMT
Amount {0..1}
P_BASE_CCY
Currency{0..1}
P_BASE_RATE_USAGE_NM
String {0..1}
P_PREFERRED_CDT_MOP
String {0..1}
P_PRIORITY
long {0..1}
P_BULKING_PROFILE
String {0..1}
GPP PAYplus | Fndt Message Format | Page 17
Field Name
Comment
Occurrences
P_IN_BULK_MSGID
String {0..1}
P_OUT_BULK_MSGID
String {0..1}
P_IN_INTERNAL_FILEID
String {0..1}
P_CHUNK_ID
String {0..1}
P_FC_INFO_IND
Integer {0..1}
P_TIME_STAMP
String {0..1}
P_NON_ACC
Boolean {0..1}
P_IS_HISTORY
0 - Active
1 - Historical
2 - Templates
Integer {0..1}
P_PAYMENT_TP
Length: 25
String {0..1}
P_TEMPLATE_NM
Length: 30
String {0..1}
P_TEMPLATE_CD
Length: 20
String {0..1}
P_TEMPLATE_TYPE
Template type
P for Partial repetitive
F for Fully Repetitive
S for Standing Order
A for Associated (standing order)
String {0..1}
P_PROC_DT
ISO date {0..1}
DebitSide*
See Debit Side Persistent Info
{0..1}
CreditSide*
See Credit Side Persistent Info
{0..1}
2.3.3.9.1 Debit Side Persistent Info*
Field Name
Comment
Occurrences
P_DBT_MOP
String {0..1}
P_DBT_AMT
Amount {0..1}
P_DBT_ACCT_NB
String {0..1}
P_DBT_FEE_ACCT_NB
String {0..1}
P_DBT_FEE_ACCT_CCY
String {0..1}
P_DBT_FEE_ACCT_OFFICE
String {0..1}
P_DBT_CROSS_CONV
Boolean {0..1}
P_DBT_CUST_CD
String {0..1}
GPP PAYplus | Fndt Message Format | Page 18
Field Name
Comment
Occurrences
P_DBT_FEE_ACCT_OFFICE
String {0..1}
P_DBT_FEE_PMT_CCY
Currency {0..1}
P_DBT_FEE_POSTING_STS
String {0..1}
P_DBT_MID_RATE
Rate {0..1}
P_DBT_RATE
Rate {0..1}
P_DBT_RATE_USAGE_NM
String {0..1}
P_DBT_SPREAD
Decimal {0..1}
P_DBT_TX_CD
String {0..1}
P_DBT_AMT_STEP1
Amount {0..1}
P_DBT_FEE_ACCT_CCY
String {0..1}
P_DBT_RATE_STEP1
Rate {0..1}
P_DBT_ACCT_CCY
Currency {0..1}
P_DBT_RATE_STEP2
Rate {0..1}
P_DBT_ACCT_OFFICE
String {0..1}
P_DBT_TRIANGULATION_CCY
Currency {0..1}
P_DBT_VD
ISO date {0..1}
2.3.3.9.2 Credit Side Persistent Info*
Field Name
Comment
Occurrences
P_CDT_FEE_ACCT_NB
String {0..1}
P_CDT_FEE_ACCT_CCY
Currency {0..1}
P_CDT_FEE_ACCT_OFFICE
String {0..1}
P_CDT_FEE_PMT_CCY
Currency {0..1}
P_CDT_FEE_POSTING_STS
String {0..1}
P_CDT_AMT_STEP1
Amount {0..1}
P_CDT_ACCT_NB
String {0..1}
P_CDT_ACCT_OFFICE
String {0..1}
P_CDT_RATE_USAGE_NM
String {0..1}
P_CDT_RATE
Rate {0..1}
P_CDT_MOP
String {0..1}
GPP PAYplus | Fndt Message Format | Page 19
Field Name
Comment
Occurrences
P_CDT_APPLY_FEE
String {0..1}
P_CDT_CROSS_CONV
Boolean {0..1}
P_CDT_MID_RATE
Rate {0..1}
P_CDT_POSTING_STS
String {0..1}
P_CDT_SPREAD
Decimal {0..1}
P_CDT_TX_CD
String {0..1}
P_CDT_RATE_STEP1
Rate {0..1}
P_CDT_RATE_STEP2
Rate {0..1}
P_CDT_TRIANGULATION_CCY
Currency {0..1}
P_CDT_ACCT_CCY
Currency {0..1}
P_CDT_AMT
Amount {0..1}
P_CDT_CUST_CD
String {0..1}
P_CDT_VD
ISO date {0..1}
2.3.3.10 XML Persistent Info
Field Name
Comment
Occurrences
X_MSG_USER_REF
String {0..1}
X_DBT_CDT_IND
String {0..1}
X_EPMT_REF
String {0..1}
D_FIRST_IN_CDT_CHAIN_BIC
BIC {0..1}
D_DIRECT_RECEIVER
String {0..1}
InstrNxtAgtOtherCodes
X_INSTR_NXT_AGT_OTHER_CD
and
X_INSTR_NXT_AGT_OTHER_INF
Following its
specific
definition{0..1}
2.3.3.11 Cut-off Info*
Field Name
Comment
Occurrences
P_TREASURY_CUTOFF_TM
Treasury cut-off time
Date time {0..1}
P_TREASURY_CUTOFF_NM
Treasury cut-off name
String {0..1}
P_TREASURY_CUTOFF_STS
Treasury cut-off status
String {0..1}
P_CLEARING_CUTOFF_TM
Clearing cut-off time
Date time {0..1}
GPP PAYplus | Fndt Message Format | Page 20
Field Name
Comment
Occurrences
P_CLEARING_CUTOFF_NM
Clearing cut-off name
String {0..1}
P_CLEARING_CUTOFF_STS
Clearing cut-off status
String {0..1}
P_PROC_CUTOFF_TM
Processing cut-off time
Date time {0..1}
P_PROC_CUTOFF_NM
Processing cut-off name
String {0..1}
P_PROC_CUTOFF_STS
Processing cut-off status
String {0..1}
2.3.3.12 Operational Section*
Field Name
Description
Occurrences
D_BUTTON_ID
Holds the button ID that was last
activated
{0..1}
D_SCREENSET_ID
Holds the Screenset ID
{0..1}
TemplateSection
See Template Section Line
{0..1}
2.3.3.12.1 Template Section Line
Field Name
Description
Occurrences
D_TEMPLATE_UNCHANGED_FIELDS
Template Unchanged Fields.
Includes a comma-separated list of
fields (Logical Field ID) that cannot
be modified. When adding a field, if
it is not the first field mapped then
the value mapped must be
preceded by a comma.
{0..1}
2.3.3.13 Balance Check Information
Field Name
Description
Occurrences
M_BI_INFO_LINE
Balance check information record.
See
Memo Post Line
{0..n}
2.3.3.13.1 Balance Check Line
Field Name
Description
Occurrences
F_BI_INFO_DEBIT_TYPE
The type of the amount on which
balance check is requested; either
MAIN or FEE
{0..1}
F_BI_INFO_ACCNO
Account number
{0..1}
GPP PAYplus | Fndt Message Format | Page 21
Field Name
Description
Occurrences
F_BI_INFO_ACC_CURRENCY
Account currency
{0..1}
F_BI_INFO_ACC_OFFICE
Account office
{0..1}
F_ BI_INFO_ACC_TRANS_CD
The transaction code associated with
the account the balance check is on.
The source for this attribute is as
follows:
For Principal account it is
populated with P_DBT_TX_CD (it
is populated using the Debit
transaction code rules)
For fee account it is populated with
the transaction code of the relevant
Fee Formula
{0..1}
F_BI_INFO_BOOKING_ENT
The Booking Entity (accounting
system) that the account is managed
in.
The source for this attribute is:
For Principal account: from the
Account object containing the
information for the debit account –
either from its GPP DB Account
entry or received from Account
lookup
For fee account: if it is same as
principal account, then same
source. If it is a different account it
is only populated from its GPP DB
Account entry
{0..1}
F_BI_INFO_AMOUNT
The amount on which balance check
is requested for this entry
{0..1}
F_BI_INFO_VALUE_DATE
Value date for which the balance
was checked
{0..1}
F_BI_INFO_BALANCE
Balance returned from the Balance
Inquiry interface (if returned)
{0..1}
F_BI_INFO_EARMARK_REF
Earmark reference returned from the
Balance Inquiry interface (if returned)
{0..1}
F_BI_INFO_EARMARK_STS
Earmark status. Possible values:
X - Default (initial value)
R - Required
P - Pending response. It is required
and a request for balance check
with earmark was sent
E - Earmarked (earmark reference
returned from HOST)
C - Earmark Canceled/Released
{0..1}
GPP PAYplus | Fndt Message Format | Page 22
Field Name
Description
Occurrences
U - Earmark Used. Earmark
reference was sent as part of
Posting for this amount
2.3.3.14 Memo Post (aka Posting Information – Older Design)
Field Name
Description
Occurrences
M_POSTING_INFO_LINE
Posting Info record. See Memo Post
Line
{0..n}
2.3.3.14.1 Memo Post Line
Field Name
Description
Occurrences
F_POSTING_INFO_MOVEMENT_TYPE
Either debit or credit
{0..1}
F_POSTING_INFO_OFFICE
Account owning office
{0..1}
F_POSTING_INFO_ACCNO
Account number
{0..1}
F_POSTING_INFO_ACCT_TP
Account type
{0..1}
F_POSTING_INFO_FEE_TP
Fee type (only relevant for fee
posting entries)
{0..1}
F_POSTING_INFO_CURRENCY
Account currency
{0..1}
F_POSTING_INFO_AMOUNT
Posting amount
{0..1}
F_POSTING_INFO_VALUE_DATE
Posting value date
{0..1}
2.3.3.15 Message Posting (aka Posting Information – New Design)
Field Name
Description
Occurrences
M_POSTING_INFO_LINE
Posting Info record. See Posting Info
Line (Msg_Posting entry)
{0..n}
MsgPostingReqExt
Extension information (customer
specific) related to, and on the level
of, the posting request. See Posting
Info Line (Msg_Posting entry)
{0..n}
2.3.3.15.1 Posting Info Line (Msg_Posting entry)
Field Name
Description
Occurrences
F_POSTING_INFO_POSTING_REQ_ID
A unique ID of the posting request
in which the posting entry is
included
{0..1}
GPP PAYplus | Fndt Message Format | Page 23
Field Name
Description
Occurrences
F_POSTING_INFO_POSTING_NTRY_ID
A unique ID of the posting entry
{0..1}
F_POSTING_INFO_IS_REVERSAL_IND
An indicator of whether the posting
entry is a reversed posting of
another original posting entry
{0..1}
F_POSTING_INFO_RVRSD_ORIG_NTRY
_ID
In the original posting entry this tag
quotes the reversed posting entry
id.
In the reversed posting entry this
tag quotes the posting entry id of
the original posting entry that is
being reversed.
Note: When the first step
accounting is a lump sum (on the
S):
Only in the reversed posting
entries of the individual
messages, the original posting is
quoted.
This tag is not quoted in the
original lump posting entry, as
there is a relation of 1:n between
the original posting entry (on the
S) and the possible reversed (per
Individual)
{0..1}
F_POSTING_INFO_POSTING_TYPE
The entry posting type, can have
the values as setup in
Fields_Values for
Field_Type=POSTING_TYPE
{0..1}
F_POSTING_INFO_OFFICE
The transaction Office
{0..1}
F_POSTING_INFO_CR_DR_FLAG
The action of this posting – CR/DR
{0..1}
F_POSTING_INFO_ACCNO
The account the posting is on
{0..1}
F_POSTING_INFO_ACCT_TP
The type of the account the posting
is on
{0..1}
F_POSTING_INFO_CURRENCY
The currency account the posting is
on
{0..1}
F_POSTING_INFO_ACC_OFFICE
The office of the account the
posting is on
{0..1}
F_POSTING_INFO_CUST_ACC_IND
An indication that the posting
account is a customer account
(copied from the relevant attribute of
the ACCTYPES entry relevant for
the posting account)
{0..1}
F_POSTING_INFO_ACC_TRANS_CD
The transaction code associated
with the account the posting is on.
{0..1}
GPP PAYplus | Fndt Message Format | Page 24
Field Name
Description
Occurrences
The source for this attribute is as
follows:
For Principal debit entry –
populated with P_DBT_TX_CD
(that is populated using the Debit
transaction code rules)
For Principal credit entry –
populated with P_CDT_TX_CD
(that is populated using the
Credit transaction code rules)
For fee entries - populated with
the transaction code of the
relevant Fee Formula
F_POSTING_INFO_BOOKING_ENT
The booking entity/accounting
system under which the account the
posting is on is managed
{0..1}
F_POSTING_INFO_ACC_COST_CTR
The Cost Center to which the
account belongs (attribute of the
Accounts entry). Used by Anti-
Money Laundering, mainly for
Posting and mainly in US.
{0..1}
F_POSTING_INFO_AMOUNT
The amount posted per this entry
{0..1}
F_POSTING_INFO_BASE_AMOUNT
The base amount equivalent of the
posting amount
{0..1}
F_POSTING_INFO_VALUE_DATE
The relevant Dbt/Cdt value date of
the posting entry
{0..1}
F_POSTING_INFO_FEE_TP
The fee type of the selected fee
posted in this entry (only relevant
for fee posting entries)
Note: This tag is not represented in
the Msg_Posting table as the rest of
the POSTING_INFO tags, but it
remains in the structure for
historic/backward compatibility
reasons
{0..1}
F_POSTING_INFO_FEE_TP_CTG
The fee type category of the
selected fee posted in this entry
(only relevant for fee posting
entries)
{0..1}
F_POSTING_INFO_STATUS
The status of the posting entry
Note: this tag usually is not mapped
when using this section as the
posting request (status is Pending),
but can be used in the Posting
Response to report specific status
per entry. It also can be mapped
when using the Fndt Message as a
full structure reporting all details on
the message, including posting
{0..1}
GPP PAYplus | Fndt Message Format | Page 25
Field Name
Description
Occurrences
information, for example on
completion.
F_POSTING_INFO_EARMARK_REF
Earmark reference that was
returned from the Balance Inquiry
interface (if returned), and should
be sent back with the posting entry
to allow the linkage between the
earmarked funds and this posting
entry
{0..1}
F_POSTING_INFO_FORCE_POST_IND
An indicator of whether the current
posting entry was sent to the
accounting system with an
instruction to force post
{0..1}
F_MAN_POST_RSPNS_IND
An indicator of whether the current
posting status is the result of a
manually instructed posting
response a user had requested –
either Positive or Negative
Note: same mapping behavior as
for POSTING_STS
{0..1}
MsgPostingEntryExt
Extension information (customer
specific) related to, and on the level
of, the posting entry. See Entry
Level Posting extension Info Line
{0..n}
2.3.3.15.1.1 Entry Level Posting extension Info Line
Field Name
Description
Occurrences
F_POSTING_NTRY_EXT_INFO_FLD_NM
The name of the additional
customer specific attribute (on
entry level)
{0..1}
F_POSTING_NTRY_EXT_INFO_FLD_VAL
The value of the additional
customer specific attribute (on
entry level)
{0..1}
2.3.3.15.2 Request Level Posting Extension Info Line
Field Name
Description
Occurrences
F_POSTING_REQ_EXT_INFO_FLD_NM
The name of the additional
customer specific attribute (on
request level)
{0..1}
F_POSTING_REQ_EXT_INFO_FLD_VAL
The value of the additional customer
specific attribute (on request level)
{0..1}
GPP PAYplus | Fndt Message Format | Page 26
2.3.3.16 User Defined Fields – Custom Fields
The Custom Fields (CMFs) can include the following elements (with any order between the following
elements):
System-wide user-defined fields section encapsulated in a System element
Financial institution user-defined fields section encapsulated in an Office element
Note: The Financial Institution’s code value must be provided in the parent Office code attribute.
Financial institution clients’ user-defined fields section encapsulated in a Customer element
Note: The transaction's proprietary ID value element must be provided in the parent Customer
code attribute.
Both sections must contain a sequence of logical field ID tags that encapsulate inner text values.
Field name
Description
Occurrences
System
This element holds the system level CMF
{0..1}
Office
This element holds the office level CMF
{0..1}
Customer
This element holds the customer level CMF
{0..1}
2.3.3.17 Interfaces Section (N/A)
2.3.3.18 QA Info (N/A)
2.3.3.19 Web Services Result
Field Name
Occurrences
returnCode
Integer {0..1}
description
String {0..1}
errorsList
String {0..1}
error
String {0..n}
code
Integer {0..1}
description
String {0..1}
dataArray
String {0..1}
error
String {0..n}
2.3.3.20 Processing Transient Info*
Field Name
Occurrences
D_1ST_IN_CDT_CHA_ACCNUM_FLD_ID
{0..1}
D_1ST_IN_CDT_CHA_IBAN_FLD_ID
{0..1}
D_1ST_IN_DBT_CHA_ACCNUM_FLD_ID
{0..1}
GPP PAYplus | Fndt Message Format | Page 27
Field Name
Occurrences
D_1ST_IN_DBT_CHA_BIC_FLD_ID
{0..1}
D_1ST_IN_DBT_CHA_IBAN_FLD_ID
{0..1}
D_ACCOUNT_DERIVATION_TYPE
{0..1}
D_AF_MATCHED_MID
{0..1}
D_CDTR_IBAN_CUST_CD
{0..1}
D_CONFIRMATION_FLOW
{0..1}
D_CURRENCY_CONVERSION_TYPE
{0..1}
D_DIRECT_RECEIVER_INDEX
{0..1}
D_FIND_FIRST_IN_CHAIN_TYPE
{0..1}
D_FEE_CALCULATION_TYPE
{0..1}
D_FIRST_IN_CDT_CHAIN_ACC_NUM
{0..1}
D_FIRST_IN_CDT_CHAIN_IBAN
{0..1}
D_FIRST_IN_DBT_CHAIN_ACC_NUM
{0..1}
D_FIRST_IN_DBT_CHAIN_BIC
{0..1}
D_FIRST_IN_DBT_CHAIN_IBAN
{0..1}
D_LOAD_CUSTOMER_TYPE
{0..1}
D_MOP_SELECTION_TYPE
{0..1}
D_MT191AUTOGEN
{0..1}
D_STOP_FLAGS_PROCESS_TYPE
{0..1}
D_AVAILABLE_MOPS
{0..1}
D_CDT_CURR1_UNITS
{0..1}
D_CDT_CURR2_UNITS
{0..1}
D_DBT_CURR1_UNITS
{0..1}
D_DBT_CURR2_UNITS
{0..1}
D_DEBIT_AUTHORIZATION
{0..1}
D_MOP_VALID
{0..1}
D_CDT_FEE_ACCT_AMT
{0..1}
D_CDT_FEE_ACCT_BASEEQVT
{0..1}
D_CDT_FEE_PMT_DEDUCT_AMT
{0..1}
D_CDT_FEE_PMT_DEDUCT_BASEEQVT
{0..1}
GPP PAYplus | Fndt Message Format | Page 28
Field Name
Occurrences
D_CDT_AF_FEE_PMT_AMT
{0..1}
D_CDT_FEE_ACCT_AMT_LATER
{0..1}
D_IN_AF_CDT_ACCT_AMT
{0..1}
D_DBT_FEE_ACCT_AMT
{0..1}
D_DBT_FEE_ACCT_BASEEQVT
{0..1}
D_DBT_FEE_ACCT_CCY
{0..1}
D_DBT_FEE_PMT_DEDUCT_AMT
{0..1}
D_DBT_FEE_PMT_DEDUCT_BASEEQVT
{0..1}
D_DBT_MAIN_POST_AMT
{0..1}
D_TOT_FEE_PMT_DEDUCT_AMT
{0..1}
D_TOT_FEE_PMT_DEDUCT_BASEEQVT
{0..1}
D_DBT_FEE_PMT_AMT_REQUEST
{0..1}
D_CDT_FEE_ACCT_AMT_NOW
{0..1}
D_DBT_FEE_AMT_PMT_PRE_IN_AF
{0..1}
D_RULE_TYPE_ID
{0..1}
D_RULE_SUB_TYPE
{0..1}
D_EVENT_ID
{0..1}
D_DBT_AF_FEE_ACCT_AMT
{0..1}
D_BANK_ID
{0..1}
D_BRANCH_ID
{0..1}
D_IBAN_STS
{0..1}
D_VD_MONTH_CALENDAR
{0..1}
D_PD_MONTH_CALENDAR
{0..1}
D_STP_FIELDS_TO_VALID
{0..1}
D_STP_RULE
{0..1}
D_STANDARD_VD
{0..1}
D_MQ_MSG_ID
{0..1}
GPP PAYplus | Fndt Message Format | Page 29
2.3.3.21 Monitors*
Field Name
Description
Occurrences
UserMonitor*
See User Monitor Information
{0..1}
ServiceState*
See
Service State Monitor Information
{0..1}
PlaceHolder
{0..1}
2.3.3.21.1 User Monitor Information*
Field Name
Occurrences
MU_REQ_FOR_CHARGES_FORCE_STS
String {0..1}
MU_STOP_FLAGS_OVERRIDE_STS
String {0..1}
MU_MISSED_CUTOFF
String {0..1}
MU_SPECIAL_INST_STS
String {0..1}
MU_PI_FORCE_STS
String {0..1}
MU_HANDLE_71G_GAP
String {0..1}
MU_COMPLIANCE_FORCE_STS
String {0..1}
MU_NSF_FORCE_STS
String {0..1}
MU_FORCE_STANDARD_VD
String {0..1}
2.3.3.21.2 Service State Monitor Information*
Field Name
Occurrences
MF_DBT_STOP_FLAGS_STS
String {0..1}
MF_CDT_STOP_FLAGS_STS
String {0..1}
MF_MOP_SELECTION_STS
String {0..1}
MF_SPECIAL_INST_STS
String {0..1}
MF_INITIAL_CREATE
String {0..1}
MF_OUT_REQ_FOR_CHRG_MATCH_STS
String {0..1}
MF_GENERATE_REQ_CHARGES
String {0..1}
MF_TIME_HOLD
String {0..1}
MF_GENERATED_ANSWER_MESSAGE
String {0..1}
MF_GENERATED_CANCEL_REQUEST
String {0..1}
GPP PAYplus | Fndt Message Format | Page 30
Field Name
Occurrences
MF_REQ_FOR_CHARGES_MATCH_STS
String {0..1}
MF_COMPLIANCE_VALIDATION_STS
String {0..1}
MF_DIRECT_COVER_GENERATED
String {0..1}
MF_REQ_FOR_CHARGES_VALID_STS
String {0..1}
MF_PISN_MATCH_STS
String {0..1}
MF_PISN_PROCESS_STS
String {0..1}
MF_CANCEL_MATCH_STS
String {0..1}
MF_CANCEL_REQUEST_VALID_STS
String {0..1}
MF_N_MESSAGES_MATCH_STS
String {0..1}
MF_FEE_PROC_STS
String {0..1}
MF_POSTING_STS
String {0..1}
2.3.3.22 Reference Data*
Field Name
Description
Occurrences
M_DBT_CUST_PROFILE*
See
Debit Party Profile Info
{0..1}
M_CDT_CUST_PROFILE*
See Credit Party Profile Info
{0..1}
M_STTLM_CCY_PROFILE*
See
Settlement Currency Info
{0..1}
M_DBT_MOP_PROFILE*
See Debit MOP Profile
{0..1}
M_CDT_MOP_PROFILE*
See Credit MOP Profile
{0..1}
M_DBT_ACCOUNT*
See Debit Account Info
{0..1}
M_CDT_ACCOUNT*
See Credit Account Info
{0..1}
M_INSTG_AGT_PROFILE*
See
Instructing Agent Info
{0..1}
M_LOCAL_OFFICE_PROFILE*
See Office Profile
{0..1}
M_CONTACT_INFO
See Contact Profile
{0..1}
option for multi
occurrences of
M_CONTACT_LINE
)
GPP PAYplus | Fndt Message Format | Page 31
2.3.3.22.1 Debit Party Profile Info*
Field Name
Occurrences
F_DBT_CUST_ABA
String {0..1}
F_DBT_CUST_ALIAS
String {0..1}
F_DBT_CUST_BASE_NO
String {0..1}
F_DBT_CUST_CLEARING_CODE
String {0..1}
F_DBT_CUST_COUNTRYCODE
String {0..1}
F_DBT_CUST_CUST_CATEGORY
String {0..1}
F_DBT_CUST_CUST_CODE
String {0..1}
F_DBT_CUST_CUST_NAME
String {0..1}
F_DBT_CUST_CUST_TYPE
String {0..1}
F_DBT_CUST_DEPARTMENT
String {0..1}
F_DBT_CUST_FEE_ACCOUNT_NO
String {0..1}
F_DBT_CUST_FEE_ACCOUNT_CCY
String {0..1}
F_DBT_CUST_FEE_ACCOUNT_OFFICE
String {0..1}
F_DBT_CUST_FROMREASON
String {0..1}
F_DBT_CUST_IBAN_BANK_ID
String {0..1}
F_DBT_CUST_OWNERSHIP
String {0..1}
F_DBT_CUST_PROFESSION
String {0..1}
F_DBT_CUST_REG_REPORT1
String {0..1}
F_DBT_CUST_REG_REPORT2
String {0..1}
F_DBT_CUST_STOPFLAGFROM
Integer {0..1}
F_DBT_CUST_STOPFLAGTO
Integer {0..1}
F_DBT_CUST_SWIFT_ID
String {0..1}
F_DBT_CUST_TOREASON
String {0..1}
F_DBT_CUST_FROMREASON
String {0..1}
F_DBT_CUST_CITY
String {0..1}
F_DBT_CUST_STATE
String {0..1}
F_DBT_CUST_ZIP
String {0..1}
F_DBT_CUST_ADDRESS1
String {0..1}
F_DBT_CUST_ADDRESS2
String {0..1}
GPP PAYplus | Fndt Message Format | Page 32
Field Name
Occurrences
F_DBT_CUST_ADDRESS3
String {0..1}
F_DBT_CUST_ADDRESS4
String {0..1}
2.3.3.22.2 Credit Party Profile Info*
Field Name
Occurrences
F_CDT_CUST_ABA
String {0..1}
F_CDT_CUST_ALIAS
String {0..1}
F_CDT_CUST_BASE_NO
String {0..1}
F_CDT_CUST_CLEARING_CODE
String {0..1}
F_CDT_CUST_COUNTRYCODE
String {0..1}
F_CDT_CUST_CUST_CATEGORY
String {0..1}
F_CDT_CUST_CUST_CODE
String {0..1}
F_CDT_CUST_CUST_NAME
String {0..1}
F_CDT_CUST_CUST_TYPE
String {0..1}
F_CDT_CUST_DEPARTMENT
String {0..1}
F_CDT_CUST_FEE_ACCOUNT_NO
String {0..1}
F_CDT_CUST_FEE_ACCOUNT_CCY
String {0..1}
F_CDT_CUST_FEE_ACCOUNT_OFFICE
String {0..1}
F_CDT_CUST_FROMREASON
String {0..1}
F_CDT_CUST_IBAN_BANK_ID
String {0..1}
F_CDT_CUST_OWNERSHIP
String {0..1}
F_CDT_CUST_PROFESSION
String {0..1}
F_CDT_CUST_REG_REPORT1
String {0..1}
F_CDT_CUST_REG_REPORT2
String {0..1}
F_CDT_CUST_STOPFLAGFROM
Integer {0..1}
F_CDT_CUST_STOPFLAGTO
Integer {0..1}
F_CDT_CUST_SWIFT_ID
String {0..1}
F_CDT_CUST_TOREASON
String {0..1}
F_CDT_CUST_CITY
String {0..1}
F_CDT_CUST_STATE
String {0..1}
GPP PAYplus | Fndt Message Format | Page 33
Field Name
Occurrences
F_CDT_CUST_ZIP
String {0..1}
F_CDT_CUST_ADDRESS1
String {0..1}
F_CDT_CUST_ADDRESS2
String {0..1}
F_CDT_CUST_ADDRESS3
String {0..1}
F_CDT_CUST_ADDRESS4
String {0..1}
2.3.3.22.3 Settlement Currency Info*
Field Name
Occurrences
F_INSTR_CCY_DRAFT
Boolean {0..1}
F_INSTR_CCY_EURO
String {0..1}
2.3.3.22.4 Debit MOP Profile*
Field Name
Occurrences
F_MOP_MAXAMOUNT
Amount {0..1}
F_MOP_CHK_DRAFT_CURRENCY
Boolean {0..1}
F_MOP_CURRENCY
Currency {0..1}
F_MOP_MOPDOWN
Boolean {0..1}
F_MOP_ALLOW_NAC_MSG
Boolean {0..1}
F_MOP_SENDOUTMSG
Boolean {0..1}
F_MOP_MINAMOUNT
Amount {0..1}
F_MOP_SEND_REC_IDCODE
String {0..1}
F_MOP_SETT_ACC_EXISTS
Boolean {0..1}
F_MOP_SPLIT_OVER_MAX
Boolean {0..1}
F_MOP_NM
String {0..1}
F_MOP_GROUP
String {0..1}
F_MOP_NCC_TYPE
String {0..1}
2.3.3.22.5 Credit MOP Profile*
Field Name
Occurrences
F_CDT_MOP_CCY
String {0..1}
GPP PAYplus | Fndt Message Format | Page 34
Field Name
Occurrences
F_CDT_MOP_CHK_DRAFT_CCY
Boolean {0..1}
F_CDT_MOP_MIN_AMT
Amount {0..1}
F_CDT_MOP_SENDOUTMSG
Boolean {0..1}
F_CDT_MOP_SEND_REC_IDCODE
String {0..1}
F_CDT_MOP_SETT_ACC_EXISTS
Boolean {0..1}
F_INSTG_CUST_ALIAS
Boolean {0..1}
F_CDT_MOP_SNDR_BIC
BIC {0..1}
F_CDT_MOP_SPLIT_OVER_MAX
Boolean {0..1}
F_CDT_MOP_FIN_COPY
String {0..1}
F_CDT_MOP_DOWN
Boolean {0..1}
F_CDT_MOP_NCC_TP
String {0..1}
F_CDT_MOP_MAX_AMT
Amount {0..1}
F_CDT_MOP_ALLOW_NAC_MSG
Boolean {0..1}
F_CDT_MOP_GRP
String {0..1}
F_CDT_MOP_NM
String {0..1}
2.3.3.22.6 Debit Account Info*
Field Name
Occurrences
F_DBT_ACCT_ASSET
Boolean {0..1}
F_DBT_ACCT_BOOKNG_ENT
String {0..1}
F_DBT_ACCT_ACC_TYPE
String {0..1}
F_DBT_ACCT_IBAN
String {0..1}
F_DBT_ACCT_STOPFLAGDR
Integer {0..1}
F_DBT_ACCT_REASONDR
String {0..1}
F_DBT_ACCT_STOPFLAGCR
Integer {0..1}
F_DBT_ACCT_REASONCR
String {0..1}
2.3.3.22.7 Credit Account Info*
Field Name
Occurrences
F_CDT_ACCT_ASSET
Boolean {0..1}
GPP PAYplus | Fndt Message Format | Page 35
Field Name
Occurrences
F_CDT_ACCT_BOOKNG_ENT
String {0..1}
F_CDT_ACCT_ACC_TYPE
String {0..1}
F_CDT_ACCT_IBAN
String {0..1}
F_CDT_ACCT_STOPFLAGDR
Integer {0..1}
F_CDT_ACCT_REASONDR
String {0..1}
F_CDT_ACCT_STOPFLAGCR
Integer {0..1}
F_CDT_ACCT_REASONCR
String {0..1}
2.3.3.22.8 Instructing Agent Info*
Field Name
Occurrences
F_INSTG_CUST_ABA
String {0..1}
F_INSTG_CUST_SWIFT_ID
String {0..1}
F_INSTG_CUST_ALIAS
String {0..1}
2.3.3.22.9 Office Profile*
Field Name
Occurrences
F_OFFICE_CUST_SWIFT_ID
String {0..1}
F_OFFICE_BDT
Date time {0..1}
2.3.3.22.10 Contact Profile
Field Name
Description
Occurrences
M_CONTACT_LINE
Contact record. See Contact Info Line
{0..n}
2.3.3.22.10.1 Contact Info Line
Field Name
Description
Occurrences
F_CONTACT_OF
The entity that this entry serves as its contact for
advising. Values: DR_PARTY, CR_PARTY,
DR_ACCT, CR_ACCT, DR_FEE, CR_FEE
String {0..1}
F_CONTACT_NAME
Name of the contact
String {0..1}
F_UID_CONTACT
Unique ID for CONTACTS table entry (Office
and Contact Name)
String {0..1}
GPP PAYplus | Fndt Message Format | Page 36
Field Name
Description
Occurrences
F_CONTACT_DESCRIPTIO
N
Description of the contact
String {0..1}
F_CONTACT_PHONE
Phone of the contact
String {0..1}
F_CONTACT_FAX
Fax of the contact
String {0..1}
F_CONTACT_EMAIL
E-mail address of the contact
String {0..1}
F_CONTACT_ADDRESS1
First line of the address of the contact
String {0..1}
F_CONTACT_ADDRESS2
Second line of the address of the contact
String {0..1}
F_CONTACT_ADDRESS3
Third line of the address of the contact
String {0..1}
F_CONTACT_ADDRESS4
Fourth line of the address of the contact
String {0..1}
F_CONTACT_ADDRESS5
Fifth line of the address of the contact
String {0..1}
F_CONTACT_ADDRESS6
Sixth line of the address of the contact
String {0..1}
2.3.3.23 Response Details
Field Name
Occurrences
returnCode
Integer {0..1}
description
String {0..1}
errorsList
String {0..1}
error
String {0..n}
code
Integer {0..1}
description
String {0..1}
dataArray
String {0..1}
error
String {0..n}
2.4 Examples
2.4.1 Creating Custom Message Fields (CMFs)
Custom Fields can be defined at the user level and system level. For information about how to create
a custom field, see Creating Custom Fields Overview in the GPP Online Help.
The following example assumes that these two Custom Fields have been created:
Field name = PMT_CAT, UDF Type = System
Field name = REF_NUM, UDF Type = Client, Cust Code = D-36789242
Example of a request using the defined Custom Fields.
GPP PAYplus | Fndt Message Format | Page 37
<FndtMsg xmlns="http://fundtech.com/SCL/CommonTypes">
<Msg>
<Pmnt>
<Document xmlns="urn:iso:std:iso:20022:tech:xsd:pacs.008.001.02"/>
</Pmnt>
<Extn>
<UserDefinedFields>
<System>
<PMT_CAT>Urgent</PMT_CAT>
</System>
<Customer code="D-36789242">
<REF_NUM> AB-1223</REF_NUM>
</Customer>
</UserDefinedFields>
</Extn>
</Msg>
</FndtMsg>
2.4.2 Example of a Response
<FndtMsg xmlns="http://fundtech.com/SCL/CommonTypes">
<Msg>
<Pmnt>
<Document xmlns="urn:iso:std:iso:20022:tech:xsd:pacs.008.001.02"/>
</Pmnt>
<Extn>
<UserDefinedFields>
<System>
<PMT_CAT>Urgent</PMT_CAT>
</System>
<Customer>
<REF_NUM>AB-1223</REF_NUM>
</Customer>
</UserDefinedFields>
</Extn>
</Msg>
</FndtMsg>
2.4.3 FndtMsgBatch
2.4.3.1 BatchHeader
< <BatchHeader>
<GrpHdr xmlns="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03">
<MsgId>CTv422-001</MsgId>
<CreDtTm>2008-06-25T06:19:06</CreDtTm>
<NbOfTxs>3</NbOfTxs>
<CtrlSum>2400</CtrlSum>
<InitgPty>
<Nm>THE US COMPANY</Nm>
<Id>
<OrgId>
<Othr>
<Id>
<Id>US1SACOMPUS33XXX</Id>
</Id>
</Othr>
</OrgId>
</Id>
</InitgPty>
</GrpHdr>
</BatchHeader>
2.4.3.2 PmtHeader
<PmntHeader>
<PmtInf xmlns:p="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03">
<BtchBookg>false</BtchBookg>
<Dbtr>
<Nm>The US Company</Nm>
<PstlAdr>
GPP PAYplus | Fndt Message Format | Page 38
<StrtNm>Tower Hill</StrtNm>
<BldgNb>4</BldgNb>
<PstCd>NY 10011</PstCd>
<TwnNm>New York</TwnNm>
<Ctry>US</Ctry>
</PstlAdr>
</Dbtr>
<DbtrAcct>
<Id>
<Othr>
<Id>22222222</Id>
</Othr>
</Id>
<Ccy>USD</Ccy>
</DbtrAcct>
<DbtrAgt>
<FinInstnId>
<BIC>BOFAUS31XXX</BIC>
</FinInstnId>
</DbtrAgt>
<PmtInfId>PmntHeader1</PmtInfId>
</PmtInf>
</PmntHeader>
Note: CdtTrfTxInf is not included in the header.
2.4.3.3 TxInf
<TxInf>
<FndtMsg>
<Msg>
<Pmnt>
<Document xsi:schemaLocation="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03
pain.001.001.03.xsd " xmlns="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<CstmrCdtTrfInitn>
<GrpHdr />
<PmtInf>
<CdtTrfTxInf>
<PmtId>
<InstrId>AA_1</InstrId>
<EndToEndId>CTv422-8/2008-06-25</EndToEndId>
</PmtId>
<PmtTpInf>
<CtgyPurp>
<Cd>GDDS</Cd>
</CtgyPurp>
</PmtTpInf>
<Amt>
<InstdAmt Ccy="USD">700</InstdAmt>
</Amt>
<ChrgBr>CRED</ChrgBr>
<CdtrAgt>
<FinInstnId>
<BIC>CITIUS33XXX</BIC>
</FinInstnId>
</CdtrAgt>
<CdtrAcct>
<Id>
<Othr>
<Id>3333421212</Id>
</Othr>
</Id>
</CdtrAcct>
<RmtInf>
<Unstrd>
</Unstrd>
</RmtInf>
</CdtTrfTxInf>
</PmtInf>
GPP PAYplus | Fndt Message Format | Page 39
</CstmrCdtTrfInitn>
</Document>
</Pmnt>
</Msg>
</FndtMsg>
<FndtMsg>
<Msg>
<Pmnt>
<CdtTrfTxInf>
<PmtId>
<InstrId>AB_1</InstrId>
<EndToEndId>CTv422-8/2008-06-25</EndToEndId>
</PmtId>
<PmtTpInf>
<CtgyPurp>
<Cd>GDDS</Cd>
</CtgyPurp>
</PmtTpInf>
<Amt>
<InstdAmt Ccy="USD">800</InstdAmt>
</Amt>
<ChrgBr>CRED</ChrgBr>
<CdtrAgt>
<FinInstnId>
<BIC>CITIUS33XXX</BIC>
</FinInstnId>
</CdtrAgt>
<CdtrAcct>
<Id>
<Othr>
<Id>3333421212</Id>
</Othr>
</Id>
</CdtrAcct>
<RmtInf>
<Unstrd>
</Unstrd>
</RmtInf>
</CdtTrfTxInf>
</Pmnt>
</Msg>
</FndtMsg>
</TxInf>
2.4.3.4 Full Message – All Elements
<FndtMsgBatch xmlns="http://fundtech.com/SCL/CommonTypes">
<FndtHeader>
<credentials>
<UserID>AUDIT</UserID>
</credentials>
<Workflow>Template</Workflow>
Note: Populate <Workflow> with the value Template (for batch imports) or File (for file imports).
</FndtHeader>
<BatchHeader>
<GrpHdr xmlns="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03">
<MsgId>CTv422-001</MsgId>
<CreDtTm>2008-06-25T06:19:06</CreDtTm>
<NbOfTxs>3</NbOfTxs>
<CtrlSum>2400</CtrlSum>
<InitgPty>
<Nm>THE US COMPANY</Nm>
<Id>
<OrgId>
<Othr>
<Id>
<Id>US1SACOMPUS33XXX</Id>
</Id>
GPP PAYplus | Fndt Message Format | Page 40
</Othr>
</OrgId>
</Id>
</InitgPty>
</GrpHdr>
</BatchHeader>
<PmntTxInf>
<PmntHeader>
<PmtInf xmlns:p="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03">
<BtchBookg>false</BtchBookg>
<Dbtr>
<Nm>The US Company</Nm>
<PstlAdr>
<StrtNm>Tower Hill</StrtNm>
<BldgNb>4</BldgNb>
<PstCd>NY 10011</PstCd>
<TwnNm>New York</TwnNm>
<Ctry>US</Ctry>
</PstlAdr>
</Dbtr>
<DbtrAcct>
<Id>
<Othr>
<Id>22222222</Id>
</Othr>
</Id>
<Ccy>USD</Ccy>
</DbtrAcct>
<DbtrAgt>
<FinInstnId>
<BIC>BOFAUS31XXX</BIC>
</FinInstnId>
</DbtrAgt>
<PmtInfId>PmntHeader1</PmtInfId>
</PmtInf>
</PmntHeader>
<TxInf>
<FndtMsg>
<Msg>
<Pmnt>
<Document xsi:schemaLocation="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03
pain.001.001.03.xsd " xmlns="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<CstmrCdtTrfInitn>
<GrpHdr />
<PmtInf>
<CdtTrfTxInf>
<PmtId>
<InstrId>AA_1</InstrId>
<EndToEndId>CTv422-8/2008-06-25</EndToEndId>
</PmtId>
<PmtTpInf>
<CtgyPurp>
<Cd>GDDS</Cd>
</CtgyPurp>
</PmtTpInf>
<Amt>
<InstdAmt Ccy="USD">700</InstdAmt>
</Amt>
<ChrgBr>CRED</ChrgBr>
<CdtrAgt>
<FinInstnId>
<BIC>CITIUS33XXX</BIC>
</FinInstnId>
</CdtrAgt>
<CdtrAcct>
<Id>
<Othr>
<Id>3333421212</Id>
</Othr>
GPP PAYplus | Fndt Message Format | Page 41
</Id>
</CdtrAcct>
<RmtInf>
<Unstrd>
</Unstrd>
</RmtInf>
</CdtTrfTxInf>
</PmtInf>
</CstmrCdtTrfInitn>
</Document>
</Pmnt>
</Msg>
</FndtMsg>
<FndtMsg>
<Msg>
<Pmnt>
<CdtTrfTxInf>
<PmtId>
<InstrId>AB_1</InstrId>
<EndToEndId>CTv422-8/2008-06-25</EndToEndId>
</PmtId>
<PmtTpInf>
<CtgyPurp>
<Cd>GDDS</Cd>
</CtgyPurp>
</PmtTpInf>
<Amt>
<InstdAmt Ccy="USD">800</InstdAmt>
</Amt>
<ChrgBr>CRED</ChrgBr>
<CdtrAgt>
<FinInstnId>
<BIC>CITIUS33XXX</BIC>
</FinInstnId>
</CdtrAgt>
<CdtrAcct>
<Id>
<Othr>
<Id>3333421212</Id>
</Othr>
</Id>
</CdtrAcct>
<RmtInf>
<Unstrd>
</Unstrd>
</RmtInf>
</CdtTrfTxInf>
</Pmnt>
</Msg>
</FndtMsg>
<FndtMsg>
<Msg>
<Pmnt>
<Document xsi:schemaLocation="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03
pain.001.001.03.xsd " xmlns="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<CstmrCdtTrfInitn>
<GrpHdr />
<PmtInf>
<CdtTrfTxInf>
<PmtId>
<InstrId>AC_1</InstrId>
<EndToEndId>CTv422-8/2008-06-25</EndToEndId>
</PmtId>
<PmtTpInf>
<CtgyPurp>
<Cd>GDDS</Cd>
</CtgyPurp>
</PmtTpInf>
<Amt>
GPP PAYplus | Fndt Message Format | Page 42
<InstdAmt Ccy="USD">900</InstdAmt>
</Amt>
<ChrgBr>CRED</ChrgBr>
<CdtrAgt>
<FinInstnId>
<BIC>CITIUS33XXX</BIC>
</FinInstnId>
</CdtrAgt>
<CdtrAcct>
<Id>
<Othr>
<Id>3333421212</Id>
</Othr>
</Id>
</CdtrAcct>
<RmtInf>
<Unstrd>
</Unstrd>
</RmtInf>
</CdtTrfTxInf>
</PmtInf>
</CstmrCdtTrfInitn>
</Document>
</Pmnt>
</Msg>
</FndtMsg>
</TxInf>
</PmntTxInf>
</FndtMsgBatch>
2.4.3.5 FndtMsgBatch – Used for Submit Requests
FndtMsgBatch includes the following sections:
FndtHeader – Base header that includes context information and credentials.
FndtPmntTxInfo – Multiple transaction section containing a list of FndtMsg elements.
See the example in pain.001 to FndtBatchMsg of Submit Request.
2.4.4 FndtMsg
FndtMsg includes the following sections:
Header – contains the message MID (in a non-create mode).
Msg –Transaction and extension.
Pmnt – Pain message “as is” (including both headers).
Extn – GPP message extension.
OrigMsg – Original message as received before any enrichment process began
2.4.5 Submit Message Example
<q0:MsgBatch>
<q1:FndtHeader>
<q1:credentials>
<q1:UserID>audit3</q1:UserID>
</q1:credentials>
<q1:Workflow>File</q1:Workflow>
</q1:FndtHeader>
<q1:FndtPmntTxInf>
<q1:FndtMsg>
<q1:Msg>
<q1:Pmnt>
<Document xmlns="urn:iso:std:iso:20022:tech:xsd:pain.001.001.03"
xmlns:n1="http://www.w3.org/2001/XMLSchema-instance">
<CstmrCdtTrfInitn>
GPP PAYplus | Fndt Message Format | Page 43
<GrpHdr>
<MsgId>CTv422-001</MsgId>
<CreDtTm>2008-06-25T06:19:06</CreDtTm>
<NbOfTxs>1</NbOfTxs>
<CtrlSum>700</CtrlSum>
<InitgPty>
<Nm>THE US COMPANY</Nm>
<Id>
<OrgId>
<Othr>
<Id>US1SACOMPUS33XXX</Id>
</Othr>
</OrgId>
</Id>
</InitgPty>
</GrpHdr>
<PmtInf>
<PmtMtd>TRF</PmtMtd>
<BtchBookg>false</BtchBookg>
<ReqdExctnDt>2009-05-04</ReqdExctnDt>
<Dbtr>
<Nm>THE US COMPANY</Nm>
<Id>
<OrgId>
<Othr>
<Id>US1SACOMPUS33XXX</Id>
</Othr>
</OrgId>
</Id>
</Dbtr>
<DbtrAcct>
<Id>
<Othr>
<Id>22222222</Id>
</Othr>
</Id>
<Ccy>USD</Ccy>
</DbtrAcct>
<DbtrAgt>
<FinInstnId>
<BIC>BOFAUS31XXX</BIC>
</FinInstnId>
</DbtrAgt>
<CdtTrfTxInf>
<PmtId>
<InstrId>ADv41-04</InstrId>
<EndToEndId>CTv422-8/2008-06-25</EndToEndId>
</PmtId>
<Amt>
<InstdAmt Ccy="USD">700</InstdAmt>
</Amt>
<ChrgBr>CRED</ChrgBr>
<CdtrAgt>
<FinInstnId>
<BIC />
</FinInstnId>
</CdtrAgt>
<CdtrAcct>
<Id>
<Othr>
<Id>8552502</Id>
</Othr>
</Id>
<RmtInf>
<Unstrd>
</Utrd>
</RmtInf>
</CdtTrfTxInf>
</PmtInf>
</CstmrCdtTrfInitn>
GPP PAYplus | Fndt Message Format | Page 44
</Document>
</q1:Pmnt>
<q1:Extn>
<q1:ProcessingPersistentInfo>
<q1:P_OFFICE>US1</q1:P_OFFICE>
<q1:P_DEPARTMENT>PSV</q1:P_DEPARTMENT>
<q1:DebitSide>
<q1:P_DBT_ACCT_NB>22222222</q1:P_DBT_ACCT_NB>
<q1:P_DBT_ACCT_CCY>USD</q1:P_DBT_ACCT_CCY>
<q1:P_DBT_ACCT_OFFICE>US1</q1:P_DBT_ACCT_OFFICE>
</q1:DebitSide>
</q1:ProcessingPersistentInfo>
<q1:UserDefinedFields>
<q1:System>
<q1:PMT_CTGORY>INTERNAL</q1:PMT_CTGORY>
</q1:System>
</q1:UserDefinedFields>
<q1:OperationalSection>
<q1:D_BUTTON_ID>Submit</q1:D_BUTTON_ID>
</q1:OperationalSection>
</q1:Extn>
</q1:Msg>
</q1:FndtMsg>
</q1:FndtPmntTxInf>
</q0:MsgBatch>
2.4.6 FndtBatchMsg for File Processing
The illustration shows how pain.001.001.03 sections are accommodated in the Fndt batch message
structure while maintaining support for one debit with multiple credits.
GPP PAYplus | Fndt Message Format | Page 45
GPP PAYplus | Fndt Message Format | Page 46
2.4.6.1 pain.001 to FndtBatchMsg of File Processing

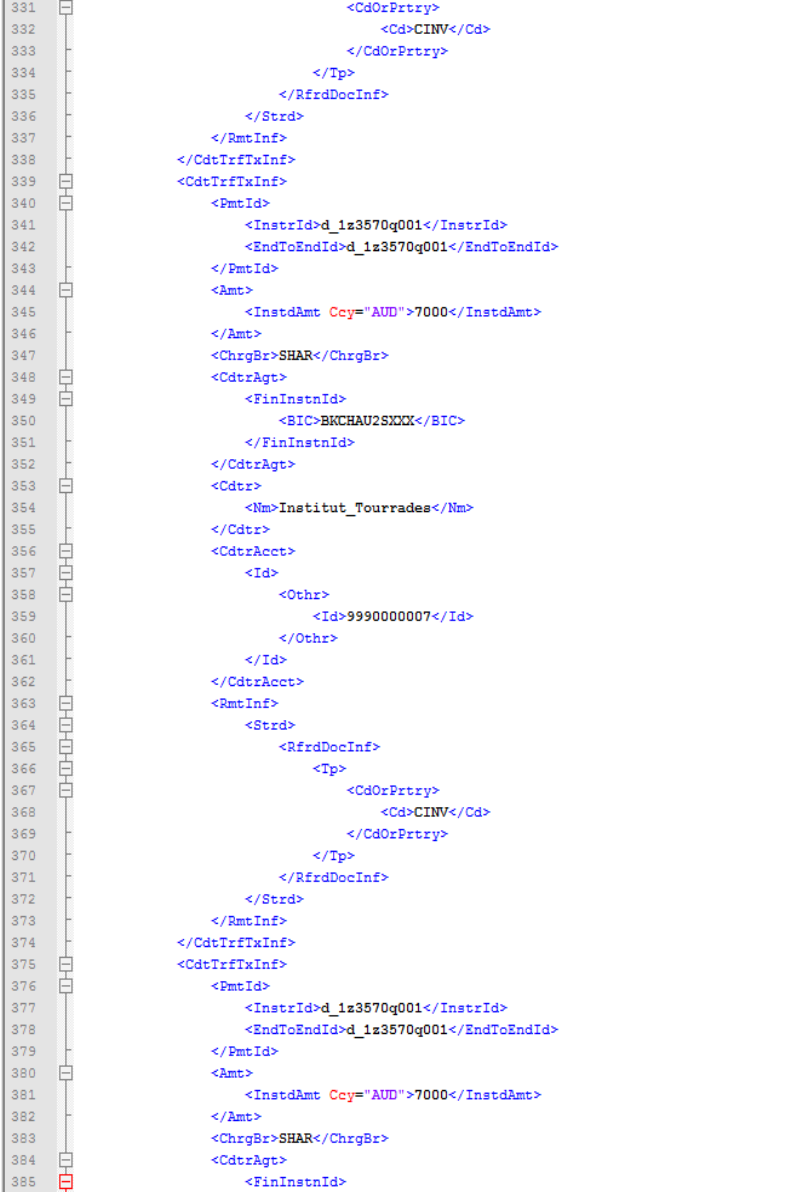

The illustration shows how a standard pain.001 message (that can include multiple transactions) is
accommodated in the FndtBatchMsg of file processing.
GPP PAYplus | Fndt Message Format | Page 47
2.4.6.2 pain.001 to FndtBatchMsg of Submit Request
The illustration shows how a standard pain.001 message can be accommodated in the FndtBatchMsg
of a submit request.
3 Usage
3.1 Feeding Systems
It is recommended to use Fndt message proprietary format for feeder system. This allows a robust
feeding mechanism. The feeder can use both a standard format, such as pain or MT103, and also
provide GPP with specific attributes in the GPP extension section that includes customized message
fields, and additional GPP attributes that can have effect on the processing of the transaction, such as
Fees information, Rates information.
An interface (type: FEEDER) has to be set up with the relevant specifications, for example, the
definition of MQ that may be used.
Note: In the Interface profile for ‘feeder’ the transaction different sources may be defined with the
source field. This allows more specific identification of the feeder type (for example: Internet banking
or branches feeder).
3.2 Posting
Posting information is defined by GPP during the transaction processing flow.
The Posting interface can be invoked using the Fndt message or any other proprietary pre-defined
document.
When using the Fndt Message structure the posting information (per each entry – for example, type,
amount, dr/cr indication, currency, account), resides in the M_POSTING_INFO_LINE element in the
Fndt message (see section Message Posting (aka Posting Information – New Design)). Along with the
main attributes of each entry, there is also, within this element (in
F_POSTING_INFO_FORCE_POST_IND), an indication that the posting entry needs to be forced (no
balance check should be performed in the back office end), whether due to user action in the
insufficient funds queue, or due to processing reasons (for example, reverse posting due to canceled
GPP PAYplus | Fndt Message Format | Page 48
transaction or Offline mode). To get more indication of why this entry should be forced, an indication
for user action of force transaction outside of insufficient funds status is available in the UserMonitors
element info (MU_NSF_FORCE_STS).
These monitors should be taken into account when setting up the interface on the back office end. In
cases where the posting information also requires including additional related information (for
example, advising) it is easy and configurable to setup the relevant elements from the full Fndt
message to be included in the posting request. The definition of which elements from the full structure
are included in the specific posting request structure is specified in
XML_FORMAT_TYPE_RELATIONS system table.
Note: Bank/FI may request to use the minimal recommended and predefined POSTING elements in
the Fndt message or request to include its own list of additional elements from the Fndt message for
posting.
Posting response may be positive or negative. Where the posting response is negative, it is also
possible to state the reason for failure. GPP, with its generic posting logic, uses the negative response
code to appropriately change the GPP message status (msg sts) where the transaction should park
(whether it is posting restrictions, insufficient funds, posting exceptions or with the workflow system
rules to any pre-defined message status).
3.3 Balance inquiry
Balance Inquiry (BI) can be invoked using the Fndt message or any other proprietary pre-defined
document.
When using the Fndt Message structure the balance request resides in the M_BI_INFO_LINE
element in the Fndt message (see section Balance Check Information).
BI response may be positive or negative. When the BI response is positive it may include an earmark
reference and an account balance. When the BI response is negative, it is also possible to state the
reason for failure. GPP with the workflow system rules is capable to set GPP message status (msg
sts) where the transaction should park (whether it is repair or insufficient funds or any pre-defined
message status).
BI service indicator is held by field ID ‘MF_BI_STS’.
GPP PAYplus | Fndt Message Format | Page 49
Appendix A: Glossary of Terms
This table lists the terms used in this document.
Term
Description
Fndt
Message
The FuNDs Transfer message structure is a GPP specific XML structure that is
comprising of the full set of information as received, enriched, computed or manually
updated per message. This structure is used as part of the standard interfaces for
interacting with financial institution systems.
ISO
International Organization for Standards
Feeder
Feeder systems are the customer facing systems (front end systems) that enable
transaction capture.
The prefix convention for naming transaction attribute fields is described in this table:
Prefix
Meaning
Explanation
T_
Tree
Place holder in the tree view that hold the relevant associated
information. For example: T_PARTIES holds all of the
transaction parties
X_
XML
ISO (<pmnt>) information that is stored in an XML structure in
the XML_MSG
OX_
Original XML
Copy of the originally received XML transaction (<pmnt>)
information that is stored in an XML structure in
ORIG_XML_MSG
OC_
Original Copy of XML
field
Prefix used if there is more than one way to receive specific
data. Example: OX_CDTR_AGT_BIC_1OR or
OX_CDTR_AGT_BIC_2AND. GPP copies the data into
OC_CDTR_AGT_BIC to facilitate determining whether creditor
agent BIC was provided or not. Relevant only for originally
received attributes.
P_
Process
GPP extension field for transaction data that cannot be placed
in the ISO standard format. Examples of commonly used
attributes: P_MID, P_OFFICE.
F_
GPP derived transaction
attribute
Derived attribute that are taken from the static data profile that
is associated with transaction details. For example, after
P_CDT_MOP is determined, the related credit MOP profile
attributes are set in these fields. Examples: F_CDT_MOP_NM
is the credit MOP name derived from the credit MOP value.
F_MOP_NM is associated with the debit MOP.
D_
Derived
Derived attributes that are calculated ‘on the fly’ while the GPP
service is calculating the information. Derived fields are not
stored in the transaction after processing is completed, or
stopped for manual handling or wait. Therefore, they usually
cannot be used as a condition in business rules.
MU
MF
User Monitor
Flow (service) monitor
Monitors are divided into three categories:
GPP PAYplus | Fndt Message Format | Page 50
Prefix
Meaning
Explanation
MI
Interface monitor
User monitors that track the user action over the user interface,
such as, forcing a transaction out of the insufficient funds queue
Workflow monitors – internal monitors in the code that track the
transaction processing flow
Interface monitors that monitor interface interactions
These P_ field attributes hold the monitor statuses strings for
every transaction.
P_USER_STATE_MONITOR - for User Monitors – MU_
prefix
P_SERVICE_STATE_MONITOR - for Flow Monitors – MF_
prefix
P_INTERFACE_STATE_MONITOR - for Interface Monitors
– MI_ prefix
The location of each monitor in the field is defined by
LOGICAL_FIELDS.LOCATION. The first location is 0 (zero).
Example of a monitor string P_ field value:
XXXXXXXXXXXXXXXXXXXT.
The following SQL could be used to check the full list of
monitors as per their monitor P_field and their location:
select lf.obj_ref_data_id, lf.location, lf.* from logical_fields lf
where lf.obj_ref_data_id like '%MONITOR'
order by 1,2
Appendix B: Conventions
This table details naming conventions used within the document.
Term
Meaning
Tag name in Bold
Indicate Aggregates
ISO Date Time
Date Time formats defined as ISO Date Time will conform to ISO8601.
Representation:
ISO Date Time with milliseconds:
YYYY-MM-DD [T] {0,1} HH:MM:SS.mmm [Z,-,+] {1,1} HH:MM {0,1}
ISO Date Time without milliseconds:
YYYY-MM-DD [T] {0,1} HH:MM:SS [Z,-,+] {1,1} HH:MM {0,1}
Where:
YYYY is the year
MM is the month (01 - 12)
DD is the day (01 - 31)
T is a literal separator between the date and time portions (optional)
HH is the hour in 24 hour time
MM is the minutes
SS is the seconds
mmm is the milliseconds
Z is the time zone designator:
- Z for when time is in UTC time, OR
GPP PAYplus | Fndt Message Format | Page 51
Term
Meaning
- +HH:MM; OR
- or -HH:MM
ISO Date
Date formats defined as ISO Date Time will conform to ISO8601.
Representation:
YYYY-MM-DD
Where:
YYYY is the year,
MM is the month (01 - 12)
DD is the day (01 - 31)
ISO Decimal Values
Decimal values defined as ISO Decimal Values will use the ISO format
definition using fractionDigits and totalDigits
Where:
totalDigits defines the total number of digits in the number (on both
sides of the decimal point)
fractionDigits defines the number of digits to the right of the decimal
point (the fraction)
SWIFT Date
Date formats defined as SWIFT Date will conform to SWIFT representation:
YYMMDD
Where:
YY is the year
MM is the month (01 - 12)
DD is the day (01 - 31)
SWIFT Decimal
Values
Decimal values defined as SWIFT Decimal Values will use the SWIFT
representation of digits and a comma acting as the decimal separator
between the fraction and the full number
Presence
(Cardinality)
0..1 means Optional
1..1 means Required
0..n means Optional and may have multiple occurrences (limited to
specified n)
1..n means required and may have multiple occurrences (limited to
specified n)
String format
[character set] {min length, max length]
[A-Z] means only upper letter characters
[a-z] means only lower letter characters
[0-9] means only digits
[A-Za-z] means upper and lower letter characters
Text means all characters
{1,6} means a string at least one character long and no longer than 6
characters
GPP PAYplus | Fndt Message Format | Page 52
Appendix C: Additional Fndt Message Related Information
This section includes various SQL statements that can be used for various aspects of the concept and
usage of the Fndt Message. These queries can be used to receive the up-to-date results (as per on-
going evolvements).
C.1 Structure of the Fndt SWIFT XML
A SWIFT message, embedded within an XML structure quoting the full SWIFT text message in the
/SWIFT/Header/Original_Swift/Message tag, and separate message attributes as per the different
SWIFT fields.
The tags that appear under the SWIFT Header and SWIFT Data sections (under the <Pmnt> tag, vary
per message type.
The following SQL statement can be used to fetch the appropriate tags:
For the SWIFT header fields, the following query should be used (the highlighted parameter can
be changed by the user per message type).
Select a.field_logical_id as "Logical Field" ,lf.description as "Field Description" from (SELECT
lfx_field_logical_id AS field_logical_id, lf_xml_type AS xml_type,
lfx_field_path AS XML_Path --, lfx_xml_type AS script2, VERSION,
-- namespace
FROM (SELECT lfx.field_logical_id AS lfx_field_logical_id,
lfs.field_xml_type AS lf_field_xml_type,
lfx.xml_type AS lf_xml_type,
(SELECT lx.field_path
AS lx_field_path
FROM logical_fields_xpath lx,
logical_fields lf
WHERE
lf.path_parent_id IS NOT NULL
AND lx.field_logical_id LIKE 'X_%'
AND lf.path_parent_id = lx.field_logical_id
AND lf.field_logical_id = lfs.field_logical_id
AND lx.xml_type = lfx.xml_type
AND CASE
WHEN lfx.VERSION IS NULL
AND lx.VERSION IS NULL
THEN 1
WHEN lx.VERSION = lfx.VERSION
THEN 1
ELSE 0
END = 1)
|| lfx.field_path AS lfx_field_path,
'xmlns="' || doc.namespace || '"' AS lfx_xml_type,
lfx.VERSION, doc.namespace
FROM logical_fields_xpath lfx,
logical_fields lfs,
xml_document_types doc
WHERE lfs.LOCATION IN ('XML_MSG', 'XML_ORIG_MSG')
AND lfx.field_logical_id = lfs.field_logical_id
AND lfs.field_xml_type = 'TEXT'
AND (lfx.xml_type like 'SWIFT%')
AND lfx.xml_type = doc.document_id
AND ( (lfx.VERSION = doc.VERSION)
AND (lfx.VERSION='001'))
)) A
,logical_fields LF,xml_format_type_relations REL
GPP PAYplus | Fndt Message Format | Page 53
where A.field_logical_id=lf.field_logical_id
and rel.field_logical_id=lf.field_logical_id
and rel.version='001'
and a.XML_Path like '/SWIFT/Header/%'
and rel.format_type='SWIFT_103'
Example extract for an MT103 Header:
XML_PATH
DESCRIPTION
FIELD_LOGICAL_ID
/SWIFT/Header/Bank_Priority
SWIFT block 3 tag 113, banking priority
code
X_BNK_PRTY_CD
/SWIFT/Header/User_Header
/Service_Identifier
Clearing System ID (SWIFT Business code-
FIN copy)
X_CLR_SYS_ID
/SWIFT/Header/Create_Date
_Time
PACS Header create date time
X_CRE_DT_TM
/SWIFT/Header/Sender_BIC
Instructing agent (SWIFT Sender) BIC
X_INSTG_AGT_BIC_2
AND
/SWIFT/Header/User_Header
/Address_Info/Ctry
Instructing agent (SWIFT Sender) country
code
X_INSTG_AGT_CTRY
_2AND
/SWIFT/Header/Message_Pri
ority
Priority attribute (SWIFT block 2 header.
PACS instruction priority). Possible values:
S,N = NORM, U = HIGH
X_INSTR_PRTY
/SWIFT/Header/Receiver_BI
C
Instructed agent (SWIFT Receiver) BIC
X_INSTD_AGT_BIC_2
AND
/SWIFT/Header/User_Header
/Address_Info/Ctry
country code of the instructed agent
(Receiver)
X_INSTD_AGT_CTRY_
2AND
/SWIFT/Header/Msg_ID
Point to point reference, as assigned by the
account servicing institution, and sent to the
account owner or the party authorized to
receive the message, to unambiguously
identify the message
X_MSG_ID
/SWIFT/Header/User_Header
/Message_User_Reference
MUR is SWIFT tag 108 in block 3. Message
User Reference (MUR) used by applications
for reconciliation with ACK.
X_MSG_USER_REF
/SWIFT/Header/Original_Swif
t/Message
Sent message
X_SENT_MSG
/SWIFT/Header/Create_Date
_Time
SWIFT Header Sender create date time
X_SND_CRE_DT_TM
/SWIFT/Header/Settlement_
Method
Settlemt Method. Codeword: CLRG
(clearingSystem), COVE (CoverMethod),
INDA (InstructedAgent) and INGA
(InstructingAgent)
X_STTLM_MTD
/SWIFT/Header/Input_Output
_Identifier
direction attribute (SWIFT block 2 header
direction indication I/O)
X_SWIFT_DIRECTION
_IND
GPP PAYplus | Fndt Message Format | Page 54
XML_PATH
DESCRIPTION
FIELD_LOGICAL_ID
/SWIFT/Header/Sequence_N
umber
Swift Block1 Sequence number
X_SWIFT_SEQUENCE
/SWIFT/Header/Session_Nu
mber
Swift Block1 Session number
X_SWIFT_SESSION
/SWIFT/Header/User_Header
/Validation_Flag
Validation flag is SWIFT tag 119 in block 3.
Used to indicate an MT202 COV or
MT103PLS
X_VALIDATION_FLAG
/SWIFT/Header/Instd_Agent_
Name
Instructed agent (SWIFT Receiver) name
X_INSTD_AGT_NM_2
AND
/SWIFT/Header/Instg_Agent_
Name
Instructing agent (SWIFT Sender) name
X_INSTG_AGT_NM_2
AND
For the SWIFT data fields the following query should be used (highlighted parameter can be
changed by the user per message type).
Select a.field_logical_id as "Logical Field" ,lf.description as "Field Description" from (SELECT
lfx_field_logical_id AS field_logical_id, lf_xml_type AS xml_type,
lfx_field_path AS XML_Path --, lfx_xml_type AS script2, VERSION,
-- namespace
FROM (SELECT lfx.field_logical_id AS lfx_field_logical_id,
lfs.field_xml_type AS lf_field_xml_type,
lfx.xml_type AS lf_xml_type,
(SELECT lx.field_path
AS lx_field_path
FROM logical_fields_xpath lx,
logical_fields lf
WHERE
lf.path_parent_id IS NOT NULL
AND lx.field_logical_id LIKE 'X_%'
AND lf.path_parent_id = lx.field_logical_id
AND lf.field_logical_id = lfs.field_logical_id
AND lx.xml_type = lfx.xml_type
AND CASE
WHEN lfx.VERSION IS NULL
AND lx.VERSION IS NULL
THEN 1
WHEN lx.VERSION = lfx.VERSION
THEN 1
ELSE 0
END = 1)
|| lfx.field_path AS lfx_field_path,
'xmlns="' || doc.namespace || '"' AS lfx_xml_type,
lfx.VERSION, doc.namespace
FROM logical_fields_xpath lfx,
logical_fields lfs,
xml_document_types doc
WHERE lfs.LOCATION IN ('XML_MSG', 'XML_ORIG_MSG')
AND lfx.field_logical_id = lfs.field_logical_id
AND lfs.field_xml_type = 'TEXT'
AND (lfx.xml_type like 'SWIFT%')
AND lfx.xml_type = doc.document_id
AND ( (lfx.VERSION = doc.VERSION)
AND (lfx.VERSION='001'))
GPP PAYplus | Fndt Message Format | Page 55
)) A
,logical_fields LF,xml_format_type_relations REL
where A.field_logical_id=lf.field_logical_id
and rel.field_logical_id=lf.field_logical_id
and rel.version='001'
and a.XML_Path like '/SWIFT/Data/%'
and rel.format_type='SWIFT_103'
order by a.XML_Path
Example extract for an MT103 Data:
XML_PATH
Description
FIELD_LOGICAL_ID
/SWIFT/Data/ClrChann
el
Clearing channel indication (//RT in SWIFT or
RTGS in PACS). May be used in one of the credit
parties to indicate that the transaction should be
sent via the RTGS
X_CLR_CHANL
/SWIFT/Data/F13C/CL
STIME
Continuous Links Settlement (CLS) settlement
request time, expressed in Central European Time
(CET). SWIFT tag 13C (CLSTIME)
X_STTLM_CLS_TM
/SWIFT/Data/F13C/RN
CTIME
Time at which a TARGET transaction has been
debited at the sending central bank. SWIFT tag
13c (SNDTIME)
X_STTLM_CDT_DT_T
M
/SWIFT/Data/F13C/SN
DTIME
Time where TARGET transaction has been
credited at the receiving central bank. SWIFT
tag13C (RNCTIME)
X_STTLM_DBT_DT_T
M
/SWIFT/Data/F20/Send
er_s_Reference
Instruction ID (SWIFT tag 20 Sender's Reference)
X_INSTR_ID
/SWIFT/Data/F21/Relat
ed_Reference
End To End ID (SWIFT tag 21-Related Reference)
X_END_TO_END_ID
/SWIFT/Data/F23B
Service Level proprietary (SWIFT Tag 23B for
codeword SPRI,SPAY,SSTD). Agreement under
which or rules under which the transaction should
be processed
X_SVC_LVL_PRTRY
/SWIFT/Data/F23E/Cat
egoryPurposeCode
Category purpose, as published in an external
category purpose code list (SWIFT 23E codewrod
CORT and INTC)
X_CTGY_PURP_CD
/SWIFT/Data/F26T
Underlying reason for the transaction (SWIFT
26T-Transaction Type Code)
X_PURP_PRTRY
/SWIFT/Data/F32A/Am
ount
Settlement (SWIFT tag 32A)- Amount
X_STTLM_AMT
/SWIFT/Data/F32A/Curr
ency
Settlement (SWIFT tag 32A)- Currency
X_STTLM_CCY
/SWIFT/Data/F32A/Dat
e
Settlement (SWIFT tag 32A)- Date
X_STTLM_DT_1B
GPP PAYplus | Fndt Message Format | Page 56
XML_PATH
Description
FIELD_LOGICAL_ID
/SWIFT/Data/F33B/Am
ount
Instructed (SWIFT tag 33B)- Amount
X_INSTD_AMT
/SWIFT/Data/F33B/Curr
ency
Instructed (SWIFT tag 33B)- Currency
X_INSTD_CCY
/SWIFT/Data/F36/Rate
Exchange rate. The factor used for conversion of
an amount from one currency into another (SWIFT
tag 36).
X_XCHG_RATE
/SWIFT/Data/F50a/F50
F/Id/PrvtId/DtAndPlcOf
Birth/BirthDt
Debtor (SWIFT tag 50-Ordering Customer)
birthdate
X_DBTR_BIRTHDT
/SWIFT/Data/F50a/F50
F/Id/PrvtId/DtAndPlcOf
Birth/CityOfBirth
Debtor (SWIFT tag 50-Ordering Customer) City of
Birth
X_DBTR_CITYOFBIRT
H
/SWIFT/Data/F50a/F50
F/Id/PrvtId/DtAndPlcOf
Birth/CtryOfBirth
Debtor (SWIFT tag 50-Ordering customer)
Country of Birth
X_DBTR_CTRYOFBIR
TH
/SWIFT/Data/F50a/F50
F/Id/PrvtId/Othr/Id
Debtor (SWIFT tag 50-Ordering Customer) other
identification.
codeword:ARNU,CCPT,CUST,DRLC,EMPL
NIDN,SOSE,TXID
X_DBTR_PRVTID_OT
HR_ID
/SWIFT/Data/F50a/F50
F/Id/PrvtId/Othr/Issr
Debtor (SWIFT tag 50-Ordering Customer) Entity
that assigns the identification
X_DBTR_PRVTID_OT
HR_ISSR
/SWIFT/Data/F50a/F50
F/Id/PrvtId/Othr/Schme
NmCd
Debtor (SWIFT tag 50-Ordering Customer) other
identification. This field contains the identification
type from codeword profile
X_DBTR_PRVTID_OT
HR_CD
/SWIFT/Data/F50a/Part
yInfo/Account_IBAN
IBAN of the debtor account group
X_DBTR_ACCT_IBAN
/SWIFT/Data/F50a/Part
yInfo/Addr_info/Ctry
Debtor (SWIFT tag 50-Ordering Customer)
country part of the postal address
X_DBTR_PSTLADR_C
TRY
/SWIFT/Data/F50a/Part
yInfo/Addr_info/TwnNm
Debtor (SWIFT tag 50-Ordering Customer) town
name part of the postal address
X_DBTR_PSTLADR_T
WNNM
/SWIFT/Data/F50a/Part
yInfo/Identifier_Code
Debtor (SWIFT tag 50-Ordering Customer) BIC
X_DBTR_BIC
/SWIFT/Data/F50a/Part
yInfo/PartyName
Debtor (SWIFT tag 50-Ordering Customer) name
X_DBTR_NM
/SWIFT/Data/F50a/SWI
FT/Data/F50a
debtor account currency
X_DBTR_ACCT_CCY
/SWIFT/Data/F52a/Acc
ount_IBAN
IBAN of the debtor agent account
X_DBTR_AGT_ACCT_I
BAN
/SWIFT/Data/F52a/ClrS
ysCd
NCC of the debtor agent
X_DBTR_AGT_CLR_S
YS_PRTRY
GPP PAYplus | Fndt Message Format | Page 57
XML_PATH
Description
FIELD_LOGICAL_ID
/SWIFT/Data/F53a/Acc
ount
Instructing reimbursement agent (SWIFT tag 53-
Senders Correspondent) Account
X_INSTG_RMB_AGT_
ACCT_ID_2AND
/SWIFT/Data/F53a/Acc
ount
Sttlm Acct Schem Name Code
X_STTLM_ACCT_SCH
M_CD
/SWIFT/Data/F53a/Acc
ount_IBAN
Instructing reimbursement agent (SWIFT tag 53-
Senders Correspondent) IBAN
X_INSTG_RMB_AGT_
ACCT_IBAN
/SWIFT/Data/F53a/ClrS
ysCd
Instructing reimbursement agent (SWIFT tag 53-
Senders Correspondent) NCC
X_INSTG_RMB_AGT_
CLR_SYS_PRTRY
/SWIFT/Data/F53a/Cou
ntry
Instructing reimbursement agent (SWIFT tag 53-
Senders Correspondent) Country code
X_INSTG_RMB_AGT_
CTRY_2AND
/SWIFT/Data/F53a/Sch
meNmCd
Instructing reimbursement agent (SWIFT tag 53-
Senders Correspondent). Name of the
identification scheme, in a coded form
X_INSTG_RMB_AGT_
ACCT_SCHM_CD
/SWIFT/Data/F54a/ClrS
ysCd
Proprietary NCC of the instructed reimbursement
agent (Receivers Correspondent SWIFT tag 54)
X_INSTD_RMB_AGT_
CLR_SYS_PRTRY
/SWIFT/Data/F54a/Cou
ntry
Country code of the instructed reimbursement
agent (Receivers Correspondent SWIFT tag 54)
X_INSTD_RMB_AGT_
CTRY_2AND
/SWIFT/Data/F54b/Acc
ount
Account number of the instructed reimbursement
agent (Receivers Correspondent SWIFT tag 54)
X_INSTD_RMB_AGT_
ACCT_ID_2AND
/SWIFT/Data/F54b/Acc
ount_IBAN
IBAN of the instructed reimbursement agent
(Receivers Correspondent SWIFT tag 54)
X_INSTD_RMB_AGT_
ACCT_IBAN
/SWIFT/Data/F54b/Sch
meNmCd
Name of the instructed reimbursement agent
(Receivers Correspondent SWIFT tag 54), in a
coded form
X_INSTD_RMB_AGT_
ACCT_SCHM_CD
/SWIFT/Data/F55a/Acc
ount_IBAN
Third reimbursement institution (SWIFT tag 55)
account group IBAN
X_THRD_RMB_AGT_A
CCT_IBAN
/SWIFT/Data/F56a/Acc
ount
Intermediary agent 1 (SWIFT tag 56-Intermediary
Institution) account number
X_INTRMY_AGT1_AC
CT_ID
/SWIFT/Data/F56a/ClrS
ysCd
Intermediary agent 1 (SWIFT tag 56-Intermediary
Institution) NCC
X_INTRMY_AGT1_CL
R_SYS_PRTRY
/SWIFT/Data/F56a/Cou
ntry
Intermediary agent 1 (SWIFT tag 56-Intermediary
Institution) country code
X_INTRMY_AGT1_CT
RY_2AND
/SWIFT/Data/F56a/Part
yName
Intermediary agent 1 (SWIFT tag 56-Intermediary
Institution) account number
X_INTRMY_AGT1_AC
CT_NM
/SWIFT/Data/F57a/Acc
ount_IBAN
Creditor agent (SWIFT tag 57-Account With
Institution) IBAN
X_CDTR_AGT_ACCT_I
BAN
/SWIFT/Data/F57a/Cou
ntry
Creditor agent (SWIFT tag 57-Account With
Institution) country code
X_CDTR_AGT_CTRY_
2AND
/SWIFT/Data/F71A/Cod
e
Charges bearer (SWIFT F71A Details of Charges)
X_CHRG_BR
GPP PAYplus | Fndt Message Format | Page 58
XML_PATH
Description
FIELD_LOGICAL_ID
/SWIFT/Data/F72/PrevI
nstructAgent/ClrSysCd
Agent immediately prior to the instructing agent
X_PRVS_INSTG_AGT_
CLR_SYS_CD
/SWIFT/Data/F72/PrevI
nstructAgent/Party_Ide
ntifier
Agent immediately prior to the instructing agent
X_PRVS_INSTG_AGT_
ID_2AND
/SWIFT/Data/InstrForA
gents/InstrsForCdtrAge
nt/InstrForCdtrAgent/F2
3E_72_Code
Instruction for creditor agent. codeword (SWIFT
72 codeword ACC or 23E codeword)
X_INSTR_CDTR_AGT_
CD
/SWIFT/Data/InstrForA
gents/InstrsForCdtrAge
nt/InstrForCdtrAgent/F2
3E_72_Information
Instruction for Creditor Agent (SWIFT tag 72
codeword ACC) instructions are for the account
with institution
X_INSTR_CDTR_AGT_
INF
/SWIFT/Data/InstrForA
gents/InstrsForNextAge
nt/InstrForNextAgent/F2
3E_72_Code
Standard instruction for next agent (SWIFT tag 72
for codeword INT, REC)
X_INSTR_NXT_AGT_C
D
/SWIFT/Data/InstrForA
gents/InstrsForNextAge
nt/InstrForNextAgent/F2
3E_72_Information
Standard instruction for next agent (SWIFT tag 72
codeword INT and SWIFT tag 23E for codeword
PHON, TELE, PHOI and TELI)
X_INSTR_NXT_AGT_I
NF
/SWIFT/Data/SvcLvlCd
Service level code (SWIFT 23E codeword SDVA).
Pre-agreed level of service between the parties,
as published in an external code list
X_SVC_LVL_CD
Example of the <Pmnt> tag content in case of an MT103 SWIFT message, including both the Header
and the Data sections:
<Pmnt>
<swif:SWIFT MT="103" xmlns:swif="urn:fundtech/scl/SWIFT"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<swif:Header>
<swif:Input_Output_Identifier>I</swif:Input_Output_Identifier>
<swif:Sender_BIC>CLYDGB2SXXX</swif:Sender_BIC>
<swif:Receiver_BIC>CITIUS33XXX</swif:Receiver_BIC>
<swif:Message_Priority>NORM</swif:Message_Priority>
<swif:User_Header>
<swif:Message_User_Reference>13AD804381M30W04</swif:Message_User_Reference>
</swif:User_Header>
<swif:Original_Swift>
<swif:Message>{1:F01CLYDGB2SAXXX0000000000}{2:I103CITIUS33XXXXN}{3:{108:13AD8
04381M30W04}}{4:
:20:C1n1223225
:23B:CRED
:32A:131013USD4427,00
:33B:USD4427,
:50K:/4505123456500
REMITTER
:57A:ADCBAEAAXXX
:59:/AE850030000928312345678
BENEFICIARY
:70:WAGES
:71A:SHA
GPP PAYplus | Fndt Message Format | Page 59
-}</swif:Message>
</swif:Original_Swift>
<swif:Create_Date_Time>2013-10-13T08:04:38</swif:Create_Date_Time>
<swif:Msg_ID>C1n1223225</swif:Msg_ID>
<swif:Sequence_Number>000000</swif:Sequence_Number>
<swif:Session_Number>0000</swif:Session_Number>
</swif:Header>
<swif:Data xsi:type="swif:Data_103">
<swif:F20>
<swif:Sender_s_Reference>C1n1223225</swif:Sender_s_Reference>
</swif:F20>
<swif:F32A>
<swif:Currency>USD</swif:Currency>
<swif:Amount>4427.00</swif:Amount>
<swif:Date>2013-10-13</swif:Date>
</swif:F32A>
<swif:F33B>
<swif:Currency>USD</swif:Currency>
<swif:Amount>4427</swif:Amount>
</swif:F33B>
<swif:F50a>
<swif:SWIFT>
<swif:Data>
<swif:F50a>USD</swif:F50a>
</swif:Data>
</swif:SWIFT>
<swif:Account>4505123456500</swif:Account>
<swif:PartyInfo>
<swif:PartyName>REMITTER</swif:PartyName>
</swif:PartyInfo>
</swif:F50a>
<swif:F56a>
<swif:Identifier_Code>CITIUS33XXX</swif:Identifier_Code>
</swif:F56a>
<swif:F57a>
<swif:Identifier_Code>ADCBAEAAXXX</swif:Identifier_Code>
<swif:Country>AE</swif:Country>
</swif:F57a>
<swif:Cdrt_F58a_F59a>
<swif:Account>AE850030000928312345678</swif:Account>
<swif:PartyName>BENEFICIARY</swif:PartyName>
</swif:Cdrt_F58a_F59a>
<swif:F70>
<swif:Unstructed>WAGES</swif:Unstructed>
</swif:F70>
<swif:F71A>
<swif:Code>SHAR</swif:Code>
</swif:F71A>
</swif:Data>
</swif:SWIFT>
</Pmnt>
C.2 Supported XML Based Components
select distinct xml_type from LOGICAL_FIELDS_XPATH
union
select distinct FORMAT_TYPE from XML_FORMAT_TYPE_RELATIONS
XML_TYPE
1
210
2
ACK_NOTIFY
3
ACK_PAIN_002
GPP PAYplus | Fndt Message Format | Page 60
XML_TYPE
4
ACMT_023
5
ACMT_024
6
CAMT_052
7
CAMT_053
8
CAMT_054
9
CHIPS_31
10
Camt_029
11
Camt_056
12
DOWNST
13
DOWNST_RESP
14
ENRICH
15
EXTN
16
FED_10
17
FED_15
18
FED_16
19
FED_ABI
20
FED_ABO
21
FED_DSI
22
FED_DSO
23
FED_EBI
24
FED_ECI
25
FED_ECO
26
FED_FUNDS
27
FED_GBI
28
FED_RES
29
FED_RTI
30
FED_RTO
31
FED_SVC
32
FED_TGI
33
FED_TGO
GPP PAYplus | Fndt Message Format | Page 61
XML_TYPE
34
FNDT_MSG
35
FULL
36
FX_EXEC_REPORT_INTERFACE
37
FX_ORDER_INTERFACE
38
FX_ORDER_STATUS_INTERFACE
39
FX_QUOTE_INTERFACE
40
FX_QUOTE_RES_INTERFACE
41
G3ACK_NOTIFY
42
G3_ACK_PAIN2
43
INTERFACE1
44
INTERFACE2
45
INTERFACE3
46
INTERFACE4
47
MAMBO_FTM401
48
MAMBO_FTM402
49
MAMBO_FTM411
50
MAMBO_FTM441
51
MAMBO_FTM451
52
MAMBO_FTM452
53
MAMBO_HUB401
54
MAMBO_HUB402
55
MAMBO_HUB411
56
MAMBO_HUB441
57
MAMBO_HUB451
58
MAMBO_HUB452
59
MASS_PAY_TEMPLATE
60
MOP_OUT
61
MPEDDIdfBlkDirDeb
62
MSG_SBMT_OUT
63
N90
GPP PAYplus | Fndt Message Format | Page 62
XML_TYPE
64
N91
65
N92
66
N95
67
N96
68
N98
69
N99
70
NOTIFY
71
ORIG_PERSISTENT_DATA
72
PERSISTENT_DATA
73
POSTING
74
POSTING_CAMT
75
POSTING_REQ
76
Pacs_002
77
Pacs_003
78
Pacs_004
79
Pacs_007
80
Pacs_008
81
Pacs_00801
82
Pacs_009
83
Pain_001
84
Pain_002
85
Pain_007
86
Pain_008
87
Pain_009
88
Pain_010
89
Pain_011
90
RTR
91
SCTCvfBlkCredTrf
92
SCTIcfBlkCredTrf
93
SCTScfBlkCredTrf
GPP PAYplus | Fndt Message Format | Page 63
XML_TYPE
94
SWIFT
95
SWIFT_103
96
SWIFT_190
97
SWIFT_191
98
SWIFT_192
99
SWIFT_195
100
SWIFT_196
101
SWIFT_198
102
SWIFT_199
103
SWIFT_200
104
SWIFT_202
105
SWIFT_202COV
106
SWIFT_210
107
SWIFT_290
108
SWIFT_291
109
SWIFT_292
110
SWIFT_295
111
SWIFT_296
112
SWIFT_298
113
SWIFT_298_011
114
SWIFT_298_012
115
SWIFT_298_013
116
SWIFT_298_014
117
SWIFT_299
118
SWIFT_400
119
SWIFT_401
120
SWIFT_402
121
SWIFT_900
122
SWIFT_910
123
SWIFT_940
GPP PAYplus | Fndt Message Format | Page 64
XML_TYPE
124
SWIFT_941
125
SWIFT_942
126
SWIFT_950
127
SWIFT_970
128
SWIFT_971
129
SWIFT_972
130
VERIFY_ACC
131
VERIFY_ACC_RS
132
WS_REQ
C.3 Fndt Message Components
select * from LOGICAL_FIELDS_XPATH where XML_TYPE = 'FNDT_MSG'
FIELD_LOGICAL_ID
XML_TYPE
FIELD_PATH
TAG_NAME
X_FNDT_MSG_PMNT
FNDT_MSG
/FndtMsg/Msg/Pmnt/*
Pmnt
X_FNDT_MSG_EXT
FNDT_MSG
/FndtMsg/Msg/Extn
Extn
X_FNDT_ORIG_MSG_PM
NT
FNDT_MSG
/FndtMsg/OrigMsg/Pmnt/*
Pmnt
X_FNDT_ORIG_MSG_EXT
FNDT_MSG
/FndtMsg/OrigMsg/Extn
Extn
X_ENRICH_MSG
FNDT_MSG
/Document
Document
X_ENRICH_ORIG_MSG
FNDT_MSG
/Document
Document
D_SKIP_PERSIST_ON_ER
ROR
FNDT_MSG
/D_SKIP_PERSIST_ON_
ERROR
D_SKIP_PERSIST_ON_ER
ROR
P_MID
FNDT_MSG
/P_MID
P_MID
X_FNDT_MSG_HDR_SEC
TION
FNDT_MSG
/FndtMsg/Header
Header
C.4 Usage of Fndt Message
select * from xml_format_type_relations where xml_Type = 'FNDT_MSG'
