N.D. 369-18

GE Appliances

General Electric Company

Appliance Park, Louisville, KY 40225

Service Bulletin

DISHWASHERS DD 11-02

TRITON XL:

GSD6000 SERIES, PDW7000 SERIES

EDW4000 SERIES

JUNE 2002

The Triton XL series of dishwashers contain a

transient absorber (“transorb”). It absorbs electrical

transients created when the water valve is turned

off. The transorb is wired in the harness between

the line and neutral sides of the water valve circuit.

It is located approximately 1-1/2 inches from the red

water valve harness connector and is attached to a

yellow harness lead coming from the water valve on

one end and to a white-red neutral wire on the other

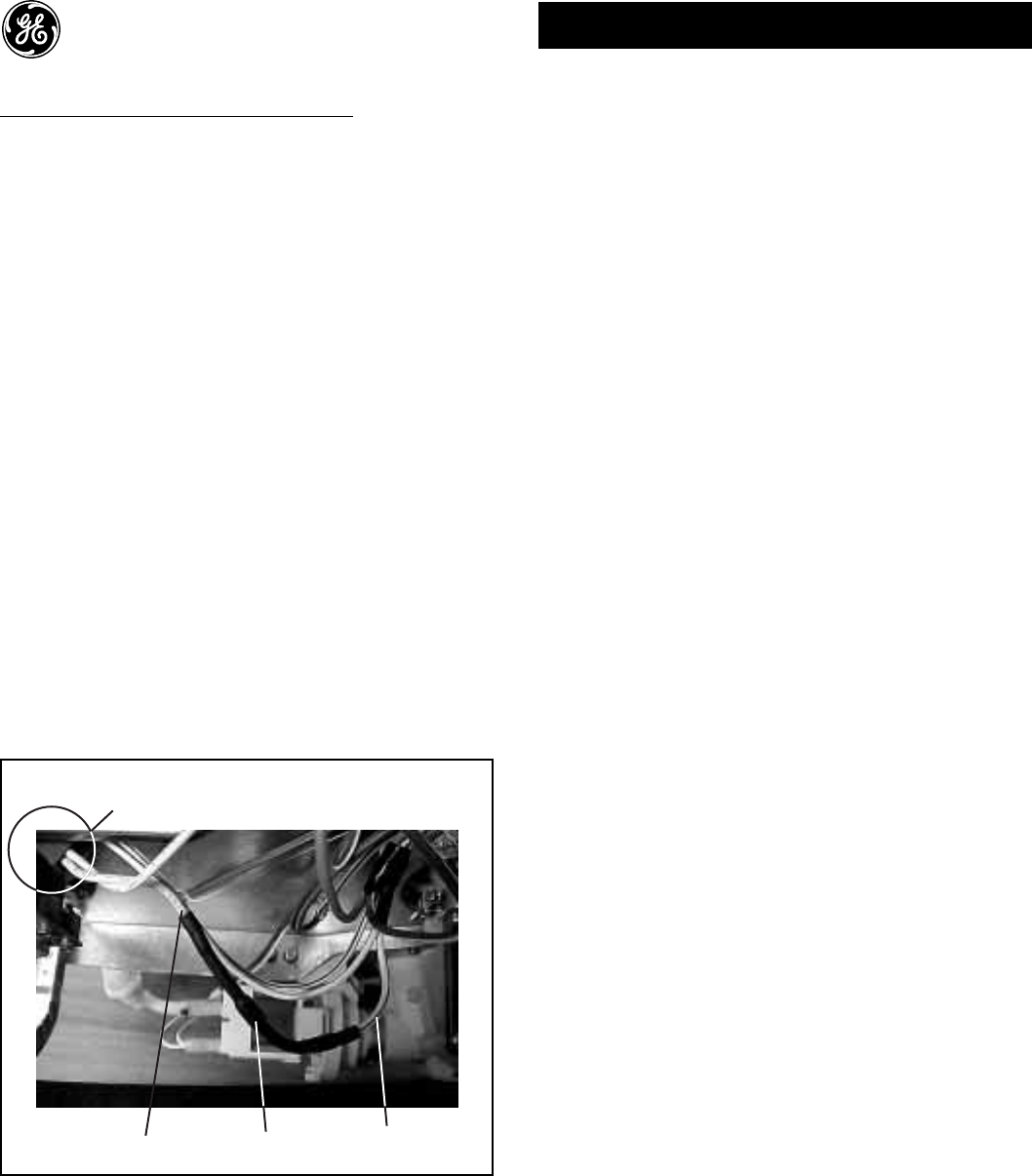

end. It is covered with black heat shrink tubing. See

photo below.

If the transorb fails, it may create a short circuit.

This would cause the circuit breaker to trip when

the dishwasher control engages the water valve.

Beginning in July 2002, a kit will be available to

repair transorbs. The kit number is WD35X10025.

It contains a transorb with 2 attached butt connec-

tors and installation instructions.

To install the new transorb, cut the defective part

out of the harness and splice in the new one

according to the installation instructions. This will

eliminate the need to replace the entire harness.

When replacing a transorb, also replace the

electronic control, WD21X10117. A shorted transorb

may damage the water valve circuit in the electronic

control. Replacing the control will eliminate the

possibility of a call-back for control problems

related to a “shorted” transorb.

Transorb

Yellow Lead White / Red Lead

Red Harness Connector

Attached to the Water Valve

Dishwasher Trips Circuit Breaker

When Water Valve Is Turned On By Control
