LAUNDRY - HYDROWAVE WASHERS HL 01-09

GE CONFIDENTIAL AND PROPRIETARY INFORMATION–NOT FOR PUBLIC DISCLOSURE

GE Appliances

General Electric Company

Louisville, Kentucky 40225

GE Consumer & Industrial

5KMCxxxYTxxxxx 175D5106G001

120 V 60 HZ 6.1 RA

Made in China INS Class F1

Serial number

3 Phase

Bar

Code Bar

Code

Service Bulletin

JANUARY 2009

Electronically Protected

USE IN AUTO CLOTHES WASHER ONLY

OPEN COIL ON MODE SHIFTER ASSEMBLY

Symptoms:

• Wash basket spins in agitate

• Excessive splashing sound

These symptoms can be caused by the motor inverter

sending excessive current to the mode shifter coil and

opening the coil circuit.

This can occur if the customer has lifted the lid during

disengage and lifts the lid again during engage for agitate

or rinse. Note that some models engage the mode shifter

during the fill portion of the cycle.

Check the resistance of the mode shifter coil. If there is no

resistance, the coil is open and the mode shifter assembly

must be replaced. In addition to the mode shifter, replace

the motor inverter assembly if the part number on the

motor label is one of the following:

175D5106G014

175D5106G015

175D5106G016

175D5106G026

175D5106G027

175D5106G028

175D5106G029

175D5106G030

175D5106G031

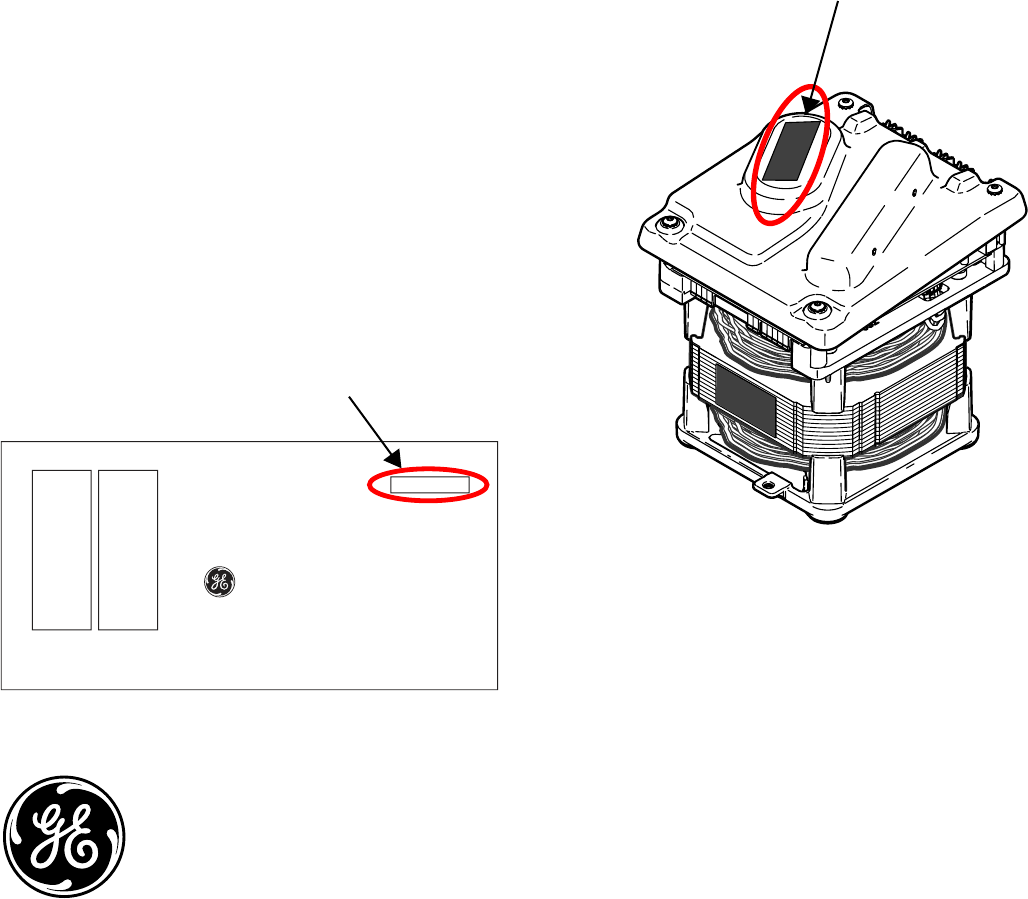

Motor Inverter Label

Part Number

NOTE: Some motor inverter assemblies have

a second label on the top cover with a differ-

ent part number. Always use this top label (if

present) to determine the current motor

inverter assembly part number.

Part Number

Label Color Drawing Number Part Number Label Color Drawing Number

Blue 175D5106G002 WH20X10036 Blue 175D5106G008

Blue 175D5106G008 WH20X10044 Blue 175D5106G029

Blue 175D5106G013

Blue 175D5106G028

White

175D5106G001 WH20X10030 White 175D5106G001

White 175D5106G007

WH20X10035 White 175D5106G007

White 175D5106G010

WH20X10043 White 175D5106G027

White

175D5106G026 WH20X10051 White 175D5106G037

White 175D5106G036

Yellow 175D5106G004 WH20X10034* Yellow 175D5106G004

Yellow 175D5106G009 WH20X10037* Yellow 175D5106G009

Yellow 175D5106G011 WH20X10041 Red 175D5106G014

Red 175D5106G015 WH20X10045 Yellow 175D5106G031

Yellow 175D5106G030 WH20X10052 Yellow 175D5106G039

Yellow 175D5106G038

Red 175D5106G014 WH20X10041 Red 175D5106G014

Red 175D5106G015 WH20X10045 Yellow 175D5106G031

Yellow 175D5106G021 WH20X10052 Yellow 175D5106G039

Yellow 175D5106G022

Yellow 175D5106G030

Yellow 175D5106G038

Green 175D5106G016 WH20X10040 Green 175D5106G016

Green 175D5106G034 WH20X10047 Green 175D5106G034

Green 175D5106G040 WH20X10053 Green 175D5106G040

Orange 175D5106G005

WH20X10033 Orange 175D5106G005

Orange

175D5106G012 WH20X10046 Orange 175D5106G033

Orange

175D5106G032

Replacement Motor

Model Type

Original Motor

Two-speed electromechanical

(ex. WBSR3140G1WW)

F3 commercial models

(ex. WCCB1030F3WC)

Single-speed electromechanical

WCSR2090 models

(G1 and later)

(ex. WCSR2090G1WW)

International 240V

2006 & 2007 Electronic

2007 Energy Star

Commercial H models

(ex. WMCD2050H2WC)

2008 Electronic

2008 Energy Star

NOTE: The replacement part number in BOLD is the latest supersedure for that model type.

* Do not use the older yellow label motors (WH20X10034 or WH20X10037) to replace a new version red

or yellow original motor (175D5106G011, G014, G015, G021, G022, G030, G031, G038, G039)

Hydrowave Motor Inverter Chart
