PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
1
1. Why we need full-system simulation in PIM?
Although PIMSim has provided a simple and fast simulation for PIM architecture, it
cannot provide exactly detailed information such as packet traffic. The fast simulation
concentrates more on architecture level instead of circuit and operating system,
leading to lack of such modeling. We recommend PIM researchers who focus on
operating-system-level and circuit-level impacts to set a full-system simulation
environment of PIM. This guide will help you establish GEM5 full system environment
step by step.
2. Modifications on simulator by applying PIM.
In full-system simulation of PIMSim, PIM acts as a memory component with the
capability of computing. We have to fully understand how PIM architecture works. The

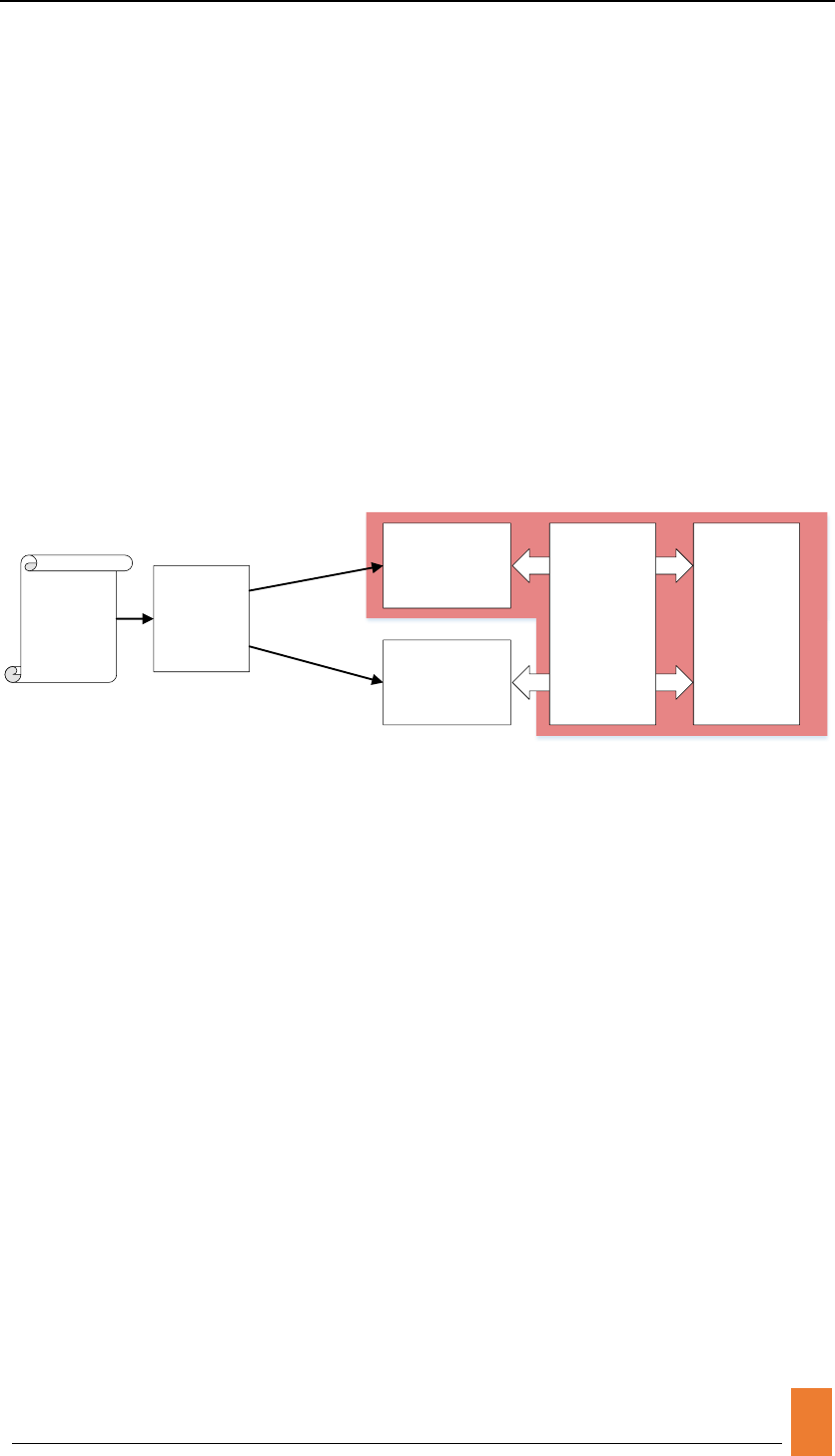

figure below shows general execution sequences of PIM architecture.
Host-side
Cores
Code
Snippets
Compiler
PIM
Compuational
Unit(Logic)
Coherence
Check Memory(s)
Control Flow
PIM-Support Memory
System Level
The frontend of PIM architecture is a compiler. It transforms computer code written in
programming language (the source language) into computer language (operation
code). The collection of operation codes in a particular architecture is called
Instruction Set Architecture(ISA). GEM5 has implemented common ISAs like sparc,
x86_64, arm and so on. However, existed ISAs did not support any PIM operations,
which means we have to integrate our own PIM instructions into full-system simulators.
Another problem is that the existed compiler cannot recognize the added PIM
instructions, causing compiling and execution errors. PIM architecture is a highly-
customized system, which made it incompatible with any current compilers.
After the compiler transferred source code into executable binaries, the host-side
cores start to handle it. In this stage, PIM architecture have to implement how cores
act when execution such PIM operations and send the operation to PIM units, during
which the coherence check is done. Then PIM Unit will start to process data.
In PIMSim, we added some PIM instructions and compiler feature to help you establish
your PIM system. If you just want to use PIM instead of studying PIM, you can follow
the instruction of Section 3. If you want to focus on PIM research, we’ve provided a
detailed method to establish your own PIM architecture in GEM5 at Section 4.
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
2
3. Getting start with PIM-supported GEM5.
This section will help you set up a basic PIM system in GEM5 using PIMSim. GEM5 is a
complex cycle-accurate simulator. Each modification may result to changes complete
differently. You should not avoid or ignore any steps unless you had understood what
the step aimed to do and make sure you really don’t need it.
Build GEM5
Before you setting up PIM architecture in GEM5, you should have an available
GEM5 binary. You can follow the step of Build System and Full System and Benchmark
Files at official website and get a executable GEM5 binary file. If you’re not familiar
with GEM5, we provide a simple guide to help you getting a Ubuntu system in GEM5
in Section 4.
After building GEM5, you can use PIMSim by simply typing:
PIMSim supports DRAM, HMC, PCM and NVM (soon available) memory
simulations. DRMSim and HMCSim are integrated into the memory. You can modify it
by using –mem-type=PIM_(mem_type).
You may add debug flags to debug PIM operations and get detailed information
like this:
Define your own PIM Unit.
This step will help you define your own PIM Unit about what it can do. You may
add two or more PIM Unit if you need.
First, you should add a python class in $GEM5_HOME/src/dev. For example, if
you can create an adder with 4 inputs and 1 output. You should first create a python
file named $GEM5_HOME/src/dev/PIMAdder.py
> ./$GEM5_HOME/build/your_arch/gem5.opt config/example/fs.py --mem-
type=PIM_DRAM
> ./$GEM5_HOME/build/your_arch/gem5.opt –debug-flags=PIM
config/example/fs.py --mem-type=PIM_DRAM
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
3
Parameters latency indicates the processing cycles of your PIM Unit (do not
include memory access latency). Parameters input and output indicates the input and
output variables counts. Parameters cxx_header indicates the cpp class of your unit’s
logic.
After that, you should add two cpp file to implement your PIM Unit designs. These two
files should be placed in the same path as python file. In our example, you should write
$GEM5_HOME/src/dev/pimadder.cc and place it at $GEM5_HOME/src/dev/. You
should implement your logic by get your own functions like void ADD(); The registers
definition is in $GEM5_HOME/src/dev/pimkernel.hh.
Link your PIM Units in GEM5
After you create your own PIM Unit class, you should initial it in full system config
file. Locate $GEM5_HOME/configs/common/MemConfig.py, line 240. Replace
mem_ctrl.kernels.append(PIMAdder()) with mem_ctrl.kernels.append(Your_class_name()).
After this step, GEM5 can already recognize your customized PIM Unit and get it
initialed.
Add PIM operation in your source codes
There are three ways to let GEM5 recognize your PIM operations.
You can replace your operations in source code such as
with
from m5.params import *
from m5.proxy import *
from m5.SimObject import SimObject
from m5.objects.PIMKernel import PIMKernel
class PIMAdder(PIMKernel):
type = 'PIMAdder'
cxx_header = "dev/pimadder.hh"
name = Param.String("ADDer","PIM Unit name.")
latency = Param.Int("1", "PIM Unit computation delay cycles.")
input=Param.Int(4, "num of inputs")
output=Param.Int(1, "num of outputs")
output_var_1=+input_var_1+input_var_2+input_var_3+input_var_4;
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
4
This function will use PIM to process 4 input variables and write the result to output
variable using PIM Unit #(PIMUnit_ID). If you configure only one PIM Unit, just leave
it 0.
For complex PIM Units, you can use #PIM CODE START and #PIM CODE END label to
mark your PIM code. PIMSim will translate the code snippets automatically into kernel
code and execute it on PIM CPU.
Another way is to use explicit address to tell PIM what to do like this. You may also use
#INPUT = &variable to get it related to program variables. If you provide the detailed
address, PIMSim will handle with as physical addresses.
Compile your codes
After you completing your code modification, you can type the following
PIMKernel(&input_var_1, &input_var_2, &input_var_3, &input_var_4,
&output_var_1, PIMUnit_ID);
#PIM CODE START
#DEFINE input1 a
#DEFINE input2 b
#DEFINE input3 c
#DEFINE output1 d
if(a!=0)
d=a*b+c;
` else
a+=1；
#PIM CODE END
#PIM START
#INPUT = 4736648
#INPUT = 3434212
#INPUT = 56345
#INPUT = 34656
#OUTPUT = 23434
#KERNEL ID = 0
#PIM END
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
5
command to compiler it and get an executable binary with PIM operations. Make sure
mono is installed before you compiling your codes.
After done, you should copy it into your GEM5 full-system image and execute it
by typing this in m5Term:
If you add PIM debug flags, you will see the PIM information in the console.
4. Three cases of PIM research
If the PIM operations provided by PIMSim cannot meet your need, you can
customize your own PIM instruction. We’ll show some cases to help you set up
different types of PIM architecture in the following. We partitioned the hotspot of PIM
researches into four main parts:
- Research on new designs of computing logic/circuit/unit in PIM.
- Research on exploring application partition methods (deicide which code snippets
should be executed in PIM) to gain more performance improvement.
- Research on developing new coherence mechanism in PIM.
CASE 1: Research on new designs of computing
logic/circuit/unit in PIM

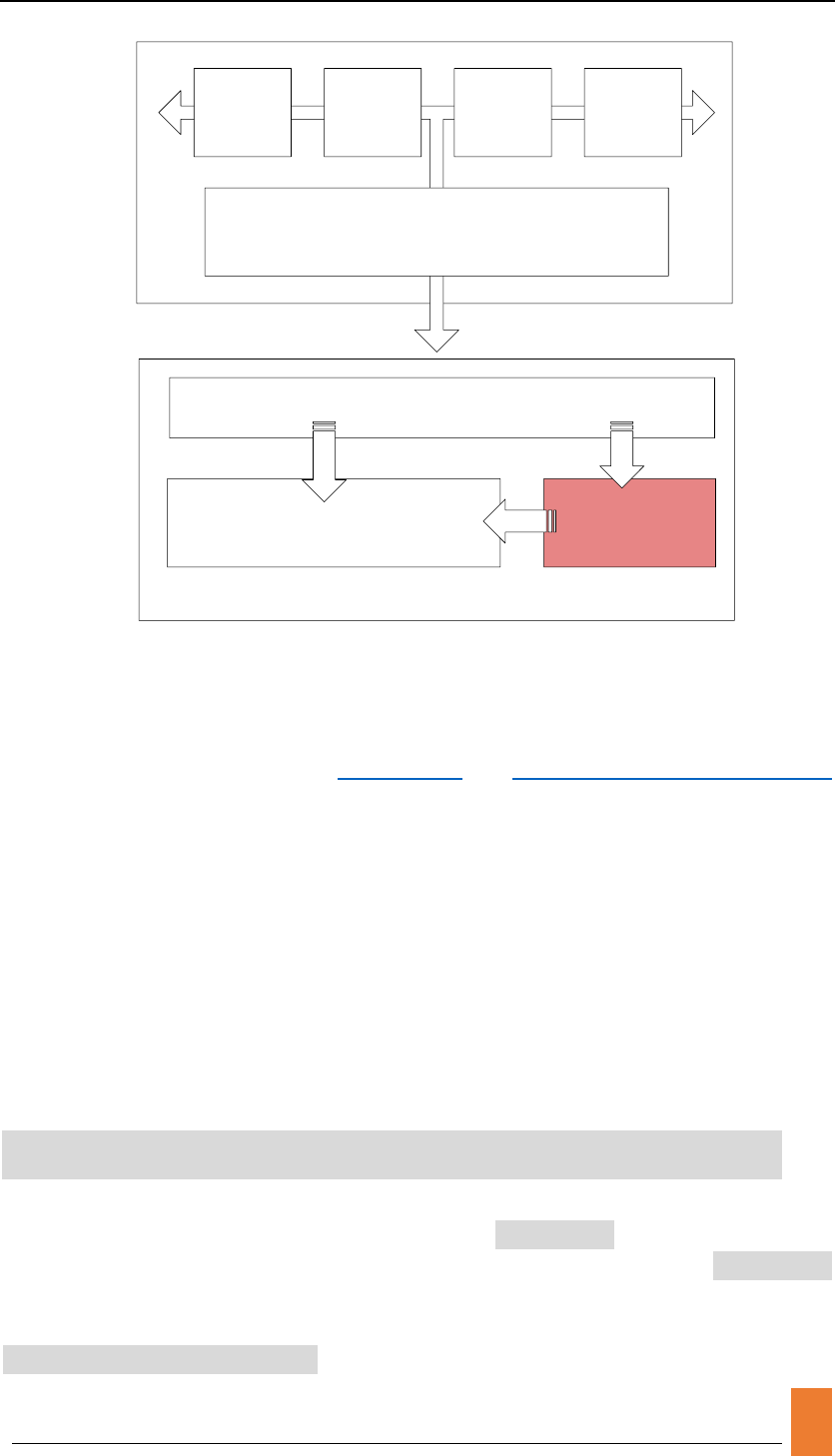

In this section, we’ll guide you to establish PIM architecture in the figure
below. This architecture looks like Intelligent RAM (IRAM).
> mono $GEM5_HOME/tools build.exe YOUR_CODE_FILE OUTPUT_FILE_NAME
> ./ OUTPUT_FILE_NAME
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
6
CPU
Cores
Cache
Cores Cores Cores
Through Ports
PIM-Support Memory
Through Cross Bar
Memory Controller
DRAM Ranks Your designed
Logic circuits
Build GEM5 successfully.
Before you setting up PIM architecture in GEM5, you should have an available GEM5
binary. You can follow the step of Build System and Full System and Benchmark Files
at official website and get a executable binary file.
However, the full-system image provided by official website is too old and less user-
friendly. We’ll give a brief instruction to help you establish a latest Ubuntu system in
GEM5 with newer Linux kernel. You may skip this subsection if you need. The
architecture we used is x86, you can build other ISAs at the same way.
1. Creating a disk image
When using gem5 in full-system mode, the first step is to create a disk image for system
installing. GEM5 had provided a python tool to make it simple to use. You can run the
following command:
This command will create a blank image file called “x86root.img” that is 4GB. You need
sudo password if you don't have permission to create loopback devices. gem5img.py
is a tool to manage your image file and we will be using it heavily throughout the whole
process, so you may want to understand it better. If you just run
$GEM5_HOME/util/gem5img.py, it displays all of the possible commands.
> sudo $GEM5_HOME/util/gem5img.py init x86root.img 4096
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
7
2. Copy OS file to the disk file
Now you had an image file, we need to install Ubuntu OS files into it. We can use
Ubuntu base distributes for propose (other OS is okay). Since I am simulating an x86
machine, I chose the file ubuntu-base-14.04.5-base-amd64.tar.gz downloading form
Ubuntu releases page. You can download whatever image is appropriate for the
system you are simulating.
After you download the tar ball of OS, you should first mount the image file created
by Subsection I.
Now you can copy files to your image by copying files to mnt.
3. Setting up gem5-specific files
By default, gem5 uses the serial port to allow communication from the host system to
the simulated system. To use this, we need to create a serial tty. Since Ubuntu uses
upstart to control the init process, we need to add a file to mnt/etc/init which will
initialize our terminal. Also, in this file, we will add some code to detect if there was a
script passed to the simulated system. If there is a script, we will execute the script
instead of creating a terminal.
Put the following code into a file named mnt/etc/init/tty-gem5.conf
Usage: %s [command] <command arguments>
where [command] is one of
init: Create an image with an empty file system.
mount: Mount the first partition in the disk image.
umount: Unmount the first partition in the disk image.
new: File creation part of "init".
partition: Partition part of "init".
format: Formatting part of "init".
Watch for orphaned loopback devices and delete them with losetup -d.
Mounted images will belong to root, so you may need to use sudo to modify
their contents
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
8
The next step is to copy a few required files from your working system onto the disk
so we can chroot into the new disk. We need to copy /etc/resolv.conf onto the new
disk.
We also need to set up the localhost loopback device if we are going to use any
applications that use it. To do this, we need to add the following to the mnt/etc/hosts
file.
start on stopped rc RUNLEVEL=[12345]
stop on runlevel [!12345]
console owner
respawn
script
# Create the serial tty if it doesn't already exist
if [ ! -c /dev/ttyS0 ]
then
mknod /dev/ttyS0 -m 660 /dev/ttyS0 c 4 64
fi
# Try to read in the script from the host system
/sbin/m5 readfile > /tmp/script
chmod 755 /tmp/script
if [ -s /tmp/script ]
then
# If there is a script, execute the script and then exit the simulation
exec su root -c '/tmp/script' # gives script full privileges as root user in multi-
user mode
/sbin/m5 exit
else
# If there is no script, login the root user and drop to a console
# Use m5term to connect to this console
exec /sbin/getty --autologin root -8 38400 ttyS0
fi
end script
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
9
Finally, gem5 comes with an extra binary application that executes pseudo-instructions
to allow the simulated system to interact with the host system. To build this binary,
run make -f Makefile.<isa> in the $GEM5_HOME/util/m5 directory, where <isa> is the
ISA that you are simulating (e.g., x86). After this, you should have an m5 binary file.
Copy this file to mnt/sbin.
After updating the disk with all of the gem5-specific files, unless you are going on to
add more applications or copying additional files, unmount the disk image.
By now, the OS image file has been successfully created.
4. Building Linux Kernel.
Next, you need to build a Linux kernel. Unfortunately, the out-of-the-box Ubuntu
kernel doesn't play well with gem5.
First, you need to download latest kernel from kernel.org. I use Kernel version 3.2.1
which can be found here. Then, to build the kernel, you are going to want to start with
a known-good configure file. The configure file that I'm used for kernel version 2.6.28.4
can be found in full-system files provided GEM5 official website.
Then, you need to move the good config to .config and the run make oldconfig which
starts the kernel configuration process with an existing config file.
At this point you can select any extra drivers you want to build into the kernel. Note:
You cannot use any kernel modules unless you are planning on copying the modules
onto the guest disk at the correct location. All drivers must be built into the kernel
binary.
# /etc/fstab: static file system information.
#
# Use 'blkid' to print the universally unique identifier for a
# device; this may be used with UUID= as a more robust way to name devices
# that works even if disks are added and removed. See fstab(5).
#
# <file system> <mount point> <type> <options> <dump>
<pass>
/dev/hda1 / ext3 noatime
0 1
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
10
Finally, you need to build the kernel.
5. Test you GEM5 simulation.
After you have done all above steps, you can now boot your Ubuntu system by typing
this.
6. Install new applications
The easiest way to install new applications on to your disk, is to use chroot. This
program logically changes the root directory ("/") to a different directory, mnt in this
case. Before you can change the root, you first have to set up the special directories in
your new root. To do this, we use mount -o bind.
After binding those directories, make sure you had mount-ed your image file, you can
now chroot:
At this point you will see a root prompt and you will be in the / directory of your new
disk.
You should update your repository information.
Now, you are able to install any applications you could install on a native Ubuntu
machine via apt-get.
Remember, after you exit you need to unmount all of the directories we used bind on.
Let GEM5 understand your PIM operation.
Naive GEM5 had no recognition of PIM operations, in this step we’ll help you
> $GEM5_HOME/build/x86/gem5.opt configs/example/fs.py --
kernel=your_compiled_kernel
> sudo /bin/mount -o bind /sys mnt/sys
> sudo /bin/mount -o bind /dev mnt/dev
> sudo /bin/mount -o bind /proc mnt/proc
> sudo /usr/sbin/chroot mnt /bin/bash
> apt-get update
> sudo /bin/umount mnt/sys
> sudo /bin/umount mnt/proc
> sudo /bin/umount mnt/dev
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
11

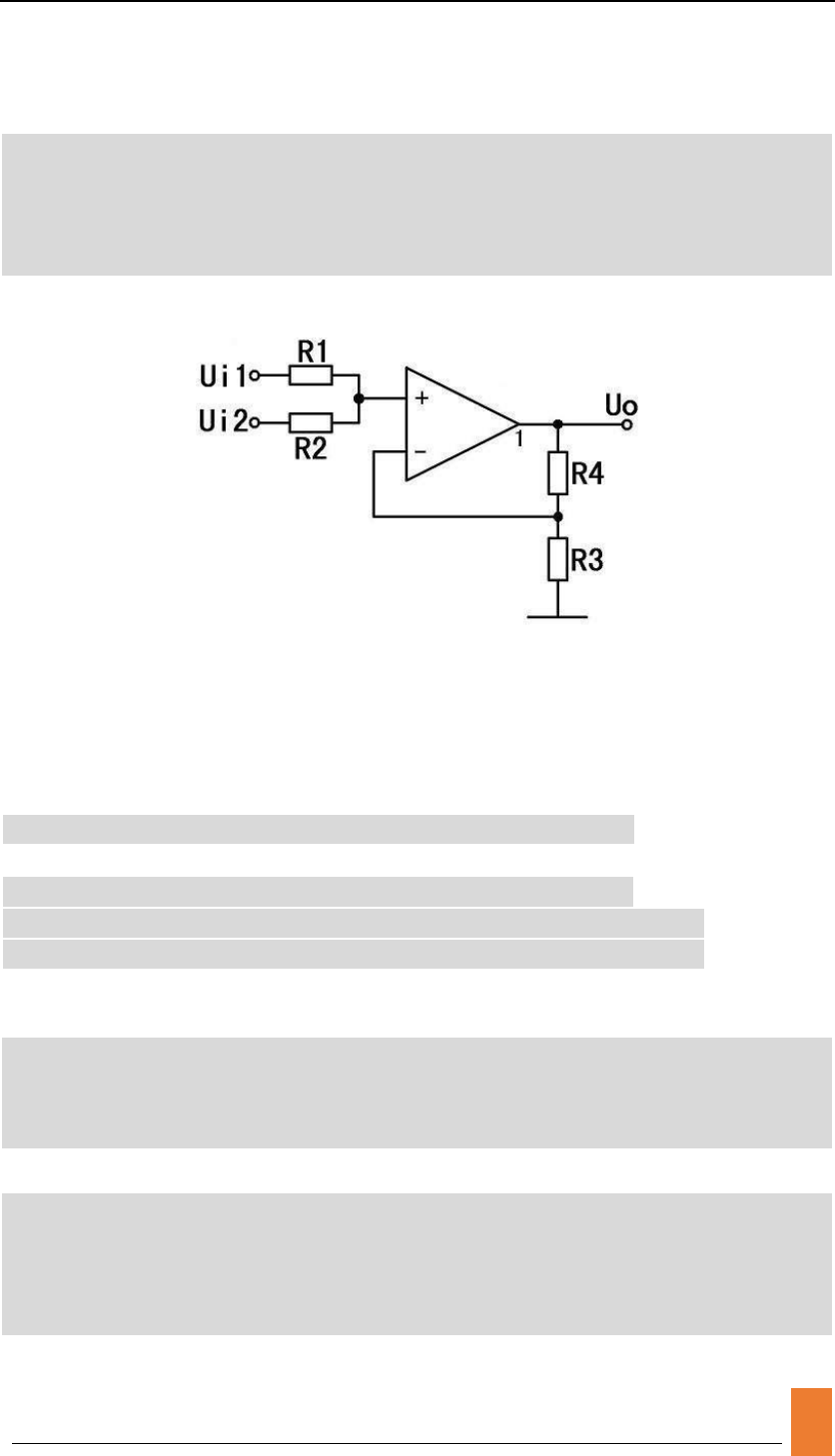

customize your own PIM operations. We assume we designed an adder circuit which
can read the data of a given address in memory, then apply Increment operations and
write results back like ++ operations in c++ below.
1. Define PIM operations in GEM5
The first step is to let GEM5 know our customized operation. You can either modify
GEM5 reserved instructions or add new instructions. If you want to add new
instructions, you should find an un-used operation code. Open
$GEM5_HOME/src/arch/x86/isa/decoder/two_byte_opcodes.isa (you can also
modify one-byte operation code in
$GEM5_HOME/src/arch/x86/isa/decoder/one_byte_opcodes.isa or three in
$GEM5_HOME/src/arch/x86/isa/decoder/three_byte_0f38_opcodes.isa or
$GEM5_HOME/src/arch/x86/isa/decoder/three_byte_0f3a_opcodes.isa).
For example, we can change this
Into :
//X= [Address];
//X++;
//[Address] = X;
X++;
0x55: m5reserved1({{
warn("M5 reserved opcode 1 ignored.\n");
}}, IsNonSpeculative);
0x55: m5reserved1({{
warn("PIM_Add operation.\n");
PseudoInst::PIM_ADD(xc->tcBase(), Rdi, Rsi);
}}, IsNonSpeculative);
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
12
The m5 reserved operation is a pseudo instruction reserved by GEM5, we can use it to
understand the logic how GEM5 recognizes instructions and what will GEM5 do if
decoding such new instructions. We can add more instructions the same ways as this.
In $GEM5_HOME/src/sim/pseudo_inst.hh, you should add function declaration.
In $GEM5_HOME/src/sim/pseudo_inst.cc, modify here
And add function implement. Now we just test PIM operation execution, so we only
print strings on console at this stage.
Next, rebuild GEM5 by typing:
Now GEM5 can understand your added PIM operations.
2. Compiler codes with PIM operations.
GCC cannot understand our customized PIM operation, so have to use a simple tool to
compile our source code.
In $GEM5_HOME/include/gem5/m5ops.h, add this in the end.
In $GEM5_HOME/include/gem5/m5ops.h, add this in the end.
Now we can create a cpp file to test our PIM operation.
void PIM_ADD(ThreadContext *tc, uint64_t pa1);
case M5OP_ANNOTATE:
PIM_ADD(tc, args[0], args[1]);
break;
void
PIM_ADD(ThreadContext *tc, uint64_t pa1, uint64_t pa2)
{
std::cout<<"PIM_ADD Operation executed"<<std::endl;
//tc->getCpuPtr()->sendCommandtoPIM();
}
> scons $GEM5_HOME/build/x86/gem5.opt
void m5_PIM_ADD(uint64_t pa1);
TWO_BYTE_OP(m5_PIM_ADD, M5OP_ANNOTATE)
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
13
Now create a text file named “pim_test.c”, add below content:
You can compile your code through:
Now you can copy this binary to GEM5 image file using gem5img.py and execute
it in full system mode, you can see your output in the console.
3. Control your PIM unit.
In this section, we are going to help you control your PIM circuits. In step C, we
had confirmed GME5 can decode and execute what we want while executing our
customized PIM operation. We’ll establish control flow to control our designed
PIM circuit.
As we all known, GEM5 use Port mechanism to transfer data through objects. So
we should establish the connection between different objects. The figure below
shows three connections between different objects. Original Memory stands for
the regular memory read/write operation sent by host-side CPUs. PIM Unit CMD
stands for operations on memory required by your ADDer unit. The straight right
arrow stands for the control command sent from host-side CPU while PIM
operation decoding is done. All the command is sent in the form of Packets.
> cd $GEM5_HOME/tests/test_progs/
> mkdir pim_test
> cd pim_test
> mkdir src
> cd src
#include <gem5/m5ops.h>
int main()
{
m5_PIM_ADD(0);
return 0;
}
> gcc -o pim_test pim_test.c -I ../../../../include/ ./../../../../util/m5/m5op_x86.S
PIM_ADD Operation executed
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
14
CPU Model CrossBar Memory
Controller
Through
Ports
Through
Ports
Through
Ports
ADDer
Unit
Original Memory CMD PIM Unit CMD

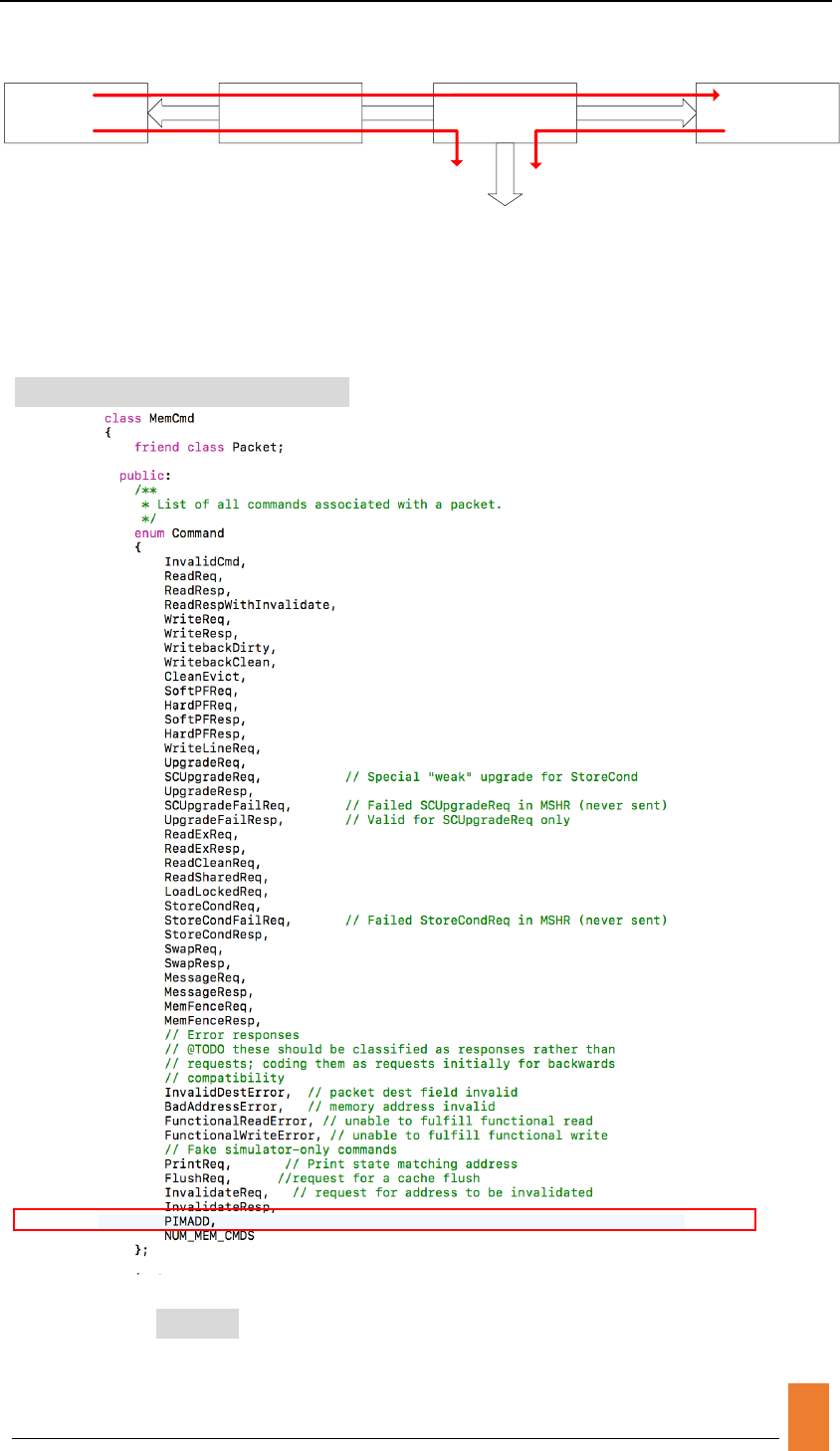

3.1 Customize your own command.
You have to define your unique command first to support different functions
operated by your designed PIM Units as an identity distinct from original memory
commands. The define file of memory command is in
$GEM5_HOME/src/mem/packet.hh.
You should add your customized PIM operation in the code location of above
figure such as a PIMADD command. Except that, you should add the attributes of
your command for further analysis of your packets. All of packets attributes are
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
15

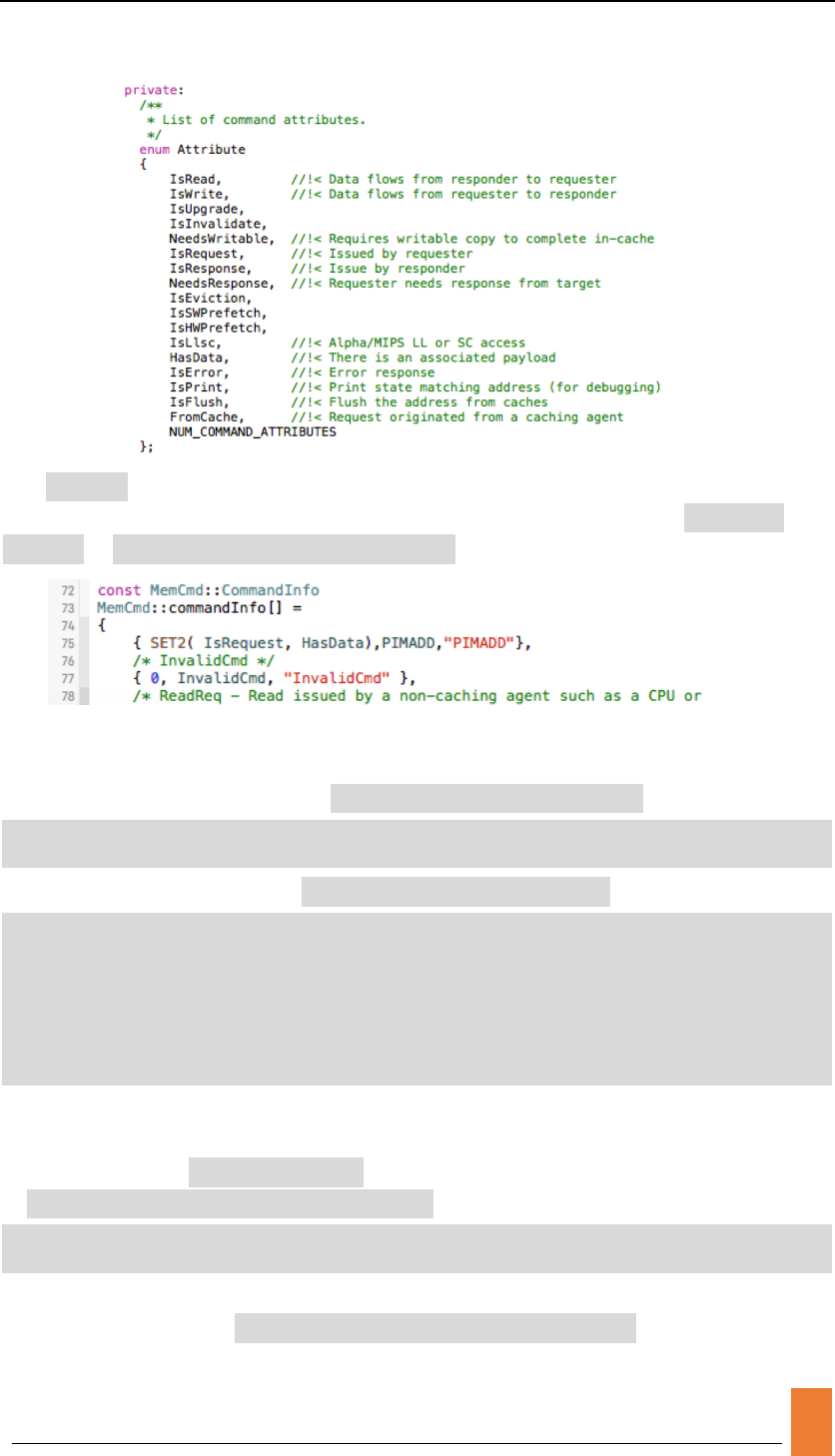

listed below.
The PIMADD command we added is aimed to let PIM Units start an atomic add
operation on a specified address, so we can set its attributes to IsRequest,
HasData in $GEM5_HOME/src/mem/packet.cc like this.
Or you can add new attributes if you need.
I. CPU -> Memory connection
First, we should add a function in $GEM5_HOME/src/cpu/base.hh in BaseCPU.
And add virtual implements in $GEM5_HOME/src/cpu/base.cc.
After that you should override this function in codes of your CPU model. For
example, if we use AtomicSimpleCPU, we should add declaration of this function
in $GEM5_HOME/src/cpu/simple/atomic.hh.
And add implements in $GEM5_HOME/src/cpu/simple/atomic.cc.
void sendCommandtoPIM(Addr addr_);
Fault
BaseCPU:: sendCommandtoPIM(Addr addr_)
{
Return NoFault;
}
void sendCommandtoPIM(Addr addr_) override;
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
16
II. Memory -> PIM Unit connection
When memory received Memory command, it should first identify the destiny of
this command. If the destiny is PIM Unit, transmit it. We use default dram
controller as an example.
In $GEM5_HOME/src/mem/dram_ctrl.cc, add transmit mechanisms. Locate the
following code snippets:
Fault AtomicSimpleCPU:: sendCommandtoPIM(Addr addr_)
{
SimpleExecContext& t_info = *threadInfo[curThread];
SimpleThread* thread = t_info.thread;
static uint8_t zero_array[64] = {};
assert(data != NULL);
Request *req = &data_write_req;
int fullSize = size;
dcache_latency = 0;
req->taskId(taskId());
// translate to physical address if you use & operations
//Fault fault = thread->dtb->translateAtomic(req, thread->getTC(),
BaseTLB::Write);
if (fault == NoFault) {
MemCmd cmd = MemCmd::WriteReq; // default
bool do_access = true; // flag to suppress cache access
cmd = MemCmd::PIMADD;
Packet pkt = Packet(req, cmd);
pkt.dataStatic(addr_);
if (fastmem && system->isMemAddr(pkt.getAddr()))
system->getPhysMem().access(&pkt);
else
dcache_latency += dcachePort.sendAtomic(&pkt);
threadSnoop(&pkt, curThread);
assert(!pkt.isError());
}
return NoFault;
}
}
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
17
This function is called when DRAM get a memory command to access data. DRAM
controller only receives command from CPU in state-of-the-art architecture, but
in PIM, it will also receive commands from PIM Unit (you may also implement
your circuits here instead of creating an individual competent in GEM5). Now
you should add determine statements before the function access(pkt); You can
do like this:
Add two ports in $GEM5_HOME/src/mem/dram_ctrl.hh, the add codes in
$GEM5_HOME/src/mem/dram_ctrl.cc. You may include our provided coherence
header file, or you can write your own coherence mechanism.
Create your PIM Unit Component.
You can use circuit-level simulator to get detailed characteristic parameters and
implement it as a black-box unit. You may require latency, energy parameters and
establish the connection mechanism follow the rules of Ports definition in
$GEM5_HOME/src/mem/ports.hh. If you’re not familiar with GEM5, you can
simply implement your circuit through c/c++ in
$GEM5_HOME/src/mem/dram_ctrl.cc.
Tick
DRAMCtrl::recvAtomic(PacketPtr pkt)
{
DPRINTF(DRAM, "recvAtomic: %s 0x%x\n", pkt->cmdString(), pkt->getAddr());
panic_if(pkt->cacheResponding(), "Should not see packets where cache "
"is responding");
// do the actual memory access and turn the packet into a response
access(pkt);
Tick
DRAMCtrl::recvAtomic(PacketPtr pkt)
{
if(pkt->cmd==MemCmd::PIMADD )
{
// Distribute PIM operation to PIM Unit when receiving PIMADD command.
pimport.sendAtomic(pkt);
return;
}else{
coherence.check(pkt->getAddr());
}
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
18

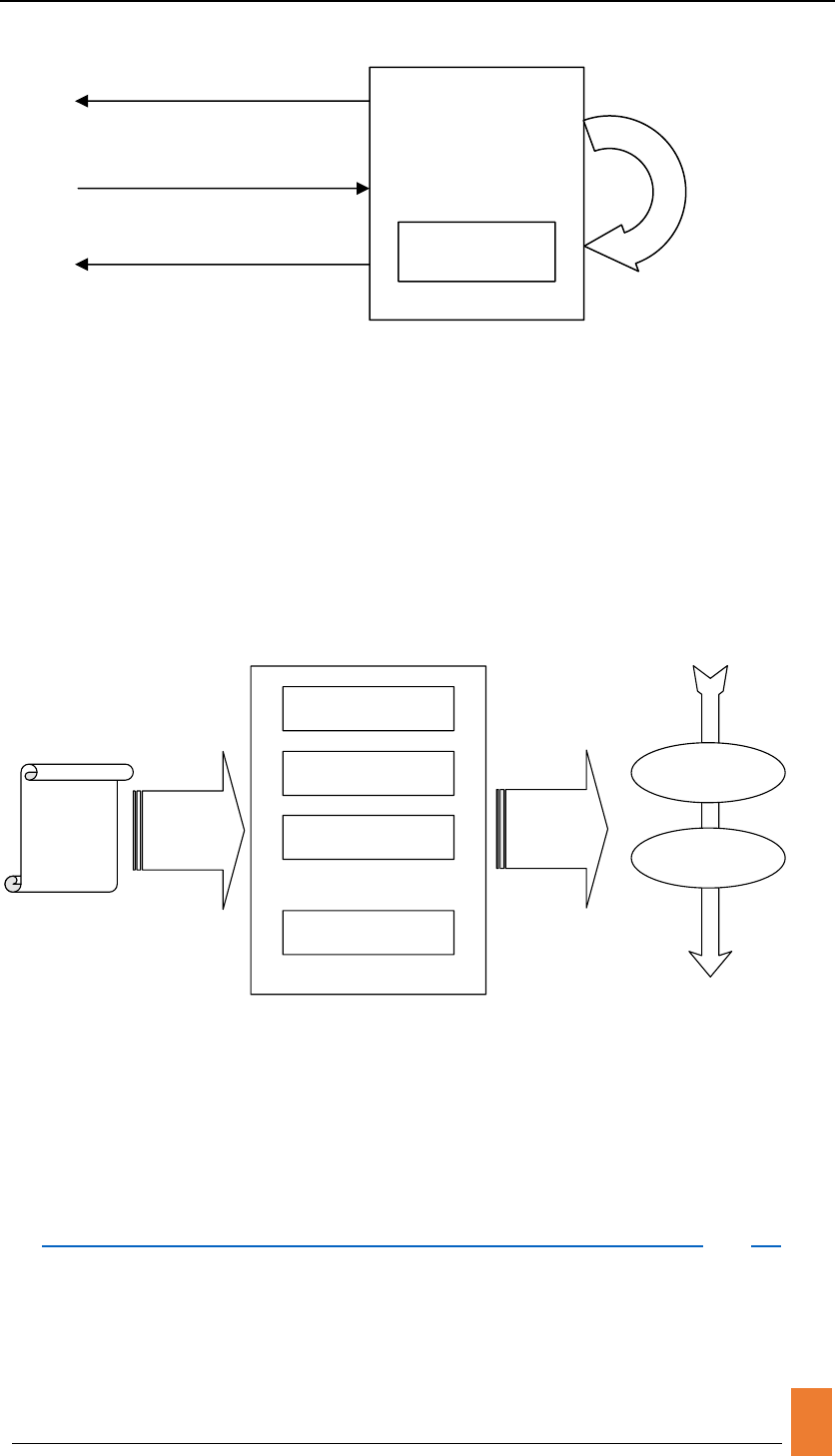

ADD-er
(Black-box Unit)
SentAtomic
(send data requests)
RecvAtomic
(receive commands)
Process latency
Energy
Calculation
RecvAtomic
(receive data)
CASE2: Researchers on discovering PIM's potential and gain
better performance.
If you’re researchers with little circuits knowledge but more coding ability, you
may care less about how the PIM Units are designed but how to take advantages
of PIM. For architectural researchers, they may also extract the hotspots of a
popular application to figure out a way to accelerate the whole system. In this
case, the logic unit in memory is assumed to be several general-propose CPU
cores.
Code
Snippets
Hotspot #1
Hotspot #2
Hotspot #3
Hotspot #N
Hotspots of Code
……
Analysis Generate
Function Kernel
Function Kernel
Execution on
PIM-Cores
The general sequences of such research start from application analysis. This step will
get the hotspots of a kind of applications. By distilling the critical path of target hotspots
with the consideration of PIM architecture, researchers can get individual kernels that
may benefit from PIM architecture. When host-side CPU encountered such code
snippets, it will inform memory-side cores to start the kernel.
Next, we’ll show how to establish such PIM system in GEM5. This architecture looks
like Practical Near-Data Processing for In-Memory Analytics Frameworks and PEI.
I. Boot your GEM5 simulator.
You should first follow the steps A in CASE 1 to get an executable binary of GEM5 and
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
19
get it boot. When you’re in the bash shell, you should stop simulations and see how
many instructions had been simulated. Then you can use --at-instruction --take-
checkpoints=N to reboot your GEM5 system and get an initial GEM5 checkpoints in
bash shell.
The aim of this step is to get a fixed start point and prevent data changed by system
boot before application analysis starts. You can boot GEM5 through checkpoints by
applying --at-instruction -r N to fs.py or se.py.
II. Analysis your applications.
In this step, you should distill the kernels that you want to execute at PIM Units. You
can use profiling tools to get detailed information about hotspots.
Note that you have to build newer Linux kernel following the guide of Compiling a Linux
Kernel and apply it to GEM use --kernel= command. The pre-build kernel provided by
GEM5 full-system image file is too old to support such profiling software. You should
always start from a checkpoint to invoke another profiling in order to prevent data
changed by the boot of operating system.
III.Pass the kernel to PIM Cores
After you selected the kernels you want to executed at memory-side PIM cores, you
should provide the information fetched by step B to PIM cores such as kernel stating
PC and ending PC. You should first follow all the guide in CASE 1, where you only need
to pass an address to PIM Units. In this case, you should provide a class named
ThreadContext defined in $GEM5_HOME/src/cpu/thread_context.hh. This definition is
overridden in detailed implement of different CPU model. You can define your function
to pass the ThreadContext of current CPU to PIM Cores in
$GEM5_HOME/src/sim/pseudo_inst.cc like this:
> ./build/x86/gem5.opt configs/examples/fs.py --at-instruction --take-
checkpoints=50000000 --max-checkpoints=1
> ./build/x86/gem5.opt configs/examples/fs.py --at-instruction -r 50000000
PIMSIM, CONTROL COMPUTING LABORATORY, STATE KEY LABORATORY OF COMPUTER ARCHITECTURE,
INSTUTUTE OF COMPUTING TECHNOLOGY, CHINESE ACADEMY OF SECIENCE
20
You may also call takeOverFrom function defined in
$GEM5_HOME/src/cpu/thread_context.hh to let PIM cores take over all the content
from host-side CPUs.
CASE3: Researches on PIM architecture.
For researcher on PIM architecture, you have to implement all the feature like
CASE1 and CASE2, then modify what you need. In this case, we use PIM coherence as
an example to show how to modify PIM coherence.
Coherence is definitely an important part in PIM architecture due the limited share
in memory between host-side CPUs and memory-side PIM Units. The general solution
is lock mechanism. Whenever host-side cores or PIM Units require data, it should look
up LockTable to ensure the operation atomicity.

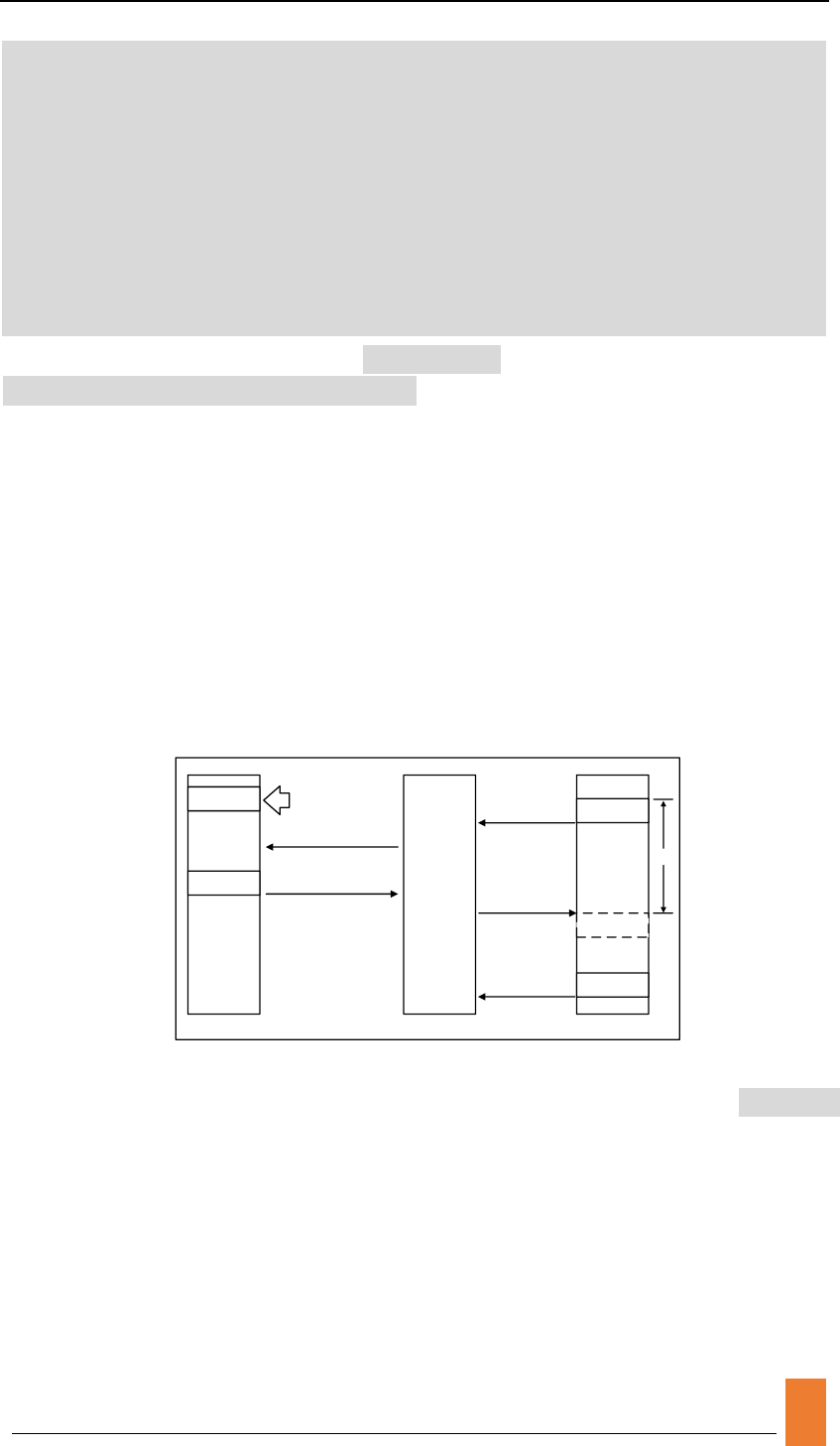

Core(s) PIM Unit(s)
t
LD A LD A
LD A
① Set lock
Lock
Table
②Flush request
FLUSH A
……
Cache contains
data copy of A
③Flush complete ④Data ready
……
ST A
⑤ Release lock
……
The simplest way is to check Lock Table before the actual access operation happened.
You should follow the steps in CASE1 and add judgment statement before the doaccess()
function is called.
void
PIM_Kernel_Pass(ThreadContext *tc, uint64_t pa1, uint64_t pa2)
{
BaseCPU* cpu=(BaseCPU*)tc->getCpuPtr();
sendContexttoPIM(cpu->threadInfo[cpu->curThread]);
ThreadID id= cpu->contextToThread(cpu->curThread);
cpu->haltContext(id);
}

Navigation menu
