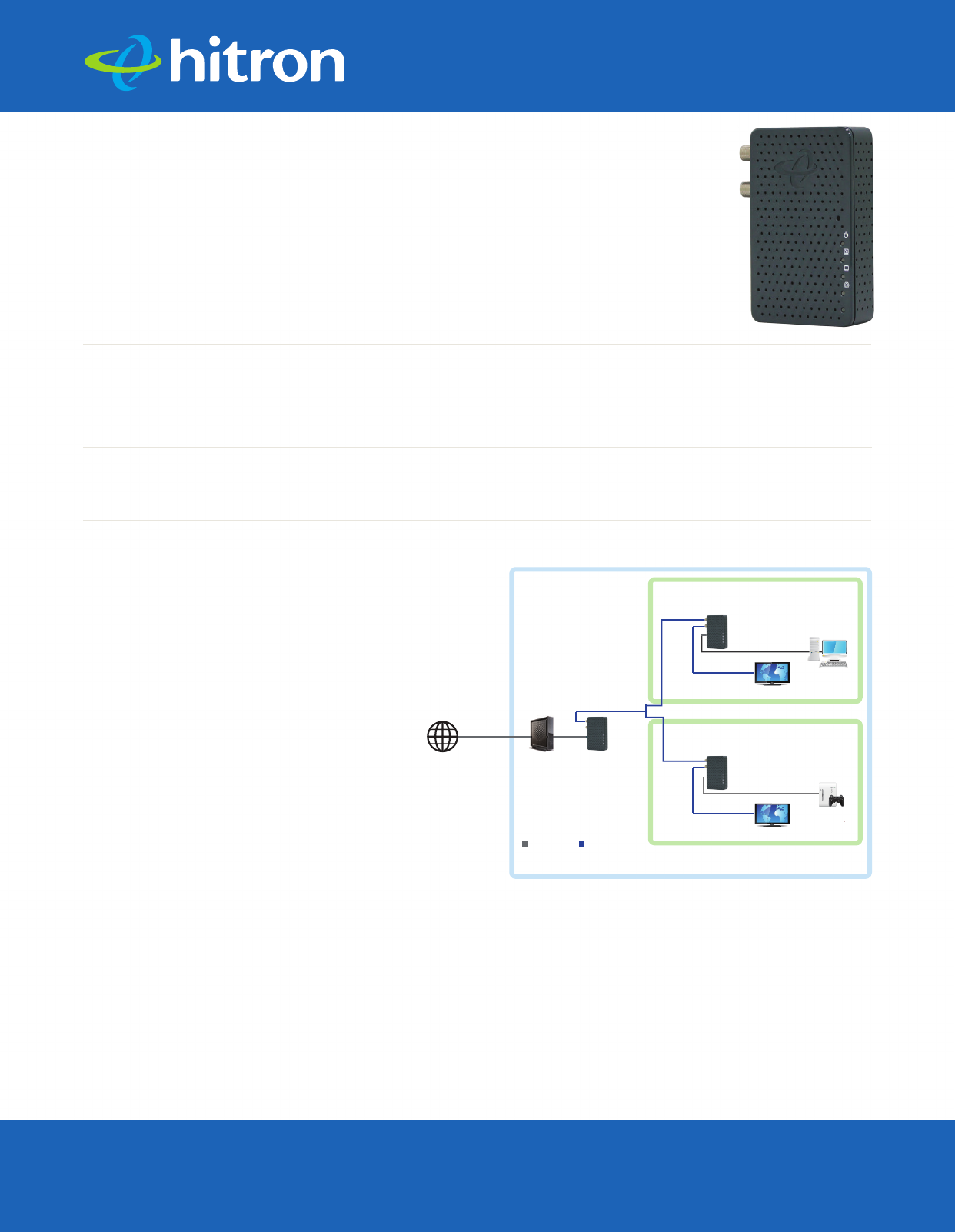

MoCA 2.0 Coax-to-Ethernet Adapter
MoCA 2.0 and Giga Ethernet
MoCA 2.0 D-band
700Mbps PHY data rate
EASY INSTALLATION
The HT-EM2 comes with two Coax F-type connectors and one Ethernet RJ-45 connector. Simply connect HT-EM2 to coaxial
outlet, it should establish MoCA link automatically with the gateway. The Ethernet port is now ready to use.
MOCA 2.0 HIGHEST PERFORMANCE ENTERTAINMENT NETWORKING
The HT-EM2 enables high-bandwidth trac to be seamlessly distributed across the end-user’s home or oce.
KEY FEATURES
• MoCA 2.0 standard for highest performance of
entertainment networking
• Compact size (110mm (W) x 70mm (H) x 25mm (D))
for home application
• Upgradable software over web-based GUI
• Well-dened LEDs clearly display device and
network status
• Hardware DES and AES Encryption to keep your data
safe from unauthorized access
HT-EM2
Headquarters - www.hitrontech.com
No. 1-8, Lihsin 1st Rd., Hsinchu Science Park,
Hsinchu, Taiwan
Tel: +886 3 5786658 Fax: +886 3 5778856
USA - www.hitron-americas.com
304 Inverness Way South, Suite 480
Englewood, Colorado 80112
Tel: +1 303 792 3380 Fax: +1 303 799 6185
Europe - www.hitron-europe.com
Kingsfordweg 151 1043 GR
Amsterdam, The Netherlands
Tel: +31 20 491 9995 Fax: +31 20 491 9090
R
OO
M 1
B
U
ILDIN
G
R
OO
M
2
TV
GAMES
CONSOLE
TV
PC
HT-EM2
HT-EM2
GATEWAY
ETHERNET COAX
INTERNET HT-EM2
CABLE IN
CABLE IN
TV OUT
TV OUT
SPECIFICATION
Connectivity
• 2x RF F-type female 75Ω connector (to wall and to TV)
• RJ-45 Ethernet port 10/100/1000 Mbps
(Auto-MDI/MDIX)
Management
• Web-based GUI control conguration and management
• Dual-color LEDs clearly display network status
MoCA 2.0 Reception / Transmitter-Modulation
• Demodulation/ Modulation:
BPSK, QPSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM,
256QAM, 512QAM, 1024QAM
• Data Rate: 700 Mbps (Baseline Mode)
• Throughput: 400+Mbps (Baseline Mode) / 500+Mbps
(Turbo Mode, Point to Point Conguration)
• Frequency (center frequencies): 1025 ~ 1625Mhz
• Channel Bandwidth: 100 MHz
• Link Privacy: 56-bit DES and 128-bit AES hardware
encryptions for network security and password
Simple installation
Mechanical
• 4 status LEDs (Power, LAN activity, LAN link, MoCA)
• Dimensions: 110mm (W) x 70mm (H) x 25mm (D)
• Weight: 500g
Environmental
• Power Input: DC 12V / 0.5A
• Power Consumption: 5W (Max)
• Operating Temperature: 0 ~ +45 ℃
• Operating Humidity: 10 to 90% RH
• Storage Temperature: -30 ~ +70 ℃
• Surge Protection: RF input sustains at least 4KV; Ethernet
RJ-45 sustains at least 4KV
Compliance Certicates
• RoHS Compliant
• FCC/IC
HT-EM2
P/N: HT-EM2_2014_1A - Issued Aug. 2014 - Specications subject to change without further notice

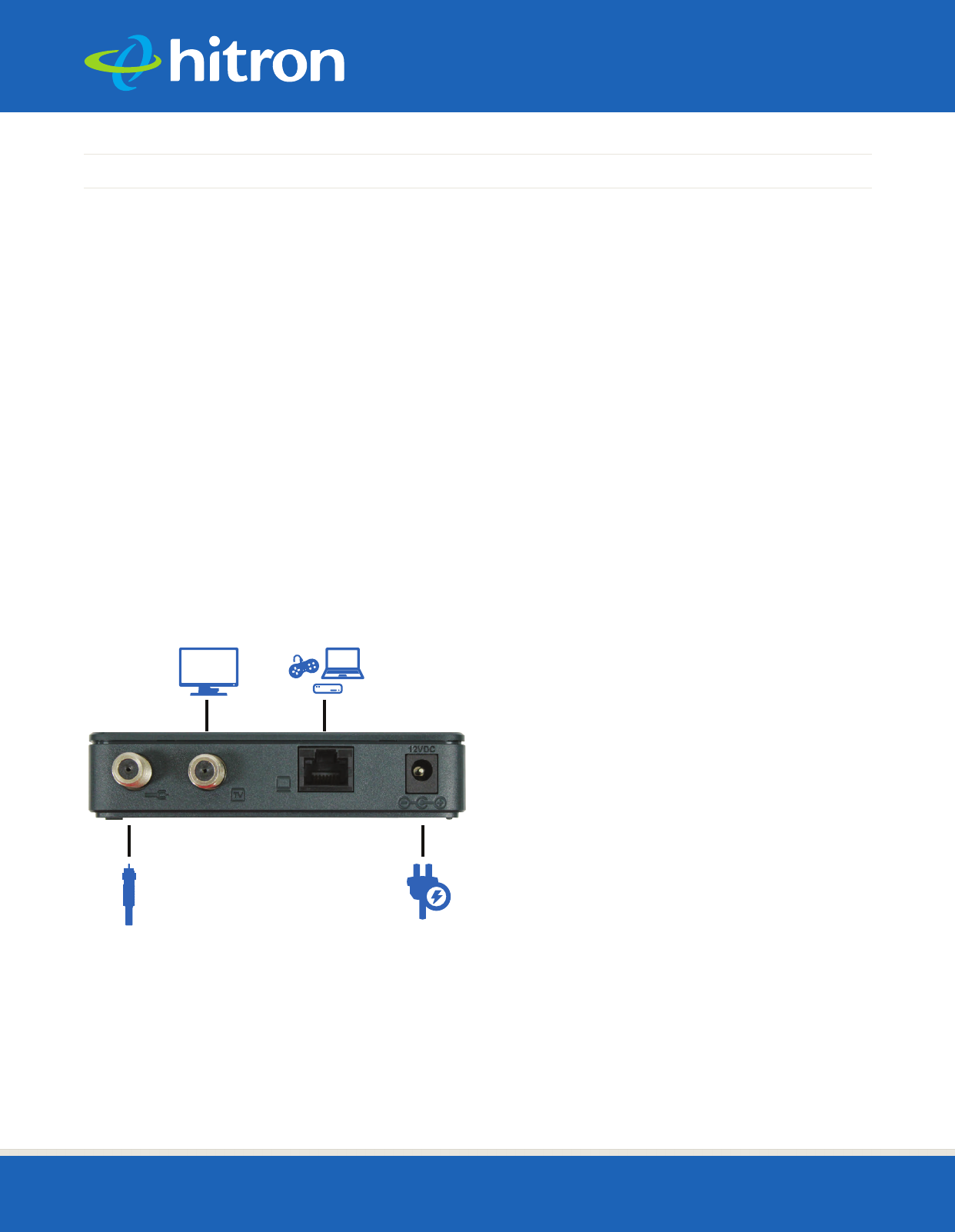

Connects
