Hik Vision IP Surveillance API (Ra CM Part) User Guide

User Manual: Pdf

Open the PDF directly: View PDF .
Page Count: 90

Content
1 Introduction
2 Conformance
3 Glossary and Relationship
- 3.1 Glossary of Terms

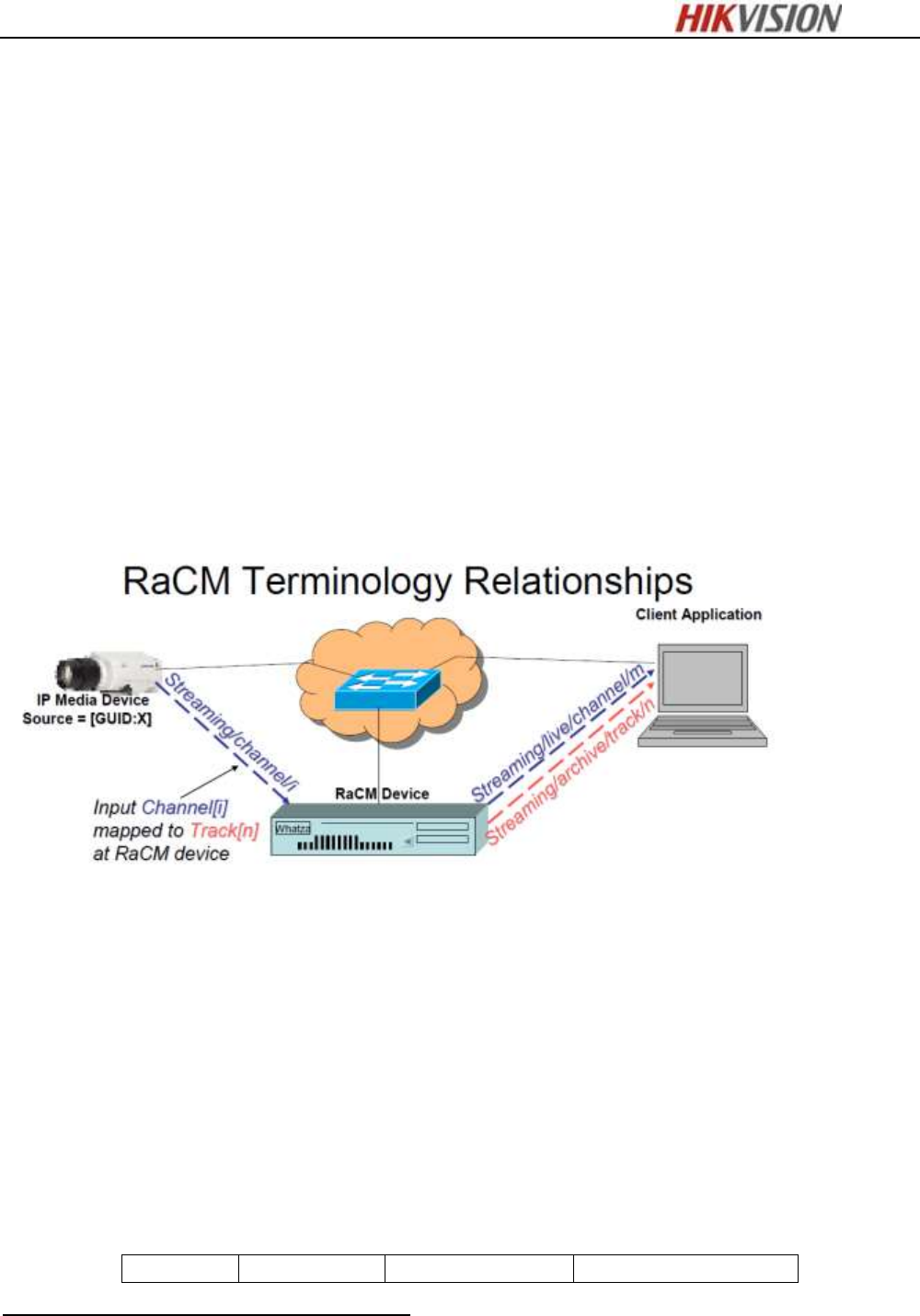

- 3.2 Relationship of Entities and Terminology
- 3.3 XML Reserved Characters
4 General Rules and Guidelines
- 4.1 DVR & NVR Design Considerations
- 4.2 Input Source Management (Remote Camera Configuration)
5 ContentMgmt Base Service
- 5.1 /ISAPI/ContentMgmt/sourceSupport
  - 5.1.1 Source Support XML Schema Definition
  - 5.1.2 Access and Operation of Source Support
    - 5.1.2.1 “send=…” Query String Parameter
    - 5.1.2.2 “mfgr=” Query String Parameter
6 /ISAPI/ContentMgmt/Capabilities
7 /ISAPI/ContentMgmt/record
- 7.1 /ISAPI/ContentMgmt/record/storageMounts
- 7.2 /ISAPI/ContentMgmt/record/profile
  - 7.2.1 /ISAPI/ContentMgmt/record/profile Schema Definition
- 7.3 /ISAPI/ContentMgmt/record/tracks
- 7.4 /ISAPI/ContentMgmt/record/control
8 /ISAPI/ContentMgmt/search
- 8.1 /ISAPI/ContentMgmt/search/profile
  - 8.1.1 /ISAPI/ContentMgmt/search/profile Schema Definition
- 8.2 /ISAPI/ContentMgmt/search
  - 8.2.1 Search Query Parameter Schema Definition
  - 8.2.2 Search Query Results Schema
    - 8.2.2.1 Search Response Examples
    - 8.2.2.2 Search Result Schema Definition
9 /ISAPI/ContentMgmt/logSearch
- 9.1.1 Search Query Parameter Schema Definition
- 9.1.2 Search Query Results Schema
10 Metadata Identity String (MIDS; “metaID”)
- 10.1 MIDS Field Definitions
11 Streaming and Playback
- 11.1 Streaming URIs
- 11.2 Playback
  - 11.2.1 Use of RTSP
  - 11.2.2 Initiating Playback
    - 11.2.2.1 Range header field
    - 11.2.2.2 Rate-Control header field
12 /ISAPI/ContentMgmt/InputProxy
- 12.1 /ISAPI/ContentMgmt/InputProxy/sourceCapability
- 12.2 /ISAPI/ContentMgmt/InputProxy/search
- 12.3 /ISAPI/ContentMgmt/InputProxy/ipcConfig
- 12.4 /ISAPI/ContentMgmt/InputProxy/customProtocols
  - 12.4.1 /ISAPI/ContentMgmt/InputProxy/customProtocols/<ID>
- 12.5 /ISAPI/ContentMgmt/InputProxy/channels
- 12.6 /ISAPI/ContentMgmt/InputProxy/channels/status
- 12.7 /ISAPI/ContentMgmt/InputProxy/channels/<ID>
- 12.8 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/password
- 12.9 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/netParam
- 12.10 /ISAPI/ContentMgmt/InputProxy/channels/<ID> /status
- 12.11 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/video
- 12.12 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/video/overlays
- 12.13 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/video/privacyMask
  - 12.13.1 ./InputProxy/channels/<ID>/video/privacyMask/regions
  - 12.13.2 ./InputProxy/channels/<ID>/video/privacyMask/regions/<ID>
- 12.14 /ISAPI/ContentMgmt/InputProxy channels/<ID>/video/tamperDetection
  - 12.14.1 ./InputProxy/channels/<ID>/video/tamperDetection/regions
  - 12.14.2 ./InputProxy/channels/<ID>/video/tamperDetection/regions/<ID>
- 12.15 /ISAPI/ContentMgmt/InputProxy /channels/<ID>/video/motionDetection
  - 12.15.1 ./InputProxy/channels/<ID>/video/motionDetection/layout
  - 12.15.2 /ISAPI/ContentMgmt/InputProxy/channels/ID/video/smartDetection
13 / ISAPI/ContentMgmt/IOProxy
- 13.1 /ISAPI/ContentMgmt/IOProxy/status
- 13.2 / ISAPI/ContentMgmt/IOProxy/inputs
- 13.3 / ISAPI/ContentMgmt/IOProxy/inputs/ID
- 13.4 / ISAPI/ContentMgmt/IOProxy/inputs/ID/status
- 13.5 / ISAPI/ContentMgmt /IOProxy/outputs
- 13.6 / ISAPI/ContentMgmt/IOProxy/outputs/ID
- 13.7 / ISAPI/ContentMgmt /IOProxy/outputs/ID/trigger
- 13.8 /ISAPI/ContentMgmt/IOProxy/outputs/ID/status
14 /ISAPI/ContentMgmt/ZeroVideo
- 14.1 /ISAPI/ContentMgmt/ZeroVideo/channels
- 14.2 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>
- 14.3 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>/enlarge
- 14.4 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>/switchScreen
- 14.5 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>/previewCfg
15 /ISAPI/ContentMgmt/ImageProxy
16 /ISAPI/ContentMgmt/SnapshotProxy
17 /ISAPI/ContentMgmt/PTZCtrlProxy
18 /ISAPI/ContentMgmt/StreamingProxy
19 /ISAPI/ContentMgmt/ZeroStreaming
- 19.1 /ISAPI/ContentMgmt/ZeroStreaming/status
- 19.2 /ISAPI/ContentMgmt/ZerStreaming/channels
- 19.3 /ISAPI/ContentMgmt/ZeroStreaming/channels/<ID>
- 19.4 /ISAPI/ContentMgmt/ZeroStreaming/channels/<ID>/status
20 /ISAPI/ContentMgmt/Storage
- 20.1 /ISAPI/ContentMgmt/Storage/hdd
- 20.2 /ISAPI/ContentMgmt/Storage/hdd/<ID>
- 20.3 /ISAPI/ContentMgmt/Storage/hdd/<ID>/format
- 20.4 /ISAPI/ContentMgmt/Storage/hdd/<ID>/formatStatus
- 20.5 /ISAPI/ContentMgmt/Storage/nas
- 20.6 /ISAPI/ContentMgmt/Storage/nas/<ID>
- 20.7 /ISAPI/ContentMgmt/Storage/nas/<ID>/format
- 20.8 /ISAPI/ContentMgmt/Storage/nas/<ID>/formatStatus
- 20.9 /ISAPI/ContentMgmt/Storage/nas/search
- 20.10 /ISAPI/ContentMgmt/Storage/quota
- 20.11 /ISAPI/ContentMgmt/Storage/quota/<ID>
- 20.12 /ISAPI/ContentMgmt/Storage/extract
- 20.13 /ISAPI/ContentMgmt/Storage/diskGroup
- 20.14 /ISAPI/ContentMgmt/Storage/diskGroup/<ID>
- 20.15 /ISAPI/ContentMgmt/Storage/extension
21 / ISAPI/ContentMgmt/download
22 Appendix A: Codec Type Dictionary

IP Surveillance API

(RaCM Part)

User Guide

Version 2.0

Revision 1

2014-01

http://www.hikvision.com/

Revision History

Description

Date

v2.0-draft-0920

Initial version

2012-09

Meng Hong

v2.0.1

Update the document

2014-01

Meng Hong

Notices

The information in this documentation is subject to change without notice and does not

represent any commitment on behalf of HIKVISION. HIKVISION disclaims any liability

whatsoever for incorrect data that may appear in this documentation. The product(s)

described in this documentation are furnished subject to a license and may only be used

in accordance with the terms and conditions of such license.

issued in strict confidence and is to be used only for the purposes for which it is

supplied. It may not be reproduced in whole or in part, in any form, or by any means or be

used for any other purpose without prior written consent of HIKVISION and then only on

the condition that this notice is included in any such reproduction. No information as to the

contents or subject matter of this documentation, or any part thereof, or arising directly or

indirectly therefrom, shall be given orally or in writing or shall be communicated in any

manner whatsoever to any third party being an individual, firm, or company or any

employee thereof without the prior written consent of HIKVISION. Use of this product is

subject to acceptance of the HIKVISION agreement required to use this product.

HIKVISION reserves the right to make changes to its products as circumstances may

warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind. Please send

any comments regarding the documentation to:

overseabusiness@hikvision.com

Find out more about HIKVISION at www.hikvision.com.

Content

1 Introduction ............................................................................................................ 7

2 Conformance ......................................................................................................... 7

3 Glossary and Relationship .................................................................................... 7

3.1 Glossary of Terms ................................................................................................. 7

3.2 Relationship of Entities and Terminology ............................................................. 8

3.3 XML Reserved Characters .................................................................................... 8

4 General Rules and Guidelines .............................................................................. 9

4.1 DVR & NVR Design Considerations ..................................................................... 9

4.2 Input Source Management (Remote Camera Configuration) ............................. 11

5 ContentMgmt Base Service ................................................................................ 13

5.1 /ISAPI/ContentMgmt/sourceSupport ................................................................ 13

5.1.1 Source Support XML Schema Definition .............................................. 15

5.1.2 Access and Operation of Source Support ............................................ 15

6 /ISAPI/ContentMgmt/Capabilities ........................................................................ 19

7 /ISAPI/ContentMgmt/record ................................................................................ 21

7.1 /ISAPI/ContentMgmt/record/storageMounts .................................................... 21

7.2 /ISAPI/ContentMgmt/record/profile .................................................................. 23

7.2.1 /ISAPI/ContentMgmt/record/profile Schema Definition ........................ 23

7.3 /ISAPI/ContentMgmt/record/tracks ..................................................................... 24

7.3.1 Custom Configuration Data (Extensions) ............................................. 25

7.3.2 ISAPI-REST List-Entry <id> Creation method ..................................... 25

7.3.3 Streaming URL implied in <Track> configuration ................................. 25

7.3.4 Recording Source Description .............................................................. 25

7.3.5 Recording Schedule overview .............................................................. 25

7.3.6 Track Description NVP ......................................................................... 26

7.3.7 /ISAPI/ContentMgmt/record/tracks ....................................................... 28

7.3.8 /ISAPI/ContentMgmt/record/tracks/<id> ............................................... 28

7.3.9 Example Track Creation Message Exchange ...................................... 29

7.3.10 Track List Schema ................................................................................ 31

7.3.11 /ISAPI/ContentMgmt/record/tracks/<id>/dailyDistribution .................... 32

7.4 /ISAPI/ContentMgmt/record/control .................................................................... 32

7.4.1 /ISAPI/ContentMgmt/record/control/manual/start/tracks/<ID> ............. 32

7.4.2 /ISAPI/ContentMgmt/record/control/manual/stop/tracks/<ID> ............. 34

7.4.3 /ISAPI/ContentMgmt/record/control/locks ............................................ 34

8 /ISAPI/ContentMgmt/search................................................................................ 36

8.1 /ISAPI/ContentMgmt/search/profile .................................................................. 36

8.1.1 /ISAPI/ContentMgmt/search/profile Schema Definition ....................... 37

8.2 /ISAPI/ContentMgmt/search................................................................................ 37

8.2.1 Search Query Parameter Schema Definition ....................................... 39

8.2.2 Search Query Results Schema ............................................................ 41

9 /ISAPI/ContentMgmt/logSearch .......................................................................... 44

9.1.1 Search Query Parameter Schema Definition ....................................... 45

9.1.2 Search Query Results Schema ............................................................ 45

10 Metadata Identity String (MIDS; “metaID”) ......................................................... 46

10.1 MIDS Field Definitions ......................................................................................... 46

10.1.1 Domain: event.hikvision.com ................................................................ 47

10.1.2 Domain: log.hikvision.com .................................................................... 47

10.1.3 Domain: recordType.meta.hikvision.com ............................................. 50

11 Streaming and Playback ..................................................................................... 52

11.1 Streaming URIs ................................................................................................... 52

11.1.1 Live Streams ......................................................................................... 52

11.1.2 Archive Streams.................................................................................... 52

11.1.3 Time-related Streaming ........................................................................ 53

11.2 Playback .............................................................................................................. 54

11.2.1 Use of RTSP ......................................................................................... 54

11.2.2 Initiating Playback ................................................................................. 54

12 /ISAPI/ContentMgmt/InputProxy ......................................................................... 56

12.1 /ISAPI/ContentMgmt/InputProxy/sourceCapability ............................................. 56

12.2 /ISAPI/ContentMgmt/InputProxy/search ............................................................. 57

12.3 /ISAPI/ContentMgmt/InputProxy/ipcConfig ......................................................... 57

12.4 /ISAPI/ContentMgmt/InputProxy/customProtocols .......................................... 58

12.4.1 /ISAPI/ContentMgmt/InputProxy/customProtocols/<ID>...................... 59

12.5 /ISAPI/ContentMgmt/InputProxy/channels ......................................................... 60

12.6 /ISAPI/ContentMgmt/InputProxy/channels/status ............................................... 60

12.7 /ISAPI/ContentMgmt/InputProxy/channels/<ID> ................................................ 60

12.8 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/password ................................ 61

12.9 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/netParam ................................ 62

12.10 /ISAPI/ContentMgmt/InputProxy/channels/<ID> /status ............................. 62

12.11 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/video ............................... 63

12.12 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/video/overlays ................. 63

12.12.1 ./InputProxy/channels/<ID>/video/overlays/text ................................... 64

12.12.2 ./InputProxy/channels/<ID>/video/overlays/text/<ID> .......................... 64

12.12.3 ./InputProxy/channels/<ID>/video/overlays/image ............................... 65

12.12.4 ./InputProxy/channels/<ID>/video/overlays/image/<ID> ...................... 65

12.13 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/video/privacyMask .......... 65

12.13.1 ./InputProxy/channels/<ID>/video/privacyMask/regions ...................... 66

12.13.2 ./InputProxy/channels/<ID>/video/privacyMask/regions/<ID> ............. 66

12.14 /ISAPI/ContentMgmt/InputProxy channels/<ID>/video/tamperDetection .... 67

12.14.1 ./InputProxy/channels/<ID>/video/tamperDetection/regions ................ 67

12.14.2 ./InputProxy/channels/<ID>/video/tamperDetection/regions/<ID> ....... 67

12.15 /ISAPI/ContentMgmt/InputProxy /channels/<ID>/video/motionDetection ... 68

12.15.1 ./InputProxy/channels/<ID>/video/motionDetection/layout .................. 68

12.15.2 /ISAPI/ContentMgmt/InputProxy/channels/ID/video/smartDetection ... 69

13 / ISAPI/ContentMgmt/IOProxy ............................................................................ 69

13.1 /ISAPI/ContentMgmt/IOProxy/status................................................................... 70

13.2 / ISAPI/ContentMgmt/IOProxy/inputs.................................................................. 70

13.3 / ISAPI/ContentMgmt/IOProxy/inputs/ID ............................................................. 70

13.4 / ISAPI/ContentMgmt/IOProxy/inputs/ID/status .................................................. 71

13.5 / ISAPI/ContentMgmt /IOProxy/outputs .............................................................. 71

13.6 / ISAPI/ContentMgmt/IOProxy/outputs/ID ........................................................... 72

13.7 / ISAPI/ContentMgmt /IOProxy/outputs/ID/trigger .............................................. 72

13.8 /ISAPI/ContentMgmt/IOProxy/outputs/ID/status ................................................. 73

14 /ISAPI/ContentMgmt/ZeroVideo .......................................................................... 73

14.1 /ISAPI/ContentMgmt/ZeroVideo/channels .......................................................... 73

14.2 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID> ................................................. 74

14.3 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>/enlarge .................................... 74

14.4 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>/switchScreen .......................... 75

14.5 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>/previewCfg .............................. 75

15 /ISAPI/ContentMgmt/ImageProxy ....................................................................... 76

16 /ISAPI/ContentMgmt/SnapshotProxy .................................................................. 76

17 /ISAPI/ContentMgmt/PTZCtrlProxy ..................................................................... 76

18 /ISAPI/ContentMgmt/StreamingProxy................................................................. 77

19 /ISAPI/ContentMgmt/ZeroStreaming .................................................................. 77

19.1 /ISAPI/ContentMgmt/ZeroStreaming/status ........................................................ 77

19.2 /ISAPI/ContentMgmt/ZerStreaming/channels ..................................................... 77

19.3 /ISAPI/ContentMgmt/ZeroStreaming/channels/<ID> .......................................... 78

19.4 /ISAPI/ContentMgmt/ZeroStreaming/channels/<ID>/status ............................... 79

20 /ISAPI/ContentMgmt/Storage .............................................................................. 80

20.1 /ISAPI/ContentMgmt/Storage/hdd ....................................................................... 80

20.2 /ISAPI/ContentMgmt/Storage/hdd/<ID> .............................................................. 80

20.3 /ISAPI/ContentMgmt/Storage/hdd/<ID>/format .................................................. 81

20.4 /ISAPI/ContentMgmt/Storage/hdd/<ID>/formatStatus ........................................ 81

20.5 /ISAPI/ContentMgmt/Storage/nas ....................................................................... 82

20.6 /ISAPI/ContentMgmt/Storage/nas/<ID> .............................................................. 82

20.7 /ISAPI/ContentMgmt/Storage/nas/<ID>/format................................................... 83

20.8 /ISAPI/ContentMgmt/Storage/nas/<ID>/formatStatus ........................................ 83

20.9 /ISAPI/ContentMgmt/Storage/nas/search ........................................................... 83

20.10 /ISAPI/ContentMgmt/Storage/quota ............................................................ 84

20.11 /ISAPI/ContentMgmt/Storage/quota/<ID> ................................................... 84

20.12 /ISAPI/ContentMgmt/Storage/extract .......................................................... 85

20.13 /ISAPI/ContentMgmt/Storage/diskGroup ..................................................... 85

20.14 /ISAPI/ContentMgmt/Storage/diskGroup/<ID> ............................................ 86

20.15 /ISAPI/ContentMgmt/Storage/extension ...................................................... 86

21 / ISAPI/ContentMgmt/download .......................................................................... 88

22 Appendix A: Codec Type Dictionary ................................................................... 89

1 Introduction

This document specifies an interface that enables physical security and video management systems to

communicate with a Recording and Content Management (RaCM) device in a standardized way.

2 Conformance

The RaCM Device will host ISAPI compliant services and adhere to the ISAPI Service Model.

3 Glossary and Relationship

3.1 Glossary of Terms

• Channel = Handle/tag for an input source (port or stream); see IPMD spec for usage. For DVR,

“channel” is the identifier, or handle, used to identify a local input stream (which may also be

accessible to remote entities via a local /ISAPI/Streaming/channel/<id> Resource).

The “stream” may contain Video, Audio, and/or Metadata. For NVR, “channel” is used to identify

remote media stream which, if from an IPMD, should come from the remote device’s

/ISAPI/Streaming/channels/<id> Resource. The term ‘channel’ is used as a guiding principle and

logical construct.

• Track = Virtual storage container for a set of contents (e.g. VIDEO, AUDIO, METADATA, etc.).

[Channels and tracks are kept separate to allow the ability to mix and match channels totracks].

RESTRICTION: At this time, a Track’s configuration contains only 1 <SourceDescriptor> which is

intended to describe the source for the recorded media-stream. This media-stream will be

construed as the equivalent of the input “channel” for the track, which means that each Track can

only record one input stream. The media-stream however can be Multi-Media, if the source

delivers such a stream (to be found at the <SrcUrl>), as is the case with IPMD.

• Source = Any input media device is a ‘source’, whether the input is a hardware oriented ‘port’ (e.g.

NTSC/PAL, audio input jack, etc.), or an IP-based media device. All ‘sources’ are identified by

ISO/IEC 9834-8:2005 128-bit UUIDs/GUIDs to guarantee uniqueness within any given system.

Using the RaCM nomenclature specified herein, sources send their data to RaCM devices on via

‘streams’ which are mapped to ‘channels’. Channels are handles used to identify the specific input

streams for a RaCM device. Channels that are recorded are then mapped onto ‘tracks’ for

recording. See the following diagram for more details. Within the RaCM Device, such ‘sources’

are not explicitly configured. These logical ‘sources’ are visible (Read-Only fashion) via the

‘/ISAPI/ContentMgmt/status/sources’ Resource. It is also possible to search based on these

‘sources’ via “/ISAPI/ContentMgmt/search” Resource.

• Metadata = All streaming data except video and audio. This includes events, alarms, etc.

• URI = A virtual path that specifically identifies a REST resource; this path must follow the

service/resource hierarchy (see ISAPI Service Model specification).

• Segment = A general term addressing a single, contiguous portion of a media track, or (in some

cases) a stream. Basically, a ‘media clip’ that is less than the whole of a respective media track or

stream, yet is individually accessible via one of the mechanisms specified in this document.

3.2 Relationship of Entities and Terminology

Below are the basic relationships between the terms defined above.

•

Source = The device is the original point for input to a RaCM device. This is usually a camera, an

encoder (video and/or audio) or a metadata generator. All devices have their own ISO/IEC

9834-8/ITU X.667, 128-bit UUID/GUID as their based identity.

•

Channel = Incoming media stream (input identifier). This is a handle/identifier for a specific input

stream.

•

Stream = In general, a network-based output media connection (output identifier).

•

Track = A recorded channel. Since input characteristics may change over time, ‘tracks’ are the

virtual containers for recorded content associated with a ‘channel’. Channels may be extant or

extinct with respect to a track. That is why tracks are separate from channels. Channels are

mapped to tracks for recording.

The following diagram depicts the relationships between the streams, channels and tracks.

IP Media Device advertises its Streams by channels. Based on configuration the RaCM device

selects the IPMD’s stream channel ID (i) which is indigenous to the IP Media Device. This input

stream becomes Channel ‘m’ on the RaCM device (since it has multiple inputs) for this particular live

stream. Via configuration it is mapped to track ‘n’ for recording. The track ID ‘n’ may, or may not, be

equal to ‘m’. When a client requests a live stream from the RaCM device, it uses the advertised

Channel ID ‘m’. When it requests a stream from the archived track, it uses the Advertised track ID

‘n’..

3.3 XML Reserved Characters

Within an XML document, some characters are reserved for language use. If these characters

appear in data values, they should be replaced with their Entity Reference equivalents (akin to ANSI

Escapes) to avoid parsing errors.

Character

Description

Entity Reference

Comments

Less than

May never appear in

data.

Ampersand

May never appear in

data.

Greater than

Replace as best

practice.

“

Double quote

Replace as best

practice.

‘

Single quote

Replace as best

practice.

Percent

Replace as best

practice.

Note that  (null) is not permitted.

For example, the URL: “rtsp://144.70.13.92:554/ISAPI/Streaming/tracks/27?

starttime=20130731T092241&endtime=20130731T093000” would appear as follows in XML:

<playbackURI>rtsp://144.70.13.92:554/ISAPI/Streaming/tracks/27?starttime=20130731T092241&

endtime=20130731T093000</playbackURI>

4 General Rules and Guidelines

The following guidelines and requirements apply to those parties implementing this specification:

•

All RaCM devices shall comply with the guidelines, formats, syntax, and base protocol definitions

contained in the ISAPI Service Model specification.

•

All RaCM devices shall implement the following ISAPI REST Resource hierarchies, as outlined on

the ISAPI IP Media Device (IPMD) Specification:

o For DVRs , the “/ISAPI/System/Video/…” REST resources and services as is pertinent for

the hardware capabilities for a given RaCM device.

o For DVRs that support PTZ commands, the “/ISAPI/PTZ/…” REST resources and services

are to be implemented, as outlined in IPMD, where the PTZ capabilities in the IPMD

specification are functionally compatible for the DVR device.

o For DVRs and NVRs, the “/ISAPI/System/…” REST resource hierarchies must be

implemented as defined in IPMD Sections, for the configurable system based devices and

I/O capabilities (network, serial, I/O, …) supported by a given RaCM device.

o For DVRs, the “/ISAPI/Streaming/Channels…” REST resource hierarchy for each hardware

channel it supports. The “picture” and “requestKeyFrame” resources are not required.

o NVRs and hybrid DVRs must comply with the management guidelines outlined in the

following Section regarding the management of external IP media devices.

o All RaCM devices shall support the “/ISAPI/System/time/…” REST resources for

setting/reporting local time on their devices unless they use a network domain controller to

access network time.

Though the resource hierarchy described herein does cite specific resources in the IPMD and Service

Model specifications, it does not preclude RaCM device implementers from incorporating other ISAPI

resources that are relevant. The objective of this specification is to provide the design details and intent for

the base protocol implementation.

4.1 DVR & NVR Design Considerations

Digital Video Recorder (DVR) devices have design issues unique to their product classes. Unlike

NVRs, DVRs have onboard video and (in many cases) audio codec hardware as their input sources. Since

this hardware is intrinsic to the device, i.e. it is not dynamically assignable to the unit like NVR input

sources, DVRs must comply with the following design operational items, in addition to the general

requirements listed in the above section of this document:

•

All video codec hardware must be listed as pre-configured (i.e. with default settings) input

‘channels’ in the following ISAPI resource hierarchies:

o For DVR video input hardware that provides image setting parameters, such as

brightness, contrast, sharpness, etc., these settings must be accessible in the

“/ISAPI/System/Video/inputs/channels…” resource hierarchy. This means that the

‘VideoInputChannelList’ XML schema document returned by a GET to the

“/ISAPI/System/Video/inputs/channels” resource must list all of the existing input

channels as ‘VideoInputChannel’ elements. The IDs for each element must be set for

each channel by the DVR and cannot be allowed to be changed by external entities.

o DVR video codec hardware must be listed as pre-configured (i.e. using default values)

input ‘channels’ in the “/ISAPI/Streaming/channels…” resource. The returned

‘StreamingChannelList” XML schema document must be pre-populated with all of the

codec channels that are available for configuration and use. The channel IDs in the

schema must be preset by the DVR.

•

All audio codec hardware present on a DVR must be listed as existing, pre-configured (i.e.

using default values) hardware input ‘channels’ in the “/ISAPI/System/Audio/channels…”

resource hierarchy. The channel IDs must be pre-populated in the ‘AudioChannelList’ XML

schema document returned by GETs to the “/ISAPI/System/Audio/channels…” resource. The

channels IDs assigned by a DVR are immutable by external entities.

•

Multiple “/ISAPI/Streaming/channels/<id>” may have the same <videoInputChannelID>.

Multiple “/ISAPI/ContentMgmt/StreamingProxy/channels/<id>” may have the same

<dynVideoInputChannelID>. In consideration of the relationship between stream and track,

video input id, dynVideo input id, stream id, dynStream id use the following encoding:

(1) To ensure the compatibilities of different devices, please use unified id No.in

/ISAPI/System/Video/inputs/channels/<ID> and

/ISAPI/ContentMgmt/InputProxys/channels/<ID>/video. For example, if a device

supports 16 channels, the ID No. should be 1-16 in Video/inputs/channels/<ID>, in this

case, the ID No.should start with 17 in InputProxys/channels/<ID>/video.

(2) <ID> of dynamic stream adopts binary coded decimal, the former 6 digits stand for channel

number, the last 2 digits stand for stream number, for example, if channel 1 of a Hybrid DVR

supports 9-ch streams, the ninth stream should be 109; for the 99-ch stream of the channle100,

the number should be10099.

•

Tracks will record from their respective <SourceDescriptor>’s.

o Thus, each active Track implicitly creates an input ‘channel’.

o In addition, /ISAPI/ContentMgmt/InputProxy/channels can also be used to create an

input ‘channel’. It is recommended to use the service to create an input ‘channel’. This

service can also manage/configure some corresponding paramters related with input

‘channel’, such as image parameter, compression parameter, OSD, Motion Detection and

so on.

o The <id> for these ‘channels’ are determined by the RaCM Device automatically.

The above design items are described here to aid in providing commonality in the implementation of

this specification, and provide clarity for those developing to the interfaces defined herein. Hybrid

DVR/NVR products must still follow the above guidelines for the onboard codec hardware that is present

on their respective devices. Please note that these design guidelines pertain to the definition and

configuration of the video/audio input hardware. The information related to track configuration, etc., is

addressed later in this document.

4.2 Input Source Management (Remote Camera Configuration)

NVRs and hybrid DVRs support external IP network devices as their input sources. These devices,

usually IP cameras, may, or may not, be ISAPI protocol compliant. This specification does not require the

external input sources to be ISAPI compliant in order to be supported by a RaCM device. However, within

the industry there are different methods for managing the support for, configuration and status of, input IP

media devices. ISAPI RaCM devices must fall into one of two possible categories regarding the

management of external IP media sources. The management categories are listed below:

Management Mode

Mode Description

Simple

This mode describes as RaCM device that manages track configuration, but

does not manage the settings related to video/audio codecs and streaming at

the external source camera/encoder. This means that management entities

such as VMS applications are required to manage the settings on the RaCM

devices, and the external source devices, separately. I.e. the RaCM device

does not change the settings on a source device when a codec or streaming

related parameter is changed on a track. A Simple RaCM device will attempt

to open a new session to the respective source with the new codec/streaming

settings, but it will NOT modify the codec/streaming configuration settings on

an external camera/encoder. In some cases, this is sufficient since codec

settings on some cameras can be modified on-the-fly via the session setup

parameters; in other cases the VMS management application will have to

modify the codec/streaming settings at the source prior to making track setting

changes. In all cases in Simple management mode, the management

application (VMS, etc.) is responsible for the settings at all the devices and for

the synchronization of those settings between the sources and consumers.

The recommendation in this mode is that management applications SHOULD

always change the settings at the source device (camera, encoder) and then

modify the appropriate track settings on the dependent RaCM device(s).

Please note that: this can produce race conditions between the source and

recoding device in some cases.

Proxy

RaCM devices that have the ability to remotely manage other source device’s

codec/streaming parameters are called ‘proxy managers’. Modifications to

codec/streaming settings on a proxy managing RaCM device will also be

performed at the external source device by the RaCM device for those

devices the RaCM unit knows how to configure. Basically, in proxy

management mode the RaCM device receives the settings that affect streams

and/or tracks, and performs, based on the sources behavior, all of the

necessary configuration adjustments on behalf of the management

application.

In order to aid interoperability, and to support the use of Proxy management mode, three new

RaCM REST resources have been created: “/ISAPI/ContentMgmt/sourceSupport”,

“/ISAPI/ContentMgmt/InputProxy”, “/ISAPI/ContentMgmt/StreamingProxy”.

“/ISAPI/ContentMgmt/sourceSupport” identifies which mode of management and level of

interoperability a RaCM device provides for each advertised camera/encode device it claims support

for (see /ISAPI/ContentMgmt/sourceSupport ).

Fundamentally, “/ISAPI/ContentMgmt/sourceSupport” resource provides a list of IP cameras and

encoders, by manufacture and model, that are supported (i.e. compatible) along with the

management mode for each.

5 ContentMgmt Base Service

The ‘ContentMgmt’ base service is the ‘root’ for all Recording and Content Management (RaCM) device

function related to the recording and management of multimedia data. This service is the base node in the

REST resource hierarchy for all active functions provided by a RaCM device.

As mentioned in the previous section, the RaCM device must also comply with the ISAPI Service Model

specification and also implement the required IPMD Services.

5.1 /ISAPI/ContentMgmt/sourceSupport

For RaCM devices that support external IP cameras and encoders as input devices, the ‘sourceSupport’

REST resource MUST be supported in order to advertise the types and models of devices that a unit is

compatible with. Section Input Source Management of this specification describes the management modes

a RaCM device may support for managing external IP input sources.

GETs from the “/ISAPI/ContentMgmt/sourceSupport” resource return a schema that describes the

manufacturers, makes and models of IP media devices that a RaCM device is compatible with. The following

table provides the base details for the ‘sessionSupport’ resource.

/ISAPI/ContentMgmt/sourceSupport

General Resource v1.0

GET

Description

Description of the IP media devices, in mfgr, make and model, that a RaCM

devices supports as input sources

Query

Optional: “send=head” “send=top”, “send=middle” “send=bottom” or…

“mfgr=<mfgrName>”

Inbound Data

None

Success Return

Notes:

The schema and element definitions for this resource follow.

Example XML

<?xml version="1.0" encoding="UTF-8"?>

<CMSourceSupport version=”1.0”

xmlns=”http://www.isapi.org/ver20/XMLSchema”>

< mediaDeviceListSize>8</ mediaDeviceListSize>

< supportedMediaDeviceSourceList>

<MediaDeviceMfgr>HIKVISION</MediaDeviceMfgr>

<MediaDeviceMgmtMode>Proxy</MediaDeviceMgmtMode>

</MediaDeviceSource>

<MediaDeviceMfgr>ClearView</MediaDeviceMfgr>

<MediaDeviceMake>MaxView Series</MediaDeviceMake>

<MediaDeviceMgmtMode>Simple</MediaDeviceMgmtMode>

</MediaDeviceSource>

<MediaDeviceMfgr>ISAPI</MediaDeviceMfgr>

<MediaDeviceMake>Any ISAPI compliant IP Media

device</MediaDeviceMake>

<MediaDeviceMgmtModel>Standard</MediaDeviceMgmtModel>

</MediaDeviceSource>

</ supportedMediaDeviceSourceList>

</CMSourceSupport>

The above example represents a RaCM device that supports 9 different camera

models from 3 different manufacturers. Please note that the ‘make’ element is not

used on every manufacturer. Also, the ‘ISAPI’ IP Media Device support is listed as

a generic manufacturer with Standard (i.e. non-PTZ) and a PTZ generic model

support. This example is only referential.

Accesses to the ‘session Support’ resource returns a ‘CMSourceSupport’ schema document instance.

This schema document is primarily a list of the types and models of IP media devices that a RaCM device

supports as compatible input sources. Each element in a list element is comprised of the following parameters:

Element name

Requirement

Description

MediaDeviceMfgr

Mandatory

XML string field that lists the manufacturer of the

supported IP Media Device. This field is treated as case

insensitive to aid in searching and matching (e.g.

Luminati = luminati, effectively).

MediaDeviceMake

Optional

Optional XML string field that lists the make of an IP Media

device. Some manufacturers come out with ‘lines’ (i.e.

product lines) of cameras that share protocol attributes.

This field is to aid in identifying products that belong to a

certain product line (where/when that information is

pertinent and relevant).

MediaDeviceModel

Mandatory

XML string that identifies the model of a certain IP Media

device.

MediaDeviceMgmtMode

Mandatory

XML type restricted to “Simple” or “Proxy”.

Please note that all of the values contained in the above fields are treated in a case insensitive manner to

aid in better interoperability between management applications, clients and the RaCM devices. The purpose

of the “CMSourceSupport” schema is to provide consumers with a well ordered list of the media devices that it

can record and stream. It is also acceptable for ‘generic’ media device support to be listed where the RaCM

device has an industry (or mfgr) standards-based driver that supports compliant cameras generically (i.e. the

“MediaDeviceMfgr” does not have to contain a literal manufacturer; it could contain a value like “PSIA” or

“ONVIF”, etc.). The full schema definition follows.

5.1.1 Source Support XML Schema Definition

XSD File: cmSourceSupport.xsd

This schema definition is basically a list of elements that define the types of IP media devices that are

supported, or are compatible with, a RaCM device. The first element is a count of the number of IP media

device models (i.e. “MediaDeviceModel” entries) that are listed in a “CMSourceSupport” document instance.

This is important since the size of the schema can be huge, in some cases, and due to the fact that consumers

can ask for only the ‘count’ of the supported media devices (see following section). Please note that each list

element, which has one manufacturer value, can support multiple model numbers/strings per that

manufacturer value. The manufacturer name can also identify standards organizations, not specific

manufacturers.

5.1.2 Access and Operation of Source Support

The REST URI structure of the “/ISAPI/ContentMgmt/sourceSupport” resource allows consumers to ask

for portions, or all, of the schema document information (see table in above Section 8.4). A consumer

accessing source support by a simple GET to the “/ISAPI/ContentMgmt/sourceSupport” resource will get the

entire data list of all supported IP media devices in the “CMSourceSupport” schema instance. However, due to

the fact that the size of this XML list could be prohibitively large, RaCM devices MUST support the following

options for getting portions of the source support information without requiring the entire data set. There are

two query parameters that can be added to the REST URI for getting portions of the overall information set.

They are:

•

“send=…” The send designator identifies that the consumer only wants a portion of the overall source

support information. A value is supplied with the “send=” string as an NVP that designates the portion

of the information to be sent. This is discussed in more detail below.

•

“mfgr=…” The data designator specifies a ‘filter’ for the information to be returned.

Basically, a consumer specifies what type of information it is looking for. This is described in detail

below.

Please note that the ‘send’ and ‘mfgr’ query parameters are mutually exclusive; they cannot be used in

the same HTTP/REST GET message since they each counter-actively affect what, and how much, of the

source support information is returned by a RaCM device. Consumers of source information are to use these

query string parameters to govern the amount of source information that is transferred since this information

base can be very large. Each of the query string parameters is described below, in detail

5.1.2.1 “send=…” Query String Parameter

The “send=…” query string parameter (QSP) enables consumers to specify, or control, (in a coarse

manner) the amount of source support information that they desire to receive. If the “send=…” QSP is not

present when a GET to the “/ISAPI/ContentMgmt/sourceSupport” resource is issued, ALL the source support

information will be returned in the CMSourceSupport schema instance. In order to prevent data overrun, the

“send=…” QSP is provided such that the consumer can ask for the source support list information in ‘chunks’.

The amount, and type, of information is specified by the value tag supplied with the “send=…” QSP. The value

tags that can be supplied are listed below with descriptions.

Tag

Value

URI Example

Description

“head”

GET

/ISAPI/ContentMgmt/sourceSupport?send=head

This tag value indicates that the

consumer only wants the returned

schema instance to contain the count

of the number of source support

models in its list; No element data

should be returned.

This allows consumers to gauge the

approximate size of the source

support information base, in total.

“top”

GET

/ISAPI/ContentMgmt/sourceSupport?send=top

This tag value indicates that the

consumer wants the top 1/3rd

(roughly) of the source support list.

RaCM devices receiving this QSP

should provide, approximately, the

first one-third of the

“CMSourceSupport” list.

“middle”

GET

/ISAPI/ContentMgmt/sourceSupport?send=middle

This tag value indicates that the

consumer wants the middle 1/3rd

(roughly) of the source support list.

RaCM devices receiving this QSP

should provide, approximately, the

middle one-third of the

“CMSourceSupport” list data.

“bottom”

GET

/ISAPI/ContentMgmt/sourceSupport?send=middle

Similar to the two above tags, this tag

value indicates that the consumer

wants the last 1/3rd (roughly) of the

source support list. RaCM devices

receiving this QSP should provide,

approximately, the final one-third of

the “CMSourceSupport” list data.

Please note that it is up to the RaCM

device on how to apportion the source

support info into ‘chunks’.

When a RaCM device receives a “send=head” request, the returned schema should only contain the

“MediaDeviceModelCount” element and its value. For all of the other QSP strings, the RaCM device is to

provide portions of the schema document that align on list element boundaries (i.e. manufacturer/make

boundaries). This apportioning scheme prohibits the use of the “mfgr=…” QSP, which is described in the

following section. The following examples are provided as additional descriptive information. These examples

are based on the example XML schema instance listed in the table at the top of Section

/ISAPI/ContentMgmt/sourceSupport.

Send ‘head’ Example:

(request)

GET /ISAPI/ContentMgmt/sourceSupport?send=head HTTP/1.1

… (response) HTTP/1.1 200 OK

Content-type:application/xml

Content-length :165

<?xml version="1.0" encoding="UTF-8"?>

</CMSourceSupport>

Send ‘top’ Example:

(request)

GET /ISAPI/ContentMgmt/sourceSupport?send=top HTTP/1.1

… (response) HTTP/1.1 200 OK

Content-type:application/xml

Content-length :<nnn>

<?xml version="1.0" encoding="UTF-8"?>

<MediaDeviceMfgr>HIKVISION</MediaDeviceMfgr>

<MediaDeviceMgmtMode>Proxy</MediaDeviceMgmtMode>

</MediaDeviceSource>

</SupportedMediaDeviceList>

</CMSourceSupport>

Send ‘middle’ Example:

(request)

GET /ISAPI/ContentMgmt/sourceSupport?send=middle HTTP/1.1

… response)HTTP/1.1 200 OK

Content-type:application/xml

Content-length :<nnn>

<?xml version="1.0" encoding="UTF-8"?>

<MediaDeviceMfgr>ClearView</MediaDeviceMfgr>

<MediaDeviceMake>MaxView Series</MediaDeviceMake>

<MediaDeviceMgmtMode>Simple</MediaDeviceMgmtMode>

</MediaDeviceSource>

</SupportedMediaDeviceList>

</CMSourceSupport>

Send ‘bottom’ Example:

(request)

GET /ISAPI/ContentMgmt/sourceSupport?send=bottom HTTP/1.1

… (response) HTTP/1.1 200 OK

Content-type:application/xml

Content-length :<nnn>

<?xml version="1.0" encoding="UTF-8"?>

<MediaDeviceMfgr>ISAPI</MediaDeviceMfgr>

<MediaDeviceMake>Any ISAPI compliant IP Media device</MediaDeviceMake>

<MediaDeviceMgmtModel>Standard</MediaDeviceMgmtModel>

</MediaDeviceSource>

</CMSourceSupport>

The above examples are for reference. The data set they contain is hypothetical and relatively small for the

sake of simplicity. Please note that in these examples the RaCM device made its own arbitrary decision as to

where to subdivide the CMSourceSupport information of ‘top’ versus ‘middle’ versus ‘bottom’. Also note that the

“MediaDeviceModelCount” size varies since the number of IP media device models varied per response. The

next section describes the ability for consumers to ask for specific forms of information.

5.1.2.2 “mfgr=” Query String Parameter

The “mfgr=…” QSP enables consumers to ask for supported IP media device information related to a

specific manufacturer or standards organization. Consumers using this capability can ask for supported model

information related to a specific manufacturer or standard. An example request would look like:

GET /ISAPI/ContentMgmt/souceSupport?mfgr=GoodVision

This type of request instructs the RaCM to only return a “CMSourceSupport” schema instance that lists the

supported models for the manufacturer “GoodVision”. The following is an example of what is expected to be

returned:

…(request)

GET /ISAPI/ContentMgmt/sourceSupport?mfgr=HIKVISION HTTP/1.1

… (response) HTTP/1.1 200 OK

Content-type:application/xml

Content-length :<nnn>

<?xml version="1.0" encoding="UTF-8"?>

<MediaDeviceMfgr>HIKVISION</MediaDeviceMfgr>

<MediaDeviceMgmtMode>Proxy</MediaDeviceMgmtMode>

</MediaDeviceSource>

</SupportedMediaDeviceList>

</CMSourceSupport>

Please note that the manufacturer name string is treated in a case insensitive manner. Also, manufacturer

strings that contain spaces must use the W3C special character replacement scheme. For example, a fictitious

vendor named “Volcano Vision” would have a QSP that looks like “...mfgr=Volcano%20Vision…”. RaCM

devices must parse out, and convert, the special character symbols just like the processing associated with a

standard URI. Additionally, a consumer may place multiple “mfgr=…” QSPs in a request. For example:

GET /ISAPI/ContentMgmt/souceSupport?mfgr=HIKVISION&mfgr=ONVIF is a valid REST URI for the

sourceSupport resource. The recommendation is that a consumer should not send more than 3 manufacturer

IDs per request. If a RaCM device cannot process the number of ‘mfgr’ QSPs sent in a single request, it should

return an HTTP status code of ‘503 Bad Request’.

6 /ISAPI/ContentMgmt/Capabilities

/ISAPI/ ContentMgmt /capabilities

General Resource v2.0

GET

Description

It is used to get device capability.

Query

None

Inbound Data

None

Success Return

Notes:

RacmCap XML Block

< RacmCap version="1.0" xmlns=“http://www.isapi.org/ver20/XMLSchema”>

</NasMountType>

</RacmCap>

XSD File: cmRacmCap.xsd

7 /ISAPI/ContentMgmt/record

This section describes the REST Interfaces to configure the logical storage used for media archival, along

with the actual recording session configurations. A recording session is also known as a “track” in the RaCM

Device. A track archives media (Audio, Video, and Metadata) from a Source. The Source can be local (e.g.

DVR recording from a local analog port) or remote (e.g. IP Network Media Device).

7.1 /ISAPI/ContentMgmt/record/storageMounts

This REST Interface is used to configure the total storage available to the RaCM Device to be used to

archive media. This storage is described as a List of Mount points, along with root directories and sizes. There

is no affinity specified, at this time, with regards to assigning tracks or range of tracks to a particular Disk or

Mount.

URI

/ISAPI/ContentMgmt/record/storageMounts

Type

Resource

RequirementL

evel

Basic

Function

Description of the REST method parameters and formats available to functionally manipulate

the ‘record/storage’ resource.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

PUT

None

POST

None

<Mount>

DELETE

None

Notes

This resource is used to manage the total storage allocation and logical mounts of the

Recorder. It is allowable to DELETE the entire list, though any implementation is free to

return an error for that operation if that capability is undesirable.

Low level drive configuration should be done through “/ISAPI/System/storage”.

This resource manages the <MountList> XML object and follows the same scheme used for <TrackList>

manipulation and other similar examples from IPMD that manage a list-based XML resource (see

“ISAPI-REST List-Entry <id> Creation method”, below.). As such, GET and PUT methods are used to access

the entire <MountList>. POST is used (with a “dummy” <id> of 0) to create an individual entry within the list;

where the newly created <id> is returned in the <ResponseStatus> given for the POST request.

Once an <Mount> entry is created, it can be accessed by its <id>, using this resource:

URI

/ISAPI/ContentMgmt/record/storageMounts/<id>

Type

Resource

Function

Description of the REST method parameters and formats available to access a single

<Mount> entry.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

<Mount>

PUT

None

<Mount>

POST

N/A

DELETE

None

Notes

POST (i.e. Create) is not allowed for individual <Mount> entry, with given explicit <id>.

Example XML <MountList>:

<?xml version="1.0"

encoding="

UTF

-8"?>

Mount

<dir>/racm1/record_tracks</dir>

<descr>master ide</descr>

Mount

<dir>/racm1/record_tracks</dir>

<descr>first scsi</descr>

/Mount>

<Mount>

<dir>/racm1/record_tracks</dir>

<descr>win-dos drive</descr>

/Mount

</MountList>

XSD File: cmRacmMount.xsd

7.2 /ISAPI/ContentMgmt/record/profile

RaCM devices have the ability to support more than one type of ‘track’. Since a track is nothing

more than a named handle to a virtual content container, ISAPI does not specify how the content is

actually recorded, indexed, etc. However, the attributes and properties that define how a track is

configured, how a track’s content is understood, and how its contents may be played, are critical to

interoperability. The definitions and descriptions of track attributes and track types are defined in

following Sections. The REST resource that advertises these recording attributes (i.e. track types) is

defined here.

URI

/ISAPI/ContentMgmt/record/profile

Type

Resource

Function

Description of the REST resource that advertises the track types supported by a RaCM

device.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

PUT

None

POST

None

DELETE

None

Notes

This resource is read-only.

Example

<?xml version="1.0" encoding="UTF-8"?>

<trackType>standard</trackType>

<trackType>polymorphic</trackType>

<trackType>polytemporal</trackType>

</CMRecordProfile>

The above example XML response instance indicates that the RaCM device supports all of

track types defined by RaCM specifications. See “/ISAPI/ContentMgmt/record (Recorder

Configuration & Control)” for details about the attributes and behaviors of track types.

The “/ISAPI/ContentMgmt/record/profile” REST resource is a read-only advertisement to

management applications (VMSs, etc.) of the supported track types which, in turn, governs their

configuration options. All RaCM devices are required to support at least one of the sanctioned track

types described in this specification. The “CMRecordProfile” schema definition also enables vendors

to provide their own extensions to this information using a structured extension mechanism. The

schema is described below.

7.2.1 /ISAPI/ContentMgmt/record/profile Schema Definition

XSD File: cmRecordProfile.xsd

RaCM devices list the track types they support which affects the configuration characteristics of

the tracks (i.e. polymorphic tracks can have video and audio sources mixed (for example) whereas

standard tracks contain only one form of media data). For vendors that desire to add their own track

type extensions, this is provided for in the schema with the following conditions:

•

All RaCM devices MUST support at least one of the sanctioned track types (standard,

polymorphic, polytemporal). Any custom track type extensions must be in addition to this

requirement. This is to ensure that all RaCM have a base level of interoperability.

•

All custom extensions listed in a “CMRecordProfile” MUST have the following contents:

o The listed track type of “other” for the custom/extended track type.

o In the “profileExtension” element:

o A URI link to where the formal definition of the extension information can be

accessed.

o A brief description, embedded in the document instance, of what the extension

information means.

o The extension information itself.

7.3 /ISAPI/ContentMgmt/record/tracks

This REST interface is used to configure a recording session or “track”. A track is treated virtually

with regards to how the implementation may actually store the archived media on disk.

The track is generally accessed or referred to by its <id>. The <Stream> number is a logical

(outbound streaming channel) number for the track and is not tightly coupled to the <id>, which is

treated as an index into the <TrackList>.

Note on GUIDs

All UUIDs/GUIDs MUST be universally unique. They can be assigned by a central VMS Server or

GUID broker or auto-generated locally. However, all UUIDs/GUIDs MUST be compliant with the

ISO/IEC 9834-8 / ITU X.667 formats and definitions.

Note on Recording Modes

Currently, those recording modes are defined:

•

CMR – “Continuous Mode Recording” which implies recording media as it is available.

•

EDR – “Alarm or Motion-Driven Recording” which implies recording media when I/O alarms or

video motion are detected.

•

ALARM–“alarm-Driven Recording” which implies recording media when I/O alarms are

detected.

•

MOTION–“alarm or motion-Driven Recording” which implies recording media when io alarms

or video motion are detected.

•

ALARMANDMOTION–“alarm or motion-Driven Recording” which implies recording media

when I/O alarms or video motion are detected.

•

COMMAND–“alarm or motion-Driven Recording” which implies recording media when I/O

alarms or video motion are detected.

• SMART

–“SMART Event Driven Recording” which implies recording media when intelligent

events are detected or triggered.

Track Size

The Track’s size is determined by the <Size> value. However, optionally, some flexibility is

allowed for best-effort by the implementation to honor the <Duration> value.

7.3.1 Custom Configuration Data (Extensions)

Custom configuration information can be added using <CustomExtensionList>, but for interoperability,

the name is assigned to each extension object which MUST be registered with ISAPI, and a schema (XSD)

MUST be provided for the “xs:any” object(s).

7.3.2 ISAPI-REST List-Entry <id> Creation method

Track <id>’s, along with most other list-based <id>’s, are managed (SET) by the target RaCM Device.

The method for track creation (and return of <id> value is in accordance with other list- based XML object

examples in IPMD). See the “/ISAPI/ContentMgmt/record/tracks” Resource Description, below.

7.3.3 Streaming URL implied in <Track> configuration

There is an implied relationship between the REST URL’s and RTSP URL’s.

Within the <Track> configuration, the <Channel> value is used for “live” viewing of the media stream being

recorded to that track, using the URL described in section Live Streams. The Track’s REST <id> value is

used for recorded (i.e. “archive”) media streaming (see below).

7.3.4 Recording Source Description

The source for a recording track is logically described by the <SourceDescriptor>, which is part of the

track configuration. The <SourceDescriptor> contains two important tags which help uniquely identify the

media source: <SrcGUID> and <SrcUrl>. The <SrcGUID> is a GUID/UUID for a stream source, which may

also provide multiple channels of output. The <SrcChannel> value allows for more specific description of

the input media-stream at a logical level.

For a local port, the <SrcUrl> should contain a symbolic reference to a local stream (encoded from a

local /System/Video/inputs/channels) as follows:

rtsp://localhost/ISAPI/Streaming/channels/<id>

Also, for both local and remote sources, the <SrcDriver> provides an optional, vendor specific, hint

with regards to the name of an executable/driver to use for stream acquisition.

7.3.5 Recording Schedule overview

The <TrackSchedule> defines the recording schedule for the Track. It generally contains either

external-references to schedules in the schedule database (/ISAPI/ContentMgmt/schedules) or an

embedded sequence of <ScheduleBlock>’s (typically just one). A <ScheduleBlock> is a single logical

schedule, identified by GUID. The default (embedded) <ScheduleBlock>, in the example, contains the

required identifiers <ScheduleBlockGUID> and <ScheduleBlockType>, along with a sequence of

<ScheduleAction>’s, which are used to build a day-of-week schedule.

This default, day-of-week schedule contains <Actions> to perform during the defined period. A period

is defined by a start-time and end-time, with each time expressed as Day-of-Week and Time- of-Day. The

Day-of-Week value is identified by a restricted name string. The Time-of-Day is expressed in local time, in

order to allow for a more human-intuitive definition of time from the local administrators perspective and

also account for Day-Light-Savings Time. Thus, for a time period expressed as “midnight to 8 am” local

time, the intended elapsed time is 8 hours normally.

However, if Day-Light-Savings Time is enabled, on the morning of transition (in the Spring and

assuming the switch occurs at 2:00 am), the actual elapsed time would represent just 7 hours of time,

during this morning of transition. In the fall, the reverse would be true, and the actual elapsed time, for just

that morning, would be 9 hours.

Example XML fragment (“lunch-time” period):

<DayOfWeek>Monday</DayOfWeek>

</ScheduleActionStartTime>

<DayOfWeek>Monday</DayOfWeek>

</ScheduleActionEndTime>

The start-time is inclusive of the time specified. The end-time is exclusive to allow aggregation of time

period definitions to create a continuum without overlap/conflict.

<ExternalScheduleBlockReferences> allow for reduction in size and simplification of the <Track>

configuration object, by enabling references to shared schedules in a database, as opposed to embedding

them within each <Track> configuration.

7.3.6 Track Description NVP

One of the key elements in each track’s parameter base is the “<Description>” element. This field is a

Comma Separated Variable (CSV) string which contains a list of Name-Value-Pairs (NVP of form

“Name=Value”. With this scheme, the comma (‘,’) and equal (‘=’) are treated as reserved characters;

however, if a Name or Value string must contain and these characters, the XML encoding standard can be

used to embed them if necessary (i.e. replace the ‘=’ with &61, and replace the ‘,’ with &44).

Parameter

Name

Parameter Values

Comments

trackType

 “standard” = normal, single content base track

 “polymorphic” = multi-content type track

 “polytemporal” = multi-time segmented track

Required Field

sourceTag

Manufacturer specific device-type string (e.g. make/model)

Optional

contentType

 “video”

 “audio”

 “metadata”

 “text

NOTE: For polymorphic tracks this indicates the primary,

or predominant, content type.

Required Field

codecType

See Appendix A.

Required Field

resolution

Required for audio/video. Field indicating resolution of the

data elements in a datastream. For video, this is the

horizontal by vertical resolution in a ‘Horizontal x Vertical’

format where ASCII ‘x’ separates the horizontal and

vertical integer numbers. The assumed video format is

progressive (i.e. frame based). For video streams that are

interlaced (i.e. field based) and ASCII lower-case ‘i’ needs

to be. For audio, it is the bit-width of the samples.

If a text protocol is enabled for double-byte characters, this

field should be used to indicate “2B” character sets.

Required for Audio/Video

framerate

Frame rate of encoder output as a floating point number.

Required for Video

bitrate

Bit rate of datastream (bps or kbps integer).

Optional

Examples

<Description>trackType=standard,sourceTag=AXIS210a,contentType=video,codecType=MPEG4-

SP,resolution=640x480,framerate=25.0,bitrate=3200 kbps</Description>

7.3.7 /ISAPI/ContentMgmt/record/tracks

URI

/ISAPI/ContentMgmt/record/tracks

Type

Resource

Function

Description of the REST method parameters and formats available to functionally manipulate

the ‘record/storage/tracks’ resource.

Methods

Query Strin (s)

Inbound Data

Return Result

GET

None

PUT

N/A

POST

N/A

<Track>

DELETE

N/A

Notes

Track Creation: POST (Create) will expect, as HTTP Payload, an individual <Track> object

instead of the <TrackList>. For the Create operation, the <id> tag, within the <Track> XML,

must contain a “dummy” value of 0 (zero).

To lessen possibility for ambiguity, it is not permissible for the Client (xMS) to set the <id>

during track creation, though it is possible for the Client to update (PUT) the entire

<TrackList> (with each entry containing valid <id>’s already set by the target). This is in

alignment with other such list-based REST Resources in IPMD.

Reference Example <ResponseStatus> from Service Model Specification:

<?xml version="1.0" encoding="UTF-8"?>

<requestURL>/Streaming/Channels</requestURL>

<!-- O=1-OK, 2-Device Busy, 3-Device Error, 4-Invalid Operation, 5-Invalid XML Format, 6-Invalid

XML Content; 7-Reboot Required -->

</ResponseStatus>

7.3.8 /ISAPI/ContentMgmt/record/tracks/<id>

Once created, individual Tracks are managed via:

URI

/ISAPI/ContentMgmt/record/tracks/<id>

Type

Resource

RequirementL

evel

Basic

Function

Resource to address (Read/Update) single <Track> by <id>.

Methods

Query Strin (s)

Inbound Data

Return Result

GET

None

<Track>

PUT

None

<Track>

POST

N/A

DELETE

None

7.3.9 Example Track Creation Message Exchange

A. Client attempts track creation with “POST /ISAPI/ContentMgmt/record/tracks” containing:

<?xml version="1.0" encoding="UTF-8"?>

<Description>trackType=standard,sourceTag=AXIS210a,contentType=video,codecType=MPEG

4- SP,resolution=640x480,framerate=20.0,bitrate=6000 kbps</Description>

<TrackGUID>{A01AAAAA-BBBB-CCCC-DDDD-033595353625}</TrackGUID>

</Track>

B. If creation is successful, RaCM Device responds with:

<?xml version="1.0" encoding="UTF-8"?>

<requestURL>/ISAPI/ContentMgmt/record/tracks</requestURL>

</ResponseStatus>

Please note that the <ID> tag is uppercase. This is to match the example in Service Model Specification

(Section 10.1.4). The returned Track <id> value is 777, which will be used in the following Track Deletion

example.

Example Track Deletion Message Exchange

A. Client attempts track deletion with “DELETE /ISAPI/ContentMgmt/record/tracks/777” (no payload),

using <id> previously given by the creation example response, above.

B. If deletion is successful, RaCM Device responds with:

<?xml version="1.0" encoding="UTF-8"?>

<requestURL>/ISAPI/ContentMgmt/record/tracks</requestURL>

</ResponseStatus>

More detailed Single Track XML example (<Schedule> incomplete)

<?xml version="1.0" encoding="UTF-8"?>

<Track>

<Description>trackType=standard,sourceTag=AXIS210a,contentType=video,codecType=MPEG4-SP,

resolution=640x480,frameRate=20 fps,bitrate=6000 kbps</Description>

<TrackGUID>{A01AAAAA-BBBB-CCCC-DDDD-033595353625}</TrackGUID>

<StreamHint>video, mp4, 640x480, 20 fps, 6000 kbps</StreamHint>

<SrcType>mp4 video</SrcType>

<SrcUrl>rtsp://10.3.2.26/mpeg4/media.amp</SrcUrl>

<SrcUrlMethods>DESCRIBE, SETUP, PLAY, TEARDOWN</SrcUrlMethods>

<SrcLogin>admin:admin</SrcLogin>

</SourceDescriptor>

</ScheduleBlockReference>

</ScheduleReference>

</ExternalScheduleBlockReferences>

<ScheduleBlockType>/ISAPI/recording/schedule/default</ScheduleBlockType>

<DayOfWeek>Monday</DayOfWeek>

</ScheduleActionStartTime>

<DayOfWeek>Monday</DayOfWeek>

</ScheduleActionEndTime>

<Description>PreMorning (Midnight to 8am, local time)</Description>

</Actions>

</ScheduleAction>

<DayOfWeek>Monday</DayOfWeek>

</ScheduleActionStartTime>

<DayOfWeek>Monday</DayOfWeek>

</ScheduleActionEndTime>

<Description>Morning (8am to noon, local time) </Description>

</Actions>

</ScheduleAction>

</ScheduleBlock>

</ScheduleBlockList>

</TrackSchedule>

</Track>

</TrackList>

7.3.10 Track List Schema

XSD File: cmTrackList.xsd

7.3.11 /ISAPI/ContentMgmt/record/tracks/<id>/dailyDistributi

URI

/ISAPI/ContentMgmt/record/tracks/<id>/dailyDistribution

Type

Resource

Function

get the track record segments’s daily distribution

Methods

Query String(s)

Inbound Data

Return Result

GET

POST

Notes

<monthOfYear> month of year, start from 1

<dayOfMonth> day of month, start from 1

<record>detect if someday has video recording

<recordType> record type, time: normal record type; event: event record type

XSD File: cmTrackList.xsd

7.4 /ISAPI/ContentMgmt/record/control

This resource is used to send explicit control command to the “record” service.

7.4.1 /ISAPI/ContentMgmt/record/control/manual/start/tracks/<

ID>

URI

/ISAPI/ContentMgmt/record/control/manual/start/tracks/<id>

Type

Resource

RequirementL

evel

Basic

Function

Description of the REST method parameters and formats available to functionally

manipulate the ‘record/control/manual/start’ resource.

Methods

Query String(s)

Inbound Data

Return Result

GET

N/A

PUT

N/A

None

POST

N/A

<ResponseStatus w/error

code>

DELETE

N/A

<ResponseStatus w/error

code>

Notes

This resource is used to manually Start the recording track, regardless of

recording mode.

To Enable or Disable (i.e. permanent Stop) the track, the configuration interface

should be used to update the track configuration object to set the enable/disable

value accordingly.

7.4.2 /ISAPI/ContentMgmt/record/control/manual/stop/tracks/<

ID>

URI

/ISAPI/ContentMgmt/record/control/manual/stop/tracks/<id>

Type

Resource

RequirementL

evel

Basic

Function

Description of the REST method parameters and formats available to functionally

manipulate the ‘record/control/manual/stop’ resource.

Methods

Query String(s)

Inbound Data

Return Result

GET

N/A

PUT

N/A

None

POST

N/A

<ResponseStatus w/error

code>

DELETE

N/A

<ResponseStatus w/error

code>

Notes

This resource is used to manually stop the recording track and regardless of

recording mode.

To enable or disable (i.e. permanent Stop) the track, the configuration interface

should be used to update the track configuration object to set the enable/disable

value accordingly.

7.4.3 /ISAPI/ContentMgmt/record/control/locks

URI

/ISAPI/ContentMgmt/record/control/locks

Type

Resource

Requirement

Level

Basic

Function

Description of the REST method parameters and formats available to functionally

manipulate the ‘/ISAPI/ContentMgmt/record/control/locks’ resource.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

PUT

None

POST

None

DELETE

N/A

Notes

Used to manage the list of recording locks.

(Please refer to “ISAPI-REST List-Entry <id> Creation method above.)

URI

/ISAPI/ContentMgmt/record/control/locks/<id>

Type

Resource

RequirementL

evel

Basic

Function

Resource used to manage a single <RecordingLock> entry.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

PUT

None

POST

N/A

<ResponseStatus w/error

code>

DELETE

None

Notes

XSD File: cmTrackLockList.xsd

8 /ISAPI/ContentMgmt/search

This section of the specification defines the operation and parameters associated with the ‘search’

service within the ISAPI Content Management hierarchy. Tables, examples and schemas are provided

for defining and explaining the search functions.

8.1 /ISAPI/ContentMgmt/search/profile

Due to the complexity of the functions entailed in a recording and content management (RaCM)

device, all RaCM devices MUST provide a ‘profile’ resource (schema instance) such that entities

accessing them may determine their functional level and basic attributes. Details are outlined below.

URI

/ISAPI/ContentMgmt/search/profile

Type

Resource

Function

RaCM Mandatory REST resource/object that publishes the functional profile/level of a

RaCM device and its operable service/resource structure.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

PUT

N/A

POST

N/A

DELETE

N/A

Notes

The ‘GET’ request issued to retrieve an instance of the ‘CMCapabilities’ XML schema.

Example(s)

<?xml version="1.0" encoding="UTF-8"?>

</CMSearchProfile>

The above example represents a hypothetical RaCM device that supports a ‘Full’ profile

for search its functionality (see below for more details). The succeeding “textSearch”

parameter indicates that this device performs raw text string searches on recorded text,

and text-based metadata such as Point-of-Sale, or Automated Teller Machine output. The

next set of optional parameters (though recommended for Full devices) indicates the

maximum number of specific search parameters that can be part of a single instance of a

search criterion. The following parameter, “maxSearchResults” indicates the maximum

number of results the RaCM will pass back per search instance. The optional

“maxSearchTimeout” parameter indicates that the RaCM devices will timeout searches

that exceed two minutes (120 seconds) to execute. The final parameter, which is optional,

indicates the maximum number of concurrent search operations the RaCM device can

support.

8.1.1 /ISAPI/ContentMgmt/search/profile Schema Definition

The ContentMgmt/search/profile schema is used to define the types of searches a RaCM device

supports. A device with a search profile of ‘Basic’ only performs searches with one timespan per search

request (see “/ISAPI/ContentMgmt/search”). Devices that support the ‘Full’ search profile must outline

their parameter limits, as described in the following schema.

XSD File: cmSearchProfile.xsd

8.2 /ISAPI/ContentMgmt/search

The Content Management ‘Search’ service is the primary component for conducting searches of

content bases managed by a ISAPI recording device. Fundamentally, searches are initiated using a

parameter-based criteria set which is conveyed by the initiator to the device via the

‘CMSearchDescription’ XML schema. Since not all programming languages allow content bodies with

HTTP GET methods, both ‘GET’ and ‘POST’ are supported as message types for initiating searches. The

responding device passes back the results in a ‘CMSearchResult’ XML schema instance for search

requests that had valid syntax. If a search request is syntactically invalid (i.e. no payload, malformed

schema instance, etc.), an HTTP response with status code 400 (Bad Request) and a corresponding

‘Response Status’ are returned to the requester. Please note that a syntactically correct search, that has

no matching criteria, returns a ‘CMSearchResult’ schema instance with a ‘NO MATCHES’ status string.

Essentially, most searches are conducted based on time and/or track and/or source related search

parameters. Full profile Content Management devices also support the potential for metadata search

related parameters. More details, and examples, follow.

URI

/ISAPI/ContentMgmt/search/

Type

Service

Function

Mandatory description of the REST method parameters and formats available to

functionally manipulate the ‘search’ resource/object.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

<CMSearchResult or

ResponseStatus w/error

code>

PUT

N/A

<ResponseStatus w/error

code>

POST

None

<CMSearchResult or

ResponseStatus w/error

code>

DELETE

N/A

<ResponseStatus w/error

code>

Notes

The ‘GET’ or ‘POST’ message requires a “CMSearchDescription” XML document to

engage a search. An example XML document instance follows.

Example(s)

<?xml version="1.0" encoding="UTF-8"?>

<CMSearchDescription version="1.0"

xmlns="http://www.isapi.org/ver20/XMLSchema">

</trackIDList>

</timeSpanList>

<contentType>video</contentType>

</contentTypeList>

<metadataDescriptor>recordType.meta.hikvision.com/motion</metadataDescri

ptor>

</metadataList>

</CMSearchDescription>

The above example is for a search of tracks 9, 22, and 43, between twelve noon and

1:30PM on June 10th, 2013 for Video Motion events. The requester does not want

more than 40 results passed back in the search response, and, that matching results

should only be video segments (based on the above “contentTypeList

”).

8.2.1 Search Query Parameter Schema Definition

The following XML schema definition defines the search parameters that are provided to the

ContentMgmt/search service. Basically, an entity can search based on time and/or source and/or tracks

and/or metadata. Basic profile devices are not required to support metadata in their search criteria. Each

search must be given a unique ID (“searchID”) by the initiator. This ID is an ISO/IEC 9834-8/ITU X.667

compliant UUID/GUID. The responder echoes this value back in the search response (see next section) to

correlate the results to the corresponding query. Basic profile devices are only required to support one

query at-a-time. Full profile devices MUST advertise the number of concurrent search queries they can

support (via the “/ISAPI/ContentMgmt/search/profile” Resource).

The ‘cmSearchDescription’ schema allows searches based on: track lists, track state lists, source ID

lists, channel ID lists, timespan lists, and metadata lists. Only one of these criteria is required for a valid

search.

Optional information includes the ability for an initiator to specify that it only wants to receive a

maximum number of responses to a search criteria (i.e. limit the potential number of responses). This is

specified by the “maxResults” element. When this limit is specified in a search request, the responding

device must not send more than the requested number of responses (matches). If the querying entity

specifies a “maxResult” limit that is less than the number of total results that matched the original search

criteria, it must re-issue the search query with the “search ResultsPosition” parameter indicating the

number of prior results the inquirer has already received. For example, a client application searches for

Video Motion events from the prior night and indicates it only wants a maximum of ten results passed back.

The ContentMgmt device, while performing the search, discovers 23 matches. However, the device is only

allowed to pass back the first ten results based on the inquirer’s “maxResults” value. The device does so,

but indicates in the search response schema instance a status string of “MORE”. After this, if the inquirer

desires to retrieve the next set of matching results, it must do so with the same search criteria and a

“searchResultsPosition” value that indicates the cumulative number of results received by the inquirer. In

other words, the “searchResultsPosition” is a walking index used to indicate where an inquirer desires the

searching entity to resume the search.

Another optional search parameter that governs, or conditions, the search result contents is the

“contentTypeList”. This element allows one or more “contentType” designators. These designators

instruct the searching Content Manager to only provide matching result segments that correspond to the

designated content types. The supported content types are: “video”, “audio”, “metadata”, “text”, “mixed”

and “other”. If a search specifies one, or more content types, the searching Content Manager will ignore

matches to the search criteria if the content segment/track does not match the specified content type(s).

If a RaCM device supports raw text searches, searches are allowed to pass in “searchText” as a

search criteria, but only for “text” and/or “metadata” content types. The following conditions and

restrictions apply regarding text searching:

•

The ‘content type’ MUST be specified when conducting searches that involve text. The

applicable content types are “text” and “metadata”.

•

There is an inherent limitation of one text string per search instance.

•

The search string may not exceed 128 characters.

•

ALL text searches are performed in a case insensitive manner such that any combination of

upper and lower casing can be matched (‘open matching’).

•

Any search string that contains whitespace, or special characters, MUST be started and

ended with double-quotes (“).

Since raw text searches are compute intensive, requesters, and RaCM devices, that honor search

timeouts should either: A) ignore timeouts for text searches, or B) timeouts should be lengthened

significantly for text searches.

Finally, RaCM devices that support search timeout limits must allow requesters to

dynamically/optionally specify ‘desired’ timeout limits on a per-search basis. Please note that this is a hint

to the RaCM device to restrict, in a best effort manner, the search operation duration to the time limit

specified in the XML parameter set. If a RaCM device cannot honor the timeout it will process the search

as best it can. Additionally, a RaCM device that does not support search timeouts should ignore a

timeout if it errantly receives one on search request instance.

XSD File: cmSearchDescription.xsd

8.2.2 Search Query Results Schema

The response to a ContentMgmt/search operation, using the “CMSearchDescription”

schema, is defined by the “CMSearchResult” schema definition below. Fundamentally, the

response echoes the initiator’s search ID and an overall status value. The status consists of 2

parts: A) a boolean, called “responseStatus”, indicates overall success or failure, which is

followed by B) the “responseStatusString” which indicates a readable status string that further

qualifies the overall status (e.g. TRUE + “OK”, or TRUE + “MORE” [indicating more matches were

found than the initiator desired to receive], or FALSE + “NO MATCHES [search failed to find

matches to specified criteria], or FALSE + “INVALID TRACK ID” [indicating an invalid track ID had

been provided]). The combination of an overall Boolean status indicator, plus a qualifying string,

allows a requester to quickly determine if a search was successful and then have information

detailing the operation.

After the response status, the responder provides the number of matches found, and a list of

“matchElements” that corresponding the each matching multimedia segment. Each

“matchElement” contains the following information:

•

The source ID of the input source that corresponds to the matching segment;

•

The track ID of the multimedia track that corresponds to the matching segment;

•

The timespan of the matching segment (since it is probably a subset of the overall

search’s timespan);

•

A media segment descriptor that the search initiator can directly use to playback the

corresponding match segment. It contains the following:

o The content type of the segment (video, audio, metadata, text, other);

o The codecType of the content in the segment (e.g. “MPEG4-SP” or G.726);

o The rate attribute of the segment, if applicable;

o The playback URI for the match segment (i.e. a URI of the responder’s definition

that contains all the information necessary to ‘play’ the segment, via RTSP, without

the responder having to recommit another search).

Optionally, the responder can include the following information in a “matchElement” where

applicable and/or supported:

•

The channel ID of the source corresponding the match segment, if the input channel is still

active (i.e. ‘live’);

•

For metadata searches, the fully qualified ISAPI Domain/Class/Type REST URI(s) of the

corresponding events that correlate to the match segment.

8.2.2.1 Search Response Examples

The following example XML schema instances describe some of the potential responses to

search queries. Please note that these examples are provided for reference but there are still

many potential scenarios not directly addressed.

<?xml version="1.0" encoding="UTF-8"?>

</timeSpan>

<contenType>video</contenType>

<playbackURI>rtsp://144.70.13.92:554/ISAPI/Streaming/tracks/27?offset=a07724&

endtime=2013-05-18T10:31.25</playbackURI>

</mediaSegmentDescriptor>

<metadataDescriptor>recordType.meta.hikvision.com/motion</metadataDescriptor>

</metadataMatches>

</matchElement>

</matchList>

</CMSearchResult>

The above example is in response to a search query for video motion events, with respect to

a set of specific sources, i.e. b049902e72-0049-1158-c0d2-7e330680d93c and

b049902e72-0049-1158-c0d2-7e330680755e, for video motion events between 10:30 and

10:45AM on May 18th, 2013. One match (“matchElements”) was found that matched the search

criteria. The status combination of “true” and “OK” indicate a complete response. If there had

been more matches than the requester had allowed for reply, the status would have been “true”

and “MORE” in the “responseStatus” and “responseStatusStrg” fields respectively. The

“mediaURIDescriptor”s provided is exemplary only.

The playback URIs within the match elements are fictional examples that are syntactically

correct. Match element playback URIs are opaque to the requester; they are only required to

contain whatever information the responder needs to playback the corresponding media segment

via RTSP.

<?xml version="1.0" encoding="UTF-8"?>

<responseStatus>false</responseStatus>

<responseStatusStrg>NO MATCHES</responseStatusStrg>

</CMSearchResult>

In this example, a valid search query had no matches for the original criteria provided.

8.2.2.2 Search Result Schema Definition

XSD File: cmSearchResult.xsd

9 /ISAPI/ContentMgmt/logSearch

The services defined log search protocol. The service from the implementation of RaCM

protocol in serach, in addition to the request and the corresponding XML content is different, the

log search mechanism and RaCM in the same search services.

URI

/ISAPI/ContentMgmt/logSearch

Type

Service

RequirementL

evel

- All Profiles -

Function

Mandatory description of the REST method parameters and formats available to

functionally manipulate the ‘logSearch’ resource/object.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

<CMSearchResult

or…ResponseStatus w/error

code>

PUT

N/A

POST

None

<CMSearchResult

or…ResponseStatus w/error

code>

DELETE

N/A

Notes

The ‘GET’ or ‘POST’ messages require a “CMSearchDescription” XML document to

engage a search. An example XML document instance follows.

Example(s)

<?xml version="1.0" encoding="UTF-8"?>

<CMSearchDescription version="1.0"

xmlns="http://www.isapi.org/ver20/XMLSchema">

</timeSpanList>

<metaID>log.hikvision.com/Alarm/motionstart</metaID>

</CMSearchDescription>

The above example is for a search of log of video motion detection, between twelve

noon and 1:30PM on June 10th, 2013 for Video Motion events. The requester does not

want more than 40 results passed back in the search response.

9.1.1 Search Query Parameter Schema Definition

XSD File: cmSearchDescription.xsd

9.1.2 Search Query Results Schema

XSD File: cmSearchResult.xsd

10 Metadata Identity String (MIDS;

“metaID”)

In order to have a large variety of metadata types, that can be commonly processed, and yet

allow flexibility in designing and developing metadata product components, a hierarchical

namespace, forming a metadata taxonomy, is employed. This notation is based on a URI

structure. The format is:

<domain>/<class>/<type>[/attribute/LID][/TransID][/…]

Definitions for the above URI fields are:

10.1 MIDS Field Definitions

Field/Name

Requirement Level

Comments

Domain

Mandatory

The ‘virtual domain’ name of the ordaining

body for the format and definitions that are

used for the associated metadata/event

information. The domain determines the

format, and thus the processing and

interpretation, of metadata/event instance

data.

Class

Optional

Domain-specific ‘Class’ of the

metadata/event information. Some

examples are: “Alarm”, “Exception”, etc.

If Class is not contained, it stands for all of

classes

Type

Optional

Class-dependent type of metadata/event

information. For example, within a class

called “Alarm” there would be types such as:

“motionStart”, “motionStop”, etc.

If Type is not contained, it stands for all of

types

Attribute/LID (‘Local

ID’)

Dependent / Optional

Free-form field that is available for use as

additional descriptive information using the

following rules:

> The convention is that this field MUST be

used as the ‘Local ID’ field for all

metadata/event occurrences that are related

to, or associated with, a channel/port/stream

ID.

> For metadata/event occurrences that have

no correlation to a channel or port (etc.), this

field is optional.

TransID

(Transaction ID)

Optional

A string field that uniquely identifies this

occurrence instance to the source. If a

source entity requires a transactional level

acknowledgement, then this field MAY be

used as an identifier for expressly

acknowledging a specific metadata/event

instance. Please note that the source

UUID/GUID and timestamp of a

metadata/event instance are the standard

fields used for uniqueness. Additional fields

are optional.

In this hierarchical namespace scheme, the Domain is REQUIRED. The Class and Type fields

Attribute/LID and TransID fields are optional. To provide consistent parsing and decoding, the

above described fields are ‘positonal’ within an MIDS URI. Empty slots after the

Domain/Class/Type need not be present.

10.1.1 Domain: event.hikvision.com

Domain:event.hikvison.com：

Class

Type

Attribute/LID (‘Local

ID’)

TransID

(Transaction ID)

VideoMotion

motion

video input

port/dynamical video

input port

motionStart

motionStop

Intrusion

alarmIn

alarm In port

10.1.2 Domain: log.hikvision.com

Domain:log.hikvison.com：

Class

Type

Attribute/LID

(‘Local ID’)

TransID

(Transaction ID)

Alarm

alarmIn

alarm in port

alarmOut

alarm out port

motionStart

video input port

motionStop

video input port

hideStart

video input port

hideStop

video input port

vcaStart

video input port

vcaStop

video input port

lineDetectionStart

video input port

lineDetectionStop

video input port

fieldDetectionStart

video input port

fieldDetectionStop

video input port

audioInputExceptionStart

video input port

audioInputExceptionStop

video input port

soundIntensityMutationStart

video input port

soundIntensityMutationStop

video input port

faceDetectionStart

video input port

faceDetectionStop

video input port

defocusDetectionStart

video input port

defocusDetectionStop

video input port

sceneChangeDetectionStart

video input port

sceneChangeDetectionStop

video input port

Exception

videoLost

video input port

videoException

video input port

videoFormatMismatch

video input port

illlegealAccess

hdError

hdFull

netBroken

recordError

video input port

ipcDisconnect

video input port

ipcIpConfilict

video input port

ipConflict

video input port

poePowerException

video input port

Operation

devicePowerOn

devicePowerOff

deviceRecycle

stopAbnormal

localLogin

localLogOut

localCfgPara

localUpdate

localStartRec

localStopRec

localCtrlPtz

localLockFile

localUnlockFile

localManulAlarm

localFormatDisk

localAddIpc

localDelIpc

localSetIpc

localPlayByFile

localPlayByTime

localDownloadCfgFile

localUploadCfgFile

localDownloadRecFile

localDownloadPicFile

localAddNas

localDelNas

localSetNas

localConfRebRaid

localConfSpareRaid

localAddRaid

locaDelRaid

localMigRaid

localRebRaid

localQuickConfRaid

localAddVd

localDelVd

localStartPicRec

localStopPicRec

localSetSnmp

localResetPasswd

localTagOperation

localLock

localUnlock

localHdTest

remotePowerOff

remotePowerRecycle

remoteLogin

remoteLogout

remoteCfgPara

remoteUpgrade

remoteStartRec

remoteStopRec

remoteCtrlPtz

remoteLockFile

remoteUnlockFile

remoteManulAlarm

remoteFormatHd

remoteAddIpc

remoteDelIpc

remoteSetIpc

remotePlayByFile

remotePlayByTime

remoteDownloadCfgFile

remoteUploadCfgFile

remoteDownloadRecFile

remoteGetPara

remoteGetStatus

remoteStartTransChan

remoteStopTransChan

startVoiceTalk

stopVoiceTalk

remoteArm

remoteDisArm

remoteAddNas

remoteDelNas

remoteSetNas

remoteConfRebRaid

remoteConfSpareRaid

remoteAddRaid

remoteDelRaid

remoteMigRaid

remoteRebRaid

remoteQuickConfRaid

remoteAddVd

remoteDelVd

remoteRpVd

remoteUpgradeRaid

remoteStartPicRec

remoteStopPicRec

remotePicBackUp

remoteSetSnmp

remoteTagOperation

remoteDelHdisk

remoteLoadHdisk

remoteUnloadHdisk

localExpandVd

localStopRaid

remoteExpandVd

remoteStopRaid

Information

hddInfo

smartInfo

startRec

stopRec

delExpiredRec

nasInfo

raidInfo

runStatusInfo

10.1.3 Domain: recordType.meta.hikvision.com

Domain:recordType.meta.hikvison.com：

Class

Type

Attribute/LID (‘Local

ID’)

TransID

(Transaction ID)

Timing

Motion

Alarm

Manual

motionOrAlarm

motionAndAlarm

Smart

11 Streaming and Playback

RaCM devicea must offer ISAPI compliant streaming services for the playback of recorded media

information. For RaCM devices that also offer the ability to serve live streams to clients, and other

multimedia consumers, as a proxy server, these streams must also be provided in an ISAPI compliant

manner. The requirements for multimedia streaming are specified in the “ISAPI IP Media Device API

Specification”. These sections of the IP Media Device specification cover just live streaming. Additionally,

a RaCM device has the ability to stream recorded data. Due to these unique functional differences, the

following exceptions, qualifications, and additions to the IP Media Device specification

11.1 Streaming URIs

11.1.1 Live Streams

The IP Media Device specification specifies the following URI structure for a client/consumer to initiate

and RTSP Streaming session:

rtsp://<addr>:<port>/ISAPI/Streaming/Channels/<id>

This is compatible with channel definitions for RaCM devices as well. All input streams, port or

network-based, are mapped to RaCM device ‘channels’ identified by channel IDs. Each track, in its

configuration, information also contains the corresponding channel ID for its input stream. So, channel IDs

can be obtained by reading track configuration information (see “/ISAPI/ContentMgmt/record/tracks

(Recording Session Configuration)”).

rtsp://10.1.2.55/ISAPI/Streaming/channels/701

In the above example, a client desires to retrieve an RTSP description of channels 701. Please note that

this RTSP URI construct will only work for the RTSP DESCRIBE message/method.

11.1.2 Archive Streams

RaCM devices record multimedia information onto ‘tracks’ which are accessible for RTSP Streaming via

track IDs. The URI structure for Streaming this media information is:

rtsp://<addr>:<port>/ISAPI/Streaming/tracks/<id>

The above 2 URI constructs are direct derivatives of the ISAPI REST resource hierarchy for media

information and match the RaCM notations described herein. Additionally, a client/consumer that

establishes an RTSP session to a RACM device and issues a “DESCRIBE” (see RFC 2326), for a channel

or track, only receives an SDP description of the media information for that specific, channel or track, not

for an entire “presentation” (see RFC 2326). For the use of time as a parameter in the management of

streaming sessions, please see “Time-related streaming” below

11.1.3 Time-related Streaming

For archive streams, there usually is a time component that indicates the desired time range with

respect to a track. In the cases where a consumer needs to specify the specific time range associated with

a streaming session, URI request line parameters are employed for defining the specific time range. The

following parameter tags are used:

•

“starttime”: This parameter tag indicates that it will be followed by and ISO 8601 timestamp

indicating the start time of the media stream the consumer is targeting for description, setup, or

playing.

•

“endtime”: This parameter tag indicates that it will be followed by an ISO 8601 time stamp

indicating the ending time the consumer desires to be the termination point for a media stream.

This parameter field is optional. If it is not present, the stream is to proceed from the start time

until the session is manually terminated, or paused, by the consumer.

The format of the time stamps is ISO 8601 as specified in Section 3.7 of RFC 2326, “Absolute Time.’

This format is almost identical to XML ‘dateTime’ except there are no dashes to separate the fields.

Basically, the format is: YYYYMMDD”T”HHmmSS.fraction”Z” where Y=year, M=month, D=day, “T” is the

time separator, H=hour, m=minutes, S=seconds, and “Z” is the optional field indicating Zulu (GMT) time. A

time stamp example is: “20130526T134258Z” which represents May 26th, 2013 at 1:42.58 PM GMT.

Given the above formatting information, a client using RTSP session management would append the

time stamps to the end of its URI (either track or source-based) as a way of designating the target

timeframe associated with a streaming session. A track-based example follows:

rtsp://10.1.2.39:554/ISAPI/Streaming/tracks/18?starttime=20130731T092241Z&endtime=20130731T

093000Z

In the above example, a requester desires to describe/setup/play a media stream that spans the time

range on July 31st, 2013 from 9:22:48 AM GMT to 9:30AM GMT.

The appending of timestamps as parameters to a URI request line is pertinent for all URIs, even those

returned by the ‘SearchResponse’ since a requester may not desire an entire time segment. Please

reference RFC 2326 for more details on URI and parameter formats.

11.2 Playback

11.2.1 Use of RTSP

The replay protocol is based on RTSP [RFC 2326].

In addition, we make the following stipulations on the usage of RTSP:

1. Interleaved mode ([RFC 2326] section 10.12) MUST be supported by the RACM DEVICE.

2. Clients should use either interleaved mode or RTP/TCP (if supported) .

3. The RACM DEVICE MAY elect not to send RTCP packets during replay. In typical usage, at least

with an ONVIF-aware client, RTCP packets are not required, because usually a reliable transport will be

used, and because absolute time information is sent within the stream, making the timing information in

RTCP sender reports redundant.

11.2.2 Initiating Playback

Playback is initiated by means of the RTSP PLAY method. For example:

PLAY rtsp://192.168.0.1/path/to/recording RTSP/1.0

CSeq: 123

Session: 12345678

Range: clock=20090615T114900.440Z- Rate-Control: no

Reverse playback is indicated using the Scale header field with a negative value. For example to play in

reverse without any data loss a value of –1.0 would be used.

PLAY rtsp://192.168.0.1/path/to/recording RTSP/1.0

CSeq: 123

Session: 12345678

Range: clock=20090615T114900.440Z- Rate-Control: no

Scale: -1.0

11.2.2.1 Range header field

The Range field MUST be expressed using absolute times only; the other formats defined by [RFC

2326] shall not be used.

Either open or closed ranges may be used. In the case of a closed range, the range is increasing (end time

later than start time) for forward playback and decreasing for reverse playback. The direction of the range

MUST correspond to the value of the Scale header.

In all cases, the first point of the range indicates the starting point for replay. Examples:

PLAY rtsp://192.168.0.1/path/to/recording RTSP/1.0

CSeq: 123

Session: 12345678

Range: clock=20090615T114900.440Z-20090615T115000

Rate-Control: no

PLAY rtsp://192.168.0.1/path/to/recording RTSP/1.0

CSeq: 123

Session: 12345678

Range: clock=20090615T115000.440Z-20090615T114900

Rate-Control: no

Scale: -1.0

11.2.2.2 Rate-Control header field

The Rate-Control field is an ONVIF extension and may be either “yes” or “no”. If this field is not present,

“yes” is assumed, and the stream is delivered in real time using standard RTP timing mechanisms. If this

field is “no”, the stream is delivered as fast as possible, using only the flow control provided by the

transport to limit the delivery rate.

12 /ISAPI/ContentMgmt/InputProxy

URI

/ISAPI/ContentMgmt/InputProxy

Type

Service

Methods

Query String(s)

Inbound Data

Return Result

Notes

Dynamical input service.

In this document, expanding the InputProxy and StreamingProxy interfaces to realize the

configuration of the source parameters.

Dynamic video channel generates dynamic stream. When the dynamic video channel is deleted, all

the related dynamic streams will also be deleted.

12.1 /ISAPI/ContentMgmt/InputProxy/sourceCapability

URI

/ISAPI/ContentMgmt/InputPorxy/sourceCapability

Type

Resource

Function

get the source’s capability

Methods

Query String(s)

Inbound Data

Return Result

GET

POST

Notes

XSD File: cmInputProxy.xsd

sourceDescriptor XML Block

<!--req, xs:string “HIKVISION, SONY, ISAPI, ONVIF …”>

</adminProtocol>

</addressingFormatType>

</sourceDescriptor>

sourceCapability XML Block

</sourceCapability>

12.2 /ISAPI/ContentMgmt/InputProxy/search

URI

/ISAPI/ContentMgmt/InputProxy/search

Type

Resource

Function

serach proxy inputs

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

VideoSourceList XML Block

</proxyProtocol>

</addressingFormatType>

</VideoSourceDescriptor>

12.3 /ISAPI/ContentMgmt/InputProxy/ipcConfig

/ISAPI/ContentMgmt/InputProxy/ipcConfig

General Resource v2.0

GET

Description

Export ipc’s configuration data.

Query

None

Inbound Data

None

Success

Return

Opaque Data

PUT

Description

Import ipc’s configuration data.

Query

None

Inbound Data

Opaque Data

Success

Return

Error Status

Code

statusCode

subStatusCode

description

upgrading

device upgrading

noMemory

importErrorData

configOperating

device importing or exporting

Notes:

Configuration file is device-dependant – it may be binary or any other format.

May reboot device after configuration file is applied.

ImportErrorStatus XML Block

<errorCode> <!-- opt, xs:string, chanNumReachLimit, configOperating, badDevType，

badLanguage，importErrorData，importFail> </errorCode>

</ImportIpcCfgError>

<errorRowNo>  </errorRowNo>error number

<errorType> <!-- req, xs:string, channelNoInvalid、channelNoConflict、channel IP/Domain

invalid、channel IP/Domain conflict、channel IP conflict with local IP、protocolError、

adminPortError、channelError、UserNameInvalid、passwordInvalid、transProtocalError -->

</errorType>

</IpcError>

</IpcErrorList>

12.4 /ISAPI/ContentMgmt/InputProxy/customProtocols

/ISAPI/ContentMgmt/InputProxy/customProtocols

General Resource v2.0

GET

Description

It is used to get the configurations of customProtocols.

Query

None

Inbound Data

None

Success

Return

customProtocolList

PUT

Description

It is used to set the configurations of customProtocols.

Query

None

Inbound Data

customProtocolList

Success

Return

ResponseStatus

Notes:

customProtocalList XML Block

</customProtocolList>

12.4.1 /ISAPI/ContentMgmt/InputProxy/customProtocols/

<ID>

/ISAPI/ContentMgmt/InputProxy/customProtocols/ID

General Resource v2.0

GET

Description

It is used to get the configurations of customProtocols.

Query

None

Inbound Data

None

Success

Return

customProtocol

PUT

Description

It is used to set the configurations of customProtocols.

Query

None

Inbound Data

customProtocol

Success

Return

ResponseStatus

Notes:

customProtocol XML Block

</customProtocol>

streamingList XML Block

</streaming>

</streamingList>

12.5 /ISAPI/ContentMgmt/InputProxy/channels

URI

/ISAPI/ContentMgmt/InputProxy/channels

Type

Resource

Function

Access dynamical video input channels.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

PUT

POST

Notes

Dynamical video inputport can be created or deleted.

InputProxyChannelList XML Block

</InputProxyChannelList>

12.6 /ISAPI/ContentMgmt/InputProxy/channels/status

URI

/ISAPI/ContentMgmt/InputProxy/channels/status

Type

Resource

Function

Access dynamical video input channels status.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

Notes

InputProxyChannelStatusList XML Block

</InputProxyChannelStatusList>

12.7 /ISAPI/ContentMgmt/InputProxy/channels/<ID>

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID

Type

Resource

Function

Access dynamical input channel properties.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

DELETE

Notes

<sourceInputPortDescriptor> creates channel by content from the tag.

<adminProtocol>protocol of the IPC

<adminPort>adminPOrt

<srcInputPort> specify inputPort\

<srcLogin> username and password of the channel

InputProxyChannel XML Block

</adminProtocol>

</addressingFormatType>

</sourceInputPortDescriptor>

</InputProxyChannel>

12.8 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/passwor

URI

/ISAPI/ContentMgmt/InputProxy/channels/<ID>/password

Type

Resource

Function

set channel password

Methods

Query String(s)

Inbound Data

Return Result

PUT

None

Notes

InputProxyChannelPassword XML Block

</InputProxyChannelPassword>

12.9 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/netPara

URI

/ISAPI/ContentMgmt/InputProxy/channels/<ID>/netParam

Type

Resource

Function

set netparam for spec channel

Methods

Query String(s)

Inbound Data

Return Result

PUT

None

Notes

InputProxyChannelNetParam XML Block

<InputProxyChannelNetParam version=“1.0”

xmlns=“http://www.isapi.org/ver20/XMLSchema”>

</InputProxyChannelNetParam>

12.10 /ISAPI/ContentMgmt/InputProxy/channels/<ID> /status

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/status

Type

Resource

Function

Access dynamical input channels status.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

Notes

<online> the channel online or outline

<StreamingProxyChannelIdList> the channel dynamic streaming

<relatedIOProxy>channel IO

InputProxyChannelStatus XML Block

</streamingProxyChannelIdList>

</inputProxyPortIdList>

</outputProxyPortIdList>

</relatedIOProxy>

<chanDetectResult> <!-- opt, xs:string, “connect, overSysBandwidth, domainError,

ipcStreamFail, connecting, chanNoError, ipAddrConflictWithDev, ipAddrConflicWithIpc,

errorUserNameOrPasswd, netUnreachable, unknownError，notExist，

ipcStreamTypeNotSupport, ipcResolutionNotSupport” --> </chanDetectResult>

</InputProxyChannelStatus>

12.11 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/video

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video

Type

Resource

Function

Access the special dynamical video input.

Methods

Query String(s)

Inbound Data

Return Result

PUT

None

Notes

12.12 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/video/ov

erlays

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/overlays

Type

Resource

Function

Configure and access text and image overlays.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

DELETE

Notes

IP media devices can overlay additional information on the encoded video stream.

These overlays can be either text information or a set of images. Overlays are

composited together in ID-order when displayed in the video.

VideoOverlay XML Block (refer to IPMD)

12.12.1 ./InputProxy/channels/<ID>/video/overlays/text

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/overlays

/text

Type

Resource

Function

Access and configure text overlays for a particular video channel.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

POST

DELETE

Notes

A set of text overlays is managed. They are composited over the video signal in

increasing ID-order.

TextOverlayList XML Block (refer to IPMD)

12.12.2 ./InputProxy/channels/<ID>/video/overlays/text/<ID

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/overlays

/text/ID

Type

Resource

Function

Access and configure a particular text overlay for a video channel.

Methods

Query String(s)

Inbound Data

Return Result

GET

TextOverlay>

PUT

DELETE

Notes

A text overlay can contain time information and static text with color and transparency

information.

TextOverlay XML Block (refer to IPMD)

12.12.3 ./InputProxy/channels/<ID>/video/overlays/image

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/overlays

/image

Type

Resource

Function

Access and configure image overlays for a particular video channel.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

POST

DELETE

Notes

A set of image overlays is managed. They are composited over the video signal in

increasing ID-order.

ImageOverlayList XML Block (please refer to IPMD)

12.12.4 ./InputProxy/channels/<ID>/video/overlays/image/<

ID>

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/overlays

/image/ID

Type

Resource

Function

Access and configure a particular image overlay for a video channel.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

DELETE

Notes

An image overlay can contain time information and static text with color and

transparency information.

In order to enable image overlay, an image must have been previously uploaded to

the device using the /ISAPI/System/Video/overlayImages command.

ImageOverlay XML Block (please refer to IPMD)

12.13 /ISAPI/ContentMgmt/InputProxy/channels/<ID>/video/pri

vacyMask

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/privacy

Mask

Type

Resource

Function

Access and configure privacy masking.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

Notes

Privacy masking can be enabled and the region list configured per channel.

PrivacyMask XML Block (please refer to IPMD)

12.13.1 ./InputProxy/channels/<ID>/video/privacyMask/regi

ons

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/Video/privacyMask/

regions

Type

Resource

Function

Access and configure privacy mask regions.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

POST

DELETE

Notes

Privacy masking consists of a set of regions that are combined to grey or black out

areas of a video input.

PrivacyMaskRegionList XML Block (please refer to IPMD)

12.13.2 ./InputProxy/channels/<ID>/video/privacyMask/regi

ons/<ID>

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/privacyMask

/regions/ID

Type

Resource

Function

Access and configure a particular privacy mask region.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

DELETE

Notes

Region coordinates are dependent on video resolution. Regions will be “drawn”

from the coordinates provided in a top-down fashion. At least three

<RegionCoordinates> blocks must be provided for a single PrivacyMaskRegion>

block.

Ordering of <PrivacyMaskRegion> blocks is insignificant.

PrivacyMaskRegion XML Block (please refer to IPMD)

12.14 /ISAPI/ContentMgmt/InputProxy

channels/<ID>/video/tamperDetection

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/tamperDetecti

Type

Service

Function

Tamper detection configuration for a dynamic video input channel.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

Notes

<coordinateCapabilities> coordinate for every regional

TamperDetectionChannel XML Block (please refer to IPMD)

12.14.1 ./InputProxy/channels/<ID>/video/tamperDetection/

regions

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/tamperDetecti

on/regions

Type

Resource

Function

Access the list of regions for tamper detection on a particular video input channel.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

POST

DELETE

Notes

TamperDetectionRegionList XML Block (please refer to IPMD)

12.14.2 ./InputProxy/channels/<ID>/video/tamperDetection/

regions/<ID>

URI

/ISAP/Custom/SelfExt/TamperDetection/channels/ID/regions/ID

Type

Resource

Function

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/tamperDetection/region/ID

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

DELETE

Notes

Region coordinates are dependent on video resolution. Regions will be “drawn” from

the coordinates provided in a top-down fashion. At least three <RegionCoordinates>

blocks must be provided for a single <TamperDetectionRegion> block.

Ordering of <TamperDectectionRegion> blocks is insignificant.

TamperDetectionRegion XML Block (please refer to IPMD)

12.15 /ISAPI/ContentMgmt/InputProxy

/channels/<ID>/video/motionDetection

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/motionDetecti

Type

Service

Function

Tamper detection configuration for a dynamic video input channel.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

Notes

MotionDetection XML Block (please refer to IPMD)

12.15.1 ./InputProxy/channels/<ID>/video/motionDetection/

layout

URI

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/motionDetectio

n/layout

Type

Resource

Function

Access the list of regions for tamper detection on a particular video input channel.

Methods

Query String(s)

Inbound Data

Return Result

GET

< MotionDetectionGridLayout >

PUT

< MotionDetectionGridLayout >

Notes

MotionDetectionGridLayout XML Block (please refer to IPMD)

12.15.2 /ISAPI/ContentMgmt/InputProxy/channels/ID/video/

smartDetection

When some smart events are detetected or triggered, these devices support to pop up an alarm

image, audio alarm, Email alarm, trigger alarm output, trigger recording on a channel or capture a

picture, etc.

/ISAPI/ContentMgmt/InputProxy/channels/ID/video/smartDetection

General Resource

v2.0

GET

Description

It is used to get a particular smart detection configuration.

Query

None

Inbound Data

None

Success Return

SmartDetection

PUT

Description

It is used to update a particular smart detection configuration.

Query

None

Inbound Data

SmartDetection

Success Return

ResponseStatus

Notes:

SmartDetection XML Block

</SmartDetection>

13 / ISAPI/ContentMgmt/IOProxy

URI

/IISAPI/ContentMgmt/IOProxy

Type

Service

Methods

Query String(s)

Inbound Data

Return Result

GET

< IOProxyPortList>

Notes

The allocation of IDs between dynamic input and output ports must be unique.

IOProxyPortList XML Block

</IOProxyPortList>

13.1 /ISAPI/ContentMgmt/IOProxy/status

URI

/ISAPI/ContentMgmt/IOProxy/status

Type

Resource

Function

Query the dynamic IO status

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

The allocation of IDs between dynamic input and output ports must be unique.

IOProxyPortStatusList XML Block (please refer to IPMD)

13.2 / ISAPI/ContentMgmt/IOProxy/inputs

URI

/ISAPI/ContentMgmt/IOProxy/inputs

Type

Resource

Function

Access dynamic input ports

Methods

Query String(s)

Inbound Data

Return Result

GET

<hik:IOProxyInputPortList>

PUT

<hik:IOProxyInputPortList>

POST

<hik:IOProxyInputPort>

Notes

The resource is or not support POST method,the device support create IO.

IOProxyInputPortList XML Block

</IOProxyInputPortList>

13.3 / ISAPI/ContentMgmt/IOProxy/inputs/ID

URI

/ISAPI/ContentMgmt/IOProxy/inputs/ID

Type

Resource

Function

Access the particular dynamic input port

Methods

Query String(s)

Inbound Data

Return Result

GET

<hik:IOProxyInputPort>

PUT

<hik:IOProxyInputPort>

DELETE

Notes

IOInputPort XML Block

<!—req xs:enumeration “HIKVISION, AXIS, PANASONIC, BOSCH, PELCO, SONY…”-->

</proxyProtocol>

</addressingFormatType>

</IODescriptor >

</IOProxyInputPort>

13.4 / ISAPI/ContentMgmt/IOProxy/inputs/ID/status

URI

/ISAPI/ContentMgmt/IOProxy/input/ID/status

Type

Resource

Function

Query the status of a dynamic input port

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

IOPortStatus XML Block (please refer to IPMD)

13.5 / ISAPI/ContentMgmt /IOProxy/outputs

URI

/ISAPI/ContentMgmt/IOProxy/outputs

Type

Resource

Function

Access dynamic input ports

Methods

Query String(s)

Inbound Data

Return Result

GET

<hik:IOProxyOutputPortList>

PUT

<hik:IOProxyOutputPortList>

POST

<hik:IOProxyOutputPort>

Notes

IOProxyOutPortList XML Block

</IOProxyOutputPortList>

13.6 / ISAPI/ContentMgmt/IOProxy/outputs/ID

URI

/ISAPI/ContentMgmt/IOProxy/outputs/ID

Type

Resource

Function

Access the particular dynamic output port

Methods

Query String(s)

Inbound Data

Return Result

GET

<hik:IOProxyOutputPort>

PUT

<hik:IOProxyOutputPort>

DELETE

Notes

IOProxyOutputPort XML Block

</PowerOnState>

</IOProxyOutputPort>

13.7 / ISAPI/ContentMgmt /IOProxy/outputs/ID/trigger

URI

/ISAPI/ContentMgmt/IOProxy/outputs/ID/trigger

Type

Resource

Function

Manually trigger an dynamical output port.

Methods

Query String(s)

Inbound Data

Return Result

PUT

outputState

pulseDuration

Notes

Either the inbound data or query string values are used.

The IO output port is toggled to a high or low signal accordingly. If the <outputState>

refers to pulse, then the <pulseDuration> tag must be provided and the output port will

be triggered to the specified state for the duration specified by <pulseDuration>.

IOPortData XML Block (please refer to IPMD)

13.8 /ISAPI/ContentMgmt/IOProxy/outputs/ID/status

URI

/ISAPI/ContentMgmt/IOProxy/outputs/ID/status

Type

Resource

Function

Query the status of a dynamic output port

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

See /ISAPI/ContentMgmt/IOProxy/status for an explanation of the fileds.

IOPortStatus XML Block (please refer to IPMD)

14 /ISAPI/ContentMgmt/ZeroVideo

URI

/ISAPI/ContentMgmt/ZeroVideo

Type

Service

Methods

Query String(s)

Inbound Data

Return Result

Notes

Zero Video service.

14.1 /ISAPI/ContentMgmt/ZeroVideo/channels

URI

/ISAPI/ContentMgmt/ZeroVideo/channels

Type

Resource

Function

Access zero video channels.

Methods

Query String(s)

Inbound Data

Return Result

GET

None

Notes

Since zero video input channels are resources that are defined by the hardware

configuration of the device, they cannot be created or deleted.

ZeroVideoChannelList XML Block

</ZeroVideoChannelList>

14.2 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>

URI

/ISAPI/ContentMgmt/ZeroVideo/channels/ID

Type

Resource

Function

Access zero video input channel properties.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

Notes

None

ZeroVideoChannel XML Block

14.3 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>/enlarge

URI

/ISAPI/ContentMgmt/ZeroVideo/channels/ID/enlarge

Type

Resource

Function

Get or set zero chan video input enlarge configuration

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

Notes

mousePosition: the device uses this element to decide which sub screen should be

enlarged.

ZeroVideoEnlarge XML Block

</mousePosition>

14.4 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>/switchScr

een

URI

/ISAPI/ContentMgmt/ZeroVideo/channels/ID/switchScre

Type

Resource

Function

Switch screen

Methods

Query String(s)

Inbound Data

Return Result

PUT

Notes

ZeroVideoSwitch XML Block

14.5 /ISAPI/ContentMgmt/ZeroVideo/channels/<ID>/previewC

URI

/ISAPI/ContentMgmt/ZeroVideo/channels/ID/previewCfg

Type

Resource

Function

Get or set zero chan video input preview configuration

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

Notes

screenMode: sub screen nums per screen

subScreenOrder: sub screen order. Attribute ‘order’ represent sub screen order, for

example: order=”1,3,5,2,4”.

ZeroVideoPreview XML Block

</subScreenOrder>

15 /ISAPI/ContentMgmt/ImageProxy

URI

/ISAPI/ContentMgmt/ImageProxy

Type

Service

Methods

Query String(s)

Inbound Data

Return Result

Notes

Image Proxy service

Image Proxy service (please refer to IPMD)

16 /ISAPI/ContentMgmt/SnapshotProxy

URI

/ISAPI/ContentMgmt/SnapshotProxy

Type

Service

Methods

Query String(s)

Inbound Data

Return Result

Notes

Snapshot Proxy service

Snapshot Proxy service (please refer to IPMD)

17 /ISAPI/ContentMgmt/PTZCtrlProxy

URI

/ISAPI/ContentMgmt/PTZCtrlProxy

Type

Service

Methods

Query String(s)

Inbound Data

Return Result

Notes

Ptz Proxy service

PTZ Control Proxy service (please refer to IPMD PTZ)

18 /ISAPI/ContentMgmt/StreamingProxy

URI

/ISAPI/ContentMgmt/StreamingProxy

Type

Service

Methods

Query String(s)

Inbound Data

Return Result

Notes

dynamical Streaming service

Streaming Proxy service (please refer to IPMD Streaming)

19 /ISAPI/ContentMgmt/ZeroStreaming

URI

/ISAPI/ContentMgmt/ZeroStreaming

Type

Service

Methods

Query String(s)

Inbound Data

Return Result

Notes

Zero Streaming service

19.1 /ISAPI/ContentMgmt/ZeroStreaming/status

URI

/ISAPI/ContentMgmt/ZeroStreaming/status

Type

Resource

Function

Query the device zero streaming status.

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

This command accesses the status of all devices zero streaming sessions.

ZeroStreamingStatus XML Block

</ZeroStreamingStatus>

19.2 /ISAPI/ContentMgmt/ZerStreaming/channels

URI

/ISAPI/ContentMgmt/ZeroStreaming/channels

Type

Resource

Function

Zero Streaming channels.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

POST

DELETE

Notes

Zero Streaming channels may be hardwired, or it may be possible to create multiple

streaming channels per input if the device supports it. To determine whether it is

possibly to dynamically create streaming channels, check the defined HTTP methods

in /ISAPI/ContentMgmt/Streaming/channels/description.

ZeroStreamingChannelList XML Block

</ZeroStreamingChannelList>

19.3 /ISAPI/ContentMgmt/ZeroStreaming/channels/<ID>

URI

/ISAPI/ContentMgmt/ZeroStreaming/channels/ID

Type

Resource

Function

Access zero streaming channels.

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

DELETE

Notes

<videoInputChannelID> refers to /ISAPI/ContentMgmt/ZeroVideo/ /channels/ID.

ZeroStreamingChannel XML Block

<Video>

</videoCodecType>

</videoQualityControlType>

</Video>

</ZeroStreamingChannel>

19.4 /ISAPI/ContentMgmt/ZeroStreaming/channels/<ID>/statu

URI

/ISAPI/ContentMgmt/ZeroStreaming/channels/ID/status

Type

Resource

Function

Get the list of zero streaming sessions associated with a particular channel.

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

Use of IPv4 or IPv6 addresses depends on the value of the <ipVersion> field in

/ISAPI/System/Network/interfaces/ID/ipAddress.

StreamingSessionStatus XML Block

<ZeroStreamingSessionStatusList version=“1.0”

xmlns=“http://www.isapi.org/ver20/XMLSchema”>

</ZeroStreamingSessionStatusList>

20 /ISAPI/ContentMgmt/Storage

URI

/ISAPI/ContentMgmt/storage

Type

Service

Function

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

storage XML Block

</storage>

20.1 /ISAPI/ContentMgmt/Storage/hdd

URI

/ISAPI/ContentMgmt/Storage/hdd

Type

Resource

Function

Device HDD management

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

hddList XML Block

</hddList>

20.2 /ISAPI/ContentMgmt/Storage/hdd/<ID>

URI

/ISAPI/ContentMgmt/Storage/hdd/<ID>

Type

Resource

Function

set specify hdisk

Methods

Query String(s)

Inbound Data

Return Result

GET

<hdd>

PUT

<hdd>

Notes

<property>hdisk attribute: RW, RO and Redund

<group>hdisk group

hdd XML Block

</hddType>

<status> <!--ro, req, xs:string “ok, unformatted, error, idle, mismatch, offline, smartFailed,

reparing, formating, notexist...” --> </status>

</hdd>

20.3 /ISAPI/ContentMgmt/Storage/hdd/<ID>/format

URI

/ISAPI/ContentMgmt/Storage/hdd/<ID>/format

Type

Resource

Function

Format specified hdd disk

Methods

Query String(s)

Inbound Data

Return Result

PUT

<hdd>

Notes

20.4 /ISAPI/ContentMgmt/Storage/hdd/<ID>/formatStatus

URI

/ISAPI/ContentMgmt/Storage/hdd/<ID>/formatStatus

Type

Resource

Function

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

formatStatus XML Block

</formatStatus>

20.5 /ISAPI/ContentMgmt/Storage/nas

URI

/ISAPI/ContentMgmt/Storage/nas

Type

Resource

Function

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

POST

<nas>

Notes

nasList XML Block

</nasList>

20.6 /ISAPI/ContentMgmt/Storage/nas/<ID>

URI

/ISAPI/ContentMgmt/Storage/nas/<ID>

Type

Resource

Function

Methods

Query String(s)

Inbound Data

Return Result

GET

<nas>

PUT

<nas>

DELETE

Notes

<nasType>support NFS，iSCSI。

<property> attribute :RW, RO and RDD

<group>

nas XML Block

</addressingFormatType>

<status> <!--ro, req, xs:string “ok, unformatted, error, idle, mismatch, offline, smartFailed,

reparing, formating, notexist...” --> </status>

</nas>

20.7 /ISAPI/ContentMgmt/Storage/nas/<ID>/format

URI

/ISAPI/ContentMgmt/nas/<ID>/format

Type

Resource

Function

Remote format specified NFS/ISCSI

Methods

Query String(s)

Inbound Data

Return Result

PUT

<hdd>

Notes

20.8 /ISAPI/ContentMgmt/Storage/nas/<ID>/formatStatus

URI

/ISAPI/ContentMgmt/Storage/nas/<ID>/formatStatus

Type

Resource

Function

Get format process

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

formatStatus XML Block(please refer to Chapter 20.4)

20.9 /ISAPI/ContentMgmt/Storage/nas/search

URI

/ISAPI/ContentMgmt/Storage/nas/search

Type

Resource

Function

Get nas directoryList from a specify nas server.

Methods

Query String(s)

Inbound Data

Return Result

GET

POST

Notes

nasServerDescriptor XML Block

</nasServerDescriptor>

nasDirectoryList XML Block

</nasDirectory>

</nasDirectoryList>

20.10 /ISAPI/ContentMgmt/Storage/quota

URI

/ISAPI/ContentMgmt/Storage/quota

Type

Resource

Function

Manage disk quota

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

diskQuotaList XML Block

</diskQuotaList>

20.11 /ISAPI/ContentMgmt/Storage/quota/<ID>

URI

/ISAPI/ContentMgmt/Storage/quota/<ID>

Type

Resource

Function

Manage specify channel quota

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

Notes

diskQuota XML Block

<type>  </type> // absent-ratio; otherwise-volume

</diskQuota>

20.12 /ISAPI/ContentMgmt/Storage/extract

URI

/ISAPI/ContentMgmt/Storage/extract

Type

Resource

Function

Manage specify channel extract

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

Notes

diskExtract XML Block

</diskExtract>

20.13 /ISAPI/ContentMgmt/Storage/diskGroup

URI

/ISAPI/ContentMgmt/Storage/diskGroup

Type

Resource

Function

Methods

Query String(s)

Inbound Data

Return Result

GET

Notes

diskGroupList XML Block

</diskGroupList>

20.14 /ISAPI/ContentMgmt/Storage/diskGroup/<ID>

URI

/ISAPI/ContentMgmt/Storage/diskGroup/<ID>

Type

Resource

Function

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

Notes

diskGroup XML Block

</videoInputChannelIDList>

</diskGroup>

20.15 /ISAPI/ContentMgmt/Storage/extension

URI

/ISAPI/ContentMgmt/Storage/extension

Type

Resource

Function

Get or set the configuration information of network extension

Methods

Query String(s)

Inbound Data

Return Result

GET

PUT

Notes

BondList XML Block

</storageExtension>

21 / ISAPI/ContentMgmt/download

URI

/ISAPI/ContentMgmt/download

Type

Resource

Function

Down load a special record segment

Methods

Query String(s)

Inbound Data

Return Result

GET

Record data

PUT

< downloadRequest>

Notes

Playback URI is returned by the search service. In the url, there may be some

information about the name or size of the segment. For example,

rtsp://<host>/Streaming/tracks/<id>?name=track1segment1&size=1024B

downloadRequest XML Block

</downloadRequest>

22 Appendix A: Codec Type Dictionary

The ‘Codec Tag’s below represent the literal ASCII strings employed to identify the specific codec

standards listed below.

Codec Tag (Literal) Codec Tag Description

Audio Codecs

G.711 ITU G.711 (PCM) audio codec format (a-/u-law determined by SDP or XML

G.711a ITU G.711 (PCM) audio codec format; a-law encoding

G.711u ITU G.711 (PCM) audio codec format; u-law encoding

G.726 ITU G.726 (ADPCM) audio codec format (bitrate advertised by SDP or XML)

G.723.1 ITU G.723.1 audio codec format

G.728 ITU G.728 audio codec format

G.722, G.722.1, G.722.2

ITU G.722/.1/.2 audio codec formats (SB-ADPCM)

G.728 ITU G.728 (LD-CELP) audio codec format G.729, G.729.1 ITU G.729/.1

(CS-ACELP) audio codec format MP3 MPEG-1/Layer 3 audio codec format

AAC MPEG-2/4 Advanced Audio Codec format

Video Codecs

MPEG4-SP ISO/IEC 14496-2 MPEG-4 Simple Profile

MPEG4-ASP ISO/IEC 14496-2 MPEG-4 Advanced Simple Profile

MPEG4-MP ISO/IEC 14496-2 MPEG-4 Main Profile

H.264-BP ISO/IEC 14496-10/ITU H.264 Baseline Profile H.264-MP ISO/IEC

14496-10/ITU H.264 Main Profile H.264-HP ISO/IEC 14496-10/ITU H.264 High Profile

H.264SVC-BP ISO/IEC 14496-10/ITU H.264 Scalable Video Codec (SVC), Baseline Profile

encoding (Must read s-props/p-props and SDP for embedded stream info)

H.264SVC-MP ISO/IEC 14496-10/ITU H.264 Scalable Video Codec (SVC), Main Profile encoding

(Must read s-props/p-props and SDP for embedded stream info)

MPEG2-MP ISO/IEC 13818 MPEG-2 Main Profile

MJPEG Motion version (multi-frame) of ISO/IEC JPEG video encoding (see below) JPEG

ISO/IEC 10918 JPEG video encoding JPEG2000 ISO/IEC 154
