SERVICE

MANUAL

HF/VHF/UHF ALL MODE TRANSCEIVER

S-14214HZ-C1

Dec. 2005

INTRODUCTION

This service manual describes the latest service information

for the IC-7000 HF/VHF/UHF ALL MODE TRANSCEIVER

at the time of publication.

ORDERING PARTS

Be sure to include the following four points when ordering

replacement parts:

1. 10-digit Icom parts number

2. Component name and informations

3. Equipment model name and unit name

4. Quantity required

5030002820 LCD LTA025A161A IC-7000 Front unit 5 pieces

8810009610 Screw FH M2.6 × 6 ZK IC-7000

To p c ove r

10 pieces

Addresses are provided on the inside back cover for your

convenience.

REPAIR NOTES

1. Make sure the problem is internal before disassembling

the transceiver.

2. DO NOT open the transceiver until the transceiver is

disconnected from its power source.

3. DO NOT force any of the variable components. Turn

them slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An

insulated turning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the

transceiver is defective.

6. DO NOT transmit power into a signal generator or a

sweep generator.

7. ALWAYS connect a 50 dB to 60 dB attenuator between

the transceiver and a deviation meter or spectrum

analyzer when using such test equipment.

8. READ the instructions of test equipment thoroughly

before connecting equipment to the transceiver.

To upgrade quality, all electrical or mechanical parts and internal

circuits are subject to change without notice or obligation.

VER.NO. VERSION SYMBOL

#02 Europe EUR

#03 France FRA

#04 Spain ESP

#05 U.S.A. USA

#08 Export EXP

#10 United Kingdom UK

Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United

Kingdom, Germany, France, Spain, Russia and/or other countries.

NEVER connect the transceiver to an AC outlet or to a DC

power supply that uses more than 16 V. Such a connection

could cause a fire or electric hazard.

DO NOT expose the transceiver to rain, snow or any liquids.

DO NOT reverse the polarities of the power supply when

connecting the transceiver.

DO NOT apply an RF signal of more than 20 dBm (100 mW)

to the antenna connector. This could damage the trans-

ceiver's front end.

DANGER

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 CIRCUIT DESCRIPITON

3 - 1 RECEIVER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1

3 - 2 TRANSMITTER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4

3 - 3 DDS CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 6

3 - 4 LOGIC CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8

3 - 5 POWER SUPPLY CIRCUITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8

3 - 6 PORT ALLOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 9

SECTION 4 ADJUSTMENT PROCEDURES

4 - 1 PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1

4 - 2 DDS ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3

4 - 3 DISPLAY ADJUSTMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3

4 - 4 TRANSMITTER ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3

4 - 5 RECEIVER ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 11

SECTION 5 PARTS LIST

SECTION 6 MECHANICAL PARTS AND DISASSEMBLY

SECTION 7 SEMI-CONDUCTOR INFORMATION

SECTION 8 BOARD LAYOUTS

8 - 1 DISPLAY UNIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1

8 - 2 VR UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1

8 - 3 MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 3

8 - 4 PA UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 5

8 - 5 DDS UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 7

8 - 6 LOGIC UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 9

8 - 7 CONNECT UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 11

8 - 8 DRIVER UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 11

8 - 9 HM-151 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 11

SECTION 9 WIRING DIAGRAM

SECTION 10 BLOCK DIAGRAM

SECTION 11 CIRCUIT DIAGRAMS

11 - 1 DISPLAY/VR/CONNECT UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 1

11 - 2 MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 3

11 - 3 LOGIC UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 7

11 - 4 PA/DRIVER UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 10

11 - 5 DDS UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 13

SECTION 1 SPECIFICATIONS

1 - 1

¤ GENERAL

• Frequency coverage :

Receive 0.030 – 199.999999 MHz*1,*2

400.000 – 470.000000 MHz*1,*2

Transmit 1.800 – 1.999999 MHz*2

3.500 – 3.999999 MHz*2

5.260 – 5.405000 MHz*2

7.000 – 7.300000 MHz*2

10.100 – 10.150000 MHz

14.000 – 14.350000 MHz

18.068 – 18.168000 MHz

21.000 – 21.450000 MHz

24.890 – 24.990000 MHz

28.000 – 29.700000 MHz

50.000 – 54.000000 MHz*2

144.000 – 148.000000 MHz*2

430.000 – 450.000000 MHz*2

1 Some frequency bands are not guaranteed.

2 Depending on version.

• Mode : USB, LSB, CW, RTTY (FSK), AM,

FM, WFM (WFM is for receiver only)

• Number of memory ch. : 503 (495 split, 6 scan edges, 2 call)

• Antenna connector : SO-239 × 2

(for HF/50 MHz and 144/430 MHz)/50

Ω

• Power supply requirement : 13.8 V DC ±15% (negative ground)

• Frequency stability : Less than ±0.5 ppm

(0˚C to +50˚C ;+32˚F to +122˚F)

• Current drain :

Transmit at 100 W 22 A

Receive standby 1.3 A

max. audio 1.6 A

• Usable temperature range : –10˚C to +60˚C (+14˚F to +140˚F)

• Dimensions : 167(W) × 58(H) × 180(D) mm

(proj. not included) 69⁄16(W) × 29⁄32(H) × 73⁄32(D) inch

• Weight (approx.) : 2.3 kg (5 lb 1 oz)

• CI-V connectors : 2-conductor 3.5 (d) mm (1⁄8″)

• Video connector : 2-conductor 3.5 (d) mm (1⁄8″)

• ACC connector : 13-pin

• Data connector : 6-pin

¤ TRANSMITTER

• Output power :

• Modulation system :

SSB Digital PSN modulation

AM Digital Low Power modulation

FM Digital Phase modulation

• Spurious emissions :

below 30 MHz bands Less than –50 dB

above 50 MHz bands Less than –60 dB

• Carrier suppression : More than 50 dB

• Unwanted sideband : More than 50 dB

• Microphone connector : 8-pin modular jack (600 Ω)

• KEY connector : 3-conductor 6.35 (d) mm (1⁄4″)

• RTTY connector : 3-conductor 3.5 (d) mm (1⁄8″)

¤ RECEIVER

• Receive system :

SSB/CW/AM/FM Triple conversion superheterodyne

WFM Double conversion superheterodyne

• Intermediate frequencies :

• Receive sensitivity : (pre-amp ON)

Note: SSB, CW and AM modes are measured at 10 dB S/N; FM mode at

12 dB SINAD.

*1 Except 4–4.5 MHz, 8–9 MHz.

*2 FM mode: 28–29.7 MHz

• Squelch Sensitivity : (pre-amp ON)

SSB Less than 5.6 µV

FM Less than 0.3 µV

• Selectivity : (Sharp filter is selected)

SSB (BW=2.4 kHz) More than 2.4 kHz/–6 dB

Less than 3.6 kHz/–60 dB

CW (BW=500 Hz) More than 500 Hz/–6 dB

Less than 900 Hz/–60 dB

RTTY (BW=350 Hz) More than 360 kHz/–6 dB

Less than 650 kHz/–60 dB

AM (BW=6 kHz) More than 6.0 kHz/–6 dB

Less than 15 kHz/–60 dB

FM (BW=15 kHz) More than 12 kHz/–6 dB

Less than 20 kHz/–60 dB

• Spurious and image rejection ratio:

HF bands More than 70 dB

50 MHz band More than 70 dB (except IF/2 through)

144/430 MHz bands More than 65 dB

(except 144 MHz band IF through)

• Audio output power : More than 2.0 W at 10% distortion

(at 13.8 V DC) with an 8 Ω load

• RIT variable range : ±9.99 kHz

• PHONES connector : 3-conductor 3.5 (d) mm (1⁄8″)/8 Ω

• EXT SP connector : 2-conductor 3.5 (d) mm (1⁄8″)/8 Ω

SSB/

CW/

RTTY

AM FM WFM

0.5–1.8 MHz –– 13 µV –– ––

1.8–28 MHz*1

0.15 µV 2.0 µV –– ––

28–29.995 MHz*20.5 µV ––

50 MHz band 0.12 µV 1.0 µV 0.25 µV ––

76–108 MHz –– –– –– 10 µV

144/430 MHz

bands 0.11 µV 1.0 µV 0.18 µV ––

1st IF 2nd IF 3rd IF

SSB/CW/AM/

RTTY/FM 124.487 MHz 455 kHz 16.15 kHz

WFM 134.732 MHz 10.700 MHz ––

SSB/CW/

RTTY/FM AM

1.8–50 MHz bands 2–100 W 1–40 W

144 MHz band 2–50 W 2–20 W

430 MHz band 2–35 W 2–14 W

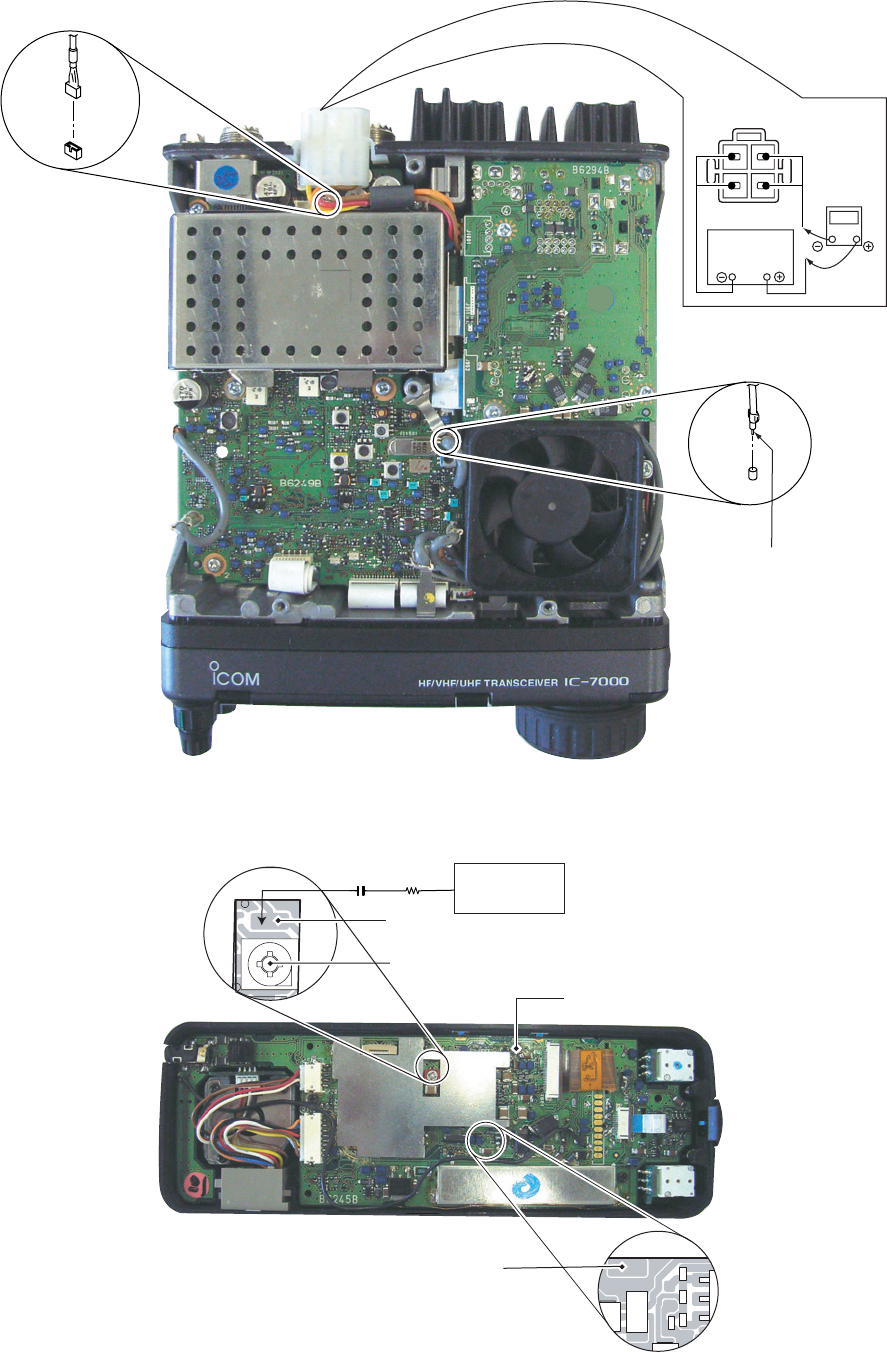

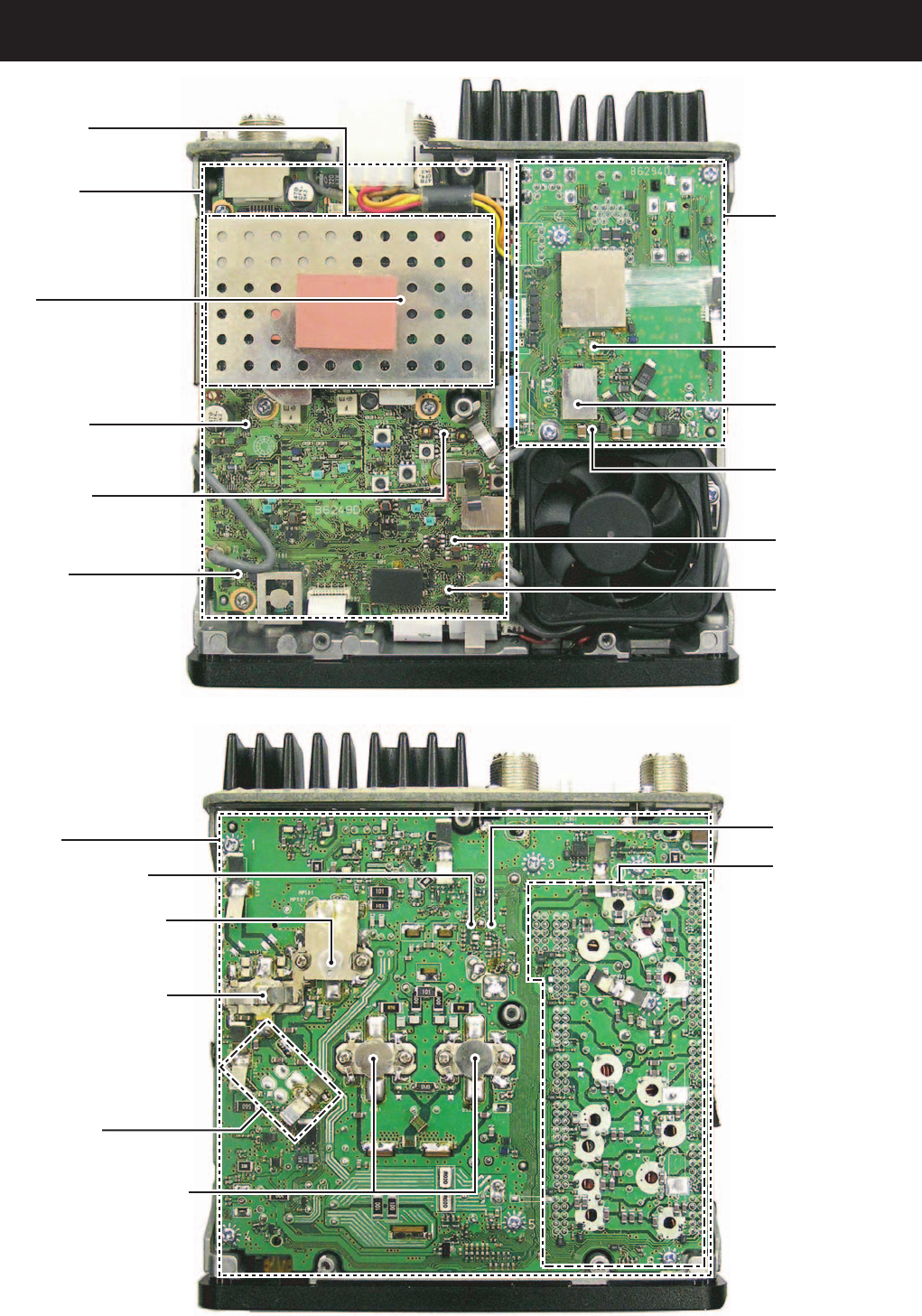

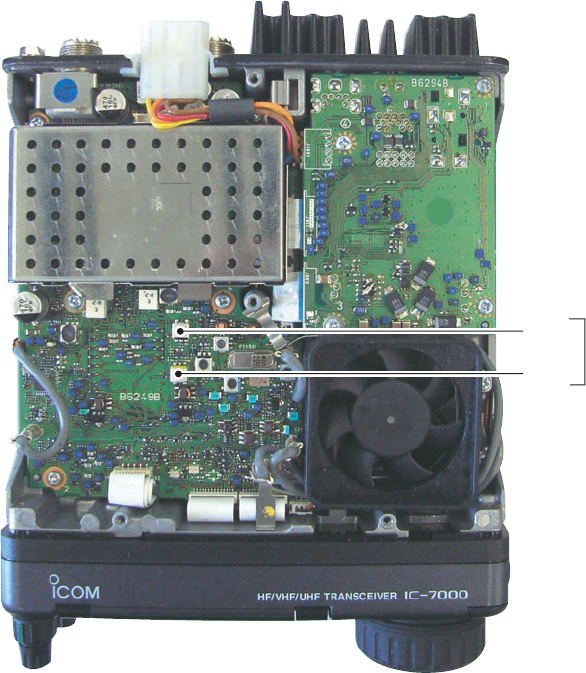

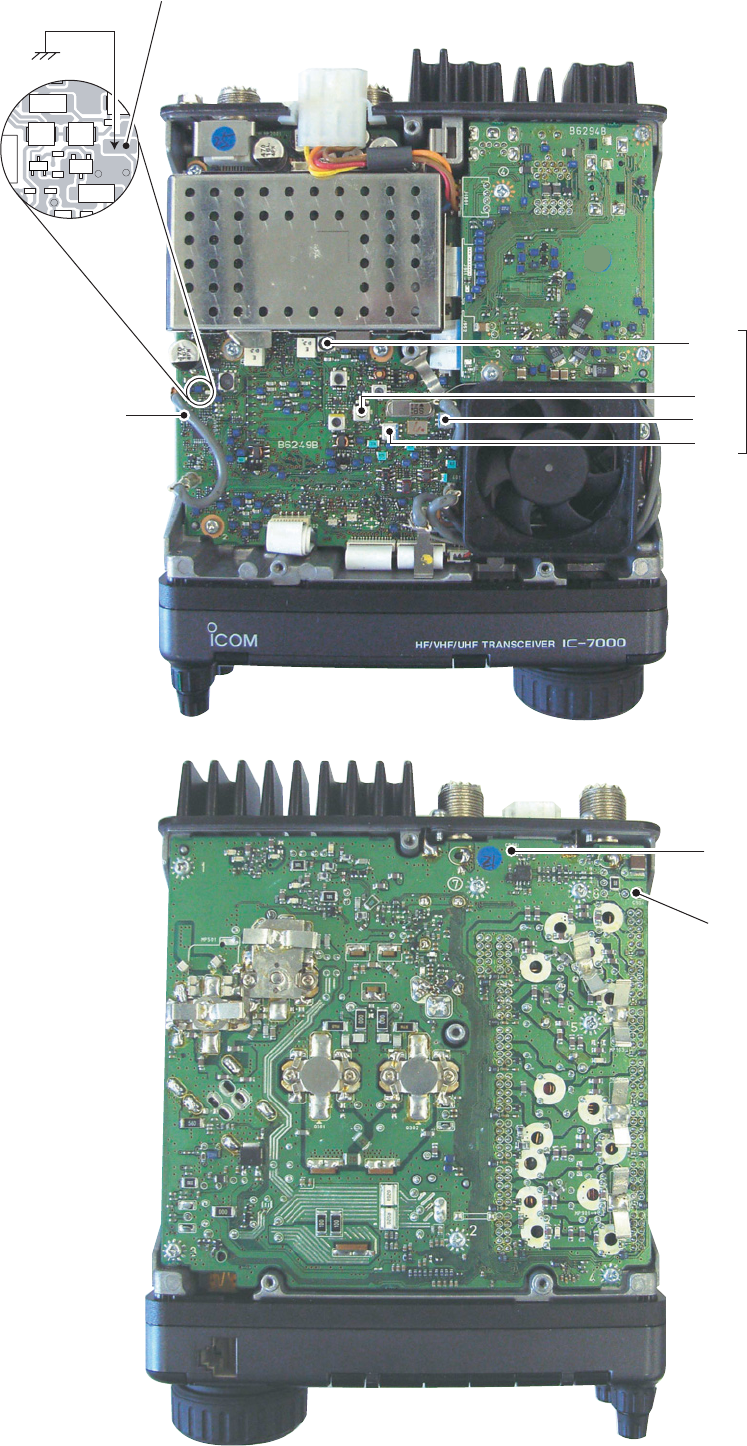

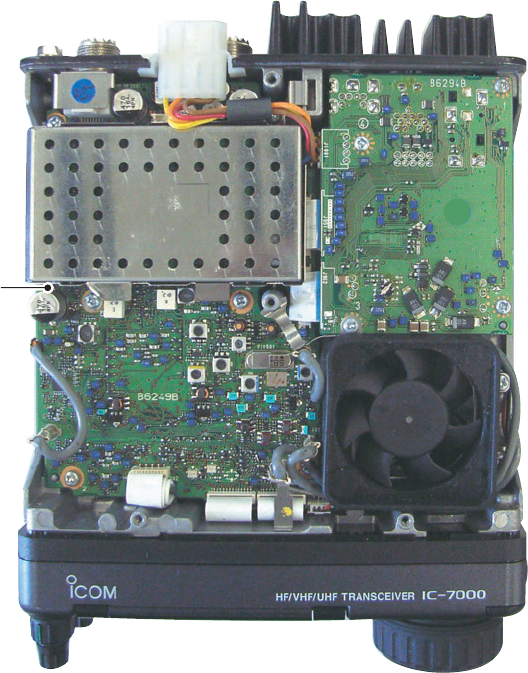

SECTION 2 INSIDE VIEWS

2 - 1

DDS UNIT

RX 1st mixer

(IC401: SPM5001)

YGR amplifier

(IC1:

µPC2709T)

PC2709T)

2nd Lo amplifier

(Q151*: 2SC4673)

3rd Lo DDS

(IC51*: AD9833BRM)

1st Lo DDS

(IC301*: AD9951YSV)

MAIN UNIT

LOGIC UNIT

RX 3rd mixer

(IC1301: TA4107F)

RX 2nd mixer

(D801: HSB88WS-E)

RF switch

(Q101: 2SC4213)

CPU

(IC1302: HD64F2377VFQ33V)

DDS UNIT

1st mixer

(IC401: SPM5001)

YGR amplifier

(IC1: µPC2709T)

2nd Lo amplifier

(Q151*: 2SC4673)

3rd Lo DDS

(IC51*: AD9833BRM)

1st Lo DDS

(IC301*: AD9951YSV)

MAIN UNIT

LOGIC UNIT

TX 3rd mixer

(IC1301: TA4107F)

2nd mixer

(D801: HSB88WS-E)

RF switch

(Q101: 2SC4213)

CPU

(IC1302: HD64F2377VFQ33V)

430 MHz pre amplifier

(Q451: 3SK291)

PA UNIT

144 MHz power amplifier

(Q501: RD70HVF1)

430 MHz power amplifier

(Q401: RD60HUF1)

DRIVER BOARD*

HF/50 MHz power amplifier

(Q301, Q302: RD70HHF1)

144 MHz pre amplifier

(Q551*: 3SK291)

LPF circuit

430 MHz pre amplifier

(Q451: 3SK291)

PA UNIT

144 MHz power amplifier

(Q501: RD70HVF1)

430 MHz power amplifier

(Q401: RD60HUF1)

DRIVER UNIT*

*Located under side of the point

144 MHz pre amplifier

(Q551*: 3SK291)

LPF circuit

HF/50 MHz power amplifiers

(Q301, Q302: RD70HHF1)

• TOP VIEW

• BOTTOM VIEW

SECTION 3 CIRCUIT DESCRIPTION

3 - 1

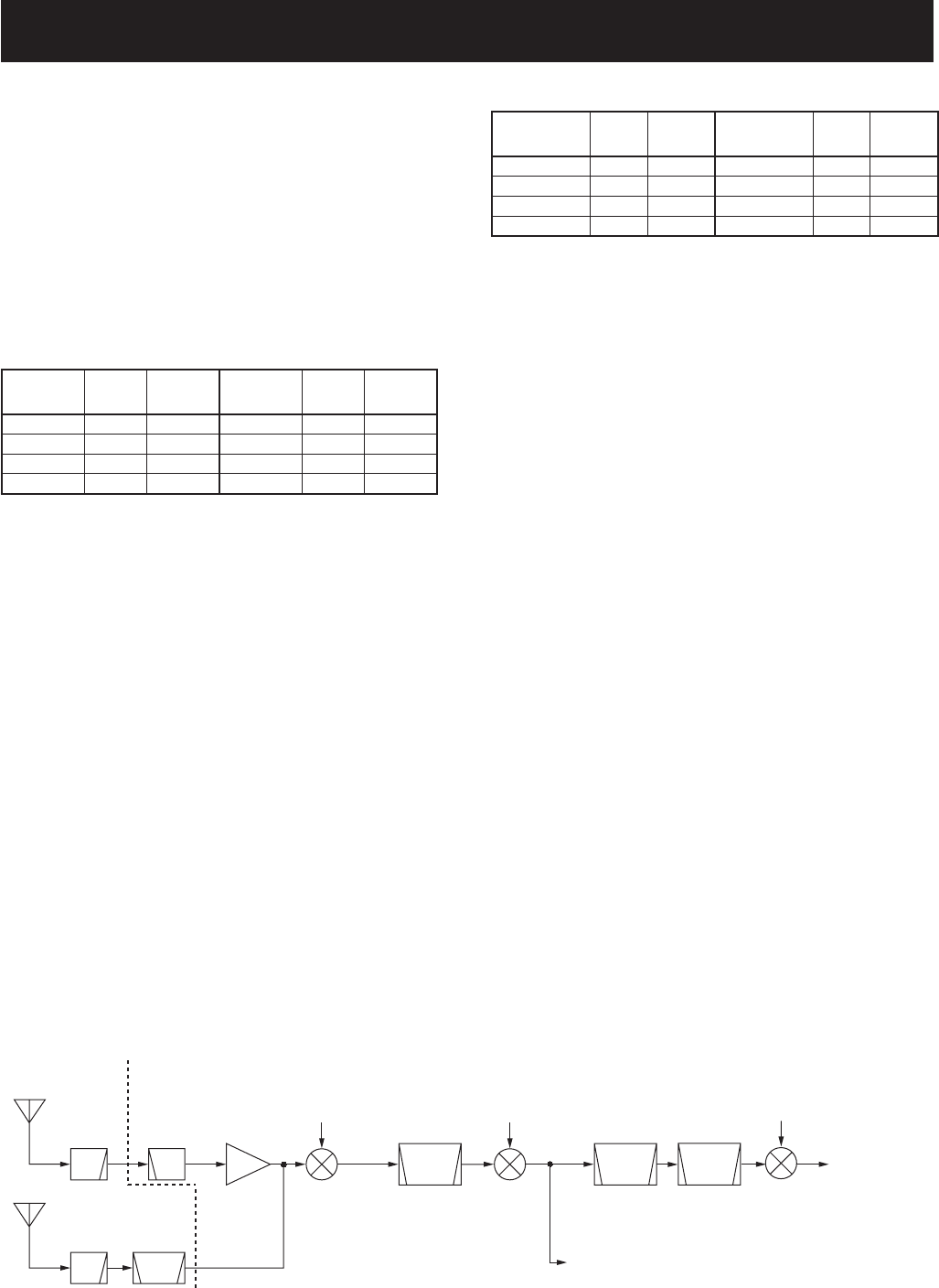

3-1 RECEIVER CIRCUITS

3-1-1 HF/50 MHz RF CIRCUIT (MAIN AND PA UNITS)

The HF/50 MHz RF filters pass only the desired band sig-

nals and suppress undesired band signals. The HF/50 MHz

RF circuit has 7 low-pass and 5 high-pass filters for speci-

fied band use.

The HF/50 MHz RF signals from the [ANT1] connector, pass

through one of 7 low-pass filters as below, the TX/RX switch

(PA unit; RL801), low-pass filter (PA unit; L801, L802, C801

–C805) and band switch (D151), and are then applied to the

MAIN unit via J101 (MAIN unit).

The signals from the PA unit are applied to the RF switch

(Q101) via the band switch (D113) and then passed through

the 20 dB attenuator (D101, D102).

The signals below 1.8 MHz are passed through the low-pass

filter (L103, L104, C106, C110, C111) and then applied to

the preamplifier circuit.

The other band signals (1.8–60 MHz) are passed through

the high-pass filter (L105, L109, L110, L116, L117, C108,

C109, C114–C116) to suppress strong signals below

1.8 MHz and then applied to the low-pass and high-pass fil-

ter circuits.

(1) 1.8–2 MHz

The filtered signals from the high-pass filter are passed

through the low-pass filter (L205, L207, C209–C213) and

then applied to the preamplifier circuits.

(2) 2–30 MHz

The filtered signals from the high-pass filter are applied to

one of 5 high-pass filters as at right above after passed

through the low-pass filter (L205, L207, C209–C213) and

are then applied to the preamplifier circuit.

(3) 30–60 MHz

The filtered signals from the high-pass filter are passed

through another high-pass filter (L215, L217, C228, C229,

C237, C238) and then amplified at the RF amplifier (Q211).

The amplified signals are applied to the preamplifier circuit.

3-1-2 VHF AND UHF RF CIRCUITS (PA UNIT)

The VHF and UHF RF circuits filter and amplify only the

desired band signals and suppress undesired band signals.

The both RF circuits have preamplifiers and bandpass filters.

• VHF RF CIRCUIT

The VHF RF signals from the [ANT2] connector pass

through the low-pass filters (L506, L508, L510, L601–L603,

C516, C519, C521, C601, C602) and antenna switching cir-

cuit (D507–D509). The switched signals are passed through

the attenuator (D551, D552) and bandpass filter (D553,

D554, D556). The filtered signals are applied to the pream-

plifier (Q551) and then passed through another bandpass

filter (D558–D560).

The filtered signals are passed through the band switch

(D462) and then applied to the 1st mixer circuit (MAIN unit)

via J101 (MAIN unit).

• UHF RF CIRCUIT

The UHF RF signals from the [ANT2] connector pass

through the low-pass (L601–L603, C601, C602) and high-

pass (L413, L414, C428, C429, C431, C433) filters and

then applied to the antenna switching circuit (D408–D410).

The switched signals are passed through the attenuator

(D451, D452) and then amplified at the preamplifier (Q451)

between the 2 bandpass filters (D453–D456). The filtered

signals are amplified at another preamplifier (IC471, pins 1, 4).

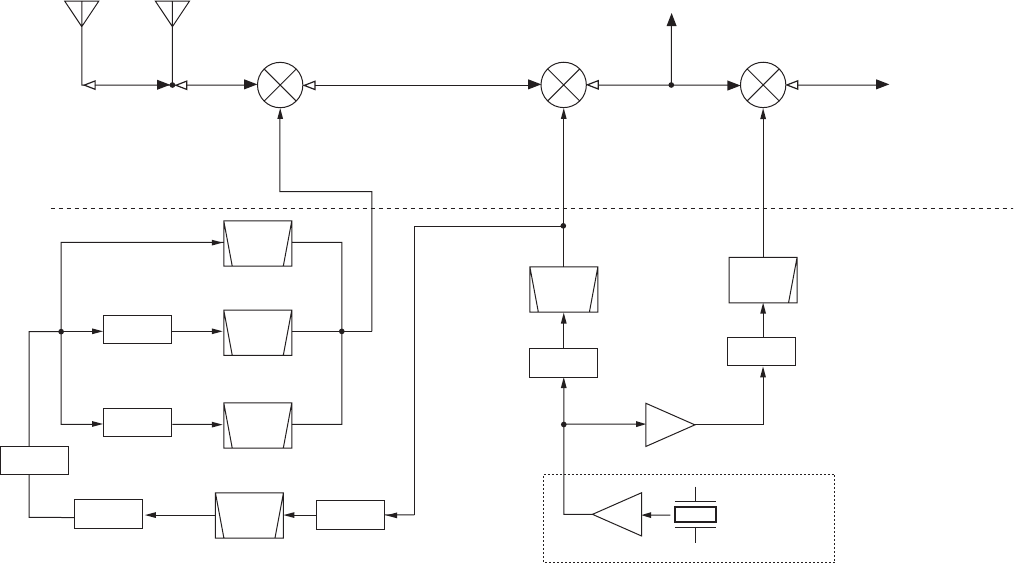

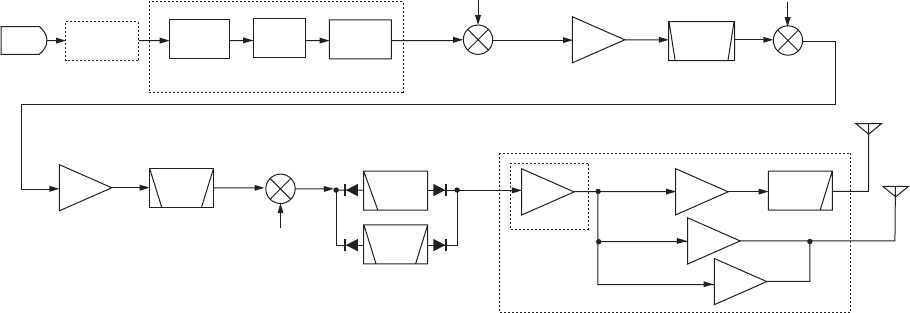

1st LO:

124.517 MHz–

594.587 MHz

BPF

LPF HPF

1st mixer

IC401

2nd LO:

124.032 MHz

2nd mixer

D801 3rd mixer

IC1101

[ANT1]

0.03–60 MHz

LPF

[ANT2]

60–470 MHz

Crystal

filter

FI601

124.487 MHz

(WFM; 134.732 MHz)

Crystal

filter

FI901

to WFM detector

circuit (IC1401)

to DSP circuit

455 kHz

PA UNIT MAIN UNIT

amp.

Preamp.

Q301

3rd LO:

438.85 kHz

Crystal

filter

FI1101

455 kHz

• Used RF low-pass ﬁ lter (PA unit)

Frequency

(MHz)

Control

signal

Entrance

relay

Frequency

(MHz)

Control

signal

Entrance

relay

0.03–2 MHz L1 RL881 15–22 MHz L5 RL941

2–4 MHz L2 RL921 22–30 MHz L6 RL821

4–8 MHz L3 RL841 30–60 MHz L7 RL861

8–15 MHz L4 RL901

• Used RF high-pass ﬁ lter (MAIN unit)

Frequency

(MHz)

Control

signal

Entrance

diode

Frequency

(MHz)

Control

signal

Entrance

diode

1.8–2 MHz B1 D204 13.9–20.9 MHz B5 D210

2–3.4 MHz B2 D205 20.9–30 MHz B6 D211

3.4–6.9 MHz B3 D208 30–60 MHz B7 D212

6.9–13.9 MHz B4 D209

• RECEIVER CONSTRUCTION

The amplified signals are passed through the band switch

(D461) and then applied to the 1st mixer circuit (MAIN unit)

via J101 (MAIN unit).

D453–D456, D553, D554, D556 and D558–D560 are

varactor diodes that tune the center frequency of an RF

passband for wide bandwidth receiving and good image

response rejection.

When receiving the signals, higher than 129 MHz, are

received, the switching diodes (D555, D557) are turned off

by the control signal “2MBL” from the CPU (LOGIC unit;

IC1302) via Q2150, then the varactor diodes (D556, D558)

are disconnected to shift the filtering frequencies.

3-1-3 PREAMPLIFIER CIRCUIT (MAIN UNIT)

The preamplifier circuit amplifies received RF signals for

wide band frequency range.

When the preamplifier is turned ON, the RF signals

(HF/50 MHz bands) from the high-pass filters are applied to

the preamplifier (Q301) via the preamplifier switches (D301,

D302).

When the preamplifier is turned OFF, the RF signals (HF/50

MHz bands) are passed through the bypass switches (D301,

D303).

The amplified or bypassed signals are applied to the 1st

mixer circuit (IC401).

3-1-4 1ST MIXER CIRCUIT (MAIN UNIT)

The 1st mixer circuit mixes the received RF signals with the

1st LO signal to convert the receive signal frequencies to

the 1st IF frequency.

While receiving the HF/50 MHz bands signals, the amplified

signals from the preamplifier switch (D304) or the bypassed

signals from the bypass switch (D303) are passed through

the low-pass filter (L310, L312, C314, C316, C318, C320,

C322) and then applied to the 1st mixer circuit (IC401) via

the band switch (D305).

While receiving the VHF/UHF bands signals, the signals

from the VHF/UHF RF circuit (PA unit) are passed through

the low-pass filter (L309, L311, L313, C313, C315, C317,

C319, C321, C323, C325) and then applied to the 1st mixer

circuit (IC401) via the band switch (D306).

The applied signals are mixed with the 1st LO signal (124.517

–594.487 MHz) and convert into the 1st IF signal.

The 1st LO signal is generated in the DDS unit, and applied

to the 1st mixer circuit (IC401, pins 1, 6) after being ampli-

fied and attenuated at the 1st LO amplifier (IC421, pins 1, 4)

and the attenuators (R416–R418, R421–R423), respectively.

The converted 1st IF signal is applied to the 1st IF circuit.

3-1-5 1ST IF CIRCUIT (MAIN UNIT)

The 1st IF circuit filters and amplifies the 1st IF signal.

The converted 1st IF signal is

applied to the IF amplifier (Q502)

via RX switches (D502, D505).

The 124.487 MHz 1st IF signal

(except WFM mode) passes

through the crystal filter (FI601)

via the mode switches (D602,

D604), and the 134.732 MHz 1st

IF signal (WFM mode) passes through the bandpass filter

(L607, L609, C602, C606, C608–C610, C617, C618) via the

mode switches (D601, D603) to suppress out-of-band sig-

nals.

Then the filtered signal is applied to the IF amplifier (Q702)

and then applied to the 2nd mixer circuit (D801) via the RX

switches (D702, D704).

3-1-6 2ND MIXER CIRCUIT (MAIN UNIT)

The 2nd mixer circuit mixes the 1st IF signal with the 2nd

LO signal to convert into the 2nd IF frequency.

The amplified signal from the IF amplifier (Q702) is applied

to the 2nd mixer circuit (D801) and then mixed with the 2nd

LO signal (124.032 MHz) to convert into the 455 kHz (other

than WFM) or 10.7 MHz (WFM) 2nd IF signal.

The 2nd LO signal is generated in the DDS unit, and applied

to the 2nd mixer circuit (D801) after being filtered and

attenuated at the low-pass filter (L808, C816, C817) and the

attenuators (R801, R805, R806, R809–R811), respectively.

The converted 2nd IF signal is applied to the 2nd IF circuit.

3-1-7 2ND IF CIRCUIT (MAIN UNIT)

The 2nd IF circuit amplifies and filters the 2nd IF signal.

The converted 2nd IF signal is applied to the bandpass filter

(FI901) to suppress undesired signals.

The 455 kHz 2nd IF signal (except

WFM mode) is passed through the

bandpass filter (FI901) via the mode

switch (D803) and then amplified

at the IF amplifier (Q902). The

amplified signal is passed through

the bandpass filter (FI1001) and

then applied to another IF amplifier

(Q1001).

The amplified signal is applied to the 3rd mixer circuit.

The 10.7 MHz 2nd IF signal for WFM mode is passed

through the low-pass filter (L1402, C1402–C1404) via

the mode switch (D802) and then applied to the IF ampli-

fier (Q1401). The amplified signal is passed through the

bandpass filter (FI1401) and then applied another IF ampli-

fier (Q1402).

3 - 2

• 1st IF frequency

Mode 1st IF

USB 124.48850 MHz

LSB 124.48550 MHz

CW 124.48700 MHz

RTTY 124.48683 MHz

AM/FM 124.48700 MHz

WFM 134.73200 MHz

• 2nd IF frequency

Mode 2nd IF

USB 456.500 kHz

LSB 453.500 kHz

CW 455.000 kHz

RTTY 454.830 kHz

AM/FM 455.000 kHz

WFM 10.700 MHz

3 - 3

The amplified IF signal is passed through the bandpass filter

(FI1402) and then applied to the WFM demodulator circuit

(IC1401).

3-1-8 3RD MIXER CIRCUIT (MAIN UNIT)

The 3rd mixer circuit mixes the 2nd IF signal with the 3rd LO

signal to convert into the 3rd IF frequency.

The amplified signal from the IF amplifier (Q1001) are mixed

with the 3rd LO signal (438.85 kHz), where come from the

DDS unit via J2406, at the 3rd mixer circuit (IC1101) to con-

vert into the 16.15 kHz 3rd IF signal.

The converted 3rd IF signal is applied to the 3rd IF circuit.

3-1-9 3RD IF CIRCUIT (MAIN UNIT)

The 3rd IF circuit filters and amplifies the 3rd IF signal.

The converted 3rd IF signal is amplified at the 3rd IF ampli-

fier (IC1203, pins 5, 7) and then passed through the low-

pass filter (IC1203, pins 1, 3). The filtered signal is passed

through the mode switches (IC1201, pins 1, 7; IC1202, pins

1, 7) and then applied to the analog switch (IC1256, pins 11,

13).

The switched signal is applied to the DSP circuit (LOGIC

unit) via the J2251 (pin 1).

3-1-10 DEMODULATOR CIRCUITS (MAIN UNIT)

• WFM mode

The demodulator circuit converts the 2nd IF signal into the

AF signals.

The filtered signal from the bandpass filter (FI1402) is

applied to the IF amplifier section inside the WFM demodu-

lator (IC1401, pin 1) and then applied to the quadrature

detector section to convert into AF signals. The detected AF

signals are output from pin 6 (IC1401) and then applied to

the mode switches (IC1201, pins 1, 7; IC1202, pins 1, 6).

The switched AF signals are applied to the analog switch

(IC1256, pins 11, 13) and then applied to the DSP circuit

(LOGIC unit) via J2251 (pin 1).

3-1-11 DSP CIRCUIT (LOGIC UNIT)

The DSP (Digital Signal Processor) circuit enables digital IF

filter, manual notch, digital twin PBT and phase demodula-

tion, etc.

The 3rd IF or demodulated AF (WFM mode) signals are

passed through the low-pass filter (IC451, pins 1, 2) and

then applied to the A/D converter (IC551, pin 4). The con-

verted signals are applied to the DSP ICs (IC301, IC2201)

for the digital IF filter, demodulation, automatic notch and

noise reduction, etc.

The output digital audio signals from the DSP IC (IC301) are

applied to the D/A converter (IC551) to convert into the ana-

log audio signals.

The converted audio signals from the D/A converter (IC551,

pins 25, 26) are passed through the low-pass filter (IC601,

pins 5–7), and then applied to the AF amplifier circuit (MAIN

unit) via J701 (pin 14).

3-1-12 AF AMPLIFIER CIRCUIT (MAIN UNIT)

The AF amplifier amplifies the demodulated AF signals to

drive speaker.

The filtered signal from the low-pass filter (LOGIC unit;

IC601, pins 5–7) are passed through another low-pass filter

(IC2551, pins 1, 3).

While in FM mode, the filtered AF signals from the low-pass

filter (IC2551, pin 1) are applied to the de-emphasis circuit

(IC2551, pins 5–7) to obtain the –6 dB/octave characteristics

and then applied to the AF switch (IC2601, pins 1, 6).

While except FM mode, the filtered AF signals from low-pass

filter (IC2551, pin 1) are applied to the AF switch (IC2601,

pins 1, 7).

The switched AF signals are amplified at the AF power

amplifier (IC2602, pins 1, 4) and then applied to the speaker

switch (Q2602).

The switched signal is applied to the internal speaker that is

connected to J2601 via [EXT SP] jack (J2602).

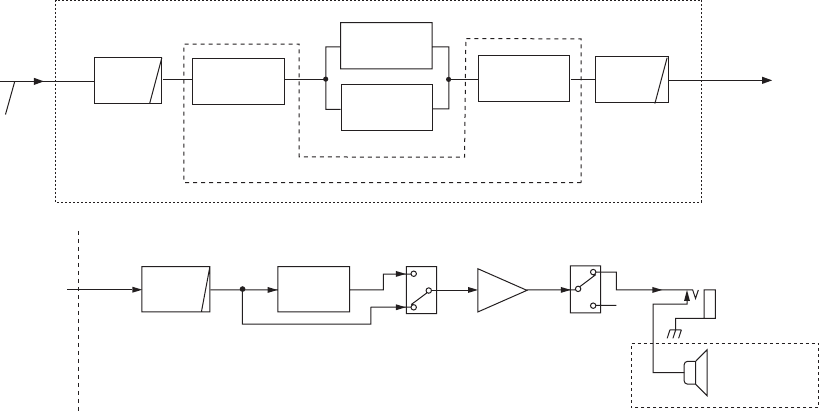

IC2551 IC2601 Q2602

IC2602

IC2551

DSPO1

LOGIC UNIT MAIN UNIT

315 7

666

[EXT SP]

AF amp.

SP1

CHASSIS

LPF De-

emphasis

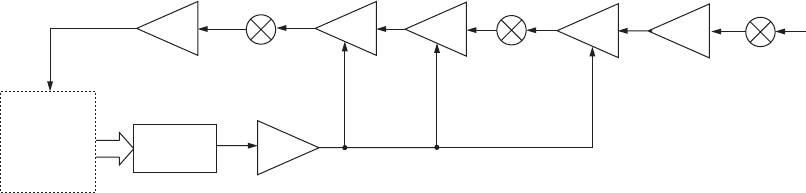

• AF CIRCUIT

LPF LPF

IC451

LOGIC unit

MAIN UNIT

CODEC IC (IC551)

IC301

IC601

DSPO2

signals

DSPI2

(16.15 kHz)

3rd IF

signal

A/D

converter

D/A

converter

DSP IC

IC2201

DSP IC

• DSP CIRCUIT

3-1-13 AGC CIRCUIT (MAIN UNIT)

The AGC (Automatic Gain Control) circuit adjusts IF amplify

gain to keep the audio output at a constant level. The

receiver gain is determined by the voltage on the AGC line

from the DSP circuit.

The AGC voltage is detected at the AGC detector section

inside the DSP ICs (LOGIC unit; IC301, IC2201) and the

AGC voltage is applied to the D/A converter (IC2155). The

converted AGC voltage is applied to the IF amplifiers (Q702,

Q902, Q1001) after being amplified at IC1201 (pin 12) and

sets the receiver gain with [RF/SQL] control.

When receiving strong signals, the detected voltage increas-

es and the AGC voltage decreases. As the AGC voltage is

used for the bias voltage of the IF amplifiers (Q702, Q902,

Q1001), IF amplifier gain is decreased.

3-1-14 S-METER CIRCUIT (LOGIC UNIT)

The S-meter circuit indicates the relative received signal

strength while receiving.

The received signal strength is detected inside the DSP ICs

(IC301, IC2201) and then applied to the main CPU (IC1302).

The S-meter signal for WFM mode is output from the FM

detector IC (IC401, pin 4) and then applied to the to the

main CPU (IC1302, pin 123).

The S-meter signal from the main CPU (IC1302) is applied

to the sub CPU (DISPLAY unit; IC2003) and is then dis-

played on the LCD display.

3-1-15 SQUELCH CIRCUIT (MAIN UNIT)

The squelch circuit mutes audio output when the S-meter

signal is lower than the [RF/SQL] control setting level.

The S-meter signal from the DSP IC is applied to the main

CPU (LOGIC unit; IC1302) and is compared with the thresh-

old level set by the [RF/SQL] control. The [RF/SQL] setting

is picked up at the sub CPU (DISPLAY unit; IC2003, pin 74).

The main CPU (LOGIC unit; IC1302) compares the S-meter

signal and [RF/SQL] setting, and outputs the mute signal via

the DSP IC (IC301, pin B4) to the AF switch (IC2601, pin 2)

to cut AF signals via Q2607.

While receiving WFM mode, the S-meter signal is output

from the WFM demodulator (IC401, pin 4) and applied to the

to the main CPU (LOGIC unit; IC1302, pin 123). The main

CPU (LOGIC unit; IC1302) compares the S-meter signal and

[RF/SQL] setting, and outputs the mute signal via the DSP

IC (IC301, pin B4) to the AF switch (IC2601, pin 2) to cut AF

signals via Q2607.

3-2 TRANSMITTER CIRCUITS

3-2-1 MICROPHONE AMPLIFIER CIRCUIT (MAIN UNIT)

The microphone amplifier circuit amplifies microphone audio

signal to a level needed for the DSP circuit.

Audio signals from the [MIC] connector (FRONT unit; J303

or MAIN unit; J2003) are amplified at the microphone ampli-

fier (IC2007, pins 1, 2) and then applied to the DSP circuit

(LOGIC unit) via J2251 (pin 3).

3-2-2 DSP CIRCUIT (LOGIC UNIT)

The DSP (Digital Signal Processor) circuit enables digital

PSN modulator, digital Low Power modulator, digital Phase

modulator, transmitter monitor and side tone, etc.

The amplified microphone signals are passed through the

low-pass filter (IC502, pins 1, 2) and then applied to the A/D

converter (IC551, pin 3). The converted digital audio signal

are applied to the DSP ICs (IC301, IC2201) to covert into

the modulated 16.15 kHz 3rd IF signal. The modulated 3rd

IF signal from the DSP IC (IC301) is applied to the D/A con-

vertor (IC551) to convert into the analog 3rd IF signal. The

converted analog 3rd IF signal is output from pins 27, 28

(IC551) and then passed through the low-pass filter (IC601,

pins 1–3).

The filtered IF signal is applied to the 3rd mixer circuit (MAIN

unit) via the J701 (pin 12).

3-2-3 3RD MIXER CIRCUIT (MAIN UNIT)

The 3rd mixer circuit mixes the 3rd IF signal with the 3rd LO

signal to convert into the 2nd IF frequency.

The filtered signal from the low-pass filter (LOGIC unit;

IC601) is applied to the analog switch (IC2251, pins 1,

7) and then applied to the 3rd mixer circuit (IC1301, pins

3, 5). The applied signal is mixed with the 3rd LO signal

(438.85 kHz) coming from DDS unit via J2406 (pin 13) and

converted into the 455 kHz 2nd IF signal.

The converted 2nd IF signal is applied to the 2nd IF circuit.

3-2-4 2ND IF CIRCUIT (MAIN UNIT)

The 2nd IF circuit filters and amplifies the 2nd IF signal.

The converted 2nd IF signal is applied to the 2nd IF ampli-

fier (Q901) and then passed through the bandpass filter

(FI901) via the TX switch (D903) to suppress unwanted sig-

nals.

The filtered signal is applied to the 2nd mixer circuit.

3 - 4

DSP

CIRCUIT

IC301

IC2201

IC2101

3rd mixer 2nd mixer 1st mixer

IC2155

12 14

AGC

D/A

converter

IC1203

DSPI1 IF

amp.

Q1001IF

amp.

Q902 IF

amp.

Q702 From the

antenna

amp.

Q502 IF

amp.

• AGC CIRCUIT

3-2-5 2ND MIXER CIRCUIT (MAIN UNIT)

The 2nd mixer circuit mixes the 2nd IF signal with the 2nd

LO signal to convert into the 1st IF frequency.

The filtered signal from the bandpass filter (FI901) is applied

to the 2nd mixer circuit (D801) and mixed with 2nd LO sig-

nal (124.032 MHz) to convert into the 1st IF signal.

The 2nd LO signal is generated in the DDS unit, and applied

to the 2nd mixer circuit (D801) after being filtered and

attenuated at the low-pass filter (L808, C816, C817) and the

attenuators (R801, R805, R806, R809–R811), respectively.

The converted 1st IF signal is applied to the 1st IF circuit.

3-2-6 1ST IF CIRCUIT (MAIN UNIT)

The 1st IF circuit amplifies and filters the 1st IF signal.

The converted 1st IF signal is applied to the IF amplifier

(Q701) via the TX switch (D703) and then passed through

the bandpass filter (FI601) to suppress unwanted signals via

the filter switches (D601, D602).

The filtered signals are applied to the 1st mixer circuit.

3-2-7 1ST MIXER CIRCUIT (MAIN UNIT)

The 1st mixer circuit mixes the 1st IF signal with the 1st LO

signal to convert into the RF frequency.

The filtered signal is applied to the 1st mixer circuit (IC401)

via the TX switches (D501, D504) and mixed with the 1st LO

signal (124.517–594.487 MHz) to convert into the RF signal.

The 1st LO signal is generated in the DDS unit, and applied

to the 1st mixer circuit (IC401, pins 1, 6) after being ampli-

fied and attenuated at the 1st LO amplifier (IC421, pins 1, 4)

and the attenuators (R416–R418, R421–R423), respectively.

The converted RF signal is applied to the RF circuit.

3-2-8 RF CIRCUIT (MAIN UNIT)

The RF circuit amplifies and filters the RF signal from the

1st mixer circuit.

The HF/50 MHz bands signal from the 1st mixer circuit

(IC401) is passed through the low-pass filter (L310, L312,

C314, C316, C318, C320, C322) via the band switch (D305).

The HF band signal is passed through one of 5 high-pass

(Refer to 3-1 for used RF high-pass filter) and low-pass

(L205, L207, C209–C213) filters.

The 50 MHz band signal is passed through the bandpass

filter (L219, L220, L246–L248, C240–C242, C282, C285–

C291).

The filtered HF/50 MHz bands signal is amplified at the YGR

amplifier (IC1) after passed through the high-pass filter (L109,

L110, L116, L117, C109, C114–C116) and attenuator (R5–

R7).

The amplified HF/50 MHz bands signal is applied to the

drive and power amplifier circuits (PA unit) via J1.

The VHF/UHF bands signal from the 1st mixer circuit (IC401)

is passed through the low-pass filter (L309, L311, L313,

C313, C315, C317, C319, C321, C323, C325) via the band

switch (D306).

The VHF band signal is passed through the bandpass filter

(L8, L10–L13, C18, C25, C26, C28, C29, C31–C33) via

the band switches (D3, D10) and then amplified at the RF

amplifier (IC2, pins 1, 3). The amplified signal is passed

through the band switch (D1) and attenuator (R5–R7), and

then applied to the YGR amplifier (IC1, pins 1, 4).

The amplified signal is passed through the high pass filter

(L21, C50–C52) via the filter switches (D6, D8) and then

applied to the drive and power amplifier circuits (PA unit) via

J1.

The UHF band signal is amplified at the RF amplifier (IC3,

pins 1, 3) via the band switch (D4) and passed through the

bandpass filters (FI2, FI3). The filtered signal is amplified at

the YGR amplifier (IC1, pins 1, 4) after passed through the

band switch (D2), attenuator (R5–R7) and bypass switches

(D7, D9).

The amplified signal is applied to the drive and power ampli-

fier circuits (PA unit) via J1.

3 - 5

• TRANSMITTER CONSTRUCTION

FI901

MIC BPF

Ceramic

455 kHz

3rd LO

(438.85 kHz)

IC2201 IC551

IC551 IC301

Controller A/D DSP

ICs D/A

FI601

BPF

Crystal

1st mixer

IC401

1st LO

(124.517−

594.487 MHz)

HPFs

BPF

IC504

LPFs

PA UNIT

LOGIC UNIT (DSP circuit)

MAIN UNIT DRIVER

UNIT

ANT1

ANT2

Q301

Q302

Q401

Q501

145 MHz

430 MHz

HF/50 MHz

Q901

AMP.

Q801

AMP.

2nd mixer

D801

2nd LO

(124.032 MHz)

124.487 MHz

AMP. PA

3 - 6

3-2-9 DRIVE AND POWER AMPLIFIER CIRCUITS

(PA AND DRIVER UNITS)

The drive and power amplifier circuits amplify the RF signal

from the RF circuit (MAIN unit) to obtain 100 W of RF output

power for the HF/50 MHz bands, 50 W for the VHF band

and 35 W for the UHF band.

The RF signal from the MAIN unit is applied to the pre drive

amplifiers (PA unit; Q101, Q102) after passed through the

attenuator (PA unit; R101–R103). The amplified signal is

applied to the drive amplifier (DRIVER unit; Q504) to amplify

a level needed for the power amplifiers.

The amplified HF/50 MHz bands signal from the drive ampli-

fier is amplified at the power amplifiers (PA unit; Q301,

Q302) to obtain a stable 100 W of RF output power. The

power amplified signal is passed through the TX/RX switch

(RL801), one of the 7 low-pass filters, APC detector (PA

unit; D961, D962) and then applied to the [ANT1] connector

(CHASSIS; J1).

The amplified VHF RF signal from the drive amplifier is

amplified at the power amplifier (Q501) to obtain a stable

50 W of RF output power. The power amplified signals are

applied to the low-pass filter, APC detector (D501–D504),

TX/RX switch (D506, D510), low-pass filters (L506, L508,

L510, L601–L603, C516, C519, C521, C601, C602) and

[ANT2] connector (CHASSIS; J2).

The amplified UHF RF signal from the drive amplifier is

amplified at the power amplifier (Q401) to obtain a stable

35 W of RF output power. The power amplified signal is

applied to the low-pass filter, APC detector (D401–D404),

TX/RX switch (D406, D407), high-pass filter (L413, L414,

C428, C429, C431, C433), low-pass filter (L601–L603,

C601, C602) and [ANT2] connector (CHASSIS; J2).

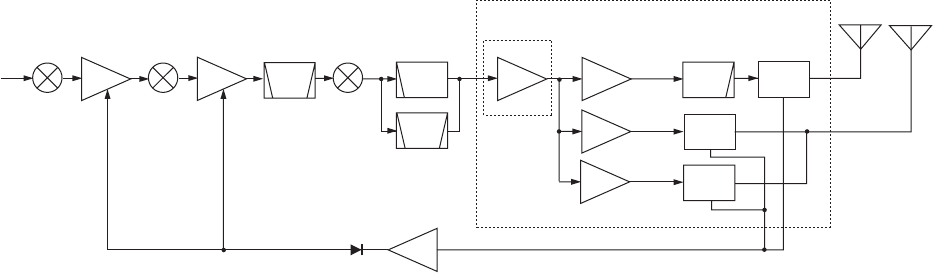

3-2-10 ALC CIRCUIT (MAIN UNIT)

The ALC (Automatic Level Control) circuit reduces the gain

of IF amplifiers in order for the transceiver to output a con-

stant RF power set by the RF power setting even when the

supplied voltage shifts, etc.

The HF/50 MHz power amplified signal from the power

amplifiers (PA unit; Q301, Q302) is detected at the APC

detector (PA unit; D961). The detected voltage is applied

to the buffer amplifier (PA unit; IC960, pins 5, 7) and then

applied to the MAIN unit as the “HFOR” voltage.

The VHF and UHF RF power amplified signal from the

power amplifiers (PA unit; Q401, Q501) are detected at the

APC detectors (PA unit; D401, D404, D501, D504) respec-

tively. The detected voltages ("VFOR" and "UFOR") are

combined to "VUFOR" voltage and then applied to the MAIN

unit.

The “HFOR” and “VUFOR” voltages are combined to the

“FORL” voltage and then applied to the ALC amplifier

(IC1601, pins 1, 2). The “POCV” voltage from the D/A con-

verter (IC2155, pin 19) via the buffer amplifier (IC2101,

pins 5, 7), determined by the RF power setting, is applied to

the ALC amplifier (IC1601, pin 3) as the reference voltage.

When the “FORL” voltage exceeds the “POCV” voltage, ALC

bias voltage from IC1601 (pin 1) controls the IF amplifiers

(Q701, Q901). This adjusts the output power to the level

determined by the RF power setting until the “FORL” and

“POCV” voltages are equalized.

In AM mode, IC1601 functions as an averaging ALC ampli-

fier with Q1601. The AM switch (Q1602) is turn ON and

shifts the “POCV” voltage to adjust the TX output power for

the AM mode (maximum; 40 W for HF/50 MHz bands, 20 W

for VHF band, 14 W for UHF band).

The ALC bias voltage from IC1601 is also applied to the

main CPU (LOGIC unit; IC1302, pin 115) as the “ALCL” volt-

age for ALC meter indication.

The external ALC input (negative voltage) from the [ACC]

socket (pin 6) is converted to a positive voltage at D1609

and is applied to the buffer amplifier (Q1604). External ALC

operation is identical to that of the internal ALC.

3-2-11 APC CIRCUIT (MAIN UNIT)

The APC (Automatic Power Control) circuit protects the

power amplifiers on the PA unit from high SWR and exces-

sive current.

The reflected wave signal appears and increases on the

antenna connector when the antenna is mismatched.

The HF/50 MHz reflected signal level is detected at D962 (PA

unit), and is amplified at the buffer amplifier (PA unit; IC960,

pins 1, 3) and applied to the ALC amplifier (IC1601, pins 8, 9)

as the "HREF" voltage.

IC1601

HF/50 MHz

145 MHz

430 MHz

HPFs LPFs

BPF

ALC

ALC amplifier

ANT1 ANT2

PA UNIT

DRIVER

UNIT

ALC

FI601

Q701

Q901

signals

Crystal

BPF

3rd mixer 2nd mixer 1st mixer

AMP PA

APC

DET

APC

DET

APC

DET

• ALC CIRCUIT

The VHF/UHF APC detector circuits (PA unit; D501, D504,

D401, D404) detect the forward and reflection signals and

convert into DC voltages. The converted DC voltages are

combined and applied to the ALC amplifier (pins 1, 2) as

"VUFOR" voltage.

For the current APC, the driving current at the power ampli-

fiers is detected in the voltages (“ICH” and “ICL”) which

appear at both terminals of detector resistors (PA unit; R721,

R722). The detected voltages are applied to the APC ampli-

fier (IC1601, pins 5–7).

When the current of the power amplifier exceeds 22 A, The

output voltage from the APC amplifier (IC1601, pin 7) con-

trols the ALC line to prevent excessive current flow.

3-2-12 RF, ALC, SWR METER CIRCUITS (LOGIC UNIT)

While transmitting, RF, ALC or SWR meter readings are

available and can be selected with the [F3 (MET)] switch.

(1) Power meter

The “FOR,” “VFOR” and “UFOR” voltages are combined to

the “FORL” voltage, and it is then applied to the main CPU

(IC1302, pin 113) for indicating the TX output power.

(2) ALC meter

The ALC bias voltage from the buffer amplifier (MAIN unit;

IC1601, pin 14) is applied to the main CPU (IC1302, pin 115)

via the “ALCL” signal line for indicating the ALC level.

(3) SWR meter

The “FORL” and “REFL” voltages are applied to the main

CPU (IC1302, pins 113, 114) respectively. The main CPU

compares the ratio of “FORL” to “REFL” voltage and indi-

cates the SWR for the [ANT1] connector.

3-3 DDS CIRCUITS

3-3-1 GENERAL

The DDS unit generates a 1st LO (124.517–594.487 MHz),

a 2nd LO (124.032 MHz) and a 3rd LO (438.85 kHz) fre-

quencies.

3-3-2 1ST LO CIRCUIT (DDS UNIT)

The 1st LO circuit generates a 1st LO signal based on the

system clock that is tripled the 2nd LO frequency.

The 124.032 MHz 2nd LO signal is applied to the tripler

circuit (Q201) and then passed through the high-pass filter

(L205, L206, L210, C206–C210, C217–C219). The filtered

signal is amplified at Q211 and then passed through the

bandpass filter (FI201). The filtered signal is applied to the

DDS IC (IC301) as the 372.096 MHz system clock. The

DDS IC generates 38.62189–199.999999 MHz frequency

based on the system clock. The output signal from the DDS

IC (IC301, pins 20, 21) is applied to the doubler circuit

(D301) and then amplified at IC401 (pins 1, 4) after being

passed through the low-pass filter (L331, L332, C331, C332,

C335). The amplified signal is applied to one of the multiplier

circuits which is selected from the readout frequency and

then amplified at IC451 (pins 1, 5). The amplified signal is

passed through the bandpass filters.

The filtered signal is applied to the 1st mixer circuit (MAIN

unit) via J851.

3 - 7

124.517–

594.487 MHz

(1st LO) 124.032 MHz

(2nd LO)

24.8064 MHz

(system clock)

372.096 MHz

(system clock)

524.487–

594.487 MHz

124.517–

154.486999 MHz

154.487–

324.486999 MHz

[ANT1] [ANT2]

1st mixer

IC401

0.03–

60 MHz

60–

470 MHz

438.85 kHz

(3rd LO)

IC51

IC301

Q101

FI101

IC61

×5

DDS UNIT

MAIN UNIT

DDS

BPF

2nd mixer

D801

3rd mixer

IC1101

1st IF: 124.487 MHz

(WFM: 134.732 MHz)

to DSP circuit

Ref. Osc.

24.8064 MHz

LPF

2nd IF: 455 kHz 3rd IF: 16.15 kHz

to WFM detector

(IC1401)

×2

×3

×2 BPF

D456

BPF

×4 BPF

D471

FI201 Q201

301

BPF

DDS

AMP.

• FREQUENCY CONSTRUCTION

3-5 POWER SUPPLY CIRCUITS

3-5-1 FRONT UNIT VOLTAGE LINE

Line Description

3.3 V

Common 3.3 V converted from the 5 V line

by the 3.3 V regulator circuit (IC151). The out-

put voltage is applied to the sub CPU (IC2003),

etc.

5 V

Common 5 V converted from the 8 V line by

the 5 V regulator circuit (IC101). The output

voltage is applied to the LCD driver (IC506),

etc.

3-3-3 2ND LO AND REFERENCE OSCILLATOR

CIRCUITS (DDS UNIT)

The reference oscillator (X1, Q1) generates a 24.8064 MHz

frequency used for the 1st LO, 3rd LO and DSP circuits as a

system clock and for the 2nd LO signal.

The oscillated signal is multiplied by 5 at Q101 and then

passed through the bandpass filter (FI101). The filtered

124.032 MHz signal is amplified at Q151 and then applied to

the 2nd mixer circuit (MAIN unit) after being passed through

the low-pass filter (L153, C154–C156) and attenuator (R157

–R159) via J151 as the 2nd LO signal.

3-3-4 3RD LO CIRCUIT (DDS UNIT)

The 3rd LO circuit generates a 3rd LO signal and shift the

frequency for the operating mode needed.

The DDS IC (IC51) generates a 10-bit digital signal. The

24.8064 MHz system clock signal from the reference oscil-

lator (X1, Q1) is buffer amplified at IC61 (pins 2, 4) and then

applied to DDS IC (IC51, pins 5, 10). The DDS IC (IC51)

generates the 438.85 kHz frequency signal and then output

from pin 10. The output signal is applied to the low-pass fil-

ter (L53, C59–C61) and then applied to the 3rd mixer circuit

(MAIN unit) via J952 (pin 13) as the 3rd LO signal.

• 3RD LO FREQUENCY

Mode RX frequency

[kHz]

TX frequency

[kHz]

USB 440.350 440.350

LSB 437.350 437.350

CW 438.850

(–CW PITCH) 438.850

CW-R 438.850

(+CW PITCH) 438.850

RTTY 436.555* 436.555*

RTTY-R 440.975* 436.555*

AM 438.850 438.850

FM 438.850 438.850

*RTTY TONE: 2125 Hz, RTTY SHIFT: 170 Hz

3-4 LOGIC CIRCUITS

3-4-1 BAND SELECTION DATA

Frequency

[MHz]

IC2151

(MAIN)

IC2152

(MAIN)

IC2152

(MAIN)

IC981

(PA)

IC901

(DDS)

HPF

(MAIN) LPF (PA) LOF

(DDS)

0.03–1.599999 B0 L1

LOF1

1.6–1.999999 B1

2.0–3.399999 B2 L2

3.4–3.999999 B3

4.0–6.899999 L3

6.9–7.300000

7.300001–7.999999

8.0–10.999999

11.0–13.899999

13.9–14.350000

14.350001–

14.999999 L5

15.0–20.899999

20.9–21.45

21.450001–

21.999999 L6

22.0–29.999999

30.0–49.999999 T: B1

R: B7

L7 LOF250.0–54.0 B7

54.000001–

59.999999

T: B1

R: B7

60.0–115.512999

L8 L8

LOF3

115.513–

128.999999 LOF4

129.0-148.0

148.000001–

199.999999 LOF5

400.0–470.0 L9 L9 LOF6

3 - 8

3-5-2 MAIN UNIT VOLTAGE LINE

Line Description

3.3 V

Common 3.3 V converted from the 5 V line

by the 3.3 V regulator circuit (IC1801). The

output voltage is applied to the D/A convert-

er ICs (IC2151–IC5155), etc.

5 V

Common 5 V converted from the H V line by

the 5 V regulator circuit (IC1951). The output

voltage is applied to the CODEC IC (LOGIC

unit; IC551), low-pass filters (LOGIC unit;

IC451, IC502), etc.

8 V

Common 8 V line converted from the HV

line by the 8 V regulator circuit (IC1901).

The output voltage is applied to the buffer

amplifiers (IC2101–IC2103), analog switches

(IC2156, IC2251), etc.

Transmit 8 V controlled by the T8 regulator

circuit (Q1703, Q1704) using TXS signal

from the CPU (LOGIC unit; IC1302, pin

106). The output voltage is applied to the RF

switch (Q101), 2nd IF amplifier (Q701), 3rd

IF amplifier (Q901), etc.

Receive 8 V controlled by the R8 regulator

circuit (Q1701, Q1702) using RXS signal

from the CPU (LOGIC unit; IC1302, pin 105).

The output voltage is applied to the 2nd IF

amplifier (Q702), 3rd IF amplifier (Q1001),

3rd mixer (Q1101), etc.

3 - 9

3-6 PORT ALLOCATIONS

3-6-1 SUB-CPU (DISPLAY UNIT; IC2003)

number

Port

name Description

3, 5 MDBK,

MDAK Input ports for [DIAL].

13, 14 S1AK,

S1BK Input ports for [PBT2/M-ch] control.

15, 16 S2AK,

S2BK Input ports for [PBT1/RIT] control.

21 VRK Input port for [AF] switch.

22 PBTK Input port for [PBT/M-ch] switch.

23 TUNK Input port for [TUNER/CALL] key.

24 TSK Input port for [TS] key.

25 LCKK Input port for [LOCK] key.

26 BUPK Input port for [Y(BAND)] key.

27 BDNK Input port for [Z(BAND)] key.

28 FMSL Input port for the HM-151 connection

detection.

35 PHNK Input port for the headphones

connection detection.

37 LCK Outputs clock signal for the LCD driv-

er (IC506).

number

Port

name Description

38 LDT Outputs data signal for the LCD driver

(IC506).

39 LDST Outputs strobe signal for the LCD

driver (IC506).

47 FSQS Outputs the squelch control signal.

High : Squelch is opened.

48 RXD

Outputs the RX LED control signal.

High : While receiving or squelch is

opened.

54 BLV Outputs the dimmer control signal for

the LCD backlights.

55 KLV Outputs the dimmer control signal for

the key backlights.

56 TXD Outputs TX LED control signal.

Low : While transmitting.

57 PBT1D

Outputs control signal for [PBT/M-ch/

RIT] indicator.

Low : While the RIT function is ON.

58 PBT2D

Outputs control signal for [PBT/M-ch/

RIT] indicator.

Low : While the PBT function is ON.

70 LRXD Input port for data signal from the

main CPU (LOGIC unit; IC1302).

71 LTXD Outputs data signal to the main CPU

(LOGIC unit; IC1302).

73 AFGL Input port for [AF] control.

74 SQLL Input port for [RF/SQL] control.

75 PTTL

Input port for PTT control signal from

the microphone that is connected to

the FRONT unit.

77 FUDL

Input port for [UP] and [DN] switch-

es from the optional microphone

(HM-103, SM-20) that is connected to

the FRONT [MIC] connector.

78 KI0L

Input port for [MODE], [P.AMP/ATT],

[Y(MENU/GRP)] and [Z(MENU/

GRP)] keys.

79 KI1L Input port for [F-1], [F-2], [F-3] and

[F-4] keys.

80 KI2L Input port for [NB LEV], [NR LEV], [N/

ANF] and [SET/REC] keys.

3 - 10

3-6-2 MAIN CPU (LOGIC UNIT; IC1302)

number

Port

name Description

26 CYDT Outputs data signal for the clock gen-

erator (IC1201) for display control.

27 CYCK Outputs clock signal for the clock gen-

erator (IC1201) for display control.

29 RTCDT

I/O port for the data signal from/to the

clock IC (IC1304) for clock indication

and timer function.

30 RTCCK

Outputs clock signal for the clock IC

(IC1304) for clock indication and timer

function.

42 LOST Outputs strobe signal for the D/A con-

verter (DDS unit; IC901).

43 MST

Outputs strobe signal for the D/A

converter ICs (MAIN unit; IC2151–

IC2154).

46 MMDK

Input port for the data signal from the

microphone that is connected to the

rear [MIC] connector.

47 DRES Outputs the reset signal for the DSP

ICs (IC301, IC2201).

48 PRES#

Outputs the reset signal for the LCD

controller (IC1226) and DDS IC (DDS

unit; IC301).

49 SQSS

Outputs the squelch control signal for

the ACC connector and connected

microphone.

51 MCK

Outputs clock signal for the D/A

converter ICs (MAIN unit; IC2151–

IC2154).

52 MDT

Outputs serial data signal for the D/A

converter ICs (MAIN unit; IC2151–

IC2154).

57 SDSS

Outputs the signal for H SEND or V

SEND selection.

High : While V SEND is selected.

58 TDAT • Outputs data signal for AT-180.

• Outputs start signal for AH-3/AH-4.

81 DTXD Outputs data signal for the DSP IC

(IC301).

82 DRXD Input port for data signal from the

DSP IC (IC301).

83 2T8V

Outputs the TX band signal.

High : While transmitting the 144 MHz

band.

104 4T8V

Outputs the TX band signal.

High: While transmitting the 430 MHz

band.

105 RXS

Outputs R8 regulator (Q1701, Q1702)

control signal.

Low : While receiving.

106 TXS

Outputs T8 regulator (Q1703, Q1704)

control signal.

Low :While transmitting.

107 POWS Outputs the power control signal .

High :When IC-7000 is power ON.

number Port name Description

109 ECK Outputs clock signal to the EE-

PROM (IC1301).

110 EDT I/O port for the EEPROM (IC1301).

113 FORL Input port for the forward voltage.

114 REFL Input port for the reﬂ ection voltage .

115 ALCL Input port for ALC level.

116 SNDL

Input port for PTT control signal

from the FRONT unit or ACC con-

nector.

117 DPTL Input port for PTT control signal

from the DATA connector.

118 THML Input port for the temperature de-

tection signal.

119 MUDL

Input port for [UP] and [DN] switch-

es from the optional microphone

(HM-103, SM-20) that is connected

to the rear [MIC] connector.

121,

122

DASK,

DOTK Input ports for [KEY] jack.

124 MMSL Input port for the HM-151 connec-

tion detection.

127 TKEY Input port for tuner ON.

128 TRD Input port for the detected signal for

the tuner unit connection.

133 LTXD Outputs data signal to the sub CPU

(DISPLAY unit; IC2003).

134 LRXD Inputs data signal from the sub

CPU (DISPLAY unit; IC2003).

135 PWRK Input port for [PWR] key.

Low : While [PWR] key is pushed.

137 3DST

Outputs strobe signal to the DDS

IC (DDS unit; IC51) for the 3rd LO

signal.

138 PCK

Outputs clock signal for the DDS

ICs (DDS unit; IC51, IC301) and

D/A converter (DDS unit; IC901).

140 1DST

Output strobe signal to the DDS IC

(DDS unit; IC301) for the 1st LO

signal.

142 PDT

Outputs serial data signal for the

DDS ICs (DDS unit; IC51, IC301)

and D/A converter (DDS unit;

IC901).

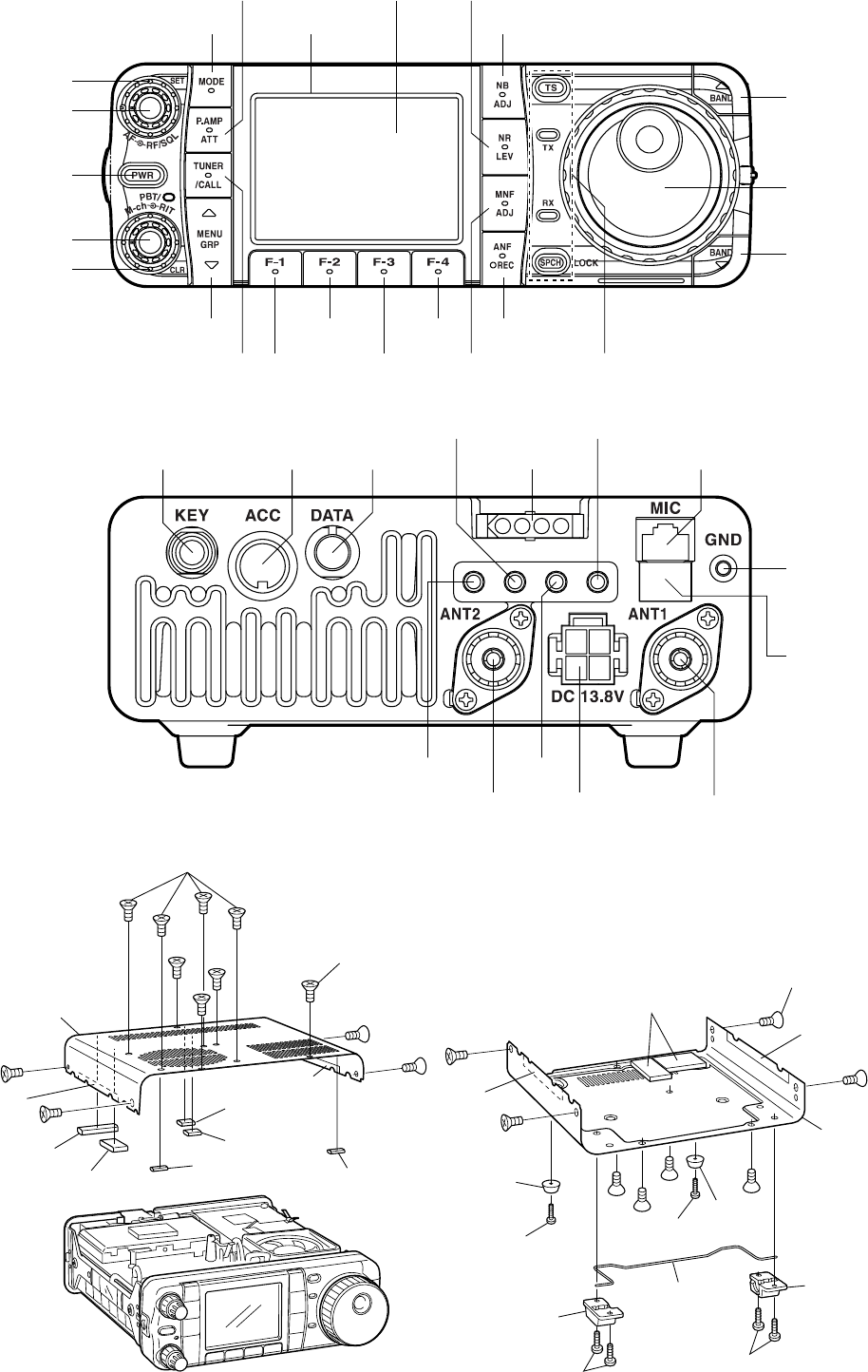

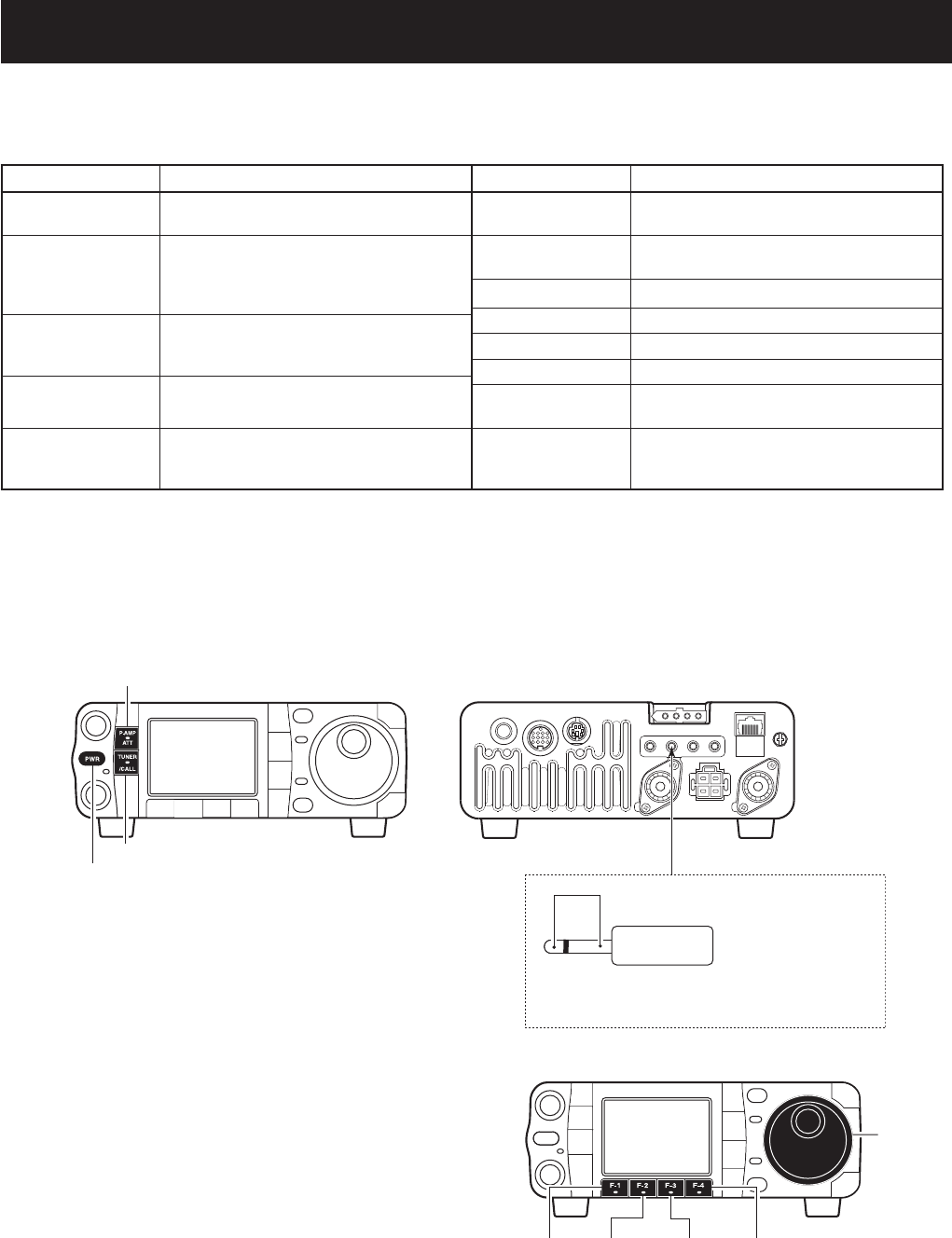

2-conductor 3.5 (d) mm (1⁄8″) plug

to [REMOTE] jack

Rear panel

Front panel

JIG plug

Shorten the both terminals

[P.AMP/ATT]

[TUNER/CALL]

[PWR]

KEY ACC DATA MIC

ANT2 ANT1

DC 13.8V

GND

4 - 1

SECTION 4 ADJUSTMENT PROCEDURES

4-1 PREPARATION

Some adjustment must be performed on the adjustment mode.

M REQUIRED TEST EQUIPMENT

EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RENGE

DC power supply Output voltage : 13.8 V DC

Current capacity : 30 A or more Distortion meter Frequency range : 1 kHz ±10 %

Measuring range : 1–100 %

RF power meter

(treminated type)

Measuring range : 0.5–200 W

Frequency range : 1.8–500 MHz

Impedance : 50 Ω

SWR : 1.2 : 1 or better

Oscilloscope Frequency range : DC–100 MHz

Measuring range : 0.01–10 V

Digital multimeter Imput impeadance : 10 MΩ/DC or more

AC millivoltmeter Measuring range : 10 mV to 10 V

Frequency counter

Frequency range : 0.1–500 MHz

Frequency accuracy : ±1 ppm or better

Sensitivity : 100 mV or better

DC voltmeter Input impedance : 50 kΩ/V DC or more

DC ammeter Measuring capability : 5 A/30 A

RF voltmeter Frequency range : 0.1–500 MHz

Measuring range : 0.01–10 V Audio generator Frequency range : 300–3000 Hz

Measuring range : 1–500 mV

Standard signal

generator (SSG)

Frequency range : 0.1–500 MHz

Output level : 0.1 µV to 32 mV

(–127 to –17 dBm)

External speaker Input impedance : 8 Ω

Capacity : 5 W or more

M ENTERING THE ADJUSTMENT MODE

q Turn the transceiver’s power OFF.

w Connect the JIG plug (see illustration below) to [REMOTE] jack on the rear panel.

e While pushing and holding [P.AMP/ATT] and [TUNE/CALL], turn the transceiver power ON.

NOTE: Exiting from the adjustment mode when the transceiver's power is OFF.

M OPERATING ON THE ADJUSTMENT MODE

• Enter DDS adjustment mode. : Push [F-1 (REF)]

• Enter TX adjustment mode. : Push [F-2 (TX)]

• Enter RX adjustment mode. : Push [F-3 (RX)]

• Store the set value. : Push [F-4 (SET)]

• Adjust the value. : Rotate [DIAL]

CAUTION: Connect a dummy load to the antenna con-

nectors during the transmitter adjustment,

when the adjustment condition does not re-

quire a test equipment.

[F-1(REF)] [F-3 (RX)]

[DIAL]

[F-2 (TX)] [F-4 (SET)]

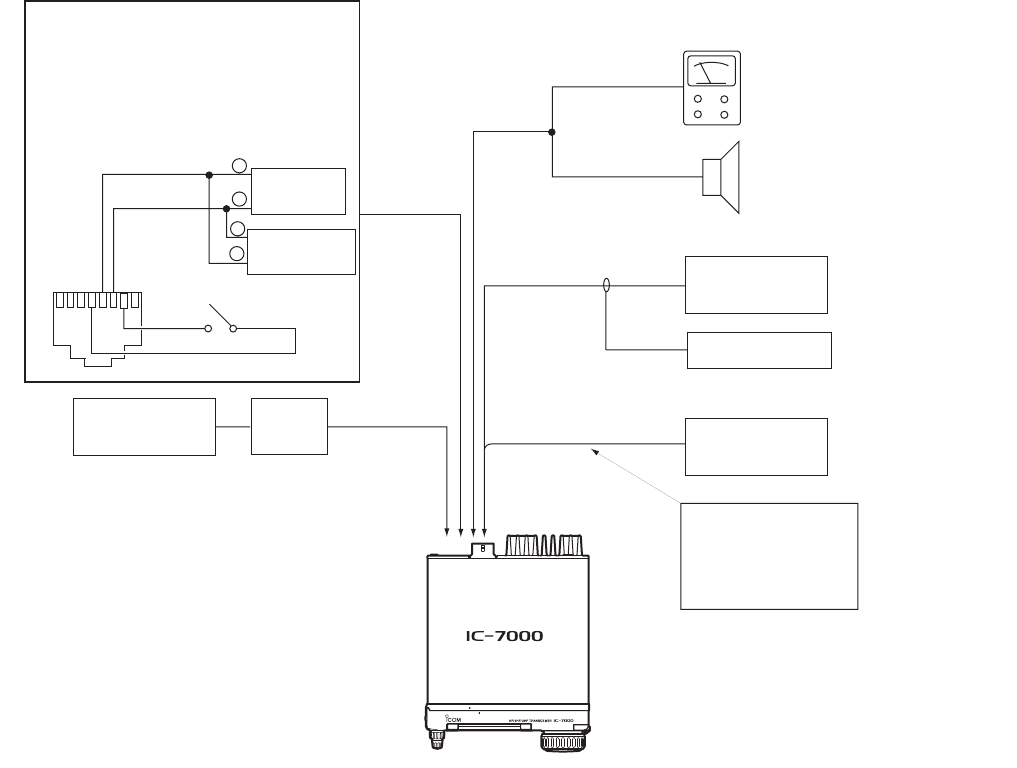

Audio

generator

RF power meter

A200 W/50 Ω

DC power supply

AA13.8 V/30 A Standard signal

aagenerator

millivoltmeter

CAUTION!

DO NOT connect the

signal generator while

transmitting.

Speaker

to [EXT SP]

to [MIC]

to [DC 13.8 V]

to [ANT 1/2]

• Microphone connector (Rear panel view)

Frequency counter

Ammeter

5 A, 30 A

Pin 5

MIC GND

Pin 6

MIC INPUT

–

Pin 4

PTT

Millivoltmerter

Pin 7

GND

–

NOTE! Connect the test equipment to the

micropho0ne connector on the rear panel,

otherwise the transmitter adjustment will not

adjusted properly.

4 - 2

• CONNECTION

4-3 DISPLAY ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE ADJUSTMENT

UNIT LOCATION UNIT ADJUST

DISPLAY 1 • Connect between DISPLAY unit

ground and MAIN unit ground.

• Disconnect J2231 (MAIN unit).

• Receiving

DIS-

PLAY

Connect a frequency

counter to CP536

through a capacitor

(0.0047 µF) and resistor

(1 kΩ) in series.

3.579545 MHz

[USA]

4.433619 MHz

[Others]

DIS-

PLAY

C536

2 • Receiving Connect a frequency

counter to CP505.

15.734 kHz

[USA]

15.625 kHz

[Others]

DIS-

PLAY

R541

After the adjustment, connect J2231 (MAIN unit) and disconnect jumper wire between DISPLAY unit ground

and MAIN unit ground.

4 - 3

4-2 DDS ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

REFERENCE

FREQUENCY

1 • Enter the adjustment mode.

• Push [F1 (REF)].

2• Disconnect P4 from J801 (MAIN

unit).

• Receiving

REF OSC Connect a frequency counter to P4 and

set 124.032000 MHz using [DIAL]. Then

push [F-4 (SET)].

After the adjustment, exit the adjustment mode and connect P4 to J801 (MAIN unit).

4-4 TRANSMITTER ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

DRIVE/FINAL

IDLING

CURRENT

1 • Enter the adjustment mode.

• Push [F-2 (TX)].

2• Connect an RF power meter to

[ANT1] and [ANT2] connectors.

• Apply no audio signals to [MIC]

jack.

• Connect a DC ammeter (5 A

type) between power supply and

transceiver.

• Transmitting

Driver Idle Cur Preset the adjustment value to "00" using

with [DIAL], and check the driving current.

3 Rotate [DIAL] to set adjustment value to

1 A value from the driving current of "00"

value. Then push [F-4 (SET )].

4Final Idle Cur(HF/50M)-1 Preset the adjustment value to "00" using

with [DIAL], and check the driving current.

5 Rotate [DIAL] to set adjustment value to

1 A value from the driving current of "00"

value. Then push [F-4 (SET )].

6Final Idle Cur(HF/50M)-2 Preset the adjustment value to "00" using

with [DIAL], and check the driving current.

7 Rotate [DIAL] to set adjustment value to

1 A value from the driving current of "00"

value. Then push [F-4 (SET )].

8Final Idle Cur(144M) Preset the adjustment value to "00" using

with [DIAL], and check the driving current.

9 Rotate [DIAL] to set adjustment value to

2 A value from the driving current of "00"

value. Then push [F-4 (SET )].

10 Final Idle Cur(430M) Preset the adjustment value to "00" using

with [DIAL], and check the driving current.

11 Rotate [DIAL] to set adjustment value to

2.5 A value from the driving current of

"00" value. Then push [F-4 (SET )].

After the adjustment, exit the adjustment mode.

CP536

Display check point

R541

Display adjustment point

Display check point

CP505

Display adjustment point

Frequency

counter

C536

0.0047µF 1kΩ

4 - 4

• FRONT UNIT

• MAIN UNIT

J2231

Display adjustment

presetting

Reference frequency

check point

J801

Ammeter

DC power

supply

Rear panel view

4 - 5

4-4 TRANSMITTER ADJUSTMENT (continue)

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE ADJUSTMENT

UNIT LOCATION UNIT ADJUST

SWR

DETECTOR

1 • Operating freq : 10.10000 MHz

• MODE : USB

• RF Power : 100%

• MIC Gain : 50%

• Connect an audio generator to

[MIC] connector and set as;

Frequency : 1.5 kHz

• Connect a wire between CP1601

(MAIN unit) and ground.

• Transmitting

REAR

panel

Connect an RF power

meter to [ANT1] connec-

tor.

80 W Audio

genera-

tor

Output

level

2 PA Connect a DC voltmeter

to CP961.

Minimum volt-

age

PA C964

After adjustment, disconnect the wire between CP1601 (MAIN unit) and ground.

TX PEAK 1 REAR

panel

Connect an RF power

meter to [ANT1] connec-

tor.

Maximum out-

put power

MAIN L701

• Operating freq. : 10.10000 MHz

• MODE : USB

• RF Power : 100%

• MIC Gain : 50%

• Preset R1618 (MAIN

unit) as the illustration at

right.

• Preset L604, L612

and L904 (MAIN

unit) as the illustra-

tion at right.

• Connect an audio generator to

[MIC] connector and set as ;

Level : 1.5 kHz/3 mV

( Adjust the audio generator

output level to keep less than

50 W output power.)

• Transmitting

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

TX TOTAL

GAIN

1 • Enter the adjustment mode.

• Push [F-2 (TX)].

2• Connect an RF power meter to

[ANT1] connector.

• Connect an audio generator to

[MIC] connector and set as;

Level : 1.5 kHz/3 mV

• Transmitting

TX Total Gain(HF1)

Set the output power to 50 W using

[DIAL]. Then push [F-4 (SET)].

TX Total Gain(HF2)

Set the output power to 50 W using

[DIAL]. Then push [F-4 (SET)].

TX Total Gain(HF3)

Set the output power to 50 W using

[DIAL]. Then push [F-4 (SET)].

TX Total Gain(50M)

Set the output power to 50 W using

[DIAL]. Then push [F-4 (SET)].

6• Connect an RF power to [ANT2]

connector.

• Transmitting

TX Total Gain(144M)

Set the output power to 25 W using

[DIAL]. Then push [F-4 (SET)].

TX Total Gain(430M)

Set the output power to 17.5 W using

[DIAL]. Then push [F-4 (SET)].

Core’s

top

4 - 6

TX peak

adjustment point

TX peak adjustment point

L904

L701

L604

L612

R1618

SWR DETECTOR preset point

CP1601

C964

SWR DETECTOR

adjustment point

CP961

SWR DETECTOR

check point

• MAIN UNIT

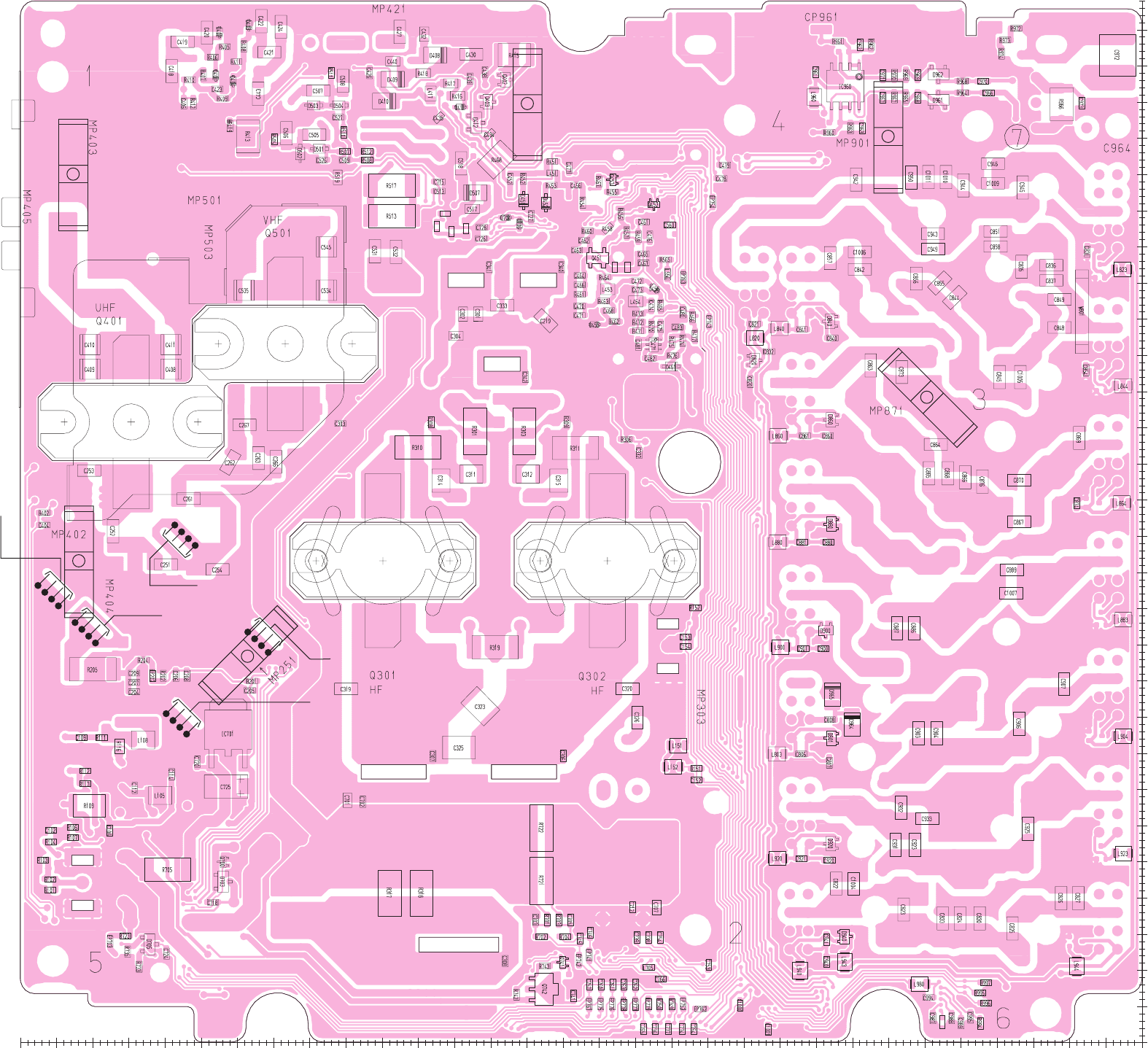

• PA UNIT

4-4 TRANSMITTER ADJUSTMENT (Continue)

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

TX OUTPUT

POWER (HF)

1• Connect an RF power meter to

[ANT1] connector.

• Connect an audio generator to

[MIC] connector and set as;

Level : 1.5 kHz/30 mV

• Transmitting

Po Min(HF) Set the output power to 1 W using [DIAL].

Then push [F-4 (SET)] .

2Po Tune(HF) Set the output power to 10 W using

[DIAL]. Then push [F-4 (SET)].

3Po 25%(HF) Set the output power to 25 W using

[DIAL]. Then push [F-4 (SET)].

4Po 50%(HF) Set the output power to 50 W using

[DIAL]. Then push [F-4 (SET)].

5Po(HF APC Low Volt) Set the output power to 75 W using

[DIAL]. Then push [F-4 (SET)].

6Po 100%(HF) Set the output power to 95 W using

[DIAL]. Then push [F-4 (SET)].

7Po Max(HF) Set the output power to 105 W using

[DIAL]. Then push [F-4 (SET)] key.

APC (HF) 1 APC(HF) Push [F-4 (SET)].

TX OUTPUT

POWER (AM)

1• Connect an RF power meter to

[ANT1] connector.

• Apply no audio signal to [MIC]

connector.

• Transmitting

AM POCV Ratio Set the output power to 35 W using

[DIAL]. Then push [F-4 (SET)].

TX OUTPUT

POWER

(50 MHz)

1• Connect an RF power meter to

[ANT1] connector.

• Connect an audio generator to

[MIC] connector and set as;

Level : 1.5 kHz/30 mV

• Transmitting

Po Min(50 M) Set the output power to 1 W using [DIAL].

Then push [F-4 (SET)].

2Po Tune(50 M) Set the output power to 10 W using

[DIAL]. Then push [F-4 (SET)].

3Po 25%(50 M) Set the output power to 25 W using

[DIAL]. Then push [F-4 (SET)].

4Po 50%(50 M) Set the output power to 50 W using

[DIAL]. Then push [F-4 (SET)].

5Po 100%(50 M) Set the output power to 90 W using

[DIAL]. Then push [F-4 (SET)].

6Po Max(50 M) Set the output power to 100 W using

[DIAL]. Then push [F-4 (SET)].

4 - 7

4-4 TRANSMITTER ADJUSTMENT (continue)

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

TX OUTPUT

POWER

(144 MHz)

1• Connect an RF power to [ANT2]

connector.

• Connect an audio generator to

[MIC] connector and set as;

Level : 1.5 kHz/30 mV

• Transmitting

Po Min(144 M) Set the output power to 1 W using [DIAL].

Then push [F-4 (SET)].

2Po 25%(144 M) Set the output power to 12.5 W using

[DIAL]. Then push [F-4 (SET)].

3Po 50%(144 M) Set the output power to 25 W using

[DIAL]. Then push [F-4 (SET)].

4Po 100%(144 M) Set the output power to 45 W using

[DIAL]. Then push [F-4 (SET)].

5Po Max(144 M) Set the output power to 50 W using

[DIAL]. Then push [F-4 (SET)].

APC (VHF) 1 APC(VHF) Push [F-4 (SET)].

TX OUTPUT

POWER

(430 MHz)

1• Connect an RF power meter to

[ANT2] connector.

• Connect an audio generator to

[MIC] connector and set as;

Level : 1.5 kHz/30 mV

• Transmitting

Po Min(430 M) Set the output power to 1 W using [DIAL].

Then push [F-4 (SET)].

2Po 25%(430 M) Set the output power to 8.75 W using

[DIAL]. Then push [F-4 (SET)].

3Po 50%(430 M) Set the output power to 17.5 W using

[DIAL]. Then push [F-4 (SET)].

4Po 100%(430 M) Set the output power to 31.5 W using

[DIAL]. Then push [F-4 (SET)].

5Po Max(430 M) Set the output power to 35 W using

[DIAL]. Then push [F-4 (SET)].

4 - 8

4-4 TRANSMITTER ADJUSTMENT (continue)

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

ALC 1 • Connect an RF power meter to

[ANT1] connector.

• Connect an audio generator to

[MIC] connector and set as;

Level : 1.5 kHz/30 mV

• Transmitting

ALC Push [F-4 (SET)].

Drive Min

(HF/50 MHz)

1• Set an audio generator as;

Level : 1.5 kHz/20 mV

• Transmitting

Drive Min(HF/50 M) Push [F-4 (SET)].

ALC (144 MHz) 1 • Connect an RF power meter to

[ANT2] connector.

• Connect an audio generator to

[MIC] connector and set as;

Level : 1.5 kHz/30 mV

• Transmitting

ALC(144 M) Push [F-4 (SET)].

Drive Min

(144 MHz)

1• Set an audio generator as;

Level : 1.5 kHz/20 mV

• Transmitting

Drive Min(144 M) Push [F-4 (SET)].

ALC (430 MHz) 1 • Connect an RF power meter to

[ANT2] connector.

• Connect an audio generator to

[MIC] connector and set as;

Level : 1.5 kHz/30 mV

• Transmitting

ALC(430 M) Push [F-4 (SET)].

Drive Min

(430 MHz)

1• Set an audio generator as;

Level : 1.5 kHz/20 mV

• Transmitting

Drive Min(430 M) Push [F-4 (SET)].

SWR 1 • Connect a 50 Ω dummy load to

[ANT1] connector.

• Transmitting

SWR=1 Push [F-4 (SET)].

2• Connect a 100 Ω dummy load to

[ANT1] connector.

• Transmitting

SWR=2 Push [F-4 (SET)].

After the adjustment, exit the adjustment mode.

4 - 9

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

ADJUSTMENT

UNIT LOCATION UNIT ADJUST

ID APC 1

REAR

panel

Connect a DC ammeter

(30 A type) between the

DC power supply and

transceiver.

22 A MAIN R1618

After the adjustment, disconnect the wire between CP1601 and ground.

RESIDUAL

1 • Operating freq. : 10.10000 MHz

• MODE : FM

• Connect an audio generator to

[MIC] connector and set as;

Level : 1 kHz/30 mV

• Transmitting

REAR

panel

Connect an RF power

meter to [ANT1] connec-

tor.

Maximum

output power

MAIN L701

• Operating freq. : 18.10000 MHz

• MODE : USB

• Preset R1618 (MAIN

unit) as illustration at

right.

• Connect a wire between CP1601

(MAIN unit) and ground.

• Connect an RF power meter or

dummy load to [ANT1] connec-

tor.

• Connect an audio generator to

[MIC ] connector and set as;

Level : 1.5 kHz/30 mV

• Transmitting

4 - 10

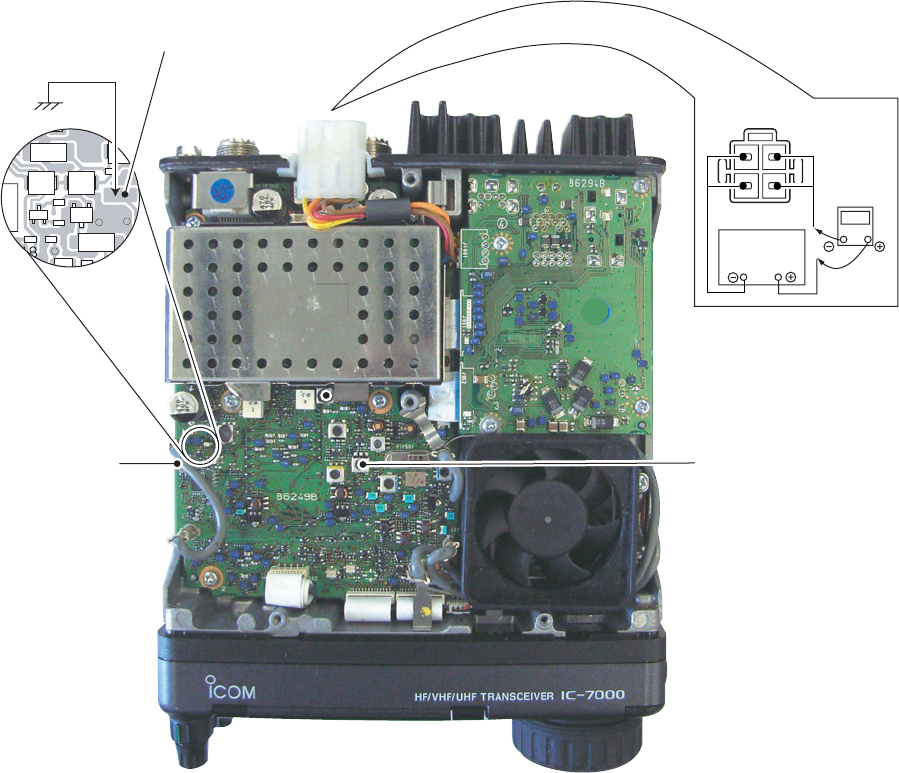

Residual AM

adjustment point

ID APC adjustment point

L701

R1618

ID APC preset point

CP1601

Ammeter

DC power

supply

Rear panel view

• MAIN UNIT

4 - 11

4-5 RECEIVER ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE ADJUSTMENT

UNIT LOCATION UNIT ADJUST

RX PEAK

(HF/50 MHz)

1 • Operating freq : 14.15000 MHz

• MODE : USB

• RIT : OFF

• AGC : FAST

• NB : OFF

• Preamp : ON

• Connect an SSG to [ANT1] con-

nector and set as;

Frequency : 14.15150 MHz

Level : 500 µV* (–53 dBm)

Modulation : OFF

• Receiving

REAR

panel

Connect an AC

millivoltmeter to [EXT

SP] jack with an 8 Ω

load.

Maximum AF

output level

MAIN L702,

L703

*The output level of a standard signal generator (SSG) is indicated as SSG's open circuit.

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

TOTAL GAIN

(HF/50 MHz)

1 • Enter the adjustment mode.

• Push [F-3 (RX)].

2• Connect an SSG to [ANT1] con-

nector and set as;

Level : 500 µV* (–53 dBm)

or OFF

Modulation : OFF

• Connect an AC millivoltmeter to

[EXT SP] jack with an 8 Ω load.

• Receiving

Total Gain(HF/50 M) Set 30 dB of AF level difference between

500 µV and no signal input from the SSG

using with [DIAL]. Then push [F-4 (SET)].

S-METER

(HF/50 MHz)

1• Connect an SSG to [ANT1] con-

nector and set as;

Frequency : 14.15150 MHz

Level : OFF

• Receiving

S0 Level Push [F-4 (SET)].

2• Set an SSG as;

Level : 50 µV* (–73 dBm)

• Receiving

S9 Level Push [F-4 (SET)].

3• Set an SSG as;

Level : 32 mV* (–17 dBm)

• Receiving

S9+60 Level Push [F-4 (SET)].

RECEIVE

SENSITIVITY

(VHF/UHF)

1• Connect an SSG to [ANT2] con-

nector and set as;

Frequency : 60.2015 MHz

Level : 10 µV* (–87 dBm)

Modulation : OFF

• Receiving

Tuned BPF(60 M) Push [F-4 (SET)].

2• Set an SSG as ;

Frequency : 90.8015 MHz

• Receiving

Tuned BPF(90 M) Push [F-4 (SET)].

3• Set an SSG as ;

Frequency : 128.8015 MHz

• Receiving

Tuned BPF(128 M) Push [F-4 (SET)].

4• Set an SSG as ;

Frequency : 129.2015 MHz

• Receiving

Tuned BPF(129 M) Push [F-4 (SET)].

5• Set an SSG as ;

Frequency : 145.3015 MHz

• Receiving

Tuned BPF(145 M) Push [F-4 (SET)].

4 - 12

L703

L702

RX peak

adjustment point

• MAIN UNIT

4 - 13

4-5 RECEIVER ADJUSTMENT (continue)

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

RECEIVE

SENSITIVITY

(VHF/UHF)

6• Set an SSG as ;

Frequency : 169.8015 MHz

• Receiving

Tuned BPF(170 M) Push [F-4 (SET)].

7• Set an SSG as ;

Frequency : 400.2015 MHz

• Receiving

Tuned BPF(400 M) Push [F-4 (SET)].

8• Set an SSG as ;

Frequency : 435.2015 MHz

• Receiving

Tuned BPF(435 M) Push [F-4 (SET)].

9• Set an SSG as ;

Frequency : 469.8015 MHz

• Receiving

Tuned BPF(470 M) Push [F-4 (SET)].

TOTAL GAIN

(VHF/UHF)

1• Connect an SSG to [ANT2] con-

nector and set as;

Frequency : 435.2015 MHz

Level : 500 µV* (–53 dBm)

or OFF

Modulation : OFF

• Connect an AC millivolt meter to

[EXT SP] jack with an 8 Ω load.

• Receiving

Total Gain(144M/430M) Set 25 dB of AF level difference between

500 µV and no signal input from the SSG

using with [DIAL]. Then push [F-4 (SET)].

S-METER

(WFM)

1• Connect an SSG to the [ANT2]

connector and set as;

Frequency : 90.80 MHz

Level : 0.56 µV* (–112 dBm)

Modulation : OFF

• Receiving

S0 Level(WFM) Push [F-4 (SET)].

2• Set an SSG as;

Level : 3.2 µV* (–97 dBm)

• Receiving

S9 Level(WFM) Push [F-4 (SET)].

3• Set an SSG as;

Level : 32 µV* (–77 dBm)

• Receiving

S9+60 Level(WFM) Push [F-4 (SET)].

After the adjustment, exit the adjustment mode.

*The output level of a standard signal generator (SSG) is indicated as SSG's open circuit.

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE ADJUSTMENT

UNIT LOCATION UNIT ADJUST

WFM

DISTORTION

1• Operating freq : 90.00000 MHz

MODE : WFM

Preamp : ON

• Connect an SSG to [ANT2] con-

nector and set as;

Frequency : 90.0000 MHz

Level : 3.2 µV* (–97 dBm)

Modulation : 1 kHz

Deviation : 50 kHz

• Receiving

REAR

panel

Connect a distortion me-

ter to [EXT SP] jack with

an 8 Ω load.

Minimum AF

distortion level

MAIN C1423

4 - 14

C1423

WFM distortion

adjustment point

• MAIN UNIT

5 - 1

SECTION 5 PARTS LIST

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

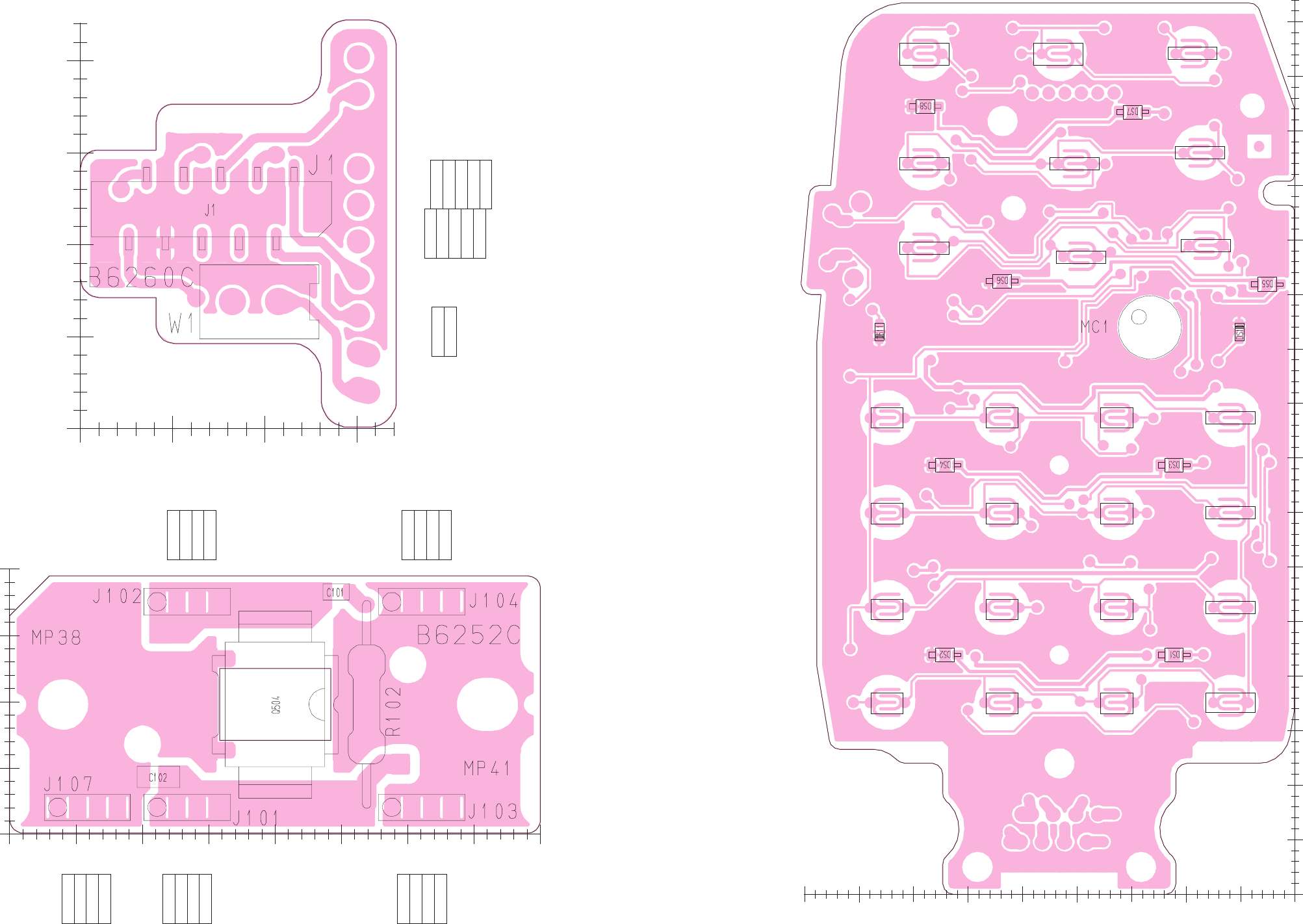

[FRONT UNIT]

DS1 5030002820 LCD LTA025A161A

W1 8900013940 CBL OPC-1447 (N=10, L=30)

W2 8900013990 CBL OPC-1445

EP1 880001670 UBD EX-2822 #01

L1 6190001561 S.COL CDRH5D18NP-101NC B 68.4/6.3

L2 6190001561 S.COL CDRH5D18NP-101NC B 34.6/5.2

L3 6200002041 S.COL NLV25T-101J B 30.7/10.4

L51 6190001561 S.COL CDRH5D18NP-101NC B 55.9/6.2

L53 6200002041 S.COL NLV25T-101J B 60.9/10.9

L101 6200001831 S.COL NLV32T-100J B 96/11.6

L151 6200001831 S.COL NLV32T-100J B 96/8.6

L152 6200001831 S.COL NLV32T-100J B 100.6/11.4

L251 6200003950 S.COL HF50ACC 322513-T B 145.9/44

L252 6200003950 S.COL HF50ACC 322513-T B 146/50.6

L301 6200002041 S.COL NLV25T-101J B 109.6/16.7

L302 6200005011 S.COL NLV25T-100J T 112.6/24

L303 6200002041 S.COL NLV25T-101J T 112/20.3

L306 6200003261 S.COL NLV32T-101J T 109.8/25.5

L307 6200002041 S.COL NLV25T-101J T 115.4/26.6

L309 6200002041 S.COL NLV25T-101J T 115.3/24

L310 6200002041 S.COL NLV25T-101J T 115.4/21.5

L312 6200002041 S.COL NLV25T-101J T 115.4/19

L313 6200002041 S.COL NLV25T-101J T 115.7/16.3

L505 6200005521 S.COL NLV25T-470J B 71.2/47.9

L506 6200005011 S.COL NLV25T-100J B 67.9/20.2

L507 6200005011 S.COL NLV25T-100J B 50.2/29

L508 6200005011 S.COL NLV25T-100J B 49.3/24.3

L509 6200005011 S.COL NLV25T-100J B 17.4/35.6

L601 6200002041 S.COL NLV25T-101J B 70.6/25.2

L602 6200005011 S.COL NLV25T-100J B 53.5/36.2

L603 6200005011 S.COL NLV25T-100J B 51/43.6

L604 6200005011 S.COL NLV25T-100J B 53.5/43.6

L605 6200005011 S.COL NLV25T-100J B 50.9/36.2

L651 6200002041 S.COL NLV25T-101J B 19.1/42.7

L701 6200002041 S.COL NLV25T-101J B 21.1/37.5

L702 6200002041 S.COL NLV25T-101J B 65.4/10.9

L703 6200002041 S.COL NLV25T-101J B 27.9/11.3

L801 6200005011 S.COL NLV25T-100J B 63.4/16.9

L802 6200002041 S.COL NLV25T-101J B 19.1/47.5

L851 6200003950 S.COL HF50ACC 322513-T B 33.2/17.2

L852 6200003950 S.COL HF50ACC 322513-T B 35/21.3

L853 6200002041 S.COL NLV25T-101J B 34.4/26.6

L854 6200002041 S.COL NLV25T-101J B 34.4/24.1

L855 6200003950 S.COL HF50ACC 322513-T B 36.4/17.2

R1 7030008141 S.RES ERA3YKD 224V (220 kΩ) B 33.4/9.6

R2 7030005671 S.RES ERA3YKD 393V (39 kΩ) B 33.4/11.6

R3 7030008051 S.RES ERA3YKD 184V (180 kΩ) B 42.6/6.4

R4 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 40.9/6.8

R5 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 40.9/7.7

R51 7030008141 S.RES ERA3YKD 224V (220 kΩ) B 49.7/10.8

R52 7030007911 S.RES ERA3YKD 563V (56 kΩ) B 48.5/10.8

R53 7030006561 S.RES ERA3YED 223V (22 kΩ) B 46.5/11.8

R54 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 47.9/8.4

R55 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 48.8/8.4

R201 7030010040 S.RES ERJ2GEJ-JPW B 109.6/38

R202 7030010040 S.RES ERJ2GEJ-JPW B 109.6/39

R251 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 136.5/49.6

R252 7030000300 S.RES MCR10EZHJ 220

Ω B 133.9/47.3

R253 7030000300 S.RES MCR10EZHJ 220

Ω B 142/50.8

R254 7030000300 S.RES MCR10EZHJ 220

Ω B 133.9/49

R255 7030000300 S.RES MCR10EZHJ 220

Ω T 143.2/50.7

R301 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 113.2/32

R302 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 114/30.4

R303 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 111/33.4

R304 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 111.9/33.4

R305 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 113.2/32.9

R306 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 114.9/11

R307 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 111.3/8.4

R308 7030005230 S.RES ERJ2GEJ 334 X (330 kΩ) B 113.8/5.3

R309 7030005310 S.RES ERJ2GEJ 124 X (120 kΩ) B 112/5.3

R310 7030008010 S.RES ERJ2GEJ 123 X (12 kΩ) B 110.2/5.3

R521 7030008370 S.RES ERJ2GEJ 561 X (560 Ω) B 60.8/46.1

R522 7030010040 S.RES ERJ2GEJ-JPW B 65.3/47.4

R523 7030010040 S.RES ERJ2GEJ-JPW B 65.4/48.7

R524 7030010900 S.RES ERJ3GEYJ 750 V (75 Ω) B 63.1/48.9

R528 7030010040 S.RES ERJ2GEJ-JPW B 60.8/42.6

R529 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 58.6/43.8

R530 7030005080 S.RES ERJ2GEJ 823 X (82 kΩ) B 60.8/43.6

R531 7030009290 S.RES ERJ2GEJ 562 X (5.6 kΩ) B 76.3/42.9

R532 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 60.8/37.2

R533 7030010040 S.RES ERJ2GEJ-JPW B 56.5/32.3

R534 7030010040 S.RES ERJ2GEJ-JPW B 60.8/36

R536 7030010040 S.RES ERJ2GEJ-JPW B 62.6/29

R537 7030010040 S.RES ERJ2GEJ-JPW B 64.6/29

R538 7030010040 S.RES ERJ2GEJ-JPW B 66.6/29

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

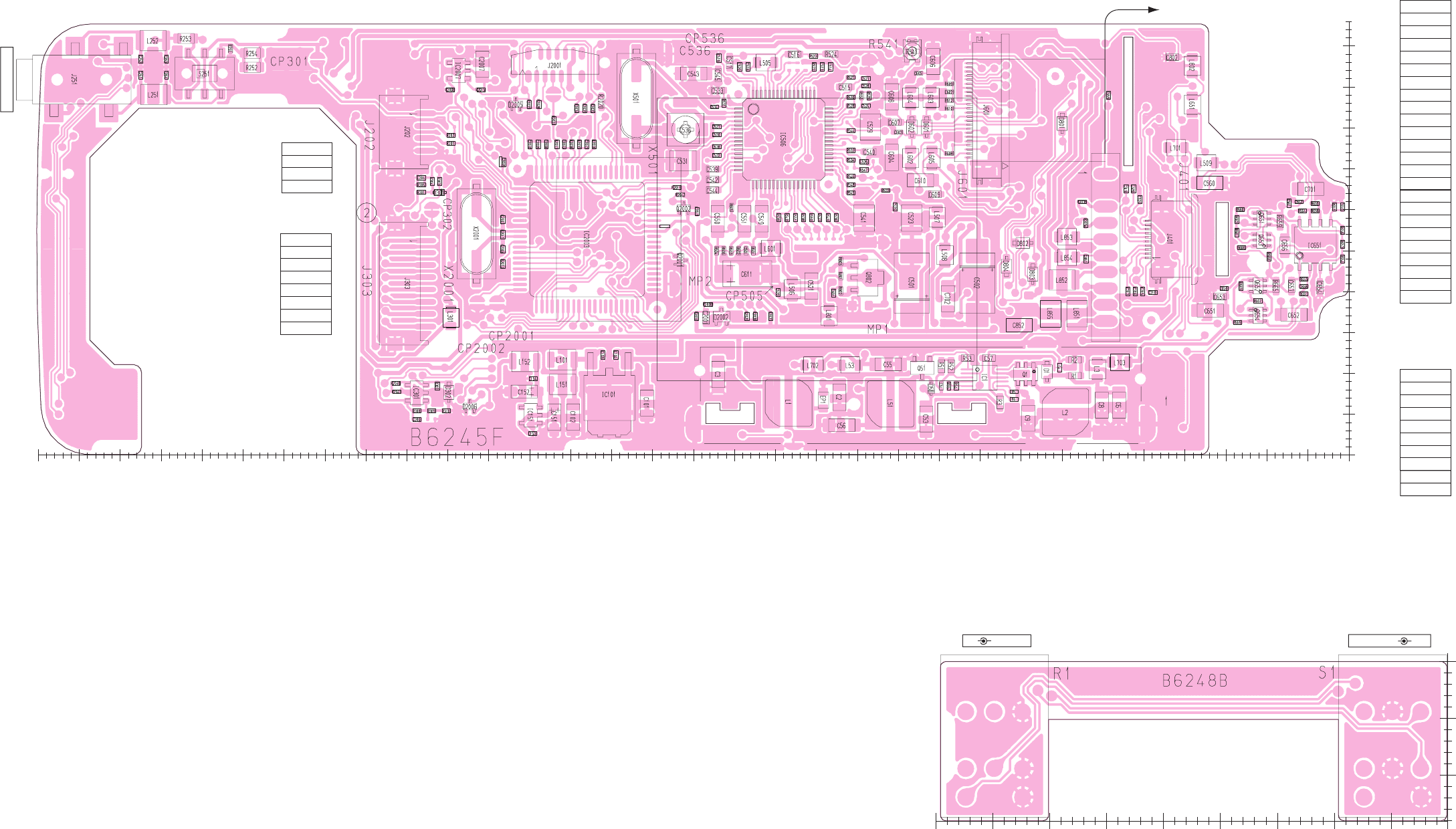

[DISPLAY UNIT]

IC1 6910016730 S.DCC XC9504B092ARN B 44.4/9.4

IC101 1180001071 S.IC TA7805F (TE16L, Q) B 90.3/6.9

IC151 1180002201 S.IC RN5RZ33BA-TR-F B 99.9/4.8

IC301 1110002751 S.IC TA75S01F (TE85R, F) B 113.8/7.5

IC506 1120003010 S.IC AN2533FH-V B 69/38.5

IC651 1110005420 S.IC BA15532F-E2 B 4.1/25.6

IC2003 1140013140 S.IC HD64338020SB68HV B 93/26.3

IC2007 1110005821 S.IC R3112N281A-TR-F B 108.7/46.9

Q1 1550000090 S.FET RSQ035P03TR B 39.4/9.8

Q51 1560001330 S.FET RSR025N03 B 52.1/10.6

Q301 1560001290 S.FET 2SK3065 T100 T 110.8/31.4

Q302 1590003520 S.TR BCR108T T 116.7/10.2

Q303 1590003530 S.TR BCR08PN T 113.1/11.5

Q651 1590001650 S.TR XP4601 (TX) B 10.6/28.8

Q652 1590001650 S.TR XP4601 (TX) B 11.1/20.6

Q653 1590001650 S.TR XP4601 (TX) B 10.6/26.2

Q654 1590001650 S.TR XP4601 (TX) B 11.1/17

Q701 1530002060 S.TR 2SC4081 T106 R T 19.1/50.3

Q721 1530002060 S.TR 2SC4081 T106 R T 22/5.8

Q741 1530002060 S.TR 2SC4081 T106 R T 94/50.1

Q761 1530002060 S.TR 2SC4081 T106 R T 104.2/50.1

Q771 1530002060 S.TR 2SC4081 T106 R T 18.4/25.1

Q781 1530002060 S.TR 2SC4081 T106 R T 5.3/23.6

Q802 1520000460 S.TR 2SB1132 T100 R B 58.8/21.6

Q2001 1590003520 S.TR BCR108T B 81.6/23.7

Q2002 1590003570 S.TR BCR183T B 81.2/30.1

D1 1790000970 S.DIO MA729 (TX) B 36.8/10.1

D51 1750000730 S.DIO MA2SD1000L B 51/8

D301 1790001250 S.DIO MA2S111-(TX) B 111/32

D302 1790001520 S.ZEN MA8075-L (TX) B 109.9/7.6

D601 1750000950 S.DIO MA732 (TX) B 51.5/40

D602 1750000950 S.DIO MA732 (TX) B 53.3/40

D801 1730002340 S.ZEN MA8047-M (TX) B 35/40.4

D802 1730002340 S.ZEN MA8047-M (TX) B 39.8/25.8

D803 1730002340 S.ZEN MA8047-M (TX) B 38.6/22

D804 1730002340 S.ZEN MA8047-M (TX) B 41.8/23

D2001 1750000950 S.DIO MA732 (TX) T 107.4/26.5

D2002 1790001670 S.DIO RB706F-40T106 B 76.6/16.8

D2003 1790001670 S.DIO RB706F-40T106 T 116.4/36.7

D2004 1750000370 S.DIO DA221 TL T 100.6/41.8

D2005 1750000370 S.DIO DA221 TL B 101.7/42.8

D2006 1750000370 S.DIO DA221 TL B 107.3/5.9

X501 6050012140 S.XTL CR-805 [USA] B 87/43.5

6050012150 S.XTL CR-806 [Others] B 87/43.5

X2001 6050011550 S.XTL CR-747 B 106.5/27

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DISPLAY UNIT]

[REPLACEMENT UNITS]

ORDER NO. UNIT NAME

0324270102

0324270105

U 7000 #02 FRONT

U 7000 #05 FRONT

[EUR], [FRA], [ESP], [EXP], [UK]

[USA]

5 - 2

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DISPLAY UNIT]

R539 7030005720 S.RES ERJ2GEJ 563 X (56 kΩ) B 69.6/29

R540 7030010040 S.RES ERJ2GEJ-JPW B 68.6/29

R541 7310004650 S.TRI EVM-2WSX80 B53 B 53.3/49.2

R544 7030010040 S.RES ERJ2GEJ-JPW B 60.8/39.6

R545 7030005720 S.RES ERJ2GEJ 563 X (56 kΩ) B 60.8/32

R546 7030010040 S.RES ERJ2GEJ-JPW B 60.8/34

R547 7030010040 S.RES ERJ2GEJ-JPW B 59.2/34.8

R548 7030010040 S.RES ERJ2GEJ-JPW B 60.8/33

R549 7030010040 S.RES ERJ2GEJ-JPW B 63.6/29

R550 7030010040 S.RES ERJ2GEJ-JPW B 65.6/29

R551 7030010040 S.RES ERJ2GEJ-JPW B 67.6/29

R553 7030010040 S.RES ERJ2GEJ-JPW B 59.5/43.8

R601 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 72.7/24.9

R602 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 74.5/24.9

R603 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 75.4/24.9

R604 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 77.2/24.9

R605 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 75.3/30.2

R606 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 76.3/24.9

R608 7030010040 S.RES ERJ2GEJ-JPW B 48.8/36.8

R609 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 48.8/45.3

R610 7030010040 S.RES ERJ2GEJ-JPW B 48.8/42.3

R612 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 48.8/43.3

R651 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 5.5/19.6

R652 7030005220 S.RES ERJ2GEJ 223 X (22 kΩ) B 0.8/25.7

R653 7030005060 S.RES ERJ2GEJ 333 X (33 kΩ) B 5.5/21.4

R654 7030005070 S.RES ERJ2GEJ 683 X (68 kΩ) B 0.8/23.9

R655 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 4.1/30.7

R656 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) B 0.8/27.4

R657 7030005060 S.RES ERJ2GEJ 333 X (33 kΩ) B 1.8/30.3

R658 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 4.1/29.8

R659 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 8.4/28.5

R660 7030005720 S.RES ERJ2GEJ 563 X (56 kΩ) B 13.2/29.9

R661 7030005220 S.RES ERJ2GEJ 223 X (22 kΩ) B 13.7/27.1

R662 7030007350 S.RES ERJ2GEJ 393 X (39 kΩ) B 13.7/28.7

R663 7030005220 S.RES ERJ2GEJ 223 X (22 kΩ) B 13.2/20.6

R664 7030007340 S.RES ERJ2GEJ 153 X (15 kΩ) B 5.7/29.8

R665 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 8.9/20.6

R666 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 13.1/25.3

R667 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 11.1/18.8

R668 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 9.7/24.2

R669 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 13.6/16.2

R701 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 18.4/48

R702 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) T 19.7/48

R703 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 25.1/41

R704 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 16.6/17.2

R705 7030007340 S.RES ERJ2GEJ 153 X (15 kΩ) T 18.7/6.4

R721 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 20.2/6.2

R722 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) T 23.8/5.6

R723 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 47.5/2.4

R724 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 61.8/2.4

R725 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 75.9/2.4

R741 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 92.2/49.7

R742 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) T 95.7/49.6

R743 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 102.1/35

R744 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 102.1/25.5

R745 7030007340 S.RES ERJ2GEJ 153 X (15 kΩ) T 100.6/8.6

R761 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 103.1/48.2

R762 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) T 104.8/47.8

R771 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 18.7/28.9

R772 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) T 18.1/29.9

R781 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 3.5/22.4

R782 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) T 3.5/24.2

R801 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 62/21.8

R802 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) B 62/20

R803 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 62/23.6

R2002 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 110.4/40.7

R2003 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 24.6/24.3

R2004 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 24.6/26.3

R2005 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 24.6/23.3

R2006 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 24.6/25.3

R2007 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 107.6/24.4

R2008 7030005220 S.RES ERJ2GEJ 223 X (22 kΩ) B 78.2/18.4

R2009 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 107.8/33

R2010 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 79.6/16.9

R2011 7030005160 S.RES ERJ2GEJ 105 X (1 MΩ) B 103.3/26.9

R2012 7030008010 S.RES ERJ2GEJ 123 X (12 kΩ) B 103.3/23.3

R2013 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 96.7/37.9

R2014 7030005290 S.RES ERJ2GEJ 682 X (6.8 kΩ) T 24.1/41

R2015 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 106/44.6

R2016 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 92.1/37.9

R2017 7030005290 S.RES ERJ2GEJ 682 X (6.8 kΩ) T 33.4/3.7

R2018 7030005290 S.RES ERJ2GEJ 682 X (6.8 kΩ) T 102.2/41.8

R2019 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 82/32.6

R2020 7030003450 S.RES ERJ3GEYJ 122 V (1.2 kΩ) B 91.2/43.1

R2021 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 97.1/40.8

R2022 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 92.3/42.3

R2023 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 100.1/42.8

R2024 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 94.3/42.3

R2025 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 93.3/42.3

R2026 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 72.5/16.9

R2027 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 70.6/16.9

R2028 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 98.9/42.8

R2029 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 73.5/16.9

R2030 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 108/11.8

R2031 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) T 108.8/40.1

R2033 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 19.4/20.3

R2034 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 32.1/28.3

R2035 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 32.5/30.9

R2036 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 94.9/37.9

R2037 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 93.9/37.9

R2039 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 107.6/23.5

R2040 7030007340 S.RES ERJ2GEJ 153 X (15 kΩ) B 116.3/8.7

R2041 7030007340 S.RES ERJ2GEJ 153 X (15 kΩ) B 116.2/7.7

R2042 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 81.6/31.7

C2 4030018960 S.CER C3216 JB 1C 106MT-N B 62.2/7

C3 4030018960 S.CER C3216 JB 1C 106MT-N B 77/9.8

C4 4030017420 S.CER ECJ0EC1H470J B 35.3/10.6

C6 4030018960 S.CER C3216 JB 1C 106MT-N B 28/6

C8 4030018960 S.CER C3216 JB 1C 106MT-N B 30.1/6

C9 4030018960 S.CER C3216 JB 1C 106MT-N B 39.1/4.4

C51 4030017420 S.CER ECJ0EC1H470J B 49.7/8.4

C53 4030018960 S.CER C3216 JB 1C 106MT-N B 51.6/4.3

C55 4030018960 S.CER C3216 JB 1C 106MT-N B 56.2/11

C56 4030018960 S.CER C3216 JB 1C 106MT-N B 61.9/3.6

C57 4030017490 S.CER C1608 JB 1A 105K-T B 43.9/11.8

C101 4030018960 S.CER C3216 JB 1C 106MT-N B 85.7/6.3

C102 4030018960 S.CER C3216 JB 1C 106MT-N B 94.7/4.6

C103 4030016930 S.CER ECJ0EB1A104K B 91.1/12.2

C104 4030016930 S.CER ECJ0EB1A104K B 89.5/12.2

C151 4550006250 S.TAN TEESVA 1A 106M8R B 97/4.6

C152 4550006250 S.TAN TEESVA 1A 106M8R B 100.7/7.7

C153 4030016930 S.CER ECJ0EB1A104K B 99.7/2.6

C154 4030016930 S.CER ECJ0EB1A104K B 99.6/9.3

C251 4030017730 S.CER ECJ0EB1E471K B 147.5/46.4

C252 4030017730 S.CER ECJ0EB1E471K B 147.5/48.3

C253 4030017730 S.CER ECJ0EB1E471K B 144.4/48.3

C254 4030017730 S.CER ECJ0EB1E471K B 144.4/46.4

C301 4030017780 S.CER ECJ0EB1E472K T 108.3/19.9

C302 4030017780 S.CER ECJ0EB1E472K T 108.2/28.7

C303 4030006880 S.CER C1608 JB 1H 472K-T T 113/27

C304 4030017780 S.CER ECJ0EB1E472K B 113.2/33.8

C305 4030017780 S.CER ECJ0EB1E472K T 114.9/12.6

C306 4030017780 S.CER ECJ0EB1E472K B 113.8/4.3

C312 4030017780 S.CER ECJ0EB1E472K T 108.2/29.6

C315 4030017780 S.CER ECJ0EB1E472K B 25.2/19.9

C316 4030017780 S.CER ECJ0EB1E472K B 26.1/19.9

C317 4030017780 S.CER ECJ0EB1E472K B 27/19.9

C318 4030017780 S.CER ECJ0EB1E472K B 23.9/19.8

C319 4030017780 S.CER ECJ0EB1E472K B 27.2/32.5

C320 4030017780 S.CER ECJ0EB1E472K B 26.3/32.5

C321 4030017780 S.CER ECJ0EB1E472K B 25.5/31.1

C322 4030017780 S.CER ECJ0EB1E472K T 24.6/27.3

C501 4550007140 S.TAN TEESVD 1C 107M12R B 53.3/20.9

C502 4550007140 S.TAN TEESVD 1C 107M12R B 45.3/20.9

C513 4030016930 S.CER ECJ0EB1A104K B 64.3/47.4

C514 4030016930 S.CER ECJ0EB1A104K B 63.3/47.4

C515 4030017490 S.CER C1608 JB 1A 105K-T B 61.5/44.9

C516 4030018910 S.CER C1608 JB 0J 475K-T B 67.7/48.9

C517 4030017490 S.CER C1608 JB 1A 105K-T B 75.6/47.9

C518 4030017650 S.CER ECJ0EC1H270J [Others] B 73.4/47.4

4030017670 S.CER ECJ0EC1H390J [USA] B 73.4/47.4

C519 4030016930 S.CER ECJ0EB1A104K B 76.9/48.4

C520 4030016930 S.CER ECJ0EB1A104K B 74.4/47.4

C521 4030018960 S.CER C3216 JB 1C 106MT-N B 65.6/20.6

C522 4030016930 S.CER ECJ0EB1A104K B 69.7/19.8

C523 4030018970 S.CER C3225 JB 1C 226MT-N B 53.4/28.9

C524 4030017700 S.CER ECJ0EC1H151J B 59/42.6

C525 4030016930 S.CER ECJ0EB1A104K B 55.4/30.3

C526 4030018090 S.CER ECJ0EB1C822K B 59.2/35.8

C527 4030018100 S.CER ECJ0EB1H681K B 59/45.9

C528 4030017730 S.CER ECJ0EB1E471K B 59/45

C529 4030018970 S.CER C3225 JB 1C 226MT-N B 58.4/40

C530 4030016930 S.CER ECJ0EB1A104K B 77.2/39.1

C531 4030018970 S.CER C3225 JB 1C 226MT-N B 81.3/35.9

C532 4030016930 S.CER ECJ0EB1A104K B 77.2/36.6

C533 4030017490 S.CER C1608 JB 1A 105K-T B 77/44.5

C534 4030016970 S.CER ECJ0EB1C223K B 77.5/42.5

C536 4610001850 S.TRI TZB4R200AB10R00 B 81/39.7

C537 4030016930 S.CER ECJ0EB1A104K B 77.2/40.1

C538 4030016930 S.CER ECJ0EB1A104K B 77.2/37.6

C539 4030018910 S.CER C1608 JB 0J 475K-T B 77.7/34.9

C540 4030018910 S.CER C1608 JB 0J 475K-T B 58.5/37

C541 4030018970 S.CER C3225 JB 1C 226MT-N B 59.2/28.9

C542 4030018910 S.CER C1608 JB 0J 475K-T B 77.7/33.6

C543 4030018960 S.CER C3216 JB 1C 106MT-N B 80/46.5

C544 4030018910 S.CER C1608 JB 0J 475K-T B 77.7/32.3

C545 4030011600 S.CER C1608 JB 1E 104K-T B 77/46.3

C549 4030018960 S.CER C3216 JB 1C 106MT-N B 71.7/28.8

C550 4030018960 S.CER C3216 JB 1C 106MT-N B 77/28.8

C551 4030018960 S.CER C3216 JB 1C 106MT-N B 73.8/28.8

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DISPLAY UNIT]

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DISPLAY UNIT]

C559 4030017460 S.CER ECJ0EB1E102K B 29.3/43.9

C560 4030018960 S.CER C3216 JB 1C 106MT-N B 17/33.2

C561 4030017330 S.CER ECJ0EF1C104Z B 7.3/30.7

C562 4030017780 S.CER ECJ0EB1E472K B 6.1/30.9

C601 4030016930 S.CER ECJ0EB1A104K B 73.6/24.9

C602 4030016930 S.CER ECJ0EB1A104K B 48.8/44.3

C603 4030016930 S.CER ECJ0EB1A104K B 55/39.4

C604 4030018960 S.CER C3216 JB 1C 106MT-N B 55.8/36.3

C605 4030016930 S.CER ECJ0EB1A104K B 52.5/46.6

C606 4030018960 S.CER C3216 JB 1C 106MT-N B 50.7/48

C607 4030011600 S.CER C1608 JB 1E 104K-T B 55.4/40.6

C608 4030018960 S.CER C3216 JB 1C 106MT-N B 55.8/43.7

C609 4030011600 S.CER C1608 JB 1E 104K-T B 50.5/31.8

C610 4030018960 S.CER C3216 JB 1C 106MT-N B 52.3/33.5

C611 4550007220 S.TAN F931A476MCMBMA B 73.4/22.1

C651 4030018960 S.CER C3216 JB 1C 106MT-N B 16.9/17.6

C652 4030018960 S.CER C3216 JB 1C 106MT-N B 6.7/17.1

C653 4030011600 S.CER C1608 JB 1E 104K-T B 15.7/19.3

C654 4030017490 S.CER C1608 JB 1A 105K-T B 3.5/20.4

C655 4030016790 S.CER ECJ0EB1C103K B 0.8/30.3

C656 4030019090 S.CER C2012 JB 1C 225M-T B 7.8/25.5

C657 4030018520 S.CER C1608 JB 0J 225M-T B 7/20.6

C658 4030017650 S.CER ECJ0EC1H270J B 5.5/20.5

C659 4030017780 S.CER ECJ0EB1E472K B 15.2/20.3

C701 4030018960 S.CER C3216 JB 1C 106MT-N B 4.6/32.4

C702 4030018960 S.CER C3216 JB 1C 106MT-N B 48.9/19

C801 4030016930 S.CER ECJ0EB1A104K B 62.9/19.7

C802 4030011600 S.CER C1608 JB 1E 104K-T B 21.5/48.5

C851 4030017780 S.CER ECJ0EB1E472K B 32.1/23.9

C852 4030018960 S.CER C3216 JB 1C 106MT-N B 40.3/15.8

C2001 4030018520 S.CER C1608 JB 0J 225M-T B 78.5/16.7

C2002 4030017780 S.CER ECJ0EB1E472K T 114.8/34.7

C2003 4030017630 S.CER ECJ0EC1H120J B 103.3/28.7

C2004 4030017630 S.CER ECJ0EC1H120J B 103.3/25.1

C2005 4030016790 S.CER ECJ0EB1C103K B 103.3/35.7

C2006 4030016930 S.CER ECJ0EB1A104K B 98/37.9

C2007 4030018960 S.CER C3216 JB 1C 106MT-N B 105.8/47.7

C2008 4030017030 S.CER ECJ0EB1A273K B 109.7/44.6

C2009 4030016930 S.CER ECJ0EB1A104K B 99/37.9

C2010 4030016930 S.CER ECJ0EB1A104K B 100/37.9

C2011 4030016930 S.CER ECJ0EB1A104K B 79.6/29.7

C2012 4030017780 S.CER ECJ0EB1E472K B 95.8/37.9

C2013 4030017780 S.CER ECJ0EB1E472K B 93/37.9

C2014 4030016930 S.CER ECJ0EB1A104K T 110.4/41.7

C2015 4030016930 S.CER ECJ0EB1A104K B 103.3/35.7

C2016 4030016930 S.CER ECJ0EB1A104K B 83.5/28

J202 6510023801 S.CNR S4B-ZR-SM4A-TF (LF) (SN) B 115.9/39.4

J251 6510024680 S.CNR HSJ1636-011020 B 154.7/45.8

J303 6510021431 S.CNR S8B-ZR-SM4A-TF (LF) (SN) B 115.9/20.9

J401 6510024840 S.CNR 52746-1070 B 21.3/26.3

J601 6510024780 S.CNR 52437-2472 B 45.1/42

J2001 6510024790 S.CNR 52559-1072 B 96.9/47.6

DS805 5040003190 S.LED NSSW008B T 29.5/39.4

DS806 5040003190 S.LED NSSW008B T 29.4/31.4

DS807 5040003190 S.LED NSSW008B T 29.4/24.1

DS808 5040003190 S.LED NSSW008B T 29.5/16.1

DS2001 5040002930 S.LED SML-512MW T86 T 110.2/15.8

DS2002 5040002020 S.LED CL-170UR-CD-T T 110.2/36.8

DS2004 5040002930 S.LED SML-512MW T86 T 11.4/20.5

S201 2230001160 S.SW SPVP110100 T 157.7/34.3

S251 2220000330 S.SW HSW0880-01-210 B 139.7/46.5

S701 2230001150 S.SW LS9J2M-1FG-T T 22.2/48.3

S702 2230001150 S.SW LS9J2M-1FG-T T 21.7/36.5

S703 2230001150 S.SW LS9J2M-1FG-T T 20.9/17

S704 2230001150 S.SW LS9J2M-1FG-T T 21.6/2.7

S721 2230001150 S.SW LS9J2M-1FG-T T 40.1/2.4

S722 2230001150 S.SW LS9J2M-1FG-T T 54.3/2.4

S723 2230001150 S.SW LS9J2M-1FG-T T 68.4/2.4

S724 2230001150 S.SW LS9J2M-1FG-T T 82.6/2.4

S741 2230001150 S.SW LS9J2M-1FG-T T 98.1/47.8

S742 2230001150 S.SW LS9J2M-1FG-T T 99.1/32.1

S743 2230001150 S.SW LS9J2M-1FG-T T 99.1/20.5

S744 2230001150 S.SW LS9J2M-1FG-T T 98.1/5.7

S761 2230001150 S.SW LS9J2M-1FG-T T 109.5/49.1

S762 2230001150 S.SW LS9J2M-1FG-T T 109.5/3.5

S763 2230001150 S.SW LS9J2M-1FG-T T 154.8/47.4

S764 2230001150 S.SW LS9J2M-1FG-T T 154.8/5.1

S781 2230001150 S.SW LS9J2M-1FG-T T 4.6/29

S782 2230001150 S.SW LS9J2M-1FG-T T 21.7/25.8

EP1 6910014730 S.BEA MPZ2012S331A-T B 64.1/6.6

R1 7210003230 VAR TP96D00A-17F-10KBX2

R2 7030003860 S.RES ERJ3GE JPW V T 1.3/32.6

R3 7030003860 S.RES ERJ3GE JPW V T 2.3/30

J1 6510024850 S.CNR 54550-1094 T 3.3/22.2

S1 2250000170 ECR TP90D96AE20-17F (1352)

EP4 6910012350 S.BEA MMZ1608Y 102BT T 2.7/32.6

EP5 6910012350 S.BEA MMZ1608Y 102BT T 3.7/30

EP6 6910012350 S.BEA MMZ1608Y 102BT T 0.9/30

EP7 6910012350 S.BEA MMZ1608Y 102BT T 0.9/14.5

EP8 6910012350 S.BEA MMZ1608Y 102BT T 3.7/14.5

EP9 6910012350 S.BEA MMZ1608Y 102BT T 2.7/11.8

EP10 6910012350 S.BEA MMZ1608Y 102BT T 2.3/14.5

EP11 6910012350 S.BEA MMZ1608Y 102BT T 1.3/11.8

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[VR UNIT]

IC1 1110004080 S.IC µPC2709T-E3 T 75.6/12.7

IC2 1110004101 S.IC TA4001F (TE85L,F) T 63.9/18.8

IC3 1110004091 S.IC TA4002F (TE85L,F) T 48.3/17.4

IC401 1190002051 S.IC SPM5001-YL-E T 77.5/27.9

IC421 1110004080 S.IC µPC2709T-E3 T 86.4/19.4

IC801 1110004080 S.IC µPC2709T-E3 T 86/57.4

IC1101 1110006730 S.IC NJM2594V-TE1 T 5/83.3

IC1201 1130006221 S.IC TC4W53FU (TE12L,F) T 24.2/81.6

IC1202 1130006221 S.IC TC4W53FU (TE12L,F) T 19.8/81.4

IC1203 1110006570 S.IC TS462CPT T 12.8/81.7

IC1301 1110005461 S.IC TA4107F (TE12L,F) T 13.7/63.4

IC1401 1110006541 S.IC LA1225M-TLM-E B 23.4/82.2

IC1501 1110006530 S.IC TA4019F (TE12L,F) B 74.8/39

IC1502 1110005040 S.IC M52342FP 600C B 79.7/57

IC1601 1110005320 S.IC NJM13403V-TE1 T 8.6/41.5

IC1801 1180002020 S.REG BA033FP-E2 B 22.8/106.5

IC1901 1180001251 S.IC TA7808F (TE16L,Q) B 10.4/55.2

IC1951 1190002120 S.IC XC9201D09AKR B 41.9/107.8

IC1952 1180002020 S.REG BA033FP-E2 B 14.7/125.8

IC2001 1180001251 S.IC TA7808F (TE16L,Q) B 8.5/19

IC2007 1110006570 S.IC TS462CPT T 15.8/121

IC2101 1110005320 S.IC NJM13403V-TE1 T 28.5/118.2

IC2102 1110005320 S.IC NJM13403V-TE1 T 49.5/111.9

IC2103 1110005140 S.IC NJM3403AV-TE1 T 49.5/121.2

IC2151 1130012720 S.IC CD74HC4094PWR T 47.1/95.9

IC2152 1130012720 S.IC CD74HC4094PWR T 37.9/95.9

IC2153 1130012720 S.IC CD74HC4094PWR T 28.1/95.8

IC2154 1130012720 S.IC CD74HC4094PWR T 28.2/101.5

IC2155 1110006680 S.IC BH2221FV-E2 T 38.2/118.1

IC2156 1130009100 S.IC BU4052BCFV-E2 T 10.1/107.6

IC2231 1110006640 S.IC NJM2244M-TE1 T 34.7/109.4

IC2251 1130008510 S.IC TC7W53FU (TE12L) T 16.7/89.5

IC2501 1110006570 S.IC TS462CPT B 12.7/91.7

IC2551 1110006570 S.IC TS462CPT B 49.2/122

IC2601 1130006221 S.IC TC4W53FU (TE12L,F) B 63.2/123.9

IC2602 1110003091 IC LA4425A-E

Q101 1530003091 S.TR 2SC4213-B (TE85R,F) T 11.2/17.5

Q102 1590003520 S.TR BCR108T T 21.3/5.6

Q103 1590003530 S.TR BCR08PN T 38.4/20.2

Q201 1590003520 S.TR BCR108T T 16.1/31.1

Q202 1590003520 S.TR BCR108T T 23.5/28.5

Q204 1590003520 S.TR BCR108T B 44.7/38.6

Q205 1590003520 S.TR BCR108T T 42.9/61.5

Q206 1590003520 S.TR BCR108T B 24.5/55

Q207 1590003520 S.TR BCR108T B 24.5/51.9

Q208 1590003520 S.TR BCR108T B 24.2/48.8

Q209 1590003520 S.TR BCR108T B 23.5/45.7

Q210 1590003520 S.TR BCR108T B 42.9/41.4

Q211 1530003851 S.TR 2SC5551F-TD-E T 27.6/30.1

Q301 1530003851 S.TR 2SC5551F-TD-E T 56.7/32.4

Q402 1590003530 S.TR BCR08PN T 82.8/22.8

Q403 1590003530 S.TR BCR08PN T 70.6/23.6

Q502 1530003851 S.TR 2SC5551F-TD-E T 82.8/37.1

Q701 1580000780 S.FET 3SK195 (TE85L,F) T 62/56.5

Q702 1580000780 S.FET 3SK195 (TE85L,F) T 54.6/51.8

Q901 1580000780 S.FET 3SK195 (TE85L,F) T 36.6/65.7

Q902 1580000780 S.FET 3SK195 (TE85L,F) T 35.9/73.2

Q1001 1580000780 S.FET 3SK195 (TE85L,F) T 17.9/76

Q1201 1590003530 S.TR BCR08PN T 28/78.6

Q1401 1530002060 S.TR 2SC4081 T106 R B 42.5/74.3

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

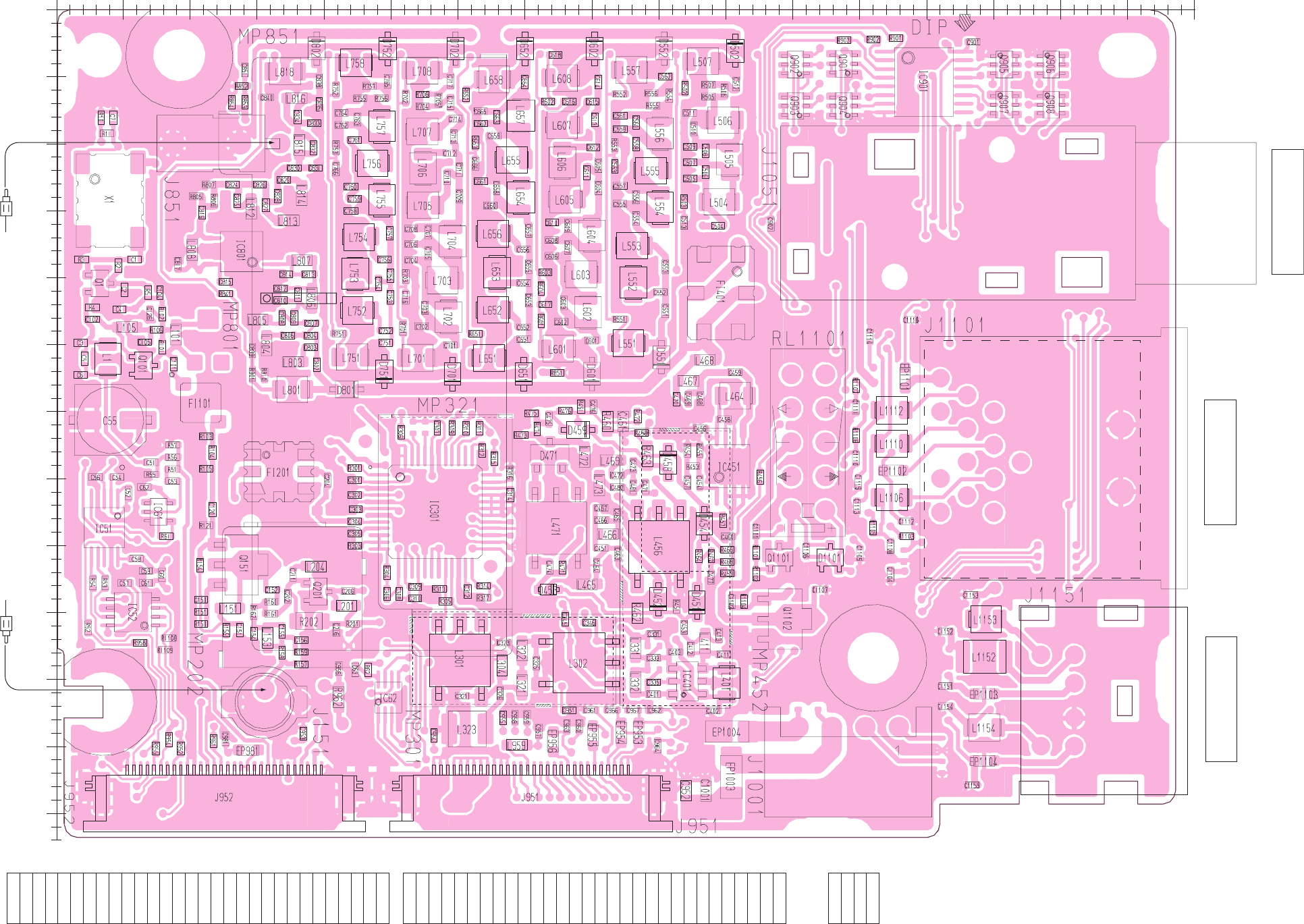

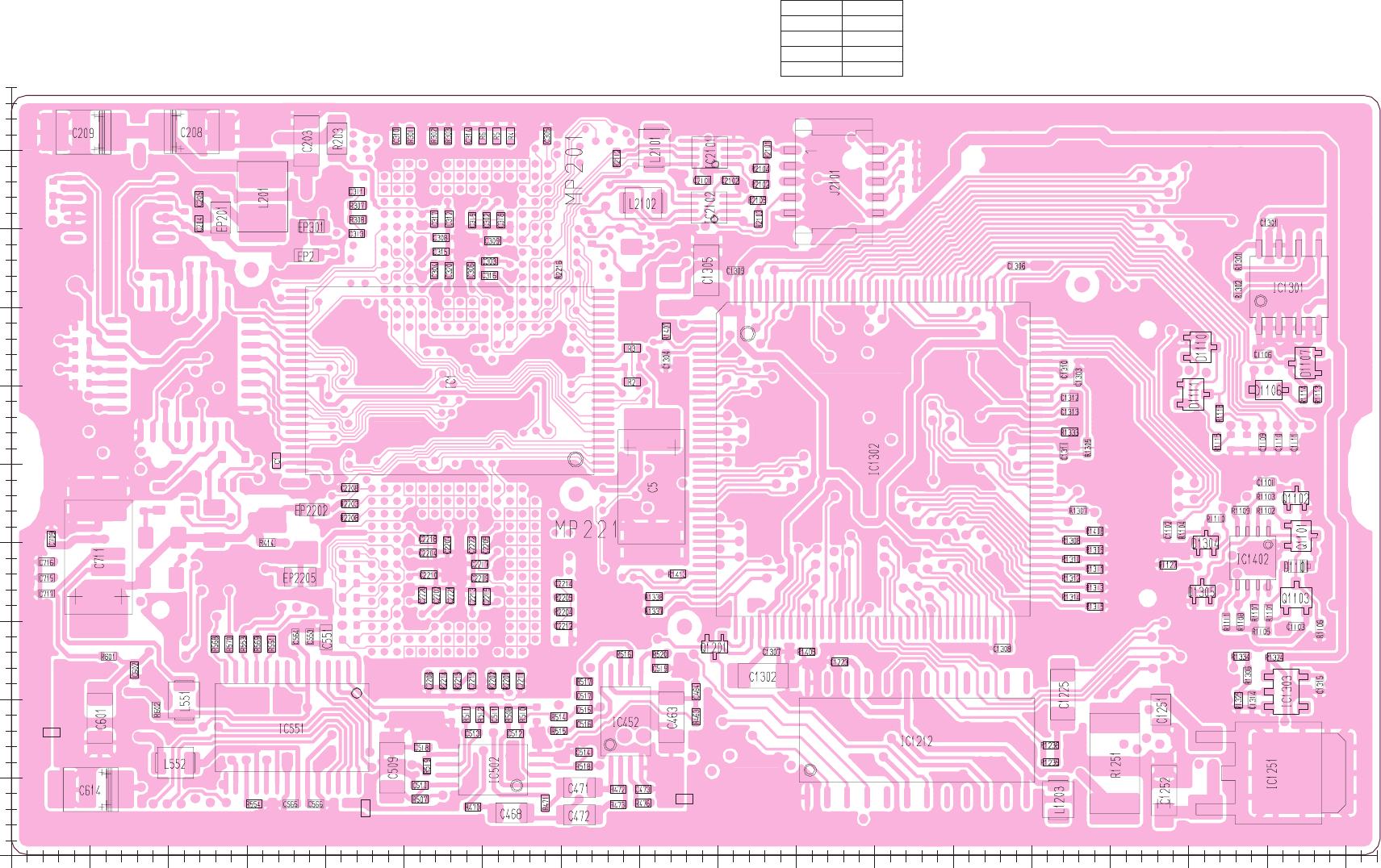

[MAIN UNIT]

5 - 3

5 - 4

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

Q1402 1530002060 S.TR 2SC4081 T106 R B 36.7/80.1

Q1501 1590003530 S.TR BCR08PN T 30.6/78.5

Q1521 1530002060 S.TR 2SC4081 T106 R B 86.6/48.6

Q1601 1530003091 S.TR 2SC4213-B (TE85R,F) T 8.3/52.9

Q1602 1590001870 S.TR DTA114EE TL T 4.5/53

Q1603 1590003520 S.TR BCR108T T 2.8/40.7

Q1604 1510000771 S.TR 2SA1586-GR (TE85R,F) T 5.1/32.7

Q1606 1560001260 S.FET 2SK3018 T106 T 12.5/36.8

Q1701 1540000441 S.TR 2SD1619T-TD-E B 52.4/48.2

Q1702 1590003520 S.TR BCR108T B 54.3/52.1

Q1703 1540000441 S.TR 2SD1619T-TD-E B 52.4/67.4

Q1704 1590003520 S.TR BCR108T B 54.1/72.9

Q1901 1590003530 S.TR BCR08PN T 35.8/78.5

Q1902 1590003530 S.TR BCR08PN T 33.3/78.5

Q1903 1590003530 S.TR BCR08PN B 23.6/17

Q1904 1590003530 S.TR BCR08PN B 32.9/87.9

Q1905 1590003530 S.TR BCR08PN B 46/40.9

Q1906 1590003530 S.TR BCR08PN B 26.3/30.8

Q1907 1590003530 S.TR BCR08PN T 40.9/78.5

Q1908 1590003530 S.TR BCR08PN T 38.3/78.5

Q1909 1590003530 S.TR BCR08PN B 22.1/11.8

Q1960 1550000090 S.FET RSQ035P03TR B 37.9/103.6

Q2150 1590003530 S.TR BCR08PN T 48.4/100.1

Q2151 1520000460 S.TR 2SB1132 T100 R T 55.3/103.8

Q2152 1520000460 S.TR 2SB1132 T100 R T 21.3/111

Q2153 1520000460 S.TR 2SB1132 T100 R T 49.8/104.5

Q2154 1590003530 S.TR BCR08PN T 44.7/100.1

Q2155 1590003530 S.TR BCR08PN T 39.9/100.1

Q2156 1590003520 S.TR BCR108T T 58.9/104.5

Q2157 1590003520 S.TR BCR108T T 25.4/109.7

Q2158 1590003520 S.TR BCR108T T 45.5/107.1

Q2159 1590003530 S.TR BCR08PN T 6.7/118.2

Q2160 1590003530 S.TR BCR08PN T 7.7/122.2

Q2231 1590003520 S.TR BCR108T T 4.7/121.7

Q2232 1590003530 S.TR BCR08PN T 57.3/114.8

Q2233 1590003530 S.TR BCR08PN T 54.7/115.7

Q2301 1530002060 S.TR 2SC4081 T106 R T 30.6/109

Q2401 1540000441 S.TR 2SD1619T-TD-E B 80.1/26.4

Q2601 1560001260 S.FET 2SK3018 T106 B 36.2/125.3

Q2602 1560001220 S.FET ECH8301-TL B 37.3/128.2

Q2603 1530002060 S.TR 2SC4081 T106 R T 65.3/111.3

Q2605 1590003520 S.TR BCR108T T 11.7/112.7

Q2606 1540000451 S.TR 2SD1623T-TD-E B 89.5/119.9

Q2607 1590003520 S.TR BCR108T B 65.4/120.5

Q2608 1590003520 S.TR BCR108T B 45/128.6

D1 1750000581 S.DIO 1SV307 (TPH3, F) T 70.2/16.6

D2 1750000581 S.DIO 1SV307 (TPH3, F) T 70.1/14.8

D3 1750000581 S.DIO 1SV307 (TPH3, F) T 45.2/19.8

D4 1750000581 S.DIO 1SV307 (TPH3, F) T 41.9/19

D5 1750000581 S.DIO 1SV307 (TPH3, F) T 70.6/18.3

D6 1790000620 S.DIO MA77 (TX) B 80.5/16.4

D7 1790000620 S.DIO MA77 (TX) T 78.5/15.8

D8 1790000620 S.DIO MA77 (TX) B 81.5/10.6

D9 1790000620 S.DIO MA77 (TX) T 79/11.5

D10 1750000581 S.DIO 1SV307 (TPH3, F) T 42.4/20.9

D101 1750000581 S.DIO 1SV307 (TPH3, F) T 13.3/22.5

D102 1750000581 S.DIO 1SV307 (TPH3, F) T 15.7/19.2

D103 1750000581 S.DIO 1SV307 (TPH3, F) T 19.9/8.5

D104 1750000581 S.DIO 1SV307 (TPH3, F) T 34.7/17.9

D105 1750000581 S.DIO 1SV307 (TPH3, F) T 23.1/12.7

D106 1750000581 S.DIO 1SV307 (TPH3, F) T 29.6/21

D107 1750000581 S.DIO 1SV307 (TPH3, F) T 44/23.6

D108 1750000950 S.DIO MA732 (TX) B 27.1/18.2

D109 1750000950 S.DIO MA732 (TX) B 24.7/20.3

D110 1790001240 S.DIO MA2S728-(TX) B 51.6/26.4

D111 1790001240 S.DIO MA2S728-(TX) B 51.6/24.7

D112 1750000581 S.DIO 1SV307 (TPH3, F) T 15.7/20.9

D113 1750000581 S.DIO 1SV307 (TPH3, F) T 10.2/19.7

D114 1790001250 S.DIO MA2S111-(TX) T 35.7/21.3

D203 1750000581 S.DIO 1SV307 (TPH3, F) T 19.3/35.7

D204 1750000581 S.DIO 1SV307 (TPH3, F) T 25.7/58.2

D205 1750000581 S.DIO 1SV307 (TPH3, F) T 25.7/56.3

D208 1750000581 S.DIO 1SV307 (TPH3, F) T 25.7/53.4

D209 1750000581 S.DIO 1SV307 (TPH3, F) T 25.7/50.6

D210 1750000581 S.DIO 1SV307 (TPH3, F) T 25.7/47.7

D211 1750000581 S.DIO 1SV307 (TPH3, F) T 25.7/44.8

D212 1750000581 S.DIO 1SV307 (TPH3, F) T 25.7/39.2

D213 1750000581 S.DIO 1SV307 (TPH3, F) T 25.7/41.5

D214 1750000581 S.DIO 1SV307 (TPH3, F) T 47.7/59.3

D215 1750000581 S.DIO 1SV307 (TPH3, F) T 47.7/56.3

D216 1750000581 S.DIO 1SV307 (TPH3, F) T 47.9/53.6

D217 1750000581 S.DIO 1SV307 (TPH3, F) T 47.8/49.7

D218 1750000581 S.DIO 1SV307 (TPH3, F) B 41.7/47.2

D219 1750000581 S.DIO 1SV307 (TPH3, F) B 38.9/41.6

D220 1750000581 S.DIO 1SV307 (TPH3, F) B 44.6/28.5

D221 1750000581 S.DIO 1SV307 (TPH3, F) B 40.4/36

D301 1750000581 S.DIO 1SV307 (TPH3, F) T 47.3/28.5

D302 1750000581 S.DIO 1SV307 (TPH3, F) T 49.5/30.3

D303 1750000581 S.DIO 1SV307 (TPH3, F) T 64/29.9

D304 1750000581 S.DIO 1SV307 (TPH3, F) T 62.4/35.2

D305 1750000581 S.DIO 1SV307 (TPH3, F) T 73.4/35.2

D306 1750000581 S.DIO 1SV307 (TPH3, F) T 64.5/25.1

D501 1750000531 S.DIO 1SV271 (TPH3, F) T 90.5/32.2

D502 1750000581 S.DIO 1SV307 (TPH3, F) T 86.2/31.4

D503 1750000581 S.DIO 1SV307 (TPH3, F) T 89.4/29.7

D504 1750000531 S.DIO 1SV271 (TPH3, F) T 89.7/37.7

D505 1750000581 S.DIO 1SV307 (TPH3, F) T 86.7/40.1

D506 1750000581 S.DIO 1SV307 (TPH3, F) B 87.2/35.5

D601 1750000581 S.DIO 1SV307 (TPH3, F) B 90/38.5

D602 1750000581 S.DIO 1SV307 (TPH3, F) T 92.4/41.5

D603 1750000581 S.DIO 1SV307 (TPH3, F) B 76.2/46.5

D604 1750000581 S.DIO 1SV307 (TPH3, F) T 66.7/43.7

D701 1750000581 S.DIO 1SV307 (TPH3, F) T 61.2/43.7

D702 1750000581 S.DIO 1SV307 (TPH3, F) T 65.1/41.3

D703 1750000581 S.DIO 1SV307 (TPH3, F) T 62.7/61.4

D704 1750000581 S.DIO 1SV307 (TPH3, F) T 62.7/63.2

D801 1750000431 S.DIO HSB88WSTR-E T 74.1/60.3

D802 1750000581 S.DIO 1SV307 (TPH3, F) T 63/73.3

D803 1750000581 S.DIO 1SV307 (TPH3, F) T 65.5/64.6

D903 1750000581 S.DIO 1SV307 (TPH3, F) T 39.5/69.4

D904 1750000581 S.DIO 1SV307 (TPH3, F) T 39.5/72.8

D1301 1750000581 S.DIO 1SV307 (TPH3, F) T 12.8/72.6

D1302 1750000581 S.DIO 1SV307 (TPH3, F) T 13.9/70.8

D1521 1750000531 S.DIO 1SV271 (TPH3, F) B 79.4/40.7

D1522 1750000531 S.DIO 1SV271 (TPH3, F) B 79.4/42.4

D1601 1790001240 S.DIO MA2S728-(TX) T 15.1/48.7

D1602 1790001240 S.DIO MA2S728-(TX) T 18.3/53.1

D1604 1790001250 S.DIO MA2S111-(TX) T 7.7/31.5

D1605 1790001250 S.DIO MA2S111-(TX) T 7.7/32.8

D1606 1790001250 S.DIO MA2S111-(TX) T 14.1/44.8

D1607 1790001250 S.DIO MA2S111-(TX) T 14.1/43.5

D1608 1790001250 S.DIO MA2S111-(TX) T 14.1/42.2

D1609 1790001330 S.ZEN MA8036-L (TX) T 7.5/29.9

D1610 1790001250 S.DIO MA2S111-(TX) T 12.3/34.9

D1701 1790001670 S.DIO RB706F-40T106 B 50.2/52.2

D1702 1790001670 S.DIO RB706F-40T106 B 51.8/71.8

D1951 1750001110 S.DIO SM240A-T B 36.2/99.9

D2151 1790001250 S.DIO MA2S111-(TX) [USA] only T 39/87.1

D2153 1790001250 S.DIO MA2S111-(TX) [USA] only T 36.5/87.1

D2154 1790001250 S.DIO MA2S111-(TX) T 36.5/88.4

D2155 1790001250 S.DIO MA2S111-(TX) T 36.5/89.7

D2156 1790001250 S.DIO MA2S111-(TX) T 39/90.5

D2157 1790001250 S.DIO MA2S111-(TX) except [FRA] T 48.5/87.1

D2158 1790001250 S.DIO MA2S111-(TX) T 48.5/88.4

D2159 1790001250 S.DIO MA2S111-(TX) T 48.5/89.7

D2160 1790001250 S.DIO MA2S111-(TX) T 48.5/91

D2162 1790001250 S.DIO MA2S111-(TX) [USA] only T 46/88.4

D2163 1790001250 S.DIO MA2S111-(TX)

[EUR], [FRA], [ESP], [UK] only T 46/89.7

D2166 1790001250 S.DIO MA2S111-(TX) [ESP] only T 29.4/88.2

D2168 1790001250 S.DIO MA2S111-(TX)

[EUR], [ESP], [UK] only T 29.4/90.6

D2169 1790001250 S.DIO MA2S111-(TX)

[EUR], [ESP], [USA], [EXP] only T 26.9/87.1

D2170 1790001250 S.DIO MA2S111-(TX)

[EUR], [USA], [EXP] only T 26.9/88.4

D2171 1790001250 S.DIO MA2S111-(TX)

[FRA], [ESP], [EXP] only T 26.9/89.7

D2172 1790001250 S.DIO MA2S111-(TX) T 26.9/91

D2173 1790001250 S.DIO MA2S111-(TX) T 6.4/120.2

D2174 1790001250 S.DIO MA2S111-(TX) T 52/88.2

D2175 1790001250 S.DIO MA2S111-(TX) T 52/87

D2176 1790001250 S.DIO MA2S111-(TX) T 54.5/88.2

D2177 1790001250 S.DIO MA2S111-(TX) T 54.5/87

D2201 1730002340 S.ZEN MA8047-M (TX) T 10.5/123

D2205 1790001010 S.ZEN MA8043-L (TX) T 13.5/115.2

D2211 1790001010 S.ZEN MA8043-L (TX) T 21.5/118

D2231 1160000070 S.DIO DAN202K T146 T 57.6/117.8

D2232 1790001670 S.DIO RB706F-40T106 T 56.8/112.2

D2401 1160000070 S.DIO DAN202K T146 B 85.7/27.2

D2402 1790001250 S.DIO MA2S111-(TX) T 63.5/113.2

D2551 1790001140 S.ZEN MA8039-L (TX) B 45.3/116.8

D2601 1160000070 S.DIO DAN202K T146 B 42/126.3

D2602 1790001250 S.DIO MA2S111-(TX) B 41.2/128.5

FI2 2040001420 S.LC LFB32440MSC1-955 T 59.4/13.9

FI3 2040001420 S.LC LFB32440MSC1-955 T 53.3/13.4

FI601 2010002640 S.XTL FL-374 (124.487 MHz) T 81/43.7

FI901 2020002010 S.CER CFUCG455KF4A-R0 T 44.7/69.7

FI1001 2020002010 S.CER CFUCG455KF4A-R0 T 27.8/66.9

FI1401 2020001810 S.CER SFECV10M7FA00-R0 B 37.5/76.4

FI1402 2020001810 S.CER SFECV10M7FA00-R0 B 29.5/77.5

FI1501 2040001560 SAW WFSTSB6321D [Others]

2040001570 SAW WFSTSB6221D [USA]

FI1502 2020001700 S.CER SFSKA4M50CF00-R1 [USA] B 69.3/57.8

2020001720 S.CER SFSKA5M50CF00-R1 [Others] B 69.3/57.8

FI1503 2020001710 S.CER TPSKA4M50B00-R1 [USA] B 73.5/78.7

2020001730 S.CER TPSKA5M50B00-R1 [Others] B 73.5/78.7

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

5 - 5

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

L3 6200004480 S.COL MLF1608D R82K-T T 76.4/10.1

L4 6200002041 S.COL NLV25T-101J T 76.1/19

L5 6200004780 S.COL MLF1608A 1R5K-T T 67.2/18.6

L8 6200011320 S.COL ELJQE 56NJ T 57/16.6

L10 6200011320 S.COL ELJQE 56NJ T 57.3/17.9

L11 6200011380 S.COL ELJNJ R18J T 56.5/20

L12 6200011400 S.COL ELJNJ R12J T 53.8/19.8

L13 6200011380 S.COL ELJNJ R18J T 52.8/18.5

L14 6200011350 S.COL ELJQE 18NJ T 57.5/11.5

L16 6200011320 S.COL ELJQE 56NJ T 49.6/19.8

L18 6200005041 S.COL NLV25T-220J T 73.4/9.8

L19 6200002041 S.COL NLV25T-101J T 66.6/14.8

L21 6200006671 S.COL ELJRE 68NGFA B 80.4/14

L22 6200002861 S.COL NLV25T-4R7J B 80.5/19.6

L23 6200002861 S.COL NLV25T-4R7J B 84/9.2

L24 6200011520 S.COL SLF7045T-102MR14-PF B 8.8/69

L101 6200002041 S.COL NLV25T-101J T 15.7/17

L102 6200002041 S.COL NLV25T-101J T 20.4/10.8

L103 6200010800 S.COL C2520C-4R7G-A T 23.7/7.8

L104 6200010800 S.COL C2520C-4R7G-A T 27.9/9.9

L105 6200002041 S.COL NLV25T-101J T 28.1/12.8

L106 6200002041 S.COL NLV25T-101J B 17.5/16.3

L107 6200002041 S.COL NLV25T-101J B 31.6/21.6

L108 6200002041 S.COL NLV25T-101J T 25.2/20.8

L109 6200001831 S.COL NLV32T-100J T 28.5/15.5

L110 6200003121 S.COL NLV32T-8R2J T 21.1/15.1

L112 6200002041 S.COL NLV25T-101J B 43.5/23

L113 6200002041 S.COL NLV25T-101J T 7.2/17.6

L114 6200002041 S.COL NLV25T-101J T 7.2/15

L116 6200003131 S.COL NLV32T-120J T 28.5/18.6

L117 6200001831 S.COL NLV32T-100J T 21.1/18.1

L204 6200002041 S.COL NLV25T-101J T 18.7/32.9

L205 6200010740 S.COL C2520C-R27G-A T 20.2/38.1

L207 6200010680 S.COL C2520C-R22G-A T 21.8/41.3

L213 6200005011 S.COL NLV25T-100J T 22.7/34.9

L215 6200010330 S.COL C2012C-R18G-A B 27.7/38.6

L217 6200009990 S.COL C2012C-R22G-A T 22.7/32.5

L218 6200005011 S.COL NLV25T-100J B 25.6/43.3

L219 6200011050 S.COL C2012C-R12G-A B 29/41.4

L220 6200010320 S.COL C2012C-R15G-A B 34.1/37.9

L221 6200002041 S.COL NLV25T-101J T 15.1/52.6

L222 6200002041 S.COL NLV25T-101J T 45.6/61.4

L223 6200002041 S.COL NLV25T-101J B 40.4/55.3

L224 6200002041 S.COL NLV25T-101J B 27.5/55.7

L225 6200002041 S.COL NLV25T-101J B 27.4/52

L226 6200002861 S.COL NLV25T-4R7J T 40.3/57.6

L227 6200003711 S.COL NLV25T-2R7J T 29.1/55.5

L228 6200002861 S.COL NLV25T-4R7J T 44.6/54.7

L229 6200004671 S.COL NLV25T-3R9J T 35.1/51.5

L230 6200002041 S.COL NLV25T-101J B 40.4/52.2

L231 6200002041 S.COL NLV25T-101J B 40.4/49.4

L232 6200002041 S.COL NLV25T-101J B 27.1/49.1

L233 6200002041 S.COL NLV25T-101J B 26.4/46.2

L234 6200010780 S.COL C2520C-1ROG-A T 35.5/48.5

L235 6200010530 S.COL C2520C-R56G-A B 32.9/49.5

L236 6200010950 S.COL C2520C-1R5G-A T 43.4/50.4

L237 6200010450 S.COL C2520C-R82G-A B 32.9/46.3

L238 6200002041 S.COL NLV25T-101J B 43.9/45

L239 6200002041 S.COL NLV25T-101J B 38.8/39.5

L240 6200002041 S.COL NLV25T-101J T 29.5/42.1

L241 6200010870 S.COL C2520C-R33G-A B 35.1/41.6

L242 6200005011 S.COL NLV25T-100J T 33.5/29.9

L243 6140004601 S.COL LR-518A T 28.4/35.2

L244 6200010960 S.COL C2520C-R47G-A B 39.7/44.1

L245 6200005011 S.COL NLV25T-100J B 41.2/28.3

L246 6200009990 S.COL C2012C-R22G-A B 30.7/36.4

L247 6200010320 S.COL C2012C-R15G-A B 42.1/38.7

L248 6200005011 S.COL NLV25T-100J B 43.8/36.3

L301 6200002041 S.COL NLV25T-101J T 36.1/27.4

L302 6200002041 S.COL NLV25T-101J T 52.6/31.8

L303 6200002041 S.COL NLV25T-101J T 52.3/35.4

L304 6140004591 S.COL LR-517A T 56.4/39

L305 6200002041 S.COL NLV25T-101J T 52.8/29.3

L306 6200002041 S.COL NLV25T-101J T 61.7/39.3

L307 6200002041 S.COL NLV25T-101J T 60.9/32

L308 6200002041 S.COL NLV25T-101J T 64.9/33.1

L309 6200011350 S.COL ELJQE 18NJ T 49.3/24

L310 6200010650 S.COL C2520C-R12G-A T 65.7/38.2

L311 6200011360 S.COL ELJQE 15NJ T 53.5/23.2

L312 6200010660 S.COL C2520C-R15G-A T 69.6/34.3

L313 6200011570 S.COL ELJQE 10NJ T 61.5/25.7

L314 6200002041 S.COL NLV25T-101J T 72.5/37.3

L315 6200002041 S.COL NLV25T-101J T 75.8/32

L402 6140004610 S.COL LR-520 T 70.8/27.9

L403 6200002041 S.COL NLV25T-101J T 81.1/19.7

L404 6130002961 S.COL #617DB-1327=P3 T 84.4/27.9

L406 6130002961 S.COL #617DB-1327=P3 T 77.5/24.2

L421 6200004590 S.COL MLF1608D R18K-T T 86.4/21.7

L501 6200004660 S.COL MLF1608A 1R8K-T T 93.4/35.7

L503 6200004660 S.COL MLF1608A 1R8K-T T 83.2/31.1

L507 6200001981 S.COL NLV25T-1R0J T 79.2/33.5

L508 6200010650 S.COL C2520C-R12G-A T 86.3/34.4

L509 6200004660 S.COL MLF1608A 1R8K-T T 93.1/38.7

L511 6200004150 S.COL MLF1608D 47NM-T T 92.7/37.2

L512 6200011700 S.COL ELJQE 39NJ B 89.6/32.8

L601 6200004660 S.COL MLF1608A 1R8K-T B 85.7/38.6

L603 6200004660 S.COL MLF1608A 1R8K-T T 89.3/42.2

L604 6150005330 S.COL LS-548 T 90.5/46.2

L605 6200004660 S.COL MLF1608A 1R8K-T T 93.1/39.9

L607 6200011800 S.COL C2520C-47NG-A B 85.6/43.5

L609 6200011800 S.COL C2520C-47NG-A B 81.5/46

L610 6200004660 S.COL MLF1608A 1R8K-T B 78.1/44.8

L611 6200004660 S.COL MLF1608A 1R8K-T T 68/46.3

L612 6150005330 S.COL LS-548 T 72.2/42.4

L701 6150005350 S.COL LS-550 T 62.9/48.6

L702 6150005340 S.COL LS-549 T 54.8/45.4

L703 6150005350 S.COL LS-550 T 55.3/59.5

L704 6200004940 S.COL MLF1608D R27K-T T 62.3/59.6

L705 6200009920 S.COL C2012C-R10G-A T 61.8/41.7

L801 6140002810 S.COL LR-317 T 68.6/61.3

L802 6200005190 S.COL MLF1608D R56K-T T 89/58.4

L803 6140002810 S.COL LR-317 T 79.6/60.1

L804 6200005011 S.COL NLV25T-100J T 57.5/69.1

L805 6200009871 S.COL NLV25T-120J T 57.6/71.9

L806 6200004741 S.COL NLV25T-1R2J T 63.1/71.2

L807 6200004741 S.COL NLV25T-1R2J T 63.2/66.7

L808 6200004100 S.COL MLF1608D 68NM-T T 86.1/61.6

L901 6200003520 S.COL ELJFB 102K-F B 37.6/72.4

L904 6150005360 S.COL LS-551 T 51.6/70.9

L905 6200003520 S.COL ELJFB 102K-F B 40.2/59.9

L906 6200003520 S.COL ELJFB 102K-F B 33.6/62.4

L908 6200003520 S.COL ELJFB 102K-F B 31.5/69.7

L1003 6200003520 S.COL ELJFB 102K-F B 12.9/75.3

L1102 6200002041 S.COL NLV25T-101J T 7.1/89.7

L1301 6200002041 S.COL NLV25T-101J T 8.3/55.8

L1302 6200002041 S.COL NLV25T-101J T 11.8/58.5

L1303 6200002041 S.COL NLV25T-101J T 4.8/55.8

L1401 6200002041 S.COL NLV25T-101J B 43.3/79.6

L1402 6200004790 S.COL MLF1608D R47K-T B 44.1/70.4

L1403 6200002041 S.COL NLV25T-101J B 43/77.1

L1404 6200003711 S.COL NLV25T-2R7J B 18.2/80.4

L1405 6200002041 S.COL NLV25T-101J B 17.7/85

L1491 6200010740 S.COL C2520C-R27G-A [USA] B 84.9/30.7

6200010870 S.COL C2520C-R33G-A [Others] B 84.9/30.7

L1492 6200010650 S.COL C2520C-R12G-A [Others] B 80.6/33.1

6200010740 S.COL C2520C-R27G-A [USA] B 80.6/33.1

L1492 6200010870 S.COL C2520C-R33G-A [Others] B 80.6/33.1

L1501 6200005011 S.COL NLV25T-100J B 91.1/27.1

L1502 6200011380 S.COL ELJNJ R18J B 79.4/38.2

L1503 6200011380 S.COL ELJNJ R18J B 82/37.5

L1504 6200005011 S.COL NLV25T-100J B 75.6/43.4

L1505 6200005190 S.COL MLF1608D R56K-T B 73.2/48.5

L1506 6150005070 S.COL LS-534 (4KMH) [USA] T 68.7/55.4

6150005080 S.COL LS-535 (4KMH) [Others] T 68.7/55.4

L1507 6200005031 S.COL NLV25T-180J B 71.7/62.2

L1508 6200005021 S.COL NLV25T-150J B 77.3/79.5

L1951 6180003610 S.COL 7E10L-101M 100U B 34.6/110.9

L1952 6180003610 S.COL 7E10L-101M 100U B 54.7/113.3

L1953 6180003610 S.COL 7E10L-101M 100U B 14/111.9

L1954 6180003610 S.COL 7E10L-101M 100U B 24.4/119.8

L2001 6200005011 S.COL NLV25T-100J B 72.5/16.4

L2002 6200002041 S.COL NLV25T-101J B 84.5/3.8

L2003 6200002041 S.COL NLV25T-101J B 81.1/4.3

L2004 6200002041 S.COL NLV25T-101J B 76.3/20.4

L2006 6200002041 S.COL NLV25T-101J B 64.2/12.8

L2007 6200002041 S.COL NLV25T-101J B 70.9/3.8

L2008 6200002041 S.COL NLV25T-101J B 67.9/6.1

L2009 6200005011 S.COL NLV25T-100J B 70.8/10.6

L2010 6200002041 S.COL NLV25T-101J B 60.7/13.7

L2011 6200011300 S.COL EXCML16A 270U T 86.6/9.1

L2012 6200011300 S.COL EXCML16A 270U B 84.7/21.9

L2013 6200002041 S.COL NLV25T-101J B 71.8/19.6

L2015 6200002041 S.COL NLV25T-101J B 52.5/10.4

L2016 6200002041 S.COL NLV25T-101J B 59.2/11.2

L2017 6200002041 S.COL NLV25T-101J B 57/14

L2018 6200002041 S.COL NLV25T-101J B 19.7/129.4

L2019 6200002041 S.COL NLV25T-101J T 22.2/126.9

L2020 6200002041 S.COL NLV25T-101J B 27.9/131.3

L2021 6200005011 S.COL NLV25T-100J B 27.9/126.5

L2022 6200002041 S.COL NLV25T-101J B 22.9/127.8

L2023 6200002041 S.COL NLV25T-101J B 23.2/131.2

L2024 6200002041 S.COL NLV25T-101J T 12.7/128.2

L2025 6200002041 S.COL NLV25T-101J B 87.5/6.2

L2026 6200002041 S.COL NLV25T-101J B 77.6/5

L2027 6200002041 S.COL NLV25T-101J B 76.5/12.2

L2028 6200002041 S.COL NLV25T-101J B 67.4/10.8

L2029 6200002041 S.COL NLV25T-101J B 64/10.3

L2030 6200002041 S.COL NLV25T-101J B 67.5/3.6

L2031 6200002041 S.COL NLV25T-101J B 76.5/14.7

L2032 6200002041 S.COL NLV25T-101J B 66.2/15.3

L2033 6200011300 S.COL EXCML16A270U B 69.6/14.5

L2034 6200009300 S.COL ELJPA 100KF 10U B 67.8/19.6

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

5 - 6

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

L2035 6200002041 S.COL NLV25T-101J B 59.8/18.4

L2036 6200002041 S.COL NLV25T-101J B 64.1/3.8

L2037 6200002041 S.COL NLV25T-101J B 88.3/3.7

L2041 6180003610 S.COL 7E10L-101M 100U B 62.6/86.9

L2042 6200002861 S.COL NLV25T-4R7J B 62.9/79.3

L2053 6200002041 S.COL NLV25T-101J B 28.7/90.9

L2151 6200002041 S.COL NLV25T-101J B 36.9/121

L2152 6200002041 S.COL NLV25T-101J B 52.3/14.7

L2201 6200005011 S.COL NLV25T-100J T 27.2/126

L2202 6200005011 S.COL NLV25T-100J T 16.5/124.3

L2231 6200002041 S.COL NLV25T-101J T 34/104.2

L2256 6200002041 S.COL NLV25T-101J T 15/103.4

L2257 6200002041 S.COL NLV25T-101J T 10.5/89.7

L2260 6200002041 S.COL NLV25T-101J T 68.5/110.9

L2263 6200002041 S.COL NLV25T-101J T 62.3/99.4

L2264 6200002041 S.COL NLV25T-101J T 62.3/96.9

L2265 6200002041 S.COL NLV25T-101J T 62.4/94.3

L2266 6200002041 S.COL NLV25T-101J T 62.4/91.5

L2267 6200002041 S.COL NLV25T-101J T 66/89.6

L2268 6200002041 S.COL NLV25T-101J T 62.4/87.1

L2272 6200002041 S.COL NLV25T-101J T 71.1/90.2

L2402 6200002041 S.COL NLV25T-101J B 89.4/98

L2403 6200002041 S.COL NLV25T-101J B 89.2/84

L2404 6200002041 S.COL NLV25T-101J T 81.6/96.8

L2405 6200002041 S.COL NLV25T-101J B 89.3/95.5

L2406 6200002041 S.COL NLV25T-101J T 84.8/93.7

L2408 6200011300 S.COL EXCML16A 270U T 82.1/92.3

L2409 6200002041 S.COL NLV25T-101J B 89.3/88.5

L2411 6200011300 S.COL EXCML16A 270U T 85.1/89.7

L2601 6200009330 S.COL SLF12555T-681MR43 T 87.5/119.6

L2605 6200009330 S.COL SLF12555T-681MR43 T 71/119.6

R1 7030011400 S.RES ERJ2GE 5R6 X (5.6 Ω) T 80.1/17

R2 7030009270 S.RES ERJ2GEJ 821 X (820 Ω) T 80.1/17.9

R3 7030009270 S.RES ERJ2GEJ 821 X (820 Ω) T 80.1/16.1

R5 7030011400 S.RES ERJ2GE 5R6 X (5.6 Ω) T 74.1/17.4

R6 7030009270 S.RES ERJ2GEJ 821 X (820 Ω) T 75.2/16.4

R7 7030009270 S.RES ERJ2GEJ 821 X (820 Ω) T 73.4/16.4

R8 7030009200 S.RES ERJ2GEJ 390 X (39 Ω) T 72.7/19.2

R9 7030003400 S.RES ERJ3GEYJ 471 V (470 Ω) T 69.9/13.3

R10 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 72.5/17.4

R11 7030005300 S.RES ERJ2GEJ 150 X (15 Ω) T 62.1/15.9

R12 7030010040 S.RES ERJ2GEJ-JPW T 63.7/13.8

R13 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 66.6/20.6

R15 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 68.8/10.6

R16 7030003860 S.RES ERJ3GE JPW V T 62.4/12.3

R17 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 76.8/15.8

R18 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 44.2/17.2

R19 7030003860 S.RES ERJ3GE JPW V T 50.4/14.6

R20 7030009530 S.RES ERJ2GEJ 270 X (27 Ω) T 69.5/19.7

R21 7030009530 S.RES ERJ2GEJ 270 X (27 Ω) T 66.1/22.8

R22 7030010040 S.RES ERJ2GEJ-JPW T 78.1/13.8

R23 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 79.8/13.8

R24 7030005010 S.RES ERJ2GEJ 681 X (680 Ω) T 78.1/12.9

R25 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 79.6/17.8

R27 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 81.3/8.5

R29 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 73.1/12.3

R30 7030009160 S.RES ERJ2GEJ 181 X (180 Ω) T 46.4/15.4

R31 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 42.6/17.2

R32 7030009200 S.RES ERJ2GEJ 390 X (39 Ω) T 44.1/18.2

R33 7030010040 S.RES ERJ2GEJ-JPW T 60/18

R34 7030010040 S.RES ERJ2GEJ-JPW T 62/18

R35 7030003860 S.RES ERJ3GE JPW V T 64/18

R101 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 13.2/16

R102 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 11.9/14.6

R103 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 10.3/14.6

R104 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 15.7/13.4

R105 7030005580 S.RES ERJ2GEJ 560 X (56 Ω) T 15.7/22.3

R106 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 13.2/20.5

R107 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 10.8/22.1

R108 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 10.8/23

R111 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 10.8/21.2

R112 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 25.6/12.5

R113 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 26.7/5.7

R114 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) B 33.1/23.4

R115 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) B 34.1/22.2

R116 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 22.3/21.3

R117 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 20.7/21.3

R118 7030009280 S.RES ERJ2GEJ 391 X(390

Ω) B 40.9/23.2

R119 7030009280 S.RES ERJ2GEJ 391 X(390

Ω) B 40.9/22.3

R120 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 50.3/23.5

R121 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 44/22.2

R122 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 7.8/20.3

R123 7030009280 S.RES ERJ2GEJ 391 X(390

Ω) T 7.8/19.4

R125 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 35.5/20.2

R126 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 26.7/4.8

R127 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 25/4.8

R128 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 35.5/19.3

R202 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 18.1/31.2

R203 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 42.9/59.9

R204 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 42.9/54.3

R205 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 19.4/54.2

R206 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 42.9/51.4

R207 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 42.9/50.5

R208 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 46.4/45

R216 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 44.2/43.3

R217 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 18.1/30.3

R218 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) T 21.9/29.9

R225 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 19.1/29.1

R226 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 17.6/54.2

R227 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 30.9/30.9

R228 7030009140 S.RES ERJ2GEJ 272 X (2.7 kΩ) T 30.9/29.1

R301 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 44.5/28.8

R302 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 38.6/27.8

R303 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) T 52.5/38.9

R304 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 55.1/35.6

R305 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 59.9/33.8

R306 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 55.3/28.7

R307 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 56.7/35.6

R308 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 59.2/30.1

R309 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 58.5/29.1

R310 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 50.1/31.7

R311 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 65.3/31.3

R312 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 63.7/31.3

R314 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 73.3/32.5

R315 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 74.8/33.8

R401 7030010040 S.RES ERJ2GEJ-JPW T 75/29.7

R402 7030010040 S.RES ERJ2GEJ-JPW T 75/27

R403 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 76.7/29.7

R404 7030010040 S.RES ERJ2GEJ-JPW T 73.1/23.5

R405 7030010040 S.RES ERJ2GEJ-JPW T 85/24.1

R406 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) T 73.1/30.6

R407 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) T 73.1/25.3

R411 7030007260 S.RES ERJ2GEJ 330 X (33 Ω) T 80/29.5

R412 7030007260 S.RES ERJ2GEJ 330 X (33 Ω) T 80/26.8

R414 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 78.3/29.6

R416 7030010090 S.RES ERJ2GEJ 180 X (18 Ω) T 87.8/24

R417 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 87.8/24.9

R418 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 87.8/22.9

R421 7030010090 S.RES ERJ2GEJ 180 X (18 Ω) B 88.5/20.2

R422 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) B 90.1/20.2

R423 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) B 90.1/19.3

R424 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) T 88.5/21.6

R501 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 91.3/35.6

R502 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 92.9/33.8

R509 7030005580 S.RES ERJ2GEJ 560 X (56 Ω) T 83.4/33.1

R510 7030007250 S.RES ERJ2GEJ 220 X (22 Ω) T 83.4/34.1

R512 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 81.7/34.1

R517 7030010040 S.RES ERJ2GEJ-JPW B 80/31

R518 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 79.3/37

R519 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 79.3/38.8

R520 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 89.1/39.2

R521 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 84.2/40.4

R523 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 91.3/34.7

R524 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 86.9/37

R601 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) B 88.5/40

R602 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 91/39.6

R603 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 89.1/41

R604 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) B 78.6/45.9

R605 7030010040 S.RES ERJ2GEJ-JPW T 68.2/45.2

R606 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 67.1/47.4

R607 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 66.6/45.2

R701 7030005220 S.RES ERJ2GEJ 223 X (22 kΩ) T 61.1/53

R702 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 64.2/43.9

R703 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) T 50.8/44.1

R705 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 59/51.5

R706 7030009270 S.RES ERJ2GEJ 821 X (820 Ω) T 64.5/55.9

R707 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 59.5/57

R708 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 63.9/58.6

R709 7030005210 S.RES ERJ2GEJ 822 X (8.2 kΩ) T 59.5/55.1

R710 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 59.8/62.5

R711 7030009140 S.RES ERJ2GEJ 272 X (2.7 kΩ) T 50.5/51.4

R712 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 51.2/50.5

R713 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 57.1/51.5

R715 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) T 52.1/54.1

R716 7030005710 S.RES ERJ2GEJ 121 X (120 Ω) T 51.3/57.5

R717 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) T 52.1/51.4

R718 7510001461 S.TMR NTCG16 3NH 471JT T 63.3/54

R801 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 86.8/55.1

R802 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 65.3/60.9

R803 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 71.9/64.9

R804 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) T 91.1/57.1

R805 7030010090 S.RES ERJ2GEJ 180 X (18 Ω) T 86.3/54.1

R806 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 85.2/55.1

R807 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 62.8/64.6

R808 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) T 62.3/69.4

R809 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 82.8/60.6

R810 7030010090 S.RES ERJ2GEJ 180 X (18 Ω) T 84.4/60.6

R811 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 82.8/59.7

R904 7030003860 S.RES ERJ3GE JPW V T 36.5/68.1

R905 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 39.2/64.6

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

5 - 7

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

R906 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 39.2/66.5

R907 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 36.8/70

R908 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 35.6/61.9

R909 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) T 34.2/68.4

R912 7030005210 S.RES ERJ2GEJ 822 X (8.2 kΩ) T 34.2/66.6

R913 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) T 40.5/75

R914 7030009290 S.RES ERJ2GEJ 562 X (5.6 kΩ) T 35.6/75.4

R915 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 36.6/70.9

R916 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 37.2/75.4

R917 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) T 34.2/69.3

R918 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) B 31.4/72.1

R919 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 31.5/72.1

R1009 7030009290 S.RES ERJ2GEJ 562 X (5.6 kΩ) T 25.8/72.9

R1018 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 18.1/73.7

R1019 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 20.3/76.9

R1020 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 12.7/77.6

R1022 7510001461 S.TMR NTCG16 3NH 471JT T 14.8/75.9

R1023 7030008370 S.RES ERJ2GEJ 561 X (560 Ω) T 15.2/74.7

R1024 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 12.7/74.9

R1025 7030007260 S.RES ERJ2GEJ 330 X (33 Ω) T 12.7/76.7

R1027 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 4.6/87.8

R1201 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 25.7/77.6

R1202 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 24/78.5

R1203 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 25.6/78.5

R1204 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 20.2/79.2

R1205 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 20.2/78.3

R1206 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 21.8/79.2

R1207 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 17.9/83.6

R1208 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 9.4/79.8

R1209 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 16.4/79.9

R1211 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 12.7/79.4

R1212 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 12.7/78.5

R1213 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 11.1/79.4

R1215 7030007350 S.RES ERJ2GEJ 393 X (39 kΩ) T 8.1/81.3

R1216 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 9.5/83.4

R1217 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 8/82.8

R1218 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 7.5/78.5

R1219 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 7.5/79.7

R1301 7030010040 S.RES ERJ2GEJ-JPW T 16.8/72.9

R1302 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 15.2/72.7

R1303 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 12.7/74

R1304 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 14.9/68.3

R1305 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 16.2/63.8

R1306 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 10.9/56.8

R1308 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) T 12.9/67.3

R1309 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 11.3/66.4

R1310 7510001451 S.TMR NTCG16 4BH 472JT T 12.2/68.4

R1401 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 45.3/72.3

R1402 7030008010 S.RES ERJ2GEJ 123 X (12 kΩ) B 43.6/72.3

R1403 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) B 44.5/73.4

R1404 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) B 44.5/75.2

R1405 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) B 42/71.5

R1406 7030005290 S.RES ERJ2GEJ 682 X (6.8 kΩ) B 38.7/79.9

R1407 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 38.7/79

R1408 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) B 38.7/80.8

R1409 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) B 34.6/80

R1414 7030007340 S.RES ERJ2GEJ 153 X (15 kΩ) B 20.2/76.4

R1416 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 19.4/83

R1420 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 25/76.8

R1421 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) B 23.2/75.9

R1422 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 23.2/76.8

R1501 7030010040 S.RES ERJ2GEJ-JPW B 72.4/38.2

R1502 7030005100 S.RES ERJ2GEJ 154 X (150 kΩ) B 86.4/55.3

R1503 7030005100 S.RES ERJ2GEJ 154 X (150 kΩ) B 85.7/54.1

R1504 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) B 72.4/40.3

R1505 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) B 73.6/54.8

R1506 7030007350 S.RES ERJ2GEJ 393 X (39 kΩ) B 85.7/52.3

R1507 7030007350 S.RES ERJ2GEJ 393 X (39 kΩ) B 85.7/53.2

R1508 7030005220 S.RES ERJ2GEJ 223 X (22 kΩ) B 74.2/61.6

R1509 7030006610 S.RES ERJ2GEJ 394 X (390 kΩ) B 85.9/59

R1510 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ)

[USA] only B 76.6/61.9

R1511 7030005590 S.RES ERJ2GEJ 680 X (68 Ω) B 85.8/60.8

R1512 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 71.5/73.7

R1513 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) B 73.1/73.7

R1514 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) B 73.1/52.8

R1515 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) B 71.8/53.6

R1516 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) B 82.5/35.3

R1521 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 86.5/50.3

R1522 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 86.7/46.8

R1523 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 77.3/39.5

R1524 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 81.9/40.3

R1525 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 81.9/42.2

R1526 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 83.5/40.5

R1602 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 6.3/54

R1603 7030010040 S.RES ERJ2GEJ-JPW T 13/49.6

R1604 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 13/50.5

R1605 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 8.8/46.9

R1606 7030005070 S.RES ERJ2GEJ 683 X (68 kΩ) T 6.1/46.6

R1607 7030005070 S.RES ERJ2GEJ 683 X (68 kΩ) T 5.1/42.1

R1608 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 10.4/47.8

R1609 7030007320 S.RES ERJ2GEJ 225 X (2.2 MΩ) T 10.4/46

R1610 7030005060 S.RES ERJ2GEJ 333 X (33 kΩ) T 4.5/43.5

R1611 7030005230 S.RES ERJ2GEJ 334 X (330 kΩ) T 8.8/47.8

R1612 7030005060 S.RES ERJ2GEJ 333 X (33 kΩ) T 3.4/42.3

R1613 7030003860 S.RES ERJ3GE JPW V T 6.7/48.7

R1614 7030007310 S.RES ERJ2GEJ 155 X (1.5 MΩ) T 6.1/45.7

R1615 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 4.2/35.4

R1616 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 6.7/35.4

R1617 7030005720 S.RES ERJ2GEJ 563 X (56 kΩ) T 3.4/38.2

R1618 7310005020 S.TRI RH03ADC14X (10 kΩ) T 3.5/46.3

R1619 7030005080 S.RES ERJ2GEJ 823 X (82 kΩ) T 2.6/43.3

R1620 7030008290 S.RES ERJ2GEJ 183 X (18 kΩ) T 3.4/37.3

R1621 7030005160 S.RES ERJ2GEJ 105 X (1 MΩ) T 6.7/37.2

R1622 7030010040 S.RES ERJ2GEJ-JPW T 5/37.3

R1623 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 12/46.8

R1624 7030007250 S.RES ERJ2GEJ 220 X (22 Ω) T 14.9/38.3

R1625 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 13.6/32.6

R1626 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 10.3/34.5

R1627 7030007320 S.RES ERJ2GEJ 225 X (2.2 MΩ) T 10.3/35.4

R1628 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 4.9/30.8

R1629 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 4.9/29.9

R1630 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 8.3/45.7

R1631 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 9.8/37.2

R1634 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 10.3/33.6

R1636 7030007320 S.RES ERJ2GEJ 225 X (2.2 MΩ) T 13/31.7

R1637 7030007320 S.RES ERJ2GEJ 225 X (2.2 MΩ) T 12/45.9

R1638 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 10.9/48.8

R1639 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 14.6/50.5

R1640 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 10.9/31.6

R1641 7030007320 S.RES ERJ2GEJ 225 X (2.2 MΩ) T 13/30.7

R1642 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 56/24

R1701 7030009320 S.RES ERJ2GEJ 4R7 X (4.7 Ω) T 48/45.3

R1702 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) B 52.1/44.7

R1703 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) B 53.7/43.8

R1704 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) B 53.7/44.7

R1705 7030009320 S.RES ERJ2GEJ 4R7 X (4.7 Ω) T 48/46.2

R1706 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) B 53.6/64.2

R1707 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) B 55.6/64.8

R1708 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) B 55.6/65.7

R1901 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 20/13.9

R1902 7030011290 S.RES ERJ12YJ1R8U (1.8

Ω) B 12.4/45.8

R1952 7030009980 S.RES ERJ12RSJR15U B 42.6/102.7

R1953 7030009980 S.RES ERJ12RSJR15U B 42.6/99

R1954 7030005170 S.RES ERJ2GEJ 474 X (470 kΩ) B 42.7/111.3

R1955 7030005511 S.RES ERA3YED 303V (30 kΩ) B 44.9/108

R1956 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) B 33.7/105.1

R1957 7030007350 S.RES ERJ2GEJ 393 X (39 kΩ) B 35.3/104.2

R1958 7030005720 S.RES ERJ2GEJ 563 X (56 kΩ) B 35.3/103.3

R1981 7030008240 S.RES ERJ12YJ0R00U B 83.1/109

R2002 7030010040 S.RES ERJ2GEJ-JPW B 36.9/12.7

R2003 7030008240 S.RES ERJ12YJ0R00U T 55.7/8

R2004 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 59.8/9.2

R2005 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 59.1/3

R2006 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 60.7/3.7

R2007 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 60.7/4.6

R2008 7030010040 S.RES ERJ2GEJ-JPW B 34/17.6

R2010 7030010040 S.RES ERJ2GEJ-JPW B 32.5/15.1

R2011 7030006210 S.RES ERJ12YJ4R7U (4.7

Ω) B 13.1/26.3

R2012 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 32.4/17.3

R2101 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 26.1/113.8

R2102 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 33.1/114.3

R2103 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 30.7/123.4

R2104 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 28.1/123.4

R2105 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 32.3/119

R2106 7030005720 S.RES ERJ2GEJ 563 X (56 kΩ) T 25/115.5

R2107 7030005720 S.RES ERJ2GEJ 563 X (56 kΩ) T 31.5/114.8

R2108 7030005100 S.RES ERJ2GEJ 154 X (150 kΩ) T 30.7/122.5

R2109 7030007350 S.RES ERJ2GEJ 393 X (39 kΩ) T 27.1/122.5

R2110 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 44.3/111.8

R2111 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 44.7/110

R2112 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 54.1/110.8

R2113 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 54.1/111.7

R2114 7030005100 S.RES ERJ2GEJ 154 X (150 kΩ) T 44.7/112.7

R2115 7030005100 S.RES ERJ2GEJ 154 X (150 kΩ) T 44.7/109.1

R2116 7030005100 S.RES ERJ2GEJ 154 X (150 kΩ) T 54.4/109.9

R2117 7030005100 S.RES ERJ2GEJ 154 X (150 kΩ) T 54.1/112.6

R2118 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 54.1/120.6

R2119 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 54.1/121.8

R2120 7030008300 S.RES ERJ2GEJ 184 X (180 kΩ) T 44.8/122.1

R2121 7030008300 S.RES ERJ2GEJ 184 X (180 kΩ) T 42.9/121.3

R2122 7030005100 S.RES ERJ2GEJ 154 X (150 kΩ) T 54.1/119.7

R2123 7030006610 S.RES ERJ2GEJ 394 X (390 kΩ) T 54.2/122.8

R2124 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 44.8/123

R2125 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 44.8/119.4

R2126 7030010040 S.RES ERJ2GEJ-JPW T 33.1/116.6

R2128 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 32.3/123.4

R2129 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 54.1/118.8

R2131 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 39.8/122

R2132 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 42.8/115.1

R2133 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 40.6/114.1

R2134 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 36.5/114.1

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

5 - 8

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

R2135 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 34.9/114.2

R2136 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 26.5/123.4

R2137 7030005230 S.RES ERJ2GEJ 334 X (330 kΩ) T 43.3/123.7

R2138 7030005230 S.RES ERJ2GEJ 334 X (330 kΩ) T 42.9/122.2

R2139 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 25/116.4

R2140 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 32/115.7

R2141 7030010040 S.RES ERJ2GEJ-JPW T 44.7/113.6

R2142 7030010040 S.RES ERJ2GEJ-JPW T 52.7/108.9

R2143 7030010040 S.RES ERJ2GEJ-JPW T 56/109.9

R2144 7030010040 S.RES ERJ2GEJ-JPW T 51.3/115.1

R2145 7030010040 S.RES ERJ2GEJ-JPW T 58.1/123.6

R2146 7030010040 S.RES ERJ2GEJ-JPW T 46.3/124

R2147 7030010040 S.RES ERJ2GEJ-JPW T 46/118.5

R2151 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 52.3/101.7

R2152 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 56.5/107.1

R2153 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 24.8/112.5

R2154 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 25.6/111.6

R2155 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 46.1/104.6

R2156 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 46.1/105.5

R2157 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) B 33.3/120.8

R2158 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) B 33.3/119.8

R2159 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) B 35/118.3

R2160 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) B 40.7/94.3

R2161 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) B 40.7/95.2

R2162 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) B 30.2/93.8

R2163 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) B 30.9/95.9

R2164 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) B 30.2/94.7

R2165 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) B 29.3/95.9

R2166 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) T 51.8/93.3

R2167 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) T 51.8/94.2

R2168 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) T 51.8/95.1

R2169 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 8.8/118.5

R2170 7030005170 S.RES ERJ2GEJ 474 X (470 kΩ) T 5/104.5

R2171 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 9.7/114.2

R2172 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 5/112.4

R2174 7030005170 S.RES ERJ2GEJ 474 X (470 kΩ) T 5/105.4

R2175 7030005170 S.RES ERJ2GEJ 474 X (470 kΩ) T 5/111.5

R2176 7030005170 S.RES ERJ2GEJ 474 X (470 kΩ) T 11.3/114.2

R2177 7030005210 S.RES ERJ2GEJ 822 X (8.2 kΩ) T 3.3/108

R2202 7030010040 S.RES ERJ2GEJ-JPW T 26.5/124.3

R2203 7030005080 S.RES ERJ2GEJ 823 X (82 kΩ) T 25/122.4

R2204 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 23.4/122.7

R2205 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 18.2/118.2

R2206 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 12.6/118.8

R2207 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 23.1/121.5

R2208 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 19/119.2

R2209 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 21/116.5

R2211 7030005230 S.RES ERJ2GEJ 334 X (330 kΩ) T 12.9/123.5

R2212 7030005310 S.RES ERJ2GEJ 124 X (120 kΩ) T 12/124.4

R2213 7030008010 S.RES ERJ2GEJ 123 X (12 kΩ) T 10.4/124.4

R2214 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 8.8/117.6

R2215 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 11.1/120.6

R2217 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) T 24.9/121.5

R2218 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 15.5/127.5

R2219 7030007280 S.RES ERJ2GEJ 331 X (330 Ω) T 17.7/126.1

R2220 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 16.1/126.1

R2221 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 9.5/120.5

R2230 7030010900 S.RES ERJ3GEYJ 750 V (75 Ω) T 40.4/105.8

R2231 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 4.5/118.2

R2232 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 54.7/117.5

R2251 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 6.1/96.9

R2254 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 6.8/100.7

R2255 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 6.8/101.6

R2256 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 6.8/102.5

R2257 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 75.3/109

R2258 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 70.9/106.5

R2259 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 75.3/107.8

R2260 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 71/105.6

R2261 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 75.3/106.6

R2262 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 71.4/104.5

R2263 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 75.6/104.5

R2264 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 72.2/103.6

R2267 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 78.6/104.1

R2268 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 78.6/103.2

R2269 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 78.6/102.3

R2270 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) T 76.6/101.8

R2271 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 76.6/100.9

R2272 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 78.1/97.8

R2273 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 78.1/98.9

R2274 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 14.1/89.7

R2277 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 19.2/89.5

R2278 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 19.2/90.4

R2279 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 66.2/107

R2280 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 69.7/110.2

R2281 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 7.1/101.5

R2301 7030007250 S.RES ERJ2GEJ 220 X (22 Ω) T 28.3/106.6

R2302 7030008290 S.RES ERJ2GEJ 183 X (18 kΩ) T 28.9/108

R2303 7030005710 S.RES ERJ2GEJ 121 X (120 Ω) T 31.2/110.8

R2304 7030010900 S.RES ERJ3GEYJ 750 V (75 Ω) T 77.7/112

R2311 7030006101 S.RES ERA3YED 183V (18 kΩ) B 67.6/107.1

R2312 7030006571 S.RES ERA3YED 392V (3.9 kΩ) B 68.5/108.3

R2401 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) B 78.7/29.6

R2402 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 81.3/29.6

R2405 7030010040 S.RES ERJ2GEJ-JPW T 91.9/5.8

R2406 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 90.3/100.7

R2408 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) B 90.3/99.8

R2409 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 87.1/68.1

R2410 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 90.3/65.5

R2411 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 87.3/67.2

R2412 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 91.3/68.5

R2413 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 87.3/66.3

R2414 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 90.3/64.6

R2415 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 87.3/65.4

R2416 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) B 90.3/63.7

R2417 7030010040 S.RES ERJ2GEJ-JPW B 43/141.4

R2418 7030010040 S.RES ERJ2GEJ-JPW T 93.3/7.8

R2501 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 8.3/93.3

R2502 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 8/95.1

R2503 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 8/91.5

R2505 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 10.6/89.2

R2506 7030005720 S.RES ERJ2GEJ 563 X (56 kΩ) B 9.4/90

R2507 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 16.4/89.9

R2508 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 10.4/88.3

R2509 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 15.7/88.3

R2510 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 17.4/92.8

R2513 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) B 15.8/94

R2551 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 42.9/123.2

R2552 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 42.9/122.3

R2555 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 51.4/119.3

R2556 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 44.5/125.2

R2559 7030010040 S.RES ERJ2GEJ-JPW B 49.5/124.6

R2560 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 49.5/125.5

R2561 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 52.9/124.7

R2562 7030008410 S.RES ERJ2GEJ 392 X (3.9 kΩ) B 53.9/122.8

R2564 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 46.1/126.1

R2565 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) B 42/117

R2566 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 59/126.8

R2567 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 60.6/126.8

R2568 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 47.8/124.7

R2569 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 46.1/125.2

R2601 7030010040 S.RES ERJ2GEJ-JPW B 66.7/123.4

R2602 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) B 57.2/122.6

R2603 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 63.4/121.7

R2604 7030008400 S.RES ERJ2GEJ 182 X (1.8 kΩ) B 66.7/124.3

R2605 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 65.5/126

R2607 7030010040 S.RES ERJ2GEJ-JPW T 40.4/132.4

R2608 7030009320 S.RES ERJ2GEJ 4R7 X (4.7 Ω) B 85.4/134.1

R2611 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 33.9/125.2

R2612 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 38.4/126

R2613 7030005080 S.RES ERJ2GEJ 823 X (82 kΩ) B 38.4/124.2

R2614 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 34.5/127.2

R2617 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 63.3/111.1

R2618 7030007340 S.RES ERJ2GEJ 153 X (15 kΩ) T 69.3/112.6

R2619 7030005060 S.RES ERJ2GEJ 333 X (33 kΩ) T 63.3/112.1

R2620 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 78.1/100.3

R2621 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 78.1/99.4

R2623 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 9.8/112.9

R2624 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) B 86.8/122

R2628 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 61.8/121.7

C5 4030017460 S.CER ECJ0EB1E102K B 47.5/30.7

C6 4030018960 S.CER C3216 JB 1C 106MT-N T 66.3/12

C7 4030017330 S.CER ECJ0EF1C104Z T 73.1/13.2

C8 4030017330 S.CER ECJ0EF1C104Z T 77.2/9

C9 4030017330 S.CER ECJ0EF1C104Z T 73.1/15

C10 4030017330 S.CER ECJ0EF1C104Z T 75/15.5

C11 4030017330 S.CER ECJ0EF1C104Z T 72.7/20.1

C12 4030017330 S.CER ECJ0EF1C104Z T 76.8/16.7

C13 4030017330 S.CER ECJ0EF1C104Z T 73.4/18.3

C14 4030017460 S.CER ECJ0EB1E102K T 67.7/16.5

C15 4030017460 S.CER ECJ0EB1E102K T 63.7/15.6

C16 4030017460 S.CER ECJ0EB1E102K T 63.6/16.5

C17 4030017460 S.CER ECJ0EB1E102K T 60.7/16.7

C18 4030017620 S.CER ECJ0EC1H100C T 60.8/19

C21 4030017730 S.CER ECJ0EB1E471K T 63.7/14.7

C25 4030017580 S.CER ECJ0EC1H060C T 55.2/17.8

C26 4030017660 S.CER ECJ0EC1H330J T 55.2/18.7

C27 4030017780 S.CER ECJ0EB1E472K T 51.6/20.5

C28 4030017530 S.CER ECJ0EC1H0R5B T 53.8/17.1

C29 4030017600 S.CER ECJ0EC1H080C T 51.7/19.6

C30 4030017730 S.CER ECJ0EB1E471K T 45.8/17.5

C31 4030017530 S.CER ECJ0EC1H0R5B T 53.8/16.2

C32 4030017660 S.CER ECJ0EC1H330J T 52.1/17.4

C33 4030017580 S.CER ECJ0EC1H060C T 52.2/16.5

C34 4030017380 S.CER ECJ0EC1H050B T 56/15

C35 4030017380 S.CER ECJ0EC1H050B T 55.9/12.4

C36 4030017730 S.CER ECJ0EB1E471K T 51/15.6

C37 4030017780 S.CER ECJ0EB1E472K T 70.4/10.6

C38 4030017780 S.CER ECJ0EB1E472K T 45.8/18.4

C40 4030017730 S.CER ECJ0EB1E471K T 73.1/14.1

C41 4030017730 S.CER ECJ0EB1E471K T 66.8/19.6

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

5 - 9

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C42 4030017730 S.CER ECJ0EB1E471K T 70.4/11.5

C43 4030017420 S.CER ECJ0EC1H470J T 45.8/16.6

C44 4030017420 S.CER ECJ0EC1H470J T 48/11.7

C50 4030017640 S.CER ECJ0EC1H150J B 81.5/12.6

C51 4030017640 S.CER ECJ0EC1H150J B 79.9/11.8

C52 4030017430 S.CER ECJ0EC1H101J B 79.9/12.7

C53 4030016930 S.CER ECJ0EB1A104K B 79.6/21.3

C54 4030016930 S.CER ECJ0EB1A104K T 79.8/12.9

C55 4030016930 S.CER ECJ0EB1A104K T 78.5/17.9

C56 4030018860 S.CER ECJ0EB0J105K B 66.9/22.7

C58 4030017710 S.CER ECJ0EC1H181J T 71.1/19.7

C59 4030017710 S.CER ECJ0EC1H181J T 66.3/23.7

C101 4030017330 S.CER ECJ0EF1C104Z T 10.3/15.5

C102 4030017330 S.CER ECJ0EF1C104Z T 13.2/16.9

C103 4030017330 S.CER ECJ0EF1C104Z T 13.2/17.8

C104 4030017330 S.CER ECJ0EF1C104Z T 3.3/29.9

C105 4030017330 S.CER ECJ0EF1C104Z T 13.2/19.6

C106 4030017850 S.CER C2012 CH 1H 272J-T T 23.7/10.9

C107 4030017330 S.CER ECJ0EF1C104Z T 19.2/12.9

C108 4030017330 S.CER ECJ0EF1C104Z T 36.5/16.6

C109 4030017330 S.CER ECJ0EF1C104Z T 25.2/14

C110 4030017800 S.CER C1608 CH 1H 561J-T T 27.8/7.6

C111 4030018590 S.CER C1608 CH 1H 122J-T T 28.8/5

C112 4030017330 S.CER ECJ0EF1C104Z T 25/5.7

C114 4030018600 S.CER C1608 CH 1H 152J-T T 25.1/15

C115 4030008490 S.CER C2012 JB 1H 682K-T T 24.8/16.7

C116 4030017850 S.CER C2012 CH 1H 272J-T T 24.8/18.4

C117 4030017330 S.CER ECJ0EF1C104Z T 19.3/5.8

C118 4030017330 S.CER ECJ0EF1C104Z T 38.2/17.5

C119 4030017780 S.CER ECJ0EB1E472K T 7.8/22.2

C120 4030017330 S.CER ECJ0EF1C104Z T 7.8/21.3

C121 4030017330 S.CER ECJ0EF1C104Z T 5.7/12.9

C122 4030017330 S.CER ECJ0EF1C104Z T 13.2/18.7

C123 4030017330 S.CER ECJ0EF1C104Z T 15.4/14.3

C124 4030017330 S.CER ECJ0EF1C104Z T 16.3/15.3

C125 4030017460 S.CER ECJ0EB1E102K T 40/21.7

C126 4030017460 S.CER ECJ0EB1E102K T 37/22.3

C127 4030017460 S.CER ECJ0EB1E102K B 19.2/23

C208 4030017330 S.CER ECJ0EF1C104Z T 19.7/31.2

C209 4030017680 S.CER ECJ0EC1H820J T 18.5/41.4

C210 4030017610 S.CER ECJ0EC1H090C T 18.5/40.5

C211 4030017700 S.CER ECJ0EC1H151J T 18.5/42.3

C212 4030017650 S.CER ECJ0EC1H270J T 23.2/39.2

C213 4030017510 S.CER ECJ0EC1H680J T 21.8/43.4

C214 4030018820 S.CER ECJ0EB1H561K T 31.7/54.4

C215 4030017440 S.CER ECJ0EC1H221J T 37/54.6

C226 4030017330 S.CER ECJ0EF1C104Z T 24.1/43.4

C227 4030017330 S.CER ECJ0EF1C104Z T 19.7/30.3

C228 4030017430 S.CER ECJ0EC1H101J T 28.1/39.2

C229 4030017440 S.CER ECJ0EC1H221J T 29.7/39.2

C237 4030017500 S.CER ECJ0EC1H560J T 28.1/38.2

C238 4030017330 S.CER ECJ0EF1C104Z T 21.9/30.9

C239 4030017330 S.CER ECJ0EF1C104Z B 24.7/41.4

C240 4030017400 S.CER ECJ0EC1H220J B 28.1/43.6

C241 4030017580 S.CER ECJ0EC1H060C B 31.5/40.1

C242 4030017680 S.CER ECJ0EC1H820J B 31.5/41

C243 4030018630 S.CER C2012 CH 1H 472J-T T 32.5/57.8

C244 4030018680 S.CER C2012 CH 1H 822J-T T 36.8/57.8

C245 4030017330 S.CER ECJ0EF1C104Z T 45.8/63.2

C246 4030018600 S.CER C1608 CH 1H 152J-T T 36.5/56.1

C247 4030017860 S.CER C2012 CH 1H 332J-T T 40.3/54.1

C248 4030018630 S.CER C2012 CH 1H 472J-T T 43.8/57.9

C249 4030017330 S.CER ECJ0EF1C104Z B 24.9/56.4

C250 4030017330 S.CER ECJ0EF1C104Z B 24.9/53.3

C251 4030018590 S.CER C1608 CH 1H 122J-T T 30.5/51

C252 4030011340 S.CER C1608 CH 1H 471J-T T 31.9/48.6

C253 4030018630 S.CER C2012 CH 1H 472J-T T 29.1/53.3

C254 4030018620 S.CER C1608 CH 1H 222J-T T 38.1/50.8

C255 4030018580 S.CER C1608 CH 1H 821J-T T 32.6/55.9

C256 4030010760 S.CER C1608 CH 1H 331J-T T 38.1/52.1

C257 4030018610 S.CER C1608 CH 1H 182J-T T 34.4/53.4

C258 4030017870 S.CER C1608 CH 1H 681J-T T 40.7/52.2

C259 4030018590 S.CER C1608 CH 1H 122J-T T 37.1/53.4

C260 4030017870 S.CER C1608 CH 1H 681J-T T 40.7/47.9

C261 4030017780 S.CER ECJ0EB1E472K B 37.9/56.2

C262 4030017780 S.CER ECJ0EB1E472K B 37.9/53.8

C263 4030017330 S.CER ECJ0EF1C104Z B 24.5/50.2

C264 4030017330 S.CER ECJ0EF1C104Z B 23.9/47.1

C265 4030011280 S.CER C1608 CH 1H 271J-T B 36.4/46

C266 4030017700 S.CER ECJ0EC1H151J B 31/44.1

C267 4030018590 S.CER C1608 CH 1H 122J-T B 36.4/49.6

C268 4030018580 S.CER C1608 CH 1H 821J-T B 31.7/42.9

C269 4030017710 S.CER ECJ0EC1H181J B 36.5/47.1

C270 4030017430 S.CER ECJ0EC1H101J B 32.6/44.1

C271 4030011330 S.CER C1608 CH 1H 391J-T B 36.4/48.3

C272 4030011280 S.CER C1608 CH 1H 271J-T B 36.3/43.8

C273 4030011330 S.CER C1608 CH 1H 391J-T B 38.8/47.3

C274 4030017730 S.CER ECJ0EB1E471K B 34.2/43.7

C275 4030017780 S.CER ECJ0EB1E472K B 42.9/49.6

C276 4030017780 S.CER ECJ0EB1E472K B 39.2/46.2

C278 4030017330 S.CER ECJ0EF1C104Z T 30.9/31.8

C279 4030017330 S.CER ECJ0EF1C104Z T 31/43.8

C281 4030017330 S.CER ECJ0EF1C104Z T 33/31.7

C282 4030017580 S.CER ECJ0EC1H060C B 31.5/39.2

C283 4030017330 S.CER ECJ0EF1C104Z B 35.8/35.8

C284 4030017780 S.CER ECJ0EB1E472K B 42.6/43.3

C285 4030017380 S.CER ECJ0EC1H050B B 33.1/39.5

C286 4030017510 S.CER ECJ0EC1H680J B 34.7/39.5

C287 4030017690 S.CER ECJ0EC1H121J B 36.5/37.8

C288 4030017680 S.CER ECJ0EC1H820J B 34.2/36.3

C289 4030017420 S.CER ECJ0EC1H470J B 36.3/36.7

C290 4030018600 S.CER C1608 CH 1H 152J-T B 38.8/37.6

C291 4030017680 S.CER ECJ0EC1H820J B 37.9/36.5

C292 4030017330 S.CER ECJ0EF1C104Z T 30.9/30

C293 4030017780 S.CER ECJ0EB1E472K B 38.1/34.8

C294 4030017440 S.CER ECJ0EC1H221J T 38.6/49.6

C295 4030017510 S.CER ECJ0EC1H680J T 40.4/51.2

C301 4030017330 S.CER ECJ0EF1C104Z T 47/30.1

C302 4030017330 S.CER ECJ0EF1C104Z B 56.1/30.7

C303 4030017330 S.CER ECJ0EF1C104Z T 51.5/33.6

C305 4030017330 S.CER ECJ0EF1C104Z T 59.9/34.7

C307 4030017330 S.CER ECJ0EF1C104Z T 59.9/35.6

C308 4030017330 S.CER ECJ0EF1C104Z T 60.7/36.5

C309 4030017330 S.CER ECJ0EF1C104Z T 62.8/36.9

C310 4030017330 S.CER ECJ0EF1C104Z T 60.9/30.1

C311 4030017330 S.CER ECJ0EF1C104Z T 50.1/32.6

C312 4030017330 S.CER ECJ0EF1C104Z T 64.5/36.1

C313 4030017380 S.CER ECJ0EC1H050B T 46.4/23

C314 4030017660 S.CER ECJ0EC1H330J T 64.8/35.2

C315 4030017340 S.CER ECJ0EC1H010B T 49.2/22.9

C316 4030017630 S.CER ECJ0EC1H120J T 66.1/36.1

C317 4030017600 S.CER ECJ0EC1H080C T 51.4/23.8

C318 4030017680 S.CER ECJ0EC1H820J T 66.4/35.2

C319 4030017570 S.CER ECJ0EC1H040B T 53/24.3

C320 4030017570 S.CER ECJ0EC1H040B T 69.6/37.1

C321 4030017580 S.CER ECJ0EC1H060C T 58.6/24.4

C322 4030017670 S.CER ECJ0EC1H390J T 69/32.2

C323 4030017590 S.CER ECJ0EC1H070C T 60.4/24.2

C324 4030017330 S.CER ECJ0EF1C104Z T 74.7/38.6

C325 4030017360 S.CER ECJ0EC1H030B T 62/24.6

C326 4030017780 S.CER ECJ0EB1E472K T 47.6/47.1

C401 4030017330 S.CER ECJ0EF1C104Z T 71/30.8

C413 4030017330 S.CER ECJ0EF1C104Z T 80.6/23.9

C415 4030017330 S.CER ECJ0EF1C104Z T 73.1/24.4

C418 4030017330 S.CER ECJ0EF1C104Z T 67.9/24.8

C422 4030017330 S.CER ECJ0EF1C104Z T 80/28.6

C423 4030017330 S.CER ECJ0EF1C104Z T 68.3/23.9

C424 4030017330 S.CER ECJ0EF1C104Z T 83.2/21

C425 4030017330 S.CER ECJ0EF1C104Z T 86.9/27.6

C426 4030017330 S.CER ECJ0EF1C104Z T 78.6/19.8

C427 4030017330 S.CER ECJ0EF1C104Z T 80/27.7

C429 4030017460 S.CER ECJ0EB1E102K T 81.6/25.3

C431 4030017330 S.CER ECJ0EF1C104Z T 88.5/25.9

C432 4030017780 S.CER ECJ0EB1E472K B 88.5/19.3

C433 4030017780 S.CER ECJ0EB1E472K T 88.8/20.3

C434 4030017780 S.CER ECJ0EB1E472K T 86.2/22.9

C511 4030017460 S.CER ECJ0EB1E102K T 41.8/26.8

C512 4030017780 S.CER ECJ0EB1E472K T 93.1/32.9

C513 4030017330 S.CER ECJ0EF1C104Z T 88.4/28.3

C514 4030017330 S.CER ECJ0EF1C104Z B 88.3/31.7

C515 4030017780 S.CER ECJ0EB1E472K T 81.7/33.2

C516 4030017580 S.CER ECJ0EC1H060C T 86.1/38.7

C518 4030017570 S.CER ECJ0EC1H040B T 86.8/36.7

C525 4030017330 S.CER ECJ0EF1C104Z T 81.8/32.3

C526 4030016790 S.CER ECJ0EB1C103K T 77.7/38

C527 4030017330 S.CER ECJ0EF1C104Z T 79.3/37.9

C528 4030017330 S.CER ECJ0EF1C104Z T 89.7/35.1

C529 4030017670 S.CER ECJ0EC1H390J T 91.3/33.8

C530 4030017460 S.CER ECJ0EB1E102K B 87.7/34.1

C602 4030017570 S.CER ECJ0EC1H040B B 85.7/39.6

C603 4030017780 S.CER ECJ0EB1E472K T 89.1/40.1

C604 4030017780 S.CER ECJ0EB1E472K T 94/46.5

C605 4030017620 S.CER ECJ0EC1H100C T 86/43.9

C606 4030017620 S.CER ECJ0EC1H100C B 85.7/41.4

C608 4030017550 S.CER ECJ0EC1H1R5B B 82.7/43.8

C609 4030017580 S.CER ECJ0EC1H060C B 78.6/46.8

C610 4030017620 S.CER ECJ0EC1H100C B 80.7/48.1

C611 4030017780 S.CER ECJ0EB1E472K B 85.1/37.5

C612 4030017610 S.CER ECJ0EC1H090C T 79.5/40.5

C613 4030017620 S.CER ECJ0EC1H100C T 76.5/43.7

C614 4030017780 S.CER ECJ0EB1E472K T 69.6/38.8

C615 4030017780 S.CER ECJ0EB1E472K T 64.3/43

C616 4030017780 S.CER ECJ0EB1E472K T 77.4/39.5

C617 4030017620 S.CER ECJ0EC1H100C B 85.7/40.5

C618 4030017620 S.CER ECJ0EC1H100C B 80.7/49

C701 4030017330 S.CER ECJ0EF1C104Z T 59/50.6

C702 4030017330 S.CER ECJ0EF1C104Z T 63/45

C703 4510008630 S.ELE 16 CE 47 FE B 59/44.9

C704 4030017780 S.CER ECJ0EB1E472K T 58.6/42.9

C705 4030017600 S.CER ECJ0EC1H080C T 59.6/45.1

C707 4030017330 S.CER ECJ0EF1C104Z T 64.2/52.9

C708 4030017460 S.CER ECJ0EB1E102K T 64.5/55

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

5 - 10

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C709 4030017780 S.CER ECJ0EB1E472K T 60.7/58.6

C710 4030017780 S.CER ECJ0EB1E472K T 62.3/58.6

C711 4030017460 S.CER ECJ0EB1E102K T 57.1/50.6

C712 4030017600 S.CER ECJ0EC1H080C T 53/49.7

C714 4030017460 S.CER ECJ0EB1E102K T 55.5/49.7

C715 4030017780 S.CER ECJ0EB1E472K T 52.1/53.2

C716 4030017340 S.CER ECJ0EC1H010B T 55.3/55.1

C717 4030017780 S.CER ECJ0EB1E472K T 51.2/52.3

C718 4030017780 S.CER ECJ0EB1E472K T 56.9/55.1

C719 4030017340 S.CER ECJ0EC1H010B T 61.1/53.9

C720 4030017380 S.CER ECJ0EC1H050B T 59.3/42

C721 4030017780 S.CER ECJ0EB1E472K T 51.2/49.6

C801 4030017330 S.CER ECJ0EF1C104Z T 71.5/64

C803 4030017780 S.CER ECJ0EB1E472K T 65.3/61.8

C804 4030017330 S.CER ECJ0EF1C104Z T 91.9/58

C805 4030017460 S.CER ECJ0EB1E102K T 83.5/55.8

C807 4030017330 S.CER ECJ0EF1C104Z T 60.6/66.7

C808 4030017870 S.CER C1608 CH 1H 681J-T T 60.3/65.5

C809 4030018630 S.CER C2012 CH 1H 472J-T T 57.4/66.8

C810 4030017700 S.CER ECJ0EC1H151J T 63.9/68.5

C811 4030017700 S.CER ECJ0EC1H151J T 63.9/69.4

C812 4030017700 S.CER ECJ0EC1H151J T 60.1/69.4

C813 4030017700 S.CER ECJ0EC1H151J T 60.1/68.5

C814 4030017330 S.CER ECJ0EF1C104Z T 88.5/57.1

C815 4030017460 S.CER ECJ0EB1E102K T 86.6/60.6

C816 4030017400 S.CER ECJ0EC1H220J T 85.7/59.7

C817 4030017400 S.CER ECJ0EC1H220J T 84/61.7

C818 4030018590 S.CER C1608 CH 1H 122J-T T 54.6/65.6

C819 4030017850 S.CER C2012 CH 1H 272J-T T 51.6/65.8

C901 4030017330 S.CER ECJ0EF1C104Z T 38.4/71.3

C910 4030017710 S.CER ECJ0EC1H181J T 39.2/65.6

C911 4030017700 S.CER ECJ0EC1H151J T 47.9/74.7

C913 4030017330 S.CER ECJ0EF1C104Z T 38.2/61.1

C914 4030017330 S.CER ECJ0EF1C104Z T 39.2/63.6

C915 4030017330 S.CER ECJ0EF1C104Z T 36.8/69.1

C916 4030017330 S.CER ECJ0EF1C104Z T 33.9/61.9

C917 4030017780 S.CER ECJ0EB1E472K T 35.6/63.2

C918 4030017330 S.CER ECJ0EF1C104Z T 34.2/67.5

C920 4030017460 S.CER ECJ0EB1E102K T 38.4/74.2

C921 4030017330 S.CER ECJ0EF1C104Z T 34.2/70.2

C922 4030017330 S.CER ECJ0EF1C104Z T 29.4/73

C923 4030017330 S.CER ECJ0EF1C104Z T 29.9/72.1

C924 4030017780 S.CER ECJ0EB1E472K T 41.2/74.1

C925 4030017700 S.CER ECJ0EC1H151J B 31.4/73

C1001 4030017780 S.CER ECJ0EB1E472K T 31.7/71.2

C1009 4030017780 S.CER ECJ0EB1E472K T 25.8/72

C1016 4030017330 S.CER ECJ0EF1C104Z T 25.8/73.8

C1018 4030017460 S.CER ECJ0EB1E102K T 20.3/76

C1019 4030017330 S.CER ECJ0EF1C104Z T 15.2/76.9

C1020 4030017330 S.CER ECJ0EF1C104Z T 12.7/75.8

C1021 4030017330 S.CER ECJ0EF1C104Z T 4.6/78.9

C1022 4510008630 S.ELE 16 CE 47 FE B 6.1/86

C1023 4510008630 S.ELE 16 CE 47 FE B 5.7/77.4

C1101 4030017490 S.CER C1608 JB 1A 105K-T T 2.5/78.9

C1102 4030017330 S.CER ECJ0EF1C104Z T 4.6/78

C1104 4030017490 S.CER C1608 JB 1A 105K-T T 2.5/87.8

C1105 4030018960 S.CER C3216 JB 1C 106MT-N T 2.9/89.7

C1108 4030017330 S.CER ECJ0EF1C104Z T 2.3/91.3

C1201 4030017330 S.CER ECJ0EF1C104Z T 26.6/80.6

C1202 4030017330 S.CER ECJ0EF1C104Z T 28.7/80.5

C1203 4030017330 S.CER ECJ0EF1C104Z T 18.6/79.2

C1204 4030018960 S.CER C3216 JB 1C 106MT-N T 9/76.9

C1206 4030017780 S.CER ECJ0EB1E472K T 14.3/79.4

C1207 4030017780 S.CER ECJ0EB1E472K T 14.3/78.5

C1208 4030018080 S.CER ECJ0EB1H182K T 12.9/85

C1209 4030018820 S.CER ECJ0EB1H561K T 12.9/84.1

C1210 4030017780 S.CER ECJ0EB1E472K T 11.3/84.1

C1211 4030017490 S.CER C1608 JB 1A 105K-T T 9.2/84.5

C1212 4030017490 S.CER C1608 JB 1A 105K-T T 6.7/87.8

C1213 4030017330 S.CER ECJ0EF1C104Z T 21.8/78.3

C1301 4030017330 S.CER ECJ0EF1C104Z T 15.2/73.6

C1302 4030017330 S.CER ECJ0EF1C104Z T 15.1/67.3

C1303 4030018860 S.CER ECJ0EB0J105K T 11.3/67.3

C1304 4030017330 S.CER ECJ0EF1C104Z T 14.3/69.2

C1305 4030017330 S.CER ECJ0EF1C104Z T 11.6/65.5

C1306 4030017330 S.CER ECJ0EF1C104Z T 10.9/60.3

C1307 4030017330 S.CER ECJ0EF1C104Z T 16.2/65.6

C1308 4030017330 S.CER ECJ0EF1C104Z T 14.5/60.3

C1309 4030017330 S.CER ECJ0EF1C104Z T 3.8/50.8

C1310 4030017330 S.CER ECJ0EF1C104Z T 16.2/62.9

C1311 4030018960 S.CER C3216 JB 1C 106MT-N T 5.4/58.5

C1312 4030018860 S.CER ECJ0EB0J105K T 13/66.4

C1401 4030017330 S.CER ECJ0EF1C104Z B 46.6/77.3

C1402 4030017700 S.CER ECJ0EC1H151J B 42/69.6

C1403 4030017650 S.CER ECJ0EC1H270J B 45.5/71.4

C1404 4030017700 S.CER ECJ0EC1H151J B 41.9/70.5

C1405 4030017780 S.CER ECJ0EB1E472K B 43.6/71.4

C1406 4030017780 S.CER ECJ0EB1E472K B 42/72.4

C1407 4030017780 S.CER ECJ0EB1E472K B 44.6/74.3

C1408 4030017780 S.CER ECJ0EB1E472K B 40.3/79

C1409 4030017780 S.CER ECJ0EB1E472K B 34.7/79

C1411 4030018860 S.CER ECJ0EB0J105K B 27/79.9

C1412 4030016950 S.CER ECJ0EB1A473K B 27/80.8

C1413 4030017490 S.CER C1608 JB 1A 105K-T B 20.7/77.4

C1414 4030016950 S.CER ECJ0EB1A473K B 25/77.8

C1415 4510008640 S.ELE 6 CE 100 FE B 13.2/81.2

C1416 4030016950 S.CER ECJ0EB1A473K B 20.2/78.5

C1418 4030017350 S.CER ECJ0EC1H020B B 23/86.6

C1419 4030018390 S.CER ECJ0EB1A563K B 23/87.5

C1420 4030017420 S.CER ECJ0EC1H470J B 17.8/83

C1421 4030018960 S.CER C3216 JB 1C 106MT-N B 19.8/87.3

C1422 4030017640 S.CER ECJ0EC1H150J B 17.8/82.1

C1423 4610001970 S.TRI TZC3P200A110R00 T 3.8/72.5

C1491 4030017400 S.CER ECJ0EC1H220J [USA] B 88.2/29.3

4030017670 S.CER ECJ0EC1H390J [Others] B 88.2/29.3

C1493 4030017660 S.CER ECJ0EC1H330J B 86.1/33.7

C1494 4030017420 S.CER ECJ0EC1H470J [USA] B 83.6/34

4030017670 S.CER ECJ0EC1H390J [Others] B 83.6/34

C1495 4030010760 S.CER C1608 CH 1H 331J-T [USA] B 84/32.9

4030011280 S.CER C1608 CH 1H 271J-T [Others] B 84/32.9

C1496 4030017660 S.CER ECJ0EC1H330J B 79.3/35.2

C1498 4030017400 S.CER ECJ0EC1H220J [USA] B 79.3/36.3

4030017670 S.CER ECJ0EC1H390J [Others] B 79.3/36.3

C1501 4030017410 S.CER ECJ0EC1H240J B 79.3/37.2

C1503 4030017330 S.CER ECJ0EF1C104Z B 78.9/61.9

C1504 4030017510 S.CER ECJ0EC1H680J B 80.9/36.3

C1506 4030017780 S.CER ECJ0EB1E472K B 92.1/28.8

C1507 4030017410 S.CER ECJ0EC1H240J B 82.5/36.2

C1508 4030017780 S.CER ECJ0EB1E472K B 77.3/38.6

C1509 4030017780 S.CER ECJ0EB1E472K B 72.4/39.1

C1510 4030017780 S.CER ECJ0EB1E472K B 72.4/41.2

C1511 4030016790 S.CER ECJ0EB1C103K B 86.4/56.2

C1512 4030017780 S.CER ECJ0EB1E472K B 77/41.6

C1513 4030018900 S.CER ECJ0EB0J474K B 71.7/54.8

C1514 4030017780 S.CER ECJ0EB1E472K B 73.5/42.1

C1515 4030018960 S.CER C3216 JB 1C 106MT-N B 68.3/53.7

C1516 4030017330 S.CER ECJ0EF1C104Z B 77.6/49

C1517 4030017730 S.CER ECJ0EB1E471K B 73.6/53.9

C1518 4030016790 S.CER ECJ0EB1C103K B 85.7/51.4

C1519 4030018960 S.CER C3216 JB 1C 106MT-N B 69.3/47.4

C1520 4510008630 S.ELE 16 CE 47 FE B 91/45.4

C1521 4030017680 S.CER ECJ0EC1H820J B 85.9/58

C1522 4030017670 S.CER ECJ0EC1H390J T 73.2/55.3

C1523 4030017330 S.CER ECJ0EF1C104Z T 31.2/80.4

C1524 4030017420 S.CER ECJ0EC1H470J [Others] B 73.6/60.5

4030017510 S.CER ECJ0EC1H680J [USA] B 73.6/60.5

C1525 4030018900 S.CER ECJ0EB0J474K B 85.8/59.9

C1526 4030018960 S.CER C3216 JB 1C 106MT-N B 69.3/51.5

C1531 4030017490 S.CER C1608 JB 1A 105K-T B 82.8/48.3

C1532 4030017780 S.CER ECJ0EB1E472K B 81.9/41.3

C1533 4030017780 S.CER ECJ0EB1E472K B 81.9/39.4

C1534 4030017780 S.CER ECJ0EB1E472K B 83.5/38.5

C1601 4030017780 S.CER ECJ0EB1E472K T 6.3/52.2

C1604 4030017780 S.CER ECJ0EB1E472K T 5.6/50.8

C1605 4030017330 S.CER ECJ0EF1C104Z T 8.8/48.7

C1607 4030017780 S.CER ECJ0EB1E472K T 14.7/46

C1609 4030017490 S.CER C1608 JB 1A 105K-T T 14.1/33.6

C1610 4030017330 S.CER ECJ0EF1C104Z T 12.1/44.7

C1611 4030017330 S.CER ECJ0EF1C104Z T 14.6/41.1

C1613 4030017330 S.CER ECJ0EF1C104Z T 18.9/47.1

C1614 4030017730 S.CER ECJ0EB1E471K T 15/36.1

C1615 4030017420 S.CER ECJ0EC1H470J T 10.4/46.9

C1616 4550007260 S.TAN F931C475MAABMA T 9.6/50.5

C1618 4030017430 S.CER ECJ0EC1H101J T 12.7/26.3

C1701 4030017490 S.CER C1608 JB 1A 105K-T B 55.1/50.4

C1702 4030017490 S.CER C1608 JB 1A 105K-T B 55/69.6

C1801 4030017330 S.CER ECJ0EF1C104Z B 18.4/105

C1802 4510008630 S.ELE 16 CE 47 FE B 14.4/101.2

C1803 4030018960 S.CER C3216 JB 1C 106MT-N B 22.3/112.1

C1804 4030017330 S.CER ECJ0EF1C104Z B 22.8/110.6

C1901 4030017330 S.CER ECJ0EF1C104Z T 36.2/80.4

C1902 4030017330 S.CER ECJ0EF1C104Z T 33.7/80.4

C1903 4030017330 S.CER ECJ0EF1C104Z B 23.3/18.8

C1904 4030017330 S.CER ECJ0EF1C104Z B 32.5/89.8

C1905 4030017330 S.CER ECJ0EF1C104Z B 25.9/33.8

C1906 4030017330 S.CER ECJ0EF1C104Z B 25.9/32.9

C1907 4030017330 S.CER ECJ0EF1C104Z T 41.6/80.3

C1908 4030017330 S.CER ECJ0EF1C104Z T 38.4/80.7

C1909 4030017330 S.CER ECJ0EF1C104Z B 21.6/13.9

C1910 4030017460 S.CER ECJ0EB1E102K B 45.4/25.4

C1916 4030018960 S.CER C3216 JB 1C 106MT-N B 14.7/50.5

C1917 4030018960 S.CER C3216 JB 1C 106MT-N B 5.3/52.7

C1951 4030018960 S.CER C3216 JB 1C 106MT-N B 48.1/103.1

C1952 4030018960 S.CER C3216 JB 1C 106MT-N B 48.1/98.9

C1953 4030018960 S.CER C3216 JB 1C 106MT-N B 48.1/96.8

C1954 4030018960 S.CER C3216 JB 1C 106MT-N B 48.2/105.2

C1955 4030018960 S.CER C3216 JB 1C 106MT-N B 48.1/101

C1956 4030018960 S.CER C3216 JB 1C 106MT-N B 60.9/118.7

C1957 4030017330 S.CER ECJ0EF1C104Z B 63.8/116.7

C1958 4030018910 S.CER C1608 JB 0J 475K-T B 20.9/125.7

C1959 4550007090 S.TAN TEESVA 1A 226M8R B 11.4/120.2

C1960 4030010210 S.CER C3216 JB 1C 105M-T B 47.3/109.7

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

5 - 11

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C1961 4030017730 S.CER ECJ0EB1E471K B 44/110

C1962 4030017440 S.CER ECJ0EC1H221J B 44.4/107

C1963 4030017500 S.CER ECJ0EC1H560J B 35.3/105.1

C1964 4030017330 S.CER ECJ0EF1C104Z B 44.3/111.3

C1965 4030018960 S.CER C3216 JB 1C 106MT-N B 7.4/108

C1966 4030017330 S.CER ECJ0EF1C104Z B 10.1/103

C1968 4030018960 S.CER C3216 JB 1C 106MT-N B 31.7/103.6

C1969 4030018970 S.CER C3225 JB 1C 226MT-N B 30.8/100.9

C1970 4030018970 S.CER C3225 JB 1C 226MT-N B 30.8/97.9

C1971 4030017330 S.CER ECJ0EF1C104Z B 45.9/111.3

C1972 4030017330 S.CER ECJ0EF1C104Z B 47.6/106.7

C1973 4030017330 S.CER ECJ0EF1C104Z B 32.1/105.1

C2001 4030017780 S.CER ECJ0EB1E472K T 33.2/10.3

C2002 4030017330 S.CER ECJ0EF1C104Z B 71.7/14.6

C2003 4030017780 S.CER ECJ0EB1E472K B 58.8/15.8

C2004 4030017780 S.CER ECJ0EB1E472K B 83/5.9

C2005 4030017780 S.CER ECJ0EB1E472K B 69.2/16.5

C2006 4030017330 S.CER ECJ0EF1C104Z B 83/6.8

C2007 4030017780 S.CER ECJ0EB1E472K B 84.6/5.9

C2008 4030017330 S.CER ECJ0EF1C104Z B 56.7/10.1

C2009 4030017330 S.CER ECJ0EF1C104Z B 75.8/18.6

C2010 4030017780 S.CER ECJ0EB1E472K B 75.9/6.7

C2011 4030017330 S.CER ECJ0EF1C104Z B 75/7.7

C2012 4030017780 S.CER ECJ0EB1E472K B 63.1/15.5

C2013 4030017330 S.CER ECJ0EF1C104Z B 88.9/2

C2014 4030017780 S.CER ECJ0EB1E472K B 32.5/11.8

C2015 4030017780 S.CER ECJ0EB1E472K B 32.5/12.7

C2016 4030017780 S.CER ECJ0EB1E472K B 19/131.2

C2017 4030017330 S.CER ECJ0EF1C104Z T 86.4/10.2

C2018 4030017780 S.CER ECJ0EB1E472K B 42.7/17.7

C2019 4030017780 S.CER ECJ0EB1E472K T 24.7/126.7

C2020 4030017330 S.CER ECJ0EF1C104Z B 85/23.1

C2021 4030017780 S.CER ECJ0EB1E472K B 32.5/16

C2022 4030017780 S.CER ECJ0EB1E472K B 30.3/130.2

C2024 4030017780 S.CER ECJ0EB1E472K B 29.1/128.2

C2025 4030017780 S.CER ECJ0EB1E472K B 45.7/12.8

C2026 4030018960 S.CER C3216 JB 1C 106MT-N B 10.1/23.4

C2027 4030018960 S.CER C3216 JB 1C 106MT-N B 10.1/14.6

C2028 4030017330 S.CER ECJ0EF1C104Z B 51.7/12.7

C2029 4030017330 S.CER ECJ0EF1C104Z B 58.1/9.4

C2030 4030017330 S.CER ECJ0EF1C104Z B 55.8/15.8

C2032 4030017780 S.CER ECJ0EB1E472K B 27.4/129

C2033 4030017330 S.CER ECJ0EF1C104Z B 71.1/21.9

C2034 4030017780 S.CER ECJ0EB1E472K B 64.8/5.6

C2035 4030017780 S.CER ECJ0EB1E472K B 25.6/130.2

C2036 4030017330 S.CER ECJ0EF1C104Z B 88.2/8

C2037 4030017330 S.CER ECJ0EF1C104Z B 76/16.5

C2038 4030017780 S.CER ECJ0EB1E472K T 14.5/126.4

C2039 4030017780 S.CER ECJ0EB1E472K B 80.2/6.7

C2040 4030017780 S.CER ECJ0EB1E472K B 64.6/17.7

C2041 4030017330 S.CER ECJ0EF1C104Z B 75.2/10.5

C2042 4030017330 S.CER ECJ0EF1C104Z B 62.7/18.1

C2043 4030017780 S.CER ECJ0EB1E472K B 55.4/8.8

C2044 4030017780 S.CER ECJ0EB1E472K B 62.7/19.5

C2045 4030017780 S.CER ECJ0EB1E472K B 65.3/22.3

C2046 4030017780 S.CER ECJ0EB1E472K B 63.6/14.6

C2047 4030017780 S.CER ECJ0EB1E472K B 57.7/21.9

C2048 4030017780 S.CER ECJ0EB1E472K B 63.1/5.6

C2049 4030017780 S.CER ECJ0EB1E472K T 45.1/101.8

C2050 4030017780 S.CER ECJ0EB1E472K T 42.8/100.3

C2051 4030017330 S.CER ECJ0EF1C104Z T 56.3/99.9

C2052 4030017780 S.CER ECJ0EB1E472K T 21.6/108

C2053 4030017780 S.CER ECJ0EB1E472K T 49.8/107.5

C2054 4030018960 S.CER C3216 JB 1C 106MT-N B 55.3/83.4

C2055 4030018960 S.CER C3216 JB 1C 106MT-N B 28.1/88.5

C2058 4030018960 S.CER C3216 JB 1C 106MT-N B 16.4/95.5

C2062 4550007710 S.TAN TEESVB2 1A 476M8R B 26.6/13

C2063 4030017730 S.CER ECJ0EB1E471K B 46/13.7

C2064 4030018960 S.CER C3216 JB 1C 106MT-N B 62.1/23

C2065 4030016930 S.CER ECJ0EB1A104K B 73.3/1.2

C2066 4030016930 S.CER ECJ0EB1A104K B 75.1/1.2

C2067 4030017430 S.CER ECJ0EC1H101J B 55.3/25

C2068 4030017460 S.CER ECJ0EB1E102K B 59.1/26.1

C2069 4030017730 S.CER ECJ0EB1E471K B 44/12

C2101 4030017330 S.CER ECJ0EF1C104Z T 28.3/114

C2102 4030017330 S.CER ECJ0EF1C104Z T 44.7/110.9

C2103 4030018960 S.CER C3216 JB 1C 106MT-N T 28.8/112.4

C2104 4030017330 S.CER ECJ0EF1C104Z T 56.1/123.5

C2105 4030018960 S.CER C3216 JB 1C 106MT-N T 54.7/125

C2156 4030017330 S.CER ECJ0EF1C104Z T 36.2/122.1

C2157 4030017330 S.CER ECJ0EF1C104Z B 34.4/91

C2158 4030017330 S.CER ECJ0EF1C104Z B 27.4/93.7

C2159 4030017330 S.CER ECJ0EF1C104Z T 22.4/94.4

C2160 4030017330 S.CER ECJ0EF1C104Z B 38.2/88.8

C2161 4030018960 S.CER C3216 JB 1C 106MT-N T 36.8/123.6

C2162 4030018960 S.CER C3216 JB 1C 106MT-N B 37.7/90.4

C2163 4030017780 S.CER ECJ0EB1E472K T 4.6/116.5

C2164 4030018960 S.CER C3216 JB 1C 106MT-N T 6.5/114.9

C2166 4030012610 S.CER C2012 JB 1C 474K-T T 5.2/106.8

C2167 4030018960 S.CER C3216 JB 1C 106MT-N T 4.9/109.9

C2168 4030012610 S.CER C2012 JB 1C 474K-T T 16.5/116.8

C2169 4030016930 S.CER ECJ0EB1A104K T 13.6/124.4

C2201 4030017780 S.CER ECJ0EB1E472K T 24.7/125.8

C2203 4030018520 S.CER C1608 JB 0J 225M-T T 16/118.4

C2204 4030017330 S.CER ECJ0EF1C104Z T 11.1/119.7

C2205 4030018960 S.CER C3216 JB 1C 106MT-N T 12.4/117.1

C2206 4030017780 S.CER ECJ0EB1E472K T 21.7/115.6

C2208 4030017730 S.CER ECJ0EB1E471K T 19/116.9

C2211 4030018960 S.CER C3216 JB 1C 106MT-N T 22.4/119.9

C2212 4030018960 S.CER C3216 JB 1C 106MT-N T 23.2/124.3

C2213 4550007140 S.TAN TEESVD 1C 107M12R T 37.4/139.1

C2214 4030018910 S.CER C1608 JB 0J 475K-T T 20.9/122.6

C2231 4030017330 S.CER ECJ0EF1C104Z T 38.2/105.6

C2232 4030018960 S.CER C3216 JB 1C 106MT-N T 38.1/104

C2233 4030017780 S.CER ECJ0EB1E472K T 4.7/123.2

C2234 4550007310 S.TAN F930J227MNMBMA T 70.1/130.6

C2235 4030018960 S.CER C3216 JB 1C 106MT-N T 40.9/108.8

C2236 4030018960 S.CER C3216 JB 1C 106MT-N T 39.8/111.1

C2237 4030017460 S.CER ECJ0EB1E102K T 60.6/123.3

C2254 4030017330 S.CER ECJ0EF1C104Z T 7.6/92.5

C2255 4030017330 S.CER ECJ0EF1C104Z B 2.4/98.1

C2256 4030017330 S.CER ECJ0EF1C104Z B 2.6/95.6

C2257 4030017330 S.CER ECJ0EF1C104Z T 9.9/87.9

C2260 4030017330 S.CER ECJ0EF1C104Z T 18.5/103.6

C2261 4030017330 S.CER ECJ0EF1C104Z T 6.7/104.4

C2262 4030017330 S.CER ECJ0EF1C104Z T 58.5/100.3

C2264 4030017330 S.CER ECJ0EF1C104Z T 61.8/88.9

C2266 4030017330 S.CER ECJ0EF1C104Z T 72/85.2

C2268 4030017330 S.CER ECJ0EF1C104Z T 68.5/89.4

C2269 4030017330 S.CER ECJ0EF1C104Z B 78.4/92.4

C2270 4030017780 S.CER ECJ0EB1E472K T 61.8/89.8

C2272 4030017330 S.CER ECJ0EF1C104Z T 56.2/92.2

C2274 4030017330 S.CER ECJ0EF1C104Z T 55.8/95

C2275 4030017330 S.CER ECJ0EF1C104Z B 68.1/99.3

C2276 4030017330 S.CER ECJ0EF1C104Z B 64.2/100.6

C2277 4030017330 S.CER ECJ0EF1C104Z T 63.6/103.4

C2278 4030017330 S.CER ECJ0EF1C104Z T 63.6/107.9

C2279 4030017330 S.CER ECJ0EF1C104Z T 62.7/108.8

C2280 4030017420 S.CER ECJ0EC1H470J T 51.8/37.9

C2281 4030017330 S.CER ECJ0EF1C104Z T 68.5/90.3

C2282 4030017330 S.CER ECJ0EF1C104Z B 80.4/93

C2283 4030017330 S.CER ECJ0EF1C104Z B 81.6/92.1

C2285 4030017330 S.CER ECJ0EF1C104Z T 50.8/99

C2286 4030017330 S.CER ECJ0EF1C104Z T 14.1/88.8

C2301 4030018910 S.CER C1608 JB 0J 475K-T T 30.8/106.9

C2302 4030018910 S.CER C1608 JB 0J 475K-T T 27.8/109.4

C2303 4550007310 S.TAN F930J227MNMBMA T 84.4/110.3

C2311 4030017330 S.CER ECJ0EF1C104Z B 68.1/110.2

C2312 4030018910 S.CER C1608 JB 0J 475K-T B 67.3/104.9

C2401 4030017330 S.CER ECJ0EF1C104Z B 90.8/103.3

C2402 4030017330 S.CER ECJ0EF1C104Z B 81.2/100.7

C2403 4030017780 S.CER ECJ0EB1E472K B 77.2/28.8

C2405 4030017330 S.CER ECJ0EF1C104Z T 74.2/79.3

C2406 4030017460 S.CER ECJ0EB1E102K B 88.5/99.7

C2407 4030017330 S.CER ECJ0EF1C104Z T 74.1/78.2

C2408 4030017330 S.CER ECJ0EF1C104Z B 84.9/96.1

C2409 4030017330 S.CER ECJ0EF1C104Z T 75.6/77.6

C2410 4030017330 S.CER ECJ0EF1C104Z B 88.5/85.8

C2411 4030017330 S.CER ECJ0EF1C104Z B 81.1/96.4

C2412 4510008630 S.ELE 16 CE 47 FE B 62.1/30.4

C2413 4030017330 S.CER ECJ0EF1C104Z B 88.5/93.7

C2414 4030017780 S.CER ECJ0EB1E472K T 84/95.6

C2415 4030017780 S.CER ECJ0EB1E472K B 88.3/28

C2417 4030017330 S.CER ECJ0EF1C104Z B 88.3/27.1

C2418 4030017330 S.CER ECJ0EF1C104Z B 82.6/94

C2419 4030017330 S.CER ECJ0EF1C104Z B 88.5/86.7

C2422 4030017330 S.CER ECJ0EF1C104Z T 84.8/87.3

C2423 4030017420 S.CER ECJ0EC1H470J B 63.9/140.5

C2424 4510008630 S.ELE 16 CE 47 FE B 69.2/31.3

C2426 4030017330 S.CER ECJ0EF1C104Z B 68.8/82.1

C2427 4030012600 S.CER C2012 JB 1A 105M-T T 85.1/91.4

C2501 4030017330 S.CER ECJ0EF1C104Z B 8/94.2

C2502 4030018960 S.CER C3216 JB 1C 106MT-N B 11.5/95.2

C2503 4030016970 S.CER ECJ0EB1C223K B 14.9/89.3

C2505 4030016940 S.CER ECJ0EB1A393K B 17.4/91.4

C2506 4030017780 S.CER ECJ0EB1E472K B 18.2/93.8

C2507 4030017490 S.CER C1608 JB 1A 105K-T B 12.7/89.2

C2551 4030017330 S.CER ECJ0EF1C104Z B 42.9/124.1

C2552 4030018960 S.CER C3216 JB 1C 106MT-N B 47.8/118.8

C2553 4030016970 S.CER ECJ0EB1C223K B 51.3/124.7

C2554 4030018390 S.CER ECJ0EB1A563K B 53.9/121.9

C2555 4030017760 S.CER ECJ0EB1H222K B 53.9/121

C2556 4030017770 S.CER ECJ0EB1E332K B 52.8/123.8

C2557 4030017330 S.CER ECJ0EF1C104Z B 41.7/120.8

C2558 4030018960 S.CER C3216 JB 1C 106MT-N B 42.9/118.8

C2561 4030018960 S.CER C3216 JB 1C 106MT-N B 56.5/124.3

C2562 4030018960 S.CER C3216 JB 1C 106MT-N B 52.8/126.6

C2563 4550007110 S.TAN SY6-1A107M-RC B 75.3/122.8

C2564 4030018080 S.CER ECJ0EB1H182K B 47.8/125.6

C2565 4030017430 S.CER ECJ0EC1H101J B 44.6/122.6

C2566 4030018090 S.CER ECJ0EB1C822K B 46.2/124.3

C2601 4030017330 S.CER ECJ0EF1C104Z B 59.7/125.1

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

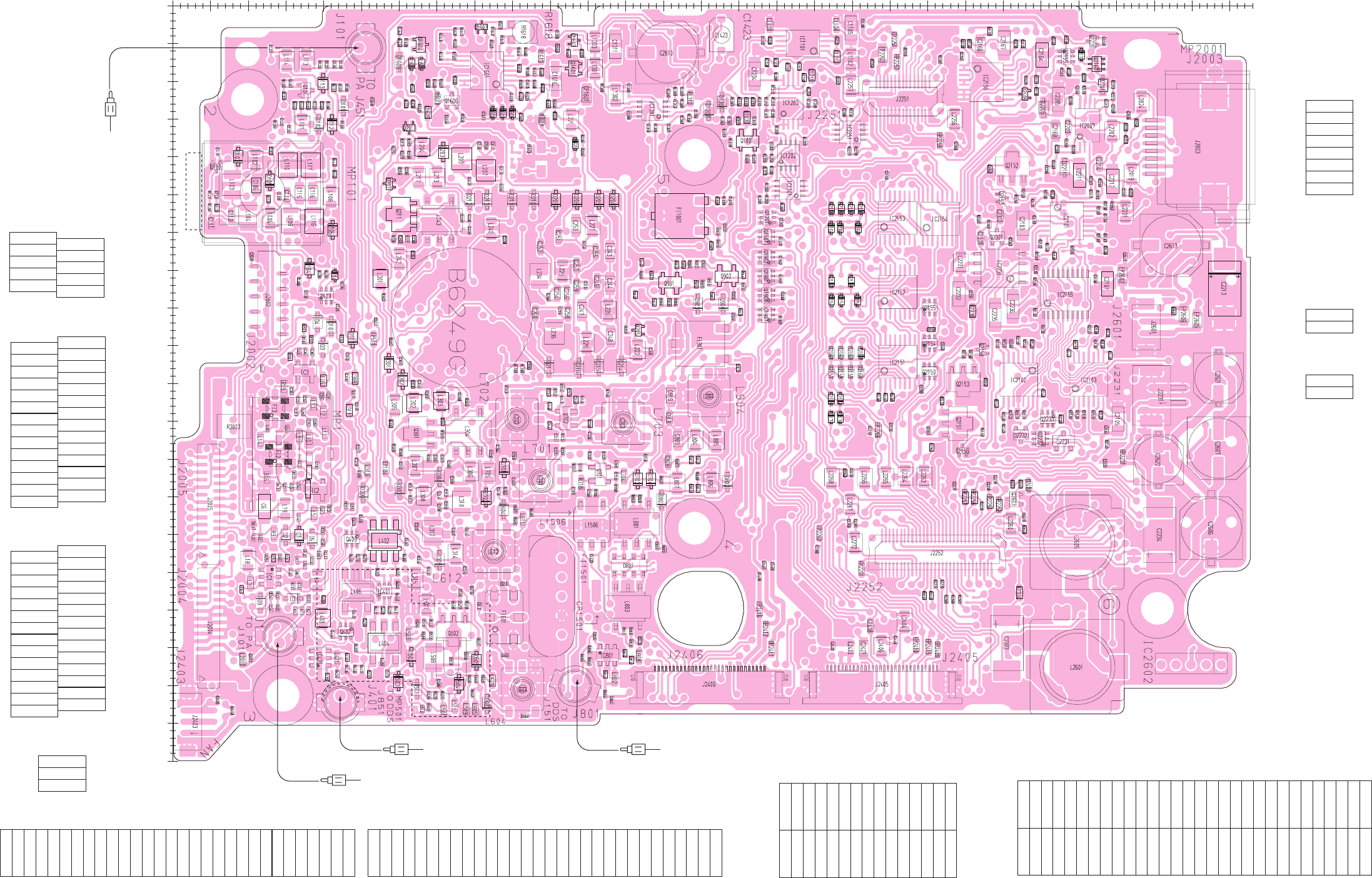

[MAIN UNIT]

5 - 12

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C2603 4030010210 S.CER C3216 JB 1C 105M-T B 87.5/126

C2604 4030016790 S.CER ECJ0EB1C103K B 89.1/128.6

C2605 4030017330 S.CER ECJ0EF1C104Z B 85.4/135

C2606 4510009250 S.ELE EEEFK1C471P T 69.2/137.4

C2607 4510008650 S.ELE EEEFK1C221P T 58.6/138.3

C2608 4030017330 S.CER ECJ0EF1C104Z B 87.5/128.6

C2610 4510009250 S.ELE EEEFK1C471P T 6.2/65.3

C2612 4030017330 S.CER ECJ0EF1C104Z B 33.9/124.3

C2613 4510009250 S.ELE EEEFK1C471P T 31.7/132.1

C2616 4030017780 S.CER ECJ0EB1E472K B 30/134.2

C2617 4030017780 S.CER ECJ0EB1E472K T 33.2/126

C2618 4030017430 S.CER ECJ0EC1H101J B 30/133.1

C2619 4030017780 S.CER ECJ0EB1E472K T 67.7/112.6

C2620 4510008630 S.ELE 16 CE 47 FE B 82.9/119.1

C2621 4510008500 S.ELE EEE1CA101WP T 49.3/138.3

C2622 4510008500 S.ELE EEE1CA101WP T 60.1/130.4

C2624 4030017330 S.CER ECJ0EF1C104Z B 38.4/125.1

CP1601 6910009670 S.CHK HK3-S-T T 11.7/54.7

J1 6510007020 CNR TMP-J01X-V6

J101 6510007020 CNR TMP-J01X-V6

J401 6510007020 CNR TMP-J01X-V6

J801 6510007020 CNR TMP-J01X-V6

J2002 6510019971 S.CNR 52808-1071 T 39/12.6

J2003 6510024860 S.CNR 406721-2 T 18.7/137.8

J2004 6510023510 S.CNR 28FLT-SM1-TB T 82.4/4.9

J2005 6510023510 S.CNR 28FLT-SM1-TB T 66/4.9

J2231 6510018961 S.CNR B2B-PH-SM4-TB (LF) (SN) T 51.6/129.5

J2251 6510022880 S.CNR AXK5S30340P T 12.3/96.6

J2252 6510024820 S.CNR AXK5S60340P T 72.4/101.1

J2401 6510024680 S.CNR HSJ1636-011020 B 57.7/137.1

J2402 6510024680 S.CNR HSJ1636-011020 B 47/137.1

J2403 6510019371 S.CNR B3B-ZR-SM4-TF (LF) (SN) T 94.8/1.8

J2405 6510024880 S.CNR 52689-3087 T 90.3/93.8

J2406 6510024880 S.CNR 52689-3087 T 90.3/70.9

J2407 6510024680 S.CNR HSJ1636-011020 B 68.4/137.1

J2601 6510014961 S.CNR B2B-ZR-SM4-TF (LF) (SN) T 42.6/128.8

J2602 6510024680 S.CNR HSJ1636-011020 B 36.3/137.1

W1 9029701008 WIR 72/98/020/X98/X98

W601 9029701008 WIR 72/98/020/X98/X98

EP104 6910012350 S.BEA MMZ1608Y 102BT T 61.2/28.1

EP511 6910012350 S.BEA MMZ1608Y 102BT T 44.1/26.5

EP1951 6910014730 S.BEA MPZ2012S331A-T B 61.3/116.7

EP1952 6910014730 S.BEA MPZ2012S331A-T B 26.8/113.3

EP1953 6910014730 S.BEA MPZ2012S331A-T B 9.9/104.5

EP1954 6910014730 S.BEA MPZ2012S331A-T B 50.3/107.3

EP2001 6910012350 S.BEA MMZ1608Y 102BT B 74.2/5.3

EP2002 6910012350 S.BEA MMZ1608Y 102BT B 34.7/12.6

EP2003 6910012350 S.BEA MMZ1608Y 102BT B 33.5/13.8

EP2004 6910012350 S.BEA MMZ1608Y 102BT B 39.5/15.9

EP2006 6910014730 S.BEA MPZ2012S331A-T B 42.2/13.3

EP2007 6910012350 S.BEA MMZ1608Y 102BT B 45.2/11.4

EP2008 6910012350 S.BEA MMZ1608Y 102BT B 45.1/14.8

EP2231 6910012350 S.BEA MMZ1608Y 102BT T 59.8/125.7

EP2251 6910012350 S.BEA MMZ1608Y 102BT T 4.5/95.5

EP2252 6910012350 S.BEA MMZ1608Y 102BT T 7.5/95.8

EP2253 6910012350 S.BEA MMZ1608Y 102BT T 66.1/109.3

EP2254 6910012350 S.BEA MMZ1608Y 102BT T 65.7/108.1

EP2255 6910012350 S.BEA MMZ1608Y 102BT T 17.8/101.5

EP2256 6910012350 S.BEA MMZ1608Y 102BT T 65.1/106

EP2257 6910012350 S.BEA MMZ1608Y 102BT T 65.1/104.8

EP2258 6910012350 S.BEA MMZ1608Y 102BT B 77.9/93.4

EP2259 6910012350 S.BEA MMZ1608Y 102BT B 68.1/102.5

EP2260 6910012350 S.BEA MMZ1608Y 102BT B 68.1/101.3

EP2261 6910012350 S.BEA MMZ1608Y 102BT B 66/98.2

EP2262 6910012350 S.BEA MMZ1608Y 102BT T 69.9/85.5

EP2263 6910014730 S.BEA MPZ2012S331A-T T 6.5/93.9

EP2264 6910012350 S.BEA MMZ1608Y 102BT B 69.3/111.3

EP2265 6910012350 S.BEA MMZ1608Y 102BT B 68.6/98.2

EP2266 6910012350 S.BEA MMZ1608Y 102BT T 56.2/93.3

EP2271 6910012350 S.BEA MMZ1608Y 102BT T 74.6/91.1

EP2402 6910012350 S.BEA MMZ1608Y 102BT B 50.4/130.2

EP2403 6910012350 S.BEA MMZ1608Y 102BT B 47.8/130.2

EP2404 6910012350 S.BEA MMZ1608Y 102BT B 67.2/130.2

EP2405 6910012350 S.BEA MMZ1608Y 102BT B 52.6/135.9

EP2408 6910012350 S.BEA MMZ1608Y 102BT B 91.3/102.2

EP2409 6910012350 S.BEA MMZ1608Y 102BT T 85.3/101.2

EP2410 6910012350 S.BEA MMZ1608Y 102BT T 84.7/98.3

EP2411 6910012350 S.BEA MMZ1608Y 102BT T 85.2/79.2

EP2412 6910012350 S.BEA MMZ1608Y 102BT T 82.5/78.4

EP2413 6910012350 S.BEA MMZ1608Y 102BT B 71.5/130.1

EP2414 6910012350 S.BEA MMZ1608Y 102BT B 89.3/91

EP2415 6910012350 S.BEA MMZ1608Y 102BT T 84.9/100

EP2416 6910012350 S.BEA MMZ1608Y 102BT T 80/77.6

EP2417 6910012350 S.BEA MMZ1608Y 102BT B 87.2/78.8

EP2602 6910014730 S.BEA MPZ2012S331A-T T 35.7/125.6

EP2604 6910014730 S.BEA MPZ2012S331A-T B 29.8/135.6

EP2605 6910014730 S.BEA MPZ2012S331A-T T 41.6/135.5

EP2606 6910014730 S.BEA MPZ2012S331A-T T 40.9/133.8

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

IC471 1110005630 S.IC µPC3215TB-E3-A B 67.5/96.4

IC701 1180002010 S.REG BA08FP-E2 B 126.3/41.9

IC960 1110002700 S.IC NJM2904M-TE1 B 41/132.1

IC981 1130012720 S.IC CD74HC4094PWR T 26.2/5.9

Q101 1560001091 S.FET 2SK2854 (T2L ICOM, F) T 149.2/28.5

Q102 1560001241 S.FET RD01MUS1-T113 T 146/40.1

Q301 1560001391 FET RD70HHF1-101

Q302 1560001391 FET RD70HHF1-101

Q401 1560001401 FET RD60HUF1-101

Q402 1590000680 S.TR DTC114EUA T106 B 88/133

Q403 1590000680 S.TR DTC114EUA T106 B 90.4/129.9

Q451 1580000691 S.FET 3SK291 (TE85L, F) B 75.3/108.4

Q452 1590003520 S.TR BCR108T B 67.5/115.8

Q453 1590003520 S.TR BCR108T B 73.2/119.2

Q501 1560001191 FET RD70HVF1-121

Q502 1590000680 S.TR DTC114EUA T106 T 87.7/107.5

Q503 1590000680 S.TR DTC114EUA T106 T 87.7/110

Q551 1580000691 S.FET 3SK291 (TE85L, F) T 68.4/108.9

Q552 1590003520 S.TR BCR108T T 63/110.1

Q700 1590003520 S.TR BCR108T B 127/24.9

Q741 1590003520 S.TR BCR108T B 80.1/11

Q742 1520000460 S.TR 2SB1132 T100 R B 82.7/7.3

Q980 1590003520 S.TR BCR108T T 51.3/84.6

Q981 1590003520 S.TR BCR108T T 51.5/13.8

Q982 1590003520 S.TR BCR108T T 53.8/97.3

Q983 1590003520 S.TR BCR108T T 51.2/56.9

Q984 1590003520 S.TR BCR108T T 51.6/97.2

Q985 1590003520 S.TR BCR108T T 51.3/27.9

Q986 1590003520 S.TR BCR108T T 51.3/71.4

Q987 1590003520 S.TR BCR108T T 52.5/41.6

Q988 1590003530 S.TR BCR08PN T 58.3/90.3

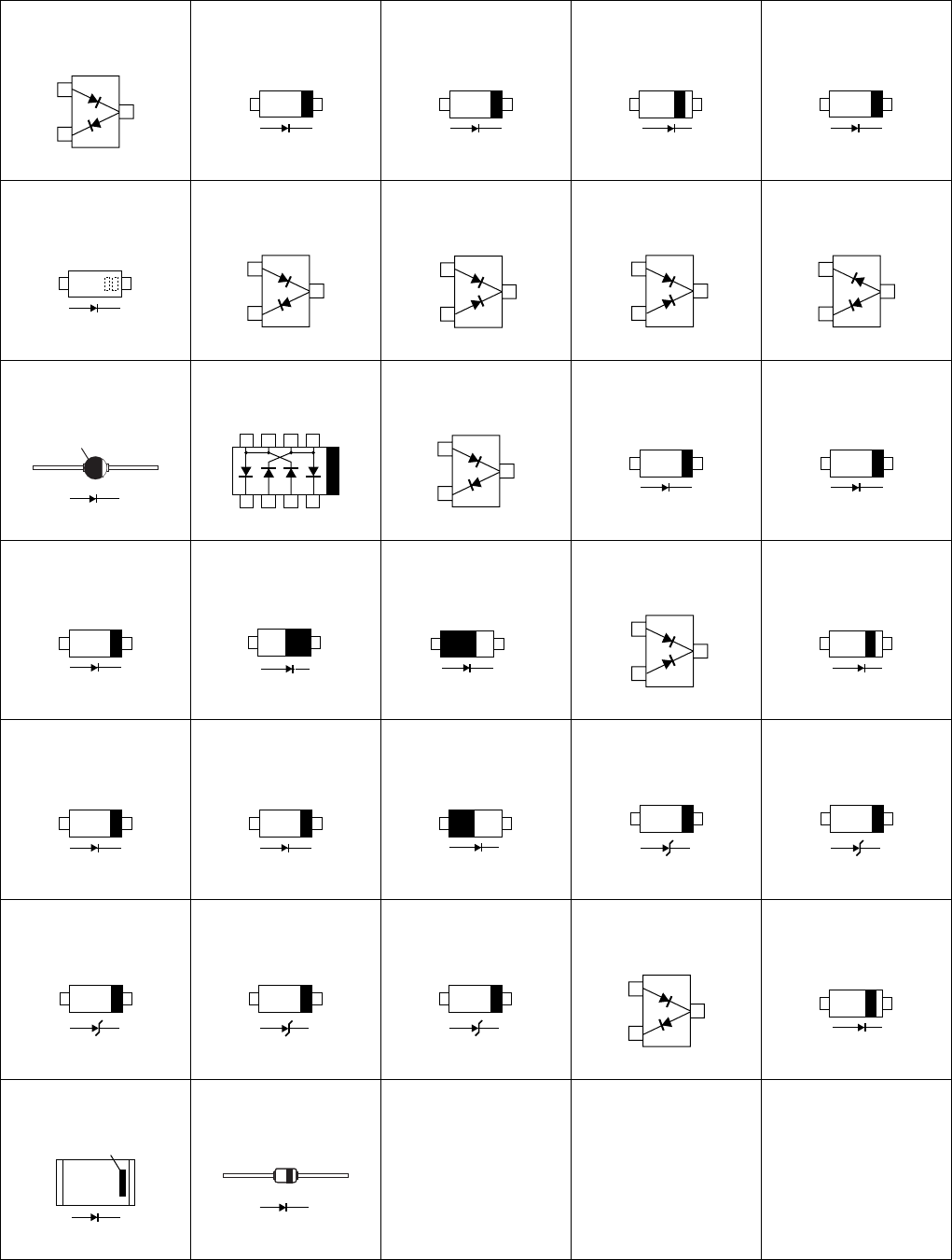

D101 1750000301 S.DIO 1SS302 (TE85R, F) T 152.4/22.7

D102 1750000301 S.DIO 1SS302 (TE85R, F) T 152.4/19.8

D151 1750000581 S.DIO 1SV307 (TPH3, F) T 59.5/56.4

D152 1790001250 S.DIO MA2S111-(TX) T 56.3/58.5

D301 1160000060 S.DIO DAN202U T106 T 105.1/80.8

D302 1160000060 S.DIO DAN202U T106 T 74.9/87.3

D401 1790001240 S.DIO MA2S728-(TX) B 128/133.6

D402 1790001240 S.DIO MA2S728-(TX) B 127.5/139.5

D403 1790001240 S.DIO MA2S728-(TX) B 123.4/140.5

D404 1790001240 S.DIO MA2S728-(TX) B 125.6/132.8

D406 1710001060 DIO XB15A407

D407 1710001060 DIO XB15A407

D408 1750000511 S.DIO UX9401F-STD/TR B 97.7/136.4

D409 1750000511 S.DIO UX9401F-STD/TR B 103.5/133

D410 1750000511 S.DIO UX9401F-STD/TR B 104.7/130

D411 1790001250 S.DIO MA2S111-(TX) B 94.2/129.2

D412 1160000070 S.DIO DAN202K T146 B 92/127

D451 1750000581 S.DIO 1SV307 (TPH3, F) B 85.5/116.3

D452 1750000581 S.DIO 1SV307 (TPH3, F) B 82.4/116

D453 1720000701 S.VCP 1SV305 (TPL3,F) T 75.5/117.3

D454 1720000701 S.VCP 1SV305 (TPL3,F) T 77.8/116.6

D455 1720000701 S.VCP 1SV305 (TPL3,F) B 75.6/99.1

D456 1720000701 S.VCP 1SV305 (TPL3,F) B 67.3/104.1

D461 1750000581 S.DIO 1SV307 (TPH3, F) B 65/93.3

D462 1750000581 S.DIO 1SV307 (TPH3, F) T 65.6/94.7

D501 1790000970 S.DIO MA729 (TX) B 113.7/123.4

D502 1790000970 S.DIO MA729 (TX) B 116.3/122.8

D503 1790000970 S.DIO MA729 (TX) B 114.5/129.4

D504 1790000970 S.DIO MA729 (TX) B 111/129.4

D506 1710001060 DIO XB15A407

D507 1750000511 S.DIO UX9401F-STD/TR B 92.1/117.4

D508 1750000511 S.DIO UX9401F-STD/TR T 86.9/114.4

D509 1750000511 S.DIO UX9401F-STD/TR T 81.9/120.3

D510 1710001060 DIO XB15A407

D511 1750000581 S.DIO 1SV307 (TPH3, F) B 95.4/112.2

D551 1750000581 S.DIO 1SV307 (TPH3, F) T 74/116.7

D552 1750000581 S.DIO 1SV307 (TPH3, F) T 72.2/116.7

D553 1750000610 S.VCP MA2SV0500L T 67.2/118.5

D554 1750000610 S.VCP MA2SV0500L T 69.6/117.8

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

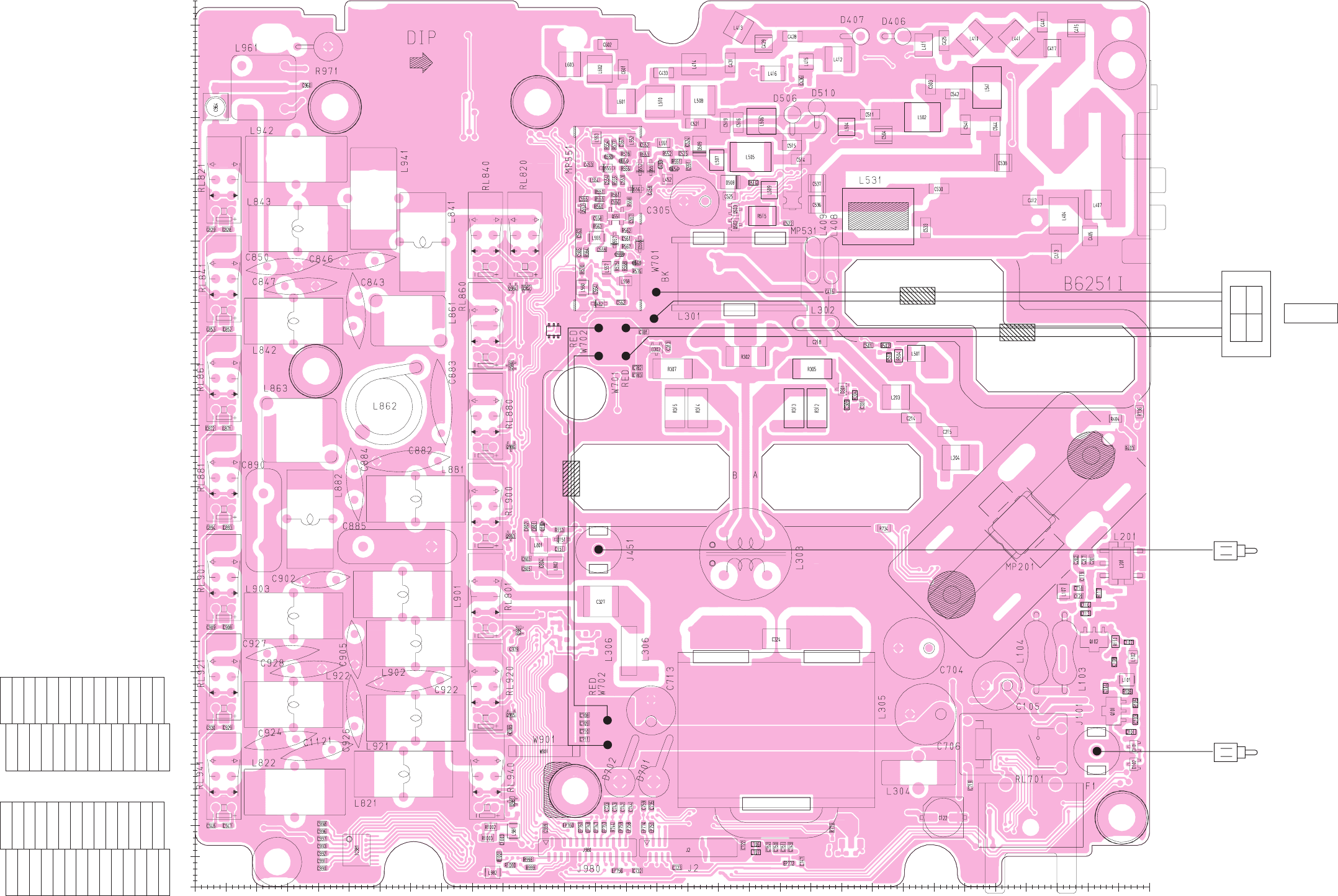

[PA UNIT]

5 - 13

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[PA UNIT]

D555 1750000581 S.DIO 1SV307 (TPH3, F) T 66.9/116.7

D556 1720000590 S.VCP MA357 (TX) T 71.6/113.3

D557 1750000581 S.DIO 1SV307 (TPH3, F) T 68.1/104.9

D558 1720000590 S.VCP MA357 (TX) T 72.2/104.3

D559 1750000610 S.VCP MA2SV0500L T 68.9/102.7

D560 1750000610 S.VCP MA2SV0500L T 71.7/101.3

D701 1790000700 DIO DSA3A1

D702 1790000700 DIO DSA3A1

D703 1160000070 S.DIO DAN202K T146 B 127/22.1

D704 1790001240 S.DIO MA2S728-(TX) B 87.9/113.9

D705 1160000070 S.DIO DAN202K T146 B 137.1/13.5

D706 1790001240 S.DIO MA2S728-(TX) B 86/113

D801 1750000301 S.DIO 1SS302 (TE85R, F) B 43/42

D820 1750000301 S.DIO 1SS302 (TE85R, F) B 53.5/94.2

D840 1750000301 S.DIO 1SS302 (TE85R, F) B 43.1/99.6

D860 1750000301 S.DIO 1SS302 (TE85R, F) B 43/86

D880 1750000301 S.DIO 1SS302 (TE85R, F) B 43/71.6

D900 1750000301 S.DIO 1SS302 (TE85R, F) B 43.7/56.9

D920 1750000301 S.DIO 1SS302 (TE85R, F) B 43/27.4

D940 1750000301 S.DIO 1SS302 (TE85R, F) B 41.1/14.6

D961 1790000491 S.DIO HSM88ASTR-E B 28.1/130.2

D962 1790000491 S.DIO HSM88ASTR-E B 28.1/133.7

D964 1750000511 S.DIO UX9401F-STD/TR B 40.1/43.9

D965 1750000511 S.DIO UX9401F-STD/TR B 42.8/48

L101 6200005051 S.COL NLV25T-330J T 151.3/33.6

L102 6200008570 S.COL LQW2BHN6N8D03L T 152.3/37.3

L103 6180000990 COL LAL 04NA 101K

L104 6180000990 COL LAL 04NA 101K

L105 6200003950 S.COL HF50ACC 322513-T B 135.7/34.1

L107 6200002631 S.COL NLV25T-R10J T 141/47.9

L108 6200003031 S.COL NLV32T-R47J B 138/41.7

L151 6200003941 S.COL NLV25T-5R6J B 64.1/41

L152 6200005521 S.COL NLV25T-470J B 64.8/38

L201 6140004580 S.COL LR-515 T 150.4/52.5

L203 6200010040 S.COL AS100340-10N T 113.8/79.5

L204 6200010040 S.COL AS100340-10N T 123.5/69.7

L301 6140003410 COL LR-383

L302 2040000490 COL EXC-ELDR25C

L303 6140003590 COL LR-400 (TR10X5X5 6H3)

L304 6140004570 COL LR-507

L305 6140004560 COL LR-506

L404 6200010060 S.COL AS080647-56N T 141/108.9

L407 6200010170 S.COL AS080447-33N T 146.6/110.7

L408 2040000490 COL EXC-ELDR25C

L409 2040000490 COL EXC-ELDR25C

L410 6200010040 S.COL AS100340-10N T 126.5/137.8

L411 6200010420 S.COL FHW1210HC 1R0JGT T 118.3/136.7

L412 6200010160 S.COL AS080440-22N T 104.4/134.4

L413 6200010150 S.COL AS080340-15N T 88.2/139.5

L414 6200010150 S.COL AS080340-15N T 81/133.5

L415 6200008330 S.COL 0.45-1.4-4TL 15N T 99.2/134

L416 6200008360 S.COL 0.25-1.9-13TL T 93.8/132.1

L417 6200007790 S.COL LQW2BHNR15J03L B 98.3/131.1

L441 6200010040 S.COL AS100340-10N T 133.4/137.8

L451 6200005621 S.COL ELJRE 4N7ZFA B 81.5/120.1

L452 6200008530 S.COL 0.30-1.0-4TR 12N T 76.7/114.9

L453 6200007230 S.COL LQW2BHN15NJ03L B 73.8/104

L454 6200007230 S.COL LQW2BHN15NJ03L B 69.9/102.3

L501 6200010780 S.COL C2520C-1ROG-A T 117.1/86.6

L502 6200010060 S.COL AS080647-56N T 118.1/125

L504 6200010780 S.COL C2520C-1ROG-A T 105.7/123.4

L505 6200010070 S.COL AS080747-68N T 90.2/118.5

L506 6200010170 S.COL AS080447-33N T 91.9/124.3

L507 6200008170 S.COL 0.35-1.6-8TL 54N T 84.7/118

L508 6200010050 S.COL AS080547-47N T 81.8/127.7

L509 6200010780 S.COL C2520C-1ROG-A T 93.2/113.1

L510 6200010050 S.COL AS080547-47N T 75.5/127.5

L531 6110003980 COL LA-604

L541 6200010070 S.COL AS080747-68N T 128.5/129.8

L551 6200007700 S.COL LQW2BHN22NJ03L T 76.1/120.8

L552 6200007720 S.COL LQW2BHN33NJ03L T 70.8/121.2

L553 6200008090 S.COL LQW2BHN68NJ03L T 65.1/121.6

L554 6200003640 S.COL MLF1608E 100K-T T 64.9/114.8

L555 6200003711 S.COL NLV25T-2R7J T 65.2/105.4

L556 6200003640 S.COL MLF1608E 100K-T B 65.5/106.1

L557 6200007760 S.COL LQW2BHN82NJ03L T 66.8/100.5

L558 6200007710 S.COL LQW2BHN27NJ03L T 69.9/98.3

L560 6200002611 S.COL NLV25T-R47J T 62.9/97.3

L601 6200010040 S.COL AS100340-10N T 69.2/127.5

L602 6200010160 S.COL AS080440-22N T 65.7/132.8

L603 6200010150 S.COL AS080340-15N T 60.8/133.5

L705 6200003550 S.COL MLF1608A 4R7K-T B 68.2/10.3

L706 6200011300 S.COL EXCML16A 270U T 91/6.9

L707 6200011300 S.COL EXCML16A 270U T 91/5.6

L801 6200011410 S.COL C2520C-82NG-A T 55.8/55.5

L802 6200010650 S.COL C2520C-R12G-A T 58.5/52.1

L803 6200007420 S.COL ELJFC 101K-F B 50.4/39.8

L820 6200006430 S.COL ELJFC 180K-F B 53.5/97.3

L821 6140002020 COL LR-229 (T50-10)

L822 6140003540 COL LR-396

L823 6200006430 S.COL ELJFC 180K-F B 2.7/106.8

L840 6200007420 S.COL ELJFC 101K-F B 50.1/98.6

L841 6140001820 COL LR-218 (T50-10)

L842 6140001800 COL LR-216 (T50-2)

L843 6140001800 COL LR-216 (T50-2)

L844 6200007420 S.COL ELJFC 101K-F B 2.6/90.7

L860 6200004440 S.COL ELJFC 4R7M-F B 50.3/83.8

L861 6110003550 COL LA-547 (LA-214A)

L862 6110003570 COL LA-550

L863 6110003540 COL LA-548 (LA-215A)

L864 6200004440 S.COL ELJFC 4R7M-F B 2.8/74.5

L880 6200007420 S.COL ELJFC 101K-F B 50.3/69.1

L881 6140002570 COL LR-294 (T50-2)

L882 6140002580 COL LR-295 (T50-2)

L883 6200007420 S.COL ELJFC 101K-F B 2.6/58.4

L900 6200008600 S.COL ELJFC 560K-F B 50/54.6

L901 6140002560 COL LR-293 (T50-10)

L902 6140002560 COL LR-293 (T50-10)

L903 6140002560 COL LR-293 (T50-10)

L904 6200008600 S.COL ELJFC 560K-F B 2.6/42.3

L920 6200007420 S.COL ELJFC 101K-F B 50.4/25.4

L921 6140001780 COL LR-214 (T50-2)

L922 6140001780 COL LR-214 (T50-2)

L923 6200007420 S.COL ELJFC 101K-F B 2.6/26.1

L940 6200007390 S.COL ELJFC 120K-F B 47.3/9.9

L941 6140003450 COL LR-387 (T50-10)

L942 6140003460 COL LR-388 (T50-10)

L943 6200007420 S.COL ELJFC 101K-F B 41.1/11.1

L944 6200007390 S.COL ELJFC 120K-F B 9/10.5

L960 6200007420 S.COL ELJFC 101K-F B 45.3/130.6

L961 6140003490 COL LR-391 (TR10X5X5 3A6)

L980 6200007420 S.COL ELJFC 101K-F B 30.7/8

L981 6200007420 S.COL ELJFC 101K-F T 51.7/9

L982 6200007420 S.COL ELJFC 101K-F T 48.3/2.3

R101 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) B 150.9/21

R102 7030003230 S.RES ERJ3GEYJ 180 V (18

Ω) B 150.9/22.5

R103 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) B 151.9/25.2

R104 7030003300 S.RES ERJ3GEYJ 680 V (68

Ω) B 150.8/27.7

R105 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 152.7/29.8

R106 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 147.8/29.7

R107 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) B 147.8/28.3

R108 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 151.4/31.7

R109 7030008190 S.RES ERJ12YJ330U (33

Ω) B 145.5/32.7

R110 7030000230 S.RES MCR10EZHJ 56

Ω T 149.4/39.8

R111 7030003410 S.RES ERJ3GEYJ 561 V (560

Ω) B 143.8/42.1

R112 7030003510 S.RES ERJ3GEYJ 392 V (3.9 kΩ) B 146.1/37.5

R113 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 146.1/35.7

R116 7030000340 S.RES MCR10EZHJ 470

Ω B 141.3/40.8

R117 7030003860 S.RES ERJ3GE JPW V T 146.7/47.7

R151 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) B 61.6/37.8

R152 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 61.7/60.1

R153 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 59.2/57.9

R201 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 123/49.9

R202 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 135.2/50.6

R204 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 138/52.8

R205 7030010420 S.RES ERJ1TYJ 560U (56

Ω) B 145/51.5

R301 7030009300 S.RES ERJ1WY0R00U B 92.2/84.4

R302 7030010520 S.RES ERJ1TYJ 101U (100

Ω) T 89.4/86.1

R303 7030009300 S.RES ERJ1WY0R00U B 85.4/84.4

R304 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 107.1/79.8

R305 7030010410 S.RES ERJ1TYJ 220U (22

Ω) T 100.2/84.1

R306 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 71.2/83.3

R307 7030010410 S.RES ERJ1TYJ 220U (22

Ω) T 77.5/84.1

R308 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 98.3/85.7

R309 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 79.5/85.7

R310 7030007630 S.RES MCR100JZHJ 0.68

Ω B 100.1/82.2

R311 7030007630 S.RES MCR100JZHJ 0.68

Ω B 78.3/82.1

R312 7030011250 S.RES ERJ1TY 390U (39

Ω) T 100.9/77.7

R313 7030010540 S.RES ERJ1TYJ 330U (33

Ω) T 97.2/77.7

R314 7030010540 S.RES ERJ1TYJ 330U (33

Ω) T 81.6/77.7

R315 7030011250 S.RES ERJ1TY 390U (39

Ω) T 77.9/77.7

R317 7030010950 S.RES ERJ1TYJ 100U (10

Ω) B 104/20.6

R318 7030010950 S.RES ERJ1TYJ 100U (10

Ω) B 99.6/20.6

R319 7030010660 S.RES ERJ1TYJ 6R8U (6.8

Ω) B 89.4/54.5

R402 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 151.7/73.1

R403 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 151.8/71.2

R404 7030000260 S.RES MCR10EZHJ 100

Ω T 149.4/76

R405 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 126.7/137.5

R406 7030003860 S.RES ERJ3GE JPW V B 128.4/136.1

R407 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 129.7/133.6

R408 7030003860 S.RES ERJ3GE JPW V B 124.1/137.6

R409 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 127/130.4

R410 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 131.6/133

R411 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 125.1/135.5

R412 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) B 131.1/129.7

R413 7030007160 S.RES ERJ12YJ3R3U (3.3

Ω) B 123.5/125.1

R415 7030008350 S.RES ERJ12YJ390U B 86.7/136.4

R416 7030000140 S.RES MCR10EZHJ 10

Ω B 94.6/130.7

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[PA UNIT]

5 - 14

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[PA UNIT]

R417 7030000140 S.RES MCR10EZHJ 10

Ω B 95.5/132.5

R418 7030000010 S.RES MCR10EZHJ JPW B 99.3/133.9

R451 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) B 81.5/121.7

R452 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7 Ω) B 85.5/119.3

R453 7030003260 S.RES ERJ3GEYJ 330 V (33 Ω) B 81.6/118.4

R454 7030003860 S.RES ERJ3GE JPW V B 77.3/116

R455 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 73.2/117.5

R456 7030003700 S.RES ERJ3GEYJ 154 V (150 kΩ) B 72/114.4

R457 7030003750 S.RES ERJ3GEYJ 394 V (390 kΩ) B 71.2/111.9

R458 7030003710 S.RES ERJ3GEYJ 184 V (180 kΩ) B 73.8/112.4

R459 7030003740 S.RES ERJ3GEYJ 334 V (330 kΩ) B 69.6/111.3

R460 7030003740 S.RES ERJ3GEYJ 334 V (330 kΩ) B 76.6/112.1

R461 7030003270 S.RES ERJ3GEYJ 390 V (39 Ω) B 77.7/103.3

R462 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 72.9/99.6

R463 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 74.4/102.4

R464 7030003210 S.RES ERJ3GEYJ 120 V (12 Ω) B 74.2/105.7

R465 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 66.5/101.7

R466 7030003860 S.RES ERJ3GE JPW V B 62.1/100.2

R467 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 75/118.9

R468 7030008240 S.RES ERJ12YJ0R00U B 89.1/121.9

R470 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 67.7/98.8

R471 7030003270 S.RES ERJ3GEYJ 390 V (39 Ω) B 69.6/98.3

R472 7030003340 S.RES ERJ3GEYJ 151 V (150 Ω) B 69.6/99.5

R473 7030003340 S.RES ERJ3GEYJ 151 V (150 Ω) B 69.6/100.7

R474 7030003340 S.RES ERJ3GEYJ 151 V (150 Ω) B 63.5/96.9

R475 7030003340 S.RES ERJ3GEYJ 151 V (150 Ω) B 64.9/96.7

R476 7030003270 S.RES ERJ3GEYJ 390 V (39 Ω) B 64.8/94.9

R477 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) B 61.8/97.6

R502 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) T 112.1/87.9

R503 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 112.6/86

R504 7030000260 S.RES MCR10EZHJ 100

Ω T 114.2/86.2

R505 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 119.9/124.8

R507 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 110.2/123.1

R508 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 107.1/121.9

R510 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 110.3/125.7

R511 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 112.1/133.9

R512 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 107.1/123.1

R513 7030010520 S.RES ERJ1TYJ 101U (100 Ω) B 103.7/114.2

R515 7030006060 S.RES ERJ12YJ100U (10

Ω) T 92.1/108.9

R516 7030003860 S.RES ERJ3GE JPW V T 90.6/114.3

R517 7030010520 S.RES ERJ1TYJ 101U (100 Ω) B 103.7/118.4

R518 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 97.5/112.7

R519 7030000010 S.RES MCR10EZHJ JPW B 111.1/119.5

R551 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) T 78.2/117.8

R552 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7 Ω) T 76.7/119.1

R553 7030003260 S.RES ERJ3GEYJ 330 V (33 Ω) T 73/118.9

R554 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 66.8/120.4

R555 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 68.1/114.7

R556 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 69.9/116.6

R557 7030003740 S.RES ERJ3GEYJ 334 V (330 kΩ) T 65.7/112.9

R558 7030003710 S.RES ERJ3GEYJ 184 V (180 kΩ) T 70.5/111.2

R559 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 65.7/111.7

R560 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 65.6/110.5

R561 7030003740 S.RES ERJ3GEYJ 334 V (330 kΩ) T 68.3/112.4

R562 7030003270 S.RES ERJ3GEYJ 390 V (39 Ω) T 70.1/106.6

R563 7030003420 S.RES ERJ3GEYJ 681 V (680 Ω) T 65.4/107.3

R564 7030003210 S.RES ERJ3GEYJ 120 V (12 Ω) T 63.5/103

R565 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 65.8/108.1

R567 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 70.1/104

R568 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 69.7/100.7

R570 7030003380 S.RES ERJ3GEYJ 331 V (330 Ω) T 62.8/100.3

R575 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 68.4/100.7

R576 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) T 71.8/100

R577 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 68/120.4

R578 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) T 69.9/119

R701 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) B 82.2/16.9

R702 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) B 83/14.5

R703 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) B 80.6/16.9

R704 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) B 79.7/14.5

R705 7030009300 S.RES ERJ1WY0R00U B 134.6/23.8

R721 7030011240 S.RES LRF3W-LF-01-R020F B 83/22.3

R722 7030011240 S.RES LRF3W-LF-01-R020F B 83/29.6

R723 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7 Ω) B 140.5/14.7

R733 7030009591 S.RES ERA3YED 472V (4.7 kΩ) B 138.6/10.4

R734 7510001470 S.TMR NTCG20 4AG 473JT T 111.9/58.2

R735 7030009591 S.RES ERA3YED 472V (4.7 kΩ) B 140.2/12.5

R736 7510001470 S.TMR NTCG20 4AG 473JT T 153.3/77.1

R742 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 86.4/6.5

R743 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 82.5/10.5

R744 7030003860 S.RES ERJ3GE JPW V T 67.8/9.6

R749 7030003860 S.RES ERJ3GE JPW V B 65/5.2

R750 7030003860 S.RES ERJ3GE JPW V B 66.6/5.2

R773 7030003860 S.RES ERJ3GE JPW V T 103.4/9.5

R960 7030003860 S.RES ERJ3GE JPW V B 43.2/125.7

R961 7030003380 S.RES ERJ3GEYJ 331 V (330 Ω) B 42/138.3

R962 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 37.4/137.8

R963 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 40.3/126.3

R964 7030003860 S.RES ERJ3GE JPW V B 24.8/131.2

R965 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 32.6/130.5

R966 7030008190 S.RES ERJ12YJ330U (33

Ω) B 11.1/129.6

R967 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 34.2/130.5

R968 7030003860 S.RES ERJ3GE JPW V B 24.8/132.8

R969 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 32.6/133.6

R970 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 34.2/133.6

R971 7540000130 ABS 2P-50A-301

R972 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) B 17.4/140.1

R973 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) B 18.9/138.5

R974 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) B 19.4/136.6

R994 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 22.4/2.6

R995 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 22.4/6.8

R996 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 21.6/5.4

R997 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 21.6/8.2

R998 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) T 54.1/4.4

R999 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) T 54.5/3.1

R1000 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) T 51.2/3.5

R1001 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) T 49.3/4.9

R1002 7030000280 S.RES MCR10EZHJ 150

Ω T 48/9.7

R1003 7030000290 S.RES MCR10EZHJ 180

Ω T 47.5/7.9

C101 4030011600 S.CER C1608 JB 1E 104K-T T 151.9/25.1

C102 4030011600 S.CER C1608 JB 1E 104K-T B 150.8/29.3

C103 4030011340 S.CER C1608 CH 1H 471J-T T 152.7/27.2

C104 4030011600 S.CER C1608 JB 1E 104K-T T 147.8/32.2

C105 4510004591 ELE 16 ME 470 HC

C106 4030011600 S.CER C1608 JB 1E 104K-T B 142.7/29.2

C107 4030011600 S.CER C1608 JB 1E 104K-T T 151.6/39.7

C108 4030011600 S.CER C1608 JB 1E 104K-T T 149.2/36.5

C109 4030007130 S.CER C1608 CH 1H 101J-T B 146.6/42.1

C112 4030011600 S.CER C1608 JB 1E 104K-T B 139.2/35.1

C113 4030011600 S.CER C1608 JB 1E 104K-T T 144.6/44.4

C114 4030011600 S.CER C1608 JB 1E 104K-T B 134.1/37

C116 4030007060 S.CER C1608 CH 1H 270J-T T 144.6/45.8

C118 4030007130 S.CER C1608 CH 1H 101J-T T 143.5/48.5

C119 4030007130 S.CER C1608 CH 1H 101J-T T 144/50.4

C120 4030007020 S.CER C1608 CH 1H 120J-T T 143.5/47.2

C122 4510008500 S.ELE EEE1CA101WP T 121.5/11.2

C151 4030011600 S.CER C1608 JB 1E 104K-T T 59.2/54.8

C152 4030006880 S.CER C1608 JB 1H 472K-T B 61.6/36.2

C153 4030011600 S.CER C1608 JB 1E 104K-T B 63.1/56

C154 4030006860 S.CER C1608 JB 1H 102K-T B 63.1/54.7

C201 4030006860 S.CER C1608 JB 1H 102K-T T 145.6/53

C202 4030006860 S.CER C1608 JB 1H 102K-T T 143/53

C204 4030011600 S.CER C1608 JB 1E 104K-T B 139.3/48.4

C205 4030006860 S.CER C1608 JB 1H 102K-T B 123.3/48.6

C206 4030017810 S.CER C1608 CH 1H 102J-T B 133.5/50.6

C207 4030017810 S.CER C1608 CH 1H 102J-T B 139.3/49.7

C208 4030011600 S.CER C1608 JB 1E 104K-T B 132/50.6

C209 4030007170 S.CER C1608 CH 1H 221J-T B 139.3/51

C214 4030018940 S.CER GRM31A7U2J331JW31D T 116.3/76.1

C215 4030018930 S.CER GRM31A7U2J221JW31D T 122.2/73.9

C217 4030011600 S.CER C1608 JB 1E 104K-T T 144.3/53

C218 4030018930 S.CER GRM31A7U2J221JW31D T 101/88.5

C219 4030018930 S.CER GRM31A7U2J221JW31D B 82.4/99.7

C251 4030011180 S.CER GRM31M2C2H220JV01L B 134.9/66

C252 4030011180 S.CER GRM31M2C2H220JV01L B 142.2/70.6

C253 4030011080 S.CER GRM31M2C2H6R0DV01L B 145.5/79

C254 4030011160 S.CER GRM31M2C2H150JV01L B 127.7/65.3

C261 4030012480 S.CER GRM31M2C2H121JV01L B 131.7/75.1

C262 4030018940 S.CER GRM31A7U2J331JW31D B 126/80.1

C263 4030018770 S.CER C3216 CH 2J 102J-T B 122.1/80.7

C266 4030018950 S.CER GRM31A7U2J681JW31D B 119.7/80.2

C267 4030018930 S.CER GRM31A7U2J221JW31D B 124/85.3

C301 4030001100 S.CER GRM216B11H102KA01D B 91.7/100.6

C302 4030001020 S.CER GRM2162C1H121JA01D B 93.8/100.6

C303 4030011600 S.CER C1608 JB 1E 104K-T B 110.8/85.5

C304 4030017320 S.CER GRM21BB11H104KA11L B 94.8/97.6

C305 4510004591 ELE 16 ME 470 HC

C306 4030006860 S.CER C1608 JB 1H 102K-T B 80/39.6

C307 4030006860 S.CER C1608 JB 1H 102K-T B 98/39.5

C308 4030006860 S.CER C1608 JB 1H 102K-T B 88/11.2

C309 4030011600 S.CER C1608 JB 1E 104K-T T 105.8/78.3

C311 4030018750 S.CER C3225 CH 2J 682K-T B 92.7/78.5

C312 4030018750 S.CER C3225 CH 2J 682K-T B 84.9/78.5

C313 4030011600 S.CER C1608 JB 1E 104K-T T 76.8/87.8

C314 4030018750 S.CER C3225 CH 2J 682K-T B 96.9/77.6

C315 4030018750 S.CER C3225 CH 2J 682K-T B 80.6/77.6

C319 4030011730 S.CER GRM31M2C2H101JV01L B 110/48.8

C320 4030011730 S.CER GRM31M2C2H101JV01L B 71.1/48.9

C323 4030003810 S.MIC UC342H 1200J-T B 91.4/46.4

C324 4320001050 S.MIC UC342H 3900J-T T 94.4/40.2

C325 4320001070 S.MIC UC342H 3300J-T B 94.4/40.7

C327 4030011790 S.CER GRM55RF52A684ZD01L T 65.9/46.3

C331 4030011600 S.CER C1608 JB 1E 104K-T T 108.3/78.3

C332 4030011600 S.CER C1608 JB 1E 104K-T B 69.5/81.4

C333 4030018940 S.CER GRM31A7U2J331JW31D B 88.4/101.8

C340 4030006860 S.CER C1608 JB 1H 102K-T B 80.2/107.1

C341 4030006860 S.CER C1608 JB 1H 102K-T B 90.2/107.1

C342 4030006860 S.CER C1608 JB 1H 102K-T B 85.2/91.9

C404 4030006860 S.CER C1608 JB 1H 102K-T B 151.7/71.4

C405 4030011740 S.CER GRM32N2C2H201JV01L T 145.3/105.7

C406 4030006860 S.CER C1608 JB 1H 102K-T B 132.4/129.7

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[PA UNIT]

5 - 15

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[PA UNIT]

C408 4030018040 S.CER ERF22X 6C2H 180J D01L B 134.2/93

C409 4030018040 S.CER ERF22X 6C2H 180J D01L B 145.4/93

C410 4030018260 S.CER ERF22X 6C2H 150J D01L B 145.4/96.4

C411 4030018260 S.CER ERF22X 6C2H 150J D01L B 134.2/96.4

C412 4030018770 S.CER C3216 CH 2J 102J-T T 136/111.5

C413 4030018770 S.CER C3216 CH 2J 102J-T T 139.8/102.7

C415 4030018410 S.CER ERF22X 6C2H 2R0C D01L T 143.1/139.4

C416 4030006880 S.CER C1608 JB 1H 472K-T T 103.1/96.7

C417 4030018040 S.CER ERF22X 6C2H 180J D01L T 139.2/136.2

C418 4030011120 S.CER GRM31M2C2H100JV01L B 134.1/134.2

C419 4030011020 S.CER GRM31M4C2H1R0CY21L B 132.6/138.2

C420 4030011080 S.CER GRM31M2C2H6R0DV01L B 129.2/139.5

C421 4030011020 S.CER GRM31M4C2H1R0CY21L B 120.6/136.8

C422 4030011120 S.CER GRM31M2C2H100JV01L B 121.7/141.1

C423 4030007090 S.CER C1608 CH 1H 470J-T B 127.8/131.7

C424 4030011090 S.CER GRM31M2C2H7R0DV01L B 119/140.3

C425 4030011180 S.CER GRM31M2C2H220JV01L T 121.6/137.4

C426 4030006860 S.CER C1608 JB 1H 102K-T B 106.7/133.9

C427 4030011040 S.CER GRM31M4C2H2R0CY21L B 102.6/139.6

C428 4030011090 S.CER GRM31M2C2H7R0DV01L T 97/138.1

C429 4030017940 S.CER ERF22X 6C2H 680J D01L T 92.3/136.9

C430 4030017190 S.CER GRM31AR32J471KW01D B 92.7/136.5

C431 4030011070 S.CER GRM31M2C2H5R0CY21L T 86.9/133.8

C432 4030004820 S.CER C2012 CH 1H 050C-T B 99.2/139.3

C433 4030011090 S.CER GRM31M2C2H7R0DV01L T 76.1/132.2

C434 4030006860 S.CER C1608 JB 1H 102K-T B 90.1/125.4

C435 4030006860 S.CER C1608 JB 1H 102K-T B 97.2/127.7

C436 4030006860 S.CER C1608 JB 1H 102K-T T 98.4/130.9

C438 4030006850 S.CER C1608 JB 1H 471K-T B 90.8/134

C439 4030006860 S.CER C1608 JB 1H 102K-T B 92.8/133.1

C440 4030004710 S.CER C2012 JB 1H 471K-T B 103.5/135.5

C441 4030011090 S.CER GRM31M2C2H7R0DV01L T 137.6/140.4

C443 4030011020 S.CER GRM31M4C2H1R0CY21L B 122.1/131

C452 4030007020 S.CER C1608 CH 1H 120J-T B 87.3/119.3

C453 4030006860 S.CER C1608 JB 1H 102K-T T 63.9/117.3

C456 4030009350 S.CER C1608 CH 1H 3R5B-T B 78.2/118.4

C458 4030006860 S.CER C1608 JB 1H 102K-T T 73.8/113.1

C461 4030011600 S.CER C1608 JB 1E 104K-T B 68.8/113.3

C462 4030011600 S.CER C1608 JB 1E 104K-T B 77.1/110.8

C463 4030006860 S.CER C1608 JB 1H 102K-T B 78.1/109.4

C464 4030011600 S.CER C1608 JB 1E 104K-T B 77.7/105.9

C465 4030011600 S.CER C1608 JB 1E 104K-T B 68.9/108.9

C466 4030006860 S.CER C1608 JB 1H 102K-T B 77.7/104.6

C467 4030006860 S.CER C1608 JB 1H 102K-T B 68.9/107.6

C468 4030007020 S.CER C1608 CH 1H 120J-T B 73.7/101.1

C470 4030011600 S.CER C1608 JB 1E 104K-T B 77.7/101.7

C471 4030006860 S.CER C1608 JB 1H 102K-T B 77.7/100.4

C472 4030009500 S.CER C1608 CH 1H 0R5B-T B 69.7/105.2

C473 4030007040 S.CER C1608 CH 1H 180J-T B 69.7/104

C474 4030009530 S.CER C1608 CH 1H 030B-T B 67.7/101.7

C475 4030006860 S.CER C1608 JB 1H 102K-T B 66.5/98.8

C476 4030006860 S.CER C1608 JB 1H 102K-T B 68/111.3

C477 4030006860 S.CER C1608 JB 1H 102K-T B 79.1/120.8

C478 4030006860 S.CER C1608 JB 1H 102K-T B 58.1/119.3

C479 4030006860 S.CER C1608 JB 1H 102K-T B 57.6/121.2

C480 4030007090 S.CER C1608 CH 1H 470J-T B 63.4/100.8

C481 4030006860 S.CER C1608 JB 1H 102K-T B 69.6/96.3

C482 4030006860 S.CER C1608 JB 1H 102K-T B 67.9/94.5

C483 4030006860 S.CER C1608 JB 1H 102K-T B 64.2/98.8

C484 4030007010 S.CER C1608 CH 1H 100D-T B 71.5/106

C485 4030017810 S.CER C1608 CH 1H 102J-T B 69.5/106

C501 4030006860 S.CER C1608 JB 1H 102K-T T 109.3/87.9

C503 4030011070 S.CER GRM31M2C2H5R0CY21L T 119.4/130.3

C504 4030017960 S.CER ERF22X 6C2H 330J D01L T 111.8/122.1

C505 4030011040 S.CER GRM31M4C2H2R0CY21L B 114.4/125.4

C506 4030011120 S.CER GRM31M2C2H100JV01L B 118.2/125.6

C507 4030011040 S.CER GRM31M4C2H2R0CY21L B 113.8/131.5

C508 4030011070 S.CER GRM31M2C2H5R0CY21L B 110.4/132.8

C509 4030007150 S.CER C1608 CH 1H 151J-T B 110.2/121.9

C511 4030018770 S.CER C3216 CH 2J 102J-T T 109.6/125.4

C513 4030006860 S.CER C1608 JB 1H 102K-T B 97.1/117.6

C514 4030011170 S.CER GRM31M2C2H180JV01L T 98.4/118.1

C515 4030018770 S.CER C3216 CH 2J 102J-T T 96.9/120.4

C516 4030011100 S.CER GRM31M2C2H8R0DV01L T 88.2/124.1

C517 4030004880 S.CER C2012 CH 1H 120J-T B 92.5/115.1

C518 4030018770 S.CER C3216 CH 2J 102J-T B 94.1/121.4

C519 4030011190 S.CER GRM31M2C2H270JV01L T 86.1/124.1

C520 4030004870 S.CER C2012 CH 1H 100D-T B 934/112.5

C521 4030011290 S.CER GRM31M2C2H240JV01L T 81.2/123.9

C522 4030006850 S.CER C1608 JB 1H 471K-T T 96.3/107.7

C523 4030006860 S.CER C1608 JB 1H 102K-T T 79.3/119.1

C524 4030006910 S.CER C1608 CH 1H 0R5C-T T 79.9/120.9

C525 4030004720 S.CER C2012 JB 1H 102K-T T 86.7/112.1

C526 4030007150 S.CER C1608 CH 1H 151J-T B 113.3/121.9

C527 4030007150 S.CER C1608 CH 1H 151J-T B 111.1/127.8

C528 4030006860 S.CER C1608 JB 1H 102K-T B 96.2/114.5

C530 4030011230 S.CER GRM31M2C2H390JV01L T 120.8/113.3

C531 4030018770 S.CER C3216 CH 2J 102J-T B 106/109.3

C532 4030018770 S.CER C3216 CH 2J 102J-T B 103.1/109.2

C533 4030018770 S.CER C3216 CH 2J 102J-T T 118.6/107

C534 4030017880 S.CER ERF22X 6C2H 560J D01L B 112.7/103.9

C535 4030017880 S.CER ERF22X 6C2H 560J D01L B 124.1/103.9

C536 4030017980 S.CER ERF22X 6C2H 470J D01L T 101/110.8

C537 4030017940 S.CER ERF22X 6C2H 680J D01L T 101/114.2

C538 4030017880 S.CER ERF22X 6C2H 560J D01L T 131.2/117.5

C541 4030011060 S.CER GRM31M2C2H4R0CY21L T 125.1/123.7

C542 4030012480 S.CER GRM31M2C2H121JV01L T 123.4/128.7

C544 4030011730 S.CER GRM31M2C2H101JV01L T 129.9/123.5

C545 4030017940 S.CER ERF22X 6C2H 680J D01L B 112.7/109.9

C551 4030006880 S.CER C1608 JB 1H 472K-T T 80.1/117.1

C552 4030006860 S.CER C1608 JB 1H 102K-T T 73/120.5

C553 4030006850 S.CER C1608 JB 1H 471K-T T 69.4/114.7

C554 4030006860 S.CER C1608 JB 1H 102K-T T 66.8/114.7

C555 4030006860 S.CER C1608 JB 1H 102K-T T 63.1/111.7

C556 4030011600 S.CER C1608 JB 1E 104K-T T 68.3/111.2

C557 4030006860 S.CER C1608 JB 1H 102K-T T 70.8/108.5

C558 4030006860 S.CER C1608 JB 1H 102K-T T 65.4/108.6

C559 4030006860 S.CER C1608 JB 1H 102K-T T 66/103.5

C560 4030006860 S.CER C1608 JB 1H 102K-T B 65.3/112.9

C561 4030006850 S.CER C1608 JB 1H 471K-T T 70.1/105.3

C562 4030006860 S.CER C1608 JB 1H 102K-T T 69.2/94.9

C563 4030006860 S.CER C1608 JB 1H 102K-T T 62.3/106.1

C564 4030006860 S.CER C1608 JB 1H 102K-T T 65/97

C565 4030006860 S.CER C1608 JB 1H 102K-T T 62.3/103

C567 4030006860 S.CER C1608 JB 1H 102K-T T 69.2/120.9

C601 4030011070 S.CER GRM31M2C2H5R0CY21L T 69.5/132.7

C602 4030011090 S.CER GRM31M2C2H7R0DV01L T 67/136.8

C701 4030017320 S.CER GRM21BB11H104KA11L B 109.8/33.4

C702 4030006860 S.CER C1608 JB 1H 102K-T B 107.7/33.2

C703 4030011600 S.CER C1608 JB 1E 104K-T B 83.8/16.9

C704 4510004601 ELE 16 ME 1000 HC

C705 4030011600 S.CER C1608 JB 1E 104K-T B 79/16.9

C706 4510004601 ELE 16 ME 1000 HC

C707 4030017320 S.CER GRM21BB11H104KA11L B 67.1/18.6

C708 4030006900 S.CER C1608 JB 1H 103K-T T 63.2/27.8

C709 4030006860 S.CER C1608 JB 1H 102K-T T 63.2/26.5

C710 4030006850 S.CER C1608 JB 1H 471K-T T 63.2/25.2

C711 4030007170 S.CER C1608 CH 1H 221J-T T 63.2/23.9

C712 4030007170 S.CER C1608 CH 1H 221J-T B 70.4/18.7

C713 4510004591 ELE 16 ME 470 HC

C715 4030006860 S.CER C1608 JB 1H 102K-T B 97.1/118.9

C718 4030011600 S.CER C1608 JB 1E 104K-T B 128.4/19.3

C719 4030011600 S.CER C1608 JB 1E 104K-T T 125.8/16.4

C720 4030011600 S.CER C1608 JB 1E 104K-T B 130.5/38.7

C722 4030007130 S.CER C1608 CH 1H 101J-T T 88.9/6.7

C723 4030007130 S.CER C1608 CH 1H 101J-T T 78.3/3.1

C724 4030011340 S.CER C1608 CH 1H 471J-T B 134.8/12.2

C725 4550007350 S.TAN F931C226MCMBMA B 126.6/35.3

C726 4030006860 S.CER C1608 JB 1H 102K-T B 91.3/111

C727 4030006860 S.CER C1608 JB 1H 102K-T B 84.4/114.1

C728 4030006860 S.CER C1608 JB 1H 102K-T B 91.2/112.6

C732 4030011600 S.CER C1608 JB 1E 104K-T T 71.8/2.6

C733 4030011600 S.CER C1608 JB 1E 104K-T T 66.8/12.9

C734 4030006860 S.CER C1608 JB 1H 102K-T B 63.5/1.8

C735 4030011600 S.CER C1608 JB 1E 104K-T T 74.1/13.2

C736 4030011600 S.CER C1608 JB 1E 104K-T B 67.3/1.8

C737 4030011600 S.CER C1608 JB 1E 104K-T B 65.4/1.8

C738 4030011600 S.CER C1608 JB 1E 104K-T B 68.2/14.5

C739 4030011600 S.CER C1608 JB 1E 104K-T B 69.8/14.5

C741 4030011600 S.CER C1608 JB 1E 104K-T B 78.5/6.4

C742 4030011600 S.CER C1608 JB 1E 104K-T T 69.4/12.9

C743 4030006860 S.CER C1608 JB 1H 102K-T T 68.1/12.9

C744 4030011600 S.CER C1608 JB 1E 104K-T T 70.7/12.9

C745 4030011600 S.CER C1608 JB 1E 104K-T B 77.7/14.3

C746 4030011600 S.CER C1608 JB 1E 104K-T B 76.2/15.1

C747 4030011600 S.CER C1608 JB 1E 104K-T T 98.5/4.1

C749 4030011600 S.CER C1608 JB 1E 104K-T T 96.6/6.4

C750 4030006880 S.CER C1608 JB 1H 472K-T T 94.2/6.4

C751 4030006860 S.CER C1608 JB 1H 102K-T T 95.4/6.4

C752 4030011600 S.CER C1608 JB 1E 104K-T T 93/6.4

C753 4030006880 S.CER C1608 JB 1H 472K-T B 59.9/10.7

C754 4030006860 S.CER C1608 JB 1H 102K-T B 66.6/14.5

C757 4030011600 S.CER C1608 JB 1E 104K-T B 76.4/8

C759 4030006880 S.CER C1608 JB 1H 472K-T T 72.8/13.2

C760 4030006880 S.CER C1608 JB 1H 472K-T B 74.8/8

C761 4030006880 S.CER C1608 JB 1H 472K-T B 73.2/8

C762 4030006880 S.CER C1608 JB 1H 472K-T B 70/8

C763 4030006880 S.CER C1608 JB 1H 472K-T B 71.6/8

C764 4030006880 S.CER C1608 JB 1H 472K-T B 61.9/1.8

C765 4030011600 S.CER C1608 JB 1E 104K-T B 68.9/1.8

C766 4030006860 S.CER C1608 JB 1H 102K-T B 66.5/8.7

C781 4030006860 S.CER C1608 JB 1H 102K-T T 72.8/90.1

C782 4030006900 S.CER C1608 JB 1H 103K-T T 71.8/84.3

C783 4030006880 S.CER C1608 JB 1H 472K-T T 71.8/83.1

C801 4030007070 S.CER C1608 CH 1H 330J-T T 55/58.5

C802 4030009470 S.CER C1608 CH 1H R75C-T T 53.7/58.5

C803 4030007100 S.CER C1608 CH 1H 560J-T T 53.8/53.2

C804 4030007030 S.CER C1608 CH 1H 150J-T T 56.2/52.5

C805 4030007080 S.CER C1608 CH 1H 390J-T T 53.8/51.6

C806 4030006880 S.CER C1608 JB 1H 472K-T B 47.1/39.8

C807 4030011600 S.CER C1608 JB 1E 104K-T B 43.2/38.6

C808 4030011600 S.CER C1608 JB 1E 104K-T B 43.1/44.5

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[PA UNIT]

5 - 16

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[PA UNIT]

C820 4030011600 S.CER C1608 JB 1E 104K-T B 54.1/91.2

C821 4030006880 S.CER C1608 JB 1H 472K-T B 53.5/99.2

C822 4030011510 S.CER GRM31M2C2H560JV01L B 42.2/21.9

C823 4030011160 S.CER GRM31M2C2H150JV01L B 32.9/18.3

C824 4030012480 S.CER GRM31M2C2H121JV01L B 25.1/17.1

C825 4030011240 S.CER GRM31M2C2H470JV01L B 17.9/15.7

C826 4030011550 S.CER GRM31M2C2H680JV01L B 11.2/19.9

C827 4030011510 S.CER GRM31M2C2H560JV01L B 8.8/19.9

C828 4030006880 S.CER C1608 JB 1H 472K-T T 5.2/106.7

C829 4030011600 S.CER C1608 JB 1E 104K-T T 2.6/106.7

C830 4030011210 S.CER GRM31M2C2H330JV01L B 22.4/17.1

C831 4030006880 S.CER C1608 JB 1H 472K-T B 7.5/109.2

C832 4030006880 S.CER C1608 JB 1H 472K-T B 51.5/95.4

C833 4030011730 S.CER GRM31M2C2H101JV01L B 27.5/17.1

C835 4030012480 S.CER GRM31M2C2H121JV01L B 16.6/107.1

C836 4030012480 S.CER GRM31M2C2H121JV01L B 12.5/107.3

C837 4030012480 S.CER GRM31M2C2H121JV01L B 12.5/105.2

C840 4030011600 S.CER C1608 JB 1E 104K-T B 42.8/97.3

C841 4030006880 S.CER C1608 JB 1H 472K-T B 47/98.5

C842 4030011730 S.CER GRM31M2C2H101JV01L B 39/106.8

C843 4010008160 CER HM13SJ SL 431J 500V

C844 4030011730 S.CER GRM31M2C2H101JV01L B 25.9/102.9

C845 4030014460 S.CER GRM31M2C2H820JV01L B 19.7/91.9

C846 4010005370 CER HM11SJ SL 331J 500V

C847 4010005930 CER HM11SJ SL 391J 500V

C848 4030011190 S.CER GRM31M2C2H270JV01L B 11.4/98.7

C849 4030011180 S.CER GRM31M2C2H220JV01L B 11.4/102.6

C850 4010005930 CER HM11SJ SL 391J 500V

C851 4030012480 S.CER GRM31M2C2H121JV01L B 20.2/112

C852 4030006880 S.CER C1608 JB 1H 472K-T T 5.3/90.5

C853 4030011600 S.CER C1608 JB 1E 104K-T T 2.6/90.5

C854 4030006880 S.CER C1608 JB 1H 472K-T B 7.7/92.8

C855 4030011730 S.CER GRM31M2C2H101JV01L B 27.9/104.9

C856 4030011510 S.CER GRM31M2C2H560JV01L B 31.2/105.5

C857 4030012480 S.CER GRM31M2C2H121JV01L B 43.1/108.3

C858 4030011730 S.CER GRM31M2C2H101JV01L B 20.2/109.9

C860 4030011600 S.CER C1608 JB 1E 104K-T B 43.4/83.8

C861 4030006880 S.CER C1608 JB 1H 472K-T B 46.6/83.8

C863 4030011170 S.CER GRM31M2C2H180JV01L B 37.5/93.5

C864 4030011510 S.CER GRM31M2C2H560JV01L B 28.5/82.6

C865 4030011110 S.CER GRM31M2C2H9R0DV01L B 29.4/78.6

C866 4030011230 S.CER GRM31M2C2H390JV01L B 24.4/78

C867 4030011060 S.CER GRM31M2C2H4R0CY21L B 17/71.9

C868 4030011240 S.CER GRM31M2C2H470JV01L B 26.8/78.6

C869 4030011180 S.CER GRM31M2C2H220JV01L B 8.7/83.5

C870 4030011170 S.CER GRM31M2C2H180JV01L B 17/77.7

C871 4030006880 S.CER C1608 JB 1H 472K-T T 5.2/74.4

C872 4030011600 S.CER C1608 JB 1E 104K-T T 2.5/74.4

C873 4030011070 S.CER GRM31M2C2H5R0CY21L B 33.2/92.6

C874 4030006880 S.CER C1608 JB 1H 472K-T B 9/74.5

C876 4030011160 S.CER GRM31M2C2H150JV01L B 22/77.4

C880 4030011600 S.CER C1608 JB 1E 104K-T B 43.4/69.1

C881 4030006880 S.CER C1608 JB 1H 472K-T B 47/69.1

C882 4010007590 CER HM15SJ SL 681J 500V

C883 4010007590 CER HM15SJ SL 681J 500V

C884 4010005930 CER HM11SJ SL 391J 500V

C885 4320000981 DMI KD20C 222J5A

C886 4030012480 S.CER GRM31M2C2H121JV01L B 31.5/57.2

C887 4030011730 S.CER GRM31M2C2H101JV01L B 33.9/57.2

C889 4030014460 S.CER GRM31M2C2H820JV01L B 18/65.3

C890 4320001200 DIP KD19C 162J5A

C893 4030006880 S.CER C1608 JB 1H 472K-T T 5.3/58.3

C894 4030011600 S.CER C1608 JB 1E 104K-T T 2.6/58.3

C900 4030011600 S.CER C1608 JB 1E 104K-T B 44/54.4

C901 4030006880 S.CER C1608 JB 1H 472K-T B 46.8/54.4

C902 4010005870 CER HM95SJ SL 221J 500V

C903 4030011190 S.CER GRM31M2C2H270JV01L B 30.9/42.7

C904 4030014460 S.CER GRM31M2C2H820JV01L B 28.4/42.7

C905 4010005870 CER HM95SJ SL 221J 500V

C906 4030011510 S.CER GRM31M2C2H560JV01L B 17/44

C907 4030011510 S.CER GRM31M2C2H560JV01L B 10.8/49.5

C908 4030006880 S.CER C1608 JB 1H 472K-T T 5.3/42.1

C909 4030011600 S.CER C1608 JB 1E 104K-T T 2.6/42.1

C920 4030011600 S.CER C1608 JB 1E 104K-T B 43.2/25.1

C921 4030006880 S.CER C1608 JB 1H 472K-T B 47.1/25.4

C922 4010007590 CER HM15SJ SL 681J 500V

C923 4030011730 S.CER GRM31M2C2H101JV01L B 31.4/27.3

C924 4010006410 CER HM13SJ SL 471J 500V

C925 4030014460 S.CER GRM31M2C2H820JV01L B 15.7/29.5

C926 4010006410 CER HM13SJ SL 471J 500V

C927 4010005930 CER HM11SJ SL 391J 500V

C928 4010005930 CER HM11SJ SL 391J 500V

C929 4030006880 S.CER C1608 JB 1H 472K-T T 5.3/25.8

C930 4030011600 S.CER C1608 JB 1E 104K-T T 2.6/25.8

C931 4030014460 S.CER GRM31M2C2H820JV01L B 34.1/27.3

C932 4030011730 S.CER GRM31M2C2H101JV01L B 33.3/32.4

C933 4030011730 S.CER GRM31M2C2H101JV01L B 29.7/30.9

C940 4030011600 S.CER C1608 JB 1E 104K-T B 43.6/11.1

C941 4030006880 S.CER C1608 JB 1H 472K-T B 43.6/14.2

C942 4030014460 S.CER GRM31M2C2H820JV01L B 39.5/119.2

C943 4030011230 S.CER GRM31M2C2H390JV01L B 28.9/111.7

C944 4030014460 S.CER GRM31M2C2H820JV01L B 24.7/118.4

C945 4030011160 S.CER GRM31M2C2H150JV01L B 16.5/118.1

C947 4030006880 S.CER C1608 JB 1H 472K-T T 5.3/9.9

C948 4030011600 S.CER C1608 JB 1E 104K-T T 2.6/9.9

C949 4030011050 S.CER GRM31M3C2H3R0CY21L B 28.9/109.6

C960 4030010760 S.CER C1608 CH 1H 331J-T T 18.1/130.2

C961 4030011600 S.CER C1608 JB 1E 104K-T B 45.1/134.1

C962 4030006880 S.CER C1608 JB 1H 472K-T B 39/137.8

C963 4030006880 S.CER C1608 JB 1H 472K-T B 38.7/126.3

C964 4610002120 S.TRI TZB4Z100EB10R00 T 3.3/126.6

C966 4030006880 S.CER C1608 JB 1H 472K-T B 21.2/131.2

C968 4030011340 S.CER C1608 CH 1H 471J-T B 31/130.5

C969 4030011340 S.CER C1608 CH 1H 471J-T B 31/133.6

C970 4030010760 S.CER C1608 CH 1H 331J-T B 22/132.8

C971 4030011340 S.CER C1608 CH 1H 471J-T B 35.8/133.6

C972 4030011790 S.CER GRM55RF52A684ZD01L B 3.4/136.4

C973 4030007090 S.CER C1608 CH 1H 470J-T B 8.3/129.8

C979 4030006880 S.CER C1608 JB 1H 472K-T T 51.8/38.6

C987 4030006880 S.CER C1608 JB 1H 472K-T B 28.9/3.3

C988 4030006880 S.CER C1608 JB 1H 472K-T B 26.3/3.3

C989 4030006880 S.CER C1608 JB 1H 472K-T B 25/2.6

C990 4030006880 S.CER C1608 JB 1H 472K-T T 20.6/3

C991 4030006880 S.CER C1608 JB 1H 472K-T T 20.6/4.2

C992 4030006880 S.CER C1608 JB 1H 472K-T T 20.6/5.4

C993 4030006880 S.CER C1608 JB 1H 472K-T T 20.6/6.6

C994 4030011600 S.CER C1608 JB 1E 104K-T B 29.5/6.1

C995 4030006880 S.CER C1608 JB 1H 472K-T B 23.7/3.4

C996 4030007090 S.CER C1608 CH 1H 470J-T T 20.6/9

C997 4030007090 S.CER C1608 CH 1H 470J-T T 20.6/7.8

C998 4030007090 S.CER C1608 CH 1H 470J-T T 20.6/10.2

C999 4030006860 S.CER C1608 JB 1H 102K-T T 56.8/9.5

C1000 4030006860 S.CER C1608 JB 1H 102K-T B 55.5/5

C1001 4030011600 S.CER C1608 JB 1E 104K-T B 51.6/1.7

C1002 4030006880 S.CER C1608 JB 1H 472K-T B 27.6/2.6

C1003 4030011600 S.CER C1608 JB 1E 104K-T T 49.8/7.6

C1004 4030011510 S.CER GRM31M2C2H560JV01L B 39.8/21.9

C1005 4030011550 S.CER GRM31M2C2H680JV01L B 16.8/91.9

C1006 4030014460 S.CER GRM31M2C2H820JV01L B 39/109.2

C1007 4030011550 S.CER GRM31M2C2H680JV01L B 18.1/62.1

C1009 4030011510 S.CER GRM31M2C2H560JV01L B 20.6/118.7

C1010 4030014460 S.CER GRM31M2C2H820JV01L B 27.1/119.5

C1121 4010006410 CER HM13SJ SL 471J 500V

RL701 6330001550 RLY JV-12-KT

RL801 6330001721 RLY ATN207-K1

RL820 6330001721 RLY ATN207-K1

RL821 6330001721 RLY ATN207-K1

RL840 6330001721 RLY ATN207-K1

RL841 6330001721 RLY ATN207-K1

RL860 6330001721 RLY ATN207-K1

RL861 6330001721 RLY ATN207-K1

RL880 6330001721 RLY ATN207-K1

RL881 6330001721 RLY ATN207-K1

RL900 6330001721 RLY ATN207-K1

RL901 6330001721 RLY ATN207-K1

RL920 6330001721 RLY ATN207-K1

RL921 6330001721 RLY ATN207-K1

RL940 6330001721 RLY ATN207-K1

RL941 6330001721 RLY ATN207-K1

J2 6510023510 S.CNR 28FLT-SM1-TB T 80.1/6

J980 6510023510 S.CNR 28FLT-SM1-TB T 63.7/6

F1 5220000341 HOL FHA010-03F

F2 5210000940 FUS 1205

W101 9024270070 WIR 1.5D COAXIAL 175 mm

W401 9009130165 WIR 1.5D COAXIAL 200 mm

W701 8900013900 CBL OPC-1455

W702 8900013910 CBL OPC-1456

W801 7120000480 S.JMP MJP-0.4-T B 8.3/100.9

W901 7120000480 S.JMP MJP-0.4-T T 56.7/22

EP202 6910012350 S.BEA MMZ1608Y 102BT B 136.7/50.6

EP703 6910012350 S.BEA MMZ1608Y 102BT B 142.6/13.9

EP741 6910012350 S.BEA MMZ1608Y 102BT B 76.4/11.9

EP742 6910012350 S.BEA MMZ1608Y 102BT B 77.8/11.3

EP743 6910012350 S.BEA MMZ1608Y 102BT B 59.8/99.5

EP747 6910012350 S.BEA MMZ1608Y 102BT T 65/9.6

EP748 6910012350 S.BEA MMZ1608Y 102BT T 63.8/9.6

EP751 6910012350 S.BEA MMZ1608Y 102BT T 74.1/9.6

EP752 6910012350 S.BEA MMZ1608Y 102BT B 63.4/5.2

EP753 6910012350 S.BEA MMZ1608Y 102BT T 66.4/9.6

EP754 6910012350 S.BEA MMZ1608Y 102BT B 59.3/116.1

EP756 6910012350 S.BEA MMZ1608Y 102BT T 68.6/2.6

EP758 6910012350 S.BEA MMZ1608Y 102BT T 70.3/9.6

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[PA UNIT]

5 - 17

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[PA UNIT]

EP759 6910012350 S.BEA MMZ1608Y 102BT T 69.1/9.6

EP760 6910012350 S.BEA MMZ1608Y 102BT T 60.6/10

EP761 6910012350 S.BEA MMZ1608Y 102BT T 62.5/9.6

EP762 6910012350 S.BEA MMZ1608Y 102BT B 61/4.6

EP763 6910012350 S.BEA MMZ1608Y 102BT B 63.3/105.6

EP767 6910012350 S.BEA MMZ1608Y 102BT B 76.4/5.2

EP772 6910012350 S.BEA MMZ1608Y 102BT T 96.4/3.8

EP774 6910012350 S.BEA MMZ1608Y 102BT T 72.8/9.6

EP775 6910012350 S.BEA MMZ1608Y 102BT B 74.8/5.2

EP776 6910012350 S.BEA MMZ1608Y 102BT B 73.2/5.2

EP777 6910012350 S.BEA MMZ1608Y 102BT B 70/5.2

EP778 6910012350 S.BEA MMZ1608Y 102BT B 71.6/5.2

EP779 6910012350 S.BEA MMZ1608Y 102BT B 68.2/5.2

IC1 1130013280 S.IC TC58FVM6T5BTG65GCH T 27.9/30.2

IC2 1130011151 S.IC SN74AHC2G08HDCT3 B 40.2/38.2

IC3 1130011151 S.IC SN74AHC2G08HDCT3 B 40.2/32.5

IC4 1130012600 S.IC SN74AHC1G04DCKR B 43.3/33.8

IC51 1130012841 S.IC CY7C1021CV33-15BAXIT B 24.5/28.5

IC301 1140012541 S.IC ADSP-BF532SBBCZ400 B 28.6/39.2

IC401 1110004770 S.IC BU9480F-E2 B 17.4/21.6

IC451 1110006570 S.IC TS462CPT B 29.1/7.9

IC452 1110006570 S.IC TS462CPT T 39.1/8.5

IC502 1110006570 S.IC TS462CPT T 30.7/5.4

IC551 1190001611 S.IC AK4528VFP-E2/P T 17.9/8.1

IC601 1110006570 S.IC TS462CPT B 12.7/10.8

IC701 1130012600 S.IC SN74AHC1G04DCKR B 2.7/15.9

IC1201 1130012791 S.IC CY22150FZXCT B 44.5/4.5

IC1212 1140012170 S.IC BH7236AF-E2 T 57.7/7.3

IC1217 1130007181 S.IC TC7WU04FU (TE12L, F) B 63.4/9.8

IC1218 1130012760 S.IC SN74AHC2G86HDCTR B 52.7/6.5

IC1226 1130010870 S.IC S1D13706F00A B 53.7/19.8

IC1251 1180002020 S.REG BA033FP-E2 T 79.5/5.2

IC1301 1130012690 S.IC HN58X24256FPIE (SOP8) T 81.4/36.2

IC1302 1140013133 S.IC HD64F2377VFQ33V T 54.9/25.2

IC1303 1110005771 S.IC S-80942CNMC-G9CT2G T 81.2/10.4

IC1304 1130011551 S.IC RX-4581NB-F B 71.9/7.2

IC1402 1130012780 S.IC SN74AHC2G04HDCTR T 79.1/18.9

IC2002 1130012841 S.IC CY7C1021CV33-15BAXIT B 32.7/28.3

IC2101 1130012850 S.IC SN74LVC3G34DCUR T 44.5/44.7

IC2102 1130012850 S.IC SN74LVC3G34DCUR T 44.4/41.2

IC2201 1140012541 S.IC ADSP-BF532SBBCZ400 B 28.6/17.7

Q201 1550000110 S.FET RTQ035P02TR B 18.9/42.7

Q1101 1530002060 S.TR 2SC4081 T106 R T 82.1/20.3

Q1102 1590003520 S.TR BCR108T T 81.8/22.7

Q1103 1510000510 S.TR 2SA1576A T106R T 81.8/16.4

Q1201 1590003520 S.TR BCR108T T 44.8/13.2

D201 1750001280 S.DIO CUS02 (TE85L,Q) B 19.2/45.3

D1001 1750000370 S.DIO DA221 TL B 64.5/36.8

D1002 1750000370 S.DIO DA221 TL B 64.9/34.5

D1101 1790001250 S.DIO MA2S111-(TX) T 81.9/18.4

D1106 1750000950 S.DIO MA732 (TX) T 80.1/29.6

D1107 1790001670 S.DIO RB706F-40T106 T 82.4/31.3

D1110 1790001670 S.DIO RB706F-40T106 T 75.7/32.3

D1111 1790001670 S.DIO RB706F-40T106 T 75.3/29.3

D1112 1790001670 S.DIO RB706F-40T106 B 79.2/29.1

D1113 1790001670 S.DIO RB706F-40T106 B 82.3/30.6

D1201 1790001250 S.DIO MA2S111-(TX) B 83/40.4

D1301 1790000660 S.DIO MA728 (TX) B 77.5/2.9

D1304 1750000370 S.DIO DA221 TL T 76.1/19.9

D1305 1750000370 S.DIO DA221 TL T 75.8/16.8

D1306 1750000370 S.DIO DA221 TL B 49.3/32.9

D1307 1750000370 S.DIO DA221 TL B 51.4/33.3

D1311 1790001250 S.DIO MA2S111-(TX) B 80.9/19.6

D1312 1790001250 S.DIO MA2S111-(TX) B 83.1/18.5

D1313 1790001250 S.DIO MA2S111-(TX) B 80/22.6

D1314 1790001240 S.DIO MA2S728-(TX) B 81.7/22.4

D1331 1790001250 S.DIO MA2S111-(TX) B 65.6/17.5

X1201 6050012140 S.XTL CR-805 [USA] B 61.3/3.1

6050012150 S.XTL CR-806 [Others] B 61.3/3.1

X1301 6050012190 S.XTL CR-809 B 60.4/30.8

L201 6200011900 S.COL LQH43CN100K03L T 16/41.9

L202 6200009491 S.COL CDRH6D28NP-100NC B 13.3/41.4

L551 6200005011 S.COL NLV25T-100J T 11/9.8

L552 6200005011 S.COL NLV25T-100J T 10.4/5.8

L1202 6200002041 S.COL NLV25T-101J B 52.3/2.3

L1203 6200002041 S.COL NLV25T-101J T 66.7/3.5

L1204 6200002041 S.COL NLV25T-101J B 57.9/10.3

L2101 6200005011 S.COL NLV25T-100J T 40.9/45

L2102 6200005011 S.COL NLV25T-100J T 40.2/41.5

R2 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 39.5/30.1

R3 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 39.5/32.3

R4 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 31.8/45.8

R5 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 30.9/45.8

R6 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 30/45.8

R203 7030000010 S.RES MCR10EZHJ JPW T 20.7/45.6

R301 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 25.4/45.8

R302 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 26.9/45.8

R303 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 27.8/45.8

R306 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 37.3/32.2

R307 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 22/41.4

R308 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 22/40.5

R310 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 36.7/35.4

R312 7030010040 S.RES ERJ2GEJ-JPW B 33.6/45.9

R313 7030010040 S.RES ERJ2GEJ-JPW B 35.6/43.3

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[LOGIC UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DRIVER UNIT]

Q504 1590003060 S.FET PD55015 T 20/9.7

R102 7070000271 RES ERG1SJ 101 (100

Ω)

C101 4030004750 S.CER C2012 JB 1H 103K-T T 24.6/18.2

C102 4030011230 S.CER GRM31M2C2H390JV01L T 11.2/4.2

J101 6910016830 CNR IMSA-9230B-1-04Z149-PT1

J102 6910016830 CNR IMSA-9230B-1-04Z149-PT1

J103 6910016830 CNR IMSA-9230B-1-04Z149-PT1

J104 6910016830 CNR IMSA-9230B-1-04Z149-PT1

J107 6910016830 CNR IMSA-9230B-1-04Z149-PT1

5 - 18

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[LOGIC UNIT]

R314 7030010040 S.RES ERJ2GEJ-JPW B 35.6/40.6

R413 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 18.1/16.8

R414 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 16.3/19.9

R415 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 19/16.8

R416 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 17.2/16.8

R462 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 33.8/7.4

R463 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 43.6/8.8

R464 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 26.2/5.7

R465 7030009270 S.RES ERJ2GEJ 821 X (820 Ω) B 28.6/5.2

R467 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) B 31.3/4.3

R469 7030009270 S.RES ERJ2GEJ 821 X (820 Ω) B 30.4/4.3

R470 7030009140 S.RES ERJ2GEJ 272 X (2.7 kΩ) T 29.4/3

R471 7030009140 S.RES ERJ2GEJ 272 X (2.7 kΩ) T 34/3.3

R472 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 38.6/4.2

R473 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 38.6/3.2

R474 7030009140 S.RES ERJ2GEJ 272 X (2.7 kΩ) B 24.8/7.1

R475 7030009140 S.RES ERJ2GEJ 272 X (2.7 kΩ) B 33.8/9.2

R476 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 40.2/3.3

R507 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 26/3.5

R508 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 31.6/8.9

R510 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 32.5/8.9

R511 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 28.9/8.9

R512 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 29.8/8.9

R514 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 34.9/8.8

R515 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 34.9/7.9

R516 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 39/12.8

R517 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 36.5/11

R518 7030009140 S.RES ERJ2GEJ 272 X (2.7 kΩ) T 36.4/5.6

R519 7030009140 S.RES ERJ2GEJ 272 X (2.7 kΩ) T 26.4/5.6

R520 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 41.3/12.8

R551 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 16.5/13.4

R553 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 14.7/13.4

R554 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 15.4/3.2

R568 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 12.9/13.4

R569 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 15.6/13.4

R570 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 13.8/13.4

R571 7030009320 S.RES ERJ2GEJ 4R7 X (4.7 Ω) B 20.7/8.4

R601 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 6.2/12.6

R602 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) T 9.2/9.2

R603 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 12.3/4.8

R604 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 13.2/4.8

R605 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 14.4/5.1

R606 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 12.8/7.2

R607 7030005290 S.RES ERJ2GEJ 682 X (6.8 kΩ) B 13.8/7.2

R608 7030005290 S.RES ERJ2GEJ 682 X (6.8 kΩ) B 14.8/6.4

R609 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 3.3/12.4

R610 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 8.9/4.2

R611 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 9.8/4.2

R612 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 11.4/5.6

R613 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 8.8/6.9

R614 7030005290 S.RES ERJ2GEJ 682 X (6.8 kΩ) B 9.7/6.9

R615 7030005290 S.RES ERJ2GEJ 682 X (6.8 kΩ) B 10.6/6.9

R618 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 14.4/4.2

R619 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 10.7/4.2

R701 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 4.6/22.8

R702 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 4.6/23.7

R703 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 4.5/25.9

R705 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 5/21

R706 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 4.4/17.1

R707 7030007250 S.RES ERJ2GEJ 220 X (22 Ω) B 4.4/15.5

R1001 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 70.8/37

R1002 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 65.9/32.3

R1003 7030005160 S.RES ERJ2GEJ 105 X (1 MΩ) B 70.4/35.8

R1004 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 66.1/18.5

R1006 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 52/34.8

R1007 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 53.2/32

R1008 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 75.1/20.4

R1010 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 76.7/19.8

R1012 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) B 66.5/34.2

R1013 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) B 66.5/36.2

R1015 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 50.4/34.8

R1016 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 51/31.7

R1018 7030007340 S.RES ERJ2GEJ 153 X (15 kΩ) B 63.3/34.4

R1019 7030007340 S.RES ERJ2GEJ 153 X (15 kΩ) B 62.9/36.1

R1101 7030008290 S.RES ERJ2GEJ 183 X (18 kΩ) T 80.1/15.4

R1102 7030008010 S.RES ERJ2GEJ 123 X (12 kΩ) T 79.9/21.9

R1103 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 79.9/22.8

R1104 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 74.5/20.7

R1105 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 79.6/14.2

R1106 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 83.3/14.4

R1107 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 79.2/15.4

R1108 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 78.3/14.8

R1109 7030005160 S.RES ERJ2GEJ 105 X (1 MΩ) T 78.3/21.9

R1110 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 76.7/21.4

R1111 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 77.4/14.8

R1113 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 83.2/29.3

R1114 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) T 82.3/29.3

R1115 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 76.8/26.3

R1116 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 76.9/28.1

R1117 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 82.7/22.2

R1118 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 83/23.8

R1119 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 83.8/22.2

R1120 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 84.1/23.8

R1123 7030005160 S.RES ERJ2GEJ 105 X (1 MΩ) B 66.9/24.4

R1124 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 82/20

R1126 7030005160 S.RES ERJ2GEJ 105 X (1 MΩ) B 66.9/23.5

R1127 7030010040 S.RES ERJ2GEJ-JPW T 73.7/18.5

R1128 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) B 83.2/20.1

R1129 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 81.9/28.4

R1131 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 78.5/26.1

R1132 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) B 81.4/24.4

R1201 7030005160 S.RES ERJ2GEJ 105 X (1 MΩ) B 62.7/7.6

R1202 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 49.2/7.5

R1203 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 49.2/8.4

R1204 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 49.7/9.6

R1205 7030010040 S.RES ERJ2GEJ-JPW B 49.2/3.1

R1206 7030007570 S.RES ERJ2GEJ 122 X (1.2 kΩ) B 46.1/9.6

R1207 7030007570 S.RES ERJ2GEJ 122 X (1.2 kΩ) B 43.9/9.6

R1208 7030007570 S.RES ERJ2GEJ 122 X (1.2 kΩ) B 43.5/11.4

R1209 7030009710 S.RES ERJ2GEJ 203 X (20 kΩ) B 48.8/9.6

R1210 7030007350 S.RES ERJ2GEJ 393 X (39 kΩ) B 47.9/9.6

R1211 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 48.9/11.4

R1212 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 48/11.4

R1213 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 47.1/11.4

R1214 7030009710 S.RES ERJ2GEJ 203 X (20 kΩ) B 46.2/11.4

R1215 7030007350 S.RES ERJ2GEJ 393 X (39 kΩ) B 45.3/11.4

R1216 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 44.7/12.6

R1217 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 44.7/13.5

R1218 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 44.7/14.4

R1219 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 74.4/41.1

R1220 7030009710 S.RES ERJ2GEJ 203 X (20 kΩ) B 44.7/15.3

R1221 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 82.9/41.6

R1222 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 74.4/40.2

R1223 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 74.4/39.3

R1224 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 82.9/39.3

R1225 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 83.1/35.7

R1226 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 74.4/37.5

R1227 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 73.8/38.4

R1228 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 82.2/35.7

R1229 7030007350 S.RES ERJ2GEJ 393 X (39 kΩ) B 43.5/15.4

R1230 7030004970 S.RES ERJ2GEJ 470 X (47 Ω) B 49.2/2.2

R1231 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 48.8/5.4

R1232 7030005220 S.RES ERJ2GEJ 223 X (22 kΩ) B 40.3/3.2

R1235 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 66.2/5.9

R1236 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 66.2/7

R1237 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) B 61.1/7.6

R1251 7030011250 S.RES ERJ1TY 390U (39 Ω) T 70.3/5.8

R1301 7030005220 S.RES ERJ2GEJ 223 X (22 kΩ) T 78.1/37.8

R1302 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 78.1/36

R1303 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 66/21.2

R1304 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 66/20.3

R1305 7030009160 S.RES ERJ2GEJ 181 X (180 Ω) T 68.5/25.9

R1306 7030005060 S.RES ERJ2GEJ 333 X (33 kΩ) T 78.7/11.4

R1307 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 68/21.9

R1308 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 67.5/20

R1309 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 69/19.4

R1310 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 67.5/18.8

R1311 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 69/18.2

R1312 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 67.5/17.6

R1313 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 69/17

R1314 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 67.5/16.4

R1315 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 69/15.8

R1316 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) B 66.6/12.3

R1317 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) B 65.7/12.3

R1318 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) B 64.8/12.3

R1319 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) B 63.9/12.3

R1320 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) B 63/12.3

R1321 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) B 62.1/12.3

R1322 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) B 61.2/12.3

R1323 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) B 60.3/12.1

R1324 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 80.5/12.6

R1325 7030007350 S.RES ERJ2GEJ 393 X (39 kΩ) T 78.1/9.8

R1326 7030005010 S.RES ERJ2GEJ 681 X (680 Ω) B 78.9/2

R1327 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 66/19.4

R1328 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) B 75.9/6.4

R1329 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 75.9/5

R1331 7030010040 S.RES ERJ2GEJ-JPW B 75.9/3.2

R1332 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) B 75.9/4.1

R1333 7030005110 S.RES ERJ2GEJ 224 X (220 kΩ) T 67.4/26.9

R1334 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 78.3/12.6

R1335 7030010040 S.RES ERJ2GEJ-JPW B 78.5/5.1

R1337 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 40.9/15.5

R1338 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 40.9/16.4

R1339 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) B 65.5/22.4

R1401 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 62.7/24.2

R1402 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 76.7/21.8

R1403 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 78.3/22.1

R1404 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 76.7/22.9

R1405 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 50.7/12.9

R1406 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 69/20.6

R1407 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 41.7/33.4

R1408 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 76.7/25.3

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[LOGIC UNIT]

5 - 19

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[LOGIC UNIT]

R1409 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 78.3/24.7

R1410 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 78.3/23.5

R1411 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 76.7/24.1

R1412 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) B 43.6/24.7

R1413 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 42.4/17.9

R1502 7030007300 S.RES ERJ2GEJ 332 X (3.3 kΩ) B 80.9/28.4

R2101 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 48.1/44.9

R2102 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 47.7/42.7

R2103 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 47.6/40.5

R2104 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 47.7/43.7

R2105 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 47.5/41.7

R2110 7030010040 S.RES ERJ2GEJ-JPW B 21.4/22.5

R2112 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 38.5/44.4

R2201 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 31.5/11.1

R2202 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.6/11.1

R2203 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 21.5/22.4

R2204 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 35.2/15.5

R2205 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 35.2/16.4

R2206 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 21.5/21.5

R2214 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 27.5/11.1

R2215 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 28.4/11.1

R2216 7030010040 S.RES ERJ2GEJ-JPW T 34.8/37.3

C1 4030016930 S.CER ECJ0EB1A104K T 16.9/25.1

C2 4030016930 S.CER ECJ0EB1A104K B 38.1/36.1

C3 4030016930 S.CER ECJ0EB1A104K B 39.5/29

C4 4030016930 S.CER ECJ0EB1A104K B 42.4/35.8

C5 4550007310 S.TAN F930J227MNMBMA T 40.8/23.4

C51 4030016930 S.CER ECJ0EB1A104K B 19.2/27.4

C52 4030016930 S.CER ECJ0EB1A104K B 19.2/28.3

C53 4550007310 S.TAN F930J227MNMBMA B 11.4/29.8

C201 4030016930 S.CER ECJ0EB1A104K B 19/40.2

C202 4550007310 S.TAN F930J227MNMBMA B 4.4/42.9

C203 4030018960 S.CER C3216 JB 1C 106MT-N T 18.8/45.5

C204 4030016930 S.CER ECJ0EB1A104K T 11.9/40.2

C205 4030016930 S.CER ECJ0EB1A104K T 11.9/41.8

C206 4030016930 S.CER ECJ0EB1A104K B 8.8/43.4

C207 4030018960 S.CER C3216 JB 1C 106MT-N B 9/46.5

C208 4550006780 S.TAN TEESVB2 0J 476M8R T 11.5/46.1

C209 4550006780 S.TAN TEESVB2 0J 476M8R T 4.6/46

C302 4030016930 S.CER ECJ0EB1A104K T 30.2/40.4

C303 4030016930 S.CER ECJ0EB1A104K T 30.4/37.8

C304 4030016930 S.CER ECJ0EB1A104K T 26.9/37.2

C305 4030016930 S.CER ECJ0EB1A104K T 34.1/45.8

C306 4030016930 S.CER ECJ0EB1A104K T 29.2/37.2

C307 4030016930 S.CER ECJ0EB1A104K B 36.8/38.6

C308 4030016930 S.CER ECJ0EB1A104K T 27.3/39.3

C309 4030016930 S.CER ECJ0EB1A104K T 30.6/39.1

C310 4030016930 S.CER ECJ0EB1A104K T 24.5/45.8

C311 4030016930 S.CER ECJ0EB1A104K T 22/42.3

C312 4030016930 S.CER ECJ0EB1A104K T 27.8/40.5

C313 4030016930 S.CER ECJ0EB1A104K T 22/39.6

C314 4030016930 S.CER ECJ0EB1A104K T 29.1/45.8

C315 4030016930 S.CER ECJ0EB1A104K T 27.3/38.4

C316 4030016930 S.CER ECJ0EB1A104K T 30.4/36.9

C317 4030016930 S.CER ECJ0EB1A104K T 26.9/40.5

C318 4030016930 S.CER ECJ0EB1A104K T 31.1/40.4

C319 4030016930 S.CER ECJ0EB1A104K T 29.3/40.4

C320 4030016930 S.CER ECJ0EB1A104K T 27.8/37.2

C413 4030018960 S.CER C3216 JB 1C 106MT-N B 21.3/19.6

C414 4030016930 S.CER ECJ0EB1A104K B 16.3/16.8

C415 4030018960 S.CER C3216 JB 1C 106MT-N B 15.6/26.3

C461 4030016930 S.CER ECJ0EB1A104K B 34.2/4.3

C462 4030018960 S.CER C3216 JB 1C 106MT-N B 35.3/5.8

C463 4030018960 S.CER C3216 JB 1C 106MT-N T 42/8.7

C464 4030016930 S.CER ECJ0EB1A104K T 43.6/10.4

C465 4030017740 S.CER ECJ0EB1E821K B 27.4/5.5

C466 4030017760 S.CER ECJ0EB1H222K B 29.5/4.3

C467 4030017740 S.CER ECJ0EB1E821K B 30.7/5.5

C468 4030018560 S.CER C2012 JB 1A 475K-T T 31.8/2.6

C469 4030016930 S.CER ECJ0EB1A104K B 24.8/8.7

C470 4030016930 S.CER ECJ0EB1A104K B 33.8/8.3

C471 4030018560 S.CER C2012 JB 1A 475K-T T 36.2/4.2

C472 4030018560 S.CER C2012 JB 1A 475K-T T 36.2/2.5

C473 4030016930 S.CER ECJ0EB1A104K T 40.2/4.2

C509 4030018960 S.CER C3216 JB 1C 106MT-N T 24.2/5.5

C510 4030016930 S.CER ECJ0EB1A104K T 26/4.4

C511 4030017760 S.CER ECJ0EB1H222K T 30.7/8.9

C512 4030017690 S.CER ECJ0EC1H121J T 32.1/7.7

C513 4030017690 S.CER ECJ0EC1H121J T 29.4/7.7

C514 4030016930 S.CER ECJ0EB1A104K T 36.4/6.5

C515 4030018860 S.CER ECJ0EB0J105K T 36.5/9.2

C516 4030018860 S.CER ECJ0EB0J105K T 36.5/8.3

C517 4030018860 S.CER ECJ0EB0J105K T 36.5/10.1

C518 4030016930 S.CER ECJ0EB1A104K T 26.1/6.8

C519 4030016930 S.CER ECJ0EB1A104K T 41.3/11.9

C522 4030017780 S.CER ECJ0EB1E472K B 38.9/9.8

C523 4030017780 S.CER ECJ0EB1E472K B 34/3

C524 4030017780 S.CER ECJ0EB1E472K T 2.5/8

C525 4030017780 S.CER ECJ0EB1E472K T 22.5/3

C526 4030017780 S.CER ECJ0EB1E472K T 43/4

C527 4030017780 S.CER ECJ0EB1E472K B 26/3

C551 4030018520 S.CER C1608 JB 0J 225M-T T 20/13.8

C553 4030016930 S.CER ECJ0EB1A104K T 19/13.9

C563 4030018960 S.CER C3216 JB 1C 106MT-N B 18.9/6.6

C564 4030016930 S.CER ECJ0EB1A104K T 18.1/13.9

C565 4030016930 S.CER ECJ0EB1A104K T 17.8/3.2

C566 4030016930 S.CER ECJ0EB1A104K T 19.4/3.2

C567 4030018960 S.CER C3216 JB 1C 106MT-N B 21.3/12.3

C569 4030018960 S.CER C3216 JB 1C 106MT-N B 19.2/12.3

C601 4030018960 S.CER C3216 JB 1C 106MT-N T 5.6/8.7

C602 4030016930 S.CER ECJ0EB1A104K T 7.8/11.8

C603 4030018820 S.CER ECJ0EB1H561K B 13.4/6

C604 4510008640 S.ELE 6 CE 100 FE B 4.8/7

C605 4030016930 S.CER ECJ0EB1A104K B 3.3/11.4

C606 4030018580 S.CER C1608 CH 1H 821J-T B 9.6/5.6

C607 4030017440 S.CER ECJ0EC1H221J B 13.3/8.4

C608 4030017440 S.CER ECJ0EC1H221J B 14.8/8

C609 4030018860 S.CER ECJ0EB0J105K B 15.8/13.7

C610 4030010760 S.CER C1608 CH 1H 331J-T B 9.6/8.3

C611 4030010760 S.CER C1608 CH 1H 331J-T B 11.8/7.7

C612 4030018960 S.CER C3216 JB 1C 106MT-N B 8.8/13.7

C613 4550006780 S.TAN TEESVB2 0J 476M8R B 20.6/2.7

C614 4550006780 S.TAN TEESVB2 0J 476M8R T 5/4.1

C651 4030017460 S.CER ECJ0EB1E102K B 65.5/31.4

C652 4030017460 S.CER ECJ0EB1E102K B 66/16.4

C653 4030017460 S.CER ECJ0EB1E102K B 77.1/20.9

C654 4030017430 S.CER ECJ0EC1H101J B 77.2/28.2

C655 4030017430 S.CER ECJ0EC1H101J B 76.5/27.1

C656 4030017430 S.CER ECJ0EC1H101J B 76.1/26.2

C701 4030016930 S.CER ECJ0EB1A104K B 3/13.5

C702 4030017780 S.CER ECJ0EB1E472K B 4.4/18.8

C703 4030017780 S.CER ECJ0EB1E472K B 7.5/26.1

C704 4030017780 S.CER ECJ0EB1E472K B 19.7/26.2

C705 4030017430 S.CER ECJ0EC1H101J B 4.6/21.9

C706 4030017430 S.CER ECJ0EC1H101J B 4.6/24.6

C707 4030017430 S.CER ECJ0EC1H101J B 3.9/27.2

C708 4030017430 S.CER ECJ0EC1H101J B 6.6/26.1

C709 4030017430 S.CER ECJ0EC1H101J T 2.5/20.1

C711 4550007310 S.TAN F930J227MNMBMA T 5.5/18.9

C715 4030017460 S.CER ECJ0EB1E102K T 2.2/17.6

C716 4030017460 S.CER ECJ0EB1E102K T 2.2/18.6

C717 4030017460 S.CER ECJ0EB1E102K T 2.2/16.6

C1001 4030017780 S.CER ECJ0EB1E472K B 76.7/18.9

C1002 4030017780 S.CER ECJ0EB1E472K B 70.4/38.2

C1101 4030017780 S.CER ECJ0EB1E472K T 79.9/23.7

C1102 4030017780 S.CER ECJ0EB1E472K T 73.6/20.7

C1103 4030016930 S.CER ECJ0EB1A104K T 81.8/14.5

C1106 4030017780 S.CER ECJ0EB1E472K T 79.7/31.9

C1107 4030018900 S.CER ECJ0EB0J474K B 80.1/25.5

C1108 4030018900 S.CER ECJ0EB0J474K B 81.4/25.4

C1109 4030017780 S.CER ECJ0EB1E472K T 79.7/26.3

C1110 4030017780 S.CER ECJ0EB1E472K T 80.7/26.3

C1111 4030017780 S.CER ECJ0EB1E472K T 81.7/26.3

C1112 4030017780 S.CER ECJ0EB1E472K B 82.9/28.4

C1201 4030016930 S.CER ECJ0EB1A104K B 50.6/4.3

C1202 4030017780 S.CER ECJ0EB1E472K B 53.2/4.3

C1203 4030017650 S.CER ECJ0EC1H270J B 62.7/6.7

C1204 4030016930 S.CER ECJ0EB1A104K B 47.9/8

C1205 4030016930 S.CER ECJ0EB1A104K B 45.2/9.6

C1206 4030016930 S.CER ECJ0EB1A104K B 43.5/13.8

C1207 4030017430 S.CER ECJ0EC1H101J B 47/9.6

C1208 4030017430 S.CER ECJ0EC1H101J B 43.9/8.7

C1209 4030017430 S.CER ECJ0EC1H101J B 44.4/11.4

C1210 4030017650 S.CER ECJ0EC1H270J B 61.1/6.7

C1211 4030018860 S.CER ECJ0EB0J105K B 60.2/10.5

C1212 4030016930 S.CER ECJ0EB1A104K B 49.7/4.3

C1213 4030016930 S.CER ECJ0EB1A104K B 49.2/6.6

C1214 4030016930 S.CER ECJ0EB1A104K B 40.3/4.8

C1215 4030016930 S.CER ECJ0EB1A104K B 64.2/19.3

C1216 4030016930 S.CER ECJ0EB1A104K B 53.7/30.3

C1217 4030016930 S.CER ECJ0EB1A104K B 57.5/29.2

C1218 4030016930 S.CER ECJ0EB1A104K B 44.8/23.9

C1219 4030016930 S.CER ECJ0EB1A104K B 46.3/13.2

C1220 4030016930 S.CER ECJ0EB1A104K B 56/8.8

C1221 4030016930 S.CER ECJ0EB1A104K B 60.5/13.7

C1222 4030016930 S.CER ECJ0EB1A104K B 60.9/25.6

C1223 4030016930 S.CER ECJ0EB1A104K T 52.7/12.3

C1225 4030018960 S.CER C3216 JB 1C 106MT-N T 67/10.2

C1251 4030012610 S.CER C2012 JB 1C 474K-T T 73.2/9.2

C1252 4550007320 S.TAN F930J226MAABMA T 73.4/4.1

C1301 4030016930 S.CER ECJ0EB1A104K T 80.1/40.3

C1302 4030018960 S.CER C3216 JB 1C 106MT-N T 47.9/11.4

C1303 4030016790 S.CER ECJ0EB1C103K T 67.9/30.4

C1304 4030016930 S.CER ECJ0EB1A104K T 41.7/31.5

C1305 4030018960 S.CER C3216 JB 1C 106MT-N T 44.3/37.2

C1306 4030016790 S.CER ECJ0EB1C103K T 64/37.5

C1307 4030016930 S.CER ECJ0EB1A104K T 48.4/12.9

C1308 4030016930 S.CER ECJ0EB1A104K T 63.1/13.1

C1309 4030016930 S.CER ECJ0EB1A104K T 46.1/37.2

C1310 4030016930 S.CER ECJ0EB1A104K T 67/30.9

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[LOGIC UNIT]

5 - 20

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[LOGIC UNIT]

C1311 4030016930 S.CER ECJ0EB1A104K T 67/25.7

C1312 4030017620 S.CER ECJ0EC1H100C T 67.4/29.1

C1313 4030017620 S.CER ECJ0EC1H100C T 67.4/28.2

C1314 4030016930 S.CER ECJ0EB1A104K T 79/9.8

C1315 4030017030 S.CER ECJ0EB1A273K T 83.3/10.8

C1316 4030016930 S.CER ECJ0EB1A104K B 75.9/2.3

C1317 4030018960 S.CER C3216 JB 1C 106MT-N B 84.4/3

C1319 4030018960 S.CER C3216 JB 1C 106MT-N B 16.8/6.6

C2016 4030016930 S.CER ECJ0EB1A104K B 37.7/30.2

C2017 4030016930 S.CER ECJ0EB1A104K B 37.7/31.3

C2101 4030016930 S.CER ECJ0EB1A104K T 44/43

C2102 4030016930 S.CER ECJ0EB1A104K T 45.8/43

C2202 4030016930 S.CER ECJ0EB1A104K T 27/16.5

C2204 4030016930 S.CER ECJ0EB1A104K T 26.5/19.2

C2205 4030016930 S.CER ECJ0EB1A104K T 30.2/19.7

C2206 4030016930 S.CER ECJ0EB1A104K T 26.6/11.1

C2207 4030016930 S.CER ECJ0EB1A104K T 27.7/19.7

C2208 4030016930 S.CER ECJ0EB1A104K T 21.5/23.4

C2209 4030016930 S.CER ECJ0EB1A104K T 29.8/17.6

C2210 4030016930 S.CER ECJ0EB1A104K T 26.6/17.8

C2211 4030016930 S.CER ECJ0EB1A104K T 32.4/11.1

C2212 4030016930 S.CER ECJ0EB1A104K T 35.2/14.6

C2213 4030016930 S.CER ECJ0EB1A104K T 29.3/16.4

C2214 4030016930 S.CER ECJ0EB1A104K T 35.2/17.3

C2215 4030016930 S.CER ECJ0EB1A104K T 29.3/11.1

C2217 4030016930 S.CER ECJ0EB1A104K T 29.8/18.5

C2218 4030016930 S.CER ECJ0EB1A104K T 26.5/20.1

C2219 4030016930 S.CER ECJ0EB1A104K T 30.2/16.4

C2220 4030016930 S.CER ECJ0EB1A104K T 26.1/16.5

C2221 4030016930 S.CER ECJ0EB1A104K T 27.9/16.5

C2222 4030016930 S.CER ECJ0EB1A104K T 29.3/19.7

J651 6510024810 S.CNR AXK6S60635P B 71/24.9

J701 6510022070 S.CNR AXK6S30635P B 10.9/20.4

J1201 6510018890 S.CNR 52559-1390 B 77.5/38.2

J2101 6510020130 S.CNR AXN810535P T 52.4/42.9

BT1301 3020000330 LTM ML920S/F9D

EP2 6910012350 S.BEA MMZ1608Y 102BT T 18.8/38.2

EP51 6910012350 S.BEA MMZ1608Y 102BT B 18.1/29.7

EP201 6910014730 S.BEA MPZ2012S331A-T T 13.3/40.6

EP301 6910012350 S.BEA MMZ1608Y 102BT T 19.1/40

EP701 6910012350 S.BEA MMZ1608Y 102BT B 5.6/15

EP2002 6910012350 S.BEA MMZ1608Y 102BT B 38.2/28

EP2202 6910012350 S.BEA MMZ1608Y 102BT T 19.1/22

EP2205 6910014730 S.BEA MPZ2012S331A-T T 18.4/17.7

EP2217 6910015970 S.BEA MMZ1608B 301CT-AS B 20.9/16.1

IC51 1190001811 S.IC AD9833BRMZ T 33.8/7

IC52 1130012780 S.IC SN74AHC2G04HDCTR T 45/5.6

IC61 1130012610 S.IC SN74AHC1GU04DCKR T 37.5/7.5

IC62 1130012850 S.IC SN74LVC3G34DCUR T 51.3/24.7

IC251 1180002321 S.REG TK11218CMCL-G B 29.5/16.2

IC301 1190002101 S.IC SN65LVDS391D T 37.5/28.2

IC401 1110004080 S.IC µPC2709T-E3 T 50.1/47

IC451 1110006430 S.IC µPC1678GV-E1-A T 34.1/50.2

IC801 1110006430 S.IC µPC1678GV-E1-A T 18/13.7

IC901 1130012720 S.IC CD74HC4094PWR T 5.4/64.7

Q1 1530002381 S.TR 2SC4215-Y (YE85R ,F) T 20.4/3.1

Q101 1530002561 S.TR 2SC4403-3-TL-E T 26.5/6.4

Q151 1530003151 S.TR 2SC4673D-TD-E T 41.4/13.7

Q201 1530003431 S.TR 2SC5226-4-TL-E T 43.4/19.4

Q211 1530003431 S.TR 2SC5226-4-TL-E B 43.5/15.2

Q301 1590000680 S.TR DTC114EUA T106 B 45.4/32.2

Q901 1590003530 S.TR BCR08PN T 4/58.7

Q902 1590003530 S.TR BCR08PN T 4.1/55.1

Q903 1590003530 S.TR BCR08PN T 7.2/55.1

Q904 1590003530 S.TR BCR08PN T 7.2/58.7

Q905 1590003530 S.TR BCR08PN T 4.1/70.7

Q906 1590003530 S.TR BCR08PN T 4.1/74.2

Q907 1590003530 S.TR BCR08PN T 7.1/70.7

Q908 1590003530 S.TR BCR08PN T 7.1/74.2

Q1101 1530002060 S.TR 2SC4081 T106 R T 40.9/53.9

Q1102 1540000451 S.TR 2SD1623T-TD-E T 45.5/54.3

D301 1750000620 S.DIO MA717WK (TX) B 44.8/35.9

D341 1790001621 S.DIO 1SV308 (TPL3, F) B 45.2/39.7

D451 1750000581 S.DIO 1SV307 (TPH3, F) T 44.2/47.7

D452 1750000581 S.DIO 1SV307 (TPH3, F) T 44/44.8

D453 1790001621 S.DIO 1SV308 (TPL3, F) T 43.3/36.6

D454 1750000581 S.DIO 1SV307 (TPH3, F) T 38.3/48.3

D456 1750000620 S.DIO MA717WK (TX) B 35.1/42.8

D458 1750000581 S.DIO 1SV307 (TPH3, F) T 33.8/45.6

D459 1750000581 S.DIO 1SV307 (TPH3, F) T 31.3/38.8

D471 1750000620 S.DIO MA717WK (TX) T 33.2/36.7

D501 1750000581 S.DIO 1SV307 (TPH3, F) B 26.2/42.6

D502 1750000581 S.DIO 1SV307 (TPH3, F) T 3/50.6

D551 1750000581 S.DIO 1SV307 (TPH3, F) T 25.9/45.1

D552 1750000581 S.DIO 1SV307 (TPH3, F) T 2.9/45.3

D601 1750000581 S.DIO 1SV307 (TPH3, F) T 27.2/39.9

D602 1750000581 S.DIO 1SV307 (TPH3, F) T 2.9/40.1

D651 1750000581 S.DIO 1SV307 (TPH3, F) T 27.2/34.8

D652 1750000581 S.DIO 1SV307 (TPH3, F) T 2.9/34.9

D701 1750000581 S.DIO 1SV307 (TPH3, F) T 27.2/29.5

D702 1750000581 S.DIO 1SV307 (TPH3, F) T 2.9/29.7

D751 1750000581 S.DIO 1SV307 (TPH3, F) T 27/24.4

D752 1750000581 S.DIO 1SV307 (TPH3, F) T 2.9/24.6

D801 1750000581 S.DIO 1SV307 (TPH3, F) T 28.3/21.6

D802 1750000581 S.DIO 1SV307 (TPH3, F) T 2.9/19.3

D1101 1750000301 S.DIO 1SS302 (TE85R, F) T 40.9/57.7

D1102 1160000080 S.DIO DAP202K T146 B 27.9/63

FI101 2010002660 S.XTL FL-391 (124.032 MHz) T 29.3/10.7

FI201 2040001860 S.SAW NSVS776 T 34.5/16.5

X1 6050012160 S.XTL CR-788 (24.8064 MHz) T 14.2/3.9

L1 6200002641 S.COL NLV25T-R15J T 26/3.7

L51 6200005011 S.COL NLV25T-100J B 35.6/4.2

L52 6200005011 S.COL NLV25T-100J B 38.8/3.8

L53 6200003241 S.COL NLV32T-221J B 43.4/8.7

L101 6200003540 S.COL MLF1608D R22K-T T 24.2/8.8

L105 6200004730 S.COL MLF1608A 1R2K-T T 23.7/5.2

L151 6200004470 S.COL MLF1608D R12K-T T 44.7/12.8

L153 6200004150 S.COL MLF1608D 47NM-T T 46.9/15.7

L201 6200004150 S.COL MLF1608D 47NM-T T 44.5/21.5

L202 6200005661 S.COL ELJRE 10NGFA B 37.5/12.4

L204 6200003540 S.COL MLF1608D R22K-T T 41.5/19.3

L205 6200005711 S.COL ELJRE 27NGFA B 47.1/21.7

L206 6200005701 S.COL ELJRE 22NGFA B 46.2/20.4

L210 6200005701 S.COL ELJRE 22NGFA B 47/19.1

L212 6200002581 S.COL NLV25T-033J B 41.9/12.8

L213 6200005681 S.COL ELJRE 15NGFA B 40.1/17.8

L301 6140002810 S.COL LR-317 T 48.5/30

L302 6140002810 S.COL LR-317 T 48.7/38.9

L303 6200004150 S.COL MLF1608D 47NM-T B 41.9/35.7

L304 6200003960 S.COL MLF1608A 1R0K-T T 48.9/33.2

L321 6200011370 S.COL ELJNJ R10J T 50.4/34.7

L322 6200011370 S.COL ELJNJ R10J T 47.8/34.7

L323 6200010860 S.COL C2520C-R10G-A T 53.7/30.6

L331 6200011540 S.COL ELJQE 47NJ T 47.6/43.1

L332 6200011540 S.COL ELJQE 47NJ T 50.2/43.1

L341 6200004470 S.COL MLF1608D R12K-T B 41.1/37

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DDS UNIT]

5 - 21

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DDS UNIT]

L401 6200001981 S.COL NLV25T-1R0J T 50.2/49.9

L411 6200011700 S.COL ELJQE 39NJ T 47.3/48.3

L456 6140002810 S.COL LR-317 T 40.1/44.9

L458 6200011540 S.COL ELJQE 47NJ B 37.5/42.1

L461 6200011570 S.COL ELJQE 10NJ B 39.3/41.7

L464 6200002631 S.COL NLV25T-R10J T 28.8/50.6

L465 6200004470 S.COL MLF1608D R12K-T T 42.9/39.5

L466 6200011710 S.COL ELJQE 33NJ T 39.1/41.1

L467 6200011560 S.COL ELJQE 12NJ T 27.7/47.1

L468 6200011350 S.COL ELJQE 18NJ T 26.1/48.3

L469 6200011360 S.COL ELJQE 15NJ T 33.6/41.3

L471 6140002810 S.COL LR-317 T 38.7/37.2

L472 6200011540 S.COL ELJQE 47NJ T 33.4/39.3

L473 6200011340 S.COL ERJQE 22NJ T 35.5/40.4

L501 6200002611 S.COL NLV25T-R47J B 21.7/43.6

L502 6200002631 S.COL NLV25T-R10J B 18.1/46.7

L503 6200002431 S.COL NLV25T-082J B 15/46.4

L504 6200002411 S.COL NLV25T-056J T 14.3/49.4

L505 6200002421 S.COL NLV25T-068J T 11.2/50.2

L506 6200002421 S.COL NLV25T-068J T 8.2/49.7

L507 6200002611 S.COL NLV25T-R47J T 3.8/48.2

L551 6200002611 S.COL NLV25T-R47J T 24.9/42.6

L552 6200002421 S.COL NLV25T-068J T 20.3/43

L553 6200002411 S.COL NLV25T-056J T 17.6/42.9

L554 6200002601 S.COL NLV25T-047J T 14.7/45

L555 6200002601 S.COL NLV25T-047J T 12/44.3

L556 6200002581 S.COL NLV25T-033J T 9.2/45

L557 6200002611 S.COL NLV25T-R47J T 4.5/42.8

L601 6200002611 S.COL NLV25T-R47J T 25.3/37.4

L602 6200002601 S.COL NLV25T-047J T 22.6/39.6

L603 6200002591 S.COL NLV25T-039J T 19.7/39.1

L604 6200003891 S.COL NLV25T-027J T 16.8/39.9

L605 6200002601 S.COL NLV25T-047J T 14.1/37.9

L606 6200002601 S.COL NLV25T-047J T 11.4/37.7

L607 6200002421 S.COL NLV25T-068J T 8.6/37.7

L608 6200002601 S.COL NLV25T-047J T 5.1/37.7

L651 6200002611 S.COL NLV25T-R47J T 26/32.2

L652 6200002591 S.COL NLV25T-039J T 22.4/32.5

L653 6200002591 S.COL NLV25T-039J T 19.6/32.8

L654 6200002591 S.COL NLV25T-039J T 14/34.6

L655 6200002591 S.COL NLV25T-039J T 11.2/33.9

L656 6200002601 S.COL NLV25T-047J T 16.7/32.5

L657 6200002581 S.COL NLV25T-033J T 7.9/34.6

L658 6200002611 S.COL NLV25T-R47J T 5.2/32.6

L701 6200002611 S.COL NLV25T-R47J T 26/26.9

L702 6200002581 S.COL NLV25T-033J T 22.9/29.2

L703 6200002581 S.COL NLV25T-033J T 20.2/28.7

L704 6200003891 S.COL NLV25T-027J T 17.3/29.5

L705 6200002591 S.COL NLV25T-039J T 14.6/27.3

L706 6200002581 S.COL NLV25T-033J T 11.8/27.3

L707 6200002581 S.COL NLV25T-033J T 9.1/27.2

L708 6200002611 S.COL NLV25T-R47J T 4.5/27.2

L751 6200002611 S.COL NLV25T-R47J T 25.9/22

L752 6200003881 S.COL NLV25T-022J T 22.4/22.4

L753 6200003891 S.COL NLV25T-027J T 19.7/22.2

L754 6200002581 S.COL NLV25T-033J T 16.9/22.5

L755 6200003891 S.COL NLV25T-027J T 14.2/24.2

L756 6200003891 S.COL NLV25T-027J T 11.4/23.5

L757 6200003881 S.COL NLV25T-022J T 8.7/24.2

L758 6200002611 S.COL NLV25T-R47J T 3.9/22.2

L801 6200002181 S.COL NLV25T-R12J T 28.3/17.5

L803 6200005711 S.COL ELJRE 27NGFA T 26.3/17.6

L804 6200011350 S.COL ELJQE 18NJ T 25/15.6

L805 6200011360 S.COL ELJQE 15NJ T 23.1/14.9

L806 6200005641 S.COL ELJRE 6N8ZFA T 21.5/19

L807 6200011560 S.COL ELJQE 12NJ T 18.7/18.2

L808 6200004720 S.COL MLF1608D R10K-T T 17.9/10

L812 6200005711 S.COL ELJRE 27NGFA T 14.8/14.4

L813 6200011350 S.COL ELJQE 18NJ T 15.7/17.2

L814 6200011360 S.COL ELJQE 15NJ T 13.8/18.2

L815 6200005641 S.COL ELJRE 6N8ZFA T 10.1/18

L816 6200011560 S.COL ELJQE 12NJ T 6.6/17.8

L818 6200002181 S.COL NLV25T-R12J T 4.6/17

L851 6200002181 S.COL NLV25T-R12J B 26.8/30.6

L852 6200002611 S.COL NLV25T-R47J B 26.4/34.1

L853 6200002181 S.COL NLV25T-R12J B 3.4/22.8

L854 6200002611 S.COL NLV25T-R47J B 5.4/26

L901 6200007420 S.COL ELJFC 101K-F B 3.7/65.9

L953 6200002041 S.COL NLV25T-101J B 56.4/44.6

L954 6200002041 S.COL NLV25T-101J B 55.7/42.1

L955 6200002041 S.COL NLV25T-101J B 55.9/39.6

L956 6200002041 S.COL NLV25T-101J B 56.1/37.1

L957 6200002041 S.COL NLV25T-101J B 55.9/34.6

L959 6200011300 S.COL EXCML16A 270U T 54.9/34.3

L960 6200002041 S.COL NLV25T-101J B 56.5/30.8

L962 6200011300 S.COL EXCML16A 270U B 59.2/32.2

L963 6200011300 S.COL EXCML16A 270U B 60.4/32.2

L1001 6200003241 S.COL NLV32T-221J B 53.7/50.8

L1002 6200003241 S.COL NLV32T-221J B 47.9/55

L1103 6200002041 S.COL NLV25T-101J B 42.2/61.2

L1105 6200002041 S.COL NLV25T-101J B 40.8/71.8

L1106 6200002041 S.COL NLV25T-101J T 36.4/62.3

L1107 6200002041 S.COL NLV25T-101J B 34.9/74.7

L1110 6200002041 S.COL NLV25T-101J T 32.4/62.3

L1111 6200002041 S.COL NLV25T-101J B 26.1/69.8

L1112 6200002041 S.COL NLV25T-101J T 29.9/62.3

L1152 6200003590 S.COL EXCCL3225U1 T 48.3/69.2

L1153 6200002041 S.COL NLV25T-101J T 45.5/69.3

L1154 6200002041 S.COL NLV25T-101J T 53.6/69.2

R2 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 19.1/4.5

R3 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 18.6/1.8

R4 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 22.2/2.6

R5 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 21.1/6.7

R8 7030003630 S.RES ERJ3GEYJ 393 V (39 kΩ) B 13.6/7.1

R9 7030003610 S.RES ERJ3GEYJ 273 V (27 kΩ) B 13.6/9.7

R10 7030005220 S.RES ERJ2GEJ 223 X (22 kΩ) T 8/3.2

R11 7030010040 S.RES ERJ2GEJ-JPW T 9.2/3.7

R51 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 34.3/8.6

R52 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 46.1/2.3

R53 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 42.8/3.5

R54 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 42.8/2.6

R55 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 34.7/7

R56 7030010090 S.RES ERJ2GEJ 180 X (18 Ω) T 33.4/8.6

R57 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 32.5/8.6

R61 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 39.3/8.1

R62 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) T 49.3/23.1

R101 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 25.2/7.8

R102 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 22.7/7.8

R103 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 31.8/11.1

R104 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 33/11.5

R105 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 34.2/11.1

R106 7030005100 S.RES ERJ2GEJ 154 X (150 kΩ) T 23.9/7.4

R121 7030005040 S.RES ERJ2GEJ 472 X (4.7 kΩ) T 38.5/11.1

R150 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 45.8/10.7

R151 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 44.9/10.7

R154 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 41.4/10.6

R155 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) T 46.3/12.6

R157 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 48.8/18.2

R158 7030009200 S.RES ERJ2GEJ 390 X (39 Ω) T 48/16.7

R159 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 47.9/18.2

R160 7030005300 S.RES ERJ2GEJ 150 X (15 Ω) T 44.2/15.9

R161 7030005300 S.RES ERJ2GEJ 150 X (15 Ω) T 45.1/15.9

R162 7030005300 S.RES ERJ2GEJ 150 X (15 Ω) T 45/14.6

R201 7030005530 S.RES ERJ2GEJ 100 X (10 Ω) T 45.8/22

R202 7030000700 S.RES MCR10EZHJ 470 kΩ T 45.6/18.8

R211 7030003400 S.RES ERJ3GEYJ 471 V (470 Ω) B 37.3/17.8

R212 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 40.8/16.2

R213 7030003200 S.RES ERJ3GEYJ 100 V (10 Ω) B 44.5/11.4

R214 7030003280 S.RES ERJ3GEYJ 470 V (47 Ω) B 46.8/16.3

R301 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 34.2/22.2

R303 7030010040 S.RES ERJ2GEJ-JPW T 40/22.2

R304 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 42/24.6

R305 7030005710 S.RES ERJ2GEJ 121 X (120 Ω) T 44.1/28.9

R306 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 31.5/25.6

R309 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 31.2/29.4

R310 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 31.2/30.5

R311 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 31.2/31.5

R312 7030010040 S.RES ERJ2GEJ-JPW T 32.9/31.7

R313 7030005710 S.RES ERJ2GEJ 121 X (120 Ω) T 43.2/28.5

R314 7030009140 S.RES ERJ2GEJ 272 X (2.7 kΩ) T 43/31.8

R315 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 33.5/32.6

R316 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 34.6/33.8

R317 7030007570 S.RES ERJ2GEJ 122 X (1.2 kΩ) T 43.9/31.8

R341 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 44.3/38.3

R342 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 45.9/41.2

R451 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 44.5/46.2

R453 7030010090 S.RES ERJ2GEJ 180 X (18 Ω) T 34.1/47.4

R454 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 32.9/47

R455 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 32.9/47.9

R456 7030010040 S.RES ERJ2GEJ-JPW T 34.9/52.4

R457 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 38.1/49.7

R458 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 31.6/43.6

R459 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 42.1/50

R460 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 30.7/41

R461 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 29.6/39.1

R462 7030003860 S.RES ERJ3GE JPW V T 45/43.3

R463 7030003400 S.RES ERJ3GEYJ 471 V (470 Ω) T 33.3/44

R464 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 40.8/47.9

R465 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 40.3/50

R467 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 40.8/48.8

R468 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 41.2/50

R469 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 37.7/39.9

R471 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 41.6/37.7

R472 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 30.3/43.3

R473 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 31.7/34.6

R474 7030009200 S.RES ERJ2GEJ 390 X (39 Ω) T 31.3/35.8

R475 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 30.1/35.3

R476 7030005000 S.RES ERJ2GEJ 471 X (470 Ω) T 29.9/37.9

R477 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) B 37.3/38.6

R501 7030003390 S.RES ERJ3GEYJ 391 V (390 Ω) B 21/46.1

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DDS UNIT]

5 - 22

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DDS UNIT]

R502 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 5.8/46.8

R503 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 14.3/46.8

R505 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 6.5/48.6

R506 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 6/49.8

R507 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 5.6/48.6

R551 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 23.1/42

R552 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 6.3/42

R553 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 10.1/41.6

R554 7030009200 S.RES ERJ2GEJ 390 X (39 Ω) T 6.4/45.7

R555 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 7.1/44.4

R556 7030007270 S.RES ERJ2GEJ 151 X (150 Ω) T 6.2/44.3

R601 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 23.2/36.1

R602 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 6.8/36.6

R603 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 19.6/36.4

R604 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 20.8/36.1

R651 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 24.2/31.2

R652 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 6.3/30.5

R653 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 9.9/31.2

R701 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 23.8/25.8

R702 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 6.5/26

R703 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 19.9/26

R704 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 7.2/27.2

R705 7030005580 S.RES ERJ2GEJ 560 X (56 Ω) T 6.7/28.4

R706 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 6.3/27.2

R751 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 24.2/21

R752 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 5.9/20.8

R753 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 10.3/20.8

R755 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 6.6/22.6

R756 7030005580 S.RES ERJ2GEJ 560 X (56 Ω) T 6.6/24.2

R757 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 5.7/23.3

R801 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 27.2/14.5

R805 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 13.9/10.3

R806 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 14.2/11.7

R807 7030005570 S.RES ERJ2GEJ 820 X (82 Ω) T 13/11.3

R808 7030003390 S.RES ERJ3GEYJ 391 V (390 Ω) B 3.6/17.9

R810 7030005090 S.RES ERJ2GEJ 104 X (100 kΩ) T 27.2/15.4

R841 7030005710 S.RES ERJ2GEJ 121 X (120 Ω) T 21.2/12.5

R851 7030009280 S.RES ERJ2GEJ 391 X (390 Ω) T 27.1/37.3

R852 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 5.7/13.7

R853 7030010090 S.RES ERJ2GEJ 180 X (18 Ω) T 6.9/14

R854 7030008280 S.RES ERJ2GEJ 271 X (270 Ω) T 6.9/13

R855 7030003390 S.RES ERJ3GEYJ 391 V (390 Ω) B 5.5/29.5

R901 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 2.1/62.6

R902 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 2.2/60.9

R903 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 2.2/58.7

R951 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) B 59.2/6.9

R952 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 55.1/9.2

R953 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) B 59.5/3.3

R954 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 54.5/8.3

R955 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 55.1/7.3

R956 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) B 59.2/4.9

R957 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) B 56.6/5

R958 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 47.2/6.1

R959 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) B 57.9/51

R960 7030003280 S.RES ERJ3GEYJ 470 V (47 Ω) B 57.5/49

R961 7030004990 S.RES ERJ2GEJ 221 X (220 Ω) T 54.6/11.6

R962 7030003860 S.RES ERJ3GE JPW V T 51.3/21

R1051 7030003860 S.RES ERJ3GE JPW V B 10.8/73

R1101 7030005120 S.RES ERJ2GEJ 102 X (1 kΩ) T 40.5/52.1

R1102 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 42.1/52.1

R1103 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 39.3/63.4

R1104 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 44.2/51.2

R1105 7030004980 S.RES ERJ2GEJ 101 X (100 Ω) T 38.7/60.9

R1106 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 31.8/59.6

R1107 7030007290 S.RES ERJ2GEJ 222 X (2.2 kΩ) T 28.1/59.6

R1108 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 46.9/8.3

R1109 7030005240 S.RES ERJ2GEJ 473 X (47 kΩ) T 47.8/8

C1 4030016950 S.CER ECJ0EB1A473K T 18.6/5.7

C2 4030017780 S.CER ECJ0EB1E472K T 20.9/5

C3 4030017510 S.CER ECJ0EC1H680J T 24.8/1.7

C4 4030017780 S.CER ECJ0EB1E472K T 22.3/4.6

C5 4030017680 S.CER ECJ0EC1H820J T 26/2

C6 4030017510 S.CER ECJ0EC1H680J T 27.2/1.7

C7 4030016930 S.CER ECJ0EB1A104K T 8/4.1

C51 4030017780 S.CER ECJ0EB1E472K T 33.8/7

C52 4030017780 S.CER ECJ0EB1E472K T 36.1/5.3

C53 4030017780 S.CER ECJ0EB1E472K T 35.2/8.6

C54 4030016930 S.CER ECJ0EB1A104K T 34.9/4.4

C55 4510008580 S.ELE EEE0JA470SR T 30.6/3.9

C56 4030016930 S.CER ECJ0EB1A104K T 34.9/2.8

C57 4030016930 S.CER ECJ0EB1A104K T 42.8/5

C58 4030016930 S.CER ECJ0EB1A104K T 41/5.9

C59 4030017720 S.CER ECJ0EB1H331K T 41.9/6.6

C60 4030017690 S.CER ECJ0EC1H121J T 42.2/7.8

C61 4030017720 S.CER ECJ0EB1H331K T 42.8/6.6

C62 4030016930 S.CER ECJ0EB1A104K T 35.6/6.5

C63 4030016930 S.CER ECJ0EB1A104K T 49.3/22.2

C101 4030017580 S.CER ECJ0EC1H060C T 26.4/8.7

C102 4030017660 S.CER ECJ0EC1H330J T 23.1/2.6

C104 4030017780 S.CER ECJ0EB1E472K T 21.1/7.6

C105 4030017460 S.CER ECJ0EB1E102K T 24.8/6.5

C120 4030017780 S.CER ECJ0EB1E472K T 37.3/11.5

C126 4030017780 S.CER ECJ0EB1E472K T 22.7/6.9

C150 4030017780 S.CER ECJ0EB1E472K T 44/10.7

C151 4030017780 S.CER ECJ0EB1E472K T 46.3/13.6

C152 4030017640 S.CER ECJ0EC1H150J T 43.3/16

C154 4030017660 S.CER ECJ0EC1H330J T 46.6/14.6

C155 4030017600 S.CER ECJ0EC1H080C T 46.4/16.7

C156 4030017660 S.CER ECJ0EC1H330J T 47/18.2

C157 4030007090 S.CER C1608 CH 1H 470J-T B 53/16

C202 4030017590 S.CER ECJ0EC1H070C T 43.8/17.2

C203 4030007060 S.CER C1608 CH 1H 270J-T B 37.8/15.9

C204 4030016930 S.CER ECJ0EB1A104K T 35.1/20.1

C206 4030017560 S.CER ECJ0EC1H2R5B T 43.4/21.7

C207 4030007110 S.CER C1608 CH 1H 680J-T B 44/21.7

C208 4030009910 S.CER C1608 CH 1H 040B-T B 40.9/21.7

C209 4030007060 S.CER C1608 CH 1H 270J-T B 43.1/20.4

C210 4030009910 S.CER C1608 CH 1H 040B-T B 40.8/19.1

C211 4030017460 S.CER ECJ0EB1E102K T 42.2/17.6

C216 4030017780 S.CER ECJ0EB1E472K T 46.3/20.8

C217 4030007120 S.CER C1608 CH 1H 820J-T B 43.9/19.1

C218 4030011770 S.CER C1608 CH 1H 060B-T B 43.2/17.8

C219 4030007010 S.CER C1608 CH 1H 100D-T B 46.2/17.8

C221 4030006880 S.CER C1608 JB 1H 472K-T B 46/15

C222 4030009910 S.CER C1608 CH 1H 040B-T B 40.7/14.7

C223 4030006880 S.CER C1608 JB 1H 472K-T B 46/13.5

C224 4030018630 S.CER C2012 CH 1H 472J-T B 39.2/11.4

C251 4030011600 S.CER C1608 JB 1E 104K-T B 27.6/12.2

C252 4030011600 S.CER C1608 JB 1E 104K-T B 28.7/23.5

C253 4550007090 S.TAN TEESVA 1A 226M8R B 29.6/21.7

C254 4030011600 S.CER C1608 JB 1E 104K-T B 29.2/12.2

C255 4550007090 S.TAN TEESVA 1A 226M8R B 29.5/19.3

C301 4030016930 S.CER ECJ0EB1A104K T 35.1/22.2

C302 4030016930 S.CER ECJ0EB1A104K T 36.2/22.2

C303 4030016930 S.CER ECJ0EB1A104K T 37.3/22.2

C304 4030016930 S.CER ECJ0EB1A104K T 38.2/22.2

C305 4030016930 S.CER ECJ0EB1A104K T 39.1/22.2

C306 4030016930 S.CER ECJ0EB1A104K T 43.6/24.6

C307 4030016930 S.CER ECJ0EB1A104K T 31.2/28.3

C308 4030016930 S.CER ECJ0EB1A104K T 43.6/25.5

C309 4030016930 S.CER ECJ0EB1A104K T 43/26.7

C310 4030016930 S.CER ECJ0EB1A104K T 43.9/26.7

C312 4030016930 S.CER ECJ0EB1A104K T 43.4/30.6

C314 4030017780 S.CER ECJ0EB1E472K T 36.2/33.8

C317 4030011600 S.CER C1608 JB 1E 104K-T B 42.6/26.2

C318 4030006880 S.CER C1608 JB 1H 472K-T B 38.6/25.4

C319 4030011600 S.CER C1608 JB 1E 104K-T B 36.6/26.3

C320 4030018960 S.CER C3216 JB 1C 106MT-N B 37.3/32.3

C321 4030017660 S.CER ECJ0EC1H330J T 51.2/30.2

C323 4030017510 S.CER ECJ0EC1H680J T 47.2/33.3

C325 4030017660 S.CER ECJ0EC1H330J T 48.8/35.7

C326 4030017640 S.CER ECJ0EC1H150J T 51/33

C327 4030006880 S.CER C1608 JB 1H 472K-T B 36.4/30.3

C331 4030017390 S.CER ECJ0EC1H180J T 46.6/44.5

C333 4030017670 S.CER ECJ0EC1H390J T 48.4/44.5

C335 4030017390 S.CER ECJ0EC1H180J T 50.2/44.5

C341 4030007090 S.CER C1608 CH 1H 470J-T B 42.5/39.7

C342 4030007090 S.CER C1608 CH 1H 470J-T B 43.7/42.1

C343 4030007140 S.CER C1608 CH 1H 121J-T B 41.3/39

C344 4030007100 S.CER C1608 CH 1H 560J-T B 42.7/34.3

C345 4030017510 S.CER ECJ0EC1H680J T 45.5/37.9

C346 4030017510 S.CER ECJ0EC1H680J T 45.7/39.7

C401 4030017460 S.CER ECJ0EB1E102K T 51.1/44.5

C402 4030017460 S.CER ECJ0EB1E102K T 52.3/48.9

C403 4030017430 S.CER ECJ0EC1H101J T 47.9/46.1

C411 4030017400 S.CER ECJ0EC1H220J T 48.1/49.7

C412 4030017630 S.CER ECJ0EC1H120J T 47.7/47.3

C413 4030017400 S.CER ECJ0EC1H220J T 46.7/49.4

C451 4030017420 S.CER ECJ0EC1H470J T 40.2/40.6

C453 4030017460 S.CER ECJ0EB1E102K T 46.1/46.8

C454 4030017460 S.CER ECJ0EB1E102K T 35.3/47.9

C456 4030016930 S.CER ECJ0EB1A104K T 31.2/48

C457 4030017460 S.CER ECJ0EB1E102K T 35.3/47

C458 4030017460 S.CER ECJ0EB1E102K T 30.5/49.8

C459 4030017460 S.CER ECJ0EB1E102K T 27/50.6

C460 4030017780 S.CER ECJ0EB1E472K T 39.3/50

C461 4030006880 S.CER C1608 JB 1H 472K-T T 30.7/42.2

C463 4030017420 S.CER ECJ0EC1H470J T 40.6/41.8

C464 4030017690 S.CER ECJ0EC1H121J T 41.5/40.2

C465 4030017400 S.CER ECJ0EC1H220J T 37.7/41.8

C466 4030017570 S.CER ECJ0EC1H040B T 38.1/40.6

C467 4030017400 S.CER ECJ0EC1H220J T 37.2/40.6

C468 4030017360 S.CER ECJ0EC1H030B T 29/48

C469 4030017370 S.CER ECJ0EC1H3R5B T 29/47.1

C470 4030017380 S.CER ECJ0EC1H050B T 29/46.2

C471 4030017380 S.CER ECJ0EC1H050B T 35.6/43.9

C472 4030017660 S.CER ECJ0EC1H330J T 34.7/41.8

C473 4030017570 S.CER ECJ0EC1H040B T 34/43

C474 4030017460 S.CER ECJ0EB1E102K T 41.6/36.7

C475 4030017460 S.CER ECJ0EB1E102K T 30.5/36.7

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DDS UNIT]

5 - 23

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DDS UNIT]

C476 4030017780 S.CER ECJ0EB1E472K T 29.6/40

C477 4030017780 S.CER ECJ0EB1E472K T 42.4/48.8

C478 4030006880 S.CER C1608 JB 1H 472K-T B 39.8/39.1

C479 4030006880 S.CER C1608 JB 1H 472K-T B 38/37.3

C480 4030017630 S.CER ECJ0EC1H120J T 35.6/41.8

C481 4030017360 S.CER ECJ0EC1H030B T 35.6/43

C501 4030007080 S.CER C1608 CH 1H 390J-T B 19/42.6

C502 4030007120 S.CER C1608 CH 1H 820J-T B 18.3/44.1

C503 4030007060 S.CER C1608 CH 1H 270J-T B 16.1/43.8

C504 4030017780 S.CER ECJ0EB1E472K T 16.1/49.3

C505 4030017660 S.CER ECJ0EC1H330J T 12.6/47.2

C506 4030017620 S.CER ECJ0EC1H100C T 12.1/48.4

C507 4030017500 S.CER ECJ0EC1H560J T 11.4/47.2

C508 4030017580 S.CER ECJ0EC1H060C T 10.5/48.4

C509 4030017420 S.CER ECJ0EC1H470J T 10.2/47.2

C510 4030017350 S.CER ECJ0EC1H020B T 8.9/47.5

C511 4030017670 S.CER ECJ0EC1H390J T 7.7/47.2

C512 4030017780 S.CER ECJ0EB1E472K T 5.5/50.7

C513 4030017780 S.CER ECJ0EB1E472K T 15.9/46.8

C551 4030017650 S.CER ECJ0EC1H270J T 22.5/45.4

C552 4030017500 S.CER ECJ0EC1H560J T 21.1/45

C553 4030017650 S.CER ECJ0EC1H270J T 19.2/45.4

C554 4030017780 S.CER ECJ0EB1E472K T 15.6/43.2

C555 4030017670 S.CER ECJ0EC1H390J T 14.5/42

C556 4030017350 S.CER ECJ0EC1H020B T 14/43.2

C557 4030017420 S.CER ECJ0EC1H470J T 13.1/42

C558 4030017590 S.CER ECJ0EC1H070C T 10/43.2

C559 4030017420 S.CER ECJ0EC1H470J T 8.9/42

C560 4030017630 S.CER ECJ0EC1H120J T 8.4/43.2

C561 4030017660 S.CER ECJ0EC1H330J T 7.9/42

C562 4030017780 S.CER ECJ0EB1E472K T 4.9/45.3

C563 4030017780 S.CER ECJ0EB1E472K T 11.7/41.6

C601 4030017780 S.CER ECJ0EB1E472K T 24.7/39.9

C602 4030017400 S.CER ECJ0EC1H220J T 23.3/37.6

C603 4030017360 S.CER ECJ0EC1H030B T 21.9/37.8

C604 4030017630 S.CER ECJ0EC1H120J T 13.3/40.4

C605 4030017620 S.CER ECJ0EC1H100C T 11.6/40.4

C606 4030017660 S.CER ECJ0EC1H330J T 18.4/36.9

C607 4030017600 S.CER ECJ0EC1H080C T 17.7/38.1

C608 4030017650 S.CER ECJ0EC1H270J T 17.2/36.9

C609 4030017640 S.CER ECJ0EC1H150J T 16.1/38.1

C610 4030017640 S.CER ECJ0EC1H150J T 15.9/36.9

C611 4030017440 S.CER ECJ0EC1H221J T 12.1/39.5

C612 4030017510 S.CER ECJ0EC1H680J T 10.2/40

C613 4030017620 S.CER ECJ0EC1H100C T 8.2/40.1

C614 4030017640 S.CER ECJ0EC1H150J T 5.4/40.3

C615 4030017670 S.CER ECJ0EC1H390J T 6.8/39.9

C616 4030017780 S.CER ECJ0EB1E472K T 6.8/38.2

C617 4030017780 S.CER ECJ0EB1E472K T 22/36.4

C618 4030017650 S.CER ECJ0EC1H270J T 3.3/37.1

C651 4030017620 S.CER ECJ0EC1H100C T 24.6/34.8

C652 4030017450 S.CER ECJ0EB1E271K T 23.7/34.8

C653 4030017590 S.CER ECJ0EC1H070C T 21.7/35.2

C654 4030017680 S.CER ECJ0EC1H820J T 20.4/34.8

C655 4030017600 S.CER ECJ0EC1H080C T 19.2/35.2

C656 4030017420 S.CER ECJ0EC1H470J T 17.9/34.8

C657 4030017630 S.CER ECJ0EC1H120J T 16.5/35.2

C658 4030017340 S.CER ECJ0EC1H010B T 13.3/32.8

C659 4030017360 S.CER ECJ0EC1H030B T 9.4/32.6

C660 4030017640 S.CER ECJ0EC1H150J T 14.6/32.3

C661 4030017650 S.CER ECJ0EC1H270J T 12.8/31.6

C662 4030017400 S.CER ECJ0EC1H220J T 8.5/31.6

C663 4030017380 S.CER ECJ0EC1H050B T 8/32.8

C664 4030017460 S.CER ECJ0EB1E102K T 5.4/34.9

C665 4030017390 S.CER ECJ0EC1H180J T 7.6/31.6

C666 4030017780 S.CER ECJ0EB1E472K T 11.5/31.2

C701 4030017460 S.CER ECJ0EB1E102K T 25/29.3

C702 4030017640 S.CER ECJ0EC1H150J T 23.6/27.2

C703 4030017540 S.CER ECJ0EC1HR75B T 22.2/27.4

C704 4030017650 S.CER ECJ0EC1H270J T 18.7/26.4

C705 4030017350 S.CER ECJ0EC1H020B T 18.2/27.7

C706 4030017400 S.CER ECJ0EC1H220J T 17.5/26.4

C707 4030017570 S.CER ECJ0EC1H040B T 16.6/27.7

C708 4030017390 S.CER ECJ0EC1H180J T 16.3/26.4

C709 4030017590 S.CER ECJ0EC1H070C T 13.9/30

C710 4030017500 S.CER ECJ0EC1H560J T 12.5/29.1

C711 4030017380 S.CER ECJ0EC1H050B T 11.9/30

C712 4030017500 S.CER ECJ0EC1H560J T 10.7/29.3

C713 4030017380 S.CER ECJ0EC1H050B T 9.5/29.6

C714 4030017710 S.CER ECJ0EC1H181J T 8.1/29.7

C715 4030017630 S.CER ECJ0EC1H120J T 6.9/29.3

C716 4030017780 S.CER ECJ0EB1E472K T 21.5/26

C717 4030017460 S.CER ECJ0EB1E102K T 5.3/29.3

C751 4030017590 S.CER ECJ0EC1H070C T 24.8/24.5

C752 4030017710 S.CER ECJ0EC1H181J T 23.9/24.5

C753 4030017380 S.CER ECJ0EC1H050B T 21.4/24.8

C754 4030017500 S.CER ECJ0EC1H560J T 20.4/23.9

C755 4030017380 S.CER ECJ0EC1H050B T 19.8/24.8

C756 4030017650 S.CER ECJ0EC1H270J T 18.6/24.4

C757 4030017600 S.CER ECJ0EC1H080C T 16.7/24.8

C758 4030017610 S.CER ECJ0EC1H090C T 15/21.9

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DDS UNIT]

C759 4030017530 S.CER ECJ0EC1H0R5B T 14.1/22.2

C760 4030017640 S.CER ECJ0EC1H150J T 13.2/21.9

C761 4030017350 S.CER ECJ0EC1H020B T 9.7/22.2

C762 4030017630 S.CER ECJ0EC1H120J T 8.6/21.2

C763 4030017360 S.CER ECJ0EC1H030B T 8.2/22.4

C764 4030017620 S.CER ECJ0EC1H100C T 7.7/21.2

C765 4030017460 S.CER ECJ0EB1E102K T 5.3/24.6

C766 4030017780 S.CER ECJ0EB1E472K T 11.9/20.8

C802 4030017590 S.CER ECJ0EC1H070C T 26.5/19.3

C803 4030017380 S.CER ECJ0EC1H050B T 25.2/18.9

C804 4030017570 S.CER ECJ0EC1H040B T 24.3/18.9

C806 4030017600 S.CER ECJ0EC1H080C T 24.3/17.2

C807 4030017360 S.CER ECJ0EC1H030B T 23.4/18.9

C808 4030017660 S.CER ECJ0EC1H330J T 23/16.7

C809 4030017570 S.CER ECJ0EC1H040B T 23/17.6

C810 4030017570 S.CER ECJ0EC1H040B T 21.7/16.6

C811 4030017590 S.CER ECJ0EC1H070C T 21.2/17.9

C812 4030017610 S.CER ECJ0EC1H090C T 20.8/16.6

C813 4030017350 S.CER ECJ0EC1H020B T 19.7/18.7

C814 4030017580 S.CER ECJ0EC1H060C T 19.7/17

C815 4030017460 S.CER ECJ0EB1E102K T 20.3/12.5

C816 4030017460 S.CER ECJ0EB1E102K T 15.1/10.8

C817 4030017730 S.CER ECJ0EB1E471K T 19/9

C824 4030017590 S.CER ECJ0EC1H070C T 13/13

C825 4030017380 S.CER ECJ0EC1H050B T 14.2/13.4

C826 4030017570 S.CER ECJ0EC1H040B T 13/15.1

C827 4030017620 S.CER ECJ0EC1H100C T 14.6/15.5

C828 4030017360 S.CER ECJ0EC1H030B T 13.9/16.4

C829 4030017660 S.CER ECJ0EC1H330J T 12.7/16.9

C830 4030017570 S.CER ECJ0EC1H040B T 11.8/17.6

C831 4030017570 S.CER ECJ0EC1H040B T 11.8/19.2

C832 4030017590 S.CER ECJ0EC1H070C T 10.3/19.1

C833 4030017610 S.CER ECJ0EC1H090C T 8.4/19.1

C834 4030017350 S.CER ECJ0EC1H020B T 8/17.9

C835 4030017580 S.CER ECJ0EC1H060C T 7/19.5

C838 4030017460 S.CER ECJ0EB1E102K T 5.3/19.5

C839 4030017780 S.CER ECJ0EB1E472K T 25.4/14.5

C840 4030017460 S.CER ECJ0EB1E102K T 6.5/15.6

C841 4030006860 S.CER C1608 JB 1H 102K-T B 3.6/22.2

C851 4030017780 S.CER ECJ0EB1E472K T 4.5/14

C901 4030017780 S.CER ECJ0EB1E472K T 2.4/68.4

C902 4030017430 S.CER ECJ0EC1H101J T 16/53.2

C951 4030016930 S.CER ECJ0EB1A104K T 52.3/38.2

C952 4030011600 S.CER C1608 JB 1E 104K-T T 58.3/46.9

C953 4030016930 S.CER ECJ0EB1A104K T 54/18.3

C954 4030017780 S.CER ECJ0EB1E472K T 54.1/28.1

C955 4030016930 S.CER ECJ0EB1A104K T 52.8/33.2

C956 4030016930 S.CER ECJ0EB1A104K T 49.2/21

C957 4030016930 S.CER ECJ0EB1A104K T 53.8/35.9

C958 4030017780 S.CER ECJ0EB1E472K T 52.8/34.1

C959 4030017780 S.CER ECJ0EB1E472K T 52.8/35

C960 4030016930 S.CER ECJ0EB1A104K T 53.5/38.9

C961 4030016930 S.CER ECJ0EB1A104K T 52.3/39.8

C962 4030016930 S.CER ECJ0EB1A104K T 52.3/44.6

C963 4030016930 S.CER ECJ0EB1A104K T 53.5/38

C964 4030017460 S.CER ECJ0EB1E102K T 55/44.8

C966 4030016930 S.CER ECJ0EB1A104K T 52.3/41.4

C967 4030016930 S.CER ECJ0EB1A104K T 52.3/43

C968 4030018960 S.CER C3216 JB 1C 106MT-N B 42/43.9

C972 4030018970 S.CER C3225 JB 1C 226MT-N B 42.2/3.5

C973 4030018970 S.CER C3225 JB 1C 226MT-N B 29/2.7

C974 4030018970 S.CER C3225 JB 1C 226MT-N B 32/2.7

C975 4550007140 S.TAN TEESVD 1C 107M12R B 16.7/4.1

C976 4550007140 S.TAN TEESVD 1C 107M12R B 23.5/10.5

C977 4550007140 S.TAN TEESVD 1C 107M12R B 23.5/19.5

C978 4550007140 S.TAN TEESVD 1C 107M12R B 32.3/10.5

C981 4030016930 S.CER ECJ0EB1A104K T 54.4/12.5

C982 4030006860 S.CER C1608 JB 1H 102K-T B 14/67.1

C983 4030006860 S.CER C1608 JB 1H 102K-T B 7.4/74

C991 4030006860 S.CER C1608 JB 1H 102K-T B 10/68.1

C992 4030006860 S.CER C1608 JB 1H 102K-T B 7.2/67.3

C993 4030006860 S.CER C1608 JB 1H 102K-T B 4.2/74

C994 4030006860 S.CER C1608 JB 1H 102K-T B 5.6/71.3

C995 4030006860 S.CER C1608 JB 1H 102K-T B 2.2/59.2

C996 4030006860 S.CER C1608 JB 1H 102K-T B 5/58.8

C997 4030006860 S.CER C1608 JB 1H 102K-T B 2.9/55

C998 4030006860 S.CER C1608 JB 1H 102K-T B 3.1/62.6

C1001 4030011600 S.CER C1608 JB 1E 104K-T T 58.3/48.4

C1051 4030006880 S.CER C1608 JB 1H 472K-T B 20.2/65.3

C1052 4030006880 S.CER C1608 JB 1H 472K-T B 19.2/60.3

C1101 4030017780 S.CER ECJ0EB1E472K T 38.9/52.1

C1102 4030017780 S.CER ECJ0EB1E472K T 44.2/50.3

C1104 4030017780 S.CER ECJ0EB1E472K T 42.2/62.2

C1105 4030017780 S.CER ECJ0EB1E472K T 40.6/59.9

C1106 4030017780 S.CER ECJ0EB1E472K T 40.4/55.9

C1107 4030017780 S.CER ECJ0EB1E472K T 43.3/56.9

C1108 4030017460 S.CER ECJ0EB1E102K T 40.1/62.2

C1109 4030006880 S.CER C1608 JB 1H 472K-T B 35.1/76.9

C1110 4030017780 S.CER ECJ0EB1E472K T 33.5/59.6

C1111 4030017780 S.CER ECJ0EB1E472K T 29.7/59.6

C1112 4030017780 S.CER ECJ0EB1E472K T 38.2/63.4

5 - 24

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[DDS UNIT]

C1113 4030017780 S.CER ECJ0EB1E472K T 37.1/59.7

C1114 4030017780 S.CER ECJ0EB1E472K T 24.4/60.6

C1115 4030017780 S.CER ECJ0EB1E472K T 35.3/59.8

C1116 4030017460 S.CER ECJ0EB1E102K T 23.1/63.7

C1117 4030006860 S.CER C1608 JB 1H 102K-T B 20.9/63.9

C1151 4030017780 S.CER ECJ0EB1E472K T 50.5/66.3

C1152 4030017780 S.CER ECJ0EB1E472K T 46.4/66.3

C1153 4030017780 S.CER ECJ0EB1E472K T 43.7/68.2

C1154 4030017780 S.CER ECJ0EB1E472K T 52/66.3

C1155 4030017780 S.CER ECJ0EB1E472K T 57.9/68.3

RL1101 6330001721 RLY ATN207-K1

J151 6510007020 CNR TMP-J01X-V6

J851 6510018450 CNR TMP-S01X-B1

J951 6510024880 S.CNR 52689-3087 T 59.2/35.3

J952 6510024880 S.CNR 52689-3087 T 59.2/12.4

J1001 6510003520 CNR S04B-EH-S

J1051 6450001790 CNR HLJ7000-01-3010

J1101 6450001641 CNR TCS5044-0141177

J1151 6450001841 CNR TCS7568-43-201

EP6 6910012350 S.BEA MMZ1608Y 102BT B 12.9/8.4

EP251 6910012350 S.BEA MMZ1608Y 102BT B 33.1/18.7

EP301 6910012350 S.BEA MMZ1608Y 102BT B 49.7/25

EP302 6910012350 S.BEA MMZ1608Y 102BT B 32.9/27.8

EP303 6910012350 S.BEA MMZ1608Y 102BT B 32.9/26.1

EP304 6910012350 S.BEA MMZ1608Y 102BT B 35.8/28.4

EP305 6910012350 S.BEA MMZ1608Y 102BT B 41/27.1

EP451 6910012350 S.BEA MMZ1608Y 102BT B 39.9/47.8

EP452 6910012350 S.BEA MMZ1608Y 102BT B 48.6/44.6

EP809 6910012350 S.BEA MMZ1608Y 102BT B 16.6/7.1

EP951 6910012350 S.BEA MMZ1608Y 102BT B 53.3/24.3

EP952 6910012350 S.BEA MMZ1608Y 102BT B 49.9/22.6

EP953 6910012350 S.BEA MMZ1608Y 102BT T 54/43.4

EP954 6910012350 S.BEA MMZ1608Y 102BT T 54/42.1

EP955 6910012350 S.BEA MMZ1608Y 102BT T 54.2/40

EP956 6910012350 S.BEA MMZ1608Y 102BT T 54.6/37

EP957 6910012350 S.BEA MMZ1608Y 102BT B 39.5/46.1

EP958 6910012350 S.BEA MMZ1608Y 102BT B 55.9/47.4

EP959 6910012350 S.BEA MMZ1608Y 102BT B 55.9/32.7

EP960 6910012350 S.BEA MMZ1608Y 102BT B 56.9/28.9

EP964 6910012350 S.BEA MMZ1608Y 102BT B 53.3/22.2

EP981 6910012350 S.BEA MMZ1608Y 102BT T 55.3/14.2

EP1003 6910016790 S.BEA FHH-1M3216-601 T 57.3/50.3

EP1004 6910016790 S.BEA FHH-1M3216-601 T 53.9/50

EP1051 6910012350 S.BEA MMZ1608Y 102BT B 20.2/66.8

EP1052 6910012350 S.BEA MMZ1608Y 102BT B 19.2/58.7

EP1100 6910012350 S.BEA MMZ1608Y 102BT B 38.7/63.4

EP1101 6910012350 S.BEA MMZ1608Y 102BT T 27.5/63.3

EP1102 6910012350 S.BEA MMZ1608Y 102BT T 34.4/62.4

EP1103 6910012350 S.BEA MMZ1608Y 102BT T 51.1/69.2

EP1104 6910012350 S.BEA MMZ1608Y 102BT T 56.1/69.2

EP1105 6910014730 S.BEA MPZ2012S331A-T B 41/67.8

EP1106 6910014730 S.BEA MPZ2012S331A-T B 34.7/61.7

EP1107 6910014730 S.BEA MPZ2012S331A-T B 31.4/61.7

EP1108 6910014730 S.BEA MPZ2012S331A-T B 27.5/73.6

S.=Surface mount

J1 6510000370 CNR MR-DS

J2 6510000370 CNR MR-DS

SP1 2510000991 SP VS-C66Y0811A

MF1 2710000790 FAN AFB0512HB-4L50

W1 8600037110 WIR SP CABLE (P01CH)

W3 8900015210 CBL OPC-1448A (P0.5, N28, L60)

W4 8900015210 CBL OPC-1448A (P0.5, N28, L60)

W5 8900015220 CBL OPC-1461A (P0.5, N30, L40)

W6 8900015220 CBL OPC-1461A (P0.5, N30, L40)

W7 8900013970 CBL OPC-1450 (N=10, L=53)

W11 8600037122 WIR P02*J03CH-2 M500

W15 8970024620 WIR 1.5D COAXIAL 95 mm

W17 8970024630 WIR 1.5D COAXIAL 170 mm

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[CHASSIS UNIT]

J1 6510019971 S.CNR 52808-1071

W1 8900014810 CBL OPC-1579

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[CONNECT UNIT]

5 - 25

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[HM-151]

IC1 1140011490 S.IC µPD789071MC-041-5A4-E1 B 51.1/24.5

IC3 1110006310 S.IC BD5245G-TR B 67.3/34.8

Q1 1530001941 S.TR 2SC2712-BL (TE85R,F) B 26.1/11

Q2 1590000680 S.TR DTC114EUA T106 B 21.6/34.8

Q3 1590001330 S.TR DTA114EUA T106 B 24.7/34.8

Q5 1510000771 S.TR 2SA1586-GR (TE85R,F) B 54.8/37.7

D1 1790000950 S.ZEN MA8056-M (TX) B 23.1/17

D3 1750000940 S.DIO ISS400 TE61 B 64.7/23.2

D4 1750000940 S.DIO ISS400 TE61 B 64.7/29.2

D6 1750000940 S.DIO ISS400 TE61 B 58.7/20.8

D7 1750000940 S.DIO ISS400 TE61 B 42.8/16.7

D9 1750000940 S.DIO ISS400 TE61 B 34.1/16.3

D10 1750000940 S.DIO ISS400 TE61 B 34.9/17.8

D11 1750000940 S.DIO ISS400 TE61 B 38.8/14.5

D16 1730002280 S.ZEN MA8091-M (TX) B 55.2/14.5

D17 1730002280 S.ZEN MA8091-M (TX) B 48.8/14.5

D18 1730002280 S.ZEN MA8091-M (TX) B 13.1/13.7

X1 6060000610 S.CER EFOS4914E3 B 42.6/22.3

L1 6200005051 S.COL NLV25T-330J B 12.3/28.9

L2 6200005011 S.COL NLV25T-100J B 11/13.9

R2 7030000400 S.RES MCR10EZHJ 1.5 kΩ B 24.2/8.3

R3 7030000400 S.RES MCR10EZHJ 1.5 kΩ B 41.9/8.3

R4 7030000400 S.RES MCR10EZHJ 1.5 kΩ B 57.3/8.2

R5 7030003400 S.RES ERJ3GEYJ 471 V (470Ω) B 28.6/11.2

R6 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) B 26.8/34.7

R7 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) B 23.3/36.8

R8 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) B 19.1/33.7

R11 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 53/35

R12 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 55/34.2

R14 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 47.2/6.1

R18 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 41.6/33.6

R19 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 38.4/34.5

R22 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 37.9/18.7

R23 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 56.1/18.1

R24 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 58/18.6

R25 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 59.8/18.9

R27 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 68.1/32.5

R35 7030000400 S.RES MCR10EZHJ 1.5 kΩ B 69.1/11.9

R36 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 20.5/30.6

R37 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) B 19.1/30.6

R39 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 24.4/5.7

R40 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 24.4/3

R41 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) B 17/32.7

R42 7030003860 S.RES ERJ3GE JPW V B 68.4/21.6

R44 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 57.3/22.1

R45 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 53.9/18

R46 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 37.8/15.8

R47 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 37.6/17.1

R48 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 45.3/17.6

R49 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 57.3/26.2

R50 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 58.1/23.4

C1 4030006850 S.CER C1608 JB 1H 471K-T B 52/16.9

C2 4510008500 S.ELE EEE1CA101WP B 35.5/5.8

C5 4030007050 S.CER C1608 CH 1H 220J-T B 14.9/30.4

C9 4030007050 S.CER C1608 CH 1H 220J-T B 20.8/16.8

C10 4030007050 S.CER C1608 CH 1H 220J-T B 19.8/11.6

C11 4030007050 S.CER C1608 CH 1H 220J-T B 17/5.6

C12 4030011600 S.CER C1608 JB 1E 104K-T B 64.9/34.4

C13 4030011600 S.CER C1608 JB 1E 104K-T B 44.3/27.6

C14 4030006900 S.CER C1608 JB 1H 103K-T B 67.5/37.2

C16 4030006860 S.CER C1608 JB 1H 102K-T B 14.7/13.6

C17 4030006880 S.CER C1608 JB 1H 472K-T B 11.7/17.4

C18 4030006880 S.CER C1608 JB 1H 472K-T B 10.4/17.4

C19 4030011600 S.CER C1608 JB 1E 104K-T B 13/25.8

C21 4030011600 S.CER C1608 JB 1E 104K-T B 11.7/25.8

C22 4030011600 S.CER C1608 JB 1E 104K-T B 10.4/28.5

C23 4030011600 S.CER C1608 JB 1E 104K-T B 23.1/14

C24 4030011600 S.CER C1608 JB 1E 104K-T B 67.2/12.1

C25 4030011600 S.CER C1608 JB 1E 104K-T B 25.6/32.2

C26 4030011600 S.CER C1608 JB 1E 104K-T B 44.5/6.1

C27 4030011600 S.CER C1608 JB 1E 104K-T B 51.7/35

C29 4510008540 S.ELE EEE1CA100SR B 26.4/16

C30 4030010210 S.CER C3216 JB 1C 105M-T B 19.8/4.6

C31 4510008540 S.ELE EEE1CA100SR B 28.3/4.9

C32 4030011600 S.CER C1608 JB 1E 104K-T B 55/35.7

J1 6510023110 CNR 3008L-8P8C

DS1 5010000120 S.LED LN1371G-(TR) T 21.9/11

DS2 5010000120 S.LED LN1371G-(TR) T 21.9/32

DS3 5010000120 S.LED LN1371G-(TR) T 39.3/11

DS4 5010000120 S.LED LN1371G-(TR) T 39.3/32

DS5 5010000120 S.LED LN1371G-(TR) T 55.9/2.5

DS6 5010000120 S.LED LN1371G-(TR) T 56.2/26.8

DS7 5010000120 S.LED LN1371G-(TR) T 71.7/14.8

DS8 5010000120 S.LED LN1371G-(TR) T 72.2/33.8

DS10 5040002890 S.LED SML-310FT T86 T 51.6/5

DS11 5040002620 S.LED SML-311UT T86 T 51.6/38

MC1 7700002310 MIC EM-140

S1 2260000980 SW SKHHLP014A

W1 8900011270 WIR OPC-1153

EP1 6910012350 S.BEA MMZ1608Y 102BT B 10.4/25.8

EP2 6910012350 S.BEA MMZ1608Y 102BT B 14.3/17.4

EP3 6910012350 S.BEA MMZ1608Y 102BT B 13/17.4

EP4 6910012350 S.BEA MMZ1608Y 102BT B 14.7/11

EP5 6910012350 S.BEA MMZ1608Y 102BT B 15/25

S.=Surface mount

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[HM-151]

SECTION 6 MECHANICAL PARTS AND DISASSEMBLY

6 - 1

[MAIN UNIT]

MP1 8510017200 2427 A-shield plate 1

MP2 8930067510 2427 B-earth spring 1

MP3 8930030380 Ferrite sheet (C) 15 × 8 × 2 1

MP4 8930068000 Shield sponge (AT) 1

MP101 8510017330 2427 LPF case Y807 1

MP102* 8930068000 Shield sponge (AT) 1

MP201 8510017210 2427 B-shield plate 1

MP501* 8510017620 2427 mix shield plate 1

MP802 8930067500 2427 A-earth spring 1

MP1951 8510017200 2427 A-shield plate 1

MP2001 8510017170 2427 mic plate 1

MP2002 8930068240 2427 C-earth spring 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[FRONT UNIT]

W1 8900013940 Cable OPC-1447 (N=10, L=30) 1

W2 8900013990 Cable OPC-1445 1

DS1 5030002820 LCD LTA025A161A 1

EP1 0880001670 Encoder EX-2832 1

MP1 8210021760 2427 front panel 1

MP2 8210021770 2427 rear panel 1

MP4 8310063800 2427 window plate 1

MP5 8930069540 2427 A-window sheet 1

MP11 8610012370 Knob N328 1

MP12 8610012380 Knob N328 (A) 1

MP13 8610012390 Knob N329 1

MP14 8610012400 Knob N330 1

MP18 8930065660 2427 brake button 1

MP19 8930065541 2427 power button-1 1

MP20 8930065550 2427 release button 1

MP21 8610012340 Knob K246 1

MP22 8610012330 Knob K247 1

MP23 8610012320 Knob K248 1

MP24 8610012311 Knob K249-1 1

MP25 8610012300 Knob K250 1

MP26 8610012290 Knob K251 1

MP27 8610012280 Knob K252 1

MP28 8610012270 Knob K253 1

MP29 8610012260 Knob K254 1

MP30 8610012250 Knob K255 1

MP31 8610012240 Knob K255 (A) 1

MP32 8610012210 Knob K256 1

MP33 8610012220 Knob K257 1

MP34 8610012230 Knob K258 1

MP35 8930065530 2427 TS lock button 1

MP41 8930065590 2427 LCD holder 1

MP42 8210021790 2427 reflector 1

MP43 8850002610 Plain washer (AI) 1

MP44 8830002440 2427 nut 1

MP51 8930065570 2427 A-release button 1

MP52 8930065580 2427 B-release button 1

MP61 8950006480 2427 B-contact base 1

MP64 8930065610 2427 LCD filter 1

MP65 8930069670 2427 A-LCD sheet 1

MP67 8930065600 Coil spring (AI) 2

MP72 8830001010 Hex nut (A) 2

MP74 8930036740 1691 brake pad 2

MP81 8810009220 Screw PH B0 M2 × 8 ZK (BT) 3

MP82 8810009220 Screw PH B0 M2 × 8 ZK (BT) 2

MP83 8930066680 Coil spring (AJ) 2

MP84 8850000110 Flat washer M2 NI BS 2

MP85 8810008640 Screw FH BT M2 × 4 NI-ZU 2

MP86 8930065560 2427 slide button 1

MP87 8010020110 2427 LCD frame 1

MP88 8930066450 2427 A-prism sheet 1

MP89 8930066440 2427 B-prism sheet 1

MP90 8930062190 Double side tape (AJ) 2

MP91 8610012551 Knob N331 assembly -1 1

(incl: Base, Cover, Finger reset, etc)

MP101 8930066760 2427 A-sponge 2

MP102 8930066750 2427 B-sponge 1

MP103 8930066740 2427 C-sponge 1

MP104 8930066730 2427 D-sponge 1

MP106 8930067580 Insulation sheet (LG) 1

MP107 8930049260 Himelon sheet CA 2

MP108 8930067710 2427 A-sheet 1

MP109 8930067720 2427 B-sheet 1

MP110 8930067700 2427 B.P. sheet 1

MP111 8930067960 Sponge (IQ) 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[DISPLAY UNIT]

MP1 8510016980 2427 shield case 1

MP2 8510016970 2427 shield plate 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[VR UNIT]

R1 7210003230 Variable resistor TP96D00A-17F-10KBX2 1

S1 2250000170 Encoder TP90D96AE20-17F (1352) 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[LOGIC UNIT]

BT1301 3020000330 Lithium battery ML920S/F9D 1

MP1 8510017000 2427 logic case 1

MP2 8510016990 2427 logic cover 1

MP3 8930068080 Thermally sheet (AU) 1

MP5 8930068370 2427 A-magnetic shield 1

MP6 8930056010 Enboss tape (K) 2

MP7 8930068370 2427 A-magnetic shield 1

MP201 8930055051 Thermally sheet (V)-1 1

MP301 8930062210 Thermally sheet (AL) 1

MP1301 8930052770 Double coated tape (Y) 1

MP2221 8930055051 Thermally sheet (V)-1 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[DDS UNIT]

J1051 6450001790 Connector HLJ7000-01-3010 1

J1101 6450001640 Connector TCS5044-01-4111 1

J1151 6450001840 Connector TCS7568-43-201 1

MP201 8510017200 2427 A-shield plate 1

MP202* 8510017440 2427 B-DDS plate 1

MP301* 8510017230 2427 DDS case 1

MP302 8930024170 Earth spring (G) 1

MP321* 8510017250 2427 DDS plate 1

MP451 8510017500 2427 C-shield plate 1

MP452* 8510017240 2427 A-DDS case 1

MP453* 8930063970 Shield sponge (AM) 1

MP601 8930067520 2427 DDS spring 1

MP801* 8930024170 Earth spring (G) 1

MP851 8510017260 2427 A-DDS plate 1

MP1101 8930067530 Sponge (IP) 1

MP1102 8930067520 2427 DDS springe 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

*: Refer to SEC 8 BOARD LAYOUTS.

Screw abbreviations BT, B0: Self-tapping

FH: Flat head PH: Pan head

ZK: Black BS: Brass

NI: Nickel NI-ZU: Nickel-Zinc

EP1 P1

MP1

EP2

MC1

6 - 2

[ACCESSORIES]

P1 5610000050 Plug AP330 1

P2 5610000170 Plug AP370B 1

F1 5210000840 Fuse ATC-30 2

F2 5210000940 Fuse 1205 1

W1 8900013980 Cable OPC-1457 [USA], [EXP] only 1

W2 8900006110 Cable OPC-596 1

EP1 0880001680 Cable OPC-1457R except [USA], [EXP] 1

EP2 6910011940 Bead ZCAT2436 except [USA], [EXP] 1

MC1

Optional product

Microphone HM-151 1

MP1 8930007300 Mic hanger 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[CHASSIS PARTS]

J1 6510000370 Connector MR-DS 1

J2 6510000370 Connector MR-DS 1

W1 8600037110 SP cable 1

W3 8900015210 Cable OPC-1448A (N=28, L=60) 1

W4 8900015210 Cable OPC-1448A (N=28, L=60) 1

W5 8900015220 Cable OPC-1461A (N=30, L=40) 1

W6 8900015220 Cable OPC-1461A (N=30, L=40) 1

W7 8900013970 Cable OPC-1450 (N=10, L=53) 1

W11 8600037122 Cable SX2427 P02 × J03CH-2 M500 1

W15 8970024620 Wire 1.5D 95MM C31/C31 1

W17 8970024630 Wire 1.5D170MM C31/C31 1

SP1 2510000991 Speaker VS-C66Y0811A 1

MF1 2710000790 Fan AFB0512HB-4L50 1

EP2 9010001410 Tube 1

MP1 8010019970 2427 chassis 1

MP2 8110008491 2427 U-cover assembly -1 1

(incl: U-cover, SP net, A net, B net, etc)

MP3 8110008341 2427 L-cover-1 1

MP4 8860001370 2427 ANT lug 2

MP5 8930065990 2427 ANT plate 2

MP6 8210021781 2427 chassis panel-1 1

MP11 8930042440 1897 SP holder 1

MP13 8930002910 Rubber foot (B) 2

MP14 8810008660 Screw PH BT M3 × 8 NI-ZU 17

MP15 8810008660 Screw PH BT M3 × 8 NI-ZU 4

MP16 8810010590 Screw PH BT M3 × 20 NI-ZU 4

MP17 8810009560 Screw PH BT M2 × 6 ZK 1

MP18 8810004280 Screw PH M3 × 5 ZK 7

MP19 8810004430 Screw PH M3 × 6 ZK 4

MP20 8810009040 Setscrew H M2.6 × 10 NI 8

MP21 8810008020 Setscrew C M2.6 × 12 ZK 2

MP22 8810009610 Screw FH M2.6 × 6 ZK 16

MP23 8810009610 Screw FH M2.6 × 6 ZK 4

MP24 8810009070 Screw PH M2.6 × 8 ZK 2

MP25 8930048550 2177 clip 1

MP31 8930005790 Foot (A) 1

MP32 8930005800 Foot (B) 1

MP33 8930065980 2427 stand 1

MP35 8930065920 2427 fan holder 1

MP36 8930065930 2427 fan rubber 1

MP37 8810008660 Screw PH BT M3 × 8 NI-ZU 2

MP38 8930065910 2427 earth spring 1

MP40 8930065630 2427 fuse sheet 1

MP41 8930065910 2427 earth spring 1

MP42 8310064590 2427 plate 1

MP43 8820000530 Bolt M4 × 8 NI 1

MP44 8850000140 Flat washer M4 NI BS 1

MP45 8850001560 Washer M4 1

MP46 8930066720 2427 USB sheet 1

MP47 8930067490 2427 fan spring 1

MP48 8930067540 2427 shield tape 4

MP49 8930067740 2427 magnetic shield 1

MP50 8930067980 Shield sponge (AS) 1

MP51 8930068000 Shield sponge (AT) 1

MP52 8930068000 Shield sponge (AT) 1

MP53 8930063970 Shield sponge (AM) 1

MP54 8930063970 Shield sponge (AM) 1

MP55 8930027730 Sponge (DC) 1

MP56 8930063430 CU sheet (S) 1

MP57 8930068260 Thermally sheet (AV) 2

MP58 8930067980 Shield sponge (AS) 1

MP59 8930068390 2427 D-earth spring 1

MP60 8930068420 Sponge (IS) 1

MP61 8930068380 Sponge (IR) 1

MP62 8930032100 Sponge (DP) 2

MP63 8930069070 Shield sponge (AU) 1

MP64 8930043800 Double coated tape (S) 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[DRIVER UNIT]

MP1 8410002480 2429 PA heatsink 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[CONNECT UNIT]

W1 8900014810 Cable OPC-1579 1

MP1 8950006470 2427 A-contact base 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

[PA UNIT]

F1 5220000340 Holder FHA010-03 1

F2 5210000940 Fuse 1205 1

W701 8900013900 Cable OPC-1455 1

MP201* 8930068250 2427 PA plate 1

MP251* 8930014140 Earth spring (D) 1

MP301 8860001130 2177 PA shield plate 1

MP302 8860001130 2177 PA shield plate 1

MP401 8860001360 2427 PA shield plate 1

MP402 8930014140 Earth spring (D) 1

MP403* 8930014140 Earth spring (D) 1

MP404* 8930014140 Earth spring (D) 1

MP405 8930067570 2427 A-PA spring 1

MP410 8930067290 Shield sponge (AR) 1

MP501 8510016950 2427 PA cover 1

MP502* 8930014140 Earth spring (D) 1

MP531 8930068400 2427 E-earth spring 1

MP551* 8510012150 2177 PA S-plate 1

MP871* 8930014140 Earth spring (D) 1

MP901* 8930014140 Earth spring (D) 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

*: Refer to SEC 8 BOARD LAYOUTS.

6 - 3

MP2 (C)

MP50 (C)

MP58 (C)

MP48 (C)

MP22 (C)

MP53 (C)

MP48 (C)

MP23 (C)

MP48 (C)

MP54 (C)

MP51 (C)

MP52 (C)

MP13 (C)

MP24 (C)

MP32 (C)

MP57 (C)

MP31 (C)

MP19 (C) MP19 (C)

MP3 (C)

MP48 (C)

MP22 (C)

MP24 (C)

MP33 (C)

MP21 (F)

MP13 (F)

MP21 (F)

MP5 (F) MP25 (F)

MP26 (F)MP4 (F)

MP11 (F)

MP12 (F)

MP14 (F)

MP19 (F)

MP33 (F)

MP34 (F)

MP91 (F)

MP23 (F)

MP24 (F)

MP29 (F) MP31 (F)

MP28 (F)

MP27 (F) MP35 (F)

MP32 (F)

MP30 (F)

J1051 (DD) J1101 (DD) J1151 (DD) W11 (C)

J2602 (M)

J1 (C)

W701 (P)J2 (C)

J2402 (M)

J2401 (M)

J2407 (M)

J2003 (M)

MP43 (C)

MP45 (C)

MP44 (C)

MP46 (C)

MP3 (L)

MP14 (C)

MP1 (L)

MP6 (L)

MP201 (L)

MP6 (L)

MP14 (C)

MP5 (L)

W11 (C)

MP451

(DD)

MP2221 (L)

LOGIC UNIT

DDS UNIT

MAIN UNIT

MP14 (C)

MP302

(DD)

MP601

(DD)

MP1102

(DD)

MP1101

(DD)

MP851(DD)

W17 (C)

W15 (C)

MP201

(DD)

MP1301 (L)

BT1301 (L)

MP301 (L)

MP7 (L)

MP2 (L)

W5 (C)

MP25 (C)

W6 (C)

MP2001 (M)

MP2 (M)

MP4 (M)

MP14 (C)

MP3 (M)

SP1 (C)

W1 (C)

MP11 (C)

MP14 (C)

MP101 (M)

W7 (C)

MP55 (C)

MP2

MP62 (C)

W3 (C)

2002

(M) MP1

(M) MP501

(M)

MP1951 (M)

W4 (C)

MP201 (M)

MP47 (C)

MP60 (C)

MP37 (C)

MP35 (C)

MP410 (P)

MP56 (C)

MP49 (C)

MP44 (C)

MP45 (C)

MP43 (C)

MP46 (C)

MP5 (C)

MP4 (C)

J1 (C) MP15 (C)

MP15 (C)

J2 (C)

MP4 (C)

MP5 (C)

W701 (P)

MP531 (P)

MP14 (C)

PA UNIT

MP401 (P)

MP20 (C)

MP402 (P)

MP501

(P)

MP301 (P)

MP20 (C)

MP302

(P)

F1 (P)

MP405 (P)

F2 (P)

MP14 (C)

MP1 (C)

MP63 (C)

DRIVER UNIT

MP38 (C)

MP1 (DR)

MP21 (C)

MP41 (C)

Unit abbreviations (C): CHASSIS PARTS (F): FRONT UNIT

(M): MAIN UNIT (DI): DISPLAY UNIT

(L): LOGI UNIT (V): VR UNIT

(P): PA UNIT (CO): CONNECT UNIT

(DR): DRIVER UNIT (DD): DDS UNIT

EP2 (C)

MP61 (C)

MP18 (C)

MP6 (C)

MP18 (C)

MP40 (C)

MP42 (C)

MP18 (C)

MP64 (CO)

W1 (CO)

MP1 (CO)

MP17 (C)

CONNECT UNIT

MF1 (C)

MP16 (C)

MP14 (C)

MP16 (C)

MP802 (M)

MP59 (C)

MP36 (C)

MP81

MP107

MP61

MP83

MP51

MP84

MP85

MP107

MP86

MP52

MP83

MP84

MP2 (DI)

MP1 (DI)

MP82

MP104

MP65

MP42

MP64

MP88

MP89

MP102

MP101

MP103

DISPLAY UNIT

MP90

MP87

DS1

MP106

MP21

MP22

MP23

MP24

MP25

MP26

MP27

MP28

MP29 MP30

MP4+MP5

MP31

MP12

MP11

MP13

MP72

MP14

MP32

MP1

MP111

EP1

MP33

MP34

MP91

MP44

MP43 MP74

MP74

MP18

MP110

MP108

MP35

MP20

MP67

MP19

R1(V)

VR UNIT

S1(V)

MP109

Unit : mm (inch)

FRONT UNIT

MP30

MP41

11.9(

15/32

)

160(6

5/16

)

(

13/16

)

42(1

21/32

)

167(6

9/16

)

58(2

9/32

)

1.3(

1/16

)2(

3/32

)

6 - 4

VOLTAGE LINE

Explanatory notes

TX LINE

DTC114EU

DTA114EU

2SA1586

MA8056

D16

MA8091

D17

MA8091

D18 MA8091

DS1

LN1371G

DS2

LN1371G

DS3

LN1371G

DS4

LN1371G

DS5

LN1371G

DS6

LN1371G

DS7

LN1371G

DS8

LN1371G

DS10

SML-310FT

DS11

SML-311UT

MC1

EM-140

MAIN UNIT

S6S7 S8

S9 S10 S11 S12

S13 S14 S15 S16

S17 S18 S19 S20

S21 S22 S23 S24

S25

S26

IC3 BD5245G

1VOUT

2VDD

3GND 4

EFOS4914E3

EP2

EP5

EP3

EP4

EP1

SKHHLP014A

C23 0.1

C24 0.1

C25 0.1

C27

0.1

C32

0.1

C26 0.1

C16 0.001

C17 0.0047

C18 0.0047

C19 0.1

C21 0.1

C22 0.1

C13

0.1

C12 0.1

470p

C2 100

C29

C5 22p

C9 22p

C10 22p

C11 22p

C14 0.01

C30 1

C31

R5 470

R35

1.5k

R6 33kR7 33k

R8 8.2k

R36

10k

R41 15k

R37

1.5k

R39 2.2kR40 2.2k

R12

10k

R11 2.2k

R18 10k

R19 47k

R27 10k

R42 0

L1 33µ

L2 10µ

1SS400

D11

1SS400

D10

1SS400

2SC2712

IC1

µPD789071MC-041-5A4

1P10

2P31/BZO90

3VPP

4RESET

5X2

6X1

7VSS

8VDD

9P30/TO90

10 P27/TI80/TO80

11 P26/INTP2/CPT90

12 P25/INTP1

13 P24/INTP0

14 P23/SS20

15 P22/SI120/RXD20 16

P21/SO20/TXD20

P20/SCK20/ASCK20

P07

P06

P05

P04

P03

P02

P01

P00

P15

P14

P13

P12

P11

R44 1k

R45 1k

R46 1k

R47 1k

R48 1k

R49 1k

R50 1k

R51 1k

R22 4.7k

R23 4.7k

R24 4.7k

R25 4.7k

MKEY-I0

MKEY-I1

MKEY-I2

MKEY-I3

MKEY-07

MKEY-06

MKEY-05

MKEY-04

MKEY-03

MKEY-02

MKEY-01

MKEY-00

R14 1k

PTT

V/M

SPCH

LOCK

TUNER/

CALL

XFCUP DN

1.8

(1)

3.5

(2)

(3)

(4)

(5)

(6)

(9)

(8)

(7)

144

(0)

(.)

430

(CE)

MODE FIL GENE F-INP

ENT

F-2

F-1

M8V M8V

5V 5V 5V

MU/D

M8VSW

PTT

MICE MICE

MICE

MICEMICE

MIC

MDATA MDATA

to the IC-7000

MAIN unit J2003

[CHASSIS PARTS]

W1 8900011270 Cable OPC-1153 1

MP1 8210021920 2839 front panel (C) 1

MP2 8210018840 2539 rear panel 1

MP3 8930057380 2539 PTT button 1

MP4 8930057390 2539 LED lens 2

MP5 8930057570 2539 SW rubber 1

MP6 8930066540 2539 keyboard (C) 1

MP8 8810009370 Screw PH BT M3 × 12 ZK 2

MP9 8810009560 Screw PH BT M2 × 6 ZK 3

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

Screw abbreviations BT: Self-tapping

PH: Pan head ZK: Black

[MAIN UNIT]

J1 6510023110 Connector 3008L-8P8C 1

S1 2260000980 Switch SKHHLP014A 1

MC1 7700002310 Microphone EM-140 1

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

MP2 (C)

MP8 (C)

MP3 (C)

MP9 (C)

S1 (M)

MP6 (C)

MC1 (M)

J1 (M)

MP4 (C)

MP1 (C)

MP5 (C)

W1 (C)

Unit abbreviations

(C):CHASSIS PARTS

(M): MAIN UNIT

MAIN UNIT

31.5

(1 1/4)

61.0

(2 13/32)

104.0

(4 3/32)

54.3

(2 1/8)

Unit: mm (inch)

6 - 5

• HM-151

SECTION 7 SEMI-CONDUCTOR INFORMATION

• TRANSISTORS AND FET'S

2SA1576A T106 R 2SA1586 GR 2SB1132 T100 R 2SC4081 T106 R 2SC4213 B

2SC4215 Y 2SC4403 3 TL 2SC4673 D TD 2SC5226 4 TL 2SC5551

2SD1619 T TD 2SD1623 TD 2SK2854 2SK3018 T106 2SK3065 T100

3SK195 3SK291 BCR08PN BCR108T BCR183T

DTA114 EE TL DTC114EUA T106 ECH8301-TL PD55015 RD01MUS1

RD60HUF1 RD70HHF1 RD70HVF1 RSQ035P03 RSR025N03

RTQ035P02 XP4601

(Symbol: FR) (Symbol: SG) (Symbol: BAR) (Symbol: BR) (Symbol: AB)

(Symbol: QY) (Symbol: LY3) (Symbol: CO) (Symbol: LN4) (Symbol: EB)

(Symbol: DB) (Symbol: DF) (Symbol: UP) (Symbol: KN) (Symbol: KE)

(Symbol: UJ) (Symbol: UF) (Symbol: WFs) (Symbol: WHs) (Symbol: WMs)

(Symbol: 14) (Symbol: 24) (Symbol: JA)

(Symbol: RD60HUF1) (Symbol: RD70HH01) (Symbol: RD70HVF1)

(Symbol: PD55015) (Symbol: K2)

(Symbol: TM) (Symbol: QY)

(Symbol: TL) (Symbol: 5C)

7 - 1

• DIODES

AC AC ACAC

green

AC AC

AC AC ACAC AC

BLACK LINE

1SS302 1SV271 1SV305 1SV307 1SV308

CUS02 DA221 TL DAN202 K T146 DAN202 U T106 DAP202K T146

DSA3A1 HSB88WSTR HSM88AS TR MA2S111 MA2S728

MA2SD10 MA2SV05 MA357 MA717 WK

MA728

MA729 MA732 MA77 MA8036 L

MA8039 L

MA8043 L MA8047 M MA8075 L RB706F-40 T106 SM240A-T

UM9401F XB15A407

(Symbol: C3) (Symbol: TG) (Symbol: TV) (Symbol: TX) (Symbol: TX)

(Symbol: 2) (Symbol: K) (Symbol: N) (Symbol: N) (Symbol: P)

(Color: Green) (Symbol: Silver line) (Symbol: C1) (Symbol: A) (Symbol: B)

(Symbol: 2L) (Symbol: 3A) (Symbol: 7K) (Symbol: M3D) (Symbol: 2A)

(Symbol: 2B) (Symbol: 2C) (Symbol: 4B) (Symbol: 3_6) (Symbol: 3_9)

(Symbol: 240A)

(Symbol: 4_3) (Symbol: 4-7)

(Symbol: none)

(Symbol: 7_5) (Symbol: 3J)

(Symbol: none)

7 - 2

H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120 H125 H130 H135 H140 H145 H150 H155 H160H0

V10

V15

V25

V30

V35

V20

V45

V50

V40

SECTION 8 BOARD LAYOUTS

8 - 1

8-1 DISPLAY UNIT

• TOP VIEW

8-2 VR UNIT

• TOP VIEW

H5 H10H0

V10

V15

V25

V30

V35

V20

V45

V40

110

to DISPLAY unit J401

PBTK

VRK

S2BK

S1BK

AFV

SQL

S2AK

S1AK

3R3V

GND

H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105H110H115H120H125H130H135H140H145H150H155H160 H0

V10

V15

V25

V30

V35

V20

V45

V50

V40

3R3K1

to FRONT EP1

J202

MDBK

MDAK

GND

F8VM1

to FRONT W2

J303

U/D

PTT

MICLE

MICL

GND

SQLS

STH124

to FRONT DS1

(LCD)

J601

OEH

Q2H

CLK1

CLK2

CLK3

GND

BLUE

GREEN

RED

STH2

VEE

VCOM

VGON

VDD

STV2

OEV

CPV

STV1

VSS

VGOFF

GND10

to VR unit J1

J401

3R3V

S1AK

S2AK

SQL

AFV

S1BK

S2BK

VRK

PBTK

PHONES/SP

-VIDEO

YGND

LRXD

LTXD

MIC

MICE

to CONNECT unit MP1

AFO

GND

PWK

F8V

C2016

C2015

8 - 2

• BOTTOM VIEW (DISPLAY UNIT)

• BOTTOM VIEW (VR UNIT)

H5H10 H0

V10

V15

V25

V30

V35

V20

V45

V40

AF RF/SQL PBT/M-ch RIT

H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100H0

V10

V15

V25

V30

V35

V20

V45

V50

V55

V40

V65

V70

V75

V60

V80

V90

V95

V100

V85

V105

V110

V115

V125

V130

V135

V120

V140

to LOGIC unit J701

30 16

J2251

3R3V

DREF

VSTB

SCK

MOSI

AFMS

115

DSPI2

GND

DSPI1

GND

DOUT

GND

DSPO1

GND

DSPO2

GND

31 to LOGIC unit J651

J2252

IMR2

MMSL

IMR

REFCV

RTKI

2MBS

THML

DPTL

SNDL

ALCL

REFL

FORL

MUDL

KEY

START

CIVE

GND

PWRK

VOUT

POWS

RXS

TXS

4T8V

2T8V

SDSS

SNDS

MCK

MDT

MST

CIV

LTXD

LRXD

WFML

DASK

DOTK

SQSS

MMDK

VDL

LOST

PRES#

1CN1

1CN0

PCK

PDT

3DST

1DST

1 30

to DDS unit J952

J2406

GND

3DST

1CN1

1CN0

PDT

PCK

1DST

PRES

LOST

GND

3LOE

3LO

3LOE

REFCV

8VA

GND

DREF

GND

3R3V

GND

1 30

to DDS unit J951

J2405

GND

14V

GND

DOUT

SQLS

DPTL

DINO

BANV

KEY

EALC

RTKI

MODA

START

SNDS

SNDL

SDSS

DOTK

DASK

GND

27 28

to PA

unit J2

J2004

ID3V

ID2V

POWS

GND

14V

ID1V

H6CR8

ICH

ICL

GND

14V

27 28

to PA

unit J980

J2005

FDAT

MCK

MST

3R3V

GND

AT13

THER

TB1V

TB2V

PHT8

PT8V

ID4V

IDRV

GND

PRES

GND

HFOR

HREF

P2R8

P4R8

PR4S

PR3S

2M8L

VUFOR

PT8V

P4T8

P2T8

FANG3

to CHASSIS

MF1

J2403

FANV

MIC1 2

910

to CONNECT

unit J1

J2002

GND

LRXD

MICE

AFO

PWK

F8V

LTXD

8VM1

to Microphone

J2003

U/DM

MAFM

SENM

MCEM

MICM

GND

SQSM

ESPE2

to CHASSIS SP1

J2601

ISPO

YGND2

to CONNECT

unit W1

J2231

YY-VIDEO

from PA unit J451 HRX

P401

from DDS unit J851

1LO P4

from DDS unit J151

2LO P6

from PA unit J101

YGR P101

MP102

R35 R34 R33

8-3 MAIN UNIT

• TOP VIEW

8 - 3

H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100 H0

V10

V15

V25

V30

V35

V20

V45

V50

V55

V40

V65

V70

V75

V60

V80

V90

V95

V100

V85

V105

V110

V115

V125

V130

V135

V120

V145

V140

EXT-SPRTTYREMOTEVIDEO

C2069

• BOTTOM VIEW

(MAIN UNIT)

8 - 4

H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120 H125 H130 H135 H140 H145 H150 H155H0

V10

V15

V25

V30

V35

V20

V45

V50

V55

V40

V65

V70

V75

V60

V80

V90

V95

V100

V85

V105

V110

V115

V125

V130

V135

V120

V140

127

to MAIN unit J2004

ID3V

ID2V

POWS

GND

14V

ID1V

H6CR8

ICH

ICL

GND

14V

127

to MAIN unit J2005

J980

FDAT

MCK

MST

3R3V

GND

AT13

THER

TB1V

TB2V

PHT8

PT8V

ID4V

IDRV

GND

PRES

GND

HFOR

HREF

P2R8

P4R8

PR4S

PR3S

2M8L

VUFOR

PT8V

P4T8

P2T8

to MAIN

unit J1

YGR P101

to MAIN

unit J101

HRX P401

W702

W701

DC 13.8V

Q988

8-4 PA UNIT

• TOP VIEW

8 - 5

H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105H110H115H120H125H130H135H140H145H150H155 H0

V10

V15

V25

V30

V35

V20

V45

V50

V55

V40

V65

V70

V75

V60

V80

V90

V95

V100

V85

V105

V110

V115

V125

V130

V135

V120

V140

MP502

from DRIVER

unit J102

DRIVO

from DRIVER

unit J101

DRIVI

from DRIVER

unit J103

GND

from DRIVER

unit J104

GND

from DRIVER

unit J107

GND

C484

C485

C520

D511

C528

R518

C1002

• BOTTOM VIEW (PA UNIT)

8 - 6

H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60H0

V10

V15

V25

V30

V35

V20

V45

V50

V55

V40

V65

V70

V75

V60

V80

V85

1 30

to MAIN unit J2406

J952

GND

3DST

1CN1

1CN0

PDT

PCK

1DST

PRES

LOST

GND

3LOE

3LO

3LOE

REFCV

8VA

GND

DREF

GND

3R3V

GND

1 30

to MAIN unit J2405

J951

GND

14V

GND

DOUT

SQLS

DPTL

DINO

BANV

KEY

EALC

RTKI

MODA

START

SNDS

SNDL

SDSS

DOTK

DASK

GND

to CHASSIS W11

(TUNER)

J1001

ETE

ET14

ETST

ETKY

ELE-KEY

ACC

DATA

MP1101

GNDA

8VA

SEND1

BDTA

14VA

SEND2

ALCA

BANA

KEYA

FSKA

MODA

AFA

AFOD

SQLD DOTD

GND

DIND

PTTD

SQLA

from MAIN unit J401 1LO

from MAIN unit J801

2LO P7

MP453

8-5 DDS UNIT

• TOP VIEW

8 - 7

H5H10H15H20H25H30H35H40H45H50H55H60 H0

V10

V15

V25

V30

V35

V20

V45

V50

V55

V40

V65

V70

V75

V60

V80

EP1108

EP1105

EP1107

EP1106

C841

• BOTTOM VIEW (DDS UNIT)

8 - 8

H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85H0

V10

V15

V25

V30

V35

V20

V45

V40

3V1

J2101

GND

TDO

GND

910

EMU

TMS

TCK

TRST

TDI

C524

C525

C526

8-6 LOGIC UNIT

• TOP VIEW

8 - 9

H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85 H0

V10

V15

V25

V30

V35

V20

V45

V40

to MAIN unit J2251

J701

AFMS15

MOSI

SCK

VSTB

24M

GND

DSPO2

GND

DSPO1

GND

DOUT

GND

DSPI1

GND

DSPI2

to MAIN unit J2252

J651

CIVE

START

KEY

MUDL

FORL

REFL

ALCL

SNDL

DPTL

THML

CPU_P12

RTKI

CPU_P22

CPU_P94

CPU_P95

IMR

CPU_PF6

MMSL

IMR2

RS_TXD

MST

MDT

MCK

SNDS

SDSS

2T8V

4T8V

TXS

RXS

POWS

VOUT

PWRK

GND

CIV

LRXD

LTXD

WFML

DASK

DOTK

SQSS

MMDK

VDL

3031

160 1DST

3DST

PDT

PCK

1CN0

1CN1

PRES#

LOST

RS_RXD

C527

C523

BT1301

• BOTTOM VIEW (LOGIC UNIT)

8 - 10

H5 H10 H15 H20 H25 H30 H35 H40H0

V10

V15

V20 14

to PA unit

J102

DRIVO

to PA unit

J104

GND

to PA unit

J107

GND

to PA unit

J101

DRIVI

to PA unit

J103

GND

H5 H10 H15H0

V10

V15

V20

to MAIN

unit J2002

MICE

AFO

PWK

F8V

LTXD

MIC

GND

LRXD

to MAIN

unit J2231

YGND

YY-VIDEO

8-7 CONNECT UNIT

• TOP VIEW

8-8 DRIVER UNIT

• TOP VIEW

8 - 11

H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80H0

V10

V15

V25

V30

V35

V20

V45

V40

SPCH

/LOCK TUNER

/CALL

DOWN F-1

F-2

MODE

FIL

GENE

F-INP

ENT

430

(CE)

144

(0)

(.)

(9)

(8)

(7)

(6)

(5)

(4)

(3)

3.5

(2)

1.8

(1)

V/M

XFC

8-9 HM-151

• TOP VIEW

H5H10H15H20H25H30H35H40 H0

V10

V15

V20

H5H10H15 H0

V10

V15

V20

F8V

to DISPLAY unit

PWK

GND

AFO

MICE

MIC

LTXD

LRXD

YGND

YY-VIDEO

8 - 12

• BOTTOM VIEW (CONNECT UNIT)

• BOTTOM VIEW (DRIVER UNIT)

• BOTTOM VIEW (HM-151)

H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80 H0

V10

V15

V25

V30

V35

V20

V45

V40

to the IC-7000

MAIN unit J2003

M DATA

MIC

PTT

MU/D

MICE

M8VSW

M8V

PTT

SECTION 9 WIRING DIAGRAM

9 - 1

HF/50 MHz

GND

U/DM

MAFM

SENM

MCEM

MICM

GND

SQSM

ESPE

CIVE

CIV

GND

SEND

FSKK

J2602

J2401

J2402

J2407

ESPO

ISPO

8VM

J2003

144/430 MHz

HRX

PA UNIT

YGR

DC13.8V

MIC

EXT SP

REMOTE

RTTY

VIDEO

TUNER

ELE-KEY

ACC

DATA

1LO 2LO

J451

P101

ID1V

ID3V

H6CR8

ID2V

ICH

POWS

ICL

GND

14V

GND

J980

FDAT

PRES

MCK

GND

MST

HFOR

3R3V

HREF

GND

P2R8

P4R8

AT13

PR4S

THML

PR3S

TN1V

2M8L

TN2V

VUFOR

PHT8

PT8V

P4T8

P2T8

ID4V

IDRV

GND

J2005

FDAT

PRES

MCK

GND

MST

HFOR

3R3V

HREF

GND

P2R8

P4R8

AT13

PR4S

THER

PR3S

TB1V

2M8L

TB2V

VUFOR

PHT8

PT8V

P4T8

P2T8

ID4V

IDRV

ID1V

J2004

ID3V

H6CR8

ID2V

ICH

POWS

ICL

GND

14V

GND

J952

3DST

1CN1

1CN0

PDT

PCK

1DST

PRES

LOST

GND

3LOE

3LO

3LOE

REFCV

8VA

GND

DREF

GND

3R3V

GND

J951

GND

14V

GND

DOUT

SQLS

DPTL

DINO

BANV

KEY

EALC

RTKI

MODA

START

SNDS

SNDL

DOTK

SDSS

DASK

GND

J2405

GND

14V

GND

DOUT

SQLS

DPTL

DINO

BANV

KEY

EALC

RTKI

MODA

START

SNDS

SNDL

DOTK

SDSS

DASK

GND

J2406

3DST

1CN1

1CN0

PDT

PCK

1DST

PRES

LOST

GND

3LOE

3LO

3LOE

REFCV

8VA

GND

DREF

GND

3R3V

GND

P401

J101

J101 J1

DRIVER UNIT

LOGIC UNIT

VDL

J651

MMDK

SQSS

DOTK

DASK

WFML

LTX D

LRXD

CIV

CIVE

START

KEY

MUDL

FORL

REFL

ALCL

SNDL

DPTL

THML

CPU_P12

RTKI

CPU_P22

CPU_P94

CPU_P95

IMR

CPU_PF6

MMSL

IMR2

1DST

3DST

PDT

PCK

1CN0

1CN1

PRES#

LOST

RS_RXD

RS_TXD

MST

MDT

MCK

SNDS

SDSS

2T8V

4T8V

TXS

RXS

POWS

VOUT

PWRK

DSPI2

J701

GND

DSPI1

GND

DOUT

GND

DSPO1

GND

DSPO2

GND

J801J401

W15

W17

J851

ETKY

DOTK

GNDA

BDTA

SEND1

14VA

SEND2

AFA

MODA

SQLA

8VA

DOTD

SQLD

GND

PTTD

DIND

AFOD

KEYA

ALCA

FSKA

BANA

DASK

GND

J1001

J1051

J1101

J1151

P1001J5

ETST

ET14

ETE

ETKY

ETST

ET14

ETE

J151

24M

VSTB

SCK

MOSI

AFMS

GND

MAIN UNIT

CONNECT UNIT

FRONT UNIT

DISPLAY UNIT

EX-2832

LCD

PHONE

MAIN DIAL

MIC

VR UNIT

VDL

J2252

MMDK

SQSS

DOTK

DASK

WFML

LRXD

LTX D

CIV

CIVE

START

KEY

MUDL

FORL

REFL

ALCL

SNDL

DPTL

THML

2MBS

RTKI

REFCV

IMR

MMSL

IMR2

1DST

3DST

PDT

PCK

1CN0

1CN1

PRES#

LOST

MST

MDT

MCK

SNDS

PBTK

J401

J303 W2

W1 J1

VRK

S2BK

S1BK

AFV

SQL

S2AK

S1AK

3R3V

GND

F8VM

U/D

PTT

MICLE

MICL

GND

SQLS

F8VM

U/D

PTT

MICLE

MICL

GND

3R3V

MDBK

MDAK

GND

3R3V

J202

MDBK

MDAK

GND

PBTK

VRK

S2BK

S1BK

AFV

SQL

S2AK

S1AK

3R3V

GND

SDSS

2T8V

4T8V

TXS

RXS

POWS

VOUT

PWRK

DSPI2

J2251

GND

DSPI1

GND

DOUT

GND

DSPO1

GND

DSPO2

GND

3R3V

DREF

VSTB

SCK

MOSI

AFMS

GND

STH1

J601 DS601

OEH

Q2H

CLK1

CLK2

CLK3

GND

BLUE

GREEN

RED

STH2

VEE

VCOM

VGON

VDD

STV2

OEV

CPV

STV1

VSS

VGOFF

STH1

AFO

J251

PHK

AFO

GND

OEH

Q2H

CLK1

CLK2

CLK3

GND

BLUE

GREEN

RED

STH2

VEE

VCOM

VGON

VDD

STV2

OEV

CPV

STV1

VSS

VGOFF

MIC

J2002 W7 J1 MP1

MICE

YGND

YY-VIDEO

GND

FANV

J2403

J2601 P1

SP1

MF1

MOTOR2

ESPO

ISPO

FANG

AFO

PWK

F8V

LRXD

LTX D

MIC

MICE

GND

YGND

YY-VIDEO

AFO

PWK

F8V

LRXD

LTX D

YY-VIDEO

YGND

LRXD

LTXD

MIC

MICE

AFO

GND

PWK

F8V

YY-VIDEO

YGND

LRXD

LTXD

MIC

MICE

AFO

GND

PWK

F8V

DDS UNIT

DRIVO

J102

DRIVO

DRIVI

J101

DRIVI

DRIVO

DRIVI

J2231

SECTION 10 BLOCK DIAGRAM

10 - 1

DRIVER BOARD

VR BOARD

LOGIC

DDS

MAIN

FRONT

VDET

DET

D801

HSB88WS

Q701

3SK195

AMP

AT T AT TAMP

LPF

CTRL

TVAS

Q1201:BCR08

IC1202:TC4W53

IC2501: TS462

IC2551 TS462 1/2

IC2601

TC4W53

IC2602

LA4425

Q2602

ECH8301

EXT

JACK

MIC

JACK

REMOTE

JACK

RTTY

JACK

VIDEO

JACK

VIDEO

I/F

Q2601

2SK3018

Q2608

BCR108

D2601

DAN202K

LPF

SPS

CIV,CIVE

SQSM

MSQDS

SQSS,MMDK

MMSL,SNDL,MUDL

SNDL,RTKI

MIC

I/F

IC2007 1/2: TS462

Q2159,Q2160: BCR08PN×2

D2173: MA2S111

D2201: MA8047

IC1402: SN74AHC2G04

Q1101: 2SC4081

Q1103: 2SA1576

Q1101: MA2S111

RTTY

I/F

3.3V

REG

I/F

IC1303

80942

RESET

TUNER

I/F

TIMER

EEPROM

RTCIRQ

RTCCK,RTCDT,RTCCE

PDT,PCK,1DST,3DST

MDT,MCK,MST

TDAT

TKEY,TRD

Q1102: BCR108

D1304,1305: DA221

CTXD,CRXD/CBSY

START,KEY

AT T

THML

AMP

RES#

IC1304

4581

IC1301

NH58X24256

IC401

BU9480F

IC2201

ADSP

BF532

IC2002

CY7C1021CV33

SRAM

64X10 DC

3.3V

Q201: RTQ035

D201: MA2SD100L

DOUT

(TO DATA)

VIDEO

BA033FP

IC1251

H3V

RTKI

(TO LOGIC CPU)

WFMS

AMS

IC1201

TC4W53

WFM8

AMOD

(FROM ACC)

(FROM ACC/DATA)

DIN

(FROM DATA)

CTRL

LPF A/D

A/D

D/A

DSP

IC1302

HD64F2377VFQ33V

CPU

IC301

ADSP

BF532

SRAM

64Kx16

IC51

CY7C1021CV33

IC1

TC58FVM6T2AFT65

IC701

SN74AHC1G04

IC1226

S1D13706

IC1212

BH7236AF

SNDL

(FROM LOGIC CPU)

SEND

CTRL

PA NDER

ELE-KEY

JACK

TUNER

JACK

J1001J1051

AT T

LPF

DDS

AMP

LPF AT T

AMP

AT T

REG

SAW

24.8064MHz

438.85kHz

3LO

LPF

DDS

AMP

AT T

D301

MA717

3.3V

BDBR

BPF

HPF

BLF5

Q201

2SC5226

AMP

PDT

3DST

IC51: AD9833

IC61

SN74AHC1GU04

Q151: 2SC4673

IC301

AD9951

IC251

TK11218

124.517

594.487MHz

1LO

124.0327MHz

2LO

FI201: NSVS776 Q211: 2SC5226

1DST,PCK,PDT

PRES(FROM LOGIC CPU),1CN0(FROM LOGIC CPU),1CN1(FROM LOGIC CPU)

FI101: FL391 Q101: 2SC4403

BUFF INV

PCK

PDT

PCK

LOST

SDSS

(FROM LOGIC CPU)

VOUT

VDET

TVVS

DOTK,DASK

VIDEO

IC2231

NJM2244

SEND1

(TO ACC)

SEND2

(TO ACC)

IC901

CD74HC4094(1)

2SC4215

D501 1SV307

D551 1SV307

D502

1SV307

D552

1SV307 D1608

MA2S111

D1607

MA2S111

D1606

MA2S111

BUFF

BPF

AT T

554.5

574.5MHz

270.0

324.5MHz

225.0

270.0MHz

187.0

225.0MHz

154.5

187.0MHz

AMP

BLF0

BLF1

D601 1SV307

D602

1SV307

IC1601

NJM13403

1/4

IC1601

NJM13403

1/4

Q1604

2SA1586

IC1601

NJM13403

1/4

IC1601

NJM13403

1/4

Q1606

2SK3018

ALCL

(TO LOGIC CPU)

12/

15V

BUFF

Q1601

2SC4213

DET

CTRL

DET

CTRL

R8 REG 8V REG

8V REG

U8V

T8 REG

5V REG

VIDEO

AFV

SQL

VRK

PUSH1

S1 TP96D00A

2832

CLKK

MDAK,MDBK RESET

CPU

BLV

KLV

TP90D96AE20

KEY

BACK

LIGHT

LCD

BACK

LIGHT

D801

D804

MA8047M×4

Q802

2SB1132

IC2003

HD64F38024

X501

CR-805

3.579545MHz(NTSC)

CR-806

4.433619MHz(PAL)

IC651:B15532

Q651-654:XP4601

FSQS,FSQOS

FMDK,PTTL,PTTS

X2001

CR-747

9.8304MHz

IC2007

R3112N281A

FMLS,FUDL_ J303

J251

KEY

LIGHT

CTRL

MIC

I/F

MIC

JACK

EXT

JACK

LCD

LIGHT

CTRL

PBTK

PWRK

LRXD,LTXD

S701

S704,S721

S724

S741

S744,S761

S764

S781,S782

: LS9J2M

1FG

T×18

Q2002: BCR183T

Q701,Q721,Q741

Q761,Q771,Q781

: 2SC4081×6

IC301: TA75S01

Q301: 2SK3065

Q302: BCR108T

Q303: BCR08

D301: MA2S111

D302: MA8075

MIC,MICE

AFO

8V 3.3V

REG

Q1605

2SC4213 Q2151: 2SB1132

Q2156: BCR108

Q1703: 2SD1619

Q1704: BCR108T

IC101

TA 7 805F

IC151

RN5RZ33BA

SQL,AFV,VRK,PBTK

S1AK,S1BK,S2AK,S2BK

LTA025A161A

LCD

DRIVER

IC506

AN2533FH

LEVEL

CON

LCD

IC1: XC9504B092

Q1: RSQ035P03TR

Q51: RSR025N03

RXS

(FROM LOGIC CPU)

TXS

(FROM LOGIC CPU)

Q1701: 2SD1619

Q1702: BCR108T

IC1901

TA 7 808F

IC2001

TA 7 808F

BLF2

D651 1SV307

D652

1SV307

ALC

AMP

APC

AMP DELAY

CTRL UNSB

PT8V

ALC

12V

3.3V

15V

ADJL

APC

AMP

APC

AMP

LEVEL

SHIFT

APC

CTRL

Q1603: BCR108T

D1604,D1605: MA2S111×2

D1609: MA8036

EALC

(FROM ACC)

BLF3

D701 1SV307

D702

1SV307

BLF4

D751 1SV307

D752

1SV307

D801

1SV307

D454

1SV307

PA NDER

PA NDER DRIVER

CTRL PHT8

LPF

144/430MHz

LPF

HPF

CTRL

HEAT

CTRL

IC1801

BA033FP

IC1951

XC9201

IC1952

BA033FP Q2401: 2SD1619

D2401: DAN202K

REG

430

144

DC13.8V

D401

D404: MA2S728×4

D406,D407: XB15A407×2

D408

D410: UM9401F×3

D506,D510: XB15A407×2

D507

D509: UM9401F×3

D501

D504

MA729×4

D453,D454

1SV305×2

D455,D456

1SV305×2

Q504

PD55015

Q552

BCR108T

Q551

3SK291

Q452

BCR108T

Q451

3SK291

Q453

BCR108T

Q501

RD70HVF1

D551,D552

1SV307×2

D553,D554: MA2SV05×2

D555: 1SV307

D556: MA357

D558: MA357

D559,D560: MA2SV05×2

D557: 1SV307

D451,D452

1SV307×2

Q502,Q503

DTC114EU×2

D705

DAN202K

3.3V

REG

MF1

AFB0512HB

FAN

CTRL

3.3V

REG

Q700

BCR108T

POWS

(FROM LOGIC CPU)

D703

DAN202K

D701,D702

DSA3A1×2

IC701

BA08FP

D402,D403: DTC114EU×2

D411: MA2S111

D412: DAN202K

D706: MA2S728

UFOR P4T8

P2T8

VFOR

VUFOR

D704: MA2S728

LPF

CTRL

LPFBIAS

PWR

AMP

DET

P2T8

14V

FANV

3.3V5V

3.3V B

ICL

ICH

THML

AT 1 3

AT T

LPF

CTRL P2R8

TN1V

PR4S

2MBL

TN1V

AT 1 3

ID3V

HPF

D301: DAN202U

D302: DAN202U

Q401

RD60HUF1

Q301: RD70HHF1

Q302: RD70HHF1

BPF

AT TBPFBPF

BPF

BIAS

P4R8

P2R8

PT8V

IDRV

430M

144M

BIAS

Q101

2SK2854

Q102

RD01MUS1

PRE

DRIVE

PRE

DRIVE

PWR

AMP

PWR

AMP

BIAS

430M

ID4V

148M

ID1V

ID2V

HF+50M

CTRL

2MBL

TN2V

CTRL

PRE

AMP

PRE

AMP

DRIVE

AMP

PRE

AMP

PR3S

PWR

DET

PWR

DET

TX/RX

15M

22M

30M

60M

HFOR BUFF

BUFF

PWR/

SWR

DET

D961,D962

HSM88AS×2

HF/50MHz

IC960

NJM2904M

IC960

NJM2904M

HREF

D820,840,860,880

900,920,940

1SS302

60M

LPF TX/RX

IC981

CD74HC4094

Q980

Q986

BCR108T×7

Q987

BCR108T

D964,D965: UM9957

D801: 1SS302

(2)

1SV307

FI3

LFSC25N12B0440B

FI2

LFSC25N12B0440B

IC2: TA4001

Q204: BCR0108

Q1905: BCR08

Q202

BCR108

Q1906

BCR08

IC2151

CD74HC4094

Q201

BCR108D5

1SV307

D104

1SV307

Q102

BCR108

Q103: BCR08

D114: MA2S111

D105

1SV307

D112

1SV307

D152

MA2S111

D113

1SV307

D151

1SV307

Q101

2SC4213

D103

1SV307

(4)

IC2152

CD74HC4094

IC2153

CD74HC4094

IC2154

CD74HC4094

Q2232: BCR08

Q2233: BCR08

D462

1SV307

Q1254

BCR08

Q1255

BCR08

Q1904

BCR08

Q1904

BCR08

D461

1SV307 IC471

µPC3215TB

Q1907

BCR08

PR1S,TVVS

BHF,PROF

BHF6,ADJL,MSQOS

MAFOS(TO CP1603),SPS

FDAT,IDS,RTRS(TO CP1604)

TVAS,AMS

UNSB,MODS

FANH

MA77

144M

P2T8

P4T8AT T S

430M

D455

DAN202K

D458

1SV307

D459

1SV307

D451

1SV307

D452

1SV307

D456: MA717

D471: MA717

D453

1SV307 D802

1SV307

BLF5

BLF6

BLF0

BLF1

788

24.8064MHz

Q901

Q908

BCR08PN×7

BDBR

BLF0

BLF6

DRIVER

DBRS

LOF0

LOF6

Q1101: 2SC4081

Q1102: 2SD1623

D1101: 1SS302

D1102: DAP202K

SNDS

(FROM LOGIC CPU)

IC1218

SN74AHC2G86

IC1217

TC7WU04

IC1201

CY22150

X1201

CR-805: 3.579545MHz(NTSC)

CR-806: 4.433619MHz(PAL)

FLASH

ROM

4Mx16

LCD

CTRL

CLOCK

GEN

VIDEO

ENCODE

CLOCK

15.9744MHz

X1301

CR-809

SNC

ENCODE

DSP

LPF

CTRL

J2602

J2601

J2003

J2401

J2402

J2407

CTRL

AMP

MIC

AMP

IC2007

TS462 1/2

Q2603: 2SC4081

D2402: MA2S111

Q2301: 2SC4081

AFMS

3rd IF 16.15kHz

2nd IF 455kHz

AGC

CTRL

CTRL CTRL

LPF

AT TATT AMP

LPF

CTRL

B6 B7

MDT

P2TB

PT8V

P2R8

P4R8

WFM8

WFMS

POS8

AT 1 3

AMS

POCV

VUFOR

HREF

(FROM PA)

FORL

(TO LOGIC CPU)

ICH

IDS

ICL

HFOR

BCR08

1S8V

POST

1S15

PR3S

PR4S

WFMS

(3)

MCK

MST

CTRL

CTRL B0

1.8M

CTRL

AT T

ATT RF SW

BHF

PHT8

AT 1 3

BHF06

FDAT

MCK

MST

RX PHT8

H6CR8

H6C8

YGR

AMP

HPF

AT T AT T

LPF

D101,D102: 1SS302×2

CTRL

CTRL PR1S P4R8

1.8M

40M

Q205:BCR108

Q206:BCR108

Q207:BCR108

Q208:BCR108

Q209:BCR108

Q210:BCR108

40M

54M

1.8

40M

3.4M

6.9M

13.9M

20.9M

60M TX

HPF

PRE

AMP

HPF LPF

BPF BPF

BPF

HPF

P2R8

CTRL PROF

CTRL

TVAS

AGC

TA G C

ALC

Q702

3SK195

XTAL

BPF

XTAL

BPF

XTAL

1S8V

T8DRIV

POS8

WFM8

BW=15kHz

BW=8MHz

BW=15kHz

BW=280kHz

10.7MHz

BW=280kHz

10.7MHz

FI1402

SFECV10.7MA

5S FI1401

SFECV10.7MA

IC2101

NJM13403

IC2102

NJM13403

IC2103

NJM3403

fc=32kHz

Q1501: BCR08

Q402,403: BCR08

Q1909: BCR08Q1903: BCR08Q1902: BCR08

Q1901: BCR08

BHF6

H6CR8H6C8

BPF

IC1502

M52342FP

D704: 1SV307 D702

1SV307

D604

1SV307 FI601

374 Q502

2SC5551

D603

1SV307

D601

1SV307

D504

1SV307

D505

1SV307

D502

1SV307 D305

1SV307

D306

1SV307

D803

1SV307

D904

1SV307

D903

1SV307

Q901

3SK195

FI1001

CFUCG455F

Q1001

3SK195

IC1101

NJM2594V

IC801

µPC2709

IC1301

TA4107

D1301

1SV307 D1302

1SV307

WFM

DET

IC1401

LA1225M

P2T8

P4T8

2MBL

2T8V

(FROM LOGIC CPU)

VSTB,SCK,MOSI

(FROM LOGIC CPU)

4T8V

2MBS

MODS

IC451,IC452

TS462×2

IC601 TS462

Q2606

2SD1623

IC2551

TS462 1/2

IC551: AK4528

FMTL

SPORT0(SECOND)

RSS,DRES

SPORT1

(DCK,DTFS,DRFS,DTXD,DRXD)

IC502,IC452

TS462×2

Q1402

2SC4081

Q1401

2SC4081

Q2152: 2SB1132

Q2157: BCR108

Q2153: 2SB1132

Q2158: BCR108

IC2156

BU4052

IC2251

TC4WS3

Q2150: BCR108

Q2605: BCR108

AMP

IC2155

BH2221 AGCI,IDRI

POCI,DRII

AGC,IDRV

POCV,DRIV

ID1I,ID2I

ID3I,ID4I

ID1V,ID2V

ID3V,ID4V

BANI,FANI

TN1I,TN2I

BANV(TO ACC)

FANV

TN1V,TN2V

AMP

D/A

AMP

LPF

Q902

3SK195

D802

1SV307

FI901

CFUCG455F

CERAMIC

BPF

CERAMIC

BPF

CERAMIC

BPF

CERAMIC

BPF

1S8V

ALC

AGC

WFM8

10.7M

D107

1SV307

D304

1SV307 D302

1SV307

D111

MA2S728

D106

1SV307

D214

1SV307

D215

1SV307

D204

1SV307

D205

1SV307

D208

1SV307

D209

1SV307

D210

1SV307

D211

1SV307

Q211

2SC5551

D219

1SV307

D218

1SV307

D217

1SV307

D216

1SV307

D220

1SV307

D221

1SV307

U8V

IC3: TA4002

D212

1SV307

D213

1SV307

D203

1SV307

D110

MA2S728

D301

1SV307

D303

1SV307

D503

1SV307

D108

MA732

Q301

2SC5551

D109

MA732

PRE

AMP

RXS

(FROM LOGIC CPU)

TXS

(FROM LOGIC CPU)

IC401

SPM5001

D501

1SV271

D602

1SV307

D703: 1SV307 D701: 1SV307

SFSCC4.5MC2 [USA], [EXP]

SFSCC5.5MC2 [EUR], [FRA], [ESP]

SFSCC6.0MC2 [UK]

FI1501 IC1501

TA4019

FI1502 TSB6221D except [UK]

TSB6322C [UK]

1st IF: 124.487MHz (except WFM)

134.732MHz (WFM)

1st IF: 45.75MHz except [UK]

Q1521: 2SC4081

D1521,D1522: 1SV271×2

39.50MHz [UK]

AFO

fc=30MHz

fc=500kHz

DATA

CTRL

COMMON

VOLTAGE LINE

IC421

IC401

IC451 IC801

IC1

µPC2709

µPC1678µPC1678

µPC2709T

Explanatory notes

IC1203: TS462

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

DISPLAY UNIT (1)

DISPLAY

UNIT (2)

8021

AVCC

P13/TMIG

P14/IRQ4/ADTRG

P16

P17/IRQ3/TMIF

VSS=AVSS

OSC2

OSC1

TEST

RES

P50/WKP0/SEG1

P51/WKP1/SEG2

P52/WKP2/SEG3

P53/WKP3/SEG4

P60/SEG9

P61/SEG10

P62/SEG11

P63/SEG12

P64/SEG13

P65/SEG14

P66/SEG15

P67/SEG16

P70/SEG17

P71/SEG18

P72/SEG19

P73/SEG20

P74/SEG21

P75/SEG22

P76/SEG23

P77/SEG24

PB7/AN7

PB6/AN6

PB5/AN5

PB4/AN4

PB3/AN3/IRQ1/TMIC

PB2/AN2

PB1/AN1

PB0/AN0

P43/IRQ0

P42/TXD32

P41/RXD32

P40/SCK32

P37/AEVL

P36/AEVH

P35

P34

P92

P91/PWM2

P90/PWM1

VSS

VCC

PA0/COM1

PA 1 / C O M 2

PA 2 / C O M 3

PA 3 / C O M 4

P87/SEG32

P86/SEG31

P85/SEG30

P84/SEG29

IC2003

HD64338020SB68HV

P80/SEG25

P81/SEG26

P82/SEG27

P83/SEG28

P33

P32/TMOFH

P31/TMOFL

P30/UD

P93

P94

P95

IRQAEC

P54/WKP4/SEG5

P55/WKP5/SEG6

P56/WKP6/SEG7

P57/WKP7/SEG8

EXT1

VDD

FB1

PWM1

EN1

EXT2

GND

FB2

PWM2

EN2

IC1

XC9504B092ARN

BUS LINE1

LTX D

LRXD

YGND

VIDEO

MICE

AFO

MIC

GND

PWK

F8V

L851

HF50ACC322513

L855

HF50ACC322513

C852

L852 HF50ACC322513

L853 100µ

L854 100µ

MIC

AFO

MICE

VIDEO

YGND

LRXD

LTX D

MP1

GND

PWK

F8V

MIC

AFO

MICE

VIDEO

YGND

LRXD

LTX D

GND

PWK

F8V

PWK

MIC

MICE

GND

AFO

F8V

LRXD

LTX D

VIDEO

YGND

CONNECT UNIT

MAIN

unit

J2231

MAIN

unit

J2002

SQL

S1BK

AFV

GND

3R3V

S1AK

S2AK

J401

S2BK

VRK

PBTK

SQL

AFV

S1BK

AFV

GND

3R3V

S1AK

S2AK

S2BK

VRK

PBTK

S1BK

SQL

GND

3R3V

S1AK

S2AK

S2BK

VRK

PBTK

TP90D96AE20

17F

1352

TP96D00A

17F

B103

EP4

EP5

EP6

EP7

EP8

EP9

EP10

EP11

ERJ3GE

JPW

ERJ3GE

JPW

MICLE

GND

MICL

F8VM

U/D

PTT

J303

SQLS

FRONT

J202

MDBK

3R3K

MDAK

MAIN

DIAL

VR UNIT

3R3V

R2019

47k

Q2002

BCR183T

DS2002

170UR

R2031 330

DS2001

SML

512MW

R2030

150

Q2001

BCR108T

DS2004

SML

512MW

R2033 150

CP401

R2026

47k

CP403

CP402

R2027

47k

R2010

100k

D2002

RB706F

CP2002

CP2001

OUT

VDD

VSS

IC2007

R3112N281A

C2007

C2008

0.027

R2015

10k

R2012 12k

R2002 47k

D2006

DA221

D2003

RB706F

PTTL

SQL

C2012 0.0047

C2013 0.0047

C2006 0.1

C2009 0.1

C2010 0.1

R2018 6.8k

AFV

PHK

R2005 10k

R2006 10k

R2003 10k

R2004 10k

R2017 6.8k

R2014 6.8k

R2013 47k

R2016 47k

D2004

DA221

D2005

DA221

R2028

47k

R2023

47k

R2040 15k

LTX D

LRXD

R2035 1k

R2034 1k

RSQ035P03TR

MA729

GND

VDD

VOUT

IC151

RN5RZ33BA

IC101

TA7805F

L101 10µ

L151 10µ

R202 0

R201 0

CP2003

L252 HF50ACC322513

L251 HF50ACC322513

L307 100µ

Q303

BCR08PN

L302 10µ

L309 100µ

L310 100µ

L303 100µ

L312 100µ

L313 100µ

CP301

CP302

L306 100µ

L301 100µ

C312

0.0047

R301

D301

MA2S111

R304

3.3k

Q302

BCR108T

Q301

2SK3065

IC301

TA75S01F

L3 100µ

MDBK

MDAK

E7_7

FZMD

E7_1

E7_5

R2020 1.2k

R2021

47k

R2022

47k

R2024

47k

R2025

47k

C251 470p

C252 470p

C253 470p

C254 470p

R251 1k

R255

220

R253 220

R252 220

R254 220

S251

HSW0880

210

AFO

PHK

FUDL_

FMSL

MICE

MIC

FSQOS

FSQS

PTTS

PTTL

S1AK

S2AK

SQL

AFV

S1BK

S2BK

VRK

PBTK

FMDK

VIDEO

LRXD

LTX D

MIC

MICE

AFO

PWK

C301 0.0047

C302

0.0047

C303

0.0047

C305

0.0047

R306

R305 3.3k

C304 0.0047

R302

10k

R303

C315

0.0047

C316

0.0047

C317

0.0047

C318

0.0047

C319

0.0047

C320

0.0047

C321

0.0047

C322

0.0047

C306

0.0047

R308

330k

R309

120k

R310

12k

R307

10k

D302

MA8075

VRK

PBTK

TUNK

TSK

LCKK

BUPK

BDNK

FMSL

FSQOS

LCK

LDT

LDST

PTTS

FSQS

KLVB

BLV

KI2L

KI1L

KI0L

FUDL_

C2002

0.0047

R2009

47k

R2007

2.2k

R2041

15k

S201

SPVP110100

C2003

12p

C2004 12p

X2001

747

R2011

C2001

2.2

R2008

22k

R2042

10k

C101

C104

0.1

C103

0.1

C102

C154

0.1

C152

C153

0.1

C151

C53 10

C55 10

C51

47p

R51

220k

R52

56k

R53

22k

D51

MA2SD1000L

L51

100µ

Q51

RSR025N03

C56

C57

EP1

100µ

R54 10k

R55 10k

R4 10k

R5 10k

180k

C8 10

C6 10

220k

39k

47p

MDAK

MDBK

FMDK

E7_5

FZMD

E7_1

E7_7

SQL

OUT

SIDE

L53 100µ

J251

PHONE

S1AK

S1BK

S2AK

S2BK

D2001

MA732

R2037 47k

R2036 47k

L152

10µ

100µ

C2011 0.1

C851

0.0047

C2014 0.1

C2005 0.01

EP1

FRONT UNIT

GND

3R3V

AFO

PHK

AFO

GND

Microphone

FRONT W1

3R3V

R2039

47k

3R3V

R2029

47k

C2015

0.1

C2016 0.1

SECTION 11 CIRCUIT DIAGRAMS

11 - 1

11-1 DISPLAY/ VR/ CONNECT UNITS

11 - 2

VOLTAG E L INE

Explanatory n o tes

DISPLAY UNIT (2)

J601

CLK1

Q2H

OEH

STH1

DISPLAY

UNIT (1)

CLK2

CLK3

GND

BLUE

GREEN

RED

STH2

VEE

VCOM

VGON

VDD

STV2

OEV

CPV

STV1

VSS

VGOFF

123

654

Q651

XP4601

123

654

Q653

XP4601

LOAD

SCLK

DATA

RST1

RST2

HMC

QHSEL

MON

GND1

MON

TRAP

DET

Y IN

C/R

Y IN

ACC DET

APCDET

VXO0

VXO1

KILLDET

CH_DET

VCC1

VREF

CH_DET

TEST CLK/YS

COMMON OUT

CH_AVEDET

VCC2

CH_AVEDET

OUT

HSSIN

SYNC_OUT

SYNC_IN

COM DC ADJ

VCO ADJ

QH OUT

VSS

PCH

VDD

STV3

AFC DET

VSCLK1

VSCLK2

STV1

STV2

VCC3

HSCLK1

HSCLK2

HSCLK3

HSCLK4

OEV

STH1

STH2

STH3

GND2

OUT

IC506

AN2533FH

IC651

BA15532F

GND

V+

IC651

BA15532F R653 33k

C658 27p

123

654

Q652

XP4601

Q654

XP4601

456

321

IC651

BA15532F

R658 100k

S701

LS9J2M

1FG

MODE

S702

LS9J2M

1FG

P.AMP/ATT

S703

LS9J2M

1FG

MENU/GRP DOWN

S704

LS9J2M

1FG

MENU/GRP P

S721

LS9J2M

1FG

S722

LS9J2M

1FG

S723

LS9J2M

1FG

S724

LS9J2M

1FG

S741

LS9J2M

1FG

NB/LEVEL

S742

LS9J2M

1FG

NR/LEVEL

S743

LS9J2M

1FG

NOTCH/ANF

S744

LS9J2M

1FG

SET/REC

S761

LS9J2M

1FG

S763

LS9J2M

1FG

S764

LS9J2M

1FG

DOWN

S762

LS9J2M

1FG

LOCK

C537 0.1

C530 0.1

C531 22

C538 0.1

C532 0.1

C539 4.7

C542 4.7

C544 4.7

CP504

L508

10µ

Q701

2SC4081

L651

100µ

L802

100µ

DS808

NSSW008B

D804

MA8047

D803

MA8047

DS807

NSSW008B

DS806

NSSW008B

D802

MA8047

D801

MA8047

DS805

NSSW008B

L801

10µ

L509

10µ

CP506

CP507

R536 0

R549 0

R537 0

R550 0

R538 0

R551 0

R540 0

R802

150

D602

MA732

D601

MA732

R803

L605

10µ

L604

10µ

L603

10µ

L602

10µ

C526 0.0082

C540 4.7R532 10k

CP503

CP502

Q721

2SC4081

Q741

2SC4081

Q761

2SC4081

R743 2.2k

Q771

2SC4081

S782

LS9J2M

1FG

TUNER/CALL

S781

LS9J2M

1FG

POWER

Q781

2SC4081

L702

100µ

L506

10µ

C701

L701

100µ

L505 47µ

C519 0.1

C520 0.1

R522 0

C513 0.1

C514 0.1

C518

39p (USA)

27p (Others)

X501

805 (USA)

806 (Others)

C536

20p

C534

0.022

R531

5.6k

C533

R703 2.2k R704 4.7k

R705 15k

R723 2.2k R724 4.7k

R725 15k

R744 4.7k

R745 15k

R761

220

R762

330

R741

220

R742

330

R721

220

R722

330

R701

220

R702

330

R771

220

R772

330

R781

220

R782

330

3R3V

BUS LINE1

L601

100µ

R608

R609

4.7k

R601 3.9k

R603 3.9k

R604 3.9k

C601 0.1

C611 47

R533

C541 22

L507

10µ

C523

C525

0.1

R546 0

R544 0

R534 0

R548 0

C529 22

C524 150p

R529 10k

R528 0

R530 82k

R553 0

R541 5k

C528

470p

C527

680p

C515

R521

560

C516

4.7

C517

R523 0

R524

C559

0.001

C802

0.1

C801

0.1

R801

47k

Q802

2SB1132

R602 3.9k

R605 3.9k

R606 3.9k

R610 0

R612 4.7k

C602 0.1

C603 0.1

C604 10

C605 0.1

C606 10

C607 0.1

C608 10

C609 0.1

C610 10

C652

R651

10k

R654

68k

C654

C656

2.2

R660

56k

R661

22k

R662

39k

R659

22k

R666

100

R668

100

R652

22k

C655

0.01

R657

33k

R665

22k

R663

22k

R667

100

R669

100

C560

C561

0.1

C562

0.0047

R656

220k

R655

100k R664

15k

C657

2.2

R545

56k

C521

C522

0.1

C501

100

C502

100

C543

C545

0.1

C702

STH1

OEH

Q2H

CLK1

CLK2

CLK3

GND

BLUE

GREEN

RED

STH2

VEE

VCOM

VGON

VDD

STV2

OEV

CPV

STV1

VSS

VGOFF

DS1

LCD

L703 100µ

R547 0

C549 10

C551 10

C550 10

R539

56k

C651

C653

0.1

C659

0.0047

CP501

KLVB

TSK

BUPK

BDNK

LCKK

BLV

KI2L

KI1L

KI0L

PWK

TUNK

VIDEO

LDT

LCK

LDST

3R3V

FRONT

11-2 MAIN UNIT

11 - 3

R33

R34 0

0.001

C126

0.001

C125

0.001

C127

1S8V

C1910 0.001

R2003 0

TA4001F

IC2

1SV307

µPC2709T

IC1

14V

82p

C291

14V

100p

C228

14V14V

1LO

2LO

14V

H6CB

PT8V

390

R128

390

R125

BHF6

PHT8

518A

L243

H6CR8

1S15

PR1S

PROF

unit J851

to DDS

J801

BHF

H6CB

AT 1 3

P4T8

U8V

3R3V_B

P2T8

P4R8

P2R8

C1972 0.1

C1955 10

C1954 10

C1953 10

C1952 10

C1951 10

C1968

0.1

C1973

C1969

C1970

EP1952

0.1

C1966

C1965

EP1953

L1953 100µ

BA033FP

IC1952

100µ

L1954

4.7

C1958

C1959

C1907 0.1

R1901 100k

C1909 0.1 C1903 0.1

C1902 0.1

C1901 0.1

R105

1SV307

D101

0.1

C104

R7 820

BCR08PN

Q1907

BCR08PN

Q1909

BCR08PN

Q1903

BCR08PN

Q1902

BCR08PN

Q1901

0.1

C324

39p

C322

82p

C318

33p

C314

100µ

L314

C320

12p

C316

100µ

L315

390

R315

390

R314

1SV307

D305

0.15µ

L312

0.12µ

L310

1SV307

D306

C325

C321

C317

C313

C323

C319

C315

10n

L313

15n

L311

18n

L309

100µ

L308

390

R312

390

R311

1SV307

D303

0.1

C312

1SV307

D304

100µ

L307

270

R309

2.2k

R308

0.1

C310

R305

0.1

C305

0.1

C309

0.1

C308

100µ

L306

100

R307

0.1

C307

517A

L304

2SC5551

Q301

0.1

C301

0.1

C302

R303

R304 100

100µ

L303

100µ

L302

100µ

L301

390

R302

390

R301

1SV307

D301

0.1

C303

1SV307

D302

1.8

R1902

C1917

C1916

TA7808F

IC1901

RSQ035P03TR

Q1960

39k

R1957

220k

R1956

56p

C1963

SM240A

D1951

100µ

L1951

XC9201D09AKRN

IC1951

56k

R1958

470p

C1961

220p

C1962

30k

R1955

0.1

C1964

C1960

0.1

C1971

470k

R1954

0.15

R1953

0.15

R1952

ERJ12

JPW

R1981

0.1

C1957

EP1951

C1956

100µ

L1952

EP1954

1SV307

D221

0.0047

C293

C2012C

R15G

L247

C2012C

R22G

L246

10µ

L248

0.0015

C290

82p

C288

47p

C289

120p

C287

68p

C286

82p

C242

22p

C240

C282

C285

C241

C2012C

R15G

L220

C2012C

R12G

L219

10µ

L218

0.1

C239

BCR108T

Q204

10k

R225

1SV307

D213

10µ

L242

10µ

L245

0.1

C281

1SV307

D220

0.1

C283

2SC5551

Q211

2.7k

R228

0.1

C292

R227

0.1

C278

R218

0.1

C238

C2012C

R22G

L217

56p

C237

C2012C

R18G

L215

220p

C229

0.1

C227

10µ

L213

BCR108T

Q202

10k

R217

1SV307

D212

BCR108T

Q210

R216 100k

0.1

C279

0.0047

C284

100µ

L239

0.47µ

L244 270p

C272

0.33µ

L241

820p

C268

100µ

L240

1SV307

D219

470p

C274

100p

C270

150p

C266

1SV307

D211

BCR108T

Q209

100k

R208

0.0047

C276

100µ

L238

0.82µ

L237

390p

C271

0.56µ

L235

0.0012

C267

0.1

C264 100µ

L233

1SV307

D218

390p

C273

180p

C269

270p

C265

1SV307

D210

BCR108T

Q208

0.1

C263

1µ

L234

1.5µ

L236

0.0047

C275 100µ

L231

68p

C295

680p

C258

0.0022

C254

220p

C294

100µ

L232

100k

R207

1SV307

D217

680p

C260

330p

C256

470p

C252

1SV307

D209

R205 390 R226 390

100k

R206

0.0047

C262

3.9µ

L229

2.7µ

L227

0.1

C250

220p

C215

560p

C214

100µ

L230

0.0018

C257

0.0047

C253

100µ

L225

BCR108T

Q207

1SV307

D216

0.0012

C259

820p

C255

0.0012

C251

1SV307

D208

100k

R204

BCR108T

Q206

0.0047

C261

4.7µ

L228

4.7µ

L226

0.1

C249

100µ

L223

0.0033

C247

0.0082

C244

100µ

L224

1SV307

D215

0.0047

C248

0.0015

C246

0.0047

C243

1SV307

D205

D214 1SV307

0.1

C245

100µ

L222

R203 100k

BCR108T

Q205

0.1

C226

1SV307

D204

0.0047

C433

R424

0.0047

C434

0.18µ

L421

µPC2709T

IC421

C432 0.0047

R423 270

R422 270

R421

unit J151

to DDS

100k

R202

0.1

C208

BCR108T

Q201

68p

C213

150p

C211

82p

C209

100µ

L204

27p

C212

C210

0.22µ

L207

0.27µ

L205

1SV307

D203

C11 0.1

0.1

C112

BCR108T

Q102

C59 150p

R21 27

C58 150p

R20 27

1SV307

R8 39

0.1

C117

100µ

100k

R17

0.1

C12

0.1

C118

MA732

D109

MA732

D108

D114 MA2S111

10µ

L117

8.2µ

L110

12µ

L116

10µ

L109

0.1

C108

100k

R112

100µ

L105

0.0068

C115

0.0027

C116

0.0015

C114

0.1

C109

100k

R113

390

R117

390

R116

100µ

L108

100µ

L107

390

R114

390

R115

1SV307

D106

390

R127

390

R126

0.0012

C111

0.0027

C106

560p

C110

4.7µ

L104

4.7µ

L103

1SV307

D103

1SV307

D104

1SV307

D105

0.1

C107

470

R108

470

R107

470

R111

2SC4213

Q101

R102

10k

R101

0.1

C101

10k

R103

1SV307

D102

470

R106

0.1

C105

0.1

C103

0.1

C102

0.1

C122

100µ

L114

C121 0.1

100k

R104

0.1

C124

100µ

L101

100µ

L106

0.1

C123

EP104

1SV307

D113

100µ

L113

390

R123

390

R122

1SV307

D112

0.1

C120

0.0047

C119

1SV307

D107

100k

R120

R118 390

390

R119

100µ

L112

MA2S728

D111

MA2S728

D110

C40 470p

C7 0.1

R29 100

0.82µ

22µ

L18

0.1

C54

680

R24

2.2k

R23

R25

R22

MA77

R27

0.1

MA77

68n

L21

100p

C52

0.1

C53

4.7µ

L23

15p

C51

15p

C50

4.7µ

L22

MA77

0.1

C55

L221 100µ

C326 0.0047

BUS LINE2

BCR08PN

Q103

R310 100k

C311 0.1

100µ

L305

270

R306

100µ

L102

CLK

CC/GAIN

VOUT/FB

VSS

CE/SS

VIN

LSEN

EXT

J401

VCC

GND

OUT

GND

100k

R121

J101

unit J451

from PA

820

0.1

C13

5.6

0.1

C10

OUT

GND

VCC

GND

SLF7045T

102MR14

L24

0.1

C1309

C56

0.1

TA4002F

IC3

R16 ERJ3GE

JPW

0.0047

C27

100k

R13

ERJ3GE

JPW

R19

1SV307

D10

1SV307

100µ

L19

0.001

0.0047

C37

100k

R15

470p

C42

47p

C44

R12

470

470p

C21

1SV307

R10 1k

LFSC25N

FI2

18n

L14

C35

C34

LFSC25N

FI3

R30 180

150

R18

150

R31

1SV307

R32

0.0047

C38

470p

C36

C43 47p

C30 470p

470p

C41

1.5µ

0.001

C14

56n

L16

C33

0.5p

C31

0.18µ

L13 33p

C32

C29

0.12µ

L12

0.5p

C28

0.18µ

L11 33p

C26

C25

56n

L10

56n

10p

C18

R35

0.001

C17

R11

C16 0.001

C15 0.001

5.6

820

unit J101

from PA

14V

(2)

UNIT

MAIN

BUS LINE3

BUS LINE1

MAIN UNIT (1)

11 - 4

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

COMMON LINE

3R3V

100p

C1618

EP511

0.001

C511

POST

C514 0.1

WFM8

5V5V

0.1

C814

14V

3R3V

14V

R804 10

0.1

C1102

ALC

3SK195

Q901

ALC

D903 1SV307

WFM8

39k

R1215

0.1

C1108

ALC

14V

C1514 0.0047

ALC

WFM8

0.0047

C1407

L1403 100µ

ALC

14V

14V14V

14V

C1906 0.1

ALC

14V

C711 0.001

WFM8

3R3V

EALC

2SC4081

Q1402

0.56µ

L1505

3LOE

R1301 0

C1523 0.1

3LO

VDET

WFML

RXIF

TXIF

TVAS

UNSB

ALCL

TXS

RXS

WFMS

REFL

IDS

ICL

ICH

AMS

FORL

HFOR

VUFOR

POCV

R803 1k

10k

R916

374

FI601

0.0047

C616

DRIV2

0.1

C914

0.1

C701

3SK195

Q701

AGC

1S8V

DRIV

1.8µ

L610

470

R604

100k

R606

SFSCC5.5MC2 [Others]

SFSCC4.5MC2 [USA]

FI1502

GOI

C1503 0.1

L1507 18µ

R1508 22k

C1520 47

R1510 10k

535 [Others]

534 [USA]

L1506

47p [Others]

68p [USA]

C1524

39p

C1522

R1511

0.47

C1525

R1509 390k

C1521 82p

GOI

TPSCC5.5MB [Others]

TPSCC4.5MB [USA]

FI1503

15µ

L1508

330

R1513

R1512 1k

C1512 0.0047

0.1

C1516

TSB6321D [Others]

TSB6221D [USA]

FI1501

NJM13403V

IC1601

100

R1630

C1519

0.1

C1610

C1526

2.2k

R1515

C1515

2.2k

R1505

2.2k

R1514

470p

C1517

0.47

C1513

R1504

0.0047

C1510

TA4019F

IC1501

2.2M

R1641

2.2M

R1636

2.2M

R1627

10k

R1626

4.7k

R1634

MA2S111

D1610

470p

C1614

R1501 0

C1509 0.0047

2SK3018

Q1606

0.18µ

L1503

0.18µ

L1502

39p [Others]

22p [USA]

C1491

0.33µ [Others]

0.27µ [USA]

L1491

33p

C1493

270p [Others]

330p [USA]

C1495

39p [Others]

47p [USA]

C1494

0.33µ [Others]

0.27µ [USA]

L1492

33p

C1496

39p [Others]

22p [USA]

C1498

24p

C1501

68p

C1504

24p

C1507

R1516

R1523 1k

C1508 0.0047

0.0047

C1533

R1526

0.0047

C1532

1SV271

D1522

1SV271

D1521

3.3k

R1525

R1524

10µ

L1501

0.0047

C1506

L1504 10µ

C1531

100k

R1521

0.0047

C1534

R1522 47k

2SC4081

Q1521

150k

R1503

0.01

C1511

150k

R1502

39k

R1507

0.01

C1518

39k

R1506

M52342FP

IC1502

TS462CPT

IC1203

10k

R1218

R1027

C1212

2.2k

R1217

R1219 10k

C1211

2.2k

R1216

R1213

0.0047

C1210

R1212

0.0047

C1207

0.0047

C1206

R1211

TS462CPT

IC1203

C1209 560p

0.0018

C1208

0.1

C1202

TC4W53FU

IC1202

R1206 100k

47k

R1207

100

R1209

47k

R1204

470

R1205

0.1

C1203

0.1

C1213

470

R1201

0.1

C1201

47k

R1202

47k

R1203

TC4W53FU

IC1201

TS462CPT

IC1203

C1204

C1311 10

C1306 0.1

C1305 0.1

R1309

C1303

R1308 3.3k

C1312 1

C1304 0.1

R1310 NTCG16

R1208 100

C1308 0.1

TA4107F

IC1301

0.1

C1310

L1302 100µ

L1301 100µ

R1306 1k

L1303 100µ

C1307 0.1

R1305 1k

0.1

C1302

R1304

1SV307

D1302

R1302

1SV307

D1301

0.1

C1301

R1303

L1405 100µ

C1423 20p

R1416 3.9k

C1422 15p

C1420 47p

2.7µ

L1404

C1421

C1418

0.056

C1419

C1416 0.047

C1415 100

R1414 15k

C1413 1

C1412 0.047

C1411 1

LA1225M

IC1401

0.047

C1414

R1422 220

220

R1420

GOI

SFECV10.7MA5S

FI1402

R1421 150

C1408 0.0047

0.0047

C1409

R1409 47

R1407 1k

330

R1408

6.8k

R1406

SFECV10.7MA5S

FI1401

GOI

C1609

R1624

C1611 0.1

2SC4081

Q1401

C1406 0.0047

R1405 47

R1403 2.2k

150p

C1404

150p

C1402

27p

C1403

0.47µ

L1402

0.0047

C1405

330

R1404

12k

R1402

R1401

0.1

C1401

L1401 100µ

BCR108T

Q1603

82k

R1619

68k

R1607

NJM13403V

IC1601

R1629 10k

R1628

MA8036

D1609

100k

R1640

D1605 MA2S111

D1604 MA2S111

R1620 18k

R1622 0

56k

R1617

NJM13403V

IC1601

2SA1586

Q1604

220

R1625

MA2S111

D1608

R1621

100k

R1616

4.7k

R1615

MA2S111

D1607

NJM13403V

IC1601

33k

R1612

10k

R1618

1.5M

R1614

33k

R1610

68k

R1606

0.0047

C1601

DTA114EE

Q1602

R1602

2SC4213

Q1601

4.7

C1616

270

R1638

NJM13403V

IC1601

2.2M

R1609

MA2S111

D1606

0.0047

C1607

470

R1623

2.2M

R1637

C1615 47p

R1611 330k

C1605 0.1

C1604 0.0047

R1604 2.2k

100k

R1605

R1613

100k

R1608

R1603

R1639

MA2S728

D1602

D1601 MA2S728

CP1601

100k

R1631

14 13

C1702

BCR108T

Q1704

RB706F

D1702

2SD1619

Q1703

330

R1708

330

R1707

330

R1706

R1705 4.7

C1701

RB706F

D1701

BCR108T

Q1702

R1701 4.7

330

R1704

330

R1703

330

R1702

2SD1619

Q1701

C1908 0.1 C1905 0.1 C1904 0.1

R810 18

270

R809

270

R811

R703

0.0047

C704

C720 5p

549

L702

C712

3.3k

R717

0.0047

C717

2.7k

R711

R712 1k

C721 0.0047

C714 0.001

R713 10k

3SK195

Q702

550

L703

120

R716

0.0047

C718

1SV307

D704

C803 0.0047

R802 1k

317

L801

D703 1SV307

HSB88WS

D801

317

L803

1SV307

D803

0.1

C801

1SV307

D802

L806 1.2µ

150p

C810

150p

C811

R808 47

1.2µ

L807

150p

C812

150p

C813

R807

0.1

C807

C808 680p

C809 0.0047

10µ

L804

12µ

L805

C819 0.0027

C818 0.0012

551

L904

C911 150p

10k

R1019

3SK195

Q1001

3SK195

Q902

CFUCG455F

FI901

0.0047

C924

3.3k

R913

1000µ

L901

0.1

C922

1000µ

L906

0.1

C901

R914 5.6k

R915 2.2k

0.001

C920

R917 47

C921 0.1

100

R919

2.2k

R918

0.1

C923

CFUCG455F

FI1001

L908 1000µ

C925 150p

C1001 0.0047

5.6k

R1009

C1016 0.1

R1018 2.2k

0.0047

C1009

0.001

C1018

C1023 47

C1022 47

R1024 100

C1020 0.1

R1022 NTCG16

C1019 0.1

R1023 820

R1025

C1104 1

C1105 10

L1003 1000µ

470

R1020

0.1

C1021

C1101

NJM2594V

IC1101

L1102 100µ

68n

L808

C816 22p

22p

C817

0.001

C815

0.1

C804

0.56µ

L802

270

R801

R805

270

R806

0.001

C805

µPC2709T

IC801

0.1

C916

0.1

C918

R912 8.2k

470

R908

R909 3.9k

C917 0.0047

R907 220

C915 0.1

0.1

C913

2.2k

R906

1000µ

L905

100

R905

180p

C910

R710 1k

8.2k

R709

100

R707

0.0047

C710

0.27µ

L704

R708 2.2k

C709 0.0047

0.001

C708

NTCG16

R718

R706 820

0.1

C707

R705 220

R701 22k

C719 1p

C703

0.1

C702

C705 8p

1SV307

D701

550

L701

R607 1k

1SV307

D603

548

L612

0.0047

C614

R605

1.8µ

L611

C613 10p

C612

548

L604

C605 10p

0.0047

C604

1.8µ

L603

470

R603

1.8µ

L605

1.8µ

L509

470

R602

R520

1SV307

D505

C618 10p

L609 47n

C610 10p

C617 10p

L607 47n

C606 10p

C609

1.5p

C608

C602

470

R521

C528 0.1

0.01

C526

R519 2.2k

R518 2.2k

0.1

C527

1.0µ

L507

100

R512

R517

0.1

C525

1SV307

D503

1.8µ

L503

R509

0.0047

C515

R510

2SC5551

Q502

L508 0.12µ

C518 4p

C516

D601 1SV307

L601 1.8µ

R601 470

1SV271

D504

47n

L511

1SV271

D501

R524

0.001

C530

0.0047

C512

R502

39n

L512

1SV307

D506

R523

39p

C529

270

R418

270

R417

R416

0.001

C429

#617DB

1327=P3

L406

0.1

C425

0.1

C431

#617DB

1327=P3

L404

0.1

C427

R412

R411

C422 0.1

R401

R402 0

100

R414

100

R403

SPM5001

IC401

C423 0.1

R405

0.1

C426

0.1

C424

100µ

L403

3R3V

0.1

C1801

C1802

GOI

C1803

0.1

C1804

BA033FP

IC1801

V+

GND

BCR08PN

Q1201

V+

OUT1

OUT2

GND

CAR IN

BYPASS

SIG IN

IF1

IF2

GND

LO2

RF1

RF2

VCC

LO1

BCR08PN

Q1501

V+

GND

1.8µ

L501

R501

OUT2

OUT1

GND

VCC

MGC2

MGC1

IN2

IN1

OUT

GND

LIMIT IN

AFT SW/NPSW

QIF OUT

VCC

VCO COIL

VREG OUT

VIDEO OUT

APC FIL

EQ F/B

AUDIO OUT

NFB

IF AGC FIL

QIF DET IN

GND

VIF IN

RF AGC OUT

AFTOUT

RF AGC DELAY

ROUT

DET

LIMAMP D

IF BUFF

VCC

SMETERD

GND

REG

IF IN

OUT

GND

VCC

GND

1SV307

D904

0.0047

C715

R715

C716 1p

C2012C

R10G

L705

1SV307

D702

R702 1k

C611 0.0047

BCR08PN

Q1908

BCR08PN

Q1906

BCR08PN

Q1905

BCR08PN

Q1904

C615 0.0047

1SV307

D604

OUT

GND

1SV307

D602

0.0047

C603

0.1

C513

1SV307

D502

0.1

C415

R404

C413 0.1

R407 47 R406 47

520

L402

0.1

C418

0.1

C401

BCR08PN

Q403

BCR08PN

Q402

BUS LINE2

MAIN UNIT (2)

14V

(3)

UNIT

MAIN

BUS LINE3

BUS LINE1

14V

(1)

UNIT

MAIN

BUS LINE3

BUS LINE1

11 - 5

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

4.7

C2214

0.0047

C2617

C2055

100µ

L2053

14V

8V_

14V

8V_

14V

8V_

C2054 10

8V_

14V

3R3V

C2235

C2236

8V_

C2286 0.1

8V_

14V

8V_

3R3V

DRIV2

C1613 0.1

C2205

MA8043

D2205

0.1

C2204

R2156

2SB1132

Q2153

BCR108T

Q2158

47k

R2155

0.0047

C2053

R2154

2SB1132

Q2152

0.0047

C2052

47k

R2153

BCR108T

Q2157

R2169

10k

R2231

0.0047

C2233

0.0047

C2049

0.0047

C2050

DAN202K

D2231

RB706F

D2232

10k

R2232

R2208 100k

0.47

02168

0.0047

C2206

100

R2209

330

R2217

C2211

MA8043

D2211

100k

R2207

10k

R2204

82k

R2203

4.7k

R2205

2.2

C2203

R2202

0.0047

C2201

C2212

270

R2220

330

R2219

100

C2213

TS462CPT

IC2007

10µ

L2201

10µ

L2202

150

R2218

C2620

R2624

2SD1623

Q2606

680µ

L2601

680µ

L2605

470

C2606

3.9k

R2562

0.0033

C2556

0.0022

C2555

0.056

C2554

0.022

C2553

3.9k

R2561

3.9k

R2560

100p

C2565

4.7k

R2568

0.0018

C2564

R2559 0

C2562

4.7k

R2569

0.0082

C2566

4.7k

R2556

R2552

0.1

C2551

R2551

0.1

C2557

C2558

MA8039

D2551

390

R2565

BCR108T

Q2608

DAN202K

D2601

MA2S111

D2602

C2502 10

C2058

470

R2513

0.0047

C2506

0.022

C2503

TS462CPT

IC2501

R2510

0.039

C2505

R2509

R2508

56k

R2506

3.9k

R2505

C2507

3.9k

R2503

0.1

C2501

C2552

100

R2555

C2164

0.0047

C2163

47k

R2171

470k

R2170

47k

R2172

C2167 10

8.2k

R2177

0.47

C2166

R2176 470k

R2175 470k

R2174 470k

BCR108T

Q2605

R2623 47k

220

C2303

R2304

120

R2303

C2232

0.1

C2231

100µ

L2231

R2301

4.7

C2301

18k

R2302

4.7

C2302

470

C2613

10k

R2614

10k

R2611

0.1

C2612

82k

R2613

C2624 0.1

R2612 100k

0.1

C2605

4.7

R2608

0.1

C2608

100

C2622

100

C2621

220

C2607

0.01

C2604

C2603

1.8k

R2604

BCR108T

Q2607

47k

R2603

R2607

R2010

R2012

TVVS

2SC4081

Q2301

R2230

220

C2234

VDET

MODA

DSPI2

DIN

BCR108T

Q2231

SQSS

MA2S111

D2173

2T8V

150

R2206

470

C2610

FAFO

8V_

CP1603

CP1604

AGCI

BANI

MCEM

MICM

C2161 10

C2156 0.1

100µ

L2151

ID1I

ID2I

ID3I

ID4I

IDRI

FANI

TN1I

TN2I

C2101 0.1

C2103 10

C2102 0.1

C2105 10

C2104 0.1

NJM3403AV

IC2103

V+

GND

V+

NJM13403V

IC2101

NJM13403V

IC2102

V+

GND

AT T S

AT 1 3

BCR08PN

Q2232

BCR08PN

Q2233

2MBS

2MBL

BCR08PN

Q2150

VOUT

NJM2244M

IC2231

VIN1

SW1

VIN2

SW2

GND

VOUT

V+

VIN3

P4R8

P2R8

MODS

BCR08PN

Q2155

BCR08PN

Q2154

C2208 470p

TS462CPT

IC2007

V+

GND

DSPI1

4T8V

MSQOS

SQLS

SQSM

BCR08PN

Q2160

BCR08PN

Q2159

BCR108T

Q2156

47k

R2151

R2152

2SB1132

Q2151

0.1

C2051

TS462CPT

IC2501

V+

GND

R2501 100k

R2502 100k

100

R2507

R2278 100k

TS462CPT

IC2501

TXIF

R2277 100k

R2274 470

P4T8

P2T8

PT8V

DSPO1

TC7W53FU

IC2251

CH1

CH0

VCC

GND

VEE

INH

COM

RXIF

98 B

VSS

VEE

INH

BU4052BCFV

IC2156

VDD

0.1

C2601

R2628 47k

R2602 470

100k

R2564

R2566 10k

100

C2563

R2605

TVAS

WFMS

AMS

AFMS

TS462CPT

IC2551

V+

GND

DSPO2

C2561

10k

R2567

TS462CPT

IC2551

TS462CPT

IC2551

100µ

L2041

3R3V

R2601

TC4W53FU

IC2601

2SK3018

Q2601

LA4425A

IC2602

ECH8301

Q2602

EP2602

IMR

IMR2

UNSB

AMS

POST

WFMS

PR4S

PR3S

PROF

D2160 MA2S111

D2162 MA2S111 [USA]

D2163 MA2S111 [EUR], [FRA], [ESP], [UK]

D2166 MA2S111 [ESP]

D2169 MA2S111 [EUR], [ESP], [USA], [EXP]

D2168 MA2S111 [EUR], [ESP], [UK]

D2171 MA2S111 [FRA], [ESP], [EXP]

D2170 MA2S111 [EUR], [USA], [EXP]

D2172 MA2S111

D2175 MA2S111

D2174 MA2S111

D2176 MA2S111

D2151 MA2S111 [USA]

D2153 MA2S111 [USA]

D2156 MA2S111

D2155 MA2S111

D2157 MA2S111 except [FRA]

D2159 MA2S111

D2158 MA2S111

FDAT

IDS

UNSB

AMS

PR4S

PR3S

TVVS

MSQOS

AT T S

BHF6

POST

1S15

WFMS

TVAS

PR1S

BHF

R2165 10

R2164 10

R2163 10

R2162 10

R2161 10

R2160 10

C2159 0.1

C2158 0.1

0.1

C2157

C2162

0.1

C2160

100µ

L2152

PRES#

R2168 10

R2167 10

R2166 10

MCK

MDT

MST

POCI

DRII

MOSI

SCK

VSTB

R2159 10

R2158 10

R2157 10

QS1GND

QS2

Q7Q2

CD74HC4094PW

IC2154

VCC

DATA

STROBE

QS1GND

QS2

Q7Q2

CD74HC4094PW

IC2153

VCC

DATA

STROBE

QS1GND

QS2

Q7Q2

CD74HC4094PW

IC2152

VCC

DATA

STROBE

QS1GND

QS2

Q7Q2

CD74HC4094PW

IC2151

VCC

DATA

STROBE

20 NC

GND

AO3AO2

AO4AO1

AO5

AO6CLK

BH2221FV

IC2155

AO7

AO8

AO9

AO10

VDD

AD12

AD11

VCC

100k

R2132

100k

R2133

100k

R2134

100k

R2135

330k

R2137

330k

R2138

100k

R2131

100k

R2105

R2126

180k

R2121

220k

R2125

R2147

TN2V

NJM3403AV

IC2103

TN2I

180k

R2120

220k

R2124

R2146

TN1V

NJM3403AV

IC2103

TN1I

100k

R2119

390k

R2123

R2145

FANV

NJM3403AV

IC2103

FANI

100k

R2118

150k

R2122

470

R2129

BANV

NJM3403AV

IC2103

BANI

100k

R2113

150k

R2117

R2144

ID4V

NJM13403V

IC2102

ID4I

100k

R2112

150k

R2116

R2143

ID3V

NJM13403V

IC2102

ID3I

100k

R2111

150k

R2115

R2142

ID2V

NJM13403V

IC2102

ID2I

100k

R2110

150k

R2114

R2141

ID1V

NJM13403V

IC2102

ID1I

100k

R2104

39k

R2109

470

R2136

AGC

NJM13403V

IC2101

AGCI

100k

R2103

150k

R2108

470

R2128

IDRV

NJM13403V

IC2101

IDRI

100k

R2102

56k

R2107

100

R2140

POCV

NJM13403V

IC2101

POCI

DRII DRIV

NJM13403V

IC2101

100

R2139

56k

R2106

100k

R2101

3R3V

MAIN UNIT (3)

14V

(4)

UNIT

MAIN

BUS LINE3

BUS LINE1

14V

(2)

UNIT

MAIN

BUS LINE3

BUS LINE1

11 - 6

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

470p

C2069

EP2606

EP2605

FSKK

100p

C2067

0.001

C2068

C2405 0.1

C2409 0.1 C2407 0.1

0.1

C2256

C2255 0.1

0.1

C2257

0.1

C2254

3R3V

10k

R2214

R2002

0.0047

C2001

C2062

EALC

3R3V

14V

8V_

3R3V

8V_

14V

0.0047

C2616

SEND

FSKK

14V

EP2001

14V

0.1

C2260

R2311 18k

4.7

C2312

0.1

C2311

3.9k

R2312

15k

R2618

0.0047

C2619

0.001

C2237

2SD1619

Q2401

10k

R2402

470

R2401

C2417 0.1

C2415 0.0047

C2412 47

C2424 47

0.0047

C2403

DAN202K

D2401

R2418

R2405

120k

R2212

4.7k

R2215

12k

R2213

0.1

C2169

MA8047

D2201

10k

R2221

330k

R2211

4.7k

R2617

MA2S111

D2402

33k

R2619

2SC4081

Q2603

100p

C2618

FSKK

MCEM

MICM

MMDK

TS462CPT

IC2007

CP2021

CP1602

ESPO

4.7

R2011

C2027

C2026

TA7808F

IC2001

4.7µ

L2042

3R3V_B

VSTB

SCK

MOSI

AFMS

1DST

3DST

PDT

PCK

1CN0

1CN1

PRES#

LOST

MST

MDT

MCK

2T8V

4T8V

TXS

RXS

VOUT

ID2V

ID3V

IDRV

ID4V

PT8V

PHT8

TN2V

TN1V

THML

AT 1 3

MST

FDAT

L2011 EXCML16A270U

L2012 EXCML16A270U

0.1

C2020

0.1

C2017

PRES#

HFOR

REFL

P2R8

P4R8

PR4S

PR3S

2MBL

VUFOR

P4T8

P2T8

ID1V

H6CR8

ICH

ICL

IMR2

MMSL

IMR

REFCV

RTKI

2MBS

THML

DPTL

SNDL

ALCL

REFL

FORL

MUDL

KEY

START

CIVE

CIV

LTX D

LRXD

WFML

DASK

DOTK

SQSS

MMDK

DSPO2

DSPO1

DOUT

DSPI1

DSPI2

3DST

1CN1

1CN0

PDT

PCK

1DST

PRES#

LOST

3LOE

3LO

REFCV

DOUT

SQLS

DPTL

DIN

BANV

KEY

EALC

RTKI

MODA

START

DOTK

DASK

LTX D

LRXD

U8V

FAFO

SQSM

SNDL

MMSL

MUDL

8V_

EP2231

FANV

ESPO

EP2604

EP2403

EP2402

R2417

EP2413

47p

C2423

CIVE

CIV

EP2405

EP2404

R2251 220

R2281 220

R2256 220

R2255 220

R2254 220

L2272 100µ

R2273 220

R2272 220

R2621 1k

R2620 1k

R2271 220

R2270 47

R2269 220

R2268 220

R2267 220

R2264 220

R2263 220

R2262 220

R2261 220

R2260 220

R2259 220

R2258 220

R2257 220

R2279 1k

100

R2280

0.1

C2002

0.1

C2041

0.1

C2037

0.1

C2009

0.0047

C2012

0.0047

C2046

0.0047

C2040

0.0047

C2043

0.0047

C2005

0.0047

C2045

0.1

C2065

0.1

C2029

0.1

C2030

0.0047

C2047

0.0047

C2003

0.1

C2028

0.0047

C2048

0.1

C2008

0.0047

C2034

0.0047

C2010

0.0047

C2044

0.1

C2042

0.1

C2033

0.0047

C2039

0.1

C2006

0.0047

C2004

C2064

L2033 EXCML16A270U

R2005 220

R2006 220R2004 220

R2007 220

L2015 100µ

L2036 100µ

L2008 100µ

L2030 100µ

L2007 100µ

L2013 100µ

L2026 100µ

L2003 100µ

L2016 100µ

L2017 100µ

L2035 100µ

L2010 100µ

L2006 100µ

L2029 100µ

L2032 100µ

L2028 100µ

L2009 10µ

L2034 10µ

0.0047

C2007

0.1

C2036

0.1

C2013

0.1

C2011

0.1

C2066

L2002 100µ

L2037 100µ

L2025 100µ

L2001 10µ

L2031 100µ

L2027 100µ

L2266 100µ

0.1

C2261

0.1

C2283

0.1

C2282

0.1

C2281

0.1

C2269

47p

C2280

0.1

C2277

0.1

C2262

0.1

C2278

0.1

C2279

0.1

C2276

0.1

C2274

0.1

C2272

0.0047

C2270

0.1

C2268

0.1

C2266

0.1

C2264

0.1

C2285

0.1

C2275

L2268 100µ

L2267 100µ

L2004 100µ

L2265 100µ

L2264 100µ

L2263 100µ

L2260 100µ

EP2266

EP2264

EP2265

EP2262

EP2261

EP2259

EP2260

EP2257

EP2256

EP2254

EP2253

L2256 100µ

L2257 100µ

EP2255

EP2258

EP2271

EP2252

EP2251

EP2263

C2426 0.1

R2409 220

R2410 220

R2411 220

R2412 220

R2413 220

R2414 220

R2415 220

R2416 220

EP2417

EP2416

EP2412

EP2411

C2427 1

L2409 100µ

L2408 EXCML16A270U

L2406 100µ

L2405 100µ

L2404 100µ

L2403 100µ

L2402 100µ

R2408 47

R2406 220

0.1

C2422

0.1

C2408

0.1

C2401

0.1

C2402

0.001

C2406

0.1

C2410

0.1

C2411

0.1

C2413

0.0047

C2414

0.1

C2418

0.1

C2419

EXCML16A270U

L2411

EP2414

EP2410

EP2415

EP2003

EP2002

470p

C2063

0.0047

C2025

0.0047

C2018

0.0047

C2021

0.0047

C2015

0.0047

C2014

R2008 0

EP2008

EP2007

EP2006

EP2004

EP2409

EP2408

0.0047

C2016

0.0047

C2019

0.0047

C2032

0.0047

C2022

0.0047

C2035

0.0047

C2024

L2024 100µ

L2018 100µ

L2019 100µ

L2022 100µ

L2020 100µ

L2023 100µ

0.0047

C2038

L2021 10µ

3R3V

MF1

CHASSIS

SP1

CHASSIS

unit W1

CONNECT

GND

J2231

EXT

J2602

J2402

RTTY

VIDEO

J2407

REMOTE

J2401

GND

ISPO

J2601

FANG

FANV

J2403

3DST

1CN1

1CN0

PDT

PCK

1DST

PRES

LOST

GND

3LOE

3LO

3LOE

REFCV

8VA

GND

DREF

unit J952

DDS

GND

3R3V

GND

J2406

GND

14V

GND

DOUT

SQLS

DPTL

DINO

BANV

KEY

EALC

RTKI

MODA

unit J951

DDS

START

SNDS

SNDL

SDSS

DOTK

DASK

GND

J2405

LTX D

LRXD

unit J1

CONNECT

F8V

PWK

AFO

GND

MICE

MIC

J2002

MIC

SQSM

GND

MICM

MCEM

SENM

MAFM

U/DM

8VM

J2003

PT8V

IDRV

PHT8

J2005

ID4V

P2T8

P4T8

PT8V

VUFOR

2MBL

PR3S

PR4S

P4R8

P2R8

HREF

HFOR

GND

PRES

unit J980

TB1V

FDAT

TB2V

THER

MCK

MST

3R3V

AT 1 3

GND

14V

J2004

14V

GND

ICL

ICH

ID1V

H6CR8

unit J2

GND

ID3V

GND

POWS

ID2V

GND

POWS

IMR2

MMSL

GND

IMR

REFCV

GND

RTKI

2MBS

THML

DPTL

SNDL

ALCL

2T8V

TXS

SDSS

4T8V

GND

RXS

PWRK

VOUT

GND

PDT

1DST

PCK

J2252

3DSTMMDK

SQSS

DOTK

DASK

WFML

LRXD

LTX D

CIV

CIVE

START

SNDS

KEY

FORL

REFL

MUDL

unit J651

LOGIC

1CN1

1CN0

PRES#

LOST

MST

MDT

MCK

AFMS

MOSI

SCK

VSTB

DREF

3R3V_B

J2251

DSPI2

GND

DSPI1

GND

DOUT

GND

DSPO1

DSPO2

GND

unit J701

LOGIC

MAIN UNIT (4)

14V

(3)

UNIT

MAIN

BUS LINE3

BUS LINE1

11 - 7

11-3 LOGIC UNIT

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

0.0047

C523

C527 0.0047

C526 0.0047

C525 0.0047

C524 0.0047

R707

C715 0.001

0.001

C716

C717 0.001

H3V

C569 10

C567 10

C566 0.1

1R2V

_3V

_1R2V

_3V

EP2217

_3V

_1R2V

_3V

H3V

_1R2V

_3V

H3V

TDO

GND

C565 0.1

GND

LOGIC UNIT (1)

0.1

C564

C563

C1319

0.0047

C703

CLK

ADIN

CLK

COFS

COCK

CODO

CODI

CLK

0.0047

C704

R554 100k

EMUA

CODI

UNIT (2)

LOGIC

C1301 0.1

10k

R1302

22k

R1301

0.027

C1315

EDT

ECK

HN58X24256FPIE

IC1301

SDA

SCL

VCC

VSS

AFMS

MOSI

SCK

VSTB

DOUT

4.7k

R610

0.0047

C522

MOSI

SCK

OSTB

CRES

FMTL

CLK

100

R414

0.1

C414

C413

C513 120p

R511 4.7k

0.0022

C511

100

R508

2.7k

R518

C512 120p

0.1

C518

2.7k

R519

100

R512

C516

0.1

C519

4.7k

R516

4.7k

R520

0.1

C514

4.7k

R517

10k

R515

10k

R514

C517

C515

R510 4.7k

0.0022

C466

C465 820p

R465 820

0.1

C469

2.7k

R474

100

R464

C467 820p

R469 820

2.7k

R475

0.1

C470

100

R467

2.7k

R471

4.7

C471

4.7k

R472

0.1

C473

4.7k

R476

4.7k

R473

4.7

C472

2.7k

R470

4.7

C468

C553 0.1

C551 2.2

EMUA

TMSA

TRSTA

TCKA

A08B

A06B

A03B

TDOA

DTCK

DTPA

A07B

A05B

A02B

A01B

A04B

DTFA

AWEB

DRCK

DRFA

DRPA

ADIN

MISO

CODO

COFS

COCK

MOSB

SPIS

SCKB

SRES

SSTB

EP2205

0.1

C2209

0.1

C2210

100

R2201

0.1

C2206

0.1

C2205

0.1

C2204

0.1

C2202

0.1

C2207

0.1

C2208

0.1

C2215

0.1

C2214

0.1

C2213

0.1

C2212

0.1

C2211

AWEB

D15B

D14B

D13B

D12B

D11B

D10B

D09B

D08B

D07B

D06B

D05B

D04B

D03B

D02B

D01B

D00B

AMSOB

AREB

A16B

A15B

A14B

A13B

A12B

A11B

A10B

A09B

A08B

A07B

A06B

A05B

A04B

A03B

A02B

A01B

0.1

C2017

0.1

C2016

R1335

ML920S1F9D

BT1301

680

R1326

MA728

D1301

10k

R1324

47k

R1329

10k

R1328

C1317

0.1

C1316

39k

R1325

0.1

C1314

C1252

0.47

C1251

R1251

10k

R1334

33k

R1306

FZMD

FZTX

FZRX

JPG6

JPG5

JPG4

JP53

WDTOVF

R1228 47k

R1219 4.7k

R1221 4.7k

R1222 4.7k

R1223 4.7k

R1224 4.7k

R1227 47k

R1225 47k

TRSTA

TDIA

TCKA

TMSA

EMUA

TMSA

C2102 0.1

4.7k

R2112

0.1

C2101

10µ

L2102

10µ

L2101

10k

R2105

10k

R2104

10k

R2103

10k

R2102

10k

R2101

4.7k

R609

100

C604

0.1

C605

C614

C613

4.7k

R604

4.7k

R611

R619

3.3k

R612

R603 4.7k

R618

3.3k

R605

560p

C603

820p

C606

330p

C611

220p

C608

6.8k

R614

R615 6.8k

R613 3.3k

R608 6.8k

6.8k

R607

330p

C610

220p

C607

R606 3.3k

C612

C609

C708 100p

C707 100p

R703 10k

C706 100p

R702 10k

C705 100p

R701 10k

100p

C709

0.0047

C702

R705

EP701

10k

R706

0.1

C701

R2216 0

C601 10

C602 0.1

C510 0.1

C509 10

C463 10

C464 0.1

C462 10

C461 0.1

TS462CPT

IC601

GND

V+

R601 100

R507 100

V+

GND

TS462CPT

IC502

TS462CPT

IC452

GND

V+

R463 100

TS462CPT

IC451

GND

V+

R462 100

RTCIRQ

RTCCK

RTCDT

RTCCE

80942CNMC

G9C

IC1303

VSS

VDD

OUT

BA033FP

IC1251

VDD

FOUT

FOE

/AIRQ

/TIRQ

4581

IC1304

CE0

CE1

GND

CLK

C2222 0.1

C2221 0.1

C2220 0.1

C2219 0.1

C2218 0.1

C2217 0.1

10k

R2204

10k

R2205

H3V

1R2V

10µ

L552

10µ

L551

R1226 47k

RES#

CP1201

D1201 MA2S111

10k

R2202

10k

R2214

R2215 10k

10k

R2206

R2110 0

D12B

D09B

D06B

D03B

D00B

A15B

A09B

A10B

A11B

D13B

D10B

D07B

D04B

D01B

A16B

A14B

A13B

A12B

D15B

D14B

D11B

D08B

D05B

BUS LINE2

R2203 10k

AMSOB

AREB

EP2202

D02B

SN74LVC3G34DCUR

IC2102

SN74LVC3G34DCUR

IC2101

C711 220

EP2002

CLK

SN74AHC1G04DCK

IC701

DOUT

C415

R418 100

R416 100

R415 100

R568 100

R570 100

R553 100

R569 100

R551 100

R571 4.7

3.3k

R602

TS462CPT

IC601

TS462CPT

IC601

BU9480F

IC401

LRCLK

SDATA

BCLK

VCC

OUTL

GND

REF

OUTR

1514

CDTISDTI

1613

CCLKSDTO

1712

CSN

BICK

1811

DFS

LRCK

1910

PDN

MCLK

DEM0

P/S

DEM1

AGND

AK4528VFP

E2/P

IC551

DGND

AOUTL

AOUTL+

AOUTR

AOUTR+

AINL

AINL+

AINR

AINR+

VCOM

VREF

TS462CPT

IC502

TS462CPT

IC502

TS462CPT

IC452

TS462CPT

IC451

TS462CPT

IC451

TS462CPT

IC452

VSS

VCC

FZMD

FZTX

FZRX

JPG6

RES#

JPG5

JRESI

WDTOVF

JP53

JPG4

J1201

VDL

TDI

TRST

TCK

TMS

EMU

J2101

BUS LINE1

unit J2251

to MAIN

MOSI

AFMS

DSPO2

SCK

DSPO1

VSTB

DOUT

DSPI1

DSPI2

24M

J701

E6D1

VSSVSS

E3B5 NCCE

E4B2 NC

BHE

G5A2 WEOE

H1A1 NC

BLE

G2D3 NCNC

H6A6 NCNC

G1F4

I/015

A15

F1F3

I/014

A14

F2G4

I/013

A13

E2G3

I/012

A12

D2H5

I/011

A11

C2H4

I/010

A10

C1H3

I/09

B1H2

I/08

G6D4

I/07

F6C4

I/06

F5C3

I/05

E5B4

I/04

CY7C1021CV33

15BAIT

IC2002

I/03

I/02

I/01

I/00

VCC

VDDEXT

PF8

PF9

PF10

PF11

PF14

PPI2

PTXO

PTXI

A10 GND

A11

XTAL

A12

P14

GND

CLKIN

P13

P12

ADDR18

P11

ADDR19

P10

BG P9

DATA2

DATA5

DATA8

D ATA 1 1

D ATA 1 4

ADDR12

N14

ADDR17

TCK

VDDEXT

EMU

TMR1

ADDR3

L14

ADDR6

L13

ADDR8

L12

VDDEXT

L11

GND L10

VDDINT

GND

VDDEXT

GND

DT0PRI

DT0SEC

D ATA 1 5

TFS0

C12

VDDEXT

BMODE1

C10

C11

RESET

GND

ARE

G14 AOE

G13

AMS3

G12 GND

G11

VDDEXT

DR1PRI

RFS1

RSCLK1

AMS1

F14

AMS2

F13

VDDEXT

F12 GND

F11 GND

DR1SEC

DT1PRI

ADSP

BF532SBBC400

IC2201

GND

ABE1

ABE0

AWE

TSCLK0

DR0SEC

RFSO

VDDEXT

VDDINT

VDDEXT

ADDR4

ADDR1

DR0PRI

TMR2

GND

ADDR7

ADDR5

ADDR2

RSCLK0

TMR0

VDDINT

TDI

GND

D ATA 1 2

DATA9

DATA6

DATA3

DATA0

GND

ADDR15

ADDR9

ADDR10

AFFR11

TRST

TMS

TDO

BMODEO

D ATA 1 3

D ATA 1 0

DATA7

DATA4

DATA1

BGH

ADDR16

ADDR14

ADDR13

TSCLK1

AMSO

ARDY

SA10

VDDINT

DT1SEC

MISO

TFS1

SRAS

SWE

GND

VDDEXT

GND

VDDINT

VDDEXT

GND

MOSI

PF0

SCK

SCAS

SMS

PPI_CLK

PPIO

VDDEXT

PF15

GND

PF3

PF2

PF1

CLKOUT

SCKE

VROUT1

GND

NMI

VDDRTC

PPI1

PPI3

PF13

PF12

PF7

PF6

PF5

PF4

GND

VROUT0

E14

E13

E12

E11

D14

D13

D12

D11

D10

C14

C13

N13

N12

N11

N10

M14

M13

M12

M11

M10

H11

H12

H13

H14

J11

J12

J13

J14

K11

K12

K13

K14

B14

B13

B12

B11

B10

A14

A13

11 - 8

VOLTAGE LINE

Explanatory notes

H3V

1R2V

H3V

4.7k

R1307

2.2k

R1237

CYDT

22k

R1232

R1231 10k

0.1

C1213

1R2V

LOGIC UNIT (2)

R1304 47k

R1303 47k

FMTL

47k

R1338

MA2S111

D1331

R1411 47k

R1406 47k

R1003

0.0047

C1002

WFML

R1001 1k

WFML_

R1008 1k

0.0047

C1001

PWRK

PWRK_

47k

R1010

FZMD

47k

R1409

47k

R1408

47k

R1405

10k

R1002

47k

R1401

47k

R1337

R1407 47k

R1410 47k

R1402 47k

UNIT (3)

LOGIC

UNIT (1)

LOGIC

15k

R1018

47k

R1015

47k

R1016

15k

R1019

R1124 1k

R1128 1k

3.3k

R1129

3.3k

R1502

0.0047

C1112

0.0047

C1111

0.0047

C1110

0.0047

C1109

THML

DPTL

SNDL

ALCL

REFL

FORL

WDTOVF

C1305 10

C1306 0.01

C1302 10

C1303 0.01

0.1

C1310

0.1

C1309

0.1

C1308

0.1

C1307

0.1

C1304

MMSL

DTFS

DTXUD

RTCIRQ

RTCCK

RTCDT

RTCCE

CYCK

CYDT

H8_A17

H8_A16

H8_A15

H8_A14

H8_A13

H8_A12

H8_A11

H8_A10

H8_A9

H8_A8

H8_A7

H8_A6

H8_A5

H8_A4

H8_A3

H8_A2

IMR2

LOST

MST

CPU_P12

RTKI

MMDK

DRES

PRES#

SQSS

MCK

MDT

CPU_P22

CTXD

CRXD/CBSY

SNDS

SDSS

TDAT

DRXUD

DRFS

DCK

H8_D7

H8_D6

H8_D5

H8_D4

H8_D3

H8_D2

H8_D1

XTAL

EXTAL

DTXD

DRXD

2T8V

1CN0

1CN1

XTAL

EXTAL

4T8V

TXS

RXS

POWS

H8_D8

H8_D9

H8_D10

H8_D11

H8_D12

H8_D13

H8_D14

H8_WAIT#

H8_LWR#

H8_HWR#

H8_RD#

RES#

PDT

1DST

PCK

3DST

PWRK_

LRXD_

LTX D _

TRD

TKEY

CPU_P95

CPU_P94

VDL

WFML_

DOTK_

DASK_

MUDL_

THML_

DPTL_

SNDL_

ALCL_

REFL_

FORL_

EDT

ECK

FZTX

FZRX

JP53

JPG6

JPG5

H8_D0

H8_D1

H8_D2

H8_D3

H8_D4

H8_D5

H8_D6

H8_D7

H8_D9

H8_D10

H8_D11

H8_D12

H8_D13

H8_D14

H8_CS1#

H8_WAIT#

H8_PHI

H8_RD#

H8_HWR#

H8_LWR#

H8_A17

H8_A1

H8_A2

H8_A3

H8_A4

H8_A5

H8_A6

H8_A7

H8_A8

H8_A9

H8_A10

H8_A11

H8_A12

H8_A13

H8_A14

H8_A15

H8_A16

CYCK

R1230

0.1

C1201

0.1

C1212

0.1

C1214

0.1

C1222

0.1

C1221

0.1

C1220

0.1

C1219

0.1

C1218

0.1

C1217

0.1

C1216

0.1

C1215

LCD_R3

LCD_R2

LCD_R1

LCD_G3

LCD_G2

LCD_G1

LCD_B3

LCD_B2

LCD_B1

LCD_R0

LCD_G0

LCD_B0

806 (Others)

805 (USA)

X1201

27p

C1210

27p

C1203

R1201 1M

C1211

100µ

L1204

C1202 0.0047

R1205

100µ

L1202

BCR108T

Q1201

LCD_R3

LCD_R2

LCD_R1

LCD_R0

LCD_G3

LCD_G2

LCD_G1

LCD_G0

LCD_B3

LCD_B2

LCD_B0

R1210 39k

R1215 39k

R1229 39k

0.1

C1206

0.1

C1204

0.1

C1205

1.2k

R1206

1.2k

R1207

1.2k

R1208

100p

C1209

100p

C1208

100p

C1207

VOUT

0.1

C1223

R1236 150

R1235 150

C1225

100µ

L1203

180

R1305

C1311 0.1

R1006 1k

R1007 1k

R1012 470

R1013 470

LTX D

LRXD

DOTK

DASK

LTX D _

LRXD_

DOTK_

DASK_

DA221

D1307

DA221

D1306

DA221

D1002

DA221

D1001

BUS LINE2

4.7k

R1332

R1331 0

H8_PHI

H8_CS1#

R1327 47k

PRES#

CPU_PF6

R1333 220k

10p

C1313

10p

C1312

809

X1301

H8_A1

IMR

RSS

D1312 MA2S111

D1311 MA2S111

D1314 MA2S728

D1313 MA2S111

0.47

C1108

100k

R1132

0.47

C1107

100k

R1131

R1123

R1126

1R2V

BUS LINE1

R1120 1k

R1119 3.3k

R1118 3.3k

R1117 1k

R1116 1k

R1115 1k

RB706F

D1113

RB706F

D1112

RB706F

D1111

THML_

DPTL_

SNDL_

ALCL_

REFL_

FORL_

RB706F

D1110

JPG4

PRES#

H8_D0

R1317 220k

R1322 220k

R1316 220k

R1323 220k

R1321 220k

R1320 220k

R1319 220k

R1318 220k

R1308 220k

R1309 220k

R1310 220k

R1311 220k

R1312 220k

R1313 220k

R1314 220k

R1315 220k

H8_D15

H8_D8

H8_D15

LCLK3LCLK2

SCLK

LCLK1

VDDL

CY22150FZXCT

IC1201

LCLK4

VSS

CLK5

CLK6

XOUT

AVSS

SDAT

AVDD

VDD

XIN

VSSL

TC7WU04FU

IC1217

SN74AHC2G86HDCT

IC1218

LCD_B1

1213

VCC1

1114

SYNCOUT

1015

SYNCIN

COUT

16 NC

YOUT

BFPOUT

YTRAP

NT/PAL

SCIN

BH7236AF

IC1212

BIN

GIN

RIN

GND1

VOUT

BOUT

GOUT

ROUT

GND2

VCC2

R1202 10k

R1203 10k

R1209 20k

R1204 10k

R1211 10k

R1212 10k

R1214 20k

R1213 10k

R1216 10k

R1217 10k

R1218 10k

R1220 20k

H3V

1R2V

BUS LINE2

HD64F2377VFQ33V

IC1302

BUS LINE1

S1D13706F00A

IC1226

HIOVDD

DB8

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

VSS

NIOVDD

PWMOUT

GPIO6

GPIO5

GPIO4

GPIO3

GPIO2

GPIO1

GPIO0

CVOUT

GPO

DRDY

NIOVDD

VSS

COREVDD

FPFRAME

FPLINE

FPSHIFT

FPDAT0

FPDAT1

FPDAT2

FPDAT3

FPDAT4

FPDAT5

FPDAT6

VSS

NIOVDD

FPDAT7

FPDAT8

FPDAT9

FPDAT10

FPDAT11

FPDAT12

FPDAT13

FPDAT14

FPDAT15

FPDAT16

FPDAT17

VSS

DB9

DB10

DB11

DB12

DB13

DB14

DB15

WAIT#

HIOVDD

CLKI

VSS

RESET#

RD/WR#

WE1#

WE0#

RD#

BS#

M/R#

CS#

AB0

AB1

AB2

AB3

COREVDD

VSS

AB4

AB5

AB6

AB7

AB8

AB9

AB10

AB11

AB12

AB13

AB14

AB15

AB16

TESTEN

CNF0

CNF1

CNF2

CNF3

CNF4

CNF5

CNF6

CNF7

CLKI2

NIOVDD

100

144 MD1

143 MD0

142

P30/TXD0/IRTXD

141

P31/TXD1

140

P32/RXD0/IRRXD/SDA1

139

P33/RXD1/SCL1

138

P34/SCK0/SCK4/SDA0

137

P35/SCK1/SCL0/(OE)/(CKE)

136

P53/ADTRG/IRQ3

135

P52/SCK2/IRQ2

134

P51/RXD2/IRQ1

P50/TXD2/IRQ0

PG6/BREQ

PG5/BACK

PG4/BREQ0

AVSS

P97/AN15/DA5

P96/AN14/DA4

P95/AN13/DA3

P94/AN12/DA2

P93/AN11

P92/AN10

P91/AN9

P90/AN8

P47/AN7/DA1

P46/AN6/DA0

P45/AN5

P44/AN4

P43/AN3

P42/AN2

P41/AN1

P40/AN0

VREF

AVCC

PG3/CS3/RAS3/CAS

PG2/CS2/RAS2/RAS

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

PD1/D9

PD0/D8

PD2/D10

PD3/D11

PD4/D12

PD5/D13

PD6/D14

PD7/D15

P60/TMRIO/DREQ0/IRQ8

P61/TMRI1/DREQ1/IRQ9

P62/TMCI0/TENDO/IRQ10

PF0/WAIT

PF1/IRQ14/UCAS/DQMU

PF2/IRQ15/LCAS/DQML

PF3/LWR

PF4/HWR

PF5/RD

PF6/AS

PLLVCC

RES

PLLVSS

PF7/

VSS

XTAL

EXTAL

VCC

100

101

VSS 102

103

STBY

P63/TMCI1/TEND1/IRQ11

104

105

P64/TMO0/DACK0/IRQ12

P65/TMO1/DACK1/IRQ13

106

107

PG0/CS0

PG1/CS1

108

VCC

PE7/D7

VSS

PE6/D6

PE5/D5

PE4/D4

PE3/D3

PE2/D2

PE1/D1

PE0/D0

DCTL

P85/(IRQ5)/SCK3/EDACK3

P84/(IRQ4)/EDACK2

P83/(IRQ3)/RXD3/ETEND3

P27/PO7/TIOCB5/(IRQ15)

P26/PO6/TIOCA5/(IRQ14)

P25/PO5/TIOCB4/(IRQ13)

P24/PO4/TIOCA4/RXD4/(IRQ12)

P23/PO3/TIOCD3/TXD4/(IRQ11)

P22/PO2/TIOCC3/(IRQ10)

P21/PO1/TIOCB3/(IRQ9)

P20/PO0/TIOCA3/(IRQ8)

VSS

P17/PO15/TIOCB2/TCLKD/EDRAK3

P16/PO14/TIOCA2/EDRAK2

P15/PO13/TIOCB1/TCLKC

P14/PO12/TIOCA1

P13/PO11/TIOCD0/TCLKB

P12/PO10/TIOCC0/TCLKA

P11/PO9/TIOCB0

P10/PO8/TIOCA0

VCC

NMI

WDTOVF

PH3/CS7/(IRQ7)/OEI/CKE

PH2/CS6/(IRQ6)

PH1/CS5/RAS5/SDRAM

PH0/CS4/RAS4/WE

PB2/(IRQ2)/ETEND2

PB1/(IRQ1)/TXD3/EDREQ3

EMLE

PA7/A23/IRQ7

PA6/A22/IRQ6

PA5/A21/IRQ5

PA4/A20/IRQ4

PA3/A19

PA2/A18

VSS

PA1/A17

PA0/A16

PB7/A15

PB6/A14

PB5/A13

PB4/A12

VSS

PB3/A11

PB2/A10

PB1/A9

PB0/A8

PC7/A7

PC6/A6

PC5/A5

VSS

PC4/A4

PC3/A3

PC2/A2

PC1/A1

PC0/A0

VCC

PB0/(IRQ0)/EDREQ2

VSS

MD2

11 - 9

VOLTAGE LINE

Explanatory notes

C652 0.001

C654 100p

C655 100p

C656 100p

C653 0.001

0.001

C651

3V_

1R2V_

3V_

1R2V_

3V_

1R2V_

3V_

1R2V_

1R2V

LOGIC UNIT (3)

R1109

DTCK

12k

R1102

CP302

47k

R1413

47k

R1412

R1404 47k

R1403 47k

R1339 2.2k

R1004 47k

UNIT (2)

LOGIC

IMR2

PWRK

VOUT

POWS

RXS

TXS

4T8V

2T8V

SDSS

SNDS

MCK

MDT

MST

MMSL

CPU_PF6

IMR

CPU_P95

CPU_P94

CPU_P22

RTKI

CPU_P12

THML

DPTL

SNDL

ALCL

REFL

FORL

MUDL

KEY

START

CIV

LOST

LRXD

PRES#

LTX D

1CN1

WFML

1CN0

DASK

PCK

DOTK

PDT

SQSS

3DST

MMDK

1DST

VDL

0.1

220

0.1

C52

0.1

C51

AWE

D15

D14

D13

D12

D11

D10

D09

D08

D07

D06

D05

D04

D03

D02

D01

D00

R313

100

R301

CP301

DRES

OSTB

VSTB

MOSB

SRES

AFMS

SPIS

CLK

FBK2

FBK0

RSS

CRES

ARE

AMS3

DTXD

DTFS

AMS2

DRXD

DCK

AMS0

MISO

DRFS

MOSI

SSTB

SCK

DTPA

DTFA

AWE

DRFA

A04

A01

DRPA

SCKB

DRXUD

A07

A05

A02

DRCK

DTXUD

A08

A06

A03

D12

D09

D06

D03

D00

A15

A09

A10

A11

D13

D10

D07

D04

D01

A16

A14

A13

A12

D15

D14

D11

D08

D05

D02

A19

A18

A17

START

KEY

MA732

D1106

2.2k

R1113

3.3k

R1114

RB706F

D1107

BCR108T

Q1102

47k

R1110

R1103 1k

R1104 1k

0.0047

C1106

2SC4081

Q1101

2SA1576

Q1103

CIV

18k

R1101

10k

R1105

MA2S111

D1101

R1127 0

0.1

C1103

100k

R1108

100k

R1111

100k

R1107

C314 0.1

C313 0.1

C312 0.1

C311 0.1

C310 0.1

C309 0.1

C308 0.1

C307 0.1

C306 0.1

C305 0.1

C304 0.1

C303 0.1

C302 0.1

EMUA

TDIA

TRSTA

TMSA

TCKA

RTQ035P02

Q201

CP304

MUDL

MUDL_

TDAT

0.0047

C1102

0.0047

C1101

TKEY

47k

R1106

TRD

CTXD

CRXD/CBSY

SN74AHC2G04HDCT

IC1402

DA221

D1305

DA221

D1304

0.1

C204

220

C53

C320 0.1

C319 0.1

C318 0.1

C317 0.1

C316 0.1

C315 0.1

C202 220

C207 10

C206 0.1

R310 10k

R306 10k

MCR10

JPW

R203

10µ

L202

D201 CUS02

C209 47

C208 47

C203 10

C201 0.1

10µ

L201

C205 0.1

EP201

CP310

CP309

10k

R303

R312

10k

R302

R314 0

CP307

CP306

CP308

CP305

CP303

10k

R307

10k

R308

TDOA

EP301

100k

AMS3

AMS0

FBK0

FBK2

A01

SN74AHC1G04DCK

IC4

SN74AHC2G08HDCT3

IC3

SN74AHC2G08HDCT3

IC2

BUS LINE2

ARE

D00

D08

D01

D09

D02

D10

D03

D11

D04

D12

D05

D13

D06

D14

D07

D15

A17

AMS2

ARE

A16

A15

A14

A13

A12

A11

A10

A09

A08

A07

A06

A05

A04

A03

A02

A01

EP51

A02

A03

A04

A05

A06

A07

A08

A18

A19

DRES

AWE

A10

A11

A12

A13

A14

A15

A16

100k

EP2

BUS LINE1

1R2V

IMR2

MMSL

IMR

CPU_PF6

CPU_P95

CPU_P94

PWRK

CPU_P22

VOUT

RTKI

POWS

CPU_P12

RXS

THML

TXS

DPTL

4T8V

SNDL

2T8V

ALCL

SDSS

REFL

SNDS

FORL

MUDL

MCK

KEY

MDT

START

MST

unit J2252

to MAIN

CIVE

CIV

LRXD

LTX D

WFML

DASK

DOTK

SQSS

MMDK

VDL

LOST

PRES#

1CN1

1CN0

PCK

PDT

3DST

1DST

J651

2524 A0A1

2623 CEA2

2722

VSS

2821 OEA4

2920

DQ0

3019

DQ8

3118

DQ1

3217

DQ9A17

3316

DQ2A18

3415

DQ10

RY/BY

3514

DQ3

WP/ACC

3613

DQ11

A21

3712

VDD

RESET

3811

DQ4

3910

DQ11

A20

DQ5A19

DQ13

DQ6

DQ14

TC58FVM6T5BTG65GCH

IC1

DQ7

DQ15/A

VSS

BYTE

A16

A11

A12

A13

A14

A15

A10

E6D1

VSSVSS

E3B5 NCCE

E4B2 NC

BHE

G5A2 WEOE

H1A1 NC

G2D3 NCNC

H6A6 NCNC

G1F4

I/015

A15

F1F3

I/014

A14

F2G4

I/013

A13

E2G3

I/012

A12

D2H5

I/011

A11

C2H4

I/010

A10

C1H3

I/09

B1H2

I/08

G6D4

I/07

F6C4

I/06

F5C3

I/05

E5B4

I/04

BLE

CY7C1021CV33

15BAIT

IC51

I/03

I/02

I/01

I/00

VCC

VDDEXT

PF8

PF9

PF10

PF11

PF14

PPI2

PTX0

PTXI

A10 GND

A11

XTAL

CLKIN

A12

P14

GND P13

ADDR17

P12

ADDR18

P11

ADDR19

P10

BG P9

D ATA 2

D ATA 5

D ATA 8

D ATA 1 1

D ATA 1 4

D ATA 1 5

BMODE1

TCK

VDDEXT

ADDR12

N14

EMU

TMR1

ADDR3

L14

ADDR6

L13

ADDR8

L12

VDDEXT

L11

GND L10

VDDINT

GND

VDDEXT

GND

DT0PRI

DT0SEC

TFS0

C12

VDDEXT

C11 GND

RESET

C10

ARE

G14 AOE

G13

AMS3

G12 GND

G11

VDDEXT

DR1PRI

RFS1

RSCLK1

AMS1

F14

AMS2

F13

VDDEXT

F12 GND

F11 GND

DR1SEC

DT1PRI

ADSP

BF532SBBC400

IC301

GND

ABE1

ABE0

AWE

TSCLK0

DR0SEC

RFSO

VDDEXT

VDDINT

VDDEXT

ADDR4

ADDR1

DR0PRI

TMR2

GND

ADDR7

ADDR5

ADDR2

RSCLK0

TMR0

VDDINT

TDI

GND

D ATA 1 2

D ATA 9

D ATA 6

D ATA 3

D ATA 0

GND

ADDR15

ADDR9

ADDR10

AFFR11

TRST

TMS

TDO

BMODEO

D ATA 1 3

D ATA 1 0

D ATA 7

D ATA 4

D ATA 1

BGH

ADDR16

ADDR14

ADDR13

TSCLK1

AMSO

ARDY

SA10

VDDINT

DT1SEC

MISO

TFS1

SRAS

SWE

GND

VDDEXT

GND

VDDINT

VDDEXT

GND

MOSI

PF0

SCK

SCAS

SMS

PPI_CLK

PPIO

VDDEXT

PF15

GND

PF3

PF2

PF1

CLKOUT

SCKE

VROUT1

GND

NMI

VDDRTC

PPI1

PPI3

PF13

PF12

PF7

PF6

PF5

PF4

GND

VROUT0

E14

E13

E12

E11

D14

D13

D12

D11

D10

C14

C13

N13

N12

N11

N10

M14

M13

M12

M11

M10

H11

H12

H13

H14

J11

J12

J13

J14

K11

K12

K13

K14

B14

B13

B12

B11

B10

A14

A13

11 - 10

11-4 PA/DRIVER UNITS

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

0.001

C485

10p

C484

EP763

EP754

EP743

100k

R462

µPC3215TB

IC471

TN1V

470p

C561

0.001

C308

100p

C320

0.001

C306

100p

C319

0.001

C307

6.8

R319

100

R302

14V

_P2T8

0.001

C751

0.0047

C750

0.1

C749

DRIVO

DRIVI

P401

P101

14V

C725 22

ERJ3GE

JPW

R773

100p

C723

P2R8

2M8L

0.001

C560

PT8V

YGR

ID1V

H6CR8

ICH

ID3V

ID2V

POWS

ICL

0.001

C478

0.001

C435

ERJ1W

JPW

R705

0.1

C720

0.1

C752

100p

C722

EXCML16A270U

L707

EXCML16A270U

L706

R307

R305

DAN202U

D302

DAN202U

D301

0.1

C313

0.1

C309

0.1

C332

0.1

C331

100

R306

100

R304

39p

C102

100

R201

0.001

C205

4.7k

R202

0.001

C206

0.1

C208

220p

C209

0.001

C207

0.1

C204

R204

R205

0.1

C217

0.001

C201

470p

C724

4.7k

R733

4.7k

R735

0.1µ

L107

12p

C120

100p

C118

ERJ3GE

JPW

R117

0.1

C113

0.1

C741

L104 100µ

L103 100µ

L105 HF50ACC322513

100

C122

0.1

C114

0.1

C112

0.47µ

L108

470

R116

RD01MUS1

Q102

560

R111

0.1

C109

R110

6.8k

R113

3.9k

R112

0.1

C108

0.1

C106

0.1

C107

6.8n

L102

R109

680

R105

470

R108

470

C105

0.1

C104

5.6k

R107

2.2k

R106

0.1

C102

R104

0.1

C103

0.68

C327

12p

C326

262

L306

L304 LR

507

R318 10

R317 10

C325 330p

C324 390p

C323 120p

R309 2.2k

0.68

R311

R315 39

R314 33

R313 33

R312 39

0.68

R310

0.0068

C315

0.0068

C314

2.2k

R308

0.0068

C312

ERJ1W

JPW

R303

0.1

C303

CP201 CP202

0.001

C340

EXC

ELDR25C

L302

470

C305

0.1

C304

120p

C302

0.001

C301

220p

C218

330p

C214

220p

C215

10n

L203

10n

L204

22n

L551

0.001

C552

68n

L553

1SV307

D552

1SV307

D551

0.0047

C551

1.8k

R551

4.7

R552

R553

33n

L552

R555

4.7k

R577

0.001

C554

330k

R557

MA357

D556

0.001

C567

6.8k

R578

1SV307

D555

MA2SV05

D553

MA2SV05

D554

100k

R554

10µ

L554

100k

R556

470p

C553

BCR108T

Q552

220k

R559

180k

R558

0.001

C555

220k

R560

330k

R561

0.1

C556

0.001

C557

R562

3SK291

Q551

680

R563

0.001

C558

R564

2.7µ

L555

0.001

C559

10µ

L556

1SV307

D557

R565

D558 MA357

R567 100k

4.7k

R575

0.001

C563

6.8k

R576

100k

R568

MA2SV05

D560

MA2SV05

D559

27n

L558

82n

L557

0.001

C562

0.001

C564

0.001

C565

330

R570

0.47µ

L560

1SV307

D462

0.001

C477

0.001

C453

1.8k

R451

4.7n

L451

4.7

R452

1SV307

D451

1SV307

D452

R453

3.5p

C456

ERJ3GE

JPW

R454

12n

L452

47k

R455

47k

R467

1SV305

D454

1SV305

D453

0.001

C458

390k

R457

BCR108T

Q452

3SK291

Q451

150k

R456

180k

R458

330k

R459

0.1

C461

0.1

C462

330k

R460

0.001

C463

0.1

C464

0.1

C465

0.001

C466

0.001

C467

R461

1SV305

D455

12p

C468

4.7k

R463

0.1

C470

0.001

C471

R464

0.5p

C472

15n

L453

15n

L454

100k

R465

18p

C473

1SV305

D456

150

R473

150

R472

C474

R471

0.001

C475

0.001

C476

47p

C480

100

R470

0.001

C481

0.001

C482

ERJ3GE

JPW

R466

220

R477

150

R475

R476

0.001

C483

150

R474

1SV307

D461

R152

MA2S111

D152

4.7k

R153

0.001

C154

0.1

C153

0.1

C151

0.1

C101

R102

270

R103

270

R101

JPRES

J3R3V

PR4S

PR3S

P2R8

AT 1 3

TN2V

JHREF

PHT8

P4T8

P4R8

JHFOR

JMST

JMCK

THML

2M8L

JFDAT

TN1V

VUFOR

IDRV

PT8V

_P2T8

ID4V

C761 0.0047

C759 0.0047

C760 0.0047

C735 0.1

C757 0.1

C746 0.1

C747 0.1

BUS LINE2

12p

C452

145MHz RX

430MHz RX

BCR108T

Q453

TN2V

PR3S

AT 1 3

ERJ12

JPW

R468

TN1V

P4R8

PR4S

TN2V

ID1V

ID2V

RD70HHF1

Q302

RD70HHF1

Q301

HF03

0.0068

C311

ERJ1W

JPW

R301

506

L305

400

L303

0.001

C342

0.001

C341

220p

C219

330p

C333

383

L301

DRIVER UNIT

0.01

C101

100

R102

PD55015

Q504

J104

J102

J107

J103

J101

NTCG20

R734

R736 NTCG20

THML

2SK2854

Q101

DAN202K

D705

47k

R742

R743

BCR108T

Q741

2SB1132

Q742

P2T8

14V

IDRV

EP202

0.001

C202

515

L201

100p

C119

27p

C116

33µ

L101

H6CR8

0.0047

C152

330

R151

47µ

L152

5.6µ

L151

HRX

1SV307

D151

YGR

1SS302

D102

1SS302

D101

W401

W402

HRX

J451

unit J101

to MAIN

W102

W101

YGR

J101

unit J1

to MAIN

BA08FP

IC701

C733 0.1

C765 0.1

C743 0.001

C732 0.1

C762 0.0047

C742 0.1

C763 0.0047

C744 0.1

C736 0.1

C739 0.1

C737 0.1

C738 0.1

C734 0.001

C754 0.001

C764 0.0047

C753 0.0047

R744 ERJ3GE

JPW

R749 ERJ3GE

JPW

R750 ERJ3GE

JPW

EP760

EP762

EP761

EP752

EP748

EP747

EP753

EP779

EP756

EP759

EP777

EP758

EP778

C745 0.1

EP776

EP774

EP775

EP751

EP741

EP767

EP772

EP742

GND

JPRES

J3R3V

GND

PR4S

PR3S

P2R8

AT13

TN2V

JHREF

PHT8

ID4V

P2T8

PT8V

J980

IDRV

VUFOR

unit J2005

MAIN

TN1V

JFDAT

2M8L

THML

JMCK

JMST

JHFOR

P4R8

GND

PT8V

P4T8

ID1V

H6CR8

ICH

GND

14V

GND

unit J2004

MAIN

GND

ID3V

GND

ID2V

POWS

ICL

GND

PA UNIT (1)

BUS LINE1

UNIT (2)

11 - 11

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

COMMON LINE

1SV307

D511

0.001

C528

10p

C520

R518

P2R8

0.0047

C1002

BCR08PN

Q988

C443

R519

MCR10

JPW

4.7µ

L705

C766 0.001

C1001 0.1

0.001

C426

ICH

ICL

C602

C601

15n

L603

22n

L602

10n

L601

0.15µ

L417

R417

R416

MA2S111

D411

0.001

C439

0.001

C434

3.3

R413

C427

UX9401F

STD

D408

15n

L415

P4T8

0.001

C479

DAN202K

D412

MCR10

JPW

R418

R415

0.25

1.9

13TL

L416

UX9401F

STD

D410

UX9401F

STD

D409

470p

C440

470p

C430

470p

C438

C432

22n

L412

15n

L414

15n

L413

68p

C429

C433

C431

C428

0.001

C436

430MHz RX

145MHz RX

ERJ3GE

JPW

R516

1µ

L509

R515

0.001

C523

C524 0.5p

UX9401F

STD

D509

UX9401F

STD

D507

UX9401F

STD

D508

54n

L507

18p

C514

0.001

C525

0.001

C518

470p

C522

12p

C517

24p

C521

27p

C519

47n

L510

47n

L508

C516

33n

L506

0.001

C515

68n

L505

0.001

C513

100

R517

100

R513

22p

C252

22p

C251

15p

C254

100

R402

100

R404

C253

4.7k

R403

0.001

C404

C415

15p

C411

18p

C409

15p

C410

18p

C408

18p

C417

10n

L410

10n

L441

10p

C418

C441

MA2S728

D404

MA2S728

D401

6.8k

R411

6.8k

R405

ERJ3GE

JPW

R408

ERJ3GE

JPW

R406

MA2S728

D402

MA2S728

D403

R410

R409

R407

47p

C423

3.3k

R412

0.001

C406

0.001

C726

MA2S728

D706

0.001

C727

MA2S728

D704

4.7k

R508

150p

C509

10k

R512

0.001

C728

0.001

C715

R507

R510

150p

C526

150p

C527

6.8k

R511

6.8k

R505

MA729

D502

D501 MA729

D504 MA729

D503 MA729

56n

L502

120p

C542

100p

C544

C503

C541

68n

L541

200p

C405

0.001

C412

EXC

ELDR25C

L409

EXC

ELDR25C

L408

68p

C537

604

L531

56p

C535

39p

C530

68p

C545

56p

C538

0.0047

C416

0.001

C413

0.001

C533

0.001

C532

0.001

C531

47p

C536

56p

C534

220p

C267

330p

C262

680p

C266

0.001

C263

120p

C261

1µ

L501

4.7k

R503

0.001

C501

100

R504

100

R502

UX9401F

STD

D964

UX9401F

STD

D965

39p

C805

56p

C803

33p

C801

0.75p

C802

15p

C804

0.1

C808

0.12µ

L802

82n

L801

0.0047

C806

0.1

C807

1SS302

D801

0.0047

C783

0.01

C782

0.001

C781

W702

4.7

R723

100µ

L803

180

R1003

150

R1002

100µ

L981

RL701

BCR108T

Q700

100µ

L960

0.1

C961

0.1

C1003

DAN202K

D703

R703 3.3k

R701 3.3k

CP702CP701

0.02

R722

0.02

R721

220p

C712

220p

C711

470p

C710

0.001

C709

0.01

C708

0.1

C718

0.1

C719

0.1

C705

3.3k

R704

3.3k

R702

0.1

C703

0.1

C707

470

C713

DSA3A1

D702

DSA3A1

D701

1000

C706

1000

C704

0.001

C702

0.1

C701

C997 47p

C996 47p

C998 47p

C994 0.1

C995 0.0047

R996 10k

R995 10k

R997 10k R994 10k

100µ

L980

100µ

L982

R1001 100

R998 100

R999 100

R1000 100

PHT8PHT8

HRX

14VR

HF03

ATN207

RL801

BCR108T

Q987

0.0047

C979

PHT8

BCR108T

Q986

0.0047

C993

Q1 L1

BCR108T

Q985

0.0047

C992

Q2 L2

BCR108T

Q984

0.0047

C991

Q3 L3

BCR108T

Q983

0.0047

C990

Q4 L4

BCR108T

Q982

0.0047

C988

Q6 L6

BCR108T

Q981

0.0047

C989

Q5 L5

BCR108T

Q980

0.0047

C987

L7Q7

BUS LINE3

POWS

NJM2904M

IC960

V+

GND

J3R3V

JPRES

JMCK

JFDAT

JMST

QS1GND

QS2

Q7Q2

CD74HC4094PW

IC981

VCC

DATA

STROBE

BUS LINE2

EP703

BUS LINE1

UNIT (3)

DTC114EU

Q403

DTC114EU

Q402

DTC114EU

Q502

DTC114EU

Q503

P2T8

VUFOR

ID4V

ID3V

XB15A407

D407

XB15A407

D406

1µ

L411

C425 22p

C421

C424

10p

C422

C419

C420

RD60HUF1

Q401

33n

L407

1µ

L504

0.001

C511

56n

L404

C505

33p

C504

C506 10p

C507

C508 5p

XB15A407

D510

XB15A407

D506

RD70HVF1

Q501

14V

PA UNIT (2)

BUS LINE1

UNIT (1)

11 - 12

Explanatory notes

COMMON LINE

22p

C1011

14VR

100µ

L943

CP601

CP901

14VR

14VR14VR

14VR

18M/21M

3.5M/3.8M

10M/14M

1.8M

50M

4.63M/5M/7M

24M/28M

W901

0.68

C972

R966

470p

C968

470p

C969

330

R961

330

R960

470p

C967

47k

R967

0.0047

C963

R963

0.001

C1000

0.001

C999

R962

0.0047

C962

100k

R970

470p

C971

22k

R969

47k

R965

HSM88AS

D962

HSM88AS

D961

33k

R974

33k

R973

33k

R972

W1L301

R971

ERJ3GE

JPW

R968

ERJ3GE

JPW

R964

47p

C973

330p

C970

0.0047

C966

330p

C960

10p

C964

0.0047

C947

12µ

L944

0.1

C948

0.0047

C929

100µ

L923

0.1

C930

0.0047

C908

56µ

L904

0.1

C909

100µ

L883

0.1

C894

0.0047

C893

0.1

C872

0.0047

C871

4.7µ

L864

0.0047

C874

0.0047

C854

100µ

L844

0.0047

C852

0.1

C853

18µ

L823

0.1

C829

0.0047

C831

0.0047

C828

L822 LR

396L821 LR

229

L922 LR

214L921 LR

214

C825 47pC823 15p

C925 82p

C931 82p

C923 100p

56p

C827

68p

C826

33p

C830

120p

C824

100p

C833

56p

C822

56p

C1004

390p

C928

390p

C927

470p

C926

470p

C924

470p

C1121

680p

C922

100p

C933

100p

C932

56p

C907

220p

C905

220p

C902

C904 56p

C906 56pC903 47p

L903 LR

293L902 LR

293L901 LR

293

L881 LR

294 L882 LR

295

C1007 68p

C889 82p

C884 390p

680p

C882

680p

C883

100p

C887

120p

C886

0.0022

C885

0.0016

C890

18p

C870

22p

C869

47p

C868

39p

C866

56p

C864

C873

C876 3p

C867 4pC865 9p

C863 18p

L863 LA

548L862 LA

550L861 LA

547

L843 LR

216L842 LR

216L841 LR

218

C848 27p

C849 22p

C1005 68p

C845 82p

C843 430p

100p

C858

120p

C837

120p

C836

120p

C835

120p

C851

390p

C850

390p

C847

56p

C856

100p

C855

330p

C846

100p

C844

120p

C857

82p

C1006

100p

C842

56p

C1009

27p

C946

33p

C950

82p

C1010

100p

C944

56p

C942

C949 3p

C945 8p

C943 33p

L942 LR

388L941 LR

387

0.0047

C832

18µ

L820

0.0047

C821

0.1

C820

1SS302

D820

100µ

L840

0.0047

C841

0.1

C840

1SS302

D840

4.7µ

L860

0.0047

C861

0.1

C860

1SS302

D860

100µ

L880

0.0047

C881

0.1

C880

1SS302

D880

56µ

L900

0.0047

C901

0.1

C900

1SS302

D900

100µ

L920

1SS302

D920

0.1

C920

0.0047

C921

1SS302

D940

0.0047

C941

0.1

C940

12µ

L940

13.8V

(BLACK)

(RED)

W701

MHz

144/430

CHASSIS J2

JHFOR

JHREF

NJM2904M

IC960

NJM2904M

IC960

391

L961

HF/50MHz

CHASSIS J1

14VR

BUS LINE3

ATN207

RL941

ATN207

RL921

ATN207

RL901

ATN207

RL881

ATN207

RL821

ATN207

RL861

ATN207

RL841

ATN207

RL940

ATN207

RL920

ATN207

RL900

ATN207

RL880

ATN207

RL860

ATN207

RL840

ATN207

RL820

PA UNIT (3)

BUS LINE1

UNIT (2)

11 - 13

11-5 DDS UNIT

VOLTAGE LINE

Explanatory notes

DDS

UNIT (2)

J952

GND

3R3V

GND

MAIN

unit

J2406

DREF

GND

8VA

REFCV

3LOE

3LO

3LOE

GND

LOST

PRES

1DST

PCK

PDT

1CN0

1CN1

3DST

GND

J951

GND

DASK

DOTK

SDSS

SNDS

SNDL

START

MAIN

unit

J2406

MODA

RTKI

EALC

KEY

BANV

DINO

DPTL

SQLS

DOUT

GND

14V

GND

1234

5678

10 11 12

8VA

GNDA

BDTA

SEND1

14VA

SEND2

AFA

MODA

SQLA

FSKA

ALCA

KEYA

BANA

RL1101

ATN207

4813

I/O UPDATE

DVDD

DGND

AVDD

AGND

AVDD

AGND

OSC/REFCLK

CRYSTAL OUT

CLKMODESELECT

AVDD

AGND

AVDD

AGND

AVDD

IOUT

AGND

DACBP

DAC RSET

DGND

OSK

SYNC CLK

SYNC IN

DVDD I/O

DGND

SDIO

SCLK

SDO

IOSYNC

RESET

PWRDWNCTL

DVDD

DGND

AGND

AVDD

AGND

AVDD

AGND

AVDD

IC301

AD9951YSV

LOOP FILTER

ACC

J1151

DATA

BUS LINE2

8V_

2LO

VOUT

AGND

FSYNC

SCLK

SDATA

COMP

VDD

CAP/+2.5V

DGND

MCLK

IC51

AD9833BRM

3DST

3PCK

PDT

R52 1k

R53 1k

R54 1k

C58 0.1

3LO

IC61

SN74AHC1GU04DCK

C52

0.0047

L51

10µ

VCC

OUT

VCON

GND

788

EP957

R961 220

EP6

R9 27k

653784

FI101

391

CP151

BUS LINE1

3R3V

R213

Q211

2SC5226

OUT

GND

FI201

NSVS776

VIN

GND

VOUT

CONT

GND

N.BYPASS

IC251

TK11218CM

EP251EP301

EP964

EP954

EP955

EP958

EP960

EP959

EP956

R959 220

R960 47

L953 100µ

L954 100µ

L955 100µ

L956 100µ

L957 100µ

L959 270µ

L960 100µ

L963 270µ

L962 270µ

C954 0.0047

C955 0.1

C957 0.1

C958 0.0047

C959 0.0047

C960 0.1

C961 0.1

C962 0.1

C963 0.1

C964 0.001

C966 0.1

C967 0.1

C952

0.1

EP305

C305 0.1

EP303

EP302 EP304

R316

10k

R310 1k

D1101

1SS302

D1102

DAP202K

IC52

SN74AHC2G04HDCT

IC62

SN74LVC3G34DCUR

Q1101

2SC4081

SDSS

SDIO

PCK

PRES#

PRES

SCLK

R1051

ERJ3GE

JPW

EP1052

EP1051

EP952

EP951

EP981

R958 220

R957 220

R956 220

R955 220

R954 220

R953 220

R952 220

R951 220

R8 39k

CP951

C968

C953

0.1

C972

C951

0.1

L1001 220µ

L1002 220µ

EP1003

C1001

0.1

C1051

0.0047

C1052

0.0047

L1105 100µ

L1106 100µ

L1107 100µ

L1110 100µ

L1111 100µ

L1112 100µ

EP1102

L1152 EXCCL3225U

L1153 100µ

L1154 100µ

EP1103

EP1104

DOUT

SQLS

DPTL

DIND

RTKI

EALC

KEY

BANV

CP1101

C1109

0.0047

C1108

0.001

C1105

0.0047

C1111

0.0047

C1104

0.0047

C1110

0.0047

C1115

0.0047

C1114

0.0047

C1113

0.0047

C1112

0.0047

C1155

0.0047

C1154

0.0047

C1153

0.0047

C1152

0.0047

C1151

0.0047

START

MODA

DOTK

DASK

DOTK

SDSS

SNDL

SNDS

START

MODA

RTKI

EALC

KEY

BANV

DIND

DPTL

SQLS

DOUT

R1106

2.2k

R1107

2.2k

C1106

0.0047

R1102

10k

C1101

0.0047

R1101

1DST

PDT

C301 0.1

C302 0.1

C303 0.1

C304 0.1

R303

C306

0.1

R304

C320

C314 0.0047

C327 0.0047

C308 0.1

C309 0.1

C310 0.1

C312 0.1

R314

2.7k

R317

1.2k

R306 1k

R309 1k

R311 1k

R312

1CN1

SDIO

SCLK

1CN0

PRES

R62

C63

0.1

3PCK

C251

0.1

C254 0.1

C255 22

C252 0.1

C253 22

L204

0.22µ

C211

0.001

C216

0.0047

R201

C202

R202

470k

L201

47n

C206

2.5p

C208

C210

C218

L213

15n

C207

15p

L205

27n

L206

22n

C209

27p

C217

82p

L210

22n

C219

10p

R211

470

R212

C224

0.0047

L212

33n

C221

0.0047

R214

L202

10n

C222

C203

27p

GND

C126

0.0047

C105

0.001

L105

1.2µ

R106

150k

C102

27p

R101

470

L101

0.22µ

C101

C104

0.0047

R102 100

Q101

2SC4403

R103

R105

R121

4.7k

C150

0.0047

R150

R151

100

R154

10k

L151

0.12µ

R155

C152

15p

R160

C151

0.0047

R104

100

C120

0.0047

Q151

2SC4673

R161

C154

33p

C156

33p

R159

150

R157

150

R158

L153

47n

C155

C956

0.1

C973

C974

C975

100

C976

100

C977

100

C978

100

R11

ERJ2GE

JPW

R10

22k

0.1

2.2k

0.047

4.7k

68p

C51

0.0047

R55

270

R56

R57

270

220

82p

0.15µ

0.0047

R5 100

C53

0.0047

R51

DREF

R61 10k

C54

0.1

C62

0.1

C56 0.1

C55 47

C59

330p

C61

330p

C60

120p

L53

220µ

ELE

KEY

J1051

J1001P1001

EP953

DREF

3LO

LOST

PRES#

1DST

PCK

PDT

1CN0

1CN1

3DST

C981

0.1

EP1101

EP1004

TUNER

ETKY

ETST

ET14

ETE

J1101

SQLD

DOTD

GND

R1103 100

R1105

100

L1103

100µ

Q1102

2SD1623

R1104

10k

C1102

0.0047

C1107

0.0047

SNDS

L52 10µ

C57

0.1

Q201

2SC5226

2SC4215

C204

0.1

R162

R315

C317

0.1

C318

0.0047

C319

0.1

R301 1k

DDS UNIT (1)

DIND

PTTD

AFOD

SNDL

R1108 47k

R1109 47k

C307

0.1

R962 0

C1116

0.001

C1117

0.001

EP1100

EP1106

EP1105

EP1107

EP1108

11 - 14

VOLTAGE LINE

Explanatory notes

DDS

UNIT (1)

D751

1SV307

D701

1SV307

D651

1SV307

D601

1SV307

D551

1SV307

D501

1SV307

D552

1SV307

MAIN

unit

J401

Q901

BCR08PN

Q902

BCR08PN

Q903

BCR08PN

Q904

BCR08PN

Q905

BCR08PN

Q906

BCR08PN

Q907

BCR08PN

Q908

BCR08PN

GND

VCC

GND

OUT

IC451

µPC1678GV

D802

1SV307

GND

VCC

GND

OUT

IC801

µPC1678GV

D801

1SV307

L456

LR-317

D456

MA717WK

D458

1SV307

L471

LR-317

D471

MA717WK

D459

1SV307

D453

1SV308

D452

1SV307

D451

1SV307

D454

1SV307

L302

LR-317

D301

MA717WK

L301

LR-317

OUT

GND

VCC

IC401

µPC2709T

L332

47n

L331

47n

C401

0.001

Q301

DTC114EU

BLF6

LOF6

LOF5

LOF4

LOF3

LOF2

LOF1

LOF0

DBRS

BLF5

BLF4

BLF3

BLF2

BLF1

BLF0

BUS LINE2

IC901

CD74HC4094PW

GND

DATA

STROBE

QS1

QS2

VCC

C902

100p

LOST

PDT

PCK

R901 1k

R902 1k

R903 1k

PRES#

C901

0.0047

L901

100µ

8V_

MAIN

unit

J801

2LO

3R3V

BUS LINE1

LOF2

LOF1

LOF0

DBRS

LOF6

LOF5

LOF4

LOF3

L304

1µ

C326

15p

L323

0.1µ

C321

33p

C325

33p

C323

68p

L321

0.1µ

L322

0.1µ

R305 120

R313 120

D341

1SV308

R341

C345

68p

C346

68p

R342

C344

33p

C343

120p

C331

18p

C333

39p

C335

18p

L341

0.12µ

L303

82n

C342

47p

C341

47p

C403

100p

C402

0.001

L401

1.0µ

L411

39n

C412

12p

C453

0.001

C413

22p

C411

22p

R471

470

R477

100

C479

0.0047

C474

0.001

L472

47n

R473

150

R475

150

R476

470

R474

C475

0.001

R472

220

R461

100k

C476

0.0047

L461

10n

C478

0.0047

C465

22p

C467

22p

L465

0.12µ

C464

120p

L466

33n

C451

47p

R469

100

C463

47p

C466

L458

47n

L473

22n

L469

15n

R463

470

C472

33p

C480

12p

C471

C481

C473

C477

0.0047

R459

100k

C460

0.0047

R467

R465

R464

100

R456

R468

C457

0.001

R453

C454

0.001

R457

R454

270

R455

270

C456

0.1

C468

C470

L464

0.1µ

C459

0.001

L467

12n

L468

18n

C469

3.5p

C458

0.001 EP451

EP452

EP809

L851

0.12µ

L852

0.47µ

R851

390

L801

0.12µ

C803

C806

C808

33p

L803

27n

L804

18n

L805

15n

C810

C812

C814

C802

C804

C807

C809

L806

6.8n

L807

12n

C811

C813

C815

0.001

R805

R807

C825

C827

10p

C829

33p

C835

C833

C831

L808

0.1µ

C816

0.001

R806

C824

C826

C828

C830

L815

6.8n

L816

12n

C832

C834

C838

0.001

L812

27n

L813

18n

L814

15n

R841 120

R810 100k

L818

0.12µ

R808

390

L854

0.47µ

R855

390

L853

0.12µ

R801

270

C839 0.0047

C840

0.001

BLF0

BLF1

BLF2

BLF3

BLF4

BLF5

L751

0.47µ

L752

22n

L753

27n

L754

33n

L758

0.47µ

L755

27n

L756

27n

L757

22n

C751

C753

C755

C757

C765

0.001

C759

0.5p

C761

C763

R751

390

C752

180p

C754

56p

C756

27p

C758

C760

15p

C762

12p

C764

10p

R752

390

R753

100k

C766

0.0047

C701

0.001

C709

C711

C713

C715

12p

C702

15p

C704

27p

C706

22p

C708

18p

C710

56p

C712

56p

C714

180p

C703

0.75p

C705

C707

L705

39n

L706

33n

L707

33n

L708

0.47µ

R706

100

R704

100

R702

390

R701

390

L701

0.47µ

L702

33n

L703

33n

L704

27n

R705

C717

0.001

D702

1SV307

D752

1SV307

R703

100k

C716

0.0047

C651

10p

C664

0.001

C658

C659

C663

C652

270p

C654

82p

C656

47p

C660

15p

C661

27p

C662

22p

C665

18p

R652

390

R651

390

L651

0.47µ

L652

39n

L653

39n

L656

47n

L658

0.47µ

L654

39n

L655

39n

L657

33n

C653

C655

C657

12p

D652

1SV307

L602

47n

L603

39n

L604

27n

C611

220p

C612

68p

C615

39p

C610

15p

C608

27p

C606

33p

C602

22p

R601

270

C601

0.0047

C604

12p

C605

10p

C613

10p

C614

15p

C603

C607

C609

15p

L601

0.47µ

L607

68n

L606

47n

L605

47n

L608

47n

R602

390

D602

1SV307

R604 100

C617

0.0047

C618

27p

R553

100k

R603

100k

C563

0.0047

C616

0.0047

L551

0.47µ

L552

68n

L553

56n

L557

0.47µ

R551

390

R556

150

R555

150

C552

56p

C555

39p

C557

47p

C559

47p

C561

33p

L554

47n

L555

47n

L556

33n

C562

0.0047

C554

0.0047

C553

27p

C551

27p

C556

C558

C560

12p

R554

R552

390

L501

0.47µ

C503

27p

L502

0.1µ

L503

82n

C504

0.0047

R501

390

L506

68n

C502

82p

L505

68n

C505

33p

C507

56p

L504

56n

C509

47p

C511

39p

C501

39p

C506

10p

C508

C510

C512

0.0047

L507

0.47µ

R502

390

R852

270

R854

270

D502

1SV307

C851

0.0047

R853

R503

100k

C513

0.0047

R653

100k

C666

0.0047

R451

R460

100k

C461

0.0047

CP851

CP852

1LO<124.8264MHz>

0.03

29.999999MHz

30.0

59.999999MHz

60.0

115.512999MHz

115.513

148.0MHz

148.000001

199.999999MHz

400

470MHz

R462

ERJ3GE

JPW

DDS UNIT (2)

CP152

1LO

J851

J151

R458

220

C982

0.001

C983

0.001

C998

0.001

C995

0.001

C997

0.001

C996

0.001

C994

0.001

C993

0.001

C992

0.001

C991

0.001

R507

R505

R506

R755

100

R756

R757

100

C841 0.001

C817

470p

6F No.68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C.

Phone : +886 (02) 2559 1899 Fax : +886 (02) 2559 1874

URL : http://www.asia-icom.com

E-mail : sales@asia-icom.com

Zac de la Plaine, 1, Rue Brindejonc des Moulinais

BP 5804, 31505 Toulouse Cedex, France

Phone : +33 (5) 61 36 03 03 Fax : +33 (5) 61 36 03 00

URL : http://www.icom-france.com

E-mail : icom@icom-france.com

Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.

Phone : +44 (01227) 741741 Fax : +44 (01227) 741742

URL : http://www.icomuk.co.uk

E-mail : info@icomuk.co.uk

Ctra. Rubi, 88, 08190, Sant Cugat del Valles, Barcelona, SPAIN

Phone : +34 (93) 590 26 70 Fax : +34 (93) 589 04 46

URL : http://www.icomspain.com

E-mail : icom@icomspain.com

2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.

Phone : +1 (425) 454-8155 Fax : +1 (425) 454-1509

URL : http://www.icomamerica.com

E-mail : sales@icomamerica.com

Phone : +1 (425) 454-7619

Glenwood Centre #150-6165

Highway 17 Delta, B.C., V4K 5B8, Canada

Phone : +1 (604) 952-4266 Fax : +1 (604) 952-0090

URL : http://www.icomcanada.com

E-mail : info@icomcanada.com

A.B.N. 88 006 092 575

Unit 1 / 103 Garden Road, Clayton VIC 3168 Australia

Phone : +61 (03) 9549-7500 Fax : +61 (03) 9549-7505

URL : http://www.icom.net.au

E-mail : sales@icom.net.au

146A Harris Road, East Tamaki,

Auckland, New Zealand

Phone : +64 (09) 274 4062 Fax : +64 (09) 274 4708

URL : http://www.icom.co.nz

E-mail : inquiries@icom.co.nz

Room C01, 10th Floor, Long Silver Mansion, No. 88,

Yong Ding Road, Haidian District, Beijing, 100039, China

Phone : +86 (010) 5889 4250 Fax : +86 (010) 5889 4250

URL : http://www.bjicom.com

E-mail : bjicom@bjicom.com

Sopot, 3 Maja 54 Poland

Phone : +48 (58) 550 7135 Fax : +48 (58) 551 0484

E-mail : icompolska@icompolska.com.pl

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan

Phone : +81 (06) 6793 5302

Fax : +81 (06) 6793 0013

URL : http://www.icom.co.jp/world/index.html

Communication Equipment

Himmelgeister Str. 100, D-40225 Dusseldorf, Germany

Phone : +49 (0211) 346047 Fax : +49 (0211) 333639

URL : http://www.icomeurope.com

E-mail : info@icomeurope.com

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan S-14214HZ-C1

IC 7000 SERVICE MANUAL ICOM All Mode

Navigation menu

Versions of this User Manual:

Views

Navigation
