IC 756POR3 Service Manual ICOM 756PRO3

User Manual: Pdf ICOM--IC-756PRO3-Service Manual

Open the PDF directly: View PDF .
Page Count: 120 [warning: Documents this large are best viewed by clicking the View PDF Link!]

GUIDE
FRONT COVER
TABLE OF CONTENTS
INTRODUCTION
1.SPECIFICATIONS
2.INSIDE VIEWS
3.CIRCUIT DESCRIPTION
4.ADJUSTMENT PROCEDURES
5.PARTS LIST
6.MECHANICAL PARTS
7.SEMI-CONDUCTOR INFORMATION
8.BOARD LAYOUTS
9.BLOCK DIAGRAM
10.VOLTAGE DIAGRAM
ADDRESS
BACK COVER

GUIDE FOR CD

1) COMPOSITION

756PRO3.pdf

A3format.pdf

A4format.pdf

Instruction.pdf

Unitparts.pdf

ar505eng.exe

W_README.txt

2) DESCRIPTION

756PRO3.pdf

756PRO3.pdf is a service manual for IC-756PROIII and including all service information in this CD. This file is

mainly used for viewing on the computer display and checking page order to make printed service manual. Or

when you want to find a component, you can find very fast using “FIND” function (except Board layout).

A3format.pdf

A3format.pdf consists of A3 format pages (Board layout, Mechanical parts and disassembly, and etc.) in

756PRO3.pdf. This file is used for printing out A3 format pages.

A4format.pdf

A4format.pdf consists of A4 format pages (Circuit description, Adjustment procedures, Parts list, and etc.) in

756PRO3.pdf. This file is used for printing out A4 format pages.

Instruction.pdf

Instruction.pdf is a instruction manual for IC-756PROIII. This file is exactly same as supplying instruction

manual withproduct and consists of all A4 format pages. If you have A4 format printer, you can print out and

make brand new instruction manual any time you want. Also this ﬁ le is very helpful when you want to change

or set product conditionfor adjustment or else.

Unitparts.pdf

Unitparts.pdf is assemble unit information for IC-756PROIII. This information for authorized dis-tributor/dealer

only. Because we (ICOM INC.) don’t sell assemble unit to general.

ar505eng.exe

ar505eng.exe is an installation program of Adobe Acrobat® Reader 5.0 (English version) for Microsoft®

Windows® 95/98/Me/NT/2000/XP users.

FYC

Installer

IC_756PRO3

W_README.txt

W_README.txt is a readme text about this service manual for Windows® user that not installed Acrobat®

Reader yet.

=========================================================================================

Icom, Icom Inc. and Icom logo are registered trademarks of Icom Incorporated (Japan) in the United states, the

United Kingdom, Germany, France, Spain, Russia and/or other countries.

Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of Adobe Systems Incorporated.

Microsoft and Windows are registered trademarks of Microsoft Corporation in the U.S.A. and other countries.

=========================================================================================

HF/50MHz ALL MODE TRANSCEIVER

SERVICE

MANUAL

U.S.A.

Europe

France

United Kingdom

Italy

Korea

Spain

#32

#33

#34

#35

#38

#39

#40

USA

EUR

FRA

ITA

KOR

ESP

INTRODUCTION

This service manual describes the latest service information

for the IC-756PROIII HF/50MHz ALL MODE TRANSCEIV-

ER.

DANGER

NEVER connect the transceiver to an AC outlet or to a DC

power supply that uses more than 16 V. This will ruin the

transceiver.

DO NOT expose the transceiver to rain, snow or any liquids.

DO NOT reverse the polarities of the power supply when con-

necting the transceiver.

DO NOT apply an RF signal of more than 20 dBm (100 mW)

to the antenna connector. This could damage the transceiv-

er’s front end.

ORDERING PARTS

Be sure to include the following four points when ordering

replacement parts:

1. 10-digit order numbers

2. Component part number and name

3. Equipment model name and unit name

4. Quantity required

1110000960 S.IC NJM4558M IC-756PROIII MAIN-A UNIT 5 pieces

8810005770 Screw BiH M3×8 ZK IC-756PROIII Top cover 10 pieces

Addresses are provided on the inside back cover for your

convenience.

REPAIR NOTES

1. Make sure a problem is internal before disassembling the

transceiver.

2. DO NOT open the transceiver until the transceiver is

disconnected from its power source.

3. DO NOT force any of the variable components. Turn

them slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An insu-

lated tuning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the trans-

ceiver is defective.

6. DO NOT transmit power into a signal generator or a

sweep generator.

7. ALWAYS connect a 50 dB to 60 dB attenuator between

the transceiver and a deviation meter or spectrum ana-

lyzer when using such test equipment.

8. READ the instructions of test equipment thoroughly

before connecting equipment to the transceiver.

To upgrade quality, any electrical or mechanical parts and

internal circuits are subject to change without notice or

obligation.

Icom, Icom Inc. and are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom,

Germany, France, Spain, Russia and/or other countries.

VER.NO. SYMBOL VERSION

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 CIRCUIT DESCRIPTION

SECTION 4 ADJUSTMENT PROCEDURES

SECTION 5 PARTS LIST

SECTION 6 MECHANICAL PARTS AND DISASSEMBLY

SECTION 7 SEMI-CONDUCTOR INFORMATION

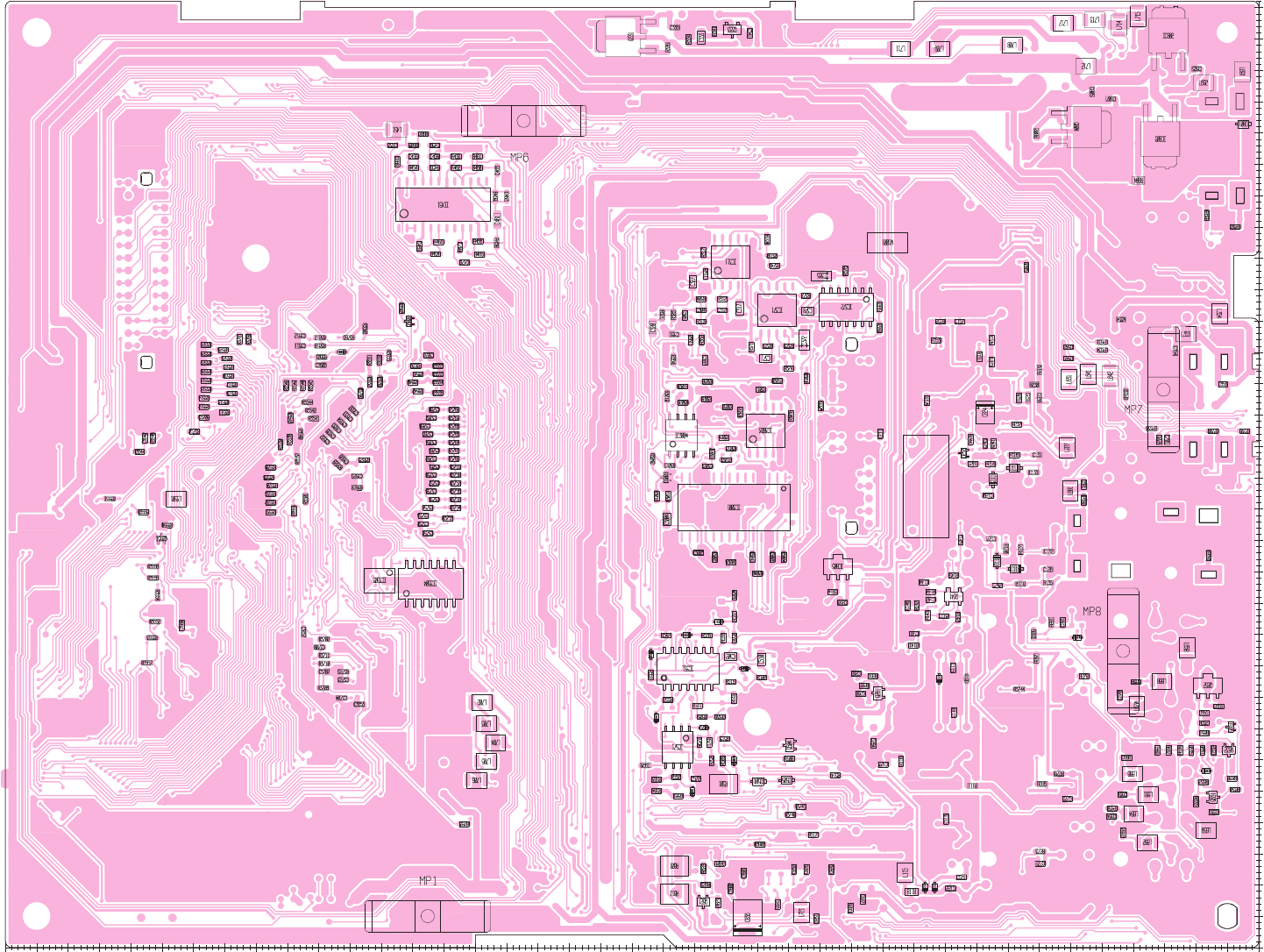

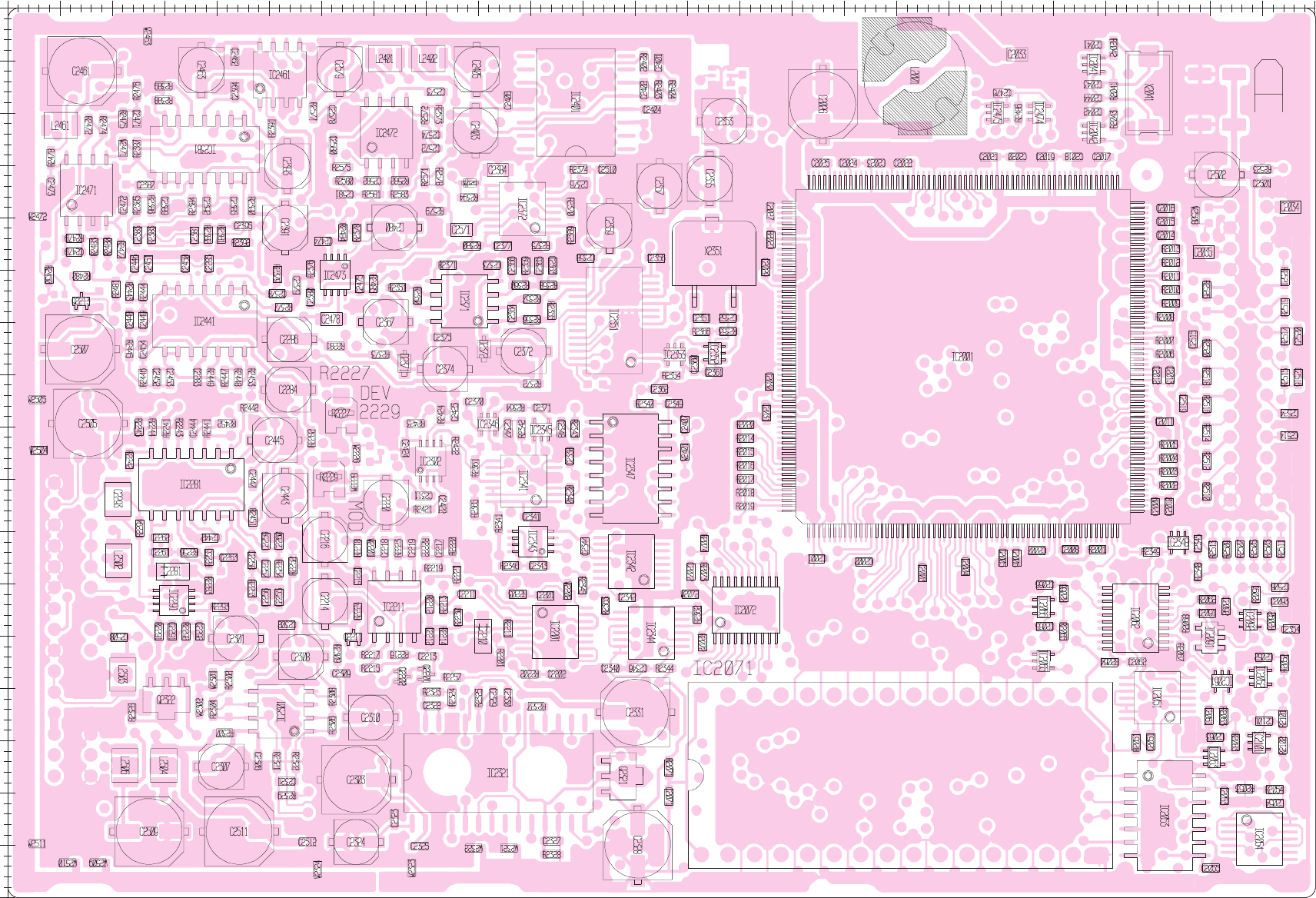

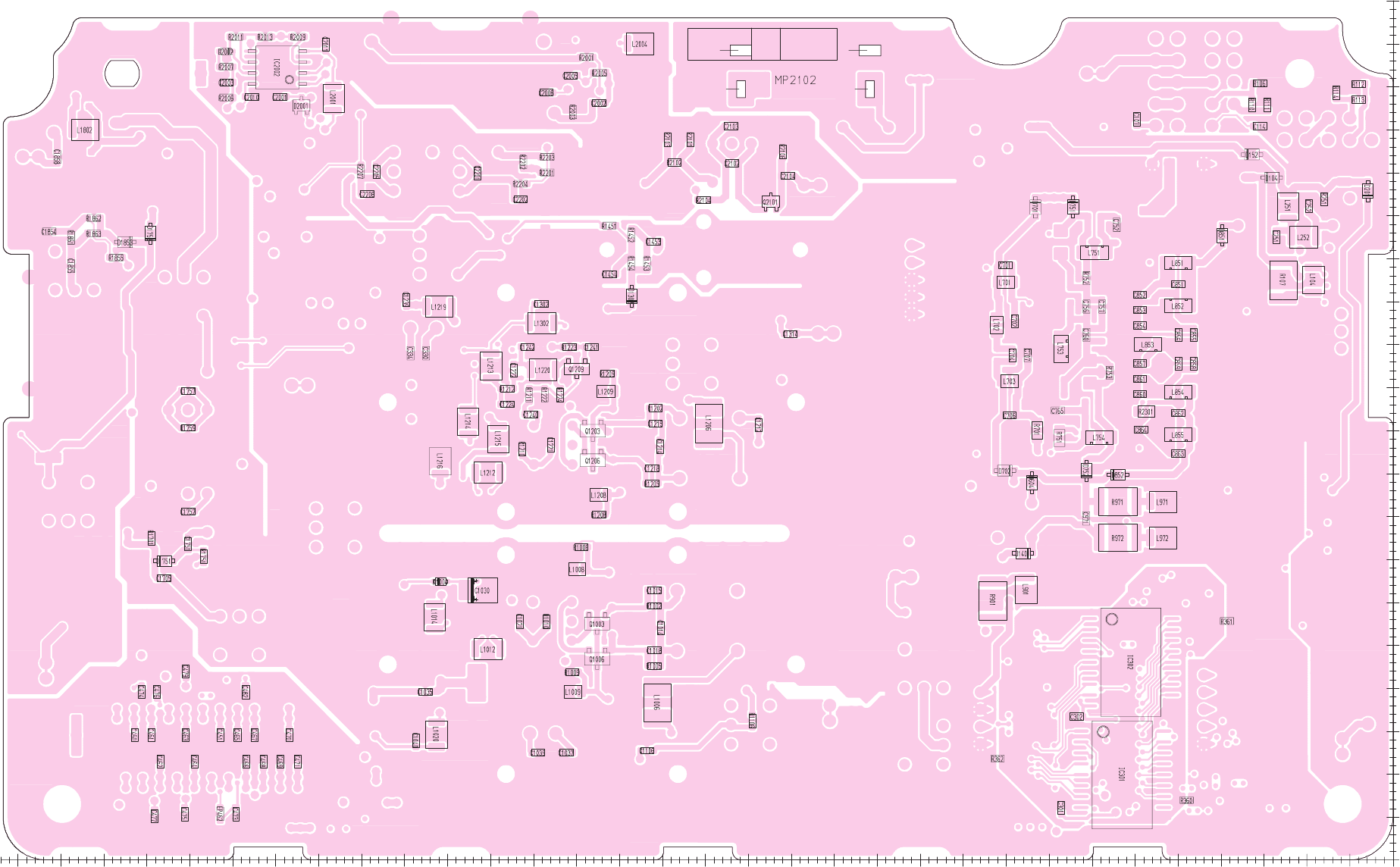

SECTION 8 BOARD LAYOUTS

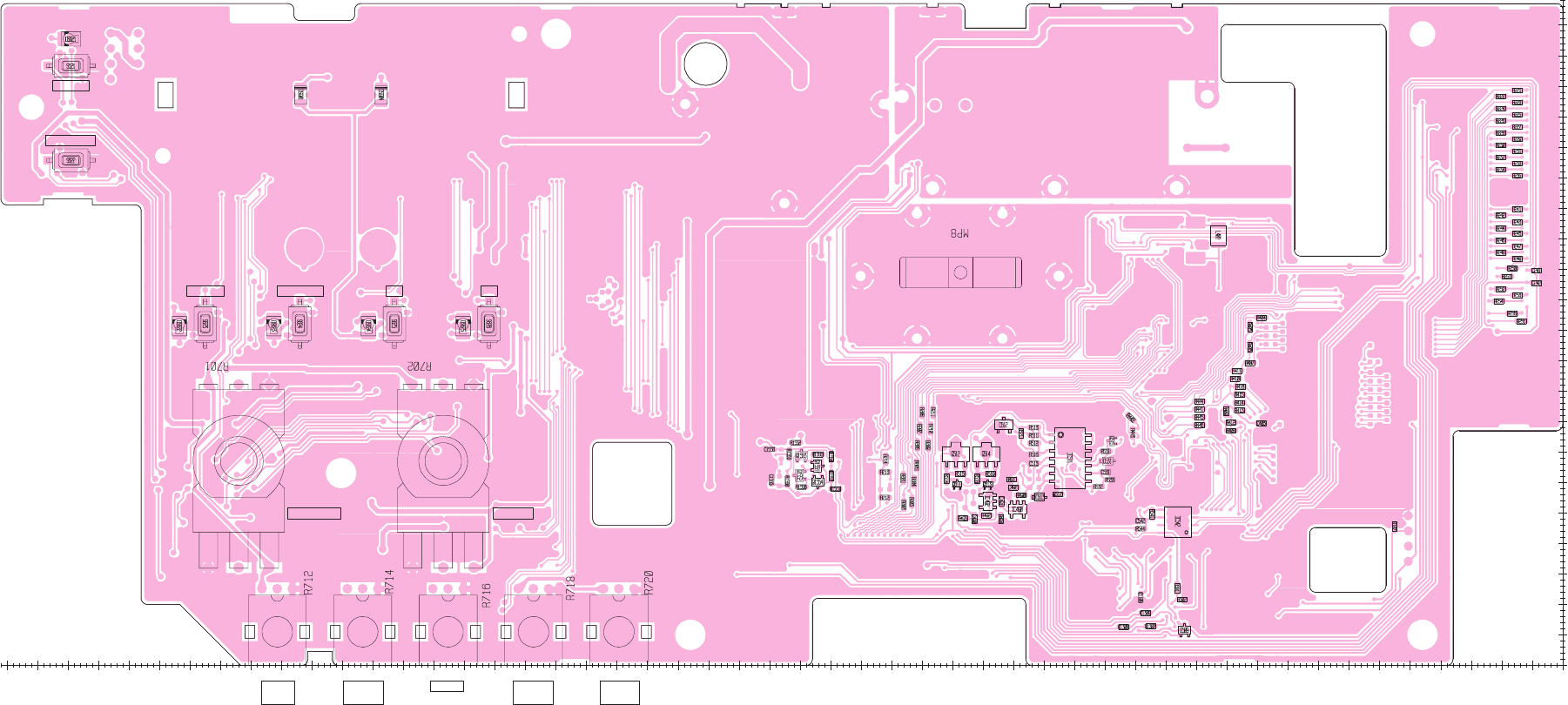

8 - 1 DISPLAY BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 1

8 - 2 MODE BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 3

8 - 3 PHONE BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 3

8 - 4 KEY BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 3

8 - 5 TEN-KEY BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 3

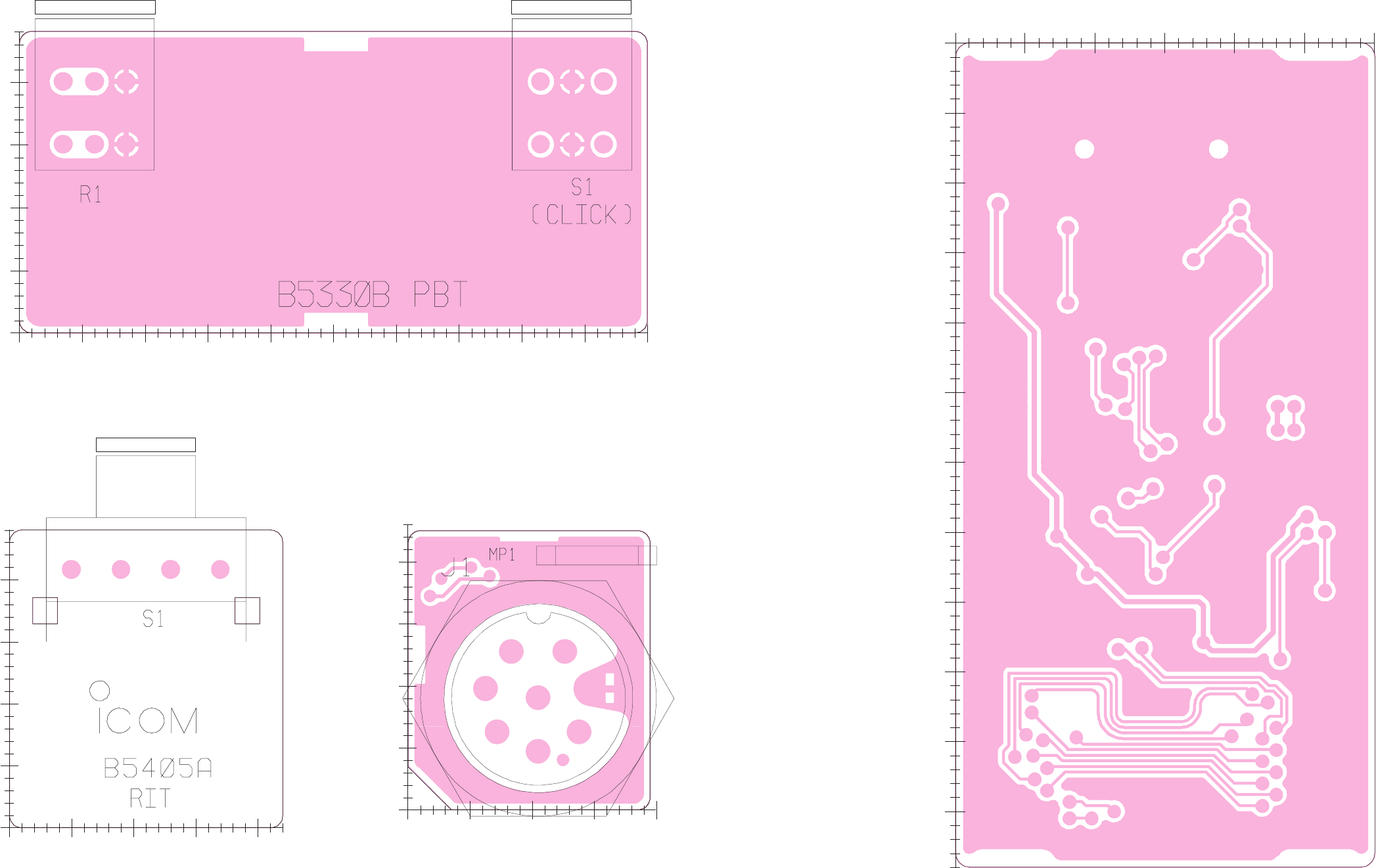

8 - 6 PBT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 5

8 - 7 RIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 5

8 - 8 MIC BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 5

8 - 9 MEMORY BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 5

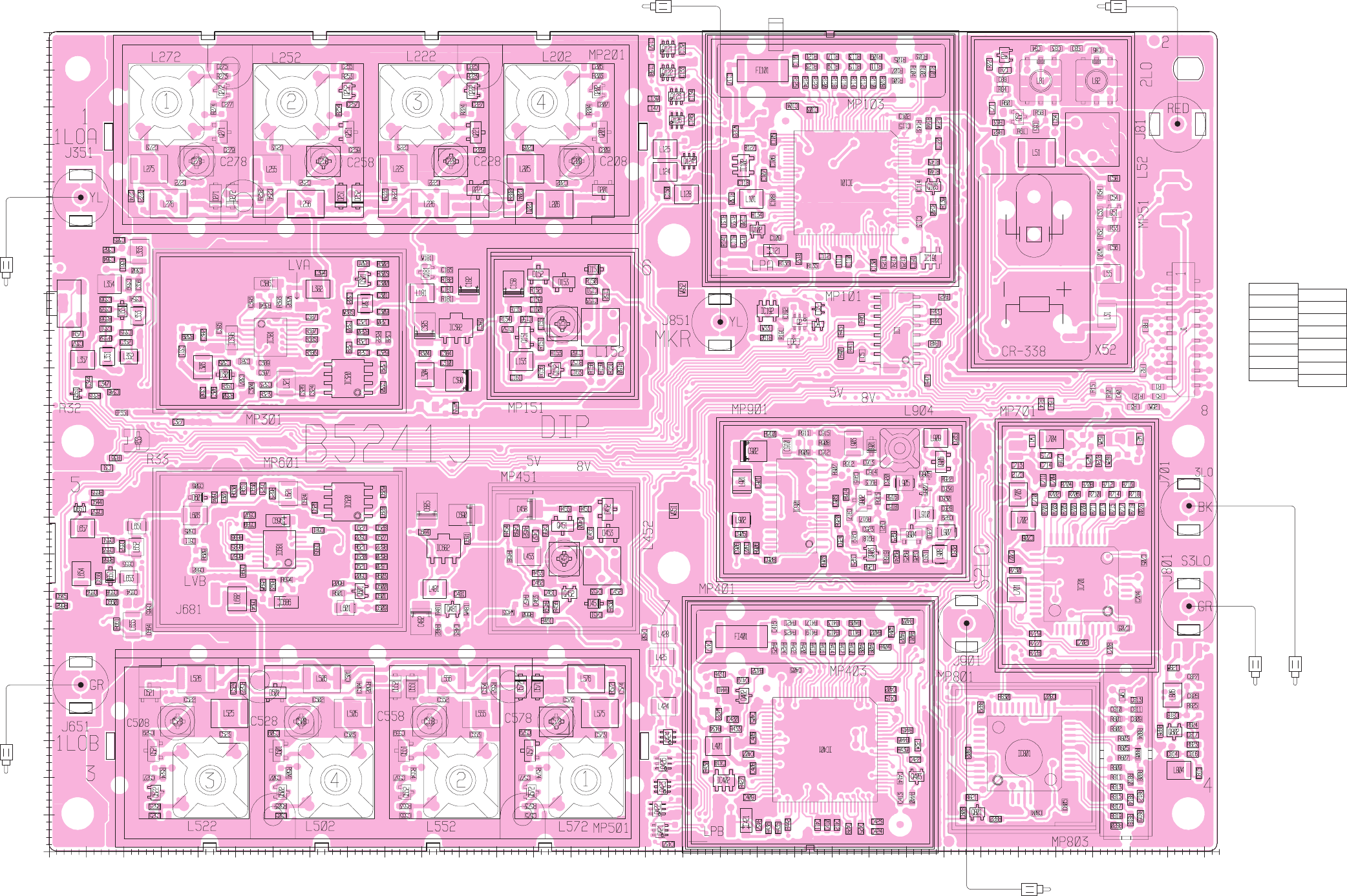

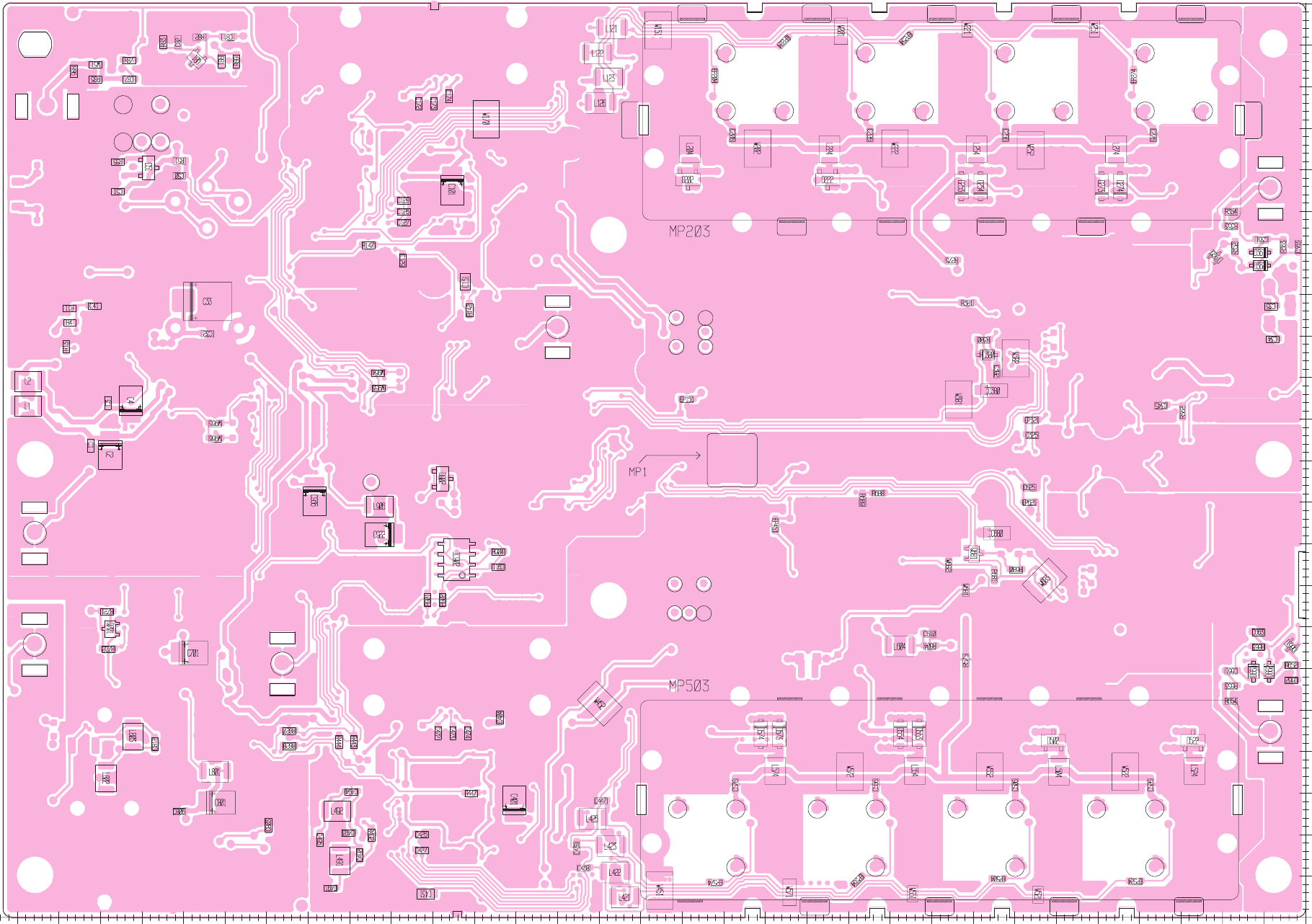

8 - 10 MAIN-A UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 7

8 - 11 DSP-A BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 9

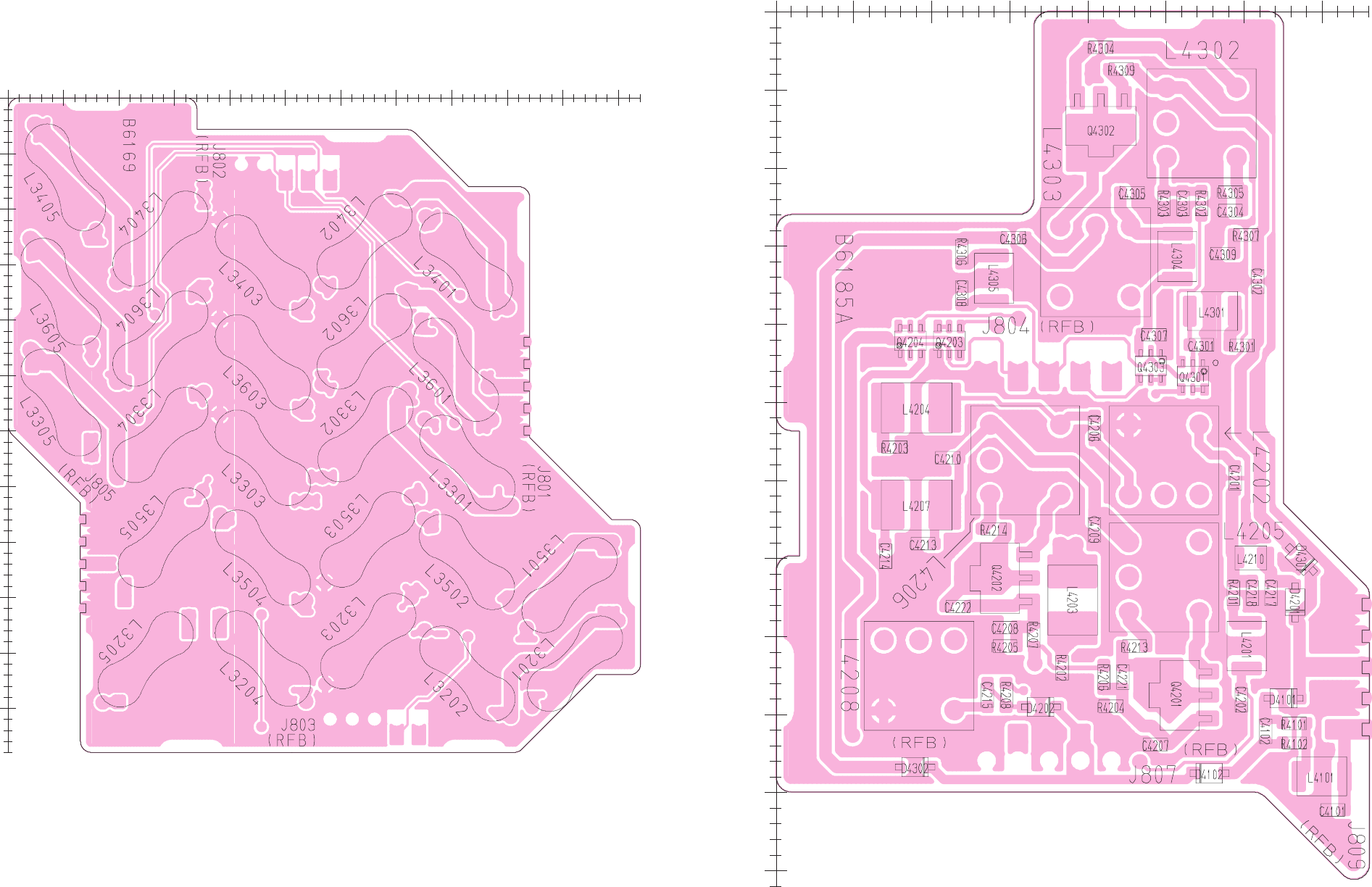

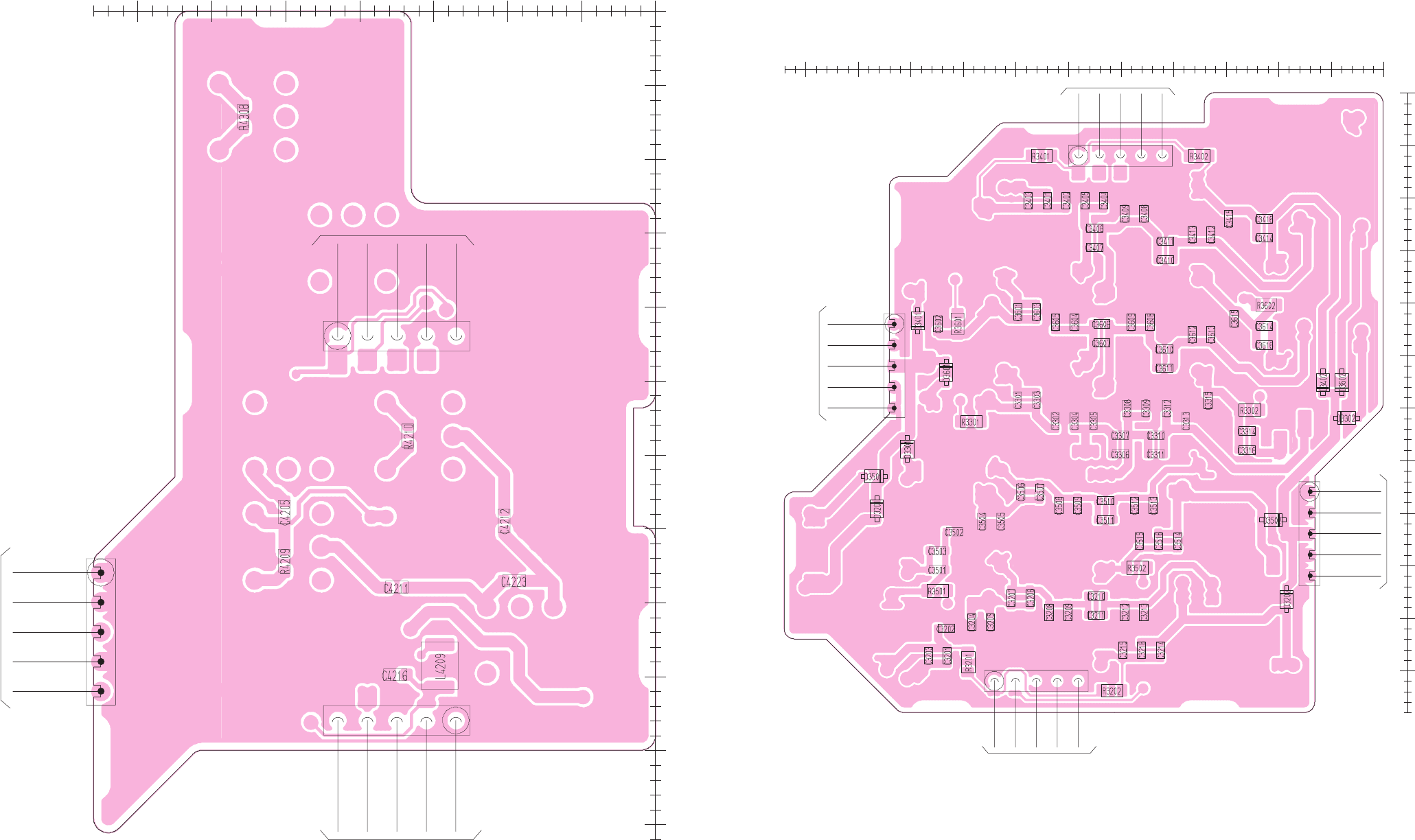

8 - 12 RF-B UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 11

8 - 13 BPF-A BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 13

8 - 14 PREAMP BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 13

8 - 15 PLL UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 15

8 - 16 PA UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 17

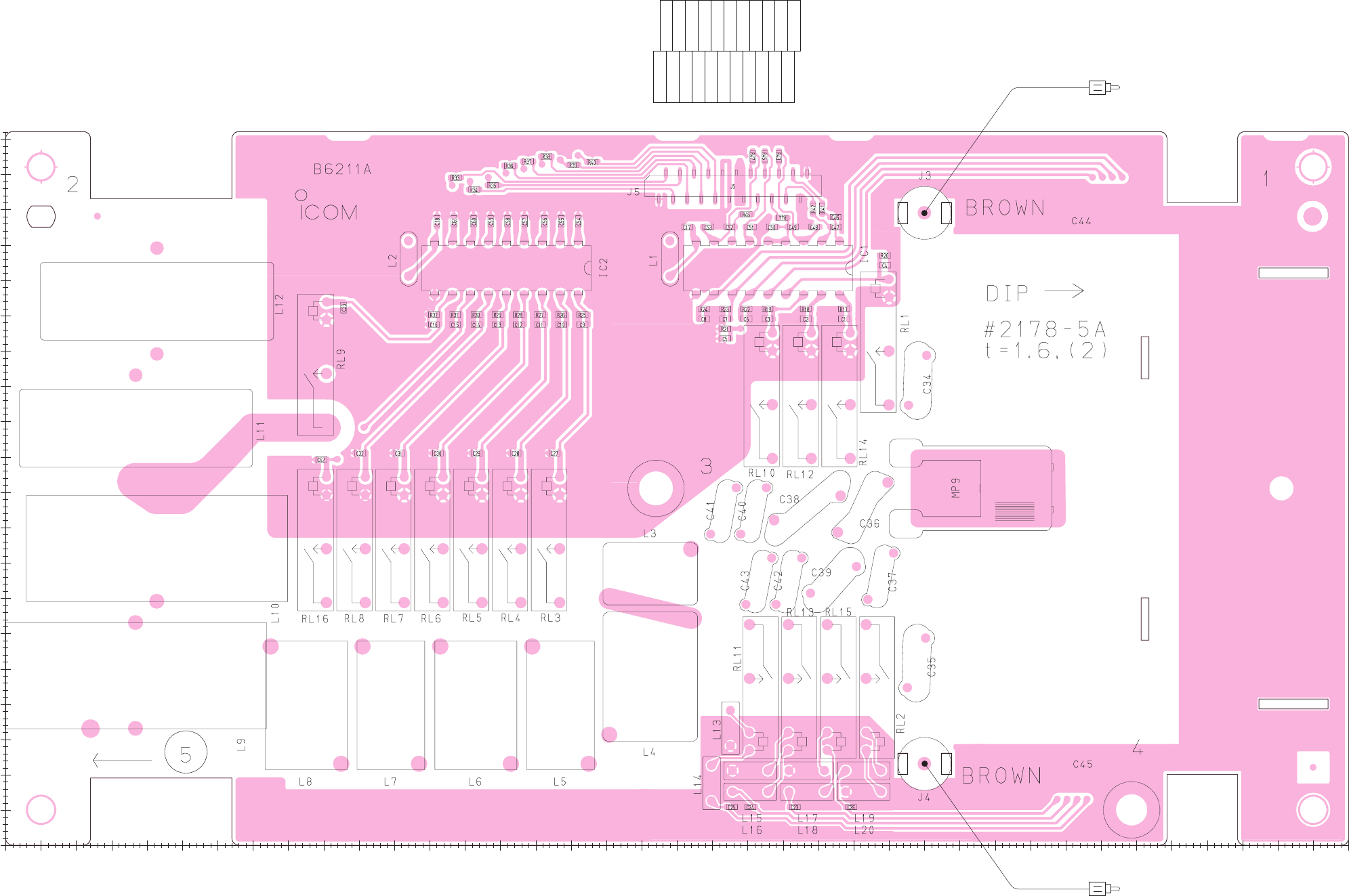

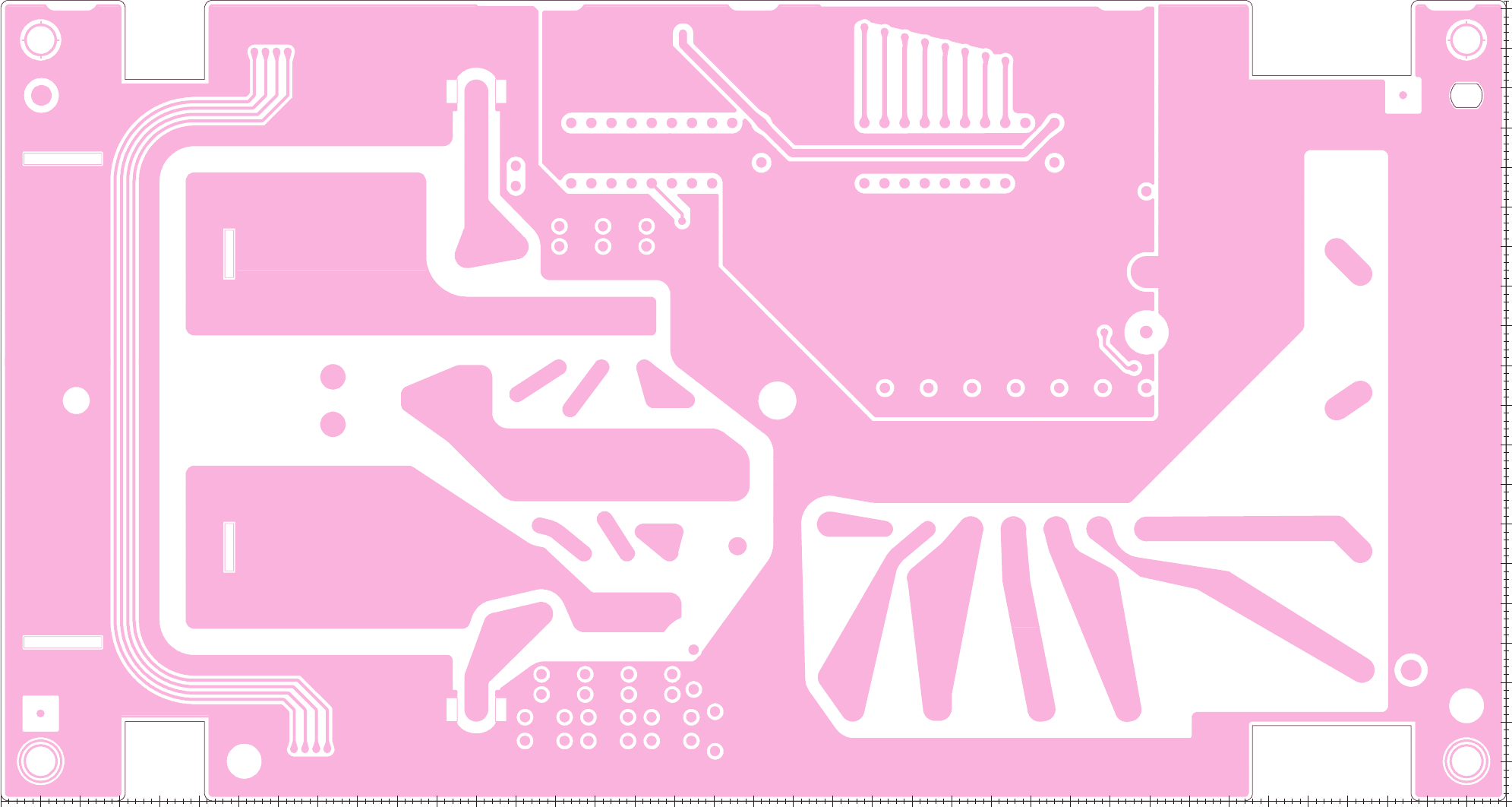

8 - 17 FILTER-A UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 19

8 - 18 CTRL-A UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 21

8 - 19 TUNER-A BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8- 23

SECTION 9 BLOCK DIAGRAM

SECTION 10 VOLTAGE DIAGRAMS

10 - 1 FRONT UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 1

10 - 2 DSP-A BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 3

10 - 3 TUNER-A, MEMORY BOARDS AND CTRL-A UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 5

10 - 4 MAIN-A UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 7

10 - 5 PLL UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12

10 - 6 PA AND FILTER-A UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 15

10 - 7 BPF-A, PREAMP BOARDS AND RF-B UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 17

SECTION 1 SPECIFICATIONS

1 - 1

■ GENERAL

• Frequency coverage:

Receive 0.030–60.000 MHz*1, *2

Transmit 1.800–1.999 MHz*2 3.500–3.999 MHz*2

5.3305, 5.3465, 5.3665, 5.3715, 5.4035 MHz*3

7.000–7.300 MHz*2 10.100–10.150 MHz*2

14.000–14.350 MHz*2 18.068–18.168 MHz*2

21.000–21.450 MHz*2 24.890–24.990 MHz*2

28.000–29.700 MHz*2 50.000–54.000 MHz*2

1 Some frequency bands are not guaranteed.

2 Depending on version.

3 [USA] only.

• Mode : USB, LSB, CW, RTTY, AM, FM

• Number of memory channels :

101 (99 regular, 2 scan edges)

• Antenna connector : SO-239 × 2 (50 Ω)

phono jack (RCA; 50 Ω)

• Usable temp. range : –10˚C to +50˚C (14˚F to 122˚F)

• Frequency stability : Less than ±0.5 ppm from 1 min. after

power ON.

(–10˚C to +50˚C; 14˚F to 122˚F)

• Freq. resolution : 1 Hz

• Power supply requirement:

13.8 V DC ±15% (negative ground)

• Current drain :

Transmit max. power 23 A

Receive stand-by 3.0 A (typical)

max. audio 3.3 A (typical)

• Dimensions : 340(W)×111(H)×285(D) mm

(proj. not included) ; 33⁄8(W)×43⁄8(H)×117⁄32(D) in

• Weight (approx.) : 9.6 kg (21 lb 3 oz)

• ACC 1 connector : 8-pin DIN connector

• ACC 2 connector : 7-pin DIN connector

• CI-V connector : 2-conductor 3.5(d) mm (1⁄8")

• Display : 5-inch (diagonal) TFT color LCD

■ TRANSMITTER

• Output power :

SSB/CW/RTTY/FM 5–100 W

AM 5–40 W

• Modulation system :

SSB PSN modulation

AM Low power modulation

FM Phase modulation

• Spurious emission : Less than –50 dB (HF bands)

Less than –60 dB (50 MHz band)

• Carrier suppression : More than 40 dB

• Unwanted sideband suppression:

More than 55 dB

• TX variable range : ±9.999 kHz

• Mic. connector : 8-pin connector (600 Ω)

• ELE-KEY connector: 3-conductor 6.35(d) mm (1⁄4")

• KEY connector : 3-conductor 6.35(d) mm (1⁄4")

• SEND connector : Phono jack (RCA)

• ALC connector : Phono jack (RCA)

■ RECEIVER

• Receive system : Triple-conversion

superheterodyne system

• Intermediate frequencies:

1st IF 64.455 MHz

2nd IF 455 kHz

3rd IF 36 kHz

• Sensitivity :

SSB, CW, RTTY (at 2.4 kHz bandwidth)

1.8–29.99 MHz*1 0.16 µV (10 dB S/N)

50.0–54.0 MHz*2 0.13 µV (10 dB S/N)

AM (at 6.0 kHz bandwidth)

0.5–1.799 MHz 13 µV (10 dB S/N)

1.8–29.99 MHz*1 2.0 µV (10 dB S/N)

50.0–54.0 MHz*2 1.0 µV (10 dB S/N)

FM (at 15 kHz bandwidth)

28.0–29.99 MHz*1 0.5 µV (12 dB SINAD)

50.0–54.0 MHz*2 0.32 µV (12 dB SINAD)

1 Pre-amp 1 ON *2 Pre-amp 2 ON

• Squelch sensitivity : (Pre-amp OFF)

SSB/CW/RTTY Less than 5.6 µV

FM Less than 1.0 µV

• Selectivity :

SSB/RTTY (at 2.4 kHz bandwidth)

More than 2.4 kHz/–6 dB

Less than 3.6 kHz/–60 dB

CW (at 500 Hz bandwidth)

More than 500 Hz/–6 dB

Less than 700 Hz/–60 dB

AM (at 6 kHz bandwidth)

More than 6.0 kHz/–6 dB

Less than 15.0 kHz/–60 dB

FM (at 15 kHz bandwidth)

More than 12 kHz/–6 dB

Less than 20 kHz/–60 dB

• Spurious and image rejection ratio:

More than 70 dB

(except IF through in 50 MHz band)

• RIT variable range : ±9.999 kHz

• Audio output power : More than 2.0 W at 10% distortion

(at 13.8 V DC) with an 8 Ω load

• PHONES connector: 3-conductor 6.35(d) mm (1⁄4")

• EXT SP connector : 2-conductor 3.5(d) mm (1⁄8") 8 Ω

■ ANTENNA TUNER

• Matching impedance range:

HF bands 16.7 to 150 Ω unbalanced*1

50 MHz band 20 to 125 Ω unbalanced*2

1 Less than VSWR 3:1 *2 Less than VSWR 2.5:1

• Minimum operating input power:

8 W

• Tuning accuracy : VSWR 1.5:1 or less

• Insertion loss : Less than 1.0 dB

(after tuning)

All stated specifications are subject to change without notice or obligation.

SECTION 2 INSIDE VIEWS

2 - 1

• TOP VIEW

Fan control circuit

PA unit

Fan

FILTER-A unit

TUNER-A unit

Antenna tuner CPU

(IC5: M38022M2-138FP)

Drive amplifier

Voltage regulator

Common filter

(L501: LR-386)

Common filter

(L502: LR-386)

CTRL-A unit

Current transformer

(L1: LR-364)

C-MOS IC

(IC14: TC74AC04F)

Fan control circuit

Q10, Q11: 2SC4081×2

Q12, Q13: 2SB1201×2

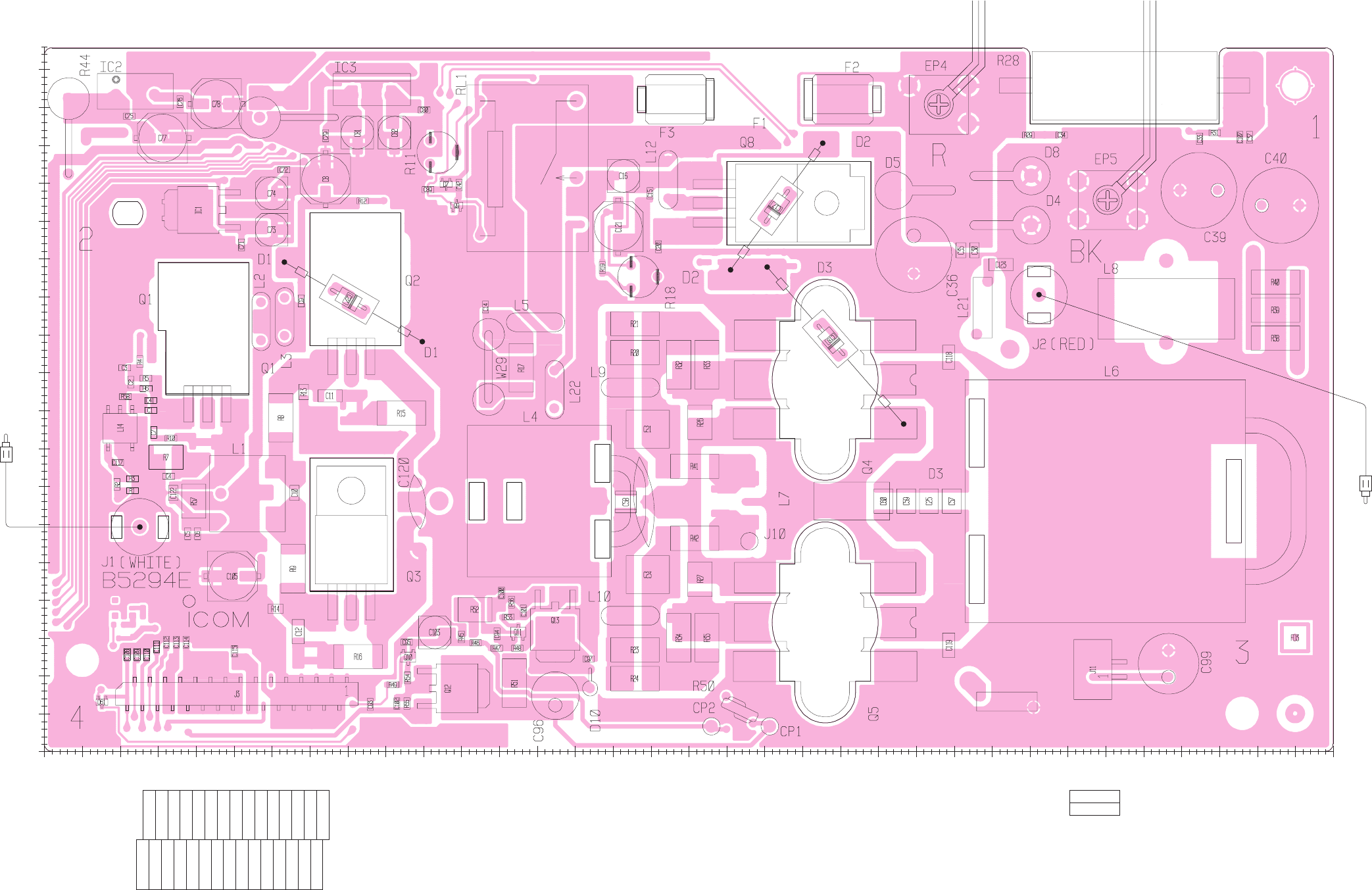

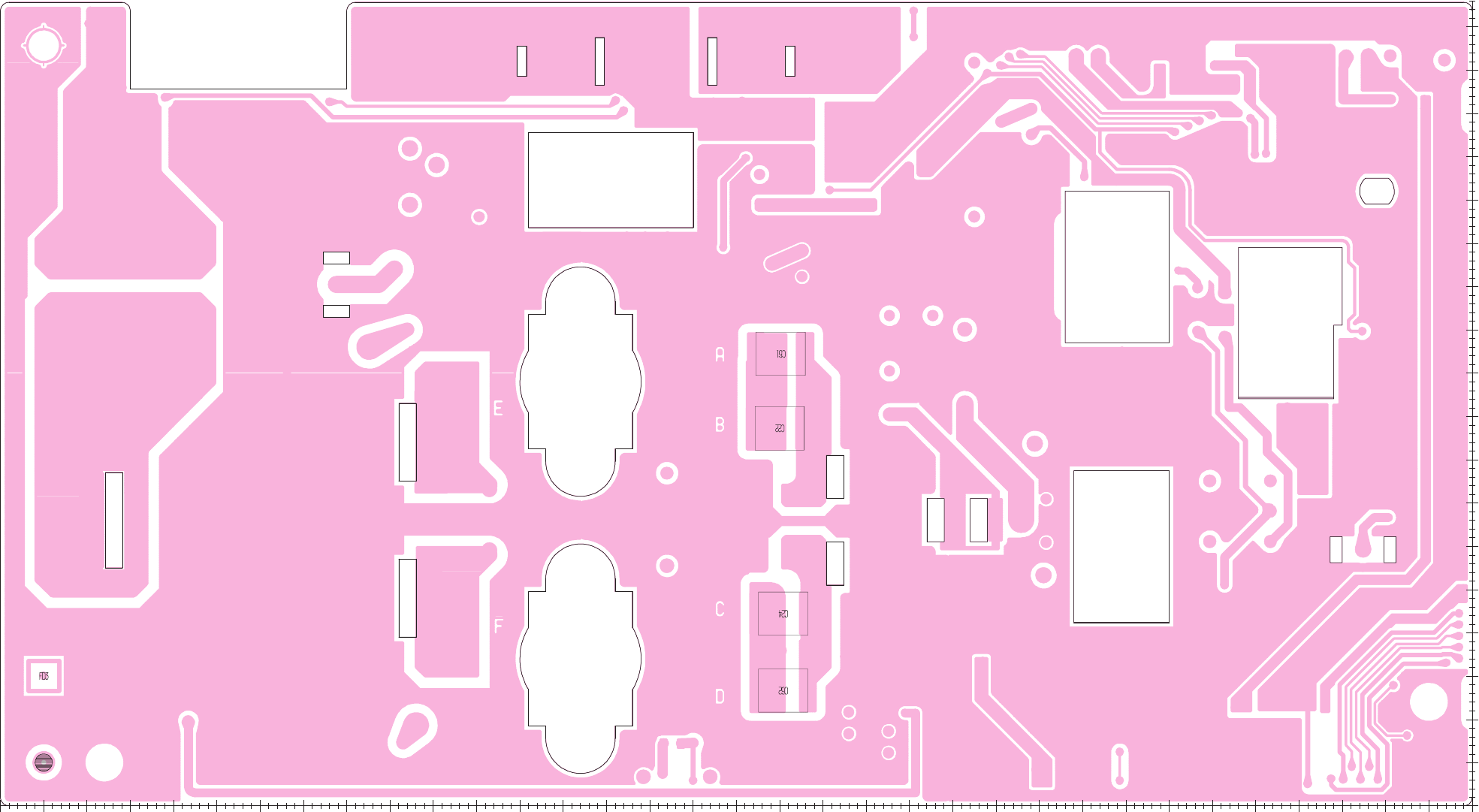

PA unit

Cooling fan

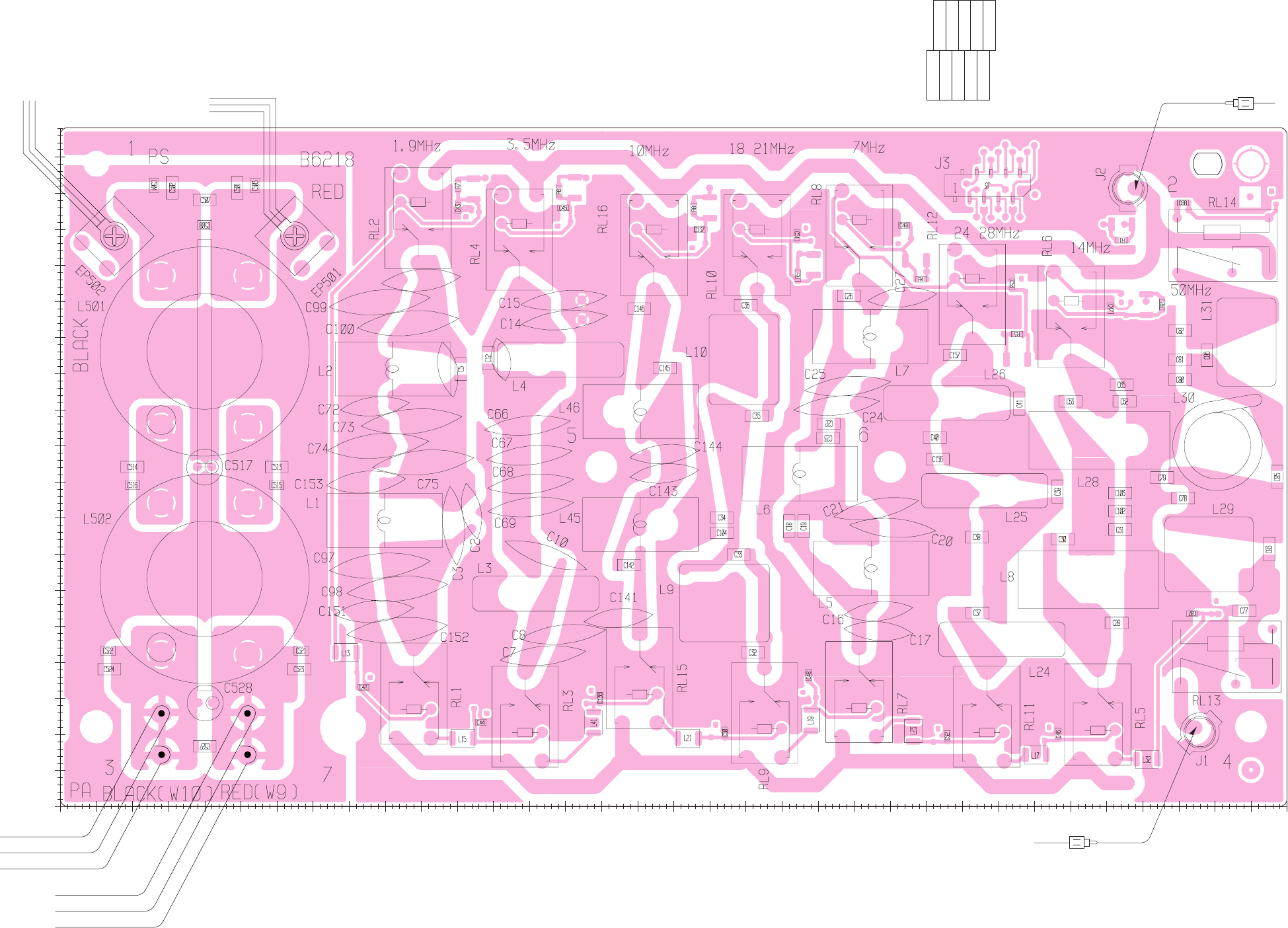

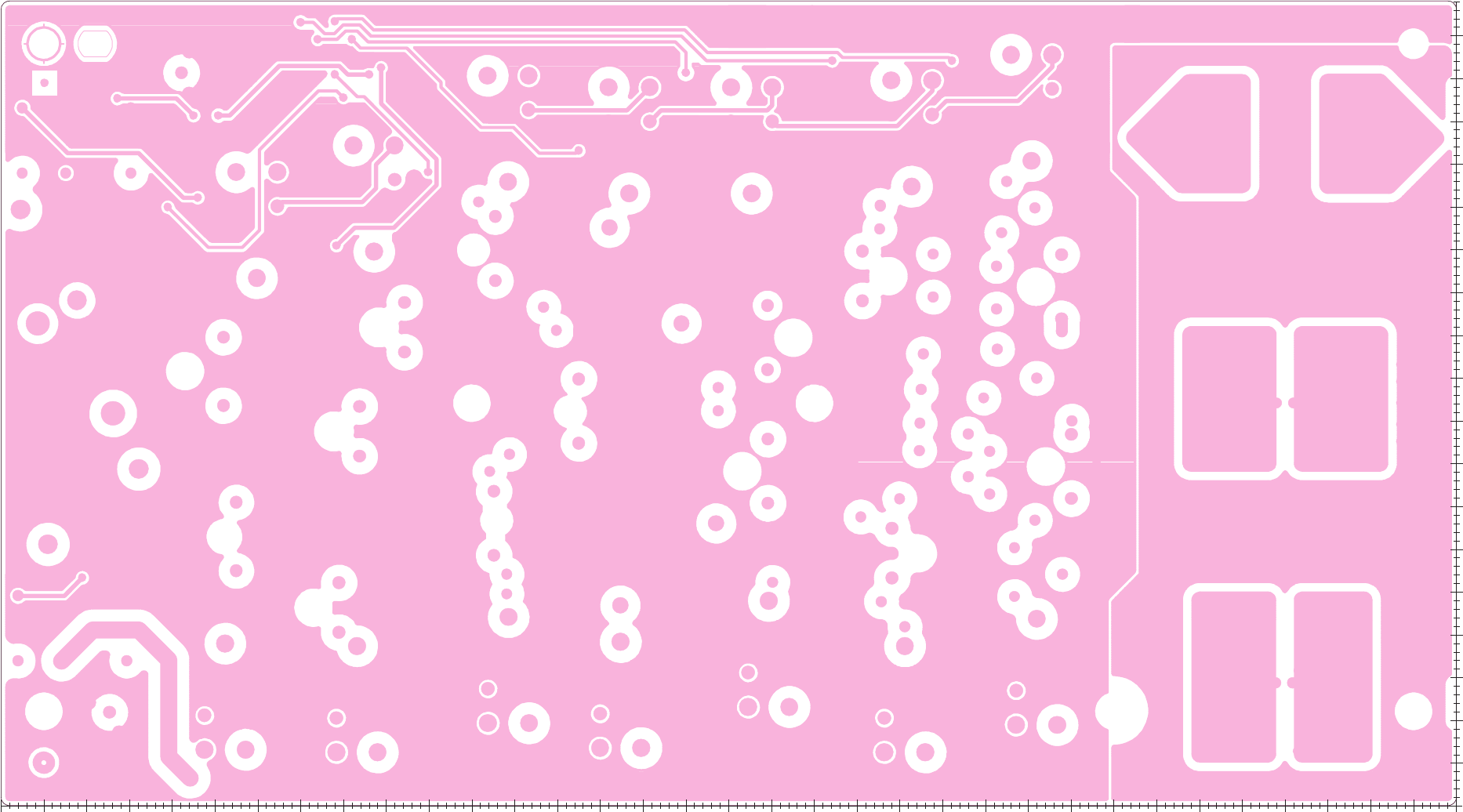

FILTER-A unit

TUNER-A unit

Antenna tuner CPU

(IC5: M38022M2-138FP)

Drive amplifier circuit

(Q2, Q3: 2SC1972×2)

Voltage regulator

IC1: TA7805F

IC2: TA7805S

IC3: TA78T08C

Common filter

(L501: LR-386)

Common filter

(L502: LR-386)

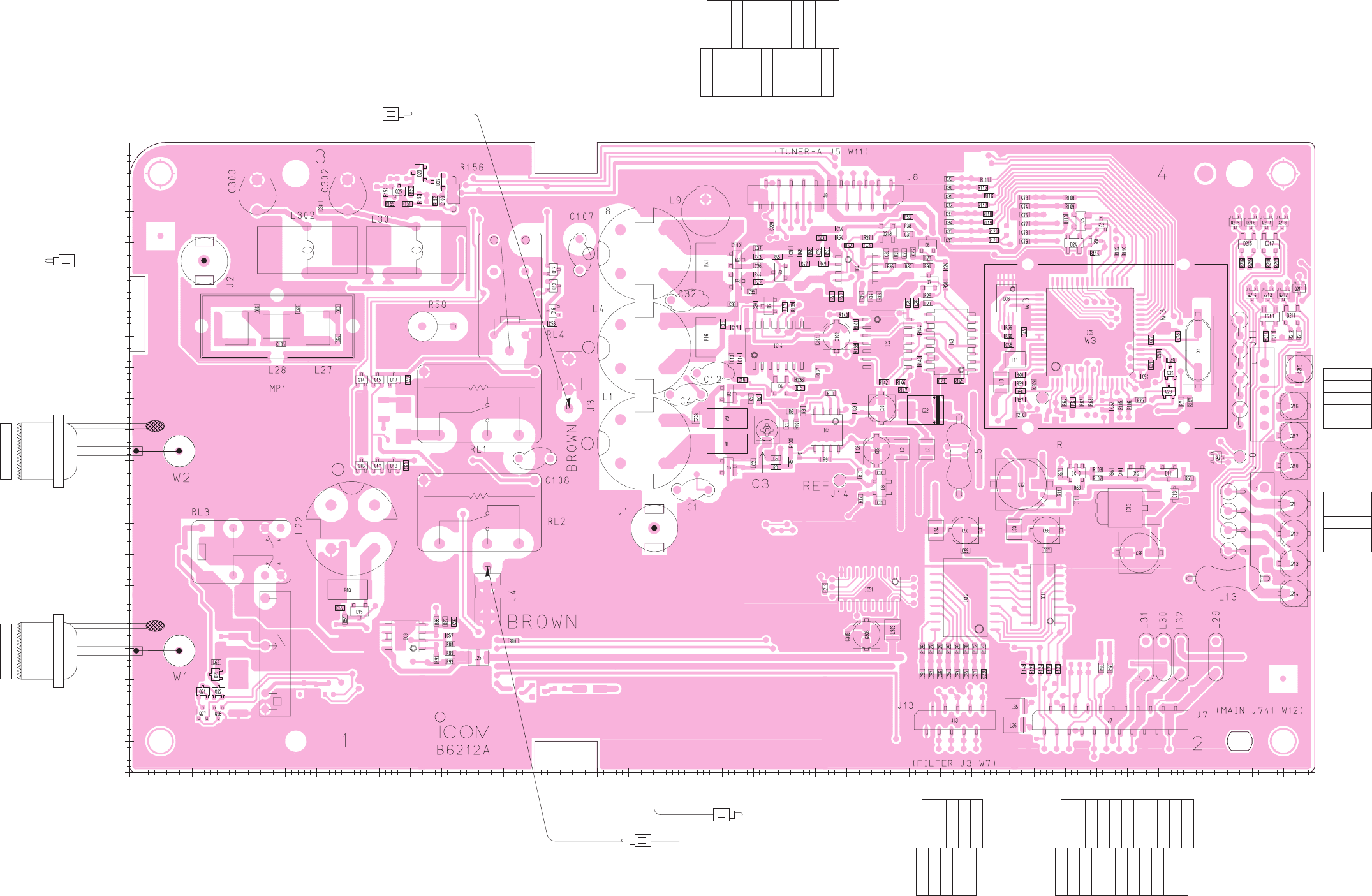

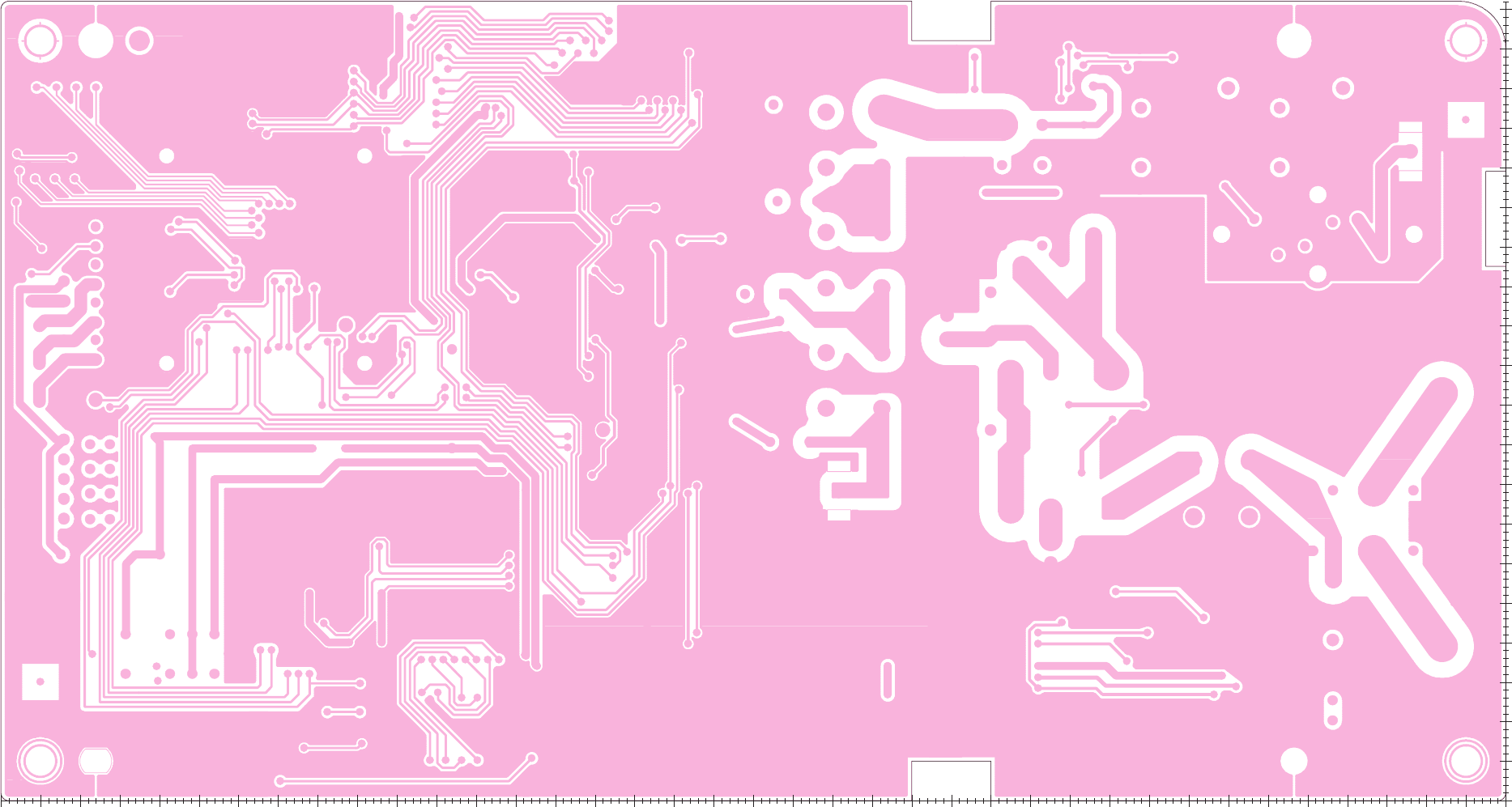

CTRL-A unit

Current transformer

(L1: LR-364)

C-MOS IC

(IC14: TC74AC04F)

Power amplifier

(Q4, Q5: 2SC5125×2)

Power amplifiers

(Q4, Q5: 2SC5125×2)

2 - 2

• BOTTOM VIEW

Reference frequency oscillator

(X52: CR-338 32.00056MHz)

RF-B unit

BPF-A board

PLL unit

1LO PLL IC

(IC381, IC681: LMX2306TM)

VCO-B circuit

VCO-A circuit

S2LO PLL IC

(IC901: LC7153M)

1LO DDS IC

(IC101, IC401: SC-1246A)

3LO/S3LO DDS IC

(IC701, IC801: SC-1287)

MAIN-A unit

Noise blanker circuit

LCD contorller

(IC3551: S1D13504F00A000)

MAIN CPU

(IC3501: HD64F2375F20)

TX 3rd mixer

(IC221: NJM1496V)

RX 3rd mixer

(IC151: TC4W53FU)

DSP-A board

PREAMP board

TX 1st mixer

(D1451: HSB88WS)

FM IF IC

(IC2001: TA3116FN)

RX 1st mixer circuit

RX 2nd mixer

(D1752: HSB88WS)

TX 2nd mixer

(D1852: HSB88WS)

Reference frequency oscillator

(X52: CR-338. 32.00056MHz)

RF-B unit

BPF-A board

PLL unit

1LO PLL IC

(IC381, IC681: LMX2306TM)

VCO-B circuit

VCO-A circuit

S2LO PLL IC

(IC901: LC7153M)

1LO DDS IC

(IC101, IC401: SC-1246A)

3LO/S3LO DDS IC

(IC701, IC801: SC-1287)

MAIN-A unit

Noise blanker circuit

LCD contorller

(IC3551: S1D13504F00A000)

MAIN CPU

(IC3501: HD64F2375F20)

TX 3rd mixer

(IC221: NJM1496V)

RX 3rd mixer

(IC151: TC4W53FU)

DSP-A board

PREAMP board

TX 1st mixer

(D1451: HSB88WS)

FM IF IC

(IC2001: TA3116FN)

RX 1st mixer circuit

RX 2nd mixer

(D1752: HSB88WS)

TX 2nd mixer

(D1852: HSB88WS)

SECTION 3 CIRCUIT DESCRIPTION

3 - 1

•

Receiver construction

1st LO B

1st LO A

LPF or

BPF

2nd LO

64.0 MHz

Crystal

filter

FI1701

1st mixer A

Q1203–Q1206

1st mixer B

Q1003–Q1006

2nd mixer

D1752

3rd LO

491 kHz

3rd mixer

IC151

64.455 MHz

0.03–60.0 MHz

Ceramic

filter

FI111

455 kHz

to squelch gate

(IC301)

36 kHz DSP-A

board

RF-B UNIT MAIN-A UNIT

Band Control

signal

Input

diode Band Control

signal

Input

diode

0.03–1.6 MHz B0 D801 11–15 MHz B7 D551

1.6–2 MHz B1 *D3201 15–22 MHz B8 D602

2–3 MHz B2 *D3301 22–30 MHz B9 D651

3–4 MHz B3 *D3401 30–50 MHz B10W D701

4–6 MHz B4 *D3501 50–54 MHz B10 D751

6–8 MHz B5 *D3601 54–60 MHz B10W D701

8–11 MHz B6 D501

3-1 RECEIVER CIRCUIT

3-1-1 RF SWITCHING CIRCUIT

(CTRL-A AND RF-B UNITS)

The RF switching circuit leads receive signals to bandpass

ﬁ lters from an antenna connector while receiving. However,

the circuit leads the signal from the RF power amplifier to

the antenna connector while transmitting.

RF signals from [ANT 1] or [ANT 2] pass through the an-

tenna selector (RL3), transmit/receive switching relays (RL1,

RL2, RL4), and low-pass ﬁ lter (L27, L28, C63–C66, C105),

and are then applied to the RF-B unit via J101 (RF-B unit).

The signals from the CTRL-A unit either bypass or pass

through the 6 dB (RF-B unit, R102, R106, R111, RL102)

and/or 12 dB (RF-B unit, R112, R113, R114, RL103)

attenuators via the antenna selector (RL101). By selecting

the attenuators, 0 (bypass), 6, 12 and 18 dB attenuations

are obtained. The signals are then applied to the RF ﬁ lters.

When the [RX ANT] is selected, the RF signals are passed

through the low-pass filter (RF-B unit, L101, L102, C101

–C105), then applied to the antenna selector (RF-B unit,

RL101).

3-1-2 RF BANDPASS FILTER CIRCUIT

(RF-B UNIT AND BPF-A BOARD)

RF bandpass ﬁ lters pass only the desired band signals and

suppress any undesired band signals. The RF circuit has 11

bandpass ﬁ lters and 1 low-pass ﬁ lter.

(1) 0.03–1.6 MHz (RF-B UNIT)

The signals pass through the low-pass filter (L801–L802,

C802, C805–C807), attenuator (R801–R803), and are then

applied to the RF ampliﬁ ers (Q1001, Q1002).

(2) 1.6–60 MHz (RF-B UNIT AND BPF-A BOARD)

The signals pass through the band switch (D104) and high-

pass filter (L251–L253, C251, C252, C271–C274) to sup-

press excessively strong signals below 1.6 MHz. The ﬁ ltered

signals are applied to one of 11 bandpass ﬁ lters on the table

at right above, and then applied to or bypassed the pre-

ampliﬁ er circuit.

3-1-3 PRE-AMPLIFIER CIRCUITS (PRIAMP BOARD)

The IC-756PROIII has 2 gain levels of pre-ampliﬁ er circuits.

One has 10 dB gain for the 1.8–21 MHz bands and the other

one has 16 dB gain for the upper 24 MHz bands.

When the [P.AMP] switch is set to [P.AMP 1] or [P.AMP

2], the signals are applied to the pre-amplifier 1 (Q4201,

Q4202) or pre-ampliﬁ er 2 (Q4302) circuit, respectively. Pre-

ampliﬁ ed or bypassed signals are applied to the RF ampliﬁ er

circuits (RF-B unit; Q1001, Q1002 or Q1201, Q1202).

3-1-4 RF AMPLIFIER AND 1ST MIXER CIRCUITS

(RF-B UNIT)

The 1st mixer circuit mixes the receive signals with the 1st

LO signal to convert the receive signal frequencies into a

64.455 MHz 1st IF signal. The IC-756PROIII has two 1st

mixer circuits for the dualwatch function.

The signals from the pre-amplifier circuit, or signals which

bypass the pre-ampliﬁ ers, are divided at L902, L903. Each

signal is applied to a 60 MHz cut-off low-pass ﬁ lter, RF am-

pliﬁ er (Q1001, Q1002 for sub readout or Q1201, Q1202 for

main readout) and then to a 1st mixer (Q1003–Q1006 sub

readout or Q1203–Q1206 for main readout) to convert the

frequency into the 64.455 MHz 1st IF signal.

Each 1st LO signal (64.4850–124.4550 MHz) from the PLL

unit via J1101 or J1301. The LO signals are ampliﬁ ed at the

LO ampliﬁ er (Q1101; sub or Q1301; main), ﬁ ltered by a low-

pass ﬁ lter, and then applied to each 1st mixer.

*: On the BPF-A board

• Used RF ﬁ lter

3 - 2

3-1-5 1ST IF CIRCUIT (RF-B UNIT)

The 1st IF circuit filters and amplifies the 1st IF signal. The

1st IF signal combined at L1018 and is then applied to a

MCF (Monolithic Crystal Filter; FI1701) to suppress out-of-

band signals.

The 1st IF signal level is adjusted at the PIN attenuators

(D1001, D1003, D1004; sub or D1201, D1203, D1204 for

main) controlled by the [BAL] controller for the dualwatch

function. The signal is applied to the 1st IF amplifier (Q1008;

sub or Q1208; main) and then combined at L1018.

The combined signal is pass through the MCFs (FI1701)

and is then applied to the 1st IF amplifier (Q1751). The

amplified signal is then applied to the 2nd mixer circuit.

3-1-6 2ND MIXER CIRCUIT (RF-B UNIT)

The 2nd mixer circuit mixes the 1st IF signal and 2nd LO

signal (64.00 MHz) for conversion into the 2nd IF signal.

The 1st IF signal from the 1st IF amplifier (Q1751) is con-

verted into a 455 kHz 2nd IF signal at the 2nd mixer circuit

(D1752).

The 2nd IF signal is applied to the noise blanker gate

(MAIN-A unit) via the J1851.

3-1-7 NOISE BLANKER CIRCUIT (MAIN-A UNIT)

The noise blanker circuit detects pulse-type noise, and

turns OFF the signal line when the noise appears.

The 2nd IF signal from the RF-B unit is applied to the noise

blanker gate (D113, D114).

A portion of the 2nd IF signal is amplified at the noise

amplifiers (Q271–Q273, Q279), and is then detected at the

noise detector (D271) to convert the noise components to

DC voltages.

The signal is then applied to the noise blanker switch (Q276,

Q278). At the moment the detected voltage exceeds Q276’

s threshold level, Q278 outputs a blanking signal to close

the noise blanker gate (D113, D114). The PLL unlock sig-

nal are also applied to Q278, to control the noise blanker

gate.

Some DC voltage from the noise detector circuit is fed back

to the noise amplifiers (Q271, Q272) via the DC amplifiers

(Q274, Q275). The DC amplifiers function as an AGC cir-

cuit to reduce average noise. Therefore, the noise blanker

function shuts off pulse-type noise only.

3-1-8 2ND IF CIRCUIT (MAIN-A UNIT)

The 2nd IF circuit amplifies and filters the 2nd IF signal,

and applies the 2nd IF signal to the 3rd mixer circuit.

The 2nd IF signal from the noise blanker gate (D113,

D114) is amplified at the 2nd IF amplifier (Q141) and

passed through the ceramic filter (FI111). The filtered sig-

nal is applied to the 3rd mixer circuit.

3-1-9 3RD MIXER AND 3RD IF CIRCUITS

(MAIN-A UNIT)

The 3rd mixer circuit mixes the 2nd IF signal and the 3rd

LO signal to obtain the 3rd IF (36 kHz) signal.

The 2nd IF signal from the ceramic filter (FI111) is applied

to the 3rd mixer circuit (IC151, pin 1). The 3rd LO signal

from the PLL unit is applied to the 3rd mixer (IC151, pin 5).

The 3rd IF signal is output from pin 6.

The 3rd IF signal is passed through the low-pass filter

(IC201a) and amplified at the 3rd IF amplifier (IC201b). The

amplified signal is then applied to the DSP-A board via

J201 (pin 27) as DRIF signal.

3-1-10 DSP RECEIVER CIRCUIT (DSP-A BOARD)

The DSP (Digital Signal Processor) circuit enables digital

IF filter, digital noise reduction, digital PSN (Phase Shift

Network)/Low Power/Phase demodulation, digital automatic

notch, and etc.

The 36 kHz 3rd IF signal from the 3rd IF amplifier (MAIN-A

unit, IC201b) is amplified at the differential amplifiers

(IC2301a/b) after being passed through the T/R switch

(IC2291), and is then applied to the A/D converter (IC2321).

Differential

converter

A/D

converter

DRIF

DRAF

• DSP receiver circuit

IC2291

IC2301b/a IC2321

Level

converter

IC2051

D/A

converter

IC2052

Level

converter

IC2351

DSP IC

IC2001

LPF

IC2401

T/R switch

IC2372x

IC2372y

HPF

IC2441a

Mixer

amplifier

IC2471a

IC2372z

IC2473

MAIN-A unit DSP-A board MAIN-A unit

36 kHz

3rd IF

signal

signals

“TXS” signal

“TXS” signal “TXS” signal

3 - 3

The converted signal is changed from a 5 V level signal to

a 3.3 V signal in the level converter (IC2051), and is then

applied to the DSP IC (IC2001) for 36 kHz digital IF filter,

demodulation, automatic notch and noise reduction, etc.

The output signal from the DSP IC (IC2001) is changed

from a 3.3 V level signal to a 5 V level signal in the level

converter (IC2502), and is applied to the D/A converter

(IC2351) to convert into the analog audio signals.

The converted audio signals are passed through the active

filter (IC2371a), AF amplifier (IC2371b), analog switches

(IC2372, pins 13, 14 and pins 1, 15) then applied to the

low-pass filter (IC2401, pins 5, 11). The filtered signals are

passed through the analog switches (IC2372, pins 3, 4 and

IC2473, pins 1, 7), high-pass filter (IC2441A) and mixer

amplifier (IC2471A), and then applied to the MAIN-A unit

via J2001 (pin 13) as the DRAF signal.

3-1-11 TWIN PBT CIRCUIT (DSP-A BOARD)

General PBT (Passband Tuning) circuit shifts the center fre-

quency of IF signal to electronically narrow the passband

width. The IC-756PROIII uses the DSP circuit for the digital

PBT function and actually shifts the both lower and higher

passbands of 3rd IF filter within ±1.8 kHz.

The twin PBT circuit in DSP IC (IC2001) controlled by the

[TWIN PBT] controller adjusts the 3rd IF passband width

and rejects interference.

3-1-12 AGC CIRCUIT (DSP-A BOARD)

The AGC (Automatic Gain Control) circuit reduces IF ampli-

fier gain and attenuates IF signal to keep the audio output

at a constant level.

The receiver gain is determined by the voltage on the

AGC line (IC2461, pin 4). The D/A converter (IC2461) for

AGC supplies control voltage to the AGC line and sets the

receiver gain with the [RF/SQL] control.

The 3rd IF signal from the level converter (IC2051) is

detected at the AGC detector section in DSP IC (IC2001),

and is applied to the D/A converter for AGC via the level

converter (IC2052). The AGC voltage is amplified at the

buffer amplifier (IC2471b), and is then applied to the

MAIN-A unit via J2001 (pin 16) to control the AGC line.

When receiving strong signals, the AGC voltage decreases

via the buffer amplifier (IC2471b). As the AGC voltage is

used for the bias voltage of the IF amplifier (RF-B unit;

Q1751), and IF amplifier gain is decreased.

3-1-13 S-METER CIRCUIT (MAIN-A UNIT)

The S-meter circuit indicates the relative received signal

strength while receiving by utilizing the AGC voltage which

changes depending on the received signal strength.

A portion of the AGC bias voltage from the DSP-A board

is applied to the differential amplifier (IC101a, pin 2) where

the difference between the AGC and reference voltage is

detected.

The detected voltage is passed through the analog switch

(IC3631, pins 12, 14) as the SML signal and applied to the

main CPU (IC3501, pin 108) to activate the S/RF meter via

the sub CPU (DISPLAY board, IC401).

3-1-14 SQUELCH CIRCUIT (MAIN-A UNIT)

The squelch circuit mutes audio output when the S-meter

signal is lower than the [RF/SQL] setting level.

The S-meter signal is applied to the main CPU (IC3501, pin

108) and is compared with the threshold level set by the

[RF/SQL] control. The [RF/SQL] setting signal is applied to

the main CPU via the sub CPU (DISPLAY board; IC401,

pin 91). The main CPU analyzes the compared signal and

outputs control signal to the squelch gate (IC301, pin 5)

via the interface IC (IC3653, pin 19) to open or close the

squelch as the SQLS signal.

3-1-15 AF AMPLIFIER CIRCUIT (MAIN-A UNIT)

The AF amplifier amplifies the audio signals to a suitable

driving level for the speaker.

The AF signals (DRAF) from the DSP-A board are passed

through the squelch gate (IC301, pins 1, 7) and amplified

at the AF amplifier section of IC311 (pins 2, 4), and volume

is controlled by the AFGV signal at the VCA section (pins 7

–9). The volume controlled AF signals are passed through

the AF mute gate (IC331, pins 1, 7), then applied to the AF

power amplifier (IC332, pins 1, 4).

The amplified audio signals are passed through the SP

mute switch (RL351) and [EXT SP] jack then applied to the

internal speaker when no plug is connected to the jack.

The AF mute gate is controlled by the [AF] control via the

sub and main CPUs.

When headphones are connected, the SP mute signal from

the main CPU (IC3501, pin 56) is applied to the SP mute

switch (RL351) via the BUS driver (IC3654, pins 8, 13) as

the SPS signal.

[PHONES]

[EXT SP]

Int. speaker

IC332

power

amp.

DRAF

• AF amplifier circuit

129

IC301 IC311

Mute switchSquelch gate

MAIN-A unitDSP-A board

“SQLS” signal

“AFGV” signal

IC331 RL351

“AFMS” signal

“SPS” signal

AMP VCA

3 - 4

3-2 TRANSMITTER CIRCUITS

3-2-1 MICROPHONE AMPLIFIER CIRCUIT

(MAIN-A UNIT)

The microphone amplifier circuit amplifies microphone

audio signals to a level needed for the DSP circuit.

Audio signals from the [MIC] connector (MIC board; J1,

pin 1) are amplified at the audio amplifier section in IC451

(pins 21, 22) via the analog switch (IC3002, pins 12, 14),

then applied to the buffer amplifier section (IC451, pin 5)

and VCA section. The gain controlled signals are output

from (IC451, pin 9) and passed through the analog switch

(IC3005, pins 12, 14) and then applied to the DSP circuit

via J201 (pin 15) as the DTAF signal.

The VCA section in IC451 (pin 9) controls microphone

input gain according to the [MIC GAIN] control level using

the MIGV signal coming from the main CPU via the I/O

expander (IC3751, pin 4).

3-2-2 VOX CIRCUIT (MAIN-A UNIT)

The VOX (Voice-Operated Transmission) circuit sets trans-

mitting conditions according to voice input.

A portion of the audio signals from the VCA section (IC451,

pin 9) is applied to the AF amplifier (IC3004b, pins 6, 7),

and then applied to the main CPU (IC3501, pin 106) after

passing through the analog switch (IC362, pins 1, 6) as the

VOXL signal.

The VOGV signal is applied to the VCA section in IC3003

(pin 8) from the main CPU via the I/O expander (IC3751,

pin 9) to adjust VOX actionable sensitivity. This is controlled

by the VOX gain set in the VOX SET mode.

3-2-3 DSP TRANSMITTER CIRCUIT

(DSP-A BOARD)

The microphone audio signals from the MAIN-A unit via the

DTAF line are applied to the analog switch (IC2201, pin 4)

and output from pin 3 or 5 to the each modulation circuits.

(1) When SSB mode

The audio signals from the analog switch (IC2201, pin 5)

are amplified at the limiter amplifier (IC2281b) and applied

to the low-pass filter (IC2281c/d) to limit the transmit

passband width.

The filtered signals are then applied to the differential

amplifiers (IC2301a/b) via the analog switch (IC2201, pins

12, 14) and T/R switch (IC2291, pins 1, 7).

(2) When FM/AM modes

The audio signals from the analog switch (IC2201, pin 3)

are applied to the modulation adjustment pots (R2227:

FM mode, R2229: AM mode) via the limiter amplifier, pre-

emphasis circuit (only FM mode) and splatter filter consist

of IC2211. The level adjusted signals are applied to the dif-

ferential amplifiers (IC2301a/b) after being passed through

the analog switch (IC2201, pins 1, 2, 13–15) and T/R

switch (IC2291 pins 1, 7). The pre-emphasis circuit is can-

celled by Q2201, Q2202, Q2211 on AM mode.

The amplified signals at the differential amplifiers (IC2301a/

b) are applied to the A/D converter (IC2321 pins 4, 5). The

converted signals are changed from 5 V level signals to 3.3

V level signals in the level converter (IC2051).

The converted signals are applied to the DSP IC (IC2001)

and modulated at the DSP IC to produce the 36 kHz trans-

mitter IF signal. The modulated IF signal from the DSP IC

is changed from a 3.3 V signal to a 5 V signal in the level

converter (IC2052), and is applied to the D/A converter

(IC2351) to convert into the analog IF signal.

The converted IF signal is passed through the active fil-

ter (IC2371a), buffer amplifier (IC2371b), analog switch

(IC2372, pins 12, 14) then applied to the low-pass filter

(IC2381c/d). The filtered signal is applied to the MAIN-A

unit via J2001 (pin 29) as the DTIF signal.

When SSB or RTTY mode, a portion of the filtered signal

from the low-pass filter (IC2381c/d) is amplified at the IF

and buffer amplifiers (IC2381a/b) and is applied to the

transmit monitor circuit for the monitor function.

DTAF

• DSP Transmitter circuit

LPF

IC2281c/dIC2281b

IC2211a

LPF

IC2211b

MAIN-A unit DSP-A board

signal

“MODS” signal

IC2201z

Mode switch

Differential

converter

A/D

converter DTIF

IC2291

IC2301a/b

IC2321

Level

converter

IC2051

D/A

converter

IC2052

Level

converter

IC2351

DSP IC

IC2001

LPF

IC2381d/c

T/R switch

IC2372x

MAIN-A unit

36 kHz IF

“TXS” signal

IC2201x

Mode switch

Limitter

SSB

mode

FM/AM

mode

3 - 5

3-2-4 SPEECH COMPRESSOR CIRCUIT

(DSP-A BOARD)

The speech compressor compresses the transmitter audio

input signals to increase the average output level (average

talk power).

When the speech compressor function is ON, the level

shifted signal from the level converter (IC2051) is applied

to the DSP IC (IC2001) and compressed at the DSP IC to

obtain an average audio level.

At the same time, the compressed signals are modulated

at the DSP IC and applied to the level converter (IC2052).

3-2-5 IF AMPLIFIER AND MIXER CIRCUITS

(MAIN-A AND RF-B UNITS)

The modulated 3rd IF signal from the DSP-A board (DTIF:

36 kHz) is applied to the 3rd mixer circuit (MAIN-A unit;

IC221, pin 1). The applied 3rd IF signal is mixed with the

3rd LO signal from the DDS circuit (PLL unit; IC701) to pro-

duce a 455 kHz 2nd IF signal.

The 2nd IF signal is output from (MAIN-A; IC221, pin 6)

and amplified at the IF amplifier (MAIN-A unit; Q241). The

amplified signal is passed through the ceramic bandpass

filter (MAIN-A unit; FI131: FM/AM modes, FI133: other

modes) for unwanted signals are suppressed. The filtered

2nd IF signal is amplified at IF amplifier (MAIN-A unit;

Q261) and applied to the 2nd mixer circuit on the RF-B unit

via J101 (MAIN-A unit).

The 2nd IF signal is mixed with the 64 MHz 2nd LO signal,

coming from the PLL unit, at the 2nd mixer circuit (RF-B

unit; D1852) to obtain a 64.455 MHz 1st IF signal. The 1st

IF signal is passed through a MCFs (RF-B unit; FI1701)

to cut-off the undesired signals then amplified at the IF

amplifier (RF-B unit; Q1551) via the T/R switch (RF-B unit;

D1551). The amplified 1st IF signal is applied to the 1st IF

mixer circuit (RF-B unit; D1451).

The operating (transmitting) frequency is produced at the

1st IF mixer circuit (RF-B unit; D1451) by mixing the 1st IF

and 1st LO signals. The mixed signal is then applied to the

RF circuit.

3-2-6 RF CIRCUIT (RF-B AND PA UNITS)

The RF circuit amplifies operating (transmitting) frequency

to obtain 100 W of RF output.

The signal from the 1st IF mixer (RF-B unit; D451) is

passed through the low-pass filter (RF-B unit; L1402,

L1403, C1405–C1409) and amplified at the RF amplifier

(RF-B unit; IC1401). The amplified signal is amplified again

at the wide-band YGR amplifier (RF-B unit, IC201) after

passing through one of 10 bandpass (Refer to page 3-1

for bandpass filters used) and high-pass filters, and is then

applied to the PA unit via J201 (RF-B unit).

The signal applied from the RF-B unit is amplified at the

pre-drive (Q1), drive (Q2, Q3) and power amplifiers (Q4,

Q5) in sequence to obtain a stable 100 W of RF output

power. The amplified signal is applied to one of 8 low-pass

filters in the FILTER-A unit.

3-2-7 LOW-PASS FILTER CIRCUIT (FILTER-A UNIT)

The low-pass filter circuit contains 8 Chebyschev low-pass

filters to suppress the higher harmonic components.

The amplified signal from the PA unit is applied to one of

8 low-pass filters, which is selected by the I/O expander

(CTRL-A unit, IC11) via the buffer amplifier (CTRL-A unit;

IC12).

The filtered signal is then applied to one of 2 antenna con-

nectors via the CTRL-A unit.

3-2-8 ALC CIRCUIT (MAIN-A UNIT)

The ALC (Automatic Level Control) circuit controls the gain

of IF amplifiers in order for the transceiver to output a con-

stant RF power set by the [RF POWER] control even when

the supplied voltage shifts, and etc.

The RF power level is detected at one of the APC detector

circuits (CTRL-A unit; D2) to be converted into DC voltage

and applied to the MAIN-A unit as the FORV signal.

The FORV signal from the CTRL-A unit is applied to the

comparator (IC551b, pins 6, 7). The POCV signal, con-

trolled by the [RF POWER] control via the I/O expander

(IC3751, pin 5), is also applied to the other input (IC551b,

pin 5) for reference. The compared signal is output from

pin 7 and applied to the IF amplifiers in the MAIN-A (Q261)

and RF-B (Q1551) units to control amplifying gain.

• Transmitter construction

1st LO

(64.485–

124.455 MHz)

D1451

Ceramic

filter

Crystal

filter

FI1701

LPF BPFs

FI131

Ceramic

filter

FI133

MIC 455 kHz

DSP-A

board

RF-B UNIT PA UNIT

MAIN-A UNIT

AMP VCA

FM/AM

modes

other

modes

3rd LO

(491 kHz)

IC221

64.455 kHz

2nd LO

(64.00 MHz)

D1852

36 kHz IF

IC451 11

IC3005x

IC3002

“MOSL” signal

“MISL” signal

DTAF DTIF

PAIN

3 - 6

When the FORV signal exceeds the POCV voltage, ALC

bias voltage from the comparator (IC551b) controls the IF

amplifiers (Q261). This adjusts the output power to a speci-

fied level from the [RF POWER] control until the FORV and

POCV voltages are equalized.

In AM mode, the comparator operates as an averaging ALC

amplifier. Q502 turns ON and the POCV voltage is shifted

for 40 W AM output power (maximum) through R510.

The ALC bias voltage is also applied to the ALC meter

amplifier (IC551a, pins 1, 2) to obtain an ALC meter signal

(ALCL). The amplified signal is passed through the analog

switch (IC 3631, pins 13, 14) and applied to the main CPU

(IC3501, pin 108) to drive the S/RF meter via the sub CPU

(IC401) on the DISPLAY board.

An external ALC input from the [ALC] jack or [ACC] sock-

ets is applied to the buffer amplifier (Q521). External ALC

operation is identical to that of the internal ALC.

The FORV signal is also applied to the power meter ampli-

fier (IC571a, pins 1, 3). The amplified signal is passed

through the analog switch (IC3631, pins 1, 15) as an FORL

signal and applied to the main CPU (IC3501, pin 109) to

drive the S/RF meter when the power meter is selected.

3-2-9 APC CIRCUIT (MAIN-A UNIT)

The APC (Automatic Power Control) circuit protects the

power amplifiers on the PA unit from high SWR and exces-

sive current.

The reflected wave signal appears and increases when the

connected antenna is mismatched to 50 Ω. The APC detec-

tor circuit (CTRL-A unit; D1 and L1) detects the reflected

signal, and applies it to the APC circuit (IC551c, pins 9, 8)

as REFV signal.

When the REFV signal level increases, the APC circuit

decreases the ALC voltage to activate the APC.

For the current APC, the power transistor current is

obtained by detecting the voltages (ICH and ICL) which

appear at both terminals of the current detector (PA unit;

R28). The detected voltages are applied to the differential

amplifier (IC551d, pins 12–14). When the current of transis-

tors is increased, the amplifier controls the ALC line to pre-

vent excessive current flow.

A portion of the REFV signal is applied to the SWR meter

amplifier (IC571b, pins 5, 7). The amplified signal is passed

through the analog switch (IC3631, pins 3, 4) as an REFL

signal and applied to the main CPU (IC3501, pin 110) to

drive the S/RF meter when the SWR meter is selected.

3-2-10 TEMPERATURE PROTECTION CIRCUIT

(PA UNIT)

The cooling fan (CHASSIS; MF1) is activated while trans-

mitting or when the temperature of the power amplifier

exceeds the preset value. The temperature protection cir-

cuit consists of Q10–Q13 and R50.

While transmitting, Q10 and Q12 are turned ON, and pro-

vide a voltage to the cooling fan to rotate at medium speed.

The thermistor (R50) detects the temperature of the final

amplifier (Q5), and activates Q11 and Q13 to accelerate

the cooling fan when the detected temperature exceeds

70˚C (158˚F). The cooling fan rotates at high speed at 80˚C

(176˚F) or more.

The thermistor keeps the cooling fan rotating even while

receiving until the Q5 temperature drops to 60˚C (140˚F) or

below.

3-2-11 MONITOR CIRCUIT

(DSP-A BOARD AND MAIN-A UNIT)

The microphone audio signals can be monitored to check

voice characteristics.

(1) When FM/AM modes (MAIN-A UNIT)

A portion of the microphone audio signals from the VCA

section (IC451; pins 9, 22) are applied to the analog switch

(IC361; pins 1, 7). The selected audio signals are applied to

IC371 (pin 2), and the output signals from pin 9 are applied

to the AF amplifier circuit (IC311, pin 2, 9).

(2) When SSB/RTTY modes

(DSP-A BOARD)

A portion of the transmit IF signal from the low-pass filter

(IC2381c/d) is amplified at the IF (IC2381b) and buffer

(IC2381a) amplifiers, and applied to the digital mixer circuit

(IC2302). The applied signal is mixed with a 36 kHz LO sig-

nal from the D/A converter (IC2342) to demodulate into the

AF signals. The demodulated signals are passed through

the buffer amplifier (IC2381a), low-pass filter (IC2441b/

c) and AF amplifier (IC2441d), and then applied to the

MAIN-A unit via J2001 (pin 19) as the DMAF signal.

The DMAF signal from the DSP-A board is amplified at the

ALC amplifier (MAIN-A unit; IC372, pins 1, 13) and applied

to the VCA section of IC371 (MAIN-A unit; pins 7, 9). The

volume controlled AF signals is applied to the AF amplifier

circuit (MAIN-A unit; IC311, pins 2, 9).

3-3 PLL CIRCUITS

3-3-1 GENERAL

The PLL unit generates a pair of 1st LO frequencies (64.485

–124.455 MHz) for dualwatch and spectrum scope func-

tions; a 2nd LO frequency (64 MHz), 3rd LO frequency

(491 kHz) and sweep LO frequency for the spectrum scope

function.

The 1st LO PLLs adopt a mixer-less dual loop PLL sys-

tem and has 4 VCO circuits. The LOs, except the 2nd, use

DDSs while the 2nd LO uses the fixed frequency of the

crystal oscillator.

3-3-2 1ST LO PLL CIRCUIT

The 1st LO PLLs contain a main and reference loop as a

dual loop system. Both PLLs have equivalent circuits— this

manual describes only the 1st LO PLL A circuit.

The reference loop generates a 10.747 to 10.865 MHz fre-

quency using a DDS circuit, and the main loop generates a

64.485 to 124.455 MHz frequency using the reference loop

frequency.

3 - 7

(1) REFERENCE LOOP PLL

The oscillated signal at the reference VCO (Q151, D151) is

amplified at the buffer amplifiers (Q102, Q152) and is then

applied to the DDS IC (IC101, pin 46). The signal is then

divided and detected on phase with the DDS generated

frequency.

The detected signal output from the DDS IC (IC101, pin

56) is converted into DC voltage (lock voltage) at the loop

filter (R135–R137, C121, C151) and then fed back to the

reference VCO circuit (Q151, D151).

(2) MAIN LOOP PLL

The oscillated signal at one of the main loop VCOs (Q201,

D201, D202), (Q221, D221, D222), (Q251, D251–D254)

and (Q271, D271–D274) is amplified at the buffer amplifi-

ers (Q301, IC320) and is then applied to the PLL IC (IC381,

pin 6) via the low-pass filter (L303, C304–C307). The signal

is then divided and detected on phase with the reference

loop output frequency.

The detected signal output from the PLL IC (IC381; pin 2)

is converted into a DC voltage (lock voltage) at the loop

filter and then fed back to one of the VCO circuits (Q201,

D201, D202), (Q221, D221, D222), (Q251, D251–D254)

and (Q271, D271–D274).

The oscillated signal is amplified at the buffer amplifiers

(Q301, IC320) and then applied to the RF-B unit as a 1st

LO A signal after being passed through the low-pass filters

(L303, C304–C307 and L351–L353, C351–C356) and high-

pass filter (L354, C358–C360) and mute circuit (D361).

3-3-3 2ND LO AND REFERENCE OSCILLATOR

CIRCUITS

The reference oscillator (X52, Q51) generates a 32.0 MHz

frequency for the 4 DDS circuits as a system clock and

for the LO output. The oscillated signal is doubled at the

doubler circuit (Q71, Q81) and the 64.0 MHz frequency is

picked up at the double tuned filter (L81, L82). The 64.0

MHz signal is applied to the RF-B unit as a 2nd LO signal.

3-3-4 3RD LO CIRCUIT

The DDS IC (IC701) generates a 10-bit digital signal using

the 32 MHz system clock. The digital signal is converted

into an analog wave signal at the D/A converter (R701–

R720). The converted analog wave is passed through the

bandpass filter (L702, L703, C709–C713) and then applied

to the MAIN-A unit as the 3rd LO signal.

3-3-5 MARKER CIRCUIT

The divided signal at the DDS circuit (IC101) is used for

the marker signals with the IC-756PROIII.

The reference signal for the DDS circuit (32.0 MHz) is

divided to produce an acceptable frequency signal, 16

MHz, with the programmable divider then divided again by

160 to obtain 100 kHz cycle square-wave signals.

The generated marker signals are output from pin 66 of the

DDS IC (IC101), and are then applied to the RF-B unit via

the mute switch (IC192) and J851 as the MKR signal.

• PLL CIRCUIT

64.485–

124.455 MHz

0.03–

60.0 MHz

455 kHz

36 kHz

10.747–

10.865 MHz

64.485–

124.455 MHz

64.0 MHz

77.8 MHz

ANT

1st mixer A

Q1203–Q1206

491 kHz

to scope circuit

(RF-B unit, D2101)

to scope circuit

(RF-B unit, IC2001)

IC801IC701

IC101

IC381

IC901

Q71

Q81

Q902

S2LOS3LO

3LO

2LO

1LOB

1LOA

77.8 MHz

RF-B unit

PLL unit

MAIN-A unit

Q201

Q221

Q251

Q271

Q151

1st LO PLL A

circuit

Phase

detector

1/N divider

1/22

Phase

detector

12 bit

D/A

Main loop PLL

Ref. loop PLL

DDS

1st mixer B

1st LO

PLL B

circuit

DDS

D/A

DDS

D/A

PLL

Crystal

filter

2nd mixer

D1752

3rd mixer

IC151

FI1701

64.455 MHz

to DSP-A board

Reference oscillator

X52: 32.0 MHz

BPFBPF

Loop

filter

LPF

3 - 8

3-4 ANTENNA TUNER CIRCUITS

3-4-1 MATCHING CIRCUIT (TUNER-A UNIT)

The matching circuit is a T-network. Using 2 tuning motors,

the matching circuit obtains rapid overall tuning speed.

Using relays (RL1–RL15), the relay control signals from

the antenna tuner CPU (CTRL-A unit; IC5) via the buffer

amplifier (IC1, IC2) ground one of the taps of L3–L12 and

add capacitors (C34–C43). After selecting the coils and

capacitors, 2 motors (CTRL-A unit; MF1, MF2) adjust C44

and C45 using the antenna tuner CPU (CTRL-A unit; IC5)

and the motor controller (CTRL-A unit; Q211–Q218, D211,

D213, D215, D217) to obtain a low SWR (Standing Wave

Ratio).

3-4-2 DETECTOR CIRCUIT (CTRL-A UNIT)

(1) SWR detector

Forward and reflected power are picked up by a current

transformer (L1), detected by D2 (FOR) and D1 (REF), and

then amplified at IC1a and IC1b, respectively. The amplified

voltages are applied to the antenna tuner CPU (IC5, pins 2,

3). The tuner CPU detects the SWR.

(2) Reactance components detector

Reactance components are picked up by comparing the

phases of the RF current and RF voltage. The RF current is

detected by L4 and R16 and buffer-amplified at IC14e and

IC2a and then applied to the phase comparator (IC3a). RF

voltages are detected by C12–C14 and then applied to the

phase comparator (IC3b) after being amplified at the buffer

amplifiers (IC14c, IC2b). The output signal from the phase

comparator (IC3a, pin 6 for RF current, IC3b pin 7 for RF

voltage) is rectified at D7 and D6 for conversion into DC

voltage. The rectified voltage signals are combined, then

amplified at the inverter amplifier (IC4b), then applied to the

antenna tuner CPU (IC5, pin 64).

A C-MOS IC is used for the buffer amplifier (IC14) to

improve functionable sensitivity; the inverter amplifier

(IC4) is very responsive even with a low signal level input.

Together, these ensure quick and stable signal detection

even at low RF signal level input.

(3) Resistance components detector

Resistance components are picked up by L8, and detected

by D8, D9 and Q5. The detected resistance components

are amplified at the inverter amplifier (IC4a), and then

applied to the antenna tuner CPU (IC5, pin 1).

3-4-3 MOTOR CONTROL CIRCUIT

(CTRL-A AND TUNER-A UNITS)

The control circuit of the internal antenna tuner consists of

the CPU, EEPROM (Electronically-Erasable Programmable

Read Only Memory), tuning motors and tuning relays.

(1) CPU and EEPROM (CTRL-A unit)

The antenna tuner CPU (IC5) controls the tuning motors

via the motor controller (Q211–Q218, D211, D213, D215,

D217) and tuning relays, and memorizes the best preset

position in 100 kHz steps. The memory contents are stored

in the EEPROM (IC6) without a backup battery.

(2) Tuning motors (CTRL-A and TUNER-A units)

A motor controller (Q211–Q218, D211, D213, D215, D217)

rotates the tuning motors (TUNER-A unit; MF1, MF2) to

obtain a low SWR.

(3) Tuning relays (TUNER-A unit)

According to the operating frequency band and antenna

condition, tuning relays select the capacitors and coils.

3-4-4 ANTENNA TUNER CPU PORT ALLOCATION

(CTRL-A unit; IC5)

number

Port

name

Description

1AN2

Input port for the resistance compo-

nents detection voltage.

2AN1

Input port for the reﬂ ected RF pow-

er voltage.

3AN0

Input port for the forward RF power

voltage.

4 PERS

Input port for the transceiver power

OFF.

13 IKEY Outputs transmit control signal to

the main CPU (IC 3501).

15 ISTA Input port for the antenna tuner

start signal.

17 THRU Input port for the [TUNER] ON/OFF

signal from main CPU (IC3501)..

21 TRC Input port for the TX/RX switching

signal.

26 VHF Output the coil select signals for the

tuner unit.

27–32

24M, 18M,

14M, 10M,

7M, 4M

Output the coil select signals to the

tuner unit.

34–40 CO1–CO3,

CI1–CI3

Output the capacitor select signal

to the tuner unit.

41–48

AZ, AY, AX,

AW, PZ, PY,

PX, PW

Output pulse-type control signals

for the tuning motors. (MF1, MF2)

27–32

24M, 18M,

14M, 10M,

7M, 4M

Output the coil select signal to the

tuner unit.

64 AN3 Input port for the reactance compo-

nents detection signal.

3 - 9

3-5 SCOPE CIRCUITS

3-5-1 SCOPE RECEIVER CIRCUIT (RF-B UNIT)

A portion of the 64.455 MHz 1st IF signal from the 1st

mixer circuit (Q1203–Q1206: while receiving) or IF ampli-

fier (Q1551: while transmitting) is passed through the

PIN attenuator (Q2203) and amplified at the IF ampli-

fiers (Q2202, Q2201), and then mixed with the 77.8 MHz

scope 2nd LO (S2LO) signal at the mixer circuit (D2101)

to produce the 13.345 MHz IF signal. The mixed IF signal

is passed through the ceramic bandpass filters (FI2003,

FI2002) to suppress unwanted signals. The filtered IF sig-

nal is applied to the FM IF IC (IC2001, pin 16).

The applied 13.345 MHz IF signal is mixed with the sweep

LO (S3LO) signals from the PLL unit at the FM IF IC

(IC2001). The mixed IF signals are filtered at the ceramic

bandpass filter (FI2001) then applied to the limiter ampli-

fier section in the FM IF IC (IC2001, pin 5). The applied IF

signals are converted into DC voltages according to the

applied IF signal strength at the RSSI section in the IC.

The converted voltages are output from pin12 (IC2001) and

amplified at IC2002, then applied to the MAIN-A unit as the

SCPL signal.

Some of the DC voltages from the FM IF IC (IC2001) are

amplified at IC2002 to produce AGC voltages for the IF

amplifiers (Q2201, Q2202), producing wider dynamic range.

By sweeping LO signals (S3LO) are applied to the mixer

section in the FM IF IC (IC2001), the spectrum scope func-

tion is activated.

3-5-2 SWEEP LO CIRCUIT (PLL UNIT)

The sweep LO signals (S3LO) are generated by the DDS

IC (IC801) using the 32 MHz system clock. A 10-bit digital

signal is converted into analog wave signals at the D/A con-

verter (R801–R820). The converted analog wave is passed

through the bandpass filter (L802, L803, C809–C813) then

applied to the RF-B unit via (J801) after being amplified at

the buffer amplifier (Q802).

3-6 POWER SUPPLY CIRCUITS

3-6-1 PA UNIT

3-6-2 FRONT UNIT

• SCOPE CIRCUIT DIAGRAM

RF-B unit

1st mixer A

Q1203–Q1206

Q2202

to 2nd mixer circuit

to the MAIN-A unit SCPL signal

Q2201

D2101 FI2003 FI2002

Ceramic

BPF

Ceramic

BPF

amp.

IC2002b

AGC

IC2002a

amp.

Ceramic

BPF

Limiter

amp.

Mixer

IC2001

FI2001

S3LO signal

(12.79–12.99 MHz*)

S2LO signal

(77.80 MHz)

1st LO

signal

RSSI

*depending on sweeping passband width

RF signals

LINE

PHV

14V

14VA

a8V

H5V

DESCRIPTION

The voltage from an external power supply via

the common filter circuit (FILTER-A unit; L501,

L502).

The same voltage as the PHV line passed

through a fuse (F1).

The same voltage as the HV line passed

through the switching relay (RL1).

The same voltage as the 14 V line is applied to

the AF power amplifier (MAIN-A unit; IC332).

Common 8 V converted from the 14 V line and

regulated by the +8 regulator circuit (IC3).

Common 5 V converted from the 14 V line and

regulated by the +5 regulator circuit (IC2).

Common 5 V converted from the HV line and

regulated by the H5V regulator circuit (IC1).

LINE

5VF

–15V

–7V

–8V

+18V

DESCRIPTION

Common 5 V converted from the 14 V line and

regulated by the +5 regulator circuit (IC861).

Common –15 V converted from the 14 V line

and converted by the –15 DC-DC converter cir-

cuit (IC841, Q841, D841). The voltage is applied

to the –7 V, –8 V regulator circuits and etc.

Common –7 V converted from the –15 V line

and regulated by the –7 regulator circuit (IC501).

Common –8 V converted from the –15 V line

and regulated by the –8V regulator circuit

(IC881).

Common 18 V converted from the 14 V line and

converted by the 18 V DC-DC converter circuit

(IC821, Q821, D822).

3 - 10

3-6-3 MAIN-A UNIT

3-6-4 CTRL-A AND PLL UNITS

3-7 LOGIC CIRCUITS

3-7-2 SUB-CPU PORT ALLOCATIONS

(DISPLAY BOARD; IC401)

LINE

R8V

T8V

DESCRIPTION

Receive 8 V converted from the 14 V line and

regulated by the R8V regulator circuit (Q601,

Q602, D601).

Transmit 8 V converted from the 14 V line and

regulated by the T8V regulator circuit (Q611,

Q612, D611).

LINE

DESCRIPTION

Common 5 V for the antenna tuner CPU

(CTRL-A unit; IC5), EEPROM (CTRL-A unit;

IC6) and etc. converted from the 14 V line and

regulated by the +5 regulator circuit (CTRL-A

unit; IC13).

Common 5 V for each PLL-A and PLL-B circuits

regulated from the 8 V line and regulated by

the +5 regulator circuit (PLL unit; IC382: PLL-A,

IC682: PLL-B).

7, 8

12, 83

56, 57

64–66

67–75

77, 79

82, 84

85, 88

100

Input and output ports for the system

clock oscillator (X401; 9.8304 MHz).

Input port for the reset signal.

Input port for the [DIAL]; pulse-type

signals are applied.

Input ports for the [ELEC-KEY] jack.

Output ports for the S/RF meter back-

light and function switch activation

indicator brightness control signal.

Control signal output ports for the

activation indicator of function switch-

es.

High : When the function is activated.

Input port for the [TWIN PBT (inner)]

control (PBT board, S1/inner).

Outputs the S/RF meter (ME1) drive

signal.

Input ports for the [RIT/∆TX] control;

pulse-type signals are applied.

Input port for the [TWIN PBT(outer)]

control (PBT board, S1/outer).

Input port for data signal from the

main-CPU (MAIN-A unit; IC3501).

Outputs data signal for the main-CPU

(MAIN-A unit; IC3501).

A/D input port for the [BAL] control

(R702/ inner).

A/D input port for the [NR] control

(R702/ outer).

A/D input port for the [MIC GAIN]

control (R712).

Input port for the [RF POWER] con-

trol (R714).

Input port for the [COMP] control

(R716).

Input port for the [KEY SPEED] con-

trol (R718).

Input port for the [BK-IN DELAY] con-

trol (R720).

Input port for the [NOTCH] control

(PBT board, R1/inner).

Input port for the [CW PITCH] control

(PBT board, R1/outer).

OSC1,

OSC2

DRES

MSB,

MSA

DOTK,

DSHK

MDM0–

MDM2

TNRD, MOND

NBD, NRD

LOCD, TXD

RXD, PBTD

NOTD

PB1B,

PB1A

METV

RSA,

RSB

PB2A,

PB2B

LMFD

LFMD

BALL

NRL

MIGL

PWRL

CMPL

KYSL

DELL

NOTL

PITL

Pin Port Description

number name

Backlight level

Port 1234567

MDM0

MDM1

MDM2

High

High High High HighLow Low Low

Low High

High High High High

Low High HighLow

Low Low Low

3-7-1 BAND SELECTION DATA

(RF-B, CTRL-A, PLL UNITS)

Frequency

[MHz]

IC401–IC403

(RF-B )

IC11

(CTRL-A)

IC101

(PLL)

IC401

(PLL)

0.03–1.5999999 B0 L1S

VA1S VB1S

1.6–1.999999 B1

2.0–2.999999 B2

L2S3.0–3.999999 B3

4.0–4.999999 B4

5.0–5.999999

L3S

6.0–6.999999 B5W

7.0–7.299999 B5

7.3–7.999999 B5W

8.0–10.999999 B6 L4S

VA2S VB2S

11.0–11.999999 B7W

12.0–13.999999

L5S14.0–14.499999 B7

14.5–14.999999 B7W

15.0–19.999999 B8W

L6S

20.0–20.999999

VA3S VB3S

21.0–21.499999 B8

21.5–21.999999 B8W

22.0–29.999999 B9 L7S

30.0–44.999999 B10W

L8S

45.0–49.999999

VA4S VB4S50.0–54.000000 B10

54.0–60.000000 B10W

3 - 11

3-7-3 MAIN-CPU PORT ALLOCATIONS

(MAIN-A UNIT; IC3501)

6–9,

11–18,

20–26

40–43,

45–52,

54–57

Address signal output ports for the

LCD controller (IC3551).

Input port for the [KEY] jack.

Low : During key down

Input port for the RTTY keying.

Power supply detection input port for

the DSP-A board.

Input port for data signal from DSP-A

board.

Input port for the [POWER] switch.

Low : When the [POWER] is pushed.

Outputs CW/RTTY keying.

Data bus lines for the LCD controller

(IC3551) and I/O expander (IC3652–

IC3654).

Outputs the CI-V signal.

Input port for the CI-V signal.

Outputs clock signal.

Outputs data signal.

Input port for the [XVERT] detection

signal.

Input port for transmit control signal

from the antenna tuner CPU (CTRL-A

board; IC5).

Outputs R8V regulator (Q601, Q602,

D601) control signal.

Low : While receiving

Outputs T8V regulator (Q611, Q612,

D611) control signal.

Low : While transmitting

Outputs antenna tuner start signal.

Outputs reset/inhibit signal to the sub-

CPU (DISPLAY board; IC401), DDS

ICs (PLL unit; IC101, IC401), antenna

tuner CPU (CTRL-A board; IC5), and

etc.

Input port for unlock signal from the

PLL unit.

Outputs strobe signals for the I/O

expander IC (PLL unit; IC1).

Outputs strobe selection signals for

the I/O expander (PLL unit; IC1).

Outputs control signal for the DDS cir-

cuits (PLL unit; IC101, IC401).

A0–A3,

A4–A11,

A12–A18

SKYS

RTKI

DPGI

DSDR

PWRK

DSKY

DB0–DB3,

DB4–DB11

DB12–DB15

CTXD

CRXD

MCK

MDAT

TRVI

IKEY

RXS

TXS

ISTA

DRES

UNLC

PSTB

PSEL

CON2

Pin Port Description

number name

85, 86

101

105

106

107

108

109

110

111

112

115

116

Outputs data signal for the DDS cir-

cuits (PLL unit; IC101, IC401).

Outputs clock signal for the DDS cir-

cuits (PLL unit, IC101, IC401).

Input ports for the CPU system clock

oscillator (X3501; 19.6608 MHz).

Outputs reset/inhibit signal for the

LCD controller (IC3551), I/O expander

(IC3652–IC3654), and etc.

Outputs data signal for the sub-CPU

(DISPLAY board; IC401).

Input port for data signal from the

sub-CPU (DISPLAY board; IC401).

Outputs [TIMER] indicator control sig-

nal.

High : When the timer function is ON

Input port for the scope signal.

A/D input port for the VOX gain.

A/D input port for the anti-VOX level.

A/D input port via the analog switch

(IC3631) for the SML signal from the

S-meter amplifier circuit (IC101a),

and ALCL signal from the ALC meter

amplifier circuit (IC551a).

A/D input port via the analog switch

(IC3631) for the NSQO signal from

the level conveter (DSP-A board;

IC2063), for noise squelch opera-

tion, and FORL signal from the power

meter amplifier circuit (IC571a).

A/D input port from the analog switch

(IC3631) for the FNTL signal from

the low-pass filter (DSP-A board;

IC2472a), for tone squelch operation,

and REFL signal from the SWR meter

amplifier circuit (IC571b).

Outputs CW side-tone signals.

Outputs beep audio signals.

Input port for connected microphone’s

PTT switch and SEND signal from the

ACC jacks.

High : While PTT switch is pushed or

activated from an external unit.

Outputs control signal for the power

switching relay (PA unit; RL1) .

High : During power ON

CON1

(PDAT)

CON0

(PCK)

XTAL,

EXTAL

LRES

LTXD

LRXD

TMD

SCPL

VOXL

AVXL

ASO0

ASO1

ASO2

STON

BEEP

SENI

PWRS

Pin Port Description

number name

3-7-4 INPUT EXPANDER ALLOCATIONS

(1) DISPLAY board; IC411

(2) MAIN-A unit; IC3652

3-7-5 OUTPUT EXPANDER ALLOCATIONS

(1) PLL unit; IC1

(2) PLL unit; IC101

(3) PLL unit; IC401

3 - 12

14, 15

Input port for the [RIT], [∆TX] and

[CLEAR] switches.

Input port for [UP] and [DN] switches

of the connected microphone.

Input port for the [DUALWATCH],

[CHANGE], [V/M] and [M/S] switches.

Input port for the [TUNER],

[MONITOR], [NB] and [NR] switches.

Input ports for the multi-function

switches.

KI4

MUDK

KI3

KI0

KI1, KI2

Pin Port Description

number name

Input port transmission status for CW

Input port for RTTY decode data.

Input port for the KEY signal from the

connected AH-3.

Low : While tuning or tune NG

Input port for AH-3 connection detec-

tion.

High : When AH-3 is connected.

Input port for interrupting signal

from audio recoder.

Input port for address clock signal

from audio recoder.

Input port for busy signal from

the installed UT-102 SPEECH

SYNTHESIZER.

CTFL

RTDT

EKEY

TCON

VINT

VRAC

SBSY

Pin Port Description

number name

Outputs the marker mute switch

(IC192) control signa

High : When the marker ON is select-

ed.

Outputs LO mute switch (Q361) con-

trol signal.

Low : Muted

Outputs bandpass filter select switch

(Q351) control signal.

High : When less than 8 MHz is dis-

played on the main band.

Outputs the LO switch (Q121) control

signal.

High : While 45.0–60.0 MHz band is

displayed on the main band.

Outputs the LO switch (Q122) control

signal.

High : While 20.0–44.999999 MHz band

is displayed on the main band.

Outputs the LO switch (Q123) control

signal.

High : While 8.0–19.999999 MHz band

is displayed on the main band.

Outputs the LO switch (Q126) control

signal.

High : While 0.03–7.999999 MHz band

is displayed on the main band.

MAKS

PAMT

PAFS

VA4S

VA3S

VA2S

VA1S

Pin Port Description

number name

Outputs LO mute switch (Q661) control

signal.

Low : Muted

Outputs bandpass filter select switch

(Q651) control signal.

High : When less than 8 MHz is dis-

played on the main band.

Outputs the LO switch (Q421) control

signal.

High : While 45.0–60.0 MHz band is

displayed on the main band.

Outputs the LO switch (Q422) control

signal.

High : While 20.0–44.999999 MHz band

is displayed on the main band.

Outputs the LO switch (Q423) control

signal.

High : While 8.0–19.999999 MHz band

is displayed on the main band.

Outputs the LO switch (Q426) control

signal.

High : While 0.03–7.999999 MHz band

is displayed on the main band.

PBMT

PBFS

VB4S

VB3S

VB2S

VB1S

Pin Port Description

number name

Outputs strobe signals to DDS IC

(IC101) for the 1st LO PLL A circuit.

Outputs strobe signals to PLL IC

(IC381) for the 1st LO PLL A circuit.

Outputs strobe signals to DDS IC

(IC401) for the 1st LO PLL B circuit.

Outputs strobe signals to PLL IC

(IC681) for the 1st LO PLL B circuit.

Outputs strobe signals to DDS IC

(IC701) for the 3rd LO PLL circuit.

Outputs strobe signals to PLL IC

(IC901) for the S2 LO PLL circuit.

Outputs strobe signals to DDS IC

(IC801) for the S3 LO PLL circuit.

PST1

PST2

PST3

PST4

PST5

PST6

PST7

Pin Port Description

number name

3 - 13

Outputs a low-pass filter select signal.

High : When 0.03–1.999999 MHz

band is selected.

Outputs a low-pass filter select signal.

High : When 2.0–4.999999 MHz band

is selected.

Outputs a low-pass filter select signal.

High : When 5.0–7.999999 MHz band

is selected.

Outputs a low-pass filter select signal.

High : When 8.0–11.999999 MHz

band is selected.

Outputs a low-pass filter select signal.

High : When 30.0–60.0 MHz band is

selected.

Outputs a low-pass filter select signal.

High : When 22.0–29.999999 MHz

band is selected.

Outputs a low-pass filter select signal.

High : When 15.0–21.999999 MHz

band is selected.

Outputs a low-pass filter select signal.

High : When 12.0–14.999999 MHz

band is selected.

L1S

L2S

L3S

L4S

L8S

L7S

L6S

L5S

Pin Port Description

number name

(5) RF-B unit; IC401

number

Port

name Description

4 B0S

Outputs a bandpass filter select signal.

High : When 0.03–1.599999 MHz is

selected.

5 B1S

Outputs a bandpass filter select signal.

High : When 1.6–1.999999 MHz is

selected.

6 B2S

Outputs a bandpass filter select signal.

High : When 2.0–2.999999 MHz is

selected.

7 B3S

Outputs a bandpass filter select signal.

High : When 3.0–3.999999 MHz is

selected.

11 B6S

Outputs a bandpass filter select signal.

High : When 8.0–10.999999 MHz is

selected.

12 B5S

Outputs a bandpass filter select signal.

High : When 7.0–7.299999 MHz is

selected.

13 B5WS

Outputs a bandpass filter select signal.

High : When 6.0–6.999999 MHz or

7.3–7.999999 MHz band is

selected.

14 B4S

Outputs a bandpass filter select signal.

High : When 4.0–5.999999 MHz is

selected.

(4) CTRL-A board; IC11

(7) RF-B unit; IC403

number

Port

name Description

4 AT1S

Outputs control signal for the

attenuator circuit (RL102, R102,

R106, R111).

Low : When 6 dB attenuator is ON.

5 AT2S

Outputs control signal for the

attenuator circuit (RL103, R112,

R113, R114).

Low : When 12 dB attenuator is ON.

6 PR1S

Outputs control signal for the pre-

amplifier (PRE-AMP board; Q4201,

Q4202).

High : When P.AMP 1 is ON.

7 PR2S

Outputs control signal for the pre-

amplifier (PRE-AMP board; Q4302).

High : When P.AMP 2 is ON.

14 RANS

Output the RX antenna select

signal.

High : When RX antenna is selected.

(6) RF-B unit; IC402

number

Port

name Description

4 B7WS

Outputs a bandpass filter select signal.

High : When 11–13.999999 MHz or

14.5–14.999999 MHz band is

selected.

5 B7S

Outputs a bandpass filter select signal.

High : When 14.0–14.499999 MHz is

selected.

6 B8WS

Outputs a bandpass filter select signal.

High : When 15.0–20.999999 MHz or

21.5–21.999999 MHz band is

selected.

7 B8W

Outputs a bandpass filter select signal.

High : When 21.0–21.499999 MHz is

selected.

12 B10S

Outputs a bandpass filter select signal.

High : When 50.0–54.0 MHz is select-

ed.

13 B10WS

Outputs a bandpass filter select signal.

High : When 30.0–49.999999 MHz or

54.000001 MHz band is select-

ed.

14 B9S

Outputs a bandpass filter select signal.

High : When 22–29.999999 MHz is

selected.

3 - 14

Outputs strobe signals for the out-

put expander ICs (RF-B unit; IC301,

IC302).

Outputs the antenna connector

([ANT1] or [ANT2]) select signal.

High : When the [ANT2] is selected.

Outputs strobe signals for the output

expander (CTRL-A board; IC11).

Outputs strobe signals for the D/A

converter (IC3751).

Outputs strobe signals for the output

expander ICs (IC3752, IC3753).

Outputs control signal for the AF mute

switch (IC331).

High : When the [AF] control is set to

maximum counter clockwidth.

Outputs squelch mute control signal,

applied to the squelch gate (IC301).

High : When squelch is closed.

BSTB

ANTS

FSTB

ASTB

MSTB

AFMS

SQLS

Pin Port Description

number name

17, 18

Outputs squelch control signal for the

[MIC] and [ACC1] connectores.

High : Squlch opend. (RX LED ON)

Outputs control signal for the internal

speaker ON/OFF select relay (RL351).

High : Internal speaker is ON.

Outputs strobe signals for the optional

UT-102 SPEECH SYNTHESIZER.

Outputs chip select signal for the

audio recoder (IC3001).

Outputs external antenna tuner (AH-3)

start signal.

Low : When the [TUNE] switch is

pushed.

Outputs control signal for the DSP IC

(DSP-A board; IC2001).

SQSS

SPS

SSTB

VCS

ESTA

DSFR,

DSFW

Pin Port Description

number name

Outputs control signal for the noise

blanker switch (Q3751, Q3752).

High : When the [NB] switch is ON,

except in FM mode.

Outputs audio select signal for the TX

monitor function.

High : During monitoring in SSB or

RTTY mode.

Outputs audio select signal for the TX

monitor function.

High : During monitoring in AM or FM

mode.

Outputs analog switch (IC3005) con-

trol signal for the audio recoder’s

(IC3001) output.

High : When the audio recoder’s out-

put to the AF circuit.

Outputs analog switch (IC3002) con-

trol signal for input of the microphone

amplifier (IC461).

High : Except the microphone input is

selected.

NBS

MSL1

MSL2

VOSL

MISL

Pin Port Description

number name

Outputs AM mode select signal for

the AGC and APC circuit.

High : When AM is selected.

Outputs HF band RF power control

signal.

High : When 0.03–29.999999 MHz

band is selected.

Outputs 50 MHz band RF power con-

trol signal.

High : When 30–60 MHz band is

selected.

Outputs 2nd IF filter (FI131 or FI133)

select signal.

High : When transmitting in AM or FM

mode. (FI131 is ON)

Outputs reset signal for the DSP cir-

cuit and etc.

Outputs FM deviation control signal.

High : When FM-N is selected.

AMS

PHFS

P50S

MODS

DSRS

FMNS

Pin Port Description

number name

(8) MAIN-A unit; IC3653 (10) MAIN unit; IC3752

(9) MAIN-A unit; IC3654

(11) MAIN-A unit; IC3753

■ REQUIRED TEST EQUIPMENT

EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE

DC power supply Output voltage

Current capacity

: 13.8 V

: 30 A or more Audio generator Frequency range

Measuring range

: 300–3000 Hz

: 1–500 mV

RF power meter

(terminated type)

Measuring range

Frequency range

Impedance

SWR

: 10–200 W

: 1.8–100 MHz

: 50 Ω

: Less than 1.2 : 1

Standard signal

generator (SSG)

Frequency range

Output level

: 0.1–300 MHz

: 0.1 µV to 32 mV

(–127 to –17 dBm)

AC millivoltmeter Measuring range : 10 mV–10 V

Frequency counter

Frequency range

Frequency accuracy

Sensitivity

: 0.1–100 MHz

: ±0.5 ppm or better

: 100 mV or better DC voltmeter Input impedance : 50 kΩ/V DC or better

DC ammeter Measuring range : 1 A/30 A

RF voltmeter Frequency range

Measuring range

: 0.1–100 MHz

: 0.01–10 V Spectrum analyzer Measuring range

Spectrum bandwidth

: At least 90 MHz

: 100 kHz or more

Modulation analyzer Frequency range

Measuring range

: At least 90 MHz

: 0–100% Attenuator Power attenuation

Capacity

: 50 or 60 dB

: 150 W or more

Distortion meter Frequency range

Measuring range

: At least 90 MHz

: 0–100%

External speaker Resistance

Capacity

: 8 Ω

: 5 W or more

Oscilloscope Frequency range

measuring range

: DC–20 MHz

: 0.01–20 V

4 - 1

SECTION 4 ADJUSTMENT PROCEDURES

4-1 PREPARATION

■ CONNECTIONS

[ANT1] [ANT2]

FM deviation meter

Modulation analyzer

RF power meter

Spectrum analyzer

Attenuator

Distortion meter

DC power supply Ammeter

Standard signal

generator

CAUTION !

DO NOT transmit while

an SSG is connected to

the antenna connector.

to the antenna connector

to [DC 13.8 V]

to [EXT SP]

Speaker

Audio generator

PTT

[MIC]

4 - 2

4-2 PLL ADJUSTMENTS

REFERENCE

FREQUENCY

LPL-A LOCK

VOLTAGE

VCO-A LOCK

VOLTAGE

1LO-A

OUTPUT

LEVEL

LPL-B LOCK

VOLTAGE

VCO-B LOCK

VOLTAGE

1LO-B

OUTPUT

LEVEL

3LO

OUTPUT

LEVEL

S3LO

OUTPUT

LEVEL

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

POINT

UNIT LOCATION UNIT ADJUST

• Display freq. : Any

• Turn L52 on the PLL unit to 4 rota-

tion downside for presetting.

• Receiving

• Display freq. : 0.030000 MHz

• Mode : USB

• Receiving

• Display freq.

: 7.999999 MHz

• Mode : USB

• Receiving

• Display freq.

: 19.999999 MHz

• Mode : USB

• Receiving

• Display freq.

: 44.999999 MHz

• Mode : USB

• Receiving

• Display freq.

: 60.000000 MHz

• Mode : USB

• Receiving

• Display freq.

0.030000 MHz, 7.999999 MHz

8.000000 MHz, 19.999999 MHz

20.000000 MHz, 44.999999 MHz

45.000000 MHz, 60.000000 MHz

• Receiving

• Sub display freq. : 0.030000 MHz

• Mode : USB

• Receiving

• Sub display freq.

: 7.999999 MHz

• Mode : USB

• Receiving

• Sub display freq.

: 19.999999 MHz

• Mode : USB

• Receiving

• Display freq.

: 44.999999 MHz

• Mode : USB

• Receiving

• Display freq.

: 60.000000 MHz

• Mode : USB

• Receiving

• Sub display freq.

0.030000 MHz, 7.999999 MHz

8.000000 MHz, 19.999999 MHz

20.000000 MHz, 44.999999 MHz

45.000000 MHz, 60.000000 MHz

• Receiving

• Display freq.

: Any

• Receiving

• Display freq.

: Any

• Receiving

PLL

Connect a frequency

counter to the check

point P81.

Connect an RF volt-

meter to the check

point P81.

Connect a digital

multimeter or oscil-

loscope to the check

point LPA.

Connect a digital

multimeter or oscil-

loscope to the check

point LVA.

Connect an RF volt-

meter to the check

point P351.

Connect a digital

multimeter or oscil-

loscope to the check

point LPB.

Connect a digital

multimeter or oscil-

loscope to the check

point LVB.

Connect an RF volt-

meter to the check

point P651.

Connect an RF volt-

meter to the check

point P701.

Connect an RF volt-

meter to the check

point P801.

64.000000 MHz

Maximum level

(0 dB or more)

2.0 V

4.3 V

–2 dBm or more

2.0 V

4.3 V

–2 dBm or more

–16 dBm or more

–10 dBm or more

PLL

L52 (R33

for critical

adjustment)

L81, L82

C154

C278

C258

C228

C208

Verify

C454

C578

C558

C528

C508

Verify

4 - 3

P81

Reference frequency

check point

L52

L81

C454

LPL-B lock voltage

adjustment

L82

Reference

frequency

adjustment

VCO-A

lock voltage

adjustment

VCO-B

lock voltage

adjustment

LPB

LPL-B lock voltage

check point

C278

C228

C208

C258

C508

C558

C578

C528

P361

1LO-A output level

check point

R33

Reference

frequency

adjustment

LVA

VCO-A lock voltage

check point

P851

Marker output level

check point

LPA

LPL-A lock voltage

check point

C154

LPL-A lock voltage

adkustment

P801

3LO output level

check point

P651

1LO-B output level

check point

LVB

VCO-B lock voltage

check point

P901

S2LO output level

check point

P701

S3LO output level

check point

• PLL unit

Bottom view of the transceiver

PLL unit

PLL ADJUSTMENTS—continued

S2LO

OUTPUT

LEVEL

MARKER

OUTPUT

LEVEL

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

POINT

UNIT LOCATION UNIT ADJUST

• Display freq.

: Any

• Receiving

• Display freq.

: Any

• Receiving

PLL

Connect an RF volt-

meter to the check

point P901.

Connect an oscil-

loscope to the check

point P851.

–3 dBm or more

4 Vp-p or more

Verify

4 - 4

4-3 TRANSMITTER ADJUSTMENTS

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

ADJUSTMENT

POINT

UNIT LOCATION UNIT ADJUST

IDLING

CURRENT

(for drive)

1• Display freq. : 14.100000 MHz

• Mode : CW (Key up)

• Preset R11, R18 on the PA unit to

max. CCW

• [RF POWER] : Max. CW

• [TUNER] : OFF

• Transmitting (without key)

PA Unsolder W29.

Connect an ammeter to

the unsoldering points

of W29.

250 mA PA R11

After adjustment, re-solder the wire (W29) on the PA board

(for ﬁ nal

ampliﬁ er)

2 • Transmitting (without key) PA Unsolder R28 (L8

side).

Connect an ammeter to

the unsoldering points

of R28.

500 mA PA R18

After adjustment, re-solder the wire (W29) on the PA board

TX PEAK 1 • Display freq. : 14.100000 MHz

• Mode : USB

• Set following selections, controls

and functions as :

[VOX] : OFF , [ TX] : OFF

PBT1 : Center , PBT2 : Center

Filter : 2.4 kHz

[RF POWER] : Max. CW

[MIC GAIN] : Center

[TUNER] : OFF

[METER] : METER Po

[MONITOR] : OFF

• Apply no audio signals to [MIC]

connector.

• Transmitting

MAIN-A Connect a digital

multimeter or oscil-

loscope to the check

point CP243.

0.06 V MAIN-A R247

2• Connect an audio generator to

[MIC] connector and set as:

Frequency : 1.5 kHz

Level : 1 mVrms

• Transmitting

Rear

panel

Connect an RF power

meter to [ANT1] con-

nector.

50 W Front

panel

[MIC GAIN]

control

3 • Transmitting Maximum output

power

MAIN-A L261

4 • [MIC GAIN] : Center

• Preset L1701, L1702's top to same

high with coil's case.

• Connect an audio generator to

[MIC] connector and set as:

Frequency : 1.5 kHz

Level : 10 mVrms

• Transmitting

RF-B Connect an RF volt-

meter the check point

J201.

Maximum level RF-B L1801,

L1553,

L1702,

L1701

Adjust in sequence L1801, L1553, L1702, L1701, L1702, L1701

TRANSMITTER

TOTAL GAIN

1 • Display freq. : 14.100000 MHz

• Mode : USB

• [MIC GAIN] : Center

• Connect an audio generator to

[MIC] connector and set as:

Frequency : 1.5 kHz

Level : 1 mVrms

• Transmitting

Rear

panel

Connect an RF power

meter to [ANT1] con-

nector.

50 W MAIN-A R263

4 - 5

L261

TX peak adjustment

R247

TX peak

adjustment

CP243

TX peak

check point

R263

Transmitter

total gain

adjustment

R28

Idling current check point

for finals

J201

TX peak check point

R11

Idling current adjustment

for drivers

R18

Idling current adjustment

for finals

W29

Idling current check point

for drivers

L4 RL1

Ammeter

W29

Unsoldering here Ammeter

Unsoldering here

TX peak

adjustment

L1701

L1702

L1553

L1801

• PA unit

• MAIN-A unit

Top view of the transceiver

PA unit

• RF-B unit

Bottom view of the transceiver

RF-B

unit

Bottom view of the transceiver

MAIN-A

unit

4 - 6

TRANSMITTER ADJUSTMENTS—continued

Ic APC

HF BANDS

OUTPUT

POWER

50 MHz BAND

OUTPUT

POWER

DEVIATION

CARRIER

POWER

MODULATION

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

POINT

UNIT LOCATION UNIT ADJUST

• Display freq. : 3.550000 MHz

• Mode : RTTY

• Connect CP501 to GND.

• Transmitting

• Display freq. : 14.100000 MHz

• Mode : RTTY

• [RF POWER] : Max. CW

• [TUNER] : OFF

• Transmitting

• Display freq. : 51.000000 MHz

• Mode : RTTY

• [RF POWER] : Max. CW

• [TUNER] : OFF

• Transmitting

• Display freq. : 29.60000 MHz

• Mode : FM

• Filter : 15 kHz

• [RF POWER] : Max. CW

• [MIC GAIN] : Center

• Connect an audio generator to

[MIC] connector and set as:

Frequency : 1 kHz

Level : 10 mVrms

• Transmitting

• Display freq. : 14.100000 MHz

• [RF POWER] : Max. CW

• Mode : AM

• [MIC GAIN] : Center

• Apply no audio signals to [MIC]

connector.

• Transmitting

• Display freq. : 14.10000 MHz

• Mode : AM

• [MIC GAIN] : Center

• [RF POWER] : Max. CCW

• Connect an audio generator to

[MIC] connector and set as:

Frequency : 1 kHz

Level : 10 mVrms

Rear

panel

Rear

panel

Rear

panel

Rear

panel

Rear

panel

Rear

panel

Connect an amme-

ter between power

supply and the

IC-756PROIII.

Connect an RF

power meter to

[ANT1] connector.

Connect an RF

power meter to

[ANT1] connector.

Connect an FM devi-

ation meter to [ANT1]

connector through an

attenuator.

Connect an RF

power meter to

[ANT1] connector.

Connect a modu-

lation analyzer to

[ANT1] connec-

tor through an

attenuator.

23 A

105 W

100 W

±4.5 kHz

40 W

90%

MAIN-A

DSP-A

MAIN-A

DSP-A

R545

R507

R509

R2227

R510

R2229

4 - 7

R2229

R2227

FM deviation

adjustment

AM modulation

adjustment

CP501

Ic APC check point

R545

Ic APC adjustment

R507

R509

50 MHz band output power

adjustment

HF bands output power

adjustment

R510

AM carrier

adjustment

• DSP-A board

Bottom view

of the transceiver

MAIN-A

unit

DSP-A board

• MAIN-A unit

Bottom view of the transceiver

MAIN-A

unit

4 - 8

4-4 RECEIVER ADJUSTMENTS

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

ADJUSTMENT

POINT

UNIT LOCATION UNIT AD-

JUST

RX PEAK 1 • Display freq. : 14.100000 MHz

• [DUALWATCH] : OFF

• Mode : USB

• Set following selections, controls

and functions as:

[AGC] : MID [ATT] : OFF

[NB] : OFF [RIT] : OFF

PBT1 : Center PBT2 : Center

Filter : 2.4 kHz

[P.AMP] : P.AMP1

[RF/SQL] : Center

[NOTCH] : OFF

[NR] switch : OFF

• Preset center dots to 90˚ differ-

ence on the roter and stater of

C1036 and C1211.

• Connect an SSG to [ANT1] con-

nector and set as:

Frequency : 14.101500 MHz

Level : 10 µV* (–87 dBm)

Modulation : 1 kHz/±5.0 kHz dev.

• Receiving

Rear

panel

Connect an AC

millivoltmeter to [EXT

SP] connector with an

8 Ω load.

Minimum audio output

level

RF-B L1211,

L1751,

L1752,

C1238

Adjust L211 to upper side of 2 peak points.

2 • Sub display freq. : 14.100000 MHz

• [DUALWATCH] : ON

• Mode : USB

• [BAL] : Max. CW

• Set an SSG as:

Level : 10 µV* (–87 dBm)

• Receiving

Rear

panel

Connect an AC

millivoltmeter to [EXT

SP] connector with an

8 Ω load.

Minimum audio output

level

RF-B L1011,

C1036

Adjust L1011 to upper side of 2 peak points.

DISTOR-

TION

1 • Display freq. : 14.100000 MHz

• [DUALWATCH] : OFF

• Mode : FM

• Filter : 15 kHz

• [P.AMP] : P.AMP1

• Connect an SSG to [ANT1] con-

nector and set as:

Frequency : 14.100000 MHz

Level : 500 µV* (–53 dBm)

Modulation : 1 kHz/±5.0 kHz Dev.

• Receiving

Rear

panel

Connect a distortion

meter to [EXT SP]

connector with an 8 Ω

load.

Minimum distortion level RF-B L1751,

L1702

Adjust in sequence L1751, L1702, L1751.

MIXER

BALANCE

1 • Display freq. : 1.900000 MHz

• Sub display freq. : 1.900000 MHz

• [DUALWATCH] : ON

• Mode : USB

• [BAL] : Max. CCW

• Apply no RF signal to [ANT1] con-

nector.

• Receiving

Rear

panel

Connect a spectrum

analyzer to the check

point J1651.

Minimum noise output

level.

RF-B R1206,

R1207

2 • [BAL] : Max. CW

• Receiving

R1006,

R1007

*This output level of standard signal generator (SSG) is indicated as SSG's open circuit.

4 - 9

L1751

L1702

R1006

R1206

C1036

C1238

L1011

L1211

RX peak

adjustment

Mixer balance

adjustment

FM distortion

adjustment

Mixer ballance

check point

RX peak

adjustment

R1007

L113

L141

L112

L111

R1207

J1651

L1752

• RF-B unit

•

MAIN-A unit

Bottom view of the transceiver

RF-B

unit

Bottom view of the transceiver

MAIN-A

unit

4 - 10

RECEIVER ADJUSTMENTS—continued

RECEIVER

TOTAL GAIN

NOISE

BLANKER

SPECTRUM

SCOPE

ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

POINT

UNIT LOCATION UNIT ADJUST

• Display freq. : 14.100000 MHz

• [DUALWATCH] : OFF

• Mode : USB

• Filter : 2.4 kHz

• [AGC] : OFF

• [P.AMP] : OFF

• Connect an SSG to [ANT1] con-

nector and set as:

Frequency : 14.101500 MHz

Level : 160 mV* (–3 dBm)

Modulation : OFF

• Receiving

• Display freq. : 14.100000 MHz

• [DUALWATCH] : OFF

• Mode : USB

• [AGC] : MID

• [P.AMP] : P.AMP1

• [NB] : OFF

• [NB LEVEL] : 50%

• Connect an SSG to [ANT1] con-

nector and set as:

Frequency : 14.101500 MHz

Level : 5.6 µV* (–92 dBm)

Modulation : OFF

and apply following signal to [ANT1]

connector.

• Preset R271 on the MAIN-A unit to

the center position.

• Receiving

• [NB] : ON

• Receiving

• Display freq. : 14.100000 MHz

• Mode : USB

• [DUALWATCH] : OFF

• [P.AMP] : OFF

• [SCOPE] : ON

• [SCOPE ATT] : OFF

• Verify the connection of J2001 on

the RF-B unit and P801 (S3LO:

12.89000 MHz/–7 dBm) from the

PLL unit.

• Connect an SSG to [ANT1] con-

nector and set as:

Frequency : 14.101500 MHz

Level : 1 µV* (–107 dBm)

Modulation : OFF

• Receiving

• Set an SSG output level to OFF.

• Receiving

• Set an SSG output level as:

Level : 50 mV* (–13 dBm)

• Receiving

MAIN-A

RF-B

Connect an oscil-

loscope to the check

point CP213.

Connect an oscil-

loscope to the check

point CP271.

Connect a digital

multimeter or oscil-

loscope to the check

point CP2002.

3.7 Vp-p

Maximum noise level

At the point where the

voltage just reduces.

Maximum voltage

0.1 V

4.4 V

MAIN-A

RF-B

R210

L271,

L272,

L273

R271

L2102,

L2201,

L2202

R2012

R2016

100 msec.

1 msec.

*This output level of a standard signal generator (SSG) is indicated as SSG’s open circuit.

4 - 11

R210

Receiver total gain

adjustment

CP213

Receiver total gain

check point

Noise

blanker

adjustment

CP271

Noise blanker

check point

R271

L272

L273

L271

L2102

L2201

L2202

R2012

R2016

CP2002

Spectrum scope

check point

J2001

Spectrum scope

pre-setting

Spectrum

scope

adjustment

Bottom view of the transceiver

RF-B

unit

Bottom view of the transceiver

MAIN-A

unit

•

RF-B unit

•

MAIN-A unit

4 - 12

• CTRL-A unit

CTRL-A unit

SWR detector

adjustment

J14 (REF)

SWR detector

check point

Top view of the transceiver

4-5 TUNER ADJUSTMENTS

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

ADJUSTMENT

POINT

UNIT LOCATION UNIT ADJUST

SWR

DETECTOR

1• Display freq.

• Mode

• [RF POWER]

• [TUNER]

: 29.70000 MHz

: FM

: Max. CW

: Through

CTRL-A Connect a digital

multimeter or oscil-

loscope to the check

point J14.

Minimum voltage CTRL-A C3

• Connect a 50 Ω dummy load to

[ANT1] connector.

• Transmitting

ADJUSTMENT CONDITION DISPLAY OPERATION

2• Enter the tuner adjustment mode:

q Turn power OFF.

w Terminate the [RE-

MOTE] jack with a

3.5 (d) mm mini-plug.

e While pushing [FILTER] and

[EXIT/SET], turn power ON.

TUNER-ADJUSTMENT MODE

Push [F5 (START)] to start tuning.

--TUNER--

Adjusting Now

Verify the display shows "Adjusting Now".

--TUNER--

Verify the display shows "OK".

4 - 13

4-6 METER ADJUSTMENTS

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION

ENTERING

ADJUSTMENT

MODE

1 • Enter the adjustment mode:

q Turn power OFF.

w Terminate the [REMOTE] jack

with a 3.5(d) mm mini-plug.

e While pushing [SSB] and [CW/

RTTY], turn power ON.

ADJUST MODE

Push [F-1 (METER)], [F-2 (TX)] or [F-3 (RX)] to

select each adjustment mode.

Once entering adjustment mode, use [F-1

(▼)] to skip items, or [F-2 (EXIT)] to return the

opening display.

CAUTION:

NEVER select adjustment items [F-2 (TX)] while transceiver is connected to an SSG. Because transceiver auto-

matically transmits when transmit item in the [F-2 (TX)] is selected.

METER

SCALE

1• Push [F-1 (METER)] to enter the

meter scale adjustment.

-- METER --

SCALE S1

Set the analog meter to S1 position using the

tuning dial. Then push [F-5 (SET)] to store the

“S1” meter into memory, and go to the next step.

-- METER --

SCALE S3

Set the analog meter to S3 position using the

tuning dial. Then push [F-5 (SET)] to store the

“S3” meter into memory, and go to the next step.

-- METER --

SCALE S5

Set the analog meter to S5 position using the

tuning dial. Then push [F-5 (SET)] to store the

“S5” meter into memory, and go to the next step.

-- METER --

SCALE S7

Set the analog meter to S7 position using the

tuning dial. Then push [F-5 (SET)] to store the

“S7” meter into memory, and go to the next step.

-- METER --

SCALE S9

Set the analog meter to S9 position using the

tuning dial. Then push [F-5 (SET)] to store the

“S9” meter into memory, and go to the next step.

-- METER --

POWER S+20

Set the analog meter to S9+20 position using

the tuning dial. Then push [F-5 (SET)] to store

the “S9+20” meter into memory, and go to the

next step.

-- METER --

POWER S9+40

Set the analog meter to S9+40 position using

the tuning dial. Then push [F-5 (SET)] to store

the “S9+40” meter into memory, and go to the

next step.

-- METER --

SCALE S9+60

Set the analog meter to S9+60 position using

the tuning dial. Then push [F-5 (SET)] to store

the “S9+60” meter into memory, and retuns to

the opening display.

TX METER

( HF POWER

METER)

1• Push [F-2 (METER)] to enter the TX

meter scale adjustment.

• Connect an RF power to [ANT1]

connector.

• Connect a 100 Ω dummy load to

[ANT2] connector.

• Connect audio generator to [MIC]

connector and set as:

FREQUENCY : 1.5 kHz

LEVEL : 10mVrms

-- TX --

POWER 0%

Push [F-5 (SET)] to store the “POWER 0%”

meter into memory, and go to the next step.

-- TX --

POWER HF Tuner

Set the output power to 10 W using the tun-

ing dial. Then push [F-5 (SET)] to store the

“POWER HF Tuner” meter into memory, and

go to the next step.

-- TX --

POWER HF 10%

Set the output power to 10 W using the tun-

ing dial. Then push [F-5 (SET)] to store the

“POWER HF 10%” meter into memory, and go

to the next step.

-- TX --

POWER HF 25%

Set the output power to 25 W using the tun-

ing dial. Then push [F-5 (SET)] to store the

“POWER HF 25%” meter into memory, and go

to the next step.

-- TX --

POWER HF 50%

Set the output power to 50 W using the tun-

ing dial. Then push [F-5 (SET)] to store the

“POWER HF 50%” meter into memory, and go

to the next step.

-- TX --

POWER HF 100%

Set the output power to 104 W using the tun-

ing dial. Then push [F-5 (SET)] to store the

“POWER HF 100%” meter into memory, and

go to the next step.

4 - 14

METER ADJUSTMENTS–contnued

ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPRATION

(50M POWER

METER)

7• Connect an RF power meter to

[ANT1] connector.

• Connect a 100 Ω dummy load to

[ANT2] connector.

• Connect an audio generator to

[MIC] connector and set as:

Frequency : 1.5 kHz

Level : 10 mVrms

-- TX --

POWER 50M Tuner

Set the output power to using the tuning dial.

Then push [F-5 (SET)] to store the "POWER

50M Tuner" meter into memory, and go to the

next step.

-- TX --

POWER 50M 10%

Set the output power to using the tuning dial.

Then push [F-5 (SET)] to store the "POWER

50M 10%" meter into memory, and go to the

next step.

-- TX --

POWER 50M 25%

Set the output power to using the tuning dial.

Then push [F-5 (SET)] to store the "POWER

50M 25%" meter into memory, and go to the

next step.

-- TX --

POWER 50M 50%

Set the output power to using the tuning dial.

Then push [F-5 (SET)] to store the "POWER

50M 50%" meter into memory, and go to the

next step.

-- TX --

POWER 50M 100%

Set the output power to using the tuning dial.

Then push [F-5 (SET)] to store the "POWER

50M 100%" meter into memory, and go to the

next step.

(ALC METER) 12

--TX--

ALC

Push [F-5 (SET)] to store the "ALC" meter into

memory, and go to the next step.

(DRIVE LEVEL) 13

-- TX --

DRIVE

Push [F-5 (SET)] to store the "DRIVE" meter

into memory, and go to the next step.

(SWR METER) 14

-- TX --

SWR

Push [F-5 (SET)] to store the "SWR" meter into

memory, and returns to the opening display.

RX METER

ADJUSTNET

(SCOPE

SCALE)

1• Push [F-3 (RX)] to enter the RX

meter adjustment.

• Connect an SSG to [ANT1] con-

nector and set as:

Frequency : 14.151500 MHz

Level : 10 mVrms

Modulation : OFF

• Receiving

-- RX --

SCOPE L4

Push [F-5 (SET)] to store the "SCOPE" level

into memory, and go to the next step.

(S-METER) 2 NOTE: During S-METER adjustment, NEVER change the connected SSG’s level until the transceiver emits “Pi Pi”

and changes indication.

• Set SSG as:

Frequency : 1.5 kHz

Level : 10 mVrms

• Receiving

-- RX --

S0 LEVEL

Push [F-5 (SET)] to store the "S0" level into

memory, and go to the next step.

3 • Set SSG as:

Level : 50 µV

Modulation : OFF

• Receiving

-- TX --

S9 LEVEL

Push [F-5 (SET)] to store the "S9" level into

memory, and go to the next step.

4 • Set SSG as:

Level : 50 mV (–13 dB)

Modulation : OFF

• Receiving

-- TX --

S9+60 LEVEL

Push [F-5 (SET)] to store the "S9+60" level into

memory, and returns to the opening display..

*This output level of a standard signal generator (SSG) is indicated as SSG’s open circuit.

5 - 1

SECTION 5 PARTS LIST

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[FRONT UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

DS1 5080000450 LMP SLU2LC1EX5B-TH

ME1 5510000490 MTR ME-41 (KL-293S-11) SX2495

W1 8900009660 CBL OPC-964 (P=1 N=10 L=60)

W2 8900009660 CBL OPC-964 (P=1 N=10 L=60)

W3 8900009660 CBL OPC-964 (P=1 N=10 L=60)

W4 8900009240 CBL OPC-909 (P=1 N=10 L=110)

W5 8900009240 CBL OPC-909 (P=1 N=10 L=110)

W6 8900009260 CBL OPC-911 (P=1 N=16 L=70)

W7 8900009260 CBL OPC-911 (P=1 N=16 L=70)

W8 8900009400 CBL OPC-926 (P=1 N=24 L=70)

EP1 6910011090 SUT RMS20-250-201-P

EP2 6450001230 E.OTH HLJ0999-01-480

EP3 6450001230 E.OTH HLJ0999-01-480

EP4 6910012500 UBD TFD50W40-A

D424 1750000520 S.DIO DAN222TL T 60.2/74.2

D425 1750000520 S.DIO DAN222TL T 62.3/74

D431 1750000520 S.DIO DAN222TL T 64.3/68.4

D432 1750000520 S.DIO DAN222TL T 65.6/71.1

D501 1750000190 S.DIO 1SS322 (TE85R) T 119.3/19.7

D509 1750000190 S.DIO 1SS322 (TE85R) B 62/5.8

D512 1730000410 S.ZEN RD5.1M-T2B2 B 91.6/39.4

D531 1730002260 S.ZEN MA8030-H (TX) B 74.6/33.5

D701 1750000520 S.DIO DAN222TL T 214.2/81.7

D801 1730002260 S.ZEN MA8030-H (TX) T 96.3/96.3

D821 1750000190 S.DIO 1SS322 (TE85R) T 105.1/60.1

D822 1730001050 S.ZEN RD20M-T2B1 T 92.1/67.7

D841 1750000560 S.DIO RB050L-40 TE-25 T 115.8/100.6

D901 1730000410 S.ZEN RD5.1M-T2B2 T 176.6/31.7

D1201 1730002260 S.ZEN MA8030-H (TX) T 89.9/27.2

D1211 1730002260 S.ZEN MA8030-H (TX) T 90/21.6

D1221 1730002260 S.ZEN MA8030-H (TX) T 90.1/15.9

X401 6050009870 S.XTL CR-567 (9.8304 MHz) T 71.9/56.6

L321 6200003950 S.COL HF50ACC 322513-T T 222.6/25.2

L322 6200003950 S.COL HF50ACC 322513-T T 222/28.6

L323 6200003950 S.COL HF50ACC 322513-T T 217.7/22.7

L401 6200003950 S.COL HF50ACC 322513-T B 56.4/70.5

L801 6180000990 COL LAL 04NA 101K T 102.9/91.8

L802 6190001190 S.COL D10F-A814AY-101K=P3 T 87/97.7

L803 6190001180 S.COL BLC13H-D818HN-1107 T 70.3/97.9

L821 6200003950 S.COL HF50ACC 322513-T T 110.8/62.8

L822 6200009190 S.COL NLFC565050T-472K T 109.9/57.7

L823 6200003520 S.COL ELJFB 102K-F T 91.3/62.6

L841 6190001190 S.COL D10F-A814AY-101K=P3 T 164.4/89.9

L842 6180003250 S.COL SLF12565T-680M2R0 T 119.4/92.5

L843 6190001190 S.COL D10F-A814AY-101K=P3 T 132.2/91.9

R101 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 40.8/10.4

R102 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 38.4/2.9

R103 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 38.6/7.9

R104 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 29.4/6.7

R105 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 43.4/12.6

R106 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 25.9/13

R107 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 27.6/22.8

R121 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 50.2/17.2

R122 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 48.6/17.2

R123 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 48.6/14.5

R124 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 49.4/12.6

R125 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 44/18

R126 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 45.9/17.2

R127 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 45.9/14.5

R128 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 46.7/12.6

R201 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 108.1/30.7

R202 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 108/26.3

R203 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 106.7/26.8

R204 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 106.3/30.1

R205 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 105.9/32.8

R206 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 105.8/36.1

R207 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 105.4/38.8

R208 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 105/41.5

R209 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 104/36.1

R210 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 103.6/38.8

R211 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 103.2/41.5

R212 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 111.1/27.5

R213 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 111.1/31.7

R214 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 111/33.8

R215 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 108.4/36

R221 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/94.3

R222 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/93.3

R223 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/92.3

R224 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/91.3

R225 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/90.3

R226 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/89.3

R227 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/88.3

R228 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/87.3

R229 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/86.3

R230 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/85.3

R231 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/84.3

R232 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/83.3

R233 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/82.3

R234 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/81.3

R235 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/80.3

R241 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/74.8

R242 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/73.8

R243 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/72.7

S.=Surface mount

[DISPLAY UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC101 1130011130 S.IC BU4030BF-E2 T 33.9/6.2

IC102 1130008650 S.IC MC14071BF-EL T 47.7/7.1

IC401 1140008850 S.IC HD6433832SD66H T 62.9/45.1

IC411 1130009640 S.IC BU4051BCFV-E2 T 69.4/70.7

IC490 1110005770 S.IC S-80942CNMC-G9C-T2 B 89.4/25.6

IC492 1130003760 S.IC TC4S81F (TE85R) B 94.3/26.9

IC501 1180001920 S.IC TA79L08F (TE12L) T 121.2/23.1

IC511 1110002680 S.IC NJM2902M-T1 B 80.8/34

IC542 1120002740 S.IC TK16105MTL B 63.1/23.6

IC821 1110002350 S.IC BA6161F T 101.6/64.5

IC841 1110006250 S.IC NJM2360AM-TE3 T 131.7/104.3

IC861 1180001070 S.IC TA7805F (TE16L) T 190.4/23

IC881 1180001920 S.IC TA79L08F (TE12L) T 215.2/94.1

IC1401 1120002580 S.IC M52338FP T 66.4/8.1

IC1521 1110003750 S.IC M5218AFP 600C T 101.9/31.5

Q321 1590002310 S.TR DTC114EE TL T 220.6/21.3

Q511 1590002310 S.TR DTC114EE TL B 99.3/29.7

Q512 1520000460 S.TR 2SB1132 T100 R B 99.5/34.6

Q513 1590002310 S.TR DTC114EE TL B 94.3/29.7

Q514 1520000460 S.TR 2SB1132 T100 R B 94.5/34.6

Q515 1590002310 S.TR DTC114EE TL B 73.9/36.8

Q622 1590002310 S.TR DTC114EE TL T 225.7/63

Q623 1590002310 S.TR DTC114EE TL T 211.5/57.5

Q624 1590002310 S.TR DTC114EE TL T 196/57.5

Q625 1590002310 S.TR DTC114EE TL T 180.5/57.5

Q801 1530002060 S.TR 2SC4081 T106 R T 98.5/96.4

Q802 1520000650 S.TR 2SB1201-S-TL T 99/85.4

Q803 1530003300 S.TR 2SC3647S-TD T 83.3/85.1

Q804 1530003300 S.TR 2SC3647S-TD T 67.5/84.7

Q805 1590002310 S.TR DTC114EE TL T 105.8/99.9

Q821 1530002060 S.TR 2SC4081 T106 R T 88/65.5

Q841 1520000580 S.TR 2SB1124S-TD T 115.6/104.7

Q901 1590002310 S.TR DTC114EE TL T 169/24.1

Q902 1590002310 S.TR DTC114EE TL T 172.8/24.1

Q903 1590002310 S.TR DTC114EE TL T 176.8/24.1

Q904 1530002060 S.TR 2SC4081 T106 R T 172.7/28.7

Q905 1520000650 S.TR 2SB1201-S-TL T 170.3/35

Q1201 1510000510 S.TR 2SA1576A T106R T 89.8/29.4

Q1211 1510000510 S.TR 2SA1576A T106R T 89.9/23.8

Q1221 1510000510 S.TR 2SA1576A T106R T 90/18.1

Q1551 1530002060 S.TR 2SC4081 T106 R B 122.2/32.7

Q1552 1510000510 S.TR 2SA1576A T106R B 125.1/31.1

Q1553 1510000510 S.TR 2SA1576A T106R B 124.8/34.4

Q1554 1530002060 S.TR 2SC4081 T106 R B 122.1/30.1

D421 1750000520 S.DIO DAN222TL T 59.4/68.4

D422 1750000520 S.DIO DAN222TL T 55.6/71.3

D423 1750000520 S.DIO DAN222TL T 57.9/74.2

[DISPLAY UNIT]

S.=Surface mount

5 - 2

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R244 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/71.7

R245 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/70.8

R246 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/69.7

R247 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/68.7

R248 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/67.7

R249 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/66.7

R250 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 8.3/65.1

R251 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 9.1/63.7

R252 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.2/61.7

R253 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 7.5/60.7

R254 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 10.5/59.7

R255 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 6.8/56.4

R256 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 8.3/57.7

R301 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 150.3/58

R312 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 150.5/63.9

R313 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 147.6/59.9

R315 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 147.6/61.9

R316 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 147.8/63.9

R317 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 147.9/66.2

R318 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 151.3/68.1

R319 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 157.9/68.8

R321 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 220.6/23

R401 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 71.3/52.4

R402 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 77.8/60

R403 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 78.3/58

R404 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 49.4/57

R405 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 51.3/55.5

R406 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 51.3/52.2

R407 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 51.3/49.6

R408 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 54.4/38.5

R409 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 55.2/41.7

R410 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 53.7/47

R411 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 53.4/48.3

R412 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 54.4/39.8

R413 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 53/41.8

R414 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 53/43.1

R415 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 53/44.4

R416 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 52.9/45.7

R421 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 58.9/70.9

R424 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 55.9/73.8

R431 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 57.6/70.9

R432 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 63.8/71

R441 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 59.6/42

R442 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 70.8/40.6

R443 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 70.5/38.1

R444 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 59.6/43.3

R445 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 59.6/40.7

R446 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 59.6/39.4

R447 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 60.2/70.9

R490 7030003630 S.RES ERJ3GEYJ 393 V (39 kΩ) B 88.8/27.9

R491 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 90.4/30.5

R492 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 94.5/24.6

R493 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 98.3/24.1

R494 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 92.1/24

R501 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 63.2/12.7

R502 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) B 62.4/10.8

R503 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 17.3/89.4

R511 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 86.7/37.7

R512 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 86.7/36.4

R513 7030003450 S.RES ERJ3GEYJ 122 V (1.2 kΩ) B 86.7/39

R514 7030003430 S.RES ERJ3GEYJ 821 V (820

Ω) B 101/30.6

R515 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 98.8/31.4

R516 7030003590 S.RES ERJ3GEYJ 183 V (18 kΩ) B 86.7/34.6

R518 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 96/30.6

R519 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 93.8/31.4

R520 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 18.8/69.2

R521 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) B 88.8/38.1

R531 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) B 74.9/35.1

R532 7030003630 S.RES ERJ3GEYJ 393 V (39 kΩ) B 76.1/29.3

R533 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 74.2/30.4

R541 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 67.3/24.8

R544 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) B 69.2/22.4

R601 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 42.2/64.1

R602 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 42.2/62.8

R621 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 244.5/102.7

R622 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) T 219.9/60

R623 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 210.8/59.8

R624 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 195.3/59.8

R625 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 179.8/59.8

R626 7030009950 S.RES ERJ8GEYJ 681V (680

Ω) T 227.8/61.9

R627 7030009950 S.RES ERJ8GEYJ 681V (680

Ω) T 215.1/57.9

R628 7030009950 S.RES ERJ8GEYJ 681V (680

Ω) T 199.6/57.9

R629 7030009950 S.RES ERJ8GEYJ 681V (680

Ω) T 184.1/58.5

R701 7210002890 VAR RK161221005J/RV-308 B 217/16

R702 7210002890 VAR RK161221005J/RV-308 B 183.5/16

R703 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 216.5/50.4

R704 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 215.5/20.8

R705 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 182.7/50

R706 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 182.7/20

R709 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 221.6/42.5

R711 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 212/10

R712 7210002630 VAR EVU-FLAE02 B14 (10KB) B 210.7/5.5

R713 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 198/10

R714 7210002630 VAR EVU-FLAE02 B14 (10KB) B 196.7/5.5

R715 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 184/10

R716 7210002630 VAR EVU-FLAE02 B14 (10KB) B 182.7/5.5

R717 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 170/10

R718 7210002630 VAR EVU-FLAE02 B14 (10KB) B 168.7/5.5

R719 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 156/10

R720 7210002630 VAR EVU-FLAE02 B14 (10KB) B 154.7/5.5

R801 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) T 103/97.6

R802 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) T 104.3/97.6

R803 7030000300 S.RES MCR10EZHJ 220

Ω (221) T 96.5/99.6

R804 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 79.9/90.9

R805 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 79.9/89.6

R806 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 104.1/100.4

R807 7030008380 S.RES ERJ1WYJ270U (27

Ω) T 123.5/62.4

R808 7030008380 S.RES ERJ1WYJ270U (27

Ω) T 119.3/62.4

R821 7030003450 S.RES ERJ3GEYJ 122 V (1.2 kΩ) T 98.1/61.4

R824 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 90.8/65.1

R841 7030009740 S.RES ERJ12RQJ0R33U (0.33

Ω) T 149.2/102

R842 7030009740 S.RES ERJ12RQJ0R33U (0.33

Ω) T 149.2/105.9

R845 7030006580 S.RES RR0816P-122-D (1.2 kΩ) T 129.4/99.6

R848 7030006260 S.RES ERJ12YJ471U (470

Ω) T 123.1/104.8

R849 7030006260 S.RES ERJ12YJ471U (470

Ω) T 123.1/101.1

R850 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 118.9/105.5

R861 7030007120 S.RES ERJ1WYJ120U (12

Ω) T 183/27.3

R862 7030007120 S.RES ERJ1WYJ120U (12

Ω) T 206.2/23.1

R863 7030007120 S.RES ERJ1WYJ120U (12

Ω) T 210.4/23.1

R881 7030006140 S.RES ERJ1WYJ560U (56

Ω) T 201.2/88.1

R882 7030006140 S.RES ERJ1WYJ560U (56

Ω) T 201.2/91.9

R904 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 169/26.7

R905 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) T 172.8/26.3

R906 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 176.8/26.3

R907 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 176.8/28

R908 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 168.8/29.3

R909 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 176.8/29.3

R910 7030000350 S.RES MCR10EZHJ 560

Ω (561) T 174.7/34.9

R912 7030009950 S.RES ERJ8GEYJ 681V (680

Ω) T 202.4/99.4

R914 7030009950 S.RES ERJ8GEYJ 681V (680

Ω) T 193.6/99.4

R915 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 168.8/28

R916 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 189.5/66.2

R917 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 181.4/70.3

R1101 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 58.9/9.6

R1103 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 57.3/19.7

R1104 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 57.3/17

R1106 7030003590 S.RES ERJ3GEYJ 183 V (18 kΩ) T 71.3/19.7

R1107 7030003570 S.RES ERJ3GEYJ 123 V (12 kΩ) T 71.3/17

R1109 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) T 74.4/19.7

R1110 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 74.4/17

R1112 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) T 63.4/19.7

R1113 7030003610 S.RES ERJ3GEYJ 273 V (27 kΩ) T 63.4/17

R1121 7030003610 S.RES ERJ3GEYJ 273 V (27 kΩ) T 62.1/19.7

R1122 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 62.1/17

R1127 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) T 72.6/19.7

R1128 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 72.6/17

R1201 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 87/30.2

R1202 7030003450 S.RES ERJ3GEYJ 122 V (1.2 kΩ) T 86.9/27.5

R1203 7030003490 S.RES ERJ3GEYJ 272 V (2.7 kΩ) T 90/25.7

R1211 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 87/25.6

R1212 7030003450 S.RES ERJ3GEYJ 122 V (1.2 kΩ) T 87/21.6

R1213 7030003490 S.RES ERJ3GEYJ 272 V (2.7 kΩ) T 90/20

R1221 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 87/19

R1222 7030003450 S.RES ERJ3GEYJ 122 V (1.2 kΩ) T 87/17.7

R1223 7030003490 S.RES ERJ3GEYJ 272 V (2.7 kΩ) T 88.7/14.3

R1526 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 104.5/27.5

R1527 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 99/27.2

R1541 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 106.5/28.6

R1542 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 107.8/31.4

R1543 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 106.5/31.4

R1544 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 106.5/34.1

R1545 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 107.9/34.1

R1551 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 119.2/28.9

R1552 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 125.7/36.5

R1553 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 119.9/31

R1554 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 119.9/34.2

R1555 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 122.1/34.6

R1556 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 124.8/29.2

R1560 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) B 127.1/30.2

R1561 7030003610 S.RES ERJ3GEYJ 273 V (27 kΩ) B 126.8/34.6

C101 4030011600 S.CER C1608 JB 1E 104K-T T 38.1/11.1

C102 4030006860 S.CER C1608 JB 1H 102K-T T 39.7/2.9

C103 4030006860 S.CER C1608 JB 1H 102K-T T 39.9/7.9

C104 4030006860 S.CER C1608 JB 1H 102K-T T 29.4/4

C105 4030011600 S.CER C1608 JB 1E 104K-T T 41.5/7.9

C121 4030006860 S.CER C1608 JB 1H 102K-T T 50.2/14.5

C122 4030006860 S.CER C1608 JB 1H 102K-T T 44/15.3

C241 4030011600 S.CER C1608 JB 1E 104K-T B 4.3/64.7

C242 4030011600 S.CER C1608 JB 1E 104K-T B 4.3/62.7

C323 4030006880 S.CER C1608 JB 1H 472K-T T 230.6/23.7

C331 4030006850 S.CER C1608 JB 1H 471K-T T 220.3/11.6

C332 4030006880 S.CER C1608 JB 1H 472K-T T 219/11.6

C401 4030007020 S.CER C1608 CH 1H 120J-T T 73.2/50.4

C402 4030007020 S.CER C1608 CH 1H 120J-T T 71.8/49.9

[DISPLAY UNIT] [DISPLAY UNIT]

S.=Surface mount

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C403 4030011600 S.CER C1608 JB 1E 104K-T B 49.4/39.7

C404 4030011600 S.CER C1608 JB 1E 104K-T T 58.8/55.7

C405 4030011600 S.CER C1608 JB 1E 104K-T T 74.2/48.6

C406 4510006650 S.ELE ECEV1EA100SR T 57.8/59.3

C411 4030011600 S.CER C1608 JB 1E 104K-T T 61.5/71.4

C431 4030011600 S.CER C1608 JB 1E 104K-T T 65.7/73.6

C490 4030011600 S.CER C1608 JB 1E 104K-T B 96.4/24

C491 4030007020 S.CER C1608 CH 1H 120J-T B 92/26.9

C492 4030006880 S.CER C1608 JB 1H 472K-T B 90.1/29.2

C501 4510006650 S.ELE ECEV1EA100SR T 119.7/29.9

C502 4030011600 S.CER C1608 JB 1E 104K-T T 121.8/26.3

C503 4030011600 S.CER C1608 JB 1E 104K-T T 121.5/18.5

C504 4510005310 S.ELE ECEV1CA220SR T 122.9/14.9

C505 4030006880 S.CER C1608 JB 1H 472K-T T 24.3/66.3

C506 4030006880 S.CER C1608 JB 1H 472K-T T 25.4/94.3

C513 4030011600 S.CER C1608 JB 1E 104K-T B 86.7/33.1

C520 4510005810 S.ELE ECEV1HAR47R T 23.2/59.9

C521 4030006880 S.CER C1608 JB 1H 472K-T T 26.7/62

C522 4030006880 S.CER C1608 JB 1H 472K-T T 20.1/69.2

C531 4030006880 S.CER C1608 JB 1H 472K-T B 74.9/31.7

C542 4030011600 S.CER C1608 JB 1E 104K-T B 69.2/23.7

C545 4510006650 S.ELE ECEV1EA100SR T 73.2/25.4

C601 4030006880 S.CER C1608 JB 1H 472K-T T 45.8/64.1

C602 4030006880 S.CER C1608 JB 1H 472K-T T 45.8/62.8

C603 4030006860 S.CER C1608 JB 1H 102K-T T 42.3/61.5

C604 4030006860 S.CER C1608 JB 1H 102K-T T 42.3/60.2

C605 4030006860 S.CER C1608 JB 1H 102K-T T 42.3/58.9

C606 4030006860 S.CER C1608 JB 1H 102K-T T 42.3/57.6

C621 4030011600 S.CER C1608 JB 1E 104K-T T 225.5/59.8

C701 4030011600 S.CER C1608 JB 1E 104K-T T 213.8/51.3

C702 4030011600 S.CER C1608 JB 1E 104K-T T 214.7/22.7

C703 4030006880 S.CER C1608 JB 1H 472K-T T 179/50

C704 4030006880 S.CER C1608 JB 1H 472K-T T 187.5/18.5

C711 4030006880 S.CER C1608 JB 1H 472K-T T 209/10

C712 4030006880 S.CER C1608 JB 1H 472K-T T 195/10

C713 4030006880 S.CER C1608 JB 1H 472K-T T 181/10

C714 4030006880 S.CER C1608 JB 1H 472K-T T 167/10

C715 4030006880 S.CER C1608 JB 1H 472K-T T 153/10

C801 4510006650 S.ELE ECEV1EA100SR T 100.5/101.2

C802 4510006650 S.ELE ECEV1EA100SR T 92.2/89.6

C803 4510006230 S.ELE ECEV1EA470UP T 90.3/82.9

C804 4340000170 S.MLR MMX-E 2A 473J T 75.2/84

C805 4030016880 S.CER C4520 CH 3F 150KT-A T 61.5/88.8

C821 4030011600 S.CER C1608 JB 1E 104K-T T 101.6/68

C822 4510006230 S.ELE ECEV1EA470UP T 109/68.3

C823 4030006880 S.CER C1608 JB 1H 472K-T T 89.7/70.6

C824 4030006880 S.CER C1608 JB 1H 472K-T T 97.1/64.5

C825 4030006880 S.CER C1608 JB 1H 472K-T T 94.3/65.9

C826 4510005360 S.ELE ECEV1HA4R7SR T 100.9/57.8

C827 4510005360 S.ELE ECEV1HA4R7SR T 95/57.8

C828 4510006650 S.ELE ECEV1EA100SR T 86.1/69.8

C829 4510005360 S.ELE ECEV1HA4R7SR T 87.5/57.8

C830 4510006650 S.ELE ECEV1EA100SR T 96.8/70.6

C841 4510006240 S.ELE ECEV1CA221P T 153.1/95

C842 4030011600 S.CER C1608 JB 1E 104K-T T 147.1/98.3

C843 4030010760 S.CER C1608 CH 1H 331J-T T 126.9/103

C844 4510006240 S.ELE ECEV1CA221P T 125.5/81.1

C845 4030011600 S.CER C1608 JB 1E 104K-T T 129.4/100.9

C846 4510006240 S.ELE ECEV1CA221P T 181.1/89.2

C847 4510006240 S.ELE ECEV1CA221P T 137.1/81.1

C848 4030011600 S.CER C1608 JB 1E 104K-T T 138.9/92.5

C849 4510006240 S.ELE ECEV1CA221P T 153.1/85.7

C850 4510006240 S.ELE ECEV1CA221P T 181.1/98.6

C861 4510006650 S.ELE ECEV1EA100SR T 201/22.7

C862 4030011600 S.CER C1608 JB 1E 104K-T T 197.4/21.2

C863 4030011600 S.CER C1608 JB 1E 104K-T T 197.4/24.8

C864 4510005310 S.ELE ECEV1CA220SR T 192.5/30.2

C881 4510006650 S.ELE ECEV1EA100SR T 208.5/93

C882 4030011600 S.CER C1608 JB 1E 104K-T T 212/91.4

C883 4030011600 S.CER C1608 JB 1E 104K-T T 218.4/92.8

C884 4510005310 S.ELE ECEV1CA220SR T 222/93.6

C901 4510005360 S.ELE ECEV1HA4R7SR T 186.1/69.9

C921 4030006880 S.CER C1608 JB 1H 472K-T T 229.9/48

C922 4030006880 S.CER C1608 JB 1H 472K-T T 225.2/48

C1101 4030011600 S.CER C1608 JB 1E 104K-T T 58.9/3

C1102 4030011600 S.CER C1608 JB 1E 104K-T T 77/7

C1103 4030011600 S.CER C1608 JB 1E 104K-T T 74.2/9.3

C1104 4030011600 S.CER C1608 JB 1E 104K-T T 58.9/8.3

C1105 4030011600 S.CER C1608 JB 1E 104K-T T 72.9/2.1

C1106 4030011600 S.CER C1608 JB 1E 104K-T T 74.2/10.9

C1107 4030011600 S.CER C1608 JB 1E 104K-T T 58.9/4.3

C1108 4030011600 S.CER C1608 JB 1E 104K-T B 69.2/11.1

C1109 4030011600 S.CER C1608 JB 1E 104K-T T 77/8.5

C1110 4030011600 S.CER C1608 JB 1E 104K-T T 74.2/12.5

C1201 4030011600 S.CER C1608 JB 1E 104K-T T 87/28.8

C1211 4030011600 S.CER C1608 JB 1E 104K-T T 87.8/23.5

C1221 4030011600 S.CER C1608 JB 1E 104K-T T 87/16.4

C1307 4030011600 S.CER C1608 JB 1E 104K-T B 67.6/6.4

C1308 4030011600 S.CER C1608 JB 1E 104K-T B 72/6.3

C1309 4030011600 S.CER C1608 JB 1E 104K-T B 68.4/8.6

C1401 4030011600 S.CER C1608 JB 1E 104K-T T 58.9/5.6

C1402 4030011600 S.CER C1608 JB 1E 104K-T T 58.9/7

C1403 4030011600 S.CER C1608 JB 1E 104K-T T 73.8/14.1

C1404 4030011600 S.CER C1608 JB 1E 104K-T T 58.9/13.5

C1405 4030011600 S.CER C1608 JB 1E 104K-T T 58.9/12.2

C1406 4030011600 S.CER C1608 JB 1E 104K-T T 58.9/10.9

C1407 4030011600 S.CER C1608 JB 1E 104K-T T 77/13.3

C1408 4030011600 S.CER C1608 JB 1E 104K-T T 77/11.7

C1409 4030011600 S.CER C1608 JB 1E 104K-T T 77/10.1

C1521 4030011600 S.CER C1608 JB 1E 104K-T T 103.2/27.5

C1522 4030011600 S.CER C1608 JB 1E 104K-T T 101.9/27.5

C1541 4510006650 S.ELE ECEV1EA100SR T 111.5/31

C1551 4510006650 S.ELE ECEV1EA100SR T 127.3/29.9

C1552 4510006650 S.ELE ECEV1EA100SR T 134/33.4

C1553 4510006650 S.ELE ECEV1EA100SR T 119.8/35.9

C1554 4510006650 S.ELE ECEV1EA100SR T 127.2/35.9

C1555 4030011600 S.CER C1608 JB 1E 104K-T B 129.7/30.4

C1556 4030011600 S.CER C1608 JB 1E 104K-T B 130/35.4

J101 6510003400 CNR B04B-EH-S T 25.3/17

J120 6510022620 S.CNR 10FMN-BMTTR-A-TBT T 24.3/36

J201 6510022610 S.CNR 16FMN-BMTTR-A-TBT T 109.6/16.7

J221 6510022610 S.CNR 16FMN-BMTTR-A-TBT T 6.3/86.8

J241 6510022580 S.CNR 24FMN-BMTTR-A-TBT T 6.3/63.2

J301 6510022580 S.CNR 24FMN-BMTTR-A-TBT T 163/61.4

J321 6510022580 S.CNR 24FMN-BMTTR-A-TBT T 193/39.9

J322 6510022620 S.CNR 10FMN-BMTTR-A-TBT T 227.9/17.9

J451 6510003400 CNR B04B-EH-S T 238/103.6

J452 6510003390 CNR B03B-EH-S T 233.5/103.6

J531 6510022580 S.CNR 24FMN-BMTTR-A-TBT T 22.5/81.7

J601 6510022620 S.CNR 10FMN-BMTTR-A-TBT T 36.8/60

J801 6510018960 S.CNR B2B-PH-SM3-TB T 49.9/91.3

J802 6510018960 S.CNR B2B-PH-SM3-TB T 143/31.9

J921 6510022620 S.CNR 10FMN-BMTTR-A-TBT T 227.6/40.1

J941 6510022620 S.CNR 10FMN-BMTTR-A-TBT T 244.3/82.4

DS621 5040002110 S.LED CL-200HR-C-TU B 244.5/102.7

DS622 5040002080 S.LED CL-200YG-C-TU B 226.7/55.6

DS623 5040002080 S.LED CL-200YG-C-TU B 211.2/55.6

DS624 5040002080 S.LED CL-200YG-C-TU B 195.7/55.6

DS625 5040002080 S.LED CL-200YG-C-TU B 180.2/55.6

DS901 5040002830 S.LED NSCW100 B 206.8/93.5

DS904 5040002830 S.LED NSCW100 B 193.6/93.5

S621 2260001890 S.SW SKQDPA B 244.5/98.3

S622 2260001890 S.SW SKQDPA B 244.5/82.8

S623 2260001890 S.SW SKQDPA B 222.5/56

S624 2260001890 S.SW SKQDPA B 207/56

S625 2260001890 S.SW SKQDPA B 191.5/56

S626 2260001890 S.SW SKQDPA B 176/56

W502 7030003860 S.RES ERJ3GE JPW V T 16.4/79.4

W504 7030003860 S.RES ERJ3GE JPW V T 16.4/76.8

W506 7030003860 S.RES ERJ3GE JPW V T 26.2/65.5

W512 7030003860 S.RES ERJ3GE JPW V B 82.8/28.1

W801 7030008240 S.RES ERJ12YJ0R00U T 50.8/76.1

EP1 0910054522 PCB B 5757B

[DISPLAY UNIT] [DISPLAY UNIT]

5 - 3

S.=Surface mount

5 - 4

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

Q1 1590002310 S.TR DTC114EE TL B 61.8/50.6

Q2 1590002310 S.TR DTC114EE TL B 8.3/45.1

Q3 1590002310 S.TR DTC114EE TL B 13.8/51.8

Q4 1590002310 S.TR DTC114EE TL B 100/71.7

Q5 1590002310 S.TR DTC114EE TL B 74.8/72.5

R1 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 9.8/93.5

R2 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 9.7/88.8

R3 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 9.7/79

R4 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) B 9.7/69.6

R5 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 74/42.4

R6 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 84/42.6

R7 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 95.5/42.7

R8 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) B 64.1/50.4

R9 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) B 6/45

R10 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) B 11.5/51.6

R11 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 102.2/71.7

R12 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 77.1/71.7

C1 4030011600 S.CER C1608 JB 1E 104K-T B 20.9/65.6

C2 4030011600 S.CER C1608 JB 1E 104K-T B 20.9/67.4

J1 6510022610 S.CNR 16FMN-BMTTR-A-TBT B 42.2/88.3

J2 6510022580 S.CNR 24FMN-BMTTR-A-TBT B 42.2/64.7

DS1 5040002110 S.LED CL-200HR-C-TU T 64.1/49.5

DS2 5040002110 S.LED CL-200HR-C-TU T 4.4/49.5

DS3 5040002220 S.LED CL-220YG-C-TU T 9.8/56

DS4 5040002220 S.LED CL-220YG-C-TU T 102.2/76.8

DS5 5040002220 S.LED CL-220YG-C-TU T 77.2/76.8

S1 2260001890 S.SW SKQDPA T 6/103.2

S2 2260001890 S.SW SKQDPA T 6/93.6

S3 2260001890 S.SW SKQDPA T 6/84

S4 2260001890 S.SW SKQDPA T 6/74.4

S5 2260001890 S.SW SKQDPA T 6/64.8

S6 2260001890 S.SW SKQDPA T 19.9/103.7

S7 2260001890 S.SW SKQDPA T 19.9/95.1

S8 2260001890 S.SW SKQDPA T 19.9/86.5

S9 2260001890 S.SW SKQDPA T 19.9/77.9

S10 2260001890 S.SW SKQDPA T 34.2/103.7

S11 2260001890 S.SW SKQDPA T 34.2/95.1

S12 2260001890 S.SW SKQDPA T 34.2/86.5

S13 2260001890 S.SW SKQDPA T 34.2/77.9

S14 2260001890 S.SW SKQDPA T 48.5/103.7

S15 2260001890 S.SW SKQDPA T 48.5/95.1

S16 2260001890 S.SW SKQDPA T 48.5/86.5

S17 2260001890 S.SW SKQDPA T 48.5/77.9

S18 2260001890 S.SW SKQDPA T 62.5/103.7

S19 2260001890 S.SW SKQDPA T 62.5/95.1

S20 2260001890 S.SW SKQDPA T 62.5/86.5

S21 2260001890 S.SW SKQDPA T 62.5/77.9

S22 2260001890 S.SW SKQDPA T 62.5/68.8

S23 2260001890 S.SW SKQDPA T 62.5/59.2

S24 2260001890 S.SW SKQDPA T 81.5/76.8

S25 2260001890 S.SW SKQDPA T 97.9/76.8

S26 2260001890 S.SW SKQDPA T 78.2/38.1

S27 2260001890 S.SW SKQDPA T 89.7/38.1

S28 2260001890 S.SW SKQDPA T 101.2/38.1

S29 2260001890 S.SW SKQDPA T 23.1/68.8

S30 2260001890 S.SW SKQDPA T 45.3/68.8

S31 2260001890 S.SW SKQDPA T 64.2/4.2

EP1 0910052273 PCB B 5403C

R1 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 11.9/94.8

R2 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 11.1/85.7

R3 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 11.1/75.6

R4 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) B 11.1/65.7

R5 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 11.9/54.9

R6 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 11.1/45.7

R7 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 11.1/35.6

C1 4030011600 S.CER C1608 JB 1E 104K-T B 11.9/97

C2 4030011600 S.CER C1608 JB 1E 104K-T B 11.9/47.7

J1 6510022610 S.CNR 16FMN-BMTTR-A-TBT B 61.6/8.5

S1 2260001890 S.SW SKQDPA T 37.2/14.3

S2 2260001890 S.SW SKQDPA T 57/14.3

S3 2260001890 S.SW SKQDPA T 76.8/14.3

S4 2260001890 S.SW SKQDPA T 96.6/14.3

S5 2260001890 S.SW SKQDPA T 116.4/14.3

S6 2260001890 S.SW SKQDPA T 37.2/4.7

S7 2260001890 S.SW SKQDPA T 57/4.7

S8 2260001890 S.SW SKQDPA T 76.8/4.7

S9 2260001890 S.SW SKQDPA T 96.6/4.7

S10 2260001890 S.SW SKQDPA T 116.4/4.7

S11 2260001890 S.SW SKQDPA T 139.8/5.2

S12 2260001890 S.SW SKQDPA T 12.3/94.8

S13 2260001890 S.SW SKQDPA T 12.3/84.8

S14 2260001890 S.SW SKQDPA T 12.3/74.8

S15 2260001890 S.SW SKQDPA T 12.3/64.8

S16 2260001890 S.SW SKQDPA T 12.3/54.8

S17 2260001890 S.SW SKQDPA T 12.3/44.8

S18 2260001890 S.SW SKQDPA T 12.3/34.8

EP1 0910052293 PCB B 5404C

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R1 7210002970 VAR RV-314 (RK0972210 10KB/10KB) T 6/20

R3 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 13.3/14.9

R4 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 14.2/12.3

C1 4030006880 S.CER C1608 JB 1H 472K-T B 16.5/13.1

C2 4030006880 S.CER C1608 JB 1H 472K-T B 14.9/14.9

J1 6510022620 S.CNR 10FMN-BMTTR-A-TBT B 10.3/6

S1 2250000410 ECR TP90D96E20-30F-2178-1 T 44/20

EP1 0910051852 PCB B 5330B

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

J1 6510022620 S.CNR 10FMN-BMTTR-A-TBT B 11/7

S1 2250000340 ECR EVQ-VCJF0324B T 11/20.8

EP1 0910052301 PCB B 5405A

[TEN-KEY UNIT] [MODE UNIT]

[PBT UNIT]

[RIT UNIT]

S.=Surface mount

5 - 5

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

L1 6200003950 S.COL HF50ACC 322513-T B 15.1/5.9

L2 6200003950 S.COL HF50ACC 322513-T B 10/7

R1 7030006240 S.RES ERJ12YJ181U (180

Ω) B 6.2/20.1

R2 7030006240 S.RES ERJ12YJ181U (180

Ω) B 13.8/20.1

C1 4030006880 S.CER C1608 JB 1H 472K-T B 13/3.1

C2 4030006880 S.CER C1608 JB 1H 472K-T B 8.5/3.4

J1 6510022620 S.CNR 10FMN-BMTTR-A-TBT T 11.5/3.3

J2 6450001980 CNR HLJ5815-01-030 T 10/30.5

EP1 0910052283 PCB B 5331C

IC1 1130007700 S.IC BU4094BCF-E2 T 113.7/69.9

IC101 1140007880 S.IC TC190G08AF-0046-Z/SC-1246A T 106.9/89.7

IC102 1130003830 S.IC TC7S04F (TE85R) T 93.1/92

IC191 1130006440 S.IC TC7S08F (TE85R) T 118.3/79.6

IC192 1130006440 S.IC TC7S08F (TE85R) T 96.4/72.5

IC320 1110001890 S.IC µPC1678G-E2 T 40.1/63.4

IC381 1130009230 S.IC LMX2306TMX T 29.7/68.9

IC382 1180000420 S.IC TA78L05F (TE12R) T 54.6/70.2

IC401 1140007880 S.IC TC190G08AF-0046-Z/SC-1246A T 104.1/13.6

IC402 1130003830 S.IC TC7S04F (TE85R) T 90.5/9.5

IC620 1110001890 S.IC µPC1678G-E2 T 40.1/46.9

IC681 1130009230 S.IC LMX2306TMX T 30.9/40.5

IC682 1180000420 S.IC TA78L05F (TE12R) T 52.9/40.6

IC701 1140004550 S.IC M65343FP/SC1287 T 138.4/35.8

IC801 1140004550 S.IC M65343FP/SC1287 T 130.9/13.1

IC901 1130007660 S.IC LC7153M-TLM T 100.3/46.3

IC902 1130006800 S.IC TC7W08F (TE12L) B 102.1/43

Q2 1590002420 S.TR UMD3N TR T 100.7/71

Q51 1530002560 S.TR 2SC4403-3-TL T 142.9/85.7

Q52 1530002060 S.TR 2SC4081 T106 R T 130.1/98.5

Q71 1530002060 S.TR 2SC4081 T106 R T 128.1/106.8

Q81 1530002570 S.TR 2SC4405-3-TL B 133.4/103.2

Q102 1530002060 S.TR 2SC4081 T106 R T 95/83.4

Q103 1530002060 S.TR 2SC4081 T106 R T 118.6/89.2

Q121 1590002420 S.TR UMD3N TR T 83/107.7

Q122 1590002420 S.TR UMD3N TR T 83/104.5

Q123 1590002420 S.TR UMD3N TR T 84.1/101.3

Q124 1590002420 S.TR UMD3N TR T 85.8/92.6

Q126 1590002420 S.TR UMD3N TR T 84.2/98.1

Q151 1560000330 S.FET 2SK210-GR (TE85R) T 63.7/68.9

Q152 1530002060 S.TR 2SC4081 T106 R T 68/64.6

Q181 1530002060 S.TR 2SC4081 T106 R T 50.6/77.7

Q201 1560000490 S.FET 2SK508 K52 T2B T 74.1/96.5

Q202 1530003090 S.TR 2SC4213-B (TE85R) T 73.5/102.1

Q221 1560000490 S.FET 2SK508 K52 T2B T 57.2/96.5

Q222 1530003090 S.TR 2SC4213-B (TE85R) T 56.7/102.1

Q251 1560000490 S.FET 2SK508 K52 T2B T 40.1/96.5

Q252 1530003090 S.TR 2SC4213-B (TE85R) T 39.9/102.1

Q271 1560000490 S.FET 2SK508 K52 T2B T 23.1/96.5

Q272 1530003090 S.TR 2SC4213-B (TE85R) T 23.1/102.1

Q301 1530002560 S.TR 2SC4403-3-TL T 42.1/76.8

Q351 1590001870 S.TR DTA114EE TL T 3.6/61.4

Q361 1590002310 S.TR DTC114EE TL B 10.8/79.5

Q402 1530002060 S.TR 2SC4081 T106 R T 93.2/20.9

Q403 1530002060 S.TR 2SC4081 T106 R T 116.4/10

Q421 1590002420 S.TR UMD3N TR T 82/2.8

Q422 1590002420 S.TR UMD3N TR T 81.6/5.6

Q423 1590002420 S.TR UMD3N TR T 82.3/8.6

Q424 1590002420 S.TR UMD3N TR T 83/15.3

Q426 1590002420 S.TR UMD3N TR T 82.4/11.7

Q451 1560000330 S.FET 2SK210-GR (TE85R) T 68.9/43.7

Q452 1530002060 S.TR 2SC4081 T106 R T 69.8/34.5

Q481 1530002060 S.TR 2SC4081 T106 R T 54.1/32.5

Q501 1560000490 S.FET 2SK508 K52 T2B T 30.8/13.4

Q502 1530003090 S.TR 2SC4213-B (TE85R) T 31.2/7.9

Q521 1560000490 S.FET 2SK508 K52 T2B T 14/13.5

Q522 1530003090 S.TR 2SC4213-B (TE85R) T 14.3/7.9

Q551 1560000490 S.FET 2SK508 K52 T2B T 47.6/13.4

Q552 1530003090 S.TR 2SC4213-B (TE85R) T 47.9/7.9

Q571 1560000490 S.FET 2SK508 K52 T2B T 64.5/13.5

Q572 1530003090 S.TR 2SC4213-B (TE85R) T 64.7/7.9

Q601 1530002560 S.TR 2SC4403-3-TL T 41.7/34.9

Q651 1590001870 S.TR DTA114EE TL T 4.1/45.9

Q661 1590002310 S.TR DTC114EE TL B 1.7/32.6

Q681 1510000510 S.TR 2SA1576A T106R B 39.9/43.7

Q701 1530002060 S.TR 2SC4081 T106 R B 143.8/34.7

Q801 1530002060 S.TR 2SC4081 T106 R T 124.5/5.2

Q802 1530003010 S.TR 2SC4117-GR (TE85R) T 150.9/16

Q902 1560000490 S.FET 2SK508 K52 T2B T 109/47.1

Q903 1530003010 S.TR 2SC4117-GR (TE85R) T 110.3/40

Q904 1530002370 S.TR 2SC2714-O (TE85R) T 115.7/42.5

Q905 1590002310 S.TR DTC114EE TL T 117.6/50.6

Q906 1590000980 S.TR DTB123EK T146 T 119.6/52.2

Q907 1590002310 S.TR DTC114EE TL T 117.5/48.5

D2 1160000140 S.DIO DAP222 TL T 99.9/68.4

D3 1750000520 S.DIO DAN222TL T 103.2/72.8

D4 1750000520 S.DIO DAN222TL T 103.1/70.7

D51 1720000830 S.VCP KV1770STL B 139.2/90.2

D151 1720000590 S.VCP MA357 (TX) T 73.1/78.1

D152 1790000490 S.DIO HSM88AS-TR T 65.6/77.4

D153 1790000490 S.DIO HSM88AS-TR T 69/76.3

D201 1720000830 S.VCP KV1770STL T 74.3/88.7

D202 1720000830 S.VCP KV1770STL B 74.3/88.7

D221 1720000830 S.VCP KV1770STL T 57.5/88.7

D222 1720000830 S.VCP KV1770STL B 57.5/88.7

D251 1790000540 S.VCP MA338 (TX) T 39.1/87.9

D252 1790000540 S.VCP MA338 (TX) T 41.4/87.9

D253 1790000540 S.VCP MA338 (TX) B 41.4/87.9

D254 1790000540 S.VCP MA338 (TX) B 39.1/87.9

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C1 4030006880 S.CER C1608 JB 1H 472K-T T 15.2/6.5

C2 4030006880 S.CER C1608 JB 1H 472K-T T 15.2/3

J1 6510022620 S.CNR 10FMN-BMTTR-A-TBT T 7.2/4

J2 6450001790 CNR HLJ7000-01-3010 T 7.1/31

EP1 6910012350 S.BEA MMZ1608Y 102BT B 14.2/20.4

EP2 6910012350 S.BEA MMZ1608Y 102BT B 14.1/4.2

EP3 0910052312 PCB B 5406B

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

L1 6200003260 S.COL NL 322522T-101J B 4.7/14.4

L3 6200003260 S.COL NL 322522T-101J B 3.1/10.6

L4 6200003260 S.COL NL 322522T-101J B 5.2/2.5

L6 6200003950 S.COL HF50ACC 322513-T B 16.8/17

C2 4030006880 S.CER C1608 JB 1H 472K-T B 3.8/6.2

C3 4030006880 S.CER C1608 JB 1H 472K-T B 2.5/6.2

C4 4030006880 S.CER C1608 JB 1H 472K-T B 8.1/2.7

C5 4030006880 S.CER C1608 JB 1H 472K-T B 17.5/6.7

C6 4030006880 S.CER C1608 JB 1H 472K-T B 16.2/13.1

C7 4030007130 S.CER C1608 CH 1H 101J-T B 9.8/15.6

J1 6510000190 CNR FM214-8SS (P) T 10.5/9

J2 6510022620 S.CNR 10FMN-BMTTR-A-TBT B 8.1/19

EP1 0910052324 PCB B 5407D

[PHONE UNIT]

[KEY UNIT]

[MIC UNIT]

[PLL UNIT]

S.=Surface mount

5 - 6

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

D271 1790000540 S.VCP MA338 (TX) T 22.3/87.9

D272 1790000540 S.VCP MA338 (TX) T 24.6/87.9

D273 1790000540 S.VCP MA338 (TX) B 24.5/87.9

D274 1790000540 S.VCP MA338 (TX) B 22.3/87.9

D301 1790000620 S.DIO MA77 (TX) T 23.6/63.9

D351 1790000620 S.DIO MA77 (TX) T 9.8/72.6

D361 1750000580 S.DIO 1SV307 (TPH3) B 5.5/80

D362 1750000580 S.DIO 1SV307 (TPH3) B 5.5/78.4

D451 1720000590 S.VCP MA357 (TX) T 73.1/33.2

D452 1790000490 S.DIO HSM88AS-TR T 74.9/45.9

D453 1790000490 S.DIO HSM88AS-TR T 75/42.7

D501 1720000830 S.VCP KV1770STL T 30.3/21.2

D502 1720000830 S.VCP KV1770STL B 30.3/21.2

D521 1720000830 S.VCP KV1770STL T 13.5/21.2

D522 1720000830 S.VCP KV1770STL B 13.5/21.2

D551 1790000540 S.VCP MA338 (TX) T 48.7/22

D552 1790000540 S.VCP MA338 (TX) T 46.4/22

D553 1790000540 S.VCP MA338 (TX) B 46.5/22

D554 1790000540 S.VCP MA338 (TX) B 48.7/22

D571 1790000540 S.VCP MA338 (TX) T 65.5/22

D572 1790000540 S.VCP MA338 (TX) T 63.2/22

D573 1790000540 S.VCP MA338 (TX) B 63.3/22

D574 1790000540 S.VCP MA338 (TX) B 65.5/22

D601 1790000620 S.DIO MA77 (TX) T 19.9/47.4

D651 1790000620 S.DIO MA77 (TX) T 8.2/36.9

D661 1750000580 S.DIO 1SV307 (TPH3) B 6.3/29.6

D662 1750000580 S.DIO 1SV307 (TPH3) B 4.4/29.6

D901 1720000590 S.VCP MA357 (TX) T 110.3/54.3

D902 1750000070 S.DIO 1SS226 (TE85R) B 103.8/52.7

FI101 2020001690 S.CER SFECY10M8TF00-R0 T 95.7/104.8

FI401 2020001690 S.CER SFECY10M8TF00-R0 T 92.9/28.8

X52 6050011390 XTL CR-338 (32.00000 MHz) T 132.1/78.4

L1 6200003950 S.COL HF50ACC 322513-T B 153.7/61.5

L2 6200003950 S.COL HF50ACC 322513-T B 153.7/64.5

L31 6200003590 S.COL EXCCL3225U1 T 141.9/71.9

L51 6200008910 S.COL 1812CS-122XKBC T 132.5/93.7

L52 6150004370 COL LS-472C (C-15045) T 143.5/95.5

L55 6200001830 S.COL NL 322522T-100J T 142.1/77.5

L81 6150004830 S.COL LS-509 T 133/103.4

L82 6150004830 S.COL LS-509 T 140.5/103.4

L101 6200001830 S.COL NL 322522T-100J T 94.2/87.5

L121 6200001830 S.COL NL 322522T-100J B 83.4/106.9

L122 6200001830 S.COL NL 322522T-100J B 85.1/103.9

L123 6200001830 S.COL NL 322522T-100J B 83.8/100.9

L124 6200001830 S.COL NL 322522T-100J T 82.6/91.2

L125 6200001830 S.COL NL 322522T-100J T 82.6/94.2

L126 6200001830 S.COL NL 322522T-100J B 84.8/97.9

L128 6200001830 S.COL NL 322522T-100J T 85.5/88.2

L152 6130002970 COL LB-343 T 72.2/68.6

L153 6200001830 S.COL NL 322522T-100J T 63.3/65.7

L181 6200001830 S.COL NL 322522T-100J T 50/74.9

L202 6190001410 COL E526GN-110501 T 69.7/97

L204 6200003260 S.COL NL 322522T-101J B 74.1/92.4

L205 6200008910 S.COL 1812CS-122XKBC T 63.9/91.5

L206 6200008910 S.COL 1812CS-122XKBC T 67.8/86.8

L222 6190001410 COL E526GN-110501 T 52.9/97

L224 6200003260 S.COL NL 322522T-101J B 57.3/92.4

L225 6200008910 S.COL 1812CS-122XKBC T 46.9/91.5

L226 6200008910 S.COL 1812CS-122XKBC T 51/86.8

L252 6190001420 COL E526GN-110502 T 36.1/97

L254 6200003260 S.COL NL 322522T-101J B 39.6/92.4

L255 6200008910 S.COL 1812CS-122XKBC T 29.9/91.5

L256 6200008910 S.COL 1812CS-122XKBC T 34.4/86.8

L272 6190001440 COL E526GN-110504 T 19.3/97

L274 6200003260 S.COL NL 322522T-101J B 22.8/92.4

L275 6200008910 S.COL 1812CS-122XKBC T 13.4/91.5

L276 6200008910 S.COL 1812CS-122XKBC T 16/86.8

L301 6200005550 S.COL ELJFC 100K-F T 42.4/73.5

L303 6200004030 S.COL NL 322522T-047J T 20.6/64.9

L304 6200002960 S.COL NL 322522T-4R7J-3 T 50.4/64

L320 6200004590 S.COL MLF1608D R18K-T T 44.8/71

L321 6200003020 S.COL NL 322522T-R33J-3 T 31.8/62.8

L328 6200006990 S.COL ELJRE 56NG-F T 40.2/67.6

L329 6200006990 S.COL ELJRE 56NG-F T 44.8/65

L351 6200002410 S.COL NL 252018T-056J T 7.8/66.4

L352 6200002430 S.COL NL 252018T-082J T 10.7/66.4

L353 6200002430 S.COL NL 252018T-082J T 11.9/71.8

L354 6200003420 S.COL NL 322522T-R15J-3 T 8.1/76.1

L355 6200000880 S.COL NL 322522T-4R7M T 12.1/80.5

L357 6200003160 S.COL NL 322522T-270J T 4.5/65.9

L382 6200003950 S.COL HF50ACC 322513-T T 36/75.4

L401 6200001830 S.COL NL 322522T-100J T 89.7/14.1

L421 6200001830 S.COL NL 322522T-100J B 81.9/2.4

L422 6200001830 S.COL NL 322522T-100J B 83/5.4

L423 6200001830 S.COL NL 322522T-100J B 83.6/8.5

L424 6200001830 S.COL NL 322522T-100J T 82.5/19.4

L425 6200001830 S.COL NL 322522T-100J T 82.2/26

L426 6200001830 S.COL NL 322522T-100J B 85.8/11.8

L428 6200001830 S.COL NL 322522T-100J T 82.5/29.1

L452 6130002970 COL LB-343 T 75.9/36.5

L453 6200001830 S.COL NL 322522T-100J T 64.4/39.5

L481 6200001830 S.COL NL 322522T-100J T 51.7/35.2

L491 6200003040 S.COL NL 322522T-R68J-3 B 116.2/6.8

L492 6200003050 S.COL NL 322522T-R82J-3 B 116.5/12.8

L502 6190001410 COL E526GN-110501 T 34.9/13

L504 6200003260 S.COL NL 322522T-101J B 29.7/17.5

L505 6200008910 S.COL 1812CS-122XKBC T 40.7/18.4

L506 6200008910 S.COL 1812CS-122XKBC T 36.6/23.1

L522 6190001410 COL E526GN-110501 T 18.1/13

L524 6200003260 S.COL NL 322522T-101J B 13.4/17.6

L525 6200008910 S.COL 1812CS-122XKBC T 24.1/18.5

L526 6200008910 S.COL 1812CS-122XKBC T 19.7/23.1

L552 6190001420 COL E526GN-110502 T 51.7/13

L554 6200003260 S.COL NL 322522T-101J B 47/17.6

L555 6200008910 S.COL 1812CS-122XKBC T 57.9/18.4

L556 6200008910 S.COL 1812CS-122XKBC T 53.3/23.1

L572 6190001440 COL E526GN-110504 T 68.5/13

L574 6200003260 S.COL NL 322522T-101J B 63.8/17.6

L575 6200008910 S.COL 1812CS-122XKBC T 73.9/18.4

L576 6200008910 S.COL 1812CS-122XKBC T 72/23.1

L601 6200005550 S.COL ELJFC 100K-F T 39.8/32.6

L603 6200004030 S.COL NL 322522T-047J T 19.6/45

L604 6200000880 S.COL NL 322522T-4R7M B 48.8/32.6

L620 6200004590 S.COL MLF1608D R18K-T T 44.6/38.2

L621 6200003020 S.COL NL 322522T-R33J-3 T 32.1/48

L627 6200006990 S.COL ELJRE 56NG-F T 41.8/43.4

L628 6200006990 S.COL ELJRE 56NG-F T 44.8/45.5

L651 6200002410 S.COL NL 252018T-056J T 11.8/43.6

L652 6200002430 S.COL NL 252018T-082J T 11.7/40.8

L653 6200002430 S.COL NL 252018T-082J T 10.7/36.6

L654 6200003420 S.COL NL 322522T-R15J-3 T 4.3/37.3

L655 6200002960 S.COL NL 322522T-4R7J-3 T 11.2/30.3

L657 6200003160 S.COL NL 322522T-270J T 4.5/43.3

L682 6200003950 S.COL HF50ACC 322513-T T 25.2/33.9

L701 6200001830 S.COL NL 322522T-100J T 129.8/35.1

L702 6200005490 S.COL NL 322522T-331J T 130.6/44.4

L703 6200008640 S.COL NL 322522T-391J T 130/47.9

L704 6200008640 S.COL NL 322522T-391J T 134.5/55.3

L801 6200001830 S.COL NL 322522T-100J B 131.2/17.5

L802 6200001830 S.COL NL 322522T-100J B 144.3/16.7

L803 6200003130 S.COL NL 322522T-120J B 141.1/21.8

L804 6200003170 S.COL NL 322522T-330J T 151.6/10.8

L806 6200002980 S.COL NL 322522T-R56J-3 T 150.7/21

L901 6200008940 S.COL LQH32MN331K21L T 92.9/49.6

L902 6200004950 S.COL NL 252018T-1R8J T 92.8/44.4

L903 6200003260 S.COL NL 322522T-101J T 107.9/54.7

L904 6190000950 COL C-13975-6.5T T 115.9/55.8

L905 6200003660 S.COL NL 252018T-R68J T 114.8/49.4

L906 6200003260 S.COL NL 322522T-101J B 111.4/49.4

L907 6200002630 S.COL NL 252018T-R10J T 120.4/42.8

L908 6200002180 S.COL NL 252018T-R12J T 119.5/39.9

L909 6200003260 S.COL NL 322522T-101J T 119/55.4

L910 6200004960 S.COL NL 252018T-R33J T 117.4/45.2

R1 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 148.8/62.3

R2 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 146.8/64.5

R3 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 145.5/59.6

R4 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 148.7/71.5

R5 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 148.8/61

R8 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 147.1/70.5

R9 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 134.4/60

R10 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 142.2/61.4

R11 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 148.7/73.2

R12 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 146.1/61

R13 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 149.1/68.7

R14 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 133.1/60

R15 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 140/62.1

R32 7310003820 TRI EVN-D2AA03 B14 T 1.8/73.5

R33 7310002720 S.TRI RV-148 (RH03A3AS3X0DA) 472 T 11.9/55.1

R36 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 8.9/52.7

R40 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 106.2/66.8

R41 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 107.5/67.6

R42 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 120.1/74.4

R43 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 118.9/72.4

R44 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 118.9/71.1

R45 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 106.2/69.8

R46 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 109/71.4

R47 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 117.8/63.2

R48 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 118.7/68.1

R51 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 135.5/91

R52 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 141/83

R53 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 142.9/83.6

R54 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 141/88.4

R55 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 142.9/90.9

R57 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 3.8/69.4

R58 7030003610 S.RES ERJ3GEYJ 273 V (27 kΩ) T 132.9/99.1

R60 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 128.4/100.4

R61 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 130.5/96.6

R62 7030003260 S.RES ERJ3GEYJ 330 V (33

Ω) T 127.3/96.5

[PLL UNIT] [PLL UNIT]

S.=Surface mount

5 - 7

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R63 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 127.3/97.8

R71 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 128.2/104.8

R72 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 126.1/105.6

R81 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 130.4/103

R82 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 133/105.9

R83 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) B 137.4/105.3

R84 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 127.9/102.2

R85 7030003350 S.RES ERJ3GEYJ 181 V (180

Ω) B 145.6/100.8

R86 7030003350 S.RES ERJ3GEYJ 181 V (180

Ω) B 148.2/101.8

R87 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) B 141.5/103.1

R89 7030003260 S.RES ERJ3GEYJ 330 V (33

Ω) B 128.6/103

R125 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 100.1/103.2

R127 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 94/94.4

R130 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 91.6/87.6

R131 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 90.5/84.6

R132 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 93.1/81.9

R133 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 91.8/84.6

R134 7030003240 S.RES ERJ3GEYJ 220 V (22

Ω) T 95/85.4

R135 7030003330 S.RES ERJ3GEYJ 121 V (120

Ω) T 102.4/78.5

R136 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 98.6/78.9

R137 7030003840 S.RES ERJ3GEYJ 225 V (2.2 MΩ) T 100.5/79.5

R139 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 119.9/87

R140 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) T 118.6/86.1

R141 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 90.5/81.9

R142 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 100.6/73

R143 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 116.7/97.3

R144 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 118/97.7

R145 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 118.7/92.5

R146 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 118.7/91.2

R147 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 112.7/80.8

R150 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 72.8/76.5

R151 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 65.9/68

R152 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 65.3/75.3

R153 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 68/66.8

R154 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 61.2/71.4

R155 7030003350 S.RES ERJ3GEYJ 181 V (180

Ω) T 62.6/72.7

R156 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 66/64.4

R157 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 70.7/65.5

R158 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 72.7/64.8

R159 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 74/64.8

R160 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 76.6/64.8

R161 7030003310 S.RES ERJ3GEYJ 820 V (82

Ω) T 75.3/64.8

R181 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 53.4/74.1

R182 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) T 53.4/76.7

R191 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 98.2/69.4

R192 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 96.2/68.9

R204 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 72.4/99.5

R224 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 55.5/99.5

R254 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 38.8/99.5

R274 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 22/99.6

R275 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 42.6/79

R301 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) T 42.1/78.9

R302 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 44.8/78.8

R303 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 44.8/77.5

R304 7030003260 S.RES ERJ3GEYJ 330 V (33

Ω) T 50.4/66.8

R309 7030003410 S.RES ERJ3GEYJ 561 V (560

Ω) T 18.6/69

R320 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 42.1/69.7

R321 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 42.1/68.4

R322 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 44.2/68.9

R323 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 29/61.3

R350 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) T 24/61.1

R351 7030003490 S.RES ERJ3GEYJ 272 V (2.7 kΩ) T 23.9/62.4

R352 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) B 8.5/80.5

R353 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) B 8.9/83.1

R354 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) B 8.9/84.9

R355 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 6.1/61.1

R356 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 7.6/71.4

R361 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 9.9/78.7

R362 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 14.8/60.7

R363 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 2.7/80.7

R380 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 38.7/69.4

R381 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 40.7/73.9

R385 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 35.2/68.7

R386 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 35.2/66.9

R387 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 35.2/69.8

R425 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 97.3/27.2

R427 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 92.9/9.2

R430 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 88.1/11.3

R431 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 90/23.7

R432 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 95/24.2

R433 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 92.1/16.4

R434 7030003240 S.RES ERJ3GEYJ 220 V (22

Ω) T 89.4/16.4

R435 7030003330 S.RES ERJ3GEYJ 121 V (120

Ω) T 97.8/3.1

R436 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 96.5/3.1

R437 7030003840 S.RES ERJ3GEYJ 225 V (2.2 MΩ) T 95.2/3.5

R439 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 114.6/13.6

R440 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) T 115.8/7.1

R441 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 90.4/21.6

R442 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 99.1/3.6

R443 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 114.5/21.1

R444 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 116.3/21.1

R445 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 115.1/16.2

R446 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 114.6/14.9

R447 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 100.4/14.9

R450 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 75.3/32.9

R451 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 71.9/45.9

R452 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 63.9/42.8

R453 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 65.6/37.3

R454 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 61.3/43

R455 7030003350 S.RES ERJ3GEYJ 181 V (180

Ω) T 69.2/45.9

R456 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 68/32.8

R457 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 64/33.6

R458 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 61.8/39.5

R459 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 66.7/32.8

R461 7030003310 S.RES ERJ3GEYJ 820 V (82

Ω) T 66.8/30.9

R481 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 52.2/32.4

R482 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) T 52.2/29.6

R492 7030003350 S.RES ERJ3GEYJ 181 V (180

Ω) B 112.4/9.9

R504 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 32.2/10.5

R524 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 15.3/10.4

R554 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 48.9/10.4

R574 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 65.7/10.4

R575 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 40.9/30.9

R601 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) T 38.8/34.6

R602 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 38.8/35.9

R603 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 44.6/36.9

R604 7030003260 S.RES ERJ3GEYJ 330 V (33

Ω) B 45.2/32.6

R609 7030003410 S.RES ERJ3GEYJ 561 V (560

Ω) T 20.8/39.8

R620 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 44.6/39.5

R621 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 41.8/40.8

R622 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 44.6/40.8

R623 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 29.9/48

R650 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) T 24.7/48.3

R651 7030003490 S.RES ERJ3GEYJ 272 V (2.7 kΩ) T 26/48.7

R652 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) B 1.7/30.3

R653 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) B 8.9/27.8

R654 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) B 8.9/26

R655 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 6.4/48.1

R656 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 7.9/39.1

R660 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 64.2/31.7

R661 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 9/30.5

R662 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 1.7/32.9

R663 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 5.7/32.5

R680 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 34.8/41.8

R681 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 37.4/41

R685 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 25.2/40.8

R686 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 25.2/42.1

R687 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 25.2/39.5

R688 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) B 51.4/51

R689 7030003590 S.RES ERJ3GEYJ 183 V (18 kΩ) B 53.3/50.2

R721 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 144.2/36.7

R722 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) B 144/32.2

R724 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 140.8/52.4

R727 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 132.3/27.9

R728 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 132.3/26.6

R729 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 132.3/29.2

R730 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 129.6/37.7

R821 7030003630 S.RES ERJ3GEYJ 393 V (39 kΩ) T 123.8/7.2

R822 7030003350 S.RES ERJ3GEYJ 181 V (180

Ω) T 127/4.3

R823 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) T 153.4/14.3

R824 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 153.4/16.9

R825 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 153.4/19.5

R826 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 149/16.1

R827 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 122.3/22.4

R828 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 122.3/20.6

R829 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 125/19.3

R830 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 128.1/20.7

R901 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 105.6/38.2

R902 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 103.8/38.2

R903 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 103.9/38.9

R904 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 97.1/43.9

R906 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 94.9/40.6

R907 7030003650 S.RES ERJ3GEYJ 563 V (56 kΩ) T 105.4/51.2

R908 7030003840 S.RES ERJ3GEYJ 225 V (2.2 MΩ) T 104/54.8

R909 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 101.3/53.5

R910 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 96.7/56

R911 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 101.3/56.1

R912 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 107.3/51.9

R913 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 110.3/49.4

R914 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 106.9/47.9

R915 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 111.2/47.3

R916 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 113.1/47.5

R917 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 109.5/44.5

R918 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 109.9/41.9

R919 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 112.3/39.5

R920 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 105.8/44.3

R921 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 110.1/38.1

R922 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 120.5/49.9

R923 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) T 113.3/42.2

R924 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 113.7/39.5

R925 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 115/39.5

C1 4030006880 S.CER C1608 JB 1H 472K-T B 146.1/56.7

C2 4550006080 S.TAN TEESVB2 1C 106M8L B 143.8/55.6

C3 4030006880 S.CER C1608 JB 1H 472K-T B 144.1/61.9

[PLL UNIT] [PLL UNIT]

S.=Surface mount

5 - 8

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C4 4550006080 S.TAN TEESVB2 1C 106M8L B 141.3/62.1

C5 4030011600 S.CER C1608 JB 1E 104K-T T 109.1/66.5

C31 4030006880 S.CER C1608 JB 1H 472K-T T 7.7/51.4

C32 4030006880 S.CER C1608 JB 1H 472K-T B 132.1/70.2

C33 4550002810 S.TAN TEESVD2 1E 106M12L B 132.1/74.1

C34 4030006880 S.CER C1608 JB 1H 472K-T B 4/69.5

C35 4030006880 S.CER C1608 JB 1H 472K-T B 4.2/73.5

C40 4030007050 S.CER C1608 CH 1H 220J-T T 143.5/61.4

C41 4030007050 S.CER C1608 CH 1H 220J-T B 145.7/73.5

C50 4030006880 S.CER C1608 JB 1H 472K-T B 135.5/89.2

C51 4030007020 S.CER C1608 CH 1H 120J-T B 142.9/87.3

C53 4030007120 S.CER C1608 CH 1H 820J-T T 141/85.7

C54 4030006880 S.CER C1608 JB 1H 472K-T T 142.9/87.7

C56 4030006880 S.CER C1608 JB 1H 472K-T T 142.9/81

C58 4030018700 S.CER GRM1882P1H121JZ01D T 142.9/90.3

C64 4030006880 S.CER C1608 JB 1H 472K-T T 135/98.3

C65 4030011600 S.CER C1608 JB 1E 104K-T T 132.4/97.2

C71 4030006880 S.CER C1608 JB 1H 472K-T T 126.5/99.7

C81 4030006880 S.CER C1608 JB 1H 472K-T B 129.6/105.9

C82 4030007170 S.CER C1608 CH 1H 221J-T B 135.6/105.3

C83 4030007050 S.CER C1608 CH 1H 220J-T T 135.1/107.7

C84 4030006880 S.CER C1608 JB 1H 472K-T T 132.4/107.7

C85 4030009510 S.CER C1608 CH 1H 010B-T T 137.8/107.7

C86 4030007050 S.CER C1608 CH 1H 220J-T T 140.6/107.5

C87 4030006880 S.CER C1608 JB 1H 472K-T B 141.5/100.8

C88 4030006880 S.CER C1608 JB 1H 472K-T T 127.9/103.5

C101 4550006080 S.TAN TEESVB2 1C 106M8L B 102.7/87.5

C102 4030011600 S.CER C1608 JB 1E 104K-T T 114.8/98.6

C103 4030011600 S.CER C1608 JB 1E 104K-T T 102.4/99.5

C104 4030011600 S.CER C1608 JB 1E 104K-T T 99.7/100

C105 4030011600 S.CER C1608 JB 1E 104K-T T 97.2/95.6

C106 4030011600 S.CER C1608 JB 1E 104K-T T 97.1/92.6

C107 4030011600 S.CER C1608 JB 1E 104K-T T 95.9/90.7

C108 4030011600 S.CER C1608 JB 1E 104K-T T 97.1/87.4

C109 4030011600 S.CER C1608 JB 1E 104K-T T 97.5/82.3

C110 4030011600 S.CER C1608 JB 1E 104K-T T 107.2/79.2

C111 4030011600 S.CER C1608 JB 1E 104K-T T 105.9/79.2

C112 4030011600 S.CER C1608 JB 1E 104K-T T 104/79.8

C113 4030011600 S.CER C1608 JB 1E 104K-T T 116.7/84.4

C114 4030011600 S.CER C1608 JB 1E 104K-T T 116.7/89.3

C115 4030011600 S.CER C1608 JB 1E 104K-T T 114.8/97.3

C116 4030011600 S.CER C1608 JB 1E 104K-T T 100.1/106.1

C117 4030011600 S.CER C1608 JB 1E 104K-T T 91.3/103.6

C118 4030011600 S.CER C1608 JB 1E 104K-T T 93.2/89.7

C119 4030006880 S.CER C1608 JB 1H 472K-T T 91.8/81.9

C120 4030011600 S.CER C1608 JB 1E 104K-T T 93.1/84.6

C121 4550006250 S.TAN TEESVA 1A 106M8L T 97.4/80.6

C122 4030006880 S.CER C1608 JB 1H 472K-T T 119.3/95

C123 4030006880 S.CER C1608 JB 1H 472K-T T 114.6/79

C124 4030006880 S.CER C1608 JB 1H 472K-T T 113.3/79

C125 4030006880 S.CER C1608 JB 1H 472K-T T 112/79

C126 4030006880 S.CER C1608 JB 1H 472K-T B 108.5/84.9

C127 4030006880 S.CER C1608 JB 1H 472K-T B 108.5/83.6

C128 4030006880 S.CER C1608 JB 1H 472K-T B 108.5/86.2

C129 4030006880 S.CER C1608 JB 1H 472K-T B 108.6/79

C130 4030006880 S.CER C1608 JB 1H 472K-T T 110.6/78.6

C131 4030012600 S.CER C2012 JB 1A 105M-T B 101.1/76.5

C132 4030006880 S.CER C1608 JB 1H 472K-T T 84.9/107.7

C133 4030006880 S.CER C1608 JB 1H 472K-T T 84.9/104.5

C134 4030006880 S.CER C1608 JB 1H 472K-T T 86.2/101.4

C137 4030006880 S.CER C1608 JB 1H 472K-T T 80.8/108.3

C138 4030006880 S.CER C1608 JB 1H 472K-T T 80.8/104.8

C139 4030006880 S.CER C1608 JB 1H 472K-T T 81.1/101

C146 4030006880 S.CER C1608 JB 1H 472K-T T 86.1/98.1

C147 4030006880 S.CER C1608 JB 1H 472K-T T 81.1/99.7

C150 4030011600 S.CER C1608 JB 1E 104K-T T 82.9/88.4

C151 4030006880 S.CER C1608 JB 1H 472K-T T 72.8/75.2

C152 4030007070 S.CER C1608 CH 1H 330J-T T 74.7/74.7

C153 4030009910 S.CER C1608 CH 1H 040B-T T 72.8/73.9

C154 4610001850 S.TRI TZB4R200AB10R00

C155 4030016550 S.CER CM105 CH 151G 50AT T 65.9/70.7

C156 4030016550 S.CER CM105 CH 151G 50AT T 64/71.4

C157 4030016550 S.CER CM105 CH 151G 50AT T 61.5/70

C158 4550006080 S.TAN TEESVB2 1C 106M8L T 62.3/76.1

C159 4030006880 S.CER C1608 JB 1H 472K-T T 65.3/74

C160 4030006880 S.CER C1608 JB 1H 472K-T T 65.3/72.7

C161 4030009920 S.CER C1608 CH 1H 050B-T T 62.6/63.5

C162 4030011600 S.CER C1608 JB 1E 104K-T T 70.7/66.8

C163 4030006880 S.CER C1608 JB 1H 472K-T T 70.7/64.2

C172 4030006990 S.CER C1608 CH 1H 080D-T B 106.7/97.9

C173 4030007030 S.CER C1608 CH 1H 150J-T B 104.9/97.9

C174 4030007060 S.CER C1608 CH 1H 270J-T B 103.1/98.8

C181 4030006880 S.CER C1608 JB 1H 472K-T T 53.4/75.4

C182 4550006080 S.TAN TEESVB2 1C 106M8L T 56.3/76.4

C183 4030006880 S.CER C1608 JB 1H 472K-T T 53.4/78

C191 4030011600 S.CER C1608 JB 1E 104K-T T 115.9/79

C192 4030011600 S.CER C1608 JB 1E 104K-T T 98.8/72.2

C201 4030006880 S.CER C1608 JB 1H 472K-T T 64.4/86.3

C202 4030009990 S.CER C1608 CH 1H 200J-T T 68.8/89.6

C203 4030006880 S.CER C1608 JB 1H 472K-T T 64.2/94.4

C204 4030011340 S.CER C1608 CH 1H 471J-T T 63.2/88.1

C205 4030006880 S.CER C1608 JB 1H 472K-T T 73.6/105.3

C206 4030009510 S.CER C1608 CH 1H 010B-T B 68.9/94.1

C207 4030006880 S.CER C1608 JB 1H 472K-T T 74.3/100.2

C208 4610001860 S.TRI TZB4Z060AB10R00 T 70.8/92.6

C209 4030009350 S.CER C1608 CH 1H 3R5B-T T 74.5/94.1

C222 4030007100 S.CER C1608 CH 1H 560J-T T 51.6/89.7

C223 4030006880 S.CER C1608 JB 1H 472K-T T 47.4/94.4

C224 4030011340 S.CER C1608 CH 1H 471J-T T 46.3/88.1

C225 4030006880 S.CER C1608 JB 1H 472K-T T 56.8/105.3

C226 4030006920 S.CER C1608 CH 1H 010C-T B 52.4/94.1

C227 4030006880 S.CER C1608 JB 1H 472K-T T 57.5/100.2

C228 4610001830 S.TRI TZB4S100AB10R00 T 53.9/92.6

C229 4030009920 S.CER C1608 CH 1H 050B-T T 57.7/94.1

C252 4030007150 S.CER C1608 CH 1H 151J-T T 34.3/89.7

C253 4030006880 S.CER C1608 JB 1H 472K-T T 30.6/94.4

C254 4030011340 S.CER C1608 CH 1H 471J-T T 29.6/88.1

C255 4030006880 S.CER C1608 JB 1H 472K-T T 40/105.3

C256 4030009510 S.CER C1608 CH 1H 010B-T B 36.1/94.1

C257 4030006880 S.CER C1608 JB 1H 472K-T T 40.7/100.2

C258 4610001830 S.TRI TZB4S100AB10R00 T 36.8/92.6

C259 4030011770 S.CER C1608 CH 1H 060B-T T 41/94.1

C272 4030007130 S.CER C1608 CH 1H 101J-T T 17.6/89.7

C273 4030006880 S.CER C1608 JB 1H 472K-T T 13.8/94.4

C274 4030011340 S.CER C1608 CH 1H 471J-T T 11/87.9

C275 4030006880 S.CER C1608 JB 1H 472K-T T 23.2/105.3

C276 4030009510 S.CER C1608 CH 1H 010B-T B 18.3/94.1

C277 4030006880 S.CER C1608 JB 1H 472K-T T 23.9/100.2

C278 4610001830 S.TRI TZB4S100AB10R00 T 19.8/92.6

C279 4030007020 S.CER C1608 CH 1H 120J-T T 24.2/94.1

C300 4030007010 S.CER C1608 CH 1H 100D-T T 44.8/76.2

C301 4030006880 S.CER C1608 JB 1H 472K-T T 44.8/74.6

C302 4030007080 S.CER C1608 CH 1H 390J-T T 40.3/74.2

C304 4030007080 S.CER C1608 CH 1H 390J-T T 27.1/62.1

C305 4030006980 S.CER C1608 CH 1H 070D-T T 23.5/65.5

C306 4030007080 S.CER C1608 CH 1H 390J-T T 22.1/61.5

C307 4030007020 S.CER C1608 CH 1H 120J-T T 25.8/63.2

C309 4030006880 S.CER C1608 JB 1H 472K-T T 44.8/72.4

C310 4030006880 S.CER C1608 JB 1H 472K-T T 53.3/65.5

C311 4030006880 S.CER C1608 JB 1H 472K-T T 17.8/67.1

C320 4030007080 S.CER C1608 CH 1H 390J-T T 40.2/70.4

C321 4030007120 S.CER C1608 CH 1H 820J-T T 42.1/71

C322 4030006880 S.CER C1608 JB 1H 472K-T T 42.1/66.9

C323 4030006880 S.CER C1608 JB 1H 472K-T T 29/62.6

C324 4030006880 S.CER C1608 JB 1H 472K-T T 35.3/61.8

C325 4030011810 S.CER C1608 JB 1A 224K-T B 32.9/58

C326 4030011600 S.CER C1608 JB 1E 104K-T T 34/61.8

C327 4030007090 S.CER C1608 CH 1H 470J-T T 17.3/57.6

C328 4030006990 S.CER C1608 CH 1H 080D-T T 45.5/68.9

C329 4030007060 S.CER C1608 CH 1H 270J-T T 44.8/66.9

C330 4030006990 S.CER C1608 CH 1H 080D-T T 44.8/62.3

C344 4030006880 S.CER C1608 JB 1H 472K-T T 5.3/63

C345 4030006880 S.CER C1608 JB 1H 472K-T B 17.4/61.5

C346 4030007090 S.CER C1608 CH 1H 470J-T T 8.6/61.6

C347 4030006880 S.CER C1608 JB 1H 472K-T T 7.4/62.7

C350 4030006880 S.CER C1608 JB 1H 472K-T T 20.6/61.5

C351 4030008560 S.CER C1608 CH 1H 300J-T T 7.6/70.1

C352 4030009530 S.CER C1608 CH 1H 030B-T T 10.3/68.3

C353 4030007070 S.CER C1608 CH 1H 330J-T T 7.6/72.7

C354 4030009520 S.CER C1608 CH 1H 020B-T T 11.6/74.1

C355 4030007010 S.CER C1608 CH 1H 100D-T T 10.3/69.6

C356 4030007050 S.CER C1608 CH 1H 220J-T T 7.6/74

C357 4030006880 S.CER C1608 JB 1H 472K-T T 3.8/68.1

C358 4030007100 S.CER C1608 CH 1H 560J-T T 12/76

C359 4030011280 S.CER C1608 CH 1H 271J-T T 10.7/76

C360 4030007100 S.CER C1608 CH 1H 560J-T T 11.8/77.9

C361 4030006880 S.CER C1608 JB 1H 472K-T B 5.3/81.5

C362 4030006880 S.CER C1608 JB 1H 472K-T T 8/80.7

C363 4030006880 S.CER C1608 JB 1H 472K-T B .9/80.6

C364 4030006880 S.CER C1608 JB 1H 472K-T T 8/79.4

C365 4030011600 S.CER C1608 JB 1E 104K-T T 9.4/82

C380 4550003220 S.TAN TEESVA 1E 105M8L B 37.4/63.3

C381 4030006880 S.CER C1608 JB 1H 472K-T T 26.2/65.7

C382 4030007130 S.CER C1608 CH 1H 101J-T T 20.7/69.3

C384 4030011600 S.CER C1608 JB 1E 104K-T T 53.3/66.8

C385 4550006080 S.TAN TEESVB2 1C 106M8L T 50.4/70.5

C386 4550005980 S.TAN TEESVA 1A 475M8L T 29.1/76.2

C387 4030006880 S.CER C1608 JB 1H 472K-T T 35.2/71.7

C388 4010006900 CER HE80SJ YB 472K 50V

C389 4030011340 S.CER C1608 CH 1H 471J-T T 28.9/65.5

C390 4550006080 S.TAN TEESVB2 1C 106M8L T 54.9/63.2

C391 4030011600 S.CER C1608 JB 1E 104K-T T 57.8/70.7

C392 4030006880 S.CER C1608 JB 1H 472K-T B 37.1/65.6

C393 4030006880 S.CER C1608 JB 1H 472K-T T 27.1/73.7

C394 4030006850 S.CER C1608 JB 1H 471K-T T 36.4/77.6

C395 4030006900 S.CER C1608 JB 1H 103K-T T 22.8/70.2

C396 4550006480 S.TAN TEESVA 1C 475M8L T 24.5/68.9

C397 4030006880 S.CER C1608 JB 1H 472K-T T 28.9/64.2

C401 4550006080 S.TAN TEESVB2 1C 106M8L B 95.2/14.1

C402 4030011600 S.CER C1608 JB 1E 104K-T T 112.9/21.7

C403 4030011600 S.CER C1608 JB 1E 104K-T T 100.2/24.2

C404 4030011600 S.CER C1608 JB 1E 104K-T B 96.9/24.1

C405 4030011600 S.CER C1608 JB 1E 104K-T T 94.4/17.9

C406 4030011600 S.CER C1608 JB 1E 104K-T T 94.4/15.2

C407 4030011600 S.CER C1608 JB 1E 104K-T T 93.8/13

C408 4030011600 S.CER C1608 JB 1E 104K-T T 94.4/11.1

[PLL UNIT] [PLL UNIT]

S.=Surface mount

5 - 9

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C409 4030011600 S.CER C1608 JB 1E 104K-T T 93.9/7.2

C410 4030011600 S.CER C1608 JB 1E 104K-T T 104.4/3.5

C411 4030011600 S.CER C1608 JB 1E 104K-T T 103.1/3.5

C412 4030011600 S.CER C1608 JB 1E 104K-T T 105.7/3.5

C413 4030011600 S.CER C1608 JB 1E 104K-T T 114.2/7.1

C414 4030011600 S.CER C1608 JB 1E 104K-T T 114.2/9.8

C415 4030011600 S.CER C1608 JB 1E 104K-T T 112.9/20.5

C416 4030011600 S.CER C1608 JB 1E 104K-T T 97.3/30.1

C417 4030011600 S.CER C1608 JB 1E 104K-T T 88.5/27.4

C418 4030011600 S.CER C1608 JB 1E 104K-T T 90/11.8

C419 4030006880 S.CER C1608 JB 1H 472K-T T 93.1/22.9

C420 4030011600 S.CER C1608 JB 1E 104K-T T 91.7/17.7

C421 4550006250 S.TAN TEESVA 1A 106M8L T 93.5/4.1

C422 4030006880 S.CER C1608 JB 1H 472K-T T 116.2/12.3

C423 4030006880 S.CER C1608 JB 1H 472K-T T 111.1/3.9

C424 4030006880 S.CER C1608 JB 1H 472K-T T 111.1/2.6

C425 4030006880 S.CER C1608 JB 1H 472K-T T 108.9/3

C426 4030006880 S.CER C1608 JB 1H 472K-T B 106.3/9.9

C427 4030006880 S.CER C1608 JB 1H 472K-T B 106.3/8

C428 4030006880 S.CER C1608 JB 1H 472K-T T 107.2/3

C431 4030012600 S.CER C2012 JB 1A 105M-T B 105.9/2.8

C437 4030006880 S.CER C1608 JB 1H 472K-T T 83.1/.9

C438 4030006880 S.CER C1608 JB 1H 472K-T B 86.8/5.9

C439 4030006880 S.CER C1608 JB 1H 472K-T B 87.7/8.3

C447 4030006880 S.CER C1608 JB 1H 472K-T B 84.8/14

C450 4030011600 S.CER C1608 JB 1E 104K-T T 79.9/29

C451 4030006880 S.CER C1608 JB 1H 472K-T T 73.4/31.7

C452 4030007070 S.CER C1608 CH 1H 330J-T T 76.1/34.8

C453 4030009910 S.CER C1608 CH 1H 040B-T T 73.4/34.8

C454 4610001850 S.TRI TZB4R200AB10R00 T 69.1/39.2

C455 4030016550 S.CER CM105 CH 151G 50AT T 72.6/42.7

C456 4030016550 S.CER CM105 CH 151G 50AT T 66.5/43

C457 4030016550 S.CER CM105 CH 151G 50AT T 65.2/42.3

C458 4550006080 S.TAN TEESVB2 1C 106M8L T 63.5/45.9

C459 4030006880 S.CER C1608 JB 1H 472K-T T 62.6/43

C460 4030006880 S.CER C1608 JB 1H 472K-T T 71.3/44

C461 4030009920 S.CER C1608 CH 1H 050B-T T 67.2/34.7

C462 4030011600 S.CER C1608 JB 1E 104K-T T 65.6/36

C463 4030006880 S.CER C1608 JB 1H 472K-T T 65.3/33.6

C472 4030006990 S.CER C1608 CH 1H 080D-T B 104.4/22.2

C473 4030007030 S.CER C1608 CH 1H 150J-T B 102.6/22.2

C474 4030007060 S.CER C1608 CH 1H 270J-T B 100.8/22.2

C481 4030006880 S.CER C1608 JB 1H 472K-T T 55.1/34.5

C482 4550006080 S.TAN TEESVB2 1C 106M8L T 49.9/30.8

C483 4030006880 S.CER C1608 JB 1H 472K-T T 54.7/29.6

C491 4030006850 S.CER C1608 JB 1H 471K-T B 117.3/3.5

C492 4030007130 S.CER C1608 CH 1H 101J-T B 113.8/7.5

C493 4030009580 S.CER C1608 JB 1H 681K-T B 115.2/10.1

C494 4030007080 S.CER C1608 CH 1H 390J-T B 114.8/15.1

C495 4030006850 S.CER C1608 JB 1H 471K-T B 118.6/9.3

C501 4030006880 S.CER C1608 JB 1H 472K-T T 40.1/23.5

C502 4030009990 S.CER C1608 CH 1H 200J-T T 36.1/20.3

C503 4030006880 S.CER C1608 JB 1H 472K-T T 40.4/15.6

C504 4030011340 S.CER C1608 CH 1H 471J-T T 41.6/21.9

C505 4030006880 S.CER C1608 JB 1H 472K-T T 31.1/4.7

C506 4030009510 S.CER C1608 CH 1H 010B-T B 34.9/15.9

C507 4030006880 S.CER C1608 JB 1H 472K-T T 30.3/9.8

C508 4610001860 S.TRI TZB4Z060AB10R00 T 33.8/17.4

C509 4030009350 S.CER C1608 CH 1H 3R5B-T T 30.1/15.8

C522 4030007100 S.CER C1608 CH 1H 560J-T T 18.9/20.3

C523 4030006880 S.CER C1608 JB 1H 472K-T T 23.6/15.6

C524 4030011340 S.CER C1608 CH 1H 471J-T T 24.7/21.9

C525 4030006880 S.CER C1608 JB 1H 472K-T T 14.2/4.7

C526 4030009510 S.CER C1608 CH 1H 010B-T B 18.6/15.9

C527 4030006880 S.CER C1608 JB 1H 472K-T T 13.4/9.8

C528 4610001830 S.TRI TZB4S100AB10R00 T 17.2/17.4

C529 4030009920 S.CER C1608 CH 1H 050B-T T 13.3/15.8

C552 4030007150 S.CER C1608 CH 1H 151J-T T 52.9/20.3

C553 4030006880 S.CER C1608 JB 1H 472K-T T 57.2/15.6

C554 4030011340 S.CER C1608 CH 1H 471J-T T 58.4/21.8

C555 4030006880 S.CER C1608 JB 1H 472K-T T 47.8/4.7

C556 4030009510 S.CER C1608 CH 1H 010B-T B 51.7/15.9

C557 4030006880 S.CER C1608 JB 1H 472K-T T 47/9.8

C558 4610001830 S.TRI TZB4S100AB10R00 T 51/17.4

C559 4030011770 S.CER C1608 CH 1H 060B-T T 46.9/15.8

C572 4030007130 S.CER C1608 CH 1H 101J-T T 69.7/20.3

C573 4030006880 S.CER C1608 JB 1H 472K-T T 74/15.6

C574 4030011340 S.CER C1608 CH 1H 471J-T T 76.8/21.8

C575 4030006880 S.CER C1608 JB 1H 472K-T T 64.6/4.7

C576 4030009510 S.CER C1608 CH 1H 010B-T B 68.6/15.9

C577 4030006880 S.CER C1608 JB 1H 472K-T T 63.8/9.8

C578 4610001830 S.TRI TZB4S100AB10R00 T 68/17.4

C579 4030007020 S.CER C1608 CH 1H 120J-T T 63.8/15.9

C600 4030007010 S.CER C1608 CH 1H 100D-T T 44.6/35.5

C601 4030006880 S.CER C1608 JB 1H 472K-T T 44.6/34.2

C602 4030007080 S.CER C1608 CH 1H 390J-T T 41.8/36.9

C604 4030007080 S.CER C1608 CH 1H 390J-T T 22.1/47.5

C605 4030006980 S.CER C1608 CH 1H 070D-T T 18.9/42.9

C606 4030007080 S.CER C1608 CH 1H 390J-T T 19.9/49

C607 4030007020 S.CER C1608 CH 1H 120J-T T 23.4/47.5

C609 4030006880 S.CER C1608 JB 1H 472K-T T 44.6/32.6

C610 4030006880 S.CER C1608 JB 1H 472K-T B 45.2/34.1

C611 4030006880 S.CER C1608 JB 1H 472K-T T 18.9/41.6

C620 4030007080 S.CER C1608 CH 1H 390J-T T 41.8/39.5

C621 4030007120 S.CER C1608 CH 1H 820J-T T 41.8/38.2

C622 4030006880 S.CER C1608 JB 1H 472K-T T 41.8/42.1

C623 4030006880 S.CER C1608 JB 1H 472K-T T 28.6/48.7

C624 4030006880 S.CER C1608 JB 1H 472K-T T 34.3/47.2

C625 4030011810 S.CER C1608 JB 1A 224K-T B 33.2/51.7

C626 4030011600 S.CER C1608 JB 1E 104K-T T 35.6/46.1

C627 4030006990 S.CER C1608 CH 1H 080D-T T 44.6/42.1

C628 4030007060 S.CER C1608 CH 1H 270J-T T 44.6/43.4

C629 4030006990 S.CER C1608 CH 1H 080D-T T 44.8/48.2

C644 4030006880 S.CER C1608 JB 1H 472K-T T 6.4/46.8

C645 4030006880 S.CER C1608 JB 1H 472K-T T 1.7/34.2

C650 4030006880 S.CER C1608 JB 1H 472K-T T 27.3/48.7

C651 4030008560 S.CER C1608 CH 1H 300J-T T 7.9/41.7

C652 4030009530 S.CER C1608 CH 1H 030B-T T 9.8/40.9

C653 4030007070 S.CER C1608 CH 1H 330J-T T 7.9/40.4

C654 4030009520 S.CER C1608 CH 1H 020B-T T 11.1/34.7

C655 4030007010 S.CER C1608 CH 1H 100D-T T 10.6/38.5

C656 4030007050 S.CER C1608 CH 1H 220J-T T 6.6/36.6

C657 4030006880 S.CER C1608 JB 1H 472K-T T 6.4/45.5

C658 4030007100 S.CER C1608 CH 1H 560J-T T 8.4/34.7

C659 4030011280 S.CER C1608 CH 1H 271J-T T 5.7/34.7

C660 4030007100 S.CER C1608 CH 1H 560J-T T 8.4/33.4

C661 4030006880 S.CER C1608 JB 1H 472K-T B 8.9/29.6

C662 4030006880 S.CER C1608 JB 1H 472K-T B 1.7/28.5

C663 4030006880 S.CER C1608 JB 1H 472K-T B 5.7/34.3

C664 4030006880 S.CER C1608 JB 1H 472K-T T 13.4/29.7

C665 4030011600 S.CER C1608 JB 1E 104K-T T 13.4/32.4

C680 4550003220 S.TAN TEESVA 1E 105M8L B 37.1/46.2

C681 4030006880 S.CER C1608 JB 1H 472K-T T 36.1/43

C682 4030007130 S.CER C1608 CH 1H 101J-T T 20/37.7

C684 4030011600 S.CER C1608 JB 1E 104K-T T 50.3/42.8

C685 4550006080 S.TAN TEESVB2 1C 106M8L T 50.7/46.3

C686 4550005980 S.TAN TEESVA 1A 475M8L T 31.8/33.4

C689 4030011340 S.CER C1608 CH 1H 471J-T T 26.9/43.8

C690 4550006080 S.TAN TEESVB2 1C 106M8L T 55.4/45.1

C691 4030011600 S.CER C1608 JB 1E 104K-T T 56/41.9

C694 4030011340 S.CER C1608 CH 1H 471J-T T 27.4/33

C695 4030006900 S.CER C1608 JB 1H 103K-T T 35.9/40.5

C696 4550006480 S.TAN TEESVA 1C 475M8L T 30.7/44.3

C697 4030006880 S.CER C1608 JB 1H 472K-T T 26.9/45.1

C698 4030006880 S.CER C1608 JB 1H 472K-T T 26/37.6

C701 4550006080 S.TAN TEESVB2 1C 106M8L B 133.8/31.8

C702 4030011600 S.CER C1608 JB 1E 104K-T T 138.6/28

C703 4030011600 S.CER C1608 JB 1E 104K-T T 144.2/29.9

C704 4030011600 S.CER C1608 JB 1E 104K-T T 146.1/34.1

C705 4030011600 S.CER C1608 JB 1E 104K-T T 146.9/39

C706 4030011600 S.CER C1608 JB 1E 104K-T T 131.3/42

C707 4030011600 S.CER C1608 JB 1E 104K-T T 129.1/39.6

C708 4030006880 S.CER C1608 JB 1H 472K-T T 142.3/27.2

C709 4030011340 S.CER C1608 CH 1H 471J-T T 134.6/49.8

C710 4030007120 S.CER C1608 CH 1H 820J-T T 132.2/47.2

C711 4030009580 S.CER C1608 JB 1H 681K-T T 133.3/49.8

C712 4030007070 S.CER C1608 CH 1H 330J-T T 129.9/50.5

C713 4030010040 S.CER C1608 JB 1H 561K-T T 129.9/51.8

C714 4030011280 S.CER C1608 CH 1H 271J-T T 133.8/51.8

C715 4030006860 S.CER C1608 JB 1H 102K-T T 133.8/53.1

C716 4030011280 S.CER C1608 CH 1H 271J-T T 135.7/52.5

C801 4550006080 S.TAN TEESVB2 1C 106M8L B 130.5/13.8

C802 4030011600 S.CER C1608 JB 1E 104K-T T 123.3/13.2

C803 4030011600 S.CER C1608 JB 1E 104K-T B 124.8/11.1

C804 4030011600 S.CER C1608 JB 1E 104K-T T 132.5/5.1

C805 4030011600 S.CER C1608 JB 1E 104K-T T 136.3/6.2

C806 4030011600 S.CER C1608 JB 1E 104K-T B 135.5/12.7

C807 4030011600 S.CER C1608 JB 1E 104K-T T 134.3/20.7

C808 4030006880 S.CER C1608 JB 1H 472K-T T 122.6/5.1

C809 4030007030 S.CER C1608 CH 1H 150J-T T 145.9/17.7

C810 4030006970 S.CER C1608 CH 1H 060D-T T 143.2/19

C811 4030007060 S.CER C1608 CH 1H 270J-T T 145.9/19

C812 4030009520 S.CER C1608 CH 1H 020B-T B 138.4/20.8

C813 4030007040 S.CER C1608 CH 1H 180J-T T 145.9/20.3

C814 4030007040 S.CER C1608 CH 1H 180J-T T 150.7/13

C815 4030007090 S.CER C1608 CH 1H 470J-T T 154.2/10.4

C816 4030007040 S.CER C1608 CH 1H 180J-T T 153.4/13

C817 4030006880 S.CER C1608 JB 1H 472K-T T 153.4/15.6

C818 4030006880 S.CER C1608 JB 1H 472K-T T 150.7/18.2

C826 4030011280 S.CER C1608 CH 1H 271J-T T 153.5/20.8

C827 4030011280 S.CER C1608 CH 1H 271J-T T 153.5/23.4

C901 4030006880 S.CER C1608 JB 1H 472K-T T 95.1/49.5

C902 4550006080 S.TAN TEESVB2 1C 106M8L T 94.5/53.7

C903 4030007130 S.CER C1608 CH 1H 101J-T T 105.5/47

C905 4030009580 S.CER C1608 JB 1H 681K-T T 92.8/42.5

C906 4030011280 S.CER C1608 CH 1H 271J-T T 92.3/40.6

C907 4030011280 S.CER C1608 CH 1H 271J-T T 93.6/40.6

C908 4030011600 S.CER C1608 JB 1E 104K-T T 96.7/39.1

C910 4030012600 S.CER C2012 JB 1A 105M-T T 99/54.4

C911 4030011600 S.CER C1608 JB 1E 104K-T B 97.1/42.1

C912 4030010750 S.CER C1608 CH 1H 201J-T T 104/53.5

C913 4030007170 S.CER C1608 CH 1H 221J-T T 110/52.1

C914 4030007020 S.CER C1608 CH 1H 120J-T T 110.4/50.8

C915 4030008880 S.CER C1608 JB 1H 223K-T T 104/56.1

C916 4030007110 S.CER C1608 CH 1H 680J-T T 108.3/50

C917 4030007020 S.CER C1608 CH 1H 120J-T T 107.4/45.1

[PLL UNIT] [PLL UNIT]

S.=Surface mount

5 - 10

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C918 4030007020 S.CER C1608 CH 1H 120J-T T 113.1/46.2

C919 4030009910 S.CER C1608 CH 1H 040B-T T 108/42.1

C920 4030006880 S.CER C1608 JB 1H 472K-T T 112.4/49.8

C921 4030006880 S.CER C1608 JB 1H 472K-T T 111.8/43.5

C922 4550006080 S.TAN TEESVB2 1C 106M8L B 111.4/46

C923 4030006880 S.CER C1608 JB 1H 472K-T T 109.9/43.2

C924 4030006880 S.CER C1608 JB 1H 472K-T T 106.1/41.6

C925 4030006880 S.CER C1608 JB 1H 472K-T T 107.9/39

C926 4030007170 S.CER C1608 CH 1H 221J-T T 116.3/39.5

C927 4030006860 S.CER C1608 JB 1H 102K-T T 118.1/42.7

C928 4030007100 S.CER C1608 CH 1H 560J-T T 120.5/46

C929 4030009910 S.CER C1608 CH 1H 040B-T T 120.5/44.7

C930 4030007130 S.CER C1608 CH 1H 101J-T T 120.2/47.3

C931 4030007020 S.CER C1608 CH 1H 120J-T T 117.6/39.5

C932 4030007100 S.CER C1608 CH 1H 560J-T T 121.4/40.3

C934 4030011600 S.CER C1608 JB 1E 104K-T T 120.5/48.6

C935 4030006880 S.CER C1608 JB 1H 472K-T T 121.6/55.3

C936 4550006080 S.TAN TEESVB2 1C 106M8L B 119.2/50.1

J1 6510022610 S.CNR 16FMN-BMTTR-A-TBT T 152.2/70

W1 7030003860 S.RES ERJ3GE JPW V T 131.9/55.1

W2 7030003860 S.RES ERJ3GE JPW V T 146.3/55.3

W6 7030003860 S.RES ERJ3GE JPW V T 144/20.9

W10 7030003860 S.RES ERJ3GE JPW V T 141/80.3

W25 7030003860 S.RES ERJ3GE JPW V T 139.5/52.4

W28 7030003860 S.RES ERJ3GE JPW V T 142.1/52.4

W29 7030003860 S.RES ERJ3GE JPW V T 141.1/55.1

W32 7030003860 S.RES ERJ3GE JPW V T 116.5/14.2

W33 7030003860 S.RES ERJ3GE JPW V T 96.2/70.2

W51 7030003860 S.RES ERJ3GE JPW V B 145.6/102.6

W92 7030003860 S.RES ERJ3GE JPW V T 148.2/59.6

W121 7030003860 S.RES ERJ3GE JPW V T 119.3/97.7

W122 7030003860 S.RES ERJ3GE JPW V T 92.1/96.6

W151 7030008240 S.RES ERJ12YJ0R00U B 77.9/106.7

W155 7030003860 S.RES ERJ3GE JPW V T 54.5/59.5

W170 7030008240 S.RES ERJ12YJ0R00U B 98.6/96

W181 7030003860 S.RES ERJ3GE JPW V T 50.7/79.6

W201 7030003970 S.RES MCR18EZHJ JPW B 55.9/106.6

W202 7030008240 S.RES ERJ12YJ0R00U B 65.9/92.5

W221 7030000010 S.RES MCR10EZHJ JPW (000) B 40.7/106.9

W222 7030008240 S.RES ERJ12YJ0R00U B 49.4/92.5

W251 7030000010 S.RES MCR10EZHJ JPW (000) B 25.4/106.9

W252 7030008240 S.RES ERJ12YJ0R00U B 33.1/92.3

W351 9009130046 WIR 62/99/160/C24/C31

W381 7030008240 S.RES ERJ12YJ0R00U B 41.7/62.3

W382 7030008240 S.RES ERJ12YJ0R00U B 34.9/67.2

W385 7030003860 S.RES ERJ3GE JPW V T 40.2/72.3

W392 7030003860 S.RES ERJ3GE JPW V T 32.2/73.7

W422 7030003860 S.RES ERJ3GE JPW V T 89.8/18.4

W451 7030008240 S.RES ERJ12YJ0R00U B 77.7/3.2

W452 7030008240 S.RES ERJ12YJ0R00U B 84.9/25.7

W455 7030003860 S.RES ERJ3GE JPW V T 61.6/32

W481 7030003860 S.RES ERJ3GE JPW V T 56/32.4

W521 7030000010 S.RES MCR10EZHJ JPW (000) B 32.2/2.7

W522 7030008240 S.RES ERJ12YJ0R00U B 21.7/17.5

W551 7030000010 S.RES MCR10EZHJ JPW (000) B 47.3/2.8

W552 7030008240 S.RES ERJ12YJ0R00U B 38/17.5

W571 7030003970 S.RES MCR18EZHJ JPW B 62.1/3

W572 7030008240 S.RES ERJ12YJ0R00U B 54.8/17.5

W681 7030003860 S.RES ERJ3GE JPW V B 40.9/39.3

W682 7030003860 S.RES ERJ3GE JPW V B 42.9/42.3

W683 7030008240 S.RES ERJ12YJ0R00U B 31.4/40.5

W692 7030003860 S.RES ERJ3GE JPW V T 28.7/35.7

W821 7030003860 S.RES ERJ3GE JPW V T 150.8/24.6

W851 8970024590 WIR 1.5D 180MM

W951 7030000010 S.RES MCR10EZHJ JPW (000) T 83.8/45.7

W952 7030000010 S.RES MCR10EZHJ JPW (000) T 85/75.5

W963 7030003860 S.RES ERJ3GE JPW V B 111.5/63.6

W964 7030003860 S.RES ERJ3GE JPW V B 111.6/65.5

W965 7030003860 S.RES ERJ3GE JPW V B 131.2/59.4

W966 7030003860 S.RES ERJ3GE JPW V B 131.2/57.6

EP1 0910051799 PCB B 5241I

EP151 6910012350 S.BEA MMZ1608Y 102BT B 74.4/62.3

EP204 6910012350 S.BEA MMZ1608Y 102BT B 71.1/101.2

EP224 6910012350 S.BEA MMZ1608Y 102BT B 62.8/105.3

EP254 6910012350 S.BEA MMZ1608Y 102BT B 48.1/105.7

EP274 6910012350 S.BEA MMZ1608Y 102BT B 20.7/101.2

EP321 6910012350 S.BEA MMZ1608Y 102BT B 32.9/59.8

EP351 6910012350 S.BEA MMZ1608Y 102BT T 9.8/58.8

EP357 6910012350 S.BEA MMZ1608Y 102BT T 7.6/68.8

EP451 6910012350 S.BEA MMZ1608Y 102BT B 63.8/47.1

EP504 6910012350 S.BEA MMZ1608Y 102BT B 37/4.6

EP524 6910012350 S.BEA MMZ1608Y 102BT B 20.5/4.3

EP554 6910012350 S.BEA MMZ1608Y 102BT B 53.9/4.4

EP574 6910012350 S.BEA MMZ1608Y 102BT B 71/4.1

EP621 6910012350 S.BEA MMZ1608Y 102BT B 33.2/49.9

IC1 1180001070 S.IC TA7805F (TE16L) T 20.3/71.4

IC2 1110002020 IC TA7805S T 9.4/86.6

IC3 1180001980 IC MC78T08CT T 40.6/86.5

Q1 1530000790 TR 2SC1971 T 21.5/52.7

Q2 1530000800 TR 2SC1972 T 40.5/59

Q3 1530000800 TR 2SC1972 T 40.5/26.6

Q4 1530003740 TR 2SC5125 T 103/49

Q5 1530003740 TR 2SC5125 T 103/17

Q8 1540000500 TR 2SD1585K T 99.2/72.3

Q9 1590003280 S.TR UNR9211J-(TX) T 54.4/72

Q10 1530002060 S.TR 2SC4081 T106 R T 48/12.4

Q11 1530002060 S.TR 2SC4081 T106 R T 62.5/15.7

Q12 1520000650 S.TR 2SB1201-S-TL T 53.2/8.3

Q13 1520000650 S.TR 2SB1201-S-TL T 67.4/17.3

D1 1790000710 VSR MA29B T 18/59.5

D2 1790000710 VSR MA29B T 44/65.3

D3 1790000710 VSR MA29B T 43.9/59.1

D4 1790000700 DIO DSA3A1 T 130.2/69.4

D5 1790000700 DIO DSA3A1 T 112.1/74

D7 1160000140 S.DIO DAP222 TL T 53/74.8

D8 1790000700 DIO DSA3A1 T 130.2/75.9

D10 1710000970 DIO MA185 T 72/8.3

D61 1750000520 S.DIO DAN222TL T 7.6/6.5

L1 6140003240 COL LR-361 T 23.3/37.5

L2 2040000490 COL EXC-ELDR25C T 28.6/54.2

L3 2040000490 COL EXC-ELDR25C T 31.7/54.8

L4 6140001180 COL LR-143 T 65.3/33

L5 2040000490 COL EXC-ELDR25C T 62.3/56.6

L6 6140003510 COL LR-393 T 139.9/33

L7 6140000610 COL LR-83 T 106.5/33

L8 6140002030 COL LR-230 (SK-10M-15Y 120) T 148/53.9

L9 2040000490 COL EXC-ELDR25C T 74.8/48

L10 2040000490 COL EXC-ELDR25C T 74.8/17.9

L12 2040000490 COL EXC-ELDR25C T 82.3/72.9

L14 6140003230 S.COL LR-360 T 10/42.6

L15 6910000670 COL BL01RN1A1D2B

L16 6910000670 COL BL01RN1A1D2B

L21 6110001730 COL LA-262 T 123/55

L22 2040000490 COL EXC-ELDR25C T 67.3/45.2

R1 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 11.6/34.4

R2 7030003230 S.RES ERJ3GEYJ 180 V (18

Ω) T 9.6/35.2

R3 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 11.6/36

R4 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 12.6/51.4

R5 7030003390 S.RES ERJ3GEYJ 391 V (390

Ω) T 13.4/49.2

R6 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 13.4/47.9

R7 7030006210 S.RES ERJ12YJ4R7U (4.7

Ω) T 16/38.8

R8 7030008230 S.RES ERJ1WYJ1R0U (1

Ω) T 31.2/44

R9 7030008230 S.RES ERJ1WYJ1R0U (1

Ω) T 32.8/24.1

R10 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 16.7/41.3

R11 7310004740 TRI EVM-2AGA00 B52 (501) T 50.9/80.5

R12 7030003300 S.RES ERJ3GEYJ 680 V (68

Ω) T 42/72.6

R13 7030000220 S.RES MCR10EZHJ 47

Ω (470) T 34.2/47.4

R14 7030000220 S.RES MCR10EZHJ 47

Ω (470) T 30.5/18.8

R15 7030006180 S.RES ERJ1WYJ101U (100

Ω) T 47.1/44.6

R16 7030006180 S.RES ERJ1WYJ101U (100

Ω) T 41.4/12.5

R17 7030006130 S.RES ERJ1WYJ100U (10

Ω) T 62.9/50.6

R18 7310004710 TRI EVM-2AGA00 B23 (202) T 77.4/64.1

R19 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 73.6/63.8

R20 7030010950 S.RES ERJ1TYJ 100U (10

Ω) T 77.9/52.6

R21 7030010950 S.RES ERJ1TYJ 100U (10

Ω) T 77.9/56.4

R23 7030010950 S.RES ERJ1TYJ 100U (10

Ω) T 77.9/13.4

R24 7030010950 S.RES ERJ1TYJ 100U (10

Ω) T 77.9/9.6

R26 7030006060 S.RES ERJ12YJ100U (10

Ω) T 86.5/43.4

R27 7030006060 S.RES ERJ12YJ100U (10

Ω) T 86.5/22.7

R28 7100000640 RES 5 SI 0.012

Ω (J)

R29 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 129.8/81.3

R31 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 154.4/81.6

R32 7030007630 S.RES MCR100JZHJ 0.68

Ω (R68) T 83.7/51

R33 7030007630 S.RES MCR100JZHJ 0.68

Ω (R68) T 87.4/51

R34 7030007630 S.RES MCR100JZHJ 0.68

Ω (R68) T 83.7/15

R35 7030007630 S.RES MCR100JZHJ 0.68

Ω (R68) T 87.4/15

R38 7030006120 S.RES ERJ1WYJ4R7U (4.7

Ω) T 162.4/54.5

R39 7030006120 S.RES ERJ1WYJ4R7U (4.7

Ω) T 162.4/58.2

R40 7030006120 S.RES ERJ1WYJ4R7U (4.7

Ω) T 162.4/61.9

R41 7030010470 S.RES ERJ1TYJ 5R6U (5.6

Ω) T 85.8/37.6

R42 7030010470 S.RES ERJ1TYJ 5R6U (5.6

Ω) T 85.8/28.1

R44 7070000681 RES ERX3SJ 3R9 (3.9

Ω) T 3.2/86.1

R45 7030005341 S.RES ERA3YED 332V T 55/15.1

R46 7030008071 S.RES ERA3YED 273V T 56.9/14.3

R47 7030005981 S.RES ERA3YED 333V T 59.7/13.6

R48 7030008061 S.RES ERA3YED 222V T 62.4/13.6

R49 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 46/8.8

R50 7510000070 TMR ERT-D2FHL 503S T 93.5/3.7

R51 7030006140 S.RES ERJ1WYJ560U (56

Ω) T 62/9

R52 7030006060 S.RES ERJ12YJ100U (10

Ω) T 56.8/18.7

[PLL UNIT] [PA UNIT]

S.=Surface mount

5 - 11

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R53 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 61.2/17.7

R54 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 47.9/9.7

R55 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 47.8/6.3

R56 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 61.6/19.7

R57 7030006270 S.RES ERJ12YJ221U (220

Ω) T 19.7/33

R58 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 10.7/46.8

C1 4030011600 S.CER C1608 JB 1E 104K-T T 14/45

C2 4030006860 S.CER C1608 JB 1H 102K-T T 11.4/48.7

C3 4030011600 S.CER C1608 JB 1E 104K-T T 10.6/50.6

C4 4030006860 S.CER C1608 JB 1H 102K-T T 16.4/36.3

C5 4030011600 S.CER C1608 JB 1E 104K-T T 18.9/28.7

C6 4030006860 S.CER C1608 JB 1H 102K-T T 20.2/28.7

C7 4030006880 S.CER C1608 JB 1H 472K-T T 14.4/42.1

C8 4510004640 S.ELE ECEV1CA470SP T 37.1/75.5

C9 4030011600 S.CER C1608 JB 1E 104K-T T 33.9/59.4

C10 4030005010 S.CER C2012 CH 1H 151J-T T 33/34.1

C11 4030012490 S.CER GRM31M1X2A472JZ01L T 37.7/46.9

C12 4030012490 S.CER GRM31M1X2A472JZ01L T 33.5/15.8

C14 4030011600 S.CER C1608 JB 1E 104K-T T 58.2/58.6

C15 4030011600 S.CER C1608 JB 1E 104K-T T 79.9/73.6

C16 4510004630 S.ELE ECEV1CA100SR T 76.4/75.9

C17 4030008920 S.CER C1608 JB 1H 473K-T T 41.4/65.3

C18 4030008920 S.CER C1608 JB 1H 473K-T T 41.5/59

C20 4030011600 S.CER C1608 JB 1E 104K-T T 81/66.5

C21 4030012620 S.CER GRM55R2C2H102JV01L T 79.6/42.5

C22 4030012620 S.CER GRM55R2C2H102JV01L B 80/43.6

C23 4030012620 S.CER GRM55R2C2H102JV01L T 79.6/23.3

C24 4030012620 S.CER GRM55R2C2H102JV01L , B 79.6/22.2

C25 4030011740 S.CER GRM32N2C2H201JV01L T 116.7/33

C27 4030008920 S.CER C1608 JB 1H 473K-T T 20.4/59.5

C30 4030004760 S.CER C2012 JF 1H 104Z-T T 122.7/66.1

C33 4030006880 S.CER C1608 JB 1H 472K-T T 152.4/80.8

C34 4030006880 S.CER C1608 JB 1H 472K-T T 134.2/81.3

C35 4030005110 S.CER C2012 JB 1E 473K-T T 120.9/66.1

C36 4510004600 ELE 16 MV 1000 HC T 114.7/68

C37 4030011600 S.CER C1608 JB 1E 104K-T T 159/81

C39 4510004600 ELE 16 MV 1000 HC T 154.8/74

C40 4510004600 ELE 16 MV 1000 HC T 160.6/72

C41 4030006860 S.CER C1608 JB 1H 102K-T T 14/46.3

C42 4030011600 S.CER C1608 JB 1E 104K-T T 54.7/74.7

C57 4030011740 S.CER GRM32N2C2H201JV01L T 119.7/33

C58 4030018370 S.CER ERF22X 6C1H 102J D01L T 76.7/32.9

C59 4030011740 S.CER GRM32N2C2H201JV01L T 113.7/33

C60 4030011740 S.CER GRM32N2C2H201JV01L T 110.7/33

C61 4030012620 S.CER GRM55R2C2H102JV01L B 79.9/52.2

C62 4030012620 S.CER GRM55R2C2H102JV01L B 79.6/13.3

C71 4030011600 S.CER C1608 JB 1E 104K-T T 26/66.8

C72 4030011600 S.CER C1608 JB 1E 104K-T T 31.6/76.7

C73 4510004630 S.ELE ECEV1CA100SR T 30/68.8

C74 4510004630 S.ELE ECEV1CA100SR T 30/73.6

C75 4030011600 S.CER C1608 JB 1E 104K-T T 11.2/83.8

C76 4030011600 S.CER C1608 JB 1E 104K-T T 17.9/85.7

C77 4510006220 S.ELE ECEV1CA101UP T 15.6/80.9

C78 4510006220 S.ELE ECEV1CA101UP T 22.7/85.4

C79 4030011600 S.CER C1608 JB 1E 104K-T T 37.1/81.2

C80 4030011600 S.CER C1608 JB 1E 104K-T T 50.1/84.6

C81 4510004630 S.ELE ECEV1CA100SR T 41.3/81.6

C82 4510004630 S.ELE ECEV1CA100SR T 46.2/81.6

C89 4030011600 S.CER C1608 JB 1E 104K-T T 50.6/74.1

C93 4030011600 S.CER C1608 JB 1E 104K-T T 43/6.2

C94 4030006880 S.CER C1608 JB 1H 472K-T T 59.7/15.5

C95 4030006880 S.CER C1608 JB 1H 472K-T T 47.8/14.4

C96 4510005000 ELE 16 MV 220 HC T 67.4/6.1

C97 4030006880 S.CER C1608 JB 1H 472K-T T 71.8/12.2

C99 4510004590 ELE 16 MV 470 HC T 148.3/9.8

C100 4030006880 S.CER C1608 JB 1H 472K-T T 60.3/20.9

C101 4030006880 S.CER C1608 JB 1H 472K-T T 63.2/18.5

C102 4030006880 S.CER C1608 JB 1H 472K-T T 46.5/6.3

C103 4510004630 S.ELE ECEV1CA100SR T 51.5/15.7

C105 4510006220 S.ELE ECEV1CA101UP T 24.8/23.1

C107 4030006880 S.CER C1608 JB 1H 472K-T T 157.7/81

C108 4030006880 S.CER C1608 JB 1H 472K-T T 10.9/12.8

C109 4030006880 S.CER C1608 JB 1H 472K-T T 12.2/12.8

C110 4030006880 S.CER C1608 JB 1H 472K-T T 13.5/12.8

C111 4030006880 S.CER C1608 JB 1H 472K-T T 14.8/13.8

C112 4030006880 S.CER C1608 JB 1H 472K-T T 16.1/14.4

C113 4030006880 S.CER C1608 JB 1H 472K-T T 17.4/14.4

C114 4030006880 S.CER C1608 JB 1H 472K-T T 18.7/14.4

C115 4030006880 S.CER C1608 JB 1H 472K-T T 25.1/13.2

C116 4030011730 S.CER GRM31M2C2H101JV01L

C117 4030007090 S.CER C1608 CH 1H 470J-T T 9.7/38.1

C118 4030012480 S.CER GRM31M2C2H121JV01L T 119.3/52

C119 4030012480 S.CER GRM31M2C2H121JV01L T 119.3/14

C120 4010005830 CER HM74SJ SL 151J 500V T 49.2/35.4

C121 4510004640 S.ELE ECEV1CA470SP T 75.7/69.2

C122 4030004910 S.CER C2012 CH 1H 220J-T T 17/34.1

C123 4030011170 S.CER GRM31M2C2H180JV01L T 126.2/64.2

RL1 6330001160 RLY AJV5341 (JV1AP-DC12V) T 57.5/85.8

J3 6510022600 S.CNR 30FMN-BMTTR-A-TBT T 25.4/7.6

J10 6510003080 CNR RT01T-1.0B T 93/27.7

J11 6510018960 S.CNR B2B-PH-SM3-TB T 138.3/10.8

F1 5210000060 FUS FGB 5A (FGB0 125V)

F2 5220000230 HOL S-N5054 T 109.8/86

F3 5220000230 HOL S-N5054 T 78.8/86

W29 9045201001 WIR 74/98/040/X98/X98 T 58.6/46.4

W30 9021780060 WIR 74/98/018/X98/X98

W31 9021780060 WIR 74/98/018/X98/X98

WS1 8970023490 SX2178 1.5D COAXIAL TUBE (1)/PA

WS2 8970023500 SX2178 1.5D COAXIAL TUBE (1)/PA

WS3 8970023510 SX2178 J BOARD SET (1)/PA

EP1 0910051815 PCB B 5294E

EP2 6910000610 BEA FSRH050100RN000B

EP3 6910000610 BEA FSRH050100RN000B

EP4 6510018330 TER F4053A T 118/85.3

EP5 6510018330 TER F4053A T 140.2/72.7

EP8 9021002002 TUB IRRAX 1.5 (d) L=10 mm

EP9 9021002002 TUB IRRAX 1.5 (d) L=10 mm

EP10 9006400002 TUB IRRAX 1.5 (d) L=21 mm

EP11 9034701901 TUB IRRAX 0.7 (d) L=20 mm

EP12 0910052242 PCB B 5447B

EP13 0910052341 PCB B 5449A

EP14 0910052351 PCB B 5450A

[PA UNIT] [PA UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC1 1140008630 S.IC MBM29F400BC-90PFTN SC-1380 B 28.9/9.4

IC2 1140008470 S.IC IDT71256SA20PZ B 28.6/23.7

R1 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 14.4/25.7

R2 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 13.1/25.7

C1 4030011600 S.CER C1608 JB 1E 104K-T B 17.1/3.5

C2 4030006860 S.CER C1608 JB 1H 102K-T B 16.6/15.9

C3 4550006250 S.TAN TEESVA 1A 106M8L B 14.9/17.4

C4 4030011600 S.CER C1608 JB 1E 104K-T B 38/23.7

J1 6510022070 S.CNR AXK6S30635P B 50/14

J2 6510022070 S.CNR AXK6S30635P B 10/14

EP1 6910012350 S.BEA MMZ1608Y 102BT B 49.2/6.4

EP2 0910052263 PCB B 5418C

[MEMORY UNIT]

S.=Surface mount

5 - 12

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

Q3751 1590001960 S.TR XP4311 (TX) T 112.3/76.5

Q3771 1510000510 S.TR 2SA1576A T106R T 155.7/128.3

Q3772 1530002060 S.TR 2SC4081 T106 R T 157.2/133.8

Q3773 1590003280 S.TR UNR9211J-(TX) T 123.6/75.3

D111 1790001620 S.DIO 1SV308 (TPL3) B 51.7/9.6

D112 1790001620 S.DIO 1SV308 (TPL3) B 53.3/9.6

D113 1790001620 S.DIO 1SV308 (TPL3) B 46.6/42.9

D114 1790001620 S.DIO 1SV308 (TPL3) B 51/42.9

D115 1790000620 S.DIO MA77 (TX) B 42.4/74.7

D116 1790000620 S.DIO MA77 (TX) B 41.8/61.7

D117 1790000620 S.DIO MA77 (TX) B 39/76.5

D118 1790000620 S.DIO MA77 (TX) B 38.8/60.4

D251 1750000520 S.DIO DAN222TL T 61.4/47.7

D252 1750000520 S.DIO DAN222TL B 47.1/78.9

D271 1790001210 S.DIO 1SS375-TL T 30.8/48.4

D273 1790001250 S.DIO MA2S111-(TX) T 39/48

D351 1750000520 S.DIO DAN222TL T 12.9/111.3

D501 1790001040 S.ZEN MA8033-L (TX) B 79.9/26.5

D502 1790001250 S.DIO MA2S111-(TX) B 83.7/29.8

D504 1790001240 S.DIO MA2S728-(TX) B 82.1/44.5

D505 1790001040 S.ZEN MA8033-L (TX) B 75.4/26.7

D531 1790001250 S.DIO MA2S111-(TX) B 86.2/52

D532 1790001250 S.DIO MA2S111-(TX) T 82.2/46.4

D533 1790001250 S.DIO MA2S111-(TX) B 91.3/49.9

D541 1790001250 S.DIO MA2S111-(TX) B 97/46.8

D542 1790001250 S.DIO MA2S111-(TX) B 96.1/36.6

D561 1790001250 S.DIO MA2S111-(TX) B 90.4/24.9

D571 1790001250 S.DIO MA2S111-(TX) B 88.6/35.1

D601 1750000370 S.DIO DA221 TL T 94.4/14.3

D611 1750000370 S.DIO DA221 TL T 94.1/8.7

D631 1790001250 S.DIO MA2S111-(TX) B 8.4/28.2

D632 1790001250 S.DIO MA2S111-(TX) T 8.6/10.1

D691 1750000520 S.DIO DAN222TL T 19.8/117.2

D801 1730002320 S.ZEN MA8051-M (TX) B 2.5/131.4

D3001 1750000370 S.DIO DA221 TL B 94.6/75

D3504 1790001250 S.DIO MA2S111-(TX) T 131.8/53.7

D3505 1790001250 S.DIO MA2S111-(TX) T 131.5/56.2

D3506 1790001250 S.DIO MA2S111-(TX) T 131.5/58.7

D3507 1750000370 S.DIO DA221 TL T 165.2/80.2

D3508 1790001670 S.DIO RB706F-40T106 T 136.9/87.7

D3509 1790001670 S.DIO RB706F-40T106 T 136.9/90.2

D3601 1790001250 S.DIO MA2S111-(TX) B 146.3/95

D3602 1790001670 S.DIO RB706F-40T106 T 137.2/92.8

D3701 1750000520 S.DIO DAN222TL T 140.7/46.7

D3702 1160000140 S.DIO DAP222 TL T 140.6/49

D3750 1790001250 S.DIO MA2S111-(TX) T 128.3/74.8

D3751 1790001250 S.DIO MA2S111-(TX)

except [ITR], [FRA], [EUR] T 129.2/66.3

D3752 1790001250 S.DIO MA2S111-(TX) T 129.2/67.6

D3753 1790001250 S.DIO MA2S111-(TX)

T 129.2/68.9

D3754 1790001250 S.DIO MA2S111-(TX) except [USA], [ESP] T 128.3/70.2

D3755 1790001250 S.DIO MA2S111-(TX) [ITR], [KOR] T 130.8/71.3

D3756 1790001250 S.DIO MA2S111-(TX) [ITR], [KOR] T 128.3/72.2

D3757 1790001250 S.DIO MA2S111-(TX) T 128.3/73.5

D3758 1790001250 S.DIO MA2S111-(TX) T 130.8/75.6

D3761 1790001250 S.DIO MA2S111-(TX) T 128.5/79.3

D3762 1790001250 S.DIO MA2S111-(TX) except [FRA] T 128.5/80.6

D3763 1790001250 S.DIO MA2S111-(TX) [EUR], [FRA], [ITR] T 128.5/81.9

D3771 1750000520 S.DIO DAN222TL T 154.9/133.5

FI111 2020000260 CER CFK455E10 T 55.2/66.5

FI131 2020001740 CER CFWLB455KDFA-B0 T 45/66.3

FI133 2020001510 CER CFWLA455KJFA-B0 T 32.4/66.8

X3501 6050009520 S.XTL CR-520 (19.6608 MHz+) T 139.7/100.4

X3551 6060000740 S.CER CSTCV26M0X51J-R0 T 183.1/67.5

L111 6150004080 COL LS-468 (C-13958) T 52.4/15.5

L112 6150004080 COL LS-468 (C-13958) T 45.3/32.9

L113 6150004080 COL LS-468 (C-13958) T 52.3/48.9

L114 6200005490 S.COL NL 322522T-331J T 52.6/9.5

L115 6200005490 S.COL NL 322522T-331J B 56.4/11.9

L141 6150004080 COL LS-468 (C-13958) T 45.2/60.6

L151 6200003260 S.COL NL 322522T-101J T 56.7/93.5

L152 6200003260 S.COL NL 322522T-101J T 41.1/96.3

L201 6200003950 S.COL HF50ACC 322513-T T 60.2/61.3

L202 6200003950 S.COL HF50ACC 322513-T T 59/69

L203 6200003950 S.COL HF50ACC 322513-T T 59/77

L204 6200003950 S.COL HF50ACC 322513-T T 58.2/112.1

L205 6200003950 S.COL HF50ACC 322513-T T 132/133.4

L206 6200003950 S.COL HF50ACC 322513-T T 143.9/143.8

L221 6200003260 S.COL NL 322522T-101J T 37/96.3

L227 6200003260 S.COL NL 322522T-101J B 30.6/79.8

L241 6200003520 S.COL ELJFB 102K-F T 47.3/78.4

L261 6150004090 COL LS-469 (C-13969) T 57.9/32.8

L271 6150002291 COL LS-450 T 25.8/17

L272 6150002291 COL LS-450 T 23.9/29.9

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC101 1110000960 S.IC NJM4558M-TE1 T 88.3/26.5

IC151 1130006220 S.IC TC4W53FU (TE12L) T 44.9/93

IC152 1130003610 S.IC TC4SU69F (TE85R) T 52.5/93.7

IC153 1130003610 S.IC TC4SU69F (TE85R) T 48.7/93.7

IC201 1110005420 S.IC BA15532F-E2 T 36.9/113.5

IC221 1110004840 S.IC NJM1496V-TE1 T 36.7/90.6

IC301 1130006220 S.IC TC4W53FU (TE12L) T 97.1/113.8

IC311 1110003300 S.IC M5282FP 70CD B 84.3/109.4

IC321 1110000960 S.IC NJM4558M-TE1 T 112.5/81

IC331 1130006220 S.IC TC4W53FU (TE12L) T 83.2/136.2

IC332 1110003090 IC LA4425A T 86/148.8

IC361 1130006220 S.IC TC4W53FU (TE12L) T 90/94.8

IC362 1130006220 S.IC TC4W53FU (TE12L) T 104.8/84.9

IC371 1110003300 S.IC M5282FP 70CD B 76.9/101.7

IC372 1110003670 S.IC BA3308F-E2 B 65.8/102.2

IC451 1140005280 S.IC µPC5023GS-077-E1 B 130.2/118.5

IC551 1110003870 S.IC NJM2058M-TE1 B 91.1/44.5

IC571 1110000960 S.IC NJM4558M-TE1 B 92.8/32

IC801 1180002000 REG BA033T T 133.8/147.2

IC802 1180001070 S.IC TA7805F (TE16L) B 14.4/145.5

IC803 1180001070 S.IC TA7805F (TE16L) B 15.7/129

IC805 1180000720 S.IC AN79L05M-(E1) B 67.2/60.7

IC3001 1190001640 S.IC ISD4003-04MS B 83.8/70.2

IC3002 1130008230 S.IC BU4053BCFV-E2 T 108/94.9

IC3003 1110003300 S.IC M5282FP 70CD B 78.7/82.5

IC3004 1110000960 S.IC NJM4558M-TE1 B 92.1/81.7

IC3005 1130008230 S.IC BU4053BCFV-E2 T 85.3/80.2

IC3501 1140012371 S.IC HD64F2357F20 (SX-2178F-2) T 154.2/84.1

IC3502 1110005770 S.IC S-80942CNMC-G9C-T2 T 150.9/136.3

IC3503 1130011330 S.IC CAT25C32SI B 140.3/58.6

IC3504 1130007450 S.IC RTC-4553A B 132.2/58.1

IC3551 1190000950 S.IC S1D13504F00A000 SED1354F0A T 170/61

IC3552 1130007180 S.IC TC7WU04FU (TE12L) T 182.5/72.7

IC3553 1130009360 S.IC LH61665AS-60A T 177.2/36.7

IC3631 1130008230 S.IC BU4053BCFV-E2 T 131/90.6

IC3651 1120002770 S.IC TC74AC244FT (EL) T 150.4/57.3

IC3652 1120002780 S.IC TC74AC245FT (EL) T 148.9/48.3

IC3653 1120002790 S.IC TC74AC574FT (EL) T 157.3/33.5

IC3654 1120002790 S.IC TC74AC574FT (EL) T 148.9/40.8

IC3655 1120002880 S.IC TC74AC08FT (EL) T 142/59.7

IC3656 1120002760 S.IC TC74AC32FT (EL) T 139.8/54.2

IC3751 1110004310 S.IC M62352GP 75EC T 78.4/24.1

IC3752 1130007570 S.IC BU4094BCFV-E2 T 135.2/73.2

IC3753 1130007570 S.IC BU4094BCFV-E2 T 135.2/81.5

IC3771 1130007110 S.IC TC7W04FU (TE12L) T 158.7/127.2

Q131 1590002710 S.TR UMH11NTN T 40.4/79

Q132 1590003280 S.TR UNR9211J-(TX) T 37.3/81.8

Q141 1580000620 S.FET 3SK131-T2 MAS B 48.7/56

Q241 1560000560 S.FET 2SK882-GR (TE85L) T 42.8/81.2

Q261 1560000560 S.FET 2SK882-GR (TE85L) B 60.8/40.6

Q271 1560000560 S.FET 2SK882-GR (TE85L) T 34.4/14.1

Q272 1560000560 S.FET 2SK882-GR (TE85L) T 27.7/24.7

Q273 1560000560 S.FET 2SK882-GR (TE85L) T 26/37.6

Q274 1530002060 S.TR 2SC4081 T106 R T 33.6/48.4

Q275 1510000510 S.TR 2SA1576A T106R T 33.6/44.1

Q276 1530002060 S.TR 2SC4081 T106 R T 35.8/50.2

Q278 1590003430 S.TR UNR911HJ-(TX) T 38.9/46.3

Q279 1530002060 S.TR 2SC4081 T106 R T 27.1/51.5

Q331 1540000470 S.TR 2SD1801S-TL B 100.2/145.4

Q333 1590002770 S.FET CPH3404-TL B 84/146.4

Q334 1590003280 S.TR UNR9211J-(TX) T 77/146.4

Q351 1590003280 S.TR UNR9211J-(TX) T 10.6/111.3

Q471 1530002060 S.TR 2SC4081 T106 R T 132.3/114.5

Q501 1590002710 S.TR UMH11NTN T 90.1/41.2

Q502 1590002390 S.TR UMH4N TN T 89.3/46.9

Q503 1530002060 S.TR 2SC4081 T106 R T 81.1/30.5

Q504 1530002060 S.TR 2SC4081 T106 R B 74.9/32.3

Q505 1510000510 S.TR 2SA1576A T106R T 74.4/18.8

Q506 1590002150 S.TR DTC144TE TL T 75.2/16.2

Q507 1590001870 S.TR DTA114EE TL T 88.8/44.3

Q521 1510000510 S.TR 2SA1576A T106R T 93.8/23.2

Q601 1540000440 S.TR 2SD1619-T-TD T 90.4/13.9

Q602 1530002060 S.TR 2SC4081 T106 R T 94.6/12

Q611 1540000440 S.TR 2SD1619-T-TD T 90.5/7.9

Q612 1530002060 S.TR 2SC4081 T106 R T 97.5/7

Q621 1510000920 S.TR 2SA1577 T106 Q B 88.7/7.3

Q622 1590002710 S.TR UMH11NTN T 87.7/10.6

Q631 1530002060 S.TR 2SC4081 T106 R B 7.3/24

Q632 1530002060 S.TR 2SC4081 T106 R B 4.8/31.5

Q651 1590001870 S.TR DTA114EE TL B 4.5/35.2

Q652 1540000440 S.TR 2SD1619-T-TD B 8.1/41.7

Q653 1590003280 S.TR UNR9211J-(TX) T 22/4.7

Q691 1590003280 S.TR UNR9211J-(TX) T 19.8/114.4

Q801 1530002060 S.TR 2SC4081 T106 R T 86.7/16.9

Q803 1590002430 S.TR DTA144EE TL T 86.2/13.1

Q804 1540000470 S.TR 2SD1801S-TL B 29.1/130.9

Q3002 1590001870 S.TR DTA114EE TL B 135.6/99.9

Q3504 1510000510 S.TR 2SA1576A T106R T 128/58.3

Q3505 1590001940 S.TR DTC144EE TL T 136.1/58.8

Q3551 1590001870 S.TR DTA114EE TL B 175.1/65.2

Q3701 1590003280 S.TR UNR9211J-(TX) T 138.5/49.1

[MAIN-A UNIT] [MAIN-A UNIT]

S.=Surface mount

5 - 13

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

L273 6150002291 COL LS-450 T 31.4/43.3

L274 6180001000 COL LAL 04NA 102K T 39.5/52.2

L351 6910003570 COL 2943-666663 T 19.3/92.8

L352 6910003570 COL 2943-666663 T 26.9/98.7

L353 6200003950 S.COL HF50ACC 322513-T B 11.6/97.9

L354 6200003950 S.COL HF50ACC 322513-T B 6.3/101.1

L451 6200001830 S.COL NL 322522T-100J B 137.5/130.5

L452 6180002650 COL RCR-875D-472K T 113.4/115.5

L631 6200003950 S.COL HF50ACC 322513-T B 30.3/90.7

L641 6200003240 S.COL NL 322522T-221J B 27.2/91.5

L642 6200003240 S.COL NL 322522T-221J B 23.7/91.2

L643 6200008820 S.COL HF70ACC 635050-T T 25.4/106.5

L644 6200008820 S.COL HF70ACC 635050-T T 26/86.8

L658 6200003950 S.COL HF50ACC 322513-T B 11.5/47.9

L659 6200003950 S.COL HF50ACC 322513-T B 8.4/18.7

L661 6200003260 S.COL NL 322522T-101J B 17.7/24.4

L662 6200003260 S.COL NL 322522T-101J B 17.8/16.8

L663 6200003950 S.COL HF50ACC 322513-T T 10/32.5

L664 6200003260 S.COL NL 322522T-101J B 20/21.3

L665 6200003260 S.COL NL 322522T-101J T 13/5.1

L666 6200003950 S.COL HF50ACC 322513-T B 20.2/27.7

L667 6200003260 S.COL NL 322522T-101J T 18.8/5.1

L668 6200003260 S.COL NL 322522T-101J B 15.5/42.5

L669 6200003950 S.COL HF50ACC 322513-T T 13.7/32.9

L670 6200003260 S.COL NL 322522T-101J B 19.5/38.5

L681 6200003260 S.COL NL 322522T-101J B 30.1/72.9

L691 6200003950 S.COL HF50ACC 322513-T B 2.6/139.7

L692 6200003950 S.COL HF50ACC 322513-T B 8.8/138

L701 2040000490 COL EXC-ELDR25C T 130/29.5

L702 6200003950 S.COL HF50ACC 322513-T B 124/39.1

L703 6200003950 S.COL HF50ACC 322513-T B 123.3/35.7

L704 6200003260 S.COL NL 322522T-101J B 121.8/32.7

L705 6200003260 S.COL NL 322522T-101J B 123.3/29.7

L706 6200003260 S.COL NL 322522T-101J B 124.8/26.7

L707 6200003260 S.COL NL 322522T-101J T 132.7/32.8

L708 6200003260 S.COL NL 322522T-101J B 39.4/144

L709 6200003950 S.COL HF50ACC 322513-T B 51/143.4

L710 2040000490 COL EXC-ELDR25C T 30.8/137.4

L711 6200003950 S.COL HF50ACC 322513-T B 57.2/143.4

L712 6200003950 S.COL HF50ACC 322513-T B 27.6/140.6

L713 6200003260 S.COL NL 322522T-101J B 26.2/148

L714 6200003260 S.COL NL 322522T-101J B 22.3/147.2

L715 6200003260 S.COL NL 322522T-101J B 19.3/148.6

L716 6200003950 S.COL HF50ACC 322513-T T 21.3/134.9

L717 6200003950 S.COL HF50ACC 322513-T B 31.2/147.5

L719 2040000490 COL EXC-ELDR25C T 54.8/6.2

L720 6180003040 COL LHL 08NB 101K T 64.2/18.6

L721 6200003220 S.COL NL 322522T-151J B 73/5.6

L722 2040000490 COL EXC-ELDR25C T 20.3/78

L723 2040000490 COL EXC-ELDR25C T 19/74.9

L3001 6200001830 S.COL NL 322522T-100J T 84.4/66

L3002 6200003260 S.COL NL 322522T-101J T 83.7/62.3

L3501 6200003950 S.COL HF50ACC 322513-T B 172.8/71.6

L3601 6200003950 S.COL HF50ACC 322513-T T 120.8/137.1

L3602 6200003950 S.COL HF50ACC 322513-T T 103.5/113

L3603 6180002650 COL RCR-875D-472K T 99.6/59.3

L3604 6180002650 COL RCR-875D-472K T 178.3/4.7

R102 7030003730 S.RES ERJ3GEYJ 274 V (270 kΩ) T 86.1/20.4

R103 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 88/21.2

R104 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) T 91/21.5

R105 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 90.2/19.6

R106 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 89.5/32.3

R107 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 86.8/32.3

R108 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) B 74.9/30.1

R111 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 45.7/25.8

R112 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 47.1/43.5

R113 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 48.8/43.6

R115 7030000310 S.RES MCR10EZHJ 270

Ω (271) T 45.6/38.5

R116 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 57.1/29.7

R118 7030000340 S.RES MCR10EZHJ 470

Ω (471) B 55.4/8.9

R119 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 38/58

R120 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 40.3/63.6

R125 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 43.4/76

R126 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 39/78.6

R127 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 38/63.5

R130 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 35.5/77.8

R134 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 40.5/81.8

R135 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 33.6/58.2

R136 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 39.1/81.8

R141 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 55.1/48.2

R142 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 48/52.7

R143 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) B 52.9/53

R144 7030003300 S.RES ERJ3GEYJ 680 V (68

Ω) B 52.4/56.8

R145 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) B 48.7/59.4

R146 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 47.5/55.6

R147 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) B 54.6/54.6

R148 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 50.5/55.6

R151 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) B 44.6/94.3

R152 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 50.8/99.9

R153 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) B 51.5/96.9

R154 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 46/97.1

R201 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 30.7/110.5

R202 7030008061 S.RES ERA3YED 222V T 37/118.1

R203 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) B 37.1/108.6

R205 7030008061 S.RES ERA3YED 222V T 40.4/116.1

R206 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 35.9/102.3

R207 7030006461 S.RES ERA3YED 152V T 33.3/102.3

R208 7030006461 S.RES ERA3YED 152V T 33.3/104.7

R209 7030006461 S.RES ERA3YED 152V T 36.7/107.3

R210 7310002690 S.TRI RV-145 (RH03A3A13X0CA) 102 T 46.3/108.8

R213 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 42.7/96.9

R214 7510001580 S.TMR NTCG16 4BH 153KT T 35.7/119.4

R221 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 40.1/93.3

R222 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 39.8/84.3

R223 7030003510 S.RES ERJ3GEYJ 392 V (3.9 kΩ) T 40.9/90.1

R224 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 35.9/85.1

R225 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) T 38.5/84.4

R226 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 37.2/84.4

R227 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 34.2/81.2

R229 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) B 35/92.2

R230 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 35.8/89.8

R231 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) B 38.3/87.7

R232 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) B 38.6/83.5

R241 7030009691 S.RES ERA3YED 101V (100

Ω) B 42.4/80.4

R242 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 48.5/86

R243 7510001670 S.TMR NTCG16 4BH 103KT T 49.8/86

R244 7030005681 S.RES ERA3YKD 473V (47 kΩ) B 46/81.1

R246 7030005981 S.RES ERA3YED 333V T 47/84.9

R247 7310002600 S.TRI RV-110 (RH03A3AS4X0AA) 473 T 59.5/50.1

R248 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 66.8/46.5

R249 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 42.4/86.1

R250 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 44.4/86.3

R251 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 45.8/82.1

R253 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) B 42.8/77.2

R261 7030003490 S.RES ERJ3GEYJ 272 V (2.7 kΩ) B 61.6/43.3

R262 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 66.4/41.5

R263 7310002760 S.TRI RV-152 (RH03A3AJ4X0HA) 223 T 63.6/39.5

R264 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 62.6/43.4

R265 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) B 63/41.8

R271 7310002760 S.TRI RV-152 (RH03A3AJ4X0HA) 223 T 40.1/19.5

R272 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 35.7/17.2

R273 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 34.9/15.3

R274 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 26/22.8

R275 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 30.6/24.7

R276 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 31.9/27.7

R277 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 24.3/35.7

R279 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 27.9/43.3

R280 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 29.3/37.5

R281 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 33.1/51.9

R283 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 35.9/50

R284 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 35.5/46.4

R285 7030003840 S.RES ERJ3GEYJ 225 V (2.2 MΩ) T 33.6/46.3

R286 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) B 34.6/26.1

R287 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 35.5/46.1

R290 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) T 38.6/49.3

R292 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 27.3/49.6

R293 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 24.5/49.2

R294 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 27.2/53.4

R301 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 96.1/109

R302 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 83.9/92.4

R303 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 93.4/100.9

R304 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 89/103.5

R305 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 93.4/114

R306 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 98.5/109.3

R307 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 99/119.8

R311 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 88.3/107.5

R312 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 85.6/103.5

R313 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 89/99.9

R314 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 69.8/109.9

R315 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 63/113.8

R316 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 87.8/108.9

R317 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) B 88.6/110.9

R318 7030003730 S.RES ERJ3GEYJ 274 V (270 kΩ) T 79.4/114.8

R320 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 93.5/108.5

R321 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 95.2/100.9

R322 7030003690 S.RES ERJ3GEYJ 124 V (120 kΩ) T 104.6/77.7

R323 7030003690 S.RES ERJ3GEYJ 124 V (120 kΩ) T 106.4/79.7

R324 7030003690 S.RES ERJ3GEYJ 124 V (120 kΩ) T 105.4/75.8

R325 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 83.9/95

R331 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 75.6/138.3

R332 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 83.8/132.3

R333 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 81.8/139.4

R334 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 91/144.9

R335 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 86.7/145.5

R336 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 94.3/143.6

R337 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 85.5/140.1

R338 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 104.1/82.5

R339 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 100.3/82.7

R340 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 85.5/137.3

R341 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 86.9/146.2

R342 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 79.5/145.5

R343 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 79.5/146.8

R351 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 21.4/111.7

R361 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) B 90.7/97

[MAIN-A UNIT] [MAIN-A UNIT]

S.=Surface mount

5 - 14

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R362 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) B 88.9/97

R363 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 94.2/94.6

R364 7030003630 S.RES ERJ3GEYJ 393 V (39 kΩ) B 93.4/93.8

R365 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 60.5/102.3

R366 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 62.2/101.4

R367 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 62.2/100.1

R369 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 60.5/98.8

R370 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 60.9/112.2

R371 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) B 81/95.8

R372 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 78.4/96

R373 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 75/96

R374 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 75/92.4

R375 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 71.9/96

R376 7030009930 S.RES ERJ3GEYJ 825 V (8.2 MΩ) B 66/108

R377 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 72.3/104

R378 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 86.5/108.9

R379 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) T 68.2/106.9

R380 7030003730 S.RES ERJ3GEYJ 274 V (270 kΩ) T 69.8/108.5

R381 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 69.4/102.2

R390 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 100.1/84.6

R391 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 108/84

R392 7310002580 S.TRI RV-108 (RH03A3A15X05A) 104 T 78.3/49

R393 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 83/51.8

R394 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 83/50.5

R395 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 119.8/95.7

R451 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 118.2/123.3

R453 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 134.9/124.4

R454 7030003710 S.RES ERJ3GEYJ 184 V (180 kΩ) B 134.9/124.4

R455 7030003730 S.RES ERJ3GEYJ 274 V (270 kΩ) B 131.5/124.4

R456 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) B 128.1/126.2

R457 7030003510 S.RES ERJ3GEYJ 392 V (3.9 kΩ) T 126.4/126.8

R458 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) B 121.6/112.4

R459 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 121.8/119.8

R460 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 124.7/124.4

R461 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 124.7/126.2

R462 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 128.1/124.4

R463 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 130.9/112.6

R464 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 131.4/110.7

R465 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 124.4/110.6

R466 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 124.6/112.7

R471 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 127.5/111.8

R472 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 131.6/111.5

R473 7030005451 S.RES ERA3YED 153V T 134.8/114.9

R474 7030003390 S.RES ERJ3GEYJ 391 V (390

Ω) T 134/111.5

R475 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 98.1/65.3

R476 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 125.2/115.4

R477 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 132.7/123.7

R478 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 130.8/125.1

R479 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 124.9/114.1

R480 7030005451 S.RES ERA3YED 153V T 134.8/113.6

R501 7030008180 S.RES ERJ12YJ331U (330

Ω) B 85.5/26.1

R502 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) B 79.3/43.1

R503 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 85.5/29.8

R504 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) B 86/36.8

R505 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 88.8/36.8

R507 7310002800 S.TRI RV-156 (RH03A3AJ5) 224 T 85.3/39.8

R509 7310002800 S.TRI RV-156 (RH03A3AJ5) 224 T 85.3/43.3

R510 7310002580 S.TRI RV-108 (RH03A3A15X05A) 104 T 85.3/46.8

R511 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 89.6/38.6

R512 7030009920 S.RES ERJ3GEYJ 335 V (3.3 MΩ) B 83.8/39.8

R513 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) B 84.3/42.4

R514 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 67.5/27.4

R515 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) B 85.3/33.3

R516 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 76.3/18.9

R517 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) B 71.1/18

R518 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 84.1/22.8

R521 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 95.8/23.3

R522 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 95.8/26

R531 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 83.7/52.8

R532 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 83.7/49.4

R533 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 85.5/49.4

R534 7030003660 S.RES ERJ3GEYJ 683 V (68 kΩ) T 90.5/49.8

R535 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 93.2/49.9

R536 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) B 88.1/49.8

R537 7510001420 S.TMR NTCG20 3SH 223JT T 87.5/49.4

R541 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 93.8/48.6

R542 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 94.6/49.8

R543 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) T 96.4/43.5

R544 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) T 91.6/46.9

R545 7310002740 S.TRI RV-150 (RH03A3A14X0FC) 103 T 94/45.5

R546 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 96.4/46.9

R551 7030009920 S.RES ERJ3GEYJ 335 V (3.3 MΩ) B 97/43.5

R552 7030009930 S.RES ERJ3GEYJ 825 V (8.2 MΩ) B 94.3/39.5

R553 7030003840 S.RES ERJ3GEYJ 225 V (2.2 MΩ) T 92/41

R561 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) B 92.7/24.2

R562 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) B 93/27.2

R563 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 96.1/26.8

R564 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 96.1/25

R571 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) B 87.7/32.8

R574 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 87.3/29.8

R601 7030006210 S.RES ERJ12YJ4R7U (4.7

Ω) B 93.3/13

R602 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 96.6/14.3

R603 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 97.4/11.9

R611 7030006210 S.RES ERJ12YJ4R7U (4.7

Ω) B 93.3/8.6

R612 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 95.8/8.9

R613 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 100.2/6.4

R621 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 86.3/7.2

R622 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) B 88.6/12.6

R623 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 88.3/10

R631 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 9/31.5

R632 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) B 8.8/26.4

R633 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) B 10/23.3

R634 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 3.8/25.2

R635 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 10.8/31.5

R636 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) B 12.6/31.5

R637 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) B 14.4/31.5

R638 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) B 4.3/27

R651 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) B 8.7/34.2

R652 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 8.7/35.8

R653 7030003550 S.RES ERJ3GEYJ 822 V (8.2 kΩ) T 22.2/6.4

R691 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 21.5/114.4

R761 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 128.6/19.3

R762 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 129.4/18

R763 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) B 126.8/19.7

R801 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 86/13.4

R802 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 35.5/129.9

R803 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 89.2/17.1

R804 7030000340 S.RES MCR10EZHJ 470

Ω (471) B 19.2/122.4

R806 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 134.9/128

R807 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) B 133.3/129.8

R3003 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 76.6/74.8

R3004 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 75.8/62.3

R3005 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 108.7/99.4

R3006 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 102.2/93.4

R3007 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 104.6/99.7

R3010 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 72.2/90.8

R3011 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) B 79.5/89

R3012 7030003730 S.RES ERJ3GEYJ 274 V (270 kΩ) B 76.8/90.4

R3013 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) B 84.2/79.6

R3015 7030003690 S.RES ERJ3GEYJ 124 V (120 kΩ) B 94/76.9

R3016 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 82.8/85.4

R3017 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 94.3/72

R3018 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 96.1/72

R3019 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) B 94.4/87.9

R3020 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 80.8/81.1

R3021 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 91.4/81.4

R3022 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) B 87.3/78.8

R3023 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 91.3/82.8

R3024 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 85.4/81.4

R3025 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 98.5/85.9

R3026 7030003820 S.RES ERJ3GEYJ 155 V (1.5 MΩ) B 91.9/86.9

R3027 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) B 91.9/89.5

R3028 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) B 88.1/87.5

R3030 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 102.2/94.7

R3032 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 84.8/86.2

R3033 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 78.1/84

R3034 7030003450 S.RES ERJ3GEYJ 122 V (1.2 kΩ) T 78.1/81.1

R3035 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 74.7/84.8

R3036 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 88/90.3

R3037 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 73.8/73.1

R3040 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 80/59.7

R3041 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 80.8/62.3

R3042 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 96.7/77.9

R3501 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 152.1/71.6

R3502 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 142.6/98.7

R3503 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 168.4/84.9

R3505 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) T 144.6/138.5

R3506 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 153.3/136.8

R3507 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 148.5/134

R3508 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 130.2/60.2

R3509 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 132.8/58.8

R3510 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 136.3/60.5

R3511 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 165.1/85.4

R3512 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 168.3/86.3

R3513 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 165.2/87

R3514 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 168.3/87.7

R3515 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 163.9/88.4

R3516 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 168/89.1

R3517 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 163.9/89.8

R3518 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 168/90.5

R3519 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 164.4/91.2

R3520 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 168/91.9

R3521 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 164.4/92.6

R3522 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 168/93.3

R3523 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 164.7/94

R3524 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 168/94.7

R3525 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 165.3/95.4

R3526 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 168/96.2

R3531 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 157.7/69.5

R3532 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 157.7/71

R3533 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 157.7/72.4

R3534 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 157.5/73.7

R3535 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 158/75

R3536 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 157.7/76.6

R3537 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 153.4/78

R3538 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 154.7/81.1

[MAIN-A UNIT] [MAIN-A UNIT]

S.=Surface mount

5 - 15

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R3539 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 156.1/80.3

R3540 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 152.9/81.9

R3541 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 150.7/84.4

R3542 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 151.2/85.7

R3543 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 154.5/84.4

R3544 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 151.7/87

R3545 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 151.3/89.7

R3546 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 152.6/89.7

R3547 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 153.9/89.7

R3548 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 155.2/89.7

R3549 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 165.5/72.7

R3551 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) B 183.3/71.6

R3552 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 176.1/52

R3553 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 176.6/49.4

R3554 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) B 175.7/56.2

R3555 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) B 176.4/58.9

R3556 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) B 176.4/60.8

R3557 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) B 177.4/45.4

R3558 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 174.2/67.4

R3559 7030003270 S.RES ERJ3GEYJ 390 V (39

Ω) B 178/69.5

R3571 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 196.3/36.2

R3572 7030003630 S.RES ERJ3GEYJ 393 V (39 kΩ) T 196.3/44

R3573 7030004120 S.RES ERJ3GEYJ 203 V (20 kΩ) T 196.3/42.7

R3574 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 196.3/41.4

R3575 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 196.3/40.1

R3576 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 196.3/38.8

R3581 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 192.9/36.2

R3582 7030003630 S.RES ERJ3GEYJ 393 V (39 kΩ) T 192.9/44

R3583 7030004120 S.RES ERJ3GEYJ 203 V (20 kΩ) T 192.9/42.7

R3584 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 192.9/41.4

R3585 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 192.9/40.1

R3586 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 192.9/38.8

R3591 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 189.5/36.2

R3592 7030003630 S.RES ERJ3GEYJ 393 V (39 kΩ) T 189.5/44

R3593 7030004120 S.RES ERJ3GEYJ 203 V (20 kΩ) T 189.5/42.7

R3594 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 189.5/41.4

R3595 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 189.5/40.1

R3596 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 189.5/38.8

R3601 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 149.6/94.2

R3602 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 151.2/125.5

R3603 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 136.8/102

R3604 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 141.2/88.2

R3605 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 141.2/89.5

R3606 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 142/91

R3607 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 143.3/88.6

R3608 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 125.6/107.1

R3609 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 133/106.7

R3610 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 105.7/110.6

R3611 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 136.2/107.5

R3612 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 163.8/132.3

R3613 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 164.6/128.8

R3615 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 152.5/125.5

R3616 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 153.8/125.5

R3617 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 149.8/97.3

R3618 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 149.8/96

R3620 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 148.3/69.8

R3621 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 140.9/68.8

R3622 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 142.3/74.2

R3623 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 141.8/72.3

R3625 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 142.8/77.8

R3626 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 142.3/77.5

R3627 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) B 143.9/73.4

R3628 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) B 147/77

R3631 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 141.9/93.7

R3632 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 140.3/93.7

R3633 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 131/92.8

R3634 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 131/90.2

R3635 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 131/91.5

R3636 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 131/88.5

R3637 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 141.8/90.3

R3638 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 140.2/90.3

R3639 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 134.5/92.8

R3640 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 135/90.2

R3641 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 134.2/91.5

R3642 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 134.2/88.8

R3643 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 170/81.9

R3644 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 178.6/79.1

R3645 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 166.9/80

R3646 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 176.5/81.3

R3647 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 172.1/79.3

R3648 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 171.9/82.7

R3649 7510001580 S.TMR NTCG16 4BH 153KT T 122.9/90.3

R3650 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 123.1/87.3

R3651 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 152.5/61.7

R3652 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 153/66.4

R3653 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) B 154/69.7

R3654 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 135.4/55.6

R3655 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 138.8/94.4

R3656 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 113.4/106.6

R3657 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 156/54.6

R3658 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 152.3/52.8

R3659 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 122.9/89

R3660 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 125.6/89.5

R3701 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 168.2/79.6

R3702 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 149.1/49.2

R3703 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 149.2/41.4

R3704 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 142.5/46.8

R3705 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 136.8/48.4

R3706 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 133.6/48.7

R3707 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 138.4/46.5

R3709 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 169.7/86.2

R3710 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 149.1/45.3

R3711 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 149.1/46.6

R3712 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 169.9/82.3

R3721 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 156.4/29

R3722 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 144.2/30.9

R3723 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 139.7/30.9

R3724 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 141.6/30.9

R3725 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 146.1/44

R3726 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 142.7/42.3

R3727 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 105.1/44.9

R3728 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 104.3/43

R3732 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 169/114.5

R3740 7030009891 S.RES ERA3YED 151V B 74.7/21.2

R3741 7030009851 S.RES ERA3YED 271V B 73.1/22.5

R3742 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 77.7/110.4

R3743 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 77.3/108.8

R3744 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 38.2/41.2

R3745 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 116.1/76.5

R3746 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 114.8/76.5

R3753 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 129.4/68.5

R3754 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 128.2/70.2

R3755 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 128.2/71.5

R3756 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 128.2/72.8

R3757 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) B 128.2/74.1

R3758 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 128.2/75.4

R3759 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 137.1/76.7

R3761 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 128.2/76.7

R3762 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 128.4/78

R3763 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 128.4/79.3

R3764 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 128.4/80.6

R3765 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 128.4/81.9

R3766 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 128.4/83.2

R3767 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 128.4/84.5

R3768 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 128.4/85.8

R3769 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 128.4/83.2

R3770 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 128.4/84.5

R3771 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 128.4/85.8

R3772 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 155.7/126.3

R3773 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 155.7/125

R3774 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 155.7/123.7

R3775 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) T 154.6/130.4

R3776 7030003620 S.RES ERJ3GEYJ 333 V (33 kΩ) T 154.6/131.7

R3777 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 157.3/131.7

R3778 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 157.3/130.4

R3779 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 162.4/125.4

R3780 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 163.7/125.4

R3781 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 162.7/97.1

R3782 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 161.2/97.1

R3783 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 134.4/58.8

R3784 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 156.7/51.6

R3785 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) B 145.2/97.3

R3786 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 143.3/88.4

R3787 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 122.2/79

R3801 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 82.2/15.4

R3802 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 84.8/15.3

R3803 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) B 79.6/16.4

C102 4030006880 S.CER C1608 JB 1H 472K-T T 86.1/21.7

C103 4030011600 S.CER C1608 JB 1E 104K-T T 91.8/24.6

C104 4030011600 S.CER C1608 JB 1E 104K-T T 91.9/28.3

C113 4030006850 S.CER C1608 JB 1H 471K-T B 49.9/20.5

C115 4030011600 S.CER C1608 JB 1E 104K-T B 48.8/44.6

C116 4030011600 S.CER C1608 JB 1E 104K-T B 48.7/37.5

C118 4510006220 S.ELE ECEV1CA101UP T 53.2/40.8

C119 4030006880 S.CER C1608 JB 1H 472K-T B 50.3/52.9

C121 4030011600 S.CER C1608 JB 1E 104K-T B 47.5/11.2

C122 4030011600 S.CER C1608 JB 1E 104K-T B 49.2/9.4

C123 4030011600 S.CER C1608 JB 1E 104K-T B 59.9/29.2

C125 4030011600 S.CER C1608 JB 1E 104K-T T 45.6/41.9

C126 4030011600 S.CER C1608 JB 1E 104K-T B 33.6/60.3

C127 4030006880 S.CER C1608 JB 1H 472K-T B 42.7/65.2

C129 4030006880 S.CER C1608 JB 1H 472K-T B 43.2/72.1

C130 4030011600 S.CER C1608 JB 1E 104K-T T 40.8/76

C131 4030011600 S.CER C1608 JB 1E 104K-T B 35.3/78.6

C132 4030006880 S.CER C1608 JB 1H 472K-T B 33.5/63.2

C133 4030006880 S.CER C1608 JB 1H 472K-T B 35.9/75.8

C135 4030011600 S.CER C1608 JB 1E 104K-T T 35.5/79.1

C141 4030006860 S.CER C1608 JB 1H 102K-T B 55/50.1

C142 4030011600 S.CER C1608 JB 1E 104K-T B 52.4/55.5

C144 4030011600 S.CER C1608 JB 1E 104K-T B 53.5/58.3

C145 4030006880 S.CER C1608 JB 1H 472K-T B 47.6/65.1

C146 4030011600 S.CER C1608 JB 1E 104K-T B 56.1/54.6

C151 4510006220 S.ELE ECEV1CA101UP T 56.1/87.4

C152 4030011600 S.CER C1608 JB 1E 104K-T T 48.3/90.3

[MAIN-A UNIT] [MAIN-A UNIT]

S.=Surface mount

5 - 16

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C153 4030011600 S.CER C1608 JB 1E 104K-T T 46.2/89.5

C154 4510006220 S.ELE ECEV1CA101UP T 52.1/101.3

C155 4030011600 S.CER C1608 JB 1E 104K-T T 49.9/90.3

C156 4030011600 S.CER C1608 JB 1E 104K-T T 52.7/91.2

C157 4030006860 S.CER C1608 JB 1H 102K-T B 47.7/99.9

C158 4340000250 S.MLR ECHU 1C 104JX5 T 34.9/100.1

C201 4510004630 S.ELE ECEV1CA100SR T 31.7/114.8

C202 4510004630 S.ELE ECEV1CA100SR T 42.1/112.2

C203 4340000200 S.MLR ECHU 1H 271JX5 T 35.7/105.7

C204 4340000230 S.MLR ECHU 1H 272JB5 T 35.7/103.9

C205 4340000240 S.MLR ECHU 1C 682JX5 T 34.4/108.1

C206 4340000220 S.MLR ECHU 1H 681JB5 T 32.6/107.7

C207 4340000210 S.MLR ECHU 1H 331JX5 T 39.8/108.3

C208 4340000190 S.MLR ECHU 1H 101JX5 T 39.8/106.5

C209 4510006670 S.ELE ECEV1CA471P T 173.8/142.2

C211 4030006880 S.CER C1608 JB 1H 472K-T B 60.4/82

C221 4030006860 S.CER C1608 JB 1H 102K-T B 42.7/93.5

C222 4510004630 S.ELE ECEV1CA100SR T 32/96.2

C223 4030011600 S.CER C1608 JB 1E 104K-T T 31.7/93

C224 4550006080 S.TAN TEESVB2 1C 106M8L B 43.7/85.4

C225 4030011600 S.CER C1608 JB 1E 104K-T T 40.9/91.4

C226 4030011600 S.CER C1608 JB 1E 104K-T T 35.5/81.4

C227 4510004630 S.ELE ECEV1CA100SR T 30.7/79.4

C228 4030011600 S.CER C1608 JB 1E 104K-T B 35/87.7

C229 4030006850 S.CER C1608 JB 1H 471K-T T 41.8/88.7

C231 4030011600 S.CER C1608 JB 1E 104K-T B 36.8/87.7

C241 4030011600 S.CER C1608 JB 1E 104K-T T 66.8/45.2

C242 4030006880 S.CER C1608 JB 1H 472K-T B 41.7/57.8

C243 4030006880 S.CER C1608 JB 1H 472K-T T 42.4/84.8

C244 4030006880 S.CER C1608 JB 1H 472K-T T 43.1/83.5

C245 4030011600 S.CER C1608 JB 1E 104K-T B 43.7/80.4

C246 4030011600 S.CER C1608 JB 1E 104K-T T 48.5/82.6

C247 4030011600 S.CER C1608 JB 1E 104K-T T 42.4/87.4

C261 4030006880 S.CER C1608 JB 1H 472K-T B 45.6/77.2

C262 4030008920 S.CER C1608 JB 1H 473K-T B 64.3/43.7

C264 4030011600 S.CER C1608 JB 1E 104K-T B 61.5/32.6

C266 4030006860 S.CER C1608 JB 1H 102K-T T 66.4/38.8

C267 4510004630 S.ELE ECEV1CA100SR T 59.3/40.7

C268 4030011600 S.CER C1608 JB 1E 104K-T B 63.6/40.5

C271 4030011600 S.CER C1608 JB 1E 104K-T T 34.3/17.2

C272 4030011600 S.CER C1608 JB 1E 104K-T B 34.9/13.4

C274 4030011600 S.CER C1608 JB 1E 104K-T T 30.6/23.4

C275 4030011600 S.CER C1608 JB 1E 104K-T B 30.6/23.7

C279 4030011600 S.CER C1608 JB 1E 104K-T T 23.3/38.3

C280 4030006880 S.CER C1608 JB 1H 472K-T T 27.1/47.9

C281 4030006850 S.CER C1608 JB 1H 471K-T B 31.3/51.9

C283 4030011600 S.CER C1608 JB 1E 104K-T T 31.5/36.4

C284 4510004640 S.ELE ECEV1CA470SP T 38/38.5

C285 4030011810 S.CER C1608 JB 1A 224K-T T 41.2/49.3

C286 4510006240 S.ELE ECEV1CA221P T 37.3/60.9

C287 4510004640 S.ELE ECEV1CA470SP T 36.9/30.4

C288 4030011600 S.CER C1608 JB 1E 104K-T T 24.5/50.5

C289 4030006870 S.CER C1608 JB 1H 222K-T T 30/51.2

C301 4510005890 S.ELE ECEV1AAN100R T 93.6/104.3

C302 4510005890 S.ELE ECEV1AAN100R T 80.7/93.7

C303 4510005890 S.ELE ECEV1AAN100R T 97.5/99

C304 4030011600 S.CER C1608 JB 1E 104K-T B 89/101.7

C305 4030011600 S.CER C1608 JB 1E 104K-T B 91.6/100.9

C306 4030011600 S.CER C1608 JB 1E 104K-T T 94.7/113.5

C307 4030011600 S.CER C1608 JB 1E 104K-T T 98.5/110.6

C308 4510005890 S.ELE ECEV1AAN100R T 95.5/122.7

C311 4510005860 S.ELE ECEV1HA2R2SR T 87.5/98.9

C312 4030006870 S.CER C1608 JB 1H 222K-T B 85.6/101.7

C313 4510004630 S.ELE ECEV1CA100SR T 81.6/98.9

C314 4510004630 S.ELE ECEV1CA100SR T 86.5/104

C315 4510004630 S.ELE ECEV1CA100SR T 63.7/117.5

C316 4510006670 S.ELE ECEV1CA471P T 87.1/116.4

C317 4030012600 S.CER C2012 JB 1A 105M-T B 82.9/102

C318 4510004440 S.ELE ECEV1HA010SR T 92.7/99

C319 4030012600 S.CER C2012 JB 1A 105M-T T 91.9/108.7

C320 4030012600 S.CER C2012 JB 1A 105M-T B 96.7/98.9

C321 4030006880 S.CER C1608 JB 1H 472K-T T 107.3/74.9

C322 4030006880 S.CER C1608 JB 1H 472K-T T 105.4/74.5

C323 4030006860 S.CER C1608 JB 1H 102K-T T 104.6/80.5

C324 4030006860 S.CER C1608 JB 1H 102K-T T 106/77.7

C325 4030011600 S.CER C1608 JB 1E 104K-T T 108.5/76.9

C326 4030011600 S.CER C1608 JB 1E 104K-T T 109.9/76.9

C327 4030012600 S.CER C2012 JB 1A 105M-T B 90.3/106.2

C331 4510004630 S.ELE ECEV1CA100SR T 76.4/141.8

C332 4510004630 S.ELE ECEV1CA100SR T 79.1/135.9

C333 4030008950 S.CER C2012 JB 1C 823K-T B 88.9/145.2

C334 4510004630 S.ELE ECEV1CA100SR T 81.8/142.4

C335 4030008880 S.CER C1608 JB 1H 223K-T T 84.1/148.3

C336 4030011600 S.CER C1608 JB 1E 104K-T B 93.2/146.8

C337 4510006670 S.ELE ECEV1CA471P T 102.4/138.8

C338 4510006670 S.ELE ECEV1CA471P T 91.6/138.8

C340 4510006220 S.ELE ECEV1CA101UP T 88.3/128.1

C341 4030011600 S.CER C1608 JB 1E 104K-T B 81.2/145.9

C351 4030006880 S.CER C1608 JB 1H 472K-T T 15.5/110.9

C352 4030006880 S.CER C1608 JB 1H 472K-T T 18.2/110.9

C353 4030006880 S.CER C1608 JB 1H 472K-T B 5.7/89.9

C354 4030006880 S.CER C1608 JB 1H 472K-T B 13.3/95.2

C361 4030011600 S.CER C1608 JB 1E 104K-T B 93.3/97.8

C362 4030011600 S.CER C1608 JB 1E 104K-T B 88.4/93.7

C363 4510004630 S.ELE ECEV1CA100SR T 59.2/104.5

C364 4510004630 S.ELE ECEV1CA100SR T 65.7/103.7

C365 4550000270 S.TAN TEESVA 1E 474M8L B 69.8/107.2

C371 4030012600 S.CER C2012 JB 1A 105M-T B 78.7/94

C372 4550000460 S.TAN TEESVA 1C 105M8L B 72.5/96.9

C374 4510004630 S.ELE ECEV1CA100SR T 75.4/95.5

C375 4510004630 S.ELE ECEV1CA100SR T 75.3/100.3

C376 4030006900 S.CER C1608 JB 1H 103K-T T 71.7/97.9

C377 4510006670 S.ELE ECEV1CA471P T 78.7/108.1

C378 4030012600 S.CER C2012 JB 1A 105M-T B 72/101.6

C379 4510004440 S.ELE ECEV1HA010SR T 65.1/109.3

C390 4030011600 S.CER C1608 JB 1E 104K-T T 101.6/82.7

C391 4030011600 S.CER C1608 JB 1E 104K-T T 109.9/84.8

C392 4030011600 S.CER C1608 JB 1E 104K-T T 81.1/51

C453 4510004440 S.ELE ECEV1HA010SR T 121.7/124.3

C456 4030007130 S.CER C1608 CH 1H 101J-T B 134.9/126.2

C457 4510005860 S.ELE ECEV1HA2R2SR T 134.2/118.4

C458 4030008880 S.CER C1608 JB 1H 223K-T B 131.5/126.2

C459 4030010040 S.CER C1608 JB 1H 561K-T B 131.5/128

C460 4030008880 S.CER C1608 JB 1H 223K-T T 129.1/126.8

C461 4030012600 S.CER C2012 JB 1A 105M-T B 121.5/116.1

C462 4030007130 S.CER C1608 CH 1H 101J-T B 120/119.8

C463 4030011600 S.CER C1608 JB 1E 104K-T B 121.5/124

C464 4510004630 S.ELE ECEV1CA100SR T 122.3/118.2

C465 4030011600 S.CER C1608 JB 1E 104K-T B 134/111.9

C466 4510004440 S.ELE ECEV1HA010SR T 117.5/115.7

C467 4030006860 S.CER C1608 JB 1H 102K-T T 116.8/123.3

C471 4030012600 S.CER C2012 JB 1A 105M-T T 124.6/112.5

C472 4510005860 S.ELE ECEV1HA2R2SR T 128.6/112.7

C473 4510004630 S.ELE ECEV1CA100SR T 94.7/61.1

C474 4510006220 S.ELE ECEV1CA101UP T 128.2/120.1

C475 4030012600 S.CER C2012 JB 1A 105M-T T 134.9/122.7

C476 4030011600 S.CER C1608 JB 1E 104K-T B 126.8/109.3

C477 4510006670 S.ELE ECEV1CA471P T 119.5/106.5

C502 4030012600 S.CER C2012 JB 1A 105M-T B 84.3/46.4

C504 4030012600 S.CER C2012 JB 1A 105M-T T 80.1/42.6

C506 4030012610 S.CER C2012 JB 1C 474K-T T 81.9/41.9

C507 4030011600 S.CER C1608 JB 1E 104K-T T 83/28.5

C508 4550006080 S.TAN TEESVB2 1C 106M8L T 76.7/31.6

C510 4030012600 S.CER C2012 JB 1A 105M-T B 79.4/46

C552 4030011600 S.CER C1608 JB 1E 104K-T T 93.5/38.5

C553 4030011600 S.CER C1608 JB 1E 104K-T T 97.5/40.6

C561 4510004630 S.ELE ECEV1CA100SR T 94.6/32.3

C571 4510004630 S.ELE ECEV1CA100SR T 88.7/35.3

C572 4030011600 S.CER C1608 JB 1E 104K-T B 89.8/26.9

C573 4030011600 S.CER C1608 JB 1E 104K-T T 95.4/37.7

C601 4510005810 S.ELE ECEV1HAR47R T 95.1/19.1

C611 4510005810 S.ELE ECEV1HAR47R T 103.6/9.2

C631 4030006880 S.CER C1608 JB 1H 472K-T B 7.2/21.6

C632 4030006880 S.CER C1608 JB 1H 472K-T B 7.2/31.5

C641 4030006880 S.CER C1608 JB 1H 472K-T B 30.4/94

C642 4030006880 S.CER C1608 JB 1H 472K-T B 30.4/95.8

C643 4030006880 S.CER C1608 JB 1H 472K-T T 22.8/114.4

C651 4030006880 S.CER C1608 JB 1H 472K-T B 8.7/37.4

C652 4030006880 S.CER C1608 JB 1H 472K-T T 23.5/3.2

C653 4030006880 S.CER C1608 JB 1H 472K-T B 6.4/38.5

C661 4030006880 S.CER C1608 JB 1H 472K-T B 21.8/24.4

C662 4030006880 S.CER C1608 JB 1H 472K-T B 21.7/18.3

C663 4030006880 S.CER C1608 JB 1H 472K-T T 5.7/32

C664 4030006880 S.CER C1608 JB 1H 472K-T B 23.5/20.9

C665 4030006880 S.CER C1608 JB 1H 472K-T T 13.7/2.9

C666 4030006880 S.CER C1608 JB 1H 472K-T B 21.1/30.3

C667 4030006880 S.CER C1608 JB 1H 472K-T T 22.2/7.7

C668 4030006880 S.CER C1608 JB 1H 472K-T B 19.6/42.4

C669 4030006880 S.CER C1608 JB 1H 472K-T B 16.2/31.5

C670 4030006880 S.CER C1608 JB 1H 472K-T B 22.2/40.3

C681 4030006880 S.CER C1608 JB 1H 472K-T B 27.9/73.9

C691 4030006880 S.CER C1608 JB 1H 472K-T T 21.5/117.1

C692 4030006880 S.CER C1608 JB 1H 472K-T T 22.8/117.1

C695 4030006880 S.CER C1608 JB 1H 472K-T B 9.9/140.2

C701 4030007130 S.CER C1608 CH 1H 101J-T B 14.6/81

C702 4030011600 S.CER C1608 JB 1E 104K-T T 125/35.2

C703 4030011600 S.CER C1608 JB 1E 104K-T T 127/31.9

C704 4030011600 S.CER C1608 JB 1E 104K-T T 127/30.6

C705 4030011600 S.CER C1608 JB 1E 104K-T T 127/29.3

C706 4030011600 S.CER C1608 JB 1E 104K-T T 21.1/137.8

C707 4030011600 S.CER C1608 JB 1E 104K-T T 19.9/148.8

C708 4030011600 S.CER C1608 JB 1E 104K-T T 22.4/137.8

C709 4030011600 S.CER C1608 JB 1E 104K-T T 21.9/148.8

C710 4030011600 S.CER C1608 JB 1E 104K-T T 23.7/137.8

C711 4030011600 S.CER C1608 JB 1E 104K-T T 23.9/148.8

C712 4030011600 S.CER C1608 JB 1E 104K-T T 25.9/148.8

C713 4030011600 S.CER C1608 JB 1E 104K-T T 27.9/148.8

C714 4030011600 S.CER C1608 JB 1E 104K-T T 29.9/148.8

C715 4030011600 S.CER C1608 JB 1E 104K-T T 35.9/148.8

C716 4030011600 S.CER C1608 JB 1E 104K-T T 39/139.4

C801 4030011600 S.CER C1608 JB 1E 104K-T T 15.8/141.3

C802 4510004630 S.ELE ECEV1CA100SR T 12.3/140.7

C803 4030011600 S.CER C1608 JB 1E 104K-T T 18.3/148.8

C804 4510006220 S.ELE ECEV1CA101UP T 13.1/146.7

C805 4030011600 S.CER C1608 JB 1E 104K-T B 26.6/136.5

C806 4510004630 S.ELE ECEV1CA100SR T 26.8/136.3

[MAIN-A UNIT] [MAIN-A UNIT]

S.=Surface mount

5 - 17

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C807 4030011600 S.CER C1608 JB 1E 104K-T B 23.6/135.4

C808 4510006220 S.ELE ECEV1CA101UP T 22.6/128.5

C813 4510006220 S.ELE ECEV1CA101UP T 30.2/128

C814 4030011600 S.CER C1608 JB 1E 104K-T B 68/56.8

C815 4510004630 S.ELE ECEV1CA100SR T 68.1/51.5

C816 4030011600 S.CER C1608 JB 1E 104K-T B 66.4/55

C817 4510006220 S.ELE ECEV1CA101UP T 65.9/57.5

C818 4550006250 S.TAN TEESVA 1A 106M8L T 131.5/141.3

C819 4550006050 S.TAN TEESVA 0J 106M8L T 138.7/141.3

C826 4030011600 S.CER C1608 JB 1E 104K-T B 72.2/12.5

C827 4030011600 S.CER C1608 JB 1E 104K-T B 63.2/7.7

C828 4030011600 S.CER C1608 JB 1E 104K-T B 65.2/6.3

C829 4030011600 S.CER C1608 JB 1E 104K-T B 68.2/12.5

C831 4030011600 S.CER C1608 JB 1E 104K-T B 70.6/4.6

C832 4030011600 S.CER C1608 JB 1E 104K-T B 74.2/12.5

C833 4030006880 S.CER C1608 JB 1H 472K-T B 76.8/6.9

C834 4030011600 S.CER C1608 JB 1E 104K-T T 145.8/2.7

C835 4510006220 S.ELE ECEV1CA101UP T 29.9/4.8

C836 4550006770 S.TAN TEESVD2 1C 476M-12R B 81.6/4.8

C837 4030006880 S.CER C1608 JB 1H 472K-T B 138.2/128

C838 4030006880 S.CER C1608 JB 1H 472K-T T 145.1/11.9

C853 4030011600 S.CER C1608 JB 1E 104K-T T 153.9/2.7

C854 4030006880 S.CER C1608 JB 1H 472K-T T 186.5/59

C855 4030006880 S.CER C1608 JB 1H 472K-T T 197.2/57

C856 4030011600 S.CER C1608 JB 1E 104K-T T 155.5/4

C857 4030011600 S.CER C1608 JB 1E 104K-T T 197.2/64

C859 4030011600 S.CER C1608 JB 1E 104K-T T 197.2/70

C861 4030011600 S.CER C1608 JB 1E 104K-T T 197.2/90.9

C863 4030011600 S.CER C1608 JB 1E 104K-T T 197.2/99.9

C864 4030011600 S.CER C1608 JB 1E 104K-T T 197.2/84.9

C865 4030006880 S.CER C1608 JB 1H 472K-T T 197.2/81.9

C866 4030006880 S.CER C1608 JB 1H 472K-T T 197.2/80.6

C867 4510006220 S.ELE ECEV1CA101UP T 137.1/129.8

C868 4030011600 S.CER C1608 JB 1E 104K-T B 137.5/125.4

C869 4510006850 S.ELE ECEV1CA4R7NR (16V 4.7) T 114.7/91.6

C3001 4030012600 S.CER C2012 JB 1A 105M-T T 95.9/76.3

C3003 4030011600 S.CER C1608 JB 1E 104K-T B 89.4/63

C3004 4030012600 S.CER C2012 JB 1A 105M-T B 94.5/68.3

C3005 4030011600 S.CER C1608 JB 1E 104K-T B 86.8/62.3

C3006 4030011600 S.CER C1608 JB 1E 104K-T B 77.6/62.3

C3008 4510006850 S.ELE ECEV1CA4R7NR (16V 4.7) T 84.2/73.9

C3009 4510007570 S.ELE EEVHB1C220UR T 87.6/60.6

C3010 4510006670 S.ELE ECEV1CA471P T 92.1/69.1

C3011 4510006670 S.ELE ECEV1CA471P T 76.8/63.6

C3012 4030008920 S.CER C1608 JB 1H 473K-T B 85/77.8

C3013 4030011600 S.CER C1608 JB 1E 104K-T T 95.8/86.2

C3014 4510004630 S.ELE ECEV1CA100SR T 95.1/82.1

C3015 4510004630 S.ELE ECEV1CA100SR T 80/87.4

C3016 4510004440 S.ELE ECEV1HA010SR T 74.9/90.7

C3017 4510004630 S.ELE ECEV1CA100SR T 74.5/79

C3018 4510004630 S.ELE ECEV1CA100SR T 79.6/78.1

C3019 4510004630 S.ELE ECEV1CA100SR T 87.1/89.3

C3020 4510004630 S.ELE ECEV1CA100SR T 74.5/84.9

C3021 4030011600 S.CER C1608 JB 1E 104K-T B 88/76.8

C3025 4510004630 S.ELE ECEV1CA100SR T 92.2/77

C3030 4030011600 S.CER C1608 JB 1E 104K-T T 102.2/92.1

C3031 4030011600 S.CER C1608 JB 1E 104K-T T 104.5/97

C3032 4030011600 S.CER C1608 JB 1E 104K-T T 81.8/83.3

C3501 4030007020 S.CER C1608 CH 1H 120J-T T 140.3/95.7

C3502 4030007020 S.CER C1608 CH 1H 120J-T T 143/94.8

C3503 4030006900 S.CER C1608 JB 1H 103K-T T 144.7/89.3

C3504 4030006900 S.CER C1608 JB 1H 103K-T T 140.7/81.9

C3505 4030006900 S.CER C1608 JB 1H 103K-T T 156.3/68.7

C3506 4030006880 S.CER C1608 JB 1H 472K-T T 143.3/136.9

C3507 4030006900 S.CER C1608 JB 1H 103K-T T 150.3/139.8

C3508 4030011600 S.CER C1608 JB 1E 104K-T T 134.1/56.1

C3509 4030006900 S.CER C1608 JB 1H 103K-T T 132.8/56.1

C3510 4510004630 S.ELE ECEV1CA100SR T 128.7/53.7

C3511 4030006900 S.CER C1608 JB 1H 103K-T T 162/94.8

C3512 4030006900 S.CER C1608 JB 1H 103K-T T 166.8/90.2

C3513 4510006670 S.ELE ECEV1CA471P T 165.7/100.9

C3552 4030006900 S.CER C1608 JB 1H 103K-T T 158/51.6

C3553 4030006900 S.CER C1608 JB 1H 103K-T T 176.2/69.4

C3554 4030006900 S.CER C1608 JB 1H 103K-T T 182.3/70.3

C3555 4030006900 S.CER C1608 JB 1H 103K-T T 187.4/32.5

C3556 4030006900 S.CER C1608 JB 1H 103K-T T 167.1/41.6

C3557 4030006900 S.CER C1608 JB 1H 103K-T T 188.2/34.4

C3558 4510006220 S.ELE ECEV1CA101UP T 183.5/4.5

C3560 4030006900 S.CER C1608 JB 1H 103K-T B 171.9/51.4

C3561 4030006880 S.CER C1608 JB 1H 472K-T T 171.1/72.2

C3562 4510006220 S.ELE ECEV1CA101UP T 176.8/80.5

C3601 4030011600 S.CER C1608 JB 1E 104K-T T 149/139.8

C3602 4510006220 S.ELE ECEV1CA101UP T 126.9/134.6

C3603 4030011600 S.CER C1608 JB 1E 104K-T T 122.4/134.3

C3604 4510006670 S.ELE ECEV1CA471P T 114.8/61.1

C3605 4030011600 S.CER C1608 JB 1E 104K-T T 126/60.8

C3606 4030007170 S.CER C1608 CH 1H 221J-T B 149.6/92.9

C3607 4030006860 S.CER C1608 JB 1H 102K-T T 139.8/85.3

C3608 4030006900 S.CER C1608 JB 1H 103K-T T 134.9/107.5

C3609 4030006900 S.CER C1608 JB 1H 103K-T T 127.5/107.9

C3610 4030006900 S.CER C1608 JB 1H 103K-T T 164.6/130.2

C3611 4030006880 S.CER C1608 JB 1H 472K-T B 153/96

C3612 4030006880 S.CER C1608 JB 1H 472K-T B 153/97.6

C3614 4030006880 S.CER C1608 JB 1H 472K-T T 148.3/71.1

C3615 4030006880 S.CER C1608 JB 1H 472K-T T 139.6/68.8

C3624 4030006880 S.CER C1608 JB 1H 472K-T T 143.1/72.3

C3625 4030006880 S.CER C1608 JB 1H 472K-T B 143.9/75.2

C3626 4030006880 S.CER C1608 JB 1H 472K-T B 146/77.9

C3631 4030006880 S.CER C1608 JB 1H 472K-T B 132.5/94.5

C3632 4030006880 S.CER C1608 JB 1H 472K-T B 144.4/85.6

C3633 4030006880 S.CER C1608 JB 1H 472K-T B 145.3/84.7

C3634 4030006880 S.CER C1608 JB 1H 472K-T B 146.2/83.8

C3635 4030006880 S.CER C1608 JB 1H 472K-T B 147.1/82.8

C3636 4030006880 S.CER C1608 JB 1H 472K-T B 148.1/81.9

C3637 4030006880 S.CER C1608 JB 1H 472K-T B 149/81

C3638 4030011600 S.CER C1608 JB 1E 104K-T T 121.8/94.9

C3641 4030006880 S.CER C1608 JB 1H 472K-T T 170.8/79.3

C3642 4030006880 S.CER C1608 JB 1H 472K-T B 177.8/81.3

C3643 4030006880 S.CER C1608 JB 1H 472K-T T 169.5/80

C3651 4030006900 S.CER C1608 JB 1H 103K-T T 150.4/62.8

C3652 4030006900 S.CER C1608 JB 1H 103K-T T 167.1/31.2

C3653 4030006900 S.CER C1608 JB 1H 103K-T B 143.5/38.8

C3654 4030006900 S.CER C1608 JB 1H 103K-T T 142.2/68.8

C3655 4030006930 S.CER C1608 CH 1H 020C-T T 134.6/53.7

C3656 4030006900 S.CER C1608 JB 1H 103K-T T 136.2/51

C3657 4030006900 S.CER C1608 JB 1H 103K-T B 152.4/50.3

C3658 4030006880 S.CER C1608 JB 1H 472K-T T 154.9/52.7

C3659 4030007130 S.CER C1608 CH 1H 101J-T T 155.6/56.5

C3702 4030006880 S.CER C1608 JB 1H 472K-T T 170.9/107.5

C3704 4030006880 S.CER C1608 JB 1H 472K-T B 146.4/39.8

C3706 4030006880 S.CER C1608 JB 1H 472K-T T 169.7/87.5

C3707 4030006880 S.CER C1608 JB 1H 472K-T B 149.1/44

C3708 4030006880 S.CER C1608 JB 1H 472K-T B 149.9/47.9

C3709 4030006880 S.CER C1608 JB 1H 472K-T B 168.3/84.6

C3711 4030006900 S.CER C1608 JB 1H 103K-T T 135.5/48.4

C3712 4030006900 S.CER C1608 JB 1H 103K-T T 141.4/50.8

C3721 4030006880 S.CER C1608 JB 1H 472K-T T 159.2/29

C3722 4030006880 S.CER C1608 JB 1H 472K-T T 142.9/30.9

C3723 4030006880 S.CER C1608 JB 1H 472K-T B 146.1/42.7

C3724 4030006880 S.CER C1608 JB 1H 472K-T T 104.3/41.7

C3725 4030011600 S.CER C1608 JB 1E 104K-T T 136.5/32.6

C3750 4030012610 S.CER C2012 JB 1C 474K-T T 120.5/72

C3751 4030006880 S.CER C1608 JB 1H 472K-T B 132.6/66.1

C3752 4030006880 S.CER C1608 JB 1H 472K-T B 133.4/67.6

C3753 4030006880 S.CER C1608 JB 1H 472K-T B 133.4/68.9

C3754 4030006880 S.CER C1608 JB 1H 472K-T B 132.6/70.2

C3755 4030006880 S.CER C1608 JB 1H 472K-T B 131.6/71.5

C3756 4030006880 S.CER C1608 JB 1H 472K-T B 132.1/72.8

C3757 4030006880 S.CER C1608 JB 1H 472K-T B 131.6/74.1

C3758 4030006880 S.CER C1608 JB 1H 472K-T B 132.1/75.4

C3761 4030006880 S.CER C1608 JB 1H 472K-T B 131.6/76.7

C3762 4030006880 S.CER C1608 JB 1H 472K-T B 132.1/78

C3763 4030006880 S.CER C1608 JB 1H 472K-T B 131.6/79.3

C3764 4030006880 S.CER C1608 JB 1H 472K-T B 132.1/80.6

C3765 4030006880 S.CER C1608 JB 1H 472K-T B 132.6/81.9

C3766 4030006880 S.CER C1608 JB 1H 472K-T B 133.1/83.2

C3767 4030006880 S.CER C1608 JB 1H 472K-T B 132.1/84.5

C3768 4030006880 S.CER C1608 JB 1H 472K-T B 131.6/85.8

C3769 4030006880 S.CER C1608 JB 1H 472K-T T 161.1/125.4

C3770 4030006880 S.CER C1608 JB 1H 472K-T T 149.9/125.5

C3771 4030011600 S.CER C1608 JB 1E 104K-T T 73.8/21.8

C3772 4030011600 S.CER C1608 JB 1E 104K-T T 137.7/69.6

C3773 4030011600 S.CER C1608 JB 1E 104K-T T 134/85.2

C3774 4030011600 S.CER C1608 JB 1E 104K-T T 101.7/45.8

C3775 4510006670 S.ELE ECEV1CA471P T 144.7/120.1

C3801 4030007090 S.CER C1608 CH 1H 470J-T B 82.2/11.9

C3802 4030007090 S.CER C1608 CH 1H 470J-T B 84.3/9.4

C3803 4030007090 S.CER C1608 CH 1H 470J-T T 84.4/17.2

RL351 6330001320 RLY AHY103 T 8.8/100.5

RL691 6330000540 RLY OMR-109F T 14.5/136.8

CP213 6910009670 S.CHK HK3-S-T T 53.1/109.6

CP243 6910009670 S.CHK HK3-S-T T 42.9/78.4

CP271 6910009670 S.CHK HK3-S-T T 32/51.4

CP501 6910009670 S.CHK HK3-S-T T 83.5/26.3

J101 6510007020 CNR TMP-J01X-V6 T 49.3/7.2

J201 6910012460 CNR IMSA-9180S-30A T 67.9/67.6

J202 6910012460 CNR IMSA-9180S-30A T 174.5/122

J211 6510007020 CNR TMP-J01X-V6 T 38.5/102.1

J351 6450000140 CNR HSJ0807-01-010 T 5.5/93.5

J641 6510018970 S.CNR B4B-PH-SM3-TB T 15.6/84.5

J661 6510023670 CNR TCS4480-01-4151 T 11.5/20.5

J662 6510023660 CNR TCS4470-01-4151 T 11.5/44.5

J681 6450001490 CNR HLJ7001-01-3010 T 8/64.5

J691 6450001130 CNR JPJ2042-01-110 T 3/127.5

J701 6450000140 CNR HSJ0807-01-010 T 5.5/79.5

J741 6510022590 S.CNR 22FMN-BMTTR-A-TBT T 121.5/28.5

J771 6510022600 S.CNR 30FMN-BMTTR-A-TBT T 33.4/143.3

J811 6510022590 S.CNR 22FMN-BMTTR-A-TBT T 73.7/9.7

J841 6510022610 S.CNR 16FMN-BMTTR-A-TBT T 148.5/7.5

J861 6510022580 S.CNR 24FMN-BMTTR-A-TBT T 191.7/90.4

[MAIN-A UNIT] [MAIN-A UNIT]

S.=Surface mount

5 - 18

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

J891 6510022580 S.CNR 24FMN-BMTTR-A-TBT T 191.7/60.5

J1702 6510022620 S.CNR 10FMN-BMTTR-A-TBT T 190/134

J3501 6510021860 CNR BH-800.8 <LTC> T 46/128.5

J3502 6510019190 S.CNR 52365-0891 T 104.6/49

J3503 6510022060 S.CNR AXK5S30235P T 190/26

J3504 6510022060 S.CNR AXK5S30235P T 150/26

BT3501 3020000110 LTM CR2032

W122 7030003860 S.RES ERJ3GE JPW V B 53/87.3

W151 7030000010 S.RES MCR10EZHJ JPW (000) T 58.5/81.5

W252 7030003860 S.RES ERJ3GE JPW V T 46.4/86.8

W278 7030003860 S.RES ERJ3GE JPW V T 29.3/34.4

W291 7030003860 S.RES ERJ3GE JPW V T 48/37.5

W308 7030003860 S.RES ERJ3GE JPW V T 96.8/119

W309 7030003860 S.RES ERJ3GE JPW V T 96.8/117

W311 7030003860 S.RES ERJ3GE JPW V T 94.7/110.9

W319 7030003860 S.RES ERJ3GE JPW V B 78.5/113

W354 7030003860 S.RES ERJ3GE JPW V B 22/100.2

W355 7030003860 S.RES ERJ3GE JPW V B 69.9/86.4

W451 7030003860 S.RES ERJ3GE JPW V T 138.2/116.5

W452 7030008240 S.RES ERJ12YJ0R00U T 102/100.3

W501 7030003860 S.RES ERJ3GE JPW V B 83.7/56.2

W503 7030003860 S.RES ERJ3GE JPW V T 78.5/41.3

W561 7030003860 S.RES ERJ3GE JPW V B 97.8/29

W571 7030003860 S.RES ERJ3GE JPW V T 92.2/36

W572 7030003860 S.RES ERJ3GE JPW V B 89.3/32.8

W701 7030003860 S.RES ERJ3GE JPW V B 15.9/81

W702 7030003860 S.RES ERJ3GE JPW V T 133.2/24.4

W703 7030003860 S.RES ERJ3GE JPW V T 115.7/19.6

W854 7030000010 S.RES MCR10EZHJ JPW (000) T 186.5/55.8

W1001 7030009300 S.RES ERJ1WY0R00U B 59.2/112.5

W3001 7030003860 S.RES ERJ3GE JPW V B 84.2/61.5

W3010 7030003860 S.RES ERJ3GE JPW V T 99.1/67.4

W3014 7030003860 S.RES ERJ3GE JPW V T 91.5/80.1

W3504 7030003860 S.RES ERJ3GE JPW V T 146.7/139.3

W3551 7030003860 S.RES ERJ3GE JPW V T 174.1/73.2

W3562 7030008240 S.RES ERJ12YJ0R00U T 181.2/87

W3563 7030000010 S.RES MCR10EZHJ JPW (000) T 185.9/87.9

W3564 7030003860 S.RES ERJ3GE JPW V T 197.7/75.8

W3565 7030003860 S.RES ERJ3GE JPW V T 182.5/74.9

W3601 7030003860 S.RES ERJ3GE JPW V T 129.8/139.3

W3730 7030003860 S.RES ERJ3GE JPW V T 71.1/73.1

EP1 0910054305 PCB B 5705E

EP631 6910012350 S.BEA MMZ1608Y 102BT B 25/96.6

EP632 6910012350 S.BEA MMZ1608Y 102BT B 21.2/88.3

EP633 6910012350 S.BEA MMZ1608Y 102BT B 17.1/82.8

EP634 6910012350 S.BEA MMZ1608Y 102BT B 25/95.3

EP658 6910012350 S.BEA MMZ1608Y 102BT B 23.4/22.2

EP681 6910012350 S.BEA MMZ1608Y 102BT B 8/62.5

EP682 6910012350 S.BEA MMZ1608Y 102BT B 27.9/71.4

EP691 6910012350 S.BEA MMZ1608Y 102BT B 3.8/115

EP692 6910012350 S.BEA MMZ1608Y 102BT B 8.3/116.8

EP701 6910012350 S.BEA MMZ1608Y 102BT B 2.3/82.4

EP702 6910012350 S.BEA MMZ1608Y 102BT B 7.3/82.4

EP703 6910012350 S.BEA MMZ1608Y 102BT T 68.8/2.2

EP861 6910012350 S.BEA MMZ1608Y 102BT T 29.6/110.5

EP3621 6910012350 S.BEA MMZ1608Y 102BT T 137.7/68

EP3622 6910012350 S.BEA MMZ1608Y 102BT T 135.7/63.5

IC2001 1190000970 S.IC ADSP-21061LKS-160 T 33.3/91.3

IC2041 1130008360 S.IC TC7SHU04FU (TE85L) T 5.4/103.8

IC2042 1130008040 S.IC TC7SH04FU T 11.9/103.8

IC2051 1130009310 S.IC TC74VHC125FT (EL) T 65.9/109.8

IC2052 1130009300 S.IC TC7SET08FU (TE85L) T 63.9/119.7

IC2053 1130006080 S.IC TC74HC02AF (TP1) T 77.1/110.6

IC2054 1130009620 S.IC TC74VHC74FT (EL) T 79.4/119.6

IC2061 1130009300 S.IC TC7SET08FU (TE85L) T 64.3/116

IC2062 1130009290 S.IC TC74VHC541FT (EL) T 58.3/107.8

IC2063 1130009300 S.IC TC7SET08FU (TE85L) T 71.6/115.3

IC2065 1130009300 S.IC TC7SET08FU (TE85L) T 62.4/99

IC2066 1130009300 S.IC TC7SET08FU (TE85L) T 57.2/99

IC2071 1130012570 IC M27C4001-12F1/SC-1414 T 80.9/66.2

IC2072 1130009290 S.IC TC74VHC541FT (EL) T 57.5/70.5

IC2091 1110005740 S.IC S-80934CNMC-G84-T2 T 60.1/114.9

IC2092 1130006540 S.IC TC7S02FU (TE85R) T 58.4/118.7

IC2101 1130008810 S.IC TC7SH32FU (TE85L) T 70.1/119.5

IC2201 1130008230 S.IC BU4053BCFV-E2 T 59.6/52.3

IC2211 1110005240 S.IC NJM4565M-TE1 T 57.2/36.9

IC2281 1110003870 S.IC NJM2058M-TE1 T 45.5/17.5

IC2291 1130006220 S.IC TC4W53FU (TE12L) T 56.6/15.8

IC2301 1110005420 S.IC BA15532F-E2 T 67.2/26.1

IC2302 1130006220 S.IC TC4W53FU (TE12L) T 43.3/40.4

IC2321 1190000960 S.IC CS5396-KS T 73.1/46.9

IC2341 1130009610 S.IC TC74VHC00FT (EL) T 45.2/49.3

IC2342 1130009630 S.IC TC74VHC4040FT (EL) T 52.8/59.6

IC2343 1130009280 S.IC TC7WH74FU (TE12L) T 50.9/50.2

IC2344 1130009620 S.IC TC74VHC74FT (EL) T 59.7/61.5

IC2345 1130008810 S.IC TC7SH32FU (TE85L) T 40.3/51

IC2346 1130009300 S.IC TC7SET08FU (TE85L) T 39.7/45.9

IC2347 1130007131 S.IC TC74HC390AF (EL) T 44/59.5

IC2348 1130009300 S.IC TC7SET08FU (TE85L) T 51/111.8

IC2351 1190002090 S.IC AD1854JRSZRL T 29.8/57.9

IC2352 1130008360 S.IC TC7SHU04FU (TE85L) T 32.9/67.5

IC2353 1130008040 S.IC TC7SH04FU T 33.1/63.7

IC2371 1110001900 S.IC µPC4570G2-T1 T 28/43.6

IC2372 1130008230 S.IC BU4053BCFV-E2 T 19.2/49.2

IC2381 1110005060 S.IC µPC4574G2-E1 T 13.5/18.8

IC2401 1190001100 S.IC MAX293CWE-W T 9/54.3

IC2441 1110003870 S.IC NJM2058M-TE1 T 29.9/18.8

IC2461 1110004770 S.IC BU9480F-E2 T 6.3/26

IC2471 1110005240 S.IC NJM4565M-TE1 T 17.4/7.5

IC2472 1110005240 S.IC NJM4565M-TE1 T 11.9/36.2

IC2473 1130006220 S.IC TC4W53FU (TE12L) T 25.5/31.2

IC2474 1130008040 S.IC TC7SH04FU T 10/98.6

IC2475 1130009300 S.IC TC7SET08FU (TE85L) T 10/94.6

Q2201 1590003280 S.TR UNR9211J-(TX) T 63.6/40

Q2202 1590003280 S.TR UNR9211J-(TX) T 63.9/37.7

Q2211 1590003280 S.TR UNR9211J-(TX) T 60.1/33

Q2213 1590003280 S.TR UNR9211J-(TX) T 28/7

Q2321 1590002470 S.FET 2SJ381-TD T 73.4/58.7

Q2322 1590002470 S.FET 2SJ381-TD T 66/15.1

D2371 1730002320 S.ZEN MA8051-M (TX) T 33.9/37.9

D2372 1730002320 S.ZEN MA8051-M (TX) T 32.6/45.5

D2373 1790001250 S.DIO MA2S111-(TX) T 16.7/44.1

X2041 6050009880 S.XTL CR-568 (40.000 MHz) T 8.1/109.1

X2351 6050010650 S.XTL CR-643 (24.576 MHz) T 23.2/67.5

L2001 6190001190 S.COL D10F-A814AY-101K=P3 T 6.5/86.7

L2401 6200003260 S.COL NL 322522T-101J T 4.8/36

L2402 6200003260 S.COL NL 322522T-101J T 4.8/40.2

L2461 6200003260 S.COL NL 322522T-101J T 11.2/5

L2502 6200003950 S.COL HF50ACC 322513-T T 52.7/10.5

L2503 6200003950 S.COL HF50ACC 322513-T T 63.7/11

L2504 6200003950 S.COL HF50ACC 322513-T T 72.4/14.9

L2506 6200003950 S.COL HF50ACC 322513-T T 72.4/11.2

R2001 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 51.7/104.1

R2002 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 45.6/111

R2003 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 44.3/111

R2004 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 43/111

R2005 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 41.7/111

R2006 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 33/110.6

R2007 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 31.7/110.6

R2008 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 29.5/110.6

R2009 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 28.2/111.2

R2010 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 26.9/111.2

R2011 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 25.6/111.2

R2012 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 24.3/111.2

R2013 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 23/111.2

R2014 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 41.1/70.5

R2015 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 42.4/70.5

R2016 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 43.7/70.5

R2017 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 45/70.5

R2018 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 46.3/70.5

[MAIN-A UNIT] [DSP-A UNIT]

S.=Surface mount

5 - 19

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R2019 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 47.6/70.5

R2020 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 39.8/70.5

R2041 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 7.9/105.7

R2042 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 3.8/105.7

R2043 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 10.6/105.7

R2051 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 70.1/107.8

R2052 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 62.5/122

R2053 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 74.5/118.2

R2054 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 74.7/121.1

R2062 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 56.5/114.6

R2063 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 67.7/116.2

R2064 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 62.5/105.3

R2065 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 59.6/100.9

R2066 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 55.9/100.9

R2067 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 61.6/112.1

R2068 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 58.8/112.6

R2071 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 72.6/63.2

R2072 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 60.6/66.3

R2073 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 53.9/66.5

R2074 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 51.1/66.5

R2083 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 70.1/117.3

R2091 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 56/119.3

R2092 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 58.5/120.8

R2101 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 67.8/121.8

R2102 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 70.4/121.8

R2201 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 62.1/47.1

R2202 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 63.6/49.8

R2203 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 56/48.7

R2211 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 59.3/47.8

R2212 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 57/40.3

R2213 7030005451 S.RES ERA3YED 153V T 57/41.6

R2214 7030006101 S.RES ERA3YED 183V T 60/41.6

R2215 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) T 63.1/34.7

R2216 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 61.8/37.4

R2217 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) T 61.8/34.7

R2218 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 51.6/33.4

R2219 7030003750 S.RES ERJ3GEYJ 394 V (390 kΩ) T 53.5/40.7

R2220 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) T 51.4/42.5

R2221 7030003700 S.RES ERJ3GEYJ 154 V (150 kΩ) T 54.1/42.9

R2222 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) T 51.6/39.9

R2223 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) T 51.6/37.3

R2224 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) T 57.6/33.4

R2227 7310002720 S.TRI RV-148 (RH03A3AS3X0DA) 472 T 38.7/31.8

R2229 7310002720 S.TRI RV-148 (RH03A3AS3X0DA) 472 T 44.8/30.7

R2230 7030003430 S.RES ERJ3GEYJ 821 V (820

Ω) T 58.2/43

R2241 7030005321 S.RES ERA3YED 103V T 40.1/15.1

R2242 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 43.2/11.6

R2243 7030005321 S.RES ERA3YED 103V T 40.1/16.4

R2244 7030008061 S.RES ERA3YED 222V T 40.1/13.8

R2245 7030007230 S.RES ERA3YED 102V T 40.1/12.5

R2252 7030006561 S.RES ERA3YED 223V T 53.3/27.2

R2253 7030006561 S.RES ERA3YED 223V T 55.5/23.3

R2254 7030006561 S.RES ERA3YED 223V T 53.6/25.9

R2255 7030006561 S.RES ERA3YED 223V T 52.5/19.2

R2256 7030006561 S.RES ERA3YED 223V T 52/17.3

R2257 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 63.9/42.5

R2281 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 32.3/31.3

R2282 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 41.1/29

R2283 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 55.2/19.2

R2291 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 59.6/14.4

R2292 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 59.6/17

R2293 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 57.2/20.3

R2294 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 49.6/12.5

R2302 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 64.2/21.1

R2304 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 67/19.6

R2306 7030005321 S.RES ERA3YED 103V T 68.5/31

R2307 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 69.3/20.7

R2308 7030005321 S.RES ERA3YED 103V T 65.8/31

R2309 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 61.7/31.5

R2321 7030009691 S.RES ERA3YED 101V (100 Ω) T 72/25.7

R2322 7030009691 S.RES ERA3YED 101V (100 Ω) T 72/27.5

R2323 7030009781 S.RES ERA3YHD 680V T 65.3/40.5

R2324 7030009781 S.RES ERA3YHD 680V T 65.8/42.4

R2325 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7

Ω) T 65.9/45

R2326 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 67.3/11.8

R2327 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 66.7/50.5

R2328 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 80.9/52

R2329 7030009891 S.RES ERA3YED 151V T 75.2/26.6

R2340 7030003290 S.RES ERJ3GEYJ 560 V (56

Ω) T 46.5/53.7

R2341 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 49.2/46.9

R2342 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 40.2/49.1

R2343 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 40.2/54.2

R2344 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 63.1/62.8

R2345 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 55.2/54.9

R2346 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 53.3/48

R2347 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 37.8/60.9

R2348 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 53.8/113.7

R2349 7030003290 S.RES ERJ3GEYJ 560 V (56

Ω) T 51.9/109.3

R2350 7030008071 S.RES ERA3YED 273V T 27.5/39.1

R2351 7030005321 S.RES ERA3YED 103V T 26.7/37.2

R2353 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 30.9/68.8

R2354 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 35.1/63.4

R2355 7030008061 S.RES ERA3YED 222V T 28.9/51.9

R2356 7030008061 S.RES ERA3YED 222V T 29.7/50

R2357 7030008061 S.RES ERA3YED 222V T 27.8/50

R2358 7030008061 S.RES ERA3YED 222V T 26.5/51.6

R2359 7030008061 S.RES ERA3YED 222V T 24.6/49.4

R2360 7030008061 S.RES ERA3YED 222V T 26.5/48.9

R2361 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 43.9/44.6

R2362 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 57.9/65.9

R2363 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 57.1/57.1

R2364 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 38.2/48.5

R2365 7030003290 S.RES ERJ3GEYJ 560 V (56

Ω) T 47.8/44.6

R2366 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 30.9/66.3

R2369 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 21.7/53.8

R2370 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 19/53.8

R2371 7030006091 S.RES ERA3YED 822V T 24.5/42

R2372 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 35.9/50.1

R2373 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 33.1/35.6

R2374 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 15.4/54.6

R2375 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 22.7/50.9

R2376 7030003510 S.RES ERJ3GEYJ 392 V (3.9 kΩ) T 24.9/28.9

R2377 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 28.6/26.3

R2378 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 21.4/33.3

R2379 7030008071 S.RES ERA3YED 273V T 25.4/25.7

R2380 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 22.7/44.3

R2381 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 21.6/20.4

R2382 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 21.6/19.1

R2383 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 21.6/13.7

R2384 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 18.9/17.6

R2385 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 18.8/12.3

R2386 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 18.8/13.7

R2387 7030005321 S.RES ERA3YED 103V T 13.4/12.3

R2388 7030005321 S.RES ERA3YED 103V T 8.8/14.8

R2389 7030009591 S.RES ERA3YED 472V T 7.4/14.8

R2390 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 18.9/23.3

R2391 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 11.4/25.2

R2392 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 22.4/22.3

R2394 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 18.1/44

R2402 7030005451 S.RES ERA3YED 153V T 5.2/60.8

R2403 7030005451 S.RES ERA3YED 153V T 7.8/62.2

R2404 7030006561 S.RES ERA3YED 223V T 7.8/63.5

R2421 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 47.9/39.7

R2422 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 41.8/42.8

R2423 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 39.7/38.9

R2424 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 38.8/41.4

R2441 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 40.1/19

R2442 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 38.2/23.1

R2443 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 27.1/11.6

R2444 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 27.1/12.9

R2445 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 32.6/11.6

R2446 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 35.3/12.9

R2447 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 35.3/20.7

R2448 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 35.3/22

R2449 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 35.3/19.4

R2450 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 25.5/3.9

R2451 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 48.7/23.4

R2452 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 39.7/20.9

R2453 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) T 35.3/23.3

R2472 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 11.2/7.7

R2474 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 11.2/9.1

R2475 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 10.6/11

R2476 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 7.9/12.3

R2477 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 23.1/10.8

R2478 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 14.3/4.1

R2479 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 22/6.3

R2480 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 22.8/9.5

R2481 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 26.8/10.3

R2482 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 25.6/7

R2483 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) T 22.8/8.2

R2484 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 21.4/32

R2485 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 26.3/34.9

R2486 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 10/96.6

R2503 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 51.6/120.4

R2505 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 51.6/119.1

R2507 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 51.6/117.8

R2509 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 51.7/116.5

R2510 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 46.2/114.6

R2511 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 51.6/121.7

R2512 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 43.3/114.6

R2513 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 51.7/115.2

R2514 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 40.6/114.6

R2515 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 35.3/122

R2516 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 37.9/114.6

R2517 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 31.3/122

R2518 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 35.2/114.6

R2519 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 28.5/122

R2520 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 32.5/114.6

R2521 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 25.7/122

R2523 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 15.4/119.9

R2526 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 26.9/114.6

R2571 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) T 16.1/39.8

R2572 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) T 10.2/39.8

R2573 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) T 10.2/41.2

R2575 7030003690 S.RES ERJ3GEYJ 124 V (120 kΩ) T 15.2/31.9

R2577 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 9.9/29.2

[DSP-A UNIT] [DSP-A UNIT]

S.=Surface mount

5 - 20

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R2578 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) T 16.1/41.2

R2579 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) T 19.4/40.8

R2580 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) T 16.5/32.1

R2581 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 17.8/34.8

R2582 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 16.5/37.4

R2583 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 17.8/37.4

C2001 4030011600 S.CER C1608 JB 1E 104K-T T 52.6/77.3

C2002 4030011600 S.CER C1608 JB 1E 104K-T T 52.9/81.8

C2003 4030011600 S.CER C1608 JB 1E 104K-T T 54/87.4

C2004 4030011600 S.CER C1608 JB 1E 104K-T T 53.4/91.5

C2005 4030011600 S.CER C1608 JB 1E 104K-T T 52.5/95.1

C2006 4030011600 S.CER C1608 JB 1E 104K-T T 52.5/96.4

C2007 4030011600 S.CER C1608 JB 1E 104K-T T 51.8/98.3

C2008 4030011600 S.CER C1608 JB 1E 104K-T T 51.7/101.5

C2009 4030011600 S.CER C1608 JB 1E 104K-T T 47.6/109.7

C2010 4030011600 S.CER C1608 JB 1E 104K-T T 47.6/111

C2011 4030011600 S.CER C1608 JB 1E 104K-T T 39.5/110.6

C2012 4030011600 S.CER C1608 JB 1E 104K-T T 35.1/109.8

C2013 4030011600 S.CER C1608 JB 1E 104K-T T 35.1/111.1

C2014 4030011600 S.CER C1608 JB 1E 104K-T T 21.7/110.7

C2015 4030011600 S.CER C1608 JB 1E 104K-T T 20.4/110.7

C2016 4030011600 S.CER C1608 JB 1E 104K-T T 19.1/110.7

C2017 4030011600 S.CER C1608 JB 1E 104K-T T 14.2/104.6

C2018 4030011600 S.CER C1608 JB 1E 104K-T T 14.2/101.9

C2019 4030011600 S.CER C1608 JB 1E 104K-T T 14.2/99.2

C2020 4030011600 S.CER C1608 JB 1E 104K-T T 14.2/96.5

C2021 4030011600 S.CER C1608 JB 1E 104K-T T 14.2/93.8

C2022 4030011600 S.CER C1608 JB 1E 104K-T T 14.8/85.6

C2023 4030011600 S.CER C1608 JB 1E 104K-T T 14.8/83

C2024 4030011600 S.CER C1608 JB 1E 104K-T T 14.8/80.3

C2025 4030011600 S.CER C1608 JB 1E 104K-T T 14.8/77.7

C2026 4510006220 S.ELE ECEV1CA101UP T 9.2/77.9

C2027 4030011600 S.CER C1608 JB 1E 104K-T T 19.4/72.9

C2028 4030011600 S.CER C1608 JB 1E 104K-T T 22.1/72.9

C2029 4030011600 S.CER C1608 JB 1E 104K-T T 24.8/72.4

C2030 4030011600 S.CER C1608 JB 1E 104K-T T 35.7/72.8

C2031 4030011600 S.CER C1608 JB 1E 104K-T T 38.7/72.5

C2033 4030012600 S.CER C2012 JB 1A 105M-T T 4.4/96.5

C2034 4030012600 S.CER C2012 JB 1A 105M-T T 19/122.6

C2035 4030012600 S.CER C2012 JB 1A 105M-T T 23.3/114.3

C2041 4030011600 S.CER C1608 JB 1E 104K-T T 3.5/103.7

C2042 4030011600 S.CER C1608 JB 1E 104K-T T 9.9/103.7

C2043 4030007030 S.CER C1608 CH 1H 150J-T T 7.3/103.7

C2044 4030007030 S.CER C1608 CH 1H 150J-T T 8.6/103.7

C2051 4030011600 S.CER C1608 JB 1E 104K-T T 70.1/109.2

C2052 4030011600 S.CER C1608 JB 1E 104K-T T 62/120

C2053 4030011600 S.CER C1608 JB 1E 104K-T T 75.3/116.2

C2054 4030011600 S.CER C1608 JB 1E 104K-T T 76/121.1

C2055 4030007090 S.CER C1608 CH 1H 470J-T T 82.2/115

C2061 4030011600 S.CER C1608 JB 1E 104K-T T 67.7/114.8

C2062 4030011600 S.CER C1608 JB 1E 104K-T T 62.5/108

C2063 4030011600 S.CER C1608 JB 1E 104K-T T 69.6/115.3

C2065 4030011600 S.CER C1608 JB 1E 104K-T T 59.1/99.1

C2066 4030011600 S.CER C1608 JB 1E 104K-T T 55.1/99.1

C2071 4030011600 S.CER C1608 JB 1E 104K-T T 75.4/63.2

C2072 4030011600 S.CER C1608 JB 1E 104K-T T 53.9/65.2

C2091 4030011600 S.CER C1608 JB 1E 104K-T T 57.8/114.6

C2092 4030008890 S.CER C1608 JB 1H 273K-T T 57.2/116.4

C2093 4030011600 S.CER C1608 JB 1E 104K-T T 56.7/121.6

C2101 4030011600 S.CER C1608 JB 1E 104K-T T 68.1/120

C2201 4030011600 S.CER C1608 JB 1E 104K-T T 56.1/51.4

C2202 4030011600 S.CER C1608 JB 1E 104K-T T 63.6/52.5

C2210 4550006250 S.TAN TEESVA 1A 106M8L T 60/45.4

C2211 4030006880 S.CER C1608 JB 1H 472K-T T 56/43.9

C2212 4030011600 S.CER C1608 JB 1E 104K-T T 60/40.3

C2213 4030011600 S.CER C1608 JB 1E 104K-T T 61.9/40.1

C2214 4510004630 S.ELE ECEV1CA100SR T 56.7/30.3

C2215 4030011600 S.CER C1608 JB 1E 104K-T T 54.3/33.4

C2216 4510004630 S.ELE ECEV1CA100SR T 50.8/30.3

C2217 4030006860 S.CER C1608 JB 1H 102K-T T 51.6/41.2

C2218 4030006870 S.CER C1608 JB 1H 222K-T T 51.6/36

C2219 4030007170 S.CER C1608 CH 1H 221J-T T 51.6/38.6

C2220 4510004630 S.ELE ECEV1CA100SR T 47.2/36.1

C2255 4030006870 S.CER C1608 JB 1H 222K-T T 56.3/25.9

C2256 4030011280 S.CER C1608 CH 1H 271J-T T 56.3/24.6

C2257 4030008470 S.CER C1608 JB 1H 272K-T T 53.6/24.6

C2258 4030011340 S.CER C1608 CH 1H 471J-T T 52.8/23.3

C2259 4030009580 S.CER C1608 JB 1H 681K-T T 50.9/24.6

C2260 4030007120 S.CER C1608 CH 1H 820J-T T 50.9/25.9

C2261 4030006880 S.CER C1608 JB 1H 472K-T T 52/14.6

C2262 4030010020 S.CER C1608 JB 1H 122K-T T 50.6/14.6

C2263 4030010040 S.CER C1608 JB 1H 561K-T T 52.5/21.1

C2281 4550000270 S.TAN TEESVA 1E 474M8L T 53.8/15.7

C2283 4030011600 S.CER C1608 JB 1E 104K-T T 35.3/18.1

C2284 4510004630 S.ELE ECEV1CA100SR T 36.4/26.8

C2285 4030011600 S.CER C1608 JB 1E 104K-T T 24.4/19.2

C2286 4510004630 S.ELE ECEV1CA100SR T 31.6/26.9

C2291 4030011600 S.CER C1608 JB 1E 104K-T T 59.6/15.7

C2292 4030011600 S.CER C1608 JB 1E 104K-T T 59.6/18.3

C2293 4340000250 S.MLR ECHU 1C 104JX5 T 46.9/10.5

C2301 4510004630 S.ELE ECEV1CA100SR T 60.2/21.8

C2302 4030011600 S.CER C1608 JB 1E 104K-T T 58.9/26.6

C2303 4510006220 S.ELE ECEV1CA101UP T 73.7/33.3

C2306 4030011600 S.CER C1608 JB 1E 104K-T T 72/23.9

C2307 4510004630 S.ELE ECEV1CA100SR T 72.5/20.4

C2308 4510005890 S.ELE ECEV1AAN100R T 62/28

C2309 4030011600 S.CER C1608 JB 1E 104K-T T 63.6/31.9

C2310 4510004630 S.ELE ECEV1CA100SR T 67.8/34.7

C2311 4030011810 S.CER C1608 JB 1A 224K-T T 46.6/39.7

C2321 4030009880 S.CER C1608 JB 1H 682K-T T 73.9/26.6

C2322 4030009880 S.CER C1608 JB 1H 682K-T T 66.6/40.5

C2323 4030011600 S.CER C1608 JB 1E 104K-T T 77.4/36.9

C2324 4510004630 S.ELE ECEV1CA100SR T 79.7/33.3

C2325 4030011600 S.CER C1608 JB 1E 104K-T T 80.1/39.4

C2327 4030011600 S.CER C1608 JB 1E 104K-T T 79.6/52

C2328 4510006220 S.ELE ECEV1CA101UP T 80/60.2

C2329 4030011600 S.CER C1608 JB 1E 104K-T T 65.9/46.4

C2330 4030011600 S.CER C1608 JB 1E 104K-T T 65.9/47.8

C2331 4510006220 S.ELE ECEV1CA101UP T 67.3/60

C2338 4030007080 S.CER C1608 CH 1H 390J-T T 42.8/53.7

C2340 4030006880 S.CER C1608 JB 1H 472K-T T 63.1/57.6

C2341 4030011600 S.CER C1608 JB 1E 104K-T T 48.6/50

C2342 4030011600 S.CER C1608 JB 1E 104K-T T 56.3/59.2

C2343 4030011600 S.CER C1608 JB 1E 104K-T T 53.3/50.7

C2344 4030007090 S.CER C1608 CH 1H 470J-T T 51.4/55.1

C2345 4030011600 S.CER C1608 JB 1E 104K-T T 51.1/113.7

C2346 4030011600 S.CER C1608 JB 1E 104K-T T 63.1/60.2

C2347 4030011600 S.CER C1608 JB 1E 104K-T T 40.2/47.8

C2348 4030011600 S.CER C1608 JB 1E 104K-T T 40.2/52.9

C2349 4030011600 S.CER C1608 JB 1E 104K-T T 37.8/63.7

C2351 4030007010 S.CER C1608 CH 1H 100D-T T 29.6/66.3

C2352 4030007010 S.CER C1608 CH 1H 100D-T T 29.6/68.8

C2353 4510004630 S.ELE ECEV1CA100SR T 10.8/68.5

C2354 4030011600 S.CER C1608 JB 1E 104K-T T 59.3/122.6

C2355 4510004630 S.ELE ECEV1CA100SR T 16.3/67.1

C2356 4030011600 S.CER C1608 JB 1E 104K-T T 23.8/62

C2357 4510004630 S.ELE ECEV1CA100SR T 17/62.3

C2358 4030011600 S.CER C1608 JB 1E 104K-T T 23.8/55.2

C2359 4510004630 S.ELE ECEV1CA100SR T 20.8/57.5

C2360 4030011600 S.CER C1608 JB 1E 104K-T T 34/65.6

C2361 4030011600 S.CER C1608 JB 1E 104K-T T 34.8/67.5

C2362 4030006880 S.CER C1608 JB 1H 472K-T T 36.4/62.3

C2363 4030006860 S.CER C1608 JB 1H 102K-T T 24.6/52

C2364 4030007170 S.CER C1608 CH 1H 221J-T T 29.1/48.1

C2365 4030006860 S.CER C1608 JB 1H 102K-T T 24.6/50.7

C2366 4030007170 S.CER C1608 CH 1H 221J-T T 24.6/48.1

C2367 4510004440 S.ELE ECEV1HA010SR T 30/36.1

C2370 4030007080 S.CER C1608 CH 1H 390J-T T 37.6/44.6

C2371 4030007080 S.CER C1608 CH 1H 390J-T T 38.2/51.1

C2372 4510004630 S.ELE ECEV1CA100SR T 32.8/49.3

C2373 4030011600 S.CER C1608 JB 1E 104K-T T 24.5/46.2

C2374 4510004630 S.ELE ECEV1CA100SR T 34.5/41.8

C2375 4030011600 S.CER C1608 JB 1E 104K-T T 31.4/41.5

C2376 4030011600 S.CER C1608 JB 1E 104K-T T 16.8/54.6

C2377 4030011600 S.CER C1608 JB 1E 104K-T T 22.7/47.3

C2378 4030011600 S.CER C1608 JB 1E 104K-T T 27.3/25.7

C2379 4030011600 S.CER C1608 JB 1E 104K-T T 26.5/27.6

C2380 4030011600 S.CER C1608 JB 1E 104K-T T 27.6/28.9

C2381 4030010020 S.CER C1608 JB 1H 122K-T T 21.6/17.8

C2383 4030009980 S.CER C1608 JB 1H 152K-T T 21.6/12.3

C2384 4030009000 S.CER C2012 JB 1C 224K-T T 15.4/46.8

C2385 4030011330 S.CER C1608 CH 1H 391J-T T 18.9/21.6

C2387 4030008470 S.CER C1608 JB 1H 272K-T T 16.9/13.2

C2389 4030011280 S.CER C1608 CH 1H 271J-T T 18.9/15

C2391 4510004630 S.ELE ECEV1CA100SR T 21/26.5

C2392 4030011600 S.CER C1608 JB 1E 104K-T T 18.9/19

C2393 4510004630 S.ELE ECEV1CA100SR T 15.1/26.7

C2394 4030011600 S.CER C1608 JB 1E 104K-T T 7.9/21.7

C2395 4030011810 S.CER C1608 JB 1A 224K-T T 20.8/22.5

C2401 4030009490 S.CER C1608 JB 1H 821K-T T 5.2/62.2

C2402 4030007150 S.CER C1608 CH 1H 151J-T T 7.8/60.8

C2403 4510004630 S.ELE ECEV1CA100SR T 11.7/44.7

C2404 4030011600 S.CER C1608 JB 1E 104K-T T 9.7/61.6

C2405 4510004630 S.ELE ECEV1CA100SR T 5.8/44.8

C2406 4030011600 S.CER C1608 JB 1E 104K-T T 8.8/47.8

C2407 4030007130 S.CER C1608 CH 1H 101J-T T 39.7/64.7

C2422 4030011600 S.CER C1608 JB 1E 104K-T T 47.4/41.5

C2424 4030011600 S.CER C1608 JB 1E 104K-T T 42.1/38

C2425 4030011810 S.CER C1608 JB 1A 224K-T T 38.6/42.7

C2442 4030011600 S.CER C1608 JB 1E 104K-T T 50.6/19.3

C2443 4510007570 S.ELE EEVHB1C220UR T 46.6/26.5

C2444 4030011600 S.CER C1608 JB 1E 104K-T T 40.1/17.7

C2445 4510007570 S.ELE EEVHB1C220UR T 41.3/25.5

C2446 4030006880 S.CER C1608 JB 1H 472K-T T 24.4/12.1

C2447 4030009580 S.CER C1608 JB 1H 681K-T T 45/23.4

C2448 4030009880 S.CER C1608 JB 1H 682K-T T 29.8/11.6

C2449 4030007160 S.CER C1608 CH 1H 181J-T T 29.8/12.9

C2450 4030006860 S.CER C1608 JB 1H 102K-T T 24.4/16.9

C2451 4030009580 S.CER C1608 JB 1H 681K-T T 24.4/13.4

C2452 4030009630 S.CER C1608 JB 1H 822K-T T 35.3/14.2

C2453 4030006880 S.CER C1608 JB 1H 472K-T T 35.3/15.5

C2454 4030010020 S.CER C1608 JB 1H 122K-T T 32.6/12.9

C2461 4510006220 S.ELE ECEV1CA101UP T 6/7

C2462 4030011600 S.CER C1608 JB 1E 104K-T T 4.7/21.7

[DSP-A UNIT] [DSP-A UNIT]

S.=Surface mount

5 - 21

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C2463 4510004630 S.ELE ECEV1CA100SR T 5.9/18.5

C2471 4030011600 S.CER C1608 JB 1E 104K-T T 10.6/12.3

C2472 4030011600 S.CER C1608 JB 1E 104K-T T 18.8/11

C2473 4030011600 S.CER C1608 JB 1E 104K-T T 17.1/4.1

C2474 4030011600 S.CER C1608 JB 1E 104K-T T 22.2/30.1

C2475 4030011600 S.CER C1608 JB 1E 104K-T T 26.3/33.6

C2476 4030011600 S.CER C1608 JB 1E 104K-T T 8.1/95

C2478 4030012600 S.CER C2012 JB 1A 105M-T T 29.7/30.9

C2479 4030006860 S.CER C1608 JB 1H 102K-T T 23.3/6.3

C2480 4510004630 S.ELE ECEV1CA100SR T 20.9/36.9

C2501 4030011600 S.CER C1608 JB 1E 104K-T T 16.7/119.9

C2502 4510004630 S.ELE ECEV1CA100SR T 15.9/115.6

C2505 4510006220 S.ELE ECEV1CA101UP T 39.7/7.6

C2506 4030006880 S.CER C1608 JB 1H 472K-T T 55.3/121.6

C2507 4510006220 S.ELE ECEV1CA101UP T 32.6/6.9

C2508 4030011600 S.CER C1608 JB 1E 104K-T T 60.1/10.6

C2509 4510006220 S.ELE ECEV1CA101UP T 78.7/13.5

C2510 4030011600 S.CER C1608 JB 1E 104K-T T 15.4/57.3

C2511 4510006220 S.ELE ECEV1CA101UP T 78.7/22.1

C2512 4030011600 S.CER C1608 JB 1E 104K-T T 79.7/28.6

C2514 4030006860 S.CER C1608 JB 1H 102K-T T 40.8/122.4

C2515 4030006860 S.CER C1608 JB 1H 102K-T T 31.6/113.3

C2516 4030006880 S.CER C1608 JB 1H 472K-T T 35.3/123.3

C2519 4030006860 S.CER C1608 JB 1H 102K-T T 37.8/112.3

C2520 4030006860 S.CER C1608 JB 1H 102K-T T 31.3/123.3

C2524 4030006860 S.CER C1608 JB 1H 102K-T T 38.7/122.5

C2571 4030009000 S.CER C2012 JB 1C 224K-T T 21.1/43.3

C2572 4030008910 S.CER C1608 JB 1H 393K-T T 13.4/40.4

C2573 4030011600 S.CER C1608 JB 1E 104K-T T 8/40.9

C2574 4030009980 S.CER C1608 JB 1H 152K-T T 12.1/40.4

C2578 4030011600 S.CER C1608 JB 1E 104K-T T 10.2/31

C2579 4510004630 S.ELE ECEV1CA100SR T 5.8/31.7

C2580 4030011600 S.CER C1608 JB 1E 104K-T T 13.1/31.1

C2581 4030011600 S.CER C1608 JB 1E 104K-T T 17.8/32.1

C2582 4030007130 S.CER C1608 CH 1H 101J-T T 16.5/34.8

J2001 6510021650 CNR IMSA-9180B-30B B 45.4/7.9

J2002 6510021650 CNR IMSA-9180B-30B B 47/116.8

J2003 2610000400 CNR IC140-3206-BS4

W2072 7030003860 S.RES ERJ3GE JPW V T 56/65.2

W2201 7030003860 S.RES ERJ3GE JPW V T 51.6/34.7

W2202 7030003860 S.RES ERJ3GE JPW V T 55.7/53.5

W2226 7030003860 S.RES ERJ3GE JPW V T 42.6/33.3

W2228 7030003860 S.RES ERJ3GE JPW V T 45.3/33.1

W2301 7030003860 S.RES ERJ3GE JPW V T 64.2/19.6

W2302 7030003860 S.RES ERJ3GE JPW V T 66.8/18.3

W2321 7030003860 S.RES ERJ3GE JPW V T 80.3/47.9

W2322 7030003860 S.RES ERJ3GE JPW V T 80.3/44.5

W2323 7030003860 S.RES ERJ3GE JPW V T 82.2/38.6

W2324 7030003860 S.RES ERJ3GE JPW V T 82.3/29.6

W2401 7030003860 S.RES ERJ3GE JPW V T 42.4/64.7

W2463 7030003860 S.RES ERJ3GE JPW V T 2.7/13.3

W2471 7030003860 S.RES ERJ3GE JPW V T 13.4/11

W2472 7030003860 S.RES ERJ3GE JPW V T 19.9/2.8

W2504 7030003860 S.RES ERJ3GE JPW V T 42.2/2.9

W2505 7030003860 S.RES ERJ3GE JPW V T 37.4/2.8

W2508 7030003860 S.RES ERJ3GE JPW V T 19.8/113.5

W2509 7030003860 S.RES ERJ3GE JPW V T 81.7/8.6

W2510 7030003860 S.RES ERJ3GE JPW V T 81.7/5.7

W2511 7030003860 S.RES ERJ3GE JPW V T 79.8/2.8

EP1 0910054272 PCB B 5704B

IC201 1110006430 S.IC µPC1678GV-E1-A T 4.1/34.4

IC301 1160000130 S.IC TD62783AF (S,EL) B 31.5/9.9

IC302 1160000130 S.IC TD62783AF (S,EL) B 30.5/23

IC401 1130011760 S.IC CD4094BPWR T 40.7/10

IC402 1130011760 S.IC CD4094BPWR T 40.6/17.8

IC403 1130011760 S.IC CD4094BPWR T 40.6/24.7

IC1401 1110006420 S.IC µPC2708TB-E3-A T 53.6/40

IC2001 1110003490 S.IC TA31136FN (D,EL) T 93.2/90.4

IC2002 1110000960 S.IC NJM4558M-TE1 B 129.8/92.2

Q101 1590003280 S.TR UNR9211J-(TX) T 34.9/86

Q102 1590002710 S.TR UMH11NTN T 5.8/68.3

Q103 1530002060 S.TR 2SC4081 T106 R T 34/79.9

Q104 1590001960 S.TR XP4311 (TX) T 30.8/86.3

Q151 1590002710 S.TR UMH11NTN T 46.8/83.2

Q152 1590003280 S.TR UNR9211J-(TX) T 44/81.2

Q201 1510000510 S.TR 2SA1576A T106R T 7.5/27.8

Q202 1590002710 S.TR UMH11NTN T 8.1/32

Q203 1590003280 S.TR UNR9211J-(TX) T 8.2/34.4

Q351 1590002710 S.TR UMH11NTN T 26.6/28

Q352 1590002710 S.TR UMH11NTN T 24.1/28

Q353 1590001960 S.TR XP4311 (TX) T 23.2/31.4

Q354 1590001960 S.TR XP4311 (TX) T 25.4/25

Q355 1590001960 S.TR XP4311 (TX) T 25.4/22.5

Q356 1590001960 S.TR XP4311 (TX) T 32.4/21.6

Q357 1590001960 S.TR XP4311 (TX) T 34.9/21.6

Q1001 1560000640 S.FET 2SK1740-TA T 72.6/26.6

Q1002 1560000640 S.FET 2SK1740-TA T 72.6/23.5

Q1003 1560000640 S.FET 2SK1740-TA B 92.6/27.5

Q1004 1560000640 S.FET 2SK1740-TA T 90.1/31.9

Q1005 1560000640 S.FET 2SK1740-TA T 90.1/24.1

Q1006 1560000640 S.FET 2SK1740-TA B 92.6/23.4

Q1007 1530002060 S.TR 2SC4081 T106 R T 106.8/33.2

Q1008 1530003850 S.TR 2SC5551F-TD T 107.6/20.6

Q1101 1530003850 S.TR 2SC5551F-TD T 81.1/19.7

Q1201 1560000640 S.FET 2SK1740-TA T 72.3/47.4

Q1202 1560000640 S.FET 2SK1740-TA T 72.3/44.4

Q1203 1560000640 S.FET 2SK1740-TA B 93.1/49.9

Q1204 1560000640 S.FET 2SK1740-TA T 89.2/51.1

Q1205 1560000640 S.FET 2SK1740-TA T 89.2/45.5

Q1206 1560000640 S.FET 2SK1740-TA B 93.1/46.5

Q1207 1530002060 S.TR 2SC4081 T106 R T 103.3/58.6

Q1208 1530003850 S.TR 2SC5551F-TD T 108.5/51.8

Q1209 1560001310 S.FET MMBFU310LT1 B 95/57.1

Q1301 1530003850 S.TR 2SC5551F-TD T 75.5/62.4

Q1551 1560000560 S.FET 2SK882-GR (TE85L) T 119.9/70.3

Q1751 1580000620 S.FET 3SK131-T2 MAS T 143.2/48.9

Q1801 1560000560 S.FET 2SK882-GR (TE85L) T 155.7/34.1

Q1901 1590001960 S.TR XP4311 (TX) T 146/21.7

Q2101 1560000560 S.FET 2SK882-GR (TE85L) B 72.4/76.6

Q2201 1560000560 S.FET 2SK882-GR (TE85L) T 109.3/85.5

Q2202 1560000560 S.FET 2SK882-GR (TE85L) T 119.3/81.4

Q2203 1530002060 S.TR 2SC4081 T106 R T 127.6/78.9

D101 1790000980 S.DIO MA742 (TX) T 37.4/83.8

D103 1750000520 S.DIO DAN222TL T 30.8/83.9

D104 1750000580 S.DIO 1SV307 (TPH3) B 14.1/79.4

D151 1750000580 S.DIO 1SV307 (TPH3) T 46/86

D152 1750000580 S.DIO 1SV307 (TPH3) B 16.4/82.1

D201 1750000580 S.DIO 1SV307 (TPH3) B 2.9/77.8

D301 1750000520 S.DIO DAN222TL T 35.7/10

D302 1750000520 S.DIO DAN222TL T 40.7/13.9

D303 1750000520 S.DIO DAN222TL T 38.6/13.9

D351 1750000520 S.DIO DAN222TL T 27.2/31.3

D352 1750000520 S.DIO DAN222TL T 29.6/26.2

D353 1160000140 S.DIO DAP222 TL T 33.5/16.5

D354 1160000140 S.DIO DAP222 TL T 35.6/16.5

D501 1750000580 S.DIO 1SV307 (TPH3) T 20.5/71.8

D502 1750000580 S.DIO 1SV307 (TPH3) T 28.8/41.8

D551 1750000580 S.DIO 1SV307 (TPH3) T 31/74.8

D552 1750000580 S.DIO 1SV307 (TPH3) T 33/44.6

D601 1750000580 S.DIO 1SV307 (TPH3) T 21.4/75.2

D602 1750000580 S.DIO 1SV307 (TPH3) T 25.7/74.5

D603 1750000580 S.DIO 1SV307 (TPH3) T 28.8/43.6

D604 1750000580 S.DIO 1SV307 (TPH3) B 42/43.9

D651 1750000580 S.DIO 1SV307 (TPH3) T 43.8/74.2

D652 1750000580 S.DIO 1SV307 (TPH3) T 42.5/45.6

D701 1750000580 S.DIO 1SV307 (TPH3) B 41.6/75.9

D702 1750000580 S.DIO 1SV307 (TPH3) B 45.1/45.3

D751 1750000580 S.DIO 1SV307 (TPH3) B 37.2/76

D752 1750000580 S.DIO 1SV307 (TPH3) B 35.7/45.3

D801 1750000580 S.DIO 1SV307 (TPH3) T 10.9/65.6

D802 1750000580 S.DIO 1SV307 (TPH3) T 45.1/32.3

D851 1790000620 S.DIO MA77 (TX) B 19.9/72.7

D852 1790000620 S.DIO MA77 (TX) B 32/44.8

D951 1750000580 S.DIO 1SV307 (TPH3) T 51.8/28.1

D1001 1750000970 S.DIO CPH5513-TL T 103.5/27.5

D1002 1750000440 S.DIO 1SV263-TL T 109.8/31.8

D1003 1750000970 S.DIO CPH5513-TL T 107.1/27.5

D1004 1790001250 S.DIO MA2S111-(TX) B 110.8/32.4

D1201 1750000970 S.DIO CPH5513-TL T 103.5/46.2

[DSP-A UNIT] [RF-B UNIT]

S.=Surface mount

5 - 22

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

D1202 1790000620 S.DIO MA77 (TX) T 100.7/59.4

D1203 1750000440 S.DIO 1SV263-TL T 103.8/50.5

D1204 1750000970 S.DIO CPH5513-TL T 107/46.2

D1205 1790001250 S.DIO MA2S111-(TX) T 106/58.4

D1301 1750000580 S.DIO 1SV307 (TPH3) T 93.4/64.1

D1302 1750000580 S.DIO 1SV307 (TPH3) B 88.6/65.6

D1401 1750000580 S.DIO 1SV307 (TPH3) B 43/35.7

D1451 1750000430 S.DIO HSB88WSTR T 80.2/71

D1501 1790000620 S.DIO MA77 (TX) T 104.2/73.8

D1551 1790000620 S.DIO MA77 (TX) T 123.3/54.6

D1601 1790000620 S.DIO MA77 (TX) T 119.3/51.7

D1751 1790000620 S.DIO MA77 (TX) B 143/34.8

D1752 1750000430 S.DIO HSB88WSTR T 140.4/71.2

D1753 1790000620 S.DIO MA77 (TX) B 144.6/72.9

D1801 1750000580 S.DIO 1SV307 (TPH3) T 154.7/86.5

D1851 1790000620 S.DIO MA77 (TX) T 147.2/40.2

D1852 1750000430 S.DIO HSB88WSTR T 153.4/61.7

D1853 1790000620 S.DIO MA77 (TX) B 147.5/71.9

D1854 1750000580 S.DIO 1SV307 (TPH3) T 155.7/77.2

D2001 1790001670 S.DIO RB706F-40T106 B 127/87.8

D2002 1790001250 S.DIO MA2S111-(TX) B 135.8/94.1

D2101 1750000430 S.DIO HSB88WSTR T 92.1/78.8

D2201 1750000440 S.DIO 1SV263-TL T 119.2/77.5

FI1701 2030000420 S.MLH FL-381 T 124.8/29.6

FI2001 2020001320 CER CFJ455K8

FI2002 2020001800 S.CER SFECV13M3DA0001-B0 T 88/93.5

FI2003 2020001800 S.CER SFECV13M3DA0001-B0 T 88/86.1

L101 6200007780 S.COL LQW2BHNR12J01L T 46.2/89.3

L102 6200007760 S.COL LQW2BHN82NJ01L T 40.1/88.4

L103 6200010730 S.COL C2520C-68NG-A T 10.7/80.3

L104 6200005490 S.COL NL 322522T-331J B 9.3/67.5

L137 6190001650 COL ELC06D102E

L151 6200005490 S.COL NL 322522T-331J T 44.8/78.1

L201 6200009810 S.COL LQH31HNR61J01L T 3.8/20

L202 6200001470 S.COL NL 322522T-R12J-3 T 3.3/23

L203 6200001710 S.COL NL 322522T-220J T 3.9/27.6

L251 6200005490 S.COL NL 322522T-331J B 12.2/76.1

L252 6200005490 S.COL NL 322522T-331J B 10.4/72.5

L253 6180003560 COL SP0406-5R6K-6

L271 6180003550 COL SP0406-4R7K-6

L401 6200003260 S.COL NL 322522T-101J T 39.1/5.7

L456 6200003090 S.COL NL 322522T-2R7J-3 T 150.7/22.4

L501 6200010780 S.COL C2520C-1ROG-A T 15.1/65.7

L502 6200010970 S.COL C2520C-1R8G-A (1.8U) T 15.1/60.1

L503 6200010970 S.COL C2520C-1R8G-A (1.8U) T 15.1/54.4

L504 6200010780 S.COL C2520C-1ROG-A T 15.2/43.4

L505 6200010970 S.COL C2520C-1R8G-A (1.8U) T 15.1/49.2

L551 6200010770 S.COL C2520C-R68G-A T 34.8/70.4

L552 6200010950 S.COL C2520C-1R5G-A (1.5U) T 34.8/64.7

L553 6200010950 S.COL C2520C-1R5G-A (1.5U) T 34.8/59.1

L554 6200010770 S.COL C2520C-R68G-A T 34.9/47.7

L555 6200010950 S.COL C2520C-1R5G-A (1.5U) T 34.9/53.3

L601 6200010530 S.COL C2520C-R56G (0.56U) T 25.1/70.3

L602 6200010450 S.COL C2520C-R82G (0.82U) T 25.1/64.6

L603 6200010450 S.COL C2520C-R82G (0.82U) T 25.1/59

L604 6200010530 S.COL C2520C-R56G (0.56U) T 25.1/48

L605 6200010450 S.COL C2520C-R82G (0.82U) T 25.1/53.3

L651 6200010870 S.COL C2520C-R33G (0.33U) T 44.3/69.8

L652 6200010770 S.COL C2520C-R68G-A T 44.3/64.1

L653 6200010770 S.COL C2520C-R68G-A T 44.2/58.7

L654 6200010870 S.COL C2520C-R33G (0.33U) T 44.4/47.5

L655 6200010770 S.COL C2520C-R68G-A T 44.3/53.4

L701 6200010980 S.COL LQW2BHNR27J03L B 45.1/67.2

L702 6200008080 S.COL LQW2BHNR22J01L B 46.1/62.2

L703 6200010980 S.COL LQW2BHNR27J03L B 44.6/55.7

L751 6200008100 S.COL LQH31HNR14J01L B 34.7/70.7

L753 6200007810 S.COL LQH31HN95NK01L B 38.6/59.5

L754 6200008100 S.COL LQH31HNR14J01L B 34.2/49.2

L801 6200010800 S.COL C2520C-4R7G-A T 35.1/34

L802 6200010800 S.COL C2520C-4R7G-A T 42.2/32.1

L851 6200007810 S.COL LQH31HN95NK01L B 25/69.5

L852 6200009810 S.COL LQH31HNR61J01L B 25/64.5

L853 6200009810 S.COL LQH31HNR61J01L B 28.5/60

L854 6200009810 S.COL LQH31HNR61J01L B 25/54.5

L855 6200007810 S.COL LQH31HN95NK01L B 25/49.5

L901 6200005490 S.COL NL 322522T-331J B 42.7/31.4

L902 6140003530 COL LR-395

L903 6140003530 COL LR-395

L971 6200005490 S.COL NL 322522T-331J B 26.8/41.7

L972 6200005490 S.COL NL 322522T-331J B 26.8/37.5

L1001 6200008280 S.COL 0.30-1.7-7TL 50N T 61.6/20.2

L1002 6200008180 S.COL 0.25-1.9-10TL 107N T 62.8/24.3

L1003 6200008360 S.COL 0.25-1.9-13TL T 62.8/29.1

L1004 6200003400 S.COL LQH43MN331K01L T 65.7/33.6

L1005 6200010870 S.COL C2520C-R33G (0.33U) T 72.4/31.7

L1006 6200009690 S.COL LQH43CN101K01L B 85.6/18.3

L1007 6140004420 COL LR-501

L1008 6200008080 S.COL LQW2BHNR22J01L B 94.9/33.8

L1009 6200008080 S.COL LQW2BHNR22J01L B 95.4/19.6

L1010 6200009690 S.COL LQH43CN101K01L T 99.9/21.2

L1011 6150005320 COL LS-546 7K7

L1012 6200001830 S.COL NL 322522T-100J B 105.3/24.5

L1013 6200001830 S.COL NL 322522T-100J T 112.6/31.2

L1014 6200001830 S.COL NL 322522T-100J B 111.5/28.3

L1015 6200001830 S.COL NL 322522T-100J T 113.7/27.1

L1016 6200001830 S.COL NL 322522T-100J T 112/12.5

L1017 6200010740 S.COL C2520C-R27G-A T 108.9/15.7

L1018 6140003210 S.COL LR-358 T 122.5/46.1

L1019 6190001650 COL ELC06D102E

L1020 6200003090 S.COL NL 322522T-2R7J-3 B 111.3/14.6

L1101 6130002960 S.COL 617DB-1327=P3 T 92.3/20.2

L1102 6200010730 S.COL C2520C-68NG-A T 93/13.2

L1103 6200010730 S.COL C2520C-68NG-A T 89.4/13.6

L1104 6200010720 S.COL C2520C-56NG-A T 85.8/13.1

L1105 6200001830 S.COL NL 322522T-100J T 81.3/13

L1106 6140003820 COL LR-441

L1201 6200008280 S.COL 0.30-1.7-7TL 50N T 61.8/37.8

L1202 6200008180 S.COL 0.25-1.9-10TL 107N T 62.6/42.2

L1203 6200008360 S.COL 0.25-1.9-13TL T 62/47

L1204 6200003400 S.COL LQH43MN331K01L T 65.3/50.7

L1205 6200010870 S.COL C2520C-R33G (0.33U) T 72.4/51.1

L1206 6200009690 S.COL LQH43CN101K01L B 79.6/50.8

L1207 6140004420 COL LR-501

L1208 6200008080 S.COL LQW2BHNR22J01L B 92.4/42.5

L1209 6200008080 S.COL LQW2BHNR22J01L B 91.6/54.5

L1210 6200009690 S.COL LQH43CN101K01L T 97.9/56.1

L1211 6150005320 COL LS-546 7K7

L1212 6200001830 S.COL NL 322522T-100J B 105.3/45.1

L1213 6200001830 S.COL NL 322522T-100J B 104.9/57.5

L1214 6200001830 S.COL NL 322522T-100J B 107.6/51

L1215 6200001830 S.COL NL 322522T-100J B 104.1/49

L1216 6200001830 S.COL NL 322522T-100J B 110.8/46.4

L1217 6200001830 S.COL NL 322522T-100J T 113.7/56.7

L1218 6200010740 S.COL C2520C-R27G-A T 114.3/48.7

L1219 6200003090 S.COL NL 322522T-2R7J-3 B 111/64.4

L1220 6200003250 S.COL NL 322522T-R39J-3 B 98.9/57

L1301 6130002960 S.COL 617DB-1327=P3 T 91.8/54.9

L1302 6200001830 S.COL NL 322522T-100J B 99/62.5

L1303 6200010730 S.COL C2520C-68NG-A T 89.5/62.4

L1304 6200010730 S.COL C2520C-68NG-A T 86.9/58.8

L1305 6200010720 S.COL C2520C-56NG-A T 85.9/63.2

L1306 6200001830 S.COL NL 322522T-100J T 73.7/55.9

L1307 6140003820 COL LR-441

L1401 6200001710 S.COL NL 322522T-220J T 50.2/40.2

L1402 6200000891 S.COL NL 322522T-R15M-3 T 52/46.4

L1403 6200003450 S.COL NL 322522T-082J T 51.4/51.2

L1451 6130002960 S.COL 617DB-1327=P3 T 73.9/71

L1452 6130002960 S.COL 617DB-1327=P3 T 86.6/71

L1551 6200004600 S.COL MLF1608D R15K-T T 97.3/70.3

L1552 6200004600 S.COL MLF1608D R15K-T T 101.6/69.6

L1553 6150004280 COL LS-484B (C-14927)

L1554 6200003030 S.COL NL 322522T-R47J-3 T 122.6/72.7

L1601 6200010760 S.COL C2520C-27NG-A T 119.4/55.9

L1701 6150004280 COL LS-484B (C-14927)

L1702 6150004280 COL LS-484B (C-14927)

L1751 6150004280 COL LS-484B (C-14927)

L1752 6150004280 COL LS-484B (C-14927)

L1753 6140003530 COL LR-395

L1754 6140003210 S.COL LR-358 T 139.8/76.9

L1755 6200010950 S.COL C2520C-1R5G-A (1.5U) T 148.8/81.2

L1756 6200010950 S.COL C2520C-1R5G-A (1.5U) T 150.4/84.8

L1801 6150004280 COL LS-484B (C-14927)

L1802 6200005490 S.COL NL 322522T-331J B 152.2/85

L1851 6140003210 S.COL LR-358 T 154.8/55.1

L1852 6140003530 COL LR-395

L1853 6200005490 S.COL NL 322522T-331J T 158.5/74.9

L2001 6200003260 S.COL NL 322522T-101J B 123.3/88.6

L2002 6200003260 S.COL NL 322522T-101J T 127.7/85.4

L2003 6200003260 S.COL NL 322522T-101J T 133.4/81.5

L2004 6200001830 S.COL NL 322522T-100J B 87.6/95

L2005 6200003080 S.COL NL 322522T-1R8J-3 T 91.8/84.4

L2101 6140003210 S.COL LR-358 T 85.5/78.7

L2102 6150004280 COL LS-484B (C-14927)

L2103 6140003210 S.COL LR-358 T 98.7/78.8

L2201 6150004280 COL LS-484B (C-14927)

L2202 6150004280 COL LS-484B (C-14927)

L2203 6200003090 S.COL NL 322522T-2R7J-3 T 124.8/79.5

R101 7540000130 ASB 2P-50A-301

R102 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 52.4/91.5

R103 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 33.1/82.5

R104 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 36/80

R105 7030003860 S.RES ERJ3GE JPW V T 34.3/83.7

R106 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) B 15.5/90.4

R107 7030008180 S.RES ERJ12YJ331U (330

Ω) B 12.8/67.5

R108 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 6/70.2

R109 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 5.8/66.4

R110 7030003270 S.RES ERJ3GEYJ 390 V (39

Ω) B 16.4/87.9

R111 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) B 14.6/87.9

R112 7030003310 S.RES ERJ3GEYJ 820 V (82

Ω) B 4/90.3

R113 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 4/88.5

[RF-B UNIT] [RF-B UNIT]

S.=Surface mount

5 - 23

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R114 7030003310 S.RES ERJ3GEYJ 820 V (82

Ω) B 6.6/89.3

R151 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 49.6/83.7

R152 7540000130 ASB 2P-50A-301

R153 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 55.2/86.1

R154 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 46.4/81.3

R155 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 47.6/86.1

R156 7030008180 S.RES ERJ12YJ331U (330

Ω) T 41/81.9

R157 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 47.4/79.4

R201 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 5.8/17

R202 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 3.9/17.5

R203 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 5.8/18.2

R204 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 7.5/29.8

R205 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 9.4/29.2

R207 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7

Ω) T 7.4/25.8

R208 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 8.9/37.3

R209 7030000320 S.RES MCR10EZHJ 330

Ω (331) T 3.8/40.7

R210 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 6/42.2

R211 7030000320 S.RES MCR10EZHJ 330

Ω (331) T 3.8/42.5

R212 7030007530 S.RES ERJ8ENF 1800V (180 Ω) T 4.1/44.5

R213 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 7.6/37.6

R251 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) B 8/76.9

R301 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/13.4

R302 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/12.5

R303 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/11.6

R304 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/10.7

R305 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/9.8

R306 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/8.9

R307 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/8

R308 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/13.4

R309 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/12.5

R310 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/11.6

R311 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/10.7

R312 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/9.8

R313 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/8.9

R314 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/8

R315 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/19.1

R316 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/18.2

R317 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/17.3

R318 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/16.4

R319 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/15.5

R320 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/19.1

R321 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/18.2

R322 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/17.3

R323 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/16.4

R324 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/15.5

R325 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.7/14.6

R326 7030005530 S.RES ERJ2GEJ 100 X (10

Ω) T 27.9/14.6

R351 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 30.2/28.4

R352 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 29/28.4

R353 7030003860 S.RES ERJ3GE JPW V T 35.4/25.6

R354 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 25.4/31.5

R357 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 21.6/29

R358 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.4/22.8

R359 7030005050 S.RES ERJ2GEJ 103 X (10 kΩ) T 30.4/23.7

R360 7030003860 S.RES ERJ3GE JPW V B 24/6.9

R361 7030003860 S.RES ERJ3GE JPW V B 19.3/27.8

R362 7030003860 S.RES ERJ3GE JPW V B 46/11.8

R451 7030004050 S.RES ERJ3GEYJ 1R0 V (1

Ω) T 149.3/10

R452 7030004050 S.RES ERJ3GEYJ 1R0 V (1

Ω) T 149.3/8.8

R501 7030000260 S.RES MCR10EZHJ 100

Ω (101) T 17.7/41.5

R551 7030000260 S.RES MCR10EZHJ 100

Ω (101) T 37.7/46.2

R601 7030000260 S.RES MCR10EZHJ 100

Ω (101) T 28/46.4

R651 7030000260 S.RES MCR10EZHJ 100

Ω (101) T 46.9/45.7

R701 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 41.4/50

R751 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 38.8/49.1

R752 7030003860 S.RES ERJ3GE JPW V B 35.6/67.7

R753 7030003860 S.RES ERJ3GE JPW V B 32.9/56.7

R801 7030000260 S.RES MCR10EZHJ 100

Ω (101) T 32/37.1

R802 7030003300 S.RES ERJ3GEYJ 680 V (68

Ω) T 31.5/34.1

R803 7030000260 S.RES MCR10EZHJ 100

Ω (101) T 34.4/38.7

R901 7030009220 S.RES ERJ12YJ561U B 46.5/30.2

R902 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 54.5/17.8

R951 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 50.8/30.3

R952 7030003650 S.RES ERJ3GEYJ 563 V (56 kΩ) T 48.4/27.8

R953 7030003570 S.RES ERJ3GEYJ 123 V (12 kΩ) T 48.4/30.4

R954 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 49.6/27.8

R971 7030008180 S.RES ERJ12YJ331U (330

Ω) B 32/41.7

R972 7030009220 S.RES ERJ12YJ561U B 32/37.5

R1001 7030000210 S.RES MCR10EZHJ 39

Ω (390) T 66.7/30.8

R1002 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) B 85.9/29.6

R1003 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 87.2/29.7

R1004 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 87.2/24.5

R1005 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) B 85.9/22.6

R1006 7310004650 S.TRI EVM-2WSX80 B53 (502) T 87.2/27.7

R1007 7310004650 S.TRI EVM-2WSX80 B53 (502) T 92.1/27.7

R1008 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 94.4/36.4

R1009 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 95.5/21.8

R1010 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) B 98.5/27.7

R1011 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 105.8/31.1

R1012 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 103.2/31.2

R1013 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 102.1/33

R1014 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 109.3/24.2

R1015 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 104.8/32.9

R1016 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 111.5/24.9

R1017 7030003450 S.RES ERJ3GEYJ 122 V (1.2 kΩ) T 112.6/18.3

R1018 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 112.6/17.1

R1019 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 111.7/15.9

R1020 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 118.2/46

R1101 7030007860 S.RES ERJ3GEYJ 8R2V (8.2

Ω) T 94.1/16.6

R1102 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 92.2/17

R1103 7030007860 S.RES ERJ3GEYJ 8R2V (8.2

Ω) T 92.2/15.8

R1104 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 81.5/15.9

R1105 7030005280 S.RES ERJ3GEYJ 6R8V (6.8

Ω) T 79.1/15.9

R1106 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) B 74.5/16.2

R1107 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 76.2/20.9

R1108 7030003390 S.RES ERJ3GEYJ 391 V (390

Ω) T 83.9/21.6

R1201 7030000210 S.RES MCR10EZHJ 39

Ω (390) T 66.6/46.7

R1202 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) B 85.8/52.6

R1203 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 86.3/50.5

R1204 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 86.3/44.5

R1205 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) B 86.2/43.8

R1206 7310004650 S.TRI EVM-2WSX80 B53 (502) T 87/48.2

R1207 7310004650 S.TRI EVM-2WSX80 B53 (502) T 92/48.2

R1208 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 92.4/40.2

R1209 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 91.4/56.6

R1210 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) B 101.3/47.8

R1211 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) B 100.5/54.1

R1212 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 103/54.8

R1213 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 103.3/52.8

R1214 7030003460 S.RES ERJ3GEYJ 152 V (1.5 kΩ) T 105.2/53.4

R1215 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 103.3/54

R1216 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 110.1/47.4

R1217 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 103.6/56.7

R1218 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 110.8/45.5

R1219 7030003450 S.RES ERJ3GEYJ 122 V (1.2 kΩ) T 107.8/56.3

R1220 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 105.9/55.2

R1221 7030003400 S.RES ERJ3GEYJ 471 V (470

Ω) T 112.1/49.6

R1222 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) B 98.7/54.1

R1223 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 95.8/59.7

R1224 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) B 96.9/54.1

R1301 7030007860 S.RES ERJ3GEYJ 8R2V (8.2

Ω) T 96.6/60.4

R1302 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 95.4/61

R1303 7030007860 S.RES ERJ3GEYJ 8R2V (8.2

Ω) T 94.1/62

R1304 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 94/58.8

R1305 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 72.3/58.6

R1306 7030005280 S.RES ERJ3GEYJ 6R8V (6.8

Ω) T 74.7/58.6

R1307 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 82.5/62.1

R1308 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 79.9/63.1

R1309 7030003390 S.RES ERJ3GEYJ 391 V (390

Ω) T 72.3/63.1

R1401 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 50.7/35.2

R1402 7030003270 S.RES ERJ3GEYJ 390 V (39

Ω) T 50.7/36.4

R1403 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 52.6/36.3

R1404 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 54.5/36.9

R1405 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 54.8/50.5

R1406 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 51.4/43.1

R1451 7030003430 S.RES ERJ3GEYJ 821 V (820

Ω) B 91.1/73.8

R1452 7030003350 S.RES ERJ3GEYJ 181 V (180

Ω) B 88.6/72.7

R1453 7030003260 S.RES ERJ3GEYJ 330 V (33

Ω) B 86.8/69.4

R1454 7030003350 S.RES ERJ3GEYJ 181 V (180

Ω) B 88.6/69.4

R1502 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 102/73

R1503 7030003290 S.RES ERJ3GEYJ 560 V (56

Ω) T 98.1/73

R1504 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 96.2/73.8

R1552 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 117.9/70.6

R1553 7510001490 S.TMR NTCG16 3NH 681KT T 123.9/67.9

R1554 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 122.7/67.9

R1555 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 119.1/67.9

R1556 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 117.9/67.9

R1557 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7

Ω) T 125.2/73.2

R1558 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 126.4/70.6

R1601 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 121.5/52.5

R1602 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 119.5/53.2

R1603 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 119.6/58.5

R1701 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 144.5/37.4

R1751 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 138.4/35.3

R1752 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 139.7/45

R1753 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 144.3/45.4

R1754 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 143.1/45.4

R1755 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) T 139.7/46.2

R1756 7030003470 S.RES ERJ3GEYJ 182 V (1.8 kΩ) T 139.7/47.4

R1757 7030003600 S.RES ERJ3GEYJ 223 V (22 kΩ) T 136.9/47.4

R1758 7030003300 S.RES ERJ3GEYJ 680 V (68

Ω) T 139.7/49.8

R1759 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 140.2/50.3

R1760 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 136.9/46.2

R1761 7030003430 S.RES ERJ3GEYJ 821 V (820

Ω) T 144.3/82

R1762 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) T 143.5/80.8

R1763 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) T 144.1/77.8

R1764 7030003230 S.RES ERJ3GEYJ 180 V (18

Ω) T 142.9/77.8

R1765 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 149/78.9

R1767 7030003860 S.RES ERJ3GE JPW V T 152.7/83.6

R1801 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 156.6/28.1

R1802 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 154.8/28.8

R1803 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 156.6/32.2

R1806 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) T 150.5/34.1

R1807 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 152.6/47.4

R1851 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 149.3/51.7

R1852 7030005280 S.RES ERJ3GEYJ 6R8V (6.8

Ω) T 151.1/50.9

[RF-B UNIT] [RF-B UNIT]

S.=Surface mount

5 - 24

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R1853 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 150.1/53.5

R1854 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 151.1/52.1

R1855 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) B 148.5/70.1

R1856 7030003430 S.RES ERJ3GEYJ 821 V (820

Ω) T 150.1/74.2

R1857 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 150.8/75.4

R1858 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) T 153.4/75.4

R1859 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 153.4/76.6

R1860 7030000340 S.RES MCR10EZHJ 470

Ω (471) T 158.6/77.3

R1861 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) B 153.8/72.4

R1862 7030003370 S.RES ERJ3GEYJ 271 V (270

Ω) B 151.1/74.7

R1863 7030003230 S.RES ERJ3GEYJ 180 V (18

Ω) B 151.1/72.9

R2001 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) B 93.8/93.4

R2002 7030003360 S.RES ERJ3GEYJ 221 V (220

Ω) T 96.1/95.8

R2003 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 95.4/87

R2004 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 125.2/90.6

R2005 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) B 92.3/91.6

R2006 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) B 135.7/88.7

R2007 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) B 135.7/92.3

R2008 7030003750 S.RES ERJ3GEYJ 394 V (390 kΩ) T 125.2/93.2

R2009 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) B 127.4/95.8

R2010 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 125.2/95.8

R2011 7030003840 S.RES ERJ3GEYJ 225 V (2.2 MΩ) B 134.6/95.8

R2012 7310002590 S.TRI RV-109 (RH03A3AJ3X0BA) 222 T 127.6/94.4

R2013 7030003760 S.RES ERJ3GEYJ 474 V (470 kΩ) B 131.2/95.8

R2014 7030003580 S.RES ERJ3GEYJ 153 V (15 kΩ) T 126.4/90.6

R2015 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 94.3/95.8

R2016 7310002580 S.TRI RV-108 (RH03A3A15X05A) 104 T 131.1/94.4

R2017 7030003700 S.RES ERJ3GEYJ 154 V (150 kΩ) T 127.6/90.6

R2101 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) B 81.8/83.8

R2102 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) B 83.6/81.2

R2103 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) B 84.4/83.8

R2104 7030003320 S.RES ERJ3GEYJ 101 V (100

Ω) B 80.2/76.8

R2106 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 71/82.4

R2201 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) B 98.4/80

R2202 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) B 101.2/81.2

R2203 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) B 98.4/81.8

R2204 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 101.5/78.7

R2205 7030003420 S.RES ERJ3GEYJ 681 V (680

Ω) T 111.3/85.2

R2206 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 116.2/85.8

R2207 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 120.1/80.1

R2208 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 121/83.7

R2209 7030003340 S.RES ERJ3GEYJ 151 V (150

Ω) T 119.2/84.6

R2210 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 119.3/79.4

R2211 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 124.8/76.9

R2212 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 127/81.6

R2213 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 129.5/79

R2214 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 130.1/80.9

R2301 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 28.7/52.2

C101 4030007090 S.CER C1608 CH 1H 470J-T T 41/91.7

C102 4030007030 S.CER C1608 CH 1H 150J-T T 43.6/90.2

C103 4030007120 S.CER C1608 CH 1H 820J-T T 39.8/91.7

C104 4030011540 S.CER C1608 CH 1H 750J-T T 42.3/89.1

C105 4030007070 S.CER C1608 CH 1H 330J-T T 38.6/91.7

C106 4030011600 S.CER C1608 JB 1E 104K-T T 37.9/88.7

C107 4030006880 S.CER C1608 JB 1H 472K-T B 29.8/86.2

C108 4030009520 S.CER C1608 CH 1H 020B-T T 36.6/86.7

C109 4030007050 S.CER C1608 CH 1H 220J-T T 35.5/83.7

C110 4030011600 S.CER C1608 JB 1E 104K-T T 14.1/80.3

C111 4030011600 S.CER C1608 JB 1E 104K-T T 8.5/68.9

C112 4030011600 S.CER C1608 JB 1E 104K-T T 8.4/65.9

C113 4030010760 S.CER C1608 CH 1H 331J-T T 37.3/81.8

C114 4030006880 S.CER C1608 JB 1H 472K-T B 15.5/85.4

C115 4030006880 S.CER C1608 JB 1H 472K-T T 2.2/88.8

C117 4030006880 S.CER C1608 JB 1H 472K-T T 32.7/85.5

C151 4030011600 S.CER C1608 JB 1E 104K-T T 49.5/86.8

C152 4030011600 S.CER C1608 JB 1E 104K-T T 43.5/83.7

C153 4030011600 S.CER C1608 JB 1E 104K-T T 49.6/82.5

C154 4030011600 S.CER C1608 JB 1E 104K-T T 44/85.8

C155 4030011600 S.CER C1608 JB 1E 104K-T T 48.6/79.4

C201 4030007010 S.CER C1608 CH 1H 100D-T T 7.3/20.3

C202 4030007120 S.CER C1608 CH 1H 820J-T T 7.3/21.5

C203 4030007020 S.CER C1608 CH 1H 120J-T T 5.5/22.2

C204 4030007120 S.CER C1608 CH 1H 820J-T T 7.3/23

C205 4030011600 S.CER C1608 JB 1E 104K-T T 5.5/24.8

C206 4030011600 S.CER C1608 JB 1E 104K-T T 4.6/29.8

C207 4030011600 S.CER C1608 JB 1E 104K-T T 8.9/39.9

C208 4030011600 S.CER C1608 JB 1E 104K-T T 6/39.6

C209 4030011600 S.CER C1608 JB 1E 104K-T T 2.9/39

C251 4030011600 S.CER C1608 JB 1E 104K-T B 13.6/72.5

C252 4030011600 S.CER C1608 JB 1E 104K-T B 9.8/76.1

C271 4030017850 S.CER C2012 CH 1H 272J-T T 9.3/77.8

C272 4030017860 S.CER C2012 CH 1H 332J-T T 13.5/77.2

C273 4030017860 S.CER C2012 CH 1H 332J-T T 11.7/77.2

C274 4030017830 S.CER C2012 CH 1H 152J-T T 16/77.4

C301 4030011600 S.CER C1608 JB 1E 104K-T B 38.6/6.1

C302 4030011600 S.CER C1608 JB 1E 104K-T B 36.8/16.7

C330 4030011600 S.CER C1608 JB 1E 104K-T B 112.5/58.9

C332 4510004630 S.ELE ECEV1CA100SR T 106.8/61.9

C334 4030011600 S.CER C1608 JB 1E 104K-T B 114.3/58.9

C401 4030011600 S.CER C1608 JB 1E 104K-T T 43.5/13.4

C402 4030011600 S.CER C1608 JB 1E 104K-T T 43.2/21.2

C403 4030011600 S.CER C1608 JB 1E 104K-T T 40.4/28.1

C451 4030006880 S.CER C1608 JB 1H 472K-T B 136.4/14.5

C452 4030011600 S.CER C1608 JB 1E 104K-T T 149.3/7.6

C453 4510004630 S.ELE ECEV1CA100SR T 146.5/3.3

C454 4030011600 S.CER C1608 JB 1E 104K-T T 138.5/2.5

C455 4510004630 S.ELE ECEV1CA100SR T 141.7/3.3

C456 4030011600 S.CER C1608 JB 1E 104K-T T 137.3/2.5

C457 4510004630 S.ELE ECEV1CA100SR T 134.1/4.8

C458 4510004590 ELE 16 MV 470 HC

C460 4030007130 S.CER C1608 CH 1H 101J-T B 146.4/14.5

C461 4030007130 S.CER C1608 CH 1H 101J-T B 144.4/14.5

C462 4030017810 S.CER C1608 CH 1H 102J-T B 143.4/11.4

C463 4030011600 S.CER C1608 JB 1E 104K-T B 140.4/14.5

C464 4030011600 S.CER C1608 JB 1E 104K-T B 139.4/11.4

C465 4030017810 S.CER C1608 CH 1H 102J-T B 134.4/14.5

C466 4030017810 S.CER C1608 CH 1H 102J-T B 133.4/11.4

C467 4030017810 S.CER C1608 CH 1H 102J-T B 132.4/14.5

C468 4030017810 S.CER C1608 CH 1H 102J-T B 131.4/11.4

C469 4030007130 S.CER C1608 CH 1H 101J-T B 129.4/11.4

C470 4030007130 S.CER C1608 CH 1H 101J-T B 128.4/14.5

C471 4030007130 S.CER C1608 CH 1H 101J-T B 127.4/11.4

C473 4030006880 S.CER C1608 JB 1H 472K-T B 134.6/5.3

C474 4030007130 S.CER C1608 CH 1H 101J-T B 145.5/19.5

C475 4030011600 S.CER C1608 JB 1E 104K-T B 140.6/5.3

C476 4030007130 S.CER C1608 CH 1H 101J-T B 143.7/19.5

C477 4030017810 S.CER C1608 CH 1H 102J-T B 144.1/5.1

C478 4030011600 S.CER C1608 JB 1E 104K-T T 141.6/22.2

C479 4030011600 S.CER C1608 JB 1E 104K-T B 140.4/21.9

C480 4030011600 S.CER C1608 JB 1E 104K-T T 130.2/7.1

C481 4030017810 S.CER C1608 CH 1H 102J-T T 136.6/20.5

C482 4030017810 S.CER C1608 CH 1H 102J-T B 133.5/19.5

C483 4030017810 S.CER C1608 CH 1H 102J-T T 131.5/21.3

C484 4030007130 S.CER C1608 CH 1H 101J-T T 129.9/19.4

C485 4030011600 S.CER C1608 JB 1E 104K-T T 115.6/7.6

C486 4030011600 S.CER C1608 JB 1E 104K-T T 115.6/8.8

C501 4030007170 S.CER C1608 CH 1H 221J-T T 17.4/68.6

C502 4030011600 S.CER C1608 JB 1E 104K-T T 18.2/66.6

C503 4030007110 S.CER C1608 CH 1H 680J-T T 18.6/68.6

C504 4030007090 S.CER C1608 CH 1H 470J-T T 19.3/59.1

C505 4030007090 S.CER C1608 CH 1H 470J-T T 19.3/57.9

C506 4030007070 S.CER C1608 CH 1H 330J-T T 16.1/57.2

C507 4030007070 S.CER C1608 CH 1H 330J-T T 17.3/57.2

C508 4030007090 S.CER C1608 CH 1H 470J-T T 19.3/56.4

C509 4030007090 S.CER C1608 CH 1H 470J-T T 19.3/55.2

C510 4030007070 S.CER C1608 CH 1H 330J-T T 12.4/51.8

C511 4030007070 S.CER C1608 CH 1H 330J-T T 13.6/51.8

C512 4030007090 S.CER C1608 CH 1H 470J-T T 18.2/52.6

C513 4030007090 S.CER C1608 CH 1H 470J-T T 18.2/51.4

C514 4030007170 S.CER C1608 CH 1H 221J-T T 18.2/47.7

C515 4030011600 S.CER C1608 JB 1E 104K-T T 19.7/45

C516 4030007110 S.CER C1608 CH 1H 680J-T T 18.2/46.4

C551 4030007160 S.CER C1608 CH 1H 181J-T T 38.1/73.6

C552 4030011600 S.CER C1608 JB 1E 104K-T T 37.6/71.6

C553 4030007090 S.CER C1608 CH 1H 470J-T T 36.8/73.6

C554 4030007040 S.CER C1608 CH 1H 180J-T T 39/63.9

C555 4030007090 S.CER C1608 CH 1H 470J-T T 39/62.6

C556 4030007050 S.CER C1608 CH 1H 220J-T T 37.1/61.9

C557 4030007030 S.CER C1608 CH 1H 150J-T T 35.9/61.9

C558 4030006990 S.CER C1608 CH 1H 080D-T T 39/61.1

C559 4030007090 S.CER C1608 CH 1H 470J-T T 39/59.9

C560 4030007050 S.CER C1608 CH 1H 220J-T T 31.5/56.1

C561 4030007030 S.CER C1608 CH 1H 150J-T T 32.8/56.1

C562 4030007040 S.CER C1608 CH 1H 180J-T T 38.1/56.6

C563 4030007090 S.CER C1608 CH 1H 470J-T T 38.1/55.3

C564 4030007160 S.CER C1608 CH 1H 181J-T T 38/50.7

C565 4030011600 S.CER C1608 JB 1E 104K-T T 39.5/49.4

C566 4030007090 S.CER C1608 CH 1H 470J-T T 38/52

C601 4030007040 S.CER C1608 CH 1H 180J-T T 27.2/73.3

C602 4030011600 S.CER C1608 JB 1E 104K-T T 27.9/71.4

C603 4030007140 S.CER C1608 CH 1H 121J-T T 28.5/73.3

C604 4030007040 S.CER C1608 CH 1H 180J-T T 29.4/63.9

C605 4030007070 S.CER C1608 CH 1H 330J-T T 29.4/62.7

C606 4030007070 S.CER C1608 CH 1H 330J-T T 26.2/61.9

C607 4030007010 S.CER C1608 CH 1H 100D-T T 27.5/61.9

C609 4030007090 S.CER C1608 CH 1H 470J-T T 29.4/59.9

C610 4030007070 S.CER C1608 CH 1H 330J-T T 21.7/56

C611 4030007010 S.CER C1608 CH 1H 100D-T T 23/56

C612 4030007040 S.CER C1608 CH 1H 180J-T T 28.4/56.5

C613 4030007070 S.CER C1608 CH 1H 330J-T T 28.4/55.2

C614 4030007040 S.CER C1608 CH 1H 180J-T T 28.4/52.1

C615 4030011600 S.CER C1608 JB 1E 104K-T T 29.8/49.6

C616 4030007140 S.CER C1608 CH 1H 121J-T T 28.4/50.8

C651 4030007130 S.CER C1608 CH 1H 101J-T T 46/73.3

C652 4030011600 S.CER C1608 JB 1E 104K-T T 46.8/71.3

C653 4030007030 S.CER C1608 CH 1H 150J-T T 47.2/73.3

C654 4030007050 S.CER C1608 CH 1H 220J-T T 48.8/63.5

C655 4030007020 S.CER C1608 CH 1H 120J-T T 48.8/62.2

C656 4030007050 S.CER C1608 CH 1H 220J-T T 45.5/61.5

C658 4030007050 S.CER C1608 CH 1H 220J-T T 48.8/60.7

C659 4030006980 S.CER C1608 CH 1H 070D-T T 48.8/59.5

C660 4030007050 S.CER C1608 CH 1H 220J-T T 40.9/56

C662 4030007050 S.CER C1608 CH 1H 220J-T T 47.7/56.8

C663 4030007020 S.CER C1608 CH 1H 120J-T T 47.7/55.6

[RF-B UNIT] [RF-B UNIT]

S.=Surface mount

5 - 25

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C664 4030007130 S.CER C1608 CH 1H 101J-T T 46.1/49.9

C665 4030011600 S.CER C1608 JB 1E 104K-T T 47.6/52.3

C666 4030007030 S.CER C1608 CH 1H 150J-T T 46.1/51.1

C701 4030007100 S.CER C1608 CH 1H 560J-T B 45.1/69.2

C702 4030011600 S.CER C1608 JB 1E 104K-T B 44/62.7

C704 4030007110 S.CER C1608 CH 1H 680J-T B 44.3/58.7

C706 4030007100 S.CER C1608 CH 1H 560J-T B 44.6/51.7

C707 4030011600 S.CER C1608 JB 1E 104K-T B 42.5/58.7

C752 4030011600 S.CER C1608 JB 1E 104K-T B 32.1/73.9

C756 4030007090 S.CER C1608 CH 1H 470J-T B 35.6/64.4

C757 4030006990 S.CER C1608 CH 1H 080D-T B 33.8/64.4

C760 4030007090 S.CER C1608 CH 1H 470J-T B 35.6/61.1

C765 4030011600 S.CER C1608 JB 1E 104K-T B 39/52.3

C801 4030011600 S.CER C1608 JB 1E 104K-T T 32.8/34.1

C802 4030011600 S.CER C1608 JB 1E 104K-T T 31.9/40

C805 4030017850 S.CER C2012 CH 1H 272J-T T 39.3/33.6

C806 4030017820 S.CER C2012 CH 1H 122J-T T 42/34.5

C807 4030017800 S.CER C1608 CH 1H 561J-T T 42.7/29.8

C851 4030007140 S.CER C1608 CH 1H 121J-T B 25/67

C852 4030011600 S.CER C1608 JB 1E 104K-T B 29.4/65.8

C853 4030011770 S.CER C1608 CH 1H 060B-T B 29.4/64

C854 4030011770 S.CER C1608 CH 1H 060B-T B 29.4/62.2

C855 4030009550 S.CER C1608 CH 1H 2R5B-T B 23.2/61.1

C856 4030009920 S.CER C1608 CH 1H 050B-T B 25/61.1

C857 4030007010 S.CER C1608 CH 1H 100D-T B 29.4/57.8

C858 4030009920 S.CER C1608 CH 1H 050B-T B 23.2/57.8

C859 4030009550 S.CER C1608 CH 1H 2R5B-T B 25/57.8

C860 4030011770 S.CER C1608 CH 1H 060B-T B 29.4/54.2

C861 4030011770 S.CER C1608 CH 1H 060B-T B 29.4/56

C862 4030007030 S.CER C1608 CH 1H 150J-T B 25/52

C863 4030007140 S.CER C1608 CH 1H 121J-T B 25/47.3

C864 4030011600 S.CER C1608 JB 1E 104K-T B 29.3/50.1

C901 4030011600 S.CER C1608 JB 1E 104K-T T 50.1/13.8

C951 4030011600 S.CER C1608 JB 1E 104K-T T 49.6/30.4

C952 4030007170 S.CER C1608 CH 1H 221J-T T 48.4/25.2

C971 4030011600 S.CER C1608 JB 1E 104K-T B 35.7/39.7

C1001 4030007050 S.CER C1608 CH 1H 220J-T T 66.4/20.6

C1002 4030007140 S.CER C1608 CH 1H 121J-T T 59.2/22.6

C1004 4030007070 S.CER C1608 CH 1H 330J-T T 66.4/23

C1005 4030007080 S.CER C1608 CH 1H 390J-T T 66.4/21.8

C1006 4030007090 S.CER C1608 CH 1H 470J-T T 59.9/25.3

C1007 4030007080 S.CER C1608 CH 1H 390J-T T 66.4/24.2

C1008 4030007100 S.CER C1608 CH 1H 560J-T T 66.4/25.4

C1009 4030007030 S.CER C1608 CH 1H 150J-T T 64.4/26.6

C1010 4030007100 S.CER C1608 CH 1H 560J-T T 66.4/26.6

C1011 4030011600 S.CER C1608 JB 1E 104K-T T 66.4/27.8

C1012 4030007030 S.CER C1608 CH 1H 150J-T T 73.2/29

C1013 4030011600 S.CER C1608 JB 1E 104K-T T 73/21.4

C1014 4030007020 S.CER C1608 CH 1H 120J-T B 85.2/27

C1015 4030011600 S.CER C1608 JB 1E 104K-T B 85.9/31.4

C1016 4030011600 S.CER C1608 JB 1E 104K-T T 87.2/30.9

C1017 4030011600 S.CER C1608 JB 1E 104K-T T 87.2/25.7

C1018 4030011600 S.CER C1608 JB 1E 104K-T B 85.9/24.4

C1019 4030007030 S.CER C1608 CH 1H 150J-T T 93.2/30.3

C1020 4030007030 S.CER C1608 CH 1H 150J-T T 93.1/25.1

C1021 4030011600 S.CER C1608 JB 1E 104K-T B 101.6/27.7

C1022 4030011340 S.CER C1608 CH 1H 471J-T T 103.8/24.9

C1023 4030006880 S.CER C1608 JB 1H 472K-T T 106.4/24.9

C1024 4030011340 S.CER C1608 CH 1H 471J-T T 105.8/29.9

C1025 4030011600 S.CER C1608 JB 1E 104K-T T 100.9/33

C1026 4030006880 S.CER C1608 JB 1H 472K-T T 108.4/29.9

C1027 4030006880 S.CER C1608 JB 1H 472K-T T 110.1/28.5

C1028 4030006880 S.CER C1608 JB 1H 472K-T T 110.1/26.5

C1029 4030011600 S.CER C1608 JB 1E 104K-T T 109.6/33.8

C1030 4550006080 S.TAN TEESVB2 1C 106M8L B 105.9/31.4

C1031 4030006900 S.CER C1608 JB 1H 103K-T T 112.6/19.5

C1032 4030006900 S.CER C1608 JB 1H 103K-T T 112.5/14.7

C1033 4030011600 S.CER C1608 JB 1E 104K-T T 108.6/12

C1034 4030009530 S.CER C1608 CH 1H 030B-T T 112.6/20.7

C1035 4030007030 S.CER C1608 CH 1H 150J-T B 112.6/19.6

C1036 4540000020 S.TRI TZY2Z060A001R00 T 113.5/22.7

C1037 4030011600 S.CER C1608 JB 1E 104K-T B 96.2/12.5

C1038 4510004630 S.ELE ECEV1CA100SR T 104.9/14

C1039 4030011600 S.CER C1608 JB 1E 104K-T B 99.5/12.5

C1040 4030011600 S.CER C1608 JB 1E 104K-T B 113.7/13.9

C1101 4030007040 S.CER C1608 CH 1H 180J-T T 89.6/17

C1102 4030006980 S.CER C1608 CH 1H 070D-T T 89.6/15.8

C1103 4030008560 S.CER C1608 CH 1H 300J-T T 87/17

C1104 4030007020 S.CER C1608 CH 1H 120J-T T 87/15.8

C1105 4030007060 S.CER C1608 CH 1H 270J-T T 85.2/16.5

C1106 4030017810 S.CER C1608 CH 1H 102J-T B 86.8/12.7

C1107 4030011600 S.CER C1608 JB 1E 104K-T T 83.9/16.5

C1108 4030006900 S.CER C1608 JB 1H 103K-T T 82.7/15.9

C1109 4030006900 S.CER C1608 JB 1H 103K-T T 80.3/15.9

C1110 4030006900 S.CER C1608 JB 1H 103K-T T 77.4/20.9

C1111 4030006900 S.CER C1608 JB 1H 103K-T T 73/20.2

C1200 4030017810 S.CER C1608 CH 1H 102J-T T 121/64.6

C1201 4030007050 S.CER C1608 CH 1H 220J-T T 67.1/37.9

C1202 4030007140 S.CER C1608 CH 1H 121J-T T 63.9/39.9

C1204 4030007070 S.CER C1608 CH 1H 330J-T T 67.1/40.3

C1205 4030007080 S.CER C1608 CH 1H 390J-T T 67.1/39.1

C1206 4030007090 S.CER C1608 CH 1H 470J-T T 61/44.2

C1207 4030007080 S.CER C1608 CH 1H 390J-T T 67.1/41.5

C1208 4030007100 S.CER C1608 CH 1H 560J-T T 67.1/42.7

C1209 4030007030 S.CER C1608 CH 1H 150J-T T 64.9/44.5

C1210 4030007100 S.CER C1608 CH 1H 560J-T T 67.1/43.9

C1211 4030011600 S.CER C1608 JB 1E 104K-T T 67.1/45.1

C1212 4030007030 S.CER C1608 CH 1H 150J-T B 73.8/50.6

C1213 4030011600 S.CER C1608 JB 1E 104K-T T 73.3/42.2

C1214 4030007020 S.CER C1608 CH 1H 120J-T B 85.3/48.1

C1215 4030011600 S.CER C1608 JB 1E 104K-T B 85.8/50.8

C1216 4030011600 S.CER C1608 JB 1E 104K-T T 86.3/51.7

C1217 4030011600 S.CER C1608 JB 1E 104K-T T 86.3/45.7

C1218 4030011600 S.CER C1608 JB 1E 104K-T B 86.2/45.6

C1219 4030007030 S.CER C1608 CH 1H 150J-T T 93/50.8

C1220 4030007030 S.CER C1608 CH 1H 150J-T T 93/45.3

C1221 4030011600 S.CER C1608 JB 1E 104K-T B 98/48.3

C1222 4030006880 S.CER C1608 JB 1H 472K-T B 102.3/56.9

C1223 4030011340 S.CER C1608 CH 1H 471J-T T 103.9/43.9

C1224 4030006880 S.CER C1608 JB 1H 472K-T B 103/53

C1225 4030006880 S.CER C1608 JB 1H 472K-T T 106.5/43.9

C1226 4030011340 S.CER C1608 CH 1H 471J-T T 103.9/48.6

C1227 4030011600 S.CER C1608 JB 1E 104K-T T 103.3/55.2

C1228 4030006880 S.CER C1608 JB 1H 472K-T T 105.8/49.1

C1229 4030006880 S.CER C1608 JB 1H 472K-T T 108.9/48.6

C1230 4030006880 S.CER C1608 JB 1H 472K-T T 109.6/45.5

C1231 4030011600 S.CER C1608 JB 1E 104K-T T 102.6/60.5

C1232 4550006080 S.TAN TEESVB2 1C 106M8L T 101.7/62.8

C1233 4030006900 S.CER C1608 JB 1H 103K-T T 109/56.3

C1234 4030006900 S.CER C1608 JB 1H 103K-T T 114.5/53.2

C1235 4030011600 S.CER C1608 JB 1E 104K-T T 111.1/57.2

C1236 4030009530 S.CER C1608 CH 1H 030B-T T 110.3/54.6

C1237 4030007030 S.CER C1608 CH 1H 150J-T T 114.5/46.1

C1238 4540000020 S.TRI TZY2Z060A001R00 T 109/56.3

C1239 4030011600 S.CER C1608 JB 1E 104K-T B 114.8/65.2

C1240 4030007090 S.CER C1608 CH 1H 470J-T B 100.3/51.8

C1241 4030011600 S.CER C1608 JB 1E 104K-T B 93.2/59.7

C1242 4030007010 S.CER C1608 CH 1H 100D-T B 100.7/59.7

C1301 4030006900 S.CER C1608 JB 1H 103K-T T 95.4/58.3

C1302 4030006900 S.CER C1608 JB 1H 103K-T B 99.1/64.7

C1303 4030006900 S.CER C1608 JB 1H 103K-T T 95.6/63.6

C1304 4030007040 S.CER C1608 CH 1H 180J-T T 92.8/59.7

C1305 4030006980 S.CER C1608 CH 1H 070D-T T 91.8/62

C1306 4030008560 S.CER C1608 CH 1H 300J-T T 91/58.6

C1307 4030007020 S.CER C1608 CH 1H 120J-T T 89.1/59

C1308 4030007060 S.CER C1608 CH 1H 270J-T T 91/59.8

C1309 4030017810 S.CER C1608 CH 1H 102J-T T 82.5/63.3

C1310 4030011600 S.CER C1608 JB 1E 104K-T T 71.1/57.8

C1311 4030006900 S.CER C1608 JB 1H 103K-T T 75.9/58.6

C1312 4030006900 S.CER C1608 JB 1H 103K-T T 73.5/58.6

C1313 4030006900 S.CER C1608 JB 1H 103K-T T 79.9/64.3

C1314 4030006900 S.CER C1608 JB 1H 103K-T B 70.1/61.2

C1400 4030011600 S.CER C1608 JB 1E 104K-T T 129.9/84.2

C1401 4030011600 S.CER C1608 JB 1E 104K-T T 54.5/38.1

C1402 4030011600 S.CER C1608 JB 1E 104K-T T 50.7/37.6

C1403 4030011600 S.CER C1608 JB 1E 104K-T T 52.9/41.9

C1404 4030011600 S.CER C1608 JB 1E 104K-T T 54.8/42.4

C1405 4030007120 S.CER C1608 CH 1H 820J-T T 54/44.3

C1406 4030007040 S.CER C1608 CH 1H 180J-T T 51.4/48.6

C1407 4030007130 S.CER C1608 CH 1H 101J-T T 54/48.6

C1408 4030007110 S.CER C1608 CH 1H 680J-T T 53.6/50.5

C1409 4030007100 S.CER C1608 CH 1H 560J-T T 54.1/52.4

C1451 4030007040 S.CER C1608 CH 1H 180J-T T 77.8/71

C1452 4030009920 S.CER C1608 CH 1H 050B-T T 82.6/71

C1453 4030011600 S.CER C1608 JB 1E 104K-T B 86/72

C1454 4030011600 S.CER C1608 JB 1E 104K-T B 91.1/68.2

C1501 4030006880 S.CER C1608 JB 1H 472K-T T 100/73.8

C1502 4030006880 S.CER C1608 JB 1H 472K-T T 100.1/72.6

C1550 4030017810 S.CER C1608 CH 1H 102J-T T 125.1/62.5

C1551 4030007100 S.CER C1608 CH 1H 560J-T T 95.5/69.6

C1552 4030006980 S.CER C1608 CH 1H 070D-T T 97.3/69.1

C1553 4030007100 S.CER C1608 CH 1H 560J-T T 99.2/69.6

C1556 4030006880 S.CER C1608 JB 1H 472K-T T 115.5/67.9

C1557 4030007010 S.CER C1608 CH 1H 100D-T T 115.5/70.6

C1558 4030011600 S.CER C1608 JB 1E 104K-T T 121.5/67.9

C1559 4030006970 S.CER C1608 CH 1H 060D-T T 120.3/67.9

C1560 4030017810 S.CER C1608 CH 1H 102J-T T 116.7/67.9

C1561 4030017810 S.CER C1608 CH 1H 102J-T T 125.2/70.6

C1563 4030017810 S.CER C1608 CH 1H 102J-T T 128.8/72.1

C1601 4030007170 S.CER C1608 CH 1H 221J-T T 121.7/55.5

C1602 4030006880 S.CER C1608 JB 1H 472K-T T 119.6/50.1

C1603 4030006900 S.CER C1608 JB 1H 103K-T T 122.2/57.3

C1604 4030006900 S.CER C1608 JB 1H 103K-T T 122.2/58.5

C1651 4030009920 S.CER C1608 CH 1H 050B-T T 124.9/51.8

C1701 4030006900 S.CER C1608 JB 1H 103K-T T 127.6/49

C1702 4030007030 S.CER C1608 CH 1H 150J-T T 119.9/29.6

C1703 4030006990 S.CER C1608 CH 1H 080D-T T 122.4/26.2

C1704 4030007030 S.CER C1608 CH 1H 150J-T T 129.7/29.6

C1705 4030006900 S.CER C1608 JB 1H 103K-T B 143/32.8

C1751 4030011600 S.CER C1608 JB 1E 104K-T B 140.2/36.8

C1752 4030007010 S.CER C1608 CH 1H 100D-T B 140.2/40.5

C1753 4030006880 S.CER C1608 JB 1H 472K-T T 137.1/45

C1754 4030017810 S.CER C1608 CH 1H 102J-T T 141.9/45.4

C1755 4030006880 S.CER C1608 JB 1H 472K-T T 137.4/48.6

C1756 4030006880 S.CER C1608 JB 1H 472K-T T 140.1/48.6

C1757 4030007020 S.CER C1608 CH 1H 120J-T B 140.2/54.6

[RF-B UNIT] [RF-B UNIT]

S.=Surface mount

5 - 26

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C1758 4030006880 S.CER C1608 JB 1H 472K-T T 136.9/49.8

C1759 4030011600 S.CER C1608 JB 1E 104K-T T 144.3/79.6

C1760 4030006880 S.CER C1608 JB 1H 472K-T T 139.8/81.8

C1761 4030011830 S.CER C1608 CH 1H 301J-T T 148.1/84

C1762 4030011830 S.CER C1608 CH 1H 301J-T T 151.5/81

C1763 4030011600 S.CER C1608 JB 1E 104K-T T 153.9/83.6

C1801 4030006880 S.CER C1608 JB 1H 472K-T T 154.8/31.4

C1802 4030007030 S.CER C1608 CH 1H 150J-T T 154.1/37.2

C1803 4030006880 S.CER C1608 JB 1H 472K-T T 153.4/34.1

C1804 4030006880 S.CER C1608 JB 1H 472K-T T 152.6/46.2

C1805 4030011600 S.CER C1608 JB 1E 104K-T T 150.5/28.9

C1851 4030011600 S.CER C1608 JB 1E 104K-T T 151.1/54.7

C1852 4030011600 S.CER C1608 JB 1E 104K-T T 154.8/51.7

C1853 4030011340 S.CER C1608 CH 1H 471J-T T 153.4/64.1

C1854 4030011600 S.CER C1608 JB 1E 104K-T B 156.3/73.1

C1855 4030011600 S.CER C1608 JB 1E 104K-T B 153.8/69.1

C1856 4030011600 S.CER C1608 JB 1E 104K-T T 153.4/74.2

C1857 4030011600 S.CER C1608 JB 1E 104K-T T 150.1/76.6

C1858 4030011600 S.CER C1608 JB 1E 104K-T B 155.4/81.8

C1901 4030011600 S.CER C1608 JB 1E 104K-T T 144/21.7

C2001 4030006880 S.CER C1608 JB 1H 472K-T B 129.5/88.8

C2002 4030006880 S.CER C1608 JB 1H 472K-T B 92.4/88.1

C2003 4030017810 S.CER C1608 CH 1H 102J-T B 135.7/90.5

C2004 4510004630 S.ELE ECEV1CA100SR T 131.8/89.7

C2005 4030011600 S.CER C1608 JB 1E 104K-T B 95.7/91.3

C2006 4030011600 S.CER C1608 JB 1E 104K-T B 98.5/89.3

C2007 4030017810 S.CER C1608 CH 1H 102J-T T 93.1/95.8

C2008 4030006880 S.CER C1608 JB 1H 472K-T T 91.9/95.8

C2009 4030006980 S.CER C1608 CH 1H 070D-T T 90.7/95.8

C2010 4030011600 S.CER C1608 JB 1E 104K-T B 132.8/88.8

C2011 4030011600 S.CER C1608 JB 1E 104K-T B 124.2/94.9

C2012 4030007130 S.CER C1608 CH 1H 101J-T T 84.9/82.5

C2013 4030007130 S.CER C1608 CH 1H 101J-T T 127.8/88.4

C2014 4030017810 S.CER C1608 CH 1H 102J-T T 128.8/76.9

C2102 4030006980 S.CER C1608 CH 1H 070D-T B 76.9/81.1

C2103 4030006880 S.CER C1608 JB 1H 472K-T B 77/85.4

C2104 4030006880 S.CER C1608 JB 1H 472K-T B 70.4/79.6

C2201 4030007030 S.CER C1608 CH 1H 150J-T B 106.5/79.9

C2202 4030006880 S.CER C1608 JB 1H 472K-T B 101.5/76.9

C2203 4030017810 S.CER C1608 CH 1H 102J-T T 112.6/85.2

C2204 4030009520 S.CER C1608 CH 1H 020B-T T 116.2/84.6

C2205 4030007030 S.CER C1608 CH 1H 150J-T B 118.3/80.1

C2206 4030006880 S.CER C1608 JB 1H 472K-T B 119.3/77.5

C2207 4030017810 S.CER C1608 CH 1H 102J-T T 119.1/83.4

C2208 4030007010 S.CER C1608 CH 1H 100D-T T 121.2/81.1

C2209 4030006880 S.CER C1608 JB 1H 472K-T T 121.2/77.6

C2210 4030006880 S.CER C1608 JB 1H 472K-T T 124.9/82.1

C2211 4030006880 S.CER C1608 JB 1H 472K-T T 128.3/81.6

C2212 4030008920 S.CER C1608 JB 1H 473K-T T 130.1/82.1

C9001 4030006880 S.CER C1608 JB 1H 472K-T T 4.6/59.4

C9002 4030006880 S.CER C1608 JB 1H 472K-T T 7.4/59.4

C9007 4030006880 S.CER C1608 JB 1H 472K-T T 42/38.9

C9008 4030006880 S.CER C1608 JB 1H 472K-T T 42/36.1

C9011 4030006880 S.CER C1608 JB 1H 472K-T T 26/82.4

C9012 4030006880 S.CER C1608 JB 1H 472K-T T 26/79.6

C9015 4030006880 S.CER C1608 JB 1H 472K-T T 54.6/67.5

C9016 4030006880 S.CER C1608 JB 1H 472K-T T 57.4/67.4

C9018 4030006880 S.CER C1608 JB 1H 472K-T T 20.6/17.5

C9020 4030006880 S.CER C1608 JB 1H 472K-T T 23.4/17.5

C9021 4030006880 S.CER C1608 JB 1H 472K-T T 49.4/17.5

C9024 4030006880 S.CER C1608 JB 1H 472K-T T 46.6/17.5

C9026 4030006880 S.CER C1608 JB 1H 472K-T T 44.1/42.9

C9027 4030006880 S.CER C1608 JB 1H 472K-T T 44.1/40.1

RL101 6330001810 RLY ATN203

RL102 6330001810 RLY ATN203

RL103 6330001810 RLY ATN203

J101 6510007020 CNR TMP-J01X-V6

J102 6450001130 CNR JPJ2042-01-110

J201 6510007020 CNR TMP-J01X-V6

J451 6510019990 S.CNR 52808-2291 T 137.9/13

J801 6910016430 CNR IMSA-9210B-1-05Z869-PT1

J802 6910016430 CNR IMSA-9210B-1-05Z869-PT1

J803 6910016430 CNR IMSA-9210B-1-05Z869-PT1

J804 6910016430 CNR IMSA-9210B-1-05Z869-PT1

J805 6910016430 CNR IMSA-9210B-1-05Z869-PT1

J807 6910016430 CNR IMSA-9210B-1-05Z869-PT1

J809 6910016430 CNR IMSA-9210B-1-05Z869-PT1

J951 6510007020 CNR TMP-J01X-V6

J1101 6510007020 CNR TMP-J01X-V6

J1301 6510007020 CNR TMP-J01X-V6

J1651 6510007020 CNR TMP-J01X-V6

J1801 6510007020 CNR TMP-J01X-V6

J1851 6510007020 CNR TMP-J01X-V6

J2001 6510006360 CNR TMP-J02X-A1

J2101 6510007020 CNR TMP-J01X-V6

W2101 9024801019 JMP 74/98/020/X98/X98

EP1 0910058371 PCB B 6168A

EP451 6910015970 S.BEA MMZ1608B 301CT-AS T 146.4/18.3

EP452 6910015970 S.BEA MMZ1608B 301CT-AS T 144.4/18.3

EP453 6910015970 S.BEA MMZ1608B 301CT-AS T 140.1/18.4

EP454 6910015970 S.BEA MMZ1608B 301CT-AS T 134.7/19.4

EP455 6910015970 S.BEA MMZ1608B 301CT-AS T 133.5/19.4

EP456 6910015970 S.BEA MMZ1608B 301CT-AS T 132.3/19.4

EP457 6910015970 S.BEA MMZ1608B 301CT-AS T 131.1/19.4

EP458 6910015970 S.BEA MMZ1608B 301CT-AS T 129/7.1

EP459 6910015970 S.BEA MMZ1608B 301CT-AS T 126.6/7.1

EP460 6910015970 S.BEA MMZ1608B 301CT-AS T 127.8/7.1

EP461 6910015970 S.BEA MMZ1608B 301CT-AS T 148.3/19.4

EP462 6910015970 S.BEA MMZ1608B 301CT-AS B 136.4/5.3

EP463 6910015970 S.BEA MMZ1608B 301CT-AS T 120.1/6.7

EP464 6910015970 S.BEA MMZ1608B 301CT-AS T 120.1/7.9

EP465 6910015970 S.BEA MMZ1608B 301CT-AS T 120.1/9.1

EP466 6910015970 S.BEA MMZ1608B 301CT-AS T 120.1/10.3

EP467 6910015970 S.BEA MMZ1608B 301CT-AS T 138.5/5.2

EP468 6910015970 S.BEA MMZ1608B 301CT-AS T 137.3/5.2

EP469 6910015970 S.BEA MMZ1608B 301CT-AS T 141.9/7.6

EP470 6910015970 S.BEA MMZ1608B 301CT-AS T 143.1/7.6

EP471 6910015970 S.BEA MMZ1608B 301CT-AS T 142.8/19.6

EP472 6910015970 S.BEA MMZ1608B 301CT-AS T 141.6/19.6

EP473 6910015970 S.BEA MMZ1608B 301CT-AS T 130.2/4.5

EP1205 6910015970 S.BEA MMZ1608B 301CT-AS T 121/63.4

EP1406 6910015970 S.BEA MMZ1608B 301CT-AS T 50.7/44.3

EP1551 6910015970 S.BEA MMZ1608B 301CT-AS T 125.1/63.7

EP1552 6910015970 S.BEA MMZ1608B 301CT-AS T 127.6/72.1

EP1801 6910015970 S.BEA MMZ1608B 301CT-AS T 150.5/31.5

EP2001 6910015970 S.BEA MMZ1608B 301CT-AS T 124.8/88

EP2002 6910015970 S.BEA MMZ1608B 301CT-AS T 130.7/79

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

D3301 1750000580 S.DIO 1SV307 (TPH3) B 33.9/45.3

D3302 1750000580 S.DIO 1SV307 (TPH3) B 30.9/3.5

D3401 1750000580 S.DIO 1SV307 (TPH3) B 21.7/44.3

D3402 1750000580 S.DIO 1SV307 (TPH3) B 27.5/5.7

D3501 1750000580 S.DIO 1SV307 (TPH3) B 36.5/48.4

D3502 1750000580 S.DIO 1SV307 (TPH3) B 40.6/10.5

D3601 1750000580 S.DIO 1SV307 (TPH3) B 26.6/41.6

D3602 1750000580 S.DIO 1SV307 (TPH3) B 27.5/3.9

L3201 6180003540 COL SP0406-3R9K-6

L3202 6180003580 COL SP0406-120K-6

L3203 6180003580 COL SP0406-120K-6

L3204 6180003540 COL SP0406-3R9K-6

L3205 6180003580 COL SP0406-120K-6

L3301 6180003550 COL SP0406-4R7K-6

L3302 6180003560 COL SP0406-5R6K-6

L3303 6180003560 COL SP0406-5R6K-6

L3304 6180003550 COL SP0406-4R7K-6

L3305 6180003560 COL SP0406-5R6K-6

L3401 6180003410 COL SP0406-2R2K-6

L3402 6180003510 COL SP0406-6R8K-6

L3403 6180003510 COL SP0406-6R8K-6

L3404 6180003410 COL SP0406-2R2K-6

L3405 6180003510 COL SP0406-6R8K-6

L3501 6180003410 COL SP0406-2R2K-6

L3502 6180003570 COL SP0406-3R3K-6

L3503 6180003570 COL SP0406-3R3K-6

L3504 6180003410 COL SP0406-2R2K-6

L3505 6180003570 COL SP0406-3R3K-6

L3601 6180003390 COL SP0406-1R2K-6

L3602 6180003490 COL SP0406-2R7K-6

L3603 6180003490 COL SP0406-2R7K-6

L3604 6180003390 COL SP0406-1R2K-6

L3605 6180003490 COL SP0406-2R7K-6

R3201 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 54.2/39.5

R3202 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 56.9/25.8

R3301 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 31.3/39.2

R3302 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 30.2/12.7

R3401 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 6/32.5

R3402 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 6/17.5

R3501 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 47.4/42.4

R3502 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 45.2/23.4

R3601 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 22/40.5

R3602 7030000260 S.RES MCR10EZHJ 100

Ω (101) B 20.2/11.1

C3201 4030017810 S.CER C1608 CH 1H 102J-T B 53.6/41.5

[RF-B UNIT] [RF-B UNIT]

[BPF-A UNIT]

S.=Surface mount

5 - 27

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

[PREAMP UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C3202 4030011600 S.CER C1608 JB 1E 104K-T B 51/41.6

C3203 4030017810 S.CER C1608 CH 1H 102J-T B 53.6/43.3

C3204 4030010760 S.CER C1608 CH 1H 331J-T B 50.4/39.2

C3205 4030007140 S.CER C1608 CH 1H 121J-T B 50.4/37.4

C3206 4030007160 S.CER C1608 CH 1H 181J-T B 48/33.6

C3207 4030007060 S.CER C1608 CH 1H 270J-T B 48/35.4

C3208 4030010760 S.CER C1608 CH 1H 331J-T B 49.4/31.8

C3209 4030007090 S.CER C1608 CH 1H 470J-T B 49.4/30

C3210 4030007160 S.CER C1608 CH 1H 181J-T B 47.9/27.3

C3211 4030007060 S.CER C1608 CH 1H 270J-T B 49.7/27.3

C3212 4030010760 S.CER C1608 CH 1H 331J-T B 49.4/24.6

C3213 4030007140 S.CER C1608 CH 1H 121J-T B 49.4/22.8

C3214 4030017810 S.CER C1608 CH 1H 102J-T B 53/21.2

C3215 4030011600 S.CER C1608 JB 1E 104K-T B 53/24.8

C3216 4030017810 S.CER C1608 CH 1H 102J-T B 53/23

C3301 4030017800 S.CER C1608 CH 1H 561J-T B 29.2/34.8

C3302 4030011600 S.CER C1608 JB 1E 104K-T B 31.2/31.2

C3303 4030010760 S.CER C1608 CH 1H 331J-T B 29.2/33

C3304 4030007080 S.CER C1608 CH 1H 390J-T B 31.2/29.4

C3305 4030010760 S.CER C1608 CH 1H 331J-T B 31.2/27.6

C3306 4030010760 S.CER C1608 CH 1H 331J-T B 34.4/25

C3307 4030007100 S.CER C1608 CH 1H 560J-T B 32.6/25

C3308 4030007090 S.CER C1608 CH 1H 470J-T B 30/24.4

C3309 4030010760 S.CER C1608 CH 1H 331J-T B 30/22.6

C3310 4030010760 S.CER C1608 CH 1H 331J-T B 32.6/21.6

C3311 4030007100 S.CER C1608 CH 1H 560J-T B 34.4/21.6

C3312 4030007080 S.CER C1608 CH 1H 390J-T B 30/20.6

C3313 4030010760 S.CER C1608 CH 1H 331J-T B 31.2/18.8

C3314 4030017800 S.CER C1608 CH 1H 561J-T B 32.2/12.9

C3315 4030011600 S.CER C1608 JB 1E 104K-T B 29.3/16.7

C3316 4030010760 S.CER C1608 CH 1H 331J-T B 34/12.9

C3401 4030011330 S.CER C1608 CH 1H 391J-T B 10.2/32

C3402 4030011600 S.CER C1608 JB 1E 104K-T B 10.2/30.2

C3403 4030017800 S.CER C1608 CH 1H 561J-T B 10.2/33.8

C3404 4030007160 S.CER C1608 CH 1H 181J-T B 10.2/26.6

C3405 4030007070 S.CER C1608 CH 1H 330J-T B 10.2/28.4

C3406 4030007120 S.CER C1608 CH 1H 820J-T B 12.9/27.4

C3407 4030007030 S.CER C1608 CH 1H 150J-T B 14.7/27.4

C3408 4030007140 S.CER C1608 CH 1H 121J-T B 11.5/22.8

C3409 4030007100 S.CER C1608 CH 1H 560J-T B 11.5/24.6

C3410 4030007120 S.CER C1608 CH 1H 820J-T B 15.9/20.7

C3411 4030007030 S.CER C1608 CH 1H 150J-T B 14.1/20.7

C3412 4030007160 S.CER C1608 CH 1H 181J-T B 13.5/16.4

C3413 4030007070 S.CER C1608 CH 1H 330J-T B 13.5/18.2

C3414 4030011330 S.CER C1608 CH 1H 391J-T B 13.8/11.3

C3415 4030011600 S.CER C1608 JB 1E 104K-T B 12/14.7

C3416 4030017800 S.CER C1608 CH 1H 561J-T B 12/11.3

C3501 4030010760 S.CER C1608 CH 1H 331J-T B 45.4/42.4

C3502 4030011600 S.CER C1608 JB 1E 104K-T B 41.8/40.8

C3503 4030007150 S.CER C1608 CH 1H 151J-T B 43.6/42.4

C3504 4030007060 S.CER C1608 CH 1H 270J-T B 40.8/38.2

C3505 4030007150 S.CER C1608 CH 1H 151J-T B 40.8/36.4

C3506 4030007140 S.CER C1608 CH 1H 121J-T B 38/34.5

C3507 4030007060 S.CER C1608 CH 1H 270J-T B 38/32.7

C3508 4030007010 S.CER C1608 CH 1H 100D-T B 39.3/30.9

C3509 4030007150 S.CER C1608 CH 1H 151J-T B 39.3/29.1

C3510 4030007140 S.CER C1608 CH 1H 121J-T B 38.8/26.4

C3511 4030007060 S.CER C1608 CH 1H 270J-T B 40.6/26.4

C3512 4030007060 S.CER C1608 CH 1H 270J-T B 39.3/23.7

C3513 4030007150 S.CER C1608 CH 1H 151J-T B 39.3/21.9

C3514 4030010760 S.CER C1608 CH 1H 331J-T B 42.6/19.6

C3515 4030011600 S.CER C1608 JB 1E 104K-T B 42.6/23.2

C3516 4030007150 S.CER C1608 CH 1H 151J-T B 42.6/21.4

C3601 4030007170 S.CER C1608 CH 1H 221J-T B 20.8/34.8

C3602 4030011600 S.CER C1608 JB 1E 104K-T B 22/42.4

C3603 4030007170 S.CER C1608 CH 1H 221J-T B 20.8/33

C3604 4030007130 S.CER C1608 CH 1H 101J-T B 21.8/29.4

C3605 4030007050 S.CER C1608 CH 1H 220J-T B 21.8/31.2

C3606 4030007080 S.CER C1608 CH 1H 390J-T B 22/26.8

C3607 4030007070 S.CER C1608 CH 1H 330J-T B 23.8/26.8

C3608 4030007120 S.CER C1608 CH 1H 820J-T B 21.8/22.2

C3609 4030007050 S.CER C1608 CH 1H 220J-T B 21.8/24

C3610 4030007080 S.CER C1608 CH 1H 390J-T B 24.4/20.8

C3611 4030007070 S.CER C1608 CH 1H 330J-T B 26.2/20.8

C3612 4030007130 S.CER C1608 CH 1H 101J-T B 23/18.2

C3613 4030007050 S.CER C1608 CH 1H 220J-T B 23/16.4

C3614 4030007170 S.CER C1608 CH 1H 221J-T B 22.2/11.3

C3615 4030011600 S.CER C1608 JB 1E 104K-T B 21.5/14.2

C3616 4030007170 S.CER C1608 CH 1H 221J-T B 24/11.3

EP1 0910058290 PCB B 6169

Q4201 1530003850 S.TR 2SC5551F-TD T 43.8/25.9

Q4202 1530003850 S.TR 2SC5551F-TD T 36.3/14.4

Q4203 1590001960 S.TR XP4311 (TX) T 21.1/11.1

Q4204 1590001960 S.TR XP4311 (TX) T 21.1/8.6

Q4301 1590001960 S.TR XP4311 (TX) T 23.3/26.7

Q4302 1530003850 S.TR 2SC5551F-TD T 7.3/20.8

Q4303 1590001960 S.TR XP4311 (TX) T 22.7/24

D4101 1750000580 S.DIO 1SV307 (TPH3) T 44/32.5

D4102 1750000580 S.DIO 1SV307 (TPH3) T 48.8/27.7

D4201 1750000580 S.DIO 1SV307 (TPH3) T 37.8/33.2

D4202 1750000580 S.DIO 1SV307 (TPH3) T 44.5/16.9

D4301 1750000580 S.DIO 1SV307 (TPH3) T 35.1/33.6

D4302 1750000580 S.DIO 1SV307 (TPH3) T 48.4/8.9

L4101 6200003220 S.COL NL 322522T-151J T 49/34.9

L4201 6200003220 S.COL NL 322522T-151J T 40.6/30.1

L4202 6140003800 COL LR-439

L4203 6200009690 S.COL LQH43CN101K01L T 37.7/19

L4204 6200009690 S.COL LQH43CN101K01L T 25.4/9

L4205 6140003810 COL LR-440

L4206 6140003810 COL LR-440

L4207 6200009690 S.COL LQH43CN101K01L T 31.6/9

L4208 6140003800 COL LR-439

L4209 6200003220 S.COL NL 322522T-151J B 44.3/14.6

L4210 6200007780 S.COL LQW2BHNR12J01L T 35/30.4

L4301 6200003220 S.COL NL 322522T-151J T 19.2/27.9

L4302 6140004430 COL LR-500

L4303 6140003900 COL LR-489

L4304 6200003260 S.COL NL 322522T-101J T 15.7/25.7

L4305 6200003220 S.COL NL 322522T-151J T 17.1/13.9

R4101 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 45.6/33.2

R4102 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 46.8/33.2

R4201 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 37.2/29.3

R4202 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 42/18.3

R4203 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 27.9/7.6

R4204 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 44.5/21.4

R4205 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 40.6/14.6

R4206 7030003490 S.RES ERJ3GEYJ 272 V (2.7 kΩ) T 42.6/21

R4207 7030003490 S.RES ERJ3GEYJ 272 V (2.7 kΩ) T 39.9/16.5

R4208 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 43.8/14.7

R4209 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) B 37.2/25.1

R4210 7030003220 S.RES ERJ3GEYJ 150 V (15

Ω) B 28.7/16.7

R4213 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 40.6/22.9

R4214 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 33.1/13.9

R4301 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 21.4/29.8

R4302 7030003510 S.RES ERJ3GEYJ 392 V (3.9 kΩ) T 12.3/27.2

R4303 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 12.3/24.8

R4304 7030007860 S.RES ERJ3GEYJ 8R2V (8.2

Ω) T 2.3/20.8

R4305 7030003240 S.RES ERJ3GEYJ 220 V (22

Ω) T 11.5/29.1

R4306 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 15.4/11.9

R4307 7030003200 S.RES ERJ3GEYJ 100 V (10

Ω) T 14.3/30.1

R4308 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) B 7.1/27.9

R4309 7030003860 S.RES ERJ3GE JPW V T 3.7/22.1

C4101 4030011600 S.CER C1608 JB 1E 104K-T T 51.1/35.6

C4102 4030011600 S.CER C1608 JB 1E 104K-T T 46.1/31.3

C4201 4030011600 S.CER C1608 JB 1E 104K-T T 29.9/29.4

C4202 4030011600 S.CER C1608 JB 1E 104K-T T 44.1/29.8

C4205 4030011600 S.CER C1608 JB 1E 104K-T B 33.9/25.1

C4206 4030011600 S.CER C1608 JB 1E 104K-T T 26.7/20.4

C4207 4030011600 S.CER C1608 JB 1E 104K-T T 46.9/24.3

C4208 4030011600 S.CER C1608 JB 1E 104K-T T 39.4/14.6

C4209 4030011600 S.CER C1608 JB 1E 104K-T T 33.2/20.4

C4210 4030011600 S.CER C1608 JB 1E 104K-T T 28.6/11

C4211 4030011600 S.CER C1608 JB 1E 104K-T B 39/17.5

C4212 4030011600 S.CER C1608 JB 1E 104K-T B 34.5/10.2

C4213 4030011600 S.CER C1608 JB 1E 104K-T T 34.1/9.4

C4214 4030011600 S.CER C1608 JB 1E 104K-T T 34.9/7

C4215 4030011600 S.CER C1608 JB 1E 104K-T T 43.8/13.5

C4216 4030011600 S.CER C1608 JB 1E 104K-T B 44.9/17.6

C4217 4030007110 S.CER C1608 CH 1H 680J-T T 37.2/31.7

C4218 4030007110 S.CER C1608 CH 1H 680J-T T 37.2/30.5

C4221 4030009510 S.CER C1608 CH 1H 010B-T T 42.6/22.2

C4222 4030009510 S.CER C1608 CH 1H 010B-T T 38.1/11.6

C4223 4030007010 S.CER C1608 CH 1H 100D-T B 38.5/9.5

C4301 4030011600 S.CER C1608 JB 1E 104K-T T 21.3/27.2

C4302 4030011600 S.CER C1608 JB 1E 104K-T T 17.3/30.8

C4303 4030011600 S.CER C1608 JB 1E 104K-T T 12.3/26

C4304 4030011600 S.CER C1608 JB 1E 104K-T T 12.7/29.1

C4305 4030011600 S.CER C1608 JB 1E 104K-T T 11.6/22.8

C4306 4030011600 S.CER C1608 JB 1E 104K-T T 14.5/15.2

C4307 4030011600 S.CER C1608 JB 1E 104K-T T 20.7/24.2

C4308 4030011600 S.CER C1608 JB 1E 104K-T T 18/11.9

C4309 4030006990 S.CER C1608 CH 1H 080D-T T 15.5/28.6

EP1 0910058301 PCB B 6185A

[BPF-A UNIT]

S.=Surface mount

5 - 28

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC1 1120000970 IC M54562P

IC2 1120000970 IC M54562P

L1 2040000490 COL EXC-ELDR25C

L2 2040000490 COL EXC-ELDR25C

L3 6110003600 COL LA-555

L4 6110003590 COL LA-554

L5 6110003020 COL LA-489

L6 6110003030 COL LA-490

L7 6110003020 COL LA-489

L8 6110003030 COL LA-490

L9 6140004520 COL LR-511

L10 6140004510 COL LR-510

L11 6140002700 COL LR-307 (T130-2)

L12 6140002700 COL LR-307 (T130-2)

L13 6180003290 COL BM27-400-6A

L14 6180003290 COL BM27-400-6A

L15 6180003290 COL BM27-400-6A

L16 6180003290 COL BM27-400-6A

L17 6180003290 COL BM27-400-6A

L18 6180003290 COL BM27-400-6A

L19 6180003290 COL BM27-400-6A

L20 6180003290 COL BM27-400-6A

R17 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 118.6/75.9

R18 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 113.2/75.9

R19 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 107.8/75.9

R20 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 124.4/83.5

R21 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 101.8/73.1

R22 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 104.8/75.9

R23 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 101.8/75.9

R24 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 98.8/75.9

R25 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 81.6/75.1

R26 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 78.6/75.1

R27 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 75.6/75.1

R28 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 72.6/75.1

R29 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 69.6/75.1

R30 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 66.6/75.1

R31 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 63.6/75.1

R32 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 60.6/75.1

R33 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 63.7/94.5

R34 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 66.3/92.8

R35 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 68.9/93.4

R36 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 71.3/96.2

R37 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 73.9/96.8

R38 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 76.5/97.5

R39 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 80.3/96.3

R40 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 83/96.7

R41 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 115.5/90.1

R42 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 114.2/90.1

R43 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 109.4/97.5

R44 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 109.9/88.8

R45 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 107.4/97.5

R46 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 104.8/89.3

R47 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 105.7/97.5

C1 4030006880 S.CER C1608 JB 1H 472K-T T 118.6/74.5

C2 4030006880 S.CER C1608 JB 1H 472K-T T 113.2/74.5

C3 4030006880 S.CER C1608 JB 1H 472K-T T 107.8/74.5

C4 4030006880 S.CER C1608 JB 1H 472K-T T 124.4/82.1

C5 4030006880 S.CER C1608 JB 1H 472K-T T 101.8/71.7

C6 4030006880 S.CER C1608 JB 1H 472K-T T 104.8/74.5

C7 4030006880 S.CER C1608 JB 1H 472K-T T 101.8/74.5

C8 4030006880 S.CER C1608 JB 1H 472K-T T 98.8/74.5

C9 4030006880 S.CER C1608 JB 1H 472K-T T 81.6/73.7

C10 4030006880 S.CER C1608 JB 1H 472K-T T 78.6/73.7

C11 4030006880 S.CER C1608 JB 1H 472K-T T 75.6/73.7

C12 4030006880 S.CER C1608 JB 1H 472K-T T 72.6/73.7

C13 4030006880 S.CER C1608 JB 1H 472K-T T 69.6/73.7

C14 4030006880 S.CER C1608 JB 1H 472K-T T 66.6/73.7

C15 4030006880 S.CER C1608 JB 1H 472K-T T 63.6/73.7

C16 4030006880 S.CER C1608 JB 1H 472K-T T 60.6/73.7

C17 4030006880 S.CER C1608 JB 1H 472K-T T 96.4/87.5

C18 4030006880 S.CER C1608 JB 1H 472K-T T 61/88.3

C23 4030006880 S.CER C1608 JB 1H 472K-T T 111.6/5.4

C24 4030006880 S.CER C1608 JB 1H 472K-T T 105.3/5.4

C25 4030006880 S.CER C1608 JB 1H 472K-T T 102.7/5.4

C26 4030006880 S.CER C1608 JB 1H 472K-T T 119.6/5.4

C27 4030006880 S.CER C1608 JB 1H 472K-T T 77.6/55.5

C28 4030006880 S.CER C1608 JB 1H 472K-T T 72.1/55.5

C29 4030006880 S.CER C1608 JB 1H 472K-T T 66.6/55.5

C30 4030006880 S.CER C1608 JB 1H 472K-T T 61.1/55.5

C31 4030006880 S.CER C1608 JB 1H 472K-T T 55.6/55.5

C32 4030006880 S.CER C1608 JB 1H 472K-T T 50.1/55.5

C33 4030006880 S.CER C1608 JB 1H 472K-T T 47.8/76.1

C34 4010008550 CER DEA1X3F390JC3B

C35 4010008550 CER DEA1X3F390JC3B

C36 4010004800 CER DEC1X3J820JC4B

C37 4010004250 CER DE1007 SL 101J 3KV

C38 4010004830 CER DEC1X3J151JC4B

C39 4010008560 CER DEA1X3F151JA3B

C40 4010004250 CER DE1007 SL 101J 3KV

C41 4010004250 CER DE1007 SL 101J 3KV

C42 4010004250 CER DE1007 SL 101J 3KV

C43 4010004250 CER DE1007 SL 101J 3KV

C44 4620000140 VAR UV35A 150P

C45 4620000140 VAR UV35A 150P

C46 4030006880 S.CER C1608 JB 1H 472K-T T 117.4/88.9

C47 4030006880 S.CER C1608 JB 1H 472K-T T 117.4/87.5

C48 4030006880 S.CER C1608 JB 1H 472K-T T 114.4/87.5

C49 4030006880 S.CER C1608 JB 1H 472K-T T 111.4/87.5

C50 4030006880 S.CER C1608 JB 1H 472K-T T 108.4/87.5

C51 4030006880 S.CER C1608 JB 1H 472K-T T 105.4/87.5

C52 4030006880 S.CER C1608 JB 1H 472K-T T 102.4/87.5

C53 4030006880 S.CER C1608 JB 1H 472K-T T 99.4/87.5

C54 4030006880 S.CER C1608 JB 1H 472K-T T 81/88.3

C55 4030006880 S.CER C1608 JB 1H 472K-T T 78.6/88.3

C56 4030006880 S.CER C1608 JB 1H 472K-T T 76.2/88.3

C57 4030006880 S.CER C1608 JB 1H 472K-T T 73.4/88.3

C58 4030006880 S.CER C1608 JB 1H 472K-T T 71/88.3

C59 4030006880 S.CER C1608 JB 1H 472K-T T 68.6/88.3

C60 4030006880 S.CER C1608 JB 1H 472K-T T 66.2/88.3

C61 4030006880 S.CER C1608 JB 1H 472K-T T 63.4/88.3

C62 4030006880 S.CER C1608 JB 1H 472K-T T 44.6/54.6

RL1 6330001610 RLY NY-12W-K-IE

RL2 6330001610 RLY NY-12W-K-IE

RL3 6330001610 RLY NY-12W-K-IE

RL4 6330001610 RLY NY-12W-K-IE

RL5 6330001610 RLY NY-12W-K-IE

RL6 6330001610 RLY NY-12W-K-IE

RL7 6330001610 RLY NY-12W-K-IE

RL8 6330001610 RLY NY-12W-K-IE

RL9 6330001610 RLY NY-12W-K-IE

RL10 6330001610 RLY NY-12W-K-IE

RL11 6330001610 RLY NY-12W-K-IE

RL12 6330001610 RLY NY-12W-K-IE

RL13 6330001610 RLY NY-12W-K-IE

RL14 6330001610 RLY NY-12W-K-IE

RL15 6330001610 RLY NY-12W-K-IE

RL16 6330001610 RLY NY-12W-K-IE

J5 6510019990 S.CNR 52808-2291 T 102.9/93.3

MF1 2710000460 MTR MP28GA STEPPING MOTOR

MF2 2710000460 MTR MP28GA STEPPING MOTOR

EP1 0910058501 PCB B 6211A

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC1 1110000960 S.IC NJM4558M-TE1 T 111.8/54.9

IC2 1120002250 S.IC TC74ACT32F T 121.5/68.8

IC3 1120002240 S.IC TC74AC112F T 131.7/69

IC4 1110000960 S.IC NJM4558M-TE1 T 116.6/80.8

IC5 1140004120 S.IC M38022M2-138FP T 154/70.6

IC6 1130010390 S.IC HN58X2416TI T 140.6/76

IC9 1110002690 S.IC NJM2903M-TE1 T 44.2/21.8

IC10 1130003920 S.IC TC4S69F (TE85R) T 151.8/48

IC11 1130011530 S.IC CD74HC4094M96 T 146.4/28.4

IC12 1160000130 S.IC TD62783AF (S,EL) T 134/28

IC13 1180001070 S.IC TA7805F (TE16L) T 159.6/42.4

IC14 1120002300 S.IC TC74AC04F T 104/68.5

IC51 1130011530 S.IC CD74HC4094M96 T 118.6/29.4

Q5 1560000870 S.FET 2SK515-T1B (X33) T 104.2/80.2

Q12 1590000680 S.TR DTC114EUA T106 T 68/80.6

Q13 1590001330 S.TR DTA114EUA T106 T 68/78

Q14 1590000680 S.TR DTC114EUA T106 T 37.2/63

Q15 1590001330 S.TR DTA114EUA T106 T 39.8/63

Q16 1590000680 S.TR DTC114EUA T106 T 37.2/49.2

Q17 1590001330 S.TR DTA114EUA T106 T 39.8/49.2

Q21 1590000680 S.TR DTC114EUA T106 T 11.7/13

Q22 1590001330 S.TR DTA114EUA T106 T 14.2/13

Q23 1590000680 S.TR DTC114EUA T106 T 166.6/61.1

Q24 1590001330 S.TR DTA114EUA T106 T 166.9/64.1

Q25 1530003090 S.TR 2SC4213-B (TE85R) T 43.2/93.2

[TUNER-A UNIT] [TUNER-A UNIT]

[CTRL-A UNIT]

S.=Surface mount

5 - 29

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

Q26 1590000680 S.TR DTC114EUA T106 T 14.2/9.5

Q27 1590001330 S.TR DTA114EUA T106 T 11.7/9.5

Q51 1590000680 S.TR DTC114EUA T106 T 154.9/85.2

Q52 1590000680 S.TR DTC114EUA T106 T 155.8/87.9

Q59 1590000680 S.TR DTC114EUA T106 T 174.4/50.5

Q211 1590000680 S.TR DTC114EUA T106 T 187.5/77.6

Q212 1590000680 S.TR DTC114EUA T106 T 185/76.6

Q213 1590000680 S.TR DTC114EUA T106 T 182.5/76.6

Q214 1590000680 S.TR DTC114EUA T106 T 180/76.6

Q215 1590000680 S.TR DTC114EUA T106 T 177.3/88.2

Q216 1590000680 S.TR DTC114EUA T106 T 179.8/88.2

Q217 1590000680 S.TR DTC114EUA T106 T 182.3/88.2

Q218 1590000680 S.TR DTC114EUA T106 T 184.8/88.2

D1 1790000490 S.DIO HSM88AS-TR T 96/49

D2 1790000490 S.DIO HSM88AS-TR T 96/60.7

D3 1750000200 S.DIO 1SS319 (TE85R) T 120.5/45.7

D4 1750000120 S.DIO DWA010-TE T 104.4/61.8

D5 1790000690 S.DIO HSM88ASR-TR T 102.5/74.8

D6 1790000490 S.DIO HSM88AS-TR T 127.9/84.6

D7 1790000490 S.DIO HSM88AS-TR T 128.2/78.7

D8 1790000490 S.DIO HSM88AS-TR T 97.4/78.8

D9 1790000490 S.DIO HSM88AS-TR T 97.4/82.2

D11 1730000410 S.ZEN RD5.1M-T2B2 T 166.6/48

D12 1730000030 S.ZEN RD5.6M-T2B2 T 161.4/48

D13 1710000780 S.DIO MA114 (TX) T 167.5/44.6

D15 1790000490 S.DIO HSM88AS-TR T 36.9/25.8

D16 1750000270 S.DIO 1SS301 (TE85R) T 67.9/74

D17 1750000270 S.DIO 1SS301 (TE85R) T 42.4/63

D18 1750000270 S.DIO 1SS301 (TE85R) T 42.4/49.2

D20 1750000270 S.DIO 1SS301 (TE85R) T 13.8/15.7

D22 1750000850 S.DIO MMBV3700LT1 T 49.4/94.7

D23 1750000850 S.DIO MMBV3700LT1 T 46.4/96.1

D24 1750000120 S.DIO DWA010-TE T 151.4/84.9

D25 1750000120 S.DIO DWA010-TE T 152.5/88.4

D211 1750000200 S.DIO 1SS319 (TE85R) T 186.3/73.1

D213 1750000200 S.DIO 1SS319 (TE85R) T 182.8/73

D215 1750000200 S.DIO 1SS319 (TE85R) T 179.3/84.7

D217 1750000200 S.DIO 1SS319 (TE85R) T 182.8/84.7

D218 1750000120 S.DIO DWA010-TE T 121.5/86.6

X1 6050009890 S.XTL CR-569 (6.144 MHz) T 171.3/67.7

L1 6140003270 COL LR-364

L2 6200001830 S.COL NL 322522T-100J T 123.8/51.8

L3 6200003260 S.COL NL 322522T-101J T 127.8/51.7

L4 6140003270 COL LR-364

L5 6180001220 COL LAL 04NA 100K

L8 6140003270 COL LR-364

L9 6180003300 COL T6-222J (2.2M)

L10 6200003260 S.COL NL 322522T-101J T 139.7/62.5

L11 6200003260 S.COL NL 322522T-101J T 142/66.2

L13 6180000990 COL LAL 04NA 101K

L22 6140003270 COL LR-364

L25 6200003260 S.COL NL 322522T-101J T 55.9/18.4

L27 6110001630 COL LA-246

L28 6110001560 COL LA-236

L29 2040000490 COL EXC-ELDR25C

L30 2040000490 COL EXC-ELDR25C

L31 2040000490 COL EXC-ELDR25C

L32 2040000490 COL EXC-ELDR25C

L33 6200003260 S.COL NL 322522T-101J T 141.8/39

L34 6200003260 S.COL NL 322522T-101J T 129.3/38.8

L35 6200003950 S.COL HF50ACC 322513-T T 141.9/10.6

L36 6200003950 S.COL HF50ACC 322513-T T 141.7/7.6

L301 6140002580 COL LR-295 (T50-2)

L302 6140002580 COL LR-295 (T50-2)

L303 6200003260 S.COL NL 322522T-101J T 122.3/22.9

R1 7030010910 S.RES ERJ1TYJ 150U (15

Ω) T 95.8/52.7

R2 7030010910 S.RES ERJ1TYJ 150U (15

Ω) T 95.8/56.8

R3 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 103.6/49

R4 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 100.9/59.9

R5 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 106/49.8

R6 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 106.1/57.9

R7 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 107.4/51.2

R8 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 108/57.9

R9 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 111.6/50.2

R10 7030003790 S.RES ERJ3GEYJ 824 V (820 kΩ) T 112.4/60.8

R11 7030003860 S.RES ERJ3GE JPW V T 149/44.9

R13 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 117.1/47.9

R14 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 117.2/43.8

R15 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) T 107.4/61.7

R16 7030010540 S.RES ERJ1TYJ 330U (33

Ω) T 92.4/69.8

R17 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) T 105/74.6

R26 7030003280 S.RES ERJ3GEYJ 470 V (47 Ω) T 130.8/78.2

R27 7030003280 S.RES ERJ3GEYJ 470 V (47 Ω) T 128/75.2

R28 7030003500 S.RES ERJ3GEYJ 332 V (3.3 kΩ) T 128/82.5

R29 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 128/76.5

R30 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) T 128/81.2

R31 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 122.8/83.2

R32 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 124.9/81.2

R33 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) T 120.2/76.3

R34 7030003530 S.RES ERJ3GEYJ 562 V (5.6 kΩ) T 118.8/76.3

R35 7030003670 S.RES ERJ3GEYJ 823 V (82 kΩ) T 117.4/76.3

R36 7030003820 S.RES ERJ3GEYJ 155 V (1.5 MΩ) T 122/81.2

R37 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 118.3/85.8

R38 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 124.8/87.7

R39 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 142.8/62.4

R40 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 142.8/63.8

R41 7030010550 S.RES ERJ1TYJ 820U (82

Ω) T 92.4/81.7

R42 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 100.8/78.6

R43 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 100.8/82.7

R44 7030003800 S.RES ERJ3GEYJ 105 V (1 MΩ) T 100.8/79.9

R45 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 103.8/82.7

R46 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 107.4/83.5

R47 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 108.2/81.6

R48 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 109/83.5

R49 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 111.2/81.6

R50 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) T 114/76.3

R51 7030003540 S.RES ERJ3GEYJ 682 V (6.8 kΩ) T 112.6/76.3

R52 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 115.3/84.5

R53 7030003820 S.RES ERJ3GEYJ 155 V (1.5 MΩ) T 111.8/83.5

R54 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 113.9/85.8

R55 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 124.8/89.1

R56 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 142.8/61.1

R57 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 142.8/59.8

R58 7540000130 ASB 2P-50A-301

R59 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 141/71.4

R60 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 141/70

R61 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 151.2/59.4

R62 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 152.6/59.4

R63 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 154/59.4

R64 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 149.8/59.4

R65 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 169.8/47.2

R66 7030003650 S.RES ERJ3GEYJ 563 V (56 kΩ) T 157.4/48

R67 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 149.2/48

R69 7030003320 S.RES ERJ3GEYJ 101 V (100 Ω) T 152/45.7

R71 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 168.6/59.4

R76 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 162.1/59.7

R83 7030010910 S.RES ERJ1TYJ 150U (15

Ω) T 35/29.3

R84 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 34.5/24.5

R86 7030003710 S.RES ERJ3GEYJ 184 V (180 kΩ) T 49.2/24.2

R87 7030003660 S.RES ERJ3GEYJ 683 V (68 kΩ) T 50.6/24.2

R88 7030003660 S.RES ERJ3GEYJ 683 V (68 kΩ) T 51.4/20.6

R89 7030003840 S.RES ERJ3GEYJ 225 V (2.2 MΩ) T 51.4/19.2

R90 7030003720 S.RES ERJ3GEYJ 224 V (220 kΩ) T 61.5/21.1

R92 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 49.2/18.2

R93 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 51.4/17.8

R98 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 157.2/16.8

R99 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 155.8/16.8

R100 7030003660 S.RES ERJ3GEYJ 683 V (68 kΩ) T 106/52.8

R101 7030003660 S.RES ERJ3GEYJ 683 V (68 kΩ) T 106.9/55.8

R102 7030003570 S.RES ERJ3GEYJ 123 V (12 kΩ) T 155.2/47.2

R103 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 155.2/48.6

R105 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 158.8/58.9

R106 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 160.2/58.9

R107 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 170/59.4

R108 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 150.8/92.2

R109 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 150.8/90.8

R110 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 159.4/83.6

R111 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 137.2/95.1

R112 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 158.2/83.6

R113 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 150.1/88.7

R114 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 154.8/83.3

R115 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 136.8/93.8

R116 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 137.8/92.5

R117 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 136.8/91

R118 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 137.6/89.6

R119 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 137.6/88.2

R120 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 138.5/86.8

R121 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 138.5/85.4

R122 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) T 144.6/16.6

R123 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) T 148.8/16.6

R124 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) T 146/16.6

R125 7030003360 S.RES ERJ3GEYJ 221 V (220 Ω) T 147.4/16.6

R126 7030003200 S.RES ERJ3GEYJ 100 V (10 Ω) T 127.1/19.8

R127 7030003200 S.RES ERJ3GEYJ 100 V (10 Ω) T 128.5/19.8

R128 7030003200 S.RES ERJ3GEYJ 100 V (10 Ω) T 132.7/19.8

R129 7030003200 S.RES ERJ3GEYJ 100 V (10 Ω) T 131.3/19.8

R130 7030003200 S.RES ERJ3GEYJ 100 V (10 Ω) T 134.1/19.8

R131 7030003200 S.RES ERJ3GEYJ 100 V (10 Ω) T 129.9/19.8

R132 7030003200 S.RES ERJ3GEYJ 100 V (10 Ω) T 135.5/19.8

R133 7030003200 S.RES ERJ3GEYJ 100 V (10 Ω) T 136.9/19.8

R136 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 107.4/63

R137 7030003280 S.RES ERJ3GEYJ 470 V (47 Ω) T 110.3/64.2

R138 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 116.4/68

R139 7030003560 S.RES ERJ3GEYJ 103 V (10 kΩ) T 106.3/74.6

R140 7030003280 S.RES ERJ3GEYJ 470 V (47 Ω) T 114.5/73.4

R141 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 116.4/71.8

R142 7030003280 S.RES ERJ3GEYJ 470 V (47 Ω) T 120.9/62.6

R143 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 126.6/65.9

[CTRL-A UNIT] [CTRL-A UNIT]

S.=Surface mount

5 - 30

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R144 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 126.6/71

R145 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 133/62.8

R146 7030003280 S.RES ERJ3GEYJ 470 V (47

Ω) T 123.7/62.6

R147 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 124/61.3

R148 7030003640 S.RES ERJ3GEYJ 473 V (47 kΩ) T 143.3/16.6

R149 7030003680 S.RES ERJ3GEYJ 104 V (100 kΩ) T 166.9/66.1

R150 7030003390 S.RES ERJ3GEYJ 391 V (390

Ω) T 46.4/92

R151 7030003430 S.RES ERJ3GEYJ 821 V (820

Ω) T 44.5/91.2

R152 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 48.9/91.7

R153 7030003520 S.RES ERJ3GEYJ 472 V (4.7 kΩ) T 45.1/93.3

R154 7030003480 S.RES ERJ3GEYJ 222 V (2.2 kΩ) T 41/93.1

R155 7030003390 S.RES ERJ3GEYJ 391 V (390

Ω) T 41.8/91.2

R156 7010006940 RES PSD1/4 1 K Ω

R211 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 187.4/70.2

R212 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 186.1/70.2

R213 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 183.4/69.9

R214 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 182.1/69.9

R215 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 179.6/81.7

R216 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 178.3/81.7

R217 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 183.8/81.7

R218 7030003380 S.RES ERJ3GEYJ 331 V (330

Ω) T 182.5/81.7

R219 7030003440 S.RES ERJ3GEYJ 102 V (1 kΩ) T 111.5/29.6

C1 4010005530 CER HM60SJ SL 020C 500V

C2 4030007110 S.CER C1608 CH 1H 680J-T T 100/49.6

C3 4610001260 S.TRI ECR-JA020 E12W T 102.2/54.9

C4 4010005530 CER HM60SJ SL 020C 500V

C5 4030011540 S.CER C1608 CH 1H 750J-T T 99.6/59.9

C6 4030006860 S.CER C1608 JB 1H 102K-T T 103.6/50.4

C7 4030006860 S.CER C1608 JB 1H 102K-T T 105.3/55.8

C8 4030006880 S.CER C1608 JB 1H 472K-T T 116.7/52.1

C9 4030006880 S.CER C1608 JB 1H 472K-T T 116.2/58.4

C10 4030006880 S.CER C1608 JB 1H 472K-T T 120.4/48.1

C11 4030006880 S.CER C1608 JB 1H 472K-T T 120.4/43.3

C12 4010005540 CER HM60SJ SL 030C 500V

C13 4030007070 S.CER C1608 CH 1H 330J-T T 96.5/66.4

C14 4030007070 S.CER C1608 CH 1H 330J-T T 97.8/66.4

C15 4030007070 S.CER C1608 CH 1H 330J-T T 95.1/71.9

C16 4030006880 S.CER C1608 JB 1H 472K-T T 98.2/63

C17 4030007120 S.CER C1608 CH 1H 820J-T T 97.1/71.4

C20 4030006880 S.CER C1608 JB 1H 472K-T T 100.3/74.8

C21 4030006880 S.CER C1608 JB 1H 472K-T T 124.8/75.3

C22 4550003120 S.TAN TEESVD2 1A 476M-12L T 127.6/58.1

C23 4030006880 S.CER C1608 JB 1H 472K-T T 130.2/62.8

C24 4030007170 S.CER C1608 CH 1H 221J-T T 130.8/81.2

C25 4030007170 S.CER C1608 CH 1H 221J-T T 126.1/75.3

C26 4030006880 S.CER C1608 JB 1H 472K-T T 125.6/83.4

C27 4030006880 S.CER C1608 JB 1H 472K-T T 124.2/83.2

C30 4030007170 S.CER C1608 CH 1H 221J-T T 121.3/83.2

C31 4030011340 S.CER C1608 CH 1H 471J-T T 124.8/86.3

C32 4010005520 CER HM60SJ SL 010C 500V

C33 4030016550 S.CER CM105 CH 151G 50AT T 96.7/75.1

C35 4030006880 S.CER C1608 JB 1H 472K-T T 99.8/77.1

C36 4030006860 S.CER C1608 JB 1H 102K-T T 100.8/81.3

C37 4030006880 S.CER C1608 JB 1H 472K-T T 100.8/84.1

C38 4030006880 S.CER C1608 JB 1H 472K-T T 106/83.5

C39 4030006880 S.CER C1608 JB 1H 472K-T T 110.4/83.5

C40 4030006880 S.CER C1608 JB 1H 472K-T T 118.3/84.5

C43 4030007170 S.CER C1608 CH 1H 221J-T T 110.9/85.7

C44 4030011340 S.CER C1608 CH 1H 471J-T T 113.9/87.2

C45 4030011600 S.CER C1608 JB 1E 104K-T T 143.4/70.6

C46 4030011600 S.CER C1608 JB 1E 104K-T T 141/68.6

C47 4030009990 S.CER C1608 CH 1H 200J-T T 163.7/69.4

C48 4030009990 S.CER C1608 CH 1H 200J-T T 168/69.9

C49 4030006880 S.CER C1608 JB 1H 472K-T T 158.8/48

C51 4030006860 S.CER C1608 JB 1H 102K-T T 163.7/65.4

C52 4030006880 S.CER C1608 JB 1H 472K-T T 157.4/58.9

C53 4030006880 S.CER C1608 JB 1H 472K-T T 165/67

C54 4030006880 S.CER C1608 JB 1H 472K-T T 162.9/63.5

C55 4030006860 S.CER C1608 JB 1H 102K-T T 33.7/26.4

C56 4030006880 S.CER C1608 JB 1H 472K-T T 52/24.2

C57 4030006880 S.CER C1608 JB 1H 472K-T T 51.4/22

C58 4030006880 S.CER C1608 JB 1H 472K-T T 67.8/72

C59 4030006880 S.CER C1608 JB 1H 472K-T T 44.6/63

C60 4030006880 S.CER C1608 JB 1H 472K-T T 44.3/49.2

C62 4030006880 S.CER C1608 JB 1H 472K-T T 13.9/17.7

C63 4030007090 S.CER C1608 CH 1H 470J-T T 33.4/74.2

C64 4030007030 S.CER C1608 CH 1H 150J-T T 33.4/69.5

C65 4030007120 S.CER C1608 CH 1H 820J-T T 27/74.3

C66 4030007070 S.CER C1608 CH 1H 330J-T T 20.4/74.2

C69 4510004630 S.ELE ECEV1CA100SR T 119.8/51.6

C70 4510004630 S.ELE ECEV1CA100SR T 120.6/58.4

C71 4030006880 S.CER C1608 JB 1H 472K-T T 151.8/43.5

C72 4510006260 S.ELE ECEV1AA471UP T 143/46.2

C73 4030006880 S.CER C1608 JB 1H 472K-T T 143.5/92.2

C74 4030006880 S.CER C1608 JB 1H 472K-T T 143.5/90.8

C75 4030006880 S.CER C1608 JB 1H 472K-T T 143.5/89.4

C76 4030006880 S.CER C1608 JB 1H 472K-T T 131.4/95.2

C77 4030006880 S.CER C1608 JB 1H 472K-T T 143.5/88

C78 4030006880 S.CER C1608 JB 1H 472K-T T 143.5/86.6

C79 4030006880 S.CER C1608 JB 1H 472K-T T 143.5/85.2

C80 4030006880 S.CER C1608 JB 1H 472K-T T 131.4/93.8

C81 4030006880 S.CER C1608 JB 1H 472K-T T 131.4/92.4

C82 4030006880 S.CER C1608 JB 1H 472K-T T 131.4/91

C83 4030006880 S.CER C1608 JB 1H 472K-T T 131.4/89.6

C84 4030006880 S.CER C1608 JB 1H 472K-T T 131.4/88.2

C85 4030006880 S.CER C1608 JB 1H 472K-T T 131.4/86.8

C86 4030006880 S.CER C1608 JB 1H 472K-T T 131.4/85.4

C87 4030006880 S.CER C1608 JB 1H 472K-T T 147/35.6

C88 4510004630 S.ELE ECEV1CA100SR T 147/38.8

C89 4030006880 S.CER C1608 JB 1H 472K-T T 134/35.6

C90 4510004630 S.ELE ECEV1CA100SR T 134/38.8

C91 4030006880 S.CER C1608 JB 1H 472K-T T 127.1/15.8

C92 4030006880 S.CER C1608 JB 1H 472K-T T 128.5/15.8

C93 4030006880 S.CER C1608 JB 1H 472K-T T 132.7/15.8

C94 4030006880 S.CER C1608 JB 1H 472K-T T 131.3/15.8

C95 4030006880 S.CER C1608 JB 1H 472K-T T 134.1/15.8

C96 4030006880 S.CER C1608 JB 1H 472K-T T 129.9/15.8

C97 4030006880 S.CER C1608 JB 1H 472K-T T 135.5/15.8

C98 4510006220 S.ELE ECEV1CA101UP T 161.9/35.2

C100 4030011570 S.CER CM105 CH 101G 50AT T 97.3/84.6

C101 4030006880 S.CER C1608 JB 1H 472K-T T 110.2/69.3

C102 4510004630 S.ELE ECEV1CA100SR T 113.3/69.9

C105 4030011540 S.CER C1608 CH 1H 750J-T T 24.2/68.7

C107 4010005580 CER HM60SJ SL 070D 500V

C108 4010005560 CER HM60SJ SL 050C 500V

C109 4030011600 S.CER C1608 JB 1E 104K-T T 50.1/91.7

C209 4030006900 S.CER C1608 JB 1H 103K-T T 145/62.2

C210 4030006900 S.CER C1608 JB 1H 103K-T T 142.8/57.4

C211 4510004440 S.ELE ECEV1HA010SR T 186.7/43.1

C212 4510004440 S.ELE ECEV1HA010SR T 186.7/38.3

C213 4510004440 S.ELE ECEV1HA010SR T 186.7/33.5

C214 4510004440 S.ELE ECEV1HA010SR T 186.7/28.7

C215 4510004440 S.ELE ECEV1HA010SR T 187.5/64.7

C216 4510004440 S.ELE ECEV1HA010SR T 186.7/58.8

C217 4510004440 S.ELE ECEV1HA010SR T 186.7/54

C218 4510004440 S.ELE ECEV1HA010SR T 186.7/49.2

C220 4030006880 S.CER C1608 JB 1H 472K-T T 136.9/15.8

C228 4030005040 S.CER C2012 CH 1H 271J-T T 90.8/56.9

C229 4030006880 S.CER C1608 JB 1H 472K-T T 102.9/87.6

C301 4030007060 S.CER C1608 CH 1H 270J-T T 30.6/90.8

C302 4610002210 TRI TZ03Z500F169B00

C303 4610002210 TRI TZ03Z500F169B00

C305 4030011600 S.CER C1608 JB 1E 104K-T T 115/21.7

C306 4510004630 S.ELE ECEV1CA100SR T 118.1/22.1

RL1 6330001450 RLY FXE-12G

RL2 6330001450 RLY FXE-12G

RL3 6330000800 RLY G5A-237P DC12V

RL4 6330000470 RLY NR-HD (12V) AE5343

J3 6510017150 CNR TMP-S01X-C1

J4 6510017150 CNR TMP-S01X-C1

J7 6510019990 S.CNR 52808-2291 T 157.2/8.4

J8 6510019990 S.CNR 52808-2291 T 111.6/92.6

J10 6510003410 CNR B05B-EH-S

J11 6510003410 CNR B05B-EH-S

J13 6510019970 S.CNR 52808-1091 T 132.3/8.4

J14 6910001040 CNR IPS-1136

W1 7120000490 JMP ERD25T0

W2 7120000490 JMP ERD25T0

W3 7120000490 JMP ERD25T0

EP1 0910058511 PCB B 6212A

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

L1 6140002570 COL LR-294 (T50-2) T 44.9/43.3

L2 6140002580 COL LR-295 (T50-2) T 46.1/64.3

L3 6140001240 COL LR-149 (T68-2) T 65.9/32.3

L4 6140001130 COL LR-138 (T68-2) T 69.3/64.7

L5 6140001800 COL LR-216 (T50-2) T 112.4/36.7

L6 6140001800 COL LR-216 (T50-2) T 102.5/49.8

L7 6140001800 COL LR-216 (T50-2) T 112.2/68.8

L8 6140002270 COL LR-240 (T68-6) T 142.5/27.4

L9 6110002920 COL LA-481 T 97.6/23.3

L10 6110002910 COL LA-480 T 90.5/56.3

L13 6200003260 S.COL NL 322522T-101J T 39.6/21.3

L15 6200003260 S.COL NL 322522T-101J T 55.8/9.4

L17 6200003260 S.COL NL 322522T-101J T 135.2/7.1

L19 6200003260 S.COL NL 322522T-101J T 104/11.9

L21 6200001830 S.COL NL 322522T-100J T 87/9.4

L23 6200001830 S.COL NL 322522T-100J T 118.2/10.4

L24 6140003450 COL LR-387 T 130.5/26

[CTRL-A UNIT] [CTRL-A UNIT]

[FILER-A UNIT]

S.=Surface mount

5 - 31

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

L25 6140003460 COL LR-388 T 128.1/46.6

L26 6140003460 COL LR-388 T 122.8/58.7

L28 6140002280 COL LR-241 (T68-6) T 144/46.7

L29 6110003540 COL LA-548 (LA-215A) T 164.5/30.5

L30 6110003570 COL LA-550 T 156.9/45.8

L31 6110003550 COL LA-547 (LA-214A) T 161.1/59

L32 6200001830 S.COL NL 322522T-100J T 150.6/6.5

L41 6200001830 S.COL NL 322522T-100J T 73.9/11.6

L45 6140003560 COL LR-394 T 80.4/42.8

L46 6140001820 COL LR-218 (T50-10) T 80.4/58.4

L501 6140003440 COL LR-386 T 14/52.5

L502 6140003440 COL LR-386 T 14/21

R1 7030003860 S.RES ERJ3GE JPW V T 147.1/78.4

R2 7030003860 S.RES ERJ3GE JPW V T 152.7/69.5

R3 7030003860 S.RES ERJ3GE JPW V T 132.6/65.4

R4 7030003860 S.RES ERJ3GE JPW V T 119.3/73

R5 7030003860 S.RES ERJ3GE JPW V T 102.2/73.5

R6 7030003860 S.RES ERJ3GE JPW V T 69.1/85.2

R7 7030003860 S.RES ERJ3GE JPW V T 55.1/86

R8 7030003860 S.RES ERJ3GE JPW V T 87.8/82.8

C2 4010008260 CER HM74TJ SL 151J 500V T 57/38.4

C3 4010008200 CER HM11TJ SL 331J 500V T 54.5/36.3

C5 4030012480 S.CER GRM31M2C2H121JV01L T 55.5/60.6

C7 4010005360 CER HM11SJ SL 301J 500V T 64.4/20.8

C8 4010005360 CER HM11SJ SL 301J 500V T 67.1/23.8

C10 4010005360 CER HM11SJ SL 301J 500V T 69.5/33.7

C12 4030011730 S.CER GRM31M2C2H101JV01L T 59.3/62.1

C14 4010005360 CER HM11SJ SL 301J 500V T 67.3/67.3

C15 4010008300 CER HM11TJ SL 391J 500V T 67.3/70.1

C16 4010005880 CER HM95SJ SL 271J 500V T 110.9/27

C17 4010005870 CER HM95SJ SL 221J 500V T 110.9/24.7

C18 4030011730 S.CER GRM31M2C2H101JV01L T 101/38.8

C19 4030011240 S.CER GRM31M2C2H470JV01L T 103/38.8

C20 4010008300 CER HM11TJ SL 391J 500V T 112.9/39

C21 4010005360 CER HM11SJ SL 301J 500V T 110.6/41

C22 4030012480 S.CER GRM31M2C2H121JV01L T 106.5/53

C23 4030011230 S.CER GRM31M2C2H390JV01L T 106.4/51

C24 4010008300 CER HM11TJ SL 391J 500V T 105.1/55.5

C25 4010008300 CER HM11TJ SL 391J 500V T 106.6/58.2

C26 4030011230 S.CER GRM31M2C2H390JV01L T 109.3/70.7

C27 4010005880 CER HM95SJ SL 271J 500V T 114.2/70.5

C28 4030011730 S.CER GRM31M2C2H101JV01L T 146.4/25.4

C30 4030011170 S.CER GRM31M2C2H180JV01L T 138.9/37

C31 4030011730 S.CER GRM31M2C2H101JV01L T 146.9/38.3

C32 4030012480 S.CER GRM31M2C2H121JV01L T 96/21.3

C33 4030011170 S.CER GRM31M2C2H180JV01L T 94/34.9

C34 4030012480 S.CER GRM31M2C2H121JV01L T 91.7/40

C35 4030011230 S.CER GRM31M2C2H390JV01L T 96.5/54.1

C36 4030011730 S.CER GRM31M2C2H101JV01L T 95/69.4

C37 4030011190 S.CER GRM31M2C2H270JV01L T 127.1/26.8

C38 4030012480 S.CER GRM31M2C2H121JV01L T 127/37.3

C39 4030011190 S.CER GRM31M2C2H270JV01L T 138.2/43.6

C40 4030011550 S.CER GRM31M2C2H680JV01L T 121.2/51.1

C41 4030011120 S.CER GRM31M2C2H100JV01L T 132.9/55.8

C42 4030006880 S.CER C1608 JB 1H 472K-T T 42/16.5

C43 4030006880 S.CER C1608 JB 1H 472K-T T 55.1/82.9

C44 4030006880 S.CER C1608 JB 1H 472K-T T 58.3/11.6

C45 4030006880 S.CER C1608 JB 1H 472K-T T 69.7/82.9

C46 4030006880 S.CER C1608 JB 1H 472K-T T 138.3/10

C47 4030006880 S.CER C1608 JB 1H 472K-T T 145.6/69

C48 4030006880 S.CER C1608 JB 1H 472K-T T 103.7/18.1

C49 4030006880 S.CER C1608 JB 1H 472K-T T 116.9/80.5

C50 4030006880 S.CER C1608 JB 1H 472K-T T 92.1/10.2

C51 4030006880 S.CER C1608 JB 1H 472K-T T 102.1/79.1

C52 4030006880 S.CER C1608 JB 1H 472K-T T 122.9/9.7

C53 4030006880 S.CER C1608 JB 1H 472K-T T 131.9/72.3

C62 4030011730 S.CER GRM31M2C2H101JV01L T 147.5/56.1

C63 4030011240 S.CER GRM31M2C2H470JV01L T 140/56.1

C65 4030011730 S.CER GRM31M2C2H101JV01L T 147.1/58.4

C66 4010005360 CER HM11SJ SL 301J 500V T 62.2/52.7

C67 4010005360 CER HM11SJ SL 301J 500V T 62.5/48.6

C68 4010005360 CER HM11SJ SL 301J 500V T 62.6/44.6

C69 4010005360 CER HM11SJ SL 301J 500V T 62.7/41.4

C72 4010008280 CER HM95TJ SL 221J 500V T 46.1/55.4

C73 4010005390 CER HM15SJ SL 621J 500V T 53.6/53.3

C74 4010005390 CER HM15SJ SL 621J 500V T 49/49.9

C75 4010005390 CER HM15SJ SL 621J 500V T 55.2/47.6

C77 4030011210 S.CER GRM31M2C2H330JV01L T 164.1/27.1

C78 4030011240 S.CER GRM31M2C2H470JV01L T 155.6/42.7

C79 4030011240 S.CER GRM31M2C2H470JV01L T 152.7/45.5

C80 4030011240 S.CER GRM31M2C2H470JV01L T 155.2/59.1

C81 4030011240 S.CER GRM31M2C2H470JV01L T 155.2/61.9

C82 4030011230 S.CER GRM31M2C2H390JV01L T 155.2/65.9

C83 4030011080 S.CER GRM31M2C2H6R0DV01L T 167.5/35.6

C85 4030011160 S.CER GRM31M2C2H150JV01L T 168.6/45.6

C86 4030011180 S.CER GRM31M2C2H220JV01L T 158.9/62.5

C87 4030006880 S.CER C1608 JB 1H 472K-T T 156.8/26.7

C88 4030006880 S.CER C1608 JB 1H 472K-T T 155.6/83.6

C97 4010005390 CER HM15SJ SL 621J 500V T 49.2/33.3

C98 4010005390 CER HM15SJ SL 621J 500V T 51.6/30.1

C99 4010005390 CER HM15SJ SL 621J 500V T 49.2/69.8

C100 4010005390 CER HM15SJ SL 621J 500V T 53.1/66.9

C102 4030011730 S.CER GRM31M2C2H101JV01L T 146.9/40.9

C103 4030012480 S.CER GRM31M2C2H121JV01L T 146.9/43.4

C104 4030012480 S.CER GRM31M2C2H121JV01L T 91.7/37.9

C136 4030006880 S.CER C1608 JB 1H 472K-T T 74.8/15

C137 4030006880 S.CER C1608 JB 1H 472K-T T 88.6/79.9

C141 4010008290 CER HM95TJ SL 271J 500V T 74.8/26

C142 4030011230 S.CER GRM31M2C2H390JV01L T 78.8/33.4

C143 4010008280 CER HM95TJ SL 221J 500V T 81.2/46.1

C144 4010008280 CER HM95TJ SL 221J 500V T 81.2/48.8

C145 4030014460 S.CER GRM31M2C2H820JV01L T 83.8/60.7

C146 4030014460 S.CER GRM31M2C2H820JV01L T 80.2/68.9

C151 4010008200 CER HM11TJ SL 331J 500V T 46/27

C152 4010005390 CER HM15SJ SL 621J 500V T 51.6/24.4

C153 4010008200 CER HM11TJ SL 331J 500V T 44.9/44.9

C156 4030011550 S.CER GRM31M2C2H680JV01L T 121.6/48.1

C157 4030011210 S.CER GRM31M2C2H330JV01L T 124/62.5

C501 4030006480 S.CER GRM319B11H104KA01D T 24.5/85.7

C502 4030006480 S.CER GRM319B11H104KA01D T 15.5/85.7

C503 4030004740 S.CER C2012 JB 1H 472K-T T 27/86

C504 4030004740 S.CER C2012 JB 1H 472K-T T 13/86

C507 4030006480 S.CER GRM319B11H104KA01D T 20/84

C508 4030004740 S.CER C2012 JB 1H 472K-T T 20/80.5

C513 4030006480 S.CER GRM319B11H104KA01D T 30/47

C514 4030006480 S.CER GRM319B11H104KA01D T 10/47

C515 4030004740 S.CER C2012 JB 1H 472K-T T 30/44.5

C516 4030004740 S.CER C2012 JB 1H 472K-T T 10/44.5

C517 4510004330 ELE 35 MV 10 SWB T 21/47

C521 4030004740 S.CER C2012 JB 1H 472K-T T 33.4/21.5

C522 4030004740 S.CER C2012 JB 1H 472K-T T 6.6/21.5

C523 4030006480 S.CER GRM319B11H104KA01D T 33.1/19

C524 4030006480 S.CER GRM319B11H104KA01D T 6.8/19

C527 4030006480 S.CER GRM319B11H104KA01D T 20/8.3

C528 4510004330 ELE 35 MV 10 SWB T 21.1/14.3

RL1 6330001510 RLY TB1-160 T 49/21.8

RL2 6330001510 RLY TB1-160 T 49.6/75.3

RL3 6330001510 RLY TB1-160 T 64.4/18.6

RL4 6330001510 RLY TB1-160 T 63.6/72.3

RL5 6330001510 RLY TB1-160 T 143.8/18.9

RL6 6330001510 RLY TB1-160 T 140.1/61.6

RL7 6330001510 RLY TB1-160 T 110.7/22

RL8 6330001510 RLY TB1-160 T 110.7/72.8

RL9 6330001510 RLY TB1-160 T 97.6/19.1

RL10 6330001510 RLY TB1-160 T 96.6/71.5

RL11 6330001510 RLY TB1-160 T 128.4/18.6

RL12 6330001510 RLY TB1-160 T 126.4/64.7

RL13 6330001330 RLY AG 201344 T 168/24.5

RL14 6330001330 RLY AG 201344 T 167.5/81.5

RL15 6330001510 RLY TB1-160 T 80.3/23.9

RL16 6330001510 RLY TB1-160 T 82.3/71.5

J1 6510007020 CNR TMP-J01X-V6 T 159.7/12

J2 6510007020 CNR TMP-J01X-V6 T 148/83.1

J3 6510019970 S.CNR 52808-1091 T 128.5/86

W9 8900009621 CBL OPC-961A

W10 8900009631 CBL OPC-962A

EP1 0910058670 PCB B 6218

EP501 6510018330 TER F4053A T 32.5/79

EP502 6510018330 TER F4053A T 7.5/79

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

J5 6510000370 CNR MR-DS

J6 6510000370 CNR MR-DS

SP1 2510000760 SP SM-77KY0208

MF1 2710000630 FAN FBA08T12HC

W7 8900009240 CBL OPC-909 (P=1 N=10 L=110)

W8 8900009260 CBL OPC-911 (P=1 N=16 L=70)

W10 8900009220 CBL OPC-907 (N:22 L:170)

W11 8900009310 CBL OPC-916 (P=1 N=22 L=120)

W12 8900009290 CBL OPC-914 (P=1 N=22 L=340)

W13 8900009320 CBL OPC-918 (P=1 N=30 L=180)

W14 8900009220 CBL OPC-907 (N:22 L:170)

W15 8900007152 CBL OPC-699B

W16 8900007020 CBL OPC-686 (N:22 L:120)

EP1 6910000340 SHT P101 KD

EP2 6910000310 EPT B312D

[FILER-A UNIT] [FILER-A UNIT]

[CHASSIS UNIT]

SECTION 6 MECHANICAL PARTS AND DISASSEMBLY

6 - 1

DS1 5080000450 Lamp SLU2LC1EX5B-TH 1

EP1 6910011090 Sensor unit RMS20-250-201-P 1

EP2 6450001230 Snap plate HLJ0999-01-480 1

EP3 6450001230 Snap plate HLJ0999-01-480 1

EP4 6910012500 Unit board TFD50W40-A 1

ME1 5510000490 Meter ME-41 (KL-293S-11) 1

MP1 8210021251 1876 front panel (D)-1 1

MP2 8010016722 1876 SUB chassis-2 1

MP3 8930041380 1876 window plate 1

MP4 8930056110 1876 power button (A) 1

MP5 8930050370 1876 4-key (A) 1

MP6 8930056090 1876 key board (B) 1

MP7 8930056100 1876 7-key (B) 1

MP8 8930050380 1876 5-key (A) 1

MP9 8930056080 1876 10-key (B) 1

MP10 8930041280 1876 2-key 1

MP11 8610010720 Knob N273 3

MP12 8610010260 Knob N252 3

MP13 8610010270 Knob N253 1

MP14 8610010650 Knob N268 assembly 1

MP19 8310063330 2178 B-name plate 1

MP20 8930041060 1876 brake plate 1

MP21 8930027470 1296 brake pad 1

MP23 8810008660 Screw PH BT M3 ×8 NI-ZU 6

MP24 8810008760 Screw PH BT M2 ×8 NI-ZU 1

MP25 8810008760 Screw PH BT M2 ×8 NI-ZU 2

MP26 8810009560 Screw PH BT M2 ×6 ZK 6

MP27 8810009560 Screw PH BT M2 ×6 ZK 6

MP29 8820000770 1296 screw 1

MP30 8810009390 Screw PH BT M3 ×18 NI-ZU 1

MP40 8810008760 Screw PH BT M2 ×8 NI-ZU 2

MP41 8810008760 Screw PH BT M2 ×8 NI-ZU 2

MP49 8810008200 Screw PH BT M2.6 ×6 NI-ZU 2

MP50 8810007300 Screw PH B0 M2.6 ×14 ZK 1

MP51 8610010740 Knob N273 (A) 1

MP52 8610010730 Knob N252 (A) 1

MP53 8850001250 Flat washer M2.6 1

MP54 8930051520 Sheet 1

MP60 8930057320 2178 LCD sheet 1

MP61 8930057340 Copper coated sheet (L) 1

MP62 8930057340 Copper coated sheet (L) 1

MP63 8930050280 Copper coated sheet (H) 1

MP70 8930064540 Shield sponge (AN) 1

[FRONT PARTS]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

R701 7210002890 Variable resistor RK161221005J/RV-308 1

R702 7210002890 Variable resistor RK161221005J/RV-308 1

MP1 8510012630 2178 shield case 1

MP3 8510010760 1876 DDS case 1

MP4 8510010770 1876 DDS cover 1

MP5 8510001081 Shield case (A)-1 1

MP6 8510001101 Shield case (A) cover (A)-1 1

MP7 8210013980 1876 reflector 1

MP8* 8930054530 2355 earth spring 1

[DISPLAY BOARD]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

R1 7210002970 Variable resistor RV-314 1

S1 2250000410 Encoder TP90D96E20-30F-2178-1 1

[PBT BOARD]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

S1 2250000340 Encoder EVQ-VCJF0324B 1

[RIT BOARD]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

J2 6450001980 Connector HLJ5815-01-030 1

MP1* 8930054900 2356 earth spring 1

[PHONE BOARD]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

J2 6450001790 Connector HLJ7000-01-3010 1

MP1* 8930054530 2355 earth spring 1

[KEY BOARD]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

J1 6510000190 Connector FM214-8SS (P) 1

MP1* 8930024170 Earth spring (G) 1

[MIC BOARD]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

Note *: Refer to SECTION 8

MODE BOARD

TEN-KEY BOARD

PHONE BOARD

KEY BOARD

DISPLAY BOARD

PBT BOARD

RIT BOARD

MIC BOARD

MP4 (DIS)

MP70 (F)

MP5 (DIS)

MP3 (DIS)

MP23 (F)

J2 (PH) MP6 (DIS)

MP49 (F)

MP7 (DIS)

R701 (DIS)

R702 (DIS)

J1 (MI)

J2 (KE)

MP49 (C)

EP2 (F)

MP2 (F)

MP7 (F)

MP24 (F)

MP4 (F)

MP74 (C)

MP5 (F)

MP76 (C)

MP77 (C)

MP77 (C) MP85 (C)

MP25 (F)

MP1 (F)

MP19 (F)

MP11 (F)

MP12 (F)

MP30 (F)

MP20 (F)

MP51 (F)

MP52 (F)

MP21 (F)

MP14 (F) MP13 (F)

MP29 (F)

MP3 (F)

MP26 (F)

S1 (RI)

MP27 (F)

MP75 (C)

MP40 (F)

MP41 (F)

MP6 (F)

MP73 (C)

MP8 (F)

MP10 (F)

MP9 (F)

EP3 (F)

J1 (MI)

DS1 (F)

EP4 (F)

MP61 (F)

MP63 (F)

MP62 (F) MP60 (F)

MP54 (F)

R701 (DIS)

R702 (DIS)

S1 (PB)

S1 (RI)

EP1 (F)

ME1 (F)

R1 (PB)

MP49 (F)

EP1 (F)

R1 (PB)

MP53 (F)

MP50 (F)

S1 (PB)

(F) : FRONT UNIT (C) : CHASSIS PARTS (PB) : PBT BOARD

(RI) : RIT BOARD (DIS) : DISPLAY BOARD (MI) : MIC BOARD

(KE) : KEY BOARD (PH) : PHONE BOARD

Unit abbreviations

MP1 (DIS)

MP4 (F)

ME1 (F)

MP1 (F) MP5 (F)MP19 (F)

MP7 (F)

MP3 (F)

MP6 (F) MP11 (F)

MP51 (F)

MP52 (F)

MP8 (F)

MP13 (F)

MP9 (F)

MP10 (F)

MP29 (F)MP11 (F)

MP12 (F)

MP38 (C)

MP12 (F)

MP11 (F)

J1 (MI)

J2 (KE)

J2 (PH)

MP14 (F)

MP43 (C)

MP42 (C)

MP45 (C)

MP44 (C)

MP12 (F)

MP15 (C)

J6 (C)

MP15 (C)

J5 (C)

J662 (M)

MP2 (C)

MP3 (C)

MP21 (C)

MP20 (C)

J701 (M) J691 (M)

MP40 (C) J681 (M)J661 (M) J351 (M)

MP39 (C)

6 - 2

PA UNIT

FILTER-A UNIT

CTRL-A UNIT

PLL UNIT

PREAMP BOARD BPF-A BOARD

RF-B UNIT

MAIN-A UNIT

DSP-A BOARD

TUNER-A BOARD

MP81 (C)

MP35 (C)

MP204 (PL)

MP59 (C)

MP28 (C)

MP23 (C)

MP72 (C) MP70 (C)

MP47 (C)

MP46 (C)

MP63 (C)

MP79 (C)

EP1 (C)

MP61 (C)

MP31 (C)

MP68 (C)

MP5 (C)

MP71 (C)

MP65 (C)

MF1 (C)

MP58 (C)

MP48 (C)

MP4 (C)

MP22 (C)

BT3501 (M)

MP17 (C)

MP80 (C)

MP13 (C)

MP91 (C)

MP66 (C)

MP27 (C)

MP72 (C)

MP67(C)

SP1 (C)

MP36 (C)

J3 (C)

MP201 (PL)

MP301 (PL)

MP601 (PL)

MP501 (PL)

MP401 (PL)

MP37 (C)

MP2 (M)

MP5 (M)

MP5 (DSP)

MP6 (DSP)

MP5 (DSP)

MP7 (DSP)

MP83 (C)

MP92 (C)

MP86 (C)

MP3 (M) MEMORY BOARD

MP1 (M)

MP1 (DSP)

MP402 (PL) MP452 (PL) MP602 (PL)

MP302 (PL)

MP152 (PL)

MP102 (PL)

MP902 (PL)

MP502 (PL)

MP503 (PL)

MP203 (PL)

MP1 (PL)

MP1 (C)

MP100 (C)

MP69 (C)

MP41(C)

MP39 (C)

MP15 (C) MP38 (C)

MP44 (C)

MP40 (C)

MP45 (C)

MP42 (C)

MP43 (C)

MP6 (T)

MP8 (T)

MP7 (T)

MF2 (T)

MP57 (C) MP105 (C)

MP89 (C)

MP90 (C)

MP7 (C)

MP5 (T) MP4 (T)

MP3 (T) MP1 (T) MP2 (T)

MP3 (C)

MP50 (C)

MP25 (C)

MP9 (C)

MP21 (C)

MP8 (C)

MP26 (C)

MP12 (C)

MP30 (C)

MP51 (C)

MP33 (C)

MP9 (T)

MP11 (C)

MP29 (C)

MP2 (C)

MP20 (C)

MP53 (C)

W11 (C)

MF1 (T)

J5 (C)

J6 (C)

MP202 (PL)

MP702 (PL)

MP802 (PL)

MP16 (C)

MP46 (C)

EP2 (C)+MP46 (C)

MP32 (C)

MP34 (C)

MP1 (CT)

MP24 (C)

MP88 (C)

MP6 (C)

MP8 (M)

MP7 (M)

MP6 (M)

MP801 (PL)

MP803 (PL)

(PL) : PLL UNIT (DSP) : DSP-A BOARD (CT) : CTRL-A UNIT

Unit abbreviations

W15 (C)

MP54(C)

6 - 3

6 - 4

MP1 8930014140 Earth spring (D) 1

MP51* 8510000230 220 shield case 1

MP101* 8510010760 1876 DDS case 1

MP102 8510010770 1876 DDS cover 1

MP103* 8510005330 Coil case 1

MP151* 8510012550 2178 DDS case 1

MP152 8510012580 2178 DDS cover 1

MP201 8510012540 2178 VCO case 1

MP202 8510011520 2072 VCO cover 1

MP203 8510011710 2072 VCO shield plate 1

MP204 8810003960 Setscrew A M2.6 ×58

MP301 8510005980 724 shield case 1

MP302 8510005990 724 shield case cover 1

MP401 8510010760 1876 DDS case 1

MP402 8510010770 1876 DDS cover 1

MP403* 8510005330 Coil case 1

MP451* 8510012550 2178 DDS case 1

MP452 8510012580 2178 DDS cover 1

MP501 8510012540 2178 VCO case 1

MP502 8510011520 2072 VCO cover 1

MP503 8510011710 2072 VCO shield plate 1

MP601 8510005980 724 shield case 1

MP602 8510005990 724 shield case cover 1

MP701* 8510005980 724 shield case 1

MP702 8510005990 724 shield case cover 1

MP801 8510012550 2178 DDS case 1

MP802 8510012580 2178 DDS cover 1

MP803 8510012400 2177 D/A case 1

MP901* 8510005980 724 shield case 1

MP902 8510005990 724 shield case cover 1

[PLL UNIT]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

J351 6450000140 Connector HSJ0807-01-010 1

J661 6510023670 Connector TCS4480-01-4151 1

J662 6510023660 Connector TCS4470-01-4151 1

J681 6450001490 Connector HLJ7001-01-3010 1

J691 6450001130 Connector JPJ2042-01-110 1

J701 6450000140 Connector HSJ0807-01-010 1

BT3501 3020000110 Lithium battery CR2032 1

MP1 8930014140 Earth spring (D) 1

MP2 8510012880 2178 A-shield cover assembly 1

MP3 8510012780 2178 A-shield case 1

MP5 8930032290 Sponge (DQ) 1

MP6 8930014140 Earth spring (D) 1

MP7 8930014140 Earth spring (D) 1

MP8 8930014140 Earth spring (D) 1

MP9* 8510000230 220 shield case 1

MP10* 8510000241 220 shield case cover -1 1

MP11* 8930004070 Earth spring (C) 1

[MAIN-A UNIT]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

MP1 8510012573 2178 DSP case-3 1

MP2* 8930057311 Shield sponge (I)-1 1

MP5 8930043440 Sponge (EY) 4

MP6 8930052890 Shield tape (G) 1

MP7 8930027700 Insulation sheet (E) 1

[DSP-A BOARD]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

MP1001* 8510016730 2178 1MIX case 1

MP1002* 8510016720 2178 1MIX cover 1

MP1201* 8510016730 2178 1MIX case 1

MP1202* 8510016720 2178 1MIX cover 1

MP1451* 8510012400 2177 D/A case 1

MP1751* 8510005150 602 shield case 1

MP1752* 8510005160 602 shield case cover 1

MP1755* 8510005150 602 shield case 1

MP1756* 8510005160 602 shield case cover 1

MP1801* 8510005150 602 shield case 1

MP1802* 8510005160 602 shield case cover 1

MP1851* 8510005150 602 shield case 1

MP1852* 8510005160 602 shield case cover 1

MP2100* 8510016550 2178 SCOPE case 1

MP2101* 8510016560 2178 SCOPE cover 1

MP2102* 8930014140 Earth spring (D) 1

[RF-B UNIT]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

MF1 2710000460 Motor MP28GA 1

MF2 2710000460 Motor MP28GA 1

MP1 8930041090 1876 A-angle 1

MP2 8810008660 Screw PH BT M3 ×8 NI-ZU 1

MP3 8810009060 Screw FH M3 ×6 ZK 4

MP4 8930041110 1876 B-angle 1

MP5 8810009060 Screw FH M3 ×6 ZK 2

MP6 8820000880 1528 screw 4

MP7 8930030111 1414 plate-1 2

MP8 8950003200 Universal couplings UJ6-5 2

MP9 8930051580 2178 tuner plate 1

[TUNER-A UNIT]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

MP1 8510002020 MIX shield case 1

[CTRL-A UNIT]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

J3 6510001920 Connector 1490R 1

J5 6510000370 Connector MR-DS 1

J6 6510000370 Connector MR-DS 1

W15 8900007152 Cable OPC-699B 1

EP1 6910000340 Sheet P101 KD 1

EP2 6910000310 Insulation plate B312D 1

MF1 2710000630 Fan FBA08T12HC 1

SP1 2510000760 Speaker SM-77KY0208 1

MP1 8410002322 1876 heatsink (A)-2 1

MP2 8110005932 1876 T-cover-2 1

MP3 8110007101 2178 L-cover-1 1

MP4 8510012530 2178 A-plate 1

MP5 8510010730 1876 B-plate 1

MP6 8510010740 1876 C-plate 1

MP7 8510010751 1876 D-plate-1 1

MP8 8930041351 1876 MAIN stand-1 2

MP9 8930041341 1876 SUB stand-1 2

MP11 8930002910 Rubber foot (B) 2

MP12 8930002910 Rubber foot (B) 2

MP13 8930029730 1413 fan holder 1

MP15 8930037001 1691 earth plate-1 2

MP16 8930018520 TR clip (A) 1

MP17 8930035240 1546 TR-B clip 1

MP20 8810005770 Screw BiH M3 ×8 ZK 11

MP21 8810005770 Screw BiH M3 ×8 ZK 6

MP22 8810008660 Screw PH BT M3 ×8 NI-ZU 4

MP23 8810008660 Screw PH BT M3 ×8 NI-ZU 11

MP24 8810008660 Screw PH BT M3 ×8 NI-ZU 3

MP25 8810008660 Screw PH BT M3 ×8 NI-ZU 6

MP26 8810008660 Screw PH BT M3 ×8 NI-ZU 2

MP27 8810008660 Screw PH BT M3 ×8 NI-ZU 2

MP28 8810008660 Screw PH BT M3 ×8 NI-ZU 2

MP29 8810004430 Screw PH M3 ×6 ZK 2

MP30 8810004430 Screw PH M3 ×6 ZK 2

MP31 8810008660 Screw PH BT M3 ×8 NI-ZU 4

MP32 8810008660 Screw PH BT M3 ×8 NI-ZU 7

MP33 8810008660 Screw PH BT M3 ×8 NI-ZU 5

MP34 8810008660 Screw PH BT M3 ×8 NI-ZU 4

MP35 8810008660 Screw PH BT M3 ×8 NI-ZU 4

MP36 8810008660 Screw PH BT M3 ×8 NI-ZU 8

MP37 8810008660 Screw PH BT M3 ×8 NI-ZU 7

MP38 8810008660 Screw PH BT M3 ×8 NI-ZU 4

MP39 8810008660 Screw PH BT M3 ×8 NI-ZU 1

MP40 8810008660 Screw PH BT M3 ×8 NI-ZU 1

MP41 8810008160 Hex head bolt M5 ×18 NI (+) 1

MP42 8830000210 Nut M5 NI BS 1

MP43 8830000360 Wing nut M5 NI 1

MP44 8850000150 Flat washer M5 NI BS 3

MP45 8850000440 Spring washer M5 NI 1

MP46 8810003170 Setscrew A M3 ×84

MP47 8810003170 Setscrew A M3 ×84

MP48 8810000420 Screw PH M4 ×18 4

MP49 8810009310 Screw FH BT M3 ×6 NI-ZU 4

MP50 8930048120 Shield tape (A) 2

MP51 8930042690 Rubber foot (L) 2

MP53 8010001060 Carrying handle assembly 1

MP54 8810003080 Screw PH FH M4 ×12 CR BS 2

MP57 8930027900 Sponge (DD) 2

MP58 8930038820 Alumi sheet V 1

MP59 8930001170 Earth spring (A) 1

MP61 8810003160 Setscrew A M3 ×62

MP63 8810003160 Setscrew A M3 ×62

MP65 8930043281 Sponge (EW)-1 1

MP66 8930043800 Double coated tape (S) 1

MP67 8930029050 Himelon sheet AL 1

[CHASSIS PARTS]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

MP68 8930032130 Himelon sheet AQ 2

MP69 8930029050 Himelon sheet AL 1

MP70 8930008670 Sponge (AQ) 2

MP71 8930043490 Sponge (FB) 1

MP72 8930007840 Himelon sheet K 2

MP73 8930043600 Sponge (FE) 1

MP74 8930043480 Sponge (FA) 1

MP75 8930041160 Himelon sheet BO 1

MP76 8930037830 Sponge (ED) 2

MP77 8930007840 Himelon sheet K 4

MP79 8930035240 1546 TR-B clip 1

MP80 8930027940 1126 TR-B clip 1

MP81 8930017260 758 module earth spring 1

MP83 8930043090 Sponge (EV) 1

MP85 8930049130 Shield tape (D) 2

MP86 8930052101 Shield sponge (C)-1 1

MP88 8930054550 Insulation plate GL 1

MP89 8930052271 Shield sponge (D)-1 1

MP90 8930052271 Shield sponge (D)-1 1

MP91 8930050050 Sponge (GJ) 1

MP92 8930043090 Sponge (EV) 1

MP100 8930064530 Thermally sheet (AT) 1

MP104* 8930017260 758 module earth spring (for PLL unit) 1

MP105 8930064840 Shield sponge (AO) 1

[CHASSIS PARTS]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

F1 5210000090 Fuse FGB 30A 2

F2 5210000060 Fuse FGB 5A 1

W1 8900006490 Cable OPC-025 D 1

MC1 7700000540 Microphone HM-36 1

[ACCESSORIES]

ORDER

NO.

REF.

NO. DESCRIPTION QTY.

Screw abbreviations BT, B0: Self-tapping

PH: Pan head FH: Flat head

BiH:

Binding head

ZK: Black

BS: Brass NI: Nickel

CR: Chrome NI-ZU: Nickel-Zinc

Note *: Refer to SECTION 8.

7 - 1

SECTION 7 SEMI-CONDUCTOR INFORMATION

• TRANSISTORS AND FET’S

BEC

2SA1576A T106 R 2SA1577 T106 Q 2SB1124 S TD 2SB1132 T100 R 2SB1201 S

2SC1971 2SC1972 2SC2714 O 2SC3647 S TD 2SC4081 T106 R

2SC4117 GR 2SC4213 B 2SC4403 3 TL 2SC4405 3 TL 2SC5125

2SC5551 2SD1585 K 2SD1619 T TD 2SD1801 S TL 2SJ381 TD

2SK210 GR 2SK508 K52 T2B 2SK515 T1B 2SK882 GR 2SK1740

3SK131 T2 MAS CPH3404-TL DTA114 EE TL DTA114EUA T106 DTA144 EE TL

DTB123 EK T146 DTC114 EE TL DTC114EUA T106 DTC144 EE TL DTC144 TE

(Symbol: FR) (Symbol: HQ) (Symbol: BG) (Symbol: BAR) (Symbol: B1201)

(Symbol: None) (Symbol: None) (Symbol: QO) (Symbol: CC) (Symbol: BR)

(Symbol: DG) (Symbol: AB) (Symbol: LY3) (Symbol: OY3)

(Symbol: EB) (Symbol: None) (Symbol: DB) (Symbol: CE) (Symbol: JI)

(Symbol: YG) (Symbol: K52) (Symbol: X33) (Symbol: TGR) (Symbol: IJ)

(Symbol: V11) (Symbol: KD) (Symbol: 14) (Symbol: 14) (Symbol: 16)

(Symbol: F12) (Symbol: 24) (Symbol: 24) (Symbol: 26) (Symbol: 06)

MMBFU310LT1 UMD3N UMH4N TN UMH11N TN UNR911HJ

UNR9211J XP4311

(Symbol: 6C) (Symbol: D3) (Symbol: H4) (Symbol: H11) (Symbol: 6P)

(Symbol: 8A) (Symbol: 3X)

•DIODES

A1 A2

C2C1

C1 green A1

white

green AC AC

CAC

1SS226 1SS301 1SS319 1SS322 1SS375-TL

1SV263 TL 1SV307 1SV308 CPH5513 TL DA221 TL

DAN222TL DAP222 TL DSA3A1 DWA010 TE HSB88WSTR

HSM88ASR TR HSM88AS TR KV1770S MA29B MA77

MA114 MA185 MA338 MA357 MA742

MA8030 H MA8033 L MA8051 M MA2S111 MA2S728

MMBV3700LT1 RB050L 40 RB706F-40 T106 RD5.1M T2B2 RD5.6M T2B2

RD20M T2B1

(Symbol: C3) (Symbol: B3) (Symbol: A4) (Symbol: A9) (Symbol: FH)

(Symbol: JV) (Symbol: TX) (Symbol: TX) (Symbol: 2B) (Symbol: K)

(Symbol: N) (Symbol: P) (Color: Green) (Symbol: W8) (Symbol: Silver line)

(Symbol: C3) (Symbol: C1) (Symbol: C7) (Symbol: Y) (Symbol: 4B)

(Symbol: 1E) (White,Green lines) (Symbol: 6H) (Symbol: 7K) (Symbol: M1U)

(Symbol: 3^0) (Symbol: 3_3) (Symbol: 5-1) (Symbol: A) (Symbol: B)

(Symbol: 4R) (Symbol: 35) (Symbol: 3J) (Symbol: 512)

(Symbol: 562)

(Symbol: 201)

7 - 2

8 - 1

SECTION 8 BOARD LAYOUTS

51015 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 2550Horizontal

100

105

Vertical

916

100

7675

14 8

SPLK16

to TEN-KEY

board J1

J221

10K

18K

24K

50K

FINK

MPRK

14K

21K

28K

GENK

MPWK

GND

MUPK24 23

to TEN-KEY

board J2

J241

MWK

TSK

LOCK

NOTK

5VF

LDV

TXD

NOTD

GND

MDNK

MCLK

XFCK

PBTK

KI4

KI3

LOCD

RXD

PBTD

GND

NC1 2

23 24

to LCD

J531

GND

L5V

VCOM

U/D

L18V

L5V

POLC

GND

L/R

N/P

15V

5VF10 9

to PBT

board J1

J601

PITL

PB1B

PB2B

GND

NOTL

PB1A

PB2A

GND

to LCD

J801

CFL+

RUP12

910

to RIT board J1

J120

RDN

GND

5VF

GND

to MAIN

DIAL

GND4

J101

MDN

MUP

5VF to LCD

NC 1

J802

CFL

GND

to MODE

board J1

J201

5VF

KI2

CWK

FILK

SPEK

F2K

F4K

GND

KI1

SSBK

AMK

EXTK

F1K

F3K

F5K

to MAIN-A

unit J861

J321

SQSS

MICE

GND

PWRK

PHE

14V

MSND

MICI

GND

TMD

AFO

14V

SSP1

to CHASSIS

SP1

J452

SSPE

SPE1

J451

SSP

to MAIN-A

unit J352

to MAIN-A

unit J891

J301

LFMD

SRES

VSYNC

GND

14V

LMFD

YOBI

HSYNC

GND

+18V

14V

GND10 9

to KEY board J1

J921

GND

DOT

GND

DASH

MICI1 2

910

to MIC board J2

J322

MUD

MSND

MMICE

M8V

SQLS

GND

AFO

GND

to PHONE

board J1

J941

GND

PHNI

AFO

GND

PHE

8-1 DISPLAY BOARD

• TOP VIEW

8 - 2

5101520253035404550556065707580859095100105110115120125130135140145150155160165170175180185190195200205210215220225230235240245250255 0

Horizontal

100

105

Vertical

POWER

TUNER MONITOR

AF. RF/SQL

MIC

GAIN RF

POWER BK-IN

DELAY KEY

SPEED

BAL/NR

COMP

NB NR

TRANSMIT

• DISPLAY BOARD (BOTTOM VIEW)

51015 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 1450Horizontal

100

105

110

Vertical

Horizontal

510 15

025 30 3520

Vertical

Horizontal

510 15

025 3020

Vertical

51015 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 1050Horizontal

100

105

110

Vertical

F-1

SSB

F-2

CW/RTTY

F-3

AM/FM

F-4

FILTER

F-5

EXIT SPEECH

PHONES

ELEC-KEY

SPLIT

CHANGE

V/M

M/S

MP-W MP-R TS

M-CL

PBT-CL NOTCH

CLEAR∆TXRIT

LOCK

DOWN

F-INP

3.5

GENE

1.8

XFC

PHE10 9

to DISPLAY board J941

PHE

GND

PHO

PHNI

GND

GND10 9

to DISPLAY board J921

GND

DOT

GND

DASH

8-2 MODE BOARD

• TOP VIEW

8-3 PHONE BOARD

• TOP VIEW 8-5 TEN-KEY BOARD

• TOP VIEW

8-4 KEY BOARD

• TOP VIEW

8 - 3

5101520253035404550556065707580859095100105110115120125130135140145 0

Horizontal

100

105

110

Vertical

Horizontal

15 0

253035 20

Vertical

Horizontal

15 0

2530 20 Vertical

5101520253035404550556065707580859095100105 0

Horizontal

100

105

110

Vertical

GND

to DISPLAY

board J201

5VF

KI2

CWK

FILK

SPEK

F2K

F4K

GND

KI1

SSBK

AMK

EXTK

F1K

F3K

F5K

SPLK1 2

15 16

to DISPLAY

board J221

10K

18K

24K

50K

FINK

MPRK

14K

21K

28K

GENK

MPWK

GND

to DISPLAY

board J241

MUPK1 2

23 24

MWK

TSK

LOCK

NOTK

5VF

LDV

TXD

NOTD

GND

MDNK

MCLK

XFCK

PBTK

KI4

KI3

LOCD

RXD

PBTD

GND

GND GND

• MODE BOARD (BOTTOM VIEW)

• PHONE BOARD (BOTTOM VIEW)

• TEN-KEY BOARD (BOTTOM VIEW)

• KEY BOARD (BOTTOM VIEW)

8 - 4

Horizontal

510 15

0253020

Vertical

8-9 MEMORY BOARD

• TOP VIEW

51015 20 25 30 35 40 45 500 Horizontal

Vertical

51015 200 Horizontal

Vertical

51015 200 Horizontal

Vertical

NOTCH/CW PITCH PBT1/PBT2

RIT

MMICE

MICI

M8V

MUD

SQLS

AFO

MSND

GND

8-6 PBT BOARD

• TOP VIEW

8-7 RIT BOARD

• TOP VIEW

8-8 MIC BOARD

• TOP VIEW

8 - 5

Horizontal

15 0

2530 20 Vertical

22 21

to MAIN-A unit J3503

GND

RESET

BYTE

VCC

A18

A17

A16

A15

A14

A13

A12

A11

A10s

A10f

GND

to MAIN-A unit J3504

GND

HWR

CSs

CSf

D10

D11

D12

D13

D14

D15

GND

• MEMORY BOARD (BOTTOM VIEW)

5101520253035404550 0

Horizontal

Vertical

5101520 0

Horizontal

Vertical

5101520 0

Horizontal

Vertical

5VF

210

to DISPLAY

board J601

PITL

PB1B

PB2B

GND

NOTL

PB1A

PB2A

GND

to DISPLAY

board J322

AFO

GND

SQLS

M8V

MMICE

MSND

MUD

MICI

GND

to DISPLAY

board J120

GND

5VF

GND

RDN

RUP

• PBT BOARD (BOTTOM VIEW)

• MIC BOARD (BOTTOM VIEW) • RIT BOARD (BOTTOM VIEW)

8 - 6

16 1

102

103

128 1

6465

8687

128

32 33

22 1

23 44

14 8

109

51015 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 2000Horizontal

100

105

110

115

125

130

135

120

145

150

140

Vertical

14 8

MP11

2011

10 1

916

from PLL unit J701

3LO P701

from RF-B unit J185

T/R2IF P1851

SENDALC

EXSPREMOTEKEY

ACC (2)ACC (1)

PAT8

to PA unit J3

J771

ICL

H5V

14VA

14V

PWRS

ICH

14VA

14V

GND

30 29

to DSP-A

board J2001

J201

GND

FMTL

GND

DRAF

DTAF

GND

DMAF

D5VA

DRIF

GND

AGC

GND

DTIF

GND

to EXT

TUNER

J641

ETKY

ETST

ET14

ETE

AGRS1 2

29 30

to DSP-A

board J2002

J202

GND

M5V_d

GND

DSDR

MCK

DSFW

MDAT

DSFR

CTFL

RTDT

GND

3R3V_d

GND

NSQO

DPGI

MODS

FMNS

CALS

ACKS

DSRS

AMS

TXS

MSL1

DSKY

GND

14V1 2

23 24

to DISPLAY

board J321

J861

14V

AFO

TMD

GND

MICI

MSND

14V

SPE

PWRK

GND

MICE

SQSS

NC24 23

to DISPLAY

board J301

J891

14V

GND

HSYNC

YOBI

LMFD

14V

GND

YSYNC

DRES

LFMD

A91 30

15 16

to MEMORY

board J1

J3503

GND

RESET

BYTE

VCC

A18

A17

A16

A15

A14

A13

A12

A11

A10s

A10f

GND

D71 30

15 16

to MEMORY

board J2

J3504

GND

HWR

CSs

CSf

D10

D11

D12

D13

D14

D15

GND

to PLL unit J1

J841

14V

PSEL

CON1

DRES

GND

14V

UNLC

CON2

CON0

PSTB

14V22 21

to CTRL-A unit J7

J741

14V

T8V

REFV

DRES

ISTA

GND

CMDT

14V

FORV

ANTS

GND

IKEY

FSTB

CMCK

14V

to RF-B unit J451

J811

AGC

ALC

R8V

TRVI

SATV

BLAY

GND

MCK

14V

T8V

RANS

BLBV

SCPL

MDAT

BSTB

GND

to optional

unit UT-102

J3502

M5V

SBSY

MDAT

SPCH

GND

MCK

SSTB

to DISPLAY

board J451

J352

SPE

SSP

8-10 MAIN-A UNIT

• TOP VIEW

8 - 7

5101520253035404550556065707580859095100105110115120125130135140145150155160165170175180185190195200 0

Horizontal

100

105

110

115

125

130

135

120

145

150

140

Vertical

24 13

112

14 8

14 1

15 28

14 15

10 6

814

610

10 6

• MAIN-A UNIT (BOTTOM VIEW)

8 - 8

Horizontal

51015025303520 45 50 5540 65 70 7560 80 90 95 10085 105 110 115 125120

Vertical

180 121

120

181

240

1 60

20 11

110

28 15

114

814

8-11 DSP-A BOARD

• TOP VIEW

8 - 9

Horizontal

51015 0253035 20455055 40657075 60809095100 85105110115125 120 Vertical

MP2

to MAIN-A unit J201

J2001

GND

FMTL

GND

DRAF

DTAF

GND

DMAF

D5VA

DRIF

GND

AGC

GND

DTIF

GND

GND 1

to MAIN-A unit J202

J2002

GND

RTDT

CTFL

DSFR

MDAT

DSFW

MCK

DSDR

GND

M5V_d

GND

AGRS

GND

DSKY

MSL1

TXS

AMS

DSRS

ACKS

CALS

FMNS

MODS

DPGI

NSQO

GND

3R3V_d

• DSP-A BOARD (BOTTOM VIEW)

8 - 10

51015 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 1600

Horizonal

100

Vertical

16 9

MP1451

W2101

S2LO P901 from PLL unit J901

from PLL unit J801

from PLL unit J81

P81

2LO

S3LO P801

to MAIN-A unit J101 P1851 2IF

1LOB from PLL unit J651

from PLL unit J851

P651

PAI from PA unit J1

P851

MKR

1LOA

P351

from PLL unit J351

from CTRL-A unit J2

XVRT RANT

GND

to BPF-A

board

J801

GND

BPF-A_IN

GND

B11

to BPF-A

board

J803

GND

B31

to BPF-A

board

J802

GND

to BPF-A

board

J805

GND

BPF-A_OUT

GND

to PREAMP

board

J809

GND

PREAMP_IN

GND

POFF

R8V1

to PREAMP

board

J804

14VL

PRE2

PRE1

GND

GND5

to PREAMP

board

J807

PREAMP_OUT

GND

PRE1

GND

BSTB

to MAIN-A

unit J811

J451

MDAT

SCPL

BLBV

T8V

14V

MCK

GND

BLAV

SATV

TRVI

R8V

ALC

AGC

14V

8-12 RF-B UNIT

• TOP VIEW

8 - 11

5101520253035404550556065707580859095100105110115120125130135140145150155160 0

Horizonal

100

Vertical

MP2102

118

910

• RF-B UNIT (BOTTOM VIEW)

8 - 12

Horizontal

510 15

025 30 3520 45 50 5540

Vertical

8-13 BPF-A BOARD

• TOP VIEW

Horizontal

51015025303520

Vertical

8-14 PREAMP BOARD

• TOP VIEW

8 - 13

Horizontal

51015 0253035 20 Vertical

GND

PRE1

GND

PREAMP_OUT

GND

to RF-B unit J807

to RF-B unit J809

POFF

GND

PREAMP_IN

R8V

14VL

PRE2

PRE1

GND

to RF-B unit J804

• PREAMP BOARD (BOTTOM VIEW)

Horizontal

15253035 20455055 40 Vertical

GND

to RF-B unit J802

GND

to RF-B unit J803

to RF-B unit J801

GND

BPF-A_IN

to RF-B unit J805

GND

BPF-A_OUT

• BPF-A BOARD (BOTTOM VIEW)

8 - 14

51015 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 1550

Horizonal

100

105

110

Vertical

25 1

51 75

100

33 23

111

22 12

4434

125

7551

100

CHASSIS

MP104

2LO

P81

to RF-B unit J1801

to RF-B unit J2101

to RF-B unit J2001

to MAIN-A unit J211

S3LO

MKR

P851

to RF-B unit J951

S2LO P901

P801

P701

to RF-B unit J1301 1LOA

P351

to RF-B unit J1101 1LOB

P651

8-15 PLL UNIT

• TOP VIEW

GND1 2

15 16

to MAIN-A

unit J841

14V

PSEL

CON1

DRES

GND

14V

UNLC

CON2

CON0

PSTB

8 - 15

5101520253035404550556065707580859095100105110115120125130135140145150155 0

Horizonal

100

105

110

Vertical

• PLL UNIT (BOTTOM VIEW)

8 - 16

51015 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 1700 Horizontal

Vertical

to FILTER-A unit J1 PAO

to RF-B unit J201

PAI P1

to FILTER-A unitto FILTER-A unit

PGND

BLACK

PHV

RED

PAT8

to MAIN-A unit J771

ICL

H5V

14VA

14V

GND

PWRS

ICH

14VA

14V

GND

to CHASSIS MF1

J11

MF+

8-16 PA UNIT

• TOP VIEW

8 - 17

5101520253035404550556065707580859095100105110115120125130135140145150155160165170 0

Horizontal

Vertical

• PA UNIT (BOTTOM VIEW)

8 - 18

51015 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 1700 Horizontal

Vertical BLACK

FGND

FHV

RED

to CHASSIS

W15

to CHASSIS

W15

to PA unit EP5

PGND

BLACK

to PA unit EP4

PHV

RED

PAO

from PA unit J2

CTIN P1

from CTRL-A unit J1

GND

to CTRL-A

unit J13

L8S

L3S

L5S

L2S

GND

L7S

L6S

L1S

L4S

8-17 FILTER-A UNIT

• TOP VIEW

8 - 19

5101520253035404550556065707580859095100105110115120125130135140145150155160165170 0

Horizontal

Vertical

• FILTER-A UNIT (BOTTOM VIEW)

8 - 20

51015 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 1900 Horizontal

100

Vertical

814

116

48 33

169

from TUNER-A board J3

P3 TUIN

RFRX

to RF-B

unit J101

CHASSIS

TUOT P4

from TUNER-A board J4

CTIN P1 to FILTER-A unit J2

ANT1 ANT2

GND

to TUNER-A

board J5

10M

18M

VHF

GND

14V

CO2

NVHF

CI2

GND

3.5M

14M

24M

GND

14V

CO3

CO1

CI3

CI1

GND

to FILTER-A unit J3

J13

102

L8S

L3S

L5S

L2S

GND

L7S

L6S

L1S

L4S

CMCK

to MAIN-A unit J741

J7 2

121

FSTB

IKEY

GNDL

ANTS

FORV

GND

14V

CMDT

GNDL

ISTA

DRES

REFV

GND

T8V

14V

T14V 1

to TUNER

MF2

J11

T14V 1

to TUNER

MF1

J10

8-18 CTRL-A UNIT

• TOP VIEW

8 - 21

5101520253035404550556065707580859095100105110115120125130135140145150155160165170175180185190 0

Horizontal

100

Vertical

• CTRL-A UNIT (BOTTOM VIEW)

8 - 22

51015 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 1900Horizontal

100

Vertical

1810

TUIN P3

to CTRL-A unit J3

TUOT P4 to CTRL-A unit J4

GND

to CTRL-A

unit J8

10M

18M

VHF

GND

14V

CO2

NVHF

CI2

GND

3.5M

14M

24M

GND

14V

CO3

CO1

CI3

CI1

GND

8-19 TUNER-A BOARD

• TOP VIEW

8 - 23

5101520253035404550556065707580859095100105110115120125130135140145150155160165170175180185190 0

Horizontal

100

Vertical

• TUNER-A BOARD (BOTTOM VIEW)

8 - 24

9 - 1

SECTION 9 BLOCK DIAGRAM

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

COMMON LINE

CLOCK

GENE

IC2041

TC7SHU04FU

IC2042

TC7SH04FU

X2041

CR-568

40MHz

IC2001

ADSP-21061LKS-160

LEVEL

CONV

IC2051

TC74VHC125FT

TIMING

IC2053

TC74HC02AF

IC2054

TC74VHC74FT

LEVEL

CONV

DSP

LEVEL

CONV

IC2072

TC74VHC541FT

ROM IC2071

SC-1414

LEVEL

CONV

IC2061,IC2063

IC2065,IC2066

TC7SET08FU × 4 CTFL

RTDT

NSQO

DCWK

DSFR

DSDW

DSFW

DSCK

LEVEL

CONV

IC2062

TC74VHC541FT

IC2101

TC7SH32FU

LEVEL

CONV DSRS

A/D

IC2321

CS5396-KS

VDD

DET VCC

CTRL

IC2091 S-80934CNMC-G84

IC2092 TC7S02FU

DIFF

CONV

CALS

ACKS

TIMING

IC2341

TC74VHC00FT

IC2343

TC7WH74FU

D/A

IC2351

AD1854JRS

AMP

IC2371A

µPC4570G2

IC2372X

BU4053BCFV

IC2372Y

BU4053BCFV

LPF

IC2401

MAX293CWE

LPF

IC2211B

M5218AFP

MODS

AMS

LPF

IC2291

IC2201X

TC4W53FU

BU4053BCFV

IC2201Y R2229

AM MOD LEVEL

R2227

FM MOD LEVEL

BU4053BCFV

LIMIT

AMP

IC2211A

M5218AFP

AMP

IC2371B

µPC4570G2

LPF

AMP

IC2381B

µPC4574G2

LPF

IC2381C,D

µPC4574G2

IC2381A

µPC4574G2

BUFFDIV

IC2342

TC74VHC4040FT

D/A

IC2461

BU9480F

AMP AGC

IC2471B

M5218AFP

BUFF

IC2281A

NJM2058M IC2441B,C

NJM2058M

LPF

IC2441D

NJM2058M

AMP

EX-SP

JACK

DRIVER

IC3771A TC7W04FU

IC3771B

Q3771 2SA1576

Q3772 2SC4081

D3771 DAN222

EXT-SP SPS

D351

DAN222

Q351

UNR9211J

RL351

AHY103

PWR

AMP

IC332

LA4425A

RIPPLE

FILTER

Q331

2SD1801

14VA

MUTE

IC331

TC4W53FU

AFMS

VCA

AFGV

AAFO

CTXD

CI-V

AMP

IC311

M5282FP

BEEP

ALC

AMP

FMTL

IC372

BA3308F

SQLS

MONV

AMP

IC371

M5282FP

VCA

BUFF

AMP

IC451

µPC5023-077

MIGV

AVXL

ATT

PHONE

BOARD PHONE

JACK PHNI

MIC

JACK

MIC

BOARD MUD

PBT

BOARD

PBT1

PBT2

NOTCH

PITCH

TRANSMIT

TRAK

TEN

KEY

TEN-KEY

BOARD

TUNER

TNRD

MONITOR

MOND

DSP

A BOARD

TUNER LED MONITOR LED

NBD

NB LED

NRD

NR LED

KIO

MODE

BOARD

MODE

KEY

BOARD

KEY

JACK

RIT

BOARD

RIT DIAL

WAVE

FORMER

IC102C,D

MC14071BFEL

15V

DC-DC

IC841 NJM2360M

Q841 2SB1124

D841 RB050L-40

IC501 TA79L08F

D501 1SS322

REG

IC881 TA79L08F

REG

+5V

REG

VRAM

IC3553

LH61665AS-60A

LCD

CONT

X3551

CSTCV26.00MXJ040

26MHz

BUS

DRIVER

IC3551

S1D13504F00A000 IC3501

HD64F2375F20

MAIN

CPU

IC3502

S-80942CNMC-G9C

RTC

BACK UP

SUB

CPU

IC401

HD6433832SD66H

X401

CR-567

3.8304MHz

X3501

CR-520

19.6608MHz

BT3501

CR2032

Q3504 2SA1576

D3504 MA2S111

D3505 MA2S111

D3506 MA2S111

EEPROM

IC3504

RTC-4553A IC3503

CAT25C32SI

D/A SERI

PAR A

IC3751

M62352GP IC3752,IC3753

BU4094BCFV IC3653,IC3654

TC74AC574FT

BUS

DRIVER

BUS

DRIVER

IC3652

TC74AC245FT

TMDI

TIMER LED

DISPLAY BOARD

REG

Q601

2SD1619

Q602

2SC4081

D601

DA221

RXS

REG

14V

TXS

Q611

2SD1619

Q612

2SC4081

D611

DA221

PAT8

REG

TRVI

Q621

2SA1577

Q622

UMH11N

PAT8

T8V

R8V

REG

IC805

AN79L05M

POCV

+14V

AMS

PHFS

P5OS

PWR

CTRL

Q501

UMH11N

Q502

UMH4N

REFV

ALC

AMP

ALC

AMP

FORV

IC571B

NJM4558M

REFL

IC571A

NJM4558M

AMP FORL

ICL

ICH ALC

AMP

IC551A

NJM2058M

AMP ALCL

ALCEALC ALC

AMP

IC551D

NJM2058M

Q521

2SA1576

IC201B

BA15532F IC151

TC4W53FU

IC221

NJM1496V

CERAMIC

BPF

FI111

CFK455E10

(455kHz)

(BW-15kHz)

GATE

CTRL

Q276

2SC4081

Q278

UNR911HJ

D273

MA2S111

DET

D271

1SS375

AMP

BUFF

Q273

2SK882

Q279

2SC4081

AGC

AMP

Q274

2SC4081

Q275

2SA1576

Q272

2SK882 Q271

2SK882

GATE

D113,D114

1SV308 × 2

Q141

3SK131 R8V

T8V T8V AT T

ATT AT T

MAIN

A UNIT RF-B UNIT

R8V

AMP

ATT

2LO

64.00000MHz

T8V

D1852 HSB88WS

D1752 HSB88WS

AMP

Q2101

2SK882

LPF AMP

PLL UNIT

DPGI M5V

Q2321 2SJ381

Q2322 2SJ381

5VA

M5V

IC2052

TC7SET08FU

IC2201Z

BU4053BCFV

IC2302

TC4W53FU

IC361

TC4W53FU

(36kHz)

IC551C

NJM2058M

IC551B

NJM2058M

S2LO

77.8MHz

3LO

491kHz

DIFF

CONV

IC2301A

BA15532F

IC2301B

BA15532F

MISL

IC3002X

BU4053BCFV

AFO

VOGV

AMP

IC3003 M5282FP

VCA

IC3005Z

BU4053BCFV

IC3002Z

BU4053BCFV

MOSL

MISL

MOSL

AMPO

IC3005Y

BU4053BCFV

Q471

2SC4081

BUFFAMOD

REC

IC3001

ISD4003-04MS

MOSL

VOSL

AMP

IC3004A

NJM4558M

IC301

RECO

TC4W53FU

MODS

IC2281C,D

NJM2058M

HPF

IC2472A,B

M5218AFP

IC2372Z

BU4053BCFV

IC2473

TC4W53FU

IC2441A

NJM2058M

IC2471A

M5218AFP

AMP

IC2281B

NJM2058M

STON

DMAF

AMP

VOXL

MOSL

IC3004B

NJM4558M

IC362

TC4W53FU

IC801

BA033T

3.3V

REG 3R3V

IC802

TA7805F

+5V

REG M5V

Q804

2SD1801

RIPPLE

FIL D5VA

IC803

MA8051

D801

TA7805F

+5V

REG

BANSBANV

IC101B

NJM4558M

AMP

BPF

FI131

CFWM455D

BPF

FI133

CFWS455IT

AMP

AMP LO

AMP

MODS

DRIV

NBLV

AGC

UNLC

Q241

2SK882

455kHz

ALC

Q261

2SK882

RESETRAMROM

IC1

SC-1415-1 IC2

ID171256SA15PZ

AFL

RFL

BALL

NRL

MIGL

PWRL

CMPL

KYSL

DELL

RF/SQL

BAL

MIC GAIN

RF POWER

COMP

KEY SPEED

BK-IN DELAY

MAIN DIAL

WAVE

FORMER

IC861 TA7805F

15V

IC821 BA6161F

Q821 2SC4081

D822 RD20M

+18V

DC-DC

14V

15V

+18V

POWER

PWRK

LCD

BACK

LIGHT

RGB

CTRL

Q1201,Q1211

Q1221 × 3

2SA1576

CONT

CTRL

IC1521B

M5218AFP LCD

INTERFACE

IC1401

M52338FP

BKLV

CTRL

Q801 2SC4081

Q802 2SC1201

DC/AC

INVERT

Q803,Q804

2SC3647 × 2

+18V

Q901

Q903 DTC114EE × 3

Q904 2SC4081

Q905 2SB1201

DIMMER

CTRL

MDM2

MDM1

MDM0

LDV

DSDR

DIV

IC2347

TC74HC390AF

(36kHz)

(491.52kHz)

DTIF

IC3005X

BU4053BCFV

MSL1

MSL2

UT-102

OPTION

SBSY

SSTB

CRXD

DRIF

DTAF

BUFF

IC2353

TC7SH04FU

DSIR

X2351

CR-643

24.576MHz

IC2352

TC7SHU04FU

36kHz

RX TOTAL GAIN

R210 IC201A

BA15532F

IC153

TC4SU69F IC152

TC4SU69F

LPF

DTAF

MEMORY BOARD IC3651

IC3656 TC74AC32FT

IC3655 TC74AC08FT

TC74AC244FT

CNTV

BKLV

455kHz 64.455MHz

DRIVER

Q1901

XP4311

14V

R8V

Q1801

2SK882

Q904

2SC2714

COMMON LINE

RX LINE

TX LINE

DATA BUS LINE

DRAF

MICI

IC101B,C,D

BU4030BF

IC102A

MC14071BFEL

IC101A

BU4030BF

IC102B

MC14071BFEL

PB1A

PB1B

PB2A

PB2B

NOTL

PITL

AMP

9 - 2

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

COMMON LINE

AMP

Q1751

3SK131

AGC

XTAL

BPF

FI1701

381

(64.455MHz)

(BW=15kHz)

T8V

COMB

AMP

Q1208

2SC5551

ATT

D1201 CPH5513

D1203 1SV263

D1204 CPH5513

Q1207

2SC4081

DRIVER

AMP

Q1008

2SC5551

Q1209

MMBFU310

ATT

D1001 CPH5513

D1002 1SV263

D1003 CPH5513

Q1007

2SC4081

DRIVER

Q1203

Q1206

2SK1740

Q1551

2SK882

AMP

ALC

T8V

R8V

D2201

1SV263

ATT

AMP

Q2202

2SK882

AMP

Q2201

2SK882

D2101

HSB88WS

CERAMIC

BPF

FI2003

SFECV13.35MAS

AGC

ATT

DET

IC2001 TA31136FN

CERAMIC

BPF

FI2001

CFJ455K8

AGC

AMP

D2002

MA2S111

IC2002B

NJM4558M

AMP

IC2002A

NJM4558M

SCPL

DRIVER

Q2203

2SC4081

SATV

Q1003

Q1006

2SK1740

AMP

Q1201,Q1202

2SK1740

LPF

SPLIT

DRIVER

Q4203,Q4204

XP4311

AMP

Q1001,Q1002

2SK1740

LPF

DRIVER

Q4301,Q4303

XP4311

Q4201

2SC5551

Q4202

2SC5551

PRE

AMP

Q4302

2SC5551 PRE

AMP

PRE2

T8V

ATT

PRE1

14V

LPF

BPF

BOARD

PREAMP BOARD

ATT

BPF

HPF

BPF

1.6

2.0MHz

HPF

2.0

3.0MHz

3.0

4.0MHz

4.0

6.0MHz

6.0

8.0MHz

8.0

11.0MHz

11.0

15.0MHz

15.0

22.0MHz

22.0

30.0MHz

50.0

54.0MHz

B10

50MHz

60MHz

B10W

BPF

50.0-54.0MHz

TX-B10

D1451

HSB88WS

LPF

Q1301

2SC5551

AMP

LPF

Q1101

2SC5551

AMP

POFF

ATT

12dB

RL103

ATN203

ATT2

ATT

6dB

ATT1

RL102

ATN203

RANS

LPF

ATT YGR

AMP

IC201

µPC1678GV

LPF ATT

RX ANT

B UNIT

D151

1SV307

MUTE

CTRL

Q152 UNR9211J

Q151 UMH11N

Q201 2SA1576

Q202 UMH11N

Q203 UNR9211J

TRVI

T8V

ANT2 ANT1

CHASSIS

ANTS

CURRENT

DET

TUNING

NET

TUNER

ON/OFF

CTRL

TUNER

A UNIT

TX/RX

CONRT

THRU

LPF

RESIST

DET

PHASE

DET

SWR

DET

CPU

DATA

X1 CR-569

6.144MHz

IC5

M38022M2-138FP

IC13

TA7805F

REG

14V 5V

FOR

REF CTRL

A UNIT

Q71 2SC4081

Q81 2SC4405

Q801

2SC4081

AMPDDS

IC801

SC-1287

PST7

D/ABPF

Q802

2SC4117

BUFF

HPF

PLL

PST6

LOOP

FIL

77.8MHz

BUFF

PSMT

Q701

2SC4081

AMP

PST5

DDSBPF D/A

IC701

SC-1287

VCO

Q521 2SK508

D521 KV1770S

D522 KV1770S

Q501 2SK508

D501 KV1770S

D502 KV1770S

Q551 2SK508

D551

D554

MA338 × 4

Q571 2SK508

D571

D574

MA338 × 4

BUFF

DATA PLL

LOOP

FIL

PST4

BPF

CTRL

Q651

DTA114EE

BPF MUTE

DRIVER

Q424

UMD3N

BUFF

Q452

2SC4081

IC681

LMX2306TM

LOOP

FIL

D451

MA357

Q451

2SK210

Q402

2SC4081

AMP PHASE

DET

AMP

IC402

TC7S04F

CERAMIC

BPF D/A

FI401

CFEC10,8MD11

DDS

DRIVER

Q421,422,423,426

UMD3N

1/4

DDS

VB1S

VB2S

VB3S

VB4S Q403

2SC4081

AMP

Q52

2SC4081

BUFF

X52

CR-338.

32.00056MHz

CAL PST2

VCO

D202 KV1770S

Q201 2SK508

D201 KV1770S

Q221 2SK508

D221,D222 KV1770S × 2

BUFF

Q601

2SC4403

Q301

2SC4403

D/A

AMP

Q151

2SK210

D151

MA357

LOOP

FIL

Q102

2SC4081

IC381

LMX2306TM Q152

2SC4081

BUFF

Q124

UMD3N

DRIVER

DATA PLL

LOOP

FIL

PST2

Q351

DTA114EE

BPF

CTRL

BPF MUTE

Q121-Q123 UMD3N

Q126 UMD3N

DRIVER

FI101

CFEC10,8MD11

DDS

CERAMIC

BPF

PHASE

DET

IC102

TC7S04F

AMP

DDS

VA1S

VA2S

VA3S

VA4S

Q103

2SC4081

AMP

MKRS

MUTE

IC191

TC7S08F

DULS

PST1

LEVEL

CONV

UNLC

CON0

CON1

CON2

IC1

BU4094BCF

SERI

PARA

PSEL

PSTB PST1

PST2

PST3

PST4

PST5

PST6

PST7

1.8MHz

LPF

3.5MHz

LPF

5/7MHz

LPF

10MHz

LPF

14MHz

LPF

18/21MHz

LPF

24/28MHz

LPF

50MHz

LPF

L1S

L2S

L3S

L4S

L5S

L6S

L7S

L8S

PWR

AMP

2SC5125

BIAS

2SD1585K

BIAS

DRIVE

AMP

2SC1972

2SC1971

PRE

DRIVE

COMMON

FILTER 13.8V

Q10 2SC4081

Q11 2SC4081

Q12 2SB1201

Q13 2SB1201

FAN

CTRL

FUSE

(5A)

RELAY

CTRL

Q9 UNR9211J

D7 DAP222

REG

IC2

TA7805S

REG

IC1

TA7805F

REG

IC3

MC78T08C

H5V

14V

FILTER

A UNITPA UNIT

0.03

1.6MHz

RL101

ATN203

Q101

UNR9211J

XVRT

Q51

2SC4403

Q2 UMD3N

MKRS

1LOA

1LOB

64.455MHz

BLAV

D1205

MA2S111

D1004

MA2S111

BLBV

LPF

T8V

64.455MHz

FI2002

SFECV13.35MAS

CERAMIC

BPF

SAGC

64.485MHz-124.455MHz

AMP

IC1401

µPC2708TB

LPF

B0-B10

B10W

TX-B10

POFF

PRE1

PRE2

RANS

ATT1

ATT2

DRIVER SERI

PAR A

IC301,IC302

TD62783AF × 2

Q351,Q352

UMH11N × 2

Q353

Q357

XP4311 × 5

D301

D303,D351,D352

DAN222 × 5

IC401,IC402,IC403

CD4094BPWR × 3

MCK

MDAT

BSTB

S3LO 12.79

12.99MHz

PSMT

Q903

2SC4117

IC901

LC7153M

IC902

TC7W08F

Q902

2SK508

DATA

PBMT

PBFS

IC401

SC-1246A

LPF

REG

IC682 TA78L05F

8V 5V PLLB

Q661

DTC114EE

8MHz

VCO

Q522 2SC4213

Q502 2SC4213

VCO

Q552 2SC4213

VCO

Q572 2SC4213

VCO

Q202 2SC4213

VCO

Q251 2SK508

D251

D254 MA338 × 4

Q271 2SK508

D271

D274 MA338 × 4

VCO

Q222 2SC4213

Q252 2SC4213

VCO

Q272 2SC4213

VCO

Q361

DTC114EE

IC101

SC-1246A

PAFS

PAM T

64.485MHz-124.455MHz

REG

IC382 TA78L05F

5V PLLA8V

CTIN

D15

HSM88AS

Q14,Q16 DTC114EU × 2

Q13,Q17 DTA114EU × 2

Q12 DTC114EU

Q13 DTA114EU

D8,D9

HSM88AS × 2

DWA010

D1,D2

HSM88AS × 2

PAI

SECTION 10 VOLTAGE DIAGRAMS

VOLTAGE LINE

Explanatory notes

100

P81/SEG26

P82/SEG27

P83/SEG28

P84/SEG29

P85/SEG30

P86/SEG31

P87/SEG32

P90/SEG33

P91/SEG34

P92/SEG35

P93/SEG36

P94/SEG37/M

P95/SEG38/D0

P96/SEG39/CL2

P97/SEG40/CL1

P15/IRQ1/TMIB

P14/PWM

P16/TRQ2/TMIC

P17/IRQ3/TMIF

P40/SCK3

P41/RXD

P42/TXD

P43/IRQ0

AVCC

PB0/AN0

PB1/AN1

PB2/AN2

PB3/AN3

PB4/AN4

PB5/AN5

PB6/AN6

PB7/AN7

PC0/AN8

PC1/AN9

PC2/AN10P37/CS

PC3/AN11

AVSS

TEST

VSS

OSC1

OSC2

RES

MDO

P20/IRQ4/ADTRG

P21/UD

P22

P23

P24

VSS

VCC

PA3/COM4

PA2/COM3

PA1/COM2

PA0/COM1

P50/WKP0/SEG1

P51/WKP1/SEG2

P52/WKP2/SEG3

P53/WKP3/SEG4

P54/WKP4/SEG5

P55/WKP5/SEG6

P56/WKP6/SEG7

P57/WKP7/SEG8

P60/SEG9

P61/SEG10

46 80

P13/TMIGP62/SEG11

P63/SEG12 P12/TMOFH 79 47

48 78

P11/TMOFLP64/SEG13

P65/SEG14 P10/TMOW 77 49

60 16 P80/SEG25P25

P66/SEG15 VCC 76 50

59 17 P77/SEG24P26 58 18 P76/SEG23P27 57 19 P75/SEG22P30/SCK1 56 20 P74/SEG21P31/SI1 55 21 P73/SEG20P32/SO1 54 22 P72/SEG19P33/SCK2 53 23 P71/SEG18P34/SI2 52 24 P70/SEG17P35/SO2 51 25 P67/SEG16P36/STRB

IC401

HD6433832SD66H

5VF

C401

12p

C402

12p

R401

X401

CR-567

IC411

BU4051BCFV

X4 VDD

INH

VEE

VSS

C411

0.1

SPLK

5VF

R404 47k

R405 47k

R406 47k

R407 47k

MIGL

PWRL

CMPL

KYSL

DELL

5VF

RFL

AFL

NRL

BALL

DN RDN

5VF

RUP

5VF

RDN

RUP

J120

RIT BOARD

EVQ-VCJF0324B

5VF

J101

F4K

F3K

F5K J201

J1 R201 1k

R202 1k

R203 1k

R204 1k

R205 1k

R206 1k

R207 1k

R208 1k

R209 1k

R210 1k

R211 1k

F5K

F4K

F3K

F2K

F1K

SPEK

EXTK

FILK

AMK

CWK

SSBK

KI2

KI1

5VF

R215

47k

R214 47k

R213 47k

R212 47k

F2K

F1K

SPEK

EXTK

FILK

AMK

CWK

SSBK

KI2

KI1

5VF

R224 1k

R227 1k

R226 1k

R225 1k

R230 1k

R229 1k

R228 1k

R223 1k

J221

R222 1k

R221 1k

R231 1k

14K

10K

SPLK

18K

21K

24K

28K

50K

R232 1k GENK

R233 1k FINK

R234 1k MPWK

R235 1k MPRK

R244 1k

R247 1k

R246 1k

R245 1k

R251 1k

R250 1k

R249 1k

R248 1k

R243 1k

J241

R242 1k

R241 1k

XFCK

TSK

MCLK

MWK

MUPK

MDNK

LOCK

PBTK

NOTK

KI4

5VF

KI3

LDV

R252 1k LOCD

R253 1k TXD

R254 1k RXD

R255 1k NOTD

PBTD

(F-5)

(F-4)

(F-3)

(F-2)

(F-1)

S10

(EXIT)

(FILTER)

(AM/FM)

(CW/RTTY)

(SSB)

S11

(SPEECH)

S17

(F)

S15

(D)

S14

(C)

S13

(B)

S12

(A)

S18

(G)

S16

(E)

6.8k R5

6.8k

2.2k R3

4.7k R4

15k R6

2.2k R7

4.7k

C2 0.1

0.1

MODE BOARD

DISPLAY BOARD

S24

(PBT-CL)

PBTK

S25

(NOTCH)

NOTK

S26

(RIT)

S27

( TX)

S28

(CLEAR)

KI4

0.1 R5

6.8k

2.2k

4.7k

S18

(UP)

MUPK

S19

(DOWN)

MDNK

S20

(MW)

MWK

S21

(M-CL)

MCLK

S22

(TS)

TSK

S23

(XFC)

XFCK

S14

(7)

S15

(18)

18K

S16

(28)

28K

S17

(F-INP)

FINK

S30

(MP-R)

MPRK

S31

(LOCK)

LOCK

S10

(3.5)

S11

(14)

14K

S12

(24)

24K

S13

(50)

50K

(1.8)

(10)

10K

(21)

21K

(GENE)

GENK

S29

(MP-W)

MPWK

(SPLIT)

SPLK

(DW)

(CHANGE)

(V/M)

(M/S)

0.1 R2

2.2k

4.7k

15k R1

6.8k

TEN-KEY BOARD

DTC114EE R8

5.6k

DS1

CL-200HR

(LOCK) LED

DTC114EE R9

5.6k

DS2

CL-200HR

(TX) LED

DTC114EE R10

680

DS3

CL-220YG

(RX) LED

DTC114EE R11

DS4

CL-220YG

(NOTCH) LED

DTC114EE R12

DS5

CL-220YG

(TWIN PEAK FILTER) LED J801

114

R102

15k

C102

0.001

C104

0.001

R104

47k

C103

0.001

R103

15k

IC101c

BU4030BF

IC101b

BU4030BF

IC101d

BU4030BF

IC102b

MC14071BFEL

IC102a

MC14071BFEL

IC101a

BU4030BF

IC102d

MC14071BFEL

12 11

R126

220k R127

100k

R128 1M

C122

0.001

R125

100k

C121

0.001

R121

100k

R124 1M

5VF

R123

100k

R122

220k

910

IC102c

MC14071BFEL

RSB

RSA

1CDCS

GND

V+

INVIN

C848

0.1

C847

220

L843

D10F-A814AY-101K

D841

RB050L-40

C843

330p

L842

SLF12565T-680M2R0

C844

220

C845

0.1

R845

1.2k

R847

27k

R846

27k

C842

0.1

C841 220

IC841

NJM2360AM

C805

15p

C804

0.047

R805

3.3k

R804

3.3k

L802

D10F-A814AY-101K D801

RD3.0M

R801

33k

C801

C803

R803

220

R806

47k

L803

D818HN-1107

C802

L801

100µH

R802

33k

Q802

2SB1201

Q801

2SC4081

5VF

Q804

2SC3647 Q803

2SC3647

C101

0.1

14K

10K

SPLK

18K

21K

24K

28K

50K

GENK

FINK

MPWK

MPRK

XFCK

TSK

MCLK

MWK

MUPK

MDNK

LOCK

PBTK

NOTK

KI4

5VF

KI3

LDV

LOCD

TXD

RXD

NOTD

PBTD

FRONT

LCD

MUP

MDN

GND

J802

LCD

Q805

DTC114EE

W801

R256 1k

C242

0.1

C241

0.1

R101

100

R105

100

C105

0.1

KI4

KI3

R447

100

KI0

D421

DAN222 D423

DAN222

D422

DAN222

R431

2.2k

R421

R424

D425

DAN222 D424

DAN222

D431

DAN222

D432

DAN222

R432 47k

C431 0.1

R403

100k

R402

SRES

DASH

DOT

DOTK

DSHK

MUD

+14V

BKLV

C846 220

L841

D10F-A814AY-101K

R841

0.33

R842

0.33

15V

+18V

+14V

5VF

C823

0.0047

C828

C826

4.7

C830

D822

RD20M

C829

4.7

C825

0.0047

C827

4.7

C824

0.0047

C822

C821

0.1

Q821

2SC4081

R824

10k

L823

1000µH

R821

1.2k IC821

BA6161F

D821 1SS322

L822

NLFC565050T-472K

L821

HF50ACC322413-B

F1K

ASL1

MSB

ASL0

F2K

F3K

F4K

F5K

SSBK

CWK

AMK

FILK

EXTK

SPEK

ASL2

PITL

NOTL

DELL

KYSL

CMPL

PWRL

MIGL

NRL

BALL

RFL

AFL

PB2B

LFMD

LMFD

PB2A

RSB

MSA

RSA

PB1B

BKLV

CNTV

PB1A

METV

MSA

R446 10k

R445 10k

R444 10k

R443 47k

R442 47k

R441 10k L401

HF50ACC322513-B

C404

0.1

C405

0.1

C406

10K

14K

18K

21K

24K

28K

50K

GENK

FINK

MPWK

MPRK

MUPK

MDNK

MWK

MCLK

TSK

NOTD

PBTD

RXD

TXD

LOCD

NRD

NBD

MOND

TNRD

MDM2

MDM1

MDN0

BKLS

HDD2

HDD1

HDD0

MAT1

PHNI

DSHK

DOTK

TRAK

NOTK

PBTK

LOCK

XFCK

R416 47k

R415 47k

R414 47k

R413 47k

R412 47k

R411 47k

R410 47k

R409 47k

R408 47k

C403

0.1

R861

R862

R863

C861 10

C862 0.1

C863 0.1

C864 22

IC861

TA7805F

CP400

R882

R881

C881 10

C882 0.1

C883 0.1

C884 22

IC881

TA79LO8F

C501 10

C502 0.1

C503 0.1

C504 22

IC501

TA79LO8F D501

1SS322

COGC

(COMMON GAIN)

(CLAMP CONTROL)

CPCN

D509 1SS322

+4R5V

7R5V

R1101

47k

KIO

+14V

GND

R107

220k

R106

220k

GND

CP101

CP102 CP103

CP104

MUDK

(INPUT SELECT)

R1112

33k

R1113

27k

R1121

27k

R1122

4.7k

CNTV

CFL+

CFL

R807

R808

C849 220

C850 220

R850 330

Q841

2SB1124S R848 470

R849 470

AS0

–8V

+14V

CNTV

5VF

18V

+14V

15V

4.8V

RSB

RSA

RIT DIAL UP RIT DIAL DOWN

4.6V

MAIN DIAL DOWNMAIN DIAL UP

4.6V

M UP

M DN

OFF 4.8V

A 0V

B 1.2V

C 2.4V

D 3.7V

OFF 4.8V

E 0V

F 1.2V

G 2.4V

OFF 4.8V

RIT 0V

∆TX 1.2V

CLEAR 2.4V

OFF 4.8V

DUAL WATCH 0V

CHANGE 1.2V

VFO/MEMO 2.4V

MAIN/SUB 3.7V

ON 4.5V

OFF 0V

ON 4.5V

OFF 0V

LCD BACKLIGHT

MAX 4.8V

MIN 0V

15.4V

18.6V

1.5V

0.1µS

4.8V

1.3V

1.6V

10-1 FRONT UNIT

10 - 1

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

C711 0.0047

R711 47k

R712

EVU-FLAE02B14

(MIC GAIN)

C712 0.0047

R713 47k

R714

EVU-FLAE02B14

(RF POWER)

C713 0.0047

R715 47k

R716

EVU-FLAE02B14

(COMP)

C714 0.0047

R717 47k

R718

EVU-FLAE02B14

(KEY SPEED)

C715 0.0047

R719 47k

R720

EVU-FLAE02B14

(BK-IN DELAY)

C2 0.0047

C1 0.0047

R1 180

R2 180

HF50ACC322513-B

PHE

PHO

PHE

PHNI

PHONE BOARD

J1J941

DOT

DASH EP1

EP2

J1J921

0.0047

KEY BOARD

NOTL

5VF

J1J601

PBT BOARD

PITL

PB1A

PB1B

R3 47k

R4 47k

0.0047 C2

0.0047

(PITCH)

(NOTCH)

RV-314

R702

RV-308

(BAL)

(NR)

R701

RV-308

(AF)

(RF/SQL)

R704

47k

R703

47k

C702

0.1

C701

0.1

R706

47k

R705

47k

C704

0.0047

C703

0.0047

J451

J452

SSPE

SSP

MAIN-A unit

J352

R914

330

DS904

CL-200YG

M8V

MICI

J322

MUD

SQLS

MSND

GND

MMICE

AFO

J531

LCD

unit

L1 100µH

L3 100µH

L4 100µH

0.0047

C7 100p

0.0047

MIC BOARD

R912

330

DS901

CL-200YG

METER BACK LIGHT

TNRD

Q622

DTC114EE

DS622

CL-200YG

R626

680

MOND

Q623

DTC114EE

DS623

CL-200YG

R627

680

NBD

Q624

DTC114EE

DS624

CL-200YG

R628

680

NRD

Q625

DTC114EE

DS625

CL-200YG

R629

680

CHASSIS

FRONT

SSP

SPE

R1104

22k

GAM1

(GAMMA 1)

BRGT

R1107

12k

C1404 0.1

C1405 0.1

C1406 0.1

CPCN

COGC

COMO

BASC

IC1401

M52338FP

MAIN IN R

CLAMP R

MAIN IN G

CLAMP G

MAIN IN B

CLAMP B

HD IN

CP CONT

VCC2

VEE

FRP2 IN

COM GAIN

COM OUT

BIAS CONT

GND

VCC1

EXT IN B

SUB CONT B

EXT IN G

SUB CONT R

EXT IN R

GAM2

GAM1

CONTRAST

BRIGHT

FRP1 IN

R OUT

SUB BIAS R

G OUT

SUB BIAS B

B OUT

C1401

0.1

C1402

0.1

C1409

0.1

C1408

0.1

C1407

0.1

C1403

0.1

GAM2

GAM1

CONT1

BRGT

C1201

0.1

R1203

2.7k R1202

1.2k

R1201

150

D1201

MA8030

Q1201

2SA1576 Q1211

2SA1576

R1213

2.7k R1212

1.2k

D1211

MA8030

C1211

0.1

R1211

150

D1221

MA8030

R1222

1.2k

R1223

2.7k

Q1221

2SA1576

R1221

150

C1221

0.1

R1541

10k

15V

18V

+14V

C1541

R1545

2.2k

R1543 22k

R1544

2.2k

IC1521b

M5218AFP

R1542

22k

CONT1

C1521 0.1 R1526

100

R1527

100

C1522

0.1

IC1521a

M5218AFP

POLC

+14V

15V

+18V

+14V

5VF

TRAK

PWRK

TMD

C621

0.1

R622

6.8k R623 2.2k R624 4.7k R625 15k

R621

2.2k DS621

CL-200HR

S622

(TRANSMIT) S621

(POWER)

S623

(TUNER) S624

(MONITOR) S625

(NB) S626

(NR)

(TIMER)

Q901

DTC114EE

Q902

DTC114EE

Q903

DTC114EE

R904

4.7k

R905

6.8k

R906

15k

R910

560

PHNI

R908

4.7k

R909

470

R907

15k

D901

RD5.1M

Q904

2SC4081

Q905

2SB1201

5VF

MDM2

MDM1

MDM0

LDV

METV

R917

4.7k R916

2.2k

C901

(PBT2)

(PBT1)

COM

PB2A

PB2B

FRONT

L5V

POLC

GND

L5V

VCOM

GND

L/R

U/D

N/P

L18V

15V

W506

R520

220k

R519

220k

R518

220k

R532

39k

R531 1.8k

C531 0.0047

C521

0.0047

C520

0.47

C522

0.0047

D531 MA8030

R533

10k

Q515

DTC114EE

IC511c

NJM2902V

98+

IC511b

NJM2092V

Q514

2SB1132

Q512

2SB1132

IC511a

NJM2092V

IC511d

NJM2902V

Q511

DTC114EE

Q513

DTC114EE

C513

0.1

R511

10k

R514 820

R515

10k

IC542

TK16105M

HDD2

HDD1

HDD0

HSYNC

BKLS

5VF

NOTL

PITL

PB1A

PB1B

PB2A

PB2B

GND

C601 0.0047

C602 0.0047

C603 0.001

C604 0.001

C605 0.001

C606 0.001

R601 47k

R602 47k

PHE

AFO

PHNI

GND

C922 0.0047

C921 0.0047

DASH

DOT

GND

SSPE

SSP

MICI

M8V

MUD

SQLS

MSND

GND

MMICE

AFO

J301

LFMD

LMFD

SRES

YOBI

HSYNC

VSYNC

GND

+18V

14V

from MAIN-A

unit J891

J321

from MAIN-A

unit J861

14V

PHE

AFO

PHE

TMD

PWRK

GND

MICI

MSND

MICE

SQSS SQSS

C331 470p

C323

0.0047

C506 0.0047

C505 0.0047

C332 0.0047 L323 HF50ACC32513-B

L322 HF50ACC32513-B

L321 HF50ACC32513-B

Q321

DTC114EE

R301 1k

R312 1k

R313 1k

R315 47

R316 47

R317 47

R318 1k

R319 1k

+14V

R915

10k

PHE

AFO

DASH

DOT

R502

15k

R501

R503

1k VSYNCVD

R707

3.9k

NOTL

PITL

PB1A

PB1B

PB2A

PB2B

R1103

10k

R1106

18k

R1109

82k

R1110

22k

R1127

82k

R1128

22k

C1104

0.1

C1101

0.1

C1107

0.1

C1307 0.1

C1308 0.1

C1309 0.1

C1106 0.1

C1109 0.1

C1102 0.1

C1110

0.1

R1553

220k R1555

22k

Q1551

2SC4081

Q1552

2SA1576

C1554

R1560

5.6k

R1561

27k

R1554

220k

C1555

0.1

C1552

C1556

0.1

R1552

100

R1551

100

Q1553

2SA1576

Q1554

2SC4081

R1556

22k

C1551

VCOM

COMO

C1553

R521

1.8k

D512

RD5.1M

+18V

+14V

R513

1.2k

W502

W504

CP5

CP401

CP402

CP411

CP412

PHONE

ELEC-KEY

LMFD

LFMD

SRES

HSYNC

VSYNC

GAM2

PHE

R709

10k

D701

DAN222

DISPLAY BOARD

(BIAS CONTROL) (BRIGHT CONTROL) (GAMMA2)

C1105 0.1

C1108 0.1

+4R5V

HF50ACC322513-B

R321 10k

7R5V

W512

C545 10

C542 0.1

R544 10 R541

10k

IC492

TC4S81F

IC490

S-80942CNMC-G9C

OUT

VDD

VSS

R491 47kR490 39k

C492 0.0047

R494 100k R493 1k

R492 10k

C490 0.1

C491

12p

R512

10k

R516

18k

–8V

+18V

+14V

PHE

AFO

TMD

PWRK

MUD

PWRK

OFF 4.8V

TUNER ON 0V

MONITOR ON 1.2V

NB ON 2.4V

NR ON 3.7V

OFF 0V

ON 4.7V

4.3V

3.1V 1.7V

3.0V

LCD CONTRAST

MAX 8.7V

MIN 0.9V

7.5V

4.5V

METER BACKLIGHT

MAX 11.9V

MIN 5.1V

4.8V

right

turn

left

turn

PB(1/2)A,PB(1/2)B

OFF 4.8V

UP 0.6V

DOWN 1.2V

12.1V

MEASUREMENT CONDITIONS

VOLTMETER :50kΩ/VDC

OSCILLOSCOPE :20MHz 1MΩ 25pF

SUPPLY VOLTAGE:13.8V

DISPLAY : 14.1MHz USB

10 - 2

10-2 DSP-A BOARD

10 - 3

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

COMMON LINE

240

239

238

237

236

235

234

233

232

231

230

229

228

227

226

225

224

223

222

221

220

219

218

217

216

215

214

213

212

211

210

209

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182

181

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

R2019 10k

R2018 10k

R2017 10k

R2016 10k

R2015 10k

R2014 10k

R2020 10k

C2031 0.1

C2030 0.1

C2029 0.1

C2028 0.1

C2027 0.1

C2026 100

C2025

0.1

C2024

0.1

C2023

0.1

C2022

0.1

C2021

0.1

C2020

0.1

C2019

0.1

C2018

0.1

C2017

0.1

R2002 10k

R2003 10k

R2004 10k

R2005 10k

R2006 10k

R2007 10k

R2008 10k

R2010 10k

R2009 10k

R2011 10k

R2012 10k

R2013 10k

C2003

0.1

C2002

0.1

C2001

D8VA

5VA

3R3V_d

M5V_d

D8VA

5VA

0.1

C2004

0.1

C2005

0.1

C2006

0.1

C2007

0.1

C2008

0.1

R2001

10k

C2010 0.1

C2009 0.1

C2011 0.1

C2012 0.1

C2013 0.1

C2014 0.1

C2015 0.1

C2016 0.1

A15

A12

VSS

A17

A14

A13

A11

A10

GND

VCC

Y8 11

R2074

100

R2073

10k

R2072

10k

RDT0

RDT1

RDT2

RDT3

RDT4

RDT5

RDT6

RDT7

DD0

DD1

DD2

DD3

DD4

DD5

DD6

DD7

RDT6

RDT7

RDT5

RDT4

RDT3

DA10

DA11

DA9

DA8

DA13

DA14

R2071

100

VCC

GND

C2062

0.1

R2064

100

C2072

0.1

R2068 47k

R2062 47k

R2067 47k

MCK

DSFW

MDAT

DSFR

DSFW

DSKY

C2061

0.1 R2063

100

IC2062

TC74VHC541FT

IC2061

TC7SET08FU

C2092

0.027

C2093

0.1

IC2092

TC7S02FU

OUT

VDD

VSS

R2091 10k

C2091 0.1

IC2091

S-80934CNMC-G84

R2510 100

R2512 100

R2514 100

R2516 100

R2518 100

R2520 100

R2503 100

R2505 100

R2507 100

R2509 100

R2511 100

R2513 100

R2515 100

R2517 100

R2521 100

R2523 4.7k

R2519 100

R2526 100

L2503

HF50ACC322513-B

L2506

HF50ACC322513-B

L2504

HF50ACC322513-B

C2512 0.1

C2511 100

C2510 0.1

C2509 100

C2508 0.1

C2507 100

L2502

HF50ACC322513-B

C2505 100

GND

VCC

IC2051

TC74VHC125FT

C2051

0.1 R2051

100

R2043

100

C2042

0.1

C2041

0.1

R2042

100

X2041 CR-568

R2041 1M

C2044

15p

C2043

15p

R2052

100

C2052

0.1

C2055

47p

IC2052

TC7SET08FU

IC2042

TC7SH04FU

IC2041

TC7SHU04FU

CLRPR

R2054

100

10 3

CLR

C2054 0.1

IC2053C

TC74HC02AF

IC2053D

TC74HC02AF

IC2054B

TC74VHC74FT IC2054A

TC74VHC74FT

12 13

IC2053B

TC74HC02AF

C2361

0.1

X2351

CR-643

R2353 1M

R2366 100

C2352

10p

IC2353

TC7SH04FU

IC2352

TC7SHU04FU

R2354

100

C2360

0.1

IC2053A

TC74HC02AF

C2053

0.1

R2053

100

C2071

0.1

IC2071

SC-1414

C2065

0.1

R2065

100

C2066

0.1

R2066

100

C2063

0.1

R2083

100

R2102

100

R2101

100k

C2101

0.1

IC2101

TC7SH32FU

L2001

D10F-A814AY-101K

IC2066

TC7SET08FU

IC2065

TC7SET08FU

IC2063

TC7SET08FU

VCC

BCLK

SDATA

LRCLK

OUTR

REF

GND

OUTL

IC2461

BU9480F

C2463 10

C2462

0.1

C2461

100

W2471

R2474

100k

R2476

4.7k

R2475

22k

C2471

0.1

IC2471B

M5218AFP

R2472

150k

L2461

100µH

C2476

0.1

C2351 10p

R2486

100

IC2474

TC7SH04FU IC2475

TC7SET08FU

R2377

1.5k

C2378

0.1

R2379

27k

R2282

100

C2284

C2283

0.1

IC2441A

NJM2058M

R2376 3.9k C2379

0.1

C2380

0.1

C2285

0.1

R2281

100

C2286

R2481

3.3k

Q2213

UNR9211J

R2482

R2483

1.8k

C2472 0.1

R2477 100

R2478 100

C2473 0.1

R2484

100

C2474

0.1

R2479 10k

C2479 0.001

R2480 22k

IC2471A

M5218AFP

IC2473

TC4W53FU

R2450

C2475

0.1

R2485 100

D-8A

D-5A

D8VA

J2002

RTDT

CTFL

DSFR

MDAT

DSFW

MCK

DSDR

AGRS

J2001

DSKY

MSL1

TXS

AMS

DSRS

ACKS

CALS

FMNS

MODS

DPGI

NSQO

3R3V_d

DRIF

DTIF

DMAF

DTAF

AGC

DRAF

D5VA

FMTL

DFL3

DFL2

DFL1

DFL0

DA0

DA1

DA2

DA3

DA4

DA5

DA6

DA7

DA8

DA9

DA10

DA11

DA12

DA13

DA14

DA15

DA16

DBMS

DRD

114

ALRC

DLRC

DDAD

ADSD

ABCK

DRXD

DTFL

DDTO

DCLK

DRFL

DD0

DD1

DD2

DD3

DD4

DD5

DD6

DD7

DRFL

DCLK

DRXD

DTFL

DFLO

DDTO

DA15

231

A16 A18

DA16

132

VPP VCC

DA12

DA7

DA6

DA5

DA4

DA3

DA2

DA1

DA0

RDT1

RDT0

RDT2

DSDR

DSRS

AVEN

DPGI

RTDT

CTFL

NSQO

DFL2

DFL1

ABCK

DDAD

DLRC

FMNS

AMS

MODS

TDI

TRST

VDD

TDO

TIMEXP

EMU

ICSA

FLAG3

FLAG2

FLAG1

FLAG0

GND

ADDR0

ADDR1

VDD

ADDR2

ADDR3

ADDR4

GND

ADDR5

ADDR6

ADDR7

VDD

ADDR8

ADDR9

ADDR10

GND

ADDR11

ADDR12

ADDR13

VDD

ADDR14

ADDR15

GND

ADDR16

ADDR17

ADDR18

VDD

ADDR19

ADDR20

ADDR21

GND

ADDR22

ADDR23

ADDR24

VDD

GND

VDD

ADDR25

ADDR26

ADDR27

GND

MS3

MS2

MS1

MS0

BMS

ADDR28

GND

VDD

ADDR29

ADDR30

ADDR31

GND

SBTS

DMAR2

DMAR1

HBR

DT1

TCLK1

TFS1

DR1

RCLK1

RFS1

GND

CPA

DT0

TCLK0

TFS0

DR0

RCLK0

RFS0

VDD

GND

ADRCLK

REDY

HBG

GND

VDD

GND

CLKIN

ACK

DMAG2

DMAG1

PAGE

VDD

BR6

BR5

BR4

BR3

BR2

BR1

GND

VDD

GND

DATA47

DATA46

DATA45

VDD

DATA44

DATA43

DATA42

GND

DATA0

DATA1

DATA2

VDD

DATA3

DATA4

DATA5

GND

DATA6

DATA7

DATA8

VDD

DATA9

DATA10

DATA11

GND

DATA12

DATA13

DATA14

VDD

DATA15

DATA16

DATA17

GND

DATA18

DATA19

DATA20

VDD

DATA21

DATA22

DATA23

GND

DATA24

DATA25

DATA26

VDD

DATA27

DATA28

DATA29

GND

DATA30

DATA31

DATA32

GND

VDD

DATA33

DATA34

DATA35

GND

DATA36

DATA37

DATA38

VDD

DATA39

DATA40

DATA41

TMS

TCK

IRQ0

IRQ1

IRQ2

EBOOT

RESET

RPBA

LBOOT

IDO

ID1

ID2

GND

VDD

GND

VDD

GND

VDD

GND

VDD

GND

IC2001

ADSP-21061LKS-160

M5V_d

C2501

0.1

C2524

0.001

C2520

0.001

C2514

0.001

DDT1

DADD

DBCK

DDLR

M5V_d

3R3V_d

5VA

DFL3

M5V_d

R2092

100

DRD

DBMS

IC2072

TC74VHC541FT

5VA

M5V_d

to MAIN-A

unit J202

to MAIN-A

unit J201

DRD

C2362

0.0047

M5V_d

DFL3

C2035 1

C2519 0.001

C2506 0.0047

C2516 0.0047

C2515 0.001

C2502

C2033

C2034

C2478

W2508

W2072

90dBµ input:158mVp-p

USB

TX MIC input

MIC VR

Trans Freq

Antenna input 60dBµ

display

14.300MHz

display

14.301MHz

14.300MHz

14.300MHz 1kHz 70% MOD

14.300MHz

14.300MHz 1kHz 3.5kHz DEV

1m Vrms

Center

14.300MHz

MEASUREMENT CONDITIONS

1.6Vp-p

25nS

40.8nS

3.3V

RX SG input

90dBµ 0.25V

60dBµ 0.6V

30dBµ 0.95V

FM 380mVp-p

AM 384mVp-p

USB 384mVp-p

RX FM FIL1:4.4V

FM:4.6V

3.2V

DSP-A BOARD

10 - 4

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

COMMON LINE

R2306

10k

R2329

150

142

R2308

10k C2308

10 76

C2328

100

Q2321

2SJ381

C2327

0.1

R2328

10k

R2327

2.2k

R2325

4.7

C2329 0.1

C2330 0.1

R2326

10k

R2294

10k

R2283

10k

C2293

0.1

Q2322

2SJ381

C2322

0.0068

R2323

R2324

IC2321

CS5396-KS

R2321 100

R2322

100

C2321

0.0068

C2323 0.1

C2324 10

C2325 0.1

CLR

C2343

0.1

IC2342

TC74VHC4040FT 9

10 CLK

RST

Q10

Q11

Q12

C2342

0.1

R2345

100

R2341

100

IC2341D

TC74VHC00FT

13 11

IC2348

TC7SET08FU

IC2341A

TC74VHC00FT

C2341

0.1

C2338

39p

C2371

39p

C2370

39p

114

CLR

PR CLR

C2346

0.1

C2340

0.0047

R2344

100

R2361

220

R2349

R2340

R2362

220 R2363

220

R2364

220 R2365

R2343

100

C2348

0.1

C2347

0.1

R2342

100

IC2343

TC7WH74FU

IC2344A

TC74VHC74FT IC2344B

TC74VHC74FT

IC2345

TC7SH32FU IC2346

TC7SET08FU

IC2347

TC74HC390AF

R2293

100k

IC2291

TC4W53FU

C2292 0.1

R2292 100

R2291 100

C2291 0.1

C2301

C2281

0.47

R2302

10k

W2302 W2301

W2228

W2226

IC2302

TC4W53FU

R2422

470 R2441

4.7k

R2451

100

C2442

0.1

IC2281A

NJM2058M

R2442

10k

C2446

0.0047

C2447

680p

R2443

10k

C2450

0.001

C2451

680p

R2444

10k

C2448

0.0068

C2449

180p

IC2441B

NJM2058M IC2441C

NJM2058M

C2453

0.0047

C2452

0.0082

C2454

0.0012

R2445

10k

R2446

10k

R2447

10k

R2449

10k

IC2441D

NJM2058M

R2448

10k

13 14

C2573

0.1

R2573

82k

C2574

0.0015

R2571

82k R2572

82k

C2572

0.039

R2578

470k

IC2472B

M5218AFP

C2571

0.22

R2582

100k R2583

100k

R2575

120k R2581

100k

R2580

470k

C2581

0.1

C2582

100p

C2580

0.1 2

C2578

0.1

C2579

R2577

100

IC2472A

M5218AFP

R2229

RV-148

R2227

RV-148

C2220

10 76

C2218

0.0022

R2223

82k

C2219

220p

C2217

0.001

R2222

82k

R2220

470k

C2214

10 R2216

1.5k

R2257

Q2202

UNR9211J

Q2201

UNR9211J

Q2211

UNR9211J

C2216

C2215

0.1

C2213

0.1

R2215

270

R2217

470k

R2221

150k

R2219

390k

R2218

100

R2230

820

R2213

15k

R2212

47k

C2212

0.1

R2214

18k

R2211

100k

C2211

0.0047

12 16

C2263 560p

C2262 0.0012

R2256

22k

C2261 0.0047

R2255

22k

C2260 82p

C2259 680p

R2254

22k

C2258 470p

C2257 0.0027

R2253

22k

C2256 270p

10 14 12

IC2281C

NJM2058M IC2281D

NJM2058M

C2255 0.0022

R2252

22k

R2245 1k

R2244

6.8k

R2243 10k

R2242

220k

IC2281B

NJM2058M

R2241

10k

R2421

100

C2422

0.1

C2424

0.1

C2444

0.1

C2445

C2443

R2423

100

R2452

100

C2353

C2354

0.1

C2358

0.1

C2357

C2356

0.1

C2355

IC2351

AD1854JRSZRL

C2310 10

C2309 0.1

R2309

100

IC2301A

BA15532F

IC2301B

BA15532F

R2201

100k

INH

IC2201

BU4053BCFV

R2202

100

C2202

0.1

C2201

0.1

R2203

100

VREF

VCOM

AGND

AINL+

AINL

ADCTL

MCLKA

TSTO1

DACTL

CAL

DGND

LRCK

SCLK

AGND

AINR+

AINR

AGND

LGND

TSTO2

MCLKD

CS/PON

CDIN/DFS

CCLK/(S/M)

SDATA 1

SDATA 2

C2364

220p

R2357

2.2k

R2356

2.2k

R2394

100k

C2366

220p

C2344

47p

R2360

2.2k

R2359

2.2k

R2378

100k

R2351

10k

C2367

R2371

8.2k

R2350

27k

IC2371B

µPC4570G2

C2374

C2375

0.1

R2373

220

C2372

C2373

0.1

R2372

220

12 16

INH

IC2372

BU4053BCFV

R2375

100k

R2374

100

C2376

0.1

R2358

2.2k

R2355

2.2k

C2359

R2402

15k

C2401

820p

R2403

15k

C2402

150p

R2404

22k

R2370

100k

R2369

100k

L2401

100µH

C2403

C2404

0.1

C2407

100p

W2401

IC2401

MAX293CWE

IC2341C

TC74VHC00FT

C2385

390p

R2384

C2383

0.0015

R2381

100k

R2382

1k R2383

1k 12

13 14

C2381

0.0012

IC2381D

µPC4574G2

IC2381C

µPC4574G2

R2388

10k

R2387

10k

R2389

4.7k

673

IC2381B

µPC4574G2

IC2381A

µPC4574G2

C2391

C2392

0.1

R2390

100

C2394

0.1

C2393

R2391

100

AGC

DRAF

ALRC

ABCK

ADSD

AVEN

MSL1

CALS

ACKS

DLRC

ABCK

DDAD

DSRS

DRIF

TXS

R2346

100

IC2211B

M5218AFP

AMS

MODS

DTAF

FMTL

DMAF

DTIF

DSP-A BOARD

D8VA

D-5A

D-8A

5VA

M5V_d

C2303

100

C2302

0.1

R2304

10k

R2307

100

C2306

0.1

C2307

D8VA

D-5A

5VA

M5V_d

R2347

100

C2349

0.1

C2384

0.22

C2331

100

R2453

6.8k

TXS

D8VA

D-5A

D-8A

5VA

D8VA

D-5A

D-8A

5VA

D8VA

D-5A

D-8A

5VA

M5V_d

C2365

0.001

IC2371A

µPC4570G2

C2377

0.1

R2380

100

5VA

D-8A

D-5A

D8VA

L2402

100µH

C2405

C2406

0.1

W2201

5C2345

0.1

R2348

100

M5V_d

IC2341B

TC74VHC00FT

R2424

100k

C2425

0.22

C2395

0.22

R2392

100k

R2385

1k R2386

C2387

0.0027

C2389

270p

IC2211A

M5218AFP

C2210

D-5A

D8VA

R2224

470k

R2579

470k

C2311

0.22

C2480

D2372

MA8051

D2373

MA2S111

D2371

MA8051

C2363

0.001

W2321

W2322

W2323

W2324

W2504

W2509

W2510

W2511

W2472

W2463

W2202

D-8A

D-5A

D8VA

RX 90dBµ input:200mVp-p

TX AM : 1.2V

FM : 970mV

SSB :174mV 3.7V

162nS

10.42µS

13pin

16pin

4.6V

2.2V

RX AM 320mVp-p

USB 340mVp-p

FM 170mVp-p

TX AM 200mV

780mV

USB 100mVp-p

FM 1Vp-p

TX 4.2V

RX 0V

4Vp-p

2µS

500mV

200mVp-p

2.4Vp-pTX FM

SSB

1mS

100mVp-p

TX,SSB

RX SG

MOD 88.5Hz ±0.75kHz Dev

11.3mS

400mVp-p

TX FM/AM/SSB:30mVp-p

TX 4.2V

RX 0V

10-3 TUNER-A, MEMORY BOARDS AND CTRL-A UNIT

10 - 5

R137

R136

10k

IC14c

TC74AC04F

R15

100

DWA010

C16

0.0047

C13

33p

C14

33p

C12

R140

R139

10k

IC14e

TC74AC04F

11 10

R17

100

HSM88ASR

C17

82p

C15

33p

R16

LR-364

R46

4.7k

14V 14V

14V

C38

0.0047

2SK515

R45

10k

C36

0.001 R44

R42

10k

C35

0.0047

R43

10k

C37

0.0047

HSM88AS

C100

100p

2.2mH

C33

150p

R41

LR-364

HSM88AS

C32

C20

0.0047

C70

C305

0.1

C229

0.0047

C306

-IC1a

NJM4558M

0.0047

C69

IC1b

NJM4558M

220k

R100

68k

R101

68k

220k

0.001

10k

HSM88AS

LR-364

75p

68p

20p

R10

820k

RL4

AE5343 RL1

FXE-12G

D17

1SS301

Q59

DTC114EU

Q51

DTC114EU

Q52

DTC114EU

D16

1SS301

C58

0.0047

Q13

DTA114EU

Q12

DTC114EU

R58

2P-50-W1L301

L27

LA-246

C64

15p

C63

47p

C65

82p

C105

75p

C66

33p

L28

LA-236

RL2

FXE-12G

D18

1SS301

C59

0.0047

C60

0.0047

C109

0.1

D22

MMBV3700LT1

D23

MMBV3700LT1

R152

4.7k

R151

820

R150

C302 50p

C301 27p

C303 50p

390

R153

4.7k

Q25

2SC4213

R155

390

R154

2.2k

D20

1SS301

Q22

DTA114EU Q21

DTC114EU

RL3

G5A-237P

C62

0.0047

L22

LR-364

R83

D15

HSM88AS

ANT2 W2

ANT1 W1

CHASSIS

TUIN P3

TUOT J4

RFRX

TUIN

TUOT

to RF

unit

J101

CTIN

FILTER

unit

C73 0.0047

C74 0.0047

C75 0.0047

C76 0.0047

C77 0.0047

C78 0.0047

C79 0.0047

C80 0.0047

C81 0.0047

C82 0.0047

C83 0.0047

C84 0.0047

C85 0.0047

C86 0.0047

R114 1k

R113 1k

R112 1k

R111 1k

R110 1k

R109 1k

R108 1k

R115 1k

R116 1k

R117 1k

R118 1k

R119 1k

R120 1k

R121 1k

CI2

CO2

10M

14M

18M

24M

VHF

CO3

CO1

NVHF

CI3

CI1

GND

3.5M

10M

14M

18M

24M

VHF

GND

14V

CO3

CO2

CO1

NVHF

CI3

CI2

CI1

GND

CHASSIS W11

GND

3.5M

10M

14M

18M

24M

VHF

GND

14V

CO3

CO2

CO1

NVHF

CI3

CI2

CI1

GND

CTRL

A UNIT

C107

C108

C61 0.0047

C60 0.0047

C59 0.0047

C58 0.0047

C57 0.0047

C56 0.0047

C55 0.0047

C54 0.0047

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

GND

C18 0.0047

R26 1k

C9 0.0047

C10 0.0047 R27 1k

C11 0.0047 R28 1k

C12 0.0047 R29 1k

C13 0.0047 R30 1k

C14 0.0047 R31 1k

C15 0.0047 R32 1k

R219 1k

C16 0.0047

R25 1k

R33 1k

R47 1k

R45 1k

R44 1k

R42 1k

R43 1k

R46 1k

R41 1k

R37 1k

R38 1k

R39 1k

R40 1k

R36 1k

R35 1k

R34 1k

IC2

M54562P

3.5M

4.5M

4.6MDL

STROBE

DATA

GND

VCC

QS2

QS1

IC51

CD74HC4094M

C53 0.0047

C52 0.0047

C51 0.0047

C50 0.0047

C49 0.0047

C48 0.0047

C47 0.0047

C46 0.0047

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

GND

C17 0.0047

R18 1k

R19 1k

C1 0.0047

C2 0.0047

C3 0.0047

R20 1k C4 0.0047

R21 1k C5 0.0047

R22 1k C6 0.0047

R23 1k C7 0.0047

R24 1k C8 0.0047

R17 1k

IC1

M54562P

EXC-ELDR25C

RL9

NY-12W-K

L12

LR-307 L11

LR-307

C33

0.0047

C32

0.0047

RL8

NY-12W-K

C62

0.0047

RL16

NY-12W-K

L10

LR-510 L9

LR-511 L8

LA-490

RL7

NY-12W-K

C31

0.0047

C30

0.0047

RL6

NY-12W-K

LA-489 L6

LA-490

RL5

NY-12W-K

C29

0.0047

C28

0.0047

RL4

NY-12W-K

LA-489 L4

LA-554

L303 100µH

RL3

NY-12W-K

C27

0.0047

LA-555

RL1

NY-12W-K RL10

NY-12W-K

C40 100p

RL12

NY-12W-K

C38 150p

RL14

NY-12W-K

C36 82p

C41 100p

C34 39p

RL2

NY-12W-K RL15

NY-12W-K

C37 100p

RL13

NY-12W-K

C39 150p

RL11

NY-12W-K

C43 100p

C35 39p

C42 100p

C25 0.0047

C24 0.0047

C23 0.0047

C44 150p

C45 150p

C26

0.0047

VHFT

MP9

24T

18T

14T

10T

35T

CI1

CI2

CI3

VHCI

VHCO

CO1

CO2

CO3

TUNER

A BOARD

D241

DWA010

D25

DWA010

IC1

SC-1415-1

A15

A14

A13

A12

A11

A10

RESET

RY/BY

A17

A16

BYTE

VSS

DQ15/A-1

DQ7

DQ14

DQ6

DQ13

DQ5

DQ12

DQ4

VCC

DQ11

DQ3

DQ10

DQ2

DQ9

DQ1

DQ8

DQ0

VSS

24 25

48 22

A11

A13

VCC

A14

A12

A10

IO8

IO7

IO6

IO5

IO4

GND

IO3

IO2

IO1

IC2

IDT71256SA15PZ

to MAIN

RESET

BYTE

unit

J3503

to MAIN-A

unit

J3504

C1 0.1

C4 0.1

A16

A15

A14

A13

A12

A11

A10f

A18

A17

A11

A13

A14

A12

A10s

A18

A17

A16

A15

A14

A13

A12

A11

A10s

A10f

0.001

D15

D14

D13

D12

D11

D10

100k

D15

D14

D13

D12

D11

D10

D11

D12

D13

D14

D15

MEMORY BOARD

14V

REF

FOR

HWR

CSs

CSf

EP1

C228

270p

R156

L301

LR-295

L302

LR-295

L14

L13

L16

L15

L18

L17

L20

BM27-

400-6A BM27-

400-6A

BM27-

400-6A

BM27-

400-6A

BM27-

400-6A

BM27-

400-6A

L19

Each Frequency band

Selected 10.5V

0.03V

0.6V

4.6V

0.13V

1.75V

0.08V

MEASUREMENT CONDITIONS

VOLTMETER :50kΩ/VDC

SUPPLY VOLTAGE :13.8V

DISPLAY :14.1MHz/USB

MEASUREMENTCONDITIONS

VOLTMETER :50kΩ/VDC

OSCILLOSCOPE :20MHz 1MΩ 25pF

SUPPLY VOLTAGE :13.8V

DISPLAY :14.1MHz USB

TUNER :ON

10 - 6

VOLTAGE LINE

Explanatory notes

P62/AN2

P61/AN1

P60/AN0

P57/INT3

P56/PWM

P55/CNTR1

P54/CNTR0

P53/SRDY2

P52/SCLK2

P51/SOUT2

P50/SIN2

P47/SRDY1

P46/SCLK1

P45/TXD

P44/RXD

P43/INT2

P42/INT1

CNV66

RESET

P41/INT0

P40/INT4

XIN

XOUT

VSS

P27/D87

P26/D86

P25/D85

P24/D84

P23/D83

P22/D82

P21/D81

P20/D80

P17/AD15

P16/AD14

P15/AD13

P14/AD12

P13/AD11

P12/AD10

P11/AD9

P10/AD8

P07/AD7

P06/AD6

P05/AD5

P04/AD4

P03/AD3

P02/AD2

P01/AD1

P00/AD0

P37/RD

P36/WR

P35/SYNC

P34

P33/RESETOUT

P32/ONW

P31/DA2

P30/DA1

VREF

AV88

P67/AN7

P66/AN6

P65/AN5

P64/AN4

P63/AN3

VCC

IC5

M38022M2-138FP

CI1

CI2

CI3

CO1

CO2

CO3

Q211

DTC114EU

Q212

DTC114EU

Q213

DTC114EU

Q214

DTC114EU

Q215

DTC114EU

Q216

DTC114EU

Q217

DTC114EU

Q218

DTC114EU

R218 330

R217 330

D217

1SS319

D215

1SS319

R215 330

R216 330

R214 330

R213 330

D213

1SS319

43 34

R212 330

D211

1SS319

R211 330

C218 1

C217 1

C216 1

C215 1

C214 1

C213 1

C212 1

C211 1

MF2

MP28GA

(TUNER)

MF1

MP28GA

T14V

C54 0.0047

THRU

10M

14M

18M

24M

VHF

NVHF

CR-569

C47

20p

C48

20p

R107

100k

C51

0.001

C52

0.0047

R105 1k

R71 1k

TRC

R149

100k

R76

10k

R106 1k

C53

0.0047

Q24

DTA114EU

Q23

DTC114EU L32

EXC-ELDR25C

AN2

AN1

AN0

R61 100k

R62 100k

R63 100k

R64 100k

J12

ISET

IC13

TA7805F

C98

100

D13

MA114

C71

0.0047

C72

470

R65

D11

RD5.1M

D12

RD5.6M

C49

0.0047

R66

56k

R102

12k

R103

100k

R67

IC10

TC4S69F

CMCK

CMDT

FSTB

GNDL

IKEY

ISTA

GNDL

DRES

ANTS

REFV

FORV

GND

T8V

GND

14V

from

MAIN

unit

J741

L29

EXC-ELDR25C

L30

EXC-ELDR25C

L31

EXC-ELDR25C

R124 220

R123 220

R125 220

R122 220

R98 1k

J13

GND

L8S

L7S

L3S

L6S

L5S

L1S

L2S

L4S

from

FILTER

unit

C220 0.0047

C97 0.0047

C96 0.0047

C95 0.0047

C94 0.0047

C93 0.0047

C92 0.0047

C91 0.0047

R126 10

R127 10

R128 10

R129 10

R130 10

R131 10

R132 10

R133 10

IC12

TD62783AF

GND

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

C89 0.0047

C90 10

L34

100µH

161

STROBE

DATA

GND

VCC

QS2

QS1

IC11

CD74HC4094M

C88

C87

0.0047

R148

47k

L33

100µH

AN3

L11

100µH

C45

0.1

VSS

VCC

SCL

SDA

IC6

HN58X2416TI

C46

0.1

R59 10k

R60 10k

L10

100µH

REF

FOR

L13 100µH

AN3

AN2

C210

0.01

R40

100k

R39

100k

R56

100k

R57

100k

C209

0.01

R55

10k

R38

10k

D218

DWA010

C44

470p

C43

220p

R54

10k

IC4a

NJM4558M

R53

1.5M

R50

6.8k

R51

6.8k R52

100k

C31

470p

C40

0.0047

C30

220p

R37

10k

R36 1.5M

R32

100k

R33

5.6k

R34

5.6k

IC4b

NJM4558M

R35

82k

R31

2.2k

C27

0.0047

R49

100k

C39

0.0047

R48

10k

R30

220

C26

0.0047

HSM88AS

R29

2.2k

C25

220p

R27

1CLK

VCC

1CK

GND

1PR

IC3a

TC74AC112F

R147

2CLK

2PR

2CK

10 14

712

IC3b

TC74AC112F

R26

47 C24

220p

HSM88AS

R28

3.3k

C23

0.0047

C22

10µH

100µH

R146

IC2c

TC74ACT32F

R143

R145

R144

114

7IC2a

TC74ACT32F

R141

4R142

R138

IC2b

TC74ACT32F

IC2d

TC74ACT32F

C101

0.0047

C102

IC14a

TC74AC04F

IC14b

TC74AC04F IC14d

TC74AC04F

891312

IC14f

TC74AC04F

R47

TRC

C21

0.0047

R13

R14

C10

0.0047

C11

0.0047

AN1

AN0

10µH

J14 REF

Q15

DTA114EU

Q14

DTC114EU

Q17

DTA114EU

Q16

DTC114EU

THRU

C55

0.001

R84

10k R86

180k

R87

68k

C56

0.0047

R88

68k

C57

0.0047

IC9a

NJM2903M

R92

R93

10k

L25

100µH

R90

220k

R89

2.2M

Q27

DTA114EU

Q26

DTC114EU

R99 10k

1SS319

14V

R69

100

R11 0

5IC9b

NJM2903M

J10

J11

CP1 CP2 CP3

CP6 CP7 CP8 CP9

CP5

CP4

CP10

CP11

CP13

CP12

L35

HF50ACC322513-B

L36

HF50ACC322513-B

CP14 CP15 CP16 CP17 CP18 CP19 CP20 CP21

14V

TRC

14V

THRU

FOR

14V

REF

FOR

14V

FOR

REF

TUNER ON: 4.4V

OFF: 0V

13.0V

7.6V

0.75V

0.65V

4.6V

7.7V

4.6V

5.0V

0.16µS

CTRL

A UNIT

10-4 MAIN-A UNIT

10 - 7

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

FORV

POCV

ALC

T8V

AGC

T8V

M5V

–5V

R8V

14VA

H5V

–8V

T8V

14V

2IF

ALC

AGC

3R3V

–5V–8V

M5V

–5V

R8V

14VA

H5V

–8V

T8V

14V

2IF

ALC

AGC

2IF

W702

C113 470p

RV-156

R507

AMS

0.001

C266

0.1

C241

FORV

R8V

unit J7

to CTRL-A

unit J1851

from RF-B

unit J3

to PA

unit J451

to RF-B

unit J1

to PLL

3R3V

3R3V_d

UNSB

HF50ACC322513-B

L205

C209 470

CP240

ALC

AGC

0.0047

C837

0.1

C831

0.1

C827

0.1

C828

W854

W3565

W3564

W151

W3563

W3562

CP820

2IF

CMCK

CMDT

GND

MAIN-A UNIT (1)

NJM2058M

IC551b

P50S

PHFS

AMS

C510

W503

C504

100k

R518

UNSB

POCV

33k

R504

CP501

CP502

R515 470k

R503 22k

MA2S111

D502

330

R501

MA8033

D501

MA8033

D505

AMS

MODS

C508

NJM4558M

IC101b

100k

R106

100k

R107

BANS

BANV

TRVI

TRV

UNLC

NBLV

MICI

J841

J811

GND

J771

J101

GND

J741

14V

–8V

GND

VSYNC

HSYNC

DRES

LMFD

LFMD

SQSS

MICE

MSND

MICI

GND

PWRK

TMD

SPE

AFO

SPE

14V

PSTB

DRES

CON0

CON1

CON2

PSEL

UNLC

14V

BSTB

MCK

MDAT

SCPL

BLAV

BLBV

SATV

TRVI

–5V

R8V

T8V

ALC

AGC

14V

14VA

H5V

ICH

ICL

PWRS

PAT8

MCK

MDAT

FSTB

IKEY

ISTA

DRES

ANTS

REFV

FORV

–8V

T8V

14V

CP855

C836

C835 100

C834 0.1

C838 0.0047

0.1

C853

C856 0.1

CP856

CP853

CP852

CP851

CP850

CP849

CP854

CP841

CP844

CP845

CP848

C869 4.7

R807 220

C867 100

C868 0.1

R806 1k

L451

330

L114

D504 MA2S728

0.47

C506

2SA1576

Q521

100k

R522

10k

R521

470

R108

–7

DTA144EE

Q803

2SC4081

Q801

10k

R801

AN79L05M

IC805

C815 10

C814 0.1

C817 100

C816 0.1

2SD1801

Q804

100

C813

R802

2.2k

R803

MA8051

D801

470

R804

TA7805F

IC803

C806 10

C805 0.1

C808 100

C807 0.1

TA7805F

IC802

C802 10

C801 0.1

C804 100

C803 0.1

BA033T

IC801

C818 10

C819 10

HF50ACC322513-B

L206

C502

330

R502

DTA114EE

Q507

UMH4N

Q502

R510 RV-108

R509 RV-156

UMH11N

Q501

330

R513

220k

R505

R512 3.3M

220k

R511

–

470k

R517

2SA1576

Q505 DTC144TE

Q506

22k

R516

R115 270

W291

2SC4081

Q503

2SC4081

Q504

UNR9211J

Q3773

10k

R3787

47k

R514

C507 0.1

R248 100

C246 0.1

L241 1000

R251 1.5k

0.0047

C242

2.7k

R261

R262 1k

C262 0.047

2SK882

Q261

R265 470

C268 0.1

R264 100

C267 10

C264 0.1

RV-152

R263

R116

C123 0.1

LS-469

L261

D114 1SV308

D113 1SV308

C116 0.1

100k

R111

0.1

C121

LS-468

L111

LS-468

L112

1SV308

D112

1SV308

D111

330

L115

470

R118

0.1

C122

–5V

R8V

14VA

H5V

–8V

T8V

14V

CP801

W703

L721 150µH

L719 EXC-ELDR25C

L720 100µH

CP815

CP814

CP813

CP811

C3803 47p

C3802 47p

C3801 47p

C833 0.0047

C826 0.1

C829 0.1

C832 0.1

CP832

CP831

CP830

CP828

CP827

CP826

CP825

CP823

CP833

CP816

CP822

CP824

R3801 220

R3802 220

R3803 220

C857 0.1

C859 0.1

C863 0.1

C861 0.1

C864 0.1

C865 0.0047

C866 0.0047

0.0047

C280

R293 22k

22k

R292

2SC4081

Q279

R294 1k

C288 0.1

R279 4.7k

C279 0.1

LS-450

L273

R280 100

board J2001

to DSP-A

board J2002

to DSP-A

CP206

CP205

CP204

CP203

CP202

CP201

CP212

CP211

CP210

CP208

CP209

CP207

CP242

CP241

CP239

CP238

CP237

CP236

CP235

CP234

CP233

CP232

CP231

CP228

CP222

0.0047

C211

GND

DSKY

GND

MSL1

RTDT

TXS

CTFL

AMS

DSFR

DSRS

MDAT

ACKS

DSFW

CALS

MCK

FMNS

MODS

DPGI

DSDR

NSQO

GND

M5V_d

3R3V_d

GND

3R3V_d

AGRS

GND

DTIF

DRIF

GND

D5VA

GND

D5VA

GND

D5VA

GND

DMAF

GND

AGC

DTAF

GND

DRAF

–8V_

GND

–8V_

GND

–5V_

GND

–5V_

GND

8V_

FMTL

8V_

GND

board J301

to DISPLAY

–5V

–8V

D5VA

J861

J891

HF50ACC322513-B

L204

HF50ACC322513-B

L203

HF50ACC322513-B

L202

HF50ACC322513-B

L201

CP223

CP224

CP225

CP226

CP227

CP229

CP230

CP221

J202

J201

board J321

to DISPLAY

CP272CP271

330

R286

100mH

L274

UNR911HJ

Q278

C286 220

MA2S111

D273

0.22

C285 6.8k

R290

R287 6.8k

2SC4081

Q276

C283 0.1

C284 47

2SC4081

Q274

2SA1576

Q275

2.2M

R285

47k

R284

C287

R283 47k

R281 100k

C281 470p

1SS375

D271

0.0022

C289

C275 0.1

2SK882

Q273

R277 22k

W278

LS-450

L272

R276 100

2SK882

Q272

R274 22k

R275 470

C274 0.1

2SK882

Q271

R271 RV-152

LS-450

L271

R272 470

C271 0.1

C272 0.1

R273 100

CP800

CP799

CP798

CP797

CP796

CP795

CP794

CP793

CP792

CP791

CP790

C716 0.1

C715 0.1

C714 0.1

CP789

CP788

CP786

L711 HF50ACC322513-B

L710 EXC-ELDR25C

L708 100µH

L709 HF50ACC322513-B

CP875

CP874

CP873

CP872

CP871

CP870

CP876

CP771

CP772

CP774

CP775

CP781

CP782

CP783

CP784

C706 0.1

C707 0.1

C708 0.1

C709 0.1

C710 0.1

C711 0.1

C712 0.1

C713 0.1

L712 HF50ACC322513-B

L717 HF50ACC322513-B

L713 100µH

L714 100µH

L715 100µH

L716 HF50ACC322513-B

R761 220

R762 220

CP704

CP703

R763 220

CP762

CP761

CP760

CP758

CP757

CP755

CP753

CP752

L707 100µH

L706 100µH

L705 100µH

L704 100µH

L703 HF50ACC322513-B

L701 EXC-ELDR25C

L702 HF50ACC322513-B

C705 0.1

C704 0.1

C703 0.1

C702 0.1

CP741

CP745

CP747

750

C854 0.0047

C855 0.0047

14V

T8V

R8V

MEASUREMENT CONDITIONS

DISPLAY FREQ. :14.10000MHZ

MODE

MEASURE :VOLTMETER, OSCILLOSCOPE

:USB

10 - 8

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

AFE

M5V

AFE

T8V

14VA

R8V

–5V

3R3V_d

H5V

M5V

14V

ALC

AGC

M5V

14V

–8V

H5V

14VA

R8V

–5V

T8V

AGC

ALC

W452

MICO

MICE

8.2k

R456

0.022

C458

W451

C453

4.7k

R453

10k

R451

–5V

M5V

3R3V

15k

R473

100k

R339

R325

4.7k

R321

C320

STON

0.1

C305

3R3V

M5V

–5V

R341 100k

R306 470

–5V

3R3V

3R3V_d

0.1

C158

100

L152

R214 NTCG16

C201 10

470p

C229

W252

0.1

C130

0.1

C125

R8V

C103 0.1

–5V

H5V

M5V

3R3V_d

–5V

DRIF

MAIN-A (2)

3LO

MIGV

AFO

AVXL

MSL2

MSL1

SPCH

MONV

AAFO

AFGV

AFMS

AFO

SPS

100k

R338

AMS

LA4425A

IC332

100k

R395

AMOD

VX1

RECI

AMPO

VX2

MOSL

VOXL

DMAF

BEEP

RECO

SQLS

REAF

DRAF

MODS

FORL

REFL

REFV

FORV

ALCL

ICH

ICL

REFV

DTIF

4.7k

R230

5.6k

R229

SML

DRIV

EALC

W309

CPH3404

Q333

UNR9211J

Q334

0.1

C341

10k

R343

220k

R342

C376 0.01

0.001

C467

100k

R475

C473

680

R479

RCR-875D-472K

L452

100

C474

100

R476

470

C477

2SC4081

Q471

15k

R480

2.2

C472 4.7k

R472

390

R474

C476 0.1

R471 1k

C471 1

C464 10

R465 47k

R466 100k

C466 1

100k

R478

C475 8.2k

R477

10k

R463

47k

R464

0.1

C465

100p

C456

180k

R454

R455 270k

C459 560p

3.9k

R457

0.022

C460

6.8k

R458

C461

22k

R461

10k

R462

R460 100k

C463 0.1

100p

C462

220k

R459

C457 2.2

R364 39k

R363 10k

0.1

C390

470

R390

R391 470

C391 0.1

R362 470

R361 470

C362 0.1

C361 0.1

C364 10

R380 270k

R370 100

R393 47k

R394 100k

C392 0.1

RV-108

R392

4.7k

R377

4.7k

R375

C363

R369

W355

1.5k

R367

4.7k

R366

47k

R365

C378 1

R376 8.2M

C365 0.47

AVI

AVO

MUTE

VOXO

VCC

SWC

VCAC

VCAO

VCAI

SWO

BU1O BU2O

VOXI

PC5023-077

IC451

BU2I

AMPO

AMP–

AMP+

GND

BU1I

SWI

CMPO

CMPI

TC4W53FU

IC361

TC4W53FU

IC362

R371 470k

IN2

OUT2

BA3308F

IC372

NF2

NF1

IN1

VCC

ALC

GND

OUT1

C371 1

C372 1

M5282FP

IC371

R381 10k

C379 1

R379 82k

R378 100

C377 470

R372 47k

C375 10

C374

R374 100k

2.2k

R373

VCAIN

CTL

VCAOUT

VCC

GND

OUT

IN–

IN+

VCC2

R315 47k

C315

4.7k

R314

W311

10k

R304

R303

R302 1k C302 10

C303

0.1

C304

R301 1k

C327

C301 10

C311 2.2

M5282FP

IC311

47k

R311

R320 100k

C317

C319 1

W319

R318 270k

R317 82k

C318 1

R316 10

C316 470

C314 10

C313

C312 0.0022

R312 10k

R313

VCAIN

CTL

VCAOUT

VCC

GND

OUT

IN–

IN+

VCC2

R335 470

470

C338

C337 470

C336 0.1

C334

C335 0.022

R334 1k

0.082

C333

470

R305

0.1

C306

10k

R307

W308

C308

C307 0.1

AHY103

RL351

R351

UNR9211J

Q351

0.0047

C352

DAN222

D351

0.0047

C351

2SD1801

Q331

R336

C340 100

R333 4.7k

R337 10k

R340 1k

C331 10

R331 470

R332 470

C332 10

TC4W53FU

IC301

TC4W53FU

IC331

T8V

14VA

R8V

14V

T8V

R8V

14V

–5V

3R3V_d

M5V

H5V

BUS LINE1

0.1

C153

100

C154

0.1

C155

0.1

C156

TC4SU69F

IC153

TC4SU69F

IC152

0.001

C157

10k

R152

R153 1M

254

100

L151

C151 100

C152 0.1

R151 1.5k

R154 47k

TC4W53FU

IC151

–5V

C572 0.1

W572

C573 0.1

NJM4558M

IC571a

2–

W571

MA2S111

D571

220

R571

R574 22k

C571 10

R564 10k

C561 10

220

R561

MA2S111

D561

W561

R551 3.3M

D542 MA2S111

MA2S111

D541

C553 0.1

C552 0.1

100k

R563

NJM4558M

IC571b

6–

470k

R562

2.2M

R553

NJM2058M

IC551a

2–

R552 8.2M

R542 47k

R541 47k

RV-150

R545

33k

R543

33k

R544

NJM2058M

IC551d

12 14

–

R546

NTCG20

R537

MA2S111

D532

MA2S111

D531

MA2S111

D533

470

R536

3.3k

R535

NJM2058M

IC551c

–8

100k

R531

W501

DAN222

D251

100k

R103

NJM4558M

IC101a

270k

R102

0.0047

C102

0.1

C104

–1

33k

R104

100k

R105

100

R213

0.001

C221

L221 100

C222 10

C223 0.1

NJM1496V

IC221

R224 220

0.1

C228

100

L227

R232 3.3k

R225 5.6k

R226 1k

R227 1k

3.9k

R223

C227 10

C226 0.1

R222 680

C224 10

C225 0.1

R221 1k

C231 0.1

R231 3.3k

VC+

VC–

VO–

V–

VO+

BIAS

VS–

VCS

VS+

BA15532F

IC201b

RV-145

R210

CP213

2.2k

R205

2.2k

R202

–7

BA15532F

IC201a

R201 10

C202 10

R203 10

–

C207 330p

C208 100p

M5V

14V

–8V

H5V

14VA

R8V

–5V

T8V

0.1

C135

R533 220k

10k

R532

68k

R534

R135

R119 10k

C126 0.1

R136

C131 0.1

10k

R126

1.8k

R253

0.0047

C261

10k

R120

10k

R127

MA77

D118

MA77

D116

0.0047

C132

0.0047

C127

MA77

D117

MA77

D115

10k

R130

10k

R125

0.0047

C133

0.0047

C129

CFWS455IT

FI133

CFWM455D

FI131

W122

CFK455E10

FI111

10k

R134

UNR9211J

Q132

UMH11N

Q131

0.0047

C145

NTCG16

R243

8.2k

R242

C243 0.0047

47k

R244

DAN222

D252

0.1

C247

R250

R249 100k

C144 0.1

R146 10

10k

R148

R145 1.5k

3SK131

Q141

LS-468

L141

C146 0.1

R147 1.5k

10k

R141

0.001

C141

R142 47

R144 68

C142 0.1

1.5k

R143

0.0047

C119

R112 470

LS-468

L113

R206 47k

1.5k

R207

C204 0.0027

C203 270p

1.5k

R208

C205 0.0068

C206 680p

1.5k

R209

C118 100

C115 0.1

R113 1k

0.0047

C244

RV-110

R247

33k

R246

2SK882

Q241

CP243

R241 100

C245 0.1

SSB 0V

FM 3.4V

MAIN-A UNIT (1)

10 - 9

VOLTAGE LINE

Explanatory notes

TX LINE

RXF

MAIN-A UNIT (2)

3R3V

0.1

C3605

470

C3604

100k

R3030

STON

L3501 HF50ACC322513-B

C3017

0.47

C611

MAIN-A (1)

T8V

R8V

0.1

C3601

33k

R3505 W3504

47k

R3507

0.0047

C3506

47k

R3785

47k

R3502

FZRS

FZVP

VSYNC

HSYNC

VSYNC

HSYNC

FPDAT2

FPDAT9

FPDAT1

R3596 10k

R3595 10k

R3594 10k

R3593 20k

R3592 39k

FPDAT0

680

R3591

FPDAT5

FPDAT11

FPDAT4

R3586 10k

R3585 10k

R3584 10k

R3583 20k

R3582 39k

FPDAT3

680

R3581

FPDAT6

FPDAT7

FPDAT8

FPDAT14

R3576 10k

R3575 10k

R3574 10k

R3573 20k

R3572 39k

680

R3571

0.0047

C3641

47k

R3646

0.0047

C3642

0.0047

C3643

DA221

D3507

RTKI_

R3644 1k

RTKI

47k

R3645

SKYS

R3643 1k

SKYS_

47k

R3656

47k

R3655

47k

R3648

PWRK_

R3647 1k

PWRK

SML

ASL

ASO2_

ASO0_

ASO1_

AVXL_

VOXL_

SCPL_

C3637 0.0047

C3635 0.0047

C3636 0.0047

C3634 0.0047

C3633 0.0047

C3632 0.0047

R3637 1k

R3638 1k

R3639 1k

R3641 1k

R3640 1k

R3642 1k

R3636 47k

R3634 47k

R3635 47k

R3633 47k

R3632 47k

R3631 47k

2.2k

R3659

ALCL

RB706F-40

D3508

4.7k

R3660

NTCG16

R3649

4.7k

R3650

RB706F-40

D3509

0.0047

C3631

BU4053BCFV

IC3631

FMTL

REFL

NSQO

FORL

VDD

VSS

VEE

INH

Y1 16

AVXL

C3638 0.1

VOXL

SCPL

RB706F-40

D3602

R3627

STON_

BEEP_

0.0047

C3625

R3626

0.0047

C321

NJM4558M

IC321A

0.0047

C322

120k

R324

120k

R322

120k

R323

0.001

C323

0.001

C324

0.1

C325

0.1

C326

–

0.0047

C3626

R3628

R3625 1k

BEEP

47k

R3623

0.0047

C3624

47k

R3621

0.0047

C3615

0.0047

C3614

R3622 1k

PWRS

SENI

47k

R3620

TRAS

47k

R3613

0.01

C3610

0.0047

C3611

0.0047

C3612

22k

R3616

22k

R3615

TXS_

R3618 1k

TXS

RXS_

R3617 1k

RXS

TRVI_

R3612 1k

TRVI

IKEY_

47k

R3611

0.01

C3608

0.01

C3609

R3609 1k

IKEY

47k

R3610

ISTA_

R3608 1k

0.001

C3607

R3605 1k

ISTA

R3604 1k

LTXD_

LMFD

R3603 2.2k

DTA114EE

Q3002

47k

R3607

47k

R3606

LRXD_

LFMD

TMD_

UNLC_

TMD

47k

R3602

R3601

220p

C3606

MA2S111

D3601

L3603 RCR-875D-472K

L3602 HF50ACC322513-B

L3601 HF50ACC322513-B

UNLC

3R3V_d

14V

H5V

–5V

M5V

2SC4081

Q602

4.7

R601

R602

TXS

RXS

0.47

C601

10k

R603

2SD1619

Q601

DA221

D601

10k

R613

2SC4081

Q612

2SD1619

Q611

4.7

R611

R612

TRVI

DA221

D611

PAT8

2SA1577

Q621

47k

R621

1.5k

R622

10k

R623

UMH11N

Q622

MICE

MISL

AMPO

470

R3022

270k

R3012

0.1

C3021

0.1

C3032

100k

R3032

RECI

82k

R3011

C3015

100k

R3016

C3016

22k

R3010

VOGV

470

R3023

100k

R3033

14V

R8V

T8V

RECO

REAF

2.2k

R3017

47k

R3020

BUS LINE1

BU4053BCFV

IC3005

INH

100

R3036

3R3V_d

C3019

C3018

R3035

C3020

1.2k

R3034

M5282FP

IC3003

VCAIN

CTL

VCAOUT

VCC

GND

OUT

IN–

IN+

VCC2

NJM4558M

IC3004A

220

R3021

C3025

0.047

C3012

10k

R3013

W3014

120k

R3015

2.2k

R3042

–

DA221

D3001

C3014

47k

R3018

C3004

220

R3019

MICO

M5V

–5V

R3005

0.1

C3031

470

R3007

MICI

M5V

BU4053BCFV

IC3002

0.1

C3030

470

R3006

INH

VX1

82k

R3028

NJM4558M

IC3004B

–

1.5M

R3026

0.1

C3013

82k

R3027

10k

R3025

VX2

VOSL

MOSL

DTAF

L3001 10µH

L3002 100

W3010

0.1

C3006

100k

R3024

470

C3011

C3009

470

C3010

0.1

C3003

0.1

C3005

4.7

C3008

W3001

C3001

10K

R3037

VDTI

VRAC

VINT

MCK

47k

R3004

47k

R3040

47k

R3041

47k

R3003

MDAT

VCS

ISD4003-04MS

IC3001

SCLK

VCCD

XCLK

INT

RAC

VSSA

VCCA

ANAIN+

ANAIN–

AMCAP

AUDOUT

VSSA

VSDD

MISO

MOSI

SS 28

1514

H5V

–5V

M5V

EP3621

EP3622

7.8V

TRV ON : 0V

OFF : 4.8V

RX 4.4V

TX 0V RX 0V

TX 4V

RX 8V

TX 0.2V

RX 0V

TX 8V

800mV

2.45mS

CW KEY DOWN

SIDE TONE LIMIT :OFF

10 - 10

VOLTAGE LINE

Explanatory notes

RXF

M5V_

RESET

C3552 0.01

3R3V_d

RESET

ASTB

BYTE

MSTB

M5V

14V

M5V_

H5V_

3R3V_d

UNLC_

R3745 22k

10k

R3746

R3558

R3559

MD1

MD13

MD2

MD12

MD3

MD11

MD4

MD10

MD5

MD9

MD6

MD8

MD7

LCAS

UCAS

RAS

MA7

MA0

MA6

MA1

MA5

MA2

MA4

MA3

100k

R3784

0.1

C3603

100

C3602

IDTI

RCR-875D-472K

L3604

MCK

MDAT

100k

R3743

15k

R3777

47k

R3778

6.8k

R3775

2SC4081

Q3772

CIV

CIVE

DAN222

D3771

33k

R3776

2SA1576

Q3771

R3780

100k

R3779

0.0047

C3769

C3770 0.0047

CBSY

DRES_

CRXD

CTXD

R3772 47k

R3773 47k

R3774 47k

C3775 470

TC7W04FU

IC3771

MONV

AFGV

MIGV

POCV

DRIV

BANV

SATV

VOGV

R3742 22k

0.1

C3771

270

R3741

ASTB

MCK

MDAT

BLAV

BLBV

150

R3740

8V 8V

M62352GP

IC3751

VSS

AO3

AO4

AO5

AO6

AO7

AO8

AO9

AO10

VDD

GND

AO2

AO1

CLK

AO12

AO11

VCC

11 10

FAI_

A10

A11

A12

A13

A14

A15

A16

A17

A18

0.01

C3554

CSTCV26.00MXJ040

X3551

R3551 1M

TC7WU04FU

IC3552

100

C3562

A16

A15

A14

A13

A12

A11

A10

W3551

0.0047

C3561

S1D13504F00A000

IC3551

HD64F2357F20

IC3501

R3769 47k

R3770 47k

R3771 47k

R3768 1k

R3767 1k

R3766 1k

R3765 1k

R3764 100

R3763 1k

R3762 1k

R3761 100

C3768 0.0047

C3767 0.0047

C3766 0.0047

C3765 0.0047

C3764 0.0047

C3763 0.0047

C3762 0.0047

C3761 0.0047

DSRS

CALS

ACKS

FMNS

MODS

P50S

PHFS

AMS

AGRS

VOSL

MOSL

MISL

MSL2

MSL1

NBS

MA2S111

D3750

0.47

C3750

R3758 1k

R3757 470k

R3756 1k

R3755 1k

R3754 1k

R3753 1k

C3758 0.0047

C3757 0.0047

C3756 0.0047

C3755 0.0047

C3754 0.0047

C3753 0.0047

C3752 0.0047

C3751 0.0047

47k

R3759

MA2S111

D3758

MA2S111

D3757

MA2S111

D3756

MA2S111

D3755

MA2S111

D3763

MA2S111

D3754

MA2S111

D3762

MA2S111

D3753

MA2S111

D3761

MA2S111

D3752

MA2S111

D3760

MA2S111

D3759

MA2S111

D3751

BU4094BCFV

IC3753

0.1

C3773

CLK

STR

BU4094BCFV

IC3752

DRES

MCK

MDAT

MSTB

0.1

C3772

CLK

STR

LWR_

HWR_

RD_

CSL

A17

WAIT

DB15

DB14

DB13

DB12

DB11

DB10

DB9

DB8

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

FPDATA14

FPDATA11

FPDATA9

FPDATA8

FPDATA7

FPDATA6

FPDATA5

FPDATA4

FPDATA3

FPDATA2

FPDATA1

FPDATA0

HSYNC

VSYNC

0.01

C3560

100k

R3553

100k

R3552

R3557 15k

R3554 15k

R3555 15k

R3556 15k

0.01

C3553

MD15

MD0

MD14

MA5

MA6

MA7

LCAS

MD8

MD9

MD10

MD11

MD12

MD13

MD14

MD15

MA4

MA3

MA2

MA1

MA0

RAS

UCAS

MD7

MD6

MD5

MD4

MD3

MD2

MD1

MD0

100

C3558

0.01

C3557

0.01

C3556

0.01

C3555

VSS

CAS

VSS

I/O9

I/O10

I/O11

I/O12

I/O13

I/O14

I/O15

I/O16

VSS

VCC

RAS

VCC

I/O8

I/O7

I/O6

I/O5

I/O4

I/O3

I/O2

I/O1

VCC

LH61665AS-60A

IC3553

2322

J3503

4.7k

R3506

10k

R3510

0.1

C3508

0.01

C3507

S-80942CNMC-G9C

IC3502

OUT

VDD

VSS

C3510

0.01

C3509

BH-800

J3501

MA2S111

D3504

DTC144EE

Q3505

4.7k

R3509

MA2S111

D3505

MA2S111

D3506

2SA1576

Q3504

47k

R3783

47k

R3508

CWR

VDD

CS0

CS1

SOUT

TPOUT

SCK

SIN

GND

RTC-4553A

IC3504

CCS

ECS

ICK

IDTO

CAT25C32SI

IC3503

VSS

VCC

HOLD

SCK

PSTB

PSEL

CON2

CON1

CON0

FAI

HWR

LWR

WAIT

BSON

LRES

0.01

C3511

TRVI_

IKEY_

RXS_

TXS_

ISTA_

LTXD_

LRXD_

TMD_

DRES_

12p

C3502

12p

C3501

CR-520

X3501

470

C3513

0.01

C3512

47k

R3781

47k

R3782

FZTX

FZRX

CTXD

CRXD

MCK

MDAT

A18

A17

A16

A15

A14

A13

A12

A11

A10

DB0

DB1

DB2

DB3

DB4

DB5

DB6

DB7

DB8

DB9

DB10

DB11

DB12

DB13

DB14

DB15

R3526 220k

R3525 220k

R3524 220k

R3523 220k

R3522 220k

R3521 220k

R3520 220k

R3519 220k

R3518 220k

R3517 220k

R3516 220k

R3515 220k

R3514 220k

R3513 220k

R3512 220k

R3511 220k

47k

R3503

FRMD

CBSY

DSKY_

DSDR

DPGI_

R3549 220k

R3548 220k

R3547 220k

R3546 220k

R3545 220k

R3544 220k

R3543 220k

R3542 220k

PWRK_

RTKI_

SKYS_

R3541 220k

R3540 220k

R3539 220k

R3538 220k

R3537 220k

R3536 220k

R3535 220k

R3534 220k

R3533 220k

R3532 220k

R3531 220k

AB3

AB4

AB5

AB6

AB7

AB8

AB9

AB10

AB11

AB12

AB13

AB14

AB15

AB16

AB17

AB18

AB19

AB20

IOVDD

VSS

BUSCLK

TESTEN

SUSPEND

CLKI

VSS

VRTC

HRTC

DACRS1

DACRS0

DACWR

DACPO

COREVDD

VSS

FPDAT15

FPDAT14

FPDAT13

FPDAT12

FPDAT11

FPDAT10

FPDAT9

FPDAT8

VSS

DACCLK

BLANK

DACRD

IOVDD

FPDAT7

FPDAT6

FPDAT5

FPDAT4

FPDAT3

FPDAT2

FPDAT1

FPDAT0

VSS

FPSHIFT

DRDY

LCDPWR

FPLINE

FPFRANE

VSS

MD15

MD0

MD14

MA2

MD1

MD13

MD2

MD12

MD3

MD11

MD4

MD10

MD5

MD9

MD6

MD8

MD7

VSS

LCAS

UCAS

RAS

IOVDD

MA9

MA11

MA8

MA10

MA7

MA0

MA6

MA1

MA5

MA4

MA3

COREVDD

VSS

DB0

DB1

DB2

DB3

DB4

DB5

DB6

DB7

DB8

DB9

DB10

DB11

DB12

DB13

DB14

DB15

VSS

IOVDD

WAIT

GPIOO

RESET

RD/WR

WE1

WEO

M/R

AB0

AB1

AB2

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

100

PF0/BREQ

WDTOVF(FWE)

P53/ADTRG

P52/SCK2

VSS

P51/RXD2

P50/TXD2

PF1/BACK

PF2/LCAS/WAIT

PF3/LWR

PF4/HWR

PF5/RD

PF6/AS

VCC

PF7/FAI

VSS

EXTAL

XTAL

VCC

STBY

NMI

RES

P20/PO0/TIOCA3

P21/PO1/TIOCB3

P22/PO2/TIOCC3

P23/PO3/TIOCD3

P24/PO4/TIOCA4

P25/PO5/TIOCB4

P26/PO6/TIOCA5

P27/PO7/TIOCB5

P63/TEND1

P62/DREQ1

P61/TEND0/CS5

VSS

P60/DREQ0/CS4

VSS

P35/SCK1

P34/SCK0

P33/RXD1

P32/RXD0

P31/TXD1

P30/TXD0

VCC

PD7/D15

PD6/D14

PD5/D13

PD4/D12

VSS

PD3/D11

PD2/D10

PD1/D9

PD0/D8

PE7/D7

PE6/D6

PE5/D5

PE4/D4

VSS

PE3/D3

PE2/D2

PE1/D1

PE0/D0

VCC

P64/IRQ0

P65/IRQ1

VSS

P66/CS6/IRQ2

P67/CS7/IRQ3

PA7/A23/IRQ7

PA6/A22/IRQ6

PA5/A21/IRQ5

PA4/A20/IRQ4

VSS

PA3/A19

PA2/A18

PA1/A17

PA0/A16

PB7/A15

PB6/A14

PB5/A13

PB4/A12

VSS

PB3/A11

PB2/A10

PB1/A9

PB0/A8

PC7/A7

PC6/A6

PC5/A5

PC4/A4

VSS

PC3/A3

PC2/A2

PC1/A1

PC0/A0

VCC

VSS

PG4/CS0

PG3/CS1

102

101

100

ASL

AFG2V

AFG1V

PWRS_

SENI

0.01

C3504

0.01

C3503

FZMD

TRAS

CS0

CS1

0.01

C3505

CS2

CS3

47k

R3501

ICK

IDTO

IDTI

ECS

CWR

CCS

ASL

BEEP_

STON_

ASO2

ASO1

ASO0

AVXL_

VOXL_

SCPL_

PG2/CS2

PG1/CS3

PG0/CAS

MD2

MD1

MD0

P10/PO8/TIOCA0

P11/PO9/TIOCB0

P12/PO10/TIOCC0

P13/PO11/TIOCD0

P14/PO12/TIOCA1

P15/PO13/TIOCB1

P16/PO14/TIOCA2

P17/PO15/TIOCB2

VSS

AVSS

P47/AN7/DA1

P46/AN6/DA0

P45/AN5

P44/AN4

P43/AN3

P42/AN2

P41/AN1

P40/AN0

VREF

AVCC

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

RXF

M5V

14V

M5V_

H5V_

230mV

38nS

25mV

NBLV

MAIN-A UNIT (2)

10 - 11

VOLTAGE LINE

Explanatory notes

RX LINE

3LO

RXF

14V

RXF

ETE

ET14

ETST

ETKY

SPE

SSP

J662

J661

CP671

J681

33k

R636

33k

R632

M5V

M5V_

CS1_

CS2_

M5V_

CS2_

M5V

P352

4.7k

R638

4.7k

R634

EP634

EP632

EP861

EP702

EP701

EP682

EP681

EP631

EP633

EP658

MA2S111

D632

47k

R3732

47k

R3704

R3727

SBSY

SSTB

0.0047

C681

100

L681

SKYS

CP681

CP682

(KEY)

(CI-V)

W701

100p

C701

EXC-ELDR25C

L723

EXC-ELDR25C

L722

CIVE

CIV

unit J701

from PLL

J211

3LO

2SD1619

Q652

DTA114EE

Q651

TRAS

330

R651

10k

R652

0.0047

C651

0.0047

C653

MA2S111

D631

0.0047

C631

SENI

2SC4081

Q631

15k

R633

EP703

4.7k

R631

0.0047

C632

2SC4081

Q632

RTKI

15k

R637

4.7k

R635

AMOD

SQSS

UNR9211J

Q653

8.2k

R653

AAFO

BANS

EALC

MSND

TRV

0.0047

C665

0.0047

C662

0.0047

C661

0.0047

C667

0.0047

C652

0.0047

C669

0.0047

C668

0.0047

C664

0.0047

C663

0.0047

C666

0.0047

C670

L665 100

L662 100

L661 100

L667 100

L669 HF50ACC322513-B

L631 HF50ACC322513-B

HF50ACC322513-B

L659

HF50ACC322513-B

L658

L668 100

L664 100

L663 HF50ACC322513-B

HF50ACC322513-B

L666

L670 100

CP665

CP662

CP661

CP667

CP669

CP668

CP670

CP663

CP664

CP666

ACC (1)

ACC (2)

UNR9211J

Q691

0.0047

C692

0.0047

C695

DAN222

D691

R691

0.0047

C691

OMR-109F

RL691

J691

CP692

CP693

CP353

CP691

(ALC (EXT))

CP354

CP351

2943-666663

L352

HF50ACC322513-B

L354

HF50ACC

322513-B

L692

HF50ACC

322513-B

L691 EP692

EP691

HF50ACC322513-B

L353

2943-666663

L351

CP352

W354

J352

0.0047

C353

START

KEY

J351

(SEND (RL))

0.0047

C641

0.0047

C642

0.0047

C643

0.0047

C354

L644 HF70ACC635050-T

L643 HF70ACC635050-T

L642 220µH

L641 220µH

CP644

CP643

CP642

CP641

TUNER

J641

CP702

CP701

J701

14V

ESTA

EKEY

TCON

RTDT_

CTFL_

DSFR

DSFW

DPGI_

DSKY_

DSDR

KEY

START

R3706

0.01

C3712

0.01

C3711

UNR9211J

Q3701

R3707

R3705

DAP222

D3702

DAN222

D3701

47k

R3701

47k

R3702

47k

R3703

C3702 0.0047

C3704 0.0047

C3705 0.0047

C3706 0.0047

C3707 0.0047

C3708 0.0047

C3709 0.0047

R3712 1k

R3711 1k

R3710 1k

R3709 1k

DPGI

RTDT

CTFL

DSKY

DSFR

DSDR

DSFW

SPCH

MCK

CP3006

CP3002

CP3004

CP3008

MDAT

47k

R3728

0.0047

C3724

0.1

C3774

CP3001

CP3003

CP3005

CP3007

J3502

W3730

VDTI

VINT

VRAC

VDTI

VINT

VRAC

SQLS

AFMS

SPS

UNSB

47k

R3722

47k

R3721

0.1

C3725

15k

R3723

SQLS_

R3724

0.0047

C3722

0.0047

C3721

AFMS_

R3726

0.0047

C3723

47k

R3725

SPS_

14V

M5V_

H5V_

0.01

C3656

C3655

R3654

HWR_

CSL

TC74AC32FT

IC3656

RD_

LWR_

HWR_

0.01

C3654

TC74AC08FT

IC3655

LRES

CS1

CS2

CS0

CS3

FAI_

RD_

LWR_

HWR_

SQSS

SPS_

SSTB

VCS

ESTA

DSFR

DSFW

R3653 220k

R3652 220k

R3657 220k

R3658 220k

0.01

C3651

100k

R3651

CSf_

FAI

CSs_

LWR

HWR

BSON

YA4

YA3

YA2

YA1

ENB

VDD

VSS

YB1

YB2

YB3

YB4

ENA

TC74AC244FT

IC3651

1110

CLK

VCC

GND

OUT EN

DB15

DB14

DB13

DB12

DB11

DB10

DB9

DB8

DTA114EE

Q3551

0.01

C3653

TC74AC574FT

IC3654

1110

0.01

C3652

BSTB

ANTS

FSTB

ASTB

MSTB

AFMS_

SQLS_

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

R3786 100k

CLK

VCC

GND

OUT EN

TC74AC574FT

IC3653

1110

CTFL_

RTDT_

EKEY

TCON

VDTI

VINT

VRAC

SBSY

0.01

C3657

DB8

DB9

DB10

DB11

DB12

DB13

DB14

DB15

VCC

GND

DIR1

TC74AC245FT

IC3652

1110

R3744

NJM4558M

IC321B

–

XP4311

Q3751

CSf

CSa

HWR

DB15

DB14

DB13

DB12

DB11

DB10

DB9

DB8

DB0

DB1

DB2

DB3

DB4

DB5

DB6

DB7

J3504

0.0047

C3658

100p

C3659

RX 0V

TX 4.5V

RX 6.5V

TX 0V

MAIN-A UNIT (2)

10-5 PLL UNIT

10 - 12

100

R112 2k

R113

1k R111

R110 2k

R108 2k

R109

R106 2k

R107

R104 2k

R105

R102 2k

R103

R120 2k

R122 2k

R124 2k

R123

1k R121

R118 2k

R119

R116 2k

R117

R114 2k

R115

R101 2k

C116

0.1

R125

470

FI101

CFEC10.8MD11 C117

0.1

R202

560

L206

1812CS.

122XKBC

C204

470p

L205

1812CS.

122XKBC

C202

20p

C203

0.0047

C208

C209

3.5p

L204

100µH

D202 KV1770S

D201 KV1770S

Q201

2SK508

C205

0.0047

R203

560

L202

E526GN-110501

Q202

2SC4213

C207

0.0047

R204

10k

C206

C225

0.0047

Q222

2SC4213

Q221

2SK508

L224

100µH

C229

D222 KV1770S

C223

0.0047

C224

470p

R223

470

C222

56P

L226

1812CS.

122XKBC

D221 KV1770S

L225

1812CS.

122XKBC

C228

10p

R222

L222

E526GN-110501

C227

0.0047

R224

10k

C226

C255

0.0047

Q252

2SC4213

Q251

2SK508

L254

100µH

C259

C253

0.01

C254

470p

R253

560

C252

150p

L256

1812CS.

122XKBC

L255

1812CS.

122XKBC

C258

10p

R252

270

L252

E526GN-110502

C257

0.0047

R254

10k

C256

C275

0.0047

Q272

2SC4213

Q271

2SK508

L274

100µH

C279

12p

C273

0.0047

C274

470p

R273

560

C272

100p

L276

1812CS.

122XKBC

L275

1812CS.

122XKBC

C278

10p

R272

560

L272

E526GN-110504

C277

0.0047

R274

10k

C276 EP274

EP254

EP224

EP204

D152

HSM88AS

C147

0.0047

C146

0.0047

L126 10µH

Q126

UMD3N

Q123

UMD3N

L123 10µH

C139

0.0047

C138

0.0047

L122 10µH

Q122

UMD3N

Q121

UMD3N

L121 10µH

C137

0.0047

L124

10µH

L125

10µH

EP151

MMZ1608Y102B

C172 8p

C173 15p

VA1S

VA4S

FLO VP

EP321

MMZ1608Y102B

EP351

EP357

L101

10µH

C101

R143

R145

R144

R146

R140

270

C191

0.1 R139

47k

C122

0.0047 W121

C124 0.0047

C123 0.0047

C130 0.0047

C129 0.0047

C128 0.0047

C127 0.0047

C126 0.0047

C125 0.0047

C110 0.1

C111 0.1

C112 0.1

R142

C131

R135

120

R150

10k

R136

R137

2.2M

C121

C151

0.0047

D151

MA357

C152

33p

R134

R133

220

C120

0.1

R132

47k

Q102

2SC4081

C119

0.0047 R131

100

C153 4p

C154 20p

L152

LB-343

D153

HSM88AS

C156

150p

R152

100k

Q151

2SK210

C157

150p

L153

10µH

R153

150

C161 5p

R156

47k

C158 10

R154

100

C159

0.0047

R155

180

R151

100k

C160

0.0047

C390

C391

0.1

R158

100

R157

220

C162

0.1

R159

C163

0.0047

Q152

2SC4081

C385

C384

0.1

IC382

TA78L05F

C396

4.7

C389

470p

R381

100

L181

10µH W181

C183

0.0047

C300 10p

C328 8p

C330 8p

C329 27p

R181

R182

5.6k

C182

C181

0.0047

L382

HF50ACC322513-B

W392

W385

R393

C386

4.7

C394

470p

C380

R380 10k

R387 1k

R385 1k

R386 1k

VCC2CPO

FO/LDGND

LEGND

DATAFIN

CLOCKFIN

CEVCC1

GNDOSCIN

IC381

LMX2306TM

L303

47nH

C305

C307

12p

C304

39p

R350

1.8k

D301

MA77

C306

39p

L351

56nH L352

82nH L353

82nH

C352

3p C354

C355

10p

C351

30p

C311

0.0047

C353

33p

R356

47k

C356

22p

C359

270p

L354

0.15µH

C346 47p

C347 0.0047

C363 0.0047

C358

56P C360

56P

D351

MA77

D361

1SV307

D362

1SV307

R363

4.7k

C361

0.0047 R353

R362

100

C345

0.0047

C362

0.0047

R354 270

R352

270

R361

4.7k

L355

4.7µH

C364

0.0047

C365 0.1

C325

0.22

C357

0.0047

C344

0.0047 R355

100

L357

27µH

L321

0.33µH

R323

C323

0.0047

R303

C321

82p

L320

0.18µH

L329

56n

L328

56n

R320 470

R322 470

R321

C322

0.0047

C320

39p

C302

39p

Q301

2SC4403

R301

1.8k R275

R302

2.2k

IC320

µPC1678G

GND

VCC

GND

OUT

VSS

SYSCLKO

VDD

VSS

DA0

DA1

DA2

DA3

VSS

DA4

DA5

DA6

DA7

VSS

DA8

DA9

DA10

DA11

VDD

TE1

TE2

TE3

VDD

ETCO0

ETCO1

ETCO2

VSS

ETCO3

ETCO4

VSS

ETCO5

ETCO6

ETCO7

VSS

VDD

Q4MA

Q16MA

VSS

FCK

REF_OSC

VDD

PDTRI

VSS

PD0

VDD

PD1

PD2

VSS

VDD

TEOUTH0

TEOUTH1

TEOUTH2

TEOUTH3

TEOUTH4

VDD

SYSRESET

VSS

VDD

OSCI

VSS

OSCF

VDD

VSS

OSCO

VSS

PDIN

REFIN

VSS

DIVOUT

VDD

DATA

CONTCLK

VSS

BUSY

VSS

CON0

CON1

CON2

STRB

VSS

SYS_CLK

VDD

VSS

BUN4O

BUN2O

BUM2O

VDD

BUN4I

BUN2I

BUM2I

VDD

VSS

IC101

SC-1246A

C150

0.1

L128

10µH

C155

150p

L304

4.7µH

R304

33 L301

10µH

C310

0.0047

C309

0.0047

Q103

2SC4081

IC191

TC7S08F

Q124

UMD3N

D254

MA338

D251

MA338

D253

MA338

D252

MA338

D274

MA338

D272

MA338 D273

MA338

D271

MA338

C174 27p

C115 0.1

C102 0.1

C103 0.1

C104 0.1

C105 0.1

C106 0.1

C107 0.1

C108 0.1

C109 0.1

IC102

TC7S04F

R127 1M

R130

C118

0.1

Q181

2SC4081

C381

0.0047

W155R160

R161

C395

0.01

VA2S

VA3S

VA4S

DULS

PAM T

PAPS

MKRS

MKRSS

ULDA

PDATA

PCKA

CON2A

PST1

MKRS

C113

0.1

C114

0.1

MKRSS

32MHz_REF

C201

0.0047

VA3S

VA2S

VA1S

ULPA

PST2

PDATA

PCKA

R394

1.8k

C382

100p

R351

2.7k

Q351

DTA114EE

C324 0.0047

C326 0.1

C350 0.0047

C327 47p

5V 1L0A

Q361

DTC114EE

5V PLLA8V 1LOA

C301

0.0047

R309 560

R147

DIVOUT

DRES

W122

R141

100

1LOA

J351

P351

to RF-B

unit J1301

1LOB

J651

P651

to RF-B

unit J1101

1LOA

C397

0.0047

32MHz_REF

C134

0.0047

C133

0.0047

C132

0.0047

C392

0.0047

C387

0.0047

C388

0.0047

C393

0.0047

4.8V 7.7V

Unselectde 0V

Selected 0.7V

Unselectde 0V

Selected 0.7V

Unselectde 0V

Selected 0.7V

Unselectde 0V

Selected 0.7V

7.5V

3.3V

4.0V

3.6V

4.3V

5.0V

0.6V

1.8V

BELOW 7.999999MHz 0V

ABOVE 8.000000MHz 4.6V BELOW 7.999999MHz 4.6V

ABOVE 8.000000MHz 0V

PLL UNIT

VOLTAGE LINE

Explanatory notes

10 - 13

VOLTAGE LINE

Explanatory notes

EP574

EP554

EP524

EP504

100

R408 2k

R410 2k

R413

R412 2k

R411

1k R409

R406 2k

R407

R404 2k

R405

R402 2k

R403

R416 2k

R419

R418 2k

R421

R423

R424 2k

R422 2k

R420 2k

R417

R414 2k

R415

R401 2k

C416

0.1

R425

470

FI401

CFEC10.8MD11 C417

0.1

C505

0.0047

Q502

2SC4213

Q501

2SK508

L504

100µH

C509

3.5p

D502 KV1770S

C503

0.0047

C504

470p

R503

560

C502

20p

L506

1812CS.

122XKBC

D501 KV1770S

L505

1812CS.

122XKBC

C508

R502

560

L502

E526GN-110501

C507

0.0047

R504

10k

C506

C525

0.0047

Q522

2SC4213

Q521

2SK508

L524

100µH

C529

D522 KV1770S

C523

0.0047

C524

470p

R523

470

C522

56P

L526

1812CS.

122XKBC

D521 KV1770S

L525

1812CS.

122XKBC

C528

10p

R522

L522

E526GN-110501

C527

0.0047

R524

10k

C526

C555

0.0047

Q552

2SC4213

Q551

2SK508

L554

100µH

C559

C627 8p

C628 27p

C600 10p

C629 8p

C553

0.01

C554

470p

R553

560

C552

150p

L556

1812CS.

122XKBC

L555

1812CS.

122XKBC

C558

10p

R552

270

L552

E526GN-110502

C557

0.0047

R554

10k

C556

C575

0.0047

Q572

2SC4213

Q571

2SK508

D574

MA338

L574

100µH

C579

12p

C573

0.0047

C574

470p

R573

560

C572

100p

L576

1812CS.

122XKBC

L575

1812CS.

122XKBC

C578

10p

R572

560

L572

E526GN-110504

C577

0.0047

R574

10k

C576

Q422

UMD3N

L422

10µH

R433

220

D452

HSM88AS

C438

0.0047 C439

0.0047

C456

150p

L423

10µH

Q423

UMD3N

Q426

UMD3N

L426

10µH

C447

0.0047

Q421

UMD3N

L421

10µH

C437

0.0047

L424

10µH

L425

10µH

EP451

MMZ1608Y102B

C473 15p

C472 8p

VB1S

FLO

R623

R434

L604

4.7µH

EP621

MMZ1608Y102B

PDAT

R439

47k

L401

10µH

C401

R443

W32

R445

R444

R440

270

R446

C422

0.0047

C424 0.0047

C425 0.0047

C423 0.0047

C426 0.0047

C427 0.0047

C428 0.0047

C412 0.1

C410 0.1

C411 0.1

R442

C431 1

R435

120

R437

2.2M

R450

10k

R436

C421

C451

0.0047

D451

MA357

R432

47k

C452

33p

C420

0.1

Q402

2SC4081

C419

0.0047 R431

100

D453

HSM88AS

C453 4p

L452

LB-343

C454 20p

Q451

2SK210

R452

100k

C457

150p

C461 5p

L453

10µH

C458 10

R453

150

R456

47k

R454

100

C459

0.0047

C460

0.0047

R455

180

R451

100K

C690

C691

0.1

R458

100

R457

220

C462

0.1

Q452

2SC4081

R459

C463

0.0047

C685

C684

0.1

IC682

TA78L05F

C696

4.7

C689

470p

R681

100

L481

10µH R481

W481

C483

0.0047

C698

0.0047

C686

4.7

R482

5.6k

C482

C481

0.0047

J681

R693

L682

HF50ACC322513-B

W692

C694

470p

R685 1k

C680

R687 1k

R680 10k

R686 1k

VCC2

CPO

FO/LD

GND

DATA

FIN

CLOCK

FIN

VCC1

GND

OSCIN

IC681

LMX2306TM

D601

MA77

L603

47nH L651

56nH

C605

R650

1.8k

C607

12p

C606

39p

C604

39p

L652

82nH L653

82nH

C652

C651

30p

C654

C655

10p

R663

4.7k

C611

0.0047

C653

33p

R656

47k

C656

22p

C659

270p

D661

1SV307

D662

1SV307

L654

0.15µH

C663

0.0047

C661

0.0047

R662

100

C658

56P C660

56P R653

D651

MA77

C645

0.0047

R652

270

C662

0.0047

R661

4.7k

L655

4.7µH

C664

0.0047

C665 0.1

C625

0.22

C657

0.0047

C644

0.0047 R655

100

L657

27µH

L621

0.33µH

L627

56n L628

56n

C623

0.0047

R603 1k

C622 0.0047

C621

82p

L620

0.18µH

R620

470

R621

R622

470

C620

39p

C602

39p

Q601

2SC4403

R601

1.8k R575

R602

2.2k

IC620

µPC1678G

GND

VCC

GND

OUT

VSS

SYSCLKO

VDD

VSS

DA0

DA1

DA2

DA3

VSS

DA4

DA5

DA6

DA7

VSS

DA8

DA9

DA10

DA11

VDD

TE1

TE2

TE3

VDD

VSS

ETCO2

ETCO3

ETCO1

ETCO0

ETCO4

C609

0.0047

VSS

ETCO5

ETCO6

ETCO7

VSS

VDD

Q4MA

Q16MA

VSS

FCK

REF_OSC

VDD

PDTRI

VSS

PD0

VDD

PD1

PD2

VSS

VDD

TEOUTH0

TEOUTH1

TEOUTH2

TEOUTH3

TEOUTH4

VDD

SYSRESET

VSS

VDD

OSCI

VSS

OSCF

VDD

VSS

OSCO

VSS

PDIN

REFIN

VSS

DIVOUT

VDD

DATA

VDD

CONTCLK

VSS

BUSY

VSS

CON0

CON1

CON2

STRB

VSS

SYS_CLK

VDD

VSS

BUN4O

BUN2O

BUM2O

VDD

BUN4I

BUN2I

BUM2I

VDD

VSS

IC401

SC-1246A

C450

0.1

L428

10µH

L601

10µH

C610

0.0047

R604

C455

150p

Q403

2SC4081

Q424

UMD3N

D554

MA338

D552

MA338 D553

MA338

D551

MA338

D572

MA338 D573

MA338

D571

MA338

C474 27p

C415 0.1

C402 0.1

C403 0.1

C404 0.1

C405 0.1

C406 0.1

C407 0.1

C408 0.1

C409 0.1

IC402

TC7S04F

R427 1M

R430

C418

0.1

Q481

2SC4081

C681

0.0047

C695

0.01

W455R660

R461

VB2S

VB3S

VB4S

ULDB

PST3

CON2B

PCK

PDAT

C501

0.0047

8MHz_REF

C414

0.1

C413

0.1

ULPB

PCK

R694

1.8k

PST4

C682

100p

C650

0.0047

Q651

DTA114EE

R651

2.7k

C626 0.1

5V 1LOB

C624 0.0047

8V 1LOB R609 560

C601

0.0047

Q661

DTC114EE

5V PLLB

R447

DRES

W422

R441

100

R492

180 L491

0.68µH L492

0.82µH

C492

100p C494

39p

C491

470p

C493

680p

C495

470p

32MHz_REF

R688

82k

Q681

2SA1576

PBFS

PBMT

PBFS

R689

18k

PBMT

PBFS

MEASUREMENT CONDITIONS

VOLTMETER :10MΩ

OSCILLOSCOPE :20MHz 1MΩ 25pF

SUPPLY VOLTAGE :13.8V

DISPLAY :14.1MHz USB

PLL UNIT

10 - 14

VOLTAGE LINE

Explanatory notes

VB2S

VB4S

VB1S

R654

270

VB3S

R719 2k R720 2k

R718 1kR717 2k

R715 2k R716 1k

R714 1kR713 2k

R711 2k R712 1k

R710 1kR709 2k

R707 2k R708 1k

R706 1kR705 2k

R703 2k R704 1k

R702 1kR701 2k

J701

3LO to MAIN-A

unit J211

P701

C710 82p

C701

C702

0.1

C703

0.1

R801 2k R802 1k

R804 1kR803 2k

R805 2k R806 1k

R808 1kR807 2k

R809 2k R810 1k

R812 1kR811 2k

R813 2k R814 1k

R816 1kR815 2k

R817 2k

R820 2k

R818 1k

R819 2k

J801 P801

to RF-B

unit J2001

C810 6p

C801

C802

0.1

C803

0.1

C818

0.0047

D51 KV1770S

L52

LS-472C

DAP222

DAN222 D4

DAN222

UMD3N

Q902

2SK508

L81

LS-509

OUTA AOA

AIAPIA

VSS PDA1

PIB PDA2

VDD TEST

CB CA

OUTB LDA

AOB LDB

AIA DI

PDB1 CL

PDB2 CE

XOUT XIN

L82

LS-509

Q1 STR

Q2 D

CLKQ3

Q4 OE

PST1

J81 P81

to RF-B unit

J1801

L701

10µH

R730

R729 1k

R727 1k

R728 1k

C707

0.1

W2W29W28W25

R724

2.2k

L704

390µH C715

0.001

C713

560p

C711

680p

C709

470p

C712 33p

L702 330µH L703 390µH C714 270p C716 270p

C807

0.1

L801

10µH

R830

R829 1k

R827 1k

R828 1k

C817

0.0047

R826

100

R823 1.8k

Q802

2SC4117

R825

220

R824

2.2k

L804

33µH C815

47p

C813

18p

W6 C814

18p

C816 18p

C809

15p

C811

27p

C812 2p

L802 10µH L803 12µH

Q801

2SC4081

R821

39k

R822

180

Q906

DTB123EK

Q905

DTC114EE

L906

100µH

C921

0.0047

C922

C923

0.0047

R917

100

R915

100

R918

100k

R919

C924

0.0047

Q903

2SC4117

R920

C920

0.0047

C919

R916

150 L905

0.68µH

R913

100k

C917

12p

C918

12p

R914 100k L904

C-13975-6.5

C914

12p

D901

MA357

R908 2.2M

R912

C913 220p

C916 68p

C908

0.1

R911

R906

R909 1.5k

C910

C912

200p

R907 56k

C903

100p

L901

330µH

R910

4.7k

C902 10

C901 0.0047

IC901

LC7153M

L908

0.12µH L907

0.1µH

C929

C931

12p

C927

0.001 L910

0.33µH R922

100 L909

100µH

C925

0.0047

R921

C932

56p

C930

100p

C928

56p

C926

220p

R925

0.0047

R924

680

R923

5.6k

C936

C935

0.0047

Q904

2SC2714

R57

R32

10k

R33

RV-148

R36

47k R51

47k

L51

1812CS.

122XKBC

C31

0.0047

C50

0.0047

C51

12p

X52

CR-338.

R53

4.7k

R55

C64

0.0047 R58

27k

R61

220

R63

680

R60

330

R62

C65 0.1

Q52

2SC4081

R84

100

R89

R81

22k

R72

330

R82

10k

R83

270

C71

0.0047

R71

47k

C88

0.0047

C81

0.0047

Q71

2SC4081

Q81

2SC4405

C82

220p

C83

22p

R54 470

R52 15k W10

L55

10µH

C54

0.0047

C53

82p

C58

120p

Q51

2SC4403

R87 15

C87 0.0047

C84

0.0047

C85

C86

22p

R46 8.2k

R45 8.2k

R44 8.2k

R41 8.2k

R43 8.2k

R40 8.2k

R42 8.2k

IC1

BU4094BCF

W51

R85

180

R86

180

2LO

L1 HF50ACC322513-B

L2 HF50ACC322513-B

0.0047

R9 1k

R14 47k

R2 1k

R3 47

R4 47

R5 1k

R8 1k

R1 100

L31

EXCCL3225U

R10 47k

R15 10k

R12 47k

R13 47k

R11 47k

to MAIN-A

unit J841

S3LO

MKR J851 P851

to RF-B

unit J951

C708

0.0047

R722

270

R721

47k

Q701

2SC4081

VSS

TREE

VDD

VSS

STRB

DATA

CON_CLK

VDD

DA8

DA7

DA6

DA5

VSS

DA4

DA3

DA2

DA1

DA0

VSS

FSK1

VSS

FSK0

ETC0

ETC1

VDD

SYS_CLK

NUM0

NUM1

NUM2

VDD

PDM2

PDM1

PDM0

VDD

VSS

RESET

ROMCE

VDD

DA9

IC801

SC-1287

VSS

TREE

VDD

VSS

STRB

DATA

CON_CLK

VDD

DA7

DA8

DA6

DA5

VSS

DA4

DA3

DA2

DA1

DA0

VSS

IC701

SC-1287

FSK1

VSS

FSK0

ETC0

ETC1

VDD

SYS_CLK

NUM0

NUM1

NUM2

VDD

PDM2

PDM1

PDM0

VDD

VSS

RESET

ROMCE

VDD

DA9

R191

100

C192

0.1

W33 R192

2.2k

IC192

TC7S08F

J901 P901

to RF-B

unit J2101

S2LO

1LOB

CON2B

CON2A

CON2

PCKA

PDATA

PDAT

PCK

W964

W963

PDAT

PCK

ULPA

ULPB

ULDA

ULDB

DULS

DIVOUT

MKRS

32MHz_REF

8MHz_REF

C56

0.0047

UNLC

DRES

PST5

PDAT

PCK

MKR

PDAT

PCK

PST6

R901

R903 1k

MKR

DRES

C804

0.1

C805

0.1

C806

0.1

PST7

PDAT

PCK

C934

0.1

S2LO

DRES

PCK

PDAT

CON2

UNLC

PST2

PST3

PST4

PST5

PST6

PST7

C706

0.1

C705

0.1

C704

0.1

PLL UNIT

W92

64MHz_REF

C5 0.1

W966

W965

C808

0.0047

PSTB

DRES

CON0

CON1

CON2

PSEL

UNLC

14V

GND

C906 270p

C905

680p

L902

1.8µH

C915 0.022

L903

100µH

C907

270p

32MHz_REF

R47

R48

C41 22p

C40 22p

C33

C32

0.0047

C826

270p

C827

270p

L806

0.56µH

W821

R902 1k

IC902

TC7W08F

R904

10k

C911

0.1

Q907

DTC114EE

D902

1SS226

W252

W251

W222

W221

W381

W382

W202

W201

W151

W170

W572

W571

W552

W551

W522

W521

W452

W451

W683

W682

W681

C34

0.0047

C35

0.0047

4.8Vp-p

10µS

1.8V

0.6V

OFF 0V

ON 5.6V

OFF 0V

ON 2.9V

OFF 0V

ON 2.7V

OFF 0V

ON 7.6V

OFF 7.6V

ON 0V

Scope OFF 0V

ON 4.6V

OFF 0V

ON 7.0V

OFF 4.6V

ON 0V

OFF 0V

ON 5.2V

OFF 0V

ON 6.6V

OFF 0V

ON 0.2V

OFF 0V

ON 0.66V

31.2nS

1.18Vp-p

2.9V

4.0V

2.3V

0.6V 2.3V

1.7V 6.3V

1.0V

0.6V

2.5V

4.0V

1.5V

2.1V

10-6 PA AND FILTER-A UNITS

10 - 15

VOLTAGE LINE

Explanatory notes

TX LINE

R14

47 R13

2SC1972

C21 0.001

R20 10

R21 10

C23 0.001

R23 10

R24 10

L10

R27

R26

2SC5125

R42

5.6

R41

5.6

L7 LR-83

C25 200p

C116 100p

LR-393

C58 0.001

LR-143

EXC-ELDR25C

R16

100

R15

100

C12

0.0047

C11

0.0047

C7 0.0047

R10

680

2SC1971

R5 390

R6 220

R7 4.7

C4 0.001

C2 0.001

R4 220

0.1

C41

0.001

R3 330

R1 330

L14

LR-360

C5 0.1

C6 0.001

C9 0.1

D1 MA29B

C27 0.047

C8 47

R12

R11

500

EXC-ELDR25C

R17

C16 10

EP3EP2

C14 0.1

EXC-ELDR25C

C17

0.047

C18

0.047

MA29B D3

MA29B

C107

0.0047

C39 1000

C40 1000

LR-230

R31

R29

C34

0.0047

C108

0.0047

R28

C35

0.047

C36

1000

R18

R19

470

C99

470

J11

C97

0.0047

D10

MA185 R51

C96

220

C102

0.0047

R55

10k

R54

Q12

2SB1201

Q13

2SB1201

C101

0.0047

R56

10k

C100

0.0047

R52

R53

C93

0.1

R49

C95

0.0047

C103

R46

27k

R47

33k

R45

3.3k

R48

2.2k R50

ERT-D2FHL503S

D61

DAP222

C94

0.0047

Q11

2SC4081

C30 0.1

D4 DSA3A1

D8 DSA3A1

D5 DSA3A1

C42 0.1

C113

0.0047

DAP222

UNR9211J

C81

C79

0.1

C80

0.1

C77

100

C75

0.1

IC1

TA7805F

IC2

TA7805S

IC3

MC78T08C

Q10

2SC4081

IGO

H5V

C114

0.0047

C73

C72

0.1

C76

0.1

C74

C78

100

C82

14VA

H5V

ICH

ICL

PWRS

PAT8

14V

RL1

AJV5341

L31

LA-547

L29

LA-548 L30

LA-550

C86

22p

C83

6p C85

15p

C77 33p

C78 47p

C80 47p

C82 39p

LR-216 L6

LR-216 L7

LR-216

C18

100p C22

120p

C19

47p C23

39p C26

39p

C16 270p

C17 220p

C20 390p

C21 300p

C25 390p

C24 390p

C27 270p

1 PAO

RL13

AG201344

RL5

TB1-160

C87

0.0047

L32

10µH

L24

LR-387 L25

LR-388

C37

27p

C38 120p

LR-240

L28

LR-241

C30

18p C63

47p

C28 100p

C31 100p

C102 100p

C65 100p

RL7

TB1-160

C48

0.0047

L19

100µH

RL11

TB1-160

C52

0.0047

L23

10µH

C46

0.0047

L17

100µH

C88

0.0047

C49

0.0047

C53

0.0047

C47

0.0047

RL6

TB1-160

RL12

TB1-160

RL8

TB1-160

RL14

AG201344

50MHz

14MHz

24MHz

28MHz

L501

LR-386

C507 0.1

EP501

EP502 J3

W15

ACS2

GND

ACS1

GND

PA UNIT

L4S

L2S

L1S

L5S

L6S

L3S

L7S

L8S

GND

CHASSIS W13

LR-361

L22

EXC-ELDR25C

C20

0.1

2SD1585K

PAO

MF1

PAI

L12

EXC-ELDR25C

CHASSIS

J10

CHASSIS W7

R57 220

C3 0.1

C10 150p

R8 1

R9 1

C105 100

R33

0.68

R32

0.68

C15 0.1

C37 0.1

MF+

MF-

MF+

MF-

C33

0.0047

C110

0.0047

C111

0.0047

EP5

EP4

CHASSIS

W17

CHASSIS

W16

C89

0.1

C109

0.0047

C112

0.0047

C115

0.0047

C71

0.1

R44

3.9

CHASSIS

W17

CHASSIS

W16

FHV

FGND

C39

27p

C40 68p

PGND

PHV

R35

0.68

R34

0.68

EXC-ELDR25C

C57 200p

PGND

PHV

C508 0.0047

L502

LR-386

C503 0.0047

C501 0.1 C502 0.1

C504 0.0047

C515 0.0047

C513 0.1 C514 0.1

C516 0.0047

C523 0.1

C521 0.0047 C522 0.0047

C524 0.1

C22 0.001

C61 0.001

C24 0.001

C62 0.001

C60 200p

C59 200p

C41

10p

C157 33p

C156 68p

5MHz

7MHz

L26

LR-388

C117 47p

C120

150p

W29

PAT8

W14 C118

120p

L21

LA-262

R40

4.7

R39

4.7

R38

4.7

C121

CP39

CP40

CP1

CP2

14V

GND

W10

CP503

CP504

CP502

CP501

CP11 CP12

C79 47p

C81 47p

CP1

CP2

CP3

CP4

CP5

CP6

CP7

CP8

CP10

CP9

R58 220

C122

22p

EXC-ELDR25C

C119

120p

C123

18p PA

L8S

L3S

L7S

L5S

C103 120p

C62 100p

L3S

L8S

L7S

L5S

C517 10

C528 10

C527 0.1

RX 0V

TX 0.68V

RX 13.8V

TX 13.6V

RX 0V

TX 1.77V

RX 13.7V

TX 13.6V

RX 0V

TX 0.65V

RX 13.8V

TX 13.6V

RX 1.0V

TX 7.0V

13.5V

12.2V

RX 13.6V

TX 13.5V RX 0V

TX 13.4V

RX 0V

TX 7.8V

RX 13.5V

TX 12.7V

RX 12.7V

TX 0V

RX 0V

TX 0.75V RX 0V

TX 0.3V

4.9V

7.9V

13.8V

4.4V 13.8V

13.8V

Each selected 11.0V

MEASUREMENT CONDITIONS

VOLTMETER :50kΩ/VDC

OSCILLOSCOPE :20MHz 1MΩ 25pF

SUPPLY VOLTAGE :13.8V

DISPLAY :14.1MHz USB

FILTER

A UNIT

10 - 16

Explanatory notes

TX LINE

LA-481

L10

LA-480

C33

18p C35

39p

C32 120p

C104 120p

C34 120p

C36 100p

C7 300p

C8 300p

C69 300p

C68 300p

C67 300p

C66 300p

C14 300p

C15 390p

C10

300p C12

100p

LR-149

LR-138

LR-294

LR-295

150p C5

120p

330p

C98 620p

C97 620p

C75 620p

C74 620p

C73 620p

C72 220p

C100 620p

C43

0.0047

C51

0.0047

C45

0.0047

RL2

TB1-160

RL4

TB1-160

RL10

TB1-160

GND

L8S

L7S

L3S

L6S

L5S

L1S

L2S

L4S

GND

SP1

MAIN

DIAL

J101

J120

RIT

BOARD

J201

MODE

BOARD

J221

TEN

KEY

BOARD

J2 J241

MIC BOARD

J2 J322

J321

KEY

BOARD

J921

PHONE

BOARD

J941

J452

J451

J601 J1

PBT

BOARD

J5 J8

TUNER

BOARD

J11

J10

J13

CTRL

UNIT

J741

J641

J811

J841

J861

J352

J771

MAIN

UNIT

CTIN

FILTER

A UNIT

14V

GND

T8V

GND

FORV

REFV

ANTS

DRES

GNDL

ISTA

IKEY

GNDL

FSTB

CMDT

CMCK

14V

AGC

ALC

T8V

R8V

–5V

TRVI

RANS

SATV

BLBV

BLAY

SCPL

GND

MDAT

MCK

BSTB

GND

14V

UNLC

PSEL

CON2

CON1

CON0

DRES

PSTB

SQSS

MICE

MSND

MICI

GND

PWRK

TMD

SPE

AFO

SPE

14V

PAT8

PWRS

ICL

ICH

H5V

14VA

14V

GND

MDN

RUP

5VF

RDN

F5K

F4K

F3K

F2K

F1K

SPEK

EXTK

FILK

AMK

CWK

SSBK

KI2

KI1

5VF

MICI

M8V

MUD

SQLS

MSND

GND

MMICE

AFO

14V

PHE

AFO

PHE

TMD

PWRK

GND

MICI

MSND

MICE

SQSS

DASH

DOT

PHE

PHO

PHE

PHNI

SSP

SSPE

5VF

NOTL

PITL

PB1A

PB1B

5VF

NOTL

PITL

PB1A

PB1B

RUP

5VF

RDN

F5K

F4K

F3K

F2K

F1K

SPEK

EXTK

FILK

AMK

CWK

SSBK

KI2

KI1

5VF

MICI

M8V

MUD

SQLS

MSND

GND

MMICE

AFO

PLL

UNIT

PSTB

DRES

CON0

CON1

CON2

14V

GND

J451

J201

UNIT

BSTB

MCK

MDAT

GND

SCPL

BLAV

BLBV

SATV

TRVI

–5V

R8V

T8V

ALC

AGC

14V

T8V

–8V

FORV

REFV

ANTS

DRES

GND

ISTA

IKEY

GND

FSTB

CMDT

CMCK

GND

3.5M

10M

14M

18M

24M

VHF

GND

14V

CO3

CO2

CO1

NVHF

CI3

CI2

CI1

GND

3.5M

10M

14M

18M

24M

VHF

GND

14V

CO3

CO2

CO1

NVHF

CI3

CI2

CI1

GND

CHASSIS W12

FRONT W4

FRONT W6

FRONT W1

FRONT W5

FRONT W7

FRONT W3

PHE

AFO

PHE

PHNI

DASH

DOT

FRONT W8

FRONT W2

CHASSIS W11

CHASSIS W7

CHASSIS W13

DISPLAY

BOARD

GNDGND

GND

PBTD

NOTD

RXD

TXD

LOCD

LDV

KI3

5VF

KI4

NOTK

PBTK

LOCK

XFCK

TSK

MCLK

MWK

MDNK

MUPK

GND

PBTD

NOTD

RXD

TXD

LOCD

LDV

KI3

5VF

KI4

NOTK

PBTK

LOCK

XFCK

TSK

MCLK

MWK

MDNK

MUPK

GND GND

MPRK

MPWK

FINK

GENK

50K

28K

24K

21K

18K

14K

10K

SPLK

MPRK

MPWK

FINK

GENK

50K

28K

24K

21K

18K

14K

10K

SPLK GND

GND

CHASSIS

FRONT

GND

PB2A

PB2B

GND

PB2A

PB2B

GND

(CTRL) P1

P352

SPE

SSP

SPE

MF1

(TUNER)

MF2

(TUNER)

TUIN

TUOT

TUIN

TUOT

RFRX

ANT1

CHASSIS J5

CHASSIS J6

ANT2

(RF) P1851

(PLL) P701

T/R2IF

3LO

J211

J101

CHASSIS W9

CHASSIS W8

CHASSIS

CHASSIS W8

3LO

J701

(PLL)P351

1LOA

J1301

J1651

J351

1LOA

1LOB

J651 J1101

1LOB

(PLL)P651

(PLL)P81

2LO

J1801

J81

2LO

J851 J951

MKR

(PLL)P851

MKR

S3LO

(PLL)P801

S3LO

J2001

J801

(PA)P1

PAI

J101

(CTRL)P2

J1851

2IF

CTIN

5VF

MUP

GND

5VF

MUP

MDN

SSP

SSPE

T14V

ETKY

ETE

ET14

ETST ETKY

ETE

ET14

ETST

J3P2

EXT TUNER

CHASSIS W14

AGRS

GND

M5V_d

GND

DSDR

MCK

DSFW

MDAT

DSFR

CTFL

RTDT

GND

3R3V_d

GND

NSQO

DPGI

MODS

FMNS

CALS

ACKS

DSRS

AMS

TXS

MSL1

DSKY

GND

J2002

GND

FMTL

GND

DRAF

DTAF

GND

DMAF

D5VA

DRIF

GND

–5V

–8V

GND

AGC

GND

DTIF

GND

J2001

DSP-A

CHASSIS W14

C141 270p

C143 220p

C144 220p

C146 82p

C142

39p C145

82p

L45

LR-394

L46

LR-218

C137

0.0047

RL16

TB1-160

C99 620p

C151 330p

C152 620p

C153 330p

GND

14V

J301

YOBI

SRES

HSYNC

VSYNC

GND

+18V

14V

CHASSIS W10

LFMD

LMFD

S2LO

(PLL)P901

S2LO

J2101

J901

J201 J202

J891

YOBI

DRES

HSYNC

YSYNC

GND

–8V

14V

CHASSIS W10

LFMD

LMFD

14V

J102

RANT

XVRT

PSEL

UNLC

CP13

CP14

L3S

EP1

PLL

W701

W702

W1851

W1852

PLL

W351

W352

PLL

W651

W652

PLL

W81

W82

PLL

W851

W852

PLL

W801

W802

PLL

W901

W902

MEMORY

J1J3503 J2 J3504

D10

D11

D12

D13

D14

D15

GND

HWR

CSs

CSf

A17

A18

A16

A15

A14

A13

A12

A11

A10s

A10f

GND

RESET

BYTE

VCC

CFL–

–15V

L18V

N/P

U/D

L/R

GND

VCOM

L5V

GND

POLC

L5V

CFL+

J802

J801

CFL–

CFL+

–15V

L18V

N/P

U/D

L/R

GND

VCOM

L5V

GND

POLC

L5V

LCD

L6S

L4S

L2S

L1S

L3S

L4S

L2S

L6S

J531

J801 J803

J805J802 BPF

GND

BPF-A_IN

GND

BPF-A_OUT

GND

J809

J807

J804

PRE

AMP

GND

PREAMP_IN

GND

POFF

R8V

14VL

PRE2

PRE1

GND

PRE1

GND

PREAMP_OUT

GND

C42

0.0047

L13

100µH

RL1

TB1-160

C44

0.0047

L15

100µH

RL3

TB1-160

C50

0.0047

L21

10µH

RL9

TB1-160

18MHz

21MHz

3.5MHz

1.9MHz

C136

0.0047

RL15

TB1-160

10MHz

L41

10µH

MEASUREMENT CONDITIONS

VOLTMETER :50kΩ/VDC

SUPPLY VOLTAGE :13.8V

DISPLAY :14.1MHz/USB

10-7 BPF-A, PREAMP BOARDS AND RF-B UNIT

10 - 17

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

COMMON LINE

BPF_PORT2

0.03-1.6

R752 0

R753

50-54

B10

54-60

30-50

B10W

22-30

15-22

11-15

8-11

560p

C807

14VL_WEST

2SC4081

Q103

PAI

R8V

POFF

PRE2

PRE1

POFF

PRE2

PRE1

14VL_WEST

5VL

8VL

T8V

TXB10

B10

B10W

B10

TXB10

ATT1

ATT2

D301 DAN222

DAN222

D302

DAN222

D303

DAP222

D354

DAP222

D353

5VL

T8V

BLAV

BLBV

5VL

8VL

ALC

R8V

AGC

14VL_EAST

14VL_WEST

14VL_2LOAMP

R14V

T8V

BSTB

MDAT

MCK

E3_4

E3_3

E3_2E2_7

E2_6

E2_4

E2_3

E2_2

E1_8

E1_7

E1_6

E1_4

E1_3

E1_2

E1_1

E3_4

E3_3

B10

TXB10

E2_7

E2_2

E2_1

E2_4

E2_3

E2_5

E2_6

B10

TXB10

E3_1

E3_2

E1_1

E1_2

E1_3

E1_4

E1_5

E1_7

E1_6

E1_8

R352 4.7k

R351 4.7k

DAN222

D352

DAN222

D351

R8V

T8V

ALC

8VL

AGC

14VL_EAST

14VL_WEST

-5V

5VL

TRVI

BLBV

BLAV

SATV

SCPL

MDAT

MCK

BSTB

MA742

D101

R8V

UNR9211J

Q152

8VL

TRVI

14VL_WEST

100k

R213

14VL_WEST

R14V

TRVI

E3_5

R353

RANS

ATT1

ATT2

100

R113

R110

ATN203

RL103

ATN203

RL102

UNR9211J

Q101

DAN222

D103

ATN203

RL101

J201

unit J1

from PA

unit J2

from CTRL-A

J101

R362

R361

R360

0.0047

C9020

0.0047

C9011

0.0047

C9027

0.0047

C9026

0.0047

C9018

0.0047

C9016

0.0047

C9008

0.0047

C9007

0.0047

C9024

0.0047

C9015

0.0047

C9002

0.0047

C9021

0.0047

C9012

0.0047

C9001

C757

1SV307

D802

0.0012

C806

0.0027

C805

4.7µ

L802

4.7µ

L801

0.1

C802 100

R803

100

R801

0.1

C801

R802

1SV307

D801

100µ

L401

D604 1SV307

D601 1SV307

R354 10k

10k

R357

XP4311

Q355

XP4311

Q354

XP4311

Q353

C403 0.1C402 0.1C401 0.1

E3_1

E3_5

QSGND

CD4094BPWR

IC403

Q'S

STR

CLK

V+

E2_1

E2_5

QSGND

CD4094BPWR

IC402

Q'S

STR

CLK

V+

E1_5

QSGND

CD4094BPWR

IC401

Q'S

STR

CLK

V+

UMH11N

Q351

UMH11N

Q352

R358 10k

R359 10k

XP4311

Q357

XP4311

Q356

R326 10

C302 0.1

R315 10

R319 10

R318 10

R316 10

R325 10k

R324 10k

R323 10k

R322 10k

R321 10k

R317 10

R320 10k

TD62783AF

IC302

GND

VCC

C301 0.1

R301 10

R302 10

R303 10

R304 10

R305 10

R306 10

R307 10

R314 10k

R313 10k

R312 10k

R311 10k

R310 10k

R309 10k

R308 10k

TD62783AF

IC301

GND

VCC

R751 100

1SV307

D752

C765 0.1

L754 0.14µ

47p

C760

L753 95n

47p

C756

0.1

C752

1SV307

D751

L751 0.14µ

R701 100

R651 100

R601 100

R551 100

R501 100

68p

C704 1SV307

D702

C707 0.1

C706 56p

L703 0.27µ

0.22µ

L702

0.1

C702

1SV307

D701

L701 0.27µ

C701 56p

1SV307

D652

0.68µ

L655

15p

C666

C665 0.1

C664 100p

L654 0.33µ

C662 22p

C663 12p

22p

C660

C659 7p

C658 22p

L653 0.68µ

22p

C656

0.68µ

L652

C655 12p

C654 22p

0.1

C652

1SV307

D651

C653 15p

L651 0.33µ

C651 100p

1SV307

D603

0.82µ

L605

120p

C616

C615 0.1

C614 18p

L604 0.56µ

C612 18p

C613 33p

33p

C610

10p

C611

C609 47p

L603 0.82µ

10p

C607

33p

C606

0.82µ

L602

C605 33p

C604 18p

0.1

C602

1SV307

D602

C603 120p

L601 0.56µ

C601 18p

1SV307

D552

1.5µ

L555

47p

C566

C565 0.1

C564 180p

L554 0.68µ

C562 18p

C563 47p

22p

C560

15p

C561

C559 47p

C558 8p

L553 1.5µ

15p

C557

22p

C556

1.5µ

L552

C555 47p

C554 18p

0.1

C552

1SV307

D551

C553 47p

L551 0.68µ

C551 180p

1SV307

D502

C515 0.1

1.8µ

L505

68p

C516

C514 220p

L504 1µ

C513 47p

C512 47p

33p

C511

33p

C510

C509 47p

C508 47p

L503 1.8µ

33p

C506

33p

C507

1.8µ

L502

C505 47p

C504 47p

1SV307

D501

0.1

C502

L501 1µ

C503 68p

C501 220p

1SV307

D104

C484 100p

C483 0.001

C482 0.001

C481 0.001

C480 0.1

C479 0.1

C478 0.1

C477 0.001

C476 100p

C475 0.1

C474 100p

C486 0.1

C485 0.1

C473 0.0047

EP461

2.7µ

L456

C1901 0.1

0.1

C207

R208 10k

XP4311

Q1901

0.1

C252

UNR9211J

Q203

180

R212

0.1

C209

330

R211

330

R209

1SV307

D201

R210

0.1

C208

µPC1678GV

IC201

GND

VCC

GND

2SA1576

Q201

47k

R204

R205

4.7

R207

C206 0.1

L203 22µ

82p

C204

82p

C202

12p

C203

0.1

C205

0.12µ

L202

R202

0.61µ

L201

10p

C201

R203 470

R201 470

0.1

C112

5.6µ

L253

4.7µ

L271

0.0033

C273

0.0015

C274

0.0033

C272

0.1

C251

100k

R251

C271 0.0027

330µ

L252

330µ

L251

100k

R108

0.1

C111

330

R107

330µ

L104

10k

R109

0.1

C153

2.2k

R155

0.1

C110

68n

L103

UMH11N

Q102

OUT

UMH11N

Q202

R151 10k

1SV307

D152

100k

R157

0.1

C155

330µ

L151

330

R156

1SV307

D151

R154 100k

0.1

C152

0.1

C151 0.1

C154

UMH11N

Q151

R153 10k

2P-50

R152

22p

C109

C108 2p

0.1

C106

33p

C105

82p

C103

82n

L102

0.12µ

L101

75p

C104

15p

C102

C101 47p

R102 10k

100k

R104

330p

C113

R105

2.2k

R103

R114 82

C115 0.0047

R112 82

R111 150

C114 0.0047

R106 150

C107 0.0047

C117 0.0047

EP460

EP459

EP458

EP457

EP456

EP455

EP454

EP462

EP473

EP463

EP464

EP453

EP472

EP471

EP470

EP469

EP452

EP468

EP465

EP466

EP467

EP451

C458 470

R452 1

R451 1

C464 0.1

C463 0.1

C462 0.001

C461 100p

C460 100p

C471 100p

C470 100p

C469 100p

C468 0.001

C467 0.001

C466 0.001

C465 0.001

C451 0.0047

C457 10

C456 0.1

C455 10

C454 0.1

C453 10

C452 0.1

CP472

CP471

CP470

CP469

CP468

CP467

CP466

CP465

CP464

CP463

CP462

CP461

CP460

CP459

CP458

CP457

CP456

CP455

CP454

CP453

CP452

CP451

unit J811

to MAIN-A

BSTB

MCK

MDAT

GND

SCPL

BLAV

BLBV

SATV

TRVI

-5V

R8V

T8V

ALC

AGC

14V

J451

XP4311

Q104

2P-50

R101

XVRT

RANT

J102

BLAV

BLBV

5VL

8VL

ALC

R8V

AGC

14VL_EAST

14VL_WEST

14VL_2LOAMP

R14V

T8V

Display frequency(MHz)

0.003000 1.599999

1.600000 1.999999

2.000000 2.999999

3.000000 3.999999

4.000000 5.999999

Filter

6.000000 7.999999

8.000000 10.999999

11.000000 14.999999

15.000000 21.999999

22.000000 29.999999

30.000000 49.999999

50.000000 54.000000

54.000001 60.000000

50.000000 54.000000

B10

B10W

TXB10

ATT OFF, 6dB: 0V

Selected: 10.8V

ATT12, 18dB: 9.8V

PREAMP2 ON: 11.2V

Other: 0V

PREAMP1 ON: 11.2V

Other: 0V

ATT OFF, 6dB: 9.9V

ATT12, 18dB: 0V

MEASUREMENT CONDITIONS

VOLTMETER : 50K Ω / VDC

OSCILLOSCOPE

DISPLAY : 14.1 MHz USB

: 20MHz 1M Ω 25pF

RF-B UNIT

10 - 18

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

COMMON LINE

14VA

R8V

14VL

MKR

PRE1_W

PREAMP_OUT

PRE2

POFF

PRE2

PRE1

8VS

R8V

2IF

PREAMP_IN

0.1

C4212

PREAMP_OUT

1SV307

D4301

PRE1_W

PREAMP_OUT

PREAMP_IN

POFF

PRE1

PRE2

PREAMP_OUT

POFF

PREAMP_IN

6.0-8.0

4.0-6.0

3.0-4.0

2.0-3.0

1.6-2.0

R3402 100

50-54

TXB10

BPF_PORT1

BPF-A BOARD PREAMP BOARD

R8V

14VL

PRE2

PRE1

GND

PREAMP_IN

POFF

R8V

14VL_WEST

-5V

R14V

T8V

5VL

R8V

14VL_WEST

NJM4558M

IC2002

8VL

MKR

2IF

0.1

C1403

T8V

R1760

0.01

C1705

1.8k

R1755

PREAMP_IN

T8V

R14V

14VL_2LOAMP

MKR

14VL_EAST

AGC

R8V

ALC

8VL

5VL

BLBV

BLAV

T8V

R14V

14VL_2LOAMP

14VL_WEST

14VL_EAST

AGC

R8V

ALC

8VL

5VL

BLBV

BLAV

56k

R952

1SV307

D951

47k

R951

12k

R953

0.1

C951 2.2k

R954

220p

C952

FL-381

FI1701

3SK131

Q1751

C1752 10p

L2002 100µ

MA77

D1853

0.1

C1852

0.1

C1851

680

R1853

6.8

R1852

R1851 680

680

R1854

LR-358

L1851 HSB88WS

D1852

470p

C1853

680

R1855

0.1

C1854

270

R1862

270

R1861

R1863 0.1

C1855

LR-395

L1852

0.1

C1857

820

R1856 330

R1859

330

R1857

R1858

0.1

C1856

D1854 1SV307

330µ

L1853 470

R1860

1SV307

D1801

330µ

L1802

0.1

C1763

R1767

C1762 300p

1.5µ

L1756

R1765 47

L1755 1.5µ

300p

C1761

MA77

D1753

R1764

270

R1763

820

R1761

R1762 270C1759 0.1

0.0047

C1760

LR-395

L1753

LS-484B

L1752

GND

V+

C2010 0.1

0.1

C2011

100µ

L2001

L2003 100µ

C1758 0.0047 C1757 12p

2.2k

R1759

R1758 68

C1756 0.0047

R1757 22k

R1756 1.8k

C1755 0.0047

C1754 0.001

R1753 10k

R1754

R1752

0.0047

C1753

LS-484B

L1751

R1751

0.1

C1751

MA77

D1751

MA77

D1851

R1701 1k

LS-484B

L1702

C1704 15p

C1703

LS-484B

L1701

C1702 15p

C1701 0.01

EP1406

C1400 0.1

µPC2708TB

IC1401

0.1

C1401

100

R1404

150

R1401

150

R1403

1SV307

D1401

R1406

R1402

0.1

C1402

22µ

L1401

532

0.1

C1404

56p

C1409

100p

C1407

82p

C1405

68p

C1408

18p

C1406

82n

L1403

0.15µ

L1402

100µ

L1206

C1213 0.1

0.33µ

L1205

15p

C1212

2SK1740

Q1202

2SK1740

Q1201

C1210 56p

C1208 56p

C1207 39p

C1205 39p

C1204 33p

C1201 22p

120p

C1202 47p

C1206 15p

C1209

330µ

L1204 39

R1201

0.1

C1211

0.25-1.9

L1203

107n

L1202

50n

L1201

2SK1740

Q1002

0.33µ

L1005

15p

C1012

2SK1740

Q1001

C1010 56p

C1008 56p

C1007 39p

C1005 39p

C1004 33p

C1001 22p

15p

C1009

47p

C1006

120p

C1002

330µ

L1004 39

R1001

0.1

C1011

0.25-1.9

L1003

107n

L1002

50n

L1001

220

R902

330µ

L901 560

R901

0.1

C901

LR-358

L1754

HSB88WS

D1752

OUT

GND

2.7k

R4207

LR-501

L1207

LR-395

L903

LR-395

L902

330µ

L972

330µ

L971

560

R972

330

R971

0.1

C971

2.5p

C859

C856

C4301 0.1

0.1

C4308

150µ

L4305

1SV307

D4302

R4306 47

C4306 0.1

100µ

L4304

C4307 0.1

C4305 0.1

R4305 22

C4304 0.1

2SC5551

Q4302

8.2

R4304

R4308

R4309

R4302 3.9k

C4303 0.1

R4303 1k

C4309 8p

L4301 150µ

R4307 10

R4301 47

0.1

C4302

R4203

2SC5551

Q4201

2SC5551

Q4202

100µ

L4207

C4214 0.1

C4213 0.1

C4210 0.1

R4205 1k

C4208 0.1

C4222 47

R4214

R4210

100µ

L4204

1SV307

D4102

1SV307

D4202

0.1

C4216

150µ

L4209 47

R4208

0.1

C4215

C4223 10p

0.1

C4211

C4209 0.1

R4206 2.7k

R4204 1k

C4207 0.1

R4202 47

0.1

C4206

C4221 47

R4213

R4209 15

L4203 100µ

C4205 0.1

R4102

C4102 0.1

R4101

150µ

L4101

C4202 0.1 150µ

L4201

R4201 47

0.1

C4201

C4218 68p

0.12µ

L4210

C4101 0.1C4217 68p

1SV307

D4201

D4101 1SV307

R3601 100

R3602 100

33p

C3611

33p

C3607

R3502 100

R3501 100

27p

C3511

27p

C3507

C3408 120p

R3401 100

R3302 100

R3301 100

J807

J804

J809

Q4301 XP4311

XP4311

Q4303

LR-500

L4302 LR-489

L4303

XP4311

Q4204

XP4311

Q4203

LR-439

L4208

L4206 LR-440

LR-439

L4202

R3201 100

R3202 100

J805

J803

J801

J802

C3601 220p

L3601 1.2µ

C3603 220p

1SV307

D3601

0.1

C3602

C3604 100p

C3605 22p

2.7µ

L3602 39p

C3606

L3603 2.7µ

C3608 82p

C3609 22p

39p

C3610

C3613 22p

C3612 100p

L3604 1.2µ

C3614 220p

C3615 0.1 220p

C3616

2.7µ

L3605 1SV307

D3602

1SV307

D3502

3.3µ

L3505

150p

C3516

C3515 0.1

C3514 330p

L3504 2.2µ

C3512 27p

C3513 150p

120p

C3510

C3509 150p

C3508 10p

L3503 3.3µ

120p

C3506

3.3µ

L3502

C3505 150p

C3504 27p

0.1

C3502

1SV307

D3501

C3503 150p

L3501 2.2µ

C3501 330p

1SV307

D3402

6.8µ

L3405

560p

C3416

C3415 0.1

C3414 390p

L3404 2.2µ

C3412 180p

C3413 33p

82p

C3410

15p

C3411

C3409 56p

L3403 6.8µ

15p

C3407

82p

C3406

6.8µ

L3402

C3405 33p

C3404 180p

0.1

C3402

1SV307

D3401

C3403 560p

L3401 2.2µ

C3401 390p

1SV307

D3302

5.6µ

L3305

330p

C3316

C3315 0.1

C3314 560p

L3304 4.7µ

C3312 39p

C3313 330p

330p

C3310

56p

C3311

C3309 330p

C3308 47p

L3303 5.6µ

56p

C3307

330p

C3306

5.6µ

L3302

C3305 330p

C3304 39p

0.1

C3302

1SV307

D3301

C3303 330p

L3301 4.7µ

C3301 560p

1SV307

D3202

12µ

L3205

0.001

C3216

C3215 0.1

C3214 0.001

L3204 3.9µ

C3212 330p

C3213 120p

180p

C3210

27p

C3211

C3209 47p

C3208 330p

L3203 12µ

27p

C3207

180p

C3206

12µ

L3202

C3205 120p

C3204 330p

0.1

C3202

1SV307

D3201

C3203 0.001

L3201 3.9µ

C3201 0.001

R2301 100

MA77

D852

0.61µ

L854

15p

C862

C864 0.1

C863 120p

L855 95n

C860 6p

C861 6p

C858

C857 10p

L853 0.61µ

2.5p

C855

0.61µ

L852

C854 6p

C853 6p

0.1

C852

MA77

D851

L851 95n

C851 120p

LR-440

L4205

MEASUREMENT CONDITIONS

VOLTMETER : 50K Ω / VDC

SUPPLY VOLTAGE

DISPLAY : 14.1 MHz / USB

: 13.8V

T8V

8VS

R14V

14VL_2LOAMP

MKR

14VL_EAST

R8V

ALC

8VL

5VL

BLBV

BLAV

Display frequency(MHz)

1.600000 1.999999

2.000000 2.999999

3.000000 3.999999

4.000000 5.999999

6.000000 7.999999

Line

Voltage[V]

11.0

MEASUREMENT CONDITIONS

VOLTMETER : 50K Ω / VDC

SUPPLY VOLTAGE

DISPLAY : 14.1 MHz / USB

: 13.8V

PREAMP2 ON: 7.2V

11.0V

1.15V

Other: 0V

PREAMP1 ON: 7.2V

Other: 0V

PREAMP1 ON: 10.2V

Other: 0V

RX: 7.4V

TX: 0V

RX: 10.6V

TX: 11.0V

PREAMP2 ON: 10.7V

Other: 0V

RF-B UNIT

10 - 19

VOLTAGE LINE

Explanatory notes

TX LINE

RX LINE

14VA

RF-B UNIT

2IF

MKR

S3LO

S2LO

2LO

BLAV

1LOA

1LOB

BLBV

2SC5551

Q1008

2SC4081

Q1007

2.2k

R1011

R8V

R1213 2.2k

CP1801

ALC

14VL_2LOAMP

8VS

SATV

8VS

5VS

R8V

BLBV

8VL

14VL_EAST

BLBV

BLAV

8VL

14VL_EAST

R14VR14V

14VL_EAST

8VL

BLAV

BLBV

T8V

R8V

unit J851

from PLL

unit J801

from PLL

unit J901

from PLL

unit J81

from PLL

unit J351

from PLL

unit J651

from PLL

SATV

S3LO

2IF

MKR

S3LO

CP2001

J2001

J951

C1858 0.1 J1851

J1651

J2101

J1801

J1301

J1101

0.1

C1235

14VA

C1033 0.1

LR-358

L1018

2SC5551

Q1101

0.0047

C1026 10µ

L1014

R1304 1k

10µ

L1215

0.0047

C1228

T8V

R1451 820

0.0047

C1222

R2003

SCPL

T8V

R14V

14VL_2LOAMP

14VL_EAST

R8V

ALC

8VL

5VS

BLBV

BLAV

LS-484B

L1801

0.0047

C1804

R1807 1k

C1805 0.1

EP1801

100

R1806

0.0047

C1803

C1802 15p

2SK882

Q1801

330

R1803

0.0047

C1801 15

R1802

R1801 330

100

R2104

2SK882

Q2101 0.0047

C2104

R2106

0.0047

C2103 7p

C2102

LS-484B

L2102

0.001

C2014

EP2002

2SK882

Q2202

0.001

C2203

150

R2206 680

R2205

C2204

R2204

C2202 0.0047 2SK882

Q2201

C2201 15p

LS-484B

L2201

LR-358

L2103

D2101 HSB88WS

2SC4081

Q2203

R2214 1k

0.047

C2212

0.0047

C2211

10k

R2213

C2210 0.0047

R2212 10k

2.7µ

L2203

R2211

1SV263

D2201

R2210

0.0047

C2209

10p

C2208

4.7k

R2208

150

R2209

0.001

C2207

0.0047

C2206 15p

C2205

R2207 47

LS-484B

L2202

R2102

R2103 330

R2101 330

LR-358

L2101

100p

C2012

1.8µ

L2005

0.1

C2005

100p

C2013

CP2002

EP2001

0.0047

C2001

RB706F

D2001

R2006

C2004

0.001

C2003

MA2S111

D2002

2.2k

R2007

NJM4558M

IC2002

NJM4558M

IC2002

R2004

390k

R2008

RV-109

R2012

15k

R2014

100k

R2010

82k

R2009

150k

R2017

RV-108

R2016

R2013 470k

R2011 2.2M

10µ

L2004

R2015 100k

0.001

C2007

SFECV13.35MAS

FI2003

SFECV13.35MAS

FI2002

C2009

0.0047

C2008

TA31136FN

IC2001

CFJ455K8

FI2001

C2006 0.1

220

R2002

220

R2001

R2005

0.0047

C2002

100

R1405

C1651 5p

C1550 0.001

EP1551

C1563 0.001

EP1552 1k

R1558

R1601

0.01

C1604

0.01

C1603

27n

L1601

R1603

220p

C1601

R1602

0.0047

C1602

MA77

D1601

MA77

D1551

0.001

C1561

4.7

R1557

0.47µ

L1554

R1556 150 R1555 1k

0.001

C1560 6p

C1559

2SK882

Q1551

C1558 0.1

R1554 2.2k

NTCG16

R1553

R1552 100

C1556 0.0047

C1557 10p

LS-484B

L1553

0.0047

C1502

56p

C1553

56p

C1551

R1503

2.2k

R1502

C1552

0.15µ

L1552

0.15µ

L1551

2.2k

R1504

0.0047

C1501

MA77

D1501

MA77

D1202

2.2k

R1212

0.0047

C1224

10µ

L1213

617DB

L1452

C1452

HSB88WS

D1451

18p

C1451

617DB

L1451

0.1

C1239

L1219 2.7µ

0.1

C334

C332

0.1

C330

L137 1000µ

C1237 15p

C1238 TZVY2Z060A110

C1236 3p

0.01

C1234

10µ

L1217

0.27µ

L1218

470

R1221

2SC5551

Q1208

2.2k

R1220

1.2k

R1219

0.01

C1233

10µ

L1216 47

R1218

R1216

0.0047

C1230

0.0047

C1229

D1203 1SV263

D1204 CPH5513

470p

C1226

R1222 22k

R1224 150

0.1

C1241

R1223 47

C1242 10p

0.39µ

L1220

MMBFU310

Q1209

470p

C1223

0.0047

C1225

L1212 10µ

CPH5513

D1201

R1211 47p

C1240

R1210 220

C1221 0.1

C1200 0.001

EP1205

MA2S111

D1205

C1232 10

R1217 10k

C1231 0.1

L1214 10µ

C1227 0.1

R1215 1k

R1214 1.5k

0.01

C1314

680

R1307

2SC5551

Q1301

C1313 0.01

R1308 680

390

R1309

6.8

R1306

C1312 0.01

R1305 47

C1311 0.01

C1310 0.1

L1306 10µ

27p

C1308

30p

C1306

C1304 18p

12p

C1307

C1305

0.001

C1309

56n

L1305

68n

L1304

68n

L1303

R1453 33

C1454 0.1

D1302 1SV307

D1301 1SV307

180

R1454

R1452 180

0.1

C1453

0.01

C1302

0.01

C1303

10µ

L1302

150

R1302

8.2

R1303

8.2

R1301

0.01

C1301

617DB

L1301

100µ

L1210

R1209 100

L1209 0.22µ

L1208 0.22µ

R1208 100

2SK1740

Q1205

2SK1740

Q1206

2SK1740

Q1203

470

R1205

0.1

C1218

470

R1204

0.1

C1217

R1207 5k

R1206 5k

C1214 12p

0.1

C1216

470

R1203

0.1

C1215

470

R1202

R1020 220

0.1

C1040

L1020 2.7µ

0.1

C1039

C1038

0.1

C1037

L1019 1000µ

C1035 15p

10µ

L1016

0.01

C1032

C1036 TZVY2Z060A110

C1034 3p

0.27µ

L1017

470

R1019

2.2k

R1018

R1017 1.2k

C1031 0.01

10µ

L1015 47

R1016

R1014

0.0047

C1028

0.0047

C1027

D1002 1SV263

D1003 CPH5513

MA2S111

D1004

C1030 10

10k

R1015

C1029 0.1

L1013 10µ

1.5k

R1012

C1025 0.1

R1013 1k

L1105 10µ

C1107 0.1

C1108 0.01

R1104 47

C1109 0.01

6.8

R1105

390

R1108

0.01

C1111

R1107 680

C1110 0.01

680

R1106

0.001

C1106

56n

L1104

27p

C1105

68n

L1103

68n

L1102

12p

C1104

C1102

30p

C1103

18p

C1101

150

R1102

8.2

R1103

8.2

R1101

617DB

L1101

470p

C1024

C1023 0.0047

C1022 470p

L1012 10µ

CPH5513

D1001

R1010 220

C1021 0.1

100µ

L1010

R1009 100

L1009 0.22µ

L1008 0.22µ

R1008 100

2SK1740

Q1006

2SK1740

Q1005

2SK1740

Q1004

470

R1005

0.1

C1018

470

R1004

0.1

C1017

R1007 5k

R1006 5k

0.1

C1016

470

R1003

0.1

C1015

470

R1002

C1014 12p

0.1

C1013

100µ

L1006

2SC4081

Q1207

330

R2203

330

R2201

R2202

AFOUT

QUAD

IFOUT

RSSI

N-DET

N-REC

GND

MIXIN

FILIN

FILOUT

DEC

IFIN

VCC

MIXOUT

OSCOUT

OSCIN

LS-546

L1211

15p

C1220 15p

C1219

2SK1740

Q1204

LR-441

L1307

LS-546

L1011

15p

C1019

15p

C1020

2SK1740

Q1003

LR-501

L1007

LR-441

L1106

unit J101

to MAIN-A

P1851

W1851

W1852

10.8V 11.6V

11.2V

1.86V

RX: 2.8V

TX: 2.1V

RX: 0V

TX: 7.4V

RX: 10.7V

TX: 10.7V

BAL

Left terminal

Center

Right terminal

D-WATCH

OFF

0.2V

4.4V

4.6V

4.4V

0.2V

4.6V

Scope ATT

on Scope moving

10dB

0dB

20dB

30dB

0.2V

0.7V

1.3V

3.1V

0.65V

1.35V

3.4V

3.8V

Marker ON

Scope moving

Scope ATT 0dB

8VS

T8V

R14V

14VL_2LOAMP

14VL_EAST

R8V

ALC

8VL

5VS

BLBV

BLAV

Asia Icom Inc.

6F No.68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C.

Phone : +886 (02) 2559 1899 Fax: +886 (02) 2559 1874

URL : http://www.asia-icom.com

E-mail : sales@asia-icom.com

Zac de la Plaine, 1, Rue Brindejonc des Moulinais

BP 5804, 31505 Toulouse Cedex, France

Phone : +33 (5) 61 36 03 03 Fax : +33 (5) 61 36 03 00

URL : http://www.icom-france.com

E-mail : icom@icom-france.com

Icom France S.a

Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.

Phone : +44 (01227) 741741 Fax : +44 (01227) 741742

URL : http://www.icomuk.co.uk

E-mail : info@icomuk.co.uk

Icom (UK) Ltd.

Crta. de Gracia a Manresa Km. 14,750

08190 Sant Cugat del Valles Barcelona, SPAIN

Phone : +34 (93) 590 26 70 Fax : +34 (93) 589 04 46

URL : http://www.icomspain.com

E-mail : icom@icomspain.com

Icom Spain S.L

2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.

Phone : +1 (425) 454-8155 Fax: +1 (425) 454-1509

URL : http://www.icomamerica.com

E-mail : sales@icomamerica.com

Phone : +1 (425) 454-7619

Icom America Inc.

Glenwood Centre #150-6165

Highway 17 Delta, B.C., V4K 5B8, Canada

Phone : +1 (604) 952-4266 Fax: +1 (604) 952-0090

URL : http://www.icomcanada.com

E-mail : info@icomcanada.com

Icom Canada

A.B.N. 88 006 092 575

290-294 Albert Street, Brunswick, Victoria, 3056, Australia

Phone : +61 (03) 9387-0666 Fax: +61 (03) 9387-0022

URL : http://www.icom.net.au

E-mail : sales@icom.net.au

Icom (Australia) Pty. Ltd.

146A Harris Road, East Tamaki,

Auckland, New Zealand

Phone : +64 (09) 274 4062 Fax : +64 (09) 274 4708

URL : http://www.icom.co.nz

E-mail : inquiries@icom.co.nz

Icom New Zealand

1305, Wanshang Plaza, Shijingshan Road, Beijing China

Phone : +86 (010) 6866 6337 Fax: +86 (010) 6866 3553

URL : http://www.bjicom.com

E-mail : bjicom@bjicom.com

Beijing Icom Ltd.

Sopot, 3 Maja 54 Poland

Phone : +48 (58) 550 7135 Fax : +48 (58) 551 0484

E-mail : icompolska@icompolska.com.pl

Icom Polska

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan

Phone : +81 (06) 6793 5302

Fax : +81 (06) 6793 0013

URL : http://www.icom.co.jp/world/index.html

Communication Equipment

Himmelgeister Str. 100, D-40225 Dusseldorf, Germany

Phone : +49 (0211) 346047 Fax : +49 (0211) 333639

URL : http://www.icomeurope.com

E-mail : info@icomeurope.com

Icom (Europe) GmbH

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan S-14110HZ-C1

C2004 Icom Inc.

IC 756POR3 Service Manual ICOM 756PRO3
