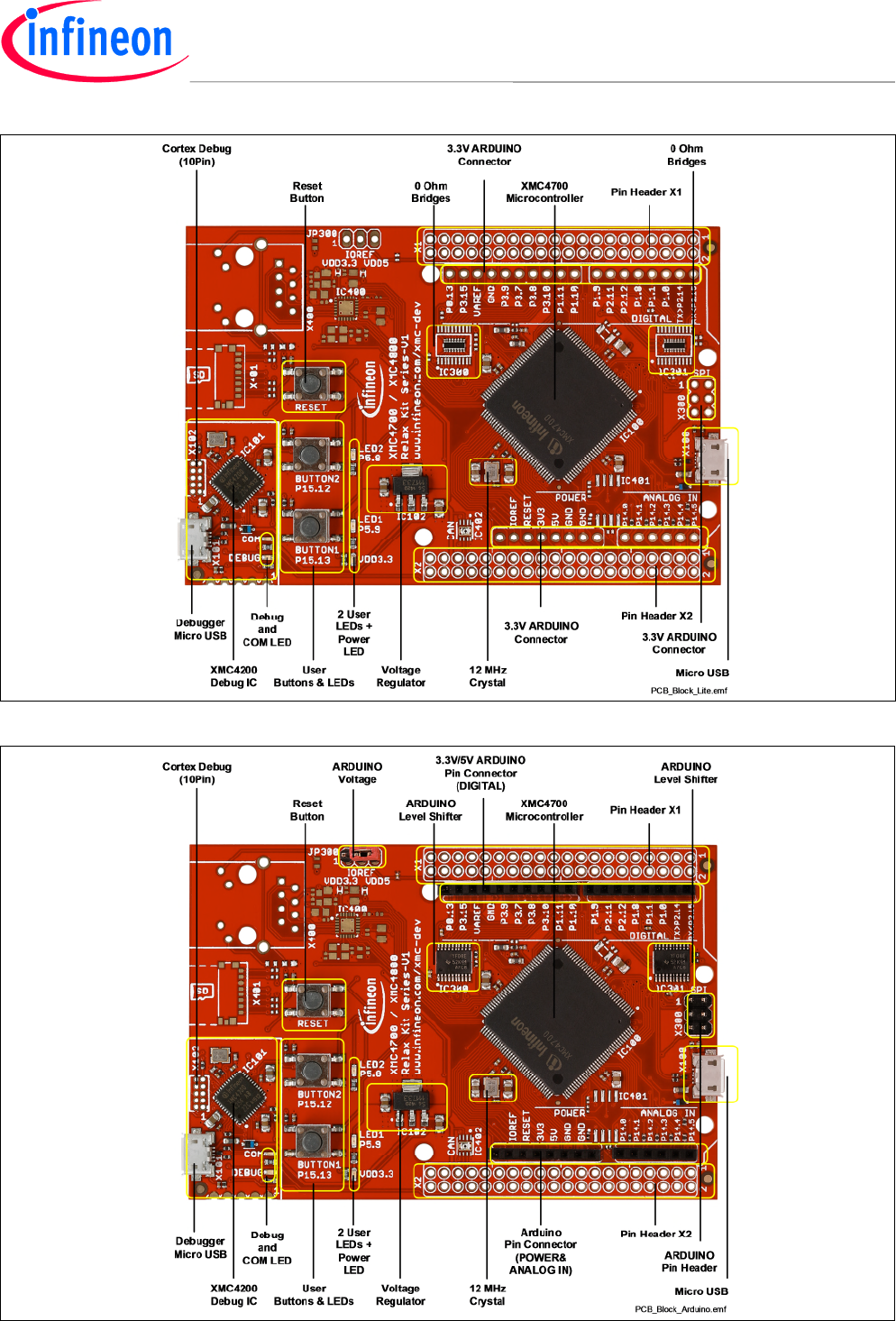

Figure 2 XMC4700 Relax Lite Kit .......................................................................................................................8

Figure 3 XMC4700 Relax Kit for 5V Shields ......................................................................................................8

Figure 4 XMC4700 Relax Kit..............................................................................................................................9

Figure 5 The XMC4800 Relax EtherCAT Kit includes the XMC EtherCAT PHY Board ....................................9

Figure 6 Power Supply Concept.......................................................................................................................10

Figure 7 Signal mapping of the pin headers X1 and X2...................................................................................11

Figure 8 Mapping of Arduino Functions to XMC Pin Functions .......................................................................12

Figure 9 Relax Kit Schematic: MCU, Push Buttons, LEDs, Reset Button, Crystals, USB...............................17

Figure 10 Relax Kit Schematic: OBD Probe, Ethernet, Quad-SPI Memory, microSD Card Slot.......................18

Figure 11 Relax Kit Schematic: Pin Header, Voltage Level Shifter, Power Supply, CAN transceiver...............19

Figure 12 XMC EtherCAT Phy Board Schematic: Input and Output Phy ..........................................................20

Figure 13 XMC EtherCAT Phy Board Schematic: Power, Connectors, LEDs ...................................................21

Figure 14 Components Placement and Geometry.............................................................................................22

List of Tables

Table 1 Kit Specification....................................................................................................................................5

Table 2 Kit Features of Assembly Versions ......................................................................................................6

Table 3 XMC4700/XMC4800 Pin Mapping for User LEDs .............................................................................13

Table 4 XMC4700/XMC4800 Pin Mapping for User Push Buttons.................................................................13

Table 5 XMC4700/XMC4800 Pins Mapping for Debugging and UART-Communication ...............................13

Table 6 Pin Assignment of the Cortex™Debug Connector (X102)................................................................13

Table 7 CAN Signals and XMC4700/XMC4800 Pin Mapping.........................................................................14

Table 8 XMC4700/XMC4800 Pins Mapping for Serial Flash Memory............................................................14

Table 9 XMC4700/XMC4800 Pins Mapping for microSD Card ......................................................................15

Table 10 XMC4700/XMC4800 Pins used for Ethernet .....................................................................................15

Table 11 Boot Mode Selection with external Pull Resistors..............................................................................15

Table 12 List of Material....................................................................................................................................23

XMC4700/XMC4800 Relax Kit Series-V1

Introduction

Board Users Manual 5 Revision 1.2, 2016-06-16

1 Introduction

This document describes the features and hardware details of the XMC4700/XMC4800 Relax Kit Series-V1

equipped with an ARM®Cortex®-M4 based XMC™Microcontroller from Infineon Technologies AG.

It can be used with a wide range of development tools including Infineon’s free of charge Eclipse based IDE

DAVE. The XMC4700/XMC4800 Relax Kit Series-V1 are designed to evaluate the capabilities of the

XMC4700 / XMC4800 Microcontroller. Table 1 shows its specification.

Table 1 Kit Specification

Processor Infineon’s ARM®Cortex®-M4 XMC4700 or XMC4800 M

icrocontroller in LQFP144

package (order number XMC4700-F144K2048 or XMC4800-F144K2048)

Flash Memory 2048 kB

Data Memory 352 kB

Dimensions 66 x 99 mm (66 x 101 mm with connectors)

Clock Crystals •12 MHz and 32.768 kHz crystal for CPU

•25 MHz crystal for Ethernet Phy

Power

•5V external powering

•Micro-AB USB Connector interface or

•On-Board Debugger USB interface

Connectors

•Arduino compatible connectors

•All relevant XMC™pins available on expansion pads (X1, X2)

•All EtherCAT signals available on expansion pads (X1, X2)

•Ethernet interface via RJ45 jack

•microUSB

•microSD-Card slot

•Serial Wire Debug interface (2x5, 50 mil pitch) to XMC™

(on board debugger can be overridden by externally connected debugger)

Debugger On-Board J-Link Debug Probe via USB supporting

•Serial Wire Debug (SWD)

•UART-to-USB bridge (virtual COM)

Others

•On-board debug probe, based on XMC4200 Microcontroller

•Ethernet Phy

•CAN transceiver

•32 Mbit Quad-SPI Flash Memory

•2 user push-buttons, 2 user LEDs

•Reset push-button

The XMC4700/XMC4800 Relax Kit Series-V1 are available in four different assembly versions differentiating in

features:

•XMC4700 Relax Lite

•XMC4700 Relax for 5V Shields

•XMC4700 Relax

•XMC4800 Relax EtherCAT

The XMC4700 Relax Kit and the XMC4800 Relax EtherCAT®Kit feature with an Ethernet-enabled

communication option, e.g. to run an embedded web server. You can store your own HTML web pages on a

microSD Card or control the XMC4700 / XMC4800 via the web browser on your PC.

Additional voltage level shifters and Aruino connection header on theXMC4700 Relax Kit for 5V Shieldsallow

the usage of Arduino shields with 3.3V or 5V logic level.

XMC4700/XMC4800 Relax Kit Series-V1

Introduction

Board Users Manual 6 Revision 1.2, 2016-06-16

The embedded web server application is not supported by the KXMC4700 Relax Lite Kit and the

XMC4700 Relax Kit for 5V Shields, because some components e.g. for Ethernet and SD-Card are not

assembled.

The XMC4800 Relax EtherCAT®Kit is assembled with a XMC4800 (pin compatible to XMC4700) and comes

together with a top-mounted XMC EtherCAT®Phy Board. It’s a complete development kit for EtherCAT slave

devices and the XMC4800 is powerful and functional enough to make this board an ideal choice for the

development engineers of EtherCAT®slaves such as servo drives and intelligent I/O devices.

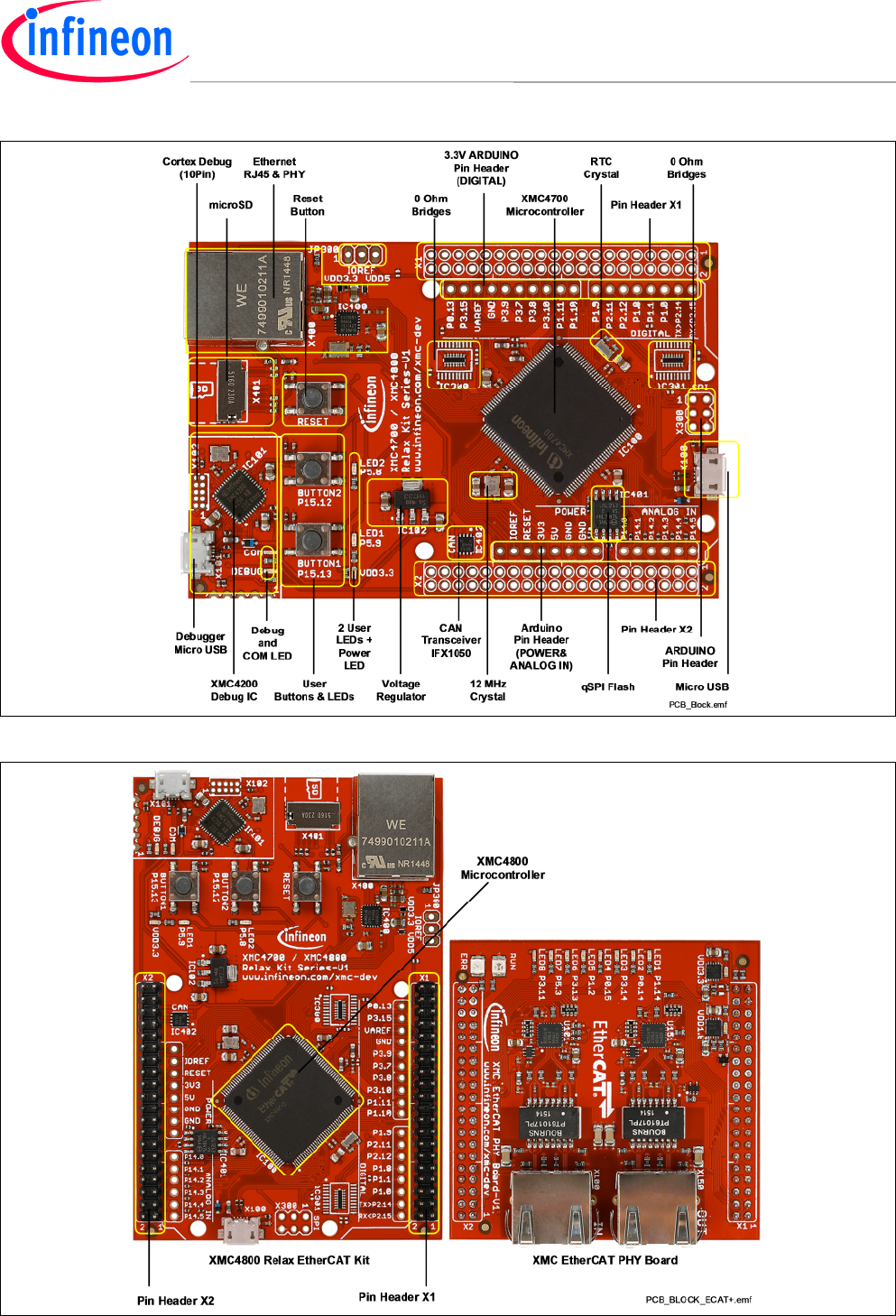

All boards are marked with “XMC4700/XMC4800 Relax Kit Series-V1” and can be distinguished by the

assembled devices (see pictures in chapter 2). These boards are neither cost nor size optimized and do not

serve as a reference design.

1.1 Key Features

Table 2 summarizes the features of the different assembly versions of the XMC4700/XMC4800 Relax Kit

Series-V1.

Table 2 Kit Features of Assembly Versions

Feature XMC4700

Relax Lite

Kit

XMC4700

Relax Kit

for

5V Shields

XMC4700

Relax Kit XMC4800

Relax

EtherCAT®Kit

XMC4700 Microcontroller

XMC4800 Microcontroller

On-board Debug Probe with USB interface

supporting SWD + SWO

Virtual COM Port via Debug Probe

2 x User Push-Buttons and

2 x User LED and

1 x Reset Push-Button

Voltage Regulator 5 V -> 3.3 V

USB (Micro USB Plug)

12 MHz Crystal

32.768 kHz RTC Crystal

Arduino compatible connector and voltage level

shifter for 3.3 V / 5 V Arduino shields

0 Ohm Bridges for 3.3 V Arduino shields

Ethernet PHY and RJ45 Jack

32 Mbit Quad-SPI Flash Memory

microSD Card Slot

CAN Transceiver

Pin Header at X1 and X2 with mounted

XMC™EtherCAT Phy Board

XMC4700/XMC4800 Relax Kit Series-V1

Hardware Description

Board Users Manual 7 Revision 1.2, 2016-06-16

1.2 Block Diagram

The block diagram in Figure 1 shows the main components of the XMC4700/XMC4800 Relax Kit Series-V1 and

their interconnections. There are following main building blocks:

•XMC4700 / XMC4800 Microcontroller in a LQFP144 package

•On-board USB debug probe based on XMC4200 for SWD, SWV and Virtual COM Port support

•Ethernet Phy with RJ45 Plug

•Two 40-pin header X1 and X2

•Connection Header for Arduino

•On-board power generation

•2 User Push-Buttons, 2 User LEDs, Reset Push-Button

•Micro-AB USB Plug

•microSD Card Slot

•CAN Transceiver

•Quad SPI Flash

Figure 1 Block Diagram of the XMC4700/XMC4800 Relax Kit Series-V1

2 Hardware Description

The following chapters give a detailed description of the board hardware and how it can be used. The different

assembly versions of the kits series are shown in Figure 2, Figure 3, Figure 4 and Figure 5.

XMC4700 / XMC4800

Microcontroller

U2C1

SDMMC

USB

Debug,

U0C0

ETH

OCS

EVR

ADC

SD/MMC

12 MHz

Crystal

32.768

kHz

Micro

USB

micro

SD

qSPI

Flash

BUTTON2

ETH

PHY

25 MHz

Crystal

RJ45 RMII

EtherCAT, U1C0, CCU80, ADC,

DAC, CAN, ERU0

EtherCAT, U0C1, U2C0, ERU1,

CCU4, CCU8

SWV

SWD

USB

GPIO PORST

#

RESETLED1

BUTTON1

XMC4200

Debug IC

Micro

USB

Voltage

Regulator

5V 3.3V

UART BSL

Pin Header X2

2x20, 0.1"

Not assembled in

Lite and ARDUINO

version

Not assembled in

any versions

XMC4700 / XMC4800

Relax Kit Series-V1

LED1

P15.13

P15.12

Power

LED

BlockDiag.emf

Debug*

(10pin)

RX/TX, SPI,

PWM, INT, IO

CAN

Trans.

Level

Shifter

Pin Header Arduino™(DIGITAL)

Debug

LED COM

LED

SWD

SWV

Pin Header Arduino™(ANALOG IN)

CAN

RTC

Pin Header X1

2x20, 0.1"

P5.9

P5.8

Assembled in

ARDUINO version

only

Assembeld in

EtherCAT version

only

2x3

pin

XMC4700/XMC4800 Relax Kit Series-V1

Hardware Description

Board Users Manual 8 Revision 1.2, 2016-06-16

Figure 2 XMC4700 Relax Lite Kit

Figure 3 XMC4700 Relax Kit for 5V Shields

XMC4700/XMC4800 Relax Kit Series-V1

Hardware Description

Board Users Manual 9 Revision 1.2, 2016-06-16

Figure 4 XMC4700 Relax Kit

Figure 5 The XMC4800 Relax EtherCAT Kit includes the XMC EtherCAT PHY Board

XMC4700/XMC4800 Relax Kit Series-V1

Hardware Description

Board Users Manual 10 Revision 1.2, 2016-06-16

2.1 Power Supply

The XMC4700/XMC4800 Relax Kit Series-V1 must be supplied by an external 5 Volt DC power supply

connected to any of the micro USB plugs (X100, X101). Out of the box with the pre-programmed web server

application and the on-board debug probe in operation theXMC4700 Relax Kit typically draws about 250 mA,

the XMC4700 Relax Lite Kit and the XMC4700 Relax Kit for 5V Shields without the web server capabilities

draws about 200 mA and the XMC4800 Relax EtherCAT Kit together with the XMC EtherCAT Phy Board in

an EtherCAT network draws about 500 mA. This current can be delivered via the USB plug of a PC, which is

specified to deliver up to 500 mA. The green Power LED (VDD3.3) indicates the presence of the generated

3.3 V supply voltage.

On-board reverse current protection diodes will ensure safe operation in case power is provided through both

USB plugs at the same time. These protection diodes allows to use the on-board debug probe connected with a

PC/Notebook via X101 and a second host PC/Laptop connected with the XMC4700 / XMC4800 Relax Kit via

X100.

If the board is powered via a USB plug, it’s not recommended to apply an additional 5 Volt power supply to one

of the 5 Volt power pins (VDD5, 5 V) on the pin headers X1 or X2 or the Arduino Power header, because there

is no protection against reverse current into the external power supply. These power pins can be used to power

an external circuit. But care must be taken not to draw more current than USB can deliver. A PC as USB host

typically can deliver up to 500 mA current. If higher currents are required and in order to avoid damages on the

USB host the use of an external USB power supply unit which is able to deliver higher currents than 500 mA is

strongly recommended.

After power-up the green DEBUG LED starts blinking. In case there is a connection to a PC via the Debug USB

plug X101 and the USB Debug Device drivers are installed on this PC, the DEBUG LED will turn from blinking to

constant illumination.

Figure 6 Power Supply Concept

XMC4700 / XMC4800

Relax Kit Series-V1

3.3V

Power_BlockDiag.emf

Micro

USB

Micro

USB

IFX1117

Lin. Voltage

Regulator

IC102

XMC4200

Debug IC

IC101

XMC4700 /

XMC4800

Micro-

controller

IC100

Power

LED

X100

IC402

X101

Infineon

Infineon

Infineon

Infineon

Voltage Level

Shifter for

ARDUINO

JP300, IOREF

Pin Header X1 and X2

2x20, 0.1"

IFX1051LE

CAN

Transceiver

Ethernet

Phy, QSPI

Flash

IC300, IC301

Infineon

Infineon

IC400, IC401

+5V

+5V

ARDUINO POWER Pin Header

3.3V

+5V

+5V

3.3V

XMC4700/XMC4800 Relax Kit Series-V1

Hardware Description

Board Users Manual 11 Revision 1.2, 2016-06-16

2.2 Pin Header X1 and X2

The pin headers X1 and X2 can be used to extend the evaluation board or to perform measurements on the

XMC4700 / XMC4800. Figure 7 shows the available GPIOs / signals at these pin headers. The pin table is also

printed onto the bottom side of the PCB.

Pin Header X2 Pin Header X1

GND 40 39 GND GND 40 39 GND

GND 38 37 GND VDD3.3 38 37 GND

VDD3.3 36 35 CANL VDD3.3 36 35 VDD5

VDD3.3 34 33 CANH P5.11 34 33 P5.10

RST# 32 31 VDD5 P1.14 32 31 P2.13

HIB_1 30 29 HIB_0 P14.8 30 29 P14.9

P2.6 28 27 P5.7 P15.14 28 27 P15.15

P5.6 26 25 P5.5 P14.6 26 25 P14.7

P5.4 24 23 P5.3 P14.12 24 23 P14.13

P5.2 22 21 P5.1 P14.14 22 21 P14.15

P5.0 20 19 P1.15 P15.2 20 19 P15.3

P6.6 18 17 P6.5 P15.4 18 17 P15.5

P6.4 16 15 P6.3* P15.7 16 15 P15.6

P6.2 14 13 P6.1 P3.0 14 13 P3.1

P6.0 12 11 P1.2 P0.9 12 11 P3.2

P0.8 10 9 P0.7 P0.0 10 9 P0.10

P3.3 8 7 P3.14 P0.2 8 7 P0.1

P0.15 6 5 P0.14 P0.4 6 5 P0.3

P0.12 4 3 P3.11 P0.6 4 3 P0.5

P3.12 2 1 P3.13 P0.11 2 1 P3.4

(Top

View)

Figure 7 Signal mapping of the pin headers X1 and X2

* The silkscreen on the PCB of this pin is wrong: It says “P5.3” (wrong) instead of “P6.3” (right). PCB version 1

is affected only.

XMC4700/XMC4800 Relax Kit Series-V1

Hardware Description

Board Users Manual 12 Revision 1.2, 2016-06-16

2.3 Arduino Compatible Connector

The mapping of GPIOs and XMC pin functions to Arduino compatible functions can be found in Figure 8. The

Arduino compatible connector supports

•SPI interface (SPI_xxx)

•I2C interface (I2C_xxx)

•UART interface (UART_xxx)

•PWM signal outputs (PWM0-5)

•ADC input (ADC0-5)

•Interrupt input (INT0-1)

Figure 8 Mapping of Arduino Functions to XMC Pin Functions

The XMC4700 Relax Kit for 5V Shields features bi-directional voltage level shifter and therefor supports 5 V

Arduino shields. Jumper JP300 (IOREF) determines whether the Arduino shield is driven with 5 V or 3.3 V.

Analog input signals ADC0-5 are limited to 3.3 V input voltage. Primarily ADC0 to ADC3 should be used as

analog input, because there is no additional circuit connected to these pins, whereas ADC4 and ADC5 have

additional circuitry and require an input signal with lower input impedance.

Note: Parallel operation of I2C and ADC4 / ADC5 is not possible, because they share the same Arduino pins.

10

9P3.15 /

P14.4 I2C_SDA: U1C1.DOUT0

P0.13 /

P14.5 I2C_SCL / U1C1.SCLKOUT ADC5 / VADC.G0CH0

ADC4: VADC.G0CH1

8VAREF AREF: VAREF

7GND

6P3.9 SPI_CLK: U2C0.SCLKOUT

P3.7 SPI_MISO: U2C0.DX0C

4P3.8 SPI_MOSI: U2C0.DOUT0 PWM5: CCU41.OUT2

3P3.10 SPI_CS: U2C0.SELO0 PWM4: CCU41.OUT0

2P1.11 PWM3: CCU81.OUT11

1P1.10 IO2: P1.10

8P1.9 IO1: P1.9

7P2.11 PWM2: CCU80.OUT22

6P2.12 PWM1: CCU81.OUT33

4P1.1 INT1: ERU0.3A0 PWM0: CCU40.OUT2

5P1.8 IO0: P1.8

3P1.0 INT0: ERU0.3B0

2P2.14 UART_TXD: U1C0.DOUT0

1P2.15 UART_RXD: U1C0.DX0C

1

3

2

4

P14.3

5

6

P14.5 /

P0.13

ADC5 / VADC.G2CH1

P14.2

P14.1

I2C_SCL / U1C1.SCLKOUT

I2C_SCL / U1C1.DOUT0 P14.4 /

P3.15

ADC4: VADC.G2CH0

ADC3 / VADC.G1CH3

ADC2: VADC.G1CH2

ADC1: VADC.G1CH1

ADC0: VADC.G0CH0 P14.0

7

GND

GND

5V

3V3

N.C.

RESET#

IOREF

N.C. 8

4

6

5

1

2

3

(Top View)

13

4

5

6

Arduino_Pin_Mapping.emf

ANALOG INPOWER

DIGITAL

5V

2

P3.9 SPI_CLK: U2C0.SCLKOUT

RESET#

GND

5

P3.7 SPI_MISO: U2C0.DX0C

P3.8SPI_MOSI: U2C0.DOUT0PWM5: CCU41.OUT2

XMC4700/XMC4800 Relax Kit Series-V1

Hardware Description

Board Users Manual 13 Revision 1.2, 2016-06-16

2.4 User Push Buttons and User LEDs

The XMC4700/XMC4800 Relax Kit Series-V1 provides two push buttons and two LEDs. The port pins used can

be found in Table 3 and Table 4. These pins are used exclusively for this function and they are not mapped to

other devices or connectors.

Table 3 XMC4700/XMC4800 Pin Mapping for User LEDs

LED XMC Pin

LED1 P5.9

LED2 P5.8

Table 4 XMC4700/XMC4800 Pin Mapping for User Push Buttons

Button XMC Pin

BUTTON1 P15.13

BUTTON2 P15.12

2.5 Debugging and UART-to-USB Communiction

The XMC4700/XMC4800 Relax Kit Series-V1 supports debugging via 2 different channels:

•On-board debug probe

•10-pin Cortex™Debug Connector (not assembled)

2.5.1 On-board Debug Probe

The on-board debug probe supports Serial Wire Debug (SWD) and UART communication. Both require the

installation of Segger’s J-Link Driver which is part of the DAVE™installation. DAVE™is a highly efficient

development platform for the XMC microcontroller families to simplify and shorten SW development. It can be

downloaded at www.infineon.com/dave. The latest Segger J-Link Driver can be downloaded at

http://www.segger.com/jlink-software.html. Table 5 shows the pin assignment of the XMC4700/XMC4800 used

for debugging and UART communication.

Table 5 XMC4700/XMC4800 Pins Mapping for Debugging and UART-Communication

Pin Funtion Input/Output XMC Pin

Data pin for Debugging via SWD I/O TMS

Clock pin for Debugging ia SWD O TCK

Transmit pin for UART communication (PC_RX) O P1.5 (U0C0.DOUT)

Receive pin for UART communication (PC_TX) I P1.4 (U0C0.DX0B)

2.5.2 Cortex™Debug Connector (10-pin)

The 10-pin Cortex™Debug Connector supports Serial Wire Debug (SWD) and Serial Wire Viewer (SWV). The

pin assignment of the Cortex™Debug Connector is shown in Table 6.

Table 6 Pin Assignment of the Cortex™Debug Connector (X102)

Pin No. Signal Name Description

1 VCC +3.3 V

2 TMS Serial Wire Data I/O

3 GND Ground

4 TCK Serial Wire Clock

5 GND Ground

XMC4700/XMC4800 Relax Kit Series-V1

Hardware Description

Board Users Manual 14 Revision 1.2, 2016-06-16

Pin No. Signal Name Description

6 SWV Serial Wire Viewer (Trace Data Out)

7 Key Key

8 NC Not connected

9 GND_Detect Ground detect

10 RESET Rest (active low)

2.6 Reset

The reset pin (PORST#) of the XMC4700/XMC4800 is a bi-directional pin in open drain mode. An internal pull-

up resistor keeps the PORST# pin high during normal operation. A low level at this pin will force a hardware

reset. In case of a MCU internal reset the PORST# pin will drive a low signal.

A reset signal can be issued by

•the on-board Reset Button (SW102, “RESET”)

•the on-board debug probe (IC101.46)

•the external debugger connected to the 10-pin Cortex™Debug probe connector (X102)

•the Arduino Power Header (X302.3, “RESET”)

•the pin header X2 (X2.32, “RST#”)

An XMC™internal circuit always ensures a save Power-on-Reset. XMC™does not require any additional

external components to generate a reset signal during power-up.

2.7 CAN Transceiver

The XMC4700 Relax Kit and the XMC4800 Relax EtherCAT Kit provide a CAN interface via the X2 connector.

Infineon’s high speed CAN transceiver IFX1051LE for industrial application supports 3.3V I/O logic and is

suitable for 12V and 24V bus systems with an excellent EMC performance. The CAN bus (signals CANH,

CANL) is not terminated by a 120 Ohm and needs to be terminated externally.

Table 7 CAN Signals and XMC4700/XMC4800 Pin Mapping

Signal

Name

Pin No. at Pin Header X2

XMC Pin,

XMC

Function

CANH X2.33 -

CANL X2.35 -

CAN_TX - P1.12, CAN.N1_TXD

CAN_RX - P1.13, CAN.N1_RXDC

2.8 Serial Flash Memory

The XMC4700 Relax Kit and the XMC4800 Relax EtherCAT Kit provide a 32 Mbit serial flash memory from

Micron (type: N25Q032A) interfaced to XMC4700/XMC4800 through a SPI interface. The SPI interface can be

configured as single, dual or quad SPI.

Table 8 XMC4700/XMC4800 Pins Mapping for Serial Flash Memory

XMC Pin Function in qSPI Mode, XMC Function Function in SPI Mode, XMC Function

P4.2 Clock, U2C1.SCLKOUT Clock, U2C1.SCLKOUT

P4.3 Chip Select, U2C1.SELO2 Chip Select, U2C1.SELO2

P4.7 Data Line 0 I/O, U2C1.DOUT0 Master Out Slave In (MOSI, MTSR), U2C1.DOUT0

P4.6 Data Line 1, U2C1.DOUT1 Master In Slave Out (MISO, MRST), U2C1.DX0E

P4.4 Data Line 3, U2C1.DOUT3 HOLD (low active)

P4.5 Data Line 2, U2C1.DOUT2 Write Protection (low active)

XMC4700/XMC4800 Relax Kit Series-V1

Hardware Description

Board Users Manual 15 Revision 1.2, 2016-06-16

2.9 microSD Card

The XMC4700 Relax Kit and the XMC4800 Relax EtherCAT Kit provide a microSD card slot (X401). The

microSD card can be operated in SD mode via the SDMMC peripheral or in SPI mode via the USIC0 Channel1

(U0C1) of the XMC4700/XMC4800.

Table 9 XMC4700/XMC4800 Pins Mapping for microSD Card

XMC Pin Function in SD Mode, XMC Function Function in SPI Mode, XMC Function

P3.6 Clock, SDMMC.CLK_OUT (IN) Clock, U0C1.SCLKOUT

P3.5 Command Line, SDMMC.CMD_OUT (IN) Master Out Slave In (MOSI, MTSR), U0C1.DOUT0

P4.0 Data Line 0, SDMMC.DATA0_OUT (IN) Master In Slave Out (MISO, MRST), U0C1.DX0E

P1.6 Data Line 1, SDMMC.DATA1_OUT (IN) Unused

P1.7 Data Line 2, SDMMC.DATA2_OUT (IN) Unused

P4.1 Data Line 3, SDMMC.DATA3_OUT (IN) Chip Select (CS) / Slave Select (SS), U0C1.SELO0

2.10 Ethernet

The XMC4700 Relax Kit and the XMC4800 Relax EtherCAT Kit provide an Ethernet Phy and RJ45 plug.

Table 10 XMC4700/XMC4800 Pins used for Ethernet

XMC Pin Ethernet Function XMC Function

P15.9 Carrier Sense / Receive Data Valid ETH0.CRS_DVC

P15.8 Clock Input ETH0.CLK_RMIIC

P2.10 LED GPIO P2.10

P2.9 Transmit Data Line 1 ETH0.TXD1

P2.8 Transmit Data Line 0 ETH0.TXD0

P2.5 Transmit Enable ETH0.TX_EN

P2.4 Receive Error ETH0.RXERA

P2.3 Receive Data Line 1 ETH0.RXD1A

P2.2 Receive Data Line 0 ETH0.RXD0A

P2.0 Management Data In/Out ETH0.MDIB / ETH0.MDO

P2.7 Management Data Clock ETH0.MDC

P1.3 Interrupt (disabled via solder jumper R401) GPIO P1.3

2.11 Boot Option

During power-on-reset the XMC4700/XMC4800 latches the signal level at the pins TMS and TCK. Based on the

logic levels latched at these pins after reset the XMC4700/XMC4800 starts booting in different modes. TMS and

TCK pins are used for debugging and by default program execution is always starting from on-chip flash (normal

mode).

The XMC4700/XMC4800 Relax Kit Series-V1 does not support the selection of the boot options by switches

directly. In case of no external debug probe is used the boot mode can be influenced by applying 1 kOhm pull-

up- or pull-down resistors to TMS and TCK pins. These pins are available at the 10-pin debug connector X102.

Table 11 Boot Mode Selection with external Pull Resistors

Logic Level at TMS

during Reset Logic Level at TCK

during Reset Boot Mode

High Low Normal Mode (boot from on-chip flash) (DEFAULT)

XMC4700/XMC4800 Relax Kit Series-V1

Production Data

Board Users Manual 16 Revision 1.2, 2016-06-16

Logic Level at TMS

during Reset Logic Level at TCK

during Reset Boot Mode

Low Low ASC BSL Mode (boot from UART)

High High BMI Customized Boot Mode

Low High CAN BSL Mode (boot from CAN)

3 Production Data

This chapter covers schematics, board dimensions, component placement and the list of material.

3.1 Schematics

In the following figures shows the schematics of the XMC4700/XMC4800 Relax Kit Series-V1 and the XMC

EtherCAT Phy Board-V1:

•Figure 9: Relax Kit Schematic: MCU, Push Buttons, LEDs, Reset Button, Crystals, USB

•Figure 10: Relax Kit Schematic: OBD Probe, Ethernet, Quad-SPI Memory, microSD Card Slot

•Figure 11: Relax Kit Schematic: Pin Header, Voltage Level Shifter, Power Supply, CAN transceiver

•Figure 12: XMC EtherCAT Phy Board Schematic: Input and Output Phy

•Figure 13: XMC EtherCAT Phy Board Schematic: Power, Connectors, LEDs

XMC4700/XMC4800 Relax Kit Series-V1

Production Data

Board Users Manual 17 Revision 1.2, 2016-06-16

Figure 9 Relax Kit Schematic: MCU, Push Buttons, LEDs, Reset Button, Crystals, USB

100nF100nF

10uF/10V10uF/10V

10uF/10V10uF/10V

10uF/10V10uF/10V

10uF/10V10uF/10V

100nF100nF

100nF100nF

100nF100nF

100nF100nF

100nF100nF

100nF100nF

100nF100nF

100nF100nF

10uF/10V10uF/10V

100nF100nF

100nF100nF

15pF15pF

15pF15pF

100nF

100nF

10nF10nF

15pF15pF

15pF15pF

ESD8V0L2B-03LESD8V0L2B-03L

BAS3010A-03WBAS3010A-03W

GND

GND

GND GND

GND

GND

GND

GND

GND

GND

GND GND GND GND GND

GND

GND

GND

GND

GND GND

XMC4700/XMC4800_LQFP144

BLM18PG600BLM18PG600

BLM18PG600

BLM18PG600

LED-RT/D/0603LED-RT/D/0603

12MHZ/S/3.2X2.512MHZ/S/3.2X2.5

32.768KHZ32.768KHZ

1M1M

22R22R

22R22R

no ass./0Rno ass./0R

0R0R

510R/0402510R/0402

680R680R

10k10k

10K/0402

TMPS2-SMD

TMPS2-SMD

TMPS2-SMD

VDD3.3

VDD3.3

VDD3.3

VDD5

VDD3.3 VDD3.3

VDD3.3

ZX62-AB-5PAZX62-AB-5PA

ADJ_1 ADJ_2 ADJ_3

C100C100

C101C101

C102C102

C103C103

C104C104

C105C105

C106C106

C107C107

C108C108

C109C109

C110C110

C111C111

C112C112

C113C113

C114C114

C115C115

C116C116

C117C117

C118

C119

C120C120

C400C400

C401C401

D100 1

2

3

D100

D101

A C

D101

EPAD EXP

HIB_IO_0

21 HIB_IO_1

20

P0.0

2P0.1

1P0.2

144 P0.3

143 P0.4

142 P0.5

141 P0.6

140 P0.7

128 P0.8

127 P0.9

4P0.10

3P0.11

139 P0.12

138 P0.13

137 P0.14

136 P0.15

135

P1.0

112 P1.1

111 P1.2

110 P1.3

109 P1.4

108 P1.5

107 P1.6

116 P1.7

115 P1.8

114 P1.9

113 P1.10

106 P1.11

105 P1.12

104 P1.13

103 P1.14

102 P1.15

94

P2.0 74

P2.1 73

P2.2 72

P2.3 71

P2.4 70

P2.5 69

P2.6 76

P2.7 75

P2.8 68

P2.9 67

P2.10 66

P2.11 65

P2.12 64

P2.13 63

P2.14 60

P2.15 59

P3.0 7

P3.1 6

P3.2 5

P3.3 132

P3.4 131

P3.5 130

P3.6 129

P3.7 14

P3.8 13

P3.9 12

P3.10 11

P3.11 10

P3.12 9

P3.13 8

P3.14 134

P3.15 133

P4.0

124 P4.1

123 P4.2

122 P4.3

121 P4.4

120 P4.5

119 P4.6

118 P4.7

117

P5.0 84

P5.1 83

P5.2 82

P5.3 81

P5.4 80

P5.5 79

P5.6 78

P5.7 77

P5.8 58

P5.9 57

P5.10 56

P5.11 55

P6.0

101 P6.1

100 P6.2

99 P6.3

98 P6.4

97 P6.5

96 P6.6

95

P14.0

42 P14.1

41 P14.2

40 P14.3

39 P14.4

38 P14.5

37 P14.6

36 P14.7

35 P14.8

52 P14.9

51 P14.12

34 P14.13

33 P14.14

32 P14.15

31

P15.2 30

P15.3 29

P15.4 28

P15.5 27

P15.6 26

P15.7 25

P15.8 54

P15.9 53

P15.12 50

P15.13 49

P15.14 44

P15.15 43

PORST# 91

RTC_XTAL_1 22

RTC_XTAL_2 23

TCK 93

TMS 92

USB_D+

16 USB_D-

15

VAGND 45

VAREF 46

VBAT

24

VBUS

17

VDDA 48

VDDC

19 VDDC1

61 VDDC2

90 VDDC3

125

VDDP

18 VDDP1

62 VDDP2

86 VDDP3

126

VSS 85

VSSA 47

VSSO 89

XTAL1 87

XTAL2 88

IC100

L100L100

L101

L102

LED100LED101

Q100Q100

Q400Q400

R106R106

R107R107

R108R108

R109R109

R110R110

R111R111

R112R113

R114R115

R116

P

P1 S

S1

SW100

P

P1 S

S1

SW101

P

P1 S

S1

SW102

1

2

3

4

5

BUTTON1

BUTTON1

BUTTON2

BUTTON2

CAN_RX

CAN_TX

ETH_CLK

ETH_CRS

ETH_MDC

ETH_MDIO

ETH_RXD0

ETH_RXD1

ETH_RXER

ETH_TXD0

ETH_TXD1

ETH_TXEN

HIB_IO_0

HIB_IO_1

LED1

LED1

LED2

LED2

MMC_CLK

MMC_CMD

MMC_DAT0

MMC_DAT1

MMC_DAT2

MMC_DAT3

P0.0

P0.1

P0.2

P0.3

P0.4

P0.5

P0.6

P0.7

P0.8

P0.9

P0.10

P0.11

P0.12

P0.13

P0.14

P0.15

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.8

P1.9

P1.10

P1.11

P1.14

P1.15

P2.6

P2.10

P2.11

P2.12

P2.13

P2.14

P2.15

P3.0

P3.1

P3.2

P3.3

P3.4

P3.7

P3.8

P3.9

P3.10

P3.11

P3.12

P3.13

P3.14

P3.15

P5.0

P5.1

P5.2

P5.3

P5.4

P5.5

P5.6

P5.7

P5.10

P5.11

P6.0

P6.1

P6.2

P6.3

P6.4

P6.5

P6.6

P14.0

P14.1

P14.2

P14.3

P14.4

P14.5

P14.6

P14.7

P14.8

P14.9

P14.12

P14.13

P14.14

P14.15

P15.2

P15.3

P15.4

P15.5

P15.6

P15.7

P15.14

P15.15

QSPI_CLK

QSPI_CS

QSPI_IO0

QSPI_IO1

QSPI_IO2

QSPI_IO3

RESET#

RESET#

RTC_XTAL_1

RTC_XTAL_1

RTC_XTAL_2

RTC_XTAL_2

SWV

TCK

TMS

USB_DM

USB_DP

VAREF

VDDC

X100

D1

D2

A

B

C

D

E

12345678

A

B

C

D

E

1

2

3

4

5

6

7

8

XMC4700_Relax-V1

14.09.2015 14:34:39

1/3

Sheet:

Legal Disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or

characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any

information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties

and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights

of any third party.

USB

Supply

Analog

Digital

Hibernate/RTC

XMC4700 Relax Kit Series

V1 / 01.09.2015

LED2 LED1

BUTTON 2

BUTTON 1

USB Connector

Reset

Buttons & LEDs

Target Device

RTC Crystal

XMC4700 / XMC4800 Relax Kit Series-V1

2mA LED 2mA LED

ECAT_LED_8

ECAT_LED_7

ECAT0.MDO

ECAT0.P1_RXD0A

ECAT0.P1_TX_CLKA

ECAT0.P1_RX_DVA

ECAT0_LED_RUN

ECAT0_LED_ERR

ECAT0.P1_RXD1A

ECAT0.P1_RXD2A

ECAT0.P1_RXD3A

ECAT0.P1_TXD3

ECAT0.P1_TXD2

ECAT0.P1_RX_CLKA

ECAT0.PHY_RST

ECAT0.P0_LINKB

ECAT_LED_3

ECAT_LED_5

ECAT_LED_4

ECAT0.P0_TXD3

ECAT0.P0_TXD2

ECAT0.P0_TXD1

ECAT0.P0_LINK_ACT

ECAT0.P0_TXD0

ECAT0.P0_TX_ENA

ECAT0.PHY_CLK

ECAT_LED_6

ECAT_LED_1

ECAT0.P1_LINK_ACT

ECAT0.P1_LINKA

ECAT0.MCLK

ECAT0.P1_TXD1

ECAT0.P1_TXD0

ECAT0.P1_TX_ENA

ECAT0.P0_RXD3B

ECAT0.P0_RX_DVB

ECAT0.P0_TX_CLKB

ECAT0.P0_RX_CLKB

ECAT_LED_2

ECAT0.P0_RXD2

ECAT0.P0_RXD1

ECAT0.P0_RXD0

ECAT0.P1_RX_ERRB

ECAT0.P0_RX_ERRB

SCL, ADC_5

SDA, ADC_4

PWM_3

IO_2

IO_1

IO_0

PWM_2

PWM_1

INT_0

INT_1, PWM_0

UART_TX

UART_RX

SPI_CLK

SPI_MISO

SPI_MOSI, PWM_5

SPI_CS, PWM_4

ADC_3

ADC_2

ADC_1

ADC_0

SDA, ADC_4

SCL, ADC_5

ETH_Interrupt

XMC4700/XMC4800 Relax Kit Series-V1

Production Data

Board Users Manual 18 Revision 1.2, 2016-06-16

Figure 10 Relax Kit Schematic: OBD Probe, Ethernet, Quad-SPI Memory, microSD Card Slot

//m ucsdn 3 1 .eu. inf i n e on.c o m /Roe mm elm /M y doc u m ent s / Boot l o a der_ Re map p i ng/q r c ode. b m p

15pF15pF

15pF15pF

100nF100nF

100nF100nF

4.7uF/10V4.7uF/10V

10uF/10V10uF/10V

10uF/10V10uF/10V

100nF100nF

100nF100nF

100nF100nF

100nF100nF

22uF/10V22uF/10V

100nF100nF

10uF/10V10uF/10V

2.2uF/10V2.2uF/10V

100nF100nF

22uF/10V22uF/10V

100nF100nF

22pF22pF

22pF22pF

100nF100nF

100nF100nF

100nF

ESD8V0L2B-03LESD8V0L2B-03L

BAS3010A-03WBAS3010A-03W

BAT64-02VBAT64-02V

BAT64-02VBAT64-02V

GND

GND

GND GND

GNDGNDGND

GND

GNDGND GND

GND GND

GNDGND GNDGND

GND

GND GND

GNDGND

GND GNDGND GND

XMC4200_QFN48

N25Q032A

BLM18PG600BLM18PG600

BLM18PG600BLM18PG600

BLM18PG600BLM18PG600

LED-GN/D/0603

LED-GN/D/0603

12MHZ/S/3.2X2.512MHZ/S/3.2X2.5

25MHz/50ppm25MHz/50ppm

510R/0402510R/0402

10k

22R/040222R/0402

22R/040222R/0402

510R/0402510R/0402

680R

680R

1M1M

4k7/04024k7/040210k/040210k/0402

1k1k

no ass./0R

1k

10k

120R120R

120R120R

6K49/0603

10k

10k

10k

10k10k

10k10k

10k10k

10k10k

10k10k

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3

VDD3.3

VDD5

ZX62-AB-5PAZX62-AB-5PA

FTSH-105-01-F-D-K

no ass.

Würth 7499010211A

MOLEX-0475710001

no ass.

C121C121

C122C122

C123C123

C124C124

C125C125

C126C126

C127C127

C128C128

C129C129

C130C130

C131C131

C402C402

C403C403

C404C404

C405C405

C406C406

C407C407

C408C408

C409C409

C410C410

C411C411

C412C412

C413

D102

1

2

3D102

D103

A C

D103

D400

1 2

D400

D401

1 2

D401

EPAD

EPAD

HIB_IO_0 7

P0.0 2

P0.1 1

P0.2 48

P0.3 47

P0.4 46

P0.5 45

P0.6 44

P0.7 43

P0.8 42

P1.0 40

P1.1 39

P1.2 38

P1.3 37

P1.4 36

P1.5 35

P2.0

26 P2.1

25 P2.2

24 P2.3

23 P2.4

22 P2.5

21

P14.0 16

P14.3 15

P14.4 14

P14.5 13

P14.6 12

P14.7 11

P14.8 20

P14.9 19

PORST#

32

RTC_XTAL_1

8

RTC_XTAL_2

9

TCK

34

TMS

33

USB_D+ 4

USB_D- 3

VAGND

17 VAREF

18

VBAT 10

VDDC 6

VDDC1 31

VDDP 5

VDDP1 28

VDDP2 41

VSS

27

XTAL1

29

XTAL2

30

IC101

CRS_DV

15

GND 22

INTRP 18

LED0 23

MDC

11

MDIO

10

P_GND EXP

REF_CLK

16

REXT 9

RST# 24

RXD0

13

RXD1

12

RXER

17

RXM 3

RXP 4

TXD0

20

TXD1

21

TXEN

19

TXM 5

TXP 6

VDDA_3.3

2

VDDIO

14

VDD_1.2

1

XI

8

XO

7

CLK

6CS#

1

DI

5

DO

2

GND 4

HOLD#

7

VCC

8

WP# 3

IC401

L103L103

L400L400

L401L401

LED102

LED103

Q101Q101

Q401Q401

R118R118

R119

R120R120

R121R121

R122R122

R123

R124

R125R125

R126R126R127R127

R400R400

R401

R402

R403

R404R404

R405R405

R406

R407

R408

R409

R410R410

R411R411

R412R412

R413R413

R414R414

1

2

3

4

5

1 2

3 4

5 6

7 8

9 10

X102

1

2

3

4

5

X103

CG

8

CTR

5

CTT

4

LA 9

LC 10

NC

7

RA 12

RC 11

RD+

3

RD-

6

S1 S1

S2 S2

TD+

1

TD-

2

X400

CLK/SCK

P5

CMD/MOSI

P3

DAT0/MISO

P7

DAT1

P8

DAT2

P1

DAT3/CS_N

P2

GND

P6

S1 G1

S2 G2

S3 G3

S4 G4

S5 G5

VDD

P4

X401

COM_LED

CS

CS

DBGPRES#

DBGPRES#

DEBUG_LED

ETH_CLK

ETH_CRS

ETH_MDC

ETH_MDIO

ETH_RXD0

ETH_RXD1

ETH_RXER

ETH_TXD0

ETH_TXD1

ETH_TXEN

MMC_CLK

MMC_CMD

MMC_DAT0

MMC_DAT1

MMC_DAT2

MMC_DAT3

P1.3P1.4

P1.5

P2.10

QSPI_CLK

QSPI_CS

QSPI_IO0

QSPI_IO1

QSPI_IO2QSPI_IO3

RESET#

RESET#

RESET#

SWV

SWV

SWV

TCK

TCK

TCK

TMS

TMS

WTCK

WTMS

IC400

KSZ8081RNA

X101

D1

D2

A

B

C

D

E

1 2 3 4 5 6 7 8

A

B

C

D

E

1

2

3

4

5

6

7

8

XMC4700_Relax-V1

13.11.2015 18:36:31

2/3

Sheet:

Legal Disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or

characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any

information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties

and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights

of any third party.

USB

Supply

Analog

Digital

Hibernate/RTC

(IO0)

(IO1)

(IO3) (IO2)

RJ45

XMC4700 Relax Kit Series

Micro SD-Card

qSPI Flash

V1 / 01.09.2015

On-board Debugger Ethernet

SCLKOUT-P1.1

DX0B-P1.4

DX0D-P0.0

DOUT0-P2.5

DX0A-P2.2

SPI Slave

TMS

TCK

TDI

TDO

MOSI

CLK_OUT

MISO

MISO

CS_IN

CLK_IN

MOSI

CS_OUT

SPI Master

RXD

UART

U0C0

U0C1

U1C1

DOUT0-P1.5

SELO0-P1.0

DX2A-P2.3

DX1A-P2.4

RXD

TXD

UART2 (DM2)

RXD

TXD DX0A-P0.4

DOUT0-P0.5

U1C0

SWV

On-board Debugger Concept

TXACTIVE# GPIO-P0.6

RESET# RESET# GPIO-P0.3

DEBUG_LED# DEBUG_LED# GPIO-P0.2

AUX_LED#COM_LED# GPIO-P0.1

Cortex Debug

SWV

TMS

TCK

SWV

5 TH-Pads

PC_RXD

PC_TXD

2.54mm pitch

Level Shifter

No RESET Pin

UART

SPD

SWV

JTAG

XMC4700/XMC4800 Relax Kit Series-V1

Production Data

Board Users Manual 19 Revision 1.2, 2016-06-16

Figure 11 Relax Kit Schematic: Pin Header, Voltage Level Shifter, Power Supply, CAN transceiver

10uF/10V10uF/10V

10uF/10V10uF/10V

100nF100nF

100nF100nF

100nF100nF

100nF100nF

100nF

GND GND

GND

GND

GND GND

GND

GND

GND

GND

GND

GND

GNDGND

GND

GND

GND

GND GNDGND GND

IFX1117MEV33

TXS0108EPWTXS0108EPW

TXS0108EPWTXS0108EPW

IFX1051LE

LED-GN/D/0603

680R/0603

10kno ass./0R10kno ass./0R

0R Array0R Array

0R Array0R Array

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3VDD3.3

VDD3.3

VDD5

VDD3.3VDD3.3

VDD5

VDD5VDD5

VDD3.3

VDD5

VDD3.3VDD3.3 VDD5VDD5

VDD3.3

VDD3.3VDD3.3 VDD5VDD5

VDD5

VDD3.3VDD3.3

C132C132

C133C133

C300C300

C301C301

C302C302

C303C303

C304

ADJ

1

IN

3OUT1 2

OUT2 4

IC102

IC300

A1 1

A2 3

A3 4

A4 5

A5 6

A6 7

A7 8

A8 9

B1

20

B2

18

B3

17

B4

16

B5

15

B6

14

B7

13

B8

12

GND 11

OE 10

VCCA

2VCCB

19

IC300

IC301

A1 1

A2 3

A3 4

A4 5

A5 6

A6 7

A7 8

A8 9

B1

20

B2

18

B3

17

B4

16

B5

15

B6

14

B7

13

B8

12

GND 11

OE 10

VCCA

2VCCB

19

IC301

CANH 7

CANL 6

GND

2*2 RM 8

RXD

4

TXD

1

V33 5

VCC

3

IC402

1

2

3

JP300

LED104

R130

R300R301R302R303

RA200

1

2

3

4

5

6

7

8 9

10

11

12

13

14

15

16

RA200

RA201

1

2

3

4

5

6

7

8 9

10

11

12

13

14

15

16

RA201

12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536 3738 3940

X1

12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536 3738 3940

X2

X300

12 34 56

X300

1

2

3

4

5

6

X301

1

2

3

4

5

6

7

8

X302

1

2

3

4

5

6

7

8

X303

X304

1

2

3

4

5

6

7

8

9

10

X304

CANH

CANH

CANL

CANL

CAN_RX

CAN_TX

GND

HIB_IO_0HIB_IO_1

IOREF

IOREF

IOREF

IOREF

P0.0 P0.1P0.2 P0.3P0.4 P0.5P0.6

P0.7P0.8

P0.9 P0.10

P0.11 P0.12

P0.13

P0.13

P0.13*

P0.13*

P0.13*

P0.13*

P0.14P0.15

P1.0

P1.0

P1.0*

P1.0*

P1.0*

P1.1

P1.1

P1.1*

P1.1*

P1.1*

P1.2

P1.8

P1.8

P1.8*

P1.8*

P1.8*

P1.9

P1.9

P1.9*

P1.9*

P1.9*

P1.10

P1.10

P1.10*

P1.10*

P1.10*

P1.11

P1.11

P1.11*

P1.11*

P1.11*

P1.14

P1.15

P2.6

P2.11

P2.11

P2.11*

P2.11*

P2.11*

P2.12

P2.12

P2.12*

P2.12*

P2.12*

P2.13

P2.14

P2.14

P2.14*

P2.14*

P2.14*

P2.15

P2.15

P2.15*

P2.15*

P2.15*

P3.0 P3.1

P3.2

P3.3

P3.4

P3.7

P3.7

P3.7*

P3.7*

P3.7*

P3.7*

P3.8

P3.8

P3.8*

P3.8*

P3.8*

P3.8*

P3.9

P3.9

P3.9*

P3.9*

P3.9*

P3.9*

P3.10

P3.10

P3.10*

P3.10*

P3.10*

P3.11

P3.12 P3.13

P3.14

P3.15

P3.15

P3.15*

P3.15*

P3.15*

P3.15*

P5.0 P5.1P5.2 P5.3P5.4 P5.5P5.6 P5.7

P5.10P5.11

P6.0 P6.1P6.2 P6.3P6.4 P6.5P6.6

P14.0

P14.1

P14.2

P14.3

P14.4

P14.5

P14.6 P14.7

P14.8 P14.9

P14.12 P14.13

P14.14 P14.15

P15.2 P15.3

P15.4 P15.5

P15.6P15.7

P15.14 P15.15

RESET# RESET#

RESET#

VAREF

All resistors 100R

ARDUINO Compatible Connectors

R100-R105

A

B

C

D

E

12345678

A

B

C

D

E

1

2

3

4

5

6

7

8

XMC4700_Relax-V1

14.09.2015 14:34:39

3/3

Sheet:

Legal Disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or

characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any

information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties

and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights

of any third party.

Pinheader

Arduino Level Shifter

Arduino Level Jumper

CAN TransceiverArduino Level Shifter Bridges

Power Target Device

V1 / 01.09.2015

XMC4700 Relax Kit Series

ECAT0.MDO

ECAT0.P1_RXD0A

ECAT0.P1_TX_CLKA

ECAT0.P1_RX_DVA ECAT0_LED_RUN ECAT0_LED_ERR

ECAT0.P1_RXD1A ECAT0.P1_RXD2A

ECAT0.P1_RXD3A ECAT0.P1_TXD3

ECAT0.P1_TXD2 ECAT0.P1_RX_CLKA

ECAT0.PHY_RST

ECAT0.P0_LINKB

ECAT0.P0_TXD3 ECAT0.P0_TXD2

ECAT0.P0_TXD1 ECAT0.P0_LINK_ACT

ECAT0.P0_TXD0 ECAT0.P0_TX_ENA

ECAT0.PHY_CLK

ECAT0.P1_RX_ERRB

ECAT0.P0_RXD3B

ECAT0.P0_RX_DVB ECAT0.P0_TX_CLKB

ECAT0.P0_RX_CLKB

ECAT0.P0_RXD2 ECAT0.P0_RXD1

ECAT0.P0_RXD0

ECAT0.P1_LINKA

ECAT0.MCLK

ECAT0.P1_TXD1

ECAT0.P1_TXD0ECAT0.P1_TX_ENA

ECAT0.P0_RX_ERRB

IO_0

IO_1

PWM_1

PWM_2

INT_0

INT_1, PWM_0

UART_TX

UART_RX

SPI_CLK

SPI_MISO

SPI_MOSI, PWM_5

SPI_CS, PWM_4

PWM_3

IO_2

SDA, ADC_4

SCL, ADC_5

SCL, ADC_5

SDA, ADC_4

ADC_3

ADC_2

ADC_1

ADC_0

GND

GND

5V

3V3

RESET

IOREF

GND

AREF

NC

NC

SPI_CLK

SPI_MISO

SPI_MOSI, PWM_5

SPI_CS, PWM_4

PWM_3

IO_2

SCL, ADC_5

SDA, ADC_4

SPI_CLK

SPI_MISO

SPI_MOSI, PWM_5

SPI_CS, PWM_4

PWM_3

IO_2

SCL, ADC_5

SDA, ADC_4

IO_1

PWM_2

PWM_1

IO_0

INT_1, PWM_0

INT_0

UART_TX

UART_RX

IO_1

PWM_2

PWM_1

IO_0

INT_1, PWM_0

INT_0

UART_TX

UART_RX

SPI_CLK

SPI_MISO

SPI_MOSI, PWM_5

SPI_CS, PWM_4

PWM_3

IO_2

SCL, ADC_5

SDA, ADC_4

SPI_CLK

SPI_MISO

SPI_MOSI, PWM_5

SPI_CS, PWM_4

PWM_3

IO_2

SCL, ADC_5

SDA, ADC_4

IO_1

PWM_2

PWM_1

IO_0

INT_1, PWM_0

INT_0

UART_TX

UART_RX

IO_1

PWM_2

PWM_1

IO_0

INT_1, PWM_0

INT_0

UART_TX

UART_RX

DAC.OUT_0 DAC.OUT_1

CAN.N5_TXD CAN.N5_RXDA

XMC4700/XMC4800 Relax Kit Series-V1

Production Data

Board Users Manual 20 Revision 1.2, 2016-06-16

Figure 12 XMC EtherCAT Phy Board Schematic: Input and Output Phy

//m ucsdn 3 1 .eu. inf i n e on.c o m /Roe mm elm /M y doc u m ent s / Boot l o a der_ Re map p i ng/q r c ode. b m p

//m ucsdn 3 1 .eu. inf i n e on.c o m /Roe mm elm /M y doc u m ent s / Boot l o a der_ Re map p i ng/q r c ode. b m p

VDD1.8VDD1.8

VDD1.8VDD1.8

VDD1.8VDD1.8

VDD1.8VDD1.8

VDD3.3

VDD3.3

VDD3.3

VDD3.3

VDD3.3

VDD3.3

VDD3.3

VDD3.3

VDD3.3

100nF/0402

100nF/0402 100nF/0402

100nF/0402100nF/0402

100nF/0402100nF/0402

10uF/10V/080510uF/10V/0805

100nF/0402100nF/0402

100nF/0402100nF/0402

10uF/10V/080510uF/10V/0805

100nF/0402100nF/0402

100nF/0402100nF/0402

100nF/0402100nF/0402

100nF/0402100nF/0402

1000pF/2kV/1206

1000pF/2kV/12061000pF/2kV/1206

100nF/0402

100nF/0402 100nF/0402

100nF/0402100nF/0402

100nF/0402100nF/0402

10uF/10V/080510uF/10V/0805

100nF/0402100nF/0402

100nF/0402100nF/0402

10uF/10V/080510uF/10V/0805

100nF/0402100nF/0402

100nF/0402100nF/0402

100nF/0402100nF/0402

100nF/0402100nF/0402

1000pF/2kV/1206

1000pF/2kV/12061000pF/2kV/1206

GND

GNDGNDGND GNDGND

GND

GNDGND

GND

GNDGND

GNDGND GND

GNDGND GND

GND GND GNDGNDGND

GNDGND

GNDGND

GND

GND

GND

GND

GND

GND

GND

GND

GND

BLM18PG600BLM18PG600

PT61017PEL

BLM18PG600BLM18PG600

PT61017PEL

49R9/060349R9/0603

49R9/060349R9/0603

2k2/06032k2/0603

1k24/0603

49R9/060349R9/0603

49R9/060349R9/0603

49R9/060349R9/0603

49R9/060349R9/0603

270R/0603270R/0603

270R/0603270R/0603

75R/0603

75R/0603

75R/0603

75R/0603

49R9/060349R9/0603

49R9/060349R9/0603

2k2/06032k2/0603

1k24/0603

49R9/060349R9/0603

49R9/060349R9/0603

49R9/060349R9/0603

49R9/060349R9/0603

270R/0603270R/0603

270R/0603270R/0603

75R/0603

75R/0603

75R/0603

75R/0603

4*49R94*49R9

4*49R94*49R9

4*49R94*49R9

4*49R94*49R9

CHASSIS_GNDCHASSIS_GND

VDD3.3

NC7SZ157P6X

BCM5241XA1KMLG

NC7SZ157P6X

BCM5241XA1KMLG

LED-GE/D/0603

LED-GN/D/0603

LED-GE/D/0603

LED-GN/D/0603

43860-0010

43860-0010

C100

C101 C102

C103C103

C104C104

C105C105

C106C106

C107C107

C108C108

C109C109

C110C110

C111C111

C112C112

C113

C114C114

C150

C151 C152

C153C153

C154C154

C155C155

C156C156

C157C157

C158C158

C159C159

C160C160

C161C161

C162C162

C163

C164C164

L100L100

1

2

3

6

7

8 9

10

11

14

15

16

L101

L150L150

1

2

3

6

7

8 9

10

11

14

15

16

L151

R100R100

R101R101

R102R102

R103

R104R104

R105R105

R106R106

R107R107

R108R108

R109R109

R110

R111

R112

R113

R150R150

R151R151

R152R152

R153

R154R154

R155R155

R156R156

R157R157

R158R158

R159R159

R160

R161

R162

R163

RA100ARA100A

RA101ARA101A

RA150ARA150A

RA151ARA151A

GND 2

I0

3

I1

1

S

6

VCC

5

Z4

U100

RESET 10

AVDD 7

COL

29 CRS

30

DVDD 32

EXP EXP

GNDOUT 31

LED1 12

LED2 11

MDC

14 MDIO

13

OVDD 9

OVDD 22

RD+ 6

RD- 5

RDAC 8

RXC

20

RXD0

18 RXD1

17 RXD2

16 RXD3

15

RXDV

19

RXER

21

TD+ 3

TD- 4

TXC

23

TXD0

25 TXD1

26 TXD2

27 TXD3

28

TXEN

24

XTALI

1

XTALO

2

U101

GND 2

I0

3

I1

1

S

6

VCC

5

Z4

U150

RESET 10

AVDD 7

COL

29 CRS

30

DVDD 32

EXP EXP

GNDOUT 31

LED1 12

LED2 11

MDC

14 MDIO

13

OVDD 9

OVDD 22

RD+ 6

RD- 5

RDAC 8

RXC

20

RXD0

18 RXD1

17 RXD2

16 RXD3

15

RXDV

19

RXER

21

TD+ 3

TD- 4

TXC

23

TXD0

25 TXD1

26 TXD2

27 TXD3

28

TXEN

24

XTALI

1

XTALO

2

U151

V100

V101

V150

V151

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

S1

S1

S2

S2

X100

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

S1

S1

S2

S2

X150

ECAT_PHY_RST

ECAT_PHY_RST

IC1_RXD0_PHYAD0

P0.1

P0.2

P0.3

P0.4

P0.5

P0.6

P0.9

P0.10

P0.11

P0.12

P0.12

P1.15

P1.15

P2.6

P3.0

P3.1

P3.2

P3.3

P3.3

P3.4

P3.4

P3.12

P5.0

P5.1

P5.2

P5.4

P5.5

P5.6

P5.7

P6.0

P6.0

P6.1

P6.2

P6.3

P6.4

P6.5

P6.6

P15.2

PHY0_CLK_1_8V

PHY1_CLK_1_8V

A

B

C

D

E

12345678

A

B

C

D

E

1

2

3

4

5

6

7

8

XMC_ECAT_PB-V1

03.08.2015 16:51:38

1/2

Sheet:

Legal Disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or

characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any

information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties

and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights

of any third party.

MUX

MUX

ECAT Port0 IN

ECAT Port1 OUT

ECAT0.MDO

ECAT0.MCLK

ECAT0.PHY_RST

ECAT0.MDO

ECAT0.MCLK

ECAT0.PHY_RST

ECAT0.P0_LINK_ACT

ECAT0.P1_LINK_ACT

ECAT0.P1_LINKA

ECAT0.P1_LINKA

ECAT0.P0_LINKB

ECAT0.P0_LINKB

XMC4700/XMC4800 Relax Kit Series-V1

Production Data

Board Users Manual 21 Revision 1.2, 2016-06-16

Figure 13 XMC EtherCAT Phy Board Schematic: Power, Connectors, LEDs

//m ucsdn 3 1 .eu. inf i n e on.c o m /Roe mm elm /M y doc u m ent s / Boot l o a der_ Re map p i ng/q r c ode. b m p

VDD1.8VDD1.8VDD3.3

VDD3.3

VDD3.3

VDD3.3

VDD3.3

VDD3.3

10uF/10V/080510uF/10V/0805

10nF/040210nF/0402

10uF/10V/080510uF/10V/0805

10uF/10V/080510uF/10V/0805

10nF/040210nF/0402

10uF/10V/080510uF/10V/0805

100nF/0402

GND GND

GND

GND

GND

GND GNDGND

GND

GND

GNDGNDGND

GND

GND

GNDGND GND GND

GND

4k87/060310k/0603

1k5/0603

0R/0603NA/0603

680R/0603

10k/060349k9/0603

680R/0603680R/0603

680R/0603680R/0603

680R/0603

680R/0603

680R/0603

680R/0603

680R/0603

680R/0603

680R/0603

680R/0603

10k/0603

10k/0603

4k7/0603

1k5/0603

BCR108W

VDD3.3RK VDD3.3RK

VDD3.3RKVDD3.3RK

VDD5

VDD5VDD5

VDD5VDD5

VDD5

IFX54441LDV

IFX54441LDV33IFX54441LDV33

NC7SZ125

VDDGND

U230P

LED-GN/D/0603

LED-GN/D/0603

TOPLED/GN

TOPLED/RT

LED-RT/D/0603

LED-RT/D/0603

LED-RT/D/0603

LED-RT/D/0603

LED-RT/D/0603

LED-RT/D/0603

LED-RT/D/0603

LED-RT/D/0603

B2*20 B2*20

Select PHY Adress for PHY 1

ADJ_1 ADJ_2 ADJ_3

C200C200

C201C201

C202C202

C210C210

C211C211

C212C212

C230

R200R201

R202

R210R211

R212

R213R214

R220R220

R221R221

R222

R223

R224

R225

R226

R227

R228

R229

R230

R231

R232

R233

T200

BYP 5

EN

7

EXP EXP

GND

6

IN

9*2 OUT 1*2

SENSE/ADJ 4

U200

U210

BYP 5

EN

7

EXP EXP

GND

6

IN

9*2 OUT 1*2

SENSE/ADJ 4

U210

24

1

U230G

3 5

V200

V210

V230

V231

V232

V233

V234

V235

V236

V237

V238

V239

12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536 3738 3940

X1

12 34 56 78 910 1112 1314 1516 1718 1920 2122 2324 2526 2728 2930 3132 3334 3536 3738 3940

X2

ECAT_PHY_RST

IC1_RXD0_PHYAD0

P0.0

P0.0 P0.1P0.2 P0.3P0.4 P0.5P0.6

P0.7

P0.7

P0.8

P0.8

P0.9 P0.10

P0.11

P0.12

P0.12

P0.14

P0.14

P0.15

P0.15

P1.2

P1.2

P1.14

P1.14

P1.15

P2.6

P3.0 P3.1

P3.2

P3.3

P3.4

P3.11

P3.11

P3.12

P3.13

P3.13

P3.14

P3.14

P5.0 P5.1P5.2

P5.3

P5.3P5.4 P5.5P5.6 P5.7

P6.0 P6.1P6.2 P6.3P6.4 P6.5P6.6

P15.2

A

B

C

D

E

12345678

A

B

C

D

E

1

2

3

4

5

6

7

8

XMC_ECAT_PB-V1

03.08.2015 16:51:38

2/2

Sheet:

Legal Disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or

characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any

information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties

and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights

of any third party.

Power 1,8V

Power 3,3V

LEDs

Pin header Relax Kit

Phy Pull Resistors

LED1

LED2

LED3

LED4

LED5

LED6

LED7

LED8

Phy Reset Buffer

ECAT0.MDO

ECAT0_LED_RUN

ECAT0_LED_ERR

ECAT0.P1_RXD0A

ECAT0.P1_TX_CLKA

ECAT0.P1_RX_DVA

ECAT0.P1_RXD1A ECAT0.P1_RXD2A

ECAT0.P1_RXD3A ECAT0.P1_TXD3

ECAT0.P1_TXD2 ECAT0.P1_RX_CLKA

ECAT0.PHY_RST

ECAT0.P1_RX_ERRB

ECAT0.P1_LINKA

ECAT0.P1_TXD1

ECAT0.P1_TXD0ECAT0.P1_TX_ENA

ECAT0.MDO

ECAT0_LED_RUN ECAT0_LED_ERR

ECAT0.P0_LINKB

ECAT0.P0_TXD3 ECAT0.P0_TXD2

ECAT0.P0_TXD1 ECAT0.P0_LINK_ACT

ECAT0.P0_TXD0 ECAT0.P0_TX_ENA

ECAT0.PHY_CLK

ECAT0.P0_RXD3B

ECAT0.P0_RX_DVB ECAT0.P0_TX_CLKB

ECAT0.P0_RX_CLKB

ECAT0.P0_RXD2 ECAT0.P0_RXD1

ECAT0.P0_RXD0

ECAT0.MCLK

ECAT0.P0_RX_ERRB

ECAT0.PHY_RST

XMC4700/XMC4800 Relax Kit Series-V1

Production Data

Board Users Manual 22 Revision 1.2, 2016-06-16

3.2 Components Placement and Geometry

Figure 14 Components Placement and Geometry

52.1mm

66mm

2.5mm

27.9mm14mm

53.3mm

98.3mm

9

10

11

12

1357

8 6 4 2

LEFTRIGHT

FRONT

1

40

1

40

1

6

ADJ_1ADJ_1

ADJ_2ADJ_2

ADJ_3ADJ_3

C100C100

C101C101

C102C102

C103C103

C104C104

C105C105

C106C106

C107

C107

C108C108

C109C109

C110

C110

C111

C111

C112

C112

C113C113

C114C114

C115C115

C116C116

C117C117

C118C118 C119C119

C120C120

C121C121

C122C122

C123C123

C124

C124

C125C125

C126

C126

C127C127

C128C128

C129C129

C130C130

C131C131

C132C132

C133C133

C300C300

C301C301

C302C302

C303C303

C304C304

C400

C400

C401C401

C402C402

C403C403

C404C404

C405C405

C406C406

C407C407

C408C408

C409C409

C410C410

C411C411 C412C412

C413C413

D100D100

D101D101

D102D102

D103D103

D400D400

D401D401

IC100IC100

IC101IC101

IC102IC102

IC300IC300 IC301IC301

IC400IC400

IC401IC401

IC402IC402

JP300JP300

L100L100

L101L101

L102

L102

L103L103

L400L400

L401L401

LED100LED100

LED101LED101

LED102LED102

LED103LED103

LED104LED104

Q100Q100

Q101Q101

Q400Q400

Q401Q401

R100R100

R101R101

R102R102

R103R103

R104R104

R105R105

R106R106

R107R107

R108R108

R109R109

R110R110

R111

R111

R112R112

R113R113

R114R114 R115R115 R116R116

R118R118

R119R119

R120R120

R121R121

R122R122

R123R123

R124R124

R125R125

R126R126 R127R127

R130R130

R300R300

R301R301 R302R302

R303R303

R400R400

R401R401

R402R402

R403R403

R404R404

R405R405

R406R406

R407R407

R408R408

R409R409

R410R410

R411R411

R412R412

R413R413

R414R414

RA200RA200 RA201RA201

SW100SW100

SW101SW101

SW102SW102

X1X1

X2X2

X100X100

X101X101

X102X102

X103X103

X300X300

X301X301

X302X302

X303X303

X304X304

X400X400

X401

XMC4700/XMC4800 Relax Kit Series-V1

Production Data

Board Users Manual 23 Revision 1.2, 2016-06-16

3.3 List of Material

The list of material is valid for the XMC4700/XMC4800 Relax Kit Series-V1.

Table 12 List of Material

Value Device Qty Reference Designator Note*

IFX1051LE TSON8 CAN Transceiver Infineon 1 IC402 B

15pF 50V 10% 0402 Capacitor COG 4 C116, C117, C121, C122

15pF 50V 10% 0402 Capacitor COG 2 C400, C401 B

22pF 50V 5% 0402 Capacitor COG 2 C409, C410 B

10uF 10V 10% 0805 Capacitor X5R 9

C101, C102, C103, C104,

C113, C126, C127, C132,

C133

10uF 10V 10% 0805 Capacitor X5R 1 C404 B

22uF 10V 20% 0805 Capacitor X5R 2 C402, C407 B

100nF 16V 10% 0402 Capacitor X7R 19

C100, C105, C106, C107,

C108, C109, C110, C111,

C112, C114, C115, C118,

C119, C123, C124, C128,

C129, C130, C131

100nF 16V 10% 0402 Capacitor X7R 5 C300, C301, C302, C303,

C304 A

100nF 16V 10% 0402 Capacitor X7R 6 C403, C406, C408, C411,

C412, C413 B

10nF 16V 10% 0402 Capacitor X7R 1 C120

2.2uF 10V 10% 0805 Capacitor X7R 1 C405 B

4.7uF 10V 10% 0805 Capacitor X7R ESR<50mOhm 1 C125

10-pin Connection Header 10-pin 0.1" THT

SSW-110-01-G-S 1 X304 A

6-pin Connection Header 6-pin 0.1" THT

SSW-106-01-G-S 1 X301 A

8-pin Connection Header 8-pin 0.1" THT

SSW-108-01-G-S 2 X302, X303 A

RJ45 Connector 10/100 Ethernet

7499010211A Wüth 1 X400 B

ZX62-AB-5PA Connector Micro USB AB SMD ZX62-

AB-5PA Hirose 2 X100, X101

microSD-Card Slot Connector microSD MOLEX-

0475710001 1 X401 B

12MHz 3.2x2.5 Crystal 12MHz 4Pad NX3225SA

12MHz NDK 2 Q100, Q101

25MHz 3.2x2.5 Crystal 25MHz 4Pad NX3225SA

25MHz NDK 1 Q401 B

32.768KHz 3.2x1.5 Crystal 32.768KHz SMD 12.5pF NDK

NX3215SA-32.768K 1 Q400 B

BAT64-02V SC79 Diode Infineon 2 D400, D401 B

BAS3010A-03W SOD323 Diode Schottky 30V 1A Infineon 2 D101, D103

KSZ8081RNACA QFN24 Ethernet PHY RMII Micrel 1 IC400 B

BLM18PG600SN1D 0603 Ferrite Bead 60R 500mA Murata 4 L100, L101, L102, L103

BLM18PG600SN1D 0603 Ferrite Bead 60R 500mA Murata 2 L400, L401 B

XMC4700/XMC4800 Relax Kit Series-V1

Production Data

Board Users Manual 24 Revision 1.2, 2016-06-16

Value Device Qty Reference Designator Note*

N25Q032A13ESE40

SO8W Flash serial SPIx4 32-Mbit Micron 1 IC401 B

LED-GN 0603 LED SMD gn LSQ971-Z 3 LED102, LED103, LED104

LED-RT 0603 LED SMD rt LSQ976-Z 2 LED100, LED101

TXS0108EPW TSSOP-20 Level Shifter 8-bit 2 IC300, IC301 A

XMC4200-Q48K256

QFN48 Microcontroller XMC4200 Infineon 1 IC101

XMC4700/XMC4800-

F144F2048 LQFP144 Microcontroller XMC4700/XMC4800

Infineon 1 IC100

2x20pin 0.1" Pin Header THT 2 X1, X2 C

2x3-pin 0.1" Pin Header THT 1 X300 A

3-pin 0.1" Pin Header THT 1 JP300 A

no ass. 2x5pin 0.05" Pin Header THT FTSH-105-01-F-D-K 1 X102 N

no ass. 5-pin 0.1" Pin Header THT no assembly 1 X103 N

ESD8V0L2B-03L TSLP-3-

1Diode Protection Infineon 2 D100, D102

FSM2JSMA Pushbutton ON SMD Tyco 3 SW100, SW101, SW102

0R 1% 0402 Resistor 1 R110

100R 1%0 402 Resistor 6 R100, R101, R102, R103,

R104, R105

10K 1% 0402 Resistor 5 R114, R115, R116, R119,

R127

10k 1% 0402 Resistor 2 R300, R302 A

10k 1% 0402 Resistor 9

R403, R407, R408, R409,

R410, R411, R412, R413,

R414 B

120R 1% 0603 Resistor 2 R404, R405 B

1k 1% 0402 Resistor 2 R400, R402 B

1M 1% 0402 Resistor 2 R106, R125

22R 1% 0402 Resistor 2 R107, R108

22R 1% 0402 Resistor 2 R120, R121

4k7 1% 0402 Resistor 1 R126

510R 1% 0402 Resistor 3 R111, R118, R122

680R 1% 0603 Resistor 4 R112, R113, R123, R124

680R 1% 0603 Resistor 1 R130

6K49 1% 0603 Resistor 1 R406 B

no ass. 0R Resistor 4 R109, R301, R303, R401 N

0R 0402 Array Resistor Network EXB2HVR000V

Panasonic 2 RA200, RA201 D

IFX1117MEV33 SOT223 Voltage Regulator 3.3 V Infineon 1 IC102

*Agenda:

A: Assembled on Relax Kit for 5V Shields only

B: Assembled on Relax Kit and Relax EtherCAT Kit only

C: Assembled on Relax EtherCAT Kit only

D: Assembled on Relax Kit , Relax Lite Kit and Relax EtherCAT Kit only

N: Not Assembled

w w w . i n f i n e o n . c o m

Published by Infineon Technologies AG
