Page Count: 40

Listing Constructional Data Report (CDR)
Report Number
180525001GZU-001
Original Issued: 5-Jul-2018 Revised: 10-Nov-2018
Standard(s)
Applicant Manufacturer
Address Address
Country Country
Contact Contact
Phone Phone
FAX FAX
Email Email postmaster@lutone.compostmaster@lutone.com
6th Building, Zhangbei Industrial Park,
Xinlian Community, Longcheng Street,
LONGGANG Shenzhen 518172
0755-23495757 0755-23495757
6th Building, Zhangbei Industrial Park,
Xinlian Community, Longcheng Street,
LONGGANG Shenzhen 518172
China
Shenzhen Theone Electronic Co.,
Ltd.
1.0 Reference and Address
Shenzhen Theone Electronic Co., Ltd.
0755-23495697
Lucky Xu Lucky Xu
China
0755-23495697
Information Technology Equipment Safety Part 1: General Requirements >Valid without
technical revision: 20Dec2020< [UL 60950-1:2007 Ed.2+R:14Oct2014]
Information Technology Equipment Safety Part 1: General Requirements (R2016) >Valid
without technical revision: 20Dec2020< [CSA C22.2#60950-1:2007 Ed.2+A1;A2]
Page 1 of 40
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 2 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
Product
Brand name
Models
Model Similarity
Ratings
TA06A3, TP601C:
Input: 110-240V~, 50-60Hz, 1.3A max., Class II
Output: Type C port: 5Vdc 3A / 9Vdc 3A / 12Vdc 3A / 15Vdc 3A / 19Vdc 3A / 20Vdc 3A; 60W
Max.
TP452CA:
Input: 110-240V~, 50-60Hz, 1.3A max., Class II
Output: Type C port: 5Vdc 3A / 9Vdc 3A / 12Vdc 3A / 15Vdc 3A / 19Vdc 2.25A / 20Vdc 2.25A,
USB port: 5Vdc, 2.4A; 60W Max.
TP601CA:
Input: 110-240V~, 50-60Hz, 1.3A max., Class II
Output: Type C port: 5Vdc 3A / 9Vdc 3A / 12Vdc 3A / 15Vdc 3A / 19Vdc 3A / 20Vdc 3A,
USB port: 5Vdc, 2.4A; 60W Max.
TP602LA:
Input: 110-240V~, 50-60Hz, 1.3A max., Class II
Output: Type C port (with output cord): 5Vdc 3A / 9Vdc 3A / 12Vdc 3A / 15Vdc 3A / 19Vdc 3A /
20Vdc 3A,
USB port: 5Vdc, 2.4A; 60W Max.
TP451CA:
Input: 110-240V~, 50-60Hz, 1.0A max., Class II
Output: Type C port: 5Vdc 3A / 9Vdc 3A / 12Vdc 3A / 15Vdc 3A / 19Vdc 2.25A / 20Vdc 2.25A,
USB port: 5Vdc, 2.4A; 45W Max.
TA07E3, TP451C:
Input: 110-240V~, 50-60Hz, 1.0A max., Class II
Output: Type C port: 5Vdc 3A / 9Vdc 3A / 12Vdc 3A / 15Vdc 3A / 19Vdc 2.25A / 20Vdc 2.25A;
45W Max.
TP302CA:
2.0 Product Description
CHARGER
(The one)
All models are identical to each other except for the model name, output rating, enclosure
shape base on different output port, output port and parameters of components(Such as C19,
L5, L6 etc.).
Description
The products covered by this report are AC/DC CHARGER with non-detchable plug, intended
for using at the overvoltage category II and pollution degree 2 circumstances, for indoor use
only.
TP601CA, TP601C, TP602LA, TA06A3, TP452CA, TP451C, TA07E3, TP451CA, TP302CA,
TP301CA, TP301C, TP303L.
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 3 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
2.0 Product Description
Other Ratings
TP302CA:
Input: 110-240V~, 50-60Hz, 1.0A max., Class II
Output: Type C port: 5Vdc 3A / 9Vdc 3A / 12Vdc 2.5A / 15Vdc 2A / 19Vdc 1.5A / 20Vdc 1.5A,
USB port: 5Vdc, 2.4A; 45W Max.
TP301CA:
Input: 110-240V~, 50-60Hz, 1.0A max., Class II
Output: Type C port: 5Vdc 3A / 9Vdc 3A / 12Vdc 2.5A / 15Vdc 2A / 19Vdc 1.5A / 20Vdc 1.5A,
USB port: 5Vdc, 2.4A; 30W Max.
TP303L:
Input: 110-240V~, 50-60Hz, 1.0A max., Class II
Output: Type C port (with output cord): 5Vdc 3A / 9Vdc 3A / 12Vdc 2.5A / 15Vdc 2A / 19Vdc
1.5A / 20Vdc 1.5A,
USB port: 5Vdc, 2.4A; 30W Max.
TP301C:
Input: 110-240V~, 50-60Hz, 1.0A max., Class II
Output: Type C port: 5Vdc 3A / 9Vdc 3A / 12Vdc 2.5A / 15Vdc 2A / 19Vdc 1.5A / 20Vdc 1.5A;
30W Max.
NA
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 4 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018

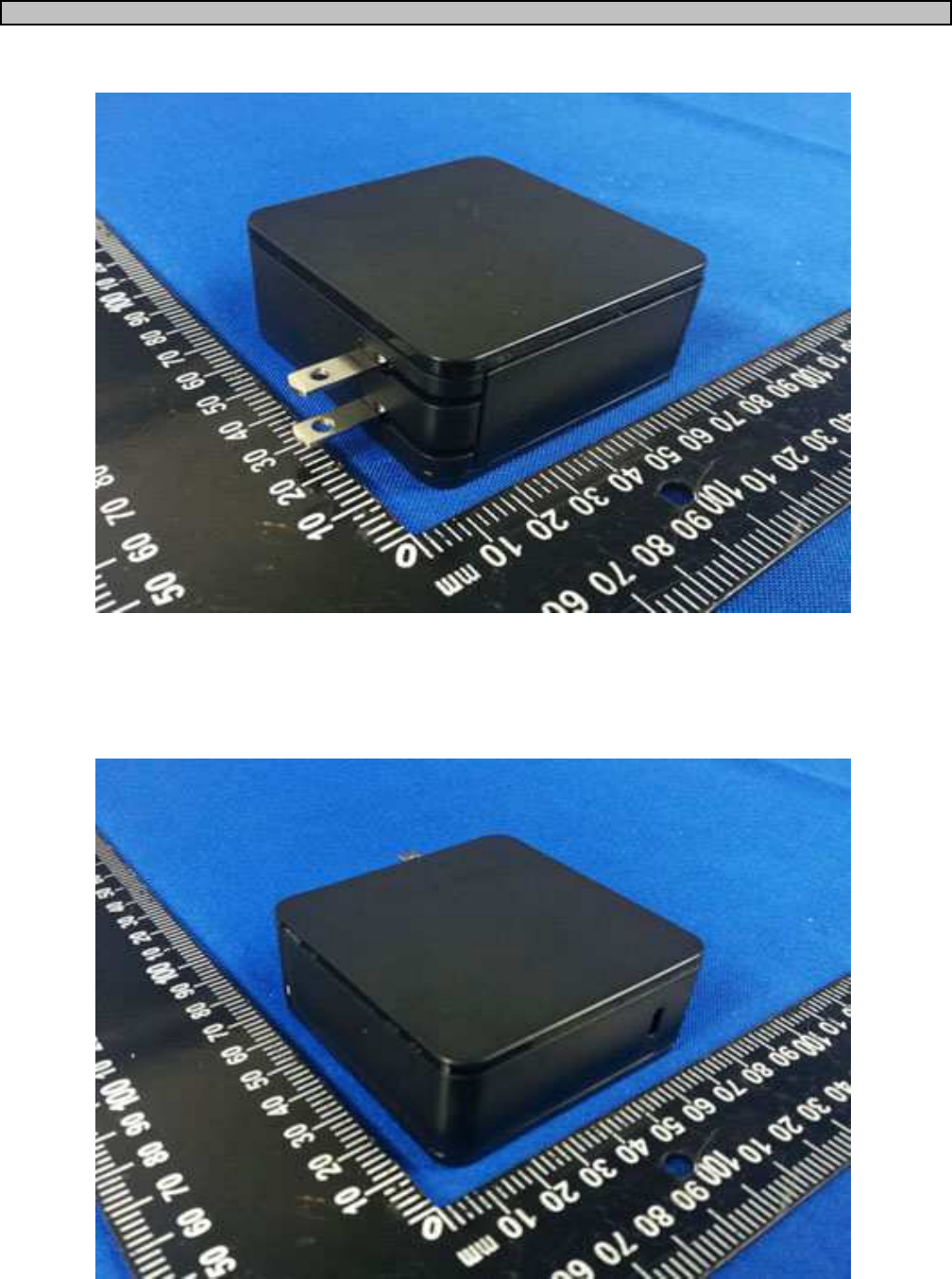

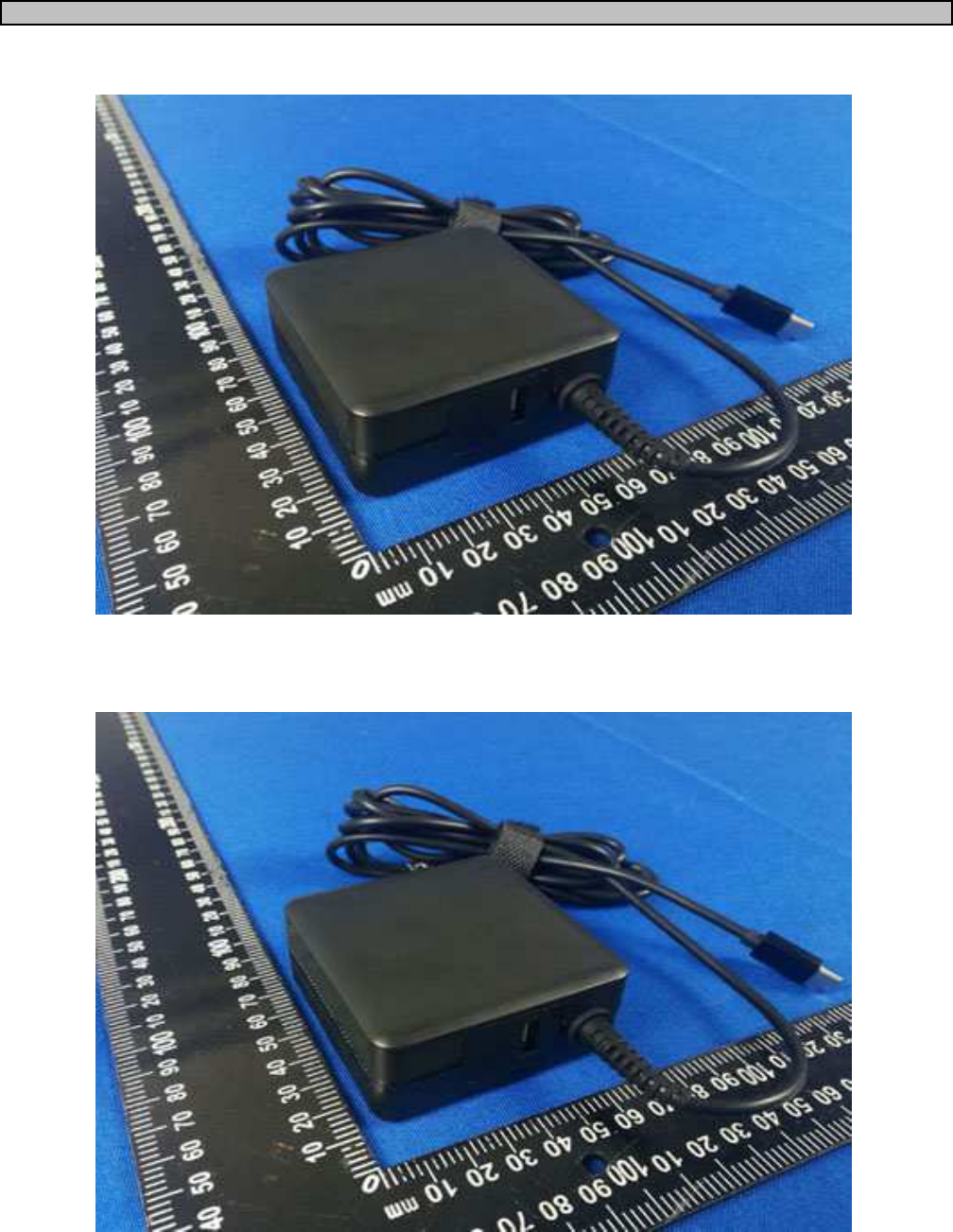

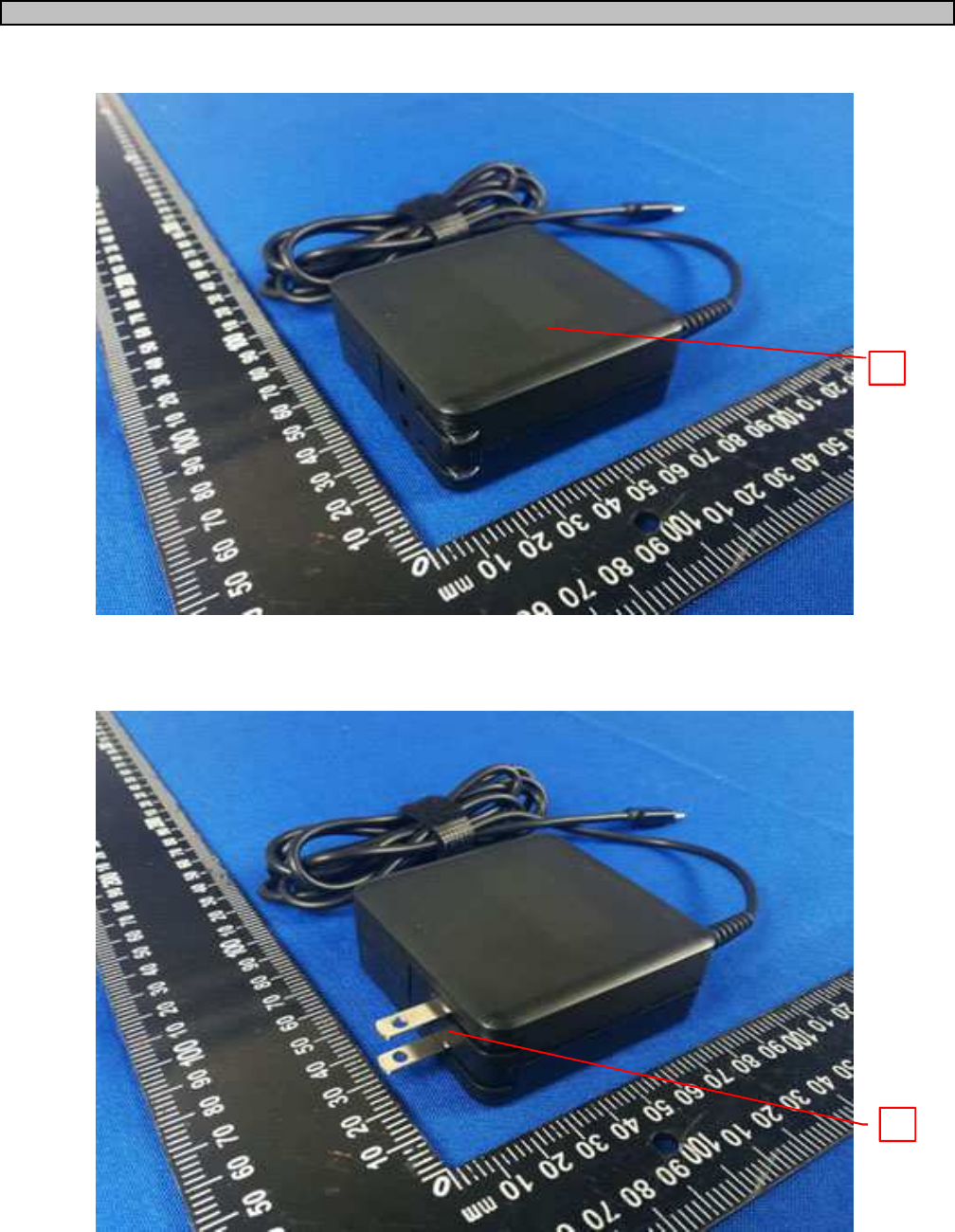

Photo 1 - Overall view of the unit TP602LA and TP303L
Photo 2 - Overall view of the unit TP602LA and TP303L
3.0 Product Photographs
1
2
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 5 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 3 - Overall view of the unit TP602LA and TP303L
Photo 4 - Overall view of the unit TP602LA and TP303L
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 6 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 5 - Overall view of the unit TP452CA, TP601CA, TP451CA, TP301CA and TP302CA
Photo 6 -
Overall view of the unit TP452CA, TP601CA, TP451CA, TP301CA and TP302CA
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 7 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 7 -
Overall view of the unit TP601C, TP451C, TP301C
Photo 8
-
Overall view of the unit TP601C, TP451C, TP301C
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 8 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs

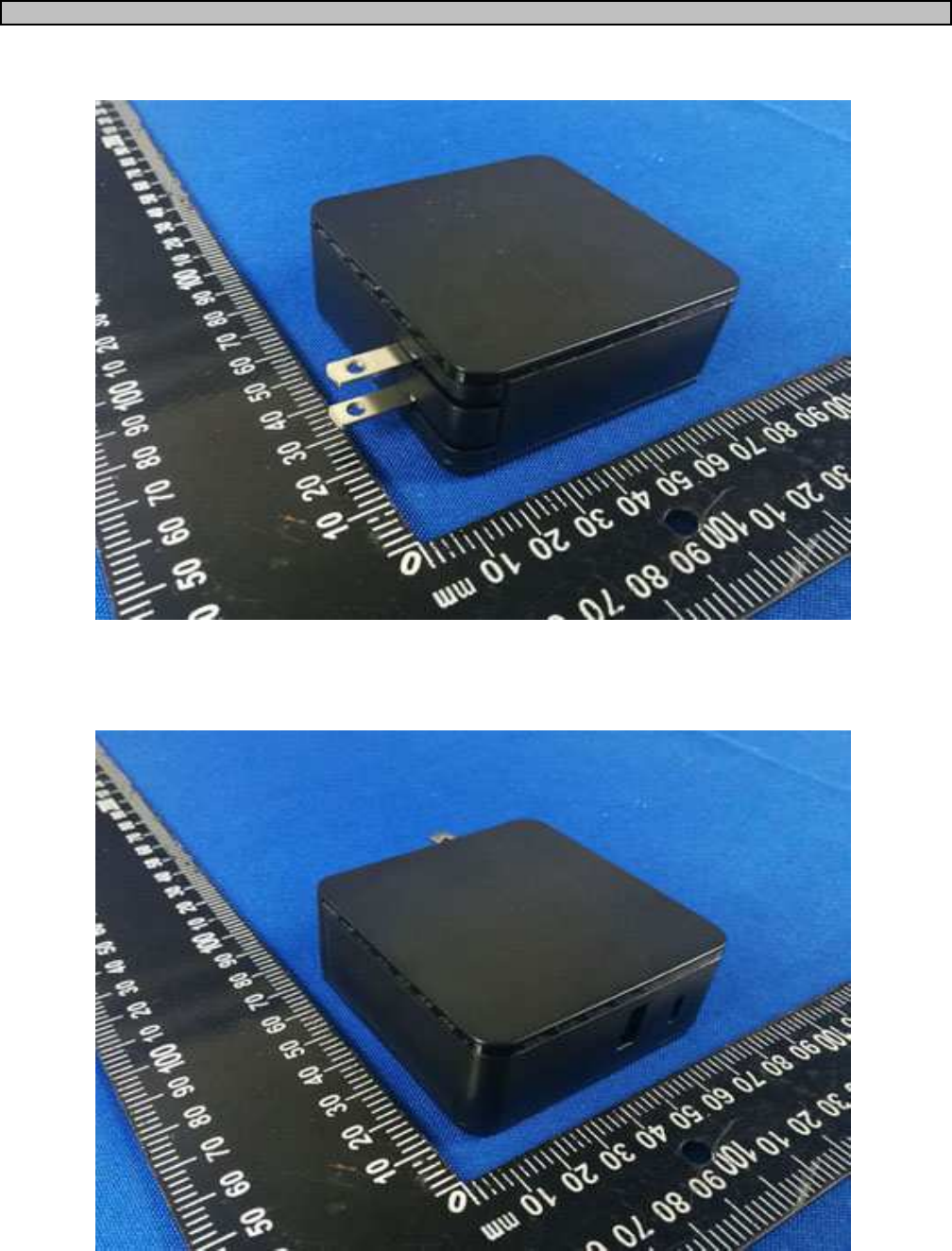

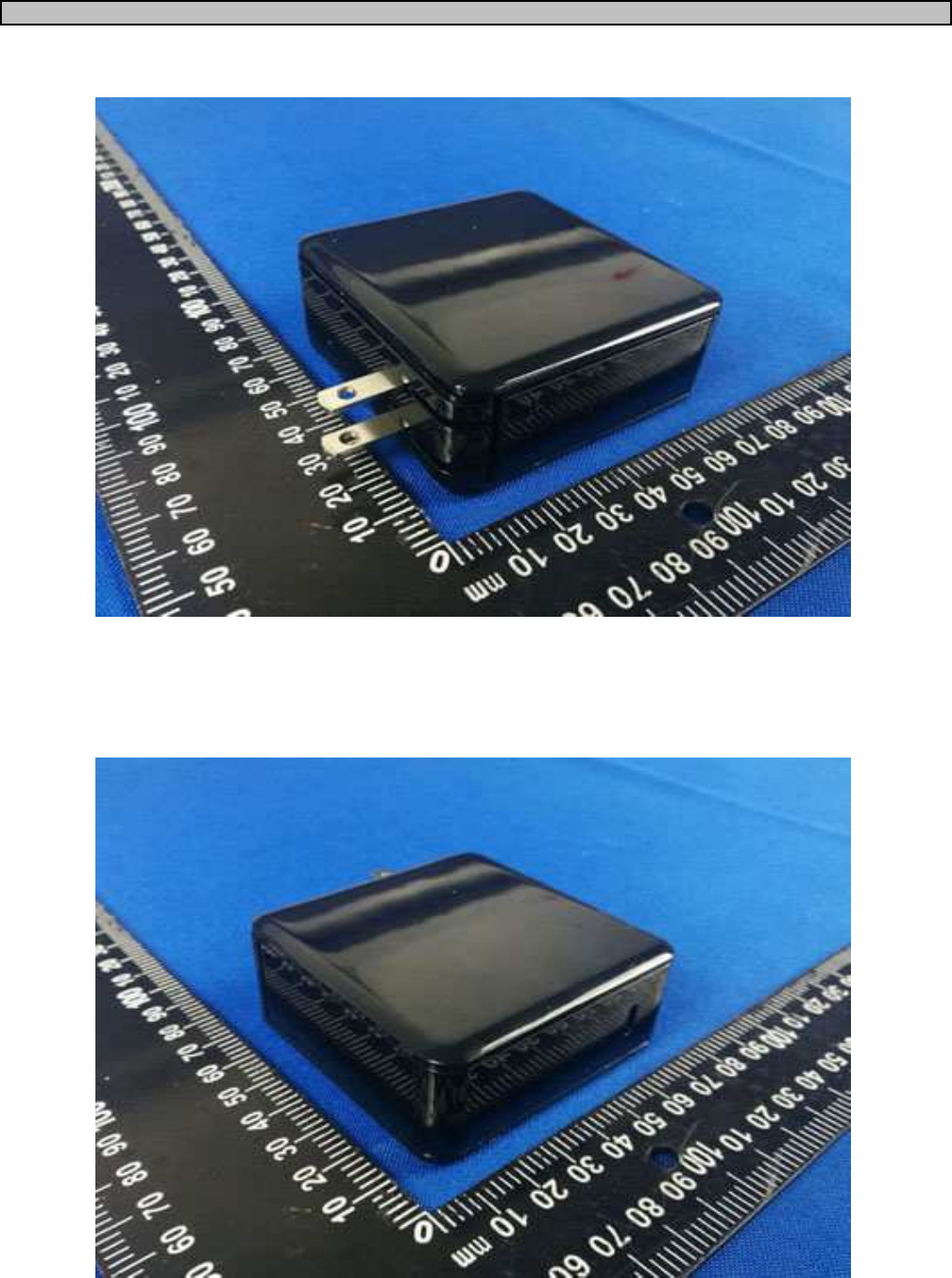

Photo 9
Overall view of the unit TA06A3 and TA07E3
Photo 10 - Overall view of the unit TA06A3 and TA07E3
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 9 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs

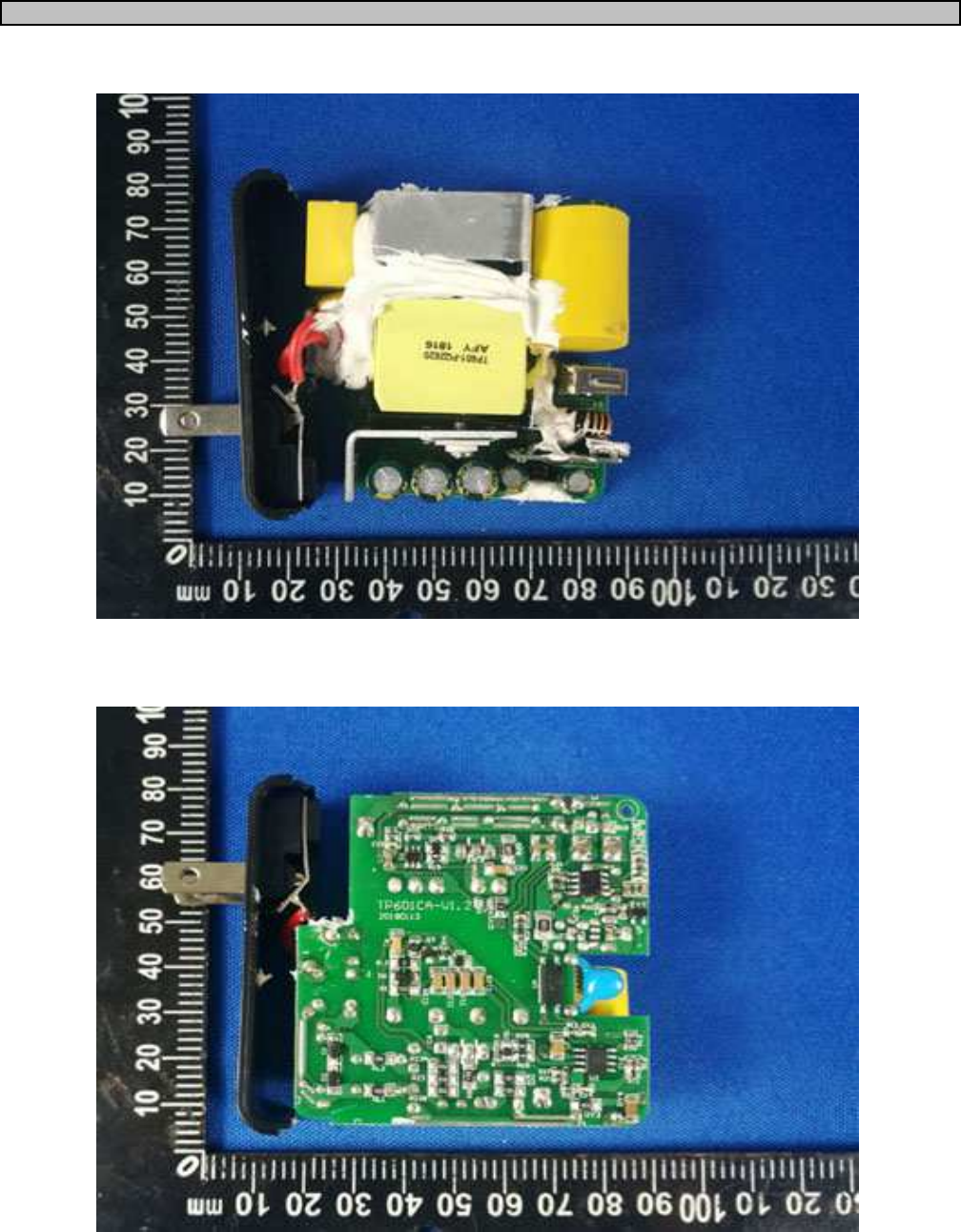

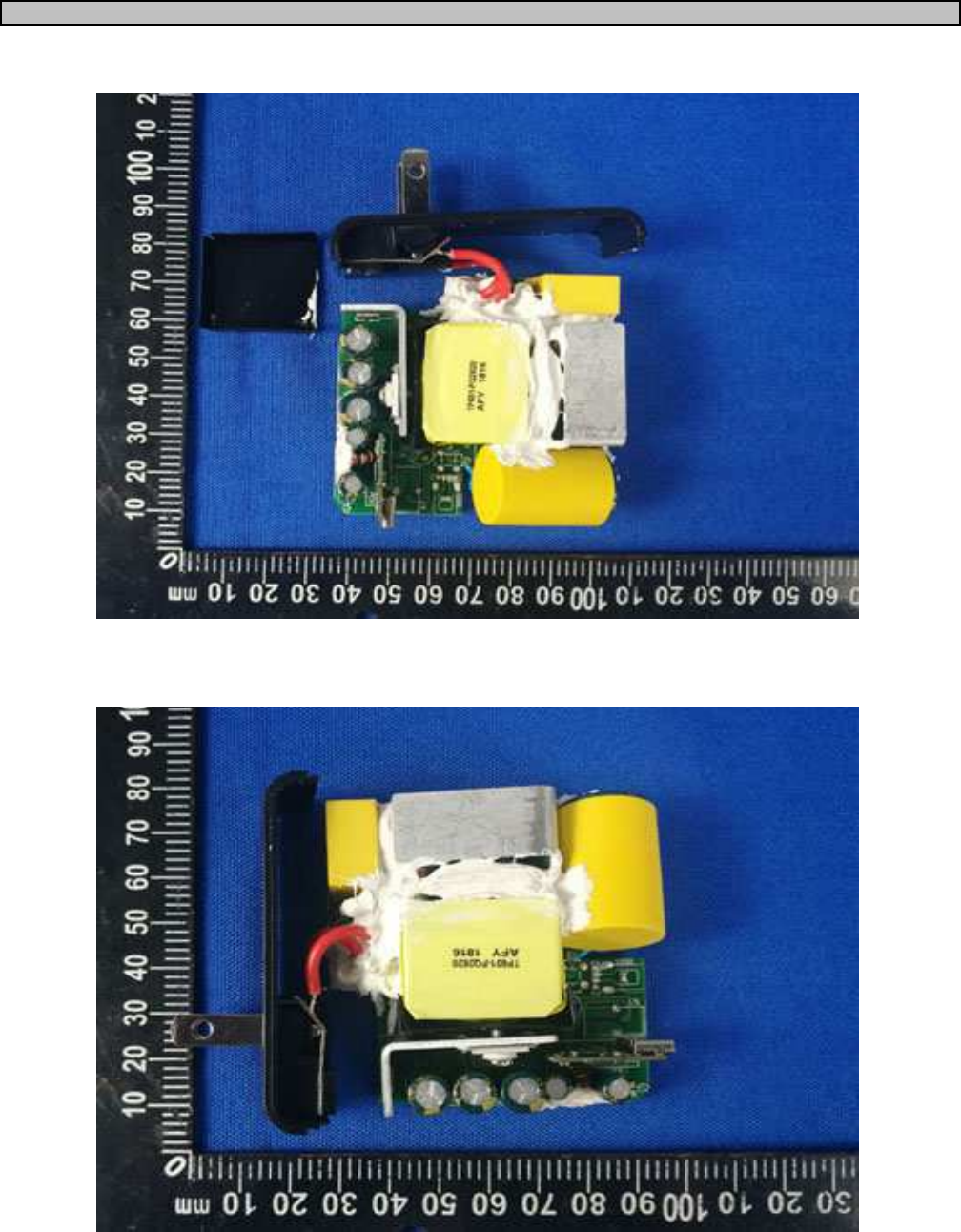

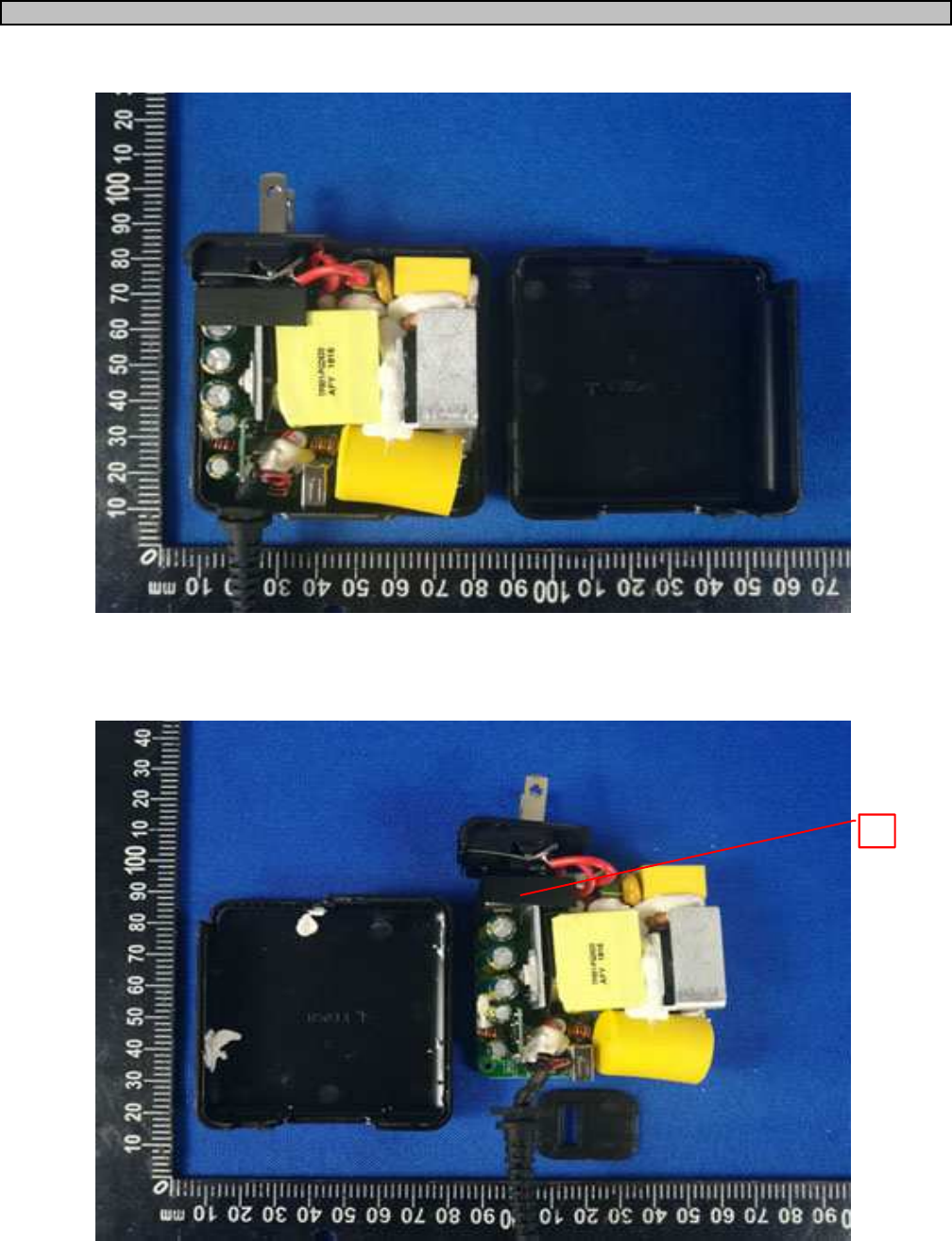

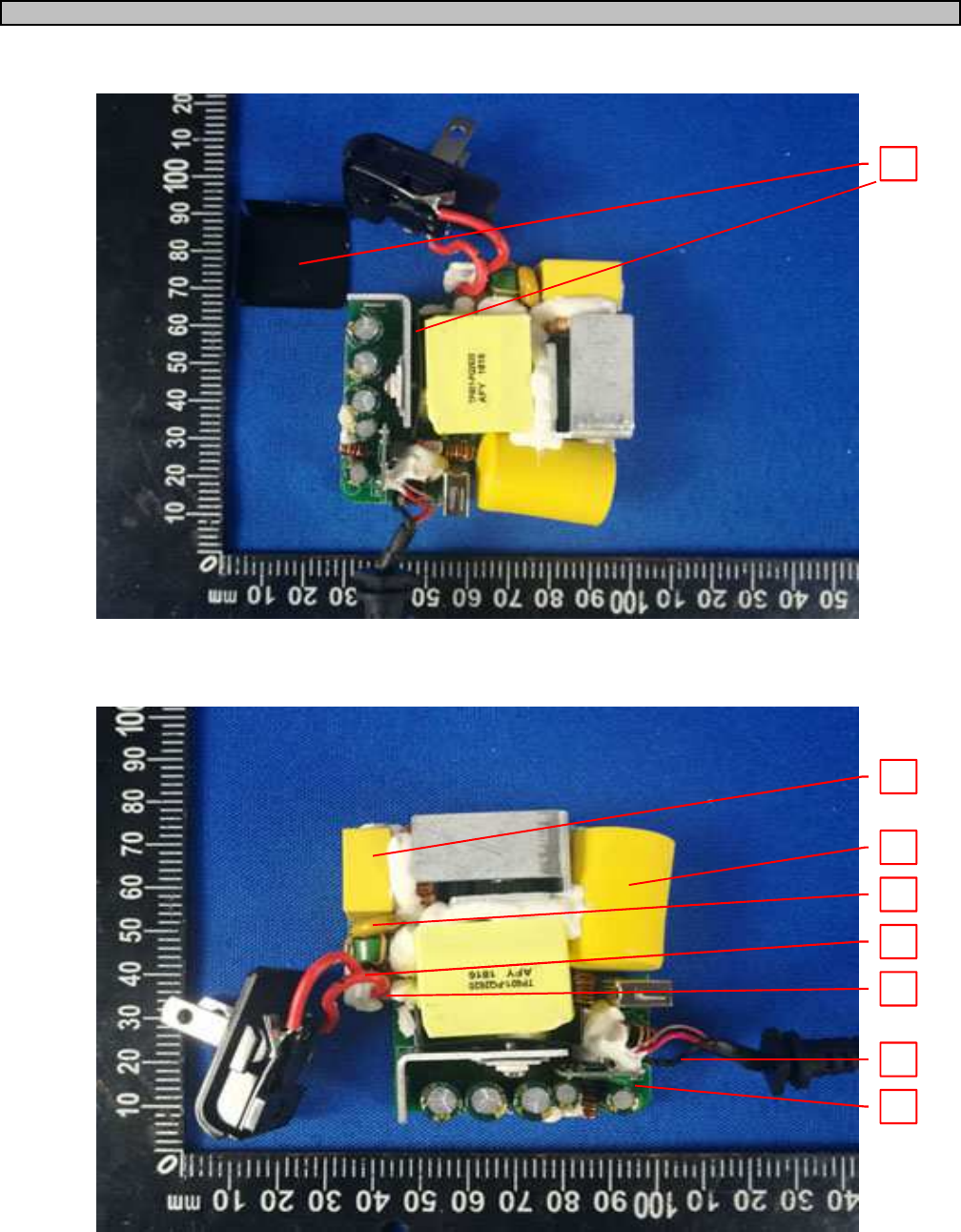

Photo 11

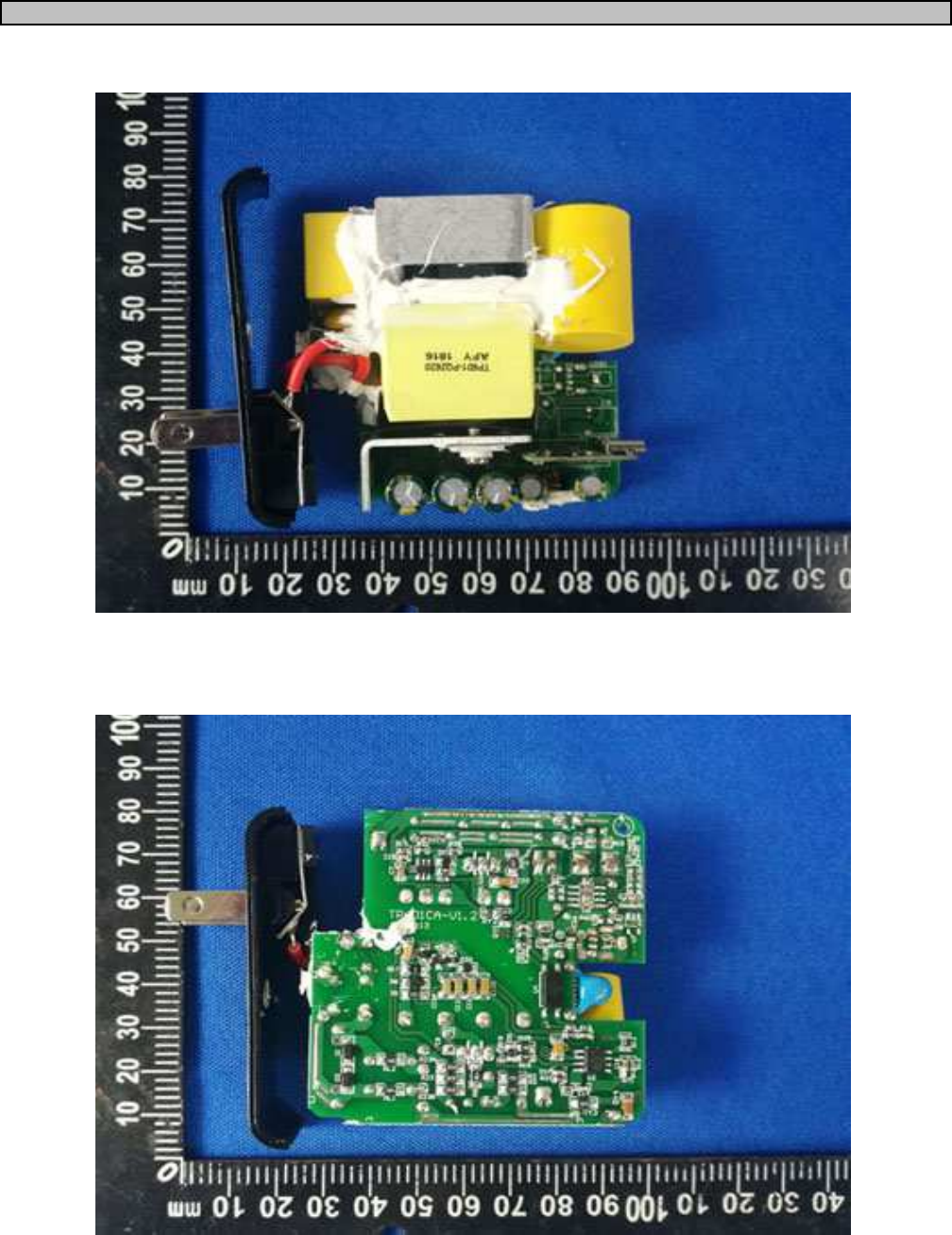

- Internal view of the unit TP602LA and TP303L
Photo 12 - Internal view of the unit TP602LA and TP303L
3
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 10 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 13 -
Internal view of the unit TP602LA and TP303L
Photo 14 -
PCB components view: TP602LA and TP303L
3
10
4
9
5
8
6
7
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 11 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs

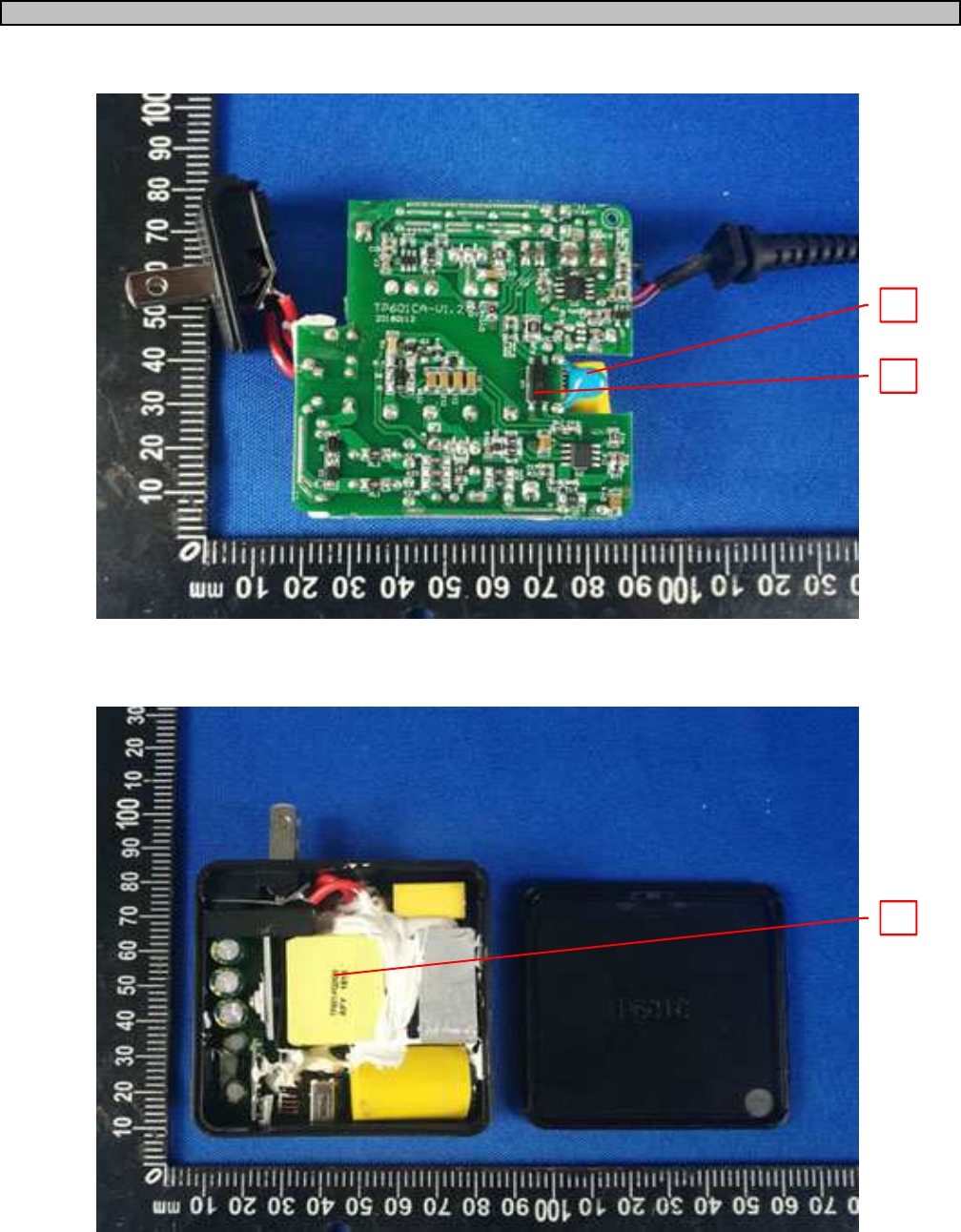

Photo 15 -
PCB tracess view: TP602LA and TP303L
Photo 16 -
Internal view of the unit TP452CA, TP601CA, TP451CA, TP301CA and TP302CA
11
12
13
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 12 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 17 -
Internal view of the unit TP452CA, TP601CA, TP451CA, TP301CA and TP302CA
Photo 18 -
Internal view of the unit TP452CA, TP601CA, TP451CA, TP301CA and TP302CA
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 13 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 19 -

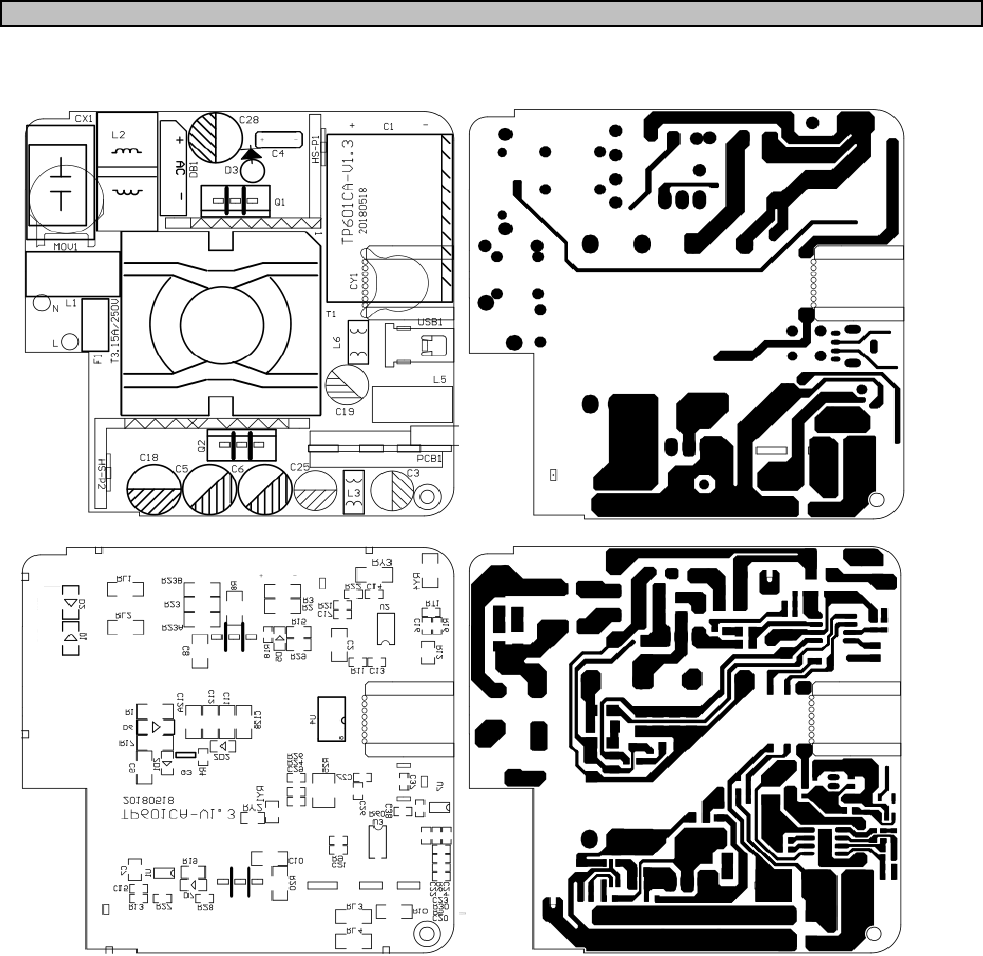

PCB components view: TP452CA, TP601CA, TP451CA, TP301CA and TP302CA
Photo 20 -
PCB tracess view: TP452CA, TP601CA, TP451CA, TP301CA and TP302CA
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 14 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs

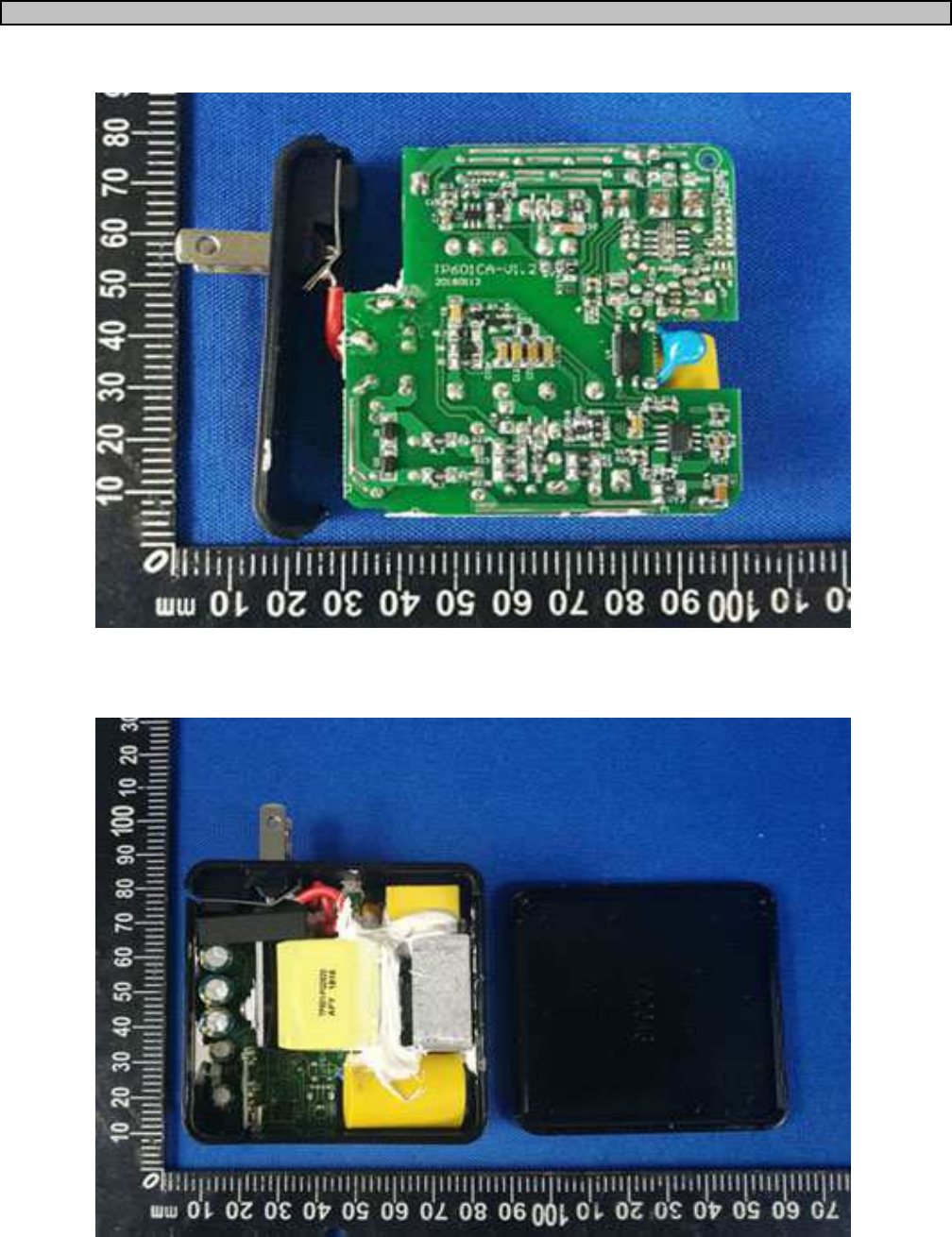

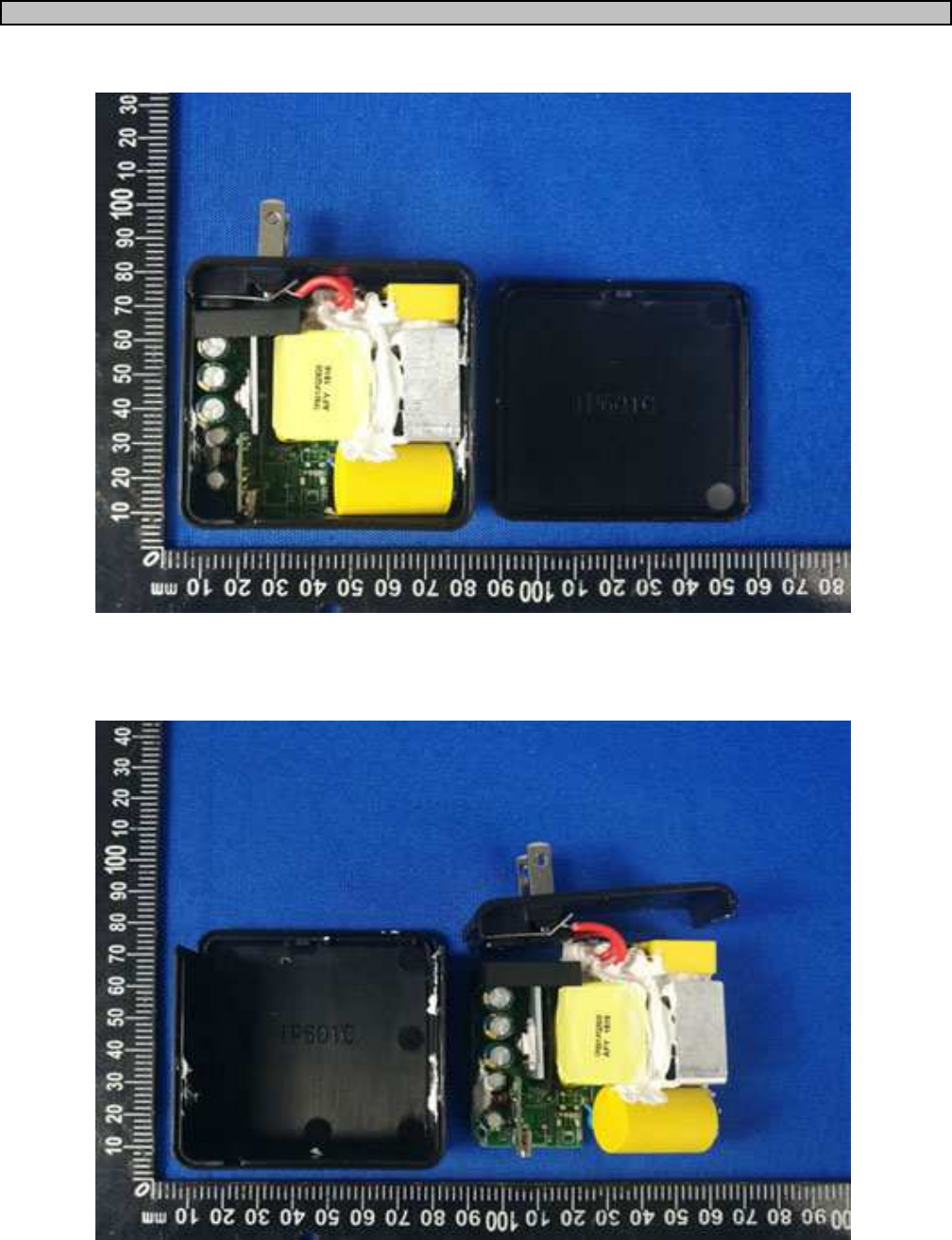

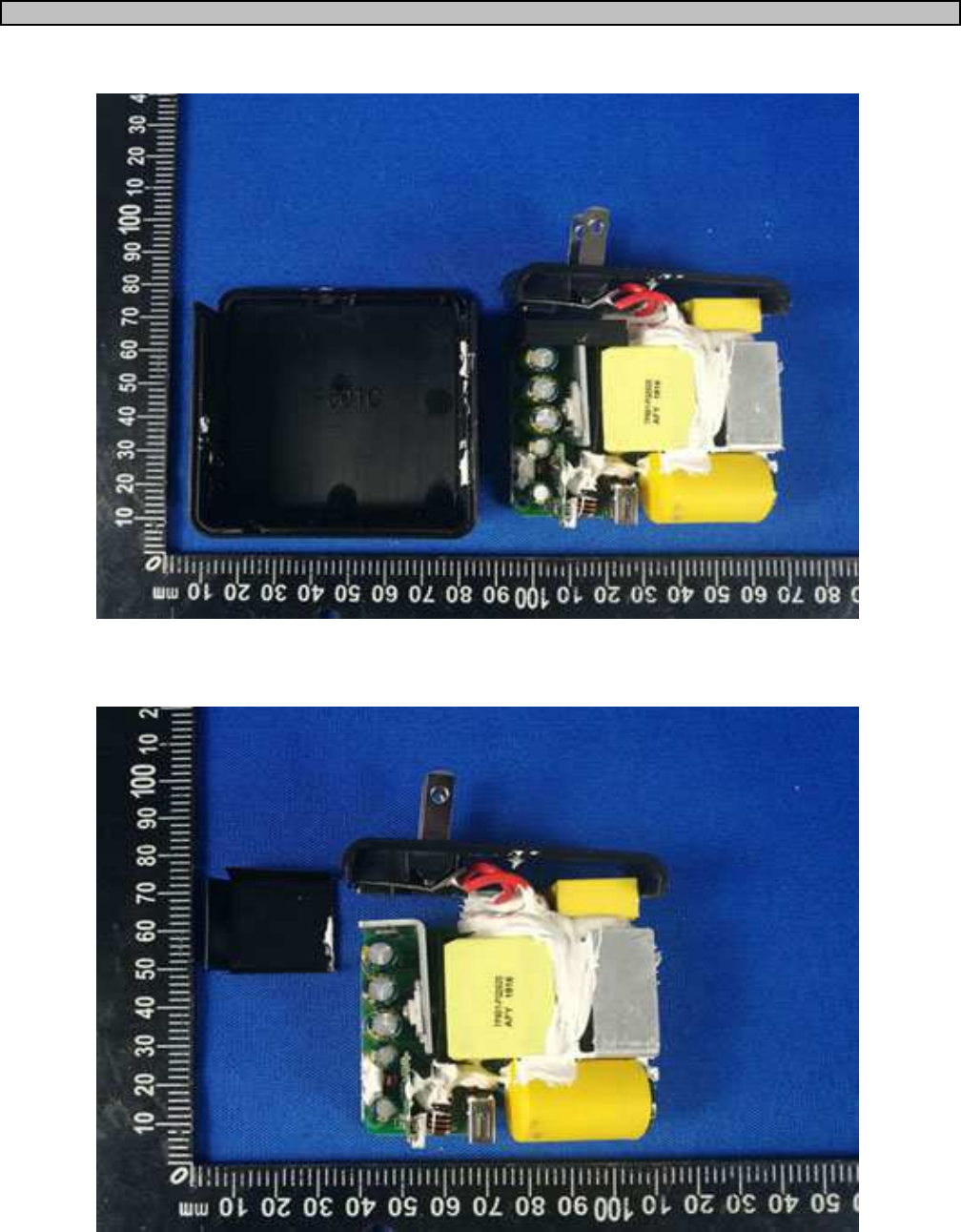

Photo 21 -
Internal view of the unit TP601C, TP451C, TP301C
Photo 22 -
Internal view of the unit TP601C, TP451C, TP301C
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 15 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 23 -
Internal view of the unit TP601C, TP451C, TP301C
Photo 24 -
PCB components view: TP601C, TP451C, TP301C
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 16 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 25 -
PCB tracess view: TP601C, TP451C, TP301C
Photo 26 -
Internal view of the unit TA06A3 and TA07E3
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 17 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs

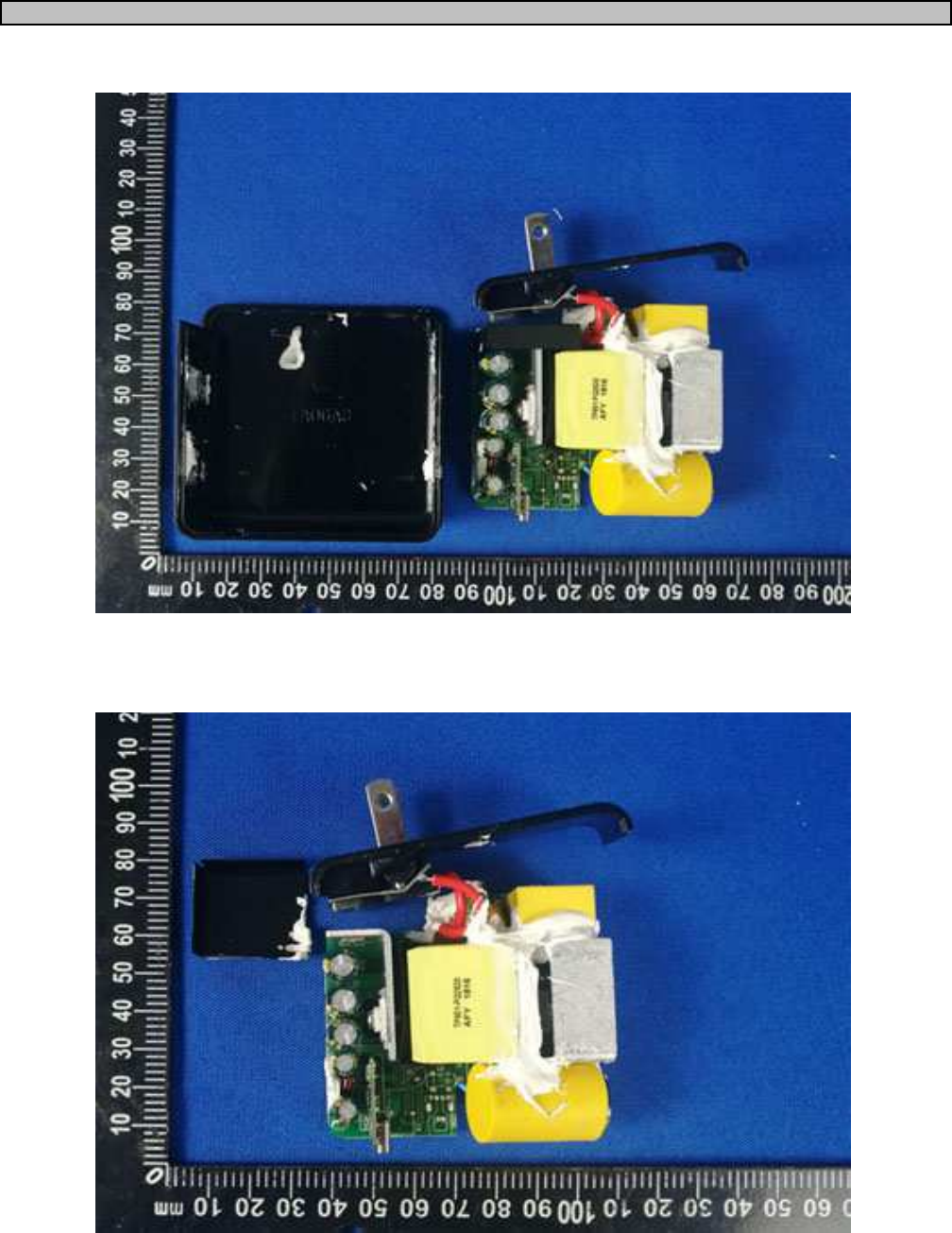

Photo 27 -
Internal view of the unit TA06A3 and TA07E3
Photo 28 -
Internal view of the unit TA06A3 and TA07E3
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 18 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 29 -
PCB components view: TA06A3 and TA07E3
Photo 30 -
PCB tracess view: TA06A3 and TA07E3
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 19 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs

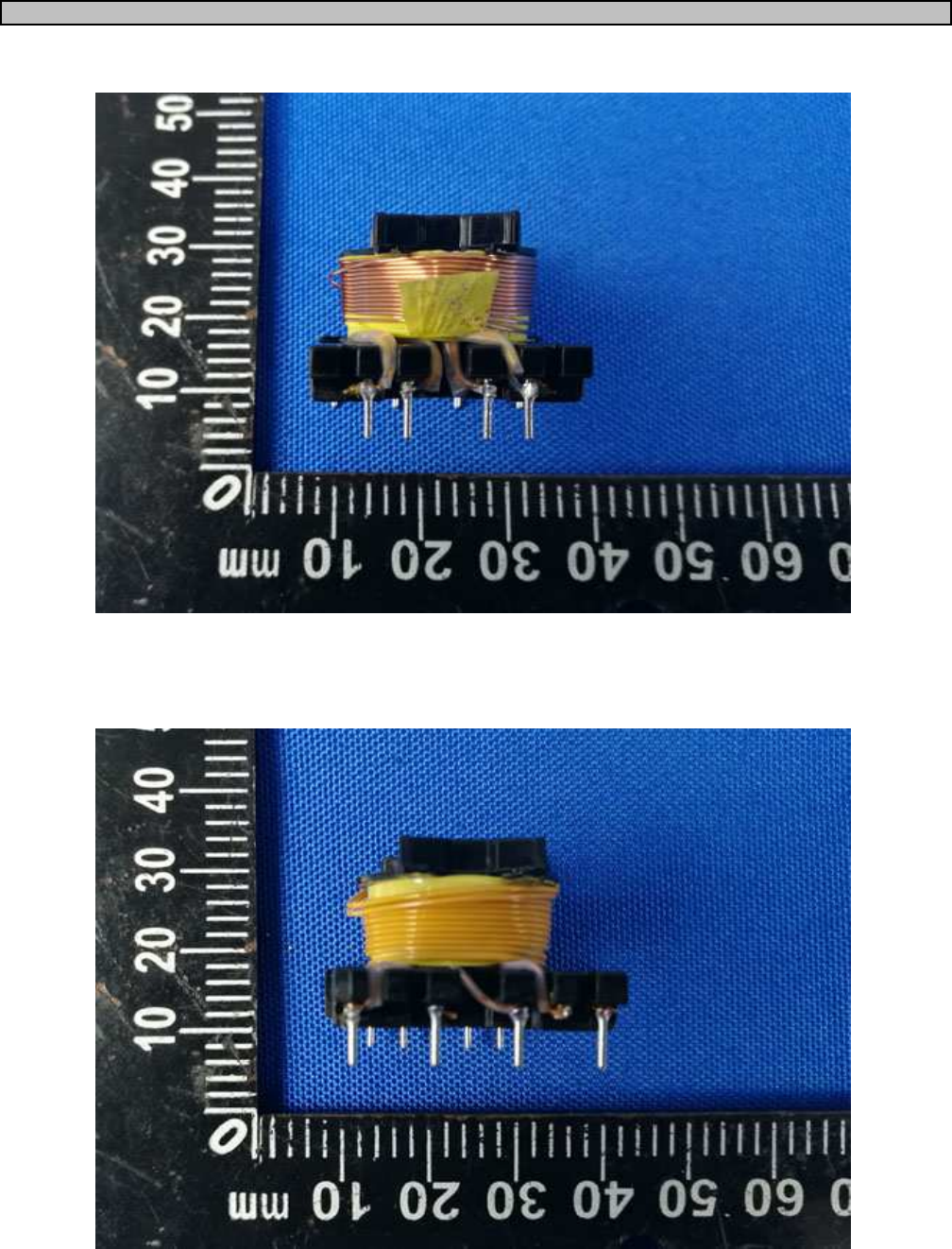

Photo 31 -

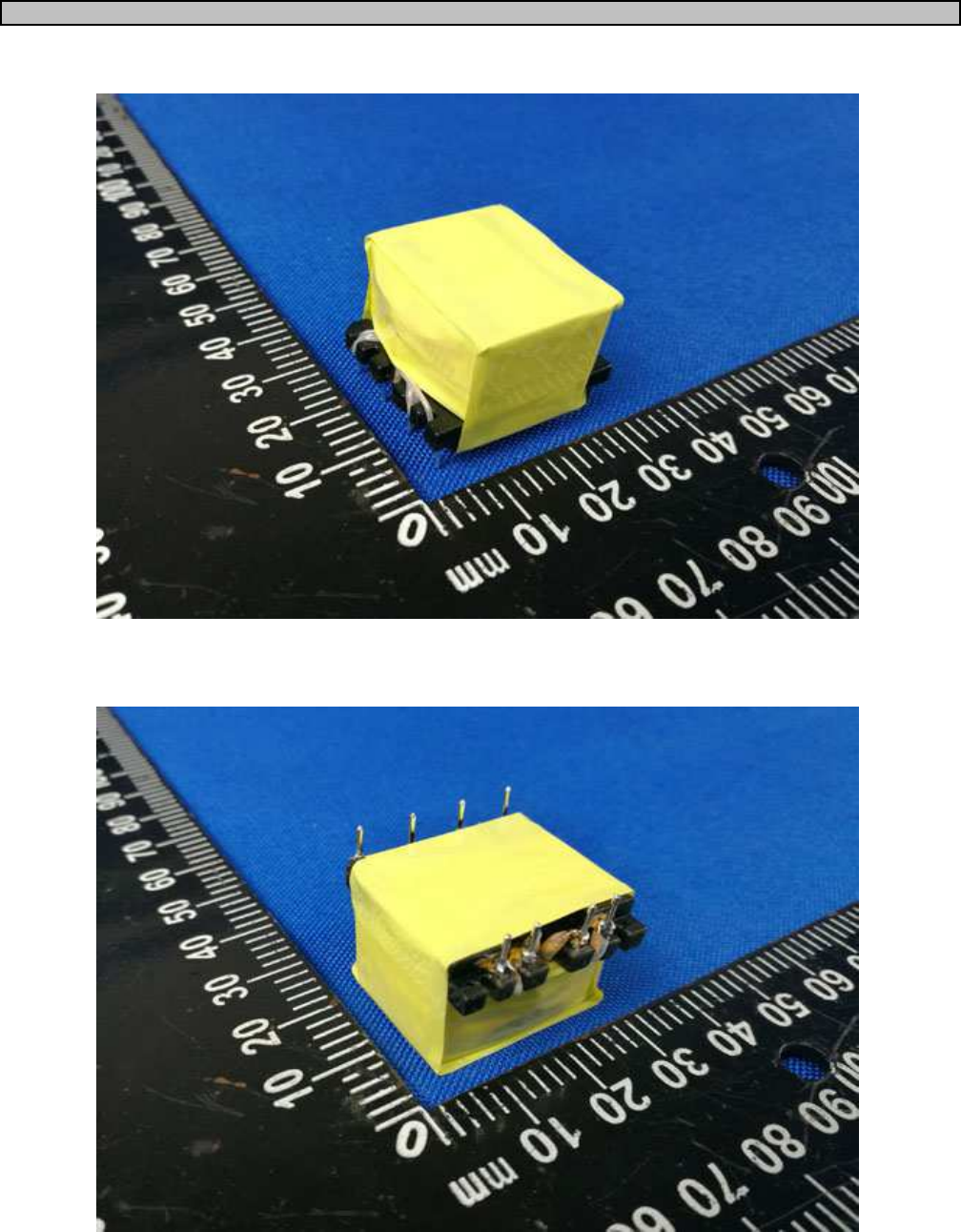

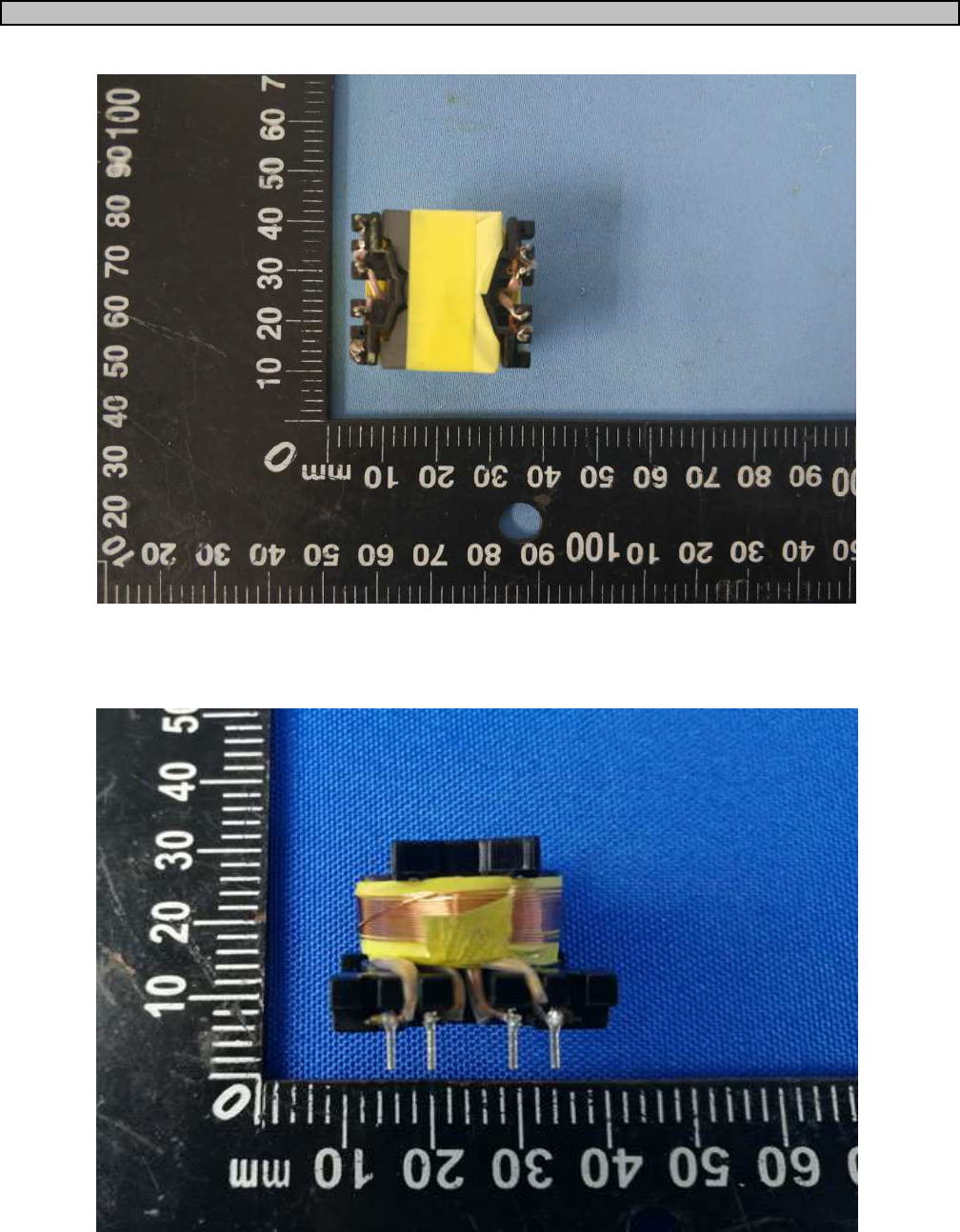

Transformer view
Photo 32 -
Transformer view
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 20 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 33 -
Transformer view
Photo 34 -
Transformer view
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 21 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs
Photo 35 -
Transformer view
Photo 36 -
Transformer view
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 22 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
3.0 Product Photographs

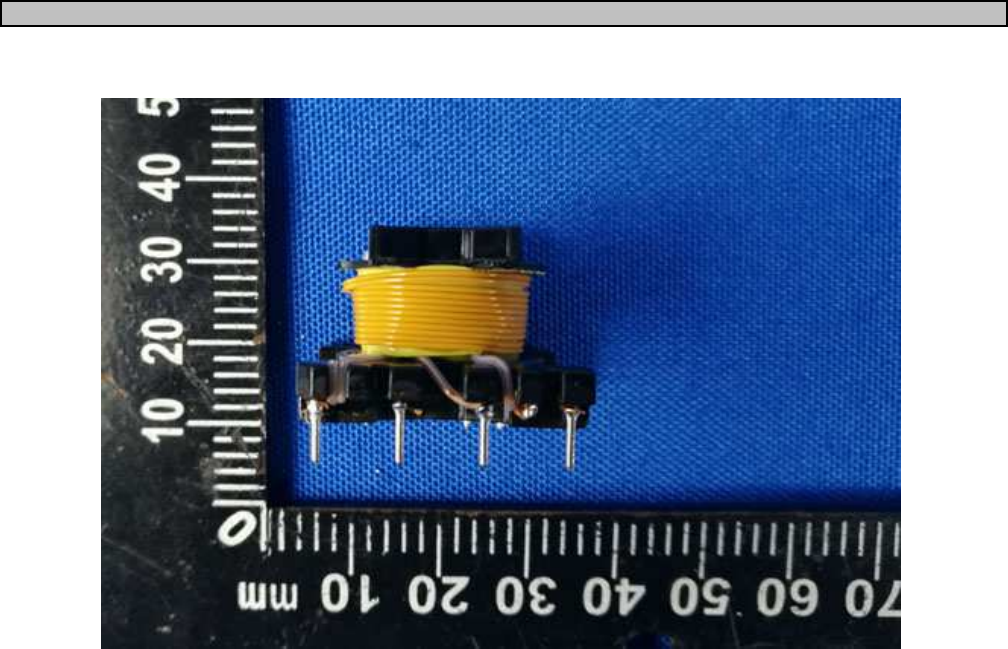

Photo 37 -
Transformer view
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 23 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
Photo #
Item
no.
1
Name Manufacturer/
trademark
2
Type / model
2
Technical data and securement
means
Mark(s) of
conformity
3
1 1 Enclosure
SUMITOMO
BAKELITE CO
LTD
AV-Lite DP 901 V-0, 130°C, min. 2.0 mm
thickness cURus
2 2 Plug holder
SUMITOMO
BAKELITE CO
LTD
AV-Lite DP 901 V-0, 130°C cURus
SHENZHEN XING
FU CHENG
APPLIED
MATERIALS CO
LTD
XFCPC-
EFR9922R
Min. 0.4 mm thickness, rated V-0,
125°C (between AC plug portion
and secondary heat-sink)
cURus
SICHUAN
DONGFANG
INSULATING
MATERIAL CO
LTD
DX10A
Min. 0.4 mm thickness, rated V-0,
125°C (between AC plug portion
and secondary heat-sink)
cURus
SICHUAN
DONGFANG
INSULATING
MATERIAL CO
LTD
DX10A1
Min. 0.4 mm thickness, rated V-0,
125°C (between AC plug portion
and secondary heat-sink)
cURus
14 4 Heat-shrinkable
tubing
DONGJUE
SILICONE
(NANJING) CO
LTD
NE-Z150 Min. 0.4 mm thickness, rated V-0,
150°C (wrapping primary C1) cURus
DONGGUAN
CHENG XING
ELECTRONIC CO
LTD
1015 VW-1, min. 22AWG, min. 105°C,
min. 300V cURus
DONGGUAN
ZHIHE
ELECTRICAL
CABLE TECH CO
1015 VW-1, min. 22AWG, min. 105°C,
min. 300V cURus
KAIBO WIRE &
CABLE MFG CO
LTD
1015 VW-1, min. 22AWG, min. 105°C,
min. 300V cURus
PACIFIC
ELECTRIC WIRE
& CABLE CO LTD
1015 VW-1, min. 22AWG, min. 105°C,
min. 300V cURus
2464 cURus
2468 cURus
1185 cURus
2464 cURus
2468 cURus
1185 cURus
2464 cURus
2468 cURus
1185 cURus
2464 cURus
2468 cURus
1185 cURus
3
Primary lead wire
Insulation sheet
4.0 Critical Components
Output cord
KAIBO WIRE &
CABLE MFG CO
LTD
VW-1, 80°C, 300V, min. 20AWG
PACIFIC
ELECTRIC WIRE
& CABLE CO LTD
12,
13
614
14 5
VW-1, 80°C, 300V, min. 20AWG
SHENZHEN
BENDA
ELECTRICIAN
MATERIAL CO
LTD
VW-1, 80°C, 300V, min. 20AWG
Various VW-1, min. 80°C, min. 300V, min.
20AWG
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 24 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
Photo #
Item
no.
1
Name Manufacturer/
trademark
2
Type / model
2
Technical data and securement
means
Mark(s) of
conformity
3
4.0 Critical Components
KINGBOARD
LAMINATES
HOLDINGS LTD
KB-6150 V-0, 130°C UR
DONGGUAN
ZHIHAN
ELECTRONIC CO
LTD
ZH-M V-0, 130°C UR
GOLDENMAX
INTERNATIONAL
TECHNOLOGY
(ZHUHAI) LTD
GF432 V-0, 130°C UR
Various Various V-0, 130°C UR
3K T3.15AL, 250 V cURus
SMT T3.15AL, 250 V cURus
LITTELFUSE
WICKMANN
WERKE
392 +, & T3.15AL, 250 V cURus
DONGGUAN
CHEVRON
ELECTRONIC
TECHNOLOGY
CO LTD
SET T3.15AL, 250 V cURus
Various Various T3.15AL, 250 V cURus
TVR10471-V
TVR10471-B
HONGZHI
ENTERPRISES
LTD
HEL10D471K
(@)
Min. 300VAC, min. 105°C, min. V-
0 coating cURus
DONG GUAN
CITY JIANKUN
ELECTRONICS
TECHNOLOGY
CO LTD
10D471K Min. 300VAC, min. 85°C, min. V-
0 coating cURus
HUIZHOU
YUXINYUAN
ELECTRONICS
CO LTD
MKP Max. 0.68uF, min. 275V AC, min.
110°C, X2 type cURus
SHANTOU HIGH-
NEW
TECHNOLOGY
DEVELOPMNT
ZONE
SONGTIAN
ENTERPRISE CO
LTD
MPX Max. 0.68uF, min. 275V AC, min.
110°C, X2 type cURus
MPX cURus
MKP # cURus
THINKING
ELECTRONIC
INDUSTRIAL CO
LTD
PCB14 7
8 Current fuse (F1)
Min. 300VAC, min. 105°C, min. V-
0 coating cURus
14
Varistor (MOV1)
(optional)
14
GUANGDONG
JURCC
ELECTRONICS
CO LTD
Max. 0.68uF, min. 275V AC, min.
110°C, X2 type
SHENZHEN
LANSON
ELECTRONICS
CO LTD
914
X-capacitor (CX1)10
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 25 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
Photo #
Item
no.
1
Name Manufacturer/
trademark
2
Type / model
2
Technical data and securement
means
Mark(s) of
conformity
3
4.0 Critical Components
DONGGUAN
WEIQING
ELECTRONIC CO
LTD
MPX Max. 0.68uF, min. 275V AC, min.
110°C, X2 type cURus
JYA-NAY CO LTD JN Max. 1000pF, min. 250V AC, 125°
C , Y1 type cURus
SHANTOU HIGH-
NEW
TECHNOLOGY
DEVELOPMNT
ZONE
SONGTIAN
ENTERPRISE CO
LTD
CD Max. 1000pF, min. 250V AC, 125°
C , Y1 type cURus
DONG GUAN
CITY JIANKUN
ELECTRONICS
TECHNOLOGY
CO LTD
JT Max. 1000pF, min. 250V AC, 125°
C , Y1 type cURus
GUANGZHOU
YES
ELECTRONIC
TECHNOLOGY
CO LTD
AR Max. 1000pF, min. 250V AC, 125°
C , Y1 type cURus
EVERLIGHT
ELECTRONICS
CO LTD
EL101XH% Double protection optical isolators,
providing 5000 vac isolation cURus
LITE-ON
TECHNOLOGY
CORP
LTV-10XX
Double protection optical isolators
having an isolation voltage of
5000 V ac
cURus
SHENZHEN
ANFUYUAN
TECHNOLOGY
CO LTD
Class B, Rainforced, see
Illustrations 4 for details NR
SHENZHEN
MINGDAFA
TECHNOLOGY
CO LTD
Class B, Rainforced, see
Illustrations 4 for details NR
SHENZHEN
ZHANMAO
TECHNOLOGY
CO LTD
Class B, Rainforced, see
Illustrations 4 for details NR
16 13a Insulation system
for T1 (not show)
SHENZHEN
MINGDAFA
ELECTRONICS
CO LTD
MDF-B Class B UR
3) Indicates specific marks to be verified, which assures the agreed level of surveillance for the component. "NR" - indicates Unlisted and
only visual examination is necessary. "See 5.0" indicates Unlisted components or assemblies to be evaluated periodically refer to section
5.0 for details.
NOTES:
.
2) “Various“ means any type, from any manufacturer that complies with the "Technical data and securement means" and meets the "Mark(s)
of conformity" can be used.
TP601-PQ2620
11
16 13 Transformer (T1)
15
Optocoupler (U4)1215
Y-capacitor (CY1)
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 26 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
No Unlisted CEC components are used in this report.
5.0 Critical Unlisted CEC Components
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 27 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
2. Mechanical Assembly - Components such as switches, fuseholders, connectors, wiring terminals and display
lamps are mounted and prevented from shifting or rotating by the use of lockwashers, starwashers, or other
mounting format that prevents turning of the component.
3. Corrosion Protection - All ferrous metal parts are protected against corrosion by painting, plating or the
equivalent.
4. Accessibility of Live Parts - All uninsulated live parts in primary circuitry are housed within a non-metallic
enclosure constructed with no openings other than those specifically described in Sections 4 and 5.
5. Grounding - This product is not provided with a means of grounding as it is double insulated.
6. Polarized Connection - This product is provided with a non-polarized power supply connection.
7. Internal Wiring - Internal wiring is routed away from sharp or moving parts. Internal wiring leads terminating
in soldered connections are made mechanically secure prior to soldering. Recognized Component
separable (quick disconnect) connectors of the positive detent type, closed loop connectors, or other types
specifically described in the text of this report are also acceptable as internal wiring terminals. At points
where internal wiring passes through metal walls or partitions, the wiring insulation is protected against
abrasion or damage by plastic bushings or grommets.
8. Schematics - Refer to Illustration No 2, 2a. or schematics requiring verification during Field Representative
Inspection Audits schematics.
9. Markings - See Illustration No.1 - Marking
10. Cautionary Markings - See Illustration No.1 - Marking
11. Installation, Operating and Safety Instructions - Instructions for installation and use of this product are
provided by the manufacturer. See Illustration No. 5, The use manual in French must provide
when the unit sell to Canada.
6.0 Critical Features
Unlisted Component - A part that has not been previously evaluated to the appropriate designated component
standard. It may also be a Listed or Recognized component that is being used outside of its evaluated Listing or
component recognition.
Listed Component - A component part, which has been previously Listed or Certified by an accredited
Certification Organization with no restrictions and is used in the intended application within its ratings.
Recognized Component - A component part, which has been previously evaluated by an accredited certification
body with restrictions and must be evaluated as part of the basic product considering the restrictions as specified
by the Conditions of Acceptability.
1. Spacing - In primary circuits, _2.0/2.5_ mm minimum spacing are maintained through air and over surfaces
of insulating material between current-carrying parts of opposite polarity, between line or neutral and
earthing; _4.0/5.0_ mm minimum between such current-carrying parts and dead-metal parts or low voltage
isolated circuits and _4.6/6.0_ mm minimum between transformer priamry winding & core and secondary
parts.
Critical Features/Components - An essential part, material, subassembly, system, software, or accessory of a
product that has a direct bearing on the product’s conformance to applicable requirements of the product
standard.
Construction Details - For specific construction details, reference should be made to the photographs and
descriptions. All dimensions are approximate unless specified as exact or within a tolerance. In addition to the
specific construction details described in this Report, the following general requirements also apply.
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 28 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018

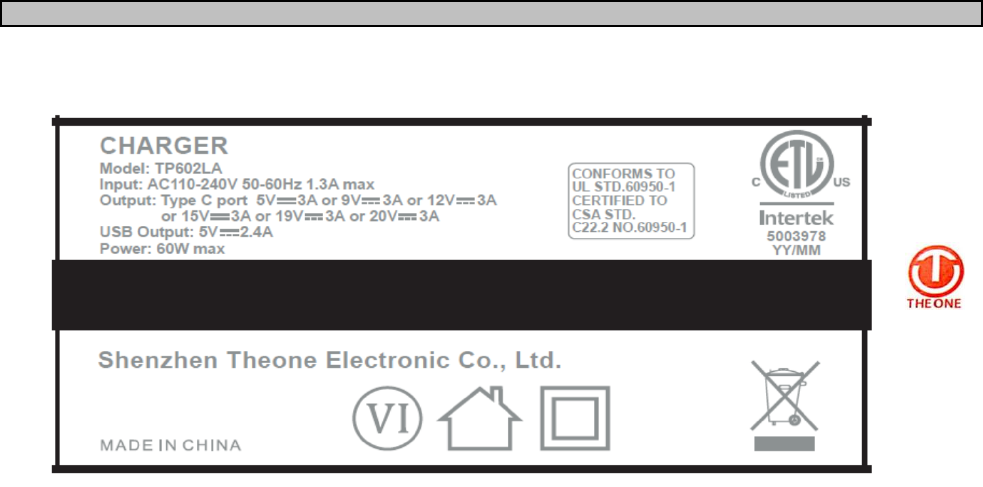

Illustration 1 -
Marking (representative)
7.0 Illustrations
Note:
1. The above markings are the minimum requirements required by the safety standard. For the final production
samples, the additional markings which do not give rise to misunderstanding may be added.
2. The other models (refer to 2.0) have the same labels except the model number and rating.
3. Date code "YYMM" is printed on the label, "YY" denote year, '"MM" denote month (for example 1801 means
the first month of 2018 year).
4. Brand name is printed on the product.
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 29 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
7.0 Illustrations

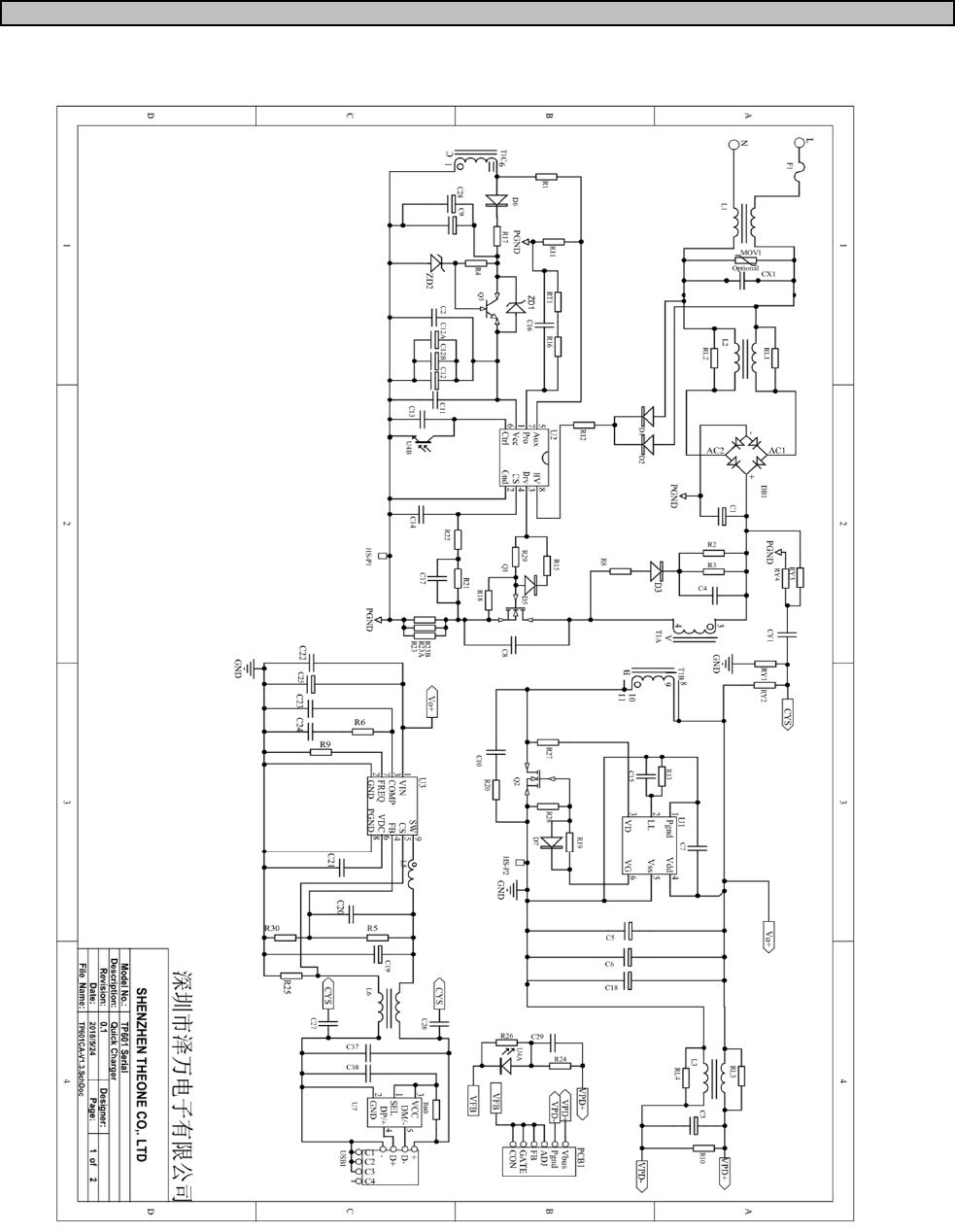

Illustration 2 - Circuit diagram
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 30 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
7.0 Illustrations
Illustration 2a
- Circuit diagram(For PCB1)
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 31 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
7.0 Illustrations

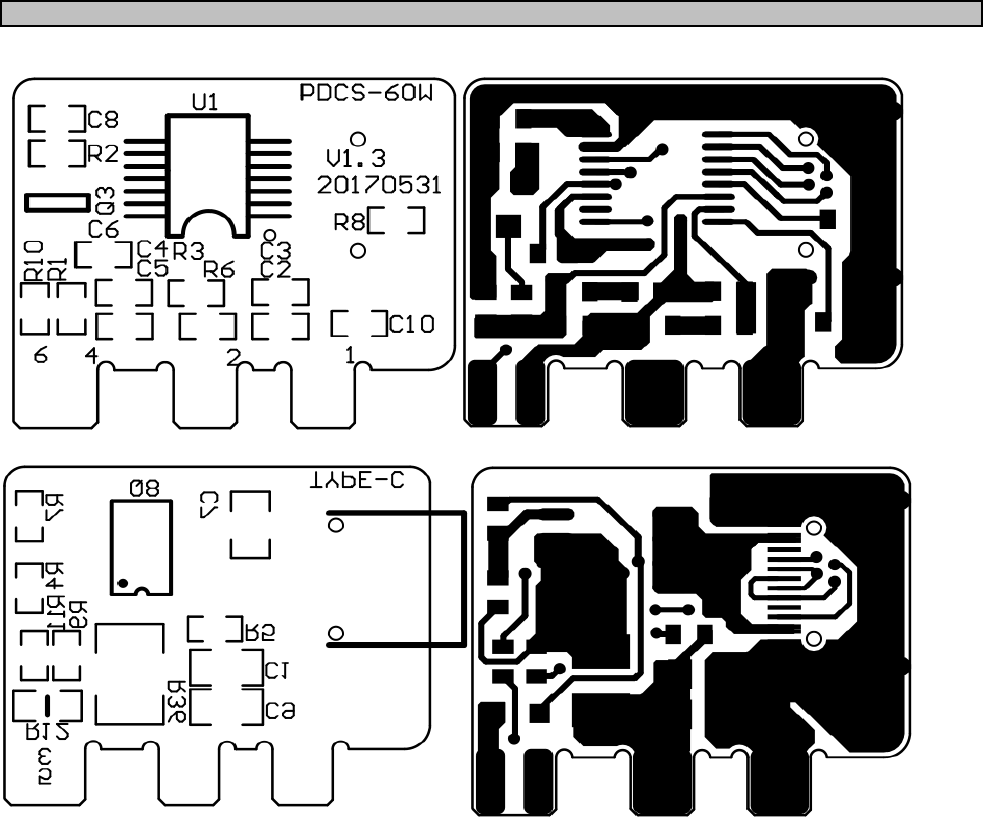

Illustration 3 - PCB layout
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 32 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
7.0 Illustrations
Illustration 3a
- PCB layout(For PCB1)
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 33 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
7.0 Illustrations

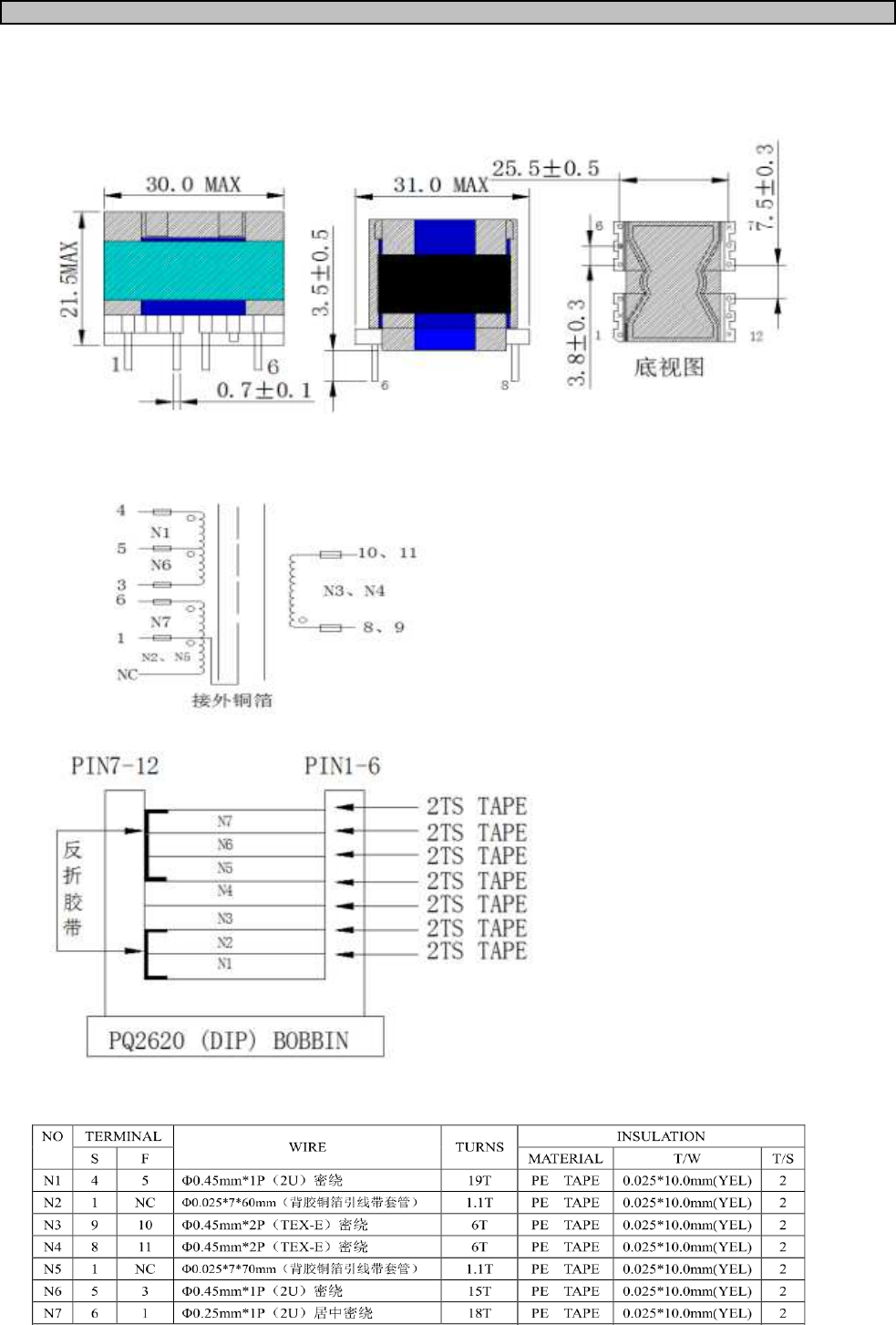

Illustration 4 - transformer spec
1. External view of Transformer (T1)
2. Construction / winding diagram of transformer (T1)
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 34 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
7.0 Illustrations
Illustration 5
- User manual (representative)
2. The output power taken from the supply must not exceed the rating given on the adaptor.
4. The connector of this transformer cannot be replaced;
Input: 110-240V~, 50-60Hz, 1.3A max., Class II
Output: Type C port: 5Vdc 3A / 9Vdc 3A / 12Vdc 3A / 15Vdc 3A / 19Vdc 3A / 20Vdc 3A,
USB port: 5Vdc, 2.4A; 60W Max.
Address: 6th Building, Zhangbei Industrial Park, Xinlian Community, Longcheng Street, LONGGANG
Shenzhen 518172, China
If the connector is damaged, the transformer should be scrapped.
5. The disconnection from line voltage is made by pulling the mains plug or appliance inlet.
6. The socket-outlet shall be installed near the equipment and shall be easily accessible.
7. The product CONFORMS TO UL STD. 60950-1 and CERTIFIED TO CSA STD. C22.2 NO. 60950-1.
To comply with the published safety standards, the following must be observed when using this switching
power supply.
Manufacturer: Shenzhen Theone Electronic Co., Ltd.
1. For information technology equipment and office equipment use only.
(unit can be thrown away).
8. The max ambient temperature should not exceed 25°C.
INSTRUCTION MANUAL
CHARGER
Model:TA602LA
3. The adaptor is not intended to be repaired by service personnel in case of failure or component defect
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 35 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
Evaluation Period Project No. 180525001GZU
Sample Rec. Date 25-May-2018 Condition Prototype Sample ID. S180525001-
001~020
Test Location
Test Procedure
Completed by: Reviewed by:
Title: Title:
Signature: Signature:
Strain on Socket-Outlet Test 4.3.6
Mechanical Strength – Stress Relief Test 4.2.7
Normal Operating Test 4.5.2
Ball Pressure Test 4.5.5
Touch Current Test 5.1
Electric Strength Test 5.2
Abnormal Operations and Fault Conditions Test 5.3
Clearances and Creepage Distances Measurement 2.10.3 & 2.10.4
Mechanical Strength – Drop Test 4.2.6
Mechanical Strength – 10 N Force Test 4.2.2
Mechanical Strength – 250 N Force Test 4.2.4
Limited Power Sources Test 2.5
Humidity Condition Test 2.9.2
Determination of Working Voltage Test 2.10.2
Finger Test 2.1.1.1 b
Pin Test 2.1.1.1 c
Voltage under Normal Conditions Test 2.2.2
Stored Discharge on Capacitors Test 2.1.1.7
Energy Hazards Test 2.1.1.5
Technical Team Leader
Spark He
A representative sample of the product covered by this report has been evaluated and found to comply with the
applicable requirements of the standards indicated in Section 1.0.
Kady Qin
Voltage under Fault Conditions Test 2.2.3
Solid Insulation Measurement 2.10.5.1 & 2.10.5.2
Limited Current Circuits Test 2.4
8.0 Test Summary
GuangZhou ITL Co. Ltd
1-2 floor,South Block,Building A2, No.3 Keyan road,Science city,Guangzhou Guangdong,
China
25-May-2018 to 4-Jul-2018
Determination of the result includes consideration of measurement uncertainty from the test equipment and
methods. The product was tested as indicated below with results in conformance to the relevant test criteria.
Witnessed Manufacturer Testing (WMT) - Level 2
1.6.2
Signature on file Signature on file
The following tests were performed:
8.1 Signatures
Engineer
Marking Durability Test 1.7.11
Test Description
Information Technology Equipment Safety Part 1:
General Requirements >Valid without
technical revision: 01Jan2022< [UL 60950-1:2007
Ed.2 +R:14Oct2014]
Information Technology Equipment Safety Part 1:
General Requirements (R2016) >Valid
without technical revision: 01Jan2022< [CSA
C22.2#60950-1:2007 Ed.2+A1;A2]
Clause
Input Test
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 36 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
BASIC LISTEE
Address
Country
Product
MULTIPLE LISTEE 1
Address
Country
Brand Name
ASSOCIATED
MANUFACTURER
Address
Country
BASIC LISTEE MODELS
TP601CA
TP602LA
TP451CA
MULTIPLE LISTEE 2
Address
Country
Brand Name
ASSOCIATED
MANUFACTURER
Address
Country
BASIC LISTEE MODELS
MULTIPLE LISTEE 3
Address
Country
Brand Name
ASSOCIATED
MANUFACTURER
Address
Country
BASIC LISTEE MODELS
(Manhattan)
Intracom Asisa Co., Ltd
4F., No. 77, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan
China
None
None
Shenzhen Theone Electronic Co., Ltd.
6th Building, Zhangbei Industrial Park, Xinlian Community, Longcheng Street,
LONGGANG Shenzhen 518172
China
MULTIPLE LISTEE 1 MODELS
180214, 180221
180054, 180146
180238, 180245
MULTIPLE LISTEE 3 MODELS
MULTIPLE LISTEE 2 MODELS
CHARGER
China
9.0 Correlation Page For Multiple Listings
The following products, which are identical to those identified in this report except for model number and Listee
name, are authorized to bear the ETL label under provisions of the Intertek Multiple Listing Program.
Shenzhen Theone Electronic Co., Ltd.
6th Building, Zhangbei Industrial Park, Xinlian Community, Longcheng Street,
LONGGANG Shenzhen 518172
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 37 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
10.0 General Information
The Applicant and Manufacturer have agreed to produce, test and label ETL Listed products in accordance with
the requirements of this Report. The Manufacturer has also agreed to notify Intertek and to request authorization
prior to using alternate parts, components or materials.
COMPONENTS
Components used shall be those itemized in this Intertek report covering the product, including any amendments
and/or revisions.
LISTING MARK
The ETL Listing mark applied to the products shall either be separable in form, such as labels purchased from
Intertek, or on a product nameplate or other media only as specifically authorized by Intertek. Use of the mark is
subject to the control of Intertek.
The mark must include the following four items:
1) applicable country identifiers "US" and/or "C" or "US", "C" and "EU"
2) the word "Listed" or "Classified" or "Recognized Component" (whichever is appropriate)
3) a control number issue by Intertek
4) a product descriptor that identifies the standards used for certification. Example:
For US standards, the words, “Conforms to” shall appear with the standard number along with the word, “
Standard” or “Std.” Example: “Conforms to ANSI/UL Std. XX.”
For Canadian standards, the words “Certified to CAN/CSA Standard CXX No. XX.” shall be used, or
abbreviated, “Cert. to CAN/CSA Std. CXX No. XX.”
Can be used together when both standards are used.
Note: A facsimile must be submitted to Intertek, Attn: Follow-up Services for approval prior to use.
The facsimile need not have a control number. A control number will be issued after signed Certification
Agreements have been received by the Follow-up Services office, approval of the facsimile of your
proposed Listing Mark, satisfactory completion of the Listing Report, and scheduling of a factory
assessment in your facility.
MANUFACTURING AND PRODUCTION TESTS
Manufacturing and Production Tests shall be performed as required in this Report.
FOLLOW-UP SERVICE
Periodic unannounced audits of the manufacturing facility (and any locations authorized to apply the mark) shall
be scheduled by Intertek. An audit report shall be issued after each visit. Special attention will be given to the
following:
1. Conformance of the manufactured product to the descriptions in this Report.
2. Conformance of the use of the ETL mark with the requirements of this Report and the Certification Agreement.
3. Manufacturing changes.
4. Performance of specified Manufacturing and Production Tests.
In the event that the Intertek representative identifies non-conformance(s) to any provision of this Report, the
Applicant shall take one or more of the following actions:
1. Correct the non-conformance.
2. Remove the ETL Mark from non-conforming product.
3. Contact the issuing product safety evaluation center for instructions.
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 38 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
10.1 Evaluation of Unlisted Components
Note to Intertek Follow Up Inspector: The Component Evaluation Center, CEC, will notify you in writing
when these components must be selected and sent to the CEC for re-evaluation
Ship the samples to:
Intertek Testing Services Shenzhen Limited Guangzhou Branch
ETL Component Evaluation Center
Block E, No. 7-2 Guang Dong Software Science Park, Caipin Road, Guangzhou Science
City
CETDD Guangzhou, China.
Attn: Ms. Joey Kuang
Sample Disposition: Due to the destructive nature of the testing, all samples will be
discarded at the conclusion of testing unless, the manufacturer specifically requests the
return of the samples. The request for return must accompany the initial component
shipment.
Because Unlisted Components are uncontrolled, and they do not fall under a third party follow up program,
Intertek may require these components to be tested and/or evaluated at least once annually, more often for
certain components, as part of the independent certification process. The Unlisted Components in Section 5.0
require testing and/or evaluation as indicated.
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 39 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
Product
Test Voltage
Test Time
All products covered by this Report. 3000 Vac 60s
or
Between mains input to output terminal/enclosure with metal foil 3600 Vac 1s
Products Requiring Dielectric Voltage Withstand Test:
The test equipment shall incorporate a transformer with an essentially sinusoidal output, a means to indicate the
applied test potential, and an audible and/or visual indicator of dielectric breakdown.
The test equipment shall incorporate a voltmeter in the output circuit to indicate directly the applied test potential
if the rated output of the test equipment is less than 500VA.
Test Equipment
If the rated output of the test equipment is 500VA or more, the applied test potential may be indicated by either:
1 - a voltmeter in the primary circuit;
2 - a selector switch marked to indicate the test potential; or
3 - a marking in a readily visible location to indicate the test potential for test equipment having a single test
potential output.
In cases 2 and 3, the test equipment shall include a lamp or other visual means to indicate that the test potential
is present at the test equipment output. All test equipment shall be maintained in current calibration.
The test voltage specified below shall be applied between primary circuits and accessible dead-metal parts. The
test voltage may be gradually increased to the specified value but must be maintained at the specified value for
one second or one minute as required.
One hundred percent of production of the products covered by this Report shall be subjected to a routine
production line dielectric withstand test.
The test shall be conducted on products, which are fully assembled. Prior to applying the test potential, all
switches, contactors, relays, etc., should be closed so that all primary circuits are energized by the test potential.
If all primary circuits cannot be tested at one time, then separate applications of the test potential shall be made.
11.1 Dielectric Voltage Withstand Test
Method
Dielectric Voltage Withstand Test
11.0 Manufacturing and Production Tests
The manufacturer agrees to conduct the following Manufacturing and Production Tests as specified:
Required Tests
ED 16.3.15 (20-Apr-17) Mandatory
Report No. 180525001GZU-001
Shenzhen Theone Electronic Co., Ltd. Page 40 of 40 Issued: 5-Jul-2018
Revised: 10-Nov-2018
Date/ Project Handler/
Proj # Site ID Reviewer
10-Nov-2018 Kady Qin/
Spark He 1.0 -
Revised Standard(s) from "Information Technology
Equipment Safety Part 1: General Requirements >Valid
without
technical revision: 01Jan2022< [UL 60950-1:2007 Ed.2
+R:14Oct2014]
Information Technology Equipment Safety Part 1: General
Requirements (R2016) >Valid
without technical revision: 01Jan2022< [CSA C22.2#60950-
1:2007 Ed.2+A1;A2]" to "Information Technology Equipment
Safety Part 1: General Requirements >Valid without technical
revision: 20Dec2020< [UL 60950-1:2007 Ed.2+R:14Oct2014]
Information Technology Equipment Safety Part 1: General
Requirements (R2016) >Valid without technical revision:
20Dec2020< [CSA C22.2#60950-1:2007 Ed.2+A1;A2]"
181108114G
ZU 9.0 -
Added MULTIPLE LISTEE 1 company"Intracom Asisa Co.,
Ltd" and brand name: "Manhattan".
Added MULTIPLE LISTEE 1 MODELS:180214, 180221,
180238, 180245, 180054, 180146.
no evaluation to the standards needed.
12.0 Revision Summary
The following changes are in compliance with the declaration of Section 8.1:
Section Item Description of Change
ED 16.3.15 (20-Apr-17) Mandatory

Navigation menu
