LOW LEVEL

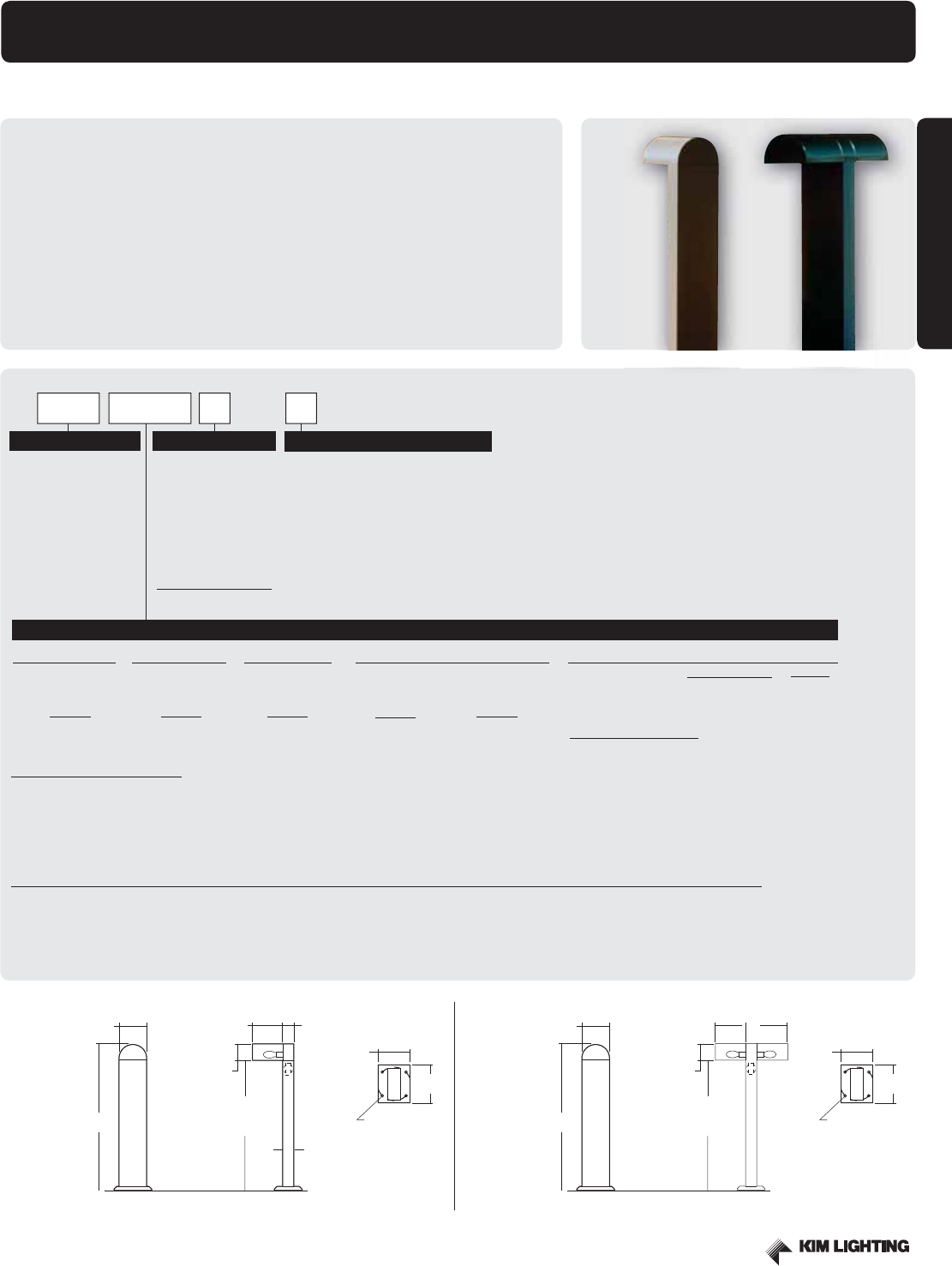

SL1 / SL2 Site Lightforms® Bollards

Low Level Luminaires

FEATURES

• SL fi xtures are specifi cally designed and engineered to combine contemporary

form with rugged vandal resistant construction

• New energy effi cient LED modules, up to 72 LEDs, are now available for

Site Lightforms Bollard models

• SL1 and SL2 offer path lighting with full-cutoff optics

• One-piece extruded aluminum shafts for a clean sharp cornered

appearance with superior strength

FIXTURE

SL1 Site Lightforms

SL2 Site Lightforms

FIXTURE FINISH

BL Black

DB Dark Bronze

LG Light Gray

SG Stealth Gray™

PS Platinum Silver

WH White

CC Custom Color*

*Consult representative

50PMH 50W PMH1

70PMH 70W PMH1

Voltages

120 120V

277 277V

50HPS 50W HPS1

70HPS 70W HPS1

Voltages

120 120V

277 277V

60INC 60W INC1

Voltages

120 120V

13PL 13W PL2,3

Voltages

120 120V

277 277V

42PL 42W PL1,4

Voltages

120 120V

208 208V

240 240V

277 277V

18L 18 LEDs5

36L 36 LEDs5

72L 72 LEDs6

ELECTRICAL MODULE

OPTIONS

EM Battery Back-up8

EM-CP Cold-Pack Emergency

Battery Pack8

1

2

3

4

Two lamps required for fi xture SL2 only.

Four lamps required for fi xture SL2 only.

Two lamps required per fi xture on SL1.

42PL operates one or two 26, 32, or

42 watt lamp(s) at 120 thru 277 volts

(50-60Hz).

5

6

7

8

For SL1 only.

For SL2 only.

Constant wattage isolated ballast is required on

all 208V and 240V Canadian orders.

For compact fl uorescent only.

NOTE: For lamp/ballast information outside of the U.S.A.

and Canada, please consult your local Kim representative.

Coated lamps recommended.

SL2

SL1

SL1 SITE LIGHTFORMS

Maximum

weight: 37 lb

SL2 SITE LIGHTFORMS

Maximum

weight: 47 lb

FRONT SIDE FRONT SIDE

8"

(203 mm)

8E"

(225 mm) 8"

(203 mm)

3B"

(79 mm)

42"*

(1067 mm)

4K"

(114 mm)

BASE PLAN

SL1

*36" OVERALL HEIGHT

AVAILABLE - CONTACT

KIM REPRESENTATIVE

8"

(203 mm)

8K" (216 mm)

BOLT CIRCLE DIA.

9D"

(245 mm)

37K"

(953 mm)

LIGHT

CENTER

HEIGHT

42"*

(1067 mm)

4K"

(114 mm)

BASE PLAN

SL2

*36" OVERALL HEIGHT

AVAILABLE - CONTACT

KIM REPRESENTATIVE

8"

(203 mm)

8K" (216 mm)

BOLT CIRCLE DIA.

9D"

(245 mm)

37K"

(953 mm)

LIGHT

CENTER

HEIGHT

21"

(533 mm)

8"

(203 mm)

8E"

(225 mm)

3B"

(80 mm)

ORDERING INFORMATION (Example)

SL1 WH

70PMH120 EM

LEDPMH HPS INC PL

Color Temperature

3K 3500K

5K 5100K

2K Amber

Voltages

120 120V

208 208V

240 277V

277 277V

3K = 3500 Kelvin LED

5K = 5100 Kelvin LED

2K = 580nm Amber LED

PMH = Pulse Start Metal Halide

HPS = High Pressure Sodium

INC = Incandescent

PL = Compact Fluorescent

LED = Light Emitting Diode

808

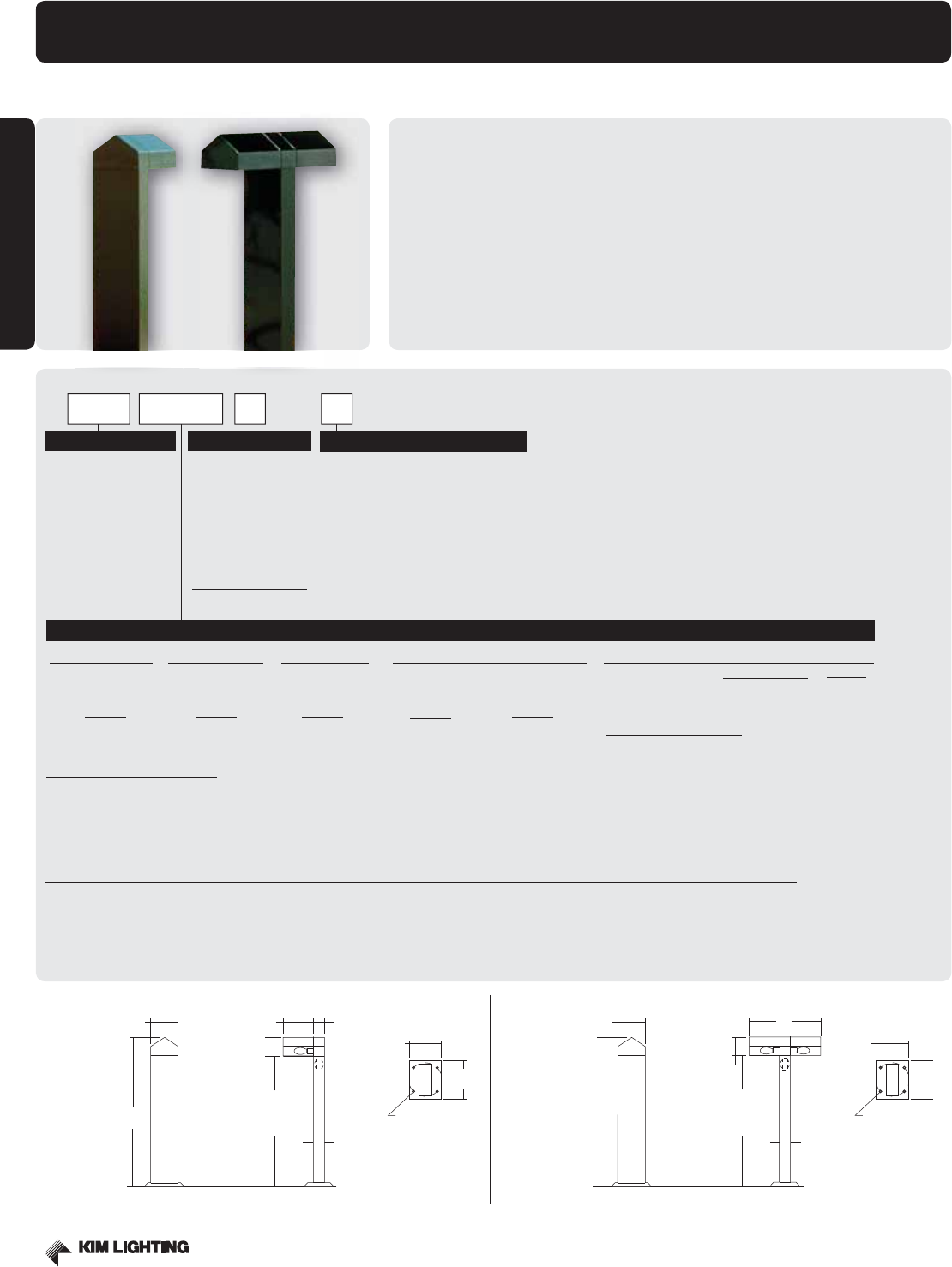

LOW LEVEL

SL3 / SL4 Site Lightforms® Bollards

Low Level Luminaires

FEATURES

• SL fi xtures are specifi cally designed and engineered to combine contemporary

form with rugged vandal resistant construction

• New energy effi cient LED modules, up to 72 LEDsj, are now available for

Site Lightforms Bollards

• SL3 and SL4 offer path lighting with full-cutoff optics

• One-piece extruded aluminum shafts for a clean sharp cornered

appearance with superior strength

SL4

SL3

FIXTURE

SL3 Site Lightforms

SL4 Site Lightforms

FIXTURE FINISH

BL Black

DB Dark Bronze

LG Light Gray

SG Stealth Gray™

PS Platinum Silver

WH White

CC Custom Color*

*Consult representative

50PMH 50W PMH1

70PMH 70W PMH1

Voltages

120 120V

277 277V

50HPS 50W HPS1

70HPS 70W HPS1

Voltages

120 120V

277 277V

60INC 60W INC1

Voltages

120 120V

13PL 13W PL2,3

Voltages

120 120V

277 277V

42PL 42W PL1,4

Voltages

120 120V

208 208V

240 240V

277 277V

ELECTRICAL MODULE

OPTIONS

EM Battery Back-up1, 8

EM-CP Cold-Pack Emergency

Battery Pack8

SL3 SITE LIGHTFORMS

Maximum

weight: 39 lb

SL4 SITE LIGHTFORMS

Maximum

weight: 47 lb

FRONT SIDE FRONT SIDE

3B"

(79 mm)

5J"

(133 mm)

3B"

(80 mm)

8"

(203 mm) 8E"

(225 mm)

42L"*

(1086 mm)

BASE PLAN

SL3

*36L" OVERALL HEIGHT

AVAILABLE - CONTACT

KIM REPRESENTATIVE

8"

(203 mm)

8K" (216 mm)

BOLT CIRCLE DIA.

9D"

(245 mm)

37K"

(953 mm)

LIGHT

CENTER

HEIGHT

5J"

(133 mm)

3B"

(80 mm)

8"

(203 mm)

42L"*

(1086 mm)

BASE PLAN

SL4

*36L" OVERALL HEIGHT

AVAILABLE - CONTACT

KIM REPRESENTATIVE

8"

(203 mm)

8K" (216 mm)

BOLT CIRCLE DIA.

9D"

(245 m

m

37K"

(953 mm)

LIGHT

CENTER

HEIGHT

21"

(533 mm)

1

2

3

4

Two lamps required for fi xture SL4 only.

Four lamps required for fi xture SL4 only.

Two lamps required per fi xture on SL3.

42PL operates one or two 26, 32, or

42 watt lamp(s) at 120 thru 277 volts

(50-60Hz).

5

6

7

8

For SL3 only.

For SL4 only.

Constant wattage isolated ballast is required on

all 208V and 240V Canadian orders.

For compact fl uorescent only.

NOTE: For lamp/ballast information outside of the U.S.A.

and Canada, please consult your local Kim representative.

Coated lamps recommended.

ORDERING INFORMATION (Example)

SL3 DB50PMH120 —

18L 18 LEDs5

36L 36 LEDs5

72L 72 LEDs6

LEDPMH HPS INC PL

Color Temperature

3K 3500K

5K 5100K

2K Amber

Voltages

120 120V

208 208V

240 240V

277 277V

3K = 3500 Kelvin LED

5K = 5100 Kelvin LED

2K = 580nm Amber LED

PMH = Pulse Start Metal Halide

HPS = High Pressure Sodium

INC = Incandescent

PL = Compact Fluorescent

LED = Light Emitting Diode

809

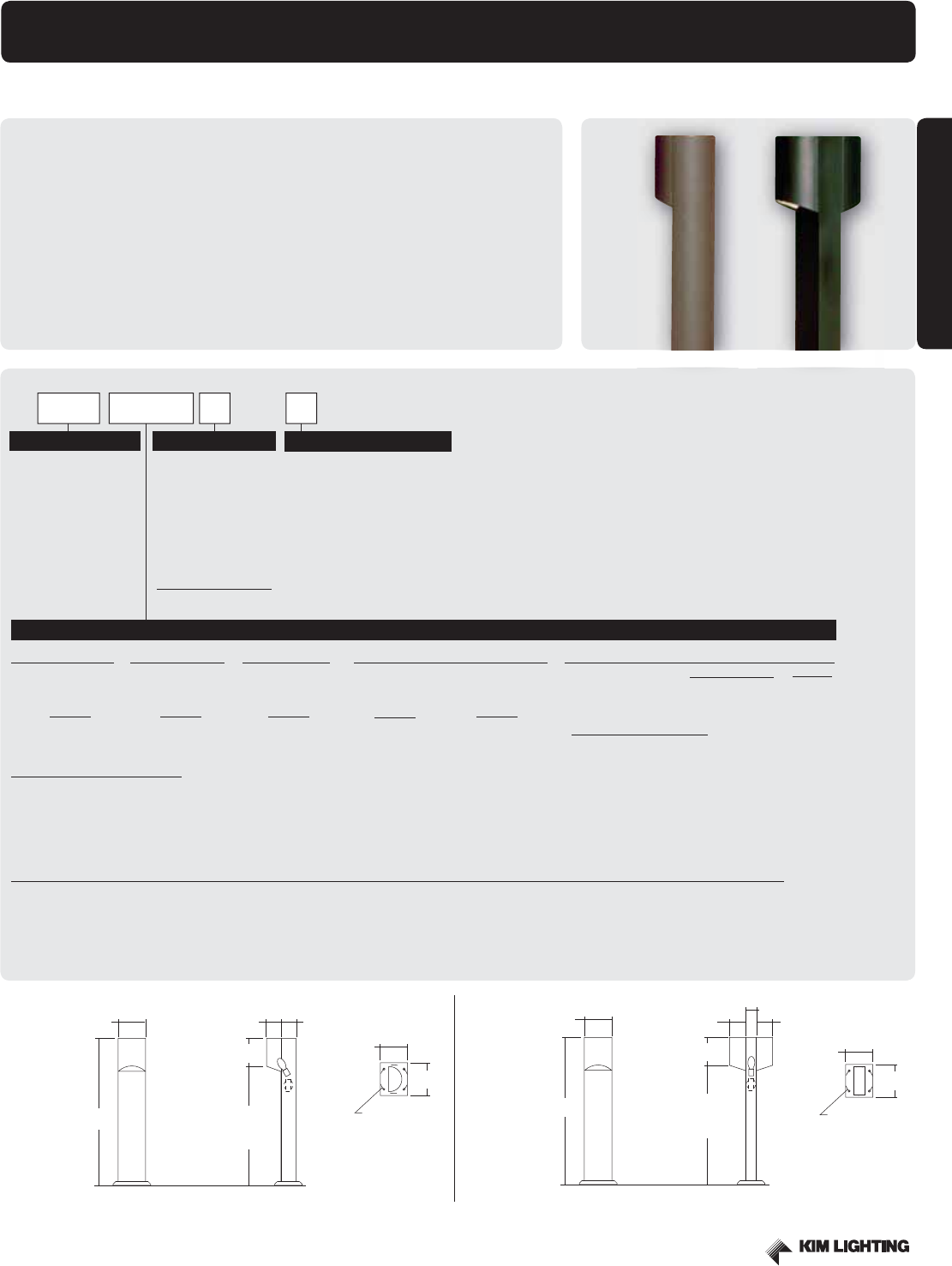

LOW LEVEL

SL5 / SL6 Site Lightforms® Bollards

Low Level Luminaires

FEATURES

• SL fi xtures are specifi cally designed and engineered to combine contemporary

form with rugged vandal resistant construction

• New energy effi cient LED modules, up to 36 LEDs, are now available for

Site Lightforms Bollards

• SL5 and SL6 offer path lighting with semi cutoff optics

• One-piece extruded aluminum shafts for a clean sharp cornered

appearance with superior strength

SL5 SITE LIGHTFORMS

Maximum

weight: 37 lb

SL6 SITE LIGHTFORMS

Maximum

weight: 39 lb

FRONT SIDE FRONT SIDE

8"

(203 mm)

42"*

(1067 mm)

9"

(229 mm)

BASE PLAN

SL6

*36" OVERALL HEIGHT

AVAILABLE - CONTACT

KIM REPRESENTATIVE

8"

(203 mm)

8K" (216 mm)

BOLT CIRCLE DIA.

9D"

(245 mm)

33"

(838 mm)

LIGHT

CENTER

HEIGHT

4L"

(121 mm)

4L"

(121 mm)

3B"

(79 mm)

8"

(203 mm)

42"*

(1067 mm)

9"

(229 mm)

BASE PLAN

SL5

*36" OVERALL HEIGHT

AVAILABLE - CONTACT

KIM REPRESENTATIVE

8"

(203 mm)

8K" (216 mm)

BOLT CIRCLE DIA.

9D"

(245 mm)

33"

(838 mm)

LIGHT

CENTER

HEIGHT

4J"

(108 mm)

4J"

(108 mm)

SL6

SL5

FIXTURE

SL5 Site Lightforms

SL6 Site Lightforms

FIXTURE FINISH

BL Black

DB Dark Bronze

LG Light Gray

SG Stealth Gray™

PS Platinum Silver

WH White

CC Custom Color*

*Consult representative

50PMH 50W PMH

70PMH 70W PMH

Voltages

120 120V

277 277V

50HPS 50W HPS

70HPS 70W HPS

Voltages

120 120V

277 277V

100INC 100W INC

Voltages

120 120V

13PL 13W PL1

Voltages

120 120V

277 277V

42PL 42W PL2

Voltages

120 120V

208 208V

240 240V

277 277V

ELECTRICAL MODULE

OPTIONS

PMH = Pulse Start Metal Halide

HPS = High Pressure Sodium

INC = Incandescent

PL = Compact Fluorescent

LED = Light Emitting Diode

EM Battery Back-up1,6

EM-CP Cold-Pack Emergency

Battery Pack6

1

2

Two lamps required per fi xture on SL6.

42PL operates one or two 26, 32, or 42 watt

lamp(s) at 120 thru 277 volts (50-60Hz).

S

L

5

S

L

6

3

4

5

6

For SL5 only.

For SL6 only.

Constant wattage isolated ballast is required on

all 208V and 240V Canadian orders.

For compact fl uorescent only.

NOTE: For lamp/ballast information outside of the U.S.A.

and Canada, please consult your local Kim representative.

Coated lamps recommended.

ORDERING INFORMATION (Example)

SL5 DB50PMH120 —

9L 9 LEDs3

18L 18LEDs3

36L 36 LEDs4

Color Temperature

3K 3500K

5K 5100K

2K Amber

Voltages

120 120V

208 208V

240 240V

277 277V

3K = 3500 Kelvin LED

5K = 5100 Kelvin LED

2K = 580nm Amber LED

LEDPMH HPS INC PL
