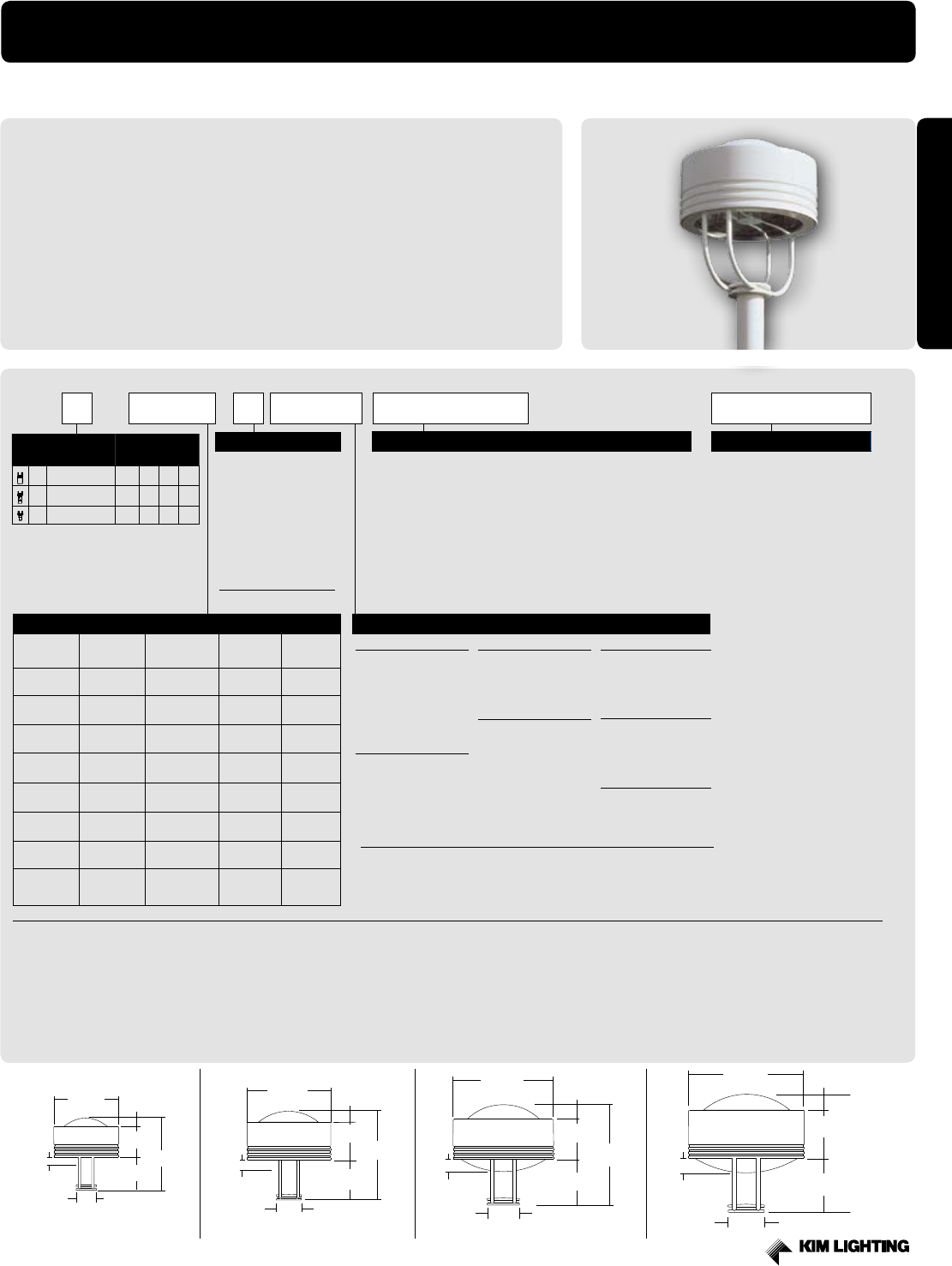

SITE / ROADWAY

753

VL Post Top Mount

Vertical Lamp

FEATURES

• Classic, Cylindrical style luminaire for architectural relevance and

reduced wind loads

• Pulse start metal halide and high pressure sodium sources

• Semi-cutoff, vertical optical systems in asymmetric and symmetric patterns

• Available in four sizes from pedestrian zone to site/roadway zone

• Sealed optical chamber, IP-66 rated

See p. 762-765 for ordering

no., pole and arm EPA.

PoLE

NoTE: Due to the Energy Independence and Security Act

(EISA) of 2007, Kim Lighting can no longer supply probe

start Metal Halide ballasts with its luminaires, effective

January 1, 2009. Contact Kim Lighting for availability

of replacement ballasts for warranty service claims.

(Visit www.aboutlightingcontrols.org or the Library of

Congress website for more details).

FIXTURE oPTIoNS

FIXTURE FINISH

BL Black

DB Dark Bronze

LG Light Gray

SG Stealth Gray™

PS Platinum Silver

WH White

CC Custom Color*

*Consult representative

MoUNTING

EPA

17" 21"25"29"

FM Flush Mount 0.7 1.0 1.2 1.5

PT Pole Tenon Mount 0.7 1.0 1.2 1.5

DM Direct Mount 0.7 1.0 1.2 1.5

NoTE: EPA is for Fixture only

L17 Polycarbonate Lens3

HS Houseside shield4

HSC Houseside shield for

Convex Glass Lens5

REV Accent Reveals

A-30 120 Volt photocell

A-31 208 Volt photocell

A-32 240 Volt photocell

A-33 277 Volt photocell

A-34 480 Volt photocell

A-35 347 Volt Photocell

1

2

3

480V with medium base sockets may require approval of

local building code authority.

Manufacturers of metal halide lamps recommend turning them

off for 15 minutes once per week when under continuous

operation to reduce risk of arc tube rupture at end of life.

See lamp manufacturers’ specs for color temperature variations.

Use only in high-vandalism situations.

Useful life is limited by UV discoloration from sunlight

and metal halide lamps.

4

5

6

Recommended for fixtures with optional flat glass

lens. Asymmetric distribution only.

Asymmetric distributions only. For fixtures with standard

convex glass lens or optional polycarbonate lens.

Only available wth Type IV reflectors.

Constant wattage isolated ballast is required on all

208V and 240V Canadian orders.

FIXTURE - PoST ToP MoUNT

Asymmetric

Wide

Asymmetric

Medium

Square

Wide

Square

Medium

VL-17

Convex Lens VLP17W3 VLP17M3 VLP17W5 VLP17M5

VL-17

Op. Flat Lens —VLP17N3F —VLP17N5F

VL-21

Convex Lens VLP21W3 VLP21M3 VLP21W5 VLP21M5

VL-21

Op. Flat Lens —VLP21N3F —VLP21N5F

VL-25

Convex Lens VLP25W3 VLP25M3 VLP25W5 VLP25M5

VL-25

Op. Flat Lens —VLP25N3F —VLP25N5F

VL-29

Convex Lens VLP29W3 VLP29M3 VLP29W5 VLP29M5

VL-29

Op. Flat Lens —VLP29N3F —VLP29N5F

19L"

(502 mm)

17" DIA.

(432 mm)

5K" DIA.

(140 mm)

9"

(229 mm)

2L"

(70 mm)

1L"

(45mm)

8"

(203 mm) 22K"

(572 mm)

21" DIA.

(533 mm)

9K"

(241.3 mm)

3"

(76 mm)

10"

(254 mm)

3J"

(83 mm)

6L" DIA.

(172 mm)

24K"

(622 mm)

25" DIA.

(635 mm)

11"

(279 mm)

3K"

(89 mm)

10"

(254.0 mm)

8" DIA.

(203 mm)

2D"

(67 mm)

28"

(711 mm)

29" DIA.

(737 mm)

13"

(330 mm)

4"

(102 mm)

11"

(279 mm)

8K" DIA.

(216 mm)

3L"

(95 mm)

VL17P VL21P VL25P VL29P

VERTICAL LAMP

ELECTRICAL MoDULE

VL17

70HPS 70W HPS

100HPS 100W HPS

150HPS 150W HPS

VL21/VL25

150HPS 150W HPS

250HPS 250W HPS

400HPS 400W HPS

VL29

750HPS 750W HPS

1000HPS 1000W HPS

VL17

70PMH 70W PMH2

100PMH 100W PMH2

150PMH 150W PMH2

175PMH 175W PMH2

200PMH 200W PMH2

VL21

175PMH 175W PMH2

250PMH 250W PMH2

320PMH 320W PMH2

350PMH 350W PMH2

400PMH 400W PMH2

VL25

175PMH 175W PMH2

250PMH 250W PMH2

400PMH 400W PMH2

VL29

750PMH 750W PMH2

1000PMH 1000W PMH2

1000MH 1000W MH

oRDERING INFoRMATIoN (Example)

FM VLP17N3F PRA16-6188FM/WH

100PMH120WH A-30/HS

Voltages: 120V, 208V6, 240V6, 277V, 347V, 480V1

PMH = Pulse Start Metal Halide, MH = Metal Halide, HPS = High Pressure Sodium

VLP
