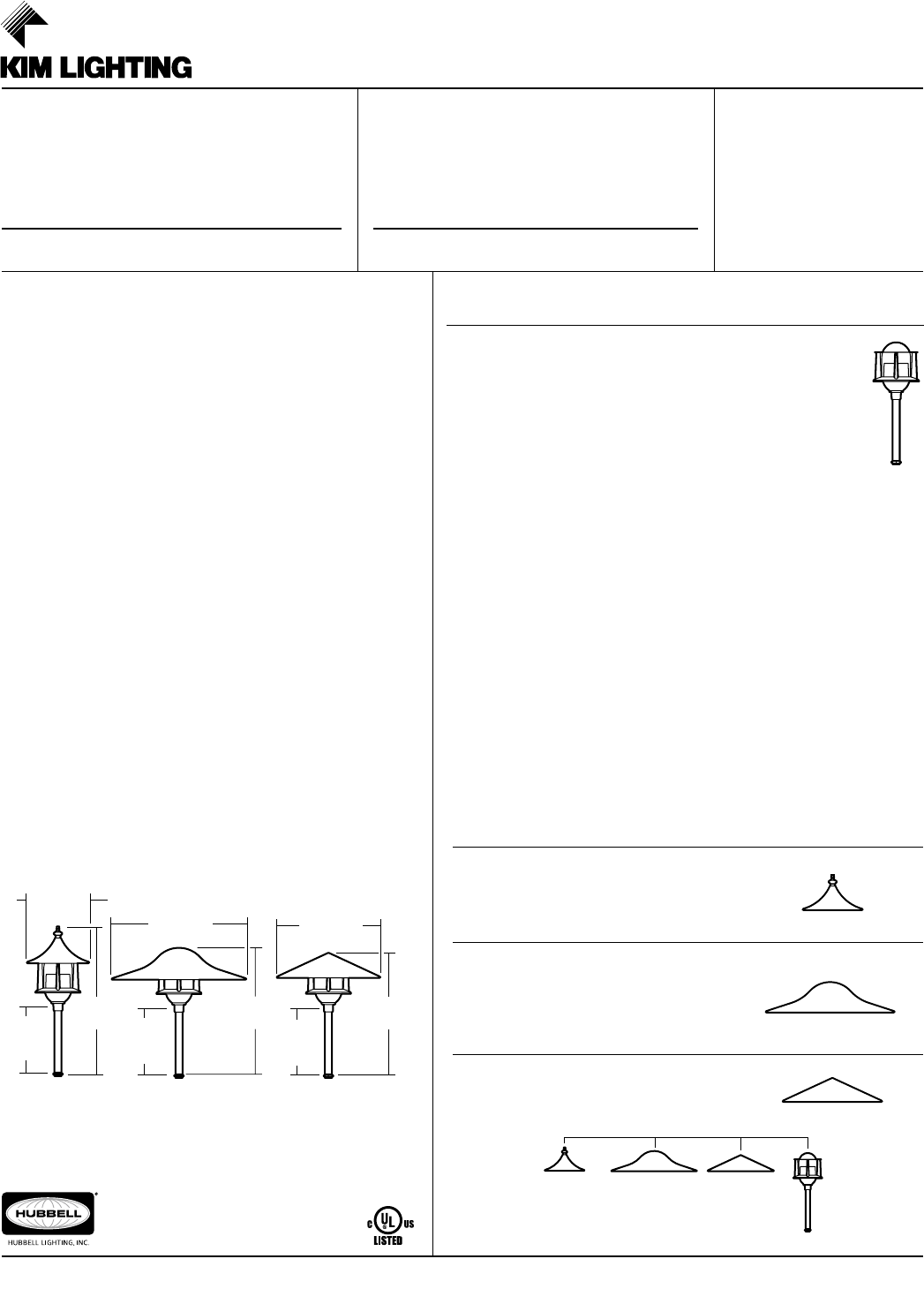

Specifications

Traditional EL188

120 Volt Die-Cast Aluminum, LED

revision 7/15/15 • kl_el188_spec.pdf

Hood: Spun aluminum with low copper alloy aluminum

die-cast reflector and hinge assembly. The hood is

painted to order and the reflector is always painted white.

The hood reflector assembly is removable with a no-tool

stainless steel lever latch. Hood is available in three

styles: Pagoda, Cone, and Mushroom.

Husk: Die-cast low copper alloy aluminum with stain-

less steel hinge / latch assembly.

Globe: Fluted glass.

Stem: 8" schedule 40 aluminum pipe with K" NPT at

bottom plus solid brass locknut for secure mounting.

Wiring: No. 18AWM rated 105°C.

Optical System: A total of 3 LED emitters congured

in a rectangular array comprised together as a mod-

ule. Available in 3500K, 4200K and 5100K.

Driver: Universal Voltage from 120 to 277V with a

±10% tolerance. -40ºF. starting temperature. All driv-

ers are Underwriters Laboratories recognized.

Finish: Each luminaire receives a fade and abrasion

resistant, electrostatically applied, thermally cured,

triglycidal isocyanurate (TGIC) polyester powdercoat

nish. Standard colors are Black (BL), Dark Bronze

(DB), and Verde Green (GR).

Certification: UL Listed to U.S. and Canadian safety

standards for wet locations.

12C"

DIA.

(314.3 mm)

16B"

DIA.

(409.6 mm)

7G"

DIA.

(188.9 mm)

17F"

(436.6 mm)

EL177 / H60

Pagoda

EL177 / H70

Mushroom

EL177 / H80

Cone

14O"

(376.2 mm)

14F"

(360.4 mm)

(203.2 mm)

stem

(203.2 mm)

stem

(203.2 mm)

stem

Date:

Page: 1 of 4

Type:

Job:

Fixture Catalog number:

Fixture Module and Finish Hood and Finish

Mounting Options:

Ordered Separately from Fixture

See pages 2-3

Approvals:

KIM LIGHTING RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.

NOTE: Fixture modules and hoods

may be ordered separately.

Pagoda Hood Material / Finish

l H60BL Alum. / Black

l H60DB Alum. / Dark Bronze

l H60GR Alum. / Verde Green

Mushroom Hood Material / Finish

l H70BL Alum. / Black

l H70DB Alum. / Dark Bronze

l H70GR Alum. / Verde Green

Cone Hood Material / Finish

l H80BL Alum. / Black

l H80DB Alum. / Dark Bronze

l H80GR Alum. / Verde Green

H60

Pagoda

H70

Mushroom

KLV177

8" Stem

H80

Cone

8" Stem

ORDERING INFORMATION

Fixture Source Finish

l EL188/3L3KUV1/BL 5.2W, 3 LED’s, 3000K Alum/

Black

l EL188/3L4KUV1/BL 5.2W, 3 LED’s, 4200K Alum/

Black

l EL188/3L5KUV1/BL 5.2W, 3 LED’s, 5100K Alum/

Black

l EL188/3L3KUV1/DB 5.2W,, 3 LED’s, 3000K Alum/

Dark Bronze

l EL188/3L4KUV1/DB 5.2W,, 3 LED’s, 4200K Alum/

Dark Bronze

l EL188/3L5KUV1/DB 5.2W, 3 LED’s, 5100K Alum/

Dark Bronze

l EL188/3L3KUV1/GR 5.2W, 3 LED’s, 3000K Alum/

Verde Green

l EL188/3L4KUV1/GR 5.2W, 3 LED’s, 4200K Alum/

Verde Green

l EL188/3L5KUV1/GR 5.2W, 3 LED’s, 5100K Alum/

Verde Green

1Universal Voltage from 120 to 277V with a ±10% tolerance.

For 5.2W, Max Amps. are .040 for 120V, .030 for 208V, .020 for 240V,

.020 for 277V

Traditional EL188

120 Volt Die-Cast Aluminum, LED

revision 7/15/15 • kl_el188_spec.pdf

Page: 2 of 4

Type:

Job:

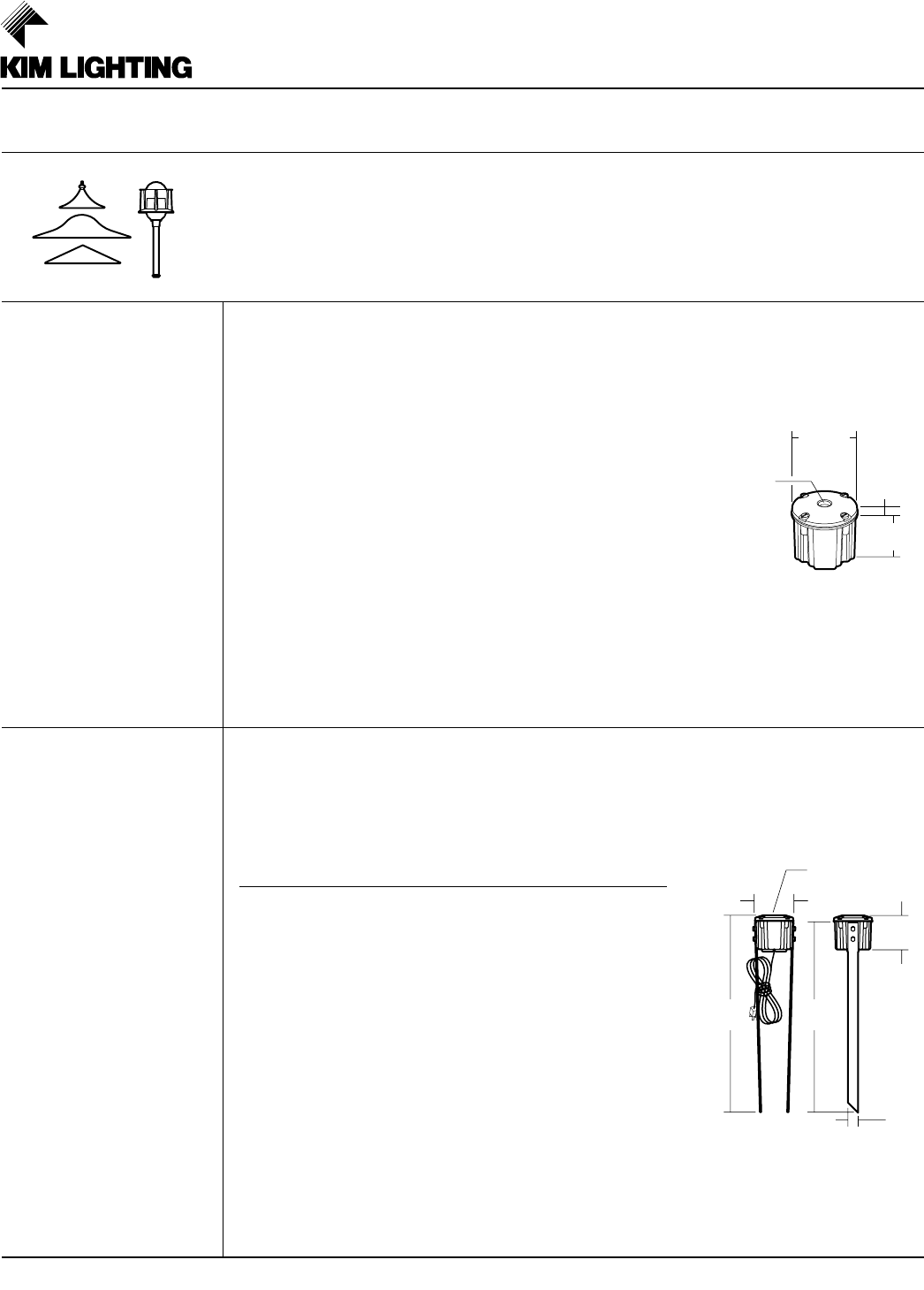

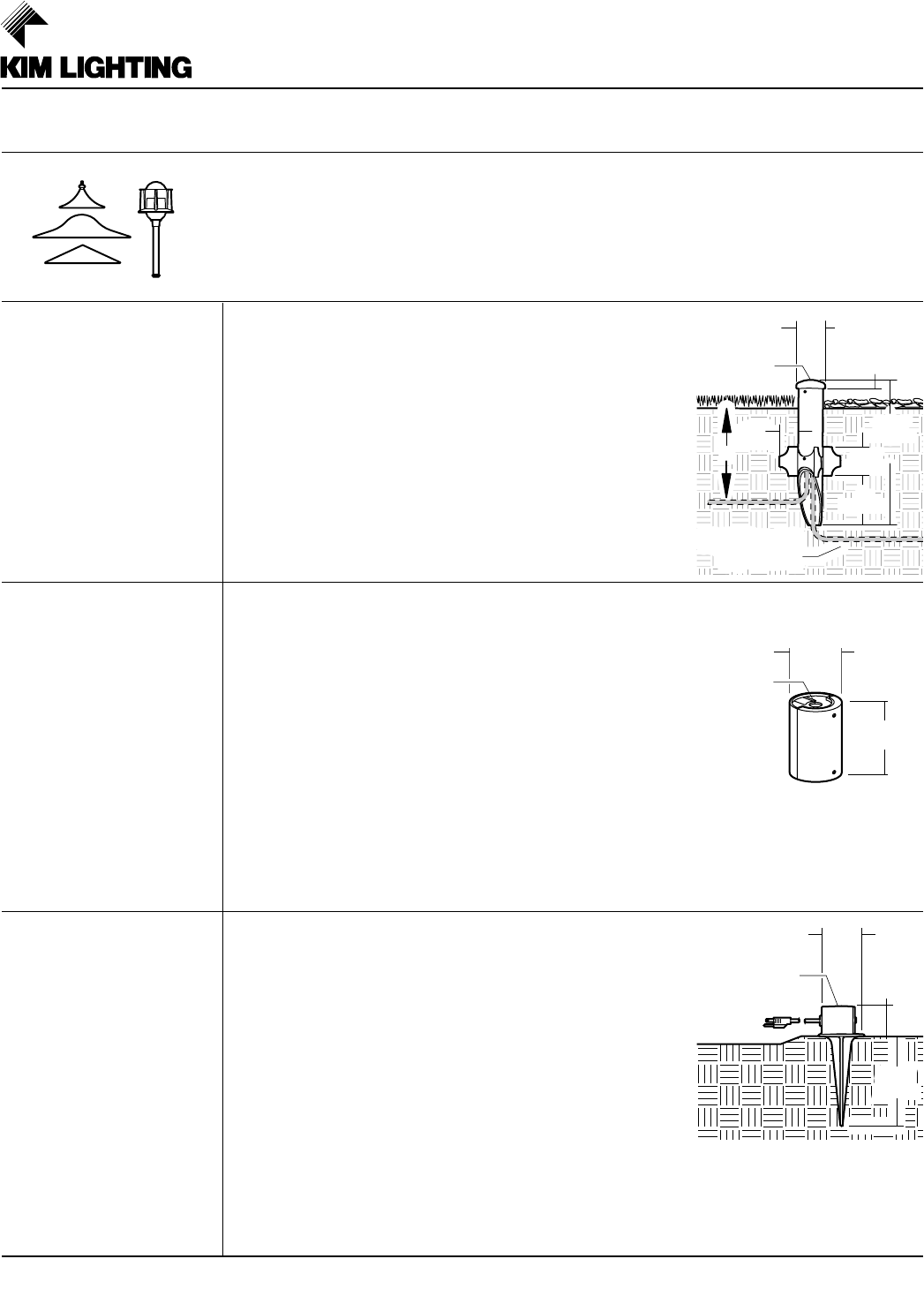

Mounting Options

Ordered Separately from Fixture

PVC fixture molded in black with K” NPT mount is

corrosion free and UV resistant. Replaces EMT, conduit

connectors and weatherproof boxes. 100% shatter resistant

against denting and cracking. Angled bottom to eliminate

cable congestion.

17K" post length

NOTE: EP17 should be used with a UL listed fixture

and grounding means (i.e., third wire) suitable for use

in wet locations.

“x” = required depth of conduit per local codes.

3K"

17K"

2J" 17K"

(444.5 mm)

3K"

(88.9 mm)

(25.4 mm)

(127.0 mm)

3J"

DIA.

(82.6 mm)

2J"

(57.2 mm)

K" NPT

Fixture

Mount

x = required depth of conduit

per local codes

x = required depth of conduit

per local codes

Rigid Conduit

(by others)

Rigid Conduit

(by others)

Landscape Light Post by

Engineered Products Co.

Cat. No.

l EP17

l No Option

Die-cast aluminum with K" NPSM fixture mount. Internal

set screw provided for locking position. Two K" NPSM in

bottom, 17 cu in. internal volume. Super TGIC powder

coat paint over clear anodizing and titanated zirconium

conversion coating.

NOTE: May also be used to hard mount low voltage fixtures.

Application Notes

• Elevates Accent Lights above ground cover to prevent

foliage from blocking the light.

• Elevates Path Lights above ground cover to achieve a

greater light throw.

CAUTION: Junction box must be installed high enough to

avoid contact with soil or standing water.

Architectural Junction

Box

Cat. No. Finish

l JB1/BL Black

l JB1/DB Dark Bronze

l JB1/GR Verde

Green

l No Option

4L"

(121 mm)

DIA.

K" NPSM

Fixture

Mount

(76 mm)

6E"

2J"

(57.2 mm)

6E"

(174.6 mm)

3K"

DIA.

(88.9 mm)

K" NPSM

Fixture Mount

Cast iron with K" NPSM fixture mount. Hot dip galvanized

finish. 5.5 cu in. splice compartment. (SJTW-A) 3 wire cord

and plug.

9' cord length

Portable Spear Mount

Cat. No.

l J-25N

l No Option

Traditional EL188

120 Volt Die-Cast Aluminum, LED

revision 7/15/15 • kl_el188_spec.pdf

Page: 3 of 4

Type:

Job:

Mounting Options

Ordered Separately from Fixture

JBR30

BRASS IN-GRADE STAKED JUNCTION BOX

Die-cast brass with K" NPSM fixture mount and

die-cast cover. Internal set screw provided for locking

position. 18 cu in. internal volume.

(2) K" NPT in bottom with (2) 19" long brass stakes

NOTE: May also be used to hard mount low voltage fixtures.

JBR32

BRASS IN-GRADE STAKED JUNCTION BOX WITH CORD

Die-cast brass with K" NPSM fixture mount and

die-cast cover. Internal set screw provided for locking

position. 18 cu in. internal volume. (SJTW-A) 3 wire cord

and plug.

(2) 19" long brass stakes with 9' cord

25 Year Limited Warranty:

Solid brass junction boxes are warranted for 25 years, from

date of sale, against manufacturing defects and failure due

to corrosion.

Application Notes

• Creates a flush-mounted appearance.

• May be cast in concrete for increased stability.

CAUTION: Fixture stem and swivel must not contact soil or

standing water. Provide drainage away from junction box.

Brass In-grade Staked

Junction Box

Cat. No.

l JBR30

l No Option

18D"

(473.1 mm)

19C"

(492.1 mm)

3K"

(88.9 mm)

3L"

DIA.

(95.3 mm)

(25.4 mm)

K" NPSM

Fixture Mount

Die-cast brass with K" NPSM fixture mount and

die-cast cover. Internal set screw provided for locking

position. 18 cu in. internal volume.

JBR-2 (2) K" NPT in bottom

JBR-3 (2) L" NPT in bottom

JBR-21 (2) K" NPT in sides, (2) K" NPT in bottom

JBR-24 (4) K" NPT in sides, (2) K" NPT in bottom

All side taps provided with plugs.

NOTE: May also be used to hard mount low voltage fixtures.

25 Year Limited Warranty:

Solid brass junction boxes are warranted for 25 years, from

date of sale, against manufacturing defects and failure due

to corrosion.

Application Notes

• Creates a flush-mounted appearance.

• May be cast in concrete for increased stability.

CAUTION: Fixture stem and swivel must not contact soil or

standing water. Provide drainage away from junction box.

Brass In-grade

Architectural Junction

Box

Cat. No.

l JBR-2

l JBR-3

l JBR-21

l JBR-24

l No Option

(76.2 mm)

(12.7 mm)

K" NPSM

Fixture

Mount

3L"

DIA.

(95.3 mm)

Brass In-grade Staked

Junction Box with Cord

Cat. No.

l JBR32

l No Option

Traditional EL188

120 Volt Die-Cast Aluminum, LED

revision 7/15/15 • kl_el188_spec.pdf

Page: 4 of 4

Type:

Job:

Lumen Data

ELECTRICAL - Drive Current @350mA (3 LEDs)

Volts -AC Amps - AC System Watts

120 0.04 5.2

208 0.03 5.2

240 0.02 5.2

277 0.02 5.2

Absolute Lumens (3 LEDs)

Temperature EL188/3L*K

3000K 64.5

4200K 74.6

5100K 82.5

Lumens Per Watt (3 LEDs)

Temperature EL188/3L*K

3000K 12.4

4200K 14.3

5100K 15.9

Spectroradiometric

3000K 4200K 5100K

Correlated Color Temp. CCT (K) 2800 to 3175K 3800 to 4600K 4600 to 5600K

Color Rendering Index (CRI) ≥75 ≥70 ≥65
