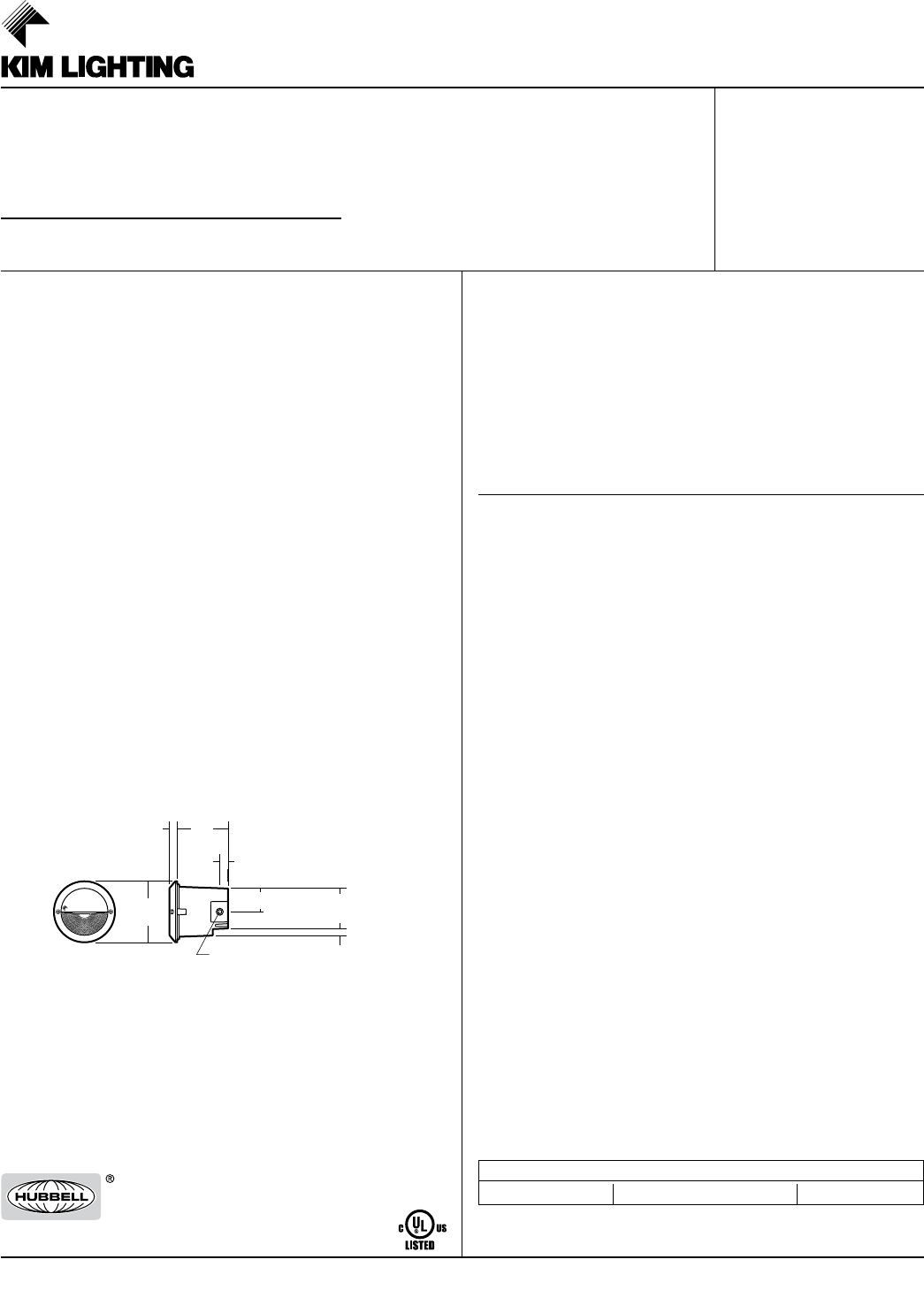

Wall, Step, Path Light EL817

120 / 277 Volt Die-Cast Aluminum LED

revision 2/11/15 • kl_el817_spec.pdf

Housing: Die-cast low copper alloy (<0.6% Cu) aluminum

with clear anodized finish. Two K" NPT in sides. Housing

mounts into concrete, brick, or masonry (non-combustible

materials). Internal splice area provided behind lamp plate.

Lens Frame: Die-cast aluminum, with silicone gasket,

attaches to housing with two captive 10-32 stainless steel, hex

socket cap screws.

Lens: Tempered prismatic glass with silicone gasket,

concealed above lens frame opening.

Finish: On Lens Frame only, each luminaire receives a

fade and abrasion resistant, electrostatically applied,

thermally cured, triglycidal isocyanurate (TGIC) polyester

powdercoat finish. Standard colors are Black (BL),

Dark Bronze (DB), and Verde Green (GR).

Optical System: A total of 3 or 9 LED emitters are configured

together as a module. Available in 3000K, 4200K, and 5100K.

Driver: Universal Voltage from 120 to 277V with a

±10% tolerance. -40° F. starting temperature. All drivers are

Underwriters Laboratories recognized.

Approvals:

Date:

Page: 1 of 2

6" DIA.

(152.4 mm)

5"

(127.0 mm)

L"

(19.1 mm)

2M" (58.4 mm)

D"

(15.9 mm)

O"

(21.3 mm)

K" NPT

4"

(101.6 mm)

© 2014 KIM LIGHTING INC. • 16555 EAST GALE AVENUE, CiTy of iNdUSTry, CA 91745-1788 • TEL: 626/968-5666 • fAX: 626/968-5716 5642211101

Type:

Job:

Fixture Catalog number:

Fixture Mode Finish

ø

Hubbell

Lighting, Inc.

Listings and Ratings

UL cUL 15981 IP66 Rated 25C Ambient

1Suitable for wet locations

KIM LIGHTING RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.

/

ORDERING INFORMATION

Fixture Source

l EL817 / 3L3KUV1 5.3W, 3 LED’s, 3000K

l EL817 / 3L4KUV1 5.3W 3 LED’s, 4200K

l EL817 / 3L5KUV1 5.3W 3 LED’s, 5100K

Fixture Source

l EL817 / 9L3KUV1 10.4W, 9 LED’s, 3000K

l EL817 / 9L4KUV1 10.4W, 9 LED’s, 4200K

l EL817 / 9L5KUV1 10.4W, 9 LED’s, 5100K

1 Universal Voltage from 120 to 277V with a ±10% tolerance.

For 5.3W, Max Amps. are .13 for 120V, .080 for 208V, .070 for 240V,

.060 for 277V. For 10.4W, Max Amps. are .090 for 120V, .050 for 208V,

.040 for 240V, .040 for 277V..

Finish

l BL - Black

l DB - Dark Bronze

l GR - Verde Green

Wall, Step, Path Light EL817

120 / 277 Volt Die-Cast Aluminum LED

revision 2/11/15 • kl_el817_spec.pdf

© 2014 KIM LIGHTING INC. • 16555 EAST GALE AVENUE, CiTy of iNdUSTry, CA 91745-1788 • TEL: 626/968-5666 • fAX: 626/968-5716 5642211101

Page: 2 of 2

Type:

Job:

Lumen Data

ELECTRICAL - Drive Current @350mA (3 LEDs)

Volts -AC Amps - AC System Watts

120 0.13 5.3

208 0.08 5.3

240 0.07 5.3

277 0.06 5.3

ELECTRICAL - Drive Current @350mA (9 LEDs)

Volts -AC Amps - AC System Watts

120 0.09 10.4

208 0.05 10.4

240 0.04 10.4

277 0.04 10.4

Absolute Lumens (3 LEDs)

Temperature EL817/3L*K

3000K 54

4200K 61

5100K 65

Absolute Lumens (9 LEDs)

Temperature EL817/3L*K

3000K 136

4200K 176

5100K 196

Lumens Per Watt (3 LEDs)

Temperature EL817/3L*K

3000K 10.2

4200K 11.5

5100K 12.3

Lumens Per Watt (9 LEDs)

Temperature EL817/3L*K

3000K 13.1

4200K 16.9

5100K 18.8

Spectroradiometric

3000K 4200K 5100K

Correlated Color Temp. CCT (K) 2800 to 3175K 3800 to 4600K 4600 to 5600K

Color Rendering Index (CRI) ≥75 ≥70 ≥65
