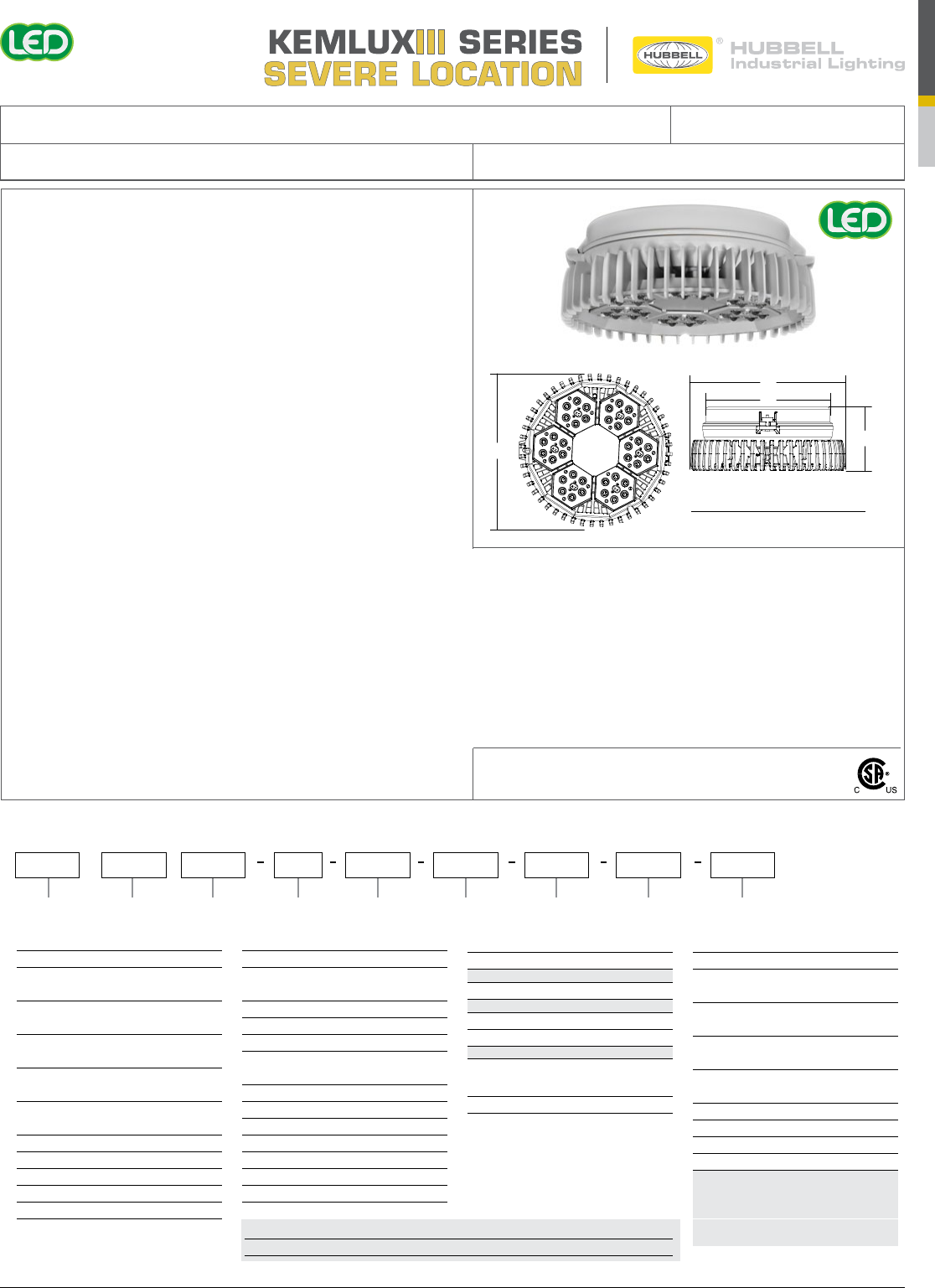

HIL0022 KEMLUXIII Spec-B 10/13
CAT.# APPROVALS
JOB TYPE
series
KSL Kemlux III LED
NUMBer OF LeDs
18L 18 High Performanc LEDs
(43 watts)
24L 24 High Performanc LEDs
(57 watts)
36L 36 High Performanc LEDs
(86 watts)
VOLTAGe
U 120 - 277
1 120
2 208
3 240
4 277
COLOr TeMperATUre
5K 5000˚ Kelvin
OpTiCs
5M Type V Square
5R Type V Rectangle
N Narrow
MOUNT
A Pendant
B Wall Bracket
C Cone
D Stanchion 25˚
N None (Mount ordered separately)
S Straight stanchion
X Ceiling
HUB
2 ¾”
Available with A, C, X Mount
3 1”
Available with A, C, X Mount
4 1 ¼”
5 1 ½”
Available with S, D Mount
COLOrs
GR Gray
OpTiONs
WIH Wireless Control System
SC70 70% Output dimmed/
30% Energy savings
SC50 50% Output dimmed/
50% Energy savings
SC30 30% Output dimmed/
70% Energy savings
SC0 No light putput when dimmed/
ON/OFF Control
F(x) Fusing1
P1 Photo cell factory 120V3
P2 Photo cell factory 208-277V3
P3 Photo cell factory 347V3zsz
Notes:
1. Fusing 1-120V, 2-208V, 3-240V,
4-277V, 6-347V
2. Must specify voltage on order
3. Available only with A, B, D and S
mounting options
Applications -
Designed to efficiently light corrosive and harsh applications such as
chemical, petrochemical, marine, power generation, pharmaceutical
or food processing plants.
Construction -
• Vertically finned cast aluminum housing for maximum heat dissipation
ensuring long component life and performance
• Separate hinged optical and electrical compartments for optimum component
operation and easy installation, maintenance.
• One piece molded silicone gasket ensures weather proof seal around each
individual LED; Stamped bezel provides mechanical compression to seal the
optical assembly
• Modular design provides 6 mounting options
• Specialized thermal management allows up to 40°C ambient
temperature ratings
• Copper-free (<0.4%) aluminum housing and cover with gray Lektrocote®
powder polyester paint finish provides excellent corrosion resistance from
most chemicals
• Fixture weight: 29 lbs. Shipped weight: 33 lbs.
Optics/Electrical System -
• Custom engineered LED optics providing optimally controlled and evenly
distributed light
• Three distinct distributions: Type V square, Type V rectangle and Narrow
LED Light Engine -
• High output LEDs delivering up to 105 lumens per watt
• CCT: 5100K
• 18, 24 and 36 LEDs on up to six individual light engines providing fail-safe
redundancy
LED Driver -
• Transient voltage protection with standard10KVA surge suppressor
• Thermal compensation management
• Wattage: 43-86
• Minimum operating temperature of -40˚C to 40˚C
Listings -
• Listed to UL1598 for use in wet locations
Warranty -
• Five years from date of purchase
SPECIFICATIONS
ORDERING INFORMATION
DIMENSIONS
A B C
14.5” 11” 6”
KS
ACCessOries (Order as separate part #)
WG Wire Guard
ORDERING EXAMPLE: KSL-36L-U-5K-N-C-2-TN-WG-WIH
Voltage
Series # of LEDs Color
Temperature
Optics Mount Hub Colors Options
KSL GR5K
A
A
B
C
A
A
B
C
pg 2
HIL0022 KEMLUXIII Spec-B 10/13

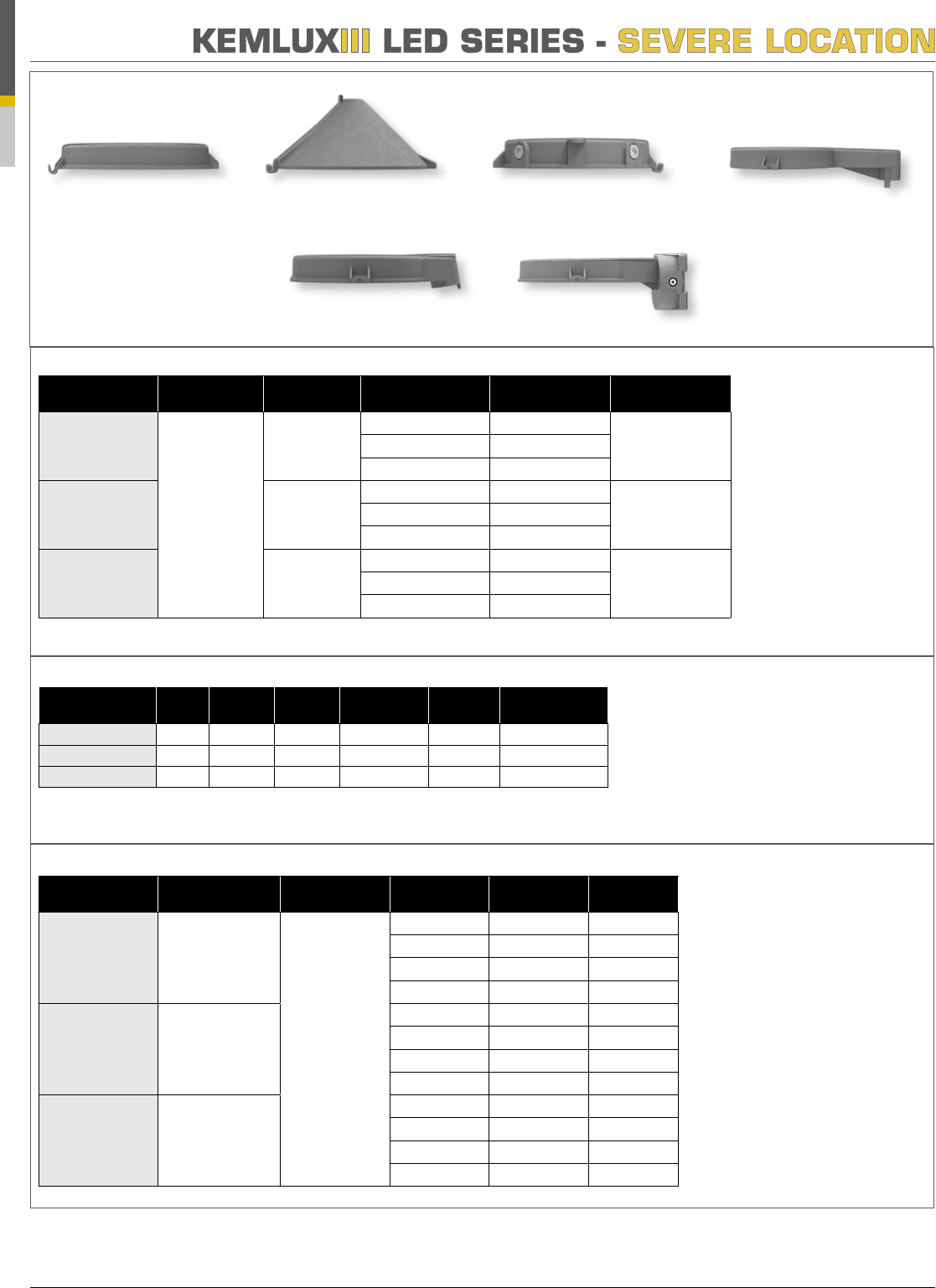

MOuNTING OPTIONS
LED SYSTEM INFORMATION
ELECTRICAL DATA
PROJECTED LuMEN MAINTENANCE
NUMBER OF LED’s DRIVE CURRENT
(MILLIAMPS) INPUT WATTS TOTAL LUMENS LUMENS PER WATT HID EQUIVALENT
18
STD.
(700 MA)
43
4410 103
100w HID4323 101
4405 102
24 57
5988 105
175w HID5712 100
5896 103
36 86
9004 105
250w HID8473 99
8747 102
NUMBER OF LED’s NUMBER OF DRIVERS DRIVE CURRENT
(MILLIAMPS)
INPUT VOLTAGE
(V)
SYSTEM POWER
(W)
CURRENT
(AMPS)
18 1
STD.
(700 MA)
120 43 0.36
277 45 0.20
347 43 0.13
480 43 0.11
24 2
120 57 0.48
277 59 0.24
347 56 0.17
480 57 0.13
36 3
120 86 0.73
277 89 0.35
347 84 0.25
480 85 0.20
AMBIENT
TEMPERATURE 0 25,000 50,000
1TM-21-11
60,000 100,000 CALCULATED L70
(HOURS)
10°C / 50°F 1.01 1.00 0.99 0.99 0.97 >1,085,000
25°C / 77°F 1.00 0.99 0.98 0.98 0.96 >1,085,000
40°C / 104°F 0.99 0.98 0.96 0.96 0.94 >706,000
1 Projected per IESNA TM-21-11
Data references the extrapolated performance projections for the SCP-36LU-5K base model in a 40°C
ambient, based on 10,000 hours of LED testing per IESNA LM-80-08.
WALL MOuNTSTANCHION (25˚) MOuNT
CONE MOuNT STANCHION (0˚) MOuNTPENDANT MOuNT CEILING MOuNT
1Lumen values are from photometric tests performed in accordance with IESNA LM-79-08. Data is considered to be
representative of the configurations shown. Actual performance may differ as a result of end-user environment and application.
Due to our continued efforts to improve our products, specifications are subject to change
without notice. Copyright © 2013 Hubbell Lighting All Rights Reserved.
For more information visit our web site: http://www.hubbellindustrialcom/
Phone: 1-864-678-1000 HIL0022 KEMLUXIII Spec-B 10/13
pg 3

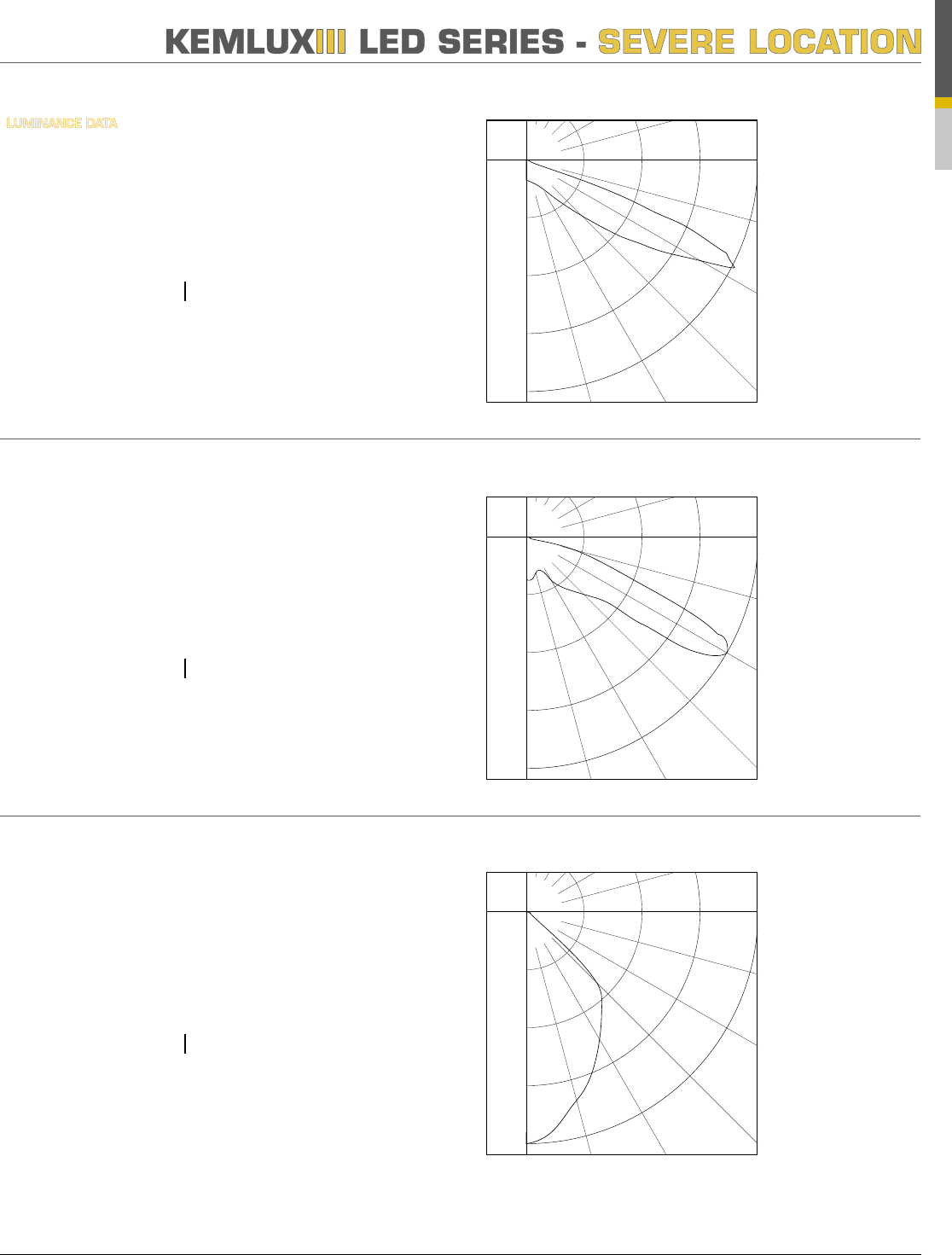

PHOTOMETRIC REPORT REPORT NUMBER: KXL-36L-X-5K-5M
REPORT NUMBER: KXL-36L-X-5K-5R
REPORT NUMBER: KXL-36L-X-5K-N
1478
2965
4433
5910
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
1216
2432
3648
4864
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
1628
3267
4885
6513
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
ZONAL LUMEN SUMMARY
ZONE LUMENS
0-30 557.83
0-40 1309.22
0-60 5689.70
0-90 8461.34
ZONAL LUMEN SUMMARY
ZONE LUMENS
0-30 765.65
0-40 1585.54
0-60 5239.6
0-90 8747.08
ZONAL LUMEN SUMMARY
ZONE LUMENS
0-30 4255.62
0-40 6587.47
0-60 8904.83
0-90 9004.24
LUMINANCE DATA (cd/sq.m)
ANGLE IN
DEGREES
AVERAGE
0-DEG
AVERAGE
45-DEG
AVERAGE
90-DEG
45 36714 38224 36501
55 64143 91715 63284
65 47593 182242 47788
75 2539 17775 2645
85 1257 1571 1414
LUMINANCE DATA (cd/sq.m)
ANGLE IN
DEGREES
AVERAGE
0-DEG
AVERAGE
45-DEG
AVERAGE
90-DEG
45 33189 34371 30033
55 97444 53401 47123
65 128719 104809 8197
75 41158 28409 1852
85 8798 2985 1414
LUMINANCE DATA (cd/sq.m)
ANGLE IN
DEGREES
AVERAGE
0-DEG
AVERAGE
45-DEG
AVERAGE
90-DEG
45 55516 55516 55516
55 3485 3485 3485
65 1620 1620 1620
75 1799 1799 1799
85 1728 1728 1728
