Transformation Guide
Informatica PowerCenter®
(Version 8.1.1)
Informatica PowerCenter Transformation Guide
Version 8.1.1
September 2006
Copyright (c) 1998–2006 Informatica Corporation.
All rights reserved. Printed in the USA.
This software and documentation contain proprietary information of Informatica Corporation and are provided under a license agreement containing
restrictions on use and disclosure and are also protected by copyright law. Reverse engineering of the software is prohibited. No part of this document may be
reproduced or transmitted in any form, by any means (electronic, photocopying, recording or otherwise) without prior consent of Informatica Corporation.
Use, duplication, or disclosure of the Software by the U.S. Government is subject to the restrictions set forth in the applicable software license agreement and as
provided in DFARS 227.7202-1(a) and 227.7702-3(a) (1995), DFARS 252.227-7013(c)(1)(ii) (OCT 1988), FAR 12.212(a) (1995), FAR 52.227-19, or FAR
52.227-14 (ALT III), as applicable.
The information in this document is subject to change without notice. If you find any problems in the documentation, please report them to us in writing.
Informatica Corporation does not warrant that this documentation is error free.
Informatica, PowerCenter, PowerCenterRT, PowerCenter Connect, PowerCenter Data Analyzer, PowerMart, SuperGlue, Metadata Manager, Informatica Data
Quality and Informatica Data Explorer are trademarks or registered trademarks of Informatica Corporation in the United States and in jurisdictions throughout
the world. All other company and product names may be trade names or trademarks of their respective owners.
Portions of this software and/or documentation are subject to copyright held by third parties, including without limitation: Copyright DataDirect Technologies,
1999-2002. All rights reserved. Copyright © Sun Microsystems. All Rights Reserved. Copyright © RSA Security Inc. All Rights Reserved. Copyright © Ordinal
Technology Corp. All Rights Reserved.
Informatica PowerCenter products contain ACE (TM) software copyrighted by Douglas C. Schmidt and his research group at Washington University and
University of California, Irvine, Copyright (c) 1993-2002, all rights reserved.
Portions of this software contain copyrighted material from The JBoss Group, LLC. Your right to use such materials is set forth in the GNU Lesser General
Public License Agreement, which may be found at http://www.opensource.org/licenses/lgpl-license.php. The JBoss materials are provided free of charge by
Informatica, “as-is”, without warranty of any kind, either express or implied, including but not limited to the implied warranties of merchantability and fitness
for a particular purpose.
Portions of this software contain copyrighted material from Meta Integration Technology, Inc. Meta Integration® is a registered trademark of Meta Integration
Technology, Inc.
This product includes software developed by the Apache Software Foundation (http://www.apache.org/). The Apache Software is Copyright (c) 1999-2005 The
Apache Software Foundation. All rights reserved.
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit and redistribution of this software is subject to terms available
at http://www.openssl.org. Copyright 1998-2003 The OpenSSL Project. All Rights Reserved.
The zlib library included with this software is Copyright (c) 1995-2003 Jean-loup Gailly and Mark Adler.
The Curl license provided with this Software is Copyright 1996-2004, Daniel Stenberg, <Daniel@haxx.se>. All Rights Reserved.
The PCRE library included with this software is Copyright (c) 1997-2001 University of Cambridge Regular expression support is provided by the PCRE library
package, which is open source software, written by Philip Hazel. The source for this library may be found at ftp://ftp.csx.cam.ac.uk/pub/software/programming/
pcre.
InstallAnywhere is Copyright 2005 Zero G Software, Inc. All Rights Reserved.
Portions of the Software are Copyright (c) 1998-2005 The OpenLDAP Foundation. All rights reserved. Redistribution and use in source and binary forms, with
or without modification, are permitted only as authorized by the OpenLDAP Public License, available at http://www.openldap.org/software/release/license.html.
This Software is protected by U.S. Patent Numbers 6,208,990; 6,044,374; 6,014,670; 6,032,158; 5,794,246; 6,339,775 and other U.S. Patents Pending.
DISCLAIMER: Informatica Corporation provides this documentation “as is” without warranty of any kind, either express or implied,
including, but not limited to, the implied warranties of non-infringement, merchantability, or use for a particular purpose. The information provided in this
documentation may include technical inaccuracies or typographical errors. Informatica could make improvements and/or changes in the products described in
this documentation at any time without notice.
iii
Table of Contents
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxv
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxix
About This Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxx
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxx
Other Informatica Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxxi
Visiting Informatica Customer Portal . . . . . . . . . . . . . . . . . . . . . . . . . xxxi
Visiting the Informatica Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . xxxi
Visiting the Informatica Developer Network . . . . . . . . . . . . . . . . . . . . xxxi
Visiting the Informatica Knowledge Base . . . . . . . . . . . . . . . . . . . . . . xxxi
Obtaining Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxxi
Chapter 1: Working with Transformations . . . . . . . . . . . . . . . . . . . . . . 1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Creating a Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Configuring Transformations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Working with Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Creating Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Configuring Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Linking Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Multi-Group Transformations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Working with Expressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

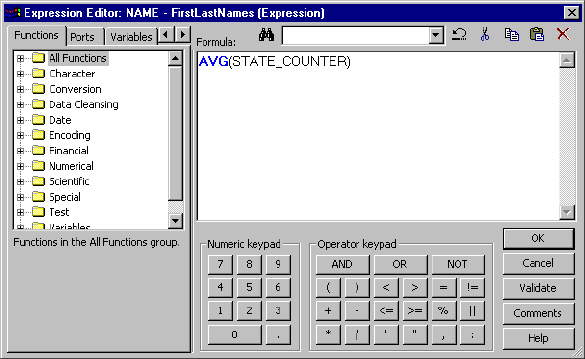

Using the Expression Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using Local Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Temporarily Store Data and Simplify Complex Expressions . . . . . . . . . . 14
Store Values Across Rows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Capture Values from Stored Procedures . . . . . . . . . . . . . . . . . . . . . . . . 15
Guidelines for Configuring Variable Ports . . . . . . . . . . . . . . . . . . . . . . 16
Using Default Values for Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Entering User-Defined Default Values . . . . . . . . . . . . . . . . . . . . . . . . . 20
Entering User-Defined Default Input Values . . . . . . . . . . . . . . . . . . . . . 22
Entering User-Defined Default Output Values . . . . . . . . . . . . . . . . . . . 25
iv Table of Contents
General Rules for Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Entering and Validating Default Values . . . . . . . . . . . . . . . . . . . . . . . . .28
Configuring Tracing Level in Transformations . . . . . . . . . . . . . . . . . . . . . . .30
Reusable Transformations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Instances and Inherited Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Mapping Variables in Expressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Creating Reusable Transformations . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Promoting Non-Reusable Transformations . . . . . . . . . . . . . . . . . . . . . .32
Creating Non-Reusable Instances of Reusable Transformations . . . . . . . .33
Adding Reusable Transformations to Mappings . . . . . . . . . . . . . . . . . . .33
Modifying a Reusable Transformation . . . . . . . . . . . . . . . . . . . . . . . . . .34
Chapter 2: Aggregator Transformation . . . . . . . . . . . . . . . . . . . . . . .37
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Ports in the Aggregator Transformation . . . . . . . . . . . . . . . . . . . . . . . . .38
Components of the Aggregator Transformation . . . . . . . . . . . . . . . . . . .38
Aggregate Caches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Aggregate Expressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Aggregate Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Nested Aggregate Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Conditional Clauses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Non-Aggregate Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Null Values in Aggregate Functions . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Group By Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Non-Aggregate Expressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Using Sorted Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Sorted Input Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Pre-Sorting Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Creating an Aggregator Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Chapter 3: Custom Transformation . . . . . . . . . . . . . . . . . . . . . . . . . .53
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Working with Transformations Built On the Custom Transformation . . .54
Code Page Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Table of Contents v
Distributing Custom Transformation Procedures . . . . . . . . . . . . . . . . . . 56
Creating Custom Transformations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Rules and Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Custom Transformation Components . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Working with Groups and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Creating Groups and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Editing Groups and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Defining Port Relationships . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Working with Port Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Custom Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Setting the Update Strategy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Working with Thread-Specific Procedure Code . . . . . . . . . . . . . . . . . . . 66
Working with Transaction Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Transformation Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Generate Transaction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Working with Transaction Boundaries . . . . . . . . . . . . . . . . . . . . . . . . . 69
Blocking Input Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Writing the Procedure Code to Block Data . . . . . . . . . . . . . . . . . . . . . . 70
Configuring Custom Transformations as Blocking Transformations . . . . 70
Validating Mappings with Custom Transformations . . . . . . . . . . . . . . . 71
Working with Procedure Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Creating Custom Transformation Procedures . . . . . . . . . . . . . . . . . . . . . . . 73
Step 1. Create the Custom Transformation . . . . . . . . . . . . . . . . . . . . . . 73
Step 2. Generate the C Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Step 3. Fill Out the Code with the Transformation Logic . . . . . . . . . . . 76
Step 4. Build the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Step 5. Create a Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Step 6. Run the Session in a Workflow . . . . . . . . . . . . . . . . . . . . . . . . . 87
Chapter 4: Custom Transformation Functions . . . . . . . . . . . . . . . . .89
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Working with Handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Function Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Working with Rows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Rules and Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Generated Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Initialization Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
vi Table of Contents
Notification Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Deinitialization Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
API Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Set Data Access Mode Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Navigation Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Property Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Rebind Datatype Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Data Handling Functions (Row-Based Mode) . . . . . . . . . . . . . . . . . . . 117
Set Pass-Through Port Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
Output Notification Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Data Boundary Output Notification Function . . . . . . . . . . . . . . . . . . . 121
Error Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Session Log Message Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Increment Error Count Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Is Terminated Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Blocking Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Pointer Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Change String Mode Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Set Data Code Page Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Row Strategy Functions (Row-Based Mode) . . . . . . . . . . . . . . . . . . . . 128
Change Default Row Strategy Function . . . . . . . . . . . . . . . . . . . . . . . 129
Array-Based API Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Maximum Number of Rows Functions . . . . . . . . . . . . . . . . . . . . . . . . 130
Number of Rows Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Is Row Valid Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Data Handling Functions (Array-Based Mode) . . . . . . . . . . . . . . . . . . 132
Row Strategy Functions (Array-Based Mode) . . . . . . . . . . . . . . . . . . . . 135
Set Input Error Row Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Java API Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
C++ API Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Chapter 5: Expression Transformation . . . . . . . . . . . . . . . . . . . . . . 141
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Calculating Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Adding Multiple Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Creating an Expression Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Table of Contents vii
Chapter 6: External Procedure Transformation . . . . . . . . . . . . . . . . 145
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Code Page Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
External Procedures and External Procedure Transformations . . . . . . . . 147
External Procedure Transformation Properties . . . . . . . . . . . . . . . . . . . 147
Pipeline Partitioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
COM Versus Informatica External Procedures . . . . . . . . . . . . . . . . . . . 148
The BankSoft Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Developing COM Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Steps for Creating a COM Procedure . . . . . . . . . . . . . . . . . . . . . . . . . 149
COM External Procedure Server Type . . . . . . . . . . . . . . . . . . . . . . . . 149
Using Visual C++ to Develop COM Procedures . . . . . . . . . . . . . . . . . 149
Developing COM Procedures with Visual Basic . . . . . . . . . . . . . . . . . 156
Developing Informatica External Procedures . . . . . . . . . . . . . . . . . . . . . . . 159
Step 1. Create the External Procedure Transformation . . . . . . . . . . . . . 159
Step 2. Generate the C++ Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Step 3. Fill Out the Method Stub with Implementation . . . . . . . . . . . . 164
Step 4. Building the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Step 5. Create a Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Step 6. Run the Session in a Workflow . . . . . . . . . . . . . . . . . . . . . . . . 167
Distributing External Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Distributing COM Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Distributing Informatica Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Development Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
COM Datatypes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Row-Level Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Return Values from Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Exceptions in Procedure Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Memory Management for Procedures . . . . . . . . . . . . . . . . . . . . . . . . . 173
Wrapper Classes for Pre-Existing C/C++ Libraries or VB Functions . . . 173
Generating Error and Tracing Messages . . . . . . . . . . . . . . . . . . . . . . . 173
Unconnected External Procedure Transformations . . . . . . . . . . . . . . . . 175
Initializing COM and Informatica Modules . . . . . . . . . . . . . . . . . . . . 175
Other Files Distributed and Used in TX . . . . . . . . . . . . . . . . . . . . . . . 179
Service Process Variables in Initialization Properties . . . . . . . . . . . . . . . . . 180
External Procedure Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Dispatch Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
viii Table of Contents
External Procedure Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Property Access Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Parameter Access Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Code Page Access Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Transformation Name Access Functions . . . . . . . . . . . . . . . . . . . . . . . 185
Procedure Access Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Partition Related Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Tracing Level Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187
Chapter 7: Filter Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190
Filter Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Creating a Filter Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Chapter 8: HTTP Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .198
Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Connecting to the HTTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Creating an HTTP Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Configuring the Properties Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Configuring the HTTP Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Selecting a Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Configuring Groups and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Configuring a URL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
GET Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .209
POST Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
SIMPLE POST Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Chapter 9: Java Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214
Steps to Define a Java Transformation . . . . . . . . . . . . . . . . . . . . . . . . . 214
Active and Passive Java Transformations . . . . . . . . . . . . . . . . . . . . . . . 215
Datatype Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Using the Java Code Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Table of Contents ix
Configuring Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Creating Groups and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Setting Default Port Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Configuring Java Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . 221
Working with Transaction Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Setting the Update Strategy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Developing Java Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Creating Java Code Snippets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Importing Java Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Defining Helper Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
On Input Row Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
On End of Data Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
On Receiving Transaction Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Configuring Java Transformation Settings . . . . . . . . . . . . . . . . . . . . . . . . . 229
Configuring the Classpath . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Enabling High Precision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Compiling a Java Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Fixing Compilation Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Locating the Source of Compilation Errors . . . . . . . . . . . . . . . . . . . . . 232
Identifying Compilation Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Chapter 10: Java Transformation API Reference . . . . . . . . . . . . . . . 237
Java Transformation API Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
commit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
failSession . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
generateRow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
getInRowType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
incrementErrorCount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
x Table of Contents
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
isNull . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
logInfo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
logError . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
rollBack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
setNull . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
setOutRowType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Chapter 11: Java Transformation Example . . . . . . . . . . . . . . . . . . . 251
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .252
Step 1. Import the Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Step 2. Create Transformation and Configure Ports . . . . . . . . . . . . . . . . . . 254
Step 3. Enter Java Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Import Packages Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Helper Code Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
On Input Row Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Step 4. Compile the Java Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Step 5. Create a Session and Workflow . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Sample Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Chapter 12: Java Expressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .264
Expression Function Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Using the Define Expression Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Step 1. Configure the Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . .266
Table of Contents xi
Step 2. Create and Validate the Expression . . . . . . . . . . . . . . . . . . . . . 267
Step 3. Generate Java Code for the Expression . . . . . . . . . . . . . . . . . . 267
Steps to Create an Expression and Generate Java Code . . . . . . . . . . . . 268
Java Expression Templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Working with the Simple Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
invokeJExpression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Simple Interface Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Working with the Advanced Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Steps to Invoke an Expression with the Advanced Interface . . . . . . . . . 273
Rules and Guidelines for Working with the Advanced Interface . . . . . . 273
EDataType Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
JExprParamMetadata Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
defineJExpression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
JExpression Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Advanced Interface Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
JExpression API Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
invoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
getResultDataType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
getResultMetadata . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
isResultNull . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
getInt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
getDouble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
getLong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
getStringBuffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
getBytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Chapter 13: Joiner Transformation . . . . . . . . . . . . . . . . . . . . . . . . . 283
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Working with the Joiner Transformation . . . . . . . . . . . . . . . . . . . . . . 284
Joiner Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Defining a Join Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Defining the Join Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Normal Join . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Master Outer Join . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Detail Outer Join . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Full Outer Join . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Using Sorted Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
xii Table of Contents
Configuring the Sort Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Adding Transformations to the Mapping . . . . . . . . . . . . . . . . . . . . . . . 293
Configuring the Joiner Transformation . . . . . . . . . . . . . . . . . . . . . . . . 293
Defining the Join Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Joining Data from a Single Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Joining Two Branches of the Same Pipeline . . . . . . . . . . . . . . . . . . . . . 296
Joining Two Instances of the Same Source . . . . . . . . . . . . . . . . . . . . . . 297
Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Blocking the Source Pipelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Unsorted Joiner Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Sorted Joiner Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Working with Transactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .300
Preserving Transaction Boundaries for a Single Pipeline . . . . . . . . . . . . 301
Preserving Transaction Boundaries in the Detail Pipeline . . . . . . . . . . . 301
Dropping Transaction Boundaries for Two Pipelines . . . . . . . . . . . . . . 302
Creating a Joiner Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Chapter 14: Lookup Transformation . . . . . . . . . . . . . . . . . . . . . . . . 307
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .308
Connected and Unconnected Lookups . . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Connected Lookup Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . 309
Unconnected Lookup Transformation . . . . . . . . . . . . . . . . . . . . . . . . . 310
Relational and Flat File Lookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
Relational Lookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
Flat File Lookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
Lookup Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Lookup Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Lookup Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Lookup Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Lookup Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Metadata Extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
Lookup Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .316
Configuring Lookup Properties in a Session . . . . . . . . . . . . . . . . . . . . 320
Lookup Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
Default Lookup Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
Overriding the Lookup Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
Table of Contents xiii
Lookup Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
Uncached or Static Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
Dynamic Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Handling Multiple Matches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Lookup Caches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Configuring Unconnected Lookup Transformations . . . . . . . . . . . . . . . . . 331
Step 1. Add Input Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
Step 2. Add the Lookup Condition . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Step 3. Designate a Return Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332
Step 4. Call the Lookup Through an Expression . . . . . . . . . . . . . . . . . 333
Creating a Lookup Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Chapter 15: Lookup Caches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Cache Comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Building Connected Lookup Caches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Sequential Caches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Concurrent Caches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Using a Persistent Lookup Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Using a Non-Persistent Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Using a Persistent Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Rebuilding the Lookup Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Working with an Uncached Lookup or Static Cache . . . . . . . . . . . . . . . . . 344
Working with a Dynamic Lookup Cache . . . . . . . . . . . . . . . . . . . . . . . . . 345
Using the NewLookupRow Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Using the Associated Input Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348
Working with Lookup Transformation Values . . . . . . . . . . . . . . . . . . . 349
Using the Ignore Null Property . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Using the Ignore in Comparison Property . . . . . . . . . . . . . . . . . . . . . . 354
Using Update Strategy Transformations with a Dynamic Cache . . . . . . 354
Updating the Dynamic Lookup Cache . . . . . . . . . . . . . . . . . . . . . . . . 356
Using the WHERE Clause with a Dynamic Cache . . . . . . . . . . . . . . . 358
Synchronizing the Dynamic Lookup Cache . . . . . . . . . . . . . . . . . . . . . 359
Example Using a Dynamic Lookup Cache . . . . . . . . . . . . . . . . . . . . . . 360
Rules and Guidelines for Dynamic Caches . . . . . . . . . . . . . . . . . . . . . 361
Sharing the Lookup Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
xiv Table of Contents
Sharing an Unnamed Lookup Cache . . . . . . . . . . . . . . . . . . . . . . . . . . 363
Sharing a Named Lookup Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . .365
Lookup Cache Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .369
Chapter 16: Normalizer Transformation . . . . . . . . . . . . . . . . . . . . . . 371
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .372
Normalizing Data in a Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
Normalizer Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
Adding a COBOL Source to a Mapping . . . . . . . . . . . . . . . . . . . . . . . 374
Differences Between Normalizer Transformations . . . . . . . . . . . . . . . . . . . 378
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379
Chapter 17: Rank Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . 381
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .382
Ranking String Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
Rank Caches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383
Rank Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . .383
Ports in a Rank Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Rank Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Defining Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 385
Creating a Rank Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 386
Chapter 18: Router Transformation . . . . . . . . . . . . . . . . . . . . . . . . . 389
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .390
Working with Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392
Input Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392
Output Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392
Using Group Filter Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
Adding Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .394
Working with Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .396
Connecting Router Transformations in a Mapping . . . . . . . . . . . . . . . . . . . 398
Creating a Router Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Chapter 19: Sequence Generator Transformation . . . . . . . . . . . . . . 401
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .402
Common Uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Creating Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .403
Table of Contents xv
Replacing Missing Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403
Sequence Generator Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404
NEXTVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 404
CURRVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406
Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407
Start Value and Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408
Increment By . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408
End Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Current Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Number of Cached Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411
Creating a Sequence Generator Transformation . . . . . . . . . . . . . . . . . . . . . 412
Chapter 20: Sorter Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 416
Sorting Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417
Sorter Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419
Sorter Cache Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419
Case Sensitive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Work Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Distinct Output Rows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Tracing Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Null Treated Low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
Transformation Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422
Creating a Sorter Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423
Chapter 21: Source Qualifier Transformation . . . . . . . . . . . . . . . . . 425
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426
Transformation Datatypes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426
Target Load Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426
Parameters and Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427
Source Qualifier Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . 429
Default Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431
Viewing the Default Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432
Overriding the Default Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432
Joining Source Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434
Default Join . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434
xvi Table of Contents
Custom Joins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .435
Heterogeneous Joins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436
Creating Key Relationships . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 436
Adding an SQL Query . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438
Entering a User-Defined Join . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 440
Outer Join Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442
Informatica Join Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 442
Creating an Outer Join . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .447
Common Database Syntax Restrictions . . . . . . . . . . . . . . . . . . . . . . . . 449
Entering a Source Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450
Using Sorted Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .452
Select Distinct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 454
Overriding Select Distinct in the Session . . . . . . . . . . . . . . . . . . . . . .454
Adding Pre- and Post-Session SQL Commands . . . . . . . . . . . . . . . . . . . . . 455
Creating a Source Qualifier Transformation . . . . . . . . . . . . . . . . . . . . . . . . 456
Creating a Source Qualifier Transformation By Default . . . . . . . . . . . . 456
Creating a Source Qualifier Transformation Manually . . . . . . . . . . . . . 456
Configuring Source Qualifier Transformation Options . . . . . . . . . . . . . 456
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 458
Chapter 22: SQL Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . 459
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .460
Script Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 461
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 462
Script Mode Rules and Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . 462
Query Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464
Using Static SQL Queries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 465
Using Dynamic SQL Queries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 466
Query Mode Rules and Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . 469
Connecting to Databases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470
Using a Static Database Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 470
Passing a Logical Database Connection . . . . . . . . . . . . . . . . . . . . . . . . 470
Passing Full Connection Information . . . . . . . . . . . . . . . . . . . . . . . . . 470
Database Connections Rules and Guidelines . . . . . . . . . . . . . . . . . . . . 473
Session Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .474
Input Row to Output Row Cardinality . . . . . . . . . . . . . . . . . . . . . . . . 474
Transaction Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478
Table of Contents xvii
High Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478
Creating an SQL Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 480
SQL Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 482
Properties Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 482
SQL Settings Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 485
SQL Ports Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486
SQL Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 488
Chapter 23: Stored Procedure Transformation . . . . . . . . . . . . . . . . 489
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490
Input and Output Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490
Connected and Unconnected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 491
Specifying when the Stored Procedure Runs . . . . . . . . . . . . . . . . . . . . 492
Using a Stored Procedure in a Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . 494
Writing a Stored Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 495
Sample Stored Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 495
Creating a Stored Procedure Transformation . . . . . . . . . . . . . . . . . . . . . . . 498
Importing Stored Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 498
Manually Creating Stored Procedure Transformations . . . . . . . . . . . . . 500
Setting Options for the Stored Procedure . . . . . . . . . . . . . . . . . . . . . . 501
Using $Source and $Target Variables . . . . . . . . . . . . . . . . . . . . . . . . . 502
Changing the Stored Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 503
Configuring a Connected Transformation . . . . . . . . . . . . . . . . . . . . . . . . . 504
Configuring an Unconnected Transformation . . . . . . . . . . . . . . . . . . . . . . 506
Calling a Stored Procedure From an Expression . . . . . . . . . . . . . . . . . . 506
Calling a Pre- or Post-Session Stored Procedure . . . . . . . . . . . . . . . . . . 509
Error Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 512
Pre-Session Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 512
Post-Session Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 513
Session Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 513
Supported Databases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 514
SQL Declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 514
Parameter Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 514
Input/Output Port in Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 514
Type of Return Value Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . 515
Expression Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 516
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 517
xviii Table of Contents
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 518
Chapter 24: Transaction Control Transformation . . . . . . . . . . . . . .519
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .520
Transaction Control Transformation Properties . . . . . . . . . . . . . . . . . . . . . 521
Properties Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .521
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522
Using Transaction Control Transformations in Mappings . . . . . . . . . . . . . . 524
Sample Transaction Control Mappings with Multiple Targets . . . . . . . . 525
Mapping Guidelines and Validation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 528
Creating a Transaction Control Transformation . . . . . . . . . . . . . . . . . . . . . 529
Chapter 25: Union Transformation . . . . . . . . . . . . . . . . . . . . . . . . . .531
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .532
Union Transformation Rules and Guidelines . . . . . . . . . . . . . . . . . . . . 532
Union Transformation Components . . . . . . . . . . . . . . . . . . . . . . . . . . 532
Working with Groups and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 534
Creating a Union Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 536
Using a Union Transformation in Mappings . . . . . . . . . . . . . . . . . . . . . . . 538
Chapter 26: Update Strategy Transformation . . . . . . . . . . . . . . . . . 539
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .540
Setting the Update Strategy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 540
Flagging Rows Within a Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 541
Forwarding Rejected Rows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 541
Update Strategy Expressions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 541
Aggregator and Update Strategy Transformations . . . . . . . . . . . . . . . . .542
Lookup and Update Strategy Transformations . . . . . . . . . . . . . . . . . . . 543
Setting the Update Strategy for a Session . . . . . . . . . . . . . . . . . . . . . . . . . . 544
Specifying an Operation for All Rows . . . . . . . . . . . . . . . . . . . . . . . . . 544
Specifying Operations for Individual Target Tables . . . . . . . . . . . . . . . 545
Update Strategy Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 547
Chapter 27: XML Transformations . . . . . . . . . . . . . . . . . . . . . . . . . . 549
XML Source Qualifier Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . 550
XML Parser Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 551
XML Generator Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 552
Table of Contents xix
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 553
xx Table of Contents
List of Figures xxi
List of Figures
Figure 1-1. Sample Ports Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Figure 1-2. Example of Input, Output, and Input/Output Ports . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 1-3. Sample Input and Output Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 1-4. Expression Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 1-5. Variable Ports Store Values Across Rows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 1-6. Default Value for Input and Input/Output Ports . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 1-7. Default Value for Output Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 1-8. Using a Constant as a Default Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Figure 1-9. Using the ERROR Function to Skip Null Input Values . . . . . . . . . . . . . . . . . . . . 24
Figure 1-10. Entering and Validating Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 1-11. Reverting to Original Reusable Transformation Properties . . . . . . . . . . . . . . . . . 35
Figure 2-1. Sample Mapping with Aggregator and Sorter Transformations . . . . . . . . . . . . . . . 46
Figure 3-1. Custom Transformation Ports Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Figure 3-2. Editing Port Dependencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Figure 3-3. Port Attribute Definitions Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Figure 3-4. Edit Port Attribute Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Figure 3-5. Custom Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Figure 3-6. Custom Transformation Ports Tab - Union Example . . . . . . . . . . . . . . . . . . . . . . 74
Figure 3-7. Custom Transformation Properties Tab - Union Example . . . . . . . . . . . . . . . . . . 75
Figure 3-8. Mapping with a Custom Transformation - Union Example . . . . . . . . . . . . . . . . . 87
Figure 4-1. Custom Transformation Handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Figure 6-1. Process for Distributing External Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Figure 6-2. External Procedure Transformation Initialization Properties . . . . . . . . . . . . . . . . 178
Figure 6-3. External Procedure Transformation Initialization Properties Tab . . . . . . . . . . . . 180
Figure 7-1. Sample Mapping with a Filter Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Figure 7-2. Specifying a Filter Condition in a Filter Transformation . . . . . . . . . . . . . . . . . . 191
Figure 8-1. HTTP Transformation Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Figure 8-2. HTTP Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Figure 8-3. HTTP Transformation Properties Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Figure 8-4. HTTP Transformation HTTP Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Figure 8-5. HTTP Tab for a GET Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Figure 8-6. HTTP Tab for a POST Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Figure 8-7. HTTP Tab for a SIMPLE POST Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Figure 9-1. Java Code Tab Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Figure 9-2. Java Transformation Ports Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Figure 9-3. Java Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Figure 9-4. Java Transformation Settings Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Figure 9-5. Highlighted Error in Code Entry Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Figure 9-6. Highlighted Error in Full Code Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Figure 11-1. Java Transformation Example - Sample Mapping . . . . . . . . . . . . . . . . . . . . . . . 253
xxii List of Figures
Figure 11-2. Java Transformation Example - Ports Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255
Figure 11-3. Java Transformation Example - Import Packages Tab . . . . . . . . . . . . . . . . . . . . .257
Figure 11-4. Java Transformation Example - Helper Code Tab . . . . . . . . . . . . . . . . . . . . . . .258
Figure 11-5. Java Transformation Example - On Input Row Tab . . . . . . . . . . . . . . . . . . . . . .260
Figure 11-6. Java Transformation Example - Successful Compilation . . . . . . . . . . . . . . . . . . .261
Figure 12-1. Define Expression Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .267
Figure 12-2. Java Expressions Code Entry Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .268
Figure 13-1. Mapping with Master and Detail Pipelines . . . . . . . . . . . . . . . . . . . . . . . . . . . .284
Figure 13-2. Joiner Transformation Properties Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .286
Figure 13-3. Mapping Configured to Join Data from Two Pipelines . . . . . . . . . . . . . . . . . . .295
Figure 13-4. Mapping that Joins Two Branches of a Pipeline . . . . . . . . . . . . . . . . . . . . . . . . .297
Figure 13-5. Mapping that Joins Two Instances of the Same Source . . . . . . . . . . . . . . . . . . . .297
Figure 13-6. Preserving Transaction Boundaries when You Join Two Pipeline Branches . . . . .301
Figure 14-1. Session Properties for Flat File Lookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .321
Figure 14-2. Return Port in a Lookup Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .333
Figure 15-1. Building Lookup Caches Sequentially . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .340
Figure 15-2. Building Lookup Caches Concurrently . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .341
Figure 15-3. Mapping with a Dynamic Lookup Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .346
Figure 15-4. Dynamic Lookup Transformation Ports Tab . . . . . . . . . . . . . . . . . . . . . . . . . . .347
Figure 15-5. Using Update Strategy Transformations with a Lookup Transformation . . . . . . .355
Figure 15-6. Slowly Changing Dimension Mapping with Dynamic Lookup Cache . . . . . . . . .360
Figure 16-1. COBOL Source Definition and a Normalizer Transformation . . . . . . . . . . . . . .375
Figure 17-1. Sample Mapping with a Rank Transformation . . . . . . . . . . . . . . . . . . . . . . . . . .382
Figure 18-1. Comparing Router and Filter Transformations . . . . . . . . . . . . . . . . . . . . . . . . .390
Figure 18-2. Sample Router Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .391
Figure 18-3. Using a Router Transformation in a Mapping . . . . . . . . . . . . . . . . . . . . . . . . . .393
Figure 18-4. Specifying Group Filter Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .394
Figure 18-5. Router Transformation Ports Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .396
Figure 18-6. Input Port Name and Corresponding Output Port Names . . . . . . . . . . . . . . . . .397
Figure 19-1. Connecting NEXTVAL to Two Target Tables in a Mapping . . . . . . . . . . . . . . .404
Figure 19-2. Mapping with a Sequence Generator and an Expression Transformation . . . . . . .405
Figure 19-3. Connecting CURRVAL and NEXTVAL Ports to a Target . . . . . . . . . . . . . . . . .406
Figure 20-1. Sample Mapping with a Sorter Transformation . . . . . . . . . . . . . . . . . . . . . . . . .416
Figure 20-2. Sample Sorter Transformation Ports Configuration . . . . . . . . . . . . . . . . . . . . . .417
Figure 20-3. Sorter Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .419
Figure 21-1. Source Definition Connected to a Source Qualifier Transformation . . . . . . . . . .431
Figure 21-2. Joining Two Tables with One Source Qualifier Transformation . . . . . . . . . . . . .435
Figure 21-3. Creating a Relationship Between Two Tables . . . . . . . . . . . . . . . . . . . . . . . . . .437
Figure 22-1. SQL Transformation Script Mode Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .461
Figure 22-2. SQL Editor for an SQL Transformation Query . . . . . . . . . . . . . . . . . . . . . . . . .464
Figure 22-3. SQL Transformation Static Query Mode Ports . . . . . . . . . . . . . . . . . . . . . . . . .466
Figure 22-4. SQL Transformation Ports to Pass a Full Dynamic Query . . . . . . . . . . . . . . . . .467
Figure 22-5. SQL Transformation Properties Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .483
List of Figures xxiii
Figure 22-6. SQL Settings Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 485
Figure 22-7. SQL Transformation SQL Ports Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486
Figure 23-1. Sample Mapping with a Stored Procedure Transformation . . . . . . . . . . . . . . . . 504
Figure 23-2. Expression Transformation Referencing a Stored Procedure Transformation . . . 506
Figure 23-3. Stored Procedure Error Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 512
Figure 24-1. Transaction Control Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . 521
Figure 24-2. Sample Transaction Control Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 523
Figure 24-3. Effective and Ineffective Transaction Control Transformations . . . . . . . . . . . . . 525
Figure 24-4. Transaction Control Transformation Effective for a Transformation . . . . . . . . . 525
Figure 24-5. Valid Mapping with Transaction Control Transformations . . . . . . . . . . . . . . . . 526
Figure 24-6. Invalid Mapping with Transaction Control Transformations . . . . . . . . . . . . . . 527
Figure 25-1. Union Transformation Groups Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 534
Figure 25-2. Union Transformation Group Ports Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 535
Figure 25-3. Union Transformation Ports Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 535
Figure 25-4. Mapping with a Union Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 538
Figure 26-1. Specifying Operations for Individual Target Tables . . . . . . . . . . . . . . . . . . . . . 546
xxiv List of Figures
List of Tables xxv
List of Tables
Table 1-1. Transformation Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table 1-2. Multi-Group Transformations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 1-3. Transformations Containing Expressions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 1-4. Variable Usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Table 1-5. System Default Values and Integration Service Behavior. . . . . . . . . . . . . . . . . . . . . 18
Table 1-6. Transformations Supporting User-Defined Default Values . . . . . . . . . . . . . . . . . . . 20
Table 1-7. Default Values for Input and Input/Output Ports . . . . . . . . . . . . . . . . . . . . . . . . . 22
Table 1-8. Supported Default Values for Output Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table 1-9. Session Log Tracing Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Table 3-1. Custom Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Table 3-2. Transaction Boundary Handling with Custom Transformations . . . . . . . . . . . . . . . 69
Table 3-3. Module File Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Table 3-4. UNIX Commands to Build the Shared Library. . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Table 4-1. Custom Transformation Handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Table 4-2. Custom Transformation Generated Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Table 4-3. Custom Transformation API Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Table 4-4. Custom Transformation Array-Based API Functions . . . . . . . . . . . . . . . . . . . . . . . 94
Table 4-5. INFA_CT_MODULE Property IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Table 4-6. INFA_CT_PROC_HANDLE Property IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Table 4-7. INFA_CT_TRANS_HANDLE Property IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Table 4-8. INFA_CT_INPUT_GROUP and INFA_CT_OUTPUT_GROUP
Handle Property IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Table 4-9. INFA_CT_INPUTPORT and INFA_CT_OUTPUTPORT_HANDLE
Handle Property IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Table 4-10. Property Functions (MBCS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Table 4-11. Property Functions (Unicode). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Table 4-12. Compatible Datatypes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Table 4-13. Get Data Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Table 4-14. Get Data Functions (Array-Based Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Table 6-1. Differences Between COM and Informatica External Procedures . . . . . . . . . . . . . 148
Table 6-2. Visual C++ and Transformation Datatypes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Table 6-3. Visual Basic and Transformation Datatypes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Table 6-4. External Procedure Initialization Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Table 6-5. Descriptions of Parameter Access Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Table 6-6. Member Variable of the External Procedure Base Class. . . . . . . . . . . . . . . . . . . . . 185
Table 8-1. HTTP Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Table 8-2. HTTP Transformation Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Table 8-3. GET Method Groups and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Table 8-4. POST Method Groups and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Table 8-5. SIMPLE POST Method Groups and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Table 9-1. Mapping from PowerCenter Datatypes to Java Datatypes . . . . . . . . . . . . . . . . . . . 215
xxvi List of Tables
Table 9-2. Java Transformation Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .221
Table 11-1. Input and Output Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .254
Table 12-1. Enumerated Java Datatypes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .274
Table 12-2. JExpression API Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .276
Table 13-1. Joiner Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .286
Table 13-2. Integration Service Behavior with Transformation Scopes for the
Joiner Transformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .300
Table 14-1. Differences Between Connected and Unconnected Lookups . . . . . . . . . . . . . . . . .309
Table 14-2. Lookup Transformation Port Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .314
Table 14-3. Lookup Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .316
Table 14-4. Session Properties for Flat File Lookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .322
Table 15-1. Lookup Caching Comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .339
Table 15-2. Integration Service Handling of Persistent Caches . . . . . . . . . . . . . . . . . . . . . . . .343
Table 15-3. NewLookupRow Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .348
Table 15-4. Dynamic Lookup Cache Behavior for Insert Row Type . . . . . . . . . . . . . . . . . . . .357
Table 15-5. Dynamic Lookup Cache Behavior for Update Row Type . . . . . . . . . . . . . . . . . . .358
Table 15-6. Location for Sharing Unnamed Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .364
Table 15-7. Properties for Sharing Unnamed Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .364
Table 15-8. Location for Sharing Named Cache. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .367
Table 15-9. Properties for Sharing Named Cache. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .367
Table 16-1. VSAM and Relational Normalizer Transformation Differences . . . . . . . . . . . . . . .378
Table 17-1. Rank Transformation Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .384
Table 17-2. Rank Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .387
Table 19-1. Sequence Generator Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . .407
Table 20-1. Column Sizes for Sorter Data Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . .420
Table 21-1. Conversion for Datetime Mapping Parameters and Variables . . . . . . . . . . . . . . . .427
Table 21-2. Source Qualifier Transformation Properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . .429
Table 21-3. Locations for Entering Outer Join Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .443
Table 21-4. Syntax for Normal Joins in a Join Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . .443
Table 21-5. Syntax for Left Outer Joins in a Join Override . . . . . . . . . . . . . . . . . . . . . . . . . . .445
Table 21-6. Syntax for Right Outer Joins in a Join Override . . . . . . . . . . . . . . . . . . . . . . . . .447
Table 22-1. Full Database Connection Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .471
Table 22-2. Native Connect String Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .471
Table 22-3. Output Rows By Query Statement - Query Mode . . . . . . . . . . . . . . . . . . . . . . . .475
Table 22-4. NumRowsAffected Rows by Query Statement - Query Mode . . . . . . . . . . . . . . . .475
Table 22-5. Output Rows by Query Statement - Query Mode . . . . . . . . . . . . . . . . . . . . . . . .477
Table 22-6. SQL Transformation Connection Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .481
Table 22-7. SQL Transformation Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .483
Table 22-8. SQL Settings Tab Attributes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .485
Table 22-9. SQL Transformation Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .486
Table 22-10. Standard SQL Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .488
Table 23-1. Comparison of Connected and Unconnected Stored Procedure Transformations . .492
Table 23-2. Setting Options for the Stored Procedure Transformation . . . . . . . . . . . . . . . . . .501
Table 26-1. Constants for Each Database Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .541
List of Tables xxvii
Table 26-2. Specifying an Operation for All Rows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 544
Table 26-3. Update Strategy Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 545
xxviii List of Tables
xxix
Preface
Welcome to PowerCenter, the Informatica software product that delivers an open, scalable
data integration solution addressing the complete life cycle for all data integration projects
including data warehouses, data migration, data synchronization, and information hubs.
PowerCenter combines the latest technology enhancements for reliably managing data
repositories and delivering information resources in a timely, usable, and efficient manner.
The PowerCenter repository coordinates and drives a variety of core functions, including
extracting, transforming, loading, and managing data. The Integration Service can extract
large volumes of data from multiple platforms, handle complex transformations on the data,
and support high-speed loads. PowerCenter can simplify and accelerate the process of
building a comprehensive data warehouse from disparate data sources.
xxx Preface
About This Book
The Transformation Guide is written for the developers and software engineers responsible for
implementing your data warehouse. The Trans f o rmation Guide assumes that you have a solid
understanding of your operating systems, relational database concepts, and the database
engines, flat files, or mainframe system in your environment. This guide also assumes that
you are familiar with the interface requirements for your supporting applications.
The material in this book is also available online.
Document Conventions
This guide uses the following formatting conventions:
If you see… It means…
italicized text The word or set of words are especially emphasized.
boldfaced text Emphasized subjects.
italicized monospaced text
This is the variable name for a value you enter as part of an
operating system command. This is generic text that should be
replaced with user-supplied values.
Note: The following paragraph provides additional facts.
Tip: The following paragraph provides suggested uses.
Warning: The following paragraph notes situations where you can overwrite
or corrupt data, unless you follow the specified procedure.
monospaced text This is a code example.
bold monospaced text This is an operating system command you enter from a prompt to
run a task.
Preface xxxi
Other Informatica Resources
In addition to the product manuals, Informatica provides these other resources:
Informatica Customer Portal
Informatica web site
Informatica Developer Network
Informatica Knowledge Base
Informatica Technical Support
Visiting Informatica Customer Portal
As an Informatica customer, you can access the Informatica Customer Portal site at
http://my.informatica.com. The site contains product information, user group information,
newsletters, access to the Informatica customer support case management system (ATLAS),
the Informatica Knowledge Base, Informatica Documentation Center, and access to the
Informatica user community.
Visiting the Informatica Web Site
You can access the Informatica corporate web site at http://www.informatica.com. The site
contains information about Informatica, its background, upcoming events, and sales offices.
You will also find product and partner information. The services area of the site includes
important information about technical support, training and education, and implementation
services.
Visiting the Informatica Developer Network
You can access the Informatica Developer Network at http://devnet.informatica.com. The
Informatica Developer Network is a web-based forum for third-party software developers.
The site contains information about how to create, market, and support customer-oriented
add-on solutions based on interoperability interfaces for Informatica products.
Visiting the Informatica Knowledge Base
As an Informatica customer, you can access the Informatica Knowledge Base at
http://my.informatica.com. Use the Knowledge Base to search for documented solutions to
known technical issues about Informatica products. You can also find answers to frequently
asked questions, technical white papers, and technical tips.
Obtaining Technical Support
There are many ways to access Informatica Technical Support. You can contact a Technical
Support Center by using the telephone numbers listed the following table, you can send
email, or you can use the WebSupport Service.
xxxii Preface
Use the following email addresses to contact Informatica Technical Support:
support@informatica.com for technical inquiries
support_admin@informatica.com for general customer service requests
WebSupport requires a user name and password. You can request a user name and password at
http://my.informatica.com.
North America / South America Europe / Middle East / Africa Asia / Australia
Informatica Corporation
Headquarters
100 Cardinal Way
Redwood City, California
94063
United States
Toll Free
877 463 2435
Standard Rate
United States: 650 385 5800
Informatica Software Ltd.
6 Waltham Park
Waltham Road, White Waltham
Maidenhead, Berkshire
SL6 3TN
United Kingdom
Toll Free
00 800 4632 4357
Standard Rate
Belgium: +32 15 281 702
France: +33 1 41 38 92 26
Germany: +49 1805 702 702
Netherlands: +31 306 022 797
United Kingdom: +44 1628 511 445
Informatica Business Solutions
Pvt. Ltd.
Diamond District
Tower B, 3rd Floor
150 Airport Road
Bangalore 560 008
India
Toll Free
Australia: 00 11 800 4632 4357
Singapore: 001 800 4632 4357
Standard Rate
India: +91 80 4112 5738
1
Chapter 1
Working with
Transformations
This chapter includes the following topics:
Overview, 2
Creating a Transformation, 5
Configuring Transformations, 6
Working with Ports, 7
Multi-Group Transformations, 9
Working with Express ions, 10
Using Local Variables, 14
Using Default Values for Ports, 18
Configuring Tracing Level in Transformations, 30
Reusable Transformations, 31
2 Chapter 1: Working with Transformations
Overview
A transformation is a repository object that generates, modifies, or passes data. The Designer
provides a set of transformations that perform specific functions. For example, an Aggregator
transformation performs calculations on groups of data.
Transformations in a mapping represent the operations the Integration Service performs on
the data. Data passes through transformation ports that you link in a mapping or mapplet.
Transformations can be active or passive. An active transformation can change the number of
rows that pass through it, such as a Filter transformation that removes rows that do not meet
the filter condition. A passive transformation does not change the number of rows that pass
through it, such as an Expression transformation that performs a calculation on data and
passes all rows through the transformation.
Transformations can be connected to the data flow, or they can be unconnected. An
unconnected transformation is not connected to other transformations in the mapping. An
unconnected transformation is called within another transformation, and returns a value to
that transformation.
Table 1-1 provides a brief description of each transformation:
Table 1-1. Transformation Descriptions
Transformation Type Description
Aggregator Active/
Connected
Performs aggregate calculations.
Application Source Qualifier Active/
Connected
Represents the rows that the Integration Service reads from an
application, such as an ERP source, when it runs a session.
Custom Active or
Passive/
Connected
Calls a procedure in a shared library or DLL.
Expression Passive/
Connected
Calculates a value.
External Procedure Passive/
Connected or
Unconnected
Calls a procedure in a shared library or in the COM layer of
Windows.
Filter Active/
Connected
Filters data.
HTTP Transformation Passive/
Connected
Connects to an HTTP server to read or update data.
Input Passive/
Connected
Defines mapplet input rows. Available in the Mapplet Designer.
Java Active or
Passive/
Connected
Executes user logic coded in Java. The byte code for the user logic
is stored in the repository.
Overview 3
Joiner Active/
Connected
Joins data from different databases or flat file systems.
Lookup Passive/
Connected or
Unconnected
Looks up values.
Normalizer Active/
Connected
Source qualifier for COBOL sources. Can also use in the pipeline to
normalize data from relational or flat file sources.
Output Passive/
Connected
Defines mapplet output rows. Available in the Mapplet Designer.
Rank Active/
Connected
Limits records to a top or bottom range.
Router Active/
Connected
Routes data into multiple transformations based on group
conditions.
Sequence Generator Passive/
Connected
Generates primary keys.
Sorter Active/
Connected
Sorts data based on a sort key.
Source Qualifier Active/
Connected
Represents the rows that the Integration Service reads from a
relational or flat file source when it runs a session.
SQL Active or
Passive/
Connected
Executes SQL queries against a database.
Stored Procedure Passive/
Connected or
Unconnected
Calls a stored procedure.
Transaction Control Active/
Connected
Defines commit and rollback transactions.
Union Active/
Connected
Merges data from different databases or flat file systems.
Update Strategy Active/
Connected
Determines whether to insert, delete, update, or reject rows.
XML Generator Active/
Connected
Reads data from one or more input ports and outputs XML through a
single output port.
XML Parser Active/
Connected
Reads XML from one input port and outputs data to one or more
output ports.
XML Source Qualifier Active/
Connected
Represents the rows that the Integration Service reads from an XML
source when it runs a session.
Table 1-1. Transformation Descriptions
Transformation Type Description
4 Chapter 1: Working with Transformations
When you build a mapping, you add transformations and configure them to handle data
according to a business purpose. Complete the following tasks to incorporate a
transformation into a mapping:
1. Create the transformation. Create it in the Mapping Designer as part of a mapping, in
the Mapplet Designer as part of a mapplet, or in the Transformation Developer as a
reusable transformation.
2. Configure the transformation. Each type of transformation has a unique set of options
that you can configure.
3. Link the transformation to other transformations and target definitions. Drag one port
to another to link them in the mapping or mapplet.
Creating a Transformation 5
Creating a Transformation
You can create transformations using the following Designer tools:
Mapping Designer. Create transformations that connect sources to targets.
Transformations in a mapping cannot be used in other mappings unless you configure
them to be reusable.
Transformation Developer. Create individual transformations, called reusable
transformations, that use in multiple mappings. For more information, see “Reusable
Transformations” on page 31.
Mapplet Designer. Create and configure a set of transformations, called mapplets, that
you use in multiple mappings. For more information, see “Mapplets” in the Designer
Guide.
Use the same process to create a transformation in the Mapping Designer, Transformation
Developer, and Mapplet Designer.
To create a transformation:
1. Open the appropriate Designer tool.
2. In the Mapping Designer, open or create a Mapping. In the Mapplet Designer, open or
create a Mapplet.
3. On the Transformations toolbar, click the button corresponding to the transformation
you want to create.
-or-
Click Transformation > Create and select the type of transformation you want to create.
4. Drag across the portion of the mapping where you want to place the transformation.
The new transformation appears in the workspace. Next, you need to configure the
transformation by adding any new ports to it and setting other properties.
6 Chapter 1: Working with Transformations
Configuring Transformations
After you create a transformation, you can configure it. Every transformation contains the
following common tabs:
Transformation. Name the transformation or add a description.
Port. Add and configure ports.
Properties. Configure properties that are unique to the transformation.
Metadata Extensions. Extend the metadata in the repository by associating information
with individual objects in the repository.
Some transformations might include other tabs, such as the Condition tab, where you enter
conditions in a Joiner or Normalizer transformation.
When you configure transformations, you might complete the following tasks:
Add ports. Define the columns of data that move into and out of the transformation.
Add groups. In some transformations, define input or output groups that define a row of
data entering or leaving the transformation.
Enter expressions. Enter SQL-like expressions in some transformations that transform the
data.
Define local variables. Define local variables in some transformations that temporarily
store data.
Override default values. Configure default values for ports to handle input nulls and
output transformation errors.
Enter tracing levels. Choose the amount of detail the Integration Service writes in the
session log about a transformation.
Working with Ports 7
Working with Ports
After you create a transformation, you need to add and configure ports using the Ports tab.

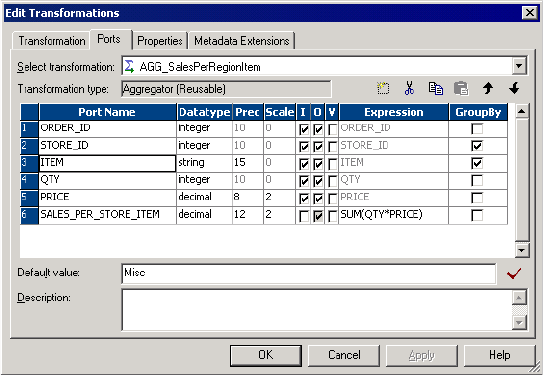

Figure 1-1 shows a sample Ports tab:
Creating Ports
You can create a new port in the following ways:
Drag a port from another transformation. When you drag a port from another
transformation the Designer creates a port with the same properties, and it links the two
ports. Click Layout > Copy Columns to enable copying ports.
Click the Add button on the Ports tab. The Designer creates an empty port you can
configure.
Configuring Ports
On the Ports tab, you can configure the following properties:
Port name. The name of the port.
Datatype, precision, and scale. If you plan to enter an expression or condition, make sure
the datatype matches the return value of the expression.
Port type. Transformations may contain a combination of input, output, input/output,
and variable port types.
Figure 1-1. Sample Ports Tab
8 Chapter 1: Working with Transformations
Default value. The Designer assigns default values to handle null values and output
transformation errors. You can override the default value in some ports.
Description. A description of the port.
Other properties. Some transformations have properties specific to that transformation,
such as expressions or group by properties.
For more information about configuration options, see the appropriate sections in this
chapter or in the specific transformation chapters.
Note: The Designer creates some transformations with configured ports. For example, the
Designer creates a Lookup transformation with an output port for each column in the table or
view used for the lookup. You need to create a port representing a value used to perform a
lookup.
Linking Ports
Once you add and configure a transformation in a mapping, you link it to targets and other
transformations. You link mapping objects through the ports. Data passes into and out of a
mapping through the following ports:
Input ports. Receive data.
Output ports. Pass data.
Input/output ports. Receive data and pass it unchanged.
Figure 1-2 shows an example of a transformation with input, output, and input/output ports:
To link ports, drag between ports in different mapping objects. The Designer validates the
link and creates the link only when the link meets validation requirements.
For more information about connecting mapping objects or about how to link ports, see
“Mappings” in the Designer Guide.
Figure 1-2. Example of Input, Output, and Input/Output Ports
Input/Output Port
Input Port
Output Ports
Multi-Group Transformations 9
Multi-Group Transformations
Transformations have input and output groups. A group is a set of ports that define a row of
incoming or outgoing data. A group is analogous to a table in a relational source or target
definition. Most transformations have one input and one output group. However, some have
multiple input groups, multiple output groups, or both. A group is the representation of a
row of data entering or leaving a transformation.
Table 1-2 lists the transformations with multiple groups:
When you connect transformations in a mapping, you must consider input and output
groups. For more information about connecting transformations in a mapping, see
“Mappings” in the Designer Guide.
Some multiple input group transformations require the Integration Service to block data at an
input group while the Integration Service waits for a row from a different input group. A
blocking transformation is a multiple input group transformation that blocks incoming data.
The following transformations are blocking transformations:
Custom transformation with the Inputs May Block property enabled
Joiner transformation configured for unsorted input
The Designer performs data flow validation when you save or validate a mapping. Some
mappings that contain blocking transformations might not be valid. For more information
about data flow validation, see Mappings” in the Designer Guide.
For more information about blocking source data, see “Integration Service Architecture in
the Administrator Guide.
Table 1-2. Multi-Group Transformations
Transformation Description
Custom Contains any number of input and output groups.
HTTP Contains an input, output, and a header group.
Joiner Contains two input groups, the master source and detail source, and one output group.
Router Contains one input group and multiple output groups.
Union Contains multiple input groups and one output group.
XML Source Qualifier Contains multiple input and output groups.
XML Target Definition Contains multiple input groups.
XML Parser Contains one input group and multiple output groups.
XML Generator Contains multiple input groups and one output group.
10 Chapter 1: Working with Transformations
Working with Expressions
You can enter expressions using the Expression Editor in some transformations. Create
expressions with the following functions:
Transformation language functions. SQL-like functions designed to handle common
expressions.
User-defined functions. Functions you create in PowerCenter based on transformation
language functions.
Custom functions. Functions you create with the Custom Function API.
For more information about the transformation language and custom functions, see the
Transformation Language Reference. For more information about user-defined functions, see
“Working with User-Defined Functions” in the Designer Guide.
Enter an expression in an output port that uses the value of data from an input or input/
output port. For example, you have a transformation with an input port IN_SALARY that
contains the salaries of all the employees. You might want to use the individual values from
the IN_SALARY column later in the mapping, and the total and average salaries you calculate
through this transformation. For this reason, the Designer requires you to create a separate
output port for each calculated value.

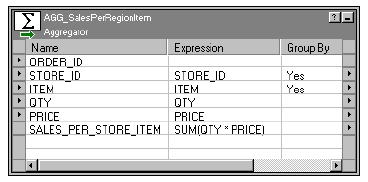

Figure 1-3 shows an Aggregator transformation that uses input ports to calculate sums and
averages:
Figure 1-3. Sample Input and Output Ports
Working with Expressions 11
Table 1-3 lists the transformations in which you can enter expressions:
Table 1-3. Transformations Containing Expressions
Transformation Expression Return Value
Aggregator Performs an aggregate calculation based on all data
passed through the transformation. Alternatively, you
can specify a filter for records in the aggregate
calculation to exclude certain kinds of records. For
example, you can find the total number and average
salary of all employees in a branch office using this
transformation.
Result of an aggregate calculation for a
port.
Expression Performs a calculation based on values within a
single row. For example, based on the price and
quantity of a particular item, you can calculate the
total purchase price for that line item in an order.
Result of a row-level calculation for a
port.
Filter Specifies a condition used to filter rows passed
through this transformation. For example, if you want
to write customer data to the BAD_DEBT table for
customers with outstanding balances, you could use
the Filter transformation to filter customer data.
TRUE or FALSE, depending on whether
a row meets the specified condition. Only
rows that return TRUE are passed
through this transformation. The
transformation applies this value to each
row passed through it.
Rank Sets the conditions for rows included in a rank. For
example, you can rank the top 10 salespeople who
are employed with the company.
Result of a condition or calculation for a
port.
Router Routes data into multiple transformations based on a
group expression. For example, use this
transformation to compare the salaries of employees
at three different pay levels. You can do this by
creating three groups in the Router transformation.
For example, create one group expression for each
salary range.
TRUE or FALSE, depending on whether
a row meets the specified group
expression. Only rows that return TRUE
pass through each user-defined group in
this transformation. Rows that return
FALSE pass through the default group.
Update Strategy Flags a row for update, insert, delete, or reject. You
use this transformation when you want to control
updates to a target, based on some condition you
apply. For example, you might use the Update
Strategy transformation to flag all customer rows for
update when the mailing address has changed, or
flag all employee rows for reject for people who no
longer work for the company.
Numeric code for update, insert, delete,
or reject. The transformation applies this
value to each row passed through it.
Transaction
Control
Specifies a condition used to determine the action the
Integration Service performs, either commit, roll back,
or no transaction change. You use this transformation
when you want to control commit and rollback
transactions based on a row or set of rows that pass
through the transformation. For example, use this
transformation to commit a set of rows based on an
order entry date.
One of the following built-in variables,
depending on whether or not a row
meets the specified condition:
- TC_CONTINUE_TRANSACTION
- TC_COMMIT_BEFORE
- TC_COMMIT_AFTER
- TC_ROLLBACK_BEFORE
- TC_ROLLBACK_AFTER
The Integration Service performs actions
based on the return value.
12 Chapter 1: Working with Transformations
Using the Expression Editor
Use the Expression Editor to build SQL-like statements. Although you can enter an
expression manually, you should use the point-and-click method. Select functions, ports,
variables, and operators from the point-and-click interface to minimize errors when you build
expressions.
Figure 1-4 shows an example of the Expression Editor:
Entering Port Names into an Expression
For connected transformations, if you use port names in an expression, the Designer updates
that expression when you change port names in the transformation. For example, you write a
valid expression that determines the difference between two dates, Date_Promised and
Date_Delivered. Later, if you change the Date_Promised port name to Due_Date, the
Designer changes the Date_Promised port name to Due_Date in the expression.
Note: You can propagate the name Due_Date to other non-reusable transformations that
depend on this port in the mapping. For more information, see “Mappings” in the Designer
Guide.
Adding Comments
You can add comments to an expression to give descriptive information about the expression
or to specify a valid URL to access business documentation about the expression.
You can add comments in one of the following ways:
To add comments within the expression, use -- or // comment indicators.
To add comments in the dialog box, click the Comments button.
For examples on adding comments to expressions, see “The Transformation Language” in the
Transformation Language Reference.
Figure 1-4. Expression Editor
Working with Expressions 13
For more information about linking to business documentation, see “Using the Designer” in
the Designer Guide.
Validating Expressions
Use the Validate button to validate an expression. If you do not validate an expression, the
Designer validates it when you close the Expression Editor. If the expression is invalid, the
Designer displays a warning. You can save the invalid expression or modify it. You cannot run
a session against a mapping with invalid expressions.
Expression Editor Display
The Expression Editor can display syntax expressions in different colors for better readability.
If you have the latest Rich Edit control, riched20.dll, installed on the system, the Expression
Editor displays expression functions in blue, comments in grey, and quoted strings in green.
You can resize the Expression Editor. Expand the dialog box by dragging from the borders.
The Designer saves the new size for the dialog box as a client setting.
Adding Expressions to an Output Port
Complete the following steps to add an expression to an output port.
To add expressions:
1. In the transformation, select the port and open the Expression Editor.
2. Enter the expression.
Use the Functions and Ports tabs and the operator keys.
3. Add comments to the expression.
Use comment indicators -- or //.
4. Validate the expression.
Use the Validate button to validate the expression.
14 Chapter 1: Working with Transformations
Using Local Variables
Use local variables in Aggregator, Expression, and Rank transformations. You can reference
variables in an expression or use them to temporarily store data. Variables are an easy way to
improve performance.
You might use variables to complete the following tasks:
Temporarily store data.
Simplify complex expressions.
Store values from prior rows.
Capture multiple return values from a stored procedure.
Compare values.
Store the results of an unconnected Lookup transformation.
Temporarily Store Data and Simplify Complex Expressions
Variables improve performance when you enter several related expressions in the same
transformation. Rather than parsing and validating the same expression components each
time, you can define these components as variables.
For example, if an Aggregator transformation uses the same filter condition before calculating
sums and averages, you can define this condition once as a variable, and then reuse the
condition in both aggregate calculations.
You can simplify complex expressions. If an Aggregator includes the same calculation in
multiple expressions, you can improve session performance by creating a variable to store the
results of the calculation.
For example, you might create the following expressions to find both the average salary and
the total salary using the same data:
AVG( SALARY, ( ( JOB_STATUS = 'Full-time' ) AND (OFFICE_ID = 1000 ) ) )
SUM( SALARY, ( ( JOB_STATUS = 'Full-time' ) AND (OFFICE_ID = 1000 ) ) )
Rather than entering the same arguments for both calculations, you might create a variable
port for each condition in this calculation, then modify the expression to use the variables.
Table 1-4 shows how to use variables to simplify complex expressions and temporarily store
data:
Table 1-4. Variable Usage
Port Value
V_CONDITION1 JOB_STATUS = ‘Full-time’
V_CONDITION2 OFFICE_ID = 1000
Using Local Variables 15
Store Values Across Rows
Use variables to store data from prior rows. This can help you perform procedural
calculations.

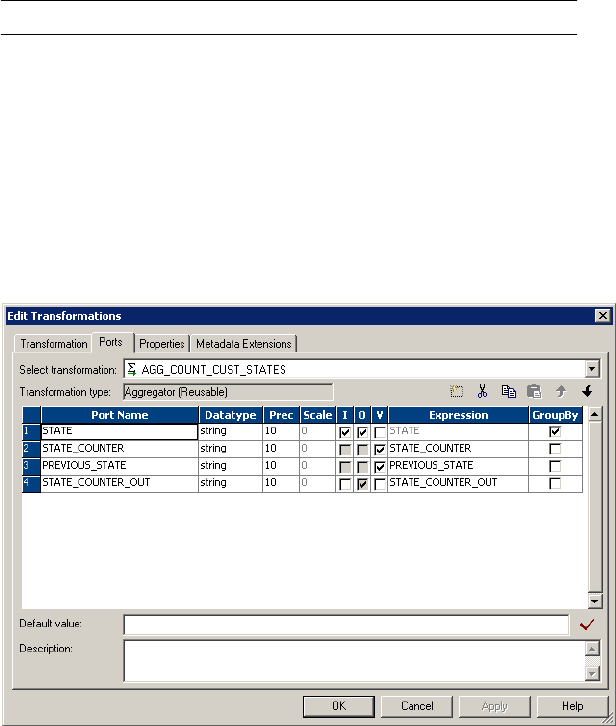

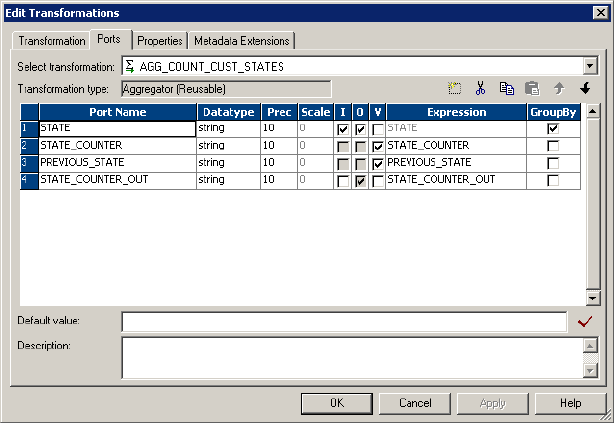

Figure 1-5 shows how to use variables to find out how many customers are in each state:
Since the Integration Service groups the input data by state, the company uses variables to
hold the value of the previous state read and a state counter. The following expression
compares the previous state to the state just read:
IIF(PREVIOUS_STATE = STATE, STATE_COUNTER +1, 1)
The STATE_COUNTER is incremented if the row is a member of the previous state. For
each new state, the Integration Service sets the counter back to 1. Then an output port passes
the value of the state counter to the next transformation.
Capture Values from Stored Procedures
Variables also provide a way to capture multiple columns of return values from stored
procedures. For more information, see “Stored Procedure Transformation” on page 489.
AVG_SALARY AVG(SALARY, (V_CONDITION1 AND V_CONDITION2) )
SUM_SALARY SUM(SALARY, (V_CONDITION1 AND V_CONDITION2) )
Figure 1-5. Variable Ports Store Values Across Rows
Table 1-4. Variable Usage
Port Value
16 Chapter 1: Working with Transformations
Guidelines for Configuring Variable Ports
Consider the following factors when you configure variable ports in a transformation:
Port order. The Integration Service evaluates ports by dependency. The order of the ports
in a transformation must match the order of evaluation: input ports, variable ports, output
ports.
Datatype. The datatype you choose reflects the return value of the expression you enter.
Variable initialization. The Integration Service sets initial values in variable ports, where
you can create counters.
Port Order
The Integration Service evaluates ports in the following order:
1. Input ports. The Integration Service evaluates all input ports first since they do not
depend on any other ports. Therefore, you can create input ports in any order. Since they
do not reference other ports, the Integration Service does not order input ports.
2. Variable por ts. Variable ports can reference input ports and variable ports, but not output
ports. Because variable ports can reference input ports, the Integration Service evaluates
variable ports after input ports. Likewise, since variables can reference other variables, the
display order for variable ports is the same as the order in which the Integration Service
evaluates each variable.
For example, if you calculate the original value of a building and then adjust for
depreciation, you might create the original value calculation as a variable port. This
variable port needs to appear before the port that adjusts for depreciation.
3. Output ports. Because output ports can reference input ports and variable ports, the
Integration Service evaluates output ports last. The display order for output ports does
not matter since output ports cannot reference other output ports. Be sure output ports
display at the bottom of the list of ports.
Datatype
When you configure a port as a variable, you can enter any expression or condition in it. The
datatype you choose for this port reflects the return value of the expression you enter. If you
specify a condition through the variable port, any numeric datatype returns the values for
TRUE (non-zero) and FALSE (zero).
Variable Initialization
The Integration Service does not set the initial value for variables to NULL. Instead, the
Integration Service uses the following guidelines to set initial values for variables:
Zero for numeric ports
Empty strings for string ports
01/01/1753 for Date/Time ports with PMServer 4.0 date handling compatibility disabled
01/01/0001 for Date/Time ports with PMServer 4.0 date handling compatibility enabled
Using Local Variables 17
Therefore, use variables as counters, which need an initial value. For example, you can create
a numeric variable with the following expression:
VAR1 + 1
This expression counts the number of rows in the VAR1 port. If the initial value of the
variable were set to NULL, the expression would always evaluate to NULL. This is why the
initial value is set to zero.
18 Chapter 1: Working with Transformations
Using Default Values for Ports
All transformations use default values that determine how the Integration Service handles
input null values and output transformation errors. Input, output, and input/output ports are
created with a system default value that you can sometimes override with a user-defined
default value. Default values have different functions in different types of ports:
Input port. The system default value for null input ports is NULL. It displays as a blank in
the transformation. If an input value is NULL, the Integration Service leaves it as NULL.
Output port. The system default value for output transformation errors is ERROR. The
default value appears in the transformation as ERROR(‘transformation error’). If a
transformation error occurs, the Integration Service skips the row. The Integration Service
notes all input rows skipped by the ERROR function in the session log file.
The following errors are considered transformation errors:
Data conversion errors, such as passing a number to a date function.
Expression evaluation errors, such as dividing by zero.
Calls to an ERROR function.
Input/output port. The system default value for null input is the same as input ports,
NULL. The system default value appears as a blank in the transformation. The default
value for output transformation errors is the same as output ports. The default value for
output transformation errors does not display in the transformation.
Table 1-5 shows the system default values for ports in connected transformations:
Note: Variable ports do not support default values. The Integration Service initializes variable
ports according to the datatype. For more information, see “Using Local Variables” on
page 14.
Table 1-5. System Default Values and Integration Service Behavior
Port Type Default
Value Integration Service Behavior User-Defined Default
Value Supported
Input,
Input/Output
NULL Integration Service passes all input null values as
NULL.
Input
Input/Output
Output,
Input/Output
ERROR Integration Service calls the ERROR function for
output port transformation errors. The Integration
Service skips rows with errors and writes the input
data and error message in the session log file.
Output
Using Default Values for Ports 19
Figure 1-6 shows that the system default value for input and input/output ports appears as
a blank in the transformation:
Figure 1-7 shows that the system default value for output ports appears
ERROR(‘transformation error’):
Figure 1-6. Default Value for Input and Input/Output Ports
Figure 1-7. Default Value for Output Ports
Blank
default
value for
input port
means
NULL.
Selected
Port
ERROR
Default
Value
Selected
Port
20 Chapter 1: Working with Transformations
You can override some of the default values to change the Integration Service behavior when
it encounters null input values and output transformation errors.
Entering User-Defined Default Values
You can override the system default values with user-defined default values for supported
input, input/output, and output ports within a connected transformation:
Input ports. You can enter user-defined default values for input ports if you do not want
the Integration Service to treat null values as NULL.
Output ports. You can enter user-defined default values for output ports if you do not
want the Integration Service to skip the row or if you want the Integration Service to write
a specific message with the skipped row to the session log.
Input/output ports. You can enter user-defined default values to handle null input values
for input/output ports in the same way you can enter user-defined default values for null
input values for input ports. You cannot enter user-defined default values for output
transformation errors in an input/output port.
Note: The Integration Service ignores user-defined default values for unconnected
transformations. For example, if you call a Lookup or Stored Procedure transformation
through an expression, the Integration Service ignores any user-defined default value and uses
the system default value only.
Table 1-6 shows the ports for each transformation that support user-defined default values:
Table 1-6. Transformations Supporting User-Defined Default Values
Transformation
Input Values for
Input Port
Input/Output Port
Output Values for
Output Port
Output Values for
Input/Output Port
Aggregator Supported Not Supported Not Supported
Custom Supported Supported Not Supported
Expression Supported Supported Not Supported
External Procedure Supported Supported Not Supported
Filter Supported Not Supported Not Supported
HTTP Supported Not Supported Not Supported
Java Supported Supported Supported
Lookup Supported Supported Not Supported
Normalizer Supported Supported Not Supported
Rank Not Supported Supported Not Supported
Router Supported Not Supported Not Supported
SQL Supported Not Supported Supported
Stored Procedure Supported Supported Not Supported
Using Default Values for Ports 21
Use the following options to enter user-defined default values:
Constant value. Use any constant (numeric or text), including NULL.
Constant expression. You can include a transformation function with constant
parameters.
ERROR. Generate a transformation error. Write the row and a message in the session log
or row error log. The Integration Service writes the row to session log or row error log
based on session configuration.
ABORT. Abort the session.
Entering Constant Values
You can enter any constant value as a default value. The constant value must match the port
datatype. For example, a default value for a numeric port must be a numeric constant. Some
constant values include:
0
9999
NULL
'Unknown Value'
'Null input data'
Entering Constant Expressions
A constant expression is any expression that uses transformation functions (except aggregate
functions) to write constant expressions. You cannot use values from input, input/output, or
variable ports in a constant expression.
Sequence Generator n/a Not Supported Not Supported
Sorter Supported Not Supported Not Supported
Source Qualifier Not Supported n/a Not Supported
Transaction Control Not Supported n/a Not Supported
Union Supported Supported n/a
Update Strategy Supported n/a Not Supported
XML Generator n/a Supported Not Supported
XML Parser Supported n/a Not Supported
XML Source Qualifier Not Supported n/a Not Supported
Table 1-6. Transformations Supporting User-Defined Default Values
Transformation
Input Values for
Input Port
Input/Output Port
Output Values for
Output Port
Output Values for
Input/Output Port
22 Chapter 1: Working with Transformations
Some valid constant expressions include:
500 * 1.75
TO_DATE('January 1, 1998, 12:05 AM')
ERROR ('Null not allowed')
ABORT('Null not allowed')
SYSDATE
You cannot use values from ports within the expression because the Integration Service assigns
default values for the entire mapping when it initializes the session. Some invalid default
values include the following examples, which incorporate values read from ports:
AVG(IN_SALARY)
IN_PRICE * IN_QUANTITY
:LKP(LKP_DATES, DATE_SHIPPED)
Note: You cannot call a stored procedure or lookup table from a default value expression.
Entering ERROR and ABORT Functions
Use the ERROR and ABORT functions for input and output port default values, and input
values for input/output ports. The Integration Service skips the row when it encounters the
ERROR function. It aborts the session when it encounters the ABORT function.
Entering User-Defined Default Input Values
You can enter a user-defined default input value if you do not want the Integration Service to
treat null values as NULL. You can complete the following functions to override null values:
Replace the null value with a constant value or constant expression.
Skip the null value with an ERROR function.
Abort the session with the ABORT function.
Table 1-7 summarizes how the Integration Service handles null input for input and input/
output ports:
Table 1-7. Default Values for Input and Input/Output Ports
Default Value Default Value
Type Description
NULL (displays blank) System Integration Service passes NULL.
Constant or
Constant expression
User-Defined Integration Service replaces the null value with the value of the constant
or constant expression.
Using Default Values for Ports 23
Replacing Null Values
Use a constant value or expression to substitute a specified value for a NULL. For example, if
an input string port is called DEPT_NAME and you want to replace null values with the
string ‘UNKNOWN DEPT’, you could set the default value to ‘UNKNOWN DEPT’.
Depending on the transformation, the Integration Service passes ‘UNKNOWN DEPT’ to an
expression or variable within the transformation or to the next transformation in the data
flow.

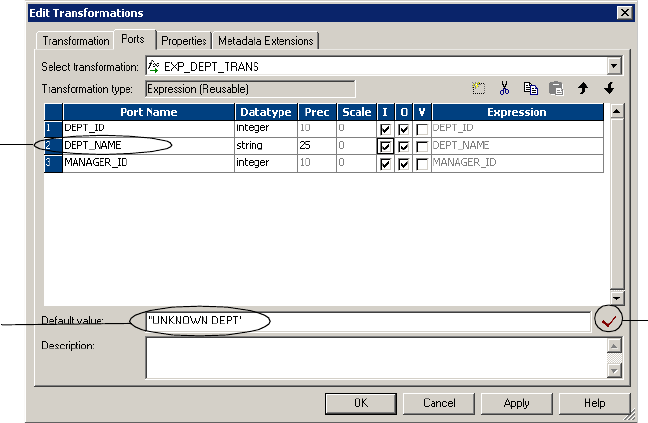

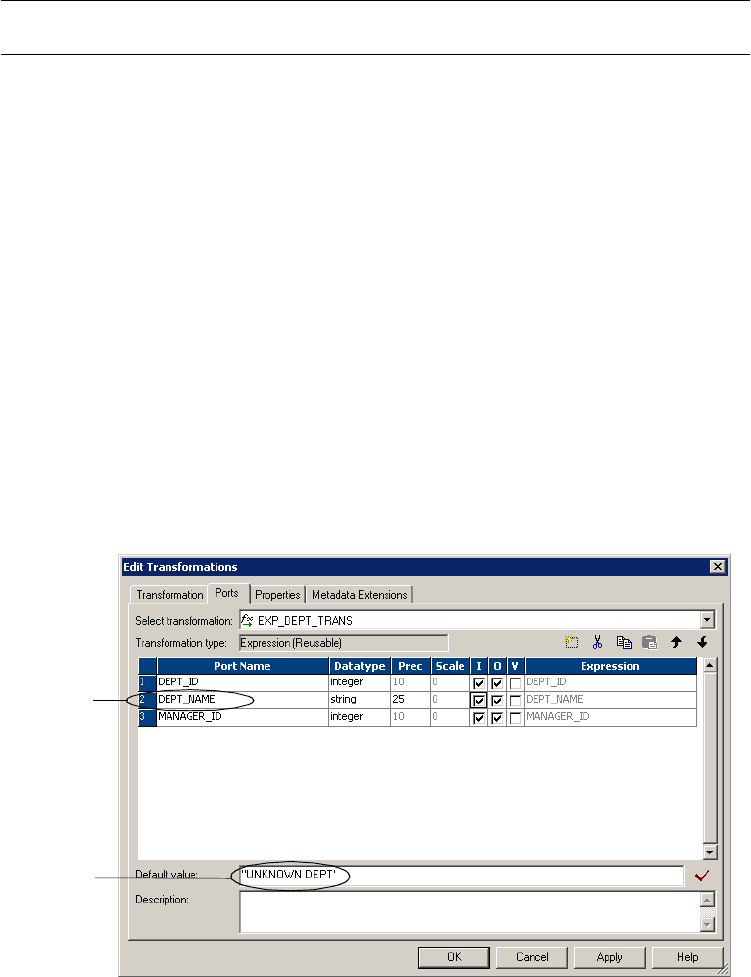

Figure 1-8 shows a string constant as a user-defined default value for input or input/output
ports:
ERROR User-Defined Integration Service treats this as a transformation error:
- Increases the transformation error count by 1.
- Skips the row, and writes the error message to the session log file or
row error log.
The Integration Service does not write rows to the reject file.
ABORT User-Defined Session aborts when the Integration Service encounters a null input
value. The Integration Service does not increase the error count or write
rows to the reject file.
Figure 1-8. Using a Constant as a Default Value
Table 1-7. Default Values for Input and Input/Output Ports
Default Value Default Value
Type Description
Selected Port
User-Defined
Constant
Default Value
24 Chapter 1: Working with Transformations
The Integration Service replaces all null values in the EMAIL port with the string
‘UNKNOWN DEPT.’
DEPT_NAME REPLACED VALUE
Housewares Housewares
NULL UNKNOWN DEPT
Produce Produce
Skipping Null Records
Use the ERROR function as the default value when you do not want null values to pass into a
transformation. For example, you might want to skip a row when the input value of
DEPT_NAME is NULL. You could use the following expression as the default value:
ERROR('Error. DEPT is NULL')

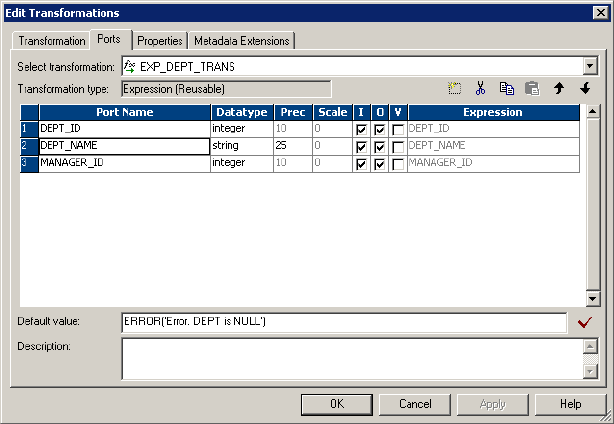

Figure 1-9 shows a default value that instructs the Integration Service to skip null values:
When you use the ERROR function as a default value, the Integration Service skips the row
with the null value. The Integration Service writes all rows skipped by the ERROR function
into the session log file. It does not write these rows to the session reject file.
DEPT_NAME RETURN VALUE
Housewares Housewares
NULL 'Error. DEPT is NULL' (Row is skipped)
Produce Produce
Figure 1-9. Using the ERROR Function to Skip Null Input Values
Using Default Values for Ports 25
The following session log shows where the Integration Service skips the row with the null
value:
TE_11019 Port [DEPT_NAME]: Default value is: ERROR(<<Transformation
Error>> [error]: Error. DEPT is NULL
... error('Error. DEPT is NULL')
).
CMN_1053 EXPTRANS: : ERROR: NULL input column DEPT_NAME: Current Input
data:
CMN_1053 Input row from SRCTRANS: Rowdata: ( RowType=4 Src Rowid=2 Targ
Rowid=2
DEPT_ID (DEPT_ID:Int:): "2"
DEPT_NAME (DEPT_NAME:Char.25:): "NULL"
MANAGER_ID (MANAGER_ID:Int:): "1"
)
For more information about the ERROR function, see “Functions in the Transformation
Language Reference.
Aborting the Session
Use the ABORT function to abort a session when the Integration Service encounters any null
input values. For more information about the ABORT function, see “Functionsin the
Transformation Language Reference.
Entering User-Defined Default Output Values
You can enter user-defined default values for output ports if you do not want the Integration
Service to skip rows with errors or if you want the Integration Service to write a specific
message with the skipped row to the session log. You can enter default values to complete the
following functions when the Integration Service encounters output transformation errors:
Replace the error with a constant value or constant expression. The Integration Service
does not skip the row.
Abort the session with the ABORT function.
Write specific messages in the session log for transformation errors.
You cannot enter user-defined default output values for input/output ports.
26 Chapter 1: Working with Transformations
Table 1-8 summarizes how the Integration Service handles output port transformation errors
and default values in transformations:
Replacing Errors
If you do not want the Integration Service to skip a row when a transformation error occurs,
use a constant or constant expression as the default value for an output port. For example, if
you have a numeric output port called NET_SALARY and you want to use the constant value
9999’ when a transformation error occurs, assign the default value 9999 to the
NET_SALARY port. If there is any transformation error (such as dividing by zero) while
computing the value of NET_SALARY, the Integration Service uses the default value 9999.
Aborting the Session
Use the ABORT function as the default value in an output port if you do not want to allow
any transformation errors.
Writing Messages in the Session Log or Row Error Logs
You can enter a user-defined default value in the output port if you want the Integration
Service to write a specific message in the session log with the skipped row. The system default
is ERROR (‘transformation error’), and the Integration Service writes the message
transformation error’ in the session log along with the skipped row. You can replace
transformation error’ if you want to write a different message.
When you enable row error logging, the Integration Service writes error messages to the error
log instead of the session log and the Integration Service does not log Transaction Control
transformation rollback or commit errors. If you want to write rows to the session log in
addition to the row error log, you can enable verbose data tracing.
Table 1-8. Supported Default Values for Output Ports
Default Value Default Value
Type Description
Transformation Error System When a transformation error occurs and you did not override the default
value, the Integration Service performs the following tasks:
- Increases the transformation error count by 1.
- Skips the row, and writes the error and input row to the session log file or
row error log, depending on session configuration.
The Integration Service does not write the row to the reject file.
Constant or
Constant Expression
User-Defined Integration Service replaces the error with the default value.
The Integration Service does not increase the error count or write a
message to the session log.
ABORT User-Defined Session aborts and the Integration Service writes a message to the
session log.
The Integration Service does not increase the error count or write rows to
the reject file.
Using Default Values for Ports 27
Working with ERROR Functions in Output Port Expressions
If you enter an expression that uses the ERROR function, the user-defined default value for
the output port might override the ERROR function in the expression.
For example, you enter the following expression that instructs the Integration Service to use
the value ‘Negative Sale’ when it encounters an error:
IIF( TOTAL_SALES>0, TOTAL_SALES, ERROR ('Negative Sale'))
The following examples show how user-defined default values may override the ERROR
function in the expression:
Constant value or expression. The constant value or expression overrides the ERROR
function in the output port expression.
For example, if you enter ‘0’ as the default value, the Integration Service overrides the
ERROR function in the output port expression. It passes the value 0 when it encounters
an error. It does not skip the row or write ‘Negative Sale’ in the session log.
ABORT. The ABORT function overrides the ERROR function in the output port
expression.
If you use the ABORT function as the default value, the Integration Service aborts the
session when a transformation error occurs. The ABORT function overrides the ERROR
function in the output port expression.
ERROR. If you use the ERROR function as the default value, the Integration Service
includes the following information in the session log:
Error message from the default value
Error message indicated in the ERROR function in the output port expression
Skipped row
For example, you can override the default value with the following ERROR function:
ERROR('No default value')
The Integration Service skips the row, and includes both error messages in the log.
TE_7007 Transformation Evaluation Error; current row skipped...
TE_7007 [<<Transformation Error>> [error]: Negative Sale
... error('Negative Sale')
]
Sun Sep 20 13:57:28 1998
TE_11019 Port [OUT_SALES]: Default value is: ERROR(<<Transformation
Error>> [error]: No default value
... error('No default value')
28 Chapter 1: Working with Transformations
General Rules for Default Values
Use the following rules and guidelines when you create default values:
The default value must be either a NULL, a constant value, a constant expression, an
ERROR function, or an ABORT function.
For input/output ports, the Integration Service uses default values to handle null input
values. The output default value of input/output ports is always ERROR(‘Transformation
Error’).
Variable ports do not use default values.
You can assign default values to group by ports in the Aggregator and Rank
transformations.
Not all port types in all transformations allow user-defined default values. If a port does
not allow user-defined default values, the default value field is disabled.
Not all transformations allow user-defined default value. For more information, see
Table 1-6 on page 20.
If a transformation is not connected to the mapping data flow (an unconnected
transformation), the Integration Service ignores user-defined default values.
If any input port is unconnected, its value is assumed to be NULL and the Integration
Service uses the default value for that input port.
If an input port default value contains the ABORT function and the input value is NULL,
the Integration Service immediately stops the session. Use the ABORT function as a
default value to restrict null input values. The first null value in an input port stops the
session.
If an output port default value contains the ABORT function and any transformation
error occurs for that port, the session immediately stops. Use the ABORT function as a
default value to enforce strict rules for transformation errors. The first transformation
error for this port stops the session.
The ABORT function, constant values, and constant expressions override ERROR
functions configured in output port expressions.
Entering and Validating Default Values
You can validate default values as you enter them. The Designer includes a Validate button so
you can ensure valid default values. A message appears indicating if the default is valid.
Using Default Values for Ports 29
Figure 1-10 shows the user-defined value for a port and the Validate button:
The Designer also validates default values when you save a mapping. If you enter an invalid
default value, the Designer marks the mapping invalid.
Figure 1-10. Entering and Validating Default Values
Selected Port
User-Defined
Default Value
Validate Button
30 Chapter 1: Working with Transformations
Configuring Tracing Level in Transformations
When you configure a transformation, you can set the amount of detail the Integration
Service writes in the session log.
Table 1-9 describes the session log tracing levels:
By default, the tracing level for every transformation is Normal. Change the tracing level to a
Verbose setting only when you need to debug a transformation that is not behaving as
expected. To add a slight performance boost, you can also set the tracing level to Terse,
writing the minimum of detail to the session log when running a workflow containing the
transformation.
When you configure a session, you can override the tracing levels for individual
transformations with a single tracing level for all transformations in the session.
Table 1-9. Session Log Tracing Levels
Tracing Level Description
Normal Integration Service logs initialization and status information, errors encountered, and skipped
rows due to transformation row errors. Summarizes session results, but not at the level of
individual rows.
Terse Integration Service logs initialization information and error messages and notification of rejected
data.
Verbose
Initialization
In addition to normal tracing, Integration Service logs additional initialization details, names of
index and data files used, and detailed transformation statistics.
Verbose Data In addition to verbose initialization tracing, Integration Service logs each row that passes into
the mapping. Also notes where the Integration Service truncates string data to fit the precision
of a column and provides detailed transformation statistics.
Allows the Integration Service to write errors to both the session log and error log when you
enable row error logging.
When you configure the tracing level to verbose data, the Integration Service writes row data for
all rows in a block when it processes a transformation.
Reusable Transformations 31
Reusable Transformations
Mappings can contain reusable and non-reusable transformations. Non-reusable
transformations exist within a single mapping. Reusable transformations can be used in
multiple mappings.
For example, you might create an Expression transformation that calculates value-added tax
for sales in Canada, which is useful when you analyze the cost of doing business in that
country. Rather than perform the same work every time, you can create a reusable
transformation. When you need to incorporate this transformation into a mapping, you add
an instance of it to the mapping. Later, if you change the definition of the transformation, all
instances of it inherit the changes.
The Designer stores each reusable transformation as metadata separate from any mapping that
uses the transformation. If you review the contents of a folder in the Navigator, you see the
list of all reusable transformations in that folder.
Each reusable transformation falls within a category of transformations available in the
Designer. For example, you can create a reusable Aggregator transformation to perform the
same aggregate calculations in multiple mappings, or a reusable Stored Procedure
transformation to call the same stored procedure in multiple mappings.
You can create most transformations as a non-reusable or reusable. However, you can only
create the External Procedure transformation as a reusable transformation.
When you add instances of a reusable transformation to mappings, you must be careful that
changes you make to the transformation do not invalidate the mapping or generate
unexpected data.
Instances and Inherited Changes
When you add a reusable transformation to a mapping, you add an instance of the
transformation. The definition of the transformation still exists outside the mapping, while a
copy (or instance) appears within the mapping.
Since the instance of a reusable transformation is a pointer to that transformation, when you
change the transformation in the Transformation Developer, its instances reflect these
changes. Instead of updating the same transformation in every mapping that uses it, you can
update the reusable transformation once, and all instances of the transformation inherit the
change. Note that instances do not inherit changes to property settings, only modifications to
ports, expressions, and the name of the transformation.
Mapping Variables in Expressions
Use mapping parameters and variables in reusable transformation expressions. When the
Designer validates the parameter or variable, it treats it as an Integer datatype. When you use
the transformation in a mapplet or mapping, the Designer validates the expression again. If
the mapping parameter or variable does not exist in the mapplet or mapping, the Designer
32 Chapter 1: Working with Transformations
logs an error. For more information, see “Mapping Parameters and Variables” in the Designer
Guide.
Creating Reusable Transformations
You can create a reusable transformation using the following methods:
Design it in the Transformation Developer. In the Transformation Developer, you can
build new reusable transformations.
Promote a non-reusable transformation from the Mapping Designer. After you add a
transformation to a mapping, you can promote it to the status of reusable transformation.
The transformation designed in the mapping then becomes an instance of a reusable
transformation maintained elsewhere in the repository.
If you promote a transformation to reusable status, you cannot demote it. However, you can
create a non-reusable instance of it.
Note: Sequence Generator transformations must be reusable in mapplets. You cannot demote
reusable Sequence Generator transformations to non-reusable in a mapplet.
To create a reusable transformation:
1. In the Designer, switch to the Transformation Developer.
2. Click the button on the Transformation toolbar corresponding to the type of
transformation you want to create.
3. Drag within the workbook to create the transformation.
4. Double-click the transformation title bar to open the dialog displaying its properties.
5. Click the Rename button and enter a descriptive name for the transformation, and click
OK.
6. Click the Ports tab, then add any input and output ports you need for this
transformation.
7. Set the other properties of the transformation, and click OK.
These properties vary according to the transformation you create. For example, if you
create an Expression transformation, you need to enter an expression for one or more of
the transformation output ports. If you create a Stored Procedure transformation, you
need to identify the stored procedure to call.
8. Click Repository > Save.
Promoting Non-Reusable Transformations
The other technique for creating a reusable transformation is to promote an existing
transformation within a mapping. By checking the Make Reusable option in the Edit
Transformations dialog box, you instruct the Designer to promote the transformation and
create an instance of it in the mapping.
Reusable Transformations 33
To promote a non-reusable transformation:
1. In the Designer, open a mapping and double-click the title bar of the transformation you
want to promote.
2. Select the Make Reusable option.
3. When prompted whether you are sure you want to promote the transformation, click Yes.
4. Click OK to return to the mapping.
5. Click Repository > Save.
Now, when you look at the list of reusable transformations in the folder you are working in,
the newly promoted transformation appears in this list.
Creating Non-Reusable Instances of Reusable Transformations
You can create a non-reusable instance of a reusable transformation within a mapping.
Reusable transformations must be made non-reusable within the same folder. If you want to
have a non-reusable instance of a reusable transformation in a different folder, you need to
first make a non-reusable instance of the transformation in the source folder, and then copy it
into the target folder.
To create a non-reusable instance of a reusable transformation:
1. In the Designer, open a mapping.
2. In the Navigator, select an existing transformation and drag the transformation into the
mapping workspace. Hold down the Ctrl key before you release the transformation.
The status bar displays the following message:
Make a non-reusable copy of this transformation and add it to this
mapping.
3. Release the transformation.
The Designer creates a non-reusable instance of the existing reusable transformation.
4. Click Repository > Save.
Adding Reusable Transformations to Mappings
After you create a reusable transformation, you can add it to mappings.
To add a reusable transformation:
1. In the Designer, switch to the Mapping Designer.
2. Open or create a mapping.
3. In the list of repository objects, drill down until you find the reusable transformation you
want in the Transformations section of a folder.
4. Drag the transformation from the Navigator into the mapping.
34 Chapter 1: Working with Transformations
A copy (or instance) of the reusable transformation appears.
5. Link the new transformation to other transformations or target definitions.
6. Click Repository > Save.
Modifying a Reusable Transformation
Changes to a reusable transformation that you enter through the Transformation Developer
are immediately reflected in all instances of that transformation. While this feature is a
powerful way to save work and enforce standards (for example, by publishing the official
version of a depreciation calculation through a reusable transformation), you risk invalidating
mappings when you modify a reusable transformation.
To see what mappings, mapplets, or shortcuts may be affected by changes you make to a
transformation, select the transformation in the workspace or Navigator, right-click, and
select View Dependencies.
If you make any of the following changes to the reusable transformation, mappings that use
instances of it may be invalidated:
When you delete a port or multiple ports in a transformation, you disconnect the instance
from part or all of the data flow through the mapping.
When you change a port datatype, you make it impossible to map data from that port to
another port using an incompatible datatype.
When you change a port name, expressions that refer to the port are no longer valid.
When you enter an invalid expression in the reusable transformation, mappings that use
the transformation are no longer valid. The Integration Service cannot run sessions based
on invalid mappings.
Reverting to Original Reusable Transformation
If you change the properties of a reusable transformation in a mapping, you can revert to the
original reusable transformation properties by clicking the Revert button.
Reusable Transformations 35

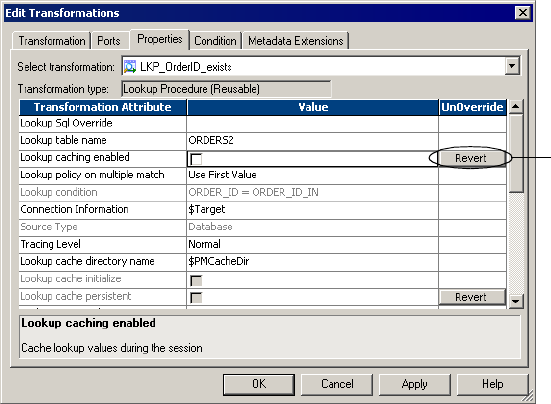

Figure 1-11 shows how you can revert to the original properties of the reusable
transformation:
Figure 1-11. Reverting to Original Reusable Transformation Properties
Revert to original
properties
defined in
Transformation
Developer.
36 Chapter 1: Working with Transformations
37
Chapter 2
Aggregator Transformation
This chapter includes the following topics:
Overview, 38
Aggregate Expressions, 40
Group By Ports, 42
Using Sorted Input, 45
Creating an Aggregator Transformation, 47
Tips, 50
Troubleshooting, 51
38 Chapter 2: Aggregator Transformation
Overview
The Aggregator transformation lets you perform aggregate calculations, such as averages and
sums. The Aggregator transformation is unlike the Expression transformation, in that you use
the Aggregator transformation to perform calculations on groups. The Expression
transformation permits you to perform calculations on a row-by-row basis only.
When using the transformation language to create aggregate expressions, use conditional
clauses to filter rows, providing more flexibility than SQL language.
The Integration Service performs aggregate calculations as it reads, and stores necessary data
group and row data in an aggregate cache.
After you create a session that includes an Aggregator transformation, you can enable the
session option, Incremental Aggregation. When the Integration Service performs incremental
aggregation, it passes new source data through the mapping and uses historical cache data to
perform new aggregation calculations incrementally. For information about incremental
aggregation, see “Using Incremental Aggregation” in the Workflow Administration Guide.
Ports in the Aggregator Transformation
To configure ports in the Aggregator transformation, complete the following tasks:
Enter an expression in any output port, using conditional clauses or non-aggregate
functions in the port.
Create multiple aggregate output ports.
Configure any input, input/output, output, or variable port as a group by port.
Improve performance by connecting only the necessary input/output ports to subsequent
transformations, reducing the size of the data cache.
Use variable ports for local variables.
Create connections to other transformations as you enter an expression.
Components of the Aggregator Transformation
The Aggregator is an active transformation, changing the number of rows in the pipeline. The
Aggregator transformation has the following components and options:
Aggregate expression. Entered in an output port. Can include non-aggregate expressions
and conditional clauses.
Group by port. Indicates how to create groups. The port can be any input, input/output,
output, or variable port. When grouping data, the Aggregator transformation outputs the
last row of each group unless otherwise specified.
Transformation type:
Active
Connected
Overview 39
Sorted input. Use to improve session performance. To use sorted input, you must pass
data to the Aggregator transformation sorted by group by port, in ascending or descending
order.
Aggregate cache. The Integration Service stores data in the aggregate cache until it
completes aggregate calculations. It stores group values in an index cache and row data in
the data cache.
Aggregate Caches
When you run a session that uses an Aggregator transformation, the Integration Service
creates index and data caches in memory to process the transformation. If the Integration
Service requires more space, it stores overflow values in cache files.
You can configure the index and data caches in the Aggregator transformation or in the
session properties. Or, you can configure the Integration Service to determine the cache size at
runtime.
For more information about configuring index and data caches, see “Creating an Aggregator
Transformation on page 47.
For information about configuring the Integration Service to determine the cache size at
runtime, see “Working with Sessions” in the Workflow Administration Guide.
Note: The Integration Service uses memory to process an Aggregator transformation with
sorted ports. It does not use cache memory. You do not need to configure cache memory for
Aggregator transformations that use sorted ports.
40 Chapter 2: Aggregator Transformation
Aggregate Expressions
The Designer allows aggregate expressions only in the Aggregator transformation. An
aggregate expression can include conditional clauses and non-aggregate functions. It can also
include one aggregate function nested within another aggregate function, such as:
MAX( COUNT( ITEM ))
The result of an aggregate expression varies depending on the group by ports used in the
transformation. For example, when the Integration Service calculates the following aggregate
expression with no group by ports defined, it finds the total quantity of items sold:
SUM( QUANTITY )
However, if you use the same expression, and you group by the ITEM port, the Integration
Service returns the total quantity of items sold, by item.
You can create an aggregate expression in any output port and use multiple aggregate ports in
a transformation.
Aggregate Functions
Use the following aggregate functions within an Aggregator transformation. You can nest one
aggregate function within another aggregate function.
The transformation language includes the following aggregate functions:
AVG
COUNT
FIRST
LAST
MAX
MEDIAN
MIN
PERCENTILE
STDDEV
SUM
VARIANCE
When you use any of these functions, you must use them in an expression within an
Aggregator transformation. For a description of these functions, see “Functions” in the
Transformation Language Reference.
Nested Aggregate Functions
You can include multiple single-level or multiple nested functions in different output ports in
an Aggregator transformation. However, you cannot include both single-level and nested
Aggregate Expressions 41
functions in an Aggregator transformation. Therefore, if an Aggregator transformation
contains a single-level function in any output port, you cannot use a nested function in any
other port in that transformation. When you include single-level and nested functions in the
same Aggregator transformation, the Designer marks the mapping or mapplet invalid. If you
need to create both single-level and nested functions, create separate Aggregator
transformations.
Conditional Clauses
Use conditional clauses in the aggregate expression to reduce the number of rows used in the
aggregation. The conditional clause can be any clause that evaluates to TRUE or FALSE.
For example, use the following expression to calculate the total commissions of employees
who exceeded their quarterly quota:
SUM( COMMISSION, COMMISSION > QUOTA )
Non-Aggregate Functions
You can also use non-aggregate functions in the aggregate expression.
The following expression returns the highest number of items sold for each item (grouped by
item). If no items were sold, the expression returns 0.
IIF( MAX( QUANTITY ) > 0, MAX( QUANTITY ), 0))
Null Values in Aggregate Functions
When you configure the Integration Service, you can choose how you want the Integration
Service to handle null values in aggregate functions. You can choose to treat null values in
aggregate functions as NULL or zero. By default, the Integration Service treats null values as
NULL in aggregate functions.
For information about changing this default behavior, see “Configuring Services” in the
Installation and Configuration Guide.
42 Chapter 2: Aggregator Transformation
Group By Ports
The Aggregator transformation lets you define groups for aggregations, rather than
performing the aggregation across all input data. For example, rather than finding the total
company sales, you can find the total sales grouped by region.
To define a group for the aggregate expression, select the appropriate input, input/output,
output, and variable ports in the Aggregator transformation. You can select multiple group by
ports, creating a new group for each unique combination of groups. The Integration Service
then performs the defined aggregation for each group.
When you group values, the Integration Service produces one row for each group. If you do
not group values, the Integration Service returns one row for all input rows. The Integration
Service typically returns the last row of each group (or the last row received) with the result of
the aggregation. However, if you specify a particular row to be returned (for example, by using
the FIRST function), the Integration Service then returns the specified row.
When selecting multiple group by ports in the Aggregator transformation, the Integration
Service uses port order to determine the order by which it groups. Since group order can
affect the results, order group by ports to ensure the appropriate grouping. For example, the
results of grouping by ITEM_ID then QUANTITY can vary from grouping by QUANTITY
then ITEM_ID, because the numeric values for quantity are not necessarily unique.
The following Aggregator transformation groups first by STORE_ID and then by ITEM:
If you send the following data through this Aggregator transformation:
STORE_ID ITEM QTY PRICE
101 'battery' 32.99
101 'battery' 13.19
101 'battery' 22.59
101 'AAA' 22.45
201 'battery' 11.99
201 'battery' 41.59
301 'battery' 12.45
Group By Ports 43
The Integration Service performs the aggregate calculation on the following unique groups:
The Integration Service then passes the last row received, along with the results of the
aggregation, as follows:
Non-Aggregate Expressions
Use non-aggregate expressions in group by ports to modify or replace groups. For example, if
you want to replace ‘AAA battery before grouping, you can create a new group by output
port, named CORRECTED_ITEM, using the following expression:
IIF( ITEM = 'AAA battery', battery, ITEM )
Default Values
Use default values in the group by port to replace null input values. This allows the
Integration Service to include null item groups in the aggregation. For more information
about default values, see “Using Default Values for Ports” on page 18.
STORE_ID ITEM
101 'battery'
101 'AAA'
201 'battery'
301 'battery'
STORE_ID ITEM QTY PRICE SALES_PER_STORE
101 'battery' 22.59 17.34
101 'AAA' 22.45 4.90
201 'battery' 41.59 8.35
301 'battery' 12.45 2.45
44 Chapter 2: Aggregator Transformation
For example, if you define a default value ofMisc’ in the ITEM column as shown below, the
Integration Service replaces null groups with ‘Misc’:
Using Sorted Input 45
Using Sorted Input
You can improve Aggregator transformation performance by using the sorted input option.
When you use sorted input, the Integration Service assumes all data is sorted by group. As the
Integration Service reads rows for a group, it performs aggregate calculations. When
necessary, it stores group information in memory. To use the Sorted Input option, you must
pass sorted data to the Aggregator transformation. You can gain performance with sorted
ports when you configure the session with multiple partitions.
When you do not use sorted input, the Integration Service performs aggregate calculations as
it reads. However, since data is not sorted, the Integration Service stores data for each group
until it reads the entire source to ensure all aggregate calculations are accurate.
For example, one Aggregator transformation has the STORE_ID and ITEM group by ports,
with the sorted input option selected. When you pass the following data through the
Aggregator, the Integration Service performs an aggregation for the three rows in the
101/battery group as soon as it finds the new group, 201/battery:
If you use sorted input and do not presort data correctly, you receive unexpected results.
Sorted Input Conditions
Do not use sorted input if either of the following conditions are true:
The aggregate expression uses nested aggregate functions.
The session uses incremental aggregation.
If you use sorted input and do not sort data correctly, the session fails.
Pre-Sorting Data
To use sorted input, you pass sorted data through the Aggregator.
Data must be sorted as follows:
By the Aggregator group by ports, in the order they appear in the Aggregator
transformation.
Using the same sort order configured for the session. If data is not in strict ascending or
descending order based on the session sort order, the Integration Service fails the session.
For example, if you configure a session to use a French sort order, data passing into the
Aggregator transformation must be sorted using the French sort order.
STORE_ID ITEM QTY PRICE
101 'battery' 32.99
101 'battery' 13.19
101 'battery' 22.59
201 'battery' 41.59
201 'battery' 11.99
46 Chapter 2: Aggregator Transformation
For relational and file sources, use the Sorter transformation to sort data in the mapping
before passing it to the Aggregator transformation. You can place the Sorter transformation
anywhere in the mapping prior to the Aggregator if no transformation changes the order of
the sorted data. Group by columns in the Aggregator transformation must be in the same
order as they appear in the Sorter transformation. For information about sorting data using
the Sorter transformation, see “Sorter Transformation” on page 415.
If the session uses relational sources, you can also use the Number of Sorted Ports option in
the Source Qualifier transformation to sort group by columns in the source database. Group
by columns must be in the same order in both the Aggregator and Source Qualifier
transformations. For information about sorting data in the Source Qualifier, see “Using
Sorted Ports” on page 452.

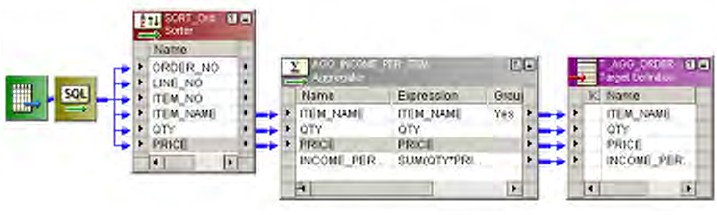

Figure 2-1 shows the mapping with a Sorter transformation configured to sort the source data
in descending order by ITEM_NAME:
The Sorter transformation sorts the data as follows:
With sorted input, the Aggregator transformation returns the following results:
Figure 2-1. Sample Mapping with Aggregator and Sorter Transformations
ITEM_NAME QTY PRICE
Soup 42.95
Soup 12.95
Soup 23.25
Cereal 14.49
Cereal 25.25
ITEM_NAME QTY PRICE INCOME_PER_ITEM
Cereal 25.25 14.99
Soup 23.25 21.25
Creating an Aggregator Transformation 47
Creating an Aggregator Transformation
To use an Aggregator transformation in a mapping, add the Aggregator transformation to the
mapping. Then configure the transformation with an aggregate expression and group by
ports.
To create an Aggregator transformation:
1. In the Mapping Designer, click Transformation > Create. Select the Aggregator
transformation.
2. Enter a name for the Aggregator, click Create. Then click Done.
The Designer creates the Aggregator transformation.
3. Drag the ports to the Aggregator transformation.
The Designer creates input/output ports for each port you include.
4. Double-click the title bar of the transformation to open the Edit Transformations dialog
box.
5. Select the Ports tab.
6. Click the group by option for each column you want the Aggregator to use in creating
groups.
Optionally, enter a default value to replace null groups.
If you want to use a non-aggregate expression to modify groups, click the Add button and
enter a name and data type for the port. Make the port an output port by clearing Input
(I). Click in the right corner of the Expression field, enter the non-aggregate expression
using one of the input ports, and click OK. Select Group By.
7. Click Add and enter a name and data type for the aggregate expression port. Make the
port an output port by clearing Input (I). Click in the right corner of the Expression field
to open the Expression Editor. Enter the aggregate expression, click Validate, and click
OK.
Make sure the expression validates before closing the Expression Editor.
8. Add default values for specific ports.
If certain ports are likely to contain null values, you might specify a default value if the
target database does not handle null values.
48 Chapter 2: Aggregator Transformation
9. Select the Properties tab.
Select and modify these options:
Aggregator Setting Description
Cache Directory Local directory where the Integration Service creates the index and data cache files. By
default, the Integration Service uses the directory entered in the Workflow Manager for
the process variable $PMCacheDir. If you enter a new directory, make sure the
directory exists and contains enough disk space for the aggregate caches.
If you have enabled incremental aggregation, the Integration Service creates a backup
of the files each time you run the session. The cache directory must contain enough
disk space for two sets of the files. For information about incremental aggregation, see
“Using Incremental Aggregation” in the Workflow Administration Guide.
Tracing Level Amount of detail displayed in the session log for this transformation.
Sorted Input Indicates input data is presorted by groups. Select this option only if the mapping
passes sorted data to the Aggregator transformation.
Aggregator Data
Cache Size
Data cache size for the transformation. Default cache size is 2,000,000 bytes. If the
total configured session cache size is 2 GB (2,147,483,648 bytes) or greater, you must
run the session on a 64-bit Integration Service. You can configure the Integration
Service to determine the cache size at runtime, or you can configure a numeric value. If
you configure the Integration Service to determine the cache size, you can also
configure a maximum amount of memory for the Integration Service to allocate to the
cache.
Creating an Aggregator Transformation 49
10. Click OK.
11. Click Repository > Save to save changes to the mapping.
Aggregator Index
Cache Size
Index cache size for the transformation. Default cache size is 1,000,000 bytes. If the
total configured session cache size is 2 GB (2,147,483,648 bytes) or greater, you must
run the session on a 64-bit Integration Service. You can configure the Integration
Service to determine the cache size at runtime, or you can configure a numeric value. If
you configure the Integration Service to determine the cache size, you can also
configure a maximum amount of memory for the Integration Service to allocate to the
cache.
Transformation Scope Specifies how the Integration Service applies the transformation logic to incoming data:
- Transaction. Applies the transformation logic to all rows in a transaction. Choose
Transaction when a row of data depends on all rows in the same transaction, but does
not depend on rows in other transactions.
- All Input. Applies the transformation logic on all incoming data. When you choose All
Input, the PowerCenter drops incoming transaction boundaries. Choose All Input
when a row of data depends on all rows in the source.
For more information about transformation scope, see “Understanding Commit Points”
in the Workflow Administration Guide.
Aggregator Setting Description
50 Chapter 2: Aggregator Transformation
Tips
Use the following guidelines to optimize the performance of an Aggregator transformation.
Use sorted input to decrease the use of aggregate caches.
Sorted input reduces the amount of data cached during the session and improves session
performance. Use this option with the Sorter transformation to pass sorted data to the
Aggregator transformation.
Limit connected input/output or output ports.
Limit the number of connected input/output or output ports to reduce the amount of data
the Aggregator transformation stores in the data cache.
Filter before aggregating.
If you use a Filter transformation in the mapping, place the transformation before the
Aggregator transformation to reduce unnecessary aggregation.
Troubleshooting 51
Troubleshooting
I selected sorted input but the workflow takes the same amount of time as before.
You cannot use sorted input if any of the following conditions are true:
The aggregate expression contains nested aggregate functions.
The session uses incremental aggregation.
Source data is data driven.
When any of these conditions are true, the Integration Service processes the transformation as
if you do not use sorted input.
A session using an Aggregator transformation causes slow performance.
The Integration Service may be paging to disk during the workflow. You can increase session
performance by increasing the index and data cache sizes in the transformation properties. For
more information about caching, see “Session Caches” in the Workflow Administration Guide.
I entered an override cache directory in the Aggregator transformation, but the Integration
Service saves the session incremental aggregation files somewhere else.
You can override the transformation cache directory on a session level. The Integration
Service notes the cache directory in the session log. You can also check the session properties
for an override cache directory.
52 Chapter 2: Aggregator Transformation
53
Chapter 3
Custom Transformation
This chapter includes the following topics:
Overview, 54
Creating Custom Transformations, 57
Working with Groups and Ports, 59
Working with Port Attributes, 62
Custom Transformation Properties, 64
Working with Transaction Control, 68
Blocking Input Data, 70
Working with Procedure Properties, 72
Creating Custom Transformation Procedures, 73
54 Chapter 3: Custom Transformation
Overview
Custom transformations operate in conjunction with procedures you create outside of the
Designer interface to extend PowerCenter functionality. You can create a Custom
transformation and bind it to a procedure that you develop using the functions described in
“Custom Transformation Functions” on page 89.
Use the Custom transformation to create transformation applications, such as sorting and
aggregation, which require all input rows to be processed before outputting any output rows.
To support this process, the input and output functions occur separately in Custom
transformations compared to External Procedure transformations.
The Integration Service passes the input data to the procedure using an input function. The
output function is a separate function that you must enter in the procedure code to pass
output data to the Integration Service. In contrast, in the External Procedure transformation,
an external procedure function does both input and output, and its parameters consist of all
the ports of the transformation.
You can also use the Custom transformation to create a transformation that requires multiple
input groups, multiple output groups, or both. A group is the representation of a row of data
entering or leaving a transformation. For example, you might create a Custom transformation
with one input group and multiple output groups that parses XML data. Or, you can create a
Custom transformation with two input groups and one output group that merges two streams
of input data into one stream of output data.
Working with Transformations Built On the Custom Transformation
You can build transformations using the Custom transformation. Some of the PowerCenter
transformations are built using the Custom transformation. Rules that apply to Custom
transformations, such as blocking rules, also apply to transformations built using Custom
transformations. For example, when you connect a Custom transformation in a mapping, you
must verify that the data can flow from all sources in a target load order group to the targets
without the Integration Service blocking all sources. Similarly, you must also verify this for
transformations built using a Custom transformation. For more information about data flow
validation, see “Mappings in the Designer Guide.
The following transformations that ship with Informatica products are built using the
Custom transformation:
HTTP transformation with PowerCenter
Java transformation with PowerCenter
SQL transformation with PowerCenter
Union transformation with PowerCenter
Transformation type:
Active/Passive
Connected
Overview 55
XML Parser transformation with PowerCenter
XML Generator transformation with PowerCenter
SAP/ALE_IDoc_Interpreter transformation with PowerCenter Connect for SAP
NetWeaver mySAP Option
SAP/ALE_IDoc_Prepare transformation with PowerCenter Connect for SAP NetWeaver
mySAP Option
Web Service Consumer transformation with PowerCenter Connect for Web Services
Address transformation with Data Cleansing Option
Parse transformation with Data Cleansing Option
Code Page Compatibility
The Custom transformation procedure code page is the code page of the data the Custom
transformation procedure processes. The following factors determine the Custom
transformation procedure code page:
Integration Service data movement mode
The INFA_CTChangeStringMode() function
The INFA_CTSetDataCodePageID() function
The Custom transformation procedure code page must be two-way compatible with the
Integration Service code page. The Integration Service passes data to the procedure in the
Custom transformation procedure code page. Also, the data the procedure passes to the
Integration Service must be valid characters in the Custom transformation procedure code
page.
By default, when the Integration Service runs in ASCII mode, the Custom transformation
procedure code page is ASCII. Also, when the Integration Service runs in Unicode mode, the
Custom transformation procedure code page is UCS-2, but the Integration Service only
passes characters that are valid in the Integration Service code page.
However, use the INFA_CTChangeStringMode() functions in the procedure code to request
the data in a different format. In addition, when the Integration Service runs in Unicode
mode, you can request the data in a different code page using the
INFA_CTSetDataCodePageID() function.
Changing the format or requesting the data in a different code page changes the Custom
transformation procedure code page to the code page the procedure requests:
ASCII mode. You can write the external procedure code to request the data in UCS-2
format using the INFA_CTChangeStringMode() function. When you use this function,
the procedure must pass only ASCII characters in UCS-2 format to the Integration
Service. Do not use the INFA_CTSetDataCodePageID() function when the Integration
Service runs in ASCII mode.
Unicode mode. You can write the external procedure code to request the data in MBCS
using the INFA_CTChangeStringMode() function. When the external procedure requests
the data in MBCS, the Integration Service passes the data in the Integration Service code
56 Chapter 3: Custom Transformation
page. When you use the INFA_CTChangeStringMode() function, you can write the
external procedure code to request the data in a different code page from the Integration
Service code page using the INFA_CTSetDataCodePageID() function. The code page you
specify in the INFA_CTSetDataCodePageID() function must be two-way compatible with
the Integration Service code page.
Note: You can also use the INFA_CTRebindInputDataType() function to change the format
for a specific port in the Custom transformation.
Distributing Custom Transformation Procedures
You can copy a Custom transformation from one repository to another. When you copy a
Custom transformation between repositories, you must verify that the Integration Service
machine the target repository uses contains the Custom transformation procedure.
Creating Custom Transformations 57
Creating Custom Transformations
You can create reusable Custom transformations in the Transformation Developer, and add
instances of the transformation to mappings. You can create non-reusable Custom
transformations in the Mapping Designer or Mapplet Designer.
Each Custom transformation specifies a module and a procedure name. You can create a
Custom transformation based on an existing shared library or DLL containing the procedure,
or you can create a Custom transformation as the basis for creating the procedure. When you
create a Custom transformation to use with an existing shared library or DLL, make sure you
define the correct module and procedure name.
When you create a Custom transformation as the basis for creating the procedure, select the
transformation and generate the code. The Designer uses the transformation properties when
it generates the procedure code. It generates code in a single directory for all transformations
sharing a common module name.
The Designer generates the following files:
m_<module_name>.c. Defines the module. This file includes an initialization function,
m_<module_name>_moduleInit() that lets you write code you want the Integration
Service to run when it loads the module. Similarly, this file includes a deinitialization
function, m_<module_name>_moduleDeinit(), that lets you write code you want the
Integration Service to run before it unloads the module.
p_<procedure_name>.c. Defines the procedure in the module. This file contains the code
that implements the procedure logic, such as data cleansing or merging data.
makefile.aix, makefile.aix64, makefile.hp, makefile.hp64, makefile.hpparisc64,
makefile.linux, makefile.sol, and makefile.sol64. Make files for the UNIX platforms. Use
makefile.aix64 for 64-bit AIX platforms, makefile.sol64 for 64-bit Solaris platforms, and
makefile.hp64 for 64-bit HP-UX (Itanium) platforms.
Rules and Guidelines
Use the following rules and guidelines when you create a Custom transformation:
Custom transformations are connected transformations. You cannot reference a Custom
transformation in an expression.
You can include multiple procedures in one module. For example, you can include an
XML writer procedure and an XML parser procedure in the same module.
You can bind one shared library or DLL to multiple Custom transformation instances if
you write the procedure code to handle multiple Custom transformation instances.
When you write the procedure code, you must make sure it does not violate basic mapping
rules. For more information about mappings and mapping validation, see “Mappings” in
the Designer Guide.
The Custom transformation sends and receives high precision decimals as high precision
decimals.
58 Chapter 3: Custom Transformation
Use multi-threaded code in Custom transformation procedures.
Custom Transformation Components
When you configure a Custom transformation, you define the following components:
Transformation tab. You can rename the transformation and add a description on the
Transformation tab.
Ports tab. You can add and edit ports and groups to a Custom transformation. For more
information about creating ports and groups, see “Working with Groups and Ports on
page 59. You can also define the input ports an output port depends on. For more
information about defining port dependencies, see “Defining Port Relationships” on
page 60.
Port Attribute Definitions tab. You can create user-defined port attributes for Custom
transformation ports. For more information about creating and editing port attributes, see
“Working with Port Attributes” on page 62.
Properties tab. You can define transformation properties such as module and function
identifiers, transaction properties, and the runtime location. For more information about
defining transformation properties, see “Custom Transformation Properties” on page 64.
Initialization Properties tab. You can define properties that the external procedure uses at
runtime, such as during initialization. For more information about creating initialization
properties, see “Working with Procedure Properties” on page 72.
Metadata Extensions tab. You can create metadata extensions to define properties that the
procedure uses at runtime, such as during initialization. For more information about using
metadata extensions for procedure properties, see Working with Procedure Properties on
page 72.
Working with Groups and Ports 59
Working with Groups and Ports
A Custom transformation has both input and output groups. It also can have input ports,
output ports, and input/output ports. You create and edit groups and ports on the Ports tab of
the Custom transformation. You can also define the relationship between input and output
ports on the Ports tab.
Figure 3-1 shows the Custom transformation Ports tab:
Creating Groups and Ports
You can create multiple input groups and multiple output groups in a Custom
transformation. You must create at least one input group and one output group. To create an
input group, click the Create Input Group icon. To create an output group, click the Create
Output Group icon. When you create a group, the Designer adds it as the last group. When
you create a passive Custom transformation, you can only create one input group and one
output group.
To create a port, click the Add button. When you create a port, the Designer adds it below the
currently selected row or group. Each port contains attributes defined on the Port Attribute
Definitions tab. You can edit the attributes for each port. For more information about
creating and editing user-defined port attributes, see “Working with Port Attributeson
page 62.
Figure 3-1. Custom Transformation Ports Tab
First Input Group Header
Output Group Header
Second Input Group Header
Add and delete groups,
and edit port attributes.
Coupled Group Headers
Second Input Group Header
60 Chapter 3: Custom Transformation
Editing Groups and Ports
Use the following rules and guidelines when you edit ports and groups in a Custom
transformation:
You can change group names by typing in the group header.
You can only enter ASCII characters for port and group names.
Once you create a group, you cannot change the group type. If you need to change the
group type, delete the group and add a new group.
When you delete a group, the Designer deletes all ports of the same type in that group.
However, all input/output ports remain in the transformation, belong to the group above
them, and change to input ports or output ports, depending on the type of group you
delete. For example, an output group contains output ports and input/output ports. You
delete the output group. The Designer deletes the output ports. It changes the input/
output ports to input ports. Those input ports belong to the input group with the header
directly above them.
To move a group up or down, select the group header and click the Move Port Up or Move
Port Down button. The ports above and below the group header remain the same, but the
groups to which they belong might change.
Defining Port Relationships
By default, an output port in a Custom transformation depends on all input ports. However,
you can define the relationship between input and output ports in a Custom transformation.
When you do this, you can view link paths in a mapping containing a Custom transformation
and you can see which input ports an output port depends on. You can also view source
column dependencies for target ports in a mapping containing a Custom transformation.
To define the relationship between ports in a Custom transformation, create a port
dependency. A port dependency is the relationship between an output or input/output port
and one or more input or input/output ports. When you create a port dependency, base it on
the procedure logic in the code.
To create a port dependency, click Custom Transformation on the Ports tab and choose Port
Dependencies.
Working with Groups and Ports 61

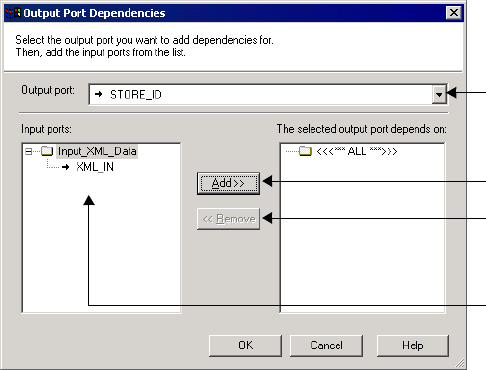

Figure 3-2 shows where you create and edit port dependencies:
For example, create a external procedure that parses XML data. You create a Custom
transformation with one input group containing one input port and multiple output groups
containing multiple output ports. According to the external procedure logic, all output ports
depend on the input port. You can define this relationship in the Custom transformation by
creating a port dependency for each output port. Define each port dependency so that the
output port depends on the one input port.
To create a port dependency:
1. On the Ports tab, click Custom Transformation and choose Port Dependencies.
2. In the Output Port Dependencies dialog box, select an output or input/output port in
the Output Port field.
3. In the Input Ports pane, select an input or input/output port on which the output port or
input/output port depends.
4. Click Add.
5. Repeat steps 3 to 4 to include more input or input/output ports in the port dependency.
6. To create another port dependency, repeat steps 2 to 5.
7. Click OK.
Figure 3-2. Editing Port Dependencies
Choose an output or input/output port.
Add a port dependency.
Remove a port dependency.
Choose an input or input/output port on
which the output or input/output port
depends.
62 Chapter 3: Custom Transformation
Working with Port Attributes
Ports have certain attributes, such as datatype and precision. When you create a Custom
transformation, you can create user-defined port attributes. User-defined port attributes apply
to all ports in a Custom transformation.
For example, you create a external procedure to parse XML data. You can create a port
attribute calledXML pathwhere you can define the position of an element in the XML
hierarchy.
Create port attributes and assign default values on the Port Attribute Definitions tab of the
Custom transformation. You can define a specific port attribute value for each port on the
Ports tab.

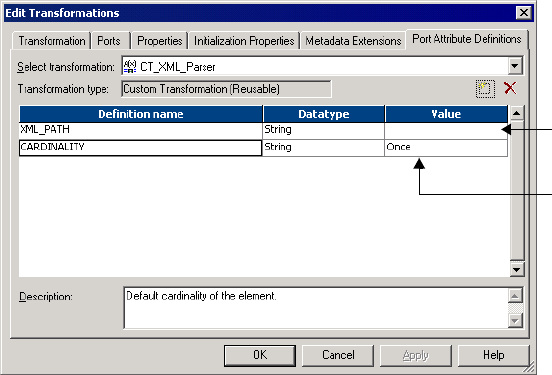

Figure 3-3 shows the Port Attribute Definitions tab where you create port attributes:
When you create a port attribute, define the following properties:
Name. The name of the port attribute.
Datatype. The datatype of the port attribute value. You can choose Boolean, Numeric, or
String.
Value. The default value of the port attribute. This property is optional. When you enter a
value here, the value applies to all ports in the Custom transformation. You can override
the port attribute value for each port on the Ports tab.
You define port attributes for each Custom transformation. You cannot copy a port attribute
from one Custom transformation to another.
Figure 3-3. Port Attribute Definitions Tab
Default Value
Port Attribute
Working with Port Attributes 63
Editing Port Attribute Values
After you create port attributes, you can edit the port attribute values for each port in the
transformation. To edit the port attribute values, click Custom Transformation on the Ports
tab and choose Edit Port Attribute.
Figure 3-4 shows where you edit port attribute values:
You can change the port attribute value for a particular port by clicking the Open button.
This opens the Edit Port Attribute Default Value dialog box. Or, you can enter a new value by
typing directly in the Value column.
You can filter the ports listed in the Edit Port Level Attributes dialog box by choosing a group
from the Select Group field.
Figure 3-4. Edit Port Attribute Values
Filter ports by group.
Edit port attribute value.
Revert to default port attribute
value.
64 Chapter 3: Custom Transformation
Custom Transformation Properties
Properties for the Custom transformation apply to both the procedure and the
transformation. Configure the Custom transformation properties on the Properties tab of the
Custom transformation.

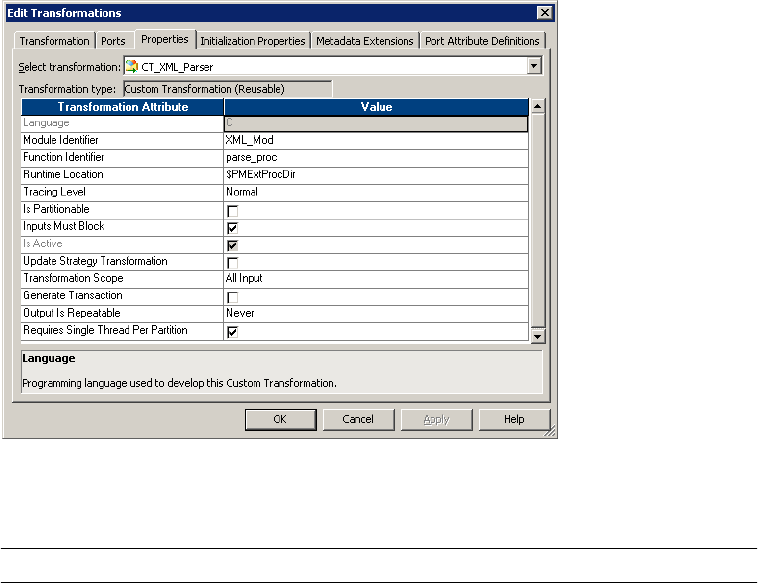

Figure 3-5 shows the Custom transformation Properties tab:
Table 3-1 describes the Custom transformation properties:
Figure 3-5. Custom Transformation Properties
Table 3-1. Custom Transformation Properties
Option Description
Language Language used for the procedure code. You define the language when you create the
Custom transformation. If you need to change the language, create a new Custom
transformation.
Module Identifier Module name. Applies to Custom transformation procedures developed using C or C++.
Enter only ASCII characters in this field. You cannot enter multibyte characters.
This property is the base name of the DLL or the shared library that contains the procedure.
The Designer uses this name to create the C file when you generate the external procedure
code.
Function Identifier Name of the procedure in the module. Applies to Custom transformation procedures
developed using C.
Enter only ASCII characters in this field. You cannot enter multibyte characters.
The Designer uses this name to create the C file where you enter the procedure code.
Custom Transformation Properties 65
Class Name Class name of the Custom transformation procedure. Applies to Custom transformation
procedures developed using C++ or Java.
Enter only ASCII characters in this field. You cannot enter multibyte characters.
Runtime Location Location that contains the DLL or shared library. Default is $PMExtProcDir. Enter a path
relative to the Integration Service machine that runs the session using the Custom
transformation.
If you make this property blank, the Integration Service uses the environment variable
defined on the Integration Service machine to locate the DLL or shared library.
You must copy all DLLs or shared libraries to the runtime location or to the environment
variable defined on the Integration Service machine. The Integration Service fails to load the
procedure when it cannot locate the DLL, shared library, or a referenced file.
Tracing Level Amount of detail displayed in the session log for this transformation. Default is Normal.
Is Partitionable Indicates if you can create multiple partitions in a pipeline that uses this transformation:
- No. The transformation cannot be partitioned. The transformation and other
transformations in the same pipeline are limited to one partition.
- Locally. The transformation can be partitioned, but the Integration Service must run all
partitions in the pipeline on the same node. Choose Local when different partitions of the
Custom transformation must share objects in memory.
- Across Grid. The transformation can be partitioned, and the Integration Service can
distribute each partition to different nodes.
Default is No.
For more information about using partitioning with Custom transformations, see Working
with Partition Points” in the Workflow Administration Guide.
Inputs Must Block Indicates if the procedure associated with the transformation must be able to block incoming
data. Default is enabled.
For more information about blocking data, see “Blocking Input Data” on page 70.
Is Active Indicates if this transformation is an active or passive transformation.
You cannot change this property after you create the Custom transformation. If you need to
change this property, create a new Custom transformation and select the correct property
value.
Update Strategy
Transformation
Indicates if this transformation defines the update strategy for output rows. Default is
disabled. You can enable this for active Custom transformations.
For more information about this property, see “Setting the Update Strategy” on page 66.
Transformation Scope Indicates how the Integration Service applies the transformation logic to incoming data:
- Row
- Transaction
- All Input
When the transformation is passive, this property is always Row. When the transformation is
active, this property is All Input by default.
For more information about working with transaction control, see “Working with Transaction
Control” on page 68.
Generate Transaction Indicates if this transformation can generate transactions. When a Custom transformation
generates transactions, it generates transactions for all output groups.
Default is disabled. You can only enable this for active Custom transformations.
For more information about working with transaction control, see “Working with Transaction
Control” on page 68.
Table 3-1. Custom Transformation Properties
Option Description
66 Chapter 3: Custom Transformation
Setting the Update Strategy
Use an active Custom transformation to set the update strategy for a mapping at the following
levels:
Within the procedure. You can write the external procedure code to set the update strategy
for output rows. The external procedure can flag rows for insert, update, delete, or reject.
For more information about the functions used to set the update strategy, see “Row
Strategy Functions (Row-Based Mode)” on page 128.
Within the mapping. Use the Custom transformation in a mapping to flag rows for insert,
update, delete, or reject. Select the Update Strategy Transformation property for the
Custom transformation.
Within the session. Configure the session to treat the source rows as data driven.
If you do not configure the Custom transformation to define the update strategy, or you do
not configure the session as data driven, the Integration Service does not use the external
procedure code to flag the output rows. Instead, when the Custom transformation is active,
the Integration Service flags the output rows as insert. When the Custom transformation is
passive, the Integration Service retains the row type. For example, when a row flagged for
update enters a passive Custom transformation, the Integration Service maintains the row
type and outputs the row as update.
Working with Thread-Specific Procedure Code
Custom transformation procedures can include thread-specific operations. A thread-specific
operation is code that performs an action based on the thread that is processing the
procedure.
Output is Ordered Indicates if the order of the output data is consistent between session runs.
- Never. The order of the output data is inconsistent between session runs. This is the default
for active transformations.
- Based On Input Order. The output order is consistent between session runs when the input
data order is consistent between session runs. This is the default for passive
transformations.
- Always. The order of the output data is consistent between session runs even if the order of
the input data is inconsistent between session runs.
Requires Single Thread
Per Partition
Indicates if the Integration Service processes each partition at the procedure with one
thread. When you enable this option, the procedure code can use thread-specific operations.
Default is enabled.
For more information about writing thread-specific operations, see “Working with Thread-
Specific Procedure Code” on page 66.
Output is Deterministic Indicates whether the transformation generates consistent output data between session
runs. You must enable this property to perform recovery on sessions that use this
transformation.
For more information about session recovery, see “Recovering Workflows” in the Workflow
Administration Guide.
Table 3-1. Custom Transformation Properties
Option Description
Custom Transformation Properties 67
You can configure the Custom transformation so the Integration Service uses one thread to
process the Custom transformation for each partition using the Requires Single Thread Per
Partition property.
When you configure a Custom transformation to process each partition with one thread, the
Integration Service calls the following functions with the same thread for each partition:
p_<proc_name>_partitionInit()
p_<proc_name>_partitionDeinit()
p_<proc_name>_inputRowNotification()
p_<proc_name>_dataBdryRowNotification()
p_<proc_name>_eofNotification()
You can include thread-specific operations in these functions because the Integration Service
uses the same thread to process these functions for each partition. For example, you might
attach and detach threads to a Java Virtual Machine.
Note: When you configure a Custom transformation to process each partition with one thread,
the Workflow Manager adds partition points depending on the mapping configuration. For
more information, see “Working with Partition Pointsin the Workflow Administration Guide.
68 Chapter 3: Custom Transformation
Working with Transaction Control
You can define transaction control for Custom transformations using the following
transformation properties:
Transformation Scope. Determines how the Integration Service applies the transformation
logic to incoming data.
Generate Transaction. Indicates that the procedure generates transaction rows and outputs
them to the output groups.
Transformation Scope
You can configure how the Integration Service applies the transformation logic to incoming
data. You can choose one of the following values:
Row. Applies the transformation logic to one row of data at a time. Choose Row when the
results of the procedure depend on a single row of data. For example, you might choose
Row when a procedure parses a row containing an XML file.
Tr a n s a ct i o n . Applies the transformation logic to all rows in a transaction. Choose
Transaction when the results of the procedure depend on all rows in the same transaction,
but not on rows in other transactions. When you choose Transaction, you must connect all
input groups to the same transaction control point. For example, you might choose
Transaction when the external procedure performs aggregate calculations on the data in a
single transaction.
All Input. Applies the transformation logic to all incoming data. When you choose All
Input, the Integration Service drops transaction boundaries. Choose All Input when the
results of the procedure depend on all rows of data in the source. For example, you might
choose All Input when the external procedure performs aggregate calculations on all
incoming data, or when it sorts all incoming data.
For more information about transformation scope, see “Understanding Commit Points” in
the Workflow Administration Guide.
Generate Transaction
You can write the external procedure code to output transactions, such as commit and
rollback rows. When the external procedure outputs commit and rollback rows, configure the
Custom transformation to generate transactions. Select the Generate Transaction
transformation property. You can enable this property for active Custom transformations. For
information about the functions you use to generate transactions, see “Data Boundary
Output Notification Function” on page 121.
When the external procedure outputs a commit or rollback row, it outputs or rolls back the
row for all output groups.
When you configure the transformation to generate transactions, the Integration Service
treats the Custom transformation like a Transaction Control transformation. Most rules that
apply to a Transaction Control transformation in a mapping also apply to the Custom
Working with Transaction Control 69
transformation. For example, when you configure a Custom transformation to generate
transactions, you cannot concatenate pipelines or pipeline branches containing the
transformation. For more information about working with Transaction Control
transformations, see Transaction Control Transformation” on page 519.
When you edit or create a session using a Custom transformation configured to generate
transactions, configure it for user-defined commit.
Working with Transaction Boundaries
The Integration Service handles transaction boundaries entering and leaving Custom
transformations based on the mapping configuration and the Custom transformation
properties.
Table 3-2 describes how the Integration Service handles transaction boundaries at Custom
transformations:
Table 3-2. Transaction Boundary Handling with Custom Transformations
Transformation
Scope Generate Transactions Enabled Generate Transactions Disabled
Row Integration Service drops incoming transaction
boundaries and does not call the data
boundary notification function.
It outputs transaction rows according to the
procedure logic across all output groups.
When the incoming data for all input groups
comes from the same transaction control point,
the Integration Service preserves incoming
transaction boundaries and outputs them
across all output groups. However, it does not
call the data boundary notification function.
When the incoming data for the input groups
comes from different transaction control points,
the Integration Service drops incoming
transaction boundaries. It does not call the
data boundary notification function. The
Integration Service outputs all rows in one
open transaction.
Transaction Integration Service preserves incoming
transaction boundaries and calls the data
boundary notification function.
However, it outputs transaction rows according
to the procedure logic across all output groups.
Integration Service preserves incoming
transaction boundaries and calls the data
boundary notification function.
It outputs the transaction rows across all output
groups.
All Input Integration Service drops incoming transaction
boundaries and does not call the data
boundary notification function. The Integration
Service outputs transaction rows according to
the procedure logic across all output groups.
Integration Service drops incoming transaction
boundaries and does not call the data
boundary notification function. It outputs all
rows in one open transaction.
70 Chapter 3: Custom Transformation
Blocking Input Data
By default, the Integration Service concurrently reads sources in a target load order group.
However, you can write the external procedure code to block input data on some input
groups. Blocking is the suspension of the data flow into an input group of a multiple input
group transformation. For more information about blocking source data, see “Integration
Service Architecture” in the Administrator Guide.
To use a Custom transformation to block input data, you must write the procedure code to
block and unblock data. You must also enable blocking on the Properties tab for the Custom
transformation.
Writing the Procedure Code to Block Data
You can write the procedure to block and unblock incoming data. To block incoming data,
use the INFA_CTBlockInputFlow() function. To unblock incoming data, use the
INFA_CTUnblockInputFlow() function. For more information about the blocking
functions, see “Blocking Functions” on page 125.
You might want to block input data if the external procedure needs to alternate reading from
input groups. Without the blocking functionality, you would need to write the procedure
code to buffer incoming data. You can block input data instead of buffering it which usually
increases session performance.
For example, you need to create an external procedure with two input groups. The external
procedure reads a row from the first input group and then reads a row from the second input
group. If you use blocking, you can write the external procedure code to block the flow of
data from one input group while it processes the data from the other input group. When you
write the external procedure code to block data, you increase performance because the
procedure does not need to copy the source data to a buffer. However, you could write the
external procedure to allocate a buffer and copy the data from one input group to the buffer
until it is ready to process the data. Copying source data to a buffer decreases performance.
Configuring Custom Transformations as Blocking Transformations
When you create a Custom transformation, the Designer enables the Inputs Must Block
transformation property by default. This property affects data flow validation when you save
or validate a mapping. When you enable this property, the Custom transformation is a
blocking transformation. When you clear this property, the Custom transformation is not a
blocking transformation. For more information about blocking transformations, see “Multi-
Group Transformations” on page 9.
Configure the Custom transformation as a blocking transformation when the external
procedure code must be able to block input data.
You can configure the Custom transformation as a non-blocking transformation when one of
the following conditions is true:
The procedure code does not include the blocking functions.
Blocking Input Data 71
The procedure code includes two algorithms, one that uses blocking and the other that
copies the source data to a buffer allocated by the procedure instead of blocking data. The
code checks whether or not the Integration Service allows the Custom transformation to
block data. The procedure uses the algorithm with the blocking functions when it can
block, and uses the other algorithm when it cannot block. You might want to do this to
create a Custom transformation that you use in multiple mapping configurations.
For more information about verifying whether the Integration Service allows a Custom
transformation to block data, see “Validating Mappings with Custom Transformations” on
page 71.
Note: When the procedure blocks data and you configure the Custom transformation as a
non-blocking transformation, the Integration Service fails the session.
Validating Mappings with Custom Transformations
When you include a Custom transformation in a mapping, both the Designer and Integration
Service validate the mapping. The Designer validates the mapping you save or validate and
the Integration Service validates the mapping when you run the session.
Validating at Design Time
When you save or validate a mapping, the Designer performs data flow validation. When the
Designer does this, it verifies that the data can flow from all sources in a target load order
group to the targets without blocking transformations blocking all sources. Some mappings
with blocking transformations are invalid. For more information about data flow validation,
see “Mappings” in the Designer Guide.
Validating at Runtime
When you run a session, the Integration Service validates the mapping against the procedure
code at runtime. When the Integration Service does this, it tracks whether or not it allows the
Custom transformations to block data:
Configure the Custom transformation as a blocking transformation. The Integration
Service always allows the Custom transformation to block data.
Configure the Custom transformation as a non-blocking transformation. The
Integration Service allows the Custom transformation to block data depending on the
mapping configuration. If the Integration Service can block data at the Custom
transformation without blocking all sources in the target load order group simultaneously,
it allows the Custom transformation to block data.
You can write the procedure code to check whether or not the Integration Service allows a
Custom transformation to block data. Use the INFA_CT_getInternalProperty() function to
access the INFA_CT_TRANS_MAY_BLOCK_DATA property ID. The Integration Service
returns TRUE when the Custom transformation can block data, and it returns FALSE when
the Custom transformation cannot block data. For more information about the
INFA_CT_getInternalProperty() function, see “Property Functions” on page 108.
72 Chapter 3: Custom Transformation
Working with Procedure Properties
You can define property name and value pairs in the Custom transformation that the
procedure can use when the Integration Service runs the procedure, such as during
initialization time. You can create user-defined properties on the following tabs of the Custom
transformation:
Metadata Extensions. You can specify the property name, datatype, precision, and value.
Use metadata extensions for passing information to the procedure. For more information
about creating metadata extensions, see “Metadata Extensions” in the Repository Guide.
Initialization Properties. You can specify the property name and value.
While you can define properties on both tabs in the Custom transformation, the Metadata
Extensions tab lets you provide more detail for the property. Use metadata extensions to pass
properties to the procedure.
For example, you create a Custom transformation external procedure that sorts data after
transforming it. You could create a boolean metadata extension named Sort_Ascending.
When you use the Custom transformation in a mapping, you can choose True or False for the
metadata extension, depending on how you want the procedure to sort the data.
When you define a property in the Custom transformation, use the get all property names
functions, such as INFA_CTGetAllPropertyNamesM(), to access the names of all properties
defined on the Initialization Properties and Metadata Extensions tab. Use the get external
property functions, such as INFA_CT_getExternalPropertyM(), to access the property name
and value of a property ID you specify.
Note: When you define a metadata extension and an initialization property with the same
name, the property functions only return information for the metadata extension.
Creating Custom Transformation Procedures 73
Creating Custom Transformation Procedures
You can create Custom transformation procedures that run on 32-bit or 64-bit Integration
Service machines. Use the following steps as a guideline when you create a Custom
transformation procedure:
1. In the Transformation Developer, create a reusable Custom transformation. Or, in the
Mapplet Designer or Mapping Designer, create a non-reusable Custom transformation.
2. Generate the template code for the procedure.
When you generate the procedure code, the Designer uses the information from the
Custom transformation to create C source code files and makefiles.
3. Modify the C files to add the procedure logic.
4. Use a C/C++ compiler to compile and link the source code files into a DLL or shared
library and copy it to the Integration Service machine.
5. Create a mapping with the Custom transformation.
6. Run the session in a workflow.
This section includes an example, the “Union example,” to demonstrate this process. The
steps in this section create a Custom transformation that contains two input groups and one
output group. The Custom transformation procedure verifies that the Custom transformation
uses two input groups and one output group. It also verifies that the number of ports in all
groups are equal and that the port datatypes are the same for all groups. The procedure takes
rows of data from each input group and outputs all rows to the output group.
Step 1. Create the Custom Transformation
The first step is to create a Custom transformation.
To create a Custom transformation:
1. In the Transformation Developer, click Transformation > Create.
2. In the Create Transformation dialog box, choose Custom transformation, enter a
transformation name, and click Create.
In the Union example, enter CT_Inf_Union as the transformation name.
3. In the Active or Passive dialog box, create the transformation as a passive or active
transformation, and click OK.
In the Union example, choose Active.
4. Click Done to close the Create Transformation dialog box.
5. Open the transformation and click the Ports tab. Create groups and ports.
You can edit the groups and ports later, if necessary. For more information about creating
groups and ports, see “Working with Groups and Ports” on page 59.
74 Chapter 3: Custom Transformation
In the Union example, create the groups and ports shown in Figure 3-6:
6. Select the Properties tab and enter a module and function identifier and the runtime
location. Edit other transformation properties.
For more information about Custom transformation properties, see “Custom
Transformation Properties” on page 64.

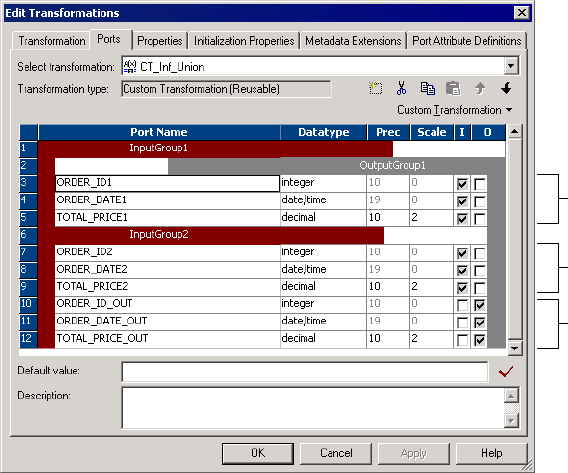

Figure 3-6. Custom Transformation Ports Tab - Union Example
First Input Group
Second Input Group
Output Group
Creating Custom Transformation Procedures 75
In the Union example, enter the properties shown in Figure 3-7:
7. Click the Metadata Extensions tab to enter metadata extensions, such as properties the
external procedure might need for initialization. For more information about using
metadata extensions for procedure properties, see Working with Procedure Properties”
on page 72.
In the Union example, do not create metadata extensions.
8. Click the Port Attribute Definitions tab to create port attributes, if necessary. For more
information about creating port attributes, see “Working with Port Attributes” on
page 62.
In the Union example, do not create port attributes.
9. Click OK.
10. Click Repository > Save.
After you create the Custom transformation that calls the procedure, the next step is to
generate the C files.
Step 2. Generate the C Files
After you create a Custom transformation, you generate the source code files. The Designer
generates file names in lower case.
Figure 3-7. Custom Transformation Properties Tab - Union Example
76 Chapter 3: Custom Transformation
To generate the code for a Custom transformation procedure:
1. In the Transformation Developer, select the transformation and click Transformation >
Generate Code.
2. Select the procedure you just created. The Designer lists the procedures as
<module_name>.<procedure_name>.
In the Union example, select UnionDemo.Union.
3. Specify the directory where you want to generate the files, and click Generate.
In the Union example, select <client_installation_directory>/TX.
The Designer creates a subdirectory, <module_name>, in the directory you specified. In
the Union example, the Designer creates <client_installation_directory>/TX/
UnionDemo. It also creates the following files:
m_UnionDemo.c
m_UnionDemo.h
p_Union.c
p_Union.h
makefile.aix (32-bit), makefile.aix64 (64-bit), makefile.hp (32-bit), makefile.hp64
(64-bit), makefile.hpparisc64, makefile.linux (32-bit), and makefile.sol (32-bit).
Step 3. Fill Out the Code with the Transformation Logic
You must code the procedure C file. Optionally, you can also code the module C file. In the
Union example, you fill out the procedure C file only. You do not need to fill out the module
C file.
To code the procedure C file:
1. Open p_<procedure_name>.c for the procedure.
In the Union example, open p_Union.c.
2. Enter the C code for the procedure.
3. Save the modified file.
In the Union example, use the following code:
/**************************************************************************
*
* Copyright (c) 2005 Informatica Corporation. This file contains
* material proprietary to Informatica Corporation and may not be copied
* or distributed in any form without the written permission of Informatica
* Corporation
*
**************************************************************************/
Creating Custom Transformation Procedures 77
/**************************************************************************
* Custom Transformation p_union Procedure File
*
* This file contains code that functions that will be called by the main
* server executable.
*
* for more information on these files,
* see $(INFA_HOME)/ExtProc/include/Readme.txt
**************************************************************************/
/*
* INFORMATICA 'UNION DEMO' developed using the API for custom
* transformations.
* File Name: p_Union.c
*
* An example of a custom transformation ('Union') using PowerCenter8.0
*
* The purpose of the 'Union' transformation is to combine pipelines with the
* same row definition into one pipeline (i.e. union of multiple pipelines).
* [ Note that it does not correspond to the mathematical definition of union
* since it does not eliminate duplicate rows.]
*
* This example union transformation allows N input pipelines ( each
* corresponding to an input group) to be combined into one pipeline.
*
* To use this transformation in a mapping, the following attributes must be
* true:
* a. The transformation must have >= 2 input groups and only one output group.
* b. In the Properties tab set the following properties:
* i. Module Identifier: UnionDemo
* ii. Function Identifier: Union
* iii. Inputs May Block: Unchecked
* iv. Is Active: Checked
* v. Update Strategy Transformation: Unchecked *
* vi. Transformation Scope: All
* vii. Generate Transaction: Unchecked *
*
* * This version of the union transformation does not provide code for
* changing the update strategy or for generating transactions.
* c. The input groups and the output group must have the same number of ports
* and the same datatypes. This is verified in the initialization of the
* module and the session is failed if this is not true.
* d. The transformation can be used in multiple number of times in a Target
78 Chapter 3: Custom Transformation
* Load Order Group and can also be contained within multiple partitions.
*
*/
/**************************************************************************
Includes
**************************************************************************/
include <stdlib.h>
#include "p_union.h"
/**************************************************************************
Forward Declarations
**************************************************************************/
INFA_STATUS validateProperties(const INFA_CT_PARTITION_HANDLE* partition);
/**************************************************************************
Functions
**************************************************************************/
/**************************************************************************
Function: p_union_procInit
Description: Initialization for the procedure. Returns INFA_SUCCESS if
procedure initialization succeeds, else return INFA_FAILURE.
Input: procedure - the handle for the procedure
Output: None
Remarks: This function will get called once for the session at
initialization time. It will be called after the moduleInit function.
**************************************************************************/
INFA_STATUS p_union_procInit( INFA_CT_PROCEDURE_HANDLE procedure)
{
const INFA_CT_TRANSFORMATION_HANDLE* transformation = NULL;
const INFA_CT_PARTITION_HANDLE* partition = NULL;
size_t nTransformations = 0, nPartitions = 0, i = 0;
/* Log a message indicating beginning of the procedure initialization */
INFA_CTLogMessageM( eESL_LOG,
"union_demo: Procedure initialization started ..." );
INFA_CTChangeStringMode( procedure, eASM_MBCS );
Creating Custom Transformation Procedures 79
/* Get the transformation handles */
transformation = INFA_CTGetChildrenHandles( procedure,
&nTransformations,
TRANSFORMATIONTYPE);
/* For each transformation verify that the 0th partition has the correct
* properties. This does not need to be done for all partitions since rest
* of the partitions have the same information */
for (i = 0; i < nTransformations; i++)
{
/* Get the partition handle */
partition = INFA_CTGetChildrenHandles(transformation[i],
&nPartitions, PARTITIONTYPE );
if (validateProperties(partition) != INFA_SUCCESS)
{
INFA_CTLogMessageM( eESL_ERROR,
"union_demo: Failed to validate attributes of "
"the transformation");
return INFA_FAILURE;
}
}
INFA_CTLogMessageM( eESL_LOG,
"union_demo: Procedure initialization completed." );
return INFA_SUCCESS;
}
/**************************************************************************
Function: p_union_procDeinit
Description: Deinitialization for the procedure. Returns INFA_SUCCESS if
procedure deinitialization succeeds, else return INFA_FAILURE.
Input: procedure - the handle for the procedure
Output: None
Remarks: This function will get called once for the session at
deinitialization time. It will be called before the moduleDeinit
function.
**************************************************************************/
INFA_STATUS p_union_procDeinit( INFA_CT_PROCEDURE_HANDLE procedure,
INFA_STATUS sessionStatus )
80 Chapter 3: Custom Transformation
{
/* Do nothing ... */
return INFA_SUCCESS;
}
/**************************************************************************
Function: p_union_partitionInit
Description: Initialization for the partition. Returns INFA_SUCCESS if
partition deinitialization succeeds, else return INFA_FAILURE.
Input: partition - the handle for the partition
Output: None
Remarks: This function will get called once for each partition for each
transformation in the session.
**************************************************************************/
INFA_STATUS p_union_partitionInit( INFA_CT_PARTITION_HANDLE partition )
{
/* Do nothing ... */
return INFA_SUCCESS;
}
/**************************************************************************
Function: p_union_partitionDeinit
Description: Deinitialization for the partition. Returns INFA_SUCCESS if
partition deinitialization succeeds, else return INFA_FAILURE.
Input: partition - the handle for the partition
Output: None
Remarks: This function will get called once for each partition for each
transformation in the session.
**************************************************************************/
INFA_STATUS p_union_partitionDeinit( INFA_CT_PARTITION_HANDLE partition )
{
/* Do nothing ... */
return INFA_SUCCESS;
}
/**************************************************************************
Function: p_union_inputRowNotification
Creating Custom Transformation Procedures 81
Description: Notification that a row needs to be processed for an input
group in a transformation for the given partition. Returns INFA_ROWSUCCESS
if the input row was processed successfully, INFA_ROWFAILURE if the input
row was not processed successfully and INFA_FATALERROR if the input row
causes the session to fail.
Input: partition - the handle for the partition for the given row
group - the handle for the input group for the given row
Output: None
Remarks: This function is probably where the meat of your code will go,
as it is called for every row that gets sent into your transformation.
**************************************************************************/
INFA_ROWSTATUS p_union_inputRowNotification( INFA_CT_PARTITION_HANDLE partition,
INFA_CT_INPUTGROUP_HANDLE inputGroup )
{
const INFA_CT_OUTPUTGROUP_HANDLE* outputGroups = NULL;
const INFA_CT_INPUTPORT_HANDLE* inputGroupPorts = NULL;
const INFA_CT_OUTPUTPORT_HANDLE* outputGroupPorts = NULL;
size_t nNumInputPorts = 0, nNumOutputGroups = 0,
nNumPortsInOutputGroup = 0, i = 0;
/* Get the output group port handles */
outputGroups = INFA_CTGetChildrenHandles(partition,
&nNumOutputGroups,
OUTPUTGROUPTYPE);
outputGroupPorts = INFA_CTGetChildrenHandles(outputGroups[0],
&nNumPortsInOutputGroup,
OUTPUTPORTTYPE);
/* Get the input groups port handles */
inputGroupPorts = INFA_CTGetChildrenHandles(inputGroup,
&nNumInputPorts,
INPUTPORTTYPE);
/* For the union transformation, on receiving a row of input, we need to
* output that row on the output group. */
for (i = 0; i < nNumInputPorts; i++)
{
INFA_CTSetData(outputGroupPorts[i],
INFA_CTGetDataVoid(inputGroupPorts[i]));
82 Chapter 3: Custom Transformation
INFA_CTSetIndicator(outputGroupPorts[i],
INFA_CTGetIndicator(inputGroupPorts[i]) );
INFA_CTSetLength(outputGroupPorts[i],
INFA_CTGetLength(inputGroupPorts[i]) );
}
/* We know there is only one output group for each partition */
return INFA_CTOutputNotification(outputGroups[0]);
}
/**************************************************************************
Function: p_union_eofNotification
Description: Notification that the last row for an input group has already
been seen. Return INFA_FAILURE if the session should fail as a result of
seeing this notification, INFA_SUCCESS otherwise.
Input: partition - the handle for the partition for the notification
group - the handle for the input group for the notification
Output: None
**************************************************************************/
INFA_STATUS p_union_eofNotification( INFA_CT_PARTITION_HANDLE partition,
INFA_CT_INPUTGROUP_HANDLE group)
{
INFA_CTLogMessageM( eESL_LOG,
"union_demo: An input group received an EOF notification");
return INFA_SUCCESS;
}
/**************************************************************************
Function: p_union_dataBdryNotification
Description: Notification that a transaction has ended. The data
boundary type can either be commit or rollback.
Return INFA_FAILURE if the session should fail as a result of
seeing this notification, INFA_SUCCESS otherwise.
Input: partition - the handle for the partition for the notification
transactionType - commit or rollback
Output: None
**************************************************************************/
Creating Custom Transformation Procedures 83
INFA_STATUS p_union_dataBdryNotification ( INFA_CT_PARTITION_HANDLE partition,
INFA_CT_DATABDRY_TYPE transactionType)
{
/* Do nothing */
return INFA_SUCCESS;
}
/* Helper functions */
/**************************************************************************
Function: validateProperties
Description: Validate that the transformation has all properties expected
by a union transformation, such as at least one input group, and only
one output group. Return INFA_FAILURE if the session should fail since the
transformation was invalid, INFA_SUCCESS otherwise.
Input: partition - the handle for the partition
Output: None
**************************************************************************/
INFA_STATUS validateProperties(const INFA_CT_PARTITION_HANDLE* partition)
{
const INFA_CT_INPUTGROUP_HANDLE* inputGroups = NULL;
const INFA_CT_OUTPUTGROUP_HANDLE* outputGroups = NULL;
size_t nNumInputGroups = 0, nNumOutputGroups = 0;
const INFA_CT_INPUTPORT_HANDLE** allInputGroupsPorts = NULL;
const INFA_CT_OUTPUTPORT_HANDLE* outputGroupPorts = NULL;
size_t nNumPortsInOutputGroup = 0;
size_t i = 0, nTempNumInputPorts = 0;
/* Get the input and output group handles */
inputGroups = INFA_CTGetChildrenHandles(partition[0],
&nNumInputGroups,
INPUTGROUPTYPE);
outputGroups = INFA_CTGetChildrenHandles(partition[0],
&nNumOutputGroups,
OUTPUTGROUPTYPE);
/* 1. Number of input groups must be >= 2 and number of output groups must
* be equal to one. */
if (nNumInputGroups < 1 || nNumOutputGroups != 1)
84 Chapter 3: Custom Transformation
{
INFA_CTLogMessageM( eESL_ERROR,
"UnionDemo: There must be at least two input groups "
"and only one output group");
return INFA_FAILURE;
}
/* 2. Verify that the same number of ports are in each group (including
* output group). */
outputGroupPorts = INFA_CTGetChildrenHandles(outputGroups[0],
&nNumPortsInOutputGroup,
OUTPUTPORTTYPE);
/* Allocate an array for all input groups ports */
allInputGroupsPorts = malloc(sizeof(INFA_CT_INPUTPORT_HANDLE*) *
nNumInputGroups);
for (i = 0; i < nNumInputGroups; i++)
{
allInputGroupsPorts[i] = INFA_CTGetChildrenHandles(inputGroups[i],
&nTempNumInputPorts,
INPUTPORTTYPE);
if ( nNumPortsInOutputGroup != nTempNumInputPorts)
{
INFA_CTLogMessageM( eESL_ERROR,
"UnionDemo: The number of ports in all input and "
"the output group must be the same.");
return INFA_FAILURE;
}
}
free(allInputGroupsPorts);
/* 3. Datatypes of ports in input group 1 must match data types of all other
* groups.
TODO:*/
return INFA_SUCCESS;
}
Creating Custom Transformation Procedures 85
Step 4. Build the Module
You can build the module on a Windows or UNIX platform.
Table 3-3 lists the library file names for each platform when you build the module:
Building the Module on Windows
On Windows, use Microsoft Visual C++ to build the module.
To build the module on Windows:
1. Start Visual C++.
2. Click File > New.
3. In the New dialog box, click the Projects tab and select the Win32 Dynamic-Link Library
option.
4. Enter its location.
In the Union example, enter <client_installation_directory>/TX/UnionDemo.
5. Enter the name of the project.
You must use the module name specified for the Custom transformation as the project
name. In the Union example, enter UnionDemo.
6. Click OK.
Visual C++ creates a wizard to help you define the project components.
7. In the wizard, select An empty DLL project and click Finish. Click OK in the New
Project Information dialog box.
Visual C++ creates the project files in the directory you specified.
8. Click Project > Add To Project > Files.
Table 3-3. Module File Names
Platform Module File Name
Windows <module_identifier>.dll
AIX lib<module_identifier>.a
HP-UX lib<module_identifier>.sl
Linux lib<module_identifier>.so
Solaris lib<module_identifier>.so
86 Chapter 3: Custom Transformation
9. Navigate up a directory level. This directory contains the procedure files you created.
Select all .c files and click OK.
In the Union example, add the following files:
m_UnionDemo.c
p_Union.c
10. Click Project > Settings.
11. Click the C/C++ tab, and select Preprocessor from the Category field.
12. In the Additional Include Directories field, enter the following path and click OK:
..; <PowerCenter_install_dir>\extproc\include\ct
13. Click Build > Build <module_name>.dll or press F7 to build the project.
Visual C++ creates the DLL and places it in the debug or release directory under the
project directory.
Building the Module on UNIX
On UNIX, use any C compiler to build the module.
To build the module on UNIX:
1. Copy all C files and makefiles generated by the Designer to the UNIX machine.
Note: If you build the shared library on a machine other than the Integration Service
machine, you must also copy the files in the following directory to the build machine:
<PowerCenter_install_dir>\ExtProc\include\ct
In the Union example, copy all files in <client_installation_directory>/TX/UnionDemo.
2. Set the environment variable INFA_HOME to the Integration Service installation
directory.
Note: If you specify an incorrect directory path for the INFA_HOME environment
variable, the Integration Service cannot start.
3. Enter a command from Table 3-4 to make the project.
Table 3-4. UNIX Commands to Build the Shared Library
UNIX Version Command
AIX (32-bit) make -f makefile.aix
AIX (64-bit) make -f makefile.aix64
HP-UX (32-bit) make -f makefile.hp
HP-UX (64-bit) make -f makefile.hp64
HP-UX PA-RISC make -f makefile.hpparisc64
Creating Custom Transformation Procedures 87
Step 5. Create a Mapping
In the Mapping Designer, create a mapping that uses the Custom transformation.
In the Union example, create a mapping similar to the one in Figure 3-8:
In this mapping, two sources with the same ports and datatypes connect to the two input
groups in the Custom transformation. The Custom transformation takes the rows from both
sources and outputs them all through its one output group. The output group has the same
ports and datatypes as the input groups.
Step 6. Run the Session in a Workflow
When you run the session, the Integration Service looks for the shared library or DLL in the
runtime location you specify in the Custom transformation.
To run a session in a workflow:
1. In the Workflow Manager, create a workflow.
2. Create a session for this mapping in the workflow.
3. Copy the shared library or DLL to the runtime location directory.
4. Run the workflow containing the session.
When the Integration Service loads a Custom transformation bound to a procedure, it
loads the DLL or shared library and calls the procedure you define.
Linux make -f makefile.linux
Solaris make -f makefile.sol

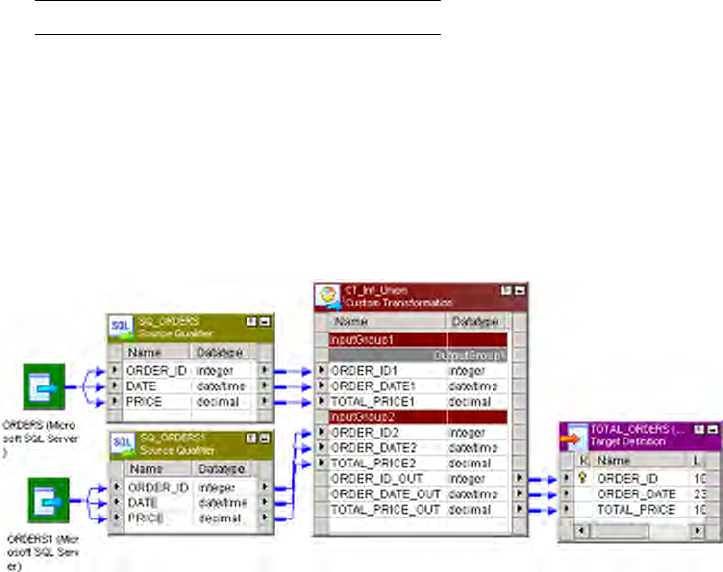

Figure 3-8. Mapping with a Custom Transformation - Union Example
Table 3-4. UNIX Commands to Build the Shared Library
UNIX Version Command
88 Chapter 3: Custom Transformation
89
Chapter 4
Custom Transformation
Functions
This chapter includes the following topics:
Overview, 90
Function Reference, 92
Working with Rows, 96
Generated Functions, 98
API Functions, 104
Array-Based API Functions, 130
Java API Functions, 138
C++ API Functions, 139
90 Chapter 4: Custom Transformation Functions
Overview
Custom transformations operate in conjunction with procedures you create outside of the
Designer to extend PowerCenter functionality. The Custom transformation functions allow
you to develop the transformation logic in a procedure you associate with a Custom
transformation. PowerCenter provides two sets of functions called generated and API
functions. The Integration Service uses generated functions to interface with the procedure.
When you create a Custom transformation and generate the source code files, the Designer
includes the generated functions in the files. Use the API functions in the procedure code to
develop the transformation logic.
When you write the procedure code, you can configure it to receive a block of rows from the
Integration Service or a single row at a time. You can increase the procedure performance
when it receives and processes a block of rows. For more information about receiving rows
from the Integration Service, see “Working with Rows” on page 96.
Working with Handles
Most functions are associated with a handle, such as INFA_CT_PARTITION_HANDLE.
The first parameter for these functions is the handle the function affects. Custom
transformation handles have a hierarchical relationship to each other. A parent handle has a
1:n relationship to its child handle.
Overview 91
Figure 4-1 shows the Custom transformation handles:
Table 4-1 describes the Custom transformation handles:
Figure 4-1. Custom Transformation Handles
Table 4-1. Custom Transformation Handles
Handle Name Description
INFA_CT_MODULE_HANDLE Represents the shared library or DLL. The external procedure can only access
the module handle in its own shared library or DLL. It cannot access the
module handle in any other shared library or DLL.
INFA_CT_PROC_HANDLE Represents a specific procedure within the shared library or DLL.
You might use this handle when you need to write a function to affect a
procedure referenced by multiple Custom transformations.
INFA_CT_TRANS_HANDLE Represents a specific Custom transformation instance in the session.
INFA_CT_PARTITION_HANDLE Represents a specific partition in a specific Custom transformation instance.
INFA_CT_INPUTGROUP_HANDLE Represents an input group in a partition.
INFA_CT_INPUTPORT_HANDLE Represents an input port in an input group in a partition.
INFA_CT_OUTPUTGROUP_HANDLE Represents an output group in a partition.
INFA_CT_OUTPUTPORT_HANDLE Represents an output port in an output group in a partition.
INFA_CT_MODULE_HANDLE
INFA_CT_PROC_HANDLE
INFA_CT_TRANS_HANDLE
INFA_CT_PARTITION_HANDLE
INFA_CT_INPUTGROUP_HANDLE INFA_CT_OUTPUTGROUP_HANDLE
INFA_CT_INPUTPORT_HANDLE INFA_CT_OUTPUTPORT_HANDLE
contains 1contains n
contains 1
contains 1
contains n
contains n
contains n
contains n
contains 1
contains 1contains 1
contains 1 contains n
contains n
Parent handle to INFA_CT_PROC_HANDLE
Child handle to INFA_CT_MODULE_HANDLE
92 Chapter 4: Custom Transformation Functions
Function Reference
The Custom transformation functions include generated and API functions.
Table 4-2 lists the Custom transformation generated functions:
Table 4-3 lists the Custom transformation API functions:
Table 4-2. Custom Transformation Generated Functions
Function Description
m_<module_name>_moduleInit() Module initialization function. For more information, see “Module
Initialization Function” on page 98.
p_<proc_name>_procInit() Procedure initialization function. For more information, see “Procedure
Initialization Function” on page 99.
p_<proc_name>_partitionInit() Partition initialization function. For more information, see “Partition
Initialization Function” on page 99.
p_<proc_name>_inputRowNotification() Input row notification function. For more information, see “Input Row
Notification Function” on page 100.
p_<proc_name>_dataBdryNotification() Data boundary notification function. For more information, see “Data
Boundary Notification Function” on page 101.
p_<proc_name>_eofNotification() End of file notification function. For more information, see “End Of File
Notification Function” on page 101.
p_<proc_name>_partitionDeinit() Partition deinitialization function. For more information, see “Partition
Deinitialization Function” on page 102.
p_<proc_name>_procedureDeinit() Procedure deinitialization function. For more information, see “Procedure
Deinitialization Function” on page 102.
m_<module_name>_moduleDeinit() Module deinitialization function. For more information, see “Module
Deinitialization Function” on page 103.
Table 4-3. Custom Transformation API Functions
Function Description
INFA_CTSetDataAccessMode() Set data access mode function. For more information, see “Set Data
Access Mode Function” on page 104.
INFA_CTGetAncestorHandle() Get ancestor handle function. For more information, see “Get Ancestor
Handle Function” on page 105.
INFA_CTGetChildrenHandles() Get children handles function. For more information, see “Get Children
Handles Function” on page 106.
INFA_CTGetInputPortHandle() Get input port handle function. For more information, see “Get Port
Handle Functions” on page 107.
INFA_CTGetOutputPortHandle() Get output port handle function. For more information, see “Get Port
Handle Functions” on page 107.
Function Reference 93
INFA_CTGetInternalProperty<datatype>() Get internal property function. For more information, see “Get Internal
Property Function” on page 108.
INFA_CTGetAllPropertyNamesM() Get all property names in MBCS mode function. For more information,
see “Get All External Property Names (MBCS or Unicode)” on
page 114.
INFA_CTGetAllPropertyNamesU() Get all property names in Unicode mode function. For more
information, see “Get All External Property Names (MBCS or Unicode)”
on page 114.
INFA_CTGetExternalProperty<datatype>M() Get external property in MBCS function. For more information, see Get
External Properties (MBCS or Unicode)” on page 114.
INFA_CTGetExternalProperty<datatype>U() Get external property in Unicode function. For more information, see
“Get External Properties (MBCS or Unicode)” on page 114.
INFA_CTRebindInputDataType() Rebind input port datatype function. For more information, see “Rebind
Datatype Functions” on page 115.
INFA_CTRebindOutputDataType() Rebind output port datatype function. For more information, see
“Rebind Datatype Functions” on page 115.
INFA_CTGetData<datatype>() Get data functions. For more information, see “Get Data Functions
(Row-Based Mode)” on page 118.
INFA_CTSetData() Set data functions. For more information, see “Set Data Function (Row-
Based Mode)” on page 118.
INFA_CTGetIndicator() Get indicator function. For more information, see “Indicator Functions
(Row-Based Mode)” on page 119.
INFA_CTSetIndicator() Set indicator function. For more information, see “Indicator Functions
(Row-Based Mode)” on page 119.
INFA_CTGetLength() Get length function. For more information, see “Length Functions” on
page 120.
INFA_CTSetLength() Set length function. For more information, see “Length Functions” on
page 120.
INFA_CTSetPassThruPort() Set pass-through port function. For more information, see “Set Pass-
Through Port Function” on page 120.
INFA_CTOutputNotification() Output notification function. For more information, see “Output
Notification Function” on page 121.
INFA_CTDataBdryOutputNotification() Data boundary output notification function. For more information, see
“Data Boundary Output Notification Function” on page 121.
INFA_CTGetErrorMsgU() Get error message in Unicode function. For more information, see
“Error Functions” on page 122.
INFA_CTGetErrorMsgM() Get error message in MBCS function. For more information, see “Error
Functions” on page 122.
INFA_CTLogMessageU() Log message in the session log in Unicode function. For more
information, see Session Log Message Functions” on page 123.
Table 4-3. Custom Transformation API Functions
Function Description
94 Chapter 4: Custom Transformation Functions
Table 4-4 lists the Custom transformation array-based functions:
INFA_CTLogMessageM() Log message in the session log in MBCS function. For more
information, see Session Log Message Functions” on page 123.
INFA_CTIncrementErrorCount() Increment error count function. For more information, see “Increment
Error Count Function” on page 124.
INFA_CTIsTerminateRequested() Is terminate requested function. For more information, see “Is
Terminated Function” on page 124.
INFA_CTBlockInputFlow() Block input groups function. For more information, see “Blocking
Functions” on page 125.
INFA_CTUnblockInputFlow() Unblock input groups function. For more information, see “Blocking
Functions” on page 125.
INFA_CTSetUserDefinedPtr() Set user-defined pointer function. For more information, see “Pointer
Functions” on page 126.
INFA_CTGetUserDefinedPtr() Get user-defined pointer function. For more information, see “Pointer
Functions” on page 126.
INFA_CTChangeStringMode() Change the string mode function. For more information, see “Change
String Mode Function” on page 126.
INFA_CTSetDataCodePageID() Set the data code page ID function. For more information, see “Set
Data Code Page Function” on page 127.
INFA_CTGetRowStrategy() Get row strategy function. For more information, see “Row Strategy
Functions (Row-Based Mode)” on page 128.
INFA_CTSetRowStrategy() Set the row strategy function. For more information, see “Row Strategy
Functions (Row-Based Mode)” on page 128.
INFA_CTChangeDefaultRowStrategy() Change the default row strategy of a transformation. For more
information, see “Change Default Row Strategy Function” on page 129.
Table 4-4. Custom Transformation Array-Based API Functions
Function Description
INFA_CTAGetInputRowMax() Get maximum number of input rows function. For more information, see
“Maximum Number of Rows Functions” on page 130.
INFA_CTAGetOutputRowMax() Get maximum number of output rows function. For more information,
see “Maximum Number of Rows Functions” on page 130.
INFA_CTASetOutputRowMax() Set maximum number of output rows function. For more information,
see “Maximum Number of Rows Functions” on page 130.
INFA_CTAGetNumRows() Get number of rows function. For more information, see “Number of
Rows Functions” on page 131.
INFA_CTASetNumRows() Set number of rows function. For more information, see “Number of
Rows Functions” on page 131.
Table 4-3. Custom Transformation API Functions
Function Description
Function Reference 95
INFA_CTAIsRowValid() Is row valid function. For more information, see “Is Row Valid Function
on page 132.
INFA_CTAGetData<datatype>() Get data functions. For more information, see Get Data Functions
(Array-Based Mode)” on page 133.
INFA_CTAGetIndicator() Get indicator function. For more information, see “Get Indicator
Function (Array-Based Mode)” on page 134.
INFA_CTASetData() Set data function. For more information, see “Set Data Function (Array-
Based Mode)” on page 134.
INFA_CTAGetRowStrategy() Get row strategy function. For more information, see “Row Strategy
Functions (Array-Based Mode)” on page 135.
INFA_CTASetRowStrategy() Set row strategy function. For more information, see “Row Strategy
Functions (Array-Based Mode)” on page 135.
INFA_CTASetInputErrorRowM() Set input error row function for MBCS. For more information, see “Set
Input Error Row Functions” on page 136.
INFA_CTASetInputErrorRowU() Set input error row function for Unicode. For more information, see “Set
Input Error Row Functions” on page 136.
Table 4-4. Custom Transformation Array-Based API Functions
Function Description
96 Chapter 4: Custom Transformation Functions
Working with Rows
The Integration Service can pass a single row to a Custom transformation procedure or a
block of rows in an array. You can write the procedure code to specify whether the procedure
receives one row or a block of rows. You can increase performance when the procedure
receives a block of rows:
You can decrease the number of function calls the Integration Service and procedure make.
The Integration Service calls the input row notification function fewer times, and the
procedure calls the output notification function fewer times.
You can increase the locality of memory access space for the data.
You can write the procedure code to perform an algorithm on a block of data instead of
each row of data.
By default, the procedure receives a row of data at a time. To receive a block of rows, you must
include the INFA_CTSetDataAccessMode() function to change the data access mode to
array-based. When the data access mode is array-based, you must use the array-based data
handling and row strategy functions to access and output the data. When the data access
mode is row-based, you must use the row-based data handling and row strategy functions to
access and output the data.
All array-based functions use the prefix INFA_CTA. All other functions use the prefix
INFA_CT. For more information about the array-based functions, see Array-Based API
Functions” on page 130.
Use the following steps to write the procedure code to access a block of rows:
1. Call INFA_CTSetDataAccessMode() during the procedure initialization, to change the
data access mode to array-based.
2. When you create a passive Custom transformation, you can also call
INFA_CTSetPassThruPort() during procedure initialization to pass through the data for
input/output ports.
When a block of data reaches the Custom transformation procedure, the Integration
Service calls p_<proc_name>_inputRowNotification() for each block of data. Perform
the rest of the steps inside this function.
3. Call INFA_CTAGetNumRows() using the input group handle in the input row
notification function to find the number of rows in the current block.
4. Call one of the INFA_CTAGetData<datatype>() functions using the input port handle
to get the data for a particular row in the block.
5. Call INFA_CTASetData to output rows in a block.
6. Before calling INFA_CTOutputNotification(), call INFA_CTASetNumRows() to notify
the Integration Service of the number of rows the procedure is outputting in the block.
7. Call INFA_CTOutputNotification().
Working with Rows 97
Rules and Guidelines
Use the following rules and guidelines when you write the procedure code to use either row-
based or array-based data access mode:
In row-based mode, you can return INFA_ROWERROR in the input row notification
function to indicate the function encountered an error for the row of data on input. The
Integration Service increments the internal error count.
In array-based mode, do not return INFA_ROWERROR in the input row notification
function. The Integration Service treats that as a fatal error. If you need to indicate a row
in a block has an error, call the INFA_CTASetInputErrorRowM() or
INFA_CTASetInputErrorRowU() function.
In row-based mode, the Integration Service only passes valid rows to the procedure.
In array-based mode, an input block may contain invalid rows, such as dropped, filtered,
or error rows. Call INFA_CTAIsRowValid() to determine if a row in a block is valid.
In array-based mode, do not call INFA_CTASetNumRows() for a passive Custom
transformation. You can call this function for active Custom transformations.
In array-based mode, call INFA_CTOutputNotification() once.
In array-based mode, you can call INFA_CTSetPassThruPort() only for passive Custom
transformations.
In array-based mode for passive Custom transformations, you must output all rows in an
output block, including any error row.
98 Chapter 4: Custom Transformation Functions
Generated Functions
When you use the Designer to generate the procedure code, the Designer includes a set of
functions called generated functions in the m_<module_name>.c and p_<procedure_name>.c
files. The Integration Service uses the generated functions to interface with the procedure.
When you run a session, the Integration Service calls these generated functions in the
following order for each target load order group in the mapping:
1. Initialization functions
2. Notification functions
3. Deinitialization functions
Initialization Functions
The Integration Service first calls the initialization functions. Use the initialization functions
to write processes you want the Integration Service to run before it passes data to the Custom
transformation. Writing code in the initialization functions reduces processing overhead
because the Integration Service runs these processes only once for a module, procedure, or
partition.
The Designer generates the following initialization functions:
m_<module_name>_moduleInit(). For more information, see Module Initialization
Function” on page 98.
p_<proc_name>_procInit(). For more information, see “Procedure Initialization
Function” on page 99.
p_<proc_name>_partitionInit(). For more information, see “Partition Initialization
Function” on page 99.
Module Initialization Function
The Integration Service calls the m_<module_name>_moduleInit() function during session
initialization, before it runs the pre-session tasks. It calls this function, once for a module,
before all other functions.
If you want the Integration Service to run a specific process when it loads the module, you
must include it in this function. For example, you might write code to create global structures
that procedures within this module access.
Use the following syntax:
INFA_STATUS m_<module_name>_moduleInit(INFA_CT_MODULE_HANDLE module);
Argument Datatype Input/
Output Description
module INFA_CT_MODULE_HANDLE Input Module handle.
Generated Functions 99
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value. When the function returns INFA_FAILURE, the Integration Service fails
the session.
Procedure Initialization Function
The Integration Service calls p_<proc_name>_procInit() function during session
initialization, before it runs the pre-session tasks and after it runs the module initialization
function. The Integration Service calls this function once for each procedure in the module.
Write code in this function when you want the Integration Service to run a process for a
particular procedure. You can also enter some API functions in the procedure initialization
function, such as navigation and property functions.
Use the following syntax:
INFA_STATUS p_<proc_name>_procInit(INFA_CT_PROCEDURE_HANDLE procedure);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value. When the function returns INFA_FAILURE, the Integration Service fails
the session.
Partition Initialization Function
The Integration Service calls p_<proc_name>_partitionInit() function before it passes data to
the Custom transformation. The Integration Service calls this function once for each partition
at a Custom transformation instance.
If you want the Integration Service to run a specific process before it passes data through a
partition of the Custom transformation, you must include it in this function.
Use the following syntax:
INFA_STATUS p_<proc_name>_partitionInit(INFA_CT_PARTITION_HANDLE
transformation);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value. When the function returns INFA_FAILURE, the Integration Service fails
the session.
Note: When the Custom transformation requires one thread for each partition, you can
include thread-specific operations in the partition initialization function. For more
Argument Datatype Input/
Output Description
procedure INFA_CT_PROCEDURE_HANDLE Input Procedure handle.
Argument Datatype Input/
Output Description
transformation INFA_CT_PARTITION_HANDLE Input Partition handle.
100 Chapter 4: Custom Transformation Functions
information about working with thread-specific procedure code, see “Working with Thread-
Specific Procedure Code” on page 66.
Notification Functions
The Integration Service calls the notification functions when it passes a row of data to the
Custom transformation.
The Designer generates the following notification functions:
p_<proc_name>_inputRowNotification(). For more information, see “Input Row
Notification Function” on page 100.
p_<proc_name>_dataBdryRowNotification(). For more information, see “Data Boundary
Notification Function” on page 101.
p_<proc_name>_eofNotification(). For more information, see “End Of File Notification
Function” on page 101.
Note: When the Custom transformation requires one thread for each partition, you can
include thread-specific operations in the notification functions. For more information about
working with thread-specific procedure code, see “Working with Thread-Specific Procedure
Code” on page 66.
Input Row Notification Function
The Integration Service calls the p_<proc_name>_inputRowNotification() function when it
passes a row or a block of rows to the Custom transformation. It notes which input group and
partition receives data through the input group handle and partition handle.
Use the following syntax:
INFA_ROWSTATUS
p_<proc_name>_inputRowNotification(INFA_CT_PARTITION_HANDLE Partition,
INFA_CT_INPUTGROUP_HANDLE group);
The datatype of the return value is INFA_ROWSTATUS. Use the following values for the
return value:
INFA_ROWSUCCESS. Indicates the function successfully processed the row of data.
INFA_ROWERROR. Indicates the function encountered an error for the row of data. The
Integration Service increments the internal error count. Only return this value when the
data access mode is row.
If the input row notification function returns INFA_ROWERROR in array-based mode,
the Integration Service treats it as a fatal error. If you need to indicate a row in a block has
Argument Datatype Input/
Output Description
partition INFA_CT_PARTITION_HANDLE Input Partition handle.
group INFA_CT_INPUTGROUP_HANDLE Input Input group handle.
Generated Functions 101
an error, call the INFA_CTASetInputErrorRowM() or INFA_CTASetInputErrorRowU()
function.
INFA_FATALERROR. Indicates the function encountered a fatal error for the row of data
or the block of data. The Integration Service fails the session.
Data Boundary Notification Function
The Integration Service calls the p_<proc_name>_dataBdryNotification() function when it
passes a commit or rollback row to a partition.
Use the following syntax:
INFA_STATUS p_<proc_name>_dataBdryNotification(INFA_CT_PARTITION_HANDLE
transformation, INFA_CTDataBdryType dataBoundaryType);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value. When the function returns INFA_FAILURE, the Integration Service fails
the session.
End Of File Notification Function
The Integration Service calls the p_<proc_name>_eofNotification() function after it passes
the last row to a partition in an input group.
Use the following syntax:
INFA_STATUS p_<proc_name>_eofNotification(INFA_CT_PARTITION_HANDLE
transformation, INFA_CT_INPUTGROUP_HANDLE group);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value. When the function returns INFA_FAILURE, the Integration Service fails
the session.
Argument Datatype Input/
Output Description
transformation INFA_CT_PARTITION_HANDLE Input Partition handle.
dataBoundaryType INFA_CTDataBdryType Input Integration Service uses one of the
following values for the dataBoundaryType
parameter:
- eBT_COMMIT
- eBT_ROLLBACK
Argument Datatype Input/
Output Description
transformation INFA_CT_PARTITION_HANDLE Input Partition handle.
group INFA_CT_INPUTGROUP_HANDLE Input Input group handle.
102 Chapter 4: Custom Transformation Functions
Deinitialization Functions
The Integration Service calls the deinitialization functions after it processes data for the
Custom transformation. Use the deinitialization functions to write processes you want the
Integration Service to run after it passes all rows of data to the Custom transformation.
The Designer generates the following deinitialization functions:
p_<proc_name>_partitionDeinit(). For more information, see “Partition Deinitialization
Function” on page 102.
p_<proc_name>_procDeinit(). For more information, see “Procedure Deinitialization
Function” on page 102.
m_<module_name>_moduleDeinit(). For more information, see “Module
Deinitialization Function” on page 103.
Note: When the Custom transformation requires one thread for each partition, you can
include thread-specific operations in the initialization and deinitialization functions. For
more information about working with thread-specific procedure code, see “Working with
Thread-Specific Procedure Code” on page 66.
Partition Deinitialization Function
The Integration Service calls the p_<proc_name>_partitionDeinit() function after it calls the
p_<proc_name>_eofNotification() or p_<proc_name>_abortNotification() function. The
Integration Service calls this function once for each partition of the Custom transformation.
Use the following syntax:
INFA_STATUS p_<proc_name>_partitionDeinit(INFA_CT_PARTITION_HANDLE
partition);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value. When the function returns INFA_FAILURE, the Integration Service fails
the session.
Note: When the Custom transformation requires one thread for each partition, you can
include thread-specific operations in the partition deinitialization function. For more
information about working with thread-specific procedure code, see “Working with Thread-
Specific Procedure Code” on page 66.
Procedure Deinitialization Function
The Integration Service calls the p_<proc_name>_procDeinit() function after it calls the
p_<proc_name>_partitionDeinit() function for all partitions of each Custom transformation
instance that uses this procedure in the mapping.
Argument Datatype Input/
Output Description
partition INFA_CT_PARTITION_HANDLE Input Partition handle.
Generated Functions 103
Use the following syntax:
INFA_STATUS p_<proc_name>_procDeinit(INFA_CT_PROCEDURE_HANDLE procedure,
INFA_STATUS sessionStatus);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value. When the function returns INFA_FAILURE, the Integration Service fails
the session.
Module Deinitialization Function
The Integration Service calls the m_<module_name>_moduleDeinit() function after it runs
the post-session tasks. It calls this function, once for a module, after all other functions.
Use the following syntax:
INFA_STATUS m_<module_name>_moduleDeinit(INFA_CT_MODULE_HANDLE module,
INFA_STATUS sessionStatus);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value. When the function returns INFA_FAILURE, the Integration Service fails
the session.
Argument Datatype Input/
Output Description
procedure INFA_CT_PROCEDURE_HANDLE Input Procedure handle.
sessionStatus INFA_STATUS Input Integration Service uses one of the
following values for the sessionStatus
parameter:
- INFA_SUCCESS. Indicates the session
succeeded.
- INFA_FAILURE. Indicates the session
failed.
Argument Datatype Input/
Output Description
module INFA_CT_MODULE_HANDLE Input Module handle.
sessionStatus INFA_STATUS Input Integration Service uses one of the
following values for the sessionStatus
parameter:
- INFA_SUCCESS. Indicates the session
succeeded.
- INFA_FAILURE. Indicates the session
failed.
104 Chapter 4: Custom Transformation Functions
API Functions
PowerCenter provides a set of API functions that you use to develop the transformation logic.
When the Designer generates the source code files, it includes the generated functions in the
source code. Add API functions to the code to implement the transformation logic. The
procedure uses the API functions to interface with the Integration Service. You must code API
functions in the procedure C file. Optionally, you can also code the module C file.
Informatica provides the following groups of API functions:
Set data access mode. See “Set Data Access Mode Function” on page 104.
Navigation. See “Navigation Functions” on page 105.
Property. See “Property Functions” on page 108.
Rebind datatype. See “Rebind Datatype Functions” on page 115.
Data handling (row-based mode). See “Data Handling Functions (Row-Based Mode)” on
page 117.
Set pass-through port. See “Set Pass-Through Port Function” on page 120.
Output notification. See “Output Notification Function” on page 121.
Data boundary output notification. See “Data Boundary Output Notification Function
on page 121.
Error. See “Error Functions on page 122.
Session log message. See “Session Log Message Functions” on page 123.
Increment error count. See “Increment Error Count Function on page 124.
Is terminated. See “Is Terminated Functionon page 124.
Blocking. See “Blocking Functions” on page 125.
Pointer. See “Pointer Functions” on page 126.
Change string mode. See “Change String Mode Function” on page 126.
Set data code page. See “Set Data Code Page Function” on page 127.
Row strategy (row-based mode). See Row Strategy Functions (Row-Based Mode)” on
page 128.
Change default row strategy. See Change Default Row Strategy Function” on page 129.
Informatica also provides array-based API Functions. For more information about array-based
API functions, see Array-Based API Functions” on page 130.
Set Data Access Mode Function
By default, the Integration Service passes data to the Custom transformation procedure one
row at a time. However, use the INFA_CTSetDataAccessMode() function to change the data
access mode to array-based. When you set the data access mode to array-based, the
Integration Service passes multiple rows to the procedure as a block in an array.
API Functions 105
When you set the data access mode to array-based, you must use the array-based versions of
the data handling functions and row strategy functions. When you use a row-based data
handling or row strategy function and you switch to array-based mode, you will get
unexpected results. For example, the DLL or shared library might crash.
You can only use this function in the procedure initialization function.
If you do not use this function in the procedure code, the data access mode is row-based.
However, when you want the data access mode to be row-based, include this function and set
the access mode to row-based.
For more information about the array-based functions, see “Array-Based API Functions” on
page 130.
Use the following syntax:
INFA_STATUS INFA_CTSetDataAccessMode( INFA_CT_PROCEDURE_HANDLE procedure,
INFA_CT_DATA_ACCESS_MODE mode );
Navigation Functions
Use the navigation functions when you want the procedure to navigate through the handle
hierarchy. For more information about handles, see “Working with Handles” on page 90.
PowerCenter provides the following navigation functions:
INFA_CTGetAncestorHandle(). For more information, see “Get Ancestor Handle
Function” on page 105.
INFA_CTGetChildrenHandles(). For more information, see “Get Children Handles
Function” on page 106.
INFA_CTGetInputPortHandle(). For more information, see “Get Port Handle
Functions” on page 107.
INFA_CTGetOutputPortHandle(). For more information, see “Get Port Handle
Functions” on page 107.
Get Ancestor Handle Function
Use the INFA_CTGetAncestorHandle() function when you want the procedure to access a
parent handle of a given handle.
Argument Datatype Input/
Output Description
procedure INFA_CT_PROCEDURE_HANDLE Input Procedure name.
mode INFA_CT_DATA_ACCESS_MODE Input Data access mode.
Use the following values for the mode
parameter:
- eDA_ROW
- eDA_ARRAY
106 Chapter 4: Custom Transformation Functions
Use the following syntax:
INFA_CT_HANDLE INFA_CTGetAncestorHandle(INFA_CT_HANDLE handle,
INFA_CTHandleType returnHandleType);
The handle parameter specifies the handle whose parent you want the procedure to access.
The Integration Service returns INFA_CT_HANDLE if you specify a valid handle in the
function. Otherwise, it returns a null value.
To avoid compilation errors, you must code the procedure to set a handle name to the return
value.
For example, you can enter the following code:
INFA_CT_MODULE_HANDLE module = INFA_CTGetAncestorHandle(procedureHandle,
INFA_CT_HandleType);
Get Children Handles Function
Use the INFA_CTGetChildrenHandles() function when you want the procedure to access the
children handles of a given handle.
Use the following syntax:
INFA_CT_HANDLE* INFA_CTGetChildrenHandles(INFA_CT_HANDLE handle, size_t*
pnChildrenHandles, INFA_CTHandleType returnHandleType);
Argument Datatype Input/
Output Description
handle INFA_CT_HANDLE Input Handle name.
returnHandleType INFA_CTHandleType Input Return handle type.
Use the following values for the returnHandleType
parameter:
- PROCEDURETYPE
- TRANSFORMATIONTYPE
- PARTITIONTYPE
- INPUTGROUPTYPE
- OUTPUTGROUPTYPE
- INPUTPORTTYPE
- OUTPUTPORTTYPE
Argument Datatype Input/
Output Description
handle INFA_CT_HANDLE Input Handle name.
API Functions 107
The handle parameter specifies the handle whose children you want the procedure to access.
The Integration Service returns INFA_CT_HANDLE* when you specify a valid handle in the
function. Otherwise, it returns a null value.
To avoid compilation errors, you must code the procedure to set a handle name to the
returned value.
For example, you can enter the following code:
INFA_CT_PARTITION_HANDLE partition =
INFA_CTGetChildrenHandles(procedureHandle, pnChildrenHandles,
INFA_CT_PARTITION_HANDLE_TYPE);
Get Port Handle Functions
The Integration Service associates the INFA_CT_INPUTPORT_HANDLE with input and
input/output ports, and the INFA_CT_OUTPUTPORT_HANDLE with output and input/
output ports.
PowerCenter provides the following get port handle functions:
INFA_CTGetInputPortHandle(). Use this function when the procedure knows the
output port handle for an input/output port and needs the input port handle.
Use the following syntax:
INFA_CTINFA_CT_INPUTPORT_HANDLE
INFA_CTGetInputPortHandle(INFA_CT_OUTPUTPORT_HANDLE outputPortHandle);
INFA_CTGetOutputPortHandle(). Use this function when the procedure knows the
input port handle for an input/output port and needs the output port handle.
pnChildrenHandles size_t* Output Integration Service returns an array of children
handles. The pnChildrenHandles parameter
indicates the number of children handles in the
array.
returnHandleType INFA_CTHandleType Input Use the following values for the returnHandleType
parameter:
- PROCEDURETYPE
- TRANSFORMATIONTYPE
- PARTITIONTYPE
- INPUTGROUPTYPE
- OUTPUTGROUPTYPE
- INPUTPORTTYPE
- OUTPUTPORTTYPE
Argument Datatype Input/
Output Description
outputPortHandle INFA_CT_OUTPUTPORT_HANDLE input Output port handle.
Argument Datatype Input/
Output Description
108 Chapter 4: Custom Transformation Functions
Use the following syntax:
INFA_CT_OUTPUTPORT_HANDLE
INFA_CTGetOutputPortHandle(INFA_CT_INPUTPORT_HANDLE inputPortHandle);
The Integration Service returns NULL when you use the get port handle functions with input
or output ports.
Property Functions
Use the property functions when you want the procedure to access the Custom
transformation properties. The property functions access properties on the following tabs of
the Custom transformation:
Ports
Properties
Initialization Properties
Metadata Extensions
Port Attribute Definitions
Use the following property functions in initialization functions:
INFA_CTGetInternalProperty<datatype>(). For more information, see “Get Internal
Property Function” on page 108.
INFA_CTGetAllPropertyNamesM(). For more information, see “Get All External
Property Names (MBCS or Unicode)” on page 114.
INFA_CTGetAllPropertyNamesU(). For more information, see “Get All External
Property Names (MBCS or Unicode)” on page 114.
INFA_CTGetExternalProperty<datatype>M(). For more information, see “Get External
Properties (MBCS or Unicode)” on page 114.
INFA_CTGetExternalProperty<datatype>U(). For more information, see “Get External
Properties (MBCS or Unicode)” on page 114.
Get Internal Property Function
PowerCenter provides functions to access the port attributes specified on the ports tab, and
properties specified for attributes on the Properties tab of the Custom transformation.
The Integration Service associates each port and property attribute with a property ID. You
must specify the property ID in the procedure to access the values specified for the attributes.
For more information about property IDs, see “Port and Property Attribute Property IDs” on
page 109. For the handle parameter, specify a handle name from the handle hierarchy. The
Integration Service fails the session if the handle name is invalid.
Argument Datatype Input/
Output Description
inputPortHandle INFA_CT_INPUTPORT_HANDLE input Input port handle.
API Functions 109
Use the following functions when you want the procedure to access the properties:
INFA_CTGetInternalPropertyStringM(). Accesses a value of type string in MBCS for a
given property ID.
Use the following syntax:
INFA_STATUS INFA_CTGetInternalPropertyStringM( INFA_CT_HANDLE handle,
size_t propId, const char** psPropValue );
INFA_CTGetInternalPropertyStringU(). Accesses a value of type string in Unicode for a
given property ID.
Use the following syntax:
INFA_STATUS INFA_CTGetInternalPropertyStringU( INFA_CT_HANDLE handle,
size_t propId, const INFA_UNICHAR** psPropValue );
INFA_CTGetInternalPropertyInt32(). Accesses a value of type integer for a given
property ID.
Use the following syntax:
INFA_STATUS INFA_CTGetInternalPropertyInt32( INFA_CT_HANDLE handle,
size_t propId, INFA_INT32* pnPropValue );
INFA_CTGetInternalPropertyBool(). Accesses a value of type Boolean for a given
property ID.
Use the following syntax:
INFA_STATUS INFA_CTGetInternalPropertyBool( INFA_CT_HANDLE handle, size_t
propId, INFA_BOOLEN* pbPropValue );
INFA_CTGetInternalPropertyINFA_PTR(). Accesses a pointer to a value for a given
property ID.
Use the following syntax:
INFA_STATUS INFA_CTGetInternalPropertyINFA_PTR( INFA_CT_HANDLE handle,
size_t propId, INFA_PTR* pvPropValue );
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Port and Property Attribute Property IDs
The following tables list the property IDs for the port and property attributes in the Custom
transformation. Each table lists a Custom transformation handle and the property IDs you
can access with the handle in a property function.
Table 4-5 lists INFA_CT_MODULE _HANDLE property IDs:
Table 4-5. INFA_CT_MODULE Property IDs
Handle Property ID Datatype Description
INFA_CT_MODULE_NAME String Specifies the module name.
INFA_CT_SESSION_INFA_VERSION String Specifies the Informatica version.
110 Chapter 4: Custom Transformation Functions
Table 4-6 lists INFA_CT_PROC_HANDLE property IDs:
INFA_CT_SESSION_CODE_PAGE Integer Specifies the Integration Service code page.
INFA_CT_SESSION_DATAMOVEMENT_MODE Integer Specifies the data movement mode. The
Integration Service returns one of the following
values:
- eASM_MBCS
- eASM_UNICODE
INFA_CT_SESSION_VALIDATE_CODEPAGE Boolean Specifies whether the Integration Service enforces
code page validation.
INFA_CT_SESSION_PROD_INSTALL_DIR String Specifies the Integration Service installation
directory.
INFA_CT_SESSION_HIGH_PRECISION_MODE Boolean Specifies whether session is configured for high
precision.
INFA_CT_MODULE_RUNTIME_DIR String Specifies the runtime directory for the DLL or
shared library.
INFA_CT_SESSION_IS_UPD_STR_ALLOWED Boolean Specifies whether the Update Strategy
Transformation property is selected in the
transformation.
INFA_CT_TRANS_OUTPUT_IS_
REPEATABLE
Integer Specifies whether the Custom transformation
produces data in the same order in every session
run. The Integration Service returns one of the
following values:
- eOUTREPEAT_NEVER = 1
- eOUTREPEAT_ALWAYS = 2
- eOUTREPEAT_BASED_ON_INPUT_ORDER = 3
INFA_CT_TRANS_FATAL_ERROR Boolean Specifies if the Custom Transformation caused a
fatal error. The Integration Service returns one of
the following values:
- INFA_TRUE
- INFA_FALSE
Table 4-6. INFA_CT_PROC_HANDLE Property IDs
Handle Property ID Datatype Description
INFA_CT_PROCEDURE_NAME String Specifies the Custom transformation procedure
name.
Table 4-5. INFA_CT_MODULE Property IDs
Handle Property ID Datatype Description
A P I Fu nc tio ns 111
Table 4-7 lists INFA_CT_TRANS_HANDLE property IDs:
Table 4-7. INFA_CT_TRANS_HANDLE Property IDs
Handle Property ID Datatype Description
INFA_CT_TRANS_INSTANCE_NAME String Specifies the Custom transformation instance
name.
INFA_CT_TRANS_TRACE_LEVEL Integer Specifies the tracing level. The Integration Service
returns one of the following values:
- eTRACE_TERSE
- eTRACE_NORMAL
- eTRACE_VERBOSE_INIT
- eTRACE_VERBOSE_DATA
INFA_CT_TRANS_MAY_BLOCK_DATA Boolean Specifies if the Integration Service allows the
procedure to block input data in the current session.
INFA_CT_TRANS_MUST_BLOCK_DATA Boolean Specifies if the Inputs Must Block Custom
transformation property is selected.
INFA_CT_TRANS_ISACTIVE Boolean Specifies whether the Custom transformation is an
active or passive transformation.
INFA_CT_TRANS_ISPARTITIONABLE Boolean Specifies if you can partition sessions that use this
Custom transformation.
INFA_CT_TRANS_IS_UPDATE_
STRATEGY
Boolean Specifies if the Custom transformation behaves like
an Update Strategy transformation.
INFA_CT_TRANS_DEFAULT_UPDATE_STRATE
GY
Integer Specifies the default update strategy.
- eDUS_INSERT
- eDUS_UPDATE
- eDUS_DELETE
- eDUS_REJECT
- eDUS_PASSTHROUGH
INFA_CT_TRANS_NUM_PARTITIONS Integer Specifies the number of partitions in the sessions
that use this Custom transformation.
INFA_CT_TRANS_DATACODEPAGE Integer Specifies the code page in which the Integration
Service passes data to the Custom transformation.
Use the set data code page function if you want the
Custom transformation to access data in a different
code page. For more information, see “Set Data
Code Page Function” on page 127.
INFA_CT_TRANS_TRANSFORM_
SCOPE
Integer Specifies the transformation scope in the Custom
transformation. The Integration Service returns one
of the following values:
- eTS_ROW
- eTS_TRANSACTION
- eTS_ALLINPUT
112 Chapter 4: Custom Transformation Functions
Table 4-8 lists INFA_CT_INPUT_GROUP_HANDLE and
INFA_CT_OUTPUT_GROUP_HANDLE property IDs:
INFA_CT_TRANS_GENERATE_
TRANSACT
Boolean Specifies if the Generate Transaction property is
enabled. The Integration Service returns one of the
following values:
- INFA_TRUE
- INFA_FALSE
INFA_CT_TRANS_OUTPUT_IS_
REPEATABLE
Integer Specifies whether the Custom transformation
produces data in the same order in every session
run. The Integration Service returns one of the
following values:
- eOUTREPEAT_NEVER = 1
- eOUTREPEAT_ALWAYS = 2
- eOUTREPEAT_BASED_ON_INPUT_ORDER = 3
INFA_CT_TRANS_FATAL_ERROR Boolean Specifies if the Custom Transformation caused a
fatal error. The Integration Service returns one of
the following values:
- INFA_TRUE
- INFA_FALSE
Table 4-8. INFA_CT_INPUT_GROUP and INFA_CT_OUTPUT_GROUP
Handle Property IDs
Handle Property ID Datatype Description
INFA_CT_GROUP_NAME String Specifies the group name.
INFA_CT_GROUP_NUM_PORTS Integer Specifies the number of ports in the group.
INFA_CT_GROUP_ISCONNECTED Boolean Specifies if all ports in a group are connected to
another transformation.
INFA_CT_PORT_NAME String Specifies the port name.
INFA_CT_PORT_CDATATYPE Integer Specifies the port datatype. The Integration Service
returns one of the following values:
- eINFA_CTYPE_SHORT
- eINFA_CTYPE_INT32
- eINFA_CTYPE_CHAR
- eINFA_CTYPE_RAW
- eINFA_CTYPE_UNICHAR
- eINFA_CTYPE_TIME
- eINFA_CTYPE_FLOAT
- eINFA_CTYPE_DOUBLE
- eINFA_CTYPE_DECIMAL18_FIXED
- eINFA_CTYPE_DECIMAL28_FIXED
- eINFA_CTYPE_INFA_CTDATETIME
INFA_CT_PORT_PRECISION Integer Specifies the port precision.
INFA_CT_PORT_SCALE Integer Specifies the port scale (if applicable).
Table 4-7. INFA_CT_TRANS_HANDLE Property IDs
Handle Property ID Datatype Description
API F unc t ion s 113
Table 4-9 lists INFA_CT_INPUTPORT_HANDLE and INFA_CT_OUTPUT_HANDLE
property IDs:
INFA_CT_PORT_IS_MAPPED Boolean Specifies whether the port is linked to other
transformations in the mapping.
INFA_CT_PORT_STORAGESIZE Integer Specifies the internal storage size of the data for a
port. The storage size depends on the datatype of
the port.
INFA_CT_PORT_BOUNDDATATYPE Integer Specifies the port datatype. Use instead of
INFA_CT_PORT_CDATATYPE if you rebind the port
and specify a datatype other than the default. For
more information about rebinding a port, see
“Rebind Datatype Functions” on page 115.
Table 4-9. INFA_CT_INPUTPORT and INFA_CT_OUTPUTPORT_HANDLE
Handle Property IDs
Handle Property ID Datatype Description
INFA_CT_PORT_NAME String Specifies the port name.
INFA_CT_PORT_CDATATYPE Integer Specifies the port datatype. The Integration Service
returns one of the following values:
- eINFA_CTYPE_SHORT
- eINFA_CTYPE_INT32
- eINFA_CTYPE_CHAR
- eINFA_CTYPE_RAW
- eINFA_CTYPE_UNICHAR
- eINFA_CTYPE_TIME
- eINFA_CTYPE_FLOAT
- eINFA_CTYPE_DOUBLE
- eINFA_CTYPE_DECIMAL18_FIXED
- eINFA_CTYPE_DECIMAL28_FIXED
- eINFA_CTYPE_INFA_CTDATETIME
INFA_CT_PORT_PRECISION Integer Specifies the port precision.
INFA_CT_PORT_SCALE Integer Specifies the port scale (if applicable).
INFA_CT_PORT_IS_MAPPED Boolean Specifies whether the port is linked to other
transformations in the mapping.
INFA_CT_PORT_STORAGESIZE Integer Specifies the internal storage size of the data for a
port. The storage size depends on the datatype of
the port.
INFA_CT_PORT_BOUNDDATATYPE Integer Specifies the port datatype. Use instead of
INFA_CT_PORT_CDATATYPE if you rebind the port
and specify a datatype other than the default. For
more information about rebinding a port, see
“Rebind Datatype Functions” on page 115.
Table 4-8. INFA_CT_INPUT_GROUP and INFA_CT_OUTPUT_GROUP
Handle Property IDs
Handle Property ID Datatype Description
114 Chapter 4: Custom Transformation Functions
Get All External Property Names (MBCS or Unicode)
PowerCenter provides two functions to access the property names defined on the Metadata
Extensions tab, Initialization Properties tab, and Port Attribute Definitions tab of the Custom
transformation.
Use the following functions when you want the procedure to access the property names:
INFA_CTGetAllPropertyNamesM(). Accesses the property names in MBCS.
Use the following syntax:
INFA_STATUS INFA_CTGetAllPropertyNamesM(INFA_CT_HANDLE handle, const
char*const** paPropertyNames, size_t* pnProperties);
INFA_CTGetAllPropertyNamesU(). Accesses the property names in Unicode.
Use the following syntax:
INFA_STATUS INFA_CTGetAllPropertyNamesU(INFA_CT_HANDLE handle, const
INFA_UNICHAR*const** pasPropertyNames, size_t* pnProperties);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Get External Properties (MBCS or Unicode)
PowerCenter provides functions to access the values of the properties defined on the Metadata
Extensions tab, Initialization Properties tab, or Port Attribute Definitions tab of the Custom
transformation.
You must specify the property names in the functions if you want the procedure to access the
values. Use the INFA_CTGetAllPropertyNamesM() or INFA_CTGetAllPropertyNamesU()
Argument Datatype Input/
Output Description
handle INFA_CT_HANDLE Input Specify the handle name.
paPropertyNames const char*const** Output Specifies the property name. The Integration
Service returns an array of property names in
MBCS.
pnProperties size_t* Output Indicates the number of properties in the array.
Argument Datatype Input/
Output Description
handle INFA_CT_HANDLE Input Specify the handle name.
paPropertyNames const
INFA_UNICHAR*const**
Output Specifies the property name. The Integration
Service returns an array of property names in
Unicode.
pnProperties size_t* Output Indicates the number of properties in the array.
API F unc t ion s 115
functions to access property names. For the handle parameter, specify a handle name from the
handle hierarchy. The Integration Service fails the session if the handle name is invalid.
Note: If you define an initialization property with the same name as a metadata extension, the
Integration Service returns the metadata extension value.
Use the following functions when you want the procedure to access the values of the
properties:
INFA_CTGetExternalProperty<datatype>M(). Accesses the value of the property in
MBCS. Use the syntax as shown in Table 4-10:
INFA_CTGetExternalProperty<datatype>U(). Accesses the value of the property in
Unicode. Use the syntax as shown in Table 4-11:
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Rebind Datatype Functions
You can rebind a port with a datatype other than the default datatype with PowerCenter. Use
the rebind datatype functions if you want the procedure to access data in a datatype other
than the default datatype. You must rebind the port with a compatible datatype.
You can only use these functions in the initialization functions.
Table 4-10. Property Functions (MBCS)
Syntax Property
Datatype
INFA_STATUS INFA_CTGetExternalPropertyStringM(INFA_CT_HANDLE
handle, const char* sPropName, const char** psPropValue);
String
INFA_STATUS INFA_CTGetExternalPropertyINT32M(INFA_CT_HANDLE
handle, const char* sPropName, INFA_INT32* pnPropValue);
Integer
INFA_STATUS INFA_CTGetExternalPropertyBoolM(INFA_CT_HANDLE
handle, const char* sPropName, INFA_BOOLEN* pbPropValue);
Boolean
Table 4-11. Property Functions (Unicode)
Syntax Property
Datatype
INFA_STATUS INFA_CTGetExternalPropertyStringU(INFA_CT_HANDLE
handle, INFA_UNICHAR* sPropName, INFA_UNICHAR** psPropValue);
String
INFA_STATUS INFA_CTGetExternalPropertyStringU(INFA_CT_HANDLE
handle, INFA_UNICHAR* sPropName, INFA_INT32* pnPropValue);
Integer
INFA_STATUS INFA_CTGetExternalPropertyStringU(INFA_CT_HANDLE
handle, INFA_UNICHAR* sPropName, INFA_BOOLEN* pbPropValue);
Boolean
116 Chapter 4: Custom Transformation Functions
Consider the following rules when you rebind the datatype for an output or input/output
port:
You must use the data handling functions to set the data and the indicator for that port.
Use the INFA_CTSetData() and INFA_CTSetIndicator() functions in row-based mode,
and use the INFA_CTASetData() function in array-based mode.
Do not call the INFA_CTSetPassThruPort() function for the output port.
Table 4-12 lists compatible datatypes:
Table 4-12. Compatible Datatypes
Default Datatype Compatible With
Char Unichar
Unichar Char
Date INFA_DATETIME
Use the following syntax:
struct INFA_DATETIME
{
int nYear;
int nMonth;
int nDay;
int nHour;
int nMinute;
int nSecond;
int nNanoSecond;
}
Dec18 Char, Unichar
Dec28 Char, Unichar
API F unc t ion s 117
PowerCenter provides the following rebind datatype functions:
INFA_CTRebindInputDataType(). Rebinds the input port. Use the following syntax:
INFA_STATUS INFA_CTRebindInputDataType(INFA_CT_INPUTPORT_HANDLE
portHandle, INFA_CDATATYPE datatype);
INFA_CTRebindOutputDataType(). Rebinds the output port. Use the following syntax:
INFA_STATUS INFA_CTRebindOutputDataType(INFA_CT_OUTPUTPORT_HANDLE
portHandle, INFA_CDATATYPE datatype);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Data Handling Functions (Row-Based Mode)
When the Integration Service calls the input row notification function, it notifies the
procedure that the procedure can access a row or block of data. However, to get data from the
input port, modify it, and set data in the output port, you must use the data handling
functions in the input row notification function. When the data access mode is row-based,
use the row-based data handling functions.
Include the INFA_CTGetData<datatype>() function to get the data from the input port and
INFA_CTSetData() function to set the data in the output port. Include the
INFA_CTGetIndicator() or INFA_CTGetLength() function if you want the procedure to
verify before you get the data if the port has a null value or an empty string.
PowerCenter provides the following data handling functions:
INFA_CTGetData<datatype>(). For more information, see “Get Data Functions (Row-
Based Mode)” on page 118.
INFA_CTSetData(). For more information, see “Set Data Function (Row-Based Mode)”
on page 118.
Argument Datatype Input/
Output Description
portHandle INFA_CT_OUTPUTPORT_HANDLE Input Output port handle.
datatype INFA_CDATATYPE Input The datatype with which you rebind the
port. Use the following values for the
datatype parameter:
- eINFA_CTYPE_SHORT
- eINFA_CTYPE_INT32
- eINFA_CTYPE_CHAR
- eINFA_CTYPE_RAW
- eINFA_CTYPE_UNICHAR
- eINFA_CTYPE_TIME
- eINFA_CTYPE_FLOAT
- eINFA_CTYPE_DOUBLE
- eINFA_CTYPE_DECIMAL18_FIXED
- eINFA_CTYPE_DECIMAL28_FIXED
- eINFA_CTYPE_INFA_CTDATETIME
118 Chapter 4: Custom Transformation Functions
INFA_CTGetIndicator(). For more information, see “Indicator Functions (Row-Based
Mode)” on page 119.
INFA_CTSetIndicator(). For more information, see “Indicator Functions (Row-Based
Mode)” on page 119.
INFA_CTGetLength(). For more information, see “Length Functions on page 120.
INFA_CTSetLength(). For more information, see “Length Functions” on page 120.
Get Data Functions (Row-Based Mode)
Use the INFA_CTGetData<datatype>() functions to retrieve data for the port the function
specifies.
You must modify the function name depending on the datatype of the port you want the
procedure to access.
Table 4-13 lists the INFA_CTGetData<datatype>() function syntax and the datatype of the
return value:
Set Data Function (Row-Based Mode)
Use the INFA_CTSetData() function when you want the procedure to pass a value to an
output port.
Table 4-13. Get Data Functions
Syntax Return Value
Datatype
void* INFA_CTGetDataVoid(INFA_CT_INPUTPORT_HANDLE dataHandle); Data void
pointer to the
return value
char* INFA_CTGetDataStringM(INFA_CT_INPUTPORT_HANDLE
dataHandle);
String (MBCS)
IUNICHAR* INFA_CTGetDataStringU(INFA_CT_INPUTPORT_HANDLE
dataHandle);
String
(Unicode)
INFA_INT32 INFA_CTGetDataINT32(INFA_CT_INPUTPORT_HANDLE
dataHandle);
Integer
double INFA_CTGetDataDouble(INFA_CT_INPUTPORT_HANDLE
dataHandle);
Double
INFA_CT_RAWDATE INFA_CTGetDataDate(INFA_CT_INPUTPORT_HANDLE
dataHandle);
Raw date
INFA_CT_RAWDEC18 INFA_CTGetDataRawDec18(
INFA_CT_INPUTPORT_HANDLE dataHandle);
Decimal BLOB
(precision 18)
INFA_CT_RAWDEC28 INFA_CTGetDataRawDec28(
INFA_CT_INPUTPORT_HANDLE dataHandle);
Decimal BLOB
(precision 28)
INFA_CT_DATETIME
INFA_CTGetDataDateTime(INFA_CT_INPUTPORT_HANDLE dataHandle);
Datetime
API F unc t ion s 119
Use the following syntax:
INFA_STATUS INFA_CTSetData(INFA_CT_OUTPUTPORT_HANDLE dataHandle, void*
data);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Note: If you use the INFA_CTSetPassThruPort() function on an input/output port, do not
use set the data or indicator for that port.
Indicator Functions (Row-Based Mode)
Use the indicator functions when you want the procedure to get the indicator for an input
port or to set the indicator for an output port. The indicator for a port indicates whether the
data is valid, null, or truncated.
PowerCenter provides the following indicator functions:
INFA_CTGetIndicator(). Gets the indicator for an input port. Use the following syntax:
INFA_INDICATOR INFA_CTGetIndicator(INFA_CT_INPUTPORT_HANDLE dataHandle);
The return value datatype is INFA_INDICATOR. Use the following values for
INFA_INDICATOR:
INFA_DATA_VALID. Indicates the data is valid.
INFA_NULL_DATA. Indicates a null value.
INFA_DATA_TRUNCATED. Indicates the data has been truncated.
INFA_CTSetIndicator(). Sets the indicator for an output port. Use the following syntax:
INFA_STATUS INFA_CTSetIndicator(INFA_CT_OUTPUTPORT_HANDLE dataHandle,
INFA_INDICATOR indicator);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE
for the return value.
Note: If you use the INFA_CTSetPassThruPort() function on an input/output port, do not
set the data or indicator for that port.
Argument Datatype Input/
Output Description
dataHandle INFA_CT_OUTPUTPORT_HANDLE Input Output port handle.
indicator INFA_INDICATOR Input The indicator value for the output port. Use
one of the following values:
- INFA_DATA_VALID. Indicates the data is
valid.
- INFA_NULL_DATA. Indicates a null value.
- INFA_DATA_TRUNCATED. Indicates the
data has been truncated.
120 Chapter 4: Custom Transformation Functions
Length Functions
Use the length functions when you want the procedure to access the length of a string or
binary input port, or to set the length of a binary or string output port.
Use the following length functions:
INFA_CTGetLength(). Use this function for string and binary ports only. The Integration
Service returns the length as the number of characters including trailing spaces. Use the
following syntax:
INFA_UINT32 INFA_CTGetLength(INFA_CT_INPUTPORT_HANDLE dataHandle);
The return value datatype is INFA_UINT32. Use a value between zero and 2GB for the
return value.
INFA_CTSetLength(). When the Custom transformation contains a binary or string
output port, you must use this function to set the length of the data, including trailing
spaces. Verify you the length you set for string and binary ports is not greater than the
precision for that port. If you set the length greater than the port precision, you get
unexpected results. For example, the session may fail.
Use the following syntax:
INFA_STATUS INFA_CTSetLength(INFA_CT_OUTPUTPORT_HANDLE dataHandle,
IUINT32 length);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE
for the return value.
Set Pass-Through Port Function
Use the INFA_CTSetPassThruPort() function when you want the Integration Service to pass
data from an input port to an output port without modifying the data. When you use the
INFA_CTSetPassThruPort() function, the Integration Service passes the data to the output
port when it calls the input row notification function.
Consider the following rules and guidelines when you use the set pass-through port function:
Only use this function in an initialization function.
If the procedure includes this function, do not include the INFA_CTSetData(),
INFA_CTSetLength, INFA_CTSetIndicator(), or INFA_CTASetData() functions to pass
data to the output port.
In row-based mode, you can only include this function when the transformation scope is
Row. When the transformation scope is Transaction or All Input, this function returns
INFA_FAILURE.
In row-based mode, when you use this function to output multiple rows for a given input
row, every output row contains the data that is passed through from the input port.
In array-based mode, you can only use this function for passive Custom transformations.
You must verify that the datatype, precision, and scale are the same for the input and output
ports. The Integration Service fails the session if the datatype, precision, or scale are not the
same for the input and output ports you specify in the INFA_CTSetPassThruPort() function.
API Functions 121
Use the following syntax:
INFA_STATUS INFA_CTSetPassThruPort(INFA_CT_OUTPUTPORT_HANDLE outputport,
INFA_CT_INPUTPORT_HANDLE inputport)
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Output Notification Function
When you want the procedure to output a row to the Integration Service, use the
INFA_CTOutputNotification() function. Only include this function for active Custom
transformations. For passive Custom transformations, the procedure outputs a row to the
Integration Service when the input row notification function gives a return value. If the
procedure calls this function for a passive Custom transformation, the Integration Service
ignores the function.
Note: When the transformation scope is Row, you can only include this function in the input
row notification function. If you include it somewhere else, it returns a failure.
Use the following syntax:
INFA_ROWSTATUS INFA_CTOutputNotification(INFA_CT_OUTPUTGROUP_HANDLE
group);
The return value datatype is INFA_ROWSTATUS. Use the following values for the return
value:
INFA_ROWSUCCESS. Indicates the function successfully processed the row of data.
INFA_ROWERROR. Indicates the function encountered an error for the row of data. The
Integration Service increments the internal error count.
INFA_FATALERROR. Indicates the function encountered a fatal error for the row of
data. The Integration Service fails the session.
Note: When the procedure code calls the INFA_CTOutputNotification() function, you must
verify that all pointers in an output port handle point to valid data. When a pointer does not
point to valid data, the Integration Service might shut down unexpectedly.
Data Boundary Output Notification Function
Include the INFA_CTDataBdryOutputNotification() function when you want the procedure
to output a commit or rollback transaction.
When you use this function, you must select the Generate Transaction property for this
Custom transformation. If you do not select this property, the Integration Service fails the
session.
Argument Datatype Input/
Output Description
group INFA_CT_OUTPUT_GROUP_HANDLE Input Output group handle.
122 Chapter 4: Custom Transformation Functions
Use the following syntax:
INFA_STATUS INFA_CTDataBdryOutputNotification(INFA_CT_PARTITION_HANDLE
handle, INFA_CTDataBdryType dataBoundaryType);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Error Functions
Use the error functions to access procedure errors. The Integration Service returns the most
recent error.
PowerCenter provides the following error functions:
INFA_CTGetErrorMsgM(). Gets the error message in MBCS. Use the following syntax:
const char* INFA_CTGetErrorMsgM();
INFA_CTGetErrorMsgU(). Gets the error message in Unicode. Use the following syntax:
const IUNICHAR* INFA_CTGetErrorMsgU();
Argument Datatype Input/
Output Description
handle INFA_CT_PARTITION_HANDLE Input Handle name.
dataBoundaryType INFA_CTDataBdryType Input The transaction type.
Use the following values for the
dataBoundaryType parameter:
- eBT_COMMIT
- eBT_ROLLBACK
API Functions 123
Session Log Message Functions
Use the session log message functions when you want the procedure to log a message in the
session log in either Unicode or MBCS.
PowerCenter provides the following session log message functions:
INFA_CTLogMessageU(). Logs a message in Unicode.
Use the following syntax:
void INFA_CTLogMessageU(INFA_CT_ErrorSeverityLevel errorseverityLevel,
INFA_UNICHAR* msg)
INFA_CTLogMessageM(). Logs a message in MBCS.
Use the following syntax:
void INFA_CTLogMessageM(INFA_CT_ErrorSeverityLevel errorSeverityLevel,
char* msg)
Argument Datatype Input/
Output Description
errorSeverityLevel INFA_CT_ErrorSeverityLevel Input Severity level of the error message that
you want the Integration Service to write
in the session log. Use the following
values for the errorSeverityLevel
parameter:
- eESL_LOG
- eESL_DEBUG
- eESL_ERROR
msg INFA_UNICHAR* Input Enter the text of the message in Unicode
in quotes.
Argument Datatype Input/
Output Description
errorSeverityLevel INFA_CT_ErrorSeverityLevel Input Severity level of the error message that
you want the Integration Service to write
in the session log. Use the following
values for the errorSeverityLevel
parameter:
- eESL_LOG
- eESL_DEBUG
- eESL_ERROR
msg char* Input Enter the text of the message in MBCS in
quotes.
124 Chapter 4: Custom Transformation Functions
Increment Error Count Function
Use the INFA_CTIncrementErrorCount() function when you want to increase the error
count for the session.
Use the following syntax:
INFA_STATUS INFA_CTIncrementErrorCount(INFA_CT_PARTITION_HANDLE
transformation, size_t nErrors, INFA_STATUS* pStatus);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Is Terminated Function
Use the INFA_CTIsTerminated() function when you want the procedure to check if the
PowerCenter Client has requested the Integration Service to stop the session. You might call
this function if the procedure includes a time-consuming process.
Use the following syntax:
INFA_CTTerminateType INFA_CTIsTerminated(INFA_CT_PARTITION_HANDLE
handle);
The return value datatype is INFA_CTTerminateType. The Integration Service returns one of
the following values:
eTT_NOTTERMINATED. Indicates the PowerCenter Client has not requested to stop
the session.
eTT_ABORTED. Indicates the Integration Service aborted the session.
eTT_STOPPED. Indicates the Integration Service failed the session.
Argument Datatype Input/
Output Description
transformation INFA_CT_PARTITION_HANDLE Input Partition handle.
nErrors size_t Input Integration Service increments the error
count by nErrors for the given transformation
instance.
pStatus INFA_STATUS* Input Integration Service uses INFA_FAILURE for
the pStatus parameter when the error count
exceeds the error threshold and fails the
session.
Argument Datatype Input/
Output Description
handle INFA_CT_PARTITION_HANDLE input Partition handle.
API Functions 125
Blocking Functions
When the Custom transformation contains multiple input groups, you can write code to
block the incoming data on an input group. For more information about blocking data, see
“Blocking Input Data” on page 70.
Consider the following rules when you use the blocking functions:
You can block at most n-1 input groups.
You cannot block an input group that is already blocked.
You cannot block an input group when it receives data from the same source as another
input group.
You cannot unblock an input group that is already unblocked.
PowerCenter provides the following blocking functions:
INFA_CTBlockInputFlow(). Allows the procedure to block an input group.
Use the following syntax:
INFA_STATUS INFA_CTBlockInputFlow(INFA_CT_INPUTGROUP_HANDLE group);
INFA_CTUnblockInputFlow(). Allows the procedure to unblock an input group.
Use the following syntax:
INFA_STATUS INFA_CTUnblockInputFlow(INFA_CT_INPUTGROUP_HANDLE group);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Verify Blocking
When you use the INFA_CTBlockInputFlow() and INFA_CTUnblockInputFlow() functions
in the procedure code, verify the procedure checks whether or not the Integration Service
allows the Custom transformation to block incoming data. To do this, check the value of the
INFA_CT_TRANS_MAY_BLOCK_DATA propID using the
INFA_CTGetInternalPropertyBool() function.
When the value of the INFA_CT_TRANS_MAY_BLOCK_DATA propID is FALSE, the
procedure should either not use the blocking functions, or it should return a fatal error and
stop the session.
If the procedure code uses the blocking functions when the Integration Service does not allow
the Custom transformation to block data, the Integration Service might fail the session.
Argument Datatype Input/
Output Description
group INFA_CT_INPUTGROUP_HANDLE Input Input group handle.
126 Chapter 4: Custom Transformation Functions
Pointer Functions
Use the pointer functions when you want the Integration Service to create and access pointers
to an object or a structure.
PowerCenter provides the following pointer functions:
INFA_CTGetUserDefinedPtr(). Allows the procedure to access an object or structure
during run time.
Use the following syntax:
void* INFA_CTGetUserDefinedPtr(INFA_CT_HANDLE handle)
INFA_CTSetUserDefinedPtr(). Allows the procedure to associate an object or a structure
with any handle the Integration Service provides. To reduce processing overhead, include
this function in the initialization functions.
Use the following syntax:
void INFA_CTSetUserDefinedPtr(INFA_CT_HANDLE handle, void* pPtr)
You must substitute a valid handle for INFA_CT_HANDLE.
Change String Mode Function
When the Integration Service runs in Unicode mode, it passes data to the procedure in UCS-
2 by default. When it runs in ASCII mode, it passes data in ASCII by default. Use the
INFA_CTChangeStringMode() function if you want to change the default string mode for
the procedure. When you change the default string mode to MBCS, the Integration Service
passes data in the Integration Service code page. Use the INFA_CTSetDataCodePageID()
function if you want to change the code page. For more information about changing the code
page ID, see “Set Data Code Page Function” on page 127.
When a procedure includes the INFA_CTChangeStringMode() function, the Integration
Service changes the string mode for all ports in each Custom transformation that use this
particular procedure.
Use the change string mode function in the initialization functions.
Argument Datatype Input/
Output Description
handle INFA_CT_HANDLE Input Handle name.
Argument Datatype Input/
Output Description
handle INFA_CT_HANDLE Input Handle name.
pPtr void* Input User pointer.
API Functions 127
Use the following syntax:
INFA_STATUS INFA_CTChangeStringMode(INFA_CT_PROCEDURE_HANDLE procedure,
INFA_CTStringMode stringMode);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Set Data Code Page Function
Use the INFA_CTSetDataCodePageID() when you want the Integration Service to pass data
to the Custom transformation in a code page other than the Integration Service code page.
Use the set data code page function in the procedure initialization function.
Use the following syntax:
INFA_STATUS INFA_CTSetDataCodePageID(INFA_CT_TRANSFORMATION_HANDLE
transformation, int dataCodePageID);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Argument Datatype Input/
Output Description
procedure INFA_CT_PROCEDURE_HANDLE Input Procedure handle name.
stringMode INFA_CTStringMode Input Specifies the string mode that you want the
Integration Service to use. Use the following values
for the stringMode parameter:
- eASM_UNICODE. Use this when the Integration
Service runs in ASCII mode and you want the
procedure to access data in Unicode.
- eASM_MBCS. Use this when the Integration
Service runs in Unicode mode and you want the
procedure to access data in MBCS.
Argument Datatype Input/
Output Description
transformation INFA_CT_TRANSFORMATION_HANDLE Input Transformation handle name.
dataCodePageID int Input Specifies the code page you want the
Integration Service to pass data in.
For valid values for the
dataCodePageID parameter, see
“Code Pages” in the Administrator
Guide.
128 Chapter 4: Custom Transformation Functions
Row Strategy Functions (Row-Based Mode)
The row strategy functions allow you to access and configure the update strategy for each row.
PowerCenter provides the following row strategy functions:
INFA_CTGetRowStrategy(). Allows the procedure to get the update strategy for a row.
Use the following syntax:
INFA_STATUS INFA_CTGetRowStrategy(INFA_CT_INPUTGROUP_HANDLE group,
INFA_CTUpdateStrategy updateStrategy);
INFA_CTSetRowStrategy(). Sets the update strategy for each row. This overrides the
INFA_CTChangeDefaultRowStrategy function.
Use the following syntax:
INFA_STATUS INFA_CTSetRowStrategy(INFA_CT_OUTPUTGROUP_HANDLE group,
INFA_CT_UPDATESTRATEGY updateStrategy);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Argument Datatype Input/
Output Description
group INFA_CT_INPUTGROUP_HANDLE Input Input group handle.
updateStrategy INFA_CT_UPDATESTRATEGY Input Update strategy for the input port.
The Integration Service uses the
following values:
- eUS_INSERT = 0
- eUS_UPDATE = 1
- eUS_DELETE = 2
- eUS_REJECT = 3
Argument Datatype Input/
Output Description
group INFA_CT_OUTPUTGROUP_HANDLE Input Output group handle.
updateStrategy INFA_CT_UPDATESTRATEGY Input Update strategy you want to set for the
output port. Use one of the following
values:
- eUS_INSERT = 0
- eUS_UPDATE = 1
- eUS_DELETE = 2
- eUS_REJECT = 3
API Functions 129
Change Default Row Strategy Function
By default, the row strategy for a Custom transformation is pass-through when the
transformation scope is Row. When the transformation scope is Transaction or All Input, the
row strategy is the same value as the Treat Source Rows As session property by default.
For example, in a mapping you have an Update Strategy transformation followed by a Custom
transformation with Row transformation scope. The Update Strategy transformation flags the
rows for update, insert, or delete. When the Integration Service passes a row to the Custom
transformation, the Custom transformation retains the flag since its row strategy is pass-
through.
However, you can change the row strategy of a Custom transformation with PowerCenter. Use
the INFA_CTChangeDefaultRowStrategy() function to change the default row strategy at the
transformation level. For example, when you change the default row strategy of a Custom
transformation to insert, the Integration Service flags all the rows that pass through this
transformation for insert.
Note: The Integration Service returns INFA_FAILURE if the session is not in data-driven
mode.
Use the following syntax:
INFA_STATUS INFA_CTChangeDefaultRowStrategy(INFA_CT_TRANSFORMATION_HANDLE
transformation, INFA_CT_DefaultUpdateStrategy defaultUpdateStrategy);
The return value datatype is INFA_STATUS. Use INFA_SUCCESS and INFA_FAILURE for
the return value.
Argument Datatype Input/
Output Description
transformation INFA_CT_TRANSFORMATION_HANDLE Input Transformation handle.
defaultUpdateStrategy INFA_CT_DefaultUpdateStrategy Input Specifies the row strategy you
want the Integration Service to
use for the Custom
transformation.
- eDUS_PASSTHROUGH. Flags
the row for passthrough.
- eDUS_INSERT. Flags rows for
insert.
- eDUS_UPDATE. Flags rows
for update.
- eDUS_DELETE. Flags rows
for delete.
130 Chapter 4: Custom Transformation Functions
Array-Based API Functions
The array-based functions are API functions you use when you change the data access mode
to array-based. For more information about changing the data access mode, see “Set Data
Access Mode Function” on page 104.
Informatica provides the following groups of array-based API functions:
Maximum number of rows. See “Maximum Number of Rows Functions” on page 130.
Number of rows. See “Number of Rows Functions” on page 131.
Is row valid. See “Is Row Valid Function” on page 132.
Data handling (array-based mode). See “Data Handling Functions (Array-Based Mode)”
on page 132.
Row strategy. See “Row Strategy Functions (Array-Based Mode)” on page 135.
Set input error row. See “Set Input Error Row Functions” on page 136.
Maximum Number of Rows Functions
By default, the Integration Service allows a maximum number of rows in an input block and
an output block. However, you can change the maximum number of rows allowed in an
output block.
Use the INFA_CTAGetInputNumRowsMax() and INFA_CTAGetOutputNumRowsMax()
functions to determine the maximum number of rows in input and output blocks. Use the
values these functions return to determine the buffer size if the procedure needs a buffer.
You can set the maximum number of rows in the output block using the
INFA_CTASetOutputRowMax() function. You might use this function if you want the
procedure to use a larger or smaller buffer.
You can only call these functions in an initialization function.
PowerCenter provides the following functions to determine and set the maximum number of
rows in blocks:
INFA_CTAGetInputNumRowsMax(). Use this function to determine the maximum
number of rows allowed in an input block.
Use the following syntax:
IINT32 INFA_CTAGetInputRowMax( INFA_CT_INPUTGROUP_HANDLE inputgroup );
INFA_CTAGetOutputNumRowsMax(). Use this function to determine the maximum
number of rows allowed in an output block.
Argument Datatype Input/
Output Description
inputgroup INFA_CT_INPUTGROUP_HANDLE Input Input group handle.
Array-Based API Functions 131
Use the following syntax:
IINT32 INFA_CTAGetOutputRowMax( INFA_CT_OUTPUTGROUP_HANDLE outputgroup );
INFA_CTASetOutputRowMax(). Use this function to set the maximum number of rows
allowed in an output block.
Use the following syntax:
INFA_STATUS INFA_CTASetOutputRowMax( INFA_CT_OUTPUTGROUP_HANDLE
outputgroup, INFA_INT32 nRowMax );
Number of Rows Functions
Use the number of rows functions to determine the number of rows in an input block, or to
set the number of rows in an output block for the specified input or output group.
PowerCenter provides the following number of rows functions:
INFA_CTAGetNumRows(). You can determine the number of rows in an input block.
Use the following syntax:
INFA_INT32 INFA_CTAGetNumRows( INFA_CT_INPUTGROUP_HANDLE inputgroup );
INFA_CTASetNumRows(). You can set the number of rows in an output block. Call this
function before you call the output notification function.
Argument Datatype Input/
Output Description
outputgroup INFA_CT_OUTPUTGROUP_HANDLE Input Output group handle.
Argument Datatype Input/
Output Description
outputgroup INFA_CT_OUTPUTGROUP_HANDLE Input Output group handle.
nRowMax INFA_INT32 Input Maximum number of rows you want to
allow in an output block.
You must enter a positive number. The
function returns a fatal error when you
use a non-positive number, including
zero.
Argument Datatype Input/
Output Description
inputgroup INFA_CT_INPUTGROUP_HANDLE Input Input group handle.
132 Chapter 4: Custom Transformation Functions
Use the following syntax:
void INFA_CTASetNumRows( INFA_CT_OUTPUTGROUP_HANDLE outputgroup,
INFA_INT32 nRows );
Is Row Valid Function
Some rows in a block may be dropped, filter, or error rows. Use the INFA_CTAIsRowValid()
function to determine if a row in a block is valid. This function returns INFA_TRUE when a
row is valid.
Use the following syntax:
INFA_BOOLEN INFA_CTAIsRowValid( INFA_CT_INPUTGROUP_HANDLE inputgroup,
INFA_INT32 iRow);
Data Handling Functions (Array-Based Mode)
When the Integration Service calls the p_<proc_name>_inputRowNotification() function, it
notifies the procedure that the procedure can access a row or block of data. However, to get
data from the input port, modify it, and set data in the output port in array-based mode, you
must use the array-based data handling functions in the input row notification function.
Include the INFA_CTAGetData<datatype>() function to get the data from the input port
and INFA_CTASetData() function to set the data in the output port. Include the
INFA_CTAGetIndicator() function if you want the procedure to verify before you get the
data if the port has a null value or an empty string.
Argument Datatype Input/
Output Description
outputgroup INFA_CT_OUTPUTGROUP_HANDLE Input Output port handle.
nRows INFA_INT32 Input Number of rows you want to define in
the output block. You must enter a
positive number. The Integration
Service fails the output notification
function when specify a non-positive
number.
Argument Datatype Input/
Output Description
inputgroup INFA_CT_INPUTGROUP_HANDLE Input Input group handle.
iRow INFA_INT32 Input Index number of the row in the block. The
index is zero-based.
You must verify the procedure only passes
an index number that exists in the data
block. If you pass an invalid value, the
Integration Service shuts down
unexpectedly.
Array-Based API Functions 133
PowerCenter provides the following data handling functions for the array-based data access
mode:
INFA_CTAGetData<datatype>(). For more information, see “Get Data Functions (Array-
Based Mode)” on page 133.
INFA_CTAGetIndicator(). For more information, see “Get Indicator Function (Array-
Based Mode)” on page 134.
INFA_CTASetData(). For more information, see “Set Data Function (Array-Based
Mode)” on page 134.
Get Data Functions (Array-Based Mode)
Use the INFA_CTAGetData<datatype>() functions to retrieve data for the port the function
specifies. You must modify the function name depending on the datatype of the port you
want the procedure to access. The Integration Service passes the length of the data in the
array-based get data functions.
Table 4-14 lists the INFA_CTGetData<datatype>() function syntax and the datatype of the
return value:
Table 4-14. Get Data Functions (Array-Based Mode)
Syntax Return Value
Datatype
void* INFA_CTAGetDataVoid( INFA_CT_INPUTPORT_HANDLE
inputport, INFA_INT32 iRow, INFA_UINT32* pLength);
Data void pointer to
the return value
char* INFA_CTAGetDataStringM( INFA_CT_INPUTPORT_HANDLE
inputport, INFA_INT32 iRow, INFA_UINT32* pLength);
String (MBCS)
IUNICHAR* INFA_CTAGetDataStringU( INFA_CT_INPUTPORT_HANDLE
inputport, INFA_INT32 iRow, INFA_UINT32* pLength);
String (Unicode)
INFA_INT32 INFA_CTAGetDataINT32( INFA_CT_INPUTPORT_HANDLE
inputport, INFA_INT32 iRow);
Integer
double INFA_CTAGetDataDouble( INFA_CT_INPUTPORT_HANDLE
inputport, INFA_INT32 iRow);
Double
INFA_CT_RAWDATETIME INFA_CTAGetDataRawDate(
INFA_CT_INPUTPORT_HANDLE inputport, INFA_INT32 iRow);
Raw date
INFA_CT_DATETIME INFA_CTAGetDataDateTime(
INFA_CT_INPUTPORT_HANDLE inputport, INFA_INT32 iRow);
Datetime
INFA_CT_RAWDEC18 INFA_CTAGetDataRawDec18(
INFA_CT_INPUTPORT_HANDLE inputport, INFA_INT32 iRow);
Decimal BLOB
(precision 18)
INFA_CT_RAWDEC28 INFA_CTAGetDataRawDec28(
INFA_CT_INPUTPORT_HANDLE inputport, INFA_INT32 iRow);
Decimal BLOB
(precision 28)
134 Chapter 4: Custom Transformation Functions
Get Indicator Function (Array-Based Mode)
Use the get indicator function when you want the procedure to verify if the input port has a
null value.
Use the following syntax:
INFA_INDICATOR INFA_CTAGetIndicator( INFA_CT_INPUTPORT_HANDLE inputport,
INFA_INT32 iRow );
The return value datatype is INFA_INDICATOR. Use the following values for
INFA_INDICATOR:
INFA_DATA_VALID. Indicates the data is valid.
INFA_NULL_DATA. Indicates a null value.
INFA_DATA_TRUNCATED. Indicates the data has been truncated.
Set Data Function (Array-Based Mode)
Use the set data function when you want the procedure to pass a value to an output port. You
can set the data, the length of the data, if applicable, and the indicator for the output port you
specify. You do not use separate functions to set the length or indicator for the output port.
Use the following syntax:
void INFA_CTASetData( INFA_CT_OUTPUTPORT_HANDLE outputport, INFA_INT32
iRow, void* pData, INFA_UINT32 nLength, INFA_INDICATOR indicator);
Argument Datatype Input/
Output Description
inputport INFA_CT_INPUTPORT_HANDLE Input Input port handle.
iRow INFA_INT32 Input Index number of the row in the block. The
index is zero-based.
You must verify the procedure only
passes an index number that exists in the
data block. If you pass an invalid value,
the Integration Service shuts down
unexpectedly.
Argument Datatype Input/
Output Description
outputport INFA_CT_OUTPUTPORT_HANDLE Input Output port handle.
iRow INFA_INT32 Input Index number of the row in the block. The index
is zero-based.
You must verify the procedure only passes an
index number that exists in the data block. If you
pass an invalid value, the Integration Service
shuts down unexpectedly.
pData void* Input Pointer to the data.
Array-Based API Functions 135
Row Strategy Functions (Array-Based Mode)
The array-based row strategy functions allow you to access and configure the update strategy
for each row in a block.
PowerCenter provides the following row strategy functions:
INFA_CTAGetRowStrategy(). Allows the procedure to get the update strategy for a row
in a block.
Use the following syntax:
INFA_CT_UPDATESTRATEGY INFA_CTAGetRowStrategy( INFA_CT_INPUTGROUP_HANDLE
inputgroup, INFA_INT32 iRow);
nLength INFA_UINT32 Input Length of the port. Use for string and binary
ports only.
You must verify the function passes the correct
length of the data. If the function passes a
different length, the output notification function
returns failure for this port.
Verify the length you set for string and binary
ports is not greater than the precision for the
port. If you set the length greater than the port
precision, you get unexpected results. For
example, the session may fail.
indicator INFA_INDICATOR Input Indicator value for the output port. Use one of
the following values:
- INFA_DATA_VALID. Indicates the data is valid.
- INFA_NULL_DATA. Indicates a null value.
- INFA_DATA_TRUNCATED. Indicates the data
has been truncated.
Argument Datatype Input/
Output Description
inputgroup INFA_CT_INPUTGROUP_HANDLE Input Input group handle.
iRow INFA_INT32 Input Index number of the row in the block. The
index is zero-based.
You must verify the procedure only passes
an index number that exists in the data
block. If you pass an invalid value, the
Integration Service shuts down
unexpectedly.
Argument Datatype Input/
Output Description
136 Chapter 4: Custom Transformation Functions
INFA_CTASetRowStrategy(). Sets the update strategy for a row in a block.
Use the following syntax:
void INFA_CTASetRowStrategy( INFA_CT_OUTPUTGROUP_HANDLE outputgroup,
INFA_INT32 iRow, INFA_CT_UPDATESTRATEGY updateStrategy );
Set Input Error Row Functions
When you use array-based access mode, you cannot return INFA_ROWERROR in the input
row notification function. Instead, use the set input error row functions to notify the
Integration Service that a particular input row has an error.
PowerCenter provides the following set input row functions in array-based mode:
INFA_CTASetInputErrorRowM(). You can notify the Integration Service that a row in
the input block has an error and to output an MBCS error message to the session log.
Use the following syntax:
INFA_STATUS INFA_CTASetInputErrorRowM( INFA_CT_INPUTGROUP_HANDLE
inputGroup, INFA_INT32 iRow, size_t nErrors, INFA_MBCSCHAR* sErrMsg );
Argument Datatype Input/
Output Description
outputgroup INFA_CT_OUTPUTGROUP_HANDLE Input Output group handle.
iRow INFA_INT32 Input Index number of the row in the block.
The index is zero-based.
You must verify the procedure only
passes an index number that exists in
the data block. If you pass an invalid
value, the Integration Service shuts
down unexpectedly.
updateStrategy INFA_CT_UPDATESTRATEGY Input Update strategy for the port. Use one
of the following values:
- eUS_INSERT = 0
- eUS_UPDATE = 1
- eUS_DELETE = 2
- eUS_REJECT = 3
Argument Datatype Input/
Output Description
inputGroup INFA_CT_INPUTGROUP_HANDLE Input Input group handle.
iRow INFA_INT32 Input Index number of the row in the block.
The index is zero-based.
You must verify the procedure only
passes an index number that exists in
the data block. If you pass an invalid
value, the Integration Service shuts
down unexpectedly.
Array-Based API Functions 137
INFA_CTASetInputErrorRowU(). You can notify the Integration Service that a row in the
input block has an error and to output a Unicode error message to the session log.
Use the following syntax:
INFA_STATUS INFA_CTASetInputErrorRowU( INFA_CT_INPUTGROUP_HANDLE
inputGroup, INFA_INT32 iRow, size_t nErrors, INFA_UNICHAR* sErrMsg );
nErrors size_t Input Use this parameter to specify the number
of errors this input row has caused.
sErrMsg INFA_MBCSCHAR* Input MBCS string containing the error
message you want the function to output.
You must enter a null-terminated string.
This parameter is optional. When you
include this argument, the Integration
Service prints the message in the
session log, even when you enable row
error logging.
Argument Datatype Input/
Output Description
inputGroup INFA_CT_INPUTGROUP_HANDLE Input Input group handle.
iRow INFA_INT32 Input Index number of the row in the block. The
index is zero-based.
You must verify the procedure only
passes an index number that exists in the
data block. If you pass an invalid value,
the Integration Service shuts down
unexpectedly.
nErrors size_t Input Use this parameter to specify the number
of errors this output row has caused.
sErrMsg INFA_UNICHAR* Input Unicode string containing the error
message you want the function to output.
You must enter a null-terminated string.
This parameter is optional. When you
include this argument, the Integration
Service prints the message in the
session log, even when you enable row
error logging.
Argument Datatype Input/
Output Description
138 Chapter 4: Custom Transformation Functions
Java API Functions
Information forthcoming.
C++ API Functions 139
C++ API Functions
Information forthcoming.
140 Chapter 4: Custom Transformation Functions
141
Chapter 5
Expression
Transformation
This chapter includes the following topics:
Overview, 142
Creating an Expression Transformation, 143
142 Chapter 5: Expression Transformation
Overview
Use the Expression transformation to calculate values in a single row before you write to the
target. For example, you might need to adjust employee salaries, concatenate first and last
names, or convert strings to numbers. Use the Expression transformation to perform any non-
aggregate calculations. You can also use the Expression transformation to test conditional
statements before you output the results to target tables or other transformations.
Note: To perform calculations involving multiple rows, such as sums or averages, use the
Aggregator transformation. Unlike the Expression transformation, the Aggregator lets you
group and sort data. For more information, see Aggregator Transformation” on page 37.
Calculating Values
To use the Expression transformation to calculate values for a single row, you must include the
following ports:
Input or input/output ports for each value used in the calculation. For example, when
calculating the total price for an order, determined by multiplying the unit price by the
quantity ordered, the input or input/output ports. One port provides the unit price and
the other provides the quantity ordered.
Output port for the expression. You enter the expression as a configuration option for the
output port. The return value for the output port needs to match the return value of the
expression. For more information about entering expressions, see “Working with
Expressions” on page 10. Expressions use the transformation language, which includes
SQL-like functions, to perform calculations.
Adding Multiple Calculations
You can enter multiple expressions in a single Expression transformation. As long as you enter
only one expression for each output port, you can create any number of output ports in the
transformation. In this way, use one Expression transformation rather than creating separate
transformations for each calculation that requires the same set of data.
For example, you might want to calculate several types of withholding taxes from each
employee paycheck, such as local and federal income tax, Social Security and Medicare. Since
all of these calculations require the employee salary, the withholding category, and/or the
corresponding tax rate, you can create one Expression transformation with the salary and
withholding category as input/output ports and a separate output port for each necessary
calculation.
Transformation type:
Passive
Connected
Creating an Expression Transformation 143
Creating an Expression Transformation
Use the following procedure to create an Expression transformation.
To create an Expression transformation:
1. In the Mapping Designer, click Transformation > Create. Select the Expression
transformation. Enter a name for it (the convention is EXP_TransformationName) and
click OK.
2. Create the input ports.
If you have the input transformation available, you can select Link Columns from the
Layout menu and then drag each port used in the calculation into the Expression
transformation. With this method, the Designer copies the port into the new
transformation and creates a connection between the two ports. Or, you can open the
transformation and create each port manually.
Note: If you want to make this transformation reusable, you must create each port
manually within the transformation.
3. Repeat the previous step for each input port you want to add to the expression.
4. Create the output ports (O) you need, making sure to assign a port datatype that matches
the expression return value. The naming convention for output ports is
OUT_PORTNAME.
5. Click the small button that appears in the Expression section of the dialog box and enter
the expression in the Expression Editor.
To prevent typographic errors, where possible, use the listed port names and functions.
If you select a port name that is not connected to the transformation, the Designer copies
the port into the new transformation and creates a connection between the two ports.
Port names used as part of an expression in an Expression transformation follow stricter
rules than port names in other types of transformations:
A port name must begin with a single- or double-byte letter or single- or double-byte
underscore (_).
It can contain any of the following single- or double-byte characters: a letter, number,
underscore (_), $, #, or @.
6. Check the expression syntax by clicking Validate.
If necessary, make corrections to the expression and check the syntax again. Then save the
expression and exit the Expression Editor.
7. Connect the output ports to the next transformation or target.
8. Select a tracing level on the Properties tab to determine the amount of transaction detail
reported in the session log file.
9. Click Repository > Save.
144 Chapter 5: Expression Transformation
145
Chapter 6
External Procedure
Transformation
This chapter includes the following topics:
Overview, 146
Developing COM Procedures, 149
Developing Informatica External Procedures, 159
Distributing External Procedures, 169
Development Notes, 171
Service Process Variables in Initialization Properties, 180
External Procedure Interfaces, 181
146 Chapter 6: External Procedure Transformation
Overview
External Procedure transformations operate in conjunction with procedures you create
outside of the Designer interface to extend PowerCenter functionality.
Although the standard transformations provide you with a wide range of options, there are
occasions when you might want to extend the functionality provided with PowerCenter. For
example, the range of standard transformations, such as Expression and Filter
transformations, may not provide the functionality you need. If you are an experienced
programmer, you may want to develop complex functions within a dynamic link library
(DLL) or UNIX shared library, instead of creating the necessary Expression transformations
in a mapping.
To obtain this kind of extensibility, use the Transformation Exchange (TX) dynamic
invocation interface built into PowerCenter. Using TX, you can create an Informatica
External Procedure transformation and bind it to an external procedure that you have
developed. You can bind External Procedure transformations to two kinds of external
procedures:
COM external procedures (available on Windows only)
Informatica external procedures (available on Windows, AIX, HP-UX, Linux, and Solaris)
To use TX, you must be an experienced C, C++, or Visual Basic programmer.
Use multi-threaded code in external procedures.
Code Page Compatibility
When the Integration Service runs in ASCII mode, the external procedure can process data in
7-bit ASCII.
When the Integration Service runs in Unicode mode, the external procedure can process data
that is two-way compatible with the Integration Service code page. For information about
accessing the Integration Service code page, see “Code Page Access Functions” on page 185.
Configure the Integration Service to run in Unicode mode if the external procedure DLL or
shared library contains multibyte characters. External procedures must use the same code page
as the Integration Service to interpret input strings from the Integration Service and to create
output strings that contain multibyte characters.
Configure the Integration Service to run in either ASCII or Unicode mode if the external
procedure DLL or shared library contains ASCII characters only.
Transformation type:
Passive
Connected/Unconnected
Overview 147
External Procedures and External Procedure Transformations
There are two components to TX: external procedures and External Procedure transformations.
As its name implies, an external procedure exists separately from the Integration Service. It
consists of C, C++, or Visual Basic code written by a user to define a transformation. This
code is compiled and linked into a DLL or shared library, which is loaded by the Integration
Service at runtime. An external procedure is “bound” to an External Procedure
transformation.
An External Procedure transformation is created in the Designer. It is an object that resides in
the Informatica repository and serves several purposes:
1. It contains the metadata describing the following external procedure. It is through this
metadata that the Integration Service knows thesignature(number and types of
parameters, type of return value, if any) of the external procedure.
2. It allows an external procedure to be referenced in a mapping. By adding an instance of
an External Procedure transformation to a mapping, you call the external procedure
bound to that transformation.
Note: You can create a connected or unconnected External Procedure.
3. When you develop Informatica external procedures, the External Procedure
transformation provides the information required to generate Informatica external
procedure stubs.
External Procedure Transformation Properties
Create reusable External Procedure transformations in the Transformation Developer, and
add instances of the transformation to mappings. You cannot create External Procedure
transformations in the Mapping Designer or Mapplet Designer.
External Procedure transformations return one or no output rows per input row.
On the Properties tab of the External Procedure transformation, only enter ASCII characters
in the Module/Programmatic Identifier and Procedure Name fields. You cannot enter
multibyte characters in these fields. On the Ports tab of the External Procedure
transformation, only enter ASCII characters for the port names. You cannot enter multibyte
characters for External Procedure transformation port names.
Pipeline Partitioning
If you purchase the Partitioning option with PowerCenter, you can increase the number of
partitions in a pipeline to improve session performance. Increasing the number of partitions
allows the Integration Service to create multiple connections to sources and process partitions
of source data concurrently.
When you create a session, the Workflow Manager validates each pipeline in the mapping for
partitioning. You can specify multiple partitions in a pipeline if the Integration Service can
maintain data consistency when it processes the partitioned data.
148 Chapter 6: External Procedure Transformation
Use the Is Partitionable property on the Properties tab to specify whether or not you can
create multiple partitions in the pipeline. For more information about partitioning External
Procedure transformations, see “Working with Partition Points in the Workflow
Administration Guide.
COM Versus Informatica External Procedures
Table 6-1 describes the differences between COM and Informatica external procedures:
The BankSoft Example
The following sections use an example called BankSoft to illustrate how to develop COM and
Informatica procedures. The BankSoft example uses a financial function, FV, to illustrate how
to develop and call an external procedure. The FV procedure calculates the future value of an
investment based on regular payments and a constant interest rate.
Table 6-1. Differences Between COM and Informatica External Procedures
COM Informatica
Technology Uses COM technology Uses Informatica proprietary technology
Operating System Runs on Windows only Runs on all platforms supported for the Integration
Service: Windows, AIX, HP, Linux, Solaris
Language C, C++, VC++, VB, Perl, VJ++ Only C++
Developing COM Procedures 149
Developing COM Procedures
You can develop COM external procedures using Microsoft Visual C++ or Visual Basic. The
following sections describe how to create COM external procedures using Visual C++ and
how to create COM external procedures using Visual Basic.
Steps for Creating a COM Procedure
To create a COM external procedure, complete the following steps:
1. Using Microsoft Visual C++ or Visual Basic, create a project.
2. Define a class with an IDispatch interface.
3. Add a method to the interface. This method is the external procedure that will be
invoked from inside the Integration Service.
4. Compile and link the class into a dynamic link library.
5. Register the class in the local Windows registry.
6. Import the COM procedure in the Transformation Developer.
7. Create a mapping with the COM procedure.
8. Create a session using the mapping.
COM External Procedure Server Type
The Integration Service only supports in-process COM servers (that is, COM servers with
Server Type: Dynamic Link Library). This is done to enhance performance. It is more efficient
when processing large amounts of data to process the data in the same process, instead of
forwarding it to a separate process on the same machine or a remote machine.
Using Visual C++ to Develop COM Procedures
C++ developers can use Visual C++ version 5.0 or later to develop COM procedures. The first
task is to create a project.
Step 1. Create an ATL COM AppWizard Project
1. Launch Visual C++ and click File > New.
2. In the dialog box that appears, select the Projects tab.
3. Enter the project name and location.
In the BankSoft example, you enter COM_VC_Banksoft as the project name, and
c:\COM_VC_Banksoft as the directory.
4. Select the ATL COM AppWizard option in the projects list box and click OK.
150 Chapter 6: External Procedure Transformation
A wizard used to create COM projects in Visual C++ appears.
5. Set the Server Type to Dynamic Link Library, select the Support MFC option, and click
Finish.
The final page of the wizard appears.
6. Click OK to return to Visual C++.
7. Add a class to the new project.
8. On the next page of the wizard, click the OK button. The Developer Studio creates the
basic project files.
Step 2. Add an ATL Object to a Project
1. In the Workspace window, select the Class View tab, right-click the tree item
COM_VC_BankSoft.BSoftFin classes, and choose New ATL Object from the local menu
that appears.
2. Highlight the Objects item in the left list box and select Simple Object from the list of
object types.
3. Click Next.
4. In the Short Name field, enter a short name for the class you want to create.
In the BankSoft example, use the name BSoftFin, since you are developing a financial
function for the fictional company BankSoft. As you type into the Short Name field, the
wizard fills in suggested names in the other fields.
5. Enter the programmatic identifier for the class.
In the BankSoft example, change the ProgID (programmatic identifier) field to
COM_VC_BankSoft.BSoftFin.
A programmatic identifier, or ProgID, is the human-readable name for a class. Internally,
classes are identified by numeric CLSID's. For example:
{33B17632-1D9F-11D1-8790-0000C044ACF9}
The standard format of a ProgID is Project.Class[.Version]. In the Designer, you refer to
COM classes through ProgIDs.
6. Select the Attributes tab and set the threading model to Free, the interface to Dual, and
the aggregation setting to No.
7. Click OK.
Now that you have a basic class definition, you can add a method to it.
Step 3. Add the Required Methods to the Class
1. Return to the Classes View tab of the Workspace Window.
2. Expand the tree view.
Developing COM Procedures 151
For the BankSoft example, you expand COM_VC_BankSoft.
3. Right-click the newly-added class.
In the BankSoft example, you right-click the IBSoftFin tree item.
4. Click the Add Method menu item and enter the name of the method.
In the BankSoft example, you enter FV.
5. In the Parameters field, enter the signature of the method.
For FV, enter the following:
[in] double Rate,
[in] long nPeriods,
[in] double Payment,
[in] double PresentValue,
[in] long PaymentType,
[out, retval] double* FV
This signature is expressed in terms of the Microsoft Interface Description Language
(MIDL). For a complete description of MIDL, see the MIDL language reference. Note
that:
[in] indicates that the parameter is an input parameter.
[out] indicates that the parameter is an output parameter.
[out, retval] indicates that the parameter is the return value of the method.
Also, note that all [out] parameters are passed by reference. In the BankSoft example, the
parameter FV is a double.
6. Click OK.
The Developer Studio adds to the project a stub for the method you added.
Step 4. Fill Out the Method Stub with an Implementation
1. In the BankSoft example, return to the Class View tab of the Workspace window and
expand the COM_VC_BankSoft classes item.
2. Expand the CBSoftFin item.
3. Expand the IBSoftFin item under the above item.
4. Right-click the FV item and choose Go to Definition.
5. Position the cursor in the edit window on the line after the TODO comment and add the
following code:
double v = pow((1 + Rate), nPeriods);
*FV = -(
(PresentValue * v) +
(Payment * (1 + (Rate * PaymentType))) * ((v - 1) / Rate)
);
152 Chapter 6: External Procedure Transformation
Since you refer to the pow function, you have to add the following preprocessor
statement after all other include statements at the beginning of the file:
#include <math.h>
The final step is to build the DLL. When you build it, you register the COM procedure
with the Windows registry.
Step 5. Build the Project
1. Pull down the Build menu.
2. Select Rebuild All.
As Developer Studio builds the project, it generates the following output:
------------Configuration: COM_VC_BankSoft - Win32 Debug--------------
Performing MIDL step
Microsoft (R) MIDL Compiler Version 3.01.75
Copyright (c) Microsoft Corp 1991-1997. All rights reserved.
Processing .\COM_VC_BankSoft.idl
COM_VC_BankSoft.idl
Processing C:\msdev\VC\INCLUDE\oaidl.idl
oaidl.idl
Processing C:\msdev\VC\INCLUDE\objidl.idl
objidl.idl
Processing C:\msdev\VC\INCLUDE\unknwn.idl
unknwn.idl
Processing C:\msdev\VC\INCLUDE\wtypes.idl
wtypes.idl
Processing C:\msdev\VC\INCLUDE\ocidl.idl
ocidl.idl
Processing C:\msdev\VC\INCLUDE\oleidl.idl
oleidl.idl
Compiling resources...
Compiling...
StdAfx.cpp
Compiling...
COM_VC_BankSoft.cpp
BSoftFin.cpp
Generating Code...
Linking...
Creating library Debug/COM_VC_BankSoft.lib and object Debug/
COM_VC_BankSoft.exp
Registering ActiveX Control...
RegSvr32: DllRegisterServer in .\Debug\COM_VC_BankSoft.dll succeeded.
COM_VC_BankSoft.dll - 0 error(s), 0 warning(s)
Notice that Visual C++ compiles the files in the project, links them into a dynamic link
library (DLL) called COM_VC_BankSoft.DLL, and registers the COM (ActiveX) class
COM_VC_BankSoft.BSoftFin in the local registry.
Once the component is registered, it is accessible to the Integration Service running on that
host.
Developing COM Procedures 153
For more information about how to package COM classes for distribution to other
Integration Services, see “Distributing External Procedures on page 169.
For more information about how to use COM external procedures to call functions in a
preexisting library of C or C++ functions, see “Wrapper Classes for Pre-Existing C/C++
Libraries or VB Functions” on page 173.
For more information about how to use a class factory to initialize COM objects, see
“Initializing COM and Informatica Modules” on page 175.
Step 6. Register a COM Procedure with the Repository
1. Open the Transformation Developer.
2. Click Transformation > Import External Procedure.
The Import External COM Method dialog box appears.
3. Click the Browse button.
4. Select the COM DLL you created and click OK.
In the Banksoft example, select COM_VC_Banksoft.DLL.
5. Under Select Method tree view, expand the class node (in this example, BSoftFin).
6. Expand Methods.
7. Select the method you want (in this example, FV) and press OK.
The Designer creates an External Procedure transformation.
8. Open the External Procedure transformation, and select the Properties tab.
Locate the COM procedure.
154 Chapter 6: External Procedure Transformation
The transformation properties display:
Enter ASCII characters in the Module/Programmatic Identifier and Procedure Name
fields.
9. Click the Ports tab.
Enter ASCII characters in the Port Name fields. For more information about mapping
Visual C++ and Visual Basic datatypes to COM datatypes, see “COM Datatypes” on
page 171.
10. Click OK, and then click Repository > Save.
The repository now contains the reusable transformation, so you can add instances of this
transformation to mappings.
Developing COM Procedures 155
Step 7. Create a Source and a Target for a Mapping
Use the following SQL statements to create a source table and to populate this table with
sample data:
create table FVInputs(
Rate float,
nPeriods int,
Payment float,
PresentValue float,
PaymentType int
)
insert into FVInputs values (.005,10,-200.00,-500.00,1)
insert into FVInputs values (.01,12,-1000.00,0.00,0)
insert into FVInputs values (.11/12,35,-2000.00,0.00,1)
insert into FVInputs values (.005,12,-100.00,-1000.00,1)
Use the following SQL statement to create a target table:
create table FVOutputs(
FVin_ext_proc float,
)
Use the Source Analyzer and the Target Designer to import FVInputs and FVOutputs into
the same folder as the one in which you created the COM_BSFV transformation.
Step 8. Create a Mapping to Test the External Procedure
Transformation
Now create a mapping to test the External Procedure transformation:
1. In the Mapping Designer, create a new mapping named Test_BSFV.
2. Drag the source table FVInputs into the mapping.
3. Drag the target table FVOutputs into the mapping.
4. Drag the transformation COM_BSFV into the mapping.
5. Connect the Source Qualifier transformation ports to the External Procedure
transformation ports as appropriate.
156 Chapter 6: External Procedure Transformation
6. Connect the FV port in the External Procedure transformation to the FVIn_ext_proc
target column.
7. Validate and save the mapping.
Step 9. Start the Integration Service
Start the Integration Service. Note that the service must be started on the same host as the one
on which the COM component was registered.
Step 10. Run a Workflow to Test the Mapping
When the Integration Service runs the session in a workflow, it performs the following
functions:
Uses the COM runtime facilities to load the DLL and create an instance of the class.
Uses the COM IDispatch interface to call the external procedure you defined once for
every row that passes through the mapping.
Note: Multiple classes, each with multiple methods, can be defined within a single project.
Each of these methods can be invoked as an external procedure.
To run a workflow to test the mapping:
1. In the Workflow Manager, create the session s_Test_BSFV from the Test_BSFV
mapping.
2. Create a workflow that contains the session s_Test_BSFV.
3. Run the workflow. The Integration Service searches the registry for the entry for the
COM_VC_BankSoft.BSoftFin class. This entry has information that allows the
Integration Service to determine the location of the DLL that contains that class. The
Integration Service loads the DLL, creates an instance of the class, and invokes the FV
function for every row in the source table.
When the workflow finishes, the FVOutputs table should contain the following results:
Developing COM Procedures with Visual Basic
Microsoft Visual Basic offers a different development environment for creating COM
procedures. While the Basic language has different syntax and conventions, the development
procedure has the same broad outlines as developing COM procedures in Visual C++.
FVIn_ext_proc
2581.403374
12682.503013
82846.246372
2301.401830
Developing COM Procedures 157
Step 1. Create a Visual Basic Project with a Single Class
1. Launch Visual Basic and click File > New Project.
2. In the dialog box that appears, select ActiveX DLL as the project type and click OK.
Visual Basic creates a new project named Project1.
If the Project window does not display, type Ctrl+R, or click View > Project Explorer.
If the Properties window does not display, press F4, or click View > Properties.
3. In the Project Explorer window for the new project, right-click the project and choose
Project1 Properties from the menu that appears.
4. Enter the name of the new project.
In the Project window, select Project1 and change the name in the Properties window to
COM_VB_BankSoft.
Step 2. Change the Names of the Project and Class
1. Inside the Project Explorer, select theProject – Project1” item, which should be the root
item in the tree control. The project properties display in the Properties Window.
2. Select the Alphabetic tab in the Properties Window and change the Name property to
COM_VB_BankSoft. This renames the root item in the Project Explorer to
COM_VB_BankSoft (COM_VB_BankSoft).
3. Expand the COM_VB_BankSoft (COM_VB_BankSoft) item in the Project Explorer.
4. Expand the Class Modules item.
5. Select the Class1 (Class1) item. The properties of the class display in the Properties
Window.
6. Select the Alphabetic tab in the Properties Window and change the Name property to
BSoftFin.
By changing the name of the project and class, you specify that the programmatic identifier
for the class you create is “COM_VB_BankSoft.BSoftFin.” Use this ProgID to refer to this
class inside the Designer.
Step 3. Add a Method to the Class
Place the pointer inside the Code window and enter the following text:
Public Function FV( _
Rate As Double, _
nPeriods As Long, _
Payment As Double, _
PresentValue As Double, _
PaymentType As Long _
) As Double
Dim v As Double
v = (1 + Rate) ^ nPeriods
158 Chapter 6: External Procedure Transformation
FV = -( _
(PresentValue * v) + _
(Payment * (1 + (Rate * PaymentType))) * ((v - 1) / Rate) _
)
End Function
This Visual Basic FV function, of course, performs the same operation as the C++ FV
function in “Developing COM Procedures with Visual Basic” on page 156.
Step 4. Build the Project
To build the project:
1. From the File menu, select the Make COM_VB_BankSoft.DLL. A dialog box prompts
you for the file location.
2. Enter the file location and click OK.
Visual Basic compiles the source code and creates the COM_VB_BankSoft.DLL in the
location you specified. It also registers the class COM_VB_BankSoft.BSoftFin in the local
registry.
Once the component is registered, it is accessible to the Integration Service running on that
host.
For more information about how to package Visual Basic COM classes for distribution to
other machines hosting the Integration Service, see “Distributing External Procedures” on
page 169.
For more information about how to use Visual Basic external procedures to call preexisting
Visual Basic functions, see “Wrapper Classes for Pre-Existing C/C++ Libraries or VB
Functions” on page 173.
To create the procedure, follow steps 6 to 9 of “Using Visual C++ to Develop COM
Procedures” on page 149.
Developing Informatica External Procedures 159
Developing Informatica External Procedures
You can create external procedures that run on 32-bit or 64-bit Integration Service machines.
Complete the following steps to create an Informatica-style external procedure:
1. In the Transformation Developer, create an External Procedure transformation.
The External Procedure transformation defines the signature of the procedure. The
names of the ports, datatypes and port type (input or output) must match the signature
of the external procedure.
2. Generate the template code for the external procedure.
When you execute this command, the Designer uses the information from the External
Procedure transformation to create several C++ source code files and a makefile. One of
these source code files contains a stub” for the function whose signature you defined in
the transformation.
3. Modify the code to add the procedure logic. Fill out the stub with an implementation
and use a C++ compiler to compile and link the source code files into a dynamic link
library or shared library.
When the Integration Service encounters an External Procedure transformation bound to
an Informatica procedure, it loads the DLL or shared library and calls the external
procedure you defined.
4. Build the library and copy it to the Integration Service machine.
5. Create a mapping with the External Procedure transformation.
6. Run the session in a workflow.
We use the BankSoft example to illustrate how to implement this feature.
Step 1. Create the External Procedure Transformation
1. Open the Transformation Developer and create an External Procedure transformation.
2. Open the transformation and enter a name for it.
In the BankSoft example, enter EP_extINF_BSFV.
3. Create a port for each argument passed to the procedure you plan to define.
Be sure that you use the correct datatypes.
160 Chapter 6: External Procedure Transformation
To use the FV procedure as an example, you create the following ports. The last port, FV,
captures the return value from the procedure:
4. Select the Properties tab and configure the procedure as an Informatica procedure.
In the BankSoft example, enter the following:
Note on Module/Programmatic Identifier:
The module name is the base name of the dynamic link library (on Windows) or the
shared object (on UNIX) that contains the external procedures. The following table
Module/Programmatic
Identifier
Runtime Location
Developing Informatica External Procedures 161
describes how the module name determines the name of the DLL or shared object on
the various platforms:
Notes on Runtime Location:
If you set the Runtime Location to $PMExtProcDir, then the Integration Service looks
in the directory specified by the process variable $PMExtProcDir to locate the library.
If you leave the Runtime Location property blank, the Integration Service uses the
environment variable defined on the server platform to locate the dynamic link library
or shared object. The following table describes the environment variables used to
locate the DLL or shared object on the various platforms:
You can hard code a path as the Runtime Location. This is not recommended since the
path is specific to a single machine only.
Note: You must copy all DLLs or shared libraries to the Runtime Location or to the
environment variable defined on the Integration Service machine. The Integration
Service fails to load the external procedure when it cannot locate the DLL, shared library,
or a referenced file.
5. Click OK.
6. Click Repository > Save.
After you create the External Procedure transformation that calls the procedure, the next step
is to generate the C++ files.
Operating System Module Identifier Library File Name
Windows INF_BankSoft INF_BankSoft.DLL
AIX INF_BankSoft libINF_BankSoftshr.a
HPUX INF_BankSoft libINF_BankSoft.sl
Linux INF_BankSoft libINF_BankSoft.so
Solaris INF_BankSoft libINF_BankSoft.so.1
Operating System Environment Variable
Windows PATH
AIX LIBPATH
HPUX SHLIB_PATH
Linux LD_LIBRARY_PATH
Solaris LD_LIBRARY_PATH
162 Chapter 6: External Procedure Transformation
Step 2. Generate the C++ Files
After you create an External Procedure transformation, you generate the code. The Designer
generates file names in lower case since files created on UNIX-mapped drives are always in
lower case. The following rules apply to the generated files:
File names. A prefix ‘tx’ is used for TX module files.
Module class names. The generated code has class declarations for the module that
contains the TX procedures. A prefix Tx is used for TX module classes. For example, if an
External Procedure transformation has a module name Mymod, then the class name is
TxMymod.
To generate the code for an external procedure:
1. Select the transformation and click Transformation > Generate Code.
2. Select the check box next to the name of the procedure you just created.
In the BankSoft example, select INF_BankSoft.FV.
3. Specify the directory where you want to generate the files, and click Generate.
The Designer creates a subdirectory, INF_BankSoft, in the directory you specified.
Each External Procedure transformation created in the Designer must specify a module
and a procedure name. The Designer generates code in a single directory for all
transformations sharing a common module name. Building the code in one directory
creates a single shared library.
The Designer generates the following files:
tx<moduleName>.h. Defines the external procedure module class. This class is derived
from a base class TINFExternalModule60. No data members are defined for this class
in the generated code. However, you can add new data members and methods here.
tx<moduleName>.cpp. Implements the external procedure module class. You can
expand the InitDerived() method to include initialization of any new data members
you add. The Integration Service calls the derived class InitDerived() method only
when it successfully completes the base class Init() method.
This file defines the signatures of all External Procedure transformations in the module.
Any modification of these signatures leads to inconsistency with the External Procedure
transformations defined in the Designer. Therefore, you should not change the
signatures.
This file also includes a C function CreateExternalModuleObject, which creates an
object of the external procedure module class using the constructor defined in this file.
The Integration Service calls CreateExternalModuleObject instead of directly calling the
constructor.
<procedureName>.cpp. The Designer generates one of these files for each external
procedure in this module. This file contains the code that implements the procedure
logic, such as data cleansing and filtering. For data cleansing, create code to read in
Developing Informatica External Procedures 163
values from the input ports and generate values for output ports. For filtering, create
code to suppress generation of output rows by returning INF_NO_OUTPUT_ROW.
stdafx.h. Stub file used for building on UNIX systems. The various *.cpp files include
this file. On Windows systems, the Visual Studio generates an stdafx.h file, which
should be used instead of the Designer generated file.
version.cpp. This is a small file that carries the version number of this
implementation. In earlier releases, external procedure implementation was handled
differently. This file allows the Integration Service to determine the version of the
external procedure module.
makefile.aix, makefile.aix64, makefile.hp, makefile.hp64, makefile.hpparisc64,
makefile.linux, makefile.sol. Make files for UNIX platforms. Use makefile.aix,
makefile.hp, makefile.linux, and makefile.sol for 32-bit platforms. Use makefile.aix64
for 64-bit AIX platforms and makefile.hp64 for 64-bit HP-UX (Itanium) platforms.
Example 1
In the BankSoft example, the Designer generates the following files:
txinf_banksoft.h. Contains declarations for module class TxINF_BankSoft and external
procedure FV.
txinf_banksoft.cpp. Contains code for module class TxINF_BankSoft.
fv.cpp. Contains code for procedure FV.
version.cpp. Returns TX version.
stdafx.h. Required for compilation on UNIX. On Windows, stdafx.h is generated by
Visual Studio.
readme.txt. Contains general help information.
Example 2
If you create two External Procedure transformations with procedure names ‘Myproc1’ and
Myproc2,’ both with the module name Mymod, the Designer generates the following files:
txmymod.h. Contains declarations for module class TxMymod and external procedures
Myproc1 and Myproc2.
txmymod.cpp. Contains code for module class TxMymod.
myproc1.cpp. Contains code for procedure Myproc1.
myproc2.cpp. Contains code for procedure Myproc2.
version.cpp.
stdafx.h.
readme.txt.
164 Chapter 6: External Procedure Transformation
Step 3. Fill Out the Method Stub with Implementation
The final step is coding the procedure.
1. Open the <Procedure_Name>.cpp stub file generated for the procedure.
In the BankSoft example, you open fv.cpp to code the TxINF_BankSoft::FV procedure.
2. Enter the C++ code for the procedure.
The following code implements the FV procedure:
INF_RESULT TxINF_BankSoft::FV()
{
// Input port values are mapped to the m_pInParamVector array in
// the InitParams method. Use m_pInParamVector[i].IsValid() to check
// if they are valid. Use m_pInParamVector[i].GetLong or GetDouble,
// etc. to get their value. Generate output data into m_pOutParamVector.
// TODO: Fill in implementation of the FV method here.
ostrstream ss;
char* s;
INF_Boolean bVal;
double v;
TINFParam* Rate = &m_pInParamVector[0];
TINFParam* nPeriods = &m_pInParamVector[1];
TINFParam* Payment = &m_pInParamVector[2];
TINFParam* PresentValue = &m_pInParamVector[3];
TINFParam* PaymentType = &m_pInParamVector[4];
TINFParam* FV = &m_pOutParamVector[0];
bVal =
INF_Boolean(
Rate->IsValid() &&
nPeriods->IsValid() &&
Payment->IsValid() &&
PresentValue->IsValid() &&
PaymentType->IsValid()
);
if (bVal == INF_FALSE)
{
FV->SetIndicator(INF_SQL_DATA_NULL);
return INF_SUCCESS;
}
Developing Informatica External Procedures 165
v = pow((1 + Rate->GetDouble()), (double)nPeriods->GetLong());
FV->SetDouble(
-(
(PresentValue->GetDouble() * v) +
(Payment->GetDouble() *
(1 + (Rate->GetDouble() * PaymentType->GetLong()))) *
((v - 1) / Rate->GetDouble())
)
);
ss << "The calculated future value is: " << FV->GetDouble() <<ends;
s = ss.str();
(*m_pfnMessageCallback)(E_MSG_TYPE_LOG, 0, s);
(*m_pfnMessageCallback)(E_MSG_TYPE_ERR, 0, s);
delete [] s;
return INF_SUCCESS;
}
The Designer generates the function profile, including the arguments and return value.
You need to enter the actual code within the function, as indicated in the comments.
Since you referenced the POW function and defined an ostrstream variable, you must
also include the preprocessor statements:
On Windows:
#include <math.h>;
#include <strstrea.h>;
On UNIX, the include statements would be the following:
#include <math.h>;
#include <strstream.h>;
3. Save the modified file.
Step 4. Building the Module
On Windows, use Visual C++ to compile the DLL.
To build a DLL on Windows:
1. Start Visual C++.
2. Click File > New.
3. In the New dialog box, click the Projects tab and select the MFC AppWizard (DLL)
option.
166 Chapter 6: External Procedure Transformation
4. Enter its location.
In the BankSoft example, you enter c:\pmclient\tx\INF_BankSoft, assuming you
generated files in c:\pmclient\tx.
5. Enter the name of the project.
It must be the same as the module name entered for the External Procedure
transformation. In the BankSoft example, it is INF_BankSoft.
6. Click OK.
Visual C++ now steps you through a wizard that defines all the components of the
project.
7. In the wizard, click MFC Extension DLL (using shared MFC DLL).
8. Click Finish.
The wizard generates several files.
9. Click Project > Add To Project > Files.
10. Navigate up a directory level. This directory contains the external procedure files you
created. Select all .cpp files.
In the BankSoft example, add the following files:
fv.cpp
txinf_banksoft.cpp
version.cpp
11. Click Project > Settings.
12. Click the C/C++ tab, and select Preprocessor from the Category field.
13. In the Additional Include Directories field, enter ..; <pmserver install
dir>\extproc\include.
14. Click the Link tab, and select General from the Category field.
15. Enter <pmserver install dir>\bin\pmtx.lib in the Object/Library Modules field.
16. Click OK.
17. Click Build > Build INF_BankSoft.dll or press F7 to build the project.
The compiler now creates the DLL and places it in the debug or release directory under
the project directory. For information about running a workflow with the debug version,
see Running a Session with the Debug Version of the Module on Windows” on
page 168.
Developing Informatica External Procedures 167
To build shared libraries on UNIX:
1. If you cannot access the PowerCenter Client tools directly, copy all the files you need for
the shared library to the UNIX machine where you plan to perform the build.
For example, in the BankSoft procedure, use ftp or another mechanism to copy
everything from the INF_BankSoft directory to the UNIX machine.
2. Set the environment variable INFA_HOME to the PowerCenter installation directory.
Warning: If you specify an incorrect directory path for the INFA_HOME environment
variable, the Integration Service cannot start.
3. Enter the command to make the project.
The command depends on the version of UNIX, as summarized below:
Step 5. Create a Mapping
In the Mapping Designer, create a mapping that uses this External Procedure transformation.
Step 6. Run the Session in a Workflow
When you run the session in a workflow, the Integration Service looks in the directory you
specify as the Runtime Location to find the library (DLL) you built in Step 4. The default
value of the Runtime Location property in the session properties is $PMExtProcDir.
To run a session in a workflow:
1. In the Workflow Manager, create a workflow.
2. Create a session for this mapping in the workflow.
Tip: Alternatively, you can create a re-usable session in the Task Developer and use it in
the workflow.
3. Copy the library (DLL) to the Runtime Location directory.
4. Run the workflow containing the session.
UNIX Version Command
AIX (32-bit) make -f makefile.aix
AIX (64-bit) make -f makefile.aix64
HP-UX (32-bit) make -f makefile.hp
HP-UX (64-bit) make -f makefile.hp64
Linux make -f makefile.linux
Solaris make -f makefile.sol
168 Chapter 6: External Procedure Transformation
Running a Session with the Debug Version of the Module on Windows
Informatica ships PowerCenter on Windows with the release build (pmtx.dll) and the debug
build (pmtxdbg.dll) of the External Procedure transformation library. These libraries are
installed in the server bin directory.
If you build a release version of the module in Step 4, run the session in a workflow to use the
release build (pmtx.dll) of the External Procedure transformation library. You do not need to
complete the following task.
If you build a debug version of the module in Step 4, follow the procedure below to use the
debug build (pmtxdbg.dll) of the External Procedure transformation library.
To run a session using a debug version of the module:
1. In the Workflow Manager, create a workflow.
2. Create a session for this mapping in the workflow.
Or, you can create a re-usable session in the Task Developer and use it in the workflow.
3. Copy the library (DLL) to the Runtime Location directory.
4. To use the debug build of the External Procedure transformation library:
Preserve pmtx.dll by renaming it or moving it from the server bin directory.
Rename pmtxdbg.dll to pmtx.dll.
5. Run the workflow containing the session.
6. To revert the release build of the External Procedure transformation library back to the
default library:
Rename pmtx.dll back to pmtxdbg.dll.
Return/rename the original pmtx.dll file to the server bin directory.
Note: If you run a workflow containing this session with the debug version of the module on
Windows, you must return the original pmtx.dll file to its original name and location before
you can run a non-debug session.
Distributing External Procedures 169
Distributing External Procedures
Suppose you develop a set of external procedures and you want to make them available on
multiple servers, each of which is running the Integration Service. The methods for doing this
depend on the type of the external procedure and the operating system on which you built it.
You can also use these procedures to distribute external procedures to external customers.
Distributing COM Procedures
Visual Basic and Visual C++ register COM classes in the local registry when you build the
project. Once registered, these classes are accessible to the Integration Service running on the
machine where you compiled the DLL. For example, if you build a project on HOST1, all the
classes in the project will be registered in the HOST1 registry and will be accessible to the
Integration Service running on HOST1. Suppose, however, that you also want the classes to
be accessible to the Integration Service running on HOST2. For this to happen, the classes
must be registered in the HOST2 registry.
Visual Basic provides a utility for creating a setup program that can install COM classes on a
Windows machine and register these classes in the registry on that machine. While no utility
is available in Visual C++, you can easily register the class yourself.
Figure 6-1 shows the process for distributing external procedures:
To distribute a COM Visual Basic procedure:
1. After you build the DLL, exit Visual Basic and launch the Visual Basic Application Setup
wizard.
2. Skip the first panel of the wizard.
3. On the second panel, specify the location of the project and select the Create a Setup
Program option.
4. In the third panel, select the method of distribution you plan to use.
5. In the next panel, specify the directory to which you want to write the setup files.
For simple ActiveX components, you can continue to the final panel of the wizard.
Otherwise, you may need to add more information, depending on the type of file and the
method of distribution.
Figure 6-1. Process for Distributing External Procedures
Development PowerCenter Client Integration Service
(Where external
procedure was
developed using C++
or VB)
(Bring the DLL here to
run
regsvr32<xyz>.dll)
(Bring the DLL here to
execute
regsvr32<xyz>.dll)
170 Chapter 6: External Procedure Transformation
6. Click Finish in the final panel.
Visual Basic then creates the setup program for the DLL. Run this setup program on any
Windows machine where the Integration Service is running.
To distribute a COM Visual C++/Visual Basic procedure manually:
1. Copy the DLL to the directory on the new Windows machine anywhere you want it
saved.
2. Log in to this Windows machine and open a DOS prompt.
3. Navigate to the directory containing the DLL and execute the following command:
REGSVR32 project_name.DLL
project_name is the name of the DLL you created. In the BankSoft example, the project
name is COM_VC_BankSoft.DLL. or COM_VB_BankSoft.DLL.
This command line program then registers the DLL and any COM classes contained in
it.
Distributing Informatica Modules
You can distribute external procedures between repositories.
To distribute external procedures between repositories:
1. Move the DLL or shared object that contains the external procedure to a directory on a
machine that the Integration Service can access.
2. Copy the External Procedure transformation from the original repository to the target
repository using the Designer client tool.
-or-
Export the External Procedure transformation to an XML file and import it in the target
repository.
For more information, see “Exporting and Importing Objects” in the Repository Guide.
Development Notes 171
Development Notes
This section includes some additional guidelines and information about developing COM
and Informatica external procedures.
COM Datatypes
When using either Visual C++ or Visual Basic to develop COM procedures, you need to use
COM datatypes that correspond to the internal datatypes that the Integration Service uses
when reading and transforming data. These datatype matches are important when the
Integration Service attempts to map datatypes between ports in an External Procedure
transformation and arguments (or return values) from the procedure the transformation calls.
Table 6-2 compares Visual C++ and transformation datatypes:
Table 6-3 compares Visual Basic and transformation datatypes:
If you do not correctly match datatypes, the Integration Service may attempt a conversion.
For example, if you assign the Integer datatype to a port, but the datatype for the
corresponding argument is BSTR, the Integration Service attempts to convert the Integer
value to a BSTR.
Table 6-2. Visual C++ and Transformation Datatypes
Visual C++ COM Datatype Transformation Datatype
VT_I4 Integer
VT_UI4 Integer
VT_R8 Double
VT_BSTR String
VT_DECIMAL Decimal
VT_DATE Date/Time
Table 6-3. Visual Basic and Transformation Datatypes
Visual Basic COM Datatype Transformation Datatype
Long Integer
Double Double
String String
Decimal Decimal
Date Date/Time
172 Chapter 6: External Procedure Transformation
Row-Level Procedures
All External Procedure transformations call procedures using values from a single row passed
through the transformation. You cannot use values from multiple rows in a single procedure
call. For example, you could not code the equivalent of the aggregate functions SUM or AVG
into a procedure call. In this sense, all external procedures must be stateless.
Return Values from Procedures
When you call a procedure, the Integration Service captures an additional return value
beyond whatever return value you code into the procedure. This additional value indicates
whether the Integration Service successfully called the procedure.
For COM procedures, this return value uses the type HRESULT.
Informatica procedures use the type INF_RESULT. If the value returned is S_OK/
INF_SUCCESS, the Integration Service successfully called the procedure. You must return
the appropriate value to indicate the success or failure of the external procedure. Informatica
procedures return four values:
INF_SUCCESS. The external procedure processed the row successfully. The Integration
Service passes the row to the next transformation in the mapping.
INF_NO_OUTPUT_ROW. The Integration Service does not write the current row due
to external procedure logic. This is not an error. When you use
INF_NO_OUTPUT_ROW to filter rows, the External Procedure transformation behaves
similarly to the Filter transformation.
Note: When you use INF_NO_OUTPUT_ROW in the external procedure, make sure you
connect the External Procedure transformation to another transformation that receives
rows from the External Procedure transformation only.
INF_ROW_ERROR. Equivalent to a transformation error. The Integration Service
discards the current row, but may process the next row unless you configure the session to
stop on n errors.
INF_FATAL_ERROR. Equivalent to an ABORT() function call. The Integration Service
aborts the session and does not process any more rows. For more information, see
“Functions” in the Transformation Language Reference.
Exceptions in Procedure Calls
The Integration Service captures most exceptions that occur when it calls a COM or
Informatica procedure through an External Procedure transformation. For example, if the
procedure call creates a divide by zero error, the Integration Service catches the exception.
In a few cases, the Integration Service cannot capture errors generated by procedure calls.
Since the Integration Service supports only in-process COM servers, and since all Informatica
procedures are stored in shared libraries and DLLs, the code running external procedures
exists in the same address space in memory as the Integration Service. Therefore, it is possible
for the external procedure code to overwrite the Integration Service memory, causing the
Development Notes 173
Integration Service to stop. If COM or Informatica procedures cause such stops, review the
source code for memory access problems.
Memory Management for Procedures
Since all the datatypes used in Informatica procedures are fixed length, there are no memory
management issues for Informatica external procedures. For COM procedures, you need to
allocate memory only if an [out] parameter from a procedure uses the BSTR datatype. In this
case, you need to allocate memory on every call to this procedure. During a session, the
Integration Service releases the memory after calling the function.
Wrapper Classes for Pre-Existing C/C++ Libraries or VB Functions
Suppose that BankSoft has a library of C or C++ functions and wants to plug these functions
in to the Integration Service. In particular, the library contains BankSoft’s own
implementation of the FV function, called PreExistingFV. The general method for doing this
is the same for both COM and Informatica external procedures. A similar solution is available
in Visual Basic. You need only make calls to preexisting Visual Basic functions or to methods
on objects that are accessible to Visual Basic.
Generating Error and Tracing Messages
The implementation of the Informatica external procedure TxINF_BankSoft::FV in “Step 4.
Building the Module” on page 165 contains the following lines of code.
ostrstream ss;
char* s;
...
ss << "The calculated future value is: " << FV->GetDouble() << ends;
s = ss.str();
(*m_pfnMessageCallback)(E_MSG_TYPE_LOG, 0, s);
(*m_pfnMessageCallback)(E_MSG_TYPE_ERR, 0, s);
delete [] s;
When the Integration Service creates an object of type Tx<MODNAME>, it passes to its
constructor a pointer to a callback function that can be used to write error or debugging
messages to the session log. (The code for the Tx<MODNAME> constructor is in the file
Tx<MODNAME>.cpp.) This pointer is stored in the Tx<MODNAME> member variable
m_pfnMessageCallback. The type of this pointer is defined in a typedef in the file
$PMExtProcDir/include/infemmsg.h:
typedef void (*PFN_MESSAGE_CALLBACK)(
enum E_MSG_TYPE eMsgType,
unsigned long Code,
char* Message
);
Also defined in that file is the enumeration E_MSG_TYPE:
enum E_MSG_TYPE {
E_MSG_TYPE_LOG = 0,
E_MSG_TYPE_WARNING,
174 Chapter 6: External Procedure Transformation
E_MSG_TYPE_ERR
};
If you specify the eMsgType of the callback function as E_MSG_TYPE_LOG, the callback
function will write a log message to the session log. If you specify E_MSG_TYPE_ERR, the
callback function writes an error message to the session log. If you specify
E_MSG_TYPE_WARNING, the callback function writes an warning message to the session
log. Use these messages to provide a simple debugging capability in Informatica external
procedures.
To debug COM external procedures, you may use the output facilities available from inside a
Visual Basic or C++ class. For example, in Visual Basic use a MsgBox to print out the result of
a calculation for each row. Of course, you want to do this only on small samples of data while
debugging and make sure to remove the MsgBox before making a production run.
Note: Before attempting to use any output facilities from inside a Visual Basic or C++ class,
you must add the following value to the registry:
1. Add the following entry to the Windows registry:
\HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\PowerMart\Parameter
s\MiscInfo\RunInDebugMode=Yes
This option starts the Integration Service as a regular application, not a service. You can
debug the Integration Service without changing the debug privileges for the Integration
Service service while it is running.
2. Start the Integration Service from the command line, using the command
PMSERVER.EXE.
The Integration Service is now running in debug mode.
When you are finished debugging, make sure you remove this entry from the registry or set
RunInDebugMode to No. Otherwise, when you attempt to start PowerCenter as a service, it
will not start.
1. Stop the Integration Service and change the registry entry you added earlier to the
following setting:
\HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\PowerMart\Parameter
s\MiscInfo\RunInDebugMode=No
2. Restart the Integration Service as a Windows service.
The TINFParam Class and Indicators
The <PROCNAME> method accesses input and output parameters using two parameter
arrays, and that each array element is of the TINFParam datatype. The TINFParam datatype
is a C++ class that serves as a “variant” data structure that can hold any of the Informatica
internal datatypes. The actual data in a parameter of type TINFParam* is accessed through
member functions of the form Get<Type> and Set<Type>, where <Type> is one of the
Informatica internal datatypes. TINFParam also has methods for getting and setting the
indicator for each parameter.
Development Notes 175
You are responsible for checking these indicators on entry to the external procedure and for
setting them on exit. On entry, the indicators of all output parameters are explicitly set to
INF_SQL_DATA_NULL, so if you do not reset these indicators before returning from the
external procedure, you will just get NULLs for all the output parameters. The TINFParam
class also supports functions for obtaining the metadata for a particular parameter. For a
complete description of all the member functions of the TINFParam class, see the infemdef.h
include file in the tx/include directory.
Note that one of the main advantages of Informatica external procedures over COM external
procedures is that Informatica external procedures directly support indicator manipulation.
That is, you can check an input parameter to see if it is NULL, and you can set an output
parameter to NULL. COM provides no indicator support. Consequently, if a row entering a
COM-style external procedure has any NULLs in it, the row cannot be processed. Use the
default value facility in the Designer to overcome this shortcoming. However, it is not
possible to pass NULLs out of a COM function.
Unconnected External Procedure Transformations
When you add an instance of an External Procedure transformation to a mapping, you can
choose to connect it as part of the pipeline or leave it unconnected. Connected External
Procedure transformations call the COM or Informatica procedure every time a row passes
through the transformation.
To get return values from an unconnected External Procedure transformation, call it in an
expression using the following syntax:
:EXT.transformation_name(arguments)
When a row passes through the transformation containing the expression, the Integration
Service calls the procedure associated with the External Procedure transformation. The
expression captures the return value of the procedure through the External Procedure
transformation return port, which should have the Result (R) option checked. For more
information about expressions, see Working with Expressions” on page 10.
Initializing COM and Informatica Modules
Some external procedures must be configured at initialization time. This initialization takes
one of two forms, depending on the type of the external procedure:
1. Initialization of Informatica-style external procedures. The Tx<MODNAME> class,
which contains the external procedure, also contains the initialization function,
Tx<MODNAME>::InitDerived. The signature of this initialization function is well-
known to the Integration Service and consists of three parameters:
nInitProps. This parameter tells the initialization function how many initialization
properties are being passed to it.
Properties. This parameter is an array of nInitProp strings representing the names of
the initialization properties.
176 Chapter 6: External Procedure Transformation
Values. This parameter is an array of nInitProp strings representing the values of the
initialization properties.
The Integration Service first calls the Init() function in the base class. When the Init()
function successfully completes, the base class calls the Tx<MODNAME>::InitDerived()
function.
The Integration Service creates the Tx<MODNAME> object and then calls the
initialization function. It is the responsibility of the external procedure developer to
supply that part of the Tx<MODNAME>::InitDerived() function that interprets the
initialization properties and uses them to initialize the external procedure. Once the
object is created and initialized, the Integration Service can call the external procedure on
the object for each row.
2. Initialization of COM-style external procedures. The object that contains the external
procedure (or EP object) does not contain an initialization function. Instead, another
object (the CF object) serves as a class factory for the EP object. The CF object has a
method that can create an EP object.
The signature of the CF object method is determined from its type library. The
Integration Service creates the CF object, and then calls the method on it to create the EP
object, passing this method whatever parameters are required. This requires that the
signature of the method consist of a set of input parameters, whose types can be
determined from the type library, followed by a single output parameter that is an
IUnknown** or an IDispatch** or a VARIANT* pointing to an IUnknown* or
IDispatch*.
The input parameters hold the values required to initialize the EP object and the output
parameter receives the initialized object. The output parameter can have either the [out]
or the [out, retval] attributes. That is, the initialized object can be returned either as an
Development Notes 177
output parameter or as the return value of the method. The datatypes supported for the
input parameters are:
COM VC type
VT_UI1
VT_BOOL
VT_I2
VT_UI2
VT_I4
VT_UI4
VT_R4
VT_R8
VT_BSTR
VT_CY
VT_DATE
Setting Initialization Properties in the Designer
Enter external procedure initialization properties on the Initialization Properties tab of the
Edit Transformations dialog box. The tab displays different fields, depending on whether the
external procedure is COM-style or Informatica-style.
COM-style External Procedure transformations contain the following fields on the
Initialization Properties tab:
Programmatic Identifier for Class Factory. Enter the programmatic identifier of the class
factory.
Constructor. Specify the method of the class factory that creates the EP object.
178 Chapter 6: External Procedure Transformation

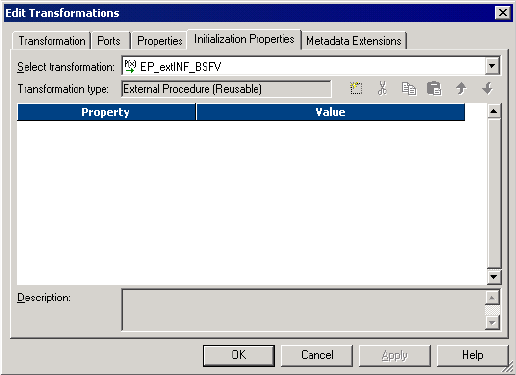

Figure 6-2 shows the Initialization Properties tab of a COM-style External Procedure
transformation:
You can enter an unlimited number of initialization properties to pass to the Constructor
method for both COM-style and Informatica-style External Procedure transformations.
To add a new initialization property, click the Add button. Enter the name of the parameter
in the Property column and enter the value of the parameter in the Value column. For
example, you can enter the following parameters:
Note: You must create a one-to-one relation between the initialization properties you define in
the Designer and the input parameters of the class factory constructor method. For example,
if the constructor has n parameters with the last parameter being the output parameter that
receives the initialized object, you must define n – 1 initialization properties in the Designer,
one for each input parameter in the constructor method.
You can also use process variables in initialization properties. For information about process
variables support in Initialization properties, see “Service Process Variables in Initialization
Properties” on page 180.

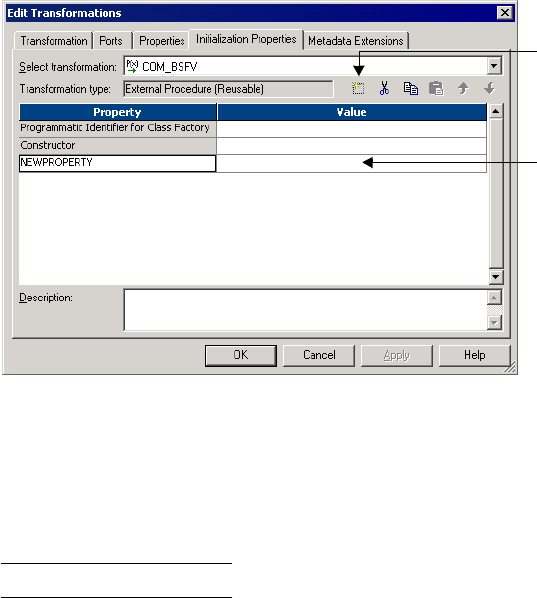

Figure 6-2. External Procedure Transformation Initialization Properties
Parameter Value
Param1 abc
Param2 100
Param3 3.17
Add a new property.
New Property
Development Notes 179
Other Files Distributed and Used in TX
Following are the header files located under the path $PMExtProcDir/include that are needed
for compiling external procedures:
infconfg.h
infem60.h
infemdef.h
infemmsg.h
infparam.h
infsigtr.h
Following are the library files located under the path <PMInstallDir> that are needed for
linking external procedures and running the session:
libpmtx.a (AIX)
libpmtx.sl (HP-UX)
libpmtx.so (Linux)
libpmtx.so (Solaris)
pmtx.dll and pmtx.lib (Windows)
180 Chapter 6: External Procedure Transformation
Service Process Variables in Initialization Properties
PowerCenter supports built-in process variables in the External Procedure transformation
initialization properties list. If the property values contain built-in process variables, the
Integration Service expands them before passing them to the external procedure library. This
can be very useful for writing portable External Procedure transformations.

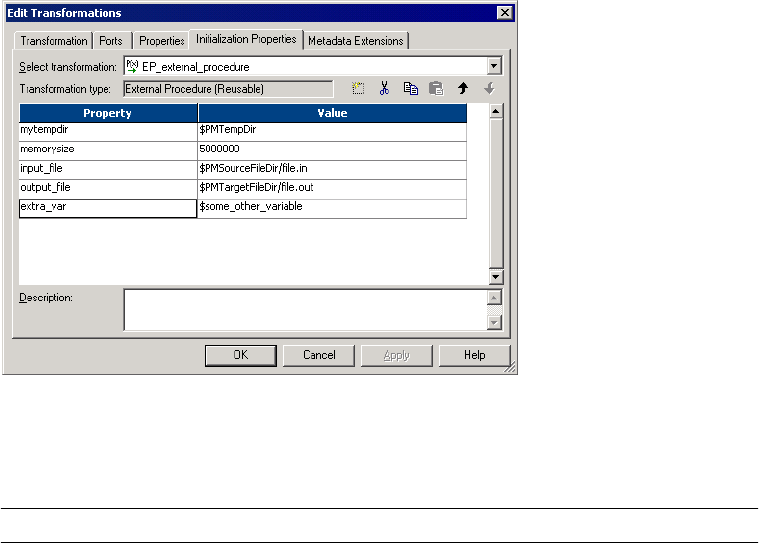

Figure 6-3 shows an External Procedure transformation with five user-defined properties:
Table 6-4 contains the initialization properties and values for the External Procedure
transformation in Figure 6-3:
When you run the workflow, the Integration Service expands the property list and passes it to
the external procedure initialization function. Assuming that the values of the built-in process
variables $PMTempDir is /tmp, $PMSourceFileDir is /data/input, and $PMTargetFileDir is
/data/output, the last column in Ta ble 6-4 contains the property and expanded value
information. Note that the Integration Service does not expand the last property
“$some_other_variable” because it is not a built-in process variable.
Figure 6-3. External Procedure Transformation Initialization Properties Tab
Table 6-4. External Procedure Initialization Properties
Property Value Expanded Value Passed to the External Procedure Library
mytempdir $PMTempDir /tmp
memorysize 5000000 5000000
input_file $PMSourceFileDir/file.in /data/input/file.in
output_file $PMTargetFileDir/file.out /data/output/file.out
extra_var $some_other_variable $some_other_variable
External Procedure Interfaces 181
External Procedure Interfaces
The Integration Service uses the following major functions with External Procedures:
Dispatch
External procedure
Property access
Parameter access
Code page access
Transformation name access
Procedure access
Partition related
Tra c in g l e ve l
Dispatch Function
The Integration Service calls the dispatch function to pass each input row to the external
procedure module. The dispatch function, in turn, calls the external procedure function you
specify.
External procedures access the ports in the transformation directly using the member variable
m_pInParamVector for input ports and m_pOutParamVector for output ports.
Signature
The dispatch function has a fixed signature which includes one index parameter.
virtual INF_RESULT Dispatch(unsigned long ProcedureIndex) = 0
External Procedure Function
The external procedure function is the main entry point into the external procedure module,
and is an attribute of the External Procedure transformation. The dispatch function calls the
external procedure function for every input row. For External Procedure transformations, use
the external procedure function for input and output from the external procedure module.
The function can access the IN and IN-OUT port values for every input row, and can set the
OUT and IN-OUT port values. The external procedure function contains all the input and
output processing logic.
Signature
The external procedure function has no parameters. The input parameter array is already
passed through the InitParams() method and stored in the member variable
m_pInParamVector. Each entry in the array matches the corresponding IN and IN-OUT
ports of the External Procedure transformation, in the same order. The Integration Service
fills this vector before calling the dispatch function.
182 Chapter 6: External Procedure Transformation
Use the member variable m_pOutParamVector to pass the output row before returning the
Dispatch() function.
For the MyExternal Procedure transformation, the external procedure function is the
following, where the input parameters are in the member variable m_pInParamVector and the
output values are in the member variable m_pOutParamVector:
INF_RESULT Tx<ModuleName>::MyFunc()
Property Access Functions
The property access functions provide information about the initialization properties
associated with the External Procedure transformation. The initialization property names and
values appear on the Initialization Properties tab when you edit the External Procedure
transformation.
Informatica provides property access functions in both the base class and the
TINFConfigEntriesList class. Use the GetConfigEntryName() and GetConfigEntryValue()
functions in the TINFConfigEntriesList class to access the initialization property name and
value, respectively.
Signature
Informatica provides the following functions in the base class:
TINFConfigEntriesList*
TINFBaseExternalModule60::accessConfigEntriesList();
const char* GetConfigEntry(const char* LHS);
Informatica provides the following functions in the TINFConfigEntriesList class:
const char* TINFConfigEntriesList::GetConfigEntryValue(const char* LHS);
const char* TINFConfigEntriesList::GetConfigEntryValue(int i);
const char* TINFConfigEntriesList::GetConfigEntryName(int i);
const char* TINFConfigEntriesList::GetConfigEntry(const char* LHS)
Note: In the TINFConfigEntriesList class, use the GetConfigEntryName() and
GetConfigEntryValue() property access functions to access the initialization property names
and values.
You can call these functions from a TX program. The TX program then converts this string
value into a number, for example by using atoi or sscanf. In the following example,
addFactor” is an Initialization Property. accessConfigEntriesList() is a member variable of the
TX base class and does not need to be defined.
const char* addFactorStr = accessConfigEntriesList()->
GetConfigEntryValue("addFactor");
External Procedure Interfaces 183
Parameter Access Functions
Parameter access functions are datatype specific. Use the parameter access function
GetDataType to return the datatype of a parameter. Then use a parameter access function
corresponding to this datatype to return information about the parameter.
A parameter passed to an external procedure belongs to the datatype TINFParam*. The
header file infparam.h defines the related access functions. The Designer generates stub code
that includes comments indicating the parameter datatype. You can also determine the
datatype of a parameter in the corresponding External Procedure transformation in the
Designer.
Signature
A parameter passed to an external procedure is a pointer to an object of the TINFParam class.
This fixed-signature function is a method of that class and returns the parameter datatype as
an enum value.
The valid datatypes are:
INF_DATATYPE_LONG
INF_DATATYPE_STRING
INF_DATATYPE_DOUBLE
INF_DATATYPE_RAW
INF_DATATYPE_TIME
Table 6-5 lists a brief description of some parameter access functions:
Table 6-5. Descriptions of Parameter Access Functions
Parameter Access Function Description
INF_DATATYPE GetDataType(void); Gets the datatype of a parameter. Use the parameter datatype to
determine which datatype-specific function to use when accessing
parameter values.
INF_Boolean IsValid(void); Verifies that input data is valid. Returns FALSE if the parameter contains
truncated data and is a string.
INF_Boolean IsNULL(void); Verifies that input data is NULL.
INF_Boolean IsInputMapped (void); Verifies that input port passing data to this parameter is connected to a
transformation.
INF_Boolean IsOutput Mapped (void); Verifies that output port receiving data from this parameter is connected
to a transformation.
INF_Boolean IsInput(void); Verifies that parameter corresponds to an input port.
INF_Boolean IsOutput(void); Verifies that parameter corresponds to an output port.
INF_Boolean GetName(void); Gets the name of the parameter.
184 Chapter 6: External Procedure Transformation
Only use the SetInt32 or GetInt32 function when you run the external procedure on a 64-bit
Integration Service. Do not use any of the following functions:
GetLong
SetLong
GetpLong
GetpDouble
GetpTime
Pass the parameters using two parameter lists.
SQLIndicator GetIndicator(void); Gets the value of a parameter indicator. The IsValid and ISNULL
functions are special cases of this function. This function can also return
INF_SQL_DATA_TRUNCATED.
void SetIndicator(SQLIndicator Indicator); Sets an output parameter indicator, such as invalid or truncated.
long GetLong(void); Gets the value of a parameter having a Long or Integer datatype. Call
this function only if you know the parameter datatype is Integer or Long.
This function does not convert data to Long from another datatype.
double GetDouble(void); Gets the value of a parameter having a Float or Double datatype. Call
this function only if you know the parameter datatype is Float or Double.
This function does not convert data to Double from another datatype.
char* GetString(void); Gets the value of a parameter as a null-terminated string. Call this
function only if you know the parameter datatype is String. This function
does not convert data to String from another datatype.
The value in the pointer changes when the next row of data is read. If
you want to store the value from a row for later use, explicitly copy this
string into its own allocated buffer.
char* GetRaw(void); Gets the value of a parameter as a non-null terminated byte array. Call
this function only if you know the parameter datatype is Raw. This
function does not convert data to Raw from another datatype.
unsigned long GetActualDataLen(void); Gets the current length of the array returned by GetRaw.
TINFTime GetTime(void); Gets the value of a parameter having a Date/Time datatype. Call this
function only if you know the parameter datatype is Date/Time. This
function does not convert data to Date/Time from another datatype.
void SetLong(long lVal); Sets the value of an output parameter having a Long datatype.
void SetDouble(double dblVal); Sets the value of an output parameter having a Double datatype.
void SetString(char* sVal); Sets the value of an output parameter having a String datatype.
void SetRaw(char* rVal, size_t
ActualDataLen);
Sets a non-null terminated byte array.
void SetTime(TINFTime timeVal); Sets the value of an output parameter having a Date/Time datatype.
Table 6-5. Descriptions of Parameter Access Functions
Parameter Access Function Description
External Procedure Interfaces 185
Table 6-6 lists the member variables of the external procedure base class.
Code Page Access Functions
Informatica provides two code page access functions that return the code page of the
Integration Service and two that return the code page of the data the external procedure
processes. When the Integration Service runs in Unicode mode, the string data passing to the
external procedure program can contain multibyte characters. The code page determines how
the external procedure interprets a multibyte character string. When the Integration Service
runs in Unicode mode, data processed by the external procedure program must be two-way
compatible with the Integration Service code page.
Signature
Use the following functions to obtain the Integration Service code page through the external
procedure program. Both functions return equivalent information.
int GetServerCodePageID() const;
const char* GetServerCodePageName() const;
Use the following functions to obtain the code page of the data the external procedure
processes through the external procedure program. Both functions return equivalent
information.
int GetDataCodePageID(); // returns 0 in case of error
const char* GetDataCodePageName() const; // returns NULL in case of error
Transformation Name Access Functions
Informatica provides two transformation name access functions that return the name of the
External Procedure transformation. The GetWidgetName() function returns the name of the
transformation, and the GetWidgetInstanceName() function returns the name of the
transformation instance in the mapplet or mapping.
Signature
The char* returned by the transformation name access functions is an MBCS string in the
code page of the Integration Service. It is not in the data code page.
Table 6-6. Member Variable of the External Procedure Base Class
Variable Description
m_nInParamCount Number of input parameters.
m_pInParamVector Actual input parameter array.
m_nOutParamCount Number of output parameters.
m_pOutParamVector Actual output parameter array.
Note: Ports defined as input/output show up in both parameter lists.
186 Chapter 6: External Procedure Transformation
const char* GetWidgetInstanceName() const;
const char* GetWidgetName() const;
Procedure Access Functions
Informatica provides two procedure access functions that provide information about the
external procedure associated with the External Procedure transformation. The
GetProcedureName() function returns the name of the external procedure specified in the
Procedure Name field of the External Procedure transformation. The GetProcedureIndex()
function returns the index of the external procedure.
Signature
Use the following function to get the name of the external procedure associated with the
External Procedure transformation:
const char* GetProcedureName() const;
Use the following function to get the index of the external procedure associated with the
External Procedure transformation:
inline unsigned long GetProcedureIndex() const;
Partition Related Functions
Use partition related functions for external procedures in sessions with multiple partitions.
When you partition a session that contains External Procedure transformations, the
Integration Service creates instances of these transformations for each partition. For example,
if you define five partitions for a session, the Integration Service creates five instances of each
external procedure at session runtime.
Signature
Use the following function to obtain the number of partitions in a session:
unsigned long GetNumberOfPartitions();
Use the following function to obtain the index of the partition that called this external
procedure:
unsigned long GetPartitionIndex();
External Procedure Interfaces 187
Tracing Level Function
The tracing level function returns the session trace level, for example:
typedef enum
{
TRACE_UNSET = 0,
TRACE_TERSE = 1,
TRACE_NORMAL = 2,
TRACE_VERBOSE_INIT = 3,
TRACE_VERBOSE_DATA = 4
} TracingLevelType;
Signature
Use the following function to return the session trace level:
TracingLevelType GetSessionTraceLevel();
188 Chapter 6: External Procedure Transformation
189
Chapter 7
Filter Transformation
This chapter includes the following topics:
Overview, 190
Filter Condition, 192
Creating a Filter Transformation, 193
Tips, 195
Troubleshooting, 196
190 Chapter 7: Filter Transformation
Overview
You can filter rows in a mapping with the Filter transformation. You pass all the rows from a
source transformation through the Filter transformation, and then enter a filter condition for
the transformation. All ports in a Filter transformation are input/output, and only rows that
meet the condition pass through the Filter transformation.
In some cases, you need to filter data based on one or more conditions before writing it to
targets. For example, if you have a human resources target containing information about
current employees, you might want to filter out employees who are part-time and hourly.
The mapping in Figure 7-1 passes the rows from a human resources table that contains
employee data through a Filter transformation. The filter only allows rows through for
employees that make salaries of $30,000 or higher.
Transformation type:
Active
Connected
Figure 7-1. Sample Mapping with a Filter Transformation
Overview 191

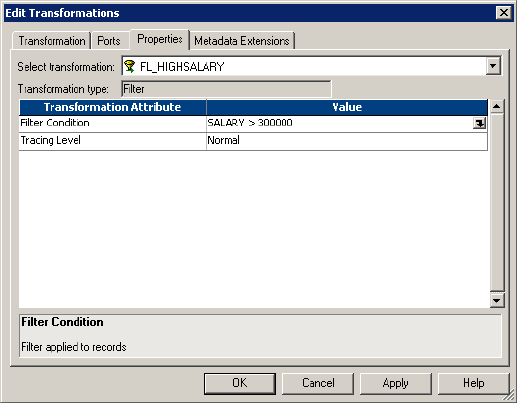

Figure 7-2 shows the filter condition used in the mapping in Figure 7-1 on page 190:
With the filter of SALARY > 30000, only rows of data where employees that make salaries
greater than $30,000 pass through to the target.
As an active transformation, the Filter transformation may change the number of rows passed
through it. A filter condition returns TRUE or FALSE for each row that passes through the
transformation, depending on whether a row meets the specified condition. Only rows that
return TRUE pass through this transformation. Discarded rows do not appear in the session
log or reject files.
To maximize session performance, include the Filter transformation as close to the sources in
the mapping as possible. Rather than passing rows you plan to discard through the mapping,
you then filter out unwanted data early in the flow of data from sources to targets.
You cannot concatenate ports from more than one transformation into the Filter
transformation. The input ports for the filter must come from a single transformation. The
Filter transformation does not allow setting output default values.

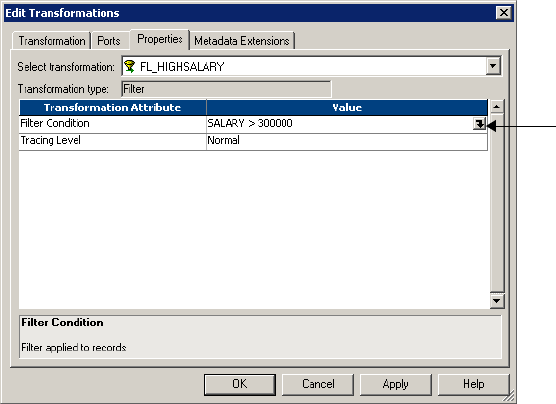

Figure 7-2. Specifying a Filter Condition in a Filter Transformation
192 Chapter 7: Filter Transformation
Filter Condition
You use the transformation language to enter the filter condition. The condition is an
expression that returns TRUE or FALSE. For example, if you want to filter out rows for
employees whose salary is less than $30,000, you enter the following condition:
SALARY > 30000
You can specify multiple components of the condition, using the AND and OR logical
operators. If you want to filter out employees who make less than $30,000 and more than
$100,000, you enter the following condition:
SALARY > 30000 AND SALARY < 100000
You do not need to specify TRUE or FALSE as values in the expression. TRUE and FALSE
are implicit return values from any condition you set. If the filter condition evaluates to
NULL, the row is assumed to be FALSE.
Enter conditions using the Expression Editor, available from the Properties tab of the Filter
transformation. The filter condition is case sensitive. Any expression that returns a single
value can be used as a filter. You can also enter a constant for the filter condition. The
numeric equivalent of FALSE is zero (0). Any non-zero value is the equivalent of TRUE. For
example, if you have a port called NUMBER_OF_UNITS with a numeric datatype, a filter
condition of NUMBER_OF_UNITS returns FALSE if the value of NUMBER_OF_UNITS
equals zero. Otherwise, the condition returns TRUE.
After entering the expression, you can validate it by clicking the Validate button in the
Expression Editor. When you enter an expression, validate it before continuing to avoid
saving an invalid mapping to the repository. If a mapping contains syntax errors in an
expression, you cannot run any session that uses the mapping until you correct the error.
Creating a Filter Transformation 193
Creating a Filter Transformation
Creating a Filter transformation requires inserting the new transformation into the mapping,
adding the appropriate input/output ports, and writing the condition.
To create a Filter transformation:
1. In the Designer, switch to the Mapping Designer and open a mapping.
2. Click Transformation > Create.
Select Filter transformation, and enter the name of the new transformation. The naming
convention for the Filter transformation is FIL_TransformationName. Click Create, and
then click Done.
3. Select and drag all the ports from a source qualifier or other transformation to add them
to the Filter transformation.
After you select and drag ports, copies of these ports appear in the Filter transformation.
Each column has both an input and an output port.
4. Double-click the title bar of the new transformation.
5. Click the Properties tab.
A default condition appears in the list of conditions. The default condition is TRUE (a
constant with a numeric value of 1).
6. Click the Value section of the condition, and then click the Open button.
The Expression Editor appears.
Open Button
194 Chapter 7: Filter Transformation
7. Enter the filter condition you want to apply.
Use values from one of the input ports in the transformation as part of this condition.
However, you can also use values from output ports in other transformations.
8. Click Validate to check the syntax of the conditions you entered.
You may have to fix syntax errors before continuing.
9. Click OK.
10. Select the Tracing Level, and click OK to return to the Mapping Designer.
11. Click Repository > Save to save the mapping.
Tips 195
Tips
Use the Filter transformation early in the mapping.
To maximize session performance, keep the Filter transformation as close as possible to the
sources in the mapping. Rather than passing rows that you plan to discard through the
mapping, you can filter out unwanted data early in the flow of data from sources to targets.
Use the Source Qualifier transformation to filter.
The Source Qualifier transformation provides an alternate way to filter rows. Rather than
filtering rows from within a mapping, the Source Qualifier transformation filters rows when
read from a source. The main difference is that the source qualifier limits the row set extracted
from a source, while the Filter transformation limits the row set sent to a target. Since a source
qualifier reduces the number of rows used throughout the mapping, it provides better
performance.
However, the Source Qualifier transformation only lets you filter rows from relational sources,
while the Filter transformation filters rows from any type of source. Also, note that since it
runs in the database, you must make sure that the filter condition in the Source Qualifier
transformation only uses standard SQL. The Filter transformation can define a condition
using any statement or transformation function that returns either a TRUE or FALSE value.
For more information about setting a filter for a Source Qualifier transformation, see “Source
Qualifier Transformation” on page 425.
196 Chapter 7: Filter Transformation
Troubleshooting
I imported a flat file into another database (Microsoft Access) and used SQL filter queries to
determine the number of rows to import into the Designer. But when I import the flat file into
the Designer and pass data through a Filter transformation using equivalent SQL
statements, I do not import as many rows. Why is there a difference?
You might want to check two possible solutions:
Case sensitivity. The filter condition is case sensitive, and queries in some databases do not
take this into account.
Appended spaces. If a field contains additional spaces, the filter condition needs to check
for additional spaces for the length of the field. Use the RTRIM function to remove
additional spaces.
How do I filter out rows with null values?
To filter out rows containing null values or spaces, use the ISNULL and IS_SPACES
functions to test the value of the port. For example, if you want to filter out rows that contain
NULLs in the FIRST_NAME port, use the following condition:
IIF(ISNULL(FIRST_NAME),FALSE,TRUE)
This condition states that if the FIRST_NAME port is NULL, the return value is FALSE and
the row should be discarded. Otherwise, the row passes through to the next transformation.
For more information about the ISNULL and IS_SPACES functions, see “Functions” in the
Transformation Language Reference.
197
Chapter 8
HTTP Transformation
This chapter includes the following topics:
Overview, 198
Creating an HTTP Transformation, 200
Configuring the Properties Tab, 202
Configuring the HTTP Tab, 204
Examples, 209
198 Chapter 8: HTTP Transformation
Overview
The HTTP transformation enables you to connect to an HTTP server to use its services and
applications. When you run a session with an HTTP transformation, the Integration Service
connects to the HTTP server and issues a request to retrieve data from or update data on the
HTTP server, depending on how you configure the transformation:
Read data from an HTTP server. When the Integration Service reads data from an HTTP
server, it retrieves the data from the HTTP server and passes the data to the target or a
downstream transformation in the mapping. For example, you can connect to an HTTP
server to read current inventory data, perform calculations on the data during the
PowerCenter session, and pass the data to the target.
Update data on the HTTP server. When the Integration Service writes to an HTTP
server, it posts data to the HTTP server and passes HTTP server responses to the target or
a downstream transformation in the mapping. For example, you can post data providing
scheduling information from upstream transformations to the HTTP server during a
session.
Figure 8-1 shows how the Integration Service processes an HTTP transformation:
The Integration Service passes data from upstream transformations or the source to the
HTTP transformation, reads a URL configured in the HTTP transformation or application
connection, and sends an HTTP request to the HTTP server to either read or update data.
Requests contain header information and may contain body information. The header
contains information such as authentication parameters, commands to activate programs or
web services residing on the HTTP server, and other information that applies to the entire
HTTP request. The body contains the data the Integration Service sends to the HTTP server.
Transformation type:
Passive
Connected
Figure 8-1. HTTP Transformation Processing
HTTP Server
Integration Service
HTTP Transformation Target
Source
HTTP Response
HTTP Request
Overview 199
When the Integration Service sends a request to read data, the HTTP server sends back an
HTTP response with the requested data. The Integration Service sends the requested data to
downstream transformations or the target.
When the Integration Service sends a request to update data, the HTTP server writes the data
it receives and sends back an HTTP response that the update succeeded. The Integration
Service then sends the HTTP response to downstream transformations or the target.
You can configure the HTTP transformation for the headers of HTTP responses. HTTP
response body data passes through the HTTPOUT output port.
Authentication
The HTTP transformation uses the following forms of authentication:
Basic. Based on a non-encrypted user name and password.
Digest. Based on an encrypted user name and password.
NTLM. Based on encrypted user name, password, and domain.
Connecting to the HTTP Server
When you configure an HTTP transformation, you can configure the URL for the
connection. You can also create an HTTP connection object in the Workflow Manager.
Configure an HTTP application connection in the following circumstances:
The HTTP server requires authentication.
You want to configure the connection timeout.
You want to override the base URL in the HTTP transformation.
200 Chapter 8: HTTP Transformation
Creating an HTTP Transformation
You create HTTP transformations in the Transformation Developer or in the Mapping
Designer. An HTTP transformation has the following tabs:
Transformation. Configure the name and description for the transformation.
Ports. View input and output ports for the transformation. You cannot add or edit ports
on the Ports tab. The Designer creates ports on the Ports tab when you add ports to the
header group on the HTTP tab. For more information, see “Configuring Groups and
Ports on page 205.
Properties. Configure properties for the HTTP transformation on the Properties tab. For
more information, see “Configuring the Properties Tab” on page 202.
Initialization Properties. You can define properties that the external procedure uses at run
time, such as during initialization. For more information about creating initialization
properties, see “Working with Procedure Properties” on page 72.
Metadata Extensions. You can specify the property name, datatype, precision, and value.
Use metadata extensions for passing information to the procedure. For more information
about creating metadata extensions, see “Metadata Extensions” in the Repository Guide.
Port Attribute Definitions. You can view port attributes for HTTP transformation ports.
You cannot edit port attribute definitions.
HTTP. Configure the method, ports, and URL on the HTTP tab. For more information,
see Configuring the HTTP Tab” on page 204.
Creating an HTTP Transformation 201
Figure 8-2 shows an HTTP transformation:
To create an HTTP transformation:
1. In the Transformation Developer or Mapping Designer, click Transformation > Create.
2. Select HTTP transformation.
3. Enter a name for the transformation.
4. Click Create.
The HTTP transformation displays in the workspace.
5. Click Done.
6. Configure the tabs in the transformation.
Figure 8-2. HTTP Transformation
202 Chapter 8: HTTP Transformation
Configuring the Properties Tab
The HTTP transformation is built using the Custom transformation. Some Custom
transformation properties do not apply to the HTTP transformation or are not configurable.
Figure 8-3 shows the Properties tab of an HTTP transformation:
Table 8-1 describes the HTTP transformation properties that you can configure:
Figure 8-3. HTTP Transformation Properties Tab
Table 8-1. HTTP Transformation Properties
Option Description
Runtime Location Location that contains the DLL or shared library. Default is $PMExtProcDir. Enter a path
relative to the Integration Service machine that runs the session using the HTTP
transformation.
If you make this property blank, the Integration Service uses the environment variable
defined on the Integration Service machine to locate the DLL or shared library.
You must copy all DLLs or shared libraries to the runtime location or to the environment
variable defined on the Integration Service machine. The Integration Service fails to load the
procedure when it cannot locate the DLL, shared library, or a referenced file.
Tracing Level Amount of detail displayed in the session log for this transformation. Default is Normal.
Configuring the Properties Tab 203
Is Partitionable Indicates if you can create multiple partitions in a pipeline that uses this transformation:
- No. The transformation cannot be partitioned. The transformation and other
transformations in the same pipeline are limited to one partition.
- Locally. The transformation can be partitioned, but the Integration Service must run all
partitions in the pipeline on the same node. Choose Local when different partitions of the
Custom transformation must share objects in memory.
- Across Grid. The transformation can be partitioned, and the Integration Service can
distribute each partition to different nodes.
Default is No.
For more information about using partitioning, see the Workflow Administration Guide.
Requires Single Thread
Per Partition
Indicates if the Integration Service processes each partition at the procedure with one
thread. When you enable this option, the procedure code can use thread-specific operations.
Default is enabled.
For more information about writing thread-specific operations, see “Working with Thread-
Specific Procedure Code” on page 66.
Table 8-1. HTTP Transformation Properties
Option Description
204 Chapter 8: HTTP Transformation
Configuring the HTTP Tab
On the HTTP tab, you can configure the transformation to read data from the HTTP server
or write data to the HTTP server. Configure the following information on the HTTP tab:
Select the method. Select GET, POST, or SIMPLE POST method based on whether you
want to read data from or write data to an HTTP server. For more information, see
“Selecting a Method” on page 204.
Configure groups and ports. Manage HTTP request/response body and header details by
configuring input and output ports. You can also configure port names with special
characters. For more information, see “Configuring Groups and Ports” on page 205.
Configure a base URL. Configure the base URL for the HTTP server you want to connect
to. For more information, see “Configuring a URL” on page 207.
Figure 8-4 shows the HTTP tab of an HTTP transformation:
Selecting a Method
The groups and ports you define in a transformation depend on the method you select. To
read data from an HTTP server, select the GET method. To write data to an HTTP server,
select the POST or SIMPLE POST method.
Figure 8-4. HTTP Transformation HTTP Tab
Method
Groups
HTTP Name
URL
Configuring the HTTP Tab 205
Table 8-2 explains the different methods:
To define the metadata for the HTTP request, you must configure input and output ports
based on the method you select:
GET method. Use the input group to add input ports that the Designer uses to construct
the final URL for the HTTP server.
POST or SIMPLE POST method. Use the input group for the data that defines the body
of the HTTP request.
For all methods, use the header group for the HTTP request header information.
Configuring Groups and Ports
The ports you add to an HTTP transformation depend on the method you choose and the
group. An HTTP transformation uses the following groups:
Output. Contains body data for the HTTP response. Passes responses from the HTTP
server to downstream transformations or the target. By default, contains one output port,
HTTPOUT. You cannot add ports to the output group. You can modify the precision for
the HTTPOUT output port.
Input. Contains body data for the HTTP request. Also contains metadata the Designer
uses to construct the final URL to connect to the HTTP server. To write data to an HTTP
server, the input group passes body information to the HTTP server. By default, contains
one input port.
Header. Contains header data for the request and response. Passes header information to
the HTTP server when the Integration Service sends an HTTP request. Ports you add to
the header group pass data for HTTP headers. When you add ports to the header group
the Designer adds ports to the input and output groups on the Ports tab. By default,
contains no ports.
Note: The data that passes through an HTTP transformation must be of the String datatype.
String data includes any markup language common in HTTP communication, such as
HTML and XML.
Table 8-2. HTTP Transformation Methods
Method Description
GET Reads data from an HTTP server.
POST Writes data from multiple input ports to the HTTP server.
SIMPLE POST A simplified version of the POST method. Writes data from one input port as a single block of
data to the HTTP server.
206 Chapter 8: HTTP Transformation
Table 8-3 describes the groups and ports for the GET method:
Table 8-4 describes the ports for the POST method:
Table 8-3. GET Method Groups and Ports
Request/
Response Group Description
REQUEST Input The Designer uses the names and values of the input ports to construct the final URL.
Header You can configure input and input/output ports for HTTP requests. The Designer adds
ports to the input and output groups based on the ports you add to the header group:
- Input group. Creates input ports based on input and input/output ports from the header
group.
- Output group. Creates output ports based on input/output ports from the header group.
RESPONSE Header You can configure output and input/output ports for HTTP responses. The Designer adds
ports to the input and output groups based on the ports you add to the header group:
- Input group. Creates input ports based on input/output ports from the header group.
- Output group. Creates output ports based on output and input/output ports from the
header group.
Output All body data for an HTTP response passes through the HTTPOUT output port.
Table 8-4. POST Method Groups and Ports
Request/
Response Group Description
REQUEST Input You can add multiple ports to the input group. Body data for an HTTP request can pass
through one or more input ports based on what you add to the header group.
Header You can configure input and input/output ports for HTTP requests. The Designer adds
ports to the input and output groups based on the ports you add to the header group:
- Input group. Creates input ports based on input and input/output ports from the header
group.
- Output group. Creates output ports based on input/output ports from the header group.
RESPONSE Header You can configure output and input/output ports for HTTP responses. The Designer adds
ports to the input and output groups based on the ports you add to the header group:
- Input group. Creates input ports based on input/output ports from the header group.
- Output group. Creates output ports based on output and input/output ports from the
header group.
Output All body data for an HTTP response passes through the HTTPOUT output port.
Configuring the HTTP Tab 207
Table 8-5 describes the ports for the SIMPLE POST method:
Adding an HTTP Name
The Designer does not allow special characters, such as a dash (-), in port names. If you need
to use special characters in a port name, you can configure an HTTP name to override the
name of a port. For example, if you want an input port named Content-type, you can name
the port ContentType and enter Content-Type as the HTTP name.
Configuring a URL
After you select a method and configure input and output ports, you must configure a URL.
Enter a base URL, and the Designer constructs the final URL. If you select the GET method,
the final URL contains the base URL and parameters based on the port names in the input
group. If you select the POST or SIMPLE POST methods, the final URL is the same as the
base URL.
You can also specify a URL when you configure an HTTP application connection. The base
URL specified in the HTTP application connection overrides the base URL specified in the
HTTP transformation.
Note: An HTTP server can redirect an HTTP request to another HTTP server. When this
occurs, the HTTP server sends a URL back to the Integration Service, which then establishes
a connection to the other HTTP server. The Integration Service can establish a maximum of
five additional connections.
Final URL Construction for GET Method
The Designer constructs the final URL for the GET method based on the base URL and port
names in the input group. It appends HTTP arguments to the base URL to construct the
final URL in the form of an HTTP query string. A query string consists of a question mark
Table 8-5. SIMPLE POST Method Groups and Ports
Request/
Response Group Description
REQUEST Input You can add one input port. Body data for an HTTP request can pass through one input
port.
Header You can configure input and input/output ports for HTTP requests. The Designer adds
ports to the input and output groups based on the ports you add to the header group:
- Input group. Creates input ports based on input and input/output ports from the header
group.
- Output group. Creates output ports based on input/output ports from the header group.
RESPONSE Header You can configure output and input/output ports for HTTP responses. The Designer adds
ports to the input and output groups based on the ports you add to the header group:
- Input group. Creates input ports based on input/output ports from the header group.
- Output group. Creates output ports based on output and input/output ports from the
header group.
Output All body data for an HTTP response passes through the HTTPOUT output port.
208 Chapter 8: HTTP Transformation
(?), followed by name/value pairs. The Designer appends the question mark and the name/
value pairs that correspond to the names and values of the input ports you add to the input
group.
When you select the GET method and add input ports to the input group, the Designer
appends the following group and port information to the base URL to construct the final
URL:
?<input group input port 1 name> = $<input group input port 1 value>
For each input port following the first input group input port, the Designer appends the
following group and port information:
& <input group input port n name> = $<input group input port n value>
where n represents the input port.
For example, if you enter www.company.com for the base URL and add the input ports ID,
EmpName, and Department to the input group, the Designer constructs the following final
URL:
www.company.com?ID=$ID&EmpName=$EmpName&Department=$Department
You can edit the final URL to modify or add operators, variables, or other arguments. For
more information about HTTP requests and query string, see http://www.w3c.org.
Examples 209
Examples
This section contains examples for each type of method:
GET
POST
SIMPLE POST
GET Example
The source file used with this example contains the following data:
78576
78577
78578

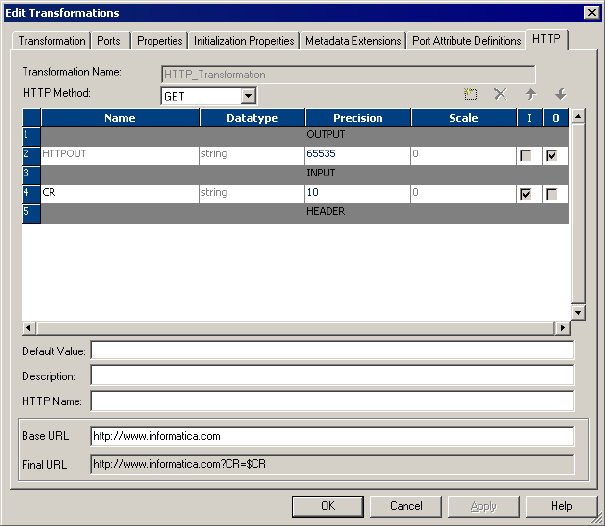

Figure 8-5 shows the HTTP tab of the HTTP transformation for the GET example:
The Designer appends a question mark (?), the input group input port name, a dollar sign ($),
and the input group input port name again to the base URL to construct the final URL:
http://www.informatica.com?CR=$CR
Figure 8-5. HTTP Tab for a GET Example
210 Chapter 8: HTTP Transformation
The Integration Service sends the source file values to the CR input port of the HTTP
transformation and sends the following HTTP requests to the HTTP server:
http://www.informatica.com?CR=78576
http://www.informatica.com?CR=78577
http://www.informatica.com?CR=78578
The HTTP server sends an HTTP response back to the Integration Service, which sends the
data through the output port of the HTTP transformation to the target.
POST Example
The source file used with this example contains the following data:
33,44,1
44,55,2
100,66,0

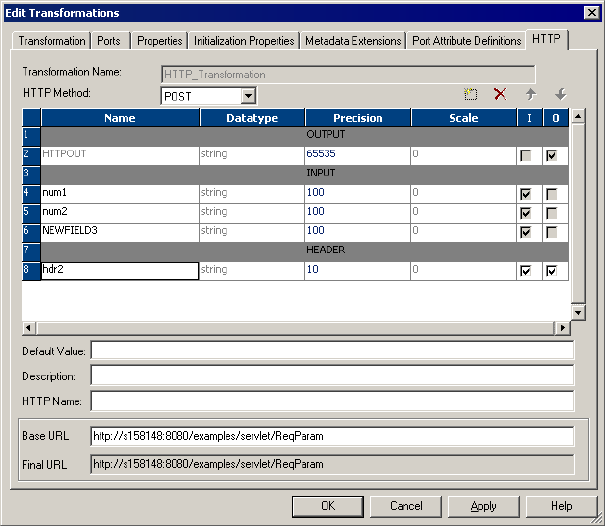

Figure 8-6 shows that each field in the source file has a corresponding input port:
The Integration Service sends the values of the three fields for each row through the input
ports of the HTTP transformation and sends the HTTP request to the HTTP server specified
in the final URL.
Figure 8-6. HTTP Tab for a POST Example
Examples 211
SIMPLE POST Example
The following text shows the XML file used with this example:
<?xml version="1.0" encoding="UTF-8"?>
<n4:Envelope xmlns:cli="http://localhost:8080/axis/Clienttest1.jws"
xmlns:n4="http://schemas.xmlsoap.org/soap/envelope/" xmlns:tns="http://
schemas.xmlsoap.org/soap/encoding/" xmlns:xsi="http://www.w3.org/2001/
XMLSchema-instance/" xmlns:xsd="http://www.w3.org/2001/XMLSchema">
<n4:Header>
</n4:Header>
<n4:Body n4:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/
"><cli:smplsource>
<Metadatainfo xsi:type="xsd:string">smplsourceRequest.Metadatainfo106</
Metadatainfo></cli:smplsource>
</n4:Body>
<n4:Envelope>,capeconnect:Clienttest1services:Clienttest1#smplsource
Figure 8-7 shows the HTTP tab of the HTTP transformation for the SIMPLE POST
example:
The Integration Service sends the body of the source file through the input port and sends the
HTTP request to the HTTP server specified in the final URL.
Figure 8-7. HTTP Tab for a SIMPLE POST Example
212 Chapter 8: HTTP Transformation
213
Chapter 9
Java Transformation
This chapter includes the following topics:
Overview, 214
Using the Java Code Tab, 217
Configuring Ports, 219
Configuring Java Transformation Properties, 221
Developing Java Code, 225
Configuring Java Transformation Settings, 229
Compiling a Java Transformation, 231
Fixing Compilation Errors, 232
214 Chapter 9: Java Transformation
Overview
You can extend PowerCenter functionality with the Java transformation. The Java
transformation provides a simple native programming interface to define transformation
functionality with the Java programming language. You can use the Java transformation to
quickly define simple or moderately complex transformation functionality without advanced
knowledge of the Java programming language or an external Java development environment.
For example, you can define transformation logic to loop through input rows and generate
multiple output rows based on a specific condition. You can also use expressions, user-defined
functions, unconnected transformations, and mapping variables in the Java code.
You create Java transformations by writing Java code snippets that define transformation
logic. You can use Java transformation API methods and standard Java language constructs.
For example, you can use static code and variables, instance variables, and Java methods. You
can use third-party Java APIs, built-in Java packages, or custom Java packages. You can also
define and use Java expressions to call expressions from within a Java transformation.
For more information about the Java transformation API methods, see “Java Transformation
API Reference” on page 237. For more information about using Java expressions, see “Java
Expressions” on page 263.
The PowerCenter Client uses the Java Development Kit (JDK) to compile the Java code and
generate byte code for the transformation. The Integration Service uses the Java Runtime
Environment (JRE) to execute generated byte code at run time.When you run a session with a
Java transformation, the Integration Service uses the JRE to execute the byte code and process
input rows and generate output rows.
You can define transformation behavior for a Java transformation based on the following
events:
The transformation receives an input row
The transformation has processed all input rows
The transformation receives a transaction notification such as commit or rollback
Steps to Define a Java Transformation
Complete the following steps to write and compile Java code and fix compilation errors in a
Java transformation:
1. Create the transformation in the Transformation Developer or Mapping Designer.
2. Configure input and output ports and groups for the transformation. Use port names as
variables in Java code snippets. For more information, see “Configuring Ports” on
page 219.
Transformation type:
Active/Passive
Connected
Overview 215
3. Configure the transformation properties. For more information, see “Configuring Java
Transformation Properties” on page 221.
4. Use the code entry tabs in the transformation to write and compile the Java code for the
transformation. For more information, see Developing Java Code on page 225 and
“Compiling a Java Transformation” on page 231.
5. Locate and fix compilation errors in the Java code for the transformation. For more
information, see “Fixing Compilation Errors” on page 232.
Active and Passive Java Transformations
You can create active and passive Java transformations. You select the type of Java
transformation when you create the transformation. After you set the transformation type,
you cannot change it. Active and passive Java transformations run the Java code in the On
Input Row tab for the transformation one time for each row of input data.
Use an active transformation when you want to generate more than one output row for each
input row in the transformation. You must use Java transformation generateRow API to
generate an output row. For example, a Java transformation contains two input ports that
represent a start date and an end date. You can generate an output row for each date between
the start date and end date.
Use a passive transformation when you need one output row for each input row in the
transformation. Passive transformations generate an output row after processing each input
row.
Datatype Mapping
The Java transformation maps PowerCenter datatypes to Java primitives, based on the Java
transformation port type. The Java transformation maps input port datatypes to Java
primitives when it reads input rows, and it maps Java primitives to output port datatypes
when it writes output rows.
For example, if an input port in a Java transformation has an Integer datatype, the Java
transformation maps it to an integer primitive. The transformation treats the value of the
input port as Integer in the transformation, and maps the Integer primitive to an integer
datatype when the transformation generates the output row.
Table 9-1 shows the mapping between PowerCenter datatypes and Java primitives by a Java
transformation:
Table 9-1. Mapping from PowerCenter Datatypes to Java Datatypes
PowerCenter Datatype Java Datatype
CHAR String
BINARY byte[]
LONG (INT32) int
216 Chapter 9: Java Transformation
String and byte[] are object datatypes in Java. Int, double, and long are primitive datatypes.
DOUBLE double
DECIMAL double *
BigDecimal
Date/Time long (number of milliseconds since
January 1, 1970 00:00:00.000 GMT)
* For more information about configuring the Java datatype for PowerCenter
Decimal datatypes, see “Enabling High Precision” on page 230.
Table 9-1. Mapping from PowerCenter Datatypes to Java Datatypes
PowerCenter Datatype Java Datatype
Using the Java Code Tab 217
Using the Java Code Ta b
Use the Java Code tab to define, compile, and fix compilation errors in Java code. You can use
code snippets that Java packages, define static code or a static block, instance variables, and
user-defined methods, define and call Java expressions, and define transformation logic.
Create code snippets in the code entry tabs.
After you develop code snippets, you can compile the Java code and view the results of the
compilation in the Output window or view the full Java code.

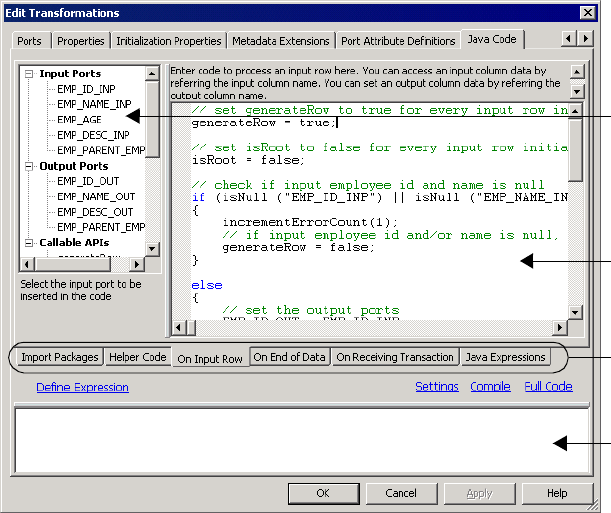

Figure 9-1 shows the components of the Java Code tab:
The Java Code tab contains the following components:
Navigator. Add input or output ports or APIs to a code snippet. The Navigator lists the
input and output ports for the transformation, the available Java transformation APIs, and
a description of the port or API function. For input and output ports, the description
includes the port name, type, datatype, precision, and scale. For API functions, the
description includes the syntax and use of the API function.
The Navigator disables any port or API function that is unavailable for the code entry tab.
For example, you cannot add ports or call API functions from the Import Packages code
entry tab.
Figure 9-1. Java Code Tab Components
Navigator
Code Window
Code Entry
Tabs
Output Window
218 Chapter 9: Java Transformation
For more information about using the Navigator when you develop Java code, see
“Developing Java Code” on page 225.
Code window. Develop Java code for the transformation. The code window uses basic Java
syntax highlighting. For more information, see Developing Java Code” on page 225.
Code entry tabs. Define transformation behavior. Each code entry tab has an associated
Code window. To enter Java code for a code entry tab, click the tab and write Java code in
the Code window. For more information about the code entry tabs, see “Developing Java
Code” on page 225.
Define Expression link. Launches the Define Expression dialog box that you use to create
Java expressions. For more information about creating and using Java expressions, see “Java
Expressions” on page 263.
Settings link. Launches the Settings dialog box that you use to set the classpath for third-
party and custom Java packages and to enable high precision for Decimal datatypes. For
more information, see “Configuring Java Transformation Settings” on page 229.
Compile link. Compiles the Java code for the transformation. Output from the Java
compiler, including error and informational messages, appears in the Output window. For
more information about compiling Java transformations, see “Compiling a Java
Transformation on page 231.
Full Code link. Opens the Full Code window to display the complete class code for the
Java transformation. The complete code for the transformation includes the Java code
from the code entry tabs added to the Java transformation class template. For more
information about using the Full Code window, see “Fixing Compilation Errors” on
page 232.
Output window. Displays the compilation results for the Java transformation class. You
can right-click an error message in the Output window to locate the error in the snippet
code or the full code for the Java transformation class in the Full Code window. You can
also double-click an error in the Output window to locate the source of the error. For more
information about using the Output window to troubleshoot compilation errors, see
“Fixing Compilation Errors” on page 232.
Configuring Ports 219
Configuring Ports
A Java transformation can have input ports, output ports, and input/output ports. You create
and edit groups and ports on the Ports tab. You can specify default values for ports. After you
add ports to a transformation, use the port names as variables in Java code snippets.

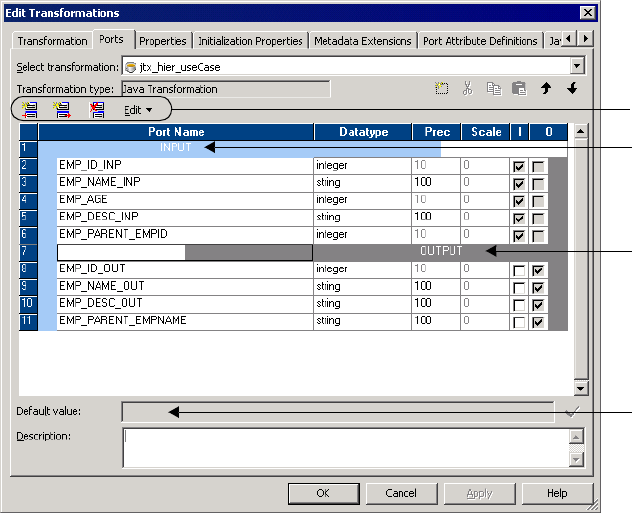

Figure 9-2 shows the Ports tab for a Java transformation with one input group and one output
group:
Creating Groups and Ports
When you create a Java transformation, it includes one input group and one output group. A
Java transformation always has one input group and one output group. You can change the
existing group names by typing the group header. If you delete a group, you can add a new
group by clicking the Create Input Group or Create Output Group icon. The transformation
is not valid if it has multiple input or output groups.
To create a port, click the Add button. When you create a port, the Designer adds it below the
currently selected row or group.
For guidelines about creating and editing groups and ports, see “Working with Groups and
Ports on page 59.
Figure 9-2. Java Transformation Ports Tab
Add and delete
groups, and edit
port relationships.
Set default value.
Output Group
Input Group
220 Chapter 9: Java Transformation
Setting Default Port Values
You can define default values for ports in a Java transformation. The Java transformation
initializes port variables with the default port value, depending on the datatype of the port.
For more information about port datatypes, see “Datatype Mapping” on page 215.
Input and Output Ports
The Java transformation initializes the value of unconnected input ports or output ports that
are not assigned a value in the Java code snippets. The Java transformation initializes the ports
depending on the port datatype:
Simple datatypes. If you define a default value for the port, the transformation initializes
the value of the port variable to the default value. Otherwise, it initializes the value of the
port variable to 0.
Complex datatypes. If you provide a default value for the port, the transformation creates
a new String or byte[] object, and initializes the object to the default value. Otherwise, the
transformation initializes the port variable to NULL.
Input ports with a NULL value generate a NullPointerException if you access the value of
the port variable in the Java code.
Input/Output Ports
The Java transformation treats input/output ports as pass-through ports. If you do not set a
value for the port in the Java code for the transformation, the output value is the same as the
input value. The Java transformation initializes the value of an input/output port in the same
way as an input port.
If you set the value of a port variable for an input/output port in the Java code, the Java
transformation uses this value when it generates an output row. If you do not set the value of
an input/output port, the Java transformation sets the value of the port variable to 0 for
simple datatypes and NULL for complex datatypes when it generates an output row.
Configuring Java Transformation Properties 221
Configuring Java Transformation Properties
The Java transformation includes properties for both the transformation code and the
transformation. If you create a Java transformation in the Transformation Developer, you can
override the transformation properties when you use it in a mapping.

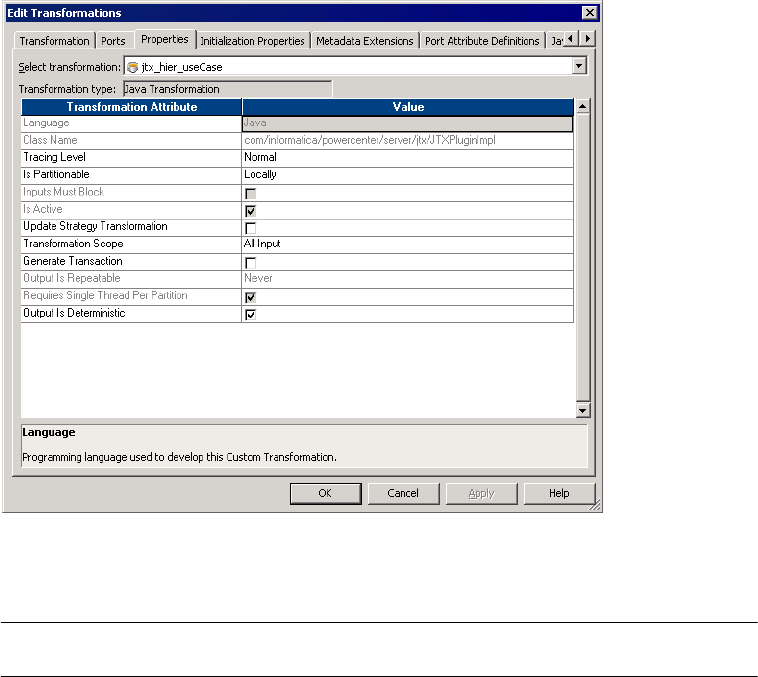

Figure 9-3 shows the Java transformation Properties tab:
Table 9-2 describes the Java transformation properties:
Figure 9-3. Java Transformation Properties
Table 9-2. Java Transformation Properties
Property Required /
Optional Description
Language Required Language used for the transformation code. You cannot change this
value.
Class Name Required Name of the Java class for the transformation. You cannot change this
value.
222 Chapter 9: Java Transformation
Tracing Level Required Amount of detail displayed in the session log for this transformation. Use
the following tracing levels:
- Terse
- Normal
- Verbose Initialization
- Verbose Data
Default is Normal. For more information about tracing levels, see “Session
and Workflow Logs” in the Workflow Administration Guide.
Is Partitionable Required Multiple partitions in a pipeline can use this transformation. Use the
following options:
- No. The transformation cannot be partitioned. The transformation and
other transformations in the same pipeline are limited to one partition.
You might choose No if the transformation processes all the input data
together, such as data cleansing.
- Locally. The transformation can be partitioned, but the Integration
Service must run all partitions in the pipeline on the same node. Choose
Locally when different partitions of the transformation must share objects
in memory.
- Across Grid. The transformation can be partitioned, and the Integration
Service can distribute each partition to different nodes.
Default is No.
For more information about using partitioning with Java and Custom
transformations, see “Working with Partition Points” in the Workflow
Administration Guide.
Inputs Must Block Optional The procedure associated with the transformation must be able to block
incoming data. Default is enabled.
Is Active Required The transformation can generate more than one output row for each input
row.
You cannot change this property after you create the Java transformation.
If you need to change this property, create a new Java transformation.
Update Strategy
Transformation
Optional The transformation defines the update strategy for output rows. You can
enable this property for active Java transformations.
Default is disabled.
For more information about setting the update strategy in Java
transformations, see “Setting the Update Strategy” on page 224.
Transformation Scope Required The method in which the Integration Service applies the transformation
logic to incoming data. Use the following options:
- Row
- Transaction
- All Input
This property is always Row for passive transformations. Default is All
Input for active transformations.
For more information about working with transaction control, see “Working
with Transaction Control” on page 223.
Table 9-2. Java Transformation Properties
Property Required /
Optional Description
Configuring Java Transformation Properties 223
Working with Transaction Control
You can define transaction control for a Java transformation using the following properties:
Transformation Scope. Determines how the Integration Service applies the transformation
logic to incoming data.
Generate Transaction. Indicates that the Java code for the transformation generates
transaction rows and outputs them to the output group.
Transformation Scope
You can configure how the Integration Service applies the transformation logic to incoming
data. You can choose one of the following values:
Row. Applies the transformation logic to one row of data at a time. Choose Row when the
results of the transformation depend on a single row of data. You must choose Row for
passive transformations.
Tr a n s a ct i o n . Applies the transformation logic to all rows in a transaction. Choose
Transaction when the results of the transformation depend on all rows in the same
transaction, but not on rows in other transactions. For example, you might choose
Transaction when the Java code performs aggregate calculations on the data in a single
transaction.
All Input. Applies the transformation logic to all incoming data. When you choose All
Input, the Integration Service drops transaction boundaries. Choose All Input when the
Generate Transaction Optional The transformation generates transaction rows. You can enable this
property for active Java transformations.
Default is disabled.
For more information about working with transaction control, see “Working
with Transaction Control” on page 223.
Output Is Ordered Required The order of the output data is consistent between session runs.
- Never. The order of the output data is inconsistent between session runs.
- Based On Input Order. The output order is consistent between session
runs when the input data order is consistent between session runs.
- Always. The order of the output data is consistent between session runs
even if the order of the input data is inconsistent between session runs.
Default is Never for active transformations. Default is Based On Input
Order for passive transformations.
Requires Single
Thread Per Partition
Optional A single thread processes the data for each partition.
You cannot change this value.
Output Is Deterministic Optional The transformation generates consistent output data between session
runs. You must enable this property to perform recovery on sessions that
use this transformation.
For more information about session recovery, see “Recovering Workflows”
in the Workflow Administration Guide.
Table 9-2. Java Transformation Properties
Property Required /
Optional Description
224 Chapter 9: Java Transformation
results of the transformation depend on all rows of data in the source. For example, you
might choose All Input when the Java code for the transformation sorts all incoming data.
For more information about transformation scope, see “Understanding Commit Points” in
the Workflow Administration Guide.
Generate Transaction
You can define Java code in an active Java transformation to generate transaction rows, such as
commit and rollback rows. If the transformation generates commit and rollback rows,
configure the Java transformation to generate transactions with the Generate Transaction
transformation property. For more information about Java transformation API methods to
generate transaction rows, see commit” on page 239 and rollBack” on page 247.
When you configure the transformation to generate transaction rows, the Integration Service
treats the Java transformation like a Transaction Control transformation. Most rules that
apply to a Transaction Control transformation in a mapping also apply to the Java
transformation. For example, when you configure a Java transformation to generate
transaction rows, you cannot concatenate pipelines or pipeline branches containing the
transformation. For more information about working with Transaction Control
transformations, see Transaction Control Transformation” on page 519.
When you edit or create a session using a Java transformation configured to generate
transaction rows, configure it for user-defined commit.
Setting the Update Strategy
Use an active Java transformation to set the update strategy for a mapping. You can set the
update strategy at the following levels:
Within the Java code. You can write the Java code to set the update strategy for output
rows. The Java code can flag rows for insert, update, delete, or reject. For more about
setting the update strategy, see setOutRowType” on page 249.
Within the mapping. Use the Java transformation in a mapping to flag rows for insert,
update, delete, or reject. Select the Update Strategy Transformation property for the Java
transformation.
Within the session. Configure the session to treat the source rows as data driven.
If you do not configure the Java transformation to define the update strategy, or you do not
configure the session as data driven, the Integration Service does not use the Java code to flag
the output rows. Instead, the Integration Service flags the output rows as insert.
Developing Java Code 225
Developing Java Code
Use the code entry tabs to enter Java code snippets that define Java transformation
functionality. You can write Java code using the code entry tabs to import Java packages, write
helper code, define Java expressions, and write Java code that defines transformation behavior
for specific transformation events. You can develop snippets in the code entry tabs in any
order.
You can enter Java code in the following code entry tabs:
Import Packages. Import third-party Java packages, built-in Java packages, or custom Java
packages. For more information, see “Importing Java Packages” on page 226.
Helper Code. Define variables and methods available to all tabs except Import Packages.
For more information, see “Defining Helper Code” on page 226.
On Input Row. Define transformation behavior when it receives an input row. For more
information, see “On Input Row Tab” on page 227.
On End of Data. Define transformation behavior when it has processed all input data. For
more information, see “On End of Data Tab” on page 228.
On Receiving Transaction. Define transformation behavior when it receives a transaction
notification. Use with active Java transformations. For more information, see “On
Receiving Transaction Tab” on page 228.
Java Expressions. Define Java expressions to call PowerCenter expressions. You can use
Java expressions in the Helper Code, On Input Row, On End of Data, and On Transaction
code entry tabs. For more information about Java expressions, see Java Expressions” on
page 263.
You can access input data and set output data on the On Input Row tab. For active
transformations, you can also set output data on the On End of Data and On Receiving
Tra n s a c t i on t ab s .
Creating Java Code Snippets
Use the Code window in the Java Code tab to create Java code snippets to define
transformation behavior.
To create a Java code snippet:
1. Click the appropriate code entry tab.
2. To access input or output column variables in the snippet, double-click the name of the
port in the Navigator.
3. To call a Java transformation API in the snippet, double-click the name of the API in the
navigator. If necessary, configure the appropriate API input values.
4. Write appropriate Java code, depending on the code snippet.
The Full Code windows displays the full class code for the Java transformation.
226 Chapter 9: Java Transformation
Importing Java Packages
Use the Import Package tab to import third-party Java packages, built-in Java packages, or
custom Java packages for active or passive Java transformations. After you import Java
packages, use the imported packages in any code entry tab. You cannot declare or use static
variables, instance variables, or user methods in this tab.
For example, to import the Java I/O package, enter the following code in the Import Packages
tab:
import java.io.*;
When you import non-standard Java packages, you must add the package or class to the
classpath. For more information about setting the classpath, see “Configuring Java
Transformation Settings” on page 229.
When you export or import metadata that contains a Java transformation in the PowerCenter
Client, the JAR files or classes that contain the third-party or custom packages required by the
Java transformation are not included. If you import metadata that contains a Java
transformation, you must also copy the JAR files or classes that contain the required third-
party or custom packages to the PowerCenter Client machine.
Defining Helper Code
Use the Helper Code tab in active or passive Java transformations to declare user-defined
variables and methods for the Java transformation class. Use variables and methods declared
in the Helper Code tab in any code entry tab except the Import Packages tab.
You can declare the following user-defined variables and user-defined methods:
Static code and static variables. You can declare static variables and static code within a
static block. All instances of a reusable Java transformation in a mapping and all partitions
in a session share static code and variables. Static code executes before any other code in a
Java transformation.
For example, the following code declares a static variable to store the error threshold for all
instances of a Java transformation in a mapping:
static int errorThreshold;
You can then use this variable to store the error threshold for the transformation and access
it from all instances of the Java transformation in a mapping and from any partition in a
session.
Note: You must synchronize static variables in a multiple partition session or in a reusable
Java transformation.
Instance variables. You can declare partition-level instance variables. Multiple instances of
a reusable Java transformation in a mapping or multiple partitions in a session do not share
instance variables. Declare instance variables with a prefix to avoid conflicts and initialize
non-primitive instance variables.
Developing Java Code 227
For example, the following code uses a boolean variable to decide whether to generate an
output row:
// boolean to decide whether to generate an output row
// based on validity of input
private boolean generateRow;
User-defined methods. Create user-defined static or instance methods to extend the
functionality of the Java transformation. Java methods declared in the Helper Code tab
can use or modify output variables or locally declared instance variables. You cannot access
input variables from Java methods in the Helper Code tab.
For example, use the following code in the Helper Code tab to declare a function that adds
two integers:
private int myTXAdd (int num1,int num2)
{
return num1+num2;
}
On Input Row Tab
Use the On Input Row tab to define the behavior of the Java transformation when it receives
an input row. The Java code in this tab executes one time for each input row. You can access
input row data in the On Input Row tab only.
You can access and use the following input and output port data, variables, and methods from
the On Input Row tab:
Input port and output port variables. You can access input and output port data as a
variable by using the name of the port as the name of the variable. For example, if “in_int
is an Integer input port, you can access the data for this port by referring as a variable
“in_int” with the Java primitive datatype int. You do not need to declare input and output
ports as variables.
Do not assign a value to an input port variable. If you assign a value to an input variable in
the On Input Row tab, you cannot get the input data for the corresponding port in the
current row.
Instance variables and user-defined methods. Use any instance or static variable or user-
defined method you declared in the Helper Code tab.
For example, an active Java transformation has two input ports, BASE_SALARY and
BONUSES, with an integer datatype, and a single output port, TOTAL_COMP, with an
integer datatype. You create a user-defined method in the Helper Code tab, myTXAdd,
that adds two integers and returns the result. Use the following Java code in the On Input
Row tab to assign the total values for the input ports to the output port and generate an
output row:
TOTAL_COMP = myTXAdd (BASE_SALARY,BONUSES);
generateRow();
When the Java transformation receives an input row, it adds the values of the
BASE_SALARY and BONUSES input ports, assigns the value to the TOTAL_COMP
output port, and generates an output row.
228 Chapter 9: Java Transformation
Java transformation API methods. You can call API methods provided by the Java
transformation. For more information about Java transformation API methods, see “Java
Transformation API Reference” on page 237.
On End of Data Tab
Use the On End of Data tab in active or passive Java transformations to define the behavior of
the Java transformation when it has processed all input data. If you want to generate output
rows in the On End of Data tab, you must set the transformation scope for the transformation
to Transaction or All Input. You cannot access or set the value of input port variables in this
tab.
You can access and use the following variables and methods from the On End of Data tab:
Output port variables. Use the names of output ports as variables to access or set output
data for active Java transformations.
Instance variables and user-defined methods. Use any instance variables or user-defined
methods you declared in the Helper Code tab.
Java transformation API methods. You can call API methods provided by the Java
transformation. Use the commit and rollBack API methods to generate a transaction. For
more information about API methods, see “Java Transformation API Reference on
page 237.
For example, use the following Java code to write information to the session log when the
end of data is reached:
logInfo("Number of null rows for partition is: " + partCountNullRows);
On Receiving Transaction Tab
Use the On Receiving Transaction tab in active Java transformations to define the behavior of
an active Java transformation when it receives a transaction notification. The code snippet for
the On Receiving Transaction tab is only executed if the Transaction Scope for the
transformation is set to Transaction. You cannot access or set the value of input port variables
in this tab.
You can access and use the following output data, variables, and methods from the On
Receiving Transaction tab:
Output port variables. Use the names of output ports as variables to access or set output
data.
Instance variables and user-defined methods. Use any instance variables or user-defined
methods you declared in the Helper Code tab.
Java transformation API methods. You can call API methods provided by the Java
transformation. Use the commit and rollBack API methods to generate a transaction. For
more information about API methods, see “Java Transformation API Reference on
page 237. For example, use the following Java code to generate a transaction after the
transformation receives a transaction:
commit();
Configuring Java Transformation Settings 229
Configuring Java Transformation Settings
You can configure Java transformation settings to set the classpath for third-party and custom
Java packages and to enable high precision for Decimal datatypes.

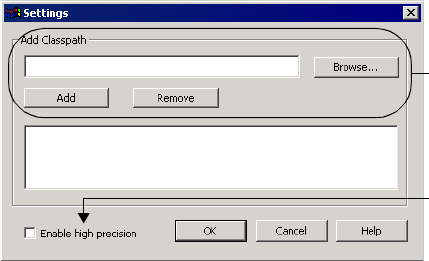

Figure 9-4 shows the Settings dialog box for a Java transformation where you can set the
classpath and enable high precision:
Configuring the Classpath
When you import non-standard Java packages in the Import package tab, you must set the
classpath to the location of the JAR files or class files for the Java package. You can set the
CLASSPATH environment variable on the PowerCenter Client machine or configure the Java
transformation settings to set the classpath. The PowerCenter Client adds the Java packages
or class files you add in the Settings dialog box to the system classpath when you compile the
Java code for the transformation.
For example, you import the Java package converter in the Import Packages tab and define
the package in converter.jar. You must add converter.jar to the classpath before you compile
the Java code for the Java transformation.
You do not need to set the classpath for built-in Java packages. For example, java.io is a built-
in Java package. If you import java.io, you do not need to set the classpath for java.io.
Note: You can also add Java packages to the system classpath for a session, using the Java
Classpath session property. For more information, see “Session Properties Reference” in the
Workflow Administration Guide.
To set the classpath for a Java transformation:
1. On the Java Code tab, click the Settings link.
The Settings dialog box appears.
2. Click Browse under Add Classpath to select the JAR file or class file for the imported
package. Click OK.
Figure 9-4. Java Transformation Settings Dialog Box
Set classpath.
Enable high precision.
230 Chapter 9: Java Transformation
3. Click Add.
The JAR or class file appears in the list of JAR and class files for the transformation.
4. To remove a JAR file or class file, select the JAR or class file and click Remove.
Enabling High Precision
By default, the Java transformation maps ports of type Decimal to double datatypes (with a
precision of 15). If you want to process a Decimal datatype with a precision greater than 15,
enable high precision to process decimal ports with the Java class BigDecimal.
When you enable high precision, you can process Decimal ports with precision less than 28 as
BigDecimal. The Java transformation maps Decimal ports with a precision greater than 28 to
double datatypes.
For example, a Java transformation has an input port of type Decimal that receives a value of
40012030304957666903. If you enable high precision, the value of the port is treated as it
appears. If you do not enable high precision, the value of the port is 4.00120303049577 x
10^19.
Compiling a Java Transformation 231
Compiling a Java Transformation
The PowerCenter Client uses the Java compiler to compile the Java code and generate the
byte code for the transformation. The Java compiler compiles the Java code and displays the
results of the compilation in the Output window. The Java compiler installs with the
PowerCenter Client in the java/bin directory.
To compile the full code for the Java transformation, click Compile in the Java Code tab.
When you create a Java transformation, it contains a Java class that defines the base
functionality for a Java transformation. The full code for the Java class contains the template
class code for the transformation, plus the Java code you define in the code entry tabs.
When you compile a Java transformation, the PowerCenter Client adds the code from the
code entry tabs to the template class for the transformation to generate the full class code for
the transformation. The PowerCenter Client then calls the Java compiler to compile the full
class code. The Java compiler compiles the transformation and generates the byte code for the
transformation.
The results of the compilation display in the Output window. Use the results of the
compilation to identify and locate Java code errors.
Note: The Java transformation is also compiled when you click OK in the transformation.
232 Chapter 9: Java Transformation
Fixing Compilation Errors
You can identify Java code errors and locate the source of Java code errors for a Java
transformation in the Output window. Java transformation errors may occur as a result of an
error in a code entry tab or may occur as a result of an error in the full code for the Java
transformation class.
To troubleshoot a Java transformation:
Locate the source of the error. You can locate the source of the error in the Java snippet
code or in the full class code for the transformation.
Identify the type of error. Use the results of the compilation in the output window and the
location of the error to identify the type of error.
After you identify the source and type of error, fix the Java code in the code entry tab and
compile the transformation again.
Locating the Source of Compilation Errors
When you compile a Java transformation, the Output window displays the results of the
compilation. Use the results of the compilation to identify compilation errors. When you use
the Output window to locate the source of an error, the PowerCenter Client highlights the
source of the error in a code entry tab or in the Full Code window.
You can locate errors in the Full Code window, but you cannot edit Java code in the Full Code
window. To fix errors that you locate in the Full Code window, you need to modify the code
in the appropriate code entry tab. You might need to use the Full Code window to view errors
caused by adding user code to the full class code for the transformation.
Use the results of the compilation in the Output window to identify errors in the following
locations:
Code entry tabs
Full Code window
Locating Errors in the Code Entry Tabs
To locate the source of an error in the code entry tabs, right-click on the error in the Output
window and choose View error in snippet or double-click on the error in the Output window.
The PowerCenter Client highlights the source of the error in the appropriate code entry tab.
Fixing Compilation Errors 233
Figure 9-5 shows a highlighted error in a code entry tab:
Locating Errors in the Full Code Window
To locate the source of errors in the Full Code window, right-click on the error in the Output
window and choose View error in full code or double-click the error in the Output window.
The PowerCenter Client highlights the source of the error in the Full Code window.
Figure 9-5. Highlighted Error in Code Entry Tab
234 Chapter 9: Java Transformation

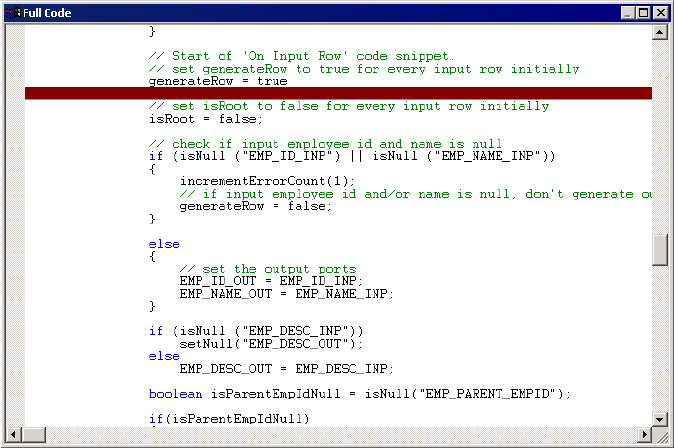

Figure 9-6 shows a highlighted error in the Full Code window:
Identifying Compilation Errors
Compilation errors may appear as a result of errors in the user code. Errors in the user code
may also generate an error in the non-user code for the class. Compilation errors occur in the
following code for the Java transformation:
User code
Non-user code
User Code Errors
Errors may occur in the user code in the code entry tabs. User code errors may include
standard Java syntax and language errors. User code errors may also occur when the
PowerCenter Client adds the user code from the code entry tabs to the full class code.
For example, a Java transformation has an input port with a name of int1 and an integer
datatype. The full code for the class declares the input port variable with the following code:
int int1;
However, if you use the same variable name in the On Input Row tab, the Java compiler issues
an error for a redeclaration of a variable. You must rename the variable in the On Input Row
code entry tab to fix the error.
Figure 9-6. Highlighted Error in Full Code Window
Fixing Compilation Errors 235
Non-user Code Errors
User code in the code entry tabs may cause errors in non-user code.
For example, a Java transformation has an input port and an output port, int1 and out1, with
integer datatypes. You write the following code in the On Input Row code entry tab to
calculate interest for input port int1 and assign it to the output port out1:
int interest;
interest = CallInterest(int1); // calculate interest
out1 = int1 + interest;
}
When you compile the transformation, the PowerCenter Client adds the code from the On
Input Row code entry tab to the full class code for the transformation. When the Java
compiler compiles the Java code, the unmatched brace causes a method in the full class code
to terminate prematurely, and the Java compiler issues an error.
236 Chapter 9: Java Transformation
237
Chapter 10
Java Transformation API
Reference
This chapter includes the following topic:
Java Transformation API Methods, 238
238 Chapter 10: Java Transformation API Reference
Java Transformation API Methods
You can call Java transformation API methods in the Java Code tab of a Java transformation to
define transformation behavior.
The Java transformation provides the following API methods:
commit. Generates a transaction. For more information, see commit” on page 239.
failSession. Throws an exception with an error message and fails the session. For more
information, see failSession” on page 240.
generateRow. Generates an output row for active Java transformations. For more
information, see “generateRow” on page 241.
getInRowType. Returns the input type of the current row in the transformation. For more
information, see “getInRowType” on page 242.
incrementErrorCount. Increases the error count for the session. For more information, see
“incrementErrorCount” on page 243.
isNull. Checks the value of an input column for a null value. For more information, see
“isNull” on page 244.
logError. Writes an error message to the session log. For more information, see “logError”
on page 246.
logInfo. Writes an informational message to the session log. For more information, see
“logInfo” on page 245.
rollback. Generates a rollback transaction. For more information, see rollBack” on
page 247.
setNull. Sets the value of an output column in an active or passive Java transformation to
NULL. For more information, see “setNull” on page 248.
setOutRowType. Sets the update strategy for output rows. For more information, see
setOutRowType” on page 249.
You can add any API method to a code entry tab by double-clicking the name of the API
method in the Navigator, dragging the method from the Navigator into the Java code snippet,
or manually typing the API method in the Java code snippet.
You can also use the defineJExpression and invokeJExpression API methods to create and
invoke Java expressions. For more information about using the API methods with Java
expressions, see “Java Expressions” on page 263.
commit 239
commit
Generates a transaction.
Use commit in any tab except the Import Packages or Java Expressions code entry tabs. You
can only use commit in active transformations configured to generate transactions. If you use
commit in an active transformation not configured to generate transactions, the Integration
Service throws an error and fails the session.
Syntax
Use the following syntax:
commit();
Example
Use the following Java code to generate a transaction for every 100 rows processed by a Java
transformation and then set the rowsProcessed counter to 0:
if (rowsProcessed==100) {
commit();
rowsProcessed=0;
}
240 Chapter 10: Java Transformation API Reference
failSession
Throws an exception with an error message and fails the session. Use failSession to terminate
the session. Do not use failSession in a try/catch block in a code entry tab.
Use failSession in any tab except the Import Packages or Java Expressions code entry tabs.
Syntax
Use the following syntax:
failSession(String errorMessage);
Example
Use the following Java code to test the input port input1 for a null value and fail the session if
input1 is NULL:
if(isNull(”input1”)) {
failSession(“Cannot process a null value for port input1.”);
}
Argument Datatype Input/
Output Description
errorMessage String Input Error message string.
generateRow 241
generateRow
Generates an output row for active Java transformations. When you call generateRow, the Java
transformation generates an output row using the current value of the output port variables. If
you want to generate multiple rows corresponding to an input row, you can call generateRow
more than once for each input row. If you do not use generateRow in an active Java
transformation, the transformation does not generate output rows.
Use generateRow in any code entry tab except the Import Packages or Java Expressions code
entry tabs. You can use generateRow with active transformations only. If you use generateRow
in a passive transformation, the session generates an error.
Syntax
Use the following syntax:
generateRow();
Example
Use the following Java code to generate one output row, modify the values of the output
ports, and generate another output row:
// Generate multiple rows.
if(!isNull("input1") && !isNull("input2"))
{
output1 = input1 + input2;
output2 = input1 - input2;
}
generateRow();
// Generate another row with modified values.
output1 = output1 * 2;
output2 = output2 * 2;
generateRow();
242 Chapter 10: Java Transformation API Reference
getInRowType
Returns the input type of the current row in the transformation. The method returns a value
of insert, update, delete, or reject.
You can only use getInRowType in the On Input Row code entry tab. You can only use the
getInRowType method in active transformations configured to set the update strategy. If you
use this method in an active transformation not configured to set the update strategy, the
session generates an error.
Syntax
Use the following syntax:
rowType getInRowType();
Example
Use the following Java code to propagate the input type of the current row if the row type is
UPDATE or INSERT and the value of the input port input1 is less than 100 or set the output
type as DELETE if the value of input1 is greater than 100:
// Set the value of the output port.
output1 = input1;
// Get and set the row type.
String rowType = getInRowType();
setOutRowType(rowType);
// Set row type to DELETE if the output port value is > 100.
if(input1 > 100)
setOutRowType(DELETE);
Argument Datatype Input/
Output Description
rowType String Output Update strategy type. Value can be INSERT, UPDATE, DELETE, or
REJECT.
incrementErrorCount 243
incrementErrorCount
Increases the error count for the session. If the error count reaches the error threshold for the
session, the session fails. Use incrementErrorCount in any tab except the Import Packages or
Java Expressions code entry tabs.
Syntax
Use the following syntax:
incrementErrorCount(int nErrors);
Example
Use the following Java code to increment the error count if an input port for a transformation
has a null value:
// Check if input employee id and name is null.
if (isNull ("EMP_ID_INP") || isNull ("EMP_NAME_INP"))
{
incrementErrorCount(1);
// if input employee id and/or name is null, don't generate a output
row for this input row
generateRow = false;
}
Argument Datatype Input/
Output Description
nErrors Integer Input Number of errors to increment the error count for the session.
244 Chapter 10: Java Transformation API Reference
isNull
Checks the value of an input column for a null value. Use isNull to check if data of an input
column is NULL before using the column as a value. You can use the isNull method in the
On Input Row code entry tab only.
Syntax
Use the following syntax:
Boolean isNull(String satrColName);
Example
Use the following Java code to check the value of the SALARY input column before adding it
to the instance variable totalSalaries:
// if value of SALARY is not null
if (!isNull("SALARY")) {
// add to totalSalaries
TOTAL_SALARIES += SALARY;
}
or
// if value of SALARY is not null
String strColName = "SALARY";
if (!isNull(strColName)) {
// add to totalSalaries
TOTAL_SALARIES += SALARY;
}
Argument Datatype Input/
Output Description
strColName String Input Name of an input column.
logInfo 245
logInfo
Writes an informational message to the session log.
Use logInfo in any tab except the Import Packages or Java Expressions tabs.
Syntax
Use the following syntax:
logInfo(String logMessage);
Example
Use the following Java code to write a message to the message log after the Java
transformation processes a message threshold of 1,000 rows:
if (numRowsProcessed == messageThreshold) {
logInfo("Processed " + messageThreshold + " rows.");
}
The following message appears in the session log:
[JTX_1012] [INFO] Processed 1000 rows.
Argument Datatype Input/
Output Description
logMessage String Input Information message string.
246 Chapter 10: Java Transformation API Reference
logError
Write an error message to the session log.
Use logError in any tab except the Import Packages or Java Expressions code entry tabs.
Syntax
Use the following syntax:
logError(String errorMessage);
Example
Use the following Java code to log an error of the input port is null:
// check BASE_SALARY
if (isNull("BASE_SALARY")) {
logError("Cannot process a null salary field.");
}
The following message appears in the message log:
[JTX_1013] [ERROR] Cannot process a null salary field.
Argument Datatype Input/
Output Description
errorMessage String Input Error message string.
rollBack 247
rollBack
Generates a rollback transaction.
Use rollBack in any tab except the Import Packages or Java Expressions code entry tabs. You
can only use rollback in active transformations configured to generate transactions. If you use
rollback in an active transformation not configured to generate transactions, the Integration
Service generates an error and fails the session.
Syntax
Use the following syntax:
rollBack();
Example
Use the following code to generate a rollback transaction and fail the session if an input row
has an illegal condition or generate a transaction if the number of rows processed is 100:
// If row is not legal, rollback and fail session.
if (!isRowLegal()) {
rollback();
failSession(“Cannot process illegal row.”);
} else if (rowsProcessed==100) {
commit();
rowsProcessed=0;
}
248 Chapter 10: Java Transformation API Reference
setNull
Sets the value of an output column in an active or passive Java transformation to NULL.
Once you set an output column to NULL, you cannot modify the value until you generate an
output row.
Use setNull in any tab except the Import Packages or Java Expressions code entry tabs.
Syntax
Use the following syntax:
setNull(String strColName);
Example
Use the following Java code to check the value of an input column and set the corresponding
value of an output column to null:
// check value of Q3RESULTS input column
if(isNull("Q3RESULTS")) {
// set the value of output column to null
setNull("RESULTS");
}
or
// check value of Q3RESULTS input column
String strColName = "Q3RESULTS";
if(isNull(strColName)) {
// set the value of output column to null
setNull(strColName);
}
Argument Datatype Input/
Output Description
strColName String Input Name of an output column.
setOutRowType 249
setOutRowType
Sets the update strategy for output rows. The setOutRowType method can flag rows for
insert, update, or delete.
You can only use setOutRowType in the On Input Row code entry tab. You can only use
setOutRowType in active transformations configured to set the update strategy. If you use
setOutRowType in an active transformation not configured to set the update strategy, the
session generates an error and the session fails.
Syntax
Use the following syntax:
setOutRowType(String rowType);
Example
Use the following Java code to propagate the input type of the current row if the row type is
UPDATE or INSERT and the value of the input port input1 is less than 100 or set the output
type as DELETE if the value of input1 is greater than 100:
// Set the value of the output port.
output1 = input1;
// Get and set the row type.
String rowType = getInRowType();
setOutRowType(rowType);
// Set row type to DELETE if the output port value is > 100.
if(input1 > 100)
setOutRowType(DELETE);
Argument Datatype Input/
Output Description
rowType String Input Update strategy type. Value can be INSERT, UPDATE, or
DELETE.
250 Chapter 10: Java Transformation API Reference
251
Chapter 11
Java Transformation
Example
This chapter includes the following topics:
Overview, 252
Step 1. Import the Mapping, 253
Step 2. Create Transformation and Configure Ports, 254
Step 3. Enter Java Code, 256
Step 4. Compile the Java Code, 261
Step 5. Create a Session and Workflow, 262
252 Chapter 11: Java Transformation Example
Overview
You can use the Java code in this example to create and compile an active Java transformation.
You import a sample mapping and create and compile the Java transformation. You can then
create and run a session and workflow that contains the mapping.
The Java transformation processes employee data for a fictional company. It reads input rows
from a flat file source and writes output rows to a flat file target. The source file contains
employee data, including the employee identification number, name, job title, and the
manager identification number.
The transformation finds the manager name for a given employee based on the manager
identification number and generates output rows that contain employee data. The output
data includes the employee identification number, name, job title, and the name of the
employee’s manager. If the employee has no manager in the source data, the transformation
assumes the employee is at the top of the hierarchy in the company organizational chart.
Note: The transformation logic assumes the employee job titles are arranged in descending
order in the source file.
Complete the following steps to import the sample mapping, create and compile a Java
transformation, and create a session and workflow that contains the mapping:
1. Import the sample mapping. For more information, see Step 1. Import the Mapping”
on page 253.
2. Create the Java transformation and configure the Java transformation ports. For more
information, see “Step 2. Create Transformation and Configure Ports on page 254.
3. Enter the Java code for the transformation in the appropriate code entry tabs. For more
information, see “Step 3. Enter Java Code” on page 256.
4. Compile the Java code. For more information, see “Step 4. Compile the Java Code” on
page 261.
5. Create and run a session and workflow. For more information, see “Step 5. Create a
Session and Workflow” on page 262.
For a sample source and target file for the session, see “Sample Data” on page 262.
The PowerCenter Client installation contains a mapping, m_jtx_hier_useCase.xml, and flat
file source, hier_input, that you can use with this example.
For more information about creating transformations, mappings, sessions, and workflows, see
Getting Started.
Step 1. Import the Mapping 253
Step 1. Import the Mapping
Import the metadata for the sample mapping in the Designer. The sample mapping contains
the following components:
Source definition and Source Qualifier transformation. Flat file source definition,
hier_input, that defines the source data for the transformation.
Target de finit ion. Flat file target definition, hier_data, that receives the output data from
the transformation.
You can import the metadata for the mapping from the following location:
<PowerCenter Client installation directory>\client\bin\m_jtx_hier_useCase.xml
Figure 11-1 shows the sample mapping:
Figure 11-1. Java Transformation Example - Sample Mapping
254 Chapter 11: Java Transformation Example
Step 2. Create Transformation and Configure Ports
You create the Java transformation and configure the ports in the Mapping Designer. You can
use the input and output port names as variables in the Java code. In a Java transformation,
you create input and output ports in an input or output group. A Java transformation may
contain only one input group and one output group. For more information about configuring
ports in a Java transformation, see Configuring Ports” on page 219.
In the Mapping Designer, create an active Java transformation and configure the ports. In this
example, the transformation is named jtx_hier_useCase.
Note: To use the Java code in this example, you must use the exact names for the input and
output ports.
Table 11-1 shows the input and output ports for the transformation:
Table 11-1. Input and Output Ports
Port Name Port Type Datatype Precision Scale
EMP_ID_INP Input Integer 10 0
EMP_NAME_INP Input String 100 0
EMP_AGE Input Integer 10 0
EMP_DESC_INP Input String 100 0
EMP_PARENT_EMPID Input Integer 10 0
EMP_ID_OUT Output Integer 10 0
EMP_NAME_OUT Output String 100 0
EMP_DESC_OUT Output String 100 0
EMP_PARENT_EMPNAME Output String 100 0
Step 2. Create Transformation and Configure Ports 255

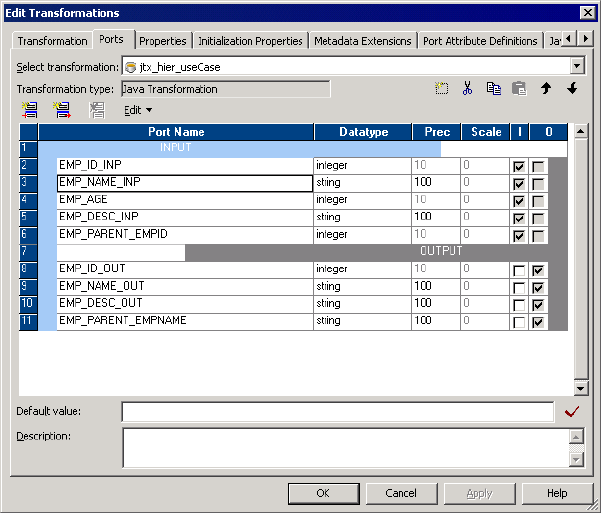

Figure 11-2 shows the Ports tab in the Transformation Developer after you create the ports:
Figure 11-2. Java Transformation Example - Ports Tab
256 Chapter 11: Java Transformation Example
Step 3. Enter Java Code
Enter Java code for the transformation in the following code entry tabs:
Import Packages. Imports the java.util.Map and java.util.HashMap packages. For
more information, see “Import Packages Tab on page 256.
Helper Code. Contains a Map object, lock object, and boolean variables used to track the
state of data in the Java transformation. For more information, see “Helper Code Tab” on
page 257.
On Input Row. Contains the Java code that processes each input row in the
transformation. For more information, see On Input Row Tab” on page 258.
For more information about using the code entry tabs to develop Java code, see “Developing
Java Code” on page 225.
Import Packages Tab
Import third-party Java packages, built-in Java packages, or custom Java packages in the
Import Packages tab. The example transformation uses the Map and HashMap packages.
Enter the following code in the Import Packages tab:
import java.util.Map;
import java.util.HashMap;
The Designer adds the import statements to the Java code for the transformation.
Step 3. Enter Java Code 257

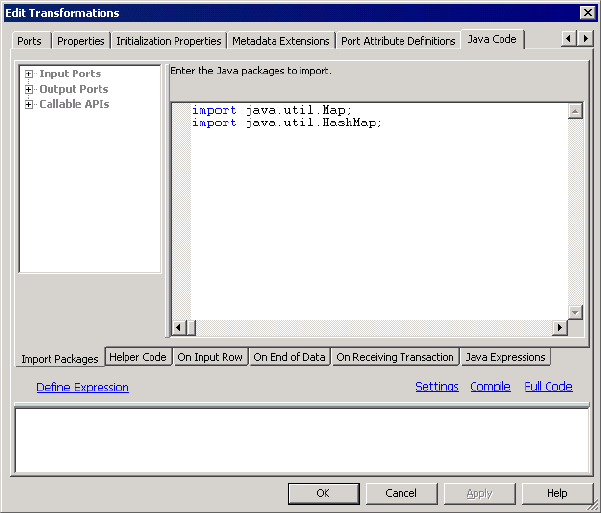

Figure 11-3 shows the Import Packages code entry tab:
Helper Code Tab
Declare user-defined variables and methods for the Java transformation on the Helper Code
tab. The Helper Code tab defines the following variables that are used by the Java code in the
On Input Row tab:
empMap. Map object that stores the identification number and employee name from the
source.
lock. Lock object used to synchronize the access to empMap across partitions.
generateRow. Boolean variable used to determine if an output row should be generated for
the current input row.
isRoot. Boolean variable used to determine if an employee is at the top of the company
organizational chart (root).
Enter the following code in the Helper Code tab:
// Static Map object to store the ID and name relationship of an
// employee. If a session uses multiple partitions, empMap is shared
// across all partitions.
private static Map empMap = new HashMap();
// Static lock object to synchronize the access to empMap across
// partitions.
private static Object lock = new Object();
Figure 11-3. Java Transformation Example - Import Packages Tab
258 Chapter 11: Java Transformation Example
// Boolean to track whether to generate an output row based on validity
// of the input data.
private boolean generateRow;
// Boolean to track whether the employee is root.
private boolean isRoot;

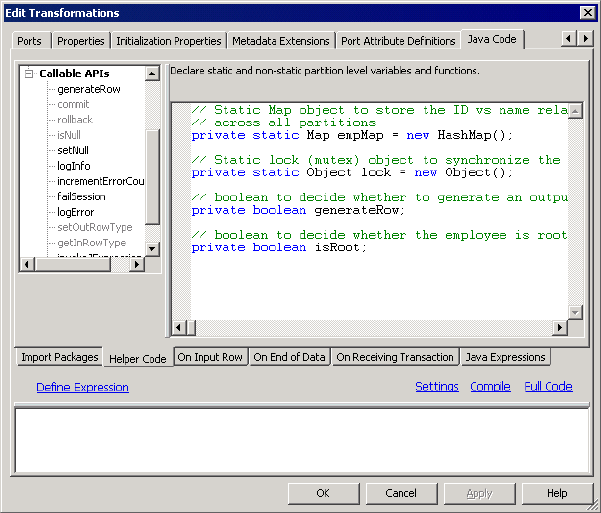

Figure 11-4 shows the Helper Code tab:
On Input Row Tab
The Java transformation executes the Java code in the On Input Row tab when the
transformation receives an input row. In this example, the transformation may or may not
generate an output row, based on the values of the input row.
Enter the following code in the On Input Row tab:
// Initially set generateRow to true for each input row.
generateRow = true;
// Initially set isRoot to false for each input row.
isRoot = false;
// Check if input employee id and name is null.
if (isNull ("EMP_ID_INP") || isNull ("EMP_NAME_INP"))
{
incrementErrorCount(1);
// If input employee id and/or name is null, don't generate a output
Figure 11-4. Java Transformation Example - Helper Code Tab
Step 3. Enter Java Code 259
// row for this input row.
generateRow = false;
} else {
// Set the output port values.
EMP_ID_OUT = EMP_ID_INP;
EMP_NAME_OUT = EMP_NAME_INP;
}
if (isNull ("EMP_DESC_INP"))
setNull("EMP_DESC_OUT");
} else {
EMP_DESC_OUT = EMP_DESC_INP;
}
boolean isParentEmpIdNull = isNull("EMP_PARENT_EMPID");
if(isParentEmpIdNull)
{
// This employee is the root for the hierarchy.
isRoot = true;
logInfo("This is the root for this hierarchy.");
setNull("EMP_PARENT_EMPNAME");
}
synchronized(lock)
{
// If the employee is not the root for this hierarchy, get the
// corresponding parent id.
if(!isParentEmpIdNull)
EMP_PARENT_EMPNAME = (String) (empMap.get(new Integer
(EMP_PARENT_EMPID)));
// Add employee to the map for future reference.
empMap.put (new Integer(EMP_ID_INP), EMP_NAME_INP);
}
// Generate row if generateRow is true.
if(generateRow)
generateRow();
260 Chapter 11: Java Transformation Example

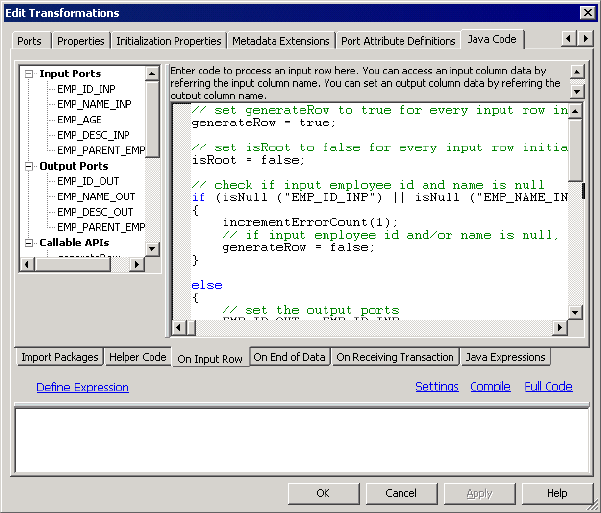

Figure 11-5 shows the On Input Row tab:
Figure 11-5. Java Transformation Example - On Input Row Tab
Step 4. Compile the Java Code 261
Step 4. Compile the Java Code
Click Compile in the Transformation Developer to compile the Java code for the
transformation. The Output window displays the status of the compilation. If the Java code
does not compile successfully, correct the errors in the code entry tabs and recompile the Java
code. After you successfully compile the transformation, save the transformation to the
repository.
For more information about compiling Java code, see “Compiling a Java Transformation on
page 231. For more information about troubleshooting compilation errors, see “Fixing
Compilation Errors” on page 232.

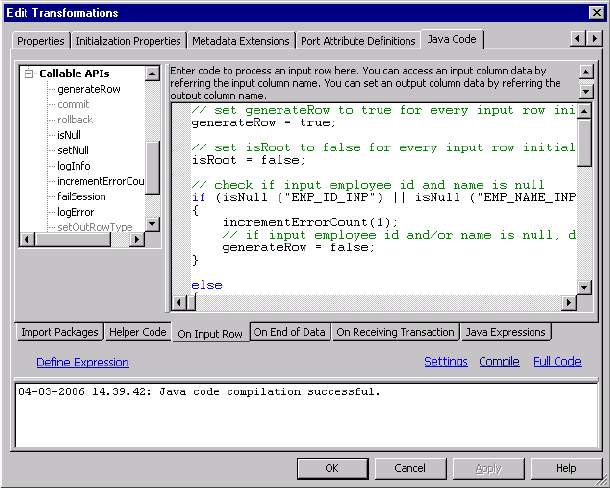

Figure 11-6 shows the results of a successful compilation:
Figure 11-6. Java Transformation Example - Successful Compilation
262 Chapter 11: Java Transformation Example
Step 5. Create a Session and Workflow
Create a session and workflow for the mapping in the Workflow Manager, using the
m_jtx_hier_useCase mapping.
When you configure the session, you can use the sample source file from the following
location:
<PowerCenter Client installation directory>\client\bin\hier_data
Sample Data
The following data is an excerpt from the sample source file:
1,James Davis,50,CEO,
4,Elaine Masters,40,Vice President - Sales,1
5,Naresh Thiagarajan,40,Vice President - HR,1
6,Jeanne Williams,40,Vice President - Software,1
9,Geetha Manjunath,34,Senior HR Manager,5
10,Dan Thomas,32,Senior Software Manager,6
14,Shankar Rahul,34,Senior Software Manager,6
20,Juan Cardenas,32,Technical Lead,10
21,Pramodh Rahman,36,Lead Engineer,14
22,Sandra Patterson,24,Software Engineer,10
23,Tom Kelly,32,Lead Engineer,10
35,Betty Johnson,27,Lead Engineer,14
50,Dave Chu,26,Software Engineer,23
70,Srihari Giran,23,Software Engineer,35
71,Frank Smalls,24,Software Engineer,35
The following data is an excerpt from a sample target file:
1,James Davis,CEO,
4,Elaine Masters,Vice President - Sales,James Davis
5,Naresh Thiagarajan,Vice President - HR,James Davis
6,Jeanne Williams,Vice President - Software,James Davis
9,Geetha Manjunath,Senior HR Manager,Naresh Thiagarajan
10,Dan Thomas,Senior Software Manager,Jeanne Williams
14,Shankar Rahul,Senior Software Manager,Jeanne Williams
20,Juan Cardenas,Technical Lead,Dan Thomas
21,Pramodh Rahman,Lead Engineer,Shankar Rahul
22,Sandra Patterson,Software Engineer,Dan Thomas
23,Tom Kelly,Lead Engineer,Dan Thomas
35,Betty Johnson,Lead Engineer,Shankar Rahul
50,Dave Chu,Software Engineer,Tom Kelly
70,Srihari Giran,Software Engineer,Betty Johnson
71,Frank Smalls,Software Engineer,Betty Johnson
263
Chapter 12
Java Expressions
This chapter includes the following topics:
Overview, 264
Using the Define Expression Dialog Box, 266
Working with the Simple Interface, 271
Working with the Advanced Interface, 273
JExpression API Reference, 279
264 Chapter 12: Java Expressions
Overview
You can invoke PowerCenter expressions in a Java transformation with the Java programming
language. Use expressions to extend the functionality of a Java transformation. For example,
you can invoke an expression in a Java transformation to look up the values of input or output
ports or look up the values of Java transformation variables.
To invoke expressions in a Java transformation, you generate the Java code or use Java
transformation APIs to invoke the expression. You invoke the expression and use the result of
the expression in the appropriate code entry tab. You can generate the Java code that invokes
an expression or use API methods to write the Java code that invokes the expression.
Use the following methods to create and invoke expressions in a Java transformation:
Use the Define Expression dialog box. Create an expression and generate the code for an
expression. For more information, see “Using the Define Expression Dialog Box” on
page 266.
Use the simple interface. Use a single method to invoke an expression and get the result of
the expression. For more information, see Working with the Simple Interface” on
page 271.
Use the advanced interface. Use the advanced interface to define the expression, invoke
the expression, and use the result of the expression. For more information, see “Working
with the Advanced Interface” on page 273.
You can invoke expressions in a Java transformation without advanced knowledge of the Java
programming language. You can invoke expressions using the simple interface, which only
requires a single method to invoke an expression. If you are familiar with object oriented
programming and want more control over invoking the expression, you can use the advanced
interface.
Expression Function Types
You can create expressions for a Java transformation using the Expression Editor, by writing
the expression in the Define Expression dialog box, or by using the simple or advanced
interface. You can enter expressions that use input or output port variables or variables in the
Java code as input parameters. If you use the Define Expression dialog box, you can use the
Expression Editor to validate the expression before you use it in a Java transformation.
You can invoke the following types of expression functions in a Java transformation:
Transformation language functions. SQL-like functions designed to handle common
expressions.
User-defined functions. Functions you create in PowerCenter based on transformation
language functions.
Custom functions. Functions you create with the Custom Function API.
Unconnected transformations. You can use unconnected transformations in expressions.
For example, you can use an unconnected lookup transformation in an expression.
Overview 265
You can also use system variables, user-defined mapping and workflow variables, and pre-
defined workflow variables such as $Session.status in expressions.
For more information about the transformation language and custom functions, see the
Transformation Language Reference. For more information about user-defined functions, see
“Working with User-Defined Functions” in the Designer Guide.
266 Chapter 12: Java Expressions
Using the Define Expression Dialog Box
When you define a Java expression, you configure the function, create the expression, and
generate the code that invokes the expression. You can define the function and create the
expression in the Define Expression dialog box.
To create an expression function and use the expression in a Java transformation, complete the
following tasks:
1. Configure the function. Configure the function that invokes the expression, including
the function name, description, and parameters. You use the function parameters when
you create the expression. For more information, see “Step 1. Configure the Function” on
page 266.
2. Create the expression. Create the expression syntax and validate the expression. For more
information, see “Step 2. Create and Validate the Expression” on page 267.
3. Generate Java code. Use the Define Expression dialog box to generate the Java code that
invokes the expression. The Designer places the code in the Java Expressions code entry
tab in the Transformation Developer. For more information, see Step 3. Generate Java
Code for the Expression” on page 267.
After you generate the Java code, call the generated function in the appropriate code entry tab
to invoke an expression or get a JExpression object, depending on whether you use the simple
or advanced interface.
Note: To validate an expression when you create the expression, you must use the Define
Expression dialog box.
Step 1. Configure the Function
You configure the function name, description, and input parameters for the Java function that
invokes the expression.
Use the following rules and guidelines when you configure the function:
Use a unique function name that does not conflict with an existing Java function in the
transformation or reserved Java keywords.
You must configure the parameter name, Java datatype, precision, and scale. The input
parameters are the values you pass when you call the function in the Java code for the
transformation.
To pass a Date datatype to an expression, use a String datatype for the input parameter. If
an expression returns a Date datatype, you can use the return value as a String datatype in
the simple interface and a String or long datatype in the advanced interface.
For more information about the mapping between PowerCenter datatypes and Java datatypes,
see Datatype Mapping” on page 215.
Using the Define Expression Dialog Box 267
Figure 12-1 shows the Define Expression dialog box where you configure the function and the
expression for a Java transformation:
Step 2. Create and Validate the Expression
When you create the expression, use the parameters you configured for the function. You can
also use transformation language functions, custom functions, or other user-defined functions
in the expression. You can create and validate the expression in the Define Expression dialog
box or in the Expression Editor.
When you enter expression syntax, follow the transformation language rules and guidelines.
For more information about expression syntax, see “The Transformation Language” in the
Transformation Language Reference.
For more information about creating expressions, see “Working with Workflows” in the
Workflow Administration Guide.
Step 3. Generate Java Code for the Expression
After you configure the function and function parameters and define and validate the
expression, you can generate the Java code that invokes the expression. The Designer places
the generated Java code in the Java Expressions code entry tab. Use the generated Java code to
call the functions that invoke the expression in the code entry tabs in the Transformation
Developer. You can generate the simple or advanced Java code.
After you generate the Java code that invokes an expression, you cannot edit the expression
and revalidate it. To modify an expression after you generate the code, you must recreate the
expression.
Figure 12-1. Define Expression Dialog Box
Java function name
Java function parameters
Define expression.
Validate expression.
268 Chapter 12: Java Expressions
Figure 12-2 shows the Java Expressions code entry tab and generated Java code for an
expression in the advanced interface:
Steps to Create an Expression and Generate Java Code
Complete the following procedure to create an expression and generate the Java code to
invoke the expression.
To generate Java code that calls an expression:
1. In the Transformation Developer, open a Java transformation or create a new Java
transformation.
2. Click the Java Code tab.
3. Click the Define Expression link.
The Define Expression dialog box appears.
4. Enter a function name.
5. Optionally, enter a description for the expression.
You can enter up to 2,000 characters.
6. Create the parameters for the function.
Figure 12-2. Java Expressions Code Entry Tab
Define the
expression.
Generated
Java Code
Using the Define Expression Dialog Box 269
When you create the parameters, configure the parameter name, datatype, precision, and
scale.
7. Click Launch Editor to create an expression with the parameters you created in step 6.
8. Click Validate to validate the expression.
9. Optionally, you can enter the expression in the Expression field and click Validate to
validate the expression.
10. If you want to generate Java code using the advanced interface, select Generate advanced
code.
11. Click Generate.
The Designer generates the function to invoke the expression in the Java Expressions
code entry tab.
Java Expression Templates
You can generate Java code for an expression using the simple or advanced Java code for an
expression. The Java code for the expression is generated according to a template for the
expression.
Simple Java Code
The following example shows the template for a Java expression generated for simple Java
code:
Object function_name (Java datatype x1[,
Java datatype x2 ...] )
throws SDK Exception
{
return (Object)invokeJExpression( String expression,
new Object [] { x1[, x2, ... ]} );
}
The following example shows the template for a Java expression generated using the advanced
interface:
JExpression function_name () throws SDKException
{
JExprParamMetadata params[] = new JExprParamMetadata[number of parameters];
params[0] = new JExprParamMetadata (
EDataType.STRING, // data type
20, // precision
0 // scale
);
...
params[number of parameters - 1] = new JExprParamMetadata (
EDataType.STRING, // data type
270 Chapter 12: Java Expressions
20, // precision
0 // scale
);
...
return defineJExpression(String expression,params);
}
Working with the Simple Interface 271
Working with the Simple Interface
Use the invokeJExpression Java API method to invoke an expression in the simple interface.
invokeJExpression
Invokes an expression and returns the value for the expression. Input parameters for
invokeJExpression are a string value that represents the expression and an array of objects that
contain the expression input parameters.
Use the following rules and guidelines when you use invokeJExpression:
Return datatype. The return type of invokeJExpression is an object. You must cast the
return value of the function with the appropriate datatype. You can return values with
Integer, Double, String, and byte[] datatypes.
Row type. The row type for return values from invokeJExpression is INSERT. If you want
to use a different row type for the return value, use the advanced interface. For more
information, see “invoke” on page 279.
Null values. If you pass a null value as a parameter or the return value for
invokeJExpression is NULL, the value is treated as a null indicator. For example, if the
return value of an expression is NULL and the return datatype is String, a string is
returned with a value of null.
Date datatype. You must convert input parameters with a Date datatype to String. To use
the string in an expression as a Date datatype, use the to_date() function to convert the
string to a Date datatype. Also, you must cast the return type of any expression that
returns a Date datatype as a String.
Use the following syntax:
(datatype)invokeJExpression(
String expression,
Object[] paramMetadataArray);
The following example concatenates the two strings “John” and “Smith” and returns “John
Smith:
(String)invokeJExpression("concat(x1,x2)", new Object [] { "John ",
"Smith" });
Argument Datatype Input/
Output Description
expression String Input String that represents the expression.
paramMetadataArray Object[] Input Array of objects that contain the input parameters for the
expression.
272 Chapter 12: Java Expressions
Note: The parameters passed to the expression must be numbered consecutively and start with
the letter x. For example, to pass three parameters to an expression, name the parameters x1,
x2, and x3.
Simple Interface Example
You can define and call expressions that use the invokeJExpression API in the Helper Code or
On Input Row code entry tabs. The following example shows how to perform a lookup on the
NAME and ADDRESS input ports in a Java transformation and assign the return value to the
COMPANY_NAME output port.
Use the following code in the On Input Row code entry tab:
COMPANY_NAME = (String)invokeJExpression(":lkp.my_lookup(X1,X2)",
new Object [] {str1 ,str2} );
generateRow();
Working with the Advanced Interface 273
Working with the Advanced Interface
You can use the object oriented APIs in the advanced interface to define, invoke, and get the
result of an expression.
The advanced interface contains the following classes and Java transformation APIs:
EDataType class. Enumerates the datatypes for an expression. For more information, see
“EDataType Class” on page 274.
JExprParamMetadata class. Contains the metadata for each parameter in an expression.
Parameter metadata includes datatype, precision, and scale. For more information, see
“JExprParamMetadata Class” on page 274.
defineJExpression API. Defines the expression. Includes PowerCenter expression string
and parameters. For more information, see defineJExpression” on page 275.
JExpression class. Contains the methods to create, invoke, get the metadata and get the
expression result, and check the return datatype. For more information, see “JExpression
API Reference” on page 279.
Steps to Invoke an Expression with the Advanced Interface
Complete the following process to define, invoke, and get the result of an expression:
1. In the Helper Code or On Input Row code entry tab, create an instance of
JExprParamMetadata for each parameter for the expression and set the value of the
metadata. Optionally, you can instantiate the JExprParamMetadata object in
defineJExpression.
2. Use defineJExpression to get the JExpression object for the expression.
3. In the appropriate code entry tab, invoke the expression with invoke.
4. Check the result of the return value with isResultNull.
5. You can get the datatype of the return value or the metadata of the return value with
getResultDataType and getResultMetadata.
6. Get the result of the expression using the appropriate API. You can use getInt, getDouble,
getStringBuffer, and getBytes.
Rules and Guidelines for Working with the Advanced Interface
Use the following rules and guidelines when you work with expressions in the advanced
interface:
Null values. If you pass a null value as a parameter or if the result of an expression is null,
the value is treated as a null indicator. For example, if the result of an expression is null and
the return datatype is String, a string is returned with a value of null. You can check the
result of an expression using isResultNull. For more information, see isResultNull” on
page 280.
274 Chapter 12: Java Expressions
Date datatype. You must convert input parameters with a Date datatype to a String before
you can use them in an expression. To use the string in an expression as a Date datatype,
use the to_date() function to convert the string to a Date datatype. You can get the result
of an expression that returns a Data datatype as String or long datatype. For more
information, see “getStringBuffer” on page 282 and “getLong” on page 281.
EDataType Class
Enumerates the Java datatypes used in expressions. You can use the EDataType class to get the
return datatype of an expression or assign the datatype for a parameter in a
JExprParamMetadata object. You do not need to instantiate the EDataType class.
Table 12-1 lists the enumerated values for Java datatypes in expressions:
The following example shows how to use the EDataType class to assign a datatype of String to
an JExprParamMetadata object:
JExprParamMetadata params[] = new JExprParamMetadata[2];
params[0] = new JExprParamMetadata (
EDataType.STRING, // data type
20, // precision
0 // scale
);
...
JExprParamMetadata Class
Instantiates an object that represents the parameters for an expression and sets the metadata
for the parameters. You use an array of JExprParamMetadata objects as input to the
defineJExpression to set the metadata for the input parameters. You can create a instance of
the JExprParamMetadata object in the Java Expressions code entry tab or in
defineJExpression.
Table 12-1. Enumerated Java Datatypes
Datatype Enumerated Value
INT 1
DOUBLE 2
STRING 3
BYTE_ARRAY 4
DATE_AS_LONG 5
Working with the Advanced Interface 275
Use the following syntax:
JExprParamMetadata paramMetadataArray[] =
new JExprParamMetadata[numberOfParameters];
paramMetadataArray[0] = new JExprParamMetadata(datatype, precision,
scale);
...
paramMetadataArray[numberofParameters - 1] =
new JExprParamMetadata(datatype, precision, scale);;
For example, use the following Java code to instantiate an array of two JExprParamMetadata
objects with String datatypes, precision of 20, and scale of 0:
JExprParamMetadata params[] = new JExprParamMetadata[2];
params[0] = new JExprParamMetadata(EDataType.STRING, 20, 0);
params[1] = new JExprParamMetadata(EDataType.STRING, 20, 0);
return defineJExpression(":LKP.LKP_addresslookup(X1,X2)",params);
defineJExpression
Defines the expression, including the expression string and input parameters. Arguments for
defineJExpression include a JExprParamMetadata object that contains the input parameters
and a string value that defines the expression syntax.
To use defineJExpression, you must instantiate an array of JExprParamMetadata objects that
represent the input parameters for the expression. You set the metadata values for the
parameters and pass the array as an argument to defineJExpression.
Argument Datatype Input/
Output Description
datatype EDataType Input Datatype of the parameter.
precision Integer Input Precision of the parameter.
scale Integer Input Scale of the parameter.
276 Chapter 12: Java Expressions
Use the following syntax:
defineJExpression(
String expression,
Object[] paramMetadataArray
);
For example, use the following Java code to create an expression to perform a lookup on two
strings:
JExprParaMetadata params[] = new JExprParamMetadata[2];
params[0] = new JExprParamMetadata(EDataType.STRING, 20, 0);
params[1] = new JExprParamMetadata(EDataType.STRING, 20, 0);
defineJExpression(":lkp.mylookup(x1,x2)",params);
Note: The parameters passed to the expression must be numbered consecutively and start with
the letter x. For example, to pass three parameters to an expression, name the parameters x1,
x2, and x3.
JExpression Class
The JExpression class contains the methods to create and invoke an expression, return the
value of an expression, and check the return datatype.
Table 12-2 lists the JExpression API methods:
Argument Datatype Input/
Output Description
expression String Input String that represents the expression.
paramMetadataArray Object[] Input Array of JExprParaMetadata objects that contain the input
parameters for the expression.
Table 12-2. JExpression API Methods
Method Name Description
invoke Invokes an expression.
getResultDataType Returns the datatype of the expression result.
getResultMetadata Returns the metadata of the expression result.
isResultNull Checks the result value of an expression result.
getInt Returns the value of an expression result as an Integer datatype.
getDouble Returns the value of an expression result as a Double datatype.
getStringBuffer Returns the value of an expression result as a String datatype.
getBytes Returns the value of an expression result as a byte[] datatype.
Working with the Advanced Interface 277
For more information about the JExpression class, including syntax, usage, and examples, see
“JExpression API Referenceon page 279.
Advanced Interface Example
The following example shows how to use the advanced interface to create and invoke a lookup
expression in a Java transformation. The Java code shows how to create a function that calls
an expression and how to invoke the expression to get the return value. This example passes
the values for two input ports with a String datatype, NAME and COMPANY, to the
function myLookup. The myLookup function uses a lookup expression to look up the value
for the ADDRESS output port.
Note: This example assumes you have an unconnected lookup transformation in the mapping
called LKP_addresslookup.
Use the following Java code in the Helper Code tab of the Transformation Developer:
JExprParamMetadata addressLookup() throws SDKException
{
JExprParamMetadata params[] = new JExprParamMetadata[2];
params[0] = new JExprParamMetadata (
EDataType.STRING, // data type
50, // precision
0 // scale
);
params[1] = new JExprParamMetadata (
EDataType.STRING, // data type
50, // precision
0 // scale
);
return defineJExpression(":LKP.LKP_addresslookup(X1,X2)",params);
}
JExpression lookup = null;
boolean isJExprObjCreated = false;
278 Chapter 12: Java Expressions
Use the following Java code in the On Input Row tab to invoke the expression and return the
value of the ADDRESS port:
...
if(!iisJExprObjCreated)
{
lookup = addressLookup();
isJExprObjCreated = true;
}
lookup = addressLookup();
lookup.invoke(new Object [] {NAME,COMPANY}, ERowType.INSERT);
EDataType addressDataType = lookup.getResultDataType();
if(addressDataType == EDataType.STRING)
{
ADDRESS = (lookup.getStringBuffer()).toString();
} else {
logError("Expression result datatype is incorrect.");
}
...
JExpression API Reference 279
JExpression API Reference
The JExpression class contains the following API methods:
invoke
getResultDataType
getResultMetadata
isResultNull
getInt
getDouble
getStringBuffer
getBytes
invoke
Invokes an expression. Arguments for invoke include an object that defines the input
parameters and the row type. You must instantiate an JExpression object before you use
invoke.
You can use ERowType.INSERT, ERowType.DELETE, and ERowType.UPDATE for the row
type.
Use the following syntax:
objectName.invoke(
new Object[] { param1[, ... paramN ]},
rowType
);
For example, you create a function in the Java Expressions code entry tab named
address_lookup() that returns an JExpression object that represents the expression. Use the
following code to invoke the expression that uses input ports NAME and COMPANY:
JExpression myObject = address_lookup();
myObject.invoke(new Object[] { NAME,COMPANY }, ERowType INSERT);
Argument Datatype Input/
Output Description
objectName JExpression Input JExpression object name.
parameters n/a Input Object array that contains the input values for the
expression.
280 Chapter 12: Java Expressions
getResultDataType
Returns the datatype of an expression result. getResultDataType returns a value of
EDataType. For more information about the EDataType enumerated class, see “EDataType
Class” on page 274.
Use the following syntax:
objectName.getResultDataType();
For example, use the following code to invoke an expression and assign the datatype of the
result to the variable dataType:
myObject.invoke(new Object[] { NAME,COMPANY }, ERowType INSERT);
EDataType dataType = myObject.getResultDataType();
getResultMetadata
Returns the metadata for an expression result. For example, you can use getResultMetadata to
get the precision, scale, and datatype of an expression result.
You can assign the metadata of the return value from an expression to an
JExprParamMetadata object. Use the getScale, getPrecision, and getDataType object methods
to retrieve the result metadata.
Use the following syntax:
objectName.getResultMetadata();
For example, use the following Java code to assign the scale, precision, and datatype of the
return value of myObject to variables:
JExprParamMetadata myMetadata = myObject.getResultMetadata();
int scale = myMetadata.getScale();
int prec = myMetadata.getPrecision();
int datatype = myMetadata.getDataType();
Note: The getDataType object method returns the integer value of the datatype, as enumerated
in EDataType. For more information about the EDataType class, see “EDataType Class” on
page 274.
isResultNull
Check the value of an expression result.
Use the following syntax:
objectName.isResultNull();
JExpression API Reference 281
For example, use the following Java code to invoke an expression and assign the return value
of the expression to the variable address if the return value is not null:
JExpression myObject = address_lookup();
myObject.invoke(new Object[] { NAME,COMPANY }, ERowType INSERT);
if(!myObject.isResultNull()) {
String address = myObject.getStringBuffer();
}
getInt
Returns the value of an expression result as an Integer datatype.
Use the following syntax:
objectName.getInt();
For example, use the following Java code to get the result of an expression that returns an
employee ID number as an integer, where findEmpID is a JExpression object:
int empID = findEmpID.getInt();
getDouble
Returns the value of an expression result as a Double datatype.
Use the following syntax:
objectName.getDouble();
For example, use the following Java code to get the result of an expression that returns a salary
value as a double, where JExprSalary is an JExpression object:
double salary = JExprSalary.getDouble();
getLong
Returns the value of an expression result as a Long datatype.
You can use getLong to get the result of an expression that uses a Date datatype.
Use the following syntax:
objectName.getLong();
For example, use the following Java code to get the result of an expression that returns a Date
value as a Long datatype, where JExprCurrentDate is an JExpression object:
long currDate = JExprCurrentDate.getLong();
282 Chapter 12: Java Expressions
getStringBuffer
Returns the value of an expression result as a String datatype.
Use the following syntax:
objectName.getStringBuffer();
For example, use the following Java code to get the result of an expression that returns two
concatenated strings, where JExprConcat is an JExpression object:
String result = JExprConcat.getStringBuffer();
getBytes
Returns the value of an expression result as an byte[] datatype. For example, you can use
getByte to get the result of an expression that encypts data with the AES_ENCRYPT
function.
Use the following syntax:
objectName.getBytes();
For example, use the following Java code to get the result of an expression that encrypts the
binary data using the AES_ENCRYPT function, where JExprEncryptData is an JExpression
object:
byte[] newBytes = JExprEncryptData.getBytes();
283
Chapter 13
Joiner Transformation
This chapter includes the following topics:
Overview, 284
Joiner Transformation Properties, 286
Defining a Join Condition, 288
Defining the Join Type, 289
Using Sorted Input, 292
Joining Data from a Single Source, 296
Blocking the Source Pipelines, 299
Working with Transactions, 300
Creating a Joiner Transformation, 303
Tips, 306
284 Chapter 13: Joiner Transformation
Overview
Use the Joiner transformation to join source data from two related heterogeneous sources
residing in different locations or file systems. You can also join data from the same source.
The Joiner transformation joins sources with at least one matching column. The Joiner
transformation uses a condition that matches one or more pairs of columns between the two
sources.
The two input pipelines include a master pipeline and a detail pipeline or a master and a
detail branch. The master pipeline ends at the Joiner transformation, while the detail pipeline
continues to the target.
Figure 13-1 shows the master and detail pipelines in a mapping with a Joiner transformation:
To join more than two sources in a mapping, join the output from the Joiner transformation
with another source pipeline. Add Joiner transformations to the mapping until you have
joined all the source pipelines.
The Joiner transformation accepts input from most transformations. However, consider the
following limitations on the pipelines you connect to the Joiner transformation:
You cannot use a Joiner transformation when either input pipeline contains an Update
Strategy transformation.
You cannot use a Joiner transformation if you connect a Sequence Generator
transformation directly before the Joiner transformation.
Working with the Joiner Transformation
When you work with the Joiner transformation, you must configure the transformation
properties, join type, and join condition. You can configure the Joiner transformation for
sorted input to improve Integration Service performance. You can also configure the
Transformation type:
Active
Connected
Figure 13-1. Mapping with Master and Detail Pipelines
Master Pipeline
Detail Pipeline
Overview 285
transformation scope to control how the Integration Service applies transformation logic. To
work with the Joiner transformation, complete the following tasks:
Configure the Joiner transformation properties. Properties for the Joiner transformation
identify the location of the cache directory, how the Integration Service processes the
transformation, and how the Integration Service handles caching. For more information,
see Joiner Transformation Properties” on page 286.
Configure the join condition. The join condition contains ports from both input sources
that must match for the Integration Service to join two rows. Depending on the type of
join selected, the Integration Service either adds the row to the result set or discards the
row. For more information, see “Defining a Join Condition” on page 288.
Configure the join type. A join is a relational operator that combines data from multiple
tables in different databases or flat files into a single result set. You can configure the Joiner
transformation to use a Normal, Master Outer, Detail Outer, or Full Outer join type. For
more information, see “Defining the Join Type” on page 289.
Configure the session for sorted or unsorted input. You can improve session performance
by configuring the Joiner transformation to use sorted input. To configure a mapping to
use sorted data, you establish and maintain a sort order in the mapping so that the
Integration Service can use the sorted data when it processes the Joiner transformation. For
more information about configuring the Joiner transformation for sorted input, see “Using
Sorted Input” on page 292.
Configure the transaction scope. When the Integration Service processes a Joiner
transformation, it can apply transformation logic to all data in a transaction, all incoming
data, or one row of data at a time. For more information about configuring how the
Integration Service applies transformation logic, see “Working with Transactions” on
page 300.
If you have the partitioning option in PowerCenter, you can increase the number of partitions
in a pipeline to improve session performance. For information about partitioning with the
Joiner transformation, see “Working with Partition Points” in the Workflow Administration
Guide.
286 Chapter 13: Joiner Transformation
Joiner Transformation Properties
Properties for the Joiner transformation identify the location of the cache directory, how the
Integration Service processes the transformation, and how the Integration Service handles
caching. The properties also determine how the Integration Service joins tables and files.

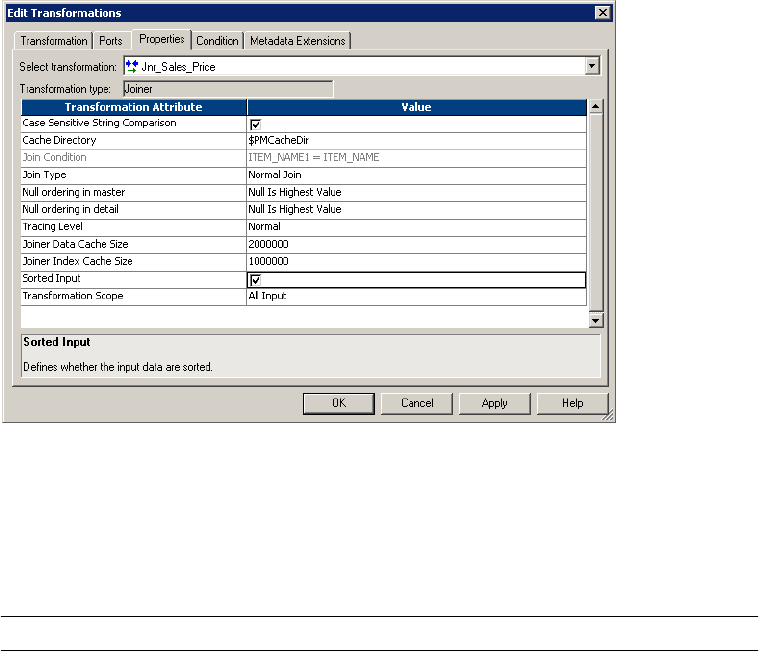

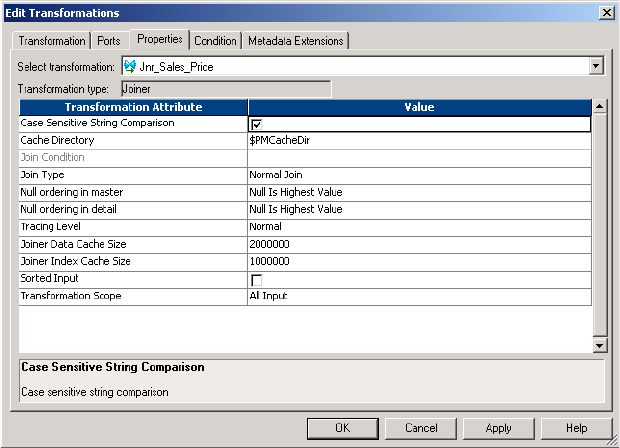

Figure 13-2 shows the Joiner transformation properties:
When you create a mapping, you specify the properties for each Joiner transformation. When
you create a session, you can override some properties, such as the index and data cache size
for each transformation.
Table 13-1 describes the Joiner transformation properties:
Figure 13-2. Joiner Transformation Properties Tab
Table 13-1. Joiner Transformation Properties
Option Description
Case-Sensitive String Comparison If selected, the Integration Service uses case-sensitive string comparisons when
performing joins on string columns.
Cache Directory Specifies the directory used to cache master or detail rows and the index to these
rows. By default, the cache files are created in a directory specified by the
process variable $PMCacheDir. If you override the directory, make sure the
directory exists and contains enough disk space for the cache files. The directory
can be a mapped or mounted drive.
Join Type Specifies the type of join: Normal, Master Outer, Detail Outer, or Full Outer.
Null Ordering in Master Not applicable for this transformation type.
Joiner Transformation Properties 287
Null Ordering in Detail Not applicable for this transformation type.
Tracing Level Amount of detail displayed in the session log for this transformation. The options
are Terse, Normal, Verbose Data, and Verbose Initialization.
Joiner Data Cache Size Data cache size for the transformation. Default cache size is 2,000,000 bytes. If
the total configured cache size is 2 GB or more, you must run the session on a 64-
bit Integration Service. You can configure a numeric value, or you can configure
the Integration Service to determine the cache size at runtime. If you configure the
Integration Service to determine the cache size, you can also configure a
maximum amount of memory for the Integration Service to allocate to the cache.
Joiner Index Cache Size Index cache size for the transformation. Default cache size is 1,000,000 bytes. If
the total configured cache size is 2 GB or more, you must run the session on a 64-
bit Integration Service. You can configure a numeric value, or you can configure
the Integration Service to determine the cache size at runtime. If you configure the
Integration Service to determine the cache size, you can also configure a
maximum amount of memory for the Integration Service to allocate to the cache.
Sorted Input Specifies that data is sorted. Choose Sorted Input to join sorted data. Using
sorted input can improve performance. For more information about working with
sorted input, see “Using Sorted Input” on page 292.
Transformation Scope Specifies how the Integration Service applies the transformation logic to incoming
data. You can choose Transaction, All Input, or Row.
For more information, see “Working with Transactions” on page 300.
Table 13-1. Joiner Transformation Properties
Option Description
288 Chapter 13: Joiner Transformation
Defining a Join Condition
The join condition contains ports from both input sources that must match for the
Integration Service to join two rows. Depending on the type of join selected, the Integration
Service either adds the row to the result set or discards the row. The Joiner transformation
produces result sets based on the join type, condition, and input data sources.
Before you define a join condition, verify that the master and detail sources are configured for
optimal performance. During a session, the Integration Service compares each row of the
master source against the detail source. To improve performance for an unsorted Joiner
transformation, use the source with fewer rows as the master source. To improve performance
for a sorted Joiner transformation, use the source with fewer duplicate key values as the
master.
By default, when you add ports to a Joiner transformation, the ports from the first source
pipeline display as detail sources. Adding the ports from the second source pipeline sets them
as master sources. To change these settings, click the M column on the Ports tab for the ports
you want to set as the master source. This sets ports from this source as master ports and ports
from the other source as detail ports.
You define one or more conditions based on equality between the specified master and detail
sources. For example, if two sources with tables called EMPLOYEE_AGE and
EMPLOYEE_POSITION both contain employee ID numbers, the following condition
matches rows with employees listed in both sources:
EMP_ID1 = EMP_ID2
Use one or more ports from the input sources of a Joiner transformation in the join
condition. Additional ports increase the time necessary to join two sources. The order of the
ports in the condition can impact the performance of the Joiner transformation. If you use
multiple ports in the join condition, the Integration Service compares the ports in the order
you specify.
The Designer validates datatypes in a condition. Both ports in a condition must have the
same datatype. If you need to use two ports in the condition with non-matching datatypes,
convert the datatypes so they match.
If you join Char and Varchar datatypes, the Integration Service counts any spaces that pad
Char values as part of the string:
Char(40) = "abcd"
Varchar(40) = "abcd"
The Char value is “abcd” padded with 36 blank spaces, and the Integration Service does not
join the two fields because the Char field contains trailing spaces.
Note: The Joiner transformation does not match null values. For example, if both EMP_ID1
and EMP_ID2 contain a row with a null value, the Integration Service does not consider
them a match and does not join the two rows. To join rows with null values, replace null
input with default values, and then join on the default values. For more information about
default values, see “Using Default Values for Ports” on page 18.
Defining the Join Type 289
Defining the Join Type
In SQL, a join is a relational operator that combines data from multiple tables into a single
result set. The Joiner transformation is similar to an SQL join except that data can originate
from different types of sources.
You define the join type on the Properties tab in the transformation. The Joiner
transformation supports the following types of joins:
Normal
Master Outer
Detail Outer
Full Outer
Note: A normal or master outer join performs faster than a full outer or detail outer join.
If a result set includes fields that do not contain data in either of the sources, the Joiner
transformation populates the empty fields with null values. If you know that a field will
return a NULL and you do not want to insert NULLs in the target, you can set a default value
on the Ports tab for the corresponding port.
Normal Join
With a normal join, the Integration Service discards all rows of data from the master and
detail source that do not match, based on the condition.
For example, you might have two sources of data for auto parts called PARTS_SIZE and
PARTS_COLOR with the following data:
To join the two tables by matching the PART_IDs in both sources, you set the condition as
follows:
PART_ID1 = PART_ID2
PARTS_SIZE (master source)
PART_ID1 DESCRIPTION SIZE
1Seat Cover Large
2Ash Tray Small
3Floor Mat Medium
PARTS_COLOR (detail source)
PART_ID2 DESCRIPTION COLOR
1Seat Cover Blue
3Floor Mat Black
4Fuzzy Dice Yellow
290 Chapter 13: Joiner Transformation
When you join these tables with a normal join, the result set includes the following data:
The following example shows the equivalent SQL statement:
SELECT * FROM PARTS_SIZE, PARTS_COLOR WHERE PARTS_SIZE.PART_ID1 =
PARTS_COLOR.PART_ID2
Master Outer Join
A master outer join keeps all rows of data from the detail source and the matching rows from
the master source. It discards the unmatched rows from the master source.
When you join the sample tables with a master outer join and the same condition, the result
set includes the following data:
Because no size is specified for the Fuzzy Dice, the Integration Service populates the field with
a NULL.
The following example shows the equivalent SQL statement:
SELECT * FROM PARTS_SIZE RIGHT OUTER JOIN PARTS_COLOR ON
(PARTS_SIZE.PART_ID1 = PARTS_COLOR.PART_ID2)
Detail Outer Join
A detail outer join keeps all rows of data from the master source and the matching rows from
the detail source. It discards the unmatched rows from the detail source.
When you join the sample tables with a detail outer join and the same condition, the result
set includes the following data:
Because no color is specified for the Ash Tray, the Integration Service populates the field with
a NULL.
PART_ID DESCRIPTION SIZE COLOR
1Seat Cover Large Blue
3Floor Mat Medium Black
PART_ID DESCRIPTION SIZE COLOR
1Seat Cover Large Blue
3Floor Mat Medium Black
4Fuzzy Dice NULL Yellow
PART_ID DESCRIPTION SIZE COLOR
1Seat Cover Large Blue
2Ash Tray Small NULL
3Floor Mat Medium Black
Defining the Join Type 291
The following example shows the equivalent SQL statement:
SELECT * FROM PARTS_SIZE LEFT OUTER JOIN PARTS_COLOR ON
(PARTS_COLOR.PART_ID2 = PARTS_SIZE.PART_ID1)
Full Outer Join
A full outer join keeps all rows of data from both the master and detail sources.
When you join the sample tables with a full outer join and the same condition, the result set
includes:
Because no color is specified for the Ash Tray and no size is specified for the Fuzzy Dice, the
Integration Service populates the fields with NULL.
The following example shows the equivalent SQL statement:
SELECT * FROM PARTS_SIZE FULL OUTER JOIN PARTS_COLOR ON
(PARTS_SIZE.PART_ID1 = PARTS_COLOR.PART_ID2)
PART_ID DESCRIPTION SIZE Color
1Seat Cover Large Blue
2Ash Tray Small NULL
3Floor Mat Medium Black
4Fuzzy Dice NULL Yellow
292 Chapter 13: Joiner Transformation
Using Sorted Input
You can improve session performance by configuring the Joiner transformation to use sorted
input. When you configure the Joiner transformation to use sorted data, the Integration
Service improves performance by minimizing disk input and output. You see the greatest
performance improvement when you work with large data sets.
To configure a mapping to use sorted data, you establish and maintain a sort order in the
mapping so the Integration Service can use the sorted data when it processes the Joiner
transformation. Complete the following tasks to configure the mapping:
Configure the sort order. Configure the sort order of the data you want to join. You can
join sorted flat files, or you can sort relational data using a Source Qualifier
transformation. You can also use a Sorter transformation.
Add transformations. Use transformations that maintain the order of the sorted data.
Configure the Joiner transformation. Configure the Joiner transformation to use sorted
data and configure the join condition to use the sort origin ports. The sort origin
represents the source of the sorted data.
When you configure the sort order in a session, you can select a sort order associated with the
Integration Service code page. When you run the Integration Service in Unicode mode, it
uses the selected session sort order to sort character data. When you run the Integration
Service in ASCII mode, it sorts all character data using a binary sort order. To ensure that data
is sorted as the Integration Service requires, the database sort order must be the same as the
user-defined session sort order.
When you join sorted data from partitioned pipelines, you must configure the partitions to
maintain the order of sorted data. For more information about joining data from partitioned
pipelines, see “Working with Partition Points” in the Workflow Administration Guide.
Configuring the Sort Order
You must configure the sort order to ensure that the Integration Service passes sorted data to
the Joiner transformation.
Configure the sort order using one of the following methods:
Use sorted flat files. When the flat files contain sorted data, verify that the order of the
sort columns match in each source file.
Use sorted relational data. Use sorted ports in the Source Qualifier transformation to sort
columns from the source database. Configure the order of the sorted ports the same in
each Source Qualifier transformation.
For more information about using sorted ports, see “Using Sorted Ports” on page 452.
Use Sorter transformations. Use a Sorter transformation to sort relational or flat file data.
Place a Sorter transformation in the master and detail pipelines. Configure each Sorter
transformation to use the same order of the sort key ports and the sort order direction.
Using Sorted Input 293
For more information about using the Sorter transformation, see “Creating a Sorter
Transformation on page 423.
If you pass unsorted or incorrectly sorted data to a Joiner transformation configured to use
sorted data, the session fails and the Integration Service logs the error in the session log file.
Adding Transformations to the Mapping
When you add transformations between the sort origin and the Joiner transformation, use the
following guidelines to maintain sorted data:
Do not place any of the following transformations between the sort origin and the Joiner
transformation:
Custom
Unsorted Aggregator
Normalizer
Rank
Union transformation
XML Parser transformation
XML Generator transformation
Mapplet, if it contains one of the above transformations
You can place a sorted Aggregator transformation between the sort origin and the Joiner
transformation if you use the following guidelines:
Configure the Aggregator transformation for sorted input using the guidelines in “Using
Sorted Input” on page 45.
Use the same ports for the group by columns in the Aggregator transformation as the
ports at the sort origin.
The group by ports must be in the same order as the ports at the sort origin.
When you join the result set of a Joiner transformation with another pipeline, verify that
the data output from the first Joiner transformation is sorted.
Tip: You can place the Joiner transformation directly after the sort origin to maintain sorted
data.
Configuring the Joiner Transformation
To configure the Joiner transformation, complete the following tasks:
Enable Sorted Input on the Properties tab.
Define the join condition to receive sorted data in the same order as the sort origin.
294 Chapter 13: Joiner Transformation
Defining the Join Condition
Configure the join condition to maintain the sort order established at the sort origin: the
sorted flat file, the Source Qualifier transformation, or the Sorter transformation. If you use a
sorted Aggregator transformation between the sort origin and the Joiner transformation, treat
the sorted Aggregator transformation as the sort origin when you define the join condition.
Use the following guidelines when you define join conditions:
The ports you use in the join condition must match the ports at the sort origin.
When you configure multiple join conditions, the ports in the first join condition must
match the first ports at the sort origin.
When you configure multiple conditions, the order of the conditions must match the
order of the ports at the sort origin, and you must not skip any ports.
The number of sorted ports in the sort origin can be greater than or equal to the number
of ports at the join condition.
Example of a Join Condition
For example, you configure Sorter transformations in the master and detail pipelines with the
following sorted ports:
1. ITEM_NO
2. ITEM_NAME
3. PRICE
When you configure the join condition, use the following guidelines to maintain sort order:
You must use ITEM_NO in the first join condition.
If you add a second join condition, you must use ITEM_NAME.
If you want to use PRICE in a join condition, you must also use ITEM_NAME in the
second join condition.
If you skip ITEM_NAME and join on ITEM_NO and PRICE, you lose the sort order and
the Integration Service fails the session.
Using Sorted Input 295
Figure 13-3 shows a mapping configured to sort and join on the ports ITEM_NO,
ITEM_NAME, and PRICE:
When you use the Joiner transformation to join the master and detail pipelines, you can
configure any one of the following join conditions:
ITEM_NO = ITEM_NO
or
ITEM_NO = ITEM_NO1
ITEM_NAME = ITEM_NAME1
or
ITEM_NO = ITEM_NO1
ITEM_NAME = ITEM_NAME1
PRICE = PRICE1
Figure 13-3. Mapping Configured to Join Data from Two Pipelines
The master and
detail Sorter
transformations
sort on the same
ports in the same
order.
296 Chapter 13: Joiner Transformation
Joining Data from a Single Source
You may want to join data from the same source if you want to perform a calculation on part
of the data and join the transformed data with the original data. When you join the data using
this method, you can maintain the original data and transform parts of that data within one
mapping. You can join data from the same source in the following ways:
Join two branches of the same pipeline.
Join two instances of the same source.
Joining Two Branches of the Same Pipeline
When you join data from the same source, you can create two branches of the pipeline. When
you branch a pipeline, you must add a transformation between the source qualifier and the
Joiner transformation in at least one branch of the pipeline. You must join sorted data and
configure the Joiner transformation for sorted input.
For example, you have a source with the following ports:
Employee
Department
Total Sales
In the target, you want to view the employees who generated sales that were greater than the
average sales for their departments. To do this, you create a mapping with the following
transformations:
Sorter transformation. Sorts the data.
Sorted Aggregator transformation. Averages the sales data and group by department.
When you perform this aggregation, you lose the data for individual employees. To
maintain employee data, you must pass a branch of the pipeline to the Aggregator
transformation and pass a branch with the same data to the Joiner transformation to
maintain the original data. When you join both branches of the pipeline, you join the
aggregated data with the original data.
Sorted Joiner transformation. Uses a sorted Joiner transformation to join the sorted
aggregated data with the original data.
Filter transformation. Compares the average sales data against sales data for each employee
and filter out employees with less than above average sales.
Joining Data from a Single Source 297
Figure 13-4 shows joining two branches of the same pipeline:
Note: You can also join data from output groups of the same transformation, such as the
Custom transformation or XML Source Qualifier transformation. Place a Sorter
transformation between each output group and the Joiner transformation and configure the
Joiner transformation to receive sorted input.
Joining two branches might impact performance if the Joiner transformation receives data
from one branch much later than the other branch. The Joiner transformation caches all the
data from the first branch, and writes the cache to disk if the cache fills. The Joiner
transformation must then read the data from disk when it receives the data from the second
branch. This can slow processing.
Joining Two Instances of the Same Source
You can also join same source data by creating a second instance of the source. After you
create the second source instance, you can join the pipelines from the two source instances. If
you want to join unsorted data, you must create two instances of the same source and join the
pipelines.
Figure 13-5 shows two instances of the same source joined using a Joiner transformation:
Note: When you join data using this method, the Integration Service reads the source data for
each source instance, so performance can be slower than joining two branches of a pipeline.
Figure 13-4. Mapping that Joins Two Branches of a Pipeline
Figure 13-5. Mapping that Joins Two Instances of the Same Source
Pipeline Branch 1
Pipeline Branch 2
Source
Filter out employees with less than above
average sales.
Sorted Joiner Transformation
Source
Instance 1
Source
Instance 2
298 Chapter 13: Joiner Transformation
Guidelines
Use the following guidelines when deciding whether to join branches of a pipeline or join two
instances of a source:
Join two branches of a pipeline when you have a large source or if you can read the source
data only once. For example, you can only read source data from a message queue once.
Join two branches of a pipeline when you use sorted data. If the source data is unsorted
and you use a Sorter transformation to sort the data, branch the pipeline after you sort the
data.
Join two instances of a source when you need to add a blocking transformation to the
pipeline between the source and the Joiner transformation.
Join two instances of a source if one pipeline may process slower than the other pipeline.
Join two instances of a source if you need to join unsorted data.
Blocking the Source Pipelines 299
Blocking the Source Pipelines
When you run a session with a Joiner transformation, the Integration Service blocks and
unblocks the source data, based on the mapping configuration and whether you configure the
Joiner transformation for sorted input.
For more information about blocking source data, see “Integration Service Architecture in
the Administrator Guide.
Unsorted Joiner Transformation
When the Integration Service processes an unsorted Joiner transformation, it reads all master
rows before it reads the detail rows. To ensure it reads all master rows before the detail rows,
the Integration Service blocks the detail source while it caches rows from the master source.
Once the Integration Service reads and caches all master rows, it unblocks the detail source
and reads the detail rows.
Some mappings with unsorted Joiner transformations violate data flow validation. For more
information about mappings containing blocking transformations that violate data flow
validation, see “Mappings in the Designer Guide.
Sorted Joiner Transformation
When the Integration Service processes a sorted Joiner transformation, it blocks data based on
the mapping configuration. Blocking logic is possible if master and detail input to the Joiner
transformation originate from different sources.
The Integration Service uses blocking logic to process the Joiner transformation if it can do so
without blocking all sources in a target load order group simultaneously. Otherwise, it does
not use blocking logic. Instead, it stores more rows in the cache.
When the Integration Service can use blocking logic to process the Joiner transformation, it
stores fewer rows in the cache, increasing performance.
Caching Master Rows
When the Integration Service processes a Joiner transformation, it reads rows from both
sources concurrently and builds the index and data cache based on the master rows. The
Integration Service then performs the join based on the detail source data and the cache data.
The number of rows the Integration Service stores in the cache depends on the partitioning
scheme, the source data, and whether you configure the Joiner transformation for sorted
input. To improve performance for an unsorted Joiner transformation, use the source with
fewer rows as the master source. To improve performance for a sorted Joiner transformation,
use the source with fewer duplicate key values as the master. For more information about
Joiner transformation caches, see “Session Caches” in the Workflow Administration Guide.
300 Chapter 13: Joiner Transformation
Working with Transactions
When the Integration Service processes a Joiner transformation, it can apply transformation
logic to all data in a transaction, all incoming data, or one row of data at a time. The
Integration Service can drop or preserve transaction boundaries depending on the mapping
configuration and the transformation scope. You configure how the Integration Service
applies transformation logic and handles transaction boundaries using the transformation
scope property.
You configure transformation scope values based on the mapping configuration and whether
you want to preserve or drop transaction boundaries.
You can preserve transaction boundaries when you join the following sources:
You join two branches of the same source pipeline. Use the Transaction transformation
scope to preserve transaction boundaries. For information about preserving transaction
boundaries for a single source, see “Preserving Transaction Boundaries for a Single
Pipeline” on page 301.
You join two sources, and you want to preserve transaction boundaries for the detail
source. Use the Row transformation scope to preserve transaction boundaries in the detail
pipeline. For more information about preserving transaction boundaries for the detail
source, see “Preserving Transaction Boundaries in the Detail Pipelineon page 301.
You can drop transaction boundaries when you join the following sources:
You join two sources or two branches and you want to drop transaction boundaries. Use
the All Input transformation scope to apply the transformation logic to all incoming data
and drop transaction boundaries for both pipelines. For more information about dropping
transaction boundaries for two pipelines, see “Dropping Transaction Boundaries for Two
Pipelines” on page 302.
Table 13-2 summarizes how to preserve transaction boundaries using transformation scopes
with the Joiner transformation:
Table 13-2. Integration Service Behavior with Transformation Scopes for the
Joiner Transformation
Transformation Scope Input Type Integration Service Behavior
Row Unsorted Preserves transaction boundaries in the detail pipeline.
Sorted Session fails.
*Transaction Sorted Preserves transaction boundaries when master and detail
originate from the same transaction generator. Session fails
when master and detail do not originate from the same
transaction generator
Unsorted Session fails.
*All Input Sorted, Unsorted Drops transaction boundaries.
*Sessions fail if you use real-time data with All Input or Transaction transformation scopes.
Working with Transactions 301
For more information about transformation scope and transaction boundaries, see
“Understanding Commit Points” in the Workflow Administration Guide.
Preserving Transaction Boundaries for a Single Pipeline
When you join data from the same source, use the Transaction transformation scope to
preserve incoming transaction boundaries for a single pipeline. Use the Transaction
transformation scope when the Joiner transformation joins data from the same source, either
two branches of the same pipeline or two output groups of one transaction generator. Use this
transformation scope with sorted data and any join type.
When you use the Transaction transformation scope, verify that master and detail pipelines
originate from the same transaction control point and that you use sorted input. For example,
in Figure 13-6 the Sorter transformation is the transaction control point. You cannot place
another transaction control point between the Sorter transformation and the Joiner
transformation.

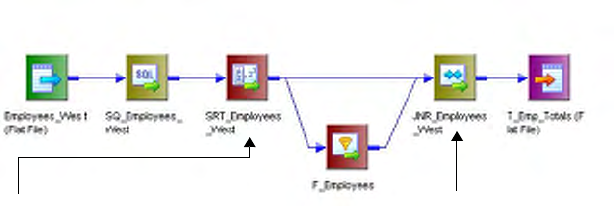

Figure 13-6 shows a mapping configured to join two branches of a pipeline and preserve
transaction boundaries:
Preserving Transaction Boundaries in the Detail Pipeline
When you want to preserve the transaction boundaries in the detail pipeline, choose the Row
transformation scope. The Row transformation scope allows the Integration Service to process
data one row at a time. The Integration Service caches the master data and matches the detail
data with the cached master data.
When the source data originates from a real-time source, such as IBM MQ Series, the
Integration Service matches the cached master data with each message as it is read from the
detail source.
Use the Row transformation scope with Normal and Master Outer join types that use
unsorted data.
Figure 13-6. Preserving Transaction Boundaries when You Join Two Pipeline Branches
The Integration Service joins the pipeline branches
and preserves transaction boundaries.
Master and detail pipeline branches
originate from the same transaction.
302 Chapter 13: Joiner Transformation
Dropping Transaction Boundaries for Two Pipelines
When you want to join data from two sources or two branches and you do not need to
preserve transaction boundaries, use the All Input transformation scope. When you use All
Input, the Integration Service drops incoming transaction boundaries for both pipelines and
outputs all rows from the transformation as an open transaction. At the Joiner
transformation, the data from the master pipeline can be cached or joined concurrently,
depending on how you configure the sort order. Use this transformation scope with sorted
and unsorted data and any join type.
For more information about configuring the sort order, see “Joiner Transformation
Properties” on page 286.
Creating a Joiner Transformation 303
Creating a Joiner Transformation
To use a Joiner transformation, add a Joiner transformation to the mapping, set up the input
sources, and configure the transformation with a condition and join type and sort type.
To create a Joiner Transformation:
1. In the Mapping Designer, click Transformation > Create. Select the Joiner
transformation. Enter a name, and click OK.
The naming convention for Joiner transformations is JNR_TransformationName. Enter a
description for the transformation.
The Designer creates the Joiner transformation.
2. Drag all the input/output ports from the first source into the Joiner transformation.
The Designer creates input/output ports for the source fields in the Joiner transformation
as detail fields by default. You can edit this property later.
3. Select and drag all the input/output ports from the second source into the Joiner
transformation.
The Designer configures the second set of source fields and master fields by default.
4. Double-click the title bar of the Joiner transformation to open the transformation.
5. Click the Ports tab.
6. Click any box in the M column to switch the master/detail relationship for the sources.
304 Chapter 13: Joiner Transformation
Tip: To improve performance for an unsorted Joiner transformation, use the source with
fewer rows as the master source. To improve performance for a sorted Joiner
transformation, use the source with fewer duplicate key values as the master.
7. Add default values for specific ports.
Some ports are likely to contain null values, since the fields in one of the sources may be
empty. You can specify a default value if the target database does not handle NULLs.
8. Click the Condition tab and set the join condition.
9. Click the Add button to add a condition. You can add multiple conditions. The master
and detail ports must have matching datatypes. The Joiner transformation only supports
equivalent (=) joins.
For more information about defining the join condition, see “Defining a Join Condition
on page 288.
Creating a Joiner Transformation 305
10. Click the Properties tab and configure properties for the transformation.
Note: You can edit the join condition from the Condition tab. The keyword AND
separates multiple conditions.
For more information about defining the properties, see “Joiner Transformation
Properties” on page 286.
11. Click OK.
12. Click the Metadata Extensions tab to configure metadata extensions.
For information about working with metadata extensions, see “Metadata Extensions” in
the Repository Guide.
13. Click Repository > Save to save changes to the mapping.
306 Chapter 13: Joiner Transformation
Tips
The following tips can help improve session performance.
Perform joins in a database when possible.
Performing a join in a database is faster than performing a join in the session. In some cases,
this is not possible, such as joining tables from two different databases or flat file systems. If
you want to perform a join in a database, use the following options:
Create a pre-session stored procedure to join the tables in a database.
Use the Source Qualifier transformation to perform the join. For more information, see
“Joining Source Data” on page 434 for more information.
Join sorted data when possible.
You can improve session performance by configuring the Joiner transformation to use sorted
input. When you configure the Joiner transformation to use sorted data, the Integration
Service improves performance by minimizing disk input and output. You see the greatest
performance improvement when you work with large data sets. For more information, see
“Using Sorted Input on page 292.
For an unsorted Joiner transformation, designate the source with fewer rows as the master
source.
For optimal performance and disk storage, designate the source with the fewer rows as the
master source. During a session, the Joiner transformation compares each row of the master
source against the detail source. The fewer unique rows in the master, the fewer iterations of
the join comparison occur, which speeds the join process.
For a sorted Joiner transformation, designate the source with fewer duplicate key values as
the master source.
For optimal performance and disk storage, designate the source with fewer duplicate key
values as the master source. When the Integration Service processes a sorted Joiner
transformation, it caches rows for one hundred keys at a time. If the master source contains
many rows with the same key value, the Integration Service must cache more rows, and
performance can be slowed.
307
Chapter 14
Lookup Transformation
This chapter includes the following topics:
Overview, 308
Connected and Unconnected Lookups, 309
Relational and Flat File Lookups, 311
Lookup Components, 313
Lookup Properties, 316
Lookup Query, 324
Lookup Condition, 328
Lookup Caches, 330
Configuring Unconnected Lookup Transformations, 331
Creating a Lookup Transformation, 335
Tips, 336
308 Chapter 14: Lookup Transformation
Overview
Use a Lookup transformation in a mapping to look up data in a flat file or a relational table,
view, or synonym. You can import a lookup definition from any flat file or relational database
to which both the PowerCenter Client and Integration Service can connect. Use multiple
Lookup transformations in a mapping.
The Integration Service queries the lookup source based on the lookup ports in the
transformation. It compares Lookup transformation port values to lookup source column
values based on the lookup condition. Pass the result of the lookup to other transformations
and a target.
Use the Lookup transformation to perform many tasks, including:
Get a related value. For example, the source includes employee ID, but you want to
include the employee name in the target table to make the summary data easier to read.
Perform a calculation. Many normalized tables include values used in a calculation, such
as gross sales per invoice or sales tax, but not the calculated value (such as net sales).
Update slowly changing dimension tables. Use a Lookup transformation to determine
whether rows already exist in the target.
You can configure the Lookup transformation to complete the following types of lookups:
Connected or unconnected. Connected and unconnected transformations receive input
and send output in different ways.
Relational or flat file lookup. When you create a Lookup transformation, you can choose
to perform a lookup on a flat file or a relational table.
When you create a Lookup transformation using a relational table as the lookup source,
you can connect to the lookup source using ODBC and import the table definition as the
structure for the Lookup transformation.
When you create a Lookup transformation using a flat file as a lookup source, the Designer
invokes the Flat File Wizard. For more information about using the Flat File Wizard, see
“Working with Flat Files” in the Designer Guide.
Cached or uncached. Sometimes you can improve session performance by caching the
lookup table. If you cache the lookup, you can choose to use a dynamic or static cache. By
default, the lookup cache remains static and does not change during the session. With a
dynamic cache, the Integration Service inserts or updates rows in the cache during the
session. When you cache the target table as the lookup, you can look up values in the
target and insert them if they do not exist, or update them if they do.
Transformation type:
Passive
Connected/Unconnected
Connected and Unconnected Lookups 309
Connected and Unconnected Lookups
You can configure a connected Lookup transformation to receive input directly from the
mapping pipeline, or you can configure an unconnected Lookup transformation to receive
input from the result of an expression in another transformation.
Table 14-1 lists the differences between connected and unconnected lookups:
Connected Lookup Transformation
The following steps describe how the Integration Service processes a connected Lookup
transformation:
1. A connected Lookup transformation receives input values directly from another
transformation in the pipeline.
2. For each input row, the Integration Service queries the lookup source or cache based on
the lookup ports and the condition in the transformation.
3. If the transformation is uncached or uses a static cache, the Integration Service returns
values from the lookup query.
Table 14-1. Differences Between Connected and Unconnected Lookups
Connected Lookup Unconnected Lookup
Receives input values directly from the pipeline. Receives input values from the result of a :LKP expression
in another transformation.
Use a dynamic or static cache. Use a static cache.
Cache includes all lookup columns used in the mapping
(that is, lookup source columns included in the lookup
condition and lookup source columns linked as output
ports to other transformations).
Cache includes all lookup/output ports in the lookup
condition and the lookup/return port.
Can return multiple columns from the same row or insert
into the dynamic lookup cache.
Designate one return port (R). Returns one column from
each row.
If there is no match for the lookup condition, the
Integration Service returns the default value for all
output ports. If you configure dynamic caching, the
Integration Service inserts rows into the cache or leaves
it unchanged.
If there is no match for the lookup condition, the Integration
Service returns NULL.
If there is a match for the lookup condition, the
Integration Service returns the result of the lookup
condition for all lookup/output ports. If you configure
dynamic caching, the Integration Service either updates
the row the in the cache or leaves the row unchanged.
If there is a match for the lookup condition, the Integration
Service returns the result of the lookup condition into the
return port.
Pass multiple output values to another transformation.
Link lookup/output ports to another transformation.
Pass one output value to another transformation. The
lookup/output/return port passes the value to the
transformation calling :LKP expression.
Supports user-defined default values. Does not support user-defined default values.
310 Chapter 14: Lookup Transformation
If the transformation uses a dynamic cache, the Integration Service inserts the row into
the cache when it does not find the row in the cache. When the Integration Service finds
the row in the cache, it updates the row in the cache or leaves it unchanged. It flags the
row as insert, update, or no change.
4. The Integration Service passes return values from the query to the next transformation.
If the transformation uses a dynamic cache, you can pass rows to a Filter or Router
transformation to filter new rows to the target.
Note: This chapter discusses connected Lookup transformations unless otherwise specified.
Unconnected Lookup Transformation
An unconnected Lookup transformation receives input values from the result of a :LKP
expression in another transformation. You can call the Lookup transformation more than
once in a mapping.
A common use for unconnected Lookup transformations is to update slowly changing
dimension tables. For more information about slowly changing dimension tables, visit the
Informatica Knowledge Base at http://my.informatica.com.
The following steps describe the way the Integration Service processes an unconnected
Lookup transformation:
1. An unconnected Lookup transformation receives input values from the result of a :LKP
expression in another transformation, such as an Update Strategy transformation.
2. The Integration Service queries the lookup source or cache based on the lookup ports and
condition in the transformation.
3. The Integration Service returns one value into the return port of the Lookup
transformation.
4. The Lookup transformation passes the return value into the :LKP expression.
For more information about unconnected Lookup transformations, see “Configuring
Unconnected Lookup Transformations” on page 331.
Relational and Flat File Lookups 311
Relational and Flat File Lookups
When you create a Lookup transformation, you can choose to use a relational table or a flat
file for the lookup source.
Relational Lookups
When you create a Lookup transformation using a relational table as a lookup source, you can
connect to the lookup source using ODBC and import the table definition as the structure for
the Lookup transformation.
You can override the default SQL statement to add a WHERE clause or to query multiple
tables.
Flat File Lookups
When you use a flat file for a lookup source, use any flat file definition in the repository, or
you can import it. When you import a flat file lookup source, the Designer invokes the Flat
File Wizard.
Use the following options with flat file lookups only:
Use indirect files as lookup sources by specifying a file list as the lookup file name.
Use sorted input for the lookup.
You can sort null data high or low. With relational lookups, this is based on the database
support.
Use case-sensitive string comparison with flat file lookups. With relational lookups, the
case-sensitive comparison is based on the database support.
Using Sorted Input
When you configure a flat file Lookup transformation for sorted input, the condition
columns must be grouped. If the condition columns are not grouped, the Integration Service
cannot cache the lookup and fails the session. For best caching performance, sort the
condition columns.
For example, a Lookup transformation has the following condition:
OrderID = OrderID1
CustID = CustID1
In the following flat file lookup source, the keys are grouped, but not sorted. The Integration
Service can cache the data, but performance may not be optimal.
OrderID CustID ItemNo. ItemDesc Comments
1001 CA502 F895S Flashlight Key data is grouped, but not sorted.
CustID is out of order within OrderID.
1001 CA501 C530S Compass
312 Chapter 14: Lookup Transformation
The keys are not grouped in the following flat file lookup source. The Integration Service
cannot cache the data and fails the session.
If you choose sorted input for indirect files, the range of data must not overlap in the files.
1001 CA501 T552T Tent
1005 OK503 S104E Safety Knife Key data is grouped, but not sorted.
OrderID is out of order.
1003 CA500 F304T First Aid Kit
1003 TN601 R938M Regulator System
OrderID CustID ItemNo. ItemDesc Comments
1001 CA501 T552T Tent
1001 CA501 C530S Compass
1005 OK503 S104E Safety Knife
1003 TN601 R938M Regulator System
1003 CA500 F304T First Aid Kit
1001 CA502 F895S Flashlight Key data for CustID is not grouped.
OrderID CustID ItemNo. ItemDesc Comments
Lookup Components 313
Lookup Components
Define the following components when you configure a Lookup transformation in a
mapping:
Lookup source
Ports
Properties
Condition
Metadata extensions
Lookup Source
Use a flat file or a relational table for a lookup source. When you create a Lookup
transformation, you can import the lookup source from the following locations:
Any relational source or target definition in the repository
Any flat file source or target definition in the repository
Any table or file that both the Integration Service and PowerCenter Client machine can
connect to
The lookup table can be a single table, or you can join multiple tables in the same database
using a lookup SQL override. The Integration Service queries the lookup table or an in-
memory cache of the table for all incoming rows into the Lookup transformation.
The Integration Service can connect to a lookup table using a native database driver or an
ODBC driver. However, the native database drivers improve session performance.
Indexes and a Lookup Table
If you have privileges to modify the database containing a lookup table, you can improve
lookup initialization time by adding an index to the lookup table. This is important for very
large lookup tables. Since the Integration Service needs to query, sort, and compare values in
these columns, the index needs to include every column used in a lookup condition.
You can improve performance by indexing the following types of lookup:
Cached lookups. You can improve performance by indexing the columns in the lookup
ORDER BY. The session log contains the ORDER BY clause.
Uncached lookups. Because the Integration Service issues a SELECT statement for each
row passing into the Lookup transformation, you can improve performance by indexing
the columns in the lookup condition.
Lookup Ports
The Ports tab contains options similar to other transformations, such as port name, datatype,
and scale. In addition to input and output ports, the Lookup transformation includes a
314 Chapter 14: Lookup Transformation
lookup port type that represents columns of data in the lookup source. An unconnected
Lookup transformation also includes a return port type that represents the return value.
Table 14-2 describes the port types in a Lookup transformation:
The Lookup transformation also enables an associated ports property that you configure when
you use a dynamic cache.
Use the following guidelines to configure lookup ports:
If you delete lookup ports from a flat file session, the session fails.
You can delete lookup ports from a relational lookup if you are certain the mapping does
not use the lookup port. This reduces the amount of memory the Integration Service uses
to run the session.
To ensure datatypes match when you add an input port, copy the existing lookup ports.
Lookup Properties
On the Properties tab, you can configure properties, such as an SQL override for relational
lookups, the lookup source name, and tracing level for the transformation. You can also
configure caching properties on the Properties tab.
For more information about lookup properties, see “Lookup Properties” on page 316.
Table 14-2. Lookup Transformation Port Types
Ports Type of
Lookup
Number
Required Description
IConnected
Unconnected
Minimum of 1 Input port. Create an input port for each lookup port you want to
use in the lookup condition. You must have at least one input or
input/output port in each Lookup transformation.
OConnected
Unconnected
Minimum of 1 Output port. Create an output port for each lookup port you want
to link to another transformation. You can designate both input
and lookup ports as output ports. For connected lookups, you
must have at least one output port. For unconnected lookups,
use a lookup/output port as a return port (R) to designate a
return value.
LConnected
Unconnected
Minimum of 1 Lookup port. The Designer designates each column in the
lookup source as a lookup (L) and output port (O).
RUnconnected 1 only Return port. Use only in unconnected Lookup transformations.
Designates the column of data you want to return based on the
lookup condition. You can designate one lookup/output port as
the return port.
Lookup Components 315
Lookup Condition
On the Condition tab, you can enter the condition or conditions you want the Integration
Service to use to determine whether input data qualifies values in the lookup source or cache.
For more information about the lookup condition, see “Lookup Condition on page 328.
Metadata Extensions
You can extend the metadata stored in the repository by associating information with
repository objects, such as Lookup transformations. For example, when you create a Lookup
transformation, you may want to store your name and the creation date with the Lookup
transformation. You associate information with repository metadata using metadata
extensions. For more information, see “Metadata Extensions” in the Repository Guide.
316 Chapter 14: Lookup Transformation
Lookup Properties
Properties for the Lookup transformation identify the database source, how the Integration
Service processes the transformation, and how it handles caching and multiple matches.
When you create a mapping, you specify the properties for each Lookup transformation.
When you create a session, you can override some properties, such as the index and data cache
size, for each transformation in the session properties.
Table 14-3 describes the Lookup transformation properties:
Table 14-3. Lookup Transformation Properties
Option Lookup
Type Description
Lookup SQL Override Relational Overrides the default SQL statement to query the lookup table.
Specifies the SQL statement you want the Integration Service to use for
querying lookup values. Use only with the lookup cache enabled.
For more information, see “Lookup Query” on page 324.
Lookup Table Name Relational Specifies the name of the table from which the transformation looks up
and caches values. You can import a table, view, or synonym from
another database by selecting the Import button on the dialog box that
appears when you first create a Lookup transformation.
If you enter a lookup SQL override, you do not need to add an entry for
this option.
Lookup Caching Enabled Flat File,
Relational
Indicates whether the Integration Service caches lookup values during
the session.
When you enable lookup caching, the Integration Service queries the
lookup source once, caches the values, and looks up values in the cache
during the session. This can improve session performance.
When you disable caching, each time a row passes into the
transformation, the Integration Service issues a select statement to the
lookup source for lookup values.
Note: The Integration Service always caches flat file lookups.
Lookup Policy on Multiple
Match
Flat File,
Relational
Determines what happens when the Lookup transformation finds multiple
rows that match the lookup condition. You can select the first or last row
returned from the cache or lookup source, or report an error. Or, you can
allow the Lookup transformation to use any value. When you configure
the Lookup transformation to return any matching value, the
transformation returns the first value that matches the lookup condition.
It creates an index based on the key ports rather than all Lookup
transformation ports.
If you do not enable the Output Old Value On Update option, the Lookup
Policy On Multiple Match option is set to Report Error for dynamic
lookups. For more information about lookup caches, see “Lookup
Caches” on page 337.
Lookup Condition Flat File,
Relational
Displays the lookup condition you set in the Condition tab.
Lookup Properties 317
Connection Information Relational Specifies the database containing the lookup table. You can select the
database connection or use the $Source or $Target variable. If you use
one of these variables, the lookup table must reside in the source or
target database you specify when you configure the session.
If you select the database connection, you can also specify what type of
database connection it is. Type Application: before the connection
name if it is an Application connection. Type Relational: before the
connection name if it is a relational connection.
If you do not specify the type of database connection, the Integration
Service fails the session if it cannot determine the type of database
connection.
For more information about using $Source and $Target, see “Configuring
Relational Lookups in a Session” on page 322.
Source Type Flat File,
Relational
Indicates that the Lookup transformation reads values from a relational
database or a flat file.
Tracing Level Flat File,
Relational
Sets the amount of detail included in the session log when you run a
session containing this transformation.
Lookup Cache Directory
Name
Flat File,
Relational
Specifies the directory used to build the lookup cache files when you
configure the Lookup transformation to cache the lookup source. Also
used to save the persistent lookup cache files when you select the
Lookup Persistent option.
By default, the Integration Service uses the $PMCacheDir directory
configured for the Integration Service.
Lookup Cache Persistent Flat File,
Relational
Indicates whether the Integration Service uses a persistent lookup
cache, which consists of at least two cache files. If a Lookup
transformation is configured for a persistent lookup cache and persistent
lookup cache files do not exist, the Integration Service creates the files
during the session. Use only with the lookup cache enabled.
Lookup Data Cache Size Flat File,
Relational
Indicates the maximum size the Integration Service allocates to the data
cache in memory. You can configure a numeric value, or you can
configure the Integration Service to determine the cache size at runtime.
If you configure the Integration Service to determine the cache size, you
can also configure a maximum amount of memory for the Integration
Service to allocate to the cache.
If the Integration Service cannot allocate the configured amount of
memory when initializing the session, it fails the session. When the
Integration Service cannot store all the data cache data in memory, it
pages to disk.
The Lookup Data Cache Size is 2,000,000 bytes by default. The
minimum size is 1,024 bytes. If the total configured session cache size is
2 GB (2,147,483, 648 bytes) or greater, you must run the session on a
64-bit Integration Service.
Use only with the lookup cache enabled.
Table 14-3. Lookup Transformation Properties
Option Lookup
Type Description
318 Chapter 14: Lookup Transformation
Lookup Index Cache Size Flat File,
Relational
Indicates the maximum size the Integration Service allocates to the index
cache in memory. You can configure a numeric value, or you can
configure the Integration Service to determine the cache size at runtime.
If you configure the Integration Service to determine the cache size, you
can also configure a maximum amount of memory for the Integration
Service to allocate to the cache.
If the Integration Service cannot allocate the configured amount of
memory when initializing the session, it fails the session. When the
Integration Service cannot store all the index cache data in memory, it
pages to disk.
The Lookup Index Cache Size is 1,000,000 bytes by default. The
minimum size is 1,024 bytes. If the total configured session cache size is
2 GB (2,147,483, 648 bytes) or greater, you must run the session on a
64-bit Integration Service.
Use only with the lookup cache enabled.
Dynamic Lookup Cache Flat File,
Relational
Indicates to use a dynamic lookup cache. Inserts or updates rows in the
lookup cache as it passes rows to the target table.
Use only with the lookup cache enabled.
Output Old Value On
Update
Flat File,
Relational
Use only with dynamic caching enabled. When you enable this property,
the Integration Service outputs old values out of the lookup/output ports.
When the Integration Service updates a row in the cache, it outputs the
value that existed in the lookup cache before it updated the row based on
the input data. When the Integration Service inserts a new row in the
cache, it outputs null values.
When you disable this property, the Integration Service outputs the same
values out of the lookup/output and input/output ports.
This property is enabled by default.
Cache File Name Prefix Flat File,
Relational
Use only with persistent lookup cache. Specifies the file name prefix to
use with persistent lookup cache files. The Integration Service uses the
file name prefix as the file name for the persistent cache files it saves to
disk. Only enter the prefix. Do not enter .idx or .dat.
If the named persistent cache files exist, the Integration Service builds
the memory cache from the files. If the named persistent cache files do
not exist, the Integration Service rebuilds the persistent cache files.
Recache From Lookup
Source
Flat File,
Relational
Use only with the lookup cache enabled. When selected, the Integration
Service rebuilds the lookup cache from the lookup source when it first
calls the Lookup transformation instance.
If you use a persistent lookup cache, it rebuilds the persistent cache files
before using the cache. If you do not use a persistent lookup cache, it
rebuilds the lookup cache in memory before using the cache.
Table 14-3. Lookup Transformation Properties
Option Lookup
Type Description
Lookup Properties 319
Insert Else Update Flat File,
Relational
Use only with dynamic caching enabled. Applies to rows entering the
Lookup transformation with the row type of insert. When you select this
property and the row type entering the Lookup transformation is insert,
the Integration Service inserts the row into the cache if it is new, and
updates the row if it exists. If you do not select this property, the
Integration Service only inserts new rows into the cache when the row
type entering the Lookup transformation is insert. For more information
about defining the row type, see “Using Update Strategy Transformations
with a Dynamic Cache” on page 354.
Update Else Insert Flat File,
Relational
Use only with dynamic caching enabled. Applies to rows entering the
Lookup transformation with the row type of update. When you select this
property and the row type entering the Lookup transformation is update,
the Integration Service updates the row in the cache if it exists, and
inserts the row if it is new. If you do not select this property, the
Integration Service only updates existing rows in the cache when the row
type entering the Lookup transformation is update.
For more information about defining the row type, see “Using Update
Strategy Transformations with a Dynamic Cache” on page 354.
Datetime Format Flat File If you do not define a datetime format for a particular field in the lookup
definition or on the Ports tab, the Integration Service uses the properties
defined here.
You can enter any datetime format. Default is MM/DD/YYYY
HH24:MI:SS.
Thousand Separator Flat File If you do not define a thousand separator for a particular field in the
lookup definition or on the Ports tab, the Integration Service uses the
properties defined here.
You can choose no separator, a comma, or a period. Default is no
separator.
Decimal Separator Flat File If you do not define a decimal separator for a particular field in the lookup
definition or on the Ports tab, the Integration Service uses the properties
defined here.
You can choose a comma or a period decimal separator. Default is
period.
Case-Sensitive String
Comparison
Flat File If selected, the Integration Service uses case-sensitive string
comparisons when performing lookups on string columns.
Note: For relational lookups, the case-sensitive comparison is based on
the database support.
Table 14-3. Lookup Transformation Properties
Option Lookup
Type Description
320 Chapter 14: Lookup Transformation
Configuring Lookup Properties in a Session
When you configure a session, you can configure lookup properties that are unique to
sessions:
Flat file lookups. Configure location information, such as the file directory, file name, and
the file type.
Relational lookups. You can define $Source and $Target variables in the session
properties. You can also override connection information to use the session parameter
$DBConnection.
Null Ordering Flat File Determines how the Integration Service orders null values. You can
choose to sort null values high or low. By default, the Integration Service
sorts null values high. This overrides the Integration Service
configuration to treat nulls in comparison operators as high, low, or null.
Note: For relational lookups, null ordering is based on the database
support.
Sorted Input Flat File Indicates whether or not the lookup file data is sorted. This increases
lookup performance for file lookups. If you enable sorted input, and the
condition columns are not grouped, the Integration Service fails the
session. If the condition columns are grouped, but not sorted, the
Integration Service processes the lookup as if you did not configure
sorted input. For more information about sorted input, see “Flat File
Lookups” on page 311.
Table 14-3. Lookup Transformation Properties
Option Lookup
Type Description
Lookup Properties 321
Configuring Flat File Lookups in a Session

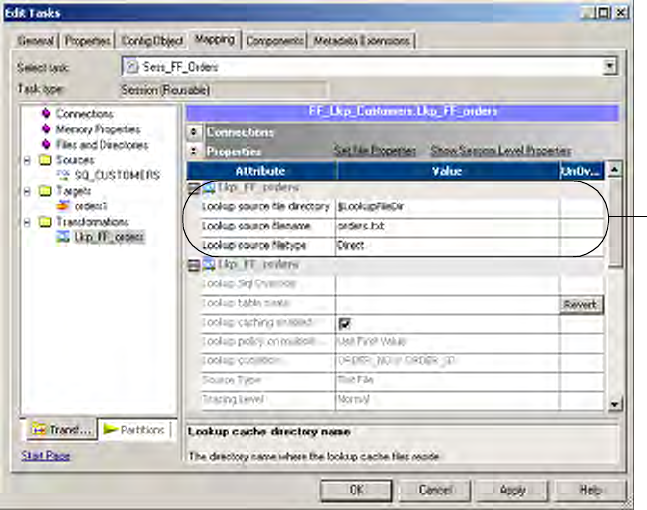

Figure 14-1 shows the session properties for a flat file lookup:
Figure 14-1. Session Properties for Flat File Lookups
Session
Properties for
Flat File Lookup
322 Chapter 14: Lookup Transformation
Table 14-4 describes the session properties you configure for flat file lookups:
Configuring Relational Lookups in a Session
When you configure a session, you specify the connection for the lookup database in the
Connection node on the Mapping tab (Transformation view). You have the following options
to specify a connection:
Choose any relational connection.
Use the connection variable, $DBConnection.
Specify a database connection for $Source or $Target information.
If you use $Source or $Target for the lookup connection, configure the $Source Connection
Value and $Target Connection Value in the session properties. This ensures that the
Integration Service uses the correct database connection for the variable when it runs the
session.
Table 14-4. Session Properties for Flat File Lookups
Property Description
Lookup Source File Directory Enter the directory name. By default, the Integration Service looks in the
process variable directory, $PMLookupFileDir, for lookup files.
You can enter the full path and file name. If you specify both the directory
and file name in the Lookup Source Filename field, clear this field. The
Integration Service concatenates this field with the Lookup Source
Filename field when it runs the session.
You can also use the $InputFileName session parameter to specify the
file name.
For more information about session parameters, see “Working with
Sessions” in the Workflow Administration Guide.
Lookup Source Filename Name of the lookup file. If you use an indirect file, specify the name of the
indirect file you want the Integration Service to read.
You can also use the lookup file parameter, $LookupFileName, to change
the name of the lookup file a session uses.
If you specify both the directory and file name in the Source File Directory
field, clear this field. The Integration Service concatenates this field with
the Lookup Source File Directory field when it runs the session. For
example, if you have “C:\lookup_data\” in the Lookup Source File
Directory field, then enter “filename.txt” in the Lookup Source Filename
field. When the Integration Service begins the session, it looks for
“C:\lookup_data\filename.txt”.
For more information, see “Working with Sessions” in the Workflow
Administration Guide.
Lookup Source Filetype Indicates whether the lookup source file contains the source data or a list
of files with the same file properties. Choose Direct if the lookup source
file contains the source data. Choose Indirect if the lookup source file
contains a list of files.
When you select Indirect, the Integration Service creates one cache for all
files. If you use sorted input with indirect files, verify that the range of data
in the files do not overlap. If the range of data overlaps, the Integration
Service processes the lookup as if you did not configure for sorted input.
Lookup Properties 323
If you use $Source or $Target and you do not specify a Connection Value in the session
properties, the Integration Service determines the database connection to use when it runs the
session. It uses a source or target database connection for the source or target in the pipeline
that contains the Lookup transformation. If it cannot determine which database connection
to use, it fails the session.
The following list describes how the Integration Service determines the value of $Source or
$Target when you do not specify $Source Connection Value or $Target Connection Value in
the session properties:
When you use $Source and the pipeline contains one source, the Integration Service uses
the database connection you specify for the source.
When you use $Source and the pipeline contains multiple sources joined by a Joiner
transformation, the Integration Service uses different database connections, depending on
the location of the Lookup transformation in the pipeline:
When the Lookup transformation is after the Joiner transformation, the Integration
Service uses the database connection for the detail table.
When the Lookup transformation is before the Joiner transformation, the Integration
Service uses the database connection for the source connected to the Lookup
transformation.
When you use $Target and the pipeline contains one target, the Integration Service uses
the database connection you specify for the target.
When you use $Target and the pipeline contains multiple relational targets, the session
fails.
When you use $Source or $Target in an unconnected Lookup transformation, the session
fails.
324 Chapter 14: Lookup Transformation
Lookup Query
The Integration Service queries the lookup based on the ports and properties you configure in
the Lookup transformation. The Integration Service runs a default SQL statement when the
first row enters the Lookup transformation. If you use a relational lookup, you can customize
the default query with the Lookup SQL Override property.
Default Lookup Query
The default lookup query contains the following statements:
SELECT. The SELECT statement includes all the lookup ports in the mapping. You can
view the SELECT statement by generating SQL using the Lookup SQL Override property.
Do not add or delete any columns from the default SQL statement.
ORDER BY. The ORDER BY clause orders the columns in the same order they appear in
the Lookup transformation. The Integration Service generates the ORDER BY clause. You
cannot view this when you generate the default SQL using the Lookup SQL Override
property.
Overriding the Lookup Query
The lookup SQL override is similar to entering a custom query in a Source Qualifier
transformation. You can override the lookup query for a relational lookup. You can enter the
entire override, or you can generate and edit the default SQL statement. When the Designer
generates the default SQL statement for the lookup SQL override, it includes the lookup/
output ports in the lookup condition and the lookup/return port.
Override the lookup query in the following circumstances:
Override the ORDER BY clause. Create the ORDER BY clause with fewer columns to
increase performance. When you override the ORDER BY clause, you must suppress the
generated ORDER BY clause with a comment notation. For more information, see
“Overriding the ORDER BY Clause” on page 325.
Note: If you use pushdown optimization, you cannot override the ORDER BY clause or
suppress the generated ORDER BY clause with a comment notation.
A lookup table name or column names contains a reserved word. If the table name or any
column name in the lookup query contains a reserved word, you must ensure that all
reserved words are enclosed in quotes. For more information, see “Reserved Words on
page 326.
Use mapping parameters and variables. Use mapping parameters and variables when you
enter a lookup SQL override. However, the Designer cannot expand mapping parameters
and variables in the query override and does not validate the lookup SQL override. When
you run a session with a mapping parameter or variable in the lookup SQL override, the
Integration Service expands mapping parameters and variables and connects to the lookup
database to validate the query override. For more information about using mapping
Lookup Query 325
parameters and variables in expressions, see “Mapping Parameters and Variables” in the
Designer Guide.
A lookup column name contains a slash (/) character. When generating the default
lookup query, the Designer and Integration Service replace any slash character (/) in the
lookup column name with an underscore character. To query lookup column names
containing the slash character, override the default lookup query, replace the underscore
characters with the slash character, and enclose the column name in double quotes.
Add a WHERE statement. Use a lookup SQL override to add a WHERE statement to the
default SQL statement. You might want to use this to reduce the number of rows included
in the cache. When you add a WHERE statement to a Lookup transformation using a
dynamic cache, use a Filter transformation before the Lookup transformation. This
ensures the Integration Service only inserts rows into the dynamic cache and target table
that match the WHERE clause. For more information, see Using the WHERE Clause
with a Dynamic Cache” on page 358.
Note: The session fails if you include large object ports in a WHERE clause.
Other. Use a lookup SQL override if you want to query lookup data from multiple
lookups or if you want to modify the data queried from the lookup table before the
Integration Service caches the lookup rows. For example, use TO_CHAR to convert dates
to strings.
Overriding the ORDER BY Clause
By default, the Integration Service generates an ORDER BY clause for a cached lookup. The
ORDER BY clause contains all lookup ports. To increase performance, you can suppress the
default ORDER BY clause and enter an override ORDER BY with fewer columns.
Note: If you use pushdown optimization, you cannot override the ORDER BY clause or
suppress the generated ORDER BY clause with a comment notation.
The Integration Service always generates an ORDER BY clause, even if you enter one in the
override. Place two dashes ‘--’ after the ORDER BY override to suppress the generated
ORDER BY clause. For example, a Lookup transformation uses the following lookup
condition:
ITEM_ID = IN_ITEM_ID
PRICE <= IN_PRICE
The Lookup transformation includes three lookup ports used in the mapping, ITEM_ID,
ITEM_NAME, and PRICE. When you enter the ORDER BY clause, enter the columns in
the same order as the ports in the lookup condition. You must also enclose all database
reserved words in quotes. Enter the following lookup query in the lookup SQL override:
SELECT ITEMS_DIM.ITEM_NAME, ITEMS_DIM.PRICE, ITEMS_DIM.ITEM_ID FROM
ITEMS_DIM ORDER BY ITEMS_DIM.ITEM_ID, ITEMS_DIM.PRICE --
326 Chapter 14: Lookup Transformation
To override the default ORDER BY clause for a relational lookup, complete the following
steps:
1. Generate the lookup query in the Lookup transformation.
2. Enter an ORDER BY clause that contains the condition ports in the same order they
appear in the Lookup condition.
3. Place two dashes ‘--’ as a comment notation after the ORDER BY clause to suppress the
ORDER BY clause that the Integration Service generates.
If you override the lookup query with an ORDER BY clause without adding comment
notation, the lookup fails.
Note: Sybase has a 16 column ORDER BY limitation. If the Lookup transformation has more
than 16 lookup/output ports (including the ports in the lookup condition), you might want
to override the ORDER BY clause or use multiple Lookup transformations to query the
lookup table.
Reserved Words
If any lookup name or column name contains a database reserved word, such as MONTH or
YEAR, the session fails with database errors when the Integration Service executes SQL
against the database. You can create and maintain a reserved words file, reswords.txt, in the
Integration Service installation directory. When the Integration Service initializes a session, it
searches for reswords.txt. If the file exists, the Integration Service places quotes around
matching reserved words when it executes SQL against the database.
You may need to enable some databases, such as Microsoft SQL Server and Sybase, to use
SQL-92 standards regarding quoted identifiers. Use connection environment SQL to issue
the command. For example, with Microsoft SQL Server, use the following command:
SET QUOTED_IDENTIFIER ON
Note: The reserved words file, reswords.txt, is a file that you create and maintain in the
Integration Service installation directory. The Integration Service searches this file and places
quotes around reserved words when it executes SQL against source, target, and lookup
databases. For more information about reswords.txt, see “Working with Targets in the
Workflow Administration Guide.
Guidelines to Overriding the Lookup Query
Use the following guidelines when you override the lookup SQL query:
You can only override the lookup SQL query for relational lookups.
Configure the Lookup transformation for caching. If you do not enable caching, the
Integration Service does not recognize the override.
Generate the default query, and then configure the override. This helps ensure that all the
lookup/output ports are included in the query. If you add or subtract ports from the
SELECT statement, the session fails.
Lookup Query 327
Use a Filter transformation before a Lookup transformation using a dynamic cache when
you add a WHERE clause to the lookup SQL override. This ensures the Integration
Service only inserts rows in the dynamic cache and target table that match the WHERE
clause. For more information, see “Using the WHERE Clause with a Dynamic Cache” on
page 358.
If you want to share the cache, use the same lookup SQL override for each Lookup
transformation.
If you override the ORDER BY clause, the session fails if the ORDER BY clause does not
contain the condition ports in the same order they appear in the Lookup condition or if
you do not suppress the generated ORDER BY clause with the comment notation.
If you use pushdown optimization, you cannot override the ORDER BY clause or suppress
the generated ORDER BY clause with comment notation.
If the table name or any column name in the lookup query contains a reserved word, you
must enclose all reserved words in quotes.
Steps to Overriding the Lookup Query
Use the following steps to override the default lookup SQL query.
To override the default lookup query:
1. On the Properties tab, open the SQL Editor from within the Lookup SQL Override field.
2. Click Generate SQL to generate the default SELECT statement. Enter the lookup SQL
override.
3. Connect to a database, and then click Validate to test the lookup SQL override.
4. Click OK to return to the Properties tab.
328 Chapter 14: Lookup Transformation
Lookup Condition
The Integration Service uses the lookup condition to test incoming values. It is similar to the
WHERE clause in an SQL query. When you configure a lookup condition for the
transformation, you compare transformation input values with values in the lookup source or
cache, represented by lookup ports. When you run a workflow, the Integration Service queries
the lookup source or cache for all incoming values based on the condition.
You must enter a lookup condition in all Lookup transformations. Some guidelines for the
lookup condition apply for all Lookup transformations, and some guidelines vary depending
on how you configure the transformation.
Use the following guidelines when you enter a condition for a Lookup transformation:
The datatypes in a condition must match.
Use one input port for each lookup port used in the condition. Use the same input port in
more than one condition in a transformation.
When you enter multiple conditions, the Integration Service evaluates each condition as
an AND, not an OR. The Integration Service returns only rows that match all the
conditions you specify.
The Integration Service matches null values. For example, if an input lookup condition
column is NULL, the Integration Service evaluates the NULL equal to a NULL in the
lookup.
If you configure a flat file lookup for sorted input, the Integration Service fails the session
if the condition columns are not grouped. If the columns are grouped, but not sorted, the
Integration Service processes the lookup as if you did not configure sorted input. For more
information about sorted input, see “Flat File Lookups” on page 311.
The lookup condition guidelines and the way the Integration Service processes matches can
vary, depending on whether you configure the transformation for a dynamic cache or an
uncached or static cache. For more information about lookup caches, see “Lookup Cacheson
page 337.
Uncached or Static Cache
Use the following guidelines when you configure a Lookup transformation without a cache or
to use a static cache:
Use the following operators when you create the lookup condition:
=, >, <, >=, <=, !=
Tip: If you include more than one lookup condition, place the conditions with an equal
sign first to optimize lookup performance. For example, create the following lookup
condition:
ITEM_ID = IN_ITEM_ID
PRICE <= IN_PRICE
The input value must meet all conditions for the lookup to return a value.
Lookup Condition 329
The condition can match equivalent values or supply a threshold condition. For example, you
might look for customers who do not live in California, or employees whose salary is greater
than $30,000. Depending on the nature of the source and condition, the lookup might return
multiple values.
Dynamic Cache
If you configure a Lookup transformation to use a dynamic cache, you can only use the
equality operator (=) in the lookup condition.
Handling Multiple Matches
Lookups find a value based on the conditions you set in the Lookup transformation. If the
lookup condition is not based on a unique key, or if the lookup source is denormalized, the
Integration Service might find multiple matches in the lookup source or cache.
You can configure a Lookup transformation to handle multiple matches in the following
ways:
Return the first matching value, or return the last matching value. You can configure the
transformation to return the first matching value or the last matching value. The first and
last values are the first value and last value found in the lookup cache that match the
lookup condition. When you cache the lookup source, the Integration Service generates an
ORDER BY clause for each column in the lookup cache to determine the first and last row
in the cache. The Integration Service then sorts each lookup source column in ascending
order.
The Integration Service sorts numeric columns in ascending numeric order (such as 0 to
10), date/time columns from January to December and from the first of the month to the
end of the month, and string columns based on the sort order configured for the session.
Return any matching value. You can configure the Lookup transformation to return any
value that matches the lookup condition. When you configure the Lookup transformation
to return any matching value, the transformation returns the first value that matches the
lookup condition. It creates an index based on the key ports rather than all Lookup
transformation ports. When you use any matching value, performance can improve
because the process of indexing rows is simplified.
Return an error. When the Lookup transformation uses a static cache or no cache, the
Integration Service marks the row as an error, writes the row to the session log by default,
and increases the error count by one. When the Lookup transformation uses a dynamic
cache, the Integration Service fails the session when it encounters multiple matches either
while caching the lookup table or looking up values in the cache that contain duplicate
keys. Also, if you configure the Lookup transformation to output old values on updates,
the Lookup transformation returns an error when it encounters multiple matches.
330 Chapter 14: Lookup Transformation
Lookup Caches
You can configure a Lookup transformation to cache the lookup file or table. The Integration
Service builds a cache in memory when it processes the first row of data in a cached Lookup
transformation. It allocates memory for the cache based on the amount you configure in the
transformation or session properties. The Integration Service stores condition values in the
index cache and output values in the data cache. The Integration Service queries the cache for
each row that enters the transformation.
The Integration Service also creates cache files by default in the $PMCacheDir. If the data
does not fit in the memory cache, the Integration Service stores the overflow values in the
cache files. When the session completes, the Integration Service releases cache memory and
deletes the cache files unless you configure the Lookup transformation to use a persistent
cache.
When configuring a lookup cache, you can specify any of the following options:
Persistent cache
Recache from lookup source
Static cache
Dynamic cache
Shared cache
Note: You can use a dynamic cache for relational or flat file lookups.
For more information about working with lookup caches, see “Lookup Caches” on page 337.
Configuring Unconnected Lookup Transformations 331
Configuring Unconnected Lookup Transformations
An unconnected Lookup transformation is separate from the pipeline in the mapping. You
write an expression using the :LKP reference qualifier to call the lookup within another
transformation. Some common uses for unconnected lookups include:
Testing the results of a lookup in an expression
Filtering rows based on the lookup results
Marking rows for update based on the result of a lookup, such as updating slowly changing
dimension tables
Calling the same lookup multiple times in one mapping
Complete the following steps when you configure an unconnected Lookup transformation:
1. Add input ports.
2. Add the lookup condition.
3. Designate a return value.
4. Call the lookup from another transformation.
Step 1. Add Input Ports
Create an input port for each argument in the :LKP expression. For each lookup condition
you plan to create, you need to add an input port to the Lookup transformation. You can
create a different port for each condition, or use the same input port in more than one
condition.
For example, a retail store increased prices across all departments during the last month. The
accounting department only wants to load rows into the target for items with increased prices.
To accomplish this, complete the following tasks:
Create a lookup condition that compares the ITEM_ID in the source with the ITEM_ID
in the target.
Compare the PRICE for each item in the source with the price in the target table.
If the item exists in the target table and the item price in the source is less than or equal
to the price in the target table, you want to delete the row.
If the price in the source is greater than the item price in the target table, you want to
update the row.
332 Chapter 14: Lookup Transformation
Create an input port (IN_ITEM_ID) with datatype Decimal (37,0) to match the
ITEM_ID and an IN_PRICE input port with Decimal (10,2) to match the PRICE lookup
port.
Step 2. Add the Lookup Condition
After you correctly configure the ports, define a lookup condition to compare transformation
input values with values in the lookup source or cache. To increase performance, add
conditions with an equal sign first.
In this case, add the following lookup condition:
ITEM_ID = IN_ITEM_ID
PRICE <= IN_PRICE
If the item exists in the mapping source and lookup source and the mapping source price is
less than or equal to the lookup price, the condition is true and the lookup returns the values
designated by the Return port. If the lookup condition is false, the lookup returns NULL.
Therefore, when you write the update strategy expression, use ISNULL nested in an IIF to
test for null values.
Step 3. Designate a Return Value
With unconnected Lookups, you can pass multiple input values into the transformation, but
only one column of data out of the transformation. Designate one lookup/output port as a
return port. The Integration Service can return one value from the lookup query. Use the
return port to specify the return value. If you call the unconnected lookup from an update
strategy or filter expression, you are generally checking for null values. In this case, the return
port can be anything. If, however, you call the lookup from an expression performing a
calculation, the return value needs to be the value you want to include in the calculation.
Configuring Unconnected Lookup Transformations 333
To continue the update strategy example, you can define the ITEM_ID port as the return port.
The update strategy expression checks for null values returned. If the lookup condition is
true, the Integration Service returns the ITEM_ID. If the condition is false, the Integration
Service returns NULL.

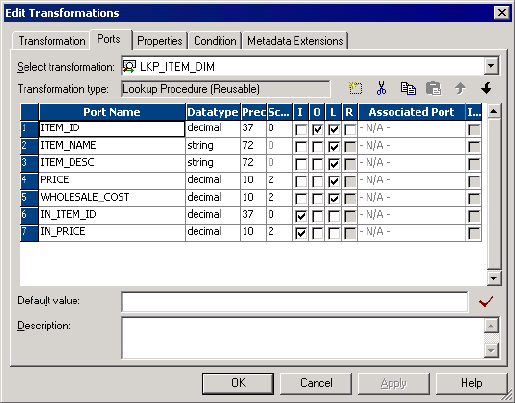

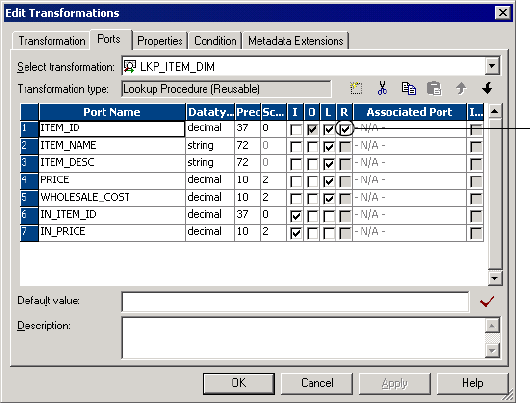

Figure 14-2 shows a return port in a Lookup transformation:
Step 4. Call the Lookup Through an Expression
You supply input values for an unconnected Lookup transformation from a :LKP expression
in another transformation. The arguments are local input ports that match the Lookup
transformation input ports used in the lookup condition. Use the following syntax for a :LKP
expression:
:LKP.lookup_transformation_name(argument, argument, ...)
To continue the example about the retail store, when you write the update strategy expression,
the order of ports in the expression must match the order in the lookup condition. In this
case, the ITEM_ID condition is the first lookup condition, and therefore, it is the first
argument in the update strategy expression.
IIF(ISNULL(:LKP.lkpITEMS_DIM(ITEM_ID, PRICE)), DD_UPDATE, DD_REJECT)
Use the following guidelines to write an expression that calls an unconnected Lookup
transformation:
The order in which you list each argument must match the order of the lookup conditions
in the Lookup transformation.
The datatypes for the ports in the expression must match the datatypes for the input ports
in the Lookup transformation. The Designer does not validate the expression if the
datatypes do not match.
Figure 14-2. Return Port in a Lookup Transformation
Return Port
334 Chapter 14: Lookup Transformation
If one port in the lookup condition is not a lookup/output port, the Designer does not
validate the expression.
The arguments (ports) in the expression must be in the same order as the input ports in
the lookup condition.
If you use incorrect :LKP syntax, the Designer marks the mapping invalid.
If you call a connected Lookup transformation in a :LKP expression, the Designer marks
the mapping invalid.
Tip: Avoid syntax errors when you enter expressions by using the point-and-click method to
select functions and ports.
Creating a Lookup Transformation 335
Creating a Lookup Transformation
The following steps summarize the process of creating a Lookup transformation.
To create a Lookup transformation:
1. In the Mapping Designer, click Transformation > Create. Select the Lookup
transformation. Enter a name for the transformation. The naming convention for
Lookup transformations is LKP_TransformationName. Click OK.
2. In the Select Lookup Table dialog box, you can choose the following options:
Choose an existing table or file definition.
Choose to import a definition from a relational table or file.
Skip to create a manual definition.
3. Define input ports for each lookup condition you want to define.
4. For an unconnected Lookup transformation, create a return port for the value you want
to return from the lookup.
5. Define output ports for the values you want to pass to another transformation.
6. For Lookup transformations that use a dynamic lookup cache, associate an input port or
sequence ID with each lookup port.
7. Add the lookup conditions. If you include more than one condition, place the conditions
using equal signs first to optimize lookup performance.
For information about lookup conditions, see “Lookup Condition” on page 328.
8. On the Properties tab, set the properties for the Lookup transformation, and click OK.
For a list of properties, see “Lookup Properties” on page 316.
9. For unconnected Lookup transformations, write an expression in another transformation
using :LKP to call the unconnected Lookup transformation.
Choose an existing definition.
Import a definition.
Manually create a definition.
336 Chapter 14: Lookup Transformation
Tips
Use the following tips when you configure the Lookup transformation:
Add an index to the columns used in a lookup condition.
If you have privileges to modify the database containing a lookup table, you can improve
performance for both cached and uncached lookups. This is important for very large lookup
tables. Since the Integration Service needs to query, sort, and compare values in these
columns, the index needs to include every column used in a lookup condition.
Place conditions with an equality operator (=) first.
If a Lookup transformation specifies several conditions, you can improve lookup performance
by placing all the conditions that use the equality operator first in the list of conditions that
appear under the Condition tab.
Cache small lookup tables.
Improve session performance by caching small lookup tables. The result of the lookup query
and processing is the same, whether or not you cache the lookup table.
Join tables in the database.
If the lookup table is on the same database as the source table in the mapping and caching is
not feasible, join the tables in the source database rather than using a Lookup transformation.
Use a persistent lookup cache for static lookups.
If the lookup source does not change between sessions, configure the Lookup transformation
to use a persistent lookup cache. The Integration Service then saves and reuses cache files
from session to session, eliminating the time required to read the lookup source.
Call unconnected Lookup transformations with the :LKP reference qualifier.
When you write an expression using the :LKP reference qualifier, you call unconnected
Lookup transformations only. If you try to call a connected Lookup transformation, the
Designer displays an error and marks the mapping invalid.
337
Chapter 15
Lookup Caches
This chapter includes the following topics:
Overview, 338
Building Connected Lookup Caches, 340
Using a Persistent Lookup Cache, 342
Working with an Uncached Lookup or Static Cache, 344
Working with a Dynamic Lookup Cache, 345
Sharing the Lookup Cache, 363
Lookup Cache Tips, 369
338 Chapter 15: Lookup Caches
Overview
You can configure a Lookup transformation to cache the lookup table. The Integration
Service builds a cache in memory when it processes the first row of data in a cached Lookup
transformation. It allocates memory for the cache based on the amount you configure in the
transformation or session properties. The Integration Service stores condition values in the
index cache and output values in the data cache. The Integration Service queries the cache for
each row that enters the transformation.
The Integration Service also creates cache files by default in the $PMCacheDir. If the data
does not fit in the memory cache, the Integration Service stores the overflow values in the
cache files. When the session completes, the Integration Service releases cache memory and
deletes the cache files unless you configure the Lookup transformation to use a persistent
cache.
If you use a flat file lookup, the Integration Service always caches the lookup source. If you
configure a flat file lookup for sorted input, the Integration Service cannot cache the lookup if
the condition columns are not grouped. If the columns are grouped, but not sorted, the
Integration Service processes the lookup as if you did not configure sorted input. For more
information, see “Flat File Lookups” on page 311.
When you configure a lookup cache, you can configure the following cache settings:
Building caches. You can configure the session to build caches sequentially or
concurrently. When you build sequential caches, the Integration Service creates caches as
the source rows enter the Lookup transformation. When you configure the session to build
concurrent caches, the Integration Service does not wait for the first row to enter the
Lookup transformation before it creates caches. Instead, it builds multiple caches
concurrently. For more information, see “Building Connected Lookup Caches” on
page 340.
Persistent cache. You can save the lookup cache files and reuse them the next time the
Integration Service processes a Lookup transformation configured to use the cache. For
more information, see “Using a Persistent Lookup Cache” on page 342.
Recache from source. If the persistent cache is not synchronized with the lookup table,
you can configure the Lookup transformation to rebuild the lookup cache. For more
information, see “Building Connected Lookup Caches” on page 340.
Static cache. You can configure a static, or read-only, cache for any lookup source. By
default, the Integration Service creates a static cache. It caches the lookup file or table and
looks up values in the cache for each row that comes into the transformation. When the
lookup condition is true, the Integration Service returns a value from the lookup cache.
The Integration Service does not update the cache while it processes the Lookup
transformation. For more information, see Working with an Uncached Lookup or Static
Cache” on page 344.
Dynamic cache. To cache a target table or flat file source and insert new rows or update
existing rows in the cache, use a Lookup transformation with a dynamic cache. The
Integration Service dynamically inserts or updates data in the lookup cache and passes data
Overview 339
to the target. For more information, see “Working with a Dynamic Lookup Cache” on
page 345.
Shared cache. You can share the lookup cache between multiple transformations. You can
share an unnamed cache between transformations in the same mapping. You can share a
named cache between transformations in the same or different mappings. For more
information, see “Sharing the Lookup Cache” on page 363.
When you do not configure the Lookup transformation for caching, the Integration Service
queries the lookup table for each input row. The result of the Lookup query and processing is
the same, whether or not you cache the lookup table. However, using a lookup cache can
increase session performance. Optimize performance by caching the lookup table when the
source table is large.
For more information about caching properties, see “Lookup Properties” on page 316.
For information about configuring the cache size, see “Session Caches” in the Workflow
Administration Guide.
Note: The Integration Service uses the same transformation logic to process a Lookup
transformation whether you configure it to use a static cache or no cache. However, when you
configure the transformation to use no cache, the Integration Service queries the lookup table
instead of the lookup cache.
Cache Comparison
Table 15-1 compares the differences between an uncached lookup, a static cache, and a
dynamic cache:
Table 15-1. Lookup Caching Comparison
Uncached Static Cache Dynamic Cache
You cannot insert or update the
cache.
You cannot insert or update the
cache.
You can insert or update rows in the cache
as you pass rows to the target.
You cannot use a flat file lookup. Use a relational or a flat file lookup. Use a relational or a flat file lookup.
When the condition is true, the
Integration Service returns a
value from the lookup table or
cache.
When the condition is not true,
the Integration Service returns
the default value for connected
transformations and NULL for
unconnected transformations.
For more information, see
“Working with an Uncached
Lookup or Static Cache” on
page 344.
When the condition is true, the
Integration Service returns a value
from the lookup table or cache.
When the condition is not true, the
Integration Service returns the
default value for connected
transformations and NULL for
unconnected transformations.
For more information, see “Working
with an Uncached Lookup or Static
Cache” on page 344.
When the condition is true, the Integration
Service either updates rows in the cache
or leaves the cache unchanged,
depending on the row type. This indicates
that the row is in the cache and target
table. You can pass updated rows to a
target.
When the condition is not true, the
Integration Service either inserts rows into
the cache or leaves the cache unchanged,
depending on the row type. This indicates
that the row is not in the cache or target.
You can pass inserted rows to a target
table.
For more information, see “Updating the
Dynamic Lookup Cache” on page 356.
340 Chapter 15: Lookup Caches
Building Connected Lookup Caches
The Integration Service can build lookup caches for connected Lookup transformations in the
following ways:
Sequential caches. The Integration Service builds lookup caches sequentially. The
Integration Service builds the cache in memory when it processes the first row of the data
in a cached lookup transformation. For more information, see “Sequential Caches” on
page 340.
Concurrent caches. The Integration Service builds lookup caches concurrently. It does not
need to wait for data to reach the Lookup transformation. For more information, see
“Concurrent Caches on page 341.
Note: The Integration Service builds caches for unconnected Lookup transformations
sequentially regardless of how you configure cache building. If you configure the session to
build concurrent caches for an unconnected Lookup transformation, the Integration Service
ignores this setting and builds unconnected Lookup transformation caches sequentially.
Sequential Caches
By default, the Integration Service builds a cache in memory when it processes the first row of
data in a cached Lookup transformation. The Integration Service creates each lookup cache in
the pipeline sequentially. The Integration Service waits for any upstream active
transformation to complete processing before it starts processing the rows in the Lookup
transformation. The Integration Service does not build caches for a downstream Lookup
transformation until an upstream Lookup transformation completes building a cache.
For example, the following mapping contains an unsorted Aggregator transformation
followed by two Lookup transformations.

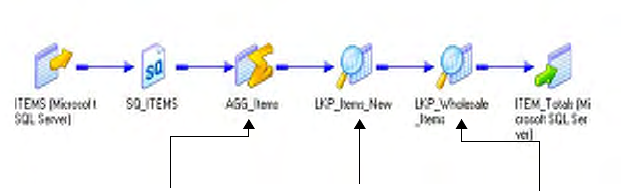

Figure 15-1 shows a mapping that contains multiple Lookup transformations:
The Integration Service processes all the rows for the unsorted Aggregator transformation and
begins processing the first Lookup transformation after the unsorted Aggregator
Figure 15-1. Building Lookup Caches Sequentially
2) Lookup transformation builds
cache after it reads first input row.
3) Lookup transformation builds
cache after it reads first input row.
1) Aggregator
transformation
processes rows.
Building Connected Lookup Caches 341
transformation completes. When it processes the first input row, the Integration Service
begins building the first lookup cache. After the Integration Service finishes building the first
lookup cache, it can begin processing the lookup data. The Integration Service begins
building the next lookup cache when the first row of data reaches the Lookup transformation.
You might want to process lookup caches sequentially if the Lookup transformation may not
process row data. The Lookup transformation may not process row data if the transformation
logic is configured to route data to different pipelines based on a condition. Configuring
sequential caching may allow you to avoid building lookup caches unnecessarily. For example,
a Router transformation might route data to one pipeline if a condition resolves to true, and it
might route data to another pipeline if the condition resolves to false. In this case, a Lookup
transformation might not receive data at all.
Concurrent Caches
You can configure the Integration Service to create lookup caches concurrently. You may be
able to improve session performance using concurrent caches. Performance may especially
improve when the pipeline contains an active transformations upstream of the Lookup
transformation. You may want to configure the session to create concurrent caches if you are
certain that the you will need to build caches for each of the Lookup transformations in the
session.
When you configure the Lookup transformation to create concurrent caches, it does not wait
for upstream transformations to complete before it creates lookup caches, and it does not
need to finish building a lookup cache before it can begin building other lookup caches.
For example, you configure the session shown in Figure 15-1 for concurrent cache creation.

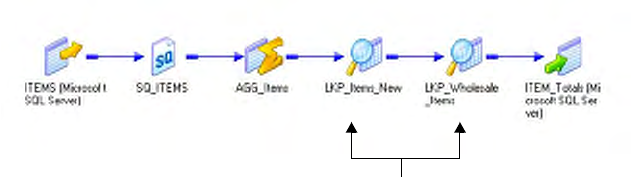

Figure 15-2 shows lookup transformation caches built concurrently:
When you run the session, the Integration Service builds the Lookup caches concurrently. It
does not wait for upstream transformations to complete, and it does not wait for other
Lookup transformations to complete cache building.
Note: You cannot process caches for unconnected Lookup transformations concurrently.
To configure the session to create concurrent caches, configure a value for the session
configuration attribute, Additional Concurrent Pipelines for Lookup Cache Creation.
Figure 15-2. Building Lookup Caches Concurrently
Caches are built concurrently.
342 Chapter 15: Lookup Caches
Using a Persistent Lookup Cache
You can configure a Lookup transformation to use a non-persistent or persistent cache. The
Integration Service saves or deletes lookup cache files after a successful session based on the
Lookup Cache Persistent property.
If the lookup table does not change between sessions, you can configure the Lookup
transformation to use a persistent lookup cache. The Integration Service saves and reuses
cache files from session to session, eliminating the time required to read the lookup table.
Using a Non-Persistent Cache
By default, the Integration Service uses a non-persistent cache when you enable caching in a
Lookup transformation. The Integration Service deletes the cache files at the end of a session.
The next time you run the session, the Integration Service builds the memory cache from the
database.
Using a Persistent Cache
If you want to save and reuse the cache files, you can configure the transformation to use a
persistent cache. Use a persistent cache when you know the lookup table does not change
between session runs.
The first time the Integration Service runs a session using a persistent lookup cache, it saves
the cache files to disk instead of deleting them. The next time the Integration Service runs the
session, it builds the memory cache from the cache files. If the lookup table changes
occasionally, you can override session properties to recache the lookup from the database.
When you use a persistent lookup cache, you can specify a name for the cache files. When you
specify a named cache, you can share the lookup cache across sessions. For more information
about the Cache File Name Prefix property, see “Lookup Properties” on page 316. For more
information about sharing lookup caches, see “Sharing the Lookup Cache” on page 363.
Rebuilding the Lookup Cache
You can instruct the Integration Service to rebuild the lookup cache if you think that the
lookup source changed since the last time the Integration Service built the persistent cache.
When you rebuild a cache, the Integration Service creates new cache files, overwriting existing
persistent cache files. The Integration Service writes a message to the session log when it
rebuilds the cache.
You can rebuild the cache when the mapping contains one Lookup transformation or when
the mapping contains Lookup transformations in multiple target load order groups that share
a cache. You do not need to rebuild the cache when a dynamic lookup shares the cache with a
static lookup in the same mapping.
If the Integration Service cannot reuse the cache, it either recaches the lookup from the
database, or it fails the session, depending on the mapping and session properties.
Using a Persistent Lookup Cache 343
Table 15-2 summarizes how the Integration Service handles persistent caching for named and
unnamed caches:
Table 15-2. Integration Service Handling of Persistent Caches
Mapping or Session Changes Between Sessions Named Cache Unnamed Cache
Integration Service cannot locate cache files. Rebuilds cache. Rebuilds cache.
Enable or disable the Enable High Precision option in session properties. Fails session. Rebuilds cache.
Edit the transformation in the Mapping Designer, Mapplet Designer, or
Reusable Transformation Developer.*
Fails session. Rebuilds cache.
Edit the mapping (excluding Lookup transformation). Reuses cache. Rebuilds cache.
Change database connection or the file location used to access the lookup
table.
Fails session. Rebuilds cache.
Change the Integration Service data movement mode. Fails session. Rebuilds cache.
Change the sort order in Unicode mode. Fails session. Rebuilds cache.
Change the Integration Service code page to a compatible code page. Reuses cache. Reuses cache.
Change the Integration Service code page to an incompatible code page. Fails session. Rebuilds cache.
*Editing properties such as transformation description or port description does not affect persistent cache handling.
344 Chapter 15: Lookup Caches
Working with an Uncached Lookup or Static Cache
By default, the Integration Service creates a static lookup cache when you configure a Lookup
transformation for caching. The Integration Service builds the cache when it processes the
first lookup request. It queries the cache based on the lookup condition for each row that
passes into the transformation. The Integration Service does not update the cache while it
processes the transformation. The Integration Service processes an uncached lookup the same
way it processes a cached lookup except that it queries the lookup source instead of building
and querying the cache.
When the lookup condition is true, the Integration Service returns the values from the lookup
source or cache. For connected Lookup transformations, the Integration Service returns the
values represented by the lookup/output ports. For unconnected Lookup transformations, the
Integration Service returns the value represented by the return port.
When the condition is not true, the Integration Service returns either NULL or default
values. For connected Lookup transformations, the Integration Service returns the default
value of the output port when the condition is not met. For unconnected Lookup
transformations, the Integration Service returns NULL when the condition is not met.
When you create multiple partitions in a pipeline that use a static cache, the Integration
Service creates one memory cache for each partition and one disk cache for each
transformation.
For more information, see “Session Caches” in the Workflow Administration Guide.
Working with a Dynamic Lookup Cache 345
Working with a Dynamic Lookup Cache
You can use a dynamic cache with a relational lookup or a flat file lookup. For relational
lookups, you might configure the transformation to use a dynamic cache when the target
table is also the lookup table. For flat file lookups, the dynamic cache represents the data to
update in the target table.
The Integration Service builds the cache when it processes the first lookup request. It queries
the cache based on the lookup condition for each row that passes into the transformation.
When you use a dynamic cache, the Integration Service updates the lookup cache as it passes
rows to the target.
When the Integration Service reads a row from the source, it updates the lookup cache by
performing one of the following actions:
Inserts the row into the cache. The row is not in the cache and you specified to insert rows
into the cache. You can configure the transformation to insert rows into the cache based on
input ports or generated sequence IDs. The Integration Service flags the row as insert.
Updates the row in the cache. The row exists in the cache and you specified to update
rows in the cache. The Integration Service flags the row as update. The Integration Service
updates the row in the cache based on the input ports.
Makes no change to the cache. The row exists in the cache and you specified to insert new
rows only. Or, the row is not in the cache and you specified to update existing rows only.
Or, the row is in the cache, but based on the lookup condition, nothing changes. The
Integration Service flags the row as unchanged.
The Integration Service either inserts or updates the cache or makes no change to the cache,
based on the results of the lookup query, the row type, and the Lookup transformation
properties you define. For more information, see “Updating the Dynamic Lookup Cache” on
page 356.
The following list describes some situations when you use a dynamic lookup cache:
Updating a master customer table with new and updated customer information. You
want to load new and updated customer information into a master customer table. Use a
Lookup transformation that performs a lookup on the target table to determine if a
customer exists or not. Use a dynamic lookup cache that inserts and updates rows in the
cache as it passes rows to the target.
Loading data into a slowly changing dimension table and a fact table. You wa nt to lo a d
data into a slowly changing dimension table and a fact table. Create two pipelines and use
a Lookup transformation that performs a lookup on the dimension table. Use a dynamic
lookup cache to load data to the dimension table. Use a static lookup cache to load data to
the fact table, making sure you specify the name of the dynamic cache from the first
pipeline. For more information, see “Example Using a Dynamic Lookup Cache” on
page 360.
Reading a flat file that is an export from a relational table. You want to read data from a
Teradata table, but the ODBC connection is slow. You can export the Teradata table
contents to a flat file and use the file as a lookup source. You can pass the lookup cache
346 Chapter 15: Lookup Caches
changes back to the Teradata table if you configure the Teradata table as a relational target
in the mapping.
Use a Router or Filter transformation with the dynamic Lookup transformation to route
inserted or updated rows to the cached target table. You can route unchanged rows to another
target table or flat file, or you can drop them.
When you create multiple partitions in a pipeline that use a dynamic lookup cache, the
Integration Service creates one memory cache and one disk cache for each transformation.
However, if you add a partition point at the Lookup transformation, the Integration Service
creates one memory cache for each partition. For more information, see “Session Caches” in
the Workflow Administration Guide.

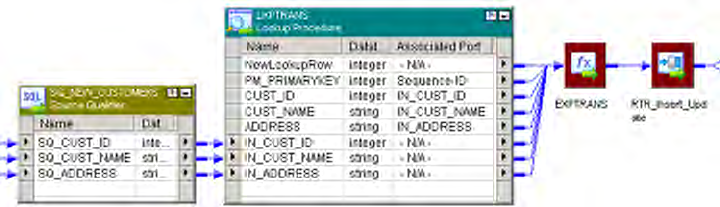

Figure 15-3 shows a mapping with a Lookup transformation that uses a dynamic lookup
cache:
A Lookup transformation using a dynamic cache has the following properties:
NewLookupRow. The Designer adds this port to a Lookup transformation configured to
use a dynamic cache. Indicates with a numeric value whether the Integration Service
inserts or updates the row in the cache, or makes no change to the cache. To keep the
lookup cache and the target table synchronized, you pass rows to the target when the
NewLookupRow value is equal to 1 or 2. For more information, see “Using the
NewLookupRow Port” on page 347.
Figure 15-3. Mapping with a Dynamic Lookup Cache
Working with a Dynamic Lookup Cache 347
Associated Port. Associate lookup ports with either an input/output port or a sequence
ID. The Integration Service uses the data in the associated ports to insert or update rows in
the lookup cache. If you associate a sequence ID, the Integration Service generates a
primary key for inserted rows in the lookup cache. For more information, see “Using the
Associated Input Port” on page 348.
Ignore Null Inputs for Updates. The Designer activates this port property for lookup/
output ports when you configure the Lookup transformation to use a dynamic cache.
Select this property when you do not want the Integration Service to update the column in
the cache when the data in this column contains a null value. For more information, see
“Using the Ignore Null Property” on page 353.
Ignore in Comparison. The Designer activates this port property for lookup/output ports
not used in the lookup condition when you configure the Lookup transformation to use a
dynamic cache. The Integration Service compares the values in all lookup ports with the
values in their associated input ports by default. Select this property if you want the
Integration Service to ignore the port when it compares values before updating a row. For
more information, see “Using the Ignore in Comparison Property” on page 354.

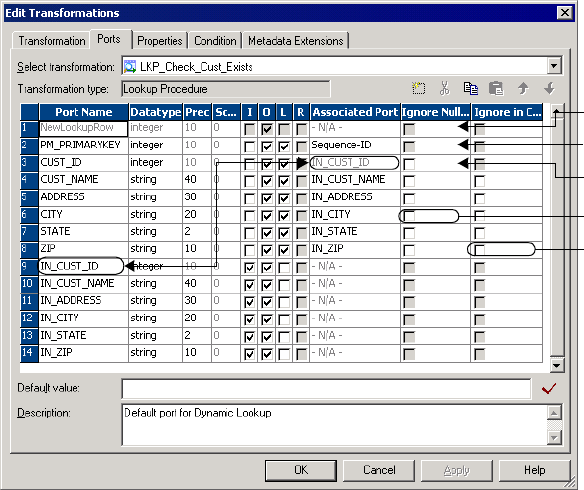

Figure 15-4 shows the output port properties unique to a dynamic Lookup transformation:
Using the NewLookupRow Port
When you define a Lookup transformation to use a dynamic cache, the Designer adds the
NewLookupRow port to the transformation. The Integration Service assigns a value to the
port, depending on the action it performs to the lookup cache.
Figure 15-4. Dynamic Lookup Transformation Ports Tab
Associated Sequence-ID
Associated Port
Ignore Null
Ignore in Comparison
NewLookupRow
348 Chapter 15: Lookup Caches
Table 15-3 lists the possible NewLookupRow values:
When the Integration Service reads a row, it changes the lookup cache depending on the
results of the lookup query and the Lookup transformation properties you define. It assigns
the value 0, 1, or 2 to the NewLookupRow port to indicate if it inserts or updates the row in
the cache, or makes no change.
For information about how the Integration Service determines to update the cache, see
“Updating the Dynamic Lookup Cache” on page 356.
The NewLookupRow value indicates how the Integration Service changes the lookup cache. It
does not change the row type. Therefore, use a Filter or Router transformation and an Update
Strategy transformation to help keep the target table and lookup cache synchronized.
Configure the Filter transformation to pass new and updated rows to the Update Strategy
transformation before passing them to the cached target. Use the Update Strategy
transformation to change the row type of each row to insert or update, depending on the
NewLookupRow value.
You can drop the rows that do not change the cache, or you can pass them to another target.
For more information, see “Using Update Strategy Transformations with a Dynamic Cache”
on page 354.
Define the filter condition in the Filter transformation based on the value of
NewLookupRow. For example, use the following condition to pass both inserted and updated
rows to the cached target:
NewLookupRow != 0
For more information about the Filter transformation, see “Filter Transformation” on
page 189.
Using the Associated Input Port
When you use a dynamic lookup cache, you must associate each lookup/output port with an
input/output port or a sequence ID. The Integration Service uses the data in the associated
port to insert or update rows in the lookup cache. The Designer associates the input/output
ports with the lookup/output ports used in the lookup condition.
For more information about the values of a Lookup transformation when you use a dynamic
lookup cache, see Working with Lookup Transformation Values” on page 349.
Table 15-3. NewLookupRow Values
NewLookupRow Value Description
0Integration Service does not update or insert the row in the cache.
1Integration Service inserts the row into the cache.
2Integration Service updates the row in the cache.
Working with a Dynamic Lookup Cache 349
Sometimes you need to create a generated key for a column in a target table. For lookup ports
with an Integer or Small Integer datatype, you can associate a generated key instead of an
input port. To do this, select Sequence-ID in the Associated Port column.
When you select Sequence-ID in the Associated Port column, the Integration Service
generates a key when it inserts a row into the lookup cache.
The Integration Service uses the following process to generate sequence IDs:
1. When the Integration Service creates the dynamic lookup cache, it tracks the range of
values in the cache associated with any port using a sequence ID.
2. When the Integration Service inserts a new row of data into the cache, it generates a key
for a port by incrementing the greatest sequence ID existing value by one.
3. When the Integration Service reaches the maximum number for a generated sequence ID,
it starts over at one. It then increments each sequence ID by one until it reaches the
smallest existing value minus one. If the Integration Service runs out of unique sequence
ID numbers, the session fails.
Note: The maximum value for a sequence ID is 2147483647.
The Integration Service only generates a sequence ID for rows it inserts into the cache.
Working with Lookup Transformation Values
When you associate an input/output port or a sequence ID with a lookup/output port, the
following values match by default:
Input value. Value the Integration Service passes into the transformation.
Lookup value. Value that the Integration Service inserts into the cache.
Input/output port output value. Value that the Integration Service passes out of the
input/output port.
The lookup/output port output value depends on whether you choose to output old or new
values when the Integration Service updates a row:
Output old values on update. The Integration Service outputs the value that existed in the
cache before it updated the row.
Output new values on update. The Integration Service outputs the updated value that it
writes in the cache. The lookup/output port value matches the input/output port value.
Note: You configure to output old or new values using the Output Old Value On Update
transformation property. For more information about this property, see “Lookup Properties
on page 316.
350 Chapter 15: Lookup Caches
For example, you have the following Lookup transformation that uses a dynamic lookup
cache:
You define the following lookup condition:
IN_CUST_ID = CUST_ID
By default, the row type of all rows entering the Lookup transformation is insert. To perform
both inserts and updates in the cache and target table, you select the Insert Else Update
property in the Lookup transformation.
The following sections describe the values of the rows in the cache, the input rows, lookup
rows, and output rows as you run the session.
Initial Cache Values
When you run the session, the Integration Service builds the lookup cache from the target
table with the following data:
Input Values
The source contains rows that exist and rows that do not exist in the target table. The
following rows pass into the Lookup transformation from the Source Qualifier
transformation:
Note: The input values always match the values the Integration Service outputs out of the
input/output ports.
PK_PRIMARYKEY CUST_ID CUST_NAME ADDRESS
100001 80001 Marion James 100 Main St.
100002 80002 Laura Jones 510 Broadway Ave.
100003 80003 Shelley Lau 220 Burnside Ave.
SQ_CUST_ID SQ_CUST_NAME SQ_ADDRESS
80001 Marion Atkins 100 Main St.
80002 Laura Gomez 510 Broadway Ave.
99001 Jon Freeman 555 6th Ave.
Working with a Dynamic Lookup Cache 351
Lookup Values
The Integration Service looks up values in the cache based on the lookup condition. It
updates rows in the cache for existing customer IDs 80001 and 80002. It inserts a row into
the cache for customer ID 99001. The Integration Service generates a new key
(PK_PRIMARYKEY) for the new row.
Output Values
The Integration Service flags the rows in the Lookup transformation based on the inserts and
updates it performs on the dynamic cache. These rows pass through an Expression
transformation to a Router transformation that filters and passes on the inserted and updated
rows to an Update Strategy transformation. The Update Strategy transformation flags the
rows based on the value of the NewLookupRow port.
The output values of the lookup/output and input/output ports depend on whether you
choose to output old or new values when the Integration Service updates a row. However, the
output values of the NewLookupRow port and any lookup/output port that uses the
Sequence-ID is the same for new and updated rows.
When you choose to output new values, the lookup/output ports output the following values:
When you choose to output old values, the lookup/output ports output the following values:
Note that when the Integration Service updates existing rows in the lookup cache and when it
passes rows to the lookup/output ports, it always uses the existing primary key
(PK_PRIMARYKEY) values for rows that exist in the cache and target table.
The Integration Service uses the sequence ID to generate a new primary key for the customer
that it does not find in the cache. The Integration Service inserts the new primary key value
into the lookup cache and outputs it to the lookup/output port.
PK_PRIMARYKEY CUST_ID CUST_NAME ADDRESS
100001 80001 Marion Atkins 100 Main St.
100002 80002 Laura Gomez 510 Broadway Ave.
100004 99001 Jon Freeman 555 6th Ave.
NewLookupRow PK_PRIMARYKEY CUST_ID CUST_NAME ADDRESS
2100001 80001 Marion Atkins 100 Main St.
2100002 80002 Laura Gomez 510 Broadway Ave.
1100004 99001 Jon Freeman 555 6th Ave.
NewLookupRow PK_PRIMARYKEY CUST_ID CUST_NAME ADDRESS
2100001 80001 Marion James 100 Main St.
2100002 80002 Laura Jones 510 Broadway Ave.
1100004 99001 Jon Freeman 555 6th Ave.
352 Chapter 15: Lookup Caches
The Integration Service output values from the input/output ports that match the input
values. For those values, see “Input Values” on page 350.
Note: If the input value is NULL and you select the Ignore Null property for the associated
input port, the input value does not equal the lookup value or the value out of the input/
output port. When you select the Ignore Null property, the lookup cache and the target table
might become unsynchronized if you pass null values to the target. You must verify that you
do not pass null values to the target. For more information, see “Using the Ignore Null
Property” on page 353.
Working with a Dynamic Lookup Cache 353
Using the Ignore Null Property
When you update a dynamic lookup cache and target table, the source data might contain
some null values. The Integration Service can handle the null values in the following ways:
Insert null values. The Integration Service uses null values from the source and updates
the lookup cache and target table using all values from the source.
Ignore null values. The Integration Service ignores the null values in the source and
updates the lookup cache and target table using only the not null values from the source.
If you know the source data contains null values, and you do not want the Integration Service
to update the lookup cache or target with null values, select the Ignore Null property for the
corresponding lookup/output port.
For example, you want to update the master customer table. The source contains new
customers and current customers whose last names have changed. The source contains the
customer IDs and names of customers whose names have changed, but it contains null values
for the address columns. You want to insert new customers and update the current customer
names while retaining the current address information in a master customer table.
For example, the master customer table contains the following data:
The source contains the following data:
Select Insert Else Update in the Lookup transformation in the mapping. Select the Ignore
Null option for all lookup/output ports in the Lookup transformation. When you run a
session, the Integration Service ignores null values in the source data and updates the lookup
cache and the target table with not null values:
Note: When you choose to ignore NULLs, you must verify that you output the same values to
the target that the Integration Service writes to the lookup cache. When you choose to ignore
PRIMARYKEY CUST_ID CUST_NAME ADDRESS CITY STATE ZIP
100001 80001 Marion James 100 Main St. Mt. View CA 94040
100002 80002 Laura Jones 510 Broadway Ave. Raleigh NC 27601
100003 80003 Shelley Lau 220 Burnside Ave. Portland OR 97210
CUST_ID CUST_NAME ADDRESS CITY STATE ZIP
80001 Marion Atkins NULL NULL NULL NULL
80002 Laura Gomez NULL NULL NULL NULL
99001 Jon Freeman 555 6th Ave. San Jose CA 95051
PRIMARYKEY CUST_ID CUST_NAME ADDRESS CITY STATE ZIP
100001 80001 Marion Atkins 100 Main St. Mt. View CA 94040
100002 80002 Laura Gomez 510 Broadway Ave. Raleigh NC 27601
100003 80003 Shelley Lau 220 Burnside Ave. Portland OR 97210
100004 99001 Jon Freeman 555 6th Ave. San Jose CA 95051
354 Chapter 15: Lookup Caches
NULLs, the lookup cache and the target table might become unsynchronized if you pass null
input values to the target. Configure the mapping based on the value you want the
Integration Service to output from the lookup/output ports when it updates a row in the
cache:
New values. Connect only lookup/output ports from the Lookup transformation to the
target.
Old values. Add an Expression transformation after the Lookup transformation and before
the Filter or Router transformation. Add output ports in the Expression transformation for
each port in the target table and create expressions to ensure you do not output null input
values to the target.
Using the Ignore in Comparison Property
When you run a session that uses a dynamic lookup cache, the Integration Service compares
the values in all lookup ports with the values in their associated input ports by default. It
compares the values to determine whether or not to update the row in the lookup cache.
When a value in an input port differs from the value in the lookup port, the Integration
Service updates the row in the cache.
If you do not want to compare all ports, you can choose the ports you want the Integration
Service to ignore when it compares ports. The Designer only enables this property for lookup/
output ports when the port is not used in the lookup condition. You can improve
performance by ignoring some ports during comparison.
You might want to do this when the source data includes a column that indicates whether or
not the row contains data you need to update. Select the Ignore in Comparison property for
all lookup ports except the port that indicates whether or not to update the row in the cache
and target table.
Note: You must configure the Lookup transformation to compare at least one port. The
Integration Service fails the session when you ignore all ports.
Using Update Strategy Transformations with a Dynamic Cache
When you use a dynamic lookup cache, use Update Strategy transformations to define the
row type for the following rows:
Rows entering the Lookup transformation. By default, the row type of all rows entering a
Lookup transformation is insert. However, use an Update Strategy transformation before a
Lookup transformation to define all rows as update, or some as update and some as insert.
Rows leaving the Lookup transformation. The NewLookupRow value indicates how the
Integration Service changed the lookup cache, but it does not change the row type. Use a
Filter or Router transformation after the Lookup transformation to direct rows leaving the
Lookup transformation based on the NewLookupRow value. Use Update Strategy
transformations after the Filter or Router transformation to flag rows for insert or update
before the target definition in the mapping.
Working with a Dynamic Lookup Cache 355
Note: If you want to drop the unchanged rows, do not connect rows from the Filter or Router
transformation with the NewLookupRow equal to 0 to the target definition.
When you define the row type as insert for rows entering a Lookup transformation, use the
Insert Else Update property in the Lookup transformation. When you define the row type as
update for rows entering a Lookup transformation, use the Update Else Insert property in the
Lookup transformation. If you define some rows entering a Lookup transformation as update
and some as insert, use either the Update Else Insert or Insert Else Update property, or use
both properties. For more information, see “Updating the Dynamic Lookup Cache” on
page 356.
Figure 15-5 shows a mapping with multiple Update Strategy transformations and a Lookup
transformation using a dynamic cache:
In this case, the Update Strategy transformation before the Lookup transformation flags all
rows as update. Select the Update Else Insert property in the Lookup transformation. The
Router transformation sends the inserted rows to the Insert_New Update Strategy
transformation and sends the updated rows to the Update_Existing Update Strategy
transformation. The two Update Strategy transformations to the right of the Lookup
transformation flag the rows for insert or update for the target.
Configuring Sessions with a Dynamic Lookup Cache
When you configure a session using Update Strategy transformations and a dynamic lookup
cache, you must define certain session properties.
On the General Options settings on the Properties tab in the session properties, define the
Treat Source Rows As option as Data Driven.
Figure 15-5. Using Update Strategy Transformations with a Lookup Transformation
Update Strategy
inserts new rows into
the target.
Update Strategy
updates existing rows
in the target.
Update Strategy marks
rows as update.
Output rows not
connected to a target
get dropped.
356 Chapter 15: Lookup Caches
You must also define the following update strategy target table options:
Select Insert
Select Update as Update
Do not select Delete
These update strategy target table options ensure that the Integration Service updates rows
marked for update and inserts rows marked for insert.
If you do not choose Data Driven, the Integration Service flags all rows for the row type you
specify in the Treat Source Rows As option and does not use the Update Strategy
transformations in the mapping to flag the rows. The Integration Service does not insert and
update the correct rows. If you do not choose Update as Update, the Integration Service does
not correctly update the rows flagged for update in the target table. As a result, the lookup
cache and target table might become unsynchronized. For more information, see “Setting the
Update Strategy for a Session” on page 544.
For more information about configuring target session properties, see “Working with Targets
in the Workflow Administration Guide.
Updating the Dynamic Lookup Cache
When you use a dynamic lookup cache, define the row type of the rows entering the Lookup
transformation as either insert or update. You can define some rows as insert and some as
update, or all insert, or all update. By default, the row type of all rows entering a Lookup
transformation is insert. You can add an Update Strategy transformation before the Lookup
transformation to define the row type as update. For more information, see “Using Update
Strategy Transformations with a Dynamic Cache on page 354.
The Integration Service either inserts or updates rows in the cache, or does not change the
cache. The row type of the rows entering the Lookup transformation and the lookup query
result affect how the Integration Service updates the cache. However, you must also configure
the following Lookup properties to determine how the Integration Service updates the lookup
cache:
Insert Else Update. Applies to rows entering the Lookup transformation with the row type
of insert.
Update Else Insert. Applies to rows entering the Lookup transformation with the row type
of update.
Note: You can select either the Insert Else Update or Update Else Insert property, or you can
select both properties or neither property. The Insert Else Update property only affects rows
entering the Lookup transformation with the row type of insert. The Update Else Insert
property only affects rows entering the Lookup transformation with the row type of update.
Insert Else Update
You can select the Insert Else Update property in the Lookup transformation. This property
only applies to rows entering the Lookup transformation with the row type of insert. When a
Working with a Dynamic Lookup Cache 357
row of any other row type, such as update, enters the Lookup transformation, the Insert Else
Update property has no effect on how the Integration Service handles the row.
When you select Insert Else Update and the row type entering the Lookup transformation is
insert, the Integration Service inserts the row into the cache if it is new. If the row exists in the
index cache but the data cache is different than the current row, the Integration Service
updates the row in the data cache.
If you do not select Insert Else Update and the row type entering the Lookup transformation
is insert, the Integration Service inserts the row into the cache if it is new, and makes no
change to the cache if the row exists.
Table 15-4 describes how the Integration Service changes the lookup cache when the row type
of the rows entering the Lookup transformation is insert:
Update Else Insert
You can select the Update Else Insert property in the Lookup transformation. This property
only applies to rows entering the Lookup transformation with the row type of update. When a
row of any other row type, such as insert, enters the Lookup transformation, this property has
no effect on how the Integration Service handles the row.
When you select this property and the row type entering the Lookup transformation is
update, the Integration Service updates the row in the cache if the row exists in the index
cache and the cache data is different than the existing row. The Integration Service inserts the
row in the cache if it is new.
If you do not select this property and the row type entering the Lookup transformation is
update, the Integration Service updates the row in the cache if it exists, and makes no change
to the cache if the row is new.
Table 15-4. Dynamic Lookup Cache Behavior for Insert Row Type
Insert Else Update
Option
Row Found in
Cache
Data Cache is
Different
Lookup Cache
Result
NewLookupRow
Value
Cleared (insert only) Yes n/a No change 0
No n/a Insert 1
Selected Yes Yes Update 2*
Yes No No change 0
No n/a Insert 1
*If you select Ignore Null for all lookup ports not in the lookup condition and if all those ports contain null values, the Integration Service
does not change the cache and the NewLookupRow value equals 0. For more information, see “Using the Ignore Null Property” on
page 353.
358 Chapter 15: Lookup Caches
Table 15-5 describes how the Integration Service changes the lookup cache when the row type
of the rows entering the Lookup transformation is update:
Using the WHERE Clause with a Dynamic Cache
When you add a WHERE clause in a lookup SQL override, the Integration Service uses the
WHERE clause to build the cache from the database and to perform a lookup on the database
table for an uncached lookup. However, it does not use the WHERE clause to insert rows into
a dynamic cache when it runs a session.
When you add a WHERE clause in a Lookup transformation using a dynamic cache, connect
a Filter transformation before the Lookup transformation to filter rows you do not want to
insert into the cache or target table. If you do not use a Filter transformation, you might get
inconsistent data.
For example, you configure a Lookup transformation to perform a dynamic lookup on the
employee table, EMP, matching rows by EMP_ID. You define the following lookup SQL
override:
SELECT EMP_ID, EMP_STATUS FROM EMP ORDER BY EMP_ID, EMP_STATUS WHERE
EMP_STATUS = 4
When you first run the session, the Integration Service builds the lookup cache from the
target table based on the lookup SQL override. Therefore, all rows in the cache match the
condition in the WHERE clause, EMP_STATUS = 4.
Suppose the Integration Service reads a source row that meets the lookup condition you
specify (the value for EMP_ID is found in the cache), but the value of EMP_STATUS is 2.
The Integration Service does not find the row in the cache, so it inserts the row into the cache
and passes the row to the target table. When this happens, not all rows in the cache match the
condition in the WHERE clause. When the Integration Service tries to insert this row in the
target table, you might get inconsistent data if the row already exists there.
Table 15-5. Dynamic Lookup Cache Behavior for Update Row Type
Update Else Insert
Option
Row Found in
Cache
Data Cache is
Different
Lookup Cache
Result
NewLookupRow
Value
Cleared (update only) Yes Yes Update 2*
Yes No No change 0
No n/a No change 0
Selected Yes Yes Update 2*
Yes No No change 0
No n/a Insert 1
*If you select Ignore Null for all lookup ports not in the lookup condition and if all those ports contain null values, the Integration Service
does not change the cache and the NewLookupRow value equals 0. For more information, see “Using the Ignore Null Property” on
page 353.
Working with a Dynamic Lookup Cache 359
To verify that you only insert rows into the cache that match the WHERE clause, add a Filter
transformation before the Lookup transformation and define the filter condition as the
condition in the WHERE clause in the lookup SQL override.
For the example above, enter the following filter condition:
EMP_STATUS = 4
For more information about the lookup SQL override, see “Overriding the Lookup Query
on page 324.
Synchronizing the Dynamic Lookup Cache
When you use a dynamic lookup cache, the Integration Service writes to the lookup cache
before it writes to the target table. The lookup cache and target table can become
unsynchronized if the Integration Service does not write the data to the target. For example,
the target database or Informatica writer might reject the data.
Use the following guidelines to keep the lookup cache synchronized with the lookup table:
Use a Router transformation to pass rows to the cached target when the NewLookupRow
value equals one or two. Use the Router transformation to drop rows when the
NewLookupRow value equals zero, or you can output those rows to a different target.
Use Update Strategy transformations after the Lookup transformation to flag rows for
insert or update into the target.
Set the error threshold to one when you run a session. When you set the error threshold to
one, the session fails when it encounters the first error. The Integration Service does not
write the new cache files to disk. Instead, it restores the original cache files, if they exist.
You must also restore the pre-session target table to the target database. For more
information about setting the error threshold, see “Working with Sessions” in the
Workflow Administration Guide.
Verify that you output the same values to the target that the Integration Service writes to
the lookup cache. When you choose to output new values on update, only connect lookup/
output ports to the target table instead of input/output ports. When you choose to output
old values on update, add an Expression transformation after the Lookup transformation
and before the Router transformation. Add output ports in the Expression transformation
for each port in the target table and create expressions to ensure you do not output null
input values to the target.
Set the Treat Source Rows As property to Data Driven in the session properties.
Select Insert and Update as Update when you define the update strategy target table
options in the session properties. This ensures that the Integration Service updates rows
marked for update and inserts rows marked for insert. Select these options in the
Transformations View on the Mapping tab in the session properties. For more
information, see “Working with Targets in the Workflow Administration Guide.
360 Chapter 15: Lookup Caches
Null Values in Lookup Condition Columns
Sometimes when you run a session, the source data may contain null values in columns used
in the lookup condition. The Integration Service handles rows with null values in lookup
condition columns differently, depending on whether the row exists in the cache:
If the row does not exist in the lookup cache, the Integration Service inserts the row in the
cache and passes it to the target table.
If the row does exist in the lookup cache, the Integration Service does not update the row
in the cache or target table.
Note: If the source data contains null values in the lookup condition columns, set the error
threshold to one. This ensures that the lookup cache and table remain synchronized if the
Integration Service inserts a row in the cache, but the database rejects the row due to a Not
Null constraint.
Example Using a Dynamic Lookup Cache
Use a dynamic lookup cache when you need to insert and update rows in the target. When
you use a dynamic lookup cache, you can insert and update the cache with the same data you
pass to the target to insert and update.
For example, use a dynamic lookup cache to update a table that contains customer data. The
source data contains rows that you need to insert into the target and rows you need to update
in the target.

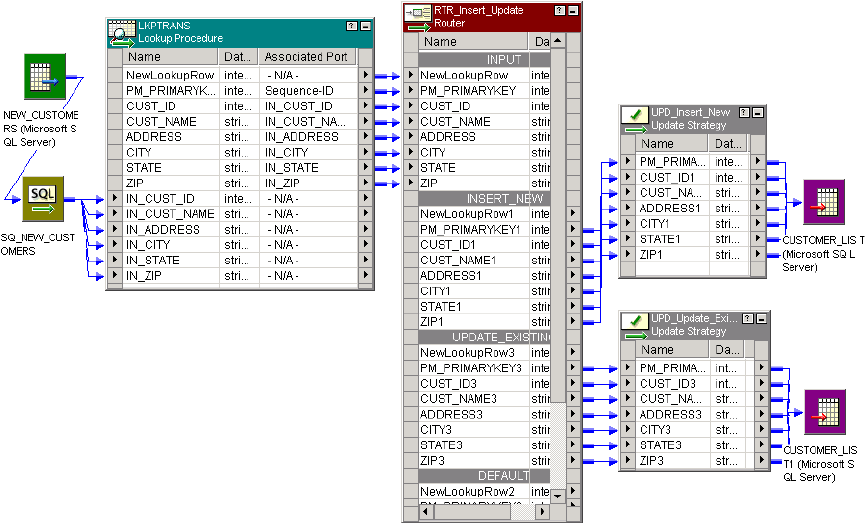

Figure 15-6 shows a mapping that uses a dynamic cache:
The Lookup transformation uses a dynamic lookup cache. When the session starts, the
Integration Service builds the lookup cache from the target table. When the Integration
Service reads a row that is not in the lookup cache, it inserts the row in the cache and then
passes the row out of the Lookup transformation. The Router transformation directs the row
to the UPD_Insert_New Update Strategy transformation. The Update Strategy
transformation marks the row as insert before passing it to the target.
The target table changes as the session runs, and the Integration Service inserts new rows and
updates existing rows in the lookup cache. The Integration Service keeps the lookup cache
and target table synchronized.
Figure 15-6. Slowly Changing Dimension Mapping with Dynamic Lookup Cache
Working with a Dynamic Lookup Cache 361
To generate keys for the target, use Sequence-ID in the associated port. The sequence ID
generates primary keys for new rows the Integration Service inserts into the target table.
Without the dynamic lookup cache, you need to use two Lookup transformations in the
mapping. Use the first Lookup transformation to insert rows in the target. Use the second
Lookup transformation to recache the target table and update rows in the target table.
You increase session performance when you use a dynamic lookup cache because you only
need to build the cache from the database once. You can continue to use the lookup cache
even though the data in the target table changes.
Rules and Guidelines for Dynamic Caches
Use the following guidelines when you use a dynamic lookup cache:
You can create a dynamic lookup cache from a relational or flat file source.
The Lookup transformation must be a connected transformation.
Use a persistent or a non-persistent cache.
If the dynamic cache is not persistent, the Integration Service always rebuilds the cache
from the database, even if you do not enable Recache from Lookup Source.
You cannot share the cache between a dynamic Lookup transformation and static Lookup
transformation in the same target load order group.
You can only create an equality lookup condition. You cannot look up a range of data.
Associate each lookup port (that is not in the lookup condition) with an input port or a
sequence ID.
Use a Router transformation to pass rows to the cached target when the NewLookupRow
value equals one or two. Use the Router transformation to drop rows when the
NewLookupRow value equals zero, or you can output those rows to a different target.
Verify that you output the same values to the target that the Integration Service writes to
the lookup cache. When you choose to output new values on update, only connect lookup/
output ports to the target table instead of input/output ports. When you choose to output
old values on update, add an Expression transformation after the Lookup transformation
and before the Router transformation. Add output ports in the Expression transformation
for each port in the target table and create expressions to ensure you do not output null
input values to the target.
When you use a lookup SQL override, make sure you map the correct columns to the
appropriate targets for lookup.
When you add a WHERE clause to the lookup SQL override, use a Filter transformation
before the Lookup transformation. This ensures the Integration Service only inserts rows
in the dynamic cache and target table that match the WHERE clause. For more
information, see “Using the WHERE Clause with a Dynamic Cache” on page 358.
When you configure a reusable Lookup transformation to use a dynamic cache, you
cannot edit the condition or disable the Dynamic Lookup Cache property in a mapping.
362 Chapter 15: Lookup Caches
Use Update Strategy transformations after the Lookup transformation to flag the rows for
insert or update for the target.
Use an Update Strategy transformation before the Lookup transformation to define some
or all rows as update if you want to use the Update Else Insert property in the Lookup
transformation.
Set the row type to Data Driven in the session properties.
Select Insert and Update as Update for the target table options in the session properties.
Sharing the Lookup Cache 363
Sharing the Lookup Cache
You can configure multiple Lookup transformations in a mapping to share a single lookup
cache. The Integration Service builds the cache when it processes the first Lookup
transformation. It uses the same cache to perform lookups for subsequent Lookup
transformations that share the cache.
You can share caches that are unnamed and named:
Unnamed cache. When Lookup transformations in a mapping have compatible caching
structures, the Integration Service shares the cache by default. You can only share static
unnamed caches.
Named cache. Use a persistent named cache when you want to share a cache file across
mappings or share a dynamic and a static cache. The caching structures must match or be
compatible with a named cache. You can share static and dynamic named caches.
When the Integration Service shares a lookup cache, it writes a message in the session log.
Sharing an Unnamed Lookup Cache
By default, the Integration Service shares the cache for Lookup transformations in a mapping
that have compatible caching structures. For example, if you have two instances of the same
reusable Lookup transformation in one mapping and you use the same output ports for both
instances, the Lookup transformations share the lookup cache by default.
When two Lookup transformations share an unnamed cache, the Integration Service saves the
cache for a Lookup transformation and uses it for subsequent Lookup transformations that
have the same lookup cache structure.
If the transformation properties or the cache structure do not allow sharing, the Integration
Service creates a new cache.
Guidelines for Sharing an Unnamed Lookup Cache
Use the following guidelines when you configure Lookup transformations to share an
unnamed cache:
You can share static unnamed caches.
Shared transformations must use the same ports in the lookup condition. The conditions
can use different operators, but the ports must be the same.
You must configure some of the transformation properties to enable unnamed cache
sharing. For more information, see Table 15-6 on page 364.
The structure of the cache for the shared transformations must be compatible.
If you use hash auto-keys partitioning, the lookup/output ports for each transformation
must match.
If you do not use hash auto-keys partitioning, the lookup/output ports for the first
shared transformation must match or be a superset of the lookup/output ports for
subsequent transformations.
364 Chapter 15: Lookup Caches
If the Lookup transformations with hash auto-keys partitioning are in different target load
order groups, you must configure the same number of partitions for each group. If you do
not use hash auto-keys partitioning, you can configure a different number of partitions for
each target load order group.
Table 15-6 shows when you can share an unnamed static and dynamic cache:
Table 15-7 describes the guidelines to follow when you configure Lookup transformations to
share an unnamed cache:
Table 15-6. Location for Sharing Unnamed Cache
Shared Cache Location of Transformations
Static with Static Anywhere in the mapping.
Dynamic with Dynamic Cannot share.
Dynamic with Static Cannot share.
Table 15-7. Properties for Sharing Unnamed Cache
Properties Configuration for Unnamed Shared Cache
Lookup SQL Override If you use the Lookup SQL Override property, you must use the same override in all
shared transformations.
Lookup Table Name Must match.
Lookup Caching Enabled Must be enabled.
Lookup Policy on Multiple
Match
n/a
Lookup Condition Shared transformations must use the same ports in the lookup condition. The
conditions can use different operators, but the ports must be the same.
Connection Information The connection must be the same. When you configure the sessions, the database
connection must match.
Source Type Must match.
Tracing Level n/a
Lookup Cache Directory Name Does not need to match.
Lookup Cache Persistent Optional. You can share persistent and non-persistent.
Lookup Data Cache Size Integration Service allocates memory for the first shared transformation in each
pipeline stage. It does not allocate additional memory for subsequent shared
transformations in the same pipeline stage.
For information about pipeline stages, see “Pipeline Partitioning” in the Workflow
Administration Guide.
Lookup Index Cache Size Integration Service allocates memory for the first shared transformation in each
pipeline stage. It does not allocate additional memory for subsequent shared
transformations in the same pipeline stage.
For information about pipeline stages, see “Pipeline Partitioning” in the Workflow
Administration Guide.
Sharing the Lookup Cache 365
Sharing a Named Lookup Cache
You can also share the cache between multiple Lookup transformations by using a persistent
lookup cache and naming the cache files. You can share one cache between Lookup
transformations in the same mapping or across mappings.
The Integration Service uses the following process to share a named lookup cache:
1. When the Integration Service processes the first Lookup transformation, it searches the
cache directory for cache files with the same file name prefix. For more information
about the Cache File Name Prefix property, see “Lookup Properties” on page 316.
2. If the Integration Service finds the cache files and you do not specify to recache from
source, the Integration Service uses the saved cache files.
3. If the Integration Service does not find the cache files or if you specify to recache from
source, the Integration Service builds the lookup cache using the database table.
Dynamic Lookup Cache You cannot share an unnamed dynamic cache.
Output Old Value On Update Does not need to match.
Cache File Name Prefix Do not use. You cannot share a named cache with an unnamed cache.
Recache From Lookup Source If you configure a Lookup transformation to recache from source, subsequent
Lookup transformations in the target load order group can share the existing cache
whether or not you configure them to recache from source. If you configure
subsequent Lookup transformations to recache from source, the Integration Service
shares the cache instead of rebuilding the cache when it processes the subsequent
Lookup transformation.
If you do not configure the first Lookup transformation in a target load order group to
recache from source, and you do configure the subsequent Lookup transformation to
recache from source, the transformations cannot share the cache. The Integration
Service builds the cache when it processes each Lookup transformation.
Lookup/Output Ports The lookup/output ports for the second Lookup transformation must match or be a
subset of the ports in the transformation that the Integration Service uses to build the
cache. The order of the ports do not need to match.
Insert Else Update n/a
Update Else Insert n/a
Datetime Format n/a
Thousand Separator n/a
Decimal Separator n/a
Case-Sensitive String
Comparison
Must match.
Null Ordering Must match.
Sorted Input n/a
Table 15-7. Properties for Sharing Unnamed Cache
Properties Configuration for Unnamed Shared Cache
366 Chapter 15: Lookup Caches
4. The Integration Service saves the cache files to disk after it processes each target load
order group.
5. The Integration Service uses the following rules to process the second Lookup
transformation with the same cache file name prefix:
The Integration Service uses the memory cache if the transformations are in the same
target load order group.
The Integration Service rebuilds the memory cache from the persisted files if the
transformations are in different target load order groups.
The Integration Service rebuilds the cache from the database if you configure the
transformation to recache from source and the first transformation is in a different
target load order group.
The Integration Service fails the session if you configure subsequent Lookup
transformations to recache from source, but not the first one in the same target load
order group.
If the cache structures do not match, the Integration Service fails the session.
If you run two sessions simultaneously that share a lookup cache, the Integration Service uses
the following rules to share the cache files:
The Integration Service processes multiple sessions simultaneously when the Lookup
transformations only need to read the cache files.
The Integration Service fails the session if one session updates a cache file while another
session attempts to read or update the cache file. For example, Lookup transformations
update the cache file if they are configured to use a dynamic cache or recache from source.
Guidelines for Sharing a Named Lookup Cache
Use the following guidelines when you configure Lookup transformations to share a named
cache:
You can share any combination of dynamic and static caches, but you must follow the
guidelines for location. For more information, see Tab le 15-8 on page 367.
You must configure some of the transformation properties to enable named cache sharing.
For more information, see Tab le 15-9 on page 367.
A dynamic lookup cannot share the cache if the named cache has duplicate rows.
A named cache created by a dynamic Lookup transformation with a lookup policy of error
on multiple match can be shared by a static or dynamic Lookup transformation with any
lookup policy.
A named cache created by a dynamic Lookup transformation with a lookup policy of use
first or use last can be shared by a Lookup transformation with the same lookup policy.
Shared transformations must use the same output ports in the mapping. The criteria and
result columns for the cache must match the cache files.
The Integration Service might use the memory cache, or it might build the memory cache
from the file, depending on the type and location of the Lookup transformations.
Sharing the Lookup Cache 367
Table 15-8 shows when you can share a static and dynamic named cache:
For more information about target load order groups, see “Mappings” in the Designer Guide.
Table 15-9 describes the guidelines to follow when you configure Lookup transformations to
share a named cache:
Table 15-8. Location for Sharing Named Cache
Shared Cache Location of Transformations Cache Shared
Static with Static - Same target load order group.
- Separate target load order groups.
- Separate mappings.
- Integration Service uses memory cache.
- Integration Service uses memory cache.
- Integration Service builds memory cache from file.
Dynamic with Dynamic - Separate target load order groups.
- Separate mappings.
- Integration Service uses memory cache.
- Integration Service builds memory cache from file.
Dynamic with Static - Separate target load order groups.
- Separate mappings.
- Integration Service builds memory cache from file.
- Integration Service builds memory cache from file.
Table 15-9. Properties for Sharing Named Cache
Properties Configuration for Named Shared Cache
Lookup SQL Override If you use the Lookup SQL Override property, you must use the same override in all
shared transformations.
Lookup Table Name Must match.
Lookup Caching Enabled Must be enabled.
Lookup Policy on Multiple
Match
- A named cache created by a dynamic Lookup transformation with a lookup policy of
error on multiple match can be shared by a static or dynamic Lookup transformation
with any lookup policy.
- A named cache created by a dynamic Lookup transformation with a lookup policy of
use first or use last can be shared by a Lookup transformation with the same lookup
policy.
Lookup Condition Shared transformations must use the same ports in the lookup condition. The conditions
can use different operators, but the ports must be the same.
Connection Information The connection must be the same. When you configure the sessions, the database
connection must match.
Source Type Must match.
Tracing Level n/a
Lookup Cache Directory
Name
Must match.
Lookup Cache Persistent Must be enabled.
Lookup Data Cache Size When transformations within the same mapping share a cache, the Integration Service
allocates memory for the first shared transformation in each pipeline stage. It does not
allocate additional memory for subsequent shared transformations in the same pipeline
stage. For information about pipeline stages, see “Pipeline Partitioning” in the Workflow
Administration Guide.
368 Chapter 15: Lookup Caches
Note: You cannot share a lookup cache created on a different operating system. For example,
only an Integration Service on UNIX can read a lookup cache created on a Integration Service
on UNIX, and only an Integration Service on Windows can read a lookup cache created on an
Integration Service on Windows.
Lookup Index Cache Size When transformations within the same mapping share a cache, the Integration Service
allocates memory for the first shared transformation in each pipeline stage. It does not
allocate additional memory for subsequent shared transformations in the same pipeline
stage. For information about pipeline stages, see “Pipeline Partitioning” in the Workflow
Administration Guide.
Dynamic Lookup Cache For more information about sharing static and dynamic cache, see Table 15-8 on
page 367.
Output Old Value on Update Does not need to match.
Cache File Name Prefix Must match. Enter the prefix only. Do not enter .idx or .dat. You cannot share a named
cache with an unnamed cache.
Recache from Source If you configure a Lookup transformation to recache from source, subsequent Lookup
transformations in the target load order group can share the existing cache whether or
not you configure them to recache from source. If you configure subsequent Lookup
transformations to recache from source, the Integration Service shares the cache
instead of rebuilding the cache when it processes the subsequent Lookup
transformation.
If you do not configure the first Lookup transformation in a target load order group to
recache from source, and you do configure the subsequent Lookup transformation to
recache from source, the session fails.
Lookup/Output Ports Lookup/output ports must be identical, but they do not need to be in the same order.
Insert Else Update n/a
Update Else Insert n/a
Thousand Separator n/a
Decimal Separator n/a
Case-Sensitive String
Comparison
n/a
Null Ordering n/a
Sorted Input Must match.
Table 15-9. Properties for Sharing Named Cache
Properties Configuration for Named Shared Cache
Lookup Cache Tips 369
Lookup Cache Tips
Use the following tips when you configure the Lookup transformation to cache the lookup
table:
Cache small lookup tables.
Improve session performance by caching small lookup tables. The result of the lookup
query and processing is the same, whether or not you cache the lookup table.
Use a persistent lookup cache for static lookup tables.
If the lookup table does not change between sessions, configure the Lookup
transformation to use a persistent lookup cache. The Integration Service then saves and
reuses cache files from session to session, eliminating the time required to read the lookup
table.
370 Chapter 15: Lookup Caches
371
Chapter 16
Normalizer
Transformation
This chapter includes the following topics:
Overview, 372
Normalizing Data in a Mapping, 373
Differences Between Normalizer Transformations, 378
Troubleshooting, 379
372 Chapter 16: Normalizer Transformation
Overview
Normalization is the process of organizing data to reduce redundancy. In database terms, this
includes creating normalized tables and establishing relationships between the tables
eliminating redundancy and inconsistent dependencies.
The Normalizer transformation normalizes records from COBOL and relational sources,
allowing you to organize the data. A Normalizer transformation can appear anywhere in a
pipeline when you normalize a relational source. Use a Normalizer transformation instead of
the Source Qualifier transformation when you normalize a COBOL source. When you drag a
COBOL source into the Mapping Designer workspace, the Mapping Designer creates a
Normalizer transformation with input and output ports for every column in the source.
You primarily use the Normalizer transformation with COBOL sources, which are often
stored in a denormalized format. The OCCURS statement in a COBOL file nests multiple
records of information in a single record. Using the Normalizer transformation, you break out
repeated data within a record into separate records. For each new record it creates, the
Normalizer transformation generates a unique identifier. Use this key value to join the
normalized records.
You can also use the Normalizer transformation with relational sources to create multiple rows
from a single row of data.
Transformation type:
Active
Connected
Normalizing Data in a Mapping 373
Normalizing Data in a Mapping
Although the Normalizer transformation is designed to handle data read from COBOL
sources, you can also use it to denormalize data from any type of source in a mapping. You
can add a Normalizer transformation to any data flow within a mapping to normalize
components of a single record that contains denormalized data.
If you have denormalized data for which the Normalizer transformation has created key
values, connect the ports representing the repeated data and the output port for the generated
keys to a different pipeline branch in the mapping. Ultimately, you may want to write these
values to different targets.
Use a single Normalizer transformation to handle multiple levels of denormalization in the
same record. For example, a single record might contain two different detail record sets.
Rather than using two Normalizer transformations to handle the two different detail record
sets, you handle both normalizations in the same transformation.
Normalizer Ports
When you create a Normalizer for a COBOL source, or in the mapping pipeline, the
Designer identifies the OCCURS and REDEFINES statements and generates the following
columns:
Generated key. One port for each REDEFINES clause. For more information, see
“Generated Key” on page 373.
Generated Column ID. One port for each OCCURS clause. For more information, see
“Generated Column ID” on page 374.
Use these ports for primary and foreign key columns. The Normalizer key and column ID
columns are also useful when you want to pivot input columns into rows. You cannot delete
these ports.
Generated Key
The Designer generates a port for each REDEFINES clause to specify the generated key. Use
the generated key as a primary key column in the target table and to create a primary-foreign
key relationship. The naming convention for the Normalizer generated key is:
GK_<redefined_field_name>
As shown in Figure 16-1 on page 375, the Designer adds one column (GK_FILE_ONE and
GK_HST_AMT) for each REDEFINES in the COBOL source. The Normalizer GK columns
tell you the order of records in a REDEFINES clause. For example, if a COBOL file has 10
records, when you run the workflow, the Integration Service numbers the first record 1, the
second record 2, and so on.
You can create approximately two billion primary or foreign key values with the Normalizer
by connecting the GK port to the transformation or target and using the values ranging from
1 to 2147483647. At the end of each session, the Integration Service updates the GK value to
the last value generated for the session plus one.
374 Chapter 16: Normalizer Transformation
If you have multiple versions of the Normalizer transformation, the Integration Service
updates the GK value across all versions when it runs a session.
If you open the mapping after you run the session, the current value displays the last value
generated for the session plus one. Since the Integration Service uses the GK value to
determine the first value for each session, you should only edit the GK value if you want to
reset the sequence.
If you have multiple versions of the Normalizer, and you want to reset the sequence, you must
check in the mapping after you modify the GK value.
Generated Column ID
The Designer generates a port for each OCCURS clause to specify the positional index within
an OCCURS clause. Use the generated column ID to create a primary-foreign key
relationship. The naming convention for the Normalizer generated column ID is:
GCID_<occuring_field_name>
As shown in Figure 16-1 on page 375, the Designer adds one column (GCID_HST_MTH
and GCID_HST_AMT) for each OCCURS in the COBOL source. The Normalizer GCID
columns tell you the order of records in an OCCURS clause. For example, if a record occurs
two times, when you run the workflow, the Integration Service numbers the first record 1 and
the second record 2.
Adding a COBOL Source to a Mapping
When you add a COBOL source to a mapping, the Mapping Designer inserts and configures
a Normalizer transformation. The Normalizer transformation identifies the nested records
within the COBOL source and displays them accordingly.
To add a COBOL source to a mapping:
1. In the Designer, create a new mapping or open an existing one.
2. Drag an imported COBOL source definition into the mapping.
If the Designer does not create a Normalizer transformation by default, manually create
the Normalizer transformation.
For example, when you add the COBOL source to a mapping, the Designer adds a
Normalizer transformation and connects it to the COBOL source definition.
Normalizing Data in a Mapping 375
Figure 16-1 shows that the ports representing HST_MTH appear separately within the
Normalizer transformation:
If you connect the ports directly from the Normalizer transformation to targets, you
connect the records from HST_MTH, represented in the Normalizer transformation, to
their own target definition, distinct from any other target that may appear in the
mapping.
3. Open the new Normalizer transformation.
4. Select the Ports tab and review the ports in the Normalizer transformation.
5. Click the Normalizer tab to review the original organization of the COBOL source.
This tab contains the same information as in the Columns tab of the source definition for
this COBOL source. However, you cannot modify the field definitions in the Normalizer
transformation. If you need to make modifications, open the source definition in the
Source Analyzer.
6. Select the Properties tab and enter the following settings:
7. Click OK.
8. Connect the Normalizer transformation to the rest of the mapping.
If you have denormalized data for which the Normalizer transformation has created key
values, connect the ports representing the repeated data and the output port for the generated
Figure 16-1. COBOL Source Definition and a Normalizer Transformation
Setting Description
Reset Resets the generated key value after the session finishes to its original value.
Restart Restarts the generated key values from 1 every time you run a session.
Tracing level Determines the amount of information about this transformation that the Integration Service
writes to the session log. You can override this tracing level when you configure a session.
376 Chapter 16: Normalizer Transformation
keys to a different portion of the data flow in the mapping. Ultimately, you may want to write
these values to different targets.
To add a Normalizer transformation to a mapping:
1. In the Mapping Designer, click Transformation > Create. Select Normalizer
transformation. Enter a name for the Normalizer transformation. Click Create.
The naming convention for Normalizer transformations is NRM_TransformationName.
The Designer creates the Normalizer transformation.
If the mapping contains a COBOL source, and you do not have the option set to create a
source qualifier, the Create Normalizer Transformation dialog box appears. For more
information about this option, see “Using the Designer” in the Designer Guide.
2. If the create Normalizer Transformation dialog box appears, select the Normalizer
transformation type.
3. Select the source for this transformation. Click OK.
4. Open the new Normalizer transformation.
5. Select the Normalizer tab and add new output ports.
Add a port corresponding to each column in the source record that contains
denormalized data. The new ports only allow the number or string datatypes. You can
create only new ports in the Normalizer tab, not the Ports tab.
Using the level controls in the Normalizer transformation, identify which ports belong to
the master and detail records. Adjust these ports so that the level setting for detail ports is
higher than the level setting for the master record. For example, if ports from the master
record are at level 1, the detail ports are at level 2. When you adjust the level setting for
the first detail port, the Normalizer transformation creates a heading for the detail record.
Enter the number of times detail records repeat within each master record.
6. After configuring the output ports, click Apply.
The Normalizer transformation creates all the input and output ports needed to connect
master and detail records to the rest of the mapping. In addition, the Normalizer
Normalizing Data in a Mapping 377
transformation creates a generated key column for joining master and detail records.
When you run a session, the Integration Service generates unique IDs for these columns.
7. Select the Properties tab and enter the following settings:
8. Click OK.
9. Connect the Normalizer transformation to the rest of the mapping.
10. Click Repository > Save.
Setting Description
Reset Reset generated key sequence values at the end of the session.
Restart Start the generated key sequence values from 1.
Tracing level Determines the amount of information Integration Service writes to the session log. You
can override this tracing level when you configure a session.
378 Chapter 16: Normalizer Transformation
Differences Between Normalizer Transformations
There are a number of differences between a VSAM Normalizer transformation using
COBOL sources and a pipeline Normalizer transformation.
Table 16-1 lists the differences between Normalizer transformations:
Note: Concatenation from the Normalizer transformation occurs only when the row sets being
concatenated are of the order one. You cannot concatenate row sets in which the order is
greater than one.
Table 16-1. VSAM and Relational Normalizer Transformation Differences
VSAM Normalizer Transformation Pipeline Normalizer Transformation
Connection COBOL source Any transformation
Port creation Created based on the COBOL source Created manually
Ni-or-1 rule Yes Yes
Transformations allowed
before the Normalizer
transformation
No Yes
Transformations allowed
after the Normalizer
Transformation
Yes Yes
Reusable No Yes
Ports Input/Output Input/Output
Troubleshooting 379
Troubleshooting
I cannot edit the ports in my Normalizer transformation when using a relational source.
When you create ports manually, you must do so on the Normalizer tab in the
transformation, not the Ports tab.
Importing a COBOL file failed with a lot of errors. What should I do?
Check the file heading to see if it follows the COBOL standard, including spaces, tabs, and
end of line characters. The header should be similar to the following:
identification division.
program-id. mead.
environment division.
select file-one assign to "fname".
data division.
file section.
fd FILE-ONE.
The import parser does not handle hidden characters or extra spacing very well. Be sure to use
a text-only editor to make changes to the COBOL file, such as the DOS edit command. Do
not use Notepad or Wordpad.
A session that reads binary data completed, but the information in the target table is
incorrect.
Open the session in the Workflow Manager, edit the session, and check the source file format
to see if the EBCDIC/ASCII is set correctly. The number of bytes to skip between records
must be set to 0.
I have a COBOL field description that uses a non-IBM COMP type. How should I import the
source?
In the source definition, clear the IBM COMP option.
In my mapping, I use one Expression transformation and one Lookup transformation to
modify two output ports from the Normalizer transformation. The mapping concatenates
them into one single transformation. All the ports are under the same level, which does not
violate the Ni-or-1 rule. When I check the data loaded in the target, it is incorrect. Why is
that?
You can only concatenate ports from level one. Remove the concatenation.
380 Chapter 16: Normalizer Transformation
381
Chapter 17
Rank Transformation
This chapter includes the following topics:
Overview, 382
Ports in a Rank Transformation, 384
Defining Groups, 385
Creating a Rank Transformation, 386
382 Chapter 17: Rank Transformation
Overview
You can select only the top or bottom rank of data with Rank transformation. Use a Rank
transformation to return the largest or smallest numeric value in a port or group. You can also
use a Rank transformation to return the strings at the top or the bottom of a session sort
order. During the session, the Integration Service caches input data until it can perform the
rank calculations.
The Rank transformation differs from the transformation functions MAX and MIN, in that it
lets you select a group of top or bottom values, not just one value. For example, use Rank to
select the top 10 salespersons in a given territory. Or, to generate a financial report, you might
also use a Rank transformation to identify the three departments with the lowest expenses in
salaries and overhead. While the SQL language provides many functions designed to handle
groups of data, identifying top or bottom strata within a set of rows is not possible using
standard SQL functions.
You connect all ports representing the same row set to the transformation. Only the rows that
fall within that rank, based on some measure you set when you configure the transformation,
pass through the Rank transformation. You can also write expressions to transform data or
perform calculations.
Figure 17-1 shows a mapping that passes employee data from a human resources table
through a Rank transformation. The Rank only passes the rows for the top 10 highest paid
employees to the next transformation.
As an active transformation, the Rank transformation might change the number of rows
passed through it. You might pass 100 rows to the Rank transformation, but select to rank
only the top 10 rows, which pass from the Rank transformation to another transformation.
You can connect ports from only one transformation to the Rank transformation. You can
also create local variables and write non-aggregate expressions.
Transformation type:
Active
Connected
Figure 17-1. Sample Mapping with a Rank Transformation
Overview 383
Ranking String Values
When the Integration Service runs in the ASCII data movement mode, it sorts session data
using a binary sort order.
When the Integration Service runs in Unicode data movement mode, the Integration Service
uses the sort order configured for the session. You select the session sort order in the session
properties. The session properties lists all available sort orders based on the code page used by
the Integration Service.
For example, you have a Rank transformation configured to return the top three values of a
string port. When you configure the workflow, you select the Integration Service on which
you want the workflow to run. The session properties display all sort orders associated with
the code page of the selected Integration Service, such as French, German, and Binary. If you
configure the session to use a binary sort order, the Integration Service calculates the binary
value of each string, and returns the three rows with the highest binary values for the string.
Rank Caches
During a session, the Integration Service compares an input row with rows in the data cache.
If the input row out-ranks a cached row, the Integration Service replaces the cached row with
the input row. If you configure the Rank transformation to rank across multiple groups, the
Integration Service ranks incrementally for each group it finds.
The Integration Service stores group information in an index cache and row data in a data
cache. If you create multiple partitions in a pipeline, the Integration Service creates separate
caches for each partition. For more information about caching, see “Session Caches” in the
Workflow Administration Guide.
Rank Transformation Properties
When you create a Rank transformation, you can configure the following properties:
Enter a cache directory.
Select the top or bottom rank.
Select the input/output port that contains values used to determine the rank. You can
select only one port to define a rank.
Select the number of rows falling within a rank.
Define groups for ranks, such as the 10 least expensive products for each manufacturer.
384 Chapter 17: Rank Transformation
Ports in a Rank Transformation
The Rank transformation includes input or input/output ports connected to another
transformation in the mapping. It also includes variable ports and a rank port. Use the rank
port to specify the column you want to rank.
Table 17-1 lists the ports in a Rank transformation:
Rank Index
The Designer creates a RANKINDEX port for each Rank transformation. The Integration
Service uses the Rank Index port to store the ranking position for each row in a group. For
example, if you create a Rank transformation that ranks the top five salespersons for each
quarter, the rank index numbers the salespeople from 1 to 5:
The RANKINDEX is an output port only. You can pass the rank index to another
transformation in the mapping or directly to a target.
Table 17-1. Rank Transformation Ports
Ports Number Required Description
IMinimum of one Input port. Create an input port to receive data from another transformation.
OMinimum of one Output port. Create an output port for each port you want to link to another
transformation. You can designate input ports as output ports.
VNot Required Variable port. Can use to store values or calculations to use in an
expression. Variable ports cannot be input or output ports. They pass data
within the transformation only.
ROne only Rank port. Use to designate the column for which you want to rank values.
You can designate only one Rank port in a Rank transformation. The Rank
port is an input/output port. You must link the Rank port to another
transformation.
RANKINDEX SALES_PERSON SALES
1Sam 10,000
2Mary 9,000
3Alice 8,000
4Ron 7,000
5Alex 6,000
Defining Groups 385
Defining Groups
Like the Aggregator transformation, the Rank transformation lets you group information. For
example, if you want to select the 10 most expensive items by manufacturer, you would first
define a group for each manufacturer. When you configure the Rank transformation, you can
set one of its input/output ports as a group by port. For each unique value in the group port
(for example, MANUFACTURER_ID or MANUFACTURER_NAME), the transformation
creates a group of rows falling within the rank definition (top or bottom, and a particular
number in each rank).
Therefore, the Rank transformation changes the number of rows in two different ways. By
filtering all but the rows falling within a top or bottom rank, you reduce the number of rows
that pass through the transformation. By defining groups, you create one set of ranked rows
for each group.
For example, you might create a Rank transformation to identify the 50 highest paid
employees in the company. In this case, you would identify the SALARY column as the input/
output port used to measure the ranks, and configure the transformation to filter out all rows
except the top 50.
After the Rank transformation identifies all rows that belong to a top or bottom rank, it then
assigns rank index values. In the case of the top 50 employees, measured by salary, the highest
paid employee receives a rank index of 1. The next highest-paid employee receives a rank
index of 2, and so on. When measuring a bottom rank, such as the 10 lowest priced products
in the inventory, the Rank transformation assigns a rank index from lowest to highest.
Therefore, the least expensive item would receive a rank index of 1.
If two rank values match, they receive the same value in the rank index and the
transformation skips the next value. For example, if you want to see the top five retail stores in
the country and two stores have the same sales, the return data might look similar to the
following:
RANKINDEX SALES STORE
110000 Orange
110000 Brea
390000 Los Angeles
480000 Ventura
386 Chapter 17: Rank Transformation
Creating a Rank Transformation
You can add a Rank transformation anywhere in the mapping after the source qualifier.
To create a Rank transformation:
1. In the Mapping Designer, click Transformation > Create. Select the Rank transformation.
Enter a name for the Rank. The naming convention for Rank transformations is
RNK_TransformationName.
Enter a description for the transformation. This description appears in the Repository
Manager.
2. Click Create, and then click Done.
The Designer creates the Rank transformation.
3. Link columns from an input transformation to the Rank transformation.
4. Click the Ports tab, and then select the Rank (R) option for the port used to measure
ranks.
If you want to create groups for ranked rows, select Group By for the port that defines
the group.
Creating a Rank Transformation 387
5. Click the Properties tab and select whether you want the top or bottom rank.
6. For the Number of Ranks option, enter the number of rows you want to select for the
rank.
7. Change the other Rank transformation properties, if necessary.
Table 17-2 describes the Rank transformation properties:
Table 17-2. Rank Transformation Properties
Setting Description
Cache Directory Local directory where the Integration Service creates the index and data
cache files. By default, the Integration Service uses the directory entered
in the Workflow Manager for the process variable $PMCacheDir. If you
enter a new directory, make sure the directory exists and contains
enough disk space for the cache files.
Top/Bottom Specifies whether you want the top or bottom ranking for a column.
Number of Ranks Number of rows you want to rank.
Case-Sensitive String Comparison When running in Unicode mode, the Integration Service ranks strings
based on the sort order selected for the session. If the session sort order
is case-sensitive, select this option to enable case-sensitive string
comparisons, and clear this option to have the Integration Service ignore
case for strings. If the sort order is not case-sensitive, the Integration
Service ignores this setting. By default, this option is selected.
Tracing Level Determines the amount of information the Integration Service writes to
the session log about data passing through this transformation in a
session.
388 Chapter 17: Rank Transformation
8. Click OK.
9. Click Repository > Save.
Rank Data Cache Size Data cache size for the transformation. Default is 2,000,000 bytes. If the
total configured session cache size is 2 GB (2,147,483,648 bytes) or
more, you must run the session on a 64-bit Integration Service. You can
configure a numeric value, or you can configure the Integration Service
to determine the cache size at runtime. If you configure the Integration
Service to determine the cache size, you can also configure a maximum
amount of memory for the Integration Service to allocate to the cache.
Rank Index Cache Size Index cache size for the transformation. Default is 1,000,000 bytes. If the
total configured session cache size is 2 GB (2,147,483,648 bytes) or
more, you must run the session on a 64-bit Integration Service. You can
configure a numeric value, or you can configure the Integration Service
to determine the cache size at runtime. If you configure the Integration
Service to determine the cache size, you can also configure a maximum
amount of memory for the Integration Service to allocate to the cache.
Transformation Scope Specifies how the Integration Service applies the transformation logic to
incoming data:
- Transaction. Applies the transformation logic to all rows in a
transaction. Choose Transaction when a row of data depends on all
rows in the same transaction, but does not depend on rows in other
transactions.
- All Input. Applies the transformation logic on all incoming data. When
you choose All Input, the PowerCenter drops incoming transaction
boundaries. Choose All Input when a row of data depends on all rows in
the source.
For more information about transformation scope, see “Understanding
Commit Points” in the Workflow Administration Guide.
Table 17-2. Rank Transformation Properties
Setting Description
389
Chapter 18
Router Transformation
This chapter includes the following topics:
Overview, 390
Working with Groups, 392
Working with Ports, 396
Connecting Router Transformations in a Mapping, 398
Creating a Router Transformation, 400
390 Chapter 18: Router Transformation
Overview
A Router transformation is similar to a Filter transformation because both transformations
allow you to use a condition to test data. A Filter transformation tests data for one condition
and drops the rows of data that do not meet the condition. However, a Router transformation
tests data for one or more conditions and gives you the option to route rows of data that do
not meet any of the conditions to a default output group.
If you need to test the same input data based on multiple conditions, use a Router
transformation in a mapping instead of creating multiple Filter transformations to perform
the same task. The Router transformation is more efficient. For example, to test data based on
three conditions, you only need one Router transformation instead of three filter
transformations to perform this task. Likewise, when you use a Router transformation in a
mapping, the Integration Service processes the incoming data only once. When you use
multiple Filter transformations in a mapping, the Integration Service processes the incoming
data for each transformation.
Figure 18-1 shows two mappings that perform the same task. Mapping A uses three Filter
transformations while Mapping B produces the same result with one Router transformation:
A Router transformation consists of input and output groups, input and output ports, group
filter conditions, and properties that you configure in the Designer.
Transformation type:
Active
Connected
Figure 18-1. Comparing Router and Filter Transformations
Mapping BMapping A
Overview 391

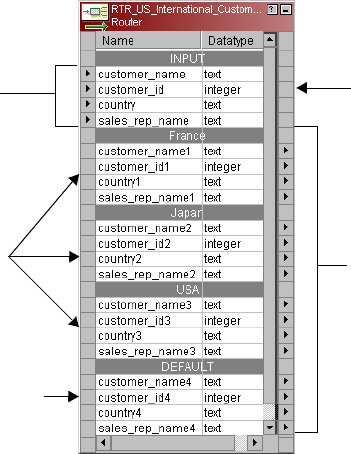

Figure 18-2 shows a sample Router transformation and its components:
Figure 18-2. Sample Router Transformation
Input Ports
User-Defined
Output Groups Output Ports
Input Group
Default Output Group
392 Chapter 18: Router Transformation
Working with Groups
A Router transformation has the following types of groups:
Input
Output
Input Group
The Designer copies property information from the input ports of the input group to create a
set of output ports for each output group.
Output Groups
There are two types of output groups:
User-defined groups
Default group
You cannot modify or delete output ports or their properties.
User-Defined Groups
You create a user-defined group to test a condition based on incoming data. A user-defined
group consists of output ports and a group filter condition. You can create and edit user-
defined groups on the Groups tab with the Designer. Create one user-defined group for each
condition that you want to specify.
The Integration Service uses the condition to evaluate each row of incoming data. It tests the
conditions of each user-defined group before processing the default group. The Integration
Service determines the order of evaluation for each condition based on the order of the
connected output groups. The Integration Service processes user-defined groups that are
connected to a transformation or a target in a mapping. The Integration Service only
processes user-defined groups that are not connected in a mapping if the default group is
connected to a transformation or a target.
If a row meets more than one group filter condition, the Integration Service passes this row
multiple times.
The Default Group
The Designer creates the default group after you create one new user-defined group. The
Designer does not allow you to edit or delete the default group. This group does not have a
group filter condition associated with it. If all of the conditions evaluate to FALSE, the
Integration Service passes the row to the default group. If you want the Integration Service to
Working with Groups 393
drop all rows in the default group, do not connect it to a transformation or a target in a
mapping.
The Designer deletes the default group when you delete the last user-defined group from the
list.
Using Group Filter Conditions
You can test data based on one or more group filter conditions. You create group filter
conditions on the Groups tab using the Expression Editor. You can enter any expression that
returns a single value. You can also specify a constant for the condition. A group filter
condition returns TRUE or FALSE for each row that passes through the transformation,
depending on whether a row satisfies the specified condition. Zero (0) is the equivalent of
FALSE, and any non-zero value is the equivalent of TRUE. The Integration Service passes the
rows of data that evaluate to TRUE to each transformation or target that is associated with
each user-defined group.
For example, you have customers from nine countries, and you want to perform different
calculations on the data from only three countries. You might want to use a Router
transformation in a mapping to filter this data to three different Expression transformations.
There is no group filter condition associated with the default group. However, you can create
an Expression transformation to perform a calculation based on the data from the other six
countries.

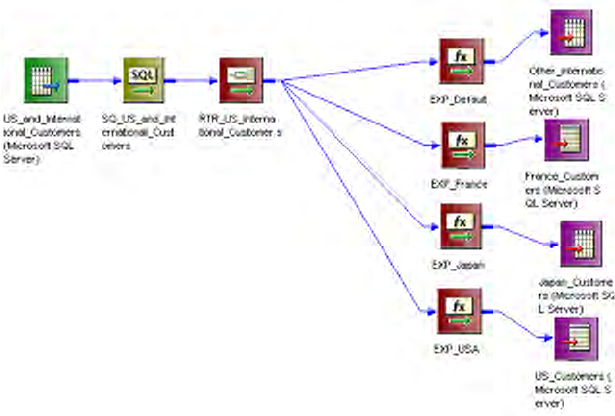

Figure 18-3 shows a mapping with a Router transformation that filters data based on multiple
conditions:
Figure 18-3. Using a Router Transformation in a Mapping
394 Chapter 18: Router Transformation
Since you want to perform multiple calculations based on the data from three different
countries, create three user-defined groups and specify three group filter conditions on the
Groups tab.

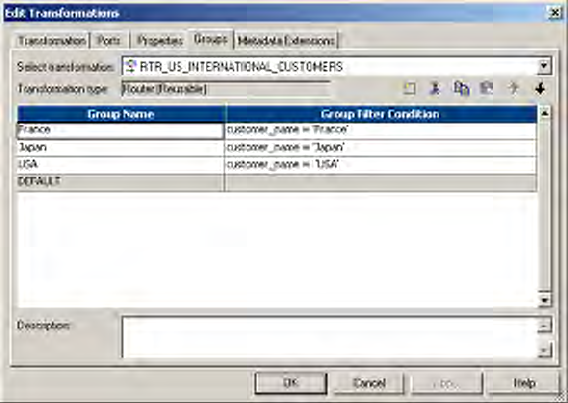

Figure 18-4 shows specifying group filter conditions in a Router transformation to filter
customer data:
In the session, the Integration Service passes the rows of data that evaluate to TRUE to each
transformation or target that is associated with each user-defined group, such as Japan,
France, and USA. The Integration Service passes the row to the default group if all of the
conditions evaluate to FALSE. If this happens, the Integration Service passes the data of the
other six countries to the transformation or target that is associated with the default group. If
you want the Integration Service to drop all rows in the default group, do not connect it to a
transformation or a target in a mapping.
Adding Groups
Adding a group is similar to adding a port in other transformations. The Designer copies
property information from the input ports to the output ports. For more information, see
“Working with Groups on page 392.
To add a group to a Router transformation:
1. Click the Groups tab.
2. Click the Add button.
3. Enter a name for the new group in the Group Name section.
4. Click the Group Filter Condition field and open the Expression Editor.
Figure 18-4. Specifying Group Filter Conditions
Working with Groups 395
5. Enter the group filter condition.
6. Click Validate to check the syntax of the condition.
7. Click OK.
396 Chapter 18: Router Transformation
Working with Ports
A Router transformation has input ports and output ports. Input ports are in the input group,
and output ports are in the output groups. You can create input ports by copying them from
another transformation or by manually creating them on the Ports tab.

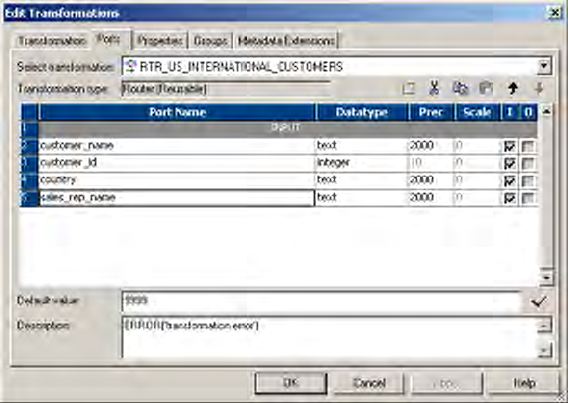

Figure 18-5 shows the Ports tab of a Router transformation:
The Designer creates output ports by copying the following properties from the input ports:
Port name
Datatype
Precision
Scale
Default value
When you make changes to the input ports, the Designer updates the output ports to reflect
these changes. You cannot edit or delete output ports. The output ports display in the Normal
view of the Router transformation.
The Designer creates output port names based on the input port names. For each input port,
the Designer creates a corresponding output port in each output group.
Figure 18-5. Router Transformation Ports Tab
Working with Ports 397

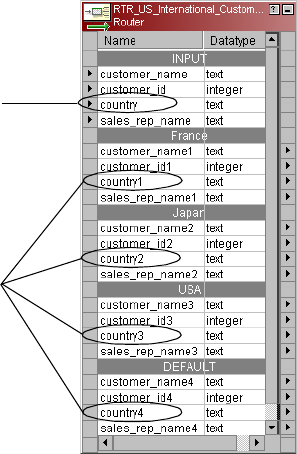

Figure 18-6 shows the output port names of a Router transformation in Normal view that
correspond to the input port names:
Figure 18-6. Input Port Name and Corresponding Output Port Names
Input Port Name
Corresponding
Output Port
Names
398 Chapter 18: Router Transformation
Connecting Router Transformations in a Mapping
When you connect transformations to a Router transformation in a mapping, consider the
following rules:
You can connect one group to one transformation or target.
You can connect one output port in a group to multiple transformations or targets.
You can connect multiple output ports in one group to multiple transformations or targets.
You cannot connect more than one group to one target or a single input group
transformation.
Port 1
Port 2
Port 3
Port 4
Output Group 1
Port 1
Port 2
Port 3
Output Group 2
Port 1
Port 2
Port 3
Port 1
Port 2
Port 3
Port 4
Output Group 1
Port 1
Port 2
Port 3
Output Group 2
Port 1
Port 2
Port 3
Port 1
Port 2
Port 3
Port 4
Port 1
Port 2
Port 3
Port 4
Output Group 1
Port 1
Port 2
Port 3
Output Group 2
Port 1
Port 2
Port 3
Port 1
Port 2
Port 3
Port 4
Port 1
Port 2
Port 3
Port 4
Output Group 1
Port 1
Port 2
Port 3
Output Group 2
Port 1
Port 2
Port 3
Connecting Router Transformations in a Mapping 399
You can connect more than one group to a multiple input group transformation, except for
Joiner transformations, when you connect each output group to a different input group.
Output Group 1
Port 1
Port 2
Port 3
Output Group 2
Port 1
Port 2
Port 3
Input Group 1
Port 1
Port 2
Port 3
Input Group 2
Port 1
Port 2
Port 3
400 Chapter 18: Router Transformation
Creating a Router Transformation
To add a Router transformation to a mapping, complete the following steps.
To create a Router transformation:
1. In the Mapping Designer, open a mapping.
2. Click Transformation > Create.
Select Router transformation, and enter the name of the new transformation. The
naming convention for the Router transformation is RTR_TransformationName. Click
Create, and then click Done.
3. Select and drag all the ports from a transformation to add them to the Router
transformation, or you can manually create input ports on the Ports tab.
4. Double-click the title bar of the Router transformation to edit transformation properties.
5. Click the Transformation tab and configure transformation properties.
6. Click the Properties tab and configure tracing levels.
For more information about configuring tracing levels, see “Configuring Tracing Level in
Transformations” on page 30.
7. Click the Groups tab, and then click the Add button to create a user-defined group.
The Designer creates the default group when you create the first user-defined group.
8. Click the Group Filter Condition field to open the Expression Editor.
9. Enter a group filter condition.
10. Click Validate to check the syntax of the conditions you entered.
11. Click OK.
12. Connect group output ports to transformations or targets.
13. Click Repository > Save.
401
Chapter 19
Sequence Generator
Transformation
This chapter includes the following topics:
Overview, 402
Common Uses, 403
Sequence Generator Ports, 404
Transformation Properties, 407
Creating a Sequence Generator Transformation, 412
402 Chapter 19: Sequence Generator Transformation
Overview
The Sequence Generator transformation generates numeric values. Use the Sequence
Generator to create unique primary key values, replace missing primary keys, or cycle through
a sequential range of numbers.
The Sequence Generator transformation is a connected transformation. It contains two
output ports that you can connect to one or more transformations. The Integration Service
generates a block of sequence numbers each time a block of rows enters a connected
transformation. If you connect CURRVAL, the Integration Service processes one row in each
block. When NEXTVAL is connected to the input port of another transformation, the
Integration Service generates a sequence of numbers. When CURRVAL is connected to the
input port of another transformation, the Integration Service generates the NEXTVAL value
plus the Increment By value.
You can make a Sequence Generator reusable, and use it in multiple mappings. You might
reuse a Sequence Generator when you perform multiple loads to a single target.
For example, if you have a large input file that you separate into three sessions running in
parallel, use a Sequence Generator to generate primary key values. If you use different
Sequence Generators, the Integration Service might generate duplicate key values. Instead,
use the reusable Sequence Generator for all three sessions to provide a unique value for each
target row.
Transformation type:
Passive
Connected
Common Uses 403
Common Uses
You can complete the following tasks with a Sequence Generator transformation:
Create keys.
Replace missing values.
Cycle through a sequential range of numbers.
Creating Keys
You can create approximately two billion primary or foreign key values with the Sequence
Generator transformation by connecting the NEXTVAL port to the transformation or target
and using the widest range of values (1 to 2147483647) with the smallest interval (1).
When you create primary or foreign keys, only use the Cycle option to prevent the Integration
Service from creating duplicate primary keys. You might do this by selecting the Truncate
Target Table option in the session properties (if appropriate) or by creating composite keys.
To create a composite key, you can configure the Integration Service to cycle through a
smaller set of values. For example, if you have three stores generating order numbers, you
might have a Sequence Generator cycling through values from 1 to 3, incrementing by 1.
When you pass the following set of foreign keys, the generated values then create unique
composite keys:
Replacing Missing Values
Use the Sequence Generator transformation to replace missing keys by using NEXTVAL with
the IIF and ISNULL functions.
For example, to replace null values in the ORDER_NO column, you create a Sequence
Generator transformation with the properties and drag the NEXTVAL port to an Expression
transformation. In the Expression transformation, drag the ORDER_NO port into the
transformation (along with any other necessary ports). Then create a new output port,
ALL_ORDERS.
In ALL_ORDERS, you can then enter the following expression to replace null orders:
IIF( ISNULL( ORDER_NO ), NEXTVAL, ORDER_NO )
COMPOSITE_KEY ORDER_NO
112345
212345
312345
112346
212346
312346
404 Chapter 19: Sequence Generator Transformation
Sequence Generator Ports
The Sequence Generator transformation provides two output ports: NEXTVAL and
CURRVAL. You cannot edit or delete these ports. Likewise, you cannot add ports to the
transformation.
NEXTVAL
Connect NEXTVAL to multiple transformations to generate unique values for each row in
each transformation. Use the NEXTVAL port to generate sequence numbers by connecting it
to a transformation or target. You connect the NEXTVAL port to a downstream
transformation to generate the sequence based on the Current Value and Increment By
properties. For more information about Sequence Generator properties, see Tab le 19-1 on
page 407.
For example, you might connect NEXTVAL to two target tables in a mapping to generate
unique primary key values. The Integration Service creates a column of unique primary key
values for each target table. The column of unique primary key values is sent to one target
table as a block of sequence numbers. The second targets receives a block of sequence
numbers from the Sequence Generator transformation only after the first target table receives
the block of sequence numbers.

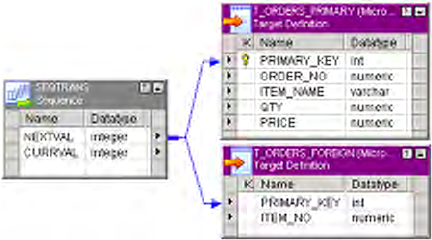

Figure 19-1 shows connecting NEXTVAL to two target tables in a mapping:
For example, you configure the Sequence Generator transformation as follows: Current Value
= 1, Increment By = 1. When you run the workflow, the Integration Service generates the
following primary key values for the T_ORDERS_PRIMARY and T_ORDERS_FOREIGN
target tables:
Figure 19-1. Connecting NEXTVAL to Two Target Tables in a Mapping
T_ORDERS_PRIMARY TABLE:
PRIMARY KEY
T_ORDERS_FOREIGN TABLE:
PRIMARY KEY
1 6
2 7
3 8
Sequence Generator Ports 405
If you want the same values to go to more than one target that receives data from a single
transformation, you can connect a Sequence Generator transformation to that preceding
transformation. The Integration Service processes the values into a block of sequence
numbers. This allows the Integration Service to pass unique values to the transformation, and
then route rows from the transformation to targets.

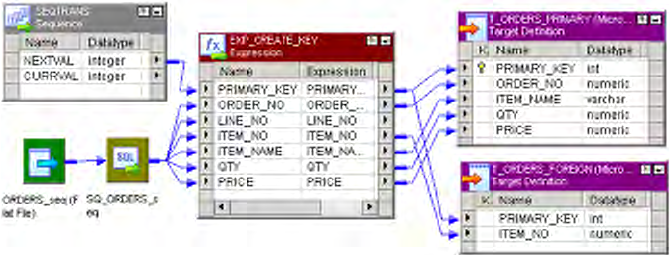

Figure 19-2 shows a mapping with a the Sequence Generator that passes unique values to the
Expression transformation. The Expression transformation then populates both targets with
identical primary key values.
For example, you configure the Sequence Generator transformation as follows: Current Value
= 1, Increment By = 1. When you run the workflow, the Integration Service generates the
following primary key values for the T_ORDERS_PRIMARY and T_ORDERS_FOREIGN
target tables:
Note: When you run a partitioned session on a grid, the Sequence Generator transformation
may skip values depending on the number of rows in each partition.
4 9
510
Figure 19-2. Mapping with a Sequence Generator and an Expression Transformation
T_ORDERS_PRIMARY TABLE:
PRIMARY KEY
T_ORDERS_FOREIGN TABLE:
PRIMARY KEY
1 1
2 2
3 3
4 4
5 5
T_ORDERS_PRIMARY TABLE:
PRIMARY KEY
T_ORDERS_FOREIGN TABLE:
PRIMARY KEY
406 Chapter 19: Sequence Generator Transformation
CURRVAL
CURRVAL is NEXTVAL plus the Increment By value. You typically only connect the
CURRVAL port when the NEXTVAL port is already connected to a downstream
transformation. When a row enters the transformation connected to the CURRVAL port, the
Integration Service passes the last-created NEXTVAL value plus one.
For information about the Increment By value, see “Increment By” on page 408.

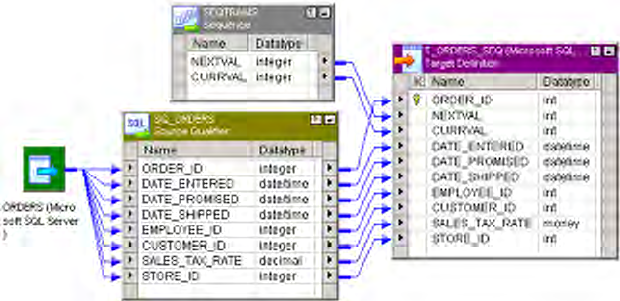

Figure 19-3 shows connecting CURRVAL and NEXTVAL ports to a target:
For example, you configure the Sequence Generator transformation as follows: Current Value
= 1, Increment By = 1. When you run the workflow, the Integration Service generates the
following values for NEXTVAL and CURRVAL:
If you connect the CURRVAL port without connecting the NEXTVAL port, the Integration
Service passes a constant value for each row.
When you connect the CURRVAL port in a Sequence Generator transformation, the
Integration Service processes one row in each block. You can optimize performance by
connecting only the NEXTVAL port in a mapping.
Note: When you run a partitioned session on a grid, the Sequence Generator transformation
may skip values depending on the number of rows in each partition.
Figure 19-3. Connecting CURRVAL and NEXTVAL Ports to a Target
NEXTVAL CURRVAL
1 2
2 3
3 4
4 5
5 6
Transformation Properties 407
Transformation Properties
The Sequence Generator transformation is unique among all transformations because you
cannot add, edit, or delete its default ports (NEXTVAL and CURRVAL).
Table 19-1 lists the Sequence Generator transformation properties you can configure:
Table 19-1. Sequence Generator Transformation Properties
Sequence
Generator Setting
Required/
Optional Description
Start Value Required Start value of the generated sequence that you want the Integration
Service to use if you use the Cycle option. If you select Cycle, the
Integration Service cycles back to this value when it reaches the end
value.
Default is 0.
Increment By Required Difference between two consecutive values from the NEXTVAL port.
Default is 1.
End Value Optional Maximum value the Integration Service generates. If the Integration
Service reaches this value during the session and the sequence is
not configured to cycle, the session fails.
Current Value Optional Current value of the sequence. Enter the value you want the
Integration Service to use as the first value in the sequence. If you
want to cycle through a series of values, the value must be greater
than or equal to the start value and less than the end value.
If the Number of Cached Values is set to 0, the Integration Service
updates the current value to reflect the last-generated value for the
session plus one, and then uses the updated current value as the
basis for the next time you run this session. However, if you use the
Reset option, the Integration Service resets this value to its original
value after each session.
Note: If you edit this setting, you reset the sequence to the new
setting. If you reset Current Value to 10, and the increment is 1, the
next time you use the session, the Integration Service generates a
first value of 10.
Cycle Optional If selected, the Integration Service cycles through the sequence
range. Otherwise, the Integration Service stops the sequence at the
configured end value.
If disabled, the Integration Service fails the session with overflow
errors if it reaches the end value and still has rows to process.
Number of Cached
Values
Optional Number of sequential values the Integration Service caches at a
time. Use this option when multiple sessions use the same reusable
Sequence Generator at the same time to ensure each session
receives unique values. The Integration Service updates the
repository as it caches each value. When set to 0, the Integration
Service does not cache values.
Default value for a standard Sequence Generator is 0.
Default value for a reusable Sequence Generator is 1,000.
408 Chapter 19: Sequence Generator Transformation
Start Value and Cycle
Use Cycle to generate a repeating sequence, such as numbers 1 through 12 to correspond to
the months in a year.
To cycle the Integration Service through a sequence:
1. Enter the lowest value in the sequence that you want the Integration Service to use for
the Start Value.
2. Enter the highest value to be used for End Value.
3. Select Cycle.
As it cycles, the Integration Service reaches the configured end value for the sequence, it wraps
around and starts the cycle again, beginning with the configured Start Value.
Increment By
The Integration Service generates a sequence (NEXTVAL) based on the Current Value and
Increment By properties in the Sequence Generator transformation.
The Current Value property is the value at which the Integration Service starts creating the
sequence for each session. Increment By is the integer the Integration Service adds to the
existing value to create the new value in the sequence. By default, the Current Value is set to
1, and Increment By is set to 1.
For example, you might create a Sequence Generator transformation with a current value of
1,000 and an increment of 10. If you pass three rows through the mapping, the Integration
Service generates the following set of values:
1000
1010
1020
Reset Optional If selected, the Integration Service generates values based on the
original current value for each session. Otherwise, the Integration
Service updates the current value to reflect the last-generated value
for the session plus one, and then uses the updated current value as
the basis for the next session run.
This option is disabled for reusable Sequence Generator
transformations.
Tracing Level Optional Level of detail about the transformation that the Integration Service
writes into the session log.
Table 19-1. Sequence Generator Transformation Properties
Sequence
Generator Setting
Required/
Optional Description
Transformation Properties 409
End Value
End Value is the maximum value you want the Integration Service to generate. If the
Integration Service reaches the end value and the Sequence Generator is not configured to
cycle through the sequence, the session fails with the following error message:
TT_11009 Sequence Generator Transformation: Overflow error.
You can set the end value to any integer between 1 and 2,147,483,647.
Current Value
The Integration Service uses the current value as the basis for generated values for each
session. To indicate which value you want the Integration Service to use the first time it uses
the Sequence Generator transformation, you must enter that value as the current value. If you
want to use the Sequence Generator transformation to cycle through a series of values, the
current value must be greater than or equal to Start Value and less than the end value.
At the end of each session, the Integration Service updates the current value to the last value
generated for the session plus one if the Sequence Generator Number of Cached Values is 0.
For example, if the Integration Service ends a session with a generated value of 101, it updates
the Sequence Generator current value to 102 in the repository. The next time the Sequence
Generator is used, the Integration Service uses 102 as the basis for the next generated value. If
the Sequence Generator Increment By is 1, when the Integration Service starts another session
using the Sequence Generator, the first generated value is 102.
If you have multiple versions of a Sequence Generator transformation, the Integration Service
updates the current value across all versions when it runs a session. The Integration Service
updates the current value across versions regardless of whether you have checked out the
Sequence Generator transformation or the parent mapping. The updated current value
overrides an edited current value for a Sequence Generator transformation if the two values
are different.
For example, User 1 creates Sequence Generator transformation and checks it in, saving a
current value of 10 to Sequence Generator version 1. Then User 1 checks out the Sequence
Generator transformation and enters a new current value of 100 to Sequence Generator
version 2. User 1 keeps the Sequence Generator transformation checked out. Meanwhile, User
2 runs a session that uses the Sequence Generator transformation version 1. The Integration
Service uses the checked-in value of 10 as the current value when User 2 runs the session.
When the session completes, the current value is 150. The Integration Service updates the
current value to 150 for version 1 and version 2 of the Sequence Generator transformation
even though User 1 has the Sequence Generator transformation checked out.
If you open the mapping after you run the session, the current value displays the last value
generated for the session plus one. Since the Integration Service uses the current value to
determine the first value for each session, you should edit the current value only when you
want to reset the sequence.
If you have multiple versions of the Sequence Generator transformation, and you want to
reset the sequence, you must check in the mapping or Sequence Generator (reusable)
transformation after you modify the current value.
410 Chapter 19: Sequence Generator Transformation
Note: If you configure the Sequence Generator to Reset, the Integration Service uses the
current value as the basis for the first generated value for each session.
Number of Cached Values
Number of Cached Values determines the number of values the Integration Service caches at
one time. When Number of Cached Values is greater than zero, the Integration Service caches
the configured number of values and updates the current value each time it caches values.
When multiple sessions use the same reusable Sequence Generator transformation at the same
time, there might be multiple instances of the Sequence Generator transformation. To avoid
generating the same values for each session, reserve a range of sequence values for each session
by configuring Number of Cached Values.
Tip: To increase performance when running a session on a grid, increase the number of cached
values for the Sequence Generator transformation. This reduces the communication required
between the master and worker DTM processes and the repository.
Non-Reusable Sequence Generators
For non-reusable Sequence Generator transformations, Number of Cached Values is set to
zero by default, and the Integration Service does not cache values during the session. When
the Integration Service does not cache values, it accesses the repository for the current value at
the start of a session. The Integration Service then generates values for the sequence. At the
end of the session, the Integration Service updates the current value in the repository.
When you set Number of Cached Values greater than zero, the Integration Service caches
values during the session. At the start of the session, the Integration Service accesses the
repository for the current value, caches the configured number of values, and updates the
current value accordingly. If the Integration Service exhausts the cache, it accesses the
repository for the next set of values and updates the current value. At the end of the session,
the Integration Service discards any remaining values in the cache.
For non-reusable Sequence Generator transformations, setting Number of Cached Values
greater than zero can increase the number of times the Integration Service accesses the
repository during the session. It also causes sections of skipped values since unused cached
values are discarded at the end of each session.
For example, you configure a Sequence Generator transformation as follows: Number of
Cached Values = 50, Current Value = 1, Increment By = 1. When the Integration Service
starts the session, it caches 50 values for the session and updates the current value to 50 in the
repository. The Integration Service uses values 1 to 39 for the session and discards the unused
values, 40 to 49. When the Integration Service runs the session again, it checks the repository
for the current value, which is 50. It then caches the next 50 values and updates the current
value to 100. During the session, it uses values 50 to 98. The values generated for the two
sessions are 1 to 39 and 50 to 98.
Transformation Properties 411
Reusable Sequence Generators
When you have a reusable Sequence Generator transformation in several sessions and the
sessions run at the same time, use Number of Cached Values to ensure each session receives
unique values in the sequence. By default, Number of Cached Values is set to 1000 for
reusable Sequence Generators.
When multiple sessions use the same Sequence Generator transformation at the same time,
you risk generating the same values for each session. To avoid this, have the Integration
Service cache a set number of values for each session by configuring Number of Cached
Values.
For example, you configure a reusable Sequence Generator transformation as follows:
Number of Cached Values = 50, Current Value = 1, Increment By = 1. Two sessions use the
Sequence Generator, and they are scheduled to run at approximately the same time. When the
Integration Service starts the first session, it caches 50 values for the session and updates the
current value to 50 in the repository. The Integration Service begins using values 1 to 50 in
the session. When the Integration Service starts the second session, it checks the repository for
the current value, which is 50. It then caches the next 50 values and updates the current value
to 100. It then uses values 51 to 100 in the second session. When either session uses all its
cached values, the Integration Service caches a new set of values and updates the current value
to ensure these values remain unique to the Sequence Generator.
For reusable Sequence Generator transformations, you can reduce Number of Cached Values
to minimize discarded values, however it must be greater than one. When you reduce the
Number of Cached Values, you might increase the number of times the Integration Service
accesses the repository to cache values during the session.
Reset
If you select Reset for a non-reusable Sequence Generator transformation, the Integration
Service generates values based on the original current value each time it starts the session.
Otherwise, the Integration Service updates the current value to reflect the last-generated value
plus one, and then uses the updated value the next time it uses the Sequence Generator
transformation.
For example, you might configure a Sequence Generator transformation to create values from
1 to 1,000 with an increment of 1, and a current value of 1 and choose Reset. During the first
session run, the Integration Service generates numbers 1 through 234. The next time (and
each subsequent time) the session runs, the Integration Service again generates numbers
beginning with the current value of 1.
If you do not select Reset, the Integration Service updates the current value to 235 at the end
of the first session run. The next time it uses the Sequence Generator transformation, the first
value generated is 235.
Note: Reset is disabled for reusable Sequence Generator transformations.
412 Chapter 19: Sequence Generator Transformation
Creating a Sequence Generator Transformation
To use a Sequence Generator transformation in a mapping, add it to the mapping, configure
the transformation properties, and then connect NEXTVAL or CURRVAL to one or more
transformations.
To create a Sequence Generator transformation:
1. In the Mapping Designer, click Transformation > Create. Select the Sequence Generator
transformation.
The naming convention for Sequence Generator transformations is
SEQ_Tr an s f or m a t io n Na m e .
2. Enter a name for the Sequence Generator, and click Create. Click Done.
The Designer creates the Sequence Generator transformation.
3. Double-click the title bar of the transformation to open the Edit Transformations dialog
box.
4. Enter a description for the transformation. This description appears in the Repository
Manager, making it easier for you or others to understand what the transformation does.
5. Select the Properties tab. Enter settings.
For a list of transformation properties, see Table 19-1 on page 407.
Creating a Sequence Generator Transformation 413
Note: You cannot override the Sequence Generator transformation properties at the
session level. This protects the integrity of the sequence values generated.
6. Click OK.
7. To generate new sequences during a session, connect the NEXTVAL port to at least one
transformation in the mapping.
Use the NEXTVAL or CURRVAL ports in an expression in other transformations.
8. Click Repository > Save.
414 Chapter 19: Sequence Generator Transformation
415
Chapter 20
Sorter Transformation
This chapter includes the following topics:
Overview, 416
Sorting Data, 417
Sorter Transformation Properties, 419
Creating a Sorter Transformation, 423
416 Chapter 20: Sorter Transformation
Overview
You can sort data with the Sorter transformation. You can sort data in ascending or
descending order according to a specified sort key. You can also configure the Sorter
transformation for case-sensitive sorting, and specify whether the output rows should be
distinct. The Sorter transformation is an active transformation. It must be connected to the
data flow.
You can sort data from relational or flat file sources. You can also use the Sorter
transformation to sort data passing through an Aggregator transformation configured to use
sorted input.
When you create a Sorter transformation in a mapping, you specify one or more ports as a
sort key and configure each sort key port to sort in ascending or descending order. You also
configure sort criteria the Integration Service applies to all sort key ports and the system
resources it allocates to perform the sort operation.

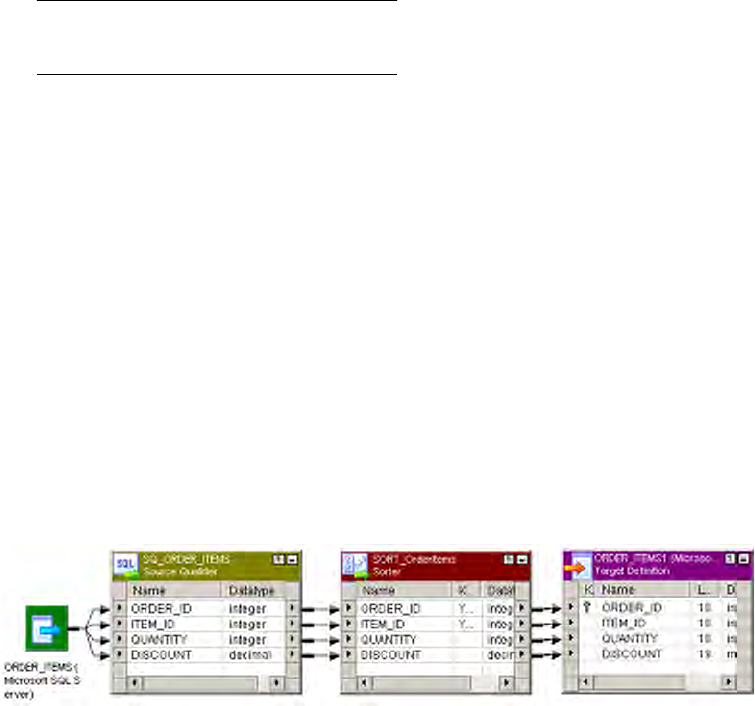

Figure 20-1 shows a simple mapping that uses a Sorter transformation. The mapping passes
rows from a sales table containing order information through a Sorter transformation before
loading to the target.
Transformation type:
Active
Connected
Figure 20-1. Sample Mapping with a Sorter Transformation
Sorting Data 417
Sorting Data
The Sorter transformation contains only input/output ports. All data passing through the
Sorter transformation is sorted according to a sort key. The sort key is one or more ports that
you want to use as the sort criteria.
You can specify more than one port as part of the sort key. When you specify multiple ports
for the sort key, the Integration Service sorts each port sequentially. The order the ports
appear in the Ports tab determines the succession of sort operations. The Sorter
transformation treats the data passing through each successive sort key port as a secondary
sort of the previous port.
At session run time, the Integration Service sorts data according to the sort order specified in
the session properties. The sort order determines the sorting criteria for special characters and
symbols.

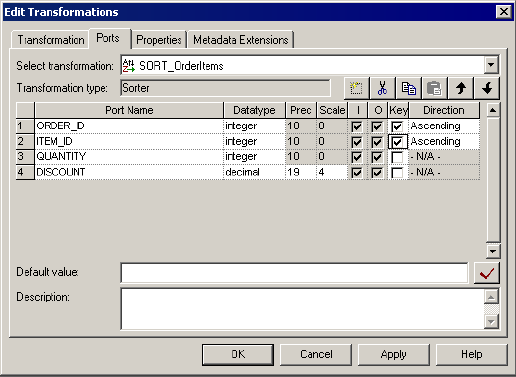

Figure 20-2 shows the Ports tab configuration for the Sorter transformation sorting the data
in ascending order by order ID and item ID:
At session run time, the Integration Service passes the following rows into the Sorter
transformation:
Figure 20-2. Sample Sorter Transformation Ports Configuration
ORDER_ID ITEM_ID QUANTITY DISCOUNT
45 123456 33.04
45 456789 212.02
43 000246 634.55
41 000468 5.56
418 Chapter 20: Sorter Transformation
After sorting the data, the Integration Service passes the following rows out of the Sorter
transformation:
ORDER_ID ITEM_ID QUANTITY DISCOUNT
41 000468 5.56
43 000246 634.55
45 123456 33.04
45 456789 212.02
Sorter Transformation Properties 419
Sorter Transformation Properties
The Sorter transformation has several properties that specify additional sort criteria. The
Integration Service applies these criteria to all sort key ports. The Sorter transformation
properties also determine the system resources the Integration Service allocates when it sorts
data.

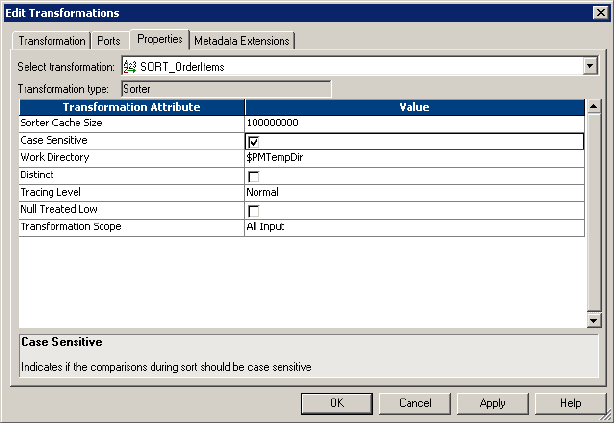

Figure 20-3 shows the Sorter transformation Properties tab:
Sorter Cache Size
The Integration Service uses the Sorter Cache Size property to determine the maximum
amount of memory it can allocate to perform the sort operation. The Integration Service
passes all incoming data into the Sorter transformation before it performs the sort operation.
You can configure a numeric value for the Sorter cache, or you can configure the Integration
Service to determine the cache size at runtime. If you configure the Integration Service to
determine the cache size, you can also configure a maximum amount of memory for the
Integration Service to allocate to the cache.
If the total configured session cache size is 2 GB (2,147,483,648 bytes) or greater, you must
run the session on a 64-bit Integration Service.
Before starting the sort operation, the Integration Service allocates the amount of memory
configured for the Sorter cache size. If the Integration Service runs a partitioned session, it
allocates the specified amount of Sorter cache memory for each partition.
If it cannot allocate enough memory, the Integration Service fails the session. For best
performance, configure Sorter cache size with a value less than or equal to the amount of
Figure 20-3. Sorter Transformation Properties
420 Chapter 20: Sorter Transformation
available physical RAM on the Integration Service machine. Allocate at least 8 MB
(8,388,608 bytes) of physical memory to sort data using the Sorter transformation. Sorter
cache size is set to 8,388,608 bytes by default.
If the amount of incoming data is greater than the amount of Sorter cache size, the
Integration Service temporarily stores data in the Sorter transformation work directory. The
Integration Service requires disk space of at least twice the amount of incoming data when
storing data in the work directory. If the amount of incoming data is significantly greater than
the Sorter cache size, the Integration Service may require much more than twice the amount
of disk space available to the work directory.
Use the following formula to determine the size of incoming data:
number_of_input_rows [( Σ column_size) + 16]
Table 20-1 gives the individual column size values by datatype for Sorter data calculations:
The column sizes include the bytes required for a null indicator.
To increase performance for the sort operation, the Integration Service aligns all data for the
Sorter transformation memory on an 8-byte boundary. Each Sorter column includes rounding
to the nearest multiple of eight.
The Integration Service also writes the row size and amount of memory the Sorter
transformation uses to the session log when you configure the Sorter transformation tracing
level to Normal. For more information about Sorter transformation tracing levels, see
“Tracing Level” on page 421.
Table 20-1. Column Sizes for Sorter Data Calculations
Datatype Column Size
Binary precision + 8
Round to nearest multiple of 8
Date/Time 24
Decimal, high precision off (all precision) 16
Decimal, high precision on (precision <=18) 24
Decimal, high precision on (precision >18, <=28) 32
Decimal, high precision on (precision >28) 16
Decimal, high precision on (negative scale) 16
Double 16
Real 16
Integer 16
Small integer 16
NString, NText, String, Text Unicode mode: 2*(precision + 5)
ASCII mode: precision + 9
Sorter Transformation Properties 421
Case Sensitive
The Case Sensitive property determines whether the Integration Service considers case when
sorting data. When you enable the Case Sensitive property, the Integration Service sorts
uppercase characters higher than lowercase characters.
Work Directory
You must specify a work directory the Integration Service uses to create temporary files while
it sorts data. After the Integration Service sorts the data, it deletes the temporary files. You can
specify any directory on the Integration Service machine to use as a work directory. By
default, the Integration Service uses the value specified for the $PMTempDir process variable.
When you partition a session with a Sorter transformation, you can specify a different work
directory for each partition in the pipeline. To increase session performance, specify work
directories on physically separate disks on the Integration Service system.
Distinct Output Rows
You can configure the Sorter transformation to treat output rows as distinct. If you configure
the Sorter transformation for distinct output rows, the Mapping Designer configures all ports
as part of the sort key. When the Integration Service runs the session, it discards duplicate
rows compared during the sort operation.
Tracing Level
Configure the Sorter transformation tracing level to control the number and type of Sorter
error and status messages the Integration Service writes to the session log. At Normal tracing
level, the Integration Service writes the size of the row passed to the Sorter transformation and
the amount of memory the Sorter transformation allocates for the sort operation. The
Integration Service also writes the time and date when it passes the first and last input rows to
the Sorter transformation.
If you configure the Sorter transformation tracing level to Verbose Data, the Integration
Service writes the time the Sorter transformation finishes passing all data to the next
transformation in the pipeline. The Integration Service also writes the time to the session log
when the Sorter transformation releases memory resources and removes temporary files from
the work directory.
For more information about configuring tracing levels for transformations, see “Configuring
Tracing Level in Transformations” on page 30.
422 Chapter 20: Sorter Transformation
Null Treated Low
You can configure the way the Sorter transformation treats null values. Enable this property if
you want the Integration Service to treat null values as lower than any other value when it
performs the sort operation. Disable this option if you want the Integration Service to treat
null values as higher than any other value.
Transformation Scope
The transformation scope specifies how the Integration Service applies the transformation
logic to incoming data:
Tr a n s a ct i o n . Applies the transformation logic to all rows in a transaction. Choose
Transaction when a row of data depends on all rows in the same transaction, but does not
depend on rows in other transactions.
All Input. Applies the transformation logic on all incoming data. When you choose All
Input, the PowerCenter drops incoming transaction boundaries. Choose All Input when a
row of data depends on all rows in the source.
For more information about transformation scope, see “Understanding Commit Points” in
the Workflow Administration Guide.
Creating a Sorter Transformation 423
Creating a Sorter Transformation
To add a Sorter transformation to a mapping, complete the following steps.
To create a Sorter transformation:
1. In the Mapping Designer, click Transformation > Create. Select the Sorter
transformation.
The naming convention for Sorter transformations is SRT_TransformationName. Enter a
description for the transformation. This description appears in the Repository Manager,
making it easier to understand what the transformation does.
2. Enter a name for the Sorter and click Create.
The Designer creates the Sorter transformation.
3. Click Done.
4. Drag the ports you want to sort into the Sorter transformation.
The Designer creates the input/output ports for each port you include.
5. Double-click the title bar of the transformation to open the Edit Transformations dialog
box.
6. Select the Ports tab.
7. Select the ports you want to use as the sort key.
8. For each port selected as part of the sort key, specify whether you want the Integration
Service to sort data in ascending or descending order.
9. Select the Properties tab. Modify the Sorter transformation properties. For information
about Sorter transformation properties, see Sorter Transformation Properties” on
page 419.
10. Select the Metadata Extensions tab. Create or edit metadata extensions for the Sorter
transformation. For more information about metadata extensions, see “Metadata
Extensions” in the Repository Guide.
11. Click OK.
12. Click Repository > Save to save changes to the mapping.
424 Chapter 20: Sorter Transformation
425
Chapter 21
Source Qualifier
Transformation
This chapter includes the following topics:
Overview, 426
Source Qualifier Transformation Properties, 429
Default Query, 431
Joining Source Data, 434
Adding an SQL Query, 438
Entering a User-Defined Join, 440
Outer Join Support, 442
Entering a Source Filter, 450
Using Sorted Ports, 452
Select Distinct, 454
Adding Pre- and Post-Session SQL Commands, 455
Creating a Source Qualifier Transformation, 456
Troubleshooting, 458
426 Chapter 21: Source Qualifier Transformation
Overview
When you add a relational or a flat file source definition to a mapping, you need to connect it
to a Source Qualifier transformation. The Source Qualifier transformation represents the
rows that the Integration Service reads when it runs a session.
Use the Source Qualifier transformation to complete the following tasks:
Join data originating from the same source database. You can join two or more tables
with primary key-foreign key relationships by linking the sources to one Source Qualifier
transformation.
Filter rows when the Integration Service reads source data. If you include a filter
condition, the Integration Service adds a WHERE clause to the default query.
Specify an outer join rather than the default inner join. If you include a user-defined
join, the Integration Service replaces the join information specified by the metadata in the
SQL query.
Specify sorted ports. If you specify a number for sorted ports, the Integration Service adds
an ORDER BY clause to the default SQL query.
Select only distinct values from the source. If you choose Select Distinct, the Integration
Service adds a SELECT DISTINCT statement to the default SQL query.
Create a custom query to issue a special SELECT statement for the Integration Service
to read source data. For example, you might use a custom query to perform aggregate
calculations.
Transformation Datatypes
The Source Qualifier transformation displays the transformation datatypes. The
transformation datatypes determine how the source database binds data when the Integration
Service reads it. Do not alter the datatypes in the Source Qualifier transformation. If the
datatypes in the source definition and Source Qualifier transformation do not match, the
Designer marks the mapping invalid when you save it.
Target Load Order
You specify a target load order based on the Source Qualifier transformations in a mapping. If
you have multiple Source Qualifier transformations connected to multiple targets, you can
designate the order in which the Integration Service loads data into the targets.
Transformation type:
Active
Connected
Overview 427
If one Source Qualifier transformation provides data for multiple targets, you can enable
constraint-based loading in a session to have the Integration Service load data based on target
table primary and foreign key relationships.
For more information, see “Mappings in the Designer Guide.
Parameters and Variables
Use mapping parameters and variables in the SQL query, user-defined join, and source filter
of a Source Qualifier transformation. You can also use the system variable $$$SessStartTime.
The Integration Service first generates an SQL query and replaces each mapping parameter or
variable with its start value. Then it runs the query on the source database.
When you use a string mapping parameter or variable in the Source Qualifier transformation,
use a string identifier appropriate to the source system. Most databases use a single quotation
mark as a string identifier. For example, to use the string parameter $$IPAddress in a source
filter for a Microsoft SQL Server database table, enclose the parameter in single quotes as
follows, $$IPAddress’. For more information, see the database documentation.
When you use a datetime mapping parameter or variable, or when you use the system variable
$$$SessStartTime, you might need to change the date format to the format used in the
source. The Integration Service passes datetime parameters and variables to source systems as
strings in the SQL query. The Integration Service converts a datetime parameter or variable to
a string, based on the source database.
Table 21-1 describes the datetime formats the Integration Service uses for each source system:
Some databases require you to identify datetime values with additional punctuation, such as
single quotation marks or database specific functions. For example, to convert the
$$$SessStartTime value for an Oracle source, use the following Oracle function in the SQL
override:
to_date (‘$$$SessStartTime’, ‘mm/dd/yyyy hh24:mi:ss’)
Table 21-1. Conversion for Datetime Mapping Parameters and Variables
Source Date Format
DB2 YYYY-MM-DD-HH24:MI:SS
Informix YYYY-MM-DD HH24:MI:SS
Microsoft SQL Server MM/DD/YYYY HH24:MI:SS
ODBC YYYY-MM-DD HH24:MI:SS
Oracle MM/DD/YYYY HH24:MI:SS
Sybase MM/DD/YYYY HH24:MI:SS
Teradata YYYY-MM-DD HH24:MI:SS
428 Chapter 21: Source Qualifier Transformation
For Informix, use the following Informix function in the SQL override to convert the
$$$SessStartTime value:
DATETIME ($$$SessStartTime) YEAR TO SECOND
For more information about SQL override, see “Overriding the Default Query” on page 432.
For information about database specific functions, see the database documentation.
Tip: To ensure the format of a datetime parameter or variable matches that used by the source,
validate the SQL query.
For information about mapping parameters and variables, see “Mapping Parameters and
Vari ables in th e Designer Guide.
Source Qualifier Transformation Properties 429
Source Qualifier Transformation Properties
Configure the Source Qualifier transformation properties on the Properties tab of the Edit
Transformations dialog box.
Table 21-2 describes the Source Qualifier transformation properties:
Table 21-2. Source Qualifier Transformation Properties
Option Description
SQL Query Defines a custom query that replaces the default query the Integration Service
uses to read data from sources represented in this Source Qualifier
transformation. For more information, see “Adding an SQL Query” on page 438. A
custom query overrides entries for a custom join or a source filter.
User-Defined Join Specifies the condition used to join data from multiple sources represented in the
same Source Qualifier transformation. For more information, see Entering a
User-Defined Join” on page 440.
Source Filter Specifies the filter condition the Integration Service applies when querying rows.
For more information, see “Entering a Source Filter” on page 450.
Number of Sorted Ports Indicates the number of columns used when sorting rows queried from relational
sources. If you select this option, the Integration Service adds an ORDER BY to
the default query when it reads source rows. The ORDER BY includes the number
of ports specified, starting from the top of the transformation.
When selected, the database sort order must match the session sort order.
Tracing Level Sets the amount of detail included in the session log when you run a session
containing this transformation. For more information, see “Configuring Tracing
Level in Transformations” on page 30.
Select Distinct Specifies if you want to select only unique rows. The Integration Service includes
a SELECT DISTINCT statement if you choose this option.
430 Chapter 21: Source Qualifier Transformation
Pre-SQL Pre-session SQL commands to run against the source database before the
Integration Service reads the source. For more information, see “Adding Pre- and
Post-Session SQL Commands” on page 455.
Post-SQL Post-session SQL commands to run against the source database after the
Integration Service writes to the target. For more information, see “Adding Pre-
and Post-Session SQL Commands” on page 455.
Output is Deterministic Relational source or transformation output that does not change between session
runs when the input data is consistent between runs. When you configure this
property, the Integration Service does not stage source data for recovery if
transformations in the pipeline always produce repeatable data.
Output is Repeatable Relational source or transformation output that is in the same order between
session runs when the order of the input data is consistent. When output is
deterministic and output is repeatable, the Integration Service does not stage
source data for recovery.
Table 21-2. Source Qualifier Transformation Properties
Option Description
Default Query 431
Default Query
For relational sources, the Integration Service generates a query for each Source Qualifier
transformation when it runs a session. The default query is a SELECT statement for each
source column used in the mapping. In other words, the Integration Service reads only the
columns that are connected to another transformation.
Figure 21-1 shows a single source definition connected to a Source Qualifier transformation:
Although there are many columns in the source definition, only three columns are connected
to another transformation. In this case, the Integration Service generates a default query that
selects only those three columns:
SELECT CUSTOMERS.CUSTOMER_ID, CUSTOMERS.COMPANY, CUSTOMERS.FIRST_NAME
FROM CUSTOMERS
If any table name or column name contains a database reserved word, you can create and
maintain a file, reswords.txt, containing reserved words. When the Integration Service
initializes a session, it searches for reswords.txt in the Integration Service installation
directory. If the file exists, the Integration Service places quotes around matching reserved
words when it executes SQL against the database. If you override the SQL, you must enclose
any reserved word in quotes. For more information about the reserved words file, see
“Working with Targets” in the Workflow Administration Guide.
When generating the default query, the Designer delimits table and field names containing
the following characters with double quotes:
/ + - = ~ ` ! % ^ & * ( ) [ ] { } ' ; ? , < > \ | <space>
Figure 21-1. Source Definition Connected to a Source Qualifier Transformation
432 Chapter 21: Source Qualifier Transformation
Viewing the Default Query
You can view the default query in the Source Qualifier transformation.
To view the default query:
1. From the Properties tab, select SQL Query.
The SQL Editor appears.
The SQL Editor displays the default query the Integration Service uses to select source
data.
2. Click Generate SQL.
3. Click Cancel to exit.
Note: If you do not cancel the SQL query, the Integration Service overrides the default query
with the custom SQL query.
Do not connect to the source database. You only connect to the source database when you
enter an SQL query that overrides the default query.
Tip: You must connect the columns in the Source Qualifier transformation to another
transformation or target before you can generate the default query.
Overriding the Default Query
You can alter or override the default query in the Source Qualifier transformation by changing
the default settings of the transformation properties. Do not change the list of selected ports
or the order in which they appear in the query. This list must match the connected
transformation output ports.
When you edit transformation properties, the Source Qualifier transformation includes these
settings in the default query. However, if you enter an SQL query, the Integration Service uses
Default Query 433
only the defined SQL statement. The SQL Query overrides the User-Defined Join, Source
Filter, Number of Sorted Ports, and Select Distinct settings in the Source Qualifier
transformation.
Note: When you override the default SQL query, you must enclose all database reserved words
in quotes.
434 Chapter 21: Source Qualifier Transformation
Joining Source Data
Use one Source Qualifier transformation to join data from multiple relational tables. These
tables must be accessible from the same instance or database server.
When a mapping uses related relational sources, you can join both sources in one Source
Qualifier transformation. During the session, the source database performs the join before
passing data to the Integration Service. This can increase performance when source tables are
indexed.
Tip: Use the Joiner transformation for heterogeneous sources and to join flat files.
Default Join
When you join related tables in one Source Qualifier transformation, the Integration Service
joins the tables based on the related keys in each table.
This default join is an inner equijoin, using the following syntax in the WHERE clause:
Source1.column_name = Source2.column_name
The columns in the default join must have:
A primary key-foreign key relationship
Matching datatypes
For example, you might see all the orders for the month, including order number, order
amount, and customer name. The ORDERS table includes the order number and amount of
each order, but not the customer name. To include the customer name, you need to join the
ORDERS and CUSTOMERS tables. Both tables include a customer ID, so you can join the
tables in one Source Qualifier transformation.
Joining Source Data 435

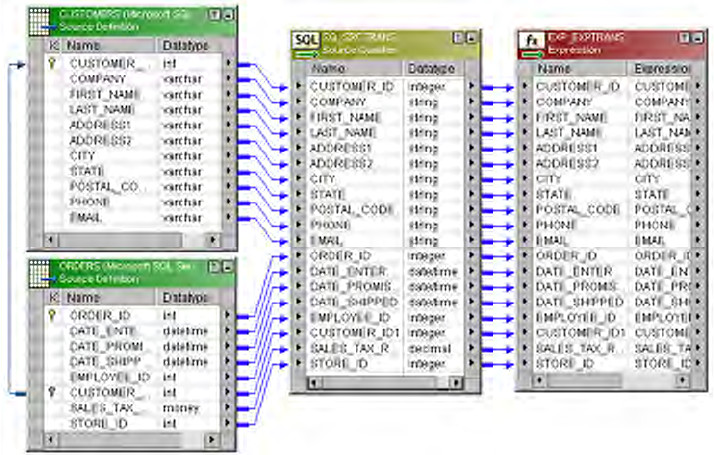

Figure 21-2 shows joining two tables with one Source Qualifier transformation:
When you include multiple tables, the Integration Service generates a SELECT statement for
all columns used in the mapping. In this case, the SELECT statement looks similar to the
following statement:
SELECT CUSTOMERS.CUSTOMER_ID, CUSTOMERS.COMPANY, CUSTOMERS.FIRST_NAME,
CUSTOMERS.LAST_NAME, CUSTOMERS.ADDRESS1, CUSTOMERS.ADDRESS2,
CUSTOMERS.CITY, CUSTOMERS.STATE, CUSTOMERS.POSTAL_CODE, CUSTOMERS.PHONE,
CUSTOMERS.EMAIL, ORDERS.ORDER_ID, ORDERS.DATE_ENTERED,
ORDERS.DATE_PROMISED, ORDERS.DATE_SHIPPED, ORDERS.EMPLOYEE_ID,
ORDERS.CUSTOMER_ID, ORDERS.SALES_TAX_RATE, ORDERS.STORE_ID
FROM CUSTOMERS, ORDERS
WHERE CUSTOMERS.CUSTOMER_ID=ORDERS.CUSTOMER_ID
The WHERE clause is an equijoin that includes the CUSTOMER_ID from the ORDERS
and CUSTOMER tables.
Custom Joins
If you need to override the default join, you can enter contents of the WHERE clause that
specifies the join in the custom query. If the query performs an outer join, the Integration
Service may insert the join syntax in the WHERE clause or the FROM clause, depending on
the database syntax.
You might need to override the default join under the following circumstances:
Columns do not have a primary key-foreign key relationship.
Figure 21-2. Joining Two Tables with One Source Qualifier Transformation
436 Chapter 21: Source Qualifier Transformation
The datatypes of columns used for the join do not match.
You want to specify a different type of join, such as an outer join.
For more information about custom joins and queries, see “Entering a User-Defined Join” on
page 440.
Heterogeneous Joins
To perform a heterogeneous join, use the Joiner transformation. Use the Joiner
transformation when you need to join the following types of sources:
Join data from different source databases
Join data from different flat file systems
Join relational sources and flat files
For more information, see “Joiner Transformation” on page 283.
Creating Key Relationships
You can join tables in the Source Qualifier transformation if the tables have primary key-
foreign key relationships. However, you can create primary key-foreign key relationships in
the Source Analyzer by linking matching columns in different tables. These columns do not
have to be keys, but they should be included in the index for each table.
Tip: If the source table has more than 1,000 rows, you can increase performance by indexing
the primary key-foreign keys. If the source table has fewer than 1,000 rows, you might
decrease performance if you index the primary key-foreign keys.
For example, the corporate office for a retail chain wants to extract payments received based
on orders. The ORDERS and PAYMENTS tables do not share primary and foreign keys.
Both tables, however, include a DATE_SHIPPED column. You can create a primary key-
foreign key relationship in the metadata in the Source Analyzer.
Note, the two tables are not linked. Therefore, the Designer does not recognize the
relationship on the DATE_SHIPPED columns.
You create a relationship between the ORDERS and PAYMENTS tables by linking the
DATE_SHIPPED columns. The Designer adds primary and foreign keys to the
DATE_SHIPPED columns in the ORDERS and PAYMENTS table definitions.
Joining Source Data 437

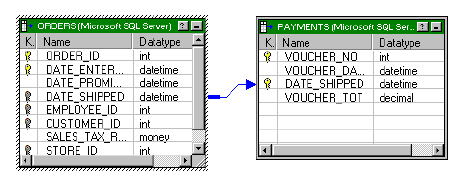

Figure 21-3 shows a relationship between two tables:
If you do not connect the columns, the Designer does not recognize the relationships.
The primary key-foreign key relationships exist in the metadata only. You do not need to
generate SQL or alter the source tables.
Once the key relationships exist, use a Source Qualifier transformation to join the two tables.
The default join is based on DATE_SHIPPED.
Figure 21-3. Creating a Relationship Between Two Tables
438 Chapter 21: Source Qualifier Transformation
Adding an SQL Query
The Source Qualifier transformation provides the SQL Query option to override the default
query. You can enter an SQL statement supported by the source database. Before entering the
query, connect all the input and output ports you want to use in the mapping.
When you edit the SQL Query, you can generate and edit the default query. When the
Designer generates the default query, it incorporates all other configured options, such as a
filter or number of sorted ports. The resulting query overrides all other options you might
subsequently configure in the transformation.
You can include mapping parameters and variables in the SQL Query. When including a
string mapping parameter or variable, use a string identifier appropriate to the source system.
For most databases, you should enclose the name of a string parameter or variable in single
quotes. For more information, see the database documentation.
When you include a datetime parameter or variable, you might need to change the date
format to match the format used by the source. The Integration Service converts a datetime
parameter and variable to a string based on the source system. For more information about
date conversion, see Ta b l e 21-1 on page 427.
When creating a custom SQL query, the SELECT statement must list the port names in the
order in which they appear in the transformation.
When you override the default SQL query for a session configured for pushdown
optimization, the Integration Service creates a view to represent the SQL override. It then
runs an SQL query against this view to push the transformation logic to the database. For
more information about working with SQL overrides and pushdown optimization, see “Using
Pushdown Optimization” in the Workflow Administration Guide.
If you edit the SQL query, you must enclose all database reserved words in quotes. For more
information about reserved words, see “Working with Targetsin the Workflow Administration
Guide.
To override the default query:
1. Open the Source Qualifier transformation, and click the Properties tab.
2. Click the Open button in the SQL Query field. The SQL Editor dialog box appears.
3. Click Generate SQL.
The Designer displays the default query it generates when querying rows from all sources
included in the Source Qualifier transformation.
4. Enter a query in the space where the default query appears.
Every column name must be qualified by the name of the table, view, or synonym in
which it appears. For example, if you want to include the ORDER_ID column from the
ORDERS table, enter ORDERS.ORDER_ID. You can double-click column names
appearing in the Ports window to avoid typing the name of every column.
Adding an SQL Query 439
Enclose string mapping parameters and variables in string identifiers. Alter the date
format for datetime mapping parameters and variables when necessary.
5. Select the ODBC data source containing the sources included in the query.
6. Enter the user name and password to connect to this database.
7. Click Validate.
The Designer runs the query and reports whether its syntax was correct.
8. Click OK to return to the Edit Transformations dialog box. Click OK again to return to
the Designer.
9. Click Repository > Save.
Tip: You can resize the Expression Editor. Expand the dialog box by dragging from the
borders. The Designer saves the new size for the dialog box as a client setting.
440 Chapter 21: Source Qualifier Transformation
Entering a User-Defined Join
Entering a user-defined join is similar to entering a custom SQL query. However, you only
enter the contents of the WHERE clause, not the entire query. When you perform an outer
join, the Integration Service may insert the join syntax in the WHERE clause or the FROM
clause of the query, depending on the database syntax.
When you add a user-defined join, the Source Qualifier transformation includes the setting in
the default SQL query. However, if you modify the default query after adding a user-defined
join, the Integration Service uses only the query defined in the SQL Query property of the
Source Qualifier transformation.
You can include mapping parameters and variables in a user-defined join. When including a
string mapping parameter or variable, use a string identifier appropriate to the source system.
For most databases, you should enclose the name of a string parameter or variable in single
quotes. For more information, see the database documentation.
When you include a datetime parameter or variable, you might need to change the date
format to match the format used by the source. The Integration Service converts a datetime
parameter and variable to a string based on the source system. For more information about
automatic date conversion, see Ta ble 21-1 on page 427.
To create a user-defined join:
1. Create a Source Qualifier transformation containing data from multiple sources or
associated sources.
2. Open the Source Qualifier transformation, and click the Properties tab.
3. Click the Open button in the User Defined Join field. The SQL Editor dialog box
appears.
4. Enter the syntax for the join.
Do not enter the keyword WHERE at the beginning of the join. The Integration Service
adds this keyword when it queries rows.
Entering a User-Defined Join 441
Enclose string mapping parameters and variables in string identifiers. Alter the date
format for datetime mapping parameters and variables when necessary.
5. Click OK to return to the Edit Transformations dialog box, and then click OK to return
to the Designer.
6. Click Repository > Save.
442 Chapter 21: Source Qualifier Transformation
Outer Join Support
Use the Source Qualifier and the Application Source Qualifier transformations to perform an
outer join of two sources in the same database. When the Integration Service performs an
outer join, it returns all rows from one source table and rows from the second source table
that match the join condition.
Use an outer join when you want to join two tables and return all rows from one of the tables.
For example, you might perform an outer join when you want to join a table of registered
customers with a monthly purchases table to determine registered customer activity. Using an
outer join, you can join the registered customer table with the monthly purchases table and
return all rows in the registered customer table, including customers who did not make
purchases in the last month. If you perform a normal join, the Integration Service returns
only registered customers who made purchases during the month, and only purchases made
by registered customers.
With an outer join, you can generate the same results as a master outer or detail outer join in
the Joiner transformation. However, when you use an outer join, you reduce the number of
rows in the data flow. This can improve performance.
The Integration Service supports two kinds of outer joins:
Left. Integration Service returns all rows for the table to the left of the join syntax and the
rows from both tables that meet the join condition.
Right. Integration Service returns all rows for the table to the right of the join syntax and
the rows from both tables that meet the join condition.
Note: Use outer joins in nested query statements when you override the default query.
Informatica Join Syntax
When you enter join syntax, use the Informatica or database-specific join syntax. When you
use the Informatica join syntax, the Integration Service translates the syntax and passes it to
the source database during the session.
Note: Always use database-specific syntax for join conditions.
When you use Informatica join syntax, enclose the entire join statement in braces
({Informatica syntax}). When you use database syntax, enter syntax supported by the source
database without braces.
When using Informatica join syntax, use table names to prefix column names. For example, if
you have a column named FIRST_NAME in the REG_CUSTOMER table, enter
“REG_CUSTOMER.FIRST_NAME” in the join syntax. Also, when using an alias for a table
name, use the alias within the Informatica join syntax to ensure the Integration Service
recognizes the alias.
Outer Join Support 443
Table 21-3 lists the join syntax you can enter, in different locations for different Source
Qualifier transformations, when you create an outer join:
You can combine left outer and right outer joins with normal joins in a single source qualifier.
Use multiple normal joins and multiple left outer joins.
When you combine joins, enter them in the following order:
1. Normal
2. Left outer
3. Right outer
Note: Some databases limit you to using one right outer join.
Normal Join Syntax
You can create a normal join using the join condition in a source qualifier. However, if you are
creating an outer join, you need to override the default join to perform an outer join. As a
result, you need to include the normal join in the join override. When incorporating a normal
join in the join override, list the normal join before outer joins. You can enter multiple
normal joins in the join override.
To create a normal join, use the following syntax:
{ source1 INNER JOIN source2 on join_condition }
Table 21-4 displays the syntax for Normal Joins in a Join Override:
Table 21-3. Locations for Entering Outer Join Syntax
Transformation Transformation Setting Description
Source Qualifier
Transformation
User-Defined Join Create a join override. The Integration Service appends
the join override to the WHERE or FROM clause of the
default query.
SQL Query Enter join syntax immediately after the WHERE in the
default query.
Application Source
Qualifier Transformation
Join Override Create a join override. The Integration Service appends
the join override to the WHERE clause of the default
query.
Extract Override Enter join syntax immediately after the WHERE in the
default query.
Table 21-4. Syntax for Normal Joins in a Join Override
Syntax Description
source1 Source table name. The Integration Service returns rows from this table that match the join
condition.
444 Chapter 21: Source Qualifier Transformation
For example, you have a REG_CUSTOMER table with data for registered customers:
The PURCHASES table, refreshed monthly, contains the following data:
To return rows displaying customer names for each transaction in the month of June, use the
following syntax:
{ REG_CUSTOMER INNER JOIN PURCHASES on REG_CUSTOMER.CUST_ID =
PURCHASES.CUST_ID }
The Integration Service returns the following data:
The Integration Service returns rows with matching customer IDs. It does not include
customers who made no purchases in June. It also does not include purchases made by non-
registered customers.
source2 Source table name. The Integration Service returns rows from this table that match the join
condition.
join_condition Condition for the join. Use syntax supported by the source database. You can combine
multiple join conditions with the AND operator.
CUST_ID FIRST_NAME LAST_NAME
00001 Marvin Chi
00002 Dinah Jones
00003 John Bowden
00004 J. Marks
TRANSACTION_NO CUST_ID DATE AMOUNT
06-2000-0001 00002 6/3/2000 55.79
06-2000-0002 00002 6/10/2000 104.45
06-2000-0003 00001 6/10/2000 255.56
06-2000-0004 00004 6/15/2000 534.95
06-2000-0005 00002 6/21/2000 98.65
06-2000-0006 NULL 6/23/2000 155.65
06-2000-0007 NULL 6/24/2000 325.45
CUST_ID DATE AMOUNT FIRST_NAME LAST_NAME
00002 6/3/2000 55.79 Dinah Jones
00002 6/10/2000 104.45 Dinah Jones
00001 6/10/2000 255.56 Marvin Chi
00004 6/15/2000 534.95 J. Marks
00002 6/21/2000 98.65 Dinah Jones
Table 21-4. Syntax for Normal Joins in a Join Override
Syntax Description
Outer Join Support 445
Left Outer Join Syntax
You can create a left outer join with a join override. You can enter multiple left outer joins in
a single join override. When using left outer joins with other joins, list all left outer joins
together, after any normal joins in the statement.
To create a left outer join, use the following syntax:
{ source1 LEFT OUTER JOIN source2 on join_condition }
Table 21-5 displays syntax for left outer joins in a join override:
For example, using the same REG_CUSTOMER and PURCHASES tables described in
“Normal Join Syntax” on page 443, you can determine how many customers bought
something in June with the following join override:
{ REG_CUSTOMER LEFT OUTER JOIN PURCHASES on REG_CUSTOMER.CUST_ID =
PURCHASES.CUST_ID }
The Integration Service returns the following data:
The Integration Service returns all registered customers in the REG_CUSTOMERS table,
using null values for the customer who made no purchases in June. It does not include
purchases made by non-registered customers.
Use multiple join conditions to determine how many registered customers spent more than
$100.00 in a single purchase in June:
{REG_CUSTOMER LEFT OUTER JOIN PURCHASES on (REG_CUSTOMER.CUST_ID =
PURCHASES.CUST_ID AND PURCHASES.AMOUNT > 100.00) }
Table 21-5. Syntax for Left Outer Joins in a Join Override
Syntax Description
source1 Source table name. With a left outer join, the Integration Service returns all rows in this
table.
source2 Source table name. The Integration Service returns rows from this table that match the join
condition.
join_condition Condition for the join. Use syntax supported by the source database. You can combine
multiple join conditions with the AND operator.
CUST_ID FIRST_NAME LAST_NAME DATE AMOUNT
00001 Marvin Chi 6/10/2000 255.56
00002 Dinah Jones 6/3/2000 55.79
00003 John Bowden NULL NULL
00004 J. Marks 6/15/2000 534.95
00002 Dinah Jones 6/10/2000 104.45
00002 Dinah Jones 6/21/2000 98.65
446 Chapter 21: Source Qualifier Transformation
The Integration Service returns the following data:
You might use multiple left outer joins if you want to incorporate information about returns
during the same time period. For example, the RETURNS table contains the following data:
To determine how many customers made purchases and returns for the month of June, use
two left outer joins:
{ REG_CUSTOMER LEFT OUTER JOIN PURCHASES on REG_CUSTOMER.CUST_ID =
PURCHASES.CUST_ID LEFT OUTER JOIN RETURNS on REG_CUSTOMER.CUST_ID =
PURCHASES.CUST_ID }
The Integration Service returns the following data:
The Integration Service uses NULLs for missing values.
Right Outer Join Syntax
You can create a right outer join with a join override. The right outer join returns the same
results as a left outer join if you reverse the order of the tables in the join syntax. Use only one
right outer join in a join override. If you want to create more than one right outer join, try
reversing the order of the source tables and changing the join types to left outer joins.
When you use a right outer join with other joins, enter the right outer join at the end of the
join override.
CUST_ID FIRST_NAME LAST_NAME DATE AMOUNT
00001 Marvin Chi 6/10/2000 255.56
00002 Dinah Jones 6/10/2000 104.45
00003 John Bowden NULL NULL
00004 J. Marks 6/15/2000 534.95
CUST_ID CUST_ID RETURN
00002 6/10/2000 55.79
00002 6/21/2000 104.45
CUST_ID FIRST_NAME LAST_NAME DATE AMOUNT RET_DATE RETURN
00001 Marvin Chi 6/10/2000 255.56 NULL NULL
00002 Dinah Jones 6/3/2000 55.79 NULL NULL
00003 John Bowden NULL NULL NULL NULL
00004 J. Marks 6/15/2000 534.95 NULL NULL
00002 Dinah Jones 6/10/2000 104.45 NULL NULL
00002 Dinah Jones 6/21/2000 98.65 NULL NULL
00002 Dinah Jones NULL NULL 6/10/2000 55.79
00002 Dinah Jones NULL NULL 6/21/2000 104.45
Outer Join Support 447
To create a right outer join, use the following syntax:
{ source1 RIGHT OUTER JOIN source2 on join_condition }
Table 21-6 displays syntax for right outer joins in a join override:
You might use a right outer join with a left outer join to join and return all data from both
tables, simulating a full outer join. For example, you can extract all registered customers and
all purchases for the month of June with the following join override:
{REG_CUSTOMER LEFT OUTER JOIN PURCHASES on REG_CUSTOMER.CUST_ID =
PURCHASES.CUST_ID RIGHT OUTER JOIN PURCHASES on REG_CUSTOMER.CUST_ID =
PURCHASES.CUST_ID }
The Integration Service returns the following data:
Creating an Outer Join
You can enter an outer join as a join override or as part of an override of the default query.
When you create a join override, the Designer appends the join override to the WHERE
clause of the default query. During the session, the Integration Service translates the
Informatica join syntax and includes it in the default query used to extract source data. When
possible, enter a join override instead of overriding the default query.
When you override the default query, enter the join syntax in the WHERE clause of the
default query. During the session, the Integration Service translates Informatica join syntax
and then uses the query to extract source data. If you make changes to the transformation
Table 21-6. Syntax for Right Outer Joins in a Join Override
Syntax Description
source1 Source table name. The Integration Service returns rows from this table that match the join
condition.
source2 Source table name. With a right outer join, the Integration Service returns all rows in this
table.
join_condition Condition for the join. Use syntax supported by the source database. You can combine
multiple join conditions with the AND operator.
CUST_ID FIRST_NAME LAST_NAME TRANSACTION_NO DATE AMOUNT
00001 Marvin Chi 06-2000-0003 6/10/2000 255.56
00002 Dinah Jones 06-2000-0001 6/3/2000 55.79
00003 John Bowden NULL NULL NULL
00004 J. Marks 06-2000-0004 6/15/2000 534.95
00002 Dinah Jones 06-2000-0002 6/10/2000 104.45
00002 Dinah Jones 06-2000-0005 6/21/2000 98.65
NULL NULL NULL 06-2000-0006 6/23/2000 155.65
NULL NULL NULL 06-2000-0007 6/24/2000 325.45
448 Chapter 21: Source Qualifier Transformation
after creating the override, the Integration Service ignores the changes. Therefore, when
possible, enter outer join syntax as a join override.
To create an outer join as a join override:
1. Open the Source Qualifier transformation, and click the Properties tab.
2. In a Source Qualifier transformation, click the button in the User Defined Join field.
In an Application Source Qualifier transformation, click the button in the Join Override
field.
3. Enter the syntax for the join.
Do not enter WHERE at the beginning of the join. The Integration Service adds this
when querying rows.
Enclose Informatica join syntax in braces ( { } ).
When using an alias for a table and the Informatica join syntax, use the alias within the
Informatica join syntax.
Use table names to prefix columns names, for example, “table.column”.
Use join conditions supported by the source database.
When entering multiple joins, group joins together by type, and then list them in the
following order: normal, left outer, right outer. Include only one right outer join per
nested query.
Select port names from the Ports tab to ensure accuracy.
4. Click OK.
To create an outer join as an extract override:
1. After connecting the input and output ports for the Application Source Qualifier
transformation, double-click the title bar of the transformation and select the Properties
tab.
2. In an Application Source Qualifier transformation, click the button in the Extract
Override field.
3. Click Generate SQL.
4. Enter the syntax for the join in the WHERE clause immediately after the WHERE.
Enclose Informatica join syntax in braces ( { } ).
When using an alias for a table and the Informatica join syntax, use the alias within the
Informatica join syntax.
Use table names to prefix columns names, for example, “table.column”.
Use join conditions supported by the source database.
Outer Join Support 449
When entering multiple joins, group joins together by type, and then list them in the
following order: normal, left outer, right outer. Include only one right outer join per
nested query.
Select port names from the Ports tab to ensure accuracy.
5. Click OK.
Common Database Syntax Restrictions
Different databases have different restrictions on outer join syntax. Consider the following
restrictions when you create outer joins:
Do not combine join conditions with the OR operator in the ON clause of outer join
syntax.
Do not use the IN operator to compare columns in the ON clause of outer join syntax.
Do not compare a column to a subquery in the ON clause of outer join syntax.
When combining two or more outer joins, do not use the same table as the inner table of
more than one outer join. For example, do not use either of the following outer joins:
{ TABLE1 LEFT OUTER JOIN TABLE2 ON TABLE1.COLUMNA = TABLE2.COLUMNA TABLE3
LEFT OUTER JOIN TABLE2 ON TABLE3.COLUMNB = TABLE2.COLUMNB }
{ TABLE1 LEFT OUTER JOIN TABLE2 ON TABLE1.COLUMNA = TABLE2.COLUMNA TABLE2
RIGHT OUTER JOIN TABLE3 ON TABLE2.COLUMNB = TABLE3.COLUMNB}
Do not use both tables of an outer join in a regular join condition. For example, do not
use the following join condition:
{ TABLE1 LEFT OUTER JOIN TABLE2 ON TABLE1.COLUMNA = TABLE2.COLUMNA WHERE
TABLE1.COLUMNB = TABLE2.COLUMNC}
However, use both tables in a filter condition, like the following:
{ TABLE1 LEFT OUTER JOIN TABLE2 ON TABLE1.COLUMNA = TABLE2.COLUMNA WHERE
TABLE1.COLUMNB = 32 AND TABLE2.COLUMNC > 0}
Note: Entering a condition in the ON clause might return different results from entering
the same condition in the WHERE clause.
When using an alias for a table, use the alias to prefix columns in the table. For example, if
you call the REG_CUSTOMER table C, when referencing the column FIRST_NAME,
use “C.FIRST_NAME”.
For more information, see the database documentation.
450 Chapter 21: Source Qualifier Transformation
Entering a Source Filter
You can enter a source filter to reduce the number of rows the Integration Service queries. If
you include the string ‘WHERE’ or large objects in the source filter, the Integration Service
fails the session.
The Source Qualifier transformation includes source filters in the default SQL query. If,
however, you modify the default query after adding a source filter, the Integration Service uses
only the query defined in the SQL query portion of the Source Qualifier transformation.
You can include mapping parameters and variables in a source filter. When including a string
mapping parameter or variable, use a string identifier appropriate to the source system. For
most databases, you should enclose the name of a string parameter or variable in single
quotes. For more information, see the database documentation.
When you include a datetime parameter or variable, you might need to change the date
format to match the format used by the source. The Integration Service converts a datetime
parameter and variable to a string based on the source system. For information about date
conversion, see Tab le 21-1 on page 427.
Note: When you enter a source filter in the session properties, you override the customized
SQL query in the Source Qualifier transformation.
To enter a source filter:
1. In the Mapping Designer, open a Source Qualifier transformation.
The Edit Transformations dialog box appears.
2. Select the Properties tab.
3. Click the Open button in the Source Filter field.
Enter the source filter.
Entering a Source Filter 451
4. In the SQL Editor dialog box, enter the filter.
Include the table name and port name. Do not include the keyword WHERE in the
filter.
Enclose string mapping parameters and variables in string identifiers. Alter the date
format for datetime mapping parameters and variables when necessary.
5. Click OK.
452 Chapter 21: Source Qualifier Transformation
Using Sorted Ports
When you use sorted ports, the Integration Service adds the ports to the ORDER BY clause
in the default query. The Integration Service adds the configured number of ports, starting at
the top of the Source Qualifier transformation. You might use sorted ports to improve
performance when you include any of the following transformations in a mapping:
Aggregator. When you configure an Aggregator transformation for sorted input, you can
send sorted data by using sorted ports. The group by ports in the Aggregator
transformation must match the order of the sorted ports in the Source Qualifier
transformation. For more information about using a sorted Aggregator transformation, see
“Using Sorted Input on page 45.
Joiner. When you configure a Joiner transformation for sorted input, you can send sorted
data by using sorted ports. Configure the order of the sorted ports the same in each Source
Qualifier transformation. For more information about using a sorted Joiner
transformation, see “Using Sorted Input” on page 292.
Note: You can also use the Sorter transformation to sort relational and flat file data before
Aggregator and Joiner transformations. For more information about sorting data using the
Sorter transformation, see “Sorter Transformation” on page 415.
Use sorted ports for relational sources only. When using sorted ports, the sort order of the
source database must match the sort order configured for the session. The Integration Service
creates the SQL query used to extract source data, including the ORDER BY clause for sorted
ports. The database server performs the query and passes the resulting data to the Integration
Service. To ensure data is sorted as the Integration Service requires, the database sort order
must be the same as the user-defined session sort order.
When you configure the Integration Service for data code page validation and run a workflow
in Unicode data movement mode, the Integration Service uses the selected sort order to sort
character data.
When you configure the Integration Service for relaxed data code page validation, the
Integration Service uses the selected sort order to sort all character data that falls in the
language range of the selected sort order. The Integration Service sorts all character data
outside the language range of the selected sort order according to standard Unicode sort
ordering.
When the Integration Service runs in ASCII mode, it ignores this setting and sorts all
character data using a binary sort order. The default sort order depends on the code page of
the Integration Service.
The Source Qualifier transformation includes the number of sorted ports in the default SQL
query. However, if you modify the default query after choosing the Number of Sorted Ports,
the Integration Service uses only the query defined in the SQL Query property.
Using Sorted Ports 453
To use sorted ports:
1. In the Mapping Designer, open a Source Qualifier transformation, and click the
Properties tab.
2. Click in Number of Sorted Ports and enter the number of ports you want to sort.
The Integration Service adds the configured number of columns to an ORDER BY
clause, starting from the top of the Source Qualifier transformation.
The source database sort order must correspond to the session sort order.
Tip: Sybase supports a maximum of 16 columns in an ORDER BY. If the source is Sybase,
do not sort more than 16 columns.
3. Click OK.
454 Chapter 21: Source Qualifier Transformation
Select Distinct
If you want the Integration Service to select unique values from a source, use the Select
Distinct option. You might use this feature to extract unique customer IDs from a table listing
total sales. Using Select Distinct filters out unnecessary data earlier in the data flow, which
might improve performance.
By default, the Designer generates a SELECT statement. If you choose Select Distinct, the
Source Qualifier transformation includes the setting in the default SQL query.
For example, in the Source Qualifier transformation in Figure 21-2 on page 435, you enable
the Select Distinct option. The Designer adds SELECT DISTINCT to the default query as
follows:
SELECT DISTINCT CUSTOMERS.CUSTOMER_ID, CUSTOMERS.COMPANY,
CUSTOMERS.FIRST_NAME, CUSTOMERS.LAST_NAME, CUSTOMERS.ADDRESS1,
CUSTOMERS.ADDRESS2, CUSTOMERS.CITY, CUSTOMERS.STATE,
CUSTOMERS.POSTAL_CODE, CUSTOMERS.EMAIL, ORDERS.ORDER_ID,
ORDERS.DATE_ENTERED, ORDERS.DATE_PROMISED, ORDERS.DATE_SHIPPED,
ORDERS.EMPLOYEE_ID, ORDERS.CUSTOMER_ID, ORDERS.SALES_TAX_RATE,
ORDERS.STORE_ID
FROM
CUSTOMERS, ORDERS
WHERE
CUSTOMERS.CUSTOMER_ID=ORDERS.CUSTOMER_ID
However, if you modify the default query after choosing Select Distinct, the Integration
Service uses only the query defined in the SQL Query property. In other words, the SQL
Query overrides the Select Distinct setting.
To use Select Distinct:
1. Open the Source Qualifier transformation in the mapping, and click on the Properties
tab.
2. Check Select Distinct, and Click OK.
Overriding Select Distinct in the Session
You can override the transformation level option to Select Distinct when you configure the
session in the Workflow Manager.
To override the Select Distinct option:
1. In the Workflow Manager, open the Session task, and click the Mapping tab.
2. Click the Transformations view, and click the Source Qualifier transformation under the
Sources node.
3. In the Properties settings, enable Select Distinct, and click OK.
Adding Pre- and Post-Session SQL Commands 455
Adding Pre- and Post-Session SQL Commands
You can add pre- and post-session SQL commands on the Properties tab in the Source
Qualifier transformation. You might want to use pre-session SQL to write a timestamp row to
the source table when a session begins.
The Integration Service runs pre-session SQL commands against the source database before it
reads the source. It runs post-session SQL commands against the source database after it
writes to the target.
You can override the SQL commands in the Transformations view on the Mapping tab in the
session properties. You can also configure the Integration Service to stop or continue when it
encounters errors running pre- or post-session SQL commands. For more information about
stopping on errors, see “Working with Sessions in the Workflow Administration Guide.
Use the following guidelines when you enter pre- and post-session SQL commands in the
Source Qualifier transformation:
Use any command that is valid for the database type. However, the Integration Service
does not allow nested comments, even though the database might.
Use mapping parameters and variables in the source pre- and post-session SQL commands.
Use a semicolon (;) to separate multiple statements.
The Integration Service ignores semicolons within /*...*/.
If you need to use a semicolon outside of comments, you can escape it with a backslash (\).
When you escape the semicolon, the Integration Service ignores the backslash, and it does
not use the semicolon as a statement separator.
The Designer does not validate the SQL.
Note: You can also enter pre- and post-session SQL commands on the Properties tab of the
target instance in a mapping.
456 Chapter 21: Source Qualifier Transformation
Creating a Source Qualifier Transformation
You can configure the Designer to create a Source Qualifier transformation by default when
you drag a source into a mapping, or you can create a Source Qualifier transformation
manually.
Creating a Source Qualifier Transformation By Default
You can configure the Designer to create a Source Qualifier transformation when you drag a
source into a mapping.
To create a Source Qualifier transformation automatically:
1. In the Designer, click Tools > Options.
2. Select the Format tab.
3. In the Tools options, select Mapping Designer.
4. Select Create Source Qualifier When Opening Sources.
For more information about configuring Designer options, see “Using the Designer” in the
Designer Guide.
Creating a Source Qualifier Transformation Manually
You can manually create a Source Qualifier transformation in the Mapping Designer.
To create a Source Qualifier transformation manually:
1. In the Mapping Designer, click Transformation > Create.
2. Enter a name for the transformation, and click Create.
3. Select a source, and click OK.
4. Click Done.
Configuring Source Qualifier Transformation Options
After you create the Source Qualifier transformation, you can configure several options.
To configure a Source Qualifier transformation:
1. In the Designer, open a mapping.
2. Double-click the title bar of the Source Qualifier transformation.
3. In the Edit Transformations dialog box, click Rename, enter a descriptive name for the
transformation, and click OK.
The naming convention for Source Qualifier transformations is
SQ_TransformationName, such as SQ_AllSources.
Creating a Source Qualifier Transformation 457
4. Click the Properties tab.
5. Enter the Source Qualifier transformation properties. For information about the Source
Qualifier transformation properties, see “Source Qualifier Transformation Properties” on
page 429.
6. Click the Sources tab and indicate any associated source definitions you want to define
for this transformation.
Identify associated sources only when you need to join data from multiple databases or
flat file systems.
7. Click OK to return to the Designer.
458 Chapter 21: Source Qualifier Transformation
Troubleshooting
I cannot perform a drag and drop operation, such as connecting ports.
Review the error message on the status bar for details.
I cannot connect a source definition to a target definition.
You cannot directly connect sources to targets. Instead, you need to connect them through a
Source Qualifier transformation for relational and flat file sources, or through a Normalizer
transformation for COBOL sources.
I cannot connect multiple sources to one target.
The Designer does not allow you to connect multiple Source Qualifier transformations to a
single target. There are two workarounds:
Reuse targets. Since target definitions are reusable, you can add the same target to the
mapping multiple times. Then connect each Source Qualifier transformation to each
target.
Join the sources in a Source Qualifier transformation. Then remove the WHERE clause
from the SQL query.
I entered a custom query, but it is not working when I run the workflow containing the
session.
Be sure to test this setting for the Source Qualifier transformation before you run the
workflow. Return to the Source Qualifier transformation and reopen the dialog box in which
you entered the custom query. You can connect to a database and click the Validate button to
test the SQL. The Designer displays any errors. Review the session log file if you need further
information.
The most common reason a session fails is because the database login in both the session and
Source Qualifier transformation is not the table owner. You need to specify the table owner in
the session and when you generate the SQL Query in the Source Qualifier transformation.
You can test the SQL Query by cutting and pasting it into the database client tool (such as
Oracle Net) to see if it returns an error.
I used a mapping variable in a source filter and now the session fails.
Try testing the query by generating and validating the SQL in the Source Qualifier
transformation. If the variable or parameter is a string, you probably need to enclose it in
single quotes. If it is a datetime variable or parameter, you might need to change its format for
the source system.
459
Chapter 22
SQL Transformation
This chapter includes the following topics:
Overview, 460
Script Mode, 461
Query Mode, 464
Connecting to Databases, 470
Session Processing, 474
Creating an SQL Transformation, 480
SQL Transformation Properties, 482
SQL Statements, 488
460 Chapter 22: SQL Transformation
Overview
The SQL transformation processes SQL queries midstream in a pipeline. You can insert,
delete, update, and retrieve rows from a database. You can pass the database connection
information to the SQL transformation as input data at run time. The transformation
processes external SQL scripts or SQL queries that you create in an SQL editor. The SQL
transformation processes the query and returns rows and database errors.
For example, you might need to create database tables before adding new transactions. You
can create an SQL transformation to create the tables in a workflow. The SQL transformation
returns database errors in an output port. You can configure another workflow to run if the
SQL transformation returns no errors.
When you create an SQL transformation, you configure the following options:
Mode. The SQL transformation runs in one of the following modes:
Script mode. The SQL transformation runs ANSI SQL scripts that are externally
located. You pass a script name to the transformation with each input row. The SQL
transformation outputs one row for each input row. For more information about script
mode, see “Script Mode on page 461.
Query mode. The SQL transformation executes a query that you define in a query
editor. You can pass strings or parameters to the query to define dynamic queries or
change the selection parameters. You can output multiple rows when the query has a
SELECT statement. For more information about query mode, see “Query Mode” on
page 464.
Database type. The type of database the SQL transformation connects to.
Connection type. Pass database connection information to the SQL transformation or use
a connection object. For more information about connection types, see “Connecting to
Databases on page 470.
Transformation type:
Active/Passive
Connected
Script Mode 461
Script Mode
An SQL transformation running in script mode runs SQL scripts from text files. You pass
each script file name from the source to the SQL transformation ScriptName port. The script
file name contains the complete path to the script file.
When you configure the transformation to run in script mode, you create a passive
transformation. The transformation returns one row for each input row. The output row
contains results of the query and any database error.
When the SQL transformation runs in script mode, the query statement and query data do
not change. When you need to run different queries in script mode, you pass the scripts in the
source data. Use script mode to run data definition queries such as creating or dropping
tables.
When you configure an SQL transformation to run in script mode, the Designer adds the
ScriptName input port to the transformation. When you create a mapping, you connect the
ScriptName port to a port that contains the name of a script to execute for each row. You can
execute a different SQL script for each input row. The Designer creates default ports that
return information about query results.

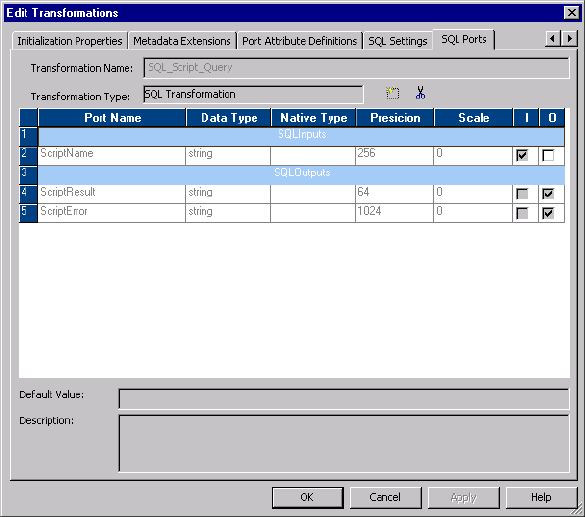

Figure 22-1 shows the default ports for an SQL transformation configured to run in script
mode:
Figure 22-1. SQL Transformation Script Mode Ports
462 Chapter 22: SQL Transformation
An SQL transformation configured for script mode has the following default ports:
Example
You need to create order and inventory tables before adding new data to the tables. You can
create an SQL script to create the tables and configure an SQL transformation to run the
script.
You create a file called create_order_inventory.txt that contains the SQL statements to create
the tables.
The following mapping shows how to pass the script name to the SQL transformation:
The Integration Service reads a row from the source. The source row contains the SQL script
file name and path:
C:\81\server\shared\SrcFiles\create_order_inventory.txt
The transformation receives the file name in the ScriptName port. The Integration Service
locates the script file and parses the script. It creates an SQL procedure and sends it to the
database to process. The database validates the SQL and executes the query.
The SQL transformation returns the ScriptResults and ScriptError. If the script executes
successfully, the ScriptResult output port returns PASSED. Otherwise, the ScriptResult port
returns FAILED. When the ScriptResult is FAILED, the SQL transformation returns error
messages in the ScriptError port. The SQL transformation returns one row for each input row
it receives.
Script Mode Rules and Guidelines
Use the following rules and guidelines for an SQL transformation that runs in script mode:
You can use a static or dynamic database connection with script mode. For more
information about configuring database connections with the SQL transformation, see
“Connecting to Databases on page 470.
Port Type Description
ScriptName Input Receives the name of the script to execute for the current row.
ScriptResult Output Returns PASSED if the script execution succeeds for the row. Otherwise contains FAILED.
ScriptError Output Returns errors that occur when a script fails for a row.
Script Mode 463
To include multiple query statements in a script, you can separate them with a semicolon.
You can use mapping variables or parameters in the script file name.
The script code page defaults to the locale of the operating system. You can change the
locale of the script. For more information about the script locale property, see “SQL
Settings Tab” on page 485.
The script file must be accessible by the Integration Service. The Integration Service must
have read permissions on the directory that contains the script.
The Integration Service ignores the output of any SELECT statement you include in the
SQL script. The SQL transformation in script mode does not output more than one row
of data for each input row.
You cannot use scripting languages such as Oracle PL/SQL or Microsoft/Sybase T-SQL in
the script.
You cannot use nested scripts where the SQL script calls another SQL script.
A script cannot accept run-time arguments.
464 Chapter 22: SQL Transformation
Query Mode
When an SQL transformation runs in query mode, it executes an SQL query that you define
in the transformation. You pass strings or parameters to the query from the transformation
input ports to change the query statement or the query data.
When you configure the SQL transformation to run in query mode, you create an active
transformation. The transformation can return multiple rows for each input row.
Create queries in the SQL transformation SQL Editor. To create a query, type the query
statement in the SQL Editor main window. The SQL Editor provides a list of the
transformation ports that you can reference in the query.
Figure 22-2 shows an SQL query in the SQL Editor:
When you create a query, the SQL Editor validates the port names in the query. It also verifies
that the ports you use for string substitution are string datatypes. The SQL Editor does not
validate the syntax of the SQL query.
You can create the following types of SQL queries in the SQL transformation:
Static SQL query. The query statement does not change, but you can use query parameters
to change the data. The Integration Service prepares the query once and runs the query for
all input rows. For more information about static queries, see “Using Static SQL Queries
on page 465.
Dynamic SQL query. You can change the query statements and the data. The Integration
Service prepares a query for each input row. For more information about dynamic queries,
see “Using Dynamic SQL Queries on page 466.
Figure 22-2. SQL Editor for an SQL Transformation Query
Double-click a port name
to add it as a query
parameter.
Query Mode 465
When you create a static query, the Integration Service prepares the SQL procedure once and
executes it for each row. When you create a dynamic query, the Integration Service prepares
the SQL for each input row. You can optimize performance by creating static queries.
Using Static SQL Queries
Create a static SQL query when you need to run the same query statements for each input
row, but you want to change the data in the query for each input row. When you create a
static SQL query, you use parameter binding in the SQL Editor to define parameters for
query data.
To change the data in the query, configure query parameters and bind them to input ports in
the transformation. When you bind a parameter to an input port, you identify the port by
name in the query. The SQL Editor encloses the name in question marks (?). The query data
changes based on the value of the data in the input port.
The SQL transformation input ports receive the data for the data values in the query, or the
values in the WHERE clause of the query.
The following static queries use parameter binding:
DELETE FROM Employee WHERE Dept = ?Dept?
INSERT INTO Employee(Employee_ID, Dept) VALUES (?Employee_ID?, ?Dept?)
UPDATE Employee SET Dept = ?Dept? WHERE Employee_ID > 100
The following static SQL query has query parameters that bind to the Employee_ID and
Dept input ports of an SQL transformation:
SELECT Name, Address FROM Employees WHERE Employee_Num =?Employee_ID? and
Dept = ?Dept?
The source might have the following rows:
The Integration Service generates the following query statements from the rows:
SELECT Name, Address FROM Employees WHERE Employee_ID = ‘100’ and DEPT = ‘Products’
SELECT Name, Address FROM Employees WHERE Employee_ID = ‘123’ and DEPT = ‘HR’
SELECT Name, Address FROM Employees WHERE Employee_ID = ‘130’ and DEPT = ‘Accounting’
Selecting Multiple Database Rows
When the SQL query contains a SELECT statement, the transformation returns one row for
each database row it retrieves. You must configure an output port for each column in the
SELECT statement.
Employee_ID Dept
100 Products
123 HR
130 Accounting
466 Chapter 22: SQL Transformation
When you configure output ports for database columns, you need to configure the datatype
of each database column you select. Select a native datatype from the list. When you select the
native datatype, the Designer configures the transformation datatype for you.
The native datatype in the transformation must match the database column datatype. The
Integration Service matches the column datatype in the database with the native database type
in the transformation at run time. If the datatypes do not match, the Integration Service
generates a row error.
For more information about transformation datatypes you can use for each database, see
“Datatype Reference” in the Designer Guide.
Figure 22-3 shows the ports in the transformation configured to run in query mode:
The SQL query selects name and address from the employees table. The SQL transformation
writes a row to the target for each database row it retrieves.
Using Dynamic SQL Queries
A dynamic SQL query can execute different query statements for each input row. When you
create a dynamic SQL query, you use string substitution to define string parameters in the
query and link them to input ports in the transformation.
To change a query statement, configure a string variable in the query for the portion of the
query you want to change. To configure the string variable, identify an input port by name in
Figure 22-3. SQL Transformation Static Query Mode Ports
The input ports receive
the data in the WHERE
clause.
The output ports return
the columns from the
SELECT statement.
Query Mode 467
the query and enclose the name with the tilde (~). The query changes based on the value of
the data in the port. The transformation input port that contains the query parameter must
be a string datatype. You can use string substitution to change the query statement and the
query data.
When you create a dynamic SQL query, the Integration Service prepares a query for each
input row. You can pass the full query or pass part of the query in an input port:
Full query. You can substitute the entire SQL query with query statements from source
data. For more information, see “Passing the Full Query” on page 467.
Partial query. You can substitute a portion of the query statement, such as the table name.
For more information, see “Substituting the Table Name in a String” on page 468.
Passing the Full Query
You can pass the full SQL query through an input port in the transformation. To pass the full
query, create a query in the SQL Editor that consists of one string variable to represent the
full query:
~Query_Port~
The transformation receives the query in the Query_Port input port.

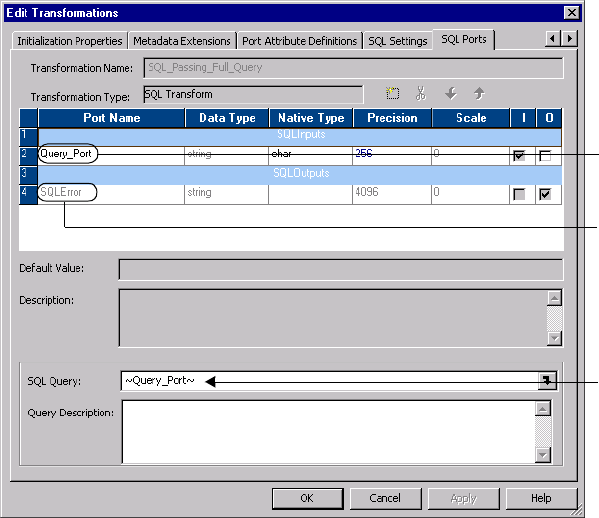

Figure 22-4 shows ports in the SQL transformation:
Figure 22-4. SQL Transformation Ports to Pass a Full Dynamic Query
Query_Port receives the
the query statements.
SQLError returns any
database error.
The SQL query contains
a string substitution
variable.
468 Chapter 22: SQL Transformation
The Integration Service replaces the ~Query_Port~ variable in the dynamic query with the
SQL statements from the source. It prepares the query and sends it to the database to process.
The database executes the query. The SQL transformation returns database errors to the
SQLError port.
The following mapping shows how to pass the query to the SQL transformation:
When you pass the full query, you can pass more than one query statement for each input
row. For example, the source might contain the following rows:
DELETE FROM Person WHERE LastName = ‘Jones’; INSERT INTO Person (LastName, Address) VALUES
('Smith', '38 Summit Drive')
DELETE FROM Person WHERE LastName = ‘Jones’; INSERT INTO Person (LastName, Address) VALUES
('Smith', '38 Summit Drive')
DELETE FROM Person WHERE LastName = ‘Russell’;
You can pass any type of query in the source data. When you configure SELECT statements
in the query, you must configure output ports for the database columns you retrieve from the
database. When you mix SELECT statements and other types of queries, the output ports
that represent database columns contain null values when no database columns are retrieved.
Substituting the Table Name in a String
You can substitute the table name in a query. To substitute the table name, configure an input
port to receive the table name from each input row. Identify the input port by name in the
query and enclose the name with the tilde (~).
The following dynamic query contains a string variable, ~Table_Port~:
SELECT Emp_ID, Address from ~Table_Port~ where Dept = ‘HR’
The source might pass the following values to the Table_Port column:
The Integration Service replaces the ~Table_Port~ variable with the table name in the input
port:
SELECT Emp_ID, Address from Employees_USA where Dept = ‘HR’
SELECT Emp_ID, Address from Employees_England where Dept = ‘HR’
SELECT Emp_ID, Address from Employees_Australia where Dept = ‘HR’
Table_Port
Employees_USA
Employees_England
Employees_Australia
Query Mode 469
Query Mode Rules and Guidelines
Use the following rules and guidelines when you configure the SQL transformation to run in
query mode:
The number and the order of the output ports must match the number and order of the
fields in the query SELECT clause.
The native datatype of an output port in the transformation must match the datatype of
the corresponding column in the database. The Integration Service generates a row error
when the datatypes do not match.
When the SQL query contains an INSERT, UPDATE, or DELETE clause, the
transformation returns data to the SQLError port and the NumRowsAffected port when it
is enabled. If you add output ports, you can configure default values for them. Otherwise
the ports receive NULL data values.
You can add pass-through ports to pass data in and out of the transformation. To create a
pass-through port, create an input port and enable it for output. The Designer creates an
output port and adds an “_output” suffix to the port name.
When you drag a port from a Source Qualifier transformation to the SQL transformation,
the Designer creates a pass-through port by default. To change the port to input, disable it
for output.
You cannot add the "_output" suffix to output port names that you create.
You cannot use the pass-through port to return data from a SELECT query.
When the number of output ports is more than the number of columns in the SELECT
clause, the extra ports receive a NULL or default value in a session.
When the number of output ports is less than the number of columns in the SELECT
clause, the Integration Service generates a row error.
You can use string substitution instead of parameter binding in a query. However, the
input ports must be string datatypes.
470 Chapter 22: SQL Transformation
Connecting to Databases
You can use a static database connection or you can pass database connection information to
the SQL transformation at run time.
Use one of the following types of connections to connect the SQL transformation to a
database:
Static connection. Configure the connection object in the session. You must first create
the connection object in Workflow Manager. For more information, see “Using a Static
Database Connection” on page 470.
Logical connection. Pass a connection name to the SQL transformation as input data at
run time. You must first create the connection object in Workflow Manager. For more
information about logical connections, see “Passing a Logical Database Connection” on
page 470.
Full Database Connection. Pass the connect string, user name, password, and other
connection information to SQL transformation input ports at run time. For more
information about passing the full database connection information, see “Passing Full
Connection Information” on page 470.
Using a Static Database Connection
You can configure the SQL transformation to connect to a database with a static connection.
A static database connection is a database connection defined in the Workflow Manager.
To use a static connection, choose a relational connection object when you configure the
session. To avoid datatype conversion errors, use a relational connection for the same database
type that is configured in the transformation.
Passing a Logical Database Connection
You can configure the SQL transformation to connect to a database with a logical database
connection. A logical database connection is a connection object name that you pass to the
transformation at run time. Define the relational connection object in the Workflow
Manager. When you configure the transformation to use a logical database connection, the
Designer creates the LogicalConnectionObject input port.
You can pass a logical connection for each input row. Configure the mapping to pass the
connection object name to the LogicalConnectionObject port. To avoid datatype conversion
errors, use a relational connection for the same database type that is configured in the
transformation.
Passing Full Connection Information
You can pass all the database connection information to an SQL transformation as input port
data. When you configure the SQL transformation to connect to a database with a full
Connecting to Databases 471
connection, the Designer creates input ports for connection components. The database type
defaults to the database type you configured for the transformation.
When you configure an SQL transformation to connect to a database with a full connection,
the Designer creates the following ports:
Passing the Connect String
The native connect string contains the database name and database server name. The connect
string allows PowerCenter and the database client to direct calls to the correct database.
Table 22-2 lists the native connect string syntax for each database:
Table 22-1. Full Database Connection Information
Port Required/
Optional Description
ConnectString Required Contains the database name and database server name. For information about
passing the connect string, see “Passing the Connect String” on page 471.
DBUser Required Name of the user with permissions to read and write from the database.
DBPasswd Required DBUser password.
CodePage Optional Code page the Integration Service uses to read from or write to the database. Use
the ISO code page name, such as ISO-8859-6. The code page name is not case
sensitive. For a list of supported code page names, see “Code Pages” in the
Administrator Guide.
AdvancedOptions Optional Connection attributes. Pass the attributes as name-value pairs. Delimit each
attribute from another with a semicolon. Attribute names are not case sensitive.
For more information about advanced options, see “Passing Advanced Options”
on page 472.
Table 22-2. Native Connect String Syntax
Database Connect String Syntax Example
IBM DB2 dbname mydatabase
Informix dbname@servername mydatabase@informix
Microsoft SQL Server servername@dbname sqlserver@mydatabase
Oracle dbname.world (same as TNSNAMES entry) oracle.world
Sybase ASE* servername@dbname sambrown@mydatabase
Teradata** ODBC_data_source_name or
ODBC_data_source_name@db_name or
ODBC_data_source_name@db_user_name
TeradataODBC
TeradataODBC@mydatabase
TeradataODBC@sambrown
*Sybase ASE servername is the name of the Adaptive Server from the interfaces file.
**Use Teradata ODBC drivers to connect to source and target databases.
472 Chapter 22: SQL Transformation
Passing Advanced Options
You can configure optional connection attributes. To configure the attributes, pass the
attributes as name-value pairs. Delimit attributes with a semicolon. Attribute names are not
case sensitive.
For example, you might pass the following string to configure connection options:
Use_Trusted_Connection = 1; Connection_Retry_Period = 5
You can configure the following advanced options:
Attribute Database Type Description
Connection Retry Period All Integer.
The number of seconds the Integration Service attempts to
reconnect to the database if the connection fails.
Data Source Name Teradata String.
The name of the Teradata ODBC data source.
Database Name Sybase ASE
Microsoft SQL Server
Teradata
String.
Override the default database name in the ODBC. If you do
not enter a database name, messages related to the
connection do not show a database name.
Domain Name Microsoft SQL Server String.
The name of the domain where Microsoft SQL Server is
running.
Enable Parallel Mode Oracle Integer.
Enable parallel processing when you load data in bulk mode.
0 is not enabled.
1 is enabled.
Default is enabled.
Owner Name All String.
The table owner name.
Packet Size Sybase ASE
Microsoft SQL Server
Integer.
Optimize the ODBC connection to Sybase ASE and Microsoft
SQL Server.
Server Name Sybase ASE
Microsoft SQL Server
String.
The name of the database server.
Use Trusted Connection Microsoft SQL Server Integer.
When enabled, the Integration Service uses Windows
authentication to access the Microsoft SQL Server database.
The user name that starts the Integration Service must be a
valid Windows user with access to the Microsoft SQL Server
database.
0 is not enabled.
1 is enabled.
Connecting to Databases 473
Database Connections Rules and Guidelines
Use the following rules and guidelines when configuring database connections for the SQL
transformation:
You need the PowerCenter license key to connect different database types. A session fails if
PowerCenter is not licensed to connect to the database.
To improve performance, use a static database connection. When you configure a dynamic
connection, the Integration Service establishes a new connection for each input row.
When you have a limited number of connections to use in a session, you can configure
multiple SQL transformations. Configure each SQL transformation to use a different
static connection. Use a Router transformation to route rows to a SQL transformation
based on connectivity information in the row.
When you configure the SQL transformation to use full connection data, the database
password is plain text. You can pass logical connections when you have a limited number
of connections you need to use in a session. A logical connection provides the same
functionality as the full connection, and the database password is secure.
When you pass logical database connections to the SQL transformation, the Integration
Service accesses the repository to retrieve the connection information for each input row.
When you have many rows to process, passing logical database connections might have a
performance impact.
474 Chapter 22: SQL Transformation
Session Processing
When the Integration Service processes an SQL transformation, it runs SQL queries
midstream in the pipeline. When a SELECT query retrieves database rows, the SQL
transformation returns the database columns in the output ports. For other types of queries,
the SQL transformation returns query results or database errors in output ports.
The SQL transformation configured to run in script mode always returns one row for each
input row. A SQL transformation that runs in query mode can return a different number of
rows for each input row. The number of rows the SQL transformation returns is based on the
type of query it runs and the success of the query. For more information, see “Input Row to
Output Row Cardinality” on page 474.
You can use transaction control with the SQL transformation when you configure the
transformation to use a static database connection. You can also issue commit and rollback
statements in the query. For more information, see “Transaction Control” on page 478.
The SQL transformation provides database connection resiliency. However, you cannot
recover an SQL transformation with a resume from last checkpoint recovery strategy. For
more information, see “High Availability” on page 478.
Input Row to Output Row Cardinality
When the Integration Service runs a SELECT query, the SQL transformation returns a row
for each row it retrieves. When the query does not retrieve data, the SQL transformation
returns zero or one row for each input row.
The SQL transformation returns a number of output rows based on the following factors:
Query statement processing. When the query contains a SELECT statement, the
Integration Service can retrieve multiple output rows.
NumRowsEffected port configuration. The NumRowsAffected output port contains the
total number of rows affected by updates, inserts, or deletes for one input row.
Query results. When a SELECT query is successful, the SQL transformation might
retrieve multiple rows. When the query contains other statements, the Integration Service
might generate a row that contains SQL errors or the number of rows affected.
The maximum row count configuration. The Max Output Row Count limits the number
of rows the SQL transformation returns from SELECT queries.
Query Statement Processing
The type of query determines how many rows the SQL transformation returns. The SQL
transformation running in query mode can return zero, one, or multiple rows. When the
query contains a SELECT statement, the SQL transformation returns each column from the
database to an output port. The transformation returns all qualifying rows.
Session Processing 475
Table 22-3 lists the output rows the SQL transformation generates for different types of query
statements when no errors occur in query mode:
Number of Rows Affected
You can enable the NumRowsAffected output port to return the number of rows affected by
the INSERT, UPDATE, or DELETE query statements for each input row. When you have
multiple statements in a query, the NumRowsAffected port contains the sum of all rows that
the query changed. NumRowsAffected is disabled by default.
When you enable NumRowsAffected in query mode, and the SQL query does not contain an
INSERT, UPDATE, or DELETE statement, NumRowsAffected is zero in each output row.
Note: When you enable NumRowsAffected and the transformation is configured to run in
script mode, NumRowsAffected is always NULL.
Table 22-4 lists the output rows the SQL transformation generates when you enable
NumRowsAffected in query mode:
When the SQL transformation runs in query mode and a query contains multiple statements,
the Integration Service returns the NumRowsAffected sum in the last row it returns for an
input row. NumRowsAffected contains the sum of the rows affected by all INSERT,
UPDATE, and DELETE statements from an input row.
For example, a query contains the following statements:
DELETE from Employees WHERE Employee_ID = ‘101’;
SELECT Employee_ID, LastName from Employees WHERE Employee_ID = ‘103’;
INSERT into Employees (Employee_ID, LastName, Address)VALUES (‘102’,
'Gein', '38 Beach Rd')
Table 22-3. Output Rows By Query Statement - Query Mode
Query Statement Output Rows
UPDATE, INSERT, DELETE only Zero rows.
One or more SELECT statements Total number of database rows retrieved.
DDL queries such as CREATE, DROP,
TRUNCATE
Zero rows.
Table 22-4. NumRowsAffected Rows by Query Statement - Query Mode
Query Statement Output Rows
UPDATE, INSERT, DELETE only One row with the NumRowsAffected total.
One or more SELECT statements Total number of database rows retrieved.
NumRowsAffected is zero in each row.
DDL queries such as CREATE, DROP,
TRUNCATE
One row with zero NumRowsAffected.
476 Chapter 22: SQL Transformation
The DELETE statement affects one row. The SELECT statement does not affect any row.
The INSERT statement affects one row. The value of NumRowsAffected is two. The
Integration Service returns this value in the last output row it returns for the input row.
The Integration Service returns no output rows from the DELETE statement. It returns one
row from the SELECT statement. It returns one row from the INSERT statement that
contains the NumRowsAffected total.
The NumRowsAffected port returns zero when all of the following conditions are true:
The database is Informix.
The transformation is running in query mode.
The query contains no parameters.
Maximum Output Row Count
You can limit the number of rows the SQL transformation returns for SELECT queries.
Configure the Max Output Row Count property to limit number of rows. When a query
contains multiple SELECT statements, the SQL transformation limits total rows from all the
SELECT statements.
For example, you set Max Output Row Count to 100. The query contains two SELECT
statements:
SELECT * FROM table1; SELECT * FROM table2;
If the first SELECT statement returns 200 rows, and the second SELECT statement returns
50 rows, the SQL transformation returns 100 rows from the first SELECT statement. It
returns no rows from the second statement.
To configure unlimited output rows, set Max Output Row Count to zero.
Understanding Error Rows
The Integration Service returns row errors when it encounters a connection error or syntax
error. The SQL transformation has the following default ports to output error text:
SQLError. Returns database errors when the SQL transformation runs in query mode.
ScriptError. Returns database errors when the SQL transformation runs in script mode.
When the SQL query contains syntax errors, the error port contains the error text from the
database. For example, the following SQL query generates a row error from an Oracle
database:
SELECT Product_ID FROM Employees
The Employees table does not contain Product_ID. The Integration Service generates one
row. The SQLError port contains the error text in one line:
ORA-0094: “Product_ID”: invalid identifier Database driver error...
Function Name: Execute SQL Stmt: SELECT Product_ID from Employees Oracle
Fatal Error
Session Processing 477
When a query contains multiple statements, and you configure the SQL transformation to
continue on SQL error, the SQL transformation might return rows from the database for one
query statement, but return database errors for another query statement. The SQL
transformation returns any database error in a separate row. For more information about
continuing on SQL errors, see “Continuing on SQL Error” on page 477.
Table 22-5 lists the rows the SQL transformation generates based on whether the queries have
errors or not:
Continuing on SQL Error
You can choose to ignore an SQL error in a statement by enabling the Continue on SQL
Error within a Row option. The Integration Service continues to run the rest of the SQL
statements for the row. The Integration Service does not generate a row error. However, the
SQLError port contains the failed SQL statement and error messages. A session fails when the
row error count exceeds the session error threshold.
Table 22-5. Output Rows by Query Statement - Query Mode
Query Statement SQLError NumRowsAffected Rows Output
UPDATE, INSERT,
DELETE only
No - Disabled
- Enabled
- Zero rows.
- One row with the NumRowsAffected column.
Yes - Disabled
- Enabled
- One row with errors in the SQLError port.
- One row with errors in the SQLError port and
the number of rows affected in the
NumRowsAffected column.
One or more SELECT
statements
No - Disabled
- Enabled
- Zero or more rows, based on what rows are
returned for each SELECT statement.
- One or more rows, based on what rows are
returned for each SELECT statement. Each
row contains a NumRowsAffected column with
a value zero.
Yes - Disabled
- Enabled
- The total number of rows is one greater than
the sum of the output rows for the successful
statements. The last row contains the errors in
the SQLError port.
- Each row contains a NumRowsAffected
column with a value zero.
DDL queries such as
CREATE, DROP,
TRUNCATE
No - Disabled
- Enabled
- Zero rows.
- One row that includes the NumRowsAffected
column with a value zero.
Yes - Disabled
- Enabled
- One row that contains errors in the SQLError
port.
- One row that contains errors in the SQLError
port and a NumRowsAffected column with a
value zero.
478 Chapter 22: SQL Transformation
For example, a query might have the following statements:
DELETE FROM Persons WHERE FirstName = ‘Ed’;
INSERT INTO Persons (LastName, Address)VALUES ('Gein', '38 Beach Rd')
If the DELETE statement fails, the SQL transformation returns an error message from the
database. The Integration Service continues processing the INSERT statement.
Tip: Disable the Continue on SQL Error option to debug database errors. Otherwise you
might not be able to associate errors with the query statements that caused them.
Transaction Control
An SQL transformation that runs in script mode drops any incoming transaction boundary
from an upstream source or transaction generator. The Integration Service issues a commit
after executing the script for each input row in the SQL transformation. The transaction
contains the set of rows affected by the script.
An SQL transformation that runs in query mode commits transactions at different points
based on the database connection type:
Dynamic database connection. The Integration Service issues a commit after executing
the SQL for each input row. The transaction is the set of rows affected by the script. You
cannot use a Transaction Control transformation with dynamic connections in query
mode.
Static connection. The Integration Service issues a commit after processing all the input
rows. The transaction includes all the database rows to update. You can override the
default behavior by using a Transaction Control transformation to control the transaction,
or by using commit and rollback statements in the SQL query.
When you configure an SQL statement to commit or rollback rows, configure the SQL
transformation to generate transactions with the Generate Transaction transformation
property. Configure the session for user-defined commit.
For more information about transaction control, see “Understanding Commit Points” in the
Workflow Administration Guide.
The following transaction control SQL statements are not valid with the SQL transformation:
SAVEPOINT. Identifies a rollback point in the transaction.
SET TRANSACTION. Changes transaction options.
High Availability
When you have high availability, the SQL transformation provides database connection
resiliency for static and dynamic connections. When the Integration Service fails to connect
to the database, it retries the connection. You can configure the Connection Retry Period for
a connection. When the Integration Service cannot connect to the database in the time period
that you configure, it generates a row error for a dynamic connection or fails the session for a
static connection.
Session Processing 479
The Integration Service is not resilient to temporary network failures or relational database
unavailability when the Integration Service retrieves data from a database for the SQL
transformation. When a connection fails during processing, the session fails. The Integration
Service cannot reconnect and continue processing from the last commit point.
You cannot resume a session from the last checkpoint when it contains the SQL
transformation. When the Integration Service resumes a session, the recovery session must
produce the same data as the original session. The SQL transformation cannot produce
repeatable data between session runs. You can recover the workflow when you configure the
session to restart.
480 Chapter 22: SQL Transformation
Creating an SQL Transformation
You can create an SQL transformation in the Transformation Developer or the Mapping
Designer.
To create an SQL transformation:
1. Click Transformation > Create.
2. Select the SQL transformation.
3. Enter a name for the transformation. The naming convention for an SQL transformation
is SQL_TransformationName. Enter a description for the transformation and click
Create.
4. Configure the SQL transformation mode:
Query mode. Configure an active transformation that executes dynamic SQL queries.
Script mode. Configure a passive transformation that executes external SQL scripts.
5. Configure the database type that the SQL transformation connects to. Choose the
database type from the list.
6. Configure the SQL transformation connection options.
Select query or script mode.
Select the database type.
Select the connection type.
Creating an SQL Transformation 481
Figure 22-6 lists the SQL transformation connection options:
7. Click OK to configure the transformation.
The Designer creates default ports in the transformation depending on the options you
choose. You cannot change the configuration except for the database type. For more
information about the default SQL transformation input and output ports, see “SQL
Ports Tab” on page 434.
Table 22-6. SQL Transformation Connection Options
Option Description
Static Connection Use a connection object that you configure for the session. The SQL
transformation connects to the database once during a session.
Dynamic Connection Connect to databases depending on connection information you pass to the
transformation in a mapping. When you configure a dynamic connection,
choose whether the transformation requires a connection object name or
the transformation requires all the connection information. Default is
connection object.
Connection Object Dynamic connection only. Use a LogicalConnectionObject port to receive
the connection object name. The connection object must be defined in the
Workflow Manager connections.
Full Connection Information Dynamic connection only. Use input ports to receive all the connection
components.
482 Chapter 22: SQL Transformation
SQL Transformation Properties
After you create the SQL transformation, you can define ports and set attributes in the
following transformation tabs:
Ports. Displays the transformation ports and attributes that you create on the SQL Ports
tab.
Properties. SQL Transformation general properties. For more information, see “Properties
Tab on pag e 482.
Initialization Properties. Run-time properties that the transformation uses during
initialization. For more information about creating initialization properties, see “Working
with Procedure Properties” on page 72.
Metadata Extensions. Property name and value pairs you can use with a procedure when
the Integration Service runs the procedure. For more information about creating metadata
extensions, see “Metadata Extensions” in the Repository Guide.
Port Attribute Definitions. User-defined port attributes that apply to all ports in the
transformation. For more information about port attributes, see “Working with Port
Attributes” on page 62.
SQL Setting. Attributes unique to the SQL transformation. For more information, see
“SQL Settings Tab” on page 485.
SQL Ports. SQL transformation ports and attributes. For more information, see “SQL
Ports Tab” on page 486.
Note: You cannot update the columns on the Ports tab. When you define ports on the SQL
Ports tab, they display on the Ports tab.
Properties Tab
Configure the SQL transformation general properties on the Properties tab. Some
transformation properties do not apply to the SQL transformation or are not configurable.
SQL Transformation Properties 483

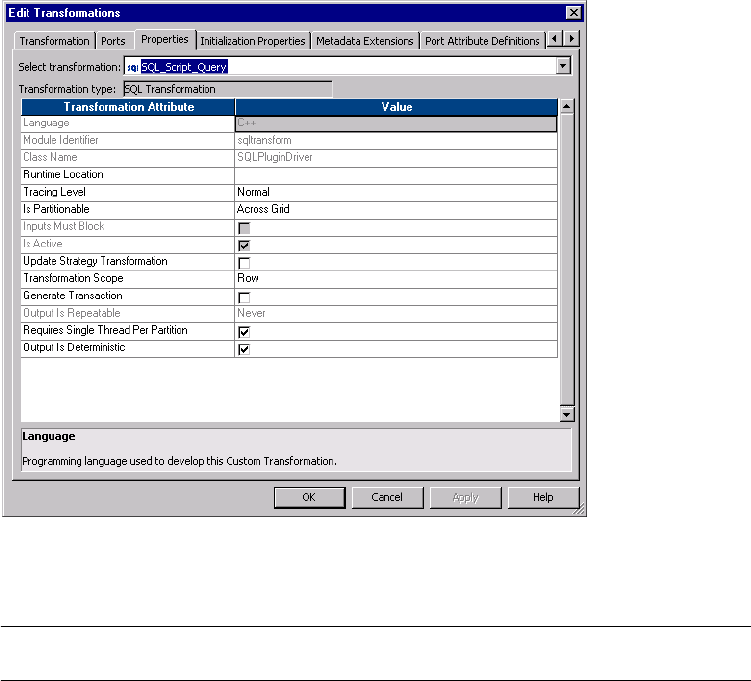

Figure 22-5 shows the SQL transformation Properties tab:
You can configure the following SQL transformation properties:
Figure 22-5. SQL Transformation Properties Tab
Table 22-7. SQL Transformation Properties
Property Required/
Optional Description
RunTime Location Optional Location that contains the DLL or shared library.
Enter a path relative to the Integration Service machine that runs the
session using the SQL transformation.
If this property is blank, the Integration Service uses the environment
variable defined on the Integration Service machine to locate the DLL or
shared library.
You must copy all DLLs or shared libraries to the run-time location or to the
environment variable defined on the Integration Service machine. The
Integration Service fails to load the procedure when it cannot locate the
DLL, shared library, or a referenced file.
Tracing Level Required Sets the amount of detail included in the session log when you run a
session containing this transformation. When you configure the SQL
transformation tracing level to Verbose Data, the Integration Service writes
each SQL query it prepares to the session log. For more information, see
“Configuring Tracing Level in Transformations” on page 30.
484 Chapter 22: SQL Transformation
IsPartitionable Required Multiple partitions in a pipeline can use this transformation. Use the
following options:
- No. The transformation cannot be partitioned. The transformation and
other transformations in the same pipeline are limited to one partition.
You might choose No if the transformation processes all the input data
together, such as data cleansing.
- Locally. The transformation can be partitioned, but the Integration
Service must run all partitions in the pipeline on the same node. Choose
Locally when different partitions of the transformation must share objects
in memory.
- Across Grid. The transformation can be partitioned, and the Integration
Service can distribute each partition to different nodes.
Default is No.
For more information about using partitioning with transformations, see
“Working with Partition Points” in the Workflow Administration Guide.
Update Strategy
Transformation
Optional The transformation defines the update strategy for output rows. You can
enable this property for query mode SQL transformations.
Default is disabled.
Transformation
Scope
Required The method in which the Integration Service applies the transformation
logic to incoming data. Use the following options:
- Row
- Transaction
- All Input
Set transaction scope to transaction when you use transaction control in
static query mode.
Default is Row for script mode transformations.
Default is All Input for query mode transformations.
Generate
Transaction
Optional The transformation generates transaction rows. Enable this property for
query mode SQL transformations that commit data in an SQL query.
Default is disabled.
Requires Single
Thread Per
Partition
Optional Indicates if the Integration Service processes each partition of a procedure
with one thread. When you enable this option, the procedure code can use
thread-specific operations. Default is enabled.
For more information about writing thread-specific operations, see
“Working with Thread-Specific Procedure Code” on page 66.
Output is
Deterministic
Optional The transformation generates consistent output data between session
runs.
Table 22-7. SQL Transformation Properties
Property Required/
Optional Description
SQL Transformation Properties 485
SQL Settings Tab
Configure SQL transformation attributes on the SQL Settings tab. The SQL attributes are
unique to the SQL transformation.

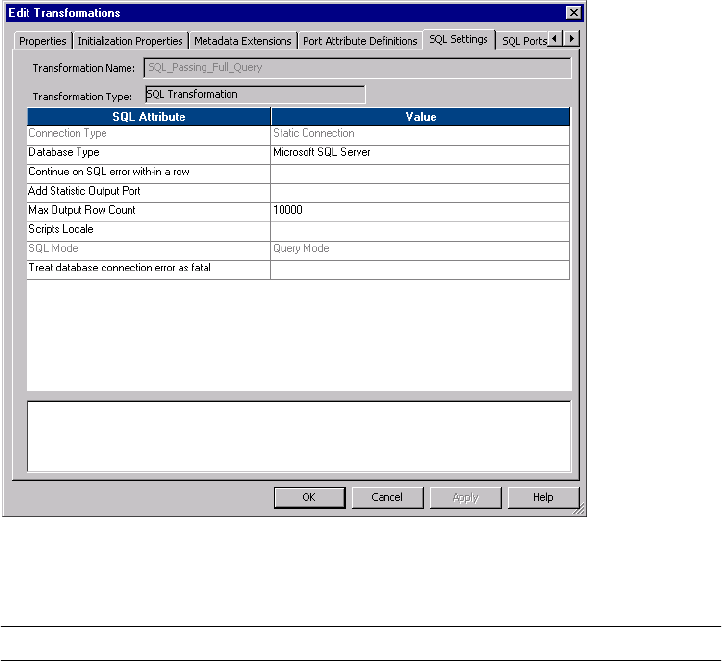

Figure 22-6 shows the SQL Settings tab attributes:
Table 22-8 lists the attributes you can configure on the SQL Setting tab:
Figure 22-6. SQL Settings Tab
Table 22-8. SQL Settings Tab Attributes
Option Description
Continue on SQL Error
within row
Continues processing the remaining SQL statements in a query after an SQL
error occurs.
Add Statistic Output Port Adds a NumRowsAffected output port. The port returns the total number of
database rows affected by INSERT, DELETE, and UPDATE query statements for
an input row.
Max Output Row Count Defines the maximum number of rows the SQL transformation can output from a
SELECT query. To configure unlimited rows, set Max Output Row Count to zero.
Scripts Locale Identifies the code page for a SQL script. Choose the code page from the list.
Default is operating system locale.
486 Chapter 22: SQL Transformation
SQL Ports Tab
When you create an SQL transformation, the Designer adds default ports depending on how
you configure the transformation. After you create the transformation, you can add ports to
the transformation on the SQL Ports tab.

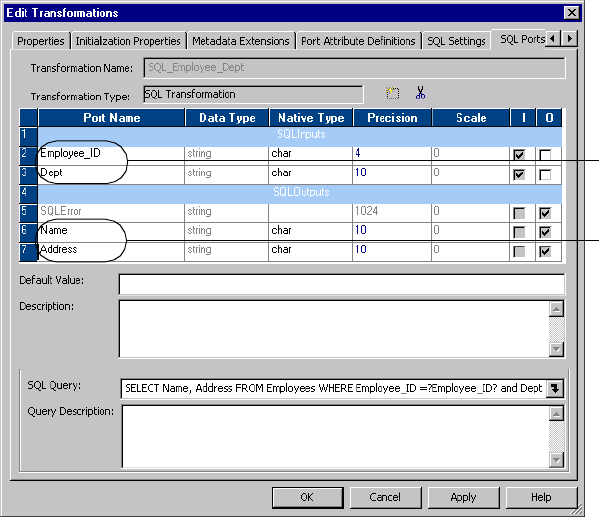

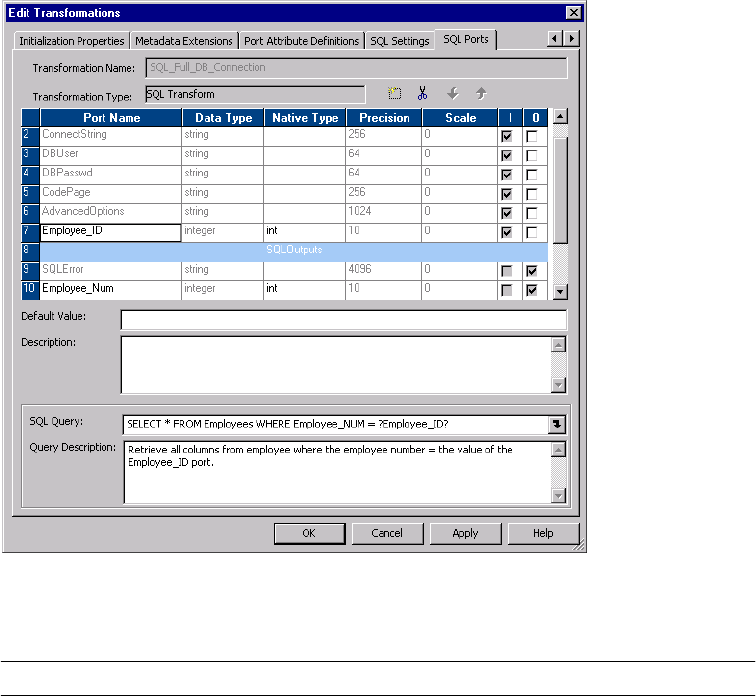

Figure 22-7 shows the ports for a query mode transformation that uses a dynamic database
connection:
Table 22-9 lists the SQL transformation ports:
Figure 22-7. SQL Transformation SQL Ports Tab
Table 22-9. SQL Transformation Ports
Port Type Mode Description
ScriptName Input Script The name of the script to execute for each row.
ScriptError Output Script SQL errors the database passes back to the transformation when
the script fails.
ScriptResult Output Script Results from query execution. Contains PASSED when the query
executes successfully. Contains FAILED when the query is not
successful.
SQLError Output Query SQL errors the database passes back to the transformation.
SQL Transformation Properties 487
LogicalConnectionObject Input Query Dynamic connection. The name of a connection defined in
Workflow Manager connections.
Connect String Input Query
Script
Connection object only. The database name and the database
server name.
DBUser Input Query
Script
Full connection only. The name of the user with permissions to read
and write from the database.
DBPasswd Input Query
Script
Full connection only. The database password.
CodePage Input Query
Script
Full connection only. The code page the Integration Service uses to
read from or write to the database.
Advanced Options Input Query
Script
Full connection only. Optional connection attributes such as packet
size, connection retry period, and enable parallel mode.
NumRowsAffected Output Query
Script
The total number of database rows affected by INSERT, DELETE,
and UPDATE query statements for an input row.
Table 22-9. SQL Transformation Ports
Port Type Mode Description
488 Chapter 22: SQL Transformation
SQL Statements
Table 22-10 lists the statements you can use with the SQL transformation:
Table 22-10. Standard SQL Statements
Statement Type Statement Description
Data Definition ALTER Modifies the structure of the database.
COMMENT Adds comments to the data dictionary.
CREATE Creates a database, table, or index.
DROP Deletes an index, table, or database.
RENAME Renames a database object.
TRUNCATE Removes all rows from a table.
Data Manipulation CALL Calls a PL/SQL or Java subprogram.
DELETE Deletes rows from a table.
EXPLAIN PLAN Writes the access plan for a statement into the database Explain
tables.
INSERT Inserts row into a table.
LOCK TABLE Prevents concurrent application processes from using or changing a
table.
MERGE Updates a table with source data.
SELECT Retrieves data from the database.
UPDATE Updates the values of rows of a table.
Data Control
Language
GRANT Grants privileges to a database user.
REVOKE Removes access privileges for a database user.
Transaction Control COMMIT Saves a unit of work and performs the database changes for that unit
of work.
ROLLBACK Reverses changes to the database since the last COMMIT.
489
Chapter 23
Stored Procedure
Transformation
This chapter includes the following topics:
Overview, 490
Using a Stored Procedure in a Mapping, 494
Writing a Stored Procedure, 495
Creating a Stored Procedure Transformation, 498
Configuring a Connected Transformation, 504
Configuring an Unconnected Transformation, 506
Error Handling, 512
Supported Databases, 514
Expression Rules, 516
Tips, 517
Troubleshooting, 518
490 Chapter 23: Stored Procedure Transformation
Overview
A Stored Procedure transformation is an important tool for populating and maintaining
databases. Database administrators create stored procedures to automate tasks that are too
complicated for standard SQL statements.
A stored procedure is a precompiled collection of Transact-SQL, PL-SQL or other database
procedural statements and optional flow control statements, similar to an executable script.
Stored procedures are stored and run within the database. You can run a stored procedure
with the EXECUTE SQL statement in a database client tool, just as you can run SQL
statements. Unlike standard SQL, however, stored procedures allow user-defined variables,
conditional statements, and other powerful programming features.
Not all databases support stored procedures, and stored procedure syntax varies depending on
the database. You might use stored procedures to complete the following tasks:
Check the status of a target database before loading data into it.
Determine if enough space exists in a database.
Perform a specialized calculation.
Drop and recreate indexes.
Database developers and programmers use stored procedures for various tasks within
databases, since stored procedures allow greater flexibility than SQL statements. Stored
procedures also provide error handling and logging necessary for critical tasks. Developers
create stored procedures in the database using the client tools provided with the database.
The stored procedure must exist in the database before creating a Stored Procedure
transformation, and the stored procedure can exist in a source, target, or any database with a
valid connection to the Integration Service.
You might use a stored procedure to perform a query or calculation that you would otherwise
make part of a mapping. For example, if you already have a well-tested stored procedure for
calculating sales tax, you can perform that calculation through the stored procedure instead of
recreating the same calculation in an Expression transformation.
Input and Output Data
One of the most useful features of stored procedures is the ability to send data to the stored
procedure, and receive data from the stored procedure. There are three types of data that pass
between the Integration Service and the stored procedure:
Input/output parameters
Return values
Status codes
Transformation type:
Passive
Connected/Unconnected
Overview 491
Some limitations exist on passing data, depending on the database implementation, which are
discussed throughout this chapter. Additionally, not all stored procedures send and receive
data. For example, if you write a stored procedure to rebuild a database index at the end of a
session, you cannot receive data, since the session has already finished.
Input/Output Parameters
For many stored procedures, you provide a value and receive a value in return. These values
are known as input and output parameters. For example, a sales tax calculation stored
procedure can take a single input parameter, such as the price of an item. After performing
the calculation, the stored procedure returns two output parameters, the amount of tax, and
the total cost of the item including the tax.
The Stored Procedure transformation sends and receives input and output parameters using
ports, variables, or by entering a value in an expression, such as 10 or SALES.
Return Values
Most databases provide a return value after running a stored procedure. Depending on the
database implementation, this value can either be user-definable, which means that it can act
similar to a single output parameter, or it may only return an integer value.
The Stored Procedure transformation captures return values in a similar manner as input/
output parameters, depending on the method that the input/output parameters are captured.
In some instances, only a parameter or a return value can be captured.
If a stored procedure returns a result set rather than a single return value, the Stored
Procedure transformation takes only the first value returned from the procedure.
Note: An Oracle stored function is similar to an Oracle stored procedure, except that the
stored function supports output parameters or return values. In this chapter, any statements
regarding stored procedures also apply to stored functions, unless otherwise noted.
Status Codes
Status codes provide error handling for the Integration Service during a workflow. The stored
procedure issues a status code that notifies whether or not the stored procedure completed
successfully. You cannot see this value. The Integration Service uses it to determine whether to
continue running the session or stop. You configure options in the Workflow Manager to
continue or stop the session in the event of a stored procedure error.
Connected and Unconnected
Stored procedures run in either connected or unconnected mode. The mode you use depends
on what the stored procedure does and how you plan to use it in a session. You can configure
connected and unconnected Stored Procedure transformations in a mapping.
Connected. The flow of data through a mapping in connected mode also passes through
the Stored Procedure transformation. All data entering the transformation through the
input ports affects the stored procedure. You should use a connected Stored Procedure
492 Chapter 23: Stored Procedure Transformation
transformation when you need data from an input port sent as an input parameter to the
stored procedure, or the results of a stored procedure sent as an output parameter to
another transformation.
Unconnected. The unconnected Stored Procedure transformation is not connected
directly to the flow of the mapping. It either runs before or after the session, or is called by
an expression in another transformation in the mapping.
Table 23-1 compares connected and unconnected transformations:
For more information, see “Configuring a Connected Transformation” on page 504 and
“Configuring an Unconnected Transformation” on page 506.
Specifying when the Stored Procedure Runs
In addition to specifying the mode of the Stored Procedure transformation, you also specify
when it runs. In the case of the unconnected stored procedure above, the Expression
transformation references the stored procedure, which means the stored procedure runs every
time a row passes through the Expression transformation. However, if no transformation
references the Stored Procedure transformation, you have the option to run the stored
procedure once before or after the session.
The following list describes the options for running a Stored Procedure transformation:
Normal. The stored procedure runs where the transformation exists in the mapping on a
row-by-row basis. This is useful for calling the stored procedure for each row of data that
passes through the mapping, such as running a calculation against an input port.
Connected stored procedures run only in normal mode.
Table 23-1. Comparison of Connected and Unconnected Stored Procedure Transformations
If you want to Use this mode
Run a stored procedure before or after a session. Unconnected
Run a stored procedure once during a mapping, such as pre- or post-session. Unconnected
Run a stored procedure every time a row passes through the Stored Procedure
transformation.
Connected or
Unconnected
Run a stored procedure based on data that passes through the mapping, such as when a
specific port does not contain a null value.
Unconnected
Pass parameters to the stored procedure and receive a single output parameter. Connected or
Unconnected
Pass parameters to the stored procedure and receive multiple output parameters.
Note: To get multiple output parameters from an unconnected Stored Procedure
transformation, you must create variables for each output parameter. For more information,
see “Calling a Stored Procedure From an Expression” on page 506.
Connected or
Unconnected
Run nested stored procedures. Unconnected
Call multiple times within a mapping. Unconnected
Overview 493
Pre-load of the Source. Before the session retrieves data from the source, the stored
procedure runs. This is useful for verifying the existence of tables or performing joins of
data in a temporary table.
Post-load of the Source. After the session retrieves data from the source, the stored
procedure runs. This is useful for removing temporary tables.
Pre-load of the Target. Before the session sends data to the target, the stored procedure
runs. This is useful for verifying target tables or disk space on the target system.
Post-load of the Target. After the session sends data to the target, the stored procedure
runs. This is useful for re-creating indexes on the database.
You can run several Stored Procedure transformations in different modes in the same
mapping. For example, a pre-load source stored procedure can check table integrity, a normal
stored procedure can populate the table, and a post-load stored procedure can rebuild indexes
in the database. However, you cannot run the same instance of a Stored Procedure
transformation in both connected and unconnected mode in a mapping. You must create
different instances of the transformation.
If the mapping calls more than one source or target pre- or post-load stored procedure in a
mapping, the Integration Service executes the stored procedures in the execution order that
you specify in the mapping.
The Integration Service executes each stored procedure using the database connection you
specify in the transformation properties. The Integration Service opens the database
connection when it encounters the first stored procedure. The database connection remains
open until the Integration Service finishes processing all stored procedures for that
connection. The Integration Service closes the database connections and opens a new one
when it encounters a stored procedure using a different database connection.
To run multiple stored procedures that use the same database connection, set these stored
procedures to run consecutively. If you do not set them to run consecutively, you might have
unexpected results in the target. For example, you have two stored procedures: Stored
Procedure A and Stored Procedure B. Stored Procedure A begins a transaction, and Stored
Procedure B commits the transaction. If you run Stored Procedure C before Stored Procedure
B, using another database connection, Stored Procedure B cannot commit the transaction
because the Integration Service closes the database connection when it runs Stored Procedure
C.
Use the following guidelines to run multiple stored procedures within a database connection:
The stored procedures use the same database connect string defined in the stored
procedure properties.
You set the stored procedures to run in consecutive order.
The stored procedures have the same stored procedure type:
Source pre-load
Source post-load
Target p r e-lo a d
Target p os t-load
494 Chapter 23: Stored Procedure Transformation
Using a Stored Procedure in a Mapping
You must perform several steps to use a Stored Procedure transformation in a mapping. Since
the stored procedure exists in the database, you must configure not only the mapping and
session, but the stored procedure in the database as well. The following sections in this
chapter detail each of the following steps.
To use a Stored Procedure transformation:
1. Create the stored procedure in the database.
Before using the Designer to create the transformation, you must create the stored
procedure in the database. You should also test the stored procedure through the
provided database client tools.
2. Import or create the Stored Procedure transformation.
Use the Designer to import or create the Stored Procedure transformation, providing
ports for any necessary input/output and return values.
3. Determine whether to use the transformation as connected or unconnected.
You must determine how the stored procedure relates to the mapping before configuring
the transformation.
4. If connected, map the appropriate input and output ports.
You use connected Stored Procedure transformations just as you would most other
transformations. Drag the appropriate input flow ports to the transformation, and create
mappings from output ports to other transformations.
5. If unconnected, either configure the stored procedure to run pre- or post-session, or
configure it to run from an expression in another transformation.
Since stored procedures can run before or after the session, you may need to specify when
the unconnected transformation should run. On the other hand, if the stored procedure
is called from another transformation, you write the expression in another transformation
that calls the stored procedure. The expression can contain variables, and may or may not
include a return value.
6. Configure the session.
The session properties in the Workflow Manager includes options for error handling
when running stored procedures and several SQL override options.
Writing a Stored Procedure 495
Writing a Stored Procedure
You write SQL statements to create a stored procedure in the database, and you can add other
Transact-SQL statements and database-specific functions. These can include user-defined
datatypes and execution order statements. For more information, see the database
documentation.
Sample Stored Procedure
In the following example, the source database has a stored procedure that takes an input
parameter of an employee ID number, and returns an output parameter of the employee
name. In addition, a return value of 0 is returned as a notification that the stored procedure
completed successfully. The database table that contains employee IDs and names appears as
follows:
The stored procedure receives the employee ID 101 as an input parameter, and returns the
name Bill Takash. Depending on how the mapping calls this stored procedure, any or all of
the IDs may be passed to the stored procedure.
Since the syntax varies between databases, the SQL statements to create this stored procedure
may vary. The client tools used to pass the SQL statements to the database also vary. Most
databases provide a set of client tools, including a standard SQL editor. Some databases, such
as Microsoft SQL Server, provide tools that create some of the initial SQL statements.
In all cases, consult the database documentation for more detailed descriptions and examples.
Note: The Integration Service fails sessions that contain stored procedure arguments with large
objects.
Informix
In Informix, the syntax for declaring an output parameter differs from other databases. With
most databases, you declare variables using IN or OUT to specify if the variable acts as an
input or output parameter. Informix uses the keyword RETURNING, making it difficult to
distinguish input/output parameters from return values. For example, you use the RETURN
command to return one or more output parameters:
CREATE PROCEDURE GET_NAME_USING_ID (nID integer)
RETURNING varchar(20);
define nID integer;
define outVAR as varchar(20);
Employee ID Employee Name
101 Bill Takash
102 Louis Li
103 Sarah Ferguson
496 Chapter 23: Stored Procedure Transformation
SELECT FIRST_NAME INTO outVAR FROM CONTACT WHERE ID = nID
return outVAR;
END PROCEDURE;
Notice that in this case, the RETURN statement passes the value of outVAR. Unlike other
databases, however, outVAR is not a return value, but an output parameter. Multiple output
parameters would be returned in the following manner:
return outVAR1, outVAR2, outVAR3
Informix does pass a return value. The return value is not user-defined, but generated as an
error-checking value. In the transformation, the R value must be checked.
Oracle
In Oracle, any stored procedure that returns a value is called a stored function. Rather than
using the CREATE PROCEDURE statement to make a new stored procedure based on the
example, you use the CREATE FUNCTION statement. In this sample, the variables are
declared as IN and OUT, but Oracle also supports an INOUT parameter type, which lets you
pass in a parameter, modify it, and return the modified value:
CREATE OR REPLACE FUNCTION GET_NAME_USING_ID (
nID IN NUMBER,
outVAR OUT VARCHAR2)
RETURN VARCHAR2 IS
RETURN_VAR varchar2(100);
BEGIN
SELECT FIRST_NAME INTO outVAR FROM CONTACT WHERE ID = nID;
RETURN_VAR := 'Success';
RETURN (RETURN_VAR);
END;
/
Notice that the return value is a string value (Success) with the datatype VARCHAR2. Oracle
is the only database to allow return values with string datatypes.
Sybase ASE/Microsoft SQL Server
Sybase and Microsoft implement stored procedures identically, as the following syntax shows:
CREATE PROCEDURE GET_NAME_USING_ID @nID int = 1, @outVar varchar(20)
OUTPUT
AS
SELECT @outVar = FIRST_NAME FROM CONTACT WHERE ID = @nID
return 0
Writing a Stored Procedure 497
Notice that the return value does not need to be a variable. In this case, if the SELECT
statement is successful, a 0 is returned as the return value.
IBM DB2
The following text is an example of an SQL stored procedure on IBM DB2:
CREATE PROCEDURE get_name_using_id ( IN id_in int,
OUT emp_out char(18),
OUT sqlcode_out int)
LANGUAGE SQL
P1: BEGIN
-- Declare variables
DECLARE SQLCODE INT DEFAULT 0;
DECLARE emp_TMP char(18) DEFAULT ' ';
-- Declare handler
DECLARE EXIT HANDLER FOR SQLEXCEPTION
SET SQLCODE_OUT = SQLCODE;
select employee into emp_TMP
from doc_employee
where id = id_in;
SET emp_out = EMP_TMP;
SET sqlcode_out = SQLCODE;
END P1
Tera da ta
The following text is an example of an SQL stored procedure on Teradata. It takes an
employee ID number as an input parameter and returns the employee name as an output
parameter:
CREATE PROCEDURE GET_NAME_USING_ID (IN nID integer, OUT outVAR
varchar(40))
BEGIN
SELECT FIRST_NAME INTO :outVAR FROM CONTACT where ID = :nID;
END;
498 Chapter 23: Stored Procedure Transformation
Creating a Stored Procedure Transformation
After you configure and test a stored procedure in the database, you must create the Stored
Procedure transformation in the Mapping Designer. There are two ways to configure the
Stored Procedure transformation:
Use the Import Stored Procedure dialog box to configure the ports used by the stored
procedure.
Configure the transformation manually, creating the appropriate ports for any input or
output parameters.
Stored Procedure transformations are created as Normal type by default, which means that
they run during the mapping, not before or after the session.
New Stored Procedure transformations are not created as reusable transformations. To create a
reusable transformation, click Make Reusable in the Transformation properties after creating
the transformation.
Note: Configure the properties of reusable transformations in the Transformation Developer,
not the Mapping Designer, to make changes globally for the transformation.
Importing Stored Procedures
When you import a stored procedure, the Designer creates ports based on the stored
procedure input and output parameters. You should import the stored procedure whenever
possible.
There are three ways to import a stored procedure in the Mapping Designer:
Select the stored procedure icon and add a Stored Procedure transformation.
Click Transformation > Import Stored Procedure.
Click Transformation > Create, and then select Stored Procedure.
Note: When you import a stored procedure containing a period (.) in the stored procedure
name, the Designer substitutes an underscore (_) for the period in the Stored Procedure
transformation name.
Creating a Stored Procedure Transformation 499
To import a stored procedure:
1. In the Mapping Designer, click Transformation > Import Stored Procedure.
2. Select the database that contains the stored procedure from the list of ODBC sources.
Enter the user name, owner name, and password to connect to the database and click
Connect.
Notice the folder in the dialog box displays FUNCTIONS. The stored procedures listed
in this folder contain input parameters, output parameters, or a return value. If stored
procedures exist in the database that do not contain parameters or return values, they
appear in a folder called PROCEDURES. This applies primarily to Oracle stored
procedures. For a normal connected Stored Procedure to appear in the functions list, it
requires at least one input and one output port.
Tip: You can select Skip to add a Stored Procedure transformation without importing the
stored procedure. In this case, you need to manually add the ports and connect
information within the transformation. For more information, see “Manually Creating
Stored Procedure Transformations” on page 500.
3. Select the procedure to import and click OK.
The Stored Procedure transformation appears in the mapping. The Stored Procedure
transformation name is the same as the stored procedure you selected. If the stored
procedure contains input parameters, output parameters, or a return value, you see the
appropriate ports that match each parameter or return value in the Stored Procedure
transformation.
500 Chapter 23: Stored Procedure Transformation
In this Stored Procedure transformation, you can see that the stored procedure contains
the following value and parameters:
An integer return value, called RETURN_VALUE, with an output port.
A string input parameter, called nNAME, with an input port.
An integer output parameter, called outVar, with an input and output port.
Note: If you change the transformation name, you need to configure the name of the
stored procedure in the transformation properties. If you have multiple instances of the
same stored procedure in a mapping, you must also configure the name of the stored
procedure.
4. Open the transformation, and click the Properties tab.
Select the database where the stored procedure exists from the Connection Information
row. If you changed the name of the Stored Procedure transformation to something other
than the name of the stored procedure, enter the Stored Procedure Name.
5. Click OK.
6. Click Repository > Save to save changes to the mapping.
Manually Creating Stored Procedure Transformations
To create a Stored Procedure transformation manually, you need to know the input
parameters, output parameters, and return values of the stored procedure, if there are any. You
must also know the datatypes of those parameters, and the name of the stored procedure. All
these are configured through Import Stored Procedure.
To create a Stored Procedure transformation:
1. In the Mapping Designer, click Transformation > Create, and then select Stored
Procedure.
The naming convention for a Stored Procedure transformation is the name of the stored
procedure, which happens automatically. If you change the transformation name, then
you need to configure the name of the stored procedure in the Transformation Properties.
If you have multiple instances of the same stored procedure in a mapping, you must
perform this step.
2. Click Skip.
The Stored Procedure transformation appears in the Mapping Designer.
3. Open the transformation, and click the Ports tab.
You must create ports based on the input parameters, output parameters, and return
values in the stored procedure. Create a port in the Stored Procedure transformation for
each of the following stored procedure parameters:
An integer input parameter
A string output parameter
A return value
Creating a Stored Procedure Transformation 501
For the integer input parameter, you would create an integer input port. The parameter
and the port must be the same datatype and precision. Repeat this for the output
parameter and the return value.
The R column should be selected and the output port for the return value. For stored
procedures with multiple parameters, you must list the ports in the same order that they
appear in the stored procedure.
4. Click the Properties tab.
Enter the name of the stored procedure in the Stored Procedure Name row, and select the
database where the stored procedure exists from the Connection Information row.
5. Click OK.
6. Click Repository > Save to save changes to the mapping.
Although the repository validates and saves the mapping, the Designer does not validate the
manually entered Stored Procedure transformation. No checks are completed to verify that
the proper parameters or return value exist in the stored procedure. If the Stored Procedure
transformation is not configured properly, the session fails.
Setting Options for the Stored Procedure
Table 23-2 describes the properties for a Stored Procedure transformation:
Table 23-2. Setting Options for the Stored Procedure Transformation
Setting Description
Stored Procedure Name Name of the stored procedure in the database. The Integration Service uses this text
to call the stored procedure if the name of the transformation is different than the
actual stored procedure name in the database. Leave this field blank if the
transformation name matches the stored procedure name. When using the Import
Stored Procedure feature, this name matches the stored procedure.
Connection Information Specifies the database containing the stored procedure. You can select the database
or use the $Source or $Target variable. By default, the Designer specifies $Target for
Normal stored procedure types.
For source pre- and post-load, the Designer specifies $Source. For target pre- and
post-load, the Designer specifies $Target. You can override these values in the
Workflow Manager session properties.
If you use one of these variables, the stored procedure must reside in the source or
target database you specify when you run the session.
If you use $Source or $Target, you can specify the database connection for each
variable in the session properties.
The Integration Service fails the session if it cannot determine the type of database
connection.
For more information about using $Source and $Target, see “Using $Source and
$Target Variables” on page 502.
Call Text Text used to call the stored procedure. Only used when the Stored Procedure Type is
not Normal. You must include any input parameters passed to the stored procedure
within the call text. For more information, see “Calling a Pre- or Post-Session Stored
Procedure” on page 509.
502 Chapter 23: Stored Procedure Transformation
Using $Source and $Target Variables
Use either the $Source or $Target variable when you specify the database location for a Stored
Procedure transformation. Use these variables in the Connection Information property for a
Stored Procedure transformation.
You can also use these variables for Lookup transformations. For more information, see
“Lookup Properties” on page 316.
When you configure a session, you can specify a database connection value for $Source or
$Target. This ensures the Integration Service uses the correct database connection for the
variable when it runs the session. You can configure the $Source Connection Value and
$Target Connection Value properties on the General Options settings of the Properties tab in
the session properties.
However, if you do not specify $Source Connection Value or $Target Connection Value in
the session properties, the Integration Service determines the database connection to use
when it runs the session. It uses a source or target database connection for the source or target
in the pipeline that contains the Stored Procedure transformation. If it cannot determine
which database connection to use, it fails the session.
The following list describes how the Integration Service determines the value of $Source or
$Target when you do not specify $Source Connection Value or $Target Connection Value in
the session properties:
When you use $Source and the pipeline contains one relational source, the Integration
Service uses the database connection you specify for the source.
When you use $Source and the pipeline contains multiple relational sources joined by a
Joiner transformation, the Integration Service uses different database connections,
depending on the location of the Stored Procedure transformation in the pipeline:
When the Stored Procedure transformation is after the Joiner transformation, the
Integration Service uses the database connection for the detail table.
When the Stored Procedure transformation is before the Joiner transformation, the
Integration Service uses the database connection for the source connected to the Stored
Procedure transformation.
When you use $Target and the pipeline contains one relational target, the Integration
Service uses the database connection you specify for the target.
Stored Procedure Type Determines when the Integration Service calls the stored procedure. The options
include Normal (during the mapping) or pre- or post-load on the source or target
database. Default is Normal.
Execution Order Order in which the Integration Service calls the stored procedure used in the
transformation, relative to any other stored procedures in the same mapping. Only
used when the Stored Procedure Type is set to anything except Normal and more
than one stored procedure exists.
Table 23-2. Setting Options for the Stored Procedure Transformation
Setting Description
Creating a Stored Procedure Transformation 503
When you use $Target and the pipeline contains multiple relational targets, the session
fails.
When you use $Source or $Target in an unconnected Stored Procedure transformation,
the session fails.
Changing the Stored Procedure
If the number of parameters or the return value in a stored procedure changes, you can either
re-import it or edit the Stored Procedure transformation manually. The Designer does not
verify the Stored Procedure transformation each time you open the mapping. After you
import or create the transformation, the Designer does not validate the stored procedure. The
session fails if the stored procedure does not match the transformation.
504 Chapter 23: Stored Procedure Transformation
Configuring a Connected Transformation

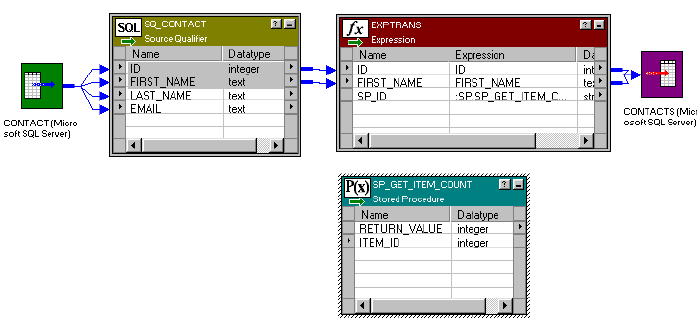

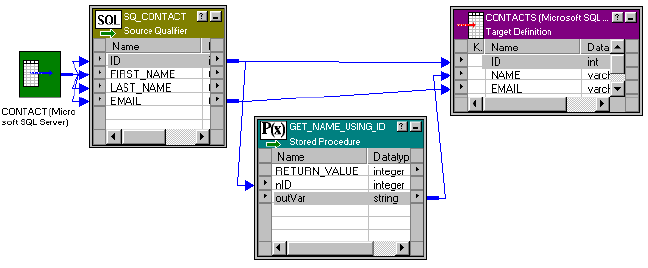

Figure 23-1 shows a mapping that sends the ID from the Source Qualifier to an input
parameter in the Stored Procedure transformation and retrieves an output parameter from the
Stored Procedure transformation that is sent to the target. Every row of data in the Source
Qualifier transformation passes data through the Stored Procedure transformation:
Although not required, almost all connected Stored Procedure transformations contain input
and output parameters. Required input parameters are specified as the input ports of the
Stored Procedure transformation. Output parameters appear as output ports in the
transformation. A return value is also an output port, and has the R value selected in the
transformation Ports configuration. For a normal connected Stored Procedure to appear in
the functions list, it requires at least one input and one output port.
Output parameters and return values from the stored procedure are used as any other output
port in a transformation. You can map the value of these ports directly to another
transformation or target.
To configure a connected Stored Procedure transformation:
1. Create the Stored Procedure transformation in the mapping.
For more information, see “Creating a Stored Procedure Transformation” on page 498.
2. Drag ports from upstream transformations to connect to any available input ports.
3. Drag the output ports of the Stored Procedure to other transformations or targets.
4. Open the Stored Procedure transformation, and select the Properties tab.
Select the appropriate database in the Connection Information if you did not select it
when creating the transformation.
Select the Tracing level for the transformation. If you are testing the mapping, select the
Verbose Initialization option to provide the most information in the event that the
transformation fails. Click OK.
Figure 23-1. Sample Mapping with a Stored Procedure Transformation
Configuring a Connected Transformation 505
5. Click Repository > Save to save changes to the mapping.
506 Chapter 23: Stored Procedure Transformation
Configuring an Unconnected Transformation
An unconnected Stored Procedure transformation is not directly connected to the flow of data
through the mapping. Instead, the stored procedure runs either:
From an expression. Called from an expression written in the Expression Editor within
another transformation in the mapping.
Pre- or post-session. Runs before or after a session.
The sections below explain how you can run an unconnected Stored Procedure
transformation.
Calling a Stored Procedure From an Expression
In an unconnected mapping, the Stored Procedure transformation does not connect to the
pipeline.

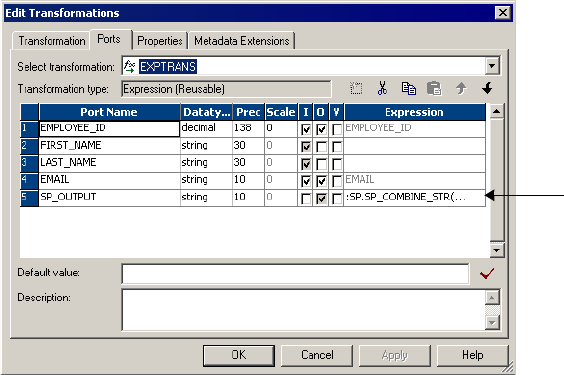

Figure 23-2 shows a mapping with an Expression transformation that references the Stored
Procedure transformation:
However, just like a connected mapping, you can apply the stored procedure to the flow of
data through the mapping. In fact, you have greater flexibility since you use an expression to
call the stored procedure, which means you can select the data that you pass to the stored
procedure as an input parameter.
When using an unconnected Stored Procedure transformation in an expression, you need a
method of returning the value of output parameters to a port. Use one of the following
methods to capture the output values:
Assign the output value to a local variable.
Assign the output value to the system variable PROC_RESULT.
Figure 23-2. Expression Transformation Referencing a Stored Procedure Transformation
Configuring an Unconnected Transformation 507
By using PROC_RESULT, you assign the value of the return parameter directly to an output
port, which can apply directly to a target. You can also combine the two options by assigning
one output parameter as PROC_RESULT, and the other parameter as a variable.
Use PROC_RESULT only within an expression. If you do not use PROC_RESULT or a
variable, the port containing the expression captures a NULL. You cannot use
PROC_RESULT in a connected Lookup transformation or within the Call Text for a Stored
Procedure transformation.
If you require nested stored procedures, where the output parameter of one stored procedure
passes to another stored procedure, use PROC_RESULT to pass the value.
The Integration Service calls the unconnected Stored Procedure transformation from the
Expression transformation. Notice that the Stored Procedure transformation has two input
ports and one output port. All three ports are string datatypes.
To call a stored procedure from within an expression:
1. Create the Stored Procedure transformation in the mapping.
For more information, see “Creating a Stored Procedure Transformation” on page 498.
2. In any transformation that supports output and variable ports, create a new output port
in the transformation that calls the stored procedure. Name the output port.
The output port that calls the stored procedure must support expressions. Depending on
how the expression is configured, the output port contains the value of the output
parameter or the return value.
3. Open the Expression Editor for the port.
The value for the new port is set up in the Expression Editor as a call to the stored
procedure using the :SP keyword in the Transformation Language. The easiest way to set
this up properly is to select the Stored Procedures node in the Expression Editor, and
Output Port
508 Chapter 23: Stored Procedure Transformation
click the name of Stored Procedure transformation listed. For a normal connected Stored
Procedure to appear in the functions list, it requires at least one input and one output
port.
The stored procedure appears in the Expression Editor with a pair of empty parentheses.
The necessary input and/or output parameters are displayed in the lower left corner of
the Expression Editor.
4. Configure the expression to send input parameters and capture output parameters or
return value.
You must know whether the parameters shown in the Expression Editor are input or
output parameters. You insert variables or port names between the parentheses in the
order that they appear in the stored procedure. The datatypes of the ports and variables
must match those of the parameters passed to the stored procedure.
For example, when you click the stored procedure, something similar to the following
appears:
:SP.GET_NAME_FROM_ID()
This particular stored procedure requires an integer value as an input parameter and
returns a string value as an output parameter. How the output parameter or return value
is captured depends on the number of output parameters and whether the return value
needs to be captured.
If the stored procedure returns a single output parameter or a return value (but not both),
you should use the reserved variable PROC_RESULT as the output variable. In the
previous example, the expression would appear as:
:SP.GET_NAME_FROM_ID(inID, PROC_RESULT)
inID can be either an input port for the transformation or a variable in the
transformation. The value of PROC_RESULT is applied to the output port for the
expression.
Configuring an Unconnected Transformation 509
If the stored procedure returns multiple output parameters, you must create variables for
each output parameter. For example, if you create a port called varOUTPUT2 for the
stored procedure expression, and a variable called varOUTPUT1, the expression appears
as:
:SP.GET_NAME_FROM_ID(inID, varOUTPUT1, PROC_RESULT)
The value of the second output port is applied to the output port for the expression, and
the value of the first output port is applied to varOUTPUT1. The output parameters are
returned in the order they are declared in the stored procedure.
With all these expressions, the datatypes for the ports and variables must match the
datatypes for the input/output variables and return value.
5. Click Validate to verify the expression, and then click OK to close the Expression Editor.
Validating the expression ensures that the datatypes for parameters in the stored
procedure match those entered in the expression.
6. Click OK.
7. Click Repository > Save to save changes to the mapping.
When you save the mapping, the Designer does not validate the stored procedure
expression. If the stored procedure expression is not configured properly, the session fails.
When testing a mapping using a stored procedure, set the Override Tracing session
option to a verbose mode and configure the On Stored Procedure session option to stop
running if the stored procedure fails. Configure these session options in the Error
Handling settings of the Config Object tab in the session properties. For more
information about setting the tracing level, see “Log Files” in the Workflow
Administration Guide. For more information about the On Stored Procedure Error
session property, see “Session Properties Reference” in the Workflow Administration
Guide.
The stored procedure in the expression entered for a port does not have to affect all values
that pass through the port. Using the IIF statement, for example, you can pass only certain
values, such as ID numbers that begin with 5, to the stored procedure and skip all other
values. You can also set up nested stored procedures so the return value of one stored
procedure becomes an input parameter for a second stored procedure.
For more information about configuring the stored procedure expression, see “Expression
Rules on page 516.
Calling a Pre- or Post-Session Stored Procedure
You may want to run a stored procedure once per session. For example, if you need to verify
that tables exist in a target database before running a mapping, a pre-load target stored
procedure can check the tables, and then either continue running the workflow or stop it. You
can run a stored procedure on the source, target, or any other connected database.
510 Chapter 23: Stored Procedure Transformation
To create a pre- or post-load stored procedure:
1. Create the Stored Procedure transformation in the mapping.
For more information, see “Creating a Stored Procedure Transformation” on page 498.
2. Double-click the Stored Procedure transformation, and select the Properties tab.
3. Enter the name of the stored procedure.
If you imported the stored procedure, this should be set correctly. If you manually set up
the stored procedure, enter the name of the stored procedure.
4. Select the database that contains the stored procedure in Connection Information.
5. Enter the call text of the stored procedure.
This is the name of the stored procedure, followed by any applicable input parameters in
parentheses. If there are no input parameters, you must include an empty pair of
parentheses, or the call to the stored procedure fails. You do not need to include the SQL
statement EXEC, nor do you need to use the :SP keyword. For example, to call a stored
procedure called check_disk_space, enter the following:
check_disk_space()
To pass a string input parameter, enter it without quotes. If the string has spaces in it,
enclose the parameter in double quotes. For example, if the stored procedure
check_disk_space required a machine name as an input parameter, enter the following:
check_disk_space(oracle_db)
You must enter values for the parameters, since pre- and post-session procedures cannot
pass variables.
When passing a datetime value through a pre- or post-session stored procedure, the value
must be in the Informatica default date format and enclosed in double quotes as follows:
SP(“12/31/2000 11:45:59”)
Configuring an Unconnected Transformation 511
6. Select the stored procedure type.
The options for stored procedure type include:
Source Pre-load. Before the session retrieves data from the source, the stored
procedure runs. This is useful for verifying the existence of tables or performing joins
of data in a temporary table.
Source Post-load. After the session retrieves data from the source, the stored procedure
runs. This is useful for removing temporary tables.
Ta rg e t Pre- lo a d . Before the session sends data to the target, the stored procedure runs.
This is useful for verifying target tables or disk space on the target system.
Ta rg e t Po st -l oa d. After the session sends data to the target, the stored procedure runs.
This is useful for re-creating indexes on the database.
7. Select Execution Order, and click the Up or Down arrow to change the order, if
necessary.
If you have added several stored procedures that execute at the same point in a session
(such as two procedures that both run at Source Post-load), you can set a stored
procedure execution plan to determine the order in which the Integration Service calls
these stored procedures. You need to repeat this step for each stored procedure you wish
to change.
8. Click OK.
9. Click Repository > Save to save changes to the mapping.
Although the repository validates and saves the mapping, the Designer does not validate
whether the stored procedure expression runs without an error. If the stored procedure
expression is not configured properly, the session fails. When testing a mapping using a
stored procedure, set the Override Tracing session option to a verbose mode and
configure the On Stored Procedure session option to stop running if the stored procedure
fails. Configure these session options on the Error Handling settings of the Config
Object tab in the session properties.
You lose output parameters or return values called during pre- or post-session stored
procedures, since there is no place to capture the values. If you need to capture values, you
might want to configure the stored procedure to save the value in a table in the database.
512 Chapter 23: Stored Procedure Transformation
Error Handling
Sometimes a stored procedure returns a database error, such as “divide by zero” or “no more
rows”. The final result of a database error during a stored procedure differs depending on
when the stored procedure takes place and how the session is configured.
You can configure the session to either stop or continue running the session upon
encountering a pre- or post-session stored procedure error. By default, the Integration Service
stops a session when a pre- or post-session stored procedure database error occurs.

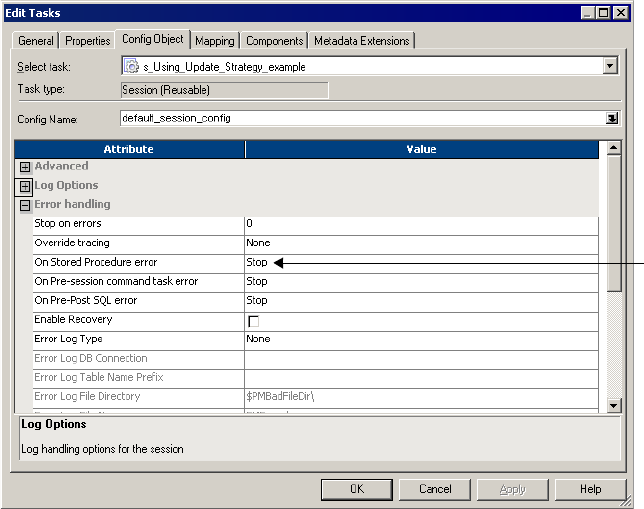

Figure 23-3 shows the properties you can configure for stored procedures and error handling:
Pre-Session Errors
Pre-read and pre-load stored procedures are considered pre-session stored procedures. Both
run before the Integration Service begins reading source data. If a database error occurs
during a pre-session stored procedure, the Integration Service performs a different action
depending on the session configuration.
If you configure the session to stop upon stored procedure error, the Integration Service
fails the session.
If you configure the session to continue upon stored procedure error, the Integration
Service continues with the session.
Figure 23-3. Stored Procedure Error Handling
Stored
Procedure Error
Handling
Error Handling 513
Post-Session Errors
Post-read and post-load stored procedures are considered post-session stored procedures. Both
run after the Integration Service commits all data to the database. If a database errors during a
post-session stored procedure, the Integration Service performs a different action depending
on the session configuration.
If you configure the session to stop upon stored procedure error, the Integration Service
fails the session.
However, the Integration Service has already committed all data to session targets.
If you configure the session to continue upon stored procedure error, the Integration
Service continues with the session.
Session Errors
Connected or unconnected stored procedure errors occurring during the session are not
affected by the session error handling option. If the database returns an error for a particular
row, the Integration Service skips the row and continues to the next row. As with other row
transformation errors, the skipped row appears in the session log.
514 Chapter 23: Stored Procedure Transformation
Supported Databases
The supported options for Oracle, and other databases, such as Informix, Microsoft SQL
Server, and Sybase are described below. For more information about database differences, see
“Writing a Stored Procedure” on page 495. For more information about supported features,
see the database documentation.
SQL Declaration
In the database, the statement that creates a stored procedure appears similar to the following
Oracle stored procedure:
create or replace procedure sp_combine_str
(str1_inout IN OUT varchar2,
str2_inout IN OUT varchar2,
str_out OUT varchar2)
is
begin
str1_inout := UPPER(str1_inout);
str2_inout := upper(str2_inout);
str_out := str1_inout || ' ' || str2_inout;
end;
In this case, the Oracle statement begins with CREATE OR REPLACE PROCEDURE. Since
Oracle supports both stored procedures and stored functions, only Oracle uses the optional
CREATE FUNCTION statement.
Parameter Types
There are three possible parameter types in stored procedures:
IN. Defines the parameter something that must be passed to the stored procedure.
OUT. Defines the parameter as a returned value from the stored procedure.
INOUT. Defines the parameter as both input and output. Only Oracle supports this
parameter type.
Input/Output Port in Mapping
Since Oracle supports the INOUT parameter type, a port in a Stored Procedure
transformation can act as both an input and output port for the same stored procedure
parameter. Other databases should not have both the input and output check boxes selected
for a port.
Supported Databases 515
Type of Return Value Supported
Different databases support different types of return value datatypes, and only Informix does
not support user-defined return values.
516 Chapter 23: Stored Procedure Transformation
Expression Rules
Unconnected Stored Procedure transformations can be called from an expression in another
transformation. Use the following rules and guidelines when configuring the expression:
A single output parameter is returned using the variable PROC_RESULT.
When you use a stored procedure in an expression, use the :SP reference qualifier. To avoid
typing errors, select the Stored Procedure node in the Expression Editor, and double-click
the name of the stored procedure.
However, the same instance of a Stored Procedure transformation cannot run in both
connected and unconnected mode in a mapping. You must create different instances of the
transformation.
The input/output parameters in the expression must match the input/output ports in the
Stored Procedure transformation. If the stored procedure has an input parameter, there
must also be an input port in the Stored Procedure transformation.
When you write an expression that includes a stored procedure, list the parameters in the
same order that they appear in the stored procedure and the Stored Procedure
transformation.
The parameters in the expression must include all of the parameters in the Stored
Procedure transformation. You cannot leave out an input parameter. If necessary, pass a
dummy variable to the stored procedure.
The arguments in the expression must be the same datatype and precision as those in the
Stored Procedure transformation.
Use PROC_RESULT to apply the output parameter of a stored procedure expression
directly to a target. You cannot use a variable for the output parameter to pass the results
directly to a target. Use a local variable to pass the results to an output port within the
same transformation.
Nested stored procedures allow passing the return value of one stored procedure as the
input parameter of another stored procedure. For example, if you have the following two
stored procedures:
get_employee_id (employee_name)
get_employee_salary (employee_id)
And the return value for get_employee_id is an employee ID number, the syntax for a
nested stored procedure is:
:sp.get_employee_salary (:sp.get_employee_id (employee_name))
You can have multiple levels of nested stored procedures.
Do not use single quotes around string parameters. If the input parameter does not
contain spaces, do not use any quotes. If the input parameter contains spaces, use double
quotes.
Tips 517
Tips
Do not run unnecessary instances of stored procedures.
Each time a stored procedure runs during a mapping, the session must wait for the stored
procedure to complete in the database. You have two possible options to avoid this:
Reduce the row count. Use an active transformation prior to the Stored Procedure
transformation to reduce the number of rows that must be passed the stored procedure.
Or, create an expression that tests the values before passing them to the stored procedure to
make sure that the value does not really need to be passed.
Create an expression. Most of the logic used in stored procedures can be easily replicated
using expressions in the Designer.
518 Chapter 23: Stored Procedure Transformation
Troubleshooting
I get the error “stored procedure not found” in the session log file.
Make sure the stored procedure is being run in the correct database. By default, the Stored
Procedure transformation uses the target database to run the stored procedure. Double-click
the transformation in the mapping, select the Properties tab, and check which database is
selected in Connection Information.
My output parameter was not returned using a Microsoft SQL Server stored procedure.
Check if the parameter to hold the return value is declared as OUTPUT in the stored
procedure. With Microsoft SQL Server, OUTPUT implies input/output. In the mapping,
you probably have checked both the I and O boxes for the port. Clear the input port.
The session did not have errors before, but now it fails on the stored procedure.
The most common reason for problems with a Stored Procedure transformation results from
changes made to the stored procedure in the database. If the input/output parameters or
return value changes in a stored procedure, the Stored Procedure transformation becomes
invalid. You must either import the stored procedure again, or manually configure the stored
procedure to add, remove, or modify the appropriate ports.
The session has been invalidated since I last edited the mapping. Why?
Any changes you make to the Stored Procedure transformation may invalidate the session.
The most common reason is that you have changed the type of stored procedure, such as from
a Normal to a Post-load Source type.
519
Chapter 24
Transaction Control
Transformation
This chapter includes the following topics:
Overview, 520
Transaction Control Transformation Properties, 521
Using Transaction Control Transformations in Mappings, 524
Mapping Guidelines and Validation, 528
Creating a Transaction Control Transformation, 529
520 Chapter 24: Transaction Control Transformation
Overview
PowerCenter lets you control commit and rollback transactions based on a set of rows that
pass through a Transaction Control transformation. A transaction is the set of rows bound by
commit or rollback rows. You can define a transaction based on a varying number of input
rows. You might want to define transactions based on a group of rows ordered on a common
key, such as employee ID or order entry date.
In PowerCenter, you define transaction control at two levels:
Within a mapping. Within a mapping, you use the Transaction Control transformation to
define a transaction. You define transactions using an expression in a Transaction Control
transformation. Based on the return value of the expression, you can choose to commit,
roll back, or continue without any transaction changes.
Within a session. When you configure a session, you configure it for user-defined commit.
You can choose to commit or roll back a transaction if the Integration Service fails to
transform or write any row to the target.
When you run the session, the Integration Service evaluates the expression for each row that
enters the transformation. When it evaluates a commit row, it commits all rows in the
transaction to the target or targets.
When the Integration Service evaluates a rollback row, it rolls back all rows in the transaction
from the target or targets.
Note: You can also use the transformation scope in other transformation properties to define
transactions. For more information, see “Understanding Commit Points” in the Workflow
Administration Guide.
Transformation type:
Active
Connected
Transaction Control Transformation Properties 521
Transaction Control Transformation Properties
Use the Transaction Control transformation to define conditions to commit and rollback
transactions from relational, XML, and dynamic IBM MQSeries targets. Define these
parameters in a transaction control expression on the Properties tab. A transaction is the row
or set of rows bound by commit or rollback rows. The number of rows may vary for each
transaction.
When you configure a Transaction Control transformation, you define the following
components:
Transformation tab. You can rename the transformation and add a description on the
Transformation tab.
Ports tab. You can add only input/output ports to a Transaction Control transformation.
Properties tab. You can define the transaction control expression, which flags transactions
for commit, rollback, or no action.
Metadata Extensions tab. You can extend the metadata stored in the repository by
associating information with the Transaction Control transformation. For more
information, see “Metadata Extensions” in the Repository Guide.
Properties Tab
On the Properties tab, you can configure the following properties:
Transaction control expression
Tra c in g l e ve l

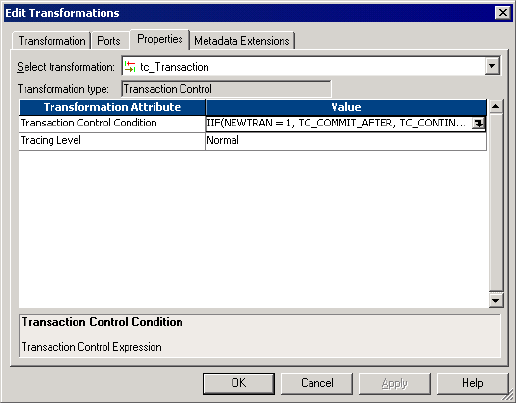

Figure 24-1 shows the Transaction Control transformation Properties tab:
Figure 24-1. Transaction Control Transformation Properties
522 Chapter 24: Transaction Control Transformation
Enter the transaction control expression in the Transaction Control Condition field. The
transaction control expression uses the IIF function to test each row against the condition.
Use the following syntax for the expression:
IIF (condition, value1, value2)
The expression contains values that represent actions the Integration Service performs based
on the return value of the condition. The Integration Service evaluates the condition on a
row-by-row basis. The return value determines whether the Integration Service commits, rolls
back, or makes no transaction changes to the row. When the Integration Service issues a
commit or rollback based on the return value of the expression, it begins a new transaction.
Use the following built-in variables in the Expression Editor when you create a transaction
control expression:
TC_CONTINUE_TRANSACTION. The Integration Service does not perform any
transaction change for this row. This is the default value of the expression.
TC_COMMIT_BEFORE. The Integration Service commits the transaction, begins a new
transaction, and writes the current row to the target. The current row is in the new
transaction.
TC_COMMIT_AFTER. The Integration Service writes the current row to the target,
commits the transaction, and begins a new transaction. The current row is in the
committed transaction.
TC_ROLLBACK_BEFORE. The Integration Service rolls back the current transaction,
begins a new transaction, and writes the current row to the target. The current row is in
the new transaction.
TC_ROLLBACK_AFTER. The Integration Service writes the current row to the target,
rolls back the transaction, and begins a new transaction. The current row is in the rolled
back transaction.
If the transaction control expression evaluates to a value other than commit, rollback, or
continue, the Integration Service fails the session.
Example
Suppose you want to use transaction control to write order information based on the order
entry date. You want to ensure that all orders entered on any given date are committed to the
target in the same transaction. To accomplish this, you can create a mapping with the
following transformations:
Sorter transformation. Sort the source data by order entry date.
Expression transformation. Use local variables to determine whether the date entered is a
new date.
Transaction Control Transformation Properties 523
The following table describes the ports in the Expression transformation:
Transaction Control transformation. Create the following transaction control expression
to commit data when the Integration Service encounters a new order entry date:
IIF(NEW_DATE = 1, TC_COMMIT_BEFORE, TC_CONTINUE_TRANSACTION)

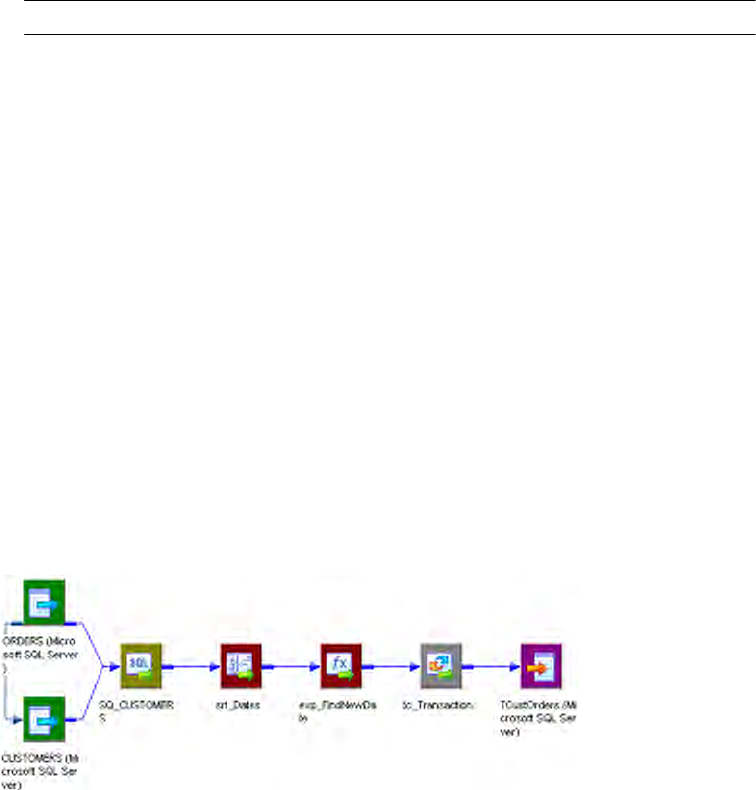

Figure 24-2 shows a sample mapping using a Transaction Control transformation:
Port Name Expression Description
DATE_ENTERED DATE_ENTERED Input/Output port.
Receives and passes the date entered.
NEW_DATE IIF(DATE_ENTERED=PREVDATE, 0,1) Variable port.
Tests current value for DATE_ENTERED against
the stored value for DATE_ENTERED in the
variable port, PREV_DATE.
PREV_DATE DATE_ENTERED Variable port.
Receives the value for DATE_ENTERED after the
Integration Service evaluates the NEW_DATE
port.
DATE_OUT NEW_DATE Output port.
Passes the flag from NEW_DATE to the
Transaction Control transformation.
Note: The Integration Service evaluates ports by dependency. The order in which ports display in a transformation must match the
order of evaluation: input ports, variable ports, output ports.
Figure 24-2. Sample Transaction Control Mapping
524 Chapter 24: Transaction Control Transformation
Using Transaction Control Transformations in Mappings
Transaction Control transformations are transaction generators. They define and redefine
transaction boundaries in a mapping. They drop any incoming transaction boundary from an
upstream active source or transaction generator, and they generate new transaction boundaries
downstream.
You can also use Custom transformations configured to generate transactions to define
transaction boundaries. For more information about configuring a Custom transformation to
generate transactions, see “Generate Transaction” on page 68.
Transaction Control transformations can be either effective or ineffective for the downstream
transformations and targets in the mapping. The Transaction Control transformation
becomes ineffective for downstream transformations or targets if you put a transformation
that drops incoming transaction boundaries after it. This includes any of the following active
sources or transformations:
Aggregator transformation with the All Input level transformation scope
Joiner transformation with the All Input level transformation scope
Rank transformation with the All Input level transformation scope
Sorter transformation with the All Input level transformation scope
Custom transformation with the All Input level transformation scope
Custom transformation configured to generate transactions
Transaction Control transformation
A multiple input group transformation, such as a Custom transformation, connected to
multiple upstream transaction control points
For more information about working with transaction control, see “Understanding Commit
Points in the Workflow Administration Guide.
Mappings with Transaction Control transformations that are ineffective for targets may be
valid or invalid. When you save or validate the mapping, the Designer displays a message
indicating which Transaction Control transformations are ineffective for targets.
Using Transaction Control Transformations in Mappings 525

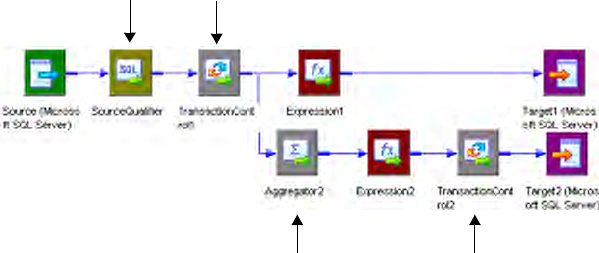

Figure 24-3 shows a valid mapping with both effective and ineffective Transaction Control
transformations:
Although a Transaction Control transformation may be ineffective for a target, it can be
effective for downstream transformations. Downstream transformations with the Transaction
level transformation scope can use the transaction boundaries defined by an upstream
Transaction Control transformation.
Figure 24-4 shows a valid mapping with a Transaction Control transformation that is effective
for a Sorter transformation, but ineffective for the target:
Sample Transaction Control Mappings with Multiple Targets
A Transaction Control transformation may be effective for one target and ineffective for
another target.
If each target is connected to an effective Transaction Control transformation, the mapping is
valid. If one target in the mapping is not connected to an effective Transaction Control
transformation, the mapping is invalid.
Figure 24-3. Effective and Ineffective Transaction Control Transformations
Figure 24-4. Transaction Control Transformation Effective for a Transformation
TransactionControl1 is
ineffective for the target.
Effective Transaction Control Transformation
Transformation Scope property is All Input. Aggregator drops
transaction boundaries defined by TransactionControl1.
TCT1 is ineffective for the target.
Effective Transaction Control Transformation for Target
Transformation Scope property is Transaction. Sorter
uses the transaction boundaries defined by TCT1.
Transformation Scope property is All Input. Aggregator
drops transaction boundaries defined by TCT1.
526 Chapter 24: Transaction Control Transformation
Figure 24-5 shows a valid mapping with both an ineffective and an effective Transaction
Control transformation:
The Integration Service processes TransactionControl1, evaluates the transaction control
expression, and creates transaction boundaries. The mapping does not include any
transformation that drops transaction boundaries between TransactionControl1 and Target1,
making TransactionControl1 effective for Target1. The Integration Service uses the
transaction boundaries defined by TransactionControl1 for Target1.
However, the mapping includes a transformation that drops transaction boundaries between
TransactionControl1 and Target2, making TransactionControl1 ineffective for Target2.
When the Integration Service processes Aggregator2, it drops the transaction boundaries
defined by TransactionControl1 and outputs all rows in an open transaction. Then the
Integration Service evaluates TransactionControl2, creates transaction boundaries, and uses
them for Target2.
If a rollback occurs in TransactionControl1, the Integration Service rolls back only rows from
Target1. It does not roll back any rows from Target2.
Figure 24-5. Valid Mapping with Transaction Control Transformations
Effective for Target1, Ineffective for Target2
Transformation Scope
property is All Input.
Active Source for Target2
Effective for Target2
Active Source for Target1
Using Transaction Control Transformations in Mappings 527

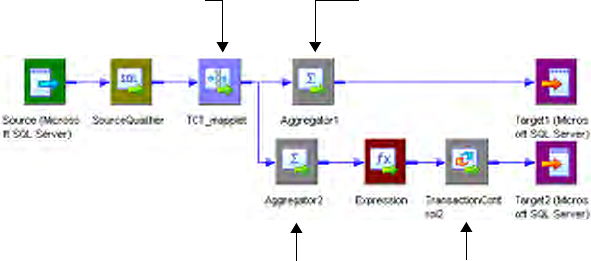

Figure 24-6 shows an invalid mapping with both an ineffective and an effective Transaction
Control transformation:
The mapping is invalid because Target1 is not connected to an effective Transaction Control
transformation.
Figure 24-6. Invalid Mapping with Transaction Control Transformations
Transformation Scope
property is All Input.
Active Source for Target2
Effective for Target2
Mapplet contains Transaction Control transformation.
Ineffective for Target1 and Target2
Transformation Scope
property is All Input.
Active Source for Target1
528 Chapter 24: Transaction Control Transformation
Mapping Guidelines and Validation
Consider the following rules and guidelines when you create a mapping with a Transaction
Control transformation:
If the mapping includes an XML target, and you choose to append or create a new
document on commit, the input groups must receive data from the same transaction
control point.
Transaction Control transformations connected to any target other than relational, XML,
or dynamic IBM MQSeries targets are ineffective for those targets.
You must connect each target instance to a Transaction Control transformation.
You can connect multiple targets to a single Transaction Control transformation.
You can connect only one effective Transaction Control transformation to a target.
You cannot place a Transaction Control transformation in a pipeline branch that starts
with a Sequence Generator transformation.
If you use a dynamic Lookup transformation and a Transaction Control transformation in
the same mapping, a rolled-back transaction might result in unsynchronized target data.
A Transaction Control transformation may be effective for one target and ineffective for
another target. If each target is connected to an effective Transaction Control
transformation, the mapping is valid. See Figure 24-5 on page 526 for an example of a
valid mapping with an ineffective Transaction Control transformation.
Either all targets or none of the targets in the mapping should be connected to an effective
Transaction Control transformation. See Figure 24-6 on page 527 for an example of an
invalid mapping where one target has an effective Transaction Control transformation and
one target has an ineffective Transaction Control transformation.
Creating a Transaction Control Transformation 529
Creating a Transaction Control Transformation
To add a Transaction Control transformation to a mapping, complete the following steps.
To create a Transaction Control transformation:
1. In the Mapping Designer, click Transformation > Create. Select the Transaction Control
transformation.
2. Enter a name for the transformation.
The naming convention for Transaction Control transformations is
TC_TransformationName.
3. Enter a description for the transformation. This description appears when you view
transformation details in the Repository Manager, making it easier to understand what
the transformation does.
4. Click Create. The Designer creates the Transaction Control transformation.
5. Click Done.
6. Drag the ports into the transformation. The Designer creates the input/output ports for
each port you include.
7. Open the Edit Transformations dialog box, and select the Ports tab.
You can add ports, edit port names, add port descriptions, and enter default values.
8. Select the Properties tab. Enter the transaction control expression that defines the
commit and rollback behavior.
9. Select the Metadata Extensions tab. Create or edit metadata extensions for the
Transaction Control transformation. For more information about metadata extensions,
see “Metadata Extensions” in the Repository Guide.
10. Click OK.
11. Click Repository > Save to save changes to the mapping.
530 Chapter 24: Transaction Control Transformation
531
Chapter 25
Union Transformation
This chapter includes the following topics:
Overview, 532
Working with Groups and Ports, 534
Creating a Union Transformation, 536
Using a Union Transformation in Mappings, 538
532 Chapter 25: Union Transformation
Overview
The Union transformation is a multiple input group transformation that you use to merge
data from multiple pipelines or pipeline branches into one pipeline branch. It merges data
from multiple sources similar to the UNION ALL SQL statement to combine the results
from two or more SQL statements. Similar to the UNION ALL statement, the Union
transformation does not remove duplicate rows.
The Integration Service processes all input groups in parallel. The Integration Service
concurrently reads sources connected to the Union transformation, and pushes blocks of data
into the input groups of the transformation. The Union transformation processes the blocks
of data based on the order it receives the blocks from the Integration Service.
You can connect heterogeneous sources to a Union transformation. The Union
transformation merges sources with matching ports and outputs the data from one output
group with the same ports as the input groups.
The Union transformation is developed using the Custom transformation.
Union Transformation Rules and Guidelines
Consider the following rules and guidelines when you work with a Union transformation:
You can create multiple input groups, but only one output group.
All input groups and the output group must have matching ports. The precision, datatype,
and scale must be identical across all groups.
The Union transformation does not remove duplicate rows. To remove duplicate rows, you
must add another transformation such as a Router or Filter transformation.
You cannot use a Sequence Generator or Update Strategy transformation upstream from a
Union transformation.
The Union transformation does not generate transactions.
Union Transformation Components
When you configure a Union transformation, define the following components:
Transformation tab. You can rename the transformation and add a description.
Properties tab. You can specify the tracing level.
Groups tab. You can create and delete input groups. The Designer displays groups you
create on the Ports tab.
Group Ports tab. You can create and delete ports for the input groups. The Designer
displays ports you create on the Ports tab.
Transformation type:
Active
Connected
Overview 533
You cannot modify the Ports, Initialization Properties, Metadata Extensions, or Port Attribute
Definitions tabs in a Union transformation.
534 Chapter 25: Union Transformation
Working with Groups and Ports
A Union transformation has multiple input groups and one output group. Create input
groups on the Groups tab, and create ports on the Group Ports tab.
You can create one or more input groups on the Groups tab. The Designer creates one output
group by default. You cannot edit or delete the output group.

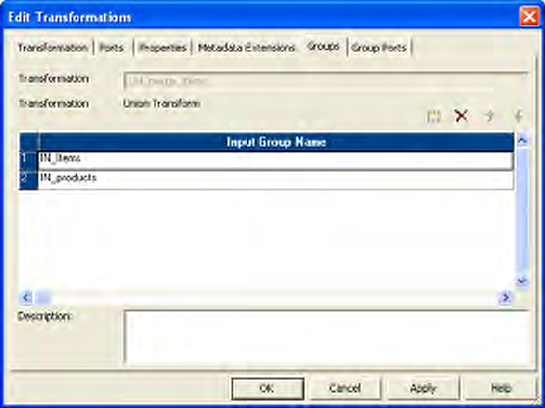

Figure 25-1 shows the Union transformation Groups tab:
You can create ports by copying ports from a transformation, or you can create ports
manually. When you create ports on the Group Ports tab, the Designer creates input ports in
each input group and output ports in the output group. The Designer uses the port names
you specify on the Group Ports tab for each input and output port, and it appends a number
to make each port name in the transformation unique. It also uses the same metadata for each
port, such as datatype, precision, and scale.
Figure 25-1. Union Transformation Groups Tab
Working with Groups and Ports 535
Figure 25-2 shows the Union transformation Group Ports tab:
The Ports tab displays the groups and ports you create. You cannot edit group and port
information on the Ports tab. Use the Groups and Group Ports tab to edit groups and ports.
Figure 25-3 shows the Union transformation Ports tab with the groups and ports defined in

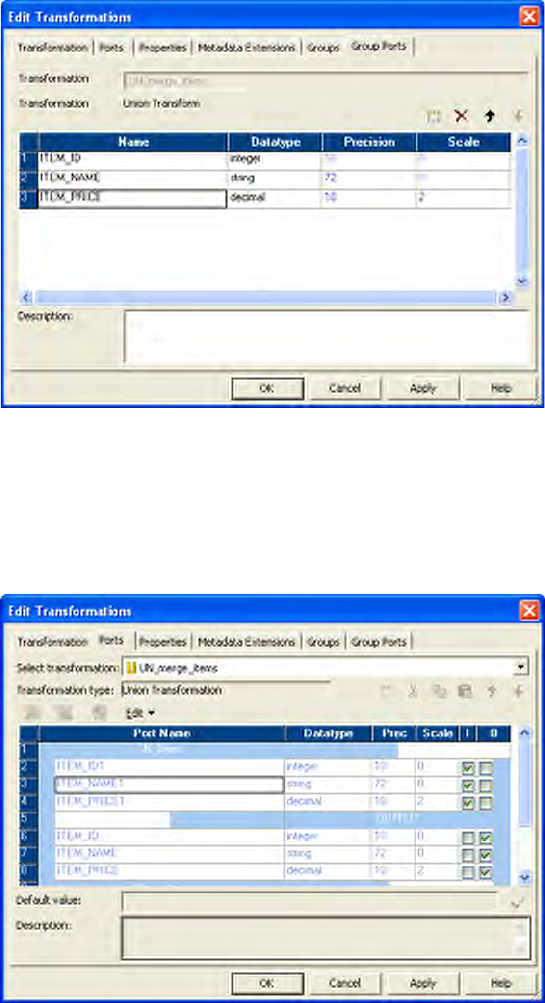

Figure 25-1 and Figure 25-2:
Figure 25-2. Union Transformation Group Ports Tab
Figure 25-3. Union Transformation Ports Tab
536 Chapter 25: Union Transformation
Creating a Union Transformation
To create a Union transformation, complete the following steps.
To create a Union transformation:
1. In the Mapping Designer, click Transformations > Create.
Select Union Transformation, and enter the name of the transformation. The naming
convention for Union transformations is UN_Tr an s f o r m at i o n Na m e . Enter a description
for the transformation. Click Create, and then click Done.
2. Click the Groups tab.
3. Add an input group for each pipeline or pipeline branch you want to merge.
The Designer assigns a default name for each group but they can be renamed.
Creating a Union Transformation 537
4. Click the Group Ports tab.
5. Add a new port for each row of data you want to merge.
6. Enter port properties, such as name and datatype.
7. Click the Properties tab to configure the tracing level.
8. Click OK.
9. Click Repository > Save to save changes.
538 Chapter 25: Union Transformation
Using a Union Transformation in Mappings
The Union transformation is a non-blocking multiple input group transformation. You can
connect the input groups to different branches in a single pipeline or to different source
pipelines.
When you add a Union transformation to a mapping, you must verify that you connect the
same ports in all input groups. If you connect all ports in one input group, but do not
connect a port in another input group, the Integration Service passes NULLs to the
unconnected port.

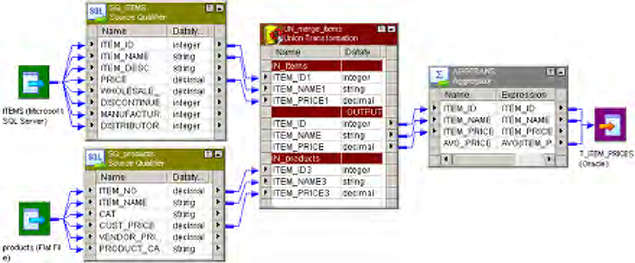

Figure 25-4 shows a mapping with a Union transformation:
When a Union transformation in a mapping receives data from a single transaction generator,
the Integration Service propagates transaction boundaries. When the transformation receives
data from multiple transaction generators, the Integration Service drops all incoming
transaction boundaries and outputs rows in an open transaction. For more information about
working with transactions, see “Understanding Commit Points” in the Workflow
Administration Guide.
Figure 25-4. Mapping with a Union Transformation
539
Chapter 26
Update Strategy
Transformation
This chapter includes the following topics:
Overview, 540
Flagging Rows Within a Mapping, 541
Setting the Update Strategy for a Session, 544
Update Strategy Checklist, 547
540 Chapter 26: Update Strategy Transformation
Overview
When you design a data warehouse, you need to decide what type of information to store in
targets. As part of the target table design, you need to determine whether to maintain all the
historic data or just the most recent changes.
For example, you might have a target table, T_CUSTOMERS, that contains customer data.
When a customer address changes, you may want to save the original address in the table
instead of updating that portion of the customer row. In this case, you would create a new row
containing the updated address, and preserve the original row with the old customer address.
This shows how you might store historical information in a target table. However, if you want
the T_CUSTOMERS table to be a snapshot of current customer data, you would update the
existing customer row and lose the original address.
The model you choose determines how you handle changes to existing rows. In PowerCenter,
you set the update strategy at two different levels:
Within a session. When you configure a session, you can instruct the Integration Service
to either treat all rows in the same way (for example, treat all rows as inserts), or use
instructions coded into the session mapping to flag rows for different database operations.
Within a mapping. Within a mapping, you use the Update Strategy transformation to flag
rows for insert, delete, update, or reject.
Note: You can also use the Custom transformation to flag rows for insert, delete, update, or
reject. For more information about using the Custom transformation to set the update
strategy, see “Setting the Update Strategy” on page 66.
Setting the Update Strategy
Use the following steps to define an update strategy:
1. To control how rows are flagged for insert, update, delete, or reject within a mapping,
add an Update Strategy transformation to the mapping. Update Strategy transformations
are essential if you want to flag rows destined for the same target for different database
operations, or if you want to reject rows.
2. Define how to flag rows when you configure a session. You can flag all rows for insert,
delete, or update, or you can select the data driven option, where the Integration Service
follows instructions coded into Update Strategy transformations within the session
mapping.
3. Define insert, update, and delete options for each target when you configure a session.
On a target-by-target basis, you can allow or disallow inserts and deletes, and you can
choose three different ways to handle updates, as explained in “Setting the Update
Strategy for a Session” on page 544.
Transformation type:
Active
Connected
Flagging Rows Within a Mapping 541
Flagging Rows Within a Mapping
For the greatest degree of control over the update strategy, you add Update Strategy
transformations to a mapping. The most important feature of this transformation is its update
strategy expression, used to flag individual rows for insert, delete, update, or reject.
Table 26-1 lists the constants for each database operation and their numeric equivalent:
The Integration Service treats any other value as an insert. For information about these
constants and their use, see “Constants” in the Transformation Language Reference.
Forwarding Rejected Rows
You can configure the Update Strategy transformation to either pass rejected rows to the next
transformation or drop them. By default, the Integration Service forwards rejected rows to the
next transformation. The Integration Service flags the rows for reject and writes them to the
session reject file. If you do not select Forward Rejected Rows, the Integration Service drops
rejected rows and writes them to the session log file.
If you enable row error handling, the Integration Service writes the rejected rows and the
dropped rows to the row error logs. It does not generate a reject file. If you want to write the
dropped rows to the session log in addition to the row error logs, you can enable verbose data
tracing. For more information about error logging, see “Row Error Logging” in the Workflow
Administration Guide.
Update Strategy Expressions
Frequently, the update strategy expression uses the IIF or DECODE function from the
transformation language to test each row to see if it meets a particular condition. If it does,
you can then assign each row a numeric code to flag it for a particular database operation. For
example, the following IIF statement flags a row for reject if the entry date is after the apply
date. Otherwise, it flags the row for update:
IIF( ( ENTRY_DATE > APPLY_DATE), DD_REJECT, DD_UPDATE )
For more information about the IIF and DECODE functions, see “Functions” in the
Transformation Language Reference.
Table 26-1. Constants for Each Database Operation
Operation Constant Numeric Value
Insert DD_INSERT 0
Update DD_UPDATE 1
Delete DD_DELETE 2
Reject DD_REJECT 3
542 Chapter 26: Update Strategy Transformation
To create an Update Strategy transformation:
1. In the Mapping Designer, add an Update Strategy transformation to a mapping.
2. Click Layout > Link Columns.
3. Drag all ports from another transformation representing data you want to pass through
the Update Strategy transformation.
In the Update Strategy transformation, the Designer creates a copy of each port you drag.
The Designer also connects the new port to the original port. Each port in the Update
Strategy transformation is a combination input/output port.
Normally, you would select all of the columns destined for a particular target. After they
pass through the Update Strategy transformation, this information is flagged for update,
insert, delete, or reject.
4. Open the Update Strategy transformation and rename it.
The naming convention for Update Strategy transformations is
UPD_TransformationName.
5. Click the Properties tab.
6. Click the button in the Update Strategy Expression field.
The Expression Editor appears.
7. Enter an update strategy expression to flag rows as inserts, deletes, updates, or rejects.
8. Validate the expression and click OK.
9. Click OK to save the changes.
10. Connect the ports in the Update Strategy transformation to another transformation or a
target instance.
11. Click Repository > Save.
Aggregator and Update Strategy Transformations
When you connect Aggregator and Update Strategy transformations as part of the same
pipeline, you have the following options:
Position the Aggregator before the Update Strategy transformation. In this case, you
perform the aggregate calculation, and then use the Update Strategy transformation to flag
rows that contain the results of this calculation for insert, delete, or update.
Position the Aggregator after the Update Strategy transformation. Here, you flag rows
for insert, delete, update, or reject before you perform the aggregate calculation. How you
flag a particular row determines how the Aggregator transformation treats any values in
that row used in the calculation. For example, if you flag a row for delete and then later use
the row to calculate the sum, the Integration Service subtracts the value appearing in this
row. If the row had been flagged for insert, the Integration Service would add its value to
the sum.
Flagging Rows Within a Mapping 543
Lookup and Update Strategy Transformations
When you create a mapping with a Lookup transformation that uses a dynamic lookup cache,
you must use Update Strategy transformations to flag the rows for the target tables. When you
configure a session using Update Strategy transformations and a dynamic lookup cache, you
must define certain session properties.
You must define the Treat Source Rows As option as Data Driven. Specify this option on the
Properties tab in the session properties.
You must also define the following update strategy target table options:
Select Insert
Select Update as Update
Do not select Delete
These update strategy target table options ensure that the Integration Service updates rows
marked for update and inserts rows marked for insert.
If you do not choose Data Driven, the Integration Service flags all rows for the database
operation you specify in the Treat Source Rows As option and does not use the Update
Strategy transformations in the mapping to flag the rows. The Integration Service does not
insert and update the correct rows. If you do not choose Update as Update, the Integration
Service does not correctly update the rows flagged for update in the target table. As a result,
the lookup cache and target table might become unsynchronized. For more information, see
“Setting the Update Strategy for a Session on page 544.
For more information about using Update Strategy transformations with the Lookup
transformation, see “Using Update Strategy Transformations with a Dynamic Cache” on
page 354.
For more information about configuring target session properties, see “Working with Targets
in the Workflow Administration Guide.
544 Chapter 26: Update Strategy Transformation
Setting the Update Strategy for a Session
When you configure a session, you have several options for handling specific database
operations, including updates.
Specifying an Operation for All Rows
When you configure a session, you can select a single database operation for all rows using the
Treat Source Rows As setting.
Configure the Treat Source Rows As session property:
Table 26-2 displays the options for the Treat Source Rows As setting:
Table 26-2. Specifying an Operation for All Rows
Setting Description
Insert Treat all rows as inserts. If inserting the row violates a primary or foreign key constraint in the
database, the Integration Service rejects the row.
Delete Treat all rows as deletes. For each row, if the Integration Service finds a corresponding row in
the target table (based on the primary key value), the Integration Service deletes it. Note that the
primary key constraint must exist in the target definition in the repository.
Treat
Source
Rows As
Setting the Update Strategy for a Session 545
Table 26-3 describes the update strategy for each setting:
Specifying Operations for Individual Target Tables
Once you determine how to treat all rows in the session, you also need to set update strategy
options for individual targets. Define the update strategy options in the Transformations view
on Mapping tab of the session properties.
Update Treat all rows as updates. For each row, the Integration Service looks for a matching primary key
value in the target table. If it exists, the Integration Service updates the row. The primary key
constraint must exist in the target definition.
Data Driven Integration Service follows instructions coded into Update Strategy and Custom transformations
within the session mapping to determine how to flag rows for insert, delete, update, or reject.
If the mapping for the session contains an Update Strategy transformation, this field is marked
Data Driven by default.
If you do not choose Data Driven when a mapping contains an Update Strategy or Custom
transformation, the Workflow Manager displays a warning. When you run the session, the
Integration Service does not follow instructions in the Update Strategy or Custom transformation
in the mapping to determine how to flag rows.
Table 26-3. Update Strategy Settings
Setting Use To
Insert Populate the target tables for the first time, or maintain a historical data warehouse. In the latter
case, you must set this strategy for the entire data warehouse, not just a select group of target
tables.
Delete Clear target tables.
Update Update target tables. You might choose this setting whether the data warehouse contains
historical data or a snapshot. Later, when you configure how to update individual target tables,
you can determine whether to insert updated rows as new rows or use the updated information to
modify existing rows in the target.
Data Driven Exert finer control over how you flag rows for insert, delete, update, or reject. Choose this setting
if rows destined for the same table need to be flagged on occasion for one operation (for example,
update), or for a different operation (for example, reject). In addition, this setting provides the only
way you can flag rows for reject.
Table 26-2. Specifying an Operation for All Rows
Setting Description
546 Chapter 26: Update Strategy Transformation

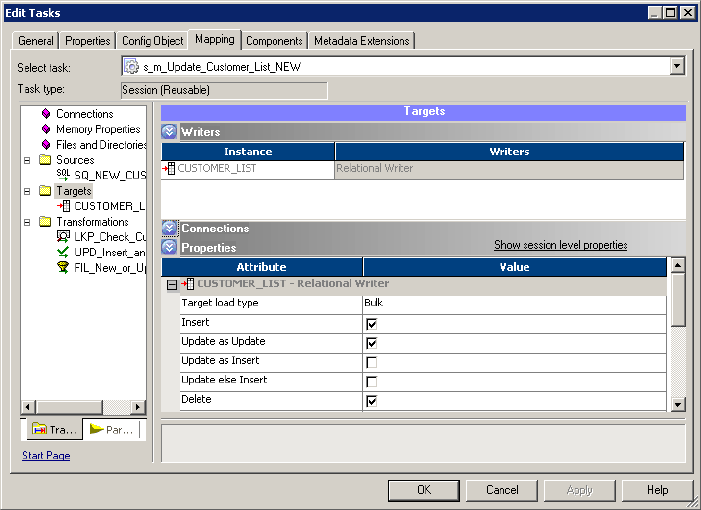

Figure 26-1 displays the update strategy options in the Transformations view on Mapping tab
of the session properties:
You can set the following update strategy options:
Insert. Select this option to insert a row into a target table.
Delete. Select this option to delete a row from a table.
Update. You have the following options in this situation:
Update as Update. Update each row flagged for update if it exists in the target table.
Update as Insert. Inset each row flagged for update.
Update else Insert. Update the row if it exists. Otherwise, insert it.
Truncate table. Select this option to truncate the target table before loading data.
Figure 26-1. Specifying Operations for Individual Target Tables
Update Strategy Checklist 547
Update Strategy Checklist
Choosing an update strategy requires setting the right options within a session and possibly
adding Update Strategy transformations to a mapping. This section summarizes what you
need to implement different versions of an update strategy.
Only perform inserts into a target table.
When you configure the session, select Insert for the Treat Source Rows As session property.
Also, make sure that you select the Insert option for all target instances in the session.
Delete all rows in a target table.
When you configure the session, select Delete for the Treat Source Rows As session property.
Also, make sure that you select the Delete option for all target instances in the session.
Only perform updates on the contents of a target table.
When you configure the session, select Update for the Treat Source Rows As session property.
When you configure the update options for each target table instance, make sure you select
the Update option for each target instance.
Perform different database operations with different rows destined for the same target table.
Add an Update Strategy transformation to the mapping. When you write the transformation
update strategy expression, use either the DECODE or IIF function to flag rows for different
operations (insert, delete, update, or reject). When you configure a session that uses this
mapping, select Data Driven for the Treat Source Rows As session property. Make sure that
you select the Insert, Delete, or one of the Update options for each target table instance.
Reject data.
Add an Update Strategy transformation to the mapping. When you write the transformation
update strategy expression, use DECODE or IIF to specify the criteria for rejecting the row.
When you configure a session that uses this mapping, select Data Driven for the Tre a t So ur c e
Rows As session property.
548 Chapter 26: Update Strategy Transformation
549
Chapter 27
XML Transformations
This chapter includes the following topics:
XML Source Qualifier Transformation, 550
XML Parser Transformation, 551
XML Generator Transformation, 552
550 Chapter 27: XML Transformations
XML Source Qualifier Transformation
You can add an XML Source Qualifier transformation to a mapping by dragging an XML
source definition to the Mapping Designer workspace or by manually creating one. When you
add an XML source definition to a mapping, you need to connect it to an XML Source
Qualifier transformation. The XML Source Qualifier transformation defines the data
elements that the Integration Service reads when it executes a session. It determines how the
PowerCenter reads the source data.
An XML Source Qualifier transformation always has one input or output port for every
column in the XML source. When you create an XML Source Qualifier transformation for a
source definition, the Designer links each port in the XML source definition to a port in the
XML Source Qualifier transformation. You cannot remove or edit any of the links. If you
remove an XML source definition from a mapping, the Designer also removes the
corresponding XML Source Qualifier transformation. You can link one XML source
definition to one XML Source Qualifier transformation
You can link ports of one XML Source Qualifier group to ports of different transformations
to form separate data flows. However, you cannot link ports from more than one group in an
XML Source Qualifier transformation to ports in the same target transformation.
You can edit some of the properties and add metadata extensions to an XML Source Qualifier
transformation. For more information about using an XML Source Qualifier transformation,
see the XML Guide.
Transformation type:
Active
Connected
XML Parser Transformation 551
XML Parser Transformation
Use an XML Parser transformation to extract XML inside a pipeline. The XML Parser
transformation lets you extract XML data from messaging systems, such as TIBCO or MQ
Series, and from other sources, such as files or databases. The XML Parser transformation
functionality is similar to the XML source functionality, except it parses the XML in the
pipeline. For example, you might want to extract XML data from a TIBCO source and pass
the data to relational targets.
The XML Parser transformation reads XML data from a single input port and writes data to
one or more output ports.
For more information about the XML Parser transformation, see the XML Guide.
Transformation type:
Active
Connected
552 Chapter 27: XML Transformations
XML Generator Transformation
Use an XML Generator transformation to create XML inside a pipeline. The XML Generator
transformation lets you read data from messaging systems, such as TIBCO and MQ Series, or
from other sources, such as files or databases. The XML Generator transformation
functionality is similar to the XML target functionality, except it generates the XML in the
pipeline. For example, you might want to extract data from relational sources and pass XML
data to targets.
The XML Generator transformation accepts data from multiple ports and writes XML
through a single output port.
For more information about the XML Generator transformation, see the XML Guide.
Transformation type:
Active
Connected
553
Index
A
ABORT function
See also Transformation Language Reference
using 22
active transformations
See also transformations
Aggregator 38
Custom 54
Filter 190
Java 215
Joiner 284
Midstream XML Generator 552
Midstream XML Parser 551
Normalizer 372
overview 2
Rank 382
Router 390
Sorter 416
Source Qualifier 426, 460
Transaction Control 521
Union 532
Update Strategy 540
XML Source Qualifier 550
add statistic output port
SQL transformation option 485
adding
comments to expressions 12
groups 394
advanced interface
EDataType class 274
example 277
invoking Java expressions 273
Java expressions 273
JExpression API Reference 279
JExpression class 276
JExprParaMetadata class 274
advanced options
SQL transformation 472
aggregate functions
See also Transformation Language Reference
list of 40
null values 41
overview 40
using in expressions 40
Aggregator transformation
compared to Expression transformation 38
components 38
conditional clause example 41
creating 47
functions list 40
group by ports 42
nested aggregation 40
non-aggregate function example 41
null values 41
optimizing performance 50
overview 38
ports 38
554 Index
sorted ports 45
STDDEV (standard deviation) function 40
tracing levels 48
troubleshooting 51
Update Strategy combination 542
using variables 14
using with the Joiner transformation 294
VARIANCE function 40
All Input transformation scope
behavior in Joiner transformation 300
API functions
Custom transformation 104
API methods
Java transformation 237
array-based functions
data handling 132
is row valid 132
maximum number of rows 130
number of rows 131
overview 130
row strategy 135
set input error row 136
ASCII
Custom transformation 55
External Procedure transformation 146
ASCII mode
configuring sort order for Joiner transformation 292
associated ports
Lookup transformation 348
sequence ID 349
averages
See Aggregator transformation
B
BankSoft example
Informatica external procedure 159
overview 148
BigDecimal datatype
Java transformation 215, 230
binary datatypes
Java transformation 215
blocking
detail rows in Joiner transformation 299
blocking data
Custom transformation 70
Custom transformation functions 125
Joiner transformation 299
C
C/C++
See also Visual C++
linking to Integration Service 173
Cache directory
Joiner transformation property 286
cache file name prefix
overview 363
caches
concurrent 340, 341
dynamic lookup cache 345
Joiner transformation 299
Lookup transformation 338
named persistent lookup 363
sequential 340
sharing lookup 363
static lookup cache 344
caching
master rows in Joiner transformation 299
calculations
aggregate 38
multiple calculations 142
using the Expression transformation 142
using variables with 15
case-sensitive string comparison
Joiner transformation property 286
Char datatypes
Java transformation 215
Class Name property
Java transformation 221
CLASSPATH
Java transformation, configuring 229
COBOL source definitions
adding Normalizer transformation automatically 374
normalizing 372
code pages
See also Administrator Guide
access functions 185
Custom transformation 55
External Procedure transformation 146
code snippets
creating for Java transformation 225
COM external procedures
adding to repository 153
compared to Informatica external procedures 148
creating 149
creating a source 155
creating a target 155
datatypes 171
debugging 173
Index 555
developing in Visual Basic 156
developing in Visual C++ 149, 154
development notes 171
distributing 169
exception handling 172
initializing 175
memory management 173
overview 149
registering with repositories 153
return values 172
row-level procedures 172
server type 149
unconnected 175
COM servers
type for COM external procedures 149
comments
adding to expressions 12
commit
example for Java transformation 239
Java transformation API method 239
syntax for Java transformation 239
compilation errors
identifying in Java transformation 234
compiling
Custom transformation procedures 85
DLLs on Windows systems 165
Java transformation 231
composite key
creating with Sequence Generator transformation 403
concurrent caches
See caches
conditions
Filter transformation 192
Joiner transformation 288
Lookup transformation 328, 332
Router transformation 393
configuring
ports 6, 7
connect string
syntax 471
connected lookups
See also Lookup transformation
creating 335
description 309
overview 309
connected transformations
Aggregator 38
Custom 54
Expression 142
External Procedure 146
Filter 190
Joiner 284
Lookup 308
Midstream XML Generator 552
Midstream XML Parser 551
Normalizer 372
Rank 382
Router 390
Sequence Generator 402
Source Qualifier 426
SQL 460
Stored Procedure 490
Update Strategy 540
XML Source Qualifier 550
connecting to databases
SQL transformation 470
connection settings
SQL transformation 470
connection variables
connection property 502
connections
SQL transformation 470
connectivity
connect string examples 471
constants
replacing null values with 21
continue on SQL error
SQL transformation 485
creating
Aggregator transformation 47
COM external procedures 149
connected Lookup transformation 335
Custom transformation 57, 73
Expression transformation 143
Filter transformation 193
Informatica external procedures 159
Joiner transformation 303
non-reusable instance of reusable transformation 33
ports 7
Rank transformation 386
reusable transformations 32
Router transformation 400
Sequence Generator transformation 412
Stored Procedure transformation 498
transformations 5
Union transformation 536
Update Strategy transformation 541
Current Value property
Sequence Generator transformation 407, 409
CURRVAL port
Sequence Generator transformation 406
custom functions
556 Index
using with Java expressions 264
Custom transformation
blocking data 70
building the module 85
code pages 55
compiling procedures 85
components 58
creating 57, 73
creating groups 59
creating ports 59
creating procedures 73
defining port relationships 60
distributing 56
functions 90
Generate Transaction property 68
generating code files 57, 75
initialization properties 72
Inputs May Block property 70
Is Partitionable property 65
metadata extensions 72
overview 54
passing rows to procedure 96
port attributes 62
procedure properties 72
properties 64
property IDs 109
Requires Single Thread property 66
rules and guidelines 57
setting the update strategy 66
threads 66
thread-specific code 66
transaction boundaries 69
transaction control 68
Transformation Scope property 68
Update Strategy property 66
Custom transformation functions
API 104
array-based 130
blocking logic 125
change default row strategy 129
change string mode 126
data boundary output 121
data handling (array-based) 132
data handling (row-based) 117
deinitialization 102
error 122
generated 98
increment error count 124
initialization 98
is row valid 132
is terminated 124
maximum number of rows 130
navigation 105
notification 100
number of rows 131
output notification 121
pointer 126
property 108
rebind datatype 115
row strategy (array-based) 135
row strategy (row-based) 128
session log 123
set data access mode 104
set data code page 127
set input error row 136
set pass-through port 120
working with handles 90, 105
Custom transformation procedures
creating 73
example 76
generating code files 75
thread-specific 66
working with rows 96
Cycle
Sequence Generator transformation property 407, 408
D
data
joining 284
pre-sorting 45
rejecting through Update Strategy transformation 547
selecting distinct 454
storing temporary 14
data driven
overview 545
data handling functions
array-based 132
row-based 117
database resilience
SQL transformation 478
databases
See also Installation and Configuration Guide
See also specific database vendors, such as Oracle
joining data from different 284
options supported 514
datatypes
COM 171
Java transformation 215
Source Qualifier 426
transformation 171
Date/Time datatypes
Index 557
Java transformation 215
DB2
See IBM DB2
debugging
external procedures 173
Java transformation 232
default groups
Router transformation 392
default join
Source Qualifier 434
default query
methods for overriding 432
overriding using Source Qualifier 438
overview 431
viewing 431
default values
Aggregator group by ports 43
entering 28
Filter conditions 193
input ports 18
input/output ports 18
output ports 18, 20
overview 18
rules for 28
validating 28
defineJExpression
Java expression API method 275
defining
port dependencies in Custom transformation 60
deinitialization functions
Custom transformation 102
dependencies
ports in Custom transformations 60
detail outer join
description 290
detail rows
blocking in Joiner transformation 299
processing in sorted Joiner transformation 299
processing in unsorted Joiner transformation 299
developing
COM external procedures 149
Informatica external procedures 159
dispatch function
description 181
distributing
Custom transformation procedures 56
external procedures 169
DLLs (dynamic linked libraries)
compiling external procedures 165
double datatype
Java transformation 215, 230
dynamic connections
performance considerations 473
SQL transformation 470
dynamic linked libraries
See DLLs
dynamic lookup cache
error threshold 359
filtering rows 347
overview 345
reject loading 359
synchronizing with target 359
using flat file sources 345
dynamic Lookup transformation
output ports 347
dynamic SQL queries
SQL transformation 466
E
EDataType class
Java expressions 274
effective Transaction Control transformation
definition 524
End Value property
Sequence Generator transformation 407, 409
entering
expressions 10, 12
source filters 450
SQL query override 438
user-defined joins 440
environment variables
setting for Java packages 229
error count
incrementing for Java transformation 243
ERROR function
See also Transformation Language Reference
using 22
error handling
for stored procedures 512
with dynamic lookup cache 359
error messages
See also Troubleshooting Guide
for external procedures 173
tracing for external procedures 173
errors
COBOL sources 379
handling 25
increasing threshold in Java transformation 243
validating in Expression Editor 13
with dynamic lookup cache 359
exceptions
558 Index
from external procedures 172
Expression Editor
overview 12
syntax colors 13
using with Java expressions 267
validating expressions using 13
Expression transformation
creating 143
multiple calculations 142
overview 142
routing data 143
using variables 14
expressions
See also Transformation Language Reference
Aggregator transformation 40
calling lookups 333
calling stored procedure from 506
entering 10, 12
Filter condition 192
non-aggregate 43
return values 11
rules for Stored Procedure transformation 516
simplifying 14
update strategy 541
using with Java transformation 264
validating 13
External Procedure transformation
See also COM external procedures
See also Informatica external procedures
ATL objects 150
BankSoft example 148
building libraries for C++ external procedures 152
building libraries for Informatica external procedures
165
building libraries for Visual Basic external procedures
158
code page access function 185
COM datatypes 171
COM external procedures 149
COM vs. Informatica types 148
creating in Designer 159
debugging 173
description 147
development notes 171
dispatch function 181
exception handling 172
external procedure function 181
files needed 179
IDispatch interface 149
Informatica external procedure using BankSoft
example 159
Informatica external procedures 159
initializing 175
interface functions 181
member variables 185
memory management 173
MFC AppWizard 165
multi-threaded code 146
overview 146
parameter access functions 183
partition related functions 186
pipeline partitioning 147
process variable support 180
properties 147
property access function 182
return values 172
row-level procedure 172
session 156
64-bit 184
tracing level function 187
unconnected 175
using in a mapping 155
Visual Basic 156
Visual C++ 149
wrapper classes 173
external procedures
See also External Procedure transformation
debugging 173
development notes 171
distributing 169
distributing Informatica external procedures 170
interface functions 181
linking to 146
F
failing sessions
Java transformation 240
failSession
example for Java transformation 240
Java transformation API method 240
syntax for Java transformation 240
Filter transformation
condition 192
creating 193
example 190
overview 190
performance tips 195
tips for developing 195
troubleshooting 196
filtering rows
Source Qualifier as filter 195
Index 559
transformation for 190, 416
flat file lookups
description 311
sorted input 311
flat files
joining data 284
lookups 311
foreign key
creating with Sequence Generator transformation 403
Forwarding Rejected Rows
configuring 541
option 541
full database connection
passing to SQL transformation 470
full outer join
definition 291
functions
See also Transformation Language Reference
aggregate 40
non-aggregate 41
G
generate Java code
Java expressions 267
generate output row
Java transformation 241
generate rollback row
Java transformation 247
generate transaction
Java transformation 223
Generate Transaction property
Java transformation 223
generated functions
Custom transformation 98
generateRow
example for Java transformation 241
Java transformation API methods 241
syntax for Java transformation 241
generating transactions
Custom transformation 68
Java transformation 224, 239
getBytes
Java expression API method 282
getDouble
Java expression API method 281
getInRowType
example for Java transformation 242
Java transformation API method 242
syntax for Java transformation 242
getInt
Java expression API method 281
getLong
Java expression API method 281
getResultMetadata
Java expression API method 280
getStringBuffer
Java expression API method 282
group by ports
Aggregator transformation 42
non-aggregate expression 43
using default values 43
group filter condition
Router transformation 393
groups
adding 394
Custom transformation 59
Custom transformation rules 60
HTTP transformation 205
Java transformation 219
Router transformation 392
Union transformation 534
user-defined 392
H
handles
Custom transformation 90
Helper Code tab
example 257
Java transformation 226
heterogeneous joins
See Joiner transformation
high precision
enabling for Java transformation 230
HTTP transformation
authentication 199
configuring groups and ports 205
configuring HTTP tab 204
configuring properties 204
creating 200
examples 209
groups 205
Is Partitionable property 203
Requires Single Thread per Partition property 203
thread-specific code 203
I
IBM DB2
connect string syntax 471
560 Index
IDispatch interface
defining a class 149
IIF function
replacing missing keys with Sequence Generator
transformation 403
Import Packages tab
example 256
Java transformation 226
Increment by
Sequence Generator transformation property 407, 408
incrementErrorCount
example for Java transformation 243
Java transformation API method 243
syntax for Java transformation 243
incrementing
setting sequence interval 408
indexes
lookup conditions 336
lookup table 313, 336
ineffective Transaction Control transformation
definition 524
Informatica external procedures
compared to COM 148
debugging 173
developing 159
development notes 171
distributing 170
exception handling 172
generating C++ code 162
initializing 175
memory management 173
return values 172
row-level procedures 172
unconnected 175
Informix
See also Installation and Configuration Guide
connect string syntax 471
stored procedure notes 495
initialization functions
Custom transformation 98
initializing
Custom transformation procedures 72
external procedures 175
Integration Service variable support for 180
variables 16
input parameters
stored procedures 491
input ports
default values 18
overview 8
using as variables 227
input row
getting row type 242
input/output ports
default values 18
overview 8
Inputs Must Block property
Java transformation 222
instance variable
Java transformation 226, 227, 228
instances
definition 31
Integration Service
aggregating data 42
datatypes 171
error handling of stored procedures 512
running in debug mode 173
transaction boundaries 69
variable support 180
invoke
Java expression API method 279
invokeJExpression
API method 271
Is Active property
Java transformation 222
Is Partitionable property
Custom transformation 65
HTTP transformation 203
Java transformation 222
isNull
example for Java transformation 244
Java transformation API method 244
syntax for Java transformation 244
isResultNull
Java expression API method 280
J
Java Classpath
session property 229
Java code snippets
creating for Java transformation 225
example 256
Java Code tab
using 217
Java expression API methods
defineJExpression 275
getBytes 282
getDouble 281
getInt 281
getLong 281
getResultMetadata 280
Index 561
getStringBuffer 282
invoke 279
isResultNull 280
Java expressions
advanced interface 273
advanced interface example 277
configuring 266
configuring functions 266
creating 267
EDataType class 274
expression function types 264
generate Java code 267
generating 266
invokeJExpression API method 271
invoking with advanced interface 273
invoking with simple interface 271
Java Expressions tab 268
JExpression API reference 279
JExpression class 276
JExprParaMetadata class 274
rules and guidelines 271, 273
simple interface 271
simple interface example 272
steps to create 268
using custom functions 264
using transformation language functions 264
using user-defined functions 264
using with Java transformation 264
Java Expressions tab
Java expressions 268
Java packages
importing 226
Java transformation
active 215
API methods 237
checking null values 244
Class Name property 221
compilation errors 232
compiling 231
creating code 225
creating groups 219
creating Java code 225
creating ports 219
datatype mapping 215
debugging 232
default port values 220
example 252
failing session 240
Generate Transaction property 223, 224
getting input row type 242
Helper Code tab 226
Import Package tab 226
Is Partitionable property 222
Java Code tab 217
Language property 221
locating errors 232
On End of Data tab 228
On Input Row tab 227
On Receiving Transaction tab 228
Output is Deterministic property 223
Output is Ordered property 223
passive 215
primitive datatypes 215
properties 221
Requires Single Thread Per Partition property 223
session level classpath 229
session log 245, 246
setting CLASSPATH 229
setting null values 248
setting output row type 249
setting the update strategy 224
Tracing Level property 222
transaction control 223
transformation level classpath 229
Transformation Scope property 222, 223
Update Strategy property 224
Java transformation API methods
commit 239
failSession 240
generateRow 241
getInRowType 242
incrementErrorCount 243
isNull 244
logError 246
logInfo 245
rollback 247
setNull 248
setOutRowType 249
JDK
Java transformation 214
JExpression API reference
Java expressions 279
JExpression class
Java expressions 276
JExprParaMetadata class
Java expressions 274
join condition
defining 294
overview 288
using sort origin ports 292
join override
left outer join syntax 445
562 Index
normal join syntax 443
right outer join syntax 447
join syntax
left outer join 445
normal join 443
right outer join 447
join type
detail outer join 290
full outer join 291
Joiner properties 289
left outer join 442
master outer join 290
normal join 289
right outer join 442
Source Qualifier transformation 442
Join Type property
Joiner transformation 286
joiner cache
Joiner transformation 299
Joiner data cache size
Joiner transformation property 287
Joiner index cache size
Joiner transformation property 287
Joiner transformation
All Input transformation scope 300
behavior with All Input transformation scope 300
behavior with Row transformation scope 300
behavior with Transaction transformation scope 300
blocking source data 299
caches 299
conditions 288
configuring join condition to use sort origin ports 292
configuring sort order 292
configuring sort order in ASCII mode 292
configuring sort order in Unicode mode 292
creating 303
detail pipeline 284
dropping transaction boundaries 302
join types 289
joining data from the same source 296
joining multiple databases 284
master pipeline 284
overview 284
performance tips 306
preserving transaction boundaries 301
processing real-time data 301
properties 286
real-time data 300
Row transformation scope 300
rules for input 284
Transaction transformation scope 300
transactions 300
transformation scope 300
using with Sorter transformation 292
joining sorted data
configuring to optimize join performance 292
using sorted flat files 292
using sorted relational data 292
using Sorter transformation 292
joins
creating key relationships for 436
custom 435
default for Source Qualifier 434
Informatica syntax 442
user-defined 440
JRE
Java transformation 214
K
keys
creating for joins 436
creating with Sequence Generator transformation 403
creating with sequence IDs 349
source definitions 436
L
Language property
Java transformation 221
left outer join
creating 445
syntax 445
libraries
for C++ external procedures 152
for Informatica external procedures 165
for VB external procedures 158
load order
Source Qualifier 426
load types
stored procedures 511
local variables
See variables
log files
See session logs
logError
example for Java transformation 246
Java transformation API method 246
syntax for Java transformation 246
logical database connection
passing to SQL transformation 470
Index 563
performance considerations 473
logInfo
example for Java transformation 245
Java transformation API method 245
syntax for Java transformation 245
long datatype
Java transformation 215
lookup caches
definition 338
dynamic 345
dynamic, error threshold 359
dynamic, synchronizing with target 359
dynamic, WHERE clause 358
handling first and last values 329
named persistent caches 363
overriding ORDER BY 325
overview 338
partitioning guidelines with unnamed caches 363
persistent 342
recache from database 340
reject loading 359
sharing 363
sharing unnamed lookups 363
static 344
lookup condition
definition 315
overview 328
lookup ports
definition 313
NewLookupRow 347
overview 313
lookup properties
configuring 320
lookup query
description
dynamic cache 358
ORDER BY 324
overriding 324
overview 324
reserved words 326
Sybase ORDER BY limitation 326
WHERE clause 358
Lookup SQL Override option
dynamic caches, using with 358
mapping parameters and variables 324
reducing cache size 325
lookup table
indexes 313, 336
Lookup transformation
See also Workflow Administration Guide
associated input port 348
cache sharing 363
caches 338
components of 313
condition 328, 332
connected 309
creating connected lookup 335
default query 324
dynamic cache 345
entering custom queries 327
error threshold 359
expressions 333
filtering rows 347
flat file lookups 308, 311
lookup sources 308
mapping parameters and variables 324
multiple matches 329
named persistent cache 363
NewLookupRow port 347
overriding the default query 324
overview 308
performance tips 336
persistent cache 342
ports 313
properties 316
recache from database 340
reject loading 359
return values 332
sequence ID 349
synchronizing dynamic cache with target 359
unconnected 309, 331
Update Strategy combination 543
lookups
See lookup query 324
M
Mapping Designer
adding reusable transformation 33
creating ports 7
mapping parameters
in lookup SQL override 324
in Source Qualifier transformations 427
mapping variables
in lookup SQL override 324
in Source Qualifier transformations 427
reusable transformations 31
mappings
adding COBOL sources 373
adding reusable transformations 33
adding transformations 5
affected by stored procedures 491
564 Index
configuring connected Stored Procedure
transformation 504
configuring unconnected Stored Procedure
transformation 506
flagging rows for update 541
lookup components 313
modifying reusable transformations 34
using an External Procedure transformation 155
using Router transformations 398
master outer join
description 290
preserving transaction boundaries 301
master rows
caching 299
processing in sorted Joiner transformation 299
processing in unsorted Joiner transformation 299
max output row count
SQL transformation 485
memory management
for external procedures 173
metadata extensions
in Custom transformations 72
methods
Java transformation 227, 228
Java transformation API 237
MFC AppWizard
overview 165
Microsoft SQL Server
connect string syntax 471
stored procedure notes 496
Midstream XML Generator
overview 552
Midstream XML Parser
overview 551
missing values
replacing with Sequence Generator 403
multi-group
transformations 9
multiple matches
Lookup transformation 329
N
named cache
persistent 342
recache from database 342
sharing 365
named persistent lookup cache
overview 363
sharing 365
native datatypes
SQL transformation 465
NewLookupRow output port
overview 347
NEXTVAL port
Sequence Generator 404
non-aggregate expressions
overview 43
non-aggregate functions
example 41
normal join
creating 443
definition 289
preserving transaction boundaries 301
syntax 443
Normal tracing levels
overview 30
normalization
definition 372
Normalizer transformation
adding 376
COBOL source automatic configuration 374
differences (VSAM v. relational) 378
overview 372
troubleshooting 379
notification functions
Custom transformation 100
Null ordering in detail
Joiner transformation property 287
Null ordering in master
Joiner transformation property 286
null values
aggregate functions 41
checking in Java transformation 244
filtering 196
replacing using aggregate functions 43
replacing with a constant 21
setting for Java transformation 248
skipping 24
number of cached values
Sequence Generator property value 407
Sequence Generator transformation property 410
NumRowsAffected port
SQL transformation 475
O
object datatype
Java transformation 215
On End of Data tab
Java transformation 228
On Input Row tab
Index 565
example 258
Java transformation 227
On Receiving Transaction tab
Java transformation 228
operators
See also Transformation Language Reference
lookup condition 328
Oracle
connect string syntax 471
stored procedure notes 496
ORDER BY
lookup query 324
outer join
See also join type
creating 447
creating as a join override 448
creating as an extract override 448
Integration Service supported types 442
Output is Deterministic property
Java transformation 223
Output is Ordered property
Java transformation 223
output parameters
stored procedures 491
output ports
default values 18
dynamic Lookup transformation 347
error handling 18
NewLookupRow in Lookup transformation 347
overview 8
required for Expression transformation 142
using as variables 227
output row
setting row type in Java transformation 249
overriding
default Source Qualifier SQL query 438
lookup query
P
parameter access functions
64-bit 184
description 183
parameter binding
SQL transformation queries 465
partition related functions
description 186
partitioned pipelines
joining sorted data 292
passive transformations
Expression 142
External Procedure transformation 146
Java 215
Lookup 308
overview 2
Sequence Generator 402
Stored Procedure 490
pass-through ports
SQL transformation 469
percentile
See Aggregator transformation
See also Transformation Language Reference
performance
Aggregator transformation 45
improving filter 195
Joiner transformation 306
logical database connections 473
Lookup transformation 336
static database connections 473
using variables to improve 14
persistent lookup cache
named and unnamed 342
named files 363
overview 342
recache from database 340
sharing 363
pipeline partitioning
Custom transformation 65
External Procedure transformation 147
HTTP transformation 203
pipelines
Joiner transformation 284
merging with Union transformation 532
port attributes
editing 63
overview 62
port dependencies
Custom transformation 60
port values
Java transformation 220
ports
Aggregator transformation 38
configuring 6
creating 6, 7
Custom transformation 59
default values overview 18
evaluation order 16
group by 42
HTTP transformation 205
Java transformation 219
Lookup transformation 313
NewLookup Row in Lookup transformation 347
566 Index
Rank transformation 384
Router transformation 396
Sequence Generator transformation 404
sorted 45, 452
sorted ports option 452
Source Qualifier 452
Union transformation 534
variables ports 14
post-session
errors 513
stored procedures 509
pre- and post-session SQL
Source Qualifier transformation 455
pre-session
errors 512
stored procedures 509
primary key
creating with Sequence Generator transformation 403
primitive datatypes
Java transformation 215
promoting
non-reusable transformations 32
property access function
description 182
property functions
Custom transformation 108
property IDs
Custom transformation 109
Q
queries
Lookup transformation 324
overriding lookup 324
Source Qualifier transformation 431, 438
query
See lookup query
query mode
rules and guidelines 469
SQL transformation 464
quoted identifiers
reserved words 431
R
Rank transformation
creating 386
defining groups for 385
options 383
overview 382
ports 384
RANKINDEX port 384
using variables 14
ranking
groups of data 385
string values 383
real-time data
processing with Joiner transformation 301
with Joiner transformation 300
recache from database
named cache 342
overview 340
unnamed cache 342
registering
COM procedures with repositories 153
reinitializing lookup cache
See recache from database
reject file
update strategies 541
relational databases
joining 284
repositories
COM external procedures 153
registering COM procedures with 153
Requires Single Thread per Partition property
HTTP transformation 203
Java transformation 223
Requires Single Thread property
Custom transformation 66
reserved words
generating SQL with 431
lookup query 326
resword.txt 431
Reset property
Sequence Generator transformation 408, 411
return port
Lookup transformation 314, 332
return values
from external procedures 172
Lookup transformation 332
Stored Procedure transformation 491
reusable transformations
adding to mappings 33
changing 34
creating 32
creating a non-reusable instance 33
mapping variables 31
overview 31
reverting to original 35
Revert button
in reusable transformations 35
Index 567
right outer join
creating 446
syntax 446
rollBack
example for Java transformation 247
Java transformation API method 247
syntax for Java transformation 247
rolling back data
Java transformation 247
Router transformation
connecting in mappings 398
creating 400
example 394
group filter condition 393
groups 392
overview 390
ports 396
routing rows
transformation for 390
row strategy functions
array-based 135
row-based 128
Row transformation scope
behavior in Joiner transformation 300
row-based functions
data handling 117
row strategy 128
rows
deleting 547
flagging for update 541
rules
default values 28
S
script mode
rules and guidelines 462
SQL transformation 461
ScriptError port
description 462
ScriptName port
SQL transformation 462
ScriptResults port
SQL transformation 462
scripts locale option
SQL transformation 485
select distinct
overriding in sessions 454
Source Qualifier option 454
Sequence Generator transformation
creating 412
creating composite key 403
creating primary and foreign keys 403
Current Value 409
CURRVAL port 406
cycle 408
End Value property 409
Increment By property 408
NEXTVAL port 404
non-reusable 410
number of cached values 410
overview 402
ports 404
properties 407
replacing missing values 403
reset 411
reusable 411
start value 408
using IIF function to replace missing keys 403
sequence ID
Lookup transformation 349
sequential caches
See caches
session logs
Java transformation 245, 246
tracing levels 30
sessions
$$$SessStartTime 427
configuring to handle stored procedure errors 512
External Procedure transformation 156
improving performance through variables 14
incremental aggregation 38
overriding select distinct 454
running pre- and post-stored procedures 509
setting update strategy 544
skipping errors 22
Stored Procedure transformation 491
setNull
example for Java transformation 248
Java transformation API method 248
syntax for Java transformation 248
setOutRowType
example for Java transformation 249
Java transformation API method 249
syntax for Java transformation 249
sharing
named lookup caches 365
unnamed lookup caches 363
simple interface
API methods 271
example 272
Java expressions 271
568 Index
sort order
Aggregator transformation 45
configuring for Joiner transformation 292
Source Qualifier transformation 452
sort origin
configuring the join condition to use 292
definition 292
sorted data
joining from partitioned pipelines 292
using in Joiner transformation 292
sorted flat files
using in Joiner transformation 292
sorted input
flat file lookups 311
Sorted Input property
Aggregator transformation 45
Joiner transformation 287
sorted ports
Aggregator transformation 45
caching requirements 39
pre-sorting data 45
reasons not to use 45
sort order 452
Source Qualifier 452
sorted relational data
using in Joiner transformation 292
Sorter transformation
configuring 419
configuring Sorter Cache Size 419
creating 423
overview 416
properties 419
using with Joiner transformation 292
$Source
multiple sources 322, 502
Lookup transformations 317
Stored Procedure transformations 501
Source Analyzer
creating key relationships 436
source filters
adding to Source Qualifier 450
Source Qualifier transformation
$$$SessStartTime 427
configuring 456
creating key relationships 436
custom joins 435
datatypes 426
default join 434
default query 431
entering source filter 450
entering user-defined join 440
joining source data 434
joins 436
mapping parameters and variables 427
Number of Sorted Ports option 452
outer join support 442
overriding default query 432, 438
overview 426
pre- and post-session SQL 455
properties 429, 457
Select Distinct option 454
sort order with Aggregator 46
SQL override 438
target load order 426
troubleshooting 458
viewing default query 432
XML Source Qualifier 550
sources
joining 284
joining data from the same source 296
joining multiple 284
merging 532
SQL
adding custom query 438
overriding default query 432, 438
viewing default query 432
SQL Ports tab
SQL transformation 486
SQL query
adding custom query 438
overriding default query 432, 438
viewing default query 432
SQL settings tab
SQL transformation 485
SQL statements
supported by SQL transformation 488
SQL transformation
advanced options 472
configuring connections 470
database resilience 478
description 460
dynamic SQL queries 466
native datatype column 465
NumRowsAffected 475
passing full connection information 470
pass-through ports 469
properties 482, 483
query mode 464
script mode 461
ScriptError port 462
ScriptName port 462
ScriptResults port 462
Index 569
SELECT queries 465
setting SQL attributes 485
setting Verbose Data 483
SQL ports description 486
static query ports 466
static SQL queries 465
supported SQL statements 488
transaction control 478
using string substitution 467
standard deviation
See Aggregator transformation
See also Transformation Language Reference
Start Value property
Sequence Generator transformation 407, 408
static code
Java transformation 226
static database connection
description 470
performance considerations 473
static lookup cache
overview 344
static SQL queries
configuring ports 466
SQL transformation 465
static variable
Java transformation 226
status codes
Stored Procedure transformation 491
Stored Procedure transformation
call text 501
configuring 494
configuring connected stored procedure 504
configuring unconnected stored procedure 506
connected 491
creating by importing 498, 499
creating manually 500, 501
execution order 502
expression rules 516
importing stored procedure 498
input data 490
input/output parameters 491
modifying 503
output data 490
overview 490
performance tips 517
pre- and post-session 509
properties 501
return values 491
running pre- or post-session 509
setting options 501
specifying session runtime 492
specifying when run 492
status codes 491
troubleshooting 518
unconnected 491, 506
stored procedures
See also Stored Procedure transformation
changing parameters 503
creating sessions for pre or post-session run 510
database-specific syntax notes 495
definition 490
error handling 512
IBM DB2 example 497
importing 499
Informix example 495
load types 511
Microsoft example 496
Oracle example 496
post-session errors 513
pre-session errors 512
session errors 513
setting type of 502
specifying order of processing 492
supported databases 514
Sybase example 496
Teradata example 497
writing 495
writing to variables 15
string substitution
SQL transformation queries 467
strings
ranking 383
Sybase ASE
connect string syntax 471
ORDER BY limitation 326
stored procedure notes 496
syntax
common database restrictions 449
creating left outer joins 445
creating normal joins 443
creating right outer joins 447
T
tables
creating key relationships 436
$Target
multiple targets 322, 502
Lookup transformations 317
Stored Procedure transformations 501
Target Designer
automatic COBOL normalization 374
570 Index
target load order
Source Qualifier 426
target tables
deleting rows 547
inserts 547
setting update strategy for 545
targets
updating 540
TC_COMMIT_AFTER constant
description 522
TC_COMMIT_BEFORE constant
description 522
TC_CONTINUE_TRANSACTION constant
description 522
TC_ROLLBACK_AFTER constant
description 522
TC_ROLLBACK_BEFORE constant
description 522
Teradata
connect string syntax 471
Terse tracing level
defined 30
threads
Custom transformation 66
thread-specific operations
Custom transformations 66
HTTP transformations 203
TINFParam parameter type
definition 174
tracing level function
description 187
Tracing Level property
Java transformation 222
tracing levels
Joiner transformation property 287
Normal 30
overriding 30
overview 30
Sequence Generator transformation property 408
session 30
session properties 48
Terse 30
Verbose Data 30
Verbose Initialization 30
tracing messages
for external procedures 173
transaction
definition 521
generating 68, 224, 239
working with in Joiner transformation 300
transaction boundaries
Custom transformation 69
transaction boundary
dropping in Joiner transformation 302
preserving in Joiner transformation 301
transaction control
Custom transformation 68
example 522
expression 522
Java transformation 223
overview 520
SQL transformation 478
transformation 521
Transaction Control transformation
creating 529
effective 524
in mappings 524
ineffective 524
mapping validation 528
overview 521
properties 521
Transaction transformation scope
behavior in Joiner transformation 300
Transformation Exchange (TX)
definition 146
transformation language
aggregate functions 40
using with Java expressions 264
transformation scope
All Input transformation scope with Joiner
transformation 300
Custom transformation 68
defining for Joiner transformation 300
Java transformation 223
Joiner transformation property 287
Row transformation scope with Joiner transformation
300
Transaction transformation scope with Joiner
transformation 300
Transformation Scope property
Java transformation 222
transformations
See also active transformations
See also connected transformations
See also passive transformations
See also unconnected transformations
active and passive 2
adding to mappings 5
Aggregator 38
connected 2
creating 5
Custom 54
Index 571
definition 2
descriptions 2
Expression 142
External Procedure 146
Filter 190
handling errors 25
Joiner 284
Lookup 308
making reusable 32
Midstream XML Generator 552
Midstream XML Parser 551
multi-group 9
Normalizer 372
overview 2
promoting to reusable 32
Rank 382
reusable transformations 31
Router 390
Sequence Generator 402
Source Qualifier 426
SQL 460
Stored Procedure 490
tracing levels 30
types that allow for expressions 11
unconnected 2
Union 532
Update Strategy 540
XML Source Qualifier 550
Treat Source Rows As
update strategy 544
troubleshooting
Aggregator transformation 51
Filter transformation 196
Java transformation 232
Normalizer transformation 379
Source Qualifier transformation 458
Stored Procedure transformation 518
TX-prefixed files
external procedures 162
U
unconnected Lookup transformation
input ports 331
return port 332
unconnected lookups
See also Lookup transformation
adding lookup conditions 332
calling through expressions 333
description 309
designating return values 332
overview 331
unconnected transformations
External Procedure transformation 146, 175
Lookup 308
Lookup transformation 331
Stored Procedure transformation 490
Unicode mode
See also Administrator Guide
configuring sort order for Joiner transformation 292
Custom transformation 55
External Procedure Transformation 146
Union transformation
components 532
creating 536
groups 534
guidelines 532
overview 532
ports 534
unnamed cache
persistent 342
recache from database 342
sharing 363
unsorted Joiner transformation
processing detail rows 299
processing master rows 299
update strategy
setting with a Custom transformation 66
setting with a Java transformation 224
Update Strategy transformation
Aggregator combination 542
checklist 547
creating 541
entering expressions 541
forwarding rejected rows 541
Lookup combination 543
overview 540
setting options for sessions 544, 545
steps to configure 540
Update Strategy Transformation property
Java transformation 222
URL
adding through business documentation links 12
user-defined functions
using with Java expressions 264
user-defined group
Router transformation 392
user-defined joins
entering 440
user-defined methods
Java transformation 227, 228
572 Index
V
Validate button
transformations 28
validating
default values 28
expressions 13
values
calculating with Expression transformation 142
variable ports
overview 14
variables
capturing stored procedure results 15
initializations 16
Java transformation 226, 227, 228
overview 14
port evaluation order 16
Verbose Data tracing level
overview 30
SQL transformation 483
Verbose Initialization tracing level
overview 30
Visual Basic
adding functions to Integration Service 173
Application Setup Wizard 169
code for external procedures 147
COM datatypes 171
developing COM external procedures 156
distributing procedures manually 170
wrapper classes for 173
Visual C++
adding libraries to Integration Service 173
COM datatypes 171
developing COM external procedures 149
distributing procedures manually 170
wrapper classes for 173
W
web links
adding to expressions 12
Windows systems
compiling DLLs on 165
wizards
ATL COM AppWizard 149
MFC AppWizard 165
Visual Basic Application Setup Wizard 169
wrapper classes
for pre-existing libraries or functions 173
X
XML transformations
See also XML Guide
Midstream XML Generator 552
Midstream XML Parser 551
Source Qualifier 550
