PRODUCT
CATALOG
DESIGNED & ENGINEERED
IN GERMANY.!
PRODUCT
CATALOG
LD-SYSTEMS.COM
facebook.com/ldsystems
youtube.com/ldsystemsvideos
blog.adamhall.com
Diseñado en Alemania, ¡escuchado en todo el mundo!
En tan solo catorce años, LD Systems® se ha convertido en una de las marcas más importantes del sector de audio profesional con una extensa gama de
productos. Los expertos ingenieros de LD Systems® y su personal altamente motivado se dedican continuamente a crear equipos de audio punteros que ofrecen
una calidad de audio superior y un valor excepcional. Diseñados en Alemania, los equipos de audio profesional de LD Systems® consiguen un sonido de primera
clase en todo el mundo.
LD Systems® es una marca registrada de Adam Hall® Group con sede cerca de la ciudad de Fráncfort (Alemania). Fundada hace más de 40 años, la empresa se
ha ganado una sólida reputación de ofrecer productos de calidad, un excepcional servicio al cliente y ser un socio able en los sectores de audio profesional,
eventos e instrumentos musicales. Las rigurosos procesos de Adam Hall® Group y su dedicación a la innovación se reejan en cada uno de los productos de audio
profesional de LD Systems®.
Conçu en Allemagne, utilisé et écouté dans le monde entier !
En à peine quatorze ans, LD Systems® est devenu une marque importante dans le secteur de l’audio professionnel, en s’appuyant sur une gamme étendue de
produits. Son équipe de concepteurs experts dans leur domaine et son personnel très motivé travaillent en permanence à la création d’appareils audio avancés,
de haut niveau, assurant des performances techniques supérieures et un rapport qualité/prix exceptionnel. Conçus en Allemagne, les produits audio LD Systems®
assurent un son de première classe partout dans le monde.
LD Systems® est une marque déposée de Adam Hall®Group, dont le siège social se trouve près de Francfort, en Allemagne. Créée voici plus de 40 ans, la société
s’est forgé une solide réputation pour ses produits de qualité, son service clientèle exceptionnel et son niveau de partenariat dans l’audio pro, l’événementiel et la
musique. Les standards rigoureux adoptés par Adam Hall®Group et sa passion pour l’innovation se reètent dans chaque produit audio pro signé LD Systems®.
Designed in Germany, heard around the world!
Within just 14 years LD Systems® has become a major pro audio brand with an extensive range of product lines. The expert LD Systems® engineering team and
highly motivated personnel are continuously engaged in creating advanced, state-of-the-art audio equipment that provides superior sonic performance and
exceptional value. Designed in Germany, LD Systems® professional audio products deliver world-class sound around the globe.
LD Systems® is a registered brand of the Adam Hall® Group with headquarters near Frankfurt am Main, Germany. Established more than 40 years ago, the company
has built a solid reputation for quality products, outstanding customer service and being a dependable partner in the pro audio, events and MI industries. The Adam
Hall® Group's rigorous standards and dedication to innovation are reected in each and every LD Systems® pro audio product.
In Deutschland entwickelt, weltweit gehört!
In nur vierzehn Jahren hat sich LD Systems® zu einer bedeutenden Audio-Marke mit zahlreichen Produktreihen entwickelt. Kompetente Designer und
ein hochmotiviertes Produktionsteam konstruieren fortschrittliche Audiogeräte mit modernster Technik, die durch überragende Performance und ein
außergewöhnliches Preis-Leistungs-Verhältnis überzeugen. In Deutschland entwickelt, sind die professionellen Audio-Produkte von LD Systems® und ihr
erstklassiger Klang weltweit allgegenwärtig.
LD Systems® ist eine eingetragene Marke von Adam Hall® Group, die ihren Hauptsitz nahe Frankfurt am Main hat. Das vor über 40 Jahren gegründete Unternehmen
besitzt einen ausgezeichneten Ruf durch seine Qualitätsprodukte und den hervorragenden Kundenservice. Adam Hall® Group ist ein verlässlicher Partner im Pro-
Audio-, Event- und MI-Bereich, dessen hohe Standards und Innovationsfreudigkeit in jedem LD Systems®-Produkt Ausdruck nden.
WELCOME TO OUR
WORLD OF SOUND.
LD Systems® is a brand of the Adam Hall Group.
SOUND
TECHNOLOGY
LIGHT
TECHNOLOGY
STAGE
EQUIPMENT
HARDWARE
FOR FLIGHTCASES
ADAM HALL GROUP BRANDS
DISTRIBUTION BRANDS

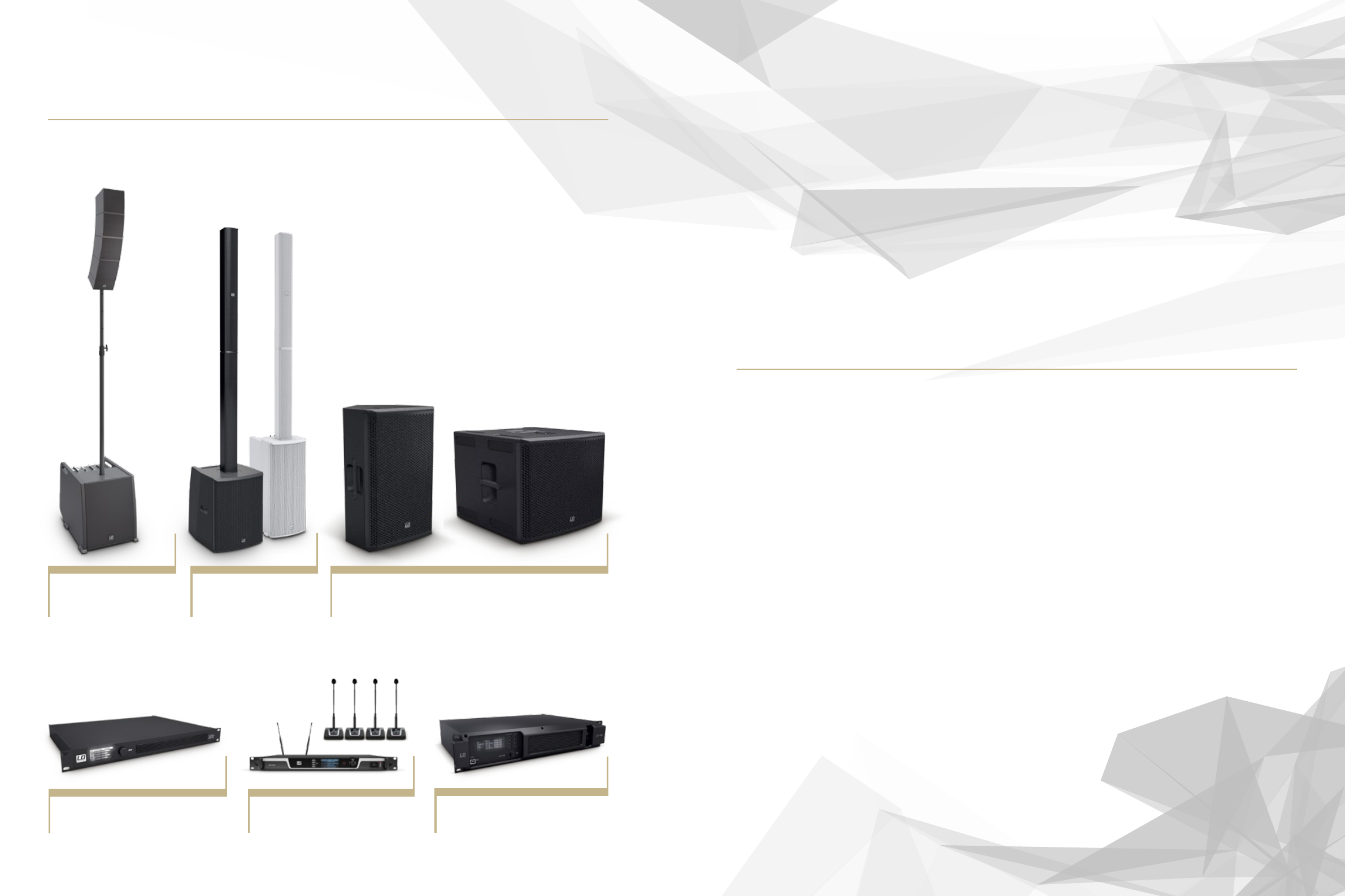

CURV 500® SERIES
PORTABLE
ARRAY SYSTEM
P. 14
STINGER® G3 SERIES
MULTIFUNCTIONAL LOUDSPEAKERS
& SUBWOOFERS
P. 44
MAUI® 11 & 28 G2
COMPACT COLUMN
PA SYSTEMS
P. 24
CURV 500®
IAMP
4-CHANNEL CLASS D INSTALLATION AMPLIFIER
P. 22

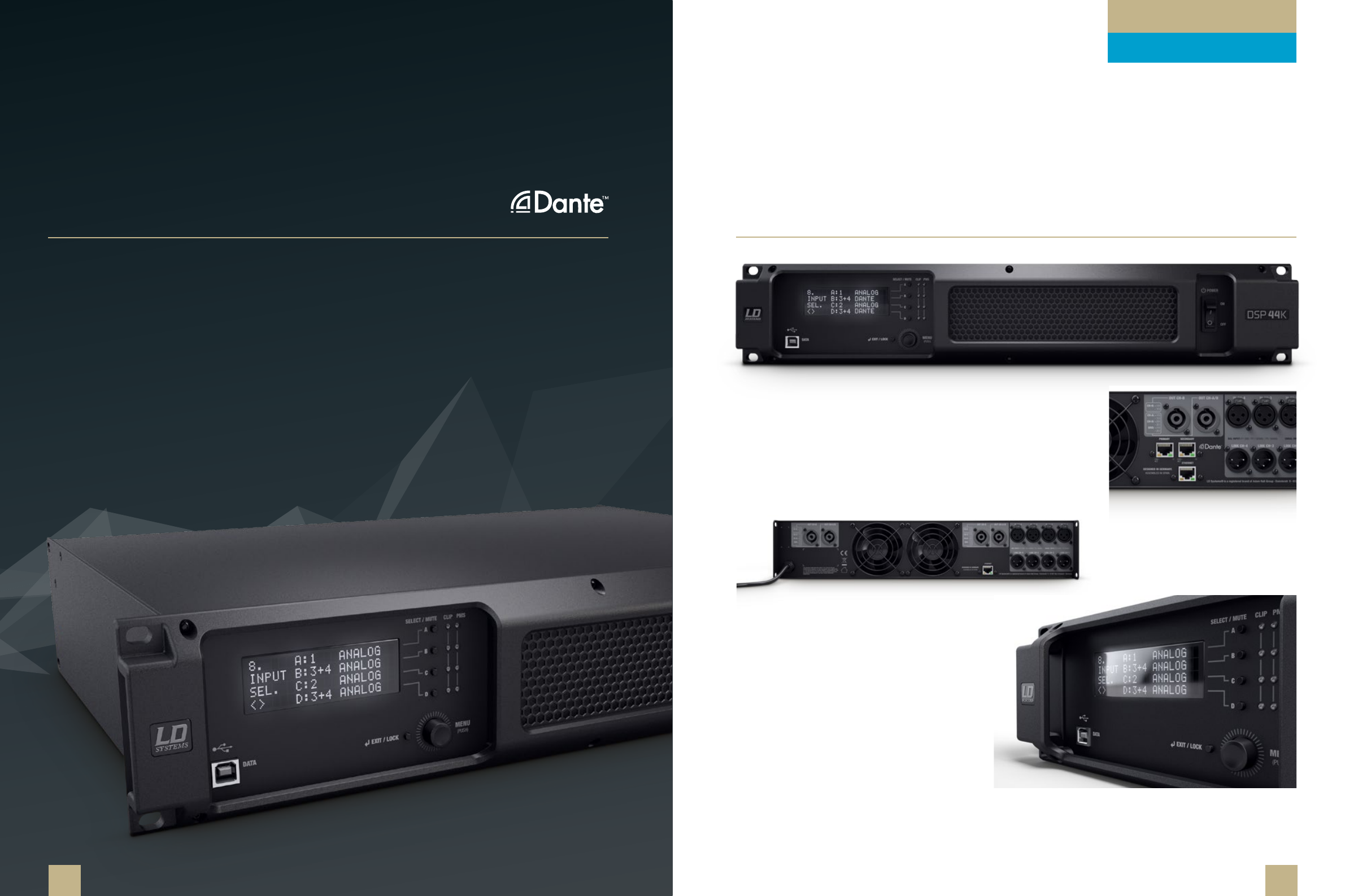

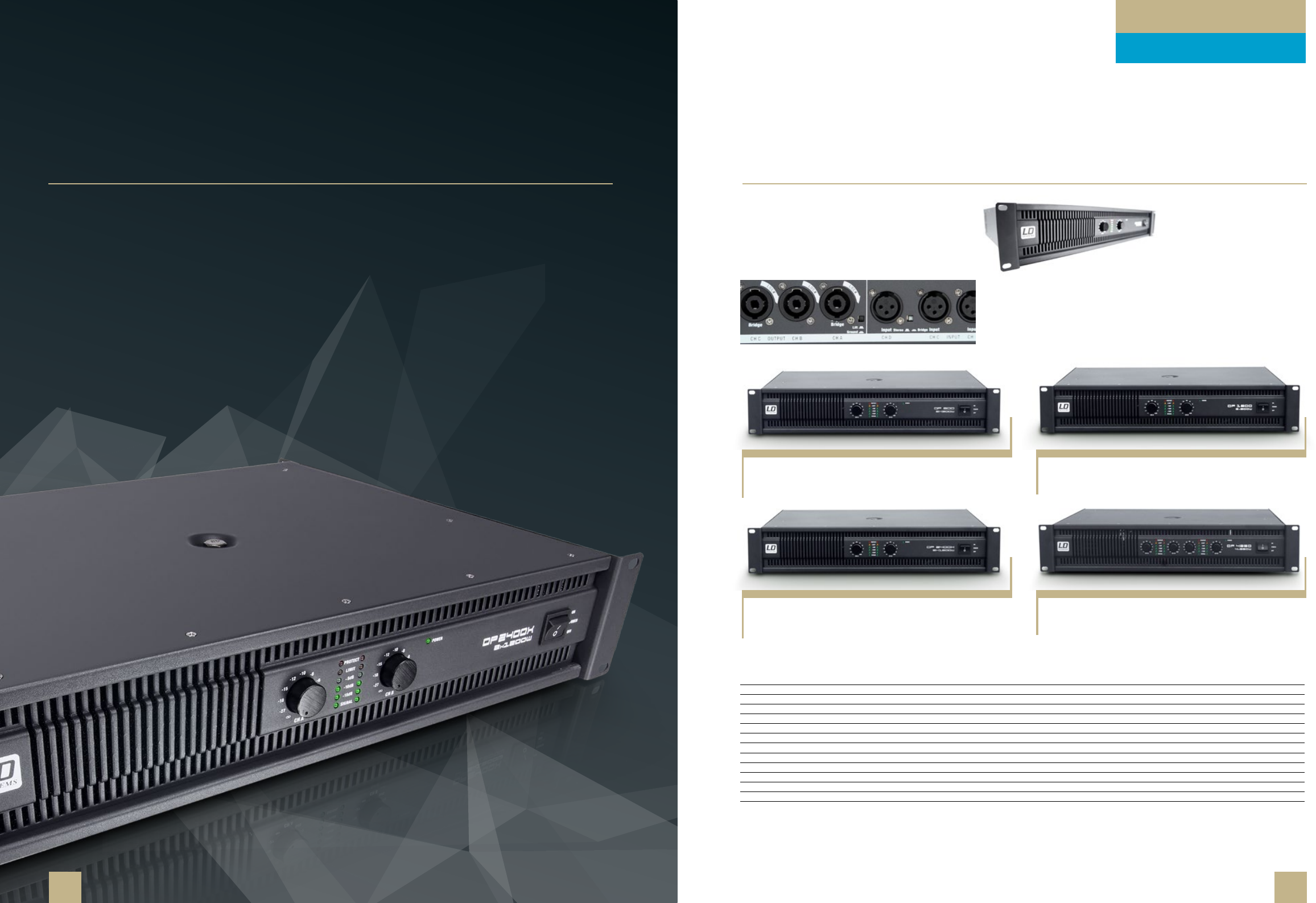

DSP SERIES
PROFESSIONAL DSP POWER AMPLIFIERS
P. 80
PRODUCT HIGHLIGHTS
TABLE OF CONTENTS
LINE ARRAYS
PREMIUM SERIES 8
COMPLETE PA SYSTEMS
CURV 500® SERIES 14
MAUI® SERIES 24
DAVE® G3 SERIES 32
DAVE® 8 SERIES 36
PA SPEAKERS

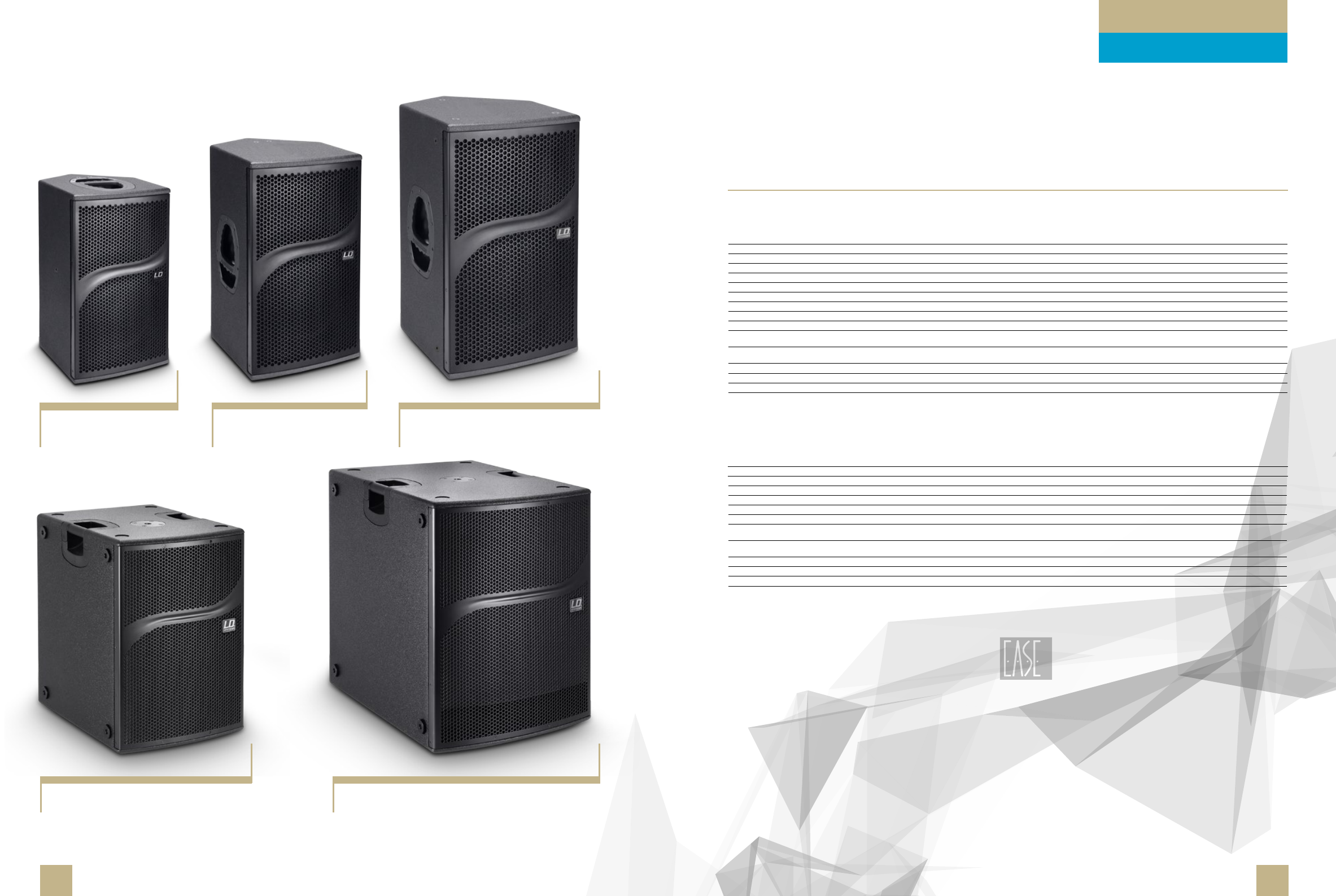

DDQ SERIES 40

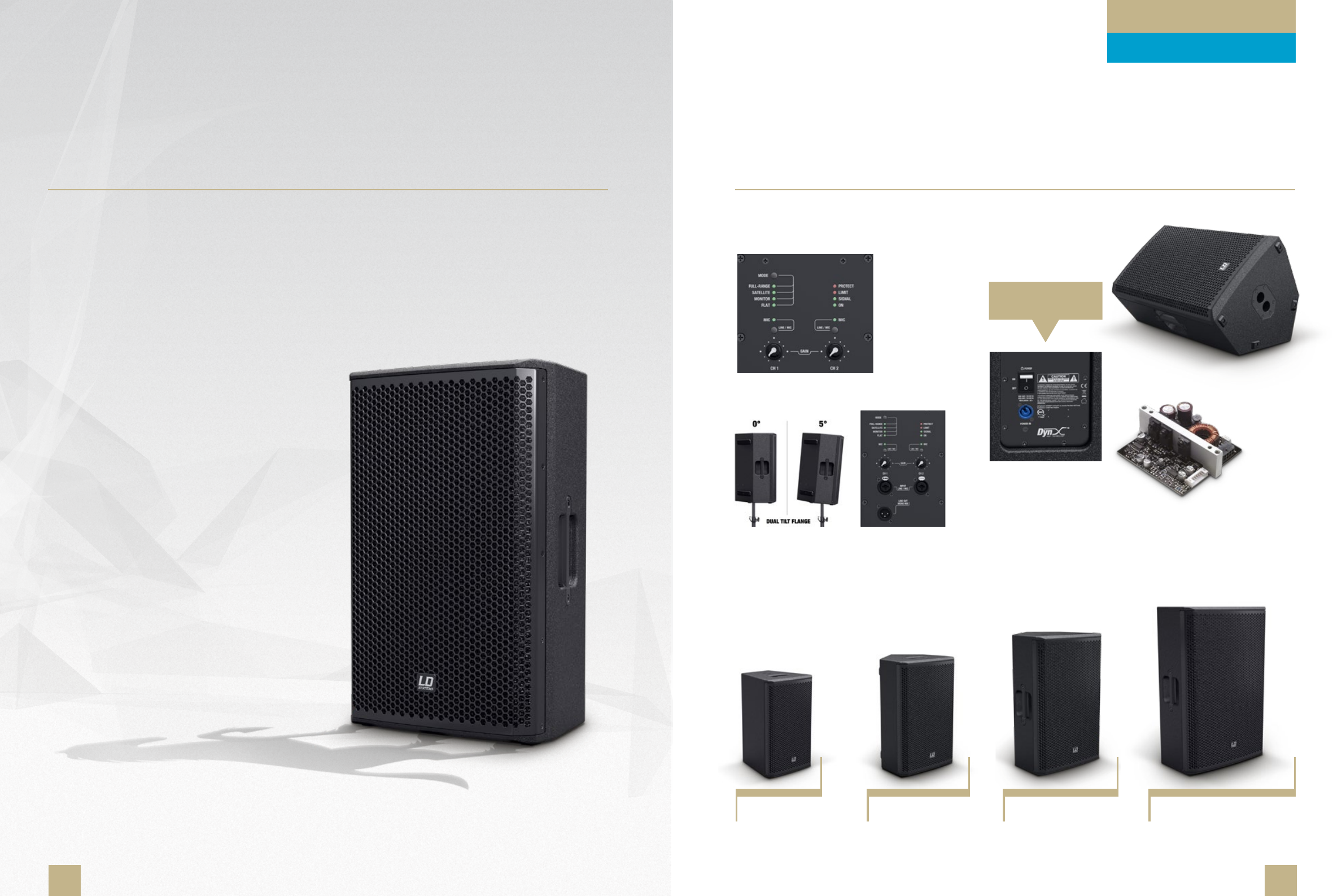

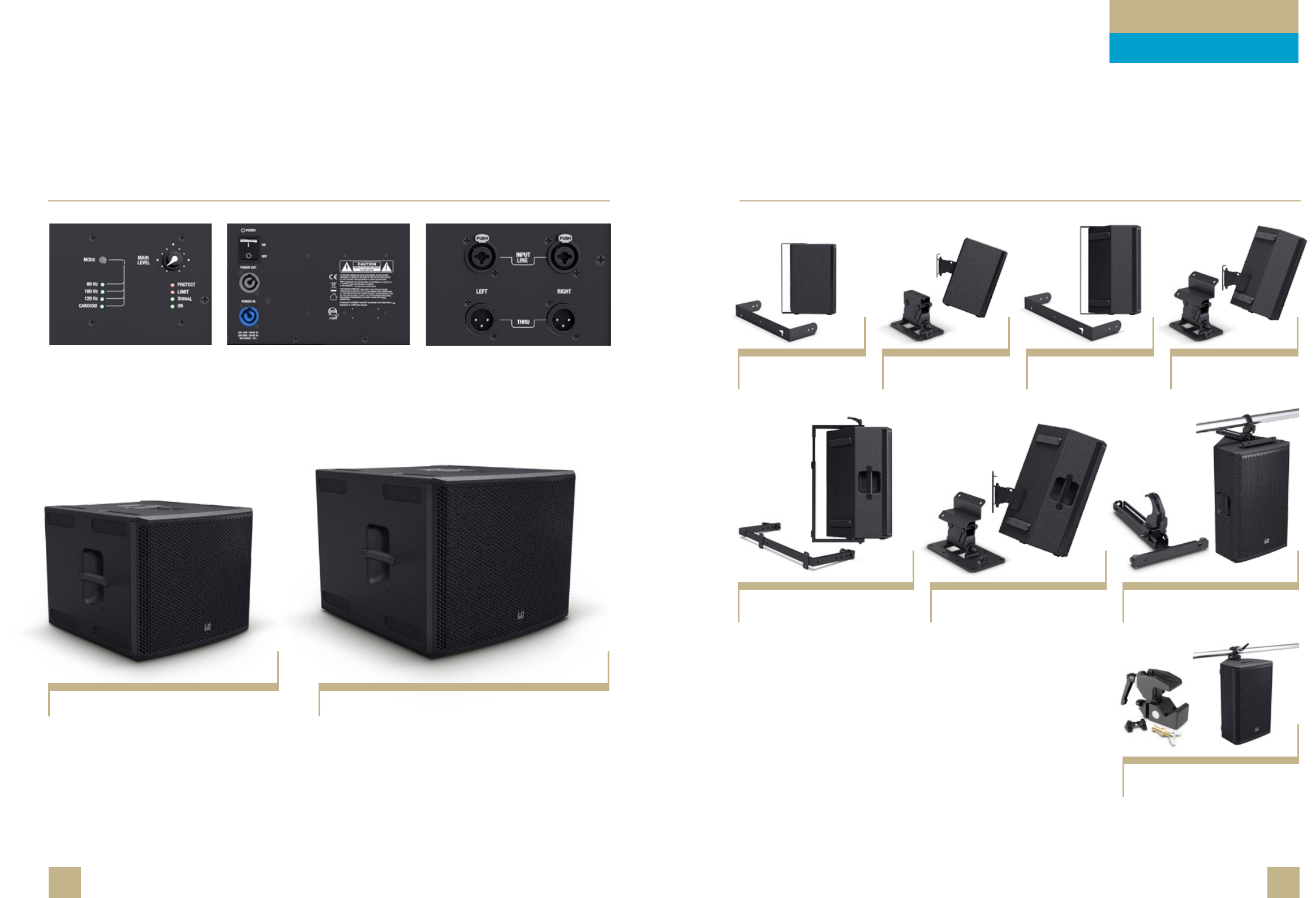

STINGER® SERIES 44
GT SERIES 52
PLAY SERIES 56
BATTERY POWERED
SPEAKERS

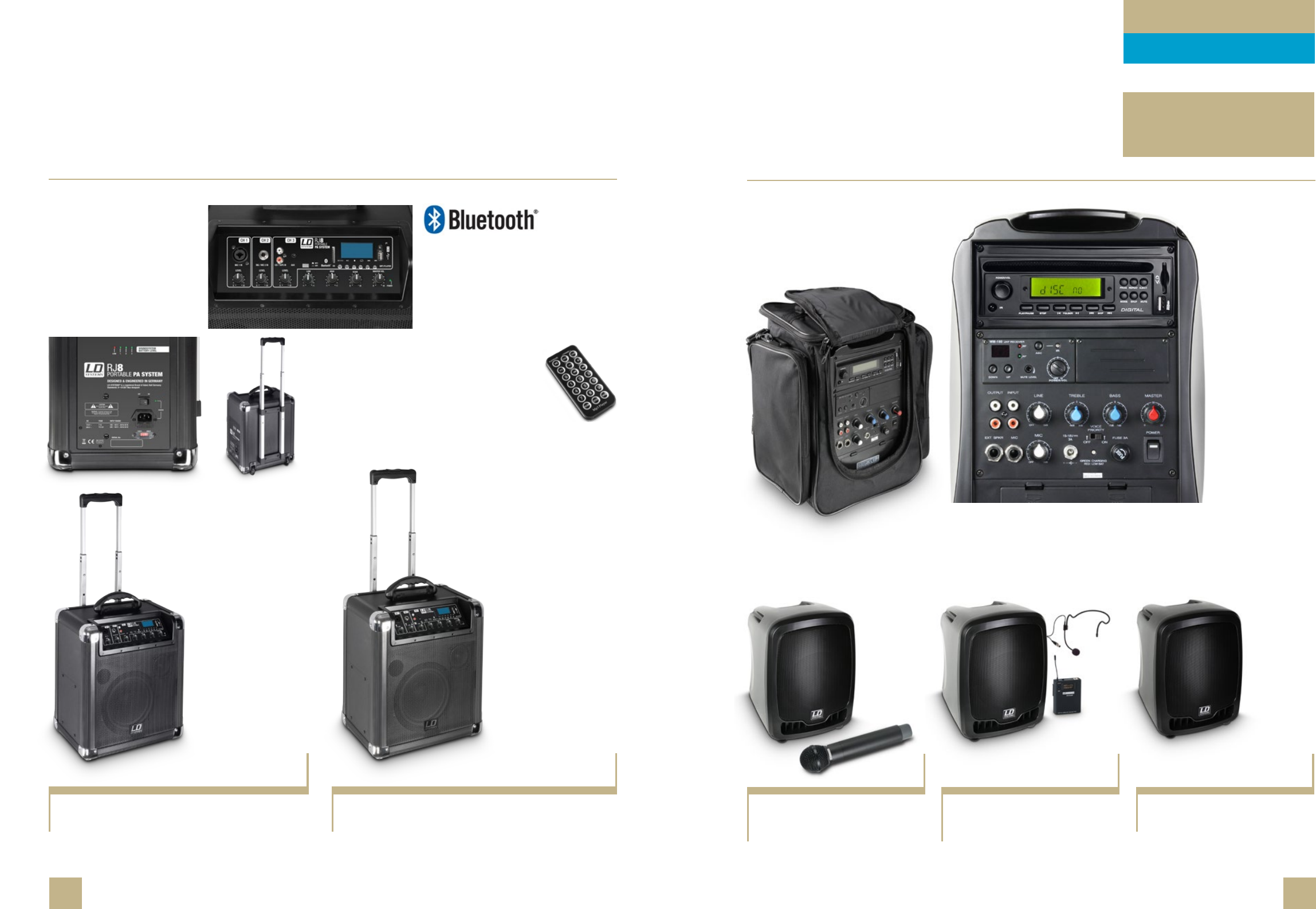

ROAD SERIES 60
INSTALLATION SPEAKERS

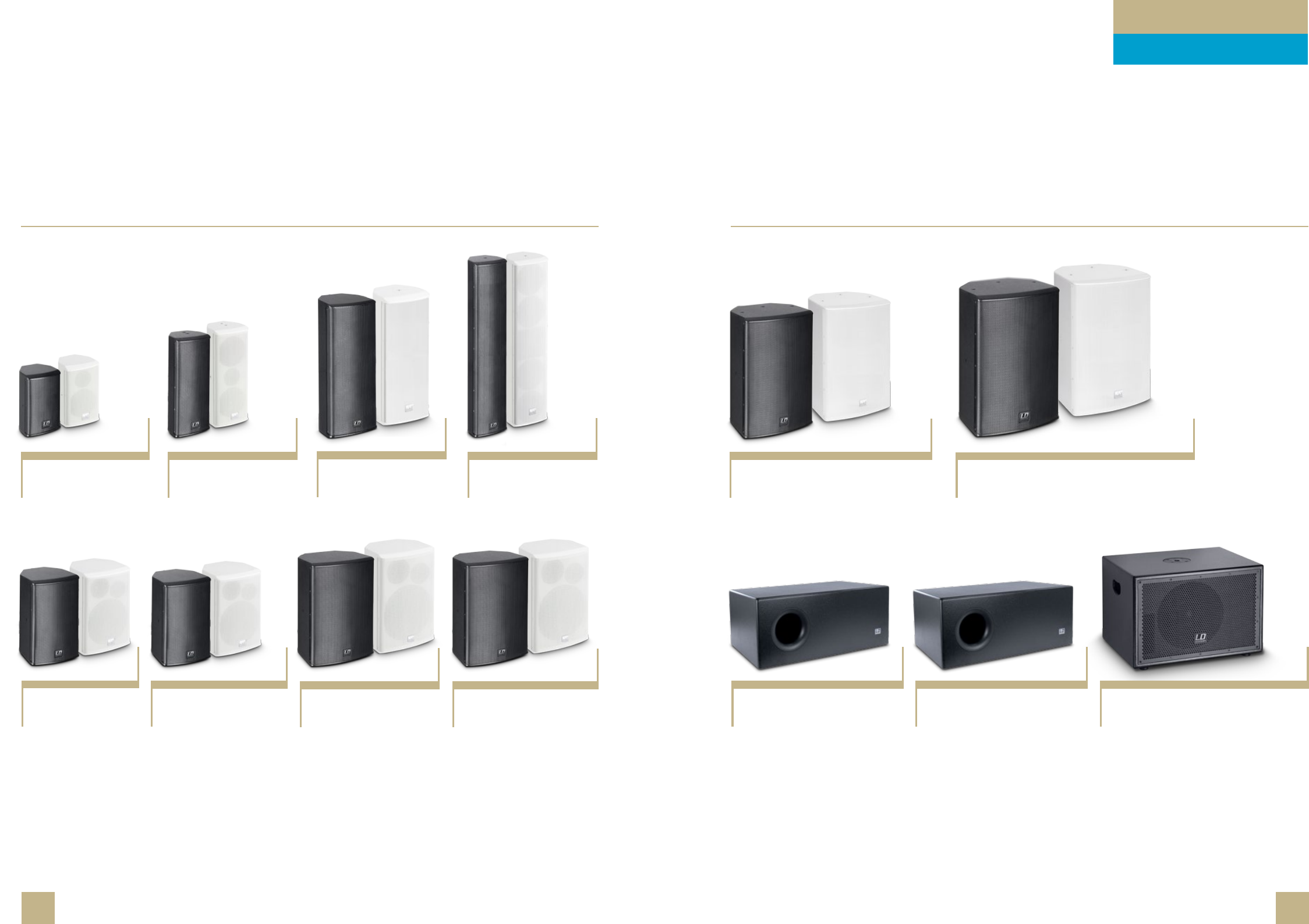

SAT G2 SERIES 68
CONTRACTOR® SERIES 74
PA POWER AMPLIFIERS
DSP SERIES 80
PREMIUM SP SERIES 84
DEEP2 SERIES 88

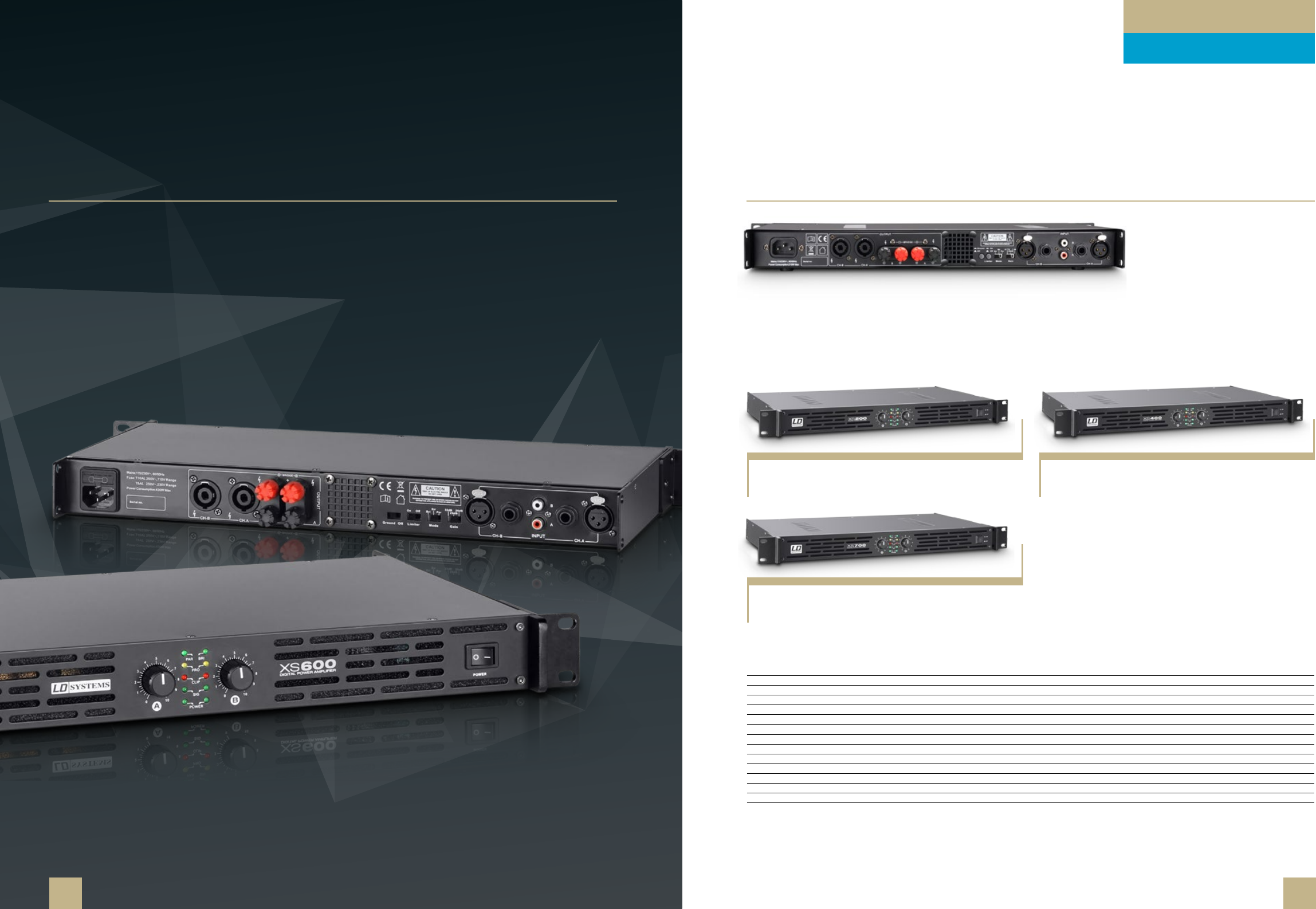

XS SERIES 90
DJ SERIES 92
SIGNAL PROCESSING 94
MIXERS

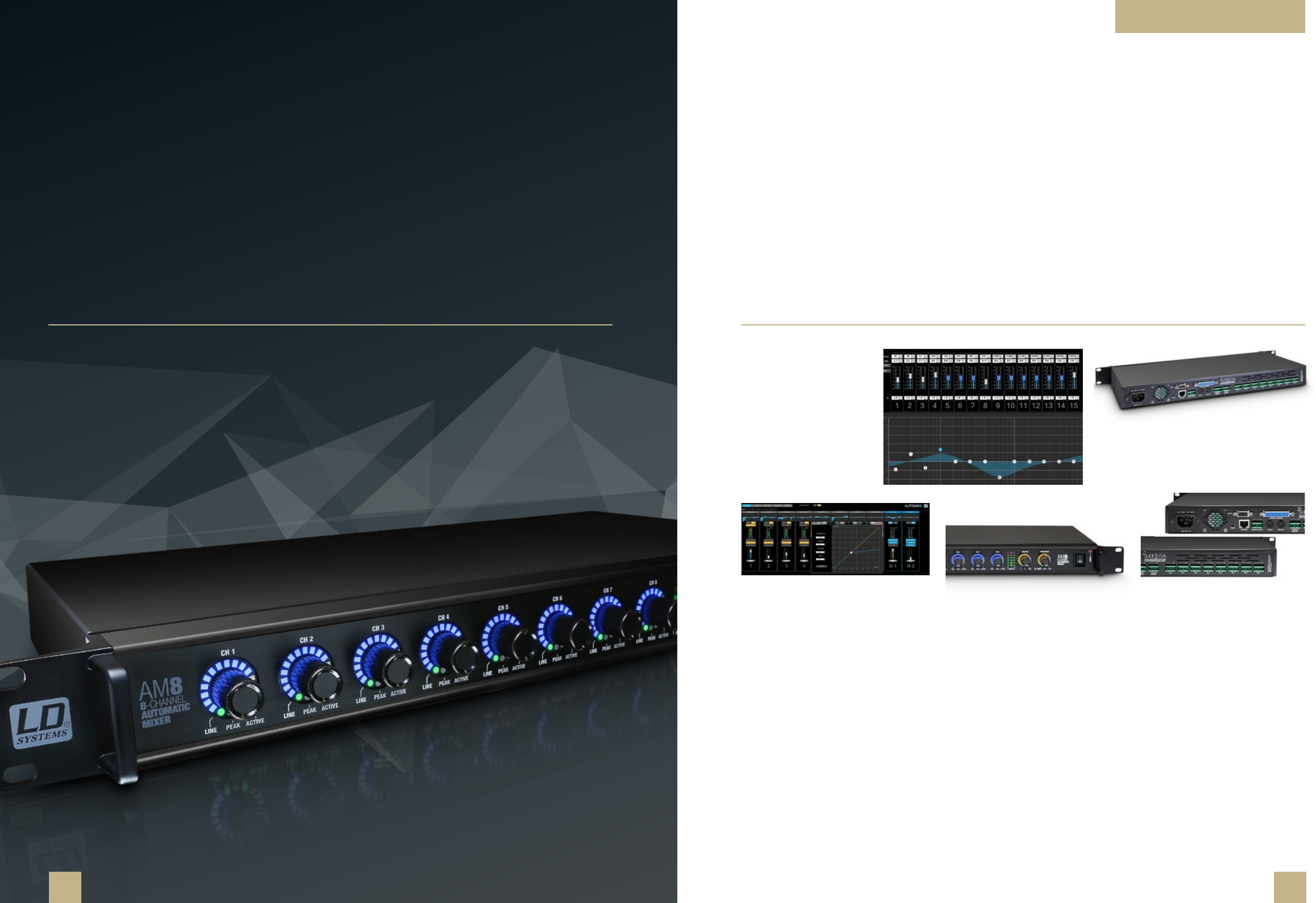

AM 8 101

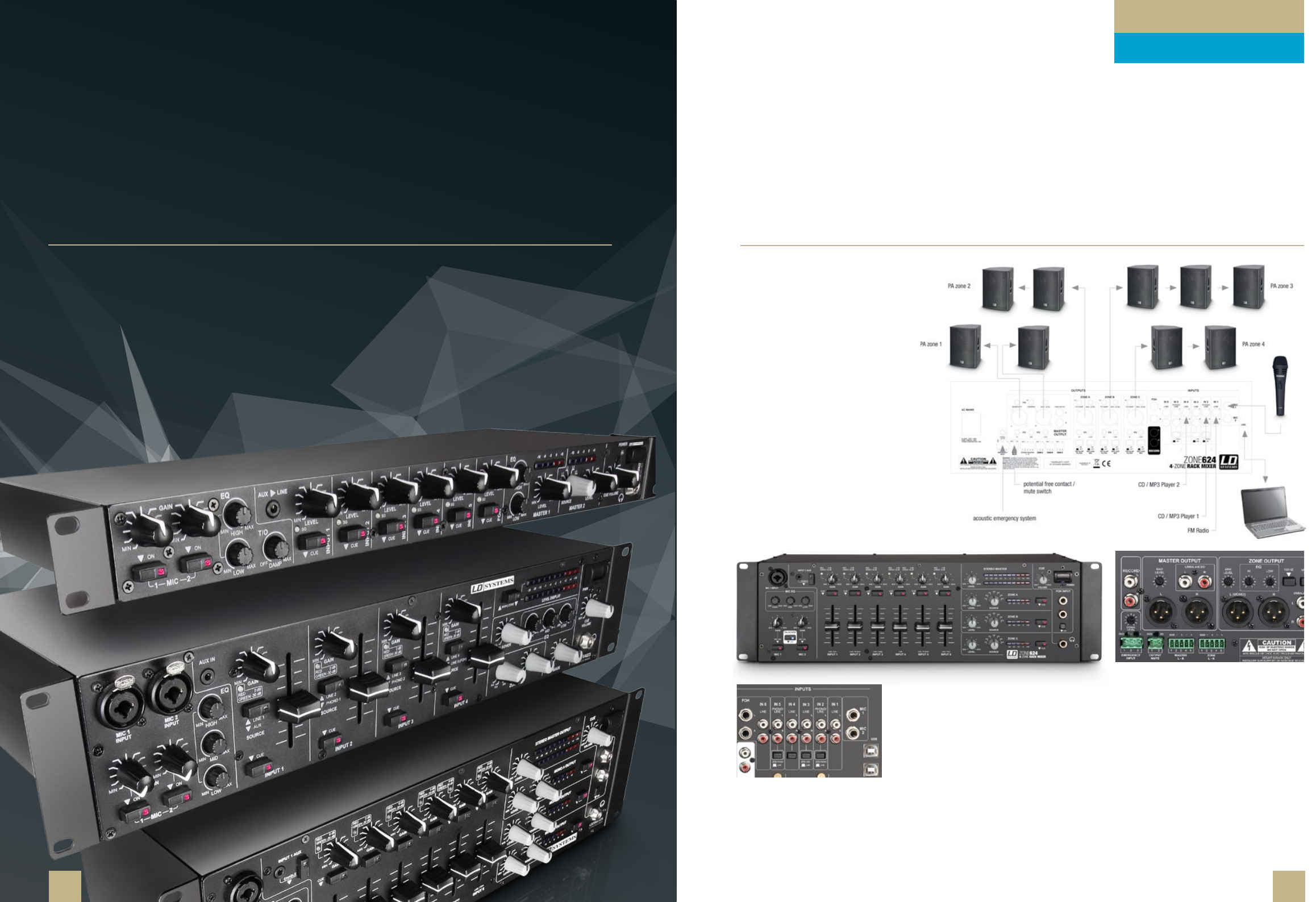

ZONE SERIES 104
VIBZ SERIES 108
WIRELESS SYSTEMS

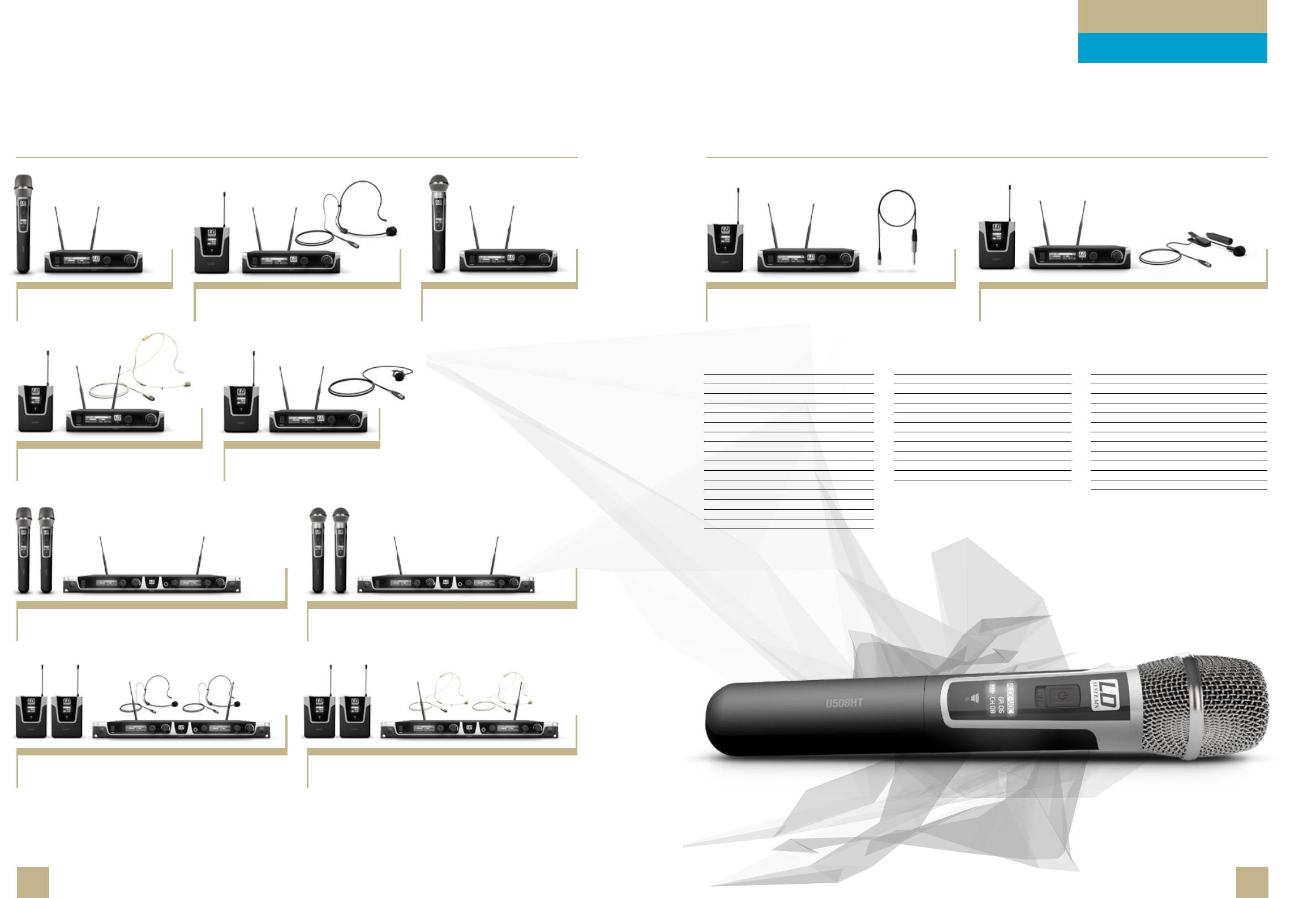

U500® 112
WIN 42 SERIES 118
WS 1G8 SERIES 122

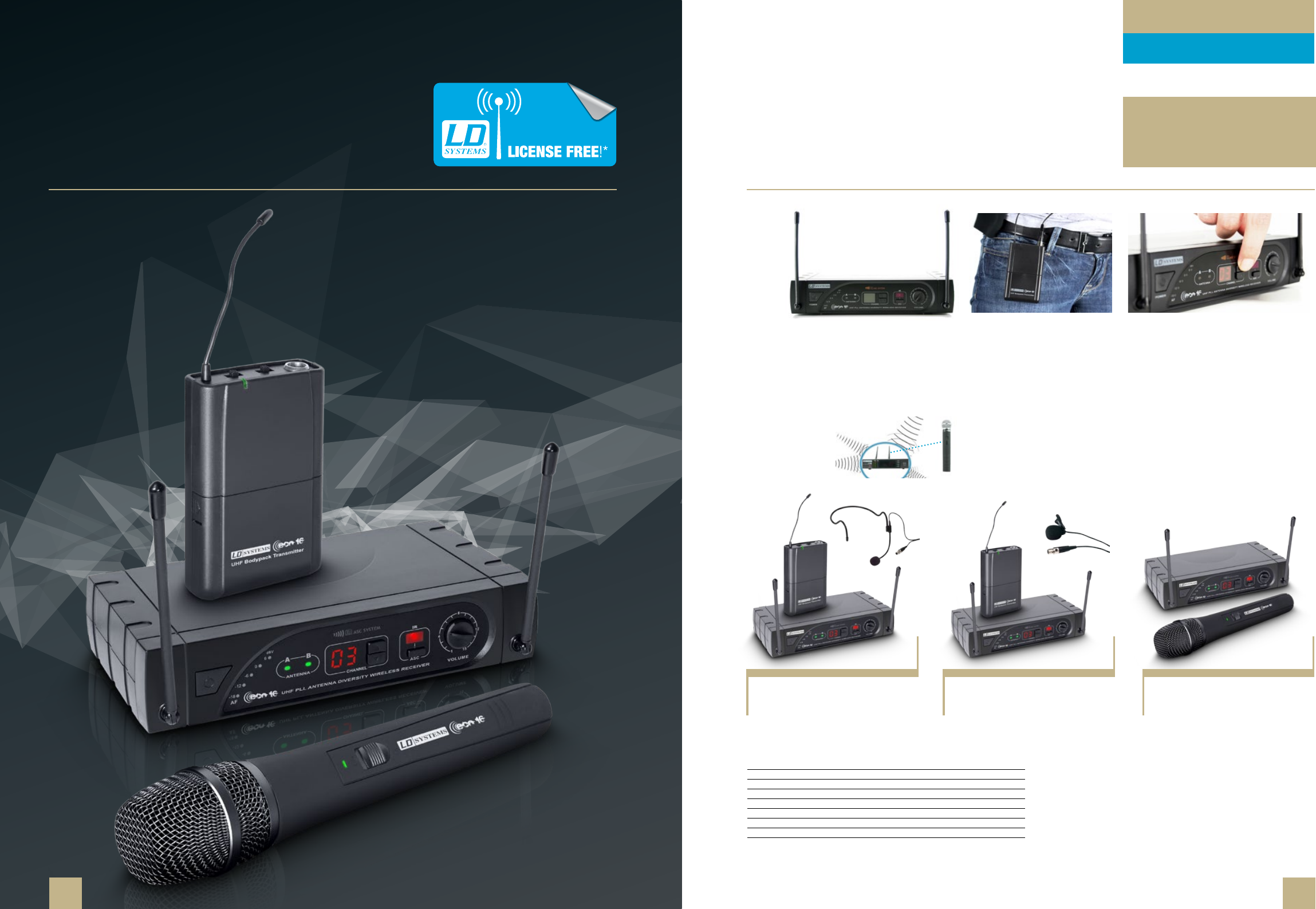

WS ECO 16 SERIES 126
WS ECO SERIES 128

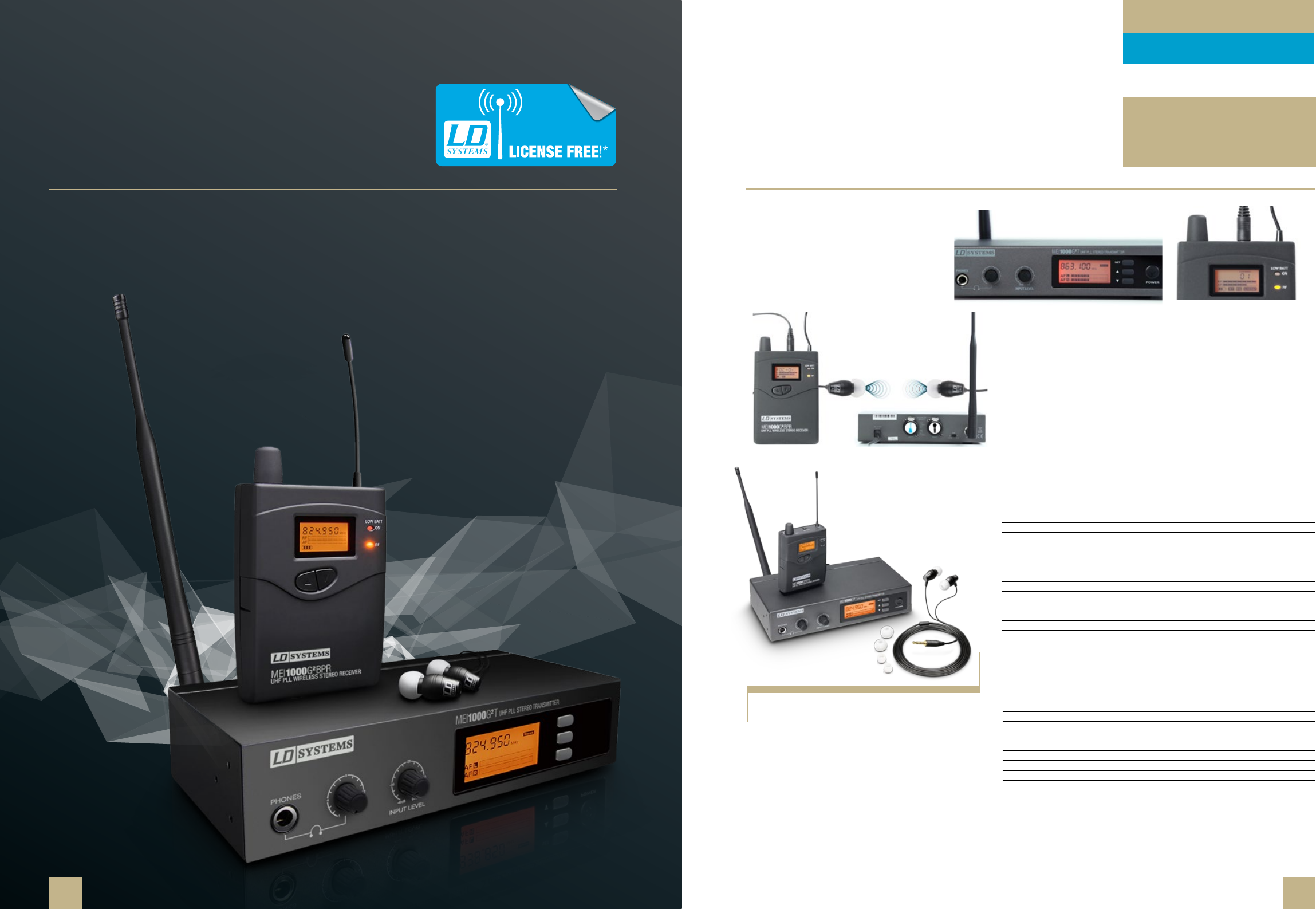

IN-EAR MONITORING
MEI 1000 G2 SERIES 132
MEI 100 G2 SERIES 134
MEI ONE SERIES 136

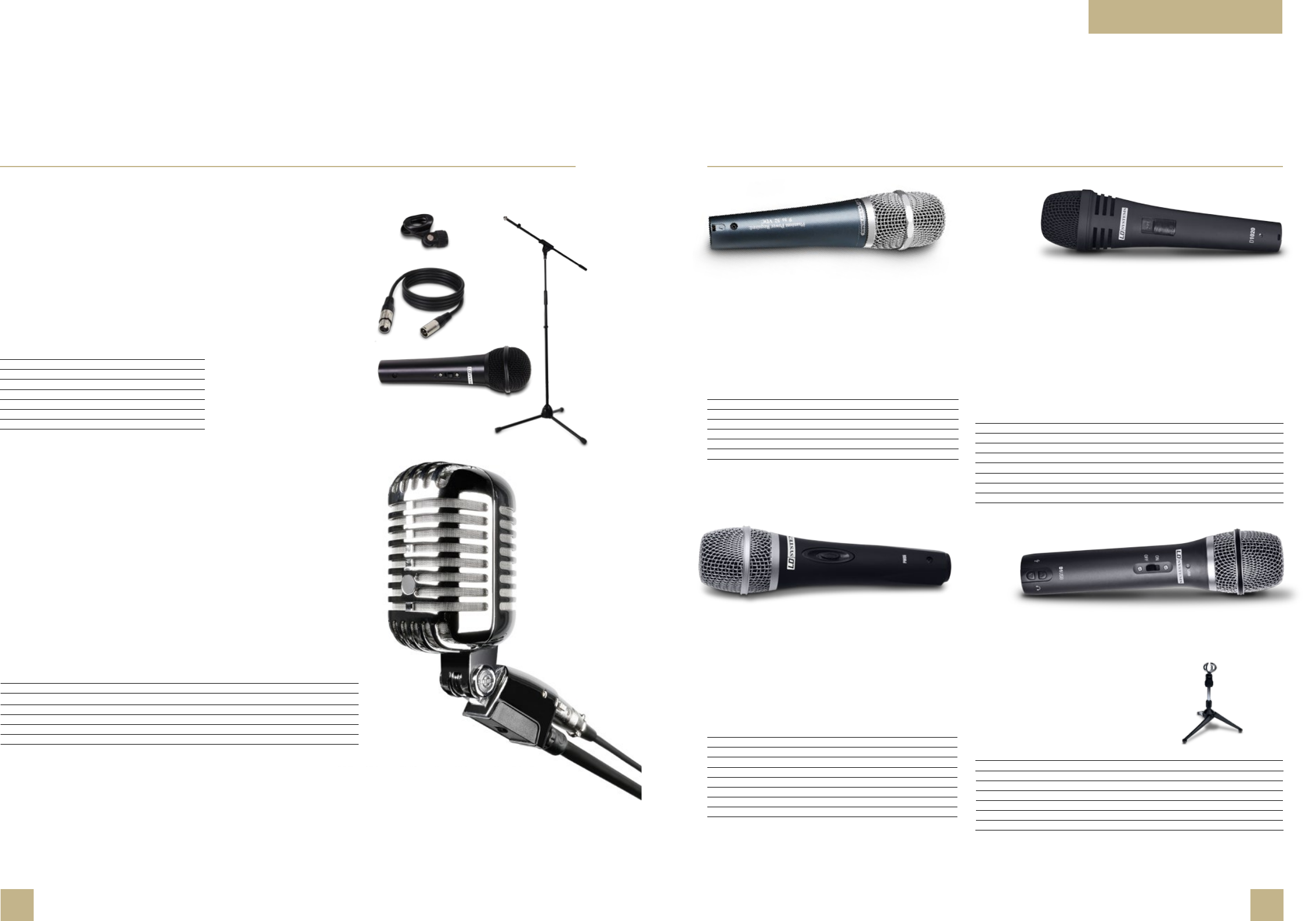

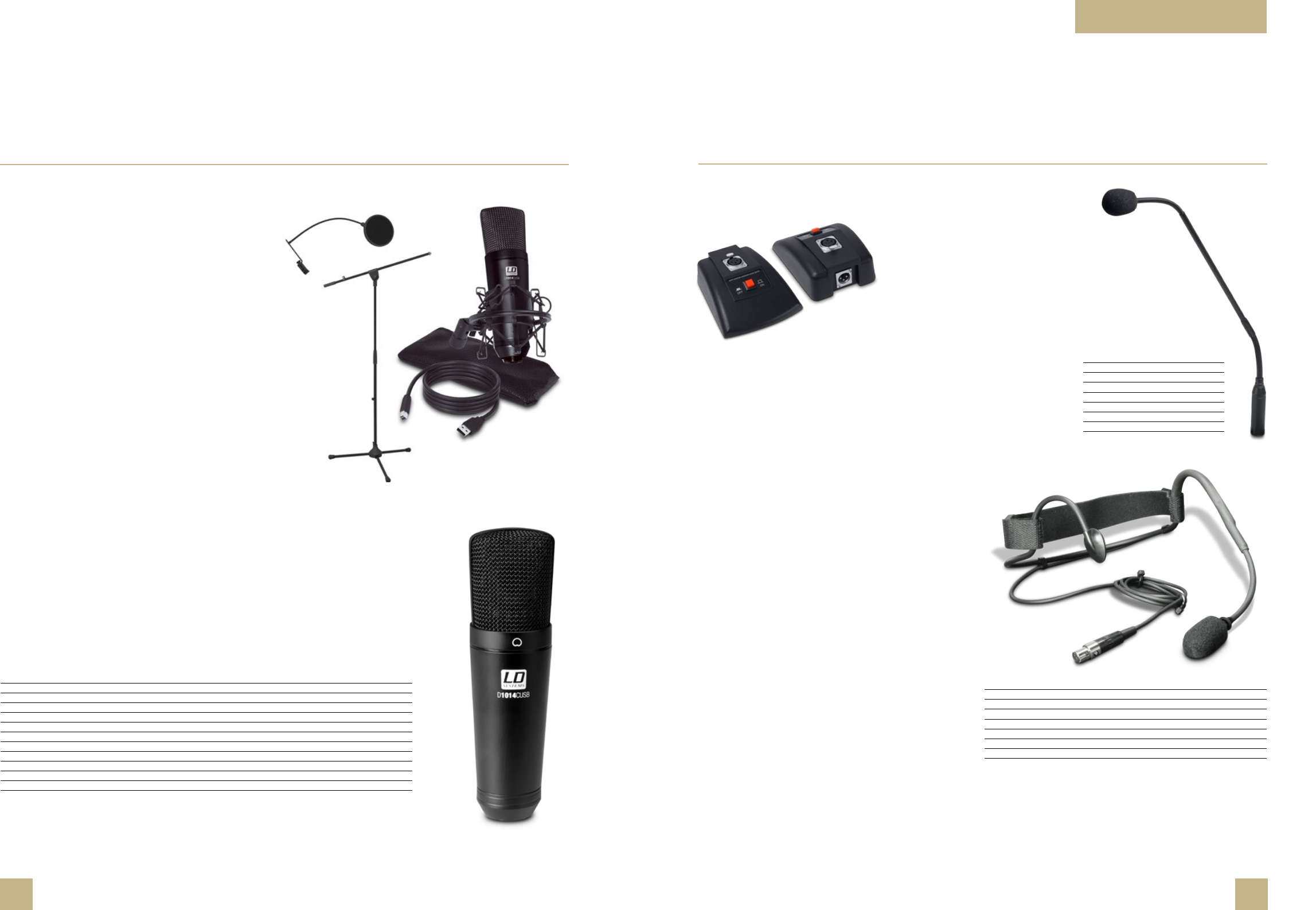

MICROPHONES
VOCAL 139
INSTRUMENT 142
STUDIO 144
HEADSETS & CONFERENCE 145
ACCESSORIES 147
U500® CS4
4-CHANNEL WIRELESS CONFERENCE SYSTEM
P. 116

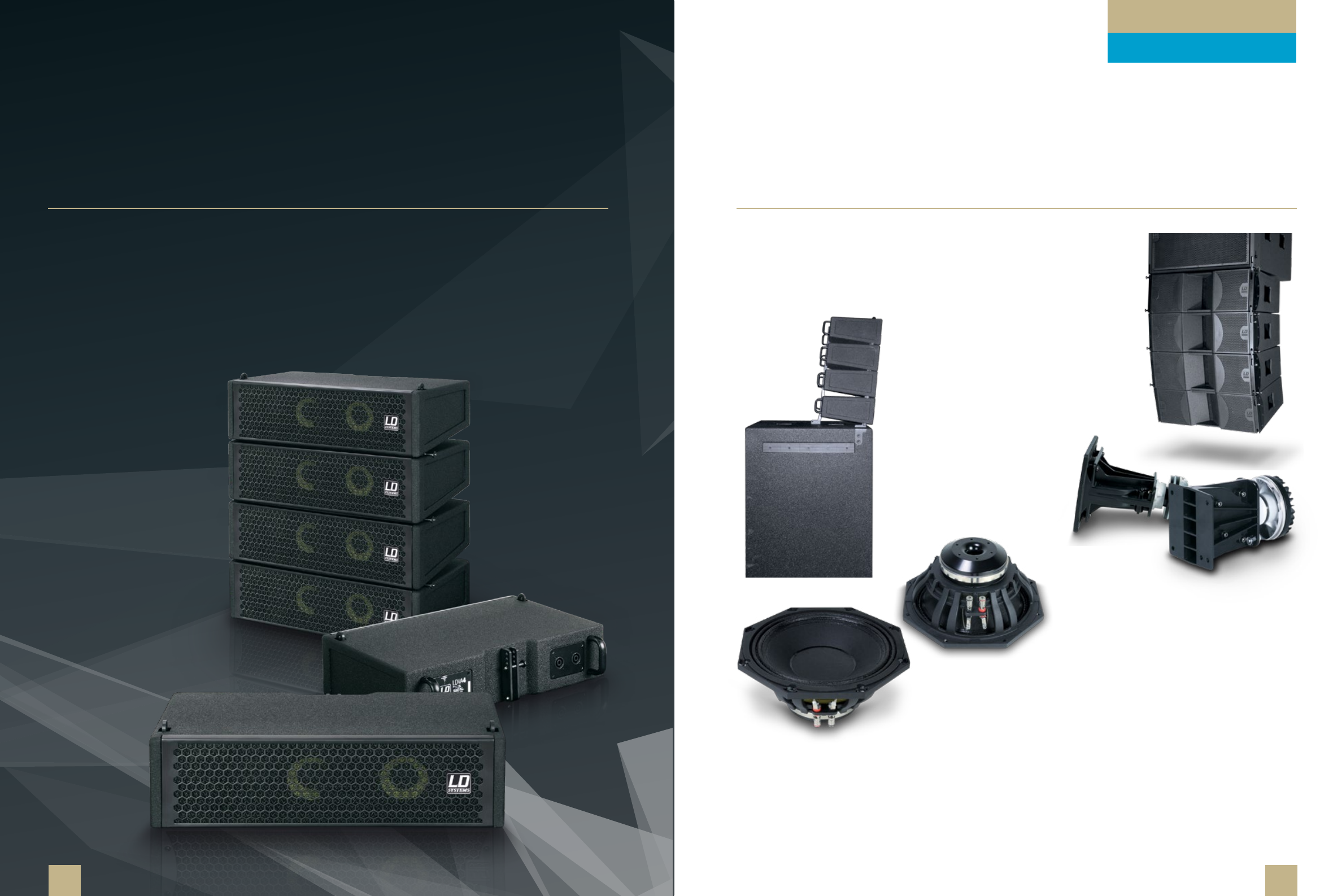

PREMIUM SERIES
LINE ARRAYS
meeting the
highest demands.
PREMIUM SERIES
DUAL LINE ARRAY SPEAKERS & HIGH POWER SUBWOOFERS
The LD Systems PREMIUM Series loudspeakers and subwoofers have been designed for truly professional requirements. Delivering high output and a balanced sound with
massive punch and rich dynamics they are suitable for demanding mobile use and permanent installations. With roadworthy construction and advanced features PREMIUM
Series loudspeakers provide a versatile choice for any application that calls for superior audio quality and reliability.
P
Professional high-performance audio product line
P
Line arrays and subwoofers
P
For demanding live and installed sound applications
PRECISION
AND EXPERTISE
Complete scalable line array solution meeting the highest
demands of high power and high range applications. Ease GLL
les and controller setups are available online for optimum array
conguration and easy startup.
ALWAYS AT EASE
High efciency custom made neodymium woofers
for reliable long life operation.
All transducers are carefully engineered with our DECA Technology (Distortion Elimination Correction Analysis)
ensuring high SPL and clarity.
RIGHT ON SPOT
The neodymium HF drivers with 1.35" voice coils and protection
circuit are connected to 1" wave guides and designed to handle
extreme outputs.
ROAD READY
All cabinets are made of 15 and 18
mm birch plywood and coated with a
durable, waterproof Dura-
Coat LX nish. Each cabinet is tted
with Neutrik® NL-4 connectors and
rigging hardware and can be set to the
desired angles. Both the VA 4 and the VA
8 can be own or used in ground stack
conguration.
PREMIUM SERIES
DUAL LINE ARRAY SPEAKERS & HIGH POWER SUBWOOFERS
8 9
PREMIUM SERIES
LINE ARRAYS
PREMIUM SERIES
DUAL LINE ARRAY SPEAKERS & HIGH POWER SUBWOOFERS
PREMIUM SERIES
DUAL LINE ARRAY SPEAKERS & HIGH POWER SUBWOOFERS
Model name: LDVA4 LDVA8
Type: Dual two way line array speaker Dual 8
"
two way line array speaker
Woofer: 2 × 4" Neodymium Kevlar
2 × 8" neodymium
Horn: 1" wave guide
1" wave guide
Compression driver: 1" neodymium with 1,35" voice coil
2 × 1" neodymium with 1,35" voice coil
Dispersion: 120° x 10° 100° x 10°
Angle adjustment: 0° / 2.5° / 5° / 7.5° 0° / 1° / 2° / 3° / 4° / 5° /6°
LF power capacity (RMS): 200 W 500 W
HF power capacity (RMS): 75 W 150 W
Frequency range: 80 Hz – 19 kHz 70 Hz - 19 kHz
SPL 1 W / 1 m: 90 dB 93 dB
Max. SPL: 113 dB 120 dB
Impedance: 16 Ω 16 Ω
Connectors (In / Out): 2 x Neutrik NL-4 2 x Neutrik NL-4
Protection: Tweeter protection Tweeter protection
Paint / Cabinet material:
Dura-Coat LX / 15 mm birch plywood
Dura-Coat LX /
18 mm birch plywood
Dimensions (W x H x D): 480 × 139 × 261 mm 740 x 247 x 467 mm
Weight: 9.6 kg 27.5 kg
SPECIFICATIONS LINE ARRAYS:
SPECIFICATIONS SUBWOOFERS:
Model name: LDV218B
LDV212B
LDV215B LDVAPS215
Type: Dual 18" bass-reex subwoofer
Passive dual 12" bandpass
subwoofer
Dual 15" bass-reex subwoofer Dual 15", 4th order bandpass subwoofer
Frequency range: 38 Hz - 200 Hz
38 - 200 Hz
35 Hz - 200 Hz 34 Hz - 150 Hz
LF power handling (RMS): 1600 W
700 W
1,200 W 1,200 W
SPL (1 W / 1 m): 100 dB
100 dB
100 dB 100 dB
Max. SPL: 132 dB
128 dB
131 dB 131 dB
Impedance: 4Ω
4 Ω
4 Ω 4 Ω
LF transducer: 2 x 18" woofer with 4" voice coil 2 x 12" woofer with 3" voice coil 2 x 15" woofer with 4" voice coil 2 × 15" with 4" voice coil
Connectors: 2 x Neutrik NL-4
2 x Neutrik NL-4
2 x Neutrik NL-4 2 x Neutrik NL-4
Paint / Cabinet material: Dura-Coat LX / 18 mm birch plywood
Dura Coat LX / 15 mm plywood
Dura-Coat LX / 18 mm birch plywood
Dura-Coat LX / 18 mm birch plywood
Dimensions (W x H x D): 762 x 552 x 1067 mm
520 x 487 x 520 mm
1060 x 475 x 620 mm 740 x 506 x 705 mm
Weight: 86 kg
32 kg
79.9 kg 81.5 kg
Features: Heavy duty steel handles, transport
wheels
M20 threaded ange, integral
yware for use with VA4 line array
Ergonomic milled handles, prepared
for transport wheels
Ergonomic milled handles, integral yware for use with VA 8 line array

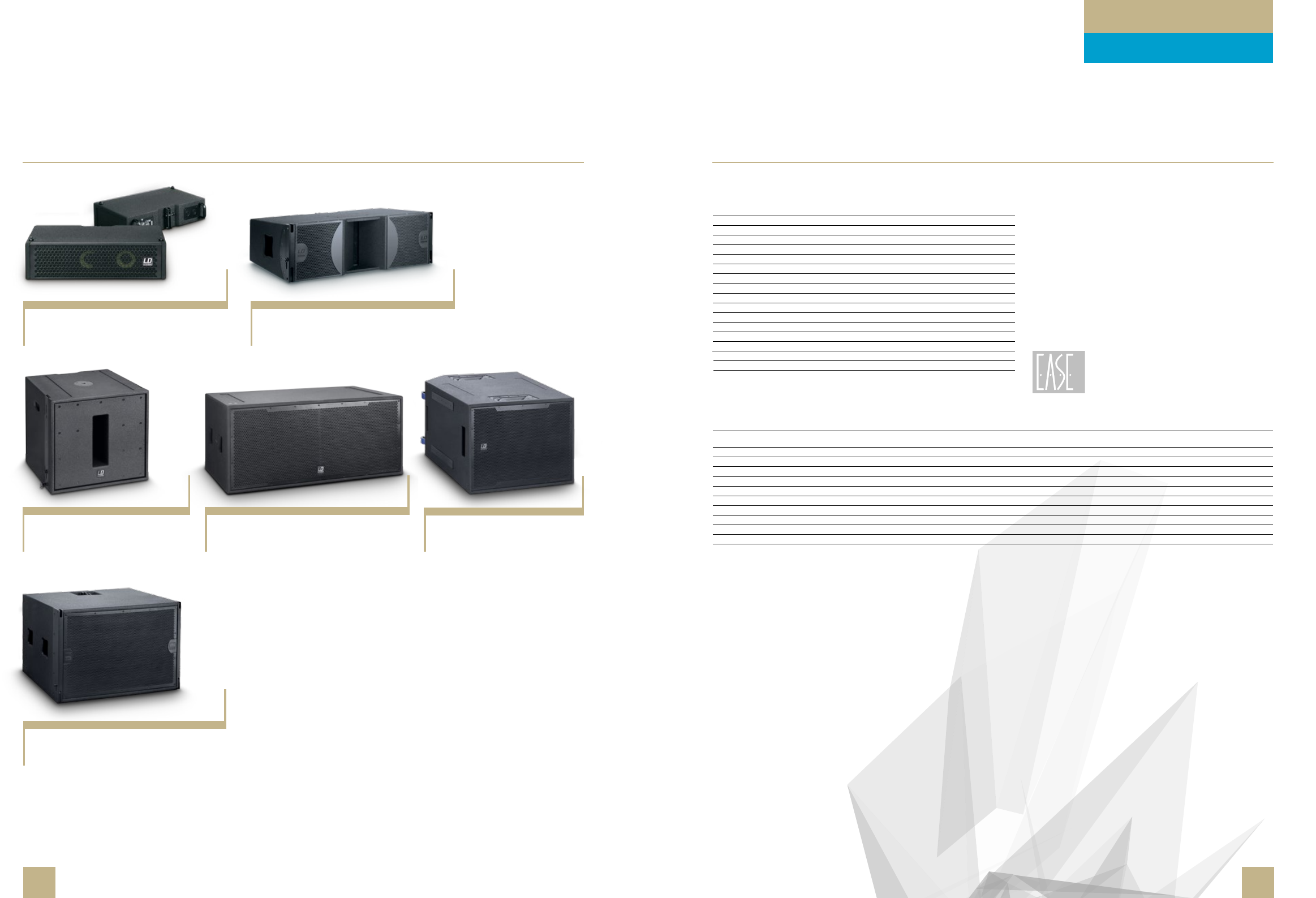

AVAILABLE ACCESSORIES
DPA 260 19" DSP CONTROLLER 6-CHANNEL
VA 4 BF FLYING BAR FOR LDVA4 LINE ARRAY
VA 8 BF FLYING BAR FOR LDVA8 LINE ARRAY
V 212 SUB BF
FLYING BAR FOR LDV 212 B SUBWOOFER / LDVA 4
VA 4 MK
GROUND STACKING MOUNTING KIT FOR LDVA4 LINE ARRAY
VA 4 SP BALL LOCK PINS FOR LDVA4 LINE ARRAY
VA 8 SP BALL LOCK PINS FOR LDVA8 LINE ARRAY
VA 4 FC FLIGHT CASE FOR LDVA4 LINE ARRAY
VA 8 FC FLIGHT CASE FOR LDVA8 LINE ARRAY
V 215 PC PROTECTIVE COVER FOR LDV215B SUBWOOFER
V 218 PC PROTECTIVE COVER FOR LDV218B SUBWOOFER
EASE-GLL
available online
VA 4
DUAL 4" LINE ARRAY SPEAKER
275 W RMS
V 212 SUB
FLYABLE 2 X 12" BAND-PASS SUBWOOFER
PASSIVE - 700 W RMS
V 218 SUB
18" DUAL BASS-REFLEX SUBWOOFER
PASSIVE (W-BIN) - 1600 W RMS
VA 8
DUAL 8" LINE ARRAY SPEAKER
650 W RMS
V 215 SUB
15" DUAL BASS-REFLEX SUBWOOFER PASSIVE
1200 W RMS
VA PS 215 SUB
15" DUAL 4TH ORDER BANDPASS SUBWOOFER
1200 W RMS
10 11
PREMIUM SERIES

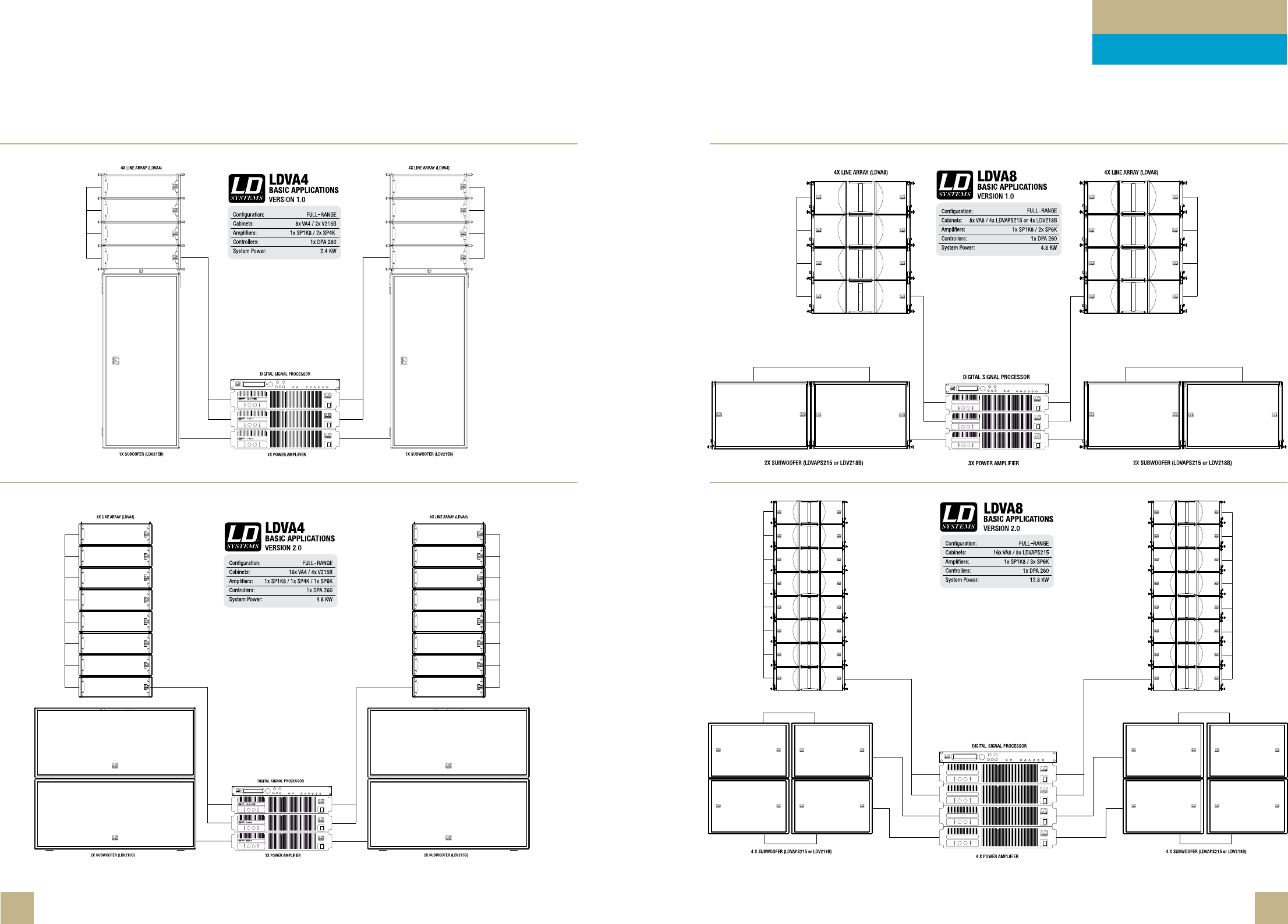

BASIC APPLICATIONS VA 4
PREMIUM SERIES
BASIC APPLICATIONS VA 8
PREMIUM SERIES
LINE ARRAYS
12 13

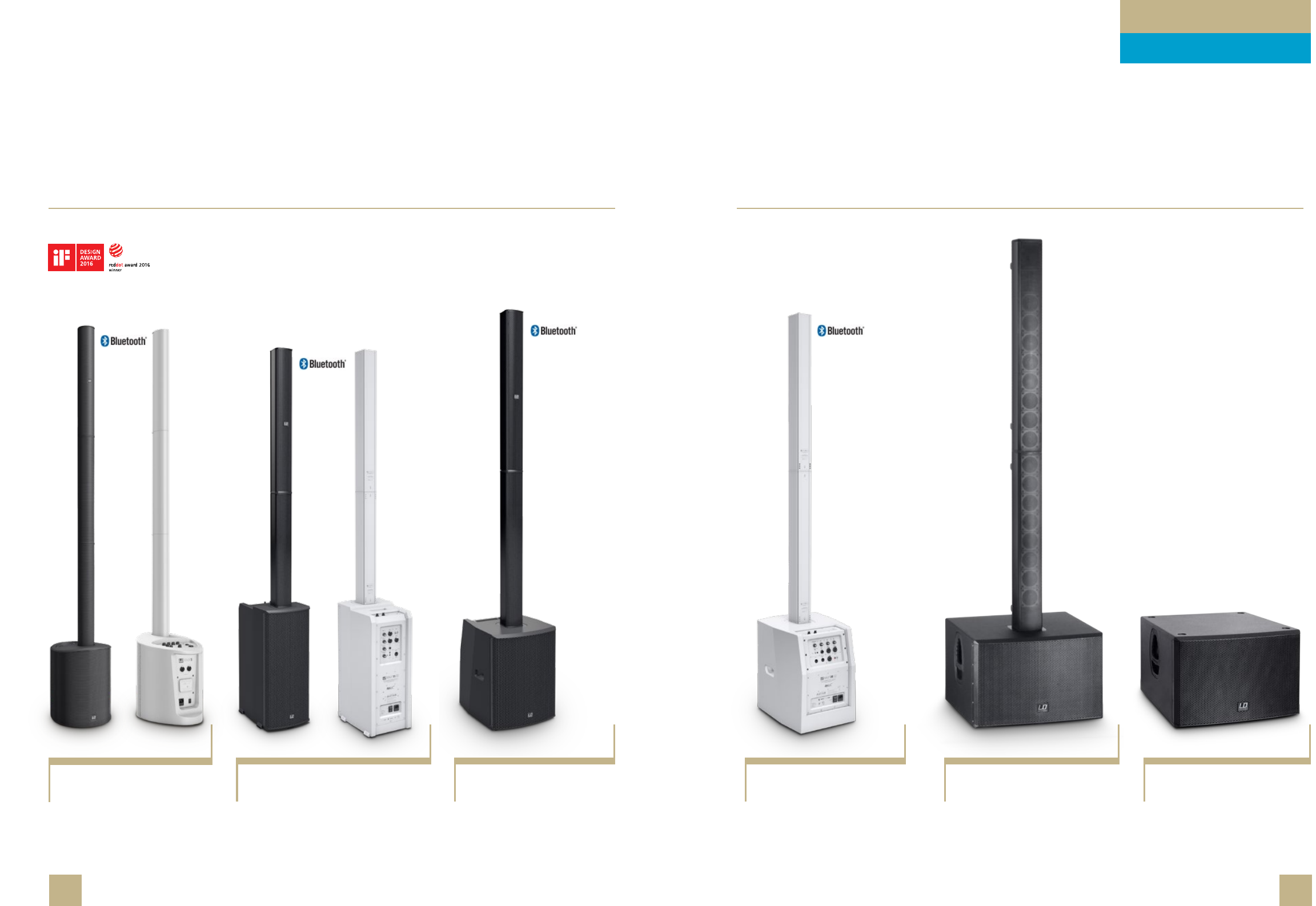

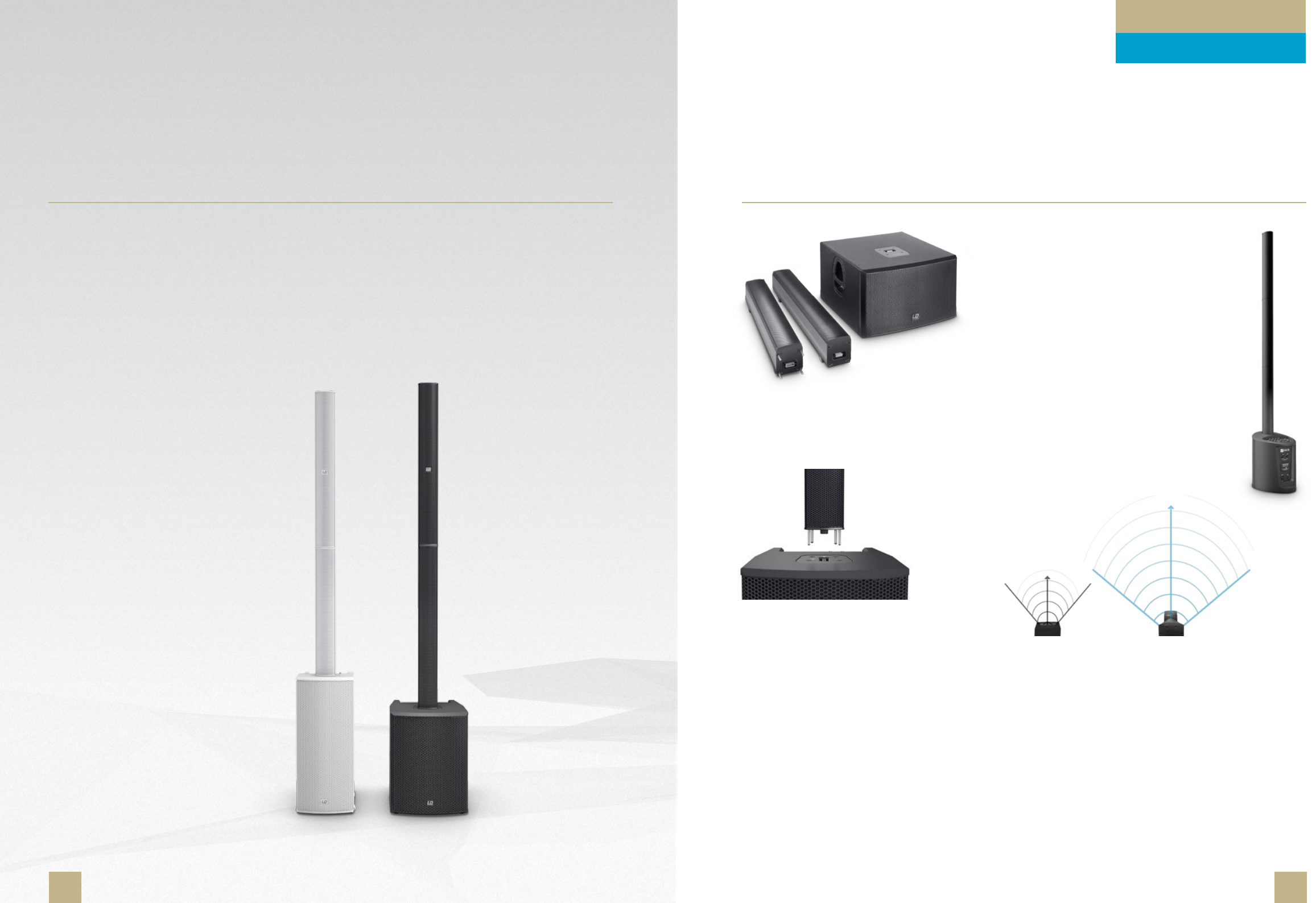

CURV 500® SERIES
COMPLETE PA SYSTEMS
array
reinvented.
CURV 500® SERIES
PORTABLE ARRAY SYSTEM
With the CURV 500 LD Systems presents the rst truly portable array featuring the WaveAhead® technology for high denition audio with powerful punch and superb balance.
Delivering extended vertical and horizontal coverage the system is fully scalable with up to four interlocking unibody-array satellites connected to a subwoofer base while the
unique SmartLink® plug and play adapter provides multiple mounting options. For all-in-one convenience a four channel mixer sporting a digital effects section and Bluetooth®
wireless technology has been integrated in the CURV 500 subwoofer.
P
The first truly portable array system
P
For AV, DJs, singer-songwriters, entertainers and home use
P
WaveAhead® technology for high definition audio
P
Fully scalable for far and near field applications
P
4 channel mixer with DFX and Bluetooth® technology
P
SmartLink® plug & play adapter
P
Durable aluminum unibody construction

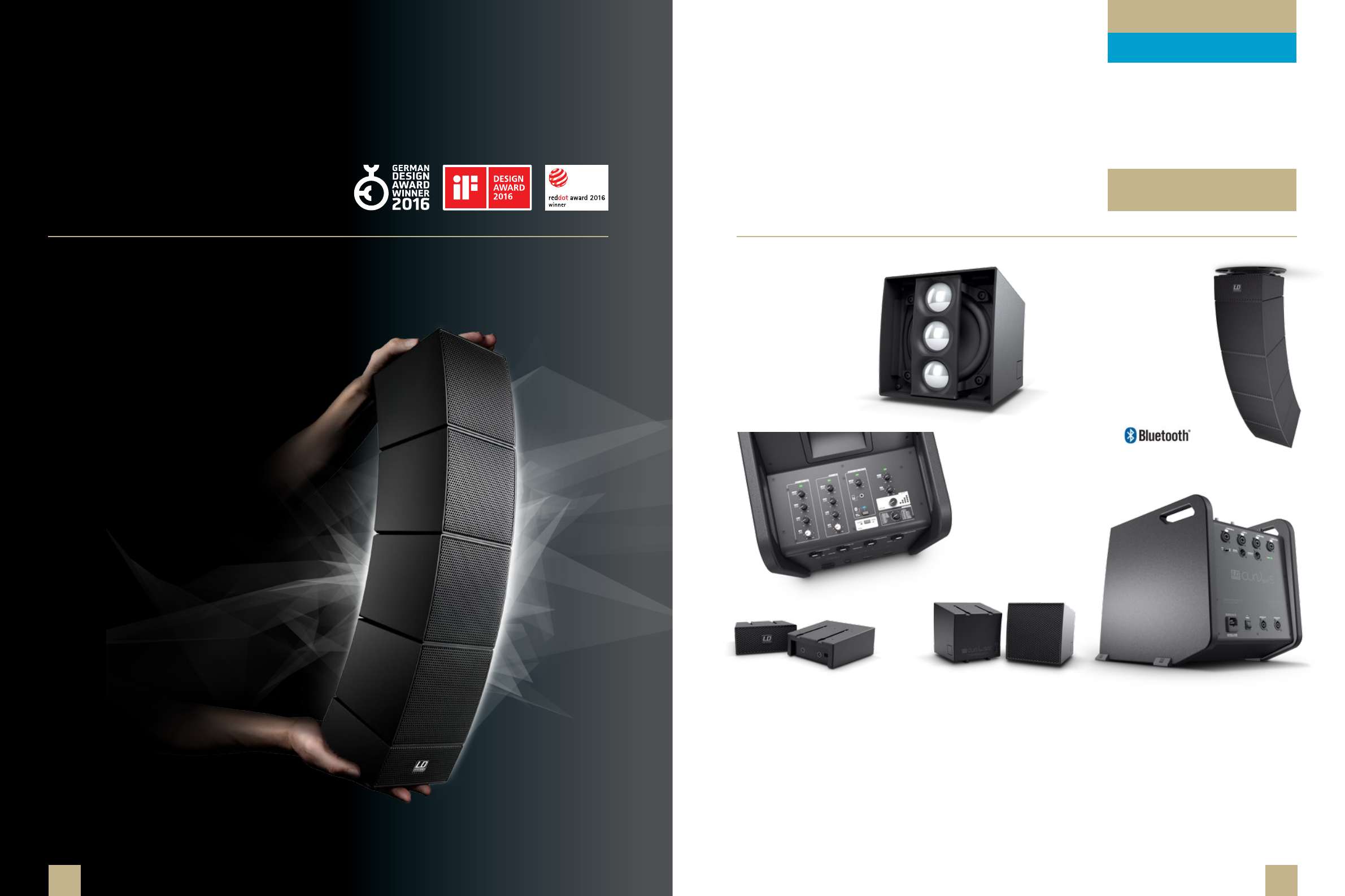

OPENING NEW SOUND HORIZONS
The CURV 500 is the rst truly portable modular
array system. It features an active subwoofer
unit powering the passive array satellites while
the unique SmartLink® adapter provides a wide
variety of system congurations and mounting
options for mobile and xed applications.
THE ARRAY WITHIN THE ARRAY
The CURV 500 array satellites
incorporate LD Systems’ exclusive
WaveAhead® technology which puts
a vertical array of 3 tweeters in front
of a high power fullrange driver. This
arrangement results in highly detailed,
transparent audio and delivers your
performance with superior clarity
and precision.
THE POWER TO DO MORE
Integrating a 4-channel mixer the
CURV 500 provides comprehensive
connectivity for microphones,
instruments and laptops plus
Bluetooth® technology for wireless
streaming from your smartphone or
tablet. In addition, a 24-bit processor
lets you add digital effects to enhance
your sound.
VISIT THE CURV 500 WEB SPECIAL AT
LD-SYSTEMS.COM/CURV500
DURABLE CONSTRUCTION
A masterpiece of design technology, the aluminium unibody construction of the CURV 500 array
satellites sets new standards. Lightweight yet exceptionally durable, it is an essential ingredient for
the system’s outstanding audio quality.
MULTIPLE APPLICATIONS.
ONE SOLUTION.

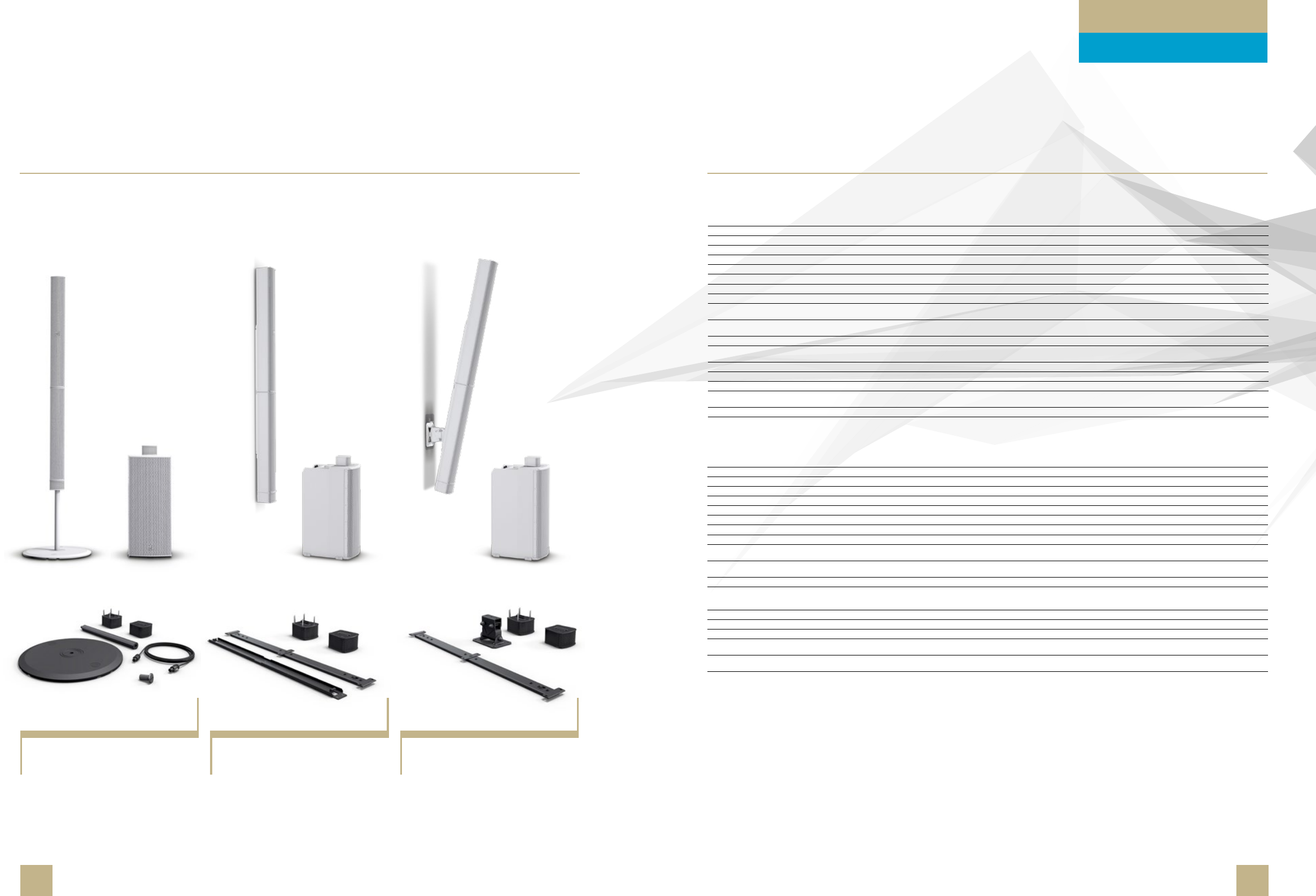

With plug-and-play convenience the CURV 500 SmartLink® adapter
is your multi-purpose array interface. It provides connectivity to
the subwoofer and universal mounting options on poles, walls,
ceilings or trusses and also doubles as a desktop stand.
14 15

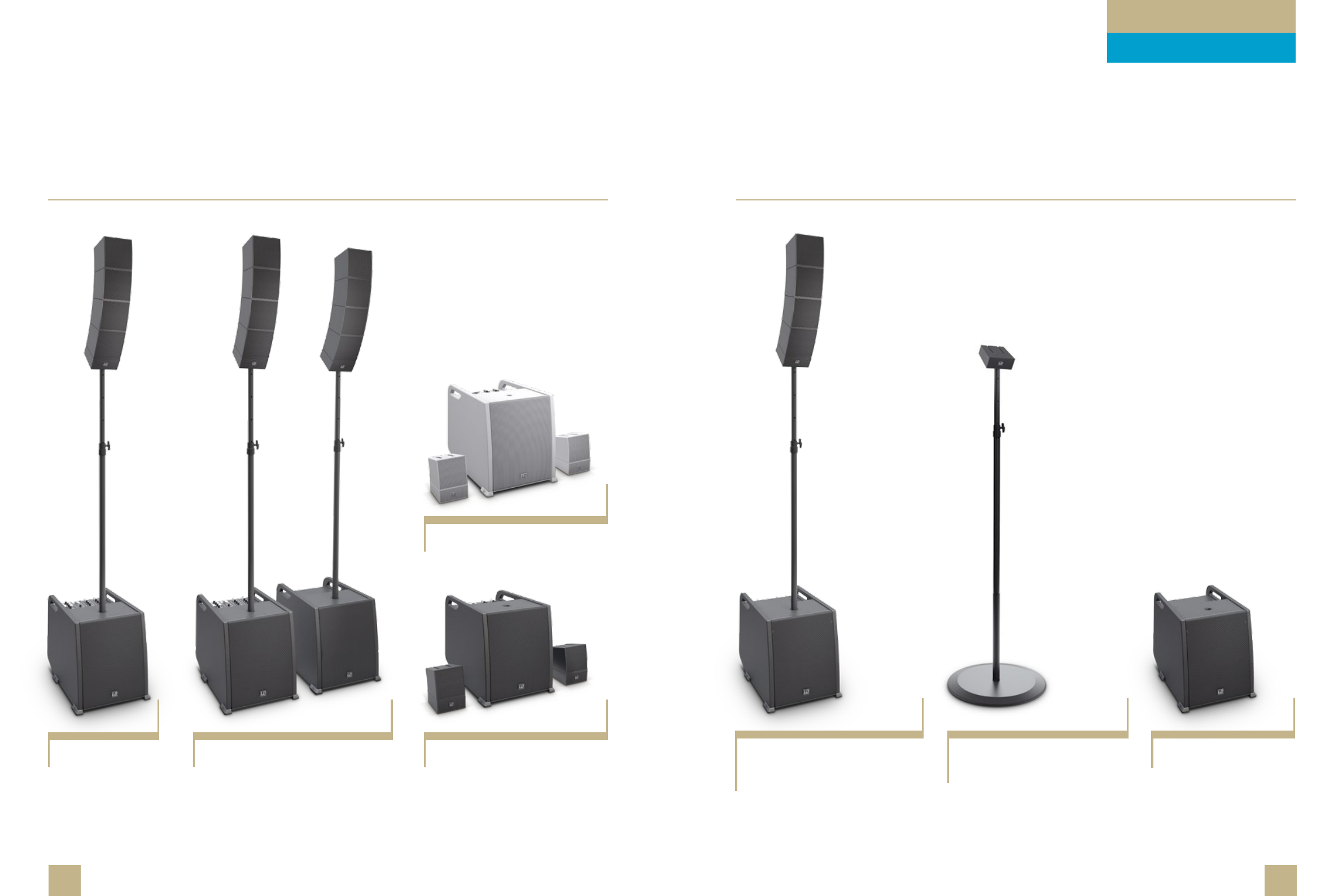

CURV 500® SERIES
COMPLETE PA SYSTEMS
CURV 500 ES
ENTERTAINER SET -
460 WCURV 500 PS
POWER SET -
920 WCURV 500 AVS
A/V SET -
380 W
CURV 500 AVS W
A/V SET -
380 W
CURV 500® SERIES
PORTABLE ARRAY SYSTEM CURV 500® SERIES
PORTABLE ARRAY SYSTEM - EXTENSION SETS
CURV 500 PES
POWER EXTENSION SET
COMPOSED OF 1 SUBWOOFER EXTENSION +
4 ARRAY SATELLITES + SMARTLINK® ADAPTER +
DISTANCE BAR + SPEAKER CABLE.
CURV 500 STS
STEREO SET
COMPOSED OF A SMARTLINK® ADAPTER + DISTANCE
BAR + SPEAKER STAND BASE + CABLE.
CURV 500 SE
SUBWOOFER EXTENSION
16 17
CURV 500® SERIES
COMPLETE PA SYSTEMS
CURV 500® SERIES

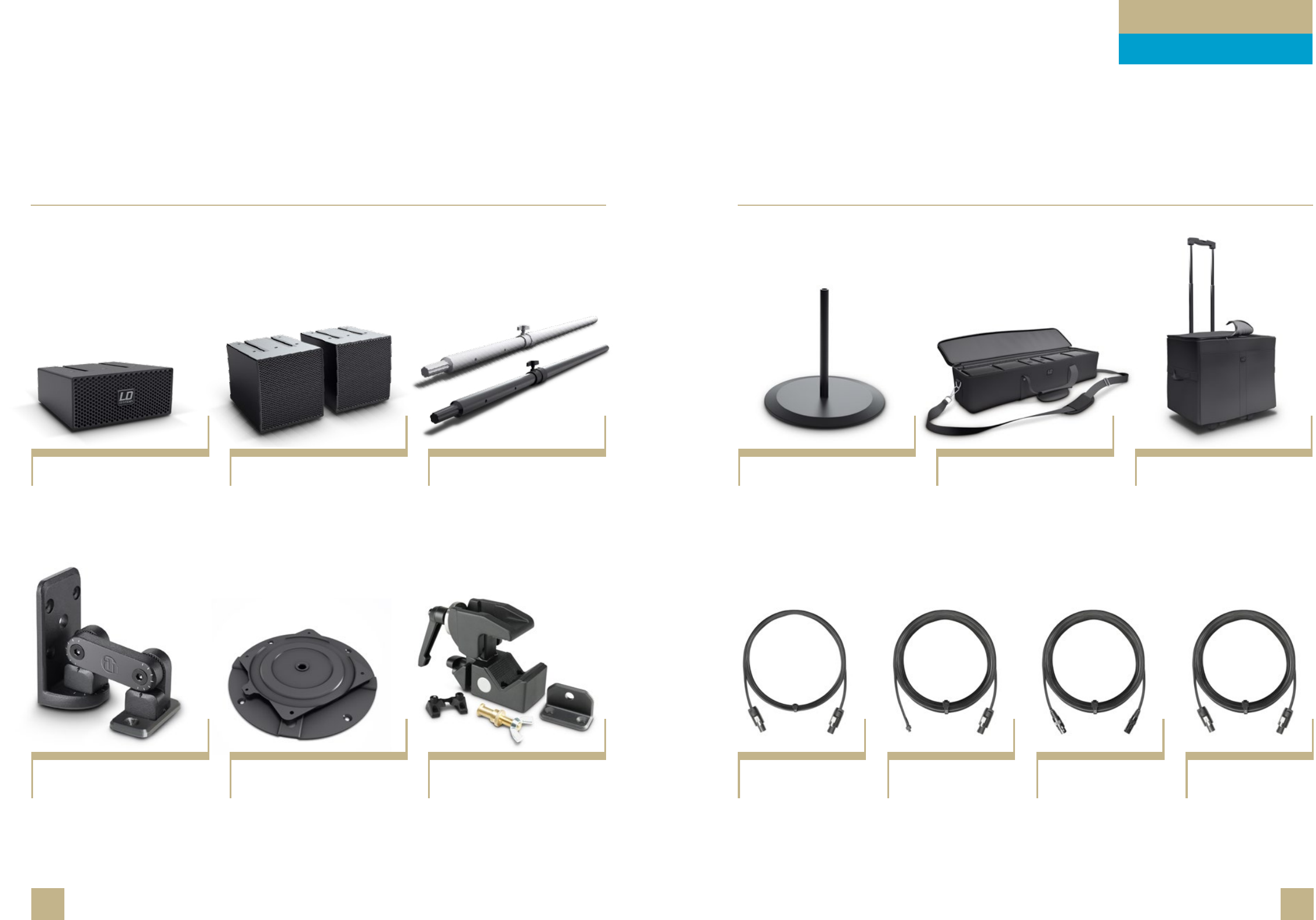

PORTABLE ARRAY SYSTEM - ACCESSORIES CURV 500® SERIES
PORTABLE ARRAY SYSTEM - ACCESSORIES
CURV 500 SLA (W)
SMARTLINK® ADAPTER
CURV 500 S2 (W)
2 x ARRAY SATELLITES
CURV 500 WMB (W)
WALL MOUNTING BRACKET
FOR CURV 500 SATELLITES
CURV 500 CMB (W)
CEILING MOUNTING BRACKET
FOR CURV 500 SATELLITES
CURV 500 TMB
TRUSS CLAMP
FOR CURV 500 SATELLITES
CURV 500 DB (W)
DISTANCE BAR
(W) = ALSO AVAILABLE IN WHITE.
CURV 500 SUB PC
TRANSPORT TROLLEY
FOR SUBWOOFER & ACCESSORIES
CURV 500 SAT BAG
TRANSPORT BAG
FOR SATELLITES & SMARTLINK® ADAPTER
CURV 500 SSB
SPEAKER STAND BASE
CURV 500 CABLE 1
SPEAKER CABLE 2.2 m
FOR CURV 500
CURV 500 CABLE 2
SPEAKER CABLE WITH TERMINAL
BLOCK 3 m FOR CURV 500
CURV 500 CABLE 3
5-PIN XLR SYSTEM CABLE 10 m
FOR CURV 500
CURV 500 CABLE 4
SPEAKER CABLE 8 m
FOR CURV 500
18 19
CURV 500® SERIES
PORTABLE ARRAY SYSTEM CURV 500® SERIES
PORTABLE ARRAY SYSTEM
SPECIFICATIONS:
CURV 500® SERIES
COMPLETE PA SYSTEMS
Model name CURV500ES CURV500AVS CURV500PS
Type: Portable Array System Entertainer Set
Including Distance Bar & Speaker Cable
Portable Array System AV Set
Including Speaker/Phoenix Cables
Portable Array System Power Set
Including Distance Bars & Speaker Cables
Rated System Power (RMS): 460 W 380 W 920 W
Number of Array Satellites: 4 2 8
Number of Smartlink® Adapters: 1 2 2
Number of Subwoofers: 1 1 2
Max. SPL (continuous): 122 dB 116 dB 128 dB
Max. SPL (peak): 128 dB 122 dB 134 dB
Subwoofer: 10" bass reex
Satellite: MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
Frequency response: 47 Hz - 20 kHz
Dispersion (H x V): 110° horizontal, 15° vertical per satellite
Amplication: Class D
Power Output (RMS/Peak): Subwoofer: 300 W / 1200 W
Array Satellites: 2 x 160 W / 2 x 640 W
Subwoofer: 300 W / 1200 W
Array Satellites: 2 x 160 W / 2 x 640 W
Subwoofer Extension: 300 W / 1200 W
Protection: DSP based multiband-limiter, Short Circuit, Overheating, Over-current
Subwoofer Features: 4 channel mixer, Bluetooth®, 16 DFX Presets, 4 System DSP Presets, threaded M20 ange, 3 ergonomic handels
Subwoofer Controls: Input Level (Ch1-4), Hi-Z, Hi/Low EQ (Ch1-2), DFX (Ch1-2), DFX Presets, DSP Presets, Bluetooth® Link, Mono/Stereo, Sub Level, Main Level
Subwoofer Indicators: Signal, Limit, Bluetooth®, Power
Subwoofer Connectors: 1x Mic/Hi-Z (XLR/6.3mm Jack Combo), 1x Mic (XLR/6.3mm Jack Combo), 2x Line (XLR/6.3mm Jack Combo), 3.5mm Jack,
2 x Array Satellite Out (Speakon compatible), Line Out (XLR), System Out (5-pin XLR)
Subwoofer Material: Plywood
Subwoofer Surface: PA Painting
Array Satellite Features: WaveAhead® Technology, internal crossover, metal grille
Array Satellite Material: Diecast Aluminium
Array Satellite Surface: Powder coating
Smartlink® Adapter Features: dual 16 mm ange, 2x M6 thread for optional wall mount
Smartlink® Adapter Connectors: 1x Speakon compatible, 1x Phoenix
Smartlink® Adapter Material: Diecast Aluminium
Smartlink® Adapter Surface: Powder coating
Subwoofer Dimensions (W x H x D): 325 x 383 x 491 mm
Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm
Smartlink® Adapter Dimensions (W x H x D): 122 x 57 x 122 mm
Subwoofer Weight: 16.5 kg
Array Satellite Weight: 1.7 kg
Smartlink® Adapter Weight: 0.6 kg
CHECK OUT OUR CONFIGURATION GUIDES ONLINE
AT LD-SYSTEMS.COM/CURV500
20 21

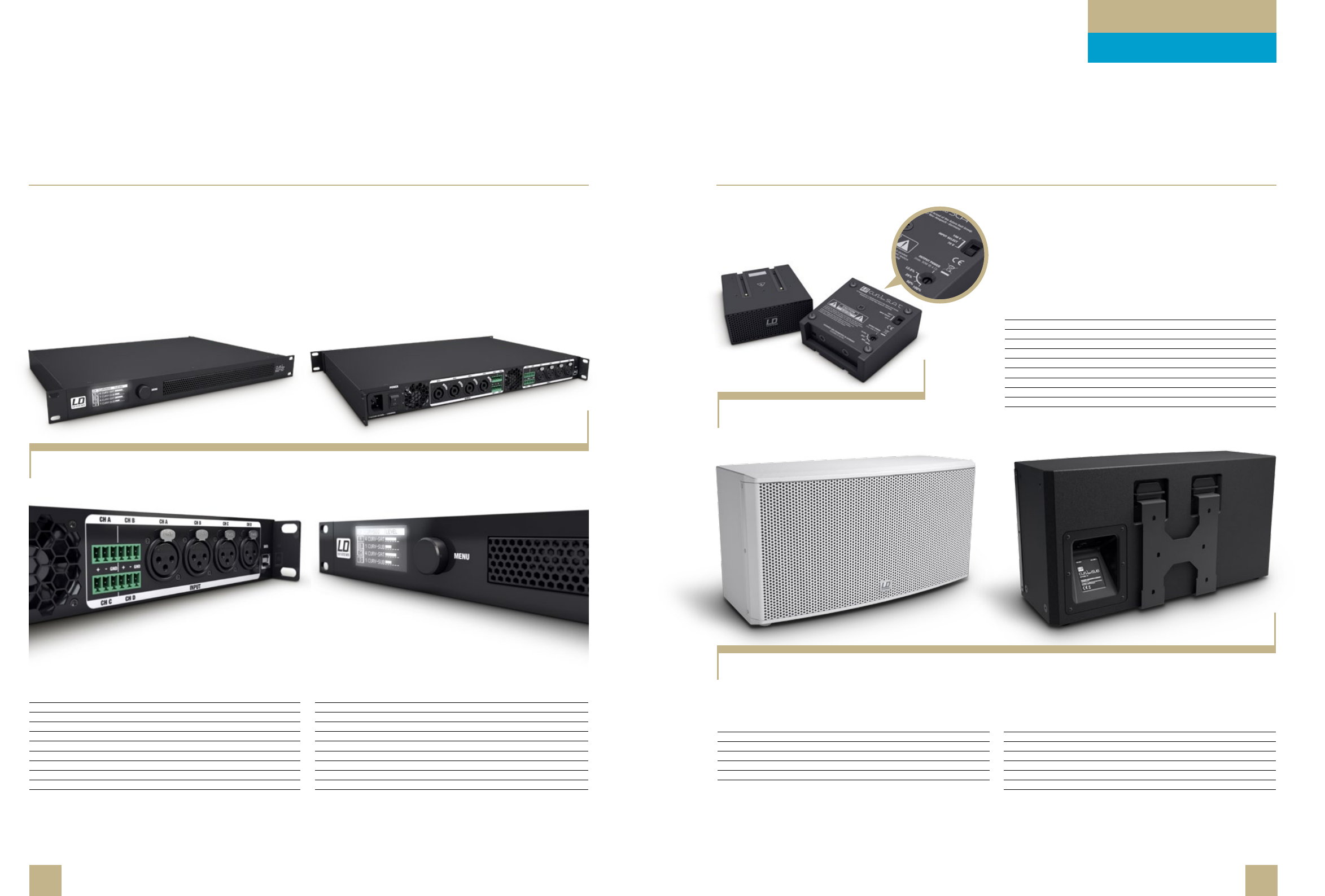

CURV 500® SERIES
INSTALL SOLUTIONS
CURV 500 SLA(W)T
SMARTLINK® ADAPTER WITH BUILT-IN TRANSFORMER
CURV
500
IAMP
4-CHANNEL CLASS D INSTALLATION AMPLIFIER
CURV
500
ISUB(W)
10" INSTALLATION SUBWOOFER
Product number: LDCURV500IAMP
Product type: Power Ampliers
Type: Installation Power Ampliers
Rated ouput power (1kHz @ 2,7 Ohms): 4 x 240 W
Rated ouput power (1kHz @ 4 Ohms): 4 x 240 W
Rated ouput power (1kHz @ 8 Ohms): 4 x 120 W
Rated ouput power (1kHz @ 16 Ohms): 4 x 60
Output circuitry: Class D
Frequency response: 10 - 22,000 Hz
THD: < 0,01 %
Protection circuits: thermal overload, over-current, soft start, short circuit, DC
Controls: Push encoder
Indicators: OLED Display
Line inputs: 4
Line input connectors: Terminal block, XLR
Loudspeaker outputs: 4
Speaker output connections: Terminal block, speakon compatible
Cooling: Temperature controlled low-noise fan, noiseless in idle mode
Operating voltage: Switching Power Supply, 115 V AC / 230 V AC (switchable)
Power consumption @ full load: 1100 W
Dimensions (W x H x D): 482 mm x 44 mm x 420 mm
Weight: 6.8 kg
Product number: LDCURV500ISUB(W)
Product type: PA subwoofer
Type: Passive
Low/mid driver dimensions: 10”
Load rating (RMS): 200 W
Frequency response: 47 - 150 Hz
Impedance: 3 Ohm(s)
Loudspeaker inputs: 2
Speaker input connections: Speakon compatible
Cabinet material: 15 mm MDF
Cabinet surface: Texture paint
Cabinet colour: Black / white
Cabinet construction: Vented
Dimensions (W x H x D): 610 mm x 310 mm x 230 mm
Weight: 14.5 kg
Product number: LDCURVSLA(W)T
Product type: PA Complete Systems Accessories
Type: Smartlink® Adapter
Material: Die-cast aluminium
Surface: Powder coated
Connectors: Screw-/plug-in terminal 2 pole
Colour: Black / white
Loudspeaker inputs: 2
Dimensions (W x H x D): 122 mm x 57 mm x 122 mm
Weight: 1.15 kg
Features: 4 x M3 threadfor optional ceiling mount, 4 x rubber feet
for desktop use, M6 thread for safety eyebolt, SmartLink®
System, 2x M6 thread for optional wall/truss mount
SPECIFICATIONS:
SPECIFICATIONS:
SPECIFICATIONS:
CURV 500® SERIES
COMPLETE PA SYSTEMS
Great sound can also be installed – combining unique design and modularity, ease of
integration and professional audio performance, the CURV 500® series now features
dedicated products for the professional install market. Now you can create fully
integrated distributed systems with up to 24 CURV 500® speakers. Set yourself
apart from the competition, give your customers more than what they want –
inspire them!
P
Wide range of mounting options for walls, ceilings and truss structures
P
Easy scalability with the “slide-and-lock” mechanism
P
Full install flexibility thanks to the Smartlink® adapter
P
1U 19" rackmount 4-channel DSP amplifier
P
Up to 24 Curv500 speakers with one iAmp amplifier
P
In-depth DSP settings (10 PEQ, and Delay per channel), and presets for
various CURV speaker configurations
P
Routing matrix, and global user presets included in the iAMP
P
Password protected system
22 23
SOND
MAUI® SERIES
COMPLETE PA SYSTEMS
MAUI® SERIES
ACTIVE COMPACT COLUMN PA SYSTEMS
Ever since its introduction, the self-powered LD Systems MAUI
®
Series vertical arrays has been taking audiences and performers by storm. Providing sound reinforcement and
monitoring in a single, eminently portable system the compact, multi-amped MAUI
®
array columns are available in three formats with up to 1,600 watts continuous output.
Without the need for cables, the extremely user friendly loudspeakers are set up in no time to deliver balanced full bandwidth audio with ultra wide horizontal coverage and
extended, tightly focused vertical directivity. Featuring LD Systems‘ proprietary LECC processing for controlled dynamic performance, the MAUI
®
Series‘ slim elegance is also
ideal for permanent installations tting into virtually any decor. For the most demanding applications the series includes two subwoofer extensions.
P
All-in-one column system for sound reinforcement and monitoring
P
Class D power amplification for stunning performance and light weight
P
Line array design for extra wide coverage and extended throw
P
Uniform dispersion with BEM-optimized HF waveguide
P
LD Systems DSP technology for distortion-free performance at all levels
P
Integrated 4-channel mixer with Bluetooth® stereo audio streaming*
P
2-piece column for compact transport dimensions
P
Secure, cableless assembly with multipin plug-and-play connector
P
Detachable column for multiple placement options **
P
Wide range of smart installation and transport accessories
* Except MAUI 44 / ** MAUI G2 models
PLUG & PLAY
Due to its custom made multi-pin connectors the MAUI
®
series is set
up in no time requiring neither speaker cables nor stands while the
minimum weight and compact dimensions provide easy portability.
PLAIN ELEGANCE
With its attractive design the MAUI
®
series is the
elegant solution for live applications and discreet integration into
virtually any ambience.
ENJOY THE MUSIC WHILE PLAYING IT
With its high feedback resistance the MAUI
®
series provides sound
reinforcement and monitoring in a single system. Just place the MAUI
®
behind you and experience the exact same sound your audience does.
AMAZING SOUND. RELIABLE PERFORMANCE.
The MAUI
®
series features short circuit and overcurrent protection and
LD Systems’ proprietary LECC DSP(*) which performs limiter, equalizer,
compressor and crossover duties for reliable operation and exceptional
audio quality.
REACH EVERYONE IN THE AUDIENCE
Ultra wide 120° horizontal dispersion and extended vertical directivity with reduced level drop
ensure maximum coverage. The result is consistent sound across the listening area and the same
audio experience for everyone in the audience.
standard speaker MAUI speaker
24 25
MAUI® SERIES
COMPLETE PA SYSTEMS
MAUI 5 (W)
ULTRA PORTABLE COLUMN PA SYSTEM
800 W
MAUI 11 G2 (W)
PORTABLE COLUMN PA SYSTEM
1000 W
MAUI 28 G2
COMPACT COLUMN PA SYSTEM
2000 W
MAUI 28 G2 W
COMPACT COLUMN PA SYSTEM
2000 W
MAUI 44 (W)
HIGH POWER COLUMN PA SYSTEM
3200 W
MAUI 44 SE
SUBWOOFER EXTENSION
FOR MAUI 44 SYSTEMS
MAUI® SERIES
ACTIVE COMPACT COLUMN PA SYSTEMS
26 27
MAUI® SERIES
COMPLETE PA SYSTEMS
MAUI® G2 SERIES
INSTALL SOLUTIONS
Model name: LDMAUI5(W) LDMAUI11G2(W)
Type: Ultra Portable Column PA System with Mixer Portable Column PA System with Mixer
Subwoofer: 1 x 8" Bass reex 3 x 6.5"
Vertical array system: 4 x 3" Fullrange: 8 x 3" / HF: 2 x 1" horn tweeter
Amplication: Class D Class D
Dispersion (H x V): 120° x 20° 120° x 20°
Power output (RMS / peak): 200 W / 800 W 500 W / 1,000 W
Frequency range: 50 Hz – 20 kHz 50 Hz – 20 kHz
Max SPL (peak): 120 dB 124 dB
Protection: DSP based multiband limiter, Short circuit, over current, overheating short circuit, DC protection,
thermal overload, multiband limiter
Controls: Main Level, Subwoofer Level, Hi EQ, Mic Level, MP3/Hi-Z Level, Line
Level, ON/OFF switch
MP3/Bluetooth level, Bluetooth button, Line Level, Mono/stereo switch, Main Level, sub level, Power,
Hi-Z Level
Indicators: On, signal, limit, protect protect (protection circuit engaged), signal, on, limit, Setup, mono, stereo
Subwoofer connectors: Line Input: 2 x XLR/6.3 mm Jack Combo, Mic input: XLR / 6.3 mm
Jack, MP3 input: 3.5 mm Jack, Hi-Z input: 6.3 mm Jack
Line input: 2 x stereo XLR/6.3 mm jack, RCA / Line output: 1 x direct out XLR
Mic input: 1, XLR/6.3 mm jack / MP3 input: 3.5 mm jack, Hi-Z input: 6.3 mm jack
Satellite connectors: Custom made multi pin connector Custom made multi pin connector
Cabinet material: ABS Subwoofer: 15 mm plywood / Column: aluminium
Cabinet surface: Subwoofer: PA painting / Column: powder coating Subwoofer: PA painting / Column: HD coating
Dimensions (W x H x D): Subwoofer: 305 x 405 x 395 mm / Column (3 pcs): 82 x 535 x 105
mm
Subwoofer: 285 x 650 x 373 mm / Column: 96 x 620/730 x 104 mm
Weight: Subwoofer: 8.2 kg / Columns (3 pcs): 3.1 kg Subwoofer: 16.9 kg / Column: 2.6 / 5.4 kg
Features: Signal processing LD LECC DSP (limiter, equalizer, compressor,
crossover), Hi EQ, 100Hz low cut in Mic channel, easy connection
with multipin plug
DSP-based signal processing, Excellent sound dispersion, Bluetooth audio streaming, 4-channel mixer on
board, Mono/ Stereo application, Automatic DSP adjustment, Available in black and white, Wall mount and
oor stand available
Model name: LDMAUI28G2(W) LDMAUI44(W)
Type: Compact Column PA System with Mixer High Power Column PA System
Subwoofer: 2 x 8" 2 x 12" neodymium woofer
Vertical array system (2pcs): Fullrange: 16 x 3" / HF: 2 x 1" Fullrange: 16 x 3.5" / HF: 2 x 1" on waveguide
Amplication: Class D Class D
Dispersion: 120° x 20° Horizontal 120° in average
Power output (RMS / peak): 1000 W / 2,000 W 1,600 W / 3,200 W
Frequency range: 45 Hz – 20 kHz 40 Hz – 20 kHz
Max. SPL (peak): 126 dB 129 db
Protection: DC protection, multiband limiter, short circuit,
thermal overload
Short circuit, over current, multiband limiter, over voltage
Controls: Mic Level, Sub level, Line Level, MP3/Bluetooth Level, Hi-Z Level,
Main Level, Mono/Stereo switch, Bluetooth button
Main level, Sub level, Power switch
Indicators: On, signal, limit, protect, Mono/Stereo, Setup On, Signal, Limit, Protect
Subwoofer connectors: Line input: 2 x stereo XLR/6.3 mm jack, RCA / Line output: 2 (1x
System Out, 1x Sub Out) XLR / Mic input: 1, XLR/6.3 mm jack / MP3
input: 3.5 mm jack, Hi-Z input: 6.3 mm jack
Input: 2 x XLR /6.3 mm jack (combo), RCA, Output: 2 x XLR direct line through, 1 x XLR sub out
Satellite connectors: Custom made multi pin connector Custom made multi pin connector
Cabinet material: Subwoofer: 15 mm plywood / Column: aluminium Subwoofer: 15 mm plywood / Column: aluminium
Cabinet surface: Subwoofer: PA painting / Column: HD coating Subwoofer: Polyurea / Column: Powder coating
Dimensions (W x H x D): Subwoofer: 370 x 484 x 480 mm /
Column: 96 x 780/795 x 104 mm
Subwoofer: 620 x 412 x 615 mm
Column: 120 x 837/922 x 144 mm
Weight: Subwoofer: 19.7 kg
Column: 5.6 / 5.6 kg
Subwoofer: 40.8 kg / Lower column: 7.4 kg /
Upper column: 10.2 kg
Features: DSP-based signal processing, Excellent sound dispersion, Bluetooth
audio streaming, 4-channel mixer on board, Mono/ Stereo
application, Automatic DSP adjustment, Available in black and white,
Wall mount and oor stand available
LD LECC DSP (limiter, equalizer, compressor, crossover), easy connection with multi pin plug (no cables),
stable connection via two steel extensions
SPECIFICATIONS:
ADDITIONAL ACCESSORIES
MAUI 5 SAT BAG Protection- / Transport Bag for MAUI 5 columns
MAUI 5 SUB BAG Protection- / Transport Bag for MAUI 5 subwoofer
MAUI 11 G2 SAT BAG Protection-/ Transport bag for MAUI 11 G2 column speaker
MAUI 11 G2 SUB PC Protection-/ Transport cover for MAUI 11 G2 subwoofer
MAUI 28 G2 SAT BAG
Protection-/ Transport bag for MAUI 28 G2 column speaker
MAUI 28 G2 SUB PC Protection-/ Transport cover for MAUI 28 G2 subwoofer
MAUI 28 G2 CB Castor Board for MAUI 28 G2 System
MAUI 44 SAT BAG Protection-/ Transport bag for MAUI 44 column speaker
MAUI 44 SUB PC Protection-/ Transport cover for MAUI 44 subwoofer
MAUI 44 CB Castor Board for MAUI 44 System
M G2 SPS (W)
FLOOR STAND KIT
FOR MAUI G2 COLUMNS
M G2 IK 1 (W)
INSTALLATION KIT FOR MAUI G2
COLUMNS (PARALLEL WALL MOUNT)
M G2 IK 2 (W)
INSTALLATION KIT FOR MAUI G2
COLUMNS (TILT AND SWIVEL WALL MOUNT)
28 29
outside
go
play
PLUG-N-PLAY LI-ION BATTERY
FOR 6 HOURS CONTINUOUS PERFORMANCE
DESIGNED & ENGINEERED IN GERMANY
LD-SYSTEMS.COM
MAUI® 5 GO
THE WORLD'S FIRST
BATTERY POWERED
COLUMN PA SYSTEM
Combining outstanding sound quality and stunning compact design with the amazing versatility of
battery-operated speakers, we’ve created an ultra-portable PA system for you: meet the MAUI® 5 GO.
Powered by a high-capacity Li-Ion battery, the MAUI® 5 GO allows you to play your music wherever
you feel like. And thanks to the optional, quick-swappable battery packs, you can also play for as long as
you like. Now nothing can hold you back – so GO play outside!
ULTRA-PORTABLE 4-PIECE DESIGN
WITH LESS THAN 13 KG
ALL-IN-ONE SOUND REINFORCEMENT
AND MONITORING SYSTEM
EXTENDED COVERAGE
THANKS TO LINE ARRAY DESIGN
BUILT-IN
4-CHANNEL MIXER
BLUETOOTH®
STEREO AUDIO STREAMING
UNLIMITED BATTERY POWER
THANKS TO QUICK-SWAPPING TECH (PATENT PENDING)
LOUDEST BATTERY-POWERED SPEAKER
ON THE MARKET FOR CROWDS OF 100+ PEOPLE
AVAILABLE
SUMMER 2017
goliath sound!

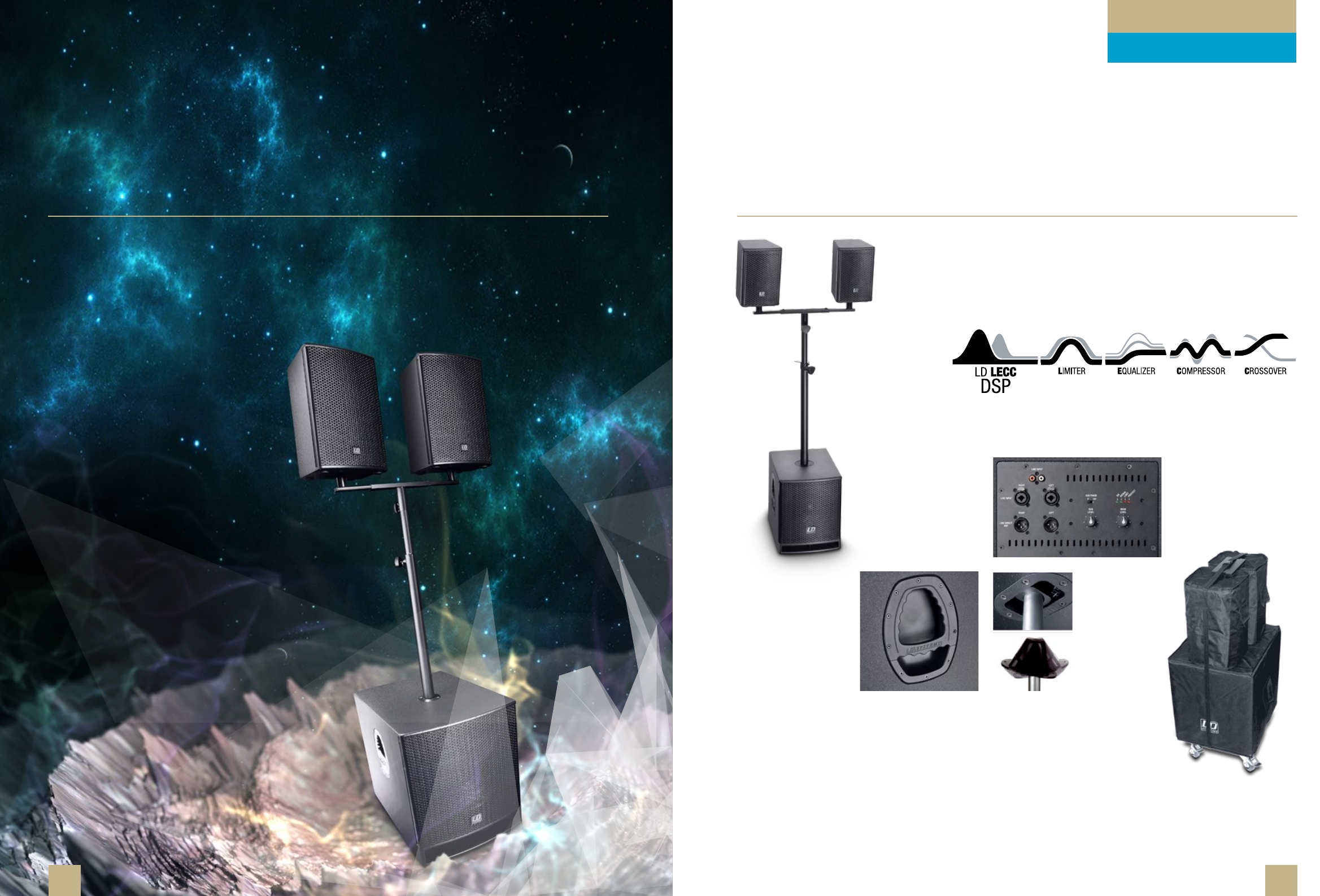

DAVE® G3 SERIES
COMPACT ACTIVE PA SYSTEMS WITH DSP
Including four self-powered single 10" to 18" subwoofer plus dual satellite systems with peak performances ranging from 1,400 to 4,800 watts, the DAVE G3 Series covers
a multitude of sound reinforcement requirements.
Sporting LD Systems‘ proprietary LECC digital signal processing and a comprehensive set of features the DAVE G3 Series provides consistent, crystal clear audio, ease of
use and reliable operation.
With their rugged construction and easy portability the compact DAVE G3 2.1 PA systems are ready for the road. An extended range
of useful accessories completes the series.
P
Portable 2.1 sound reinforcement
P
4 self-powered systems with 1,400 to 4,800 watts peak power
P
LECC digital signal processing for superior performance

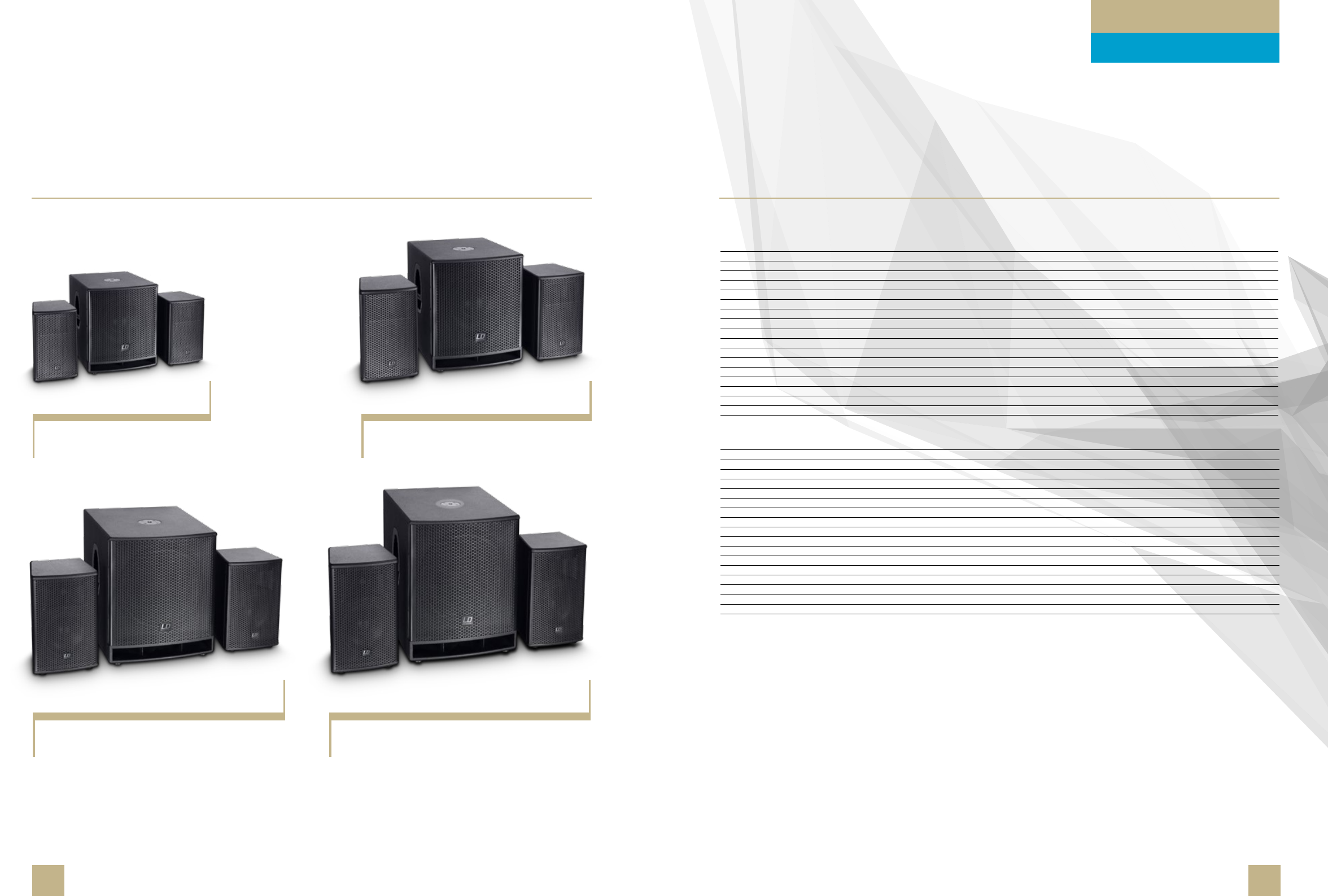

DAVE® G3 SERIES
COMPLETE PA SYSTEMS
2.1 SOUND GOLIATH
The bass reex subwoofer and the
2 satellites with HF horns ensure a
good sound with driving, dened
bass, natural mids, and clear treble.
RELIABLE PERFORMANCE
The professional full range of
features of the DAVE 12 G3 includes
sturdy multiplex cabinets, all important
protection circuits, RCA, XLR/
jack
combo and Speakon-compatible
connectors.
DIGITAL SOUND PRECISION
The LD LECC DSP digital processor ensures perfectly tuned functioning of the system. It includes specially amplitude and
low-latency optimized crossovers, separate equalizers and limiters for the bass, mid, and treble frequency ranges, and a
dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.
RIGHT ON SPOT
For accurate vertical
orientation of the
satellites, the
speaker
supports are
vertically adjustable
by ± 13.5° max. in
seven increments.
ROAD READY
Protection covers for the system
components and a castor board with
a lashing strap for easy transport are
available as accessories. Matching
speaker stands, spacer tubes, and
mounting forks are also available
separately.
SECURE GRIP FROM
ALL SIDES
The innovative Evolutive
Handles by LD Systems
offer a secure and
ergonomic grip from all
sides for easier
transortation.
32 33
DAVE® G3 SERIES
COMPLETE PA SYSTEMS
DAVE 10 G3
COMPACT 10" ACTIVE PA SYSTEM SYSTEM
WITH DSP - 1400 W
DAVE 12 G3
COMPACT 12" ACTIVE PA SYSTEM SYSTEM
WITH DSP - 2000 W
DAVE 15 G3
COMPACT 15" ACTIVE PA SYSTEM SYSTEM
WITH DSP - 2800 W
DAVE 18 G3
COMPACT 18" ACTIVE PA SYSTEM SYSTEM
WITH DSP - 4800 W
Model name: LDDAVE10G3 LDDAVE12G3
Type: Compact active PA system with DSP Compact active PA system with DSP
Subwoofer: 10" 12"
Satellites: LF: 5,25" / HF: 1" horn tweeter LF: 6,5" / HF: 1" horn tweeter
Amplication: Class A / B Class A / B
Power output (RMS / peak): 350 W / 1,400 W 500 W / 2,000 W
Frequency range: 45 Hz - 19 kHz 40 Hz - 19 kHz
Max SPL (peak): 126 dB 130 dB
Protection: Short circuit, over-current, limiter Short circuit, over-current, limiter
Controls: Volume, sub Level, 180° phase reverse, On / Off switch Volume, Sub Level, 180° phase reverse, On / Off switch
Indicators: ON, signal, limit ON, signal, limit, protect
Cooling: Convection Fan
Subwoofer connectors: Input: 2 x XLR / 6.3 mm jack (combo) / RCA Input: 2 x XLR / 6.3 mm jack (combo) / RCA , output: 2 x XLR
Satellites connectors: Speakon compatible Speakon compatible
Cabinet material: Subwoofer: 15 mm plywood / Satellites: 12 mm plywood Subwoofer: 15 mm plywood / Satellites: 15 mm plywood
Cabinet surface: Texture paint Texture paint
Dimensions (W x H x D): Subwoofer: 345 x 430 x 460 mm / Satellites: 200 x 300 x 230 mm Subwoofer: 435 x 500 x 540 mm / Satellites: 250 x 400 x 250 mm
Weight: Subwoofer: 19.5 kg / Satellites: 4 kg Subwoofer: 31.5 kg / Satellites: 8.5 kg
Features: Subwoofer: LD SYSTEMS evolutive handles, threaded ange (M20), limiter, LECC DSP
Satellite: ergonomic milled handles, stand support (5° sloped)
Subwoofer: LD SYSTEMS evolutive handles, threaded ange (M20), limiter, LECC DSP
Satellite: ergonomic milled handles, stand support adjustable, vertically (SM707)
Model name: LDDAVE15G3 LDDAVE18G3
Type: Compact active PA system with DSP Compact active PA system with DSP
Subwoofer: 15" 18"
Satellites: LF: 8" / HF: 1" horn tweeter LF: 10" / HF: 1" horn tweeter
Amplication: Class A / B Class D
Power output (RMS / peak): 700 W / 2,800 W 1,200 W / 4,800 W
Frequency range: 35 Hz - 19 kHz 35 Hz - 20 kHz
Max SPL (peak): 132 dB 135 dB
Protection: Short circuit, Over-current, limiter Dual limiter, short circuit, over current
Controls: Volume, sub level, 180° phase reverse, On / Off switch ON/OFF, sub level, main level, 180° phase reverse
Indicators: ON, signal, limit, protect ON, signal, limit, protect
Cooling: Fan Convection
Subwoofer connectors: Input: 2x XLR / 6.3 mm jack (combo) / RCA, output: 2 x XLR Line input: 2 x XLR / 6.3mm jack, 2 x RCA
Satellites connectors: Speakon compatible Speakon compatible
Cabinet material: Subwoofer: 18 mm plywood / Satellites: 15 mm plywood Subwoofer: 15 mm plywood / Satellites: 15 mm plywood
Cabinet surface: Texture paint PA painting
Dimensions (W x H x D): Subwoofer: 480 x 570 x 635 mm / Satellites: 275 x 430 x 260 mm Subwoofer: 497 x 635 x 714 mm / Satellites: 300 x 460 x 263 mm
Weight: Subwoofer: 41.5 kg / Satellites: 9.7 kg Subwoofer: 43 kg / Satellites: 10 kg
Features: Subwoofer: LD SYSTEMS evolutive handles, threaded ange (M20), limiter, LECC DSP
Satellite: ergonomic milled handles, stand support adjustable, vertically (SM707)
SM720 threaded ange, LD SYSTEMS Evolutive handles, SM707 tilt ange, LECC DSP
DAVE® G3 SERIES
COMPACT ACTIVE PA SYSTEMS WITH DSP
SPECIFICATIONS:
AVAILABLE ACCESSORIES
DAVE 10 G3 CB Castor Board for LDDAVE10G3 incl. Lashing Strap
DAVE 10 G3 SAT BAG Protective Cover for DAVE10G3 Satellites
DAVE 10 G3 SUB BAG Protective Cover for Dave10G3 Subwoofer
DAVE 10 G3 SET Accessory Set for LDDAVE10G3
DAVE 12 G3 CB Castor Board for LDDAVE12G3 incl. Lashing Strap
DAVE 12 G3 SAT BAG Protective Cover for DAVE12G3 Satellites
DAVE 12 G3 SUB BAG Protective Cover for Dave12G3 Subwoofer
DAVE 12 G3 SET Accessory Set for LDDAVE12G3
DAVE GT 15 CB
Castor Board for LDDAVE15G3 and LDGTSUB15A incl. Lashing Strap
DAVE 15 G3 SAT BAG Protective Cover for DAVE15G3 Satellites
DAVE 15 G3 SUB BAG Protective Cover for Dave15G3 Subwoofer
DAVE 15 G3 SET Accessory Set for LDDAVE15G3
DDQ DAVE GT 18 CB Castor Board for LDDDQSUB18, LDDAVE18G3 and LDGTSUB18A
DAVE 18 G3 SAT BAG Protective Cover for DAVE18G3 Satellites
DAVE 18 G3 SUB BAG Protective Cover for Dave18G3 Subwoofer
DAVE 18 G3 SET Accessory Set for LDDAVE18G3
34 35
you make it rock,
we make it roll!
DAVE® 8 SERIES
PORTABLE ACTIVE PA SYSTEMS
With the DAVE 8 ROADIE and XS subwoofer and dual satellite combos, the DAVE 8 Series provides truly multi-talented self-powered solutions for a wide variety of tasks.
The DAVE 8 Series shines in multimedia and home recording applications delivering clear, natural audio and consistent performance.
Combining attractive aesthetics and convenient portability, the compact 2.1 systems are equally at home in bars,
cafés and onstage for small PA use or dedicated DJ and keyboard monitoring.
The DAVE 8 Series includes a range of accessories for easy transport and setup.
P
Extremely compact self-powered 2.1 systems
P
Powerful performance and easy portability
P
For mobile, fixed and home applications

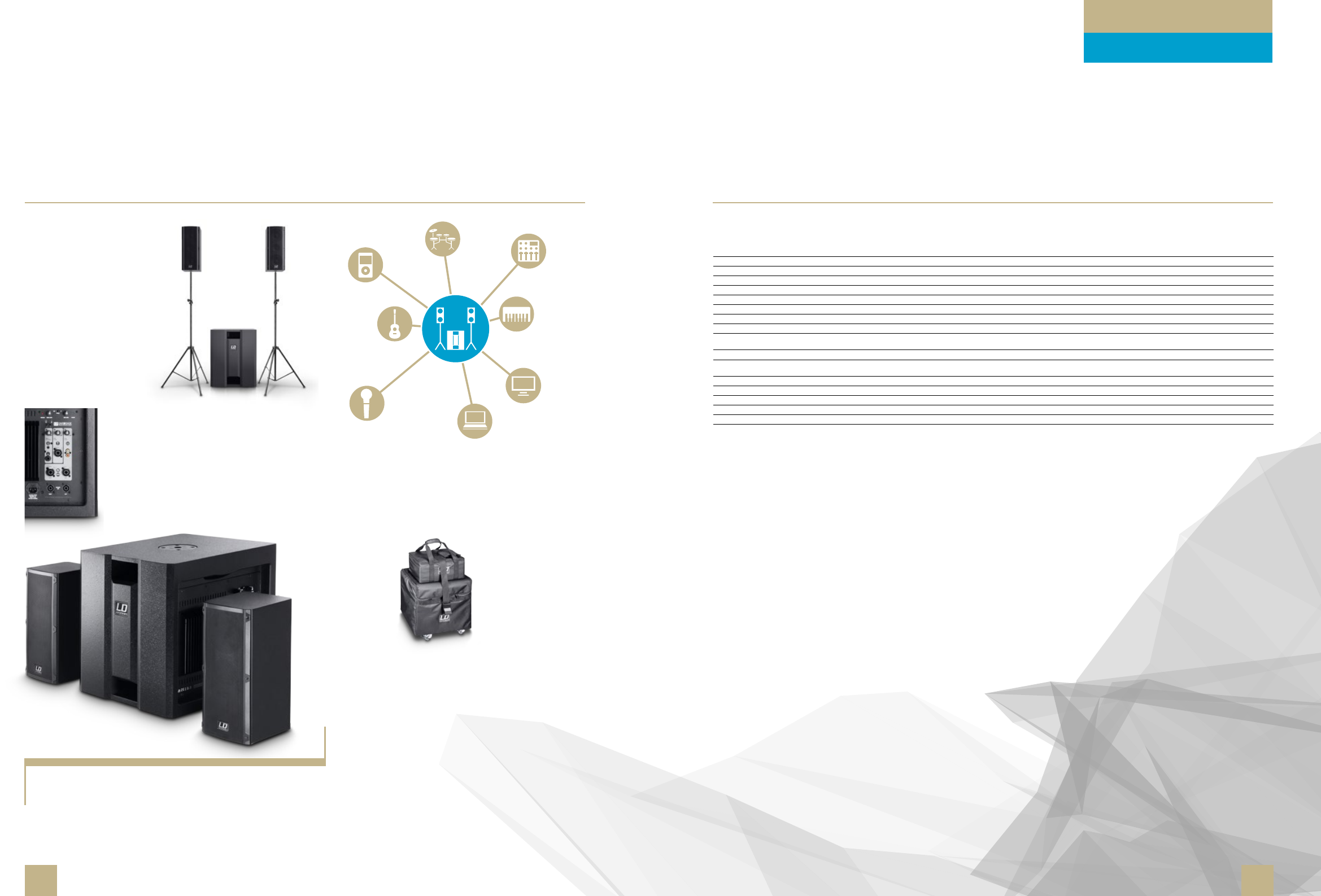

DAVE® 8 SERIES
COMPLETE PA SYSTEMS
DAVE 8 XS W
COMPACT 8" ACTIVE
MULTIMEDIA SYSTEM - 1400 W
DAVE 8 XS
COMPACT 8" ACTIVE
MULTIMEDIA SYSTEM - 1400 W
DAVE 8 XS
COMPACT ACTIVE PA SYSTEM
EXTREMELY COMPACT SELF-POWERED 2.1 SYSTEM
The LD Systems DAVE 8XS is a portable 2.1 multimedia system with a
high-performance 8” band pass subwoofer and two satellites (each 4” +
1”, with silk dome). It is specically designed for multimedia applications
home PA or gaming; it is also suitable as a monitor for DJs or keyboard-
ists or as a music system for smaller venues such as bars and cafés.
PROFESSIONAL CROSSOVER PA
The system provides crystal-clear sound. The high-performance
Class A/B amplier built into the subwoofer provides for both the
subwoofer and the satellites.
The multimedia system LD DAVE 8XS has line inputs in XLR and
RCA format.
EXTENSIVE PROTECTIONS
The built-in limiter keeps the system safe
from overload and ensures a long service
life. On the side of the subwoofer, in
addition to an ON/OFF switch and a phase
reverse switch (180°), there is a separate
subwoofer volume knob that allows you
to nd the perfect mix of brilliant treble,
punchy mids, and powerful bass.
WIDE RANGE OF ACCESSORIES
The DAVE 8 Series includes a range of
accessories for easy transport and setup:
a transport bag incl. casters for the DAVE8
Subwoofer, a transport/carrying bag for the
two DAVE8 satellites, speaker stands or a
set of 2 speaker stands with bag and 5 m
speaker cables. Wall & ceiling brackets are
also available, they are fully adjustable on
all axes and can therefore be adapted to
any location.
36 37
DAVE® 8 SERIES
COMPLETE PA SYSTEMS
Model name: LDDAVE8XS(W) LDDAVE8ROADIE
Type: Compact active PA system Portable compact active PA system
Subwoofer: 8" 8"
Satellites: LF: 2 x 4" / HF: 1" silk dome tweeter LF: 2 x 4"/ HF: 1" silk dome tweeter
Amplication: Class A / B Class A / B
Power output (RMS / peak): 350 W / 1400 W 350 W / 1400 W
Frequency range: 45 Hz - 19 kHz 45 Hz - 19 kHz
Max SPL (peak): 123 dB 123 dB
Protection: Short circuit, over-current, limiter Short circuit, over-current, limiter
Controls: Volume, sub level, 180° phase reverse, On / Off switch ON / OFF, Volume, microphone, MP3/ instrument, sub level, 180° phase reverse, input switch
(3.5mm jack / 6.3mm jack)
Indicators: Power, protect Power, protect
Subwoofer connectors: Input: line: XLR/6.3 mm jack combo / RCA / active output for DAVE8XS satellites Line input: 2 x XLR / 6.3 mm Jack Combo, RCA Mic input: XLR / 6.3mm Jack Combo
Active outputs for satellites
Satellites connectors: 2 x XLR 2 x Speakon compatible
Cabinet material: Subwoofer: 15 mm MDF / Satellites: 12 mm MDF Subwoofer: 15 mm MDF / Satellites: 12 mm MDF
Cabinet surface: Painting Painting
Dimensions (W x H x D): Subwoofer: 352 x 430 x 434 mm / Satellites: 144 x 350 x 170 mm Subwoofer: 352 x 430 x 434 mm / Satellites: 150 x 350 x 170 mm
Weight: Subwoofer: 18 kg / Satellites: 4.5 kg Subwoofer: 19 kg / Satellites: 5 kg
Features: Subwoofer: limiter, Satellite: 16 mm ange,
M6 threads for wall mounting (with LDSATWMB10B/LDSATWMB10W bracket)
Subwoofer: limiter, Satellite: 16 mm ange, threaded ange (M20), transport handles
Satellite: 3/8” thread, metal front grille, transport handles, 100 Hz low cut in Mic channel,
M6 threads for wall mounting (with LDSATWMB10B/LDSATWMB10W bracket)
SPECIFICATIONS:
AVAILABLE ACCESSORIES
DAVE 8 SET 1 Transport bags with wheels for DAVE 8 systems
DAVE 8 SET 2 2 x speaker stand with transport bag + 2 x speaker cable 5 m for DAVE 8 systems
DAVE 8 SAT BAG Protective Cover for DAVE 8 Satellites
DAVE 8 SUB BAG Protective Cover for DAVE 8 Subwoofer
SPS 16 Speaker Stands for 16 mm ange, black
SATWMB10W Wall mount for speakers white
SATWMB10B Wall mount for speakers black
ADAM HALL STANDS SPS 36 S 16 Adapter ange 36mm to 16mm
MP3 PLAYER, IPHONE,
OR OTHER DEVICES
VIA 3.5 mm JACK
ELECTRIC DRUM SET
VIA XLR OR 6.3 mm JACK MIXING
CONSOLE
VIA XLR OR
KEYBOARD
OR SYNTHESIZER
VIA XLR OR
LAPTOP
OR ANY OTHER COMPUTER
VIA RCA
HOME CINEMA
VIA RCA
DYNAMIC MICROPHONE
VIA XLR OR 6.3 mm JACK
GUITAR
VIA 6.3 mm JACK
DAVE 8 ROADIE
PORTABLE COMPACT ACTIVE PA SYSTEM
CONNECT ALMOST ANY AUDIO DEVICE
The DAVE 8 Roadie features three different inputs, which can be used
simultaneously. One channel has a combo socket (XLR/jack) for dynamic
microphones. One channel offers dual RCA connectors for computers as
well as a combo socket (XLR/jack) for mixers or keyboards. Finally, the
third channel has a 3.5 mm stereo and a 6.3 mm mono jack input for MP3
players or guitars with a switch for selecting the desired input.
SMART ELECTRONICS
The built-in limiter keeps the system safe from overload and
ensures a long service life. On the side of the
subwoofer, in addition to an ON/OFF switch and a phase reverse
switch (180°), there is a separate subwoofer
volume knob that allows you to nd the perfect mix of
brilliant treble, punchy mids, and powerful bass.
WIDE RANGE OF
ACCESSORIES
The DAVE 8 Series includes a
range of accessories for easy
transport and setup.
Powerful performance and
easy portability.
EXTREMELY COMPACT
SELF-POWERED 2.1 SYSTEMS
The DAVE 8 Roadie was designed as
a exible and portable mini PA system
especially for musicians. This complete
PA system with its powerful 1400-watt
(Peak) power amp delivers astounding
performance for mobile applications. It
is equipped with a high-performance 8"
band-pass subwoofer and two satellite
speakers (2 x 4" + 1").
DAVE 8 ROADIE
PORTABLE COMPACT 8" ACTIVE
MULTIMEDIA SYSTEM - 1400 W
38 39
DDQ SERIES
PA SPEAKERS
Quality 1 millisecond ahead...
DDQ SERIES
TOURING CLASS ACTIVE LOUDSPEAKERS & ACTIVE CARDIOID SUBWOOFERS
Setting a new standard for live sound reinforcement and xed installations, the LD Systems DDQ Series self-powered touring class loudspeakers are entirely made in
Germany with minute attention to detail.
Comprising 10", 12" and 15" fullrange models plus single 18" and dual 12" subwoofers, the DDQ Series loudspeakers utilize top components throughout. The proprietary
digital processing has been carefully programmed for impeccable performance with a look ahead limiter providing distortion-free audio even at maximum levels.
With superior transient response, tightly controlled directivity and a comprehensive set of protections the DDQ Series is the rst choice for the most demanding audio
applications.
P
Premium self-powered touring class loudspeakers and subwoofers
P
Advanced DSP with look ahead limiter for distortion-free performance
P
Controlled coverage with outstanding symmetry
P
Designed and made in Germany
DDQ full-range powered loudspeakers have been designed with the objective of making ground-breaking technology accessible for everyone. Our engineers carefully
selected and matched premium components for maximum performance and system integration.
TOURING CLASS ACTIVE
PA SPEAKERS WITH
DIGITAL SIGNAL
PROCESSING (DSP)
The heart of the DDQ series
is a state-of-the-art custom
24bit/48kHz Sharc DSP with
high-accuracy A/D and D/A
conversion and a 127/113dB
dynamic range.
FAITAL PRO
NEODYMIUM WOOFER
Featuring a cast aluminum frame and
neodymium magnet slug a Faital Pro
woofer delivers tightly focused low end
punch with excellent transient response.
ROTATABLE ASYMMETRICAL
HF HORN FLARE
Providing a controlled pattern
and consistent coverage the
asymmetrical LD Systems horn is
rotatable for optimum directivity in
vertical and horizontal
applications.
2-WAY BI-AMPLIFIED
WITH SHARC DSP
(24BIT/48KHZ)
The speakers are bi-amplified by
two Hypex Class D power stage
modules providing flat frequency
response irrespective of load
impedance.
BMS COMPRESSION
DRIVER
BMS compression drivers were chosen
for their very high sensitivity and
extended dynamic range resulting in
accurate audio imaging with maximum
depth and detail up to 20kHz.
DISTORTION FREE
EVEN AT THE HIGHEST VOLUME LEVELS
For consistently impeccable audio quality even at the highest volume levels, the
DDQ loudspeakers‘ state-of-the-art DSP includes a look-ahead peak
limiter with 1 millisecond latency that effectively prevents digital clipping. This
is achieved by splitting the input signal during the analog-to-digital
conversion
and delaying one side by 1 millisecond. The other side is now ahead
in time and used for peak analysis and limiter response control. Actual
limiting is applied to the delayed signal which is then routed to the output.
The result is a very smooth and natural-sounding gain adjustment that reduces
wave amplitude without truncating the wave crest. From moderate to maximum
volume levels, the look-ahead limiter maintains signal integrity enabling the DDQ
series powered loudspeakers to deliver crystal-clear distortion-free output
.
CARDIOID
SUBWOOFER SETUPS
P
Reduces sound pressure level on
the rear up to 20 dB
P
Keeps stage silent
P
Reduces unwanted reflections from
ear walls
P
Improves sound quality in the audience
P
Easy and quick setup
P
No external signal processors needed
P
4 possible cardioid array setups for
stacks or arrays of 2 or 3 subwoofers
40 41

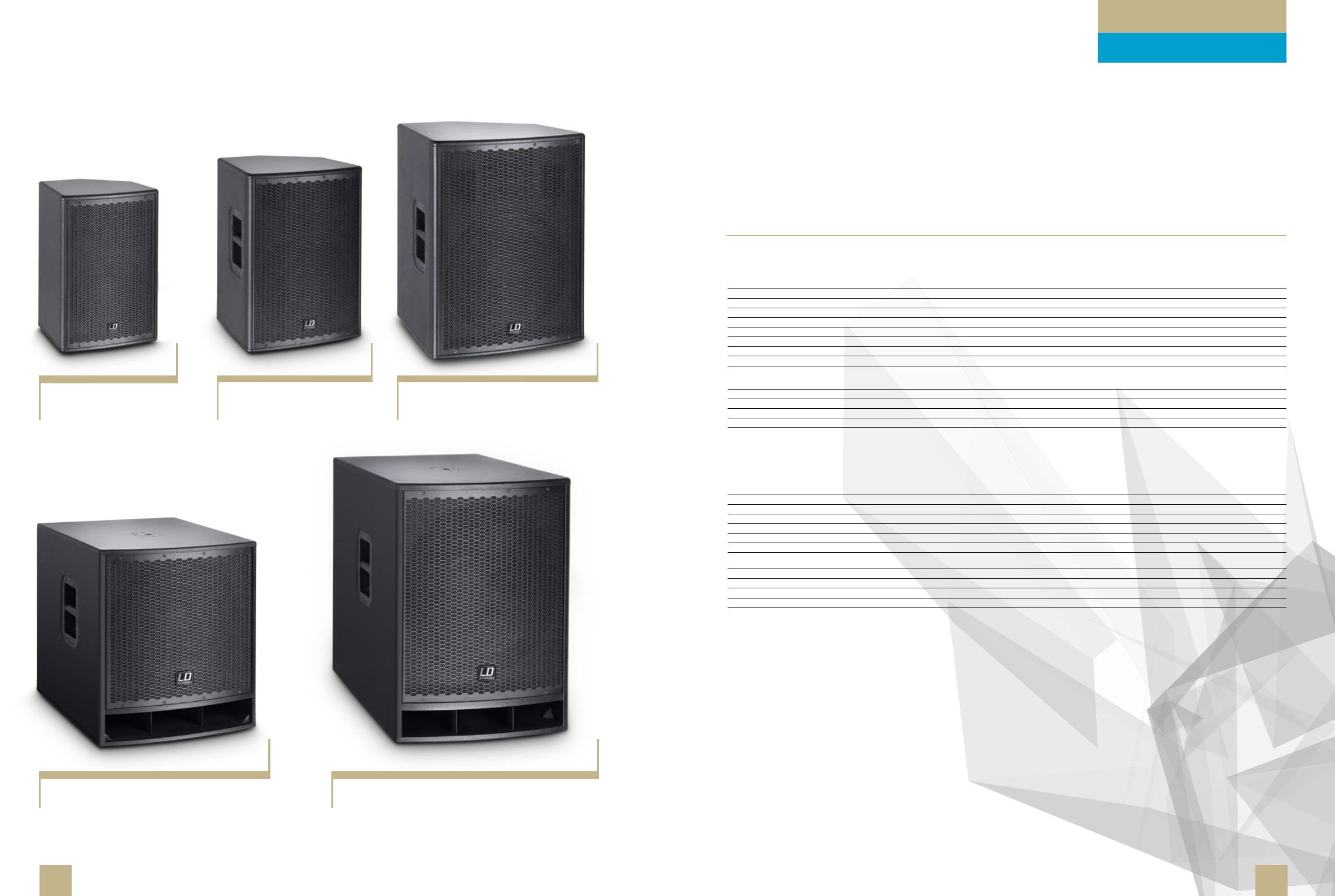

DDQ 10
10" PA SPEAKER ACTIVE
WITH DSP - 800 W RMS
DDQ 12
12" PA SPEAKER ACTIVE
WITH DSP - 800 W RMS
DDQ 15
15" PA SPEAKER ACTIVE
WITH DSP - 1400 W RMS
DDQ SUB 212
2 x 12" BANDPASS PA SUBWOOFER - 1400 W RMS DDQ SUB 18
18" BASS REFLEX PA SUBWOOFER - 1400 W RMS
DDQ SERIES
PA SPEAKERS
Model name: LDDDQ10 LDDDQ12 LDDDQ15
Type: PA-Speaker DSP controlled / Bass reex PA-Speaker DSP controlled / Bass reex PA-Speaker DSP controlled / Bass reex
Frequency range: 59 Hz - 20 kHz 54 Hz - 20 kHz 38 Hz - 20 kHz
Power output (RMS): 800 W 800 W 1400 W
Max. SPL (peak): 132 dB 134 dB 136 dB
Amplication: Class D Class D Class D
LF transducer: 10" FAITAL PRO neodymium woofer 12" FAITAL PRO neodymium woofer 15" FAITAL PRO neodymium woofer
HF transducer: 1" BMS compression driver 1" BMS compression driver 1.4" BMS compression driver
Dispersion: 80° x 60° 80° x 50° 80° x 50°
Crossover frequency: 1.5 kHz 1.5 kHz 1.3 kHz
Connectors: Input: XLR / output: XLR / Sub out: XLR Input: XLR / output: XLR / Sub out: XLR Line input: XLR
Line output: input link XLR, sub out: XLR
Protection: DSP based "look ahead" limiter, RMS speaker limiter, RMS
power supply limiter, over-current, over-voltage
DSP based "look ahead" limiter, RMS speaker limiter, RMS
power supply limiter, over-current, over-voltage
DSP based "look ahead" limiter, RMS speaker limiter, RMS
power supply limiter, over-current, over-voltage
Paint / Cabinet material: Polyurea / 15 mm birch plywood Polyurea / 15 mm birch plywood Polyurea / 15/18 mm birch plywood
Dimensions (W x H x D): 315 x 530 x 370 mm 360 x 600 x 378 mm 420 x 763 x 488 mm
Weight: 15.5 kg 17 kg 32 kg
Features: LD SYSTEMS evolutive handles, stand support adjustable
vertically (SM707), switchable ground lift, sub out, switchable
low cut
LD SYSTEMS evolutive handles, stand support adjustable
vertically (SM707), switchable ground lift, sub out,
switchable low cut
LD SYSTEMS Evolutive handles, 36mm ange, 13 x M10
ying points, monitor angle (50°), switchable ground lift,
switchable sub out / switchable low cut
Model name: LDDDQSUB18 LDDDQSUB212
Type: 18" bass reex subwoofer 2 x 12" bandpass subwoofer
Frequency range: 30 – 120 Hz 38 – 120 Hz
Power output (RMS): 1400 W 1400 W
Max. SPL (peak): 134 dB 132 dB
Amplication: Class D Class D
Transducer: 18" FAITAL PRO neodymium woofer 2 x 12" neodymium woofer
Connectors: Input: 2 x XLR / input link : 2 x XLR / Sat out: XLR with 100Hz
high-pass
Input: 2 x XLR / input link : 2 x XLR / Sat out: XLR with 100 Hz high pass
Protection: RMS speaker limiter, DSP-based “look ahead“ limiter, RMS
power supply limiter, short circuit, over-current
RMS power supply limiter, DSP-based “look ahead“ limiter, RMS high-pass speaker limiter, over-current, short circuit
Paint / Cabinet material: Polyurea / 18mm birch plywood Polyurea / 18 mm birch plywood
Dimensions (W x H x D): 510 x 700 x 725 mm 420 x 620 x 543 mm
Weight: 44.5 kg 34.5 kg
Features: 3 x corner handles, prepared for mounting of casters,
15 x DSP presets with 4 selectable cardioid setups and 7
selectable crossover frequencies (80-120Hz), 2 x threaded
ange (M20), prepared for mounting casters, power out
3 x corner handles, 15 x DSP presets with 4 selectable cardioid setups and 7 selectable crossover frequencies (80-
120Hz), 2 x threaded ange (M20), prepared for mounting of casters, power out
DDQ SERIES
TOURING CLASS ACTIVE LOUDSPEAKERS AND SUBWOOFERS
SPECIFICATIONS SPEAKERS:
SPECIFICATIONS SUBWOOFERS:
AVAILABLE ACCESSORIES
DDQ 10 B Protective Cover for LDDDQ10
DDQ 10 SB Swing Bracket for LDDDQ10
DDQ 10 WB Wall Bracket for LDDDQ10
DDQ 12 B Protective Cover for LDDDQ12
DDQ 12 SB Swing Bracket for LDDDQ12
DDQ 12 WB Wall Bracket for LDDDQ12
DDQ 15 B Protective Cover for LDDDQ15
DDQ 15 SB Swing Bracket for LDDDQ15
DDQ SUB 212 B Protective Cover for LDDDQSUB212
DDQ SUB 18 B Protective Cover for LDDDQSUB18
DDQ DAVE GT 18 CB Castor Board for LDDDQSUB18, LDDAVE18G3 and LDGTSUB18A
DDQ 212 CB Castor Board for LDDDQSUB212
EASE-GLL
available online
42 43

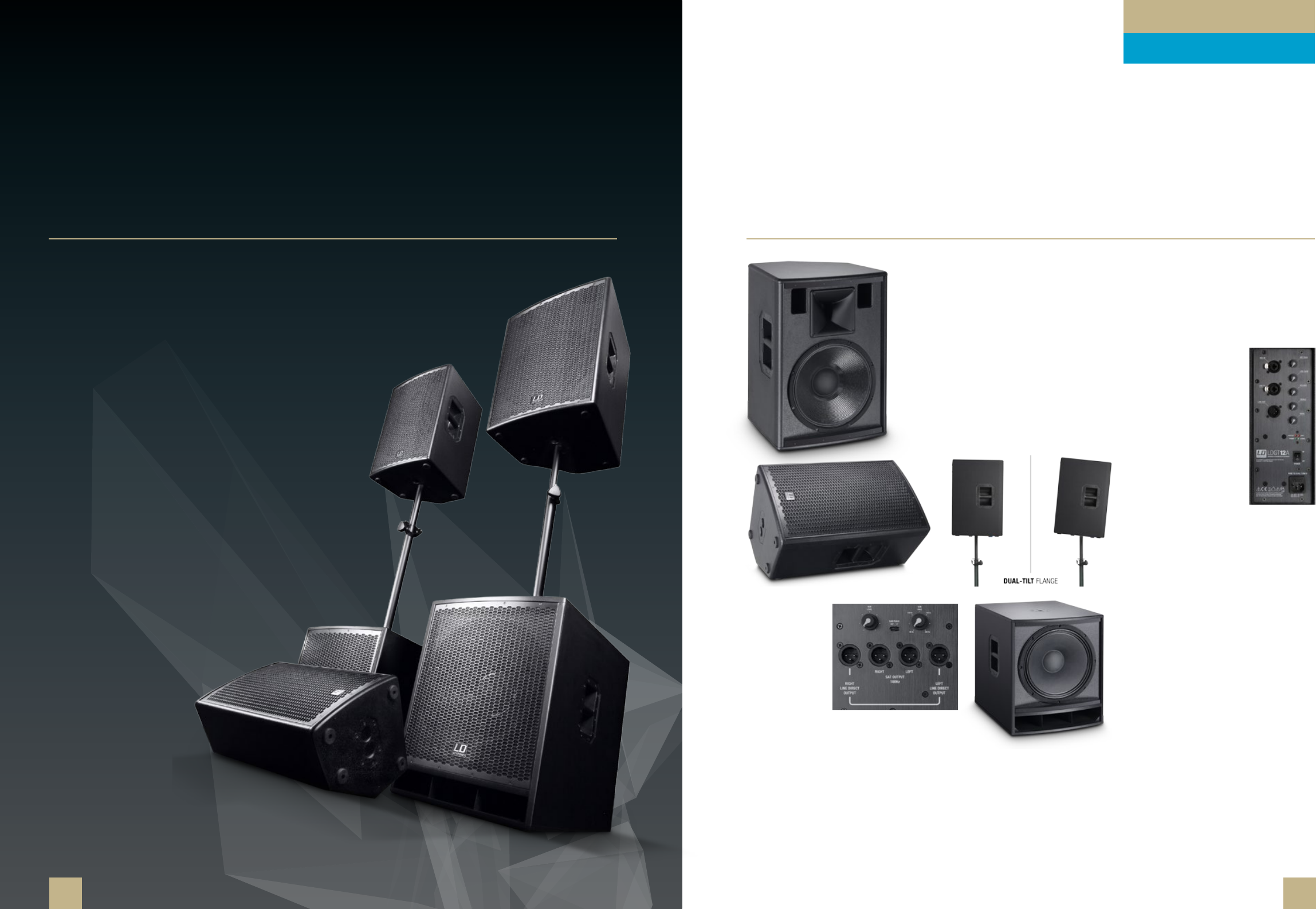

STINGER® G3 SERIES
PA SPEAKERS
STINGER® G3 SERIES
ACTIVE AND PASSIVE FULLRANGE LOUDSPEAKERS AND SUBWOOFERS
RE-DEFINING
MULTITALENT
Application presets
enable instant frequency
response contouring.
INPUT VARIETY
Dual line and mic level inputs add
application versatility to active
Stinger® G3 models.
TAKE AIM
LD Systems’ Dual-Tilt pole
mount allows 0° and 5°
orientation angles.
BUILT TO LAST
Ultra tough impact resistant polyurea coating
provides unrivaled durability.
ENGINEERED
FOR PERFECTION
Designed with BEM modeling of
sound radiation and propagation,
the HF waveguide reduces oor
and ceiling reections, effectively
eliminates side lobes and
achieves a controlled uniform
coverage pattern.
ALL MODELS EQUIPPED WITH
POWERCON COMPATIBLE
CONNECTORS
workhorse.
STINGER® G3 SERIES
ACTIVE / PASSIVE SPEAKERS, SUBWOOFERS & MONITORS
High-performance workhorse loudspeakers for outstanding sound reinforcement - that was our goal creating the Stinger® G3 Series. We’ve combined optimized components
and smart details in active and passive models to ensure exceptional reliability and ease of use. Stinger® multi-purpose systems and subwoofers are your go-to choice for
affordable pro audio quality. It’s time you saddled up!
P
Multi-purpose bass reflex PA speakers for fullrange, satellite and monitor applications
P
High power bass reflex PA subwoofers with cardioid array presets
P
Up to 800 W RMS power and 135 db Max SPL
P
High-efficiency digital power stage with SMPS power supply
P
Application presets for quick frequency response contouring
P
LD Systems DynX® DSP technology for distortion-free performance
P
BEM optimized HF waveguide for uniform coverage
P
PowerCON compatible connectors
P
Shock-resistant front grill provides maximum speaker protection
P
36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
P
birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
P
Large selection of smart installation and transport accessories
DYNX® DSP-TECHNOLOGY
Including multiband limiter and crossover functions,
LD Systems’ DynX® DSP technology ensures perfect
time alignment and distortion-free performance even
at maximum levels.
STINGER 8(A) G3
8" PASSIVE / ACTIVE PA SPEAKER STINGER 10(A) G3
10" PASSIVE / ACTIVE PA SPEAKER STINGER 12(A) G3
12" PASSIVE / ACTIVE PA SPEAKER STINGER 15(A) G3
15" PASSIVE / ACTIVE PA SPEAKER
44 45
STINGER
SUB
15
(A)
G3
15" PASSIVE / ACTIVE PA SUBWOOFER STINGER SUB 18
(A)
G3
18" PASSIVE / ACTIVE PA SUBWOOFER
LDEB82G3WMB
SWIVEL WALL MOUNT
FOR STINGER 8"
LDEBG3WMB
SWIVEL WALL MOUNT
FOR STINGER 12" AND STINGER 15"
LDEB102G3WMB
SWIVEL WALL MOUNT
FOR STINGER 10"
LDEBG3TMB
TRUSS MOUNTING BRACKET
FOR STINGER 12" AND STINGER 15"
LDEBG3SCP
TRUSS MOUNTING CLAMP SET
FOR STINGER 8" AND STINGER 10"
LDEB82G3WMB1
TILT AND SWIVEL WALL MOUNT
FOR STINGER 8"
LDEBG3WMB1
TILT AND SWIVEL WALL MOUNT
FOR STINGER 12" AND STINGER 15"
LDEB102G3WMB1
TILT AND SWIVEL WALL MOUNT
FOR STINGER 10"
MORE CONTROL. BETTER BASS.
Easily congure cardioid arrays with the
subwoofers’ built-in presets for consistent bass
coverage and less onstage sub energy.
MADE FOR PROFESSIONALS
The STINGER® G3 subwoofers have been designed
for touring and rental professionals. They are
equipped with PowerCON compatible connectors
and feature a ultra tough impact resistant polyurea
coating for unrivaled durability.
SYSTEM INTEGRATION MADE EASY
Quickly integrate Stinger® G3 Subs into your
system with convenient 80, 100 and 120 Hz
lowpass presets.
STINGER® G3 SERIES
ACTIVE AND PASSIVE FULLRANGE LOUDSPEAKERS AND SUBWOOFERS
STINGER® G3 SERIES
ACCESSORIES
STINGER® G3 SERIES
PA SPEAKERS
ADDITIONAL ACCESSORIES
LDEB82G3PC PROTECTIVE COVER FOR LDEB82G3/ LDEB82AG3
LDEB102G3PC PROTECTIVE COVER FOR LDEB102G3/ LDEB102AG3
LDEB122G3PC PROTECTIVE COVER FOR LDEB122G3/ LDEB122AG3
LDEB152G3PC PROTECTIVE COVER FOR LDEB152G3/ LDEB152AG3
LDESUB15G3PC PROTECTIVE COVER FOR LDESUB15G3/ LDESUB15AG3
LDESUB18G3PC PROTECTIVE COVER FOR LDESUB18G3/ LDESUB18AG3
LDESUB15G3CB CASTOR BOARD FOR LDESUB15G3/ LDESUB15AG3
LDESUB18G3CB CASTOR BOARD FOR LDESUB18G3/ LDESUB18AG3
46 47

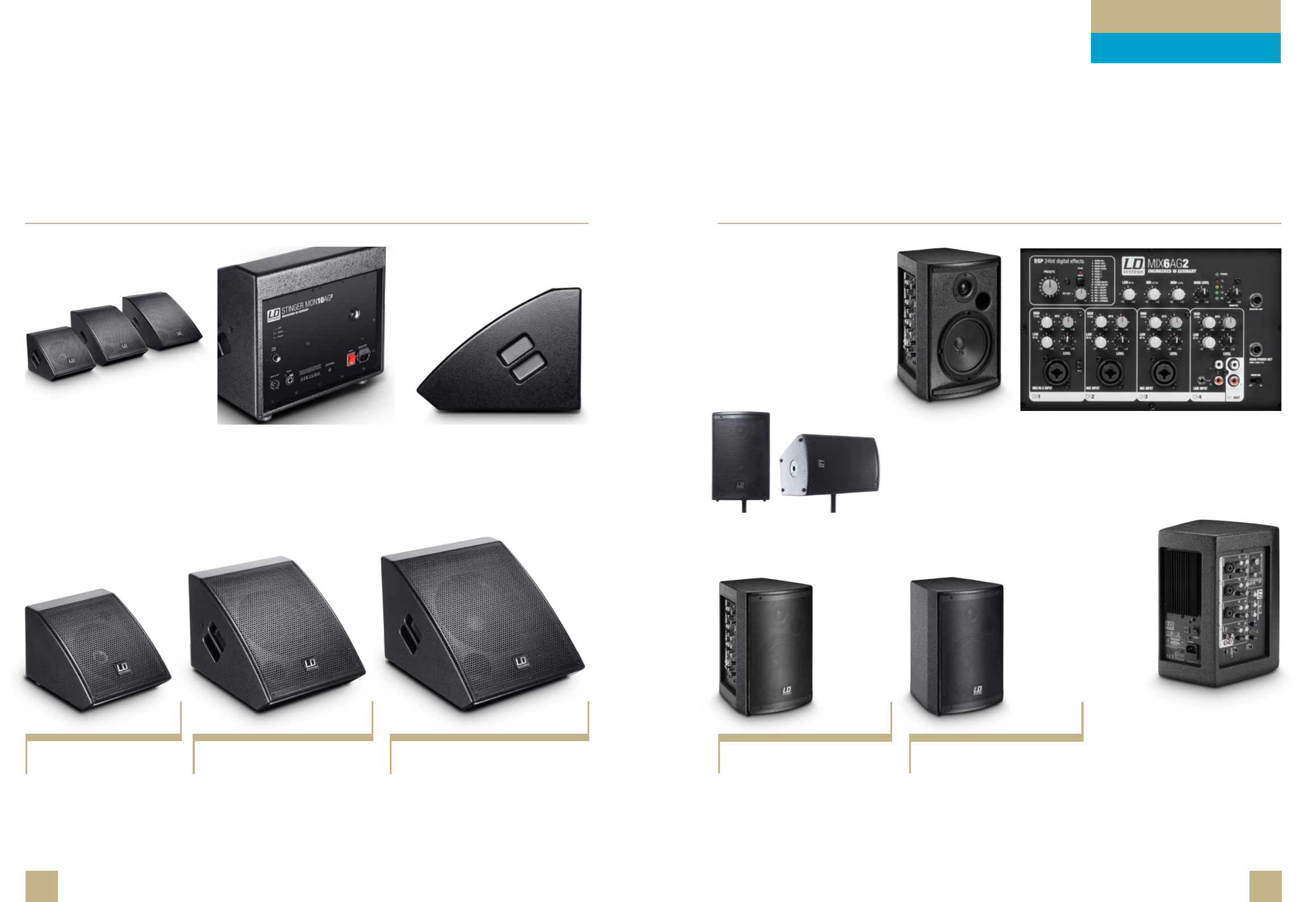

STINGER® G2 SERIES
PA SPEAKERS
STINGER® MIX 6 (A) G2
6.5" ACTIVE / PASSIVE PA SPEAKER WITH INTEGRATED 4-CHANNEL MIXER
YOUR NEW BEST FRIEND
With a built-in mixer, the compact, lightweight
Stinger MIX 6 A G2 active loudspeaker is the
perfect choice for small-scale PA and personal
monitoring applications. It features a 6.5" woofer
and 1" HF transducer with an 80 Hz to 20 kHz
frequency response and 80° x 70° dispersion
delivering amazing sound with clarity
and punch.
ULTRA PORTABLE. ULTRA
VERSATILE
Dual bottom and side stand mount
inserts permit both vertical and
horizontal setup, the latter putting
the mixer controls right at your
ngertips. On its own or in tandem
with the passive unit, the Stinger
MIX 6 A G2 provides awesome
performance and versatility in an
easily portable package.
ALL-IN-ONE SOLUTION
The integrated mixer provides a stereo line and 3 microphone channels with
high and low EQ, switchable hi-Z input and phantom power plus 24-bit digital
effects. It allows for connecting a wide variety of sources including MP3
and CD players, iPods, instruments and condenser mics. The output section
includes a 3-band master EQ for overall tone shaping and feedback control,
4-segment LED metering, RCA recording outputs and an adjustable monitor out.
ENOUGH POWER FOR 2
The Stinger MIX 6 A G2 incorporates
a Class D amplier with 2x280 watts
peak power and 6.3 mm TRS output to
power its optional passive companion
Stinger MIX 6 G2.
HEARING AID FOR MUSICIANS
The Stinger Mon G2 speakers consists of 3
especially compact active coaxial monitors with
broad frequency response, high feedback resistance
and a maximum sound-level pressure of 121 db for
versatile use on stage
.
ALSO ACTIVE ON STAGE
The signal is connected and looped through using an
XLR/Jack combo socket and the XLR output. The rear
connector panel is rounded out by a volume control,
led indicators, and the IEC power socket.
TOUGHER THAN TOUGH
The elegant looking bass-reex enclosure is made
of 15 mm-thick multiplex nished with a durable
coating. A sturdy metal grille guards against speaker
damage, and ergonomically milled handles make
transport very convenient. The monitor angle is 35°.
STINGER® MON G2
ACTIVE STAGE MONITORS
STINGER MON 101 A G2
10" ACTIVE STAGE MONITOR
600 W
STINGER MON 81 A G2
8" ACTIVE STAGE MONITOR
320 W
STINGER MON 121 A G2
12" ACTIVE STAGE MONITOR
1000 W
STINGER MIX 6 A G2
ACTIVE 2-WAY LOUDSPEAKER
2 x 280 W
STINGER MIX 6 G2
PASSIVE 2-WAY LOUDSPEAKER
280 W
48 49
Model name: LDMON81AG2 LDMON101AG2 LDMON121AG2
Type:
Active stage monitor Active stage monitor Active stage monitor
Frequency range: 90 Hz - 20 kHz 90 Hz - 20 kHz 80 Hz - 20 kHz
Power output (RMS / peak): 80 W / 320 W 150 W / 600 W 250 W / 1,000 W
Max. SPL (peak): 116 dB 121 dB 124 dB
LF transducer: 8" coaxial 10" coaxial 12" coaxial
HF transducer: 1" coaxial 1" coaxial 1" coaxial
Dispersion: 75° x 75° 75° x 75° 75° x 75°
Connectors: Input: XLR/ 6.3mm jack (combo),
output: XLR
Input: XLR/ 6.3mm jack (combo),
output: XLR
Input: XLR/ 6.3mm jack (combo),
output: XLR
Dimensions (W x H x D): 320 mm x 250 mm x 361 mm 380 mm x 335 mm x 466 mm 440 mm x 360 mm x 514 mm
Weight: 10.6 kg 15.3 kg 17.8 kg
Model name:
LDMIX6AG2
Type:
2-way active speaker cabinet
Frequency range: 80 Hz - 20 kHz
Power output (RMS / peak): 2 x 70 W / 2 x 280 W
Amplication: Class D
Max. SPL: 122 dB
LF transducer: 6.5"
HF transducer: 1"
Dispersion: 80° x 70°
Connectors: 3 x XLR/jack 6.3 Combo Channel 1-3 inputs, jack 3.5mm and RCA stereo inputs (channel 4 Mono Sum), REC OUT 2x RCA, Monitor out 6.3mm jack unbal, External loudspeaker (MAIN
POWER OUT) 6,3mm jack
Dimensions (W x H x D): 323 x 214 x 222 mm
Weight: 6.8 kg
STINGER® G3 SERIES
ACTIVE / PASSIVE SPEAKERS & MONITORS
AVAILABLE ACCESSORIES
STINGER MIX 6 G2 B Protective Cover for LDMIX6(A)G2
STINGER MIX 6 G2 B 2 Protective Cover for 2 x LDMIX6(A)G2
SPS 16 Speaker Stand for 16 mm ange, black
STINGER MIX 6 G2 SET 1 Set of 2 x Adapter ange 36mm to 16mm
STINGER MIX 6 G2 SET 2 2 x speaker stand with transport bag and speaker cable 10 m for STINGER MIX 6 (A) G2
STINGER® G3 SERIES
PA SPEAKERS
SPECIFICATIONS SUBWOOFERS:SPECIFICATIONS STAGE MONITORS:
SPECIFICATIONS STINGER MIX:
SPECIFICATIONS PA SPEAKERS:
Model name: LDEB82G3 LDEB102G3 LDEB122G3 LDEB152G3 LDEB82AG3 LDEB102AG3 LDEB122AG3 LDEB152AG3
Product type: PA loudspeaker PA loudspeaker PA loudspeaker PA loudspeaker PA loudspeaker PA loudspeaker PA loudspeaker PA loudspeaker
Type: passive passive passive passive active active active active
Low/mid driver dimensions:
8" 10" 12" 15" 8" 10" 12" 15"
HF driver dimensions: 1" 1" 1" 1" 1" 1" 1" 1"
HF driver brand: BMS BMS BMS BMS BMS BMS BMS BMS
Dispersion (H x V): 90 ° x 50 ° 90 ° x 50 ° 90 ° x 50 ° 90 ° x 50 ° 90 ° x 50 ° 90 ° x 50 ° 90 ° x 50 ° 90 ° x 50 °
Load rating (RMS): 250 W 300 W 400 W 500 W 300 W 300 W 500 W 500W
Peak power: 500W 600 W 800 W 1000W 600 W 600 W 1000 W 1000 W
Frequency response: 70 - 20000 Hz 65 - 20000 Hz 58 - 20000 Hz 50 - 20000 Hz 70 - 20000 Hz 65 - 20000 Hz 58 - 20000 Hz 50 - 20000 Hz
SPL (1W/1m): 95 dB 96 dB 99 dB 100 dB - - - -
Max. SPL (peak): 119 dB 121 dB 125 dB 127 dB 125dB 127 dB 131 dB 133 dB
Impedance: 8 Ohm(s) 8 Ohm(s) 8 Ohm(s) 8 Ohm(s)
Loudspeaker inputs: 1 1 1 1 - - - -
Inputs: Speakon compatible Speakon compatible Speakon compatible Speakon compatible 2 x Line/Mic In on
XLR, 6.3 mm Jack / 1
x Line Out on XLR
2 x Line/Mic In on
XLR, 6.3 mm Jack / 1
x Line Out on XLR
2 x Line/Mic In on
XLR, 6.3 mm Jack / 1
x Line Out on XLR
2 x Line/Mic In on
XLR, 6.3 mm Jack / 1
x Line Out on XLR
Cabinet material: 12 mm Plywood 12 mm Plywood 15 mm Plywood 15 mm Plywood 12 mm Plywood 12 mm Plywood 15 mm Plywood 15 mm Plywood
Cabinet surface:
Polyurea Polyurea Polyurea Polyurea Polyurea Polyurea Polyurea Polyurea
Width: 270 mm 325 mm 390 mm 480 mm 270 mm 325 mm 390 mm 480 mm
Height: 457 mm 527 mm 627 mm 737 mm 457 mm 527 mm 627 mm 737 mm
Depth: 290 mm 308 mm 377 mm 455 mm 290 mm 308 mm 377 mm 455 mm
Weight: 10.1 kg 11.5 kg 19.4 kg 26.4 kg 10.8 kg 12.7 kg 20.6 kg 26.8 kg
Model name: LDESUB15G3 LDESUB18G3 LDESUB15AG3 LDESUB18AG3
Product type: PA subwoofer PA subwoofer PA subwoofer PA subwoofer
Type: passive passive active active
Low/mid driver dimensions:
15" 18" 15" 18"
Load rating (RMS): 600 W 800 W 450 W 800 W
Peak power: 1200 W 1600 W 900 W 1600W
Frequency response: 40 - 200 Hz 35 - 200 Hz 40 - 200 Hz 35 - 200 Hz
Max. SPL (peak): 127 dB 129 dB 133 dB 135 dB
Controls: - - Main Level, Mode Main Level, Mode
Line inputs: 1 1 2 2
Line input connectors: Speakon compatible Speakon compatible 6.3 mm Jack, XLR 6.3 mm Jack, XLR
Cabinet material:
18 mm Plywood 18 mm Plywood 18 mm Plywood 18 mm Plywood
Cabinet surface:
Polyurea Polyurea Polyurea Polyurea
Width: 576 mm 677 mm 576 mm 677 mm
Height: 477 mm 547 mm 477 mm 547 mm
Depth: 624 mm 740 mm 624 mm 740 mm
Weight: 29,7 kg 40.6 kg 31.9 kg 42.6 kg
50 51
be active,
loud & furious.
GT SERIES
ACTIVE MULTIFUNCTIONAL SPEAKERS & HIGH POWER SUBWOOFERS
The GT Series self-powered fullrange loudspeakers and subwoofers are the perfect choice for limited budgets with ve highly affordable models
providing professional audio performance, reliable operation and exceptional value.
Featuring rugged, roadworthy enclosures with quality hardware the GT Series loudspeakers are loaded with custom low frequency
transducers and Celestion compression drivers. They are powered by lightweight, high output class D digital amplier modules with
extremely efcient SMPS technology.
P
Budget fullrange loudspeakers and subwoofers
P
Class D powered
P
Custom woofers and Celestion compression drivers
P
Rugged reliability and professional performance
GT SERIES
PA SPEAKERS
TURBO BOOST FOR YOUR PERFORMANCE
Equipped with high power custom woofers and 1" Celestion
compression drivers, the GT active fullrange loudspeakers
deliver high denition audio with high peak SPLs, wide
frequency response and 90° x 60° dispersion.
ALWAYS ON THE RIGHT ANGLE
Covered in tough, textured Dura-Vinyl for protection
and long-lasting appearance the rugged 15 mm MDF
bass reex enclosure integrates a 54° monitor angle,
honeycomb pattern steel grille and dual tilt pole mount.
BUILT FOR THE
GRANDEST TOURING: YOURS
Providing amazing value, the GT active subwoofers sport
a sturdy MDF bass reex enclosure with hard-wearing
textured Dura-Vinyl covering, heavy duty steel handles,
a steel grille with honeycomb pattern and threaded M20
pole insert.
GET LOW. VERY LOW
With their custom high power
low frequency transducers the
GT active subwoofers deliver a
big, tight bottom end with superb
transient response.
HIGH EFFICIENCY
ELECTRONICS
Providing outstanding value,
the GT series is powered
by built-in Class D digital
ampliers with highly efcient
SMPS technology and extreme
peak output. They feature XLR
and 6.3 mm Jack connectors
for line and microphone input,
a 2-band EQ, overcurrent and
overvoltage protection for
reliable operation.
52 53
GT 10 A
10" ACTIVE PA SPEAKER
800 W
GT 12 A
12" ACTIVE PA SPEAKER
1000 W
GT 15 A
15" ACTIVE PA SPEAKER
1000 W
GT SUB 15 A
15" ACTIVE PA SUBWOOFER - 1600 WGT SUB 18 A
18" ACTIVE PA SUBWOOFER - 1600 W
GT SERIES
PA SPEAKERS
Model name: LDGT10A LDGT12A LDGT15A
Type: Active PA speaker Active PA speaker Active PA speaker
Frequency range: 65 Hz - 19 kHz 60 Hz - 19 kHz 52 Hz - 19 kHz
Power output (RMS / peak): 200 W / 800 W 250 W / 1,000 W 350 W / 1,400 W
Amplication: Class D Class D Class D
Max. SPL (peak): 119 dB 122 dB 125 dB
LF transducer: 10" custom made 12" custom made 15" custom made
HF transducer: 1" Celestion driver 1" Celestion driver 1" Celestion driver
Dispersion (H x V): 90° x 60° 90° x 60° 90° x 60°
Connectors: Line input: XLR / 6.3 mm jack
Mic input: XLR / 6.3 mm jack
Line output: input link XLR
Line input: XLR / 6.3 mm jack
Mic input: XLR / 6.3 mm jack
Line output: input link XLR
Line input: XLR / 6.3 mm jack
Mic input: XLR / 6.3 mm jack
Line output: input link XLR
Protection: Over voltage, over current Over voltage, over current Over voltage, over current
Surface: Textured Dura-Vinyl Textured Dura-Vinyl Textured Dura-Vinyl
Dimensions (W x H x D): 328 x 500 x 293 mm 389 x 565 x 368 mm 480 x 650 x 460 mm
Weight: 13.8 kg 19.4 kg 28.2 kg
Features: 2-band equalizer, Monitor angle (54°), dual-angle
ange (0°/5°), solid front grille
2-band equalizer, Monitor angle (54°), dual-angle
ange (0°/5°), solid front grille
2-band equalizer, Monitor angle (54°),
dual-angle ange (0°/5°), solid front grille
Model name: LDGTSUB15A LDGTSUB18A
Type: Active PA subwoofer Active PA subwoofer
Frequency range: 35 Hz - 200 Hz 32 Hz - 200 Hz
Power output (RMS / peak): 400 W / 1,600 W 400 W / 1,600 W
Amplication: Class D Class D
Max. SPL (peak): 126 dB 128 dB
LF transducer: 15" custom made 18" custom made
Connectors: Line input: XLR / 6.3 mm jack
Line output: input link XLR, Sat output: ltered (100 Hz)
Line input: XLR / 6.3 mm jack
Line output: input link XLR, Sat output: ltered (100 Hz)
Protection: Over voltage, over current Over voltage, over current
Surface: Textured Dura-Vinyl Textured Dura-Vinyl
Dimensions (W x H x D): 480 x 570 x 620 mm 510 x 680 x 710 mm
Weight: 36.5 kg 50.3 kg
Features: Adjustable low-pass lter (80 - 200 Hz), heavy duty steel handles,
M20 threaded ange, solid front grille
Adjustable low-pass lter (80 - 200 Hz), heavy duty steel handles,
M20 threaded ange, solid front grille
SPECIFICATIONS SUBWOOFERS:
SPECIFICATIONS SPEAKERS:
AVAILABLE ACCESSORIES
GT 10 B Protective Cover for LDGT10A
GT 12 B Protective Cover for LDGT12A
GT 15 B Protective Cover for LDGT15A
GT SUB 15 B Protective Cover for LDGTSUB15A
DAVE GT 15 CB Castor Board for LDDAVE15G3 and LDGTSUB15A incl. Lashing Strap
GT SUB 18 B Protective Cover for LDGTSUB18A
DDQ DAVE GT 18 CB Castor Board for LDDDQSUB18, LDDAVE18G3 and LDGTSUB18A
GT SERIES
ACTIVE MULTIFUNCTIONAL SPEAKERS
& HIGH POWER SUBWOOFERS
54 55
it´s time to play.

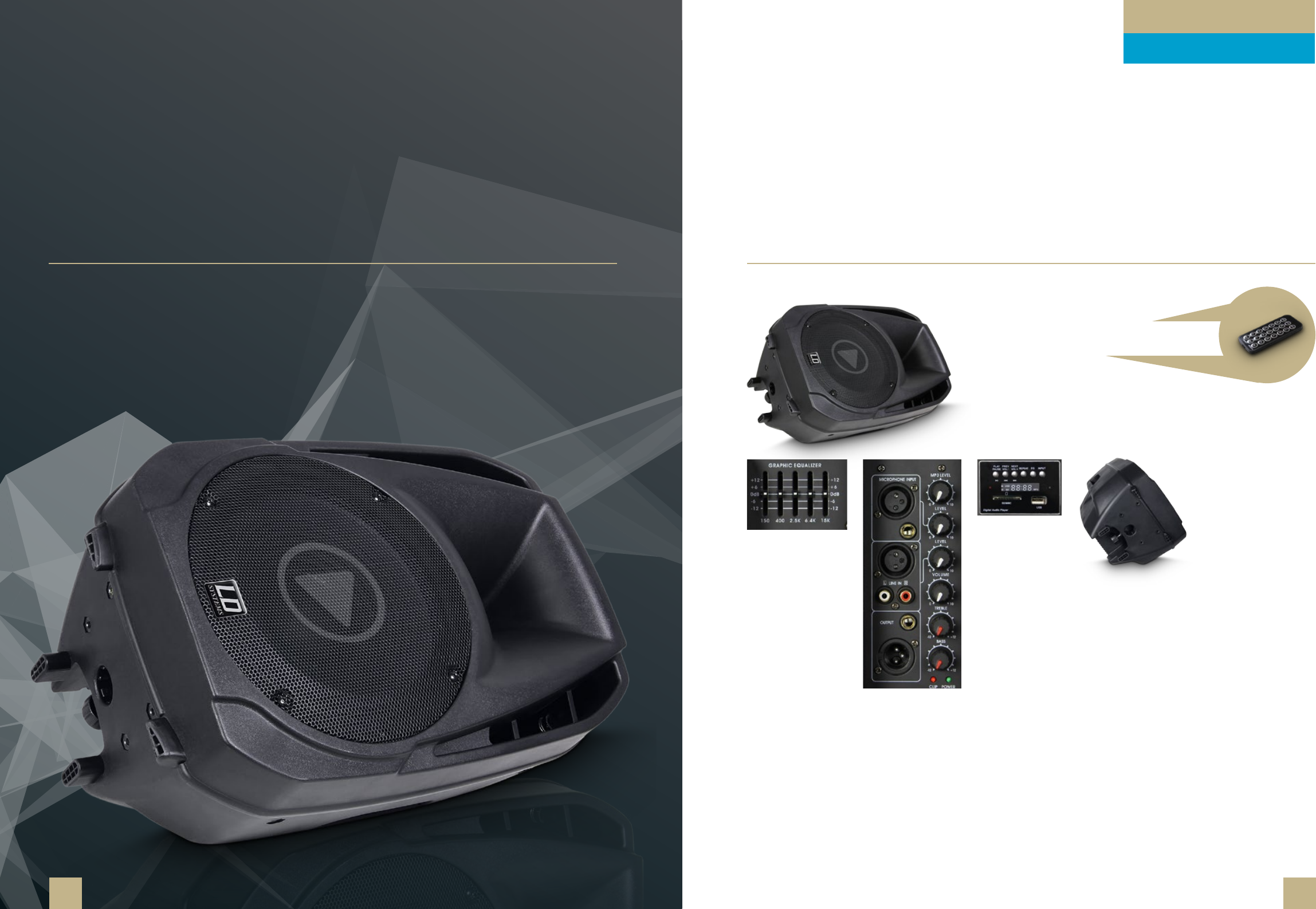

PLAY SERIES
ACTIVE PA SPEAKERS WITH MP3 PLAYER
With a wealth of features, class AB bi-amping and 1,000 watts peak output the PLAY Series loudspeakers are powerful universal sound stations.
Designed for a wide range of applications they sport dedicated microphone and line inputs and a built-in digital audio player with USB port, SD card slot and convenient
infrared remote control. The PLAY Series' individual level controls plus master volume, 2-band EQ and 5-band graphic EQ provide extensive mixing
and tone shaping facilities.
P
Bi-amped multi-purpose loudspeakers
P
Mic and line inputs plus built-in digital audio player
P
Comprehensive level and EQ control
P
The powerful all-in-one solution
PLAY SERIES
PA SPEAKERS
VERSATILE AND RUGGED
The active loudspeakers LDPLAY12A and
LDPLAY15A offer comprehensive connectivity and
setting possibilities for many types of applications
like school, kindergarten, church, sports eld,
multimedia presentation, party room and so on.
INCLUDING
REMOTE CONTROL!
READY TO PLAY
Simply plug in your
USB-stick or SD-card
and let the music play!
Connectivity for external
sound sources like
microphone, CD-player,
mixing board is also
integrated.
FULL CONTROL
Take control of your sound
with the integrated 5-band
graphic equalizer and the
infrared remote control.
EASY HANDLING
Ergonomic handles and a 35 mm
standard stand support complete
the extensive features of the
PLAY series.
56 57

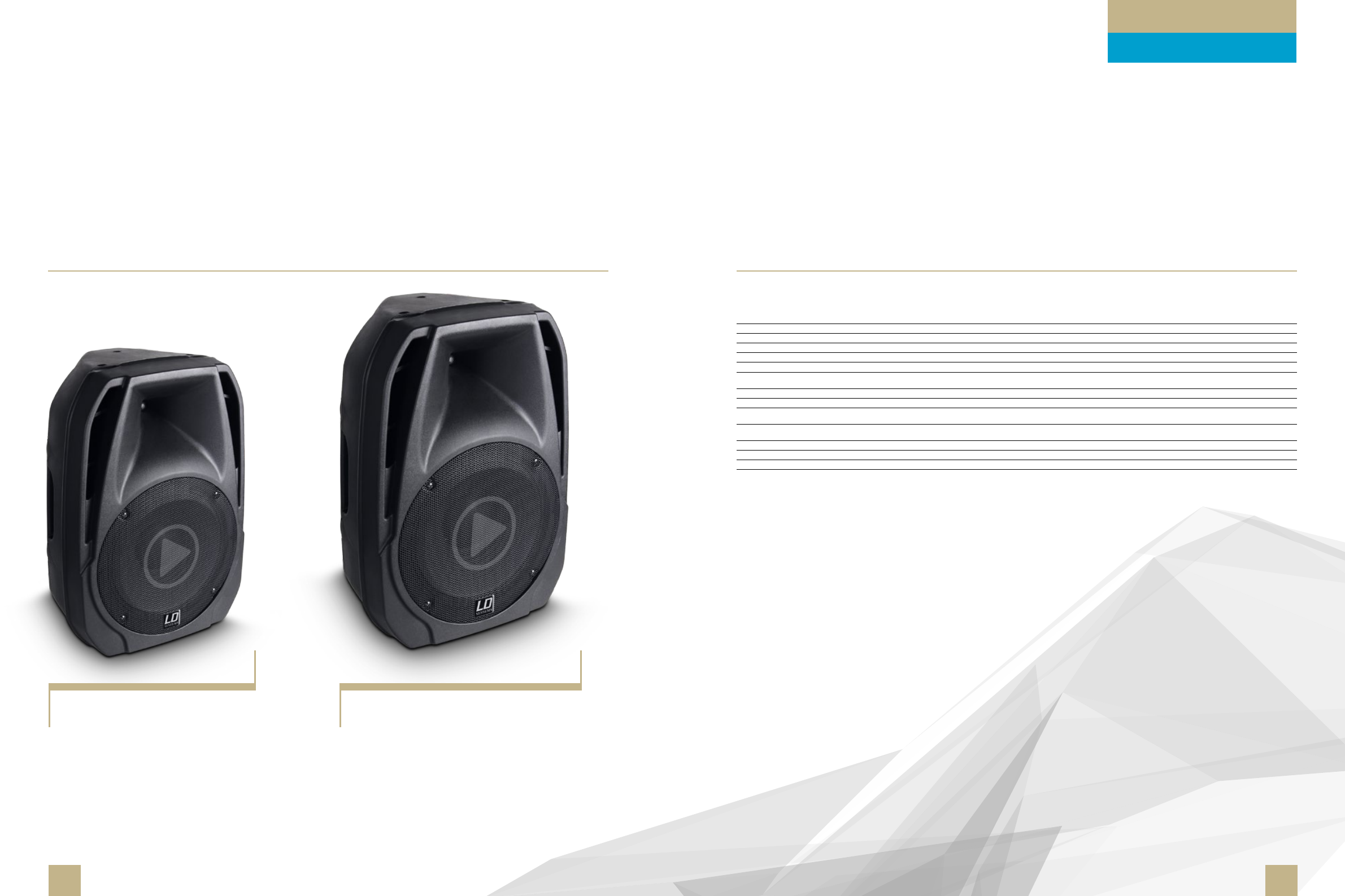

Model name: LDPLAY12A LDPLAY15A
Type: Active PA speaker Active PA speaker
Components: 12" woofer, 1,35" compression driver 15" woofer, 1,75" compression driver
Frequency range: 60 – 18,000 Hz 55 – 18,000 Hz
Power output (RMS / peak): 250 W / 1,000 W 300 W / 1,200 W
Max. SPL: 119 dB 121 dB
Controls: mp3 level, mic level, line level, master volume, treble, bass,
5-band master EQ
mp3 level, mic level, line level, master volume, treble, bass, 5-band master EQ
Indicators: Clip, power Clip, power
Dispersion: 90° x 45° 90° x 45°
Connectors: Input: mic (XLR, 6.3 mm Jack), line (XLR, 2 x RCA)
Output: line (XLR, 6.3 mm Jack)
Input: mic (XLR, 6.3 mm Jack), line (XLR, 2 x RCA)
Output: line (XLR, 6.3 mm Jack)
USB/SD-card-player controls: Power, setup, play/pause, mode, vol. up, vol. down, previous
track, next track
Power, setup, play/pause, mode, vol. up, vol. down, previous track, next track
USB/SD-card-player connectors:
USB, SD-card, infrared USB, SD-card, infrared
Cabinet material: PP PP
Dimensions (W x H x D): 425 x 640 x 365 mm 495 x 760 x 430 mm
Weight: 15.7 Kg 19.9 Kg
PLAY 12 A
12" PA SPEAKER ACTIVE
WITH MP3 PLAYER - 1000 W
PLAY 15 A
15" PA SPEAKER ACTIVE
WITH MP3 PLAYER - 1200 W
SPECIFICATIONS:
PLAY SERIES
PA SPEAKERS
PLAY SERIES
ACTIVE PA SPEAKERS WITH MP3 PLAYER
58 59
ROAD SERIES
BATTERY POWERED SPEAKERS
let the world be your stage!
ROAD SERIES
PORTABLE BATTERY POWERED ACTIVE PA SPEAKERS
Designed for maximum portability and versatility the battery powered ROAD Series loudspeakers shine in a wide range of mobile applications.
With advanced features such as MP3 or Bluetooth players with USB port, SD card slot and infrared remote control, integrated UHF wireless and comprehensive connectivity
the compact ROAD loudspeakers provide a perfect all-in-one solution. For easy coverage extension the series includes a selection of battery powered and passive slave
loudspeakers.
P
Battery powered all-in-one loudspeakers
P
Models with built-in Bluetooth players and UHF wireless
P
Slave loudspeakers for extended coverage
P
Maximum mobility with mains independent operation

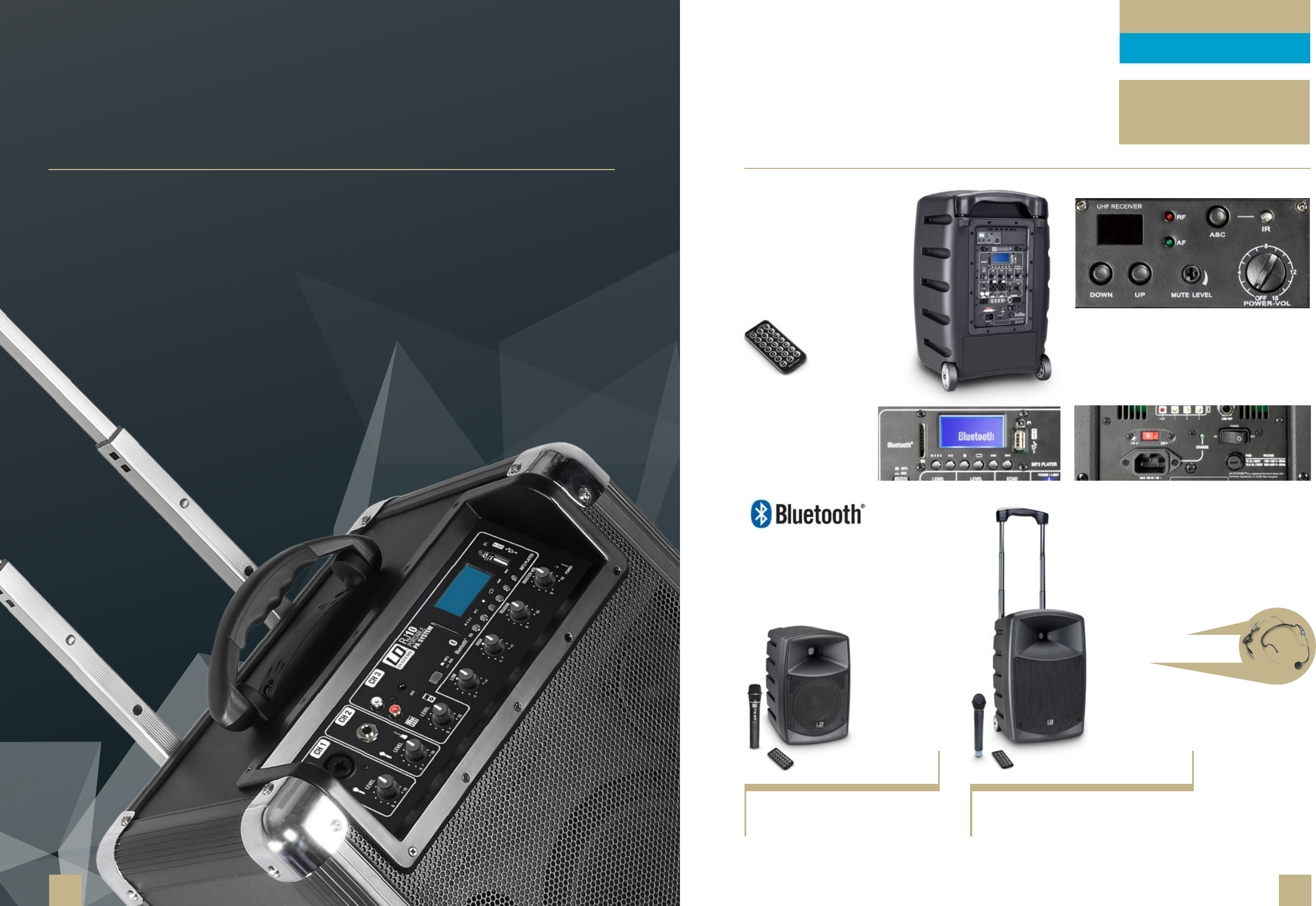

ROADBUDDY
BATTERY POWERED BLUETOOTH® LOUDSPEAKER
WITH MIXER AND WIRELESS MICROPHONE
CONNECT ALMOST
ANY AUDIO SOURCE
The integrated mixer sports three channels
with individual volume controls, a 2-band EQ
plus adjustable echo and master volume. It
delivers up to a stunning 480 watts of class
D peak power and comes in 6" and 10"
woofer versions.
LESS WIRE. MORE FREEDOM.
The Road Buddy incorporates an UHF receiver available with three different
frequency bands (863 – 865 Mhz // B5: 584 – 607 MHz // B6: 655 – 679
MHz) and features a slot for an additional unit available as accessory.
It comes with a choice of handheld or headset wireless microphones.
WIRELESS MICROPHONE AVAILABLE
WITH THREE FREQUENCY RANGES:
Standard: 863 - 865 MHz
B5: 584 - 607 MHz
B6: 655 - 679 MHz
TAKE IT EASY
The Road Buddy
speakers come with a
handy IR remote
control and convenient
pole mount insert.
VERSATILE MEDIA PLAYER
A major Road Buddy feature, the
built-in Bluetooth® player also supports
USB storage devices and SD cards
and includes multiple genre specic
presets for instant EQ adjustment.
ROADBUDDY 6
BATTERY POWERED BLUETOOTH LOUDSPEAKER
WITH MIXER AND WIRELESS MICROPHONE
200 W
ALSO AVAILABLE
WITH HEADSET MICROPHONE.
ROADBUDDY 10
BATTERY POWERED BLUETOOTH LOUDSPEAKER
WITH MIXER AND WIRELESS MICROPHONE
480 W
READY FOR TAKE OFF
A rechargeable battery pack provides up to 8 hours of continuous
operation. With built-in wheels and extension handles for carting
convenience the Road Buddy active 2-way systems take your
sound everywhere.
60 61
ROAD SERIES
BATTERY POWERED SPEAKERS
ROADJACK
BATTERY POWERED BLUETOOTH® SPEAKER
WITH MIXER
ALL-IN-ONE SPEAKER
The integrated mixer sports three channels
with individual volume controls, a 2-band
EQ plus adjustable echo and master volume.
CONNECT ALMOST ANY AUDIO SOURCE
One major feature is a built-in Bluetooth player which
permits wireless streaming to the system. It also
supports SD card and USB storage devices. The player
menu includes multiple genre specic presets for instant
EQ adjustment.
ULTRA MOBILE
A rechargeable battery pack
provides up to 20 hours of
continuous operation.
EASY OPERATION
The Road Jack speakers come
with a handy IR remote control
and convenient stand mount
insert.
READY TO GO
The Road Jack Series active
2-way system takes your sounds
anywhere. With built-in wheels
and extension handles for
carting convenience.
ROADJACK 8
ACTIVE 8" BATTERY BLUETOOTH LOUDSPEAKER
WITH MIXER - 100 W
ROADJACK 10
ACTIVE 10" BATTERY BLUETOOTH LOUDSPEAKER
WITH MIXER - 100 W
ROADBOY
BATTERY POWERED SPEAKER
WITH WIRELESS MICROPHONE
ULTRA VERSATILE
CD/MP3 Player with Gain and Tone Control, USB & SD
Input, 1 x UHF PLL 16 CHN Wireless Unit with dynamic
microphone (WS1616MD), optional with beltpack WS-
1616BP and headset-/lavaliere microphone available.
ULTRA EASY
1 x Mic In / Aux In / Aux Out,
2 x sound control (bass/
treble), Talkover function,
100 - 240 V external switch
mode power supply.
LESS WIRE.
MORE FREEDOM.
The RoadBoy incorporates
an UHF receiver available
with three different
frequency bands (863 -865
Mhz // B5: 584 – 607 MHz
// B6: 655 – 679 MHz) and
features a slot for an
additional unit available as
accessory.
It comes with a choice of
handheld or headset
wireless microphones.
ULTRA PORTABLE
Only 5 kg, built in 12 V / 2.9 Ah rechargeable battery, runs
up to 5 hours, built in 25 W RMS amplier, external output
for passive box.
ROADBOY 65
ACTIVE PORTABLE PA SPEAKER
WITH HANDHELD MICROPHONE
100 W
ROADBOY 65 HS
ACTIVE PORTABLE PA SPEAKER
WITH HEADSET MICROPHONE
100 W
ROADBOY 65 SP
PASSIVE SLAVE SPEAKER
100 W
WIRELESS MICROPHONE AVAILABLE
WITH THREE FREQUENCY RANGES:
Standard: 863 - 865 MHz
B5: 584 - 607 MHz
B6: 655 - 679 MHz
62 63

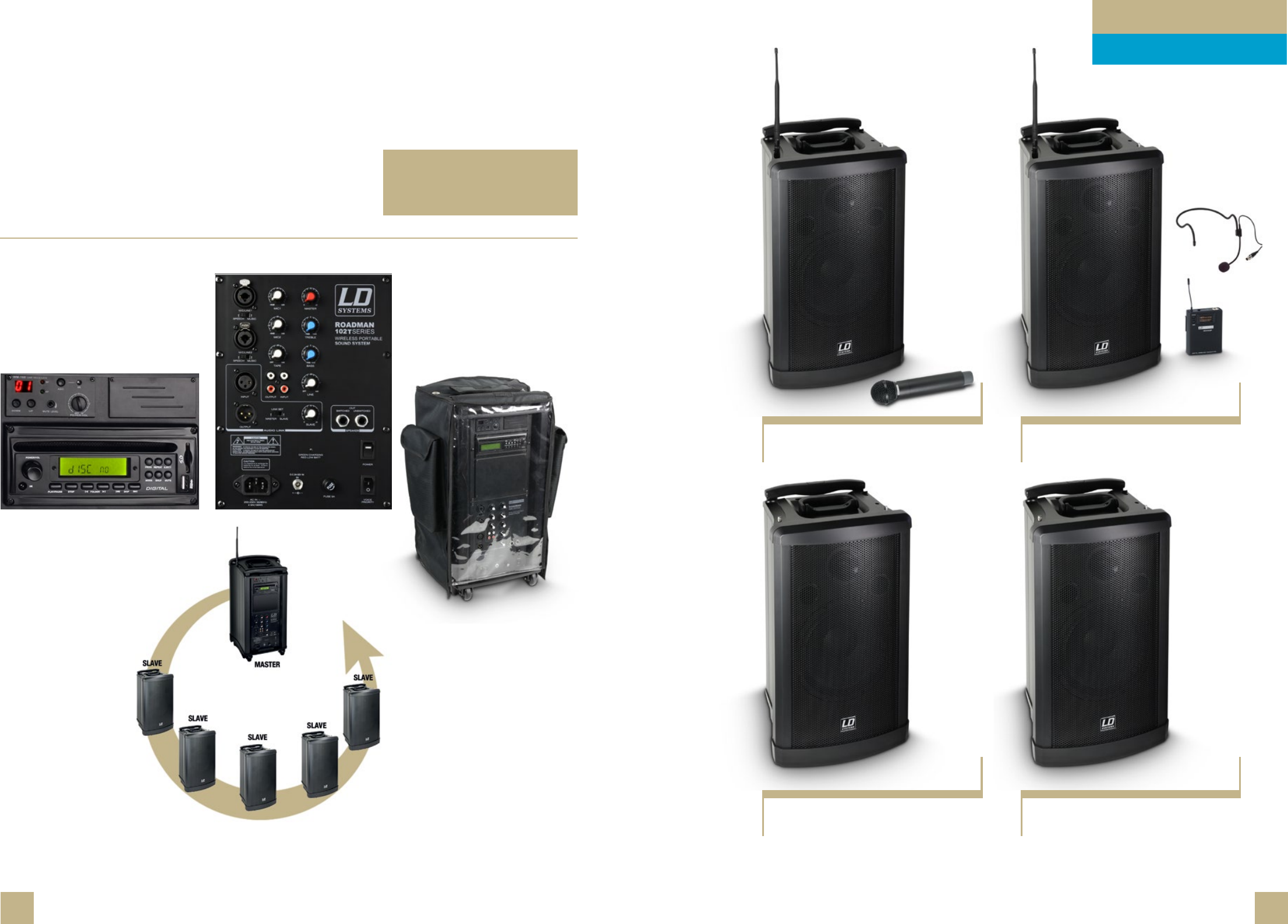

ROADMAN
BATTERY POWERED SPEAKER
WITH WIRELESS MICROPHONE
ROADMAN 102
PORTABLE PA SPEAKER
WITH HANDHELD MICROPHONE - 320 W
ROADMAN 102 SP
PASSIVE SLAVE SPEAKER
320 W
ROADMAN 102 HS
PORTABLE PA SPEAKER
WITH HEADSET MICROPHONE - 320 W
ROADMAN 102 SL
ACTIVE SLAVE SPEAKER
320 W
PROFESSIONAL AUDIO
CONNECTIONS & CONTROLS
XLR / Jack Combo input for two wired microphones
or two Line signal sources (Line / Mic switch), Line
in & out on RCA.
LESS WIRE. MORE FREEDOM.
The RoadMan incorporates an UHF receiver available with
three different frequency bands (863 -865 Mhz // B5: 584
– 607 MHz // B6: 655 – 679 MHz) and features a slot for
an additional unit available as accessory. It comes with a
choice of handheld or headset wireless microphones.
SCALE YOUR SYSTEM
You can extend your Roadman system with up to
7 active slave speakers. With the passive slave
speaker you can extend your system to a 2-piece
system.
VERSATILITY CHAMPION
The Roadman comes with a CD/MP3/USB/SD Player
as well as a wireless microphone unit with handheld mic.
A second wireless microphone unit is also available
in option.
WIRELESS MICROPHONE AVAILABLE
WITH THREE FREQUENCY RANGES:
Standard: 863 - 865 MHz
B5: 584 - 607 MHz
B6: 655 - 679 MHz
ROAD SERIES
BATTERY POWERED SPEAKERS
64 65
ROAD SERIES
PORTABLE BATTERY POWERED ACTIVE PA SPEAKERS
SPECIFICATIONS ROADBUDDY:SPECIFICATIONS ROADJACK:SPECIFICATIONS ROADBOY:SPECIFICATIONS ROADMAN:
AVAILABLE ACCESSORIES
Roadboy 65 B Transport Bag for LDRB65 and LDRB65HS
AVAILABLE ACCESSORIES
Roadman 102 BAG Protective Cover for LDRM102 Portable PA Speaker
AVAILABLE ACCESSORIES
ROADBUDDY 10 PC Protective cover for LD Roadbuddy 10
AVAILABLE ACCESSORIES
ROADJACK 8 PC Protective covers for LDRJ8
ROADJACK 10 PC Protective covers for LDRJ10
ROAD SERIES
BATTERY POWERED SPEAKERS
Product number: LDRJ10 LDRJ8
Product type: Portable PA Speaker Portable PA Speaker
Type: active active
Low/mid driver dimensions: 10" 8"
Woofer magnet: Ferrite Ferrite
Woofer brand: Custom-made Custom-made
HF driver dimensions: (broad band) 3" (broad band) 3"
HF driver magnet: Ferrite Ferrite
HF driver brand: Custom-made Custom-made
Amplier: Class D Class D
RMS: 25 W 25 W
Peak power: 100 W 100 W
Frequency response: 65 - 18,000 Hz 90 - 18,000 Hz
Max. SPL: 117 dB 113 dB
Protection circuits: over-current, short circuit, overload
protection
short circuit, over-current, overload
protection
Controls: CD / Tape IN Level, low, Mic 1 Level,
Mic 2 Level, Master Volume, AUX / MP3
switch, Echo, high
Master Volume, Mic 2 Level, CD
/ Tape IN Level, high, low, Mic 1
Level, Echo, AUX / MP3 switch
Indicators: Power, Charge/battery status Charge/battery status, Power
Media player
Supported media: Bluetooth, SD Card, USB stick USB stick, Bluetooth, SD Card
Supported formats: MP3 le, WMA le WAV, WMA le, MP3 le
Media player controls: Play / Pause, Repeat, Next Track, Mode
(Menu / Bluetooth /SD / USB), Stop,
Previous Track
Play / Pause, Repeat, Next Track,
Mode (Menu / Bluetooth /SD / USB),
Stop, Previous Track
Media player display elements: Lighted multifunctional LC display Lighted multifunctional LC display
Line inputs: 1 1
Line input connectors: 2 x RCA, 3.5 mm jack 2 x RCA, 3.5 mm jack
Mic inputs: 2, XLR / 6.3mm Jack Combo 2, XLR / 6.3mm Jack Combo
Operating voltage: Switching Power Supply, 100 V - 120 V
/ 60 Hz, 220 V - 240 V AC / 50 Hz
Switching Power Supply, 100
V - 120 V / 60 Hz, 220 V - 240 V
AC / 50 Hz
Rechargeable batteries: 12 V / 5 Ah 12 V / 5 Ah
Cabinet material: 15 mm MDF 15 mm MDF
Cabinet construction: vented vented
Dimensions (W x H x D): 415 mm x 525 mm x 328 mm 385 mm x 450 mm x 298 mm
Weight: 16.2 kg 13.8 kg
Other features: Stand mount 36 mm, IR remote for
media player, transport casters,
transport handle, extendable handle
Extendable handle, transport han-
dle, transport casters, IR remote for
media player, stand mount 36 mm
Product number: LDRBUD10 / HS LDRBUD6 / HS
Product type: mobile PA speaker mobile PA speaker
Type: active active
Low/mid driver dimensions: 10" 6"
Woofer magnet: Ferrite Ferrite
Woofer brand: Custom-made Custom-made
HF driver dimensions: 1" 1"
HF driver magnet: Ferrite Ferrite
HF driver brand: Custom-made Custom-made
Amplier: Class D Class D
RMS: 120 W 50 W
Peak power: 480 W 200 W
Frequency response: 55 - 18,000 Hz 110 - 18,000 Hz
Max. SPL: 115 dB 120 dB
Protection circuits: overvoltage, short circuit,
limiters, DC
overvoltage, short circuit, limiters,
DC
Controls: AUX / MP3 Switch, High, Low,
Master Volume, Mic 2 Level,
Mic 1 Level, CD / Tape IN
Level, Echo
AUX / MP3 Switch, High, Low,
Master Volume, Mic 2 Level, Mic 1
Level, CD / Tape IN Level, Echo
Indicators: power, charge/battery status power, charge/battery status
Media player
Supported media: USB stick, Bluetooth, SD card USB stick, Bluetooth, SD card
Supported formats: MP3, WMA, WAV MP3, WMA, WAV
Media player controls: Stop, Next track, Previous
track, Repeat, Mode (Menu /
Bluetooth / SD / USB), Play /
Pause, Equalizer
Stop, Next track, Previous track,
Repeat, Mode (Menu / Bluetooth /
SD / USB), Play / Pause, Equalizer
Media player display elements: Lighted multifunctional LC
display
Lighted multifunctional LC display
Line inputs: 1 1
Line input connectors: 3.5 mm jack, 2 x RCA, 2 x
XLR, 6.3 mm jack
3.5 mm jack, 2 x RCA, 2 x XLR, 6.3
mm jack
Mic inputs: 2, XLR, 6.3 mm jack 2, XLR, 6.3 mm jack
Wireless Unit
Radio Frequency Range Standard: 863 - 865 MHz
B5: 584 - 607 MHz
B6: 655 - 679 MHz
Standard: 863 - 865 MHz
B5: 584 - 607 MHz
B6: 655 - 679 MHz
Modulation Type analogue FM analogue FM
Channels 16 16
Frequency Response 50 - 17,000 Hz 50 - 17,000 Hz
Controllers Power/Volume, Value Up,
Value Down, ASC, MUTE-Level
(squelch)
Power/Volume, Value Up, Value
Down, ASC, MUTE-Level (squelch)
Indicators LED display, RF (LED), AF
(LED)
LED display, RF (LED), AF (LED)
Connections TNC for receiver antenna TNC for receiver antenna
RF Transmitter Power Output 10 mW 10 mW
Operating voltage: Switching Power Supply, 100
V - 120 V / 60 Hz, 220 V - 240
V AC / 50 Hz
Switching Power Supply, 100 V - 120
V / 60 Hz, 220 V - 240 V AC / 50 Hz
Rechargeable batteries: 12 V / 5 Ah 12 V / 5 Ah
Cabinet material: PP black PP black
Cabinet construction: bass reex bass reex
Dimensions (W x H x D): 415 mm x 525 mm x 328 mm 245mm x 377mm x 205mm
Weight: 16.5 kg 5.6 kg
Other features: IR remote control for media
player, carrying handle, 36
mm tripod ange, pull-out
handle, castor wheels
IR remote control for media player,
carrying handle, 36 mm tripod
ange, pull-out handle, castor
wheels
Product number: LDRB65/HS
Product type: Portable PA Speaker
Type: active
Low/mid driver dimensions: 6.5"
Woofer magnet: Ferrite
Woofer brand: Custom-made
Amplier: Class D
RMS: 25 W
Peak power: 100 W
Frequency response: 80 - 15,000 Hz
SPL (1W/1m): 93 dB
Max. SPL: 110 dB
Protection circuits: short circuit
Controls: Master, Voice priority on / off, Line Gain, Bass, Treble, Power, Mic Gain
Indicators: Charge/battery status, Power
Media player
Supported media: CD-R/W, SD Card, CD-R, Audio-CD, USB stick
Supported formats: WMA-CD, MP3-CD, MP3 le, WMA le, Audio-CD
Media player controls: Program, Folder -, Shufe, Power / Volume, Previous Track, Next
Track, Mode (CD / SD / USB), Folder +, Repeat, mute, Play / Pause, CD
ejector, Stop
Media player display elements: Lighted multifunctional LC display
Line inputs: 2
Line input connectors: RCA
Mic inputs: 1, 6.3 mm Jack
Line outputs: 2
Line output connectors: RCA
Loudspeaker outputs: 1
Speaker output connections: 6.3 mm Jack
Wireless Unit
Radio Frequency Range Standard: 863 - 865 MHz
B5: 584 - 607 MHz
B6: 655 - 679 MHz
Modulation Type analogue FM
Channels 16
Frequency Response 50 - 17.000 Hz
Controllers Power/Volume, Value Up, Value Down, ASC, MUTE-Level (squelch)
Indicators LED display, RF (LED), AF (LED)
Connections TNC for receiver antenna
RF Transmitter Power Output 10 mW
Operating voltage: External 100- 240 V AC switch mode power supply, 15 - 18 V DC, 3 A
Rechargeable batteries: 12 V / 2.6 AH
Cabinet material: polypropylene
Cabinet construction: vented
Dimensions (W x H x D): 200 mm x 300 mm x 230 mm
Weight: 6 kg
Other features: 16 mm stand mount, transport handle
Product number: LDRM102/HS
Product type: Portable PA Speaker
Type: active
Low/mid driver dimensions: 10"
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1"
HF driver magnet: Ferrite
HF driver brand: Custom-made
Amplier: Class D
RMS: 80 W
Peak power: 320 W
Frequency response: 70 - 16,000 Hz
SPL (1W/1m): 95 dB
Max. SPL: 115 dB
Protection circuits: short circuit
Controls: Power, Line Gain, Treble, Master, Audio-link slave volume, Speech /
music switch (Mic / Line 1), Tape volume, Value Down, Voice priority on /
off, Volume Mic 2, Volume Mic 1, Audio-link set (master / slave), Speech
/ music switch (Mic / Line 2), Bass
Indicators: Power, Charge/battery status
Media player
Supported media: USB stick, CD-R/W, CD-R, SD Card, Audio-CD
Supported formats: MP3-CD, Audio-CD, WMA-CD, WMA le, MP3 le
Media player controls: mute, Mode (CD / SD / USB), Previous Track, Stop, Play / Pause, CD
ejector, Power / Volume, Program, Folder +, Folder -, Next Track, Repeat,
Shufe
Media player display elements: Lighted multifunctional LC display
Line inputs: 3
Line input connectors: 2 x RCA, Audio-link input XLR, female
Mic inputs: 2, XLR, 6.3 mm Jack
Line outputs: 3
Line output connectors: 2 x RCA, Audio-link output XLR, male
Loudspeaker outputs: Speaker Out Unswitched, Speaker Out Switched
Speaker output connections: 6.3 mm Jack
Wireless Unit
Radio Frequency Range Standard: 863 - 865 MHz
B5: 584 - 607 MHz
B6: 655 - 679 MHz
Modulation Type analogue FM
Channels 16
Frequency Response 50 - 17.000 Hz
Controllers Power/Volume, Value Up, Value Down, ASC, MUTE-Level (squelch)
Indicators LED display, RF (LED), AF (LED)
Connections TNC for receiver antenna
RF Transmitter Power Output 10 mW
Operating voltage: transformer, 24 V DC - 32 V DC (5A), 200 V AC - 250 V AC
Rechargeable batteries: 2 x 12 V / 4.5 AH
Cabinet material: aluminium, plastic
Cabinet construction: vented
Dimensions (W x H x D): 355 mm x 610 mm x 315 mm
Weight: 19 kg
Other features: Stand mount 36 mm, audio-link function, cassette player available
optionally, transport handle, transport bag available optionally,
additional radio receiver (LDRM102R) available optionally, trolley handle,
transport casters
66 67

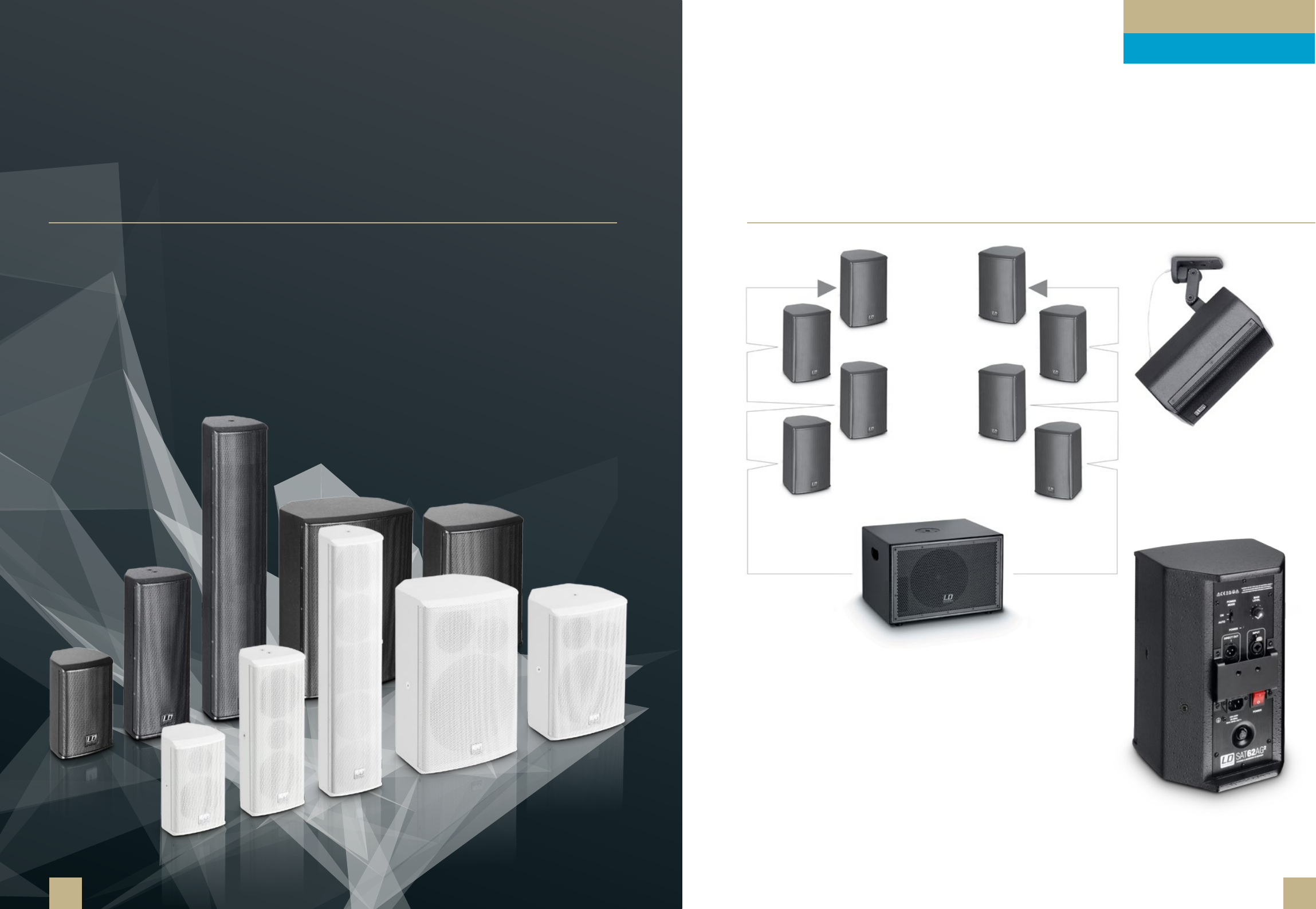

SAT G2 SERIES
INSTALLATION SPEAKERS
black or white – they rock your world!
SAT G2 SERIES
INSTALLATION SPEAKERS & SUBWOOFERS
With clean, straightforward aesthetics, the SAT G2 Series installation loudspeakers and subwoofers t into virtually any decor. Available in black or white and self-powered
or passive versions, they are eminently suitable for a wide variety of commercial and residential installations. Delivering outstanding sound and powerful performance
the SAT G2 Series installation loudspeakers are engineered for reliable operation and durability. The rugged enclosures feature multiple suspension points for a choice
of mounting options.
P Self-powered and passive installation loudspeakers and subwoofers
P Wide range of formats including elegant slimline models
P Unobtrusive aesthetics
P Easy integration into virtually any decor
SPEAKERS TO LOOK UP TO
The 12 mm MDF cabinet with a rugged textured
coating is available in black and white. The included
mounting bracket and M6 rigging points offer
extensive possibilities for mounting; a universal joint
mount is available as an accessory.
PROVEN TECHNOLOGY FOR OPTIMAL RELIABLITY
The series is based on proven technologies offering maximum reliability and durability.
The class AB amplied active versions feature a switchable power saving mode that
automatically switches to standby if there is no signal for 3 minutes. The SAT G² series
features a warm and rich sound, highly balanced and dynamic throughout the complete
frequency range and offers stunning sound pressure levels.
FULLY SCALABLE SOLUTIONS
The LD systems SAT G² series consists of elegant bass-reex installation monitors and subwoofers that can be
unobtrusively integrated into almost any environment. With 13 fullrange speakers and 3 subwoofers you can
scale your system from the smallest shelf speaker application up to complete lounge club sound reinforcement
solutions.
68 69
SAT G2 SERIES
INSTALLATION SPEAKERS
SAT 42 G2 (W)
4" INSTALLATION SPEAKER
60 W
SAT 242 G2 (W)
2 x 4" INSTALLATION SPEAKER
100 W
SAT 102 G2 (W)
10" INSTALLATION SPEAKER
200 W
SAT 122 G2 (W)
12" INSTALLATION SPEAKER
250 W
SAT 442 G2 (W)
4 x 4" INSTALLATION SPEAKER
200 W
SAT 262 G2 (W)
2 x 6.5" INSTALLATION SPEAKER
180 W
SAT 62 G2 (W)
6.5" INSTALLATION SPEAKER
80 W
SAT 62 A G2 (W)
6.5" ACTIVE INSTALLATION SPEAKER
50 W
SAT 82 G2 (W)
8" INSTALLATION SPEAKER
120 W
SAT G2 SERIES
INSTALLATION SPEAKERS
SAT 82 A G2 (W)
8" ACTIVE INSTALLATION SPEAKER
80 W
SUB 88
INSTALLATION SUBWOOFER
2 x 100 W
SUB 10 A
ACTIVE INSTALLATION SUBWOOFER
3 x 120 W
SUB 88 A
ACTIVE INSTALLATION SUBWOOFER
150 W
70 71
Model name:
LDSAT42G2(W) LDSAT242G2(W) LDSAT262G2(W) LDSAT442G2(W)
Frequency range:
75 Hz - 20 kHz 75 Hz - 20 kHz 65 Hz - 19 kHz 75 Hz - 20 kHz
Rated system power (RMS / peak): 60 W / 240 W 100 W / 400 W 180 W / 360 W 200 W / 400 W
Sensitivity (1W/ 1m): 85 dB 88 dB 93 dB 94 dB
Max. SPL: 103 dB 108 dB 116 dB 114 dB
Impedance: 16 Ω 8 Ω 8 Ω 8 Ω
LF / HF transducer: 4" / 1" silk dome tweeter 2 x 4" / 1" silk dome tweeter 2 x 6.5" / 1" compression driver 4 x 4" / 1" compression driver with waveguide
Dispersion: 60° x 60° 60° x 60° 80° x 60° 120° x 30°
Connectors: Clamp-type Clamp-type Terminal block Clamp-type
Dimensions (W x H x D): 140 x 230 x 125 mm 140 x 378 x 135 mm 200 x 630 x 205 mm 140 x 670 x 155 mm
Weight: 2.5 kg 4.15 kg 9.8 kg 8 kg
Features:
M6 rigging / mounting points, mounting
brackets
M6 rigging / mounting points, mounting
brackets
Prepared for U-frame wall mount, prepared
for Gravity® Stands multipurpose wall
mount, 4x M8 ying points
M6 rigging / mounting points, mounting brackets
Model name:
LDSAT62G2(W)
LDSAT62AG2(W)
LDSAT82G2(W) LDSAT82AG2(W)
Frequency range:
55 Hz - 20 kHz 55 Hz - 20 kHz 50 Hz - 20 kHz 50 Hz - 20 kHz
Rated system power (RMS / peak): 80 W / 320 W 50 W / 200 W 120 W / 480 W 80 W / 40 W
Sensitivity (1W/ 1m): 89 dB 89 dB 93 dB 94 dB
Max. SPL: 108 dB 108 dB 114 dB 114 dB
Impedance: 16 Ω - 8 Ω 8 Ω
LF / HF transducer: 6,5" / 1" silk dome tweeter 6,5" / 1" silk dome tweeter 8" / 1" silk dome tweeter 8" / 1" silk dome tweeter
Dispersion: 60° x 60° 60° x 60° 60° x 60° 60° x 60°
Connectors: Clamp-type Input: XLR / 6.3 mm jack, output: XLR Clamp-type XLR / jack
Dimensions (W x H x D): 200 x 320 x 200 mm 200 x 320 x 200 mm 274 x 410 x 243 mm 274 x 410 x 243 mm
Weight: 4.1 kg 5.25 kg 7 kg 8.6 kg
Features:
M6 rigging / mounting points, brackets M6 rigging / mounting points, brackets,
auto power / OFF switchable, protection
circuits against overcurrent
M6 rigging / mounting points, brackets Protection circuits against overcurrent, switcha-
ble power saving mode, M6 rigging / mounting
points, mounting brackets
Model name:
LDSAT102G2(W) LDSAT122G2(W)
Frequency range:
65 Hz - 19 kHz 60 Hz - 19 kHz
Rated system power (RMS / peak): 200 W / 400 W 250 W / 500 W
Sensitivity (1W/ 1m): 95 dB 97 dB
Max. SPL: 118 dB 121 dB
Impedance: 8 Ω 8 Ω
LF / HF transducer: 10" / 1" compression driver 12" / 1" compression driver
Dispersion: 80° x 60° 80° x 60°
Connectors: Terminal block Terminal block
Dimensions (W x H x D): 300 x 550 x 270 mm 350 x 580 x 310 mm
Weight: 12.2 kg 16.3 kg
Features:
Prepared for U-frame wall mount, prepared for Gravity® Stands multipurpose wall
mount, 4x M8 ying points
Prepared for U-frame wall mount, prepared for Gravity® Stands multipurpose wall mount,
4x M8 ying points
Model name:
LDSUB88 LDSUB88A LDSUB10A / bass reex
Frequency range: 40 Hz - 120 Hz 40 Hz - 120 Hz 40 Hz - 120 Hz
Power (RMS / peak): 2 x 100 W / 2 x 400 W 150 W / 600 W 3 x 120 W ( 120 W for subwoofer + 2 x 120 W for external speakers) / 3 x 480 W (480
W for subwoofer + 2 x 480 W for external speakers)
Sensitivity (1W/ 1m): 92 dB - -
Max. SPL: 115 dB 115 dB 118 dB
Impedance: 2 x 8 Ω - -
LF transducer: 2 x 8" 2 x 8" 10"
Connectors: Clamp-type (2x input / 2x output) Input: XLR / 6.3 mm jack
Input: line In: 2 x XLR/ 6.3 mm jack (combo)
output: binding post
Controls: -
Volume, 180° phase switch, Sub crossover Volume, subwoofer level, 180° phase switch
Protection: - Overload Short circuit, over current, clip limiter
Dimensions (W x H x D): 600 x 250 x 350 mm 600 x 250 x 350 mm 505 x 345 x 425 mm
Weight: 13.3 kg 15 kg 21 kg
Features: - Sub X-Over frequency, sub phase reverse Handles, M20 threaded ange
SPECIFICATIONS SPEAKERS:SPECIFICATIONS SUBWOOFERS:
AVAILABLE ACCESSORIES
SAT WMB 10 B Wall mount for speakers black
SAT WMB 10 W Wall mount for speakers white
SAT 262 G2 WMB Swivel wall mount bracket for SAT262G2 black
SAT 262 G2 WMB W Swivel wall mount bracket for SAT262G2W white
SAT 102 G2 WMB Swivel wall mount bracket for SAT102G2 black
SAT 102 G2 WMB W Swivel wall mount bracket for SAT102G2W white
SAT 122 G2 WMB Swivel wall mount bracket for SAT122G2 black
SAT 122 G2 WMB W Swivel wall mount bracket for SAT122G2 black
GSP WMB S20 B Swivel & tilt wall mount bracket for SAT262G2, SAT102G2, SAT122G2 black
GSP WMB S20 W Swivel & tilt wall mount bracket for SAT262G2W, SAT102G2W, SAT122G2W white
SAT G2 SERIES
INSTALLATION SPEAKERS
72 73
invisible audio.
CONTRACTOR® SERIES
PROFESSIONAL INSTALLATION SPEAKERS
Sporting straightforward, elegant aesthetics, the Contractor® Series loudspeakers are the ideal choice for discreet audio installations requiring balanced music playback and
high speech intelligibility at budget prices.
The series comprises white in-ceiling and in-wall speakers, frameless in-wall speakers and wall mount speakers from 4" to 6.5" in black and white. For distributed systems,
all models are available in 100 V versions. Providing solid low-end extension down to 40 Hz, the LD Systems Contractor® Series includes a 10" in-wall subwoofer. It also
features a dedicated outdoor loudspeaker.
The uniform appearance of the Contractor® Series installation loudspeakers allows for easy mixing and matching in restaurants, bars, hotel or theater lobbies and retail outlets.
P
Installation loudspeakers with plain, uniform aesthetics
P
In-ceiling, in-wall, frameless and wall mount models
P
100V versions available
CONTRACTOR® SERIES
INSTALLATION SPEAKERS
CONTRACTOR® SERIES
IN-WALL AND IN-CEILING SPEAKERS
WALLS HAVE MOUTHS
With almost ush tting grilles and
shallow depths Contractor
loudspeakers enable easy and discreet
installation in walls and ceilings.
ENVIRONMENTAL
EQUALIZER
3-position switch for
HF response adjustment
and -3, 0 and +3 dB
settings.
100 V TRANSFORMER
Contractor Series loudspeakers are available in 100V
versions with taps from 1.5 to 24W for distributed systems.
SECURE AND EASY
MOUNTING
Quick-turn dog-ear clamps
facilitate safe and
trouble free installation.
CFL 52 / 100V
5.25" FRAMELESS 2-WAY
IN-WALL SPEAKER -
40 W
CIWS 52 / 100V
5.25" 2-WAY IN-WALL SPEAKER -
40 W CIWS 62 / 100V
6.5" 2-WAY IN-WALL SPEAKER -
60 W CIW SUB 10
10" IN-WALL SUBWOOFER -
150 W
CICS 52 / 100V
5.25" 2-WAY
IN-CEILING SPEAKER -
40 W
CFL 62 / 100V
6.5" FRAMELESS 2-WAY
IN-WALL SPEAKER -
60 W
CICS 62 / 100V
6.5" 2-WAY
IN-CEILING SPEAKER -
60 W
74 75
CONTRACTOR® SERIES
INSTALLATION SPEAKERS

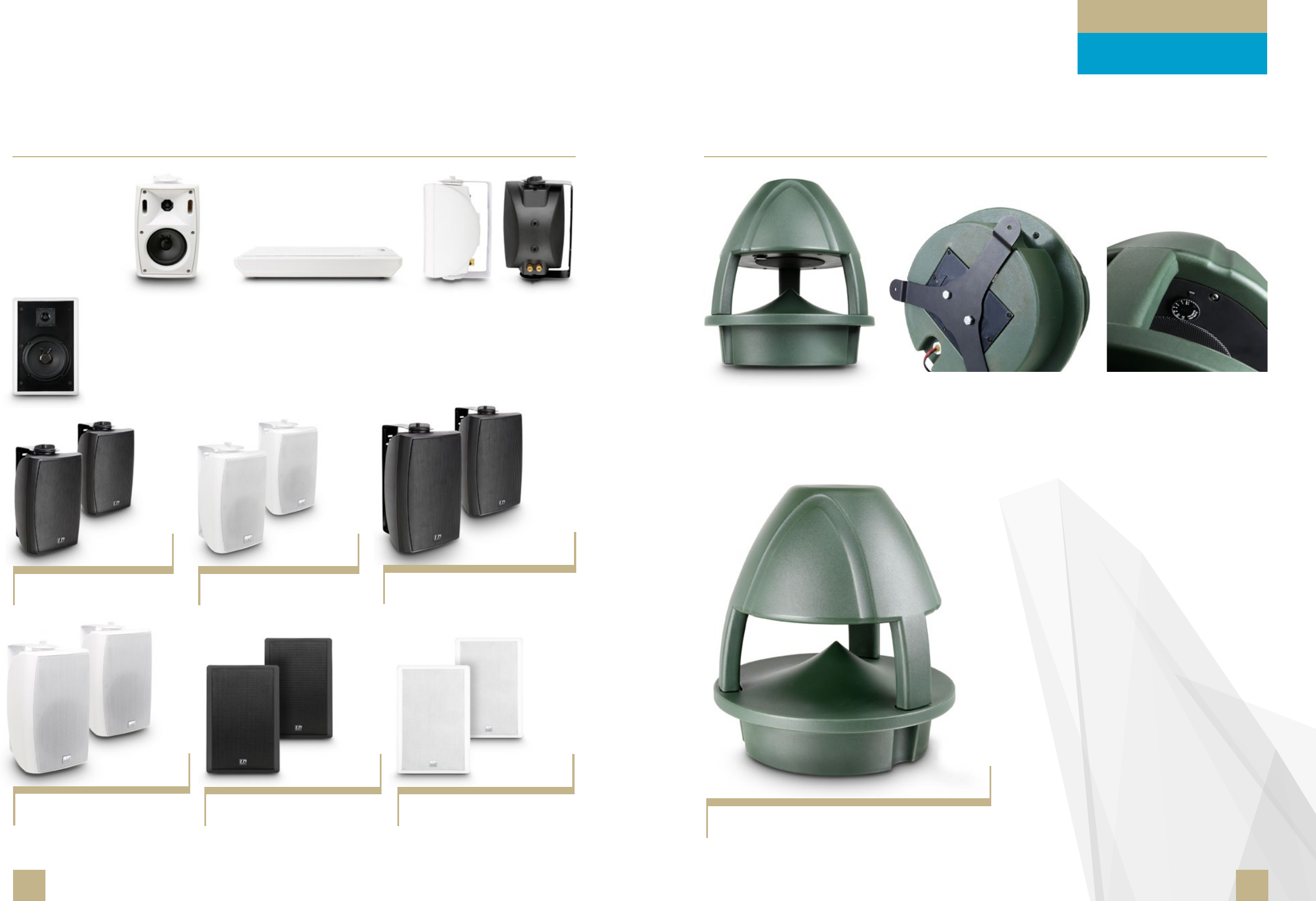

CONTRACTOR® SERIES
2-WAY WALL MOUNT SPEAKERS
THE ULTIMATE
ALLROUNDERS
The wall mount speaker series
is designed for a wide range of
unobtrusive audio installations
in hotels, restaurants, bars,
lounges, training and confer-
ence rooms, shopping centres
and for home use.
FLEXIBLE MOUNTING
The included bracket provides universal options for
speaker mounting and orientation.
COVERING ALL
INSTALLATION APPLICATIONS
This stylish speaker is designed for a wide scope of applications,
providing a subtle sound in hotels, restaurants, bars, lounges, training
and conference rooms, shopping centres and even at home.
IS THIS A TABLET?
No, this is an ultra thin wall mount loudspeaker with
attractive looks and a depth of only 37 mm. FULLY SCALABLE
Contractor Series
loudspeakers are
available in 100V
versions for
distributed systems.
CWMS 42 B / 100V
4" 2-WAY WALL MOUNT SPEAKER -
40 W
CWMS 52 B / 100V
5.25" 2-WAY WALL MOUNT SPEAKER -
30 W
CWMSS 5 B / 100V
5.25" 2-WAY WALL MOUNT SPEAKER FLAT -
30 W
CWMS 42 W / 100V
4" 2-WAY WALL MOUNT SPEAKER -
40 W
CWMS 52 W / 100V
5.25" 2-WAY WALL MOUNT SPEAKER -
30 W CWMSS 5 W / 100V
5.25" 2-WAY WALL MOUNT SPEAKER FLAT -
30 W
CONTRACTOR® SERIES
OUTDOOR SPEAKERS
THE ART OF CAMOUFLAGE
The COGS 52 is a rugged outdoor speaker in army
green with an IP56 rating.
LOCK IT UP
To rmly anchor the speaker in the ground, two M8 inserts
on the base can be used to attach an optionally available
mounting bracket (LDCOGS52MB).
ADAPTIVE INPUT
The speaker features a 7-way switch for easy
transformer tap selection.
COGS 52
5.25" OUTDOOR GARDEN SPEAKER
76 77
CONTRACTOR® SERIES
INSTALLATION SPEAKERS
SPECIFICATIONS:
CONTRACTOR® SERIES
INSTALLATION SPEAKERS
Product number: LDCFL52 LDCFL52100V LDCFL62 LDCFL62100V LDCICS52
LDCICS52100V
LDCICS62
LDCICS62100V
LDCIWS52
LDCIWS52100V
LDCIWS62
LDCIWS62100V
LDCIWSUB10
Type: Passive
frameless
ceiling
speaker
Passive
frameless
ceiling
speaker
Passive
frameless
ceiling
speaker
Passive
frameless
ceiling
speaker
Passive
ceiling
speaker
Passive
ceiling
speaker
Passive
ceiling
speaker
Passive
ceiling
speaker
Passive
in-wall
rectangular
speaker
Passive
in-wall
rectangular
speaker
Passive
in-wall
rectangular
speaker
Passive
in-wall
rectangular
speaker
Passive in-wall
subwoofer
Speaker type: 2-way
speaker
2-way
speaker
2-way
speaker
2-way
speaker
2-way
speaker
2-way
speaker
2-way
speaker
2-way
speaker
2-way
speaker
2-way
speaker
2-way
speaker
2-way
speaker
Subwoofer
Colour: black, white
grille
white grille,
black
white grille,
black
black, white
grille
white white white white white white white white white
Woofer dimensions: 5.25" 5.25" 6.5" 6.5" 5.25" 5.25" 6.5" 6.5" 5.25" 5.25" 6.5" 6.5" 10"
Tweeter dimensions: 1.2" 1.2" 1.2" 1.2" 1.2" 1.2" 1.2" 1.2" 1.42" 1.42" 1.42" 1.42" -
Opening size: 178 mm 178 mm 210 mm 210 mm 170 mm 170 mm 202 mm 202 mm
158 x 246 mm
158 x 246 mm
276 x 188 mm 274 x 185 mm
271 x 271mm
Mounting depth: 77 mm 77 mm 81 mm 81 mm 83 mm 83 mm 87 mm 87 mm 64 mm 64 mm 67mm 71 mm 90 mm
Min. Material Thickness: 3 mm 3 mm 3 mm 3 mm 2.5 mm 2.5 mm 3 mm 3 mm 9 mm 9 mm 9 mm 9 mm 9 mm
Max. Material Thickness: 15 mm 15 mm 15 mm 15 mm 31 mm 31 mm 30 mm 30 mm 38 mm 38 mm 37 mm 37 mm 37 mm
Impedance
(low-impedance):
8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω
100 V Inputs: -
1.5 W, 3 W, 6 W
-
6 W, 12 W, 24 W
-
6 W, 12 W, 24 W
-
6 W, 12 W, 24 W
-
6 W, 12 W, 24 W
-
6 W, 12 W, 24 W
-
Frequency response:
80 -
20,000 Hz
80 -
20,000 Hz
70 -
20,000 Hz
70 -
20,000 Hz
80 -
20,000 Hz
80 -
20,000 Hz
70 -
20,000 Hz
70 -
20,000 Hz
80 -
20,000 Hz
80 -
20,000 Hz
70 -
20,000 Hz
70 -
20,000 Hz
40Hz - 250 Hz
(x-over required)
Sensitivity (1 W / 1 m): 88 dB 88 dB 88 dB 88 dB 88 dB 88 dB 88 dB 88 dB 88 dB 88 dB 88 dB 88 dB 88 dB
Low-impedance rated
load (RMS):
40 W 40 W 60 W 60 W 40 W 40 W 60 W 60 W 40 W 40 W 60 W 60 W 150 W
Depth: 81 mm 81 mm 86 mm 86 mm 92 mm 92 mm 97 mm 100 mm 75 mm 75 mm 76 mm 76 mm 102 mm
Diameter: 204 mm 204 mm 234 mm 234 mm 202 mm 202 mm 233 mm 233 mm - - - - -
Weight: 1.085 Kg 1.225 kg 1.56 kg 1.865 kg 1.09 kg 1.31kg 1.49 kg 1.795 kg 1.21 kg 1.52 kg 1.69 kg 1.99 kg 2.77 kg
Height: - - - - - - - - 279 mm 279 mm 218 mm 218 mm 303 mm
Width: - - - - - - - - 192 mm 192 mm 305 mm 305 mm 303 mm
LDCOGS52 LDCWMS42B
LDCWMS42B100V
LDCWMS42W
LDCWMS42W100V
LDCWMS52B
LDCWMS52B100V
LDCWMS52W
LDCWMS52W100V
LDCWMSS5B
LDCWMSS5B100V
LDCWMSS5W
LDCWMSS5W100V
Passive
outdoor
speaker
Passive
wall-mounted
speaker
Passive
wall-mounted
speaker
Passive
wall-mounted
speaker
Passive
wall-mounted
speaker
Passive
wall-mounted
speaker
Passive
wall-mounted
speaker
Passive
wall-mounted
speaker
Passive
wall-mounted
speaker
Passive
On-Wall
ultra-thin
speaker
Passive
On-Wall
ultra-thin
speaker
Passive
On-Wall
ultra-thin
speaker
Passive
On-Wall
ultra-thin
speaker
2-way
speaker
2-way
speaker
2-way speaker 2-way
speaker
2-way speaker 2-way
speaker
2-way
speaker
2-way
speaker
2-way speaker 2-way
speaker
2-way speaker 2-way
speaker
2-way speaker
Army green black black white white black black white white black black white white
5.25" 4" 4" 4" 4" 5.25" 5.25" 5.25" 5.25" 5.25" 5.25" 5.25" 5.25"
1.2" 0.75" 0.75" 0.75" 0.75" 1.2" 1.2" 1.2" 1.2" 1" 1" 1" 1"
- - - - - - - - - - - - -
74 mm - - - - - - - - - - - -
- - - - - - - - - - - - -
- - - - - - - - - - - - -
8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω 8 Ω
2 W, 4 W, 8 W,
16 W, 24 W
-1.25 W, 2.5 W,
5 W, 10 W
-1.25 W, 2.5 W,
5 W, 10 W
-1.25 W, 2.5 W,
5 W, 10 W
-1.25 W, 2.5 W,
5 W, 10 W
-30 W -30 W
80 -
15,000 Hz
90 -
20,000 Hz
90 -
20,000 Hz
90 -
20,000 Hz
90 -
20,000 Hz
80 -
20,000 Hz
80 -
20,000 Hz
80 -
20,000 Hz
80 -
20,000 Hz
100 -
20,000 Hz
100 -
20,000 Hz
100 -
20,000 Hz
100 -
20,000 Hz
- 87 dB 87 dB 87 dB 87 dB 88 dB 88 dB 88 dB 88 dB 90 dB 90 dB 90 dB 90 dB
-20 W 20 W 20 W 20 W 30 W 30 W 30 W 30 W 30 W 30 W 30 W 30 W
135 mm 135 mm 135 mm 135 mm 160 mm 160 mm 160 mm 160 mm 37 mm 37 mm 37 mm 37 mm
345 mm - - - - - - - - - - - -
4.8 kg 3 kg 3.5 kg 3 kg 3.5 kg 4 kg 4.87 kg 4 kg 4.87 kg 1.94 kg 2.16 kg 1.94 kg 2.16 kg
372 mm 156 mm 156 mm 156 mm 156 mm 180 mm 180 mm 180 mm 180 mm 271 mm 271 mm 271 mm 271 mm
253 mm 253 mm 253 mm 253 mm 294 mm 294 mm 294 mm 294 mm 183 mm 183 mm 183 mm 183 mm
LDCIWSUB10
pa
sive, in-wall
installatiobwoof
er
Su
bwoofer
whit
e
10”
271 x 271mm
90mm
9
37
8O
hm(s)
-
4 - 250 (x-over
required)Hz
88dB
15
0W
102mm
2.75kg
303mm
303mm
78 79
PREMIUM SP SERIES
AMPLIFIERS
welcome to the digital age.
DSP SERIES
PROFESSIONAL DSP POWER AMPLIFIERS
The LD Systems® DSP power amps are professional 4-channel power amplier with extensive DSP control. Designed for demanding large-scale sound reinforcement
and concert-quality performance, they deliver a massive 1,200 watts per channel and 2 x 2,400 watts bridged. The high-efciency Class H topology and switch mode
power supply with power factor correction (PFC) provide a wide dynamic range and excellent transient response.
These amps feature comprehensive protection circuitry including power-up, DC, overcurrent, thermal and short circuit protection plus current and clip limiters to prevent
SMPS overload and loudspeaker damage. Together with a pair of temperature controlled fans, they ensure exceptional reliability in the most demanding applications. The
24-bit DSP allows precise control with FIR and IIR lters, parametric EQ, crossover, delay, RMS and peak limiter functions. User congurable loudspeaker presets with
password protection enable fast setup.
For optimal speaker performance and safe operation the DSP power amps are equipped with an LD Systems® loudspeaker preset library, and the included software
enables computer control and monitoring.
P 4-channel power amplifier with DSP control / + Dante™ enabled (DSP 44 K)
P 4 x 1,200 watts @ 4 and 2 ohms, 2 x 2,400 watts bridged @ 4 ohms
P 10 Hz – 22 kHz frequency response with 120 dB dynamic range
P 24-bit/48kHz DSP with FIR and IIR filters, parametric EQ, crossover, delay, RMS and peak limiters
P DC, overcurrent, thermal and short circuit protection, soft start, clip and SMPS overload limiters
P Dual temperature-controlled fans
P Power factor correction (PFC)
P Menu driven 4-line display with rotary encoder and security lock
P Includes control and monitoring software and LD Systems® Loudspeaker Preset Library
MASSIVE POWER
Designed for demanding large-scale sound reinforcement
and concert-quality performance, they deliver a massive
1,200 watts per channel and 2 x 2,400 watts bridged. DANTE™ SPOKEN HERE
The Dante™ interface permits instant
integration into networks using the Dante™
protocol, and the included software enables
computer control and monitoring.
CLASS H – FIRST CLASS POWER AMPS
The high-efciency Class H topology and switch mode
power supply with power factor correction (PFC) provide
a wide dynamic range and excellent transient response.
EASY PROCESSING
The 24-bit DSP allows precise control with FIR and IIR lters, parametric
EQ, crossover, delay, RMS and peak limiter functions. User congurable
loudspeaker presets with password protection enable fast setup.
80 81
DSP 44 K
PROFESSIONAL DSP POWER AMPLIFIER WITH DANTE™ INTERFACE
4 x 1200 W
DSP 45 K
PROFESSIONAL DSP POWER AMPLIFIER
4 x 1200 W
DSP SERIES
PROFESSIONAL DSP POWER AMPLIFIERS
SPECIFICATIONS:
Product name: DSP 44 K DSP 45 K
Product type: Power Amplier Power Amplier
Type: 4-channel 4-channel
Rated ouput power (1kHz @ 2 Ohms): 4 x 1200 W 4 x 1200 W
Rated ouput power (1kHz @ 4 Ohms): 4 x 1200 W 4 x 1200 W
Rated ouput power (1kHz @ 8 Ohms): 4 x 675 W 4 x 675 W
Rated ouput power (1kHz @ 4 Ohms, bridged): 2 x 2400 W 2 x 2400 W
High Z 70 V rms / 100 V peak: 4 x 1200 W 4 x 1200 W
High Z 100 V rms / 140 V peak: 2 x 2400 W 2 x 2400 W
Output circuitry: Class H Class H
Frequency response: 10 - 22000 Hz 10 - 22000 Hz
THD: < 0.05 % @ 1 kHz < 0.05 % @ 1 kHz
Signal-to-noise ratio: 32 dB 32 dB
Protection circuits: clip limiter , DC protection , Multiband limiter , over-current , RMS speaker
limiter , short circuit , soft start , thermal protection
clip limiter , DC protection , Multiband limiter , over-current , RMS speaker
limiter , short circuit , soft start , thermal protection
Controls: Direct access buttons , Exit / lock button , On / off switch , Push encoder Direct access buttons , Exit / lock button , On / off switch , Push encoder
Indicators: LC display LC display
Line inputs: 4 4
Line input connectors: Neutrik XLR Neutrik XLR
Line outputs: 4 4
Line output connectors: Neutrik XLR Neutrik XLR
Loudspeaker outputs: 4 4
Speaker output connections: Speakon Speakon
Cooling: 2 fans, temperature controlled 2 fans, temperature controlled
Maximum Ambient Temperature: 0 - 40° 0 - 40°
Operating voltage: 220 V AC - 240 V AC, 50-60 Hz , Switching Power Supply 220 V AC - 240 V AC, 50-60 Hz , Switching Power Supply
Relative Humidity: < 80% (non-condensing) < 80% (non-condensing)
Power consumption @ full load: 1900 W 1900 W
Dimensions (W x H x D): 482 mm x 89 mm x 320 mm 482 mm x 89 mm x 320 mm
Weight: 7.9 kg 7.9 kg
Features: 19" / 2 U , Active Power Factor Correction , Computer control software,
Dante interface , DSP controlled , Ethernet , LD Systems loudspeaker preset
library , USB front port
19" / 2 U , Active Power Factor Correction , Computer control software, DSP
controlled, Ethernet, LD Systems loudspeaker preset library , USB front port
82 83

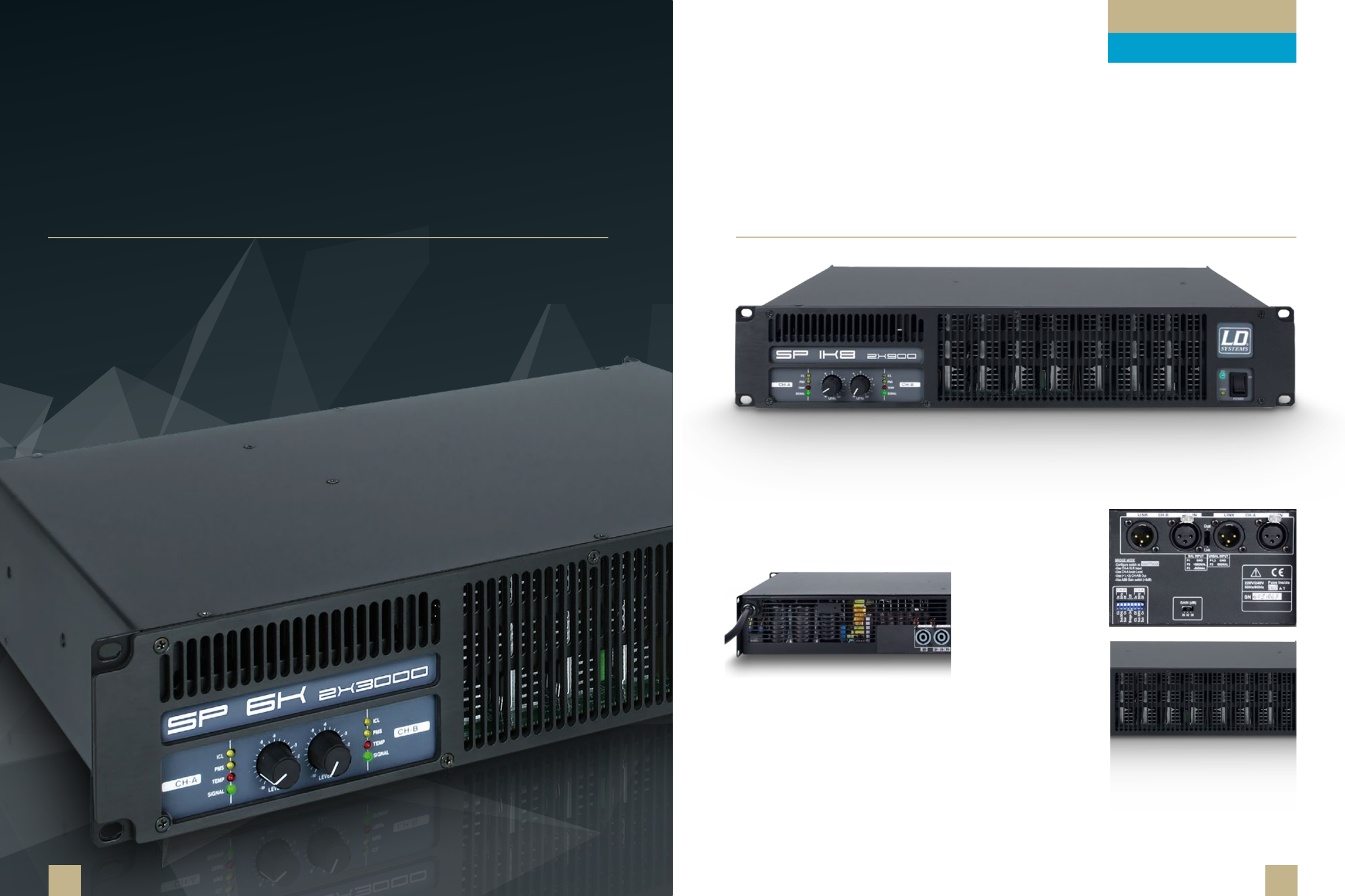

PREMIUM SP SERIES
AMPLIFIERS
meeting the highest demands.
PREMIUM SP SERIES
PROFESSIONAL POWER AMPLIFIERS
The PREMIUM SP Series is a professional line of high output power ampliers for demanding touring and installed sound applications. Featuring highly efcient switch
mode power supplies, soft start, turn-on mute and comprehensive protections including intelligent clip limiting the Class H design ampliers are available in 2 and 4
channel versions with power ratings up to 2 x 2,950 and 4 x 1,440 watts at 2 ohms.
P High performance high output power amplifiers
P 2 and 4 channel versions
P Up to 2 x 2,950 and 4 x 1,440 watts @ 2 ohms
P Comprehensive protections
P ICL™ intelligent clip limiting
P PMS™ power management system
MEETING THE HIGHEST DEMANDS
The Premium series is a professional power amplier offering amazing value and versatility in a compact lightweight Class H design. Suitable for touring and installation
sound reinforcement, they deliver a maximum of 4 x 1,140 W into 2 Ohms and 2 x 2,880 W in 4 Ohms stereo bridge mode.
EXTENSIVE PROTECTIONS
Protection circuits against DC, thermal and power supply overload are implemented. A switchable subsonic
lter and a 3-position gain switch offer variable amplier adjustment. The series also features a highly
effective front-to-back cooling design.
SUPERIOR
TRANSIENT RESPONSE
Featuring a high efciency switch
mode power supply the Premium
series provides a 20 Hz - 20 kHz
bandwidth with low THD and
crosstalk, a damping factor higher
than 500, excellent S/N ratio and
three switchable sensitivity levels.
RELIABLE HIGH QUALITY COMPONENTS
Reliable performance is ensured by heavy duty engineering, high quality components and comprehensive
protection including soft start with turn-on muting, PMS™ power management, SSP™ (Safe operation
Sentry Protection) and ICL™ (Intelligent Clip Limiting) to maintain signal integrity.
84 85

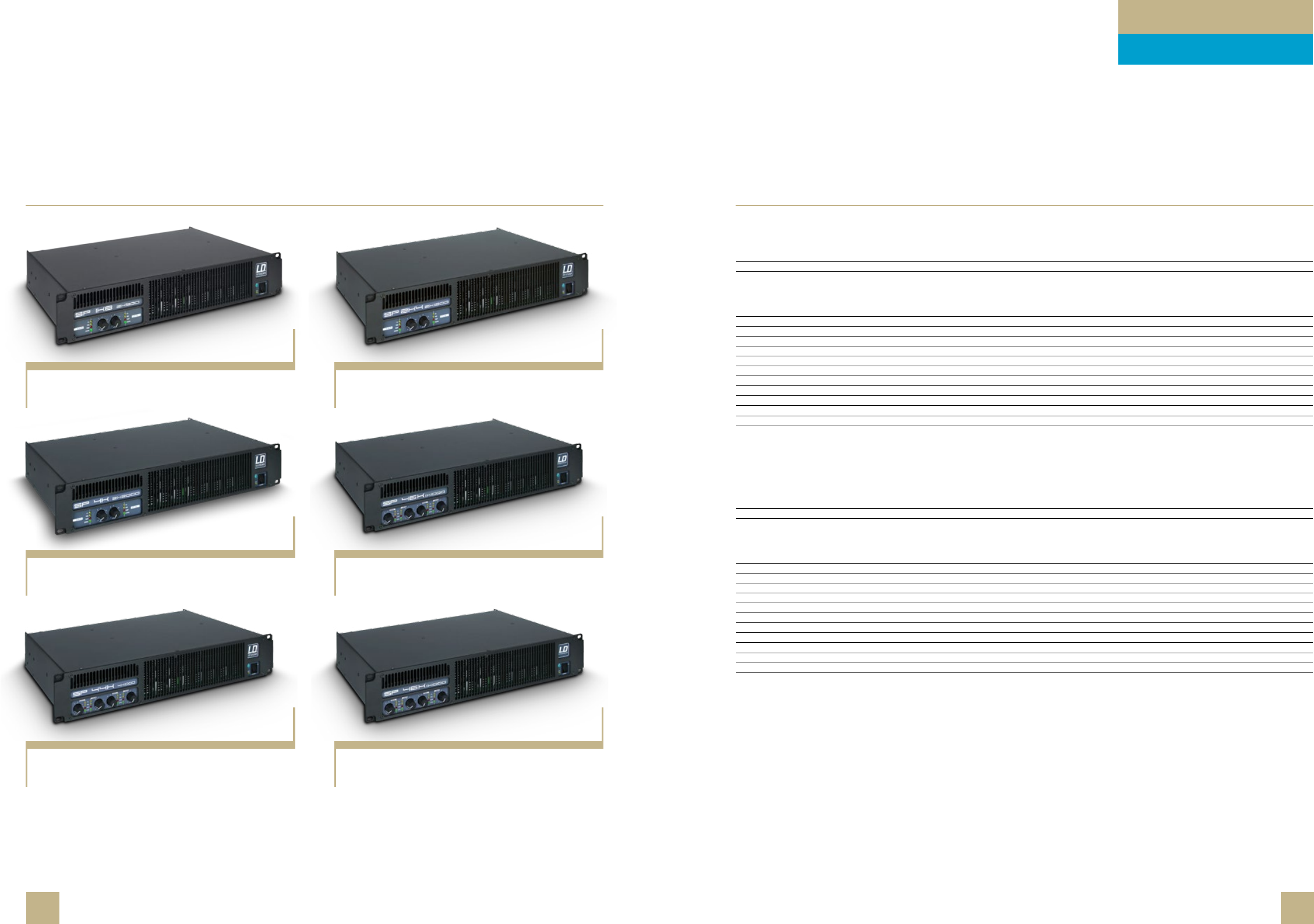

PREMIUM SP SERIES
AMPLIFIERS
SP 1K8
PROFESSIONAL POWER AMPLIFIER
1760 W
SP 4K
PROFESSIONAL POWER AMPLIFIER
3900 W
SP 44K
PROFESSIONAL POWER AMPLIFIER
2 x 1960 W
SP 2K4
PROFESSIONAL POWER AMPLIFIER
2380 W
SP 6K
PROFESSIONAL POWER AMPLIFIER
5900 W
SP 46K
PROFESSIONAL POWER AMPLIFIER
2 x 2880 W
Model name: LDSP6K LDSP44K LDSP46K
Type: Professional power amplier Professional power amplier Professional power amplier
Output power 1 kHz, <0,05% THD:
2 Ω
4 Ω
8 Ω
Bridge @ 4 Ω
Bridge @ 8 Ω
2 x 2,950 W
2 x 2,025 W
2 x 1,250 W
3,900 W
5,900 W
4 x 980 W
4 x 670 W
4 x 430 W
2 x 1,960 W
2 x 1,340 W
4 x 1,440 W
4 x 1,000 W
4 x 620 W
2 x 2,880 W
2 x 2,000 W
Frequency range (power bandwidth ± 0.25 dB): 20 Hz-20 kHz 20 Hz-20 kHz 20 Hz-20 kHz
Total harmonic distortion (20 Hz-20 kHz): < 0.05 % < 0.05 % < 0.05 %
Damping factor (20 Hz-500 Hz @8 ohm): > 500 > 500 > 500
Crosstalk (20 Hz-20 kHz): > 75 dB > 75 dB > 75 dB
Voltage gain (selectable): 26/32/38 dB 26/32/38 dB 26/32/38 dB
Sensitivity: 5.0/2.5/1.3 V 3.0/1.5/0.8 V 3.5/1.8/0.9 V
Signal to Noise ratio: 118 dB 113 dB 116 dB
Operation class: H SMPS H SMPS H SMPS
Required AC mains (@4 ohm 1/8 r.p.): 10.5 A 7.5 A 10.5 A
Dimensions (WxHxD): 483 x 88.9 x 310 mm 483 x 88.9 x 310 mm 483 x 88.9 x 310 mm
Weight (kg): 8.6 kg 8.6 kg 8.6 kg
Protections:
Soft-start, Turn-on Turn-off transients, Muting at
turn-on, Over-heating, DC, RF, Short-circuit, Open or
mismatched loads, Overloaded power supply, ICLTM
(Intelligent Clip limiting), PMSTM (Power Management
System), SSPTM (SOA Sentry Protection)
Soft-start, Turn-on Turn-off transients, Muting at
turn-on, Over-heating, DC, RF, Short-circuit, Open or
mismatched loads, Overloaded power supply, ICLTM
(Intelligent Clip limiting), PMSTM (Power Management
System), SSPTM (SOA Sentry Protection)
Soft-start, Turn-on Turn-off transients, Muting at turn-on,
Over-heating, DC, RF, Short-circuit, Open or mismatched
loads, Overloaded power supply, ICLTM (Intelligent Clip
limiting), PMSTM (Power Management System), SSPTM (SOA
Sentry Protection)
Model name: LDSP1K8 LDSP2K4 LDSP4K
Type: Professional power amplier Professional power amplier Professional power amplier
Output power 1 kHz, <0,05% THD:
2 Ω
4 Ω
8 Ω
Bridge @ 4 Ω
Bridge @ 8 Ω
2 x 880 W
2 x 575 W
2 x 325 W
1,760 W
1,150 W
2 x 1190 W
2 x 790 W
2 x 460 W
2,380 W
1,580 W
2 x 1950 W
2 x 1380 W
2 x 810 W
3,900 W
2,760 W
Frequency range (power bandwidth ± 0.25 dB): 20 Hz-20 kHz 20 Hz-20 kHz 20 Hz-20 kHz
Total harmonic distortion (20 Hz-20 kHz): < 0.05 % < 0.05 % < 0.05 %
Damping factor (20 Hz-500 Hz @8 ohm): > 500 > 500 > 500
Crosstalk (20 Hz-20 kHz): > 75 dB > 75 dB > 75 dB
Voltage gain (selectable): 26/32/38 dB 26/32/38 dB 26/32/38 dB
Sensitivity: 2.6/1.3/0.6 V 3.0/1.5/0.8 V 4.0/2.0/1.0 V
Signal to Noise ratio: 112 dB 113 dB 116 dB
Operation class: H SMPS H SMPS H SMPS
Required AC mains (@4 ohm 1/8 r.p.): 4 A 4.8 A 7.5 A
Dimensions (WxHxD): 483 x 88.9 x 310 mm 483 x 88.9 x 310 mm 483 x 88.9 x 310 mm
Weight (kg): 8 kg 8 kg 8.5 kg
Protections:
Soft-start, Turn-on Turn-off transients, Muting at
turn-on, Over-heating, DC, RF, Short-circuit, Open or
mismatched loads, Overloaded power supply, ICLTM
(Intelligent Clip limiting), PMSTM (Power Management
System), SSPTM (SOA Sentry Protection)
Soft-start, Turn-on Turn-off transients, Muting at turn-on,
Over-heating, DC, RF, Short-circuit, Open or mismatched
loads, Overloaded power supply, ICLTM (Intelligent Clip
limiting), PMSTM (Power Management System), SSPTM
(SOA Sentry Protection)
Soft-start, Turn-on Turn-off transients, Muting at turn-on,
Over-heating, DC, RF, Short-circuit, Open or mismatched
loads, Overloaded power supply, ICLTM (Intelligent Clip
limiting), PMSTM (Power Management System), SSPTM
(SOA Sentry Protection)
PREMIUM SP SERIES
PROFESSIONAL POWER AMPLIFIERS
SPECIFICATIONS:
86 87
DEEP2 SERIES
AMPLIFIERS
deeply in love with sound!
DEEP2 SERIES
DYNAMIC EFFICIENT ENGINEERED PA POWER AMPLIFIERS
Providing reliability, versatility and excellent value the compact, lightweight DEEP 2 Series power ampliers are ideal for live and installed sound applications, touring
bands and rental companies.
Featuring rugged steel enclosures, toroidal transformers and premium components throughout, the DEEP 2 Series class H design delivers dynamic, full bandwidth audio.
The perfect motor for passive loudspeakers and subwoofers, DEEP 2 Series power ampliers also incorporate a clip limiter and comprehensive protection circuits.
P Compact lightweight class H power amplifiers
P Up to 1,200 watts continuous output per channel
P Select high quality components
P Full bandwith audio with superior transient response
P Clip limiter and comprehensive protections
COMPACT LIGHTWEIGHT CLASS H POWER AMPLIFIERS
Providing reliability, versatility and excellent value the compact DEEP2
Series power ampliers are ideal for live and installed sound applica-
tions, touring bands and rental companies.
UP TO 1200 WATTS CONTINUOUS OUTPUT
PER CHANNEL
The DEEP2 series features class-H power ampliers
with toroidal core offering amplifying levels from 2 x
400 W till 4 x 810 W at 4 Ohm.
FULL BANDWIDTH AUDIO
WITH SUPERIOR TRANSIENT
RESPONSE
The DEEP2 series will convince
every user thanks to a dynamic and
very clear sound which is perfectly
adapted for sub-bass applications as
well as for multifunctional speakers.
DEEP2 600
DYNAMIC EFFICIENT ENGINEERED
PA POWER AMPLIFIER - 600 W
DEEP2 2400 X
DYNAMIC EFFICIENT ENGINEERED
PA POWER AMPLIFIER - 2400 W
DEEP2 1600
DYNAMIC EFFICIENT ENGINEERED
PA POWER AMPLIFIER - 1600 W
DEEP2 4950
DYNAMIC EFFICIENT ENGINEERED
PA POWER AMPLIFIER - 2 x 1600 W
Model name: LDDP600 LDDP1600 LDDP2400X LDDP4950
Output power @1 kHz
2 Ω 2 x 300 W 2 x 800 W 2 x 1,200 W –
4 Ω 2 x 400 W 2 x 670 W 2 x 950 W 4 x 810 W
8 Ω 2 x 300 W 2 x 450 W 2 x 600 W 4 x 490 W
Bridge 4 Ω 600 W 1,600 W 2,200 W –
Bridge 8 Ω 800 W 1,380 W 1,800 W 2 x 1,600 W
Frequency range: 20 Hz - 20 kHz
Operation class: H
Protection: DC, temp, short circuit, over current
Connectors: Input: XLR / 6,3mm jack (Combo) / Link output: XLR/ output: Speakon compatible / binding post
Power supply: AC ~ 230V / 50-60 Hz
Dimension (W x H x D): 483 x 88 x 370 mm
Weight: 12.8 kg 15.9 kg 17.6 kg 19.6 kg
SPECIFICATIONS:
88 89
XS SERIES
AMPLIFIERS
light as a feather!
XS SERIES
PA POWER AMPLIFIERS
Engineered for low to medium power requirements in live and installed sound applications, XS Series ampliers are packed with professional features. The compact,
lightweight class D design delivers detailed, natural sounding audio with excellent transient response, and comprehensive protections ensure awless performance and
long-term reliability. For easy sytem integration, the XS Series power ampliers come with dual input and output connector formats.
P Compact 1U class D power amplifiers
P 100 to 350 watts per channel @ 4 ohms
P Full bandwidth audio
P Soft start and comprehensive protections
Model name LDXS200 LD XS400 LDXS700
output power @1 KHz
4 Ω 2 x 100 W 2 x 200 W 2 x 350 W
8 Ω 2 x 50 W 2 x 100 W 2 x 200 W
Bridge 8 Ω 200 W 400 W 700 W
Frequency range: 20 Hz – 20 kHz 20 Hz – 20 kHz 20 Hz – 20 kHz
Cooling type: Convection Low Noise fan Low Noise fan
output circuitry: Class D
Protection: Soft start, short circuit, DC, Temperature, over current
Connectors: Input: XLR, 6,3 mm jack, RCA / output: Speakon compatible, binding post
Indicators: Power, signal, clip, protect, mode (bridge / parallel)
Controls: On/Off, volume, mode (bridge/ parallel / stereo), ground lift, limiter, gain
Power supply: 115 V / 230 V (switchable)
Dimensions (W x H x D): 482 x 44 x 244 mm
Weight: 3 kg 3.4 kg 3.4 kg
XS SERIES
PA POWER AMPLIFIERS
SPECIFICATIONS:
COMPACT POWER
With only 1U and a weight not exceeding 3.4 kgthe Class D power ampliers are conceived for all professional
applications. The Class D power amplier technology delivers 100W to 350W per channel at 4 ohms into a
minimum of space without generating unnecessary loss energy.
EXTENSIVE FEATURES
The XS series power ampliers sport protection
circuits against short-circuiting, DC, overheating,
and overloading and a soft-start delay. On the rear
panel, it is possible to select the mode of operation
(Bridge, Stereo and Parallel) and gain and activate
the limiter and ground-lift function. The amplier
features XLR, RCA and jack input connectors, with
Speakon-compatible sockets and screw terminals
as outputs.
XS 200
PA POWER AMPLIFIER
200 W
XS 400
PA POWER AMPLIFIER
400 W
XS 700
PA POWER AMPLIFIER
700 W
90 91

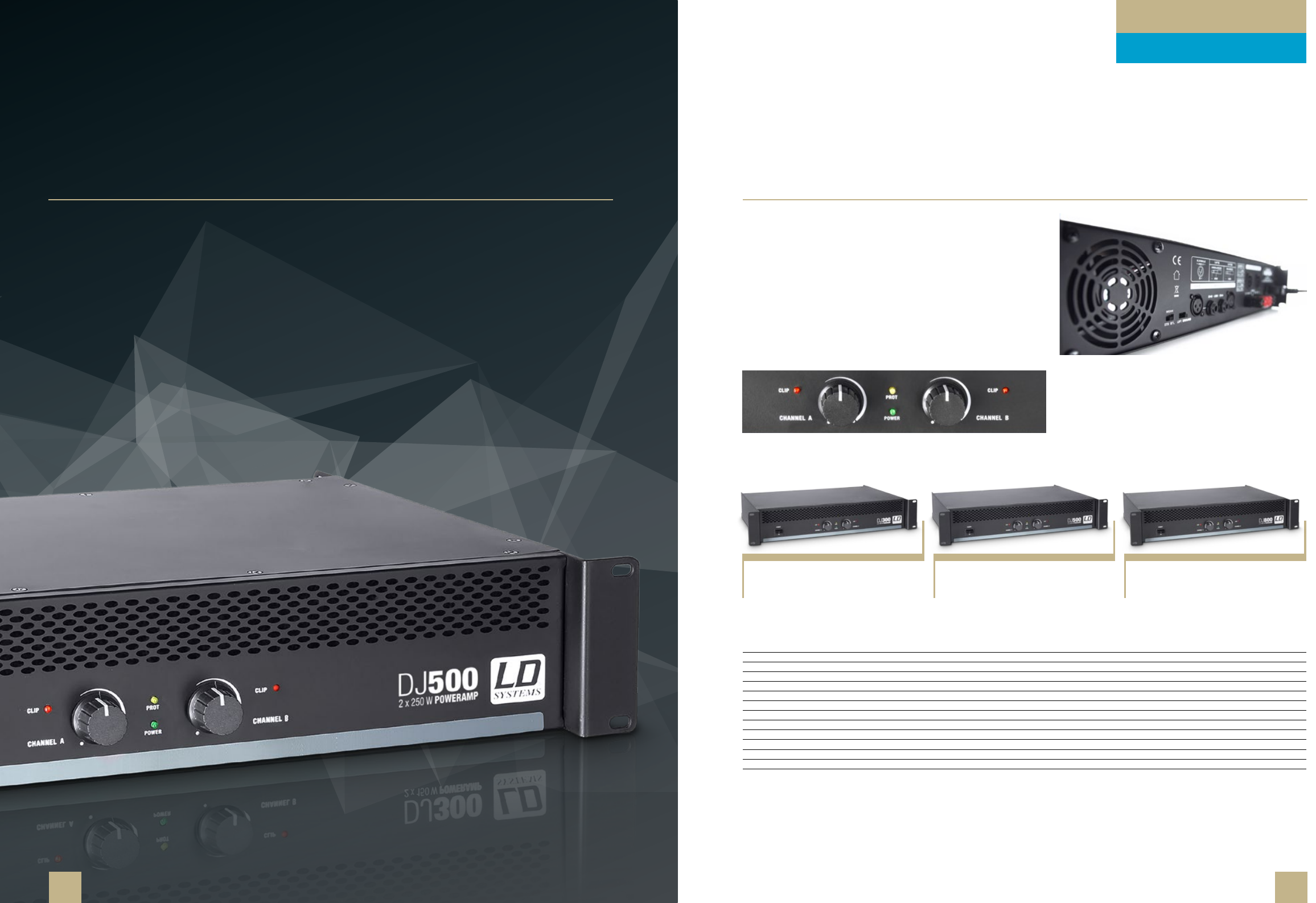

DJ SERIES
AMPLIFIERS
last night we saved a DJs life!
DJ SERIES
PA POWER AMPLIFIERS
Engineered for uncompromising performance, the straightforward DJ Series power ampliers are the convenient choice for driving passive loudspeakers and subwoofers
in portable and installed sound systems where budget is a major consideration. Compact and lightweight, the DJ Series' class AB design, rugged construction and
comprehensive protections provide long-term durability and reliable operation in a wide variety of applications.
P Budget no-frills class AB power amplifiers
P Rugged construction and reliable performance
P Soft start and comprehensive protections
DJ 300
PA POWER AMPLIFIER
300 W
DJ 500
PA POWER AMPLIFIER
500 W
DJ 800
PA POWER AMPLIFIER
800 W
Model name LDDJ300 LDDJ500 LDDJ800
Output power @1 KHz
4 Ω 2 x 150 W 2 x 250 W 2 x 400 W
8 Ω 2 x 100 W 2 x 150 W 2 x 240 W
Bridge 8 Ω 250 W 500 W 800 W
Frequency range: 20 Hz – 20 kHz 20 Hz – 20 kHz 20 Hz – 20 kHz
output circuitry: Class A/B
Protection: Soft start, short circuit, DC, temperature, over current
Connectors: Input: XLR, 6.3 mm jack /Output: SPKn, binding post
Indicators: Power, clip, protect
Controls: ON/ OFF, volume, mode (bridge/ stereo), ground lift
Power supply: AC ~ 230V / 50-60 Hz
Dimensions (W x H x D): 482 x 88 x 298 mm
Weight: 8.5 kg 9 kg 10.1 kg
SPECIFICATIONS:
BUDGET NO-FRILLS CLASS AB POWER AMPLIFIERS
Engineered for uncompromising performance, the straightforward DJ Series power
ampliers are the convenient choice for driving passive loudspeakers and subwoofers in
portable and installed sound systems where budget is a major consideration.
RUGGED CONSTRUCTION AND RELIABLE PERFORMANCE
XLR and stereo TRS sockets are used as inputs and Speakon-compatible sockets and
heavy-duty screw terminals as outputs. A ground lift switch eliminates ground loop hum.
LEDs on the front panel next to the easy-grip volume controls indicate functional status,
overloading, and triggering of the protection circuit.
SOFT START AND COMPREHENSIVE PROTECTIONS
The DJ series is equipped with extensive protection circuitry and a power-on
delay. The front panel perforations and a low-noise fan keep the amp cool.
The rugged construction and comprehensive protections provide long-term
durability and reliable operation in a wide variety of applications.
92 93

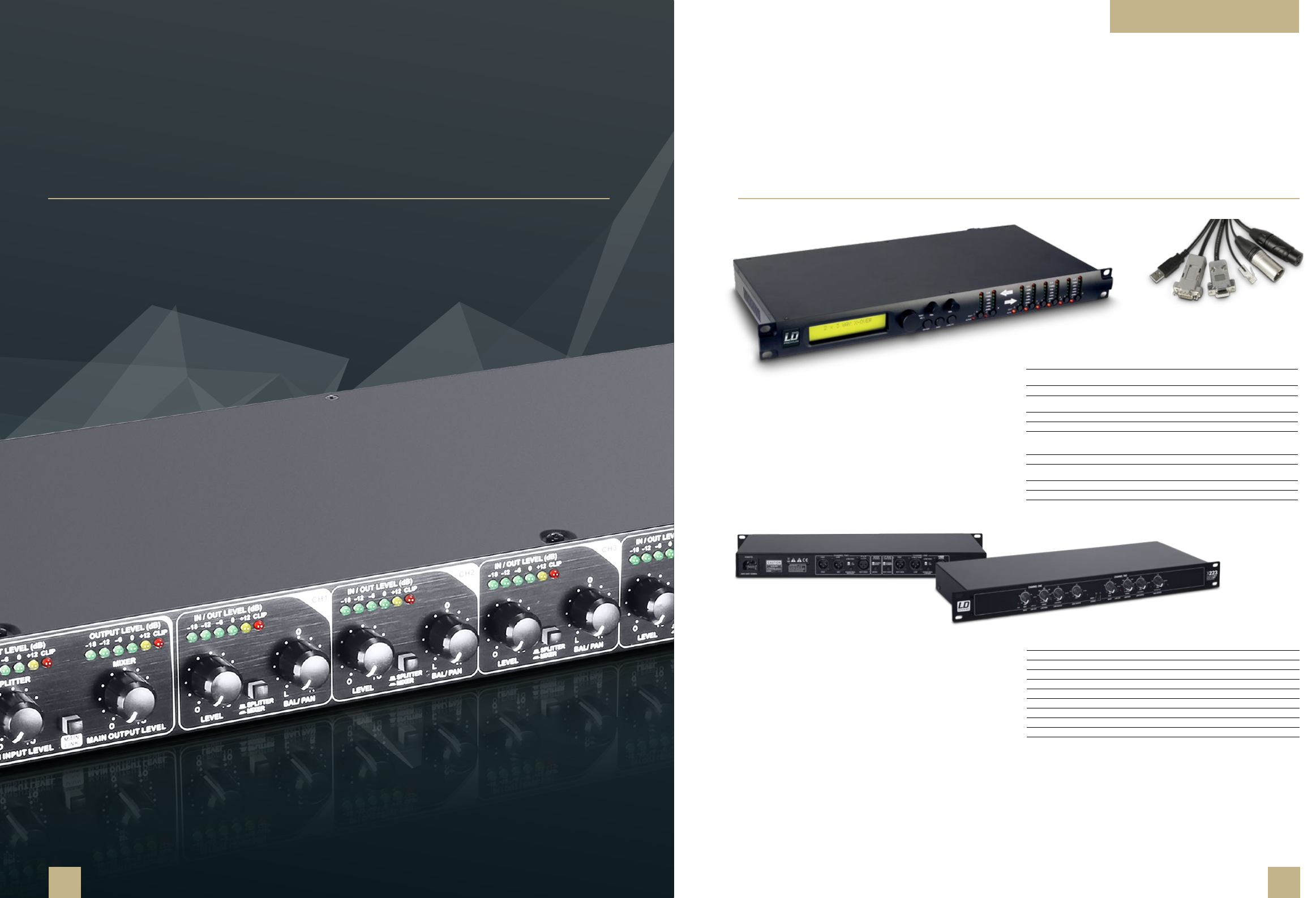

SIGNAL PROCESSING
DPA 260
19" DSP CONTROLLER 6-CHANNEL
The LD DPA260 is a 6-channel 19” speaker processor for our VA4 and VA8
array systems. Software Presets for our passive Premium and Stinger G2 series
available online.
SPECIFICATIONS
Model name: LDDPA260
Type: DSP controller (2 in / 6 out) for line array VA4, Stinger15HP, Stinger G2,
Premium Series
Description: 6-channel 19" speaker processor, 32bit DSP, 24bit AD/DA (48 kHz) converter
Inputs: 2 channels analog/digital, L + R, Noise gate, input and output matrix freely
assignable, that means you can assign any input to any output and vice versa
Input EQ: 5 Band PEQ, low shelf and high shelf types available
Crossover range: 20 Hz - 20 kHz
outputs: 6 Channels, high/low pass lter, ltertype and slope available, 7 band PEQ,
low shelf and high shelf types available, limiter with threshold, attack and
release parameters
Delay: Time or meter available, max. delay up to 848 ms
Phase invert function: USB port, full programmable software included with 24 memory capacity for
presets
Display: 2 × 24 character LCD with backlight
Switch mode power supply: 90 V - 250 V AC input range
Dimensions: 19" / 1U / 482 x 44.5 x 225 mm
DPA260RC
LDDPA260RC - Adapter USB 2.0 to RS485 for LDDPA260.
This adapter allows the remote controlling of the
LDDPA260 via multicore at the FOH.
X 223
19" ACTIVE CROSSOVER
The LD X223 is a stereo 2 way / mono 3 way crossover in standard 19"/1U
rack format. Its rugged construction, high quality and robust knobs as well as
the integrated power unit are rarities in this price range. It provides a mono sub
output, an adjustable crossover frequency for each channel, adjustable LF/HF
and input gains, phase reverse controls, switchable 40 Hz High-Pass lters and
symmetrical XLR In- and outputs. With the LD X223 you get a crossover fullling
the professional standards and offering great quality and sound characteristics.
SPECIFICATIONS
Model name: LDX223
Frequency range: 20 Hz - 20 kHz
Dynamic range: 106dB
THD+Noise: <0.004%
Interchannel crosstalk: 20 Hz - 20 kHz
Inputs: XLR
Max. input level: +21 dBu (balanced or unbalanced)
outputs: Male XLR
Max. output level: >+21 dBu (balanced or unbalanced)
Dimensions (W x H x D): 482 x 44.5 x 153 mm
Weight: 2.6 kg
pimp your sound!
SIGNAL PROCESSING
In the rubric signal processors, you will nd digital models in versions with 3 and 6 channels. The DSP controllers are optimized for use with LD Systems speaker cabinets,
but also work with other common systems. The graphic equaliser in 19" standard format is outstandingly well-suited for professional live and studio applications. In
addition, LD Systems offers an active crossover that meets the highest standards and stands out because of its excellent sound.
94 95

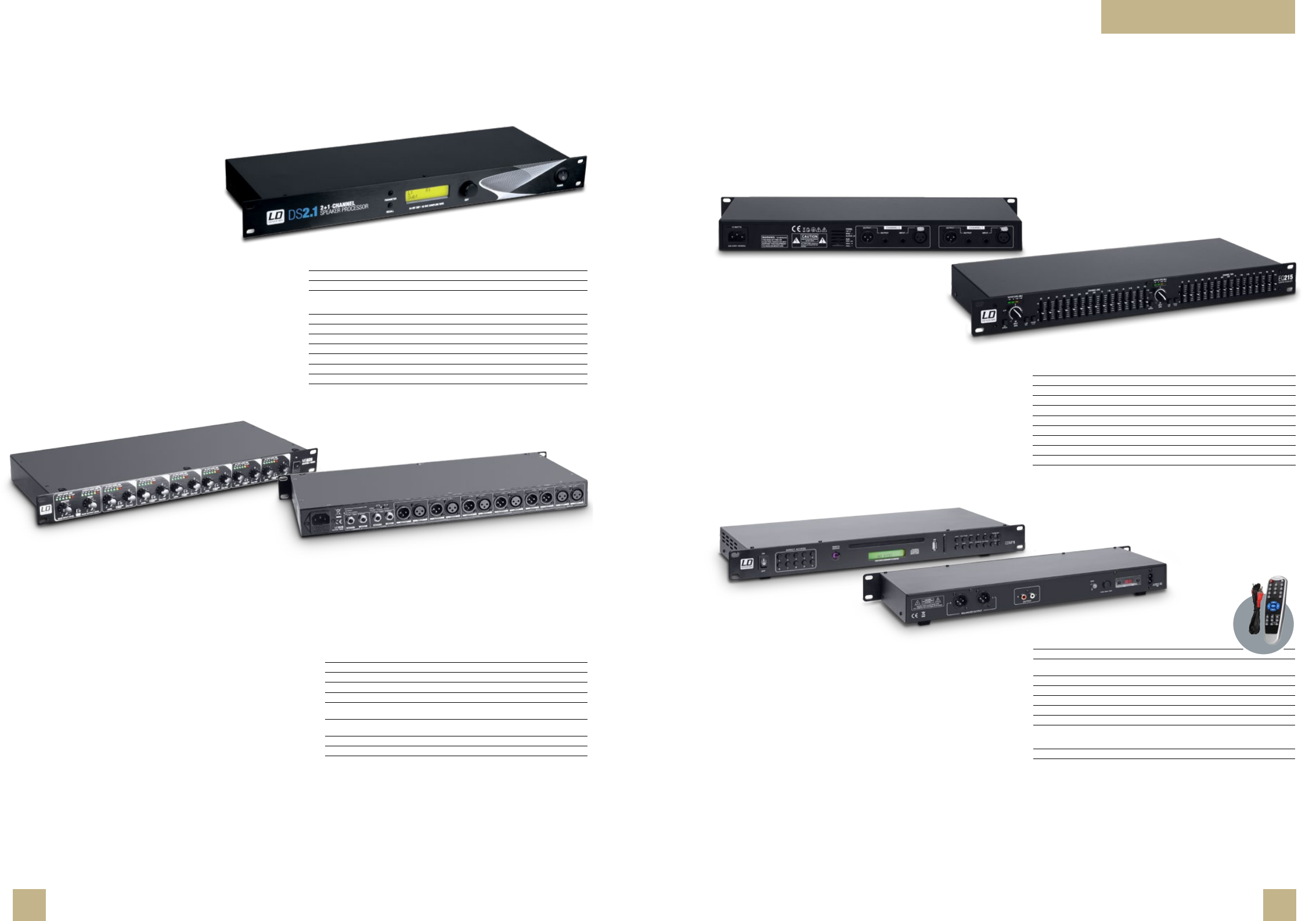

DS 2.1
19" DSP CONTROLLER
The LD DS2.1 is a universal 3-channel DSP controller for 2.1 loudspeaker systems
with 24-bit processing and convenient front panel operation providing easy setup
and high quality audio performance. Designed for live sound and xed applications
the rack mountable unit offers extensive parameter control of its EQ, crossover,
delay and limiter functions. The LD DS2.1 features a 3-band parametric EQ with
adjustable Q and high shelf / low shelf selection. The crossover includes Butter-
worth, Bessel and Linkwitz-Riley lters with 6 dB to 24 dB slopes. Delay time is
adjustable to a maximum of 12.5 ms for each of the three outputs and the limiter
provides independent threshold and hold time setting for the L / R and subwoofer
channels. Presets for our passive Premium and Stinger G2 series available online.
SPECIFICATIONS
Model name: LDDS21
Type: 28 bit DSP controller (2 in / 3 out)
AD/DA converter: 24 bit, 48 kHz
DSP functions: 3 band PEQ, low shelf or high shelf types available for all channels, high / low
pass lter, lter type and slope available, limiter with threshold and hold time
parameters, mute function, up to 12.5 ms delay
Frequency range: 20 – 20,000 Hz
Inputs: 2 channels analog (L / R), balanced XLR
Outputs: 3 channels analog (L / R + Sub), balanced XLR
Display: 2 x 16 character LCD with backlight
Features: USB port, full programmable software included, 6 user presets
Operating voltage: 90 V - 250 V AC, 50 – 60 Hz
Dimensions: 482 x 44.5 x 160 mm
Weight: 1.8 kg
SPECIFICATIONS
Model name: LDMS828
Type: 8-Channel mixer/ splitter
Channels: Six mono and one stereo
Input connectors: Stereo in: 2 x XLR, Mono in: 4 x XLR, 2 x 6.3mm jack
Output connectors: Stereo out: 2 x XLR, Mono out: 4 x XLR, 2 x 6.3mm jack
Controls: Main input level, main output level, main link, level channel 1-6, Bal/
Pan channel 1-6, splitter/ mixer channel 1-6, power
Indicators: Input level LED indicator (6-segment), output level indicator
(6-segment), In/ Out level channel 1-6 (6-segment), power
Frequency response: 5 Hz – 40,000 Hz
Dimensions (W x H x D): 483 x 44.5 x 216 mm
Weight: 3 kg
CDMP 1
MULTIMEDIA PLAYER
CD, USB, SD, MP3
This CD / MP3 player is suitable for various PA applications (e.g. in theatres, pubs etc.) and
offers the standard features such as continuous repeat, random, MP3 from USB storage
media and SD memory cards. It is compatible with audio CDs, audio CD-R and MP3 CDs.
SPECIFICATIONS
Model name: LDCDMP1
Installation dimension: 19"/1 U
Components: Audio/MP3 CD-player (12 cm disc), USB memory stick input, SD
memory card input
Supported formats: Audio/MP3 CD, MP3-le
Outputs: 2x Stereo analog
Output connectors: RCA, XLR balanced
Frequency range: 20 - 20,000 Hz
Display: backlit, multifunctional
Controls:
On/Off, direct access 1 - 0, CD eject, play/break, stop, forerun, Flyback,
folder -, folder+, +10, mute, prog, CD/USB/SD, play mode, pitch-, pitch+,
voltage selector switch (115 V AC / 230 V AC) output: XLR male / RCA
Dimensions (W x H x D): 482 x 44.5 x 270 mm
Weight: 3.2 kg
INCLUDING
REMOTE CONTROL
& CABLE
EQ 215
2 x 15-BAND
GRAPHIC EQUALIZER
The LD EQ215 is a stereo 15 band graphic equalizer in standard 19"/1U rack format
designed for professional live and studio applications. It offers the most common
features such as 2/3 octave bands, 20 mm faders, a switchable 50 Hz low cut lter, a
± 12 dB input gain range and an EQ Bypass switch. The XLR and 6.3 mm jack Neutrik
connectors provide exibility and quality. The rugged construction of the unit (metal
housing, high quality faders) will provide a long lasting and reliable operational life. The
cost effective LD EQ215 gives you full control of your sound.
SPECIFICATIONS
Model name: LDEQ215
Frequency range: 20 Hz - 20 kHz
Dynamic range: 108 dB
Signal-to-Noise ratio: >90 dB
THD + Noise: <0.004%
Interchannel crosstalk: 20 Hz - 20 kHz
Inputs: jack 6.3 mm, XLR female
outputs: jack 6.3 mm, XLR male
Max. input level: +21 dBu (balanced or unbalanced)
Dimensions (W x H x D): 482 x 44,5 x 153 mm
Weight: 3 kg
MS 828
MIXER, SPLITTER,
AND BOOSTER AMPLIFIER
The LD Systems LDMS828 is a mixer, splitter, and booster amplier in 19” rack format for
exible live and studio applications.
The MS 828 has one stereo and six mono channels with individual LED level metres;
all inputs and outputs are electronically balanced. Two mono channels are equipped
with stereo TRS sockets, the other connectors are XLR sockets. The stereo channel has
individual volume controls for input and output and a link button for looping through the
signal; each mono channel has volume and panorama controls as well as a button that
toggles between the splitter and mixer functions.
The MS 828 by LD Systems is impressive not only because of its practical features, but
also because of its technical specications. The broad frequency response of 5 - 40,000
Hz, a dynamic range of 85 dB, and the extremely low total harmonic distortion of 0.0008%
guarantee maximum signal delity. The nominal working level of -10 dBV to +4 dBu makes
the mixer/splitter suitable for connection to both professional and consumer equipment.
SIGNAL PROCESSING
96 97
SPECIFICATIONS:
Model name: LDHPA4
Max. output power: 4 x 100 mW
Input impedance: 1 kOhm
Minimum load per channel: 10 Ohms
Input connectors: 2 x RCA, 6.3 mm Phone Jack Stereo
Output connectors: 4 x 6.3 mm Phone Jack Stereo
Controls:
4 x headphone volume control, mono / stereo switch
Indicators: Power LED
Power requirement: 24 V external AC adapter (included)
SPECIFICATIONS:
Model name: LDHPA1
Power Output (1% THD @ 33 Ohm Load): 2 x 1.65 Vrms
Input impedance: 10,000 Ohms (3.5 mm jack) , 6,000 Ohms (XLR In)
Minimum connected impedance: 16 Ohms (per channel)
Input connectors: 3.5 mm stereo jack (AUX In), XLR-F (L + R Input, balanced)
Headphones outputs: 3.5 mm TRS
Controls:
Balance L/R, Stereo/Mono (Focus) switch, Power / Volume
Indicators: Battery (low battery: red), Power LED (Power ON: green), Peak (Amber), Signal (green)
Dimensions (W x H x D): 80 mm x 42.5 mm x 133 mm
Weight: 0.155 kg
SPECIFICATIONS:
Model name: LDPPA2
Input impedance (kOhms): 47 kOhm
Input impedance: 1 kOhm
Output impedance: 50 Ohm(s)
Input connectors: Earth terminal, 2 x RCA
Line output connectors: 6.3 mm TRS, 2 x RCA
Indicators:
power LED
Operating voltage: External Power Supply, 12 V DC
Dimensions (W x H x D): 104 x 36 x 67 mm
Weight: 0.28 kg
HPA 4
4-CHANNEL HEADPHONE AMPLIFIER
The LDHPA4 has small dimensions, can handle up to 4 headphones and has an output power with no equal in its class. That means high volume with no distortion. With these
features the LDHPA4 is an essential tool for every project- and home studio.
HPA 1
AMPLIFIER FOR HEADPHONES AND WIRED IEM
The LD Systems HPA 1 is a versatile headphone amplier with high power output for stage, studio and home recording and is the perfect solution for wired in-ear-monitoring..
The compact device in a rugged, ergonomically shaped plastic housing with soft-touch surface and practical belt clip is very extensively equipped.
In addition to locking XLR connectors for the stereo signal L/R input, the HPA 1 has a balanced 3.5 mm stereo jack as AUX input, which can be used in parallel for clicks or
playback. It is protected for safe operation against excessive input levels; a hollow pin socket with negative internal contact enables the connection of a network adapter for
xed operation.
A 3.5 mm stereo jack is provided as earphone and headphone output. Volume level and balance can be set with easy-grip knobs, a push-button switches between the summed
mono and stereo signals. A full-edged limiter is integrated for distortion-free playback and as protection against feedback.
PPA 2
PHONO PREAMPLIFIER AND EQUALIZER
The LD Systems PPA 2 is a very compact analogue phono preamplier, which equalises the extremely low output signal of conventional turntables to RIAA standards. It allows
you to connect to devices without any phono input, such as mixers, PA power ampliers or sound cards.
HPA 6
6-CHANNEL RACKMOUNT HEADPHONE AMPLIFIER
The LD Systems HPA 6 is a highly exible 1U 19" rack format headphone amplier with 6 fully independent channels and comprehensive features for a wide range of
professional audio monitoring applications. Each channel provides a 6.3 mm TRS headphone output on the front panel with level control, mono/stereo switching, discrete
left/right muting and a 6.3 mm TRS Aux input with Main/Aux balance control for mixing in further signal sources. Four-segment LED meters permit visual output level
monitoring, and two 6.3 mm TRS outputs per channel on the rear allow for connecting a total of 18 headphones.
The HPA 6's main section features a master level control with eight-segment LED metering and 6.3 mm TRS input to mix in an additional source with all channels. The
rear panel provides the main stereo inputs on balanced XLR and 6.3 mm TRS connectors and stereo outputs for daisy chaining multiple units.
SPECIFICATIONS
Model name: LDHPA6
Type: Headphone amplier
Max. output power: 6 x 125 mW
Input impedance: 13 kOhm
Minimum load per channel: 8 ohms
Input connectors: Front panel: MAIN INPUT TRS 6,3mm stereo, AUX IN TRS 6,3mm Stereo. Rear Panel: Power Input IEC Class 1 connector, 2 x XLR Balanced Female (MAIN INPUT LEFT&RIGHT)
& 2 x TRS 6.3mm Balanced/Unbalanced
Output connectors: Front Panel: 6 x HEADPHONE OUT TRS 6.3mm Stereo. Rear Panel: 12x HEADPHONE OUT TRS 6.3mm Stereo, Link out 2 x XLR Male Balanced (Main output Left & Right).
Controls: Signal input level (Master), MIX (MAIN, AUX) each channel, OUTPUT LEVEL each channel
Indicators: Power (green), VU (green, yellow, red), Mono/Stereo (yellow), MUTE L & MUTE R (red each)
Power requirement: 115 V AC / 230 V AC (switchable) max. 40 W consumption
Weight: 3 kg
SIGNAL PROCESSING
98 99
MIXERS
total control at your ngertips!
MIXERS
LD Systems offers a wide selection of mixers for users who are unwilling to make any compromises when it comes to audio quality, functionality, and reliability.
The range includes automatic mixers and mixing consoles with up to 12 channels for practically all applications in live use, as submixers, in home recording, for DJs,
and in installations.
AM 8
8-CHANNEL AUTOMATIC DIGITAL MIXER
AUTOMATIC MIXING
The LD Systems AM 8 is an 8 channel
automatic matrix mixer with balanced
mic/line inputs, 96kHz/24-bit internal
digital signal processing and a 20 Hz
– 30 kHz frequency response.
ADVANCED CONNECTIVITY
Rear panel RS-232, RJ45 and DB-25 connectors ensure
networking capability and remote software control while
AES/EBU and dual master outputs provide analog and digital
connectivity.
CONTROL AT YOUR FINGERTIPS
Front panel encoders with LED meter rings and peak
indicators allow manual gain adjustment in 1 dB
steps, input sensitivity selection and priority
switching. A master encoder with dual LED meters
provides gain control, output 1 or 2 and mic or line
level selection plus easy signal monitoring.
DEEPER IN THE MIX
The AM 8 software adds comprehensive conguration,
management and control convenience. It includes
phantom power switching, a 35 – 150 Hz high pass
lter, high and low shelving or 5-band parametric EQ
with variable Q for the input channels as well as a
15-band parametric and limiter for each master output.
NETWORKING ALLOWED
The mixer‘s channel inputs and master outputs
are on terminal block connectors, the cable
connectors are supplied with the AM 8. The rear
panel also features mini-DIN connectors to link
up to 16 units for master/slave operation.
100 101

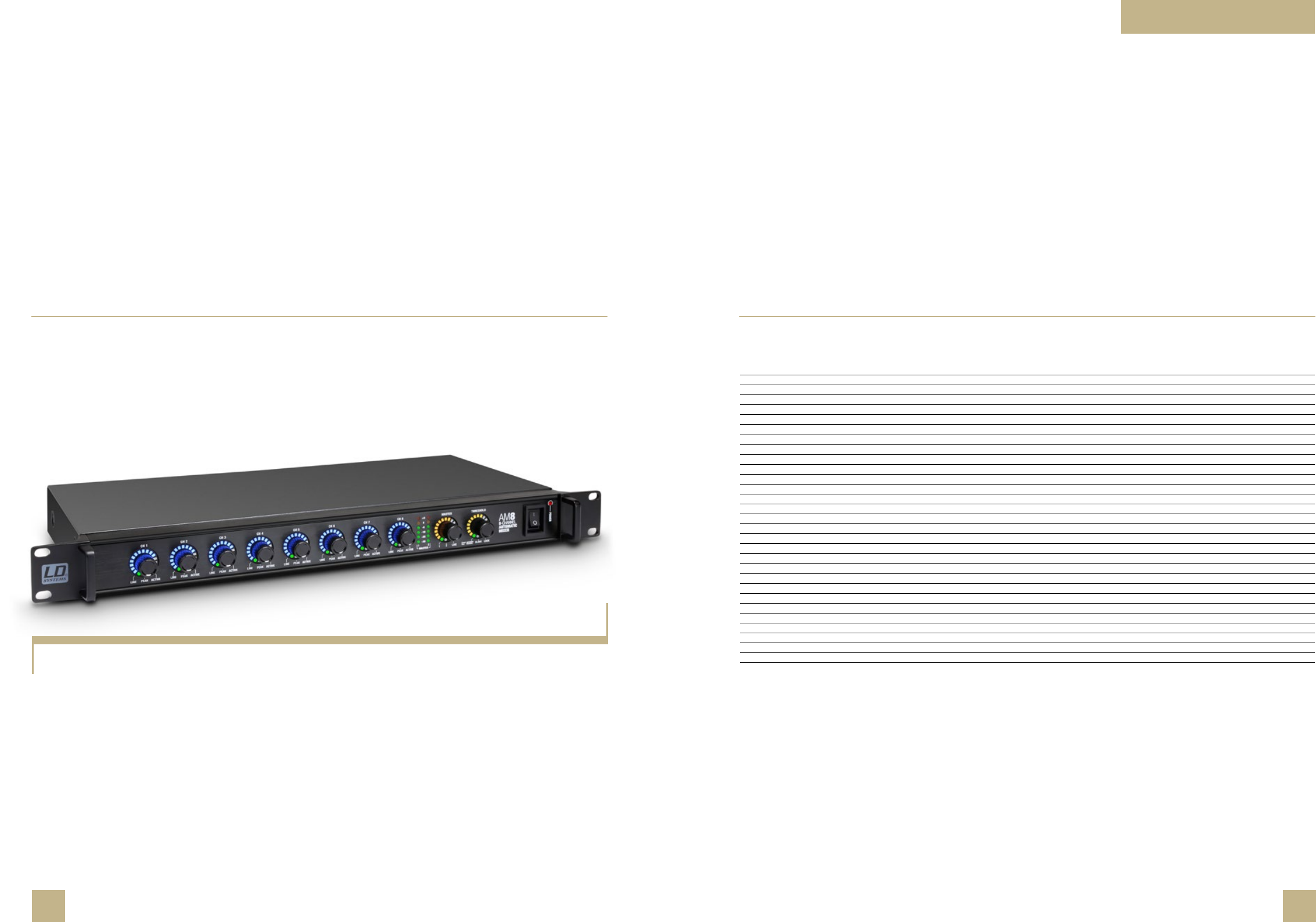

SPECIFICATIONS:
AM 8
8-CHANNEL AUTOMATIC DIGITAL MIXER
MIXERS
Model name: LDAM8
Product type: 8-Channel Automatic Digital Mixer
Type: 8 In / 2 Out analog-digital-analog Matrix
INPUT SECTION SPECIFICATIONS:
Total Input Channels: 8 (Mic/Line -switchable)
Input Channel Connectors rear side: 8 x 3-pin terminal connectors
Input Channel Controls:
Encoder (24-step) front panel/Manual operation: Gain (1dB steps), MIC/LINE, ACTIVE (Priority)
Input Sensitivity / Max. Level LINE: -20 / +20 dBu
Phantom Power: 48 Volt
Input Side Display Elements: Gain Level (16-segment blue LED), LINE (green LED), PEAK (Red LED), ACTIVE (Priority LED, Green)
OUTPUT SECTION SPECIFICATIONS:
Total Output Channels: 2
Output Channel Connectors: 2 x 3-pin terminal connector analog, AES-EBU 3-pin terminal connector digital
Output level LINE / MIC (selectable): +20 / +1 dBu
DIGITAL:
DSP: EQ, Gain control, 8 x 2 –Matrix, Dynamic control (Compressor/Limiter), Automix
Sampling Rate: 96 kHz
Resolution: 24 Bit
SOFTWARE:
Input Controls: EQ, LINE / MIC (selectable), PRIORITY, PHANTOM, MUTE, GAIN
Remote Control: TCP/IP Ethernet for PC-Software (Full Control), RS-232 (Gain Control, Mute), External Control
GLOBAL SPECIFICATIONS:
Number of Zones: 2
Max. Number of Slave units: 16
Installation Height: 1U / 19"
Other Connectors: Serial connector RS-232 (9-pin D-Sub), NETWORK (RJ45), LINK IN / LINK OUT (MiniDIN4-M), EXTERNAL CONTROL (D-SUB 25-pin)
Other Display Elements: Power –LED
Frequency Response: 20 – 30,000 Hz
Dimensions (W x H x D): 481 mm x 44 mm x 232 mm
Weight: 2.58 kg
AM 8
8-CHANNEL AUTOMATIC DIGITAL MIXER
102 103
ZONE SERIES
MIXERS
your signal is on the right path.
ZONE SERIES
PERFECT AND FLEXIBLE CONTROL CENTRE SOLUTIONS
Designed to distribute music and announcements to separate rooms, the ZONE Series rackmount mixers provide extensive system control in multi-zone installations. Front
panel cue buttons assign the mixers' microphone, line and AUX input channels to any of the zone ouputs. With a host of facilities including independent zone level and EQ
controls and the ability to accept emergency paging signals, LD Systems' ZONE Series mixers are the ideal choice for multiroom audio systems.
P Fully featured zone mixers for multiroom audio installations
P 2 mic channels plus line and AUX inputs for a wide range of sources
P Emergency paging inputs
P Extensive level and EQ control
P Extremely versatile and easy to operate
MULTIROOM AUDIO INSTALLATION
Due to its extensive connectivity the ZONE series is
the extremely exible control centre solution for PA
systems in food outlets, clubs, hotels, tness
centres, and is also excellent for presentations
and DJs.
WIDE RANGE OF SOURCES
In addition to the two balanced
microphone inputs with variable Gain and Talkover level,
12V-phantom power, and a shared EQ, the ZONE series offers
Line, and Aux-stereo connections in RCA format, a FOH-input
with balanced stereo jack plugs as well as a 3.5mm mini jack
and a USB port turning your ZONE series mixer into an external
audio interface.
RING THE ALARM
The ZONE series is a particularly compact zone mixer
series with 6 line and 2 microphone channels, that can be
assigned to a stereo or a mono master output.
The devices have all the essential functions, inputs for an
external emergency announcement system with its own
volume control, and a connection to the remote-
controlled switching mute.
MAXIMUM CONTROL
The stereo input channels of the ZONE series have a
cue button and volume control signal display, and the
channels 1-5 have an additional gain trimmer.
The stereo and mono output sections have their own
meters, EQ, trimmer for adjusting the maximum
output level.
104 105

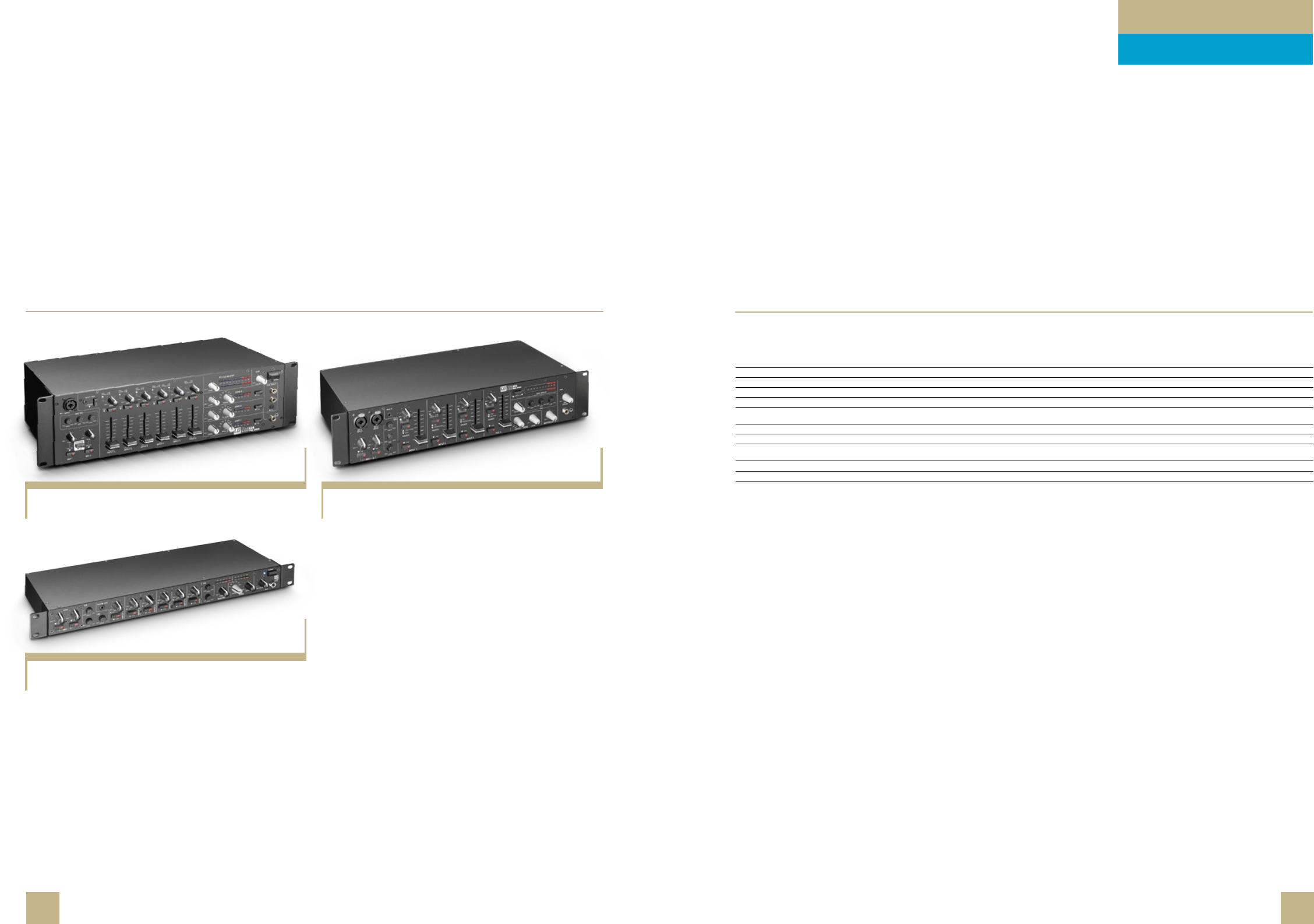

Model name: LDZONE624 LDZONE423 LDZONE622
Type: Stereo Zone Mixer Stereo Zone Mixer Stereo Zone Mixer
Number of zones: 4 (Master, Zone A-C) 2 (Master, Zone) 2 (Master, Zone)
Installation height: 3U 2U 1U
Frequency response: 20 - 40,000 Hz 20 - 40,000 Hz 20 - 40,000 Hz
Input channels: 8 (2 x Mic, 1x AUX/Line, 2 x Phono/Line, 2 x Line,
1 x FOH/Line)
6 (2 x Mic, 1 x Line/Aux, 2 x Line/Phono,
1 x Line/FOH)
8 (2 x Mic, 2 x Mic/Line, 3 x Line, 1 x FOH)
Line outputs: 5 (Master - Stereo, 3x Zone - Mono, Rec - Stereo) 3 (Master - Stereo, Zone - Stereo/Mono, Rec - Stereo) 3 (Master - Stereo, Zone - Mono, Rec - Stereo)
Output connectors master: terminal block, 2 x XLR (balanced), RCA (x2) RCA (x2), terminal block, 2 x XLR (balanced) terminal block, RCA (x2), 6.3 mm stereo jack (2 x balanced)
Zone output connectors: terminal block, XLR (balanced) terminal block, RCA (x2),
2 x XLR (balanced)
6.3 mm stereo jack (balanced),
terminal block
Dimension (W x H x D): 485 x 132 x 210 mm 485 x 89 x 210 mm 485 x 44 x 179 mm
Weight: 4.4 kg 3.3 kg 2.4 kg
Features: Phantom power 12 V, Talkover, 100 Hz High Pass,
Emergency input, Zone EQ, Master EQ, Microphone EQ,
max. level for outputs
Phantom power 12 V, Talkover, 100 Hz High Pass,
Emergency input, Zone EQ, Master EQ, Microphone
EQ, max. level for outputs
Phantom power 12 V, Talkover, Emergency input, Zone EQ,
Master EQ, Microphone EQ, max. level for outputs
SPECIFICATIONS:
ZONE 624
STEREO ZONE MIXER
ZONE 622
STEREO ZONE MIXER
ZONE 423
STEREO ZONE MIXER
ZONE SERIES
PERFECT AND FLEXIBLE CONTROL CENTRE SOLUTIONS
ZONE SERIES
MIXERS
106 107

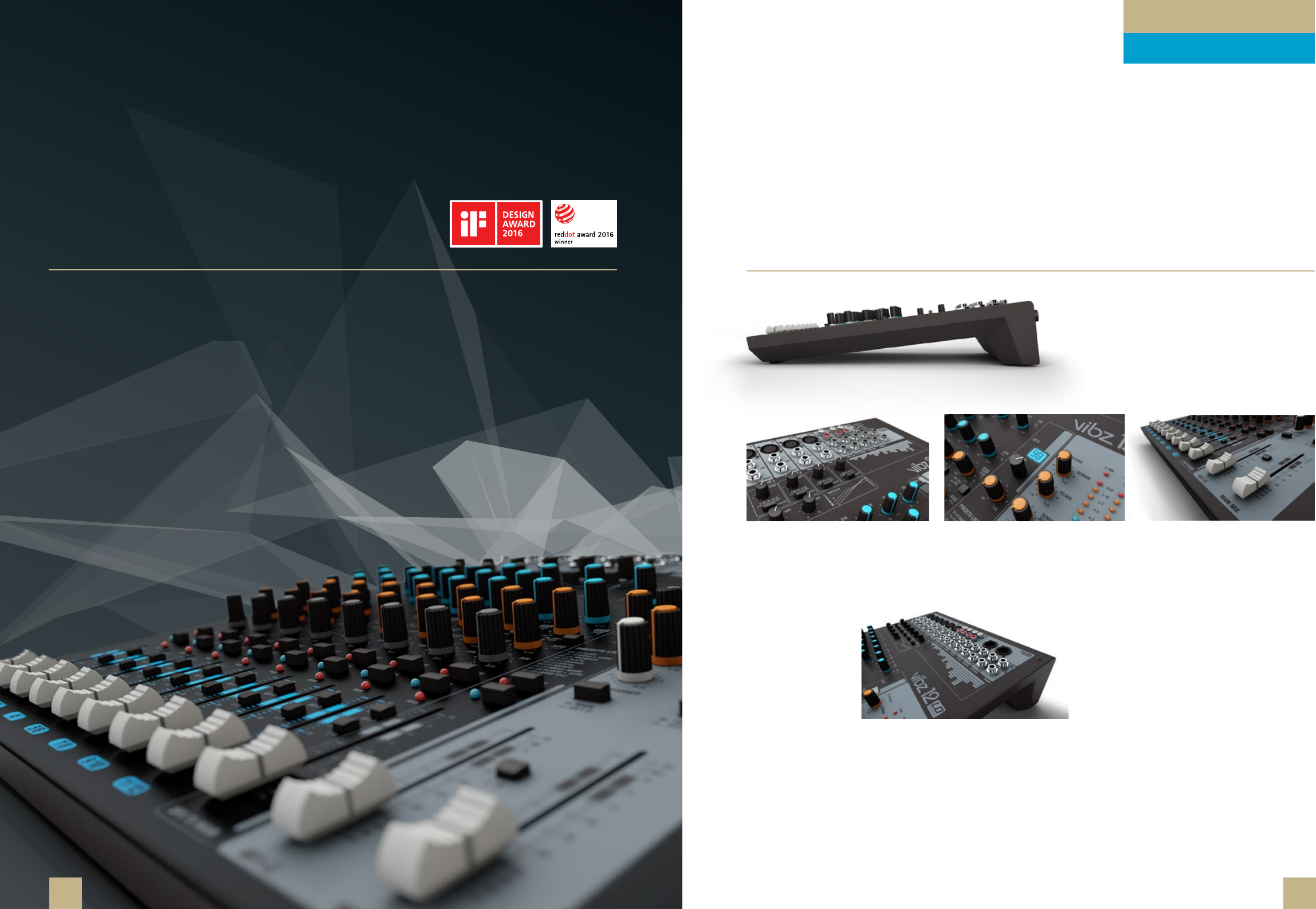

VIBZ SERIES
MIXERS
the heart of your sound.
VIBZ SERIES
MIXING CONSOLES WITH DFX AND COMPRESSOR
With the VIBZ Series, LD Systems introduces a range of mixing consoles incorporating all you need for a great sound and professional performance. Features include
electronically balanced mic/line channels with XLR and TRS inputs and phantom powering, dedicated stereo input channels with mono capability, carefully tailored
musical EQ and effects send and return. In addition, the VIBZ Series mixers provide RCA stereo inputs and outputs for playing pre-recorded music and recording
your performance, control room outputs for studio monitoring and an impressive 10 Hz – 45 kHz frequency response. Select models sport a built-in compressor and
footswitchable 24-bit digital effects. LD Systems' VIBZ mixing desks are an affordable choice for live gigs, installations and semi-pro recording applications. A microphone
stand mounting adapter is available for the 6, 8 and 10 channel mixers.
P Four mixer formats from 6 to 12 input channels
P Main, control room and headphone outputs
P Effects send and return
P Musical 3-band EQ
P Tape in and out
P 10 Hz – 45 kHz frequency response
P 24-bit digital effects with up to 100 presets
P Built-in compressor (VIBZ 8, 10 & 12)
P Mic stand mounting adapter available as accessory (for VIBZ 6, 8 and 10)
EFFICIENT GERMAN DESIGN
The VIBZ Series mixing consoles are designed for excellent audio performance
in mobile, xed and home recording applications. The German engineering is
evident in the ergonomics and tough construction which combines the light
weight of ABS with the strength of metal. Rubber strips underneath provide a
secure grip on any surface.
SONIC TRANSPARENCY
Engineers and musicians alike will appreciate the
VIBZ Series’ transparent, natural-sounding mic
preamps and the musical EQ.
POWERFUL EFFECTS
All models in the VIBZ Series include an advanced 24-
bit digital effects processor with up to 100 presets to
enhance your mix and performance.
UNIVERSAL COMPRESSOR
With a smooth, smart action the built-in single knob
compressor effectively controls the dynamics of voices,
instruments and other input sources.
FULL CONTROL
Packed with professional features LD Systems VIBZ mixers put you
in full control of your sound. They provide 3-band EQ on mono and
2-band EQ on stereo channels, FX send and return, 48V phantom
power and 2-track inputs and outputs. The 6, 8 and 10 channel
models come with a locking external power supply, the 12 channel
version sports a built-in power supply.
108 109

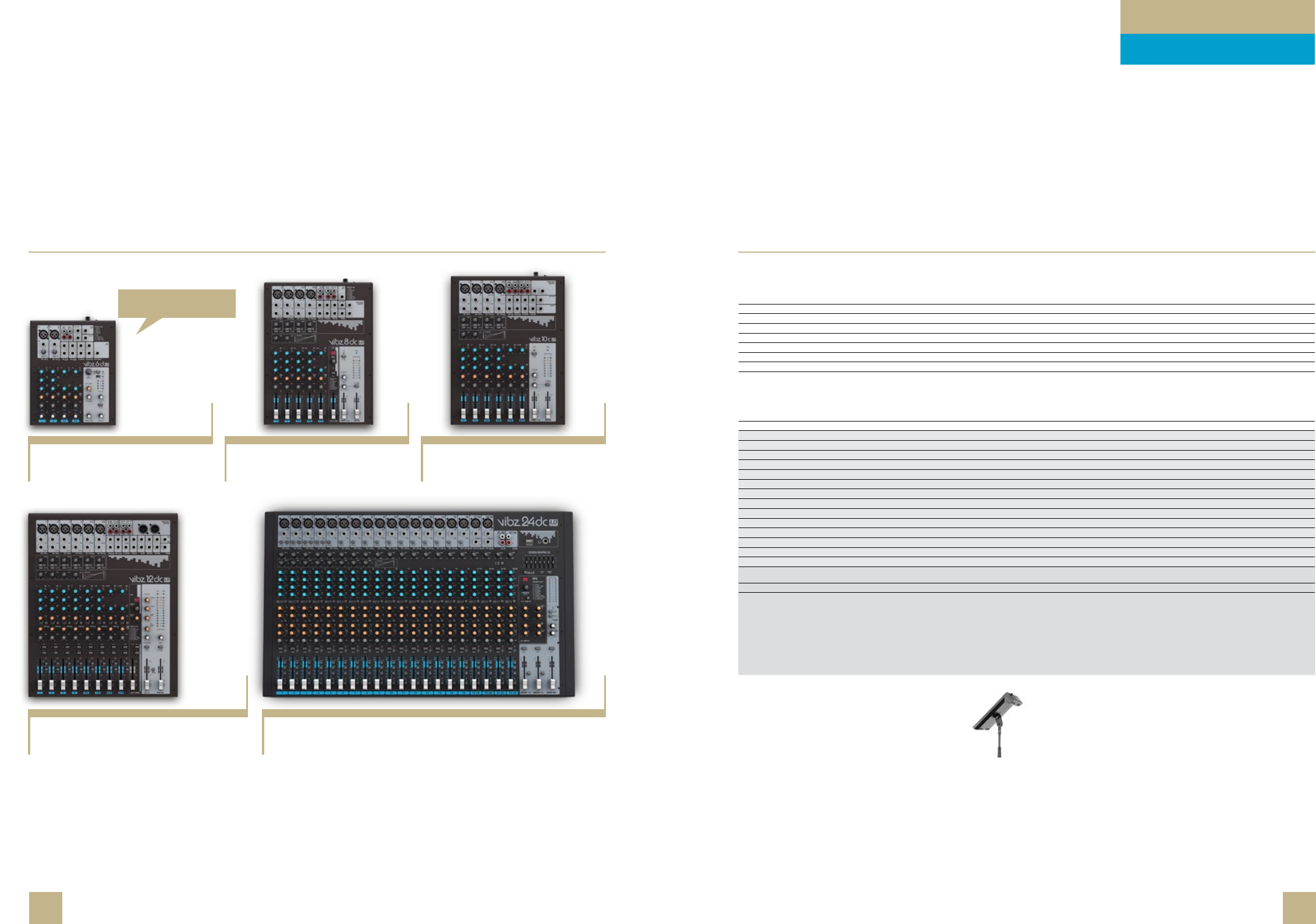

VIBZ SERIES
MIXERS
VIBZ 6 D
6 CHANNEL MIXING CONSOLE
WITH DFX
VIBZ 12 DC
12 CHANNEL MIXING CONSOLE
WITH DFX AND COMPRESSOR
VIBZ 10 C
10 CHANNEL MIXING CONSOLE
WITH COMPRESSOR
VIBZ 8 DC
8 CHANNEL MIXING CONSOLE
WITH DFX AND COMPRESSOR
VIBZ 24 DC
24 CHANNEL MIXING CONSOLE
WITH DFX AND COMPRESSOR
VIBZ SERIES
MIXING CONSOLES WITH DFX AND COMPRESSOR
AVAILABLE ACCESSORIES:
LDVIBZMSADAPTOR Microphone Stand Adapter for VIBZ 6, 8 & 10
SPECIFICATIONS:
ALSO AVAILABLE WITHOUT
DFX SECTION (VIBZ 6)
Item number: LDVIBZ6D/ LDVIBZ6 LDVIBZ8DC LDVIBZ10C LDVIBZ12DC LDVIBZ24DC
Channels stereo (mono): 6 (2) 8 (4) 10 (4) 12 (4) 24 (4)
Frequency response mono mic input: 10 - 45,000 Hz 10 - 45,000 Hz 10 - 45,000 Hz 10 - 45,000 Hz 10 - 45,000 Hz
Amplication range mono mic input: 0 - +50 dB 0 - +50 dB 0 - +50 dB 0 - +50 dB (channel 1-4) 0 - +50 dB
S/N ratio: 113 dB 113 dB 113 dB 113 dB 113 dB
Mono line input type: Electronically balanced Electronically balanced Electronically balanced Electronically balanced Electronically balanced
Mono line input frequency range: 10 - 45,000 Hz 10 - 45,000 Hz 10 - 45,000 Hz 10 - 45,000 Hz 10 - 45,000 Hz
Amplication range mono line input: 0 - +50 dB 0 - +50 dB 0 - +50 dB 0 - +50 dB 0 - +50 dB
Controls mono mic and line input channels: 3-band EQ (high, mid, low),
gain, channel volume, AUX
post, pan
AUX (DFX) post, 3-band EQ
(high, mid, low), compressor
(channel 1+2), pan, channel
volume, low cut (75 Hz), gain
Gain, compressor, AUX (DFX)
post, 3-band EQ (high, mid,
low), pan, low cut (75 Hz),
channel volume
AUX 2 (DFX) post, AUX 1
switchable pre/post, compressor,
low cut (75 Hz), 3-band EQ (high,
mid, low), gain, DFX/AUX 1, PFL
Bal, channel fader, LINE/USB -switch
(Channel 21 - 24), gain, AUX send
1-2 pre (AUX2 pre/post switchable),
PFL / solo switch, fader routing
switch (group 1/2, group 3/4, main
L+R), 3-band EQ (high, mid, low),
AUX send 3-4 (post)
Phantom power: +48 V DC switchable +48 V DC switchable +48 V DC switchable +48 V DC switchable +48 V DC switchable
Main section
AUX / effects send channels: 1 1 1 2 4
AUX / effects send connectors: 6.3 mm stereo jack unbal. 6.3 mm stereo jack unbal. 6.3 mm stereo jack unbal. 6.3 mm TRS 6.3 mm TRS
Stereo AUX return channels: 1 x stereo 1 x stereo 1 x stereo 1 x stereo 1 x stereo
AUX / effects send connectors: 2 x 6.3 mm TRS 2 x 6.3 mm TRS 6.3 mm TRS 6.3 mm TRS 6.3 mm TRS
Stereo tape output channel: 1 x stereo 1 x stereo 1 x stereo 1 x stereo n.a.
Stereo tape out connectors: 2 x RCA (Cinch) 2 x RCA (cinch) 2 x RCA (cinch) 2 x RCA (cinch) n.a.
Stereo tape input channel: 1 x stereo 1 x stereo 1 x stereo 1 x stereo n.a.
Stereo tape in connenctors: 2 x RCA (Cinch) 2 x RCA (cinch) 2 x RCA (cinch) 2 x RCA (cinch) n.a.
Group out connectors: n.a. n.a. n.a. 2 x 6.3 mm TRS 4 x 6.3 mm TRS
Unbalanced stereo main outputs: 1 1 1 1 1
Unbalanced stereo main out impedance: 120 ohm 120 ohm 120 ohm 120 ohm 120 ohm
Max. unbalanced stereo main out level: +20 dBu +20 dBu +20 dBu +23 dBu +22 dBu
Stereo control room outputs: 1 1 1 1 1
Digital effects processor: Yes, 24-bit AD/DA resolution
(not available on LDVIBZ6) Yes, 24-bit AD/DA resolution n.a. Yes, 24-bit AD/DA resolution Yes, 24-bit AD/DA resolution
No. of presets: 16 100 n.a. 100 100
Main section controls: 2-track assignment (main,
contr. room), 2-track in volume,
stereo return volume, phantom
power, master volume, phones /
control room volume
DFX to main volume, master
volume, stereo return volume,
DFX mute switch, phantom
power, DFX presets, phones /
control room volume
master volume, phones / control
room volume, phantom power,
2-track in volume, stereo return
volume, 2-track assignment
(main, control room)
PFL, presets, master volume, DFX
to AUX volume, AUX send volume,
DFX mute switch, power, volume
control CTRL / phones, group 1-2
assignment to main mix, DFX to
main volume, 2-track in volume,
CTRL / phones assignment
(main/
group 1-2), phantom power,
stereo return to AUX volume,
2-track assignment (main, contr.
room), stereo return to main
volume, group 1-2 volume
Phantom power, DFX to main,
phones/CTRL fader, AUX/DFX send 1
- 4, DFX to AUX, mains switch, group
to main -switch, 7-band graphic
EQ, EQ on/off, DFX presets, main
mix fader, TK in to main/to CTRL,
DFX mute
110 111
license
free!

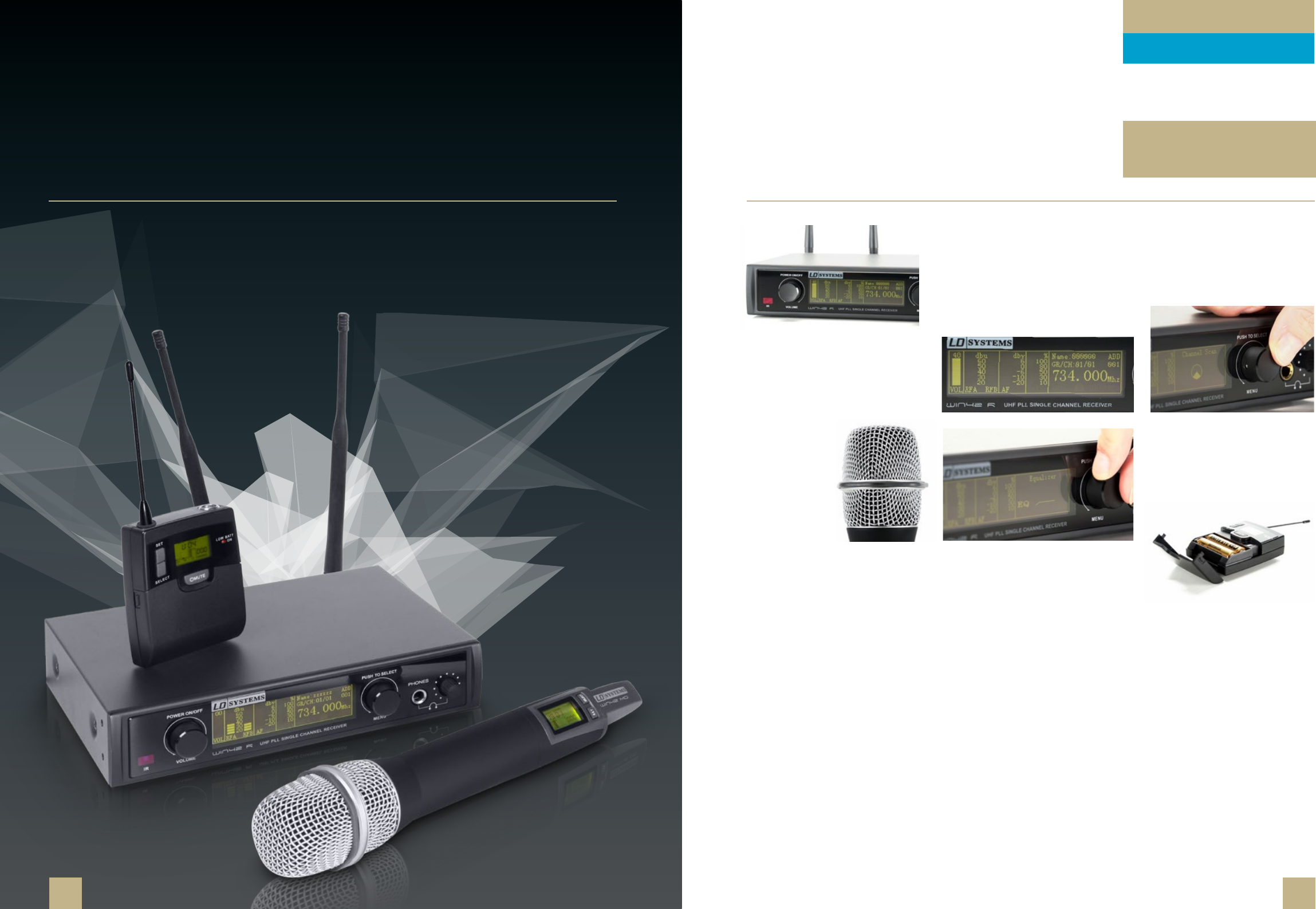

U500® SERIES
WIRELESS SYSTEMS
U500® SERIES
UHF WIRELESS MICROPHONE SYSTEM
We have developed the U500® Series and incorporated some of your suggestions to provide sophisticated and affordable wireless systems that are tailored to suit the
needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500® Series will meet your expectations of quality sound,
reliability and ease of operation.
P Professional wireless microphone and instrument systems
P Interchangeable dynamic and condenser microphone heads
P 100 meter transmission range and switchable ouptut (2, 10 or 30 mW)
P Low energy consumption and high contrast OLED displays
P Distortion free sound thanks to precise gain control up to -27 dB
P Bodypack receivers with extended low end for bass guitars
P Automatic channel scan and easy one-touch infrared frequency sync
P Pilot tone squelch circuit prevents from broadband noise
loving U.
INTERCHANGEABLE MIC HEADS
Tune your handheld transmitter with interchangeable
microphone heads! Four screw-on dynamic and
condenser capsules are available with cardioid or
hypercardiod patterns to cover virtually all voice
characteristics and applications.
WE DO THE HARD WORK
Automatic channel scanning allows quick and
easy selection of interference-free radio
frequencies. Receiver and transmitter are synced
via infrared in a convenient one touch operation.
PILOT TONE FOR NOISE-FREE OPERATION
Inaudible for the human ear a pilot tone is added to the transmitter signal. To prevent noise from interfering signals
the receiver is automatically muted if it detects no pilot tone to prevent noise from interfering signals. Transmission
power is switchable to 2, 10 or 30 mW.
GAIN CONTROL
The handheld and bodypack transmitters fea-
ture a gain control putting level adjustment
right at your ngertips. The screw-on dynamic
and condenser microphone capsules are easily
interchangable.
OLED DISPLAY
U500 Series components feature high-contrast
OLED displays for easily readable status indication
even under adverse conditions. Designed and
engineered in Germany, U500 systems provide
maximum performance and reliability.
READY TO GO
All U500 systems
come with a rugged
ABS transport case to
hold and protect your
wireless mic.
Ready to go, ready
to gig!
ALL THE WAY ACROSS
A FOOTBALL PITCH
With a line-of-sight operating range of more than
100 metres, U500 systems cover the length of a
football pitch! The transmitter’s very low current
draw allows up to 10 hours of continuous operation
with a pair of AA batteries.
112 113
U500® SERIES
WIRELESS SYSTEMS
U500® SERIES
UHF WIRELESS MICROPHONE/INSTRUMENT SYSTEMS
U5XX* HHC
WIRELESS MICROPHONE SYSTEM
WITH CONDENSER HANDHELD MICROPHONE
U5XX* BPHH
WIRELESS MICROPHONE SYSTEM
WITH BODYPACK AND SKIN-COLOURED HEADSET
U5XX* HHD
WIRELESS MICROPHONE SYSTEM
WITH DYNAMIC HANDHELD MICROPHONE
U5XX* BPH
WIRELESS MICROPHONE SYSTEM
WITH BODYPACK AND BLACK HEADSET
U5XX* BPL
WIRELESS MICROPHONE SYSTEM
WITH BODYPACK AND LAVALIER MICROPHONE
*Replace the XX with the desired version underneath to choose your frequency band:
U505 // 584 - 608 MHz // simultaneous operation of 12 systems
U506 // 655 - 679 MHz // simultaneous operation of 12 systems
U508 // 823 - 832 MHz + 863 - 865 MHz // simultaneous operation of 6 systems
U506 UK // 606 – 614 MHz // n.a.
U518 // 1785 – 1800 MHz // n.a.
U5XX* HHC2
WIRELESS MICROPHONE SYSTEM
WITH 2 x CONDENSER HANDHELD MICROPHONES
U5XX* HHD2
WIRELESS MICROPHONE SYSTEM
WITH 2 x DYNAMIC HANDHELD MICROPHONES
U5XX* BPH2
WIRELESS MICROPHONE SYSTEM
WITH 2 x BODYPACKS AND 2 X HEADSETS
U5XX* BPHH2
WIRELESS MICROPHONE SYSTEM
WITH 2 x BODYPACKS AND 2 X HEADSETS SKIN-COLOURED
U5XX* BPW
WIRELESS MICROPHONE SYSTEM
WITH BODYPACK AND BRASS INSTRUMENT MICROPHONE
U5XX* BPG
WIRELESS MICROPHONE SYSTEM
WITH BODYPACK AND GUITAR CABLE
SPECIFICATIONS RECEIVER:MICROPHONE:BODYPACK:
Product type: receiver
Type: true diversity
Antenna inputs: 2
Antenna connector: TNC
Frequency response: 60 - 16,000Hz
Noise reduction: adjustable squelch
THD: < 0,3 %
Signal-to-noise ratio: > 100 dB pilot tone squelch
Audio output, balanced: XLR - 12 dBV / 6.3 mm TRS - 18 dBV
Weight: 0.91 kg
Controls: set, up, Power On/Off, down, ASC
Indicators: OLED Display
Controls: digital encoder, volume, power
Operating voltage: 12 - 18 V DC
Width: 212 mm
Height: 45 mm
Depth: 163 mm
Accessories (included): 2 x HF antennas, 2x AA batteries
Product type: handheld transmitter
Microphone type: dynamic / condenser
Directivity: cardioid / hypercardioid
Frequency response: 60 - 16,000 Hz
Rated HF output power: 2 mW, 10 mW, 30 mW
Controls: power on/off, menu, set
Indicators: OLED display
Operating voltage: 2 x 1.5 V AA
Operating time: up to 10 h, depending on battery type
Length: 252 mm
Diameter: 52 mm
Weight: 0.25 kg
Other features: pilot tone, switchable gain, switchable RF
power, changeable capsule
Product type: Bodypack
Groups: 8
Inputs: Mini-XLR (3-pin)
Frequency response: 30 - 16,000 Hz
Rated HF output power: variable (2mW, 10mW, 30mW)
Controls: menu, set, power on/off
Indicators: OLED display
Operating voltage: 2 x AA battery
Operating time: up to 10 h, depending on battery type
Width: 65 mm
Height: 86 mm
Depth: 23 mm
Weight: 0.09 kg
Other features: Pilot tone squelch, switchable gain,
detachable antenna, switchable RF
power, switchable gain
114 115
SPECIFICATIONS CONFERENCE RECEIVER:CONFERENCE MICROPHONE:
Modulation type: FM
Groups: 6
Channels: 60 (6 x 10)
Antenna inputs: 2
Antenna connectors: BNC
Frequency response: 60 Hz
Noise reduction: squelch
THD: < 0,2 %
Signal-to-noise ratio: > 100 dB
Audio outputs balanced: 4 x XLR
Audio outputs mix balanced: XLR
Max. output level: +12 dBu
Controls: digital encoder, Power On/Off, RX 1 - 4 quick access
buttons
Indicators: OLED display
Operating voltage: 12 V DC, 1,000 mA
Width receiver: 484 mm
Height receiver: 44 mm
Depth receiver: 243 mm
Weight receiver: 2 kg
Channels: 6 (6x10)
Groups: 6
Inputs: XLR
Frequency response: 60 - 16000 lx @ 1mHz
Signal-to-noise ratio: > 100 dB
Rated HF output power: 10 mW
Controls: low cut, power / mute, gain
Indicators: LED, OLED display
Operating voltage: 2 x AA battery
Operating time: >8 h (with alkaline batteries)
Width: 115 mm
Height: 54 mm
Depth: 135 mm
Weight: 0,73 kg
U500® SERIES
WIRELESS SYSTEMS
U500® SERIES
4-CHANNEL WIRELESS CONFERENCE SYSTEM
U50X* CS4
4-CHANNEL WIRELESS CONFERENCE SYSTEM
*Replace the X with 5, 6 or 8 to choose your desired frequency band:
U505 CS4 // 554 - 586 MHz
U506 CS4 // 662 - 694 MHz
U508 CS4 // 823 - 832 MHz + 863 - 865 MHz
GAIN CONTROL & LOW CUT
Soft-spoken or powerful, the gain control lets you
match the mic level to a speaker’s voice. A switchable
highpass lter prevents boominess when the speaker
is too close to the microphone.
RECEIVER CASCADING
To extend the number of microphone units
the U500 Receiver features audio and data
ports for cascading up to ve units. Sharing
the antennas of the master unit they provide a
maximum of 20 channels.
AUTO & MANUAL GATE
If a microphone unit‘s signal level falls below the
threshold the gate mutes the respective channel to
eliminate unwanted noise. Hold time determines
how long the noise gate remains open after the
input level has dropped below the threshold.
INDIVIDUAL AND MIX OUTPUTS
The receiver sports individual XLR outputs for each
of the 4 channels plus a mix output. This provides
a summed signal of all the channels based on their
individual level settings.
READY FOR REMOTE CONTROL
Providing an RS-232 interface, the receiver enables external control via
remote systems.
REMOVABLE GOOSENECK MIC
Featuring a luminous indicator ring, the gooseneck
condenser microphone is detachable from the
desktop base’s XLR connector.
Hold time
PILOT TONE FOR NOISE
FREE TRANSMISSION
Inaudible for the human ear a pilot
tone is added to the transmitter
signal. The receiver is automatically
muted if it detects no pilot tone to
prevent noise from interfering
signals.
116 117
WIN 42 SERIES
WIRELESS SYSTEMS
professional wireless systems.
WIN 42 SERIES
TRUE DIVERSITY PROFESSIONAL WIRELESS SYSTEMS
Operating in the 734 – 776 Mhz band, the professional WIN 42 Series true diversity wireless includes a total of 1,680 UHF channels, infrared syncing and selectable RF
output up to 50 mW. With lightweight beltpack transmitters, single and dual receivers and a selection of handheld, clip-on and headset microphones, the WIN 42 Series
provides unrestricted movement while delivering crystal clear vocals and instrument sounds with extended frequency response.
P Professional true diversity wireless microphone systems
P Extended transmission range and frequency response
P Up to 50 mW RF output and 1680 UHF channel
P Dynamic, condenser, headset, lapel and horn clip-on microphones
FUTURE READY
The WIN 42 true diversity wireless microphone systems
work in two different professional UHF frequency ranges:
734 - 776 MHz and 516 – 558 MHz (B5 models).
SIMPLE IS BETTER
The threaded
connection allows to
swap the microphone
head of the handheld
transmitter from
dynamic to condenser
and vice versa quickly
and easily.
PROFESSIONAL FEATURES
Transmitter battery status indicator on receiver, “Mute
on/off” from receiver, 4 EQ presets from receiver, 3
settings for the transmitting power (10, 30, 50 mW),
Audio sensitivity adjustable, Squelch/EQ/Naming
adjustable, menu lock function, Audio/Volume/Radio
level indication.
WE DO THE JOB FOR YOU
The "Channel Scan" function assists you in
nding and tuning to a transmission frequency
without interference. This frequency is then
transmitted simply and conveniently from
receiver to transmitter via an infrared link.
THE RIGHT SOLUTION FOR ANY LIVE
APPLICATION
Up to 20 wireless microphone systems
simultaneously thanks to 1680 freely selectable
frequencies. The system offers 20 groups with 577
xed frequencies and 255 selectable addresses.
LOW ENERGY CONSUMPTION
Up to 14 hours operation with 2 standard AA
batteries.
NEW ADDITIONAL
FREQUENCY RANGE AVAILABLE:
STANDARD: 734 – 776 MHz
B5: 516 - 558 MHz
118 119
WIN 42 SERIES
WIRELESS SYSTEMS
ADDITIONAL AVAILABLE CONFIGURATIONS:
WIN 42 BPG Wireless System with Belt Pack and Guitar Cable
WIN 42 BPHH Wireless System with Belt Pack and Headset skin-coloured
WIN 42 BPHH 2 Wireless System with 2 x Belt Pack and 2 x Headset skin-coloured
WIN 42 BPW 2 Wireless System with 2x Belt Pack and 2x Brass Instrument Microphone
WIN 42 HBHH 2 Wireless System with Belt Pack, Headset skin-coloured and Dynamic Handheld Microphone
WIN 42 BPG 2 Wireless System with 2 x Belt Pack and 2 x Guitar Cable
* Systems working in the frequency range 516 – 558 MHz are marked with the code B5 at the end of the article number (ex: LDWIN42HHDB5)
WIN 42 SERIES
TRUE DIVERSITY PROFESSIONAL WIRELESS SYSTEMS
WIN 42 BPH (B5)
RECEIVER + BODYPACK +
HEADSET
WIN 42 BPH2 (B5)
DOUBLE RECEIVER + 2 x BODYPACK +
2 x HEADSET
WIN 42 BPL (B5)
RECEIVER + BODYPACK +
LAVALIERE MICROPHONE
WIN 42 HHD (B5)
RECEIVER + DYNAMIC HANDHELD
MICROPHONE
WIN 42 HHD2 (B5)
DOUBLE RECEIVER +
2 x DYNAMIC HANDHELD MICROPHONE
WIN 42 BPW (B5)
RECEIVER + BELTPACK +
WIND MICROPHONE
WIN 42 HHC (B5)
RECEIVER + CONDENSER HANDHELD
MICROPHONE
WIN 42 HHC2 (B5)
DOUBLE RECEIVER +
2 x CONDENSER HANDHELD MICROPHONE
WIN 42 HUB
SOFTWARE-BASED 19" CONTROLLER HUB
FOR WIN 42 INCLUDING WIN 42
CONTROL CENTER SOFTWARE
Model name: LDWIN42R
Channels: 1,680 (20 groups + 1 user group)
Frequency range: 734 – 776 MHz
Audio frequency range: 60 Hz – 16 kHz
THD: < 1%
Signal/Noise ratio: > 100 dB
Audio output: XLR balanced / ¼” jack unbalanced
Power supply: external power adapter 13,5 V DC, 500 mA
Dimensions (W x H x D): 212 x 44 x 184 mm
Weight: 970 g
Model name: LDWIN42MD
Channels: 1,680
Frequency range: 734 – 776 MHz
Audio frequency range: 60 Hz – 16 kHz
RF output power: adjustable 10 mw / 30 mw / 50 mw
Power requirements: 2 x AA size batteries (included)
Operating time: >13 h with alkaline batteries
Dimensions (L x Ø): 255 x 52 mm
Weight: 400 g (without batteries)
Model name: LDWIN42BP
Channels: 1,680
Frequency range: 734 – 776 MHz
Audio frequency range: 60 Hz – 16 kHz
RF output power: adjustable 10 mw / 30 mw / 50 mw
Input connector: mini XLR 3-pole (phantom power for headset)
Power requirements: 2 x AA size batteries
Operating time: >14 h with alkaline batteries (included)
Dimensions (W x H x D): 87 x 25 x 63 mm
Weight: 100 g (without batteries)
Model name: LDWIN42HUB
Type: software-based
Number of supported wireless systems: 16
Indicators: 16 x LED activation indicator
Operating voltage: 9 V - 18 V DC, 300 mA
Dimensions (W x H x D): 482 x 44 x 160 mm
Weight: 2.5 kg
Accessories (included): 16 x RJ11 cable, power adapter, RJ45 cable, software CD, USB to RS485 converter, USB cable
SPECIFICATIONS RECEIVER:
SPECIFICATIONS HUB:
HANDHELD TRANSMITTER:BELTPACK:
AVAILABLE ACCESSORIES:
WIN 42 MD (B5) Dynamic handheld microphone
WIN 42 MC (B5) Condenser Handheld Microphone
WIN 42 BP (B5) Belt pack transmitter for LD WIN 42 BPH wireless microphone system
WIN 42 R (B5) Receiver for LD WIN 42 wireless microphone system
WIN 42 R 2 (B5) Dual Receiver
WIN 42 CC Condenser Caspule
WIN 42 DC Dynamic Capsule
WIN 42 AD 4-way Antenna Split Box
WS 1000 MW Clip Microphone for Brass Instruments
WS 100 GC Guitar cable
WS 100 MH 1 Headset
WS 100 MH 3 Headset skin-coloured
WS 100 ML Lavaliere Microphone
WS 100 RK 19" Rack Kit
WS 100 DA Directional antennas for WS100, WS1000, and WIN42 series
WS 100 RK 2 19" Rackmount Kit for 2 Receivers
WS 100 TNC Antenna Cable TNC to TNC 0.5 m
WS 100 TNC 10 Antenna Cable TNC to TNC 10 m
HSAE1 Professional aerobics headset mircrophone water repellent
120 121

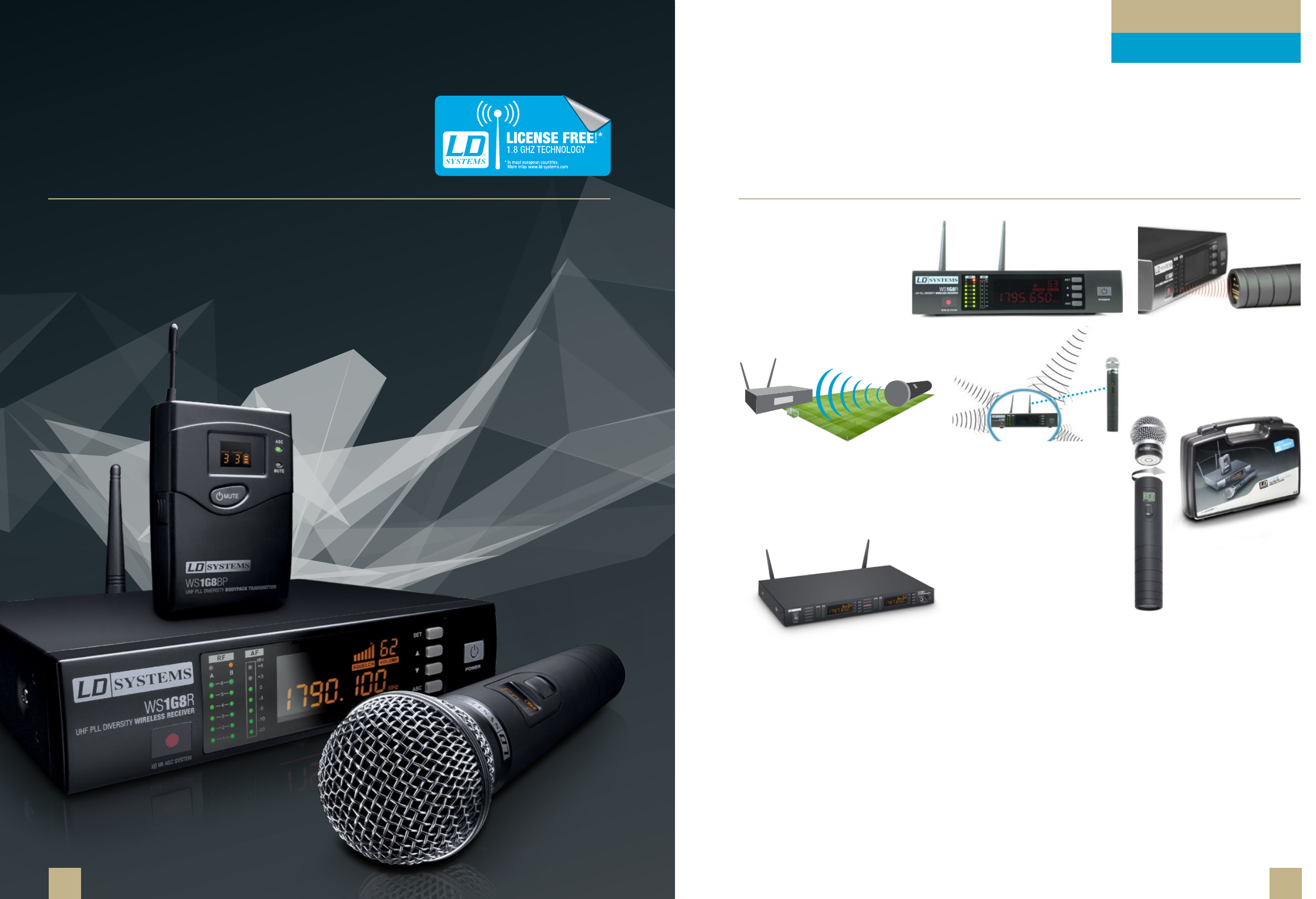

WS 1G8 SERIES
WIRELESS SYSTEMS
wireless into the future.
WS 1G8 SERIES
192 CH UHF TRUE DIVERSITY WIRELESS SYSTEMS
Engineered for professional audio quality and reliable long-term operation, the WS 1G8 Series is future proof operating in the license-free 1,785 – 1,800 Mhz frequency
band released by the digital dividend and allocated for wireless transmission. With a lightweight bodypack transmitter, handheld, clip-on and headset microphones, single
or dual receivers and 192 selectable UHF channels, the WS 1G8 Series is a sound investment for years to come.
P Professional true diversity wireless microphone systems
P Future proof license-free operation in the 1.8 GHz band
P 192 UHF channels
P Single and dual receivers
P Choice of microphones
THE FUTURE IS FREE
The WS 1G8 true diversity wireless
microphone systems work in the license free
UHF frequency band 1785 MHz - 1800 MHz.*
This frequency band allows the simultaneous
operation of up to 6 wireless microphone
systems, enough to free your whole band from
annoying cables.
ONLY TRUST THE PILOT
The Pilot Tone is a very high audio frequency
undetectable to human ear. The Pilot Tone
Squelch provides additional transmission
security, as the audio signal at the receiver is
muted as long as there is no Pilot Tone. If the
receiver detects the Pilot Tone, the audio signal
is un-muted.
KEEP IT SIMPLE
The threaded connection allows to swap the
microphone head of the handheld transmitter
from dynamic to condenser effortless and in
no time.
READY TO GO
All WS 1G8 systems come with a
rugged transport case made of ABS
plastic offering optimal protection
and storage.
AS EASY AS CAN BE
The "Channel Scan" function assists you in
nding and tuning to a transmission frequency
without interference. This frequency is then
transmitted simply and conveniently from
receiver to transmitter via an infrared link.
TRANSMIT ACROSS A SOCCER FIELD
The WS 1G8 series offers an operation range of up to a
100 meter in free eld applications. Enough to transmit
your signal across a soccer eld. They also provide a very
low power consumption allowing up to 14 hours operation
with 2 standard AA batteries.
ALSO AVAILABLE AS
DOUBLE WIRELESS SETS!
122 123

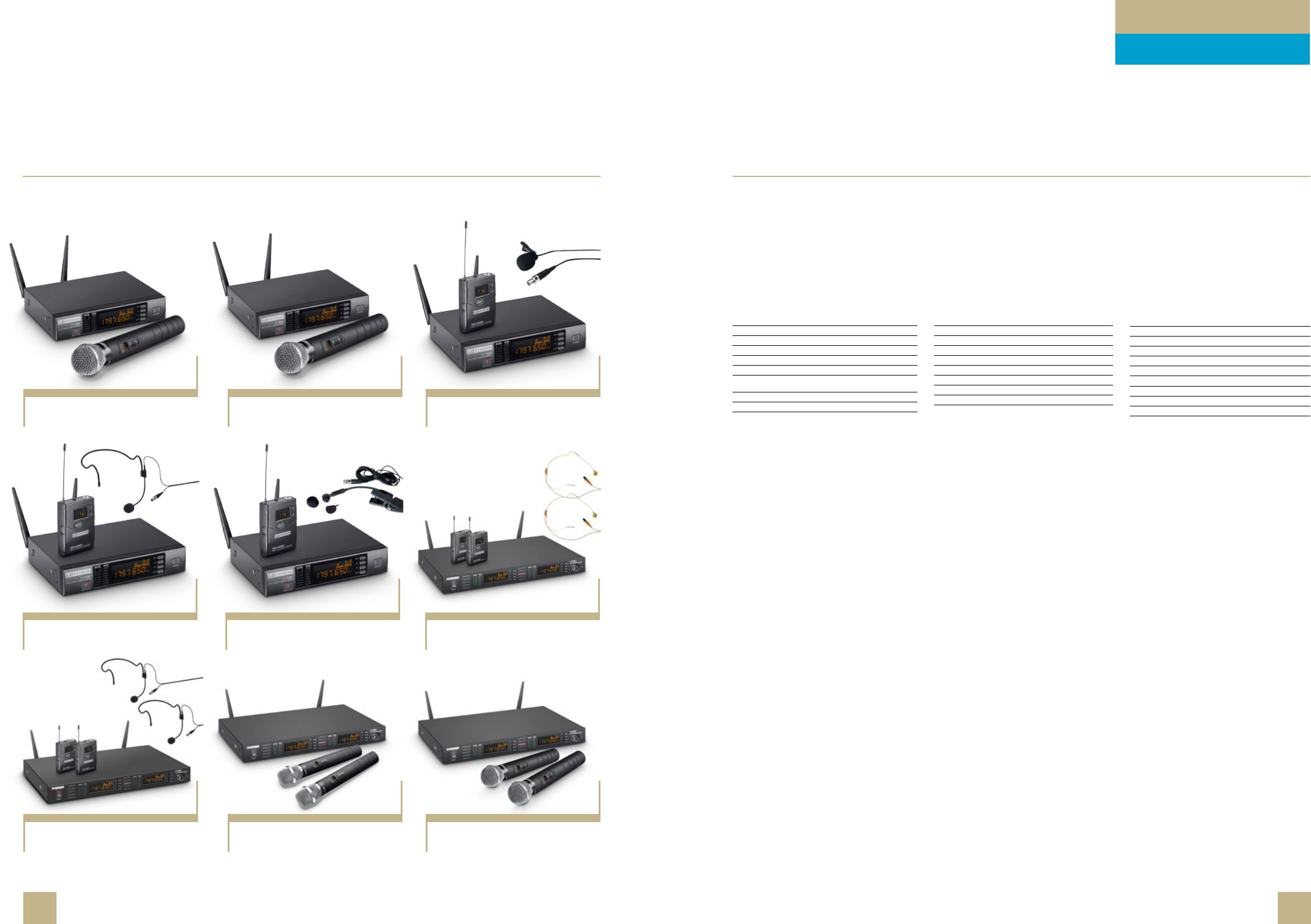

WS 1G8 SERIES
WIRELESS SYSTEMS
WS 1G8 SERIES
192 CHANNEL UHF TRUE DIVERSITY WIRELESS SYSTEMS
SPECIFICATIONS RECEIVER:BELTPACK:HANDHELD MICROPHONE:
Model name; LD WS1G8MD
Channels: 192 (16 Groups 12ch/Group)
Frequency range: 1,785 - 1,800 MHz
Pattern: Cardioid
Audio frequency range: 50 Hz - 16 kHz
Modulation: FM
RF output power: 10 mW
Power requirements: 2 x 1.5 V AA LR6 batteries (included)
Battery life: up to 13 h, depending on batteries
Dimensions: 252 x 52 mm
Weight: 220 g (without batteries)
Model name: LD WS1G8BP
Channels: 192 (16 Groups 12ch/Group)
Frequency range: 1785 - 1,800 MHz
Audio frequency range: 50 Hz - 16 kHz
Modulation: FM
RF output power: 10 mW
Power requirements: 2x 1.5 V AA LR6 batteries (included)
Battery life: up to 13 h, depending on batteries
Dimensions (W x H x D): 65 x 90 x 24 mm
Weight: 85 g (without batteries)
Model name: LD WS1G8R
Channels: 192 (16 Groups 12ch/Group)
Frequency range: 1,785 - 1,800 MHz
Audio frequency range: 50 Hz - 16 kHz
Modulation: FM
T.H.D
< 0,6 %
Audio outputs: XLR Balanced -12 dBV (600 Ohm) /
6.3 mm jack -18 dBV (3kOhm)
Power requirements: 12-18 V DC, external supply
Dimensions (W x H x D): 212 x 44 x 160 mm
Weight: 900 g
ADDITIONAL AVAILABLE CONFIGURATIONS:
WS 1G8 BPHH Wireless Microphone System with Belt Pack and Headset skin-coloured
WS 1G8 HHD2 Wireless Microphone System with 2 x Dynamic Handheld Microphone
WS 1G8 HHC2 Wireless Microphone System with 2 x Condenser Handheld Microphone
WS 1G8 BPH2 Wireless Microphone System with 2 x Belt Pack and 2 x Headset
WS 1G8 BPHH2 Wireless Microphone System with 2 x Belt Pack and 2 x Headset skin-coloured
AVAILABLE ACCESSORIES:
WS 1G8 BP Belt Pack Transmitter
WS 1G8 MC Condenser Handheld Microphone
WS 1G8 MD Dynamic Handheld Microphone
WS 1G8 R Receiver
WS 1G8 R2 Dual Receiver
WS 1000 MW Clip Microphone for Brass Instruments
WS 100 GC Guitar cable
WS 100 MH 1 Headset
WS 100 MH 3 Headset skin-coloured
WS 100 ML Lavaliere Microphone
WS 100 RK 19" Rack Kit
WS 100 RK 2 19" Rackmount Kit for 2 Receivers
WS 100 TNC Antenna Cable TNC to TNC 0.5 m
WS 100 TNC 10 Antenna Cable TNC to TNC 10 m
WS 1G8 HHD
DYNAMIC HANDHELD SET
WS 1G8 BPH2
DOUBLE HEADSET SET
WS 1G8 BPL
LAVALIERE SET
WS 1G8 BPHHD2
DOUBLE DYNAMIC HANDHELD SET
WS 1G8 BPH
HEADSET SET
WS 1G8 HHC
CONDENSER HANDHELD SET
WS 1G8 BPHHC2
DOUBLE CONDENSER HANDHELD SET
WS 1G8 BPW
WIND MICROPHONE SET WS 1G8 BPHH2
DOUBLE HEADSET SET SKIN COLOURED
124 125

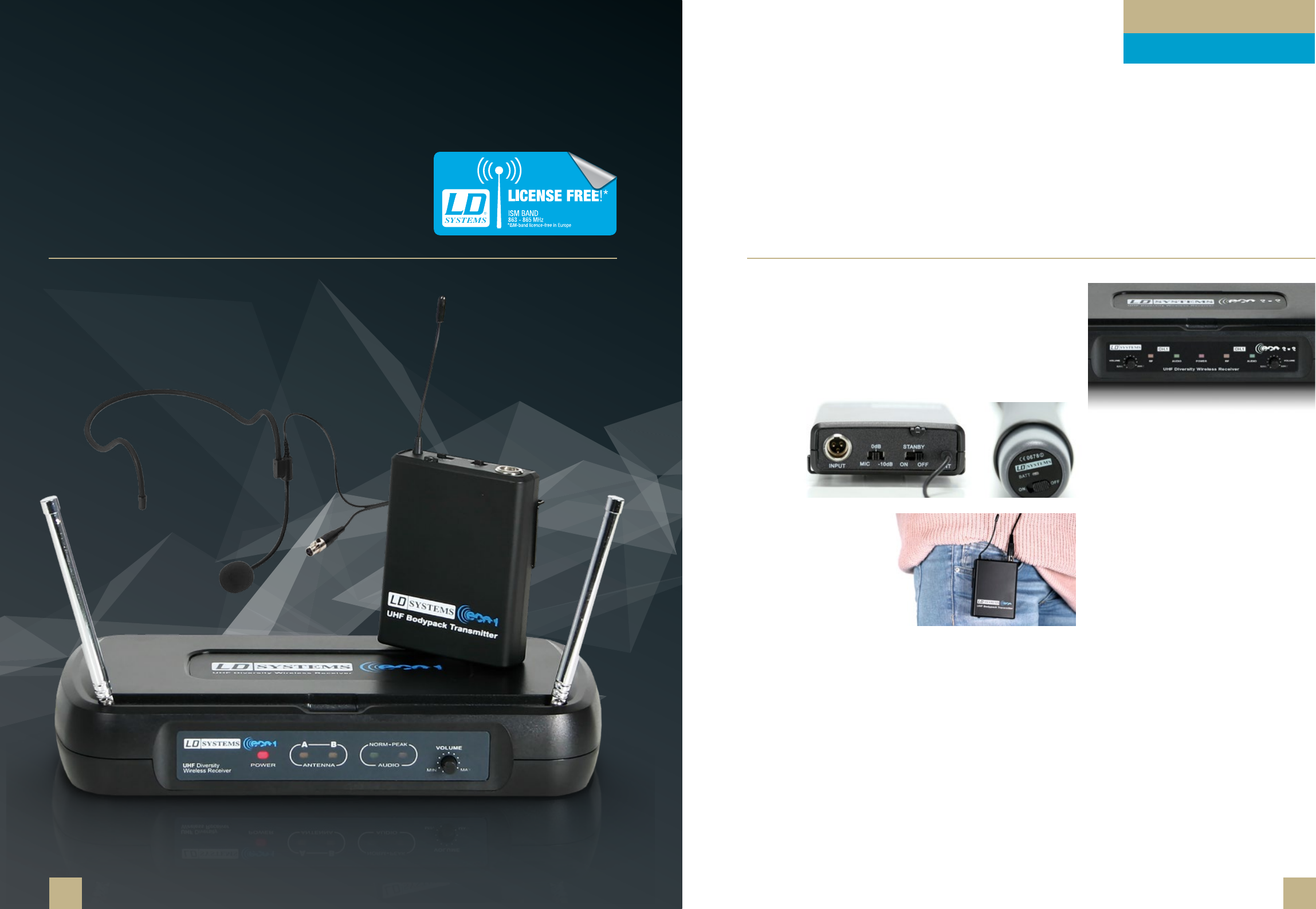

WS ECO 16 SERIES
WIRELESS SYSTEMS
for wireless beginners.
WS ECO 16 SERIES
16 CH UHF PLL DIVERSITY WIRELESS SYSTEM
Providing versatile entry-level wireless the rugged WS ECO 16 Series operates in three different frequency bands (863 – 865 MHz // B5: 584 - 607 MHz // B6: 655 - 679
MHz). With 16 selectable UHF channels, infrared syncing and a choice of handheld, lavalier or headset microphones WS ECO 16 systems deliver natural, full bandwidth
audio and superb performance at a most attractive price point.
P Budget wireless microphone systems
P License-free operation and 16 UHF channels
P Pro audio quality and performance
P Choice of handheld, lapel and headset microphones
MORE THAN ENOUGH
The ECO 16 Sets by LD Systems are the perfect introduction
to wireless audio transmission. High end components
guarantee optimal audio transmission and reliable operation.
The frequency band of 863 - 865 MHz permits operation in
most EU countries with no registration or licensing required.
TRUST THE PILOT
The Pilot Tone is a very high audio frequency undetectable to human ear. The Pilot Tone Squelch
provides additional transmission security, as the audio signal at the receiver is muted as long as there
is no Pilot Tone. If the receiver detects the Pilot Tone, the audio signal is un-muted. This professional
feature ensures an interference free operation at all times.
SAVING ENERGY
Thanks to its reliable technology and high
end components the WS ECO 16 has a
very low power consumption allowing up
to 10 hour operation with 2 standard AA
batteries.
COMMUNICATION IS THE KEY
The receiver and the transmitter of the WS ECO 16 are
keen on communicating frequency issues. Simply select
a channel on the receiver, press the ASC button, this
frequency is then transmitted simply and conveniently
from receiver to transmitter via an infrared link procedure.
WS ECO 16 BPH (B5/B6)
RECEIVER + BODYPACK + HEADSET WS ECO 16 BPL (B5/B6)
RECEIVER + BODYPACK
+ LAVALIERE MICROPHONE
WS ECO 16 HHD (B5/B6)
RECEIVER + DYNAMIC HANDHELD
MICROPHONE
Model name: LDWSECO16R (B5/B6)
Channels: 16
Frequency range: 863 – 865 MHz // B5: 584 - 607 MHz // B6: 655 - 679 MHz
Audio frequency range: 60 Hz - 16 kHz
Modulation: FM
T.H.D: < 1 %
Audio outputs: 6.3 mm jack / XLR
Dimensions (W x H x D): 235 mm x 44 mm x 118 mm
Weight: 400 g
SPECIFICATIONS:AVAILABLE ACCESSORIES:
WS 1000 MW Clip Microphone for Brass Instruments
WS 100 GC Guitar cable
WS 100 MH 1 Headset
WS 100 MH 3 Headset skin-coloured
WS 100 ML Lavaliere Microphone
HSAE 1 Professional Aerobics Headset Microphone water-repellent
NEW ADDITIONAL
FREQUENCY RANGES AVAILABLE:
STANDARD: 863-865 MHz
B5: 584 – 607 MHz
B6: 655 - 679 MHz
126 127
WS ECO SERIES
WIRELESS SYSTEMS
enter the wireless world.
BECAUSE WE KNOW
WHAT YOU WANT
The ECO 2 Sets by LD Systems are the perfect introduction to wireless audio transmission.
High end components guarantee optimal audio transmission and reliable operation. You have
the choice between four xed frequencies, selected because of their superior transmission
safety. The frequency band of 863 - 865 MHz permits operation in most EU countries with no
registration or licensing required.
SAVING ENERGY
Thanks to its reliable technology and high-end
components the WS ECO 2 has a very low-power
consumption allowing up to 10 hour operation with 2
standard AA batteries, with a range of up to 50 m.
STAY IN CONTROL
The transmitters of the WS ECO 2 feature a Mute switch and a Gain
sensitivity switch in order to match perfectly to your application
and equipment. You will also enjoy the soft-touch surface and the
decent battery status indicator.
WS ECO SERIES
DIVERSITY UHF WIRELESS SYSTEMS
Available in three single-channel xed frequency versions the WS ECO Series systems are the perfect entry-level UHF wireless solution.
With handheld dynamic and headset microphones for unrestricted vocal performance and a beltpack plus guitar cable combo, the budget WS ECO systems provide
exceptional sound, reliability and value.
P Entry-level wireless microphone systems
P 3 single-channel versions with fixed frequencies
P Handheld dynamic or headset microphones plus guitar version
128 129
WS ECO SERIES
WIRELESS SYSTEMS
Model name: LDWSECO2R
Channels: 1
Transmission frequency
range:
863,100 MHz (R1),
863,900 MHz (R2),
864,500 MHz (R3),
864,900 MHz (R4)
Audio frequency range: 60 Hz - 16 kHz
Modulation: FM
Signal-to-noise ratio: > 105dB
Audio outputs: 6.3 mm jack / XLR
Dimensions (W x H x D): 235 mm x 44 mm x 118 mm
Weight: 600 g
Model name: LDWSECO2BP
Channels: 1
Transmission frequency range: 863,100 MHz (BP1),
863,900 MHz (BP2),
864,500 MHz (BP3),
864,900 MHz (BP4)
Frequency response: 60 Hz - 16 kHz
Controls: Mic / 0dB / -10 dB switch, power
(on/off/mute)
Rated HF output power: 10 mW
Operating voltage: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Dimensions (W x H x D): 85 mm x 65 mm x 23 mm
Weight: 80 g (without batteries)
Model name: LDWSECO2MD
Channels: 1
Transmission frequency range: 863,100 MHz (MD1),
863,900 MHz (MD2),
864,500 MHz (MD3),
864,900 MHz (MD4)
Frequency response: 60 Hz - 16 kHz
Microphone type: dynamic
Directivity: cardioid
Rated HF output power: 10 mW
Operating voltage: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Controls: Gain, transmission power Hi / Low, Power
Indicators: On / Low Battery
Dimensions (Length x Diameter):
250 x 53 mm
Weight: 270 g
SPECIFICATIONS RECEIVER:SPECIFICATIONS BODY PACK:SPECIFICATIONS MICROPHONE:
AVAILABLE ACCESSORIES:
ECO 2 MD 1 Dynamic Handheld Microphone
ECO 2 MD 2 Dynamic Handheld Microphone
ECO 2 MD 3 Dynamic Handheld Microphone
ECO 2 MD 4 Dynamic Handheld Microphone
ECO 2 BP 1 Body Pack Transmitter
ECO 2 BP 2 Body Pack Transmitter
ECO 2 BP 3 Body Pack Transmitter
ECO 2 BP 4 Body Pack Transmitter
ECO 2 R 1 Receiver
ECO 2 R 2 Receiver
ECO 2 R 3 Receiver
ECO 2 R 4 Receiver
ECO 2X2 R 1 Double Receiver
ECO 2X2 R 2 Double Receiver
WS ECO 2
1 CHANNEL DIVERSITY UHF WIRELESS SET
LD Systems ECO Sets are the perfect introduction to wireless audio
transmission: All components guarantee optimal audio delivery via professional
outputs. The extensive features of the LD WS ECO Series Sets are remarkable
in this price category.
• 1 channel UHF PLL diversity wireless system, available as vocal,
guitar or headset
• Handheld dynamic mic with sensitivity switch
• Long battery life
SET WITH HEADSET
LDWSECO2BPH1: 863.100 MHz
LDWSECO2BPH2: 863.900 MHz
LDWSECO2BPH3: 864.500 MHz
LDWSECO2BPH4: 864.900 MHz
SET WITH HANDHELD
LDWSECO2HHD1: 863.100 MHz
LDWSECO2HHD2: 863.900 MHz
LDWSECO2HHD3: 864.500 MHz
LDWSECO2HHD4: 864.900 MHz
SET WITH GUITAR CABLE
LDWSECO2BPG1: 863.100 MHz
LDWSECO2BPG2: 863.900 MHz
LDWSECO2BPG3: 864.500 MHz
LDWSECO2BPG4: 864.900 MHz
WS ECO 2x2
2 CHANNEL DIVERSITY UHF WIRELESS SET
LD Systems ECO Sets are the perfect introduction to wireless audio
transmission: All components guarantee optimal audio delivery via
professional outputs.
The extensive features of the LD WS ECO Series Sets are remarkable in this
price category. The frequency band of 863 – 865 MHz permits operation in
most EU countries with no registration or licensing required.
• 2 channel UHF PLL diversity wireless system
• Available as vocal or headset
•
Handheld dynamic mic with sensitivity switch
SET WITH HEADSET
LDWSECO2X2BPH1: 863.100 MHz & 864.500 MHz
LDWSECO2X2BPH2: 863.900 MHz & 864.900 MHz
SET WITH HANDHELD
LDWSECO2X2HHD1: 863.100 MHz & 864.500 MHz
LDWSECO2X2HHD2: 863.900 MHz & 864.900 MHz
WS ECO SERIES
DIVERSITY UHF WIRELESS SYSTEMS
130 131
MEI 1000 G2 SERIES
IN EAR MONITORING
my band, my sound, my mei.
MEI 1000 G2 SERIES
IN EAR MONITORING SYSTEM
Comprising comfortable, snug-t earbuds, a sleek beltpack receiver and 10mW transmitter with rackmount kit, the MEI 1000 G2 Series wireless in-ear monitoring
system provides freedom of movement and natural, dynamic sound. With selectable mono, stereo and focus modes, a built-in limiter and convenient EQ control the MEI
1000 G2 delivers detailed, distortion-free audio. Available in three different frequency bands, the MEI 1000 G2 in-ear monitoring system allows for more than 12 hours
of continuous operation with high quality batteries.
P Professional in-ear monitoring
P License-free operation with 96 selectable UHF channels
P Integrated EQ and limiter for well-balanced distortion-free audio
P Mono and stereo modes
P More than 12 hours of continuous operation
MEI 1000 G2 SERIES
IN EAR MONITORING SYSTEM
RE-DISCOVER MONITORING
The LD Systems MEI 1000 G2 is a license-free in-ear
monitoring system with 96 UHF channels that delivers
outstanding sound quality with a large dynamic range
and outstanding crosstalk behavior.
YOU HAVE IT ALL
The earphones are very comfortable to
wear, and the multifunctional display on
the receiver shows all relevant system
information. The beltpack receiver also
provides a very low power consumption
allowing up to 12 hours operation
with 2 standard AA batteries. A 19"
rackmount kit and a rugged ABS plastic
carrying and storage case complete the
MEI 1000 G2 package.
MORE FOCUS. MORE HARMONY.
Switchable mono, stereo, and focus monitoring
modes as well as adjustable EQ and limiter
functions permit natural sound reproduction
for any application, with a frequency response
of 60 Hz - 16 kHz, a high S/N ratio, and low
THD. The MEI 1000 G2 permits simultaneous
operation of up to 5 systems allowing
each band member to better focus on his
performance, and thus, be in harmony with his
band mate.
SPECIFICATIONS TRANSMITTER:
RECEIVER:
Model name: LDMEI1000G2T (B5/B6)
Channels: 96 (8 groups, 12 ch/group)
Frequency range: 823 – 832 and 863 – 865 MHz // B5: 584 - 607 MHz // B6: 655 - 679 MHz
Audio frequency range: 60 - 16,000 Hz
Modulation: wideband FM stereo
THD: < 1 %
Signal/Noise ratio: 85 dB(A)
Switching bandwidth: 11 MHz
Peak deviation: +/- 40 kHz
RF output power: 10 mW
Input voltage range: 20 dBV max
Power supply: 12 - 18 V DC / 300 mA
Dimensions: 200 mm x 96 mm x 44 mm
Weight: 900 g
Model name: LD MEI1000G2BPR (B5/B6)
Channels: 96 (8 groups, 12ch/group)
Frequency range: 823 – 832 and 863 – 865 MHz // B5: 584 - 607 MHz // B6: 655 - 679 MHz
Audio frequency range: 60 - 16,000 Hz
Modulation: FM stereo
THD: < 1 %
Signal/Noise ratio: > 80 dB
Headphone output: 3.5 mm Stereo jack
Headphone output power: 100 mW
Power requirements: 2 x 1.5 V AA batteries
Battery life: >12 hours, depending on batteries
Dimensions: 90 mm x 65 mm x 24 mm
Weight: 90 g
AVAILABLE ACCESSORIES:
MEI 1000 G2 BPR
Receiver for LDMEI1000G2 in-ear monitoring system
IEHP 1 Professional in-ear headphones black
MEI 100 RK Rack kit for LDMEI100G2 and LDMEI1000G2
IEHP 1 Professional In-Ear Headphones
MEI 1000 G2 (B5/B6)
IN EAR MONITORING SYSTEM
NEW ADDITIONAL
FREQUENCY RANGES AVAILABLE:
STANDARD: 823 - 832 Mhz + 863 - 865 MHz
B5: 584 – 607 MHz
B6: 655 - 679 MHz
132 133

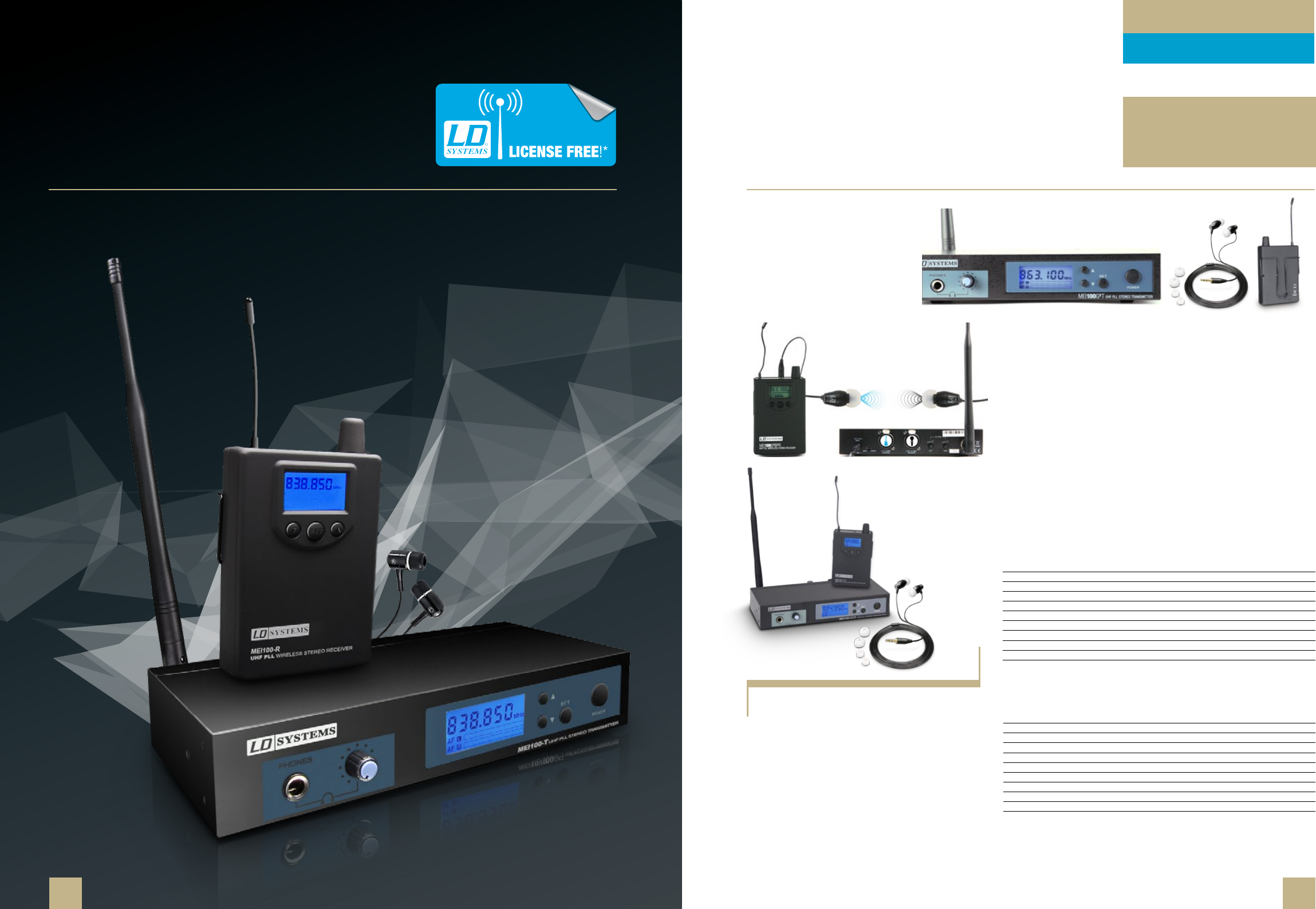

MEI 100 G2 SERIES
IN EAR MONITORING
my band, my sound, my mei.
MEI 100 G2 SERIES
IN EAR MONITORING SYSTEM
Operating in three different frequency bands, the MEI 100 G2 Series in-ear monitoring system provides clean, professional wireless performance at a great price. Including
a lightweight beltpack receiver, transmitter with rackmount kit and comfortable, high quality earbuds the MEI 100 G2 features stereo and mono transmission modes, a
built-in limiter for distortion-free audio and easy-to-read LCD displays.
P Affordable pro quality in-ear monitoring
P License-free operation with 96 selectable UHF channels
P Integrated limiter for distortion-free performance
P Mono and stereo modes
THE WEDGE IN YOUR EAR
The LD Systems MEI 100 G2 is a license-
free in-ear monitoring system with 96 UHF
channels which offers outstanding sound
quality and a large dynamic range.
CAREFREE PACKAGE
Both transmitter and receiver feature
multifunctional displays that show all
important system information. The
bodypack receiver also provides a very
low power consumption allowing up
to 10 hours operation with 2 standard
AA batteries. The MEI 100 G2 package
includes high-quality earphones, a 19"
rackmount kit, and a rugged transport
and storage box made of ABS plastic.
HEAR BETTER. SOUND BETTER.
The system toggles between mono and
stereo mode for perfect monitoring for live
musicians, actors or speakers. A built-in
limiter ensures even, distortion-free sound
reproduction with a frequency response of
80Hz - 15 kHz and stands out because of
its high signal-to-noise ratio and low total
harmonic distortion. The MEI 100 G2 permits
simultaneous operation of up to 5 systems,
enough to equip your whole band.
MEI 100 G2 (B5/B6)
IN EAR MONITORING SYSTEM
AVAILABLE ACCESSORIES:
MEI 100 G2 BPR Receiver for LDMEI100G2 in-ear monitoring system
MEI 100 G2 T Transmitter for LDMEI100G2 in-ear monitoring system
IEHP 1 Professional in-ear headphones black
MEI 100 RK Rack kit for LDMEI100G2 and LDMEI1000G2
WS 100 RK 2 19" rackmount kt for 2 receivers or transmitters
IEHP 1 Professional In-Ear Headphones
SPECIFICATIONS TRANSMITTER:
RECEIVER:
Model name: LDMEI100G2T (B5/B6)
Frequency range: 823 – 832 and 863 – 865 MHz // B5: 584 - 607 MHz // B6: 655 - 679 MHz
RF output power: 10 mW
Gain adjustment range: + 20 dB
Max. audio input level: + 14 dBu
Front panel controls: Power, set, up & down, headphone vol. control
Rear panel controls: Input level left/right, stereo/mono switch
Input: 2 x XLR / 6.3 mm combo balanced
Dimensions (W x H x D): 212 mm x 90 mm x 38 mm
Weight: 1 kg
Power requirements: 12 V to 18 V at 300 mA, external power supply
Model name: LDMEI100G2BPR (B5/B6)
Frequency range: 823 – 832 and 863 – 865 MHz // B5: 584 - 607 MHz // B6: 655 - 679 MHz
S/N ratio: > 95 dB
THD: < 1 %
Audio output level: 100 mW
Audio range: 80 Hz - 15 kHz +/- 3 dB
Dynamic range: > 90 dB, A-weighted
Dimensions (W x H x D): 95 mm x 65 mm x 25 mm
Weight: 100 g
Power requirements: 2 x 1.5 V AA batteries
Battery life: > 10 hours
NEW ADDITIONAL
FREQUENCY RANGES AVAILABLE:
STANDARD: 823 - 832 Mhz + 863 - 865 MHz
B5: 584 – 607 MHz
B6: 655 - 679 MHz
134 135

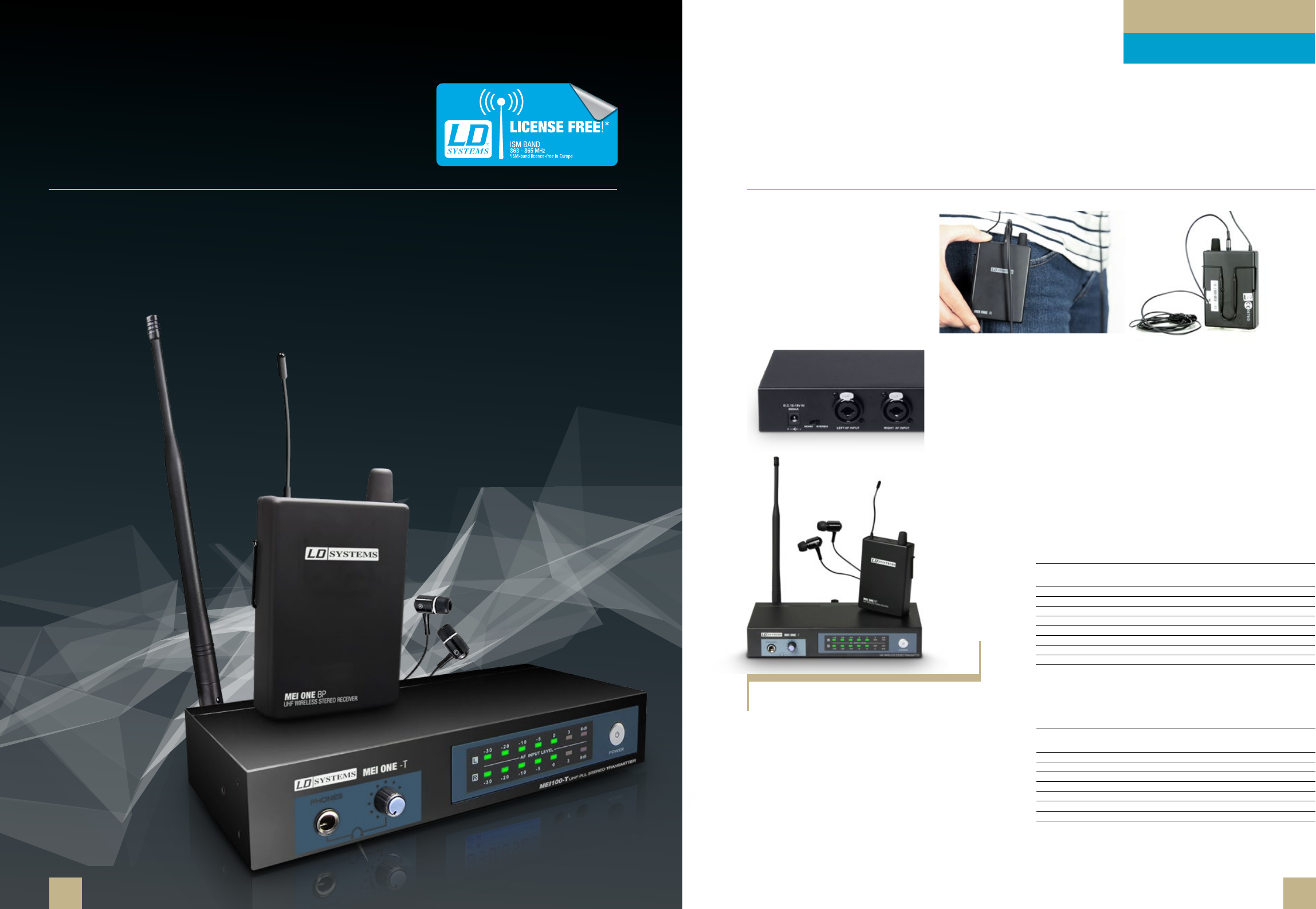

MEI ONE SERIES
IN EAR MONITORING
my band, my sound, my mei.
MEI ONE SERIES
IN EAR MONITORING SYSTEM
With the highly affordable MEI ONE Series wireless in-ear systems traditional monitor wedges and side lls are a thing of the past. Including a beltpack receiver,
transmitter with mono and stereo modes and comfy earbuds the MEI ONE systems are available in three single-channel xed frequency versions which can be operated
side-by-side. Sending a full monitor mix to the whole band is easy as ABC with the entry-level MEI ONE Series using a single transmitter and any number of beltpacks.
P Entry-level in-ear monitoring
P Three single-channel fixed frequency versions
P Mono and stereo modes
P Single transmitter with multiple beltpack operation facility
MONITORING TO GO
With the LD Systems MEI ONE license-free* in-
ear monitoring systems your monitor sound now
follows you in every corner of the stage. The MEI
ONE is available in 3 different xed frequencies,
which can operate simultaneously and free of
interference. It couldn't be easier! You may also
use one transmitter with an unlimited number
of belt pack receivers - the whole band hears
the same!
EXTRAS INCLUDED
The MEI ONE series is delivered with high quality
earphones and the display on the receiver shows all
relevant system information. The bodypack receiver
provides a low power consumption allowing up to 5
hours operation with 2 standard AA batteries. A 19"
rackmount kit and a rugged ABS plastic carrying and
storage case complete this very complete package.
PROFESSIONAL FEATURES
The system toggles between mono and stereo
mode for perfect monitoring for live musicians,
actors or speakers. This in-ear monitoring system
stands out with a frequency response of 80Hz -
16 kHz and high signal-to-noise ratio as well as
low total harmonic distortion.
MEI ONE
IN EAR MONITORING SYSTEM
AVAILABLE ACCESSORIES:
MEI ONE 1 BPR Receiver for LD MEI ONE 1 System wireless 863,700 MHz
MEI ONE 1 T Transmitter for LD MEI ONE 1 System wireless 863,700 MHz
MEI ONE 2 BPR Receiver for LD MEI ONE 2 System wireless 864,100 MHz
MEI ONE 2 T Transmitter for LD MEI ONE 2 System wireless 864,100 MHz
MEI ONE 3 BPR Receiver for LD MEI ONE 3 System wireless 864,900 MHz
MEI ONE 3 T Transmitter for LD MEI ONE 3 System wireless 864,900 MHz
IEHP 1 Professional In-Ear Headphones
* license-free: ISM band license-free in Europe, please check duplex gap for your specic country
SPECIFICATIONS TRANSMITTER:
RECEIVER:
Model name: LDMEIONET
Fixed Frequencies: LDMEIONE1T: 863,700 MHz
LDMEIONE2T: 864,100 MHz
LDMEIONE3T: 864,900 MHz
RF output power: 10 mW
Gain adjustment range: + 40 dB
Max. audio input level: + 6 dBV
Front panel controls: Power, headphone vol. control
Rear panel controls: Input level left/right, stereo/mono switch
Input: 2 x XLR / 6.3 mm Jack (combo)
Dimensions (W x H x D): 212 x 38 x 96 mm
Weight: 1 kg
Power requirements: 12 - 18 V DC, 300 mA external power supply
Model name: LDMEIONEBPR
Fixed Frequencies: LDMEIONE1BPR: 863,700 MHz
LDMEIONE2BPR: 864,100 MHz
LDMEIONE3BPR: 864,900 MHz
THD: < 1 %
Audio output level: 100 mW
Audio range: 80 - 16,000 Hz
Dynamic range: > 90 dB, A-weighted
Dimensions (W x H x D): 95 x 65 x 25 mm
Weight: 100 g
Power requirements: 2 x 1.5 V AA batteries
Battery life: > 5 hours
136 137

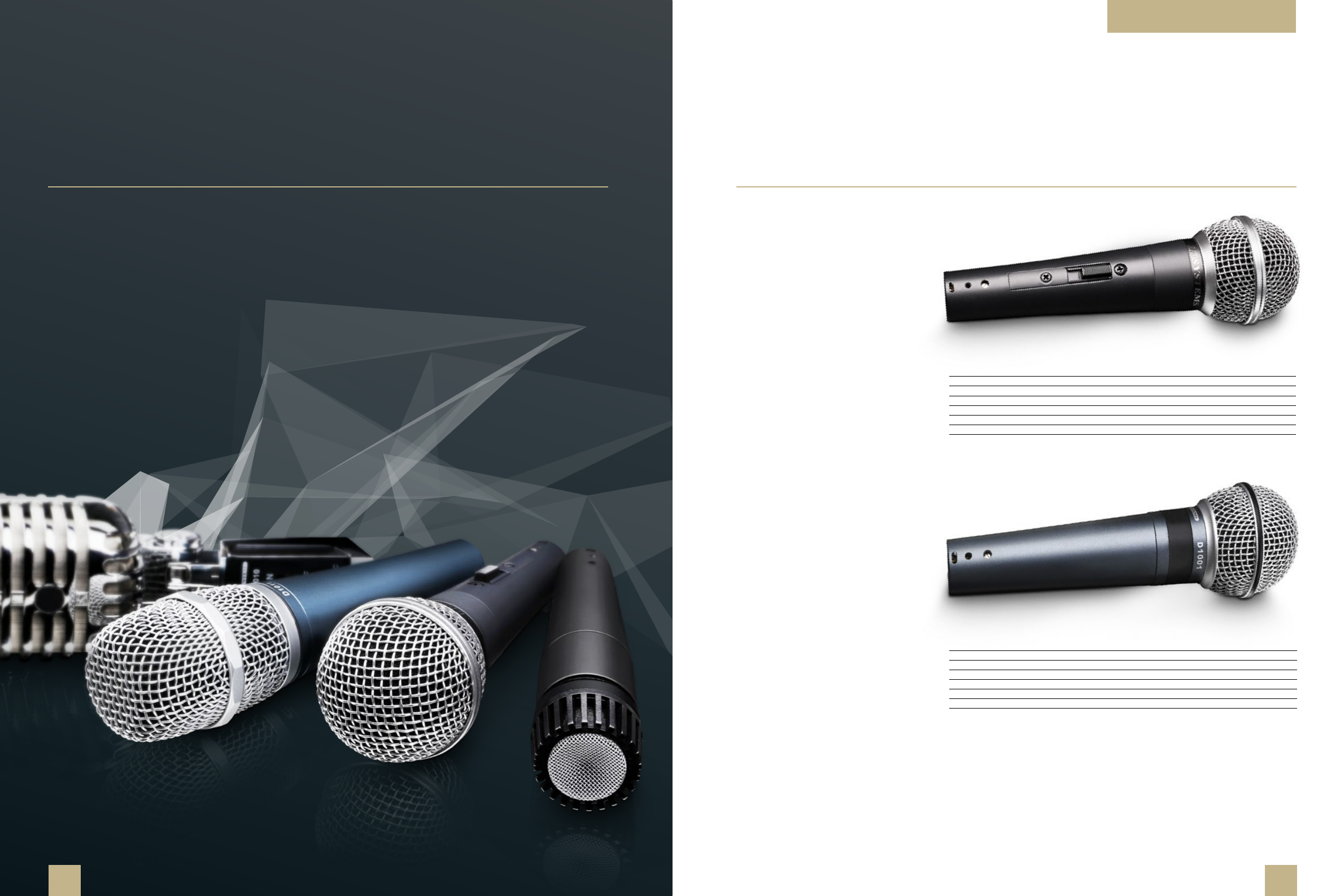

MICROPHONES
microphone check, one two.
MICROPHONES
STUDIO, VOCAL & INSTRUMENT MICROPHONES
Microphones and microphone accessories are available in many versions for all professional applications: onstage, in the studio, and wherever clear and precise
reproduction of voices and instruments is required. These include dynamic vocal microphones, condenser microphones, and microphones for drums or wind instruments,
as well as USB microphones for podcasting or home recording. LD Systems microphones are extremely feedback-resistant and stand out because of their especially
natural sound and broad frequency response. The product line is rounded out by an extensive range of accessories such as microphone mounts in various versions,
windscreens or goosenecks.
VOCAL MICROPHONES
D 1006
DYNAMIC VOCAL
MICROPHONE WITH
SWITCH
Dynamic microphone with switch. This is a
robust high quality product at a very low price.
SPECIFICATIONS
Model name: D1006
Type: Dynamic
Pattern: Cardioid
Frequency range: 80 Hz - 15,000 Hz
Rated impedance: 500 Ω
Dimension: 50 mm x 165 mm
Weight: 245 g
Accessories included: 4.5 m cable
D 1001(S)
DYNAMIC VOCAL
MICROPHONE
The low-feedback dynamic supercardioid vocal microphone
features a broad frequency spectrum, low distortion at high
sound pressure levels, and “shockproof” capsule mounting
for minimal handling noise. Suitable for all demanding stage
and studio applications. D1001 also available with ON/OFF
switch (Model name: D1001S).
SPECIFICATIONS
Model name: D1001(S)
Type: Dynamic
Pattern: Super cardioid
Frequency range: 50 Hz - 16,000 Hz
Rated impedance: 300 Ω
Max. SPL: 134 dB
Dimension: 52 mm x 165 mm
Weight: 270 g
138 139
MICROPHONES
D 1105
DYNAMIC VOCAL MICROPHONE
The D1105 is our dynamic handheld microphone with a hypercardioid polar
pattern, for demanding soloists. The attractive design, switch recessed in the
shaft, sturdy headgrille, excellent frequency range and high SPL are features
which make this an ideal soloist microphone for everyday stage use.
SPECIFICATIONS
Model name: D1105
Type: Dynamic
Pattern: Hyper cardioid
Frequency range: 50 Hz - 16000 Hz
Rated impedance: 600 Ω
Max. SPL: 144 dB
Connector: 3-Pin XLR
Dimension: 50 mm x 180 mm
Weight: 345 g
Accessories included: Bag, clamp
VOCAL MICROPHONES VOCAL MICROPHONES
MICSET 1
MICROPHONE SET WITH MICROPHONE,
STAND, CABLE AND CLAMP
This bundle consists of all the basic components a vocalist needs. The set contains a stage-suitable
microphone with a carrying bag, a sturdy microphone stand with clamp and a 5m XLR microphone cable.
Dynamic handheld microphone with a hyper cardioid polar pattern, designed for tough stage
applications. Its sturdy head grille, high resistance to feeback, lockable switch and wide frequency range
make this microphone a suitable tool for every vocal soloist.
SPECIFICATIONS
Model name: LDMICSET1
Type: Dynamic
Pattern: Hyper cardioid
Frequency range: 60 Hz – 15,000 Hz
Rated impedance: < 600 ohms
Max. SPL: 144 dB (at 1 kHz < 1% THD)
Connector: 3-Pin XLR
Dimensions (L x Ø): 165 mm x 50 mm
Accessories included: gig bag (leather) and microphone clip
Microphone stand black with boom arm
•
Heavy duty steel base with folding legs
• Height: 100 - 160 cm
• Boom arm length: 70 cm
Microphone cable XLR male / XLR
female 5 meter
D 1010
DYNAMIC VOCAL MICROPHONE MEMPHIS
STYLE
Memphis dynamic retro microphone, cardioid directional characteristic with switch, chrome-plated with
adjustable head. Supplied in plastic box. Cable and stand not included.
SPECIFICATIONS
Model name: D1010
Type: Dynamic
Pattern: Super cardioid
Frequency range: 50 Hz - 15,000 Hz
Rated impedance: 300 Ω
Connector:
3-Pin XLR with gold plated pins
Dimensions: 67 mm x 56 mm x 185 mm
Weight: 500 g
D 1011
CONDENSER VOCAL
MICROPHONE
Condenser microphone without switch, incl. mount and plastic box, very
clean sound, ideal for vocal and acoustic guitar miking, requires phantom
power between 9 V - 52 V.
SPECIFICATIONS
Model name: D1011
Type: Condenser
Pattern: Super cardioid
Frequency range: 50 Hz - 16000 Hz
Rated impedance: 200 Ω
Max. SPL: 136 dB
Dimension: 45 mm x 180 mm
Weight: 240 g
D 1020
DYNAMIC VOCAL MICROPHONE
WITH SWITCH
This microphone is largely immune to handling noise and its polar pattern provides optimal
feedback cancellation. The surface of the D1020 is specially coated so that it feels good
in the hand and it is also equipped with a low noise on-/ off-switch. These professional
features and its outstanding value for money make this microphone the number one
choice for female and male singers.
SPECIFICATIONS
Model name: D1020
Type: Dynamic
Pattern: Hyper cardioid
Frequency range: 50 Hz – 16,000 Hz
Rated impedance: 370 Ω
Max. SPL: 145 dB
Connector: 3-Pin XLR
Dimensions (L x Ø): 190 mm x 49 mm
Weight: 280 g
Accessories included: Bag, clamp, 3/8" to 5/8" adapter
SPECIFICATIONS
Model name: D1USB
Type / Polar pattern: dynamic / cardioid
Frequency range: 50 – 16,000 Hz
Rated impedance (XLR): 600 ohms
Connector: XLR and USB
Phones out: 3.5 mm jack stereo
Dimensions (L x Ø): 195 x 48 mm
Weight: 435 g
Accessories included: Bag, clamp, USB cable 3m, tripod stand
D 1 USB
DYNAMIC MICROPHONE WITH USB
• USB connector for directly connection to the PC
• No additional driver necessary
• Compatible to XP, Vista, WIN7, WIN8 and Mac OSX
• Equipped with a high quality analog/ digital converter
• Integrated audio-interface with headphones output
• Adjustable volume for the headphone output
140 141

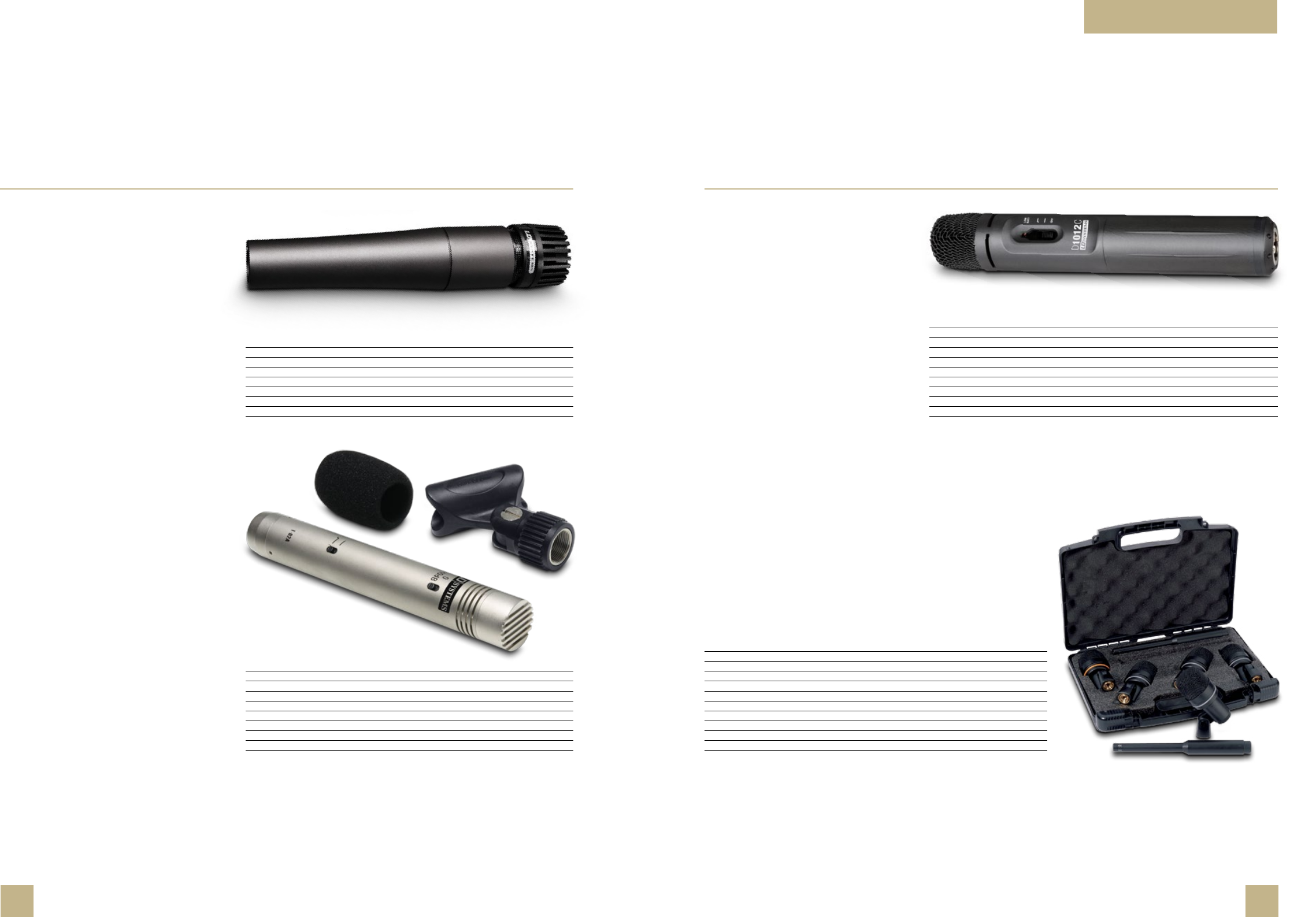

MICROPHONES
INSTRUMENT MICROPHONES
SPECIFICATIONS
Model name: D1017
Product: Bass-Drum (1x) Overhead (2x) Tom Tom/Snare (4x)
Type: Dynamic Back Electret Cond. Dynamic
Pattern: Supercardioid Supercardioid Supercardioid
Frequency range: 50 - 16,000 Hz 40 - 18,000 Hz 80 - 12,000 Hz
Rated impedance: 200 Ω 200 Ω 200 Ω
Min. load impedance: / 1000 Ω /
Max. SPL: 147 dB 137 dB (at 1 kHz < 1% THD) 150 dB
Power supply: / 9 - 48 V Phantom /
Connector: 3 pin XLR gold-plated 3 pin XLR gold-plated 3 pin XLR gold-plated
Dimensions: ø 46 x 100 mm ø 21 x 200 mm ø 46 x 100 mm
Weight: 260 g 150 g 240 g
D 1017 SET
7-PIECE DRUM MICROPHONE SET
Drum microphone set consisting of 1 x bass drum dynamic microphone, 4 x tom/snare drum dynamic
microphones as well as 2 x overhead condenser microphones. All microphones will be supplied with
microphone clamps in a hard case. Top cost/performance ratio!
D 1102
CONDENSER
INSTRUMENT MICROPHONE
The D1102 is a versatile condenser microphone for the stage
and studio. Its compact dimensions, excellent frequency range,
switchable low cut and level attenuation make this microphone
ideal particularly for the transmission and recording of acoustic
instruments. Suitable for acoustic guitar, percussion instruments,
drum overhead/hi hat, violin and piano.
SPECIFICATIONS
Model name: D1102
Type: Condenser
Pattern: Cardioid
Frequency range: 20 Hz - 20,000 Hz
Rated impedance: < 200 Ω
Max. SPL: 134 dB
Power requirement: 48 V phantom power supply
Connector: 3-Pin XLR
Dimensions: 153 mm x 23 mm
Weight: 240 g
D 1057
DYNAMIC
INSTRUMENT MICROPHONE
The D1057 completes a series of dynamic cardioid instrument
microphones designed for professional sound reinforcement
and project studio recording. High sensitivity and great extended
frequency range.
SPECIFICATIONS
Article No.: D1057
Type: Dynamic
Pattern: Cardioid
Frequency range: 50 Hz - 16,500 Hz
Impedance: 600 Ω
Max. SPL: 145 dB (at 1 kHz < 1% THD)
Connector: 3-Pin XLR
Dimensions: 31 mm x 155 mm
Weight: 250 g
D 1012 C
CONDENSER
MICROPHONE
Because the D1012C is a small diaphragm cardioid condenser
microphone with a wide frequency range, it can be used for a
variety of studio and live applications such as micing acoustic
guitars, percussion instruments, and choirs. It can also be used as
an overhead microphone for drums.
Thanks to the option of 9V battery power, it also can be used as
a microphone for reporters. The D1012C features a high quality
zinc die-cast housing, low self noise, a three-stage sensitivity
pad, a battery status LED and a high-pass lter.
SPECIFICATIONS
Model name: D1012C
Type: Condenser
Pattern: Cardioid
Frequency range: 35 Hz – 20,000 Hz
Rated impedance: 200 Ω
Max. SPL: 142 dB
Connector: 3-Pin XLR
Power requirements: Phantom power 24-48 V DC or 9V battery
Dimensions (L x Ø): 212 mm x 32 mm
Weight: 490 g
Accessories included: Bag, clamp, 3/8" to 5/8" adapter
INSTRUMENT MICROPHONES
142 143
PODCAST 2
USB STUDIO CONDENSER
MICROPHONE SET
Set consists of:
• 1 x USB Studio Condenser Microphone
• 1 x Pop Filter
• 1 x Microphone stand black with boom arm
D1014CUSB
• Type: USB condenser microphone
• Polar pattern: Cardioid
• Frequency Range: 30 Hz - 18.000 Hz
• Sensitivity: -32 dB (0 dB = 1V/Pa at 1 kHz)
• Max. SPL: 140 dB (at 1 kHz < 1% THD)
• Connector: USB Connector
• Power requirement: USB Power
• Dimensions (L x Ø): 180 mm x 55 mm
D914
• Gooseneck length: 330 mm
• Gooseneck: Ø 8 mm
• Screen: Ø 190 mm
S5BE
• Colour: black
• Height: 96-162 cm
• Boom arm length: 76 cm
And as a free download, we recommend
the open source software Audacity, in
order to begin recording right away
(download available at http://audacity.
sourceforge.net).
Compatible with:
• Windows 2000 / XP / Vista/Windows 7 /
Windows 8 / Windows 10
• Mac OS X 10.4 or later
• Linux
D 1014 CUSB
USB STUDIO CONDENSER
MICROPHONE
The D1014CUSB is a universal condenser microphone with USB connector, which does not need any drivers. It is compatible
with both Windows and MAC OS X. This microphone features a cardioid pickup pattern and a wide frequency range (30
Hz - 18,000 Hz), making it suitable for nearly all sound sources. The clear and natural sound of the D1014CUSB makes
this microphone perfect for use in podcast recording situations, multimedia presentations and many other applications.
Low self noise without ambient noise and the high output level underscore the high quality of this microphone. Package
includes: D1014CUSB microphone, shock mount, zip bag, USB cable.
Recommended accessories (optional): pop killer D914, microphone screen LDRF1.
STUDIO MICROPHONES HEADSETS & CONFERENCE
SPECIFICATIONS
Model name: D1015CM
Type: Back electret condenser
Pattern: Uni-directional
Frequency range: 50 Hz – 20,000 Hz
Low-cut switch: 150 Hz
Rated impedance: 250 Ω
Connector: 3-Pin XLR
Power requirements: Phantom power 9-52 V DC
Gooseneck length: 330 mm
D 1015 CMB
BASE FOR D1015CM
CONFERENCE MICROPHONE
The D1015CMB metal base ensures secure
positioning of gooseneck microphones and offers a
female 3-pole XLR connector on the top side and a
3-pole XLR male connector on the back.
D 1015 CM
CONDENSER CONFERENCE
MICROPHONE WITHOUT BASE
The slim and exible design of the D1015CM
gooseneck microphone with its professional,
highly sensitive and uni-directional condenser
element makes it perfect for all situations in which
the spoken word must be understood clearly.
HSAE 1
PROFESSIONAL AEROBICS
HEADSET MICROPHONE WATER
RESISTANT
The LDHSAE1 is a professional headset microphone that is especially suitable
for aerobics, sports, and tness trainers. The bi-directional electret condenser
capsule with windscreen offers high speech intelligibility and sound quality. The
low weight, exible microphone arm, and neckband with adjustable neck strap
ensure a comfortable, secure t and complete freedom of movement.
It connects to a wireless transmitter via a mini-XLR connector. The LDHSAE1
headset is extremely sturdy, water repellent, and of course also stage-ready.
SPECIFICATIONS
Model name: LDHSAE1
Type: electret condenser
Frequency range: 80 - 16,000 Hz
Directional characteristic: bi-directional
Nominal impedance: 1600 ohms
Max. SPL: 145 dB (at 1 kHz < 1% THD)
Connector: mini-XLR (3-pin)
Accessories (included): foam windscreen
Special features: water repellent
SPECIFICATIONS
Product type Microphones
Type Vocals
Frequency response 30 - 18000 Hz
Directivity cardioid
Max. SPL (1% THD @ 1kHz) 140 dB
Signal-to-noise ratio 68 dB
Phantom power requierements USB powered V
Microphone input USB-B
AD converter 16 Bit, 48 kHz
Length 180 mm
Diameter 55 mm
Accessories (included) Bag , shock mount , USB cable
Weight 0,38 kg
MICROPHONES
144 145
MICROPHONES
HEADSETS & CONFERENCE
WS 100 MH3
HEADSET MICROPHONE
Skin coloured lightweight headset
microphone with excellent wearing
comfort onto 3-pole Mini XLR
• Type : Condenser
• Uni-directional
• Frequency range : 70 Hz – 16 kHz
• Impedance : 1.4 kOhms
WS 100 MH1
HEADSET MICROPHONE
Headset Microphone for WS 100 Series,
WS 1000 Series, WS 1616 Series and WS
ECO Series
• Uni-directional Electret Condenser
Headset Microphone
• Impedance < 680 Ohms
• Frequency range : 20Hz - 20 KHz
HSM1
PROFESSIONAL HEADSET
MICROPHONE
WATER-RESISTANT
• Product number: LDHSM1
• Type: Back electret condenser
• Colour: black
• Frequency response: 70 - 16000Hz
• Directivity: Noise cancelling
• Microphone input: Mini-XLR (3-pin)
• Cable length: 1.4m
BM 1
BOUNDARY LAYER
MICROPHONE
• Linear frequency range
• Small dimensions
• Uniform pickup angle
• Extremely rugged housing
• Foam rubber sheet on base for noise isolation
• Phantom power via mixer or phantom power unit
• 6 m mini XLR to XLR standard connection cable included
SPECIFICATIONS
Model name: LDBM1
Type: Back electret
Pattern: cardioid
Frequency range: 50 - 20,000 hz
Rated impedance: 250 Ω ± 30 % (at 1 kHz)
MaxSPL: 135 dB (THD < 0.5 % 1000 Hz)
Dynamic range: 113 dB
Signal-to-Noise ratio: 73 dB
Power requirements: Phantom power 48 V DC
Connector: 3-Pin XLR
Dimensions (W x H D): 74.5 x 27 x 93.5 mm
Weight: 345 g
Accessories included: Cable: Mini XLR / XLR (6 meters)
MICROPHONE ACCESSORIES
LDI 02
ACTIVE DI BOX
Active DI box in sturdy metallic blue/silver aluminium and steel
housing with corner protectors, internal 9 V battery (indicator
blinks during operation) which is automatically switched off
when phantom power is used (indicator is on continuously).
Extremely low battery consumption, 9 V battery not included.
SPECIFICATIONS
Switchable ground lift, frequency range 20 Hz - 20 kHz, THD
< 0.05 % at 1 kHz, noise oor - 100 dBu, Input: 1 MΩ,
output: 600 Ω, Input: 6.3 mm mono jack + XLR, link out: 6.3
mm mono jack, output: balanced XLR, maximum input level:
+ 10 / + 30 dBu, switchable pad: -20 dB
PHA 1
PHANTOM POWER ADAPTER 48 V
230/110V-AC/48V-DC phantom power unit for
powering high-quality condenser microphones in the
studio and stage sector.
RF 1
MICROPHONE SCREEN
The LD Systems RF1 is designed to help minimizing the
undesirable hall reections, noises and echos in order
to obtain a very “dry” vocal or instrumental recording
signal. This lter allows good recording results even
under unfavorable ambient conditions without having
to take complicated measures to reproduce studio
conditions or an acoustical insulation. It features a
lightweight and rugged construction with high quality
soundproong materials and can be mounted on all
conventional microphone stands.
• Lightweight and portable
• Mountable on most conventional microphone stands
• 3/8" and 5/8" thread adapter for stands and
microphone holders
•
Height & depth adjustable to t to different studio
microphone types
• High quality soundproong material (various types of
soundproong foams + aluminium sheets)
• Rugged construction (light metal frame)
• Dimensions (W x H x D): 50.4 x 30.6 x 27.0 cm
146 147

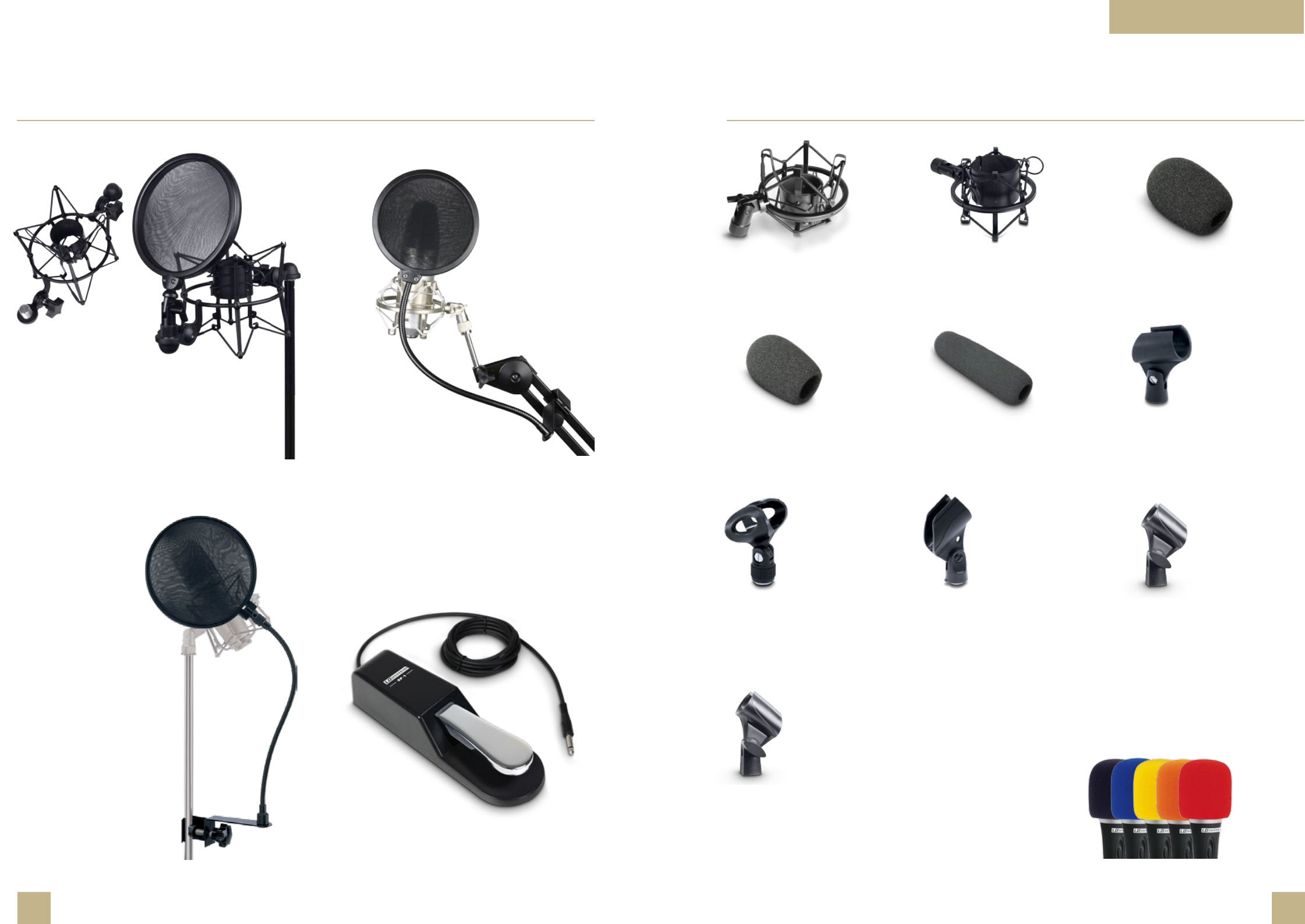

MICROPHONES
MICROPHONE ACCESSORIES MICROPHONE ACCESSORIES
DSM 40
MICROPHONE SHOCK MOUNT
Diameter: 40 mm - 44 mm / Thread: 5/8"
Available Colour: Black (B)
DSM 45
MICROPHONE SHOCK MOUNT
Diameter: 45 mm - 49 mm / Thread: 5/8"
Availbale Colour: Black (B)
D 909
WINDSCREEN BLACK
Suitable for conference microphones with
diameter of 7 – 12 mm (e.g. D1015CM)
D 911
WINDSCREEN BLACK
Suitable for microphones with diameter of
17 -22 mm (e.g. D1102, D1057)
D 916
WINDSCREEN BLACK
Suitable for video camera microphones with
diameter of 15 – 20 mm
D 902
MICROPHONE CLAMP
Microphone clamp black with rubberised exible
top to t most wireless microphones.
Quick release. Incl. 3/8
"
and 5/8
"
thread adaptor.
D 903
MICROPHONE CLAMP
Microphone clamp black with rubberised
exible top to t most microphones. Quick
release. Incl. 3/8" and 5/8" thread adaptor.
D 907
MICROPHONE CLAMP
Microphone clamp for microphones with big
diameter (e.g. wireless microphones)
Diameter: 30mm / With 3/8" and 5/8" thread inside
D 905
MICROPHONE CLAMP
Pro Stage rubberised microphone clamp for wire-
less microphones with new ns for perfect grip of
the microphone. Incl. 3/8" and 5/8" thread adaptor.
D 913#
WINDSCREEN
LD microphone windscreen, Ø 40 mm - 50 mm,
available in black, red, yellow, orange, blue,
suitable for all standard vocal microphones.
Order Code
D913BLK = black
D913BLU = blue
D913ORG = orange
D913RED = red
D913YEL = yellow
D 906
MICROPHONE CLAMP
Cone-shaped microphone clamp
Diameter: 23mm/ 28mm
With 3/8" and 5/8" thread inside
D 914
POP FILTER
For all standard microphone stands, double
nylon screen with sturdy black plastic frame.
Gooseneck length: 330 mm
Screen: Ø 190 mm
DSM 400
MICROPHONE SHOCK MOUNT
WITH POP FILTER
• High quality suspension shock mount for studio
microphones with integrated pop lter
•
Nylon screen guarantees optimum sound ltering
during studio recording
• Suitable for microphones 43 - 49 mm
• Screen: Ø 130 mm
SP 1
SUSTAIN PEDAL /
FOOT SWITCH
Selectable normally open / normally closed with 2 m (6.56") connection
cable on pedal for triggering the sustain function of keyboards and digital
pianos. Also usable as an effect on/off switch with many devices.
D 910
POP FILTER
For all standard microphone
stands, double nylon screen
with sturdy black plastic frame.
Gooseneck length: 270 mm
Screen: Ø 130 mm
148 149
PRODUCT
CATALOG
LD Systems® is a brand of the Adam Hall Group.
LD-SYSTEMS.COM
.acebook.com/ldsystems
youtube.com/ldsystemsvideos
blog.adamhall.com
The information contained in this publication, including numerical data, has been prepared as a gene-
ral guide to the products, but intending buyers and users must satisfy themselves as to the suitability
and the safety of the products for their particular purposes and duties. No responsibility is assumed
for any errors herein. The company reserves the right to alter the designs and material specications
of products shown in this publication without notice.
LD Systems® is a brand of the Adam Hall Group.
AH LD 0317 / 10.000
FIND YOUR DEALER:
LD-SYSTEMS.COM
EDITION 2017/2
facebook.com/ldsystems
youtube.com/ldsystemsvideos
blog.adamhall.com
adamhall.com
share the experience at
LD Systems®
is a brand of SOUND
TECHNOLOGY
LIGHT
TECHNOLOGY
STAGE
EQUIPMENT
HARDWARE
FOR FLIGHTCASES
