6" LED Downlight
LF6SL LENS
120V–277V
High Efficacy
0-10V Dimming
Ceiling Cutout: 6-1/4"
Maximum Ceiling Thickness 11
/4"
For conversion to millimeters,
multiply inches by 25.4
Not to Scale
LFR-LED-038
APPLICATIONS:
LiteFrame LF6SL is a 6" specification grade LED lensed downlight
that utilizes remote phosphor technology to obtain color
consistency, energy savings, and low maintenance costs. 50,000
hours minimum life up to 35ºC (95ºF) in open plenum applications.
HOUSING:
One-piece 22 gauge non-corrosive steel platform. Pre-wired j-box
with snap-on cover for easy access. Snap-in- connection from
driver compartment allows easy installation of light engine/trim
assembly without tools above or below the ceiling and can be
upgraded to accommodate technology improvements. Approve for
8 (4 in/4 out) No. 12 AWG conductors rated for 90ºC through
wiring.
REFLECTOR:
High purity aluminum, Alzak, iridescence suppressed, semi-diffuse
reflector. Self-trim standard.
IP65 AND VR:
IP65 and vandal-resistant (VR) options are made of 16GA cold
rolled steel stampings and come standard with a clear high impact
polycarbonate lens. Each option uses self tapping stainless steel
screws painted to match the white trim color standard; tamper-
resistant screws are used on the VR option only. The IP65 rated
option is completely sealed without the use of silicone on standard
non-porous ceiling surfaces.
LED LIGHT ENGINE:
The LF6SL uses the Philips Fortimo DLM Gen 5 LED Module with
remote phosphor technology. This technology provides controlled
color consistency (3 SDCM) from fixture to fixture. The system
is designed for optimal life and lumen maintenance (>50,000
hours at 70% lumen maintenance). Both reflector and light engine
assembly are mechanically retained to housing. The light engine
comes standard with 90 CRI in all Kelvin temperatures
LED DRIVER:
The LF6SL utilizes the Philips Fortimo LED Driver specifically
designed to optimize efficiency of the Fortimo DLM Module. Driver
is designed to match the 50,000 hour minimum life expectancy of
the system. Meets UL Class 2, inherent short circuit protection, self
limited, overload protected. If critical temperatures are reached
on driver or LED module, integrated thermal feedback loop will
gradually reduce current to protect system life. Driver is universal
120V-277V. Optional Lutron Series A driver is also available.
DIMMING:
Comes standard with 0-10V dimming capability. Flicker-free
dimming to 10%. 0-10V control may consume up to 1mA. Lutron
2 wire, 3 wire, and EcoSystem dimming available to 1% and
DMX with RDM (remote device management) dimming to less
than 0.1%.
INSTALLATION:
Adjustable Bar hangers included. Universal adjustable mounting
brackets also accept 1/2" EMT conduit or 1 1/2" or 3/4"
lathing channel (by others) or Prescolite 24" bar hangers (B24
or B6).
CERTIFICATIONS:
CSA certified to US and Canadian safety standards. Suitable for
wet locations. Approved for through wiring. Non-IC rated. EMR
is damp rated use only.
WARRANTY:
5 year warranty. See www.prescolite.com for details.
STANDARD 0-10V DIMMINGALTERNATIVE DIMMING TO 1% & 0.1%
❑ LF6SL
Standard
Lumen
0-10V 10%
dimming
120-277V
❑ EMR2
Emergency
Battery Pack
with remote
test switch and
indicator light
❑ CP2,3,4,5,15,17
Chicago
Plenum
❑ LV12
Lutron Vive
Enabled, 0-10V,
120-277V
❑ NXWE3,15,18,19
NX Wireless
Enabled
❑ NXE3,15,18,19
NX Enabled,
Dual SmartPorts
❑ CP2,3,4,5,15,17
Chicago Plenum
❑ FLU9,10
Flush Mount (Brushed
Aluminum Flange Standard)
❑ IP657,10,11
Flush Lens, Dust and
Water Tight to IP65
❑ VR7,10,11
Vandal Resistant
❑ B24
Set of two 24" bar hangers
for T-bar ceilings
❑ B6
Set of two (2) bar hangers for
ceiling joist up to 24" centers
❑ LFSC6
6" Reflector screw cover
❑ SCA6
Sloped ceiling adapter
(see note on back page)
❑ Signos6
Architectural glass elements.
Refer to specification sheets ARCH-
SIG-001 and -003
❑ LiteGear6
Inverter, single phase central
lighting, 125VA-250VA
❑ LPS Series6
LitePower micro-inverter, 20VA-55VA
❑ 6LFSL
Semi-Diffuse
Clear Alzak
❑ HDM1
Hi-Lume 1%
3-wire/EcoSystem
LED Driver
❑ 2DM1
Hi-Lume 1% 2-wire
LED Driver (120V
only)
❑ DMX1
DMX with RDM
dimming
to <0.1%
❑ LF6SL11L
❑ LF6SL15L
❑ LF6SL20L
Use with HDM/2DM/DMX dimming option:
Match Housing to Trim Output
NOTES:
1
For HDM, 2DM and DMX options, housing
output must match trim output
2
Not available with 347V
3
Not available with EMR
4
CP option must be selected on both housing and trim
5
Not available with DMX
6
See Central Inverter compatibility note and web
links on page 2
7
IP65 and VR can not be chosen together
8
Not available with IP65 or VR
9
Not available with color/finish options.
Semi-Diffuse finish only.
10
Not available with BNCT, WNCT, BNCTB, or WNCTB.
11
Not available with FLU
12
LV requires standard dimming or DM1
13
Must select CL or DL
14
Must select either 2750T or 2765T Kelvin with
DMT driver option
15
Not available with LV or LVE
16
Must select 2230TD with DMTW driver option
17
Not compatible with DMT or DMTW
18
Not available with CP option
19
Not available with HDM, 2DM or DMX
Standard
120V-277V
❑ 347
347V
Standard
Clear Alzak
❑ CG
Champagne
Gold Alzak
❑ GD
Gold Alzak
❑ BL
Black Alzak
❑ WE
Wheat Alzak
❑ LW
Light Wheat
Alzak
❑ PW
Pewter Alzak
❑ WH
Painted Matte
White Reflector
and Flange
❑ BC
Painted Black
Reflector and
Flange
❑ WT
Painted White
Flange Only
❑ TRG
Trim Ring
Gasket
❑ WF10
Wide Flange
❑ BNCT9,13
Black Non-
conductive Trim
❑ WNCT9,13
White Non-
conductive Trim
❑ BNCTB9,13
Black Non-
conductive Trim
Baffled
❑ WNCTB9,13
White Non-
conductive Trim
Baffled

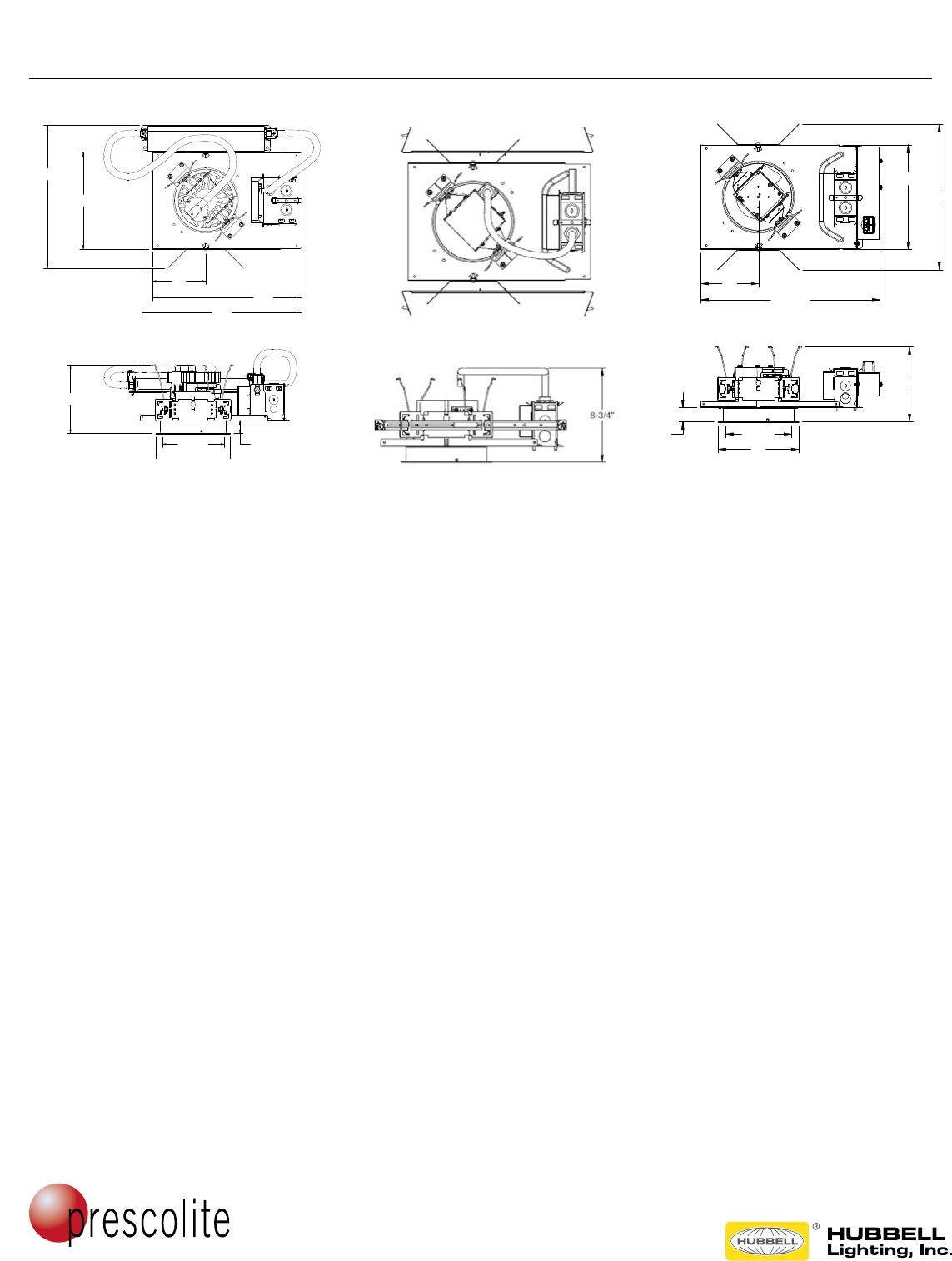

11-3/4"
14-3/8"
15-1/4"
5"
6"
3/8"
4"
5-1/4"
4" SL Family 11L, 15L, and 20L
12 3/4"
9 1/8"
5"
14"
1 1/4" 5 3/4"
7"
6 3/8"
14"
9"
12-5/8"
5"
1-1/4"
7-3/4"
6-3/8"
14-3/8"
11-3/4"
15-1/4"
5"
6"
4"
5-1/4"
3/8"
9 1/8"
12 3/4"
5"
14"
1 1/4"
6 3/8"
7"
5 3/4"
9"
14"
12-5/8"
5"
1-1/4"
7-3/4"
7-3/4"
6" SL Family 11L, 15L, and 20L 8" SL Family 11L, 15L, and 20L
4" ML Family 30L 6" ML Family 30L 8" ML Family 30L
9"
11-3/4"
14-3/8"
15-1/4"
5"
6"
3/8"
4"
5-1/4"
4" SL Family 11L, 15L, and 20L
12 3/4"
9 1/8"
5"
14"
1 1/4" 5 3/4"
7"
6 3/8"
14"
9"
12-5/8"
5"
1-1/4"
7-3/4"
6-3/8"
14-3/8"
11-3/4"
15-1/4"
5"
6"
4"
5-1/4"
3/8"
9 1/8"
12 3/4"
5"
14"
1 1/4"
6 3/8"
7"
5 3/4"
9"
14"
12-5/8"
5"
1-1/4"
7-3/4"
7-3/4"
6" SL Family 11L, 15L, and 20L 8" SL Family 11L, 15L, and 20L
4" ML Family 30L 6" ML Family 30L 8" ML Family 30L
9"
VOLTAGE
OPTION
❑ CL8
Clear Lens
(Regressed
Standard)
❑ DL8
Diffuse
Lens
(Regressed
Standard)
❑ SP
Specular
❑ SS
Semi-
Specular
❑ MFC
American
Matte™
❑ V
Kurt Versen
Specular
❑
VS
Kurt Versen
Softglow
®
❑ VSS
Kurt Versen
SoftSheen™
REFLECTOR
OPTIONS
6"
❑
120
120V
❑
277
277V
❑ LVE (HDM
Only)
Lutron Vive
Enabled,
EcoSystem
*HDM, 2DM & DMX
also available with
EMR and WW
Standard 0-10V
10% Dimming
❑ DM1
0-10V
dimming
at 1%
❑ DMT14,15
SpectraSync™
Tunable White
❑ DMTW16
SpectraSync™
Tunable Dim
to Warm
❑ 30K
3000 Kelvin,
90 CRI
❑ 35K
3500 Kelvin,
90 CRI
❑ 40K
4000 Kelvin,
90 CRI
❑ 2230TD
2200K-3000K
SpectraSync™
Dim to Warm
❑ 2750T
2700K-5000K
SpectraSync™
Tunable White
❑ 2765T
2700K-6500K
SpectraSync™
Tunable White
OUTPUT
❑ 11L
1100
Lumen
Module
❑ 15L
1500
Lumen
Module
❑ 20L17
2000
Lumen
Module
See page 4 for EMR, CP and
NX(W)E line art.
EXAMPLE: LF6SLDM1 6LFSL15L35KWT

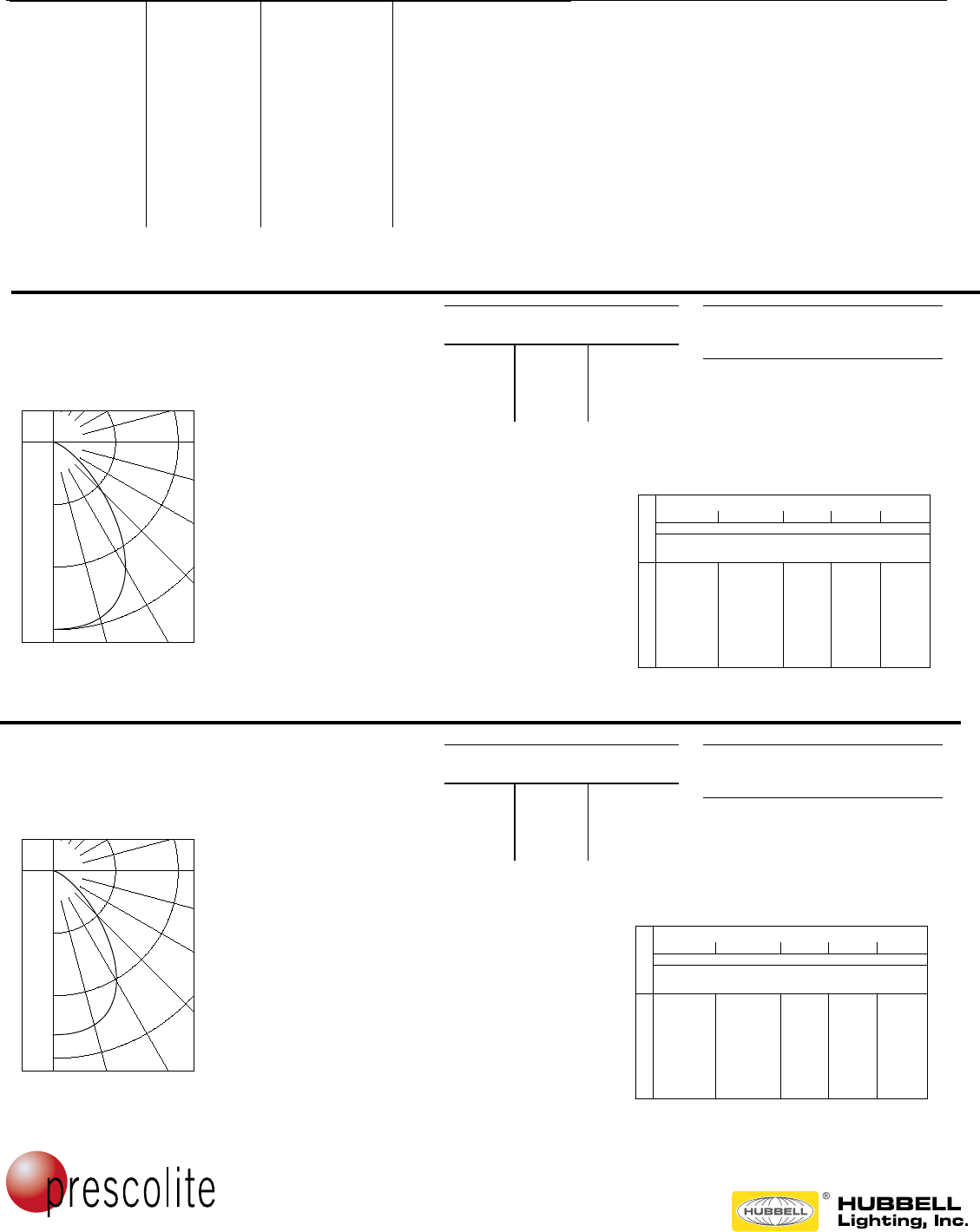

PHOTOMETRIC DATA
DRIVER DATA LF6SL20L 30K LF6SL15L 30K LF6SL11L 30K
Input Voltage 120-277V 120-277V 120-277V
Input Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Input Current 0.209A (120V) 0.158A (120V) 0.116A (120V)
0.091 (277V) 0.068A (277V) 0.050A (277V)
Input Power 25.1W 19.1W 13.9W
Constant Current Output 200–1000mA 200–1000mA 200–1000mA
Power Factor ≥0.90 ≥0.90 ≥0.90
THD <20% <20% <20%
EMI Filtering FCC 47CFR FCC 47CFR FCC 47CFR
Part 15, Class A Part 15, Class A Part 15, Class A
Operating Temperature -20ºC to 35ºC -20ºC to 35ºC -20ºC to 35ºC
Dimming 0-10V 0-10V 0-10V
Over-voltage, over-current, short-circuit protected
*Power consumption and photometric output may vary slightly with HDM or 2DM driver.
When operating in EM mode, the fixture will deliver approximately 30% of the published full lumen output.
Web: www.prescolite.com • Tech Support: (888) 777-4832
701 Millennium Boulevard • Greenville, SC 29607 U.S.A. •
Phone (864)
678-1000
Copyright ©2017 Prescolite, Inc., a division of Hubbell Lighting, Inc. All Rights Reserved
Specifications subject to change without notice. • Printed in U.S.A. • LFR-LED-038 • 9/18/17
LiteFrame - 6" LF6SL Lens
701 Millennium Blvd
Greenville, SC 29607
www.hubbelllighting.com
THIS REPORT WITH THE USE OF THE NVLAP LOGO SHALL NOT BE USED BY THE CLIENT TO CLAIM PRODUCT CERTIFICATION,
APPROVAL, OR ENDORSEMENT BY NVLAP, NIST, OR ANY AGENCY OF THE FEDERAL GOVERNMENT.
REPORT NUMBER: 17.01420 PAGE: 2 OF 5
ISSUE DATE: 05/15/17
PREPARED FOR: PRESCOLITE
CATALOG NUMBER: LF6SL 6LFSL20L30KDL
DEG CANDELA LUMENS
0 898
5 896 85
15 872 246
25 781 357
35 581 360
45 330 255
55 144 133
65 53 54
75 12 14
85 0 0
90 0
ZONAL LUMEN SUMMARY
ZONE LUMENS %FIXT
0- 30 688 45.8
0- 40 1048 69.7
0- 60 1436 95.5
0- 90 1504 100.0
90-180 0 0.0
0-180 1504 100.0
EFFICACY = 60.2 lm/W
CIE TYPE - DIRECT
LUMINAIRE SPACING CRITERION = 1.15
PLANE : 0-DEG 90-DEG
SHIELDING ANGLES : 90 90
LUMINOUS DIAMETER: 5.500
LUMINANCE DATA IN CANDELA/SQ M
ANGLE AVERAGE
IN DEG
45 30406.
55 16339.
65 8128.
75 2949.
85 0.
300
600
900
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
LUMINANCE DATA IN CANDELA/
SQ. METER
Angle in Vertical Average
45° 30406
55° 16339
65° 8128
75° 2949
85° 0
ZONAL LUMEN SUMMARY
ZONE LUMENS %LUMINAIRE
0-30 688 45.8
0-40 1048 69.7
0-60 1436 95.5
0-90 1504 100.0
LF6SL 6LFSL20L30KDL
LED Light Engine: 3000K, 90CRI
System Wattage: 25.1W
Fixture Delivered Lumens: 1504
Fixture Efficacy: 60.2
Spacing Criteria: 1.1
CANDELA DISTRIBUTION
DEG CANDELA
0 898
5 896
15 872
25 781
35 581
45 330
55 144
65 53
75 12
85 0
90 0
Test No. 17.01420
Tested at 25ºC Ambient in accordance to IESNA LM-79-2008
300
600
900
0º15º30º
45º
60º
75º
90º
COEFFICIENTS OF UTILIZATION Zonal Cavity Method
Room Cavity
Ratio
% Eective Ceiling Cavity Reectance
80% 70% 50% 30% 10%
20% Eective Floor Cavity Reectance
% Wall Reectance
70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10
1112 109 106 103 109 106 104 101 102 100 98 98 97 95 95 94 92
2105 98 93 89 102 97 92 88 93 89 86 90 87 84 87 85 82
397 89 83 78 95 88 82 77 85 80 76 83 78 75 80 77 74
491 81 74 69 89 80 74 69 78 72 68 76 71 67 74 70 66
585 74 67 62 83 73 67 61 71 65 61 70 64 60 68 63 60
679 68 61 56 78 67 60 55 66 60 55 64 59 64 63 58 54
774 63 55 50 73 62 55 50 61 54 50 59 54 50 58 53 49
870 58 51 46 68 57 51 46 56 50 45 55 49 45 54 49 45
966 54 47 42 64 53 47 42 52 46 42 51 46 42 50 45 41
10 62 50 43 39 61 50 43 39 49 43 38 48 42 38 47 42 38
LF6SL 6LFSL20L30KDL
Test No. 17.01420
701 Millennium Blvd
Greenville, SC 29607
www.hubbelllighting.com
THIS REPORT WITH THE USE OF THE NVLAP LOGO SHALL NOT BE USED BY THE CLIENT TO CLAIM PRODUCT CERTIFICATION,
APPROVAL, OR ENDORSEMENT BY NVLAP, NIST, OR ANY AGENCY OF THE FEDERAL GOVERNMENT.
REPORT NUMBER: 17.01421 PAGE: 2 OF 5
ISSUE DATE: 05/15/17
PREPARED FOR: PRESCOLITE
CATALOG NUMBER: LF6SL 6LFSL15L30KDL
DEG CANDELA LUMENS
0 787
5 786 75
15 765 215
25 685 313
35 510 315
45 289 224
55 126 116
65 46 48
75 10 12
85 0 0
90 0
ZONAL LUMEN SUMMARY
ZONE LUMENS %FIXT
0- 30 603 45.8
0- 40 919 69.7
0- 60 1259 95.5
0- 90 1319 100.0
90-180 0 0.0
0-180 1319 100.0
EFFICACY = 69.4 lm/W
CIE TYPE - DIRECT
LUMINAIRE SPACING CRITERION = 1.15
PLANE : 0-DEG 90-DEG
SHIELDING ANGLES : 90 90
LUMINOUS DIAMETER: 5.500
HEIGHT OF SIDE : 1.000
LUMINANCE DATA IN CANDELA/SQ M
ANGLE AVERAGE
IN DEG
45 21651.
55 10768.
65 4763.
75 1387.
85 0.
300
600
900
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
LUMINANCE DATA IN CANDELA/
SQ. METER
Angle in Vertical Average
45° 21651
55° 10768
65° 4763
75° 1387
85° 0
ZONAL LUMEN SUMMARY
ZONE LUMENS %LUMINAIRE
0-30 603 45.8
0-40 919 69.7
0-60 1259 95.5
0-90 1319 100.0
LF6SL 6LFSL15L30KDL
LED Light Engine: 3000K, 90CRI
System Wattage: 19.1W
Fixture Delivered Lumens: 1319
Fixture Efficacy: 69.4
Spacing Criteria: 1.1
CANDELA DISTRIBUTION
DEG CANDELA
0 787
5 786
15 765
25 685
35 510
45 289
55 126
65 46
75 10
85 0
90 0
Test No. 17.01421
Tested at 25ºC Ambient in accordance to IESNA LM-79-2008
300
600
900
0º15º30º
45º
60º
75º
90º
COEFFICIENTS OF UTILIZATION Zonal Cavity Method
Room Cavity
Ratio
% Eective Ceiling Cavity Reectance
80% 70% 50% 30% 10%
20% Eective Floor Cavity Reectance
% Wall Reectance
70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10
1112 109 106 103 109 106 104 101 102 100 98 98 97 95 95 94 92
2105 98 93 89 102 97 92 88 93 89 86 90 87 84 87 85 82
397 89 83 78 95 88 82 77 85 80 76 83 78 75 80 77 74
491 81 74 69 89 80 74 69 78 72 68 76 71 67 74 70 66
585 74 67 62 83 73 67 61 71 65 61 70 64 60 68 63 60
679 68 61 56 78 67 60 55 66 60 55 64 59 64 63 58 54
774 63 55 50 73 62 55 50 61 54 50 59 54 50 58 53 49
870 58 51 46 68 57 51 46 56 50 45 55 49 45 54 49 45
966 54 47 42 64 53 47 42 52 46 42 51 46 42 50 45 41
10 62 50 43 39 61 50 43 39 49 43 38 48 42 38 47 42 38
LF6SL 6LFSL15L30KDL
Test No. 17.01421

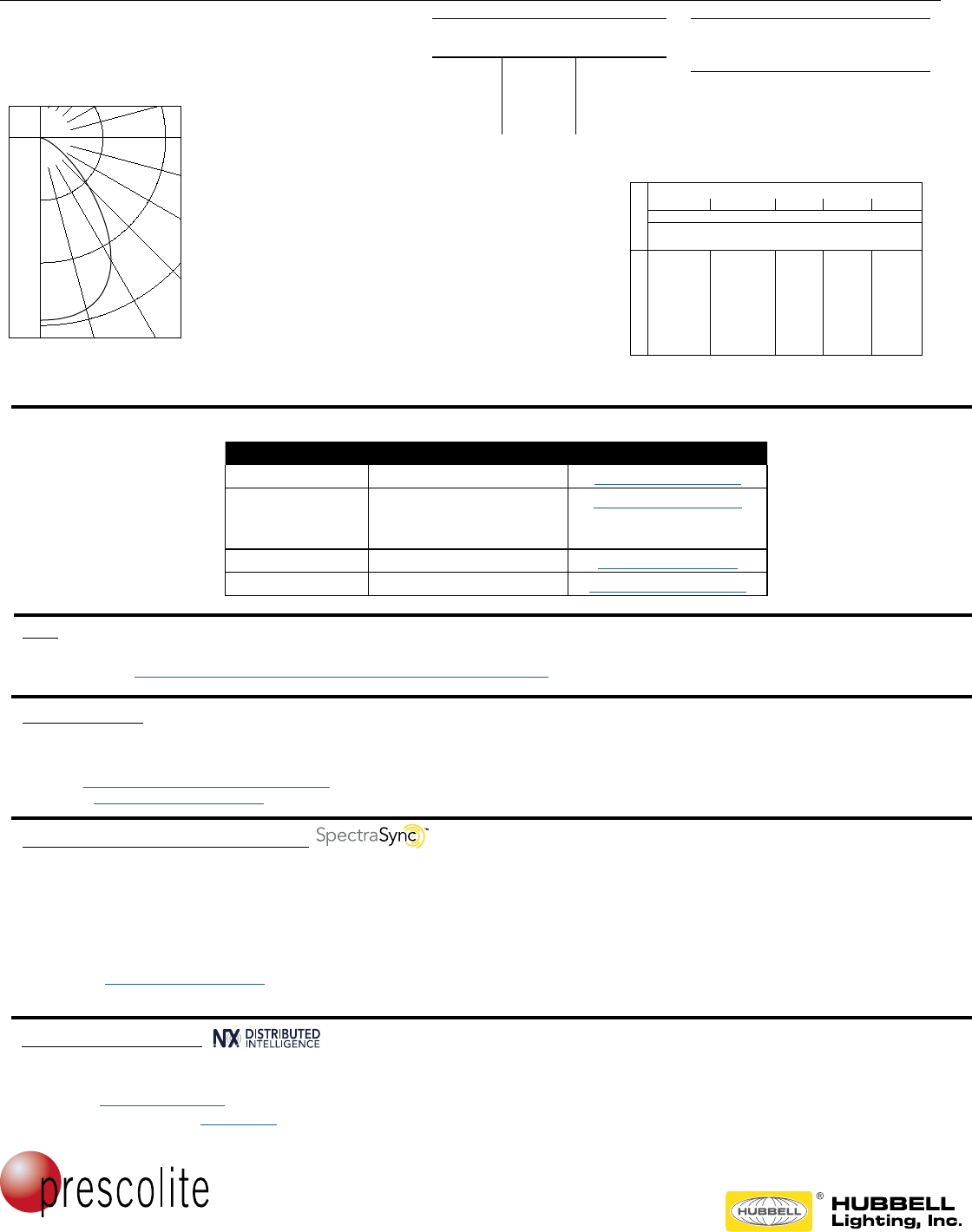

PHOTOMETRIC DATA
Web: www.prescolite.com • Tech Support: (888) 777-4832
701 Millennium Boulevard • Greenville, SC 29607 U.S.A. •
Phone (864)
678-1000
Copyright ©2017 Prescolite, Inc., a division of Hubbell Lighting, Inc. All Rights Reserved
Specifications subject to change without notice. • Printed in U.S.A. • LFR-LED-038 • 9/18/17
Dimming Compatibility Table
Dimming Ballast Manufacturer Web Link
DM/DM1 Lutron DVTV http://bit.ly/11jSvZg
DM/DM1 Leviton AWRMG-7xx,
AWSMG-7xx,
AWSMT-7xx
http://bit.ly/1BJn2R9
HDM Lutron http://bit.ly/1vtjHAl
2DM Lutron http://bit.ly/1S4WjXK
DMX
See instruction sheet on www.prescolite.com for connection & installation information.
Other useful links: http://www.eldoled.com/led-drivers/powerdrive/50-watt/ac-561s/
Central Inverters
For full fixture output in back-up mode, we recommend you visit www.dual-lite.com for your Central Lighting Inverter options. Please contact your local
Hubbell representative for any assistance with proper sizing and loading of your inverter selection. Central lighting inverters must be ordered separately.
LiteGear: www.dual-lite.com/products/litegear_lg_series
LPS Series: www.dual-lite.com/products/lps
701 Millennium Blvd
Greenville, SC 29607
www.hubbelllighting.com
THIS REPORT WITH THE USE OF THE NVLAP LOGO SHALL NOT BE USED BY THE CLIENT TO CLAIM PRODUCT CERTIFICATION,
APPROVAL, OR ENDORSEMENT BY NVLAP, NIST, OR ANY AGENCY OF THE FEDERAL GOVERNMENT.
REPORT NUMBER: 17.01422 PAGE: 2 OF 5
ISSUE DATE: 06/23/16
PREPARED FOR: PRESCOLITE
CATALOG NUMBER: LF6SL 6LFSL11L30KDL
DEG CANDELA LUMENS
0 525
5 524 50
15 510 144
25 456 209
35 340 210
45 193 149
55 84 78
65 31 32
75 7 8
85 0 0
90 0
ZONAL LUMEN SUMMARY
ZONE LUMENS %FIXT
0- 30 402 45.8
0- 40 613 69.7
0- 60 839 95.5
0- 90 879 100.0
90-180 0 0.0
0-180 879 100.0
EFFICACY = 62.8 lm/W
CIE TYPE - DIRECT
LUMINAIRE SPACING CRITERION = 1.15
PLANE : 0-DEG 90-DEG
SHIELDING ANGLES : 90 90
LUMINOUS DIAMETER: 5.500
LUMINANCE DATA IN CANDELA/SQ M
ANGLE AVERAGE
IN DEG
45 17776.
55 9552.
65 4752.
75 1724.
85 0.
180
360
540
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
LUMINANCE DATA IN CANDELA/
SQ. METER
Angle in Vertical Average
45° 17776
55° 9552
65° 4752
75° 1724
85° 0
ZONAL LUMEN SUMMARY
ZONE LUMENS %LUMINAIRE
0-30 402 45.8
0-40 613 69.7
0-60 839 95.5
0-90 879 100.0
LF6SL 6LFSL11L30KDL
LED Light Engine: 3000K, 90CRI
System Wattage: 13.9W
Fixture Delivered Lumens: 879
Fixture Efficacy: 62.8
Spacing Criteria: 1.1
CANDELA DISTRIBUTION
DEG CANDELA
0 525
5 524
15 510
25 456
35 340
45 193
55 84
65 31
75 7
85 0
90 0
Test No. 17.01422
Tested at 25ºC Ambient in accordance to IESNA LM-79-2008
180
360
540
0º15º30º
45º
60º
75º
90º
LiteFrame - 6" LF6SL Lens
COEFFICIENTS OF UTILIZATION Zonal Cavity Method
Room Cavity
Ratio
% Eective Ceiling Cavity Reectance
80% 70% 50% 30% 10%
20% Eective Floor Cavity Reectance
% Wall Reectance
70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10
1112 109 106 103 109 106 104 101 102 100 98 98 97 95 95 94 92
2105 98 93 89 102 97 92 88 93 89 86 90 87 84 87 85 82
397 89 83 78 95 88 82 77 85 80 76 83 78 75 80 77 74
491 81 74 69 89 80 74 69 78 72 68 76 71 67 74 70 66
585 74 67 62 83 73 67 61 71 65 61 70 64 60 68 63 60
679 68 61 56 78 67 60 55 66 60 55 64 59 64 63 58 54
774 63 55 50 73 62 55 50 61 54 50 59 54 50 58 53 49
870 58 51 46 68 57 51 46 56 50 45 55 49 45 54 49 45
966 54 47 42 64 53 47 42 52 46 42 51 46 42 50 45 41
10 62 50 43 39 61 50 43 39 49 43 38 48 42 38 47 42 38
LF6SL 6LFSL11L30KDL
Test No. 17.01422
SpectraSync™ Color Tuning Technology:
Control your space based on the needs of the application, specific activities throughout the day and preferences of the occupants with two distinct
SpectraSync™ Color Tuning Technology.
Dim to Warm: Dim to Warm mimics the familiar warming effect that occurs with traditional incandescent sources as they are dimmed.
(Available with 2200K-3000K).
Tunable White: Tunable White offers users the ability to tailor CCT to their personal preference, enhancing task visibility, material and
colors or the aesthetics of the space. (Available with 2700K-5000K or 2700K-6500K).
See separate SpectraSync™ Tech Sheet for additional details.
Color Tuning Technology
NOTES:
When ordering a sloped ceiling adapter, specify the degree of
slope in 5º increments, max. of 35º. For a more precise degree
or wet ceiling applications, please contact factory. Sloped ceiling
adapter and housing must be installed at the same time.
NX Distrubuted Intelligence:
Supports indoor and outdoor applications, wired, wireless and hybrid networked NX lighting control deployments and enables emerging applications
such as Hubbell Lighting’s SpectraSync™ color tuning technology.
See separate NX™ Solutions Guide for additional details.
See Hubbell Controls Solution NX Brochure.
™
PHOTOMETRIC DATA
Web: www.prescolite.com • Tech Support: (888) 777-4832
701 Millennium Boulevard • Greenville, SC 29607 U.S.A. •
Phone (864)
678-1000
Copyright ©2017 Prescolite, Inc., a division of Hubbell Lighting, Inc. All Rights Reserved
Specifications subject to change without notice. • Printed in U.S.A. • LFR-LED-038 • 9/18/17
LF6SL EMR
13-3/8"
9-1/8"
5"
14"
15"
5-3/4"
7"
6-3/8"
1-1/4"
LF6SL CP
5-3/4"
6-3/8"
1-1/4"
LF6SL LENS NX(W)E
12-3/4"
9-1/8"
15-1/2"
5"
1-1/4"
7"
5-3/4"
6-1/2"
LiteFrame - 6" LF6SL Lens

Navigation menu
