Lifesize® Icon 400™

Extending the

Connected Experience

Since its inception, video conferencing systems were

designed primarily for large meetings. Yet, it’s often the

small teams that get the work done. The Lifesize Icon 400

is designed to bring the power of video collaboration to small

meetings. Sized perfectly for huddle rooms and wherever

small teams congregate, Lifesize Icon 400 delivers an

unparalleled immersive experience that enables participants

around the world to focus on sharing knowledge and achieving

the objectives of the meeting. And when paired with Lifesize

Cloud, there simply isn’t a more powerful, yet easy-to-use

video conferencing solution in the world.

Lifesize Icon 400

• Connect with Lifesize Cloud to add seamless call

escalation, corporate and meetings directories,

secure firewall/NAT traversal and automatic

software updates.

• Escalating to a multiparty call couldn’t be easier.

Simply accept an incoming call or click on a contact

in your directory to add participants.

• Record meetings and share them with any number

of viewers with the push of a button.

• Ad-hoc meetings begin in the unified directory.

Search for a name, click and call.

• The icons on the onscreen menu clearly convey

the function or operation so you can click and

complete quickly.

• Start video calls quickly and easily with contacts

pinned as favorites.

• Lifesize Icon 400 is easy to install and configure.

• Like all members in the Lifesize Icon Series,

the Lifesize Icon 400 is designed for maximum

simplicity, flexibility and value.

Lifesize® Icon 400™

2

Pair with Lifesize Cloud*

Capitalize on the power of our cloud service to deliver even more

substantial benefits to your business. Simple point-to-point and

mobile calls that can quickly escalate to multiparty calls by clicking

on a name in a directory are strong enticements to hold meetings

via video. For IT, simplified setup through auto-provisioning, video

network management and secure NAT/firewall traversal will

accelerate deployment.

Get on with the Meeting

Lifesize firmly believes that video calls should be rewarding

experiences. That means getting the technology out of the way

and making it about realizing the user’s meeting objectives.

Lifesize Icon 400 achieves that goal. The simplified remote and the

user interface get you into your meeting quickly. The HD image and

crystal clear audio erase distance and put everyone into the same

space. Small meetings are even more productive and ecient,

and everyone leaves pleased because technology didn’t impede

meeting progress … it actually accelerated it. It’s another reason

why Lifesize video calls are described as a Connected Experience.

AT-A-GLANCE

Pair with

Lifesize Cloud*

Shared directory, virtual

meeting rooms, seamless call

escalation, name-based dialing,

automatic software updates

and more

Record and

Share Calls with

Lifesize Cloud

Amplify*

Easily record a video call or

meeting from any device and

automatically publish videos

into your own video library

Seamless Call

Escalation

Accept requests to join your

call or add others via your

directory with one simple click

of your remote

Remote Control

Sleek design for quick and easy

navigation by any user

Video Quality

Up to 1080p30

Presentation

Quality & Sharing

Up to 1080p; physical data port

HD Display

Support for one display

HD Camera Pan, tilt and zoom camera with

support for up to 1080p30 HD

and 6x zoom

Lifesize Phone

HD

Easy to use touchscreen

powers both audio and video

* Requires a Lifesize Cloud subscription

Lifesize Icon 400 with Lifesize Phone HD

Lifesize® Icon 400™Product Specifications

HEADQUARTERS

Austin, Texas, USA

+1 512 347 9300

Toll Free US +1 877 543 3749

EMEA REGIONAL OFFICE

Munich, Germany

+49 89 20 70 76 0

Toll Free Europe +00 8000 999 09 799

APAC REGIONAL OFFICE

Singapore

+65 6303 8370 www.lifesize.com

E-mail: info@lifesize.com

©2016 Lifesize, Inc. All rights reserved. Information contained in this document is

subject to change without notice. Lifesize and the Lifesize logo are registered trademarks

of Lifesize, Inc. All other trademarks are the property of their respective owners.

DS_Icon400_A4_0116

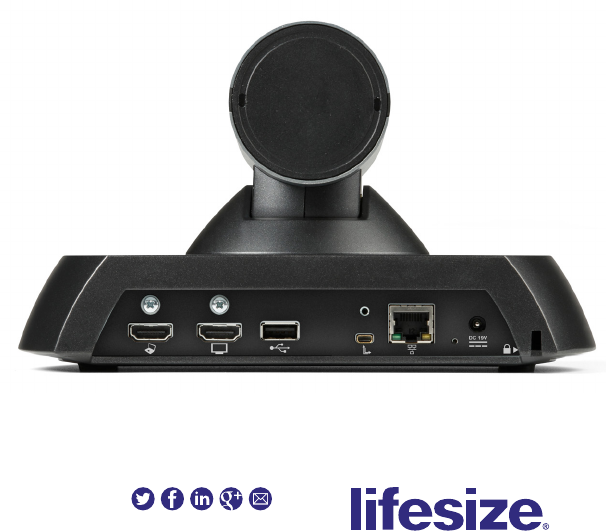

SYSTEM COMPONENTS

Lifesize Icon 400 with embedded PTZ camera

Lifesize Phone HD, Phone, 2nd Generation, or Digital MicPod

Power supply/cables

Lifesize Remote Control

COMMUNICATIONS

SIP, H.323, 128 Kbps–6.0 Mbps

1 x RJ-45 Network LAN 10/100

1 x Lifesize Link for Lifesize Phone HD, Phone, 2nd Generation,

or Digital MicPod

SUPPORT FOR SINGLE DISPLAY

Any display with HDMI input supporting 720p or 1080p

video modes

1080P30 ZOOM CAMERA

Wide-angle zoom lens with 70-degree field of view

3x optical zoom, 2x digital zoom, 6x total

Auto focus/automatic gain control

10 camera presets (near or far end)

VIDEO SPECIFICATIONS

Maximum resolution 1920x1080, 16:9 aspect ratio

All resolutions progressive scanning

Over 200 resolutions supported

Example bitrates and resolutions (H.264 High Profile, AAC-LD):

– 600 Kbps (720p30)

– 820 Kbps (720p60)

– 1.2 Mbps (1080p30)

VIDEO STANDARDS

H.264 High Profile, H.264 Baseline Profile, H.263+, H.263

VIDEO INPUTS (1 INPUT)

1 x HD Video In (up to 1080p30) HDMI enabled

VIDEO OUTPUTS (1 OUTPUT)

1 x HD Video Out (up to 1080p30) HDMI enabled

FULLY INTEGRATED, HD AUDIO

LIFESIZE PHONE HD/DIGITAL MICPOD

90 Hz up to 22 kHz

Audio pickup range up to 4.57 m (15 ft)

48kHz audio sampling

Powered by Icon 400 directly through Lifesize Link cable

Support for one Lifesize Phone HD, Phone, 2nd Generation, or

Digital MicPod

Ships with 4 m cable (Digital MicPod) or 9 m cable (Lifesize

Phone HD or Phone, 2nd Generation)

Optional 15 m cable available

AUDIO FEATURES

WebRTC NetEQ packet loss concealment

Full duplex for natural conversations

Echo cancellation for echo-free calls

Automatic gain control

Automatic noise reduction

AUDIO STANDARDS

G.711, G.722, G.722.1 and G.722.1C licensed from Polycom®,

MPEG-4-AAC-LC, MPEG-4 AAC-LD

AUDIO INPUTS (2 INPUTS)

1 x Lifesize Link (Lifesize Phone HD, Phone, 2nd Generation, or

Digital MicPod)

1 x HD Video In

AUDIO OUTPUTS (2 OUTPUTS)

1 x Lifesize Link (Lifesize Phone HD or Phone, 2nd Generation)

1 x HD Video Out

OTHER SUPPORTED STANDARDS

H.221, H.224, H.225, H.231, H.239/BFCP, H.241, H.242, H.245,

H.281, RFC 3261, RFC 3264, RFC 2190, RFC 3407, RFC 2833

USER INTERFACE & FEATURES

Simplified user interface

Heads up remote control

Seamless call escalation to a multiparty call

Graphical user interface administration console

Multiple languages supported

Do Not Disturb mode

Video mute

Picture-in-picture

LIFESIZE CLOUD*

Seamless call escalation for video and voice participants

Calendar, meeting directory, favorites, unified searchable

directory

Automatic provisioning

Guest calling

Single button recording and sharing**

Mobile calling

Video network management

Secure firewall traversal, plus NAT

Automatic software updates

SECURITY

Ability to disable HTTP, SSH services

H.235 (AES) encryption support including strict compliance

TLS/SRTP support

Kensington Security Slot

INTELLIGENT NETWORKING FEATURES

Adaptive motion control (AMC) including forward error correction

(FEC) for superior video quality in all network conditions

NAT/firewall traversal (H.460/SIP)

Auto bandwidth detection

DIRECTORY AND ADDRESS BOOK

Up to 100,000 directory entries

Global search tool

LDAP support/H.350 compliant

Calendar/meeting directory support

H.323 URI dialing support (Annex O)

SYSTEM MANAGEMENT

Web interface

Auto configuration

SNMP

Backup and restore capability

1 x USB 2.0

– Serial support

POWER

AC voltage 100–240V, 50–60 Hz, 2.31A via external 19VDC

power supply

ENVIRONMENTAL DATA

Operating temperature: 0°C (32°F) to 40°C (104°F)

Operating humidity: 15% to 85%, noncondensing

Storage temperature: –20°C (–4°F) to 60°C (140°F)

Storage humidity: 10% to 90%, noncondensing

VIDEO DEVICE DIMENSIONS

Width: 216.5 mm (8.52”)

Depth: 119.4 mm (4.70”)

Height: 125.4 mm (4.94”)

Weight: 1.04 Kg (2.29 lbs)

MOUNTING OPTIONS

Mounting holes: 2 x M5 screw holes 150 mm (6 in) apart

Mounting screws: 2 x M5 screws (Max insertion depth: 3.8 mm)

REGULATORY NUMBER

Lifesize Icon 400 = LFZ-033

*Requires a Lifesize Cloud subscription

**Through Lifesize Cloud Amplify, sold separately.
