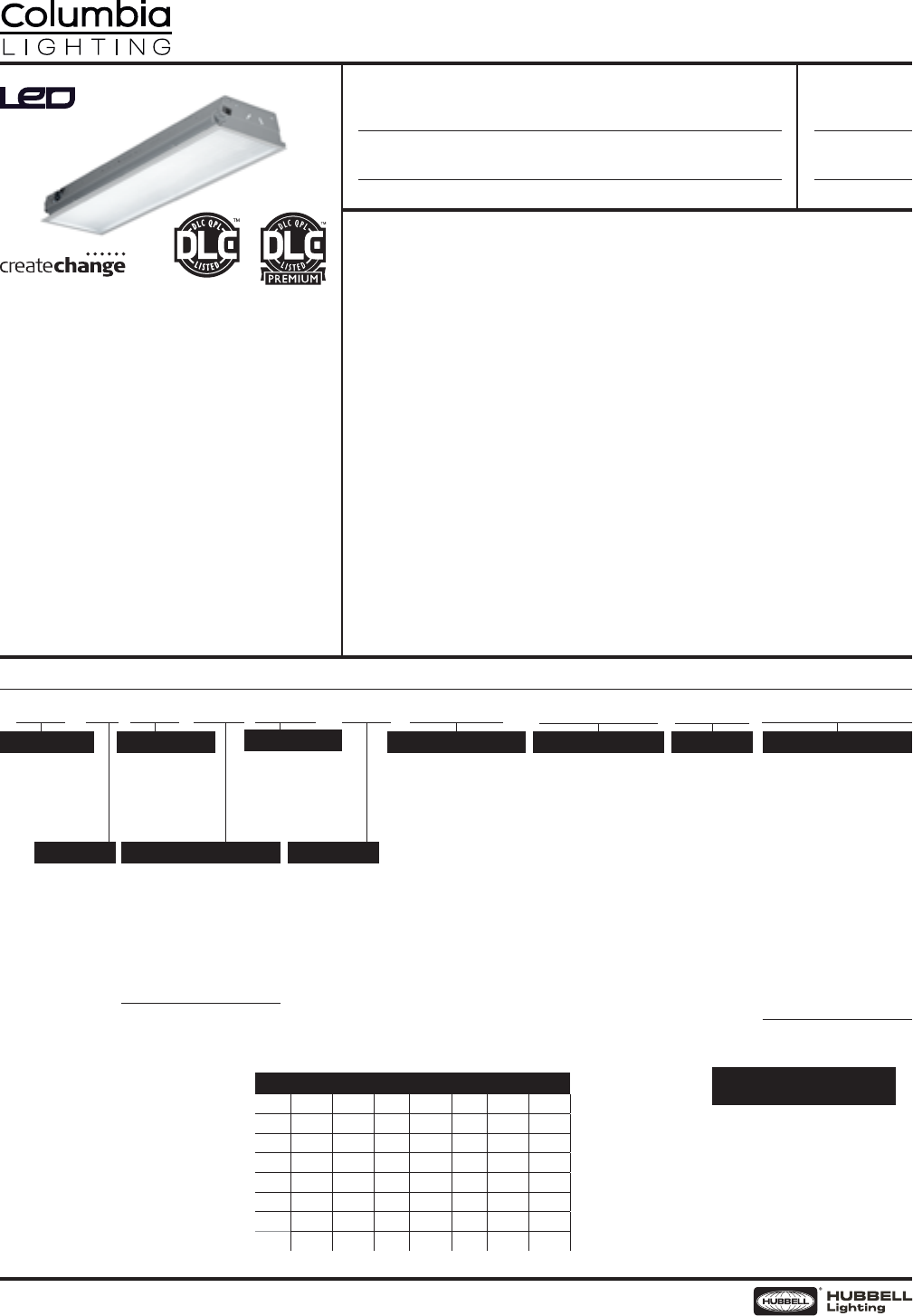

EXAMPLE LJT1435MLGFSA12EUORDERING INFORMATION
FEATURES
• Full distribution LED troer
• Direct replacement of uorescent 1x4
• Long-life, 60,000 hour LEDs at L80 reduce life cycle
maintenance costs
• Four LED color choices and 80 CRI
• Many shielding choices
• Two door frame choices
• Metal to metal light leak protection on all four sides of
shielding frame
• Fixed output, step dimming (high/low/o), 0-10V dimming,
o-10V dimming-dim to dark drivers available
• Hinged optical system allows easy access to LED modules and
electrical from below the ceiling
• All models standard with IC rating
• DesignLights Consortium® (DLC) qualied with many
congurations qualifying for DLC Premium;
see www.designlights.org
• Five year warranty
CONSTRUCTION
Luminaire housing and end caps are die-formed
code-gauge cold-rolled steel. Optical system hinges
from either side for easy access to LED module and
electrical components.
FINISH
All metal parts processed with a multi-stage
phosphate bonding treatment and nished
with a high reectance baked white enamel.
SHIELDING
Lens is high transmission pattern #12 acrylic (A12)
for light diusion without compromise to light
output. Other shielding may be specied. If desired
shielding media is not shown in ordering guide,
contact your local Hubbell Lighting representative.
INSTALLATION
An access plate is furnished with each recessed
xture for fast wiring connections without the
necessity to open the xture or wireway.
CEILING COMPATIBILITY
Designed for recessed installation in standard
inverted tee grid ceilings (G). Four integral
T-bar clips standard. Also available for recessed
installation in hard ceilings (G with FK accessory),
surface mount at ceiling plane (SM), or cable
mount suspension below ceiling plane (CM). For
compatibility with specic ceilings contact your
Hubbell Lighting representative.
CERTIFICATION
All luminaires are built to UL 1598 and 2108
standards, and bear appropriate CSA labels. Damp
location labeling is standard. Emergency equipped
xtures labeled UL924. Adheres to LM79, LM80 and
TM21 industry standards. IC rating is standard on
all models. DesignLights Consortium® (DLC) and
DLC Premium qualied. Please refer to the DLC
website for specic product qualications at
www.designlights.org.
WARRANTY
Five year warranty. (Terms and Conditions Apply)
LUMEN OUTPUT
XW Extra Low Watt
VW Very Low Watt
MW Medium Low Watt
LW Low Watt
ML Medium Lumen
HL High Lumen
VL Very High Lumen
See Product Availability Table Below
– – – –
LJT 14
SIZE
14 1' × 4'
VOLTAGE
U120V-277V
COLOR TEMP
30 3000K
35 3500K
40 4000K
50 5000K
MODEL
LJT LED Lensed
Troffer
CEILING TYPE
GGrid1
SM Surface
Mount
CM Cable Mount2
U
DRIVER
EFixed Output
ESD Step Dimming
ED 0-10V Dimming
ED1 0-10V 1%
Dimming
EDD 0-10V Dimming,
Dim to Dark3
LUTH Hi-lume 1%
EcoSystem LED
driver with Soft-
on, Fade-to-
Black dimming
technology 4
LUT5 5-Series
EcoSystem LED
driver 4
DOOR
FS White Flush
Steel
FA White Flush
Aluminum
OPTIONS
C388 3-Wire Flex
C488 4-Wire Flex
C588 5-Wire Flex
ELL14 Emergency Battery
Pack Installed,
1400 Lumens4,5
GLR Fast Blow Fuse
G1 Single Gasketing
(Door to Housing)
G2 Double Gasketing
(G1 and Lens to Door)
G3 Triple Gasketing
(G2 and Housing
to Ceiling)
CP Chicago Plenum
GTD Not Available
ACCESSORIES
ORDER SEPARATELY
FK14 1' × 4' Single
Flange Kit
CM48Y1SC3F-KIT 48" Cable Mount
Kit for 1' wide
Cable Mount
Fixtures, 3-Wire
SHIELDING
A12 Pattern
12 Acrylic
Lens
A12125
Pattern 12 Acrylic
Lens, 0.125"
Nominal
A12F
Pattern 12 Frosted
Acrylic Lens
A12125F
Pattern 12 Frosted
Acrylic Lens,
0.125" Nominal
A19
Pattern 19 Acrylic
Lens, 0.156"
Nominal
A19F
Pattern 19 Frosted
Acrylic Lens 0.156"
1 For hard ceilings use flange kit accessory.
2 Order hanger accessories separately.
3 50 watt and below
4 For compatibility with Dual-Lite LiteGear®
inverters in lieu of installed battery pack,
contact Hubbell Lighting Representative.
5 Not available with Surface Mount.
Damp label—standard.
IC rating—standard.
DRIVER AVAILABILITY TABLE
XW VW MW LW ML HL VL
E X X X X X X X
ESD X X X X X X X
ED X X X X X X X
ED1 X X X X X X X
EDD X X X X X X X
LUTH X X X X X X X
LUT5 X X X X X X X
LJT14
1' × 4' LED Troer
LED / LJT14Page 1/3 Rev. 09/18/17
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
Catalog No.
Project Name Type
Date
PROJECT INFORMATION
Product Availability
Lumen Package Lumens Input Watts LPW
LJT14-50XWG-FSA12-EU 2568 20 127
LJT14-40XWG-FSA12-EU 2358 20 116
LJT14-35XWG-FSA12-EU 2322 20 114
LJT14-30XWG-FSA12-EU 2255 20 111
LJT14-50VWG-FSA12-EU 3232 27 121
LJT14-40VWG-FSA12-EU 2968 27 111
LJT14-35VWG-FSA12-EU 2923 27 109
LJT14-30VWG-FSA12-EU 2838 27 106
LJT14-50MWG-FSA12-EU 3794 31 124
LJT14-40MWG-FSA12-EU 3484 31 114
LJT14-35MWG-FSA12-EU 3430 31 112
LJT14-30MWG-FSA12-EU 3331 31 109
LJT14-50LWG-FSA12-EU 4164 34 122
LJT14-40LWG-FSA12-EU 3824 34 112
LJT14-35LWG-FSA12-EU 3766 34 110
LJT14-30LWG-FSA12-EU 3656 34 107
LJT14-50MLG-FSA12-EU 4598 38 120
LJT14-40MLG-FSA12-EU 4222 38 111
LJT14-35MLG-FSA12-EU 4158 38 109
LJT14-30MLG-FSA12-EU 4037 38 106
LJT14-50HLG-FSA12-EU 5264 45 117
LJT14-40HLG-FSA12-EU 4834 45 107
LJT14-35HLG-FSA12-EU 4761 45 106
LJT14-30HLG-FSA12-EU 4622 45 102
LJT14-50VLG-FSA12-EU 7179 59 122
LJT14-40VLG-FSA12-EU 6593 59 112
LJT14-35VLG-FSA12-EU 6492 59 110
LJT14-30VLG-FSA12-EU 6303 59 107
LJT14
1' × 4' LED Troer
LED / LJT14Page 2/3 Rev. 09/18/17
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LJT14
1' × 4' LED Troer
LED / LJT14Page 3/3 Rev. 09/18/17
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
PHOTOMETRIC DATA
Luminaire LJT14-40LWG-FSA12-EU
LJT LED, Lensed Troer
1' X 4' LED with A12 pattern acrylic
prismed lens
Ballast XI040C110V054BST1
Ballast Factor 1.00
Lamp LED
Fixture Lumens 3824
Watts 34.20
Mounting Recessed
Shielding Angle 0º = 90 90º = 90
Spacing Criterion 0º = 1.18 90º = 1.11
Luminous Opening
in feet
Length: 3.92
Width: 0.83
Height: 0.00
Luminaire LJT14-40MLG-FSA12-EU
LJT LED, Lensed Troer
1' X 4' LED with A12 pattern acrylic
prismed lens
Ballast XI054C150V054BST1
Ballast Factor 1.00
Lamp LED
Fixture Lumens 4223
Watts 38.20
Mounting Recessed
Shielding Angle 0º = 90 90º = 90
Spacing Criterion 0º = 1.19 90º = 1.11
Luminous Opening
in feet
Length: 3.92
Width: 0.83
Height: 0.00
Luminaire LJT14-40HLG-FSA12-EU
LJT LED, Lensed Troer
1' X 4' LED with A12 pattern acrylic
prismed lens
Ballast XI054C150V054BST1
Ballast Factor 1.00
Lamp LED
Fixture Lumens 4834
Watts 45.10
Mounting Recessed
Shielding Angle 0º = 90 90º = 90
Spacing Criterion 0º = 1.19 90º = 1.10
Luminous Opening
in feet
Length: 4.00
Width: 0.83
Height: 0.00

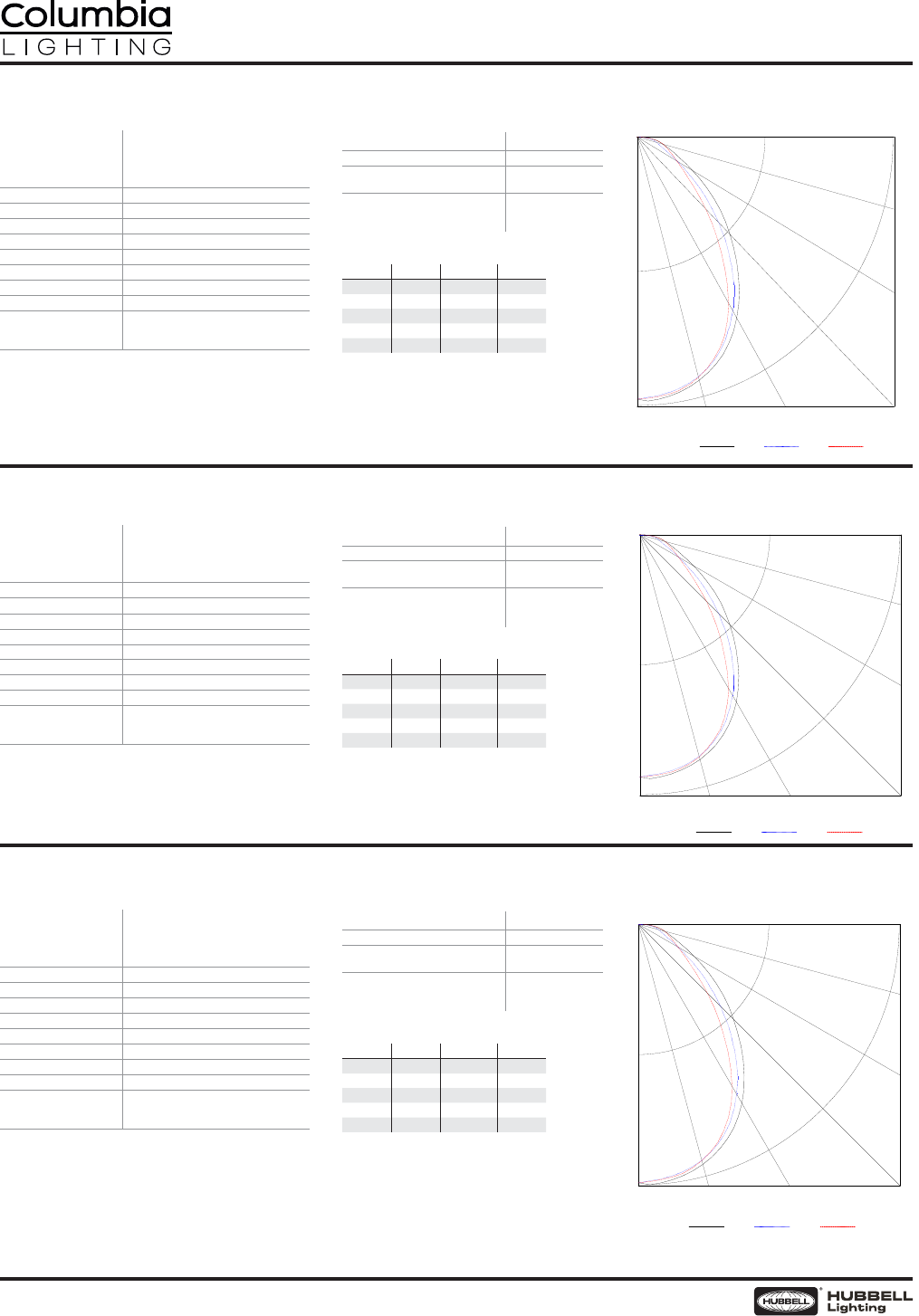

INDOOR CANDELA PLOT
INDOOR CANDELA PLOT
INDOOR CANDELA PLOT
ENERGY DATA
Total Luminaire Eciency 100.0%
Total Lumens per Watt 112
ANSI/IESNA RP-1-2004
Compliance
NONCOMPLIANT
Comparative Yearly Lighting
Energy Cost per 1000 Lumens
$2.14 based on
3000 hrs. and
$0.08 per KWH
ENERGY DATA
Total Luminaire Eciency 100.0%
Total Lumens per Watt 111
ANSI/IESNA RP-1-2004
Compliance
Noncompliant
Comparative Yearly Lighting
Energy Cost per 1000 Lumens
$2.16 based on
3000 hrs. and
$0.08 per KWH
ENERGY DATA
Total Luminaire Eciency 100.0%
Total Lumens per Watt 107
ANSI/IESNA RP-1-2004
Compliance
Noncompliant
Comparative Yearly Lighting
Energy Cost per 1000 Lumens
$2. based on
3000 hrs. and
$0.08 per KWH
LUMINAIRE DATA
LUMINAIRE DATA
LUMINAIRE DATA
Test 16360 Test Date 07/08/2016
Test 16363 Test Date 07/08/2016
Test 16366 Test Date 06/23/2016
ZONAL LUMEN SUMMARY
Zone Lumens %Lamp %Fixt.
0-30 1393 36.4 36.4
0-40 2165 56.6 56.6
0-60 3282 85.8 85.8
0-90 3824 100.0 100.0
0-180 3824 100.0 100.0
ZONAL LUMEN SUMMARY
Zone Lumens %Lamp %Fixt.
0-30 1538 36.4 36.4
0-40 2389 56.6 56.6
0-60 3623 85.8 85.8
0-90 4223 100.0 100.0
0-180 4223 100.0 100.0
ZONAL LUMEN SUMMARY
Zone Lumens %Lamp %Fixt.
0-30 1784 36.9 36.9
0-40 2764 57.2 57. 2
0-60 4159 86.0 86.0
0-90 4834 100.0 100.0
0-180 4834 100.0 100.0
Tel 864 678 1000 701 Millennium Blvd. Greenville, SC 29607
LUMINAIRE: LJT14-40LWG-FSA12-EU
LJT LED, Lensed Troffer
1' X 4' LED with A12 pattern acrylic prismed lens
Data scaled from test 16.01536
BALLAST: XI040C110V054BST1
BALLAST FACTOR: 1.00
LAMP: Led
FIXTURE LUMENS: 3824
WATTS: 34.20
MOUNTING: Recessed
SHIELDING ANGLE: 0º = 90 90º = 90
SPACING CRITERION: 0º = 1.18 90º = 1.11
LUMINOUS OPENING IN FEET
LENGTH: 3.92
WIDTH: 0.83
HEIGHT: 0.00
TEST #16360
DATE: 7/8/2016
TOTAL LUMINAIRE EFFICIENCY = 100.0
TOTAL LUMENS PER WATT = 112
ANSI/IESNA RP-1-2004 COMPLIANCE: NONCOMPLIANT
COMPARATIVE YEARLY LIGHTING ENERGY COST PER 1000 LUMENS = $2.14
BASED ON 3000 HRS. AND $.08 PER KWH
ZONAL LUMENS
ZONE LUMENS % LAMP % FIXTURE
0-30
0-40
0-60
0-90
0-180
1393 36.4 36.4
2165 56.6 56.6
3282 85.8 85.8
3824 100.0 100.0
3824 100.0 100.0
INDOOR CANDELA PLOT
Horiz 0-180
950
1900
0 15 30 45
90
75
60
0.0 45.0 90.0
CANDELA/SQ MAVERAGE LUMINANCE
ANGLE 0.0 22.5 45.0 67.5 90.0
0
30
40
45
50
55
60
65
70
75
80
85
6137 6137 6137 6137 6137
5646 5562 5425 5291 5195
4962 4867 4552 4133 3960
4562 4449 4010 3560 3369
4164 3912 3433 2975 2836
3668 3328 2838 2492 2451
3136 2739 2296 2197 2256
2709 2278 1902 2051 2231
2544 2109 1760 2109 2322
2544 2147 1917 2262 2569
2801 2305 2248 2591 2915
3189 2657 2391 3075 3075
ZONAL CAVITY METHODCOEFFICIENTS OF UTILIZATION (%)
EFFECTIVE FLOOR CAVITY REFLECTANCE = 20%
RC 0%80% 70% 50% 30% 10%
RW 70% 50% 30% 10% 70% 50% 30% 10% 50% 30% 10% 50% 30% 10% 50% 30% 10% 0%
R
C
R
0
1
2
3
4
5
6
7
8
9
10
119 119 119 119 116 116 116 116 111 111 111 106 106 106 102 102 102 100
110 106 102 98 107 103 100 97 99 96 94 95 93 91 92 90 88 86
101 94 88 82 99 92 86 81 88 84 80 85 81 78 82 79 76 74
93 84 76 70 91 82 75 70 79 73 69 77 72 67 74 70 66 64
86 75 67 61 84 74 67 61 72 65 60 69 64 59 67 62 58 56
80 68 60 54 78 67 59 54 65 58 53 63 57 52 61 56 52 50
74 62 54 48 72 61 53 48 59 52 47 58 52 47 56 51 46 45
69 57 49 43 68 56 48 43 54 48 42 53 47 42 52 46 42 40
65 52 44 39 63 52 44 39 50 43 38 49 43 38 48 42 38 36
61 48 41 35 59 48 40 35 47 40 35 46 39 35 45 39 35 33
57 45 37 32 56 44 37 32 43 37 32 42 36 32 42 36 32 30
RCR = ROOM CAVITY RATIO RC = EFFECTIVE CEILING CAVITY REFLECTANCE RW = WALL REFLECTANCE
THE DATA IN THIS REPORT ARE BASED ON ABSOLUTE MEASUREMENTS.
ANSI/IESNA RP-1 COMPLIANCE IS BASED ON ABSOLUTE MEASUREMENTS.
THIS TEST RUN IN ACCORDANCE WITH CURRENT I.E.S.N.A. PUBLISHED PROCEDURES.
APPROVED BY:______________
Tel 864 678 1000 701 Millennium Blvd. Greenville, SC 29607
LUMINAIRE: LJT14-40LWG-FSA12-EU
LJT LED, Lensed Troffer
1' X 4' LED with A12 pattern acrylic prismed lens
Data scaled from test 16.01536
BALLAST: XI040C110V054BST1
BALLAST FACTOR: 1.00
LAMP: Led
FIXTURE LUMENS: 3824
WATTS: 34.20
MOUNTING: Recessed
SHIELDING ANGLE: 0º = 90 90º = 90
SPACING CRITERION: 0º = 1.18 90º = 1.11
LUMINOUS OPENING IN FEET
LENGTH: 3.92
WIDTH: 0.83
HEIGHT: 0.00
TEST #16360
DATE: 7/8/2016
TOTAL LUMINAIRE EFFICIENCY = 100.0
TOTAL LUMENS PER WATT = 112
ANSI/IESNA RP-1-2004 COMPLIANCE: NONCOMPLIANT
COMPARATIVE YEARLY LIGHTING ENERGY COST PER 1000 LUMENS = $2.14
BASED ON 3000 HRS. AND $.08 PER KWH
ZONAL LUMENS
ZONE LUMENS % LAMP % FIXTURE
0-30
0-40
0-60
0-90
0-180
1393 36.4 36.4
2165 56.6 56.6
3282 85.8 85.8
3824 100.0 100.0
3824 100.0 100.0
INDOOR CANDELA PLOT
Horiz 0-180
950
1900
0 15 30 45
90
75
60
0.0 45.0 90.0
CANDELA/SQ MAVERAGE LUMINANCE
ANGLE 0.0 22.5 45.0 67.5 90.0
0
30
40
45
50
55
60
65
70
75
80
85
6137 6137 6137 6137 6137
5646 5562 5425 5291 5195
4962 4867 4552 4133 3960
4562 4449 4010 3560 3369
4164 3912 3433 2975 2836
3668 3328 2838 2492 2451
3136 2739 2296 2197 2256
2709 2278 1902 2051 2231
2544 2109 1760 2109 2322
2544 2147 1917 2262 2569
2801 2305 2248 2591 2915
3189 2657 2391 3075 3075
ZONAL CAVITY METHODCOEFFICIENTS OF UTILIZATION (%)
EFFECTIVE FLOOR CAVITY REFLECTANCE = 20%
RC 0%80% 70% 50% 30% 10%
RW 70% 50% 30% 10% 70% 50% 30% 10% 50% 30% 10% 50% 30% 10% 50% 30% 10% 0%
R
C
R
0
1
2
3
4
5
6
7
8
9
10
119 119 119 119 116 116 116 116 111 111 111 106 106 106 102 102 102 100
110 106 102 98 107 103 100 97 99 96 94 95 93 91 92 90 88 86
101 94 88 82 99 92 86 81 88 84 80 85 81 78 82 79 76 74
93 84 76 70 91 82 75 70 79 73 69 77 72 67 74 70 66 64
86 75 67 61 84 74 67 61 72 65 60 69 64 59 67 62 58 56
80 68 60 54 78 67 59 54 65 58 53 63 57 52 61 56 52 50
74 62 54 48 72 61 53 48 59 52 47 58 52 47 56 51 46 45
69 57 49 43 68 56 48 43 54 48 42 53 47 42 52 46 42 40
65 52 44 39 63 52 44 39 50 43 38 49 43 38 48 42 38 36
61 48 41 35 59 48 40 35 47 40 35 46 39 35 45 39 35 33
57 45 37 32 56 44 37 32 43 37 32 42 36 32 42 36 32 30
RCR = ROOM CAVITY RATIO RC = EFFECTIVE CEILING CAVITY REFLECTANCE RW = WALL REFLECTANCE
THE DATA IN THIS REPORT ARE BASED ON ABSOLUTE MEASUREMENTS.
ANSI/IESNA RP-1 COMPLIANCE IS BASED ON ABSOLUTE MEASUREMENTS.
THIS TEST RUN IN ACCORDANCE WITH CURRENT I.E.S.N.A. PUBLISHED PROCEDURES.
APPROVED BY:______________
Tel 864 678 1000 701 Millennium Blvd. Greenville, SC 29607
LUMINAIRE: LJT14-40MLG-FSA12-EU
LJT LED, Lensed Troffer
1' X 4' LED with A12 pattern acrylic prismed lens
Data scaled from test 16.01537
BALLAST: XI054C150V054BST1
BALLAST FACTOR: 1.00
LAMP: Led
FIXTURE LUMENS: 4223
WATTS: 38.20
MOUNTING: Recessed
SHIELDING ANGLE: 0º = 90 90º = 90
SPACING CRITERION: 0º = 1.19 90º = 1.11
LUMINOUS OPENING IN FEET
LENGTH: 3.92
WIDTH: 0.83
HEIGHT: 0.00
TEST #16363
DATE: 7/8/2016
TOTAL LUMINAIRE EFFICIENCY = 100.0
TOTAL LUMENS PER WATT = 111
ANSI/IESNA RP-1-2004 COMPLIANCE: NONCOMPLIANT
COMPARATIVE YEARLY LIGHTING ENERGY COST PER 1000 LUMENS = $2.16
BASED ON 3000 HRS. AND $.08 PER KWH
ZONAL LUMENS
ZONE LUMENS % LAMP % FIXTURE
0-30
0-40
0-60
0-90
0-180
1538 36.4 36.4
2389 56.6 56.6
3623 85.8 85.8
4223 100.0 100.0
4223 100.0 100.0
INDOOR CANDELA PLOT
Horiz 0-180
1100
2200
0 15 30 45
90
75
60
0.0 45.0 90.0
CANDELA/SQ MAVERAGE LUMINANCE
ANGLE 0.0 22.5 45.0 67.5 90.0
0
30
40
45
50
55
60
65
70
75
80
85
6779 6779 6779 6779 6779
6246 6116 5998 5822 5745
5476 5377 5044 4556 4388
5048 4913 4426 3921 3748
4612 4323 3783 3268 3124
4043 3674 3138 2751 2711
3461 3011 2547 2415 2508
3014 2505 2090 2255 2458
2815 2322 1944 2331 2563
2812 2365 2109 2493 2863
3144 2534 2496 2877 3258
3454 2923 2695 3492 3530
ZONAL CAVITY METHODCOEFFICIENTS OF UTILIZATION (%)
EFFECTIVE FLOOR CAVITY REFLECTANCE = 20%
RC 0%80% 70% 50% 30% 10%
RW 70% 50% 30% 10% 70% 50% 30% 10% 50% 30% 10% 50% 30% 10% 50% 30% 10% 0%
R
C
R
0
1
2
3
4
5
6
7
8
9
10
119 119 119 119 116 116 116 116 111 111 111 106 106 106 102 102 102 100
110 106 102 98 107 103 100 97 99 96 94 95 93 91 92 90 88 86
101 94 88 82 99 92 86 81 88 84 80 85 81 78 82 79 76 74
93 84 76 70 91 82 75 70 79 73 69 77 72 67 74 70 66 64
86 75 67 61 84 74 67 61 72 65 60 69 64 59 67 62 58 56
80 68 60 54 78 67 59 54 65 58 53 63 57 52 61 56 52 50
74 62 54 48 72 61 53 48 59 52 47 58 52 47 56 51 46 45
69 57 49 43 68 56 48 43 54 48 42 53 47 42 52 46 42 40
65 52 44 39 63 52 44 39 50 43 38 49 43 38 48 42 38 36
61 48 40 35 59 48 40 35 47 40 35 46 39 35 45 39 35 33
57 45 37 32 56 44 37 32 43 37 32 42 36 32 42 36 32 30
RCR = ROOM CAVITY RATIO RC = EFFECTIVE CEILING CAVITY REFLECTANCE RW = WALL REFLECTANCE
THE DATA IN THIS REPORT ARE BASED ON ABSOLUTE MEASUREMENTS.
ANSI/IESNA RP-1 COMPLIANCE IS BASED ON ABSOLUTE MEASUREMENTS.
THIS TEST RUN IN ACCORDANCE WITH CURRENT I.E.S.N.A. PUBLISHED PROCEDURES.
APPROVED BY:______________
Tel 864 678 1000 701 Millennium Blvd. Greenville, SC 29607
LUMINAIRE: LJT14-40MLG-FSA12-EU
LJT LED, Lensed Troffer
1' X 4' LED with A12 pattern acrylic prismed lens
Data scaled from test 16.01537
BALLAST: XI054C150V054BST1
BALLAST FACTOR: 1.00
LAMP: Led
FIXTURE LUMENS: 4223
WATTS: 38.20
MOUNTING: Recessed
SHIELDING ANGLE: 0º = 90 90º = 90
SPACING CRITERION: 0º = 1.19 90º = 1.11
LUMINOUS OPENING IN FEET
LENGTH: 3.92
WIDTH: 0.83
HEIGHT: 0.00
TEST #16363
DATE: 7/8/2016
TOTAL LUMINAIRE EFFICIENCY = 100.0
TOTAL LUMENS PER WATT = 111
ANSI/IESNA RP-1-2004 COMPLIANCE: NONCOMPLIANT
COMPARATIVE YEARLY LIGHTING ENERGY COST PER 1000 LUMENS = $2.16
BASED ON 3000 HRS. AND $.08 PER KWH
ZONAL LUMENS
ZONE LUMENS % LAMP % FIXTURE
0-30
0-40
0-60
0-90
0-180
1538 36.4 36.4
2389 56.6 56.6
3623 85.8 85.8
4223 100.0 100.0
4223 100.0 100.0
INDOOR CANDELA PLOT
Horiz 0-180
1100
2200
0 15 30 45
90
75
60
0.0 45.0 90.0
CANDELA/SQ MAVERAGE LUMINANCE
ANGLE 0.0 22.5 45.0 67.5 90.0
0
30
40
45
50
55
60
65
70
75
80
85
6779 6779 6779 6779 6779
6246 6116 5998 5822 5745
5476 5377 5044 4556 4388
5048 4913 4426 3921 3748
4612 4323 3783 3268 3124
4043 3674 3138 2751 2711
3461 3011 2547 2415 2508
3014 2505 2090 2255 2458
2815 2322 1944 2331 2563
2812 2365 2109 2493 2863
3144 2534 2496 2877 3258
3454 2923 2695 3492 3530
ZONAL CAVITY METHODCOEFFICIENTS OF UTILIZATION (%)
EFFECTIVE FLOOR CAVITY REFLECTANCE = 20%
RC 0%80% 70% 50% 30% 10%
RW 70% 50% 30% 10% 70% 50% 30% 10% 50% 30% 10% 50% 30% 10% 50% 30% 10% 0%
R
C
R
0
1
2
3
4
5
6
7
8
9
10
119 119 119 119 116 116 116 116 111 111 111 106 106 106 102 102 102 100
110 106 102 98 107 103 100 97 99 96 94 95 93 91 92 90 88 86
101 94 88 82 99 92 86 81 88 84 80 85 81 78 82 79 76 74
93 84 76 70 91 82 75 70 79 73 69 77 72 67 74 70 66 64
86 75 67 61 84 74 67 61 72 65 60 69 64 59 67 62 58 56
80 68 60 54 78 67 59 54 65 58 53 63 57 52 61 56 52 50
74 62 54 48 72 61 53 48 59 52 47 58 52 47 56 51 46 45
69 57 49 43 68 56 48 43 54 48 42 53 47 42 52 46 42 40
65 52 44 39 63 52 44 39 50 43 38 49 43 38 48 42 38 36
61 48 40 35 59 48 40 35 47 40 35 46 39 35 45 39 35 33
57 45 37 32 56 44 37 32 43 37 32 42 36 32 42 36 32 30
RCR = ROOM CAVITY RATIO RC = EFFECTIVE CEILING CAVITY REFLECTANCE RW = WALL REFLECTANCE
THE DATA IN THIS REPORT ARE BASED ON ABSOLUTE MEASUREMENTS.
ANSI/IESNA RP-1 COMPLIANCE IS BASED ON ABSOLUTE MEASUREMENTS.
THIS TEST RUN IN ACCORDANCE WITH CURRENT I.E.S.N.A. PUBLISHED PROCEDURES.
APPROVED BY:______________
Tel 864 678 1000 701 Millennium Blvd. Greenville, SC 29607
LUMINAIRE: LJT14-40HLG-FSA12-EU
LJT LED, Lensed Troffer
1' X 4' LED with A12 pattern acrylic prismed lens
Data scaled from test 16.01538
BALLAST: XI054C150V054BST1
BALLAST FACTOR: 1.00
LAMP: Led
FIXTURE LUMENS: 4834
WATTS: 45.10
MOUNTING: Recessed
SHIELDING ANGLE: 0º = 90 90º = 90
SPACING CRITERION: 0º = 1.19 90º = 1.10
LUMINOUS OPENING IN FEET
LENGTH: 4.00
WIDTH: 0.83
HEIGHT: 0.00
TEST #16366
DATE: 6/23/2016
TOTAL LUMINAIRE EFFICIENCY = 100.0
TOTAL LUMENS PER WATT = 107
ANSI/IESNA RP-1-2004 COMPLIANCE: NONCOMPLIANT
COMPARATIVE YEARLY LIGHTING ENERGY COST PER 1000 LUMENS = $2.24
BASED ON 3000 HRS. AND $.08 PER KWH
ZONAL LUMENS
ZONE LUMENS % LAMP % FIXTURE
0-30
0-40
0-60
0-90
0-180
1784 36.9 36.9
2764 57.2 57.2
4159 86.0 86.0
4834 100.0 100.0
4834 100.0 100.0
INDOOR CANDELA PLOT
Horiz 0-180
1200
2400
0 15 30 45
90
75
60
0.0 45.0 90.0
CANDELA/SQ MAVERAGE LUMINANCE
ANGLE 0.0 22.5 45.0 67.5 90.0
0
30
40
45
50
55
60
65
70
75
80
85
7713 7713 7713 7713 7713
7128 6982 6765 6570 6439
6222 6052 5599 5091 4893
5667 5470 4892 4337 4113
5155 4822 4156 3622 3440
4511 4053 3414 3041 2968
3819 3301 2723 2652 2717
3299 2777 2263 2493 2670
3052 2559 2180 2569 2806
3094 2631 2393 2756 3157
3398 2875 2819 3230 3566
3757 3236 2902 3869 4055
ZONAL CAVITY METHODCOEFFICIENTS OF UTILIZATION (%)
EFFECTIVE FLOOR CAVITY REFLECTANCE = 20%
RC 0%80% 70% 50% 30% 10%
RW 70% 50% 30% 10% 70% 50% 30% 10% 50% 30% 10% 50% 30% 10% 50% 30% 10% 0%
R
C
R
0
1
2
3
4
5
6
7
8
9
10
119 119 119 119 116 116 116 116 111 111 111 106 106 106 102 102 102 100
110 106 102 98 107 103 100 97 99 96 94 95 93 91 92 90 88 86
101 94 88 83 99 92 86 82 88 84 80 85 81 78 82 79 76 74
93 84 77 71 91 82 76 70 79 74 69 77 72 68 74 70 67 65
86 75 68 61 84 74 67 61 72 65 60 70 64 59 67 63 59 57
80 68 60 54 78 67 60 54 65 58 53 63 57 53 62 56 52 50
75 62 54 48 73 61 54 48 60 53 48 58 52 47 56 51 47 45
70 57 49 43 68 56 49 43 55 48 43 53 47 42 52 46 42 40
65 52 45 39 64 52 44 39 51 44 39 49 43 39 48 43 38 37
61 48 41 36 60 48 41 35 47 40 35 46 40 35 45 39 35 33
57 45 38 33 56 44 37 33 44 37 32 43 37 32 42 36 32 30
RCR = ROOM CAVITY RATIO RC = EFFECTIVE CEILING CAVITY REFLECTANCE RW = WALL REFLECTANCE
THE DATA IN THIS REPORT ARE BASED ON ABSOLUTE MEASUREMENTS.
ANSI/IESNA RP-1 COMPLIANCE IS BASED ON ABSOLUTE MEASUREMENTS.
THIS TEST RUN IN ACCORDANCE WITH CURRENT I.E.S.N.A. PUBLISHED PROCEDURES.
APPROVED BY:______________
Tel 864 678 1000 701 Millennium Blvd. Greenville, SC 29607
LUMINAIRE: LJT14-40HLG-FSA12-EU
LJT LED, Lensed Troffer
1' X 4' LED with A12 pattern acrylic prismed lens
Data scaled from test 16.01538
BALLAST: XI054C150V054BST1
BALLAST FACTOR: 1.00
LAMP: Led
FIXTURE LUMENS: 4834
WATTS: 45.10
MOUNTING: Recessed
SHIELDING ANGLE: 0º = 90 90º = 90
SPACING CRITERION: 0º = 1.19 90º = 1.10
LUMINOUS OPENING IN FEET
LENGTH: 4.00
WIDTH: 0.83
HEIGHT: 0.00
TEST #16366
DATE: 6/23/2016
TOTAL LUMINAIRE EFFICIENCY = 100.0
TOTAL LUMENS PER WATT = 107
ANSI/IESNA RP-1-2004 COMPLIANCE: NONCOMPLIANT
COMPARATIVE YEARLY LIGHTING ENERGY COST PER 1000 LUMENS = $2.24
BASED ON 3000 HRS. AND $.08 PER KWH
ZONAL LUMENS
ZONE LUMENS % LAMP % FIXTURE
0-30
0-40
0-60
0-90
0-180
1784 36.9 36.9
2764 57.2 57.2
4159 86.0 86.0
4834 100.0 100.0
4834 100.0 100.0
INDOOR CANDELA PLOT
Horiz 0-180
1200
2400
0 15 30 45
90
75
60
0.0 45.0 90.0
CANDELA/SQ MAVERAGE LUMINANCE
ANGLE 0.0 22.5 45.0 67.5 90.0
0
30
40
45
50
55
60
65
70
75
80
85
7713 7713 7713 7713 7713
7128 6982 6765 6570 6439
6222 6052 5599 5091 4893
5667 5470 4892 4337 4113
5155 4822 4156 3622 3440
4511 4053 3414 3041 2968
3819 3301 2723 2652 2717
3299 2777 2263 2493 2670
3052 2559 2180 2569 2806
3094 2631 2393 2756 3157
3398 2875 2819 3230 3566
3757 3236 2902 3869 4055
ZONAL CAVITY METHODCOEFFICIENTS OF UTILIZATION (%)
EFFECTIVE FLOOR CAVITY REFLECTANCE = 20%
RC 0%80% 70% 50% 30% 10%
RW 70% 50% 30% 10% 70% 50% 30% 10% 50% 30% 10% 50% 30% 10% 50% 30% 10% 0%
R
C
R
0
1
2
3
4
5
6
7
8
9
10
119 119 119 119 116 116 116 116 111 111 111 106 106 106 102 102 102 100
110 106 102 98 107 103 100 97 99 96 94 95 93 91 92 90 88 86
101 94 88 83 99 92 86 82 88 84 80 85 81 78 82 79 76 74
93 84 77 71 91 82 76 70 79 74 69 77 72 68 74 70 67 65
86 75 68 61 84 74 67 61 72 65 60 70 64 59 67 63 59 57
80 68 60 54 78 67 60 54 65 58 53 63 57 53 62 56 52 50
75 62 54 48 73 61 54 48 60 53 48 58 52 47 56 51 47 45
70 57 49 43 68 56 49 43 55 48 43 53 47 42 52 46 42 40
65 52 45 39 64 52 44 39 51 44 39 49 43 39 48 43 38 37
61 48 41 36 60 48 41 35 47 40 35 46 40 35 45 39 35 33
57 45 38 33 56 44 37 33 44 37 32 43 37 32 42 36 32 30
RCR = ROOM CAVITY RATIO RC = EFFECTIVE CEILING CAVITY REFLECTANCE RW = WALL REFLECTANCE
THE DATA IN THIS REPORT ARE BASED ON ABSOLUTE MEASUREMENTS.
ANSI/IESNA RP-1 COMPLIANCE IS BASED ON ABSOLUTE MEASUREMENTS.
THIS TEST RUN IN ACCORDANCE WITH CURRENT I.E.S.N.A. PUBLISHED PROCEDURES.
APPROVED BY:______________
LJT14
1' × 4' LED Troer
LED / LJT14Page 4/3 Rev. 09/18/17
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
SideEnd
A: ⁄" Diameter knockout
K: 2" × 3" through hole for access plate.
NOTE: All dimensions are in inches; dimensions and
specications are subject to change without notice.
Please consult factory or check sample for verication.
Type G
For lay-in installation in exposed grid
ceilings. Maximum tee widths of 1" and
maximum tee heights of 2" allowed.

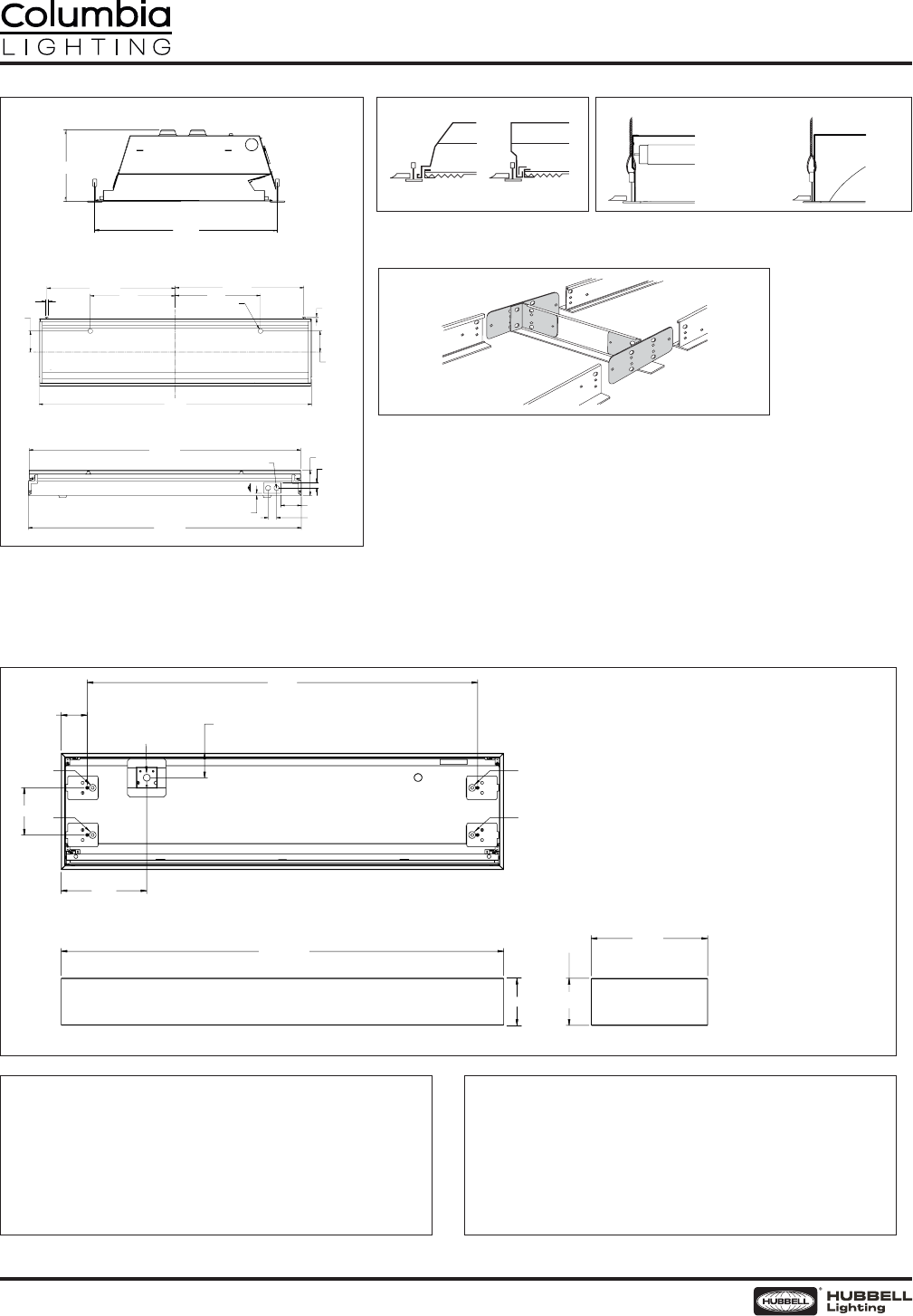

CEILING COMPATIBILITYDIMENSIONAL DATA
FK14 Flange Kit
For hard ceiling applications, order FK14 ange kit. Flange
kit wires directly into concealed ceiling opening for a clean,
nished appearance.
Flange kit rough in dimensions for single unit only: 12⁄" × 48⁄"
For anged xtures in
row congurations, the
FKCR adapter bracket kit
is required in addition
to the FK14 kit. Order
one less FKCR than the
total number of xtures
in row. (Example: Row
of two, order (2) FK14 &
(1) FKCR)
Row cut out dimensions using FK14s & FKCR adapters:
Width 12⁄", Length [48" × (# in row)] + ⁄". Example: (48" × 2) + ⁄" = 96⁄"
FKCR
SideEnd
DIMENSIONAL DATA - SURFACE MOUNT (SM) AND CABLE MOUNT (CM)
NOTE: All dimensions are in inches;
dimensions and specications are
subject to change without notice.
Please consult factory or check
sample for verication.
End ViewSide View
SURFACE MOUNT
Order SM ceiling type. Mounting collar required for surface
mounting. (4) Mounting knock-outs, ¼" to ½" provided as
shown, marked "A".
CABLE MOUNT
Order CM ceiling type. Access plate supplied for cable
mounting or suspension. Use CM48Y1 C3F-KIT 48" cable mount
kit. Includes 3 wire feed cord. For other wiring needs, contact
Hubbell Lighting representative. Mounting knock-outs, ¼" to
½" provided as shown, marked "A".
22⁄" 22⁄"
3⁄"
15" 15"
Ø⁄" ¼"
48⁄"
½"
3⁄"
12⁄"
5⁄"
48⁄"
43"
9⁄"
2⁄"
5⁄"
2⁄" 7/8"
Feed KO
A
A
A
A
3⁄"
4⁄"
⁄ KOS, 2 PLCS
1⁄"
1"
⁄"
48⁄"
47⁄"
End View
Top View
Side View
12"
4⁄"

Navigation menu
