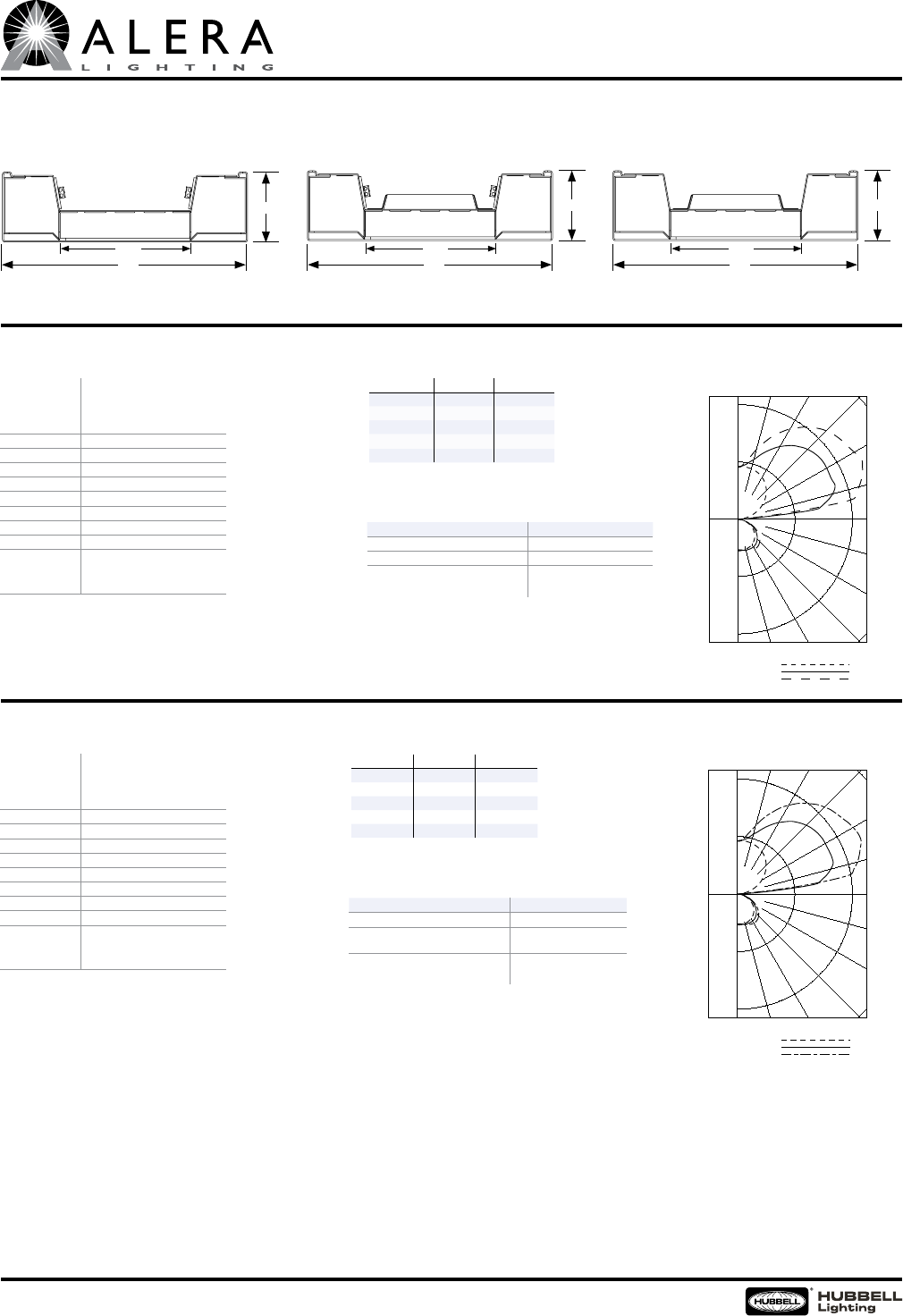

LED, Direct/Indirect, Direct Distribution
PLANK 7" LED
Page 1/2 Rev. 1/4/17
© 2017 Alera Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Alera Lighting reserves the right
to change specifications without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.aleralighting.com
Catalog No.
Project Name Type
Date
PROJECT INFORMATION
Protected by US Patent 6,796,676. Protected by Canada Patent 2,450,528. Specications subject to change without notice.
7”
BEAMS / LP7
CONSTRUCTION
- Heavy 20-gauge steel construction provides housing
rigidity.
- Modular mounting points maintain convenient,
predictable locations.
—The exact shape of the housing is maintained by the use
of a patented inner die-cast plate at each xture end
(Patent# 6,796,676 B2) throughout the run to prevent
snaking. The housing is designed to wrap around the
plate and secures on top with concealed screws to
ensure housing tolerances are consistent.
FINISH
Housing and all painted parts are treated with a multi-
stage phosphate prior to nish. Parts are then nished
with a white powder coat for maximum consistent
coverage and longevity. Other colors may be specied;
refer to page Color Selection Guide or contact your local
Alera Lighting representative.
SHIELDING
Frosted acrylic lens is lay-in and sits ush with the
housing. The lens is 83% transmissive.
DISTRIBUTION
—Fixture distribution without downlight tray provides
20% downlight.
—Available with downlight reector to provide 40%,
60%, 80%, or 100% direct distribution.
MOUNTING
—Aircraft cable suspension mechanism.
—Fixed cable has a total vertical adjustment of 1-1/4".
End of cable barrel screws into standard 1/4 - 20
bolt brought down from the ceiling. A feed canopy
is provided for each feed location. All xtures are
suspended in modular increments and must be
supported by each xture housing-end.
LABELS AND ELECTRICAL
—All luminaires are built to UL1598 standards and bear
appropriate CSA labels. Adheres to LM79 and LM80
standards. Damp location listed.
—In-row quick connect plugs standard.
—1% 0-10V dimming drivers standard
—Emergency-equipped xtures are built to UL924.
—Please refer to DLC® website for specic
product qualications at www.designlights.org.
DesignLights Consortium™ (DLC®) qualied; see
www.designlights.org
CONTROLS COMPATIBILITY
Compatibility with specic control (example, dimmer
switch) is by others. See below for daylight sensors
installed.
ARCHITECTURAL
SENSORS INSTALLED
Architectural daylight and occupancy sensors can be
installed on the light xture. See the Sensor Options
Guide for details.
FEATURES
• Rectilinear shape with clean, elegant lines for
indirect/direct, and direct distribution
• Lumen packages range from 3200 to 7500 nominal
lumens per 4ft section
• Up to 137 lumens/watt ecacy on selected packages
• Three LED CCT color choices and 83 CRI
• Upper/Lower switching available on some models
• Long-life LED is rated L90 at 60,000 hours with
projected life over 100,000 to reduce facility
maintenance
• Controls compatible for integral daylight or
occupancy sensors
• Patented die-cast plate at each xture end ensures
straight rows
• Five down light distribution options available
• DesignLights Consortium™ (DLC®) qualied with
congurations qualifying for DLC® Premium
• Five year warranty
• 90° corners available; Contact factory for details
• Available with Lutron, eldoLED and DALI compatible
drivers upon request
EXAMPLE: LP7-OA-8-35HL-60-CM48-EDU-MW
LP7
VOLTAGE
U120V-
277V
347 347V
—— —
LED COLOR
30 3000K
35 3500K
40 4000K
50 5000K
LUMEN PKG
VW Very Low Watt
LW Low Watt
ML Medium Lumen
HL High Lumen
VL Very High Lumen
OPTIONS
AB A/B Circuitry
ELL10 Emergency Battery
Pack1
EMC One Emergency Circuit2
GTD Generator Transfer
Device1,2
NLC One Night Light Circuit2
GLR Fast Blow Fuse
TBAR TBAR Clips
DC Dust Cover
DS_ Integral Daylight
Sensor1,4
OS_ Integral Occupancy
Sensor1,4
SLC Sloped Ceiling Coupler
UB Upper Lower Separate
Circuits1
(not for 20 or 100%
down distribution)
—— —
MODEL
LP7 Plank
7" LED
SHIELDING
OA Acrylic
Lens
SUSPENSION LENGTH
48 48"
96 96"
Other lengths
available on request.
CM
OA U
MOUNTING METHOD
CM Adj.
Aircraft
Cable
Mount
(Std.)
—
FINISH
MW Matte White (Std.)
ZT ZET Metallic Silver
MB Black
See Color Selection Guide
for other colors.
SHAPE AND DIMENSIONS
2"
7"
ROW LENGTH
44' Single
88' Single
—Indicate
row length
over 8' in 4'
increments
Note: Rows over 8'
will be configured
by Alera. Example:
16' will be (2)
8'. Alternate
configurations:
contact factory.
1 Not available with all configurations. Some limitations apply. Contact factory for details.
2 Additional feed drop per EMC, NLC or GTD. (For through wiring, contact factory).
3 Optional down light reflector provides approximate patterns. Distribution pattern results may vary.
4 Review Sensor Options Guide for sensor selection.
DISTRIBUTION
20 80% Up / 20% Down
40 60% Up / 40% Down3
60 40% Up / 60% Down3
80 20% Up / 80% Down3
100 0% Up / 100% Down3
—
DRIVER
EFixed Output
ED 0-10V 1% Dimming
ORDERING INFORMATION
A
R
C
H
I
T
E
C
T
U
R
A
L
S
E
N
S
O
R
S
35 PRODUCT AVAILABILITY TABLE, 3500K, 80% UP, 20% DOWN
LED LUMEN PACKAGE NOMINAL LUMENS NOMINAL WATTS LUMENS/WATT
VW 3200 30 107
LW 4200 37 114
ML 5200 41 127
HL 6200 53 117
VL 7500 63 119
Lumens vary according to color temperatures, distribution and other factors. See specific photometric test(s).
LED, Direct/Indirect, Direct Distribution
PLANK 7" LED
Page 2/2 Rev. 1/4/17
© 2017 Alera Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Alera Lighting reserves the right
to change specifications without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.aleralighting.com
BEAMS / LP7
CROSS SECTION
LP7-OA-35ML-20 LP7-OA-35ML-100LP7-OA-35ML-40
LP7-OA-35ML-60
LP7-OA-35ML-80
2"
7"
2"
7"
Luminaire LP7-OA-35ML-20
LP7 Led 7 inch Plank, Beams
7" X 48", LED with frosted
opal acrylic lens
Ballast XI040C110V054BST1
Ballast Factor 1.00
Lamp LED
Fixture Lumens 5210
Watts 38
Mounting Pendant
Shielding Angle 0º = 90 90º = 90
Spacing Criterion 0º = 1.33 90º = 1.56
Luminous
Opening in Feet
Length: 4.0
Width: 0.33
Height: 0.00
LUMINAIRE DATA Test LP7-OA-35ML-20
Zone Lumens % Fixt.
0-30 233 4.5
0-40 401 7.7
0-60 762 14.6
0-90 1003 19.2
90-180 4207 80.8
ZONAL LUMEN SUMMARY
PHOTOMETRIC DATA
Total Luminaire Eciency 100%
Total Lumens Per Watt 137.1
ANSI/IESNA RP-1-2004 Compliance YES-VDT INTENSIVE USE
Comparative Yearly Lighting
Energy Cost per 1000 Lumens
$2.33 based on 3000 hrs.
and $0.08 per KWH
ENERGY DATA
INDOOR CANDELA PLOT
Luminaire LP7-OA-35HL-20
LP7 Led 7 inch Plank, Beams
7" X 48" LED with frosted
opal acrylic lens
Ballast XI054C150V054BST1
Ballast Factor 1.00
Lamp LED
Fixture Lumens 6162
Watts 46
Mounting Pendant
Shielding Angle 0º = 90 90º = 90
Spacing Criterion 0º = 1.33 90º = 1.56
Luminous
Opening in Feet
Length: 3.67
Width: 0.33
Height: 0.04
LUMINAIRE DATA Test LP7-OA-35HL-20
Zone Lumens % Fixt.
0-30 270 4.4
0-40 466 7.6
0-60 886 14.4
0-90 1170 19.0
90-180 4992 81.0
ZONAL LUMEN SUMMARY
PHOTOMETRIC DATA
Total Luminaire Eciency 100%
Total Lumens Per Watt 134
ANSI/IESNA RP-1-2004 Compliance YES-VDT INTENSIVE
USE
Comparative Yearly Lighting
Energy Cost per 1000 Lumens
$2.40 based on 3000 hrs.
and $.08 per KWH
ENERGY DATA
INDOOR CANDELA PLOT
Test 16 .03112 Test Date 11/29/2016
Test 16 .03113 Test Date 12/6/2016
3 1/4" 3 1/4"
2"
7"
3 1/4"
701 Millennium Blvd
Greenville, SC 29607
www.hubbelllighting.com
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: 16.03112 PAGE: 3 OF 9
ISSUE DATE: 11/29/16
PREPARED FOR: ALERA LIGHTING
CATALOG NUMBER: LP7-OA-35ML-20
LUMINAIRE: 7" wide X 2" deep LED rectilinear beam shape luminaire
LAMP CAT. NO.: 93072010-2103
LAMP: 240 - 3500K Nichia LEDs
BALLAST CAT. NO.: XI040C110V054BST1
BALLAST: 1 - Philips
MOUNTING: Pendant
REFRACTOR: #RR-FR150-080 by R&R plastics opal .080
NOTE: DATA SHOWN IS ABSOLUTE FOR THE SAMPLE PROVIDED.
CANDELA DISTRIBUTION FLUX
0.0 22.5 45.0 67.5 90.0
0 271 271 271 271 271
5 275 270 273 270 268 26
15 271 269 278 281 282 78
25 260 261 280 293 297 128
35 241 246 270 291 297 168
45 211 217 241 264 272 186
55 170 177 197 216 222 175
65 120 126 141 152 155 138
75 66 70 77 82 84 80
85 17 20 21 20 20 23
90 1 2 2 1 1
95 35 345 208 42 39 282
105 119 495 858 1043 1096 791
115 206 563 890 1133 1199 811
125 286 587 897 1088 1147 737
135 355 581 862 1040 1091 619
145 405 548 785 934 980 465
155 439 505 668 785 823 301
165 456 475 538 606 629 155
175 462 461 467 472 473 45
180 455 455 455 455 455
ZONAL LUMEN SUMMARY
ZONE LUMENS %FIXT
0- 30 233 4.5
0- 40 401 7.7
0- 60 762 14.6
0- 90 1003 19.2
90-120 1885 36.2
90-130 2622 50.3
90-150 3706 71.1
90-180 4207 80.8
0-180 5210 100.0
TOTAL INPUT WATTS = 38.0
EFFICACY = 137.1 Lm/W
CIE TYPE - SEMI-INDIRECT
PLANE : 0-DEG 90-DEG
SPACING CRITERIA : 1.4 1.6
LEGEND:
0-deg:
45-deg:
90-deg:
500
1000
500
1000
0˚ 15˚ 30˚ 45˚
60˚
75˚
90˚
180˚ 165˚ 150˚ 135˚
120˚
105˚
90˚
701 Millennium Blvd
Greenville, SC 29607
www.hubbelllighting.com NVLAP LAB CODE: 201003-0
TESTING
®
THIS REPORT WITH THE USE OF THE NVLAP LOGO SHALL NOT BE USED BY THE CLIENT TO CLAIM PRODUCT CERTIFICATION,
APPROVAL, OR ENDORSEMENT BY NVLAP, NIST, OR ANY AGENCY OF THE FEDERAL GOVERNMENT.
REPORT NUMBER: 16.03113 PAGE: 2 OF 7
ISSUE DATE: 12/06/16
PREPARED FOR: ALERA LIGHTING
CATALOG NUMBER: LP7-OA-35HL-20
CANDELA DISTRIBUTION FLUX
0.0 22.5 45.0 67.5 90.0
0 314 314 314 314 314
5 320 315 317 314 312 30
15 315 312 322 326 327 91
25 302 304 325 340 345 149
35 280 286 315 337 345 196
45 245 253 281 307 316 216
55 198 206 230 252 258 204
65 141 148 164 178 182 161
75 78 83 90 96 100 95
85 21 24 25 25 25 28
90 1 2 2 1 1
95 44 413 344 60 50 358
105 141 590 1008 1229 1297 933
115 248 665 1057 1328 1410 958
125 345 692 1056 1283 1356 870
135 426 687 1014 1222 1282 730
145 489 648 924 1099 1155 548
155 529 606 787 922 968 356
165 551 571 644 710 736 184
175 559 555 561 566 568 55
180 551 551 551 551 551
ZONAL LUMEN SUMMARY
ZONE LUMENS %FIXT
0- 30 270 4.4
0- 40 466 7.6
0- 60 886 14.4
0- 90 1170 19.0
90-120 2249 36.5
90-130 3119 50.6
90-150 4398 71.4
90-180 4992 81.0
0-180 6162 100.0
EFFICACY = 134.0 lm/W
CIE TYPE - SEMI-INDIRECT
PLANE : 0-DEG 90-DEG
SPACING CRITERIA : 1.38 1.63
600
1200
600
1200
0˚ 15˚ 30˚ 45˚
60˚
75˚
90˚
105˚
120˚
135˚150˚165˚180˚
LEGEND
0-deg
45-deg
90-deg
TOTAL INPUT WATTS = 46.0
