LED / LXEM
EXAMPLE LXEM435HLRFAEDU
LXEM
SIZE
22' 1,2,3,4
44'
88'
SHIELDING
RFA Ribbed Frosted Acrylic
RA Ribbed Clear Acrylic
DFA Deep Frosted Acrylic
DCA Deep Clear Acrylic
RFP Ribbed Frosted Polycarbonate5
RP Ribbed Clear Polycarbonate5
VOLTAGE
U120V-277V
347 347V
DRIVER
EFixed Output
ESD Step Dimming6
ED 0-10V Dimming
ED1 0-10V 1% Dimming6
OPTIONS
GLR Fast Blow Fuse
SSL Stainless Steel Tamper
Resistance
Ready Latches
TP Tamper Proof Latches
ELL14 Emergency Battery Pack
Installed,
1400 Lumens3,6,7
F3C8W 3 Wire 8' Wet Cord
F3C15W 3 Wire 15' Wet Cord
F4C8W 4 Wire 8' Wet Cord
F4C15W 4 Wire 15' Wet Cord
F5C8W 5 Wire 8' Wet Cord
F5C15W 5 Wire 15' Wet Cord
F6C6W 6 Wire 6' Wet Cord
SWH Single Wet Hub ⁄" NPT Hub
DWH Dual Wet Hub ⁄" NPT Hub
ZRE ControlScope® compatible7,9
COLOR TEMP
30 3000K
35 3500K
40 4000K
50 5000K
LUMEN OUTPUT
VW Very Low Watt
LW Low Watt
ML Medium Lumen
HL High Lumen
VL Very High Lumen
XL Xtra High Lumen2
– –
MODEL
LXEM LED Enclosed
and Gasketed
––
ORDERING INFORMATION
FEATURES
• LED Enclosed and Gasketed
• Long life 60,000 hour LEDs at L80 for reduced maintenance
• Four LED color choices and 80 CRI
• IP66 all sizes when ordered with standard polyacetal (POM) latches
• IP65 all sizes, IP67 4' and 8'
• Available in 2', 4', or 8' lengths
• NEMA 4X housing
• Fiberglass housing with F1 weatherability rating, standard
• Smooth housing for easy cleaning
• Gasket is non-porous to ensure seal
• Impact modied acrylic lens equivalent to 100% DR
• Wide range of lens selections
• Lens rmly secured with tamper resistance ready
polyacetal (POM) latches
• Stainless steel latching optional
• ControlScope® compatible
• Drivers include minimum 2.5kV surge protection
• UL Sanitation Certied per NSF Standards
• Removable gear tray electrical access for modular replaceability
• Emergency battery pack installed, optional on most models
• -20°C up to +50°C ambient operation; see table provided for details
• DesignLights Consortium® qualied
• Includes surface mounting brackets
• Occupancy and/or daylight sensing accessories available
• Five year warranty
CONSTRUCTION
Housing is formed from UL 5VA berglass.
F1 weatherability rating, suitable for indoor or
outdoor use with respect to exposure to UV light.
Pour-in-place non-porous gasketing assures seal.
LED axed to removable heat sinked gear tray. 14
Latches per 8', 8 per 4', 6 per 2'. Latches are provided
tamper resistance ready, tamper resistant screws
by others. Latches are standard polyacetal (POM),
optional in stainless steel. Access openings are
provided for electrical connection.
SHIELDING
Lineal ribbed frosted acrylic lens impact modied
equivalent to 100% DR; modication adds exibility
to reduce impact breakage compared to standard
acrylic formulations. Optional ribbed polycarbonate
lens or deep acrylic. All lenses available in clear or
frost.
FINISH
White painted parts are treated with a ve-stage
phosphate bonding process and nished with high
reectance baked enamel.
ELECTRICAL
Long-life LEDs are rated for 60,000 hours at L80
lumen maintenance. Extra High Lumen packages
(XL) rated L70 at 60,000 hours. Driver options
include xed output for on/o function, step
dimming6 (high/low/o) or continuous 0-10V
dimming. QR code label axed to housing for easy
traceability.
CERTIFICATION
All luminaires are built to UL 1598 and 2108
standards, and bear appropriate CSA labels. Ingress
protection IP65 and IP67 standard. UL Sanitation
Certied per NSF Standards. Wet location labeling
is standard. Emergency-equipped xtures built to
UL 924. DesignLights Consortium® (DLC) qualied.
Please refer to the DLC website for specic product
qualications at www.designlights.org.
WARRANTY
Five year warranty (Terms and Conditions Apply).
MOUNTING
Use exible conduit only.
ACCESSORIES
ORDER SEPARATELY
XEDPM Dual Pendant Brackets (pendant by others)8
XEHC Chain Hanger Kit (Includes 14" Chain)
XE45MB 45° Mounting Bracket10
XE45MBSS 45° Stainless Steel Mounting Bracket10
SENSOR KITS Order Separately)
All sensor kits include Occupancy & Daylight.
Daylight activation requires setting of dip-switches on site.
120V/
277V
Catalog # # Relays Lens Type Voltage Wet Label
OS1360WLK 1360° 120/277 Yes
OS2360WLK 2360° 120/277 Yes
OS1AWLK 1Aisle 120/277 Yes
OS2AWLK 2Aisle 120/277 Yes
1 VL and XL not available in 2' size.
2 Not available with battery pack.
3 Not available with XL lumen package.
4 Not available with VL lumen package.
5 2' and 4' only. 8' not available.
6 See table for availability
7 Not available in 347V
8 Requires 3⁄8" OD threaded rod by others.
9 Registered trademark of Daintree
Networks, used by permission.
10 2 required for 8' fixture
Page 1/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
Catalog No.
Project Name Type
Date
PROJECT INFORMATION
LED / LXEM

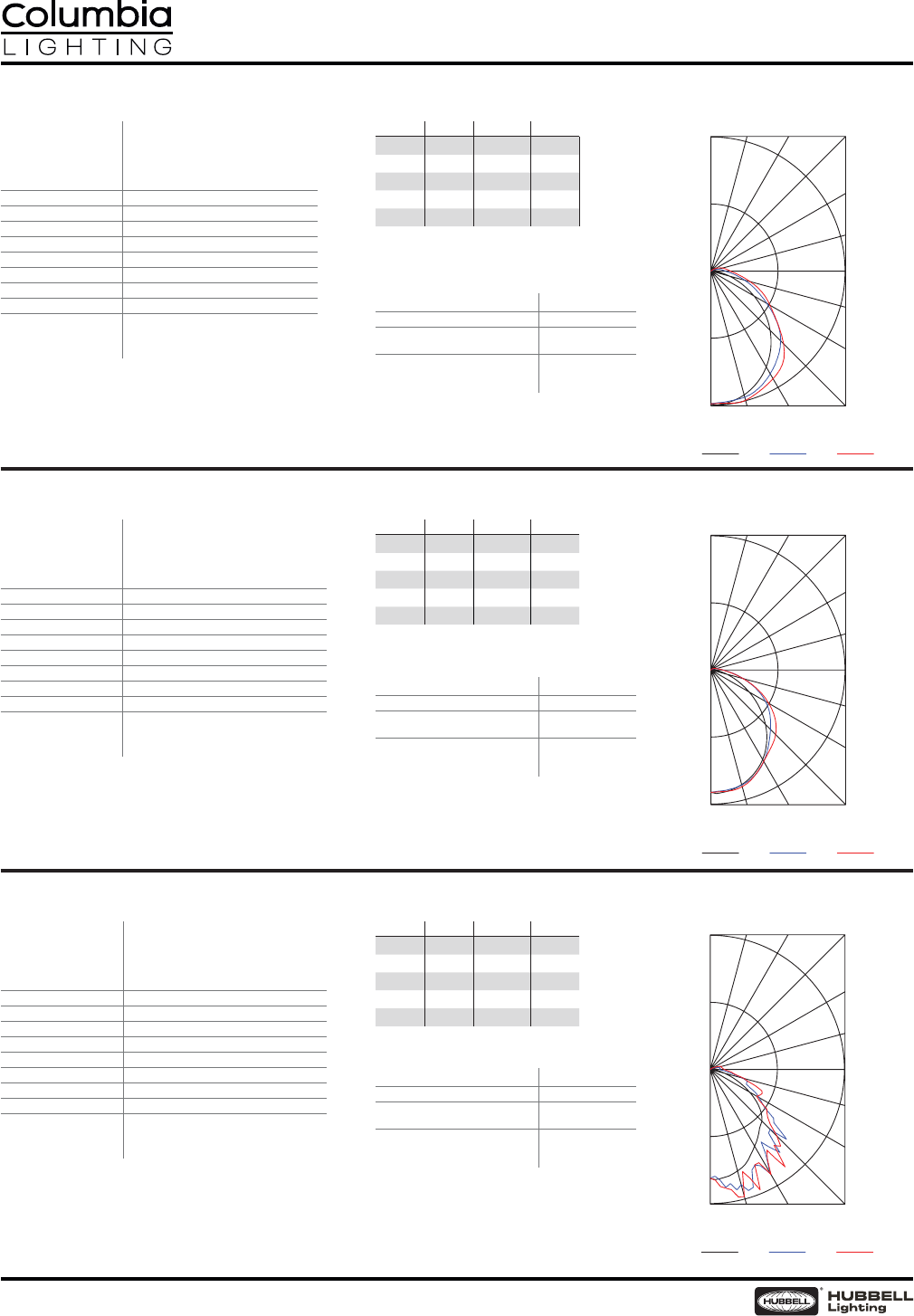

PHOTOMETRIC DATA Test# 17905 Test Date 10/13/2016
ZONAL LUMEN SUMMARY
Zone Lumens % Lamp % Fixt.
0-30 1583 24.3 24.3
0-40 2594 39.8 39.8
0-60 4661 71.4 71.4
0-90 6235 95.6 95.6
0-180 6525 100.0 100.0
ENERGY DATA
Total Luminaire Eciency 100%
Total Lumens per Watt 138
ANSI/IESNA RP-1-2004
Compliance Noncompliant
Comparative Yearly Lighting
Energy Cost per 1000 Lumens
$1.73 based on
3000 hrs. and
$0.08 per KWH
Test# 17989 Test Date 10/10/2016
LUMINAIRE DATA
Luminaire LXEM4-40HL-DFA-EDU
LXEM LED Enclosed and Gasketed,
Extreme Environment
7" x 51" LED with deep frosted acrylic
lens
Ballast XI054C150V054BST1
Ballast Factor 1.00
Lamp LED
Fixture Lumens 6525
Watts 47.30
Mounting Surface
Shielding Angle 0º = 90 90º = 90
Spacing Criterion 0º = 1.25 90º = 1.28
Luminous Opening
in Feet
Length: 4.00
Width: 0.54
Height: 0.29
ZONAL LUMEN SUMMARY
Zone Lumens % Lamp % Fixt.
0-30 1268 23.9 23.9
0-40 2105 39.7 39.7
0-60 3766 71.0 71.0
0-90 5025 94.7 94.7
0-180 5306 100.0 100.0
ENERGY DATA
Total Luminaire Eciency 100%
Total Lumens per Watt 126
ANSI/IESNA RP-1-2004
Compliance Noncompliant
Comparative Yearly Lighting
Energy Cost per 1000 Lumens
$1.90 based on
3000 hrs. and
$0.08 per KWH
LUMINAIRE DATA
Luminaire LXEM4-50ML-RFA-EDU
LXEM LED Enclosed and Gasketed,
Extreme Environment
7" x 51" LED with frosted ribbed
acrylic lens
Ballast XI040C110V054BST1
Ballast Factor 1.00
Lamp LED
Fixture Lumens 5306
Watts 42.00
Mounting Surface
Shielding Angle 0º = 90 90º = 90
Spacing Criterion 0º = 1.24 90º = 1.40
Luminous Opening
in Feet
Length: 4.00
Width: 0.54
Height: 0.17
INDOOR CANDELA PLOT
INDOOR CANDELA PLOT
INDOOR CANDELA PLOTZONAL LUMEN SUMMARY
Zone Lumens % Lamp % Fixt.
0-30 2547 24.0 24.0
0-40 4252 40.1 40.1
0-60 7643 72.1 72.1
0-90 10073 95.0 95.0
0-180 10607 100.0 100.0
ENERGY DATA
Total Luminaire Eciency 100%
Total Lumens per Watt 116
ANSI/IESNA RP-1-2004
Compliance Noncompliant
Comparative Yearly Lighting
Energy Cost per 1000 Lumens
$2.05 based on
3000 hrs. and
$0.08 per KWH
Test# 18012 Test Date 10/18/2016
LUMINAIRE DATA
Luminaire LXEM4-50XL-RA-EDU
LXEM LED Enclosed and Gasketed,
Extreme Environment
7" x 51" LED with ribbed clear acrylic
lens
Ballast XI040C110V054BST1
Ballast Factor 1.00
Lamp LED
Fixture Lumens 10607
Watts 91.40
Mounting Surface
Shielding Angle 0º = 90 90º = 90
Spacing Criterion 0º = 1.21 90º = 1.38
Luminous Opening
in Feet
Length: 4.00
Width: 0.54
Height: 0.17
Horiz 0-180
800
1600
800
1600
0153
04
5
90
75
60
105
120
180165 150135
0.045.090.0
Horiz 0-180
1100
2200
1100
2200
0153
04
5
90
75
60
105
120
180165 150135
0.045.090.0
Horiz 0-180
1800
3600
1800
3600
0153
04
5
90
75
60
105
120
180165 150135
0.045.090.0
Page 2/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
MAX. AMBIENT OPERATING TEMP.
LENGTH OUTPUT NOMINAL LUMEN
RANGE WATTS LPW
MAX AMBIENT OPERATING
TEMPERATURE C°
UNIVERSAL VOLTAGE
ELL14 WITH
UNIVERSAL
VOLTAGE 347v
2'
VW 2,145 - 2,708 21 102 - 130 40 NA 35
LW 2,738 - 3,529 26 105 - 135 40 NA 35
ML 3,862 - 4,921 39 100 - 128 40 NA 35
HL 4,254 - 5,416 44 97 - 123 35 NA 30
4'
VW 2,802 - 3,433 25 114 - 141 50 45 45
LW 3,726 - 4,922 33 112 - 139 50 45 45
ML 4,533 - 5,646 42 108 - 134 50 45 45
HL 5,449 - 6,763 47 115 - 143 45 45 35
VL 7,086 - 8,415 62 115 - 136 40 40 35
XL 9,059 - 11,237 92 99 - 123 30 NA 25
8'
VW 6,078 - 6,866 49 124-141 50 45 45
LW 8,095 - 9,276 67 122 - 139 50 45 45
ML 9,844 - 11,293 84 117 - 134 50 45 45
HL 11,851 - 13,525 95 125 - 143 45 45 35
VL 14,747 - 16,830 123 120 - 136 40 40 35
XL 19,558 - 22,473 183 107 - 123 30 NA 25
Driver Availability
LENGTH OUTPUT NOMINAL LUMEN
RANGE ESD Available ED1 Available 347v Available 347 with ESD
Available 347 with ED1
Available
2'
VW 2,145 - 2,708 YYYN/A Y
LW 2,738 - 3,529 YYYN/A Y
ML 3,862 - 4,921 YYYN/A Y
HL 4,254 - 5,416 YYYN/A Y
4'
VW 2,802 - 3,433 YYYN/A Y
LW 3,726 - 4,922 N/A Y Y N/A Y
ML 4,533 - 5,646 N/A Y Y N/A Y
HL 5,449 - 6,763 YYYN/A Y
VL 7,086 - 8,415 YYYN/A N/A
XL 9,059 - 11,237 N/A Y Y N/A N/A
8'
VW 6,078 - 6,866 YYYN/A Y
LW 8,095 - 9,276 N/A Y Y N/A Y
ML 9,844 - 11,293 N/A Y Y N/A Y
HL 11,851 - 13,525 YYYN/A Y
VL 14,747 - 16,830 YYYN/A N/A
XL 19,558 - 22,473 N/A Y Y N/A N/A
Page 3/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
LXEM PREDICTED LIFE LUMEN MAINTENENCE
LENGTH OUTPUT NOMINAL LUMEN RANGE AMBIENT OPERATING
TEMPERATURE C° L70 L80 L90
2'
VW 2,145 - 2,708 25 393,000 245,000 115,000
40 207,000 128,000 58,000
LW 2,738 - 3,529 25 393,000 245,000 115,000
40 207,000 128,000 58,000
ML 3,862 - 4,921 25 282,000 174,000 79,000
40 207,000 128,000 58,000
HL 4,254 - 5,416 25 232,000 143,000 65,000
35 175,000 105,000 42,000
4'
VW 2,802 - 3,433 25 322,000 198,000 90,000
50 257,000 159,000 72,000
LW 3,726 - 4,922 25 322,000 198,000 90,000
50 257,000 159,000 72,000
ML 4,533 - 5,646 25 322,000 198,000 90,000
50 257,000 159,000 72,000
HL 5,449 - 6,763 25 322,000 198,000 90,000
45 282,000 174,000 79,000
VL 7,086 - 8,415 25 322,000 198,000 90,000
40 228,000 140,000 63,000
XL 9,059 - 11,237 25 266,000 164,000 74,000
30 240,000 148,000 67,000
8'
VW 6,078 - 6,866 25 322,000 198,000 90,000
50 257,000 159,000 72,000
LW 8,095 - 9,276 25 322,000 198,000 90,000
50 257,000 159,000 72,000
ML 9,844 - 11,293 25 322,000 198,000 90,000
50 257,000 159,000 72,000
HL 11,851 - 13,525 25 322,000 198,000 90,000
45 282,000 174,000 79,000
VL 14,747 - 16,830 25 322,000 198,000 90,000
40 228,000 140,000 63,000
XL 19,558 - 22,473 25 266,000 164,000 74,000
30 240,000 148,000 67,000
CALCULATED HOURS
Page 4/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
Lumen Package Output Color Lens Lumens Watts LPW Max Ambient
Operating Temp
LXEM2-30VW-RFP-EDU
Very Low
Watt
30K
RFP 2,145 21.1 101.6 40°C
LXEM2-30VW-RA-EDU RA 2,365 20.8 113.7 40°C
LXEM2-30VW-RP-EDU RP 2,373 20.8 114.1 40°C
LXEM2-30VW-RFA-EDU RFA 2,448 20.8 117.7 40°C
LXEM2-30VW-DFA-EDU DFA 2,467 20.8 118.6 40°C
LXEM2-30VW-DCA-EDU DCA 2,512 20.8 120.8 40°C
LXEM2-35VW-RFP-EDU
35K
RFP 2,217 21.1 105.1 40°C
LXEM2-35VW-RA-EDU RA 2,446 20.8 117.6 40°C
LXEM2-35VW-RP-EDU RP 2,454 20.8 118.0 40°C
LXEM2-35VW-RFA-EDU RFA 2,531 20.8 121.7 40°C
LXEM2-35VW-DFA-EDU DFA 2,551 20.8 122.6 40°C
LXEM2-35VW-DCA-EDU DCA 2,598 20.8 124.9 40°C
LXEM2-40VW-RFP-EDU
40K
RFP 2,252 21.1 106.7 40°C
LXEM2-40VW-RA-EDU RA 2,484 20.8 119.4 40°C
LXEM2-40VW-RP-EDU RP 2,492 20.8 119.8 40°C
LXEM2-40VW-RFA-EDU RFA 2,571 20.8 123.6 40°C
LXEM2-40VW-DFA-EDU DFA 2,590 20.8 124.5 40°C
LXEM2-40VW-DCA-EDU DCA 2,638 20.8 126.8 40°C
LXEM2-50VW-RFP-EDU
50K
RFP 2,312 21.1 109.6 40°C
LXEM2-50VW-RA-EDU RA 2,550 20.8 122.6 40°C
LXEM2-50VW-RP-EDU RP 2,558 20.8 123.0 40°C
LXEM2-50VW-RFA-EDU RFA 2,639 20.8 126.9 40°C
LXEM2-50VW-DFA-EDU DFA 2,659 20.8 127.8 40°C
LXEM2-50VW-DCA-EDU DCA 2,708 20.8 130.2 40°C
LXEM2-30LW-RFP-EDU
Low Watt
30K
RFP 2,738 26.0 105.3 40°C
LXEM2-30LW-RP-EDU RP 3,049 26.1 116.8 40°C
LXEM2-30LW-RA-EDU RA 3,144 26.0 120.9 40°C
LXEM2-30LW-RFA-EDU RFA 3,180 26.2 121.4 40°C
LXEM2-30LW-DFA-EDU DFA 3,239 26.1 124.1 40°C
LXEM2-30LW-DCA-EDU DCA 3,273 26.1 125.4 40°C
LXEM2-35LW-RFP-EDU
35K
RFP 2,831 26.0 108.9 40°C
LXEM2-35LW-RP-EDU RP 3,153 26.1 120.8 40°C
LXEM2-35LW-RA-EDU RA 3,251 26.0 125.0 40°C
LXEM2-35LW-RFA-EDU RFA 3,289 26.2 125.5 40°C
LXEM2-35LW-DFA-EDU DFA 3,349 26.1 128.3 40°C
LXEM2-35LW-DCA-EDU DCA 3,385 26.1 129.7 40°C
LXEM2-40LW-RFP-EDU
40K
RFP 2,875 26.0 110.6 40°C
LXEM2-40LW-RP-EDU RP 3,202 26.1 122.7 40°C
LXEM2-40LW-RA-EDU RA 3,302 26.0 127.0 40°C
LXEM2-40LW-RFA-EDU RFA 3,339 26.2 127.5 40°C
LXEM2-40LW-DFA-EDU DFA 3,401 26.1 130.3 40°C
LXEM2-40LW-DCA-EDU DCA 3,437 26.1 131.7 40°C
LXEM2-50LW-RFP-EDU 50K RFP 2,951 26.0 113.5 40°C
LXEM2-50LW-RP-EDU RP 3,287 26.1 125.9 40°C
PRODUCT AVAILABILITY
Page 5/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
Lumen Package Output Color Lens Lumens Watts LPW Max Ambient
Operating Temp
LXEM2-50LW-RA-EDU
Low Watt 50K
RA 3,390 26.0 130.4 40°C
LXEM2-50LW-RFA-EDU RFA 3,428 26.2 130.9 40°C
LXEM2-50LW-DFA-EDU DFA 3,492 26.1 133.8 40°C
LXEM2-50LW-DCA-EDU DCA 3,529 26.1 135.2 40°C
LXEM2-30ML-RFP-EDU
Medium
Lumen
30K
RFP 3,862 38.5 100.3 40°C
LXEM2-30ML-RP-EDU RP 4,228 38.5 109.8 40°C
LXEM2-30ML-RFA-EDU RFA 4,343 38.5 112.8 40°C
LXEM2-30ML-RA-EDU RA 4,446 38.5 115.5 40°C
LXEM2-30ML-DFA-EDU DFA 4,526 38.5 117.5 40°C
LXEM2-30ML-DCA-EDU DCA 4,565 38.5 118.6 40°C
LXEM2-35ML-RFP-EDU
35K
RFP 3,993 38.5 103.7 40°C
LXEM2-35ML-RP-EDU RP 4,371 38.5 113.5 40°C
LXEM2-35ML-RFA-EDU RFA 4,490 38.5 116.6 40°C
LXEM2-35ML-RA-EDU RA 4,597 38.5 119.4 40°C
LXEM2-35ML-DFA-EDU DFA 4,680 38.5 121.5 40°C
LXEM2-35ML-DCA-EDU DCA 4,720 38.5 122.6 40°C
LXEM2-40ML-RFP-EDU
40K
RFP 4,055 38.5 105.3 40°C
LXEM2-40ML-RP-EDU RP 4,439 38.5 115.3 40°C
LXEM2-40ML-RFA-EDU RFA 4,560 38.5 118.4 40°C
LXEM2-40ML-RA-EDU RA 4,668 38.5 121.3 40°C
LXEM2-40ML-DFA-EDU DFA 4,752 38.5 123.4 40°C
LXEM2-40ML-DCA-EDU DCA 4,793 38.5 124.5 40°C
LXEM2-50ML-RFP-EDU
50K
RFP 4,163 38.5 108.1 40°C
LXEM2-50ML-RP-EDU RP 4,558 38.5 118.4 40°C
LXEM2-50ML-RFA-EDU RFA 4,682 38.5 121.6 40°C
LXEM2-50ML-RA-EDU RA 4,793 38.5 124.5 40°C
LXEM2-50ML-DFA-EDU DFA 4,879 38.5 126.7 40°C
LXEM2-50ML-DCA-EDU DCA 4,921 38.5 127.8 40°C
LXEM2-30HL-RFP-EDU
High Lumen
30K
RFP 4,254 44.1 96.5 35°C
LXEM2-30HL-RP-EDU RP 4,700 44.1 106.6 35°C
LXEM2-30HL-RA-EDU RA 4,868 44.1 110.4 35°C
LXEM2-30HL-RFA-EDU RFA 4,874 44.1 110.5 35°C
LXEM2-30HL-DFA-EDU DFA 5,008 44.1 113.6 35°C
LXEM2-30HL-DCA-EDU DCA 5,024 44.1 113.9 35°C
LXEM2-35HL-RFP-EDU
35K
RFP 4,399 44.1 99.7 35°C
LXEM2-35HL-RP-EDU RP 4,860 44.1 110.2 35°C
LXEM2-35HL-RA-EDU RA 5,033 44.1 114.1 35°C
LXEM2-35HL-RFA-EDU RFA 5,040 44.1 114.3 35°C
LXEM2-35HL-DFA-EDU DFA 5,179 44.1 117.4 35°C
LXEM2-35HL-DCA-EDU DCA 5,195 44.1 117.8 35°C
LXEM2-40HL-RFP-EDU
40K
RFP 4,467 44.1 101.3 35°C
LXEM2-40HL-RP-EDU RP 4,935 44.1 111.9 35°C
LXEM2-40HL-RA-EDU RA 5,111 44.1 115.9 35°C
LXEM2-40HL-RFA-EDU RFA 5,117 44.1 116.0 35°C
PRODUCT AVAILABILITY
Page 6/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
Lumen Package Output Color Lens Lumens Watts LPW Max Ambient
Operating Temp
LXEM2-40HL-DFA-EDU
High Lumen
40K DFA 5,259 44.1 119.2 35°C
LXEM2-40HL-DCA-EDU DCA 5,275 44.1 119.6 35°C
LXEM2-50HL-RFP-EDU
50K
RFP 4,586 44.1 104.0 35°C
LXEM2-50HL-RP-EDU RP 5,066 44.1 114.9 35°C
LXEM2-50HL-RA-EDU RA 5,248 44.1 119.0 35°C
LXEM2-50HL-RFA-EDU RFA 5,254 44.1 119.1 35°C
LXEM2-50HL-DFA-EDU DFA 5,399 44.1 122.4 35°C
LXEM2-50HL-DCA-EDU DCA 5,416 44.1 122.8 35°C
LXEM4-30VW-RFP-EDU
Very Low
Watt
30K
RFP 2,802 24.5 114.4 50°C
LXEM4-30VW-RP-EDU RP 2,938 24.4 120.4 50°C
LXEM4-30VW-RA-EDU RA 3,039 24.4 124.6 50°C
LXEM4-30VW-RFA-EDU RFA 3,048 24.5 124.4 50°C
LXEM4-30VW-DCA-EDU DCA 3,180 24.4 130.3 50°C
LXEM4-30VW-DFA-EDU DFA 3,184 24.4 130.5 50°C
LXEM4-35VW-RFP-EDU
35K
RFP 2,897 24.5 118.2 50°C
LXEM4-35VW-RP-EDU RP 3,038 24.4 124.5 50°C
LXEM4-35VW-RA-EDU RA 3,143 24.4 128.8 50°C
LXEM4-35VW-RFA-EDU RFA 3,151 24.5 128.6 50°C
LXEM4-35VW-DCA-EDU DCA 3,288 24.4 134.8 50°C
LXEM4-35VW-DFA-EDU DFA 3,293 24.4 134.9 50°C
LXEM4-40VW-RFP-EDU
40K
RFP 2,942 24.5 120.1 50°C
LXEM4-40VW-RP-EDU RP 3,085 24.4 126.4 50°C
LXEM4-40VW-RA-EDU RA 3,191 24.4 130.8 50°C
LXEM4-40VW-RFA-EDU RFA 3,200 24.5 130.6 50°C
LXEM4-40VW-DCA-EDU DCA 3,339 24.4 136.8 50°C
LXEM4-40VW-DFA-EDU DFA 3,344 24.4 137.0 50°C
LXEM4-50VW-RFP-EDU
50K
RFP 3,020 24.5 123.3 50°C
LXEM4-50VW-RP-EDU RP 3,168 24.4 129.8 50°C
LXEM4-50VW-RA-EDU RA 3,276 24.4 134.3 50°C
LXEM4-50VW-RFA-EDU RFA 3,285 24.5 134.1 50°C
LXEM4-50VW-DCA-EDU DCA 3,428 24.4 140.5 50°C
LXEM4-50VW-DFA-EDU DFA 3,433 24.4 140.7 50°C
LXEM4-30LW-RFP-EDU
Low Watt
30K
RFP 3,726 33.3 111.9 50°C
LXEM4-30LW-RP-EDU RP 3,872 33.3 116.3 50°C
LXEM4-30LW-RFA-EDU RFA 4,048 33.3 121.5 50°C
LXEM4-30LW-RA-EDU RA 4,054 33.3 121.8 50°C
LXEM4-30LW-DFA-EDU DFA 4,241 33.3 127.4 50°C
LXEM4-30LW-DCA-EDU DCA 4,303 33.3 129.2 50°C
LXEM4-35LW-RFP-EDU
35K
RFP 3,853 33.3 115.7 50°C
LXEM4-35LW-RP-EDU RP 4,004 33.3 120.2 50°C
LXEM4-35LW-RFA-EDU RFA 4,185 33.3 125.7 50°C
LXEM4-35LW-RA-EDU RA 4,192 33.3 125.9 50°C
LXEM4-35LW-DFA-EDU DFA 4,385 33.3 131.7 50°C
LXEM4-35LW-DCA-EDU DCA 4,449 33.3 133.6 50°C
PRODUCT AVAILABILITY
Page 7/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
Lumen Package Output Color Lens Lumens Watts LPW Max Ambient
Operating Temp
LXEM4-40LW-RFP-EDU
Low Watt
40K
RFP 3,912 33.3 117.5 50°C
LXEM4-40LW-RP-EDU RP 4,066 33.3 122.1 50°C
LXEM4-40LW-RFA-EDU RFA 4,250 33.3 127.6 50°C
LXEM4-40LW-RA-EDU RA 4,257 33.3 127.8 50°C
LXEM4-40LW-DFA-EDU DFA 4,453 33.3 133.7 50°C
LXEM4-40LW-DCA-EDU DCA 4,518 33.3 135.7 50°C
LXEM4-50LW-RFP-EDU
50K
RFP 4,017 33.3 120.6 50°C
LXEM4-50LW-RP-EDU RP 4,174 33.3 125.3 50°C
LXEM4-50LW-RFA-EDU RFA 4,363 33.3 131.0 50°C
LXEM4-50LW-RA-EDU RA 4,371 33.3 131.3 50°C
LXEM4-50LW-DFA-EDU DFA 4,572 33.3 137.3 50°C
LXEM4-50LW-DCA-EDU DCA 4,638 33.3 139.3 50°C
LXEM4-30ML-RFP-EDU
Medium
Lumen
30K
RFP 4,533 41.9 108.2 50°C
LXEM4-30ML-RP-EDU RP 4,714 41.9 112.5 50°C
LXEM4-30ML-RFA-EDU RFA 4,922 42.0 117.2 50°C
LXEM4-30ML-RA-EDU RA 4,924 42.0 117.2 50°C
LXEM4-30ML-DFA-EDU DFA 5,160 42.0 122.9 50°C
LXEM4-30ML-DCA-EDU DCA 5,238 42.0 124.7 50°C
LXEM4-35ML-RFP-EDU
35K
RFP 4,688 41.9 111.9 50°C
LXEM4-35ML-RP-EDU RP 4,875 41.9 116.3 50°C
LXEM4-35ML-RFA-EDU RFA 5,089 42.0 121.2 50°C
LXEM4-35ML-RA-EDU RA 5,091 42.0 121.2 50°C
LXEM4-35ML-DFA-EDU DFA 5,336 42.0 127.0 50°C
LXEM4-35ML-DCA-EDU DCA 5,416 42.0 128.9 50°C
LXEM4-40ML-RFP-EDU
40K
RFP 4,760 41.9 113.6 50°C
LXEM4-40ML-RP-EDU RP 4,950 41.9 118.1 50°C
LXEM4-40ML-RFA-EDU RFA 5,168 42.0 123.1 50°C
LXEM4-40ML-RA-EDU RA 5,170 42.0 123.1 50°C
LXEM4-40ML-DFA-EDU DFA 5,418 42.0 129.0 50°C
LXEM4-40ML-DCA-EDU DCA 5,500 42.0 130.9 50°C
LXEM4-50ML-RFP-EDU
50K
RFP 4,887 41.9 116.6 50°C
LXEM4-50ML-RP-EDU RP 5,082 41.9 121.3 50°C
LXEM4-50ML-RFA-EDU RFA 5,306 42.0 126.3 50°C
LXEM4-50ML-RA-EDU RA 5,308 42.0 126.4 50°C
LXEM4-50ML-DFA-EDU DFA 5,563 42.0 132.4 50°C
LXEM4-50ML-DCA-EDU DCA 5,646 42.0 134.4 50°C
LXEM4-30HL-RFP-EDU
High Lumen
30K
RFP 5,449 47.4 115.0 45°C
LXEM4-30HL-RP-EDU RP 5,648 47.2 119.7 45°C
LXEM4-30HL-RFA-EDU RFA 5,926 47.4 125.0 45°C
LXEM4-30HL-RA-EDU RA 5,932 47.3 125.4 45°C
LXEM4-30HL-DFA-EDU DFA 6,214 47.3 131.4 45°C
LXEM4-30HL-DCA-EDU DCA 6,273 47.4 132.4 45°C
LXEM4-35HL-RFP-EDU 35K RFP 5,634 47.4 118.9 45°C
LXEM4-35HL-RP-EDU RP 5,840 47.2 123.7 45°C
PRODUCT AVAILABILITY
Page 8/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
Lumen Package Output Color Lens Lumens Watts LPW Max Ambient
Operating Temp
LXEM4-35HL-RFA-EDU
High Lumen
35K
RFA 6,127 47.4 129.3 45°C
LXEM4-35HL-RA-EDU RA 6,133 47.3 129.7 45°C
LXEM4-35HL-DFA-EDU DFA 6,425 47.3 135.8 45°C
LXEM4-35HL-DCA-EDU DCA 6,487 47.4 136.9 45°C
LXEM4-40HL-RFP-EDU
40K
RFP 5,721 47.4 120.7 45°C
LXEM4-40HL-RP-EDU RP 5,931 47.2 125.7 45°C
LXEM4-40HL-RFA-EDU RFA 6,222 47.4 131.3 45°C
LXEM4-40HL-RA-EDU RA 6,228 47.3 131.7 45°C
LXEM4-40HL-DFA-EDU DFA 6,525 47.3 137.9 45°C
LXEM4-40HL-DCA-EDU DCA 6,587 47.4 139.0 45°C
LXEM4-50HL-RFP-EDU
50K
RFP 5,874 47.4 123.9 45°C
LXEM4-50HL-RP-EDU RP 6,089 47.2 129.0 45°C
LXEM4-50HL-RFA-EDU RFA 6,388 47.4 134.8 45°C
LXEM4-50HL-RA-EDU RA 6,394 47.3 135.2 45°C
LXEM4-50HL-DFA-EDU DFA 6,699 47.3 141.6 45°C
LXEM4-50HL-DCA-EDU DCA 6,763 47.4 142.7 45°C
LXEM4-30VL-RP-EDU
Very High
Lumen
30K
RP 7,086 61.6 115.0 40°C
LXEM4-30VL-RA-EDU RA 7,373 61.7 119.5 40°C
LXEM4-30VL-RFP-EDU RFP 7,388 61.6 119.9 40°C
LXEM4-30VL-RFA-EDU RFA 7,395 61.6 120.0 40°C
LXEM4-30VL-DFA-EDU DFA 7,756 61.7 125.7 40°C
LXEM4-30VL-DCA-EDU DCA 7,806 61.7 126.5 40°C
LXEM4-35VL-RP-EDU
35K
RP 7,327 61.6 118.9 40°C
LXEM4-35VL-RA-EDU RA 7,624 61.7 123.6 40°C
LXEM4-35VL-RFP-EDU RFP 7,639 61.6 124.0 40°C
LXEM4-35VL-RFA-EDU RFA 7,646 61.6 124.1 40°C
LXEM4-35VL-DFA-EDU DFA 8,020 61.7 130.0 40°C
LXEM4-35VL-DCA-EDU DCA 8,072 61.7 130.8 40°C
LXEM4-40VL-RP-EDU
40K
RP 7,440 61.6 120.8 40°C
LXEM4-40VL-RA-EDU RA 7,742 61.7 125.5 40°C
LXEM4-40VL-RFP-EDU RFP 7,757 61.6 125.9 40°C
LXEM4-40VL-RFA-EDU RFA 7,764 61.6 126.0 40°C
LXEM4-40VL-DFA-EDU DFA 8,144 61.7 132.0 40°C
LXEM4-40VL-DCA-EDU DCA 8,197 61.7 132.8 40°C
LXEM4-50VL-RP-EDU
50K
RP 7,639 61.6 124.0 40°C
LXEM4-50VL-RA-EDU RA 7,948 61.7 128.8 40°C
LXEM4-50VL-RFP-EDU RFP 7,964 61.6 129.3 40°C
LXEM4-50VL-RFA-EDU RFA 7,971 61.6 129.4 40°C
LXEM4-50VL-DFA-EDU DFA 8,361 61.7 135.5 40°C
LXEM4-50VL-DCA-EDU DCA 8,415 61.7 136.4 40°C
LXEM4-30XL-RFP-EDU
Xtra High
Lumen 30K
RFP 9,059 91.3 99.2 30°C
LXEM4-30XL-RP-EDU RP 9,448 91.2 103.6 30°C
LXEM4-30XL-RFA-EDU RFA 9,779 91.2 107.2 30°C
LXEM4-30XL-RA-EDU RA 9,839 91.4 107.7 30°C
PRODUCT AVAILABILITY
Page 9/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
Lumen Package Output Color Lens Lumens Watts LPW Max Ambient
Operating Temp
LXEM4-30XL-DFA-EDU
Xtra High
Lumen
30K DFA 10,358 91.4 113.3 30°C
LXEM4-30XL-DCA-EDU DCA 10,424 91.5 113.9 30°C
LXEM4-35XL-RFP-EDU
35K
RFP 9,367 91.3 102.6 30°C
LXEM4-35XL-RP-EDU RP 9,769 91.2 107.1 30°C
LXEM4-35XL-RFA-EDU RFA 10,111 91.2 110.9 30°C
LXEM4-35XL-RA-EDU RA 10,174 91.4 111.3 30°C
LXEM4-35XL-DFA-EDU DFA 10,710 91.4 117.2 30°C
LXEM4-35XL-DCA-EDU DCA 10,778 91.5 117.8 30°C
LXEM4-40XL-RFP-EDU
40K
RFP 9,512 91.3 104.2 30°C
LXEM4-40XL-RP-EDU RP 9,920 91.2 108.8 30°C
LXEM4-40XL-RFA-EDU RFA 10,268 91.2 112.6 30°C
LXEM4-40XL-RA-EDU RA 10,331 91.4 113.0 30°C
LXEM4-40XL-DFA-EDU DFA 10,876 91.4 119.0 30°C
LXEM4-40XL-DCA-EDU DCA 10,945 91.5 119.6 30°C
LXEM4-50XL-RFP-EDU
50K
RFP 9,765 91.3 107.0 30°C
LXEM4-50XL-RP-EDU RP 10,184 91.2 111.7 30°C
LXEM4-50XL-RFA-EDU RFA 10,542 91.2 115.6 30°C
LXEM4-50XL-RA-EDU RA 10,607 91.4 116.0 30°C
LXEM4-50XL-DFA-EDU DFA 11,166 91.4 122.2 30°C
LXEM4-50XL-DCA-EDU DCA 11,237 91.5 122.8 30°C
LXEM8-30VW-RA-EDU
Very Low
Watt
30K
RA 6,078 48.8 124.6 50°C
LXEM8-30VW-RFA-EDU RFA 6,096 49.0 124.4 50°C
LXEM8-30VW-DCA-EDU DCA 6,360 48.8 130.3 50°C
LXEM8-30VW-DFA-EDU DFA 6,369 48.8 130.5 50°C
LXEM8-35VW-RA-EDU
35K
RA 6,285 48.8 128.8 50°C
LXEM8-35VW-RFA-EDU RFA 6,303 49.0 128.6 50°C
LXEM8-35VW-DCA-EDU DCA 6,576 48.8 134.8 50°C
LXEM8-35VW-DFA-EDU DFA 6,585 48.8 134.9 50°C
LXEM8-40VW-RA-EDU
40K
RA 6,382 48.8 130.8 50°C
LXEM8-40VW-RFA-EDU RFA 6,400 49.0 130.6 50°C
LXEM8-40VW-DCA-EDU DCA 6,678 48.8 136.8 50°C
LXEM8-40VW-DFA-EDU DFA 6,687 48.8 137.0 50°C
LXEM8-50VW-RA-EDU
50K
RA 6,553 48.8 134.3 50°C
LXEM8-50VW-RFA-EDU RFA 6,571 49.0 134.1 50°C
LXEM8-50VW-DCA-EDU DCA 6,856 48.8 140.5 50°C
LXEM8-50VW-DFA-EDU DFA 6,866 48.8 140.7 50°C
LXEM8-30LW-RFA-EDU
Low Watt
30K
RFA 8,095 66.6 121.5 50°C
LXEM8-30LW-RA-EDU RA 8,109 66.6 121.8 50°C
LXEM8-30LW-DFA-EDU DFA 8,482 66.6 127.4 50°C
LXEM8-30LW-DCA-EDU DCA 8,605 66.6 129.2 50°C
LXEM8-35LW-RFA-EDU
35K
RFA 8,370 66.6 125.7 50°C
LXEM8-35LW-RA-EDU RA 8,385 66.6 125.9 50°C
LXEM8-35LW-DFA-EDU DFA 8,770 66.6 131.7 50°C
LXEM8-35LW-DCA-EDU DCA 8,898 66.6 133.6 50°C
PRODUCT AVAILABILITY
Page 10/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
Lumen Package Output Color Lens Lumens Watts LPW Max Ambient
Operating Temp
LXEM8-40LW-RFA-EDU
Low Watt
40K
RFA 8,500 66.6 127.6 50°C
LXEM8-40LW-RA-EDU RA 8,514 66.6 127.8 50°C
LXEM8-40LW-DFA-EDU DFA 8,906 66.6 133.7 50°C
LXEM8-40LW-DCA-EDU DCA 9,035 66.6 135.7 50°C
LXEM8-50LW-RFA-EDU
50K
RFA 8,727 66.6 131.0 50°C
LXEM8-50LW-RA-EDU RA 8,741 66.6 131.3 50°C
LXEM8-50LW-DFA-EDU DFA 9,143 66.6 137.3 50°C
LXEM8-50LW-DCA-EDU DCA 9,276 66.6 139.3 50°C
LXEM8-30ML-RFA-EDU
Medium
Lumen
30K
RFA 9,844 84.0 117.2 50°C
LXEM8-30ML-RA-EDU RA 9,847 84.0 117.2 50°C
LXEM8-30ML-DFA-EDU DFA 10,320 84.0 122.9 50°C
LXEM8-30ML-DCA-EDU DCA 10,476 84.0 124.7 50°C
LXEM8-35ML-RFA-EDU
35K
RFA 10,179 84.0 121.2 50°C
LXEM8-35ML-RA-EDU RA 10,182 84.0 121.2 50°C
LXEM8-35ML-DFA-EDU DFA 10,671 84.0 127.0 50°C
LXEM8-35ML-DCA-EDU DCA 10,832 84.0 128.9 50°C
LXEM8-40ML-RFA-EDU
40K
RFA 10,336 84.0 123.1 50°C
LXEM8-40ML-RA-EDU RA 10,340 84.0 123.1 50°C
LXEM8-40ML-DFA-EDU DFA 10,836 84.0 129.0 50°C
LXEM8-40ML-DCA-EDU DCA 10,999 84.0 130.9 50°C
LXEM8-50ML-RFA-EDU
50K
RFA 10,612 84.0 126.3 50°C
LXEM8-50ML-RA-EDU RA 10,616 84.0 126.4 50°C
LXEM8-50ML-DFA-EDU DFA 11,125 84.0 132.4 50°C
LXEM8-50ML-DCA-EDU DCA 11,293 84.0 134.4 50°C
LXEM8-30HL-RFA-EDU
High Lumen
30K
RFA 11,851 94.8 125.0 45°C
LXEM8-30HL-RA-EDU RA 11,863 94.6 125.4 45°C
LXEM8-30HL-DFA-EDU DFA 12,428 94.6 131.4 45°C
LXEM8-30HL-DCA-EDU DCA 12,547 94.8 132.4 45°C
LXEM8-35HL-RFA-EDU
35K
RFA 12,254 94.8 129.3 45°C
LXEM8-35HL-RA-EDU RA 12,267 94.6 129.7 45°C
LXEM8-35HL-DFA-EDU DFA 12,851 94.6 135.8 45°C
LXEM8-35HL-DCA-EDU DCA 12,973 94.8 136.9 45°C
LXEM8-40HL-RFA-EDU
40K
RFA 12,444 94.8 131.3 45°C
LXEM8-40HL-RA-EDU RA 12,456 94.6 131.7 45°C
LXEM8-40HL-DFA-EDU DFA 13,049 94.6 137.9 45°C
LXEM8-40HL-DCA-EDU DCA 13,174 94.8 139.0 45°C
LXEM8-50HL-RFA-EDU
50K
RFA 12,776 94.8 134.8 45°C
LXEM8-50HL-RA-EDU RA 12,789 94.6 135.2 45°C
LXEM8-50HL-DFA-EDU DFA 13,397 94.6 141.6 45°C
LXEM8-50HL-DCA-EDU DCA 13,525 94.8 142.7 45°C
LXEM8-30VL-RA-EDU
Very High
Lumen 30K
RA 14,747 123.4 119.5 40°C
LXEM8-30VL-RFA-EDU RFA 14,789 123.2 120.0 40°C
LXEM8-30VL-DFA-EDU DFA 15,512 123.4 125.7 40°C
LXEM8-30VL-DCA-EDU DCA 15,613 123.4 126.5 40°C
PRODUCT AVAILABILITY
Page 11/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
Lumen Package Output Color Lens Lumens Watts LPW Max Ambient
Operating Temp
LXEM8-35VL-RA-EDU
Very High
35K
RA 15,248 123.4 123.6 40°C
LXEM8-35VL-RFA-EDU RFA 15,292 123.2 124.1 40°C
LXEM8-35VL-DFA-EDU DFA 16,040 123.4 130.0 40°C
LXEM8-35VL-DCA-EDU DCA 16,143 123.4 130.8 40°C
LXEM8-40VL-RA-EDU
40K
RA 15,484 123.4 125.5 40°C
LXEM8-40VL-RFA-EDU RFA 15,529 123.2 126.0 40°C
LXEM8-40VL-DFA-EDU DFA 16,288 123.4 132.0 40°C
LXEM8-40VL-DCA-EDU DCA 16,393 123.4 132.8 40°C
LXEM8-50VL-RA-EDU
50K
RA 15,897 123.4 128.8 40°C
LXEM8-50VL-RFA-EDU RFA 15,943 123.2 129.4 40°C
LXEM8-50VL-DFA-EDU DFA 16,722 123.4 135.5 40°C
LXEM8-50VL-DCA-EDU DCA 16,830 123.4 136.4 40°C
LXEM8-30XL-RFA-EDU
Xtra High
Lumen
30K
RFA 19,558 182.4 107.2 30°C
LXEM8-30XL-RA-EDU RA 19,678 182.8 107.7 30°C
LXEM8-30XL-DFA-EDU DFA 20,716 182.8 113.3 30°C
LXEM8-30XL-DCA-EDU DCA 20,847 183.0 113.9 30°C
LXEM8-35XL-RFA-EDU
35K
RFA 20,223 182.4 110.9 30°C
LXEM8-35XL-RA-EDU RA 20,348 182.8 111.3 30°C
LXEM8-35XL-DFA-EDU DFA 21,420 182.8 117.2 30°C
LXEM8-35XL-DCA-EDU DCA 21,556 183.0 117.8 30°C
LXEM8-40XL-RFA-EDU
40K
RFA 20,536 182.4 112.6 30°C
LXEM8-40XL-RA-EDU RA 20,662 182.8 113.0 30°C
LXEM8-40XL-DFA-EDU DFA 21,752 182.8 119.0 30°C
LXEM8-40XL-DCA-EDU DCA 21,889 183.0 119.6 30°C
LXEM8-50XL-RFA-EDU
50K
RFA 21,083 182.4 115.6 30°C
LXEM8-50XL-RA-EDU RA 21,213 182.8 116.0 30°C
LXEM8-50XL-DFA-EDU DFA 22,332 182.8 122.2 30°C
LXEM8-50XL-DCA-EDU DCA 22,473 183.0 122.8 30°C
PRODUCT AVAILABILITY
Page 12/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
LED / LXEM
NOTE: All dimensions are in inches; dimensions and specications are subject to change without notice. Please consult factory or check sample for verication.
6⁄"
2⁄"
5⁄"
4⁄"
2⁄"
6⁄"
DFA or DCA Lens: 2', 4', 8'RFA Lens: 2', 4', 8', RFP Lens: 2', 4'

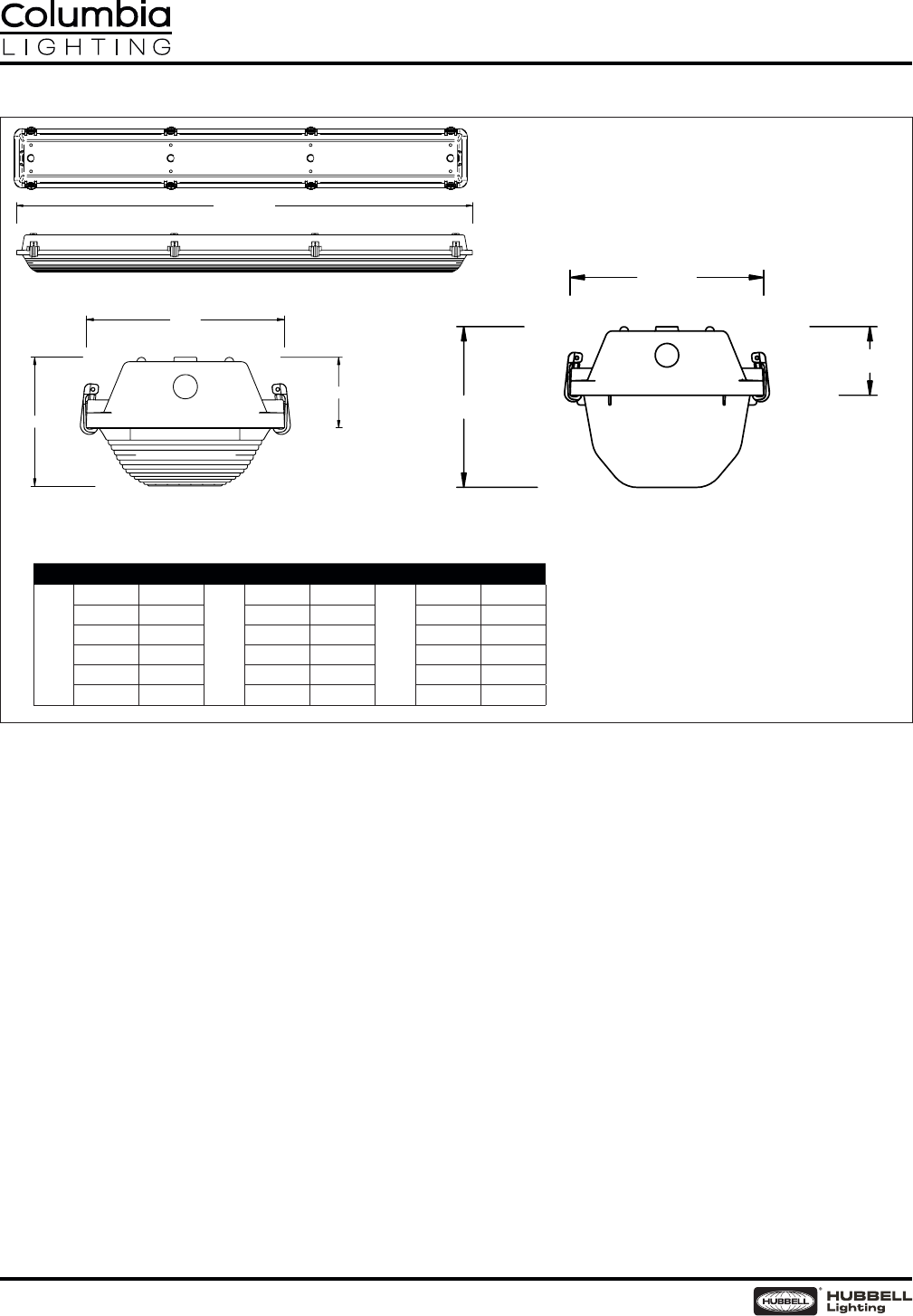

LXEM LENGTH DIMENSIONS
SIZE LENS LENGTH SIZE LENS LENGTH SIZE LENS LENGTH
2'
RFA 27⁄"
4'
RFA 51⁄"
8'
RFA 100"
RA 27⁄" RA 51⁄" RA N/A
DFA 27⁄" DFA 51⁄" DFA 100"
DCA 27⁄" DCA 51⁄" DCA 100"
RFP 27⁄" RFP 51⁄" RFP N/A
RP 27⁄" RP 51⁄" RP N/A
DIMENSIONAL DATA
See Table
Page 13/13 Rev. 08/24/17
LXEM
Enclosed and Gasketed Fiberglass Extreme Environment / LED
© 2017 Columbia Lighting, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

Navigation menu
