MFJ 2004 Ham Buyers Guide

For your nearest

dealer or to order

call 800-647-1800

MFJ ENTERPRISES, INC.,

300 Industrial Park Road,

Starkville, MS 39759

Phone: (662) 323-5869; 8-4:30 CST, M-F; Fax: (662) 323-6551

Visit our web site . . . http://www.mfjenterprises.com

See inside for these New MFJ Products!

DC Multi-Outlet Strips

has both 5-way binding posts

and

Anderson PowerPole®connectors

MFJ-1129 $10995

Four new high current

DC multi-outlet strips . . .

Manual

Screwdriver

Antenna

Covers 40-2 Meters

MFJ-1662

$12995

Four new models . . .

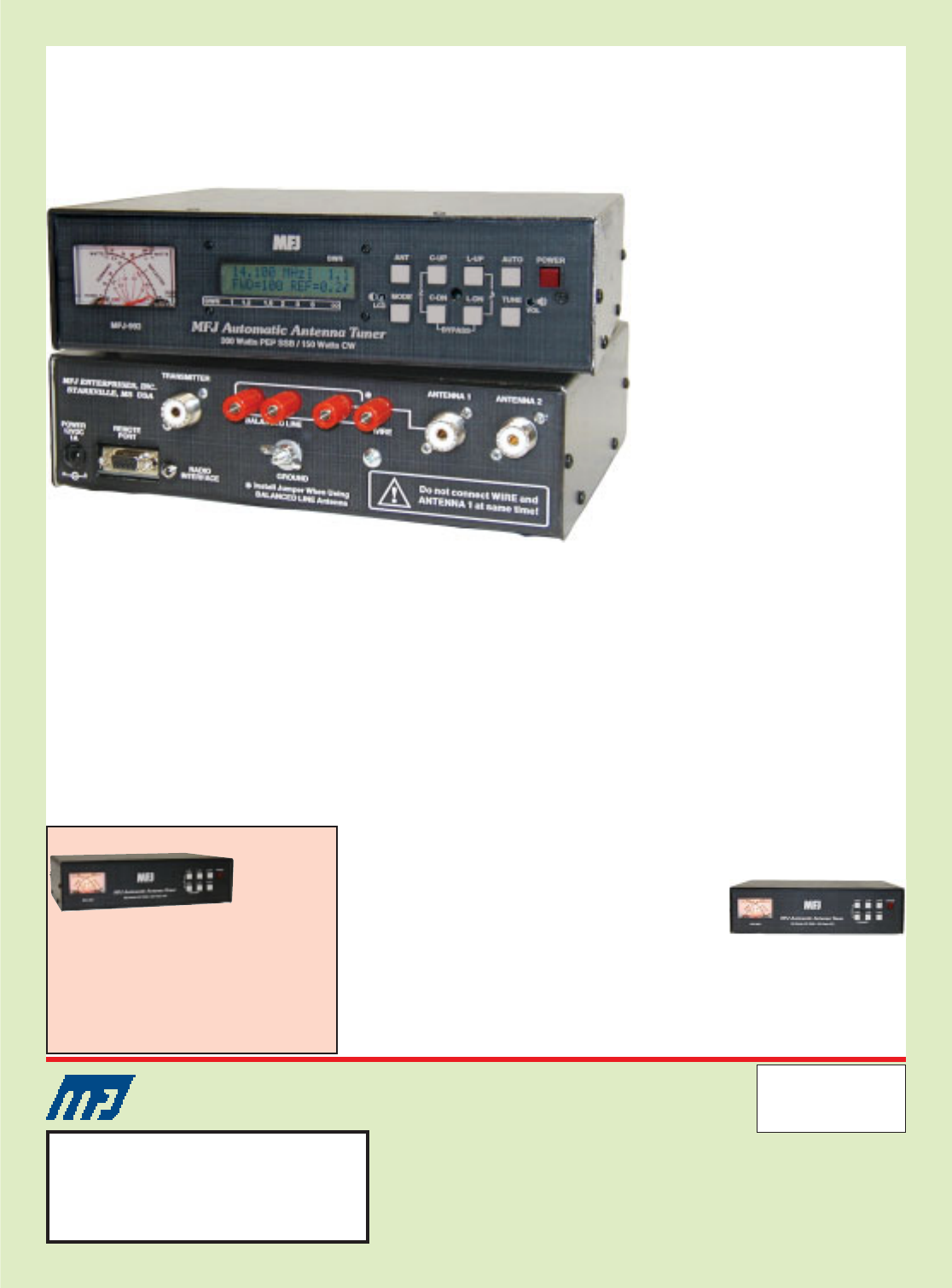

300W Automatic Tuner

Ultra-fast, 2000 memories, antenna

switch, 4:1 balun, Cross-Needle and

Digital SWR/Wattmeter, 1.8-30 MHz

MFJ-993 $25995

150, 300, 600 Watt models. . .

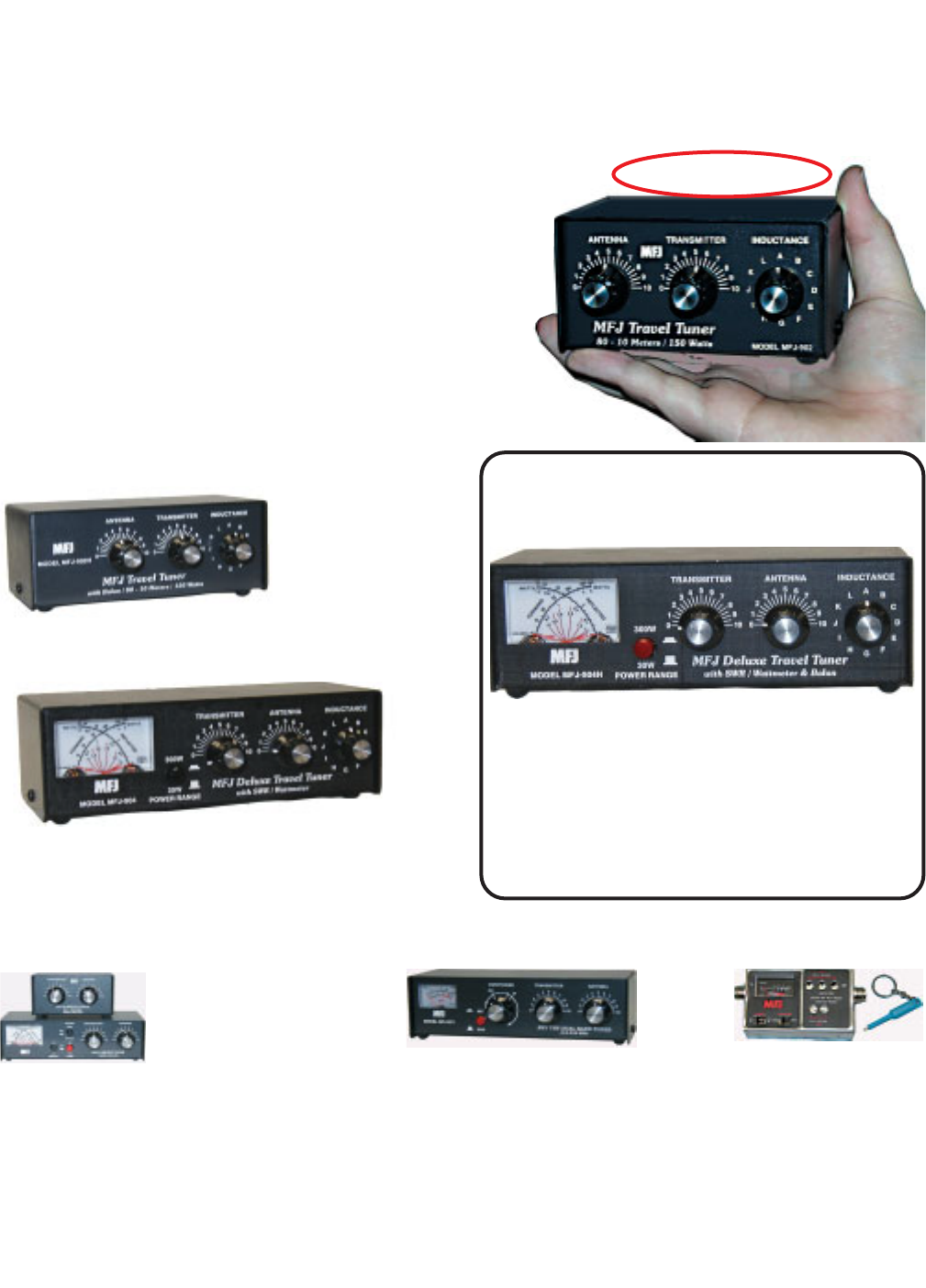

Tiny Travel Tuner

Fits in the palm of your hand! 150

Watts, 80-10 Meters, Bypass Switch

MFJ-902

$7995

Four New models -- balun,

SWR/Wattmeter . . .

See Page 16

See Page 6

See Page 42

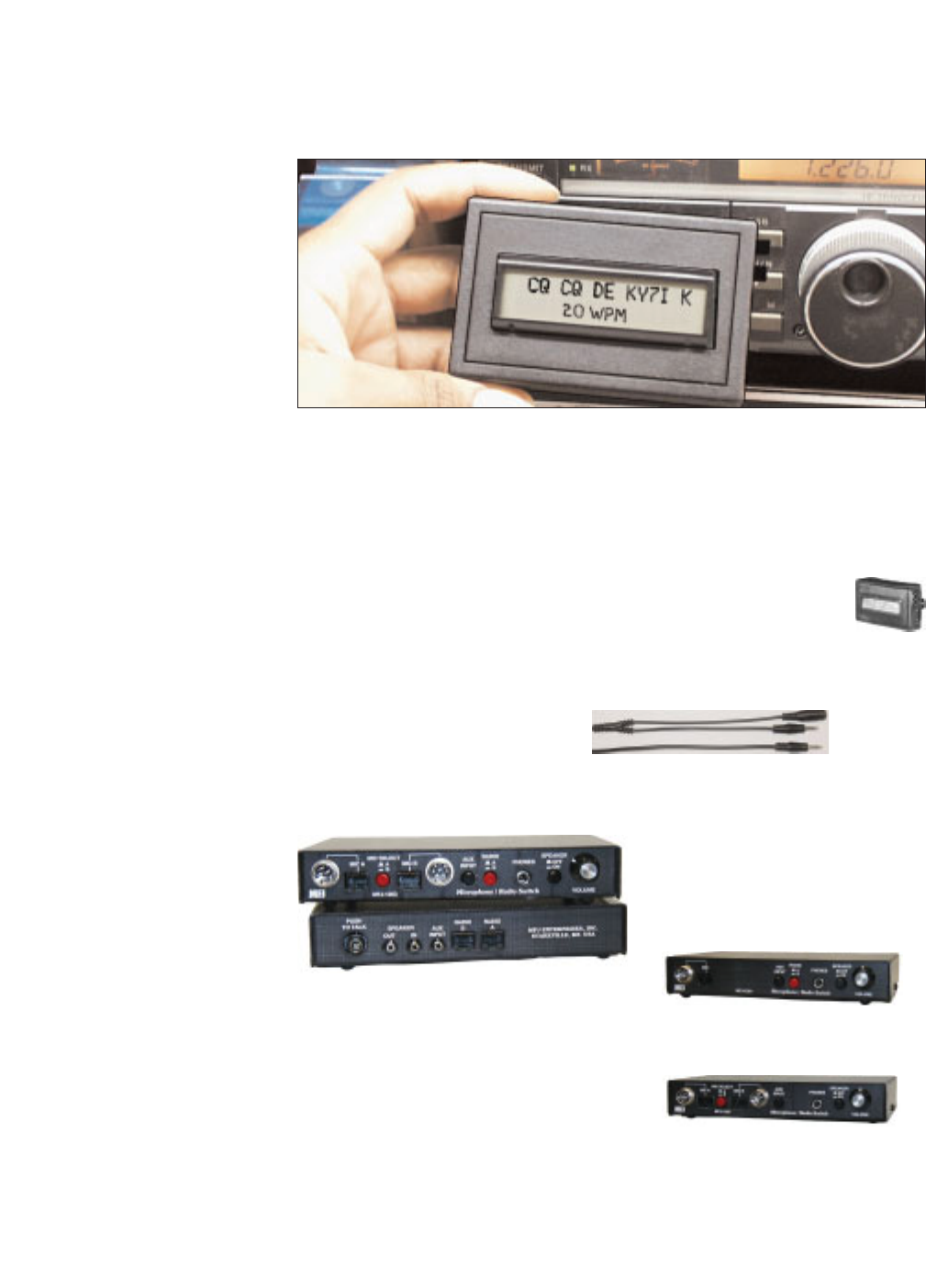

Mic/Radio Switch

Switch any 2 mics

to any 2 rigs

MFJ-1263 $9995

Three new models . . .

See Page 21

Balanced Line

Antenna Tuner

Superb

balance,

1.8-54 MHz,

300 Watts

MFJ-974H $18995

See Page 7

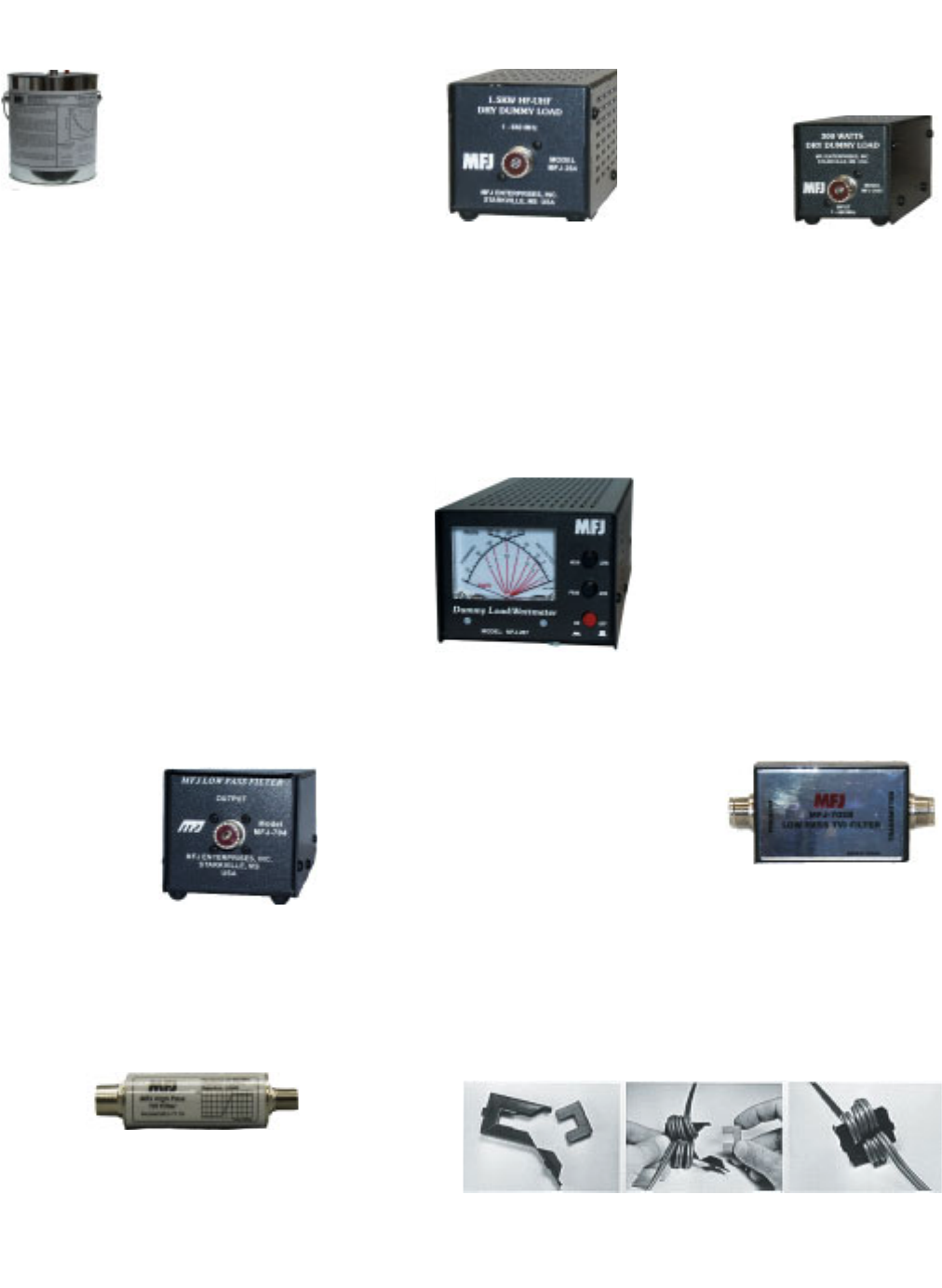

Dummy Load

SWR/Wattmeter

1.5kW,

peak reading

switchable

to external

antenna

MFJ-267 $14995

See Page 9

See Back Cover

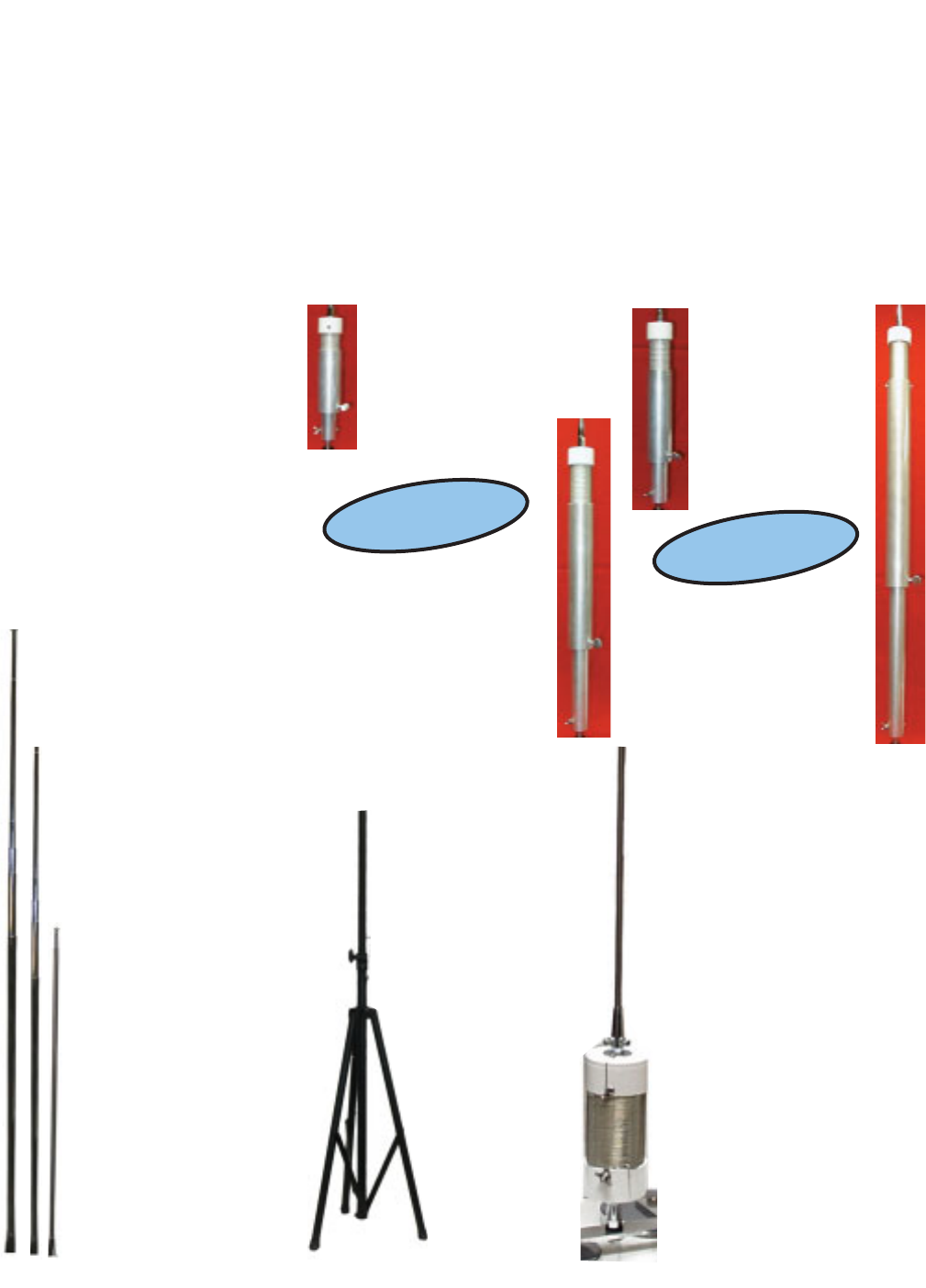

10 foot

Telescopic

Whip

MFJ-1954

$1995

3 lengths . . .

Wireless

Weather

Station

MFJ-192

$5995

Glazed

ceramic

insulator

MFJ-16C01

69c

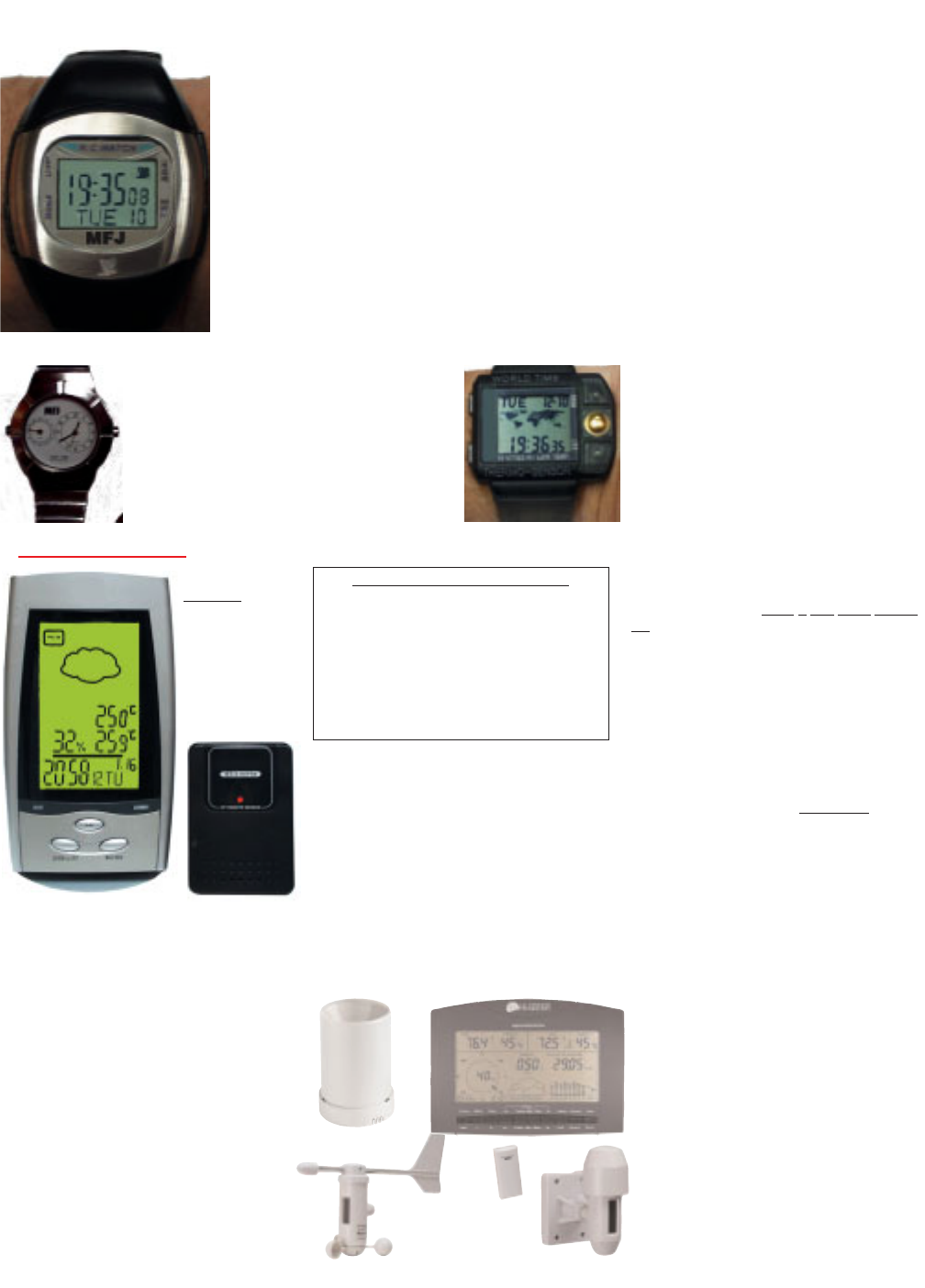

Atomic

24/12 Clock

MFJ-

132RC

$1495

Atomic

24/12 Watch

MFJ-

186RC

$2995

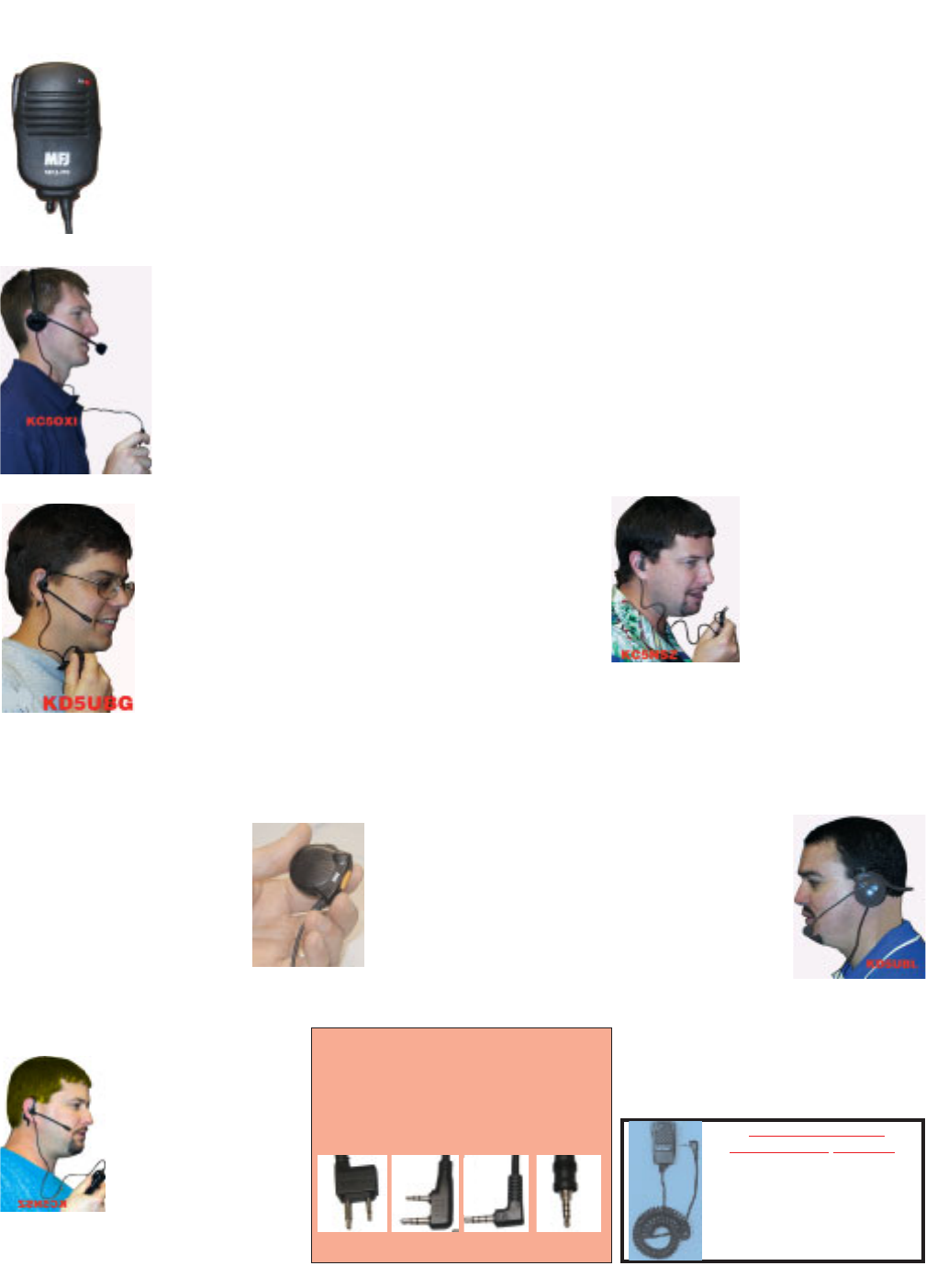

Speaker/Mic

for Yaesu VX-7R

MFJ-295R

$1995

See Page 42 See Page 43

See Page 29 See Page 30 See Page 30 See Page 35

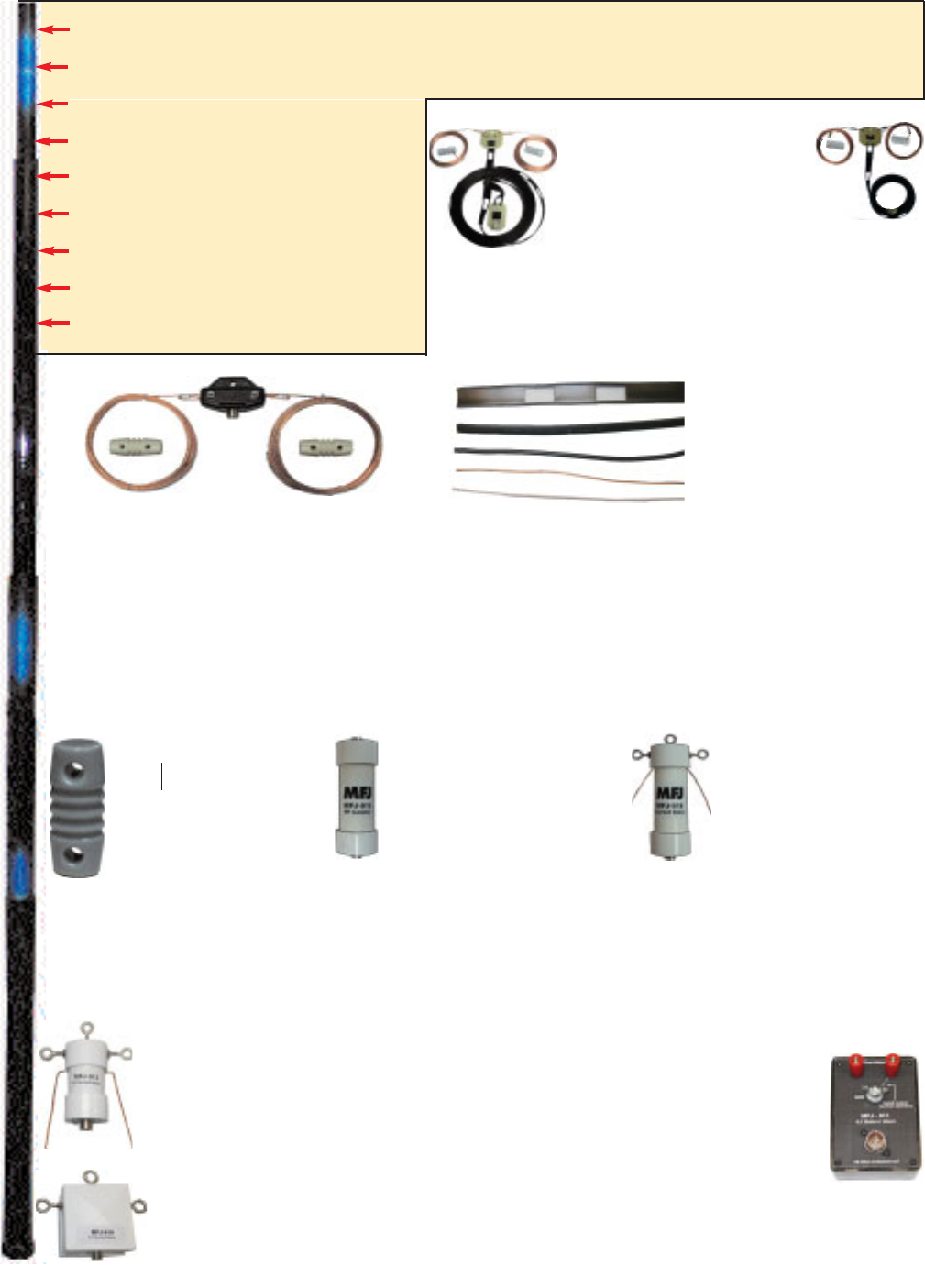

160-6 Meter

Doublet

Antenna

MFJ-

1777

$4995

Discone

Antenna

25-1300

MHz

MFJ-1868

$5995

Antenna

Tripod

40-inch

between legs

MFJ-1918

$3995

1.5 kW 4:1

current balun

/insulator

MFJ-919

$5995

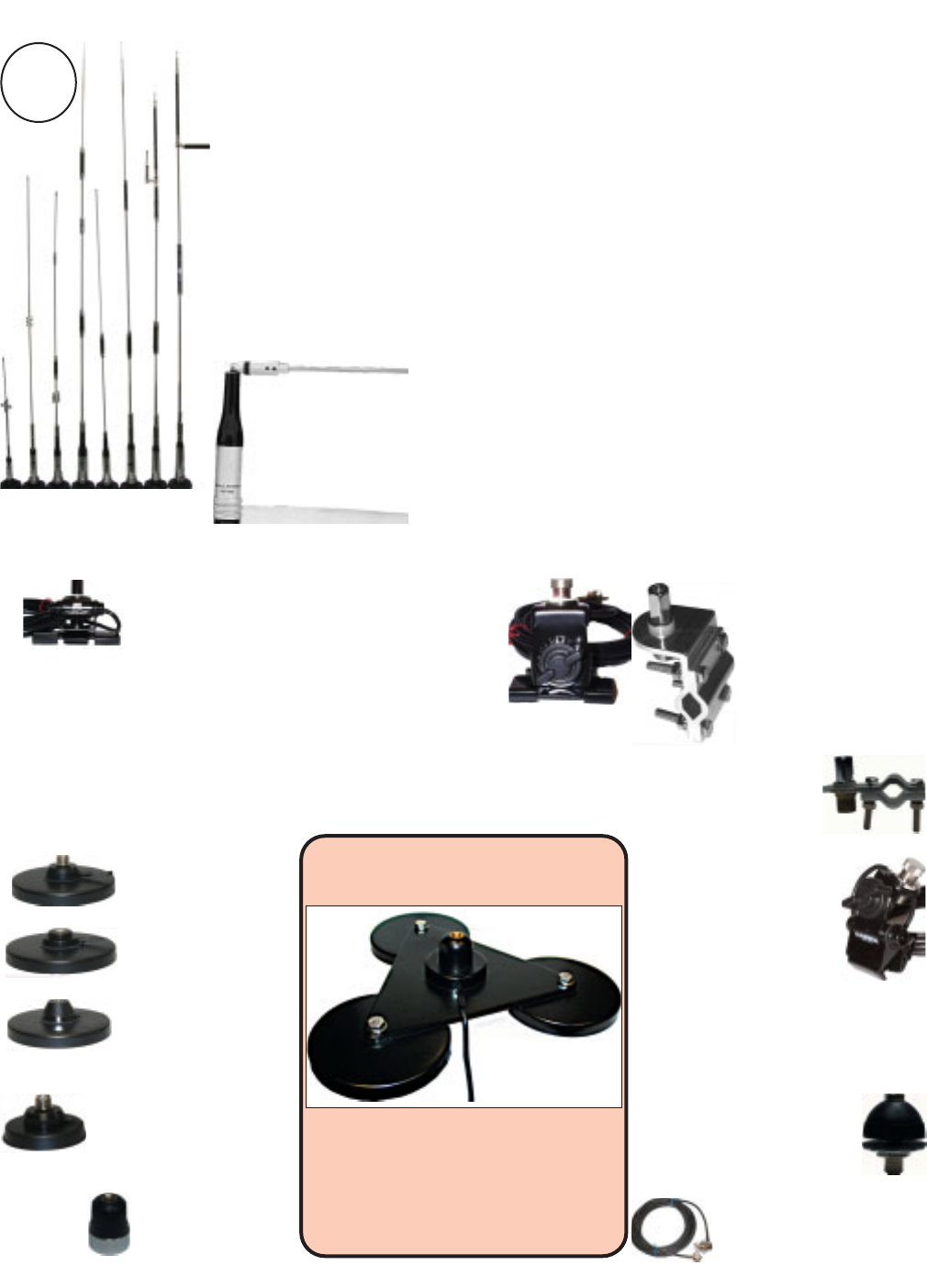

Mobile

Antennas

MFJ-1456, $14995

40/20/15/10/6/2M

MFJ-1438, $9995

10/6/2M/440 MHz

4 Foot

Ground

Rod

Copper bonded steel

MFJ-1934

$495

Ameritron

Screwdriver

Antenna

1.2 kW, Pittman

Commercial Gear Motor

SDA-100

$335

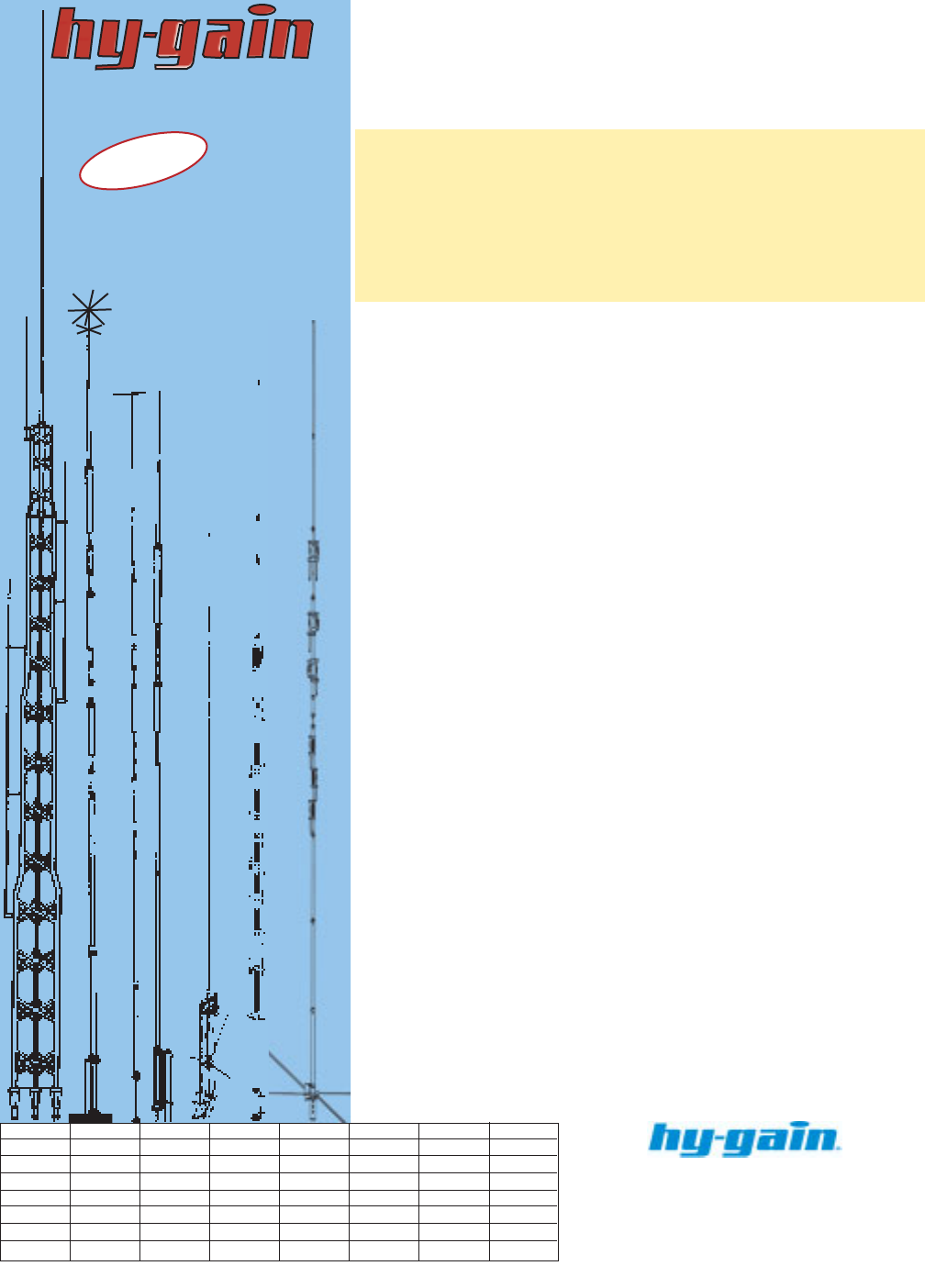

Hy-Gain

80-10 M Vertical

The Classic is Back!

AV-18AVQII

$22995

MK-80, $79.95. 80-Meter

Add-on kit for AV-14AVQ.

Ameritron

Digital Screwdriver

Antenna Controller

Super bright high-

intensity LEDs

SDC-100

$7995

Ameritron

flat Mobile

SWR/Wattmeter

Just 15/8” thick,

flat mounts on

dashboard

AWM-35

$15995

See Page 43

See Page 42 See Page 43

See Page 41, 39 See Page 40

See Page 7

See Page 50 See Page 52 See Page 51 See Page 56

QSTCatP01.qxd 10/16/2003 10:03 AM Page 1

• AirCoreTM Roller Inductor

•Super Heavy Duty Components

• Cross-Needle SWR/Wattmeter

•Antenna Selector

•TrueCurrentTM Balun

•Built-in Dummy Load

• Made in THE U.S.A.

MFJ uses super heavy duty compo-

nents -- roller inductor, variable capaci-

tors, antenna switch and balun -- to build

the world’s most popular high power

antenna tuner.

The rugged world famous MFJ-989C

handles 3 KW PEP SSB amplifier input

power (1500 Watts PEP SSB output

power). Covers 1.8 to 30 MHz, including

MARS and WARC bands.

MFJ’s AirCoreTM Roller Inductor, new

gear-driven turns counter and weighted

spinner knob gives you exact inductance

control for absolute minimum SWR.

You can match dipoles, verticals,

inverted vees, random wires, beams,

mobile whips, shortwave -- nearly any

antenna. Use coax or balanced lines.

You get everything you’ve ever wanted

in a high power, full featured antenna tuner

-- widest matching range, lighted Cross-

Needle SWR/Wattmeter, antenna switch,

built-in dummy load, balun -- all in a sleek,

compact cabinet.

MFJ builds the world’s most popular

high power antenna tuner using these

super heavy duty components . . .

MFJ’s exclusive heavy duty AirCoreTM

Roller Inductor has an air core that can’t

burn up! Get ultra high-Q, lowest loss,

highest efficiency and highest power han-

dling of any roller inductor in ham radio.

MFJ’s exclusive Self-Resonance

KillerTM keeps damaging self-resonances

away from your operating frequency.

Large, self-cleaning wiping contact

gives excellent low-resistance connection

without contact arcing or burning.

Solid 1/4 inch brass shaft, self-align

bearings give smooth non-binding rotation.

Competing tuners use a lossy, low Q,

solid plastic core with erratic electrical con-

tacts and have potentially damaging self-

resonant frequencies. This can cause

excessive heating and melt the core!

Gear Driven Counter

Aprecision gear driven 3-digit turns

counter lets you accurately reset your roller

inductor for quick band changing.

Weighted spinner knob on roller induc-

tor gives you smoother flywheel tuning.

Massive Transmitting Capacitors

Look inside . . . you’ll see two super-

heavy duty transmitting variable capacitors

that can handle 6000 volts. Extra wide

(0.27 inch) stator plate spacing gives you

arc-free operation.

Specially shaped plates give low

minimum capacitance when unmeshed.

This and a hefty 250 pf maximum give you

an extremely wide matching range -- even

on 160 and 10 Meters.

Super Antenna Switch

MFJ-989C’s super heavy duty antenna

switch is made of two individual ceramic

wafers wired in parallel. Extra wide spaced,

heavy duty contacts handle extreme voltages

and currents. We’ve never burned one up!

You can select two coax antennas

(directly or through tuner), balanced line/

random wire, or built-in dummy load.

MFJ TrueCurrentTM Balun

MFJ’s super heavy duty TrueCurrentTM

balun for balanced lines uses two giant 21/2

inch toroid cores. It’s wound with TeflonR

wire connected to high-

voltage glazed ceram-

ic feedthrough insula-

tors.

The MFJ-989C lets

you safely operate high

power into balanced

feedlines without core

saturation or voltage

breakdown.

Some “legal limit”

tuners have inferior

voltage baluns with

smaller diameter toroid

cores and soft plastic

feedthrough insulators that can arc and melt.

More reasons why the

MFJ-989C is the world’s finest

high power antenna tuner:

Built-in Dummy Load

Afull-size 300 Watt non-inductive 50

Ohm dummy load is built into MFJ-989C.

You’ll find it handy for transmitter

tuning, testing and repairing rigs, setting

power level, adjusting mic gain and more.

Lighted Cross-Needle Meter

Lighted Cross-Needle SWR/Watt-meter

lets you monitor SWR, forward and reflect-

ed power simultaneously.

Read both peak and average power in

two power ranges. Meter lamp requires 12

VDC or 110 VAC with MFJ-1312D,

$14.95. Sleek and Compact

The compact MFJ-989C slides right

into your operating position -- you’ll hardly

know it’s there. It’s just 103/4Wx41/3Hx15D

inches. Do you want a bulky “legal limit”

tuner that’s bigger than your amplifier?

Lexan Front Panel

The MFJ-989C has a new nearly inde-

structable multi-color Lexan front panel.

Its detailed logging scales and legends will

be legible for a lifetime of DXing.

Super Construction

MFJ-989C uses PEM nuts (not self-

tapping screws), wing-nut ground post (not

a cheap nut), fire-retardant epoxy glass PC

board (not canvas based), heavy gauge wire

throughout.

No Matter WhatTM Warranty

Every MFJ-989C is protected by MFJ’s

famous one year No Matter WhatTM limited

warranty. We will repair or replace your

MFJ-989C (at our option) for a full year.

Outstanding Customer Service

We’re here to help keep your MFJ-

989C performing flawlessly -- no matter

how long you own it -- call 662-323-0549.

2 www.mfjenterprises.com

MFJ-989C Legal Limit Antenna Tuner

More hams use MFJ-989s than any other legal limit antenna

tuner in the world! Why? Because MFJ uses super heavy duty

components to make the world’s finest legal limit antenna tuner

MFJ-989C

$35995

Ship Code E

QSTCatP02.qxd 10/16/2003 10:05 AM Page 1

MFJ KW Differential-TTM Antenna Tuner

...Gives you absolute minimum SWR . . . Simple 2-knob tuning . . . Lighted

Cross-Needle SWR/Wattmeter . . . AirCoreTM Roller Inductor . . . 6-position

antenna switch . . . Balun for balanced lines . . . 1.8-30 MHz coverage

MFJ’s innovative

Differential-TTM tuner

uses a differential

capacitor that makes

tuning easier than

ever. Gives minimum

SWR at only one set-

ting. Broadband

design ends constant

retuning.

The MFJ-986 is a

rugged roller inductor

antenna tuner that handles 3 KW PEP SSB

amplifier input power (1500 Watts PEP SSB

output power). Tunes 1.8-30 MHz continu-

ously, including MARS and all the WARC

bands.

MFJ’s exclusive AirCoreTM Roller

Inductor gives absolute minimum SWR --

something tapped inductors just can’t do.

3-digit turns counter plus a spinner knob

gives precise inductance control so you can

quickly retune your frequency.

Alighted peak and average reading cross-

needle meter shows SWR, forward and

reflected power at a single glance!

You get a 6-position antenna switch that

lets you select two coax lines and/or random

wires (direct or through tuner), balanced line

and external dummy load.

The MFJ TrueCurrentBalunTM for bal-

anced lines minimizes feedline radiation that

causes field pattern distortion, TVI and RF in

your shack. Ceramic feedthru insulators for

balanced lines withstand high voltages and

temperatures.

Differential-T TunerTM . . . .

A new twist on proven technology

Replacing two variable capacitors with a

single differential capacitor gives wide range

T-network tuning with just two controls -- a

tuning capacitor and a roller inductor.

Simple 2-knob tuning makes tuning easier

than ever. You get minimum SWR at only one

setting and a broadband

response that ends constant

re-tuning. You’ll spend

your time QSOing instead

of fooling with your tuner.

The compact

103/4x41/2x15 inch cabinet

has plenty of room to

mount the roller inductor

away from metal surfaces

for highest Q -- you get

high efficiency and more

power into your antenna.

Wide-spaced tuning capaci-

tor plates let you run high

power without arcing.

Lighted cross-needle meter

MFJ’s lighted Cross-Needle Meter shows

you SWR, forward and reflected power simul-

taneously. It reads peak or average power on

2000 or 200 Watt ranges.

Lamp has on/off switch and uses 12 VDC

or 110 VAC with MFJ-1312D, $14.95.

MFJ TrueCurrentBalunTM

reduces feedline radiation

Most tuners use a voltage balun that

forces equal voltages on the two antenna

halves. It minimizes unbalanced currents

only if the antenna is perfectly balanced -- not

the case with practical antennas.

The MFJ-986 uses a true current balun to

force equal currents in the two antenna halves

-- even if the antenna is not perfectly bal-

anced!

The MFJ TrueCurrentBalunTM gives supe-

rior balance over voltage baluns and mini-

mizes unbalanced current. This reduces field

pattern distortion, concentrates your power for

a stronger signal -- plus it reduces TVI and

RF in your shack caused by feedline radia-

tion. No Matter WhatTM Waranty

Protected by one year limited warranty.

Call your dealer for your best price!

In stock at ham dealers everywhere.

MFJ-962D Compact Tuner for Linear Amplifiers

MFJ AirCoreTM Roller Inductor, Compact Size, Lexan scratch-proof front panel...

MFJ-986

$32995

Ship Code E

MFJ -- The World Leader in HamRadio Accessories 3

MFJ AirCoreTM roller inductor

Why settle

for a mere 300

Watt antenna

tuner when a

few extra dol-

lars let you

add real

power when

you’re ready?

The MFJ-

962D lets you use your barefoot rig now.

When you’re ready . . . you can add a power-

house linear amplifier at no additional cost.

The compact MFJ-962D handles 1500 Watts

PEP SSB amplifier input power (800 Watts PEP

SSB amplifier output power).

It’s perfect for AMERITRON’s best selling 800 Watt AL-811H or

600 Watt AL-811 amplifiers.

Features MFJ’s AirCoreTM Roller Inductor, new aluminum-skirted

knob set including a weighted deluxe spinner knob, ultra compact size

(103/4 x4 x 107/8inches) and scratch-proof multi-colored Lexan front

panel.

Two transmitting tuning capacitors and MFJ’s exclusive AirCoreTM

roller inductor gives you precise control to get your SWR down to an

absolute minimum.

You get an extremely wide matching range from 1.8 to 30 MHz

continuously, including MARS and WARC bands.

MFJ’s AirCoreTM roller inductor has an air core that can’t burn up.

You get ultra high-Q, low loss and MFJ’s exclusive Self-Resonance

KillerTM that eliminates damaging self-resonances.

MFJ’s lighted peak and average reading Cross-Needle

SWR/Wattmeter makes tuning quick and easy. At one glance you can

read SWR, forward and reflected power in two power ranges. Meter

light uses 12 VDC or 110 VAC with MFJ-1312D, $14.95.

A6-position ceramic antenna switch lets you select 2 coax lines

(direct or through tuner), random wire and balanced lines.

You get a heavy duty MFJ TrueCurrentBalunTM for balanced lines.

High-voltage ceramic feedthru insulators let you operate high power

into balanced feedlines.

handles AMERITRON’s AL-811H!

MFJ-962D

$26995

Ship Code E

MFJ’s exclusive super heavy duty

AirCoreTM Roller Inductor has an air

core that can’t burn up! You get ultra

high-Q, the lowest loss, highest efficien-

cy and highest power handling of any

roller inductor in ham radio.

MFJ’s exclusive Self-Resonance

KillerTM keeps potentially damaging

self-resonances away from your operat-

ing frequency.

Large, self-cleaning wiping contact

gives excellent low-resistance connec-

tion without contact arcing or burning.

Asolid 1/4 inch brass shaft with

self-align bearings gives smooth non-

binding rotation.

QSTCatP03.qxd 10/16/2003 10:06 AM Page 1

More hams use

MFJ-949s than any

other antenna tuner

in the world!

Why? Because

the world’s leading tuner has earned

a worldwide reputation for being able

to match just about anything.

Full 1.8-30 MHz Operation

Custom designed inductor

switch, 1000 volt tuning capacitors, TeflonR

insulating washers and proper L/C ratio

gives you arc-free no worries operation

with up to 300 Watts 1.8 to 30 MHz.

Tunes any antenna

Tunes out SWR on dipoles, verticals,

inverted vees, random wires, beams,

mobile whips . . . nearly anything! Use

coax, random wire or balanced lines. Has

heavy duty 4:1 balun.

Custom inductor switch

The inductor switch is the most likely

component to burn up in any antenna tuner.

MFJ’s inductor switch in the MFJ-

949E was custom designed to withstand the

extremely high RF voltages and currents

that are developed in your tuner.

8-Position Antenna switch

lets you select two coax fed antennas, ran-

dom wire/balanced line or built-in dummy

load through your MFJ-949E or direct to

your transceiver.

Big Lighted Cross-Needle Meter

Has MFJ’s full size 3 inch lighted

cross-needle Meter. Lets you easily read

SWR, true peak forward and average

reflected power simultaneously

on 300 Watt or 30 Watt ranges.

Lamp has on/off switch, requires

12 VDC or 110 VAC with MFJ-

1312D, $14.95.

QRM-Free PreTuneTM

MFJ’s QRM-Free PreTuneTM

lets you pre-tune your MFJ-949E

off-the-air into its built-in

dummy load! Makes tuning your

actual antenna faster and easier.

Plus Much More!

Full size built-in non-inductive 50 Ohm

dummy load, scratch-proof Lexan multi-

colored front panel, superior cabinet and

construction and more! Measures a sleek

and compact 105/8x31/2x7 inches.

MFJ 300W Roller Inductor Tuner

World’s only 300 Watt AirCoreTM Roller Inductor Antenna Tuner gives

you absolute minimum SWR . . . Covers 6 Meters thru 160 Meters . . .

MFJ-969 gives

you MFJ’s superb

AirCoreTM Roller

Inductor and full 6

Meters through 160

Meters coverage!

You get everything you’ve ever wanted

including . . . 300 Watts PEP SSB full fea-

tured antenna tuner, widest matching range,

full-size lighted Cross-Needle

SWR/Wattmeter reads true peak forward

power, QRM-Free PreTuneTM, 8 position

antenna switch, built-in 50 Ohm dummy

load, heavy duty 4:1 balun -- all in a tough,

attractive cabinet. MFJ’s famous one year

No Matter WhatTM limited warranty.

MFJ-969’s AirCoreTM Roller Inductor,

gear-driven turns counter and spinner knob

gives you exact inductance control for

minimum SWR.

MFJ’s exclusive AirCoreTM Roller

Inductor has an air core that can’t burn up!

You get ultra high-Q, the lowest loss, high-

est efficiency and highest power handling

of any roller inductor in ham radio.

MFJ’s exclusive Self-Resonance

KillerTM keeps potentially damaging self-

resonances away from your frequency.

Huge self-cleaning wiping contact

gives you excellent low-resistance connec-

tion without contact arcing or burning.

Solid 1/4 inch brass shaft, self-align

bearings -- smooth non-binding operation.

The MFJ-969 covers all frequencies

from 160 Meters thru 6 Meters, including

the “magic band” -- the widest matching

range of any full featured antenna tuner.

Match any antenna

Match dipoles, verticals, inverted vees,

random wires, beams, mobile whips, SWL

receiving antennas -- nearly any antenna.

You can use coax cable, random wire or

balanced lines. Has heavy duty 4:1 balun.

True Peak Reading Cross-Needle Meter

MFJ’s new ActivePeak

ReadingCircuitTM accurately reads true peak

forward power -- an MFJ exclusive.

MFJ’s lighted Cross-Needle

SWR/Wattmeter reads SWR, true peak for-

ward and average reflected power simulta-

neously on 300 Watt or 30 Watt ranges.

Lamp has on/off switch and uses 12

VDC or 110 VAC with MFJ-1312D,

$14.95. ActivePeakReading CircuitTM can

also use a 9 volt battery.

MFJ’s 8 positions let you select two

coax fed antennas, random wire/balanced

line or built-in dummy load for use through

your MFJ-969 or direct to your rig.

MFJ’s QRM-Free PreTuneTM lets you

pre-tune MFJ-969 off-the-air into a built-in

dummy load without causing QRM.

Pre-tuning into a dummy load makes

tuning your actual antenna quick and easy!

The MFJ-969 has a full size non-induc-

tive 50 Ohm dummy load. You’ll find it

handy for tuning, testing, repairing rigs,

setting power level, adjusting mic gain, etc.

The tough aluminum case has a

scratch-proof multi-colored Lexan front

panel. Compact 31/2Hx101/2Dx91/2W inches.

MFJ-969 AirCoreTM Roller Inductor

All the

features of

the MFJ-949E -- the world’s leading 300

Watt antenna tuner -- for an incredibly low

$129.95! (Dummy load not included; coax

connector for one on rear panel.)

Features include custom

designed inductor switch, 1000

volt tuning capacitors, full size 3

inch lighted Cross-Needle meter,

8 position antenna switch, heavy

duty 4:1 balun, full 1.8 to 30

MHz operation, MFJ’s famous No Matter

WhatTM one year limited warranty. Measures

a slim and compact 101/2x31/2x7 inches.

MFJ-948 -- An Econo MFJ-949E for Only $129.95!

MFJ-948

$12995

Ship Code B

MFJ-949E

$14995

Ship Code B

MMoorree

hhaammss

uussee

MMFFJJ-994499ss

tthhaann

aannyy

ootthheerr

aanntteennnnaa

ttuunneerr

iinn

tthhee

wwoorrlldd!!

Ham Radio’s Most Popular 300 Watt Tuner

MFJ-969

$19995

Ship Code B

QSTCatP04.qxd 10/16/2003 10:07 AM Page 1

Op-

erate all

bands

1.8-30

MHz -- anywhere

with any transceiver

-- using a single random wire and MFJ’s

Random Wire Tuner. Small enough to

carry in your hip pocket. Handles 200

watts output.

Matches high or low impedance loads

by interchanging input and output, so it

uses SO-239 connectors for both.

Compact 2.25H X 3.5W X 5.25D in.

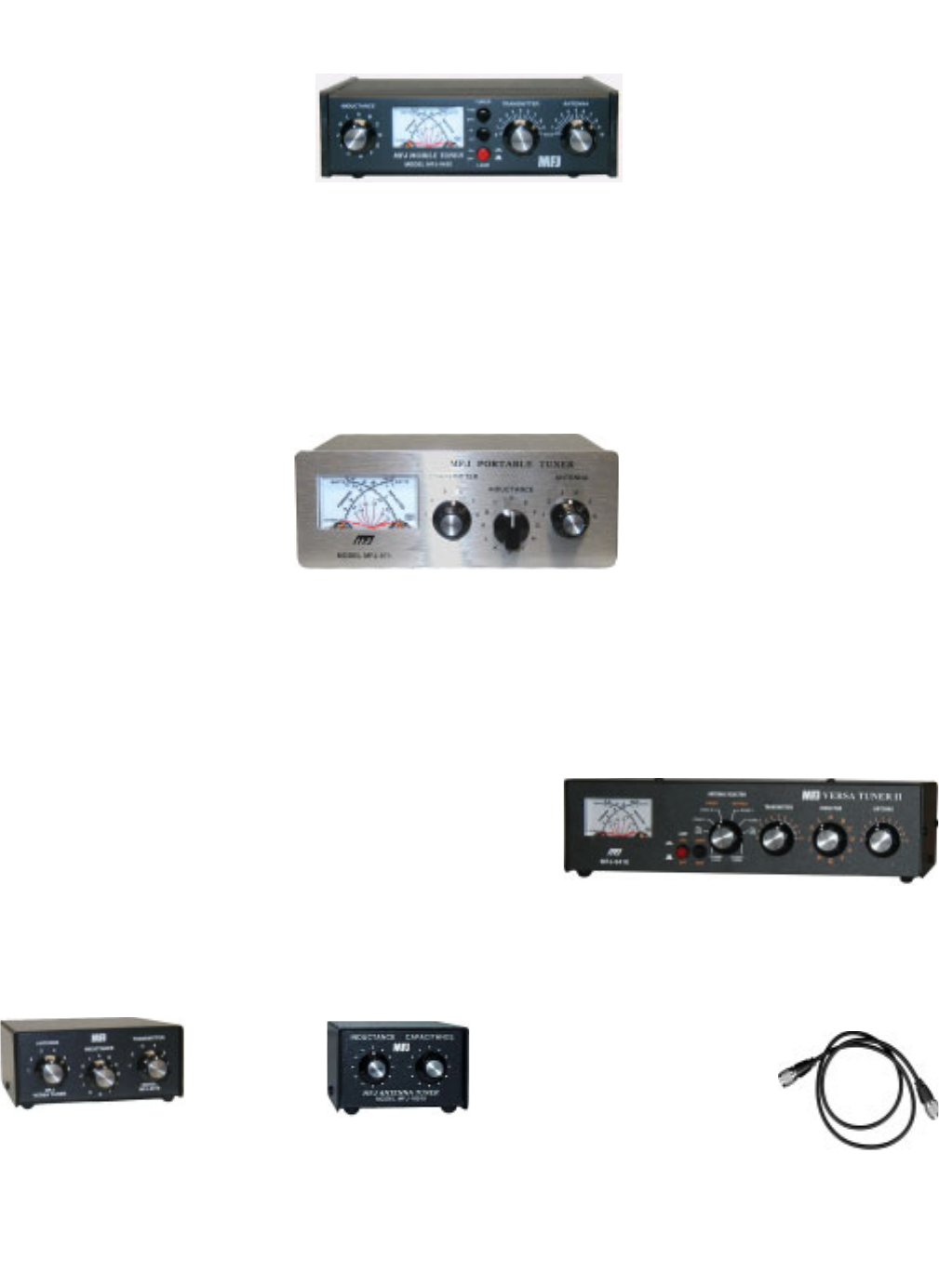

MFJ’s Smallest VERSA TUNER

MFJ’s

smallest

(5x21/2x6) and most affordable 200 Watt

PEP VERSA TUNER. Match dipoles,

vees, random wires, verticals, mobile

whips, beams, balanced and coax lines con-

tinuously from 1.8-30 MHz. A 4:1 balun

for balanced lines is built into this MFJ-

901B tuner. Three adjustment controls for

maximum matching capability.

It’s not just a tuner, it’s an 8-position

antenna switch.

The photo tells the story: you can select

among two coaxial-fed antennas, a bal-

anced line (4:1 toroid balun included) or

random wire or an external dummy load,

and for each you can select “direct”

(bypassing the tuner) or “tuned.”

This tuner is rated at 200 watts and can

match dipoles, vees, random wires, and

balanced and coax feedlines, from 1.8 to 30

MHz. You get a lighted cross needle

SWR/wattmeter

with on/off

switch (lamp

uses 12 VDC or

110 VAC with MFJ-1312D,

$14.95).

The meter shows SWR, and

forward and reflected power in 300/60 and

30/6 watt ranges selected at the front panel.

An efficient 12 position airwound

inductor gives low losses for more power

out. Uses 1000 Volt capacitors.

The aluminum cabinet has a durable

scratch-proof multi-color Lexan front panel

to complement your rig and fits right into

your station.

Measures a sleek, compact

105/8Wx27/8Hx7D inches.

The MFJ-971 is a tiny, inexpensive

portable 200 watt PEP antenna tuner that’s

a perfect match for today’s ultra-compact

HF transceivers while offering features

especially designed for the QRP operator.

Covering 1.8 to 30 MHz, this T-match

tuner can match coax-fed antennas, as

well as those fed with balanced feedline,

and random wires. A 4:1 toroid balun is

built in for balanced lines.

From the factory, the MFJ-971 offers forward power

readings of 30 watts maximum or 300 watts, on its cross

needle meter. You can monitor forward power, reflected

power, and SWR simultaneously. For dedicated QRP operation,

swapping of a jumper plug internally converts the maximum for-

ward reading on the meter to 6 watts.

The meter lamp may be powered by an external 12 VDC

source if you desire (MFJ-1312D, $14.95).

The MFJ-971, while an all-around low-

power tuner, is especially suited for MFJ

transceivers and power packs. It matches them

in size and styling and brackets included with

the tuner allow connecting the units together

physically into an attractive and compact

package.

As in all good antenna tuners, three con-

trols give flexibility in matching: Inductance

(12 positions), Transmitter, and Antenna. Once you find the

proper setting on each band, just record it for future “instant

band changing.”

Rear panel includes SO-239 coaxial jacks for transmitter

and antenna; 2 sturdy binding posts for balanced line; another

binding post for a random wire; ground post; 12 VDC input jack

for meter lamp; and low/high power meter range switch.

The MFJ-971 is backed by MFJ’s No Matter WhatTM warranty.

Measures a tiny 6X6X2.5 inches.

MFJ Compact Mobile HF Antenna Tuner

The compact MFJ-945E mobile anten-

na tuner covers 6 Meters and HF (1.8- 60

MHz), handles 300 PEP watts, and tunes

coaxial cable-fed antennas, plus random

wires.

Don’t leave home without this mobile

tuner, and have a a better trip as the MFJ-

945E extends antenna bandwidth and elimi-

nates the need to stop, go outside, and read-

just your mobile antenna.

The frustratingly narrow bandwidth of

mobile antennas can be greatly broadened

with this tuner.

Of course, this diminutive tuner can be

used to tune coax-fed home station anten-

nas of all kinds, too, as well as random

wires.

The cross needle meter shows SWR,

forward, and reflected power -- at a glance.

It reads forward/reflected

power in 300/60 and 30/6

watt ranges.

The ON/ OFF lamp

switch is handy for

changing light conditions in your vehicle;

the meter lamp is 12 VDC powered (MFJ-

1312D, $14.95).

Large, conveniently-placed controls

make tuning fast and easy.

The bypass switch lets you bypass the

tuner (connecting your antenna and trans-

mitter directly) while still using its

SWR/wattmeter.

The back panel has SO-239 coaxial

connectors for your transmitter and antenna

feedline and a wing nut post for your

ground.

For at-home use with a random wire a

standard banana plug fits neatly into the

antenna jack.

An efficient airwound inductor gives

you lower losses for more watts output.

The small, 8Wx2Hx6D inch black alu-

minum cabinet takes up little space.

Amobile mounting bracket, MFJ-20, is

$4.95. Add $2.00 shipping for the bracket

if ordered separately.

Has MFJ’s One Year No Matter WhatTM

limited warranty.

MFJ-945E

$10995

Ship Code B

MFJ-941E

$11995

Ship Code B

MFJ-971

$9995

Ship Code A

MFJ-901B

$7995

Ship Code A

MFJ-16010

$$44999955

Ship Code A

Pre-made RG-8X Patch Cables

Molded, weath-

er resistant RG8X

(mini-RG8) 50-

ohm coax patch

cables with a PL-

259 connector on

each end. (You may

need two, depend-

ing on installation). Heavy rubber boots

protect bend points. (All Ship Code A.

MFJ-5803, $5.95. 3 feet long.

MFJ-5806, $9.95. 6 feet long.

MFJ-5818, $12.95. 18 feet long.

Portable

Tuner

for

QRP

Full-bbore

Transceiver

www.mfjenterprises.com 5

MFJ 300-Watt Super Value Versa Tuner Covers 160-10 Meters

Random Wire Tuner for HF

Covers HF and 6 Meters, Handles 300 watts, Has Antenna Bypass Switch

QSTCatP05.qxd 10/16/2003 10:10 AM Page 1

6 www.mfjenterprises.com

MFJ 6 Meter/VHF/UHF Antenna Tuners

MFJ 6 Meter Antenna Tuners

MFJ-

906 6

Meter

tuner.

Low SWR with most

any coax fed antenna.

You’ll get more

power out of your transceiver and into your

antenna for more DX. Lighted Cross-

Needle SWR/Wattmeter shows SWR, for-

ward, reflected power, 300/60 and 30/6

Watt ranges. Order MFJ-1312D, $14.95 for

meter lamp. Built-in bypass switch, han-

dles 100 Watts FM, 200 Watts SSB PEP.

Works with solid state and tube rigs, 50-60

MHz. 8Wx21/2Hx3D inches.

MFJ-903, $49.95. Like MFJ-906. Less

meter/bypass switch. 5Wx21/2Hx3D inches.

144/220 MHz or 440 MHz Tuner

MFJ-921

Dual Band

VHF tuner

covers 2

Meters/220

MHz. Built-

in SWR/Watt- meter measures

SWR in 2 power ranges: 300 or

30 Watts. Meter is usable for

both 144 MHz and 220 MHz

bands. Low SWR with practically any

antenna. Handles 200 Watts. Designed to

match a wide range of impedances for both

mobile/base operation. SO-239 input/output

connectors, wing nut post ground. Black

aluminum cabinet measures a compact

8x21/2x3 inches -- fits just about anywhere.

MFJ-924, $69.95. 440 MHz band only.

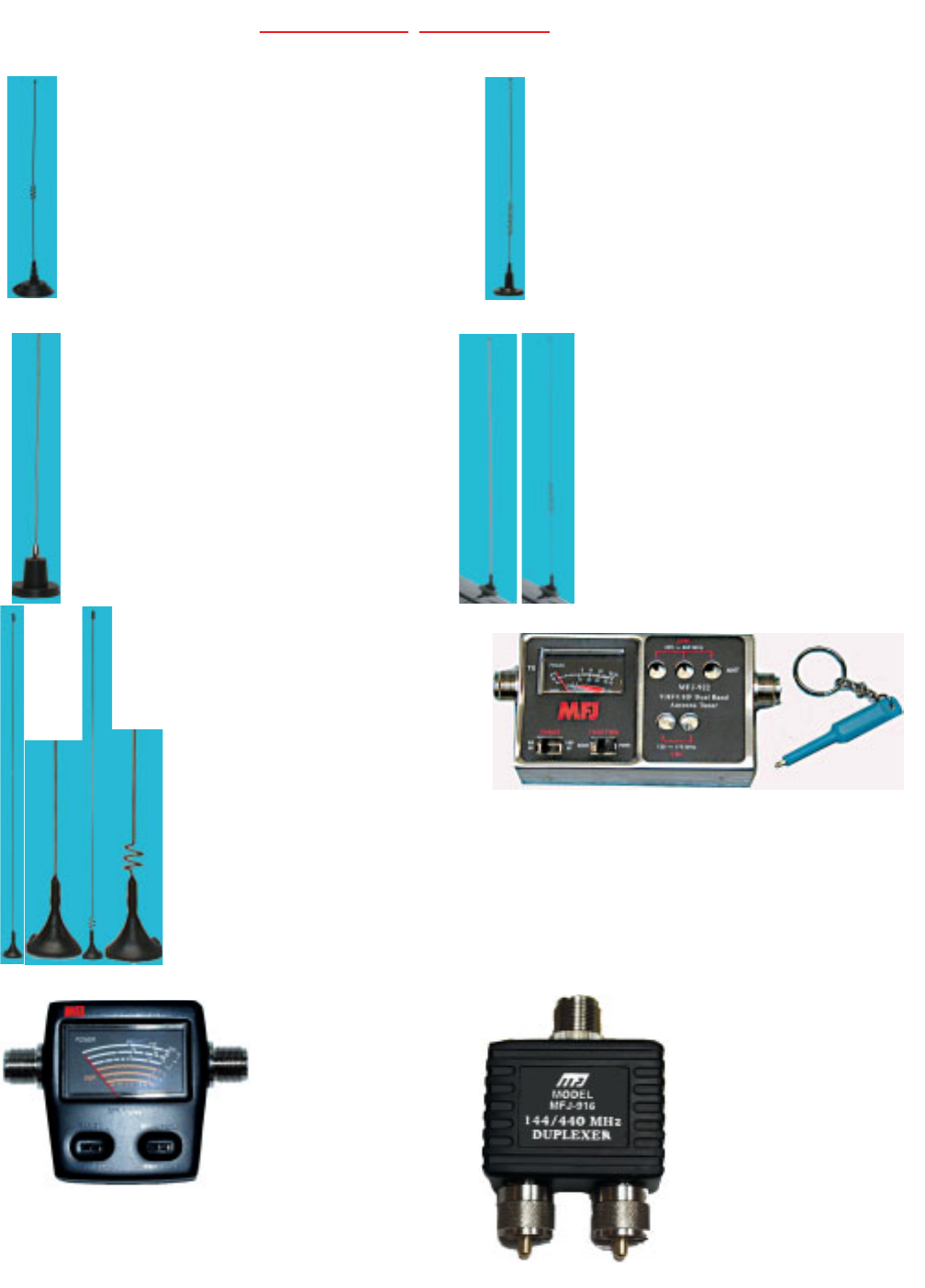

Dual Band VHF/UHF Tuner

This compact dual band VHF/UHF

antenna tuner has a single meter that reads

SWR and power. No zero adjustment

needed. It covers VHF from 136 to 175

MHz and UHF from 420 to 460 MHz. You

can read power up to 150 Watts in 2 ranges:

60 Watts or 150 Watts. It’s a great antenna

tuner for HTs, mobile rigs or amplifiers up

to 150 Watts. Its super-compact size lets

you take it anywhere -- measures a tiny

4x21/2x11/4inches -- you can put it in your

shirt pocket! Carry it with you in your car,

camping trips, etc. Tuning tool included.

MFJ-906

$7995

Ship code A

MFJ-921/924

$6995

Ship code A

MFJ-922

$7995

Ship code A

MFJ tiny Travel Tuners

Tiny 41/2x21/4x3 inch tuner handles full 150 Watts! Covers 80-10

Meters, has tuner bypass switch, tunes nearly anything!

New! Tiny Travel Tuner with 4:1 Balun

MFJ-

902H, same

as MFJ-902

Tiny Travel

Tuner but has 4:1 balun for

balanced lines and binding

post connections for balanced

lines and random wire.

5 ¾Wx2¼Hx2 ¾D inches.

MFJ-904,

Same as

MFJ-902

Tiny

Travel

Tuner but

has Cross-

Needle

SWR/Watt

meter that shows SWR, forward and reflected

power all at a glance. Push button selects for-

ward/reflected power in 300/60 and 30/6 Watt

ranges. Measures 7 ¼ Hx2 ¼ Hx2 ¾ D inches.

MFJ-902H

$9995

Ship Code A

New! Tiny Travel Tuner

with Cross-Needle SWR/Wattmeter

MFJ-904

$10995

Ship Code A

MFJ-904H is the same as MFJ-

902 Tiny Travel Tuner but has

Cross-Needle SWR/Wattmeter and

4:1 balun for balanced lines with

binding post connections for balanced lines and random

wire. Cross-Needle meter shows SWR, forward and

reflected power all at a glance. Push button selects for-

ward or reflected power in 300/60 and 30/6 Watt ranges.

Measures a compact 7 ¼Hx2¼Hx2¾D inches.

MFJ-904H

$12995

Ship Code A

New!

MFJ brings you the world’s smallest

full power 150 Watt 80-10 Meter

Antenna Tuner. Extra wide matching

range lets you tune nearly any antenna.

It’s no toy, its got guts! Built with

real air variable capacitors (600 Volt,

322 pF) and three stacked powder iron

toroids to handle real power -- not just

QRP. Bypass switch lets you bypass

tuner when you don’t need it.

You can use nearly any transceiver at

full power with nearly any coax fed or

random wire antenna for portable, home

or mobile operation.

It’s perfect for compact rigs like

Icom IC-706MKIIG, Yaesu FT-100D,

Kenwood TS-50, QRP rigs and others

with a built-in SWR meter.

Operate anywhere, any-

time with a quick easy set-

up! Tune out SWR on your

mobile whip from inside

your car. Operate in your

apartment with a wall-to-wall antenna

or from a motel room with a wire

dropped from a window or from a

mountain top with a wire over a tree

limb. Great for DXpeditions or field

day. Be prepared for emergencies.

MFJ-902 is so small and

handy, you'll rely on it wherever

you go! It's easy to pack away in

your briefcase, suitcase, backpack,

glove compartment or desk drawer.

It's tiny enough to slide in your back

hip pocket! 4½Wx2¼Hx23/4D inches.

MFJ-902

$7995

Ship Code A New!

New! Tiny Travel Tuner

with Cross-Needle SWR

WattMeter and 4:1 Balun

QSTCatP06.qxd 10/16/2003 10:12 AM Page 1

MFJ . . . The World Leader in Ham Radio Accessories! 7

The MFJ-974H is a

fully balanced true bal-

anced line antenna tuner.

It gives you superb cur-

rent balance throughout

its very wide matching

and frequency range.

Johnson Matchbox

For decades, the Johnson Matchbox has

been the standard of comparison for bal-

anced line tuners. But, it had a severely

limited matching range and covered only

80, 40, 20, 15 and 10 Meters.

The MFJ-974H is its successor. It

meets today's needs and even surpasses the

Johnson Matchbox outstanding

performance.

Everything You Need

The MFJ-974H gives you excellent cur-

rent balance, very wide matching range(12-

2000 Ohms) and covers 1.8 through 54

MHz continuously including all WARC

bands, 160 Meters, 6 Meters and the new

60 Meter band. Handles 300 Watts SSB

PEP and 150 Watts CW.

Tuning is fast and easy - - just three tun-

ing controls. You can even adjust for high-

ly efficient broadband low-Q operation or

use higher Q when you encounter extreme

loads.

Alarge three-inch lighted Cross-Needle

SWR/Wattmeter lets you read SWR, peak

or average forward and reflected power all

at a glance on 300 or 30 Watt ranges.

Aground post is provided to ground one

output terminal so you can also tune ran-

dom wires and coax fed antennas.

Compact 7½Wx6Hx8D inches fits any-

where.

Tunes any Balanced Line

The MFJ-974H tunes any balanced lines

including 600 Ohm open wire line, 450/300

Ohm ladder lines, 300/72 Ohm twin lead -

- shielded or unshielded.

Superb current balance minimizes feed-

line radiation that can cause troublesome

TVI and RFI, painful RF bites, mysterious

RF feedback problems and radiation pattern

distortion.

Excellent Balance, Excellent Design

The MFJ-974H is a fully balanced wide

range T-Network using four gear driven

1000-Volt air variable capacitors and high-

Q air wound tapped inductor for 80-10

Meters and separate inductors for 6 and

160 Meters. The tuning components are

mounted symmetrically to insure electrical

balance.

A1:1 current balun is placed on the low

impedance 50 input side to convert the bal-

anced T-Network to unbalanced operation.

The balun is made of 50 ferrite beads on

RG-303 Teflon™ coax to give exceptional

and efficient isolation. It stays cool even at

maximum power.

Balanced Line = Extremely Low Loss

Balanced lines give extremely low loss.

Doublet, horizontal loop, vertical loop,

quad, double extended Zepp, Lazy H, W8JK

antennas all give efficient multi-band oper-

ation when fed with balanced lines.

6-80 Meter Balanced Line Tuner

MFJ-974, $169.95.

Same as MFJ-974H

but for 6-80 Meter

operation (no 160 Meters).

Antenna Accessories

MFJ-1777, $49.95. 102 feet all band

doublet antenna covers 160-6 Meters with

balanced line tuner.

Super strong custom

fiberglass center insulator

provides stress relief for

450 Ohm ladder line (100

feet included). Authentic

glazed ceramic end insu-

lators. Handles 1500 Watts.

MFJ-18H100, $14.95. 100 feet of

quality 450 Ohm ladder line.

MFJ-18G100, $11.95. 100 feet of

extremely strong heavy duty 7-strand, 14-

gauge hard copper antenna wire.

MFJ-16C06, $3.95. 6 authentic glazed

ceramic end/center antenna insulators.

Extra strong. Will not arc or melt.

New! MFJ-16D01, $6.95.

Super strong custom fiberglass

stress relieving center insulator

for 450 Ohm ladder line.

See page 43 for more antenna accessories.

Antenna Tuner/Artificial Ground

MFJ-934 is unique because it has a

built-in artificial ground. A ground match-

ing knob lets you switch in inductance to

bring an attached wire to a low impedance

current point to form an artificial ground.

A push button lets you use the Cross-

Needle Meter to monitor for maximum

ground current. With an artificial ground

to work against, you’ll be surprised to see

how well a random wire can work.

You get a 300 Watt full featured, gen-

eral purpose antenna tuner that covers 1.8-

30 MHz. It has a two range, lighted Cross-

Needle Meter that lets you read SWR, for-

ward and reflected power all in a glance

and a 4:1 balun for balanced lines. Plus,

you get an efficient airwound inductor, spe-

cial high current/voltage 12 position induc-

tor switch and two 1000 volt air-variable

capacitors. It tunes all types of antennas

and feedlines including random wire, coax

and balanced lines. 105/8Wx31/2Hx8D in.

MFJ Artificial RF Ground

Places your rig near earth ground potential!

Create an

artificial ground

with this MFJ-931! It effectively places

your rig near actual earth ground potential

even if your rig is on the second floor or

higher with no earth ground possible!

Also, it electrically places a far away

RF ground at your rig.

How’s your RF ground? Do you have

RF “hot spots” that “bite” you when you

transmit? Do you have RF feedback that

causes your rig to quit working on some

bands? Do you have TVI/RFI that makes

your neighbors hard to live with? Do you

get weak signal reports because of extreme

ground losses or radiation pattern distortion?

These problems could be caused by

poor RF grounding, especially if your rig is

on a second floor with no ground at all.

Even if you have a good ground, a long

connection wire can ruin its effectiveness

by isolating true RF ground from your rig.

MFJ-931

$8995

Ship Code A

MFJ-931 Continued . . .

MFJ-931 creates an artificial ground!

It resonates a random length of wire

thrown along the floor and produces a

tuned counterpoise. This artificial ground

effectively places your rig near actual earth

ground potential with no earth ground pos-

sible. Reduces the electrical length of the

ground connection wire to virtually zero by

tuning out its reactance. MFJ-931 connects

between your rig and a random length of

wire or a connecting ground wire. It’s

tuned for maximum ground current using

the built-in RF ammeter. It covers 1.8 to

30 MHz and measures 71/2x31/2x7 inches in

an RF tight all metal cabinet.

MFJ Balanced Line Antenna Tuner

Superb balance . . . Extremely wide matching range . . . Covers 1.8-54 MHz . . .

Cross-Needle SWR Wattmeter . . . Handles 300 Watts . . . Compact size . . .

New! 4 Foot Ground Rod

Durable four foot copper bonded

steel earth ground rod is a

tough 3/8 in. diameter that

will last and last. Sharp

pointed end makes it easy

to drive into the ground.

Use it to tie your equipment to a single

earth ground to help bleed off static and

RFI and prevent RF hot spots. Use sev-

eral to form a good RF ground for ran-

dom, long wire and vertical antennas.

MFJ-1934

$495

Ship Code B

MFJ-974H

$18995

Ship Code D

MFJ-974

$16995

Ship Code D

MFJ-934

$17995

Ship Code B

New!

QSTCatP07.qxd 10/16/2003 10:14 AM Page 1

MFJ GrandMasterTM SWR/wattmeter Series

MFJ Compact HF, VHF, UHF SWR/wattmeters

This MFJ

Cross-Needle

SWR/wattmeter covers HF thru VHF --

1.8-60 MHz, 144 MHz, and 440 MHz

bands -- for only 84.95!

MFJ-864’s Cross-Needle Meter reads

forward and reflected power and SWR

simultaneously and features separate HF and

VHF/UHF directional couplers, each with

its own SO-239 connectors.

This lets you connect your HF and VHF/

UHF transceivers at the same time. You can

then monitor SWR and power of either

transceiver at the flick of a switch. Others

have a single set of connectors -- you have

to plug and unplug to use separate HF or

VHF rigs.

Power ranges: 30/300 watts forward

and 6/60 watts reflected. Each power range

for each band is individually calibrated.

Schottky diodes are used for best accuracy.

Single knob operation makes it easy to

use and the meter is lighted for easy read-

ing. Meter uses 12 VDC or 110 VAC with

optional adapter, MFJ-1312D, $14.95.

The all metal cabinet has a tough vinyl

cladding. You won’t find a tougher, longer

lasting finish anywhere. MFJ-864 measures

a compact 71/4 Wx21/2Hx21/4D inches.

MFJ-862, similar to MFJ-864 but covers

144/220/440 MHz. 30/300 Watts forward,

6/60 Watts reflected ranges. 53/4x21/2x21/4

inches. Has one sensor for all three bands.

MFJ-860, similar to MFJ-864 but for

1.8-60 MHz only. Push button selects

30/300 Watts forward, 6/60 Watts reflected.

Compact 41/2x21/4x3 inches.

Handles

200 watts and

measures

SWR and

power in

three power

ranges: 15,

60, and 200 watts. Multi-colored meter

makes for easy reading and is extra large.

Covers 144 and 440 MHz. Insertion

loss is 0.3 dB or lower with 50 Ohm

impedance. SO-239 connectors. Compact

3.75Wx3Hx1.25 D inches. Die-cast metal

with quality connectors.

most popular ham

radio wall clock!

True 24 hour Quartz

movement. Huge 12

inch black face with

large white numerals

give excellent visibil-

ity across room. At-

tractive gold colored hour, minute and

seconds hands looks great on any wall!

MFJ-126, $24.95.

12 hour Quartz

movement gives 12

hour time on inner

dial (for XYL) and

1200 to 2400 hour

time on its outer dial

(for you). Attractive

clean, white face is

highly visible. Has a

real glass cover! Handsome hunter green trim

looks great in any decor. Has seconds hand.

MFJ-107B, $9.95.

24 hour UTC Clock

has large 5/8 inch

LCD numerals.

21/4x1x2 inches. Syn-

chronizable to WWV.

Solid brushed alu-

minum frame lasts for

years. Long life button battery included.

MFJ-

118,

$24.95.

MFJ’s

Jumbo

LCDTM

shows

time in 24 UTC or 12 hour format with

huge 11/4” high-contrast LCD digits.

53/4Wx21/2Hx1/2D in. Also has year, month,

date, and day of week. Choose English,

Spanish, German or French for day-of-week

display. Easy-to-operate. Has 100 year full

calendar. Quartz controlled for excellent

accuracy. Manually snchronize to WWV.

Black scratch resistant case. Mounting

holes for wall mount/flip stand for desk

mount. Use “AAA” battery (not included).

MFJ-112B,

$24.95. This

DXers World

Map Clock shows

you the time at

any QTH

throughout the

world on an at-

tractive LCD

world map.

Also shows

day of week, month, date and year. Time

displays hour/minute/second. Choose

12/24 Hour. Easy push-buttons move you

east and west on the map to display a QTH

in every time zone. Daylight saving time

feature. Attractive grey. Cool blue back-

light for night viewing. Great for gift or

use as logging clock. 41/2Wx33/8Hx21/4D in.

1 year No Matter WhatTM limited warranty.

12 Vdc LED Mobile Clock

MFJ-

116DC,

$19.95.

12 VDC,

plugs in

cigarette

lighter.

Huge

.562 inch green LCD digits! Great for mo-

torhomes and truckers! 12 hour only. Attrac-

tive black cabinet, long cord.

HamGearTM Waistpak

MFJ-6200, $15.95. This

MFJ waistpack is the per-

fect hamfest, DXpedition

or field day hands-free carry-all. Amazing

9 spots to put your ham radio gear, tools,

accessories, refreshments. One size fits all!

HamGearTM HT Pouches

MFJ-18, $29.95. Radio chest har-

ness holds your HT or cell phone

snugly for no worries, hands-free

operation. For rugged action use!.

MFJ-15, $14.95. Durable HT radio

pocket with elastic cord and velcro closure.

MFJ-7224, $9.95. Flashlight

toolbox. 24 piece nut/screw-

driver set with flashlight case.

MFJ-7246, $5.00. Nice 14 pc

reverse ratchet set.

MFJ-7220, $3.00. Cute 12 pc.

Driver bit set.

MFJ-108B

$1995

Ship code A

QSTCatP28.qxd 10/16/2003 11:17 AM Page 1

Compact

radio-con-

trolled clock

is unique. Its

auto daylight

savings time

can be turned

off, a must for

using UTC

time, which

does not “change with the seasons.”

Dual alarms, snooze and bright

backlight. Month/ date display,

indoor temperature (14F-122F).

U.S. time zone map display. Use 2 AAA batter-

ies. 3/4Wx33/4Hx2D in. LCD is 3/4Wx13/8H in.

www.mfjenterprises.com 29

MFJ ATOMIC 24/12 HOUR CLOCKS

• Automatically receive WWVB radio signal from National Institute of Standards and

Technology in Ft. Collins, Colorado for millisecond accuracy • Choose 24/12 Hour time

format or simultaneous dual times • Choose from huge selection of wall, desk mounts

MFJ Atomic Alarm Clock -- SUPER DEAL!

An unbelievable number of features for such a low price!

NEW!

FEATURES:

• Huge 0.563-inch height LCD digits

• Receiver set at 60 kHz for WWVB

•24/12-hr selectable, running seconds display

• Dual Alarm

• 5-Minute ID (Snooze)

• Fabulous backlight

• Month and Date Display

• Indoor Thermometer

(Range 32 to 122 Degrees Fahrenheit).

•Uses two AA 1.5V Batteries (not incl).

• 1 Year NoMatterWhatTM Limited warranty

Desk Mount Atomic 24/12 Hour LCD Clocks

Large Display Wall Mount Atomic 24/12 Hour Clocks

12-inch Atomic 24/12

Hour Wall Clock

This

huge 12-inch

diameter

atomic wall

clock can be

seen from

across the room! It’ll liven up any ham-

shack wall and it automatically receives the

WWVB signal from Ft. Collins, Colorado.

Has both 12 and 24 hour time format dis-

plays. Has second hand with clearly marked

seconds display points. Attractive, clean

white, real glass face is highly visible and

will improve the decor of any room.

Time/Calendar/Temp

Atomic Clock

Atomic 24/12 Hour

LCD Desk Clock MFJ Dual Time Display

Atomic Clock Econo ATOMIC 24/12

LCD Desk Clock

MFJ-

133RC

dual time

zone LCD

clock can

display two time

zones. Lets you read

any two time zones in

24 or 12 hour format. Atomic-controlled for

absolute pin-point accuracy! Features huge

11/8 inch high-contrast LCD numerals easily

read from 6 feet away. Super compact

4Wx3Hx3/4D inches. Super attractive silver

clock folds up and slides in your shirt pocket

for great travelability -- hamfest proven to

wake you up on time.

MFJ

gives you

an excep-

tional bar-

gain that

is loaded with fantastic

features! 24/12 hour

switchable, seconds display, date/day, snooze

button or ingenius ID timer, bright green

backlight for night viewing, US time zone

map display, dual crescendo alarms. Operates

on two AAA batteries -- long lasting (not

included). Super tiny -- pocket camera size,

41/2Wx23/4Hx 11/2D inches. LCD is

21/8Wx11/16H inches. Handsome Jet black,

with silver buttons.

Dual Time Zone

Atomic Clock Solar Powered Eternity

Atomic Clock

This

24/12 hour

wall or

desk

mount atomic clock has

got all the information

you need at a single

glance!

Auto daylight sav-

ings time can be turned

off, when setting clock for UTC.

Metallic blue/silver colored clock (81/2x9

inches) has easy-to-read LCD display. Time

digits are 21/4 inches tall. Running seconds

display. Month, date, day and indoor tempera-

ture is displayed on bottom LCD display.

Easy-to-program. Choose C or F for

temperatures. Use two AA batteries. Mounts

on wall or includes desk mount. Measures

103/4Wx6Hx3/4inches.

Read both

UTC and local

time at-a-sin-

gle-glance with

this MFJ-121

dual atomic

clock. Displays 24/12 hour time simultane-

ously. Mounted in a handsome black, hard-

plastic frame, the MFJ-121 features HUGE,

easy-to-see 2” tall by 11/2” wide LCD numer-

als and also has running seconds display.

101/2Wx8Hx3/4D inches mounts on wall or

desk mount.

Use two AAA batteries -- long lasting! This is

the clock true ham radio operators have been

MFJ’s exclusive solar pow-

ered Eternity Atomic ClockTM

works for an “eternity”! No need

for batteries or to set time! Re-

ceives WWVB signal. Display is a whopping

2Hx63/4W inches. Choose 24 or 12 hour time.

Huge running seconds display. Calendar for-

mat. 103/4Wx6Hx3/4D” looks great on the wall

or desk mount. Attractive tan metallic!

MFJ-132RC

$1495

Ship Code A

MFJ-124

$2495

Ship Code A

MFJ-133RC

$2995

Ship Code A

MFJ-122

$1495

Ship Code A

MFJ-130RC

$2995

Ship Code A

MFJ-121

$6995

Ship Code A

MFJ-123

$7995

Ship Code A

MFJ-131RC

$5995

Ship Code A

QSTCatP29.qxd 10/16/2003 11:21 AM Page 1

30 www.mfjenterprises.com

This MFJ-186RC

has broken through

the high price of

Atomic Wrist

Watches!!!

For an unbelievable $29.95, you

get a beautiful full-featured radio-

controlled watch that rivals the one

your buddies paid $99.95 for!

This MFJ Radio-Controlled

Wrist Watch automatically receives

the WWVB Signal generated by the

US Atomic Clock located in Fort

Collins, Colorado.

MFJ-186RC lets you switch

from 24 hour format or 12 hour format and to different time zones

(Pacific, Mountain, Central, and Eastern). Also has running sec-

onds display and day-of-week and date display.

This MFJ radio-controlled wrist watch has an alarm function

and also can be used as a stopwatch for standard, accumulated,

split-time, or competitor measurements.

Abacklight will illuminate the LCD display for about three

seconds in a brilliant blue.

Year, Month, and Day can be displayed in calendar mode.

MFJ-186RC is water-resistant up to 3 ATM - no more fear of the

rain as you work hamfest security.

Protected by MFJ’s famous “No Matter WhatTM”One year

warranty. MFJ will repair or replace (our option) your watch for

one full year.

MFJ Radio-Controlled Wrist Watch

This Dual Time Ham Radio Watch

displays two time zones simultane-

ously. Movements can be independ-

ently set to the user’s preference.

Quartz accuracy, long-life button battery

included, manually synchronizable with WWV.

Stainless steel adjustable wrist band.

MFJ-182 has a beautiful white face with silver

outer rim and band. Looks great!

Time/Temperature Wrist Watch.

24/12 hour switchable, gives

world time of 50 different cities

and gives typical high/low tem-

peratures for each city in every month of the

year. Automatic current temperature meas-

urement (F or C), has country and/or area

code of each city, has nice backlight for

night viewing. Water-resistant to 3 ATM.

Dual Time Ham Radio Watch Time/Temperature Wrist Watch

New MFJ

Wireless

Weather Station

is an incredible

buy for only

$59.95.

For that price you will get a complete

weather station that will display tempera-

ture, humidity, forecast icon, etc. With

MFJ-192, you’ll have a complete weather

station that will quickly tell you if you need

to grab a sweater, rain coat, or dress down

for sunny weather. Indoor display unit

(4Wx7Hx1D”) will give a quick, accurate

weather forecast in a single glance as you

ragchew. 3.5” base/stand gives a nice

viewing angle. Also can be wall-mounted.

No more worrying about how to dress as

you head out in the morning. A quick

glance at MFJ-192 will tell you to grab a

sweater, winter coat, or make sure you

pack the sunscreen. It lets you quickly

understand that your golf game may be put

off to another day. Uses 2AA 1.5V batter-

ies (not included) for receiver--long lasting!

Two Time Zones, scroll-mode alternates.

Storm Alarm. This is an extremely

impressive feature. Get a warning alarm

when conditions may become threatening.

Gives you a good chance to unplug your

equipment in case of lightning. This is just

the thing for hams that don’t know when to

quit and protect the shack!

Max/Min Temperature Recording.

Pressure Trend. MFJ-192 comes complete

with one outdoor sensor. Additional sensors

can be purchased, MFJ-192S, $19.95 each.

A total of three sensors is selectable. This

allows the monitoring of three different

zone areas of interest within range.

Remote Sensor (outdoor) range (+14F

to +122F). Uses 3 AAA batteries (not

included) for remote--long lasting! Sensor

measures 21/4Wx31/2Hx1D inches. Both

have MFJ’s famous One Year “No Matter

WIRELESS WEATHER STATION for an Incredible $59.95

Displays.....Wind, Temperature,

Humidity, Rainfall, Pressure.......Has

Forecasting Icons....(sunny, cloudy with

sunny intervals, cloudy, rainy). Compass

display for wind speed, wind direction

change, wind chill temperature, air pres-

sure and air pressure tendency. Includes...

Graphic display of air pressure changes

within last 24 hours, rainfall recording

(total 24 hours, last hour), dew point, all

min/max recordings with date/time.

Also has....39 programmable visual and

audible alarms (for example: frost, air pres-

sure, temperature, unstable or stormy

weather), solar powered outdoor wind,

temperature, humidity and rain sensors

with 433 MHz radio transmitter, battery

powered indoor temperature, humidity,

pressure sensors with 433 MHz transmitter,

battery operated receiver -- Displays all

current information at-a-glance on large

high contract LCD.

MORE.....receives signals from up to 9

temperature/humidity sending units (two

included, others optional), all outdoor sen-

sors are solar powered with self-charging

battery backup, FCC approved wireless

sensors transmit over 100 ft. at 433 MHz.

OPTIONS....

MFJ-194RS, $169.95. RS-232

Computer interface for MFJ-194 weather

station.

MFJ Wireless Weather Station ----Wind, Temperature, Rainfall, and More

MFJ-186RC

$2995

Ship Code A

MFJ-192

$5995

Ship Code A

MFJ-182

$1995

Ship Code A

MFJ-185

$1495

Ship Code A

Here’s what you get for $59.95:

Indoor Temperature Range: (+32F to +122F).

Humidity Range: (20% RH to 99%RH)

Humidity Resolution: (1%RH)

Quartz Clock: Accurate, 24/12 hour switch

Date/Day Display (Huge): .563” Time digits

Transmission Range: (100 Feet Max)

Transmission Frequency: (433.92 MHz)

Fabulous Backlight: Brilliant green backlight

Forecast Icons: Sunny, Slightly Sunny, Cloudy,

Rainy, Stormy

NEW! BREAKTHROUGH LOW PRICE!!!

MFJ-194

$39995

Ship Code C

QSTCatP30.qxd 10/16/2003 11:24 AM Page 1

MFJ...The World Leader in Ham Radio Accessories 31

Easy Operation: The most

user-friendly radio you’ll ever

own. Sets up in seconds -- no

microprocessor mumbo jumbo.

Great Sensitivity: New hot-

ter-than-ever superhet receiver

brings weakest signals in at full

volume (super-quiet FET post

amp stage in the IF filter makes this the best

CW receiver going).

Excellent Selectivity: Tight CW band-

width crystal ladder filter fights unwanted

QRM and noise to the maximum.

Smooth and Stable VFO: Wide-spaced

reduction drive VFO capacitor glides slowly

across the easy-to-read dial.

True RIT: RIT control has center-detent -

- makes listening or calling off-frequency a

snap!

Easy on your Ears: Smooth AGC tracks

only the signals you want

to hear -- it never locks

onto strong signals outside

the audio bandpass. MFJ’s

InstantRecovery AGCTM

snaps the receiver back at

full gain after transmitting.

Built-in speaker: High

efficiency 3” speaker driv-

en by 100 mW of audio

gives great volume.

Rugged Transmitter:

Motorola power amplifier

transistor delivers full QRP

output, tolerates opens and

accidental shorts without

damage.

Sinewave Sidetone:

Pure 700 Hz CW sidetone

makes sending as much fun

as receiving!

Semi-QSK: Set adjustable hold transmit/

receive switching to suit your normal sending

speed or set it for full QSK during contests.

Easy to Power: It uses little power --

only 50 mA average on receive and 1.2 amp

peak on transmit. Perfect for battery opera-

tion in remote locations!

Rugged Construction: MFJ CW radios

are built on G-10 double-sided plate-through

PC boards in our plant. Rugged all-metal

cabinet with brushed aluminum front panel

and vinyl clad cover. Frequency

Coverage:

Choose your

favorite band! 40 &

15 Meter models cover

Nov- ice and TechPlus

band segments --

makes a perfect “first

radio” for new

upgrading hams.

MFJ-9040 covers

7.000-7.150 MHz;

MFJ-9030 covers

10.100-10.150 MHz;

MFJ-9020 covers

14.000-14.075 MHz;

MFJ-9017 covers

18.068-18.110 MHz;

MFJ-9015 covers

21.000-21.200 MHz.

MFJ-9040/9030/9020

MFJ-9017/9015

$18995

Each. Choose band.

Ship Code A

Integrated CW Station

Radio, tuner, power pack fasten together to

form a tiny 6X6.5X8.5-in. integrated CW

station.

$364.80 buys

complete CW sta-

tion. Includes CW

transceiver,

$189.95; MFJ-971

tuner, $99.95; MFJ-

4114 power pack,

$69.95; portable

antenna, $39.95 . . .

. order: MFJ-

9140B, 40M; MFJ-

9130B, 30M; MFJ-

9120B, 20M; MFJ-

9117B, 17M; MFJ-9115B, 15M.

$39980 if purchased separately.

MFJ-27, $4.95, carry handle.

MFJ QRP-CubTM

Trans-ceivers use

surface mount technology to achieve big per-

formance in a pocket-sized package.

The kit version has all SMT parts mounted

and soldered. You just insert and solder the

“through-hole” parts such as the connectors,

inductors and trimmer caps.

K1BQT for real world low-power operating

conditions. Buy all or choose from 80, 40, 30,

20, 17, or 15 Meters. Specify band in “XX”

area of model number.

Hot receiver with 0.2 uV sensitivity, low

noise, sharp passband crystal filter,

Differential mode AGC, rock steady, over 80

dB signal range, robust AF output, 2 Watts

thru 20 Meters, 1 Watt 15/17 Meters.

Power adjustable to zero, full QSK for

smooth break-in, natural sidetone, shaped

keying, custom TX offset, receiver passband

center, low power drain. Tiny

33/4Wx11/2Hx41/2D inches. Wired unit covered

by MFJ’s No Matter WhatTM warranty.

MFJ-93XXW, $12995.Wired & tested cub.

Specify band in “XX” portion of model #.

MFJ-4110, $49.95.

Portable AC power sup-

ply. Connect to MFJ

radios. LED indicates

when power is applied.

Output is approximately

13.8 VDC at 1.2 amps.

MFJ-416, $49.95.

CW option kit for your MFJ-9406 six meter

and your MFJ-9402 two meter adventure

transceivers.

MFJ-726, $29.95. Narrow audio filter built

for MFJ CW transceivers.

MFJ-4114, $69.95.

AC Power

supply/Battery Pack

uses Ni-Cd D cells

or alkaline D cells

(not included).

Matches MFJ radios. Output is 13.8 VDC at

1.2 amps. Voltage regulated. Ni-Cd charge

circuit.

MFJ-412, $49.95. Curtis Chip Iambic Keyer

Module for your MFJ 90 Series Transceivers.

Use your MFJ paddles with the MFJ-412 and

your transceiver for complete CW fun!

MFJ 5-watt CW Transceivers

New improved ultra-hot receiver...enjoy DXing or ragchewing wherever you go...brush up

on CW and upgrade...no-compromise performance...at a trrrific price!

Hip-pocket size QRP Cub CW transceiver

MFJ-93XXK

$7995

Kit, Ship Code A

Save $30!

Portable and QRP Power Supplies and Accessories Folded Dipole Antennas for

Your Portable Station

Great SSB/CW Accessories

for your

90 Series MFJ Transceivers

MFJ-1770A

10 Meters

MFJ-1770

15 Meters.

MFJ-1771

17 Meters.

MFJ-1772

20 Meters.

MFJ-1773

30 Meters

MFJ-1774

40 Meters

MFJ-902,

$79.95. Tiny

Travel Tuner,

41/2x21/4x3

inches, fits in

the palm of

your hand!

Handles a full 150 Watts, covers 80-10

Meters, has tuner bypass switch, tunes

nearly anything! Perfect for backpack-

ing, traveling, camping, etc. Great for

rigs like IC-706MKIIG, Yaesu FT-

100D, Kenwood TS-50. See page 6!

MFJ-971, $99.95. 200 Watt PEP

Antenna Tuner also has 6 Watt range

setting for QRP. Covers 1.8-30 MHz.

4:1 Toroid Balun is built in for bal-

anced lines. Stackable with your MFJ-

90 Series Transceivers. See Page 5!

MFJ-561, $19.95. Miniature light-

weight iambic paddle is just 13/4Wx13/4

D 3/4H inches and weighs just 21/2

ounces -- tiny enough to fit in an

Altoids(R) tin (cord and all!) -- great for

traveling with QRP or “big” rigs!

MFJ-402,

$59.95. Ham

radio’s tiniest

electronic keyer

with built-in

iambic paddle!

It’s a nano-size

2x3x1 inches and weighs just 31/2

ounces! Speed adjusts 5-65 WPM,

weight 25-75%, has Iambic mode A or

B, normal or “bug” mode and reverse.

$3995 each!

QSTCatP31.qxd 10/16/2003 11:27 AM Page 1

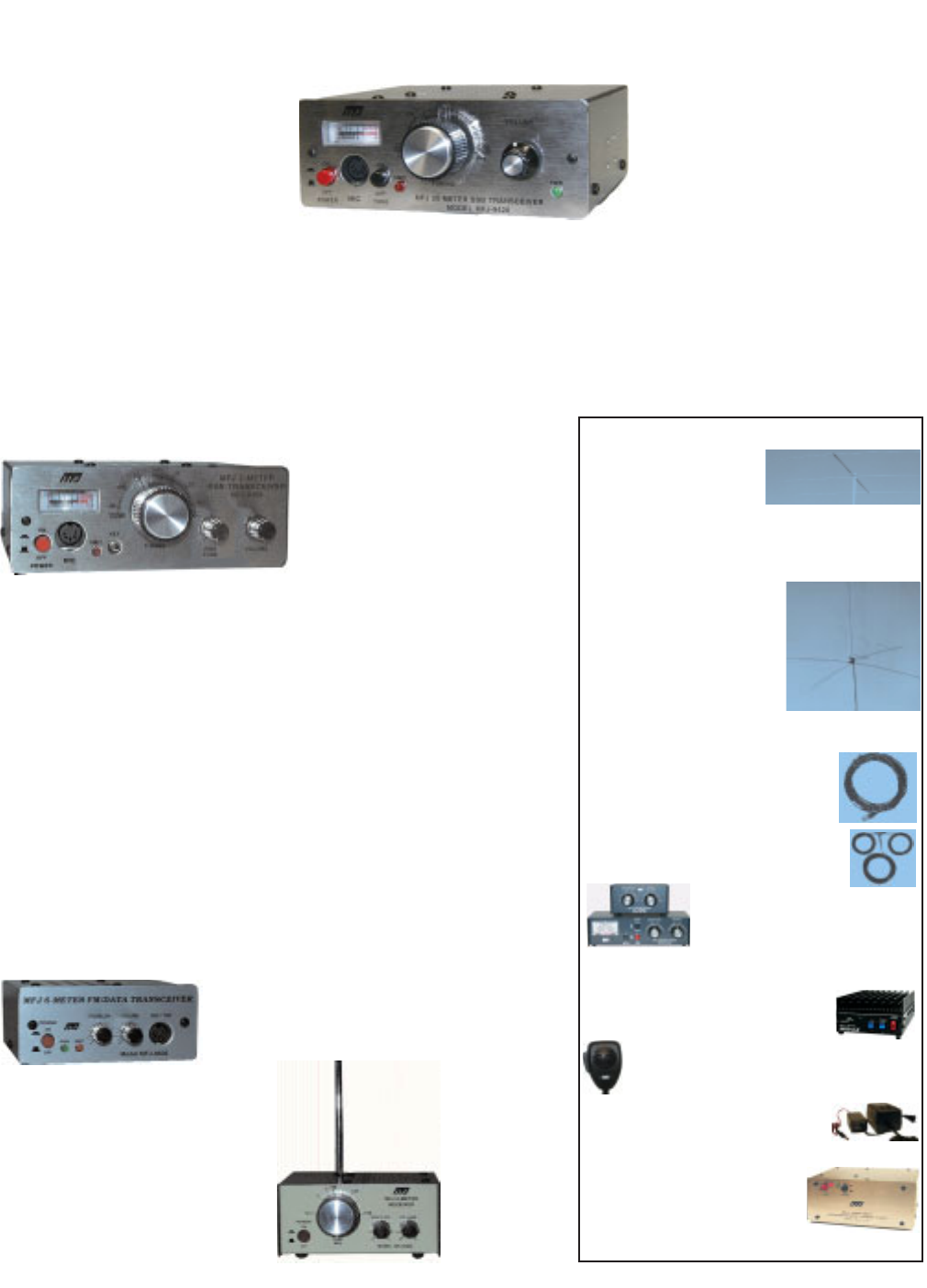

MFJ SSB Adventure Radios MFJ-1762, $79.95. 3-ele-

ment 6 Meter yagi quadru-

ples your effective radiat-

ed power over a half-wave

dipole. 6 foot boom, 2 lbs. Can use TV rotator and

mast. Handles 300 Watts PEP SSB. Mounts verti-

cally or horizontally. Current balun decouples

feedline. Great front-to-back ratio.

MFJ-1756, $79.95. Omni-

directional low-angle vertical

radiator lets you work plenty

of DX in all directions even

with low power.

GroundIsolatedTM radial sys-

tem eliminates common mode

current paths. Reduces unde-

sirable feedline/supporting

structure radiation. 55-inch.

strong aluminum radiator.

MFJ-1736, $29.95. Hang this 6 Meter

J-pole in the clear. Omni-directional

full size 1/2 wave antenna with low

angle radiation beats 1/4-waves.

MFJ-1776, $39.95. Low SWR 6-Meter

folded dipole. MFJ-1770A, $39.95.

(10 Meters).

MFJ-906, $79.95. 6 Meter anten-

na tuner with lighted cross-needle

meter (with MFJ-1312D, $14.95).

100 Watts FM, 200 Watts SSB

PEP. MFJ-903, $49.95, Same as MFJ-906, less

meter (See Page 6).

Mirage A-1015-G 150 watt ouutput

6-meter amplifier with built-in GaAs

FET receiver preamp. $389. Page 59.

MFJ -290 dynamic handheld mic for all MFJ

SSB radios, $29.95 when ordered separately.

MFJ-4110 Portable AC Power

Supply, $49.95, fits in your pocket

and is a perfect companion for radio-

on-the go. 13.8 VDC output at 1.2A.

MFJ-4114 Rechargable AC

Power Supply, $69.95, with bat-

try pack uses Ni-Cad D cells or

alkaline D cells (not included).

Switch-selectable AC or batteries.

Output 13.8VDC, 1.2A. Page 31.

Turn on your new MFJ SSB transceiver

and you’ll marvel at how well it performs.

Weak stations roll in with surprising clari-

ty, faithfully reproduced by a single conver-

sion receiver. On transmit, MFJ’s exclusive

ConstantCurrentTM speech processor cuts

through noise and QRM like a far more com-

plex radio.

Take this performance along on your next

vacation or business trip -- the MFJ transceiv-

er, microphone, power supply, and antenna

can easily fit into your brief case or carry-on

bag.

Simple operation: No microprocessor

mumbo-jumbo -- on the air in minutes!

Great sensitivity: Features a quiet double

balanced mixer front-end, single conversion

clarity and plenty of gain. If a signal is there,

you’ll get it loud & clear!

Analog S-Meter: A real calibrated S-

meter -- not a useless bargraph -- that makes

adjusting an antenna tuner or finding the best

beam heading clear-cut.

Excellent Selectivity:

Eight poles of tight IF fil-

tering cuts adjacent chat-

ter and focuses transmitter

power where you need it.

Smooth VFO: No

annoying synthesizer

jump or obscure keypad commands to deal

with. Effortless tuning, custom reduction-

drive ball-bearing capacitor.

Powerful audio: Big audio -- even in

noisy locations from a special Signetics audio

chip and rugged 3 inch speaker.

Low Current Requirements: You’ll

never have to lug around a heavy power sup-

ply to run this radio.

Rugged Transmitter: Bullet-proof output

transistor runs cool, easily tolerates 3:1

VSWR and feedline shorts or opens.

Built to last: Conservative design, plate-

through PC board, quality components, hand-

some brushed-aluminum panel and a tough

vinyl clad case ensure years of dependable

service.

MFJ-9420 covers 14.150-14.350 MHz,

MFJ-9440 covers 7.150-7.300 MHz, MFJ-

9475 covers 3.750-4.000 MHz. One Watt

audio output at 10% THD.

Draws 50-100 mA on receive and 1.2

amps peak on transmit at 13.8 VDC.

21/2x61/2x6 inches.

MFJ-415B, $49.95. Install this CW mod-

ule and operate CW, a must for DXers.

Provides semi-QSK break-in and sidetone.

MFJ-9420,

MFJ-9440/MFJ-9475

$23995

$249.95 with mic

Ship Code A

MFJ 6-Meter FM CommunicatorTM

The most inexpensive way to get on 6

Meter FM voice or packet! Potent 10 watt

transmitter and CrystalClearVoiceTM puts

fun and fidelity back into ham radio with

true-to-life speech quality and ultra-clean

AFSK data signals.

Super fast PIN diode switching, no

compromise dual-conversion FM receiver

with quiet LNA, factory installed 52.525

MHz calling crystals.

Additional plug-in crystals, $24.95

per frequency.

Put together the MFJ-8400K and

you’ll have a go-anywhere 2-Meter FM

receiver for for pennies. Features include a

low noise, high gain RF preamp, smooth

reduction drive tuning, and a 19-inch tele-

scopic antenna. Has

tune, squelch, and

volume controls,

and speaker.

Quality compo-

nents with glass

epoxy PC board

and all metal cabi-

net. Power require-

ment, 9 VDC. A

tiny 41/4Wx2Hx4D

in. MFJ-8400W

available as a wired

and tested unit.

MFJ-8400K

$7995

Ship Code A

MFJ-8400W

$9995

Ship Code A

MFJ 2-Meter FM Receiver Kit

MFJ-9406 for 6 Meters can economi-

cally open to you the exciting propaga-

tion at 50 MHz, not to mention local

ragchews. And you can take this little set

anywhere.

You get full coverage of 50.0 to 50.3

MHz with power output of 10 watts PEP.

MFJ-9402 for 2 Meters operates SSB

and (optional) CW with 7 watts output,

144.0 to 144.3 MHz.

MFJ-9410 for 10 Meters packs 20

watts SSB PEP output and you’ll be

amazed at the clarity of its receiver. It

covers 28.3 to 28.6 MHz.

Adventure radios are easy to operate:

just turn on and go!

They all sport MFJ’s exclusive

ConstantCurrentTM syllabic speech pro-

cessing for an added 4 to 6 dB of punch.

All three Adventure radios feature sin-

gle-conversion superhet receivers wth a

low-noise front end and double-balanced

mixer to fight intermod and dig deep, and

a 2.3 kHz crystal ladder filter.

All Adventure radios include a built-in

low pass filter to help avoid TVI.

You also get real analog S-meters that

double as speech processing level moni-

tors, analog tuning with no unexpected

rate shifts or stair-stepping, powerful

one-half watt of audio from their 31/2inch

top-mount speakers, and a solid-state

FET switch to key an external amplifier.

They’re energy efficient, operating

from a 2 amp AC supply (3A for the

model 9410) or from a 12 volt battery.

MFJ-416, $49.95. Optional CW

module for all Adventure Radios.

MFJ Adventure Radios are built to last

through their conservative design, premi-

um quality, plate-through PC boards,

quality components, handsome brushed

aluminum faceplate and tough cabinets.

Fit an Adventure Radio just about

anywhere: each is just 2.5X6.5X6 in.

Special offer -- add an MFJ-290

microphone for just $10 more.

32 MFJ...The World Leader in Ham Radio Accessories

MFJ Adventure Accessories

HF SSB Travel RadiosTM are Feature-Packed

...the most powerful 12 watt radios you’ll ever own ... hot receiver ... potent speech processing ...

rugged transmitter ... proven on-air design ... real alalog S-meter ... powerful audio

MFJ-9402

$28995

($299.95 with

MFJ-290 mic)

Ship Code A

MFJ-9406/9410

$25995

($269.95 with

MFJ-290 mic)

Ship Code A

MFJ-9606

$15995

MFJ-9606X

$169.95 w/Mic

Shipping Code A

QSTCatP32.qxd 10/16/2003 11:30 AM Page 1

www.mfjenterprises.com 33

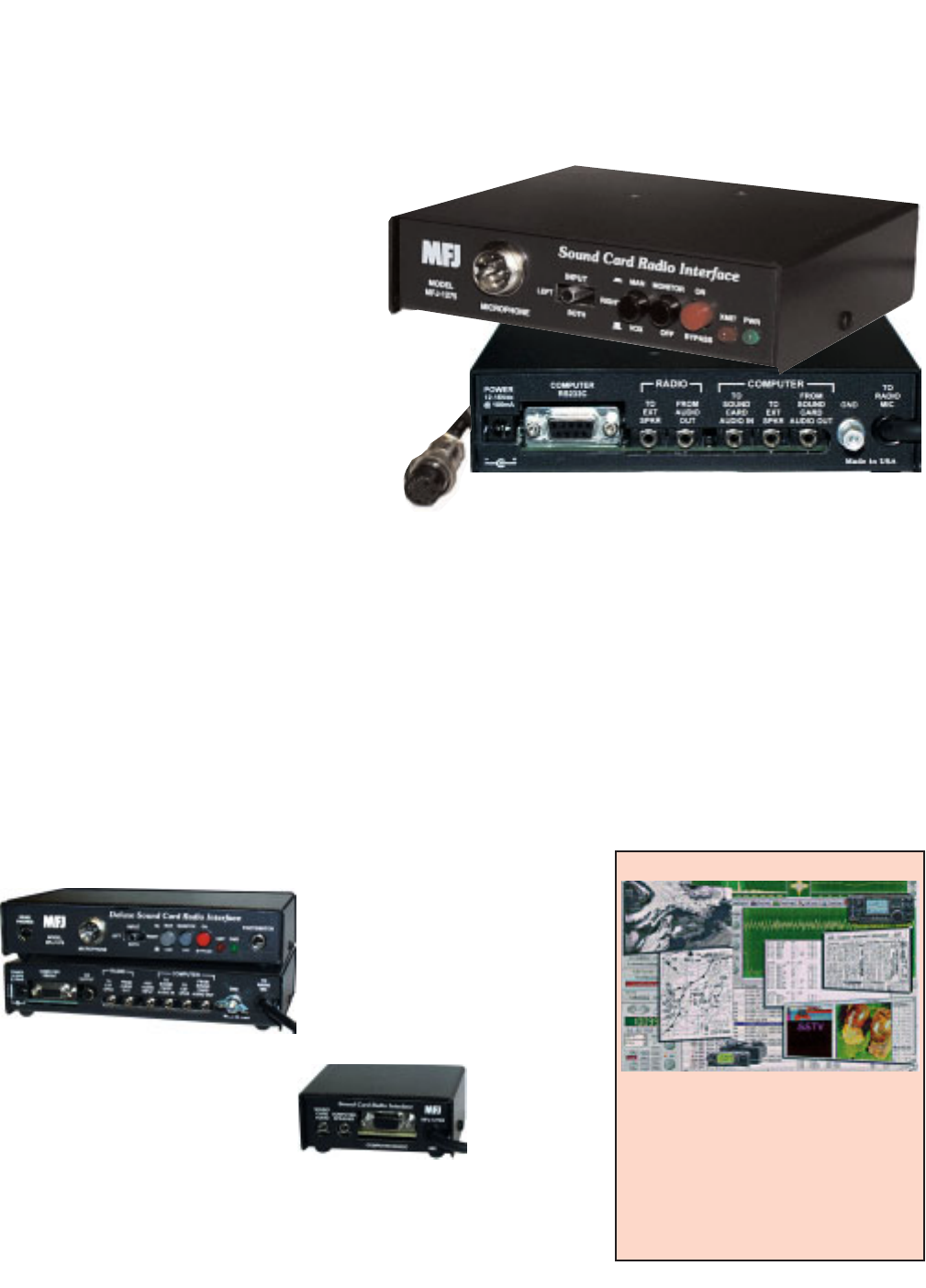

Plug this new MFJ-1275/M/T sound card interface between your

rig and computer and enjoy operating all digital modes.

Everything you need is included -- software, audio

cables, RS-232 serial cable and AC power supply.

Provides fully automatic operation with audio and

push-to-talk control. Matches sound card audio, el-

iminates ground loops and provides mic override.

Models available for all transceivers with 8-pin

round, 8-pin modular (RJ-45) or 4-pin round micro-

phone plugs.

Operate PSK-31, packet, APRS, AMTOR, RTTY, SSTV, CW,

high speed CW Meteor Scatter and many others. Also use as

Contest Voice Keyer and CW Contest Memory Keyer.

Digital Modes or Normal Operation

Select the ON digital mode -- all connections are made between

your rig and computer for instant digital operation.

Select BYPASS normal mode -- your transceiver and com-

puter connections are restored for their normal operation.

Audio Isolation Transformers

Audio isolation transformers and relay eliminate

ground loops, audio hum, noise and distortion.

MFJ Sound Card-to-Rig Interface

Use sound card and rig for all digital modes!

Plug and Play -- includes software, all cables, AC power supply . . . RFI-proof . . . Isolation trans-

formers -- no hum, noise, distortion . . . Operate PSK-31, packet, APRS, AMTOR, RTTY, SSTV, CW,

Meteor Scatter, others . . . Use as Voice Keyer, CW Contest Memory Keyer . . . Monitor On/Off Switch . . .

RFI-Proof

Extensive RF suppression and line iso-

lation eliminates RF feedback problems.

Automatic Microphone Override

Transmit mic audio at any time by

pressing PTT to override digital modes --

great for SSTV and Contest Voice Keyer.

More Impressive Features

Serial port -- lets computer control radio

to override/interrupt digital transmissions.

VOX Control -- lets you use VOX

control when not using computer serial

port control.

Level Controls -- for transmitter drive

and for receiver-to-sound card drive level.

No need to adjust microphone gain or

sound card level when you change modes.

Stereo or Mono Audio Input -- A front

panel switch selects left, right, or both

sound card audio output channels to

accommodate various programs.

Off-the-air recording -- for replaying

or for use with spectrum analyzer programs.

Monitor on/off switch lets you have a

normal QSO and receive SSTV pictures at

the same time in the “monitor on” posi-

tion. This is great for modes like SSTV and

Voice Keyer operation that may require lis-

tening to receive audio during operation.

Rugged Construction -- All aluminum

cabinet and surface-mount construction

gives you years of trouble-free service.

Use any Transceiver

Internal jumpers program microphone

wiring for any brand or model radio -- no

soldering required. Order MFJ-1275 for 8-

pin round mic plug. Order MFJ-1275M for

8-pin modular mic (RJ45) plug.

NEW! Order MFJ-1275T, for 4-pin

round mic plug, for Ten-Tec and others.

Plug and Play!

Everything you need is included --audio

and RS-232 cables, AC power supply and a

CD with a collection of the most popular

amateur radio software to operate PSK-31,

RTTY, SSTV, PACKET, AMTOR, CW,

HSCW Meteor Scatter, Contest Voice Keying

and other modes.Use 12 VDC or 110 VAC.

No Matter WhatTM Warranty

Protected by MFJ’s famous No Matter

WhatTM one year limited warranty. MFJ will

repair or replace (at our option) your MFJ-

1275/M/T no matter what for one full year.

Try it for 30 Days

Order from MFJ and try it -- no obliga-

tion. If not delighted, return it within 30

days for refund less shipping.

This super sound card

interface has all of the fea-

tures of the MFJ-1275

plus . . .

• Auxiliary Input Jack: Lets you switch

your sound card from MFJ-1279 so you

can use your sound card for something

else. No more plugging/unplugging!

• Direct CW/FSK Keying Jack: Allows

direct CW or FSK keying operation.

• Headphone Jack: Use your stereo head-

phones so you won’t disturb your XYL

(also turns off external speaker).

• Footswitch: Use footswitch or other for

PTT (push-to-talk) when not using VOX.

Plug and Play! Includes software CD,

RS-232 and audio cables, AC power supply.

Order MFJ-1279 for 8-pin round mic,

MFJ-1279M for 8-pin modular (RJ-45)

mic, MFJ-1279T for 4-pin round mic. Add

“X” suffix for 220VAC.

MFJ-1296, $119.95. RadioCom4 inte-

grates PSK31, SSTV, FAX/Sat FAX, RTTY,

SITOR, DSP audio filters and radio control.

MFJ-1298, $199.95. RadioCom5 -- all

features of RadioCom4 plus DSP Audio

Filter analyzer, Spectrum Analyzer, Dual

Scope Display, Sound Recorder, Time and

Frequency Management, Frequency Analyzer,

3D Scanner, Satellite tracking, Rig Control

for over 80 radios, more! Free demo at:

www.mfjenterprises.com/freedemo.php

Plug and Play!

Has sound card,

radio, speaker, RS-

232 jacks. Includes:

software CD and

RS-232, audio, mic

cables. No external power need-

ed. Has no mic jack or mic

switch. Order MFJ-1273B for 8

pin round mic, MFJ-1273BM for

8-pin modular (RJ-45) mic, MFJ-1273BT

for 4-pin round mic.

Super Sound Card Interface DSP Sound Card Programs

Basic Digital Interface

MFJ-1279/M/T

$12995

Ship Code A

MFJ-1275/M/T $9995 Ship Code A

MFJ-1273B

$5995

Ship Code A

QSTCatP33.qxd 10/16/2003 11:32 AM Page 1

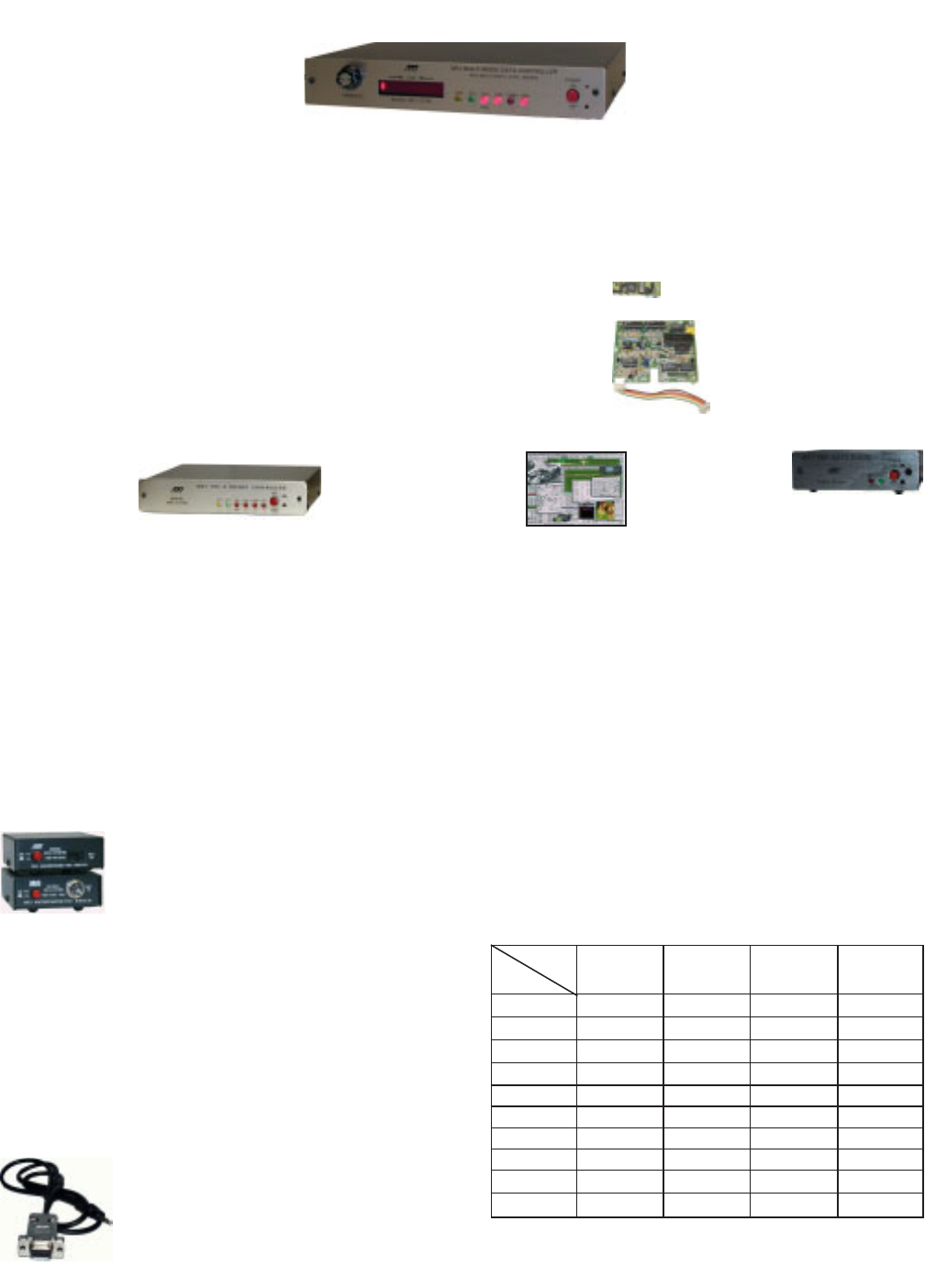

34 www.mfjenterprises.com

The world’s most powerful multi-mode data controller!

World class MFJ-1278B with built-in

“brick wall” DSP filters, GPS compatibility

and ten digital modes makes this the most

powerful data controller in ham radio!

You won’t believe your eyes when you

see solid copy from signals completely

buried in QRM! The MFJ-1278B/DSP,

your transceiver and computer are all you

need for exciting digital QSOs! Discover a

whole new world -- communicate in ways

you never knew existed!

Marvel at full color FAX news photos

as they come to life on your screen, and

you’ll see weather changes on highly

detailed weather maps in all 16 gray levels.

Eavesdrop on late-breaking news!

You’ll have fun joining worldwide

Packet networks and exchanging color

SSTV pictures with your buddies.

You’ll enjoy error-free HF QSOs on

PACTOR AND AMTOR and enjoy receiv-

ing packet mail in your mailbox.

Want to copy some CW? Just relax

and read your screen.

MFJ-1278B/DSP gives you DSP and

11 digital modes -- PSK31, Packet,

PACTOR, AMTOR, RTTY, Color SSTV,

16 Gray Level Fax/Weather FAX, ASCII,

Navtex, CW, Memory Keyer and is GPS

compatible. Order today, get the most pow-

erful multi-mode data controller in ham radio!

MFJ-1278BT, $339.95, gives you a

built-in 2400 baud modem. Runs high

speed packet without modifying your radio.

Operate 300/1200/2400 baud packet.

Optional MFJ-1278/B Accessories

MFJ-1289H, $79.95. Host program

supports all digital modes plus PSK31.

Syncs with popular logging programs. Tool

bar, Hotkeys, user-defined macros, more!

MFJ-1289W, $59.95. MultiComTM for

Windows. Control 2 TNCs at the same

time in separate windows!Send, receive

true color SSTV Scotty 1, Scotty 2, Martin

1, Martin 2, and Robot 72 pictures. Great

Multi-gray level FAX pictures and weather

maps, Packet BBS, PacketClusterTM,

MFJ-43, $9.95. Real-time clock. New low price!

MFJ-44, $14.96. Plug-in scope tuner.

MFJ-780, $99.95.

Plug-in DSP board MFJ-1278/B.

MFJ-2400, $19.95. 2400 baud

packet modem. Faster commu-

nication lessens congestion on

crowded bands. TNC still gets

300/ 1200 baud for compatibili-

ty with other TNCs.

MFJ-1278B/DSP

$38995

Ship Code B

MFJ-1278B (no DSP)

$30995

Ship Code B

MFJ MultiCommHostTM Software

MFJ brings you the

world’s first 32 bit terminal

software for MFJ family and

other TAPR TNC2s. MFJ

MultiComm HostTM software

gives you true multitasking in Windows

95/98/NT/2000 and XP! Includes PSK31!

Uses standard Windows commands.

Adds PSK-31 support! Syncs with popular

logging programs. All modes and features

are just a mouse click away! Hotkeys, user

defined macros, interface to all of the cur-

rent callbook CDs, quick connects, more!

MFJ-1289H, $79.95. MultiCommHostTM

software for MFJ Multimode TNCs.

MFJ-1284H, $49.95. Packet only Host

mode software for MFJ-1270C.

• For MFJ-1270/1276/1278 TNCs and TAPR

TNC2 with 1.1.x firmware/BLP Host Mode.

MFJ-52B, $39.95. Plug-in board for

your TNC configured as TheNet X-1J Node.

Check rig packet deviation, temperature &

voltage. Requires X-1J or later nodeware.

PSK31 with MFJ-1289H

Switch

between your TNC or Mic by

pushing a button!

Plug these pre-wired cables into

your rig’s microphone connector

and into your TNC and you are

ready to go -- no more hard-to-

find connectors and wiring up

cables -- no more plugging and

unplugging to work voice/packet!

Works with HF, VHF and UHF

radios with 8 pin mic connectors --

including Kenwood, ICOM, Yaesu,

Alinco, Radio Shack, and others.

Plug-in jumpers let you quickly

set-up for any radio. Factory set

for Kenwood and Alinco.

Has audio-in and speaker jacks.

Compact 31/4x11/4x4 inches.

Select M model for Modular

microphone; B is 8-pin round mic.

MFJ-1272B/M, $39.95, for

MFJ TNC/multimodes, TAPR

TNC-2 clones. MFJ-

1272BX/MX, $39.95, for PK-232.

MFJ-1272BYV/MYV, $39.95, for

KAM VHF port/KPC3. MFJ-

1272BYH/MYH, $39.95, for

KAM HF port/KPC3.

MFJ PacketOnlyTM transceivers

Why tie up your

expensive 2 Meter rig on

a single packet channel?

Enjoy dedicated high quality packet 1200 to

9600 baud on 2 Meters, 24 hours-a-day!

MFJ’s data radios are compatible with all

TNCs with hardware DCDs and most TNCs

with software DCDs. It couldn’t be easier --

just plug in appropriate cable your antenna,

12 VDC and you’re ready to go!

MFJ-8621, $149.95. Ready-to-operate on

145.01 MHz. Order other plug-in crystals

for just $24.95 per frequency.

MFJ-8621X2, $159.95. Ready-to-use for

APRS. Crystals pre-installed and trans-

ceiver precisely aligned. 144.390 MHz.

MFJ-8631, $169.95. PacketOnlyTM 220

MHz. Has all the features of the 2 Meter

version, ready-to-operate on 223.700 MHz.

MFJ-9606X, $169.95. Voice or packet with

MFJ’s new 6 Meter FM CommunicatorTM

Transceiver. Crystalled for 52.525 MHz

calling frequency. Easy crystal re-channel.

MFJ-1272B/M

$3995

Ship code A

The world’s most reliable VHF/

MFJ-1270C, $169.95.

Thousands are

dedicated as digi-

peaters, nodes, BBS and used in commercial

applications working 24 hours a day--many a

decade old are still in service.

All software and hardware designed for

the TAPR TNC-2 standard works with the

MFJ-1270C without modification, including

NETROM, theNET, X1J, and Rose Switch.

True DCD circuit greatly reduces sensitivity

to noise. Increases completed QSOs. Anti-

CollisionTM Technology stops packet collisions.

32K RAM/256K ROM, spkr jack, lithium

battery backup, RS-232 and TTL serial ports.

MFJ-1270CT, $189.95. Same as MFJ-

1270C, but has built-in 2400 baud modem.

MFJ-1284H, $49.95. MultiCommHostTM

packet only. 32-bit software, true multi-tasking.

MFJ-1284W, $29.95. MultiComm for

Windows. Software and RS-232 Cable.

MFJ TNC/Microphone Switch

Alinco8/Strd HT

Icom1/Yaesu/

RadioShack HTs

Kenwood2HTs

Yaesu 8-pin

Icom38-pin

Kenwood/Alinco

8-pin

Yaesu

8-pin modular

Icom4

8-pin modular

Kenwood

8-pin modular

Radio Shack

8-pin modular

Pre-wired Radio-to-TNC cables . . .

PK900/PK96/

PK12/DSP232

/PacComm/

other TNC-2

compatibles

PK-232

KAM VHF5/

KAM HF5/

KPC35/

KPC96125

All MFJ

TNCs and

Multimodes

Radios

TNC

TYPE

MFJ-5022

MFJ-5024

MFJ-5026

MFJ-5080

MFJ-5084

MFJ-5086

MFJ-5080M

MFJ-5084M

MFJ-5086M

MFJ-5088M

MFJ-5022YV

MFJ-5024YV

MFJ-5026YV

MFJ-5080YV

MFJ-5080YH

MFJ-5084YV

MFJ-5084YH

MFJ-5086YV

MFJ-5086YH

MFJ-5080MYV

MFJ-5084MYV

MFJ-5086MYV

MFJ-5088MYV

MFJ-5022X

MFJ-5024X

MFJ-5026X

MFJ-5080X

MFJ-5084X

MFJ-5086X

MFJ-5080MX

MFJ-5084MX

MFJ-5086MX

MFJ-5088MX

MFJ-5022

MFJ-5024B

MFJ-5026

MFJ-5080Z

MFJ-5084Z

MFJ-5086Z

MFJ-5080MZ

MFJ-5084MZ

MFJ-5086MZ

MFJ-5088MZ

1. does not include IC-W2A

2. does not include 2500

3. does not include 25A, 255A

4. does not include IC-100H, IC-2700H

5. YV for KAM VHF port, YH for KAM

HF port. Other Kantronics use YV

6. YV for KP9612 1200 baud port

7. YH models for KPC9612 9600 baud port

8. Excludes DJ-100, 120T, 200, 500

Pre-wired Radio to TNC Cables

New accessory port cables, $19.95 each. MFJ-5063 (Icom HF 8

pin to TNC2s). MFJ-5064 (IC VHF 8 pin to TNC2s). MFJ-

5065 (IC-706 13 pin to TNC2s). MFJ-5060 (Ken, Yaesu, Azden

6 pin mini to TNC2s). MFJ-5066 (Ken 13 pin to TNC2s).

Pre-Wired Radio to Computer Interface Cable

Convenient pre-wired transceiver to

computer interface cable has serial inter-

face built-in! MFJ-5383K, Kenwood and

compatibles. MFJ-5383I, Icom and com-

patibles. MFJ-5383Y for Yaesu standard

6-pin DIN, MFJ-5383YB for Yaesu 6 pin Mini DIN.

MFJ-5383

(I, K, Y, YB)

$$44999955

Ship code A

HF Packet TNC

QSTCatP34.qxd 10/16/2003 11:34 AM Page 1

MFJ . . . The World Leader in Ham Radio Accessories 35

MFJ Deluxe Headset MicrophoneTM adds professionalism

Walking

through an

airport, at

home, or in

your car, this MFJ

deluxe headset gives

you the ability to

carry on a private

QSO while doing

other things.

The microphone

can pick up your

voice, whether booming or at a quiet whis-

per when placed appropriately near your

mouth.

The earphone gives superb tonal quality

so even distant stations will come in loud

and clear.

Made of sturdy black plastic and strong

metal sliders, one size fits all!

Superb speaker and mic foaming pro-

tects the mic and speaker elements as well

as making the ear fit very comfortably.

You could wear this headset all day long.

It’s perfect for mobile use with single ear

design.

Small PTT switch can be conveniently

attached to your shirt or pants pocket. Has

six feet of cord from headset to plug.

MFJ-288I fits ICOM, Yaesu (not FT-

50R), ADI, Alinco, Radio Shack and other

compatibles. MFJ-288K fits Kenwood and

compatible handheld radios. MFJ-288Y

fits VX-5R, IC-Q7A and compatibles.

New! MFJ-288R, $24.95, fits new

Yaesu VX-7R handheld transceiver.

This MFJ

Neckset

Microphone

doesn’t

mess up your hair!

Naturally hidden from

view behind your neck.

Superb speaker and

mic foaming protects the

mic and speaker ele-

ments as well as making the ear fit very

comfortable. A mic element is attached to

the neckset with flexible extension.

Small PTT switch can be conveniently

attached to your shirt or pants pocket.

MFJ-282I fits Icom, MFJ-282K fits

Kenwood, MFJ-282Y fits Yaesu FT10R/40R

/50R/VX-1R/VX-5R and Icom Q7A radios.

MFJ Featherweight Earbud/Mic

MFJ Neckset BoomMicTM

Here’s a top quality

speaker mic that’s perfect

for those popular and tiny

new Yaesu, Icom, Ken-

wood, Alinco, ADI and

compatible handheld trans-

ceivers.

Fits perfectly in your hand and gives

booming receive audio so to monitor sta-

tions while the microphone is attached to

your lapel -- no more holding the speaker

up to your ear!

MFJ’s high-quality non-directional

electret condenser microphone gives your

handheld crystal clear transmit audio.

The MFJ-295 Microphone has -53 dB

sensitivity and 1K Ohm impedance.

Excellent top quality speaker produces 83

dB of crystal clear receive audio. 8 Ohm

impedance.

Built-in earphone jack, top quality PTT

thumb switch, 8-position swivel lapel clip,

31/2feet of durable, stretchable cord. Made

of high-impact plastic. Water resistant.

Black mic and cord, protective bend points.

MFJ-295Y, Yaesu, Icom, single pin plugs

like Yaesu VX-5R and Icom Q7A. MFJ-

295I, Fits Icom and compatibles. MFJ-

295K, Fits Kenwood and others.

New! MFJ-295R, $19.95 fits new

Yaesu VX-7R handheld radio.

MFJ Speaker Microphones for New Yaesu, Icom, Kenwood HTs

MFJ-295

(Y, I, K,)

$1595

Ship Code A

MFJ-295R

(VX-7R only)

$1995

Ship Code A

Finally

. . . a

secure

and com-

fortable earbud and

boom microphone

that’s as small and

inconspicuous as your

radio! No more gaudy,

oversized headsets or

massive handheld

speaker microphones!

This tiny earbud

features a secure and comfortable rubber

flex earloop design and 5 inch flexible

boom microphone that adjusts perfectly to

your mouth. The earloop secures your ear-

bud for a comfortable fit so there’s no more

worrying about it falling out of your ear.

It’s perfect for monitoring your receive

audio when you are in a loud environment.

MFJ-293’s special rubber flex earloop

design adjusts to fit the right or left ear (big

or small) very securely and comfortably.

Made of a sturdy black polyurethane and

comfortable rubber earloop, it’ll give years

of dependable use. Tiny thumb-sized PTT

switch is built right into the 6 feet of cord.

MFJ-293 (I) fits Icom and compatibles.

MFJ-293 (K) fits Kenwood. MFJ-293 (Y)

fits Yaesu FT10R/40R/ 50R/VX-1R, Icom

IC-Q7A, other radios using single plug-ins.

MFJ-293 (R), $24.95, fits Yaesu VX7R.

All have MFJ one year limited warranty.

MFJ Featherweight earbud Boom MicTM

MightyMic

is a super speaker

microphone for those tiny and popu-

lar miniaturized handheld radios on

the market today like Yaesu’s VX5R

and Icom’s Q7A.

Tiny PTT thumb switch with

speaker/microphone and lapel clip all

fits between two fingers. Tiny 19”

retractable cord stretches to 4 feet.

This is the perfect speaker/micro-

phone for concealment. You’ll look

like an FBI agent when you work

with this streamlined product!

An 8-position swivel lapel clip

lets you position and secure the

microphone to your shirt or coat

comfortably.

MFJ-294I for Icom and compati-

bles, and older Yaesu HTs.

MFJ-294Y for

Yaesu

FT10R/40R/50R /VX-1R/VX-5R,

Icom IC-Q7A, other radios using

single plug-ins.

MFJ-294K for

Kenwood and compatibles.

MFJ MightyMicTM speaker microphone

CLOSEOUT!

SPEAKER MICS

MFJ-287 for Kenwood

MFJ-286 for Kenwood

MFJ-285 for Icom W-2A

MFJ-285WC for Alinco

Credit Card Radio only

$900 EACH!

Ship Code A

MFJ-288 (K, I, Y, R)

$2495

Ship Code A

MFJ-284, $39.95, same

as MFJ-293, but adds an

FM broadcast scan radio

inside the tiny PTT switch.

Lets you catch up on the

news or listen to music or

sports while monitoring a 2-

Meter operating frequency!

Auto switches from FM to

HT audio when monitoring

frequency is detected. Batteries included.

Order MFJ-284I for Icom, MFJ-284K for

Kenwood, and MFJ-284Y for Yaesu VX5R

family and Icom Q7A single plug HTs.

MFJ’s Feather-

weight Earbud/Mic

has a tiny earphone

and thumb-size

mic/PTT switch

built right into the cord.

Barely noticeable and so

lightweight you won’t know

it’s there. Get crystal clear

receive/transmit audio out

of an ultra light (30 grams) speaker. Non-

directional electret condenser mic has -64

dB sensitivity, 1.1K Ohm impedance. 4 ft.

cord. MFJ-292I fits ICOM, Yaesu and oth-

ers; MFJ-292K for Kenwood; MFJ-292Y

for Yaesu FT-10R/40R/50R/VX-1R/VX5R.

New! MFJ-292R, $19.95, fits Yaesu VX-7R.

MFJ-293

(K/Y/I/R)

$2495

Ship Code A

MFJ-292

(I,K,Y)

$1795

Ship Code A

MFJ-282(I,K,Y)

$2495

Ship Code A

MFJ BoomMic/FM Scan Identify your speaker/mic model

MFJ uses the letters I, K, Y and R to

denote what connector is on the speaker

mic. Iis for Icom, some Yaesu, Radio

Shack, ADI and most Alinco. K is for most

Kenwood. Y is for Yaesu VX5R series and

Icom Q7A. R is for the new Yaesu VX7R.

I K Y R

New “R”

Fit VX7R!

MFJ-294 (I, K, Y)

$1695

Ship Code A

QSTCatP35.qxd 10/16/2003 11:38 AM Page 1

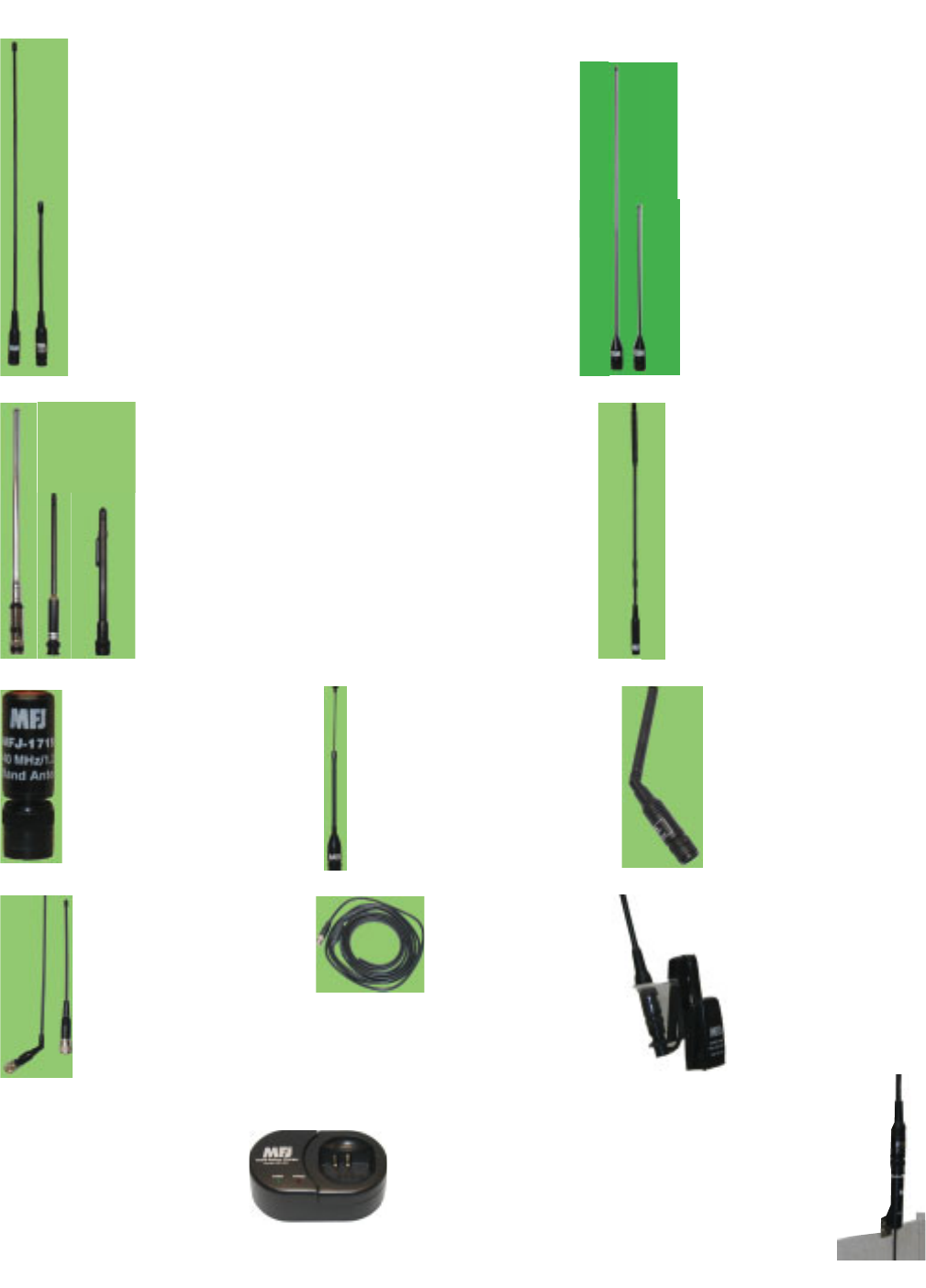

36 MFJ . . . The World Leader in Ham Radio Accessories!

A. MFJ-1714, $16.95.

For really long range

this endfed halfwave

2-Meter is hard to

beat! Outperforms a

5/8 wave on an HT

because the 5/8 wave

needs a ground

plane. Collapsed

(10.5 inches) it per-

forms like a rubber

duck. 40 inches

extended gives you

LongRangerTM

performance!

B. MFJ-1712,

$14.95. This tele-

scopic Dual Bander

is for 144/440 MHz.

It’s a 1/4wave on 2

Meters, 5/8 wave

with gain for 440

MHz. 71/4inches

collapsed acts like a

rubber duck antenna.

19 inches extended

gives you superior

performance. Easy to

fold up and put

away!

C. MFJ-1710, $9.95.

The PocketLinearTM

is a pen sized 3/8

wave for 2 Meters!

Carry this antenna in

your shirt pocket like

a ball point pen with

pocket clip. When

you rubber ducky on

your HT just won’t

receive well, pull it

out, extend to 24”

and carry on your

QSO. Tiny 51/4

inches collapsed.

MFJ’s handheld “Rubber Duck” antennas

MFJ-641, $49.95. RapidBatteryTM Charger

has both quick and trickle charging

and will charge Ni-Cad or Ni-MH

batteries. Has charging status LED

indicators. Automatically switches

from quick to trickle charge.

31/2x51/2x3 inches. Interchangeable

charging cups make charging sever-

al makes of HTs possible. Simply change the

cup and pop in your battery. Your MFJ

Charger is supplied with one charger

slot, MFJ-641(I2) for BP-131/132; (I3)

for BP-173/180; (Y2) for FNB-

10/11/12/17/27; (Y3) for FNB-31/33;

(Y4) for FNB-40/41/V47/V49; (K) for

Kenwood PB and KNB battery types.

Additional charging cups are $9.95

each. Call for more details on adapters.

MFJ-312, $9.95. Get your

antenna up in-the-air! Clip this

HT antenna extension cable on a

tree limb, outside your car win-

dow, just about anywhere! Gets

better received and transmitted

signals! BNC connectors on

both ends. 31/2feet of

tough mini coaxial line.

MFJ RapidBatteryTM Ni-Cd/Ni-MH Battery Chargers

MFJ-1717PL, $24.95. Plug into

a 2 Meter/440 MHz mobile/base

rig -- not a 10-element yagi but

it’ll get you out in a hurry! Fold-

over, flexi-duck, PL-259. 2 dBi

gain on 440 MHz, full-size 1/4

wave 2 Meter. Hi-Q, low loss

construction. 161/2”, hard safety

tip. Watts PEP. MFJ-1717P,

$24.95. Like MFJ-1717PL, but no

fold-over. Has straight PL-259.

MFJ-1730, $19.95. Roll

up this 1/2 wave 2-Meter

antenna and stick it in your

pocket. Vacations, camp-

ing, etc. Get home station

performance on-the-go!

Hang in a tree, plug the BNC into your HT

and enjoy some great QSOs. It’s omni-

directional and has significant gain over a

1/4wave. Doesn’t need a cumbersome

ground plane so it’s convenient for indoors.

MFJ-310, $14.95. This

HT Window Mount gets

your antenna outside where

it can radiate freely -- takes

away auto shielding effect

and gives increased signal

strength and reception. Use

144/440 MHz HT with BNC

connector. 10 ft. mini RG-58

coax. Mount safely rolls up

inside auto window.

MFJ-1719/MFJ-1719S, $19.95.

This HT Antenna is truly amazing

for its size! Pound for pound, it’s

the best antenna around. Less than

1” tall, it’s greatt for traveling and

monitoring calls. It doesn’t get in

your way! Receives and transmits

on 2 Meter/440 MHz. Also re-

ceives great signals at 1200 MHz.

MFJ-1719, BNC connector or

MFJ-1719S, SMA connector.

MFJ-1816, $9.95. This special HT

antenna is both flexible and telescop-

ic at the same time! It extends to

improve your range or collapses to

act like a rubber duck; plus it takes

all the bending, twisting and tugging

you can dish out! Dual band,

144/440 MHz coverage with BNC

connector only. 6” long collapsed,

81/2” extended for long range. Great

for on-the-go camping/hiking.

MFJ-1812, $19.95. Dual band

144/440 MHz HT antenna com-

bines telescopic and foldover

features in a single antenna.

Extends to improve range plus it

folds over to get out of the way

of your gut. MFJ-1812 is just

6” retracted and 16” extended.

High Q low loss construction,

super durability for years of use.

MFJ-1720S, $29.95. MFJ’s Triple

Band HT FlexiDuckTM antenna is a

whopping 19 inches tall -- it’s big

enough to deliver a powerful signal

for 2 Meters, 440 MHz, and 6 Meters!

It’s a 5/8 Wave on 440 MHz to give

you a hearty 3.2 dBi gain. On 2

Meters you get a 1/4 Wave antenna

with 2.15 dBi gain. On 6 Meters you

get an efficient full size 1/4 Wave

antenna for full-size performance.

Precision-tuned at the factory for low

SWR. High-Q, low loss construction

gives you maximum radiated power.

10 Watts. SMA Connector only.

A. MFJ-1715, $24.95. Tie it in a

knot . . . when you use it, it’ll bounce

back in shape -- you can’t break it!

It’ll take all the bending, twisting,

flexing and tugging you can dish

out, and just pop right back up.

This MFJ-1715 121/2” SuperFLEXTM

radiator is a 1/2wave on 440 MHz --

gives a hearty 2.15 dBi gain. On 2

Meters, you get an efficient full size

1/4wave antenna. Safety tip, durable

synthetic rubber compound. Add

“S” for SMA connector.

B. MFJ-1713, $19.95. 51/2” radia-

tor is similar to MFJ-1715 except

for gain on 440 MHz.Quarter wave

on 440 MHz and an efficient loaded

Quarter wave on 2 Meters. Add

“S” for SMA connector.

High Gain Dual Band HT Flexible Duck Antennas

A. MFJ-1717, $21.95.

The World’s best selling HT antenna! When other rubber ducks just give

you noise, you’ll enjoy dependable QSOs with the MFJ-1717. Only 153/4

inches in length, it’s a halfwave on 440 MHz that gives you a hearty 2.15

dBi gain. On 2 Meters, you get an efficient full-size 1/4 wave antenna for

full size performance.

MFJ-1717 is precisely tuned at the factory for low SWR. High-Q, low

loss construction gives you maximum radiated power! BNC connector. It’s

rugged! It’ll take all the bending, twisting, flexing and tugging you can

dish out, and just pop right back up.

The radiator is protected by a durable synthetic rubber compound and has

a hard protective safety tip.

Astrong rigid base protects the matching network from flexing and chang-

ing frequency. SMA or BNC connector models.

B. MFJ-1716, $16.95. Dual band 144/440 MHz Flex duck is similar to

MFJ-1717. 71/2in. length, 1/4 wave on 440 MHz and loaded 1/4 wave on 2

Mtrs. BNC. Order MFJ-1716S/1717S for SMA.

MFJ-1716V, $9.95. Same as MFJ-1716, but for 2-Meters only. BNC.

MFJ-1716VS, $9.95. Same as MFJ-1716V, but with SMA connector.

HT Antenna Window Mount

MFJ 2-Meter Pocket Roll-up

Back-of-Radio 144/440 Base

Foldover Telescopic HT antenna

MFJ Triple Band FlexiDuckTM

MFJ Telescopic Handheld Antenna Range Extenders

MFJ SuperFlex ThinDucksTM

MFJ TeleFlexTM HT Antenna

SmallWonderTM HT Antenna

HT Antenna Extender

QSTCatP36.qxd 10/16/2003 11:44 AM Page 1

www.mfjenterprises.com 37

Work DX

walking

about!

This MFJ

Walkabout

antenna is designed for the FT-

817 and other QRP rigs.

Covers all bands 80 Meters

through 6 Meters including

WARC Bands.

Its ten section telescoping

whip is 52 inches fully extend-

ed and is 7 inches when col-

lapsed.

The whip unscrews from the

12 inch base loading coil. It is

ultra-compact for easy travel-

ing. Handles 25 Watts.

You change bands by plug-

ging the “wander lead” into the

appropriate socket on the base

coil. Fine tuning is done by

adjusting the telescopic whip.

Has BNC connector. Use

adapter for SO-239.

Highly effi-

cient single

band

Walkabout

antennas for

the FT-817 and other QRP rigs

let you work exciting DX no

matter where you are!

Each 10 section telescoping

whip is 51 inches fully extend-

ed and collapses to 51/2 inches

and screws into a base loading

coil. Handles 25 Watts. Has

BNC connector. Use adapter

for SO-239.

MFJ-1806T, $29.95 (6M)

MFJ-1810T, $39.95 (10M)

MFJ-1812T, $39.95 (12M)

MFJ-1815T, $39.95 (15M)

MFJ-1817T, $39.95 (17M)

MFJ-1820T, $39.95 (20M)

MFJ-1830T, $39.95 (30M)

MFJ-1840T, $49.95 (40M)

MFJ-1880T, $49.95 (80M)

MFJ-4103 Miniature

Switching Power Supply

can deliver up to 40 Watts

(13.8 VDC at 2.89 Amps)

of reliable power any-

where in the world. Incredibly tiny --

41/8X 25/8X13/8” and weighs just 10oz.,

including power cord, connector. Output

DC cable with a standard coaxial DC power connector

(2.1mm ID, 5.5mm OD). Fits MFJ, most rigs/accessories.

Sturdy adapter cable included for Yaesu radios. The

MFJ-4103 has excellent specs and out performs all other

switching power supplies made for the FT-817. Perfect

for QRP rigs needing up to 2.89 Amps.

Works for input voltages 100-240 VAC and power

line frequencies 47-63 HZ. Use the MFJ-4103 almost

anywhere in the world by plugging in an AC power cord

with an appropriate wall plug for that country (Not incl.

Laptop computer AC cord recommended).

Overvoltage, overcurrent and overtemp protected.

Excellent 1% line and 5% load regulation and 1% peak

to peak ripple/noise. Op temperature is 0-40oC. Mean

time between failure is 100,000 hours at full load at 25o

C ambient. Meets FCC part 15 class B, UL 1950 and

CSA 22.2.

MFJ Accessories for FT-817 and Other QRP rigs

MFJ Walkabout Antenna

80 through 6 Meters

MFJ-1899T

$12995

Ship Code A

Single Band Walkabouts

6/10/12/15/17/20/30/40/80 Tiny 10 oz. Switching Power Supply

for Yaesu FT-817 and QRP Rigs.

2-Meter / 440 MHz “Back-

of-Radio” Antenna

MFJ-1717PL, $24.95.

Foldover dual band flex-

duck 161/2 inch antenna

with quality PL-259 con-

nector. Hearty 2.15 dBi

gain on 440 MHz and full

size 1/4 Wave on 2 Meters.

MFJ-7703, $6.95. Sturdy, adapter

for your FT-817

and multimode

HF antennas like

MFJ-1899T. Re-

inforced elbow

for less stress on

radio connector.

PL-259-to-BNC right angle MFJ-561, $19.95.

13/4Wx13/4Dx3/4H inches.

Full size feel for

smooth, easy CW.

Precision formed from

resilient phosphorous

bronze. Stainless steel

base with rubber feet. 3

foot cord, 3.5 mm plug.

When you and

your buddy are out

of radio range, the

MFJ Simplex

Pocket RepeaterTM greatly

extends your range. You can have

your own private, portable

repeater within your neighborhood

or when hunting, fishing, camp-

ing, hiking, caravaning on-the-roadside.

During a disaster, your MFJ-662 can provide emergency communica-

tions when repeaters are down. You can communicate way beyond the nor-

mal range of your handheld or mobile.

Works with virtually any radios in any mode or frequency in any ham

band or business band. It’s Legal! As a simplex repeater, MFJ-662 with

another radio digitally records audio from an out-of-range HT/Mobile, then

retransmits to other HT/Mobiles.Tiny, pocket -size 21/4Wx33/4Hx1D”.

Repeats up to 32 second messages. LED lights when recording. On/Off

switch. 5 pin header for radio cable (connector included). Use 9 volt bat-

tery, 9-15 VDC or 110 VAC with optional MFJ-1312D, $14.95. Pre-wired

cables for most radios, $15.95.See cable column on page 34.

MFJ Pocket Repeater

Extend range of any radio 2 Meter, 440 MHz, Handhelds, Mobile, Base!! Two way radio voice mail

lets you and your friends or

family leave and retrieve voice

messages for each other.

When in radio range, stay in

touch 24-hours-a-day no matter

where you are. Program custom access

codes and security codes so you can decide

who uses your Radio voice mail. It’s your

own private, portable repeater. MFJ-664 can provide emer-

gency communications when repeaters are down.

Test your own signal quality by repeating your transmis-

sion thru another radio. Automatically repeat recorded mes-

sage continuously. Great for determining band openings,

foxhunting and public service announcements.

Non-volatile memory -- up to 2 full minutes of voice

messages. Keypad can be used for remote operation with

Morse code verification of functions. End-of-message beep

and output level control for clean audio. Use 9V battery or

9-15 VDC or 110 VAC with MFJ-1312D, $14.95. 4Wx31/2

Dx11/2H inches. Use any radio. With PTT or mic closure

sensing. Pre-wired cables for Yaesu. (See page 34).

MFJ Radio Voice Mail

MFJ-840, $19.95,

accurately checks

power output of

your 2 Meter hand-

held into a 50 Ohm

dummy load. 5 W

full scale. BNC. 2x21/4x11/2”.

HT VHF SWR/Power Meters and Intermod FightersTM

MFJ-841, $39.95,

Connects directly

between HT and

antenna. Reads

SWR and power

output to 5 Watts.

2x21/4x11/2inches.

MFJ Miniature Travel Iambic Paddle

MFJ-713, $59.95. HT radio

Intermod FighterTM. BNC for

hook-up to your HT. Rubber duck

antenna sits on top of the MFJ-

713. Use 9V battery. 2x21/2x11/2”.

MFJ-714, $59.95. SO-239. Use

external 12 VDC for power.

2-Meter CW Interface

MFJ-552, $79.95.

MFJ’s JimHandyTM

CW interface

plugs into your 144/440 MHz

handheld and converts it into a

modulated CW transceiver --

just plug in your key.

MFJ-550, $7.95 Straight key.

MFJ-1806T

$2995

Ship Code A MFJ-4103

$3995

Ship Code A

MFJ-664

$12995

Ship Code A

MFJ-662

$7995

Ship Code A

QSTCatP37.qxd 10/16/2003 11:48 AM Page 1

38 www.mfjenterprises.com

MFJ VHF/UHF MAGNET MOUNT MOBILE ANTENNAS

Magnet Mount Dual Band 144/440 MHz Mobile

MFJ 5/8 Wave 2/6 Meter Magnet Mount Mobile MFJ Glass Mount Dual Band 144/440 Mobiles

Power*GainTM Dual Band 144/440 MHz Mobile

This MFJ-1724B is the world’s best selling

dual band 2 Meter/440 MHz magnet mount

mobile antenna! It’s perfect for your dual

band mobile or HT. Free BNC handheld

adapter. MFJ’s powerful 31/2 inch magnet base holds

your antenna firmly even at highway speeds. The base

has a scratch resistant rubber guard to protect your car.

The MFJ-1724B black stainless steel whip looks like an

attractive cellular antenna. Only 19 inches tall, you can

park in your garage without knocking is over. Low SWR

across both bands keeps your transceiver safe from over-

heating. Get excellent gain on 440 MHz band and 2

Meters. Handles 300 Watts PEP. 15 feet coax, PL-259.

MFJ-1724B

$1695

Ship Code A

MFJ’s Power*GainTM is ham radio’s most

powerful dual band magnet mount mobile

antenna! Outstanding gain on 440 MHz and

2 Meters. Low SWR lets your rig deliver full

power safely. Get a whopping 2.6 dB gain on 2 Meters

and 6.3 dB gain on 440 MHz. Perfect for dual band

mobiles or HTs. Free BNC adapter. Handles 300 Watts

PEP. MFJ’s exclusive 271/2inch stainless steel SlimLine

RadiatorTM minimizes wind vibration for less SWR flutter

giving you longer range and better readability. Inculdes

15 feet of coax with PL 259 Connector, heavy duty mag-

net mount. New! MFJ-1723, $34.95. Similar to MFJ-

1729, covers 220 MHz, 2.6dB gain. 22.5 inch radiator.

MFJ’s 5/8 wave on 2 Meters give you

the maximum possible theoretical gain of

any single element mobile antenna, no mat-

ter how much others cost. On 6 Meters, the

MFJ-1728B is a high performance full quarter wave

antenna. It’s an excellent companion for your MFJ-9406,

MFJ-9606 or other 6 Meter mobile or handheld trans-

ceiver. Give you great “magic band” signals usedmobile

or as a base station antenna. It’s perfect for your mobile

or HT. Free BNC handheld adapter. It’s rated at 300

Watts PEP. It’s amplifier ready. Low SWR lets your

transceiver deliver full power safely. A heavey duty

magnet mount holds your antenna tight at highway

speeds. You get 12 ft. of coax and a stainless steel radia-

tor that’ll endure years of harsh mobile use. Easy to take

down with an allen wrench.

Glass mount dual band 144/440

MHz mobile. A 6 inch counterpoise

mounted inside lowers SWR and

makes tuning easy. Free BNC hand-

held adapter. Excellent gain on 440

MHz and 2 Meters. Low SWR lets

your transceiver deliver full power

safely. MFJ’s Exclusive 26 inch stain-

less steel radiator minimizes wind

vibration for less SWR flutter. Longer range and

better readability. Handles 50 Watts. 12 Ft. tough

coaxial line, cleaning pad and mounting hardware.

MFJ-1738, $29.95. Similar to MFJ-1734 but 2

Meter mobile glass mount antenna.

MFJ-94, $4.95. Remount Kit for Glass Mounts.

Avoid factory tint placement.

MFJ-844 VHF/UHF SWR Mobile Power Meter

MFJ-844 cov-

ers 144 and 440

MHz. Insertion

loss is 0.3 dB or

lower with 50 Ohm imped-

ance. SO-239 connectors.

Tiny size lets you put it just

about anywhere in your oper-

ating position.

3.75Wx3Hx1.25D”.

Handles 200 Watts and

measures SWR and Power in

three power ranges: 15W, 60W, and 200W. A multi-colored white,

orange, and black meter makes for easy reading.

Extra large, highly visible meter. Die-cast metal, quality con-

nectors for years of use.

MFJ-916 VHF/UHF Duplexer, handles 200 Watts

MFJ-922 VHF/UHF Antenna Tuner, handles 150 Watts

This MFJ duplexer

lets you use a 2

Meter/440 MHz antenna

with separate 2 Meter

and 440 MHz trans-

ceivers without a built-in duplexer.

You can also use two dual band

antennas with a dual band transceiver

with only one RF output.

Heavy duty diecast enclosure

houses low pass networks that sepa-

rate/combine 144/440 MHz signals.

Low loss SO-239 and PL-259 con-

nectors. Ports are 50 Ohms, unit han-

dles 200 Watts PEP.

MFJ-1729

$3495

Ship Code A

MFJ-1728B

$2995

Ship Code A

MFJ-916

$2995

Ship

Code A

This compact dual band VHF/UHF antenna tuner

has a single meter that reads SWR and power. No

zero adjustment needed. It covers VHF from 136 to

175 MHz and UHF from 420 to 460 MHz. You can

read power up to 150 Watts in 2 ranges: 60 Watts or

150 Watts. It’s a great antenna tuner for HTs, mobile

rigs or amplifiers up to 150 Watts. Its super-compact size lets

you take it anywhere -- measures a tiny 4x21/2x11/4inches -- you

can put it in your shirt pocket! Carry it with you in your car,

camping trips, etc. Tuning tool included.

BMFJ-1738

2-Meters

$2995

Ship Code A

AMFJ-1734

Dual Bander

$3995

Ship Code A

Plop an MFJ UltraLiteTM mobile magnet mount

antenna on your car, greatly extend your range and

pull it off when you park your car. You eliminate the

shielding of your car and MFJ’s full lenght radiator

give you significant gain over your rubber duck. The

Results? Talk to where you couldn’t

before. Built rugged for mobile use. Each

has tiny but powerful 11/8” diameter rare

earth magnet & a thin 20” stainless steel

whip. Whip easily bends and curves to fit any

briefcase, travel bag, or glove box -- hides the

fact that you have an expensive mobile trans-

ceiver in your car. 9 ft. of thin, fexible RG-

174U coax with BNC connector easily snakes

through a closed window or door. Lightweight

cable makes it easy to use an HT. Free mobile

adapter included. 50 Watts on 2 Meters, 25 W

on 440 MHz. SWR typically less than 1.5:1.

Sleek black finish blends with any vehicle.

MFJ-922

$7995

Ship

Code A

MFJ UltraLiteTM Magnet Mount Mobiles

MFJ-1722

Dual Bander

$1895

Ship Code A

MFJ-1721

2-Meters

$1495

Ship Code A

MFJ-844

$6995

Ship Code A

QSTCatP38.qxd 10/16/2003 11:52 AM Page 1

MFJ . . . The World Leader in Ham Radio Accessories! 39

MFJ super heavy duty RuffRiderTM mobile antenna mounts

MFJ RuffRiderTM High Gain Mobile Antennas

MFJ Trunk/Hatchback Lip Mount

MFJ’s RuffRiderTM

Mounts feature extra-

wide four inch lip and

large reinforcing tabs on

each side safely dis-

tributes load over

your vehicle’s lip. 2

large set screws on

each end locks your

mount in place. A scratch proof rubber

guard protects your vehicle’s finish.

Secures large VHF/UHF and medium size

HF antennas. Adjustable angles. 10 ft. low

loss coax has PL-259 connector. Has Allen

wrenches and weather protection caps.

Mirror/Luggage Pipe Mounts

3/8 inch threaded

HF antenna pipe

/mirror mount fits

MFJ’s HF mobile

HamTennasTM or any 3/8”

style whips. Stainless steel

clamps can mount to 1/4or

1/2” pipe. SO-239 connector

w/lock washer feeds coaxi-

al line underneath 3/8 inch

connector.

MFJ-344 is similar to MFJ-

342, but is verti-

cal mount for 3/8

inch antennas.

MFJ GoliathTM Triangle

Triple Magnet Mount

3 super-strong 5-Inch Magnets

MFJ GoliathTM Tri-Magnet Mount has

three super strong 5-inch magnets bolt-

ed to 1/4 inch triangular mount. 17

feet coax. Caution: once on, it’s diffi-

cult to get it back off! MFJ-336S, SO-

239. MFJ-336M, NMO. MFJ-336T is

for 3/8” HamtennaTM whip antennas.

MFJ-345S

SO-239

$3495

Ship Code A

MFJ-345T

3/8x24

$3995

Deluxe Trunk/Hatchback Lip Mount

This heavy-duty

trunk/hatchback

fold-over lip

mount has a wide

3.3 inch lip and

reinforcing tabs

on each side to

safely distribute

the antenna load.

Convenient thumb/finger lay-over knob lets

you lay down your antenna to clear garages

and low over-hangs -- several position detents

in either direction. Scratch-proof foam guard

protects your vehicles finish. 17 feet of coaxi-

al line is terminated with PL-259 connector.

MFJ Mirror/Luggage Pipe Mount

MFJ RuffRiderTM Mounts on

support rod of mirror, luggage

rack or spare tire carrier of

your vehicle (up to 5/8 in.

diameter). Secures large

VHF/UHF and medium size

HF antennas. 2 axis of rota-

tion position your antenna to

any desired angle. Serrated

swivel joint locks secure with

huge 3/8” set screw.

Convenient thumb/finger turn

knob. 10 foot coax with PL-259.

MFJ-348S

SO-239

$3695

Ship Code A

MFJ-348T

3/8x24

$4295

MFJ-340

SO-239

$3495

Ship Code A

MFJ 5” Magnet Mount with coax

5-inch

super

strong

black

magnet

mount

with 17

feet of

coaxial line terminated

with PL-259 connector.

SO-239 (BS) or NMO

(BM) or 3/8 inch (BT).

All are jet-black in color.

MFJ-335BS

SO-239

MFJ-335BM

NMO

MFJ-335BT

3/8 inch

$1995

Ship Code A

MFJ-342

$995

Ship Code A

MFJ GumDropTM 3/8x24 Mount

GumDropTM 3/8”

antenna hard mount.

Tough, durable plas-

tic, rubber seal pro-

tects vehicle finish.

MFJ Hard Mount Coaxial Line

Hard mount coax-

ial line.

SO-239(S) or

NMO (M).

MFJ 3” Magnet Mount with coax

3-inch black magnet mount

with 17 feetcoaxial line termi-

nated with PL-259 connector.

SO-239(BS) or NMO (BM).

NMO-to-3/8x24 Adapter

Quality adapter lets you use

an HF whip

with an

NMO style

mount.

MFJ-335BM

MFJ-335BT

MFJ-335BS

MFJ-333BS

SO-239

MFJ-333BM

NMO

$1495

Ship Code A

MFJ-7707

$795

Ship Code A

MFJ-343

3/8x24

$995

Ship Code A

MFJ-341S/M

SO-239 or NMO

Ship Code A

MFJ’s RuffRiderTM High

Gain multi-banded mobile anten-

na series is for serious mobile

hams demanding the highest

quality products at reasonable

prices. RuffRidersTM feature

finest quality construction using

precision machined components.

RuffRidersTM battle the elements,

handle rugged rides and day-to-

day highway abuse. They have a

PL-259 base mount for quick

installation to your heavy duty

SO-239 magnet, trunk/hatch,

gutter or mirror mount. A free

NMO adapter is in-cluded for

use with an NMO mount. MFJ

tri-magnet mount is recommend-

ed for big antennas.

Choose from several different

length and gain antennas . . .

RuffRider JuniorTM.

Premium, short 161/2” antenna

fits in any garage on

any auto. 1/4Wave on 2

Meters,1/2Wave, 3 dB

gain on 440 MHz.100

Watts. No fold-over.

RuffRider High PowerTM.

Just 40” long handles full 200

Watts. Great for high

power mobile amp. 1/2

Wave, 3 dB gain on 2

Meters, 5/8Wave, 5.5

dB gain on 440 MHz.

RuffRider High GainTM.

411/2” long antenna gives extra

gain with little height

increase. Handles 150 W.

1/2Wave, 3.2 dB gain on

2 Meters, 5/8Wave, 5.7

dB on 440 MHz.

RuffRider Hyper GainTM.621/2”

brute gives a whopping 5 dB gain

on 7/8Wave 2 Meters, 5/8

Wave, 7.6 dB gain on 440

MHz. Our highest gain ant-

enna. Handles 150 Watts.

RuffRider Triple ThreatTM.

59 inches of stacked elements

with high-Q phasing

coils give a whopping

7.2 dB gain on 440

MHz, 4.5 dB on 2

Meters and 2.15 dB on 6 Meters.

Handles 150 Watts.

NEW! Covers 220 MHz!

RuffRider Triple ThreatIITM.

Slim 38 inches, similar

to MFJ-1436, but 2.15

dB on 2-Meters, 3.5 dB

on 220 MHz, and 6 dB

gain on 440 MHz. 100 Watts.

NEW! VHF/UHF & 10 Meters!

RuffRider QuadBanderTM.

52”, 7.2 dB - 440 MHz, 4.5

dB - 144 and 2.15 dB

on 6. Go HF with 10

Meters! 150 Watts.

New! Covers 40

through 6, Plus 144/440 MHz!

Covers 40/20/15/10/6/2 Meters

& 440 MHz! Use

up to 4 coils at one

time. See page 41

for more details.

Tri-magnet mount recommended.

A. B. C. D. E. F. G. H.

Shown on magnet mounts, not included.

Each MFJ RuffRiderTM

mobile antenna comes with

MFJ’s unique 90 degree

“fold-over” feature -- lets you

pull into your garage without

knocking your antenna over!

MFJ’s heavy duty bases are

extremely strong to handle

super rugged rides and day-

to-day highway abuse.

MFJ-1402

$3495

Ship Code A

MFJ-1412

$4995

Ship Code C

MFJ-1422

$4995

Ship Code C

MFJ-1432

$6995

Ship Code D

MFJ-1436

$7995

Ship Code D

MFJ-1434

$7995

Ship Code D

MFJ-1438

$9995

Ship Code D

MFJ-336S

SO-239

MFJ-336M

NMO

MFJ-336T

3/8x24

(picture

shown)

$2995 Each

Ship Code C

MFJ-344

$995

Ship Code A

MFJ-1456

$14995

Ship Code D

Use

any SO-239

or NMO

mount.

FREE NMO

adapter!

QSTCatP39.qxd 10/16/2003 11:57 AM Page 1

40 MFJ . . . The World Leader in Ham Radio Accessories!

MFJ 5/8 Wave Ground Plane

For an incredible $24.95, you get a 300 Watt 5/8 Wave ground plane 2 Meter home station antenna.

Other 5/8 wave ground planes can’t work any better -- no matter how much they cost . . .

Look at all you get

at an incredible

$24.95!

You get a 300

Watt 5/8 wave ground

plane base antenna for 2

Meters that gives you the

maximum possible calcu-

lated gain of any single element antenna.

Other 5/8waves can’t work any better --

no matter how much they cost.

You get shunt fed matching network for

lowest possible SWR over entire 2 Meter

band. Plus, it bleeds off unwanted static.

You get MFJ’s RapidTuneRadiatorTM

for quick accurate tuning.

You get a ceramic insulator for low RF

loss. Result? Maximum radiated power is

achieved.

Easy installation to any 1 to 11/2inch

mast, (not included) with a single U-bolt

(included).

You get strong lightweight aluminum

construction that’s protected by MFJ’s

PermanentMolecularBonding Tech-

nologyTM. This super durable finish actual-

ly bonds itself to aluminum molecules -- it

won’t come off unless metal comes off!

You get MFJ’s famous No Matter

WhatTM one year limited warranty.

Just $24.95 gets you the most incredi-

ble value in a 5/8 wave base station ground

plane. Remember, other 5/8 wave ground

planes can’t work any better.

MFJ-1750, $24.95. 2 Meter 5/8Wave.

MFJ-1752, $24.95. 220 MHz 5/8Wave.

MFJ-1750

$2495

Ship Code A

Dual Band 144/440 Ground Plane

MFJ’s dual band 144/440 ground

plane antenna is small, lightweight and

super easy to mount to any 1 to 11/2

inch mast, (not included) with a single

included U-bolt -- you’ll have it up and operating

anywhere in just minutes. Great for backpacking.

Mount it inside to get on-the-air quickly. You

get extra long range on 440 MHz with a high gain halfwave over

quarter wave antenna and solid 1/4 wave performance on 2 Meters.

Ground plane is sloped to give low SWR across both bands

and to minimize feedline radiation. This gives you more useful

radiated power, reduced TVI and noise pickup by the coax shield.

MFJ-1754

$2995

Ship Code A

Improved 1/4 Wave Ground Plane

For $19.95, you get an improved

300 Watt 1/4 Wave Ground Plane for 2

Meters that’ll bring up repeaters as

well as or better than any 1/4 wave

ground plane -- even if it costs twice as much.

The improved MFJ 1/4 wave ground plane min-

imizes feedline radiation for more useful radiated

power, reduced TVI and noise pickup by the coax shield.

You get MFJ’s Fast-Tune-RadiatorTM that makes tuning to your

favorite part of the band a snap. U-bolt and mounting hardware

included. Easy to install on 11/2” mast. Can be cut for 220 or 440

MHz. A cutting chart is included.

MFJ-1740

$1995

Ship Code A

Stacked 2-Meter 5/8 Wave

MFJ’s stacked 5/8 wave radiators give

you more than twice the omni-directional

gain of a single 5/8 wave radiator!

Wide 10 MHz 2:1 SWR bandwidth . . .

excellent ferrite choke balun feedline decoupling . . .

shunt choke for bleeding off unwanted static . . . strong

lightweight aluminum.

Works as an excellent 6 Meter full half-wave cen-

terfed antenna. Great for MFJ’s 6 Meter radios! Mounts

vertically for FM/packet or horizontally for SSB. U-bolt

(included) to any 1 to 11/2inch mast or tower leg.

MFJ-1766, $119.95. Gives you four times the gain of a single 5/8

wave. 2 MFJ-1764 antennas, phasing cables. Double gain on 6M.

MFJ-1765, $34.95. Includes phasing cables for two MFJ-1764s.

MFJ-1764

$4995

Ship Code A

Portable 3-element 2-Meter beam

Check out MFJ’s portable 3

element beam for 2 Meters.

Unique design lets you set it up or

take it down in seconds!

Elements simply screw into the boom. It’s easy

to store and sturdy enough to use as your base

station antenna.

The extra gain and directivity from this

beam could get you through when a vertical

can’t. It’ll make the difference between “you’re

breaking up . . .” and “Solid copy”.

Center mount it and use it vertically on FM or horizontally for

SSB. By rotating it you can minimize QRM. Unique design also

lets you end mount it vertically or horizontally on the leg of a

tower . . . great for Packet and PacketClusterTM.

Its compact 23/4foot boom gives you a calculated gain within 1

dB of a four element Yagi with a boom nearly twice as long.

Extra thick elements maintain high gain and directivity over

virtually the whole 2 Meter band. A ferrite choke balun gives you

excellent feedline decoupling. Coax coupling is further reduced by

mounting the SO-239 connector behind the reflector.

Has MFJ’s Permanent Molecular Bonding TechnologyTM. New

coating won’t come off unless the metal comes off.

Weighs just 2 pounds. Boom is 301/2x13/4x11/4inches. Mounts

easily to mast or tower leg with single included U-bolt. Mast not

included. Super easy to put together in a hurry!

Take the MFJ-1763 Two Meter portable Yagi with you wherev-

er you go and have the oomph and directivity of a beam.

MFJ-1763

$4495

Ship Code A

Get 7 elements on 440 MHz

and 4 elements on 2 Meters.

Exclusive dual band bal-

anced feed with FerriteChokeTM

decoupling prevents pattern skewing-- gives

low SWR. 1/4 inch diameter driver elements

give wide bandwidth. National Bureau of Standards design is opti-

mized for maximum gain, high front-to-back, clean symmetrical

pattern. Mounts vertically for FM/Packet or horizontally for SSB

with single included U-bolt on 1 to 11/2inch mast or tower leg.

Includes a 5 foot, 11/8inch diameter boom, antenna weighs in

at 2 pounds. Elements are electrically isolated from boom.

MFJ-1768

$7995

Ship Code A

MFJ 7 element 144/440 MHz Yagi

MFJ Six Meter Antennas

MFJ-1762, $79.95.

6 Meter Yagi quadruples

your effective radiated

power over 1/2wave

dipole. 6 foot boom, 3 elements, 2 pounds.

Handles 300 Watts PEP SSB. Mounts vertically

or horizontally. Great front-to-back ratio.

MFJ-1756, $79.95. Omni-direc-

tional low-angle vertical radiator

lets you work plenty of DX in all

directions even with low power.

55” strong aluminum radiator.

Ultra

wide-band

antenna

receives 25-

1300 MHz. Perfect for

scanners. Transmit 50-

1300 MHz. Handles 200

Watts. Ideal for 6/2/11/4

Meters, 70/33/23 CM ham

bands. Excellent for testing

various transmitters on

single coax. Includes SO-239 connector,

50 feet coax, stainless steel elements and

mounting hardware.

MFJ-1868

$5995

Ship code B Same

as MFJ-

1868,

but

transmits from 144 to

1290 MHz. Coax and

hardware is not

included.

MFJ-1866

$3995

Ship code B

MFJ Discone Antenna receives 25-1300 MHz, transmits 50-1300 MHz

New!

QSTCatP40.qxd 10/16/2003 11:59 AM Page 1

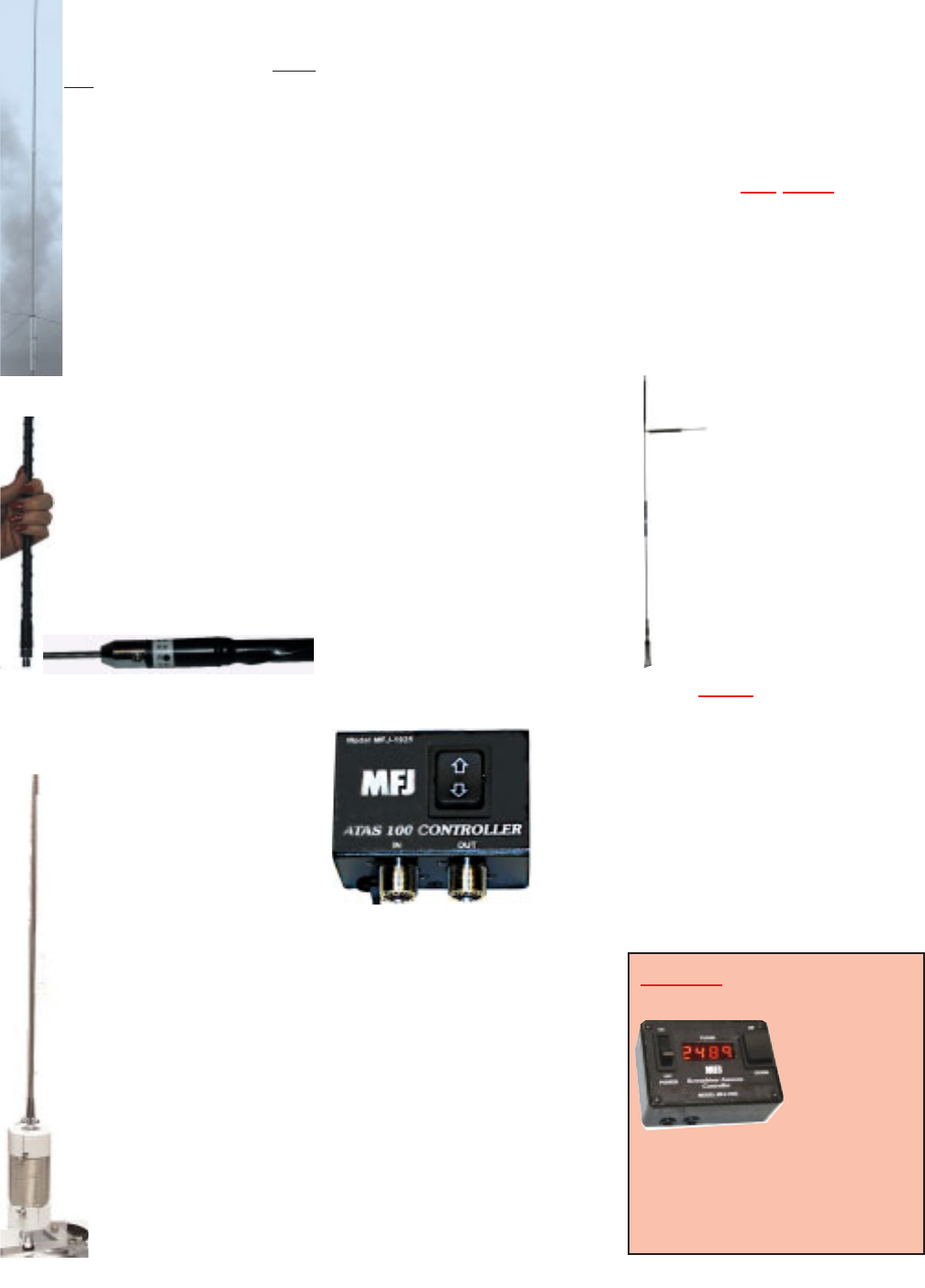

MFJ’s PulsarTM Base/Repeater

Antenna series is built to last! Heavy

duty fiberglass radomes and overlapping

shells add strength and stability.

Stainless steel hardware and waterproof

joints elliminate moisture and pollution.

Super high wind load resistance.

MFJ-1526 - $139.95. Pulsar

ULTRA MightyGainTM. Dual Band

144/440 MHz Base/Repeater Antenna.

Our highest gain PulsarTM antenna.

Great 8.3 dB on 2 Meters and 11.7 dB

on 440 MHz. 17 ft., shipped in two sec-

tions. SO-239 Connector, handles 200W.

MFJ-1526N - $139.95. Same as

MFJ-1526, has “N” connector.

MFJ-1524 - $119.95.Pulsar Hyper

MightyGainTM. Dual Band 144/440

MHz Base/Repeater Antenna. You get

high gain with little weight. Just 10 feet

tall. Features 6.5 dB gain on 2 Meters

and 9 dB gain on 440 MHz. Shipped in

two sections. SO-239 connector, handles

200 W.

MFJ-1522 - $79.95. Pulsar

Economy Priced Dual BanderTM

Base/Repeater Antenna. Only 5.5 ft.

tall, but big on gain. Get 4.5 dB gain on

2 Meters and 7.2 dB gain on 440 MHz.

Great for antenna restricted households

and apartments. Easy to hide on

Balcony or backyard. Great Price! SO-

239 Connector. Handles 200 W.

MFJ-1516 - $99.95. Pulsar VHF

Base StationTM. The ultimate 2 Meter

Base/Repeater Station Antenna! Great

7.8 dB gain is perfect for dedicated

repeater or home use. 15ft. shipped in

three sections. SO-239 Connector.

Handles 200 W.

MFJ-1536 - $119.95.Pulsar VHF

TriBanderTM. The Perfect Base/Repeater

Antenna for VHF work. Covers 2

Meters, 6 Meters, and 440 MHz. You

get 2 dB on 6 Meters, 6 dB gain on 2

Meters, and 8 dB gain on 440 MHz.

Only 8.2 ft., shipped in two sections.

SO-239 Connector. Handles 200W.

NEW! 220 MHz!

MFJ-1538 - $119.95.Pulsar VHF

Quad-BanderTM..Like MFJ-1536, but

covers 6M/144/220/440 MHz.

MFJ-1532N - $99.95. Pulsar

VHF/UHF and 1.2 GHz TriBanderTM

Base /Repeater Antenna. VHF operation

plus exciting 1.2 GHz!! 4.5 dB gain on

2 Meters, 8.3 on 440 MHz, and a whop-

ping 11.7 dB 1.2 GHz. 51/2 ft. Type

“N” connector. Handles 200 W.

Each is

ruggedly

constructed.

A heavy

duty 4

foot,3/8inch

diameter

fiberglass

rod; a nearly

indestructi-

ble .125 inch diameter PH-17-7

stainless steel whip and chrome plat-

ed brass fittings will give you years

of dependable service.

It’s sleek, low profile construction has

low wind loading and its semi-rigid fiber-

glass eliminates the need for springs or guys.

Black anti-static jacket protects the load-

ing coil and blends with any vehicle. Stain-

less steel whip is adjustable for lowest SWR.

Includes allen wrench and complete tun-

ing and matching instructions. Handles 250

Watts PEP.

These whips are about 7 feet tall fully

extended, and they collapse to about 4 feet

for easy storage.

Simply screws into any 3/8x24 female

mount for quick band-changing.

www.mfjenterprises.com 41

MFJ Controller lets you use ANY rig with the

Yaesu ATAS Series Screwdriver Antenna....

MFJ PulsarTM Base/Repeater Antenna Series

MFJ HF Mobile HamTennaTM Whips

Your Choice:

MFJ-1675T - 75 Meters

MFJ-1640T - 40 Meters

MFJ-1620T - 20 Meters

MFJ-1617T - 17 Meters

MFJ-1615T - 15 Meters

MFJ-1610T - 10 Meters

MFJ-1606T - 6 Meters

$1995 Each

Ship Code B

HF mini-Bugcatcher

Become an “HF Mobileer”

almost instantly with almost no

effort! Have tons of fun rag-chew-

ing and DXing on the HF bands.

Turn boring drives into fun-filled

ham adventures.

It only takes minutes to attach a

trunk lip mount (MFJ-345T,

$39.95), mirror or luggage mount

(MFJ-342, $9.95) or tri-magnet

mount (MFJ-336T, $29.95).

Screw in your MFJ-1624 mini

bugcatcher HF mobile antenna.

Throw your rig into your car,

plug it in the cigarette lighter and

turn the power down to 20 Watts

or so (to avoid overloading your

cigarette lighter; handles 300

Watts PEP).

Operate HF mobile and enjoy

DXing!

Bugcatcher design uses large

highly-efficient air-wound inductor

--it will far out perform other

compact HF mobile antennas.

Exclusive built-in inductive

matching network keeps SWR low.

51/2foot whip collapses to 21/2feet

for easy storage and garages. Base

loaded for minimum wind load

and stress. Change bands by mov-

ing “wander lead”. 3/8 by 24 inch

mount.

This new mobile

antenna covers all of

your favorite bands.

Four loading coils

cover 40/20/15/10/6/2

Meters and 440 MHz bands! You can

put up to 4 loading coils on the antenna

at one time. SO-239 connector quickly

screws onto mirror, luggage or tri-mag-

net (recommended). MFJ-336T, $29.95.

GoliathTM Tri-Magnet mount built to

handle the MFJ-1456. 3 super strong 5-

inch magnets are bolted to a solid 1/4

inch triangular base -- won’t come off.

The ham

world has

found the

perfect

HF/VHF

antenna for

mobile/

portable operation....the Yaesu ATAS

Screwdriver Antenna....

But, you can’t use the antenna unless

you have the MFJ-1925/MFJ-1925 I2

antenna controller. MFJ made it possible

for the popular Yaesu ATAS series anten-

na to be used with other radios such as

the IC-706, TS-50 and others.

The MFJ is installed in-line between

the antenna and rig. Provides the neces-

sary voltage to move antena up or down

when controller is pressed accordingly.

MFJ-1925 I2 is specially designed for

the Icom IC-706. It’s a perfect match for

the 706 and the Yaesu screwdriver anten-

na. It has a special 706 controller cable

with 4-pin connector that mates with the

706 controller port.

When the up/down switch is pressed

on the controller, the 706 automatically

transmits in low power and turns the

antenna for low SWR. When the lowest

SWR is found, simply release the tune

switch on the MFJ controller. Now

you’re ready to operate. SWR is moni-

tored by the meter on the 706.

MFJ-1925 I2 is simple to install. No

modification to the radio or antenna is

necessary. SO-239 connectors for radio

and antenna connections. MFJ-1925 I2

has connection for 13.6 VDC power and

4-pin connector for the 706 antenna port.

Order MFJ-1925 I2 for Icom 706,

MFJ-1925 for other transceivers.

MFJ-1925/I2

$5995

Ship Code A

New! MFJ Digital

Screwdriver Controller

Tells you exactly

where your antenna

is positioned! Re-tune exactly -

- fast, no more guessing. Super bright 5/8”

high-intensity 4-digit LED display and pre-

cision micro-controller gives digital count

range -999 to +999. On/off/reset switch

for easy calibration. Compact 4Wx11/2H

x2D inches. Much more! Use 13.8VDC.

MFJ-1922

$7995

Ship Code A

MFJ-1624

$7995

Ship Code C

MFJ-1456

$14995

Ship Code C

MFJ Multi-Band Mobile

Covers 40 through 6, Plus 144/440!

New!

QSTCatP41.qxd 10/16/2003 12:03 PM Page 1

42 www.mfjenterprises.com

MFJ's new Manually Tuned Screwdriver

Antennas let you operate all bands 80-6

Meters continuously including all WARC

bands and the new 60 Meter bands

(depends on model). It far outperforms

other HF compact antennas.

An extra long 10 foot (19” collapsed)

telescoping whip lets you really get out and

work rare DX! A 4½ foot (23” collapsed)

telescoping stainless steel whip is included

for mobile and limited space operation.

It has a highly efficient loading inductor.

For highest Q, the coil is wound with

heavy gauge wire with wide spaced turns

on a core that is mostly air.

Atuning sleeve electrically removes

turns to eliminate detrimental self-reso-

nance effects that "wander leads" cause.

The tuning sleeve is on the low impedance

side of the coil to minimize power robbing

stray capacitance and detuning hand capac-

itance effects. Tuning is smooth, easy and

sure -- the frequency stays put after you

tune it. There is no tedious back and forth

trial and error tuning procedure.

It's extremely rugged -- the whole coil

assembly is one unit and does not move. A

separate movable sleeve adjusts frequency.

A nylon-tipped thumb-screw locks sleeve.

Awing nut lets you connect a matching

capacitor or inductor for 1:1 SWR.

Standard 3/8x24 mounting hardware

is used for both the loading coil and both

whips. Use any standard 3/8x24 mount.

Works great in or out doors. Handles

200Watts PEP. Add coax, connect ground/

counterpoise and you're ready to operate.

Mobile Manual Screwdriver Antennas

The MFJ-1662 (40-2 Meters) and the

MFJ-1668 (80-6 Meters) are termed Mobile

Antennas because they cover their respec-

tive frequency ranges with the short 4½

foot (23 inches collapsed) mobile telescop-

ing stainless steel whip. A 10 foot tele-

scoping whip (19 inches collapsed) is

included for fixed mobile operation only. It

vastly increases efficiency when you are

stopped at a hotel or rest stop, etc.

Long 12/10/4.5 ft.

Telescoping Whips

New! All have standard 3/8

inch by 24 threaded stud for use with

all standard mounts.

MFJ-1956, $29.95.12 feet fully

extended, 22.5 inches collapsed.

MFJ-1954, $19.95 is 10 feet

fully extended, 19 inches collapsed.

12 and 10 Foot whips are durable

1/2 inch diameter plated brass.

Telescopes for full 1/4 wave opera-

tion 2 to 12/15 Meters.

Cover 17, 20, 30, 40, 60, 80,

160 Meters with loading coil. Use

two for multi-band dipoles.

Replace screwdriver antenna

whip for highly efficient fixed

mobile operation.

MFJ-1952, $14.95. 4.5 feet

extended stainless steel whip.

22 inches collapsed. Super

durable, can be used for

mobile or base operation.

MFJ Portable

Antenna Tripod

Steel Construction

extends 6 feet!

Holds 66

pounds of anten-

na steady.

Black steel

base forms strong

braced equilateral

triangle 40 inches on a side.

Non- skid feet.

One inch diameter steel mast

extends height to six feet.

Strong base and mast

locks.

Easily add antenna

mount or mast extension

for greater heights.

Collapses to 38 inch-

es by 4 inch diameter.

63/4pounds.

4.5 Feet

MFJ-1952

$$11449955

Ship Code A

10 Feet

MFJ-1954

$$11999955

Ship Code A

12Feet

MFJ-1956

$$22999955

Ship Code A

MFJ-1918

$3995

Ship Code C

HF Portable/Mobile Manual Screwdriver Antennas

Covers

40-2

Meters

with 4½ foot mobile or 10

foot fixed operation tele-

scoping whip.

Continuously adjustable

loading coil is 15 inches

long by 2 inches in diame-

ter and weighs 1.3 pounds.

MFJ-1662

$12995

Ship Code C

Covers 80-6

Meters with 4½

foot mobile or 10

foot fixed operation

telescoping whip. Continuously

adjustable loading coil is 36 inches

long by 2 inches in diameter and

weighs 2.6 pounds.

MFJ-1668

$15995

Ship Code C

MFJ's new Manually Tuned Screwdriver Antennas lets you operate all bands

between 80 and 6 Meters continuously including all WARC bands and the new 60

Meter bands (depends on model). It far outperforms other HF compact antennas.

HF mini-Bugcatcher

Become an “HF Mobileer”

almost instantly with almost no

effort! Have tons of fun rag-

chewing and DXing on the HF

bands. Boring drives become

ham adventures.

Only takes minutes to attach a trunk lip

mount (MFJ-345T, $39.95), mirror or lug-

gage mount (MFJ-342, $9.95) or tri-magnet

mount (MFJ-336T, $29.95).

Screw in your MFJ-1624 mini bugcatch-

er HF mobile antenna.

Throw your rig into your car, plug it in

the cigarette lighter and turn the power

down to 20 Watts or so (to avoid overload-

ing your cigarette lighter; MFJ-1624 han-

dles 300 Watts PEP).

Operate HF mobile and enjoy

DXing! This bugcatcher design uses

large highly-efficient air-wound induc-

tor -- far out performs other compact

HF antennas.

Exclusive built-in inductive match-

ing network keeps SWR low. 51/2foot

whip collapses to 21/2feet for easy stor-

age and garages. Base loaded for mini-

mum wind load and stress. Change

bands by moving “wander lead”. 3/8

by 24 inch mount.

MFJ-1624

$7995

Ship Code C

Portable Manual Screwdriver Antennas

The MFJ-1661 (40-2 Meters) and the

MFJ-1664 (80-6 Meters) are termed

Portable Antennas because they cover their

respective frequency ranges with the long

10 foot (19 inches collapsed) telescoping

whip for fixed operation. They are smaller

and lighter than the mobile versions.

Ashort 4½ foot (23 inches collapsed)

telescoping whip is included for limited

space or mobile operation.

Covers 40-2

Meters with 10 foot

whip. Covers 6-20

Meters with 4 ½ foot

whip. 12 inches long by 2 inches in

diameter. Weighs one pound.

MFJ-1661

$11995

Ship Code C

Covers 80-6

Meters with 10

foot whip. Covers

6-40 Meters 4½

foot whip. 24

inches long by 2 inches in diameter.

Weighs just 1.8 pounds.

MFJ-1664

$14995

Ship Code C

New!

Mobile

Versions

Portable

Versions

New!

QSTCatP42.qxd 10/16/2003 12:09 PM Page 1

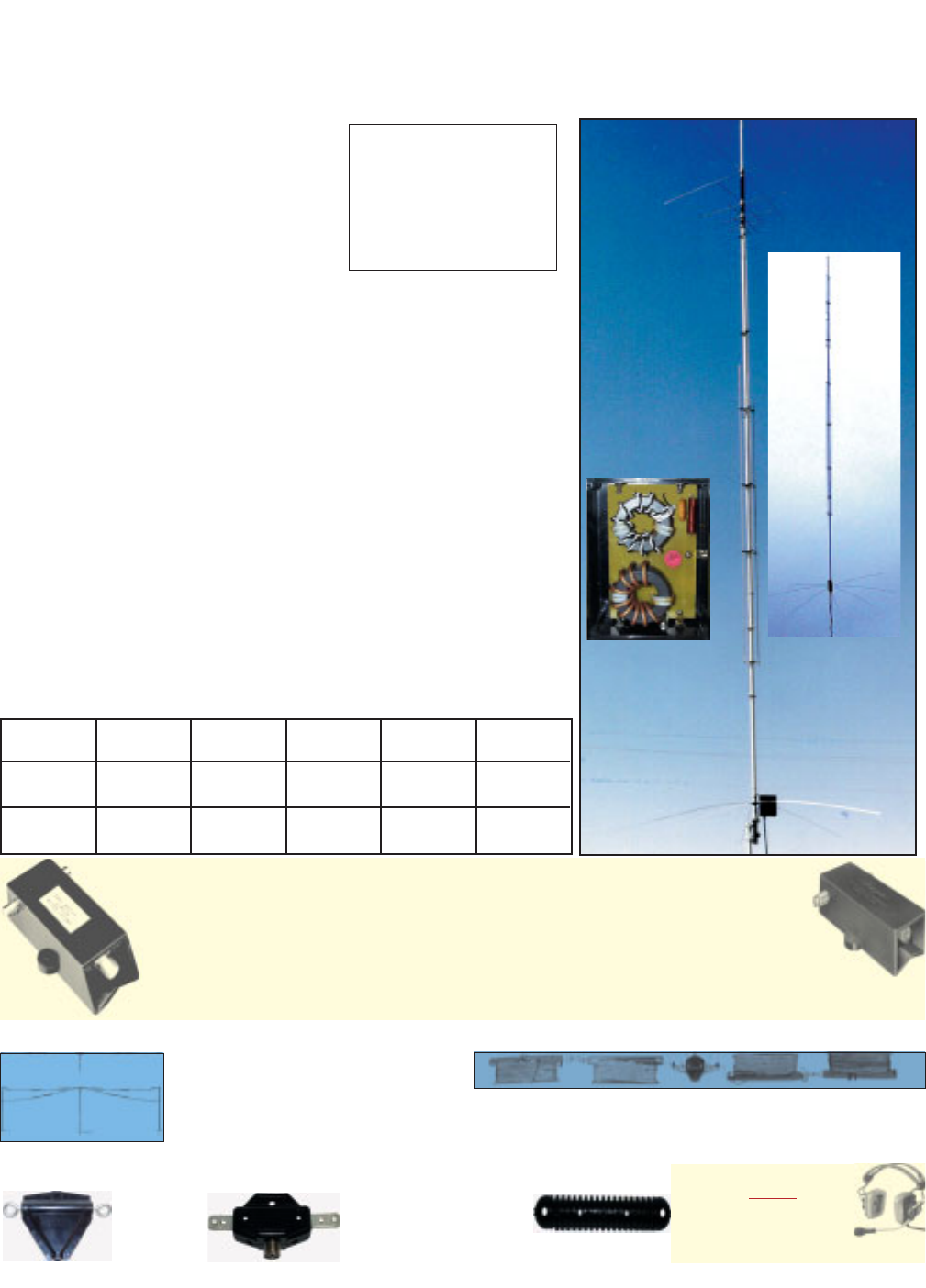

MFJ . . . The World Leader in Ham Radio Accessories! 43

MFJ Glazed Ceramic Insulator

Authentic glazed ceramic antenna

insulator. Extra-strong -- will not break

with long antennas and will not arc over

or melt even under full legal power.

Molded ridges give extra-long high

voltage path to prevent high-voltage

breakdown. Smooth wire holes prevent

MFJ-16C01

69ceach

Single Insulator

Ship Code A

MFJ-16C06

$395

6-Pack Insulators

Ship Code A

MFJ-1779A

$5995

265 ft., 160M

Ship Code A

MFJ-1779B

$3995

135 ft.,80-40M

Ship Code A

MFJ-1779C

$2995

35 ft., 20-6M

Ship Code A

Ultra high quality center fed dipoles will give you

trouble-free operation for years. Custom injection-

molded UV-resistant center insulator has built-in coax

connector and hanging hole. Heavy duty 7-strand, 14-

gauge hard copper antenna wire. Extremely strong sol-

derless crimped construction. Authentic glazed ceramic

end insulators. Use as horizontal or sloping dipole or

inverted vee. Handles full 1500 Watts. Simply cut to

length for your favorite frequency with cutting chart.

New!

33 Foot Telescoping Fiberglass Mast

Collapses to 3.8 feet . . . Weighs 3.3 lbs.

Just pull out each section and twist

to lock. It extends to a whopping 33

feet - - a full quarter wave on 40

Meters! It collapses to just 3.8 feet and

weighs a light 3.3 pounds for true portability.

Bottom section is large 13/4-inch diameter. Super

strong fiberglass flexes to resist breaking. Black

resists UV.

Great for portable, temporary use and semi-per-

manent use - - traveling, camping, from hotels,

hamfests, field day, DX-peditions.

Put up a full size inverted Vee, dipole or vertical

antenna in minutes and get full size performance.

Use to construct other types of antennas like

loops, quads, rotatable dipoles even beams.

The MFJ-913/MFJ-919 are true current baluns/antenna

center insulators that transforms 200 ohms to 50 ohms.

Transmission Line Transformer construction using

100 ohm characteristic impedance transmission

line gives flat 160-10 Meter response. Large low

permeability ferrite cores easily handle full power.

SO-239, stainless steel hardware with direct 14

gauge stranded copper wire connection to antenna.

Heavy duty weather housing.

MFJ-913, $29.95. Handles 300 Watts. 41/4”Hx2” diameter.

MFJ-919, $59.95. Handles 1500 Watts. Sturdy, cube

shaped housing measures 31/2Wx31/2Hx21/2D inches.

MFJ All-Band G5RVAntenna

Covers 160-10 Meters with

antenna tuner. 102 feet long.

Super strong custom fiber-

glass center insu-

lator provides

stress relief for

450 Ohm ladder

line. Use horizontally, as

inverted vee or sloper. Use

on 160 Meters as Marconi with tuner and ground.

Handles full 1500 Watts. Add coax, some rope and

you’re on-the-air!

MFJ-1778M, $34.95. Half-size 52 ft. G5RV

Junior covers 40-10 M with tuner. 1.5kW.

MFJ-915 RF Isolator

MFJ-915 RF Isolator prevents

unwanted RF from traveling on the

outside of your coax shield into

your transceiver. This unwanted stray RF

can cause painful RF “bites” when you

touch your microphone or volume con-

trol, cause your display or settings to go

crazy, lock up your transceiver or turn off

your power supply. In mobile installa-

tions, stray RF could cause your car to do

funny things even blow your car comput-

MFJ-918

Current Balun

True 1:1 Current

Balun/ Center Ins-

ulator forces equal

antenna currents in dipoles for

superior performance. Reduces

coax feedline radiation and

field pattern distortion -- your

signal goes where you want it. Reduces

TVI, RFI and RF hot spots in your shack.

Don’t build a dipole without one! 50 hi-

permeability ferrite beads on high quality

RG-303 Teflon(R) coax and Teflon(R) coax

connector handles full 1.5kW 1.8-30 MHz.

Stainless steel hardware with direct 14

gauge stranded copper wire connection to

MFJ Single Band Dipole Antennas

A. 450 Ohm twin lead. Two 18 gauge

solid copper covered steel. Insulated

and spaced by heavy duty black poly-

ethylene. Uniform spacing between

conductors insures proper balance, ideal

for balance line and dipole projects.

MFJ-18H050, 50 Ft., $8.95.

MFJ-18H100, 100 Ft., $14.95.

MFJ-18H250, 250 Ft., $34.95.

B. 300 Ohm TV twin-lead. Two 18

gauge stranded copper wire. Insulated

and spaced by black polyethylene.

Best for dipole, j-pole and for most low

power uses.

MFJ-18T050, 50 Ft., $12.95.

MFJ-18T100, 75 Ft., $24.95.

MFJ-18T250, 250 Ft., $59.95.

C. Coax line with PL-259. Molded

weather resistant PL-259 on one end,

open end on other. 50’ RG-8X coax.

MFJ-5850, $17.95.

D. Copper Antenna wire. 14 gauge

7-strand copper wire. Flexible, great

for dipole/antenna support.

MFJ-18G100, 100 Ft., $11.95.

MFJ-18G250, 250 Ft., $27.95.

E. 3/32 Dacron Wire Rope. Fine cop-

per wire is webbed into Dacron rope.

Makes it extreme flexible yet it is super

strong and light. Ideal for wire and

dipole antennas.

MFJ-18D120, 120 Ft., $29.95.

MFJ-915

$2995

Ship Code A

MFJ-913

$2995

Ship Code A

True 4:1 Current Balun/Center Insulators, Balun/Unun

MFJ-918

$2495

Ship Code A

New!

MFJ-1778

$3995

Ship Code A

MFJ-1910

$7995

Ship Code D

New!

MFJ-911 is a true 4:1

current balun/unun that

transforms 200 ohm bal-

anced and unbalanced

loads to 50 ohms. The

response is amazingly flat

from 160-10 M because it is a true

Transmission Line Transformer using

100 ohm characteristic impedance transmission line.

Two low permeability ferrite cores are used to easily

handle 300 watts. Change balanced to unbalanced

operation with handy ground post.21/2Wx43/4Hx1D”.

MFJ-911

$3995

Ship Code A

New!

MFJ All Band Doublet

102 ft. all

band dou-

blet cov-

ers 160-6

Meters

with bal-

anced

line tuner. Super strong

custom fiberglass center

insulator provides stress

relief for ladder line (100

ft. included). Authentic

glazed ceramic end insu-

lators. Handles 1.5 kW.

MFJ-1777

$4995

Ship Code A

MFJ-919

$5995

Ship Code A

Select MFJ wire for your antenna projects

New!

QSTCatP43.qxd 10/16/2003 12:12 PM Page 1

44 MFJ . . . The World Leader in Ham Radio Accessories!

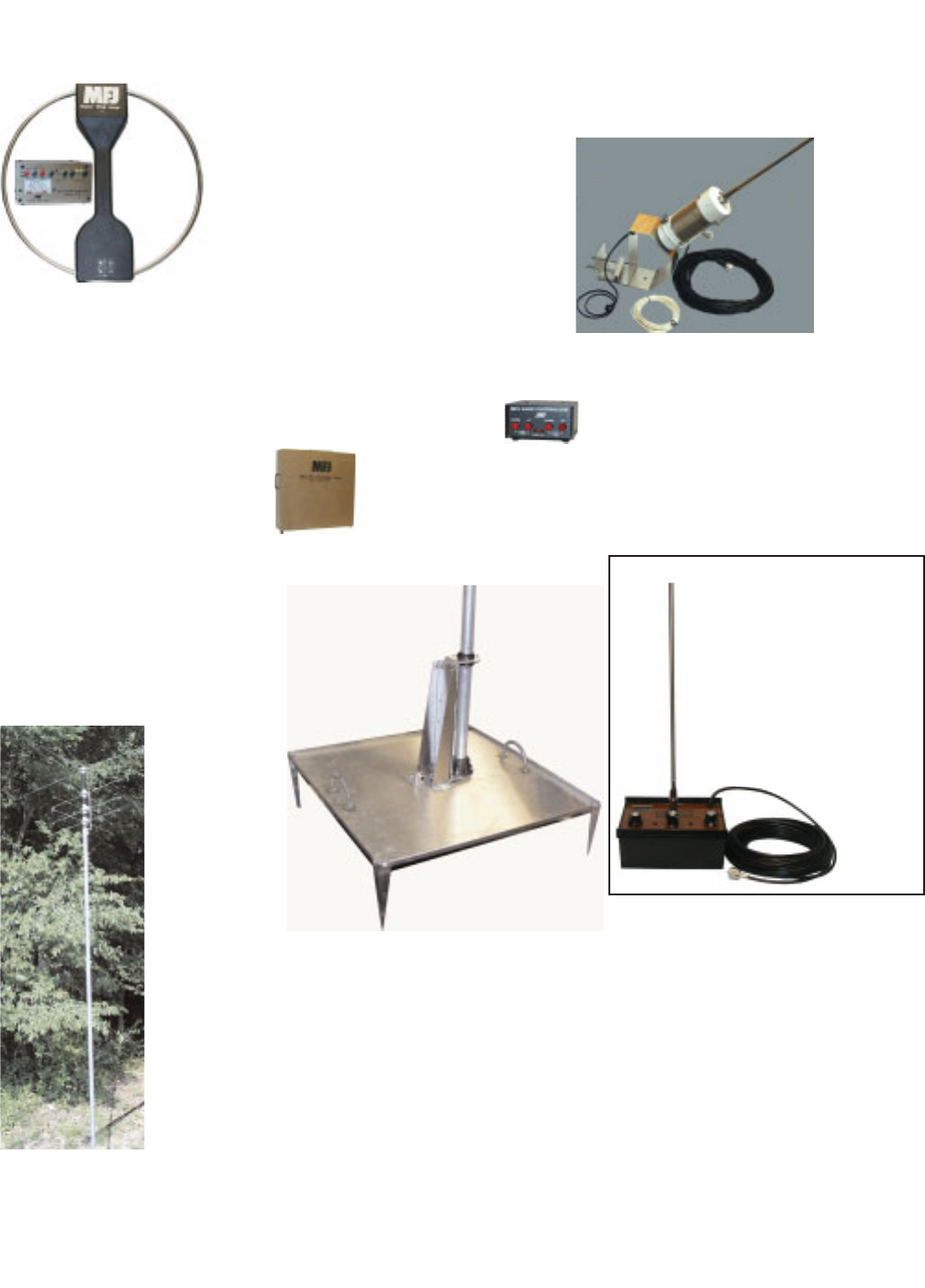

MFJ-1622

Apartment

Antenna lets

you operate 40

through 10

Meters on HF

and 6/2 Meters

on VHF with a

single antenna!

Its universal

mount/clamp

lets you easily

attach it to window frames, balconies and railings.

It also works great indoors mounted to a desk,

table or bookshelf. It’s not a 5-element yagi, but

you’ll work your share of exciting DX!

Highly efficient air wound “bug catcher” load-

ing coil and telescoping 51/2foot radiator lets you

really get out! Radiator collapses to 21/2feet for

easy storage and carrying.

It includes coax RF choke balun, coax feed

line, counterpoise wire and safety rope.

The operating frequency is adjusted by moving

the “wander lead” on the coil and adjusting the

counterpoise for best SWR.

MFJ Vertical

for Antenna

Restricted Areas

40, 20, 15, 10 Meters,

Automatic BandSwitching

Perfect for permanent or portable

operation in antenna restricted areas.

Hide behind trees,

fences, buildings,

in bushes -- only 7

to 10 feet tall

(adjustable).

Low angle of

radiation for

DXing, omni-

directional, handles

1500 watts PEP.

Highly efficient

end-loading.

Entire length radi-

ates. Low SWR.

Ground mounts

with suitable

ground such as

MFJ-1904 Ground-

Coupled Antenna

Base, radials or

ground rods. Roof

mount with radials.

MFJ-1904 P95, $219.00. MFJ-1904

with MFJ-1795 Combination. Saves

$30.90!

MFJ-1904HG-18, $174.90. MFJ-

1904 with Hy-gain AV-18VS. Saves $15!

See page 56.

MFJ-1795

$14995

Ship Code D

MFJ Apartment Antenna

Covers 40 thru 2 Meters . . . Mounts outdoor to

windows, balconies, railings . . . works great

indoors mounted to desks, tables, bookshelves

The MFJ Ground-Coupled Portable

Antenna BaseTM gives you a stable way to

mount your vertical antenna and provides an

effective ground by just plopping down the

base and standing on it to push the legs firm-

ly into the ground. It’ll support many multi-

band verticals.

It’s perfect for traveling or for semi-per-

manent summer/winter homes. You can eas-

ily set it up and take down your vertical

antenna for stealth operation if you live in an

antenna-restricted area.

The MFJ-1904 Ground-Coupled Portable

Antenna BaseTM is a 2x2 foot stainless steel

square with reinforcing bends that greatly

strengthens it. There is a folded and tapered

six-inch stainless steel leg on each corner.

Two antenna mounts let you use a variety

of vertical antennas.

Two handles make carrying and removing

the base fast and easy.

You can also attach radials for improved

performance.

Stainless steel construction means you’ll

get trouble-free service for years.

The base is anchored into the ground by

stepping on each corner and forcing each leg

into the ground. Each stainless steel leg is

designed to keep the base from tilting.

The base can support a lightweight multi-

band vertical antenna -- like the all band Hy-

Gain 18AVS and the bandswitching MFJ-

1795 -- and provide a semi-permanent instal-

lation. You can even hide the base by cover-

ing it with dirt.

Built-in antenna mount with SO-239 coax

connector and two U-bolts lets you mount

most standard and homebrew vertical antennas.

Standard 3/8-inch x 24 mobile antenna

mount built-in for MFJ Mobile Whips, bug

catchers, Hustlers and screwdriver antennas.

MFJ Antennas for Restricted Areas

MFJ’s

tiny 36

inch

diameter

loop

antenna

lets you

operate

through

30 MHz

continu-

ously --

including the WARC bands!

Ideal for limited space -- apart-

ments, small lots, motor homes, attics, or

mobile homes. Enjoy both DX and local

contacts mounted vertically. Get both

low angle radiation for excellent DX and

high angle radiation for local, close-in

contacts. Handles 150 watts.

Super easy-to-use! Only MFJ’s

super remote control has Auto Band

SelectionTM. It auto tunes to desired

band, then beeps to let you know. No

control cable is needed. Fast/slow tune

buttons and built-in two range Cross-

Needle SWR/Wattmeter lets you quick-

ly tune to your exact frequency.

All welded construction, no mechani-

cal joints, welded butterfly capacitor

with no rotating contacts, large 1.050

inch diameter round radiator -- not a

lossy thin flat-strip -- gives you highest

possible efficiency.

Each plate in MFJ’s tuning capacitor

is welded for low loss and polished to

prevent high voltage arcing, welded to

the radiator, has nylon bearing, anti-

backlash mechanism, limit switches,

continuous no-step DC motor -- gives

smooth precision tuning.

Heavy duty thick ABS plastic hous-

ing has ultraviolet inhibitor protection.

MFJ-1788, $429.95. Same as MFJ-

1786 but covers 40 - 15 Meters continu-

ous. Includes super remote control.

MFJ-1782, $339.95. Like

MFJ-1786 but fast, slow tune

button control.

MFJ-1780, $249.95. This

Box Fan Portable Loop is about

the same size (2x2 foot) as a

box fan, complete with handle.

Covers 14-30 MHz. Remote

Control box has fast/slow tunes.

MFJ’s Super High-Q LoopTM Antennas

10-40 Meter Portable Antenna

MFJ-1621 lets

you operate in most

any electrically free

area -- apartment,

campsite, hotel, the beach, etc.

DXCC, WAZ, WAC, WAS

have been won with MFJ-1621!

Work 40, 30, 20, 17, 15, 12 and 10

Meters with a telescopic whip that

extends to 54 inches. Mounted on

a sturdy 6x3x6 inch cabinet.

Built-in antenna tuner, field

strength meter,

and 50 feet of

RG-58 coax

cable.

Handles

200 Watts.

Portable Antenna Base

MFJ-1622

$9995

Ship Code C

MFJ-1904

$9995

Ship Code D

Shown with

multi-band

Hy-Gain

antenna and

mount,

(not included).

MFJ-1621

$8995

Ship Code A

MFJ-1786

$37995

Ship Code F

QSTCatP44.qxd 10/16/2003 12:16 PM Page 1

www.mfjenterprises.com 45

Bands

One

MFJ

Antenna!

Full

size

performance

ground

system

radials

Operate

bands:

75/80,

40,

30,

20,

17,

15,

12,

10,

and

Meters

with

one

antenna

Separate

full

size

radiators

End

Elevated

top

feed

Low

Radiation

Angle

Very

wide

bandwidth

Highest

performance

ground

vertical

ever

Operate 10 bands -- 75/80, 40, 30, 20, 17, 15,

12, 10, 6 and 2 Meters with this MFJ-1798 vertical

antenna and get full size performance with no

ground or radials!

Full size performance gives high efficiency for

more power radiated. Results? Stronger signals

and more Q-5 QSOs.

Full size performance also gives you exception-

ally wide bandwidths so you can use more of your

hard earned frequencies.

Full size performance is achieved using separate

full size radiators for 2-20 Meters and highly effi-

cient end loading for 30, 40, 75/80 Meters.

Handles full 1500 watts PEP

Get very low radiation angle for exciting DX,

automatic bandswitching, omni-directional cover-

age, low SWR. Handles 1500 Watts PEP SSB.

MFJ’s unique Elevated Top FeedTM elevates the

feedpoint all the way to the top of the antenna. It

puts the maximum radiation point high up in the

clear where it does the most good -- your signal

gets out even if you’re ground mounted.

It’s easy to tune because adjusting one band has

minimum effect on the resonant frequencies of

other bands.

Self-supporting and just 20 feet tall, the MFJ-

1798 mounts easily from ground level to tower top

-- small lots, backyards, apartments, condos, roofs,

tower mounts.

Separate Full Size Radiators

Separate full size quarter wave radiators are used on 20,

17, 15, 12, 10 and 2 Meters. On 6 Meters, the 17 Meter

radiator becomes a 3/4 wave radiator.

The active radiator works as a stub to decouple every-

thing beyond it. In phase antenna current flows in

all parallel radiators.

This forms a very large equivalent radiator and

gives you incredible bandwidths.

Radiator stubs provide automatic bandswitch-

ing -- absolutely no loss due to loading coils or

traps.

End Loading

On 30, 40, 75/80 Meters, end loading -- the

most efficient form of loading -- gives you highly

efficient performance, excellent bandwidth, low

angle radiation and automatic bandswitching.

MFJ’s unique Frequency Adaptive L-

NetworkTM provides automatic impedance match-

ing for lowest SWR on these low bands.

Tuning to your favorite part of these bands is

simple and is done at the bottom of the antenna.

No Ground or Radials Needed

You don’t need a ground or radials because an

effective counterpoise that’s 12 feet across gives

you excellent ground isolation.

You can mount it from ground level to roof top

and get awesome performance.

The feedline is decoupled and isolated from the

antenna with MFJ’s exclusive AirCoreTM high

power current balun. It’s wound with TeflonR

coax and can’t saturate, no matter how high your

power.

Built to Last

Incredibly strong solid fiberglass rod and large

diameter 6063 T-6 aircraft strength aluminum tubing is in

the main structure.

Efficient high-Q coils are wound on tough low loss

fiberglass forms using highly weather resistant TeflonRcov-

ered wire.

1/2-wwave,

6-BBand

No-rradials

Vertical

Only 12 feet high with a tiny 24 inch footprint! Mount any-

where -- ground level to tower top -- apartments, small lots,

trailers.

Perfect for vacations, field day, DXpeditions, camping.

Efficient end-loading, no lossy traps. Entire length always

radiating.

Full size halfwave on 2/6 Meters.

High power air-wound choke balun eliminates feedline radi-

ation.

Adjusting one band has minimum effect on others. For 40-

20-15, 10, 6, 2 Meters.

Automatic bandswitching, low radiation angle, omni-direc-

tional, handles 1500 watts PEP.

Goes together in an afternoon.

In November 1994 QST magazine, Top of the DXCC Honor

Roll member and Top 10 contester James D. Cain, K1TN, wrote

“This antenna turned out to be a good performer on all

bands...a $200 ground-independent vertical that

will get you on segments of four HF bands when

there’s room for nothing else except a small trans-

mitting loop antenna.”

MFJ-1796

$20995

Ship Code F

MFJ-1798

$28995

Ship Code F

1122

ffeeeett

ttaallll,,

MMoouunnttss

AAnnyywwhheerree,,

4400

ttoo

MMeetteerrss80/40

Meter

Vertical

MFJ-

1792 is a

high-per-

formance

80/40 Meter vertical. Full size

quarter wave radiator for 40

Meters -- that’s 33 feet of radiat-

ing power.

End loading, unique built-in

L-network for lowest SWR, low-

loss fiberglass form, high

strength 6061-T6 aluminum tub-

ing, handles 1500 watts PEP.

Requires guying and radials,

counterpoise, or ground screen.

80/40/20

Meter

Vertical

MFJ-1793, $189.95, like

MFJ-1792 but has full size 20

Meter 1/4wave radiator also.

Verticals

for

80/40/20

Meters

MFJ-1792

$169.95

Ship Code F

QSTCatP45.qxd 10/16/2003 12:18 PM Page 1

46 www.mfjenterprises.com

MFJ-3305, $19.95.

320 pages, 37 short

concise chapters.

Underlying theory,

powerful antenna-

making techniques,

special antenna

projects and more!

MFJ-3306,

$19.95. This is a

practical level

antenna from the

ground up book

by L.B. Cebik,

W4RNL. Concise,

clear chapters.

MFJ-38, $16.95.

Easy-Up Antennas

by Ed Noll,

W3FQJ. For hams

and SWL. How to

build and how to

put up. Fully test-

ed designs.

MFJ-3507, $19.95. By the

late Doug DeMaw, W1FB. A

wealth of information on cir-

cuits, including transmitter

and receiver fundamentals,

mixers, balanced modulators,

detectors, IF amplifiers, fil-

ters, AGC systems, frequency

control systems, small signal

RF amplifiers, large signal

RF amplifiers and more.

Many useful circuits to build.

MFJ-3400, $19.95. By ham

operator and avid CW enthusiast

David Finley, N1IRZ. This is

the first book to detail the Koch

method and emphasize the train-

ing techniques that are the fastest

and most effective for code pro-

ficiency. The author explains

how, using Ludwig Koch’s train-

ing method, prospective hams

can quickly grasp teachings and

pass the FCC exams faster.

MFJ-3509, $19.95.

Ladder Crystal Filters.

Generous references,

John Pivnichny, N2DCH.

MFJ-3303, $12.95.

“73 Verticals, Beams,

Triangle Antennas”. By

Ed Noll, W3FQJ.

MFJ-33, $12.95.

Everything you need to

know about mobile! By

Dave Ingram, K4TWJ.

MFJ-3501, $19.95.

30 different electronic kit

projects, schematics, part

placement. ham toys, etc.

MFJ-3506,

$19.95. Legendary

textbook from the

late Doug DeMaw,

W1FB, emphasizes

the practical aspect

of ferromagnetic

core material.

MORE GREAT MFJ SELECTIONS

MFJ-3302, $12.95. 73 Dipole &

Long Wire Antennas. By Ed

Noll, W3FQJ. Classic antenna

projects for a weekend!

MFJ-3502, $12.95. Solid State

QRP Projects. By Ed Noll,W3FQJ.

MFJ-36, $9.95. Shortwave

Listener’s Guide for Apt./Condo

dwellers. Receivers, antennas,

other equipment.

MFJ-3301, $12.95. Troubleshooting

Antennas and Feedlines. Search it

out! By Ralph Tyrell, W1TF.

MFJ-3504, $16.95. FET

Principles, Experiments and

Projects. By Ed Noll, W3FQJ.

MFJ-3510, $19.95. QRP Projects

from Down Under. Paddyboard

circuit construction, air wound coils.

MFJ-3508, 17.95. Radio

Components Handbook. Life’s work

of Guido Silva, I2EO. 416 ages of

circuits, graphs, and theory radio

components. Buku schematics!

MFJ-37, $9.95. Ham Radio

Communications Circuit Files. By

Ed Noll, W3FQJ. Many fun items!

MFJ-3036, $12.95. PROH: Packet

Radio Operators Handbook. By

Buck Rogers, K4ABT.

MFJ-30, $9.95. Golden Classics

of Yesteryear. By Dave Ingram,

K4TWJ. Collins, Heathkit, more!

MFJ-35, $7.95. Wonderful

World of Ham Radio! An excellent

introduction to ham radio for kids,

classrooms. Great start!

MFJ-32, $9.95. Packet Radio is

Made Easy. By Buck Rogers, K4ABT.

Packet radio for beginners!

MFJ-31, $7.95. Oscar Satellite

Review. By Dave Ingram,

K4TWJ. An anthology of CQ arti-

cles about oscar stations.

MFJ-3101, $7.95. Fox Hunt

Adventure. Relive a sense of mys-

tery as young Ben discovers ama-

teur radio and emergency services.

Great gift for a young lad.

MFJ QuickStudyTM Ham Radio License Guide

Use

MFJ’s

QuickStudyTM

License

Guide and

MFJ guaran-

tees that

you’ll pass

the written

exam on your

very first try

or you get

your money back*. See

above.

What is MFJ’s

QuickStudyTM concept? The

objective is to pass the exam

and get your license with a minimum amount of study time so you

can start enjoying the hobby right away.

Each MFJ license guide has all of the exact questions given on

the written exam. Each question on the exam has a multiple

choice answer. But why take the extra time to study the wrong

answers? It’ll just add to the confusion and doesn’t help you pass

the exam. MFJ gives you only the correct answers. When you

take the exam the answer jumps out at you -- no confusion, noth-

ing to clutter the mind. It’s an instant correct answer because you

only studied the right answer.

Study the material thoroughly a few times, pass the test and

enjoy the friendship of ham radio -- it couldn’t be simpler.

MFJ QuickStudyTM License Guides are available for all classes

Technician, General and Extra Classes. These books only cover the

written part of the test, not the five word-per-minute code exam.

MFJ-3211, Technician, MFJ-3213 General Class, MFJ-3215

Extra Class, $9.95 each.

MFJ-3211-Technician MFJ-3213-General MFJ-3215-Extra

MFJ Publishing guarantees that you’ll pass your written exam

on your first try . . . if you don’t pass we’ll refund your money

in full* . . . you can’t lose! *Send copy of receipt, proof of failure to MFJ within 30 days of failing and we

will refund the purchase price of your MFJ QuickStudyTM. Limit 1 per license class.

New Question Pools!

MFJ-3211

MFJ-3213

MFJ-3215

$995

each

Technician,

General, or

Extra Class

Ship Code A

QSTCatP46.qxd 10/16/2003 12:24 PM Page 1

AMERITRON...the world’s high power leader! 47

AL-811 . . . 600 WATTS . . . $649!

More hams use Ameritron AL-811 amplifiers than any other amplifier in the world

. . . The AL-811 has earned a worldwide reputation for legendary quality,

flawless performance, proven reliability and superb customer service . . .

Ameritron’s AL-811 linear

amplifier gives you plenty of

power to bust through QRM!

You get a quiet desktop lin-

ear that’s so compact it’ll slide

right into your operating posi-

tion -- you’ll hardly know it’s

there . . . until QRM sets in. And

you can conveniently plug it

into your nearest 120 VAC out-

let -- no special wiring needed.

You get three tough 811A

transmitting tubes, extra heavy

duty power supply, all HF band

coverage, pressurized ventilation,

tuned input, dual illuminated

meters, adjustable ALC and much

more for an incredible $649!

The First 600 Watts

makes the difference

The AL-811 gives you 600

Watts PEP output -- that’s near-

ly 2 full S-units over your bare-

foot rig. That could mean the

difference between hearing,

“You’re Q-5 armchair copy”

and “Sorry, can’t copy you, too

much QRM.”

Now you won’t have to

stand aside while the big guns

steal your DX. You’ll log some

of those stations first.

All band, all mode Coverage

AL-811 covers all HF

bands. No compromise on

WARC and most MARS bands

-- you get a 100% rated output.

Operate AL-811 on all

modes. Get 600 Watts output

PEP SSB and 500 Watts output

CW. You even get 300 Watts

on continuous carrier modes

like RTTY, SSTV, and FM.

The low cost 811A tubes

resists failure because . . .

First, they’re constructed with

widely spaced elements that

minimize the chance of ele-

ments touching and causing a

short -- even if the plate gets

hot enough to melt.

Second,

they use a

directly

heated tho-

riated tungsten filament cathode

that prevents the electron emit-

ting layer from instantly strip-

ping off -- even if mistuning

causes a sudden, severe current

overload.

The Ameritron AL-811 is

excellent for the newcomer

because it’s tough enough to

withstand momentary mistun-

ing. And the tubes are so inex-

pensive that you can replace

one for mere pocket change.

Extra heavy duty power supply

gives you peak performance

year after year

The heart of the AL-811

power supply is its heavy duty

power transformer with a high

silicon steel core weighing a

hefty 17 pounds.

Afull wave bridge using

67.5 mfd of total capacitance

(four 270 ufd, 450 volt capaci-

tors) produces 1500 Volts

under full load and 1700 Volts

no load. That’s excellent high

voltage regulation!

Rectifier diodes are rated

for a massive surge current of

200 amps-- won’t blow even if

you accidentally short the high

voltage supply.

Wire wound, 7 Watt, 50 K

Ohm equalizing resistors safe-

ly protect each filter capacitor

-- not 2 Watt, 100 K Ohm car-

bon composition resistors that

can open and cause filter

capacitors to explode or fail.

Ameritron’s AL-811 power

supply is built tough so you get

peak performance year after

year.

Tuned input provides

excellent load for any rig

APi-Network tuned input

provides a 50 Ohm load for

your rig. Even fussy solid state

rigs can deliver their full drive

to the AL-811.

Low loss slug tuned coils --

tunable from the rear panel --

let you optimize performance.

High quality low drift silver

mica capacitors maintain proper

tuning. Output tank:

Optimum Q on each band

The low loss pi-network

output tank has been carefully

designed for optimum Q on

each band and built with top

quality RF components.

The result is peak perform-

ance over each band, wide

impedance matching range and

exceptionally smooth tuning

with efficiencies close to 70%.

Even a 3:1 SWR load won’t

damage tubes/tank components.

Aball bearing vernier

reduction drive makes plate

tuning safe, precise and easy.

Aquiet blower pressurizes

the cabinet with a large volume

of air flow. It keeps the 811A

tube temperature well below the

tube manufacturer’s rating --

even with a key down carrier at

400 Watts output -- without the

overwhelming noise of over-

sized fans.

Two illuminated meters

give you a clear picture of your

AL-811 operating conditions so

you can tell right away if some-

thing is wrong.

The Grid Current meter

continuously checks for

improper loading. The other

meter switches be-tween high

voltage and plate current to

warn of abnormal conditions.

Exclusive Adapt-A-VoltTM power

transformer

Too high of line voltage

stresses components and causes

them to wear out and fail. Too

low line voltage causes a “soft

tube” effect -- low output and

signal distortion.

Ameritron’s exclusive

Adapt-A-VoltTM power trans-

former has a special buck-boost

winding that lets you compen-

sate for stressful high line volt-

age and performance robbing

low line voltage. Your compo-

nents last longer and gives you

peak performance -- regardless

of your line voltage.

Plus much, much more . . .

An Operate/Standby switch

lets you run barefoot, but you

can in-stantly switch to full

power if needed. A transmit

LED tells you when your rig is

keying your AL-811. A 12

VDC keying relay makes it

compatible with all solid state

and tube rigs.

Back-pulse cancelling diode

protects the rig keying circuit.

Shielded RF compartment.

One year limited warranty.

Compact 16Dx133/4Wx8 H”.

30 lbs. UPS shippable, has

transformer installed and wired

for 120 VAC. Draws 8 amps at

120 VAC. Export model is AL-

811X wired for 240 VAC.

AMERITRON

116 Willow Road, Starkville, MS 39759

Tech: 662-323-8211•Fax: 662-323-6551

www.ameritron.com

AL-811

$649

Suggested Retail

Ameritron gives

you four 811A tubes,

and 800 Watts for

the same price as

their 3 tube 600W

unit . . . Why settle

for less power and

pay more?

Only Ameritron’s

AL-811H gives you

four fully neutralized 811A

transmitting tubes. You get absolute

stability and superb performance on

higher bands that can’t be matched by

un-neutralized tubes.

Ameritron mounts the 811A

tubes vertically -- not horizontally --

to prevent hot tube elements from

sagging and shorting out. Potentially

damaging horizontal tube mounting

requires special 811A

tubes to retard sagging

and shorting.

Quiet, powerful

computer grade

blower draws in

plenty of cool air. it

pressurizes the cabi-

net and efficiently

cools your 811A tubes.

Our air flow is so quiet,

you’ll hardly know it’s there -- unlike

noisy, oversized blowers.

Efficient, full size heavy duty

tank coils, computer grade capacitors,

heavy duty silicon power transformer,

slug tuned input coils, operate/stand-

by switch, transmit LED, ALC, dual

meters, QSK compatibility with

Ameritron’s QSK-5 plus more!

800 Watts . . . $799!

QSTCatP47.qxd 10/16/2003 12:25 PM Page 1

AMERITRON Doubles Average SSB Power

Ameritron’s AL-80B

kilowatt output desktop

linear can double your

average SSB power out-

put with high-level RF

processing using

Ameritron’s exclusive Dynamic ALCTM.

You get cooler operation because the

AL-80B’s exclusive Instantaneous RF

BiasTM completely turns off the classic 3-

500 tube between words. It saves hun-

dreds of watts wasted as heat.

You get a full kilowatt PEP output

from a whisper quiet desktop linear. It’s

a compact 81/2Hx14Dx151/2inches and

plugs into your nearest 120 VAC outlet.

Covers all bands 160-15 Meters, including

WARC and MARS (10/12 Meters modifiable;

FCC license required).

You get 800 watts output on CW, 500 watts

output on RTTY, an extra heavy duty power

supply, genuine 3-500 tube, nearly 70% effi-

ciency, tuned input, Pi/Pi-L output, inrush cur-

rent protection, multi-voltage transformer, dual

cross-needle meters, QSK compatability, two-

year warranty, made in the USA, plus much

more!

Dynamic ALCTM doubles average SSB power

The AL-80B’s exclusive Dynamic ALCTM

gives you high-level low-distortion RF pro-

cessing. It can more than double your average

SSB power for up to 6 dB improvement in

intelligibility, maximizing talk power without

distortion/splatter.

Aconvenient front panel control lets you

adjust output power level.

The AL-80B’s exclusive Instantaneous RF

BiasTM turns off the classic 3-500 tube (except

filaments) between words and dots and dashes,

elininating hundreds of watts wasted as heat

for cooler operation and longer component life.

The guts of the AL-80B is its heavy duty

power supply. A 26 pound transformer using a

high silicone steel core, computer grade capac-

itors, heavy duty bleeders and ten 3 amp, 1000

volt power rectifiers give you a stiff 2700 volts

fully loaded. Many amps using two 3-500s use

such small power supplies they don’t deliver

much more power output than the AL-80B.

The AL-80B is built on a rugged steel

chassis with a separate fully-shielded RF com-

partment to minimize RFI and TVI.

Awhisper quiet internal fan draws in cool

air over power supply components and pressur-

izes the classic 3-500 tube compartment to

remove heat for longest life.

Tuned input lets your rig deliver full output

50 Ohm broadband Pi-Network tuned input

is used. Even fussy solid state transmitters

will deliver full power!

Acarefully designed Pi/Pi-L output net-

work using the optimum Q for each band gives

exceptionally smooth tuning, extremely

wide matching range, full band coverage,

and peak performance at all power lev-

els.

Step-Start Inrush ProtectionTM stops

damaging inrush current with a start up

sequence that’s easy on your tube and

power supply components.

Our exclusive Multi-Voltage Power

TransformerTM lets you optimize for 14

different primary line voltages. The high

voltage secondary can be wired to reduce

plate voltage for efficient operation below

400 watts for use outside the USA.

AMERITRON’s dual illuminated

cross-needle meters give you four sepa-

rate meters to monitor your operating condi-

tions -- you can tell right away if something is

wrong. Grid and plate current and forward out-

put power are monitored for improper loading

and abnormal conditions.

The fourth meter can be switched to moni-

tor your 3-500 tube DC plate voltage, reflected

PEP power, antenna system SWR, ALC volt-

age to your rig, and the grid current that starts

ALC action -- get a clear picture of your AL-

80B.

The T/R (transmit/ receive) relay in the

AL-80B switches nearly as fast as some vacu-

um relay QSK T/R switches.

Operate/Standby switch lets you run bare-

foot, but can instantly switch to full power if

needed.

Has transmit LED; 12 VDC, 200 mA

accessory jack; 12 VDC keying relay for solid

state and tube rigs; tough Lexan over-alu-

minum front panel. Two-year waranty.

Weighs 48 lb. Power required: 120 VAC,

12A. Made in the U.S.A.

AL-80B

$1349

Suggested

Retail

The AMERITRON AL-572 gives you

1300 Watts PEP SSB nominal power output

on 160 through 15 Meters, using four rugged

572B tubes with 3 second warm-up time. This

whisper quiet, desktop linear plugs into your

120 VAC outlet - no special wiring needed.

You get heavy duty power supply; fully

neutralized tubes; pressurized ventilation;

multi-voltage power transformer; front panel

ALC control; 6:1 vernier drives ... and more!

You'll typically get 1300 Watts PEP SSB,

1000 Watts CW continuous, on all amateur

bands from 160 through 15 Meters

AMERITRON's exclusive Instantaneous

RF Bias completely turns off the 572B tubes

between words and dots and dashes, for cool-

er operation and longer component life, while

Dynamic ALC can more than double your

average SSB power.

AMERITRON's Step-Start

Inrush Protection limits

inrush current, greatly

extending tube life.

A Pi-Network tuned

input using slug tuned coils provides a

good 50 ohm load for your rig. A quiet

internal fan draws in cool air over power

supply components and pressurizes the

tube compartment.

Grid current, plate current and for-

ward PEP output power are continuously

monitored by dual, lighted cross-needle

meters.

A fourth scale switches among peak

reflected power (and SWR), high voltage,

ALC threshold, and ALC output voltage.

For lightning fast QSK operation use the

optional Ameritron electronic PIN diode QSK

switch. Shipped wired for 120 VAC. Weighs

40 lb.Power required: 120 VAC, 16 amps.

Output power: 1250 watts PEP, single

3CX800A7. 1500 W plus, two 3CX800A7s.

160-15 Meters including WARC bands.

Modifiable for 12/10 Meters, FCC license

required.

Genuine EimacTM tube(s): AL-800 has a

single Eimac 3CX800A7; AL-800H has two

Eimac 3CX800A7s, adjustable slug-tuned

input circuit.

Output network: Pi/Pi-L gives you smooth

tuning and wide matching range. Vernier

reduction drives make tuning and loading

adjustments smooth and easy.

Tube protection: Grid current limiting cir-

cuit protects your tubes. Quiet pressurized ven-

tilation keeps tubes safely cooled.

ALC control: Front panel adjustable, true

ALC control.

Hefty power supply: 32 lb. grain orientat-

ed, silicone steel core transformer.

Step-Start Inrush Protection: Stops dam-

aging inrush current.

Multi-voltage operation: 14 user-selectable

AC line voltage from 90-140; 200-250 VAC.

Dual illuminated cross-needle meters:

Read peak forward, reflected, SWR high-volt-

age, grid/plate current.

Compact 8½Hx16½Dx14¼W in.

52 lb. (AL-800H). Power required: 240

VAC, 14 amps (AL-800H).

AL-572 Offers 1300 Watts PEP SSB on HF at Low Cost

AL-572

$1445

Suggested

Retail

AMERITRON...The World’s high power leader! 48

AMERITRON HF Linear Amplifiers with EimacTM 3CX800A7

AL-80B kilowatt output desktop linear can double your average SSB power output with high-level

RF processing...runs cooler because its 3-500 tube completely turns off between words

AL-800

$1825

One tube

Suggested

Retail

AL-800H

$2695

Two tubes

QSTCatP48.qxd 10/16/2003 12:27 PM Page 1

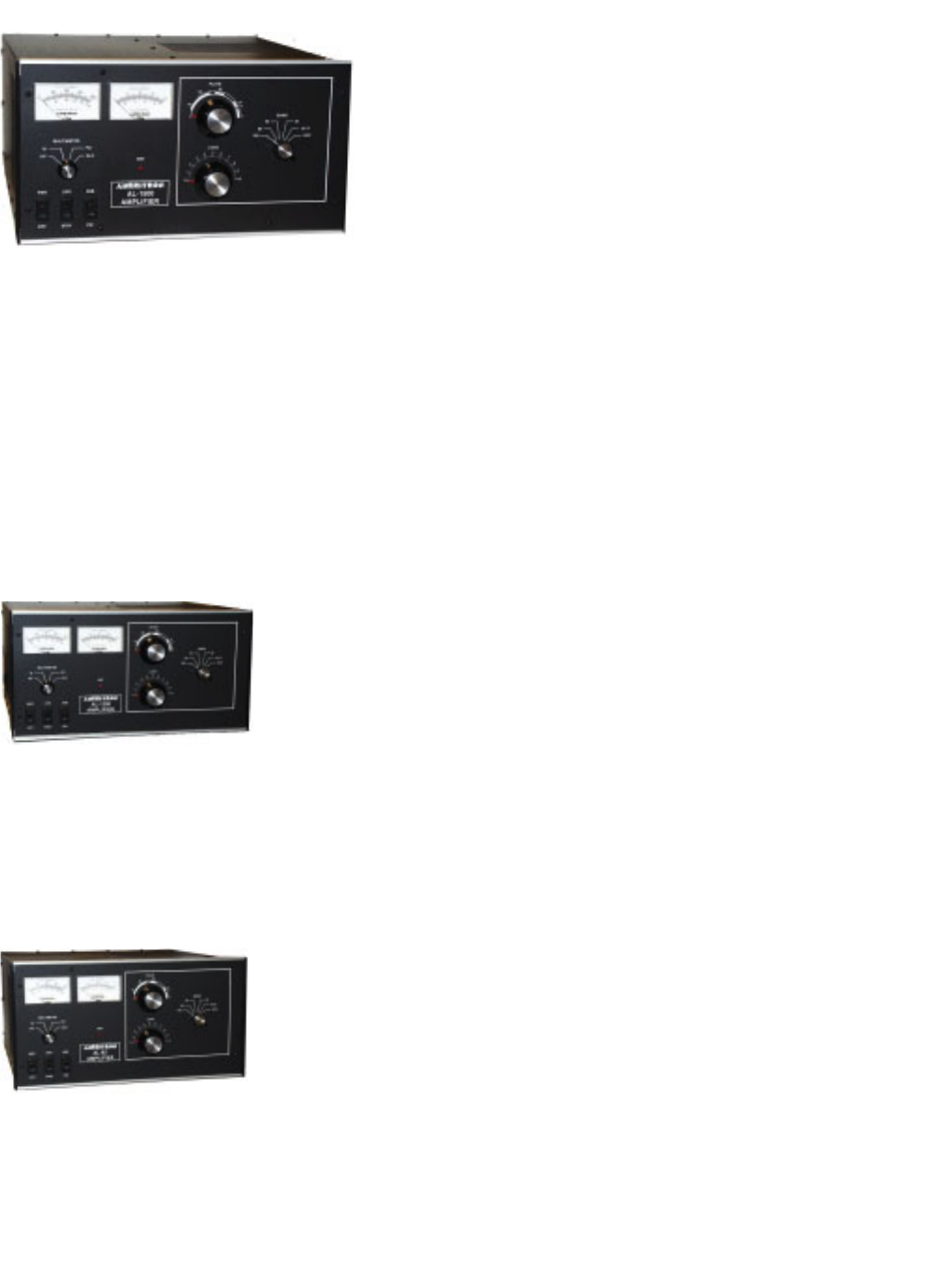

Feel the need for maximum legal

HF output power? AMERITRON’s

AL-1500 will give it to you.

Using the Herculean

3CX1500A/8877 ceramic tube with its high

power gain, the AL-1500 needs only 65 watts

of drive from your exciter to deliver the goods-

- transceivers and other exciters just loaf at

1500 watts out.

Cool, efficient operation is provided by a

forced-air system with tube chimney, using a

commercial grade die-cast ball bearing blower

for maximum tube life. The tube is further pro-

tected by time delay starting and automatic

over-current shutoff to remove drive power if

the amplifier is mis-tuned.

You get full legal power output from a

whisper quiet desktop linear. Measures 181/2D

x17Wx10H inches, and covers all bands, 160-

15 Meters, including WARC and MARS (80%

of full output set to nearest amateur band).

10/12 Meters modifiable.

You get 1500 watts output (1/2 hour

continuous carrier) and 2500 watts (30

second continuous carrier and 2500

watts- plus 30 minute PEP two-tone test).

You get all this power, plus, 65% effi-

ciency, pi-network tuned input, Pi/Pi-L

output, inrush current protection, multi-

voltage transformer, QSK compatability,

and a one-year warranty.

The guts of the AL-1500 is its heavy

duty power supply, with a 32 lb. Peter

Dahl Hypersil(R) transformer using a high

silicone steel core, computer grade

capacitors (33 mfd total), heavy duty

bleeders and twenty 3 amp, 1000 volt

power rectifiers give you a stiff 3300

volts fully loaded.

The AL-1500 is built on a rugged steel

chassis with a separate RF compartment fully

shielded to keep RF from leaking out, keeping

RFI and TVI to a minimum.

Superb RF design and layout, Hi-Q tank

circuit and commercially rated RF power com-

ponents give you 65% plate efficiency over the

entire operating range. Power goes into the

antenna instead of into heat.

50-ohm broadband Pi-Network tuned input

with slug-tuned coils is used. Even fussy solid

state transmitters will deliver full power!

Acarefully designed Pi/Pi-L output net-

work using the optimum Q for each band with

vernier ball drives gives smooth tuning, wide

matching range, full band coverage, and peak

performance at all power levels.

The AL-1500’s grid overload circuit pro-

tects the tube from excessive grid current; if

175 mA of peak gric current is reached, the

“OPR” LED will no longer light and the

amplifier will go into a bypass condition until

reset by the operator.

Transformer provides many options

Since excessive line voltage stresses com-

ponents (low line voltage causes a “soft tube”

effect, for example), Ameritron’s exclusive

Multi-Voltage Power TransformerTM lets you

optimize for different line voltages. Select from

4 different primary voltage ranges, from 205-

219 VAC to 252 to 265 VAC. The amplifier

comes wired from the factory for 240 VAC.

The AL-1500 has two illuminated panel

meters. The Grid Current meter provides con-

tinuous reading of the critical grid current and

indicates proper and safe amplifier operation.

The other meter can be selected to read

Plate Voltage, Plate Current, Peak RF Watts,

or ALC. A SSB/CW selector switch chooses

bias voltage for best linearity on SSB or lowest

dissipation on CW.

The Operate/Standby switch, in Standby,

maintains the tube’s filament and plate volt-

ages while allowing “barefoot” operation.

Other features include a 12 volt DC auxil-

iary jack and an “XMT” LED to provide indi-

cation of proper amplifier keying by the

exciter. Power required: 240 VAC, 15 amps.

Frequency coverage: 1.8, 3.5, 7, 14, 21

MHz and Warc Bands. User-modifiable for 28

MHz (FCC license required).

Size: 181/2Dx17Wx10H”. Weighs 77 lbs.

UPS shippable, 3 boxes: amp, tube, transformer.

AL-1500

$3045

Suggested Retail

AL-1500 Delivers Full Legal Power with just 65 watts drive

www.ameritron.com 49

AMERITRON AL-1200 Boasts Full Legal Power with Rugged 3CX1200A7

Classic 3-500 Tubes Deliver Full Legal Power in AMERITRON AL-82

This classic AL-82 linear gives you full

legal output using a pair of 3-500s. Examine

the features and component ratings of the AL-

82 and compare it to any competing amplifier

using two 3-500Zs.

Most can’t give you 1500 watts because

their lightweight power supplies can’t use

these tubes to their full potential. Our AL-82

amplifier has the same power supply as the

AL-1500 and AL-1200 -- powerful stuff!

The Ameritron AL-82 linear ampli-

fier is designed to give you years of

trouble free service at the full legal out-

put power limit.

A32-pound, 1800 watt continuous com-

mercial rated tape-wound Peter Dahl

Hypersil(R) transformer is standard with heavy

duty rectifiers in a full wave bridge supply

with computer capacitors. Two bias settings

allow either high efficiency RTTY and CW

operation at 1500 watts of output at nearly

70% plate efficiency or low distortion 1500

watts PEP, SSB or SSTV output.

Silver plated tank components provide

high efficiency operation above 20 meters.

The Pi-L tank circuit permits full impedance

matching capability over the entire 160 meter

band. The Pi-L/PI output tuning capacitors

and bandswitch have a 35% safety factor to

virtually eliminate tank circuit component

failures.

The cooling system keeps the components

and tube safely below the manufacturer's rat-

ings, even while operating at 1500 watts out-

put with a steady carrier. The filament supply

has inrush current limiting to insure maxi-

mum tube life. Shielding and by-passing help

prevent TVI and RFI.

The AL-82 has two illuminated meters;

Grid Current reads the 3-500Z grid current.

This is an Ameritron first. A multi-meter dis-

plays plate voltage, plate current, peak R.F.

output power and drive power/ALC detector

voltage.

Frequency coverage: 1.8, 3.5, 7, 14, 21

MHz and WARC bands. User modifiable for

28 MHz (FCC license required).

Dimensions: 181/2Dx17Wx10"H. UPS

Shippable. Operating weight is 76 lbs. Power

Requirement: 240 VAC, 15 Amps.

What makes the AL-1200

stand out from other legal limit

amplifiers? The answer: a

super heavy duty power supply

that loafs at full legal power

and can deliver more than 2500

watts PEP two-tone output for

a half hour, the same power

supply as in our AL-1500

amplifier. The heart of the AL-

1200 power supply is a highly efficient Peter Dahl

tape wound Hypersil(R) transformer weighing 32 lbs.

And now ham radio’s toughest tube, the EimacR

3CX1200A7, is in ham radio’s toughest amplifier! It

has a 50 Watt control grid dissipation. The 3CX1200A7 has the lowest

quantity history of field replacement of any modern transmitting tube

that we use. It has the ruggedness and power handling of ceramic tubes

with the long-life of thoriated tungsten filaments.

You get genuine high current, computer-grade capacitors with

screw-on terminals. The AL-1200 rectifier board uses diodes rated for

a massive surge current of 200 amps -- you can accidentally short the

high voltage supply and the diodes won't blow! Will another amplifier

you're considering withstand a direct power supply short?

The AL-1200 also gives you all mode, all band coverage, includ-

ing WARC and MARS, Pi-network tuned input, Step-Start Inrush

Protection, multi-voltage power transformer primary, and a Pi-L output

tank curcuit with silver plated components.

Other features include: a separate filament transformer eliminates

poor regulation and surges; adjustable ALC; SSB/CW switch for best

linearity and efficiency; operate/standby switch; transmit indicator

LED; 12 VDC auxiliary output; 35% safety factor for tuning capacitors

and bandswitching virtually eliminates failures.

Ashielded RF compartment; quiet die cast blower with 3 speeds;

two illuminated meters show continuous grid current, peak RF watts

out, drive power/ALC, plate voltage and plate current; ball bearing

vernier reduction drives on plate and load controls; optional QSK

board, one year limited warranty; and much more.

Frequency coverage: 1.8, 3.5, 7, 14, 21 MHz and WARC Bands.

User-modifiable for 28 MHz (FCC license required).

Measures 181/2Dx17Wx10H inches. Operating Weight is 77

pounds. UPS shippable, comes in three packages: tube, amp, trans-

former. Power required: 240 VAC, 13 amps.

AL-1200

$2645

Suggested Retail

AL-82

$2545

Suggested Retail

QSTCatP49.qxd 10/16/2003 12:28 PM Page 1

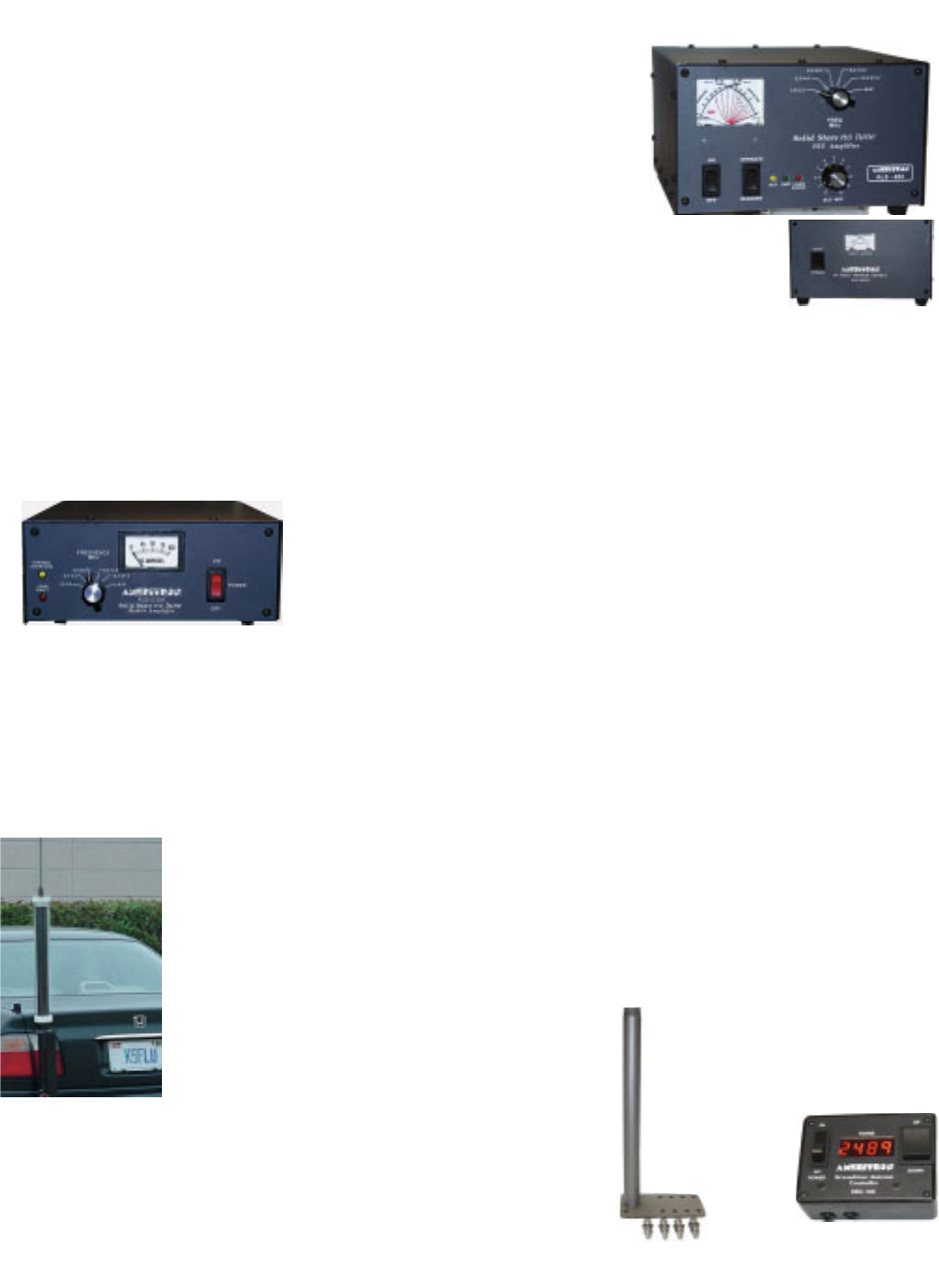

No tuning, no fuss, no worries -- just

turn on and operate. AMERITRON’s revo-

lutionary ALS-600 includes a 120/220 VAC

power supply, 600 watts output, continuous

1.5-22 MHz coverage, instant bandswitch-

ing, no warm up, no tubes to baby, fully

SWR protected, extremely quiet, compact.

This is amateur radio's only linear

amplifier that uses four rugged TMOS RF

power FETs, giving unequaled no-tune

solid state performance.

Output power is 600 watts PEP SSB

and 500 watts CW

Upgradable to include 12/10 Meters

with easy-to-install optional kit, ($29.95

plus s/h). FCC license required.

SWR protection prevents amplifier

damage if you switch to a wrong band, use

wrong antenna, or have high SWR.

Over-power protection looks for exces-

sive output forward power or reflected

power and automatically reduces output

power to prevent amplifier damage, by

controlling ALC to exciter.

This little powerhouse is unobtrusive;

its low speed, low volume fan

is so quiet you'll hardly know

it's there, unlike noisy blowers

used in other amps.

At just 6 x 9-1/2 x 12 inches, the ALS-

600 may take up less desktop space than

your transceiver, and it weighs just 12.5

pounds.

The illuminated cross-needle

SWR/wattmeter reads SWR and forward

and reflected peak power simultaneously.

The Operate/Standby switch lets you

run "barefoot" but instantly switch to full

power if you need it.

With the AMERITRON exclusive front

panel ALC control you can adjust your out-

put power.

LED indicators for Transmit, ALC, and

SWR keep you informed and the rear panel

12 VDC output jack lets you power low

current accessories.

The separate ALS-600PS power supply

unit (included) can be placed conveniently

out of the way and plugged into your near-

est 120 VAC outlet. Ameritron's exclusive

Multi-Voltage Power

Transformer lets you

compensate for

stressful high line

voltage and perform-

ance-robbing low

line voltage, while Step Start Inrush

Protection stops damaging inrush currents

and extends life of power supply compo-

nents. The illuminated cross-needle meter

reads voltage and current of 50 VDC line.

Includes prewired cable to plug in to

ALS-600 amplifier.

Higher power from

your mobile! The

Ameritron ALS-500M is a

no tune, solid state ampli-

fier made for on-the-road

use. Get 500 watts PEP SSB output or 400

watts on CW from its four rugged 2SC2879

high power linear RF power transistors.

Uses 13 VDC at 25A.

It has instant bandswitching, of course,

no tuning, no warm up -- just turn on and

operate -- makes mobile QSOs safer.

Less than 100 watts input for full out-

put.At just 3 1/2 x 9 x 15 Inches this amp

fits in nearly any mobile installation; it

weighs only 7 pounds. It’s very quiet; the

low speed, low volume fan stays off until

the temperature rises.

Continuous coverage is from 1.5 to 22

MHz and extendable to 10 and 12 Meters

with an easy to install optional kit.

Load Fault Protection (with an LED

indicator) disables and bypasses the ampli-

fier if your antenna has excessively high

reflected power or if bandswitching is set

lower than exciter frequency, virtually

eliminating damage from operating error.

Thermal Overload Protection (with

LED indicator) disables and bypasses the

amplifier if temperature is excessively

high; it automatically resets when tempera-

ture drops to a safe level.

There’s excellent harmonic suppression,

with a multiple section output network,

push-pull output circuit, and the DC current

meter lets you monitor collector current.

The ON/OFF switch bypasses the

amplifier for "barefoot" operation without

having to disconnect high current power

supply cables.

AMERITRON's

SDA-100 may be

the best built, best

looking, best per-

forming HF mobile

screwdriver anten-

na in the world!

When properly

installed on your

vehicle this antenna

provides coverage

from 80 through 10

Meters with a 6

foot whip. Remove the whip for 40 Meters

through 6 Meter coverage.

What makes our antennas stand above

all the rest is that our CNC machined com-

ponents are from aircraft aluminum or

stainless steel and blueprinted, meaning

you can take antennas apart and mix them

up, then reassemble and they all work the

same.

Our fiberglass coil form is approximate-

ly 2 inches in diameter. Other antenna

builders know fiberglass is better but they

choose not to use it because of the expense

and difficulty in machining. We use 14

gauge wire for high power capability,

wound at eight turns an inch for maximum

efficiency. We machine groove our coils so

they will not loosen up or jam -- they won't

wear out, for years of trouble free service!

The decoupler we use is CNC machined

for tight tolerances with custom fingerstock

designed to contact 3 turns of coil all the

time with over 25 pounds of combined con-

tact pressure. With this design you can run

up to 1.2 kilowatts PEP, trouble free. It's so

superior to anything else on the market that

we put our outstanding AMERITRON war-

ranty behind it.

We use a new heavy duty Pittman com-

mercial 12 volt gear motor, which is very

durable and quiet while receive tuning.

This motor is super heavy duty for years of

trouble-free service. Antennas come with

the sensors already installed so if you

decide to add an auto controller now or

later, everything is ready.

The AMERITRON SDA-100 includes:

Up/Down switch; 5 feet of motor DC

cable with detachable weather sealed con-

nector; decoupling toroid matching coils.

The SDA-100 comes in a handsome

black finish, using the Dupont

Basecoat/Clearcoat system.

Optional accessories:

SDM-100, $75.

A Stainless steel flange mount base

bracket , with multiple pre-punched

holes. The SDA-100 mounting rod is

a 1-in. pipe thread 14-in. long. Ship

Code B.

New! SDC-100,

$79.95. Digital

Screw-driver con-

troller. See

Page 52.

SWP-100, $24.95.

6-ft stainless steel whip.

50 www.ameritron.com

AMERITRON No-Tune Solid-State Amplifier

ALS-600

$1299

Suggested Retail

More Radio Horsepower from Your HF Mobile with This No-Tune Linear

ALS-500M

$799

Suggested Retail

Premium Materials Make this HF Mobile “Screwdriver” Antenna Stand Out

SDA-100

$335

Suggested Retail

1.2 kW capability...3.5-30 MHz continuous...1.5:1 VSWR...commercial gear motor

QSTCatP50.qxd 10/16/2003 12:31 PM Page 1

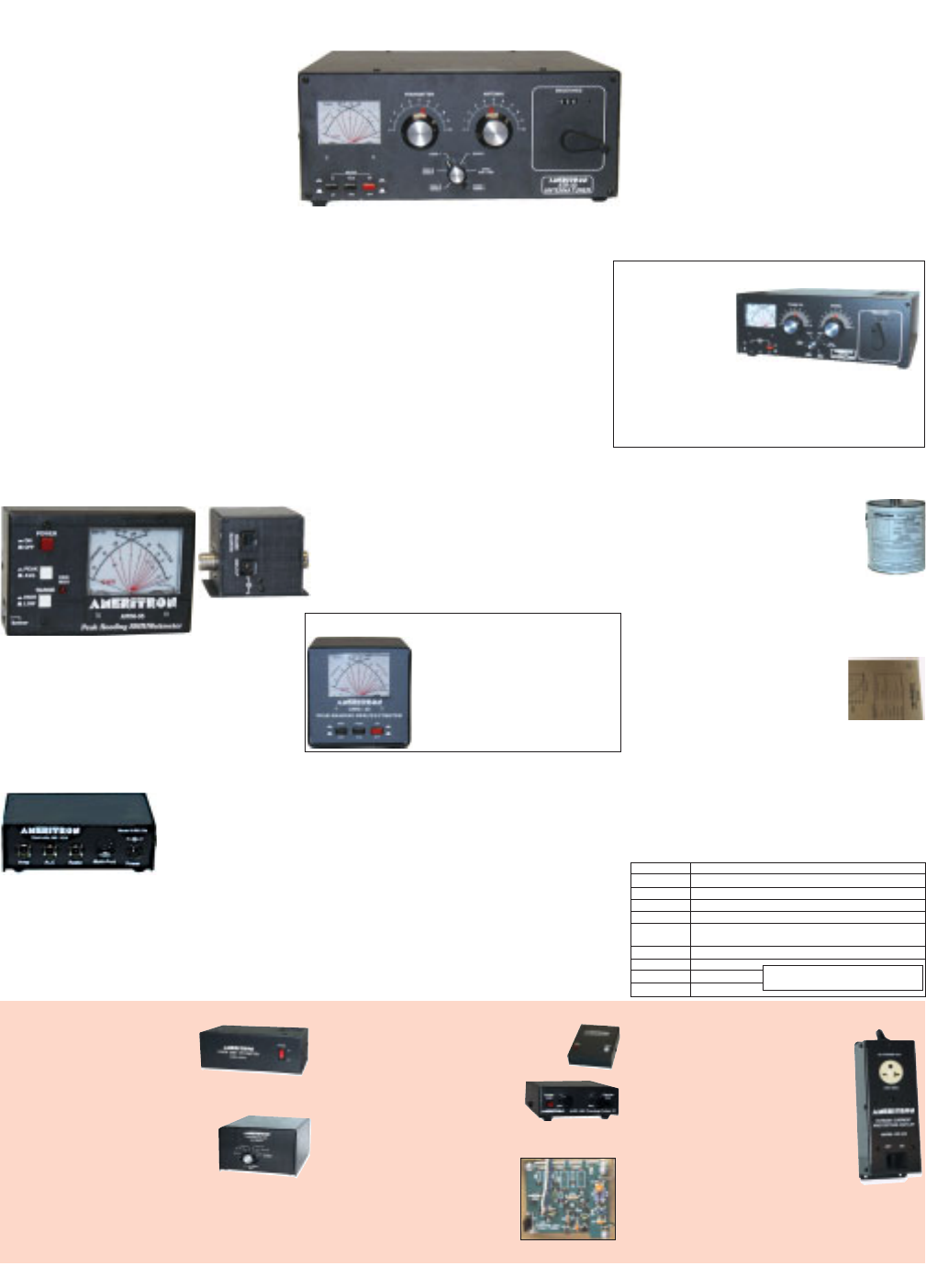

AMERITRON . . . The World’s High Power Leader! 51

AMERITRON True Legal LimitTM Tuner

AMERITRON’s ATR-30 True Legal

LimitTM roller inductor antenna tuner is ham

radio’s toughest! It’ll handle 3KW PEP or

1500 Watts continuous carrier output on all

modes and all HF bands into most antennas

-- even on 160 Meters where most antenna

tuners fail.

It’s perfect for Ameritron’s most power-

ful amplifiers where the ATR-30 just loafs.

All band coverage lets you operate 1.8-

30 MHz including all MARS and WARC

bands.

Super High Current Roller Inductor

You’ll see Ameritron’s new super high

current air core roller inductor. It’s edge

wound from a thick solid copper strip and

silver plated. This produces a large surface

area and a massive conductor. It can carry

huge circulating RF currents and withstand

tremendous heat that’ll melt or burn ordi-

nary roller inductors.

Agear driven turns counter and crank

knob gives you precise inductance control.

Two 500 pf Tuning

Capacitors

Two 500 pf -- the highest

of any antenna tuner -- vari-

able transmitting capacitors

give you no-arc wide range impedance

matching for true high power performance.

6:1 vernier reduction drives makes capac-

itor tuning smooth and easy.

Super Balun, 6 position Antenna Switch

Super heavy duty three core choke balun

lets you match virtually any balanced feed-

line antenna without core saturation.

A6 position antenna switch lets you

select your desired operating antenna.

Read true Peak Power

Ameritron’s active electronic true peak

reading meter accurately reads forward and

reflected power and SWR simultaneously on

a lighted Cross-Needle meter.

Roomy Cabinet maintains High-Q

Roomy extra-strong .080 inch thick alu-

minum cabinet gives highest efficiency and

lowest loss. 131/4Wx55/8 Hx171/2 D inches.

Has Ameritron’s superb one year limited

warranty with legendary customer service.

ATR-30

$599

Suggested Retail ATR-20 Antenna Tuner . . . $459

Handles 1.2 kW

PEP SSB.

Slightly less on

160 Meters.

131/2Wx51/2H

x131/4D inches. Roller inductor T-network,

peak reading SWR/Wattmeter, covers 1.8-30

MHz, 6 position antenna switch, balun.

Great for Ameritron’s 1kW AL-80B Amp!

QSK-5 Pin Diode Xmit/Receive Switch...$349

World’s most advanced

Transmit/Receive Switch.

Gives high power QSK opera-

tion from your linear amplifier.

Self-contained, connects externally to most HF

amps. Handles 2.5 kW PEP, 2 kW CW. Six

times faster than vacuum relay.

ARF-1000 RF Filter . . . $159

Use with transceiver or amplifier

that produces unwanted harmonics.

Frequency select switches to 1 of

six different ranges, 1.5-30 MHz. When the filter

is selected it reduces harmonics above cut-off fre-

quency. Handles 1 kW SSB input power, 600W

CW or 400W RTTY. SWR less than 1.3:1 on all

ham bands. SO-239 in/output. 51/2Wx31/2Hx91/2D”.

ATP-100 AMP Tuning Pulser . . . $4995

Pulse tuning safely tunes up your amp for

full power output and best linearity.

Keeps average power to low safe level to

prevent overheating, tube damage,

power supply stress and premature

component failure. ATP-102, $5995,

similar, variable pulser and delay.

Add-on Electronic Bias System . . . $3995 for

AL-80A82/1200/1500 Amps

EBS-1, $39.95. EBS reduces heat

by reducing quiescent current to

low values during periods when

exciter output falls below 100 mW.

Features remote detector board.

EBS-1H, $49.95, for other ampli-

fiers. Call 662-323-8211 for details.

ICP-120/240 Inrush Current Protector . . . $79

Stops power-up inrush current and

absorbs momentary high voltage spikes

to protect your amp, tubes and power

supply components. By starting your

linear amplifier through a high power

current limiting resistor and then

shorting the resistor with a relay, the

start-up sequence is easier on your

tube and power supply components.

Avoids replacing expensive tubes and

parts. Works with nearly all linear

amplifiers. Limits current to 12

Amperes during heavy draw inrush period, 20

Amperes during continuous operating current.

ICP-120, $79, for 120 Volt wired amplifiers.

ICP-240, $79, for 240 Volt wired amplifiers.

AMERITRON Amplifier-to-Transceiver Interface

AMERITRON has the best selection of high power accessories!

ADL-1500 Dummy Load with oil . . . $6995

Oil cooled 50 Ohm dummy load

handles 1500 Watts for 5 minutes.

SWR under 1.2 to 30 MHz. Low

SWR to 400 MHz. High quality

industrial grade transformer oil (no

PCB), heavy duty 50 Ohm resistor. ADL-

1500X, $49.95. Dummy load without oil.

ADL-2500 Fan cooled 2500W dry dummy

load ...$19995

Whisper quiet fan. Handles

any legal limit amplifier -- 2500

Watts average power for 1

minute on, ten off. 300 Watts

continuous. SWR below 1.25

to 30 MHz and SWR below 1.4 to 60 MHz.

Ameritron’s

flat Mobile

Peak Reading

SWR/Wattmeter is just 15/8” thick -- easily

mounts on your dashboard for easy viewing.

Flat mount on wall or shelf in your ham

shack for best viewing angle. Remote sen-

sor with 25 feet thin, flexible cable lets you

place sensor and coax out-of-the-way.

Handles full 1500 Watts, 1.8-30 MHz.

Lighted Cross-Needle meter. Active elec-

tronics lets you read true peak or average

power in 3000/300 Watt ranges. “High SWR”

LED. 5Wx31/4Hx15/8D”; sensor is 31/2Wx23/4H

x23/4D”. Use 9V battery or 12 VDC.

AWM-30 Precision SWR Wattmeter . . . $14995

This precision SWR/Watt-

meter is perfect for making

accurate linear amplifier power

measurements. Reads true peak

or average power on lighted

cross-needle meter.3000/ 300

Watt ranges, remote sensor.

Use 9V battery or 12 VDC.

New! Flat Mobile Wattmeter mounts on dashboard . . . $15995

Amplifiers can

damage radios if the

amplifier has too

much relay control

voltage, voltage

spikes, or excessive current

on the relay control line.

The ARB-704 advanced

interface is compatible with

all common radios and ampli-

fiers even though radios and amplifiers do

not have standardized voltages, accessory

plugs, or wiring. It’s designed to work

with any amplifier/radio combination.

The input is designed to be compatible

with any transmitter or transceiver, and the

output is compatible with AC or DC posi-

tive or negative amplifier control lines hav-

ing up to 200 Volts peak open circuit voltage

and 300 mA of current.

Operates with rigs that pull amplifier

control lines to ground, or output a wide

range of positive or negative control volt-

ages. Don’t take a chance! Get the ARB-

704 now! Measures 41/4Wx13/4Hx23/4D

inches. Power cord and 3 phono cords for

relay/ALC/control included.

Extra cable, $15.95 for following rigs:

ARB-704

$4995

ARB-704I2

for IC-706s

Model# Transceivers

PNP-8D FT-1000, (MP), 900, 767GX, 920, 990, 747GX

PNP-8M FT-890, 840, 817, 857, 897

PNP-35 FT-100, (D)

PNP-5M FT-847

PNP-7D TS-440, 690, 450, 180, 140, 950, 130, 870, 2000,

50, 120, 530, 430, 830, 949, 570

PNP-13D All models of the IC-706 series

PNP-7DK TS-930

PNP-7DK2 TS-520

PNP-5D FT-980

A plug-and-play cables is not

needed if your radio is not listed.

QSTCatP51.qxd 10/16/2003 12:34 PM Page 1

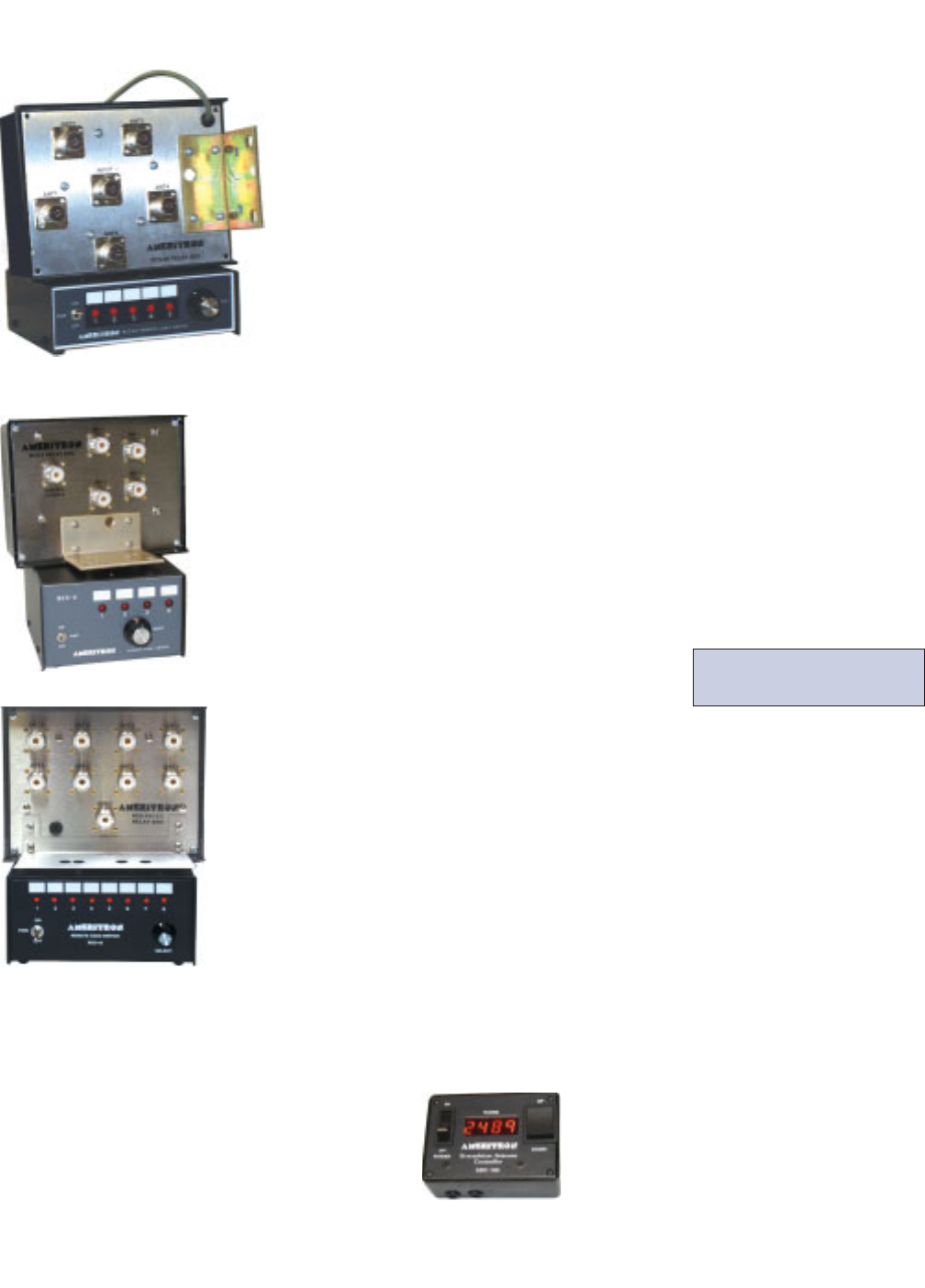

52 Ameritron . . . The World’s High Power Leader!

Ameritron’s Remote Coax Switch

lets you remotely switch up to five

separate antennas using one inexpen-

sive small control line (like standard

telephone wire) -- Eliminate a tangle of trouble-

some coax and have a simple and neat installa-

tion -- with just a single coax feedline.

The RCS-8V consists of two units -- the

weatherproof switching box that mounts on

your tower or mast and the control unit that’s

placed at your operating station.

VSWR is less than 1.2 from DC to 250 MHz

and less than 0.1 dB loss at 150 MHz -- if you

operate HF/VHF/UHF, the RCS-8V is for you.

It handles over 5 kW below 30 MHz and 1

kW at 150 MHz. You can ground unused posi-

tions or leave them open.

The indoor control unit is all metal to pre-

vent RFI and TVI. It also has LEDs to indicate

the antenna you’ve selected.

ALexan scratch proof front panel has a

markable surface for labeling your antennas.

RCS-8V operates from a 120 VAC power

source or RCS-8VX for 220/240 VAC. Use any

6 conductor control line (not supplied) and

allows safe operation with 14V control voltage.

RCS-8VN, $159. Same as RCS-8V but has

N- type connectors instead of SO-239.

SPECIFICATIONS:

Number of antenna positions: 5. Loss at 150

MHz: less than 0.1 dB. VSWR: under 1.2:1

from DC to 250 MHz. Impedance: 50 Ohms.

Power Capability: >5 kW below 30 MHz, 1 kW

at 150 MHz. Power requirements: 120 VAC,

50/60 Hz at five watts. Connectors: Teflon(R)

SO-239 for RCS-8V; “N” for RCS-8VN.

Control Box: 6Dx61/8Wx2

1/4H inches.

Switch Box: 53/8Dx7Wx3H inches.

RCS-88VHHFF

ttoo

VVHHFF//UUHHFFRReemmoottee

CCooaaxx

SSwwiittcchh

AMERITRON 160-6 Meters Remote Coax Switch

AMERITRON RCS-10 Remote Coax Switch

Ameritron RCS-4 is a remote

controlled coax switch that selects

1 of 4 outputs by supplying all

control voltages through the coax.

Elimination of control cables gives you a fast, neat

and inexpensive installation -- only 1 coax line for 4

antennas.

You get two units -- the switching box

(53/8Dx7Wx3H in.) that can be tower, mast or wall

mounted and the control console (61/8Dx51/4Wx 33/8H

in.) that is located at your operating station.

The attractive indoor console has bright LED

antenna selector indicators. A steel enclosure pro-

vides 100% shielding to prevent RFI and TVI.

Switching time is 50 milliseconds. Teflon(R) SO-239

connectors provide reliable connections.

The weatherproof switching box uses three heavy

duty 16 ampere hermetically sealed relays on a

rugged G-10 fiberglass circuit board.

Quality components are used throughout the

entire unit to ensure maximum life for the some-

times difficult-to-reach switching box. RCS-4 oper-

ates 120 VAC. RCS-4X for 220/240 VAC. RCS-4

allows safe operation with 14 Volts control voltage.

Frequencies 1.5 - 100 MHz are covered by this

excellent station accessory. Handles over 2.5 kW.

Specifications: 4 pos.; Loss at 30 MHz less than

0.1 dB; VSWR is under 1.25:1, 1.5-60 MHz;

Impedance: 50 Ohms; Power: >2.5 kW average

continuous.

Ameritron’s RCS-

10 remote coax switch

selects one of eight

antennas using an

inexpensive three or

four conductor control line (such as

standard telephone wire).

New! RCS-10L, $199. Same as

RCS-10, but has lightning protec-

tion for all coaxial inputs.

Eliminate a tangle of trouble-

some coax and have a simple and

neat installation -- with just a single

coax feedline. RCS-10 consists of

2 units -- the weatherproof switch

box that mounts on your tower or

mast and the control unit that’s placed at your operating station.

Outdoor Unit Features:

Inexpensive and simple wiring: selects up to eight antennas

using one four conductor telephone type control line.

High Power Capability: The RCS-10 relay box will handle

over 5 kW into matched loads below 30 MHz.

Long Relay Life: UL/CSA/VDE approved sealed relays with

16A switching current rating. Tested to withstand 1200V RMS.

Flexible Mounting: RCS-10 hardware accepts mast sizes from 1

inch to 21/4inches. Reliable Connectors: Teflon UHF-style SO-

239 females, internal barrier strip for control lines. Low Voltage:

Requires 10-15 Volts at less than 300 mA. Number of Antenna

Positions: 8. Frequency Coverage: DC to 100 MHz. VSWR:

Under 1.25:1 below 30 MHz; Under 1.3:1 below 60 MHz; Under

1.8:1 below 150 MHz. Impedance: 50 Ohms. Power

Capability: >5 kW into 50 Ohms below 30 MHz. Power

Requirement: RCS-10, 10-15 VDC or 120 VAC with AC adaptor

supplied. RCS-10X, 10-15 VDC or 230 VAC with AC adaptor

supplied. Relay Switch Control Line: 4 conductors telephone-

type cable, not supplied. Relay Control Line Voltage: 10-15

VDC at less than 300 mA. Flexible Control Box with External

Interface: Accepts and outputs one-of-eight and outputs three-line

BCD data to remote relay unit. Highly Weather Resistant:

Sealed relays, stainless hardware, and U-V resistant cover. Easy-

to-Read Antenna Indicators: Eight wide-spaced LED’s indicate

the selected antenna. Dimension: Control: 61/4Wx31/4Hx45/8D in.

RCS-10

$159

Suggested

Retail

RCS-4

$139

Suggested Retail

Extended Warranty Plans

Digital Screwdriver Antenna Controller Get Ameritron’s extended protection plan while you

still can -- before your warranty runs out! It’s the

same as your original warranty, just extended for the

number of months you choose to purchase. If the

product should fail during the agreed term, Ameritron

has the option to repair/replace part(s) (except tube

and output transistors) and provide necessary labor

free at Ameritron. Purchaser must return to Ameritron

prepaid in original packing or equivalent. Ameritron is

not responsible for shipping loss or damage. Call!

Ameritron’s SDC-100 Digital Screwdriver Antenna

Controller tells you exactly where your antenna is positioned!

Re-tune exactly -- fast, no more guessing. Super bright 5/8”

high-intensity 4-digit LED display and precision micro-con-

troller gives digital count range -999 to +999. Plus and minus

signs tells you if you’re going up or down. Large momentary

rocker switch makes up/down antenna control easy. Has On/

off/reset switch for easy calibration. Works with Ameritron SDA-

100 antenna, Tarheel and other screwdriver antennas with a single

or dual magnetic switch sensor. 4Wx25/8Hx11/2D”. Use 13.8VDC.

Now covers 6 Meters ...improvedrelays...GreaterPowerHandling!

Lightning Protected

model RCS-10L, $199

New

SDC-100

$7995

suggested retail

RCS-8V

$149

Suggested Retail

New!

QSTCatP52.qxd 10/16/2003 12:36 PM Page 1

www.hy-gain.com 53

TAILTWISTER SERIES II

is designed for medium anten-

na arrays of up to 20 square feet

wind load area. New! Has 5-sec-

onds brake delay! Available with

DCU-1 Pathfinder digital control

box (T2XD) or standard analog

control box (T2X). Low tem-

perature grease, alloy ring

gear, indicator

potentiometer, fer-

rite beads on poten-

tiometer wires, new

weatherproof AMP connec-

tors plus 8-pin plug at con-

trol box, triple bearing race

with 138 ball bearings for

large load bearing strength,

electric locking steel wedge

brake, north or south center

of rotation scale on meter,

low voltage control, max mast of 2 1/16 in.

AR-40

is for large FM-TV

and compact antenna

arrays up to 3.0

square feet wind load

area. Dual 12 ball

bearing race. Auto-matic position

sensor never needs resetting.

Fully automatic control - just dial

and touch for any desired loca-

tion. Solid state, low voltage

control, safe and silent opera-

tion. 21/16” mast size. MSLD

light duty lower mast support.

CD-45II

The CD-45II

is designed for

antenna arrays

of up to 8.5 sq.

feet mounted

inside a tower, or 5 sq. ft. with

mast adapter. Low temperature

grease good to -30

F degrees.

Bell rotator

design gives

total weather

protection, dual 58 ball bearing race gives

proven support. Die-cast ring gear, stamped

steel gear drive, heavy duty, trouble free

gear train, North center scale, lighted direc-

tional indicator, 8-pin plug/socket on con-

trol unit, snap-action control switches, low

voltage control, safe operation, takes maxi-

mum mast size to 2 1/16 inches. MSLD light

duty lower mast support.

HDR-300A

King-sized antenna arrays

up to 25 sq.ft. wind load area.

Control cable connector, new

hardened stainless steel output

shaft, new North or South cen-

tered calibration, new ferrite beads

on potentiometer wires reduce RF

susceptibility, new longer

output shaft keyway adds

reliability. Heavy-duty self-

centering steel clamp and

hardware. Display accurate

to 1o. Machined steel output.

ROTATORS

. . . the first choice of hams around the world!

HAM-IV

is the most popu-

lar rotator in the

world! Designed for

medium communications

arrays of up to 15 square

feet wind load area.

New! Has 5-seconds

brake delay! New low

temperature grease per-

mits normal operation

down to -30 degrees F.

New alloy ring gear gives extra strength up

to 100,000 PSI for maximum readability.

New indicator potentiometer, new ferrite

beads reduce RF susceptibility, new cinch

plug connector plus 8-pin plug at control

box. Dual 98 ball bearing race for load

bearing strength and electric locking steel

wedge brake prevents wind induced anten-

na movement. North/South center of rota-

tion scale on meter, low voltage control,

max mast size of 2 1/16 inches.

HAM-V

is the rotator for

the new milen-

nium. Medium

cantenna arrays

of up to 15

square feet

wind load area.

Similar to the HAM

IV, but includes the

innovative DCU-1

Pathfinder control

unit. Provides automatic operation of brake

and rotor, compatible with many

logging/contest programs, 6 presets for

beam headings, 1 degree heading accuracy,

auto 8-second brake delay, 360 degree

choice for center location, more!

ROTATOR OPTIONS

MSHD, $99.95, heavy duty mast support.

MSLD, $39.95, light duty mast support.

TSP-1, $34.95, lower spacer plate.

T-2XD

$102995

UPS Shippable

HAM IV & HAM V Rotator Specifications

WindLoad capacity (inside tower)

Wind Load (w/mast adapter)

Turning Power (in lbs.)

Brake Power (in lbs.)

Brake Construction

Bearing Assembly

Mounting Hardware

Control Cable Conductors

Shipping Weight (lbs.)

Effective Moment (in tower)

15 square feet

7.5 square feet

800

5000

Electric Wedge

dual race/96 ball bearings

Clamp plate/steel U-bolts

2800 ft/lbs.

HDR-300A Rotator Specifications

TAILTWISTER Rotator Specifications

Wind load capacity (inside tower)

Wind Load (w/ mast adapter)

Turning Power (in lbs.)

Brake Power (in lbs.)

Brake Construction

Bearing Assembly

Mounting Hardware

Control Cable Conductors

Shipping Weight (lbs.)

Effective Moment (in tower)

20 square feet

10 square feet

1000

9000

Electric Wedge

Triple race/138 ball brngs

Clamp plate/steel U-bolts

3400 ft/lbs.

25 square feet

-- square feet

5000

7500

solenoid operated locking

bronze sleeve w/rollers

stainless steel bolts

5000 ft/lbs.

Wind load capacity (inside tower)

Wind Load (w/ mast adapter)

Turning Power (in lbs.)

Brake Power (in lbs.)

Brake Construction

Bearing Assembly

Mounting Hardware

Control Cable Conductors

Shipping Weight (lbs.)

Effective Moment (in tower)

CD-45II Rotator Specifications

8.5 square feet

5.0 square feet

600

800

Disc Brake

Dual race/48 ball brings

plate clamps/steel U-bolts

1200 ft/lbs.

Wind load capacity (inside tower)

Wind Load (w/ mast adapter)

Turning Power (in lbs.)

Brake Power (in lbs.)

Brake Construction

Bearing Assembly

Mounting Hardware

Control Cable Conductors

Shipping Weight (lbs.)

Effective Moment (in tower)

AR-40 Rotator Specifications

3.0 square feet

1.5 square feet

350

450

Disc Brake

Dual race/12 ball bearings

Plated clamps,/steel bolts

300 ft/lbs.

Wind load capacity (inside tower)

Wind Load (w/ mast adapter)

Turning Power (in lbs.)

Brake Power (in lbs.)

Brake Construction

Bearing Assembly

Mounting Hardware

Control Cable Conductors

Shipping Weight (lbs.)

Effective Moment (in tower)

Digital Automatic Controller

Controls T2X, HAM

IV and HAM V. Auto

operation of brake/

rotor, computer control

with RS232 pass-

through, compatible with many

logging/contest programs, 6 pre-

sets for favorite beam headings, 1 degree

heading accuracy, Auto 8-sec. brake delay,

360 degree choice for center of rotation!

AR-35 Rotator/Controller

The AR-35 is

designed for the

use of small UHF,

VHF, 6-Meter, TV

and FM antennas.

Includes automatic

controller, rotator,

mounting clamps

and mounting

hardware. Uses 110 VAC. 1 Year Warranty.

Rotator Auto Brake Relay

RBD-5 allows

a automatic 5 sec.

brake delay for

your rotator. This

delay insures that

the rotator is fully stopped before the brake is

engaged. No more accidentally engaging

brake while the rotator is in movement. Use

w/ HAM II, III, IV, V, T2Xs. Easy-to-install.

Includes pre-assembled PCB and hardware.

DCU-1

$64995

NEW!

RBD-5

$2995

HAM-IV

$55995

UPS Shippable

HDR-300A

$137995

UPS

Shipp-

able

AR-40

$28995

UPS Shippable

HAM-V

$94995

UPS Shippable

CD-45II

$38995

UPS Shippable

AR-35

$6995

T-2X

$64995

UPS Shippable

QSTCatP53.qxd 10/16/2003 12:42 PM Page 1

54 www.hy-gain.com

HF BEAMS...

TH-11DX

$115995

11-Elements, 4.0 kW PEP,

10, 12, 15, 17, 20 Meters

TH-5MK2, $759.95.

5-element, 1.5 kW PEP, 10,15,20 Meters

TH-3MK4, $469.95.

3-element, 1.5 kW PEP, 10,15,20 Meters

EXP-14, $599.95.

4-element, 1.5 kW PEP, 10,15,20 Meters

TH-2MK3, $369.95.

2-element, 1.5 kW PEP, 10,15,20 Meters

Compact

3-element

10, 15, 20 Meter Tri-Bander

For limited space . . . Installs anywhere . . . 14.75 ft turning

radius . . . weighs 21 lbs . . . Rotate with CD-45II, HAM-IV

TH-7DX, $869.95.

7-element, 1.5 kW PEP, 10,15,20 Meters

TH-11DX, $1159.95. 11-element, 4.0 kW PEP, 10,12,15,17,20M

7-Elements gives you the highest average gain of any

Hy-Gain tri-bander! Dual driven for broadband operation

without compromising gain. SWR less than 2:1 on all bands.

Combined monoband and trapped parasitic elements give

you an excellent F/B ratio. Hy-Gain’sdiecast aluminum,

rugged boom-to-mast clamp, heavy gauge element-to-boom

brackets, BN-86 balun. For high power, use BN-4000.

The broadband five element TH5-MK2 gives you out-

standing gain. Separate air dielectric Hy-Q traps let you

adjust for maximum F/B ratio on each band. Has Hy-

Gain’s exclusive BetaMATCHTM, stainless steel hardware

and compression clamps and BN-86 balun.

DB-1015, $449.95.

7-element, 1.5 kW PEP, 10 & 15 Meters

This dual band beam for 10 and 15 Meters incorpo-

rates Hy-Gain’s superior mechanical design and has been

computer optimized and range-tested for max perform-

ance. DB-1015 features a 14 foot boom in 4 sections.

Handles full legal power and has Hy-Gain’s rugged

boom-to-mast clamp. DB-1217, $449.95. Similar to DB-

1015, but is dual band coverage for 12 and 17 Meters.

The super popular TH-3MK4 gives you the most gain

for your money in a full-power, full-size durable Hy-Gain

tri-bander! Impressive average gain and whopping aver-

age front-to-back ratio. Handles 1.5 kW PEP. 95 MPH

wind survival. Fits on average lot -- turning radius is just

15.3 feet. 4-piece boom is ideal for DXpeditions. Choose

CD-45II or HAM-IV rotator. Hy-Gain BetaMatchTM for

DC ground, full power Hy-QTM traps, rugged boom-to-

mast bracket and mounts on standard 2”O.D. mast.

Stainless steel hardware. BN-86 balun recommended.

The 2-element TH-2MK3 is Hy-Gain’s most economical

full power (1.5kW PEP) full size tri-bander. Increase your

effective radiated power and hear far better! Ruggedly

constructed, top-performing, compact 6 foot boom, tight

14.3 foot turning radius. Installs almost anywhere.

Rotate with CD-45II or HAM-IV. Use BN-86 balun.

Revolutionary 4-element compact tri-bander can add

40 or 30 Meters! 14 foot boom and tight 17.25 feet turning

radius. Fits on roof tri-pod, mast or medium duty tower.

Hy-Gain’s patented broadbanding ParaSleeve gives you

less than 2:1 VSWR. 1.5kW PEP. BetaMATCHTM pro-

vides DC ground to eliminate static. Has BN-86 balun.

QK-710, $169.95. 30/40 Meter option kit for EXP-14.

The choice of top DXers. With 11-elements, excellent gain and 5-bands,

the super rugged TH-11DX is the “Big Daddy”of all HF beams! Handles 2000

Watts continuous, 4000 Watts PEP.

Every part is selected for durability and ruggedness for years of trouble-

free service. Features a low loss log-periodic driven array on all bands with

monoband reflectors, BN-4000 high power balun, corrosion resistant wire

boom support, hot dipped gal-vanized and stainless steel parts.

Stainless steel hardware and clamps are used on all electrical connections.

TH-3JRS, $359.95.

Hy-Gain’s most popular 3-ele-

ment 10, 15, 20 Meter tri-bander

fits on most lots!

Same top performance as the

full power TH3MK4 in a compact

600 watt PEP design.

Excellent gain and F/B ratio let

you compete with the “big guns”.

Tooled manufacturing gives you

Hy-Gain durability with 80 MPH

wind survival.

Fits on light tower, suitable guyed

TV pole, or roof tri-pod.

79.8

9.8 22

4000

1500

600

1500

10,12,15,17,20

10, 15, 20

10,15,20

10, 15

12, 17

12.5

9.4

7.4

4.6

3.35

3.25

7.5

6.7

100

115

31.5

27.42

27.25

27.3

31.5

29.5

18.42

15.33

14.75

14.25

17.25

16.3

1.9-2.5

1.5-2.5

1.9-2.5

1.25-2.0

1.9-2.5

1.5-2.5

T2X

HAM-IV

CD-45II

HAM IV

$1159.95

$869.95

$759.95

$469.95

$359.95

$599.95

$449.95

Model

No. No. of

elements avg gain

dBi avg F/B

gain MaxPwr

wattsPEP Bands

Covered Wind

sq.ft. area Wind (mph)

Survival Boom

(feet) Longest

Elem. (ft) Turning

radius(ft) Weight

(lbs.) Mast dia

O.D.(in.) Recom.

Rotator Retail

Price

opt.

30/40

TH-11DX

TH-7DX

TH-5MK2

TH-3MK4

TH-3JRS

TH-2MK3

EXP-14

DB-1015

DB-1217

8.4

8.77

8.3

8.0

5.6

8.1

15-20

. . . are stronger, lighter, have less wind surface and last years longer.

QSTCatP54.qxd 10/16/2003 12:43 PM Page 1

Hy-Gain . . . Antennas, Rotators and Towers 55

LP-1009A, $1429.95. LP-1009A for

UHF connector. LP-1009AN for “N”

connector. Covers 10/12/15/17/20 Meters

Covers the complete 13-30 MHz HF spec-

trum under a 2:1 VSWR. Built to com-

mercial specifications, it is used by

MARS, monitoring stations, marine and

government radio stations around the

world and now it’s available to Hy-Gain

amateur customers. The discerning ham

operator will appreciate its performance

and ease of use. Just imagine all that spec-

trum coverage and only one feedline.

Exclusive 2KW BN-4000 current type

balun included. Use T2X Tailtwister or

HDR-300A rotators.

LP-1010A, $1799.95. LP-1010A for

UHF connector. LP-1010AN for “N”

connector. Covers10-30 MHz

(10, 12, 15, 17, 20, and 30 Meters)

There are only a few antennas that offer as

much HF frequency coverage as the LP-

1010A. Like the LP-1009A, this antenna

is built to commercial standards using

stainless steel hardware and having a wind

survivability of 93 mph. Rotatable with

use of T2X or HDR-300A rotators.

Hy-Gain Discoverer Series Antennas

Hy-Gain HF Log Periodic Antennas

DISCOVERER 71, $289.95.

Covers 30/40 Meters.

This rotatable dipole of low weight and

wind surface area so easily fits most existing

beam installations. Tuned to either 30 or 40

Meters with a front-to-side ratio of 30 dB for

a fast, expansion of band capability. Feeds

with 50 Ohm coax. Pre-formed mast clamp.

DISCOVERER 72, $649.95.

Covers 30/40 Meters.

This two-element 40 Meter beam has a

unique hairpin loading system. It delivers

superior performance. Feeds with 50 Ohm

coax and comes factory pre-tuned with Hy-

Gain’s exclusive BetaMatchTM. Tiltable

boom-to-mast bracket and stainless steel

hardware is included. Hy-Gain high power

BN-4000 balun is recommended.

DIR-73K, $409.95.

Add-On 30/40 Meter Director Kit

Converts the Discoverer 72 into a three-ele-

ment beam. Amazingly, it’s all on a 35 foot

boom, outperforming the other brands that

are much larger. Discoverer 72 with director

Kit fits on medium duty towers such asHG-

52SS, saving both cost and space. HyGain

offers wide bandwidth and Hy-Q efficiency

without coils. Handle legal power limits.

Hy-Gain Long Johns HF Monobanders

LJ-105CA, $289.95.10 Meters, 5 elements,

Exclusive 50 Ohm BetaMatchTM. Excellent

DC Ground. Stainless steel hardware and

clamps. BN-4000 Balun recommended.

LJ-155CA, $429.95. 15/12 Meters, Five

Elements, Exclusive 50 Ohm BetaMatchTM.

Excellent DC Ground. Stainless steel hard-

ware and clamps. Includes 12 Meter set-

ting. BN-4000 Balun recommended.

LJ-205CA, $769.95. 20/17 Meters, Five

Elements. Exclusive 50 Ohm BetaMatchTM.

Excellent DC Ground. Stainless steel hard-

ware and clamps. BN-4000 Balun recom-

mended. Manual has setting for both bands.

LJ-204BA, $539.95. 20/17 Meters, Four

Elements. Exclusive 50 Ohm BetaMatchTM.

The LJ-204BA has a tiltable cast aluminum

boom-to-mast clamp, heavy gauge

machine-formed element-to-boom brackets

and stainless steel hardware and clamps.

BN-4000 Balun is recommended. Manual

has setting for both bands.

LJ-103BA, $159.95. 10 Meters, Three

Elements. Feeds with 50 Ohm coax,

comes factory pre-tuned with Hy-Gain’s

exclusive BetaMatchTM. BN-86 balun rec-

ommended. Includes stainless steel hard-

ware and clamps.

LJ-153BA, $209.95. 15 Meters, 3 elements.

Feeds with 50 Ohm coax, BetaMatchTM, 5.7

dBd gain. BN-4000 Balun recommended.

Stainless steel hardware and clamps.

LJ-203BA, $329.95. 20 Meters, Three ele-

ments on a 16 foot boom. The LJ-203BA

feeds with 50 Ohm coax, factory pre-tuned

with Hy-Gain’s exclusive BetaMatchTM.

BN-4000 Balun is recommended. Stainless

steel hardware and clamps. Tiltable, cast

aluminum boom-to-mast bracket.

Model #

LJ-105CA

LJ-155CA

LJ-205CA

LJ-204BA

LJ-103BA

LJ-153BA

LJ-203BA

Gain (dBi)

10.8 dBi

9.8 dBi

8.7 dBi

8.2 dBi

7.9 dBi

7.3 dBi

F/B Max

36 dB

25 dB

30 dB

28 dB

24 dB

25 dB

23 dB

Max Power

1500 W PEP

Boom Size

24 feet

26 feet

34 feet

26 feet

8 feet

12 feet

16 feet, 6 in.

element size

18 feet

25 feet

36 feet

36 feet, 6 in.

18 feet, 7 in.

24 feet, 11”

37 feet

turn Radius

15 feet

17 feet, 6 in.

25 feet

22 feet, 6 in.

10 feet, 2 in.

14 feet, 3 in.

20 feet

Mast diam.

1.9-2.5 in.

1.625-2.0 in.

1.9-2.5 in.

Surface

3.9 sq. feet

5.2 sq. feet

9.0 sq. feet

7.3 sq. feet

2 sq. feet

3 sq. feet

5.4 sq. feet

Wind

100 m.p.h.

88 m.p.h.

99 m.p.h.

100 m.p.h.

107 m.p.h.

80 m.p.h.

Model #

DIS-71

DIS-72

DIR-73K

Gain (dBi)

6.5 dBi

7.5 dBi

F/B Max

35 dB

15 dB

26 dB

Max Power

1500 W PEP

Boom size

2.7 feet

22.6 feet

35 feet

elment size

45 feet

44.8 feet

45.7 feet

turn Radius

22.5 feet

25 feet

28.9 feet

Mast diam.

1.9-2.5 in.

Surface

2.7 sq. feet

6.0 sq. feet

9.0 sq. feet

Wind

100 m.p.h.

80 m.p.h.

Model #

LP-1009A/N

LP-1010A/N

Gain (dBi)

7.3 dBi

7.0 dBi

F/B Max

22 dB

Max Power

1500 W PEP

Boom size

27 feet

36 feet

element

39 feet

48 feet

turn Radius

22.5 feet

28.5

Mast diam.

1.9-2.5 in.

Surface

12.5 sq. feet

16 sq. feet

Wind

103 m.p.h.

93 m.p.h.

QSTCatP55.qxd 10/16/2003 12:47 PM Page 1

56 Hy-Gain . . . Antennas, Rotators and Towers!

DX-77A, $44995

DX-88, $36995

AV-18VS $8995

AV-12AVQ $12495

AV-14AVQ $16995

AV-18HT $79995

AV-18HT, $799.95.

10/12/15/20/40/80 M

17 & 160 Meters optional

Standing 53 feet tall, the famous Hy-

Gain HyTower is the world’s best per-

forming vertical! The AV-18HT features

automatic band selection achieved

through a unique stub-decoupling system

which effectively isolates various sections

of the antenna so that an electrical 1/4

wavelength (or odd multiple of a 1/4

wavelength) exists on all bands.

Approximately 250 kHz bandwidth at 2:1

VSWR on 80 Meters. With the addition

of a base loading coil LC-160Q or MK-

160A, it also provides exceptional 160

Meter performance. The 24 foot tower is

all rugged, hot-dip galvanized steel and

all hardware is iridited for corrosion

resistance. Special tilt-over hinged base

for easy raising and lowering. 53 feet,

114 lbs. MK-17, $89.95. 17M add-on Kit.

LC-160Q, $109.95. 160 M loading coil.

MK-160A, $119.95. 160M 1500W kit.

DX-88, $369.95.

10/12/15/17/20/30/40/80M

160 Meters optional.

All bands are easily tuned with the

DX-88’s exclusive adjustable capacitors.

80 and 40 Meters can even be tuned from

the ground without having to lower the

antenna. Super heavy-duty construction.

25 feet, 18 pounds. DX-88 OPTIONS:

KIT-160-88, $189.95. 160 M add-on kit.

GRK-88, $99.95. Ground Radial System.

RRK-88, $99.95. Roof Radial System.

DX-77A, $449.95.

10/12/15/17/20/30/40 M

No ground radials required! Off-cen-

ter-fed Windom has 55% greater band-

width than competitive verticals. Heavy-

duty tiltable base. Each band independ-

ently tunable. 29 feet, 25 pounds.

AV-18AVQII, $229.95.

10/12/15/17/20/30/40/80

New! The classic is back with

improved design including three separate

air dielectric Hy-QTM traps for 10 through

40 Meters --1.5 kW PEP. A loading coil

and an effective radiator is used for 80

Meters --1kW PEP.

AV-18VS, $89.95.

10/12/15/17/20/30/40/80 M

High quality construction and low cost

make the AV-18VS an exceptional value.

Easily tuned to any band by adjusting

feed point at the base loading coil. Roof

mount with Hy-Gain AV-14RMQ kit,

$89.95. 18 feet, 4 pounds.

AV-14AVQ, $169.95.

10/15/20/40 M

The Hy-Gain AV-14AVQ uses the

same trap design as the famous Hy-Gain

Thunderbird beams. Three separate air

dielectric Hy-Q traps with oversize coils

give superb stability and 1/4 wave reso-

nance on all bands. 18 feet, 9 pounds.

New!MK-80, $79.95. 80 Meter add-on

kit for AV-14AVQ. Easy to install. In-

cludes pre-wound loading coil, hardware.

AV-12AVQ, $124.95.

10, 15, 20 M

The AV-12AVQ also uses Thunderbird

beam design air dielectric traps for

extremely Hy-Q performance. This is the

way to go for inexpensive tri-band per-

formance in limited space. 13 ft., 9 lbs.

Roof mount with AV-14RMQ kit, $89.95.

AV-14RMQ, $89.95

Roof Mounting Kit

The AV-14RMQ roof mounting kit

provides rugged support for Hy-gain

models AV-18VS, AV-14AVQ and AV-

12AVQ. Kit includes base plate, mast,

radial/guy wires and mounting hardware.

HF VERTICALS

All hy-gain multi-band vertical antennas are entirely self supporting -- no guys

required. They offer remarkable DX performance with their extremely low angle of

radiation and omnidirectional pattern.

All hy-gain vertical antennas handle 1500 Watts PEP SSB, have low SWR, automat-

ic band-switching (except AV-18VS) and include a 12-inch heavy duty mast support

bracket (except AV-18HT). Heavy duty, slotted, tapered swaged, aircraft quality alu-

minum tubing with full circumference compression clamps is used for radiators.

Includes all stainless steel hardware. Recessed SO-239 prevents moisture damage.

Hy-gain verticals go up easily with just hand tools and their cost is surprisingly

low. All hy-gain Verticals feature a two year limited warranty.

Model #

AV-18HT

AV-14AVQ

AV-12AVQ

AV-18VS

DX-88

DX-77A

AV-18AVQII

Price

$739.95

$159.95

$114.95

$74.95

$369.95

$429.95

$229.95

Bands

10,15,20,40,80

10,15,20,40

10/15/20 M

10 - 80 M

10 - 40 M

10 - 80 M

10-80M

Max Power

1500 W PEP

1500WPEP

Height

53 feet

18 feet

13 feet

18 feet

25 feet

29 feet

18 feet

Weight

114 pounds

9 pounds

4 pounds

18 pounds

25 pounds

12 pounds

Wind Surv.

75 MPH

80 MPH

75 mph no guy

60 mph no guy

70 mph guy

Rec. Mast

------

1.5-1.625”

Antennas, Rotators & Towers

308 Industrial Park Road, Starkville, MS 39759 USA

Toll-free Customer Sales Hotline: 800-973-6572

• TECH: 662-323-9538 • FAX: 662-323-6551

http://www.hy-gain.com

Prices and specifications subject to change without notice or obligation. (C) Hy-GainR, 2004.

Self-supporting -- no guys required . . . remarkable DX performance -- low angle

radiation, omnidirectional . . . 1500 Watts . . . Low SWR . . . 2 year limited warranty

Free

Manuals!

AV-18AVQII $22995

QSTCatP56.qxd 10/16/2003 12:53 PM Page 1

www.hy-gain.com 57

Hy-Gain(R) Multi-Band PATRIOT Vertical Antennas

hy-gain’s new PATRIOT HF verti-

cals are the best built, best performing

and best priced multiband verticals

available today.

Make full use of your sunspot cycle

with the PATRIOT’s low angle signal.

AV-640, $389.95, uses quarter wave

stubs on 6, 10, 12 and 17 meters and

efficient end loading coil and capacity hats on 15, 20, 30 and

40 meters.

Instead of typical traps, the AV-640 resonators are placed in

parallel not in series.

End loading of the lower HF bands allows efficient opera-

tion with a manageable antenna height.

No ground or radials needed -- Effective counterpoise

replaces radials, end fed with broadband matching unit.

Automatic bandswitching -- Single coax cable feed, each

band is individually tunable, wide VSWR bandwidth.

Sleek and low-profile -- Low wind surface area, small area

required for mounting, mounts easily on decks, roofs and

patios.

Built-to-last -- High wind survival, matching unit made

from all TeflonRinsulated wire. Hy-gainRwarranty -- Two

year limited warranty, all replacement parts in stock.

AV-620, $289.95. Covers all bands 6 through 20 Meters

with no traps, no coils, no radials yielding an uncompromised

signal across all bands.

8-band vertical covers 40/30/20/17/15/12/10/6 Meters

• No radials • No traps • No ground • No tuning • Handles 1500 Watts

hy-gain

AV-640

8 Bands: 40, 30, 20, 17, 15, 12, 10, 6 M

389

Suggested Retail

Call your dealer for

your best price!

hy-gain

AV-620

6 bands: 20, 17, 15, 12, 10, 6 M

289

Suggested Retail

BN-86, $79.95. Broadband 50 Ohm fer-

rite balun. Useable from 3 to 30 MHz.

Rec-ommended for all HF Yagi antennas.

It provides improved front-to-back ratio.

Comes w/clamp to bolt to boom, SO-239

connector.

BN-4000B, $109.95. Broadband 50 Ohm

Beam current balun is potted to seal out

moisture. Rated at 4000 Watts for increased

power handling capabilities. Range is 1 MHz

to 54 MHz. SO-239 connector. BN-4000D,

$109.95. dipoles. BN-4000N, $119.95. “N” connector.

HY-GAIN INSULATORS FOR MULTIBAND DIPOLE ANTENNA

C-1, $29.95.

Center Insulator

for multiband

dipole antenna.

C-1C, $29.95.

Similar to C-1,

but has SO-239

antenna connector.

E-1, $6.95.

End Insulator

for Multi-

band doublet antenna. Set of 2.

FAMOUS Heavy Duty HY-GAIN BALUNS

HF Multiband Hy-Q trap DOUBLETS

DP-2BDQ, $139.95. 101 feet maxi-

mum length of dipole. DP-5BDQ,

$139.95. 94 ft. max length. DP-2BDQ

and DP-5BDQ are designed for horizon-

tal or inverted “V” rated at legal power.

Each are individually pretuned matched

traps for each band. 50 Ohm feed, coaxial cable not included.

ADJUSTABLE HF DIPOLE ANTENNA

DP-19PD, $279.95. 1.8-30 MHz, 160-10 Meters. Great for field day

or anytime. Braided nylon wire rope with conductors woven in.

Pre-marked frequencies for easy installation. 100 ft. support rope

on each end and SO-239 (UHF) connector is on center insulator.

AV-620/640

Matching

Network

Model #

AV-620

AV-640

Bands

6B, 6-20

8B, 6-40

Max Pwr

1500W

Height

22.5 feet

25.5 feet

Weight

10.5 lbs.

17.5 lbs.

wind surv

80 MPH

CONTESTER HEADSET

CLOSEOUT SALE!

Famous Hy-gain

headset/boom

mic. Regular price: $179.00.

HS-2400

$9995

Ship Code A

QSTCatP57.qxd 10/16/2003 12:56 PM Page 1

58 www.hy-gain.com

Hy-Gain VHF Vertical Antennas

Hy-Gain VHF Ground Planes

Oscar Link 435 MHz•145.9 MHz VHF/UHF DX Beam Antennas

Hy-Gain’s DX-

Series VHF/UHF

Beams are based on

the DL6WU ele-

ment length and

spacing and were further refined

on Hy-Gain’s anten-

na test range and by

computer modeling.

Both beams feature

encapsulated weath-

erproof feedpoints

with type N connectors for excel-

lent VSWR and power handling.

High quality mechanical construction is assured by heavy wall

booms and boom supports made of 6063-T832 aluminum tubing,

stainless steel hardware, UV stabilized thick-shoulder element

insulators and PTFE coaxial baluns.

2 Meter

vertical

with 5.2

dBi gain

derived

from the famous

extended double zepp

antenna design.

Radiating elements are

two collinear 5/8waves

fed in phase. 2 sets of

1/4wave radials properly

decouple lower radiator

from the mast. SO-239,

handles 500 Watts. 9 ft.

V-2R

$10995

Covers

138-175 MHz

V-42R is

independ-

ently tun-

able at

144 and

440 MHz.

Fed through one coax

cable, it has sets of 1/4

wave radials which

properly decouple 5/8

wave radiators from the

mast. Gives 5 dBd gain

UHF and 3 dBd gain on

VHF. Type N, handles

200 Watts. 9 ft.

V-42R

$16995

Covers 143-

153, and 436-

455 MHz

UB-7031DX

$21995

Covers

420-438 MHz

UHF verti-

cal with 5.2

dBi gain

derived

from dou-

ble zepp

antenna

design.

Type N,

handles 500

Watts, 4 foot.

11/4Meter vertical w/5.2

dBi gain, double zepp

design. SO-239, handles

500 Watts. 6ft., 9 in.

V-4R

$10995

Covers

400-475 MHz

V-3R

$11995

Covers

216-225 MHz

V-6R anten-

na is based

on 2 coll-

inear 5/8

wave radia-

tors. 500 Watt enclosed

coil and 2 sets of 1/4wave

radials provide complete

mast decoupling and opti-

mum pattern and gain.

Rugged design for severe

weather, also DC ground

lightning protector. 25 ft.,

3 in., UHF female con-

nect, handles 500 Watts.

V-6R

$20495

Covers 51-54

MHz

V-2R

V-42R

V-4R

V-3R

V-6R

138-175

143-153,

436-455

400-475

216-225

51-54

5.2 dBi

7.2 UHF

5.2 VHF

5,2 dBi

5.2 dBi

500 Watts

200 Watts

continuous

500 Watts

105 mph

100 mph

230 mph

100 mph

80 mph

2 in. OD

1.5-2.25

9 foot

4 foot

6 ft. 9 in.

25 ft. 3 in.

6 pounds

4 pounds

5 pounds

15 pounds

Model# Frequenc Gain dBi Pwr Input Wind Max Mast Height Weight

UB-7031DX

VB-215DX

VB-64DX

VB-66DX

420-438

144-146

50-54

19.8 dBi

16.4 dBi

10.4 dBi

12.5 dBi

2 kW PEP

500 Watts

1.5kWPEP

1.9 sq. ft.

2.75 sq. ft.

1.1 sq. ft.

1.8 sq. ft.

24.06 ft.

27.88 ft.

12 ft.

24.575 ft.

9.25 lbs.

13.56 lbs.

10 lbs.

17 lbs.

Model# Frequenc Gain dBi Pwr Input wind area #Element Boom Weight

VB-215DX

$22995

Covers

144-146 MHz

VB-64DX

$14495

Covers

50-54 MHz

These 2 Meter FM beam antennas include Hy-Gain’s exclusive

Beta MatchTM to provide exceptional Front-to-Back ratio and maxi-

mum obtainable gains. The VB-23FM (8.3 dBi gain), VB-25FM

(11.2 dBi gain), VB-28FM (14 dBi gain), and the VB-214FM

(15.2 dBi gain) gives you a wide choice of 2 Meter Beam

performance from which to choose. Accepts up to 2 inch mast.

VB-23FM

$4995

2 Meter FM

Beam

VB-25FM

$5995

2 Meter FM

Beam

VB-28FM

$7995

2 Meter FM

Beam

VB-214FM

$8995

2 Meter FM

Beam

VB-23FM

VB-25FM

VB-28FM

VB-214FM

20 dB

8.3 dBi

11.2 dBi

14 dBi

15.2 dBi

500 Watts

40.25 in.

39.625 in.

40.25 in.

39.5 in.

43.5 in.

75 in.

148.75 in.

15 ft. 6 in.

2.0 in

2 pounds

3 pounds

4 pounds

6 pounds

Model# F/B MAX Gain dBi Pwr Input Long el Boom Mast dia. Weight

GPG-2B is a 5/8 Wavelength

Ground Plane for two meters is

omni-directional and tunable from

142-185 MHz. It delivers an omni-

directional gain of 3.2 dBi. Handles

100 Watts. Measures 4 feet, max

mast mount accepted is 1.625 in O.D. Wind area

is .30 sq. ft.

GPG-1B is a 1/4 Wavelength

ground plane similar to the GPG-

2B. It has unity gain, covers 144-

148 MHz.

GPG-1, $39.95, is similar to GPG-

GPG-2B

$4995

Covers

142-185 MHz

GPG-1B

$3995

Covers

144-148 MHz

Hy-Gain’s Oscar Link antennas

are complete with the necessary

phasing lines, relays and hard-

ware. Left and right circularity

switching reduces fading. True

RF switching elements are rated

at 200 Watts and improved VSWR

for higher efficiency. Feed points

are encapsulated, weather pro-

tected for long life. The fiber-

glass crossboom maintains the integrity of the circularity pattern.

DB-218SAT, $559.95. The complete 2 Meter/ 440 MHz Oscar

Link antenna system with crossboom assembly with necessary

phasing lines, relays and hardware.

VB-216SAT

VB-7030SAT

25 dB

13.7 dBi

16.2 dBi

200 W PEP

168.75 in.

134 inches

1.1 sq. ft.

.7 sq. ft.

7 lbs.

4 lbs.

Model# F/B ratio Gain dBi Pwr Input # Element Boom Wind Weight

VB-216SAT

229

Covers

144-148 MHz

UB-7030SAT

229

Covers

432-438 MHz

FB-217SAT

119

Crossboom

Assembly only

6-Meter DX Beam Antennas

VHF-FM Beam Antennas

The VB-

64DX

and VB-

66DX

feature a

concept in beam con-

struction that provides

actual delivered per-

formance equalling

maximum theoretical

gain. The 4-element

VB-64DX generates an

impressive 10.4 dBi

gain and the 6-element

VB-66DX increases the

gain to an unprecedent-

ed 12.5 dBi.

VB-66DX

$26495

Covers

50-54 MHz

QSTCatP58.qxd 10/16/2003 1:02 PM Page 1

www.mirageamp.com 59

MIRAGE’S Most Popular ampli-

fier gives you 160 Watts of output

power for just 25W in from your

base/mobile rig!

The B-2518-G is ideal for your

20-60 Watt 2 Meter mobile or base station.

You’ll talk further, longer, clearer on all

modes --FM, SSB, CW -- hear weak sig-

nals better than you’ve ever before! You

get low noise 20 dB GaAsFET pre-amp

with an excellent 0.6 dB noise figure for

pulling out weak signals.

B-2518-G is fully protected with features

found in expensive commercial amplifiers.

High SWR or excessive input power can

damage your amplifier. Protection circuits

automatically bypass your amplifier to pre-

vent damage and LED lights to warn you.

Active-BiasTM System gives crisp,

clear voice in SSB mode!

An Active-BiasTM System keeps SSB

voice crisp and clear for fantastic operation.

Other amplifiers using conventional

bias methods tend to produce splatter and

distortion as power level changes. This

amp with Active-BiasTM doesn’t exhibit the

problem.

The B-2518-G knows when you are

transmitting and kicks in 160 Watts of

power. Adjustable time delay give you

smooth transmit/receive switching. Remote

external keying. You can remotely control

your B-2518-G and place it out of the way.

An RC-2, $45, Remote Control turns

Power On/Off and select SSB/FM. Extra

heavy duty custom heatsink spans the

entire cabinet. Draws 17-22A from 13.8

VDC. Compact 12x3x5.5 inches.

MIRAGE . . . 160 Watts on 2 Meters!

Power Curve -- Typical Output Power in Watts

FCC Type Accepted

The A-1015-G is ideal

for your 1-15 Watt Mobile

or Base Station Rig.

Abuilt-in low noise

GaAsFET receive preamp

gives you 20 dB gain -- lets

you dig out weak signals and

score exotic DX on sporadic E!

You’ll talk further, longer,

and clearer on all modes -- FM,

SSB, CW. Hear weak signals

better

than

ever

before! Extra heavy-duty

heatsink spans entire length of

cabinet. Draws 18-22 amps at

13.8VDC. Just 5 pounds, meas-

ures 12Dx3Hx51/2W inches.

Mirage 150 Watts 6-Meter Amplifier Mirage 2-Meter 300 Watt Amplifiers

Power Curve -- Typical A-1015-G Output Power in Watts.

Get 300 Watts of brute power

for 50 Watts input on all modes --

FM/SSB/CW. Ideal for 20-60 watt

2-Meter mobile or base rigs. Hear

weak signals -- low noise GaAs-

FET preamp gives excellent 0.6

dB noise figure. Select 15/20 dB

gain. Heavy heatsink spans entire length of cabinet --

prevents overheating. Power transistors are protected

by our Therm-O-GuardTM. Fully protected from high

SWR and excessive input power. Has warning LED,

smooth adjustable transmit/receive switching with remote external

keying. Draws

48A@13.8 VDC.

12x12x5”. RC-1,

Remote Control

Head, $45.00.

Power Curve -- Typical Output Power in Watts

Choose from 10 different

models -- 20 to 220 Watts

out for 2 to 50 Watts in,

$129 to $655. Extra heavy

duty heatsink spans the entire length of cabi-

net. Protection circuits automatically bypass

your amplifier to prevent damage and an

LED lights to warn you. Your expensive

power transistors are protected from over-

heating by Mirage’s exclusive Therm-O-

GuardTM. Automatically shuts down and

bypasses your amp if needed. All Mirage C-

Series have a 20 dB GaAsFET preamp.

Commercial Amplifiers are available for

150-174, 450-470 MHz and VHF marine

bands, 70-100 Watts out. Most feature over-

temperature sensing that bypasses amplifier

when safe operating temperatures are

exceeded; heavy duty heatsinks finned on 3

sides; and wide input power range. These

amps were designed for two-way radio sig-

nal commercial, mobile, or fixed location

use. All are FCC type accepted.

223-225 MHz Amplifiers

Model # Price Input Output Current

All UHF models fea-

ture all modes: FM,

SSB, CW, adjustable

delay for SSB and

remote control outlet.

They also have a heavy

duty heatsink that spans

entire length of cabinet, 50 Ohm impedance input

and output, 13.8 VDC voltage. D-3010-N -- 100

W out/30W in. For 5 to 45 Watt mobile/base. D-

1010-N -- 100 Watt/10W in. For handhelds or

mobile/base. D-26-N -- 60 W out/2W in, for HTs.

Amateur TV Amps

Industry standard ATV amps available.

D-1010-ATVN, $414. 82 Watts PEP out /10W in.

D-100-ATVN, $414. 82 Watts PEP out/2W in.

MIRAGE D-Series Specifications

420-450 MHz Amplifiers Commercial Grade Amplifiers

B-5030-G

B-2530-G

B-1030-G

Watts In

$739

$759

$739

225

140

270

150

250

300

220

300

More 160 Watt 2 Meter Amps

B-5018-G, $329. Like B-2518-G, but

for 10-50 Watt mobile/base. 160 Watts out

for 50 W in.

B-1018-G, $409. MIRAGE’S most pop-

ular dual purpose HT or mobile/base 2

Meter amp. Get 160 Watts out for 10 W

in. For 0.2 to 15 Watt rigs Use RC-2, $45,

Remote Control.

Remote Control Head for Amps

RC-1/RC-2,

$45.00. Remote con-

trols most MIRAGE

amps. Power On/Off,

preamp On/Off, switch for SSB/FM. 18 ft.

cable (longer available with special order).

13/4x 33/4x21/2”. 5018/2518/1018 use RC-2.

Others use RC-1, call mirage to verify.

A-1015-G

$389

Suggested

Retail

B-5030-G

$739

Suggested

Retail

PAC-30-130B

$329

Suggested

Retail

B-1018-G

B-2518-G

B-5018-G

Watts In

0.25

0.5

140

150

160

111

119

135

125

153

130

160

135

160+

145

160

Watts Out 6 22 42 63 84 98 122 142 150

Watts In .25 1 2 3 4 5 7 9 10

C-22-G

C-211-G

C-106-G

C-1012-G

C-2512-G

C-5012-G

C-1022-G

C-2522-G

C-5022-G

$169.00

$369.00

$269.00

$369.00

$345.00

$365.00

$759.00

$739.00

.1-5 W

.3-5 W

.3-15 W

.3-40 W

.35-55 W

.25-10 W

.25-30 W

.35-55 W

3-36 W

50-126W

3-60 W

6-120 W

.5-120 W

3-120 W

40-220W

1.5-220W

5-220 W

5 amps

25 amps

12 amps

20 amps

18 amps

48 amps

Model # Price Input Output Current

D-15-N

D-26-N

D-100ATVN

D-1010-N

D-1010ATVN

D-3010-N

$189.00

$289.00

$419.00

$395.00

$439.00

$389.00

.25-2 W

.4-5 W

0.5-5 W

.30-15 W

1-15 W

5-45 W

3-18 W

17-60 W

15-52 W

5-110 W

5-100 W

7-100 W

3 amps

12 amps

20 amps

MIRAGE Commercial Amplifier Specifications

Model Price Input Output Preamp Range

B34GC

Pac1070B

Pac15100C

Pac30130B

M120G

$159.00

$299.00

$429.00

$329.00

$199.00

.5-3 W

10-30 W

5-25 W

10-30 W

.1-3 W

10-30 W

5-70 W

5-100 W

1-100W

10-25 W

Yes

150-162

150-174

450-475

150-174

156-158.5

B-2518-G

$329

Suggested

Retail

QSTCatP59.qxd 10/16/2003 1:05 PM Page 1

60 www.mirageamp.com

MIRAGE 2-Meter/440 MHz Amplifiers for HTs

Add this MIRAGE amp to your 2 Meter

handheld and get 35 Watts output . . . talk

further, longer, clearer . . . It’s the best HT

amplifier $89.95 can buy! Here’s why:

First-class strip-line techniques and

modular construction gives superb RF per-

formance and unsurpassed reliablity.

Custom wrap around heatsink provides

excellent heat distribution -- runs cool for

extra long life. Reverse polarity protection

can save your amp and your pride if you

connect power backward.

Automatic RF sense transmit/ receive

switch makes operation super easy. Low

input SWR keeps your handheld safe from

overheating. Individual pushbutton switch-

es lets you select FM/SSB operation,

receive preamp on/off and power on/off.

LEDs show On-Air, receive preamp on

and power on. 51/4x13/4x43/4”. Free mobile

mount bracket, hardware. B-34, $69.95.

Like B-34-G but FM only, less preamp,

mobile bracket. Super tiny 31/8x13/4x41/4in.

HT Docking Booster

Two Meter dock-

ing booster gives

50 Watts out with

just 8 Watts in!

18 dB GaAsFET preamp,

on/off switch, On-air, pre-

amp and Xmit LEDs.

31/4x31/4x41/4in. Requires

13.8 VDC. Auto band selection, Reverse

Polarity protection and much more.

Choose an adapter to fit your handheld

Adapter

#MI-2

MI-3

MY-1

MY-2

MK-1

MK-2

Manufacturer/Handheld Type

IC-2S/2SAT/2SR/3S/3SAT/3SR/24/W2/X2

ICOM W21/X21/W21T/X21T, etc.

YAESU FT-23/204/73/704/104/728, etc.

YAESU FT-24/74/205/705/305/805/729, etc.

TH-25/25G/45/45G/55/75/77, etc.

TH-22A/22AT/42A/42AT/59/79/79E, etc.

Reach distant repeaters . . . Log onto

faraway packet bulletin boards.

This rugged Mirage B-310-G ampli-

fier operates all modes: FM, SSB and

CW. Perfect for all HTs up to 8 Watts and

multi-mode SSB/CW/FM 2 Meter rigs.

Built-in low noise GaAsFET receive pre-

amp gives you 15 dB gain -- lets you dig

out weak signals. SWR and Reverse

Polarity Protection.

Mirage’s integrated HeatsinkCabinetTM

and whisper quiet fan gets heat out fast!

The results? An ultra-compact

43/4x13/4x73/4inch 21/2pound amplifier that

delivers a super powerful 100 Watts.

Free 3 foot handheld to B-310-G coax

cable and mobile bracket!

Automatic RF sense Transmit/Receive

switch. Remote keying jack. LEDs moni-

tor “On-Air”, high SWR, pre-amp, power.

Push buttons select SSB/FM, pre-amp,

power. Draws 15 Amps at 12-15 VDC.

Full one year MIRAGE warranty

With MIRAGE’s legendary ruggedness,

you may never need our superb warranty.

B-310-G

$199

Suggested

Retail

11 models to choose

from -- continuous

duty all mode

FM/SSB/CW repeater

amplifiers for 6, 2,

220 MHz, 450 MHz,

and ATV service.

Low Noise GaAsFET preamps

High gain

ultra low

noise GaAsFET preamps for

receiving weak signals. Select-

able gain prevents receiver inter-

mod. 15-22 dB gain. Less

than 0.8 dB noise figure,

auto RF switching to 160W. Choose

In-shack or Mast-Mount models below.

Frequency

(MHz)

28-30

50-54

144-148

220-225

430-450

In Shack

$139

KP-1/10M

KP-1/6M

KP-1/2M

KP-1/220

KP-1/440

Mast Mount

$195

KP-2/10M

KP-2/6M

KP-2/2M

KP-2/220

KP-2/440

Accurate SWR/Wattmeters

Read SWR directly and for-

ward, Reverse, Peak/Average

power. Remote coupler. 1.8-

30, 50-200, 420-450, 1260-

1300 MHz models.

Nearest Dealer/Free Catalog: 800-647-1800

Technical: 662-323-8287 Fax: 662-323-6551

COMMUNICATIONS

EQUIPMENT

300 Ind’l Park Road, Starkville, MS 39759

MODEL

MP-1

MP-2

MP-3

MP-4

PRICE

$235.00

$265.00

$279.00

FREQ

1.8-30 MHz

50-200

420-450

1260-1300

SWR sens

1-2 Watts

5 Watts

1 Watt

Power

2000 W

1500W

150 W

1/10/100

MIRAGE Repeater Amp Specifications

A-1015-R

B-1016-R

B-2516-R

C-211-R

C-1012-R

C-2512-R

D-1010-NR

D-3010-NR

D-100-ATVN-R

D-1010-ATVN-R

$579.00

$629.00

$579.00

$659.00

$625.00

$689.00

$659.00

$689.00

.25-5 W

.25-3 W

.5-10 W

.25-.5 W

.25-6 W

.05-15 W

.25-4 W

1-15 W

.25-1 W

.25-4 W

98 W

130 W

111 W

80 W

96 W

90 W

80 W

75 W

52 W

80 W

50-52

145-148

223-225

440-450

420-450

Model# Price Input Max Out MHz

200 Watts on 2 Meters

Add this amp to

your 2 Meter HT or

mobile radio and get

200 Watts output. Talk

further, longer, clearer!

Has 15 dB GaAsFET pre-

amp, works all modes

FM/SSB/ CW, high SWR

protection, mobile mounting bracket, input

level switch for selecting proper input

power from handheld or mobile radio.

Low power input for handheld radios, 250

mW to 10 Watts. High power input for

mobile radios, 10 Watts to 50 Watts.

Custom wrap-around heatsink gives excel-

lent heat dissipation and attractiveness.

B-320-G

$44995

Suggested Retail

Mirage 2-Meter/440 MHz Amplifiers for HTs!

• 35 Watts Output

• All modes: FM, SSB, CW

• Reverse Polarity Protection

• Free Mobile Bracket

• Works with all HTs up to 8 Watts

• Auto RF sense T/R switch

Add this MIRAGE BD-35 dual band

amp and boost your handheld to a much

more powerful mobile or base -- 45

Watts on 2 Meters or 35 Watts on 440

MHz! Get 35 Watts out with just 4

Watts in!

MIRAGE’s exclusive FullDuplex AmpTM

lets you talk on a band and listen on another

band at the same time -- just like a phone

conversation (requires compatible HT).

Features auto band selection, reverse

polarity protection, on-air leds, single con-

nector for dual band radios/antennas, free

mobile bracket and more! Works with HTs

to 7 Watts. Super compact 5Wx11/2Hx5D

inches. Draws 7 Amps at 13.8 VDC.

Mirage BD-35 Handheld Dual Band Amplifier

BD-38-G

gives 70 Watts of brutal power on 2 Meters

and 60 Watts on 440 MHz! Use your HT

or mobile, 250 mW to 5 W input. An Auto

switch determines band. LED PowerGraphTM

indicates output power, completely alive at

70/60 Watts. Has 15 dB GaAsFET preamp,

with separate 144/440 MHz LEDs. 61/2Wx

21/2 Hx9D in. High SWR, over-temp and

reverse polarity protection. Free BNC to PL-

259 patch. Draws 15 Amps at 13.8 VDC.

HT/Mobile Dual Band Amp

BD-38-G

299

Suggested Retail

Mirage B-310-G . . . 100 Watts on 2 Meters

B-24-G

114

Suggested

Retail

MIRAGE Repeater Amplifiers

BD-35

159

Suggested Retail

B-34-G

$8995

Suggested

Retail

B-34

$6995

Suggested

Retail

QSTCatP60.qxd 10/16/2003 1:09 PM Page 1

www.vectronics.com 61

Vectronics 300 Watt Mobile Tuner

The VC-300M Mobile Antenna Tuner

is compact, lightweight, easy-to-operate

and is our most economical tuner.

It’s compatible with any mobile anten-

na and any mobile HF transceiver and is

compact enough to fit the most compact

car. It can also be used at home with

dipoles, vees, verticals, beams or quads fed

by coax.

Backlit dual movement meter simulta-

neously monitors power and SWR. Covers

18 to 30 MHz. Handles 300 Watts SSB

PEP, 200 Watts continuous, (150 Watts on

1.8 MHz). Measures 7.25x8.75x3.6 inches.

Weighs just 3.4 pounds.

Vectronics 2 kW Roller Inductor Antenna Tuner

The Vectronics HFT-

1500 Roller Inductor

Tuner has three continu-

ously variable compo-

nents -- two 4.5 kV capacitors and a roller

inductor controlled by a precision crafted

crank handle and a gear driven 5-

digit counter.

The HFT-1500 will tune ANY

real antenna . . . verticals, dipoles,

inverted vees, beams, long wires,

SWL antennas . . . ANYTHING!

And its huge components make the

tuning ARC-FREE!

You can tune your SWR down

to the absolute minimum from 1.8

to 30 MHz, including MARS and

the WARC bands. Handles 2 kW

SSB PEP amplifier input power.

The bargraph is a 21 segment display

that makes analyzing SSB power amazing-

ly easy. This LED meter shows your peak

reading and has fully adjustable level and

delay controls.

Alighted dual movement D’Arsonval

Cross-Needle SWR/Wattmeter displays

SWR, forward and reflected power simulta-

neously at a glance. RF directional coupler

is fully shielded for even greater accuracy.

The meter measures peak and average

power in the 300/3000 Watt scales.

Bargraph display and meter lamp require

12 VDC adapter, included.

The antenna selector switch is a six

position ceramic. Coax 1 is for tuned and

tuner byass; Coax 2 is for tuned and tuner

bypass, bypass and balanced antenna.

The HFT-1500 measures 5.5Hx12W

x12.5D inches and is housed in a beautiful

RF-tight aluminum cabinet. Weighs 10 lbs.

HFT-1500

$45995

Ship Code D

Get

everything

you’ve ever

wanted . . . precise inductance control that

rivals roller inductors, the ability to match

any real ant-enna, full 1.8-30 MHz cover-

age, peak reading backlit Cross-Needle

Meter, 8 pos. antenna switch, built-in 50

Ohm dummy load, finest components and

world class quality.

VECTRONICS’ exclusive Multi48TM

inductor gives you forty-eight inductance

values -- you’ll get precision tuning that

rivals the most expensive roller inductors.

Tune any real antenna 1.8-30 MHz, in-

cluding all MARS/WARC bands. Verticals,

dipoles, yagis, quads, long-wires, G5RVs . . .

Has 4:1 balun for balanced line antennas.

Handles up to 300 Watts SSB PEP, 200W

continuous (150W, 1.8 MHz).

Abacklit Cross-Needle Meter displays

SWR, forward and reflected power simulta-

neously. Reads both peak and average

power on 30/300 Watt scales. Lamp has

front panel switch and uses 12 VDC or 110

VAC with AC-12 $12.95.

An 8-position antenna switch selects 2

coax fed antennas, random wire/balanced

line or built-in dummy load for use through

your tuner or direct to your transceiver.

Bypass position keeps SWR meter in line.

Use the built-in dummy load for testing

and repairing your rig, setting power level,

adjusting your mic gain and more.

Chemically treated aluminum case has

durable baked-on paint and scratch-proof

color Lexan front panel. 10Wx9.5Dx3.5H”.

300 Watt Antenna Tuner

with 21 Segment SSB Bargraph

VC-300D, $199.95. Similar

to VC-300DLP, but has deluxe 21

segment SSB bargraph feature.

VC-300DLP . . . World’s most versatile HF Antenna Tuner

Tuned Active SWL Antenna

AT-100, $79.95. Portable compact antenna

is perfect for indoor use by itself or with an

outside antenna.

Tunes from 300

KHz to 30 MHz

including VLF,

AM broadcast,

all shortwave

and ham radio

bands.

Deluxe Iambic CW Keyer

CK-200, $79.95. Speed,

weight, tone, volume con-

trols, tune, iambic A/B switch

for 3 types of keying output, speed control

6-50 wpm, self-complete dots/dashes. Use

9V battery/110 VAC.

KP-200, $59.95. Iambic

Key Paddles complete with

1/4” plug and cable. KP-

200, chrome base or KP-200B, black base.

High Pass TVI Filters

HPF-2, $29.95.

Installs between VCR

and TV and cable TV or

antenna lead-in cable.

Eliminates or reduces inter-

ference caused by nearby HF

transmitters. 6 meter notch. “F” connectors.

HPF-1, $24.95. Same as HPF-2, no six

meter notch. Low loss in TV

passband 52-550 MHz.

1500 Watt dry Dummy Load

DL-650M, $74.95. Handles

100 Watts continuous, 1500

Watts for 10 seconds to 650

MHz. Ceramic resistor.

SWR< 1.3. SO-239.

DL-650MN, $79.95 has N

connector. DL-300M, $44.95.

300 Watt dry

dummy load.

DL-300MN, $49.95

with N connector.

DL-2500, $199.95. 2500

Watts dry dummy load is fan

cooled. DC to 150 MHz.

DL-2500N, $199.95 with N

connector.

1500 Watts Low Pass

TVI Filter

LP-30, $69.95.

Eliminates TVI by attenu-

ating harmonics at the

source.

Plugs between trans-

mitter and antenna or tuner. Features nine

pole Chebyshev design. Insertion loss is

only 0.25 dB at 30 MHz. 52 Ohm imped-

ance. Handles 1500 Watts.

2500 Watts Low Pass TVI Filter

LP-2500,

$139.95. Handles

up to 2500

Watts key

down. SO-239

connectors.

PM-30, $79.95, for 1.8 to 60 MHz.

Displays forward and reflected power and

SWR simultaneously on dual movement

Cross-Needle Meter.

True shielded directional coupler assures

accuracy. Backlit meter displays peak or

average power in 300/ 3000W ranges.

5.3x5.75x3.5 inches. SO-239 connectors.

PM-30UV, $89.95. Covers 144/220/

440 MHz. 30/300 Watt ranges. SO-239.

PM-30UVN, $89.95. Type N.

PM-30UVB, $89.95. BNC connector.

VC-300DLP

$15995

Ship Code B VC-300M

$10995

Ship Code B

Dry Dummy Loads Low Pass TVI Filters SWR/Power Meters

PM-30 PM-30UV

QSTCatP61.qxd 10/16/2003 1:13 PM Page 1

62 www.vectronics.com

Vectronics high-performance electronic kits . . . fun to build and use!

Full featured CW Keyer Kit is the

best electronic keyer bargain in radio!

Self-completing dot-dashes and dot-

dash memory forgive timing errors. Front panel

volume/speed (3-65 wpm) controls. Weight

adjusts 25-75%. Sidetone (300 -1000Hz) has

LM386 audio amp for external speaker. Iambic A

or B, fully auto or semi-auto “bug” mode. Sleep

Mode battery saver. Use 9V battery. 13/4x4x 31/2

in. Simple skill level. Order VEC-201K, $24.95.

Crystal radio set Kit lets you

relive the experience of early radio

pioneers. This baby really works!

Wind your own inductor, wire up the

earliest radio circuit without solder-

ing a thing and listen to the magic of radio that

needs no power. Put up an antenna, connect a

ground. Stations will come in amazingly loud

and clear. 13/4x5x61/2”. Has antenna wire, ear-

phone. Simple level. Order VEC-121K, $19.95.

Aircraft Receiver Kit tunes entire voice

aircraft band 118-136 MHz. Picks up air

traffic 100 miles away. Track progress

of incoming/outgoing traffic in your

area, gain advanced weather information, and

discover how the National Air Traffic System

really works. Great way to learn about aviation.

Use 9V battery. Drives external speaker/phones.

13/4x4x31/2 in.Intermediate. VEC-131K, $29.95.

CW Memory Keyer Kit stores 512

characters in four 128 character

non-volatile EEPROM message

memories. Carry on entire QSOs by

just pressing memory message but-

tons. True sinewave sidetone with soft rise and

fall time eliminates harsh keyclicks. Has all

features of VEC-201K CW Keyer Kit. 13/4x 63/4

x51/4in. Simple. Order VEC-221K, $69.95.

Shortwave Receiver Kit

lets you listen to the

world! Covers 75/80, 49,

40, 30, 31, 20, 25, 22, 19,

17, 16, 15 and 13 Meter bands. Explore AM,

SSB, CW, WWV, RTTY and Packet signals.

Vernier reduction drive, smooth regeneration

control, RF stage. Includes all metal cabinet. 2

earphone jacks. Use 9V battery. 21/2x7x6 in.

Intermediate skill level. VEC-102K, $69.95.

2 Meter Monitor Kit receives

144-148 MHz. Low noise, high

gain RF preamp gives you excel-

lent 0.1 uV sensitivity. Air variable tuning

capacitor has 8:1 reduction. Dual conversion

superhet provides selectivity and stability.

Automatically eliminates squelch tails. Built-in

speaker, squelch, tone, volume controls.191/4”

antenna. 9V battery. 2x41/4x4”. Intermediate

skill level. Order VEC-104K, $79.95.

QRP Transceiver Kits for 80/40/30/20 Meters

give you VXO frequency control, broad-

banded transmitter circuitry, solid one

Watt plus output, shaped keying, .3 uV

sensitivity, direct conversion receiver. In-

cludes crystal for popular QRP frequency. 13/4x 43/4

x51/4”. Intermediate skill level. Order VEC-1380K

(80 Meters),VEC-1340K(40 Meters),VEC-1330K

(30 Meters),VEC-1320K(20 Meters), $59.95 each.

20/30/40/80 Meter Receiver Kits

give high performance! Covers

entire band or tailor to cover

desired portion. Copy

CW/SSB/AM. NE602/ 612 mixer-

oscillator, LM386 high gain audio

amplifier. 13/4x43/4x 51/4in.

Moderate skill level. Order VEC-1120K (20

Meters),VEC-1130K(30 Meters),VEC-1140K (40

Meters), VEC-1180K (80 Meters), $29.95 ea.

20/30/40/80 Meter QRP CW

transmitter Kits have variable

crystal oscillator tuning, front panel

switch selects 1 of 2 crystals. 1

crystal included. Transmit and

Receive switch. Connect receiver.

13/4 x4x31/2in. Intermediate skill

level. Order VEC-1220K (20 Meters), VEC-1230K

(30 Meters), VEC-1240K (40 Meters), VEC-1280K

(80 Meters), $29.95 each.

VEC-1500K, $29.95.

This professional-grade

soldering course was

designed for schools and individuals.

Includes theory, quizzes, PC board and

components for soldering practice. Taking

this course will results in professional sol-

dering skills and fun blinking LED proj-

ect. Used & endorsed by universities, vo-

techs, high schools, businesses and others.

2/6/10 Meter FM Receiver Kits let you

tune in the world of amateur radio repeater

action with these superb educational kits.

Each covers the entire FM sub-band and

runs off your 9V battery. Experience what

it’s like for ham radio operators in your area.

Plug in speaker or headphones for clear reception.

13/4x4x31/2”. Intermediate. VEC-1002K (2 Meters),

VEC-1006K (6M), VEC-1010K (10M), $34.95 each.

AM Radio Transmitter Kit lets you set

up your own AM station and broadcast

crystal clear programming from your stu-

dio with you as the disc jockey. Choose

clear frequency from 530-1750 KHz.

Standard line level or microphone input.

Easy connection. Audio level adjustment. 13/4x4x31/2

inches. Simple skill level. Order VEC-1290K, $29.95.

FM Stereo Transmitter Kit lets you

connect your CD player, tape or other

source and broadcast clear stereo pro-

gramming on the FM band! Realistic

grand movie theater sound! Use to

assist hard-of-hearing. Frequency

adjusts 88-108 MHz. 9V battery or 5-

15 VDC. Moderate. VEC-1292K, $34.95.

Tunable SSB/CW Audio Filter Kit has

sharp four pole peak and notch filters.

Zero in with frequency control & adjust

bandwidth for best response. Tune fre-

quency from 300-3000 Hz. Notch is an out-

standing 50 dB. 1 Watt amplifier. Speaker/Phone

jacks. 12 VDC at 300 mA. 13/4x43/4x51/4in.

Intermediate skill level. VEC-841K, $34.95.

Super CW Audio Filter Kit gives you

three bandwidths: 80, 110, 180 Hz.

Eight poles gives super steep skirts

with no ringing. Pull CW QSOs out of

terrible QRM! Plugs into phone jack to drive

phones. QRM down 60 dB one octave from cen-

ter frequency (750 Hz) for 80 Hz bandwidth.

Improves S/N ratio 15 dB. Use 9V battery.

13/4x4x 31/2in. Simple. VEC-820K, $19.95.

Super CW filter/ amplifier Kit has

powerful 1 watt audio amplifier to

drive speaker. 8 poles active IC filter-

ing uses cascaded low-Q stages. 3

bandwidths: 80,110, 180 Hz. Center

frequency: 750 Hz. Up to 15 dB. Use 9-18VDC,

300 mA max. 13/4x4 x31/2in. Simple skill level.

Order VEC-821K, $29.95.

Super SSB Audio Filter Kit improves

readability with 8 poles, optimizes

audio bandwidth, reduces SSB splatter,

low, hi-pitched interference, hiss, static

crashes, background noise. Use 9 Volt battery.

13/4x4x 31/2inches. Simple skill level. Order

VEC-830K, $19.95.

49 MHz Wireless Band Monitor

Receiver kit lets you explore

weak wireless signals from miles

around. Baby monitors, cordless

phones, walkie-talkies, wireless

intercoms and more! Electronic

tuning covers just the 49 MHz band. Intermed-

iate skill level. Order VEC-1016K, $34.95.

Emergency and Business Band

Receiver lets you gather news

first hand -- tune in local fire,

police, ambulance, business, etc.

Master 2-way radio lingo, operat-

ing procedures and police 10-

codes as you find the “real story”!

9V battery. Intermediate. VEC-1012K, $34.95.

Voice Activated Recorder Switch

Kit can remotely and auto record

conversations, speeches. Don’t waste

tape by not recording silence. Plug in

remote recorder jack and it activates

when it hears speech. Built-in mic, on/off. Use

9V battery. Simple. VEC-483K, $19.95.

5 Watt 2 Meter FM transmitter Kit lets you

transmit voice and data -- AFSK data (up to

1200 baud) and FSK data (to 9600 baud).

Jumper select reactance or direct FM modula-

tors. Reliable Motorola NBFM Xmitter IC/PA transis-

tor. Crystal controlled (x8 frequency multiply). -60

dBc spurs, harmonics. 12-14 VDC, 1.5A. 5-pin DIN

mic jack. 13/4x43/4x 51/4”. Difficult. VEC-1202K, $99.95.

144/220/440 MHz Low-Noise

Preamp Kits soup up your antenna

system, pull in weak signals. Great

low-noise performance, immunity

from damaging electrostatic dis-

charge. 1x11/2”. Simple. VEC-1402K (144 MHz), VEC-

1422K (220 MHz), VEC-1444K (440 MHz), $17.95.

High-performance 2 Meter Preamp Kit

pulls weak signals out of noise. Boosts

signals, provides razor-sharp bandpass filtering, elimi-

nates electrical noises w/built-in balun. 9-14 VDC.

11/2 x3x1”. Intermediate. VEC-1402DK, $59.95.

Portable CD Amplifier Kit has 4

Watt per channel amplifier. Plug in

a portable CD player and a pair of 8

Ohm speakers.Fill your room with music. 12V

battery/12 VDC. Simple. VEC-1604K, $19.95.

The Giant Book of Electronic Projects

VEC-1901, $19.95. Includes 19 kits

on this page. Building tips, com-

plete parts lists, parts placement,PC

board layouts, test/alignment, more.

Counter Surveillance Monitor Kit lets

you search out and remove electronic

bugs! Highly sensitive wideband receiver

detector. Higher pitch audio occurs when bug is

near. 9 V batt. Moderate. VEC-8218K, $39.95.

Ni-Cad/Ni-MH Battery Charger Kit

safely quick charges expensive batteries -

- no overcharging -- many in less than an

hour. HTs, cell phones, camcorders, lap top.

13/4x43/4x51/4in. Moderate. VEC-412K,$49.95.

Shortwave Converter Kit converts AM

or AM/FM radios to shortwave receivers

at a push of a button. Choose 2 1 MHz

bands between 3 and 22 MHz. Popular

13,16,19, 25, 31, 41, 49 and 60 Meters interna-

tional bands. On/off bypass, NE-602/612 mixer-

oscillator IC and tuned input circuit. 9 V battery.

13/4x4x31/2”. Intermediate. VEC-101K, $27.95.

The GIANT

Book of

Electronic

Projects,

Volume I

Vacuum-Tube Preamplifier Kit lets

you enjoy the vintage sound of a real

life vacuum tube preamp. High degree

of even-harmonic distortion. Includes tube, 110 VAC

power supply. Moderate. VEC-1680K, $99.95.

Vectronics’ Comprehensive Soldering Course

The best home-study soldering course available!

QSTCatP62.qxd 10/16/2003 1:15 PM Page 1

www.mfjenterprises.com 63

Call 1-800-647-1800 to order

or for your nearest MFJ dealer;

(662) 323-5869 outside continental

USA; FAX to (662) 323-6551.

MAIL ORDERS: Send per-

sonal check, bank check or money

order to: MFJ, 300 Industrial Park

Road, Starkville, MS 39762.

Include payment for item(s) and

shipping charges (see chart).

Personal checks will be held 10

working days upon receipt of order.

SALES TAX: Tax must be

added for OHIO and MISSISSIPPI.

CREDIT CARDS: MasterCard

Visa, American Express, Discover.

Include account number, name of

card holder and expiration date.

FOREIGN ORDERS: US

Funds ONLY. See ship chart for

details. Call for quote.

NO RISK ORDERING: Order

any product “directly” from MFJ

Enterprises, Inc., Starkville, MS and

try it for 30 days.

If not totally delighted, we’ll

cheerfully refund your purchase

price (less shipping). No books or

software included.

WARRANTY

INFORMATION:

All MFJ products (except as

noted) come with MFJ’s famous No

Matter WhatTM one year limited

warranty.

MFJ will repair or replace (at

our option) your MFJ product No

Matter WhatTM for one complete

year. Customer MUST retain dated

proof-of-purchase.

REPAIRS/TECHSupport:

Send unit with copy of pur-

chase receipt to MFJ Enterprises,

Inc., 300 Industrial Park Road,

Starkville, MS 39759. TECH:

(662)323-0549 E-Mail: mfjcust-

serv@mfjenterprises.com

All prices and specifications are subject to change without notice or

UPS/MAIL Shipping Chart

Ship Code

UPS

$10.00

12.00

14.00

16.00

18.00

27.00

USPS/MAIL

$12.00

20.00

25.00

30.00

35.00

Canada

$25.00

30.00

35.00

40.00

50.00

55.00

Foreign

$100.00

150.00

200.00

250.00

300.00

*Code F items cannot be sent by USPS/mail. Foreign orders must call for quote.

How to Order from MFJ

Product Index

All packages 1 lb. and under will be shipped by US MAIL for $6.00

minimum charge unless otherwise specified.

Product/Description

AMPLIFIERS

HF Linear Amplifiers

HF Solid States

Repeater Amplifiers

Six Meter Amplifiers

VHF/UHF Mobiles

VHF/UHF HT Amps

AMPLIFIER ACC.

Interfaces

Electronics Bias

Inrush Current

QSK Switch

Tuning Aids

ANTENNAS

Dipoles (QRP)

Dipoles (Wire)

HF Beams (HG)

HF Mobile

HF Portable

HF Restricted

HF Verticals

HF Verticals (HG)

HT Rubber Ducks

Screwdriver Manual

Screwdriver Auto(AM)

Screwdriver Cntr Acc.

Screwdriver Cntr(AM)

SWL

Telescopic Whips

VHF-2M j-pole

VHF/UHF Mag Mnts

VHF/UHF Mobiles

VHF/UHF Base

VHF/UHF Fiberglass

Six Meter Antennas

Yaesu FT-817 Acc.

ANT. ANALYZERS

Analyzer Accessories

Dip Coil

Pouches

Accessory Packs

Frequency Counters

270-480 MHz

Custom Frequencies

HF Analyzers

HF/VHF Analyzers

HF/VHF/UHF Anal.

VHF Analyzers

Antenna Bridge

Antenna Duplexer

Antenna Insulator

Antenna Insultr(HG)

Antenna Mast

Antenna Mag Mnts

Antenna Mounts

Model Number(s)

AL-811, AL-811H

AL-80B/572/800H

AL-1500/1200/82

ALS-500M/600

X-xxxx-R

A-1015-G

B-xx18-G

B-xx-G, BD-35

ARB-704/I2

EBS1/H

ICP-120/240

QSK-5

100/102, 214/216

MFJ-177x

1778/1779/1777

TH-XXXX

16XXT, 1624

1456/1624/162-68

1661/1664/1621

1786/88/21//1795

1796/98/92/93

AV-XX/620/640

171X, 181X, 1720

1661/62/64/68

SDA-100

199/1925/1925-I2

SDC/SDM/SWP

1020/1022/24/AT1

1952/1954/1956

1730

1724/28/29/34/38/

14XX

1740/50/68/1866/8

15XX

1762/56/66/1866/8

1899T, 18XXT

MFJ-66

MFJ-29C/39C

99C/99/B/C/98/b

886/888

MFJ-229/219B

MFJ-220X

MFJ-207

259B/249B/209

MFJ-269

MFJ-208

MFJ-204B

MFJ-916

MFJ-16C01/6D01

C1/C1C,E1

MFJ-1910

333/335/336S/T

340/31/32/44/45/8

Page#

10, 51

7, 43

41, 42

42, 44

56, 57

50, 52

32, 40

11, 12

7, 43

Product/Description

ANTENNA STANDS

ANTENNA TUNERS

HF Automatic

HF Balance Line

HF kW (AME)

HF kW (VEC)

HF kW

HF 300W

HF 300W (VEC)

HF 200W

QRP

Six Meter

Travel

Tuner Extender

Tuner Tuning Aid

VHF/UHF (DB)

VHF/UHF

ATTENUATOR RF

BALUNS

BALUNS (HG)

BEACON Monitor

BATTERIES

Battery CHARGERS

BOOKS

CABLES

Amplifier Interface

Audio Accessories

Coax Patch

Coax w/PL-259

Code Reader - RS232

Radio Control

Packet to Radio

DC Radio Power

CLOCKS

LCD

LED

Analog

Atomic

CODE READERS

CW pocket reader

Multimode reader

CODE TUTORS

Code tutor accessories

Classroom Code tutor

HT CW interface

Morse Code Oscillator

Pocket Code Tutor

CONNECORS

Banana

Anderson PowerPoleR

RF Connector/adaptor

COMPUTER intrfcs

CW/RTTY/WeatherFx

Packet Controller

Packet Controller Acc.

Soundcard

Model Number(s)

MFJ-1918, 1904

MFJ-991/993/994

MFJ-994/994H

ATR-30, ATR-20

HFT-1500

989C/986/962D

969/949E/948

MFJ-945E/948

VC-300/DLP/M

971/41/901/16010

971/902/H/904/H

903/906/969/945E

MFJ-902/H/904/H

MFJ-914

MFJ-212

MFJ-922

MFJ-921/924

MFJ-762

911/12/13/14/18/9

BN-86/BN-4000

MFJ-890/890UK

92AAxx, 92AAAx

MFJ-633/641X

PNPx

MFJ-5162/5163

5803/06/18

MFJ-5850

MFJ-5161

MFJ-5383X

MFJ-50XX

5535M/5512M

107B/8B/18/112B

113/117/116DC

125/115/105C/126

132/31/33/124/22/

21/23/130RC

MFJ-461

MFJ-462B/464

MFJ-26B

MFJ-414/554

MFJ-552

MFJ-557

MFJ-413/417/418

MFJ-7700/7709

MFJ-11Cxx

MFJ-77XX

1225/24/14PC/13

1270B/1278B

24/52B/43/44/780

1273B/1275/1279

Page#

42, 44

2, 3

5, 6

4,5,6

6, 38

10, 43

12, 36

27, 20

17, 37

16, 25

24, 34

Product/Description

DIP METER

DUMMY LOADS

Dry

Dry (AME)

Oil

Oil (AME)

FILTERS

Audio

Analyzer

DSP

High-Pass

Low Pass

Low Pass (VEC)

Noise Canceling

RF Choke

2 Meter Intermod

GROUND, artificial

GROUND ROD

GROUND PLATE

HT ACCESSORIES

Antenna Clips

Voice Mail

Intermod

Pocket Repeater

HEARING PROD.

HEADPHONES

ISOLATOR

KEY PADDLE

Telegraphy

Iambic Paddles

KEYERS

Iambic

Iambic (VEC)

Keyer Chip

Memory Keyers

Keyer/Memory Acces.

KEYBOARD

Computer Keyboard

CW Keyboards

KITS (VEC)

MODEM, PACKET

MIC/SWITCHES

Switches

Desk Mic

Boom Mic

MFJ-94XX Mic

HT Speaker/Mic

METERS

AC Power Line

noise meter/power line

RF Current

RFI Sniffer

Field Strength

LIGHTNING ARRst

MULTI-outlets/DC

DC outlets/Accessory

NOISE BRIDGE

Model Number(s)

MFJ-201

260C/N/264/N

ADL-2500/650M

MFJ-250/X

ADL-1500/X

722/751B/752C

MFJ-731

MFJ-784B/781780

711B, HPF-1/2

MFJ-704/702B

LP-30/LP-2500

MFJ-1025/1026

MFJ-701

MFJ-713/714

MFJ-931/934

MFJ-1934

MFJ-1904

MFJ-310/312

MFJ-664

MFJ-713/714

MFJ-662

MFJ-616/388/389

MFJ-392B

MFJ-915

MFJ-550

564/B/561/KP200

422/407/401/402/3

CK-200

MFJ-8045ABM

495/90/92/41/42/47

MFJ-80/78/551

MFJ-551

495/464/452/451

VEC-XXXK/C

MFJ-2400

MFJ-1260/61/63

MFJ-297/299

MFJ-393I/K/Y

MFJ-290

292/3/4/5/282/285

MFJ-850

MFJ-852

MFJ-854

MFJ-805

801/02/2B/02R/2X

MFJ-270/272

1118/7/6/2/1124/26

1128/1129

MFJ-202B

Page#

51, 61

9, 61

18, 61

19, 20

Product/Description

Pre-Selectors

Pre-Amp (MIR)

Phone Patch

Pouches

Chest, HT

Analyzer, Reader/tutr

Power Supplies

Linear

Switching

Portable

Receivers

Shortwave

Aircraft/Marine

Rotators (HG)

Signal Analyzer

signal gnrator audio

Signal Tracer

Software

Sound Card

Packet, multimode

Speakers

Switches

Antenna

Foot Switch

Remote Antenna

TNC/Mic

Transmit/Receive

TEST EQUIPMENT

TRANSCEIVERS

CW accessories

Data

SSB

SSB accessories

Six Meter FM

VHF FM

TV (ATV) XMTR

TOOLS

VOICE KEYERS

WATCHES

WATTMETERS

HT Wattmeter

Wattmeters

Wattmeter w/DL

Wattmeter (AME)

Wattmeter (MIR)

Wattmeter (VEC)

WEATHER STNS

WIRES

Antenna

Coax

Model Number(s)

1046/48/40B45C

KP-1/KP-2

MFJ-624D

6200/18/15

29C/39C/26B

4035MV/4322/12

4225MV/45/4125

4015/4103/10/14

MFJ-8100K/W

8214/8218

CD45/T2X/Hamiv

MFJ-224

MFJ-5000/5004

MFJ-5012

MFJ-1296/1298

MFJ-1284x/1289X

280/281/385/382

1700B/01/04/02/N

MFJ-1709

RCS4/8V/10/L

MFJ-1272B/M

MFJ-1708

886/888/852/854

805/850/762/5000

5004/5012/4105

90xx/91xx/93xxk

8621/8631/9606

92XX

9606

8400K/W

MFJ-8704/8708

7220/7224/7246

MFJ-434, MFJ-73

MFJ-182/185/186

MFJ-840/841

870/72/73/74/

860/62/64/844/817

815B/812B/816

MFJ-267

AWM-30/35

MP-1/2/3/4

PM-30UV/PM-30

MFJ-192/S194/RS

18Dxxx, 18Hxxx,

18Gxxx

MFJ-5850

Page#

11,12,

17, 21

13,37

QSTCatP63.qxd 10/16/2003 1:15 PM Page 1

The MFJ-993

IntelliTunerTM lets you

tune any antenna automatically balanced

or unbalanced - - ultra fast.

It’s a comprehensive automatic antenna

tuning center complete with SWR/Watt-

meter, antenna switch for two antennas and

4:1 current balun for balanced lines.

MFJs exclusive IntelliTunerTM, Adaptive

SearchTM and InstantRecallTM algorithms

give you ultra fast automatic tuning with

over 2000 non-volatile revolving memories.

You get a highly efficient L-network,

wide 6-1600 ohm matching at full 300

Watts SSB/150 Watts CW, 1.8-30 MHz

coverage, Cross-Needle and digital meters,

aural SWR meter, backlit LCD display,

remote control port, radio interface, heavy-

duty 16 amp/1000 volt relays and more.

It learns while you’re having fun

As you’re ragchewing, contesting or

DXing, your MFJ-993 is learning!

When you transmit, the MFJ-993 auto-

matically tunes for minimum SWR and

remembers your frequency and tuner set-

tings. The next time you operate on that

frequency and antenna, these tuner settings

are instantly restored and you’re ready to

operate in milliseconds!

Each of two antennas can learn and

remember over a thousand frequencies and

tuner settings. They are safely stored in

non-volatile revolving memory.

Highly Intelligent ultra fast tuning

MFJs InstantRecallTM first checks its

memory to see if you have operated this

frequency before. If so, tuning is instanta-

neous and you re ready to operate.

If not, MFJs IntelliTunerTM algorithm - -

based on MFJ s famous SWR Analyzer

technology - - kicks in. It measures the

complex impedance of your antenna. Next,

it calculates the components it needs and

instantly snaps them in. Then, it fine tunes

to minimize SWR -- you’re ready to oper-

ate. It’s all done in a fraction of a second.

When the impedance is within its meas-

urement range, the MFJ-993 is the fastest

automatic antenna tuner in the world.

If it can’t accurately determine imped-

ance, MFJ’s AdaptiveSearchTM algorithm

goes into action. Frequency is measured

and relevant components values are deter-

mined. Only those values are searched for

ultra-fast tuning.

For even faster searches, you can set the

target SWR to 2 (settable 1.0-2.0).

You can manually tune when you can’t

transmit (for listening out of ham bands).

Cross Needle and Digital

SWR/Watt Meters

Lighted Cross-Needle and digital meters

lets you accurately read SWR, forward and

reflected power at a glance.

An aural SWR meter lets you hear the

tuned SWR when you can’t see or read the

meters.

Turn on a highly visible, instant response

SWR LCD bargraph when you need it.

Backlit LCD Display

An easy-to-read backlit LCD displays

SWR, forward/reflected power, frequency,

antenna 1/2, L/C tuner values, on/off indi-

cators and other information.

Remote Control Port

Plug in the MFJ-990RC, $39.95, remote

control and put your tuner at your antenna

or elsewhere and control it remotely.

The MFJ-993 supports radio tuner inter-

faces such as the ICOM 706 series.

Interface cables are available.

The MFJ-993 is a compact 10Wx2¾

Hx9D inches. Use 12 –15 VDC/1 amp or

110 VAC with MFJ-1316, $19.95.

Tune any Antenna

You can tune any antenna — dipoles,

verticals, beams, phased arrays, inverted

vees, quads, random wires, mobile anten-

nas, compact limited space antennas –

practically any antenna.

A4:1 true current balun lets you tune

any balanced antenna - - horizontal loops,

vertical loops, multi-band doublets, quads,

folded dipoles, Zepps.

150 Watt MFJ Automatic Tuner

MFJ-991, 150 Watt Intelli-TunerTM auto-

matic antenna tuner. Similar to MFJ-993

but handles 150 Watts SSB/100 Watts CW,

matches 6-3200 Ohms. Does not have digi-

tal SWR/Wattmeter/LCD display, aural

SWR meter/audio feedback, antenna switch

or 4:1 current balun for balanced lines.

MFJ IntelliTunerTM Automatic Tuner

MFJ ENTERPRISES, INC.

300 Industrial Park Road

Starkville, MS 39759 USA

TO:

PRSRT STD

U.S. Postage

PAID

MFJ Enterprises, Inc.

Automatically tunes any antenna unbalanced or balanced . . . Ultra fast . . . 2000

memories . . . Antenna Switch . . . Efficient L-network . . . Matches 6-1600 Ohms at 300

Watts . . . 1.8-30 MHz . . . 4:1 current balun . . . Cross-Needle and Digital SWR/Wattmeter . . .

Aural SWR meter . . . Backlit LCD . . . Remote control port . . . Radio interface . . .

MFJ-993

$25995

Ship Code B

600 Watt MFJ Automatic Tuner

MFJ-994, 600 Watt IntelliTunerTM!

automatic antenna tuner. Similar to MFJ-993

but handles 600 Watts SSB/300 Watts CW,

matches 12-800 Ohms. Does not have digital

SWR/Wattmeter/LCD display, aural SWR

meter/audio feedback, antenna switch or 4:1

current balun for balanced lines. Tuning

must be done at low transceiver power with

the amplifier bypassed.

MFJ-994

$35995

Ship Code B MFJ-991,

$21995

Ship Code B

New!

New! New!

QSTCatP64.qxd 10/16/2003 1:17 PM Page 1

QSTCatP01 MFJ 2004 Broshure

Navigation menu

Versions of this User Manual:

Views

Navigation
