MOTOTRBO™ System Components and Benefits
DP 3400/3401
Non-display Portable Radios

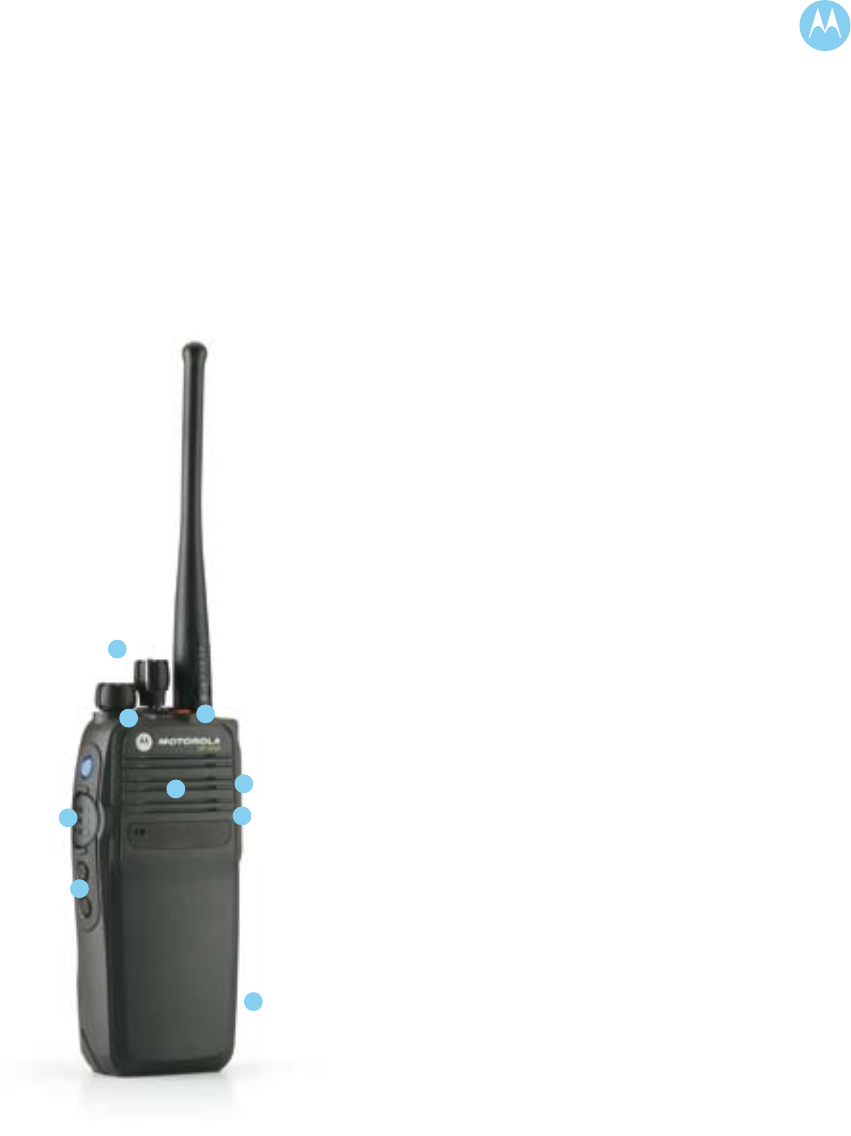

1 Tri-color LED indicator for clear, visible
feedback of calling, scanning and
monitoring.
2 Emergency button to alert supervisor
or dispatcher in an emergency situation.
3 New accessory connector meets
IP57 submersibility specifications and
incorporates RF, USB and enhanced
audio capability.
4 DP 3401 includes integrated GPS module.
5 Radio housing meets IP57 specifications;
submersible in 1 metre of water up to
30 minutes.
6 Powerful, front projecting speaker.
7 Three side programmable buttons for
easy access to favourite features. New
features such as one-touch calling and quick
text messaging are made even easier
through programmable button access.
8 Large, textured push-to-talk button. Provides
good tactile response and easy access, even
when wearing gloves.
9 32 channels.
Non-display Portable Radio
Standard Package
• Non-display Portable Radio
• Antenna - Standard whip included with DP
3400; GPS Monopole included with DP 3401
• NiMH 1300 mAh Battery
• IMPRES™ Single Unit Charger
• 2.5” Belt Clip
• Quick Reference Guide
Additional Features
• Enhanced call management
Encode: emergency, push-to-talk ID
Decode: radio check, remote monitor,
radio disable, all call
• Dual-mode analogue/digital scan - facilitates
a smooth migration from analogue to digital
• Send quick text messaging via programmable
buttons
• DP 3401 can transmit GPS coordinates
• Privacy Options
• VOX Capability
• Multiple Site Support (IP Site Connect)
2
1
3
5
4
6
7
8
9
MOTOTRBO™ System Components and Benefits
DP 3400/3401 Non-display Portable Radios
GENERAL SPECIFICATIONS
Channel Capacity 32
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
Dimensions (HxWxL)
with NiMH Battery 1300mAH 131.5 x 63.5 x 37.2 mm
with LiIon Std Battery 1500mAH 131.5 x 63.5 x 35.2 mm
with LiIon HiCap Battery 2200mAH 131.5 x 63.5 x 39.2 mm
with LiIon FM Battery 1400mAH 131.5 x 63.5 x 37.2 mm
Weight
with NiMH Battery 400 g
with LiIon FM Battery 340 g
with LiIon HiCap Battery 345 g
with LiIon Std Battery 330 g
Power Supply 7.2V nominal
Average battery life at 5/5/90 duty cycle with battery saver
enabled in carrier squelch and transmitter in high power.
IMPRES LiIon Std Battery Analogue: 9 hrs / Digital: 13 hrs
IMPRES LiIon HiCap Battery
Analogue: 13.5hrs / Digital: 19 hrs
IMPRES FM LiIon Battery Analogue: 8.5 hrs / Digital: 12 hrs
NiMH Battery Analogue: 8 hrs / Digital: 11 hrs
RECEIVER
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
Channel Spacing 12.5 kHz/ 20 kHz1/ 25 kHz
Frequency Stability +/- 1.5 ppm (DP 3400)
( -30° C, +60° C, +25° C) +/- 0.5 ppm (DP 3401)
Analogue Sensitivity 0.35 uV (12 dB SINAD)
0.22 uV (typical) (12 dB SINAD)
0.4 uV (20 dB SINAD)
Digital Sensitivity 5% BER: 0.3 uV
Intermodulation 65 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz,
70 dB @ 20/25 kHz
Spurious Rejection 70 dB
Rated Audio 500 mW
Audio Distortion @ Rated Audio 3% (typical)
Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Audio Response +1, -3 dB
Conducted Spurious Emission -57 dBm
TRANSMITTER
Frequency 136-174 MHz (VHF)
403-470 MHz (UHF1)
450-512 MHz (UHF2)
Channel Spacing 12.5 kHz/ 20 kHz1/ 25 kHz
Frequency Stability +/- 1.5 ppm (DP 3400)
( -30° C, +60° C, +25° C) +/- 0.5 ppm (DP 3401)
Power Output
UHF1 and UHF2 1W and 4 W
VHF 1W and 5 W
Modulation Limiting +/- 2.5 kHz @ 12.5 kHz
+/- 4 kHz @ 20 kHz
+/- 5.0 kHz @ 25 kHz
FM Hum and Noise -40 dB @ 12.5 kHz
-45 dB @ 20/25 kHz
Conducted / Radiated Emission -36 dBm < 1 GHz
-30dBm > 1GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Audio Response +1, -3 dB
Audio Distortion 3%
Digital Vocoder Type AMBE+2
Digital Protocol ETSI-TS 102 361-1, 2 & 3
GPS
Accuracy specs are for long-term tracking (95th percentile values
> 5 satellites visible at a nominal -130 dBm signal strength)
TTFF (Time To First Fix) Cold Start < 2 minutes
TTFF (Time To First Fix) Hot Start < 10 seconds
Horizontal Accuracy < 10 meters
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature* -30° C / +60° C
Storage Temperature -40° C / +85° C
Temperature Shock Per MIL-STD
Humidity Per MIL-STD
Water Intrusion EN60529 - IP57
Packaging Test MIL-STD 810D and E
* With LiIon battery, operating temperature specication is -10° C / +60° C.
With NiMH battery, operating temperature specication is -20° C / +60° C
MILITARY STANDARDS
810E 810F
Applicable MIL–STD Methods Procedures Methods Procedures
Low Pressure 500.3 II 500.4 II
High Temperature 501.3 I/A, II/A1 501.4 I/Hot, II/Hot
Low Temperature 502.3 I/C3, II/C1 502.4 I/C3, II/C1
Temperature Shock 503.3 I/A, 1C3 503.4 I
Solar Radiation 505.3 I 505.4 I
Rain 506.3 I,II 506.4 I, III
Humidity 507.3 II 507.4 -
Salt Fog 509.3 I 509.4 I
Dust 510.3 I 510.4 I
Vibration 514.4 I/10, II/3 514.5 I/24
Shock 516.4 I, IV 516.5 I, IV
Specifications
MOTOROLA and the Stylised M Logo are registered in the US Patent & Trademark Ofce. All other product or service
names are the property of their respective owners. © Motorola, Inc. 2008. All rights reserved. Conforms to ETSI TS 102 361
(Parts 1, 2 & 3) - ETSI DMR Standard. Specications subject to change without notice. MOTOTRBO will be launched with a
phased introduction - please check availability of products in your region before ordering.
All specications shown are typical. Radio meets applicable regulatory requirements.
DP3400/3401/SPEC-ENG(02/09)
