Developers Guide
Table of Contents
Chapter 1. Contributing to MantisBT
Chapter 2. Database Schema Management
Chapter 3. Event System
Chapter 4. Plugin System
Chapter 5. Events Reference
Chapter 6. Integrating with MantisBT
Chapter 7. Appendix
- 7.1. Git References
Appendix A. Revision History

MantisBT 2.0

Developers Guide

Reference for developers and community members

MantisBT Development Team

Developers Guide

MantisBT 2.0 Developers Guide

Reference for developers and community members

Author MantisBT Development Team mantisbt-dev@lists.sourceforge.net

ditions set forth in the GNU Free Documentation License (GFDL), V1.2 or later (the latest version is

presently available at http://www.gnu.org/licenses/fdl.txt).

This book is targeted at MantisBT developers, contributors and plugin authors. It documents the devel-

opment process and provides reference information regarding the MantisBT core, including the data-

base schema as well as the plugin system including an events reference.

iii

1. Contributing to MantisBT 1

1.1. Initial Setup .................................................................................................................. 1

1.2. Cloning the Repository .................................................................................................. 1

1.2.1. Determining the Clone URL ................................................................................ 1

1.2.2. Initializing the Clone ........................................................................................... 2

1.2.3. Adding remotes .................................................................................................. 2

1.2.4. Checking out branches ....................................................................................... 3

1.3. Maintaining Tracking Branches ...................................................................................... 4

1.4. Preparing Feature Branches .......................................................................................... 5

1.4.1. Private Branches ................................................................................................ 5

1.4.2. Public Branches ................................................................................................. 6

1.5. Running PHPUnit tests ................................................................................................. 6

1.5.1. Running the SOAP tests .................................................................................... 7

1.6. Submitting Changes ...................................................................................................... 7

1.6.1. Before you submit .............................................................................................. 7

1.6.2. Submission Via Github Pull Requests ................................................................. 7

1.6.3. Submission Via Formatted Patches ..................................................................... 8

1.6.4. Submission Via Public Repository ....................................................................... 9

2. Database Schema Management 11

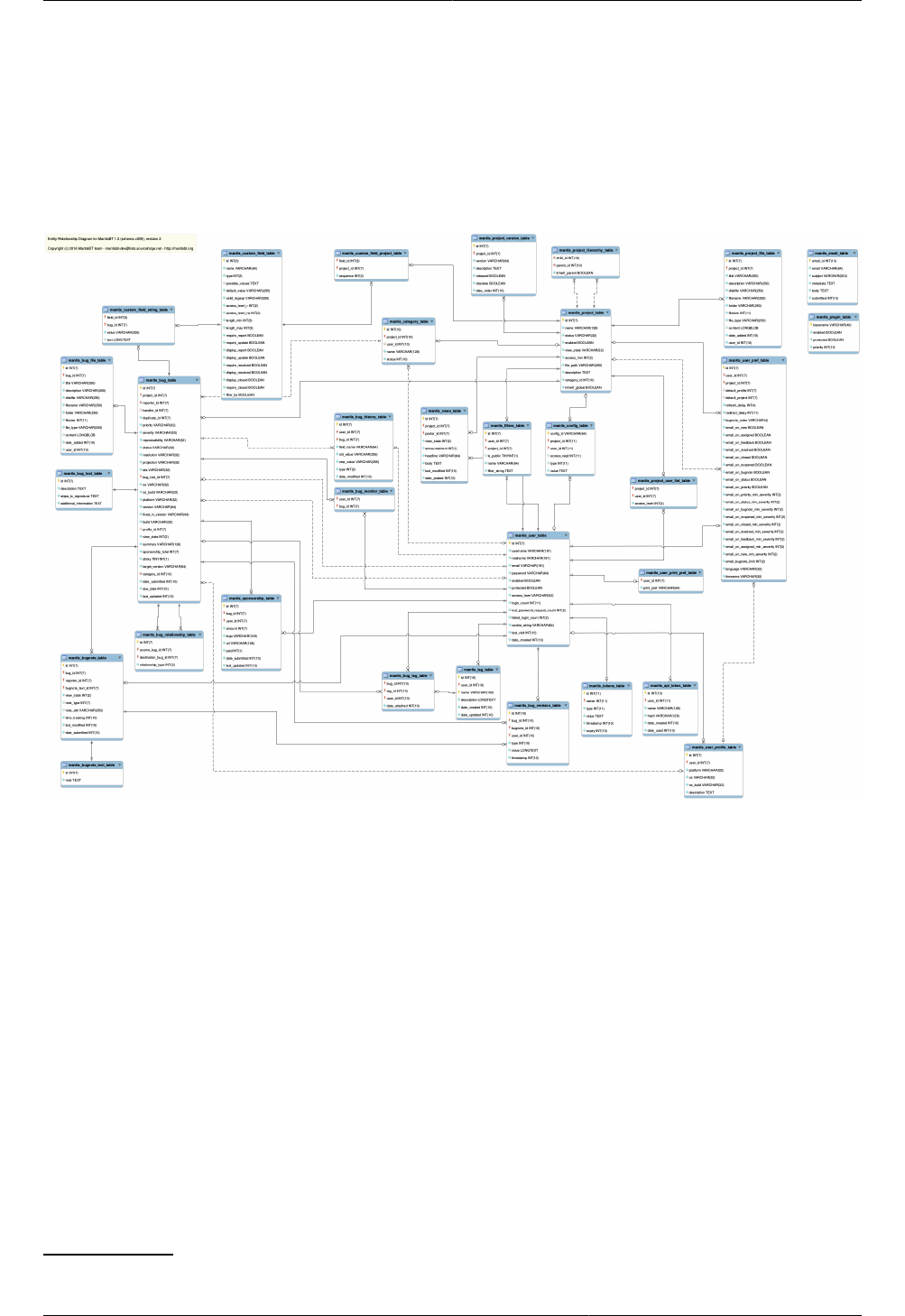

2.1. The MantisBT schema ................................................................................................ 11

2.2. Schema Definition ....................................................................................................... 11

2.3. Installation / Upgrade Process ..................................................................................... 11

3. Event System 13

3.1. General Concepts ....................................................................................................... 13

3.2. API Usage .................................................................................................................. 13

3.3. Event Types ............................................................................................................... 14

4. Plugin System 17

4.1. General Concepts ....................................................................................................... 17

4.2. Building a Plugin ......................................................................................................... 17

4.2.1. Plugin Structure ............................................................................................... 17

4.2.2. Properties ........................................................................................................ 18

4.2.3. Pages and Files ............................................................................................... 20

4.2.4. Events ............................................................................................................. 21

4.2.5. Configuration .................................................................................................... 23

4.2.6. Language and Localization ............................................................................... 24

4.3. Example Plugin Source Listing .................................................................................... 25

4.3.1. Example/Example.php ...................................................................................... 26

4.3.2. Example/files/foo.css ........................................................................................ 26

4.3.3. Example/lang/strings_english.txt ........................................................................ 26

4.3.4. Example/page/config_page.php ......................................................................... 27

4.3.5. Example/pages/config_update.php .................................................................... 27

4.3.6. Example/page/foo.php ...................................................................................... 28

4.4. API Usage .................................................................................................................. 28

5. Events Reference 29

5.1. Introduction ................................................................................................................. 29

5.2. System Events ............................................................................................................ 29

5.3. Output Modifier Events ................................................................................................ 31

5.3.1. String Display ................................................................................................... 31

5.3.2. Menu Items ...................................................................................................... 32

5.3.3. Page Layout .................................................................................................... 35

5.4. Bug Filter Events ........................................................................................................ 36

5.4.1. Custom Filters and Columns ............................................................................. 36

Developers Guide

5.5. Bug and Bugnote Events ............................................................................................. 37

5.5.1. Bug View ......................................................................................................... 37

5.5.2. Bug Actions ..................................................................................................... 37

5.5.3. Bugnote View ................................................................................................... 40

5.5.4. Bugnote Actions ............................................................................................... 41

5.6. Notification Events ...................................................................................................... 42

5.6.1. Recipient Selection ........................................................................................... 42

5.7. User Account Events ................................................................................................... 43

5.7.1. Account Preferences ........................................................................................ 43

5.8. Management Events ................................................................................................... 43

5.8.1. Projects and Versions ...................................................................................... 43

6. Integrating with MantisBT 47

6.1. Java integration .......................................................................................................... 47

6.1.1. Prebuilt SOAP stubs using Axis ........................................................................ 47

6.1.2. Usage in OSGi environments ............................................................................ 47

6.2. Compatibility between releases .................................................................................... 47

6.3. Support ....................................................................................................................... 47

7. Appendix 49

7.1. Git References ............................................................................................................ 49

A. Revision History 51

Chapter 1.

Contributing to MantisBT

MantisBT source code is managed with Git1. If you are new to this version control system, you can find

some good resources for learning and installing it in Section 7.1, “Git References”.

1.1. Initial Setup

There are a few steps the MantisBT team requires of contributors and developers when accepting

code submissions. The user needs to configure Git to know their full name (not a screen name) and an

email address they can be contacted at (not a throwaway address).

To set up your name and email address with Git, run the following commands, substituting your own

real name and email address:

git config --global user.name "John Smith"

git config --global user.email "jsmith@mantisbt.org"

Optionally, you may want to configure Git to use terminal colors when displaying file diffs and other in-

formation, and also alias certain Git actions to shorter phrases to reduce typing:

git config --global color.diff "auto"

git config --global color.status "auto"

git config --global color.branch "auto"

git config --global alias.st "status"

git config --global alias.di "diff"

git config --global alias.co "checkout"

git config --global alias.ci "commit"

1.2. Cloning the Repository

The official MantisBT source code repository is hosted at GitHub2. This document assumes that you

have already signed up for and setup a GitHub account.

1.2.1. Determining the Clone URL

Which URL you will use to clone the repository before you start developing depends on your situation.

MantisBT Core Team Developers

MantisBT developers have push access to the official repository.

Benefitting from this access requires a special URL that uses your SSH key to handle access per-

missions: git@github.com:mantisbt/mantisbt.git. Alternatively, an HTTPS link can be used as well,

in which case you will have to provide your GitHub User ID and password when Git requests it:

https://github.com/mantisbt/mantisbt.git.

1 http://git-scm.com/

2 https://github.com/mantisbt/mantisbt

Chapter 1. Contributing to MantisBT

Note

Pushes will fail if you do not have access or your public SSH key is not set up correctly in

your GitHub profile.

Contributors

For other people, the MantisBT repository and the related clone URLs git://github.com/mantis-

bt/mantisbt.git (SSH) or https://github.com/mantisbt/mantisbt.git (HTTPS) will always be read-only.

It is therefore strongly advised to create your own fork 3 of MantisBT where you will be able

to push your changes, and then use the fork's URL instead to clone, which will look like this:

git@github.com:MyGithubId/mantisbt.git or https://github.com/MyGithubId/mantisbt.git

1.2.2. Initializing the Clone

To clone the repository, execute the following command from your target workspace:

git clone YourCloneURL

After performing the cloning operation, you should end up with a new directory in your workspace,

mantisbt/, containing the MantisBT repository with a remote named origin pointing to your Clone

URL.

MantisBT uses Composer4 to pull libraries and components from Packagist5 and Github6. Install Com-

poser7 and run the following command:

composer install

Warning

Failure to execute the submodule initialization commands will result in critical components being

missing from /vendor folder, which will then cause errors when running MantisBT.

1.2.3. Adding remotes

If you are planning to use your own fork to push and maintain your changes, then we recommend set-

ting up an upstream remote for MantisBT's official repository, which will make it easier to keep your

repository up-to-date.

3 https://github.com/mantisbt/mantisbt/fork

4 https://getcomposer.org

5 https://packagist.org

6 https://github.com

7 https://getcomposer.org/download/

Checking out branches

git remote add --tags upstream git://github.com/mantisbt/mantisbt.git

1.2.4. Checking out branches

By default, the new clone will only track code from the primary remote branch, master, which is the

latest development version of MantisBT. If you are planning to work with stable release or other devel-

opment branches, you will need to set up local tracking branches in your repository.

The following command will set up a tracking branch for the current stable branch, master-1.3.x.

git checkout -b master-1.3.x origin/master-1.3.x

8 http://git-scm.com/book/en/Git-Tools-Submodules#Issues-with-Submodules

Chapter 1. Contributing to MantisBT

Note

With the introduction of submodules for some of the third-party libraries, you may encounter is-

sues when switching to an older branch which still has code from those libraries in a subdirectory

of /library rather than a submodule:

$ git checkout old_branch

error: The following untracked working tree files would be overwritten by checkout

(list of files)

Aborting

To resolve this, you first have to get rid of the submodules directories before you can checkout

the branch. The command below will move all submodules to /tmp:

sed -rn "s/^.*path\s*=\s*(.*)$/\1/p" .gitmodules |xargs -I{} mv -v {} /tmp

git checkout old_branch

Alernatively, if you don't care about keeping the changes in the submodules directories, you can

simply execute

git checkout -f old_branch

git clean -df

When switching back from the older branch, the submodules directories will be empty. At that

point you can either

• Update the submodules to reclone them

git submodule update

• Restore the directories previously moved to /tmp back into the empty directories, e.g.

sed -rn "s/^.*path\s*=\s*(.*)$/\1/p" .gitmodules |xargs -n 1 basename |xargs -I{} mv -

v /tmp/{} library

For further reference: Pro Git book 8

1.3. Maintaining Tracking Branches

In order to keep your local repository up-to-date with the official one, there are a few simple com-

mands needed for any tracking branches that you may have, including master and master-1.3.x.

First, you'll need to get the latest information from the remote repository:

git fetch origin

Preparing Feature Branches

Note

If you cloned from your personal GitHub fork instead of the official MantisBT repository as ex-

plained in Section 1.2.3, “Adding remotes”, then you should instead execute:

git fetch upstream

Then for each tracking branch you have, enter the following commands:

git checkout BranchName

git rebase

Alternatively, you may combine the fetch and rebase operations described above into a single pull

command (for each remote tracking branch):

git checkout master

git pull --rebase

1.4. Preparing Feature Branches

For each local or shared feature branch that you are working on, you will need to keep it up to date

with the appropriate master branch. There are multiple methods for doing this, each better suited to a

different type of feature branch. Both methods assume that you have already performed the previous

step, to update your local tracking branches (see Section 1.3, “Maintaining Tracking Branches”).

1.4.1. Private Branches

If the topic branch in question is a local, private branch, that you are not sharing with other developers,

the simplest and easiest method to stay up to date with master is to use the rebase command. This

will append all of your feature branch commits into a linear history after the last commit on the master

branch.

git rebase master feature

Chapter 1. Contributing to MantisBT

Note

Rebasing changes the ID for each commit in your feature branch, which will cause trouble for

anyone sharing and/or following your branch.

The resulting conflict can be fixed by rebasing their copy of your branch onto your branch:

git checkout feature

git fetch remote/feature

git rebase remote/feature

1.4.2. Public Branches

For any publicly-shared branches, where other users may be watching your feature branches, or

cloning them locally for development work, you'll need to take a different approach to keeping it up to

date with master.

To bring public branch up to date, you'll need to merge the current master branch, which will create

a special "merge commit" in the branch history, causing a logical "split" in commit history where your

branch started and joining at the merge. These merge commits are generally disliked, because they

can crowd commit history, and because the history is no longer linear. They will be dealt with during

the submission process (see Section 1.5, “Running PHPUnit tests”).

git checkout feature

git merge master

At this point, you can push the branch to your public repository, and anyone following the branch can

then pull the changes directly into their local branch, either with another merge, or with a rebase, as

necessitated by the public or private status of their own changes.

1.5. Running PHPUnit tests

MantisBT has a suite of PHPUnit tests found in the tests directory. You are encouraged to add your

own tests for the patches you are submitting, but please remember that your changes must not break

existing tests.

In order to run the tests, you will need to have the PHP Soap extension, PHPUnit 3.4 or newer9

and Phing 2.4 or newer10 installed. The tests are configured using a bootstrap.php file. The

boostrap.php.sample file contains the settings you will need to adjust to run all the tests.

Running the unit tests is done from root directory using the following command:

phing test

9 http://www.phpunit.de

10 http://phing.info

Running the SOAP tests

1.5.1. Running the SOAP tests

MantisBT ships with a suite of SOAP tests which require an initial set up to be executed. The required

steps are:

• Install MantisBT locally and configure a project and a category.

• Adjust the bootstrap.php file to point to your local installation.

• Customize the config_inc.php to enable all the features tested using the SOAP tests. The sim-

plest way to do that is to run all the tests once and adjust it based on the skipped tests.

1.6. Submitting Changes

This section describes what you should do to submit a set of changes to MantisBT, allowing the

project developers to review and test, your code, and ultimately commit it to the MantisBT repository.

The actual submission can be done using several methods, described later in this section:

•Recommended: Github Pull Requests (see Section 1.6.2, “Submission Via Github Pull Requests”)

• Other public Git repository Pull Requests (see Section 1.6.4, “Submission Via Public Repository”)

• Git Formatted patches (see Section 1.6.3, “Submission Via Formatted Patches”)

1.6.1. Before you submit

Before submitting your contribution, you should make sure that

1. Your code follows the MantisBT coding guidelines 11

2. You have tested your changes locally (see Section 1.5, “Running PHPUnit tests”)

3. Your local branch has been rebased on top of the current Master branch, as described in Sec-

tion 1.4.1, “Private Branches”.

1.6.2. Submission Via Github Pull Requests

Since the official MantisBT repository12 is hosted there, using GitHub13 is the recommended (and eas-

iest) way to submit your contributions.

With this method, you can keep your changesets up-to-date with the official development repository,

and likewise let anyone stay up to date with your repository, without needing to constantly upload and

download new formatted patches whenever you change anything.

The process below describes a simple workflow that can help you make your submission if you are not

familiar with Git; note that it is by no means the only way to do this.

11 http://www.mantisbt.org/wiki/doku.php/mantisbt:coding_guidelines

12 https://github.com/mantisbt/mantisbt

13 http://github.com

Chapter 1. Contributing to MantisBT

Note

We'll assume that you have already forked MantisBT14, cloned it locally as described in Sec-

tion 1.2, “Cloning the Repository” (remote upstream being the official MantisBT repository and ori-

gin your personal fork), and created a new feature branch (see Section 1.4, “Preparing Feature

Branches”) for your contribution, which we'll call MyBranch.

1. Make sure that the MyBranch feature branch is up-to-date with the master branch by rebasing it,

resolving any conflicts if necessary.

git fetch upstream

git rebase upstream/master MyBranch

2. Push the branch to your Github fork

git push origin MyBranch

3. Go to your Fork on Github (https://github.com/MyGithubId/mantisbt)

4. Initiate a Pull Request15 from your feature branch, following the guidelines provided in Github

Help16.

Please make sure you provide a detailed description of the changes you are submitting, includ-

ing the reason for it and if possible a reference (link) to an existing issue on our bugtracker17. The

team will usually review your changes and provide feedback within 7 days (but your mileage may

vary).

1.6.3. Submission Via Formatted Patches

Formatted patches are very similar to file diffs generated by other tools or source control systems,

but contain far more information, including your name and email address, and for every commit in the

set, the commit's timestamp, message, author, and more. They allow anyone to import the enclosed

changesets directly into Git, where all of the commit information is preserved.

Assuming that you have an existing local that you've kept up to date with master as described in Sec-

tion 1.4, “Preparing Feature Branches” currently checked out, generating a formatted patch set should

be relatively straightforward, using an appropriate filename as the target of the patch set:

git format-patch --binary --stdout origin/master..HEAD > feature_branch.patch

Once you've generated the formatted patch file, you can easily attach it to a bug report, or even use

the patch file as an email to send to the developer mailing list. Developers, or other users, can then

14 https://github.com/mantisbt/mantisbt/fork

15 https://github.com/MyGithubId/mantisbt/compare/MyBranch

16 https://help.github.com/articles/using-pull-requests

17 http://mantibt.org/bugs/

Submission Via Public Repository

import this patch set into their local repositories using the following command, again substituting the

appropriate filename:

git am --signoff feature_branch.patch

1.6.4. Submission Via Public Repository

If you are not able or not willing to make use of a fork of the official GitHub18 repository but have an-

other publicly available one to host your changes, for example on a free hosting for public repository

such as

•Bitbucket19

•Gitorious20

you can still use it to submit a patch in a similar fashion to the Github method described above, al-

though the process is slightly more complicated.

We'll assume you've already set up a publicly accessible repository at URL

git@githosting.com:contrib.git, kept it up-to-date with MantisBT's official repository, and that

you have pushed your feature branch MyBranch to it.

1. Generate the Pull Request

This will list information about your changes and how to access them. The process will attempt to

verify that you've pushed the correct data to the public repository, and will generate a summary of

changes.

git request-pull origin/master git@githosting.com:contrib.git MyBranch

2. Paste the output of the above command into a bug report or an email to the developer mailing

list21

Once your pull request has been posted, developers and other users can add your public repository

as a remote, and track your feature branch in their own working repository using the following com-

mands, replacing the remote name and local branch name as appropriate:

git remote add feature git@githosting.com:contrib.git

git checkout -b MyBranch feature/MyBranch

If the feature is approved for entry into MantisBT core, then the branch should first be rebased onto

the latest HEAD so that Git can remove any unnecessary merge commits, and create a linear history.

Once that's completed, the feature branch can be merged into master:

git rebase master feature

git checkout master

18 http://github.com

19 https://bitbucket.org

20 http://gitorious.com

21 mailto:mantisbt-dev@lists.sourceforge.net

Chapter 1. Contributing to MantisBT

git merge --no-ff feature

Chapter 2.

Database Schema Management

2.1. The MantisBT schema

The MantisBT database schema (excluding plugins) is described in the Entity-Relationship diagram

(ERD) below. There is also a PDF version available for download1.

Figure 2.1. MantisBT Entity-Relationship Diagram

2.2. Schema Definition

TODO: Discuss the ADODB datadict formats and the format MantisBT expects for schema definitions.

2.3. Installation / Upgrade Process

TODO: Discuss how MantisBT handles a database installation / upgrade, including the use of the con-

fig system and schema definitions.

1 http://mantisbt.org/docs/erd/

2 images/erd.png

Chapter 3.

Event System

3.1. General Concepts

The event system in MantisBT uses the concept of signals and hooked events to drive dynamic ac-

tions. Functions, or plugin methods, can be hooked during runtime to various defined events, which

can be signalled at any point to initiate execution of hooked functions.

Events are defined at runtime by name and event type (covered in the next section). Depending on

the event type, signal parameters and return values from hooked functions will be handled in different

ways to make certain types of common communication simplified.

3.2. API Usage

This is a general overview of the event API. For more detailed analysis, you may reference the file

core/event_api.php in the codebase.

Declaring Events

When declaring events, the only information needed is the event name and event

type. Events can be declared alone using the form:

event_declare( $name, $type=EVENT_TYPE_DEFAULT );

or they can be declared in groups using key/value pairs of name => type relations,

stored in a single array, such as:

$events = array(

$name_1 => $type_1,

$name_2 => $type_2,

...

);

event_declare_many( $events );

Hooking Events

Hooking events requires knowing the name of an already-declared event, and the

name of the callback function (and possibly associated plugin) that will be hooked to

the event. If hooking only a function, it must be declared in the global namespace.

event_hook( $event_name, $callback, [$plugin] );

In order to hook many functions at once, using key/value pairs of name => callback

relations, in a single array:

$events = array(

$event_1 => $callback_1,

$event_2 => $callback_2,

...

);

event_hook( $events, [$plugin] );

Chapter 3. Event System

Signalling Events

When signalling events, the event type of the target event must be kept in mind when

handling event parameters and return values. The general format for signalling an

event uses the following structure:

$value = event_signal( $event_name, [ array( $param, ... ),

[ array( $static_param, ... ) ] ] );

Each type of event (and individual events themselves) will use different combinations

of parameters and return values, so perusing Chapter 5, Events Reference is recom-

mended for determining the unique needs of each event when signalling and hooking

them.

3.3. Event Types

There are five standard event types currently defined in MantisBT. Each type is a generalization of a

certain "class" of solution to the problems that the event system is designed to solve. Each type al-

lows for simplifying a different set of communication needs between event signals and hooked call-

back functions.

Each type of event (and individual events themselves) will use different combinations of parameters

and return values, so perusing Chapter 5, Events Reference is recommended for determining the

unique needs of each event when signalling and hooking them.

EVENT_TYPE_EXECUTE

This is the simplest event type, meant for initiating basic hook execution without need-

ing to communicate more than a set of immutable parameters to the event, and ex-

pecting no return of data.

These events only use the first parameter array, and return values from hooked func-

tions are ignored. Example usage:

event_signal( $event_name, [ array( $param, ... ) ] );

EVENT_TYPE_OUTPUT

This event type allows for simple output and execution from hooked events. A single

set of immutable parameters are sent to each callback, and the return value is inlined

as output. This event is generally used for an event with a specific purpose of adding

content or markup to the page.

These events only use the first parameter array, and return values from hooked func-

tions are immediately sent to the output buffer via 'echo'. Another parameter $format

can be used to model how the results are printed. This parameter can be either:

• null, or omitted: The returned values are printed without further processing

• <String>: A string to be used as separator for printed values

• <Array>: An array of (prefix, separator, postfix) to be used for the printed values

Example usage:

event_signal( $event_name, [ array( $param, ... ) ], [ $format ] );

Event Types

EVENT_TYPE_CHAIN

This event type is designed to allow plugins to successively alter the parameters given

to them, such that the end result returned to the caller is a mutated version of the orig-

inal parameters. This is very useful for such things as output markup parsers.

The first set of parameters to the event are sent to the first hooked callback, which is

then expected to alter the parameters and return the new values, which are then sent

to the next callback to modify, and this continues for all callbacks. The return value

from the last callback is then returned to the event signaller.

This type allows events to optionally make use of the second parameter set, which are

sent to every callback in the series, but should not be returned by each callback. This

allows the signalling function to send extra, immutable information to every callback in

the chain. Example usage:

$value = event_signal( $event_name, $param, [ array( $static_param, ... ) ] );

EVENT_TYPE_FIRST

The design of this event type allows for multiple hooked callbacks to 'compete' for the

event signal, based on priority and execution order. The first callback that can satisfy

the needs of the signal is the last callback executed for the event, and its return value

is the only one sent to the event caller. This is very useful for topics like user authenti-

cation.

These events only use the first parameter array, and the first non-null return value

from a hook function is returned to the caller. Subsequent callbacks are never execut-

ed. Example usage:

$value = event_signal( $event_name, [ array( $param, ... ) ] );

EVENT_TYPE_DEFAULT

This is the fallback event type, in which the return values from all hooked callbacks

are stored in a special array structure. This allows the event caller to gather data sep-

arately from all events.

These events only use the first parameter array, and return values from hooked func-

tions are returned in a multi-dimensional array keyed by plugin name and hooked

function name. Example usage:

$values = event_signal( $event_name, [ array( $param, ... ) ] );

Chapter 4.

Plugin System

4.1. General Concepts

The plugin system for MantisBT is designed as a lightweight extension to the standard MantisBT API,

allowing for simple and flexible addition of new features and customization of core operations. It takes

advantage of the new Event System (see Chapter 3, Event System) to offer developers rapid creation

and testing of extensions, without the need to modify core files.

Plugins are defined as implementations, or subclasses, of the MantisPlugin class as defined in

core/classes/MantisPlugin.php. Each plugin may define information about itself, as well as a

list of conflicts and dependencies upon other plugins. There are many methods defined in the Man-

tisPlugin class that may be used as convenient places to define extra behaviors, such as config-

uration options, event declarations, event hooks, errors, and database schemas. Outside a plugin's

core class, there is a standard method of handling language strings, content pages, and files.

At page load, the core MantisBT API will find and process any conforming plugins. Plugins will be

checked for minimal information, such as its name, version, and dependencies. Plugins that meet re-

quirements will then be initialized. At this point, MantisBT will interact with the plugins when appropri-

ate.

The plugin system includes a special set of API functions that provide convenience wrappers around

the more useful MantisBT API calls, including configuration, language strings, and link generation.

This API allows plugins to use core API's in "sandboxed" fashions to aid interoperation with other plug-

ins, and simplification of common functionality.

4.2. Building a Plugin

This section will act as a walk through of how to build a plugin, from the bare basics all the way up to

advanced topics. A general understanding of the concepts covered in the last section is assumed, as

well as knowledge of how the event system works. Later topics in this section will require knowledge of

database schemas and how they are used with MantisBT.

This walk through will be working towards building a single end result: the "Example" plugin as listed in

Section 4.3, “Example Plugin Source Listing”. You may refer to the final source code along the way, al-

though every part of it will be built up in steps throughout this section.

4.2.1. Plugin Structure

This section will introduce the general concepts of plugin structure, and how to get a barebones plugin

working with MantisBT. Not much will be mentioned yet on the topic of adding functionality to plugins,

just how to get the development process rolling.

The backbone of every plugin is what MantisBT calls the basename, a succinct, and most important-

ly, unique name that identifies the plugin. It may not contain any spacing or special characters beyond

the ASCII upper- and lowercase alphabet, numerals, and underscore. This is used to identify the plug-

in everywhere except for what the end-user sees. For our "Example" plugin, the basename we will use

should be obvious enough: Example.

Every plugin must be contained in a single directory, named to match the plugin's basename, as well

as contain at least a single PHP file, also named to match the basename, as such:

Note that for plugins that require a database schema to operate, the basename is also used to build

the table names, using the MantisBT table prefixes and suffix (please refer to the Admin Guide's Con-

Chapter 4. Plugin System

figuration section for further information). If our Example plugin were to create a table named 'foo', as-

suming default values for prefixes and suffix in MantisBT configuration, the physical table name would

be mantis_plugin_Example_foo_table.

Example/

Example.php

Warning

Depending on case sensitivity of the underlying file system, these names must exactly match the

plugin's base name, i.e. example will not work.

This top-level PHP file must then contain a concrete class deriving from the MantisPlugin class,

which must be named in the form of %Basename%Plugin, which for our purpose becomes Example-

Plugin.

Because of how MantisPlugin declares the register() method as abstract, our plugin must

implement that method before PHP will find it semantically valid. This method is meant for one simple

purpose, and should never be used for any other task: setting the plugin's information properties in-

cluding the plugin's name, description, version, and more. Please refer to Section 4.2.2, “Properties”

below for details about available properties.

Once your plugin defines its class, implements the register() method, and sets at least the name

and version properties, it is then considered a "complete" plugin, and can be loaded and installed with-

in MantisBT's plugin manager. At this stage, our Example plugin, with all the possible plugin properties

set at registration, looks like this:

Example/Example.php

<?php

class ExamplePlugin extends MantisPlugin {

function register() {

$this->name = 'Example'; # Proper name of plugin

$this->description = ''; # Short description of the plugin

$this->page = ''; # Default plugin page

$this->version = '1.0'; # Plugin version string

$this->requires = array( # Plugin dependencies

'MantisCore' => '2.0', # Should always depend on an appropriate

# version of MantisBT

);

$this->author = ''; # Author/team name

$this->contact = ''; # Author/team e-mail address

$this->url = ''; # Support webpage

}

This alone will allow the Example plugin to be installed with MantisBT, and is the foundation of any

plugin. More of the plugin development process will be continued in the next sections.

4.2.2. Properties

This section describes the properties that can be defined when registering the plugin.

Properties

name

Your plugin's full name. Required value.

description

A full description of your plugin.

page

The name of a plugin page for further information and administration of the plugin. This is used to

create a link to the specified page on Mantis' manage plugin page.

version

Your plugin's version string. Required value. We recommend following the Semantic Version-

ing1 specification, but you are free to use any versioning scheme that can be handled by PHP's

version_compare() 2 function.

requires

An array of key/value pairs of basename/version plugin dependencies.

Note

The special, reserved basename MantisCore can be used to specify the minimum require-

ment for MantisBT core.

The version string can be defined as:

•Minimum requirement: the plugin specified by the given basename must be installed, and its

version must be equal or higher than the indicated one.

•Maximum requirement: prefixing a version number with '<' will allow the plugin to specify the

highest version (non-inclusive) up to which the required dependency is supported.

Note

If the plugin's minimum dependency for MantisCore is unspecified or lower than the current

release (i.e. it does not specifically list the current core version as supported) and the plu-

gin does not define a maximum dependency, a default one will be set to the next major re-

lease of MantisBT. (i.e. for 2.x.y we would add '<2').

This effectively disables plugins which have not been specifically designed for a new major

Mantis release, thus forcing authors to review their code, adapt it if necessary, and release

a new version of the plugin with updated dependencies.

•Both minimum and maximum: the two version numbers must be separated by a comma.

1 http://semver.org/

2 http://php.net/manual/en/function.version-compare.php

Chapter 4. Plugin System

Here are a few examples to illustrate the above explanations, assuming that the current Mantis re-

lease (MantisCore version) is 2.1:

• Old release without a maximum version specified

$this->requires = array( 'MantisCore' => '1.3.1' );

The plugin is compatible with MantisBT >= 1.3.1 and < 2.0.0 - note that the maximum version

(<2) was added by the system.

• Current release without a maximum version specified

$this->requires = array( 'MantisCore' => '2.0' );

The plugin is compatible with MantisBT >= 2.0 and < 3.0 (the latter is implicit); code supporting

older releases (e.g. 1.3) must be maintained separately (i.e. in a different branch).

• Only specify a maximum version

$this->requires = array( 'MantisCore' => '< 3.1' );

The plugin is compatible up to MantisBT 3.1 (not inclusive).

• Old release with a maximum version

$this->requires = array( 'MantisCore' => '1.3, < 4.0' );

The plugin is compatible with MantisBT >= 1.3 and < 4.0.

uses

An array of key/value pairs of basename/version optional (soft) plugin dependencies. See re-

quires above for details on how to specify versions.

author

Your name, or an array of names.

contact

An email address where you can be contacted.

url

A web address for your plugin.

4.2.3. Pages and Files

The plugin API provides a standard hierarchy and process for adding new pages and files to your plu-

gin. For strict definitions, pages are PHP files that will be executed within the MantisBT core system,

while files are defined as a separate set of raw data that will be passed to the client's browser exactly

as it appears in the filesystem.

New pages for your plugin should be placed in your plugin's pages/ directory, and should be named

using only letters and numbers, and must have a ".php" file extension. To generate a URI to the new

page in MantisBT, the API function plugin_page() should be used. Our Example plugin will create

Events

a page named foo.php, which can then be accessed via plugin_page.php?page=Example/foo,

the same URI that plugin_page() would have generated:

Example/pages/foo.php

<?php

echo '<p>Here is a link to <a href="', plugin_page( 'foo' ), '">page foo</a>.</p>';

Adding non-PHP files, such as images or CSS stylesheets, follows a very similar pattern as pages.

Files should be placed in the plugin's files/ directory, and can only contain a single period in the

name. The file's URI is generated with the plugin_file() function. For our Example plugin, we'll

create a basic CSS stylesheet, and modify the previously shown page to include the stylesheet:

Example/files/foo.css

p.foo {

color: red;

}

Example/pages/foo.php

<?php

echo '<p>Here is a link to <a href="', plugin_page( 'foo' ), '">page foo</a>.</p>';

echo '<link rel="stylesheet" type="text/css" href="', plugin_file( 'foo.css' ), '"/>',

'<p class="foo">This is red text.</p>';

Note that while plugin_page() expects only the page's name without the extension,

plugin_file() requires the entire filename so that it can distinguish between foo.css and a po-

tential file foo.png.

The plugin's filesystem structure at this point looks like this:

Example/

Example.php

pages/

foo.php

files/

foo.css

4.2.4. Events

Plugins have an integrated method for both declaring and hooking events, without needing to directly

call the event API functions. These take the form of class methods on your plugin.

To declare a new event, or a set of events, that your plugin will trigger, override the events() method

of your plugin class, and return an associative array with event names as the key, and the event type

as the value. Let's add an event "foo" to our Example plugin that does not expect a return value (an

"execute" event type), and another event 'bar' that expects a single value that gets modified by each

hooked function (a "chain" event type):

Example/Example.php

<?php

class ExamplePlugin extends MantisPlugin {

...

Chapter 4. Plugin System

function events() {

return array(

'EVENT_EXAMPLE_FOO' => EVENT_TYPE_EXECUTE,

'EVENT_EXAMPLE_BAR' => EVENT_TYPE_CHAIN,

);

}

When the Example plugin is loaded, the event system in MantisBT will add these two events to

its list of events, and will then allow other plugins or functions to hook them. Naming the events

"EVENT_PLUGINNAME_EVENTNAME" is not necessary, but is considered best practice to avoid

conflicts between plugins.

Hooking other events (or events from your own plugin) is almost identical to declaring them. Instead

of passing an event type as the value, your plugin must pass the name of a class method on your plu-

gin that will be called when the event is triggered. For our Example plugin, we'll create a foo() and

bar() method on our plugin class, and hook them to the events we declared earlier.

Example/Example.php

<?php

class ExamplePlugin extends MantisPlugin {

...

function hooks() {

return array(

'EVENT_EXAMPLE_FOO' => 'foo',

'EVENT_EXAMPLE_BAR' => 'bar',

);

}

function foo( $p_event ) {

...

}

function bar( $p_event, $p_chained_param ) {

...

return $p_chained_param;

}

Note that both hooked methods need to accept the $p_event parameter, as that contains the event

name triggering the method (for cases where you may want a method hooked to multiple events). The

bar() method also accepts and returns the chained parameter in order to match the expectations of

the "bar" event.

Now that we have our plugin's events declared and hooked, let's modify our earlier page so that trig-

gers the events, and add some real processing to the hooked methods:

Example/Example.php

<?php

class ExamplePlugin extends MantisPlugin {

...

function foo( $p_event ) {

echo 'In method foo(). ';

}

function bar( $p_event, $p_chained_param ) {

return str_replace( 'foo', 'bar', $p_chained_param );

}

Configuration

}

Example/pages/foo.php

<?php

echo '<p>Here is a link to <a href="', plugin_page( 'foo' ), '">page foo</a>.</p>';

'<link rel="stylesheet" type="text/css" href="', plugin_file( 'foo.css' ), '"/>',

'<p class="foo">';

event_signal( 'EVENT_EXAMPLE_FOO' );

$t_string = 'A sentence with the word "foo" in it.';

$t_new_string = event_signal( 'EVENT_EXAMPLE_BAR', array( $t_string ) );

echo $t_new_string, '</p>';

When the first event "foo" is signaled, the Example plugin's foo() method will execute and echo a

string. After that, the second event "bar" is signaled, and the page passes a string parameter; the

plugin's bar() gets the string and replaces any instance of "foo" with "bar", and returns the result-

ing string. If any other plugin had hooked the event, that plugin could have further modified the new

string from the Example plugin, or vice versa, depending on the loading order of plugins. The page

then echos the modified string that was returned from the event.

4.2.5. Configuration

Similar to events, plugins have a simplified method for declaring configuration options, as well as API

functions for retrieving or setting those values at runtime.

Declaring a new configuration option is achieved just like declaring events. By overriding the con-

fig() method on your plugin class, your plugin can return an associative array of configuration op-

tions, with the option name as the key, and the default option as the array value. Our Example plugin

will declare an option "foo_or_bar", with a default value of "foo":

Example/Example.php

<?php

class ExamplePlugin extends MantisPlugin {

...

function config() {

return array(

'foo_or_bar' => 'foo',

);

}

Retrieving the current value of a plugin's configuration option is achieved by using the plugin API's

plugin_config_get() function, and can be set to a modified value in the database using

plugin_config_set(). With these functions, the config option is prefixed with the plugin's name, in

attempt to automatically avoid conflicts in naming. Our Example plugin will demonstrate this by adding

a secure form to the "config_page", and handling the form on a separate page "config_update" that will

modify the value in the database, and redirect back to page "config_page", just like any other form and

action page in MantisBT:

Example/pages/config_page.php

<form action="<?php echo plugin_page( 'config_update' ) ?>" method="post">

<?php echo form_security_field( 'plugin_Example_config_update' ) ?>

Chapter 4. Plugin System

<label>Foo or Bar?<br/><input name="foo_or_bar" value="<?php echo

string_attribute( $t_foo_or_bar ) ?>"/></label>

<br/>

<label><input type="checkbox" name="reset"/> Reset</label>

<br/>

</form>

Example/pages/config_update.php

<?php

form_security_validate( 'plugin_Example_config_update' );

$f_foo_or_bar = gpc_get_string( 'foo_or_bar' );

$f_reset = gpc_get_bool( 'reset', false );

if( $f_reset ) {

plugin_config_delete( 'foo_or_bar' );

} else {

if( $f_foo_or_bar == 'foo' || $f_foo_or_bar == 'bar' ) {

plugin_config_set( 'foo_or_bar', $f_foo_or_bar );

}

form_security_purge( 'plugin_Example_config_update' );

print_successful_redirect( plugin_page( 'foo', true ) );

Note that the form_security_*() functions are part of the form API, and prevent CSRF attacks

against forms that make changes to the system.

4.2.6. Language and Localization

MantisBT has a very advanced set of localization tools, which allow all parts of of the application to be

localized to the user's preferred language. This feature has been extended for use by plugins as well,

so that a plugin can be localized in much the same method as used for the core system. Localizing a

plugin involves creating a language file for each localization available, and using a special API call to

retrieve the appropriate string for the user's language.

All language files for plugins follow the same format used in the core of MantisBT, should be placed in

the plugin's lang/ directory, and named the same as the core language files. Strings specific to the

plugin should be "namespaced" in a way that will minimize any risk of collision. Translating the plugin

to other languages already supported by MantisBT is then as simple as creating a new strings file with

the localized content; the MantisBT core will find and use the new language strings automatically.

We'll use the "configuration" pages from the previous examples, and dress them up with localized lan-

guage strings, and add a few more flourishes to make the page act like a standard MantisBT page.

First we need to create a language file for English, the default language of MantisBT and the default

fallback language in the case that some strings have not yet been localized to the user's language:

Example/lang/strings_english.txt

<?php

$s_plugin_Example_configuration = "Configuration";

$s_plugin_Example_foo_or_bar = "Foo or Bar?";

$s_plugin_Example_reset = "Reset Value";

Example/pages/config_page.php

Example Plugin Source Listing

<?php

layout_page_header( plugin_lang_get( 'configuration' ) );

layout_page_begin();

$t_foo_or_bar = plugin_config_get( 'foo_or_bar' );

<br/>

<form action="<?php echo plugin_page( 'config_update' ) ?>" method="post">

<?php echo form_security_field( 'plugin_Example_config_update' ) ?>

<tr>

</tr>

<td><input name="foo_or_bar" value="<?php echo string_attribute( $t_foo_or_bar ) ?>"/></

td>

</tr>

</tr>

<tr>

</tr>

</table>

</form>

<?php

layout_page_end();

The two calls to layout_page_being() and layout_page_end() trigger the standard MantisBT

header and footer portions, respectively, which also displays things such as the menus and triggers

other layout-related events. layout_page_header() pulls in the CSS classes for alternating row

colors in the table. The rest of the HTML and CSS follows the "standard" MantisBT markup styles for

content and layout.

4.3. Example Plugin Source Listing

The code in this section, for the Example plugin, is available for use, modification, and redistribution

without any restrictions and without any warranty or implied warranties. You may use this code howev-

er you want.

Example/

Example.php

files/

foo.css

lang/

strings_english.txt

pages/

config_page.php

config_update.php

foo.php

Chapter 4. Plugin System

4.3.1. Example/Example.php

Example/Example.php

<?php

class ExamplePlugin extends MantisPlugin {

function register() {

$this->name = 'Example'; # Proper name of plugin

$this->description = ''; # Short description of the plugin

$this->page = ''; # Default plugin page

$this->version = '1.0'; # Plugin version string

$this->requires = array( # Plugin dependencies

'MantisCore' => '2.0', # Should always depend on an appropriate

# version of MantisBT

);

$this->author = ''; # Author/team name

$this->contact = ''; # Author/team e-mail address

$this->url = ''; # Support webpage

}

function events() {

return array(

'EVENT_EXAMPLE_FOO' => EVENT_TYPE_EXECUTE,

'EVENT_EXAMPLE_BAR' => EVENT_TYPE_CHAIN,

);

}

function hooks() {

return array(

'EVENT_EXAMPLE_FOO' => 'foo',

'EVENT_EXAMPLE_BAR' => 'bar',

);

}

function config() {

return array(

'foo_or_bar' => 'foo',

);

}

function foo( $p_event ) {

echo 'In method foo(). ';

}

function bar( $p_event, $p_chained_param ) {

return str_replace( 'foo', 'bar', $p_chained_param );

}

4.3.2. Example/files/foo.css

Example/files/foo.css

p.foo {

color: red;

}

4.3.3. Example/lang/strings_english.txt

Example/lang/strings_english.txt

Example/page/config_page.php

<?php

$s_plugin_Example_configuration = "Configuration";

$s_plugin_Example_foo_or_bar = "Foo or Bar?";

$s_plugin_Example_reset = "Reset Value";

4.3.4. Example/page/config_page.php

Example/pages/config_page.php

<?php

layout_page_header( plugin_lang_get( 'configuration' ) );

layout_page_begin();

$t_foo_or_bar = plugin_config_get( 'foo_or_bar' );

<br/>

<form action="<?php echo plugin_page( 'config_update' ) ?>" method="post">

<?php echo form_security_field( 'plugin_Example_config_update' ) ?>

<tr>

</tr>

<td><input name="foo_or_bar" value="<?php echo string_attribute( $t_foo_or_bar ) ?>"/></

td>

</tr>

</tr>

<tr>

</tr>

</table>

</form>

<?php

layout_page_end();

4.3.5. Example/pages/config_update.php

Example/pages/config_update.php

<?php

form_security_validate( 'plugin_Example_config_update' );

$f_foo_or_bar = gpc_get_string( 'foo_or_bar' );

$f_reset = gpc_get_bool( 'reset', false );

if( $f_reset ) {

plugin_config_delete( 'foo_or_bar' );

} else {

if( $f_foo_or_bar == 'foo' || $f_foo_or_bar == 'bar' ) {

Chapter 4. Plugin System

plugin_config_set( 'foo_or_bar', $f_foo_or_bar );

}

form_security_purge( 'plugin_Example_config_update' );

print_successful_redirect( plugin_page( 'foo', true ) );

4.3.6. Example/page/foo.php

Example/pages/foo.php

<?php

echo '<p>Here is a link to <a href="', plugin_page( 'foo' ), '">page foo</a>.</p>';

'<link rel="stylesheet" type="text/css" href="', plugin_file( 'foo.css' ), '"/>',

'<p class="foo">';

event_signal( 'EVENT_EXAMPLE_FOO' );

$t_string = 'A sentence with the word "foo" in it.';

$t_new_string = event_signal( 'EVENT_EXAMPLE_BAR', array( $t_string ) );

echo $t_new_string, '</p>';

4.4. API Usage

This is a general overview of the plugin API. For more detailed analysis, you may reference the file

core/plugin_api.php in the codebase.

Chapter 5.

Events Reference

5.1. Introduction

In this chapter, an attempt will be made to list all events used (or planned for later use) in the Man-

tisBT event system. Each listed event will include details for the event type, when the event is called,

and the expected parameters and return values for event callbacks.

Here we show an example event definition. For each event, the event identifier will be listed along with

the event types (see Section 3.3, “Event Types”) in parentheses. Below that should be a concise but

thorough description of how the event is called and how to use it. Following that should be a list of

event parameters (if any), as well as the expected return value (if any).

EVENT_EXAMPLE (Default)

This is an example event description.

Parameters

• <Type>: Description of parameter one

• <Type>: Description of parameter two

Return Value

• <Type>: Description of return value

5.2. System Events

These events are initiated by the plugin system itself to allow certain functionality to simplify plugin de-

velopment.

EVENT_PLUGIN_INIT (Execute)

This event is triggered by the MantisBT plugin system after all regis-

tered and enabled plugins have been initialized (their init() func-

tions have been called). This event should always be the first event

triggered for any page load. No parameters are passed to hooked

functions, and no return values are expected.

This event is the first point in page execution where all registered

plugins are guaranteed to be enabled (assuming dependencies and

such are met). At any point before this event, any or all plugins may

not yet be loaded. Note that the core system has not yet completed

the bootstrap process when this event is signalled.

Suggested uses for the event include:

• Checking for plugins that aren't require for normal usage.

• Interacting with other plugins outside the context of pages or

events.

EVENT_CORE_HEADERS (Execute)

This event is triggered by the MantisBT bootstrap process just before

emitting the headers. This enables plugins to emit their own headers

Chapter 5. Events Reference

or use API that enables tweaking values of headers emitted by core.

An example, of headers that can be tweaked is Content-Security-Poli-

cy header which can be tweaked using http_csp_*() APIs.

EVENT_CORE_READY (Execute)

This event is triggered by the MantisBT bootstrap process after all

core APIs have been initialized, including the plugin system, but be-

fore control is relinquished from the bootstrap process back to the

originating page. No parameters are passed to hooked functions, and

no return values are expected.

This event is the first point in page execution where the entire system

is considered loaded and ready.

EVENT_REST_API_ROUTES (Execute)

This event is triggered by MantisBT to enable plugins to register their

own routes to be accessible via the REST API. All APIs belonging to

a plugin named 'Example', MUST live under 'https://.../api/rest/plug-

ins/Example/'. The route registration is done using the Slim Frame-

work app instance that is passed as a parameter. A route group

should be used to include all routes for the plugin. The name of the

route group should be retrieved via calling plugin_route_group(). See

MantisGraph core plugin for an example and Slim Framework router

documentation1.

Before calling into the plugin routes, the user would be already au-

thenticated and authorized for API access in general. However, it is

the responsibility of the plugin to do its own plugin specific authoriza-

tion.

EVENT_LOG (Execute)

This event is triggered by MantisBT to log a message. The contents

of the message should be hyper linked based on the following rules:

#123 means issue 123, ~123 means issue note 123, @P123 means

project 123, @U123 means user 123. Logging plugins can capture

extra context information like timestamp, current logged in user, etc.

This event receives the logging string as a parameter.

Parameters

• <String>: the logging string

EVENT_AUTH_USER_FLAGS (First)

An event that enables plugins to return a set of flags that control the

authentication behaviors for the user who is logging in or logged in.

In some cases, the user will be in the system, but there will be cases

where the username provided by the user doesn't exist. In case the

user doesn't exist, it is up to the authentication plugin whether to fail

the login, validate credentials then fail, or validate credentials then au-

to-provision the user based on information the plugin is aware of (e.g.

1 https://www.slimframework.com/docs/objects/router.html

Output Modifier Events

IDP or some db of accounts). If no plugin is registered for events,

then defaults are used. If plugin sets a subset of the options, then the

default will be used for the rest.

Checkout SampleAuth plugin2 for more details.

5.3. Output Modifier Events

5.3.1. String Display

These events make it possible to dynamically modify output strings to interpret or add semantic mean-

ing or markup. Examples include the creation of links to other bugs or bugnotes, as well as handling

urls to other sites in general.

EVENT_DISPLAY_BUG_ID (Chained)

This is an event to format bug ID numbers before being displayed, us-

ing the bug_format_id() API call. The result should be plain-text,

as the resulting string is used in various formats and locations.

Parameters

• <String>: bug ID string to be displayed

• <Integer>: bug ID number

Return Value

• <String>: modified bug ID string

EVENT_DISPLAY_EMAIL (Chained)

This is an event to format text before being sent in an email. Call-

backs should be used to process text and convert it into a plain-

text-readable format so that users with textual email clients can best

utilize the information. Hyperlinks and other markup should be re-

moved, leaving the core content by itself.

Parameters

• <String>: input string to be displayed

Return Value

• <String>: modified input string

EVENT_DISPLAY_EMAIL_BUILD_SUBJECT (Chained)

This is an event to format the subject line of an email before it is sent.

Parameters

• <String>: input string for email subject

Return Value

• <String>: modified subject string

2 https://github.com/mantisbt-plugins/SampleAuth

Chapter 5. Events Reference

EVENT_DISPLAY_FORMATTED (Chained)

This is an event to display generic formatted text. The string to be dis-

played is passed between hooked callbacks, each taking a turn to

modify the output in some specific manner. Text passed to this may

be processed for all types of formatting and markup, including click-

able links, presentation adjustments, etc.

Parameters

• <String>: input string to be displayed

Return Value

• <String>: modified input string

• <Boolean>: multiline input string

EVENT_DISPLAY_RSS (Chained)

This is an event to format content before being displayed in an RSS

feed. Text should be processed to perform any necessary character

escaping to preserve hyperlinks and other appropriate markup.

Parameters

• <String>: input string to be displayed

• <Boolean>: multiline input string

Return Value

• <String>: modified input string

EVENT_DISPLAY_TEXT (Chained)

This is an event to display generic unformatted text. The string to be

displayed is passed between hooked callbacks, each taking a turn to

modify the output in some specific manner. Text passed to this event

should only be processed for the most basic formatting, such as pre-

serving line breaks and special characters.

Parameters

• <String>: input string to be displayed

• <Boolean>: multiline input string

Return Value

• <String>: modified input string

5.3.2. Menu Items

These events allow new menu items to be inserted in order for new content to be added, such as new

pages or integration with other applications.

EVENT_MENU_ACCOUNT (Default)

This event gives plugins the opportunity to add new links to the user

account menu available to users from the 'My Account' link on the

main menu.

Menu Items

Return Value

• <Array>: List of HTML links for the user account menu.

EVENT_MENU_DOCS (Default)

This event gives plugins the opportunity to add new links to the docu-

ments menu available to users from the 'Docs' link on the main menu.

Return Value

• <Array>: List of HTML links for the documents menu.

EVENT_MENU_FILTER (Default)

This event gives plugins the opportunity to add new links to the issue

list menu available to users from the 'View Issues' link on the main

menu.

Return Value

• <Array>: List of HTML links for the issue list menu.

EVENT_MENU_ISSUE (Default)

This event gives plugins the opportunity to add new links to the issue

menu available to users when viewing issues.

Parameters

• <Integer>: bug ID

Return Value

• <Array>: List of HTML links for the documents menu.

EVENT_MENU_MAIN (Default)

This event gives plugins the opportunity to add new menu options to

the main menu. New links will be added AFTER the standard menu

options.

Return Value

• <Array>: Hooked events may return an array of menu options.

Each array entry will contain an associate array with keys 'title', 'url',

'access_level', and 'icon' (e.g. fa-pencil from Font Awesome3).

return array(

array(

'title' => 'My Link',

'access_level' => DEVELOPER,

'url' => 'my_link.php',

'icon' => 'fa-random'

array(

'title' => 'My Link2',

'access_level' => DEVELOPER,

'url' => 'my_link2.php',

'icon' => 'fa-shield'

)

3 http://fontawesome.io/icons/

Chapter 5. Events Reference

);

EVENT_MENU_MAIN_FRONT (Default)

This event gives plugins the opportunity to add new menu options to

main menu. New links will be added BEFORE the standard menu op-

tions.

Return Value

• <Array>: Hooked events may return an array of menu options.

Each array entry will contain an associate array with keys 'title', 'url',

'access_level', and 'icon' (e.g. fa-pencil from Font Awesome4).

return array(

array(

'title' => 'My Link',

'access_level' => DEVELOPER,

'url' => 'my_link.php',

'icon' => 'fa-random'

array(

'title' => 'My Link2',

'access_level' => DEVELOPER,

'url' => 'my_link2.php',

'icon' => 'fa-shield'

)

);

EVENT_MENU_MANAGE (Default)

This event gives plugins the opportunity to add new links to the man-

agement menu available to site administrators from the 'Manage' link

on the main menu. Plugins should try to minimize use of these links to

functions dealing with core MantisBT management.

Return Value

• <Array>: List of HTML links for the management menu.

EVENT_MENU_MANAGE_CONFIG (Default)

This event gives plugins the opportunity to add new links to the con-

figuration management menu available to site administrators from the

'Manage Configuration' link on the standard management menu. Plu-

gins should try to minimize use of these links to functions dealing with

core MantisBT configuration.

Return Value

• <Array>: List of HTML links for the manage configuration menu.

EVENT_MENU_SUMMARY (Default)

This event gives plugins the opportunity to add new links to the sum-

mary menu available to users from the 'Summary' link on the main

menu.

4 http://fontawesome.io/icons/

Page Layout

Return Value

• <Array>: List of HTML links for the summary menu.

5.3.3. Page Layout

These events offer the chance to create output at points relevant to the overall page layout of Mantis-

BT. Page headers, footers, stylesheets, and more can be created. Events listed below are in order of

runtime execution.

EVENT_LAYOUT_RESOURCES (Output)

This event allows plugins to output HTML code from inside the

<head> tag, for use with CSS, Javascript, RSS, or any other simi-

lar resources. Note that this event is signaled after all other CSS and

Javascript resources are linked by MantisBT.

Return Value

• <String>: HTML code to output.

EVENT_LAYOUT_BODY_BEGIN (Output)

This event allows plugins to output HTML code immediately after the

<body> tag is opened, so that MantisBT may be integrated within an-

other website's template, or other similar use.

Return Value

• <String>: HTML code to output.

EVENT_LAYOUT_PAGE_HEADER (Output)

This event allows plugins to output HTML code immediately after the

MantisBT header content, such as the logo image.

Return Value

• <String>: HTML code to output.

EVENT_LAYOUT_CONTENT_BEGIN (Output)

This event allows plugins to output HTML code after the top main

menu, but before any page-specific content begins.

Return Value

• <String>: HTML code to output.

EVENT_LAYOUT_CONTENT_END (Output)

This event allows plugins to output HTML code after any page- spe-

cific content has completed, but before the bottom menu bar (or foot-

er).

Return Value

• <String>: HTML code to output.

EVENT_LAYOUT_PAGE_FOOTER (Output)

This event allows plugins to output HTML code after the MantisBT

version, copyright, and webmaster information, but before the query

information.

Chapter 5. Events Reference

Return Value

• <String>: HTML code to output.

EVENT_LAYOUT_BODY_END (Output)

This event allows plugins to output HTML code immediately before

the </body> end tag, to so that MantisBT may be integrated within

another website's template, or other similar use.

Return Value

• <String>: HTML code to output.

EVENT_VIEW_BUG_ATTACHMENT (Output)

This event allows plugins to output HTML code immediately after the

line of an attachment. Receives the attachment data as a parameter,

in the form of an attachment array from within the array returned by

the file_get_visible_attachments() function.

Parameters

• <Array>: the attachment data as an array (see core/

file_api.php)

Return Value

• <String>: HTML code to output.

5.4. Bug Filter Events

5.4.1. Custom Filters and Columns

EVENT_FILTER_FIELDS (Default)

This event allows a plugin to register custom filter objects (based on

the MantisFilter class) that will allow the user to search for is-

sues based on custom criteria or datasets. The plugin can return ei-

ther a class name (which will be instantiated at runtime) or an already

instantiated object. The plugin must ensure that the filter class has

been defined before returning the class name for this event.

Return Value

• <Array>: Array of class names or objects for custom filters

EVENT_FILTER_COLUMNS (Default)

This event allows a plugin to register custom column objects (based

on the MantisColumn class) that will allow the user to view data

for issues based on custom datasets. The plugin can return either a

class name (which will be instantiated at runtime) or an already in-

stantiated object. The plugin must ensure that the column class has

been defined before returning the class name for this event.

Return Value

• <Array>: Array of class names or objects for custom columns

Bug and Bugnote Events

5.5. Bug and Bugnote Events

5.5.1. Bug View

EVENT_VIEW_BUG_DETAILS (Execute)

This event allows a plugin to either process information or display

some data in the bug view page. It is triggered after the row contain-

ing the target version and product build fields, and before the bug

summary is displayed.

Any output here should be defining appropriate rows and columns for

the surrounding

<table>

elements.

Parameters

• <Integer>: Bug ID

EVENT_VIEW_BUG_EXTRA (Execute)

This event allows a plugin to either process information or display

some data in the bug view page. It is triggered after the bug notes

have been displayed, but before the history log is shown.

Any output here should be contained within its own

<table>

element.

Parameters

• <Integer>: Bug ID

5.5.2. Bug Actions

EVENT_REPORT_BUG_FORM (Execute)

This event allows plugins to do processing or display form elements

on the Report Issue page. It is triggered immediately before the sum-

mary text field.

Any output here should be defining appropriate rows and columns for

the surrounding <table> elements.

Parameters

• <Integer>: Project ID

EVENT_REPORT_BUG_FORM_TOP (Execute)

This event allows plugins to do processing or display form elements

at the top of the Report Issue page. It is triggered before any of the

visible form elements have been created.

Chapter 5. Events Reference

Any output here should be defining appropriate rows and columns for

the surrounding <table> elements.

Parameters

• <Integer>: Project ID

EVENT_REPORT_BUG_DATA (Chain)

This event allows plugins to perform pre-processing of the new bug

data structure after being reported from the user, but before the data

is saved to the database. At this point, the issue ID is not yet known,

as the data has not yet been persisted.

Parameters

• <Complex>: Bug data structure (see core/bug_api.php)

Return Value

• <Complex>: Bug data structure

EVENT_REPORT_BUG (Execute)

This event allows plugins to perform post-processing of the bug da-

ta structure after being reported from the user and being saved to the

database. At this point, the issue ID is actually known, and is passed

as a second parameter.

Parameters

• <Complex>: Bug data structure (see core/bug_api.php)

• <Integer>: Bug ID

EVENT_UPDATE_BUG_FORM (Execute)

This event allows plugins to do processing or display form elements

on the Update Issue page. It is triggered immediately before the sum-

mary text field.

Parameters

• <Integer>: Bug ID

EVENT_UPDATE_BUG_FORM_TOP (Execute)

This event allows plugins to do processing or display form elements

on the Update Issue page. It is triggered immediately before before

any of the visible form elements have been created.

Parameters

• <Integer>: Bug ID

EVENT_UPDATE_BUG_STATUS_FORM (Execute)

This event allows plugins to do processing or display form elements

in the bug change status form. It is triggered immediately before the

add bugnote fields.

Any output here should be defining appropriate rows and columns for

the surrounding <table> elements.

Bug Actions

Parameters

• <Integer>: Bug ID

• <Integer>: New Status

EVENT_UPDATE_BUG_DATA (Chain)

This event allows plugins to perform pre-processing of the updated

bug data structure after being modified by the user, but before being

saved to the database.

Parameters

• <Complex>: Updated bug data structure (see core/

bug_api.php)

• <Complex>: Original bug data structure (see core/bug_api.php)

Return Value

• <Complex>: Updated bug data structure (see core/

bug_api.php)

EVENT_UPDATE_BUG (Execute)

This event allows plugins to perform post-processing of the bug data

structure after being updated.

Parameters

• <Complex>: Original bug data structure (see core/bug_api.php)

• <Complex>: Updated bug data structure (see core/

bug_api.php)

EVENT_BUG_ACTIONGROUP_FORM (Execute)

This event allows plugins to do processing or display form elements

in the bug group action page form. It is triggered immediately after the

standard fields, and before bugnote fields (if applicable).

Any output here should be defining appropriate rows and columns for

the surrounding <table> elements.

Parameters

• <Array>: Array of event data elements

Parameter array contents

The parameter array contains elements for these indexes:

• 'action' => <String>: Action title (see bug_actiongroup.php)

• 'bug_ids' => <Array>: Array of selected bug ids

• 'multiple_projects' => <Boolean>: Flag if selected bug ids span mul-

tiple projects

• 'has_bugnote' => <Boolean>: Flag if current group action form con-

tains a bugnote input

Depending on the action, any of these indexes may appear:

Chapter 5. Events Reference

• 'custom_field_id' => <Integer>: If action is 'CUSTOM', contains the

custom field id selected for update

EVENT_BUG_ACTION (Execute)

This event allows plugins to perform post-processing of group actions

performed from the View Issues page. The event will get called for

each bug ID that was part of the group action event.

Parameters

• <String>: Action title (see bug_actiongroup.php)

• <Integer>: Bug ID

EVENT_BUG_DELETED (Execute)

This event allows plugins to perform pre-processing of bug deletion

actions. The actual deletion will occur after execution of the event, for

compatibility reasons.

Parameters

• <Integer>: Bug ID

5.5.3. Bugnote View

EVENT_VIEW_BUGNOTES_START (Execute)

This event allows a plugin to either process information or display

some data in the bug notes section, before any bug notes are dis-

played. It is triggered after the bug notes section title.

Any output here should be defining appropriate rows and columns for

the surrounding <table> elements.

Parameters

• <Integer>: Bug ID

• <Complex>: A list of all bugnotes to be displayed to the user

EVENT_VIEW_BUGNOTE (Execute)

This event allows a plugin to either process information or display

some data in the bug notes section, interleaved with the individual

bug notes. It gets triggered after every bug note is displayed.

Any output here should be defining appropriate rows and columns for

the surrounding <table> elements.

Parameters

• <Integer>: Bug ID

• <Integer>: Bugnote ID

• <Boolean>: Private bugnote (false if public)

EVENT_VIEW_BUGNOTES_END (Execute)

Bugnote Actions

This event allows a plugin to either process information or display

some data in the bug notes section, after all bugnotes have been dis-

played.

Any output here should be defining appropriate rows and columns for

the surrounding <table> elements.

Parameters

• <Integer>: Bug ID

5.5.4. Bugnote Actions

EVENT_BUGNOTE_ADD_FORM (Execute)

This event allows plugins to do processing or display form elements

in the bugnote adding form. It is triggered immediately after the bug-

note text field.

Any output here should be defining appropriate rows and columns for

the surrounding <table> elements.

Parameters

• <Integer>: Bug ID

EVENT_BUGNOTE_ADD (Execute)

This event allows plugins to do post-processing of bugnotes added to

an issue.

Parameters

• <Integer>: Bug ID

• <Integer>: Bugnote ID

EVENT_BUGNOTE_EDIT_FORM (Execute)

This event allows plugins to do processing or display form elements

in the bugnote editing form. It is triggered immediately after the bug-

note text field.

Any output here should be defining appropriate rows and columns for

the surrounding <table> elements.

Parameters

• <Integer>: Bug ID

• <Integer>: Bugnote ID

EVENT_BUGNOTE_EDIT (Execute)

This event allows plugins to do post-processing of bugnote edits.

Parameters

• <Integer>: Bug ID

• <Integer>: Bugnote ID

EVENT_BUGNOTE_DELETED (Execute)

Chapter 5. Events Reference

This event allows plugins to do post-processing of bugnote deletions.

Parameters

• <Integer>: Bug ID

• <Integer>: Bugnote ID

EVENT_TAG_ATTACHED (Execute)

This event allows plugins to do post-processing of attached tags.

Parameters

• <Integer>: Bug ID

• <Array of Integers>: Tag IDs

EVENT_TAG_DETACHED (Execute)

This event allows plugins to do post-processing of detached tags.

Parameters

• <Integer>: Bug ID

• <Array of Integers>: Tag IDs

5.6. Notification Events

5.6.1. Recipient Selection

EVENT_NOTIFY_USER_INCLUDE (Default)

This event allows a plugin to specify a set of users to be included as

recipients for a notification. The set of users returned is added to the

list of recipients already generated from the existing notification flags

and selection process.

Parameters

• <Integer>: Bug ID

• <String>: Notification type

Return Value

• <Array>: User IDs to include as recipients

EVENT_NOTIFY_USER_EXCLUDE (Default)

This event allows a plugin to selectively exclude individual users from

the recipient list for a notification. The event is signalled for every

user in the final recipient list, including recipients added by the event

NOTIFY_USER_INCLUDE as described above.

Parameters

• <Integer>: Bug ID

• <String>: Notification type

• <Integer>: User ID

User Account Events

Return Value

• <Boolean>: True to exclude the user, false otherwise

5.7. User Account Events

5.7.1. Account Preferences

EVENT_ACCOUNT_PREF_UPDATE_FORM (Execute)

This event allows plugins to do processing or display form elements

on the Account Preferences page. It is triggered immediately after the

last core preference element.

Any output here should follow the format found in

account_prefs_inc.php. As of 1.3.x this is no longer table elements.

Parameters

• <Integer>: User ID

EVENT_ACCOUNT_PREF_UPDATE (Execute)

This event allows plugins to do pre-processing of form elements from

the Account Preferences page. It is triggered immediately before the

user preferences are saved to the database.

Parameters

• <Integer>: User ID

EVENT_USER_AVATAR (First)

This event gets the user's avatar as an instance of the Avatar class.

The first plugin to respond with an avatar wins. Hence, in case of mul-

tiple avatar plugins, make sure to tweak the priorities. Avatars should

return null if they don't have an avatar for the specified user id.

Parameters

• <Avatar>: Avatar instance or null.

5.8. Management Events

EVENT_MANAGE_OVERVIEW_INFO (Output)

This event allows plugins to display special information on the Man-

agement Overview page.

Any output here should be defining appropriate rows and columns for

the surrounding <table> elements.

Parameters

• <Boolean>: whether user is administrator

5.8.1. Projects and Versions

EVENT_MANAGE_PROJECT_PAGE (Execute)

Chapter 5. Events Reference

This event allows plugins to do processing or display information on

the View Project page. It is triggered immediately before the project

access blocks.

Any output here should be contained within its own <table> element.

Parameters

• <Integer>: Project ID

EVENT_MANAGE_PROJECT_CREATE_FORM (Execute)

This event allows plugins to do processing or display form elements

on the Create Project page. It is triggered immediately before the sub-

mit button.

Any output here should follow the format found in

manage_proj_create_page.php. As of 1.3.x this is no longer table ele-

ments.

EVENT_MANAGE_PROJECT_CREATE (Execute)

This event allows plugins to do post-processing of newly-created

projects and form elements from the Create Project page.

Parameters

• <Integer>: Project ID

EVENT_MANAGE_PROJECT_UPDATE_FORM (Execute)

This event allows plugins to do processing or display form elements

in the Edit Project form on the View Project page. It is triggered imme-

diately before the submit button.

Any output here should follow the format found in

manage_proj_edit_page.php. As of 1.3.x this is no longer table ele-

ments.

Parameters

• <Integer>: Project ID

EVENT_MANAGE_PROJECT_UPDATE (Execute)

This event allows plugins to do post-processing of modified projects

and form elements from the Edit Project form.

Parameters

• <Integer>: Project ID

EVENT_MANAGE_PROJECT_DELETE (Execute)

This event allows plugins to do pre-processing of project deletion.

This event is triggered prior to the project removal from the database.

Parameters

• <Integer>: Project ID

EVENT_MANAGE_VERSION_CREATE (Execute)

Projects and Versions

This event allows plugins to do post-processing of newly-created

project versions from the View Project page, or versions copied from

other projects. This event is triggered for each version created.

Parameters

• <Integer>: Version ID

EVENT_MANAGE_VERSION_UPDATE_FORM (Execute)

This event allows plugins to do processing or display form elements

on the Update Version page. It is triggered immediately before the

submit button.

Any output here should follow the format found in

manage_proj_ver_edit_page.php. As of 1.3.x this is no longer table

elements.

Parameters

• <Integer>: Version ID

EVENT_MANAGE_VERSION_UPDATE (Execute)

This event allows plugins to do post-processing of modified versions

and form elements from the Edit Version page.

Parameters

• <Integer>: Version ID

EVENT_MANAGE_VERSION_DELETE (Execute)

This event allows plugins to do pre-processing of version deletion.

This event is triggered prior to the version removal from the database.

Parameters

• <Integer>: Version ID

• <String>: Replacement version to set on issues that are currently

using the version that is about to be deleted.

EVENT_MANAGE_USER_CREATE_FORM (Execute)

This event allows plugins to do processing or display form elements

on the Create User page. It is triggered immediately before the submit

button.

Any output here should follow the format found in

manage_user_create_page.php.

EVENT_MANAGE_USER_CREATE (Execute)

This event allows plugins to do post-processing of newly-created

users. This event is triggered for each user created. The Manage

Users create form is one possible case for triggering such events, but

there can be other ways users can be created.

Parameters

• <Integer>: User ID

Chapter 5. Events Reference

EVENT_MANAGE_USER_UPDATE_FORM (Execute)

This event allows plugins to do processing or display form elements

in the Manage User page. It is triggered immediately before the sub-

mit button.

Any output here should follow the format found in

manage_user_edit_page.php.

Parameters

• <Integer>: User ID

EVENT_MANAGE_USER_UPDATE (Execute)

This event allows plugins to do post-processing of modified users.

This may be triggered by the Manage User page or some other path.

Parameters

• <Integer>: User ID

EVENT_MANAGE_USER_DELETE (Execute)

This event allows plugins to do pre-processing of user deletion.

Parameters

• <Integer>: User ID

EVENT_MANAGE_USER_PAGE (Execute)

This event allows plugins to do processing or display information on

the View User page. It is triggered immediately after the reset pass-

word segment.

Any output here should be contained within its own container.

Parameters

• <Integer>: User ID

Chapter 6.

Integrating with MantisBT

The primary means of integrating with MantisBT with web services is with the bundled SOAP API,

which is accessible at http://server.com/mantis/api/soap/mantisconnect.php.

6.1. Java integration

6.1.1. Prebuilt SOAP stubs using Axis

For ease of integration of the Java clients, SOAP stubs are maintained and deployed in the Maven

central repository1. For example:

<groupId>biz.futureware.mantis</groupId>

<artifactId>mantis-axis-soap-client</artifactId>

</dependency>

To include them in your project, download the latest available version2.

6.1.2. Usage in OSGi environments

If you would like to use Axis in an OSGi environment, it is recommended that you use a ready-made

bundle, such as the Axis bundle available from Eclipse Orbit3

6.2. Compatibility between releases

The SOAP API signature will change between minor releases, typically to add new functionality or to

extend existing features.

Some of these changes might require a refresh of the client libraries generated, for instance Apache

Axis 1 SOAP stubs must be regenerated if a complex type receives a new property. Such changes will

be announced before the release of the new MantisBT version on the mantisbt-soap-dev mailing list4.

Typically there will be two weeks time to integrate the new SOAP stubs.

6.3. Support

The primary means of obtaining support for Web Services and the SOAP API is through the mantis-

bt-soap-dev mailing list5.

1 http://maven.org/

2 http://search.maven.org/#search|ga|1|g%3A%22biz.futureware.mantis%22

3 http://download.eclipse.org/tools/orbit/downloads/

4 http://lists.sourceforge.net/mailman/listinfo/mantisbt-soap-dev

5 http://lists.sourceforge.net/mailman/listinfo/mantisbt-soap-dev

Chapter 7.

Appendix

7.1. Git References

• The Git SCM web site1 offers a full reference of Git commands, as well Scott Chacon's excellent Pro

Git book.

•Github's Git Reference2

• Official documentation (from kernel.org)

•Manual Page3

•Tutorial4

•Everyday Git With 20 Commands5

•Git Crash Course for SVN Users6

•Git From the Bottom Up7 (PDF)

1 http://git-scm.com/documentation/

2 http://gitref.org/

3 http://www.kernel.org/pub/software/scm/git/docs/

4 http://www.kernel.org/pub/software/scm/git/docs/gittutorial.html

5 http://www.kernel.org/pub/software/scm/git/docs/everyday.html

6 https://git.wiki.kernel.org/index.php/GitSvnCrashCourse

7 http://ftp.newartisans.com/pub/git.from.bottom.up.pdf

Appendix A. Revision History

Revision

2.10-0

Sat Dec 30 2017 Victor Boctor vboctor@mantisbt.org

Release 2.10.0

Revision 2.9-0 Sun Dec 3 2017 Victor Boctor vboctor@mantisbt.org

Release 2.9.0

Revision 2.8-0 Sat Oct 28 2017 Victor Boctor vboctor@mantisbt.org

Release 2.8.0

Revision 2.7-0 Sun Oct 8 2017 Victor Boctor vboctor@mantisbt.org

Release 2.7.0

Revision 2.6-0 Sun Sep 3 2017 Victor Boctor vboctor@mantisbt.org

Release 2.6.0

Revision 2.5-1 Sat Jun 17 2017 Victor Boctor vboctor@mantisbt.org

Release 2.5.1

Revision 2.5-0 Sun Jun 4 2017 Victor Boctor vboctor@mantisbt.org

Release 2.5.0

Revision 2.4-1 Sat May 20 2017 Victor Boctor vboctor@mantisbt.org

Release 2.4.1

Revision 2.4-0 Sun Apr 30 2017 Victor Boctor vboctor@mantisbt.org

Release 2.4.0

Revision 2.3-3 Sun Apr 30 2017 Victor Boctor vboctor@mantisbt.org

Release 2.3.2

Revision 2.3-2 Sun Apr 17 2017 Victor Boctor vboctor@mantisbt.org

Release 2.3.1

Revision 2.3-1 Fri Mar 31 2017 Victor Boctor vboctor@mantisbt.org

Appendix A. Revision History

Release 2.3.0

Revision 2.2-3 Wed Mar 22 2017 Damien Regad dregad@mantisbt.org

Release 2.2.2

Revision 2.2-2 Sun Mar 12 2017 Victor Boctor vboctor@mantisbt.org

Release 2.2.1

Revision 2.2-1 Sun Feb 26 2017 Victor Boctor vboctor@mantisbt.org

Release 2.2.0

Revision 2.1-2 Sun Feb 26 2017 Victor Boctor vboctor@mantisbt.org

Release 2.1.1

Revision 2.1-1 Tue Jan 31 2017 Victor Boctor vboctor@mantisbt.org

Release 2.1.0

Revision 2.0-2 Fri Dec 30 2016 Victor Boctor vboctor@mantisbt.org

Release 2.0.0

Revision 2.0-1 Sat Nov 26 2016 Damien Regad dregad@mantisbt.org

Release 2.0.0-rc.2

Developers Guide Reference For And Community Members Mantis BT 2.0 En US

Navigation menu

Versions of this User Manual:

Views

Navigation
