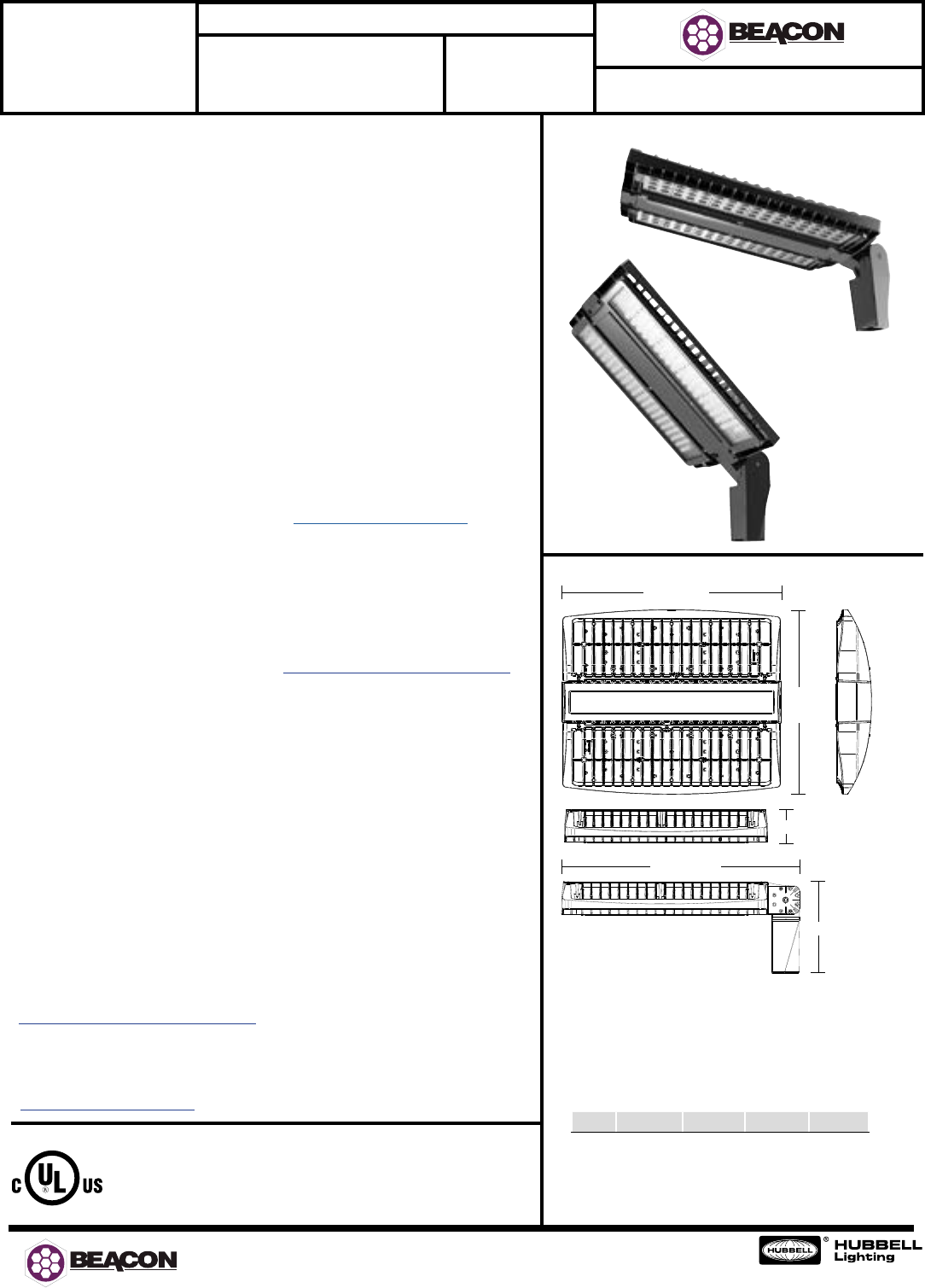

MATRIX
FLOODLIGHT
CERTIFICATIONS/LISTINGS
PRODUCT IMAGE(S)
SPECIFICATIONS
Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928
Due to our continued efforts to improve our products, product specifications are subject to change without notice.
© 2017 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA November 9, 2017 3:12 PM
Cat.#
Approvals
Job Type design . performance . technology
design . performance . technology
DIMENSIONS
13.2
29.7
25.0
4.0
34.5
Model Mount Weight lbs. Weight kgs. EPA, Sq. ft.
Flood Knuckle, 0˚
Knuckle, 30˚
86.0 39.1 1.7
3.8
Intended Use:
The Beacon Matrix luminaire is available in three
congurations with a wide choice of different LED
wattage congurations and optical distributions
designed to replace HID lighting up to 1000W MH
or HPS. Luminaires are suitable for wet locations.
Construction:
• Manufactured with die cast aluminum.
• Coated with a polyester nish that meets
ASTM B117 corrosion test requirements
and ASTM D522 cracking and loss of
adhesion test requirements.
• External hardware is corrosion resistant.
• One piece optical cartridge system consisting
of an LED engine, LED lamps, optics, gasket
and stainless steel bezel.
• Cartridge can be eld replaced as a one piece
optical system.
• Silicone gasket ensures a weather-proof seal
around each individual optic.
• Glass enclosed optics enable high angle aiming.
Electrical:
• Luminaire accepts 100V through 277V, 50 Hz
to 60 Hz (UNV), 347V, or 480V input.
• Power factor is ≥ .90 at full load.
• Dimming drivers are standard, but must
contact factory to request wiring leads for
purpose of external dimming controls.
• Component-to-component wiring within the
luminaire may carry no more than 80% of
rated load and is certied by UL for use at
600VAC at 90°C or higher.
• Fixture electrical compartment shall contain all
LED driver components and optional push-button
terminal block for AC power connections.
• Optional 7-pin ANSI C136.41-2013 twist-lock
photo control receptacle available. Compatible
with ANSI C136.41 external wireless control devices.
• Ambient operating temperature -40°C to 40°C
• Surge protection - 20kA. ANSI/IEEE category
C high
Controls/Options:
• Available with an optional passive infrared
(PIR) motion sensor capable of detecting
motion 360° around the luminaire. When
no motion is detected for the specied time,
the motion response system reduces the
wattage to factory preset level, reducing the
light level accordingly. When motion is
detected by the PIR sensor, the luminaire
returns to full wattage and full light output.
Please contact Beacon Products if project
requirements vary from standard conguration.
• Available with Energeni for optional set
dimming, timed dimming with simple delay, or
timed dimming based on time of night (see
www.beaconproducts.com/products/energeni).
• In addition, Matrix can be specied
with SiteSync™ wireless control system
for reduction in energy and maintenance costs
while optimizing light quality 24/7. For more
details, see ordering information or visit:
www.hubbelllighting.com/sitesync
Installation:
• Adjustable knuckle is designed to slip t a
2 3/8” to 3” O.D. tenon.
• Luminaire can adjust in 5˚ increments
(only when Twist Lock photocell is not being
used).
• Photo control option can only be used when
xture is aimed below horizontal position.
Finish:
• IFS polyester powder-coat electrostatically
applied and thermocured. IFS nish consists of a
ve stage pretreatment regimen with a polymer
primer sealer and top coated with a thermoset
super TGIC polyester powder coat nish.
• The nish meets the AAMA 2604
performance specication which includes
passing a 3000 hour salt spray test for
corrosion resistance and resists cracking or
loss of adhesion per ASTM D522 and resists
surface impacts of up to 160 inch-pounds.
Certications/Ratings:
• DesignLights Consortium (DLC) qualied,
consult DLC website for more details:
http://www.designlights.org/QPL
• Certied to UL 1598, UL 8750, and CSA C22.2
No. 250.0
• 1.5G rated for ANSI C136.31
• IP66 optical assembly
• IDA approved
Warranty:
Five year limited warranty for more information visit:
www.hubbelllighting.com/resources/warranty
IP65
Beacon Products • 2041 58th Avenue Circle East Bradenton, FL 34203 • Phone: 800-345-4928
Due to our continued efforts to improve our products, product specifications are subject to change without notice.
© 2017 BEACON PRODUCTS, All Rights Reserved • For more information visit our website: www.beaconproducts.com • Printed in USA NOvember 9, 2017 3:12 Pm
design . performance . technology

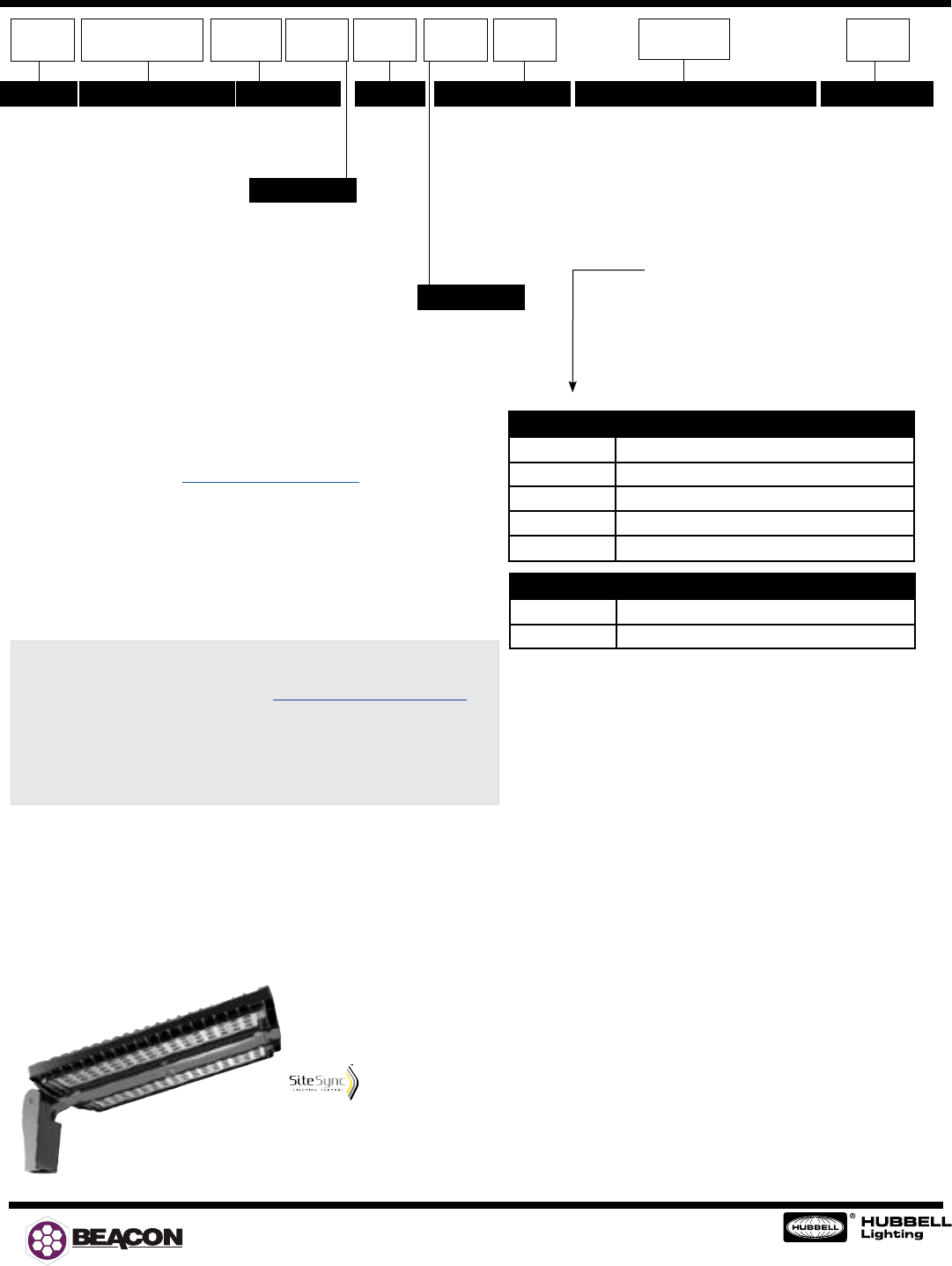

ORDERING INFORMATION ORDERING EXAMPLE: MAF/196L-610/5K7/N/UNV/K/DB/7PR-SC
SiteSync Lighting Control is available from
our most popular brands in a broad range of
award-winning product families.
PRECOMMISSIONED SITESYNC ORDERING INFORMATION: When ordering a fixture with the SiteSync lighting
control option, additional information will be required to complete the order. The SiteSync Commissioning Form
or alternate schedule information must be completed. This form includes Project location, Group information, and
Operating schedules. For more detailed information please visit www.hubbell-automation.com/products/sitesync/ or
contact Hubbell Lighting tech support at (800) 345-4928.
SiteSync fixtures with Motion control (SWPM) require the mounting height of the fixture for selection of the lens.
Examples: MAF/196L-610/5K7/N/UNV/K/DB/SWP SiteSync only
MAF/196L-610/5K7/N/UNV/K/DB/SWPM/40F SiteSync with Motion Control
MA/F
SERIES
MA/F Matrix
ENGINE
104L-265 265W, 30,000 lm
104L-300 300W, 33,000 lm
104L-330 330W, 35,000 lm
148L-380 380W, 42,000 lm
148L-425 425W, 46,000 lm
148L-470 470W, 50,000 lm
192L-490 490W, 55,000 lm
192L-550 550W, 60,000 lm
192L-610 610W, 65,000 lm
VOLTAGE
UNV
120-
277V
347
347V
480
480V
CCT/CRI6
5K7 5000K, 70 CRI
4K7 4000K, 70 CRI
3K7 3000K, 70 CRI
DISTRIBUTION
N2x2 Flood
M4x4 Flood
W6x6 Flood
TC Tennis Court
COLOR
DB Dark Bronze Textured
BL Black Textured
WH White Textured
PS Plat. Silver Smooth
GYS Light Gray Smooth
GT Graphite Textured
TT Titanium Textured
CC Custom Color
MOUNTING
KKnuckle (5o
adjustable fitter)
Accessories and Services (Ordered Separately)
1 Not available with other sensor or wireless control options.
2 Specify routine setting code (example GENI-04). See ENERGENI brochure and instructions for
setting table options.
3 Photocell included with sensor, additional photocontrol not recommended.
4 Order at least one SCPREMOTE per project location to program and control
5 Specify group and zone at time of order. See www.hubbell-automation.com/products/sitesync/ for more
details. Order at least one SiteSync interface Accessory SWUSB or SWTAB. Each option
contains SiteSync License, GUI, and Bridge Node.
6 7PR-TL shipped with shorting cap installed. Twist-lock photocell shipped with fixture.
Installer must remove shorting cap and install photocell at time of installation.
7 Requires 7PR-SC photocell receptacle. Include SCL/40F if occupancy sensing is required
CONTROL OPTIONS
7PR-TL67 pin PCR with photo control
7PR-SC 7 pin PCR with shorting cap
2PF 2 power feed with 2 drivers
GENI1,2 Energeni
PC1Button Photocell
SCL/40F
Low voltage sensor for 7PR-SC and
wiSCAPE external control accessory
SCP/40F1,3,4
Programmable Line Voltage sensor
SWP1,5
SiteSync Pre-Commission
SWPM/40F1,5
SiteSync Pre-Commission w/
Sensor
OPTIONS
FL Louver
SF120 120V Fuse
SF277 277V Fuse
SF347 347V Fuse
DF208 208V Fuse
DF240 240V Fuse
DF480 480V Fuse
Control Accessories
SWUSB SiteSync Software on USB
SWTAB SiteSync Windows Tablet
SWBRG SiteSync Wireless Bridge Node
SCPREMOTE Order at least one per project location to program and control
WIR-RME-L7wiSCAPE external control node; use with 7PR
Accessories
MAF-FL Louver
MAF-FV-XX Visor
