Moog Source Schematics

User Manual: Pdf Source Schematics Synthfool:Docs:Moog

Open the PDF directly: View PDF PDF.
Page Count: 11

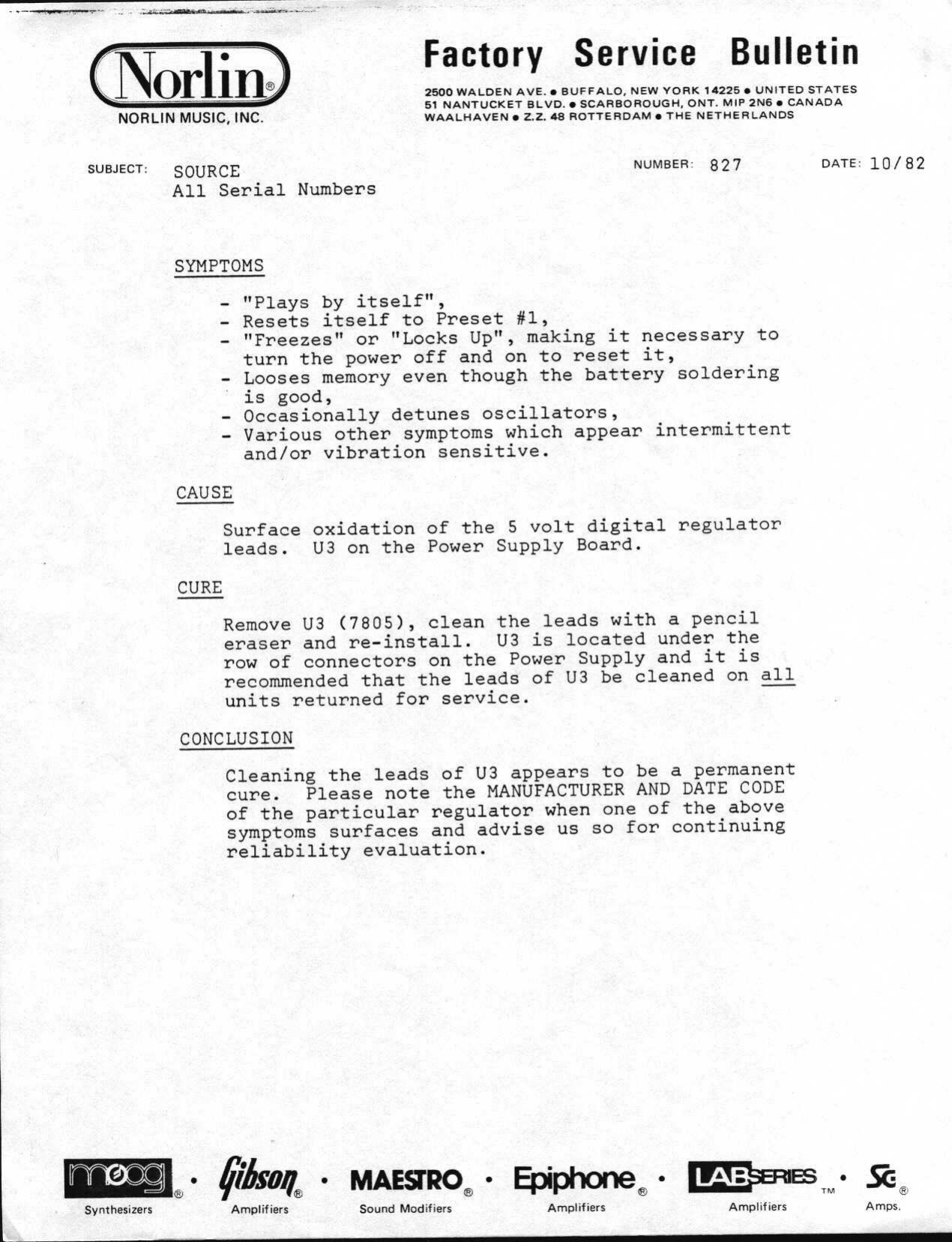

Page 1 of 11 - Moog Source Schematics

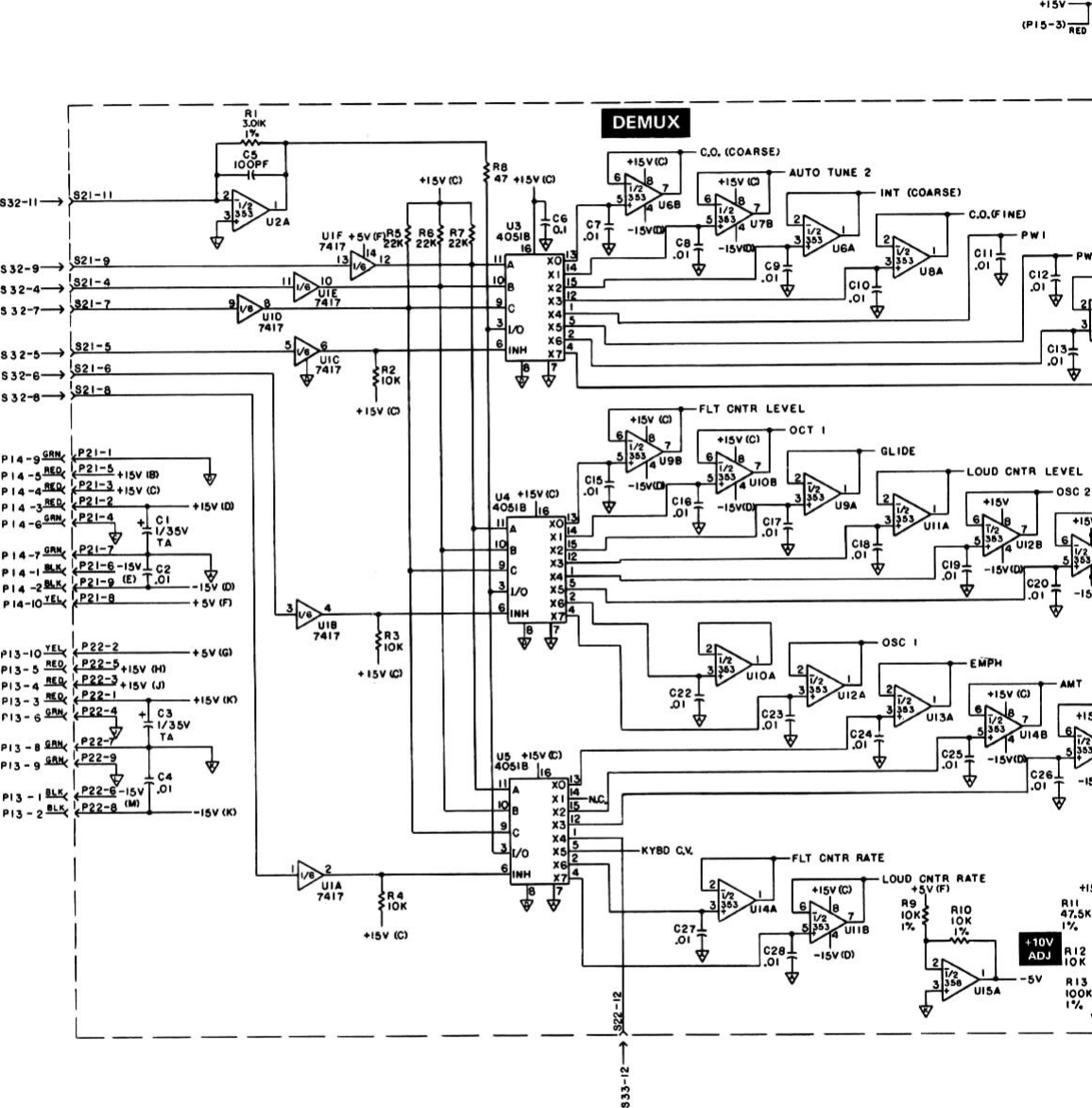

Page 2 of 11 - Moog Source Schematics

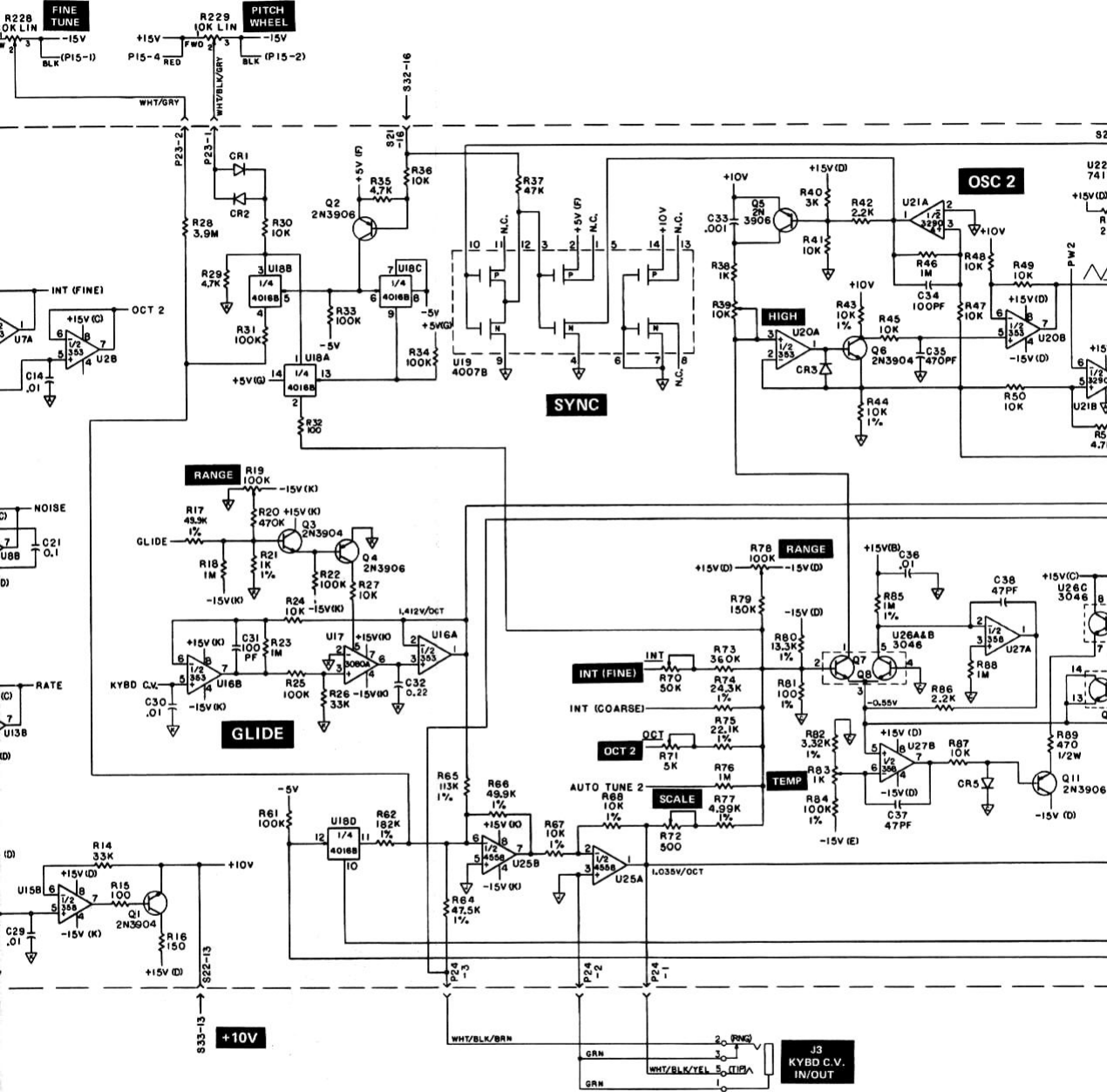

Page 3 of 11 - Moog Source Schematics

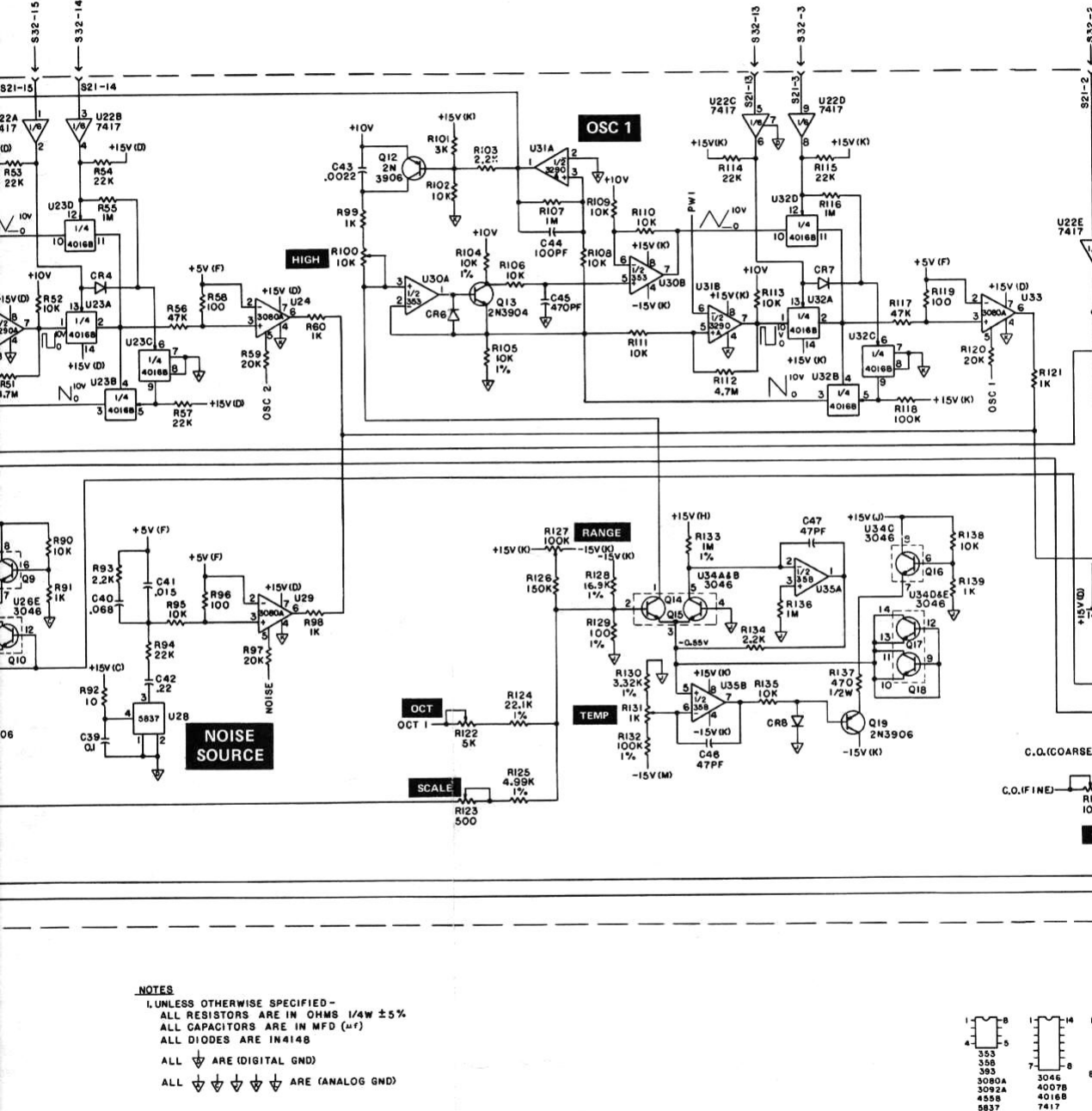

Page 4 of 11 - Moog Source Schematics
Page 5 of 11 - Moog Source Schematics

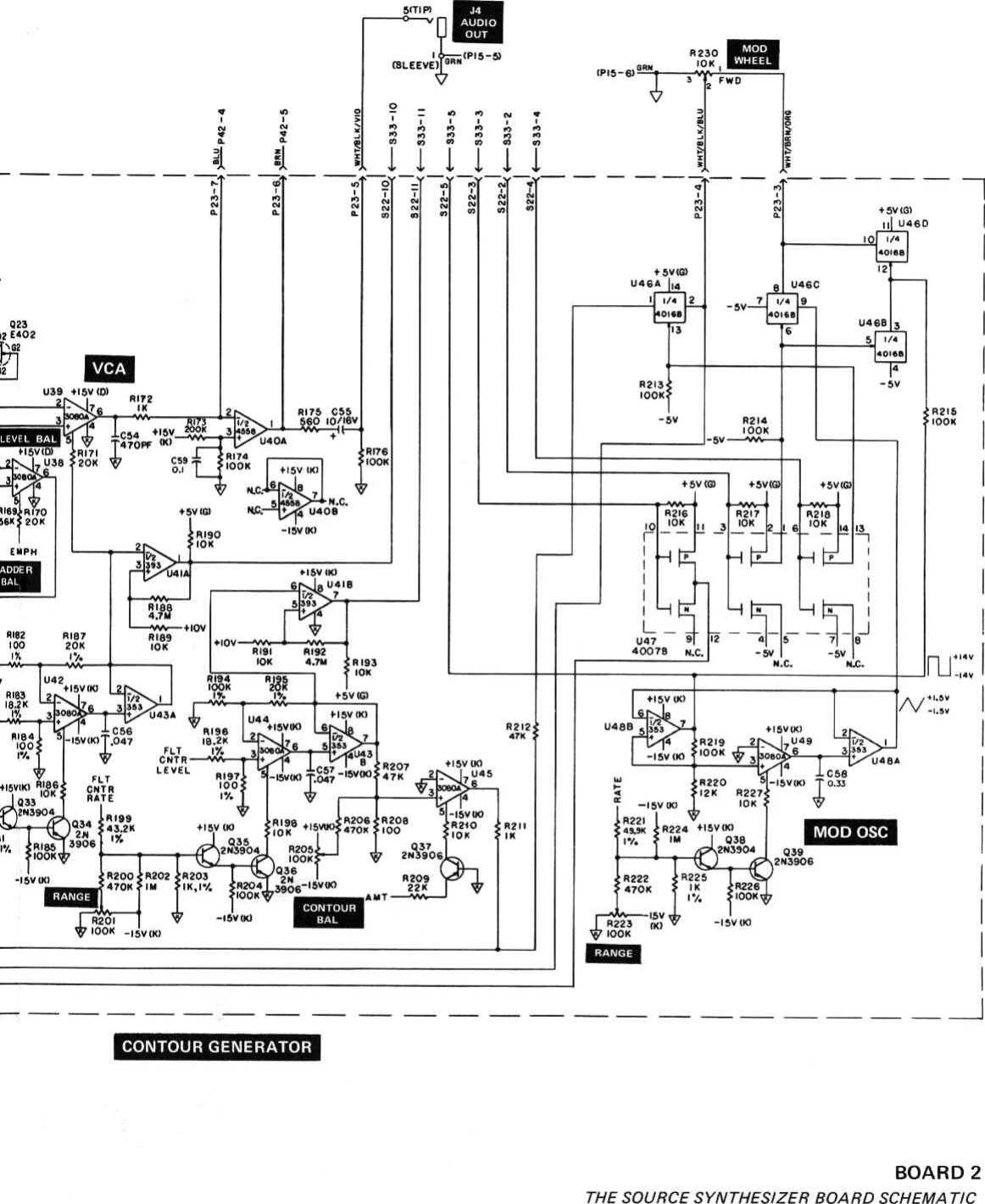

Page 6 of 11 - Moog Source Schematics

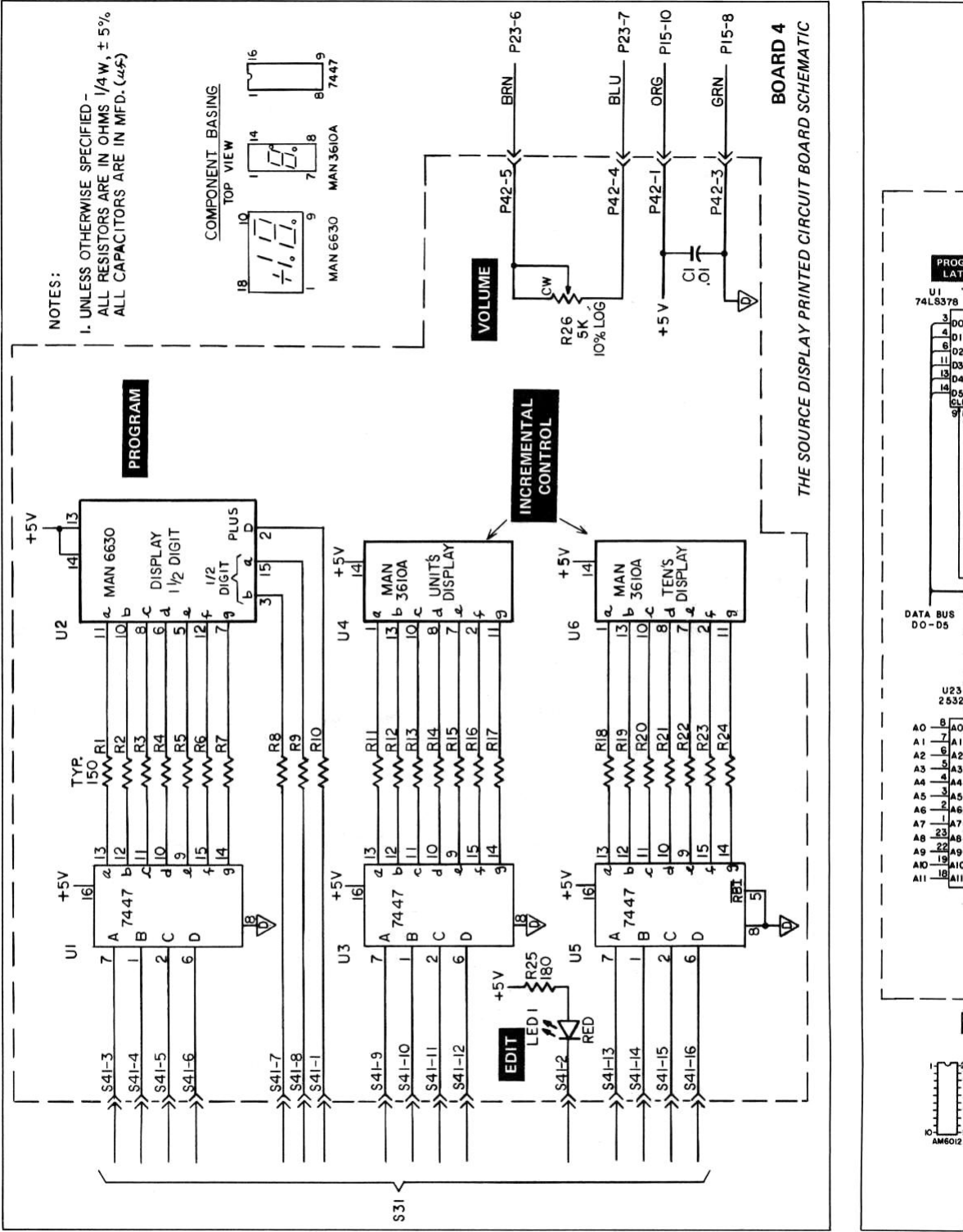

Page 7 of 11 - Moog Source Schematics
Page 8 of 11 - Moog Source Schematics

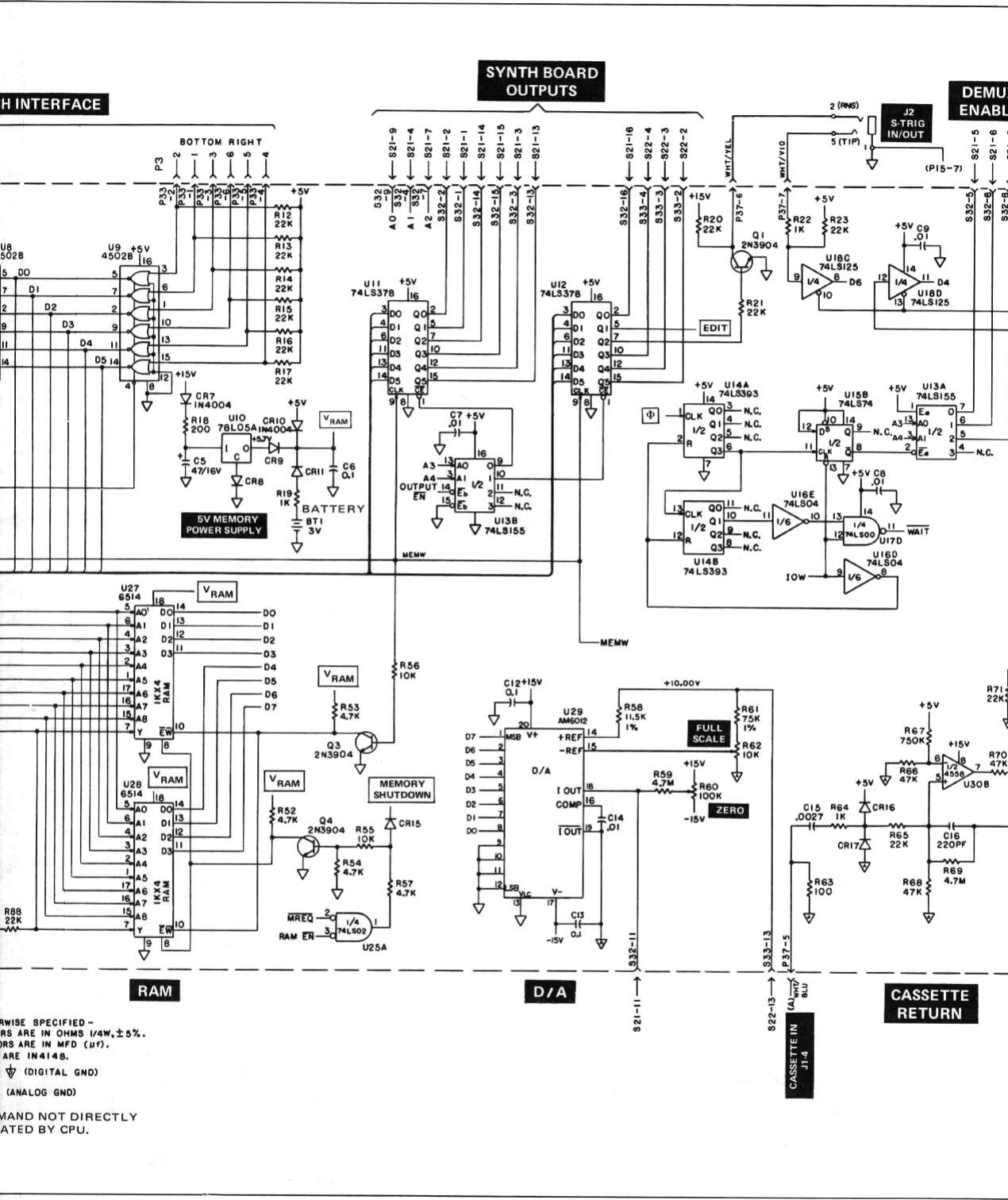

Page 9 of 11 - Moog Source Schematics

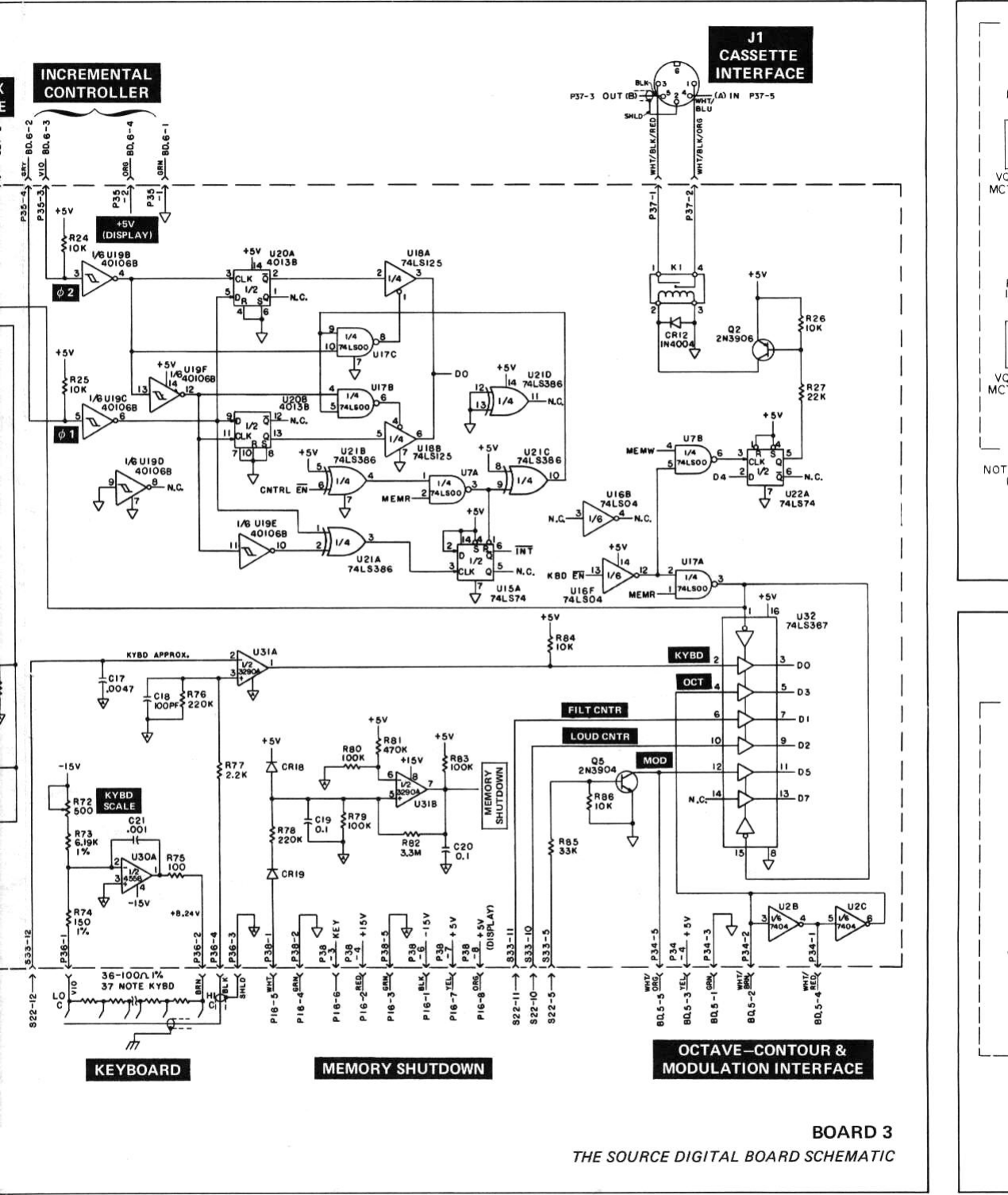

Page 10 of 11 - Moog Source Schematics

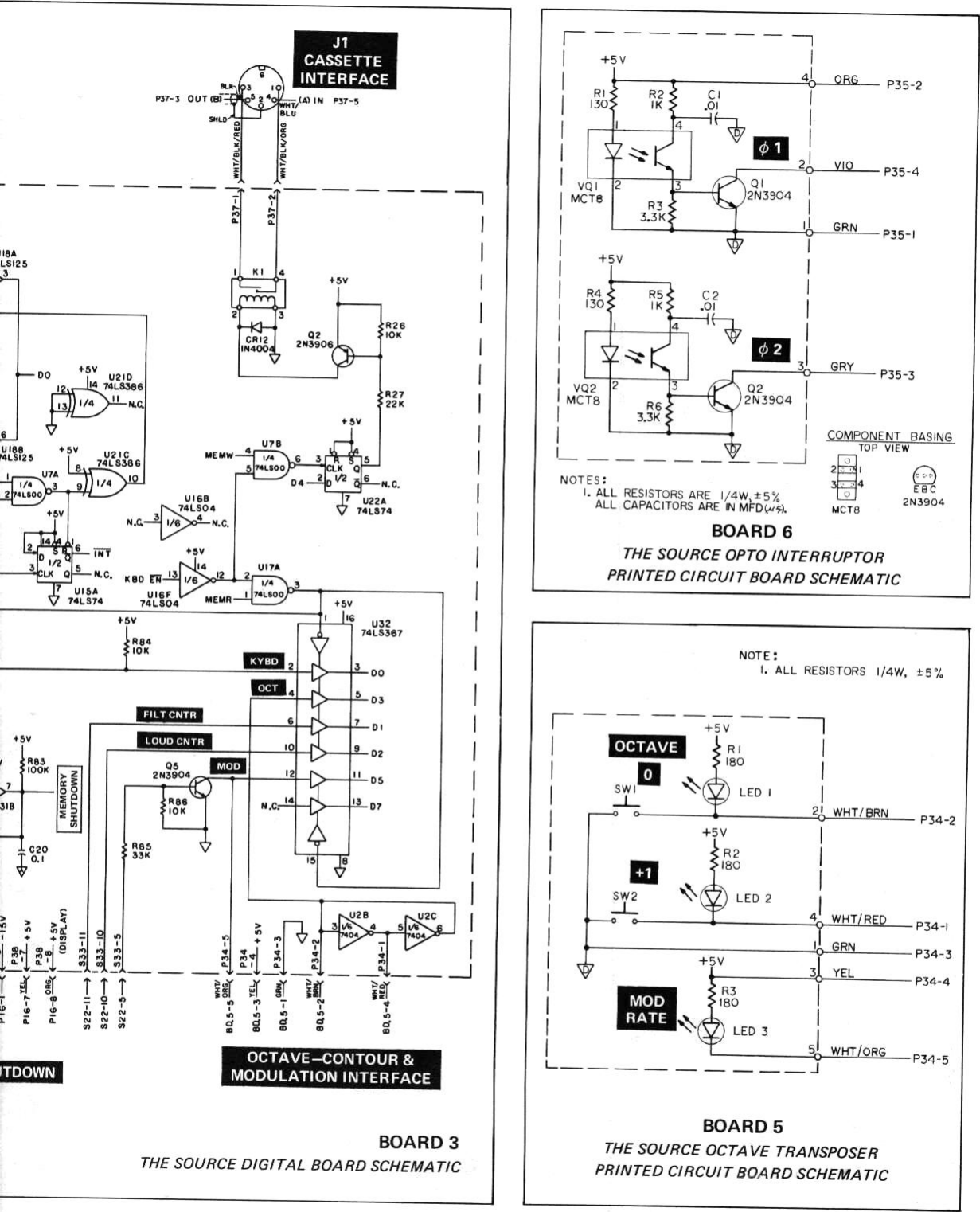

Page 11 of 11 - Moog Source Schematics
