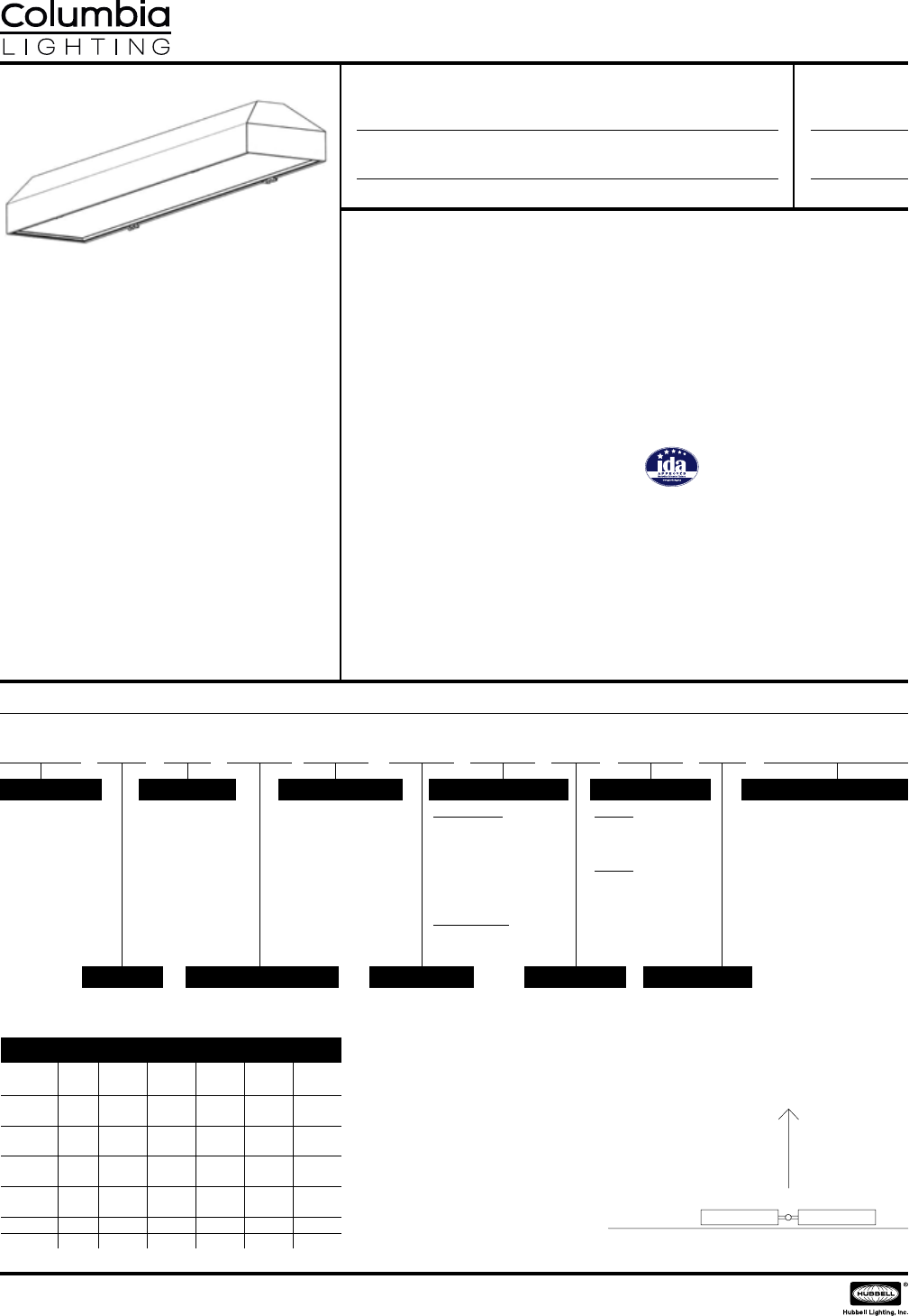

EXAMPLE MBA4454DB5TG4EPUF5841OS
FEATURES
Uses T5HO technology to achieve light levels comparable to •
traditional 400W Metal Halide
One for one replacement with up to 52% energy savings•
Bi-level inboard/outboard switching saves energy and meets •
new energy codes
International Dark-Sky Compliant•
Optional sculpted look for architectural appeal •
Forward throw optics reduce light trespass•
UL 1598 Wet Location certied•
Precision fabricated and formed aluminum housing with •
high quality welded and ground seams
Post production powder coat nish provides excellent •
corrosion resistance and durability
Door frame opens easily to provide access from below and •
secures tightly when closed
Heavy duty aluminum body provides excellent heat •
dissipation and maximum ballast life
Light weight construction simplies xture replacement•
ORDERING INFORMATION
SIZE
22'
44'
LENS
TG Tempered Glass
BALLAST
2-Lamp
EP Electronic T5HO,
Programmed Start
4-Lamp
4EP 4-Lamp Electronic
T5HO, Programmed
Start, Switchable
(54W only)
OPTIONS
F5841 41K 85 CRI T5HO Lamps
Installed
F5850 50K 82 CRI T5HO Lamps
Installed
PBP Photocontrol Base and
Locking Photocell
PBC Photocontrol Base with
Locking Shorting Cap
GLR Fast Blow Fuse
GMF Slow Blow Fuse
HS
House Side Shield
OS Occupancy Sensor
(Increases housing length)
NYC NYC Compliant
NYCU NYC Compliant, Union
Label
NO. OF LAMPS
2Two
4Four
LAMP TYPE
24 2', T5HO: 24 Watt
54 4', T5HO: 54, 51, or 49 Watt
MOUNTING
Blank None
A8 Bolt on Arm
AA2 Adjustable 2³⁄₈"
Slipfitter Arm
– –
FINISH
DB Dark Bronze
BL Black
GR Gray
TG
MODEL
MBA Box Sided
Area Light
MBW Box Sided
Wall Mount
MCA Chamfered
Area Light
MCW Chamfered
Wall Mount
–
DISTRIBUTION
MBA and MCA
5Standard Optics (Type V)
2R Forward Throw Optics
(Right Hand, Type II)*
2L Forward Throw Optics
(Left hand, Type II)*
MBW and MCW
2Forward Throw Optics
(Type II)
–
VOLTAGE
U120V-277V
HU 347V-480V
(4' fixtures only)
HEAT DISSIPATION
Heavy aluminum body and unique ballast channel
design provide excellent heat dissipation to
maximize ballast life.
CONSTRUCTION
Luminaire housing is precision CNC fabricated and
formed aluminum with high quality welded and
ground seams. Door frame is extruded aluminum
with secure latching.
FINISH
Housing is post production powder coat nish for
corrosion resistance and durability.
ELECTRICAL
Standard class “P”, thermally protected, auto-
resetting HPF ballast, sound rated A. All ballast
leads extend a minimum of 6" through access
location. NEC/CEC-compliant ballast disconnect is
standard.
MOUNTING
Housing attaches to mounting hardware via two
½" diameter bolts/rods. Mounting options include
rigid arm assembly, knuckled arm assembly for 2⁄"
OD tenon, tenon pole top adapters, and wall mount
bracket for wall mount conguration. All mounting
should include gasket between the housing and
accessory.
CERTIFICATION
All luminaires are built to UL 1598 standards and
bear appropriate UL labels. Wet location labeling is
standard. International Dark-Sky Compliant.
–
Beam Direction
Street Side
House Side
2R 2L
*
EPA VALUES
Model Single Twin @
90°
Twin @
180°
Triple @
90°
Triple @
180°
Quad @
90°
MBA2
MBA2 w/OS
1.6
1.7
3.2
3 5
3.2
3 5
4.7
5.2
4.7
5.2
6 3
7.0
MCA2
MCA2 w/OS
1 5
1.6
2.9
3.2
2.9
3.2
4.4
4.8
4.4
4.8
5.8
6.4
MBA4
MBA4 w/OS
2.7
2.9
5.4
5.7
5.4
5.7
8.1
8.6
8.1
8.6
10.8
11.4
MCA4
MCA4 w/OS
2 5
2.6
5.0
5 3
5.0
5 3
7 5
7.9
7 5
7.9
10.0
10.6
AA2 0 5 1.0 1.0 1 5 1 5 2.0
A8 0 3 0.6 0.6 0.9 0.9 1.2
© 2011 Columbia Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Columbia Lighting reserves the right to change
specications without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Tech Support 864.678.1668 / Website www.columbialighting.com
MORPH
2' or 4' Morph / 2 or 4-Lamp T5HO
OUTDOOR / MORPHPage 1/3 Rev. 01/24/11
Catalog No.
Project Name Type
Date
PROJECT INFORMATION

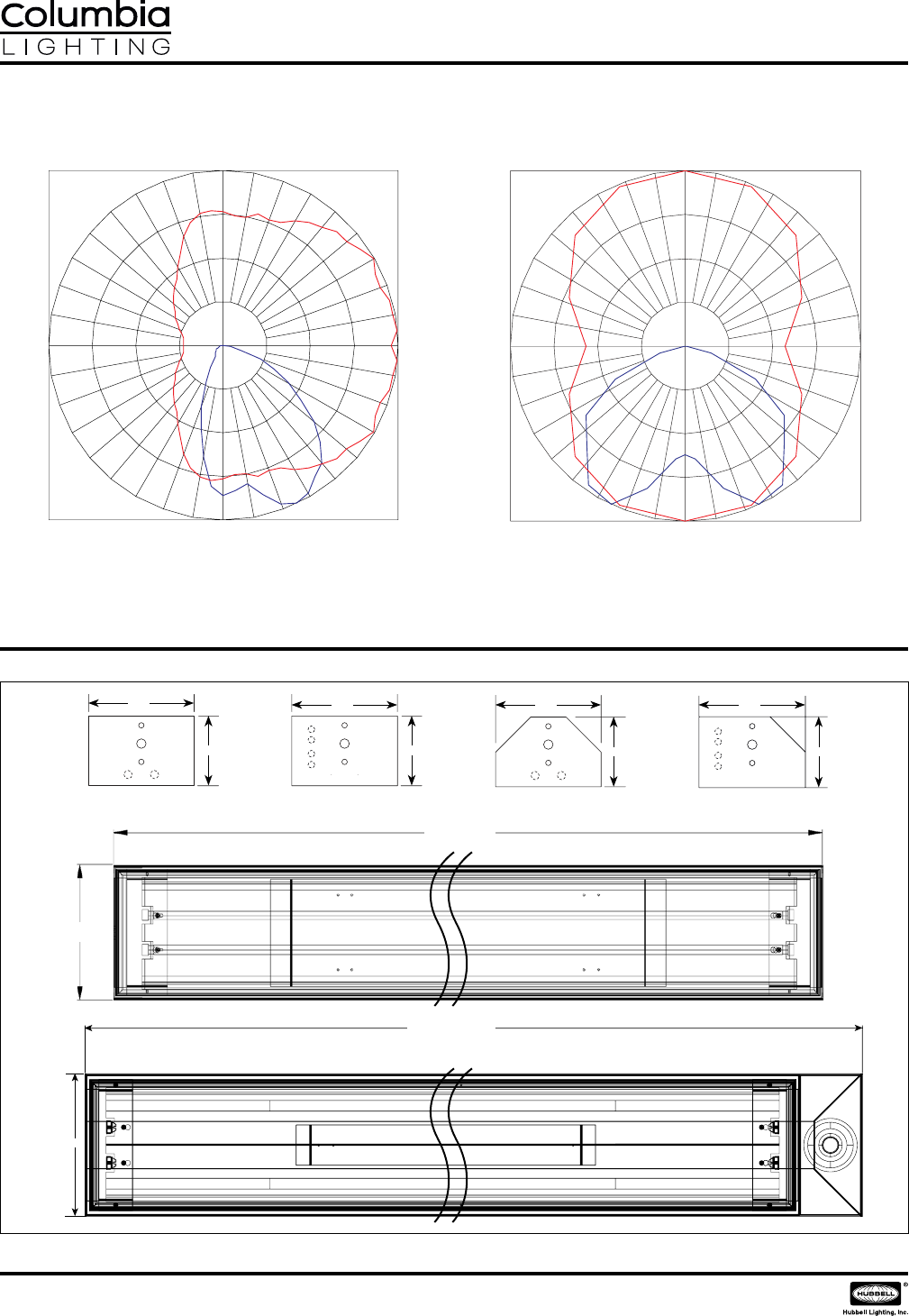

PHOTOMETRIC DATA
DIMENSIONAL DATA
NOTE: All dimensions are in inches; dimensions and specications are subject to change without notice. Please consult factory or check sample for verication.
6½"
6½" 6½" 6½"
MC Standard OpticsMB Standard Optics MB Forward Throw Optics
(Right hand shown) MC Forward Throw Optics
(Right hand shown)
9¾"
9¾" 9¾" 9¾"
26.5" OR 50"
9.5"
29.5" OR 53.5"
7099
5324
3549
1775
4361
3271
2181
1090
Type II Optics Type V Optics
OS OPTION FIXTURE
9.5"
© 2011 Columbia Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Columbia Lighting reserves the right to change
specications without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Tech Support 864.678.1668 / Website www.columbialighting.com
MORPH
2' or 4' Morph / 2 or 4-Lamp T5HO
OUTDOOR / MORPHPage 2/3 Rev. 01/24 /11
Bolt Circle
Straight Square
and Tapered Poles
Anchor Bolt
Location in
Relation
to Shaft
Rotation
Handhole
Engineering of
footing by others
Bolt Projection
Foundation Level
Grout after pole is set
and plumbed
Hex Nut
Plain Washer
Grout Finish Grade
Base Plate
Plain Washer
Hex Nut
Anchor Rod
Bolt Square

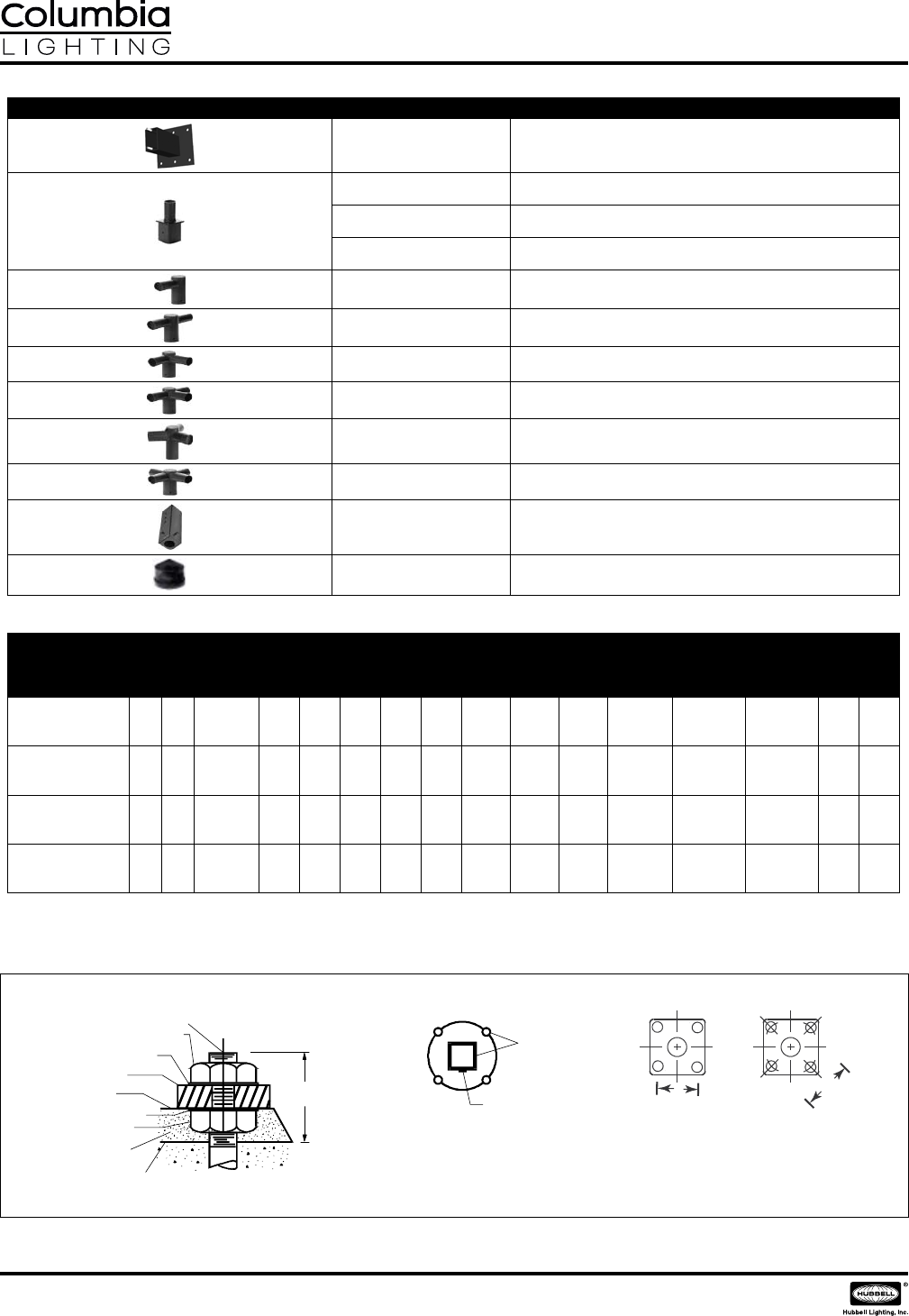

ITEM CATALOG NO. DESCRIPTION
WMB-XX1Wall mount bracket
TA-4-XX1Tenon Mount Adaptor - 4" Square Pole to 2⁄" OD Tenon
TA-5-XX1Tenon Mount Adaptor - 5" Square Pole to 2⁄" OD Tenon
TA-6-XX1Tenon Mount Adaptor - 6" Square Pole to 2⁄" OD Tenon
PTA190-XX1Pole Top Adaptor - Single 2⁄" OD Tenon
PTA2180-XX1Pole Top Adaptor - Double 2⁄" OD Tenon, 180°
PTA290-XX1Pole Top Adaptor - Double 2⁄" OD Tenon, 90°
PTA390-XX1Pole Top Adaptor - Triple 2⁄" OD Tenon, 90°
PTA3120-XX1Pole Top Adaptor - Triple 2⁄" OD Tenon, 120°
PTA490-XX1Pole Top Adaptor - Quad 2⁄" OD Tenon, 90°
PTASSA8-XX18" Pole Top Adaptor - 2⁄" OD Tenon to Bolt On Arm, EPA .4
TP Twist Lock Photocell
Poles
Pole
Height Nominal
Shaft
Dim.
Wind Load Rating
Wall
Thick.
Bolt
Circle
(Sugg.)
Bolt
Circle Bolt (Sq.)
Base Plate
(Sq.)
Anchor
Bolt Size
Bolt
Proj.
Pole
Wt.
(lbs)ft. m
70
MPH
80
MPH
90
MPH
100
MPH
120
MPH
SSS-16-40-1-RDC: 16'
high straight steel
pole 4" square
16 4.9 4 19.5 14 10.5 7.5 4 0.119 11" 8-11" 5.6-7.8" 10¼ × ¾" ¾ × 30 × 3" 4" 128
SSS-20-40-1-RDC: 20'
high straight steel
pole 4" square
20 6.1 4 13.5 9.5 6.5 4.5 1.8 0.119 11" 8-11" 5.6-7.8" 10¼ × ¾" ¾ × 30 × 3" 4" 160
SSS-25-40-1-RDC: 25'
high straight steel
pole 4" square
25 7.6 4 8.5 5 3 1.5 NR 0.119 11" 8-11" 5.6-7.8" 10¼ × ¾" ¾ × 30 × 3" 4" 238
SSS-30-50-7-RDC: 30'
high straight steel
pole 5" square
30 9.1 5 18 12 8 4.5 NR 0.179 11" 10-
13.5" 7.1-9.5" 12 × 1" 1 × 36 × 4" 4" 398
All poles are painted Dark Bronze and are drilled on all four sides with our #2 and #6 pattern.
Poles include: Poles Shaft, Anchor Bolts, Pole Cap, Anchor Bolt Template, Anchor Base Covers
ANCHOR BOLT DETAIL BASE PROGRAM
1 Colors for accessories are DB-Dark Bronze, BL-Black, or GR-Gray.
© 2011 Columbia Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Columbia Lighting reserves the right to change
specications without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Tech Support 864.678.1668 / Website www.columbialighting.com
MORPH
OUTDOOR / MORPHPage 3/3 Rev. 01/24/11
Accessories
