No matter what the requirement, NEC has the right videowall solution to fit

virtually any application. Adaptable, scalable and modular, NEC offers unlimited

creativity in capturing attention, engaging and delivering a compelling videowall

experience. Trusted NEC quality is the professional choice for display technology

and can provide the complete videowall solution from preconfiguration and

mounting solutions to content management and after sales support.

With hardware calibratable displays, super low reflection panels and direct

backlight technology, the new MultiSync®XUN Series delivers outstanding

uniformity. Innovative sensor control features offer significant time and cost

savings against installation, maintenance and servicing.

The MultiSync® XUN Series is ideal for Digital Signage, Rental and Staging,

QSR, Transportation, Leisure and Museums, Energy and Utility and Healthcare

applications.

Homogenous picture through virtually bezel-less videowalls with small

as 3.5 mm bezel *

Perfect image quality through high brightness panels (700 cd/m2) *

Reduced power consumption and operational cost with the optional

Human Sensor

Customized and flexible screen setting for high impact advertising,

control room displays, menu boards, FIDS and all large or unusual

screen sizes

Reliable and secure for mission critical application thanks to 24/7

performance *

Complete videowall solution thanks to a variety of mounts, sources,

slot-in PCs, software and other services

* Depending on model

XUN SERIES

ULTRA NARROW PROFESSIONAL GRADE LARGE FORMAT DISPLAYS

XUN SERIES ULTRA NARROW PROFESSIONAL GRADE LARGE FORMAT

Creating big pictures for big moments

CREATE VIRTUALLY BEZEL-LESS VIDEOWALLS

Videowalls are the right choice for those who are looking for a flexible

configuration, (portrait or landscape) with content that can be updated within

seconds, displaying moving images and compelling messages.

Videowalls are the perfect medium to capture attention, impress an audience,

deliver highly detailed data or enhance the shopping experience.

Build Videowalls of up to 83 square metres (up to 100 units via daisy chaining

or potential for even more) with virtually invisible bezels as small as 3.5 mm

content to content. The interruption to image caused by the bezel is minimal

and enhances the homogeneity of the total picture. The improved corner shape

of the second generation model enhances stability, making it robust enough to

withstand heavy duty handling.

Experience uniform images for greater

viewing impact

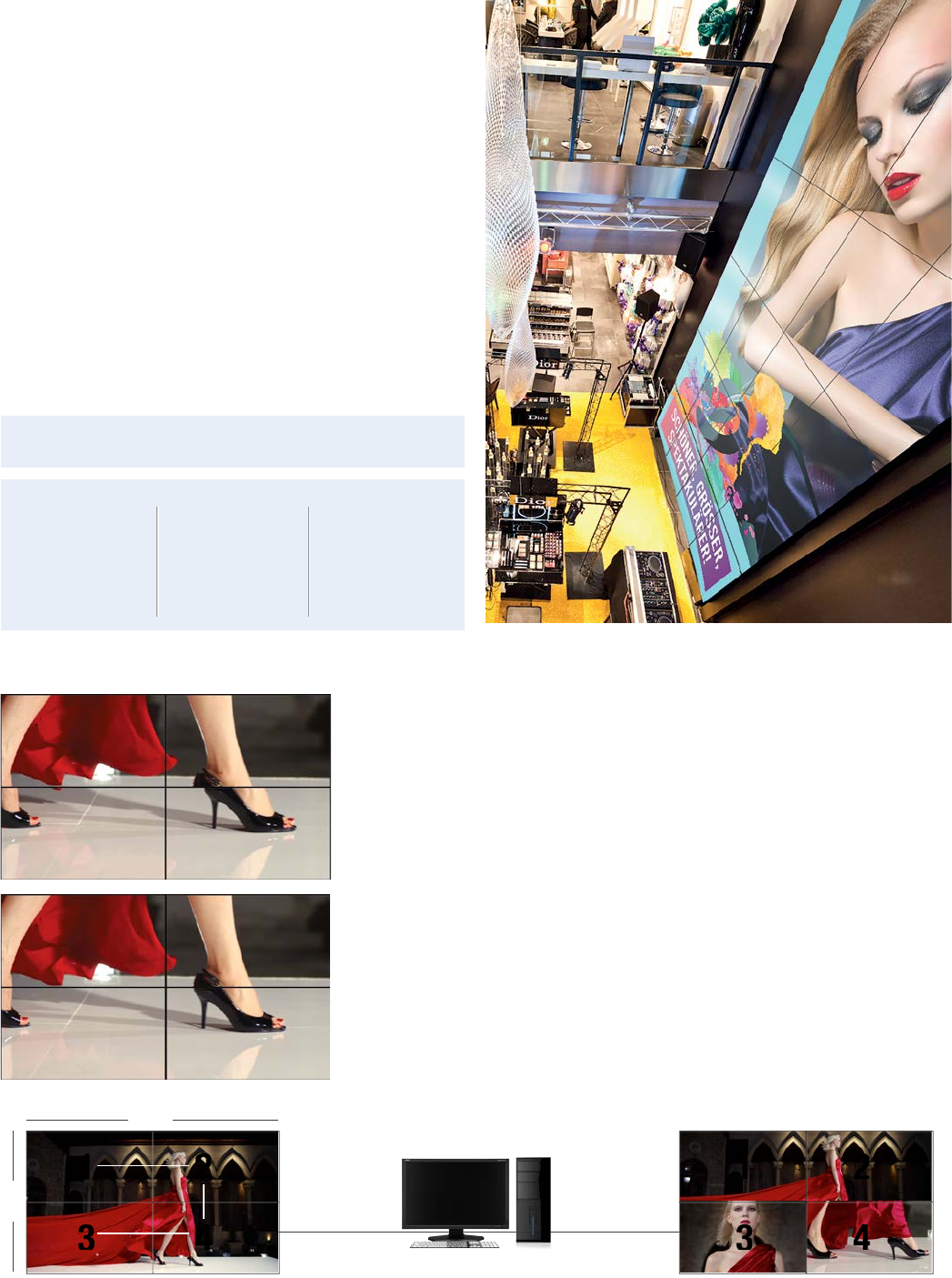

FRAME COMP

NEC Frame Comp technology synchronises content and creates a seamless

display wall appearance, crucial for fast moving content.

NATIVE UHD-RESOLUTION

Multistream DP 1.2

Multiple displays can be daisy chained and still be controlled individually. This

makes a 2x2 videowall with native UHD (3840 x 2160) resolution possible

enabling the user to create a single UHD videowall image or supply different

content to up to 4 different displays with a single PC source for an outstanding

visual experience.

WITHOUT

FRAME COMP

XUN

Super bright panel

for mission-critical

applications

XUNV

Fits the majority

of standard

applications

XUNS

Super narrow bezel

for elegant and

impressive signage

WITH

FRAME COMP

OUTPUT

3840 x 2160

OUTPUT

1920 x 1080 x 4

1

3

2

4

3840

2160

1

3

2

4

CHOOSE FROM DIFFERENT DISPLAY MODEL

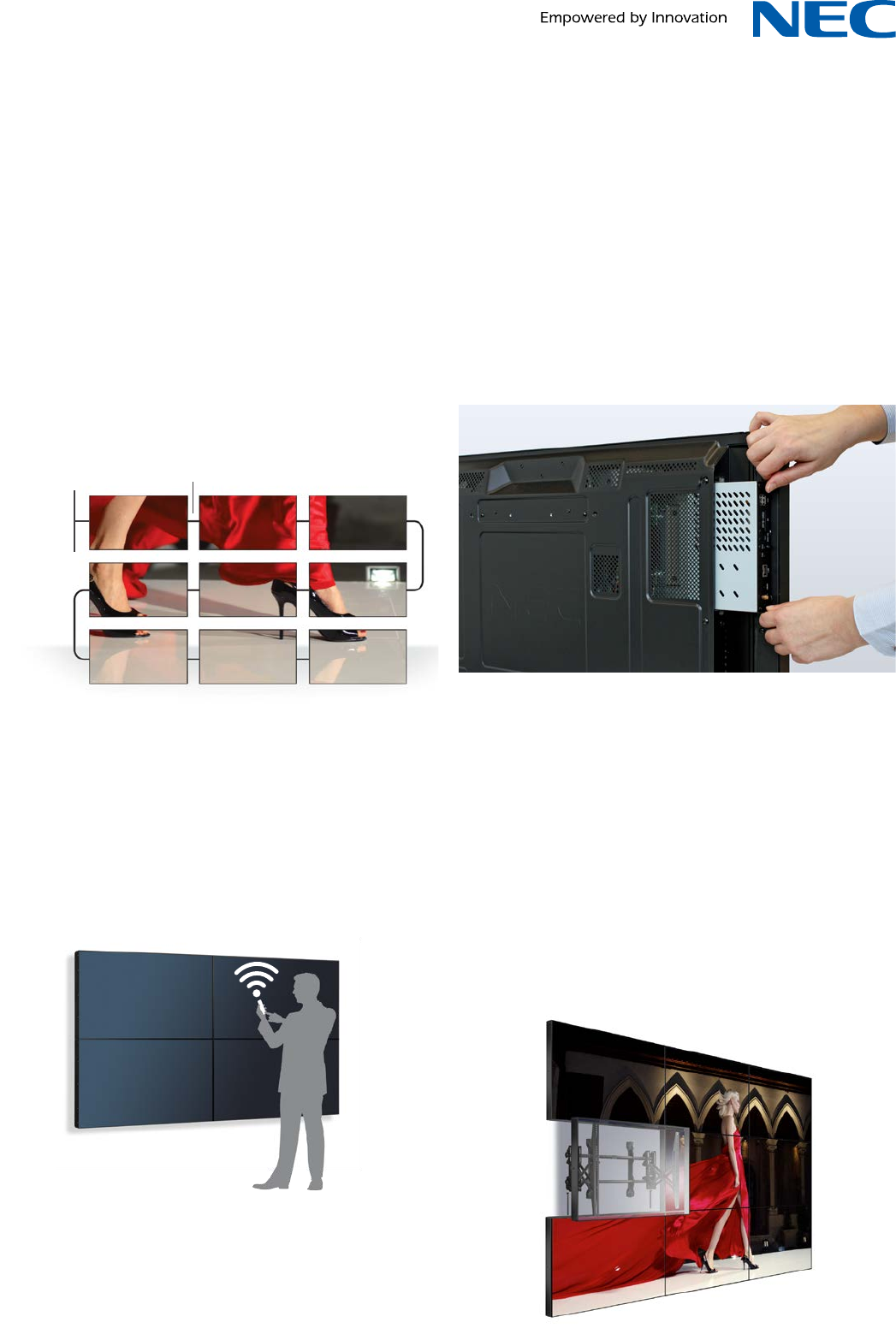

Easy Setup

AUTO TILE MATRIX

The new auto Tile Matrix function enables easy automatic set up for videowalls

making significant time and cost savings during installation. Set up one display

and simply copy settings to all displays in the videowall.

LAN DAISY CHAIN

This feature helps reduce cabling and therefore reduces installation time and

cost as a result. The LAN daisy chain function combines several signal types such

as LAN or RS232, IR and ambient light sensor into one single LAN cable.

Safe Investment

With an ever increasing range of slot in boards and a proven track record of

performance, an NEC XUN Series display allows the selection of numerous

powerful upgrade options to future proof your investment.

The OPS technology, as a global standard, enables the display to be set up with

the latest platforms. NEC’s OPS option slot permit the seamless integration of

single board computers and other option slot products without the need to

stow external equipment, meaning no excess cabling.

The new modular interface extension slot offers legacy support of old analogue

video signals as well as additional digital input for signal distribution.

Perfect Videowall Solution

NEC also offers a variety of options to ensure smooth installation and software for

content management, calibration as well as control and monitoring.

Several mounting choices, both mobile and installed, ensure all equipment

requirements are met. Slot-in options ensure a future-proof set up whilst NaViSet

Administrator2 monitoring and control software provides remote support to

secure consistent and reliable performance.

Hiperwall allows connection of an infinite number of sources with powerful

flexibility to manage the size and position of videowall content. NEC’s VUKUNET

internet-based AD serving platform turns the videowall into a Digital out of Home

advertising interface.

INTELLIGENT WIRELESS DATA (BASED ON NFC)

Using the Android app the user can pre-configure display settings, transferring

data wirelessly to all displays in the deployment without the display needing

power. This reduces installation costs as displays can be easily configured before

they are mounted.

The Android app can also be used to retrieve service related information to avoid

the inconvenience of manually collecting serial numbers, model references etc.

making estate management and failure reporting simple and trouble-free.

INPUT CHOICES

LAN

RS232

IR

Sensors

Output Loop via

LAN/RJ45

Document Name: ULTRA NARROW PROFESSIONAL GRADE LARGE FORMAT DISPLAYS

Document Revision: Version 1

Document Date: 08/14

This document is © Copyright 2014 NEC Display Solutions Europe GmbH. All rights are reserved in favour of their respective owners. The document, or parts

thereof, should not be copied, adapted, redistributed, or otherwise used without the prior written permission of NEC Display Solutions Europe GmbH. This

document is provided “as is” without warranty of any kind whatsoever, either express or implied. Errors and omissions are excepted. NEC Display Solutions

Europe GmbH may make changes, revisions or improvements in, or discontinue the supply of any product described or referenced in this document at any time

without notice. All rights re Mobishow Wifi-Doc and MirrorOp are owned by AWIND.

NEC Display Solutions Europe GmbH – HQ

Landshuter Allee 12-14 D-80637 München

Phone: +49 (0) 89 99 699-0

Fax: +49 (0) 89 99 699-500

infomail@nec-displays.com

www.nec-display-solutions.com

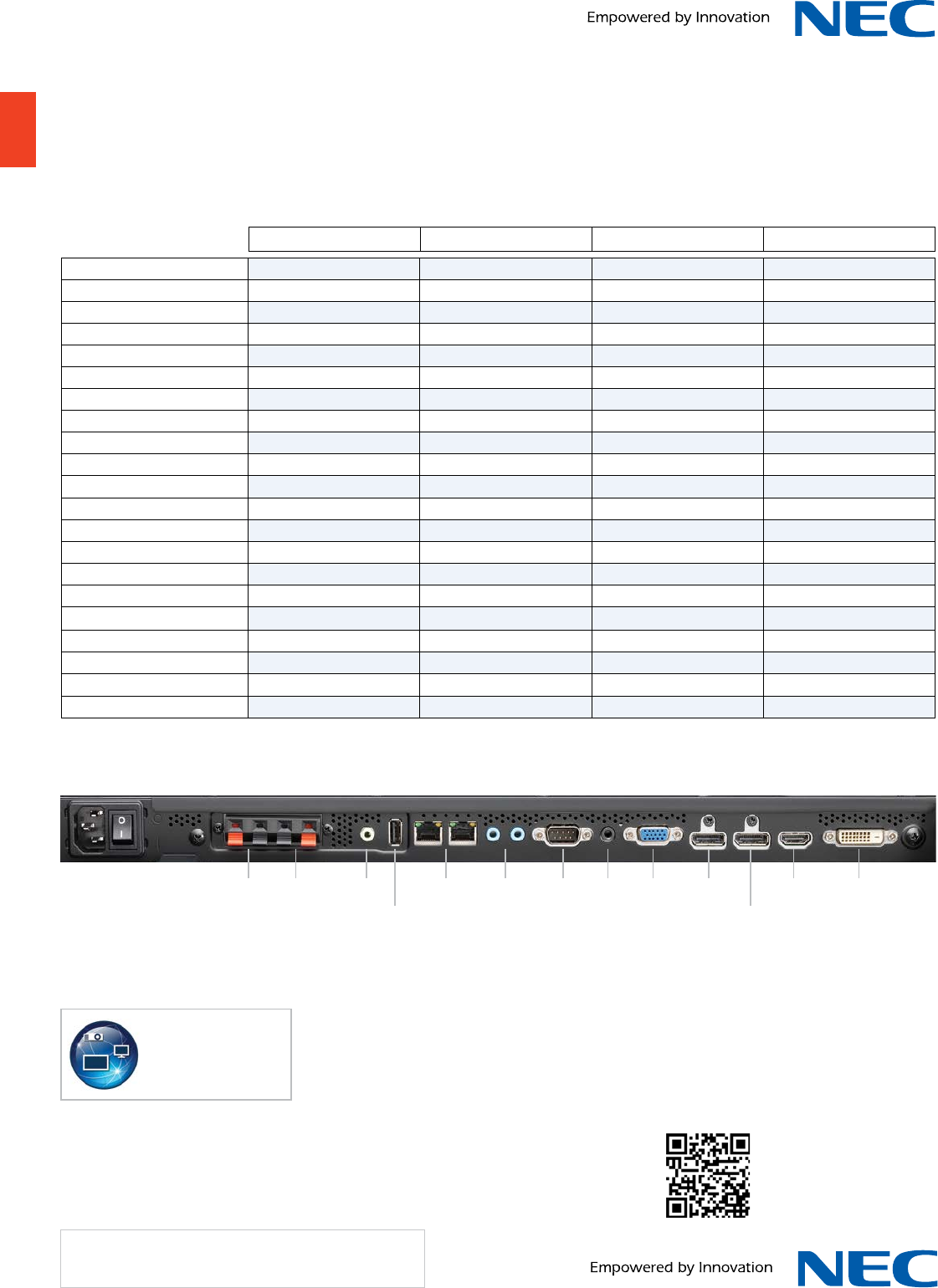

Order Code 60003791 60003790 60003789 60003673

Panel Technology / Backlight S-PVA / Direct LED S-PVA / Direct LED S-PVA / Direct LED S-PVA / Direct LED

Screen Size [inch / cm] 46 / 117 46 / 117 55 / 139 55 / 139

Aspect Ratio 16:9 16:9 16:9 16:9

Pixel Pitch [mm] 0.530 0.530 0.63 0.63

Brightness (Max.) [cd/m2] 500 700 700 700

Contrast (typ.) 3500:1 3500:1 3500:1 3500:1

Viewing Angle Hor / Vert [°] 178 / 178 178 / 178 178 / 178 178 / 178

Response Time (typ. G to G) [ms] 8 8 8 8

Colours [Mio.] 16.77 16.77 16.77 16.77

Native Resolution at 60 Hz 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080

Special Connectors DVI-D, HDMI, DisplayPort In/Out, VGA DVI-D, HDMI, DisplayPort In/Out, VGA DVI-D, HDMI, DisplayPort In/Out, VGA DVI-D, HDMI, DisplayPort In/Out, VGA

Slot-In Option OPS, Interface Extension Slot OPS, Interface Extension Slot OPS, Interface Extension Slot OPS, Interface Extension Slot

Power Use Normal [W] 90 120 150 150

Power Use Savings Mode [W] <1 <1 <1 <1

Power Management VESA DPMS ====

Dimensions (W x H x D) [mm] 1,024 x 578.6 x 117.3 1,024 x 578.6 x 99.7 1,215.3 x 686.1 x 99.6 1,213.5 x 684.3 x 100.4

Weight [kg] 22.8 23.0 29.2 27.9

Bezel Width T - L / B - R [mm] 3.8 / 1.9* 3.7 / 1.8* 3.7 / 1.8* 2.3 / 1.2*

Integrated Speakers - - - -

Energy Star ====

X464UNV-2 X464UN-2 X554UN-2 X554UNS

NaViSet 2

FREE Download of

Multi-Display Management

Software

SPEAKER

R

SPEAKER

L

AUDIO

OUT

LAN AUDIO IN RS-232C REMOTE

IN

VGA DISPLAYPORT

IN

HDMI DVI-D

DISPLAYPORT

OUT

SERVICE

PORT

* Dimensions may vary due to manufacturing tolerances
