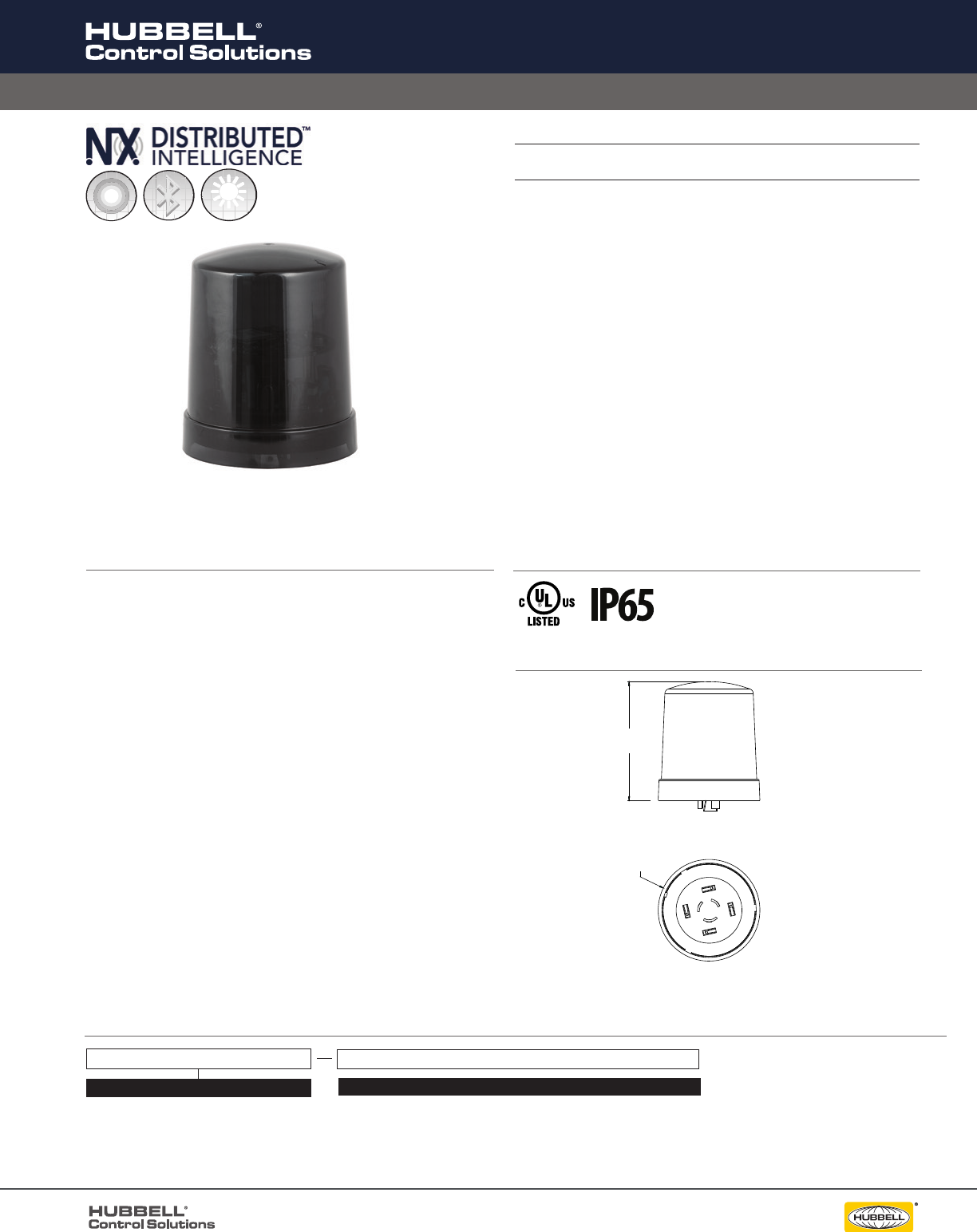

Page 1
Project Name
Catalog No. Date
NXFM SERIES
On-Fixture Module
• Designed for installation on the exterior of the luminaire housing
• NEMA standard male 7-pin twist lock connection
• Integral singe pole relay for On/O control
• Continuous dimming 0 - 10V control
• Wireless programming via NX Area Controller or NX Room Setup App
for iOS or Android
• Power measurement
• Auxiliary input for external control
• UL and cUL listed
• Five year warranty
• Built-in daylight sensor
The Hubbell Control Solutions NXFM series On-Fixture Module
enables a complete control solution for a single luminaire. The
On-Fixture Module incorporates a single pole relay for On/
O control as well as industry standard 0 - 10 volt continuous
dimming control. An auxiliary input and auxiliary 12 volt power
output are available through the 7-pin interface. The input can
be programmed to act as any of the NX input types including
occupancy and various switch types. On-board power metering
circuitry accurately measures current and voltage. The water tight
twist lock package contains the control logic, NX HubbNETTM
radio, Bluetooth® radio antennas, and 0 - 10 volt dimming driver.
The twist lock form factor allows for easy installation and removal
of the module on luminairs equipped with a compatible 7-pin
twist lock receptacle. Setup and programming is performed
using any Android™ or iOS® smart device with an available App
that is free for download.
Dimensional Data
Product Features Compliance and Certication
0-10V
DIMMING Bluetooth®
3.3”
3.9”
NEMA C136.41 Receptacle
DAYLIGHT
HARVESTING
Ordering Information
MODEL
1R1D-UNV 1 Relay 1 Dimmer, Universal Voltage (120V-480V)
NXOFM
SERIES
NXOFM NX On-Fixture module
1R1D-UNV
3504A 090617
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Page 2
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Page 2
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
Copyright © 2017 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
aliation with or endorsement by such respective owners.
Page 2
NXFM SERIES On-Fixture Module
General Specications

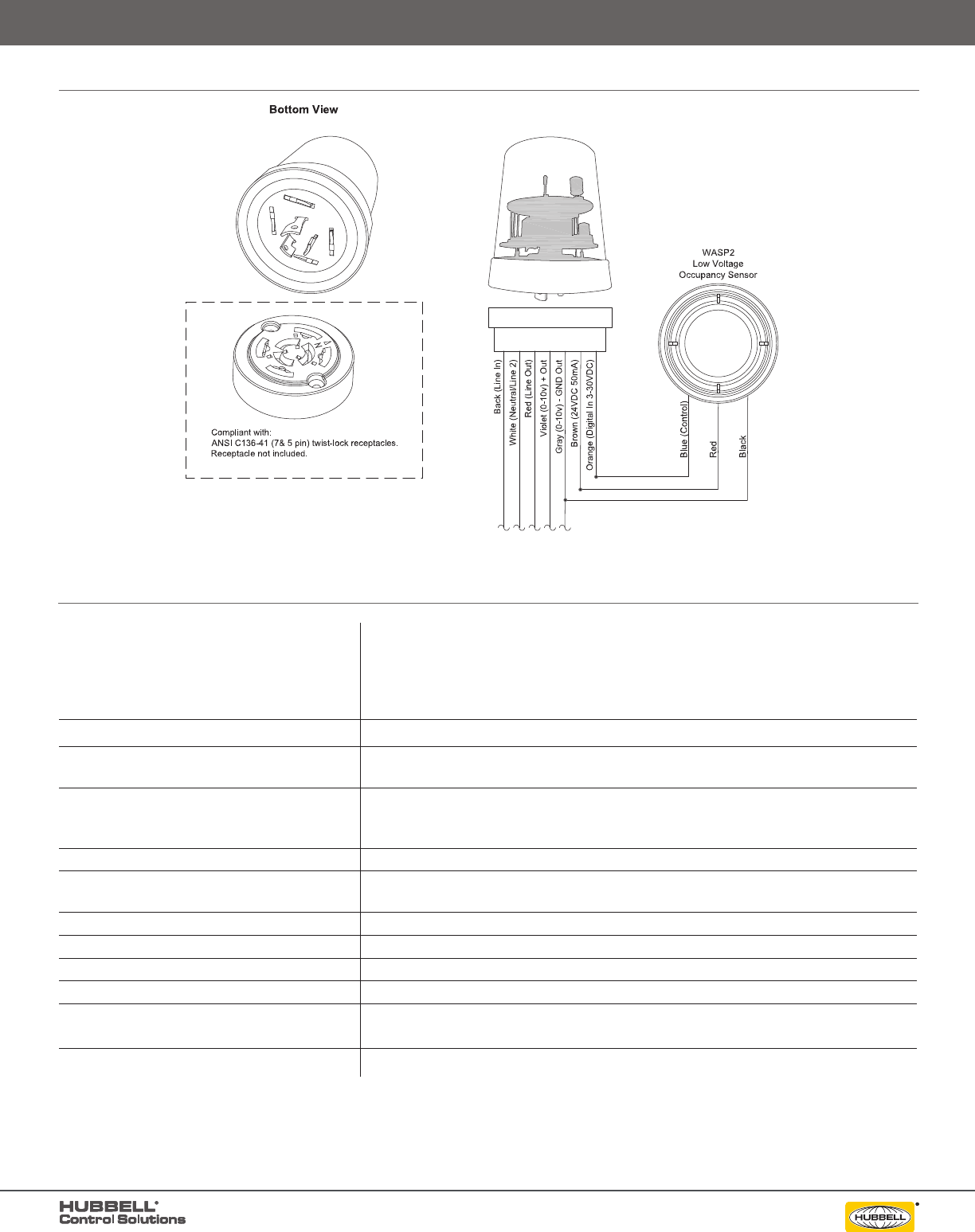

Wiring Information
Electrical Ratings
Input: 120-480VAC, 16A Max, 50-60Hz
Output: 5A@120-347V, 3A@480V
Surge Withstand: 2000V
Peak Inrush: 160A for 2 ms Max
Dimming 0-10V, 60mA, current sink
Daylight Sensor On level: 1FC to 5FC (Default: 5FC)
O level: 4FC to 15FC (Default: 8FC)
Operating Environment
Operating Temperature: -40°F to 185°F [-40°C to 85°C]
Relative humidity (non-condensing): 0 to 95%
IP65 Rated
Construction Housing: GSM UL Rated 94 HB Plastic
Mounting Standard NEMA C136-41 (2013) with 5 or 7 prongs twist lock connector also compatible with C136-10
sockets
Dimensions 3.125” D x 3.75” (79.4mm D x 95.3 H)
Weight 6 oz (170 g)
Color Smoked plastic housing
Patents Patent(s) pending
Certications Conforms with UL916 and Certied to CAN/CSA C22.2 No. 205-M1983
IC Approved
Warranty 5-year limited
