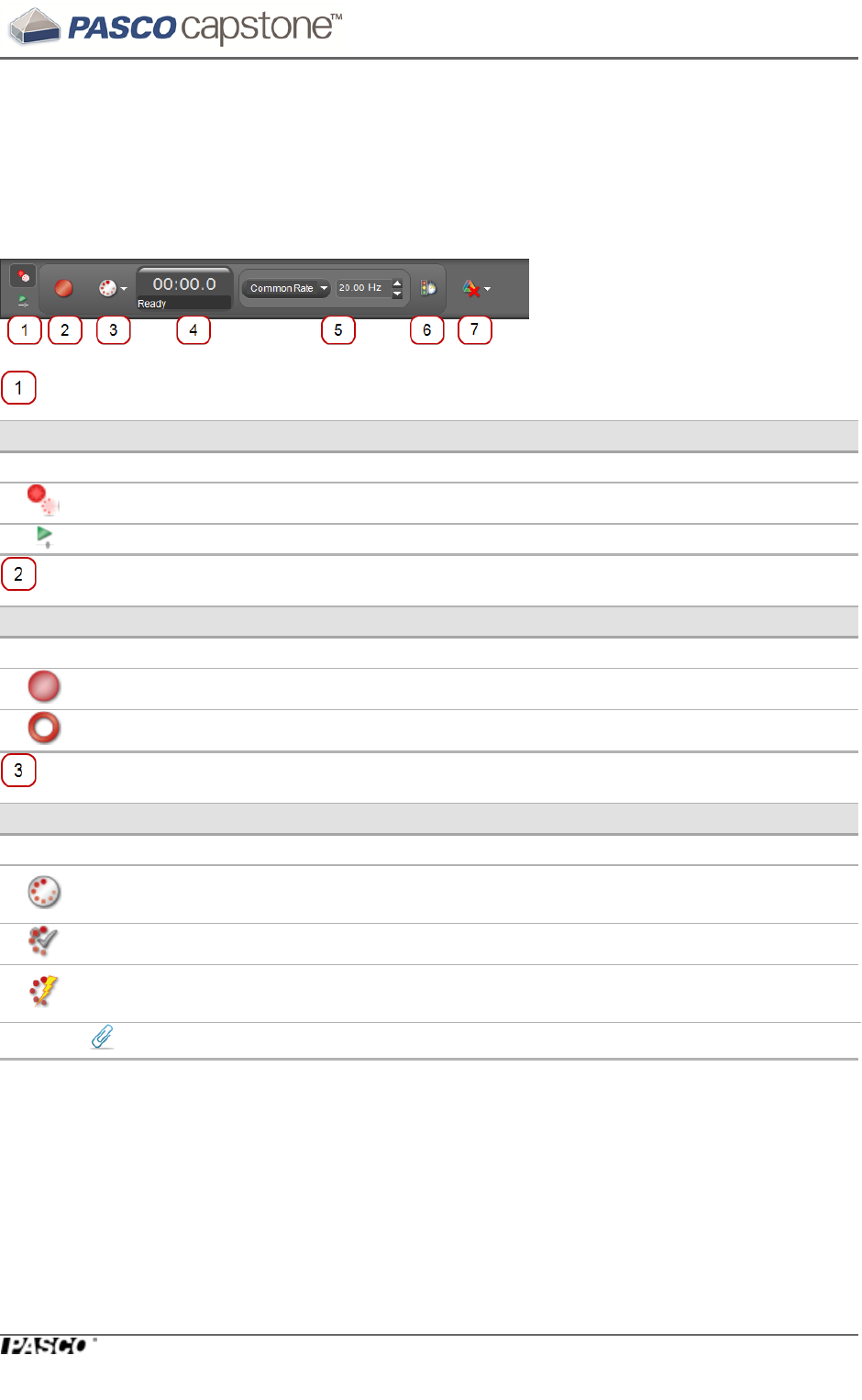

Tour theControls Palette
TheControls Palette is used to start/stop data collection, set the data monitoring mode,
set the sampling rate,delete data runs, define Start/Stop conditions, and playback syn-
chronized video.
Record/Play Selection
Icon Description
Toggle between:
Recording Mode Use to switch to recordingControls Palette
Playback Mode Use to switch to playbackControls Palette
Record/Monitor
Icon Description
Capstone toggles between:
Record Begin recording all measurements from each connected sensor
Monitor Start monitoring measurements from connected sensors
Record Mode Selection
Icon Description
Toggle between:
Continuous
Mode Set to record data at the current sample rate settings
Keep Mode Set to keep data points when commanded
Fast Monitor
Mode
Set to acquire data without recording; required for high speed
sampling in Scope and FFT displays
See"How do I record data in PASCO Capstone? ": 78
