Servicing Tait Orca handportables

The Tait Orca series of handportables is a range

of high performance, microprocessor-control-

led radios manufactured using an RF-shielded

PCB and high-density SMD componentry.

The manufacturing process does not allow

direct servicing access to components on the

main PCB, although replacement PCBs are

available on an exchange basis. Service repairs

of Tait Orca handportables are therefore limit-

ed to key mechanical and ancillary devices

associated with the main PCB. These include:

■the front panel assembly;

■the lens (Orca Excel and Orca Eclipse);

■the PTT keypad;

■the speaker;

■the keypad (Orca Excel and Orca Eclipse);

■the volume plate and keypad (Orca

Eclipse);

■the LCD display (Orca Excel and Orca

Eclipse);

■the shield, complete with user interface

PCB assembly and polyester dome (Orca

Excel and Orca Eclipse);

■the main PCB assembly;

■the antenna connector;

■the channel selector switch (Orca Elan and

Orca Excel);

■the volume control switch (Orca Elan and

Orca Excel);

■the microphone;

■the speaker contacts;

■the battery contacts;

■the PTT tact switch;

■the RF out assembly; and

■the auxiliary flexible PCB.

The repair of PCB-related faults is the respon-

sibility of the Tait repair centre, Tait Commu-

nications Ltd, Christchurch, New Zealand.

Detailed schematics and component location

information for the main PCB may be obtained

from the Customer Service Department at Tait

Electronics Ltd. Contact your Tait dealer for

more information about these two services.

WWW technical support

Tait Electronics Ltd provides product support

at the following address:

http://www.taitworld.com/support

At this site, you can send a request for support.

What does this manual contain?

This manual is supplied as part of the Tait Orca

handportable service kit, and provides the

following:

■general information and specifications on

the Tait Orca series of handportables;

■basic circuit descriptions;

■information on finding and servicing of

non-PCB-related faults;

■information on Tait Orca battery packs

and chargers;

■information on interfacing accessories to

Tait Orca handportables; and

■a glossary of key terms.

For servicing information on Tait Orca 5000

series handportables, refer to the Orca 5000

service manual, order number M5000-00-10X.

A - 4 Introduction 09/01 IPN: 449-51000-03

What is included in the calibration

service kit?

The calibration service kit contains:

■calibration test unit (TOPA-SV-004);

■radio calibration cable for connecting the

radio to the calibration test unit (TOPA-

SV-007);

■25 pin RS232 to modular phone jack

programming lead for connecting the

calibration test unit to a PC (TOPA-SV-

012);

■DC service adaptor (TOPA-SV-005);

■SMA to N-type RF test lead for connecting

to the radio’s antenna connector (TOPA-

SV-006);

■T6 driver bit and 8 mm socket (TOPA-SV-

011);

■this manual; and

■Programming Utilities CD, which

contains the Calibration Application,

Conventional and Trunked Programming

Applications, and Download and Configu-

ration Application. It also contains PDF

versions of all associated manuals.

Other items required for calibration but not

included as part of the service kit are:

■RF communications test set (e.g. HP8920,

MI2945/55, CMS52);

■digital current meter capable of measur-

ing current up to 3 A, accurate to two

decimal places.;

■DC power supply, 7.5 V, 3 A for handport-

ables; and

■DC power supply, 13.8 V, 7 A for mobile

radios.

Programming kit

The programming kit for the Tait Orca series

of handportables contains:

■accessory connector to modular phone

socket programming cable for connecting

the radio to the programming lead

(TOPA-SV-003); and

■25 pin RS232 to modular phone jack

programming lead for connecting the

programming cable to a PC (TOPA-SV-

012); and

■Programming Utilities CD, which

contains the Calibration Application,

Conventional and Trunked Programming

Applications, and Download and Configu-

ration Application. It also contains PDF

versions of all associated manuals.

Conventions

Throughout this manual, the names of

software screen, field and menu names are

referred to in bold sans serif font. For

example:

Check that the information in the Radio Model

fields (Specifications screen) is correct.

09/01 IPN: 449-51000-03 Introduction A - 5

The Tait Orca series of handportables

There are three Tait Orca series handportables

available:

■the Orca Elan;

■the Orca Excel; and

■the Orca Eclipse.

This manual includes information specific to

all three handportables. As new features and

enhancements occur, new revisions of this

manual will be released.

Product codes

The digits in the Tait Orca product code

provide information about the radio’s

functional parameters and various hardware

options, according to the scheme outlined in

Figure A-1. The product code scheme is not

intended to imply that any particular combi-

nation of radio features is at present available

or planned for later release. For more informa-

tion on the products, contact your nearest Tait

dealer.

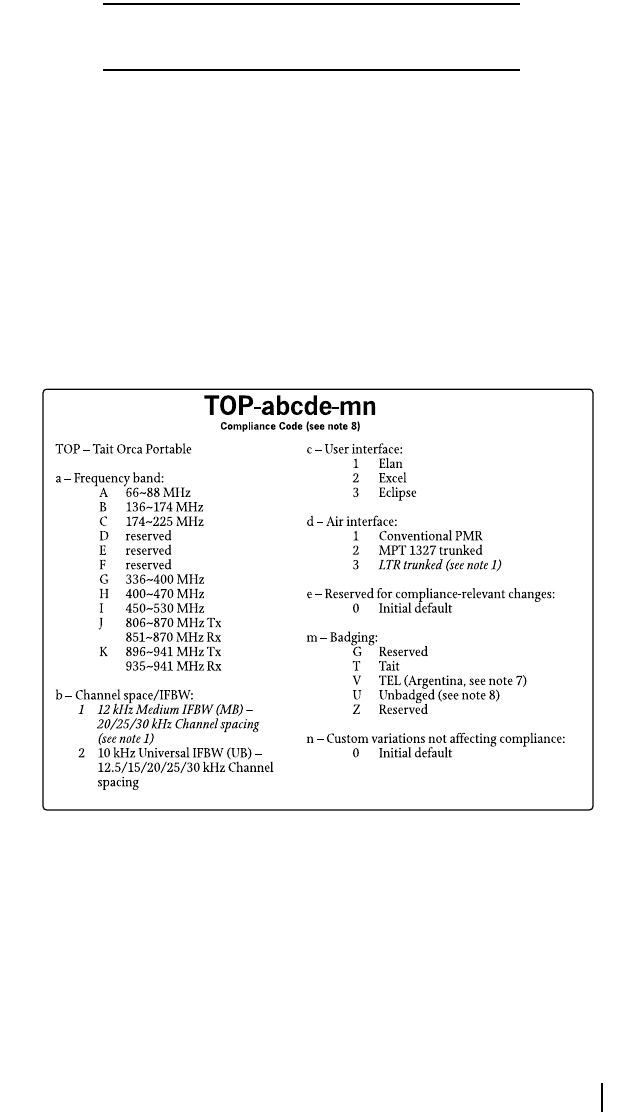

Figure A-1: The Tait Orca product code scheme

The Tait product code scheme

The Tait product code scheme is intended to

describe the meaning of the various characters

used in Tait Orca Product Codes. It is not a

design-a-product menu. Supply of products

not yet built can be negotiated, but are subject

to commercial justification by Tait Electronics

Ltd, and possible regulatory compliance.

Notes:

1. Information in italics refers either to

obsolete or planned new items which are

not available at the issue date of this

document.

2. The offer of any product in any market is

subject to adequate regulatory compliance.

A - 6 Introduction 09/01 IPN: 449-51000-03

3. Care must be taken not to enter alpha O

instead of numeral 0, or alpha I instead of

numeral 1. With the exception of I as a

band designator, alphas I & O will not be

used in this scheme.

4. This scheme does not address coding for

packed ensembles of radio, battery, charg-

er, antenna and/or other accessories.

5. Lower-case alpha character-location desig-

nation can be used as a convenient short-

hand when listing products or compliances

such as TOP-B2xy0, where x = 1~3, y = 1 or

2.

6. ‘V’ identifies TEL badged products are for

sale in Argentina, where the name 'Tait' is

registered to another Company.

7. ‘U’ identifies accessories which are general-

ly Tait-badged, but an unbadged version

has been produced for use with radios

carrying a non-Tait badge.

8. The Compliance Code underline addresses

regulator concerns that the full (3-group)

code appearing on the product is not the

same as the 2-group code under which

Compliance was obtained. It appears only

on the product label and some regulatory

declarations.

This also permits the same Compliances to

apply regardless of badging or minor custom

variations expressed in the 3rd group. Howev-

er, note that the first 2 groups of the Product

Code may not necessarily be the same as the

Compliance Code.

Operating instructions

A user’s guide is available for each radio.

Figure A-9 shows the naming convention for

Tait Orca radio user’s guides.

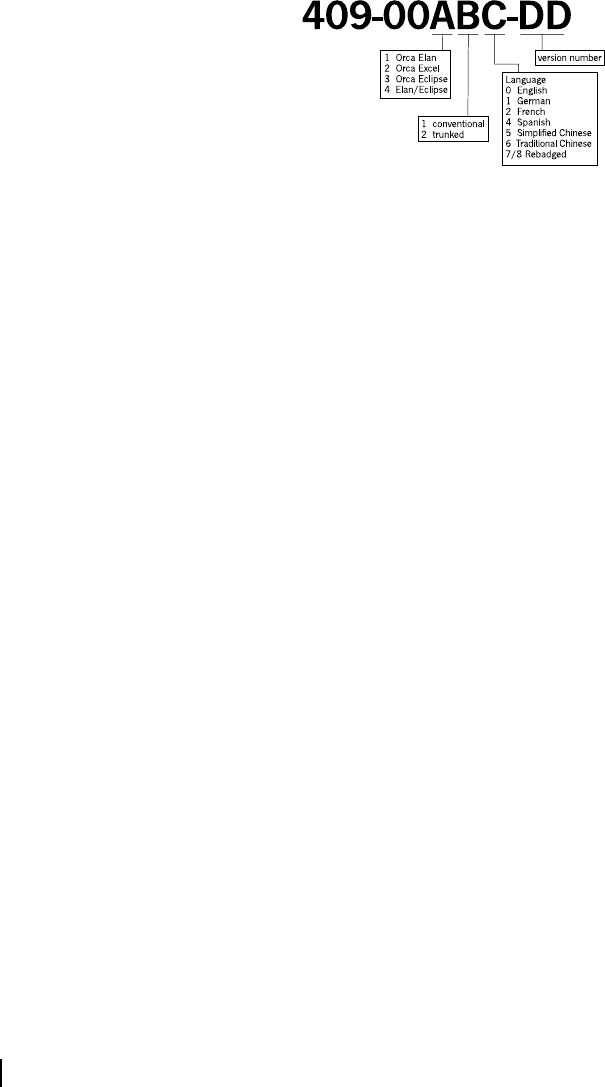

Figure A-9: Naming convention for Tait Orca

handportable user’s manuals

Accessories

Table A-1 shows the accessories available for

Tait Orca handportables. Of these accessories,

only the chargers are serviceable.

For more information on chargers, see Part E:

Battery packs and chargers. The six battery

packs available for Tait Orca handportables

are also described in Part E.

Fitting an accessory

To fit some accessories to the radio, you will

need to remove the rear accessory cover.

Remove the battery, then insert the end of a

key underneath the bottom edge of the acces-

sory cover. Lift to remove the cover.

When attaching or removing an accessory,

ensure that the lever is in the upright position.

Once the accessory is in position, rotate the

lever 90 degrees counterclockwise to lock it in

place.

Note: The D-clip used in Tait Orca 5000 series

handportables is not compatible with Orca

Elan/Excel/Eclipse handportables.

Fitting a non-Tait accessory

See Part F: Interfacing non-Tait accessories for

information on using non-Tait accessories

with Tait Orca handportables.

09/01 IPN: 449-51000-03 Introduction A - 7

Table A-1: Tait Orca handportable accessories

Type of accessory Product code Description

Antennas TOPA-AN-101 136-230 MHz 3" helical

TOPA-AN-102 336-530 MHz 3" helical

TOPA-AN-201 136-330 MHz 6" helical

TOPA-AN-202 400-530 MHz 6" 1/4 wave whip

TOPA-AN-204 806-870M 1/2 wave gain

TOPA-AN-205 896-941M 1/2 wave gain

TOPA-AN-301 66-88MHz 10" helical

Audio accessories TOPA-AA-001 Speaker microphone -10°C, two function buttons

TOPA-AA-002 Speaker microphone -30°C heavy duty, two function buttons

TOPA-AA-003 Speaker microphone -30°C MIL spec

TOPA-AA-004 Speaker microphone -30°C MIL spec RF

TOPA-AA-005 7.5 mm accessory adaptor

TOPA-AA-006 Tait Orca accessory connector kit

TOPA-AA-007 Tait Orca RF accessory connector kit

TOPA-AA-008 Speaker microphone, -30°C MIL spec, no function buttons, high/*

low volume

* For use with TOPA-AA-005

TOPA-AA-009 2-wire palm microphone and earphone*

TOPA-AA-010 3-wire lapel microphone and earphone*

TOPA-AA-011 Light weight single speaker headset with in-line PTT*

TOPA-AA-012 Over-the-head headset with noise cancelling boom microphone*

TOPA-AA-013 Behind-the-head headset with noise cancelling boom microphone*

T952-051 Earphone kit with coil cord and 2.5 mm plug†

† For use with TOPA-AA-003, TOPA-AA-004 and TOPA-AA-008

Batteries TOPB100 1100 mAh NiCd batter y pack

TOPB200 1500 mAh NiCd battery pack

TOPB400 1500 mAh NiMH battery pack

TOPB500 2000 mAh NiMH battery pack

TOPB600 1100mAh NiCd battery pack (slim, no belt clip)

TOPB700 1500 mAh NiMH battery pack (slim, no belt clip)

Battery chargers TOPA-CH-100 Desktop trickle charger

TOPA-CH-200 Desktop fast charger

TOPA-CH-300 Six-way multi-charger

Plug packs

(for TOPA-CH-200)

T952-012 Australia, New Zealand and China (230 V 50 Hz input; plug configuration: )

T952-022 Singapore and Middle East (230 V 50 Hz input; plug configuration: )

T952-032 Mainland Europe (230 V 50 Hz input; plug configuration: )

T952-042 USA and Canada (115 V 60 Hz input; plug configuration: )

T952-052 UK and Hong Kong (230 V 50 Hz input; plug configuration: )

Carrying accessories TOPA-CA-001 Heavy duty carry case

TOPA-CA-002 Heavy duty holster

TOPA-CA-007 38 mm belt clip x 1

TOPA-CA-003 38 mm belt clip x 10

TOPA-CA-004 Accessory port cover x 10

TOPA-CA-005 55 mm belt clip

TOPA-CA-006 55 mm belt clip x 10

A - 8 Introduction 09/01 IPN: 449-51000-03

Important information

Basic servicing precautions

Tait Orca handportables require specialised

servicing techniques and should only be

serviced at an approved Tait service centre

equipped with the necessary facilities.

Standard anti-static procedures should be

followed; a typical setup is shown in Figure A-1.

If in doubt, contact Tait Electronics Ltd or your

nearest Tait dealer.

Warning!!!

Repairs attempted with incorrect equipment

or by untrained personnel may result in

permanent damage.

Caution: CMOS devices

This equipment contains CMOS devices,

which are susceptible to damage from static

charges. Care when handling these devices is

essential. For correct handling procedures,

refer to manufacturers’ data books covering

CMOS devices, such as Philips Data Handbook

Covering CMOS Devices or Motorola CMOS

Data Book Section 5 (Handling Procedures).

Screw head types

Torx recess head screws and Pozidriv recess

head screws require the correct sized driver to

achieve best performance. Most of the screws

in Tait Orca handportables are Torx head

screws, and so a Torx T6 driver bit is supplied

as part of the service kit. Some earlier radios

have Pozidriv screws.

Torx head 1.8*5 mm screws should be

removed using the supplied Torx T6 driver.

When replacing these screws, set the driver to

2 inch pounds.

Pan Pozi M2*8 mm and M2*5 mm screws

should be removed using a Pozi 1 driver.

When replacing these screws, set the driver to

2 inch pounds.

Programming

For information on programming Tait Orca

handportables, refer to:

■the Tait Orca Trunked Programming Appli-

cation User’s Manual or the online help;

■the Tait Orca Conventional Programming

Application User’s Manual or the online

help.

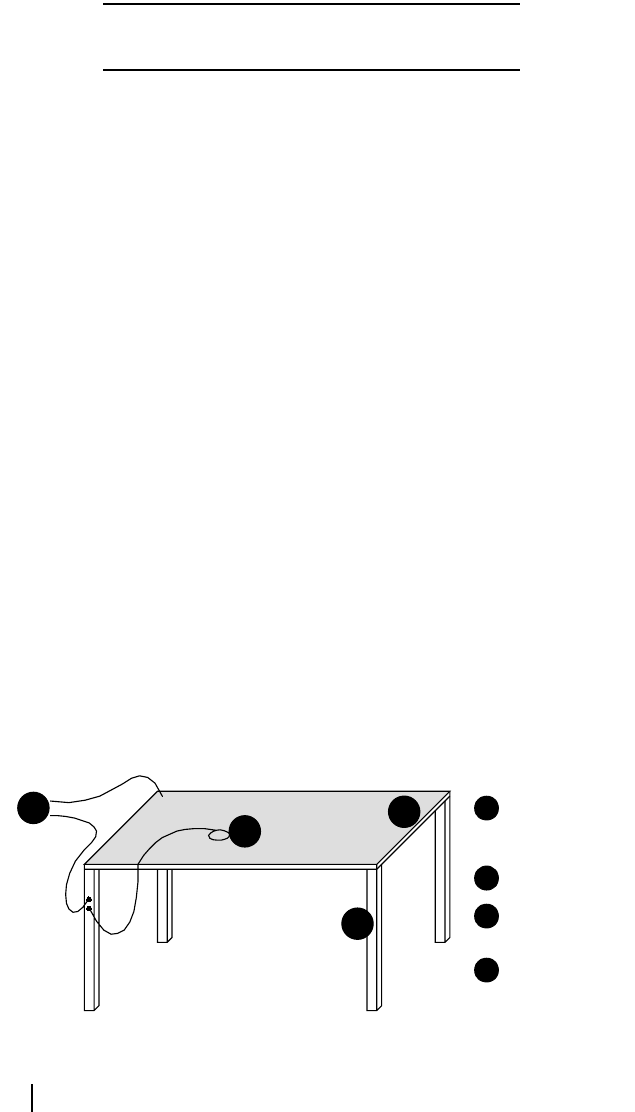

Figure A-1: Typical anti-static bench setup

2

1

4

3to building earth (not

mains earth) via 1 M

series resistor

conductive wrist strap

conductive rubber

bench mat

metal frame

1

2

3

4

09/01 IPN: 449-51000-03 Introduction A - 9

The User’s Manuals are on the Tait Program-

ming Utilities (TPU) CD-ROM, which is

included, together with this manual, as part of

the calibration service kit.

Calibrating

For information on calibrating Tait Orca

handportables, refer to:

■the Tait Orca Calibration Application User’s

Manual or the online help.

The User’s Manual is on the Tait Programming

Utilities (TPU) CD-ROM, which is included,

together with this manual, as part of the

calibration service kit.

Test facilities

Standard test facilities provide a way of testing

the radio’s functions independently of normal

radio operation. See Part C: Diagnostics and

fault finding for a description of the test facili-

ties available for Tait Orca handportables.

Basic maintenance

Your Tait Orca handportable requires no

regular maintenance other than ensuring that

the battery has sufficient charge, the battery

contacts are kept clean and unobstructed, and

that no damage has occurred to the antenna or

the battery pack.

General care

■Wipe the accessory connector contacts

and radio display with a dry lint-free cloth

to remove any dirt, oil or grease.

■Use a cloth dampened with clean water to

clean the radio’s case and display lens, but

do not immerse the radio in fluids.

■Do not allow the radio to come into

contact with detergents, alcohol, aerosol

sprays or petroleum-based products as

they may permanently damage the case.

■Avoid high temperatures. If the radio

overheats, it will cease to function. You

will hear two short high-pitched beeps.

Troubleshooting

If you are experiencing difficulty operating

your Tait Orca handportable check the follow-

ing items:

■Is the battery firmly attached to the radio?

■Are the battery contacts clean and

unobstructed?

■Is the battery sufficiently charged?

■Is the battery charger working properly?

■Is the antenna damaged?

For Fault Finding Charts see Figures C-1 to C-6

starting on page C-9. For further troubleshoot-

ing on batteries and chargers, see page E-15.

If all appears to be in order but your radio still

fails to operate properly, consult your local

Tait dealer for assistance.

A - 10 Introduction 09/01 IPN: 449-51000-03
