TEF65LV13 & TEF65LV18
Automatic Urinal Flush Valve
AC Powered (24V, AC)
TEF65LV13 (Right Rough-In)
TEF65LV18 (Left Rough-In)
Parts Manual - May 2006
CAUTION: Avoid placing infrared sensor near stainless steel walls, stainless steel handrails, mirrors, or
other reflective surfaces. Sensor detection will become intermittent.
211
Discontinued
DISCONTINUED
TEF65LV13 & TEF65LV18
Automatic Urinal Flush Valve
AC Powered (24V, AC)
TEF65LV13 (Right Rough-In)
TEF65LV18 (Left Rough-In)

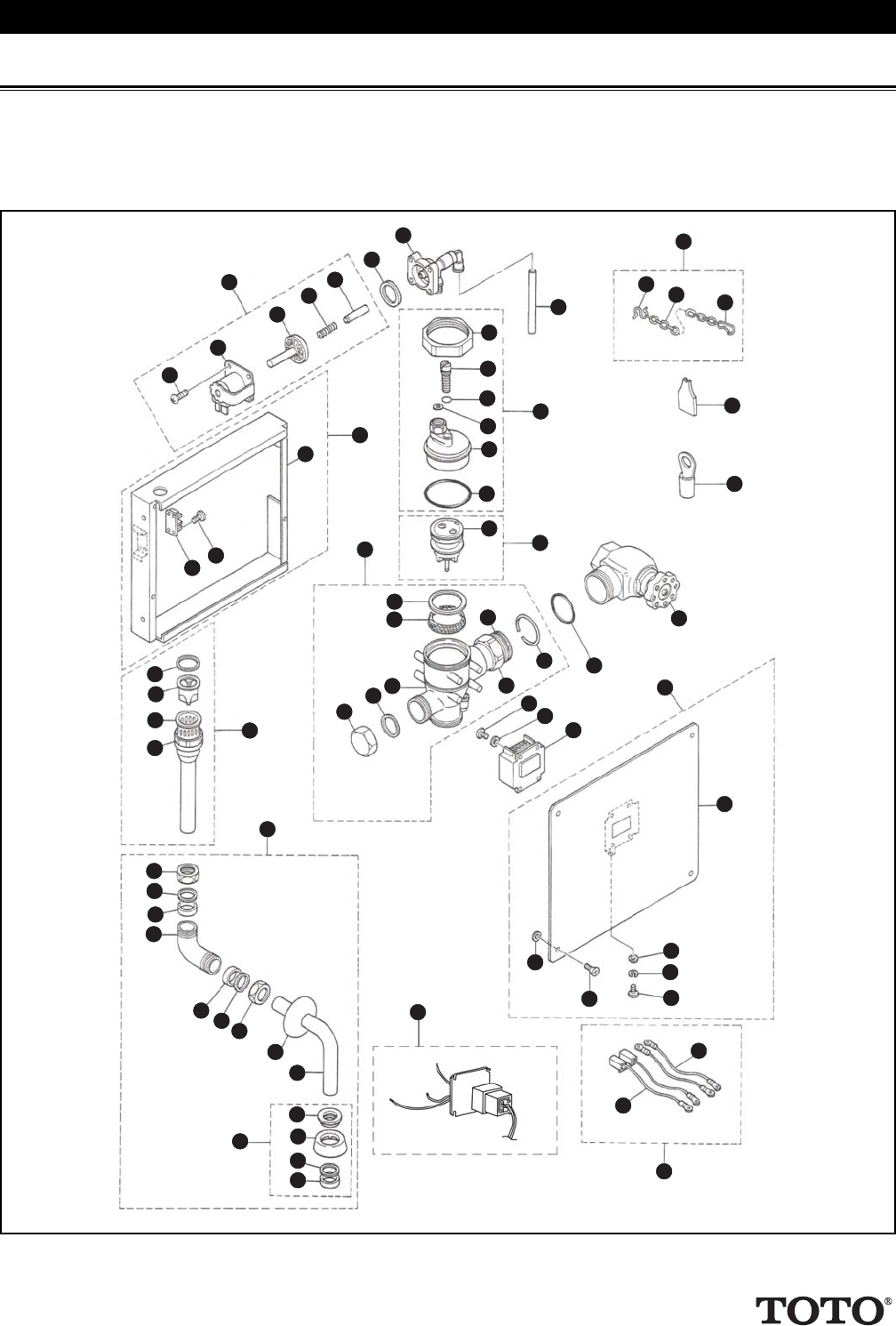

Item Part Number Description
1 TH559EDV165 Solenoid for AC Sensors
2 61122-1 Solenoid & Sensor Mounting Screws (4 pieces) (Obsolete)
3 54009T2 Solenoid (Obsolete)
4 ------ Plunger Guide
5 ------- Spring
6 ----- Plunger
7 TH559EDV212 Packing (10 Pieces)
8 TH559EDV164 Solenoid Valve Body for AC Sensors
9 TH559EDV199 Tubes (10 Pieces)
10 TH559EDV140 Rear Wall Frame Set - Urinal
11 71302T2 Wall Frame (Obsolete)
12 61122 Screw (2 pieces) (Obsolete)
13 57001T4 Wire Terminal (Obsolete)
14 TH559EDV162 Valve Cap Assembly (Obsolete)
15 22006T3 Cap Nut (Obsolete)
16 62092-2 Adjustment Screw (Obsolete)
17 91232E O-Ring (Obsolete)
18 94079 Fiber Washer (Obsolete)
19 TH559EDV163 Valve Cap (Obsolete)
20 91301S O-Ring (Obsolete)
21 TH559EDV158 Piston Assembly for AC Urinal Series
22 TH559EDV200 U-Packing (For Piston) (10 Pieces)
23 TH559EDV156 Chain Set
24 66267 Hook (2 pieces) (Obsolete)
25 73013 Chain (2 pieces) (Obsolete)
26 66167 Clip (2 pieces) (Obsolete)
27 TH559EDV207 Spanner Wrench Tools (10 Pieces)
28 57053T1 Wire Fitting (2 pieces) (Obsolete)
29 10075T2 Tube Assembly (3/4” x 8-1/2”)
30 --- Friction Washer
31 -- Duckbill Check
32 ----------- Vacuum Breaker Tube
33 ---------- Tube Nut
34 TH559EDV141 Valve Body
35 91556EW Seat Washer (Obsolete)
36 66230WR S. S. Seat (Obsolete)
37 22032R15 Cap (Obsolete)
38 91035S Washer (Obsolete)
39 TH559EDV160 Body (Obsolete)
40 22052T8 Inlet Nut (Obsolete)
41 14452T38 Tail Piece (Obsolete)
42 TH559EDV189 Nut Stoppers (10 Pieces)
43 TH559EDV190 O-Rings (Tail Piece) (10 Pieces)
44 10077T6 Angle Stop (3/4”) Urinal - Rough Brass
Flush Valve Flush Valve
(T) Fitting (T) Fitting
(E) Electronic (E) Electronic
(F) (F)
(65) (65)
(L) (L)
(V13) Version (V18) Version
Item Part Number Description
45 TH559EDV144 Top Spud Connection (Obsolete)
46 22021 Nut (Obsolete)
47 72221 Friction Washer (Obsolete)
48 91090E Compression Washer (Obsolete)
49 14348T37 Slip Elbow (Obsolete)
50 71049 Wall Escutcheon (Obsolete)
51 40108T34 Tube Elbow (Obsolete)
52 71051NT5 Spud Nut & Escutcheon 3/4”
53 --------- Spud Nut
54 -------- Spud Escutcheon
55 --- Friction Washer
56 - Compression Washer
57 TEF61RSV17 Transformer (120V AC to 24V AC 10W) (Obsolete)
58 72385 Washer (4 pieces) (Obsolete)
59 58024T7 Sensor (Obsolete)
60 TH559EDV142 Front Panel Set
61 71301T2 Front Panel (Obsolete)
62 72576T1 Washer (4 pieces) (Obsolete)
63 61248T5 Vandal Proof Screw (4 pieces) (Obsolete)
64 72385 Washer (4 pieces) (Obsolete)
65 72369 Spring Washer (Obsolete)
66 61122-1T2 Screw (Obsolete)
67 TH559EDV157 Wire Kit
68 56001T21 Power Wire (2 pieces) (Obsolete)
69 56001T22 Signal Wire (2 pieces) (Obsolete)
Note: TEF61RSV17 can be replaced with a Class II UL transformer with primary
(120V AC, 60Hz) and secondary (24V AC, 1.8A min.) using only UL Class II
No. 18 wires on the secondary side. A maximum of 10 flush valves can be
run on one transformer.
TH559EDV140 Rear Wall Frame Set can be used for Right or Left Rough-In.
Order TH559EDV158 until depleted, then order TH559EDV307.
Order TH559EDV189 until depleted, then order TH305SV105.
Order TH559EDV200 until depleted, then order TH305SV103.
TEF65LV13 is the TOTO Ltd. number.
Vacuum Breaker Sets
---------- Concealed - Top Spud 1 Obsolete
Note: The vacuum breaker (VB) assembly for a concealed top spud urinal no longer
exists; however, some individual VB components are still available.
For additional information, refer to the individual vacuum breaker parts sheets.
TOTO urinals UT104V, UT370V, and UT447V have 3/4” Back Spud Inlets.
Parts Manual - May 2006
Product Number Explanations
Discontinued
212
