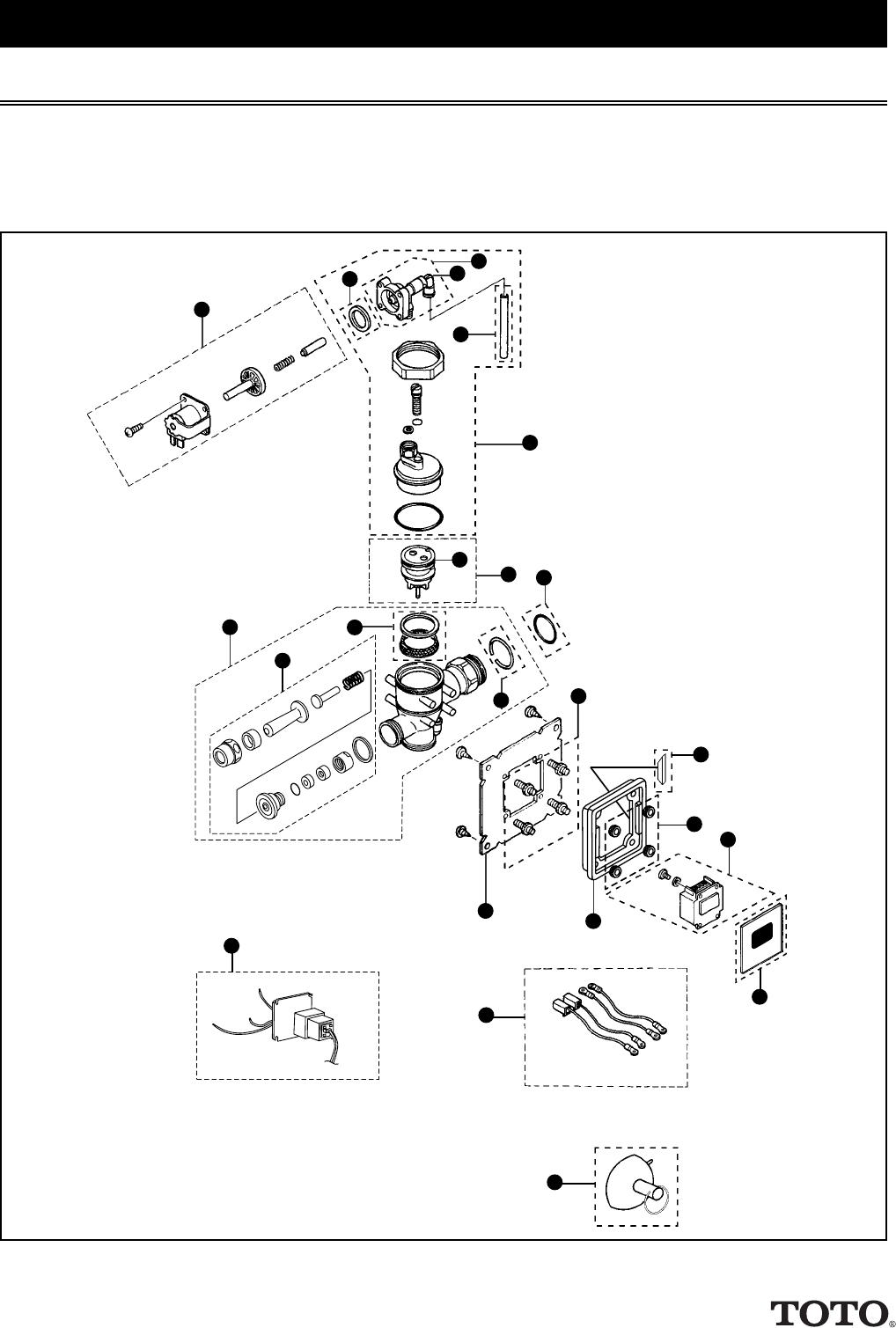

Reliance Commercial Line TET4ANW Series
Sensor Toilet Flush Valve, Concealed (4" x 4")
Off White Finish, Flush Mount (Tile Type Frame)
AC Powered (24V, AC)
TET4ANW-31
TET4ANW-32
TET4ANW-33
TOTO
1
12
10
13
2
3
14
15
17
4
5
6
22
9
18
20
7
23
21
11
16
8
19
Discontinued
PD-00575 v02 Parts Manual
Page 1 of 2
Reliance Commercial Line TET4ANW Series
Sensor Toilet Flush Valve, Concealed (4" x 4")
Off White Finish, Flush Mount (Tile Type Frame)
AC Powered (24V, AC)
TET4ANW-31
TET4ANW-32
TET4ANW-33
No. Part Number Description Qty
1 TH559EDV165 Solenoid for AC Sensors 1
2 TH559EDV198 Valve Cap Set for AC Sensors 1
3 TH559EDV159 Piston Assembly for AC Toilet Series 1
4 TH559EDV146 Valve Body 1
5 TH559EDV201 Adjustment Screw 4
6 TH559EDV218 Magnets 10
7 TH559EDV157 Wire Kit 1
8 TH559EDV54B Seal Washer Set 1
9 TH559EDV232 Sensor Unit (AC Type) 1
10 TH559EDV164 Solenoid Valve Body for AC Sensors 1
11 85068SR Suction Tools 5
12 TH559EDV212 Packing 10
13 TH559EDV199 Tubes 10
14 TH559EDV200 U-Packing (For Piston) 10
15 TH559EDV190 O-Rings (Tail Piece) 10
16 TH559EDV189 Nut Stoppers 10
17 TH559EDV203 Lever Assembly 1
18 84071 Wall Frame 1
19 90846 Tile Type Frame 1
20 YE71229-2W#N1 Sensor Plate (White) 1
21 18217T1M Elbow 1
22 63098SR Fixing Nuts 4
23 TEF61RSV17 Transformer (120V AC to 24V AC 10W) 1 Obsolete
Note: TEF61RSV17 can be replaced with a Class II UL transformer with primary
(120V AC, 60Hz) and secondary (24V AC, 1.8A min.) using only UL Class II
No. 18 wires on the secondary side. A maximum of 10 flush valves can be
run on one transformer.
Order TH559EDV159 until depleted, then order TH559EDV306.
Order TH559EDV189 until depleted, then order TH305SV105.
Order TH559EDV190 until depleted, then order TH305SV106.
Order TH559EDV200 until depleted, then order TH305SV103.
Order TH559EDV218 until depleted, then order TH559EDV360.
Order TH559EDV54B until depleted, then order Seat Packing Set TH321S.
TH559EDV232 is temporarily replaced by 58024t6, until further notice.
Model Explanation
T - Fitting T - Fitting T - Fitting
E - Electronic E - Electronic E - Electronic
6.1 telioT-T6.1 telioT-T6.1 telioT-T
4 - Concealed 4" x 4" Plate Tile Type 4 - Concealed 4" x 4" Plate Tile Type 4 - Concealed 4" x 4" Plate Tile Type
A - AC Transformer A - AC Transformer A - AC Transformer
N - Neutral Rough-In N - Neutral Rough-In N - Neutral Rough-In
W - Off White Finish W - Off White Finish W - Off White Finish
teltuO "2/1-1-3teltuO "2/1-1-3teltuO "2/1-1-3
tnuoM roolF dupS kcaB-3dupS poT-2dupS kcaB-1
No. Part Number Description Qty
Vacuum Breaker Sets
VB13RB-31 Concealed - Back Spud (1-1/2” Outlet) 1
VB13RB-32 Concealed - Top Spud (1-1/2” Outlet) 1
VB13RB-33 Concealed - Back Spud Floor Mount (1-1/2” Outlet) 1
Note: For additional information, refer to the individual vacuum breaker parts sheets.
Discontinued
PD-00575 v02
Parts Manual
Page 2 of 2
