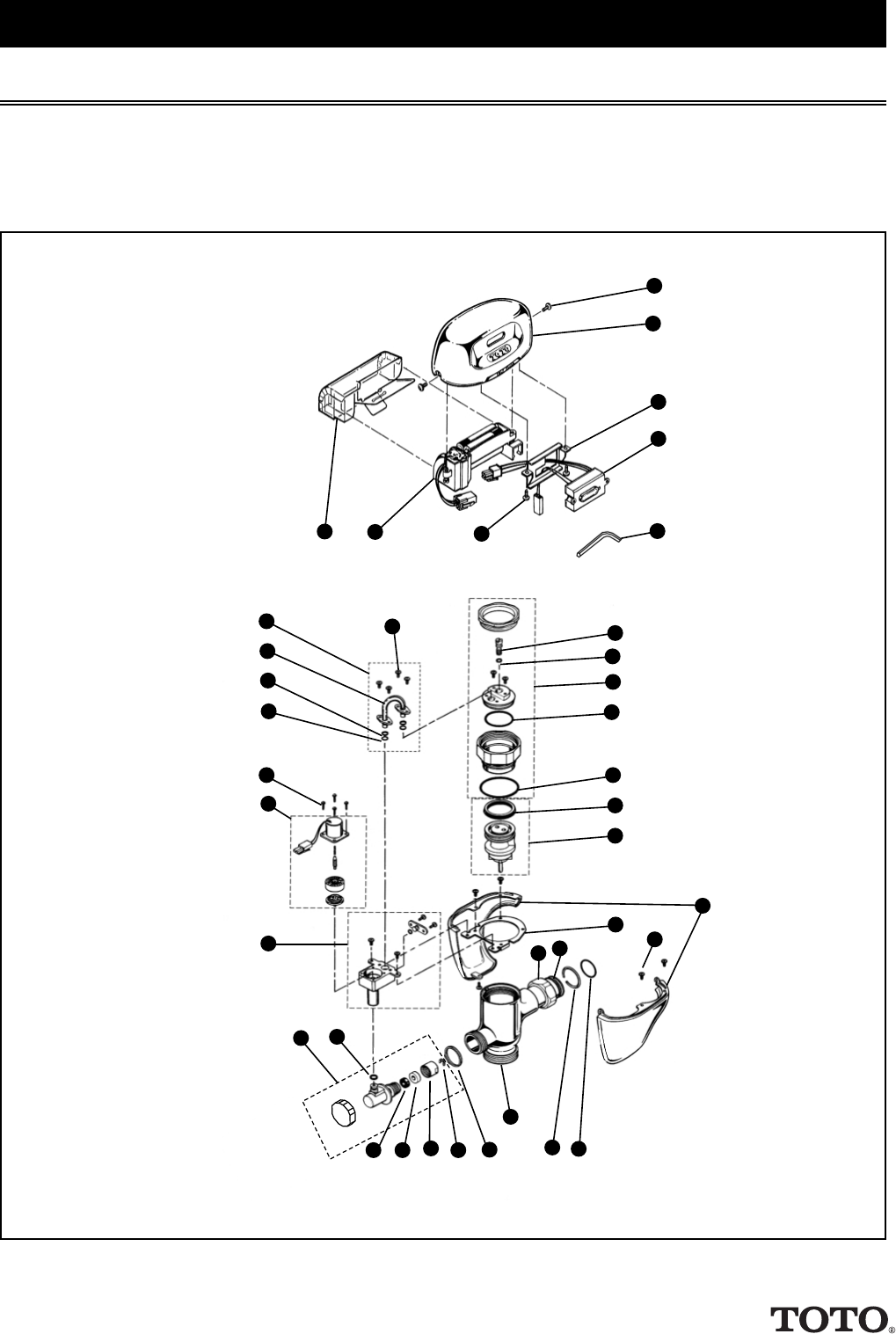

Reliance Commercial Line TEU1DNC Series
Sensor Urinal Flush Valve, Exposed - 1.0 GPF
Battery Powered (6V, DC)
TEU1DNC
TEU1DNC-12
TEU1DNC-22
4
5
6
7
8
3
2
1
27
28
29
30
31
32
33
25
34
37
36
24
23
35
22
20 211918
17 16
15
14
13
12
11
10
93
26
Discontinued
PD-00581 v05 Parts Manual
Page 1 of 2
Reliance Commercial Line TEU1DNC Series
Sensor Urinal Flush Valve, Exposed - 1.0 GPF
Battery Powered (6V, DC)
TEU1DNC
TEU1DNC-12
TEU1DNC-22
No. Part Number Description Qty
1 H660101 Battery Case Cover 1 Obsolete
2 TH559EDV352 Battery Case Assembly 1
3 H660301 Phillips Pan Head Screws (430 SS) 20
4 H660401 Hex Socket Cap Screws (304 SS) 10
5 H660501 Top Cover (DC Type) 1
6 H660601 Sensor Bracket Set 1
7 VCA9A Sensor Controller - DC Urinal 1.0 GPF 1
8 3/32" Allen Wrench 1 Reference
9 H660701 Copper Tube Sub-Assembly w/Packing 1
10 H662301 Copper Tube 1
11 H660801 Back-Up Rings 10
12 H660901 O-Rings (Tube Assembly) 10
13 H661001 Double Sems Screws #4-40 10
14 VCA503A Solenoid Unit & Diaphragm Assembly 1
15 H661101 Solenoid Valve Seat Assembly 1
16 H661201 O-Rings (Plunger Guide) 10
17 H661401 Push Button Assembly (For Urinal) 1
18 TH302RV100 Gaskets (U-Packing) 10
19 R91112MZ Guide Rings 10
20 R23024MZ Guide Ring Stoppers 10
21 H661601 E-Rings 10
22 H661701 Gaskets (Plunger Guide) 10
23 TH305SV105 Locking Rings 10
24 TH305SV106 O-Rings (Tail Piece) 10
25 TH559EDV321 Lower Urinal Cover Set 1
26 TH559EDV325 Screw Set 8-32 UNC 10
27 R31057MZ Cap Adjustment Screws 10
28 TH305SV111 O-Rings (Cap Screw) 10
29 H662001 Valve Cap Assembly 1
30 H662101 O-Rings (Valve Cap) 10
31 TH305SV112 O-Rings (Valve Guide) 10
32 R81019-1MZ U-Packing (For Piston) 10
33 R15186W Piston Assembly (1.0GPF & 3.5GPF) 1
34 H662201 Plate 1
Model Explanation
T - Fitting T - Fitting
E - Electronic E - Electronic
U - Urinal 1.0 U - Urinal 1.0
1 - Exposed 1 - Exposed
D - DC Battery D - DC Battery
N - Neutral Rough-In N - Neutral Rough-In
C - Chrome Finish C - Chrome Finish
1 - 3/4" Outlet 2 - 1-1/4" Outlet
2 - Top Spud 2 - Top Spud
No. Part Number Description Qty
35 R11149W-1 Valve Body (EFV) - No Logo 1
36 TH305SV113 Nut 1
37 TH305SV114 Tail Piece 1
Note: Allen Wrench 3/32" is for reference purposes only.
H660301 Phillips Pan Head Screws are 8-32 UNC x 1/4".
H660401 Hex Socket Cap Screws are 8-32 UNC x 3/8".
Order H660501 until depleted, then order TH559EDV351.
Vacuum Breaker Sets
VB9CP-12 Exposed - Top Spud (3/4" Outlet) 1
VB9CP-22 Exposed - Top Spud (1-1/4" Outlet) 1
Note: For additional information, refer to the individual vacuum breaker parts sheets.
TOTO urinals UT104, UT370 and UT447 have 3/4” Top Spud Inlets.
