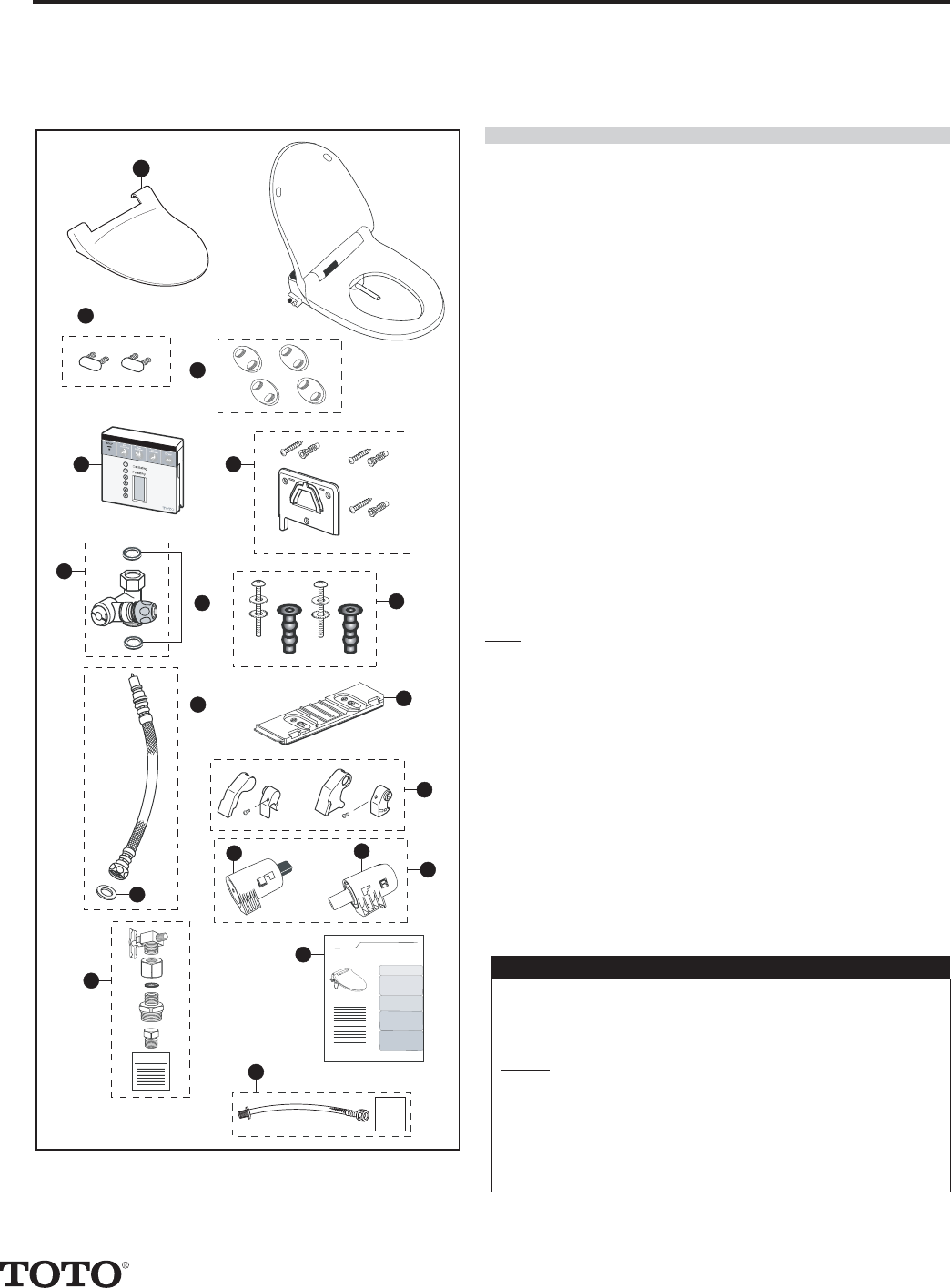

Item Part Description

Parts Manual - February 2007

Product Number Explanations

SW834R (TCF4021UR)

SW834R

TCF4021UR Washlet® S300™

Elongated Seat

TOTO TCH314FV

LA

TS

N

)LIG

NT

HE

*AS IM N7TE

L

H

SA

S

5IG

NTE

H

N

IMS

A* 7SA H TE

L

G

N

I

R

A

#FOR H

TE

N

I

MS

A* 7 T

ELHS

A

/TEH R

)AM

RO

F

N TOI N

E' T

TG

N

I

AT3 RTDE

Instruction Manual

Table of Contents

TOTO

Installation

Sheet

1

2

45

8

6

9

11

11

12

12

15

15

14

17

17

16

16

7

10

10

18

18

13

3

1 THU610#01 Lid Assembly - Elongated - Cotton White

THU610#11 Lid Assembly - Elongated

THU610#12 Lid Assembly - Elongated - Sedona Beige

2 THU611 Lid Bumpers (2 pieces)

3 THU614 Seat Bumpers (4 pieces)

4 THU663 Remote Control - Oscillating, Pulsating, &

Wand

5 THU634 Remote Control Hanger Set

6 THU661 Junction Valve

7 9BU9155 Rubber Washers - Junction Valve (2 pieces)

8 THU599 Mounting Hardware

9 THU660 Connection Hose

10 9BU9152 Fiber Washer (1 piece)

11 THU635 Mounting Plate

12 THU615 Hinge Supports - Left & Right

13 THU616 Hinge Units - Left & Right

14 THU638 Hinge Unit Left - Elongated Seat

15 THU637 Hinge Unit Right - Elongated Seat

16 TCH314FV Flushometer Adapter Kit

17 THU664 Owner ’s Manual

18 THU9090 Hose Extension Kit (for Aquia™ CST414M and

Pacifi ca™ CST804S)

Notes

S300™ was previously known as the Jasmin™.

Flushometer Adapter Kit TCH314FV requires Connection Hose THU588.

A junction valve will not be used with this kit.

Junction Valve THU661 can be converted back to THU587 (previous

page) if needed by removing the gray quick connector.

THU664 is also available in a PDF format. For inquires call Tech

Support.

Fiber Washer 9BU9152 replaces original rubber washer design.

TOTO Sales can order 0GU505 template on TOTO Partners.com

To use template, the existing toilet seat must be removed from the

toilet bowl.

Washlet®

(SW) Washlet®

(834) Model

(R) Revision

DISCONTINUED
