WT151M & WT152M
WT151M
CWT437117MFG-3
WT152M
CWT437117MFG-4
DuoFit™ In Wall Tank System
For 2x6 & 2x4 Wall Stud Installation
Dual-Max®, 1.28 Gpf/4.8 Lpf & 0.9 Gpf/3.4Lpf
Adjustable Height 15" - 19"
In Wall Tank
(CWT) Bowl, Tank, Face Plate &
Seat Combination
(WT) In Wall Tank
(153) Model w/ Pex Supply line
(154) Model w/ Copper Supply Line
(M) Dual-Max®

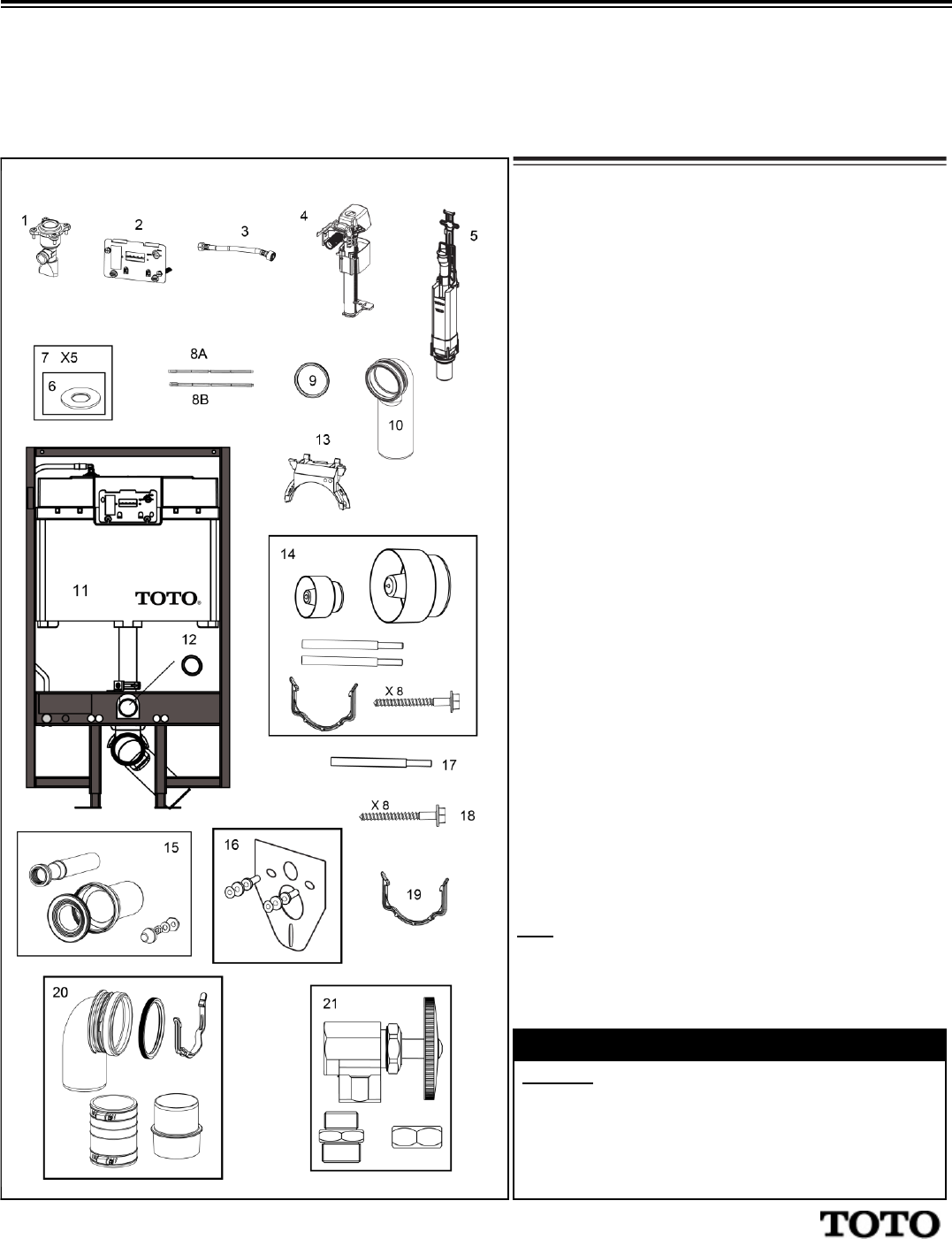

Parts for the WT151M, WT152M, WT153M, & WT154M In Wall Tank systems
are interchangeable, with the exception of THU728 and THU729 which are for
WT153 & WT154 only.
Product Number Explanations
Note:
Item
Part
Description
Actual Product may vary slightly from illustration.
1
THU329
Stop Valve
5424
2
THU321
Actuator
5425
3
THU323
Fill Valve Hose (Braided Nylon)
5426
THU294
Fill Valve Hose (Stainless Steel)
5427
4
THU134
Fill Valve Assembly w/ bracket & filter
5428
5
THU322
Flush Valve Assembly w/ hold down bracket
5429
6
9BU076
Seal Gasket for Flush Valve (1 piece)
5430
7
THU367
Seal Gasket for Flush Valve (5 pieces)
5431
8A
9AU283
Red Push Rod (Partial Flush)
5432
8B
9AU270
Blue Push Rod (Full Flush)
5433
9
9BU086
Gasket for Outlet Pipe Elbow
5434
10
THU327
Outlet Pipe Elbow for 2x6 wall - HDPE
5435
THU335
Outlet Pipe Elbow for 2x6 wall - Cast Iron
5436
11
THU313
HD Plastic Tank w/ O-Ring & Foam
5437
12
9BU087
O-Ring for Inlet Pipe
5438
13
9AU282
Bracket for Outlet Pipe Elbow
5439
14
THU320
Mounting Hardware Parts Bag
5440
15
THU334
Toilet Connection Assembly Parts
5441
16
THU316
Cushion Pad Set
5442
17
6BU033
Threaded Rod Screw M12 x 180
5443
18
6BU035
Lag Screws (x8)
5444
19
9AU273
Lower Bracket for Outlet Pipe Elbow
5445
20
THU343
2x4 Outlet Drain Kit
5446
21
THU468
Washlet Connection Kit
5447
5448
5449
5450
PD-00624
Parts Manual June 2017
