Challenging Pedicle Screw

Insertion/Salvage

Techniques

Suken A. Shah, MD

Alfred I. duPont Hospital for Children

Division Chief, Spine and Scoliosis

Center

Wilmington, Delaware USA

Spinal Deformity Surgery Educational Continuum

1

10/12 DA10293A, CA9232A

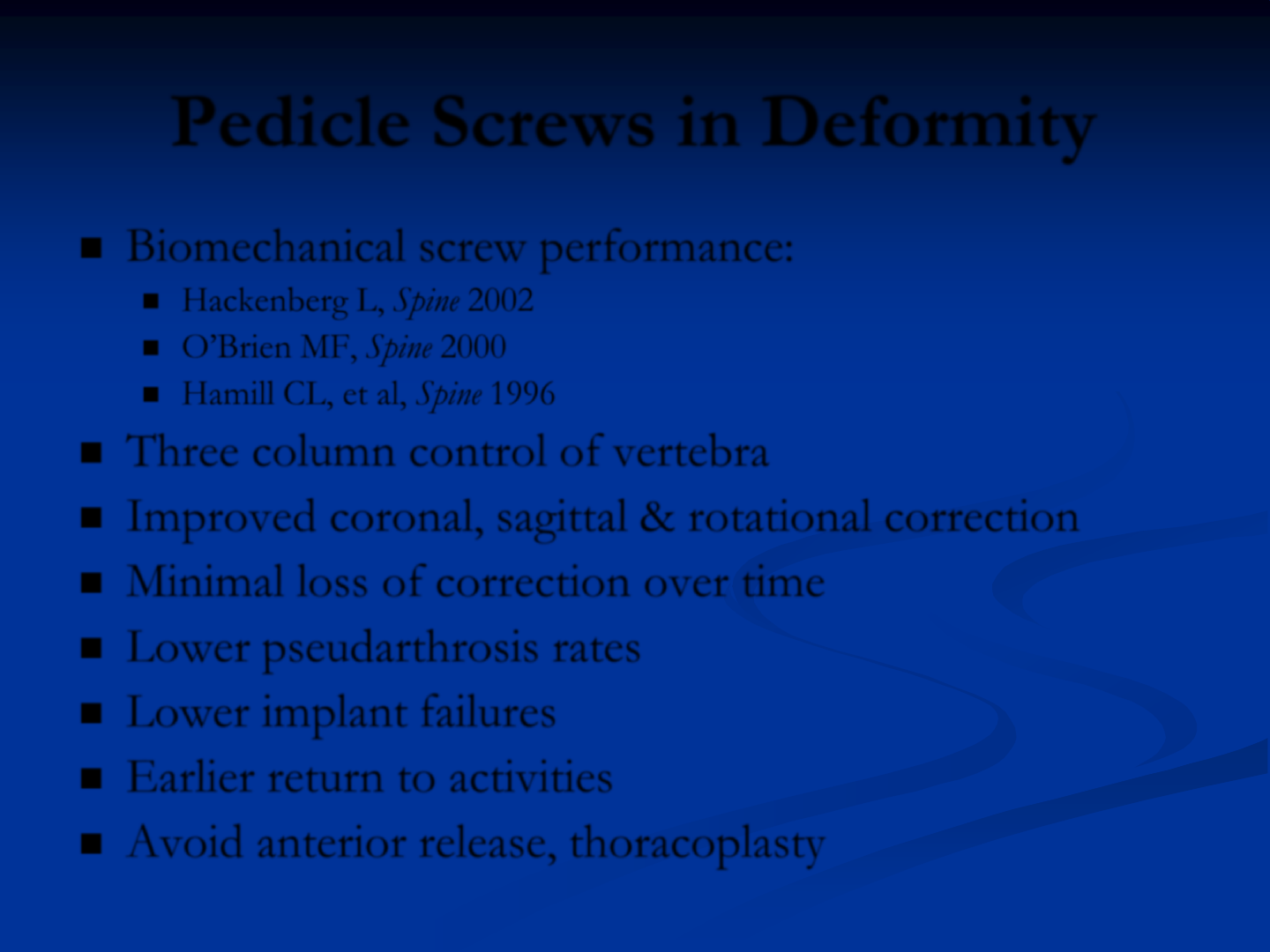

Pedicle Screws in Deformity

Biomechanical screw performance:

Hackenberg L, Spine 2002

O’Brien MF, Spine 2000

Hamill CL, et al, Spine 1996

Three column control of vertebra

Improved coronal, sagittal & rotational correction

Minimal loss of correction over time

Lower pseudarthrosis rates

Lower implant failures

Earlier return to activities

Avoid anterior release, thoracoplasty

2

10/12 DA10293A, CA9232A

Thoracic Pedicle Screws for AIS

Suk S-I, et al, Spine 1995; 20: 1399-1405

TPS for correction of adolescent idiopathic scoliosis

Coronal correction Rotational correction

Hooks 49% 19%

Screws in a hook pattern 64% 26%

Segmental screws 72% 59%

Less loss of correction at 2 yrs with TPS

No implant failures with TPS

3

10/12 DA10293A, CA9232A

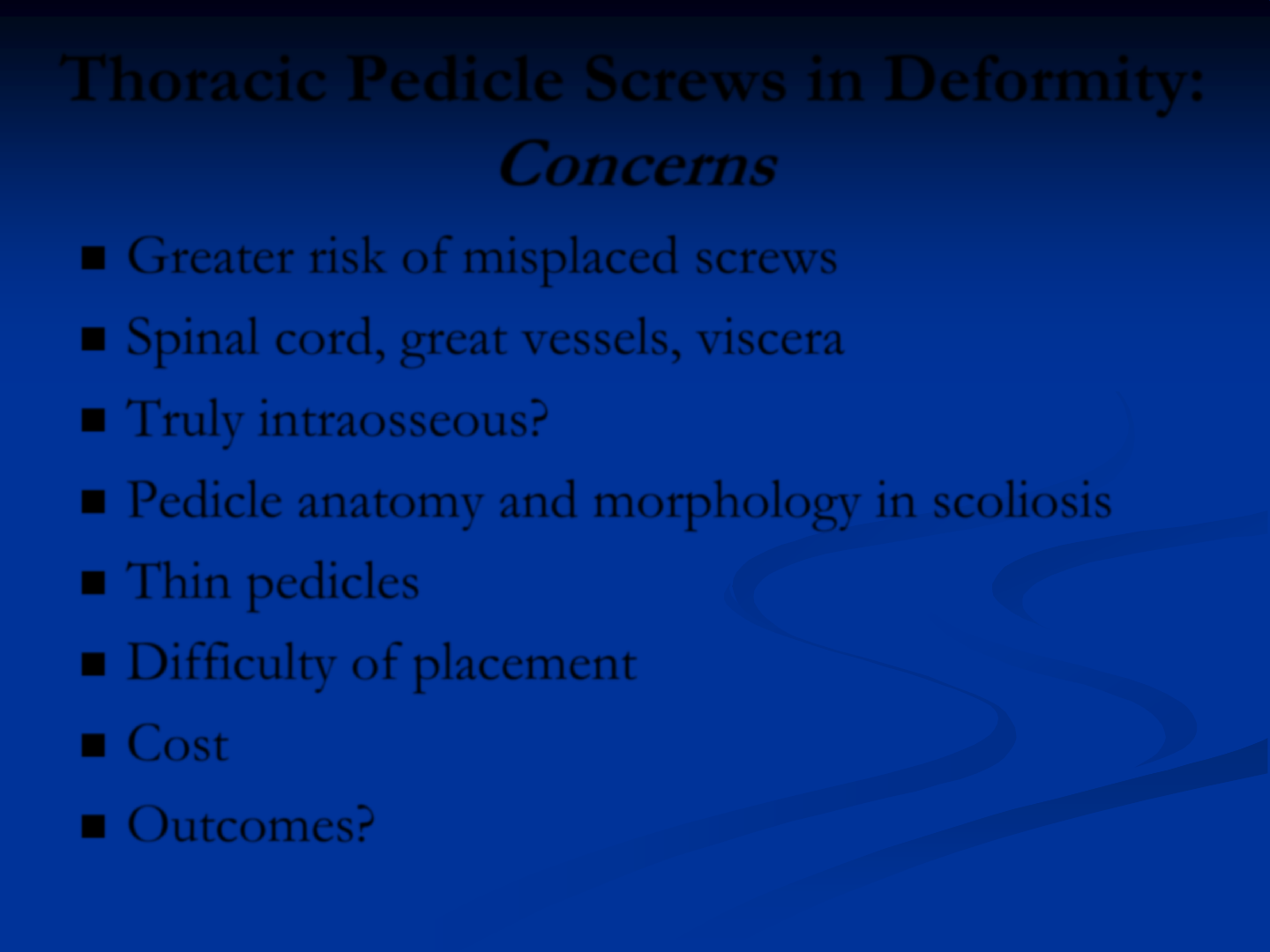

Thoracic Pedicle Screws in Deformity:

Concerns

Greater risk of misplaced screws

Spinal cord, great vessels, viscera

Truly intraosseous?

Pedicle anatomy and morphology in scoliosis

Thin pedicles

Difficulty of placement

Cost

Outcomes? Vaccaro A, J Bone Joint Surg Am 1995

4

10/12 DA10293A, CA9232A

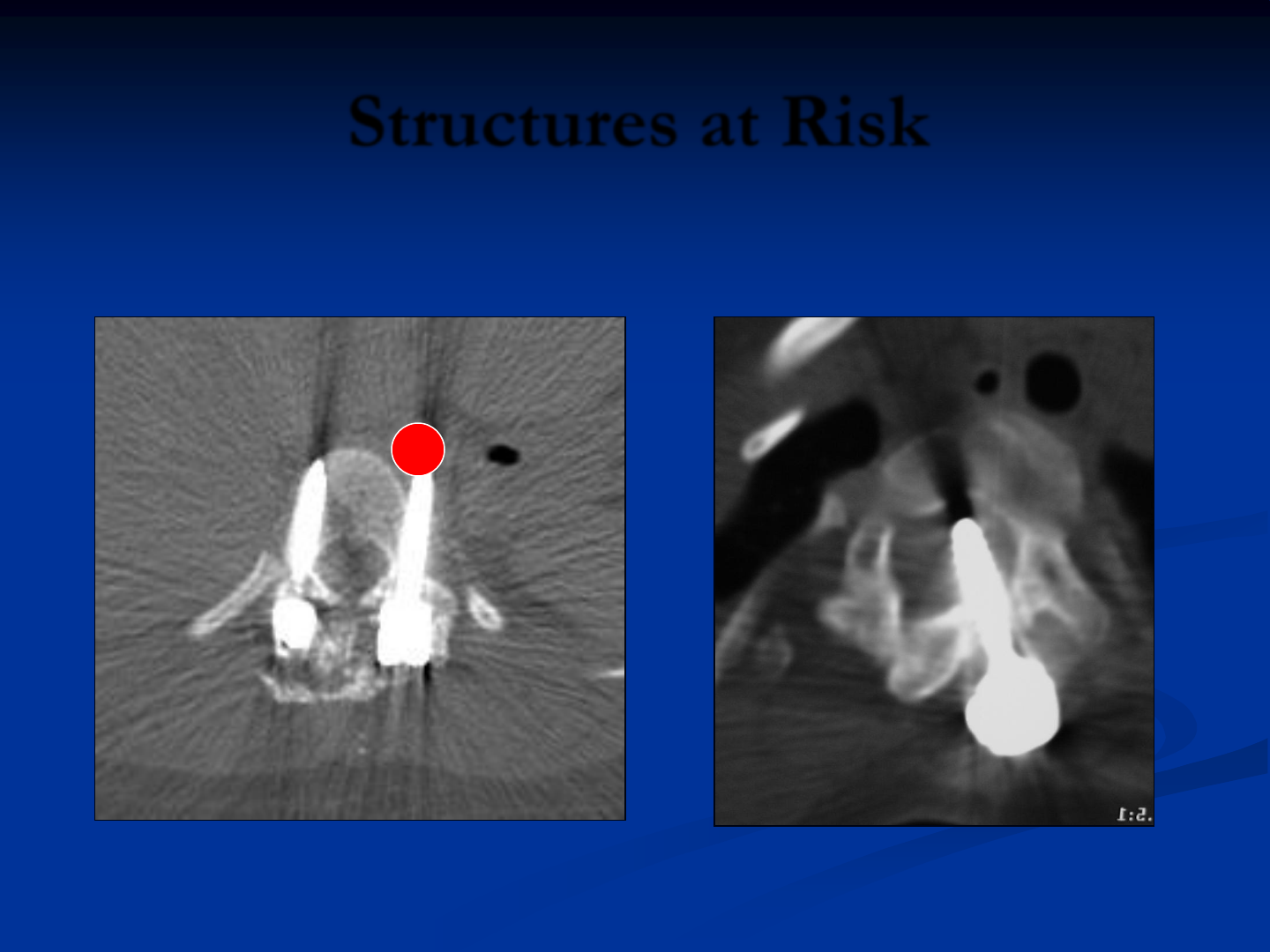

Structures at Risk

5

10/12 DA10293A, CA9232A

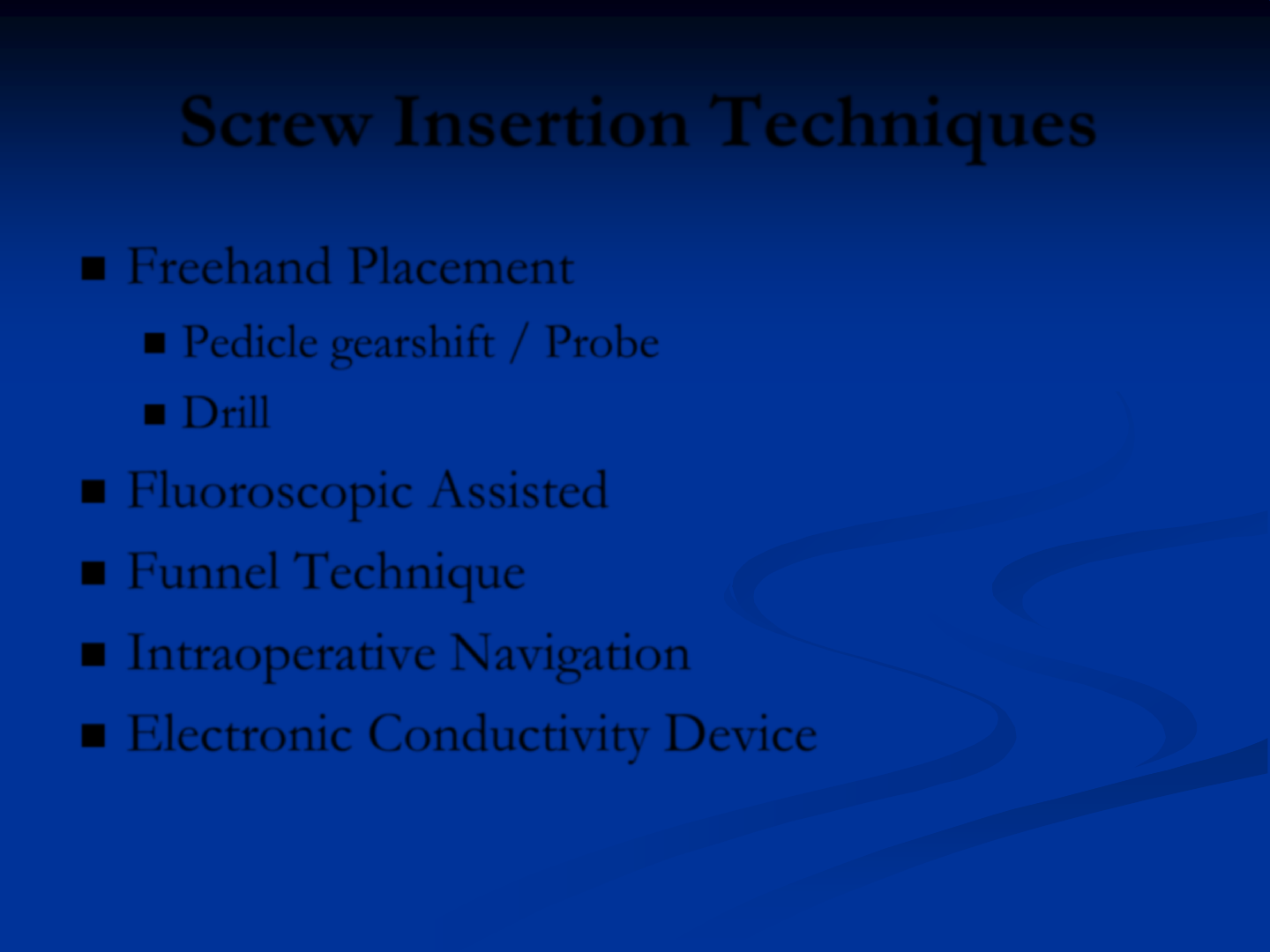

Screw Insertion Techniques

Freehand Placement

Pedicle gearshift / Probe

Drill

Fluoroscopic Assisted

Funnel Technique

Intraoperative Navigation

Electronic Conductivity Device

6

10/12 DA10293A, CA9232A

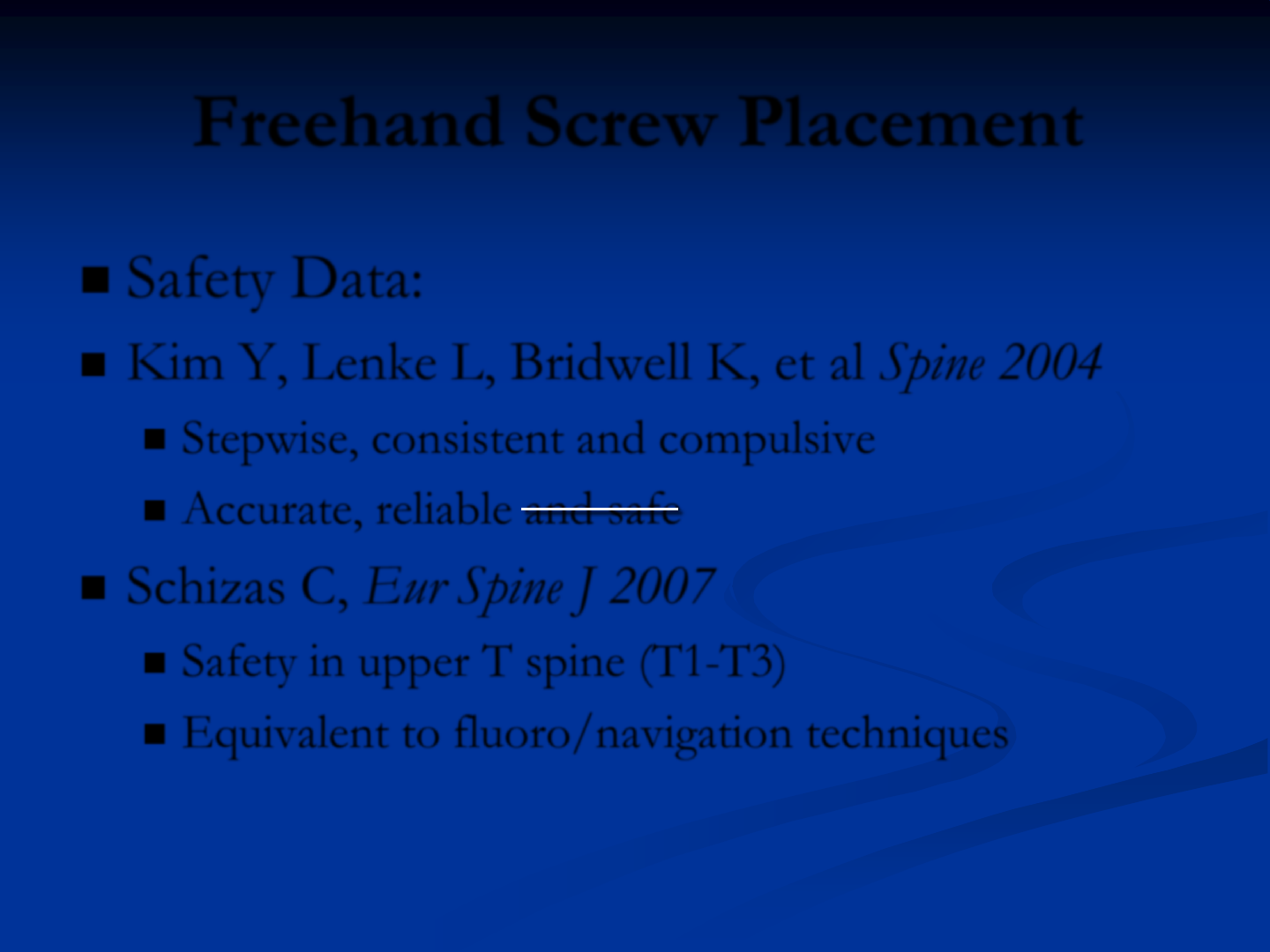

Freehand Screw Placement

Safety Data:

Kim Y, Lenke L, Bridwell K, et al Spine 2004

Stepwise, consistent and compulsive

Accurate, reliable and safe

Schizas C, Eur Spine J 2007

Safety in upper T spine (T1-T3)

Equivalent to fluoro/navigation techniques

7

10/12 DA10293A, CA9232A

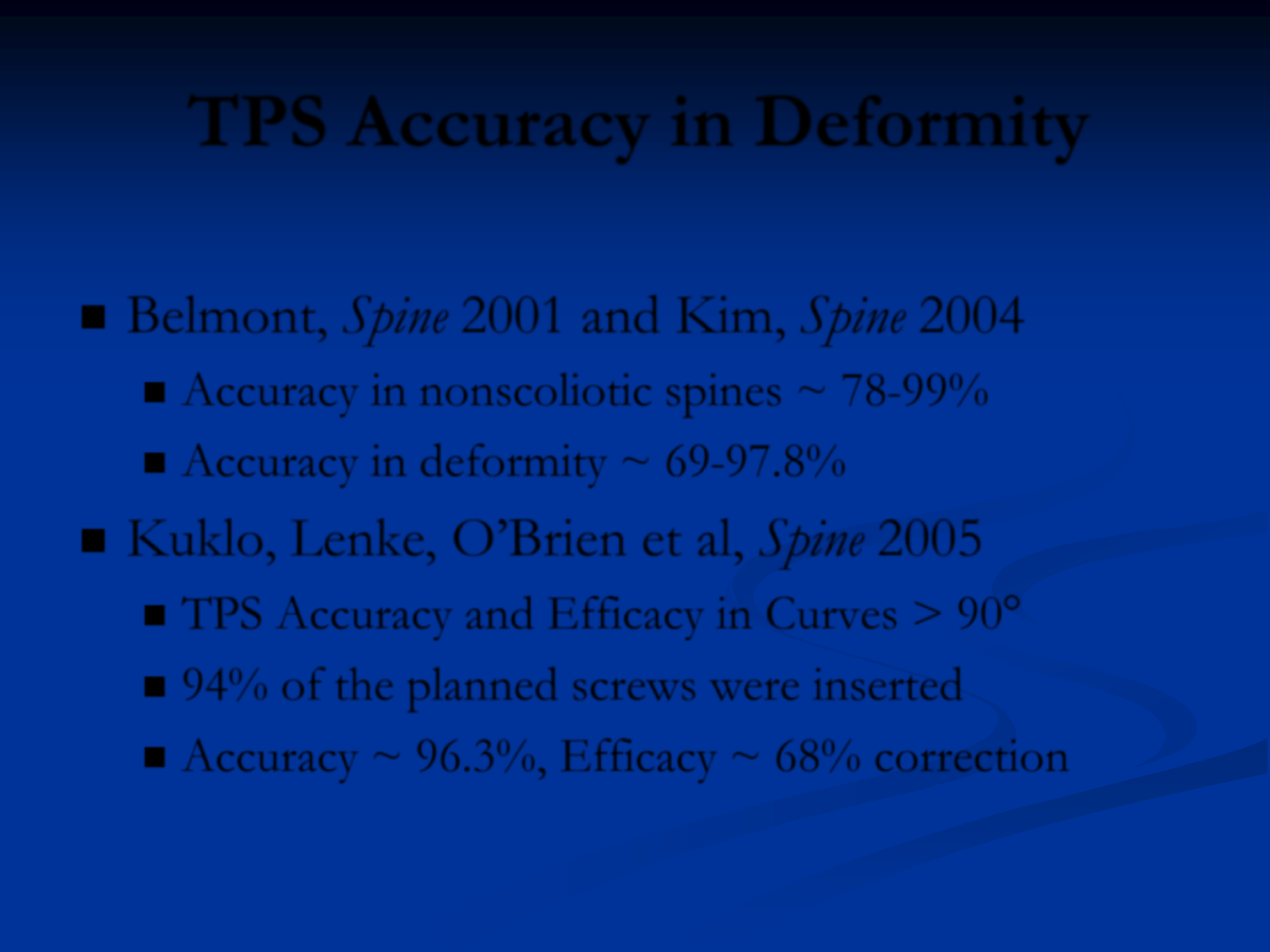

TPS Accuracy in Deformity

Belmont, Spine 2001 and Kim, Spine 2004

Accuracy in nonscoliotic spines ~ 78-99%

Accuracy in deformity ~ 69-97.8%

Kuklo, Lenke, O’Brien et al, Spine 2005

TPS Accuracy and Efficacy in Curves > 90°

94% of the planned screws were inserted

Accuracy ~ 96.3%, Efficacy ~ 68% correction

8

10/12 DA10293A, CA9232A

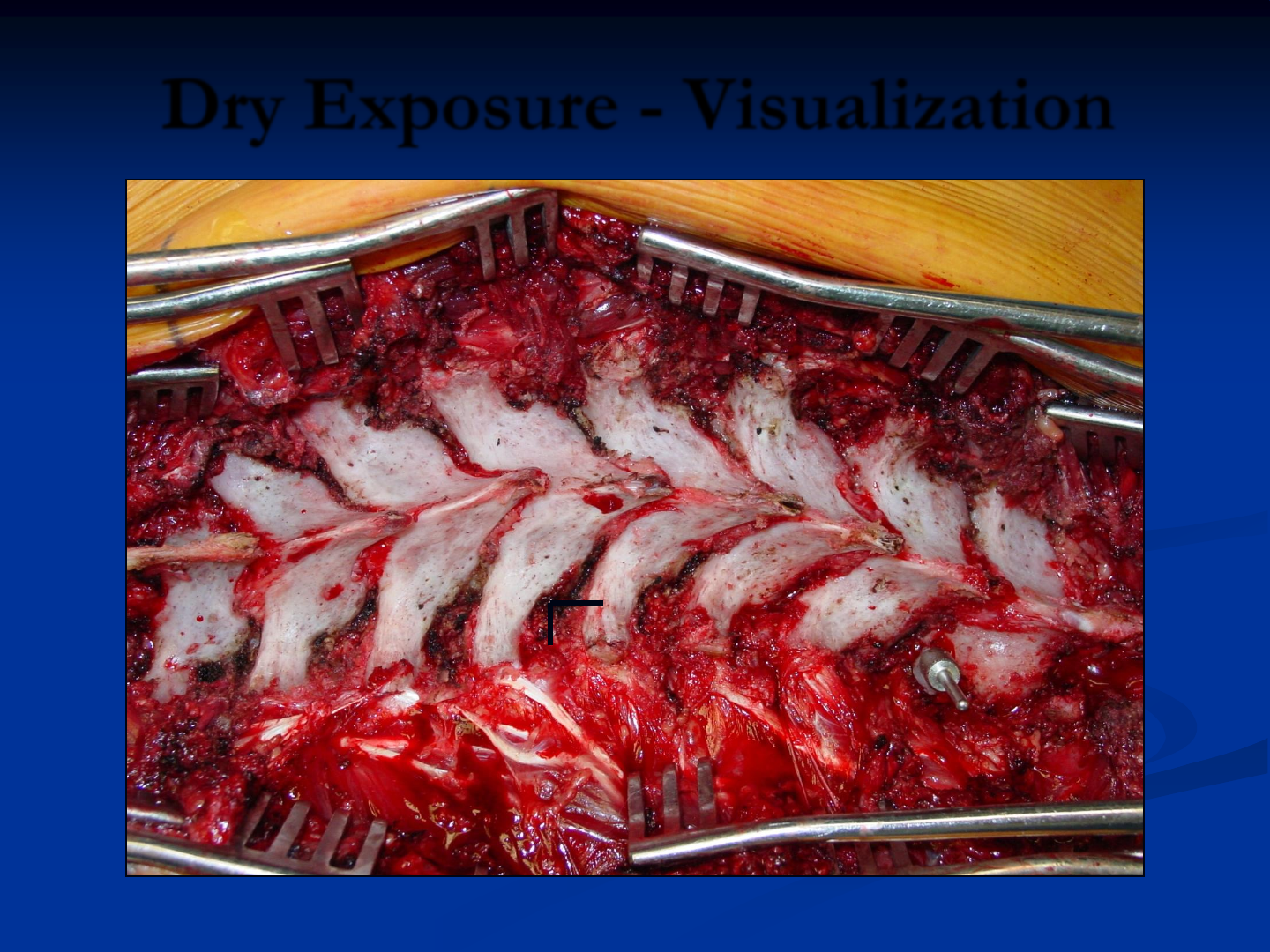

Dry Exposure - Visualization

9

10/12 DA10293A, CA9232A

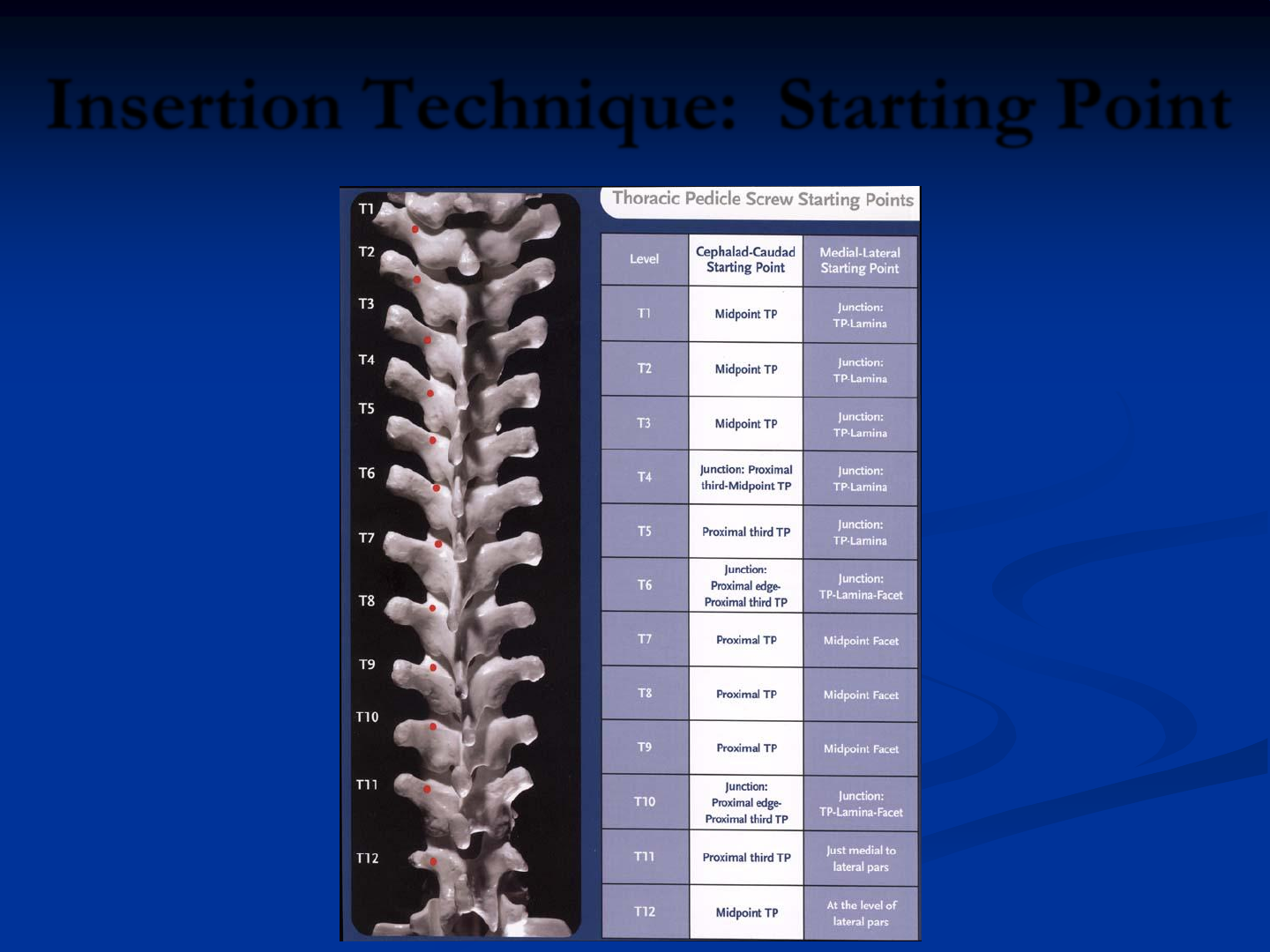

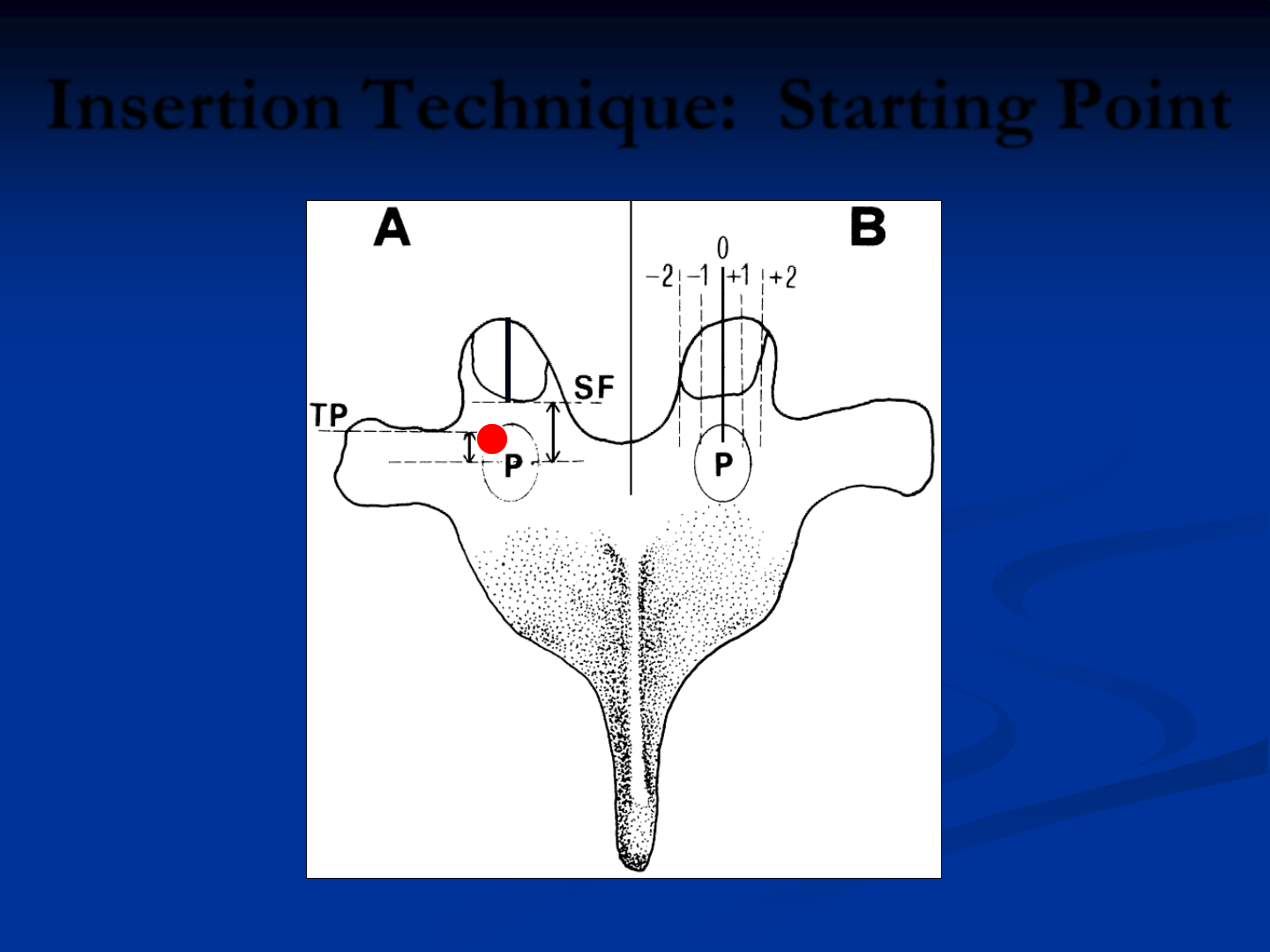

Insertion Technique: Starting Point

10

10/12 DA10293A, CA9232A

Insertion Technique: Starting Point

11

10/12 DA10293A, CA9232A

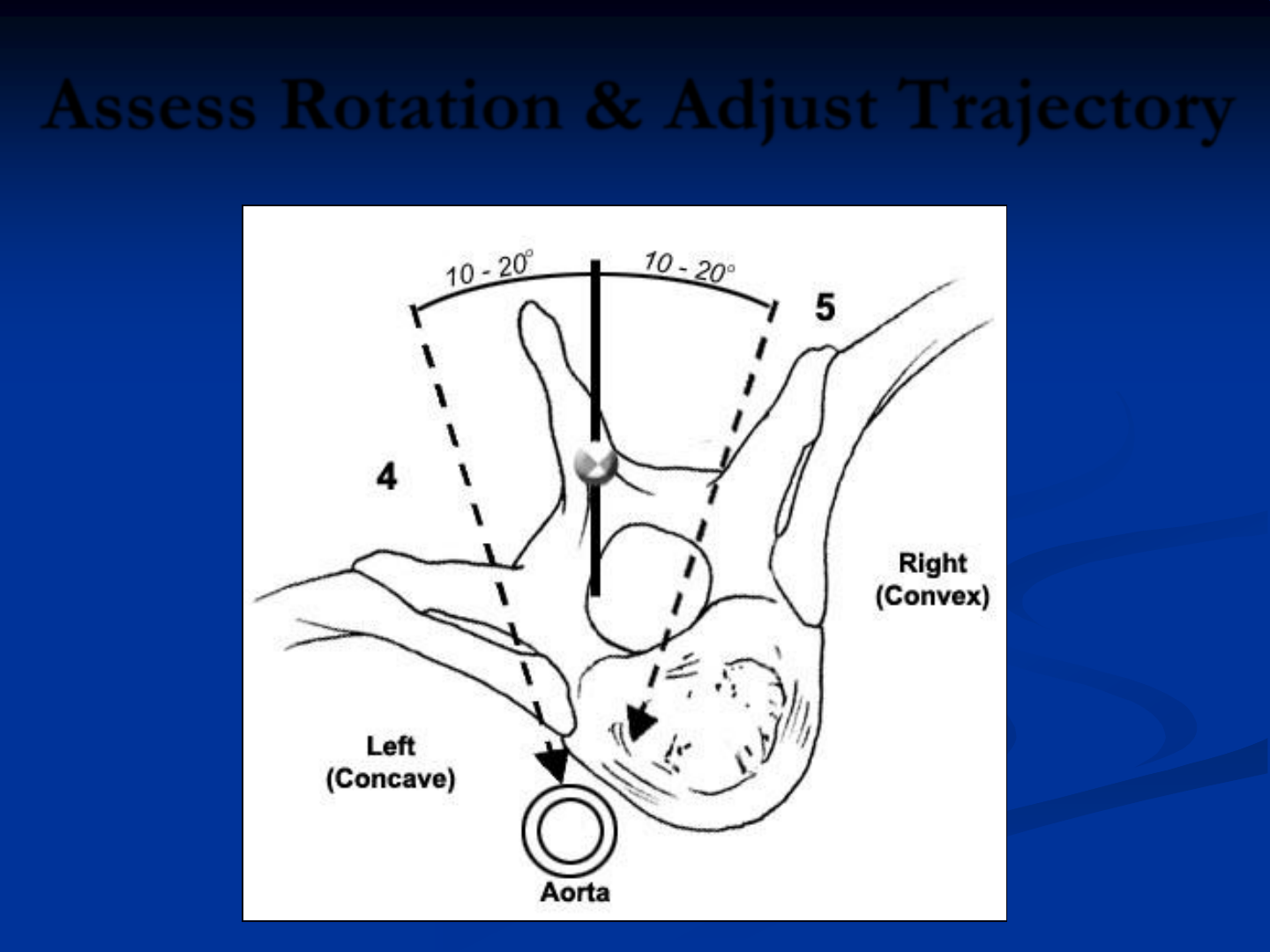

Assess Rotation & Adjust Trajectory

12

10/12 DA10293A, CA9232A

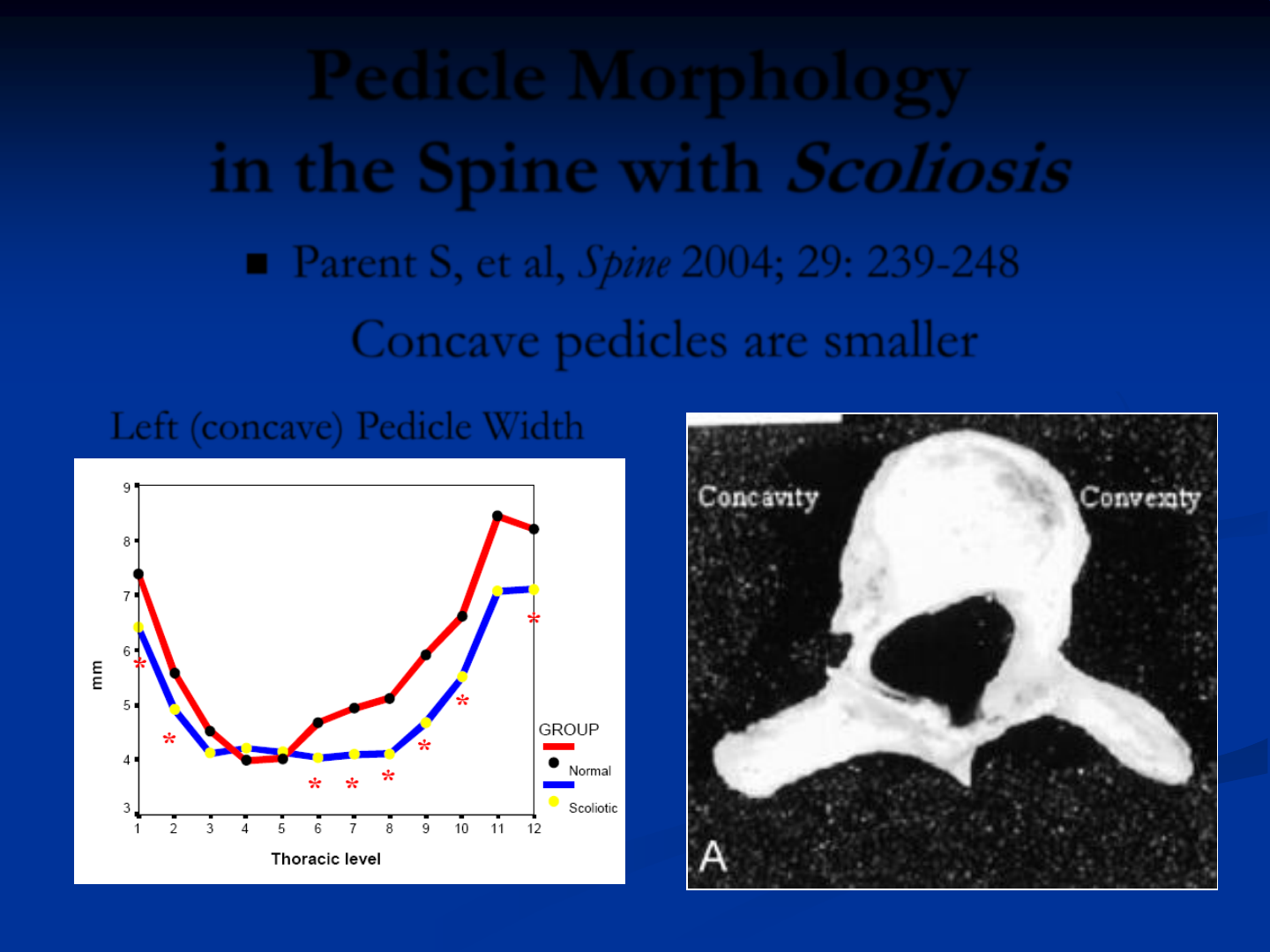

Pedicle Morphology

in the Spine with

Scoliosis

Parent S, et al, Spine 2004; 29: 239-248

Concave pedicles are smaller

Left (concave) Pedicle Width

13

10/12 DA10293A, CA9232A

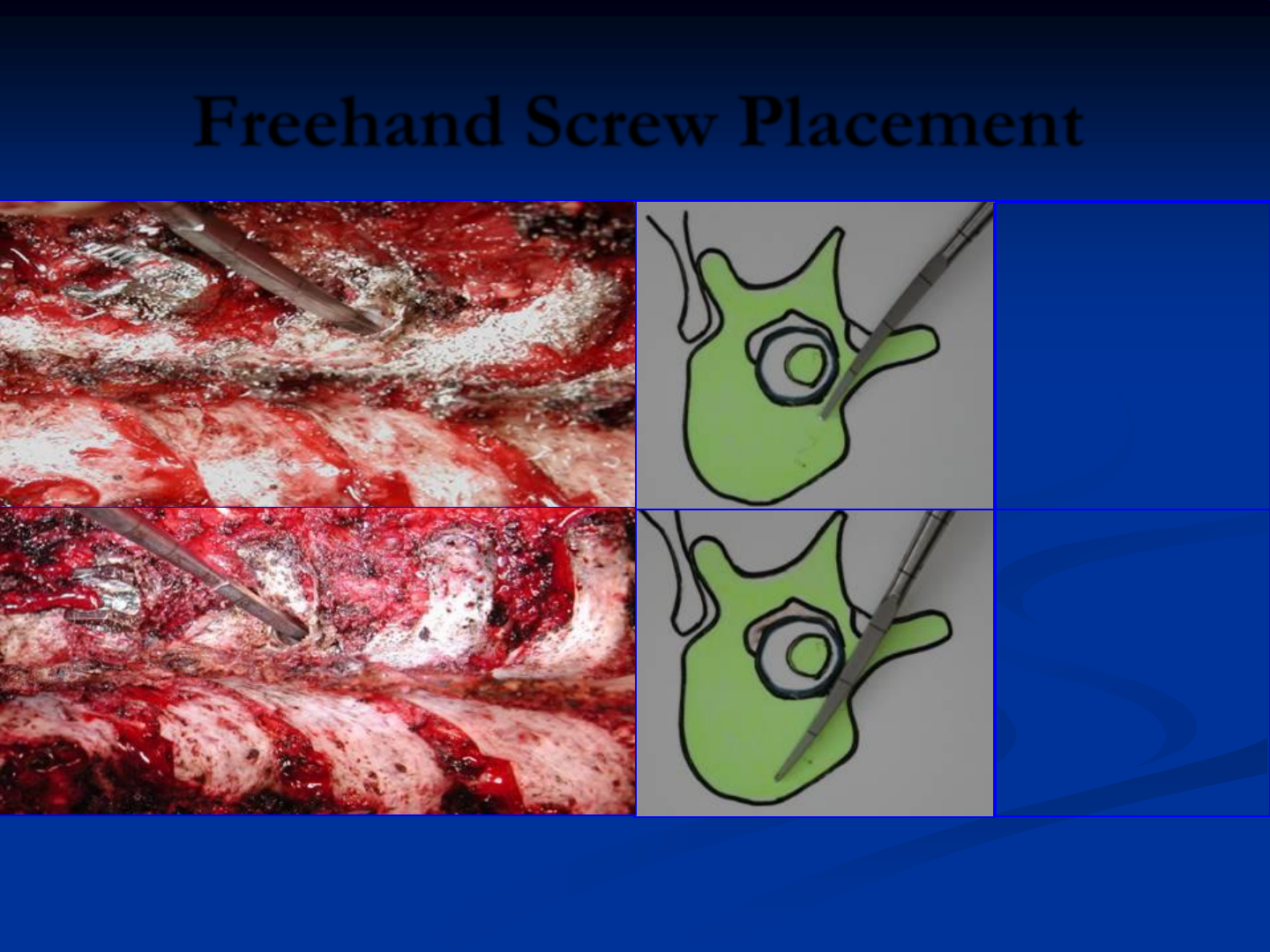

Freehand Screw Placement

Outward

gearshift

until the

pedicle base

Inward

gearshift into

vertebral body

after the

pedicle base

Kim YJ, Lenke LG et al, Spine 20047

14

10/12 DA10293A, CA9232A

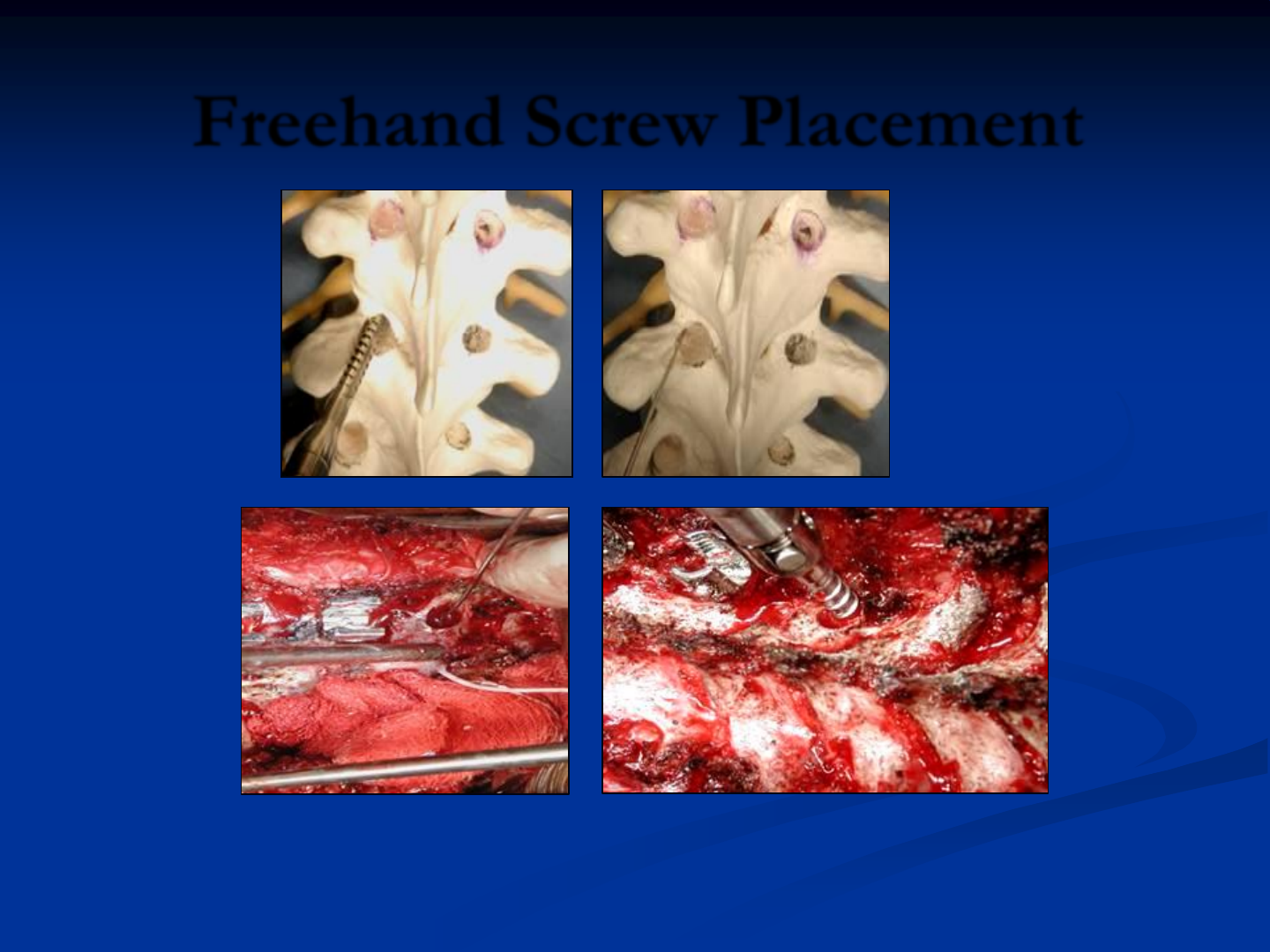

Freehand Screw Placement

Kim YJ, Lenke LG et al, Spine 2004

15

10/12 DA10293A, CA9232A

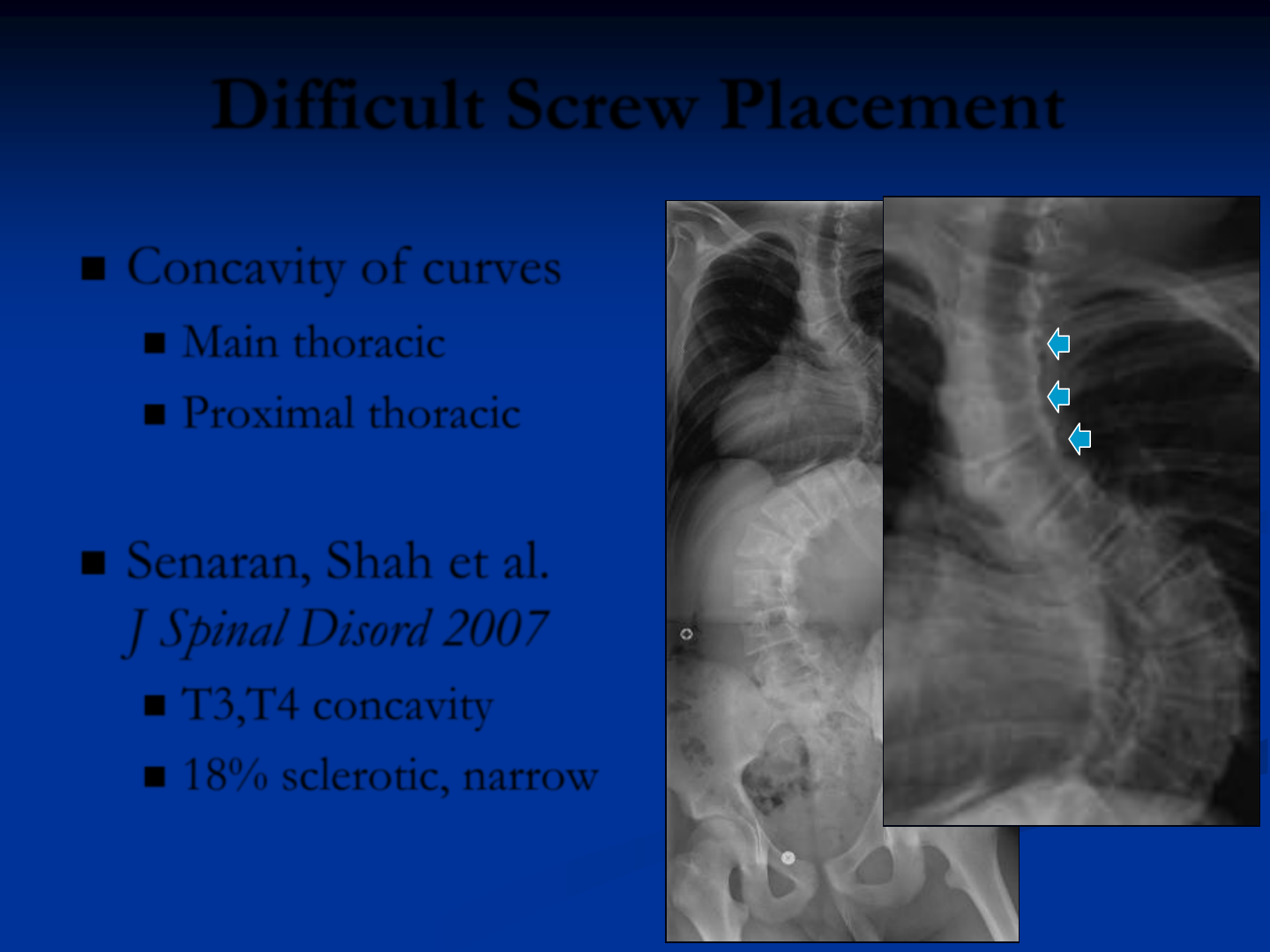

Difficult Screw Placement

Concavity of curves

Main thoracic

Proximal thoracic

Senaran, Shah et al.

J Spinal Disord 2007

T3,T4 concavity

18% sclerotic, narrow

16

10/12 DA10293A, CA9232A

Type A Type B Type C Type D

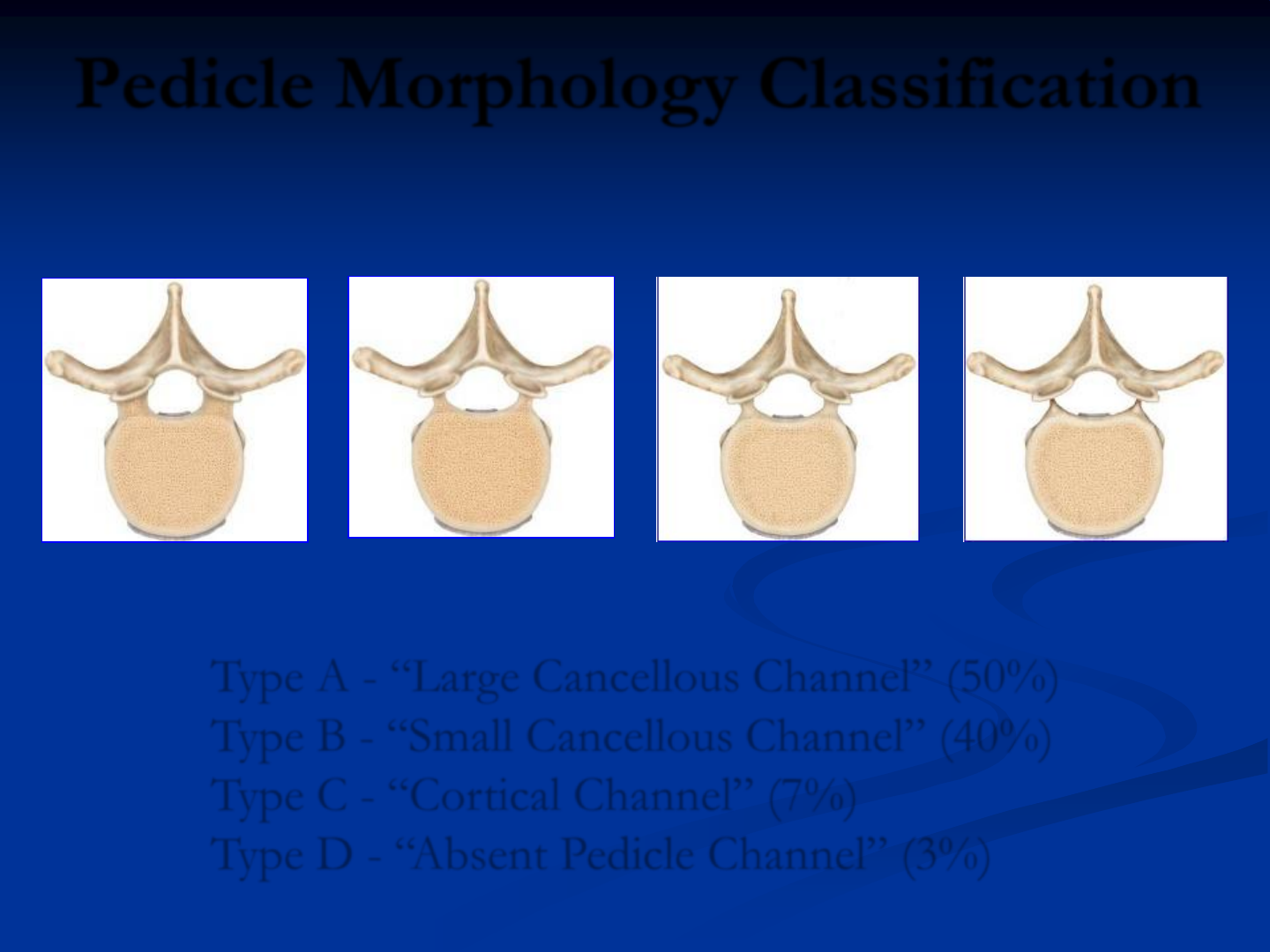

Pedicle Morphology Classification

Type A - “Large Cancellous Channel” (50%)

Type B - “Small Cancellous Channel” (40%)

Type C - “Cortical Channel” (7%)

Type D - “Absent Pedicle Channel” (3%)

Watanabe, Lenke et al IMAST 2007 and under review

17

10/12 DA10293A, CA9232A

Type A - Pedicle probe is smoothly inserted without difficulty

Type B - Pedicle probe is inserted snugly with increased force

Type C - Pedicle probe cannot be manually inserted but must be

tapped with a mallet down into the body

Type D - Necessitates a “juxtapedicular” pedicle probe insertion

Type A Type B Type C Type D

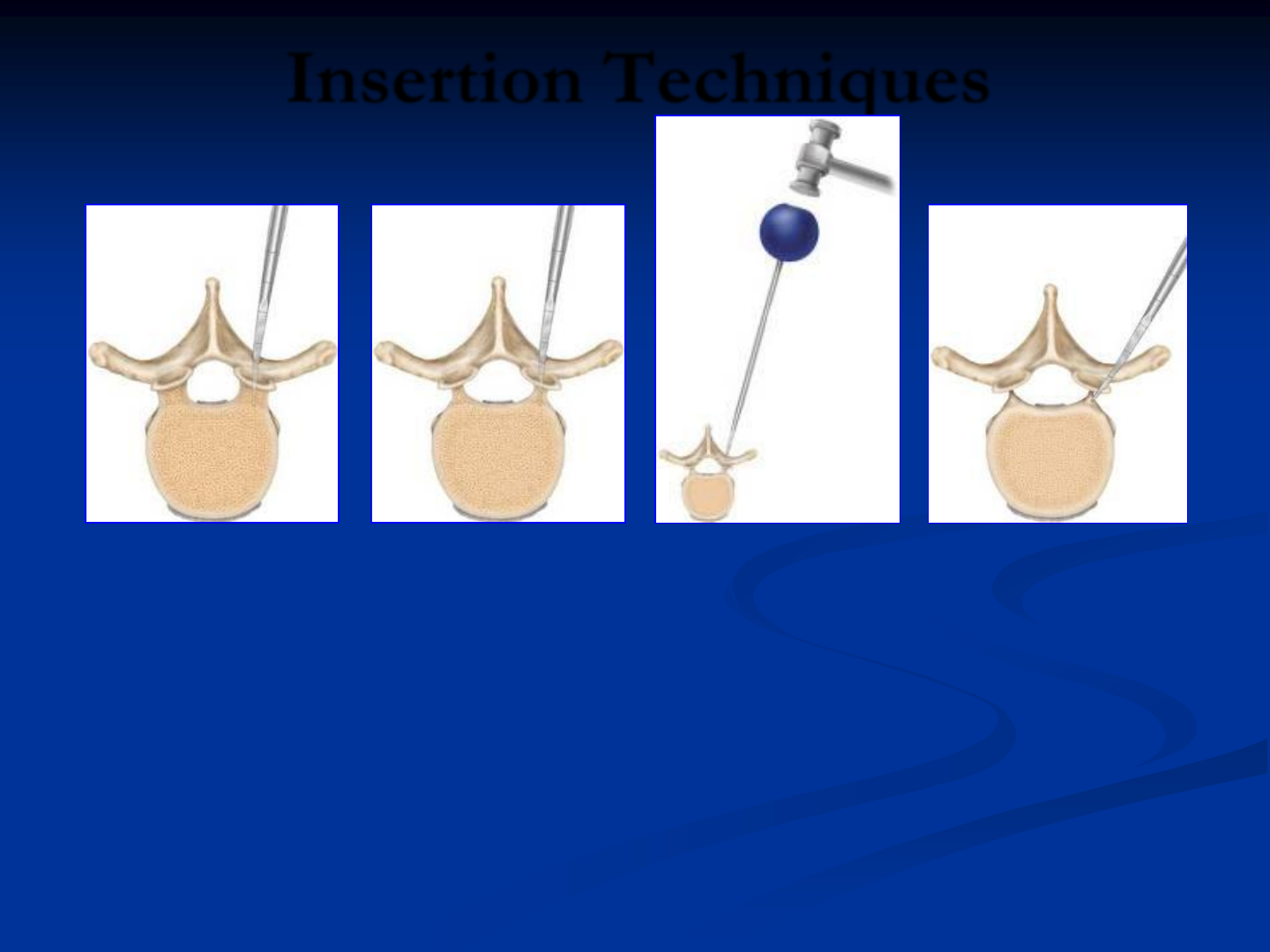

Insertion Techniques

Watanabe, Lenke et al IMAST 2007 and under review

18

10/12 DA10293A, CA9232A

13 yo♀ AIS Lenke 3CN

85

75

19

10/12 DA10293A, CA9232A

13 yo♀ AIS Lenke 3CN

PSF T4-L4

20

10/12 DA10293A, CA9232A

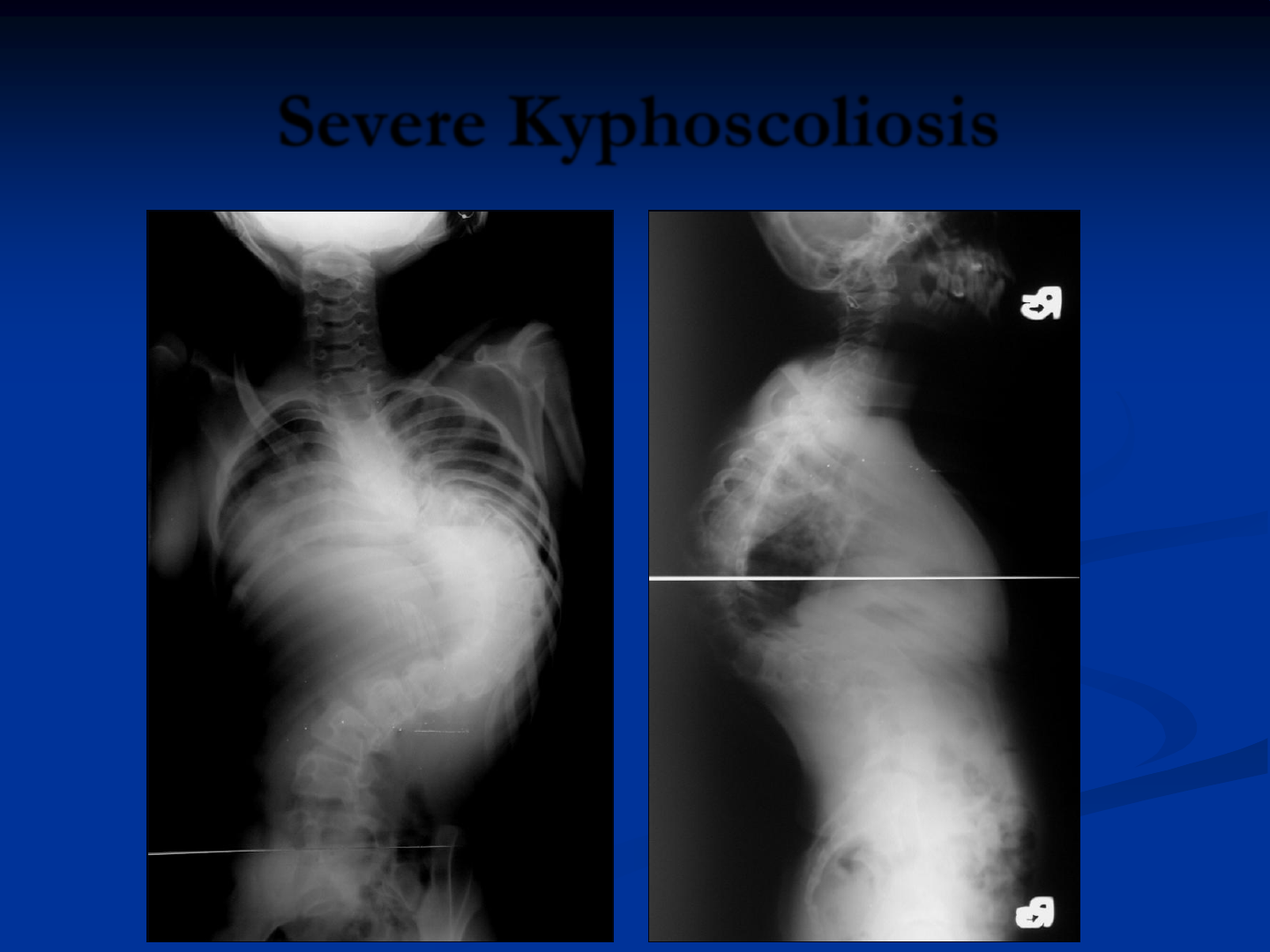

Severe Kyphoscoliosis

21

10/12 DA10293A, CA9232A

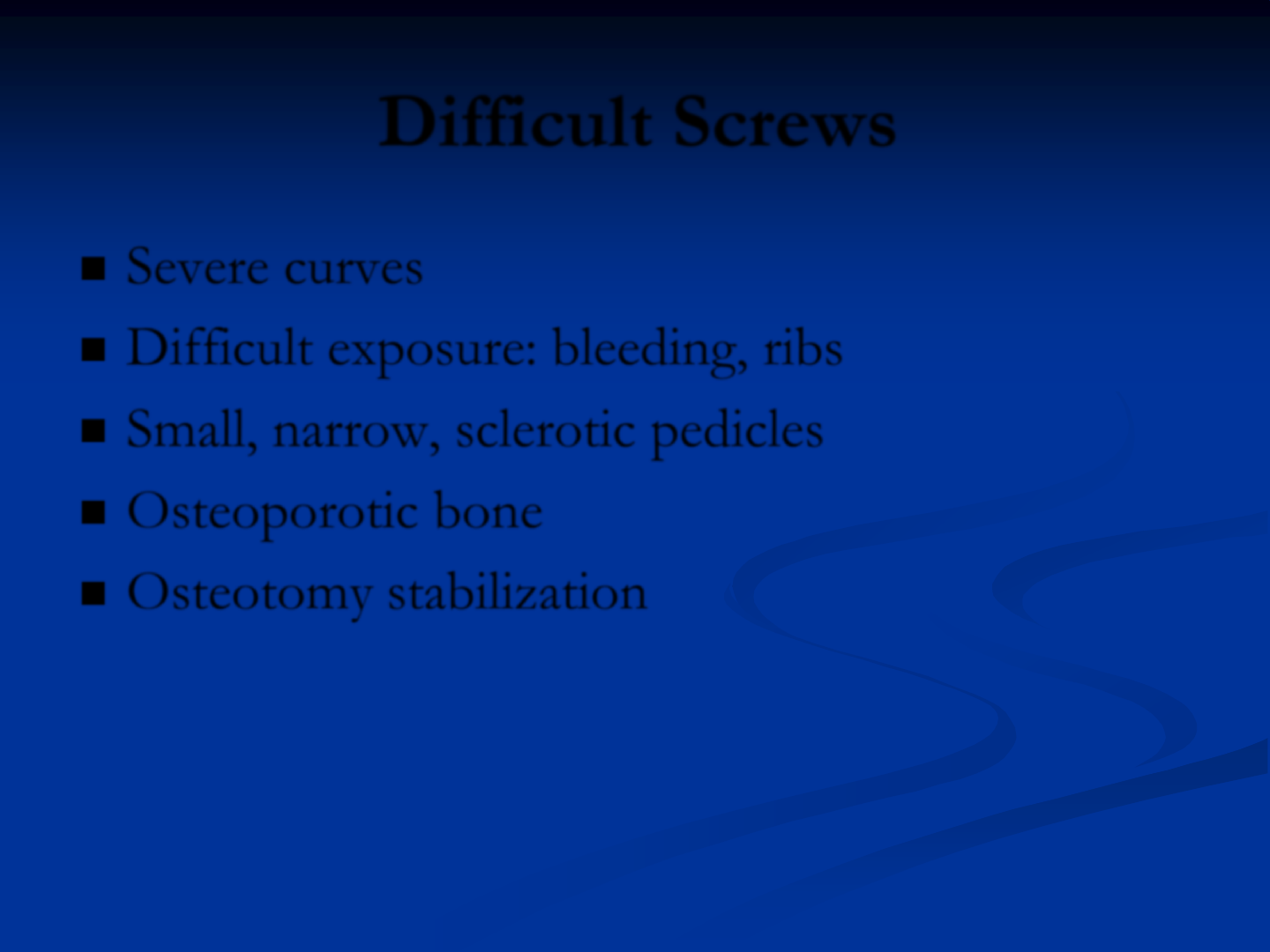

Difficult Screws

Severe curves

Difficult exposure: bleeding, ribs

Small, narrow, sclerotic pedicles

Osteoporotic bone

Osteotomy stabilization

22

10/12 DA10293A, CA9232A

Fluoroscopic Assisted Screw Insertion

Shufflebarger, DePuy Spine Technique Guide, 2007

Carbone J, Spine 2003

Rampersaud YR, Spine 2000

Collinear

23

10/12 DA10293A, CA9232A

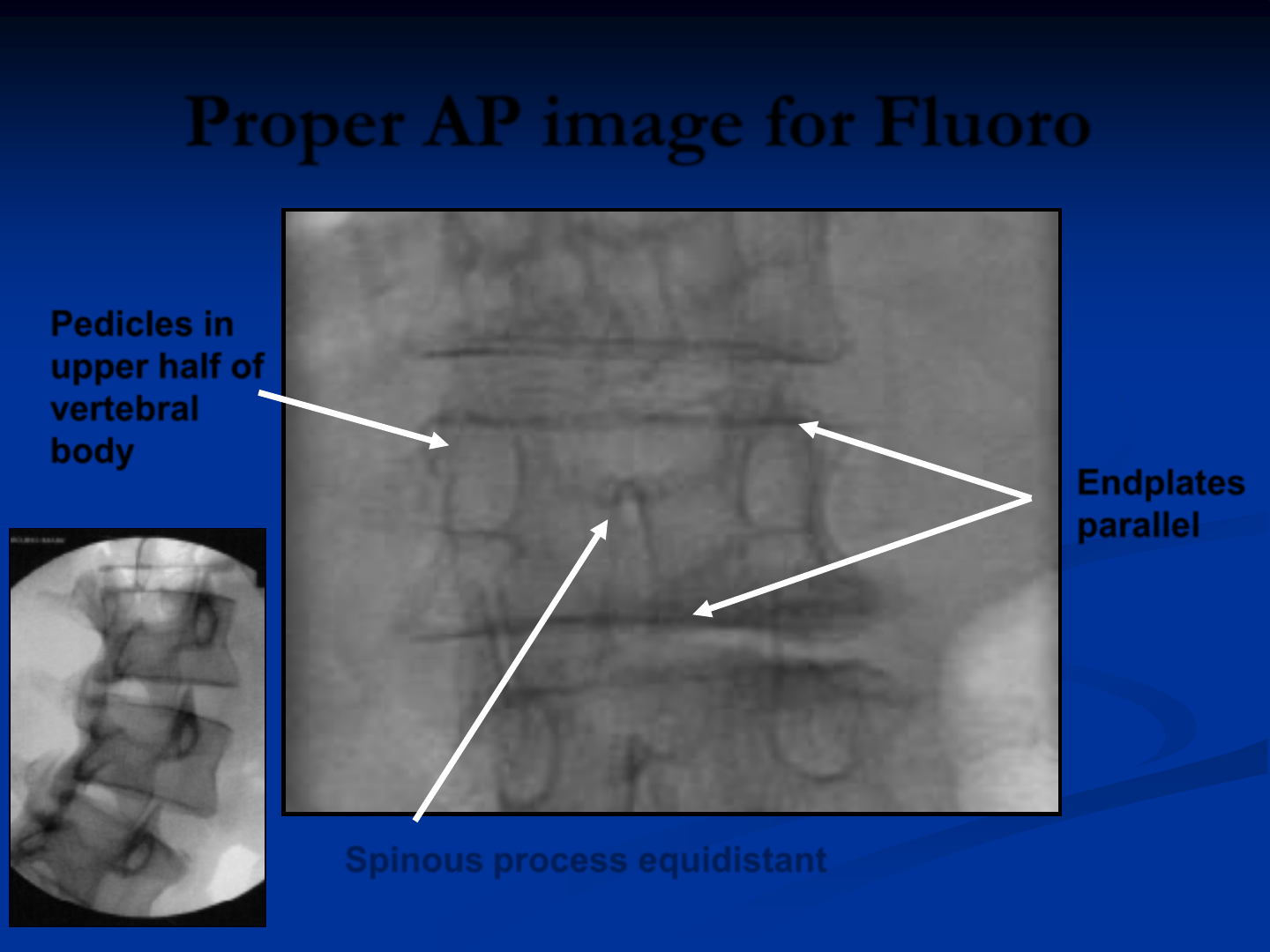

Endplates

parallel

Pedicles in

upper half of

vertebral

body

Spinous process equidistant

Proper AP image for Fluoro

24

10/12 DA10293A, CA9232A

Fluoroscopic Assisted Screw Insertion

Multiplanar fluoro, Iso-C, O-arm

Accuracy 78-93%

Radiation exposure

Wang M et al, Neurosurgery 2004

Kuntz C, J Spinal Disord 2004

25

10/12 DA10293A, CA9232A

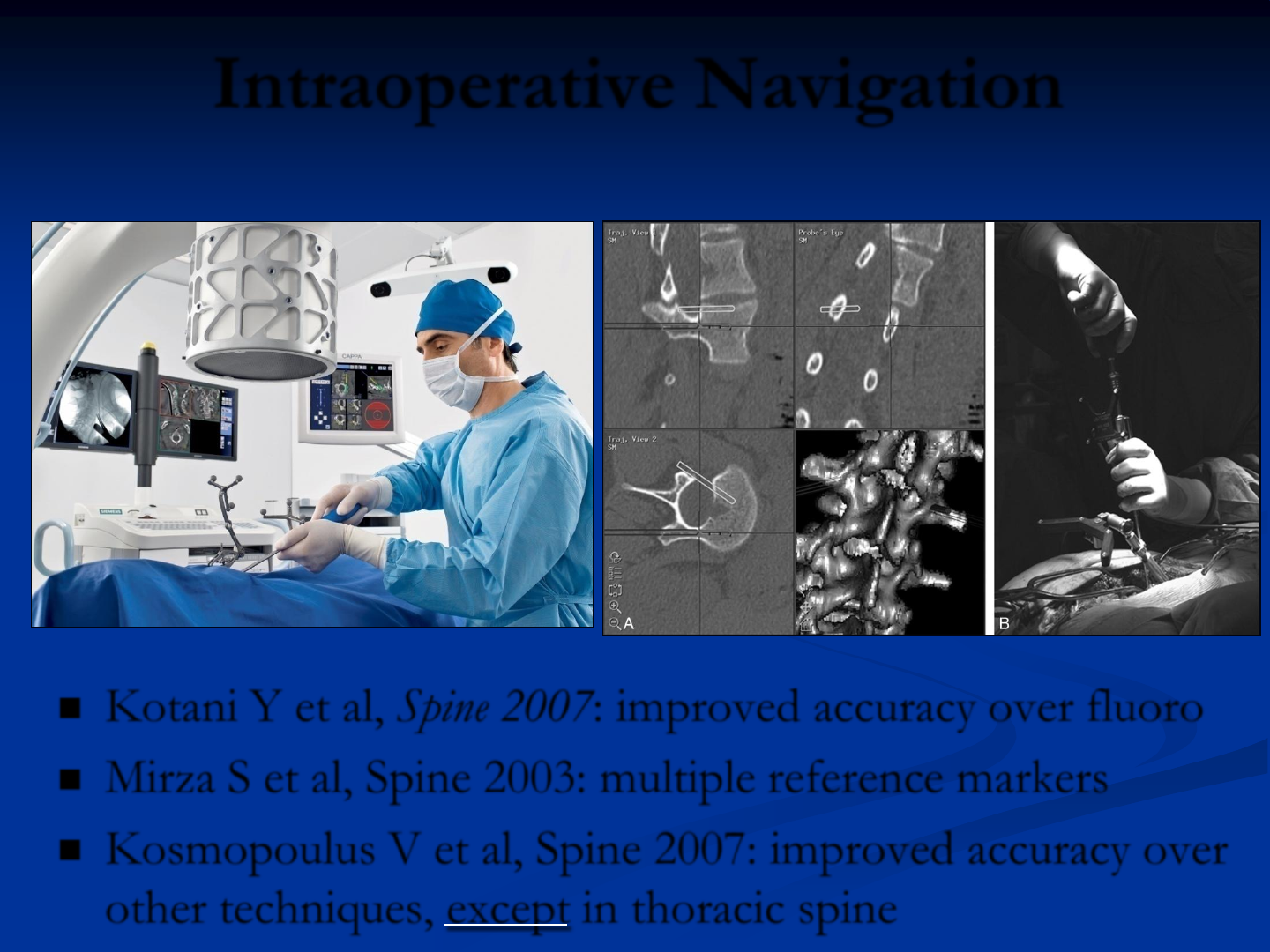

Intraoperative Navigation

Kotani Y et al, Spine 2007: improved accuracy over fluoro

Mirza S et al, Spine 2003: multiple reference markers

Kosmopoulus V et al, Spine 2007: improved accuracy over

other techniques, except in thoracic spine 26

10/12 DA10293A, CA9232A

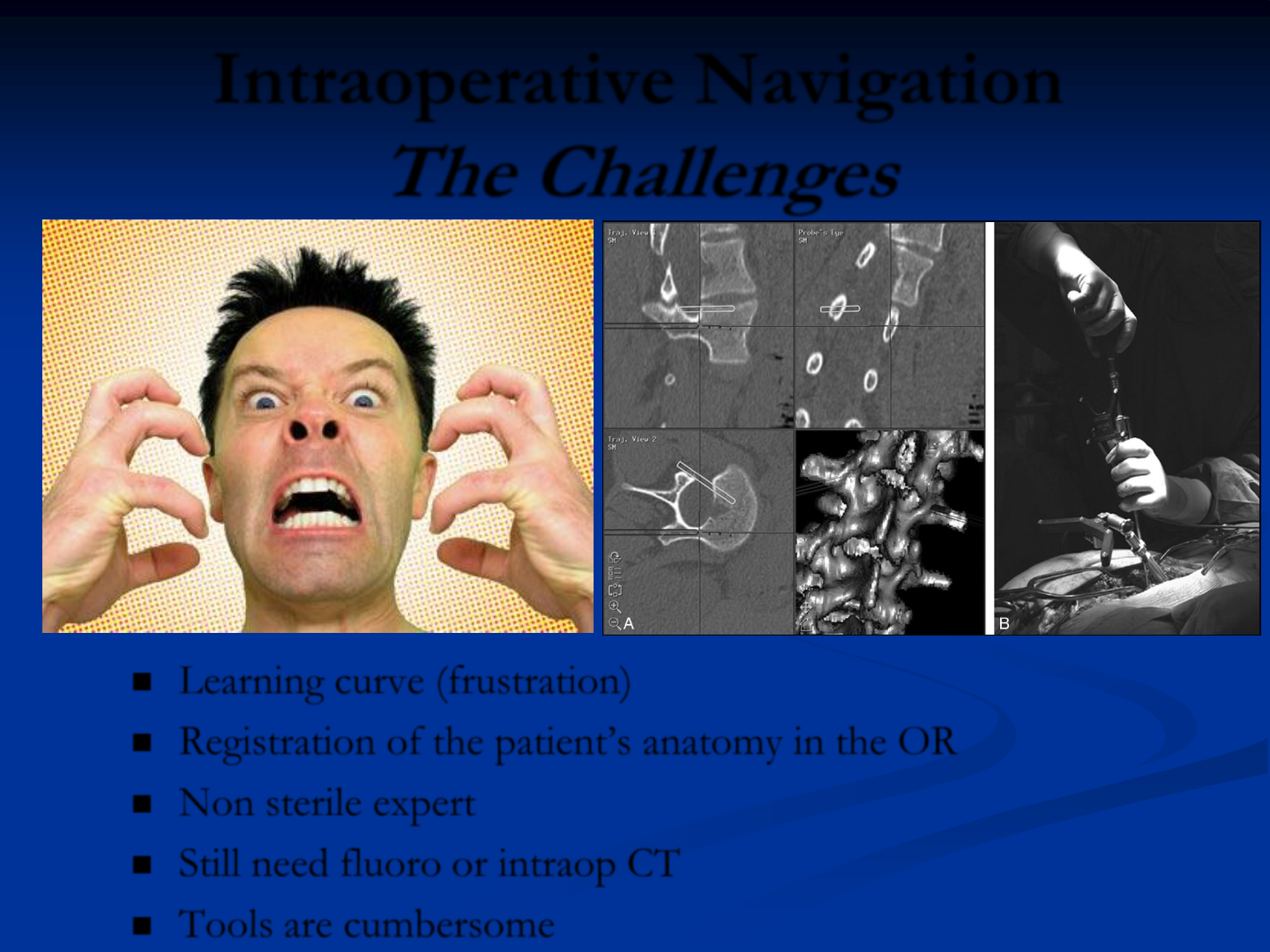

Intraoperative Navigation

The Challenges

Learning curve (frustration)

Registration of the patient’s anatomy in the OR

Non sterile expert

Still need fluoro or intraop CT

Tools are cumbersome 27

10/12 DA10293A, CA9232A

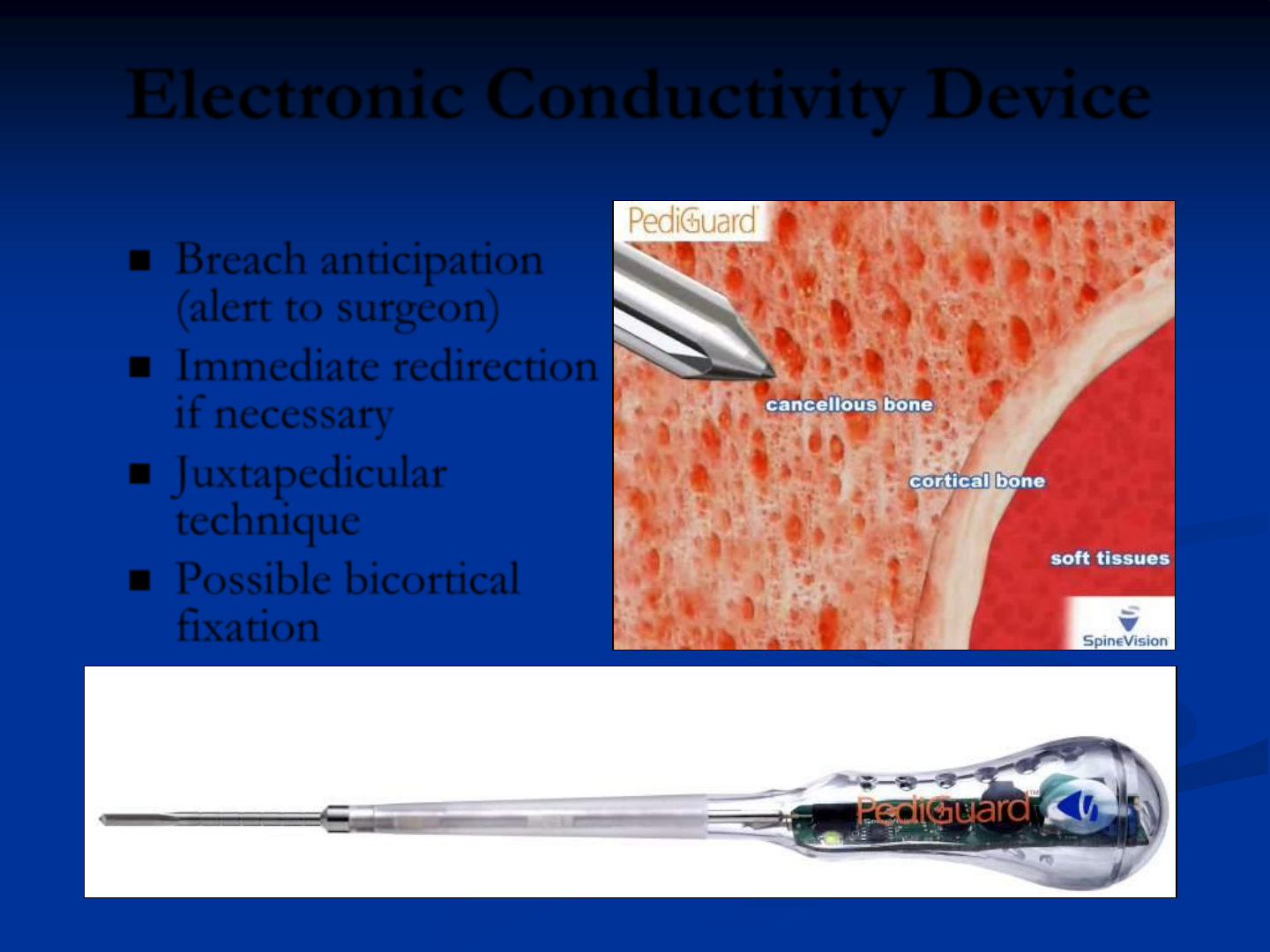

Electronic Conductivity Device

Breach anticipation

(alert to surgeon)

Immediate redirection

if necessary

Juxtapedicular

technique

Possible bicortical

fixation

28

10/12 DA10293A, CA9232A

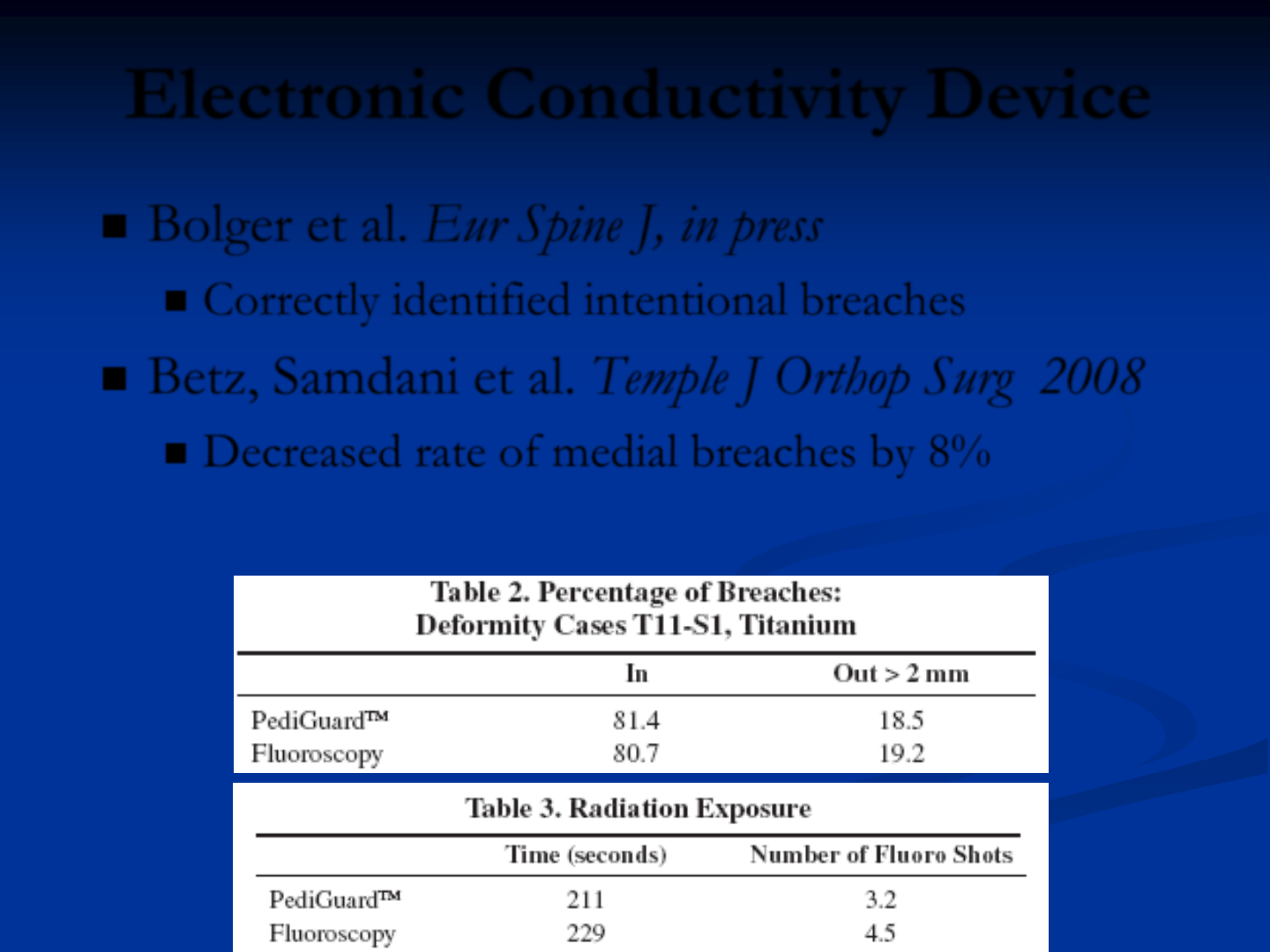

Electronic Conductivity Device

Bolger et al. Eur Spine J, in press

Correctly identified intentional breaches

Betz, Samdani et al. Temple J Orthop Surg 2008

Decreased rate of medial breaches by 8%

29

10/12 DA10293A, CA9232A

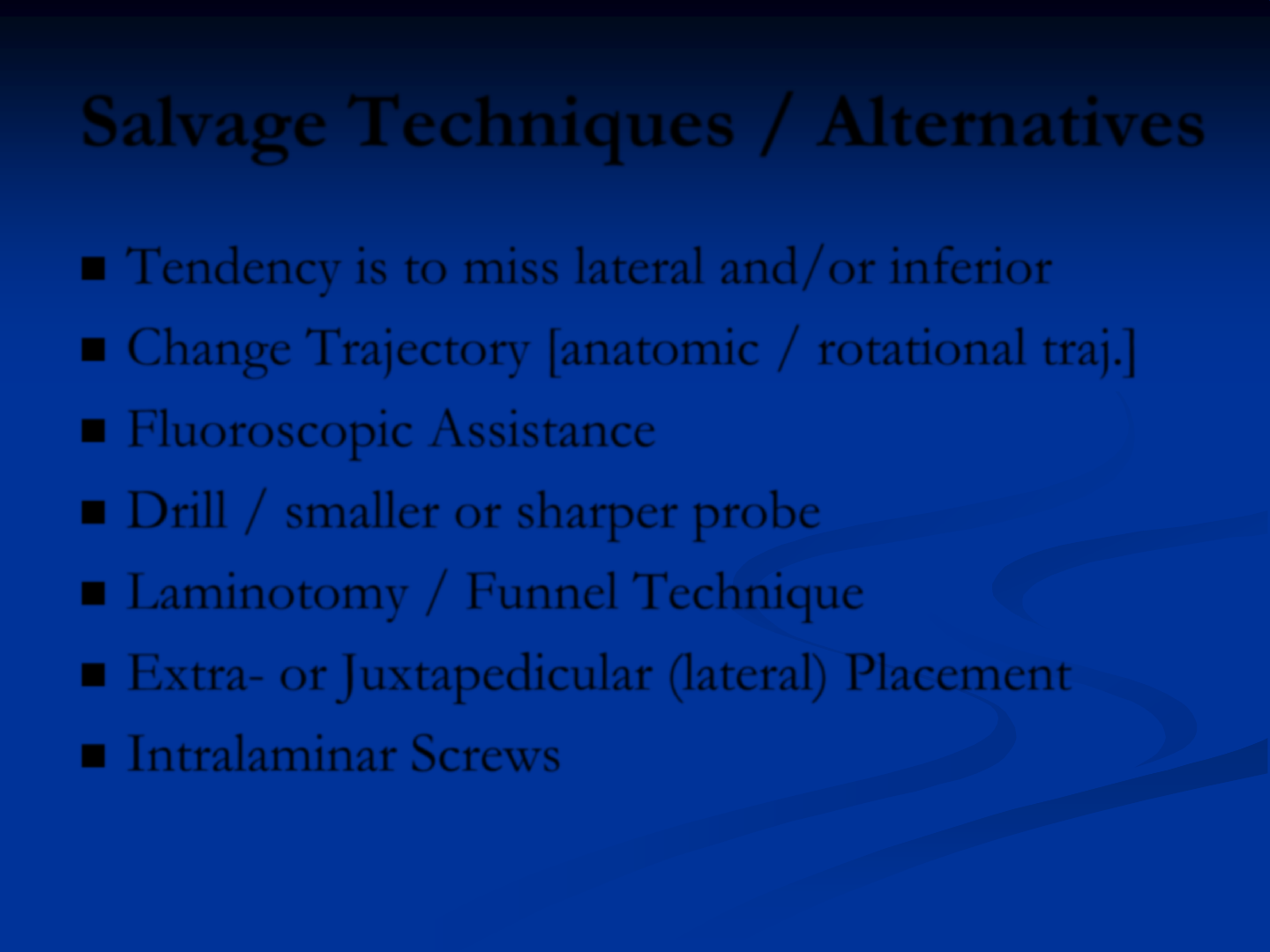

Salvage Techniques / Alternatives

Tendency is to miss lateral and/or inferior

Change Trajectory [anatomic / rotational traj.]

Fluoroscopic Assistance

Drill / smaller or sharper probe

Laminotomy / Funnel Technique

Extra- or Juxtapedicular (lateral) Placement

Intralaminar Screws

30

10/12 DA10293A, CA9232A

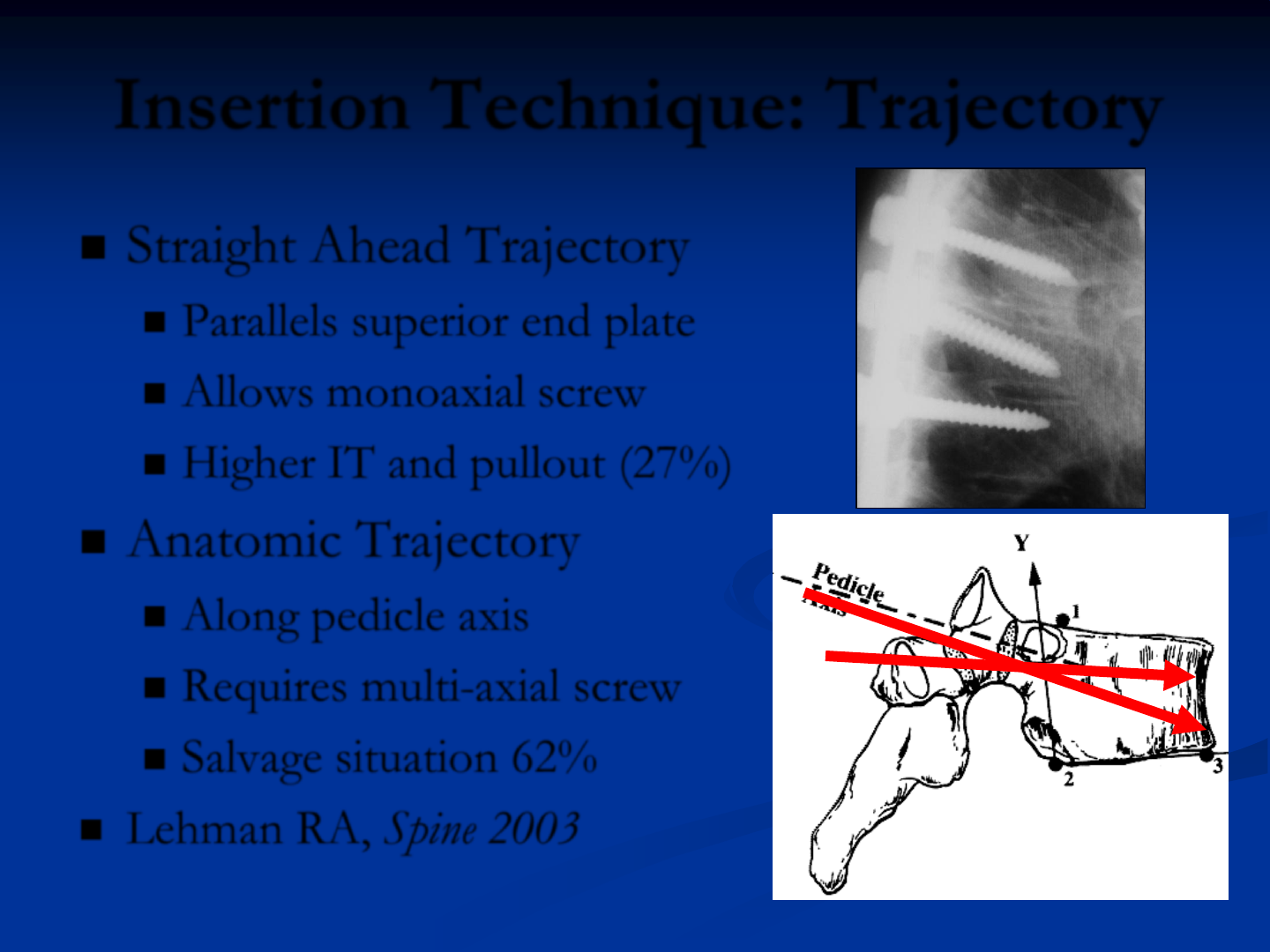

Insertion Technique: Trajectory

Straight Ahead Trajectory

Parallels superior end plate

Allows monoaxial screw

Higher IT and pullout (27%)

Anatomic Trajectory

Along pedicle axis

Requires multi-axial screw

Salvage situation 62%

Lehman RA, Spine 2003

31

10/12 DA10293A, CA9232A

Salvage Techniques for Screw Placement

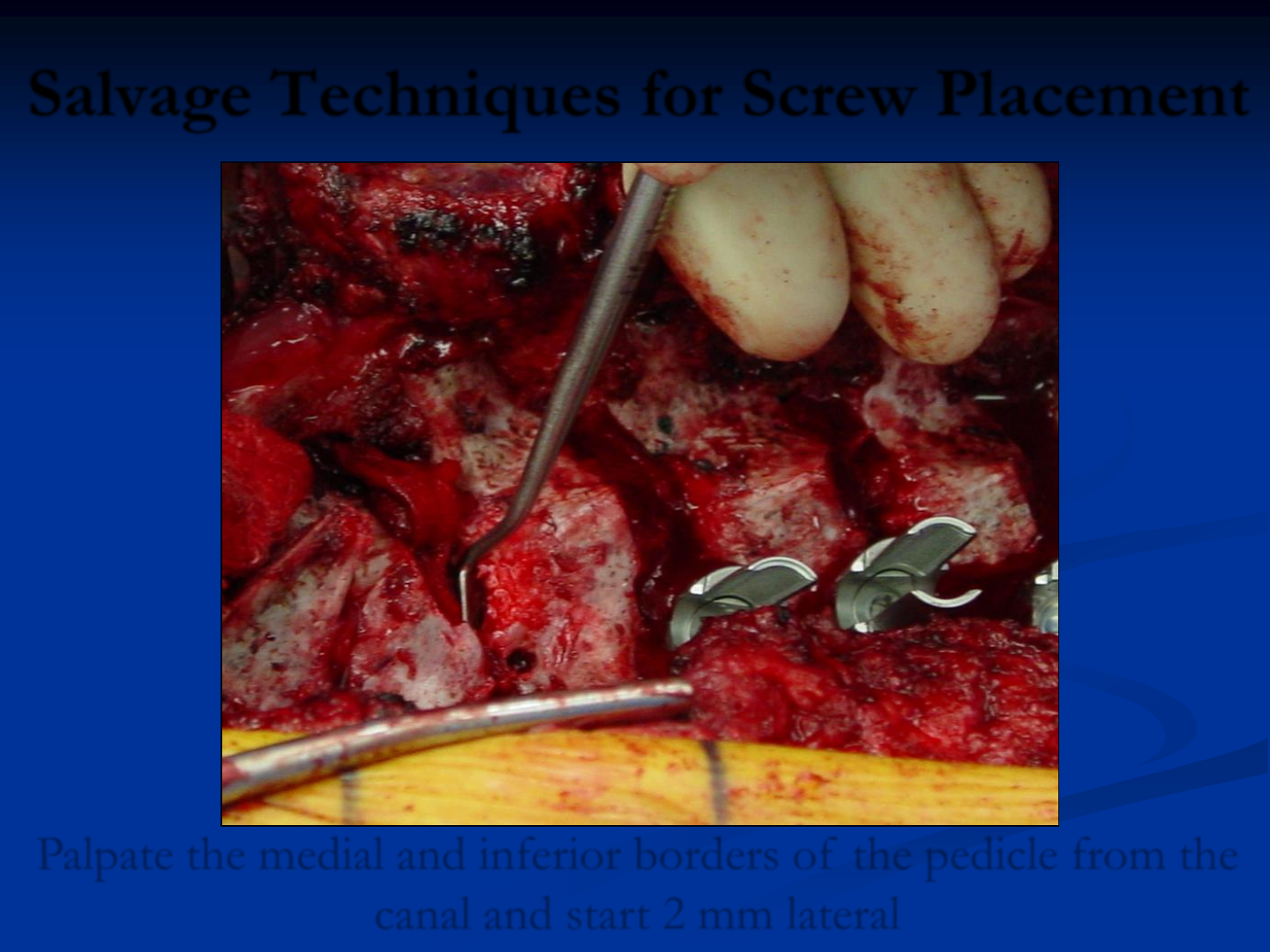

Palpate the medial and inferior borders of the pedicle from the

canal and start 2 mm lateral 32

10/12 DA10293A, CA9232A

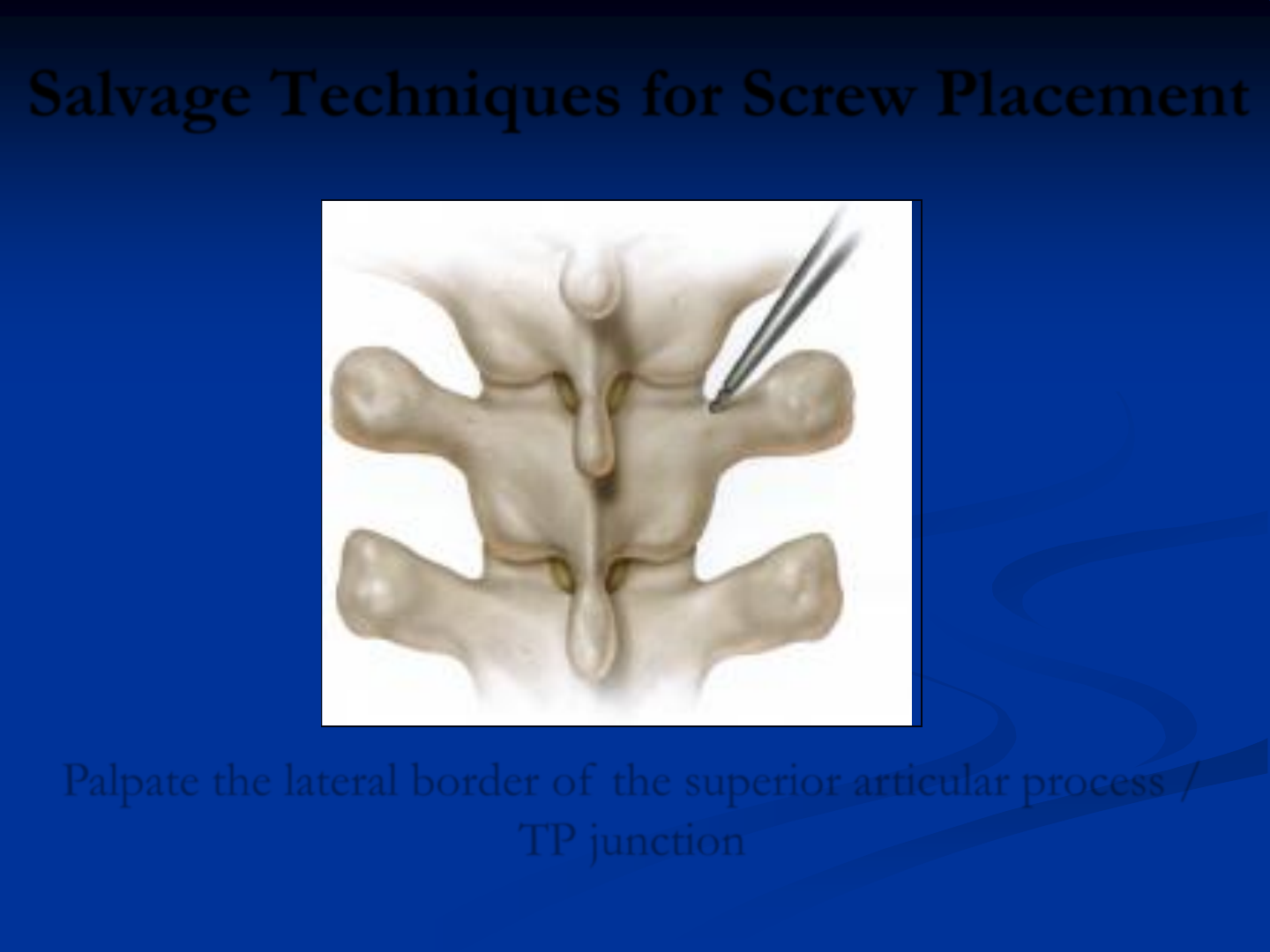

Salvage Techniques for Screw Placement

Zeiller et al, Neurol India 2005

Palpate the lateral border of the superior articular process /

TP junction

33

10/12 DA10293A, CA9232A

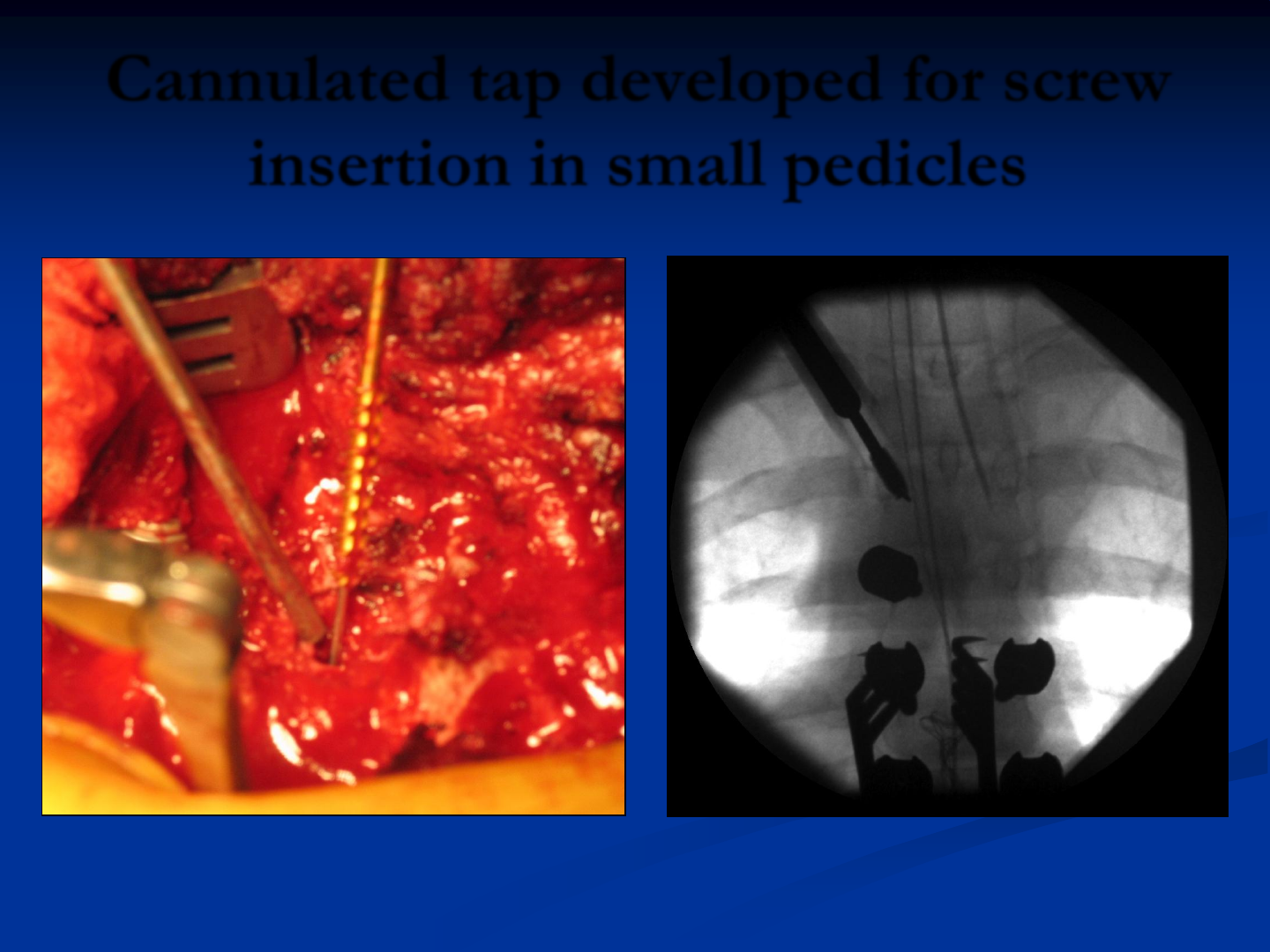

Cannulated tap developed for screw

insertion in small pedicles

34

10/12 DA10293A, CA9232A

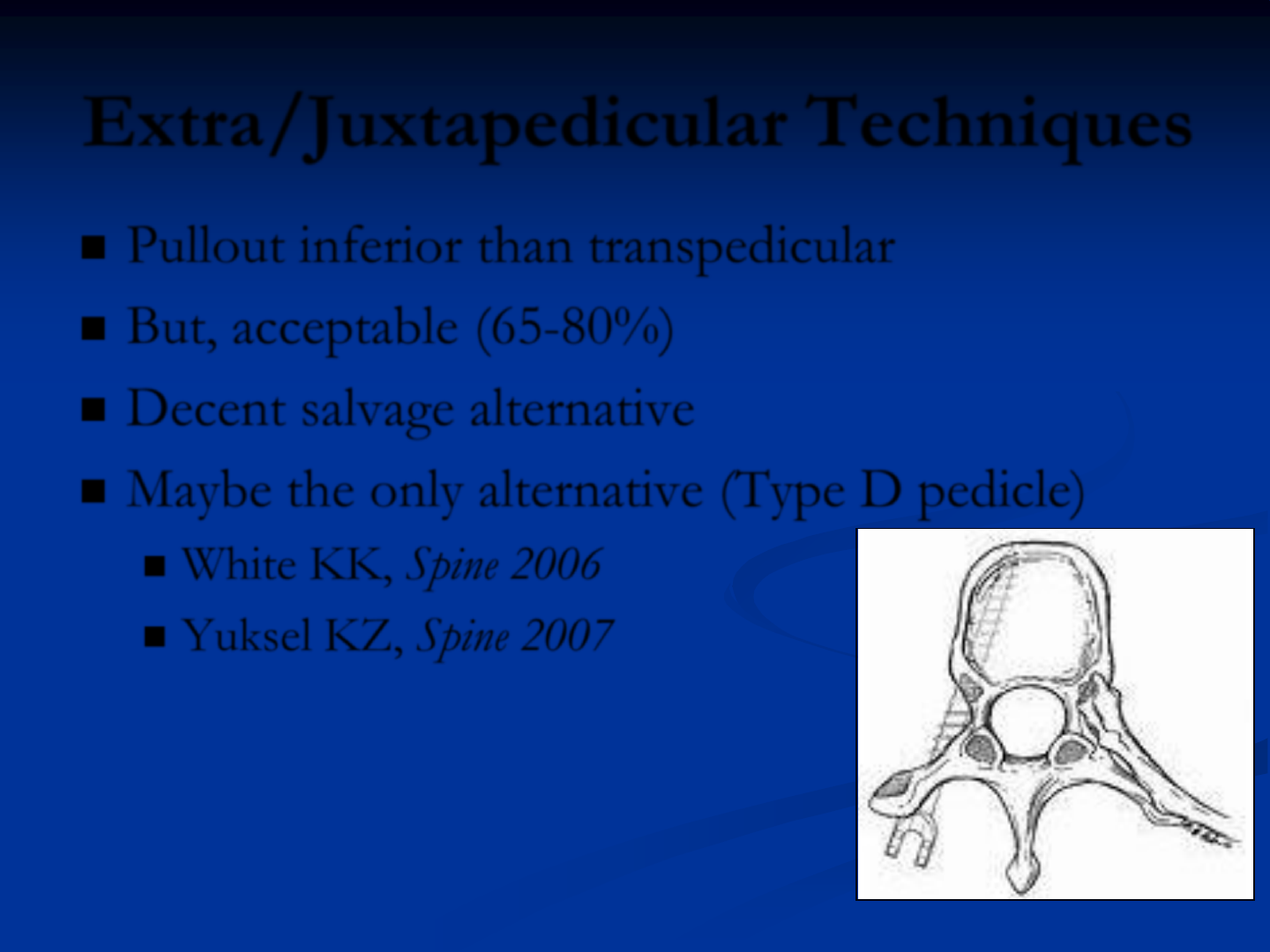

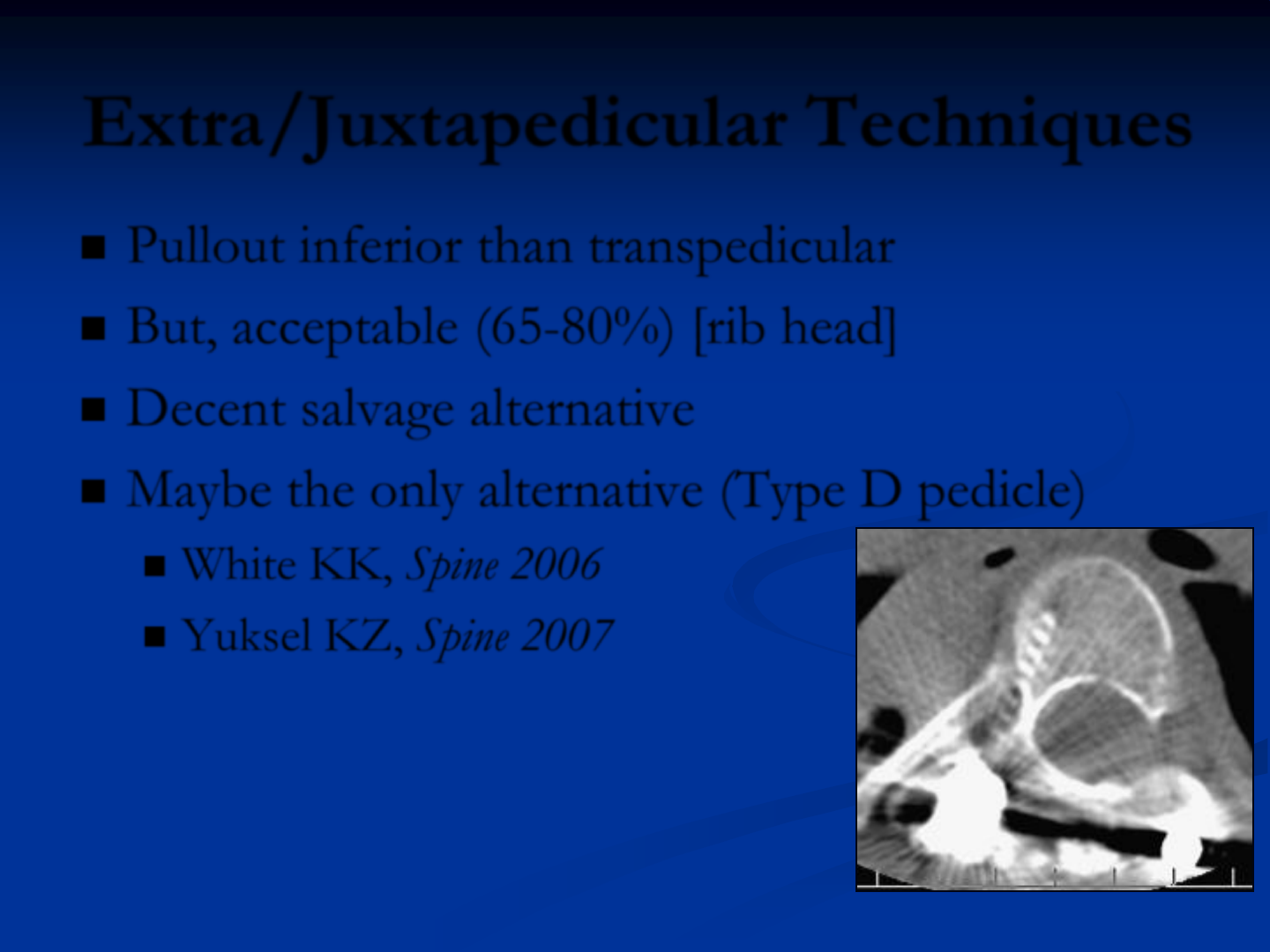

Extra/Juxtapedicular Techniques

Pullout inferior than transpedicular

But, acceptable (65-80%)

Decent salvage alternative

Maybe the only alternative (Type D pedicle)

White KK, Spine 2006

Yuksel KZ, Spine 2007

35

10/12 DA10293A, CA9232A

Extra/Juxtapedicular Techniques

Pullout inferior than transpedicular

But, acceptable (65-80%) [rib head]

Decent salvage alternative

Maybe the only alternative (Type D pedicle)

White KK, Spine 2006

Yuksel KZ, Spine 2007

36

10/12 DA10293A, CA9232A

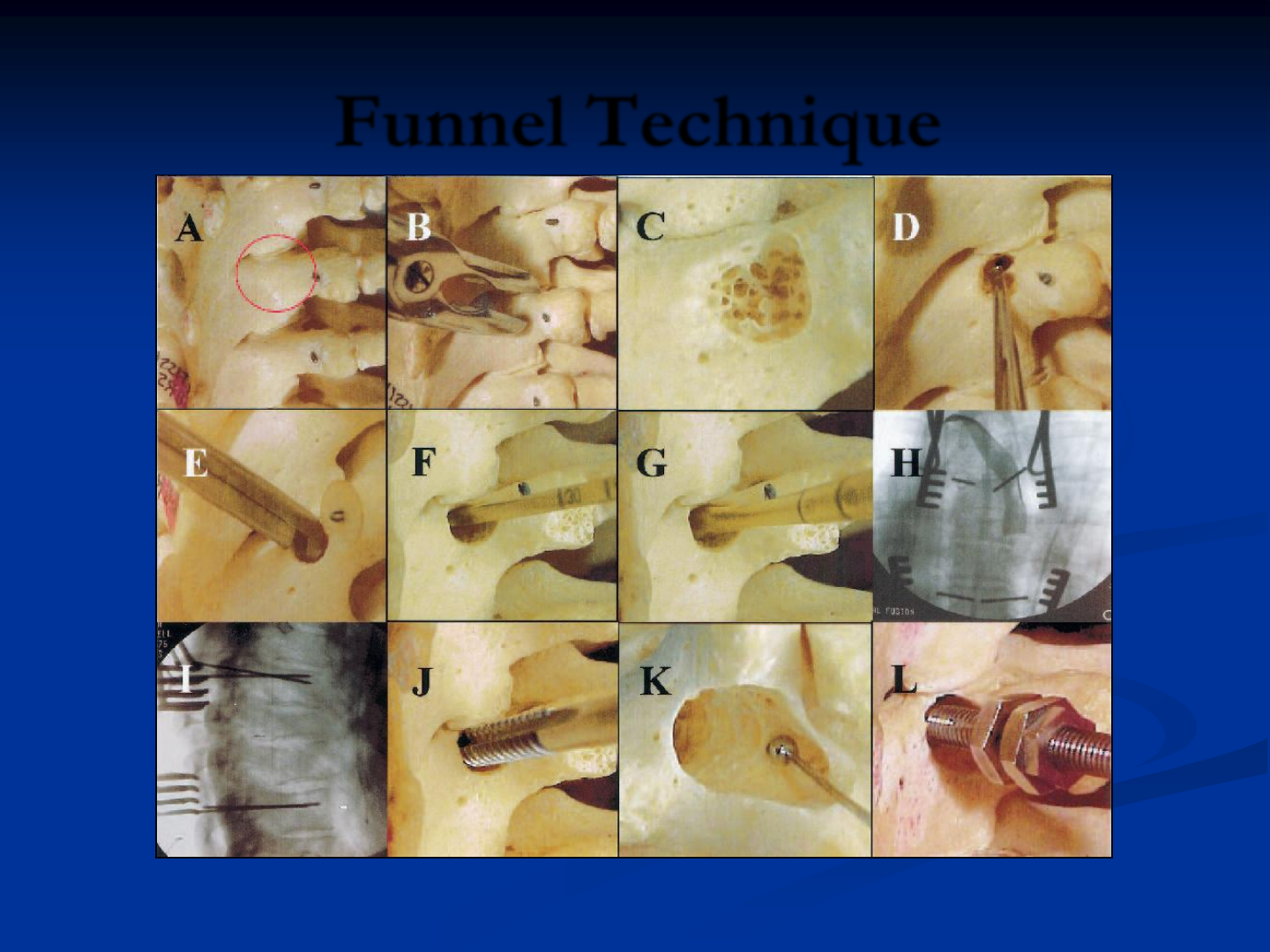

Funnel Technique

Yingsakmonkol, Karaikovic, and Gaines, J Spinal Disord 2002

37

10/12 DA10293A, CA9232A

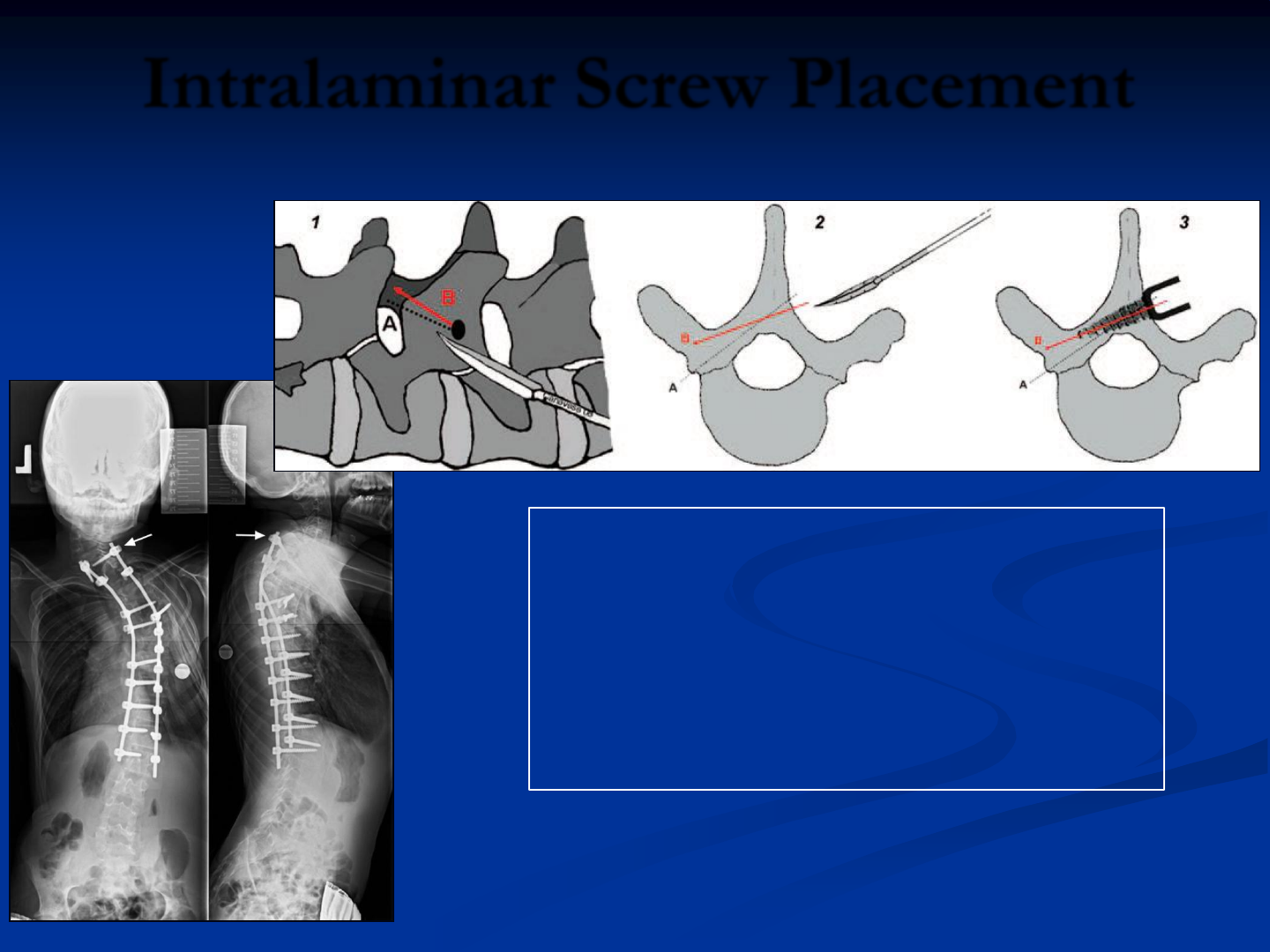

Intralaminar Screw Placement

A curved pedicle probe is directed along the axis

of the lamina with the curved tip aimed dorsally.

(1) The trajectory is kept slightly less than the

down slope of the lamina.

(2) The screw is placed entirely within the

cortical bone.

(3) A- Axis of the lamina, B - ideal trajectory.

Lewis SJ et al, Spine 2009

Biomechanics sound - Cardoso MJ J Neurosurg Spine 2009

38

10/12 DA10293A, CA9232A

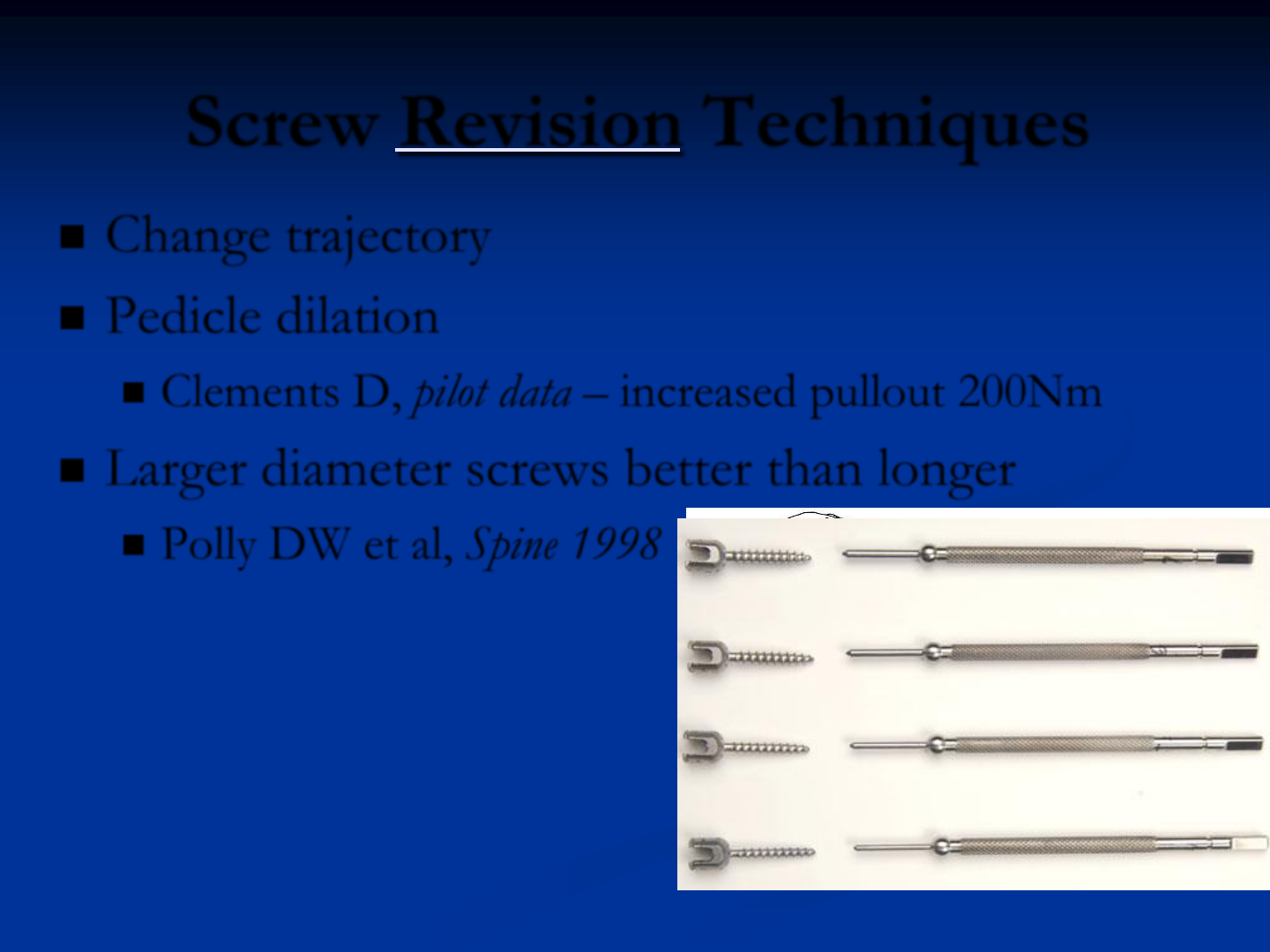

Screw Revision Techniques

Change trajectory

Pedicle dilation

Clements D, pilot data – increased pullout 200Nm

Larger diameter screws better than longer

Polly DW et al, Spine 1998

39

10/12 DA10293A, CA9232A

Other Alternatives

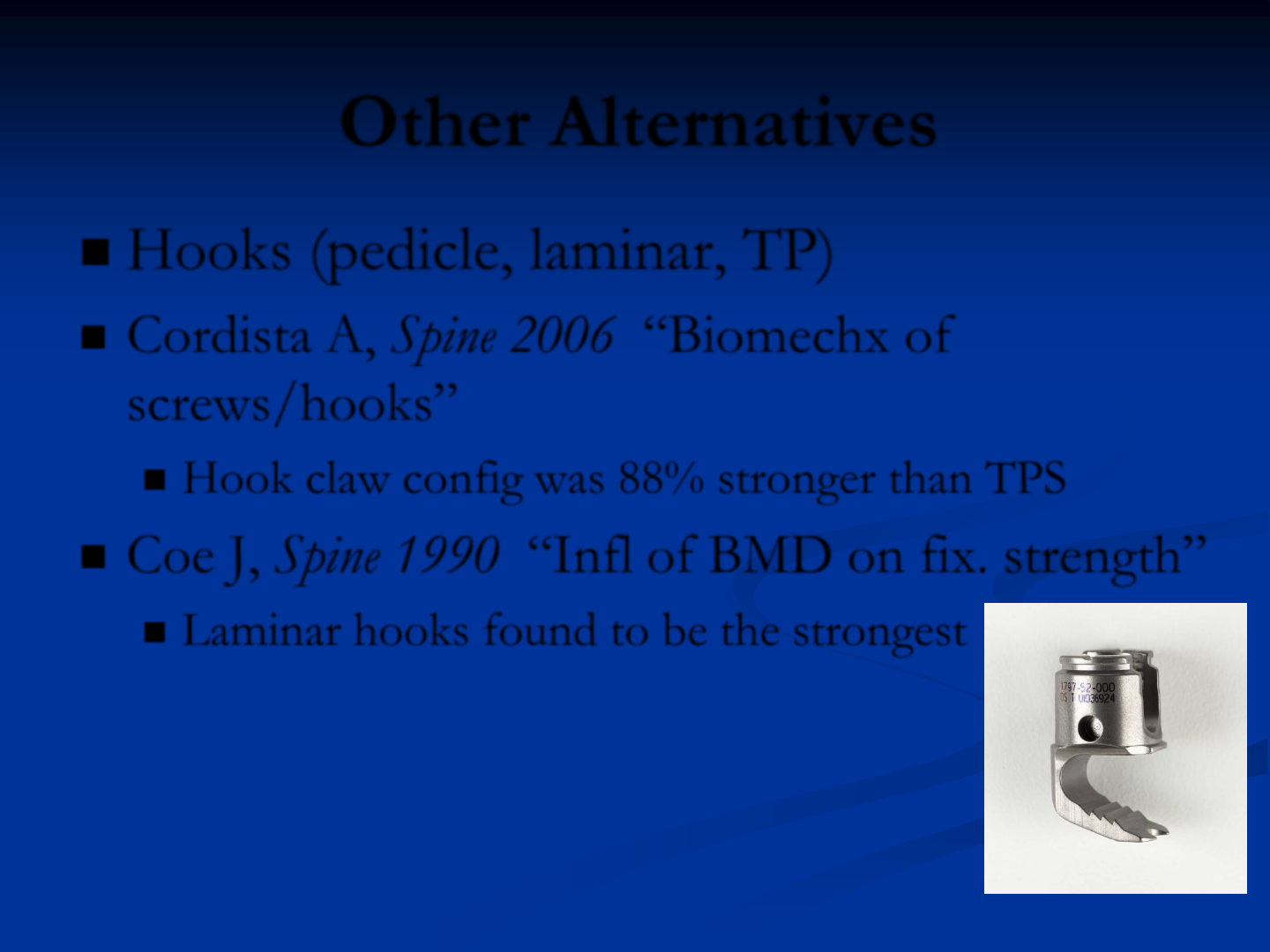

Hooks (pedicle, laminar, TP)

Cordista A, Spine 2006 “Biomechx of

screws/hooks”

Hook claw config was 88% stronger than TPS

Coe J, Spine 1990 “Infl of BMD on fix. strength”

Laminar hooks found to be the strongest

40

10/12 DA10293A, CA9232A

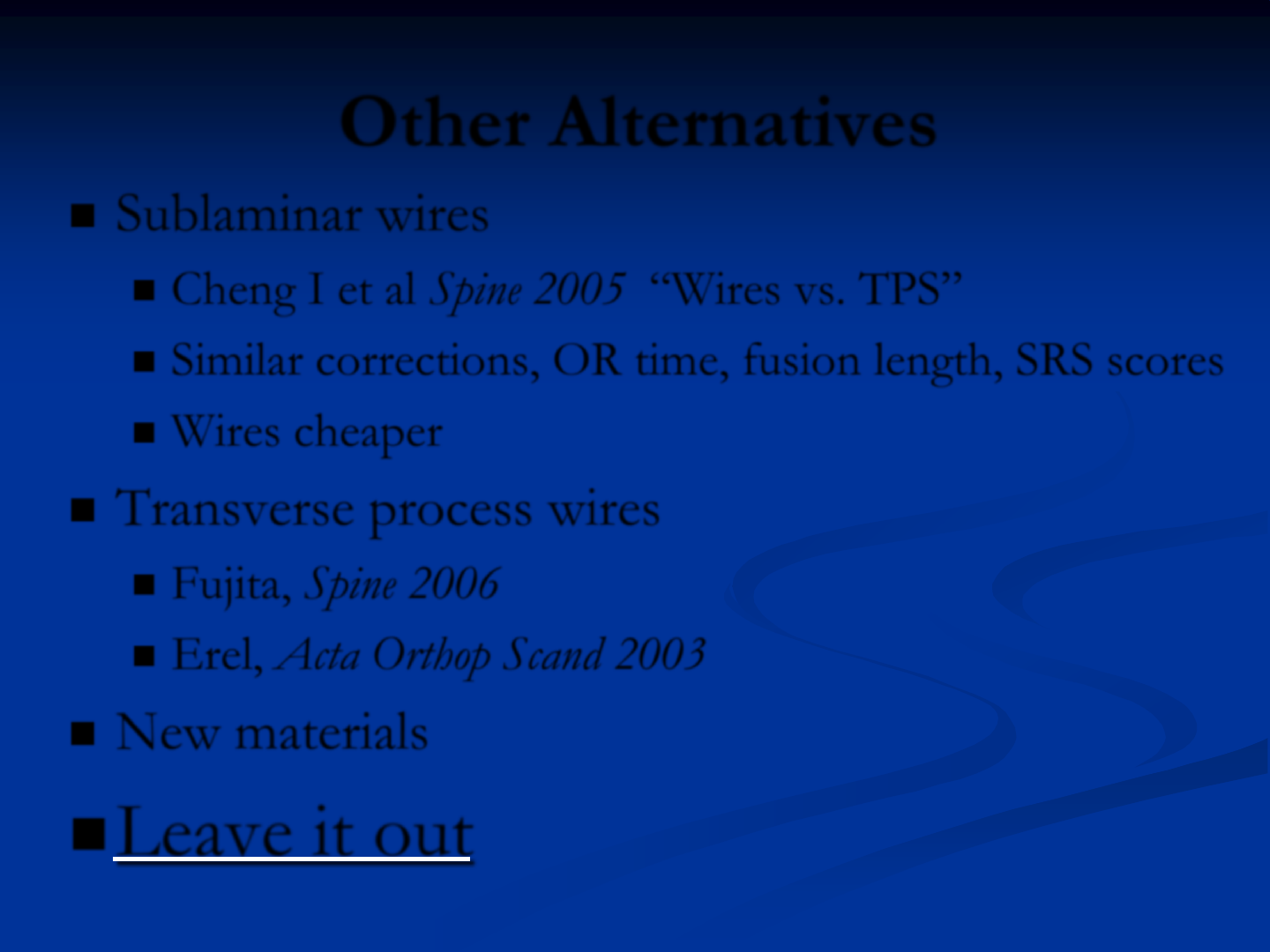

Other Alternatives

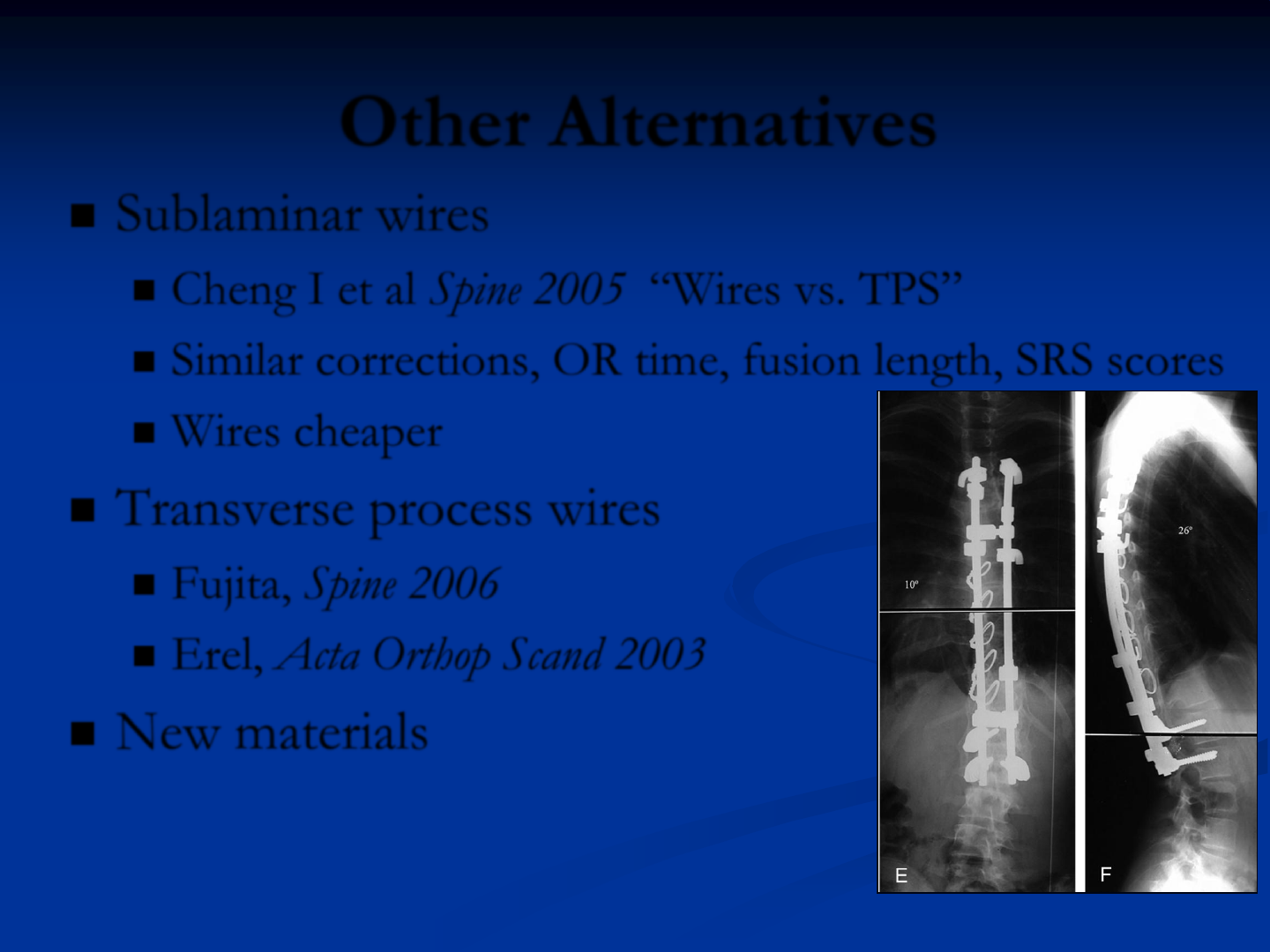

Sublaminar wires

Cheng I et al Spine 2005 “Wires vs. TPS”

Similar corrections, OR time, fusion length, SRS scores

Wires cheaper

Transverse process wires

Fujita, Spine 2006

Erel, Acta Orthop Scand 2003

New materials

41

10/12 DA10293A, CA9232A

Other Alternatives

Sublaminar wires

Cheng I et al Spine 2005 “Wires vs. TPS”

Similar corrections, OR time, fusion length, SRS scores

Wires cheaper

Transverse process wires

Fujita, Spine 2006

Erel, Acta Orthop Scand 2003

New materials

Leave it out

42

10/12 DA10293A, CA9232A

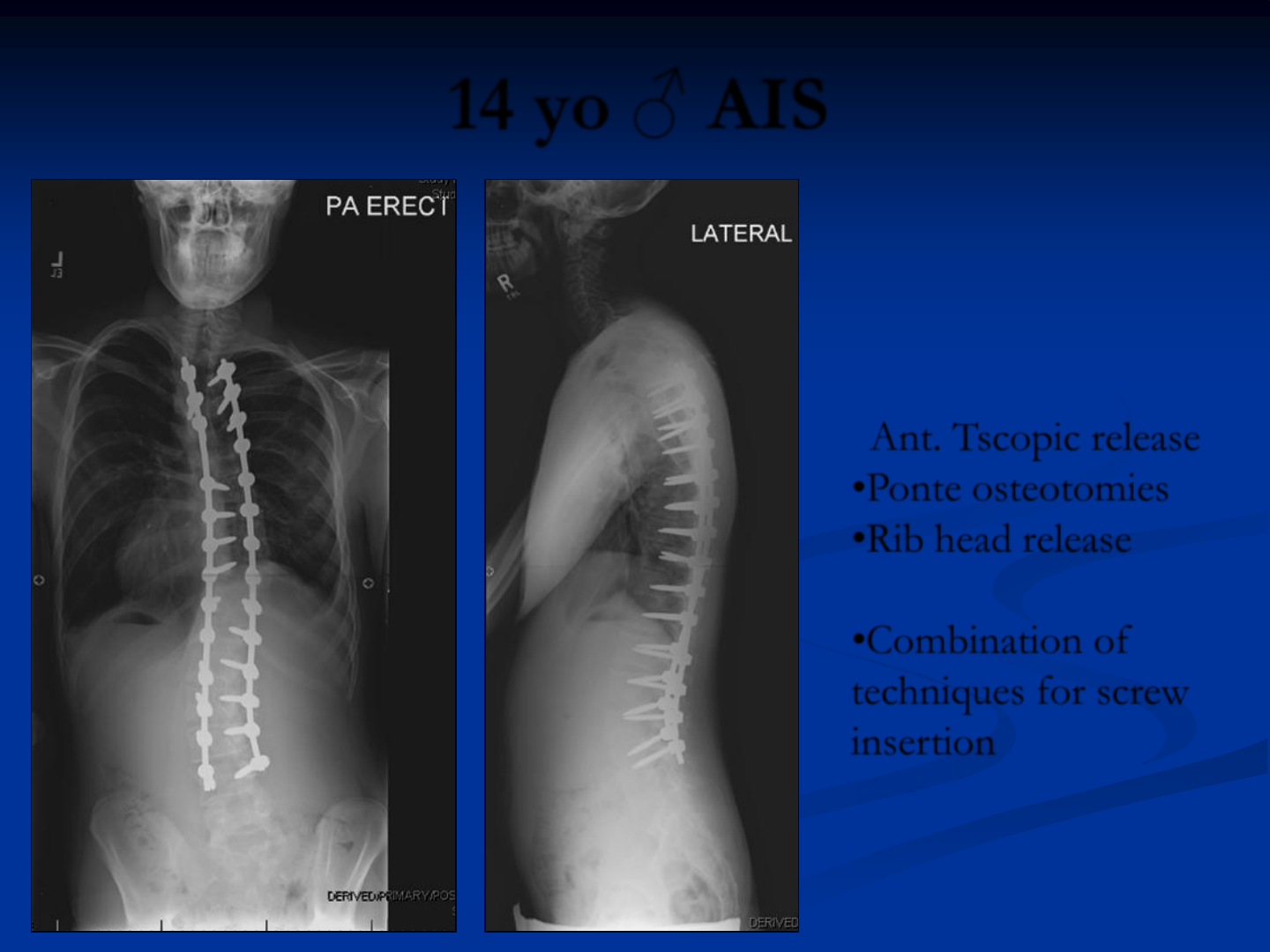

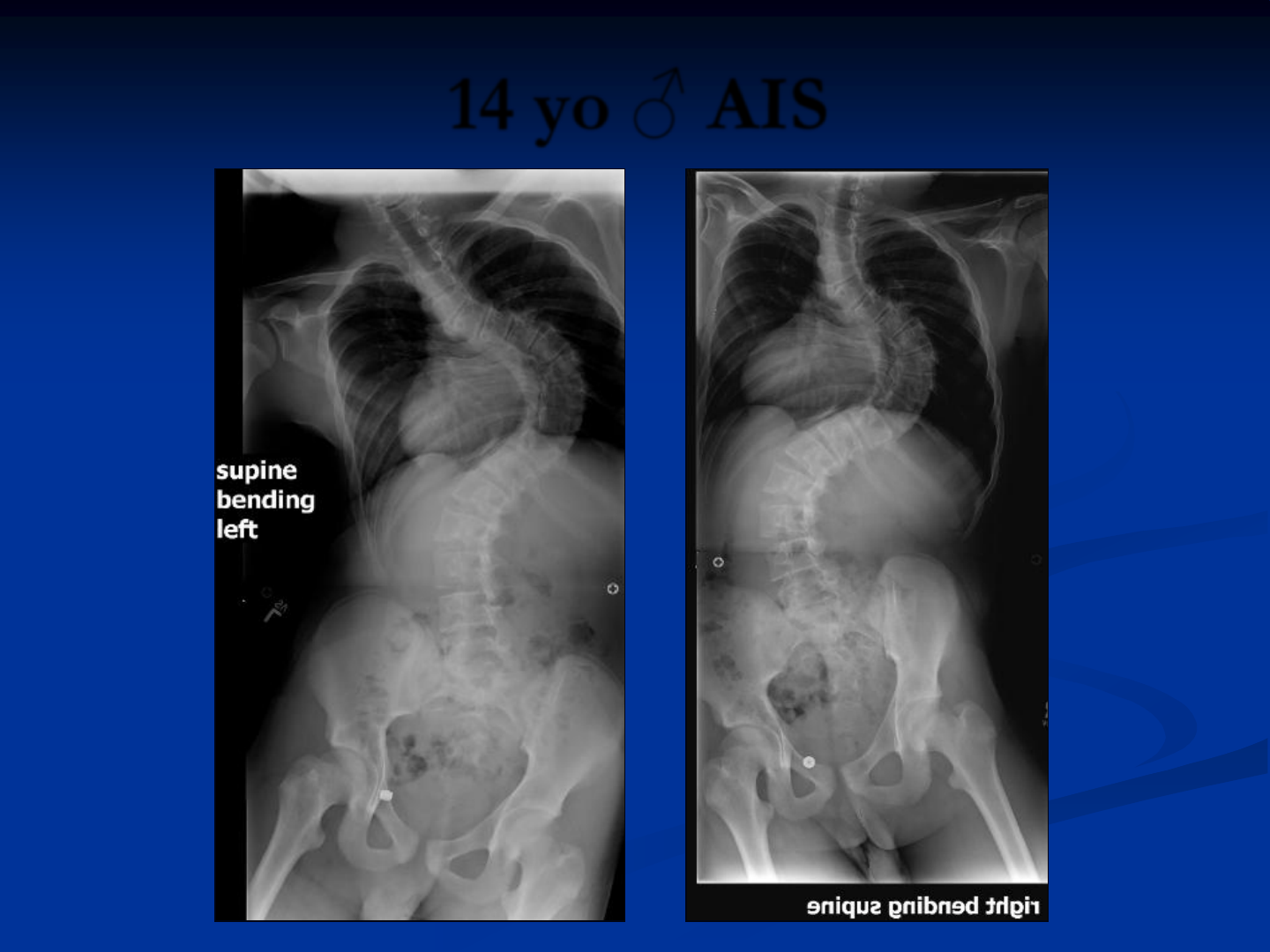

14 yo ♂ AIS

43

10/12 DA10293A, CA9232A

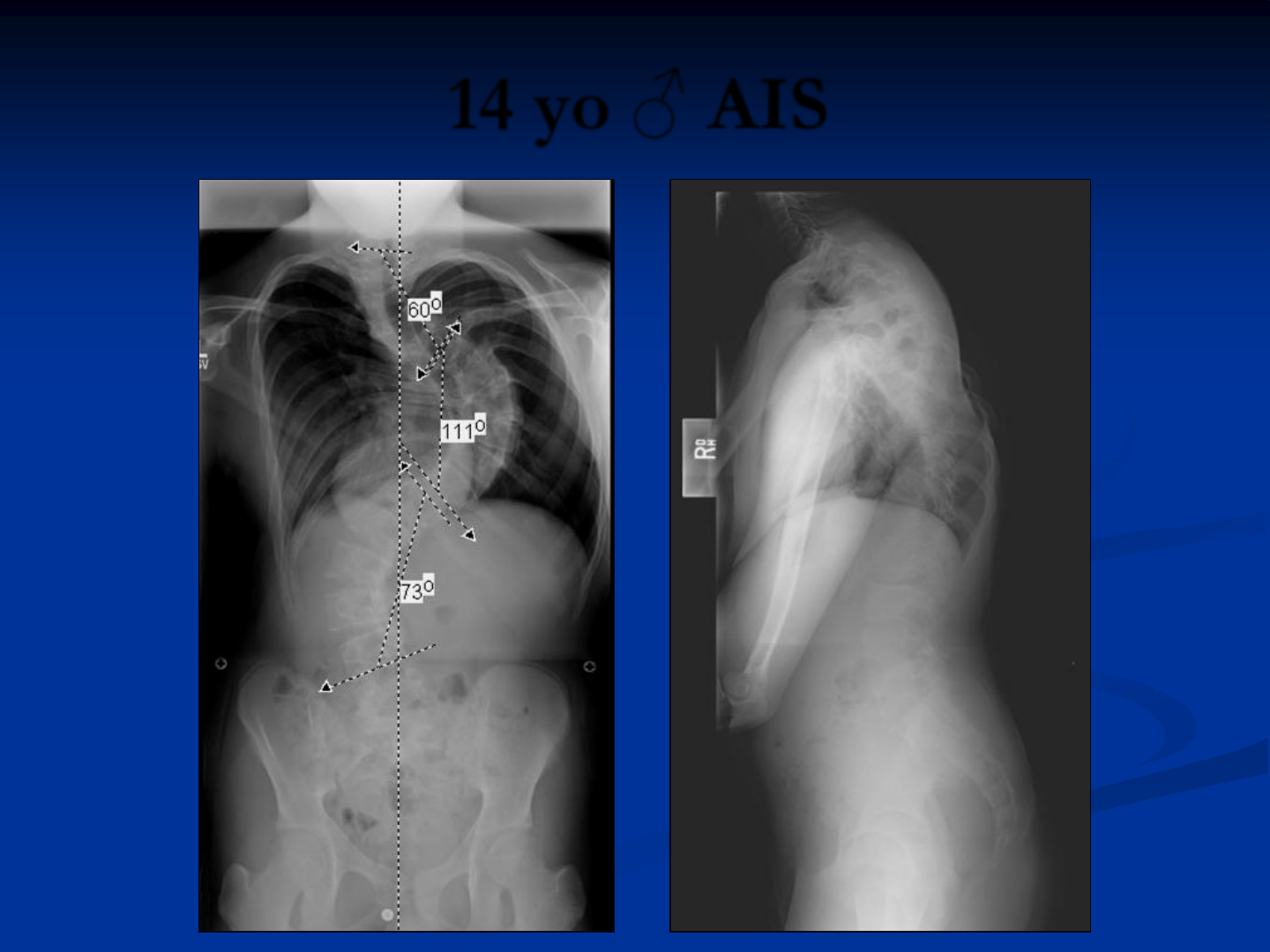

14 yo ♂ AIS

44

10/12 DA10293A, CA9232A

14 yo ♂ AIS

• Ant. Tscopic release

•Ponte osteotomies

•Rib head release

•Combination of

techniques for screw

insertion

45

10/12 DA10293A, CA9232A

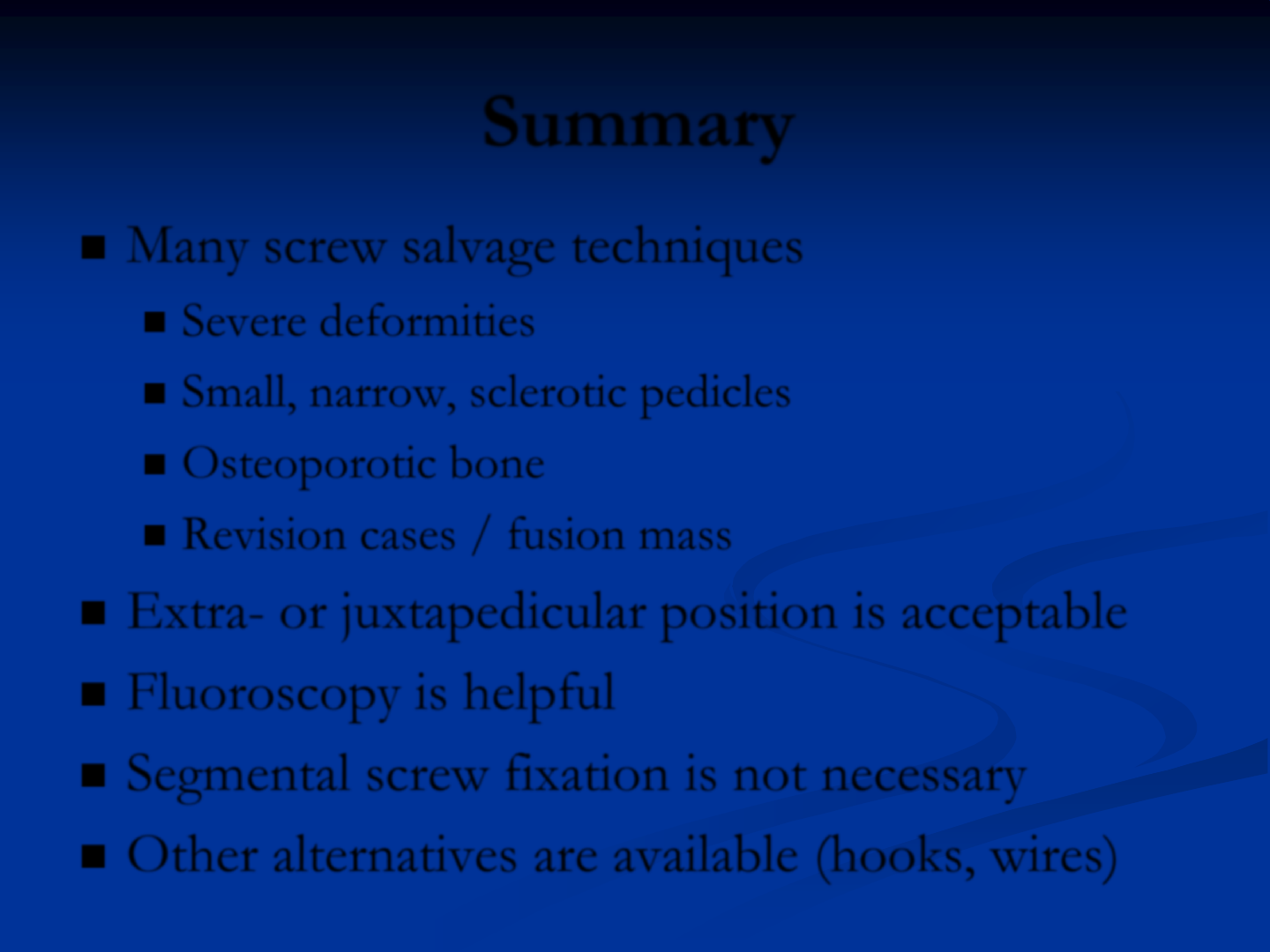

Summary

Many screw salvage techniques

Severe deformities

Small, narrow, sclerotic pedicles

Osteoporotic bone

Revision cases / fusion mass

Extra- or juxtapedicular position is acceptable

Fluoroscopy is helpful

Segmental screw fixation is not necessary

Other alternatives are available (hooks, wires)

46

10/12 DA10293A, CA9232A

Thank you
