1 Introduction

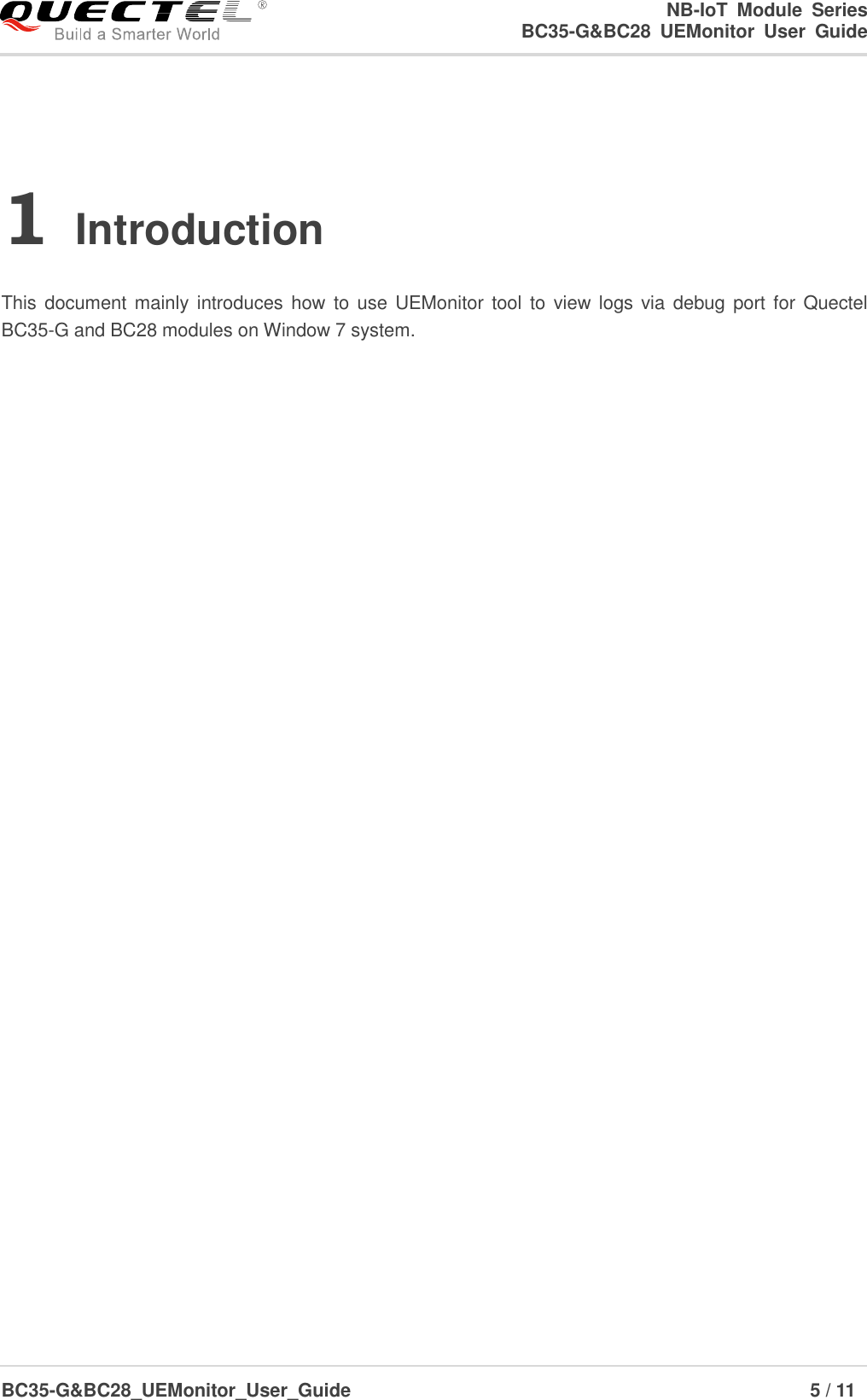

This document mainly introduces how to use UEMonitor tool to view logs via debug port for Quectel
BC35-G and BC28 modules on Window 7 system.
NB-IoT Module Series
BC35-G&BC28 UEMonitor User Guide
BC35-G&BC28_UEMonitor_User_Guide 6 / 11
2 Tool Installation

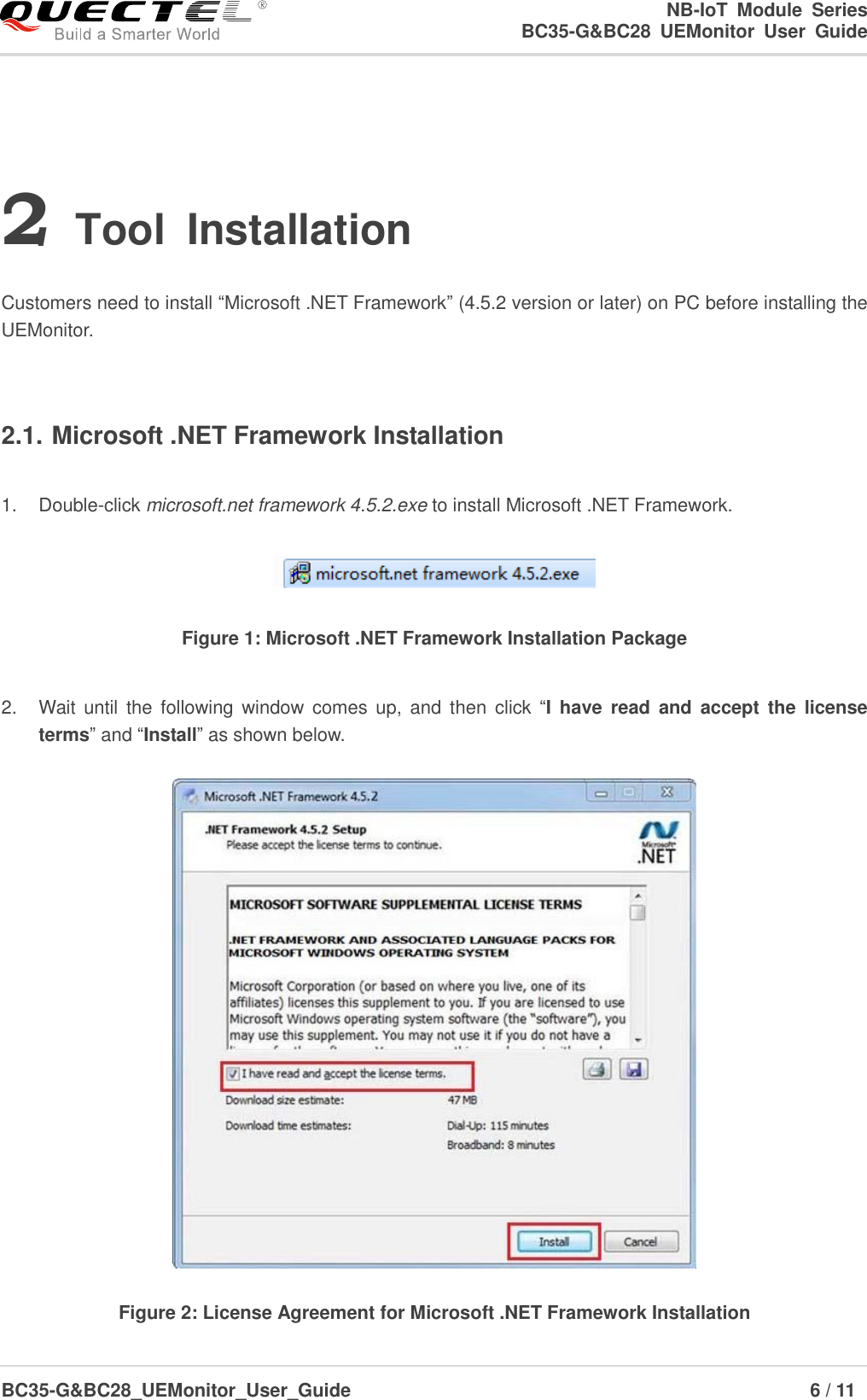

Customers need to install “Microsoft .NET Framework” (4.5.2 version or later) on PC before installing the
UEMonitor.
2.1. Microsoft .NET Framework Installation
1. Double-click microsoft.net framework 4.5.2.exe to install Microsoft .NET Framework.
Figure 1: Microsoft .NET Framework Installation Package
2. Wait until the following window comes up, and then click “I have read and accept the license
terms” and “Install” as shown below.
Figure 2: License Agreement for Microsoft .NET Framework Installation
NB-IoT Module Series
BC35-G&BC28 UEMonitor User Guide
BC35-G&BC28_UEMonitor_User_Guide 7 / 11
3. Please wait for the program to install.
Figure 3: Microsoft .NET Framework is Installing
4. Click “Finish” to accomplish installation.
Figure 4: Microsoft .NET Framework Successfully Installed
NB-IoT Module Series
BC35-G&BC28 UEMonitor User Guide
BC35-G&BC28_UEMonitor_User_Guide 8 / 11
2.2. UEMonitor Installation

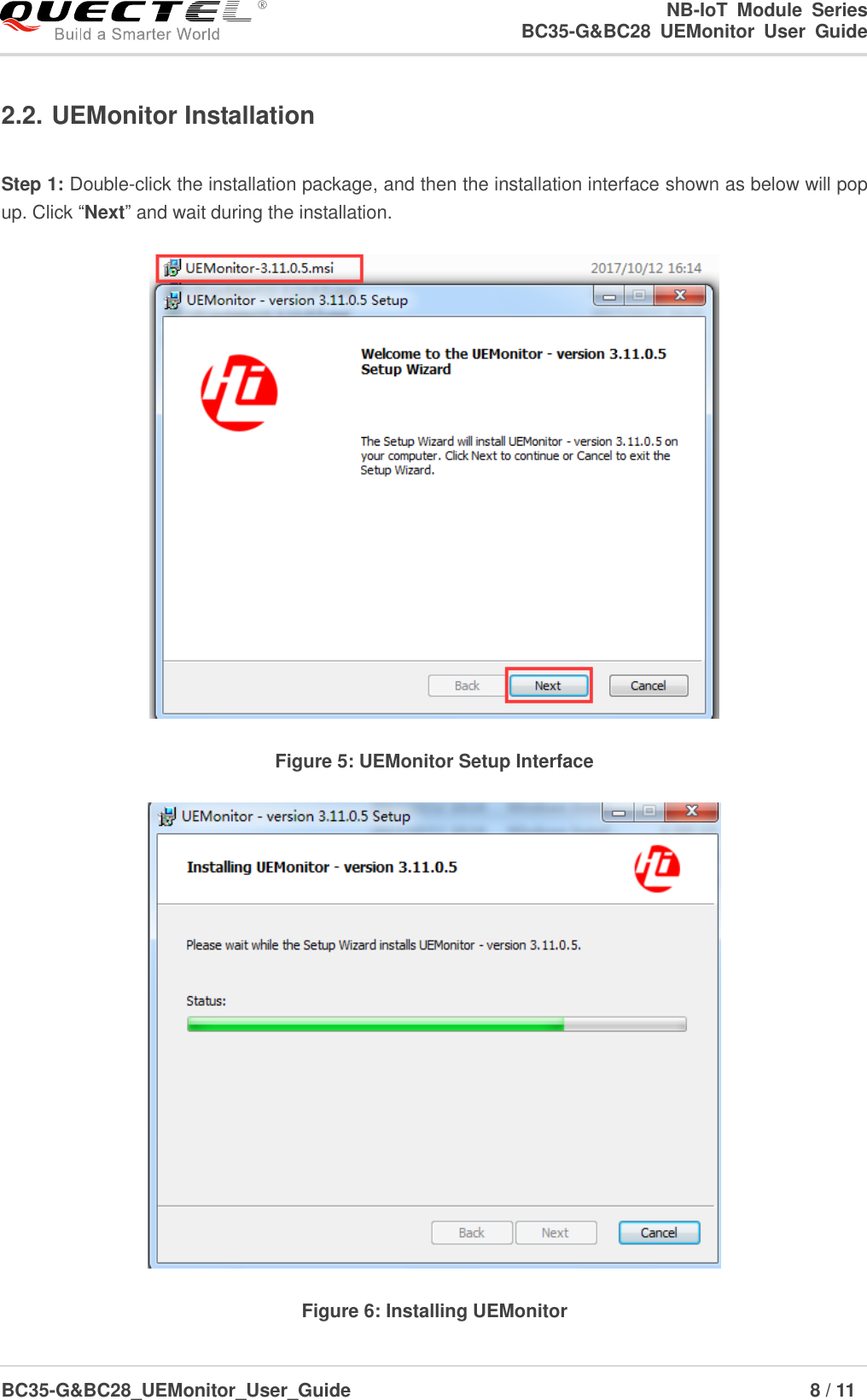

Step 1: Double-click the installation package, and then the installation interface shown as below will pop
up. Click “Next” and wait during the installation.
Figure 5: UEMonitor Setup Interface
Figure 6: Installing UEMonitor
NB-IoT Module Series
BC35-G&BC28 UEMonitor User Guide
BC35-G&BC28_UEMonitor_User_Guide 9 / 11
Step 2: Click “Finish” to finish the installation.
Figure 7: Installation Completed
Step 3: After installation, the following icon will be shown on the desktop.
Figure 8: UEMonitor Desktop Icon
NB-IoT Module Series
BC35-G&BC28 UEMonitor User Guide
BC35-G&BC28_UEMonitor_User_Guide 10 / 11
3 View Logs
This chapter mainly introduces how to use the UEMonitor tool to view logs.
Step 1: Open the tool, and then the main interface will be shown as below.
Figure 9: Main Interface of UEMonitor
Step 2: Create a new project by clicking “New Project” in the drop-down list of “File”.
Figure 10: Create a New Project
NB-IoT Module Series
BC35-G&BC28 UEMonitor User Guide
BC35-G&BC28_UEMonitor_User_Guide 11 / 11

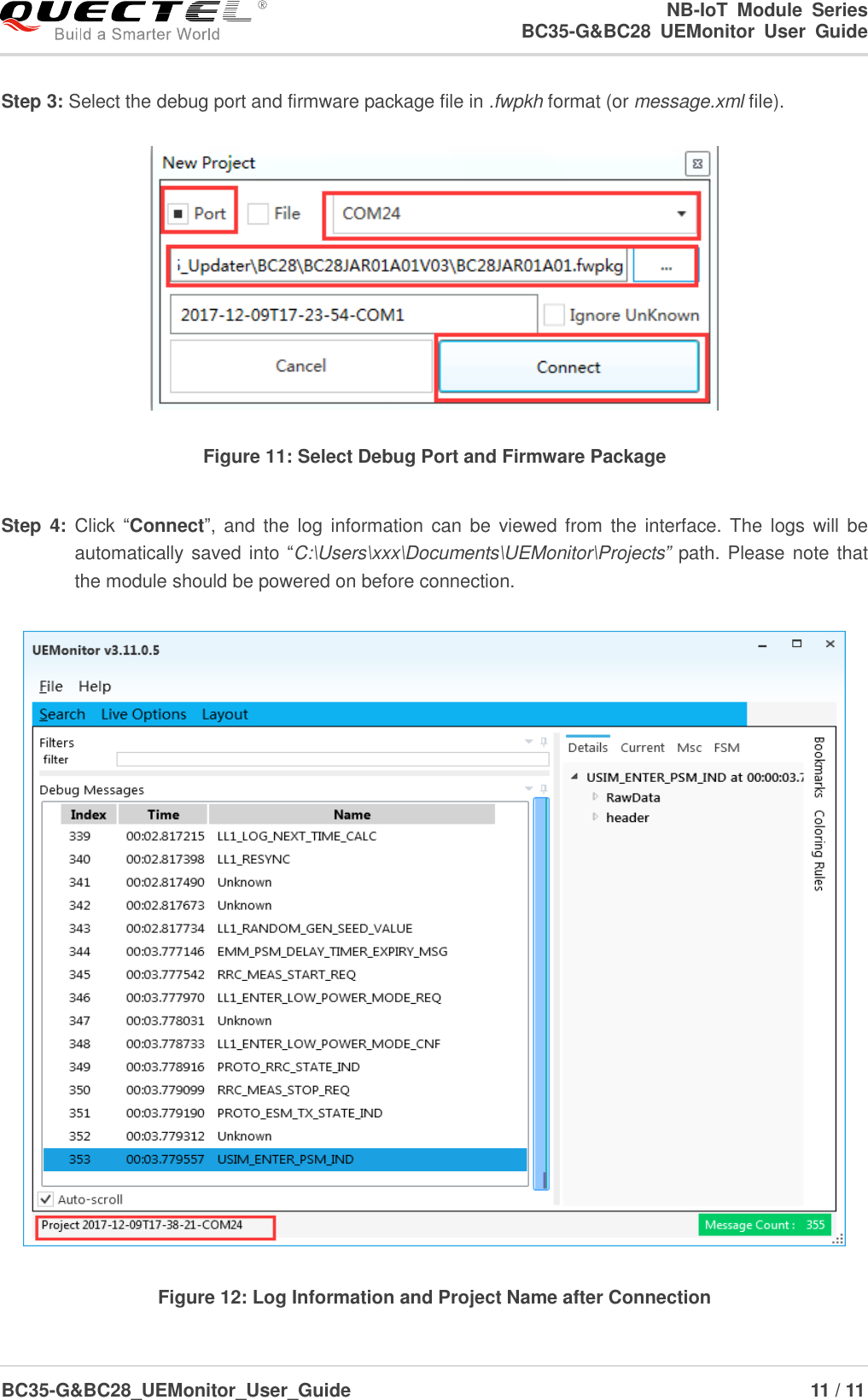

Step 3: Select the debug port and firmware package file in .fwpkh format (or message.xml file).
Figure 11: Select Debug Port and Firmware Package
Step 4: Click “Connect”, and the log information can be viewed from the interface. The logs will be
automatically saved into “C:\Users\xxx\Documents\UEMonitor\Projects” path. Please note that
the module should be powered on before connection.
Figure 12: Log Information and Project Name after Connection
