Introduction
- Audience
Active Directory and Infrastructure Services Considerations
Installation Procedures
- Windows Server Requirements
- Windows Server Roles & Features
Remote Access Configuration
Printer and Drive Mapping
- Printer and Drive Mapping
- Printing/Scanning Compression
Miscellaneous
Parallels RAS Web Portal
- Windows Prerequisites for Parallels RAS Web Portal
- Configure User Friendly URL
Parallels RAS HTML5 Gateway
Index

Parallels Remote

Application Server

Best Practices

v16.2

Parallels International GmbH

Vordergasse 59

8200 Schaffhausen

Switzerland

Tel: + 41 52 672 20 30

www.parallels.com

This product is protected by United States and international copyright laws. The product’s underlying technology,

patents, and trademarks are listed at http://www.parallels.com/about/legal/.

Microsoft, Windows, Windows Server, Windows Vista are registered trademarks of Microsoft Corporation.

Apple, Mac, the Mac logo, OS X, macOS, iPad, iPhone, iPod touch are trademarks of Apple Inc., registered in the US

and other countries.

Linux is a registered trademark of Linus Torvalds.

All other marks and names mentioned herein may be trademarks of their respective owners.

Contents

Introduction ............................................................................................................... 5

Audience ........................................................................................................................ 5

Active Directory and Infrastructure Services Considerations .................................. 6

Active Directory ............................................................................................................... 6

DNS.............................................................................................................................. 10

DHCP ........................................................................................................................... 11

File Services .................................................................................................................. 11

Installation Procedures ........................................................................................... 14

Windows Server Requirements ...................................................................................... 14

Windows Server Roles & Features ................................................................................. 15

Remote Access Configuration ................................................................................ 18

Remote Desktop/Terminal Server Performance Settings ................................................ 18

General Performance Related Settings ........................................................................... 20

Configure RemoteFX ..................................................................................................... 21

General Purpose RemoteFX Settings .................................................................................... 22

RDP Optimizations ........................................................................................................ 35

For Windows 2008/R2 .......................................................................................................... 36

For Windows 2012/R2 .......................................................................................................... 36

Contents

RDP Security ................................................................................................................ 38

Locking Down TS/RDS Host ......................................................................................... 38

Disable Administrative Components ............................................................................... 40

Antivirus Exclusions ....................................................................................................... 42

Printer and Drive Mapping ...................................................................................... 44

Printer and Drive Mapping ............................................................................................. 44

Printing/Scanning Compression ..................................................................................... 45

Miscellaneous .......................................................................................................... 48

Load Balancing ............................................................................................................. 48

Groups ......................................................................................................................... 49

Filtering ......................................................................................................................... 49

Disable Application Monitoring ....................................................................................... 50

Server Reboots ............................................................................................................. 51

Backups ....................................................................................................................... 51

Large File Upload / Download via Drive Redirection ........................................................ 53

Remove Gateway Browsing from Your LAN ................................................................... 55

Remove Self-Signed Certificate Error ............................................................................. 56

Remote PCs ................................................................................................................. 59

VDI ............................................................................................................................... 60

Parallels RAS Web Portal ........................................................................................ 65

Windows Prerequisites for Parallels RAS Web Portal ...................................................... 65

Configure User Friendly URL .......................................................................................... 66

Parallels RAS HTML5 Gateway ............................................................................... 68

Index ........................................................................................................................ 69

Parallels Remote Application Server (RAS) is an application delivery and virtual desktop solution. It

extends Microsoft Windows Remote Desktop Services by providing centralized and simplified

management, universal printing and a highly available load balanced remote access solution to

Windows Terminal Services based applications and desktops from any device, anywhere. The

solution also includes a built-in Virtual Desktop Infrastructure (VDI) solution.

Traditionally, application delivery and VDI solutions were challenging to set up and manage. Design

and implementation could take weeks or even months to complete. In contrast, Parallels RAS can

be installed in days or even hours, providing a quicker return on your investment and an easier path

to realizing the benefits of remote desktop computing.

This document describes the best practice guidelines for deploying and configuring Parallels

Remote Application Server v15.x.

In This Chapter

Audience ................................................................................................................ 5

Audience

This guide is intended for system administrators responsible for installing and configuring Parallels

Remote Application Server. This guide assumes that the reader is already familiar with relevant

Microsoft services such as Active Directory, DNS, DHCP, Terminal Servers/Remote Desktop

Session Hosts and has an intermediate networking knowledge.

CHAPTER 1

Introduction

Parallels Remote Application Server can be installed in both Workgroup and Active Directory (AD)

environments where end users, RAS servers, and RDS servers belong to the same AD forest

(domains with single root domain) or multiple forests with trust relationships. Domains and

workgroups represent different methods for organizing computers in networks. The main difference

among them is how the computers and other resources on the networks are managed. For better

manageability and scalability, following Microsoft recommendations, Parallels recommends the use

of domains where:

• One or more computers are servers. Network administrators use servers to control security and

permissions for all computers in the domain. This makes it easy to make changes because they

are automatically made to all computers. Domain users must provide a password or other

credentials each time they access the domain.

• If you have a user account on the domain, you can log in to any computer in the domain

without needing an account on that computer.

• There can be thousands of computers in a domain.

• The computers can be on different local networks.

• File, folder, and user and group permissions can be assigned.

In This Chapter

Active Directory ....................................................................................................... 6

DNS ....................................................................................................................... 10

DHCP ..................................................................................................................... 11

File Services ............................................................................................................ 11

Active Directory

Parallels recommends for consideration the usage of the following Active Directory abilities.

Note: More information on Active Directory Domain Services can be found at

https://technet.microsoft.com/en-us/library/bb742424.aspx

CHAPTER 2

Active Directory and Infrastructure Services

Considerations

Active Directory and Infrastructure Services Considerations

Organization Units

A particularly useful type of directory object contained within domains is an organizational unit (OU).

OUs are Active Directory containers into which you can place users, groups, computers, and other

organizational units. An organizational unit cannot contain objects from other domains.

An OU can be used to assign Group policy settings for centralized management and configuration

of operating systems, applications, and user settings in an AD environment.

Parallels recommends the use of OUs for the following:

• Terminal Servers/Remote Desktop Session Hosts (RDSH) hosting applications and desktops

should be set in their own OUs. Usually TS/RDSH require various group policies applied to

them. For example, in a multi-user environment, policies may be required to optimize user

experience and/or add security.

Different OUs for different TS/RDSH groups identified from the Remote Application Server

Console can also be used to organize different application groups.

• Servers in the same Remote Application Server site should reside in the same domain or in

different domains with a full trust relationship between domains.

More information on Domain trusts can be found at https://technet.microsoft.com/en-

us/library/cc773178(v=ws.10).aspx

Active Directory and Infrastructure Services Considerations

• All servers that load-balance applications/desktops must be in the same domain if a domain

security group is authorized to use the application.

Note: For the information on how to design an OU structure which works for your organization, visit

https://technet.microsoft.com/en-us/library/2008.05.oudesign.aspx

Security Groups

Security groups are used to assign permissions to shared resources. Different resources (virtual

applications, desktops, VDI machines) can be assigned to different users/groups. Parallels

recommends the use of Active Directory Security groups for better manageability if filtering is done

via user/groups.

Once security groups are created in Active Directory and members are added to them, group-

based filtering can be carried out from the Remote Application Server Console. This will ensure that

all members of that particular security group will have access to same published resources. For

example, if a new user joins the company, they only need to be added to the Active Directory

security group to have access to given published resources.

Active Directory and Infrastructure Services Considerations

Examples of logical security group segregation can be based on the department user resides in or

based on application/desktop that is to be delivered.

More details about Active Directory Security Groups can be found at

https://technet.microsoft.com/en-us/library/dn579255(v=ws.11).aspx

Note: By default, in RAS published resources are available to all users in the domain if not restricted by

filtering (User/group, Client, IP Address, MAC or Gateway access).

Group Policies

Group Policy is an infrastructure that allows you to implement specific configurations for users and

computers. Group Policy settings are contained in Group Policy objects (GPOs), which are linked to

the following Active Directory service containers: sites, domains, organizational units (OUs). The

settings within GPOs are then evaluated by the affected targets using the hierarchical nature of

Active Directory. Consequently, Group Policy is one of the top reasons to deploy Active Directory

because it allows you to manage user and computer objects.

Apart from the Remote Application Server policies, which allow IT administrators to manage

Parallels Client policies for all users on the network who connect to a server in the farm, Parallels

recommends the additional use of group policies to manage different users and computer objects

accessing the infrastructure. Group policies relating to user experience and/or security are to be

linked with their respective OUs mentioned in the previous sections.

Some recommended group policies include but not limited to listed below.

Users Permissions

Logging in remotely requires users to have remote access rights to the remote server.

This can be carried out from Group Policy Management Console (GPMC), which is an

administrative feature that can be installed via Server Manager or through PowerShell as described

at https://technet.microsoft.com/en-us/library/cc725932(v=ws.11).aspx

Once GPMC is opened, navigate to Computer Configuration / Policies / Windows Settings /

Security Settings / Restricted Groups. Right-click on Restricted Groups and click on Add User

Group that should have access to log in on to the remote machine (TS/RDSH/VDI).

More information on how to add Domain Users/Group to the Remote Desktop Users group via

Group policy can be found at https://technet.microsoft.com/en-us/library/cc725932(v=ws.11).aspx

Active Directory and Infrastructure Services Considerations

Group Policy Loopback Processing

You can use the Group Policy Loopback feature to apply Group Policy objects that depend only on

which computer the user logs in to. This is ideal when users already reside in their respective OUs

and new OUs have been created to handle Terminal Server/RDSH from where the applications and

desktops are published. Essentially, we are applying user settings when they log in to those

computer objects, in this case to the Terminal Servers/RDSH.

This can be carried out from Group Policy Management Console (GPMC). Navigate to Computer

Configuration\Administrative Templates\System\Group Policy and then enable the Loopback

Policy option (Merge or Replace).

More information on loopback processing can be found at https://support.microsoft.com/en-

us/kb/231287

DNS

The Domain Name System (DNS) is a hierarchical distributed database that contains mappings of

DNS domain names to various types of data, such as IP addresses. DNS allows you to use friendly

names to easily locate computers and other resources on a TCP/IP network.

DNS is a key infrastructure component frequently used by various Remote Application Server

components. While standard file-based storage, such as the hosts file, will provide proper DNS

resolution in Proof of Concept (POC) environments, Parallels recommends implementing Active

Directory integrated DNS in enterprise deployments.

Parallels recommends the use of the DNS zone integrated with Active Directory so that

organizations can have the benefit of using secure dynamic updates, as well as the ability to use

Access Control List (ACL) editing features to control which machines can update the DNS system.

Dynamic updates are a key feature of DNS, which allows domain computers to register their name

and IP addresses with the DNS server automatically when they come online or change IP

addresses through the DHCP server. The DNS Server service allows dynamic update to be enabled

or disabled on a per-zone basis on each server that is configured to load either a standard primary

or directory-integrated zone. By default, the DNS Client service dynamically updates host (A)

resource records in DNS when the service is configured for TCP/IP. This form of update eliminates

the need for manual entries of names and IP addresses into the DNS database.

There is a security concern when automatic update from a client to the DNS database could take

place and thus create the possibly for a malicious entry. Therefore, secure dynamic updates will

verify that the computer that is requesting the update to the DNS server also has an entry in the

Active Directory database. This means that only computers that have joined the Active Directory

domain can dynamically update the DNS database.

More information on how DNS works can be found at

https://technet.microsoft.com/library/cc772774.aspx

Active Directory and Infrastructure Services Considerations

Reverse Lookup

In most Domain Name System (DNS) lookups, clients typically perform a forward lookup, which is a

search based on the DNS name of another computer as it is stored in a host (A) resource record.

This type of query expects an IP address as the resource data for the answered response.

DNS also provides a reverse lookup process in which clients use a known IP address and look up a

computer name based on its address.

DHCP

Dynamic Host Configuration Protocol (DHCP) is a client/server protocol that automatically provides

an Internet Protocol (IP) host with its IP address and other related configuration information such as

the subnet mask and default gateway.

Parallels recommends the use of static or DHCP reserved IP addressing for Remote Application

Server infrastructure servers.

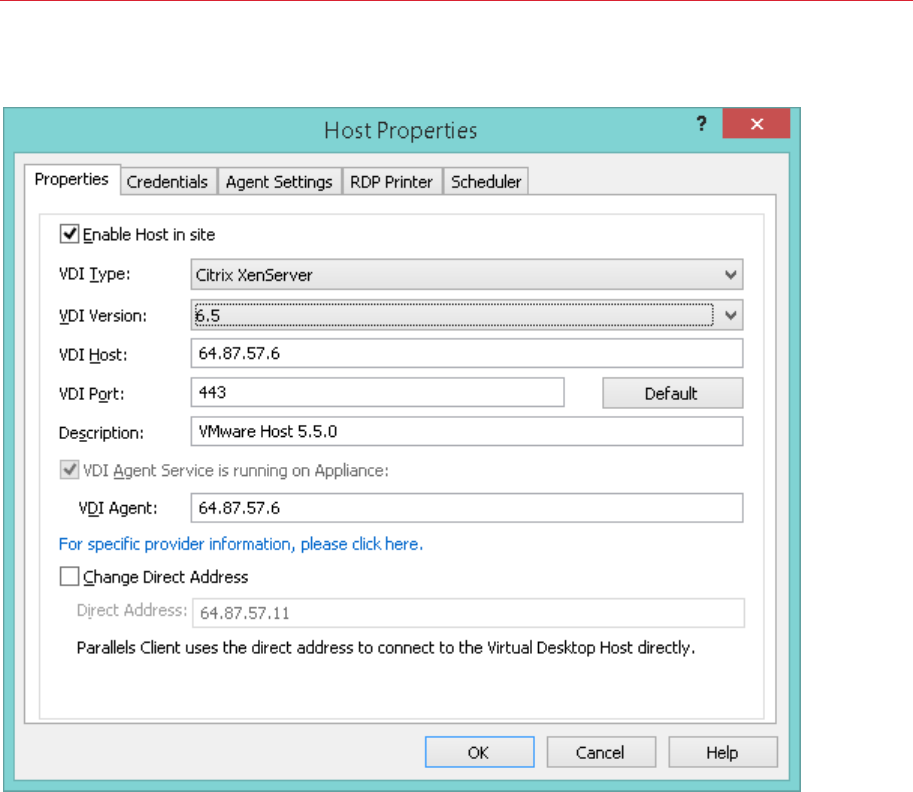

With regards to VDI, to create a RAS template from an existing virtual guest, the guest operating

system (Windows) must be configured to obtain an IP address via the DHCP server. With regards

to a VDI agent on hypervisors it is recommended to take note of the MAC address assigned to the

appliance and add a DHCP reservation. If DHCP isn't available, a static IP address needs to be

configured manually.

For Wyse clients, RAS Secure Client Gateway can act as a Wyse broker. Please ensure that DHCP

option 188 on your DHCP server is set to the IP Address of this Gateway for thin clients that are

going to boot via this gateway.

Note: Parallels Remote Application Server should not to be installed on a domain controller or any other

server where a DHCP server is running.

File Services

For a consistent visual display of personal data associated with a specific user and/or a customized

desktop environment irrespective to which TS/RDSH or VDI machine user is connecting, Parallels

recommends the use of Microsoft roaming profiles and folder redirection or User Profile Disks for a

complete profile management solution with Remote Application Server.

The following requirements are important to be noted prior the profile solution implementation:

• When deploying Roaming User Profiles with Folder Redirection in an environment with existing

local user profiles, deploy Folder Redirection before Roaming User Profiles to minimize the size

of roaming profiles. After the existing user folders have been successfully redirected, you can

deploy Roaming User Profiles.

Active Directory and Infrastructure Services Considerations

• To administer Roaming User Profiles or User Profile Disks, you must be signed in as a member

of the Domain Administrators security group, the Enterprise Administrators security group, or

the Group Policy Creator Owners security group.

• Client computers must run Windows 8.1, Windows 8, Windows 7, Windows Vista,

Windows XP, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012,

Windows Server 2008 R2, Windows Server 2008, or Windows Server 2003. Note that

Windows XP and Windows Server 2003 support Roaming User Profiles only when set up on

user accounts and not on a per-computer basis by using Group Policy.

• Client computers must be joined to the Active Directory Domain Services (AD DS) that you are

managing.

• A file server must be available to host roaming user profiles or User Profile Disks.

• If the file share uses DFS Namespaces, the DFS folders (links) must have a single target to

prevent users from making conflicting edits on different servers.

• If the file share uses DFS Replication to replicate the contents with another server, users must

be able to access only the source server to prevent users from making conflicting edits on

different servers.

• If the file share is clustered, disable continuous availability on the file share to avoid performance

issues

Active Directory and Infrastructure Services Considerations

More information on deploying users profiles can be found at https://technet.microsoft.com/en-

us/library/jj649079.aspx. And about User Profile Disks

https://blogs.technet.microsoft.com/enterprisemobility/2012/11/13/easier-user-data-management-

with-user-profile-disks-in-windows-server-2012.

For a high availability profile management solution and for scalability requirements, Parallels

recommends the use of Microsoft DFS and DFSR to host the namespace and handle the

replication between target file servers respectively. More information on DFS and DFSR can be

found at https://technet.microsoft.com/en-us/library/jj127250.aspx

In This Chapter

Windows Server Requirements ............................................................................... 14

Windows Server Roles & Features .......................................................................... 15

Windows Server Requirements

All Parallels RAS farm server components are Windows Server based, with the exception of the

HALB and VDI virtual appliances.

Supported Windows platforms:

• Windows Server 2003 SP1 (Terminal Server Agent only)

• Windows Server 2008

• Windows Server 2008 R2

• Windows Server 2012

• Windows 2012 R2

• Windows Server 2016

Active Directory

Parallels RAS can be installed using Active Directory or Local Windows Security.

• VDI for RAS requires Active Directory.

• Installation of any RAS component on an Active Directory Domain Controller is not supported.

If using Active Directory, Windows Servers must be joined to a Domain and the right hostname

configured before installing RAS.

• Do not change the server hostname after installing Parallels RAS or reconfiguration of Parallels

RAS would be required.

Networking Requirements

Use a static or permanently reserved DHCP address.

CHAPTER 3

Installation Procedures

SSL on the Gateway servers requires name resolution. For Gateways to function properly, one of

the two following conditions must be met:

• DNS resolution must be available.

• HOSTS files can be configured for DNS resolution.

See the Active Directory and Infrastructure Services Considerations chapter (p. 6).

Windows Firewall Requirements

RAS v15 and higher can automatically configure Windows Firewall settings during installation or

deployment of additional RAS farm components to allow communication between different RAS

Servers in a farm.

• For manual configuration of the Windows Firewall, do not check the "Add Firewall Rules" when

deploying RAS components.

• A comprehensive list of required Firewall ports can be found in the Port Reference section of

the Parallels Remote Application Server Administrator’s Guide, which can be download from

http://www.parallels.com/products/ras/resources/.

When pushing RAS components to another server from the RAS console, one of the following

conditions must be met on the remote server:

• Open Windows Firewall ports TCP 135, 445, 49179, then push the RAS components and have

the Windows Firewall ports automatically configured.

• Temporarily disable Windows Firewall, push the RAS components and have RAS automatically

configure the firewall settings, and then re-enable the Windows Firewall.

• Manually configure Windows Firewall settings as described in the Port Reference section of the

Parallels Remote Application Server Administrator's Guide, and then install the RAS

component(s).

Windows Server Roles & Features

In order to install Parallels RAS on Windows servers, there are some required prerequisite to be

installed from the Server Roles and Features.

• The Publishing Agent Server can be installed on any supported version of Windows. The

Publishing Agent does not require any specific Windows roles or features.

• The Secure Client Gateway can be installed on any supported version of Windows. The Secure

Client Gateway does not require any specific Windows roles or features.

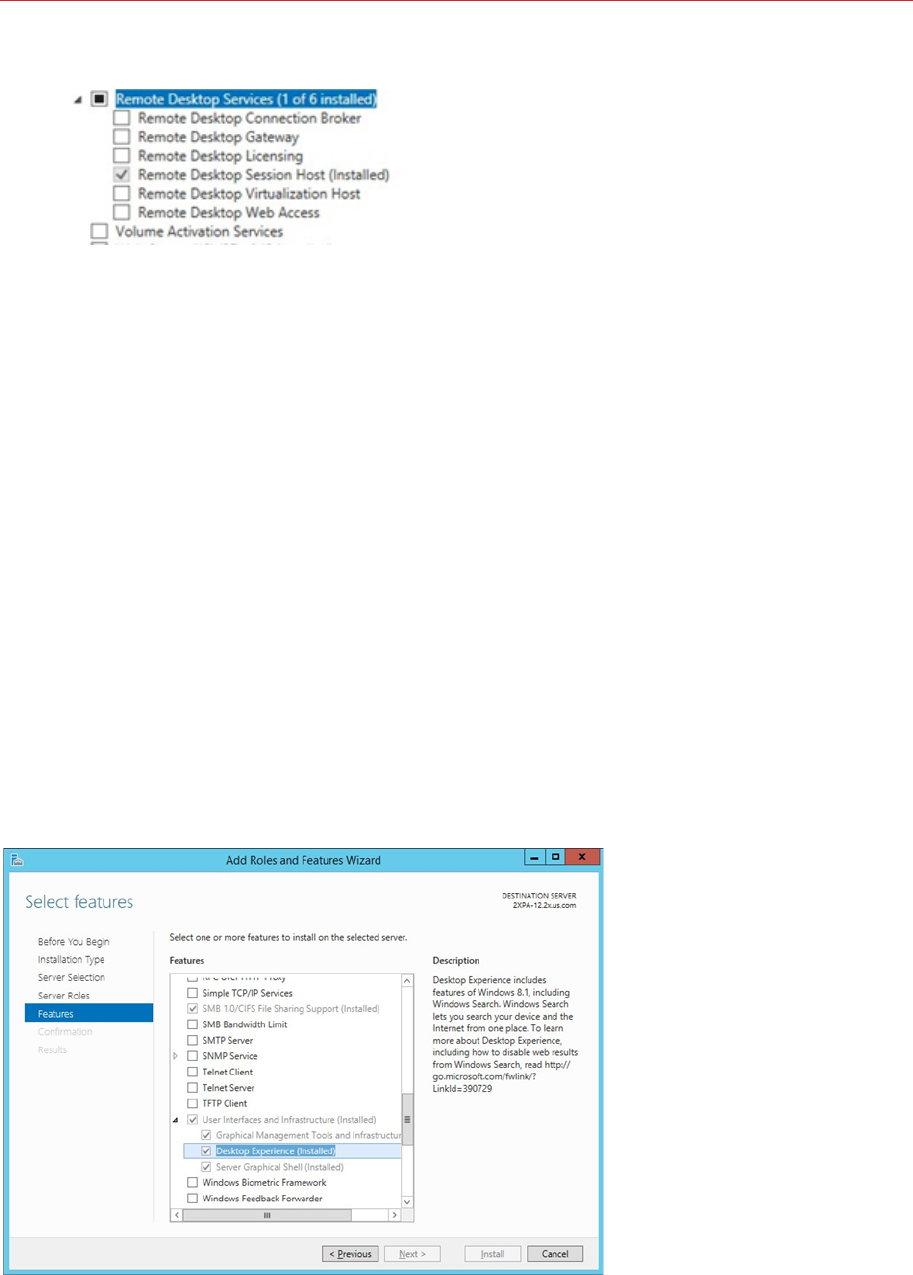

• The Terminal Server agent requires the following roles installed:

• Terminal Server Role for Windows Server versions 2003 SP1 up till 2008.

Installation Procedures

• Remote Desktop Session Host for Windows Server versions 2008 R2 up to 2016.

• For v15 and later, the Remote Desktop Session Host role can be automatically installed

using the "Add Terminal Server" capability from the RAS Console.

Parallels RAS does not replace the need for Microsoft Client Access Licenses (CALs). A Windows

Remote Desktop/Terminal Server License server is required.

Except for very small, single-server environments, the License Server should not be installed on the

production Terminal Servers or Remote Desktop Session Hosts.

More information on TS/RDS CALs can be found at https://technet.microsoft.com/en-

us/library/cc753650(v=ws.11).aspx

Ensure that Desktop Experience is installed on all Terminal Servers

When a user connects a Parallels RAS server, the desktop that exists on the RD Session Host

server is reproduced in the remote session by default. To make the remote session look and feel

more like the user's local Windows desktop, install the Desktop Experience feature on an RD

Session Host server that is running Windows Server 2008 R2, Windows 2012 , Windows 2012 R2.

Note that Windows 2016 has the Desktop Experience feature enabled by default on RDS host. This

also makes the graphics look better using the Windows Aero theme.

Desktop Experience is a feature that you can install from Server Manager.

Installation Procedures

Once Desktop Experience is enabled, you will notice that applications display richer graphics and a

remote desktop looks more like the client's local desktop with themes and other Windows client

components.

In This Chapter

Remote Desktop/Terminal Server Performance Settings .......................................... 18

General Performance Related Settings .................................................................... 20

Configure RemoteFX .............................................................................................. 21

RDP Optimizations ................................................................................................. 35

RDP Security .......................................................................................................... 38

Locking Down TS/RDS Host .................................................................................. 38

Disable Administrative Components ........................................................................ 40

Antivirus Exclusions ................................................................................................ 42

Remote Desktop/Terminal Server Performance

Settings

The default Windows performance settings are intended for general purpose servers. In order to

maximize application or desktop hosting server performance, the default Windows performance

settings should be adjusted on Windows Remote Desktop/Terminal Servers.

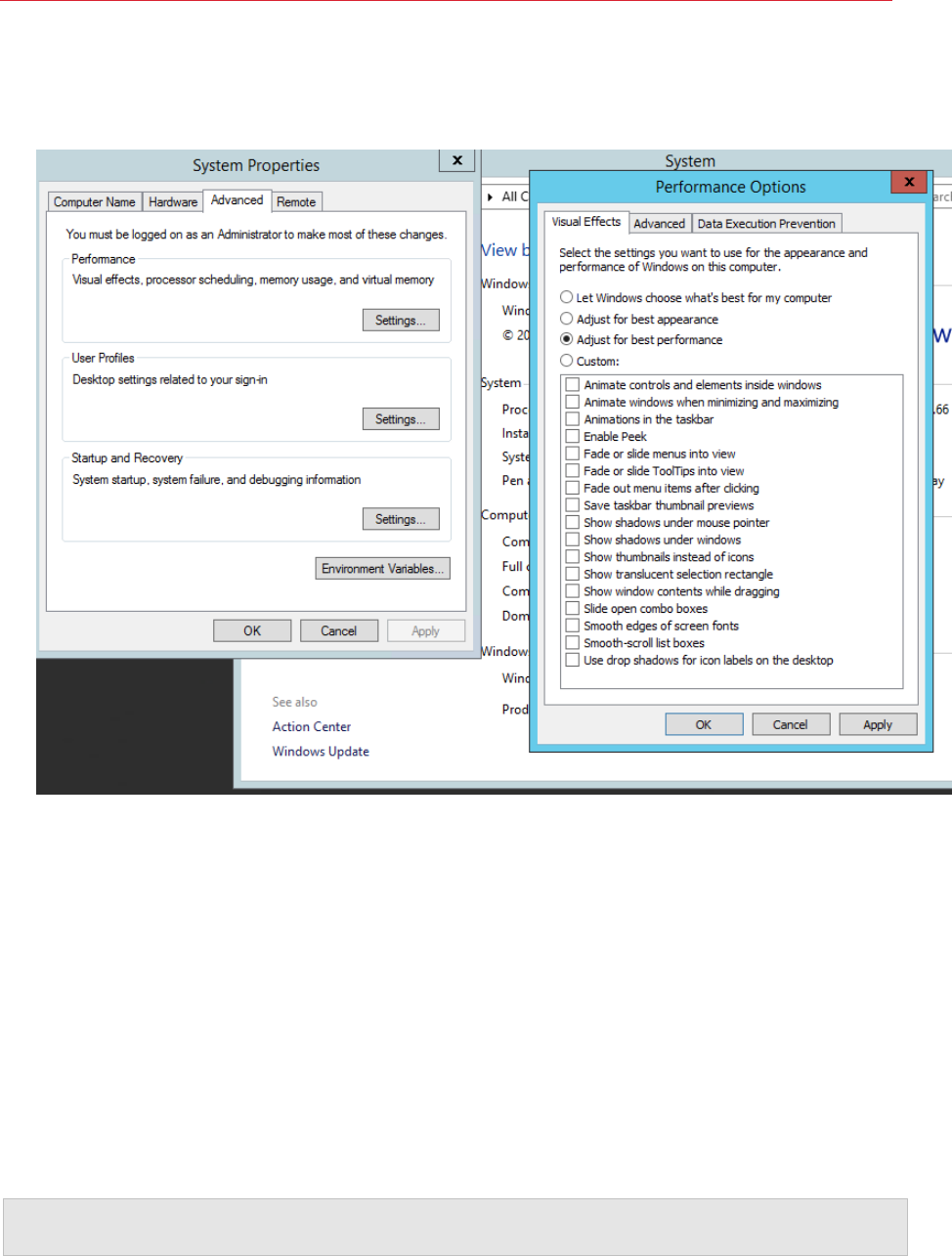

From the Control Panel go to System and click on Advanced System Settings. Under the

Advanced tab in the System Properties dialog box, click on Settings under the Performance

section.

Performance Options settings

Under the Visual Effects tab from the Performance Options dialog box, change the setting to

Adjust for best performance.

CHAPTER 4

Remote Access Configuration

If a specific application has a custom setting recommendation, you should use it, but in general, the

Adjust for best performance option will provide the best overall performance in a Parallels RAS

environment.

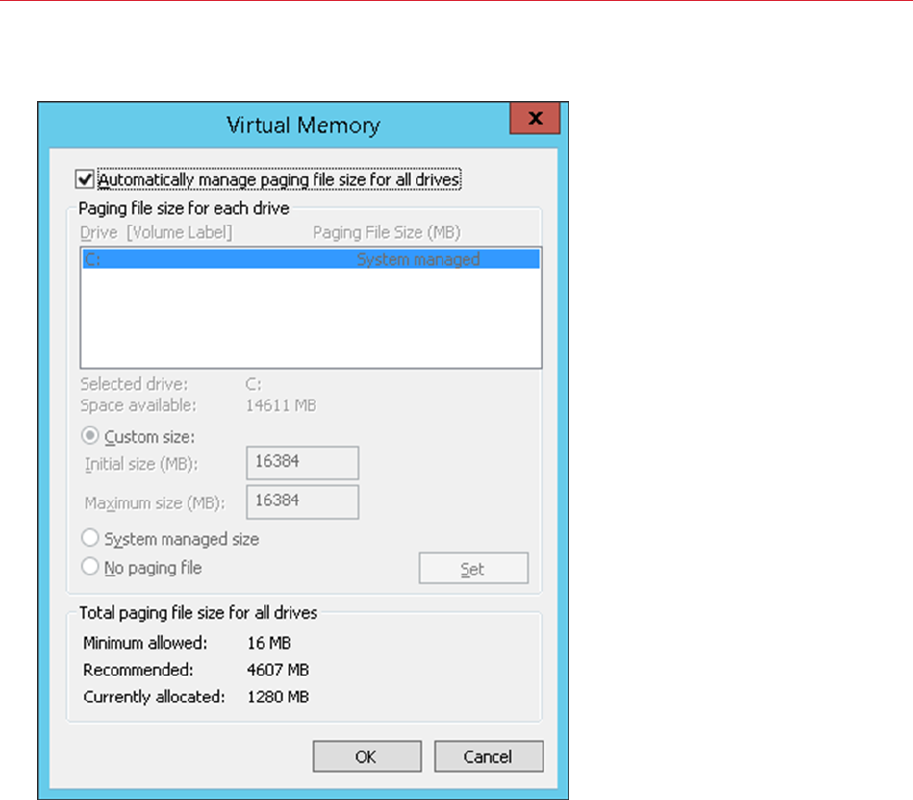

Windows paging file settings

Set the Windows paging file to twice the amount of RAM. For heavier workloads, a paging file of

three times the amount of physical memory might be required. For more information on how to

determine the exact page file size, please visit https://support.microsoft.com/en-

us/help/2860880/how-to-determine-the-appropriate-page-file-size-for-64-bit-versions-of-windows

By default, Microsoft Windows page file size is automatically managed for all drives and grows

dynamically as necessary. However, as the system ramps up to intended capacity, dynamic page

file growth can result in a fragmented page file, so it is best to set a fixed page file size upfront.

Typically, page file settings are configured when the server is first installed. However, if the server

remained in production for a while, Parallels recommends optimizing and defragmenting the drive

prior to setting paging options described below.

Note: If the size of the page file is too small, system will generate a mini dump and will log an event in the

System event log during boot to inform you about this condition.

Remote Access Configuration

In the example below. the server has 8 GB of RAM:

Note that Microsoft sets it to 1280 but recommends 4607. Parallels recommends to double it and

use a new page file on the disk. Therefore the number is 16384 (8 GB in block of 8192 x2 =

16384). Make sure you have enough free disk space to use this setting.

General Performance Related Settings

Whether you are using graphics intensive applications or streaming media across RDP, some

configurations can be applied to provide performance benefits in your environment:

• Display driver optimization – this is probably the most important component, particularly on the

Windows CE platforms that tend to have a lot less CPU power than their desktop

counterparts. The display "device driver interface" we provide in Windows CE uses only the

basic graphics engine functions; where software acceleration is provided through emulation

libraries, and hardware acceleration is limited to two-dimensional graphics operations. If at all

possible, hardware acceleration should be used.

Remote Access Configuration

• Ensure that your video and network card drivers are up to date based on the manufacturer’s

recommendations.

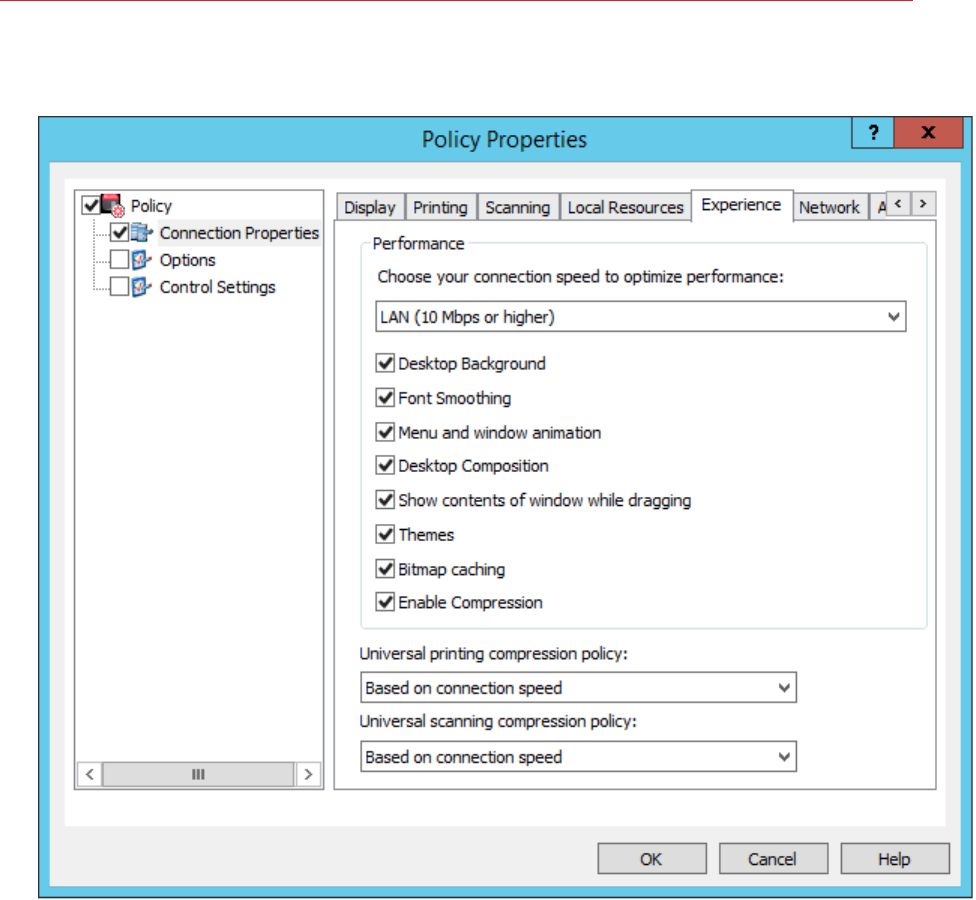

• Enable bitmap caching in your RDP session. This can result in some significant bandwidth

savings and can also improve the refresh speed. However, this does not mean that graphics

intensive applications will run at the same performance level as they would in a non-RDP

session.

• Understanding how font exchange works can also lead to some opportunities for performance

improvements. Font exchanges occur between the client and server to determine which

common system fonts are installed. The client notifies the Terminal Server of all installed

system fonts to enable faster text rendering during an RDP session. When the Terminal Server

knows what fonts the client has available, passing compressed fonts and Unicode character

strings rather than larger bitmaps to the client can save network bandwidth

• If network bandwidth is not as much of a concern, you can increase the frame rate on the client

side via a registry modification.

https://blogs.technet.microsoft.com/askperf/2009/04/17/terminal-services-and-graphically-

intensive-applications/

To learn how to increase the frame rate on the server side, see https://support.microsoft.com/en-

us/help/2885213/frame-rate-is-limited-to-30-fps-in-windows-8-and-windows-server-2012-remote-

sessions.

Configure RemoteFX

RemoteFX is a set of Microsoft Windows technologies that greatly enhances the end-user visual

and performance experience over the RDP protocol. It is available in Windows Server 2008 R2

SP1 and later. Windows 7 was the first client side operating system to support RemoteFX. Both

the client and the server versions must be able to support RemoteFX in order for these

enhancements to work.

Although RAS supports earlier versions of Windows Server, certain performance capabilities will not

be available when those versions are used. RemoteFX has been improved with subsequent

releases of Windows. The best performance will always occur when running the latest version of

Microsoft Windows Server being accessed from the latest workstation version. Older versions of

Windows can connect with newer versions (e.g.: Windows XP to Windows 2012 R2 or Windows 10

to Windows 2003) and while this might be acceptable for certain workloads, RemoteFX capabilities

will not be available.

Parallels RAS supports RemoteFX on the following clients:

• Parallels Windows Client for Windows installed on Windows 7 SP1 and higher.

• Parallels Client for Mac

• Parallels Client for Linux

• Parallels Client for iOS

Remote Access Configuration

• Parallels Client for Android

• Parallels Client for ChromeApp running on ChromeBooks

General Purpose RemoteFX Settings

RemoteFX is enabled on Windows systems using Group Policy. Parallels recommends to apply

Group policies at OU (organizational unit) level in Active Directory environments. Although local

Group Policies can be used, it requires to configure necessary settings on every Terminal

Server/Remote PC/VDI Guest in the RAS farm.

Hint: To edit domain Group Policies, from the Windows Run command, type GPMC.MSC. Once the

Group Policy settings are completed, run GPUPDATE /FORCE from the Run command to apply them.

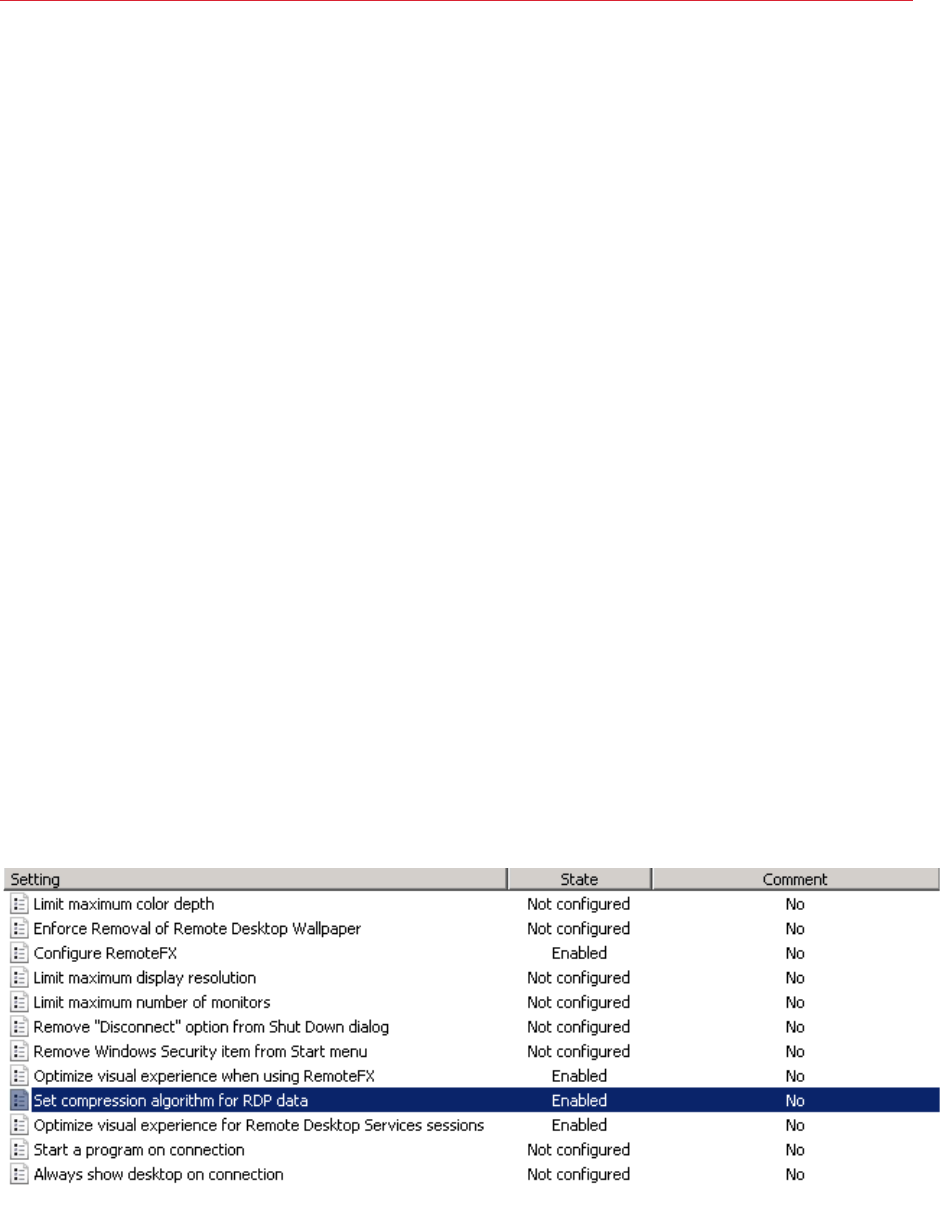

Remote FX Settings for Server 2008 R2

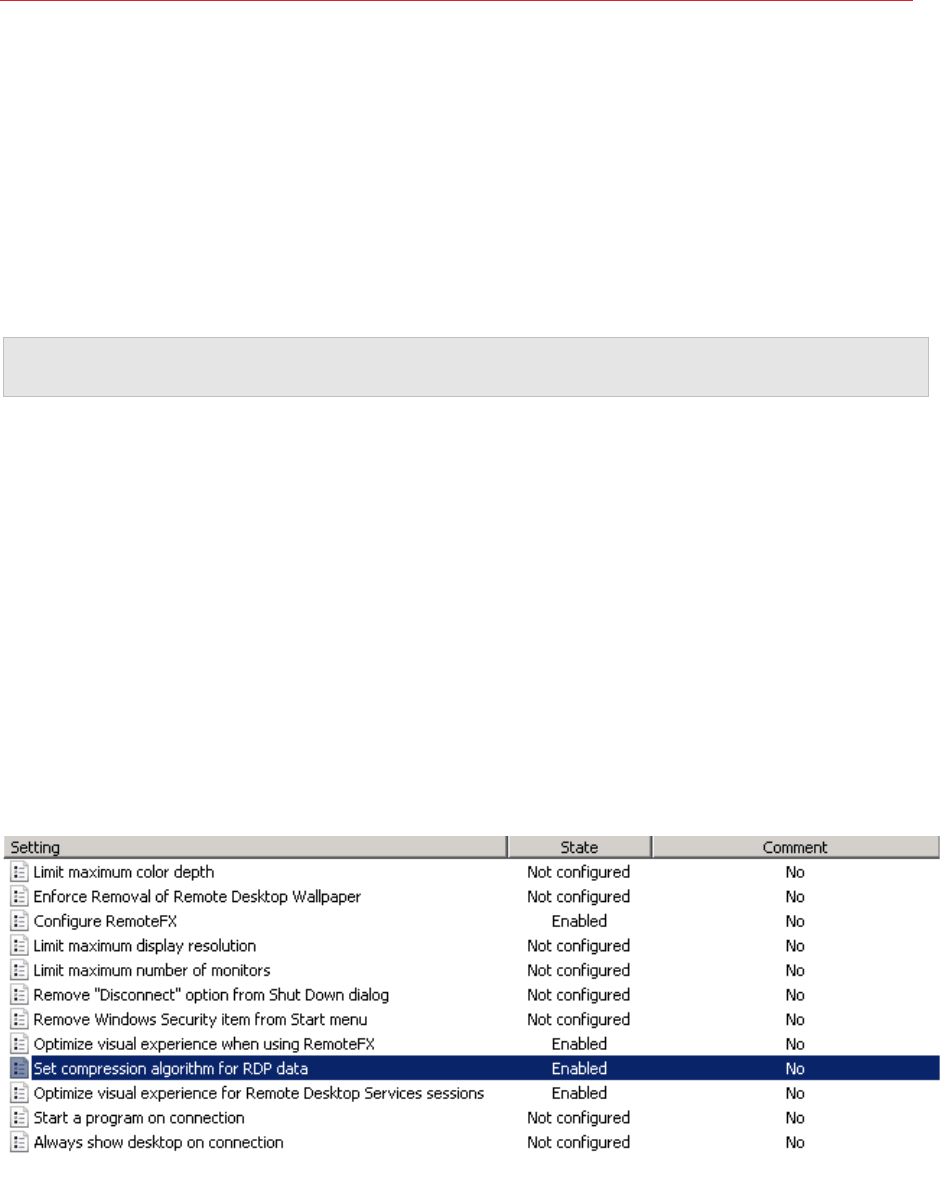

Enable the following options on all Terminal Servers in your farm. Under Computer

Configuration\Administrative Templates\Windows Components\Remote Desktop Services\Remote

Desktop Session Host\Remote Session Environment enable the following:

• Configure RemoteFX

• Optimize visual experience when using RemoteFX. Set to Medium Default.

• Set Compression algorithm for RDP data. Set to Optimize to use less network bandwidth.

• Optimize Visual experience for Remote Desktop Services sessions. Set to Rich Multimedia.

• Configure image quality for RemoteFX Adaptive Graphics (Image Quality set to Medium).

• Configure RemoteFX Adaptive Graphics. Set to Let the system choose experience for network

conditions.

Remote Access Configuration

RemoteFX settings for Server 2012 and 2012 R2

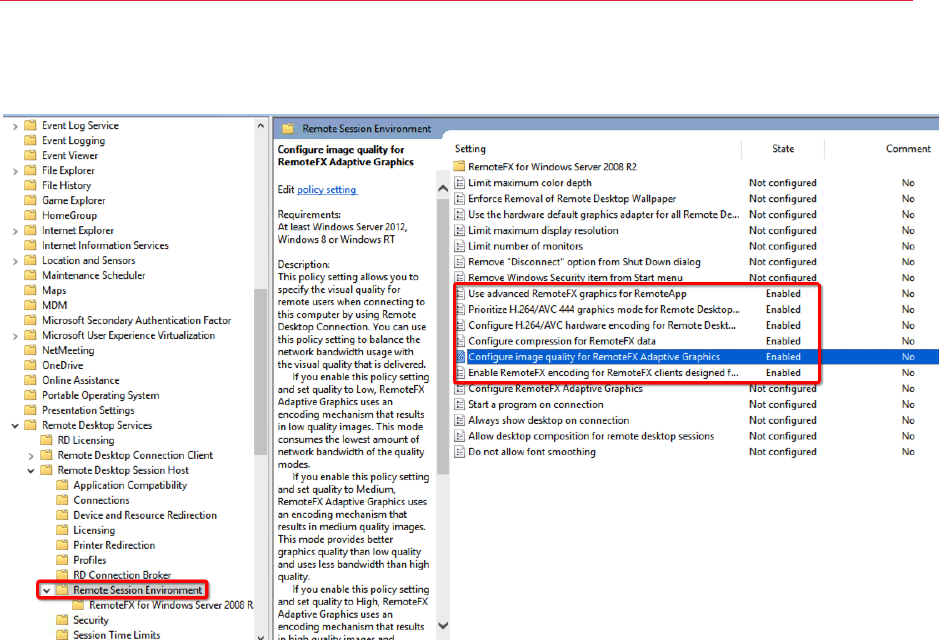

Enable the following options on all Terminal Servers in your farm. Under Computer

Configuration\Administrative Templates\Windows Components\Remote Desktop Services\Remote

Desktop Session Host\Remote Session Environment enable the following:

• Configure Compression for RemoteFX Data. Set to Optimize to use less network bandwidth.

• Configure image quality for RemoteFX Adaptive Graphics. Set to Medium.

• Enable RemoteFX encoding for RemoteFX clients designed for Windows Server 2008 R2 SP1

• Configure RemoteFX Adaptive Graphics. Set to Let the system choose the experience for

network conditions.

RemoteFX Settings for Windows Workstations Running Remote PC

Agents and Guest Agents

Remote FX Settings for Windows 7 SP1. Under Computer Configuration\Administrative

Templates\Windows Components\Remote Desktop Services\Remote Desktop Session

Host\Remote Session Environment enable the following options for virtual PC or VDI desktop which

has guest agent installed:

• Enable RemoteFX.

• Set Compression algorithm for RDP data. Set to Optimize to use less network bandwidth.

• Optimize Visual experience for Remote Desktop Services sessions. Set to Rich Multimedia.

• Configure compression for RemoteFX data. Set to Optimize to use less network bandwidth.

• Configure image quality for RemoteFX Adaptive Graphics. Set to Medium.

• Configure RemoteFX Adaptive Graphics. Set to Let the system choose the experience for the

network condition.

Remote Access Configuration

Configure RemoteFX Adaptive Graphics

RemoteFX supports two Group Policy settings that give administrators the flexibility to manually

choose the best configuration for their scenario. Both policies are under this path: Computer

Configuration\Administrative Templates\Windows Components\Remote Desktop Services\Remote

Desktop Session Host\Remote Session Environment.

The first policy setting is Configure image quality for RemoteFX Adaptive Graphics. This policy

setting specifies the graphics quality for a remote session. Administrators can use this option to

balance network bandwidth usage with graphics quality delivered.

The options are Medium (default), High, and Lossless. The Medium setting consumes the lowest

amount of bandwidth, The High setting increases the image quality with a moderate increase in

bandwidth consumption, while the Lossless setting uses lossless encoding, which preserves full

color and resolution integrity but requires significant increase in bandwidth.

The second policy setting is Configure RemoteFX Adaptive Graphics. This policy setting allows

the administrator to choose the encoding configuration to be optimized for server scalability or

bandwidth usage. If you enable this policy setting, the RemoteFX experience could be set to one of

the following options:

• Let the system choose the experience for the network condition

• Optimize for experience (balanced)

• Optimize to use minimum network bandwidth

By default, the system will choose the best experience based on available network bandwidth.

Configure RemoteFX Lossless Graphics

This policy setting allows the administrator to configure RemoteFX graphics for Remote Desktop

Session Host or Remote Desktop Virtualization Host servers to be lossless. If you enable this policy

setting, RemoteFX graphics will use lossless encoding. The color integrity of the graphics data will

stay intact. If you disable or skip the configuration of this policy setting, RemoteFX graphics lossless

encoding will be disabled.

Use the Hardware Default Graphics Adapter for all Remote Desktop

Services Sessions

This policy setting enables system administrators to change the graphics rendering for all Remote

Desktop Services sessions on a Remote Desktop Session Host (RD Session Host) server. If you

enable this policy setting, all Remote Desktop Services sessions on the RD Session Host server

use the hardware graphics renderer instead of the Microsoft Basic Render Driver as the default

adapter. If you disable or skip the configuration of this policy setting, all Remote Desktop Services

sessions on the RD Session Host server will use the Microsoft Basic Render Driver as the default

adapter.

Remote Access Configuration

Note: The policy setting affects only the default graphics processing unit (GPU) on a computer with more

than one GPU installed. All additional GPUs are considered secondary adapters and used as hardware

renderers. The GPU configuration of the local session is not affected by this policy settings.

Remote Access Configuration

Remote FX USB Redirection

In order to get Point of Sale / USB Scanning devices to work properly with Windows 2008 R2 and

higher, you must enable RemoteFX USB redirection on the user Windows devices using GPO.

Please note that this policy setting allows you to permit RDP redirection of other supported

RemoteFX USB devices from this computer. Make sure that you set RemoteFX USB Redirection

Access Rights to Administrators and Users. This is configured by navigating to Computer

Configurations > Administrative Templates > Windows Components > Remote Desktop Services >

Remote Desktop Session Host > Remote Desktop Connection Client:

Remote Access Configuration

Enable Audio / Recording Redirection

In order to allow audio playback and recording redirection, first enable and start “Windows Audio

Service” in the Services.msc console and enable server’s playback device, and then enable these

functions using group policy. Terminal Servers do not need a sound card to do this.

Remote Access Configuration

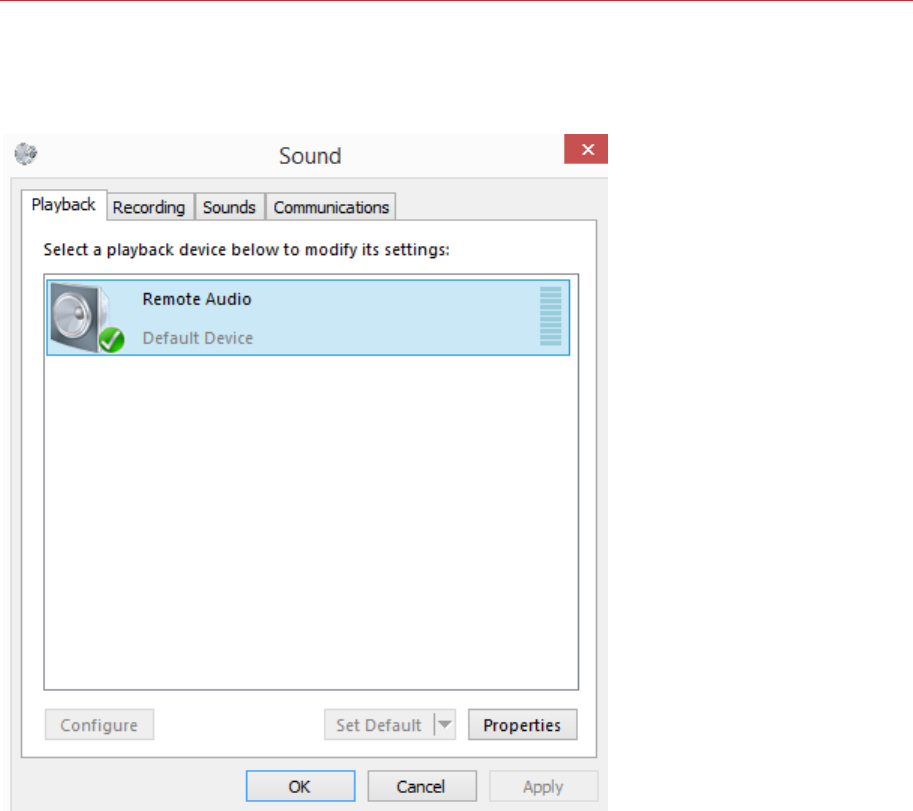

To enable the sound option on all Terminal Servers, right-click the server’s sound icon in the

Windows system tray. You will then be prompted to enable remote audio.

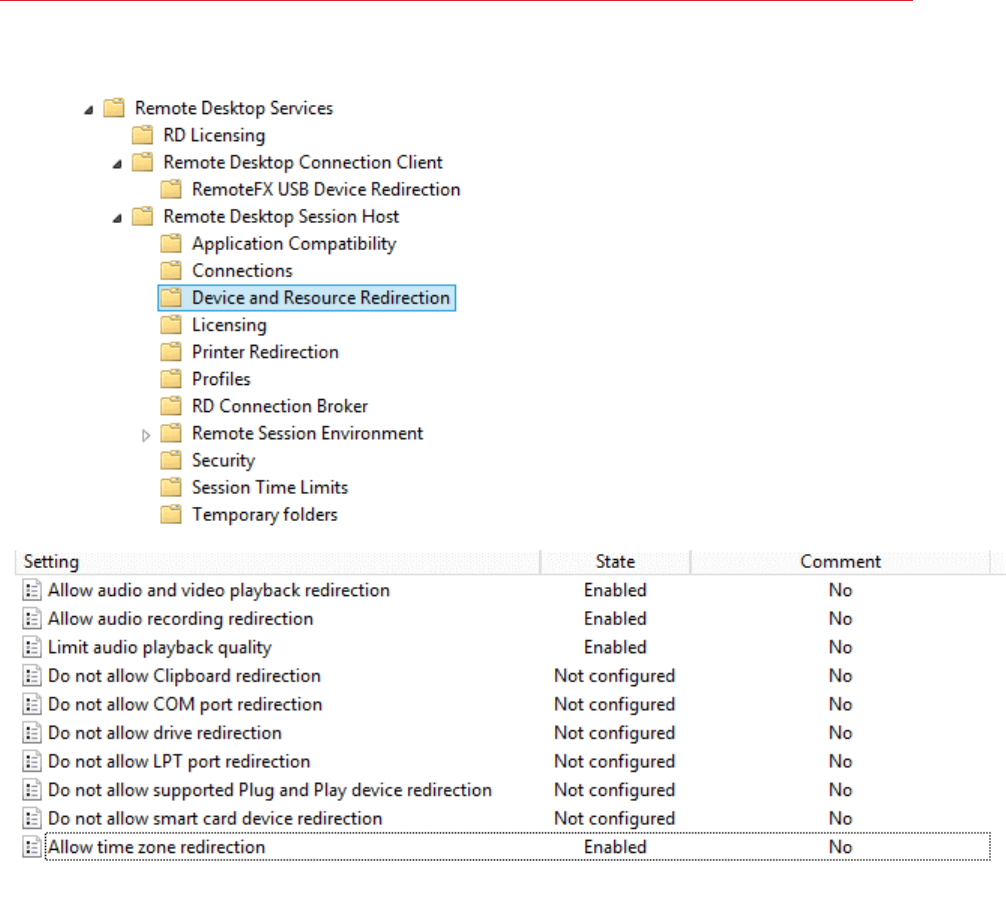

To enable the sound redirection options, navigate to Computer Configurations > Administrative

Templates > Windows Components > Remote Desktop Services > Remote Desktop Session Host

> Remote Desktop Session Host > Device and Resource Redirection and select the following

options:

• Allow audio and video playback redirection

• Allow audio recording redirection

Remote Access Configuration

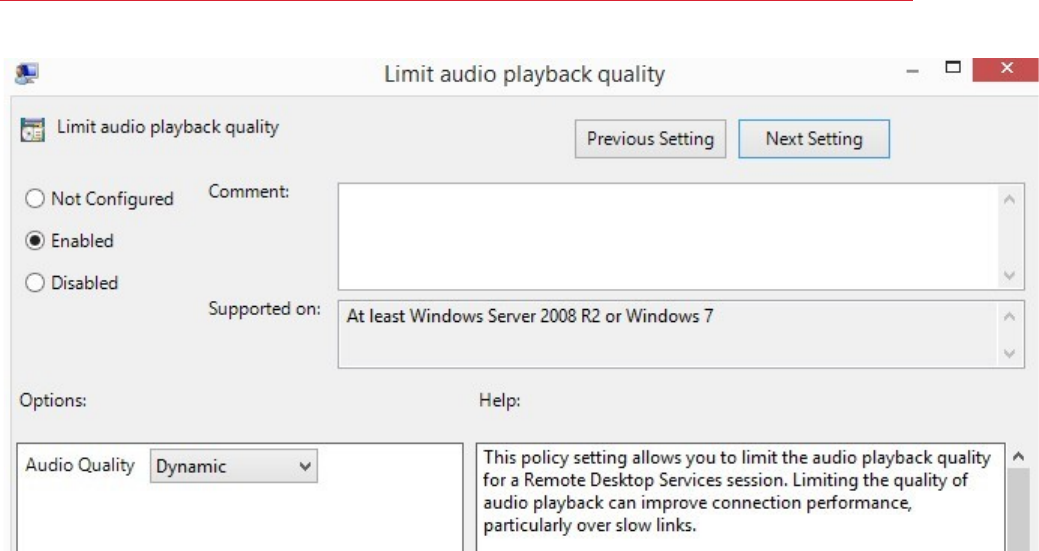

• Limit audio playback quality

Remote Access Configuration

Audio and Video Playback

Audio and video playback allows users to redirect the remote computer audio in a remote session.

It provides an improved experience for video playback in remote sessions. By default, audio and

video playback is not allowed when connecting to a computer running Windows Server 2008 R2.

https://technet.microsoft.com/en-us/library/dd759165.aspx

Audio and video playback redirection is allowed by default when connecting to a computer running

Windows 8, Windows Server 2012 R2, Windows 7, Windows Vista, or Windows XP Professional.

Time Zone Redirection

If you have users that login from different time zones, you may want to enable this setting. This

setting will redirect the local time to the app, remote PC, or VM. Time Zone Redirection is

configured in the same Group Policy location as Audio Redirection: Local Computer Policy >

Computer Configurations > Administrative Templates > Windows Components > Remote Desktop

Services > Remote Desktop Session Host > Remote Desktop Session Host > Device and

Resource Redirection.

Remote Access Configuration

Device and Resource Redirection

Generally, device redirection increases how much network bandwidth RD Session Host server

connections use because data is exchanged between devices on the client computers and

processes that are running in the server session. The extent of the increase is a function of the

frequency of operations that are performed by the applications that are running on the server

against the redirected devices. Printer redirection and Plug and Play device redirection also

increases CPU usage at sign-in.

Parallels recommends to not allow device redirection if not being used since this will result in

inefficient bandwidth usage. Local device redirection can be configured from Parallels Remote

Application Server policies, registry, or Microsoft group policies.

Remote Access Configuration

Remote Session Environment (H.264, RemoteFX, Adaptive Acceleration)

Remote Access Configuration

Set the Configure image quality for RemoteFX Adaptive Graphics option to Medium:

Remote Access Configuration

Windows 2008 R2 RemoteFX Compatibility

Remote Access Configuration

RDP Optimizations

Microsoft Windows Server 2008 R2 and later include bulk compressors that compress all data sent

from the server to the client. These are available in addition to the bulk compressor present in RDP

5.0 (in Windows 2003). These compressors can be enforced by the computer-wide Set

compression algorithm for RDP data Group Policy setting.

The choice of compression algorithm impacts the memory and CPU consumption on the server

and thus affects server scalability. RDP optimization can be configured to:

Remote Access Configuration

• Use the least amount of memory

• Use the least amount of network bandwidth

• Balance between memory and network bandwidth utilization (default)

For Windows 2008/R2

Navigate to Computer Configuration\Administrative Templates\Windows Components\Terminal

Services\Terminal Server\Remote Session Environment and set compression algorithm for RDP

data as follows:

Optimized to use less memory (RDP 5.2 or V1):

• Bulk compressor from Windows Server 2003

• Consumes more bandwidth than other compressors

• Has the least memory and CPU overhead

• Gives you the best server-side scalability

Balances network bandwidth and memory (RDP 6.0 or V2):

• The default setting if the Group Policy setting is not configured

• Balances between memory consumption and network bandwidth

• Can reduce your bandwidth by 5–30 percent compared to the RDP 5.2 compressor

Optimized to use less network bandwidth (RDP 6.1 or V3):

• A new compressor designed for Windows Server 2008

• Tuned to give you the best network performance

• Can reduce your bandwidth by 10–60 percent compared to the RDP 5.2 compressor

http://download.microsoft.com/download/4/d/9/4d9ae285-3431-4335-a86e-

969e7a146d1b/RDP_Performance_WhitePaper.docx

For Windows 2012/R2

Navigate to Computer Configuration\Administrative Templates \Windows Components\Remote

Desktop Services \ Remote Desktop Session Host\ Remote Session Environment and configure

compression for RemoteFX data as follows:

• Optimized to use less memory. Consumes the least amount of memory per session but has

the lowest compression ratio and therefore the highest bandwidth consumption.

• Balances memory and network bandwidth. Reduced bandwidth consumption while

marginally increasing memory consumption (approximately 200 KB per session).

Remote Access Configuration

• Optimized to use less network bandwidth. Further reduces network bandwidth usage at a

cost of approximately 2 MB per session. If you want to use this setting, you should assess the

maximum number of sessions and test to that level with this setting before you place the server

in production.

You can also choose not to engage a RemoteFX compression algorithm. This will use more

network bandwidth and it is only recommended if you are using a hardware device that is designed

to optimize network traffic. Even if you choose not to use a RemoteFX compression algorithm,

some graphics data will still be compressed.

https://msdn.microsoft.com/en-us/library/windows/hardware/dn567648(v=vs.85).aspx

The following policy setting specifies whether the Remote Desktop Protocol will try to detect the

network quality (bandwidth and latency): Computer Configuration\Administrative

Templates\Windows Components\Remote Desktop Services\Remote Desktop Session

Host\Connections\Select network detection on the server.

If you enable the above policy setting, you must select one of the following:

• Connect Time Network Detect

• Continuous Network Detect

• Connect Time Detect

• Continuous Network Detect

If you select Connect Time Network Detect, Remote Desktop Protocol will not try to determine the

network quality at the connect time, and it will assume all traffic to this server originates from a low

speed connection.

If you select Continuous Network Detect, Remote Desktop Protocol will not try to adopt to

changing network quality.

If you select Connect Time Detect and Continuous Network Detect, Remote Desktop Protocol will

not try to determine the network quality at the connect time, it will assume all traffic to this server

originates from a low speed connection and it will not try to adopt to changing network quality.

If you disable or do not configure this policy setting, Remote Desktop Protocol will spend a few

seconds trying to determine the network quality prior to the connection and it will continuously try

to adopt to the network quality.

The following policy setting specifies whether the UDP protocol will be used for Remote Desktop

Protocol access to this server: “Computer Configuration\Administrative Templates \Windows

Components\Remote Desktop Services \ Remote Desktop Session Host\ Connections\Select RDP

transport protocols".

If you enable the above policy setting, Remote Desktop Protocol traffic to this server will only use

the TCP protocol. If you disable or do not configure this policy setting, Remote Desktop Protocol

traffic to this server will use both the TCP and UDP protocols.

Remote Access Configuration

RDP Security

Locking Down TS/RDS Host

Server Manager Console

Disable Server Manager Pop up for users logging in. This can be done from the Group Policy

Microsoft Management Console (MMC):

User Configuration \ Polices \ Administrative Templates \ Start Menu and Taskbar

Some administrative group polices might not be available in the Group Policy Manager Console

(GPMC). These can be imported from https://www.microsoft.com/en-

au/download/details.aspx?id=41193

Remote Access Configuration

Removing Favorites and Libraries

You must perform these modifications on the RD Session Host servers. You can use the Registry

to make these changes directly or using group policy preferences (GPP).

Note: Back up the key first and take ownership of the ShellFolder before changing the value of

Attributes.

• For Favorites, the key is:

[HKEY_CLASSES_ROOTCLSID{323CA680-C24D-4099-B94D-446DD2D7249E}ShellFolder]

"Attributes"=dword:a0900100

Changing a0900100 to a9400100 will hide Favorites from the navigation pane.

• For Libraries, the key is:

[HKEY_CLASSES_ROOTCLSID{031E4825-7B94-4dc3-B131-E946B44C8DD5}ShellFolder]

"Attributes"=dword:b080010d

Changing b080010d to b090010d will hide Libraries from the navigation pane.

Hiding/Preventing Access to Drives and other features

You can use Group Policy settings to hide and restrict access to drives on the RD Session Host

server. By enabling these settings you can ensure that users do not inadvertently access data

stored on other drives, or delete or damage programs or other critical system files on drive C.

This can be carried out from the Group Policy Microsoft Management Console (MMC) as follows:

• For Windows 2008\R2: User Configuration\Policies\Administrative Templates\Windows

Components\Windows Explorer.

• For Windows 2012\R2: User Configuration/ Administrative Templates/ Windows Components/

File Explorer.

Additional policies can be set to:

• Hide the Manage item on the Windows Explorer context menu

• Remove Hardware tab

• Remove "Map Network Drive" and "Disconnect Network Drive"

• Remove Search button from Windows Explorer

• Disable Windows Explorer’s default context menu

• Remove Run menu from Start Menu

https://blogs.msdn.microsoft.com/rds/2011/05/26/how-to-restrict-users-from-accessing-local-

drives-of-an-rd-session-host-server-while-using-remoteapp-programs/

Remote Access Configuration

Session Limits

You can use this policy setting to specify the maximum amount of time that an active,

disconnected, or idle session remains in its current state.

Set the time limit for disconnected sessions. When a session is disconnected, running programs

are kept active even though the user is no longer actively connected. By default, these

disconnected sessions are maintained for an unlimited time on the server.

Set the time limit for logoff of published resources sessions. You can specify how long a user

session will remain in a disconnected state after closing all programs but before the session is

logged off from the RD Session Host server. By default, if a user closes a published resource, the

session is disconnected from the RD Session Host server but it is not logged off.

This option can also be changed in the Parallels RAS Console by navigating to Farm \ Terminal

Servers \ Properties \ Publishing Session.

Set time limit for logoff of published resources sessions. When a user closes the last running

published resource associated with a session, Remote Application Server will keep the session in a

disconnected state until the specified time limit is reached. When it is, the session will be logged off

from the RD Session Host server. If the user starts another published resource before the time limit

is reached, the user will reconnect to the disconnected session on the RD Session Host server.

Note: This policy setting appears in both Computer Configuration and User Configuration. If both policy

settings are configured, the Computer Configuration policy setting takes precedence. These

configurations can be carried out from the Group Policy Microsoft Management Console (MMC):

Computer Configuration\Policies\Administrative Templates\Windows Components\Remote Desktop

Services\Remote Desktop Session Host\Session Time Limits.

Disable Administrative Components

Disable Control panel items, Administrative Tools, and PowerShell

Various control panels, administrative tools, and server settings should be disabled for standard

user access if otherwise not required by organization. To disable control panel items, the following

policies can be carried out from the Group Policy Microsoft Management Console (MMC): User

Configuration\Administrative Templates\Control Panel

Disable Registry Modification

For added security, users should be restricted to not make any registry modifications: User

Configuration\Policies\Administrative Templates\System

Remote Access Configuration

Windows Updates and Installer

These policy setting prevents users from using Windows Installer to install patches and disables

Windows update and shutdown notifications. This can be carried out from the Group Policy

Microsoft Management Console (MMC):

• Computer Configuration\Policies\Administrative Templates\Windows Components\Windows

Installer

• Computer Configuration\Administrative Templates\Windows Components\Windows Update

Control Panel

The following Control Panel items may be removed from the list of items available for standard user

access:

• Microsoft.AdministrativeTools

• Microsoft.AutoPlay

• Microsoft.ActionCenter

• Microsoft.ColorManagement

• Microsoft.DefaultPrograms

• Microsoft.DeviceManager

• Microsoft.EaseOfAccessCenter

• Microsoft.FolderOptions

• Microsoft.iSCSIInitiator

• Microsoft.NetworkAndSharingCenter

• Microsoft.NotificationAreaIcons

• Microsoft.PhoneAndModem

• Microsoft.PowerOptions

• Microsoft.ProgramsAndFeatures

• Microsoft.System

• Microsoft.TextToSpeech

• Microsoft.UserAccounts

• Microsoft.WindowsFirewall

• Microsoft.WindowsUpdate

• Microsoft.DateAndTime

• Microsoft.RegionAndLanguage

• Microsoft.RemoteAppAndDesktopConnections

Remote Access Configuration

• Install Application On Remote Desktop Server

• Java

• Flash Player

Administrative Tools and PowerShell

• Navigate to Computer Configuration > Policies > Windows Settings > Security Settings.

• Right click on File System, choose Add File.

• In the Add a file or folder window, put %AllUsersProfile%\Microsoft\Windows\Start

Menu\Programs\Administrative Tools in the Folder field and click OK.

• On the next window Database Security for%AllUsersProfile%\Microsoft\Windows\Start

Menu\Programs\Administrative Tools\Server Manager.lnk remove Users and check that

Administrators have Full Access

• On the Add Object window choose Configure this file or folder then Propagate inheritable

permissions to all subfolders and files. Click OK.

• Do the same for PowerShell shortcut (+ delete Creator Owner in database

security): %AllUsersProfile%\Microsoft\Windows\Start Menu\Programs\System Tools\Windows

PowerShell.lnk

• Do the same for Server Manager shortcut: %AllUsersProfile%\Microsoft\Windows\Start

Menu\Programs\Administrative Tools\Server Manager.lnk

Antivirus Exclusions

Installing antivirus software on an RD Session Host server greatly affects overall system

performance, especially the CPU usage. We highly recommend that you exclude all folders that

hold temporary files from the active monitoring list, especially folders generated by services and

other system components.

The Parallels RAS folder to be excluded from real-time scanning is

%programfiles(x86)%\Parallels\ApplicationServer.

For Parallels RAS port reference, please refer to Parallels Remote Application Server

Administrator's Guide, which can be downloaded from

http://www.parallels.com/products/ras/resources. For additional information, please also see

http://kb.parallels.com/124003.

The Parallels Client for Windows folder to be excluded from real-time scanning is as follows:

• 32-bit: %programfiles(x86)%\Parallels\Client

• 64-bit: %programfiles%\Parallels\Client

Remote Access Configuration

Parallels recommends to exclude the above Parallels RAS and Parallels Client for Windows folders

from real-time or on-access scanning and scan them on a regular basis using scheduled scans.

You should also monitor the creation of new files in the excluded folders.

In This Chapter

Printer and Drive Mapping ...................................................................................... 44

Printing/Scanning Compression .............................................................................. 45

Printer and Drive Mapping

When publishing applications, sometimes the applications will open faster than GPO’s, logon

scripts, profiles or printer mapping can complete. To resolve this, Parallels RAS has the capability

to introduce a delay which allows these processes to complete before launching the application.

Beginning with RAS v15 the default setting is 20 second delay. The default can be changed and

the delay can be adjusted on a per application basis.

You can see from the example below that the Inherit default setting option is set for all

applications to wait until RAS Universal Printers are redirected.

This option only works on Published applications from RDS/TS servers, Remote PC published

applications and VDI published applications. It does not affect full desktop publishing as this type of

remote access utilizes the standard Windows logon process.

To configure the Application Delay Settings:

1 In the RAS console, navigate to Publishing.

2 Click on a desired published application.

3 Click on the Display tab.

CHAPTER 5

Printer and Drive Mapping

4 For individual applications, select the Wait until all RAS Universal Printers are redirected

before showing the application option.

5 This option will also force drive mapping with an application.

6 If you have an application that must utilize a mapped network drive, this option will insure that

the drive is mapped prior to running the application.

7 When the printers are properly mapped, they will appear on the client side as

"%PRINTERNAME% for %USERNAME% by Parallels".

Printing/Scanning Compression

For Windows desktop clients (full and basic), Parallels RAS v15.5 and higher includes Universal

printing compression policy and Universal scanning compression policy options. These

options allow system administrator to adjust printing and scanning compression levels via client

policy settings in the RAS Console.

To set printing and scanning compression policies:

1 In the RAS Console, select the Policies category.

2 Right-click an existing policy and choose Properties.

Printer and Drive Mapping

3 In the Policy Properties dialog, click Connection Properties in the left pane and then click the

Experience tab in the right pane.

4 Select one of the following options from the Universal printing compression policy or

Universal scanning compression policy drop-down lists:

• Compression disabled

• Best speed (uses less CPU)

• Best size (uses less network traffic)

• Based on connection speed (default)

If the type of printed or scanned documents is predictable — for instance, your documents are

always very small or always very large — you can benefit by selecting an appropriate compression

policy. However, compression brings the most benefit to network connections with limited

bandwidth or latency when printing or scanning often slows down thus negatively affecting user

experience.

Printer and Drive Mapping

Parallels recommends using the Best size compression policy to make printing/scanning jobs

smaller and transfer them faster if the client devices are powerful enough from the CPU and

memory perspective. If the client devices are not powerful enough, the Best speed option policy

should be used.

For more info, please also see the Parallels Remote Application Server Universal Printing Best

Practices Guide, which can be downloaded from

http://www.parallels.com/products/ras/resources/.

In This Chapter

Load Balancing ...................................................................................................... 48

Groups .................................................................................................................. 49

Filtering .................................................................................................................. 49

Disable Application Monitoring ................................................................................ 50

Server Reboots ...................................................................................................... 51

Backups ................................................................................................................ 51

Large File Upload / Download via Drive Redirection ................................................. 53

Remove Gateway Browsing from Your LAN ............................................................ 55

Remove Self-Signed Certificate Error ...................................................................... 56

Remote PCs .......................................................................................................... 59

VDI ........................................................................................................................ 60

Load Balancing

By default, the Resource Based load balancing is enabled. It is recommended that this setting is

remained as is for better resource utilization and load balancing to TS/RDSH mitigating users

experience degradation due to limited TS/RDSH resources.

CHAPTER 6

Miscellaneous

Groups

TS/RDSH groups are recommended to be used. This ensures that Published resources are

configured to publish resources from groups. If a new TS/RDSH is to be added, new servers can

simply be added to the group created rather than changing published resources configurations to

be also accessible from new servers.

Filtering

When configuring Filtering for published resources and selecting User as the filtering type, select

Secure Identifier as the Browse Mode. This is the fastest method that supports group nesting

and renaming.

Miscellaneous

Disable Application Monitoring

To save system resources on RDS hosts, it is possible to disable application monitoring if it is not

required.

Miscellaneous

Server Reboots

Reboot clears up old sessions and releases resources in use (CPU, RAM, file handles, etc.). It is

recommended to configure scheduled reboots for your TS/RDSH (applicable for frequent logoffs

and logons). This can be carried out in the RAS console by navigating to Farm \ Terminal Servers.

Reboot frequency depends on how heavily the TS/RDSH are utilized.

Hint: Make sure that server rebooting does not cause any downtime. This can be carried out by

offloading users onto other servers prior to reboot by enabling the drain mode.

Backups

Parallels recommends setting up recurrent backups of Parallels RAS farm settings. This can be

accomplished using Parallels RAS PowerShell, which is a part of Parallels Remote Application

Server beginning with version 15.5.2. Parallels RAS PowerShell is installed by default when you

install Parallels RAS. If you chose not to install it, please run the Parallels RAS installer again and

install the Parallels RAS PowerShell component.

Miscellaneous

The following sample PowerShell script shows how to export Parallels RAS farm settings to a file.

#Get the current datetime to be used as a name for the backup file.

#You can use any other unique name format that you like.

$Date = Get-Date -Format yyyy.MM.dd.mm.ss

#Import the Parallels RAS PowerShell module.

Import-Module PSAdmin

#Create a Parallels RAS session.

#Since the password must be passed as SecureString, we need to convert it first.

#In your own script, replace "secret" with your Parallels RAS password.

$Pass = "secret" | ConvertTo-SecureString -AsPlainText -Force

#We can now create a Parallels RAS session.

#Replace "user" and "server.company.dom" with your RAS user and server names.

#If executing the script locally, you can omit the -Server parameter.

New-RASSession -Username "user" -Password $Pass -Server "server.company.dom"

#Export farm settings to a file.

#You can specify a different folder for saving the file if you wish.

#.dat2 is the default extension Parallels RAS uses for backup files.

Invoke-ExportSettings $env:userprofile\$Date.dat2

#Close the current RAS session.

Remove-RASSession

Save the above sample script to a file with the ".ps1" extension. To test the script, you can execute

it in the PowerShell console. To execute the script on a schedule, do the following:

1 Open Windows Scheduler and click Create Task.

2 On the General tab page of the Create Task dialog, fill in all required fields.

3 Select the Actions tab page and then click the New button.

4 In the New Action dialog, make sure Start a program is selected in the Action drop-down list,

then click Browse and select your .ps1 script file.

5 Click OK in the New Action dialog.

6 Select the Triggers tab page and click New.

7 In the New Trigger dialog, specify the desired schedule settings.

8 Click OK to close all dialogs.

To import the settings from a saved file into a Parallels RAS farm:

• In the Parallels RAS Console, navigate to Administration \ Backup and click Import. Specify

the ".dat2" file to import the farm settings from.

• Using Parallels RAS PowerShell, execute the Invoke-ImportSettings cmdlet passing the

path and filename of the backup file.

The complete Parallels RAS PowerShell documentation can be viewed and downloaded from

http://www.parallels.com/products/ras/resources/

Miscellaneous

Large File Upload / Download via Drive

Redirection

In some cases bandwidth and other factors can cause a memory error when transferring large files

between remote applications and local drives.

For large file transfer optimization, the following settings should be made on both the server and

client side.

RDS/TS Server Settings

Referencing the Remote Desktop/Terminal Server Performance Settings section at the

beginning of this document:

• Set Visual Effects to "Best Performance".

• Set the Windows Paging file to three times the physical RAM.

Disable Desktop Composition under Group Policy (on Windows 2008 R2 only).

Under Local Computer Policy > Computer Configurations > Administrative Templates > Windows

Components > Remote Desktop Services > Remote Desktop Session Host > Remote Session

Environment, set Desktop Composition to "Not Configured."

Client Settings

Client settings can be changed on a per client basis using Connection Properties or centrally from

the Parallels RAS management console using Policies.

Miscellaneous

1 For an individual client, under Connection Properties, go the Experience tab and set the

Connection Optimization to WAN (10 Mbps or higher with high latency):

Miscellaneous

2 To change this setting centrally for multiple clients, in the Parallels RAS Console, select the

Policies category. Add a policy for a group of users and under Connection Properties >

Experience, set the Experience Optimization to WAN.

Remove Gateway Browsing from Your LAN

Keep your gateway private on your local LAN:

1 In the Parallels RAS console under Farm select Gateways.

2 Open the gateway properties for each Gateway Server in your Farm.

3 Under the Network tab, uncheck "Broadcast RAS Secure Client Gateway Address"

Miscellaneous

4 Click OK and then Apply Settings.

Remove Self-Signed Certificate Error

Parallels Remote Application server comes pre-configured with a self-signed certificate to enable

SSL access to the Farm during the testing phase. Self-signed certificates will generate a warning

that the connection is not secure/private. For production purposes, certificates should be

purchased from a Certificate Authority.

During the testing phase you may wish to suppress the self-signed certificate error which can be

done using RAS Policy settings. Note that this policy only works with Parallels Client for Windows,

Mac, and Linux.

To remove the certificate error simply follow the steps below:

1 Navigate to Policies from within the RAS Console.

2 Click to add a Local/Domain group which will be affected by this policy.

3 Select "Options" under Policy.

Miscellaneous

4 Then click on the "Advanced Settings" tab.

5 Check the option "Do not warn if server certificate is not valid".

Miscellaneous

6 Click OK and then Apply Settings.

Miscellaneous

Remote PCs

Physical PCs can be accessed remotely using the RAS infrastructure:

• Parallels RAS Remote PC agents are used to publish both Applications and Desktops from the

Windows Desktop OS.

• Desktop Operating Systems can only support 1 remote user at a time.

Supported Desktop operating systems:

• Windows 10 Pro, Windows 10 Enterprise, Windows 10 Education, Windows 8.1 Pro, Windows

8.1 Enterprise, Windows 8 Enterprise, Windows 8 Pro, Windows 7 Professional, Windows 7

Enterprise, Windows 7 Ultimate, Windows Vista Business, Windows Vista Ultimate, Windows

Vista Enterprise, Windows XP Professional.

Miscellaneous

Configure RemoteFX (Windows 7 and later) using the RemoteFX Settings for Windows

Workstations Runnings Remote PC agents and VDI Agents (p. 23) in the RemoteFX section of

this guide.

VDI

Parallels RAS supports the following VDI hosts:

• Hyper-V & Hyper-V Failover Cluster

• Windows 2008 R2 – Windows 2012 R2 Standard, System Center and Data Center

• VMware vSphere ESX 5.1 – 6.0

• vCenter for Windows v5.1 – 6.0. The vCenter appliance is not currently supported.

• Citrix Xenserver to 6.5

Parallels RAS Agents currently support a max of 1000 VM’s per agent.

The following Windows Desktop OS’s are supported VM’s within the VDI hosts:

• Windows 10 Pro, Windows 10 Enterprise, Windows 10 Education, Windows 8.1 Pro, Windows

8.1 Enterprise, Windows 8 Enterprise, Windows 8 Pro, Windows 7 Professional, Windows 7

Enterprise, Windows 7 Ultimate, Windows Vista Business, Windows Vista Ultimate, Windows

Vista Enterprise, Windows XP Professional.

Configure RemoteFX (Windows 7 and later) using the RemoteFX Settings for Windows

Workstations Runnings Remote PC agents and VDI Agents (p. 23) in the RemoteFX section of

this guide.

VMware vSphere Environments:

• Standalone ESXi Host(s) are supported via the RAS VDI virtual appliance.

• If an ESXi host is managed by vCenter, a RAS agent must be installed on the vCenter server.

With Windows Hyper-V, the Agents are installed on the Hyper-V host.

With Citrix XenServer, the VDI Appliance is used to manage the VM’s on the Citrix Xenserver.

Miscellaneous

Examples:

Hyper-V

Miscellaneous

VMware using the VDI Appliance

Miscellaneous

VMware using vCenter (Windows Only)

Miscellaneous

Citrix Xenserver using the VDI Appliance

The Parallels RAS Web Portal uses Windows IIS. This gives the users a friendly web interface to

access their applications and desktops.

The following Windows Servers are supported by the Parallels RAS Webportal.

• Windows Server 2003 Standard Edition, Windows Server 2003 Enterprise Edition, Windows

Server 2003 Datacenter Edition, Windows Server 2008,Standard Edition, Windows Server 2008

Enterprise Edition, Windows 2008 R2, Windows 2008 R2 Enterprise Edition, Window 2008 R2

Datacenter Edition, Windows Server 2012 Standard Edition, Window 2012 R2 Standard

Edition, Window 2012 Datacenter Edition, Windows 2012 R2, Datacenter Edition.

When a user accesses the RAS Web Portal for the first time, they will be prompted to download the

Parallels RAS Client.

• The administrator can assign the Parallels self-extracting client for this process which does not

require full administrative rights on the client system to install.

Parallels RAS Web Portal currently supports the following device platforms:

• Windows, Mac, Linux, Android, iOS, Raspberry PI.

In This Chapter

Windows Prerequisites for Parallels RAS Web Portal ................................................ 65

Configure User Friendly URL ................................................................................... 66

Windows Prerequisites for Parallels RAS Web

Portal

IIS and .Net are required to be installed under Roles & Features in order to install the Parallels Web

Portal:

CHAPTER 7

Parallels RAS Web Portal

Configure User Friendly URL

By default, clients access the Web Portal via the following URL:

http://<hostname/ip:81>/2XWebPortal/Logon.aspx

To make the Parallels RAS Web Portal more user friendly please do the following.

1 Install the Webportal and pick port 80 instead of port 81.

2 Make sure that port 80 isn’t in use on the server. Common conflicts on Port 80:

• IIS Default Web Site

• Parallels RAS Secure Client Gateway (if installed on this server)

Parallels RAS Web Portal

3 Login to ISS manager after you install the RAS Webportal.

4 Change the login URL under Default Documents by adding the document Logon.aspx.

5 Go into basic settings under the site and adjust the physical path to

"C:\inetpub\wwwroot\2xWebPortal"

The Parallels HTML5 Gateway enables clientless remote access to the Remote Application Server

farm from most modern web browsers that support HTML5. The HTML5 Gateway can be

accessed using the following URL:

HTTPS://<Hostname/IP>/RASHTML5Gateway

Currently, the default URL cannot be modified.

Access is delivered through a web access site hosted on the Secure Client Gateway Server.

Multiple Gateway servers can be load-balanced by the High Availability Load Balancer (HALB).

The HML5 Gateway is enabled by default and requires SSL. A self-signed certificate can be used

and is pre-installed with the product. For production, Parallels recommends that an approved SSL

certificate from a Certificate Authority is used.

Due to the clientless nature of the solution, Local drive access from clients is not available.

However, files can be saved on File Shares and on Cloud Drives (Drop Box, Google Drive,

OneDrive, etc.) if those applications are published by the administrator.

Universal printing is supported when using the HTML5 Gateway.

CHAPTER 8

Parallels RAS HTML5 Gateway

Index

Active Directory - 6

Active Directory and Infrastructure Services

Considerations - 6

Antivirus Exclusions - 42

Audience - 5

Audio and Video Playback - 30

Backups - 51

Configure RemoteFX - 21

Configure RemoteFX Adaptive Graphics - 24

Configure RemoteFX Lossless Graphics - 25

Configure User Friendly URL - 66

Device and Resource Redirection - 31

DHCP - 11

Disable Administrative Components - 40

Disable Application Monitoring - 50

DNS - 10

Enable Audio / Recording Redirection - 27

File Services - 11

Filtering - 49

For Windows 2008/R2 - 36

For Windows 2012/R2 - 36

General Performance Related Settings - 20

General Purpose RemoteFX Settings - 22

Groups - 49

Installation Procedures - 14

Introduction - 5

Large File Upload / Download via Drive

Redirection - 53

Load Balancing - 48

Locking Down TS/RDS Host - 38

Miscellaneous - 48

Parallels RAS HTML5 Gateway - 68

Parallels RAS Web Portal - 65

Printer and Drive Mapping - 44

Printing/Scanning Compression - 45

RDP Optimizations - 35

RDP Security - 38

Remote Access Configuration - 18

Remote Desktop/Terminal Server

Performance Settings - 18

Remote FX Settings for Server 2008 R2 - 22

Remote FX USB Redirection - 26

Remote PCs - 59

Remote Session Environment (H.264,

RemoteFX, Adaptive Acceleration) - 32

RemoteFX settings for Server 2012 and 2012

R2 - 23

RemoteFX Settings for Windows

Workstations Running Remote PC Agents

and Guest Agents - 23

Remove Gateway Browsing from Your LAN -

Remove Self-Signed Certificate Error - 56

Server Reboots - 51

Index

Time Zone Redirection - 30

Use the Hardware Default Graphics Adapter

for all Remote Desktop Services Sessions -

VDI - 60

Windows 2008 R2 RemoteFX Compatibility -

Windows Prerequisites for Parallels RAS Web

Portal - 65

Windows Server Requirements - 14

Windows Server Roles & Features - 15

Parallels Remote Application Server 16.2 Best Practices RAS V16 2

Navigation menu

Versions of this User Manual:

Views

Navigation
