Chapter 1 Welcome to RTI Recording Service
- 1.1 Paths Mentioned in Documentation
Chapter 2 Using Recording Console
Chapter 3 Using the Record Tool
Chapter 4 Configuring the Record Tool
Chapter 5 Accessing the Record Tool from a Remote Location
Chapter 6 Using the Replay Tool
Chapter 7 Configuring the Replay Tool
Chapter 8 Accessing the Replay Tool from a Remote Location
Chapter 9 Viewing Recorded Data
Chapter 10 Converting and Exporting Recorded Data
Chapter 11 Example Configuration Files
Appendix A Fields Available for Recording

RTI Recording Service

User’s Manual

Ver sion 5.2.3

Printed in U.S.A. First printing.

April 2016.

Trademarks

Real-Time Innovations, RTI, NDDS, RTI Data Distribution Service, DataBus, Connext, Micro DDS, the RTI

logo, 1RTI and the phrase, “Your Systems. Working as one,” are registered trademarks, trademarks or

service marks of Real-Time Innovations, Inc. All other trademarks belong to their respective owners.

Copy and Use Restrictions

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form

(including electronic, mechanical, photocopy, and facsimile) without the prior written permission of Real-

Time Innovations, Inc. The software described in this document is furnished under and subject to the RTI

software license agreement. The software may be used or copied only under the terms of the license

agreement.

Third-Party Copyright Notices

without warranty.

Technical Support

Real-Time Innovations, Inc.

232 E. Java Drive

Sunnyvale, CA 94089

Phone: (408) 990-7444

Email: support@rti.com

Website: http://www.rti.com/support

iii

Contents

1 Welcome to RTI Recording Service

1.1 Paths Mentioned in Documentation................................................................................................ 1-2

2 Using Recording Console

2.1 Starting and Stopping the Console .................................................................................................. 2-1

2.2 Using the Information Panel............................................................................................................. 2-2

2.3 Configuring Recording Console....................................................................................................... 2-2

2.3.1 Configuring From an External File ..................................................................................... 2-3

2.4 Recording Data ................................................................................................................................... 2-6

2.4.1 Using the Pause/Resume Button During Recording....................................................... 2-7

2.4.2 Troubleshooting Recording Problems ................................................................................ 2-7

2.5 Replaying Data.................................................................................................................................... 2-7

2.5.1 Using the Play Button ........................................................................................................... 2-8

2.5.2 Using the Fast-Forward Button ........................................................................................... 2-8

2.5.3 Using the Pause/Resume Button ........................................................................................ 2-8

2.5.4 Advanced Configuration...................................................................................................... 2-8

2.5.5 Restricting the Time Range to be Replayed ....................................................................... 2-9

2.6 Viewing Recorded Topics .................................................................................................................. 2-9

2.7 Scheduling Recording and Replay Tasks ...................................................................................... 2-10

2.8 Troubleshooting .................................................................................................................................2-11

3 Using the Record Tool

3.1 Starting the Record Tool .................................................................................................................... 3-1

3.2 Stopping the Record Tool .................................................................................................................. 3-2

3.3 Format of the Recorded Data............................................................................................................ 3-2

3.3.1 Discovery Data....................................................................................................................... 3-2

3.3.2 User Data ................................................................................................................................ 3-3

4 Configuring the Record Tool

4.1 How to Load the XML Configuration ............................................................................................. 4-1

4.2 General Format ................................................................................................................................... 4-2

4.2.1 Configuration File Syntax..................................................................................................... 4-3

4.2.2 Supported Data Types........................................................................................................... 4-3

4.3 General Properties for the Record Tool ........................................................................................... 4-6

4.4 Remote Access Properties ................................................................................................................. 4-6

4.4.1 Enabling RTI Distributed Logger in the Record Tool....................................................... 4-6

4.5 Database (Output File) Properties.................................................................................................... 4-8

4.5.1 Choosing Which SampleInfo and Discovery Fields to Record..................................... 4-14

4.6 Domain Type Configuration ........................................................................................................... 4-22

4.7 Domain Properties............................................................................................................................ 4-24

4.7.1 Enabling Monitoring Library in the Record Tool............................................................ 4-26

4.7.2 Recording Large User Data Types..................................................................................... 4-26

4.8 TopicGroup Properties..................................................................................................................... 4-27

4.8.1 ‘Create Index’ Syntax .......................................................................................................... 4-30

4.8.2 Indexing and Performance in SQLite: Tips and Tricks................................................... 4-32

4.9 RecordGroup Properties.................................................................................................................. 4-34

4.10 Recording Service Integration with Extensible Types................................................................. 4-36

4.10.1 Selecting a Type Version For a Topic “T” In a Recording Domain............................... 4-36

4.10.2 Recording Two Versions of a Type in Different Tables in Same Database .................. 4-40

5 Accessing the Record Tool from a Remote Location

5.1 Overview ............................................................................................................................................. 5-1

5.2 Establishing a Connection with the Record Tool ........................................................................... 5-2

5.3 Remote Control Messages ................................................................................................................. 5-4

5.3.1 Updating the Record Tool’s Partition QoS Policy............................................................. 5-5

5.4 Using the Example Remote-Access Application—Record Shell ................................................5-11

5.4.1 Record Shell’s Commands.................................................................................................. 5-12

5.4.2 Running Multiple Record Tools in the Same Domain.................................................... 5-15

6 Using the Replay Tool

6.1 Recording Data for Replay................................................................................................................ 6-1

6.2 Starting the Replay Tool..................................................................................................................... 6-1

6.3 Stopping the Replay Tool .................................................................................................................. 6-2

6.4 Performance and Indexing................................................................................................................ 6-3

7 Configuring the Replay Tool

7.1 How to Load Replay’s XML Configuration File ............................................................................ 7-1

7.2 General Format ................................................................................................................................... 7-2

7.3 General Properties for Replay........................................................................................................... 7-3

7.4 Database (Input File) Properties....................................................................................................... 7-4

7.4.1 Enabling Monitoring Library with Replay ........................................................................ 7-6

7.5 Session Properties............................................................................................................................... 7-6

7.6 Replay Topic Properties..................................................................................................................... 7-7

7.6.1 Type Selection......................................................................................................................... 7-8

7.7 Time Control Properties..................................................................................................................... 7-9

7.8 Remote Administration Properties .................................................................................................. 7-9

7.8.1 Enabling RTI Distributed Logger in the Replay Tool......................................................7-11

7.9 Type Configuration .......................................................................................................................... 7-13

7.10 Recording Service Integration with Extensible Types................................................................. 7-14

7.10.1 Selecting the Type Version to use when Replaying a Topic........................................... 7-15

7.10.2 Replaying Topics with Different Type Versions Stored in Different Tables ................ 7-16

8 Accessing the Replay Tool from a Remote Location

9Viewing Recorded Data

10 Converting and Exporting Recorded Data

10.1 Exporting Data.................................................................................................................................. 10-1

10.2 Deserializing Serialized Tables ....................................................................................................... 10-3

10.3 Handling Data Types ....................................................................................................................... 10-3

10.4 Selecting Output Files ...................................................................................................................... 10-4

10.5 Exporting Discovery Tables ............................................................................................................ 10-4

10.6 Filtering User Topic Tables .............................................................................................................. 10-4

11 Example Configuration Files

11.1 How to Record All Topics in a Single Domain..............................................................................11-1

11.2 How To Record a Subset of Data from Multiple Domains ..........................................................11-2

11.3 How To Record Data to Multiple Files...........................................................................................11-3

11.4 How To Record Serialized Data.......................................................................................................11-3

11.5 How To Record Using Best-Effort Reliability ................................................................................11-4

11.6 How To Enable Remote Access .......................................................................................................11-4

A Fields Available for Recording

A.1 User Topic Tables ............................................................................................................................... A-1

A.2 DCPSParticipant Table (Discovery) ................................................................................................ A-2

A.3 DCPSPublication Table (Discovery)................................................................................................ A-3

A.4 DCPSSubscription Table (Discovery) ............................................................................................. A-5

1-1

Chapter 1 Welcome to RTI Recording Service

RTI® Recording Service includes:

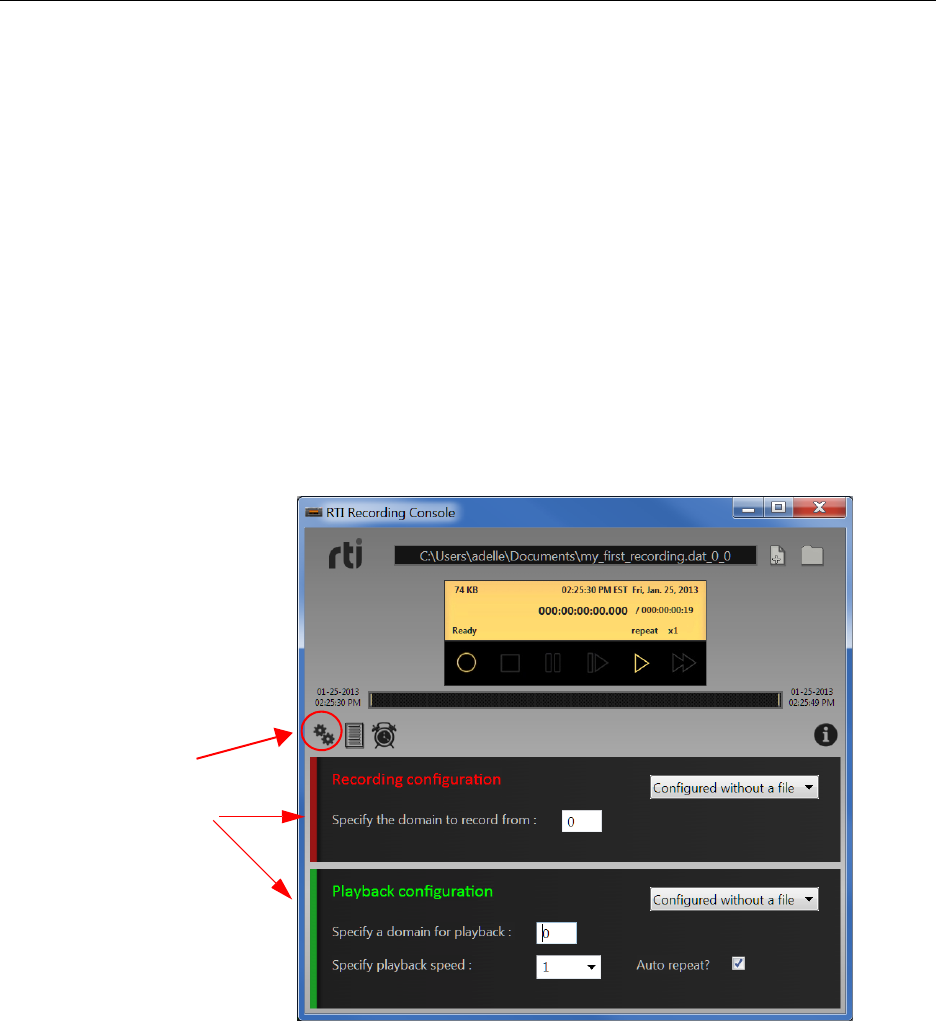

❏Recording Console, a simple graphical user interface (GUI) for using the Record and

Replay tools. This interface significantly reduces Recording Service configuration time and

complexity, and does not require any programming. The Recording Console makes it easy

to use Recording Service for testing algorithms and other processing logic against pre-

recorded test data, conducting regression testing from 'golden' data inputs, or recording

live data from the field for post-mission analysis. See Chapter 2: Using Recording Con-

sole.

❏Record, an RTI Connext™ DDS application that records both RTI Connext DDS discovery

and topic data. All recorded data is stored in one or more SQL database files. See

Chapter 3: Using the Record Tool.

❏Replay, a tool that can ‘play back’ the recorded data. You even have the option of replay-

ing the data with different data rates or QoS settings. See Chapter 6: Using the Replay

Tool.

❏Convert, a utility that enables serialized or deserialized data recorded with Record to be

exported to CSV, HTML, SQL, or XML formats. See Chapter 10: Converting and Export-

ing Recorded Data.

Recording Features

❏Records data from applications in multiple domains.

❏Records entire Topics, or specific Topic fields, based on POSIX file-name matching

expressions.

❏Records all data types except bit-fields.

❏Records to multiple files with configurable file-size limits. Optionally overwrites the old-

est file when the maximum number of files has been reached.

❏Records the DDS SampleInfo structure and a timestamp for both discovery data and user

data.

❏Records using either Best Effort or Reliable communications.

❏Optionally can be configured to record from all partitions or from only specified parti-

tions.

❏Supports remote operation.

Replay Features

❏Publishes data samples that were recorded in serialized format.

❏Highly configurable—you can:

Paths Mentioned in Documentation

1-2

• Choose which serialized topics to replay

• Set the replay rate (faster or slower) or use the original rate

• Change the QoS of the publications

• Configure the QoS for the tool itself

• Dynamically control the replay (start, stop, pause) and single-step through the

data samples

This document assumes you have a basic understanding of DDS terms such as DomainPartici-

pants, Publishers, DataWriters, Topics, and Quality of Service (QoS) policies. For an overview of

DDS terms, please see the RTI Connext DDS Core Libraries User’s Manual.

1.1 Paths Mentioned in Documentation

The documentation refers to:

❏<NDDSHOME>

This refers to the installation directory for Connext DDS.

The default installation paths are:

• Mac OS X systems:

/Applications/rti_connext_dds-version

• UNIX-based systems, non-root user:

/home/your user name/rti_connext_dds-version

• UNIX-based systems, root user:

/opt/rti_connext_dds-version

• Windows systems, user without Administrator privileges:

<your home directory>\rti_connext_dds-version

• Windows systems, user with Administrator privileges:

C:\Program Files\rti_connext_dds-version (for 64-bits machines) or

C:\Program Files (x86)\rti_connext_dds-version (for 32-bit machines)

You may also see $NDDSHOME or %NDDSHOME%, which refers to an environment

variable set to the installation path.

Wherever you see <NDDSHOME> used in a path, replace it with your installation path.

Note for Windows Users: When using a command prompt to enter a command that

includes the path C:\Program Files (or any directory name that has a space), enclose the

path in quotation marks. For example:

“C:\Program Files\rti_connext_dds-version\bin\rtiddsgen”

or if you have defined the NDDSHOME environment variable:

“%NDDSHOME%\bin\rtiddsgen”

Paths Mentioned in Documentation

1-3

❏<path to examples>

Examples are copied into your home directory the first time you run RTI Launcher or any

script in <NDDSHOME>/bin. This document refers to the location of these examples as

<path to examples>.

Wherever you see <path to examples>, replace it with the appropriate path.

By default, the examples are copied here:

• Mac OS X systems:

/Users/your user name/rti_workspace/version/examples

• UNIX-based systems:

/home/your user name/rti_workspace/version/examples

• Windows systems:

your Windows documents folder\rti_workspace\version\examples

Where 'your Windows documents folder' depends on your version of Windows.

For example, on Windows 7, the folder is C:\Users\your user name\Documents;

on Windows Server 2003, the folder is C:\Documents and Settings\your user

name\Documents.

You can specify a different location for the rti_workspace directory. You can also specify

that you do not want the examples copied to the workspace. See the RTI Connext DDS

Core Libraries Getting Started Guide.

2-1

Chapter 2 Using Recording Console

This chapter describes how to use Recording Console, which provides an easy way to record and

replay data.

2.1 Starting and Stopping the Console

Recording Console’s executable is in <NDDSHOME>/bin.

The tool should always be run using the executable script (rtirecordingconsole.bat for Win-

dows, rtirecordingconsole for Linux). For Mac OS X systems, Recording Console includes a .app

directory which includes a script to run the tool.

On Linux systems:

1. Open a command prompt and change to the <NDDSHOME>/bin directory

2. Start the Console by entering:

> rtirecordingconsole

3. Set a Domain ID as described in Section 2.3.

On Mac OS X systems:

1. Go to the <NDDSHOME>/bin directory.

2. Execute the RTI Recording Console.app application by double-clicking on it or using

Mac's open command.

3. If the Connext DDS bundle was installed under the Mac "Applications" directory, Mac's

LaunchPad will also show the RTI Recording Console application in the /bin directory.

Click on the application to run it.

On Windows systems:

1. From the Start menu, navigate to RTI Recording Service <version>, and select Record-

ing Console.

2. Set a Domain ID as described in Section 2.3.

Table 2.1 Console’s Controls

Record Stop Pause/Resume Single Step

(Press Pause first) Play Fast Forward

Using the Information Panel

2-2

2.2 Using the Information Panel

To open the Information panel, click on the in the Console’s lower-right corner. From this

panel, seen in Figure 2.2, you can access documentation, contact RTI Support, or view the most

recent log file.

Note: Log files are automatically deleted when the Console shuts down, unless errors were

reported.

2.3 Configuring Recording Console

Before you can use Recording Console to record or replay data, you must specify a domain ID in

the Configuration panels. The default domain ID is 0.

File

Management

Display

area

Schedule

(see Section 2.7)

Configure

Start here to set a

Domain ID Information

(see Section 2.2)

Figure 2.1 Console at Startup

Topics

(see Section 2.6)Controls

(see Table 2.1)

The information panel provides links to documentation, RTI Support, and the Console’s log file.

Figure 2.2 Information Panel

Configuring Recording Console

2-3

❏To record data, specify the domain in which the data you want to record is being pub-

lished.

❏To replay data, specify the domain that you want to publish the previously recorded data

into.

By default, Recording Console records and replays data using the default DomainParticipant QoS

settings described in the Connext DDS documentation. If your Connext DDS applications use

default DomainParticipant QoS settings (including transport settings), you can record and

replay data ‘out of the box’—with no QoS changes.

If your system uses any DomainParticipant QoS settings that would be incompatible with the

default settings, you need to write a configuration file that can be used by Recording Console

when recording or replaying the data.

There are two ways to configure Recording Console’s recording and playback parameters:

❏Specify values in the Configuration panels shown below.

❏Specify a file and a configuration within that file. This method is described in

Section 2.3.1.

2.3.1 Configuring From an External File

If you have a use case that is not covered by the default configuration generated by Recording

Console, you can use an external configuration file as the basis of the settings to record or replay.

Recording Console can load any configuration file that is supported by the Record or Replay tools.

These files are described in Chapter 4: Configuring the Record Tool and Chapter 7: Configuring

the Replay Tool.

Note: Not all configuration settings are taken from the selected external file; see Section 2.3.1.1

and Section 2.3.1.3.

Click here

to open these

Configuration

Panels

Configuring Recording Console

2-4

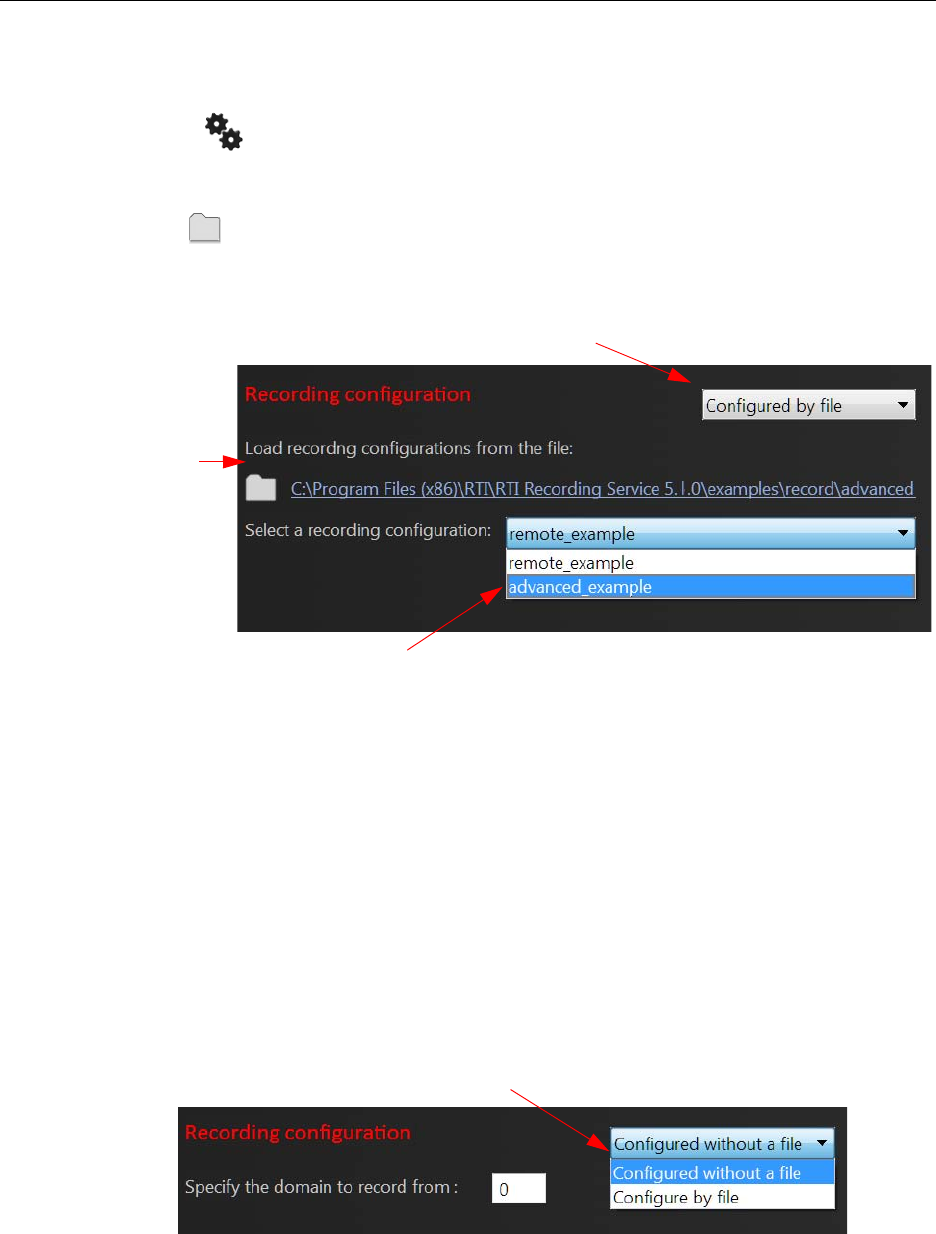

2.3.1.1 Configuring Recording from an External File

To use an external configuration file for recording:

1. Press to open the Recording and Playback Configuration panels.

2. In the Recording configuration panel, select Configured by file.

3. Select a configuration file to use for recording either by pressing the Open Folder but-

ton or by dragging-and-dropping a file from your file explorer window into the

Recording configuration panel.

4. Select one of the configurations in the file by choosing from the drop-down listbox.

Only parts of the configuration file are used, while other settings are taken from Recording Con-

sole:

❏<dds><recorder>: The name attribute will be used for the launched service.

❏<dds><recorder><remote_access><remote_access_domain>: This will be used for the

administration domain ID.

❏<dds><recorder>: Many of the settings from this element are used, except as noted

below:

• <remote_access>: The domain ID is used, but all other settings are replaced so that

they are compatible with Recording Console's settings.

• <recorder_database>: This is replaced with the database file specified in Recording

Console.

Note: To stop using the configuration file and go back to the previous QoS settings, select

Configured without a File.

2.3.1.2 Using Domain 99 in External File Configurations

By default, Recording Console monitors and controls the Record and Replay services on domain 99.

3. Select a configuration

2. Select a

file

1. Select “Configured by file”

Return to prior configuration

Configuring Recording Console

2-5

When configuring either the Record or Replay services from a file, if you happen to be using

domain 99 as your recording or playback domain, we recommend that you change the adminis-

tration domain from 99 to a different domain ID, by either specifying it in the configuration file

or by editing the file, settings.ini, which should be located in your home directory:

❏On Windows Systems:

C:\Users\<user name>\Documents\rti_workspace\<version>\user_config\

recording_service\settings.ini

❏On Linux and OS X systems:

~/rti_workspace/<version>/user_config/recording_service/settings.ini

Again, this recommendation only applies if the domain in your configuration file is domain 99.

Note: Except for the specific changes described in this document, avoid making other changes in

the settings.ini file.

2.3.1.3 Configuring Replay from an External File

To use an external configuration file for replay:

1. Press to open the Recording and Playback Configuration panels.

2. In the Playback configuration panel, select Configured by file.

3. Press the Open Folder button to select a configuration file for playback.

4. Select one of the configurations in the file by choosing from the drop-down listbox.

5. Select a QoS profile from the drop-down listbox.

Here again, only parts of the configuration file are used, while other settings are taken from

Recording Console. These configuration elements from the file are used:

❏<dds><replay_service>: The name attribute will be used for the launched service.

❏<dds><replay_service><administration><domain_id>: This will be used for the admin-

istration domain ID. The rest of the <administration> element is replaced to ensure run-

time compatibility with Recording Console.

❏<dds><replay_service>: Many of the settings will be used from this element, except for:

• Only the first <session> from the first <replay_database> will be used.

• The <filename> will be replaced with the file specified in Recording Console.

3. Select a configuration

2. Select a

file

1. Select “Configured by file”

Recording Data

2-6

Note: To stop using the configuration file and go back to the previous QoS settings, select Con-

figure without a File.

2.4 Recording Data

To record data:

1. Make sure you have set the domain ID in the Record Configuration panel (see

Section 2.3).

2. Choose where to save the recorded data. You can create a new file or choose an existing

one:

• To create a new file: Press the New Recording button in the upper-right corner

and specify a file name and location for the new recording. Then click on Create File.

• To record over an existing file:

• Press the Open Folder button in the upper-right corner and locate the file

that you want to record into.

• Another way to open a recording file is simply to drag the file from your file

explorer window and drop it into the long black rectangle at the top of the Con-

sole.

Note: If you specify an existing file, the file will be overwritten with new data. New

data is not appended to the end of the existing file contents.

3. Press the Record button to start recording.

Return to prior configuration

File size grows as data is recorded

Begin time

End time

Stop Pause/

Replaying Data

2-7

2.4.1 Using the Pause/Resume Button During Recording

To pause recording, press the Pause/Resume button .

To resume recording, either press Pause/Resume again or press Record .

2.4.2 Troubleshooting Recording Problems

Problem—You pressed the Record button, but the recording file size stays at zero.

Solution—Make sure that:

❏The Recording Domain ID matches the domain ID used by the source (the application

from which you want to record data).

❏Data is coming in from the source, by using tools such as rtiddsspy (provided with Con-

next DDS in its <NDDSHOME>/bin directory).

❏You have access rights to create files in the directory where the recording file is to be cre-

ated.

2.5 Replaying Data

You can use the Console to replay data that was recorded using the Console or the Record tool. You

may replay data recorded with an older version of Recording Service.

Note: If you recorded the data using the sqlite_ pragmas functionality described in Section 4.5,

the resulting database cannot be replayed by Recording Console; use the Replay tool instead (see

Chapter 6).

To replay data:

1. Make sure you have set the domain ID in the Playback Configuration panel (see

Section 2.3).

2. Press the Open Folder button in the upper-right corner, locate the file whose data is

to be replayed, then click Open.

• Another way to open a recorded data file is simply to drag the file from your file

explorer window and drop it into the long black rectangle at the top of the Console.

When the file is loaded, you will see the time of the original recording:

3. Press Play to begin replaying the data.

Original recording time and date

Replaying Data

2-8

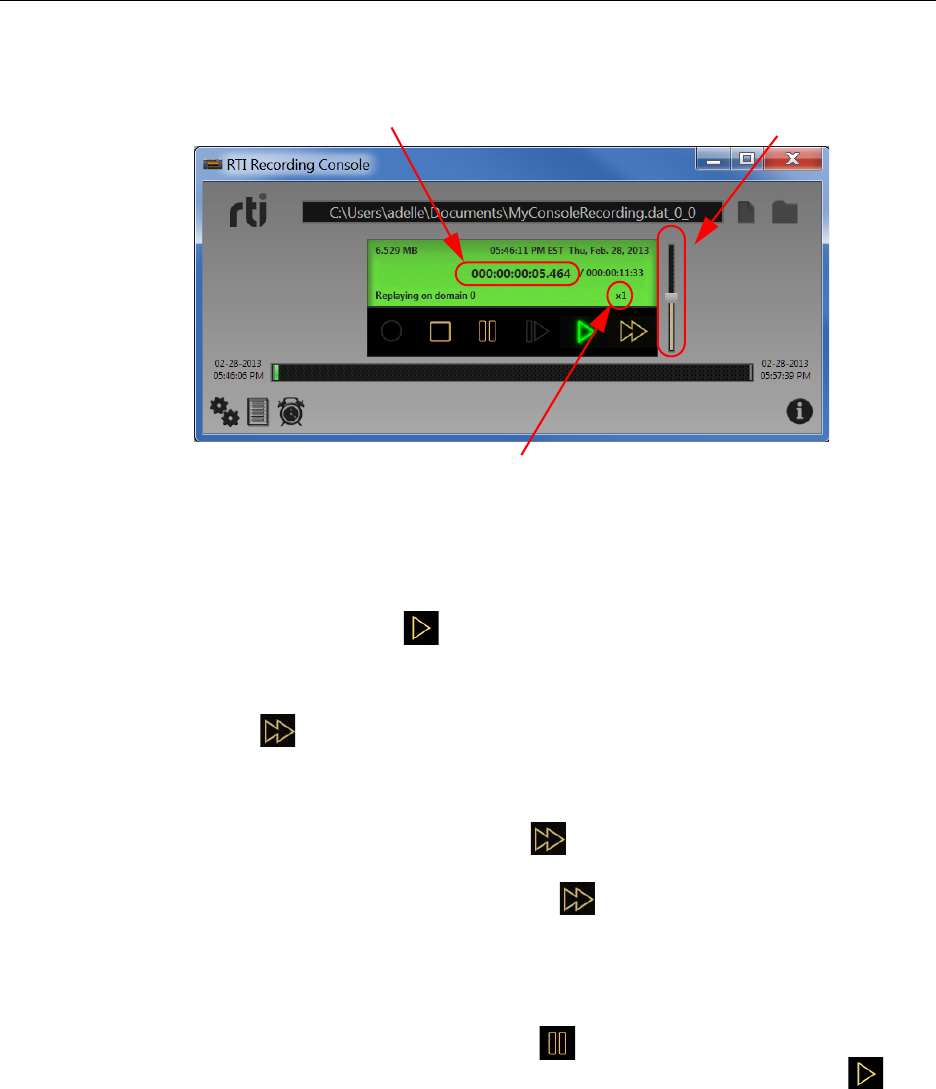

The display will show you the elapsed time since the start of the replay.

2.5.1 Using the Play Button

To begin replaying data, press Play .

2.5.2 Using the Fast-Forward Button

The Fast-Forward button will replay at a higher rate as long as the button is pressed.

“Higher rate” means the next highest option from the list of playback speed choices in the drop-

down menu. For example, if you were replaying at normal speed, fast-forward will replay at x2

(double) speed. If you were replaying at double speed, fast-forward will replay at x10 speed.

If replay is paused when you press Fast-Forward button, it will replay at the higher rate as

long as the button is pressed. When you let go of the button, replay will go back to being paused.

If replay is not paused when you press Fast-Forward button, it will replay at the higher rate

as long as the button is pressed. When you let go of the button, replay will return to the previous

rate.

2.5.3 Using the Pause/Resume Button

To pause a replay, press the Pause/Resume button .

To resume the replay at the same rate, either press Pause/Resume again or press Play .

2.5.4 Advanced Configuration

2.5.4.1 Changing the Replay Rate

To increase the rate temporarily, keep the Fast-Forward Button pressed (see Section 2.5.2).

The vertical slider on the right controls the replay rate (up for faster, center for original speed,

lower for slower).

Slider controls

replay speed

Elapsed time

Replay rate. For example.

x1 = original rate,

x2 = twice the original rate.

Viewing Recorded Topics

2-9

You can specify a default replay rate in the Playback configuration panel. Select a speed from the

drop-down list or type in your own value.

If you use the slider to change the playback speed, you can easily go back to default playback

rate by pressing the Play button again while replay is in progress.

2.5.4.2 Auto-Repeat

To automatically repeat the replay in a continuous loop, select the Auto repeat check-box.

2.5.5 Restricting the Time Range to be Replayed

You can limit the start and end time for replaying data while replay is stopped by dragging the

bars seen below:

Note: This time-restriction feature cannot be used when using a configuration file.

2.6 Viewing Recorded Topics

While recording, or when you have loaded a pre-recorded file, you can use the Recorded Topics

panel to see the topics that have been recorded. For each topic, the table shows the topic name,

and (when the recording is not in progress) the first and last recorded samples of that topic.

Drag these bars inward to restrict the time range for replaying data

Scheduling Recording and Replay Tasks

2-10

If playback is configured through Recording Console, the topic table enables you to select which

topics to replay.

Searching for Topics

To assist in selecting multiple topics, use the search bar on the bottom of the topics panel. You

can narrow down the topics that are displayed based on a substring in the topic name.

Note: The search bar does not support regular expressions.

When the desired group of topics is displayed, you can use the select all/unselect all buttons on

the entire group. Only the selected Topics will be replayed.

To restore and see the list of all topics, remove (erase) the search string from the search box.

Topic selection in the table is only available when the Console is in Ready mode (not recording or

replaying data) and you have used the Playback Configuration panel (not a configuration file).

2.7 Scheduling Recording and Replay Tasks

To schedule recording or replay:

1. Press the Schedule button .

2. Select the type of task (record, replay, or stop current operation).

3. Select the starting time and date.

Click here

to open the

Recorded

Topics Panel

Search for topics by name here

Troubleshooting

2-11

4. Optionally, select an ending time for the activity.

Important Notes:

❏Recording Console’s window must remain active for the scheduled operation to run. You

may minimize the window, but closing it will cancel the activity.

❏When selecting a file in which to record, be aware that any data already in the file will be

erased.

2.8 Troubleshooting

If Recording Console hangs, issues a generic error message, or behaves in an unexpected manner,

here are some steps to resolve the problem:

1. Read the instructions again to ensure you understand the expected behavior.

2. It’s possible that the environment or configuration in which Recording Console is running

is causing the unexpected behavior. Recording Console generates a log file. To open the log

file, click on the info button ('i') in the lower right corner, then click on the link at the bot-

tom of the info panel. Each line in the log begins with a severity level. Look for lines that

start with WARN or ERROR.

3. Contact RTI’s support team.

If you cannot resolve the issue based on the information in the log file, please contact us

so we can help you overcome the issue.

Before contacting support, please increase the logging verbosity and try to reproduce the

problem so you can provide more detailed information. To do so:

a. Close any running instances of Recording Console (otherwise, any change you make to

the settings file may be overwritten).

b. Open the console settings file in your home directory:

•rti_workspace/version/user_config/recording_service/settings.ini (rti_workspace

is described in Paths Mentioned in Documentation (Section 1.1))

Note: Except for the specific changes described in this document, avoid making other

changes in the settings.ini file.

c. Find the line with "loggingLevel=INFO" and replace the default value of "INFO" with

"TRACE".

d. Save the updated settings file.

Troubleshooting

2-12

e. Run Recording Console again until the issue you encountered before is reproduced.

f. Find the log file. The info panel has a link indicating the name of the current log file.

In general, log files are stored here: rti_workspace/version/user_config/RTI Record-

ing Console <version>/logs

Log files are named by date and time. Log files are only saved if there is an error. If no

errors are reported, the log file is deleted when Recording Console shuts down.

g. Save a copy of the log file in a safe location and close Recording Console. Review the log

file and remove any sensitive information that you would prefer not to expose.

h. Repeat the above steps to restore the logging level to the default "INFO" setting.

i. Contact RTI support. Click on the info button ('i') in the lower right corner of Record-

ing Console to open the info panel, which contains links for contacting RTI support.

Provide a description of the problem, how to reproduce it, and a copy of the log file. If

possible, please include a screenshot that demonstrates the problem.

RTI's support team is very responsive, you should receive a reply within 24 hours.

3-1

Chapter 3 Using the Record Tool

Besides using Recording Console, you can also record data by using the Record tool. While the

Console provides a simple graphical user interface (GUI) for using the Record tool, you can also

run it directly, without using the Console. You may find this method of recording useful when

you want to tie its service into your own infrastructure or software or if you need to use its more

advanced features. For instance, perhaps you want to run them from your own script to record

periodically or to process the recorded data automatically.

See also:

❏Chapter 4: Configuring the Record Tool

❏Chapter 5: Accessing the Record Tool from a Remote Location

3.1 Starting the Record Tool

Open a command prompt1 and change to the <NDDSHOME>/bin directory. Then enter:

❏On Linux and Mac OS X systems:

> rtirecord -cfgFile <file> -cfgName <configuration>

❏On Windows systems:

> rtirecord.bat -cfgFile <file> -cfgName <configuration>

To see a list of available arguments, enter rtirecord -help.

The Record tool is dynamically linked against the Connext DDS libraries. You should run the tool

from the scripts in the <NDDSHOME>/bin directory—not from the executable files themselves.

The scripts set all the paths and variables needed for the tool to find the shared libraries and run

correctly.

To see which configurations are available, use the -listCfgs option:

$ rtirecord -listCfgs

To use your own configuration file:

$ rtirecord -cfgFile config-file.xml -cfgName my_record_cfg

Table 3.1 describes the command-line options and which ones are required.

1. On Windows systems: from the Start menu, select Accessories, Command Prompt.

Stopping the Record Tool

3-2

Chapter 4: Configuring the Record Tool describes the contents of the configuration file. Example

files are provided in the <path to examples>/recording_service directory.

3.2 Stopping the Record Tool

To stop the Record tool: Press Ctrl-C. The Record tool will close all files and perform a clean

shutdown.

You can also start, stop, and even reconfigure the Record tool remotely—see Chapter 5: Access-

ing the Record Tool from a Remote Location.

3.3 Format of the Recorded Data

This section describes the format of the recorded data. For information on viewing the data, see

Chapter 9: Viewing Recorded Data.

3.3.1 Discovery Data

The Record tool stores discovery-related data in these tables:

❏DCPSParticipant — corresponds to the Participant Built-in Topic

Table 3.1 Record Tool’s Command-Line Options

Command-line Option Description

-appName <name> Assigns an application name to the DomainParticipants created by the Record

tool. If not specified, the same name used in -cfgName will be used.

-cfgFile <file>

Required.

Specifies the XML configuration file (path and filename).

In addition to the file provided using this command-line option, the Record

tool can load other XML files—see Section 4.1.

-cfgName <name>

Required.

This name is used to find the matching <recorder> tag in the configuration

file.

-help Prints version information and list of command-line options.

-licenseFile <file> Specifies the license file (path and filename). Only applicable to licensed

versions of the Record tool.

-listCfgs Lists the available configuration profiles.

-verbosity

Specifies what type of logging information should be printed.

0: silent (Connext DDS and the Record tool)

1: errors (Connext DDS and the Record tool) (default)

2: warnings (the Record tool only)

3: warnings (Connext DDS and the Record tool)

4: information (the Record tool only)

5: tracing (the Record tool only)

6: tracing (Connext DDS and the Record tool)

This property can also be set in the configuration file. However, this com-

mand-line option overrides the value specified in the configuration file.

Format of the Recorded Data

3-3

❏DCPSPublication — corresponds to the Publication Built-in Topic

❏DCPSSubscription — corresponds to the Subscription Built-in Topic

Please refer to the RTI Connext DDS C API Reference HTML documentation for the fields in each

of the corresponding builtin topics. (In the HTML documentation for the C API, select Modules,

RTI Connext DDS API Reference, Domain Module, Built-in Topics.)

Note: When using self-contained database files, the locator_filter column of the Publication

Built-in Topic Data will not be replicated. The Subscription Built-in Topic Data will also not be

replicated. This is done to minimize the overhead of replication when opening a new database

file.

The fields stored for each discovery table are listed in Appendix A. If no field selection settings

enabled, the Record tool will just create the DCPSPublication table with enough information for

the Replay tool to work. Fields can be added to the tables, see Choosing Which SampleInfo and

Discovery Fields to Record (Section 4.5.1). If fields are added to the DCPSParticipant and DCPS-

Subscription tables they will be created.

3.3.2 User Data

3.3.2.1 Deserialized Data

When the Record tool stores data in deserialized form, it creates a mapping from a Topic’s type to

a table. Each individual scalar is stored in a column named with the fully qualified name.

For example, the following will create a column, bar$x:

struct Bar {

long x;

};

struct Foo {

Bar bar;

};

3.3.2.2 Serialized Data

If the topic data is saved in serialized form, the user data table will contain the following col-

umns:

❏rti_serialized_sample: Raw binary data for the sample

❏rti_serialized_length: Length of the raw data blob

❏rti_serialized_endian: 1 — little endian, 0 — big endian

3.3.2.3 Sample Info and Metadata Fields

The Record tool creates a table called TopicName$RecordGroupName$Domain-Name for each

recorded topic (unless the shared_table property is true). The Record tool stores topic data as

specified in the subscription properties.

For each topic, the Record tool also stores the following extra columns, by default:

❏The Sample Info’s reception timestamp (in nanoseconds since Jan. 1st, 1970).

❏The Sample Info’s valid data boolean indicator.

❏Table_prefix: A string representing “RecordGroupName$DomainName” (only if

<shared_table> is specified—see TopicGroup Properties (Section 4.8)).

The fields selected for recording can be modified using the <user_topic_metadata_fields> tag in

both the Database (Output File) Properties (Section 4.5)) and RecordGroup Properties (Section

Format of the Recorded Data

3-4

4.9) in the Recorder configuration. The name and SQL type for all the fields that can be recorded

appear in Appendix A.

4-1

Chapter 4 Configuring the Record Tool

When you start the Record tool, you may specify a configuration file in XML format (it is not

required). In that file, you can set properties that control what to record, how to record, and

where to save the recorded data. This chapter describes how to write a configuration file.

4.1 How to Load the XML Configuration

The Record tool loads its XML configuration from multiple locations. This section presents the

various approaches, listed in load order.

The first three locations only contain QoS Profiles and are inherited from Connext DDS (see the

chapter on Configuring QoS with XML in the RTI Connext DDS Core Libraries User's Manual).

❏<NDDSHOME>/resource/xml/NDDS_QOS_PROFILES.xml

This file contains the Connext DDS default QoS values; it is loaded automatically if it

exists. (First to be loaded.)

❏File in NDDS_QOS_PROFILES

The files (or XML strings) separated by semicolons referenced in this environment vari-

able are loaded automatically.

❏<working directory>/USER_QOS_PROFILES.xml

This file is loaded automatically if it exists. If the USER_QOS_PROFILES file is found and

there is a default profile specified in it, this default profile is automatically applied to the

QoS settings of the Recording Service entities.

The next locations are specific to Recording Service.

❏<NDDSHOME>/resource/xml/RTI_RECORDING_SERVICE.xml

This file contains the default configuration for the Record tool; it is loaded if it exists.

RTI_RECORDING_SERVICE.xml defines a configuration that records all topics on

domain 0.

❏<working directory>/USER_RECORDING_SERVICE.xml

This file is loaded automatically if it exists.

❏File specified with the command-line option, -cfgFile (see Table 3.1 on page 3-2).

❏File specified using the remote command ‘configure’

General Format

4-2

The configure command (see Table 3.1 on page 3-2) allows loading of an XML file

remotely. The file loaded using this command replaces the file loaded using the -cfgFile

command-line option. (Last to be loaded.)

You may use a combination of the above approaches.

4.2 General Format

The configuration file uses XML format. The XSD definitions followed by the configuration are

in the document resource/schema/rti_record.xsd. All the following main sections are optional; if

specified, they must be in this order:

❏General Properties for the Record Tool (Section 4.3)

❏Remote Access Properties (Section 4.4)—contained in the top-level tag, <remote_access>

❏Database (Output File) Properties (Section 4.5)—contained in the top-level tag,

<recorder_database>

❏Domain Type Configuration (Section 4.6)—contained in the top-level tag,

<domain_type_config>

❏Domain Properties (Section 4.7)—contained in the top-level tag, <domain

name=”String”>

❏TopicGroup Properties (Section 4.8)—contained in the top-level tag, <topic_group>

❏RecordGroup Properties (Section 4.9)—contained in the top-level tag, <record_group>

Let’s look at a very basic configuration, just to get an idea of its contents. You will learn the

meaning of each line as you read the rest of this chapter.

<dds>

<recorder_database>

<database_name> simple_config.dat </database_name>

</recorder_database>

<domain_id> 0 </domain_id>

<deserialize_mode>

RTIDDS_DESERIALIZEMODE_ALWAYS

</deserialize_mode>

</domain>

<!-- Create a TopicGroup. A TopicGroup is a collection of Topics

whose names match the topic_expr. The field_expr specifies

which fields in the Topics to record. Note that a TopicGroup is

not bound to a particular domain yet. In this example, the

TopicGroup All means all fields in all Topics -->

<topic_group name="All">

<topic_expr> * </topic_expr>

</topics>

General Format

4-3

<field_expr> * </field_expr>

</topic_group>

<!-- Create a RecordGroup. A RecordGroup controls

which TopicGroups are recorded for a set of domains.

Each recorded Topic is stored in a table with the format

"record_group.domain.Topic"

In this example, we want to record data from topics in

TopicGroup "All" from "domain0." -->

<record_group name="RecordAll">

<domain_ref><element> domain0 </element></domain_ref>

<topic_ref><element> All </element></topic_ref>

</record_group>

</recorder>

</dds>

Example configuration files are provided in the examples/record directory:

❏simple_config.xml

With this configuration, the Record tool will record all fields from all topics in a specified

domain (domain ID 0).

❏advanced_config.xml

With this configuration, the Record tool will record:

• The ‘x’ and ‘y‘’ fields from all Topics named Square in domains 0 and 1.

• The ‘color’ field from all Topics in domains 0 and 1.

❏remote_shell.xml

This configuration file provides a configuration that can be used with the tutorial found

in the Recording Service Getting Started Guide to learn about how to modify the Record tool

while it is running.

4.2.1 Configuration File Syntax

Recording Service follows the same XML syntax rules as Connext DDS. Please see the RTI Connext

DDS Core Libraries User’s Manual for details.

4.2.2 Supported Data Types

As you will see in the following sections, each property that can appear in the configuration file

uses a specific data type. The Record tool converts between the value string in the XML file and

the specified type. Table 4.1 lists the supported types and the mappings used by the Record tool.

Table 4.1 Property Value Data Types

Type Format Notes

char and octet

sequences and

arrays

Compact form

DDS_Boolean yes,1,true,on: TRUE

no,0,false,off: FALSE These values are not case sensitive.

General Format

4-4

DDS_Enum A string

Enum values are not case sensitive.

Legal values are those listed for the property in the

RTI Connext DDS C API Reference HTML

documentation.

DDS_Long -2147483648 - 2147483647

0x80000000 - 0x7fffffff

A 32-bit signed integer.

You may include the following unit designations:

KB — 2^10

kB — 10^3

MB — 10^6

GB — 10^9

KiB — 2^10

MiB — 2^20

GiB — 2^30

For example, 100 kB is a legal value, meaning

100,000.

DDS_UnsignedLong 0 - 4294967296

0 - 0xffffffff

A 32-bit unsigned integer.

You may include the following unit designations:

KB — 2^10

kB — 10^3

MB — 10^6

GB — 10^9

KiB — 2^10

MiB — 2^20

GiB — 2^30

For example, 100 kB is a legal value, meaning

100,000.

Table 4.1 Property Value Data Types

Type Format Notes

General Format

4-5

DDS_QosPolicy

See the RTI Connext DDS C

API Reference HTML docu-

mentation for the structure of

each QoS policy, and the RTI

Connext DDS Core Libraries

User’s Manual’s chapter on

Configuring QoS with XML.

Each field in each QoS policy structure has a

corresponding tag. The tag is the same as the field

name in the Connext DDS C API.

For enumerations, the legal constants are those

defined for the Connext DDS C API.

For example:

<subscriber_qos>

<access_scope>

DDS_TOPIC_PRESENTATION_QOS

</access_scope>

</presentation>

<name>

</name>

</partition>

</subscriber_qos>

The above configuration will set (a) the Presentation

QoS policy’s access_scope field to

DDS_TOPIC_PRESENTATION_QOS and (b) the

Partition QoS policy’s name field to “rti”. (name is a

sequence of strings, which requires using the <ele-

ment> tag, also described in this table.)

FileSize 64 bit integer

You may include the following unit designations:

kB — 10^3

MB — 10^6

GB — 10^9

KB — 2^10

TB — 10^12

KiB — 2^10

MiB — 2^20

GiB — 2^30

TiB — 2^40

For example, 100 kB is a legal value, meaning

100,000.

String UTF-8 character string All leading and trailing spaces are ignored between

two tags.

Table 4.1 Property Value Data Types

Type Format Notes

General Properties for the Record Tool

4-6

4.3 General Properties for the Record Tool

Table 4.2 describes optional properties that control the Record tool’s main module.

4.4 Remote Access Properties

As you will see in Chapter 5: Accessing the Record Tool from a Remote Location, you can create

a Connext DDS application that can remotely control the Record tool.

By default, Remote Access is turned off in the Record tool for security reasons.

The Remote Access section of the configuration file is used to enable Remote Access and config-

ure its behavior. A Remote Access section is not required in the configuration file.

The remote application can send commands to the Record tool that will:

❏Start/stop recording.

❏Shutdown the Record tool.

❏Reconfigure the Record tool.

Table 4.3 describes the Remote Access properties. All Remote Access properties must be speci-

fied inside <remote_access> and </remote_access> tags. All remote access properties are

optional unless otherwise noted.

4.4.1 Enabling RTI Distributed Logger in the Record Tool

The Record tool provides integrated support for RTI Distributed Logger.

Table 4.2 General Properties

Property Syntax Description

auto_start

<auto_start>

DDS_Boolean

</auto_start>

Whether or not the Record tool should start recording data

when it is started. This option is mostly useful if the Record

tool is usually controlled remotely.

Default: True

replay_

compatibility

<replay_compatibility>

DDS_Boolean

</replay_compatibility>

If set to true, the Record tool will always preserve the fields

needed by the Replay tool to work with the recorded data-

base, regardless of the field selection settings (see Table 4.4,

“Database Properties” and Table 4.15, “RecordGroup

Properties”) specified by the user.

Default: True

verbosity

DDS_Long

</verbosity>

The verbosity is a bit-map that specifies what type of log-

ging information should be printed.

The verbosity may be:

0: silent (Core Libraries and the Record tool)

1: errors (Core Libraries and the Record tool) (default)

2: warnings (the Record tool only)

3: warnings (Core Libraries and the Record tool)

4: information (the Record tool only)

5: tracing (the Record tool only)

6: tracing (Core Libraries and the Record tool)

Remote Access Properties

4-7

Distributed Logger is included in Connext DDS but it is not supported on all platforms; see the RTI

Connext DDS Core Libraries Platform Notes to see which platforms support Distributed Logger.

When you enable Distributed Logger, the Record tool will publish its log messages to Connext

DDS. Then you can use RTI Monitor1 to visualize the log message data. Since the data is pro-

Table 4.3 Remote Access Properties

Properties

under

<remote_

access> Syntax Description

accept_

broadcast_

commands

<accept_broadcast_commands>

DDS_Boolean

</accept_broadcast_commands>

Specifies if the Record tool will accept commands

that have been broadcast to any Record tool or only

accept commands addressed specifically to it. (See

Chapter 5: Accessing the Record Tool from a

Remote Location.)

Default: True

enabled

DDS_Boolean

</enabled>

Enables or disables remote access to the Record tool

from another application. (See Chapter 5: Accessing

the Record Tool from a Remote Location.)

Default: False (remote access disabled)

datareader_qos

<datareader_qos>

DDS_DataReaderQos

</datareader_qos>

Configures the QoS for the DataReader created by

the Record tool’s Remote Access module.

Default: default DataReader QoS settings.

datawriter_qos

<datawriter_qos>

DDS_DataWriterQos

</datawriter_qos>

Configures the QoS for the DataWriter created by

the Record tool’s Remote Access module.

Default: Default DataWriter QoS settings.

distributed_

logger

<distributed_logger>

Distributed Logger

Properties

</distributed_logger>

Configures RTI Distributed Logger.

See Enabling RTI Distributed Logger in the Record

Tool (Section 4.4.1).

publish_

status_

period

<publish_status_period>

DDS_Long

</publish_status_period>

Specifies, in seconds, the period between each sta-

tus message sent by the Record tool.

Default: 1. Minimum value: 1.

publisher_qos

<publisher_qos>

DDS_PublisherQos

</publisher_qos>

Configures the QoS for the Publisher created by the

Record tool’s Remote Access module.

Default: default Publisher QoS settings.

remote_access_

domain

<remote_access_domain>

String

</remote_access_domain>

Required if enabled is true.

Specifies which domain the Record tool will use to

enable remote access. Only one domain can be

specified.

Note that this is a String, not a Domain ID. It is the

same String used in the

<domain name=”String”> </domain> line.

Default: False

subscriber_qos

<subscriber_qos>

DDS_QosPolicy

</subscriber_qos>

Configures the QoS for the Subscriber created by

the Record tool’s Remote Access module.

Default: Default Subscriber QoS settings.

1. RTI Monitor is a separate GUI application that can run on the same host as your application or on a different host.

Database (Output File) Properties

4-8

vided in a Connext DDS topic, you can also use rtiddsspy or even write your own visualization

tool.

To enable Distributed Logger, modify the Record tool’s XML configuration file. In the

<remote_access> section, add the <distributed_logger> tag as shown in the example below.

<remote_access>

<remote_access_domain>adminDomain</remote_access_domain>

<distributed_logger>

</distributed_logger>

</remote_access>

There are more configuration tags that you can use to control Distributed Logger’s behavior. For

example, you can specify a filter so that only certain types of log messages are published. For

details, see the Distributed Logger section of the RTI Connext DDS Core Libraries User’s Manual.

4.5 Database (Output File) Properties

Table 4.4 describes the Database properties. All database properties are optional except

database_name. All database properties must be specified within <recorder_database> and

</recorder_database> tags.

The Record tool stores data in a set of SQL database files. (Note, however, that you do not need to

install any database software to use the Record tool.)

[Note: Replaying data from a set of files is not supported. This holds true for both Recording Console and

the Replay tool. They can only replay data from one file at a time.]

A fileset is a named collection of file segments which belong to the same recording session. Each

of these file segments contains discovery and user-data, and the format is determined by SQLite.

The Record tool uses a fixed file-naming scheme:

name_set-number_segment-number

Where:

❏name is the base filename for the fileset, specified in the configuration file with the

<name> property.

❏set-number is an integer identifying the fileset, specified in configuration file with the

<set-number> property.

❏segment-number is an integer identifying the file-segment within the fileset. The first seg-

ment number to use, and the maximum number of segments are specified in the configu-

ration file with the <segment_number> and <max_file_segments> properties,

respectively.

For example: mydata_5_3 means this file belongs to fileset 5 and is the 3rd segment in that file-

set.

The maximum size of a file segment, whether to overwrite existing files, and whether to over-

write the oldest file can all be set in the configuration file.

Database (Output File) Properties

4-9

Table 4.4 Database Properties

Properties

under

<recorder_

database> Syntax Description

builtin_topic_

metadata_

fields

<builtin_topic_metadata_fields>

<DCPSParticipant_topic>

ParticipantData fields

</DCPSParticipant_topic>

<DCPSPublication_topic>

PublicationData fields

</DCPSPublication_topic>

<DCPSSubscription_topic>

SubscriptionData fields

</DCPSSubscription_topic>

</builtin_topic_metadata_fields>

Specifies which fields to include/ exclude in the

discovery tables.

There are settings for each of the three recorded

discovery tables described in Table 4.5.

database_

name

<database_name>

String

</database_name>

Required.

The name of the fileset used to store recorded data.

The Record tool appends a set number and a seg-

ment number to the filename.

Default: undefined

Example:

<database_name>myfile</database_name>

flush_period

<flush_period>

DDS_Long

</flush_period>

Specifies how often (in seconds) to flush data to

disk.

Note: increasing this value causes the Record tool to

use additional memory.

Default: 1 second

Minimum: 1 second

max_file_

segments

<max_file_segments>

DDS_Long

</max_file_segments>

Specifies how many file segments may be created.

Each time the max_file_size limit is reached for a

file segment, a new file is created if this number of

segments has not been exceeded.

Default: 1

Example:

<max_file_segments>

100

</max_file_segments>

max_file_size

<max_file_size>

FileSize

</max_file_size>

Specifies the maximum size for a file segment.

The Record tool records data to one or more files.

This property specifies the maximum file size. This

is not an absolute value, but a threshold value. As

soon as the threshold is exceeded, no more data is

written to file.

Default: 2 GB

Maximum: imposed by the operating system

Example:

<max_file_size>1 GB</max_file_size>

Database (Output File) Properties

4-10

overwrite

DDS_Boolean

</overwrite>

Specifies whether or not the Record tool should

delete all existing file segments in the fileset before

it starts recording.

This is useful if you want to reuse a data-file name

between recording sessions, but do not want to

keep any old data.

• True: If the file segments already exist, they

are deleted; otherwise, the file segments are

created as needed.

• False: If the file segments already exist, the

Record tool exits; otherwise, the file segments

are created as needed.

Example:

<max_file_segments>4</max_file_segments>

In this case, the Record tool will delete test_0_0,

test_0_1, and test_0_2 before starting to record to

test_0_0.

Default:False

path_

separator

<path_separator>

DDS_Char

</path_separator>

Specifies the path separator character that the

Record tool will use when creating table and

column names.

For instance, table names follow the

"TopicName$RecordGroupName$DomainName"

convention and fields in Topics use $ to navigate

hierarchical types, such as a$b$c..

The dollar sign (‘$’) is used as the default path

separator instead of the more conventional comma

(',') because $ does not require quotes when used in

SQLite SQL statements.

For example, to use '#' as the path separator:

<path_separator> # </path_separator>

Notes:

• Using a character that can be included in a

field name, such as an "_" (underscore) may

lead to errors when you try to replay the file

with Replay if any field contains that charac-

ter.

• This is not a required property, but when

added, it cannot be empty.

Table 4.4 Database Properties

Properties

under

<recorder_

database> Syntax Description

Database (Output File) Properties

4-11

rollover

DDS_Boolean

</rollover>

Specifies whether or not the Record tool should

overwrite existing file segments in the fileset once

the file size limit (max_file_size) has been reached

for the last file segment.

• True: Overwrite existing file segments as

needed (starting with the first one).

• False: Stop recording data.

Default: False

segment_

number

<segment_number>

DDS_Long

</segment_number>

Specifies the first segment to use in the fileset.

If the segment number is >= 0, that is the first seg-

ment number in the fileset.

Default: -1. The next available segment number

will be used, starting at 0.

Note:The set number is determined first, then the

segment number.

set_number

<set_number>

DDS_Long

</set_number>

Specifies the set number to use in the fileset.

If set_number is >= 0, that specific fileset number is

used. In this case, the <overwrite> property takes

effect.

Default: -1. The next available set number will be

used, starting at 0.

Table 4.4 Database Properties

Properties

under

<recorder_

database> Syntax Description

Database (Output File) Properties

4-12

sqlite_

pragmas

<sqlite_pragmas>

pragma name

[plus assignment or

parameters]

</pragma>

...

</sqlite_pragmas>

Specifies a list of SQLite pragma statements to be

applied to the database.

There must be at least one '<pragma>' object in the

list; there is no upper limit for the number of

pragmas that can be specified.

Pragmas are applied right after database creation

and before any table is created.

The pragma name is just the name of the SQLite

pragma (e.g., page_size) as defined by SQLite.

The PRAGMA SQLite keyword should not be

specified, as the Record tool will do that

automatically.

Values or parameters can be provided (e.g.,

page_size = 4096 or

table_info(DCPSPublication)).

The output of the pragma statements is shown in

standard output.

See https://www.sqlite.org/pragma.html

Notes:

• One possible pragma is the database journal

mode. One of the journal modes is WAL

(write-ahead logging). This mode improves

concurrency when reading and writing to the

same database file from different processes or

threads. However, WAL doesn't work on net-

work file systems.

• The order in which you specify the pragmas is

the order in which they will be applied.

user_topic_

metadata_

fields

<user_topic_metadata_fields>

<field>

field expression

</field>

...

</included>

<field>

field expression

</field>

...

</excluded>

</user_topic_metadata_fields>

Specifies lists of included and excluded Sample

Info or metadata fields in the user topic tables.

A field expression is a Posix fnmatch expression to

match field names as described in Appendix A

(e.g. "SampleInfo_*" will match all Sample Info

specific fields).

There is no upper limit to the number of <field>

expressions to be specified.

The ‘included’ and ‘excluded’ fields are optional. If

both are defined, the ‘included’ expressions are

processed before the ‘excluded’ ones.

User topic field settings can also be expressed in

the Record Group settings (see Table 4.15,

“RecordGroup Properties”). If defined, Record

Group settings take precedence over general

database settings defined here.

Table 4.4 Database Properties

Properties

under

<recorder_

database> Syntax Description

Database (Output File) Properties

4-13

Table 4.5 Builtin Topic (Discovery) Field Selection Properties

Properties under

<builtin_topic_

metadata_fields

>Syntax Description

DCPSParticipant_

topic

<DCPSParticipant_topic>

<field>

field expression

</field>

...

</included>

<field>

field expression

</field>

...

</excluded>

</DCPSParticipant_topic>

Specifies lists of included and excluded fields in

the DCPSParticipant table.

A field expression is a POSIX fnmatch expression

to match field names as described in Appendix A

(e.g. "ParticipantData_*" will match all

DCPSParticipant specific fields).

There is no upper limit to the number of <field>

expressions to be specified.

The ‘included’ and ‘excluded’ fields are optional.

If both are defined, the ‘included’ expressions are

processed before the ‘excluded’ ones.

DCPSPublication_

topic

<DCPSPublication_topic>

<field>

field expression

</field>

...

</included>

<field>

field expression

</field>

...

</excluded>

</DCPSPublication_topic>

Specifies lists of included and excluded fields in

the DCPSPublication table.

A field expression is a POSIX fnmatch expression

to match field names as described in Appendix A

(e.g. "PublicationData_*" will match all

DCPSPublication specific fields).

There is no upper limit to the number of <field>

expressions to be specified.

The ‘included’ and ‘excluded’ fields are optional.

If both are defined, the ‘included’ expressions are

processed before the ‘excluded’ ones.

DCPSSubscription

topic

<DCPSSubscription_topic>

<field>

field expression

</field>

...

</included>

<field>

field expression

</field>

...

</excluded>

</DCPSSubscription_topic>

Specifies lists of included and excluded fields in

the DCPSSubscription table.

A field expression is a POSIX fnmatch expression

to match field names as described in Appendix A

(e.g. "SubscriptionData_*" will match all

DCPSSubscription specific fields).

There is no upper limit to the number of <field>

expressions to be specified.

The ‘included’ and ‘excluded’ fields are optional.

If both are defined, the ‘included’ expressions are

processed before the ‘excluded’ ones.

Database (Output File) Properties

4-14

4.5.1 Choosing Which SampleInfo and Discovery Fields to Record

To reduce database size and increase flexibility, the Record tool provides a way to select which

Sample Info, discovery (DCPSPublication, DCPSSubscription and DCPSParticipant), and meta-

data fields should be recorded. An application may not be interested in recording all the meta-

data, SampleInfo, and discovery information.

Before this feature was introduced, the Record tool would record everything by default. Now, the

Record tool will only record the fields necessary for the Replay tool to work with the database.

These fields are:

❏In the user table:

SampleInfo_valid_data and SampleInfo_reception_timestamp.

❏In the DCPSPublication table:

PublicationData_topic_name, PublicationData_type_name,

PublicationData_typecode and PublicationData_typecode_length.

The Record tool provides capabilities to add to, or to remove from, this set of fields. It also pro-

vides a special boolean flag called replay_compatibility (see Table 4.2, “General Properties”).

When this flag is enabled (the default), it preserves the above set of fields, regardless of which

fields the user chooses to exclude. This way very general regular expressions can be used with-

out affecting compatibility with the Replay tool.

Table 4.4 describes the XML settings for selecting fields in the discovery tables (tag

<builtin_topic_metadata_fields>). There are settings for each of the three discovery tables cre-

ated by the Record tool (tags <DCPSParticipant_topic>, <DCPSPublication_topic> and

<DCPSSubscription_topic>). In any of the tables, if you decide to exclude all fields (for example:

<excluded><field> * </field></excluded>), the table will not be created; that is, if a table would

end up with no columns, the Record tool won't create it.

The field selection settings also apply to user topic tables. The tag used to define those settings is

called <user_topic_metadata_fields>; it can be used inside <recorder_database> to define gen-

eral settings, and inside <record_group> to define settings that apply only to a specific Record

Group. Record Group settings take precedence over general database settings. These settings are

described in Table 4.4, “Database Properties”and Table 4.15, “RecordGroup Properties”.

4.5.1.1 Field Selection Examples

This section shows some examples of how to configure field selection settings for the Record tool.

The following is a basic recording configuration used as the starting point for the examples. It is

based on the default configuration shipped with the product (see the file

RTI_RECORDING_SERVICE.xml in the resource/xml directory):

<!-- The replay compatibility flag tells the Record tool that

the fields needed by Replay must be preserved

regardless of the field selection configuration -->

<replay_compatibility> true </replay_compatibility>

<remote_access>

<remote_access_domain> domain0 </remote_access_domain>

<distributed_logger>

<filter_level> WARNING </filter_level>

</distributed_logger>

</remote_access>

<recorder_database>

Database (Output File) Properties

4-15

<database_name> rti_recorder_default.dat

</database_name>

</recorder_database>

<domain_id> 0 </domain_id>

<deserialize_mode> RTIDDS_DESERIALIZEMODE_ALWAYS

</deserialize_mode>

</domain>

<topic_group name="AllTopics">

<topic_expr> * </topic_expr>

</topics>

<field_expr> * </field_expr>

</topic_group>

<record_group name="RecordAll">

<domain_ref>

<element> domain0 </element>

</domain_ref>

<topic_ref>

<element> AllTopics </element>

</topic_ref>

</record_group>

</recorder>

By default, the Record tool will record only the fields that the Replay tool will need to work with

the recorded database. Furthermore, because the replay_compatibility flag is set to true, these

fields will be protected by the Record tool and will always be present when recording.

4.5.1.2 Example 1: Record Everything

The following configuration uses the builtin_topic_metadata_fields and

user_topic_metadata_field settings in the recorder_database section to record all possible fields

in all tables, including the discovery ones.

<!-- The replay_compatibility flag tells the Record tool that

the fields needed by the Replay tool must be preserved

regardless of the field selection configuration. In this

case, it's not really necessary to set it to true, because

we're going to ADD fields to the configuration, not REMOVE

them -->

<replay_compatibility> true </replay_compatibility>

<remote_access>

<remote_access_domain> domain0 </remote_access_domain>

<distributed_logger>

<filter_level> WARNING </filter_level>

</distributed_logger>

</remote_access>

<recorder_database>

<database_name> rti_recorder_default.dat

</database_name>

Database (Output File) Properties

4-16

<!-- Field selection settings for the discovery tables

(DCPSParticipant, DCPSPublication, and

DCPSSubscription). We use the '*' regular expression

in the 'included' sections to indicate that all fields

are to be recorded -->

<builtin_topic_metadata_fields>

<DCPSParticipant_topic>

</included>

</DCPSParticipant_topic>

<DCPSPublication_topic>

</included>

</DCPSPublication_topic>

<DCPSSubscription_topic>

</included>

</DCPSSubscription_topic>

</builtin_topic_metadata_fields>

<!-- Field selection settings for user topic tables.

The '*' field expression in the 'included'

settings tells the Record tool to record all fields

(Sample Info and metadata) -->

<user_topic_metadata_fields>

</included>

</user_topic_metadata_fields>

</recorder_database>

<domain_id> 0 </domain_id>

<deserialize_mode> RTIDDS_DESERIALIZEMODE_ALWAYS

</deserialize_mode>

</domain>

<topic_group name="AllTopics">

<topic_expr> * </topic_expr>

</topics>

<field_expr> * </field_expr>

</topic_group>

<record_group name="RecordAll">

<domain_ref>

<element> domain0 </element>

</domain_ref>

<topic_ref>

<element> AllTopics </element>

</topic_ref>

</record_group>

</recorder>

Database (Output File) Properties

4-17

4.5.1.3 Example 2: Record No Extra Fields

The following configuration will record only user data fields in user data tables. No Sample Info

or metadata fields will be recorded. Moreover, no discovery information is selected to be

recorded so no discovery tables will be created. The replay_compatibility flag must be disabled

for this configuration to work, because if enabled, it would lock the Replay tool’s compatibility

fields and they would be recorded.

<!-- The replay_compatibility flag must be false in this

configuration, otherwise it would block removal of the

Replay tool compatibility set of fields -->

<replay_compatibility> false </replay_compatibility>

<remote_access>

<remote_access_domain> domain0 </remote_access_domain>

<distributed_logger>

<filter_level> WARNING </filter_level>

</distributed_logger>

</remote_access>

<recorder_database>

<database_name> rti_recorder_default.dat

</database_name>

<!-- Field selection settings for the discovery tables

(DCPSParticipant, DCPSPublication, and

DCPSSubscription). The '*' regular expression in

the 'excluded' sections tells the Record tool

that ALL fields are to be skipped -->

<builtin_topic_metadata_fields>

<DCPSParticipant_topic>

</excluded>

</DCPSParticipant_topic>

<DCPSPublication_topic>

</excluded>

</DCPSPublication_topic>

<DCPSSubscription_topic>

</excluded>

</DCPSSubscription_topic>

</builtin_topic_metadata_fields>

<!-- Field selection settings for user topic tables.

Using the '*' field expression in the 'excluded'

settings tells the Record tool that none of the

extra fields (Sample Info and metadata)

should be recorded. User-data fields will always

be recorded -->

<user_topic_metadata_fields>

Database (Output File) Properties

4-18

</excluded>

</user_topic_metadata_fields>

</recorder_database>

<domain_id> 0 </domain_id>

<deserialize_mode> RTIDDS_DESERIALIZEMODE_ALWAYS

</deserialize_mode>

</domain>

<topic_group name="AllTopics">

<topic_expr> * </topic_expr>

</topics>

<field_expr> * </field_expr>

</topic_group>

<record_group name="RecordAll">

<domain_ref>

<element> domain0 </element>

</domain_ref>

<topic_ref>

<element> AllTopics </element>

</topic_ref>

</record_group>

</recorder>

4.5.1.4 Example 3: Overriding Database Settings with Record Group Settings

In the following configuration, two sets of settings are defined for user topic tables. The settings

in the general database section include the SampleInfo_source_timestamp field in the user

topic field selection settings (apart from the fields included by default). There is an extra Topic

Group called KeyedTopics, which the user will associate with keyed topics. There may be an

interest in recording the instance handle field (SampleInfo_instance_handle) for these topics.

This may be done by defining a new Record Group with different field selection settings, as

shown below.

One important aspect of the configuration is the use of the exemption expression in the AllTop-

icsExceptKeyed Topic Group. By using the exemption expression 'Keyed*' we make the two

available Topic Groups (AllTopicsExceptKeyed and 'KeyedTopics) disjoint, because AllTopics-

ExceptKeyed will never match the same topics as KeyedTopics. This is very important to be

sure that the right settings apply to the right topics.

<!-- The replay_compatibility flag is set to true for this

example although we only include fields, so it has no

real effect -->

<replay_compatibility> true </replay_compatibility>

<remote_access>

<remote_access_domain> domain0 </remote_access_domain>

<distributed_logger>

<filter_level> WARNING </filter_level>

</distributed_logger>

</remote_access>

<recorder_database>

Database (Output File) Properties

4-19

<database_name> rti_recorder_default.dat </database_name>

<!-- Field selection settings for user topic tables.

We use the name of the source timestamp field in

the 'included' section so it will be recorded

with every user data sample -->

<user_topic_metadata_fields>

<field> SampleInfo_source_timestamp </field>

</included>

</user_topic_metadata_fields>

</recorder_database>

<domain_id> 0 </domain_id>

<deserialize_mode> RTIDDS_DESERIALIZEMODE_ALWAYS

</deserialize_mode>

</domain>

<topic_group name="AllTopicsExceptKeyed">

<topic_expr> * </topic_expr>

<!-- IMPORTANT: By using an exemption expression, we

make the 2 available Topic Groups disjoint -->

<exemption> Keyed* </exemption>

</topics>

<field_expr> * </field_expr>

</topic_group>

<topic_group name="KeyedTopics">

<!-- IMPORTANT: The match expression for this Topic

Group is exactly the exemption expression in

the other Topic Group ('AllTopicsExceptKeyed') -->

<topic_expr> Keyed* </topic_expr>

</topics>

<field_expr> * </field_expr>

</topic_group>

<!-- The following Record Group will inherit the user topic

field selection settings in the database configuration,

meaning that it will record only the Replay compatibility

fields plus the SampleInfo_source_timestamp fields -->

<record_group name="RecordAllExceptKeyed">

<domain_ref>

<element> domain0 </element>

</domain_ref>

<topic_ref>

<element> AllTopicsExceptKeyed </element>

</topic_ref>

</record_group>

<record_group name="RecordKeyed">

<domain_ref>

<element> domain0 </element>

</domain_ref>

<topic_ref>

<element> KeyedTopics </element>

</topic_ref>

Database (Output File) Properties

4-20

<!-- Specific field selection settings for this Record

Group. These settings will override the general

settings in the database section.

So 'SampleInfo_instance_handle' will be recorded

but 'SampleInfo_source_timestamp' won't -->

<user_topic_metadata_fields>

<field> SampleInfo_instance_handle </field>

</included>

</user_topic_metadata_fields>

</record_group>

</recorder>

4.5.1.5 Example 4: Recording Everything Except the Metadata Fields

The following example configuration shows how to record all fields except the metadata fields

(prefixed with Metadata_). The key for this is to first include everything with the '*' regular

expression and then exclude fields matching Metadata_*.

<!-- The replay compatibility flag tells the Record tool that

the fields needed by the Replay tool must be preserved

regardless of the field selection configuration. In this

case, it's not really necessary to set it to true,

because we're going to ADD fields to the configuration,

not REMOVE them -->

<replay_compatibility> true </replay_compatibility>

<remote_access>

<remote_access_domain> domain0 </remote_access_domain>

<distributed_logger>

<filter_level> WARNING </filter_level>

</distributed_logger>

</remote_access>

<recorder_database>

<database_name> rti_recorder_default.dat </database_name>

<!-- Field selection settings for the discovery tables

(DCPSParticipant, DCPSPublication, and

DCPSSubscription). The '*' regular expression in the

'included' sections indicates that all fields are to

be recorded. By adding the expression 'Metadata_*' to

the excluded fields list, we are removing the

metadata fields -->

<builtin_topic_metadata_fields>

<DCPSParticipant_topic>

</included>

<field> Metadata_* </field>

</excluded>

</DCPSParticipant_topic>

<DCPSPublication_topic>

Database (Output File) Properties

4-21

</included>

<field> Metadata_* </field>

</excluded>

</DCPSPublication_topic>

<DCPSSubscription_topic>

</included>

<field> Metadata_* </field>

</excluded>

</DCPSSubscription_topic>

</builtin_topic_metadata_fields>

<!-- Field selection settings for user topic tables.

The '*' field expression in the 'included' settings

tells the Record tool to record all fields (Sample Info

and metadata). Then by adding the expression

'Metadata_*' to the excluded fields list, we remove

the metadata fields -->

<user_topic_metadata_fields>

</included>

<field> Metadata_* </field>

</excluded>

</user_topic_metadata_fields>

</recorder_database>

<domain_id> 0 </domain_id>

<deserialize_mode> RTIDDS_DESERIALIZEMODE_ALWAYS

</deserialize_mode>

</domain>

<topic_group name="AllTopics">

<topic_expr> * </topic_expr>

</topics>

<field_expr> * </field_expr>

</topic_group>

<record_group name="RecordAll">

<domain_ref>

<element> domain0 </element>

</domain_ref>

<topic_ref>

<element> AllTopics </element>

</topic_ref>

</record_group>

</recorder>

Domain Type Configuration

4-22

4.6 Domain Type Configuration

The top-level tag <domain_type_config> allows you to pass type configuration information to

the Record and Converter tools in the form of XML type-configuration files.

Table 4.6 describes the Domain Type Config properties. All Domain Type Config properties are

optional.

Table 4.6 Domain Type Configuration Properties

Properties under

<domain_type_config> Syntax Description

domain_group

<domain_group>

Domain Group Prop-

erties

</element>

</domain_group>

A list of type configuration elements

associated with specific Recorder

domain definitions (see Section 4.7).

These type configuration elements can

be repeated.

For more details in the contents of this

tag See Table 4.7, “Domain Group

Configuration Properties”.

Table 4.7 Domain Group Configuration Properties

Properties

under

<domain_

group> Syntax Description

domain_filter

<domain_filter>

POSIX fn expres-

sion

</element>

</domain_filter>

A list of POSIX expressions that specify the names of

the Recorder domain definitions for which the type

definitions specified will apply. The element tag can

be repeated. The POSIX expressions have to match the

name attribute of any of the domain definitions as

defined in Section 4.7.

type_config

<type_config>

XML Properties

</type_config>

Specific XML type configuration properties for the

domains specified by the list of elements in the

domain_filter tag seen above.

See Table 4.8, “Type Config Properties”.

Table 4.8 Type Config Properties

Properties

under

<type_config> Syntax Description

xml

<xml>

XML Type Configu-

ration

Properties

</xml>

Allows you to specify XML type-configuration files,

the path in which to find them, and other properties

related to the registration of the types with the

DomainParticipants.

See Table 4.9, “XML Type Configuration Properties”.

Domain Type Configuration

4-23

Table 4.9 XML Type Configuration Properties

Properties

under <xml> Syntax Description

file_group

<file_group>

File Group Properties

</element>

<file_group>

Allows you to specify XML file groups; each of these

files contain type definitions to be used by the Record

tool. The element tag can be repeated.

See Table 4.10, “File Group Properties”.

max_sequence

<max_sequence>

Integer

</max_sequence>

The default sequence size, in case there are

unbounded sequences in the type definitions specified

in the any of the files specified in any of the file

groups.

max_string

<max_string>

Integer

</max_string>

The default string size, in case there are unbounded

strings in the type definitions specified in any of the

files specified in any of the file groups.

path

<path>

Path

</element>

</path>

A list of the paths (relative or absolute) to be used

when searching for the XML type definition files. The

<element> tag can be repeated.

register_

top_level

<register_top_level>

Boolean

</register_top_level>

Whether or not to register the top-level types found in

the type definitions with their canonical names. Do

this with any of the files defined in any of the file

groups. Default: TRUE.

Table 4.10 File Group Properties

Properties

under

<file_group>

<element> Syntax Description

file_name

<file_name>

File Name

</element>

</file_name>

A list of file name strings, specifying files containing the

type definitions. The element tag can be repeated.

max_sequence

<max_sequence>

Integer

</max_sequence>

The default sequence size in case there are unbounded

sequences in the type definitions specified in the any of

the files specified in this specific file group.

max_string

<max_string>

Integer

</max_string>

The default string size in case there are unbounded

strings in the type definitions specified in any of the files

specified in this specific file group .

Domain Properties

4-24

4.7 Domain Properties

Table 4.12 describes the Domain properties. All Domain properties are optional.

register_

top_level

<register_top_level>

Boolean

</register_top_level>

Whether or not to register the top-level types found in the

type definitions with their canonical names. Do this with

any of the files found in this specific file group. The value

of this setting overrides the value of the upper-level set-

ting (see Table 4.9, “XML Type Configuration Proper-

ties”). Default: TRUE.

type

<type>

Type Registration

Properties

</element>

</type>

Specific type properties. A list of type registration proper-

ties used to define how a type found in the files has to be

registered by the Record tool in the DomainParticipants.

See Table 4.11, “Type Registration Properties”

Table 4.11 Type Registration Properties

Properties under

<type><element> Syntax Description

register_top_level

<register_top_level>

Boolean

</register_top_level>

Whether or not to register this type's canonical

name (as defined in tag type_name) with the

DomainParticipant. This name is registered

alongside any of the registration type names

defined in tag registered_type_name above.

Default: TRUE.

registered_

type_name

<registered_type_name>

Registration

name string

</element>

</registered_type_name>

When registering the type with the DomainPar-

ticipant, this setting defines a list of names to reg-

ister the type with. The element tag can be

repeated.

topics

Topic name string

</element>

This is a list of regular POSIX fn-name expres-

sions (every <element> entry is equivalent to an

expression). A topic whose name matches any of

the expressions will be recorded using the type

definition designated by <type_name>. If a topic

matches more than one expression in different

<type> entries, the first one that was matched

will be used.

type_name

<type_name>

Type Name string

</type_name>

A string representing the canonical type name as

defined in the XML type definition for the type.

Table 4.10 File Group Properties

Properties

under

<file_group>

<element> Syntax Description

Domain Properties

4-25

Domain properties must be specified inside <domain name=”String”> and </domain> tags. If

you want to use a RecordGroup (Section 4.9), you must assign a domain name with these tags,

even if you do not specify any domain properties (because the domain name is needed in the

RecordGroup’s domain_ref property).

You may specify more than one Domain. Each one must have a unique name, with its own

<domain name=”String”> and </domain> tags.

For example, the following creates a Domain named “mydomain” using domain ID 68. The data

will be recorded in serialized format. The DomainParticipant will use default QoS settings,

except for the Discovery QoS policy’s accept_unknown_peers field:

<domain_id> 68 </domain_id>

<deserialize_mode>

RTIDDS_DESERIALZEMODE_NEVER

</deserialize_mode>

<participant_qos>

<accept_unknown_peers> false</accept_unknown_peers>

</discovery>

<participant_qos>

</domain>

Notes:

❏If you do not set the <participant_name> property in the <participant_qos> settings, the

Record tool will automatically build a participant name and set it using the prefix "RTI

Recorder: ". This is for compatibility with RTI Administration Console. If this property is

Table 4.12 Domain Properties

Properties

under

<domain> Syntax Description

deserialize_

mode

<deserialize_mode>

DDS_Enum

</deserialize_mode>

Determines how topic data is stored in a database (serialized

or deserialized).

The following values are allowed:

• RTIDDS_DESERIALIZEMODE_AUTOMATIC

Deserialize data if possible, otherwise store data in seri-

alized format.

• RTIDDS_DESERIALIZEMODE_NEVER

Do not deserialize the data; store data in serialized for-

mat.

• RTIDDS_DESERIALIZEMODE_ALWAYS

Only store data if it can be deserialized first.

Default: RTIDDS_DESERIALIZEMODE_NEVER

See Recording Large User Data Types (Section 4.7.2).

domain_id

<domain_id>

DDS_Long

</domain_id>

Sets the domain ID.

Default: 0

participant_qos

<participant_qos>

DDS_QosPolicy

</participant_qos>

Configures the DomainParticipant’s QoS policies.

Default: default DomainParticipant QoS settings

See the RTI Connext DDS Core Libraries User’s Manual for

details. (See the chapter on Configuring QoS with XML.)

See the Notes: below for more information.

Domain Properties

4-26

changed, the Record tool won't override the property, but compatibility between the

Record tool and RTI Administration Console will be broken if the participant name is not

prefixed with "RTI Recorder: " (notice the space after the colon).

❏Transports are configured through the Property QoS under the <participant_qos> tag.

4.7.1 Enabling Monitoring Library in the Record Tool

RTI Monitoring Library enables Connext DDS applications to provide monitoring data. The moni-

toring data can be visualized with RTI Monitor, a separate GUI application that can run on the

same host as Monitoring Library or on a different host. Recording Service is statically linked to

Monitoring Library (you do not have to install it separately).

To enable monitoring in the Record tool, modify the participants’ QoS in the XML configuration

to include the rti.monitor.library property with a value of rtimonitoring. For example:

<participant_qos>

<value>

<name>rti.monitor.library</name>

<value>rtimonitoring</value>

<propagate>false</propagate>

</element>

</value>

</property>

</participant_qos>

<domain_id>0</domain_id>

</domain>

See also: Enabling Monitoring Library with Replay (Section 7.4.1).

4.7.2 Recording Large User Data Types

When the Record tool records serialized user data, each primitive type in the topic’s data struc-

ture will have its own column in the table. The maximum number of columns is approximately

5,050.

Therefore, if you have a data-type that would require more than 5,050 columns, you must set the

deserialize_mode property to RTIDDS_DESERIALIZEMODE_NEVER. (Disregarding this limit

will cause recording to fail.)

Note: Each primitive type is considered a column. For example, the following would require 3,000

columns:

long Array[3000];

As another example, the following would require separate columns for

y[0].x.a,y[0].x.b,y[1].x.a,y[1].x.b, etc.

struct X {

long a;

long b;

};

struct Y {

X x;

};

struct Z {

Y y[10];

}

Topic Group P ro per t ies

4-27

4.8 TopicGroup Properties

A TopicGroup is an optional logical collection of Topics. If you are not going to have a

RecordGroup in the configuration file, you do not need a TopicGroup. (See Section 4.9.)

Table 4.13 describes the TopicGroup properties.

TopicGroup properties must be specified inside <topic_group name=”String”> and

</topic_group> tags.

The following properties are required:

❏field_expr

❏shared_table

❏topics

Table 4.13 TopicGroup Properties

Properties

under

<topic_group> Syntax Description

auto_detect_

reliability

<auto_detect_reliability>

DDS_Boolean

</auto_detect_reliability>

If set to true, use the same reliability as the Publisher

of the matched Topic.

Default: False

compact_char_

array

<compact_char_array>

DDS_Boolean

</compact_char_array>

Store array of char in a single column. The default

(true) saves the most space. While it is possible to

store individual elements in separate columns, it is

not recommended as the number of columns stored

can become very large.

Default: True

compact_char_

sequence

<compact_char_sequence>

DDS_Boolean

</compact_char_sequence>

Store sequence of char in a single column. The

default (true) saves the most space. While it is possi-

ble to store individual elements in separate columns,

it is not recommended as the number of columns

stored can become very large.

Default: True

compact_

octet_array

<compact_octet_array>

DDS_Boolean

</compact_octet_array>

Store array of octet in a single column. The default

(true) saves the most space. While it is possible to

store individual elements in separate columns, it is

not recommended as the number of columns stored

can become very large.

Default: True

compact_

octet_sequence

<compact_octet_sequence>

DDS_Boolean

</compact_octet_sequence>

Store sequence of octet in a single column. The

default (true) saves the most space. While it is possi-

ble to store individual elements in separate columns,

it is not recommended as the number of columns

stored can become very large.

Default: True

Topic Group P ro per t ies

4-28

datareader_qos

<datareader_qos>

DDS_DataReaderQos

</datareader_qos>

Specifies the QoS settings for all DataReaders created

for this TopicGroup.

A DataReader is created for each discovered Topic

that matches topic_expr. All the DataReaders for the

TopicGroup will use the same set of QoS policies.

You can specify all of the QoS policies with the

datareader_qos property.

See the RTI Connext DDS Core Libraries User’s Manual

for more information. (See the chapter on

Configuring QoS with XML.)

exemption

POSIX fn expressions

</exemption>

Specifies a comma-separated list of expressions that

should not be recorded.

Default: Nothing is exempt

field_expr

<field_expr>

POSIX fn expressions

</field_expr>

Required.

A list of comma-separated POSIX expressions that

specify which fields in the Topics to record. (The

Topics are specified with <topics>, see Table 4.14,

“Topics Properties”.)

If set to ‘*’, everything is recorded.

This parameter is ignored when recording serialized

data.

include_

meta_columns

<include_meta_columns>

DDS_Boolean

</include_meta_columns>

In the database, every sample is stored alongside all

its sample information. If this property is set to

FALSE, the sample is stored in a serialized way, with

no sample information attached to it.

Setting this to FALSE (not the default) saves storage

space. When set to FALSE, less columns are created

in the SQLite database. The columns in this database

are often filled with repetitive data. So this option

can save space and execution time when these

requirements are critical.

Default value: True

index

<index>

User Data Table fields

</index>

Allows you to create an index for the recorded data-

base based on the fields provided as parameters. See

‘Create Index’ Syntax (Section 4.8.1) for details.

Table 4.13 TopicGroup Properties

Properties

under

<topic_group> Syntax Description

Topic Group P ro per t ies

4-29

shared_table

<shared_table>

DDS_Boolean

</shared_table>

Required.

Specifies whether the tables of recorded data are

shared or exclusive.

The Record tool stores Topic data in tables; those

tables can be Shared or Exclusive. An Exclusive table

means that each Topic recorded in a RecordGroup is

stored in its own table. The name of the table follows

the convention:

TopicName$RecordGroupName$DomainName

(You can change the $ separator with the

path_separator database property described in

Table 4.4.)

Thus, two topics with the same name but from two

different TopicGroups are stored in separate tables.

A shared table means that Topics with the same

name are stored in the same table, regardless of

where it was recorded from. In this case the table has

an additional column, table_prefix, which stores the

table prefix in the form:

RecordGroupName$DomainName.

Default: False (exclusive)

topics

<topic_expr>

POSIX fn expression

</topic_expr>

</topics>

Required.

Specifies a topic expression and any exemptions to

that expression. See Table 4.14, “Topics Properties”.

Table 4.14 Topics Properties

Properties

under

<topics> Syntax Description

topic_expr

<topic_expr>

POSIX fn expression

</topic_expr>

Required.

A comma-separated list of POSIX expressions that specify the

names of Topics to be included in the TopicGroup.

The syntax and semantics are the same as for Partition

matching.

Default: Null

Note: Keep in mind that spaces are valid first characters in topic

names, thus they can affect the matching process. For example,

this will match both Triangle and Square topics (notice there is

no space before Square):

<topic_expr>Triangle,Square</topic_expr>

However the following will only match Triangle topics

(because there is a space before Square):

<topic_expr>Triangle, Square</topic_expr>

Table 4.13 TopicGroup Properties

Properties

under

<topic_group> Syntax Description

Topic Group P ro per t ies

4-30

For example, the following creates a TopicGroup called AllTopics, which will include all discov-

ered Topics. From those Topics, all fields will be recorded. This example does not specify the

optional datareader_qos property, so it will use default DataReader QoS settings:

<topic_group name="AllTopics">

<topic_expr> * </topic_expr>

</topics>

<field_expr> * </field_expr>

</topic_group>

This next example creates a TopicGroup called ColorsOfSquares that will only include Topics

named “Square.” For the recorded Topics, only the “color” field will be recorded. The DataRead-

ers for the matching Topics will have default QoS settings, except that the Reliability QoS’s kind

will be DDS_RELIABLE_RELIABILITY_QOS:

<topic_group name="ColorsOfSquares">

<topic_expr> Square </topic_expr>

</topics>

<field_expr> color </field_expr>

<datareader_qos>

<kind> DDS_RELIABLE_RELIABILITY_QOS </kind>

</reliability>

</datareader_qos>

</topic_group>

The following example creates a TopicGroup called AllMinusCircleAndSquare that will include

all Topics except “Circle” and “Square.” For the recorded Topics, all fields will be recorded:

<topic_group name="AllMinusCircleAndSquare">

<topic_expr> * </topic_expr>

<exemption> Circle, Square </exemption>

</topics>

<field_expr> * </field_expr>

</topic_group>

Notes:

❏Topics are never removed from a TopicGroup. The resources used to create DataReaders

for discovered Topics are not released if/when the Topics are deleted.

❏The Record tool will ignore Topics published with a type that conflicts with an already

discovered type.

4.8.1 ‘Create Index’ Syntax

SQLite indexes may improve performance on certain SQL queries. The Replay tool creates an

index based on the reception timestamp when opening the database, if it did not already exist

(see Performance and Indexing (Section 6.4)). The process of building the index, however, may

take some time for large tables. But if it is important for you to avoid spending this time, or if

indexing needs to happen during the recording, this is an easy way to create customized indexes

while still recording data into the database.

Note: While other applications accessing the database may benefit from online indexing, the

Record tool’s performance may drop because of it, so you should consider this when using

online indexing.

Topic Group P ro per t ies

4-31

The Record tool's ability to create and store indexes for the User Data Table is controlled by the

<index> property under <topic_group> (see Table 4.13, “TopicGroup Properties”). The <index>

property expects one or more <field> tags, which create the indexes.

Syntax

The <topic_group> can contain as many indexes as needed (for some notes about indexes and

performance see Indexing and Performance in SQLite: Tips and Tricks (Section 4.8.2)). Each of

those indexes can be built using one or more fields. The fields listed could be meta-data fields

(such as the reception timestamp used by the Replay tool) or user-data ones. In addition, you

may optionally add a prefix to the index. The general syntax is:

<topic_group>

...

<field> One_field </field>

<field> Another_field </field>

...

</index>

...

</topic_group>

The above configuration will create an index named OptionalPrefix$TableName, where $ is the

default path-separator (although it could be replaced using the <path_separator> property) and

TableName is the name of the user-data table (see Table 4.4, “Database Properties” for details).

There are some details to consider when creating an index:

❏An index can only be created based on columns that actually exist in the user-data table.

So if some or all of the columns specified in the index configuration are excluded (see

Choosing Which SampleInfo and Discovery Fields to Record (Section 4.5.1)), they cannot

be used to build an index.

❏If the index cannot be created, a warning is shown and the Record tool will continue its

execution.

❏Two indexes cannot share the same prefix. If that happens, only the first one is created.

❏If no prefix is provided, the string "index" and a ordinal number are added before the

table name. For instance, if two indexes are created for a given table, their names will be

index1$TableName and index2$TableName.

Examples:

To improve the Replay tool's initialization performance, we can create an index using the field

SampleInfo_reception_timestamp like this:

<index>

<field> SampleInfo_reception_timestamp </field>

</index>

Note that this is the same index that would be created by the Replay tool. (This index corre-

sponds to the one created by the old database property <create_index>, which is no longer sup-

ported.)

User-data fields can also be used to create indexes. To add a user-data field to an index configu-

ration, you must use the fully qualified name of the field. This notation is similar to the notation

used to access data fields in filter expressions for content-filtered topics (see RTI Connext DDS

Core Libraries User’s Manual for more details). Fields inside container types are accessed using a

period character '.' (e.g., field1.nestedField2.nestedField3...). Fields in collections (arrays and

sequences) can be accessed using square brackets ('[]') notation (e.g., collectionField[1].nested-

Topic Group P ro per t ies

4-32

Field, matrixField[0][0].field1). Only primitive fields can be used for indexing, because the

Record tool does not store non-primitive fields.

For example, consider a race scenario. We have a collection of ten runners and their order in the

race is recorded with the Record tool. The data types are defined using IDL as follows:

struct Runner {

int id; //@key

char * name; //@key

}

struct Race {

struct Runner runnerList[10];

TimeStamp currentTime;

}

If other applications are trying to access the recorded data in order to analyze it, we may want to

speed up data retrieval for these applications by indexing the above data in many ways. For

instance, we could build an index based on the ID and name of the first runner. We may also

need an index based on the current time and the reception timestamp. The XML configuration to

create these indexes is:

<topic_group>

...

<field> runnerList[0].id </field>

<field> runnerList[0].name </field>

</index>

<index>

<field> SampleInfo_reception_timestamp </field>

<field> currentTime </field>

</index>

...

</topic_group>

The above configuration creates two indexes:

❏firstRunnerIndex$TableName, which indexes on the first runner’s id and name.

❏index1$TableName, which indexes on the SampleInfo_reception_timestamp field and

user-data currentTime field.

4.8.2 Indexing and Performance in SQLite: Tips and Tricks

Online indexing can affect the permanence of the insertions the Record tool makes in the data-

base, because of the extra work to maintain the indexes. However, in situations where more than

one application besides the Record tool will be accessing the database, online indexing may

make a difference, especially for applications retrieving data from the database.

It is important that indexes and the applications using them are as efficient as possible. Here are

some tips and tricks about indexing and efficient usage of indexes in SQLite.

4.8.2.1 Small Size Data Fields Work Best as Index Columns

The fewer bytes used in every index entry, the better for performance. SQLite stores indexes as

B-Trees. Every tree node uses a page of the database file. If the index does not fit in one page,

overflow pages are created. Keeping the index in one page may make a difference in terms of

performance. Therefore, large BLOBS, compact octet or char arrays, etc. should be avoided as

Topic Group P ro per t ies

4-33

index columns. If you need to index on one of these types, consider building a hash key or simi-

lar compact representation and use that for indexing instead. The space overhead may be worth

the performance improvement.

4.8.2.2 Use Multi-Column Indexes where Possible

SQLite can use indexes that are created by indexing more than one column. However, SQLite

only allows a single index per table within a simple SQL statement. For UPDATE and DELETE

statements, this translates into only allowing a single index, since these statements can only

work with one table at a time.

Suppose we have a table with columns C 1, C 2, ..., C n and we want to access the table with a

SELECT statement with columns C 1, C 2, ..., C i, i < n, in the WHERE clause, such as "... WHERE

C 1 = value 1 AND C 2 = value 2 ... AND C i = value i.” SQLite will be able to use the index pro-

vided for each of the terms in the WHERE clause. However, if we have individual indexes for

each column, SQLite can only access one of the indexes for the SELECT statement and will only

benefit from the use of indexes for one of the search terms.

4.8.2.3 Avoid Excessive Indexes

Each index added to the database has a performance cost:

❏Every additional index takes up some additional space in the database.

❏INSERT and UPDATE statements have to modify both the original table and every index

associated with it. The performance of INSERT and UPDATE decreases linearly with the

number of indexes.

❏Compilation of the SQL statements takes longer when there are more indexes for the

compiler to choose from.

❏More indexes to choose from, bigger the chance the optimizer selects a suboptimal index

for a query.

Avoid redundant indexes where possible. If for a certain table we have index 1 indexing on col-

umns (x,y) and index 2 indexing on columns (x,y,z) then index 1 is redundant and can be elimi-

nated.

4.8.2.4 Use Indexes to Improve Performance of ORDER BY Clauses

To evaluate statements containing ORDER BY classes, SQLite first puts all the results of the

SELECT statement in a temporary table, then sorts the temporary table according to the ORDER

BY clause columns. This can be time-consuming. Whenever possible, SQLite tries to avoid stor-

ing and then sorting the result set; it does this by using an index that makes the results of the

SELECT statement appear in order. To force this to happen, provide the table with an index that

indexes all the columns in the ORDER BY clause.

For example, suppose we have a table with columns (x,y,z,a) and we want to execute the follow-

ing query:

SELECT a FROM table ORDER BY x,y,z

Then providing an index in columns (x,y,z) will make SQLite avoid using a temporary table and

sorting all the result set.

The index can also be used to satisfy a WHERE clause and an ORDER BY clause in the same

statement. In the example above, suppose we want to execute this statement:

SELECT a FROM table WHERE x=value ORDER BY y,z

The above index on columns (x,y,z) will still be used by SQLite both to speed up the WHERE

clause and to avoid sorting the whole result set in the ORDER BY statement.

RecordGroup Properties

4-34

Nevertheless, care must be taken so that the columns in the index are all used in the SQL state-

ment. For example, consider the following statement:

SELECT a FROM table WHERE x=value ORDER BY z

It does not use "y", which creates a gap in the index terms of our index. This will make the index

be used to speed up the WHERE clause, but won't avoid storing and sorting the whole result set

afterwards.

4.8.2.5 Terms Used in Inequality Expressions should be Placed Last in Index Column Lists

SQLite allows at most one index column to be used in statements containing inequality expres-

sions (such as '<', '>', '<=' or '>='). Columns that are constrained by inequalities should be placed

as the right-most term of the index. For example, suppose if we have a table with columns

(x,y,z,a), an index in columns (x,y,z) and the following SQL statement:

SELECT a FROM table WHERE x = value x AND y < value y AND z = value z

The index does not help optimize term "z", because "y" is constrained by an inequality.

SQLite allows up to two inequality expressions for the same column, as long as they provide

upper and lower bounds for the column. So this statement will effectively use the index as the

inequality expressions for "y" provide an upper and lower bound for the term:

SELECT a FROM table WHERE x = value x AND y < value y1 AND y > value y2

4.8.2.6 Use Indexed Column Names in WHERE Clauses, not Expressions

SQLite uses indexes for a column when the column name appears isolated in statements, not in

more complex expressions. For example, if we have a table with column "x" and an index in "x",

the index will be used if the SQL statement includes "x" but not expressions based on "x", such as

these:

... WHERE x - value = 0

... WHERE x * 1 = ?

... WHERE +x = value

All the WHERE clauses above will cause a full-table scan and SQLite will not use the index to

optimize the query.

4.9 RecordGroup Properties

A RecordGroup is a binding between a TopicGroup and a Domain. It controls which Topic-

Group members are recorded for each Domain. Any Topic that is part of a TopicGroup in the

RecordGroup is recorded from the specified Domains.

RecordGroups are optional. If you do not create one, the Record tool will not record any data. This

is useful if you want to start the Record tool in “stand-by” mode—then you can use remote

access (see Section 4.10) to switch to a different configuration file (one that does have a

RecordGroup) and start recording.

Table 4.15 describes the RecordGroup properties. Notice that domain_ref and topic_ref are

required.

RecordGroup properties must be specified inside <record_group name = “String”> and </

record_group> tags. The name that you assign (“String”) will be used in the table name(s) in the

database (output) file(s).

RecordGroup Properties

4-35

For example, the following creates a RecordGroup called RecordAll, which will include all

members of TopicGroup All that are discovered on Domain MyDomain. This example does not

specify the optional subscriber_qos property, so it will use default Subscriber QoS settings:

<record_group name="RecordAll">

<topic_ref>

<element> AllTopics </element>

</topic_ref>

<domain_ref>

<element> MyDomain </element>

</domain_ref>

</record_group>

Note: A RecordGroup can refer to multiple domains and multiple TopicGroups. However, a

RecordGroup will only record one of each matching Topic from a Domain. If multiple matches

occur, only the first one will be recorded. (If you need to record the same Topic from the same

domain using different QoS policies, you should use different TopicGroups and RecordGroups.)

Table 4.15 RecordGroup Properties

Properties under

<record_group> Syntax Description

domain_ref

<domain_ref>

StringSequence

</domain_ref>

Required.

Specifies a sequence of references to domains.

Default: Null

subscriber_qos

<subscriber_qos>

DDS_SubscriberQos

</subscriber_qos>

Configures the Subscriber used by the

RecordGroup.

Default: default Subscriber QoS settings

See the RTI Connext DDS Core Libraries User’s

Manual for details. (See the chapter on Config-

uring QoS with XML.)

topic_ref

<topic_ref>

StringSequence

</topic_ref>

Required.

Specifies a sequence of references to

TopicGroups.

Default: Null

user_topic_

metadata_fields

<user_topic_metadata_fields>

<field>

field expression

</field>

...

</included>

<field>

field expression

</field>

...

</excluded>

</user_topic_metadata_fields>

Specifies lists of included and excluded Sample

Info or metadata fields in the user topic tables.

A field expression is a POSIX fnmatch

expression to match field names as described

in Appendix A (e.g. "SampleInfo_*" will match

all Sample Info specific fields). There is no

upper limit in the number of <field>

expressions to be specified.

The ‘included’ and ‘excluded’ fields are

optional. If both are defined, the ‘included’

expressions are processed before the ‘excluded’

ones.

User topic field settings can also be expressed

in the Database settings (see Table 4.4).

However, Record Group settings take

precedence over general database settings

defined there.

Recording Service Integration with Extensible Types

4-36

4.10 Recording Service Integration with Extensible Types

Recording Service includes partial support for the "Extensible and Dynamic Topic Types for

DDS" specification from the Object Management Group (OMG)1. This section assumes that you

are familiar with Extensible Types and you have read the RTI Connext DDS Core Libraries Getting

Started Guide Addendum for Extensible Types.

This support allows systems to define data types in a more flexible way, and to evolve data

types over time without giving up portability, interoperability, or the expressiveness of the DDS

type system.

With Extensible Types, different type definitions for the same type name may be discovered by

the Record tool during execution. The tool’s default behavior is to register the first type defini-

tion (type code) found for a type.

You can learn more in the RTI Connext DDS Core Libraries Getting Started Guide Addendum for

Extensible Types.

❏Recording Service can subscribe to topics associated with optional, final, mutable, and

extensible types.

❏A topic “T” within a recording service domain (<domain>) can be associated with at

most one version of a type. To record more than one version, you will have to use multi-

ple recording service domains.

❏Users can pre-register a set of types in a recording service domain by providing an XML

description of the types. The XML description supports structure inheritance and muta-

bility (described in the RTI Connext DDS Core Libraries Getting Started Guide Addendum for

Extensible Types).

❏The TypeConsistencyEnforcementQosPolicy can be specified on a per-topic-group

(<topic_group>) basis, in the same way as other QoS policies. Conversions between

extensible and mutable types are allowed if the TypeConsistencyEnforcementQosPol-

icy’s kind is set to ALLOW_TYPE_COERCION.

4.10.1 Selecting a Type Version For a Topic “T” In a Recording Domain

A topic “T” within a recording service domain (<domain>) can be associated with at most one

version of a type. By default, Recording Service will use the type associated with the first discov-

ered DataWriter on topic “T”. This makes the selection of the type non-deterministic since it

depends on the order in which DataWriters are discovered. To resolve this problem, you can

provide the type in the XML configuration using the <domain_type_config>. For example:

<domain_type_config>

<domain_group>

<domain_filter>

<element>domain0</element>

</domain_filter>

<type_config>

<xml>

<file_group>

<file_name>

<element>ShapeType.xml</element>

</file_name>

1. http://www.omg.org/spec/DDS-XTypes/

Recording Service Integration with Extensible Types

4-37

<type>

<register_top_level>false</register_top_level>

<type_name>ShapeTypeExtended</type_name>

<registered_type_name>

<element>ShapeType</element>

</registered_type_name>

<element>Circle</element>

<element>Square</element>

<element>Triangle</element>

</topics>

</element>

</type>

</element>

</file_group>

<path>

</path>

</xml>

</type_config>

</element>

</domain_group>

</domain_type_config>

With the above type configuration, Recording Service will register the type "ShapeTypeExtended"

with the DomainParticipant associated with “domain0”. When any of the topics in the <topics>

list is matched ("Circle", "Square" or "Triangle"), Recording Service will use "ShapeTypeExtended"

as the type for recording it. The name used for registering the type depends on the

<register_top_level> flag. If this flag is set to true, the type name used for the registration will be

the canonical type name (in the example above, it would be "ShapeTypeExtended"). However, if

this flag is set to false, at least one name has to be provided for registration of the type using the

<registered_type_name> XML setting. The first name in this list will be the one used by Record-

ing Service.

When Recording Service discovers the first DataWriter on topic “T”, it will first try to match the

topic name against the <topics> expressions in all the <type> settings. If it finds a match, it will

use the associated type settings. Otherwise, Recording Service will try to create the topic using the

DataWriter’s registered type name. If the type name has not been registered with Recording Ser-

vice ’s DomainParticipant yet, the new topic will be associated with the discovered type. If the

type name is already registered, the new topic will use the registered type.

4.10.1.1 Example

Let’s consider an example based on RTI Shapes Demo (described in the Recording Service Getting

Started Guide). You can use Shapes Demo to publish and/or subscribe to either the "ShapeType"

data type or the "ShapeExtended" data type. ShapeExtended includes the same data as Sha-

peType, plus two more fields: FillKind and Angle.

Suppose Shapes Demo is publishing the base ShapeType in a domain and the Record tool is sub-

scribing to ShapeType in the same domain. The Record tool will register and record data of type

ShapeType. If a different instance of Shapes Demo—one that uses the ShapeExtended type—

starts publishing in the same domain, the Record tool will record new data from this second

instance of Shapes Demo. (Both types are compatible because one extends the other.) However,

the Record tool will only record the fields corresponding to the base ShapeType, because that is

the registered type. The Record tool will ignore the extra fields in the ShapeExtendedType (Fill-

Kind and Angle).

Recording Service Integration with Extensible Types

4-38

As described in Selecting a Type Version For a Topic “T” In a Recording Domain (Section 4.10.1),

this default behavior is non-deterministic regarding the types being recorded. That is, you have

no control over what type version will be recorded. To change this behavior, you can change the

Record tool’s configuration and provide the XML description of the desired type version via

XML. We illustrate this with the following example, whose objective is to make sure that the

Record tool records the type ShapeTypeExtended, no matter which types are being published. To

do so, the Record tool needs a file that defines the type to be recorded, such as the following file

named ShapeType.xml.

<?xml version="1.0" encoding="UTF-8"?>

<types>

</enum>

<member name="color" stringMaxLength="128"

type="string" key="true"/>

</struct>

<member name="fillKind" type="nonBasic"

nonBasicTypeName="ShapeFillKind"/>

</struct>

</types>

Using the following configuration, the Record tool will always record the ShapeTypeExtended

by using the XML type definition in ShapeType.xml. With the configuration below, no informa-

tion from a DataWriter using ShapeTypeExtended will be lost.

<dds>

<recorder_database>

<database_name> shapes.dat </database_name>

</recorder_database>

<domain_type_config>

<domain_group>

<domain_filter>

<element>domain0</element>

</domain_filter>

<type_config>

<xml>

<file_group>

<file_name>

<!-- Name of file that defines

ShapeType. More than one file

Recording Service Integration with Extensible Types

4-39

can be included if needed.-->

<element>ShapeType.xml</element>

</file_name>

<type>

<type_name>

ShapeTypeExtended

</type_name>

<registered_type_name>

<element>ShapeType</element>

</registered_type_name>

<element>Square</element>

<element>Circle</element>

<element>Triangle</element>

</topics>

<register_top_level>

false

</register_top_level>

</element>

</type>

</element>

</file_group>

<path>

<!-- Define a sequence of paths in which

to look for the above files -->

</path>

</xml>

</type_config>

</element>

</domain_group>

</domain_type_config>

<domain_id> 0 </domain_id>

<!-- Always deserialize so the type fields are shown in

columns (for verification purposes) -->

<deserialize_mode>RTIDDS_DESERIALIZEMODE_ALWAYS

</deserialize_mode>

</domain>

<topic_group name="All">

<topic_expr> * </topic_expr>

</topics>

<field_expr> * </field_expr>

</topic_group>

<!-- Create RecordGroup to record generic TopicGroup

in domain 0 -->

<record_group name="RecordAll">

<domain_ref>

<element> domain0 </element>

</domain_ref>

Recording Service Integration with Extensible Types

4-40

<topic_ref>

</topic_ref>

</record_group>

</recorder>

</dds>

4.10.2 Recording Two Versions of a Type in Different Tables in Same Database

The following example shows how Recording Service can store samples of different type versions

it finds for a topic "T" for the same DDS domain ID, in different tables, and without any loss or

duplication of information (each type version is recorded completely, and no samples in one

table are present in a different one).

The type configuration settings in Recording Service allow the specification of name filters (regu-

lar POSIX fn-match expressions) which allow the specification of a subset of the Recording Ser-

vice domains they will apply to. This allows the specification of different type selection settings

(as described inSelecting a Type Version For a Topic “T” In a Recording Domain (Section 4.10.1))

for different Recording Service domains.

With these tools and using RTI Shapes Demo as an example, we could define a domain where to

record the base type of Shapes (named "domain0Base") and another one to use for the extended

type ("domain0Extended") associated with the same domain ID:

<domain_id> 0 </domain_id>

<!-- Always deserialize so the type fields are shown in

columns (for verification purposes) -->

<deserialize_mode>RTIDDS_DESERIALIZEMODE_ALWAYS</deserialize_mode>

</domain>

<domain_id> 0 </domain_id>

<!-- Always deserialize so the type fields are shown in

columns (for verification purposes) -->

<deserialize_mode>RTIDDS_DESERIALIZEMODE_ALWAYS</deserialize_mode>

</domain>

By applying filters to the Domain Type Configuration settings, we can specify that domain

"domain0Base" should record topics "Circle", "Square" and "Triangle" with the base type in the

XML definitions, like this:

<domain_type_config>

<domain_group>

<domain_filter>

<element> domain0Base </element>

</domain_filter>

<type_config>

<xml>

<file_group>

<register_top_level>false</register_top_level>

<file_name>

<element>TestTypesLibrary.xml</element>

</file_name>

<type>

<register_top_level>true</register_top_level>

Recording Service Integration with Extensible Types

4-41

<type_name>ShapeType</type_name>

<element>Circle</element>

<element>Square</element>

<element>Triangle</element>

</topics>

</element>

</type>

</element>

</file_group>

</xml>

</type_config>

</element>

The same way, we can associate the extended type for shapes with the extended domain:

<domain_filter>

<element> domain0Extended </element>

</domain_filter>

<type_config>

<xml>

<file_group>

<register_top_level>false</register_top_level>

<file_name>

<element>TestTypesLibrary.xml</element>

</file_name>

<type>

<register_top_level>false</register_top_level>

<type_name>ShapeTypeExtended</type_name>

<registered_type_name>

<element>ShapeType</element>

</registered_type_name>

<element>Circle</element>

<element>Square</element>

<element>Triangle</element>

</topics>

</element>

</type>

</element>

</file_group>

</xml>

</type_config>

</element>

</domain_group>

</domain_type_config>

For the moment, we have defined the type to use with each Recording Service domain, but

because the default value for the TypeConsistencyEnforcementQosPolicy is

ALLOW_TYPE_COERCION and both types are compatible, we would record each sample

twice: once for each type version. We need to set the DataReader QoS settings in the Topic-

Groups we create so that they will not allow type coercion:

<topic_group name="Shapes">

Recording Service Integration with Extensible Types

4-42

<topic_expr>Circle,Square,Triangle</topic_expr>

</topics>

<field_expr> * </field_expr>

<datareader_qos>

<type_consistency>

<kind>DISALLOW_TYPE_COERCION</kind>

</type_consistency>

</datareader_qos>

</topic_group>

We also need to associate the RecordGroup we create with both Recording Service domains:

<record_group name="RecordGroup">

<domain_ref>

<element>domain0Base</element>

<element>domain0Extended</element>

</domain_ref>

<topic_ref>

<element>Shapes</element>

</topic_ref>

</record_group>

With all these settings together, Recording Service will create a different table for each type ver-

sion of Shapes it finds when it discovers each of the Shapes Demo topics. For example, for topic

"Square", it would create table "Square$RecordGroup$domain0Base" where it would record

only the samples published with the base type version, and table

"Square$RecordGroup$domain0Extended", which would contain only the samples published

with the extended type version of Shapes.

Note: Because of a known issue1, for the Replay tool to work properly with the databases created

with the above settings (replaying different topics with their recorded version requires concur-

rent access to the database from different Replay database entitites), we need to enable the

<create_index> flag in Recording Service so the index is created beforehand:

<recorder_database>

<database_name> shapes.dat </database_name>

<create_index> true </create_index>

</recorder_database>

1. RTI Issue ID RECORD-318

5-1

Chapter 5 Accessing the Record Tool from a Remote

Location

Perhaps you want to start/stop the Record tool from another machine, or even reconfigure it to

change what is being recorded. You can create a Connext DDS application that can remotely con-

trol the Record tool. This chapter explains how.

To control the Record tool from a remote location:

1. Configure the Record tool to allow remote access (see Recording Service Integration with

Extensible Types (Section 4.10).

2. Create a Connext DDS application using the provided rtirecord.idl file. You will use rtid-

dsgen to generate the basics and then add code to send your desired remote commands.

5.1 Overview

If the Record tool is configured to allow remote access, it creates a DataReader for a “command

request” Topic (named RTI_RECORDER_COMMAND_REQUEST_TOPIC) and a DataWriter for

“command response and status” Topic (named

RTI_RECORDER_COMMAND_RESPONSE_TOPIC). So the Record tool will write status

updates and comman responses.

These topics’ types and names are specified in the IDL file, resource/idl/rtirecord.idl.

When the Record tool detects a remote DataReader and DataWriter of these special topics from

the same participant, the Record tool will be in a ‘connected’ state, which means it will accept

remote commands.

Your remote-access application will use the following constants:

❏RTI_RECORDER_COMMAND_TYPE Register a type of this name, as seen in

Figure 5.1.

❏RTI_RECORDER_COMMAND_REQUEST_TOPIC Create a DataWriter with this

Topic name, as seen in Figure 5.2.

❏RTI_RECORDER_COMMAND_RESPONSE_TOPIC Create a DataReader with this

Topic name, as seen in Figure 5.2.

See Remote Control Messages (Section 5.3) for more information.

Establishing a Connection with the Record Tool

5-2

5.2 Establishing a Connection with the Record Tool

To establish a connection with the Record tool, your remote-access application needs:

❏2 Topics (one for commands, one for status and command responses)

❏1 DataReader

❏1 DataWriter

When creating the DataReader and DataWriter, use the following QoS settings:

❏history.kind = DDS_KEEP_ALL_HISTORY_QOS

❏reliability.kind = DDS_RELIABLE_RELIABILITY_QOS

Figure 5.1 Registering the Message Type

RTIRemoteCtxMsgTypeSupport_register_type

(self->dds_participant, RTI_RECORDER_COMMAND_TYPE);

Establishing a Connection with the Record Tool

5-3

Figure 5.2 shows how to create the Entities in your remote-control application using the C API.

(A general knowledge of Connext DDS is assumed.)

Figure 5.2 Creating the Required Entities

struct DDS_TopicQos tqos = DDS_TopicQos_INITIALIZER;

DDS_Topic * dds_topic_cmd = NULL;

DDS_Topic * dds_topic_status = NULL;

struct DDS_DataWriterQos wqos = DDS_DataWriterQos_INITIALIZER;

RTIRecorderAdminMessageDataWriter * dds_writer = NULL;

struct DDS_DataReaderQos rqos = DDS_DataReaderQos_INITIALIZER;

RTIRecorderAdminMessageDataReader * dds_reader = NULL;

...

dds_topic_cmd =

DDS_DomainParticipant_create_topic(

dds_participant, RTI_RECORDER_COMMAND_REQUEST_TOPIC,

RTI_RECORDER_COMMAND_TYPE, &tqos,

NULL, DDS_STATUS_MASK_NONE);

dds_topic_status =

DDS_DomainParticipant_create_topic(

dds_participant, RTI_RECORDER_COMMAND_RESPONSE_TOPIC,

RTI_RECORDER_COMMAND_TYPE, &tqos,

NULL, DDS_STATUS_MASK_NONE);

...

rqos.reliability.kind = DDS_RELIABLE_RELIABILITY_QOS;

rqos.history.kind = DDS_KEEP_ALL_HISTORY_QOS;

dds_reader = (RTIRemoteCtxMsgDataReader*)

DDS_Subscriber_create_datareader(

dds_subscriber, DDS_Topic_as_topicdescription(

dds_topic_status), &rqos,

NONE, DDS_STATUS_MASK_NONE);

wqos.reliability.kind = DDS_RELIABLE_RELIABILITY_QOS;

wqos.history.kind = DDS_KEEP_ALL_HISTORY_QOS;

dds_writer = (RTIRemoteCtxMsgDataWriter*)

DDS_Publisher_create_datawriter(

dds_publisher, dds_topic_cmd, &wqos,

NULL, DDS_STATUS_MASK_NONE);

Remote Control Messages

5-4

5.3 Remote Control Messages

The Record tool exchanges messages with your remote-access application by publishing and

subscribing to two special remote-access topics. Both topics use the same message format,

shown in Figure 5.3.

For complete details, see the IDL file, rtirecord.idl in the examples directory.

destination_mask — A field used by other RTI tools; can be ignored.

destination — The Record tool application for which the message is intended. If

accept_broadcast_commands is turned off, this structure must match that of the Record

tool. If accept_broadcast_commands is turned on, this structure can be a specific destina-

tion or all 0's.

msg_id — A user-specified integer that identifies a particular message exchange. When the

Record tool sends a response to a command, it will include the same msg_id that was

received in the command.

msg — A union of different message types. The discriminator must be set to one of the message

types listed in Table 5.1.

The code fragment in Figure 5.4 shows how to set the message type in the remote-access appli-

cation.

Depending on the message type, the correct union member must also be filled in. For example,

Figure 5.5 shows how to construct a message to the Record tool to read a new configuration from

a file. In this example, the new configuration is to be read from a file on the same file-system as

the Record tool.

Figure 5.3 Top Level Structure for Remote Control Messages

struct RTIRecorderAdminMessage {

long destination_mask;

RTIRemoteAdminAddress destination;

long msg_id;

RTIRecorderAdminUnion msg;

}; //@Extensibility MUTABLE_EXTENSIBILITY

Figure 5.4 Assigning a Message Type (C Language)

RTIRecorderAdminMessage * msg = NULL;

...

msg = RTIRecorderAdminMessagePlugin_create_sample();

/* Handle creation errors */

if (msg == NULL) {

...

}

msg->msg._d = RTI_RECORDER_ADMIN_START;

Remote Control Messages

5-5

5.3.1 Updating the Record Tool’s Partition QoS Policy

For each Record Group in the XML configuration, Recording Service creates a DDS Subscriber.

There is one Subscriber in each of the Record Group’s domains. Sometimes it may be useful to

change the Partition QoS settings for some of these Subscribers.

Figure 5.5 Sending a Command to the Record Tool to Read a New Configuration File

RTIRecorderAdminMessage * msg = NULL;

DDS_ReturnCode_t retcode;

struct DDS_SampleInfo info;

msg = RTIRemoteCtxMsgPlugin_create_sample();

/* Handle creation errors */

if (msg == NULL) {

...

}

msg->msg._d = RTI_RECORDER_ADMIN_CONFIGURE;

/* This is the last part of the configuration. If the

* configuration spans multiple samples, then only the last

* one should have this set to TRUE */

msg->msg._u.config.final_config = DDS_BOOLEAN_TRUE;

/* Tell the Record Tool that the filename to read from follows

* in the config_from_string text string */

msg->msg._u.config.config_from_file = DDS_BOOLEAN_TRUE;

/* Copy the name of file that the Record tool shall read from */

strncpy(msg->msg._u.config.config_from_string, filename,

RTI_RECORDER_CONFIG_MAX_STRING);

/* Copy the configuration name of the <recorder> tag to load */

strncpy(msg->msg._u.config.config_name, cfgname,

RTI_RECORDER_CONFIG_MAX_STRING);

/* Send the configuration message to the Record tool.

* (dds_writer has been created elsewhere) */

retcode = RTIRecorderAdminMessageDataWriter_write(dds_writer,

msg, &DDS_HANDLE_NIL);

/* check for errors here ... */

while (no response) {

retcode = RTIRecorderAdminMessageDataWriter_read_next_sample(

dds_reader, msg, &info, &DDS_HANDLE_NIL);

if (retcode != DDS_RETCODE_NO_DATA) {

/* response received */

}

sleep(1);

}

Remote Control Messages

5-6

For instance, suppose the Record tool needs to record data from producers that are organized

into different partitions based on their geographical distribution (different locations are repre-

sented by different Partition strings). It is possible to specify a Partition QoS policy via XML con-

figuration when the Record tool starts up. But suppose the data producers change location—and

thus change their Partition QoS? The Record tool won't be able to keep track of the data without

changing its Partition QoS too. (For details on the Partition QoS Policy, see the RTI Connext DDS

Core Libraries User’s Manual.)

You can change the Partition QoS for any or all Record Groups by using the

RTI_RECORDER_ADMIN_PARTITION message type. This command needs the following

information:

Table 5.1 Messages Types Exchanged Between Record Tool and Remote Access Application

Direction

Message Type

(add prefix:

RTI_RECORDER_

ADMIN) Description

From:

Your Connext DDS

Remote-Control

Application

To:

The Record tool

RECORDER_START Instructs the Record tool to start recording.

RECORDER_STOP Instructs the Record tool to stop recording.

RECORDER_

CONFIGURE

Instructs the Record tool to reconfigure according to the

contents of the message.

Stop the Record tool before sending this message:

If the Record tool has already been stopped, it will read the

new configuration and restart. It will not automatically

start recording unless auto_start (see Table 4.2, “General

Properties”) is true (the default case).

If the Record tool has not already been stopped, an error is

returned.

RECORDER_

SHUTDOWN Instructs the Record tool to shutdown and exit.

RECORDER_ADD Instructs the Record tool to add entities based on the con-

tents of the message.

RECORDER_DELETE Instructs the Record tool to delete entities based on the con-

tents of the message.

RECORDER_PAUSE Instructs the Record tool to pause entities based on the con-

tents of the message.

RECORDER_

PARTITION

Updates the Partition QoS in all or some of the Record tool’s

Record Groups (in their associated DDS Subscribers). See

Updating the Record Tool’s Partition QoS Policy (Section

5.3.1).

RECORDER_RESUME Instructs the Record tool to resume recording of previously

paused entities based on the contents of the message.

RECORDER_PING Instructs the Record tool to send the recording model a to

the Remote Control application.

To:

Your Connext DDS

Remote-Control

Application

From:

The Record tool

RECORDER_INFO When the Record tool publishes statistics, it periodically

sends out this message type.

RECORDER_

RESPONSE Indicates that this message is a response to a command.

a. The recording model is an XML representation of two aspects of the Record tool: (1) The configuration model: the XML

configuration (similar to the XML configuration file used to configure the Record tool.) and (2) The run-time model: an

XML description of the entities that have been created based on the configuration. Note that only a a minimal model is

returned; the QoS are not returned.

Remote Control Messages

5-7

❏A collection of partition strings to be applied. As described in the RTI Connext DDS Core

Libraries User’s Manual, the partitions can be POSIX regular expressions. If no partition

string is specified, the default partition (empty) is applied.

❏A collection of Record Group names (or regular expressions matching Record Group

names) for which the partitions will be applied. The partitions will be applied to all the

DDS Subscribers created for the matching Record Groups. If no Record Group string is

specified, the partitions are applied to all the Record Groups in the Record tool’s configu-

ration.

The partition update command is absolute, meaning that current partitions that are active for

the matching Record Groups will be discarded and the new ones will be applied instead. For

example, if a Record Group is already joined to partition "A", in order to have the Record Group

join "A" and "B," the command will need to specify both "A" and "B" in their partition string col-

lection.

Partition updates are applied per Record Group. If a Record Group is linked with multiple

DomainParticipants, the Partition QoS policy will be updated for each Subscriber created for

each of the Record Group’s associated DomainParticipants. For example, consider the following

configuration:

...

<domain_id> 0 </domain_id>

</domain>

...

<domain_id> 1 </domain_id>

</domain>

...

<record_group name="RecordGroup">

<domain_ref>

<element> Domain0 </element>

<element> Domain1 </element>

</domain_ref>

<topic_ref>

</topic_ref>

</record_group>

...

</recorder>

With the above configuration, there will be two DDS DomainParticipants, "Domain0" and

"Domain1." Each of these DomainParticipants will contain a Subscriber associated with the

Record Group called "RecordGroup." Sending a partition update command specifying

"RecordGroup" will affect the Subscribers in both DomainParticipants. If you have a situation in

which different partition changes need to be specified for each Subscriber, you should specify

separate Record Groups in the Record tool’s configuration. For the above example, this would

mean splitting the Record Group in two, like this:

...

<domain_id> 0 </domain_id>

</domain>

...

<domain_id> 1 </domain_id>

Remote Control Messages

5-8

</domain>

...

<record_group name="RecordGroupDomain0">

<domain_ref>

<element> Domain0 </element>

</domain_ref>

<topic_ref>

</topic_ref>

</record_group>

<record_group name="RecordGroupDomain1">

<domain_ref>

<element> Domain1 </element>

</domain_ref>

<topic_ref>

</topic_ref>

</record_group>

...

</recorder>

This way, partition update commands can modify separate Partition QoS settings for each

Record Group.

The Partition QoS Policy establishes limits on the length of the strings provided in the partition

string collection. There can be up to 64 strings, with a maximum of 256 characters summed

across all strings. When the Record tool receives a partition update command, it checks this limit

by checking the length of all the partition strings in the command. If the summed length of the

strings is larger than the limit, the partitions won't be applied and an error response will be sent

back to the command issuer.

Note: For DDS Subscribers to match DDS Publishers, either of the two can use regular expres-

sions as their partition strings, but not both at the same time. A regular expression partition has

to be matched against a specific name partition string. It is the user's responsibility to ensure that

at least one of the sides in the communication (Publisher or Subscriber) uses a pecific name par-

tition string as the partition.

Any failure while processing the command will result in an error response from the Record tool

to the command issuer. However, after validating the partition strings passed in the command,

the processing is completed for all the Record Groups, even if an error happens while processing

any of the QoS updates for any of them.

Depending on the status of the Record tool when the partition update command is issued, the

following can happen:

❏If the Record tool is running, the command will update the current DDS Subscribers asso-

ciated with matching Record Groups. The same will happen when the Record tool is idle

(paused).

❏If the Record tool is stopped, the command will update the stored QoS settings for the

Record Groups. Because the DDS subscriptions haven't been created yet when Recorder

is stopped, the Partition QoS settings that were updated will take effect when the Record

tool is started. The newly created DDS Subscribers will use the new Partition QoS set-

tings as received in the partition update command.

Note: Partition updates are not instantaneous. Thus, the Record tool may lose samples while the

partition changes take effect. This behavior is not different than that of any other Connext DDS

application.

Remote Control Messages

5-9

5.3.1.1 Sending a Partition Update Command to the Record Tool

The following is the IDL definition of the type used to specify the information in a Partition

Update command:

const long PARTITION_MAX_LENGTH = 256;

const long MAX_PARTITIONS = 64;

const long MAX_RECORD_GROUP_EXPRESSIONS = 256;

const long RECORD_GROUP_EXPRESSION_MAX_LENGTH = 256;

struct RTIRecorderPartitionMessage {

sequence<string<PARTITION_MAX_LENGTH>, MAX_PARTITIONS> partitions;

sequence<string<RECORD_GROUP_EXPRESSION_MAX_LENGTH>,

MAX_RECORD_GROUP_EXPRESSIONS> recordGroupExpressions;

};

A maximum of 64 (MAX_PARTITIONS) partition strings can be specified, with a maximum

length of 256 characters (PARTITION_MAX_LENGTH). In a similar way, a maximum of 256

expressions to match Record Group names (MAX_RECORD_GROUP_EXPRESSIONS) can be

specified, with a maximum length of 256 characters

(RECORD_GROUP_EXPRESSION_MAX_LENGTH).

The following code snippet in C shows how to prepare and send a partition update command to

the Record tool so that all the Record Groups in the configuration join partition "A":

RTIRemoteCtxMsgDataWriter * messageWriter = NULL;

RTIRemoteCtxMsg * message = NULL;

DDS_ReturnCode_t retcode;

/* Initialize the DDS entities used for the communication */

...

/* Create the message instance to be written to the tool */

message = RTIRemoteCtxMsgTypeSupport_create_data();

if (message == NULL) {

/* Error handling */

}

/* Set the destination information for broadcast commands

* (all zeroes)

* Set the destination mask as empty too */

message->destination.app_id = 0;

message->destination.host_id = 0;

message->destination.instance_id = 0;

message->destination_mask = 0;

/* Set the type of the message to be a partition message */

message->msg._d = RTI_REMOTECTX_MSG_RECORDER_PARTITION;

/* Set the message ID; here we set it to zero for simplicity,

* but this value should be auto-incremented with every new command

* sent to the tool in order to correlate the commands with their

* responses */

message->msg_id = 0;

/* To send a partition update command for all Record Groups in a

* Recording configuration, set the collection of Record Group

* names (expressions) to be empty */

if (!DDS_StringSeq_ensure_length(

&message->msg._u.partitions.recordGroupExpressions, 0, 0)) {

/* Error handling */

Remote Control Messages

5-10

}

/* Ensure enough space to add the "A" partition string to the

* collection of partitions*/

if (!DDS_StringSeq_ensure_length(

&message->msg._u.partitions.partitions, 1, 1)) {

/* Error handling */

}

/* Copy the string ("A") into the first string in the partition

* string collection. We've used 'strncpy' in conjunction with the

* maximum length of a partition string for correctness, even

* though we know the length of string "A" fits the maximum length

* of a partition string */

strncpy(DDS_StringSeq_get(&message->msg._u.partitions.partitions,

0), "A", PARTITION_MAX_LENGTH);

/* Write the message; recall that the 'accept_broadcast_commands'

* must be enabled in the Record tool to be able to read this

* command; if we know the destination information for the Record

* tool (app id, host id and instance id), we can use this

* information and don't have to enable 'accept_broadcast_commands'

retcode = RTIRemoteCtxMsgDataWriter_write(

RTIRemoteCtxMsg_writer, message,&DDS_HANDLE_NIL);

if (retcode != DDS_RETCODE_OK) {

/* Error handling */

}

If we wanted to include a Record Group filter in our command, the filtering expression would

have to be included in the collection of Record Group expressions. For example, to apply a parti-

tion update only to Record Groups ending with the suffix "Domain1," we could use the regular

expression "*Domain1" and use the following code (in C language):

RTIRemoteCtxMsgDataWriter * messageWriter = NULL;

RTIRemoteCtxMsg * message = NULL;

DDS_ReturnCode_t retcode;

/* Initialize the DDS entities used for the communication */

...

/* Create the message instance to be written to the tool */

message = RTIRemoteCtxMsgTypeSupport_create_data();

if (message == NULL) {

/* Error handling */

}

...

/* To send a partition update command to Record Groups suffixed

* with "Domain1," use the regular expression "*Domain1"; we need

* to ensure enough space in the record group expressions

* collection to hold one entry */

if (!DDS_StringSeq_ensure_length(

&message->msg._u.partitions.recordGroupExpressions, 1, 1)) {

/* Error handling */

}

/* Copy the string ("*Domain1") into the first string in the

* record group expression string collection. We used 'strncpy' in

* conjunction with the maximum length of a record group expression

* string for correctness, even though we know the length of string

* "*Domain1" fits the maximum length of a record group expression

Using the Example Remote-Access Application—Record Shell

5-11

* string */

strncpy(DDS_StringSeq_get(

&message->msg._u.partitions.recordGroupExpressions, 0),

"*Domain1",

RECORD_GROUP_EXPRESSION_MAX_LENGTH);

/* Set the length of the partition string collection to be zero;

* The Record tool will set the default partition (empty) in the

* matching Record Groups */

if (!DDS_StringSeq_ensure_length(

&message->msg._u.partitions.partitions, 0, 0)) {

/* Error handling */

}

/* Write the message */

retcode = RTIRemoteCtxMsgDataWriter_write(

RTIRemoteCtxMsg_writer, message, &DDS_HANDLE_NIL);

if (retcode != DDS_RETCODE_OK) {

/* Error handling */

}

The example above uses an empty collection of partition strings. This means that the Record tool

will apply the default partition (empty) to the Record Groups that match the regular expression

"*Domain1" specified in the command.

5.4 Using the Example Remote-Access Application—Record Shell

The Record Shell is a Connext DDS application that can remotely control (start, stop, and reconfig-

ure) the Record tool. The Record Shell is not meant as a complete solution to remotely controlling

the Record tool. Its purpose is just to give you an idea of what can be done.

To start the Record Shell, open a command prompt1change to the <NDDSHOME>/bin directory,

and enter:

❏On Linux and Mac OS X systems:

rtirecsh -domain <domain ID>

❏On Windows systems:

rtirecsh.bat -domain <domain ID>

Table 5.2 lists the command-line options you can use when starting the Record Shell. Once it is

running, you can use the commands described in Record Shell’s Commands (Section 5.4.1).

1. On Windows systems: from the Start menu, select Accessories, Command Prompt.

Table 5.2 Record Shell’s Command-Line Options

Command-line Option Description

-domain <domain ID> Required.

Specifies the domain ID (an integer between 0 and 99).

-partition <names>

Specifies an optional, comma-separated list of partition names. This option is

necessary if the Record tool is configured to enable remote access in a particu-

lar partition.

Using the Example Remote-Access Application—Record Shell

5-12

5.4.1 Record Shell’s Commands

❏add (Section 5.4.1.1)

❏configure (Section 5.4.1.2)

❏delete (Section 5.4.1.3)

❏exit (Section 5.4.1.4)

❏info (Section 5.4.1.5)

❏pause (Section 5.4.1.6)

❏resume (Section 5.4.1.7)

❏shutdown (Section 5.4.1.8)

❏start (Section 5.4.1.9)

❏status (Section 5.4.1.10)

❏stop (Section 5.4.1.11)

Several of the commands accept a <model> argument. A model is an XML representation of two

aspects of the Record tool:

❏The configuration model: the XML configuration (similar to the XML configuration file

used to configure the Record tool.)

❏The run-time model: an XML description of the entities that have been created based on

the configuration.

The format of this XML is the same as the configuration format for the Record tool (see

Chapter 4: Configuring the Record Tool). The top-level tag must be <dds> followed by

<recorder>.

Some examples for <model> are:

<dds>

<record_group name="RecordAll"></record_group>

</recorder>

</dds>

-noUdpv4 Disables the UPDv4 transport.

-updv6 Enables the UDPv6 transport.

-noShmem Disables the shared memory transport.

-noMulticast Disables multicast.

-verbosity <mask>

The verbosity is a bit-map that specifies what type of logging information

should be printed.

The verbosity may be:

0 — No messages

1 — Exceptions (default)

2 — Warnings

4 — Information

7 — All types

-help Prints version information and a list of options.

Table 5.2 Record Shell’s Command-Line Options

Command-line Option Description

Using the Example Remote-Access Application—Record Shell

5-13

<dds>

<topic_group>name="RTI Shapes Demo">

<topic_expr>Square</topic_expr>

</topics>

<field_expr>color</field_expr>

</topic_group>

</recorder>

</dds>

5.4.1.1 add

This command adds entities to the Record tool.

The add command has the following format:

add <model>

5.4.1.2 configure

The Record tool can be reconfigured remotely with the configure command. There are two ways

to reconfigure the Record tool; using a local file or a remote file.

Note that the Record tool must be stopped before it can be reconfigured. When the Record tool is

reconfigured, it will shut down completely. The Record Shell will lose its connection with the

Record tool until the Record tool re-establishes remote access. If remote access is not enabled in

the new configuration, Record Shell will not reconnect to the Record tool.

The configure command has the following format:

configure <cfg_name> [-localfile | -remotefile ] <file>

The configuration name <cfg_name> is used to find the matching <recorder> tag to load.

❏-localfile <filename>

Example: Assume that you want to the Record tool to use a configuration file called

myconfig.xml, which is local to the Record Shell:

RTI Record Shell> stop

RTI Record Shell> configure myrecord -localfile myconfig.xml

The Record Shell will read the contents of myconfig.xml and send it to the Record tool,

which will search for a tag <record name=“myrecord”>. If auto_start (see Table 4.2,

“General Properties”) is true (the default case), it is not necessary to run the start com-

mand to start the Record tool. If auto_start is false in the new configuration, then issue the

start command in the Record Shell to start recording:

RTI Record Shell> start

❏-remotefile <filename>

To configure the Record tool with the contents of a file that is local to the Record tool, use

the -remotefile <filename> option.

For example, assume that you want reconfigure the Record tool with a file called remote-

myconfig.xml, which resides on the same file-system as the Record tool.

RTI Record Shell> stop

RTI Record Shell> configure myrecord -remotefile remotemyconfig.xml

The Record tool will read the contents of remotemyconfig.xml and reconfigure with the

contents of the tag <record name=”myrecord”>. Depending on the configuration file, it

may be necessary to start it:

RTI Record Shell> start

Using the Example Remote-Access Application—Record Shell

5-14

5.4.1.3 delete

This command deletes entities from the Record tool.

The delete command has the following format:

delete <model>

5.4.1.4 exit

This command exits the Record Shell.

RTI Record Shell> exit

5.4.1.5 info

This command shows you which Record tool session the Record Shell is connected to. The output

looks similar to this:

STATE ..: Connected to [0a0a64fe.006bbe00]

GUID ...: 0a0a64fe.006bbb00

❏STATE Which DomainParticipant the Record tool is connected to (HOSTID.APPID].

❏GUID The GUID of the Record Shell itself.

5.4.1.6 pause

This command pauses the recording of entities in the Record tool.

The pause command has the following format:

pause <model>

5.4.1.7 resume

This command resumes the recording of already paused entities in the Record tool.

The resume command has the following format:

resume <model>

5.4.1.8 shutdown

This command causes the Record tool to shut down and terminate.

This command can only be issued when the Record tool has been stopped.

5.4.1.9 start

The start command is used to start the Record tool. Note that this command only works after

stopping the Record tool first, since the tool is started when it is launched.

When the start command is given, the Record tool will shut down completely, delete all state and

objects and start from scratch. By default, the Record tool will create a new fileset each time it is

started.

5.4.1.10 status

When the Record tool is configured with remote access enabled, it will periodically send its cur-

rent status. The Record Shell stores the most recent status. The current status is displayed with

the status command:

RTI Record Shell> status

The output is similar to the following:

Using the Example Remote-Access Application—Record Shell

5-15

Version ..........: 5.0.0

Timestamp ........: Mon Feb 18 20:02:48 2013

State ............: STOPPED

Config file ......: simple_config.xml

Database file ....: simple_config.dat_34_3

Received bytes ...: 86653952

Saved bytes ......: 2127872 (2 %)

❏Version The Record tool’s version

❏Timestamp The timestamp of the Record tool when status message was sent.

❏State The Record tool’s state. The following states are possible:

•IDLE

•RECORDING

•STOPPED (the Record tool has been stopped and is not recording any user data)

•RECONFIGURE

•SHUTDOWN

• DOWNLOAD (the Record tool is downloading a new configuration)

❏Config file The name of the file from which the Record tool read its configuration. If the

configuration was received with configure -localfile, this field is not available.

❏Database file The file-segment currently being written to.

❏Received bytes Total amount of data that has been written to file.

❏Saved bytes Total number of data that has is currently saved to file. Note that if the roll-

over property is true, then Saved bytes may be less than Received bytes.

5.4.1.11 stop

This command stops the Record tool from recording user data.

RTI Record Shell> stop

5.4.2 Running Multiple Record Tools in the Same Domain

The Record Shell can only keep track of one instance of the Record tool. To control multiple copies

of the Record tool in the same domain with the Record Shell, run each Record tool instance in a

separate partition.

For the first instance of the Record tool, change the configuration file as follows:

<remote_access>

<domain> domain0 </domain>

<subscriber_qos>

<name>

<element> RecordA </element>

</name>

</partition>

</subscriber_qos>

<publisher_qos>

<name>

<element> RecordA </element>

</name>

Using the Example Remote-Access Application—Record Shell

5-16

</partition>

</publisher_qos>

</remote_access>

For the second instance of the Record tool, change the configuration file as follows:

<remote_access>

<domain> domain0 </domain>

<subscriber_qos>

<name>

<element> RecordB </element>

</name>

</partition>

</subscriber_qos>

<publisher_qos>

<name>

<element> RecordB </element>

</name>

</partition>

</publisher_qos>

</remote_access>

Then you can run the Record Shell for each partition:

rtirecsh -partition RecordA

rtirecsh -partition RecordB

6-1

Chapter 6 Using the Replay Tool

Besides replaying data with Recording Console, you can use the Replay tool directly. You may find

this method useful when you want to tie its service into your own infrastructure or software, or

if you need to use its more advanced features.

The Replay tool replays recorded data by publishing it just like the original Connext DDS applica-

tion did. You can use the original domain ID, QoS settings and data rate, or make changes to test

different scenarios.

See also:

❏Chapter 7: Configuring the Replay Tool

❏Chapter 8: Accessing the Replay Tool from a Remote Location

6.1 Recording Data for Replay

The Replay tool can replay information that has been stored in either serialized or deserialized

form. If Replay is to be used to replay deserialized data, ensure that all of the fields of the sample

data are recorded, as Replay is unable to replay partial data.

Note: SQLite is unable to look at the individual fields in the sample data of files recorded in seri-

alized mode.

6.2 Starting the Replay Tool

Open a command prompt1 and change to the <NDDSHOME>/bin directory. Then enter:

❏On Linux and Mac OS X systems:

rtireplay -cfgFile <file> -cfgName <configuration>

❏On Windows systems:

rtireplay.bat -cfgFile <file> -cfgName <configuration>

Table 6.1 describes the command-line options and which ones are required.

1. On Windows systems: from the Start menu, select Accessories, Command Prompt.

Stopping the Replay Tool

6-2

The Replay tool is dynamically linked against the Connext DDS libraries. You should run the tool

from the <NDDSHOME>/bin directory scripts—not from the executable files themselves. The

scripts set all the paths and variables needed for the tool to find the shared libraries and run cor-

rectly.

6.3 Stopping the Replay Tool

To stop the Replay tool, use <Control-c>.

Table 6.1 Replay Tool’s Command-line Options

Command-line Option Description

-appName <name>

Specifies an application name which is used to identify

the application for remote administration.

Default: -cfgName

-cfgFile <file> Required.

Used to identify the XML configuration file.

-cfgName <name>

Required.

Identifies the configuration within the XML

configuration file. The Replay tool will load the

<replay_service> with the same name as this value.

-domainIdBase <int>

Adds this value to the domain IDs in the configuration

file.

Default: 0

-forceXmlTypes

When used with XML Type Configuration, this option

instructs Replay to always use type code from the XML

file, even if an alternate is available from recorded data.

-help Displays this information.

-identifyExecution Appends the host name and process ID to the

appName to help using unique names.

-noAutoEnable Use this option if you plan to enable the Replay tool

remotely.

-remoteAdministrationDomainId <int>

Enables remote administration and sets the domain ID

for the communication.

Default: remote administration is not enabled.

-srvName <name> Specifies a name that will be used to identify the

service.

-verbosity <value>

Specifies what type of logging information should be

printed.

Silent

Exceptions (both Connext DDS and the Replay tool)

Warnings (the Replay tool only)

Information (the Replay tool only)

Warnings (both Connext DDS and the Replay tool)

Tracing (the Replay tool only)

Tracing (both Connext DDS and the Replay tool)

Default: 1

-version Prints the Replay tool’s version.

Performance and Indexing

6-3

6.4 Performance and Indexing

The Replay tool replays stored samples in the same order in which they were received, using

SQLite indexes to retrieve the samples in sorted order. SQLite automatically builds indexes

when opening an SQLite table for sorted access, and for large tables the process of building the

index may take some time.

To improve initialization performance, the Replay tool attempts to create and store indexes (rather

than depend upon automatic indexing) for the tables that it will be replaying; this saves initial-

ization time on subsequent replays.

The Replay tool's ability to store indexes is controlled by the <readonly> parameter under

<replay_database> (see Database (Input File) Properties (Section 7.4)). The default value for

<readonly> is false; this allows the Replay tool to write the table indices to the database. If you

change <readonly> to true, the Replay tool will display a message during initialization for each

table opened, stating that it was unable to store the table index.

In summary, the replay performance of the Replay tool is not affected by the <readonly> parame-

ter. The Replay tool will use the fastest means of retrieving samples in either case. But setting the

<readonly> option to false (the default) may help improve initialization performance.

7-1

Chapter 7 Configuring the Replay Tool

When you start the Replay tool, you must specify a configuration file in XML format. In that file,

you can set properties that control the data source, which topics to replay, and attributes such as

the replay speed. This chapter describes how to write a configuration file.

7.1 How to Load Replay’s XML Configuration File

The Replay tool loads its XML configuration from multiple locations. This section presents the

various approaches, listed in load order.

The first three locations only contain QoS Profiles and are inherited from Connext DDS (see

Chapter 15 in the RTI Connext DDS Core Libraries User's Manual).

❏<NDDSHOME>/resource/xml/NDDS_QOS_PROFILES.xml

This file contains the Connext DDS default QoS values; it is loaded automatically if it

exists. (First to be loaded.)

❏File in NDDS_QOS_PROFILES

The files (or XML strings) separated by semicolons referenced in this environment vari-

able are loaded automatically.

❏<working directory>/USER_QOS_PROFILES.xml

This file is loaded automatically if it exists. If the USER_QOS_PROFILES file is found and

there is a default profile specified in it, this default profile is automatically applied to the

QoS settings of the Recording Service entities.

The next locations are specific to Replay:

❏<NDDSHOME>/resource/xml/RTI_REPLAY_SERVICE.xml

This file contains the default configuration for the Replay tool; it is loaded if it exists.

RTI_REPLAY_SERVICE.xml defines a configuration that replays all topics on domain 0.

❏<working directory>/USER_REPLAY_SERVICE.xml

This file is loaded automatically if it exists.

❏The file specified with the command-line option, -cfgFile (see Table 6.1 on page 6-2).

You may use a combination of the above approaches.

General Format

7-2

7.2 General Format

The Replay configuration file uses XML format. The main sections use the following top-level

tags:

The XML configuration file used by Replay has a simple hierarchical format. The replay_service

is configured to replay data contained in one or more replay_database. Each replay_database is

associated with a DomainParticipant, and must contain one or more session. Each session is asso-

ciated with a Publisher, and corresponds to a unique execution thread. Each session contains one

or more replay_topic, each of which is associated with a DataWriter, and contains a filter expres-

sion that specifies what information contained in the data base should be replayed. Each of the

four major levels— replay_service, replay_database, session, and replay_topic—may contain a

time_control element that allows control over such features as the rate of replay, how much of

the available data to be replayed, and for coordination.

Much of Replay’s configuration has been designed to be compatible with the Record tool, so

familiarity with the Record tool’s concepts and configuration will be helpful. See Chapter 4: Con-

figuring the Record Tool.

Let’s look at a very basic configuration, just to get an idea of its contents. You will learn the

meaning of each line as you read the rest of this chapter.

<dds>

<replay_service name="default">

<domain_id> 1 </domain_id>

</administration>

<time_control>

<start_time> 6 </start_time>

</time_control>

<auto_exit> yes </auto_exit>

<replay_database name="simple_config">

<filename> replay_database.dat_0_0 </filename>

<domain_id> 0 </domain_id>

</participant>

<time_control>

Top-level Tag Reference Section

<replay_service> General Properties for Replay (Section 7.3)

<replay_database> Database (Input File) Properties (Section 7.4)

<session> Session Properties (Section 7.5)

<replay_topic> Replay Topic Properties (Section 7.6)

<time_control> Time Control Properties (Section 7.7)

<administration> Remote Administration Properties (Section 7.8)

<type_config> Type Configuration (Section 7.9)

General Properties for Replay

7-3

</time_control>

<publisher_qos></publisher_qos>

<replay_topic name="all_topics">

<time_control>

<stop_time> 26 </stop_time>

</time_control>

<topic_name> * </topic_name>

<type_name> * </type_name>

<record_group_name> * </record_group_name>

<domain_name> * </domain_name>

</input>

<datawriter_qos></datawriter_qos>

</output>

</replay_topic>

</session>

</replay_database>

</replay_service>

</dds>

7.3 General Properties for Replay

Table 7.1 describes optional properties that control the Replay tool’s main module.

All <replay_service> properties are optional except replay_database.

These properties must be specified inside <replay_service name=”String”> and

</replay_service> tags, where String is the name to be assigned to the service entity when it is

created. This name will be used during remote administration unless it is overridden by the

<administration> <name> element.

Table 7.1 Replay Service Properties

Property Syntax Description

administration

Remote Admin.

Properties

</administration>

Configures the DomainParticipant that can be used to

remotely control Replay via the rtireplaysh utility.

See Remote Administration Properties (Section 7.8).

The Remote Administration Properties must specify a

domain_id. You may also specify a name, participant_qos,

publisher_qos, subscriber_qos, datareader_qos, and

datawriter_qos.

auto_exit

<auto_exit>

DDS_Boolean

</auto_exit>

Controls whether or not the Replay tool should terminate

when all the available data specified in the initial

configuration has been replayed.

Default: True

Database (Input File) Properties

7-4

7.4 Database (Input File) Properties

Table 7.2 describes the source of the data that Replay will replay.

All <replay_database> properties are optional except session.

These properties must be specified inside <replay_database name=”String”> and

</replay_database> tags, where String is the name to be assigned to the database entity when it

is created. This name will be used during remote administration.

replay_database

<replay_database>

Replay Database Properties

</replay_database>

Required. Specifies configuration properties that describe

how to replay the information from a database. This

element can be repeated.

See Database (Input File) Properties (Section 7.4)

time_control

<time_control>

Time Control Properties

</time_control>

Specifies time configuration properties to be applied to

the Replay tool as a whole.

See Time Control Properties (Section 7.7).

Table 7.1 Replay Service Properties

Property Syntax Description

Table 7.2 Replay Database Properties

Properties

under

<replay_

database>

Syntax Description

filename

String

</filename>

Specifies the name of the fileset that

contains the data to be replayed.

Do not use both <filename> and

<fileset> at the same time.

Default: Undefined

fileset

<path_prefix>String</path_prefix>

<set_number>DDS_Long</set_number>

<start_segment>DDS_Long</start_segment>

<end_segment>DDS_Long</end_segment>

</fileset>

Specifies a fileset to be used by the

Replay tool. This fileset must contain the

file prefix to be searched for, the set

number, and the start and end segments.

Do not use both <filename> and

<fileset> at the same time.

Note: The fileset replay feature is not

compatible with the reposition

command for timestamps outside of the

current segment being replayed.

participant

Participant Properties

</participant>

See Table 7.3, “Participant Properties”

Database (Input File) Properties

7-5

Note:

❏If you do not set the <participant_name> property in the <participant_qos> settings, the

Replay tool will automatically build a participant name and set it using the prefix "RTI

Replay: ". This is for compatibility with RTI Administration Console. If this property is

readonly

DDS_Boolean

</readonly>

Specifies if Replay should open the data

file in read-only mode (true), or read-

write mode (false). Setting this option to

false is useful to enable indexing of

older database files.

Default: False

See Performance and Indexing (Section

6.4).

session

Session Properties

</session>

Required

The configuration properties that

describe how to replay the information

in a session. This element can be

repeated.

See Table 7.4, “Session Properties”

time_control

<time_control>

Time Control Properties

</time_control>

The time configuration properties to be

applied to the replay database.

See Table 7.8, “Time Control Properties”

type_config

<type_config>

XML Properties

</type_config>

Optional XML type configuration for

this replay_database. This option is useful

when type codes have not been

recorded in the database, or when

specifying types that are too large to be

recorded in the database.

See Table 7.13, “XML Type

Configuration Properties”

Table 7.3 Participant Properties

Properties

under

Syntax Description

domain_id

<domain_id>

DDS_Long

</domain_id>

Sets the domain ID. Default: 0

participant_qos

<participant_qos>

DDS_QosPolicy

</participant_qos>

Configures the DomainParticipant’s QoS policies. See the

RTI Connext DDS Core Libraries User’s Manual’s chapter on

Configuring QoS with XML.

Defaults: See the RTI Connext DDS API Reference HTML

documentation on DomainParticipants.

See the Note: below for more information.

Table 7.2 Replay Database Properties

Properties

under

<replay_

database>

Syntax Description

Session Properties

7-6

changed, the Replay tool won't override the property, but compatibility between the

Replay tool and RTI Administration Console will be broken if the participant name is not

prefixed with "RTI Replay: " (notice the space after the colon).

7.4.1 Enabling Monitoring Library with Replay

This section only applies if you want to use RTI Monitoring Library (included in Connext DDS),

which enables Connext DDS applications to provide monitoring data. The monitoring data can

be visualized with RTI Monitor, a separate GUI application that can run on the same host as

Monitoring Library or on a different host. Recording Service is statically linked to Monitoring

Library (you do not have to install it separately).

To enable monitoring in the Replay tool, use the same approach described in Enabling Monitor-

ing Library in the Record Tool (Section 4.7.1). In the <replay_database> section, include the

rti.monitor.library property with the value rtimonitoring. For example:

<domain_id>0</domain_id>

<participant_qos>

<value>

<name>rti.monitor.library</name>

<value>rtimonitoring</value>

<propagate>false</propagate>

</element>

</value>

</property>

</participant_qos>

</participant>

7.5 Session Properties

Table 7.4 describes the Session’s properties.

All <session> properties are optional except replay_topic.

These properties must be specified inside <session name=”String”> and </session> tags, where

String is the name to be assigned to the session entity when it is created. This name will be used

during remote administration.

Table 7.4 Session Properties

Properties

under

Syntax Description

publisher_qos

<publisher_qos>

DDS_QosPolicy

</publisher_qos>

Configures the Publisher’s QoS policies. See the RTI

Connext DDS Core Libraries User’s Manual’s chapter on

Configuring QoS with XML.

Defaults: See the RTI Connext DDS API Reference HTML

documentation on Publishers.

replay_topic

<replay_topic>

Replay Topic Properties

</replay_topic>

Required. The configuration properties that describes the

topics to be replayed, and the associated DataWriter

configuration. This element can be repeated. See Table 7.5,

“Replay Topic Properties”

Replay Topic Properties

7-7

7.6 Replay Topic Properties

Table 7.5 describes the Topics’ properties.

All <replay_topic> properties are optional except input.

These properties must be specified within <replay_topic name=”String”> and

</replay_topic> tags, where String is the name to be assigned to the replay topic entity when it

is created. This name will be used during remote administration.

All input properties (Table 7.6) are required, except for type_name, which is optional.

All output properties (Table 7.7) are optional.

thread

Thread Properties

</thread>

Configures the properties for the execution thread.

time_control

<time_control>

Time Control Properties

</time_control>

Configures the time control properties to be applied to the

Session. See Table 7.8, “Time Control Properties”

Table 7.4 Session Properties

Properties

under

Syntax Description

Table 7.5 Replay Topic Properties

Properties

under

<replay_

topic>

Syntax Description

input

<input>

Input Properties

</input>

Required. Configures the topics that are to be replayed

from the database. See Table 7.6, “Input Properties”.

output

Output Properties

</output>

Configures the attributes to be used in writing the replayed

topics. See Table 7.7, “Output Properties”.

time_control

<time_control>

Time Control Properties

</time_control>

Specifies time configuration properties to be applied to the

Session. See Table 7.8, “Time Control Properties”.

Table 7.6 Input Properties

Properties

under

<input>

Syntax Description

domain_name

<domain_name>

String

</domain_name>

Required. Specifies the name of the domain_name that was

specified in the Record tool’s configuration file or a regular

or wildcard expression.

record_group_

name

<record_group_name>

String

</record_group_name>

Required. Specifies the name of the record_group that was

specified in the Record tool’s configuration file or a regular

or wildcard expression.

Replay Topic Properties

7-8

7.6.1 Type Selection

This sections explains how the Replay tool obtains the type version (TypeCode) and the regis-

tered type name that will be used to replay a topic “T”.

❏First, if there are XML type-configuration settings (<type_config>) for the replay data-

base (see Section 7.9) and the name of the topic to be replayed matches any of the topic

name expressions provided using the <topics> tag within <type>, the Replay tool will use

the XML definition of the type. The registered type name will be determined as follows:

1. The type name explicitly defined by the user in

<replay_topic><input><type_name>.

2. If <type><register_top_level> is false, the name provided in

3. The canonical name (fully qualified name in the XML file) of the type.

❏Second, if there is no XML type definition, the Replay tool will first try to get a candidate

registered type name as follows:

topic_name

<topic_name>

String

</topic_name>

Required. Specifies the name of the topic_name that was

specified in the Record tool’s configuration file or a regular

or wildcard expression.

type_name

<type_name>

String

</type_name>

Specifies the name of the type_code to be used in writing

matching topics. This parameter will default to “*” if not

specified. Replay will search for a matching type name only

within matching topic records.

Table 7.7 Output Properties

Properties

under

Syntax Description

datawriter_qos

<datawriter_qos>

DDS_DataWriterQos

</datawriter_qos>

Specifies the QoS settings for all DataWriters created for this

Replay_Topic. A DataWriter is created for each Topic that

matches the topic_expr. All the DataWriters for the

Replay_Topic will use the same set of QoS policies. You can

specify all of the QoS policies with this datawriter_qos

property.

See the RTI Connext DDS Core Libraries User’s Manual’s

chapter on Configuring QoS with XML.

topic_name

<topic_name>

String

</topic_name>

Specifies the name to be assigned to the topic when

creating a DataWriter to write the data to be replayed.

topic_qos

<topic_qos>

DDS_TopicQos

</topic_qos>

Specifies the QoS settings to be applied to the topic when

creating a DataWriter to write the data to be replayed.

type_name

<topic_name>

String

</topic_name>

Specifies the name to be assigned to the type when creating

a DataWriter to write the data to be replayed.

Table 7.6 Input Properties

Properties

under

<input>

Syntax Description

Time Control Properties

7-9

1. The type name explicitly defined by the user in

<replay_topic><input><type_name>.

2. If there is no explicit type name, the Replay tool will try to get the name using the col-

umn type_name in the DCPSPublication table. If the name is not unique, the Replay

tool will report an error.

❏Third, if a valid registered type name was obtained, the Replay tool will try to get a type

definition (TypeCode) associated with the given registered type name as follows:

1. Using the type definitions under <type_config>

2. If there is no type definition available in XML, the tool will try to get the type defini-

tion using the typecode column in the DCPSPublication table. If there is no available

or unique type definition, the Replay tool will report an error.

7.7 Time Control Properties

The <time_control> element can be applied to any of Replay’s major entities: <replay_service>,

<replay_database>, <session>, and <replay_topic>.

❏The index time of the <replay_service> is the earliest index time of all of its component

replay_database entities.

❏The index time of a <replay_database> is the earliest timestamp of the database, taken

from its creation log.

❏The index time of a <replay_topic> is the earliest timestamp of the topic, taken from the

first recorded sample of the topic.

All time control properties are optional.

The start_time and stop_time values of a child entity are constrained by the start_time and

stop_time settings of its parent entities. If a start_time or stop_time value is explicitly specified

and constrained by one of its parent entities, Replay will issue a warning that the value has been

truncated.

The start_mode of a child entity overrides the start_mode setting of its parent entities.

The time_mode value of a child entity cannot be applied to a parent entity (e.g.,

TOPIC_RELATIVE cannot be applied to the time_control time_mode element of a <session>,

<replay_database>, or <replay_service>).

7.8 Remote Administration Properties

The Replay tool can be controlled remotely, by either the rtireplaysh utility, or by a Connext DDS

application that reads and writes the remote administration topic.

For security reasons, Remote Administration is turned off in the Replay tool by default.

The Remote Administration section of the configuration file is used to enable Remote Adminis-

tration and configure its behavior. This section is not required in the configuration file.

The rtireplaysh utility or a remote application can send commands to the Replay tool to:

❏Start/stop/pause/resume/step the Replay tool or any of its individual entities.

Remote Administration Properties

7-10

❏Change the speed of replay of the Replay tool or any of its individual entities.

❏Query the status of the Replay tool or any of its individual entities.

Table 7.8 Time Control Properties

Properties

under

<time_control>

Syntax Description

rate

<rate>

Real Number

</rate>

Specifies the replay rate, expressed as a multiple of the original

rate at which the data was recorded. (Therefore 1 means the

same as the original rate, 2 means twice as fast, etc.)

Although this rate may be specified as a real decimal number,

the internal resolution of the rate value is stored as a

percentage with two decimal places. The rate may also be

configured with the special value “AS_FAST_AS_POSSIBLE”,

which directs Replay to replay the data without any

intervening time between samples.

The minimum value is 0.01 (1% of the original rate.)

Default: 1

start_mode

<start_mode>

Start Mode

</start_mode>

Sets the starting mode of the entity, as described in Table 7.9,

“Start Mode Values”. Default: AUTOMATIC

start_offset

<start_offset>

DDS_Duration

</start_offset>

The time to offset the selected entity’s starting time from its

parent entity. This value is used for synchronizing data that is

replayed from different sources.

When applied to the <replay_service>, Replay will delay for

the number of seconds specified between the creation of the

entities and the start of replay. (To allow for discovery, for

example).

When applied to a <replay_database>, this time is the

amount of offset between the index time of the replay_service

and the index time of the database.

When applied to a <replay_database>, this time allows an

additional DDS_Boolean element, <auto_offset>, which if set

TRUE directs Replay to automatically calculate the offset

between the index time of the <replay_database> and the

index time of the <replay_service>. This value should not be

applied to <session> or <replay_topic>.

Default: 0

start_time

<start_time>

DDS_Duration

</start_time>

The time of the recorded data at which replay is to begin. The

time is interpreted based on the setting of time_mode.

Although expressed as <sec> and <nanosec>, the internal

resolution of Replay is limited to milliseconds. Default: 0

stop_time

<stop_time>

DDS_Duration

</stop_time>

The time of the recorded data at which replay is to stop. The

time is interpreted based on the setting of time_mode.

Although expressed as <sec> and <nanosec>, the internal

resolution of Replay is limited to milliseconds.

Default: Infinity

time_mode

<time_mode>

Time Mode

</time_mode>

Describes how the start_time and stop_time parameters

should be interpreted. See Table 7.10, “Time Mode Values”.

Default: DATABASE_RELATIVE, except when applied to a

replay_service entity, whose default is SERVICE_RELATIVE.

Remote Administration Properties

7-11

❏Reposition the Replay tool or any of its entities to any point in the replay range specified

for playback.

Chapter 8: Accessing the Replay Tool from a Remote Location describes the command format

and individual commands available in rtireplaysh, Replay’s remote administration utility.

Table 7.11 describes the Remote Administration properties. All remote administration properties

are optional.

All Remote Administration properties must be specified inside <administration> and </admin-

istration> tags.

7.8.1 Enabling RTI Distributed Logger in the Replay Tool

The Replay tool provides integrated support for RTI Distributed Logger (included in Connext

DDS).

When you enable Distributed Logger, the Replay tool will publish its log messages to Connext

DDS. Then you can use RTI Monitor1 to visualize the log message data. Since the data is pro-

Table 7.9 Start Mode Values

Enumeration

Val u e Description

AUTOMATIC Replay of the entity begins automatically. For subordinate entities, replay begins when

parent replay starts.

LOOP

Replay of the selected section begins automatically, and is restarted immediately after

the last data sample of the entity has been replayed. For example, replay_topics with

start_mode LOOP will each restart as soon as each topic has completing its replay, while

a session with start_mode LOOP will restart only when all of its topics have completed

replay.

Note: Currently this mode is operational only for session and replay_topic entities.

MANUAL

Replay of the entity begins when explicitly directed by remote administration. When an

entity is manually started, all of its child entities with AUTOMATIC start_mode will

also be started at the same time, and so forth continuing to the lowest child.

MATCHED CURRENTLY NOT SUPPORTED.

Replay begins after each child DataWriter has detected at least one matched reader.

Table 7.10 Time Mode Values

Enumeration

Val ue Description

ABSOLUTE The start_time and stop_time values are in absolute timestamps and will be used

without modification.

DATABASE_

RELATIVE

The start_time and stop_time values are relative to the replay_database’s index time (i.e.,

the index time of the replay_database will be added to the start_time and stop_time

values, if specified).

SERVICE_

RELATIVE

The start_time and stop_time values are relative to the replay_service’s index time (i.e.,

the index time of the replay_service will be added to the start_time and stop_time values,

if specified).

TOPIC_

RELATIVE

CURRENTLY NOT SUPPORTED.

The start_time and stop_time values are relative to the earliest timestamp of the topic

(i.e., the index time of the topic will be added to the start_time and stop_time values, if

specified).

1. RTI Monitor is a separate GUI application that can run on the same host as your application or on a different host.

Remote Administration Properties

7-12

vided in a Connext DDS topic, you can also use rtiddsspy or even write your own visualization

tool.

To enable Distributed Logger, modify the Replay tool’s XML configuration file. In the <administra-

tion> section, add the <distributed_logger> tag as shown in the example below.

<name>Replay Service using Distributed Logger</name>

<domain_id>99</domain_id>

Table 7.11 Remote Administration Properties

Properties under

<administration> Syntax Description

datareader_qos

<datareader_qos>

DDS_DataReaderQos

</datareader_qos>

Configures the QoS for the DataReader created by

the Replay tool’s Remote Access module.

Defaults: See the RTI Connext DDS API Reference

HTML documentation on DataReaders.

datawriter_qos

<datawriter_qos>

DDS_DataWriterQos

</datawriter_qos>

Configures the QoS for the DataWriter created by

the Replay tool’s Remote Access module.

Defaults: See the RTI Connext DDS API Reference

HTML documentation on DataWriters.

distributed_logger

<distributed_logger>

Distributed Logger

Properties

</distributed_logger>

Configures RTI Distributed Logger.

See Enabling RTI Distributed Logger in the

Replay Tool (Section 7.8.1).

domain_id

<domain_id>

DDS_Long

</domain_id>

Sets the domain ID.

Default: 0

name <name>String</name>

Assigns a name to the replay service. You can use

this name when sending commands via Replay

Shell (see Section 6.4).

participant_qos

<participant_qos>

DDS_ParticipantQos

</participant_qos>

Configures the QoS for the Participant created by

the Replay tool’s Remote Access module.

Defaults: See the RTI Connext DDS API Reference

HTML documentation on DomainParticipants.

publisher_qos

<publisher_qos>

DDS_PublisherQos

</publisher_qos>

Configures the QoS for the Publisher created by

the Replay tool’s Remote Access module.

Defaults: See the RTI Connext DDS API Reference

HTML documentation on Publishers.

status_period

<status_period>

DDS_Duration

</status_period>

Specifies, in seconds and nanoseconds, the period

between each status message sent by the Replay

Service to the Replay Shell.

When this value is set to zero (the default), no

status message is sent.

Applications that want to periodically poll the

status of the Replay service they administer

should provide a value for this property.

Default: 0 (no status is sent)

subscriber_qos

<subscriber_qos>

DDS_QosPolicy

</subscriber_qos>

Configures the QoS for the Subscriber created by

the Replay tool’s Remote Access module.

Defaults: See the RTI Connext DDS API Reference

HTML documentation on Subscribers.

Type Configuration

7-13

<distributed_logger>

</distributed_logger>

</administration>

There are more configuration tags that you can use to control Distributed Logger’s behavior. For

example, you can specify a filter so that only certain types of log messages are published. For

details, see the RTI Distributed Logger section of the RTI Connext DDS Core Libraries User’s Manual.

7.9 Type Configuration

The <type_config> element allows you to pass type configuration information to the Replay tool

in the form of XML type-configuration files.

Table 7.12 describes the Type Configuration properties. All Type Config properties are optional.

Table 7.12 Type Configuration Properties

Properties

under

<type_config>

Syntax Description

xml

<xml>

XML Type Configuration

Properties

</xml>

Allows you to specify XML type-configuration

files, the path in which to find them, and other

properties related to the registration of the types

with the DomainParticipants.

The XML type configuration for this domain

group. See Table 7.13, “XML Type Configuration

Properties”.

Table 7.13 XML Type Configuration Properties

Properties

under

<xml>

Syntax Description

file_group

<file_group>

File Group Properties

</element>

<file_group>

Allows you to specify XML file groups; each of

these files contain type definitions to be used by

the Replay tool. The element tag can be repeated.

See Table 7.14, “File Group Properties”.

max_sequence

<max_sequence>

Integer

</max_sequence>

The default sequence size, in case there are

unbounded sequences in the type definitions

specified in the any of the files specified in any of

the file groups.

max_string

<max_string>

Integer

</max_string>

The default string size, in case there are

unbounded strings in the type definitions

specified in any of the files specified in any of the

file groups.

Recording Service Integration with Extensible Types

7-14

7.10 Recording Service Integration with Extensible Types

The Replay tool includes partial support for the "Extensible and Dynamic Topic Types for DDS"

specification from the Object Management Group (OMG)1. This section assumes that you are

path

<path>

</path>

A list of the paths (relative or absolute) to be used

when searching for the XML type definition files.

The <element> tag can be repeated.

register_top_level

<register_top_level>

Boolean

</register_top_level>

Whether or not to register the top-level types

found in the type definitions with their canonical

names. Do this with any of the files defined in

any of the file groups. Default: TRUE.

Table 7.14 File Group Properties

Properties under

<file_group>

Syntax Description

file_name

<file_name>

File Name string

</element>

</file_name>

A list of file name strings, specifying files containing

the type definitions. The element tag can be repeated.

max_sequence

<max_sequence>

Integer

</max_sequence>

The default sequence size in case there are

unbounded sequences in the type definitions speci-

fied in the any of the files specified in this specific file

group.

max_string

<max_string>

Integer

</max_string>

The default string size in case there are unbounded

strings in the type definitions specified in any of the

files specified in this specific file group .

register_top_level

<register_top_level>

Boolean

</register_top_level>

Whether or not to register the top-level types found

in the type definitions with their canonical names. Do

this with any of the files found in this specific file

group. The value of this setting overrides the value of

the upper-level setting (see Table 7.13, “XML Type

Configuration Properties”). Default: TRUE.

type

<type>

Type

Registration

Properties

</element>

</type>

Specific type properties. A list of type registration

properties used to define how a type found in the

files has to be registered by Recorder in the Domain-

Participants. See Table 7.15, “Type Registration Prop-

erties”

Table 7.13 XML Type Configuration Properties

Properties

under

<xml>

Syntax Description

1. http://www.omg.org/spec/DDS-XTypes/

Recording Service Integration with Extensible Types

7-15

familiar with Extensible Types and you have read the RTI Connext DDS Core Libraries Getting

Started Guide Addendum for Extensible Types.

❏The Replay tool can publish topics associated with optional, final, mutable, and extensible

types.

❏Users can provide an XML definition of the type that must be used by the Replay tool to

publish a topic. The XML description supports structure inheritance and type mutability

(described in the RTI Connext DDS Core Libraries Getting Started Guide Addendum for

Extensible Types).

7.10.1 Selecting the Type Version to use when Replaying a Topic

With Extensible Types, it is possible to have multiple versions of a type associated with a topic

“T”. Recording Service allows you to select the type version that will be used to record the data

(see Section 4.10). However, Recording Service persists the type description (TypeCode) corre-

sponding to each one of the discovered versions in the DCPSPublication table.

The type used by the Replay tool to replay a certain topic is obtained as described in Type Selec-

tion (Section 7.6.1). When a unique type name and type-code exist for a topic in the DCPSPubli-

cation table, the Replay tool will be able to use that information to replay it. In any other case,

XML Type Configuration is needed. As an example, imagine that we have the database recorded

in the example shown in Selecting a Type Version For a Topic “T” In a Recording Domain (Sec-

tion 4.10.1). It is recorded using the extended type version of the Shapes Demo types. In order to

replay the tables in the database as samples of the base type version, we could configure the

Replay tool in the following manner:

<replay_service name="baseShapeTypeReplay">

Table 7.15 Type Registration Properties

Properties

under

<type>

Syntax Description

register_top_

level

<register_top_level>

Boolean

</register_top_level>

Whether or not to register this type's canonical name

(as defined in tag type_name) with the DomainPar-

ticipant. This name is registered alongside any of the

registration type names defined in tag

registered_type_name above. Default: TRUE.

registered_

type_name

<registered_type_name>

Registration

name string

</element>

</registered_type_name>

When registering the type with the DomainPartici-

pant, this setting defines a list of names to register

the type with. The element tag can be repeated.

topics

Topic name string

</element>

This is a list of regular POSIX fn-name expressions

(every <element> entry is equivalent to an expres-

sion). A topic whose name matches any of the

expressions will be recorded using the type defini-

tion designated by <type_name>. If a topic matches

more than one expression in different <type>

entries, the first one that was matched will be used.

type_name

<type_name>

Type Name string

</type_name>

A string representing the canonical type name as

defined in the XML type definition for the type.

Recording Service Integration with Extensible Types

7-16

<auto_exit>true</auto_exit>

<replay_database name="baseShapeTypeReplay_Database">

<filename>shapes.dat_0_0</filename>

<type_config>

<xml>

<file_group>

<register_top_level>false</register_top_level>

<file_name>

<element>ShapeType.xml</element>

</file_name>

<type>

<register_top_level>true</register_top_level>

<type_name>ShapeType</type_name>

<element>Circle</element>

<element>Square</element>

<element>Triangle</element>

</topics>

</element>

</type>

</element>

</file_group>

<path>

</path>

</xml>

</type_config>

<domain_id>0</domain_id>

</participant>

<replay_topic>

<input>

<topic_name>*</topic_name>

<domain_name>*</domain_name>

<record_group_name>*</record_group_name>

<type_name>*</type_name>

</input>

</replay_topic>

</session>

</replay_database>

</replay_service>

The example uses the same ShapeType.xml file defined in Selecting a Type Version For a Topic

“T” In a Recording Domain (Section 4.10.1) and Recording Two Versions of a Type in Different

Tables in Same Database (Section 4.10.2). By using the <topics> tag (see Table 7.15, “Type Regis-

tration Properties”) in the <type> settings in the XML Type Configuration, we make a direct

mapping of the topics to the type to be used for replay. The above configuration will result in all

Shapes Demo topics being replayed with the base ShapeType type definition.

7.10.2 Replaying Topics with Different Type Versions Stored in Different Tables

If the Record tool was set up to record each type version for a topic in its own table (see Record-

ing Two Versions of a Type in Different Tables in Same Database (Section 4.10.2)), it seems inter-

esting to be able to do the same with the Replay tool and have every type topic correctly replayed

with the original type version. This can be done by using different Replay database entities con-

Recording Service Integration with Extensible Types

7-17

figured to replay each of the recorded versions (distinguished by the name of the Recording Ser-

vice domain that recorded them).

Consider the following Replay configuration:

<replay_service name="bothVersionsShapesReplay">

<auto_exit>true</auto_exit>

<replay_database name="bothVersionsShapesReplay_Database">

<filename>shapes.dat_0_0</filename>

<type_config>

<xml>

<file_group>

<register_top_level>false</register_top_level>

<file_name>

<element>ShapeType.xml</element>

</file_name>

<type>

<register_top_level>true</register_top_level>

<type_name>ShapeType</type_name>

<element>Circle</element>

<element>Square</element>

<element>Triangle</element>

</topics>

</element>

</type>

</element>

</file_group>

<path>

</path>

</xml>

</type_config>

<domain_id>0</domain_id>

</participant>

<replay_topic>

<input>

<topic_name>*</topic_name>

<domain_name>domain0Base</domain_name>

<record_group_name>*</record_group_name>

<type_name>*</type_name>

</input>

</replay_topic>

</session>

</replay_database>

<replay_database name="bothVersionsShapesReplay_DatabaseExtended">

<filename>shapes.dat_0_0</filename>

<type_config>

<xml>

<file_group>

<register_top_level>false</register_top_level>

<file_name>

<element>ShapeType.xml</element>

</file_name>

Recording Service Integration with Extensible Types

7-18

<type>

<register_top_level>false</register_top_level>

<type_name>ShapeTypeExtended</type_name>

<registered_type_name>

<element>ShapeType</element>

</registered_type_name>

<element>Circle</element>

<element>Square</element>

<element>Triangle</element>

</topics>

</element>

</type>

</element>

</file_group>

<path>

</path>

</xml>

</type_config>

<domain_id>0</domain_id>

</participant>

<replay_topic>

<input>

<topic_name>*</topic_name>

<domain_name>domain0Extended</domain_name>

<record_group_name>*</record_group_name>

<type_name>*</type_name>

</input>

</replay_topic>

</session>

</replay_database>

</replay_service>

In the above configuration, there are two Replay database entities, each replaying the base and

the extended version of the topics, respectively. This is done by specifying the adequate domain

name in the <replay_topic><input><domain_name> tags (one database replays domain

"domain0Base" and the other one replays "domain0Extended"). For each of these database enti-

ties, different XML Type Configuration settings are provided. Topics "Circle", "Square" and "Tri-

angle" are mapped to the type ShapeType in the base Database entity, and they are mapped to

the type "ShapeTypeExtended" in the extended Database entity.

Note: There is a known issue when accessing the same database file from different Replay data-

base entities when the indexes haven't been created yet1. There are three ways to avoid this

issue:

1. Record with the <recorder_database><create_index> flag set to true so that the indexes

are created by Recording Service while recording.

2. Set the <replay_database><readonly> to true. This will disable write-mode access to the

database and thus indexes won't be created. However, this can affect the performance

while replaying the data (see Performance and Indexing (Section 6.4)).

1. RTI Issue ID RECORD-318

Recording Service Integration with Extensible Types

7-19

3. Index the database tables offline by using any SQLite access tool (for an example, see

Chapter 9: Viewing Recorded Data) the indexes on the table can be created with the fol-

lowing SQL query (all on one line):

CREATE INDEX IF NOT EXISTS

"index$[table name]" ON "[table name]"(reception_timestamp);

For additional information on how to provide XML types to the Replay tool, see Type Configura-

tion (Section 7.9).

8-1

Chapter 8 Accessing the Replay Tool from a Remote

Location

The Replay Shell is a Connext DDS application that can remotely control the Replay tool.

To start the Replay Shell:

Open a command prompt1, change to the <NDDSHOME>/bin directory, and enter:

❏On Linux and Mac OS X systems:

rtireplaysh [options]

❏On Windows systems:

rtireplaysh.bat [options]

Table 8.1 lists the command-line options you can use when starting the Replay Shell. Once it is

started, you can use the commands in Table 8.2.

1. On Windows systems: from the Start menu, select Accessories, Command Prompt.

Table 8.1 Replay Shell’s Command-Line Options

Command-line Option Description

-cmdFile <file> A file that contains commands to be run.

-domainId <integer> Specifies the domain ID, an integer between 0 and 232.

Default: 0

-help Prints version information and a list of options.

-timeout <seconds> Maximum number of seconds to wait for a remote response.

Default: 15 seconds

-verbosity <value>

Specifies what type of logging information should be printed.

Silent

Exceptions (both Connext DDS and the Replay tool)

Warnings (the Replay tool only)

Information (the Replay tool only)

Warnings (both Connext DDS and the Replay tool)

Tracing (the Replay tool only)

Tracing (both Connext DDS and the Replay tool)

Default: 1

8-2

The Replay Shell commands use this format:

<command> <replay_service> [entity] [value]

where:

❏<command> is one of the supported commands (see Table 8.2).

❏<replay_service> is the name given to the Replay service by one of the following, in

descending order of precedence:

• The value specified with the -appName command-line option used when starting the

Replay tool (highest precedence)

• The value for the <replay_service><administration><name> element (see page 7-12)

• The value for the <replay_service> name attribute (lowest precedence) (see Section 7.3)

❏[entity] is any one of the service entities expressed in this hierarchical form: <database-

name>[::<session-name>[::<topic-name>]].

Note: In this release, not all commands are supported for all entity levels. Please see the Record-

ing Service Release Notes for details on which modes are currently supported.

The database-name must match a name from a <replay_database> tag in the configura-

tion file that you specified when starting the Replay tool , such as:

<replay_database name="simple_config">

Similarly, if you specify a session-name, it must match a name from a <session> tag

within the specified database, such as:

If you specify a topic-name, it must match a name from a <replay_topic> tag within the

specified session, such as:

<replay_topic name="All_Topic">

If you do not specify an entity, the command is applied to the replay service itself.

❏value depends on the command, see Table 8.2. Not all commands require a value.

Table 8.2 Replay Shell’s Commands

Command Description

exit Exits the shell.

goto

Repositions an entity to a specific point in the playback range (relative to the entity's start

and end times).

This command takes a timestamp argument, which is a string of digits of the form

"SSSSSSSSSSUUUUUU". The first ten digits specify seconds and the last six digits specify

microseconds.

pause Pauses replay of an entity.

query

Returns the status of an entity, including:

• If the entity is enabled, started, pending, paused, and completed

• The number of child topics owned by the entity

• The number of active child topics owned by the entity

The format of this status is "[ccccc dd dd]", where each c is either 'T' or 'F', and 'dd' is a dec-

imal number. The 'T' and 'F' entries represent enabled, started, pending, paused, and com-

pleted. The d’s are decimal numbers for how many child topics are owned by the entity

and how many active child topics are owned by the entity.

8-3

rate

Changes the replay rate of an entity.

The rate is a multiplier from 0.1 to 4 billion. It replays at the speed of the multiplier (2 = 2x,

0.5 = 1/2x, etc.)

Default: 1

resume Resume replay of an entity.

start Starts replay of an entity.

step Replays a single sample from the entity.

stop Stops replay of an entity.

Table 8.2 Replay Shell’s Commands

Command Description

9-1

Chapter 9 Viewing Recorded Data

The data can be viewed with any command-line or GUI-based tool capable of reading SQLite

databases.

9-2

10-1

Chapter 10 Converting and Exporting Recorded Data

Recording Service includes a Converter tool that enables serialized or deserialized data recorded

with the Record tool to be exported to CSV, HTML or XML formats. It also allows you to convert

serialized data tables into deserialized data tables so that the recorded data can be easily

explored via SQL/SQLite in a human-readable way.

To work with the database files created by the Record tool, Converter needs the

replay_compatibility flag to be turned on (see Table 4.2), otherwise conversion is not guaran-

teed to work properly.

Tables that were recorded with field filters (field_expr) cannot be converted.

General Usage

The script to launch Converter is in <NDDSHOME>/bin/. To start the tool, open a command

prompt, change to <NDDSHOME>/bin, and enter:

❏On Linux and Max OS X systems:

rtirecconv [options] fileset|filename

❏On Windows systems:

rtirecconv.bat [options] fileset|filename

The parameters fileset or filename represent the name of a recorded file set such as

recorded_db.dat_0 or a concrete file segment such as recorded_db.dat_0_0.

10.1 Exporting Data

Converter can export data recorded by the Record tool or Recording Console in three different for-

mats: CSV (comma-separated values), XML (default export format if not specified) and HTML.

Even if the exported table is serialized, the output format of the data is deserialized. By default,

only valid samples (data for which the valid_data Sample Info value was true) are exported;

Sample Info columns are not exported.

Here is an example of how a samples from RTI Shapes Demo is exported by Converter into XML

format (external XML formatting was applied after the conversion):

<Square_RecordAll_domain0

registered_type_name="ShapeType" topic_name="Square">

Exporting Data

10-2

<color length="7" max_length="0"> MAGENTA </color>

</sample>

...

</Square_RecordAll_domain0>

</rticonverter>

There are several options available to select how and what should be exported:

Flag Valu es Description

-format [ xml | csv | html ] Specifies what format to use to export the data. If this flag is not

specified, XML format is used.

-includeInfo If present in the call to Converter, the Sample Info fields will be

exported with each sample.

-includeNonData If present in the call to Converter, samples will be exported even if

the associated Sample Info valid_data property is false.

-compact [ auto | yes | no ]

The Record tool may store arrays and sequences of single-byte

primitive types (characters and octets) in compact mode. This

means that the array or sequence is stored in one only blob

column in the recorded database. Converter can detect how data

is stored in this regard and follow the same pattern when

exporting the data.

The auto mode (default) will detect the compactness of single-

byte collections and use it for exporting the data. There are ways

to force the converted data to be compact or non-compact. By

specifying yes, the single-byte collections will be exported in

compact form. By specifying no, the data will be exported in non-

compact form.

-decodeChar [ hex | text ]

This flag is used to specify how to export values of character type

in arrays or sequences. The default format is 'text'. Explanation of

the two formats:

Text: If the character being exported is printable, it's printed

directly. Otherwise, it's printed as two hex digits preceded by the

escape character '\' (e.g. '\0B'). If exporting to XML or HTML,

special/reserved characters like '>', '<', etc. are exported as their

equivalent, '&gt', '&lt' and so forth.

Hex: Every character is exported as two hex digits. Every

exported character is separated by a dash. For example, 0B-FA-

18-D3... and so on.

-decodeOctet [ hex | text ]

This flag is used to specify how to export byte values in arrays or

sequences.

Text: If the byte being exported is printable, it's printed directly

as a character would be printed. Otherwise, it's printed as two

hex digits preceded by the escape character '\' (e.g. \0B). If

exporting to XML or HTML, special/reserved characters like '>',

'<', etc. are exported as their equivalent, '&gt', '&lt' and so forth.

Hex (default): every character is exported as two hex digits.

Every exported character is separated by a dash. For example,

0B-FA-18-D3 represents four bytes.

Deserializing Serialized Tables

10-3

10.2 Deserializing Serialized Tables

Samples stored in serialized format are not human-readable. Exporting the data automatically

deserializes serialized data but it may be the case that we need to keep the data as a SQLite data-

base for inspection or data handling, or because we still want to be able to use the Replay tool.

Converter provides an option to process a SQLite database and transform all serialized tables

into deserialized tables: -deserialize. This option takes precedence over any other format option,

like HTML or XML. When -deserialize is included the format specifier is ignored.

By default, the new database file is created in the same location as the original one and the new

file is prefixed with "deserialized." followed by the original file's name. The two files, original

and deserialized, are equivalent. If the Replay tool was able to work with the original file, it will

be able to replay the deserialized file.

10.3 Handling Data Types

Converter infers the type-code that should be used to deserialize and/or export the data from the

DCPSPublication table and the topic name. However, the type-code may be missing, either

because it wasn't published (not propagated by DomainParticipants during discovery) or

because it was filtered by using field selection properties. It may also be desirable to force types

to be loaded using XML configuration, e.g. in cases where different versions of the types were

published and we want fine-grained control of the type being exported.

If the type-code is not directly accessible from the DCPSPublication table, Converter can provide

XML representation of the types via the Recorder XML configuration file and name. The follow-

ing command-line parameters can be used to provide Converter with XML type information::

-time [ epoch | gmt ]

Every sample that is exported includes a "Timestamp" field

which with the reception timestamp of the sample. This

timestamp can be exported in two ways:

epoch: The timestamp in nanoseconds since January 1 1970.

gmt: The timestamp in GMT time format. For example: Fri Oct 11

17:25:03 2013.

Flag Values Description

Flag Parameters Description

-typeConfig <XML configuration file>

When this option is present and a correct Recorder XML

configuration file and configuration name are provided,

the XML type configuration settings in the configuration

(see Recording Service Integration with Extensible Types

(Section 4.10) will be used to match the topics and types in

the database and provide type-codes for them.

-forceXMLTypes

This option forces Converter to obtain the type-codes from

the XML configuration provided via the -typeConfig

option, whenever possible.

Selecting Output Files

10-4

10.4 Selecting Output Files

Converter extracts the file set from the input file (or set) provided by the user and detects all

available segments for conversion. Conversion is performed on every segment, and there is only

one output file, which aggregates all the conversion results. So, for example, if we have file seg-

ments rti_record_default.dat_0_0 and rti_record_default.dat_0_1, running Converter on any of

the files or the file set (rti_record_default.dat_0) will convert both segments into the same file.

Note: It is not possible to convert a single segment with Converter. If there is more than one

recorded file in a fileset Converter will automatically detect it and convert all of them.

The output file is created by appending the appropriate file extension depending on the conver-

sion format. For example, if we are converting the fileset mentioned above into XML format, the

output file would be called rti_record_default.dat_0.xml, located in the same directory as the

original fileset.

You can, however, change the output file. The command-line options to alter the output file are

as follows:

10.5 Exporting Discovery Tables

Converter's default behavior is to export just the user topic tables, except when deserializing,

where the discovery tables are copied automatically to the deserialized SQLite database. It is

possible to tell Converter to export the discovery tables when converting. If the -includeDiscov-

ery option is present, Converter will export the discovery tables present in the recorded file

alongside the user data tables.

10.6 Filtering User Topic Tables

Converter provides the ability to filter the tables to be exported. If the -tableExpr <expression>

command-line option is used, Converter will export or convert tables that follow the patterns

described by this option. The expression parameter for this option is a POSIX fnmatch expres-

sion. The tableExpr option can be repeated. If the name of a table matches any of the expressions

provided with tableExpr, it is converted/exported; otherwise it isn't.

Flag Parameters Description

-outputFile <filename>

If this option is present and has a valid file name parameter, the conversion

results will be placed in the file passed as a parameter instead of the default

filename derived from the converted fileset's name.

-filePrefix <prefix>

This option has a string parameter used as a prefix for each of the output

files created.

This option cannot be used at the same time as -outputFile.

When this option is present, an output file is created for each table in the

fileset, prefixed with the prefix provided by the user.

For example, if a recording contains tables Table1 and Table2 and the -

filePrefix option is used with prefix "toXML", two output files will be

created: toXML_Table1.xml and toXML_Table2.xml.

Filtering User Topic Tables

10-5

Discovery tables are not affected by the tableExpr option. If -includeDiscovery is included, the

discovery tables will be exported normally. The -deserialize option will automatically include

the discovery tables in the output database file, no matter what table expression is used. How-

ever, user topic tables will be filtered according to the table expression.

11-1

Chapter 11 Example Configuration Files

This chapter shows how to configure the Record tool for a variety of situations:

❏How to Record All Topics in a Single Domain (Section 11.1)

❏How To Record a Subset of Data from Multiple Domains (Section 11.2)

❏How To Record Data to Multiple Files (Section 11.3)

❏How To Record Serialized Data (Section 11.4)

❏How To Record Using Best-Effort Reliability (Section 11.5)

❏How To Enable Remote Access (Section 11.6)

11.1 How to Record All Topics in a Single Domain

Scenario

You have a system with several nodes using domain ID 54. You want all the data in this system

to be recorded to a single file called mydomaindata. When the file is full, recording should stop.

The typecodes are available from the system.

Configuration File

<dds>

<recorder_database>

<database_name> mydomaindata </database_name>

<max_file_size> 1 GB </max_file_size>

</recorder_database>

<domain_id> 54 </domain_id>

</domain>

<topic_group name="All">

<topic_expr> * </topic_expr>

</topics>

<field_expr> * </field_expr>

</topic_group>

<record_group name="sub0">

<domain_ref>

<element> mydomain </element>

</domain_ref>

<topic_ref>

How To Record a Subset of Data from Multiple Domains

11-2

</element> All </element>

</topic_ref>

</record_group>

</recorder>

</dds>

Expected Outcome

The expected outcome is a single file about 4 GB with all the data in a file called

mydomaindata_0_0. By default, the Record tool will store deserialized data, so the file will have

one column for each field in the topic.

11.2 How To Record a Subset of Data from Multiple Domains

Scenario

You have a system with multiple domains, including domain IDs 54 and 98, and hundreds of

topics whose names contain “Sensor” (such as TemperatureSensor, HeatSensor, SensorTypes,

etc.), in addition to hundreds of other topics. You only want to record the topics that start with

“Sensor”, and from each of these topics, you only want to record the fields whose name includes

“value” (such as value_max, value_min, current_value).

Configuration File

<dds>

<recorder_database>

<database_name> mydomaindata </database_name>

<max_file_size> 1 GB </max_file_size>

</recorder_database>

<domain_id> 54 </domain_id>

</domain>

<domain_id> 98 </domain_id>

</domain>

<topic_group name="Sensor">

<topic_expr> Sensor* </topic_expr>

</topics>

<field_expr> *value* </field_expr>

</topic_group>

<record_group name="sub0">

<domain_ref>

<element> mydomain54 </element>

</domain_ref>

<topic_ref>

</element> All </element>

</topic_ref>

</record_group>

<record_group name="sub1">

<domain_ref>

<element> mydomain98 </element>

</domain_ref>

<topic_ref>

</element> All </element>

</topic_ref>

How To Record Data to Multiple Files

11-3

</record_group>

</recorder>

</dds>

Expected Outcome

The expected outcome is a single file about 4 GB, with all the data in a file called

mydomaindata_0_0. By default, the Record tool will store deserialized data; so the file will have

one column per field in the topic.

11.3 How To Record Data to Multiple Files

Scenario

The Record tool is recording data on a system that supports files up to 4 GB in size. However,

you want to record more than 4 GB of data.

Configuration File

<dds>

<recorder_database>

<database_name> mydomaindata </database_name>

<max_file_size> 2000 kB </max_file_size>

<max_file_segments> 1000 </max_file_segments>

</recorder_database>

...

</recorder>

</dds>

Expected Outcome

Up to 1,000 files will be created if necessary, named mydomaindata_0_0, mydomaindata_0_1,

etc., up to mydomaindata_0_999.

11.4 How To Record Serialized Data

Scenario

Due to space limitations and speed, you want to store serialized data.

Configuration File

<dds>

...

<domain_id> 98 </domain_id>

<deserialize_mode> RTIDDS_DESERIALIZEMODE_NEVER</

deserialize_mode>

</domain>

...

</recorder>

</dds>

How To Record Using Best-Effort Reliability

11-4

Expected Outcome

All samples will be stored in a single column, along with SampleInfo and other meta-data.

11.5 How To Record Using Best-Effort Reliability

Scenario

You have a system with multiple DataWriters of the same topic. Some of these use best-effort

reliability, while others use strict reliability. You want to minimize the impact that the Record tool

has on the system.

Configuration File

<dds>

...

<topic_group name="Sensor">

<topic_expr> Sensor* </topic_expr>

</topics>

<field_expr> *value* </field_expr>

<datareader_qos>

<kind> BEST_EFFORT_RELIABILITY_QOS </kind>

</reliability>

</datareader_qos>

</topic_group>

...

</recorder>

</dds>

Expected Outcome

The Record tool will use DataReaders with best-effort Reliability to record all data.

11.6 How To Enable Remote Access

Scenario

The Record tool is part of a larger system that must reach a steady state before it starts recording.

The Record tool should use domain ID 54 and partition “rti” for communication with the control-

ler.

Configuration File

<dds>

...

<remote_access>

<publish_status_period> 10 </publish_status_period>

<remote_access_domain> domain54 </remote_access_domain>

<subscriber_qos>

<name>

How To Enable Remote Access

11-5

</name>

</partition>

</subscriber_qos>

</remote_access>

<domain_id> 54 </domain_id>

</domain>

...

</recorder>

</dds>

Expected Outcome

The Record tool will communicate with a remote controller on domain ID 54 using partition

“rti.” Status information will be published every 10 seconds.

A-1

Appendix A Fields Available for Recording

This appendix lists the fields that are available for the Record tool to store in both user topic

tables and discovery tables. See Section 4.5.1 to learn how to include or exclude fields from the

recorded tables.

A.1 User Topic Tables

The fields in Table A.1 are available for storing with the user data samples being recorded in

user topic tables. Fields coming from the SampleInfo objects are prefixed with "SampleInfo_".

More information on the meaning of the fields can be found in the RTI Connext DDS API Refer-

ence HTML documentation. The units of the timestamp fields are nanoseconds.

The Record tool stores two metadata fields with the user topic tables: the domain ID and the

table prefix (see the shared_table property in Table 4.13 for more information on table prefixes).

User data fields are stored after column SampleInfo_valid_data. When recording in serialized

format, the column storing the sample is called rti_serialized_sample. The sample's endianness

and length are stored in columns rti_serialized_endian and rti_serialized_length, respectively.

Table A.1 Fields Available to Store in User Topic Tables

Field Name SQL Type

SampleInfo_reception_timestamp INTEGER

SampleInfo_source_timestamp INTEGER

SampleInfo_valid_data INTEGER

SampleInfo_publication_seq_nr INTEGER

SampleInfo_subscription_seq_nr INTEGER

SampleInfo_sample_state INTEGER

SampleInfo_instance_state INTEGER

SampleInfo_instance_handle BLOB

SampleInfo_publication_handle BLOB

SampleInfo_disposed_generation_count INTEGER

SampleInfo_no_writers_generation_count INTEGER

SampleInfo_sample_rank INTEGER

SampleInfo_generation_rank INTEGER

SampleInfo_absolute_generation_rank INTEGER

DCPSParticipant Table (Discovery)

A-2

A.2 DCPSParticipant Table (Discovery)

The DCPSParticipant table stores the samples of the built-in discovery topic DCPSParticipant

samples received by the Record tool. Samples of this topic are prefixed with "ParticipantData_".

Alongside every sample of the discovery topic, the Sample Info object received is also stored

(and prefixed with "SampleInfo_"). For more information on this topic, see the RTI Connext DDS

Core Libraries API Reference HTML documentation. The Record tool stores two metadata fields

with this table: the domain ID and the name of the Recorder Domain object as defined in the

recorder configuration that generated the discovery traffic.

SampleInfo_original_publication_virtual_guid BLOB

SampleInfo_original_publication_virtual_seq_nr INTEGER

SampleInfo_related_original_publication_virtual_guid BLOB

SampleInfo_flag INTEGER

SampleInfo_source_guid BLOB

SampleInfo_related_source_guid BLOB

SampleInfo_related_subscription_guid BLOB

SampleInfo_related_original_publication_virtual_seq_nr INTEGER

Metadata_domain_id INTEGER

Metadata_table_prefix TEXT

Table A.1 Fields Available to Store in User Topic Tables

Field Name SQL Type

Table A.2 Fields Available to Store in DCPSParticipant Tables

Field Name SQL Type

SampleInfo_reception_timestamp INTEGER

SampleInfo_source_timestamp INTEGER

SampleInfo_valid_data INTEGER

ParticipantData_key_0 INTEGER

ParticipantData_key_1 INTEGER

ParticipantData_key_2 INTEGER

ParticipantData_key_3 INTEGER

ParticipantData_userdata BLOB

ParticipantData_participant_name TEXT

ParticipantData_property TEXT

ParticipantData_rtps_protocol_version TEXT

ParticipantData_rtps_vendor_id BLOB

ParticipantData_dds_builtin_endpoints INTEGER

ParticipantData_default_unicast_locators TEXT

ParticipantData_product_version TEXT

SampleInfo_publication_seq_nr INTEGER

SampleInfo_subscription_seq_nr INTEGER

DCPSPublication Table (Discovery)

A-3

A.3 DCPSPublication Table (Discovery)

This table stores the samples of the built-in discovery topic DCPSPublication samples that are

received by Recorder. Samples of this topic are prefixed with "PublicationData_". Alongside

every sample of the discovery topic, the Sample Info object received is also stored (and prefixed

with "SampleInfo_"). For more information on this topic, see the RTI Connext DDS Core Libraries

API Reference HTML documentation. The Record tool stores two metadata fields with this table:

the domain ID and the name of the Recorder Domain object as defined in the recorder configura-

tion that generated the discovery traffic.

SampleInfo_sample_state INTEGER

SampleInfo_instance_state INTEGER

SampleInfo_instance_handle BLOB

SampleInfo_publication_handle BLOB

SampleInfo_disposed_generation_count INTEGER

SampleInfo_no_writers_generation_count INTEGER

SampleInfo_sample_rank INTEGER

SampleInfo_generation_rank INTEGER

SampleInfo_absolute_generation_rank INTEGER

SampleInfo_original_publication_virtual_guid BLOB

SampleInfo_original_publication_virtual_seq_nr INTEGER

SampleInfo_related_original_publication_virtual_guid BLOB

SampleInfo_related_original_publication_virtual_seq_nr INTEGER

SampleInfo_flag INTEGER

SampleInfo_source_guid BLOB

SampleInfo_related_source_guid BLOB

SampleInfo_related_subscription_guid BLOB

Metadata_domain_id INTEGER

Metadata_domain_name TEXT

Table A.2 Fields Available to Store in DCPSParticipant Tables

Field Name SQL Type

Table A.3 Fields Available to Store in DCPSPublication Tables

Field Name SQL Type

SampleInfo_reception_timestamp INTEGER

SampleInfo_source_timestamp INTEGER

SampleInfo_valid_data INTEGER

PublicationData_typecode_length INTEGER

PublicationData_topic_name TEXT

PublicationData_type_name TEXT

PublicationData_typecode BLOB

PublicationData_key_0 INTEGER

DCPSPublication Table (Discovery)

A-4

PublicationData_key_1 INTEGER

PublicationData_key_2 INTEGER

PublicationData_key_3 INTEGER

PublicationData_participant_key_0 INTEGER

PublicationData_participant_key_1 INTEGER

PublicationData_participant_key_2 INTEGER

PublicationData_participant_key_3 INTEGER

PublicationData_topic_data BLOB

PublicationData_destination_order_kind INTEGER

PublicationData_destination_order_scope INTEGER

PublicationData_destination_order_source_timestamp_tolerance INTEGER

PublicationData_presentation_access_scope INTEGER

PublicationData_presentation_coherent_access INTEGER

PublicationData_presentation_ordered_access INTEGER

PublicationData_partition TEXT

PublicationData_group_data BLOB

PublicationData_publisher_key_0 INTEGER

PublicationData_publisher_key_1 INTEGER

PublicationData_publisher_key_2 INTEGER

PublicationData_publisher_key_3 INTEGER

PublicationData_durability_kind INTEGER

PublicationData_durability_direct_communication INTEGER

PublicationData_deadline_period INTEGER

PublicationData_latency_budget_duration INTEGER

PublicationData_liveliness_kind INTEGER

PublicationData_liveliness_lease_duration INTEGER

PublicationData_reliability_kind INTEGER

PublicationData_reliability_acknowledgment_kind INTEGER

PublicationData_reliability_max_blocking_time INTEGER

PublicationData_ownership_kind INTEGER

PublicationData_ownership_strength INTEGER

PublicationData_user_data BLOB

PublicationData_property BLOB

PublicationData_virtual_guid BLOB

PublicationData_rtps_protocol_version TEXT

PublicationData_rtps_vendor_id BLOB

PublicationData_product_version TEXT

PublicationData_disable_positive_acks INTEGER

PublicationData_locator_filter TEXT

PublicationData_lifespan_duration INTEGER

PublicationData_durability_service_service_cleanup_delay INTEGER

Table A.3 Fields Available to Store in DCPSPublication Tables

Field Name SQL Type

DCPSSubscription Table (Discovery)

A-5

A.4 DCPSSubscription Table (Discovery)

This table stores the samples of the built-in discovery topic DCPSSubscription samples that are

received by the Record tool. Samples of this topic are prefixed with "SubscriptionData_". Along-

side every sample of the discovery topic, the Sample Info object received is also stored (and pre-

fixed with "SampleInfo_"). For more information on this topic, see the RTI Connext DDS Core

Libraries API Reference HTML documentation. The Record tool stores two metadata fields with

this table: the domain ID and the name of the Recorder Domain object as defined in the recorder

configuration that generated the discovery traffic.

PublicationData_durability_service_history_kind INTEGER

PublicationData_durability_service_history_depth INTEGER

PublicationData_durability_service_max_samples INTEGER

PublicationData_durability_service_max_instances INTEGER

PublicationData_durability_service_max_samples_per_instance INTEGER

PublicationData_unicast_locators TEXT

PublicationData_publication_name TEXT

PublicationData_publication_role_name TEXT

SampleInfo_publication_seq_nr INTEGER

SampleInfo_subscription_seq_nr INTEGER

SampleInfo_sample_state INTEGER

SampleInfo_instance_state INTEGER

SampleInfo_instance_handle BLOB

SampleInfo_publication_handle BLOB

SampleInfo_disposed_generation_count INTEGER

SampleInfo_no_writers_generation_count INTEGER

SampleInfo_sample_rank INTEGER

SampleInfo_generation_rank INTEGER

SampleInfo_absolute_generation_rank INTEGER

SampleInfo_original_publication_virtual_guid BLOB

SampleInfo_original_publication_virtual_seq_nr INTEGER

SampleInfo_related_original_publication_virtual_guid BLOB

SampleInfo_related_original_publication_virtual_seq_nr INTEGER

SampleInfo_flag INTEGER

SampleInfo_source_guid BLOB

SampleInfo_related_source_guid BLOB

SampleInfo_related_subscription_guid BLOB

Metadata_domain_id INTEGER

Metadata_domain_name TEXT

Table A.3 Fields Available to Store in DCPSPublication Tables

Field Name SQL Type

DCPSSubscription Table (Discovery)

A-6

Table A.4 Fields Available to Store in DCPSSubscription Tables

Field Name SQL Type

SampleInfo_reception_timestamp INTEGER

SampleInfo_source_timestamp INTEGER

SampleInfo_valid_data INTEGER

SubscriptionData_key_0 INTEGER

SubscriptionData_key_1 INTEGER

SubscriptionData_key_2 INTEGER

SubscriptionData_key_3 INTEGER

SubscriptionData_participant_key_0 INTEGER

SubscriptionData_participant_key_1 INTEGER

SubscriptionData_participant_key_2 INTEGER

SubscriptionData_participant_key_3 INTEGER

SubscriptionData_topic_name TEXT

SubscriptionData_type_name TEXT

SubscriptionData_destination_order_kind INTEGER

SubscriptionData_destination_order_scope INTEGER

SubscriptionData_destination_order_source_timestamp_tolerance INTEGER

SubscriptionData_presentation_access_scope INTEGER

SubscriptionData_presentation_coherent_access INTEGER

SubscriptionData_presentation_ordered_access INTEGER

SubscriptionData_partition TEXT

SubscriptionData_group_data BLOB

SubscriptionData_topic_data BLOB

SubscriptionData_subscriber_key_0 INTEGER

SubscriptionData_subscriber_key_1 INTEGER

SubscriptionData_subscriber_key_2 INTEGER

SubscriptionData_subscriber_key_3 INTEGER

SubscriptionData_durability_kind INTEGER

SubscriptionData_durability_direct_communication INTEGER

SubscriptionData_deadline_period INTEGER

SubscriptionData_latency_budget_duration INTEGER

SubscriptionData_liveliness_kind INTEGER

SubscriptionData_liveliness_lease_duration INTEGER

SubscriptionData_reliability_kind INTEGER

SubscriptionData_reliability_acknowledgment_kind INTEGER

SubscriptionData_reliability_max_blocking_time INTEGER

SubscriptionData_ownership_kind INTEGER

SubscriptionData_user_data BLOB

SubscriptionData_property BLOB

SubscriptionData_unicast_locators TEXT

SubscriptionData_multicast_locators TEXT

SubscriptionData_virtual_guid BLOB

DCPSSubscription Table (Discovery)

A-7

SubscriptionData_rtps_protocol_version TEXT

SubscriptionData_rtps_vendor_id BLOB

SubscriptionData_product_version TEXT

SubscriptionData_disable_positive_acks INTEGER

SubscriptionData_time_based_filter_minimum_separation INTEGER

SubscriptionData_content_filter_property TEXT

SubscriptionData_subscription_name TEXT

SubscriptionData_subscription_role_name TEXT

SampleInfo_publication_seq_nr INTEGER

SampleInfo_subscription_seq_nr INTEGER

SampleInfo_sample_state INTEGER

SampleInfo_instance_state INTEGER

SampleInfo_instance_handle BLOB

SampleInfo_publication_handle BLOB

SampleInfo_disposed_generation_count INTEGER

SampleInfo_no_writers_generation_count INTEGER

SampleInfo_sample_rank INTEGER

SampleInfo_generation_rank INTEGER

SampleInfo_absolute_generation_rank INTEGER

SampleInfo_original_publication_virtual_guid BLOB

SampleInfo_original_publication_virtual_seq_nr INTEGER

SampleInfo_related_original_publication_virtual_guid BLOB

SampleInfo_related_original_publication_virtual_seq_nr INTEGER

SampleInfo_flag INTEGER

SampleInfo_source_guid BLOB

SampleInfo_related_source_guid BLOB

SampleInfo_related_subscription_guid BLOB

Metadata_domain_id INTEGER

Metadata_domain_name TEXT

Table A.4 Fields Available to Store in DCPSSubscription Tables

Field Name SQL Type

RTI_Recording_Service_UsersManual RTI Recording Service Users Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
