design . performance . technology

ORDERING2041 58th Avenue Circle East Bradenton,  34203 Phone: (800) 345-4928 Fax: (941) 751-5535

www.beaconproducts.com

Type:

Project Name:

Notes:

DETAILS

rev. 02.24.2014

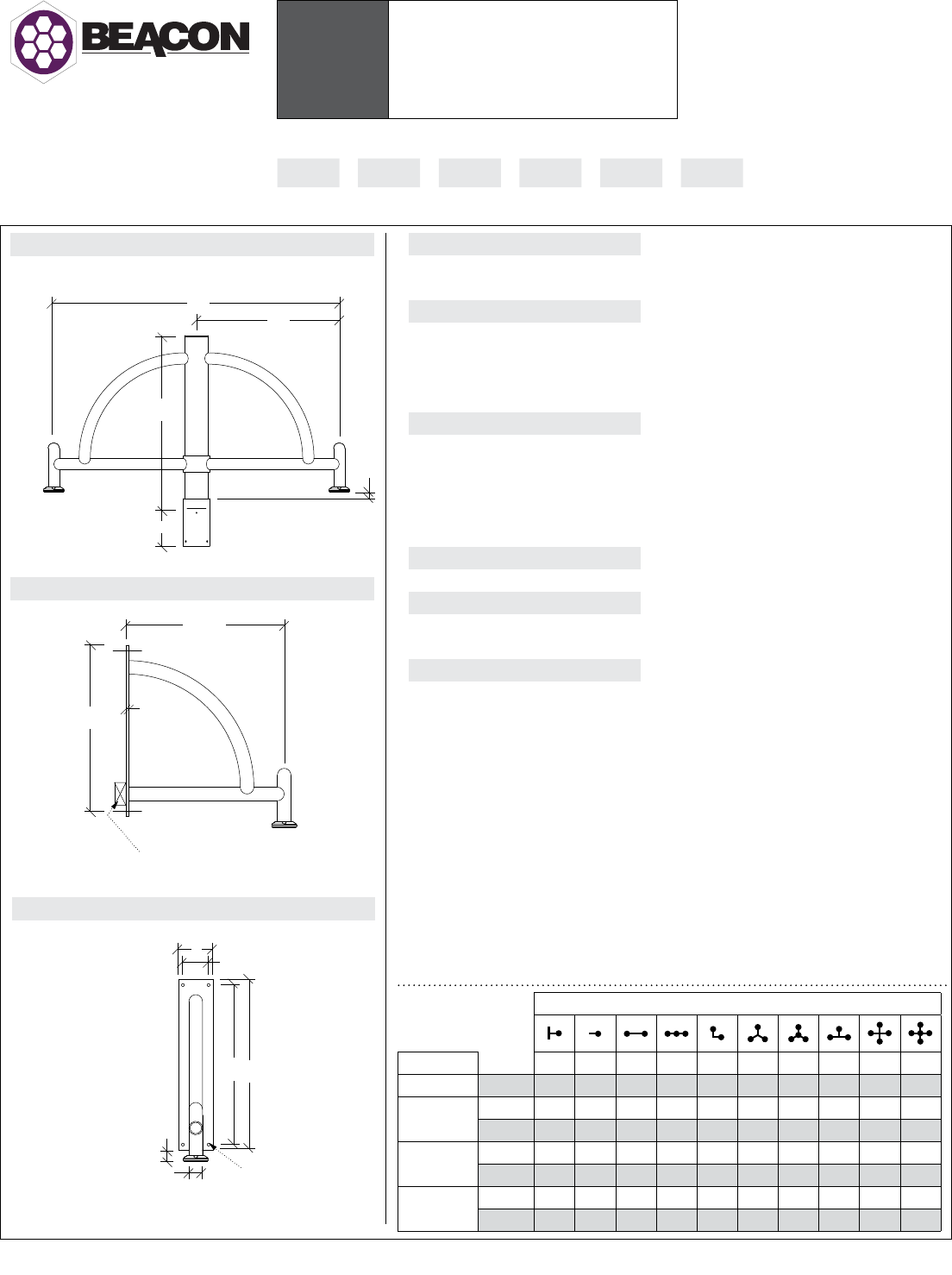

AA-49 RADIUS

Arms

A. MODEL

AA-49 Radius

B. POST SHAFT PROFILE

Wwall mount

Ssmooth

Futed

C. POST SHAFT DIAMETER

44”

55”

66”

OTHER ______________

D. ARRANGEMENT

____ see arrangement table below

E. LUMINAIRE MOUNTING

Ppendant

F. COLOR

BBT basic black textured

BMT black matte textured

WHT white textured

MBT metallic bronze textured

BZT bronze textured

DBT dark bronze textured

GYS gray smooth

DPS dark platinum smooth

GNT green textured

MST metallic silver textured

MTT metallic titanium textured

OWI old world iron

RAL ______________

Sample AA-49 S 4 B P BBT

Ordering / / / / /

A B C D E F

WALL BRACKET DETAILS

WALL PLATE DETAILS

arrangement (EPA index ft2 / weight (lbs)

shaft Ø A B C D E F G H I J

wall weight 15 - - - - - - - - -

Ø4"

EPA 1.52 2.59 3.95 3.95 3.15 4.13 4.13 4.50 5.08 5.08

weight - 18 26 27 26 34 35 34 42 43

Ø5"

EPA - 2.90 4.26 4.26 3.41 4.44 4.44 4.71 5.39 5.39

weight - 21 29 30 29 37 38 37 45 46

Ø6"

EPA - 3.21 4.57 4.57 3.77 4.75 4.75 5.12 5.70 5.70

weight - 23 32 33 32 40 41 40 48 49

6”

1/2”

27 3/4”

30”

38”3”

3 7/14”

50”

30”

2” I.D.

1 7/8”

28”

30”

4 1/2”

(4) Ø7/16” mounting holes

Junction Box

(by others)

Construction: All cast aluminum parts shall be low

copper alloy A356. All extruded aluminum parts shall

be alloy 6061-T6, 6063-T5 or equal.

EPA (effective projected area): EPA is de¬ned as

(projected surface area X drag factor) and measured

in ft2. Allowable post, luminaire arm, luminaire and

accessory EPAs are derived from the most current

published AASHTO (American Association of State

Highway and Transportation Ofcials) standard,

currently AASHTO 2001 (50yr design life). Customer

assumes all responsibility for selecting the ap¬propri-

ate post for installation (consult factory for assistance).

Luminaire arm, luminaire and accessory EPA must be

equal to or less than allowable EPA of post. Consult a

professional engineer for compliance with local codes

and standards.

Fasteners: All fasteners shall be Corrosion Resistant.

When tamper resistant fasteners are required, spanner

HD (snake eye) style shall be provided (special tool

required, available at additional cost).

Finish: Finish shall be a Beacote V polyester pow-

der-coat electro-statically applied and thermocured.

Beacote V nish shall consist of a ve stage iron

phosphate chemical pretreatment regimen with a poly-

mer primer sealer, oven dry off, and top coated with a

thermoset super TGIC polyester pow¬der coat nish.

The nish shall meet the AAMA 605.2 performance

specication which includes passing a 3000 hour salt

spray test for corrosion resistance and resists cracking

or loss of adhesion per ASTM D522 and resists sur-

face impacts of up to 160 inch-pound.

Limited Warranty: Beacon Products warrants its

products, to the original purchaser, against defects in

materials and workmanship for proper usage for a pe-

riod of 5 years after date of production, when properly

installed, maintained and appropriately specied. See

Warranty Information on www.beaconproducts.com

for complete details and exclusions.

Due to our continued eorts to improve our products, product specications are

subject to change without notice.
