Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
1
Realtek RG Rome Driver
Programming Guide
Version 1.1.2
(English Version)
November 1, 2013
Realtek Semiconductor Corp.
No. 2, Innovation Road II, Hsinchu Science Park,
Hsinchu 300, Taiwan
Tel: +886-3-578-0211 Fax: +886-3-577-6047
www.realtek.com
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
2
COPYRIGHT
©2012 Realtek Semiconductor Corp. All rights reserved. No part of this document may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means without the written permission of Realtek Semiconductor Corp.
TRADEMARKS
Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this
document are trademarks/registered trademarks of their respective owners.
DISCLAIMER
Realtek provides this document “as is”, without warranty of any kind, neither expressed nor implied,
including, but not limited to, the particular purpose. Realtek may make improvements and/or
changes in this document or in the product described in this document at any time. This document
could include technical inaccuracies or typographical errors.
USING THIS DOCUMENT
This document is intended for use by the system engineer when integrating with Realtek Software
SDK. Though every effort has been made to assure that this document is current and accurate, more
information may have become available subsequent to the production of this guide. In that event,
please contact your Realtek representative for additional information that may help in the
development process.
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
3
REVISION HISTORY
Revision Date Description Author
1.0.1 2012/08/27 First Release. Tony
1.0.2 2012/09/12 Modify ACL/VLAN Binding/add WAN Interface exsample.
Add “Wireless LAN Hardware Forward” chapter.
Add “RTK RG APIs Prototype” chapter.
Tony
1.0.3 2012/11/7 Add “MAC/ARP/NAPT” example code
ACL/QoS API name is changed
RTK RG API document renew.
Czpinging
1.0.4 2012/11/8 Add chapter “Checkout Code”,”Configuration”,” Build Code”,”Test by
Web UI configuration”,”Test by Diagnostics Shell Command”,” Realtek
RG Debug Tools”,” Test Report”
Tony
1.0.5 2012/11/9 Update Chariot Throughput
Change diag shell MAC/ARP/NAPT add seq.
Czpinging
1.0.6 2013/01/01 Modify Some API prototype Tony
1.0.7 2013/03/29 Update RG API prototype & diag shell command
Update Lite RomeDriver/ RomeDriver architechure figures & description
English Translation
Chuck
1.0.8 2013/05/27 Update Gateway basic configuration example
Add new RG APIs & example
Add Gateway Advance Configuation examples
Update Build Code commands
Update diagshell introduction
Chuck
1.0.9 2013/08/28 Update RG Interfcae related API & CVLAN related issue.
Add RG Qos APIs & example
Add Chapter for explain NAPT External Port Collision Prevention
mechanism.
Chuck
1.1.0 2013/09/25 Add GPON performace test report. Tony
1.1.1 2013/10/28 Add RG SFU API.
Add RG GPON/EPON API.
Update Chapter 5.1.4
Add chapter 6.2.6, 6.2.7, 6.2.8
Update diag shell command
Tony
1.1.2 2013/11/1 Add Wifi Throughtput testing result Chuck
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
4
Update Chater 6.1
Update Chapter 6.2.3
Add Chapter 6.2.4
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
5
Table of Contents
1. Architecture ...........................................................................................14
1.1. RomeDriver Architecture .......................................................................14
1.2. Lite RomeDriver Architecture ................................................................16
2. Realtek RG APIs ...................................................................................17
3. Checkout Code .....................................................................................32
4. Build Code.............................................................................................32
5. NAPT External Port Collsion Prevention ...............................................33
5.1.1. Enable/Disable NAPT External Port Collision Prevention .....................33
5.1.2. API: rtk_rg_naptExtPortGet...................................................................35
5.1.3. API: rtk_rg_naptExtPortFree .................................................................36
5.1.4. Sample Codes for Hooking NAPT External Port Collision Prevention
Mechanism in Linux 2.6.30 .........................................................................................36
6. (Lite)RomeDriver Initiation.....................................................................40
6.1. Gateway Basic Conifguration ................................................................41
6.2. Gateway Advanced Conifguration.........................................................48
6.2.1. Port Binding...........................................................................................48
6.2.2. VLAN Binding........................................................................................49
6.2.3. ACL Filter / ACL-Based QoS Remarking...............................................49
6.2.4. Layer2 packet classify filter and assign streamID .................................52
6.2.5. Rate Limit ..............................................................................................54
6.2.5.1. ACL-Based Share Meter .......................................................................54
6.2.5.2. Egress Port -Based Rate Limit ..............................................................54
6.2.5.3. Ingress Port-Based Rate Limit ..............................................................55
6.2.6. QoS Internal Priority & Egress Queue Decision ....................................55
6.2.7. QoS 1P Remarking ...............................................................................58
6.2.8. QoS DSCP Remarking..........................................................................59
6.2.9. QoS Strict Priority / WFQ.......................................................................60
6.2.9.1. DSCP to Internal Priority .......................................................................61
6.2.9.2. Port to Internal Priority...........................................................................62
6.2.10. L2 per-Port learning count limit .............................................................63
6.2.11. MacFilter ...............................................................................................63
6.2.12. Application-Level-Gateway(ALG) ..........................................................63
6.2.13. Virtual Server ........................................................................................64
6.2.14. DmzHost ...............................................................................................64
6.2.15. UpnpConnection ...................................................................................65
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
6
6.2.16. MulticastFlow ........................................................................................65
6.2.17. StormControl .........................................................................................66
6.2.18. PortMirror ..............................................................................................66
6.2.19. Physical Port Ability ...............................................................................67
6.2.20. Denial-of-Service (DoS) ........................................................................67
7. Wireless LAN Hardware Forward..........................................................68
8. Test by Web UI configuration ................................................................71
8.1. Configure LAN by Web UI .....................................................................72
8.2. Configure WAN by Web UI....................................................................73
9. Test by Diagnostics Shell Command ....................................................73
9.1. Diag Shell Introduction ..........................................................................73
9.1.1. Startup DiagShell ..................................................................................73
9.1.2. Command-Line-Completion for Diag Cmd ............................................74
9.1.3. Mapping for RG API & Diag Cmd ..........................................................75
9.2. NIC Driver network device name & HW Port Index mapping ................77
9.3. Diag Shell for Realtek RG APIs.............................................................77
9.3.1. Initial RG API.........................................................................................77
9.3.2. Initial RG API and register callback function..........................................78
9.3.3. Add LAN Interface.................................................................................79
9.3.4. Add WAN Interface................................................................................79
9.3.5. Set Static WAN Configuration................................................................80
9.4. Diag Shell for Realtek RG Runtime API ................................................80
9.4.1. Get RG API Version Info........................................................................80
9.4.2. Add MAC Entry .....................................................................................80
9.4.3. Add ARP Entry ......................................................................................81
9.4.4. Add NAPT Entry....................................................................................81
10. Realtek RG Debug Tools ......................................................................81
11. Test Report ...........................................................................................86
11.1. Chariot-LAN to LAN Bridge Mode-TCP Throughput..............................86
11.2. Chariot-LAN to WAN NAPT Mode-TCP Throughput .............................87
11.3. IXIA-LAN to LAN Bridge Mode-TCP(Packet Size:1518Bytes)...............88
11.4. IXIA-LAN to LAN Bridge Mode-TCP(Packet Size:64Bytes)...................89
11.5. IXIA-LAN to UTP WAN NAPT Mode-TCP(Packet Size:1518Bytes)......90
11.6. IXIA-LAN to UTP WAN NAPT Mode-TCP(Packet Size:64Bytes)..........90
11.7. IXIA-LAN to GPON WAN NAPT Mode-UDP(Packet Size:1518Bytes) ..91
11.8. IXIA-GPON WAN to LAN NAPT Mode-UDP(Packet Size:1518Bytes) ..92
11.9. IXIA-LAN to GPON WAN NAPT Mode-UDP(Packet Size:64Bytes) ......92
11.10. IXIA-GPON WAN to LAN NAPT Mode-UDP(Packet Size:64Bytes) ......93
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
7
11.11. IXIA(veriwave)-WIFI to WAN Bridge Mode-UDP...................................94
11.12. IXIA(veriwave)-WIFI to WAN NAPT Mode-UDP....................................95
12. RTK RG APIs Prototype........................................................................96
12.1. rtk_rg_driverVersion_get .......................................................................96
12.2. rtk_rg_initParam_get .............................................................................96
12.3. rtk_rg_initParam_set .............................................................................97
12.4. rtk_rg_lanInterface_add ........................................................................97
12.5. rtk_rg_wanInterface_add.......................................................................98
12.6. rtk_rg_staticInfo_set..............................................................................98
12.7. rtk_rg_dhcpRequest_set .......................................................................99
12.8. rtk_rg_dhcpClientInfo_set .....................................................................99
12.9. rtk_rg_pppoeClientInfoBeforeDial_set.................................................100
12.10. rtk_rg_pppoeClientInfoAfterDial_set ...................................................101
12.11. rtk_rg_interface_del.............................................................................101
12.12. rtk_rg_intfInfo_find ..............................................................................102
12.13. rtk_rg_cvlan_add.................................................................................102
12.14. rtk_rg_cvlan_del..................................................................................103
12.15. rtk_rg_vlanBinding_add.......................................................................103
12.16. rtk_rg_vlanBinding_del........................................................................104
12.17. rtk_rg_vlanBinding_find.......................................................................104
12.18. rtk_rg_algServerInLanAppsIpAddr_add ..............................................104
12.19. rtk_rg_algServerInLanAppsIpAddr_del ...............................................105
12.20. rtk_rg_algApps_set .............................................................................105
12.21. rtk_rg_algApps_get .............................................................................105
12.22. rtk_rg_dmzHost_set ............................................................................106
12.23. rtk_rg_dmzHost_get............................................................................106
12.24. rtk_rg_virtualServer_add .....................................................................106
12.25. rtk_rg_virtualServer_del ......................................................................107
12.26. rtk_rg_virtualServer_find .....................................................................107
12.27. rtk_rg_aclFilterAndQos_add................................................................107
12.28. rtk_rg_aclFilterAndQos_del.................................................................110
12.29. rtk_rg_aclFilterAndQos_find................................................................110
12.30. rtk_rg_macFilter_add ..........................................................................111
12.31. rtk_rg_macFilter_del............................................................................111
12.32. rtk_rg_macFilter_find...........................................................................111
12.33. rtk_rg_urlFilterString_add....................................................................112
12.34. rtk_rg_urlFilterString_del .....................................................................112
12.35. rtk_rg_urlFilterString_find ....................................................................112
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
8
12.36. rtk_rg_upnpConnection_add ...............................................................113
12.37. rtk_rg_upnpConnection_del ................................................................113
12.38. rtk_rg_upnpConnection_find ...............................................................114
12.39. rtk_rg_naptConnection_add ................................................................114
12.40. rtk_rg_naptConnection_del .................................................................115
12.41. rtk_rg_naptConnection_find ................................................................115
12.42. rtk_rg_multicastFlow_add ...................................................................116
12.43. rtk_rg_multicastFlow_del.....................................................................116
12.44. rtk_rg_multicastFlow_find....................................................................116
12.45. rtk_rg_macEntry_add..........................................................................117
12.46. rtk_rg_macEntry_del ...........................................................................117
12.47. rtk_rg_macEntry_find ..........................................................................118
12.48. rtk_rg_arpEntry_add............................................................................118
12.49. rtk_rg_arpEntry_del.............................................................................119
12.50. rtk_rg_arpEntry_find............................................................................119
12.51. rtk_rg_neighborEntry_add...................................................................119
12.52. rtk_rg_neighborEntry_del ....................................................................120
12.53. rtk_rg_neighborEntry_find ...................................................................120
12.54. rtk_rg_softwareSourceAddrLearningLimit_set ....................................121
12.55. rtk_rg_softwareSourceAddrLearningLimit_get ....................................121
12.56. rtk_rg_dosPortMaskEnable_set ..........................................................121
12.57. rtk_rg_dosPortMaskEnable_get ..........................................................122
12.58. rtk_rg_dosType_set ............................................................................122
12.59. rtk_rg_dosType_get ............................................................................123
12.60. rtk_rg_dosFloodType_set....................................................................123
12.61. rtk_rg_dosFloodType_get ...................................................................124
12.62. rtk_rg_portMirror_set...........................................................................124
12.63. rtk_rg_portMirror_get...........................................................................125
12.64. rtk_rg_portMirror_clear........................................................................125
12.65. rtk_rg_portEgrBandwidthCtrlRate_set.................................................125
12.66. rtk_rg_portIgrBandwidthCtrlRate_set ..................................................125
12.67. rtk_rg_portEgrBandwidthCtrlRate_get.................................................126
12.68. rtk_rg_portIgrBandwidthCtrlRate_get..................................................126
12.69. rtk_rg_phyPortForceAbility_set ...........................................................126
12.70. rtk_rg_phyPortForceAbility_get ...........................................................127
12.71. rtk_rg_portMibInfo_get ........................................................................127
12.72. rtk_rg_portMibInfo_clear .....................................................................130
12.73. rtk_rg_stormControl_add.....................................................................130
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
9
12.74. rtk_rg_stormControl_del......................................................................130
12.75. rtk_rg_stormControl_find.....................................................................131
12.76. rtk_rg_shareMeter_set ........................................................................131
12.77. rtk_rg_shareMeter_get ........................................................................131
12.78. rtk_rg_qosStrictPriorityOrWeightFairQueue_set .................................132
12.79. rtk_rg_qosStrictPriorityOrWeightFairQueue_get .................................132
12.80. rtk_rg_qosInternalPriMapToQueueId_set ...........................................133
12.81. rtk_rg_qosInternalPriMapToQueueId_get ...........................................133
12.82. rtk_rg_qosInternalPriDecisionByWeight_set .......................................134
12.83. rtk_rg_qosInternalPriDecisionByWeight_get .......................................134
12.84. rtk_rg_qosDscpRemapToInternalPri_set ............................................134
12.85. rtk_rg_qosDscpRemapToInternalPri_get ............................................135
12.86. rtk_rg_qosPortBasedPriority_set.........................................................135
12.87. rtk_rg_qosPortBasedPriority_get ........................................................135
12.88. rtk_rg_qosDot1pPriRemapToInternalPri_set.......................................136
12.89. rtk_rg_qosDot1pPriRemapToInternalPri_get ......................................136
12.90. rtk_rg_qosDscpRemarkEgressPortEnableAndSrcSelect_set .............136
12.91. rtk_rg_qosDscpRemarkEgressPortEnableAndSrcSelect_get .............137
12.92. rtk_rg_qosDscpRemarkByInternalPri_set ...........................................137
12.93. rtk_rg_qosDscpRemarkByInternalPri_get ...........................................138
12.94. rtk_rg_qosDscpRemarkByDscp_set ...................................................138
12.95. rtk_rg_qosDscpRemarkByDscp_get ...................................................138
12.96. rtk_rg_qosDot1pPriRemarkByInternalPriEgressPortEnable_set.........139
12.97. rtk_rg_qosDot1pPriRemarkByInternalPriEgressPortEnable_get.........139
12.98. rtk_rg_qosDot1pPriRemarkByInternalPri_set......................................140
12.99. rtk_rg_qosDot1pPriRemarkByInternalPri_get .....................................140
12.100. rtk_rg_portBasedCVlanId_set .............................................................140
12.101. rtk_rg_portBasedCVlanId_get .............................................................141
12.102. rtk_rg_portStatus_get..........................................................................141
12.103. rtk_rg_naptExtPortGet.........................................................................142
12.104. rtk_rg_naptExtPortFree.......................................................................142
12.105. rtk_rg_gpon_infoSettings_set..............................................................142
12.106. rtk_rg_gpon_infoSettings_get .............................................................142
12.107. rtk_rg_gpon_status_get.......................................................................143
12.108. rtk_rg_epon_infoSettings_set..............................................................143
12.109. rtk_rg_epon_infoSettings_get .............................................................143
12.110. rtk_rg_pon_transceiverInfo_get...........................................................144
12.111. rtk_rg_classifyEntry_add .....................................................................144
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
10
12.112. rtk_rg_classifyEntry_find .....................................................................144
12.113. rtk_rg_classifyEntry_del ......................................................................145
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
11
List of Figures
Figure1. RomeDriver Architecture .......................................................................15
Figure2. Lite RomeDriver Architecture ................................................................17
Figure3. Enable NAPT External Port Collision Prevention, step1........................34
Figure4. Enable NAPT External Port Collision Prevention, step2........................34
Figure5. Enable NAPT External Port Collision Prevention, step3........................35
Figure6. Enable NAPT External Port Collision Prevention, step4........................35
Figure7. NAPT External Port choosing flow.........................................................36
Figure8. RomeDriver Initiation Flow Chart ..........................................................40
Figure9. Internal Priority decision flow chart........................................................56
Figure10. NIC TX Descriptor Format.....................................................................69
Figure11. NIC RX Descriptor Format ....................................................................69
Figure12. Wireless LAN Hardware Forward..........................................................71
Figure13. Web UI:LAN Interface Setting ...............................................................72
Figure14. Web UI:Ethernet WAN Interface Setting................................................73
Figure15. UART: ADSL Main Menu .......................................................................74
Figure16. DiagShell tips for next keyword .............................................................74
Figure17. DiagShell command-line-completion.....................................................75
Figure18. Chariot LAN to LAN TCP connection ....................................................87
Figure19. Chariot LAN to WAN TCP connection ...................................................88
Figure20. IXIA LAN to LAN TCP connection(Large Packet) ..................................89
Figure21. IXIA LAN to LAN TCP connection(Small Packet) ..................................89
Figure22. IXIA LAN to WAN TCP connection(Large Packet).................................90
Figure23. IXIA LAN to WAN TCP connection(Small Packet).................................91
Figure24. IXIA LAN to GPON WAN UDP connection (Large Packet)....................91
Figure25. IXIA GPON WAN to LAN UDP connection (Large Packet)....................92
Figure26. IXIA LAN to GPON WAN UDP connection(Small Packet).....................93
Figure27. IXIA GPON WAN to LAN UDP connection(Small Packet).....................93
Figure28. IXIA WIFI to WAN(Bridge) UDP connection ..........................................94
Figure29. IXIA WIFI to WAN(NAPT) UDP connection ...........................................95
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
12
List of Tables
Table1. List of pure RG APIs..............................................................................22
Table2. List of mapping RG APIs (Mapping from RTK APIs)..............................31
Table3. List of RTK RG HGU APIs access Hardware Table...............................32
Table4. Example: hook rtk_rg_naptExtPortGet..................................................38
Table5. Example: hook rtk_rg_naptExtPortFree ................................................39
Table6. Example: rtk_rg_initParam_set (Default)...............................................41
Table7. Example: rtk_rg_initParam_set (Customise) .........................................42
Table8. Example: rtk_rg_lanInterface_add ........................................................43
Table9. Example: rtk_rg_wanInterface_add.......................................................45
Table10. Example: rtk_rg_staticInfo_set(for LiteRomeDriver ARP set by USER) 46
Table11. Example: rtk_rg_staticInfo_set(for RomeDriver ARP auto learning)......46
Table12. Example: rtk_rg_macEntry_add ............................................................47
Table13. Example: rtk_rg_arpEntry_add..............................................................47
Table14. Example: rtk_rg_naptConnection_add ..................................................48
Table15. Example: rtk_rg_wanInterface_add (with Port Binding).........................48
Table16. Example: rtk_rg_vlanBinding_add.........................................................49
Table17. List of ACL Action Type..........................................................................50
Table18. List of ACL QoS Actions ........................................................................50
Table19. List of ACL Patterns...............................................................................51
Table20. List of ACL fwding type..........................................................................52
Table21. Example: rtk_rg_aclFilterAndQos_add..................................................52
Table22. Example: rtk_rg_classifyEntry_add .......................................................53
Table23. Example: rtk_rate_shareMeter_set .......................................................54
Table24. Example: rtk_rate_portEgrBandwidthCtrlRate_set................................55
Table25. Example: rtk_rate_portIgrBandwidthCtrlRate_set .................................55
Table26. The corresponding RG APIs of each kind of priority source. .................56
Table27. The QoS internal priority & egress queue decision RG APIs.................56
Table28. Example: rtk_rg_qosInternalPriDecisionByWeight_set .........................57
Table29. Example: rtk_rg_qosDot1pPriRemapToInternalPri_set .........................57
Table30. Example: rtk_rg_qosDscpRemapToInternalPri_set...............................58
Table31. Example: rtk_rg_qosInternalPriMapToQueueId_set..............................58
Table32. The QoS 1Q Reamrking RG APIs. ........................................................58
Table33. Example: QoS 1P remarking.................................................................59
Table34. The QoS DSCP Remarking RG APIs. ...................................................59
Table35. Example: QoS DSCP remarking ...........................................................60
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
13
Table36. Example: rtk_qos_schedulingQueue_set ..............................................61
Table37. Example: rtk_rg_qosDscpRemapToInternalPri_set...............................62
Table38. Example: rtk_rg_qosPortBasedPriority_set...........................................62
Table39. Example: rtk_l2_portLimitLearningCnt_set............................................63
Table40. Example: rtk_rg_macFilter_add ............................................................63
Table41. Example: rtk_rg_algApps_set ...............................................................64
Table42. Example: rtk_rg_virtualServer_add .......................................................64
Table43. Example: rtk_rg_dmzHost_set ..............................................................64
Table44. Example: rtk_rg_upnpConnection_add .................................................65
Table45. Example: rtk_rg_multicastFlow_add .....................................................65
Table46. Example: rtk_rg_stormControl_add.......................................................66
Table47. Example: rtk_rg_portMirror_set.............................................................67
Table48. Example: rtk_rg_phyPortForceAbility_set .............................................67
Table49. Example: rtk_rg_dosPortMaskEnable_set ............................................67
Table50. Example: rtk_rg_dosType_set...............................................................68
Table51. Example: rtk_rg_dosFloodType_set......................................................68
Table52. NIC RX Descriptor for CPU Tag ............................................................70
Table53. List of Diag Command second keywords ..............................................76
Table54. List of Diag Command Third keywords..................................................77
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
14
1. Architecture
There are two architechture provided for Router/Gateway productivities speed up L2/L3/L4 packet
transmition. The first architechture is RomeDriver, and the other is Lite-RomeDriver.
If the user doesn’t want to adopt hacking OS(Operating System) Protocol Stack, and insert/add APIs
in the software flow, then we suggest, the user to use RomeDriver way. On the other hand, if the
customer has the capability to hack OS and wants to customize his own software data flow, the
Lite-RomeDriver will do the job.
1.1. RomeDriver Architecture
Structural wise, RomeDriver is adding the Forwarding Engine on Lite-RomeDriver. Forwarding
Engine is a lite Protocal Stack which use to handles Layer2 MAC learning, ARP Entry aging and
Napt flow forwarding. Porting RomeDriver just need to configure the informations, which is call
from UI or User Application, into RTK RG API. The Data Path will be automatically maintained by
Forwarding Engine. Thus, to enable the hardware forwarding application, here is the process:
1. NIC Driver RX Interface：When the hardware can’t process the Packet, all data will be
processed by NIC Driver, and enable the Forwarding Enging Input function.
2. NIC Driver TX Interface：NIC TX Interface is to transfer the packet after the Forwarding
Engine forward a packet or add the Hardware entry
3. The packet escalates to OS Interface : Forwarding Engine will escalate the packet to OS
Protocal Stack when it can not be processed
4. UI or User Application Interface: RomeDriver and LiteRomeDriver provids an 1-to-1 mapping
interface for UI and User Application to call RTK RG APIs. The specific interface is used to
pass the initial configuration from UI, such as LAN Interface configuration or Static WAN
configuration, and dynamic configuration from User Application, such as Gateway IP Address
from DHCP or PPPoE to RTK RG APIs. Besides, the callback function will be waked up in the
end of RTK RG API process, if the user has registered it. On the other hand, if the user hasn’t
registered callback function or RTK RG API executed failed will not wake the callback function
up.
5. Callback Function Interface: RTK RG API reserves hook points for registering callback
functions. Callback functions is used to synchronize Hardware Tables and Protocal Stack, such
as Rouing Table, and call User Application, such as DHCP Client and PPPoE Client.
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
15

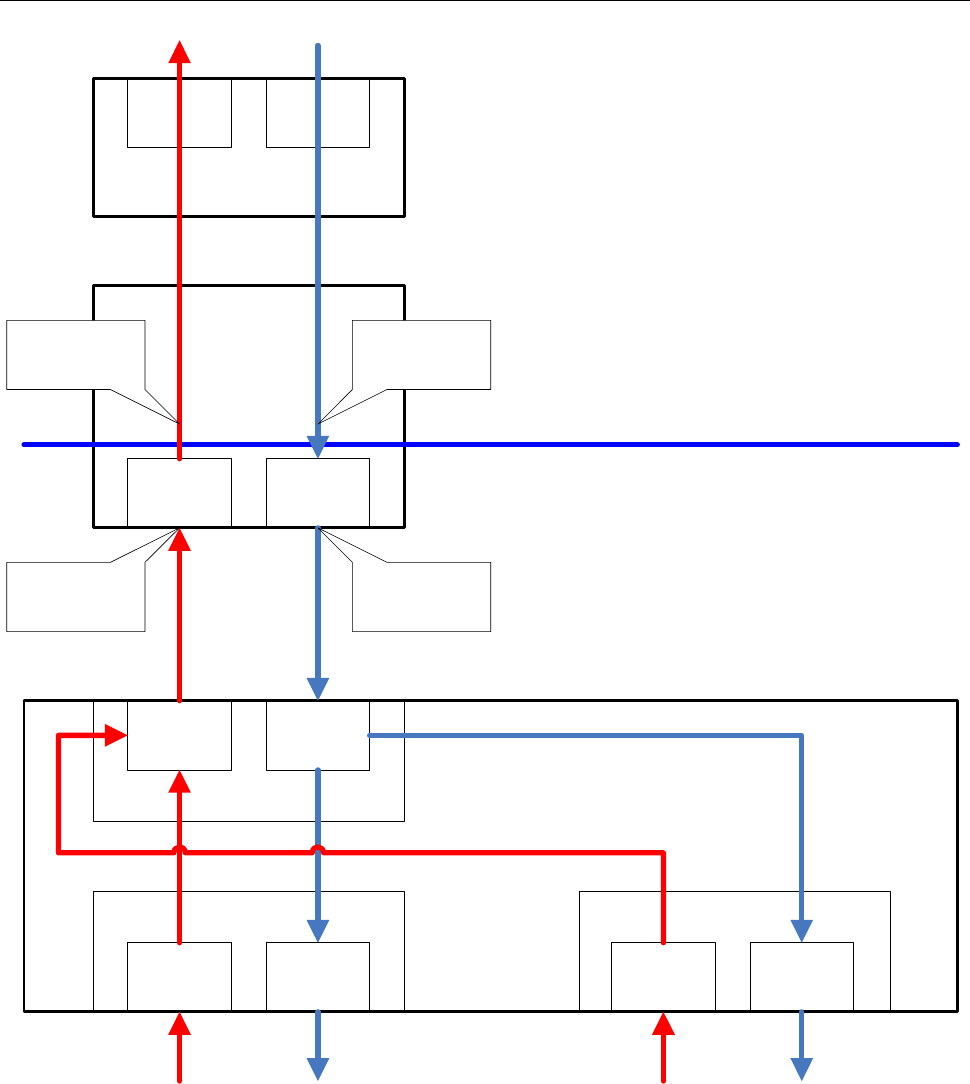

Below figure shows the architechure. The thick black frame stands for the above Interfaces, the blue
line stands for Data Path, and the red line stands for Control Path.
The Data Path is divided into three layers. The lowest layer represents data forwarding by Hardware
ASIC, the second layer represents data forwarding by Software Forwarding Engine, and the top
layer represents data forwarding by OS Protocol-Stack.
The Control Path of Hardware comes from User Space, suach as UI or User Application , or
Fowrading Engine. UI or User Applications control Hardware ASIC by 1-to-1 mapping User-Space
RTK RG APIs Interface.
Figure1. RomeDriver Architecture
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
16

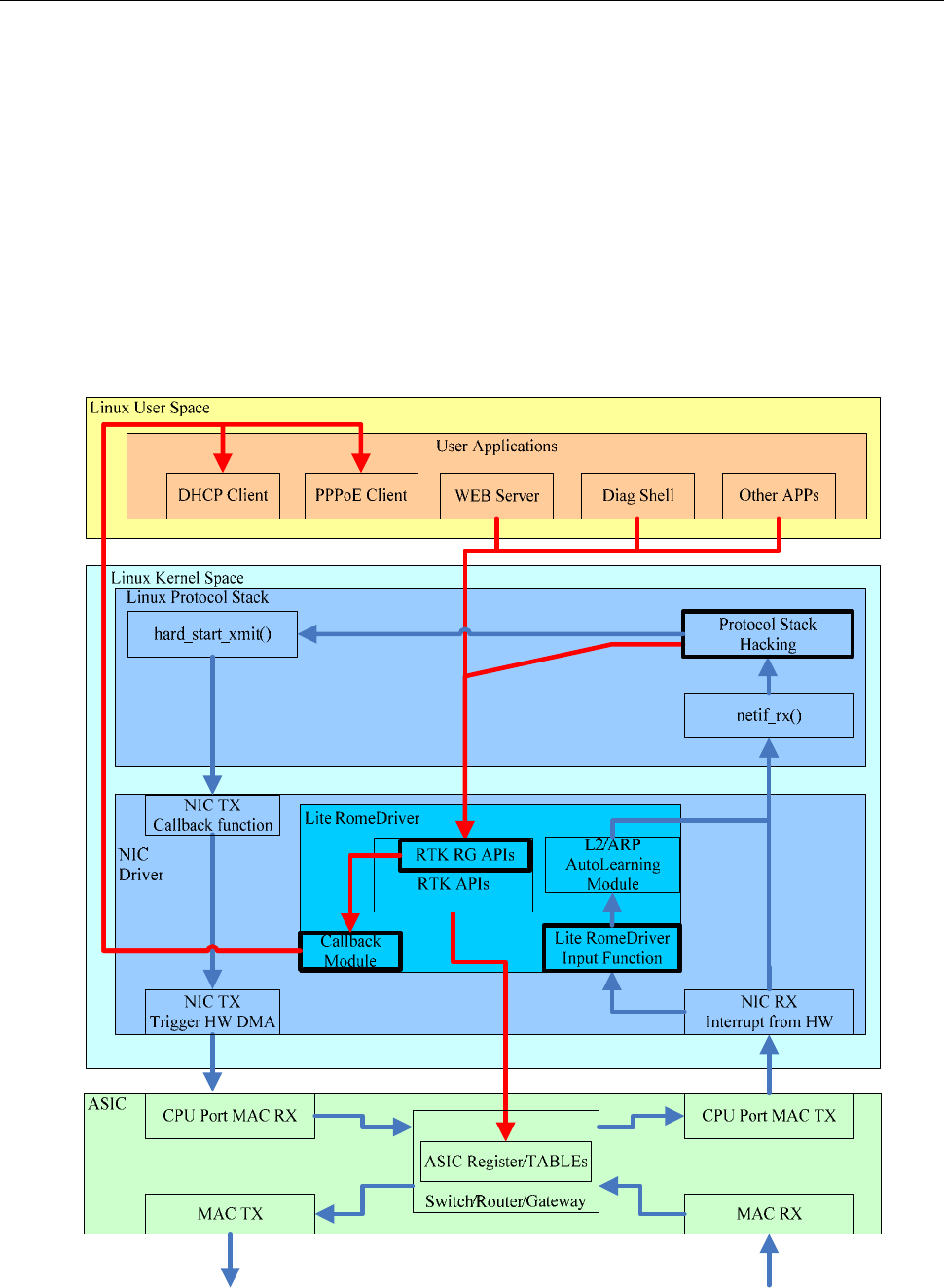

1.2. Lite RomeDriver Architecture
Lite-RomeDriver is a lighter version of RomeDriver without Forwarding Engine for which users
have to call Protocal Stack and insert RTK RG API to extract data. The difference is that the
Lite-RomeDriver will not maintain NAPT hardware/software related tables dynamic. Therefore,
users should keep related NAPT tables, counter, and Aging Mechanism synchronous between
Hardware and Protocal Stack by RTK RG APIs. Besides, Layer2 MAC & ARP Entry shoule be
maintaind by L2/ARP AutoLearning Module automatically or maintaind by user calling RTK RG
APIs to keep Layer2 MAC & ARP synchronous between Hardware and Protocal Stack. If L2/ARP
AutoLearning Module is enabled, the Lite RomeDriver Input function should be registered in NIC
RX Interface.
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
17
Figure2. Lite RomeDriver Architecture
2. Realtek RG APIs
There are two kinds of RG(Resident Gateway) APIs. One is pure RG APIs and the other is mapping
RG APIs. Pure RG APIs are class by applicable features and focus for HGU(Home Gateway Unit)
products. Mapping RG APIs are class by HW functions, they’re one-to-one mapping to RTK APIs.
(Please refer to RTK APIs Document to see more detail.), and focus for SFU(Single Family Unit)
Product.
If your product is Router/Gateway then you can call most of pure RG APIs and some mapping RG
APIs. else if your product is Switch then you can call most of mapping APIs and some RG APIs.
But, you can’t call RTK API directly.
The following Table lists all pure RG API according to their capabilities:
Category R L S Function Name Function Description
rtk_rg_driverVersion_get Get RTK RG Driver version.
rtk_rg_initParam_get Get the initial configuration.
System ● ● ●
rtk_rg_initParam_set Set initial parameters & Callback
Function.
rtk_rg_lanInterface_add Add a LAN Interface.
rtk_rg_interface_del Delete a LAN Interface.
LAN
Interface
● ● ●
rtk_rg_intfInfo_find Find a LAN Interface which is
added.
rtk_rg_wanInterface_add Add a WAN Interface.
rtk_rg_interface_del Delete a WAN Interface.
WAN
Interface/
Port Binding
● ● ●
rtk_rg_intfInfo_find Find a WAN Interface which is
added.
rtk_rg_cvlan_add Add an individual C-VLAN.
rtk_rg_cvlan_del Delete an individual C-VLAN.
CVLAN ● ● ●
rtk_rg_portBasedCVlanId_get Get Port-based VLAN ID.
rtk_rg_staticInfo_set Set WAN Type:STATIC IP
information.
rtk_rg_dhcpRequest_set Set WAN Type:DHCP request
information.
rtk_rg_dhcpClientInfo_set Set WAN Type:DHCP IP
information.
WAN Type ● ● ○
rtk_rg_pppoeClientInfoBefore Set WAN Type:PPPoE dial
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
18
Dial_set information.
rtk_rg_pppoeClientInfoAfterDi
al_set
Set WAN Type:PPPoE IP
information.
rtk_rg_vlanBinding_add Insert a VLAN Binding Entry.
rtk_rg_vlanBinding_del Delete a VLAN Binding Entry.
VLAN
Binding
● ● ●
rtk_rg_vlanBinding_find Finda VLAN Binding Entry which is
added.
rtk_rg_algApps_set Set the starting ALG Appication
type.
rtk_rg_algApps_get Set the current ALG Appication
type.
rtk_rg_algServerInLanAppsIp
Addr_add
Set the Server-in-LAN ALG Server
IP Address.
ALG ● ○ ○
rtk_rg_algServerInLanAppsIp
Addr_del
Get the Server-in-LAN ALG Server
IP Address.
rtk_rg_virtualServer_add Add a Virtual Server Rule.
rtk_rg_virtualServer_del Delete a Virtual Server Rule.
Virtual
Server
● ○ ○
rtk_rg_virtualServer_find Find a Virtual Server Rule.
rtk_rg_dmzHost_set Set DMZ Host to assigned WAN
Interface.
DMZ ● ○ ○
rtk_rg_dmzHost_get Get DMZ Host information from
assigned WAN Interface.
rtk_rg_upnpConnection_add Add an uPnP connection.
rtk_rg_upnpConnection_del Delete an uPnP connection.
UPnP ● ○ ○
rtk_rg_upnpConnection_find Find an uPnP connection which is
added.
rtk_rg_naptConnection_add Add a NAPT connection.
rtk_rg_naptConnection_del Delete a NAPT connection.
NAPT ○ ● ○
rtk_rg_naptConnection_find Find a NAPT connection which is
added.
rtk_rg_naptExtPortFree For Sync with Linux & RomeDriver.NAPT
External Port
● ○ ○
rtk_rg_naptExtPortGet For Sync with Linux & RomeDriver.
● rtk_rg_macEntry_add Add a MAC Entry. MAC ○ ●
rtk_rg_macEntry_del Delete a MAC Entry.
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
19
rtk_rg_macEntry_find Find a MAC Entry wich is added.
rtk_rg_multicastFlow_add Add a Multicast connection.
rtk_rg_multicastFlow_del Delete a Multicast connection.
Multicast ○ ● ●
rtk_rg_multicastFlow_find Find a Multicast connection which is
added.
rtk_rg_arpEntry_add Add an ARP Entry.
rtk_rg_arpEntry_del Delete an ARP Entry.
ARP ○ ● ○
rtk_rg_arpEntry_find Find an ARP Entry which is added.
rtk_rg_neighborEntry_add Add an Neighbor Entry
rtk_rg_neighborEntry_del Delete an Neighbor Entry
Neighbor ○ ● ○
rtk_rg_neighborEntry_find Find an Neighbor Entry which is
added.
rtk_rg_aclFilterAndQos_add Add an ACL Rule(include QoS
Remarking).
rtk_rg_aclFilterAndQos_del Delete an ACL Rule(include QoS
Remarking).
ACL Filter
and QoS
Remarking
● ● ●
rtk_rg_aclFilterAndQos_find
Find an ACL Rule which is added.
rtk_rg_classifyEntry_add Add a L2 CF rule.
rtk_rg_classifyEntry_del Delete a L2 CF rule.
L2
Classification
● ● ●
rtk_rg_classifyEntry_find Find a L2 CF rule which is added.
rtk_rg_macFilter_add Add a MAC Filter Entry.
rtk_rg_macFilter_del Delete a MAC Filter Entry.
MAC Filter ● ● ●
rtk_rg_macFilter_find Find a MAC Filter Entry which is
added.
rtk_rg_urlFilterString_add Add a URLFilter Entry.
rtk_rg_urlFilterString_del Delete a URLFilter Entry.
URL Filter ● ○ ○
rtk_rg_urlFilterString_find Find a URLFilter Entry which is
added.
rtk_rg_stormControl_add Add an StormControl Entry
rtk_rg_stormControl_del Delete an StormControl Entry
StormControl ● ● ●
rtk_rg_stormControl_find Find an StormControl Entry which is
added.
rtk_rg_portMirror_set Set portMirror
rtk_rg_portMirror_get Get portMirror which has been set
PortMirror ● ● ●
rtk_rg_portMirror_clear Clear portMirror
Egress ● ● ● rtk_rg_portEgrBandwidthCtrlR Set Egress Bandwidth Control rate
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
20
ate_set Bandwidth
Control rtk_rg_portEgrBandwidthCtrlR
ate_get
Get Egress Bandwidth Control rate
which has been set
rtk_rg_portIgrBandwidthCtrlR
ate_set
Set Ingress Bandwidth Control rate Ingress
Bandwidth
Control
● ● ●
rtk_rg_portIgrBandwidthCtrlR
ate_get
Get Ingress Bandwidth Control rate
which has been set
rtk_rg_phyPortForceAbility_se
t
Set Physical Port Ability
rtk_rg_phyPortForceAbility_g
et
Get Physical Port Ability which has
been set
Physical Port ● ● ●
rtk_rg_portStatus_get Get Physical Port link status.
rtk_rg_shareMeter_set Set an ShareMeter Entry. ShareMeter ● ● ●
rtk_rg_shareMeter_get Get an ShareMeter Entry which has
been set
rtk_rg_dosPortMaskEnable_set Enable DosPort
rtk_rg_dosPortMaskEnable_ge
t
Get Enabled DosPort
rtk_rg_dosType_set Set a dosType information
rtk_rg_dosType_get Get a dosType information which
has been set
rtk_rg_dosFloodType_set Set a dosFloodType information
DoS ● ● ●
rtk_rg_dosFloodType_get Get a dosFloodType information
which has been set
rtk_rg_softwareSourceAddrLe
arningLimit_get
Get software per-Port MAC learning
limit.
MAC
Learning
Limit
● ○ ●
rtk_rg_softwareSourceAddrLe
arningLimit_set
Set software per-Port MAC learning
limit.
rtk_rg_portMibInfo_clear Clear per-Port MIB info. MIB ● ● ●
rtk_rg_portMibInfo_get Get per-Port MIB info.
rtk_rg_qosDot1pPriRemapToI
nternalPri_get
CVLAN-Priority remapping table
get
rtk_rg_qosDot1pPriRemapToI
nternalPri_set
CVLAN-Priority remapping table
set
rtk_rg_qosDscpRemapToInter
nalPri_get
DSCP remapping table get.
QoS Internal
Priority
Decision
● ● ●
rtk_rg_qosDscpRemapToInter DSCP remapping table set
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
21
nalPri_set
rtk_rg_qosInternalPriDecision
ByWeight_get
Get the weight of the 9 kinds of
priority decision source.

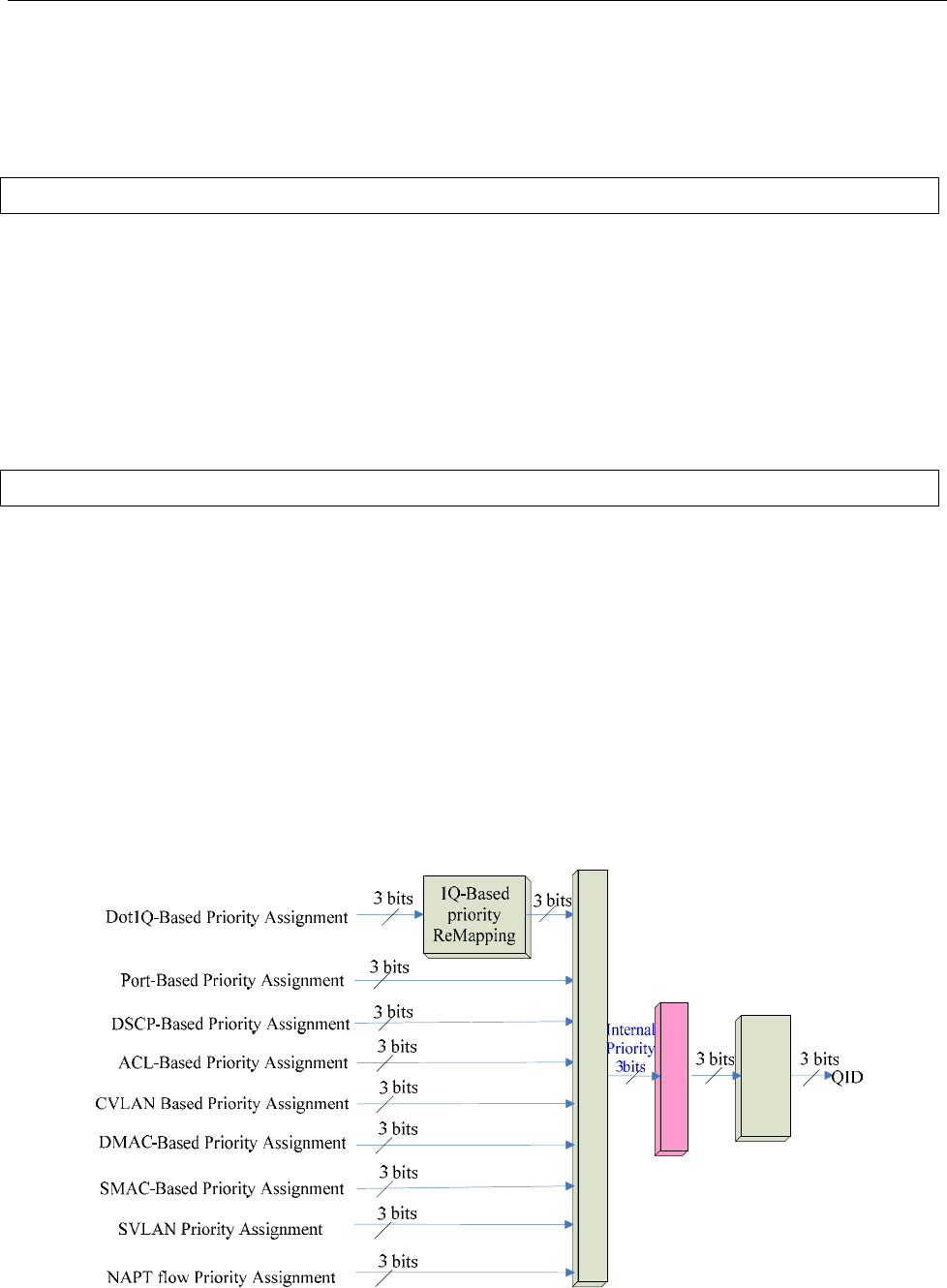

rtk_rg_qosInternalPriDecision
ByWeight_set
Set the weight of the 9 kinds of
priority decision source.
rtk_rg_qosPortBasedPriority_g
et
Get port based priority
rtk_rg_qosPortBasedPriority_s
et
Set port based priority
rtk_rg_qosInternalPriMapToQ
ueueId_get
Get the “Internal priority to Queue”
table.
QoS Egress
Queue
Decision
● ● ●
rtk_rg_qosInternalPriMapToQ
ueueId_set
Set the “Internal priority to Queue”
table.
rtk_rg_qosDot1pPriRemarkBy
InternalPriEgressPortEnable_g
et
CVLAN-Priority remarking egress
port get.
rtk_rg_qosDot1pPriRemarkBy
InternalPriEgressPortEnable_s
et
CVLAN-Priority remarking egress
port set.
rtk_rg_qosDot1pPriRemarkBy
InternalPri_get
CVLAN-Priority remarking table
get
rtk_rg_qosDot1pPriRemarkBy
InternalPri_set
CVLAN-Priority remarking table set
rtk_rg_qosDscpRemarkByDsc
p_get
Get the “DSCP remarking by
DSCP” mapping table.
rtk_rg_qosDscpRemarkByDsc
p_set
Set the “DSCP remarking by DSCP”
mapping table.
rtk_rg_qosDscpRemarkByInter
nalPri_get
Get the “DSCP remarking by
Internal Priority” mapping table.
rtk_rg_qosDscpRemarkByInter
nalPri_set
Set the “DSCP remarking by
Internal Priority” mapping table.
rtk_rg_qosDscpRemarkEgress
PortEnableAndSrcSelect_get
Get DSCP remarking egress port.
QoS
Remarking
● ● ●
rtk_rg_qosDscpRemarkEgress
PortEnableAndSrcSelect_set
Set DSCP remarking egress port.
QoS
Scheduling
● ● ● rtk_rg_qosStrictPriorityOrWei
ghtFairQueue_get
Get QoS Scheduling method
(WFQ,Strict Priority)
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
22
by Queues rtk_rg_qosStrictPriorityOrWei
ghtFairQueue_set
Set QoS Scheduling method
(WFQ,Strict Priority)
Table1. List of pure RG APIs
PS: In the Above field, “R” stands for RomeDriver API, “L” stands for Lite RomeDriver API, “S”
stands for SFU Product used API.
The following Table lists all mapping RG APIs:
rtk_rg_stp_init
rtk_rg_stp_mstpState_get
STP
rtk_rg_stp_mstpState_set
rtk_rg_gpon_activate
rtk_rg_gpon_alarmStatus_get
rtk_rg_gpon_autoBoh_get
rtk_rg_gpon_autoBoh_set
rtk_rg_gpon_autoTcont_get
rtk_rg_gpon_autoTcont_set
rtk_rg_gpon_broadcastPass_get
rtk_rg_gpon_broadcastPass_set
rtk_rg_gpon_callbackExtMsgGetHandle_reg
rtk_rg_gpon_callbackExtMsgSetHandle_reg
rtk_rg_gpon_callbackQueryAesKey_reg
rtk_rg_gpon_deActivate
rtk_rg_gpon_debug_set
rtk_rg_gpon_deinitial
rtk_rg_gpon_device_deInitialize
rtk_rg_gpon_device_initialize
rtk_rg_gpon_devInfo_show
rtk_rg_gpon_driver_deInitialize
rtk_rg_gpon_driver_initialize
rtk_rg_gpon_dsFecSts_get
rtk_rg_gpon_dsFlow_get
rtk_rg_gpon_dsFlow_set
rtk_rg_gpon_dsFlow_show
rtk_rg_gpon_eqdOffset_get
rtk_rg_gpon_eqdOffset_set
GPON
rtk_rg_gpon_evtHdlAlarm_reg
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
23
rtk_rg_gpon_evtHdlDsFecChange_reg
rtk_rg_gpon_evtHdlOmci_reg
rtk_rg_gpon_evtHdlPloam_dreg
rtk_rg_gpon_evtHdlPloam_reg
rtk_rg_gpon_evtHdlStateChange_reg
rtk_rg_gpon_evtHdlUsFecChange_reg
rtk_rg_gpon_evtHdlUsPloamNrmEmpty_reg
rtk_rg_gpon_evtHdlUsPloamUrgEmpty_reg
rtk_rg_gpon_extMsg_get
rtk_rg_gpon_extMsg_set
rtk_rg_gpon_flowCounter_get
rtk_rg_gpon_flowCounter_show
rtk_rg_gpon_globalCounter_get
rtk_rg_gpon_globalCounter_show
rtk_rg_gpon_gtc_show
rtk_rg_gpon_initial
rtk_rg_gpon_isr_entry
rtk_rg_gpon_macEntry_add
rtk_rg_gpon_macEntry_del
rtk_rg_gpon_macEntry_get
rtk_rg_gpon_macFilterMode_get
rtk_rg_gpon_macFilterMode_set
rtk_rg_gpon_macTable_show
rtk_rg_gpon_mcForceMode_get
rtk_rg_gpon_mcForceMode_set
rtk_rg_gpon_multicastAddrCheck_get
rtk_rg_gpon_multicastAddrCheck_set
rtk_rg_gpon_nonMcastPass_get
rtk_rg_gpon_nonMcastPass_set
rtk_rg_gpon_omci_rx
rtk_rg_gpon_omci_tx
rtk_rg_gpon_parameter_get
rtk_rg_gpon_parameter_set
rtk_rg_gpon_password_get
rtk_rg_gpon_password_set
rtk_rg_gpon_ploam_send
rtk_rg_gpon_ponStatus_get
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
24
rtk_rg_gpon_powerLevel_get
rtk_rg_gpon_powerLevel_set
rtk_rg_gpon_rdi_get
rtk_rg_gpon_rdi_set
rtk_rg_gpon_serialNumber_get
rtk_rg_gpon_serialNumber_set
rtk_rg_gpon_tcontCounter_get
rtk_rg_gpon_tcontCounter_show
rtk_rg_gpon_tcont_create
rtk_rg_gpon_tcont_destroy
rtk_rg_gpon_tcont_get
rtk_rg_gpon_tcont_show
rtk_rg_gpon_txForceIdle_get
rtk_rg_gpon_txForceIdle_set
rtk_rg_gpon_txForceLaser_get
rtk_rg_gpon_txForceLaser_set
rtk_rg_gpon_unit_test
rtk_rg_gpon_usFlow_get
rtk_rg_gpon_usFlow_set
rtk_rg_gpon_usFlow_show
rtk_rg_gpon_version_get
rtk_rg_gpon_version_show
rtk_rg_epon_churningKey_get
rtk_rg_epon_churningKey_set
rtk_rg_epon_dsFecState_get
rtk_rg_epon_dsFecState_set
rtk_rg_epon_fecState_get
rtk_rg_epon_fecState_set
rtk_rg_epon_forceLaserState_get
rtk_rg_epon_forceLaserState_set
rtk_rg_epon_init
rtk_rg_epon_intrMask_get
rtk_rg_epon_intrMask_set
rtk_rg_epon_intr_disableAll
rtk_rg_epon_intr_get
rtk_rg_epon_laserTime_get
EPON
rtk_rg_epon_laserTime_set
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
25
rtk_rg_epon_llidEntryNum_get
rtk_rg_epon_llid_entry_get
rtk_rg_epon_llid_entry_set
rtk_rg_epon_losState_get
rtk_rg_epon_mibCounter_get
rtk_rg_epon_mibGlobal_reset
rtk_rg_epon_mibLlidIdx_reset
rtk_rg_epon_mpcpTimeoutVal_get
rtk_rg_epon_mpcpTimeoutVal_set
rtk_rg_epon_opticalPolarity_get
rtk_rg_epon_opticalPolarity_set
rtk_rg_epon_registerReq_get
rtk_rg_epon_registerReq_set
rtk_rg_epon_syncTime_get
rtk_rg_epon_thresholdReport_get
rtk_rg_epon_thresholdReport_set
rtk_rg_epon_usFecState_get
rtk_rg_epon_usFecState_set
rtk_rg_ponmac_flow2Queue_get
rtk_rg_ponmac_flow2Queue_set
rtk_rg_ponmac_init
rtk_rg_ponmac_losState_get
rtk_rg_ponmac_mode_get
rtk_rg_ponmac_mode_set
rtk_rg_ponmac_opticalPolarity_get
rtk_rg_ponmac_opticalPolarity_set
rtk_rg_ponmac_queueDrainOut_set
rtk_rg_ponmac_queue_add
rtk_rg_ponmac_queue_del
rtk_rg_ponmac_queue_get
PON MAC
rtk_rg_ponmac_transceiver_get
rtk_rg_i2c_clock_get
rtk_rg_i2c_clock_set
rtk_rg_i2c_eepMirror_get
rtk_rg_i2c_eepMirror_read
rtk_rg_i2c_eepMirror_set
I2C
rtk_rg_i2c_eepMirror_write
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
26
rtk_rg_i2c_enable_get
rtk_rg_i2c_enable_set
rtk_rg_i2c_init
rtk_rg_i2c_read
rtk_rg_i2c_width_get
rtk_rg_i2c_width_set
rtk_rg_i2c_write
rtk_rg_intr_gphyStatus_clear
rtk_rg_intr_gphyStatus_get
rtk_rg_intr_imr_get
rtk_rg_intr_imr_restore
rtk_rg_intr_imr_set
rtk_rg_intr_ims_clear
rtk_rg_intr_ims_get
rtk_rg_intr_init
rtk_rg_intr_linkdownStatus_clear
rtk_rg_intr_linkdownStatus_get
rtk_rg_intr_linkupStatus_clear
rtk_rg_intr_linkupStatus_get
rtk_rg_intr_polarity_get
rtk_rg_intr_polarity_set
rtk_rg_intr_speedChangeStatus_clear
Interrupt
rtk_rg_intr_speedChangeStatus_get
rtk_rg_port_adminEnable_get
rtk_rg_port_adminEnable_set
rtk_rg_port_cpuPortId_get
rtk_rg_port_enhancedFid_get
rtk_rg_port_enhancedFid_set
rtk_rg_port_flowctrl_get
rtk_rg_port_gigaLiteEnable_get
rtk_rg_port_gigaLiteEnable_set
rtk_rg_port_greenEnable_get
rtk_rg_port_greenEnable_set
rtk_rg_port_init
rtk_rg_port_isolationCtagPktConfig_get
rtk_rg_port_isolationCtagPktConfig_set
Port
rtk_rg_port_isolationEntryExt_get
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
27
rtk_rg_port_isolationEntryExt_set
rtk_rg_port_isolationEntry_get
rtk_rg_port_isolationEntry_set
rtk_rg_port_isolationExtL34_get
rtk_rg_port_isolationExtL34_set
rtk_rg_port_isolationExt_get
rtk_rg_port_isolationExt_set
rtk_rg_port_isolationIpmcLeaky_get
rtk_rg_port_isolationIpmcLeaky_set
rtk_rg_port_isolationL34PktConfig_get
rtk_rg_port_isolationL34PktConfig_set
rtk_rg_port_isolationL34_get
rtk_rg_port_isolationL34_set
rtk_rg_port_isolationLeaky_get
rtk_rg_port_isolationLeaky_set
rtk_rg_port_isolationPortLeaky_get
rtk_rg_port_isolationPortLeaky_set
rtk_rg_port_isolation_get
rtk_rg_port_isolation_set
rtk_rg_port_link_get
rtk_rg_port_macExtMode_get
rtk_rg_port_macExtMode_set
rtk_rg_port_macExtRgmiiDelay_get
rtk_rg_port_macExtRgmiiDelay_set
rtk_rg_port_macForceAbilityState_get
rtk_rg_port_macForceAbilityState_set
rtk_rg_port_macForceAbility_get
rtk_rg_port_macForceAbility_set
rtk_rg_port_macLocalLoopbackEnable_get
rtk_rg_port_macLocalLoopbackEnable_set
rtk_rg_port_macRemoteLoopbackEnable_get
rtk_rg_port_macRemoteLoopbackEnable_set
rtk_rg_port_phyAutoNegoAbility_get
rtk_rg_port_phyAutoNegoAbility_set
rtk_rg_port_phyAutoNegoEnable_get
rtk_rg_port_phyAutoNegoEnable_set
rtk_rg_port_phyCrossOverMode_get
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
28
rtk_rg_port_phyCrossOverMode_set
rtk_rg_port_phyForceModeAbility_get
rtk_rg_port_phyForceModeAbility_set
rtk_rg_port_phyMasterSlave_get
rtk_rg_port_phyMasterSlave_set
rtk_rg_port_phyReg_get
rtk_rg_port_phyReg_set
rtk_rg_port_phyTestMode_get
rtk_rg_port_phyTestMode_set
rtk_rg_port_rtctResult_get
rtk_rg_port_rtct_start
rtk_rg_port_specialCongestStatus_clear
rtk_rg_port_specialCongestStatus_get
rtk_rg_port_specialCongest_get
rtk_rg_port_specialCongest_set
rtk_rg_port_speedDuplex_get
rtk_rg_rate_egrBandwidthCtrlIncludeIfg_get
rtk_rg_rate_egrBandwidthCtrlIncludeIfg_set
rtk_rg_rate_egrQueueBwCtrlEnable_get
rtk_rg_rate_egrQueueBwCtrlEnable_set
rtk_rg_rate_egrQueueBwCtrlMeterIdx_get
rtk_rg_rate_egrQueueBwCtrlMeterIdx_set
rtk_rg_rate_init
rtk_rg_rate_portEgrBandwidthCtrlIncludeIfg_get
rtk_rg_rate_portEgrBandwidthCtrlIncludeIfg_set
rtk_rg_rate_portEgrBandwidthCtrlRate_get
rtk_rg_rate_portEgrBandwidthCtrlRate_set
rtk_rg_rate_portIgrBandwidthCtrlIncludeIfg_get
rtk_rg_rate_portIgrBandwidthCtrlIncludeIfg_set
rtk_rg_rate_portIgrBandwidthCtrlRate_get
rtk_rg_rate_portIgrBandwidthCtrlRate_set
rtk_rg_rate_shareMeterBucket_get
rtk_rg_rate_shareMeterBucket_set
rtk_rg_rate_shareMeterExceed_clear
rtk_rg_rate_shareMeterExceed_get
rtk_rg_rate_shareMeterMode_get
Rate
rtk_rg_rate_shareMeterMode_set
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
29
rtk_rg_rate_shareMeter_get
rtk_rg_rate_shareMeter_set
rtk_rg_rate_stormBypass_get
rtk_rg_rate_stormBypass_set
rtk_rg_rate_stormControlEnable_get
rtk_rg_rate_stormControlEnable_set
rtk_rg_rate_stormControlMeterIdx_get
rtk_rg_rate_stormControlMeterIdx_set
rtk_rg_rate_stormControlPortEnable_get
rtk_rg_rate_stormControlPortEnable_set
rtk_rg_rldp_config_get
rtk_rg_rldp_config_set
rtk_rg_rldp_init
rtk_rg_rldp_portConfig_get
rtk_rg_rldp_portConfig_set
rtk_rg_rldp_portStatus_clear
rtk_rg_rldp_portStatus_get
rtk_rg_rldp_status_get
rtk_rg_rlpp_init
rtk_rg_rlpp_trapType_get
RLDP
rtk_rg_rlpp_trapType_set
rtk_rg_stat_global_get
rtk_rg_stat_global_getAll
rtk_rg_stat_global_reset
rtk_rg_stat_init
rtk_rg_stat_logCtrl_get
rtk_rg_stat_logCtrl_set
rtk_rg_stat_log_get
rtk_rg_stat_log_reset
rtk_rg_stat_mibCntMode_get
rtk_rg_stat_mibCntMode_set
rtk_rg_stat_mibCntTagLen_get
rtk_rg_stat_mibCntTagLen_set
rtk_rg_stat_mibLatchTimer_get
rtk_rg_stat_mibLatchTimer_set
rtk_rg_stat_mibSyncMode_get
Statistics
rtk_rg_stat_mibSyncMode_set
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
30
rtk_rg_stat_pktInfo_get
rtk_rg_stat_port_get
rtk_rg_stat_port_getAll
rtk_rg_stat_port_reset
rtk_rg_stat_rstCntValue_get
rtk_rg_stat_rstCntValue_set
rtk_rg_switch_allExtPortMask_set
rtk_rg_switch_allPortMask_set
rtk_rg_switch_chip_reset
rtk_rg_switch_deviceInfo_get
rtk_rg_switch_init
rtk_rg_switch_logicalPort_get
rtk_rg_switch_maxPktLenLinkSpeed_get
rtk_rg_switch_maxPktLenLinkSpeed_set
rtk_rg_switch_mgmtMacAddr_get
rtk_rg_switch_mgmtMacAddr_set
rtk_rg_switch_nextPortInMask_get
rtk_rg_switch_phyPortId_get
rtk_rg_switch_port2PortMask_clear
rtk_rg_switch_port2PortMask_set
rtk_rg_switch_portIdInMask_check
rtk_rg_switch_portMask_Clear
Switch
rtk_rg_switch_version_get
rtk_rg_trap_igmpCtrlPkt2CpuEnable_get
rtk_rg_trap_igmpCtrlPkt2CpuEnable_set
rtk_rg_trap_init
rtk_rg_trap_ipMcastPkt2CpuEnable_get
rtk_rg_trap_ipMcastPkt2CpuEnable_set
rtk_rg_trap_l2McastPkt2CpuEnable_get
rtk_rg_trap_l2McastPkt2CpuEnable_set
rtk_rg_trap_mldCtrlPkt2CpuEnable_get
rtk_rg_trap_mldCtrlPkt2CpuEnable_set
rtk_rg_trap_oamPduAction_get
rtk_rg_trap_oamPduAction_set
rtk_rg_trap_oamPduPri_get
rtk_rg_trap_oamPduPri_set
Trap
rtk_rg_trap_portIgmpMldCtrlPktAction_get
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
31
rtk_rg_trap_portIgmpMldCtrlPktAction_set
rtk_rg_trap_reasonTrapToCpuPriority_get
rtk_rg_trap_reasonTrapToCpuPriority_set
rtk_rg_trap_rmaAction_get
rtk_rg_trap_rmaAction_set
rtk_rg_trap_rmaPri_get
rtk_rg_trap_rmaPri_set
Table2. List of mapping RG APIs (Mapping from RTK APIs)
Each pure RG API has access to corresponding Hardware Table as follow:
Categor
y
Function Name L
2
V
L
A
R
N
I
L
3
N
H
N
B
B
I
W
A
I
P
P
P
N
A
A
C
C
F
rtk_rg_initParam_set ●●●●●●●● ● ● ● ● ● ●
rtk_rg_lanInterface_add
● ● ● LAN
Intf rtk_rg_interface_del
● ● ●
rtk_rg_wanInterface_add
● ●●● ● ● ● WAN
Intf/
Port
Binding
rtk_rg_interface_del
● ●●● ● ● ●
rtk_rg_staticInfo_set ● ● ● ● ●
rtk_rg_dhcpClientInfo_set ● ● ● ● ●
WAN
Type
rtk_rg_pppoeClientInfoAfter
Dial_set
● ● ● ● ● ●
rtk_rg_vlanBinding_add ● VLAN
Binding rtk_rg_vlanBinding_del ●
rtk_rg_aclFilterAndQos_add ● ●
ACL/
Qos
Remark
ing
rtk_rg_aclFilterAndQos_del ● ●
rtk_rg_macFilter_add ● MAC
Filter rtk_rg_macFilter_del ●
rtk_rg_urlFilterString_add ● URL
Filter rtk_rg_urlFilterString_del ●
rtk_rg_multicastFlow_add ●
rtk_rg_multicastFlow_del ●
Multi-
cast
rtk_rg_multicastFlow_find ●
NAPT rtk_rg_naptConnection_add ●
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
32
rtk_rg_naptConnection_del ●
rtk_rg_macEntry_add ● MAC
rtk_rg_macEntry_del ●
rtk_rg_arpEntry_add ● ● ARP
rtk_rg_arpEntry_del ● ●
rtk_rg_neighborEntry_add ● ● Neigh-
bor rtk_rg_neighborEntry_del ● ●
Table3. List of RTK RG HGU APIs access Hardware Table
PS: Glossary for the above field as below:
L2: LUT Table VL: CVLAN Table AR: ARP Table
NI: Network Interface Table L3: Routing Table NH: Next Hop Table
BI: Binding Table WA: WAN Type Table IP: Internal/External IP Table
PP: PPPoE Table NA: NAPT Table AC: ACL Table
CF: Classification Table NB:Neighbor Table
3. Checkout Code
The developer should Checkout Code from SVN Server:
$ mkdir ~/RTK
$ cd ~/RTK
$ svn co http://dtdinfo.realtek.com.tw/svn/CN/lunar/trunk/develop/uClinux-dist
Customers should acquire source code package from Realtek FTP.(172.21.146.57).
Please get the FTP account information from our FAE.
4. Build Code
Following command shows how to build source code to Image:
Read the default configuration setting:
$ cd uClinux-dist
$ make -f LDLMakefile preconfig2630_DL8696RG_VoIP_demo CONFIG_PRODUCT=luna
Make menuconfig. If unknown config shows, just press Enter(which means using default setting).
$make -f LDLMakefile menuconfig
Compile Kernal & User space code and to make vm.img:
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
33
$make -f LDLMakefile all
5. NAPT External Port Collsion Prevention
In Current SDK, Forwarding Engine can not support some advanced flow connection, such as
User-defined ALG., Out of RomeDriver NAPT range flows. So, these kind of connection packet
will be trapped to Protocal-stack and handled by OS(Operating System). The OS will establish and
maintain the connection by its own networking module. While establish TCP/UDP NAPT connetion,
no matter forwardingEngine or OS take care of this, it must choose an external port. In cuurent
SDK, both forwardingEngine and OS maintains these NAPT flow by Symmetric way, and each of
them are independent. For avoiding the confliction of the same external port choosed by
forwardingEngine and OS but establish different NAPT flow, we must provide a NAPT External
Port Collision Prevention Mechanism in RomeDriver to make sure each side will not choose the
same external port.
If using the NAPT External Port Collision Prevention Mechanism in RomeDriver, the user has to
modify the OS protocol stack. Considering the transplating in different OS, and the maintaince in
RomeDriver, here we provide two API in RomeDriver for modifying OS easier.
rtk_rg_naptExtPortGet (Please reference to 5.1.2)
rtk_rg_naptExtPortFree (Please reference to 5.1.3)
5.1.1. Enable/Disable NAPT External Port Collision Prevention
The NAPT External Port Collision Prevention Mechanism can be enabled by compile flag
CONFIG_RG_NAPT_PORT_COLLISION_PREVENTION.
In Linux, We can enable this feature by menuconfig as following:
Step1:Choosing the Kernal Setting configuration & Exit the main menuconfig:
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
34

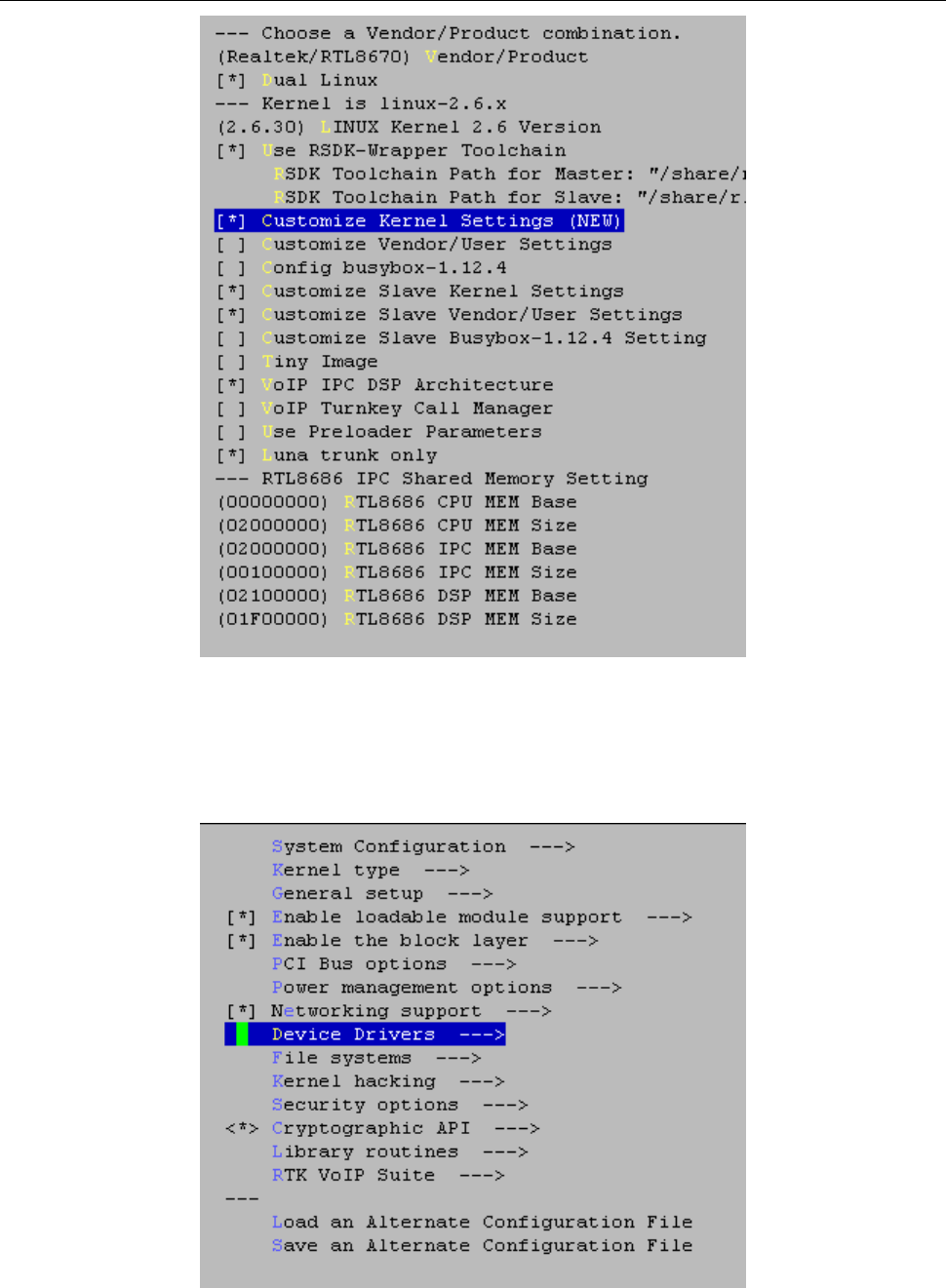

Figure3. Enable NAPT External Port Collision Prevention, step1
Step2: Enter to “Device Drivers”
Figure4. Enable NAPT External Port Collision Prevention, step2
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
35
Step3: Enter to “Realtek RG support”

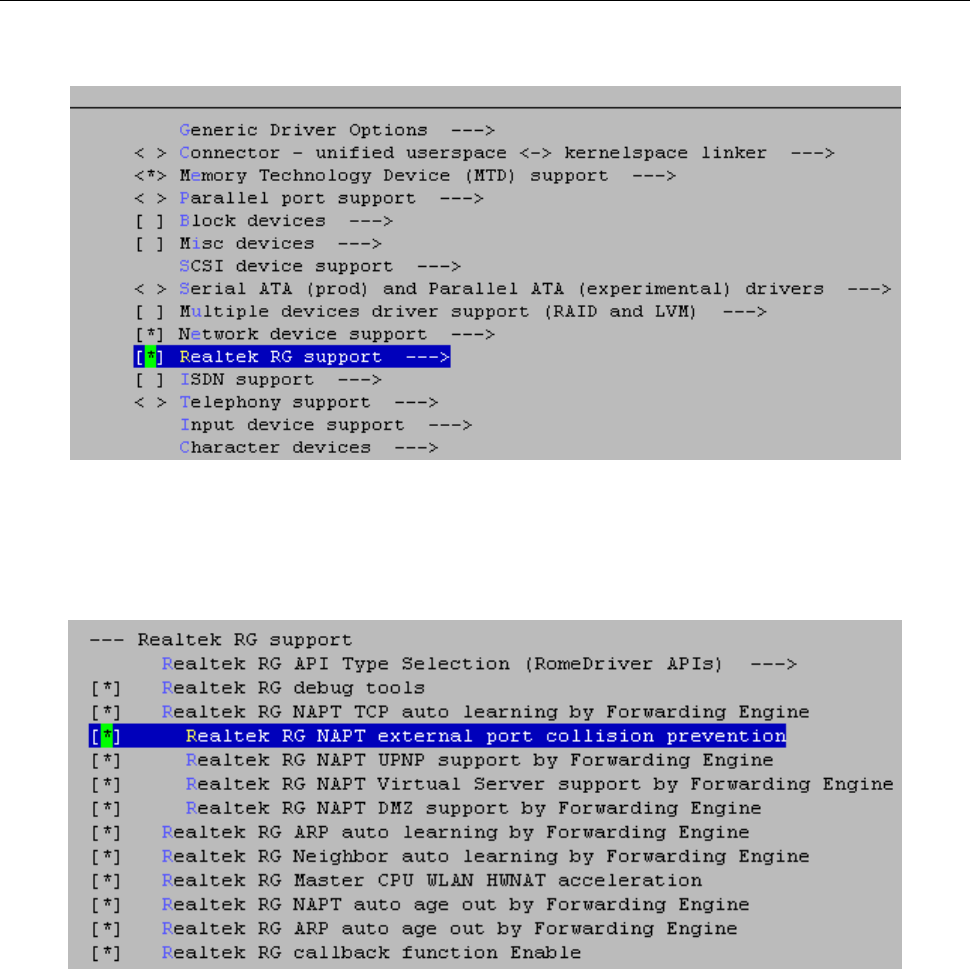

Figure5. Enable NAPT External Port Collision Prevention, step3
Step4: Enable “Realtek RG NAPT external port collision prevenction.”
Figure6. Enable NAPT External Port Collision Prevention, step4
5.1.2. API: rtk_rg_naptExtPortGet
This API maintain an external port databased and check the choosed external port is used by other
NAPT connetion or UPNP/Virtual Server or not. If the choosed external port is used, then the API
will auto increase the port number and check again until find a legal port number. Following figure
shows the external port checking flow.
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
36

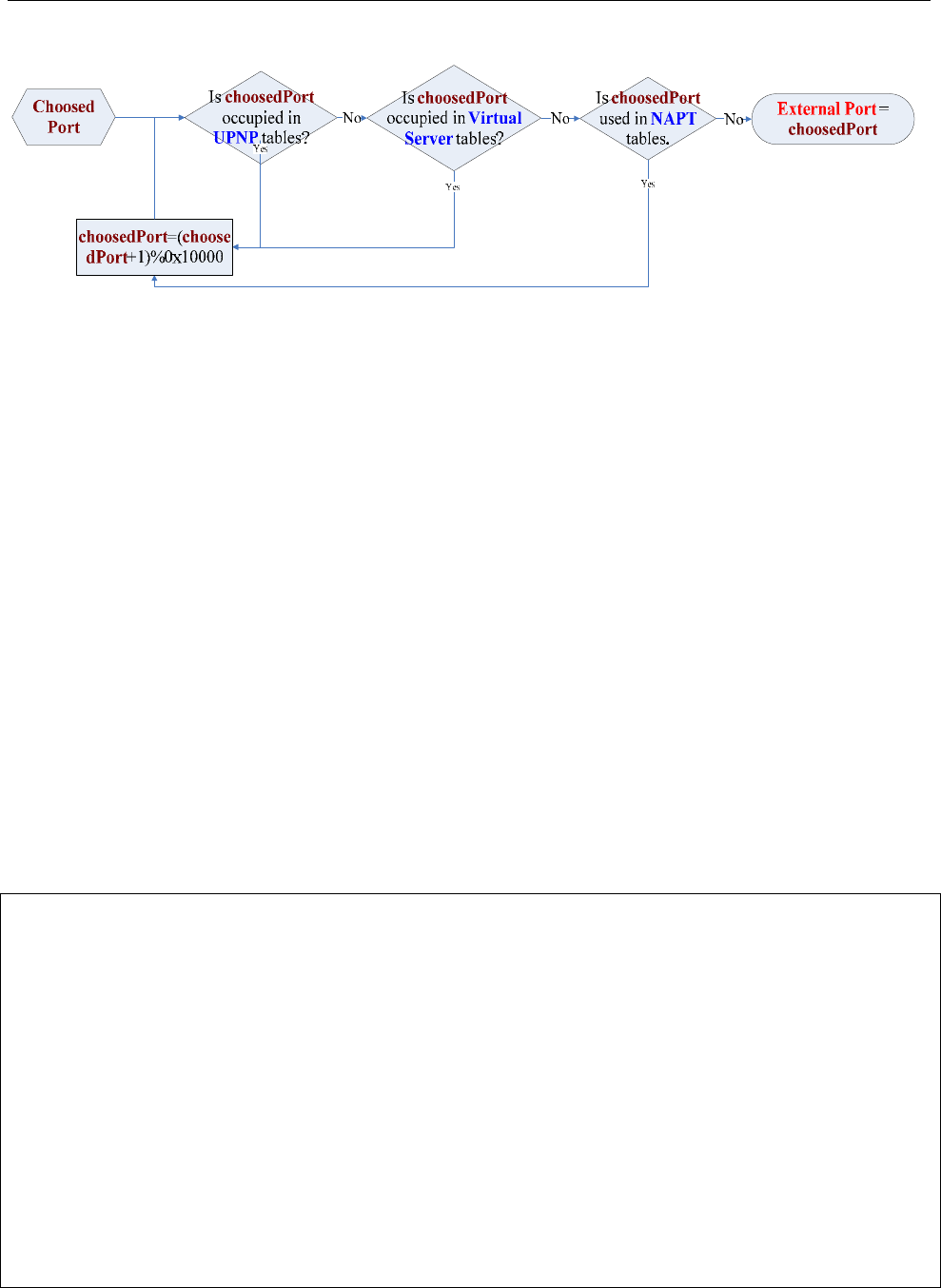

Figure7. NAPT External Port choosing flow.
5.1.3. API: rtk_rg_naptExtPortFree
This API is used to free the external port in database. After the free action, the external port can be
used in the other flow connetion.
5.1.4. Sample Codes for Hooking NAPT External Port Collision
Prevention Mechanism in Linux 2.6.30
Here is an example for hooking the NAPT External Port Collision Prevention Mechanism into
Linux Kernal 2.6.30.
Before OS netfilter establish the conntrack, the user should call rtk_rg_naptExtPortGet for letting
RomeDriver check and maintained all external ports. User should hack Protocal-Stack sample code
as following:
In Linux 2.6.30: linux-2.6.x/net/ipv4/netfilter/nf_nat_core.c
EXPORT_SYMBOL(nf_nat_used_tuple);
#if defined(CONFIG_RG_NAPT_PORT_COLLISION_PREVENTION)
extern int nf_conntrack_drop(const struct nf_conn *ct);
void nf_nat_conntrack_replace(const struct nf_conntrack_tuple *tuple,
const struct nf_conn *ignored_conntrack)
{
struct net *net = nf_ct_net(ignored_conntrack);
struct nf_conntrack_tuple_hash *h;
struct hlist_nulls_node *n;
unsigned int hash;
struct nf_conn * ct=NULL;
struct nf_conn * tmpct=NULL;
unsigned long longest_expires=0;
unsigned long begin_jiffies=jiffies;
int i;
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
37
rcu_read_lock_bh();
for (i = 0; i < nf_conntrack_htable_size; i++)
{
/* Disable BHs the entire time since we need to disable them at
* least once for the stats anyway.
*/
hlist_nulls_for_each_entry_rcu(h, n, &net->ct.hash[i], hnnode)
{
ct = nf_ct_tuplehash_to_ctrack(h);
if(ct && (ct != ignored_conntrack))
{
if (!test_bit(IPS_ASSURED_BIT, &ct->status))
{
tmpct = ((ct->timeout.expires-(jiffies-begin_jiffies)) >
longest_expires)?ct:tmpct;
longest_expires = tmpct->timeout.expires;
}
}
}
}
rcu_read_unlock_bh();
if(tmpct)
{
printk("Early drop connection: protocol:%d SRC[%d.%d.%d.%d:%d]
GW[%d.%d.%d.%d:%d]DST[%d.%d.%d.%d:%d]\n",tmpct->tuplehash[IP_CT_DIR_ORIGINAL].tuple.dst.protonum
nf_conntrack_drop(tmpct);
}
return 0;
}
EXPORT_SYMBOL(nf_nat_conntrack_replace);
#endif
/* If we source map this tuple so reply looks like reply_tuple, will
* that meet the constraints of range. */
static int
in_range(const struct nf_conntrack_tuple *tuple,
const struct nf_nat_range *range)
………………
static void
get_unique_tuple(struct nf_conntrack_tuple *tuple,
const struct nf_conntrack_tuple *orig_tuple,
const struct nf_nat_range *range,
struct nf_conn *ct,
enum nf_nat_manip_type maniptype)
{
………………
out:
#if defined(CONFIG_RG_NAPT_PORT_COLLISION_PREVENTION)
if((maniptype == IP_NAT_MANIP_SRC) //SNAT
&& ((orig_tuple->dst.protonum==IPPROTO_TCP)
||(orig_tuple->dst.protonum==IPPROTO_UDP)))
{
extern int32 rtk_rg_naptExtPortGet(int isTcp,uint16 *pPort);
extern int32 rtk_rg_naptExtPortFree(int isTcp,uint16 port);
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
38
/* Keep Linux NAT core and RG forwarding engine using separated NAPT external port. */
int i=0;
unsigned short *pPort;
int isTCP;
int ret;
isTCP = (tuple->dst.protonum==IPPROTO_TCP)?1:0;
pPort = &tuple->src.u.all;
while(pPort)
{
if(i++>65535) break;
ret = rtk_rg_naptExtPortGet(isTCP,pPort);
if(ret==0) //Port is available
{
if ((nf_nat_used_tuple(tuple, ct))==0)
break;
}
else if(ret==-1) //NAPT flow full
{
printk("PS used napt flow full\n");
nf_nat_conntrack_replace(tuple, ct);
break;
}
else
{
*pPort=((*pPort+1)&0xffff);
}
}
}
else //DNAT {
//Do nothing!
}
#endif
rcu_read_unlock();
}
Table4. Example: hook rtk_rg_naptExtPortGet
After OS delete the conntrack, user should call rtk_rg_naptExtPortFree to free the especial external
port, and following shows the sample code:
In Linux 2.6.30: linux-2.6.x/net/netfilter/nf_conntrack_core.c
static void
destroy_conntrack(struct nf_conntrack *nfct)
{
………………
rcu_read_lock();
l4proto = __nf_ct_l4proto_find(nf_ct_l3num(ct), nf_ct_protonum(ct));
if (l4proto && l4proto->destroy)
l4proto->destroy(ct);
rcu_read_unlock();
#if defined(CONFIG_RG_NAPT_PORT_COLLISION_PREVENTION)
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
39
extern unsigned int rtk_rg_naptExtPortFree(int isTcp,unsigned short port);
if(nf_ct_l3num(ct)==PF_INET)
{
if (test_bit(IPS_SEEN_REPLY_BIT, &ct->status))
{
if(nf_ct_protonum(ct)==IPPROTO_TCP)
rtk_rg_naptExtPortFree(1,ct->tuplehash[IP_CT_DIR_REPLY].tuple.src.u.all);
else if(nf_ct_protonum(ct)==IPPROTO_UDP)
rtk_rg_naptExtPortFree(0,ct->tuplehash[IP_CT_DIR_REPLY].tuple.src.u.all);
}
}
#endif
………………
nf_conntrack_free(ct);
}
………………
EXPORT_SYMBOL_GPL(nf_conntrack_tuple_taken);
#if defined(CONFIG_RG_NAPT_PORT_COLLISION_PREVENTION)
int nf_conntrack_drop(const struct nf_conn *ct)
{
del_timer(&ct->timeout);
death_by_timeout((unsigned long)ct);
return 0;
}
EXPORT_SYMBOL_GPL(nf_conntrack_drop);
#endif
#define NF_CT_EVICTION_RANGE 8
Table5. Example: hook rtk_rg_naptExtPortFree
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
40
6. (Lite)RomeDriver Initiation
rtk_rg_initParam_set
rtk_rg_wanInterface_add
rtk_rg_staticInfo_set
rtk_rg_dhcpClientInfo_set
rtk_rg_pppoeClientInfoBeforeDial_set
rtk_rg_pppoeClientInfoAfterDial_set
rtk_rg_vlanBinding_add
rtk_rg_algApps_set
rtk_rg_dmzHost_set
rtk_rg_virtualServer_add
rtk_rg_lanInterface_set
rtk_rg_macFilter_add
rtk_rg_aclFilterAndQos_add
rtk_rg_urlFilterString_add
rtk_rg_interface_del(WAN)
rtk_rg_macFilter_del
rtk_rg_interface_del(LAN)
Static ModeBridge Mode
DHCP Mode PPPoE Mode
rtk_rg_dhcpRequest_set

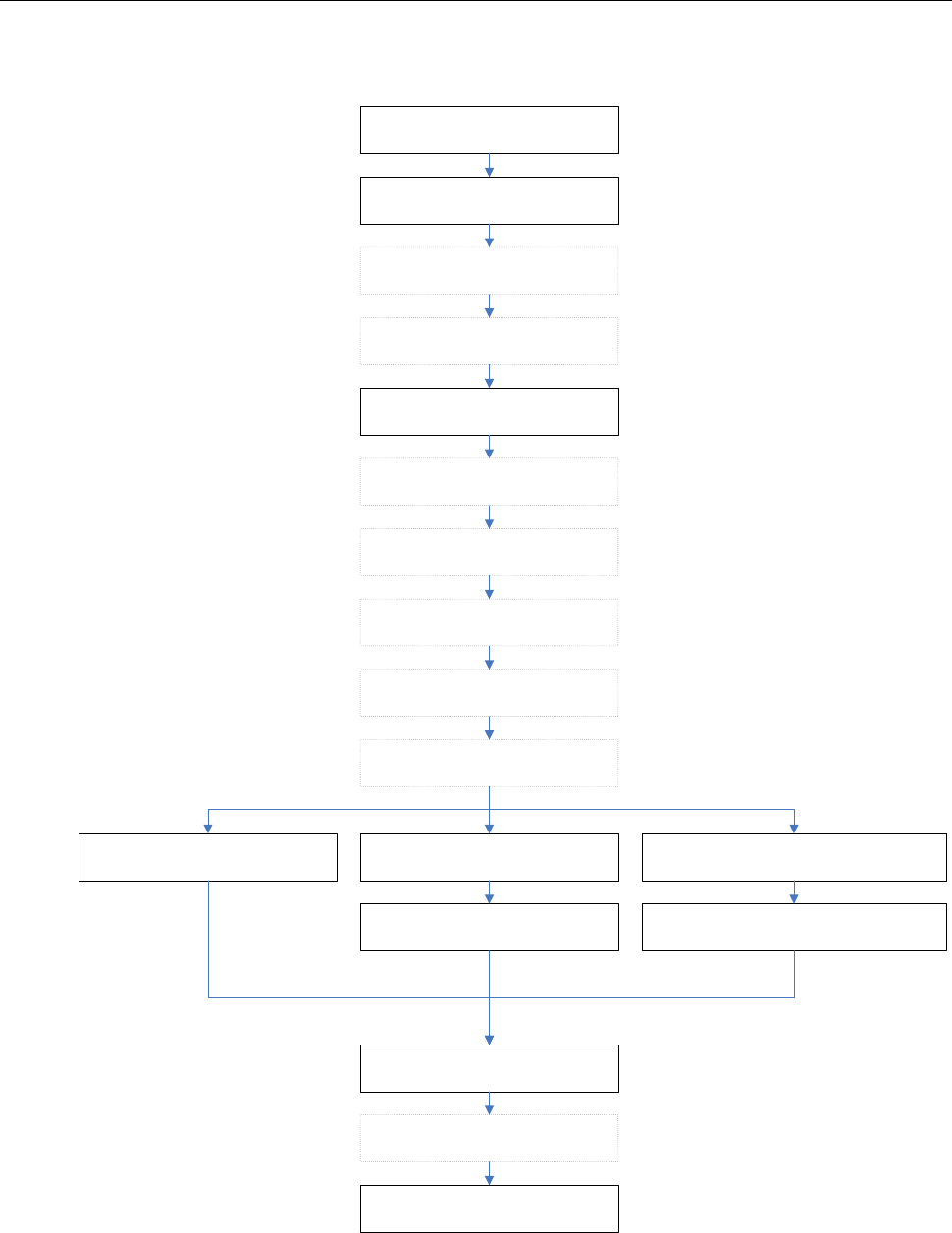

Figure8. RomeDriver Initiation Flow Chart
The above figure shows the RomeDriver and Lite RomeDriver initial flow of WAN Type is Bridge
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
41
WAN, Static WAN, DHCP WAN or PPPoE WAN, respectively. The dotted line is for setting
advance feature. For basic setting, 3~4 steps is needed for Bridge WAN/Router/Gateway
configuration.
1. rtk_rg_initParam_set
2. rtk_rg_lanInterface_add
3. rtk_rg_wanInterface_add
4. rtk_rg_staticInfo_set (for L3/L4)
The following description shows the Gateway basic setting process.
6.1. Gateway Basic Conifguration
There are 4 steps for setting up basic conversion by RTK RG APIs:
Step1-initialize RG Driver parameters:
rtk_rg_initParam_set is used to initial the Driver, and set up basic parameter and callback functions.
Following code shows the default setting:
if(rtk_rg_initParam_set(NULL)) return -1;
Table6. Example: rtk_rg_initParam_set (Default)
If user wants to control the initialization, the parameter init_param.igmpSnoopingEnable is use to
enable/disable the Igmpsnooping, the parameter init_param.macBasedTagDecision is use to
enable/disable the MacBasedVlan feature, and init_param. wanPortGponMode is use to configurate
the Wan port as PON feature or not.. The rest parameter is use to register callback functions, which
implement by user, to each configuration step. The callback functions usually are used to notify user
for Hardware add/modify/delete informations and synchronize the information between Hardware
and Protocol-Stack.
If user wants to modify the parameter should first get the default parameter and set back after
modified.
Following code shows how to enable Igmpsnooping and disable MacBasedVlan and register a
callback function in init parameters for notifing user that the hardware wants to add ARP Entry.
int *arpAddByHw_CallBack(rtk_rg_arpEntry_t *arp) { … }
…
rtk_rg_initParams_t init_param;
if(rtk_rg_initParam_get(&init_param)) return -1;
init_param.igmpSnoopingEnable=ENABLED;
init_param. macBasedTagDecision= DISABLED;
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
42
init_param.arpAddByHwCallBack=arpAddByHw_CallBack;
if(rtk_rg_initParam_set(&init_param)) return -1;
Table7. Example: rtk_rg_initParam_set (Customise)
Following description explain the usage of parameter init_param.macBasedTagDecision:
This parameter use to control the Hardware determind VLAN by MAC_BASED or VLAN_BASED.
Here is the configuration rules that shoud be followed either in MAC_BASED setting or
VLAN_BASED setting :
If init_param.macBasedTagDecision=DISABLED (VLAN_BASED):
The Hardware DMAC_TO_CVID will be disabled, so the vlan/port binding can not be set while
calling rtk_rg_wanInterface_add. And if the added Interfcace, which bring up by
rtk_rg_wanInterface_add., is BridgeWan, the VLAN must same as Lan Interface.
If init_param.macBasedTagDecision=ENABLED (MAC_BASED):
The Hardware DMAC_TO_CVID will be enabled,.However, while calling API
rtk_rg_lanInterface_add/ rtk_rg_wanInterface_add/ rtk_rg_cvlan_add, the parameter isIVL can
only be set to SVL.
Step2-Add LAN Interface:
The API rtk_rg_lanInterface_add is used to add LAN Interface. There are two parameters, the first
parameter rtk_rg_lanIntfConf_t *lan_info is used to send LAN information to Driver, the second
one int *intf_idx is the interface index returns from Driver. Since LAN interface index and WAN
interface index are two separate sets of data, therefore, LAN/WAN can use the same API
rtk_rg_interface_del as deleting interface.
Following code shows how to set up ipv4/ipv6 lan interface, and add Port0~3 and SSID0~3 into
LAN Interface. LAN configuration: VID=9, GMAC=00:11:22:33:44:55, LAN Gateway
IP/MASK=192.168.1.1/255.255.255.0 , IPv6/MASK_LENGH=2001::1/64，MTU=1500.
rtk_rg_lanIntfConf_t lan_info;
int lanIdx;
memset(&lan_info,0,sizeof(lan_info));
lan_info.ip_version=IPVER_V4V6;
lan_info.gmac.octet[0]=0x00;
lan_info.gmac.octet[1]=0x11;
lan_info.gmac.octet[2]=0x22;
lan_info.gmac.octet[3]=0x33;
lan_info.gmac.octet[4]=0x44;
lan_info.gmac.octet[5]=0x55;
lan_info.intf_vlan_id=9;
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
43
lan_info.vlan_based_pri_enable=RTK_RG_DISABLED;
lan_info.vlan_based_pri=0;
lan_info.ip_addr=0xc0a80101; //192.168.1.1
lan_info.ip_network_mask=0xffffff00;
lan_info.ipv6_addr.ipv6_addr[0]=0x20;
lan_info.ipv6_addr.ipv6_addr[1]=0x01;
lan_info.ipv6_addr.ipv6_addr[15]=0x01;
lan_info.ipv6_network_mask_length =64;
lan_info.mtu=1500;
lan_info.isIVL=0; //0:SVL 1:IVL
lan_info.port_mask.portmask= ((1<<RTK_RG_PORT0)|(1<<RTK_RG_PORT1)|
(1<<RTK_RG_PORT2)|(1<<RTK_RG_PORT3) | (1<<RTK_RG_EXT_PORT0)|
(1<<RTK_RG_EXT_PORT1)| (1<<RTK_RG_EXT_PORT2) |
(1<<RTK_RG_EXT_PORT3));
lan_info.untag_mask.portmask=((1<<RTK_RG_MAC_PORT0)|(1<<RTK_RG_MAC_PORT1)|
(1<<RTK_RG_MAC_PORT2)|(1<<RTK_RG_MAC_PORT_CPU)); //untagset hasn’t ext port
if(rtk_rg_lanInterface_add(&lanIntf,&lanIdx)) return -1;
Table8. Example: rtk_rg_lanInterface_add
lan_info. ip_version is used to decide whether to enabling ipv4, or ipv6 respectively, or to enabling
both. by setting ip_version to ipv4 or ipv6 respectively, it means port and protocol based VLAN
decision is setup, the different protocol from the same interface will be treat differently. For
example, if the interface set ip_version to 0, means ipv4_only, ipv6 packets from this interface will
be blocked. If ip_version set to 2, we will set up port based VLAN decision, that means untag
packets will follow the interface’s VLAN filtering setting. Besides, no matter lan_info. ip_version is
IPVER_V6ONLY or IPVER_V4V6, only one IPv6 lan interface can be supported because the
hardware limitation.
lan_info.gmac must be unicast address, if you entering a multicast here, the INVALID_PARAM
error will be returned.
lan_info. intf_vlan_id indicate the interfcae VLAN, but the value can not be the same as any
existing VLAN-Binding or 1Q-VLAN setting.
lan_info.vlan_based_pri_enable is to decide enable VLAN_BASED priority or not. This may effect
the internal priority decision. User have to assign the priority value to lan_info.vlan_based_pri if
enabled lan_info.vlan_based_pri_enable.
lan_info.port_mask(data type: rtk_rg_port_idx_t ) and lan_info.untag_mask(data type:
rtk_rg_mac_port_idx_t) are different. lan_info.port_mask include Virtual Extension Port, but
lan_info.untag_mask serves as indication for whether the Physical Port should add tag or not.
lan_info.isIVL is used to decide the behavior of L2-table learning. If user initialized in
MAC_BASED VLAN, then lan_info.isIVL can only set to SVL. When add LAN interface, it can
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
44
not have exact same IP subnet with other added interfaces, otherwise it will return fail.
When add LAN or WAN IPv4 subnet, we reserved C class subnet for each side. For example, if you
add a LAN interface with network mask 255.255.255.0, the ARP entries of this subnet will remain
in hardware table for L34 forwarding. After that, if you add another LAN interface, no matter how
big the subnet is, it’s ARP entries will be added to software ARP table and their L34 packets have to
forward by fwdEngine. Identically, the policy is same with WAN interfaces. This is compromise for
hardware ARP table has 512 entries in total, so we need software ARP mechanism to make up for it.
If the IP address and MAC address are all zero, then this LAN interface will not be added to routing
and netif hardware table. It just influences the LAN port’s port-based or port-and-protocol-based
VLAN settings, if it is the first added interface for that port.
Step3-Add WAN Interface:
rtk_rg_wanInterface_add is an API used to add WAN Interface. Just like rtk_rg_lanInterface_add.
There are two parameters, the first one rtk_rg_wanIntfConf_t *wanintf is used to send WAN
information to Driver, the second one int *intf_idx is the interface index returning from Driver.
Following code shows how to assign Port3 to WAN Interface, and WAN configuration: VID=8,
GMAC=00:11:22:33:44:56, without assigned VLAN_BASED priority and egress packet without
VLAN Tag, WAN Type is STATIC and default gateway. (only one WAN Interface can be Default
gateway).
When add wan_type as RTK_RG_BRIDGE and the egress_vlan_tag_on is set as zero, the
port-based VLAN setting of WAN port will be assigned as this WAN’s VLAN ID. Otherwise, for
other wan_type, they will not infect WAN port’s port-based VLAN setting. Only one WAN interface
can be set as untag bridge WAN in the system. Besides, if user initialized in MAC_BASED VLAN,
the API will add LAN/WAN side VLAN member to each other. But if initialize in VLAN_BASED
VLAN, user have to configurate the BRIDGE WAN VLAN as same as LAN VLAN.
rtk_rg_wanIntfConf_t wan_info;
int wanIdx;
memset(&wan_info,0,sizeof(wan_info));
wan_info.egress_vlan_id=8;
wan_info.vlan_based_pri_enable= RTK_RG_DISABLED;
wan_info. vlan_based_pri=0;
wan_info.egress_vlan_pri=0;
wan_info.egress_vlan_tag_on=0;
wan_info.gmac.octet[0]=0x00;
wan_info.gmac.octet[1]=0x11;
wan_info.gmac.octet[2]=0x22;
wan_info.gmac.octet[3]=0x33;
wan_info.gmac.octet[4]=0x44;
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
45
wan_info.gmac.octet[5]=0x56;
wan_info.port_binding_mask.portmask=0;
wan_info.wan_port_idx= RTK_RG_MAC_PORT_PON;
wan_info.wan_type= RTK_RG_STATIC;
wan_info.isIVL=0; //0:SVL 1:IVL
if(rtk_rg_wanInterface_add(&wan_info,&wanIdx)) return -1;
Table9. Example: rtk_rg_wanInterface_add
If user initialized in VLAN_BASED VLAN , the wan_info.port_binding_mask.portmask is limited
to 0x0. In the other side, if user initialized in MAC_BASED VLAN , the wan_info.isIVL is limited
to SVL.
Step4-Add WAN Interface information, such as IP Address/Network Mask/Gateway IP…etc:
If WAN Type is Static, user needs to use rtk_rg_staticInfo_set to set up WAN IP information. When
the napt_enable on rtk_rg_ipStaticInfo_t is disabled, the Router just forward Routing Packter when
NAPT action is disabled.
When ip_network_mask=0xffffffff is on, this WAN will not be considered as Interface Route. Like
LAN interface, WAN interfaces share 256 hardware ARP entries at all. If they need more, we will
add their ARP to software table.
gw_mac_auto_learn=1 is not supported in Lite RomeDriver. Thus, the WAN Gateway MAC
Address should be assigned by user. And also, WAN Gateway MAC should never be multicast
address.
rtk_rg_ipStaticInfo_t staticInfo;
memset(&staticInfo,0,sizeof(staticInfo));
staticInfo. ip_version=2;
staticInfo. ipv4_default_gateway_on =1;
staticInfo. gateway_ipv4_addr =0xc0a89675; //wan gateway ip:192.168.150.117
staticInfo.ip_addr=0xc0a89674; //wan ip:192.168.150.116
staticInfo.ip_network_mask=0xfffffffe;
staticInfo. ipv6_default_gateway_on=1;
staticInfo. gateway_ipv6_addr. ipv6_addr[0]=0x20; //ipv6 gateway 2002::2
staticInfo. gateway_ipv6_addr. ipv6_addr[1]=0x02;
staticInfo. gateway_ipv6_addr. ipv6_addr[15]=0x02;
staticInfo. ipv6_addr. ipv6_addr[0]=0x20; //ipv6 2002::1
staticInfo. ipv6_addr. ipv6_addr[0]=0x02;
staticInfo. ipv6_addr. ipv6_addr[0]=0x01;
staticInfo. ipv6_mask_length=64;
staticInfo.mtu=1500;
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
46
staticInfo.napt_enable=1;
staticInfo gw_mac_auto_learn_for_ipv4 =0;
staticInfo .gw_mac_auto_learn_for_ipv6=0
staticInfo.gateway_mac_addr.octet[0]=0x00;
staticInfo.gateway_mac_addr.octet[1]=0x10;
staticInfo.gateway_mac_addr.octet[2]=0x20;
staticInfo.gateway_mac_addr.octet[3]=0x30;
staticInfo.gateway_mac_addr.octet[4]=0x40;
staticInfo.gateway_mac_addr.octet[5]=0x60;
if(rtk_rg_staticInfo_set(wanIdx,&staticInfo)) return -1;
Table10. Example: rtk_rg_staticInfo_set(for LiteRomeDriver ARP set by USER)
Forwarding Engine can process ARP Request for getting WAN Gateway MAC in RomeDriver. If
user hasn’t assigned WAN Gateway MAC, then the value of gw_mac_auto_learn should be 1.
rtk_rg_ipStaticInfo_t staticInfo;
memset(&staticInfo,0,sizeof(staticInfo));
staticInfo. ipv4_default_gateway_on =1;
staticInfo.gateway_ip_addr=0xc0a89675; //wan ip:192.168.150.117
staticInfo.ip_addr=0xc0a89674; //wan ip:192.168.150.116
staticInfo.ip_network_mask=0xfffffffe;
staticInfo.mtu=1500;
staticInfo.napt_enable=1;
staticInfo. gw_mac_auto_learn_for_ipv4=1;
staticInfo. ipv6_default_gateway_on=1;
staticInfo. ipv6_addr. ipv6_addr[0]=0x20; //ipv6 2002::1
staticInfo. ipv6_addr. ipv6_addr[0]=0x02;
staticInfo. ipv6_addr. ipv6_addr[0]=0x01;
staticInfo. ipv6_mask_length=64;
staticInfo .gw_mac_auto_learn_for_ipv6=1;
if(rtk_rg_staticInfo_set(wanIdx,&staticInfo)) return -1;
Table11. Example: rtk_rg_staticInfo_set(for RomeDriver ARP auto learning)
Step5- Add Gateway MAC:
For LiteRomeDriver users without L2/ARP Autolearning Module, L2/ARP/NAPT should be
configured by following APIs. If L2/ARP Autolearning Module is enabled in LiteRomeDriver, only
NAPT should be configured. However, RomeDriver users can ignore all following APIs because its
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
47
Auto Learning Mechanism for adding all these entries.
Following code shows adding MAC Entry into L2 table by rtk_rg_macEntry_add:
rtk_rg_macEntry_t l2;
int l2Idx=0;
memset(&l2,0,sizeof(rtk_rg_macEntry_t));
l2.mac.octet[0]=0x0;
l2.mac.octet[1]=0x10;
l2.mac.octet[2]=0x20;
l2.mac.octet[3]=0x30;
l2.mac.octet[4]=0x40;
l2.mac.octet[5]=0x60;
l2.fid=0;
l2.isIVL=1;
l2.port_idx=RTK_RG_PORT1;
l2.vlan_id=9;
if(rtk_rg_macEntry_add(&l2,&l2Idx)) return -1;
Table12. Example: rtk_rg_macEntry_add
Step6-Add Gateway ARP:
After obtaining, l2Idx from rtk_rg_macEntry_add, user should set IP information & l2Idx to ARP
table by rtk_rg_arpEntry_add.
rtk_rg_arpInfo_t arpInfo;
int arpIdx=0;
memset(&arpInfo,0,sizeof(rtk_rg_arpInfo_t));
arpInfo.arpEntry.ipv4Addr=0xc0a80102; //192.168.1.2
arpInfo.arpEntry.macEntryIdx = l2Idx;
arpInfo.arpEntry.staticEntry = 1;
if(rtk_rg_arpEntry_add(&arpInfo.arpEntry,&arpIdx)) return -1;
Table13. Example: rtk_rg_arpEntry_add
Step8-Add NAPT
Use rtk_rg_naptEntry_t napt to configure NAPT connection information and set this configuration
to NAPT table by rtk_rg_naptConnection_add.
rtk_rg_naptEntry_t napt;
int naptIdx=0;
memset(&napt,0,sizeof(rtk_rg_naptEntry_t));
napt.is_tcp = 1;
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
48
napt.local_ip = 0xc0a80102; //192.168.1.2
napt.local_port = 0x500;
napt.remote_ip = 0xc0a89675;
napt.remote_port = 0x706;
napt.wan_intf_idx = 1;
napt.external_port = 0x555;
if(rtk_rg_naptConnection_add(&napt,&naptIdx)) return -1;
Table14. Example: rtk_rg_naptConnection_add
6.2. Gateway Advanced Conifguration
6.2.1. Port Binding
Port Binding is assigned as soon as WAN Interface initialization is established. Each Port can only
be assigned to Port Binding PortMask on one WAN Interface. If one Port assigned to WAN
Interface twice, the second WAN Interfcae will fail on initialization. Besides, this feature only
enabled if init_param.macBasedTagDecision=ENABLED while calling rtk_rg_initParam_set.
Following code shows how to support Port Binding by fix Step3 Sample code.
rtk_rg_wanIntfConf_t wanIntf;
int wanIdx;
memset(&wanIntf,0,sizeof(rtk_rg_wan_Intf_Conf_t));
wanIntf.egress_vlan_id=8;
wanIntf.egress_vlan_pri=0;
wanIntf.egress_vlan_tag_on=0; /* egress c-vlan untag */
wanIntf.gmac.octet[0]=0x00; /* set WAN GMAC=00:11:22:33:44:56 */
wanIntf.gmac.octet[1]=0x11;
wanIntf.gmac.octet[2]=0x22;
wanIntf.gmac.octet[3]=0x33;
wanIntf.gmac.octet[4]=0x44;
wanIntf.gmac.octet[5]=0x56;
wanIntf.wan_port_idx=RTK_RG_MAC_PORT3;
wanIntf.default_gateway_on=1; /* default router to this WAN interface */
wanIntf.port_binding_mask.portmask=(1<< RTK_RG_PORT0)|(1<< RTK_RG_PORT1);
wanIntf.wan_type= RTK_RG_STATIC; /* WAN Type: STATIC */
if(rtk_rg_wanInterface_add(&wanIntf,&wanIdx)) return -1;
Table15. Example: rtk_rg_wanInterface_add (with Port Binding)
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
49
After setting above Port Binding configuration, Port0 & Port1 will use this WAN Interface as
default route, no matter what DIP or what Ingress VLAN Tag VID take from packet, this default
routing will transform packet VID as WAN Interface VID.
6.2.2. VLAN Binding
VLAN Binding is used to binding specific VLAN Tag packet on the LAN and assign Wan Interface
Egress packet VLAN Tag which will follow WAN Interface setting to decide Tag or not, and Egress
VID. In the meantime, Ingress packet VLAN Tag from WAN assigned by LAN will be transformed
to original format.
rtk_rg_vlanBinding_t vlanBind;
memset(&vlanBind,0,sizeof(rtk_rg_vlanBinding_t));
vlanBind.port_idx=RTK_RG_MAC_PORT0;
vlanBind.ingress_vid=100;
vlanBind.wan_intf_idx=wanIdx;
if(rtk_rg_vlanBinding_add(&vlanBind,&wanIdx)) return -1;
Table16. Example: rtk_rg_vlanBinding_add
After VLAN Binding configuration is set, no matter what DIP is, the Host with CTAG VID=100
from Port0 will use this WAN Interface as Default Route, and transform VID to WAN Interface
VID. This feature only enabled if user set init_param.macBasedTagDecision=ENABLED while
calling rtk_rg_initParam_set.
This example is to show how to forward packet from Port0 and CTAG=100 to Port PON, and
determind to take VLAN Tag=8 or not by wlanIntf.egress_vlan_tag_on. When packet is sent form
WAN side to LAN side specific host, the CTAG will be transformed to VID=100 by MAC and sent
to Port0.
6.2.3. ACL Filter / ACL-Based QoS Remarking
rtk_rg_aclFilterAndQos_add can be used to filter under particular ingress/egress condition, it also
can trap packet to CPU conducting or do multi-taskings such as: Logging action and do Qos
action(CVLAN Priority remarking, DSCP Remarking, IP Precedence Remarking, assign Queue ID,
and assign Share Meter Index). User can configure action_type, and qos_actions field and
fwding_type_and_direction in aclRule to perform different activities.
action_type field supports following activities:
ACL_ACTION_TYPE_DROP Drop any packet hit the rule by Hardware. If there is no set
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
50
rule on Permit action, the Default Action Policy is Permit.
ACL_ACTION_TYPE_PERMIT Hardware will keep the packet of Hit Rule, and drop all other
packets. When a Permit Rule is added, the Default Action
Policy will turn to Drop.
ACL_ACTION_TYPE_TRAP Trap Hit Rule packet to CPU Port. And the packet will be
handeled by Forwarding Engine
ACL_ACTION_TYPE_QOS All QoS action can be distributed to perform 1P Remarking,
IP Precedence Remarking, DSCP Remarking, assign Queue
ID, assign Share Meter, assign streamed, assign acl-priority.
qos_actions is relevant only when action_type is
ACL_ACTION_TYPE_QOS
ACL_ACTION_TYPE_TRAP_T
O_PS
Trap Hit Rule packet to CPU Port. But the packet will skip
Forwarding Engine process, and be sent to Protocal Stack in
Kernal directly.
Table17. List of ACL Action Type
qos_actions field support following activities:
ACL_ACTION_1P_REMARKING_
BIT
Transformed CVLAN Prioriy, the value of Priority(0~7)
should be assigned in dot1p_remarking_pri field.
ACL_ACTION_IP_PRECEDENCE_
REMARKING_BIT
Transformed IP Precedence, the value of IP Precedence
(0~7) should be assigned in
ip_precedence_remarking_pri.
ACL_ACTION_DSCP_REMARKIN
G_BIT
Transformed DSCP, the value of DSCP (0~63) should be
assigned in dscp_remarking_pri.
ACL_ACTION_QUEUE_ID_BIT Assigned packet to specific Queue
ACL_ACTION_SHARE_METER_B
IT
Assigned Share Meter Index.
ACL_ACTION_STREAM_ID_OR_
LLID_BIT
Assigned GPON StreanID or EPON LLID
ACL_ACTION_ACL_PRIORITY_B
IT
Assigned acl-priority, which may effect internal priority
decision.
Table18. List of ACL QoS Actions
qos_actions can handle several actions in the same time by using “|”(OR) operation.
The filtedred conditions and filtered condition glossary are definded as follow:
Filter conditions bits Related fields
INGRESS_PORT_BIT ingress_port_mask、ingress_extport_mask
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
51
INGRESS_INTF_BIT ingress_intf_idx
EGRESS_INTF_BIT egress_intf_idx
INGRESS_ETHERTYPE_BIT ingress_ethertype
INGRESS_CTAG_PRI_BIT ingress_ctag_pri
INGRESS_CTAG_VID_BIT ingress_ctag_vid
INGRESS_SMAC_BIT ingress_smac
INGRESS_DMAC_BIT ingress_dmac
INGRESS_DSCP_BIT ingress_dscp
INGRESS_L4_TCP_BIT None
INGRESS_L4_UDP_BIT None
INGRESS_L4_ICMP_BIT None
INGRESS_IPV6_SIP_RANGE_BIT ingress_src_ipv6_addr_start、ingress_src_ipv6_addr_end
INGRESS_IPV6_DIP_RANGE_BIT ingress_dest_ipv6_addr_start、ingress_dest_ipv6_addr_end
INGRESS_IPV4_SIP_RANGE_BIT ingress_src_ipv4_addr_start、ingress_src_ipv4_addr_end
INGRESS_IPV4_DIP_RANGE_BIT ingress_dest_ipv4_addr_start、ingress_dest_ipv4_addr_end
INGRESS_L4_SPORT_RANGE_BIT ingress_src_l4_port_start、ingress_src_l4_port_end
INGRESS_L4_DPORT_RANGE_BIT ingress_dest_l4_port_start、ingress_dest_l4_port_end
EGRESS_IPV4_SIP_RANGE_BIT egress_src_ipv4_addr_start、egress_src_ipv4_addr_end
EGRESS_IPV4_DIP_RANGE_BIT egress_dest_ipv4_addr_start、egress_dest_ipv4_addr_end
EGRESS_L4_SPORT_RANGE_BIT egress_src_l4_port_start、egress_src_l4_port_end
EGRESS_L4_DPORT_RANGE_BIT egress_dest_l4_port_start、egress_dest_l4_port_end
EGRESS_CTAG_PRI_BIT egress_ctag_pri
EGRESS_CTAG_VID_BIT egress_ctag_vid
INGRESS_IPV6_DSCP_BIT ingress_ipv6_dscp
Table19. List of ACL Patterns
fwding_type_and_direction supports following activities:
ACL_FWD_TYPE_DIR_INGRESS_
ALL_PACKET
This type can support all actions, however only ingress
patterns can be supported.
ACL_FWD_TYPE_DIR_INGRESS_
OR_EGRESS_L34_UP_DROP
This type is used as upstream filter for dropping any
ingress/egress combination patterns packet.
ACL_FWD_TYPE_DIR_INGRESS_
OR_EGRESS_L34_DOWN_DROP
This type is used as downstream filter for dropping any
ingress/egress combination patterns packet, however
egress_ctag_vid and egress_ctag_pri pattern are not
supported.
ACL_FWD_TYPE_DIR_INGRESS_
OR_EGRESS_L34_UP_STREAMID
This type is used for assigning upstream PON streamID
and must assign egress_ctag_vid and egress_ctag_pri
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
52
pattern.
Table20. List of ACL fwding type
Below is a typical senario of setting an ACL Qos Rule to filter all UDP packet in PPPoE, and
transform DSCP to 0x20 and assigned QueueID to 1. The filtered conditions are distributed to
perform INGRESS_ETHERTYPE(0x8864) and INGRESS_L4_UDP. The action_type is assigned
to ACL_ACTION_TYPE_QOS, In the same time, enabled qos_actions bit of
ACL_ACTION_DSCP_REMARKING_BIT & ACL_ACTION_QUEUE_ID_BIT.
rtk_rg_aclFilterAndQos_t aclRule;
int aclIdx;
memset(&aclRule,0,sizeof(rtk_rg_aclFilterAndQos_t);
aclRule.fwding_type_and_direction= ACL_FWD_TYPE_DIR_INGRESS_ALL_PACKET;
aclRule.filter_fields=INGRESS_ETHERTYPE_BIT | INGRESS_L4_UDP_BIT;
aclRule.ingress_ethertype=0x8864;
aclRule.action_type= ACL_ACTION_TYPE_QOS;
aclRule.qos_actions= ACL_ACTION_DSCP_REMARKING_BIT |
ACL_ACTION_QUEUE_ID_BIT;
aclRule.action_dscp_remarking_pri=0x20;
aclRule.action_queue_id=0x7;
if(rtk_rg_aclFilterAndQos_add(&aclRule,&aclIdx)) return -1;
Table21. Example: rtk_rg_aclFilterAndQos_add
6.2.4. Layer2 packet classify filter and assign streamID
rtk_rg_classifyEntry_add can be use to assign layer2 packet streamed or LLID in PON environment.
It can also use to filter some egress patterns. User can configure index, filter_fields , direction,
us_action_field or ds_action_field in classifyRule to perform different activities
The index should be in range of 64~511. The former the rule is, the higher priotiy the rule is. The
classifyRule will be checked in sequence. Once a classifyRule is hit, the related action will be
excute and skip checking the rest classifyRules.
The filter_fields conditions and filtered condition glossary are definded as follow:
Filter conditions bits Related fields
EGRESS_ETHERTYPR_BIT etherType, etherTypeMask
EGRESS_GEMIDX_BIT gemidx, gemidxMask
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
53
EGRESS_LLID_BIT llid, llidMask
EGRESS_TAGVID_BIT outterTagVid, outterTagVidMask
EGRESS_TAGPRI_BIT outterTagPri, outterTagPriMask
EGRESS_INTERNALPRI_BIT internalPri, internalPriMask
EGRESS_STAGIF_BIT stagIf, stagIfMask
EGRESS_CTAGIF_BIT ctagIf, ctagIfMask
EGRESS_UNI_BIT uni, uniMask
direction field support following activities:
RTK_RG_CLASSIFY_DIRECTION_UPSTREAM actions should assign in
us_action_field
RTK_RG_CLASSIFY_DIRECTION_DOWNSTREAM actions should assign in
ds_action_field
us_action_field support following actions:
CF_US_ACTION_SID_BIT assign streamed by field sid.
CF_US_ACTION_DROP_BIT Drop the packet that hit the classifyRule.
ds_action_field support following actions:
CF_DS_ACTION_UNI_FORCE_BIT uniPortMask must be 0x0.
Drop the packet that hit the classifyRule.
Below is a typical senario of setting an classifyRule to assign VLAN=100 and Dot1p priority=1
packet to streameId 10.
rtk_rg_classifyEntry_t classifyRule;
memset(&classifyRule,0,sizeof(rtk_rg_classifyEntry_t));
classifyRule.index=64;
classifyRule.direction = RTK_RG_CLASSIFY_DIRECTION_UPSTREAM;
classifyRule.filter_fields |= (EGRESS_TAGVID_BIT | EGRESS_TAGPRI_BIT);
classifyRule.outterTagVid =100;
classifyRule.outterTagVidMask=0xfff;
classifyRule.outterTagPri=1;
classifyRule.outterTagPriMask=0x7;
classifyRule.us_action_field = (CF_US_ACTION_SID_BIT);
classifyRule.sid=10;
if(rtk_rg_classifyEntry_add(&classifyRule)) return -1;
Table22. Example: rtk_rg_classifyEntry_add
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
54
6.2.5. Rate Limit
6.2.5.1. ACL-Based Share Meter
When user wants to limit the flow rate of specific packet, the requirement can be supported by the
ACL QoS action type- ACL_ACTION_SHARE_METER_BIT providing both ACL Rule is and
Share Meter bandwidth are configurated.
In order to do so, Share Meter bandwidth should be set by rtk_rg_shareMeter_set. There are three
parameters in API;
The first parameter is the index of Share Meter(0~31). The second parameter is the max flow
rate ,and the uint is 1Kbps, However, the actual Hardware unit is 8Kbps. If user fills in 15 to the
second parameter, it will be rounded down to 8Kbps. So, the minimal value is liminted to 8. If user
fills in 1048576 to this parameter which means unlimit flow rate. The third parameter represents
inter-frame gap+frame preamble(total 20bytes) into the second parameter count.
However, Rate Limit in this way doesn’t include BandWidth Control. The packets which exceeding
the rate limitation will be dropped.
The following cod shows how to limit all UDP packet to 80Kbps.
rtk_rg_aclFilterAndQos_t aclRule;
int aclIdx
//set meter index 1 rate=80Kbps, and include inter-frame gap+frame preamble;
rtk_rg_shareMeter_set (1,80,ENABLED);
memset(&aclRule,0,sizeof(rtk_rg_aclFilterAndQos_t);
aclRule.fwding_type_and_direction= ACL_FWD_TYPE_DIR_INGRESS_ALL_PACKET;
aclRule.filter_fields= INGRESS_L4_UDP_BIT;
aclRule.action_type=ACL_ACTION_TYPE_QOS;
aclRule.qos_actions=ACL_ACTION_SHARE_METER_BIT;
aclRule.action_share_meter=1;
if(rtk_rg_aclFilterAndQos_add(&aclRule,&aclIdx)) return -1;
Table23. Example: rtk_rate_shareMeter_set
6.2.5.2. Egress Port -Based Rate Limit
rtk_rg_portEgrBandwidthCtrlRate_set set is used to set per-egress port limitation bandwidth. In
case if the per-egress port limitation bandwith and per-egress port & queue share meter bandwidth
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
55
are all set for the same purpose in the same time, the smallest one will be refered as queue egress
bandwidth. The parameter Port Number can only be set as MAC Port (RTK_RG_MAC_PORT0 ~
RTK_RG_MAC_PORT_CPU).
The following code shows how to limit the packet which egress set to Port0 to 80Kbps
if(rtk_rg_portEgrBandwidthCtrlRate_set (RTK_RG_MAC_PORT0,80)) return -1;
Table24. Example: rtk_rate_portEgrBandwidthCtrlRate_set
6.2.5.3. Ingress Port-Based Rate Limit
rtk_rg_portIgrBandwidthCtrlRate_set is used to set limitation bandwidth of ingress direction, the
parameter is same as rtk_rate_portEgrBandwidthCtrlRate_set.
The following code shows how to limit the packet of ingress from Port0 to 80Kbps.
if(rtk_rg_portIgrBandwidthCtrlRate_set (RTK_RG_MAC_PORT0,80)) return -1;
Table25. Example: rtk_rate_portIgrBandwidthCtrlRate_set
6.2.6. QoS Internal Priority & Egress Queue Decision
Egress Queue is mapping from Internal Priority. Users must understand how to decide the internal
priority if they want to determine the egress queue.
In Our HW, we support 9 kinds of priority source. Users are able to determine each weight of
priority source by their own.
Classification
Priority Selection
To Traffic
Class Mapping
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
56
Figure9. Internal Priority decision flow chart
The following table show the corresponding RG APIs of each kind of internal priority source.
Dot1Q-Based Priority rtk_rg_qosDot1pPriRemapToInternalPri_set
Port-Based Priority rtk_rg_lanInterface_add
rtk_rg_wanInterface_add
rtk_rg_qosPortBasedPriority_set
DSCP-Based rtk_rg_qosDscpRemarkByInternalPri_set
ACL-Based rtk_rg_aclFilterAndQos_add
CVLAN-Based rtk_rg_lanInterface_add
rtk_rg_wanInterface_add
rtk_rg_cvlan_add
DMAC-Based X(Not support yet)
SMAC-Based X(Not support yet)
SVLAN-Based X(Not support yet)
NAPT-Based rtk_rg_naptConnection_add
Table26. The corresponding RG APIs of each kind of priority source.
rtk_rg_qosDot1pPriRemapToInternalPri_get CVLAN-Priority remapping table get
rtk_rg_qosDot1pPriRemapToInternalPri_set CVLAN-Priority remapping table set
rtk_rg_qosDscpRemapToInternalPri_get DSCP remapping table get.
rtk_rg_qosDscpRemapToInternalPri_set DSCP remapping table set
rtk_rg_qosInternalPriDecisionByWeight_get Get the weight of the 9 kinds of
priority decision source.
rtk_rg_qosInternalPriDecisionByWeight_set Set the weight of the 9 kinds of
priority decision source.
rtk_rg_qosPortBasedPriority_get Get port based priority
QoS
Internal
Priority
Decision
rtk_rg_qosPortBasedPriority_set Set port based priority
rtk_rg_qosInternalPriMapToQueueId_get Get the “Internal priority to Queue”
table.
QoS
Egress
Queue
Decision
rtk_rg_qosInternalPriMapToQueueId_set Set the “Internal priority to Queue”
table.
Table27. The QoS internal priority & egress queue decision RG APIs.
The following sample code shows how to config the weight of priority source. If users’ priority
decision sequence is ACL > DMAC > DSCP > NAPT > CVLAN > SVLAN > 1Q > PORT >
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
57
SMAC.
rtk_rg_qos_priSelWeight_t weight;
memset(&weight,0,sizeof(rtk_rg_qos_priSelWeight_t));
weight.weight_of_portBased=1;
weight.weight_of_dot1q=2;
weight.weight_of_dscp=12;
weight.weight_of_acl=15;
weight.weight_of_ lutFwd =13;
weight.weight_of_saBaed=0;
weight.weight_of_vlanBased=10;
weight.weight_of_svlanBased=9;
weight.weight_of_l4Based=11;
if(rtk_rg_qosInternalPriDecisionByWeight_set (weight)) return -1;
Table28. Example: rtk_rg_qosInternalPriDecisionByWeight_set
Harware has a C-Priority Remapping Table. When ingress packet has C-tag, the Dot1Q based
priority is one-to-one mapping from ingress C-tag priority by this remapping table.
The following sample code shows how to remap C-Priority to Internal priority.
rtk_rg_qosDot1pPriRemapToInternalPri_set(0,0);
rtk_rg_qosDot1pPriRemapToInternalPri_set(1,0);
rtk_rg_qosDot1pPriRemapToInternalPri_set(2,1);
rtk_rg_qosDot1pPriRemapToInternalPri_set(3,1);
rtk_rg_qosDot1pPriRemapToInternalPri_set(4,2);
rtk_rg_qosDot1pPriRemapToInternalPri_set(5,2);
rtk_rg_qosDot1pPriRemapToInternalPri_set(6,3);
rtk_rg_qosDot1pPriRemapToInternalPri_set(7,3); //ingress c-pri 7 -->internal priority 3
Table29. Example: rtk_rg_qosDot1pPriRemapToInternalPri_set
Harware has a DSCP Remapping Table. When ingress packet has DSCP, the DSCP based priority is
multple-to-one mapping from ingress DSCP priority by this remapping table.
The following sample code shows how to remap DSCP to Internal priority.
// config internal priority decison by chapter: 6.2.6
...
rtk_rg_qosDot1pPriRemapToInternalPri_set(0,0);
rtk_rg_qosDot1pPriRemapToInternalPri_set(1,0);
...
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
58
rtk_rg_qosDscpRemapToInternalPri_set(62,7);
rtk_rg_qosDscpRemapToInternalPri_set(63,7); // DSCP 63 --> internal priority 7
Table30. Example: rtk_rg_qosDscpRemapToInternalPri_set
Harware has a Internal-Priority to Egress-Queue Remapping Table. The Egress Queue is one-to-one
remapping from internal priority.
The following sample code shows how to config this remap table.
// config internal priority decison by chapter: 6.2.6
...
rtk_rg_qosInternalPriMapToQueueId_set(0,0);
rtk_rg_qosInternalPriMapToQueueId_set(1,0);
rtk_rg_qosInternalPriMapToQueueId_set(2,1);
rtk_rg_qosInternalPriMapToQueueId_set(3,1);
rtk_rg_qosInternalPriMapToQueueId_set(4,2);
rtk_rg_qosInternalPriMapToQueueId_set(5,2);
rtk_rg_qosInternalPriMapToQueueId_set(6,3);
rtk_rg_qosInternalPriMapToQueueId_set(7,3); //internal priority 7 --> egress queue 3
Table31. Example: rtk_rg_qosInternalPriMapToQueueId_set
6.2.7. QoS 1P Remarking
The egress priority of 1P remarking is refer from internal priority.
rtk_rg_qosDot1pPriRemarkByInternalPriEgress
PortEnable_get
CVLAN-Priority remarking
egress port get.
rtk_rg_qosDot1pPriRemarkByInternalPriEgress
PortEnable_set
CVLAN-Priority remarking
egress port set.
rtk_rg_qosDot1pPriRemarkByInternalPri_get CVLAN-Priority remarking
table get
QoS
1Q
Remarking
rtk_rg_qosDot1pPriRemarkByInternalPri_set CVLAN-Priority remarking
table set
Table32. The QoS 1Q Reamrking RG APIs.
The following sample code shows how to remark the priority of egress vlan tag by internal priority.
// config internal priority decison by chapter: 6.2.6
...
rtk_rg_qosDot1pPriRemarkByInternalPri_set(0,0);
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
59
rtk_rg_qosDot1pPriRemarkByInternalPri_set(1,0);
rtk_rg_qosDot1pPriRemarkByInternalPri_set(2,1);
rtk_rg_qosDot1pPriRemarkByInternalPri_set(3,1);
rtk_rg_qosDot1pPriRemarkByInternalPri_set(4,2);
rtk_rg_qosDot1pPriRemarkByInternalPri_set(5,2);
rtk_rg_qosDot1pPriRemarkByInternalPri_set(6,3);
rtk_rg_qosDot1pPriRemarkByInternalPri_set(7,3); //internal priority 7 --> egress C-pri 3
rtk_rg_qosDot1pPriRemarkByInternalPriEgressPortEnable_set(RTK_RG_MAC_PORT_PON,
RTK_RG_ENABLED); // Enable PON port egress 1P remarking.
Table33. Example: QoS 1P remarking
6.2.8. QoS DSCP Remarking
The egress DSCP is refer from internal priority or ingress DSCP. Users are able to choise one which
they need.
rtk_rg_qosDscpRemarkByDscp_get Get the “DSCP remarking by DSCP”
mapping table.
rtk_rg_qosDscpRemarkByDscp_set Set the “DSCP remarking by DSCP”
mapping table.
rtk_rg_qosDscpRemarkByInternalPri_get Get the “DSCP remarking by Internal
Priority” mapping table.
rtk_rg_qosDscpRemarkByInternalPri_set Set the “DSCP remarking by Internal
Priority” mapping table.
rtk_rg_qosDscpRemarkEgressPortEnable
AndSrcSelect_get
Get DSCP remarking egress port.
QoS
DSCP
Remarking
rtk_rg_qosDscpRemarkEgressPortEnable
AndSrcSelect_set
Set DSCP remarking egress port.
Table34. The QoS DSCP Remarking RG APIs.
The following sample code shows how to remark egress DSCP by internal priority.
// config internal priority decison by chapter: 6.2.6
...
rtk_rg_qosDscpRemarkByInternalPri_set(0,0);
rtk_rg_qosDscpRemarkByInternalPri_set(1,8);
rtk_rg_qosDscpRemarkByInternalPri_set(2,16);
rtk_rg_qosDscpRemarkByInternalPri_set(3,24);
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
60
rtk_rg_qosDscpRemarkByInternalPri_set(4,32);
rtk_rg_qosDscpRemarkByInternalPri_set(5,40);
rtk_rg_qosDscpRemarkByInternalPri_set(6,48);
rtk_rg_qosDscpRemarkByInternalPri_set(7,56); //internal priority 7 --> egress DSCP 56
rtk_rg_qosDscpRemarkEgressPortEnableAndSrcSelect_set(
RTK_RG_MAC_PORT_PON, RTK_RG_ENABLED,
RTK_RG_DSCP_RMK_SRC_INT_PRI);
// Enable PON port egress DSCP remarking by internal priority.
Table35. Example: QoS DSCP remarking
6.2.9. QoS Strict Priority / WFQ
The RG API: rtk_rg_qosStrictPriorityOrWeightFairQueue_set is used to achieve this kind of
requirement. This function has two parameters. The first parameter is Port number(range of
0~6,0~3:LAN Port, 4: PON, 5:RGMII, 6:CPU). The second parameter is per-queue weight of
related port. Weight equal 0 represents the Strict Priority. When weight falls in the range of 1~128
represents WFQ Weights. If there is more than one Strict Priority, the higher the queue number has
the first priority to be handled. After all Strict Priority Queues are handled, the WFQ Queues then
will be handled. Each Port has the capacity for 8 Queues.
To prioritize any specific packets into Strict Priority Queue or WFQ, can done from ACL rule by
Setting QoS action type- ACL_ACTION_QUEUE_ID_BIT with assigned queue ID and assigning
per Port & Queue.
Here is the scenery of setting code for Port4~7 on Strict Priority, while Port0~3 to WFQ.
Consequently, packets transmit priority will put Queue7 packets as first priority to send out, and
then following with the sequencial order of Queue6, Queue5, and Queue4. After all packets in
Queue7~4 are exhausted, the Queue3~0 will start to send, and the bandwidth will be in order of
4:3:2:1. In ACL, all TCP packets are assigned to Queue7 with top priority.
rtk_rg_aclFilterAndQos_t aclRule;
int aclIdx,i;
rtk_rg_qos_queue_weights_t q_weight;
q_weight.weights[7]=0; //Queue4~7:Strict Priority
q_weight.weights[6]=0;
q_weight.weights[5]=0;
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
61
q_weight.weights[4]=0;
q_weight.weights[3]=4; //Queue3~0 4:3:2:1
q_weight.weights[2]=3;
q_weight.weights[1]=2;
q_weight.weights[0]=1;
for(i=0;i<7;i++)
{
rtk_rg_qosStrictPriorityOrWeightFairQueue_set (i,&q_weight);
}
memset(&aclRule,0,sizeof(rtk_rg_aclFilterAndQos_t));
aclRule.filter_fields=INGRESS_L4_TCP_BIT;
aclRule.action_type=ACL_ACTION_TYPE_QOS;
aclRule.qos_actions=ACL_ACTION_QUEUE_ID_BIT;
aclRule.action_queue_id=0x7;
if(rtk_rg_aclFilterAndQos_add(&aclRule,&aclIdx)) return -1;
Table36. Example: rtk_qos_schedulingQueue_set
6.2.9.1. DSCP to Internal Priority
If user wants to limit the qos of DHCP, not only above-mentioned (Sec. QoS Strict Priority / WFQ)
configuration needs to set, but also the Internal priority decision & the mapping of dhcp-to-internal
priority needs to set.
For Example, let dscp10: dscp20: dscp30: dscp40 sending ratio to 1:2:3:4 , we have to use
rtk_rg_qosInternalPriDecisionByWeight_set to make the DSCP priority higher while
Internal-Priority decision.(DSCP weight=12, just lower than ACL and lutFwd). And then using
rtk_rg_qosDscpRemapToInternalPri_set to set dscp10 remapping to Priority0, dscp20 remapping to
Priority1, dscp30 remapping to Priority2, and dscp40 remapping to Priority3
int ret;
rtk_rg_qos_priSelWeight_t weight;
memset(&weight,0,sizeof(rtk_rg_qos_priSelWeight_t));
weight.weight_of_portBased=1;
weight.weight_of_dot1q=2;
weight.weight_of_dscp=12;
weight.weight_of_acl=15;
weight.weight_of_ lutFwd =13;
weight.weight_of_saBaed=0;
weight.weight_of_vlanBased=10;
weight.weight_of_svlanBased=9;
weight.weight_of_l4Based=11;
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
62
if(rtk_rg_qosInternalPriDecisionByWeight_set (weight)) return -1;
if(rtk_rg_qosDscpRemapToInternalPri_set (10,0)) return -1;
if(rtk_rg_qosDscpRemapToInternalPri_set (20,1)) return -1;
if(rtk_rg_qosDscpRemapToInternalPri_set (30,2)) return -1;
if(rtk_rg_qosDscpRemapToInternalPri_set (40,3)) return -1;
Table37. Example: rtk_rg_qosDscpRemapToInternalPri_set
6.2.9.2. Port to Internal Priority
If user wants to limit the qos of each Port, not only above-mentioned (Sec. QoS Strict Priority /
WFQ) configuration needs to set, but also the Internal priority decision & the mapping of
port-to-internal priority needs to set.
For Example, let packets of Port1: Port2: Port3: Port4 sending ratio to 1:2:3:4 , we have to use
rtk_rg_qosInternalPriDecisionByWeight_set to make the port-based priority higher while
Internal-Priority decision.(port-based priority just lower than ACL and lutFwd). And then using
rtk_rg_qosPortBasedPriority_set to set Port0 mapping to Priority0, Port 2 mapping to Priority1,
Port 3 mapping to Priority2, and Port 4 remapping to Priority3.
int ret;
rtk_rg_qos_priSelWeight_t weight;
memset(&weight,0,sizeof(rtk_rg_qos_priSelWeight_t));
weight.weight_of_portBased=12;
weight.weight_of_dot1q=2;
weight.weight_of_dscp=0;
weight.weight_of_acl=15;
weight.weight_of_ lutFwd =13;
weight.weight_of_saBaed=0;
weight.weight_of_vlanBased=10;
weight.weight_of_svlanBased=9;
weight.weight_of_l4Based=11;
if(rtk_rg_qosInternalPriDecisionByWeight_set (weight)) return -1;
if(rtk_rg_qosPortBasedPriority_set (RTK_RG_MAC_PORT0,0)) return -1;
if(rtk_rg_qosPortBasedPriority_set (RTK_RG_MAC_PORT1,1)) return -1;
if(rtk_rg_qosPortBasedPriority_set (RTK_RG_MAC_PORT2,2)) return -1;
if(rtk_rg_qosPortBasedPriority_set (RTK_RG_MAC_PORT3,3)) return -1;
Table38. Example: rtk_rg_qosPortBasedPriority_set
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
63
6.2.10. L2 per-Port learning count limit
There are 2048 entries available on L2 Table without limitation on auto-learning volume in per-Port
in default setting. If user wants to limit the auto-learning on per port should use
rtk_l2_portLimitLearningCnt_set. The first parameter is PortNumber, and the second parameter is
auto learning volume. If user enter 0 on the second parameter which will disable the auto learning
mechanism to that specific Port, and the maximum number to fill in the second parameter should be
2048.
if(rtk_l2_portLimitLearningCnt_set(RTK_RG_MAC_PORT0,10)) return -1;
Table39. Example: rtk_l2_portLimitLearningCnt_set
6.2.11. MacFilter
For saving ACL resources, Macfilter is provided by L2 Tables currently. The following example
shows how to drop packet with source mac 00:e0:4c:86:70:99 by rtk_rg_macFilter_add.
int macfilterIdx;
rtk_rg_macFilterEntry_t macFilterEntry;
memset(&macFilterEntry,0,sizeof(rtk_rg_macFilterEntry_t));
macFilterEntry.mac.octet[0]=0x00;
macFilterEntry.mac.octet[1]=0xe0;
macFilterEntry.mac.octet[2]=0x4c;
macFilterEntry.mac.octet[3]=0x86;
macFilterEntry.mac.octet[4]=0x70;
macFilterEntry.mac.octet[5]=0x99;
macFilterEntry.direct=RTK_RG_MACFILTER_FILTER_SRC_MAC_ONLY;
if(rtk_rg_macFilter_add(&macFilterEntry,&macfilterIdx))
return -1;
Table40. Example: rtk_rg_macFilter_add
6.2.12. Application-Level-Gateway(ALG)
Up to now, PPTP/L2TP/FTP are supported in ALG. The following example shows how to enable
FTP by rtk_rg_virtualServer_add.
rtk_rg_alg_type_t alg_app;
alg_app = RTK_RG_ALG_FTP_TCP_BIT | RTK_RG_ALG_FTP_UDP_BIT;
if(rtk_rg_algApps_set(alg_app))
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
64
return -1;
Table41. Example: rtk_rg_algApps_set
6.2.13. Virtual Server
The following Example shows how to transmit tcp packets from Wan Interface, which wanIdx is 1,
and destination port is 1000~1099 to Lan Interfcae Server which IP is 192.168.1.2 and mapping
destination port to 2000~2099 by rtk_rg_virtualServer_add.
int virtualServerIdx;
rtk_rg_virtualServer_t virtual_server;
memset(&virtual_server,0,sizeof(rtk_rg_virtualServer_t));
virtual_server.valid=ENABLED;
virtual_server.is_tcp=ENABLED;
virtual_server.wan_intf_idx=1;
virtual_server.gateway_port_start = 1000;
virtual_server.local_port_start = 2000;
virtual_server.mappingPortRangeCnt = 100;
virtual_server.local_ip=0xc0a80102; //192.168.1.2
if(rtk_rg_virtualServer_add(&virtual_server,&virtualServerIdx))
return -1;
Table42. Example: rtk_rg_virtualServer_add
6.2.14. DmzHost
The following example shows how to enable dmzHost, and transmit all packets from Wan Interface,
which wanIdx is 1, to the Lan Interfcae Host which IP is 192.168.1.3 by rtk_rg_dmzHost_set.
int wan_intf_idx;
rtk_rg_dmzInfo_t dmz_info;
memset(&dmz_info,0,sizeof(rtk_rg_dmzInfo_t));
wan_intf_idx = 1;
dmz_info.enabled=ENABLED;
dmz_info.private_ip=0xc0a80103; //192.168.1.3
if(rtk_rg_dmzHost_set(wan_intf_idx,&dmz_info))
return -1;
Table43. Example: rtk_rg_dmzHost_set
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
65
6.2.15. UpnpConnection
The following example shows how to transmit tcp packets from Wan Interface, which wanIdx is 1,
destination IP is 192.168.10.4, source port is 3000, and destination port is 3000 to Lan Interfcae
Host whoch IP is 192.168.1.4, and Port is 4000. If upnp.limit_remote_ip=DISABLED means don’t
care source IP of originally packet. Similarly, upnp.limit_remote_port = DISABLED means don’t
care source port of originally packet.
int upnpIdx;
rtk_rg_upnpConnection_t upnp;
memset(&upnp,0,sizeof(rtk_rg_upnpConnection_t));
upnp.valid=ENABLED;
upnp.is_tcp=ENABLED;
upnp.wan_intf_idx=1;
upnp.gateway_port=3000;
upnp.local_ip=0xc0a80104; //192.168.1.4
upnp.local_port=4000;
upnp.remote_ip=0xc0a80a04;
upnp.remote_port=5000;
upnp.limit_remote_ip = 100; //192.168.10.4
upnp.limit_remote_port = 100;
upnp.type=UPNP_TYPE_PERSIST;
upnp.timeout=0; //0:disable auto-delete
if(rtk_rg_upnpConnection_add(&upnp,&upnpIdx))
return -1;
Table44. Example: rtk_rg_upnpConnection_add
6.2.16. MulticastFlow
The following example shows how to let port0, port1 join an multicast flow which IP is 224.1.2.3
by rtk_rg_multicastFlow_add.
int flowIdx;
rtk_rg_multicastFlow_t mcFlow;
memset(&mcFlow,0,sizeof(rtk_rg_multicastFlow_t));
mcFlow.multicast_ipv4_addr = 0xe0010203; //224.1.2.3
mcFlow.isIPv6 = DISABLED;
mcFlow.port_mask.portmask = (1<<RTK_RG_MAC_PORT0)|(1<<RTK_RG_MAC_PORT1);
if(rtk_rg_multicastFlow_add(&mcFlow,&flowIdx))
return -1;
Table45. Example: rtk_rg_multicastFlow_add
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
66
6.2.17. StormControl
StormControl can limit packet rate by sharemeter. We can use rtk_rg_shareMeter_set for setting
sharemeters, and the parameters can reference to Sec.ACL-Based Share Mete. The following
example shows how to use sharemeter[1] to limit multicast packets from port0 in 80Kbps by
rtk_rg_stormControl_add.
int stormInfoIdx;
rtk_rg_stormControlInfo_t stormInfo;
if(rtk_rg_shareMeter_set(1, 80000, RTK_RG_DISABLED))
return -1;
memset(&stormInfo,0,sizeof(rtk_rg_stormControlInfo_t));
stormInfo.valid=ENABLED;
stormInfo.port=RTK_RG_MAC_PORT0;
stormInfo.stormType=RTK_RG_STORM_TYPE_MULTICAST;
stormInfo.meterIdx=1;
if(rtk_rg_stormControl_add(&stormInfo,&stormInfoIdx))
return -1;
Table46. Example: rtk_rg_stormControl_add
6.2.18. PortMirror
The following example shows how to set port2 as monitor port, and copy all received packets from
port0 and port1 to port2 by rtk_rg_portMirror_set. Attention! We suggest the host in monitor port
should not respond or redirect any packet that it received. Sometimes the response or redirection
will make the packet direct looping in gateway until the ttl(time-to-live) decrease to 0.
rtk_rg_portMirrorInfo_t portMirrorInfo;
memset(&portMirrorInfo,0,sizeof(rtk_rg_portMirrorInfo_t));
portMirrorInfo.monitorPort=RTK_RG_MAC_PORT2;
portMirrorInfo.enabledPortMask.portmask=(1<<RTK_RG_MAC_PORT0)|
(1<<RTK_RG_MAC_PORT1);
portMirrorInfo.direct=RTK_RG_MIRROR_RX_ONLY;
if(rtk_rg_portMirror_set(portMirrorInfo))
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
67
return -1;
Table47. Example: rtk_rg_portMirror_set
6.2.19. Physical Port Ability
rtk_rg_phyPortForceAbility_set is used to force control the behavior of physical port. If
ability.force_disable_phy set to ENABLED that can force link-down physical port. If
ability.force_disable_phy set to DISABLED, and ability.valid set to ENABLED, then we can
control the link speed, half-duplex/full-duplex, and flowControl or not. In the other side, if
ability.valid set to DISABLED, the physical port will do auto-negotiation automatically. Following
example shows how to force set physical port to link-speed 100M, full-duplex, and enable
flowControl.
rtk_rg_mac_port_idx_t port;
rtk_rg_phyPortAbilityInfo_t ability;
memset(&ability,0,sizeof(rtk_rg_phyPortAbilityInfo_t));
port = RTK_RG_MAC_PORT0;
ability.force_disable_phy=DISABLED;
ability.valid=ENABLED;
ability.speed=RTK_RG_PORT_SPEED_100M;
ability.duplex=RTK_RG_PORT_FULL_DUPLEX;
ability.flowCtrl=RTK_RG_ENABLED;
if(rtk_rg_phyPortForceAbility_set(port,ability))
return -1;
Table48. Example: rtk_rg_phyPortForceAbility_set
6.2.20. Denial-of-Service (DoS)
rtk_rg_dosPortMaskEnable_set is used to enable the DoS feature for each port. After that, we can
use rtk_rg_dosType_set to determind trap or drop packets of different deny types. Or, we can use
rtk_rg_dosFloodType_set to limit the packet rate of different flood types. The unit of threshold is
(1K packets/sec). The packets exceed the threshold will br dropped.
rtk_rg_mac_portmask_t dos_port_mask;
dos_port_mask.portmask = (1<<RTK_RG_MAC_PORT0)|(1<<RTK_RG_MAC_PORT1)
|(1<<RTK_RG_MAC_PORT2)|(1<<RTK_RG_MAC_PORT3);
if(rtk_rg_dosPortMaskEnable_set(dos_port_mask))
return -1;
Table49. Example: rtk_rg_dosPortMaskEnable_set
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
68
The following example shows how to trap all land deny packets to CPU port by
rtk_rg_dosType_set.
if(rtk_rg_dosType_set(RTK_RG_DOS_LAND_DENY,ENABLED,RTK_RG_DOS_ACTION_TRAP))
return -1;
Table50. Example: rtk_rg_dosType_set
The following example shows how to limit syn flood packets in 1K/sec.
if(rtk_rg_dosFloodType_set(RTK_RG_DOS_SYNFLOOD_DENY,ENABLED,
RTK_RG_DOS_ACTION_DROP,1))
return -1;
Table51. Example: rtk_rg_dosFloodType_set
7. Wireless LAN Hardware Forward
To enable the Hardware Offload Forwarding (bridging/Routing/NAPT) capability with Wireless
LAN, user should connect Extension Port and Switch. Extension Ports is a Virtual Port, which used
to correspond with WLAN and SSID (ex. ROOT Interface and VAP Interface ). There are 5
Extension Ports supported by Hardware Asic, and all of them trap packets to CPU Port with a
specific identified ID for Hardware/Software.
CPU Tag is needed in order for Switch to identify Extension Port. However, packet form OS
Protocol Stack doesn’t have CPU Tag, and doesn’t have enough Header Buffery to copy CPU Tag.
Even if the Header Buffery can support the need sufficiently, some Memory Copy action, filling
CPU Tag between MAC Address and Payload, can not be avoided. Solving this problem will take
NIC TX/RX Descriptor to have enough capacity holding the CPU tag information. During TX
procedure, TX Descriptor content would be transformed to CPU Tag format so that Hardware can
identify. During RX procedure, Hardware would parsing CPU Tag from packet to RX Descriptor
content, then remove CPU Tag, following with DMA the packet to memory to complete the task.
OWN=1 E
O
R
FS LS I
P
C
S
L
4
C
S
KEEP B
L
U
C
R
C
v
S
E
l
D
I
S
L
R
n
Cputa
g_ipcs
Cputag_
l4cs
Cputa
g_psel
RSVD(
1bit)
Data_Length (17 bits )
Offset 0
TX_BUFFER_ADDRESS (32 bits) Offset 4
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
69
VLAN_TAG CPU
Tag
aspri Cputag_P
RI
(3 bits)
Tx
VLAN
action (2
bits)
Tx PPPoE
action (2
bits)
Tx
PPPoE Idx
(3 bits)
efid Enhance_fid
[2:0]
VIDL
P
RIO CFI VIDH
Offset 8
Source
Extension
Port(3 bits)
(extspa)
Tx destination port number (6
bits)
(Tx portmask)
Tx destination stream ID (7 bits)
(PON sream ID)
Reserved(13bits) L34
KEE
P
P
T
P
Offset 12
LGSEN Large-Send MTU value (11 bits) RSVD (20 bits) Offset 16
Figure10. NIC TX Descriptor Format
Above figure show NIC TX Descriptor fields. The fields relate to Extension Port are OWN, EOR,
FS, LS, Cputag_ipcs, Cputag_l4cs, Data Length, CPU Tag, Tx PPPoE action, Tx PPPoE Idx,
Source Extension Port, Tx destination port number, L34KEEP. There are options for the packet to
sent form CPU Port to Destination Port directly((Direct TX) or forward by Switch(Hardware
Lookup).
Using Hardway Lookup must fill followimg fields: OWN=1, EOR, FS=1, LS=1, Data Length, CPU
Tag=1, Source Extension Port. On the other hand, using Direct TX must fill following fields:
OWN=1, EOR, FS=1, LS=1, Cputag_ipcs=1, Cputag_l4cs=1, Data Length, CPU Tag=1, Tx PPPoE
action, Tx PPPoE Idx, Source Extension Port, Tx destination port number=CPU decision Port, and
L34KEEP=1.
OWN EOR FS LS C
R
C
E
r
r
IP
V
4
C
S
F
L
4
C
S
F
R
C
DF
IP
FRAG
PPP
oE
tag
RWT
PktType
(4bits)
L3
routing
Orig
Format
P
C
T
R
L
RSVD
( 2bits)
Data_Length
(12bits )
(max: 0x800)
Offset 0
RxBuff (32 bits) Offset 4
Cputag PTP in
CPU Tag
exist
SVLAN Tag
exist
RSVD
(2bits)
PON
stream
id(7bits)
RSVD
(3bits)
CTAVA CVLAN_TAG
(16 bits)
Offset 8
Source Port Number
(5 bits)
Destination port mask
(6 bits)
(extension port mask)
Reason
(8 bits)
Internal priority
(3 bits)
Extenstion port
TTL-1
(5 bits)
RSVD
(5 bits)
Offset 12
Figure11. NIC RX Descriptor Format
Upon receipt of a packet from Switch in NIC, the CPU Tag information will be parsed and port to
NIC RX Descriptor fields as above figure shown, After that CPU Tag will be removed. The
Software can acquire informations from Switch by RX Descriptor fields: L3 Routing, Orig Format,
Cputag, Source Port Number, Destination port mask, Reason, Internal Priority, Extension Port
TTL-1.
L3 Routing It means the packet has been modified by Hardware Asic, and Software
doesn’t need do any thing about the packet.
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
70
Orig Format The packet is the original format (doesn’t modify by Hareware).
Cputag The RX Descriptor includes parsed CPU Tag information.
Source Port Number The Port Number which the packet is originated from.
Destination port mask The Ports that the is about to be ported to (include CPU Port &
EXT0~4 ).
Reason It is a normal forwarding function if 0 is the value of Reason . On the
other hand, if the value is not zero, it means that user needs to trap
CPU because the Switch can not handle the packet, and requires
assistance from Software.
Internal Priority Decision of NIC RX Ring ID (the value is decided by Internal Priority
in Switch)
Extension Port TTL-1 While Multicasting and WAN_SA =1 in LUT, Hardward will determine
whethere to include such Ext Port in TTL-1 list if the egress Ext Port
across different VLAN. This field is valid only when Orig Format =1.
Table52. NIC RX Descriptor for CPU Tag
Once the NIC, CPU Port and Switch are connected, the Wireless LAN packets can be forwarded by
Switch (Hardware Forwarding). The architechure is as following figure:
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
71
Wireless LAN Driver
TX RX
NIC Driver
TXRX
Switch
EXT
PORT0
TX
EXT
PORT0
RX
CPU PORT
LAN
PORT0
TX
LAN
PORT0
RX
LAN PORT
WAN
PORT
TX
WAN PORT
Software
Hardware
WAN
PORT
RX
CPU Tag
Parse/
Remove
CPU Tag
Set Switch Info
by TX Desc
Fill CPU
Tag By TX
Descriptors
Get Switch Info
by RX Desc
Figure12. Wireless LAN Hardware Forward
8. Test by Web UI configuration
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
72
the machine is turned on , the machine will take the last UI confirguration from Flash, and Linux
Kernal will automatically set the Network Interface by the configuration. It will sequentially call
RTK RG APIs, rtk_rg_initParam_set, rtk_rg_lanInterface_add, rtk_rg_wanInterface_add, and
rtk_rg_staticInfo_set to enable NAPT capability in Hardware.
8.1. Configure LAN by Web UI
Use the Browser to connect Web UI and LAN Host ( default LAN Gatwway IP is 192.168.1.1).
Select the LAN item: fill the IP Address and Subnet Mask.
Select [Apply Changes] to reflash the setting and write the configuration to MIB Flash.

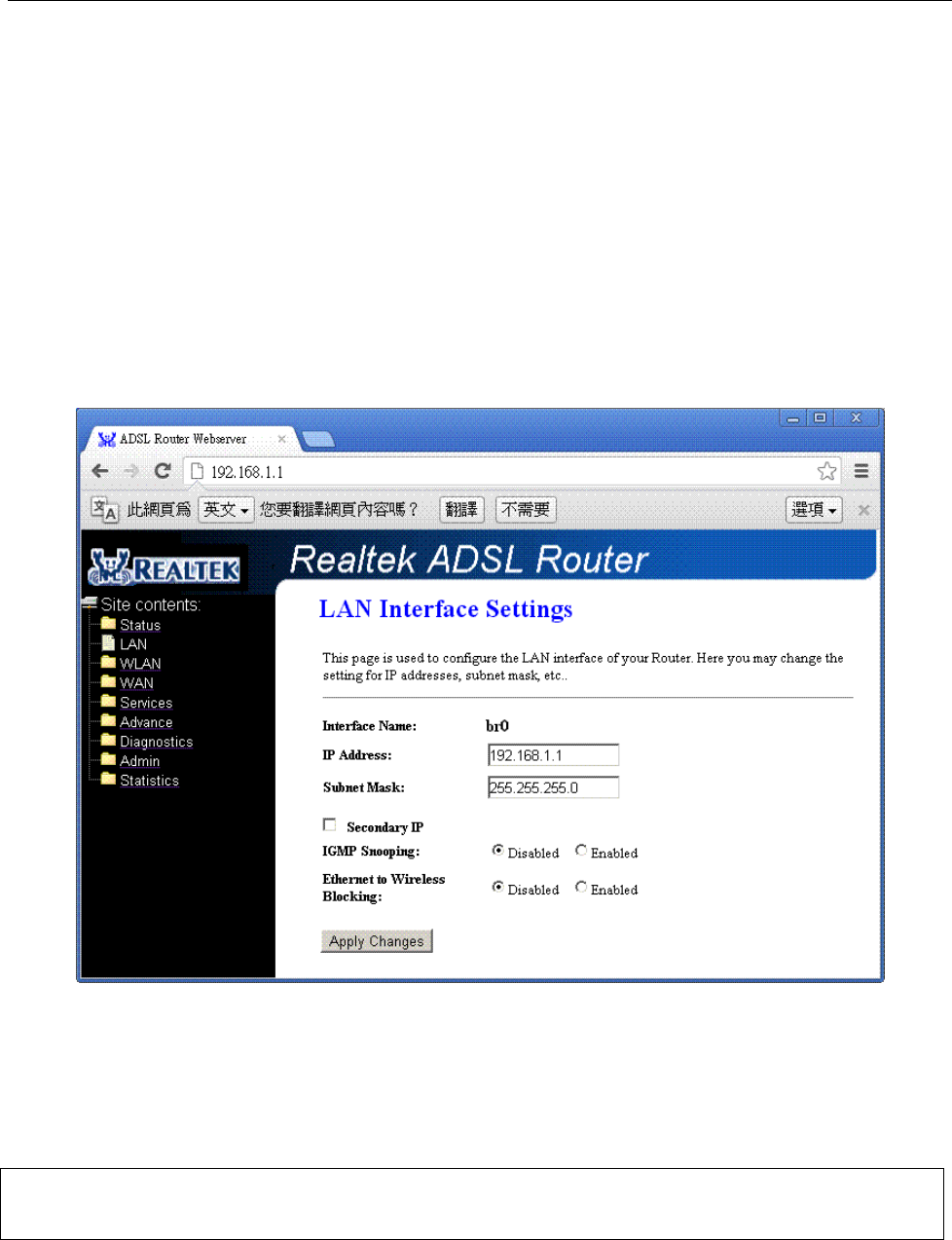

Figure13. Web UI:LAN Interface Setting
The MAC Address and Wan Physical Port can not be modified on Web UI. What can be done is to
modity the MAC address and Wan Physical Port on MIB Flash, use following command, and then
reboot the system.
# flash set ELAN_MAC_ADDR 00E04C867001 <assign Lan gateway mac 00:E0:4C:86:70:01:>
# flash set WAN_PHY_PORT 4 <assign PON Port as Wan Physical Port >
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
73
8.2. Configure WAN by Web UI
Select WAN item: fill Channel Mode=IPoE, Enable NAPT, IP Protocol=IPv4, Type=Fixed IP, Local
IP Address: 192.168.150.116, Remote IP Address=192.168.150.117, Subnet Mask=255.255.255.0.
Select [Apply Changes] to reflash the setting and write the configuration on MIB Flash.

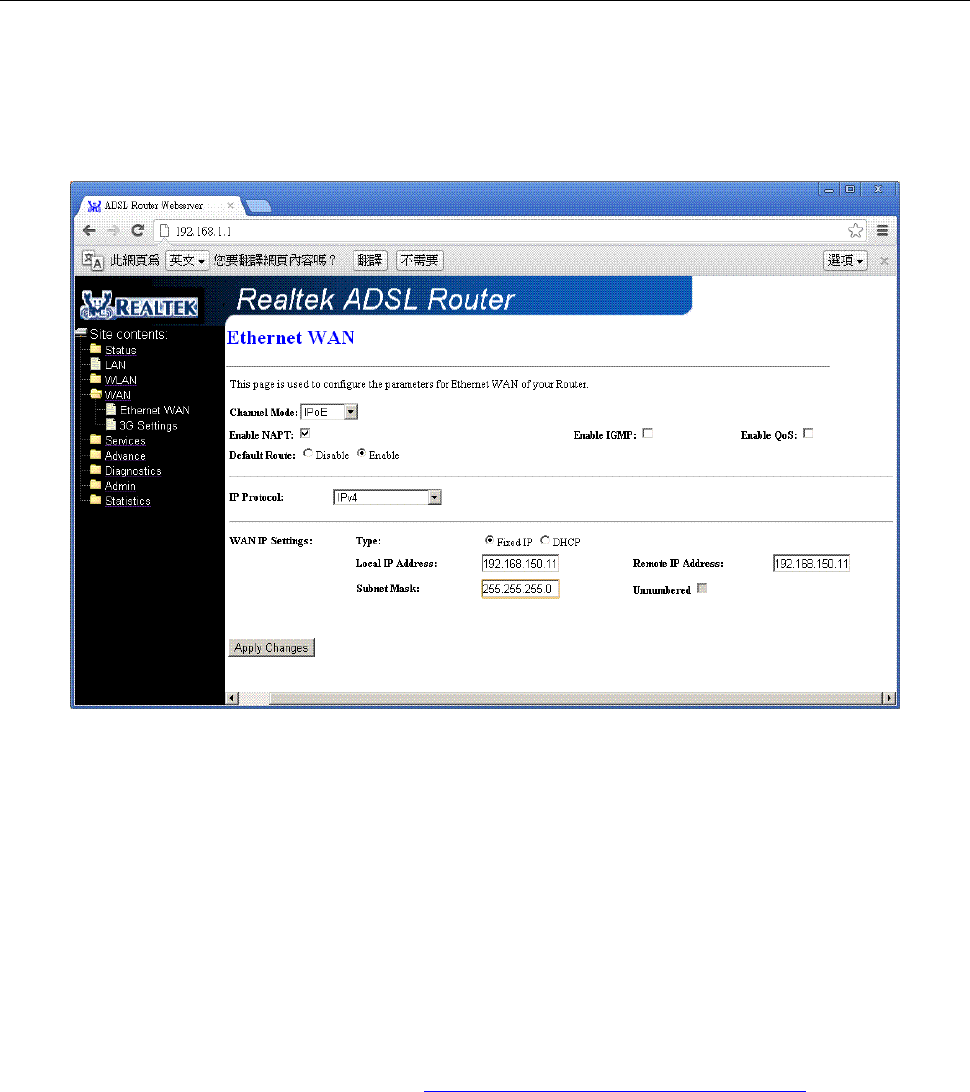

Figure14. Web UI:Ethernet WAN Interface Setting
9. Test by Diagnostics Shell Command
9.1. Diag Shell Introduction
DiagShell is an application in RG RomeDriver for debug and access RG APIs in run time. It
provides an interface to typing diag commands to access RG APIs dynamically. Each RG API can
mapping to 1~3 diag commands depends to the RG API complexity, and the relationship between
RG API and diag command is introduced in Sec. Mapping for RG API & Diag Cmd
9.1.1. Startup DiagShell
Turn on the sytem, and log in with account: admin and password: system.
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
74

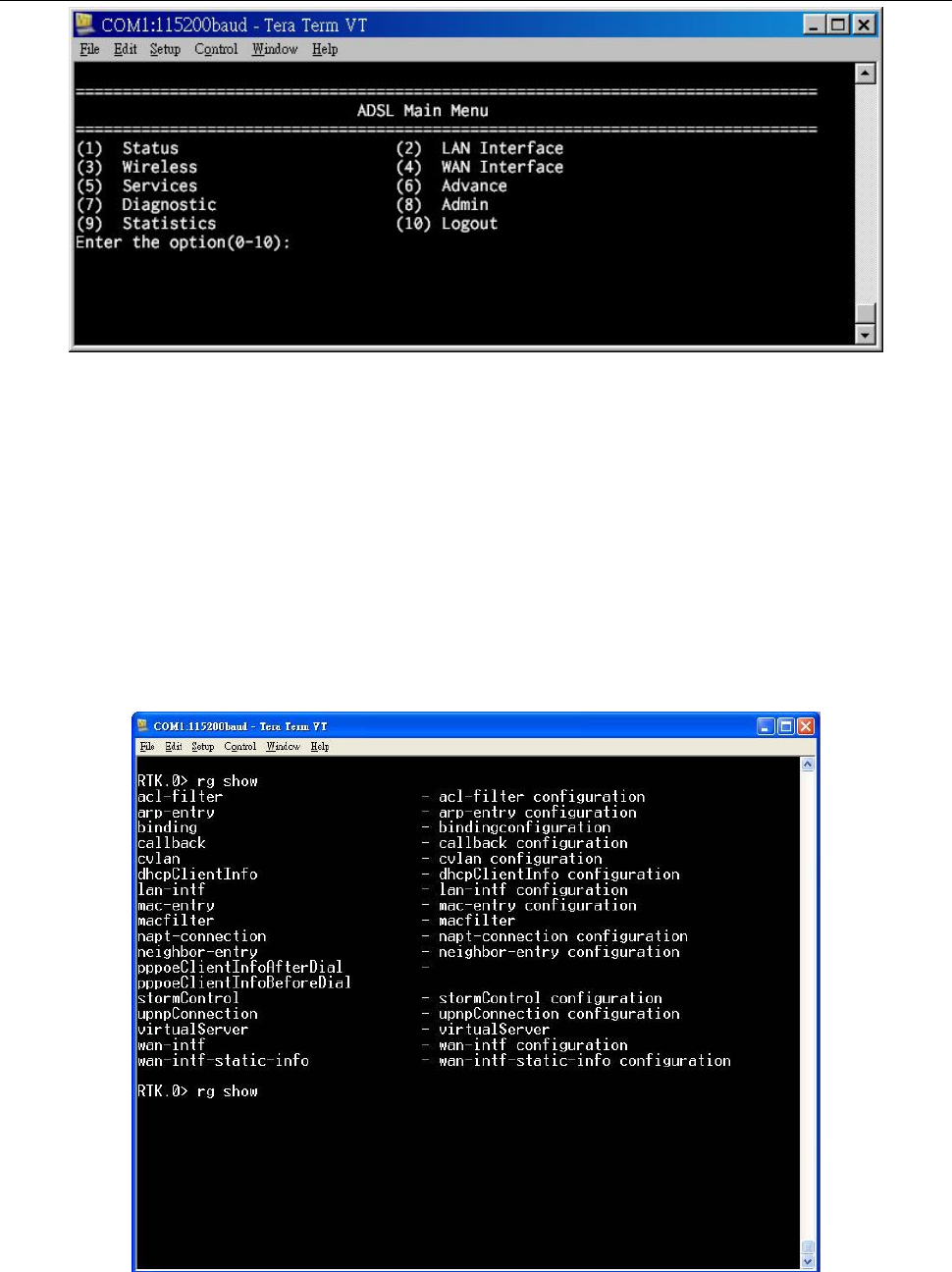

Figure15. UART: ADSL Main Menu
After login, enter the option 0 to skip ADSL Main Menu.
Enter diag for startup diagshell application.
9.1.2. Command-Line-Completion for Diag Cmd
DiagShell provides Command-Line-Completion capability by [Tab].
1. If current keyword is complete, it will give tips for next possible keyword.
Figure16. DiagShell tips for next keyword
←input [tab]
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
75
2. If current keyword is incomplete, it will complete current keyword:

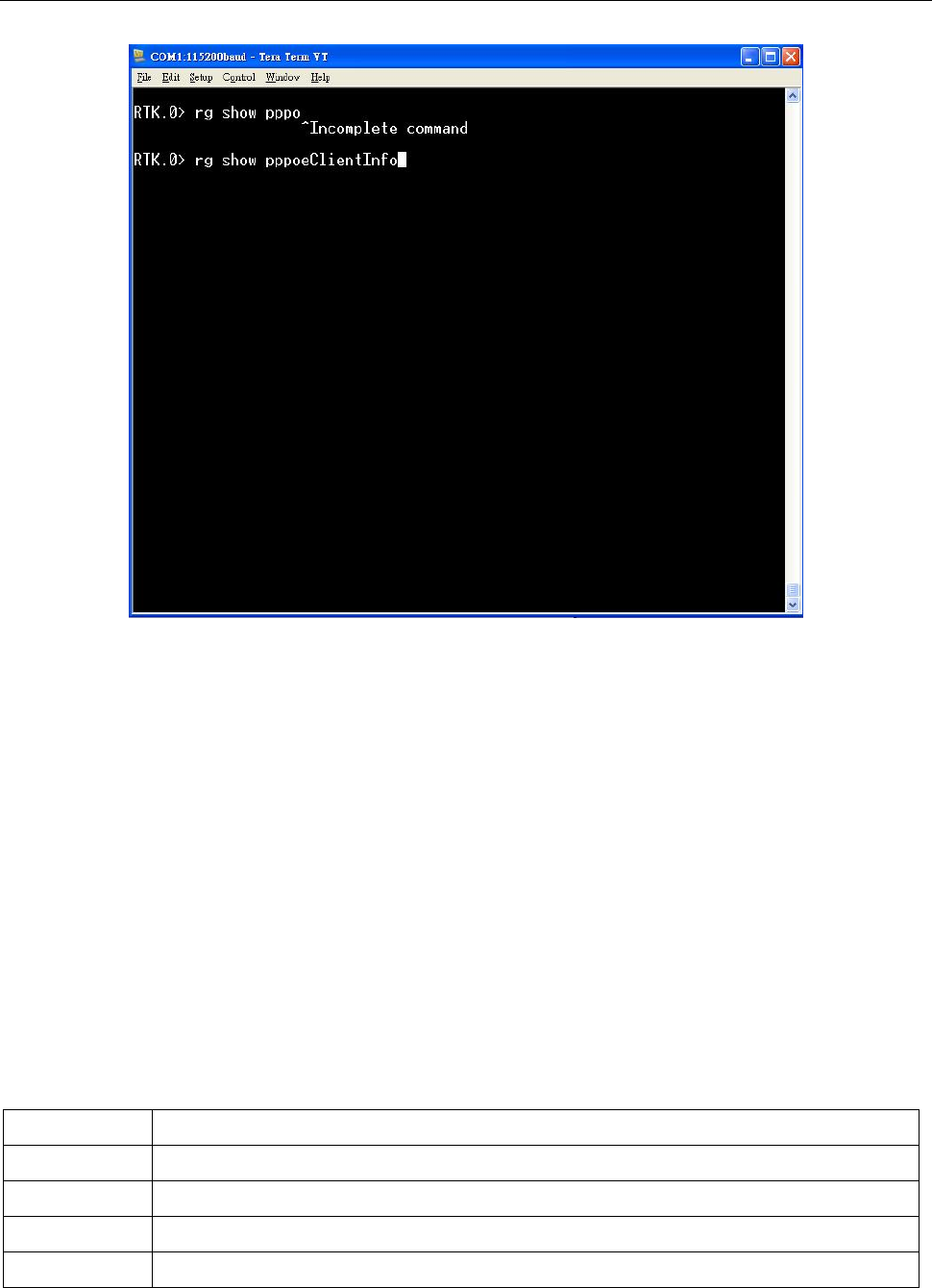

Figure17. DiagShell command-line-completion
9.1.3. Mapping for RG API & Diag Cmd
All RG API are related to the diag command with first keyword “rg”. the second keyword indicate
the action (such as add, delete, get…etc) of API. And the third keyword indicate the feature of the
API (such as Interface, macEntry, ACL…etc ).
For complex RG API suct as rtk_rg_XXXX_add( ), DiagShell separate these kind of RG API into
two or three diag commands. We use command “rg set XXXX ….” for preparing the parameters of
the API, and use command “rg add XXXX entry” for actually call to the rtk_rg_XXXX_add( ).
Following table shows all action of the command(Second keyword):
add Call to RG API rtk_rg_XXXX_add( )
del Call to RG API rtk_rg_XXXX_del( )
get Call to RG API rtk_rg_XXXX_find( )
init Especial call to RG API rtk_rg_initParam_set( )
set Set the parameters before call to RG API rtk_rg_XXXX_add( )
←input [tab]
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
76
clear Clear the parameters
show Show the current setting parameters
Table53. List of Diag Command second keywords
Following table shows the feature and API mapping of the command(Third keyword):
acl-filter rtk_rg_aclFilterAndQos_add/del/find
algApps rtk_rg_algApps_set/get
arp-entry rtk_rg_arpEntry_add/del /find
binding rtk_rg_vlanBinding_add/del/ find
cvlan rtk_rg_cvlan_add/del
dhcpClientInfo rtk_rg_dhcpClientInfo_set
dhcpRequest rtk_rg_dhcpRequest_set
dmzHost rtk_rg_dmzHost_set/get
dosFloodType rtk_rg_dosFloodType_set/get
dosPortMaskEnable rtk_rg_dosPortMaskEnable_set/get
dosType rtk_rg_dosType_set/get
lan-intf rtk_rg_lanInterface_add
mac-entry rtk_rg_macEntry_add/del/find
macfilter rtk_rg_macFilter_add/del/find
napt-connection rtk_rg_naptConnection_add/del/find
neighbor-entry rtk_rg_neighborEntry_add/del/find
phyPortForceAbility rtk_rg_phyPortForceAbility_set/get
portEgrBandwidthCtrlRate rtk_rg_portEgrBandwidthCtrlRate_set/get
portIgrBandwidthCtrlRate rtk_rg_portIgrBandwidthCtrlRate_set/get
portMirror rtk_rg_portMirror_set/get
pppoeClientInfoAfterDial rtk_rg_pppoeClientInfoAfterDial_set
pppoeClientInfoBeforeDial rtk_rg_pppoeClientInfoBeforeDial_set
qosDot1pPriRemapToInternalPri rtk_rg_qosDot1pPriRemapToInternalPri_set/get
qosDot1pPriRemarkByInternalPri rtk_rg_qosDot1pPriRemarkByInternalPri_set/get
qosDot1pPriRemarkByInternalPriEgr
essPortEnable
rtk_rg_qosDot1pPriRemarkByInternalPriEgressPortEna
ble_set/get
qosDscpRemapToInternalPri rtk_rg_qosDscpRemapToInternalPri_set/get
qosDscpRemarkByDscp rtk_rg_qosDscpRemarkByDscp_set/get
qosDscpRemarkByInternalPri rtk_rg_qosDscpRemarkByInternalPri_set/get
qosDscpRemarkEgressPortEnableAn
dSrcSelect
rtk_rg_qosDscpRemarkEgressPortEnableAndSrcSelect_
set/get
qosInternalPriDecisionByWeight rtk_rg_qosInternalPriDecisionByWeight_set/get
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
77
qosInternalPriMapToQueueId rtk_rg_qosInternalPriMapToQueueId_set/get
qosPortBasedPriority rtk_rg_qosPortBasedPriority_set/get
qosStrictPriorityOrWeightFairQueue rtk_rg_qosStrictPriorityOrWeightFairQueue_set/get
serverInLanAppsIpAddr rtk_rg_algServerInLanAppsIpAddr_add/del
shareMeter rtk_rg_shareMeter_set/get
softwareSourceAddrLearningLimit rtk_rg_softwareSourceAddrLearningLimit_set/get
stormControl rtk_rg_stormControl_add/del/find
upnpConnection rtk_rg_upnpConnection_add/del/find
url-filter rtk_rg_urlFilterString_add/del/find
virtualServer rtk_rg_virtualServer_add/del/find
wan-intf rtk_rg_wanInterface_add
wan-intf-static-info rtk_rg_staticInfo_set
Table54. List of Diag Command Third keywords
9.2. NIC Driver network device name & HW Port
Index mapping
Lan Port mapping is eth0(PortIdx=0), eth0.2(PortIdx=1), eth0.3(PortIdx=2), eth0.4(PortIdx=3), and
nas0(PortIdx-4) is used for PON WAN Port while (PortIdx=5) is used for RGMII WAN Port.
# echo 0 eth0 > /proc/rtl8686gmac/dev_port_mapping
# echo 1 eth0.2 > /proc/rtl8686gmac/dev_port_mapping
# echo 2 eth0.3 > /proc/rtl8686gmac/dev_port_mapping
# echo 3 eth0.4 > /proc/rtl8686gmac/dev_port_mapping
# echo 4 nas0 > /proc/rtl8686gmac/dev_port_mapping <4:PON, 5:RGMII>
9.3. Diag Shell for Realtek RG APIs
Enter diag shell by command diag:
9.3.1. Initial RG API
User can use following command for simply resetting all hardware tables. And then configurate
Lan/Wan Interfcae or other features of the gateway. However, without callback functions for
automatically synchronizing hardware tables and protocol stack, user should configurate the state of
protocol stack by himself. The basic commands for configurating LAN/WAN Interface of protocol
stack can be referenced by Sec. Set Lan/Wan Configuration of Protocal Stack.
RTK.0>rg init
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
78
9.3.2. Initial RG API and register callback function
LiteRomeDriver/RomeDriver reserves some hook points in RTK RG APIs for registering callback
functions. Callback functions is used to synchronize Hardware Tables and Protocal Stack, such as
sync Rouing Table. Diag Shell supports a set of default callback functions, and following command
shows how to register all of them from the start. Besides, IgmpSnooping Module and
macBasedTagDecision can be enable/sidable by user-self by following command, too. Enter
parameter 1 as enable, and 0 as disable.
RTK.0> rg init callback default igmpSnoopingEnable 1 macBasedTagDecision 1
wanPortGponMode 0
User can register his own callback functions without using default callback functions. but need to
remember where he stores it in Kernal memory (ex, oxffffffff). Following command shows how to
register callback function (The memory address just a sample, it should be assigned based on real
environment.):
RTK.0>rg set callback arpAddByHwCallBack 0xffffff00
RTK.0>rg set callback arpDelByHwCallBack 0xffffff01
RTK.0>rg set callback bindingAddByHwCallBack 0xffffff02
RTK.0>rg set callback bindingDelByHwCallBack 0xffffff03
RTK.0>rg set callback initByHwCallBack 0xffffff04
RTK.0>rg set callback interfaceAddByHwCallBack 0xffffff05
RTK.0>rg set callback interfaceDelByHwCallBack 0xffffff06
RTK.0>rg set callback macAddByHwCallBack 0xffffff07
RTK.0>rg set callback macDelByHwCallBack 0xffffff08
RTK.0>rg set callback naptAddByHwCallBack 0xffffff09
RTK.0>rg set callback naptDelByHwCallBack 0xffffff0a
RTK.0>rg set callback neighborAddByHwCallBack 0xffffff0b
RTK.0>rg set callback neighborDelByHwCallBack 0xffffff0c
RTK.0>rg set callback pppoeBeforeDiagByHwCallBack 0xffffff0d
RTK.0>rg set callback routingAddByHwCallBack 0xffffff0e
RTK.0>rg set callback routingDelByHwCallBack 0xffffff0f
RTK.0>rg set callback v6RoutingAddByHwCallBack 0xffffff10
RTK.0>rg set callback v6RoutingDelByHwCallBack 0xffffff11
RTK.0>rg init callback igmpSnoopingEnable 1 macBasedTagDecision 1 wanPortGponMode 0
Default callback function is located in memory that can be found by following command:
# cat proc/rg/callback

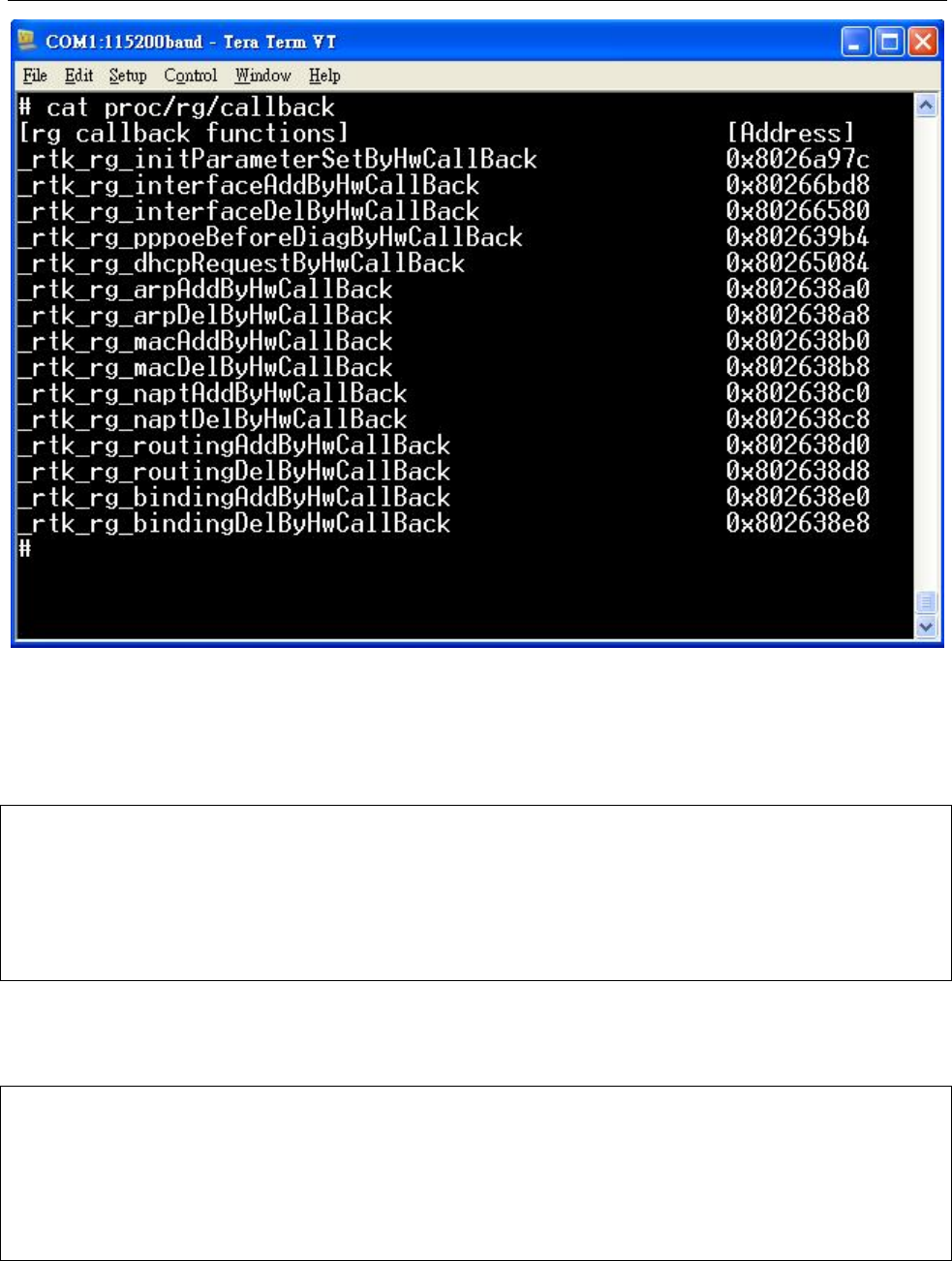

Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
79
9.3.3. Add LAN Interface
RTK.0> rg set lan-intf ip-version 2 gateway-mac 00:e0:4c:86:70:01 ip-addr 192.168.1.1
ip-mask 255.255.255.0 ipv6-addr 0::0 ipv6_network_mask_length 0 port-mask 0x5f
untag-mask 0x5f intf-vlan_id 9 vlan-based-pri-enable disable mtu 1500 isIVL 0
RTK.0>rg add lan-intf entry
add lan-intf[0] success. <This is the corresponding message.>
9.3.4. Add WAN Interface
RTK.0>rg set wan-intf wan-type 0 gateway-mac 00:e0:4c:86:70:02 wan-port 4
port-binding-mask 0x0 egress-vlan-tag-on 0 egress-vlan-id 8 vlan-based-pri-enable disable
isIVL 0
RTK.0>rg add wan-intf entry
add wan-intf[1] success. <This is the corresponding message.>
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
80
9.3.5. Set Static WAN Configuration
(1)Using following command will allow Router get gateway_mac_addr found by gateway_ip_addr
automatically(Not supported in Lite RomeDriver).
RTK.0>rg set wan-intf-static-info ip-version 2 napt_enable 1 ip_addr 192.168.150.116
ip_network_mask 255.255.255.248 ipv4_default_gateway_on 1 gateway_ipv4_addr
192.168.150.117 mtu 1500 gw_mac_auto_learn_for_ipv4 1 gateway_mac_addr_for_ipv4
00:00:00:00:00:00
RTK.0>rg set wan-intf-static-info-ipv6 ipv6_addr 2002::1 ipv6_mask_length 64
ipv6_default_gateway_on 1 gateway_ipv6_addr 2002::2 mtu 1500
gw_mac_auto_learn_for_ipv6 1 gateway_mac_addr_for_ipv6 00:00:00:00:00:00
RTK.0>rg add wan-intf-static-info intf-index 1 <1 is the corresponding value of Add WAN Intf >
add static info to interface[1] success. <This is the corresponding message.>
(2) Using following command to Assign gateway_mac_addr manually:
RTK.0>rg set wan-intf-static-info ip-version 2 napt_enable 1 ip_addr 192.168.150.116
ip_network_mask 255.255.255.248 ipv4_default_gateway_on 1 gateway_ipv4_addr
192.168.150.117 mtu 1500 gw_mac_auto_learn_for_ipv4 0 gateway_mac_addr_for_ipv4
00:e0:01:02:03:04
RTK.0>rg set wan-intf-static-info-ipv6 ipv6_addr 2002::1 ipv6_mask_length 64
ipv6_default_gateway_on 1 gateway_ipv6_addr 2002::2 mtu 1500
gw_mac_auto_learn_for_ipv6 0 gateway_mac_addr_for_ipv6 00:e0:01:02:03:04
RTK.0>rg add wan-intf-static-info intf-index 1 <1 is the corresponding value of Add WAN Intf >
add static info to interface[1] success. <This is the corresponding message.>
9.4. Diag Shell for Realtek RG Runtime API
9.4.1. Get RG API Version Info
RTK.0>rg get version
Lunar:1049 Switch:42382 RG:865 User:55269 <This is the corresponding message.>
Once NAPT, ARP Auto learning is enabled, there is no need to command following Diag Shell.
9.4.2. Add MAC Entry
RTK.0>rg set mac-entry mac-address 00:e0:01:02:03:44 isIVL 0 fid 0 vlan_id 9 port_idx 1
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
81
static_entry 1
RTK.0>rg add mac-entry entry
add macEntry[44] success. <This is corresponding message.>
Implying add MAC to MAC Table Index 45.
9.4.3. Add ARP Entry
RTK.0>rg set arp-entry macEntryIdx 44 ip_addr 192.168.1.2 static_entry 1 valid 1
RTK.0>rg add arp-entry entry
add arpEntry[2] success. <This is corresponding message.>
Implying add ARP to ARP Table Index 2.
9.4.4. Add NAPT Entry
RTK.0>rg set napt-connection is_tcp 1 local_ip 192.168.1.2 remote_ip 10.10.10.10
wan_intf_idx 1 local_port 16811 remote_port 1010 external_port 1000 outbound_pri_valid 0
outbound_priority 0 inbound_pri_valid 0 inbound_priority 0
RTK.0>rg add napt-connection entry
add naptConn[320] success. <This is corresponding message.>
Implying add NAPT to NAPT Table Index 320.
10. Realtek RG Debug Tools
If Realtek RG Debug Tools is enabled in Kernel menuconfig, the following debug tools can be used.
Each Hardware Table can be dumped by following commands:

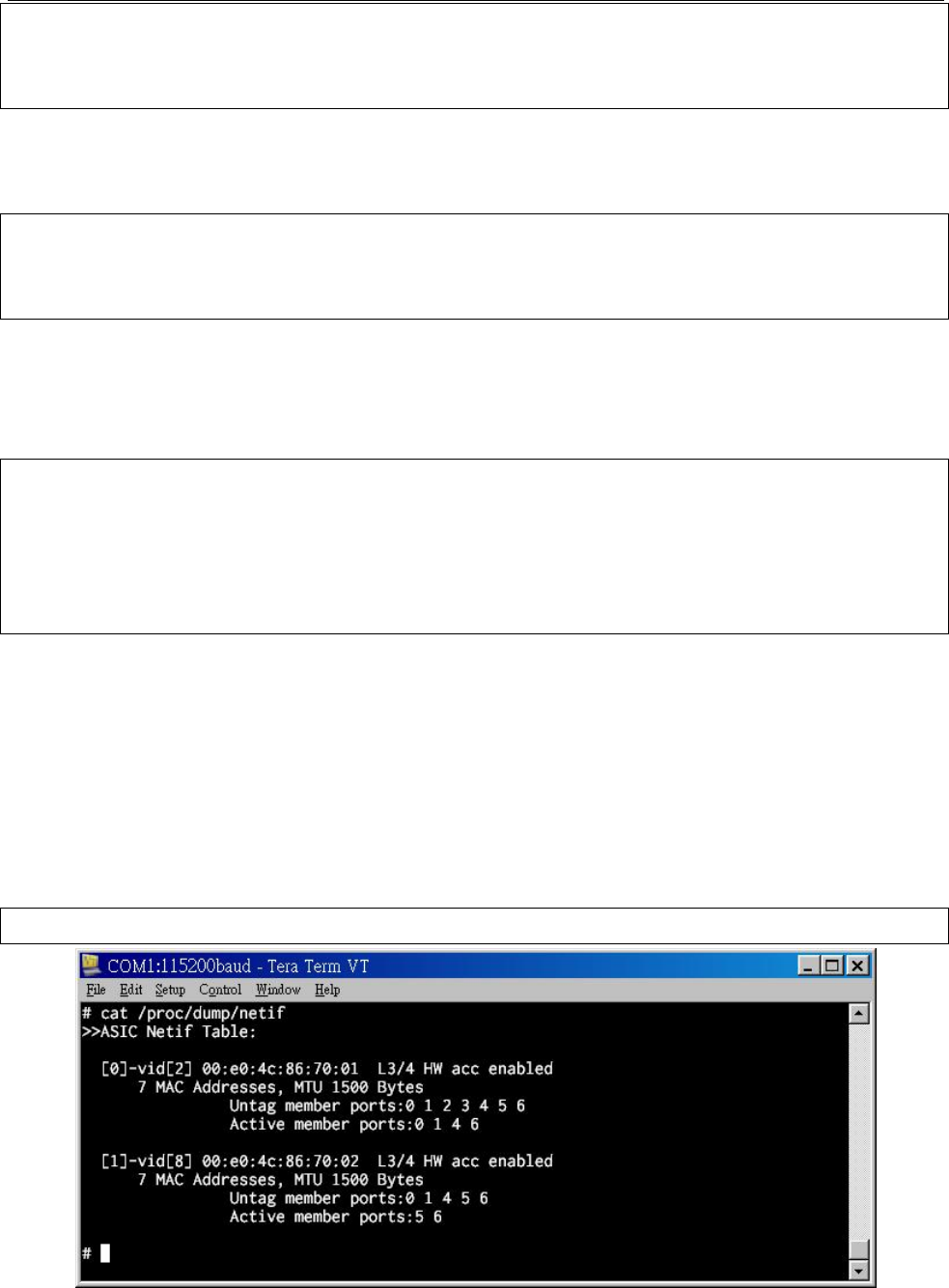

# cat /proc/dump/netif <Show Network Interface Table >
After LAN/WAN is Set up, two Network Interfaces should be showed.
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
82

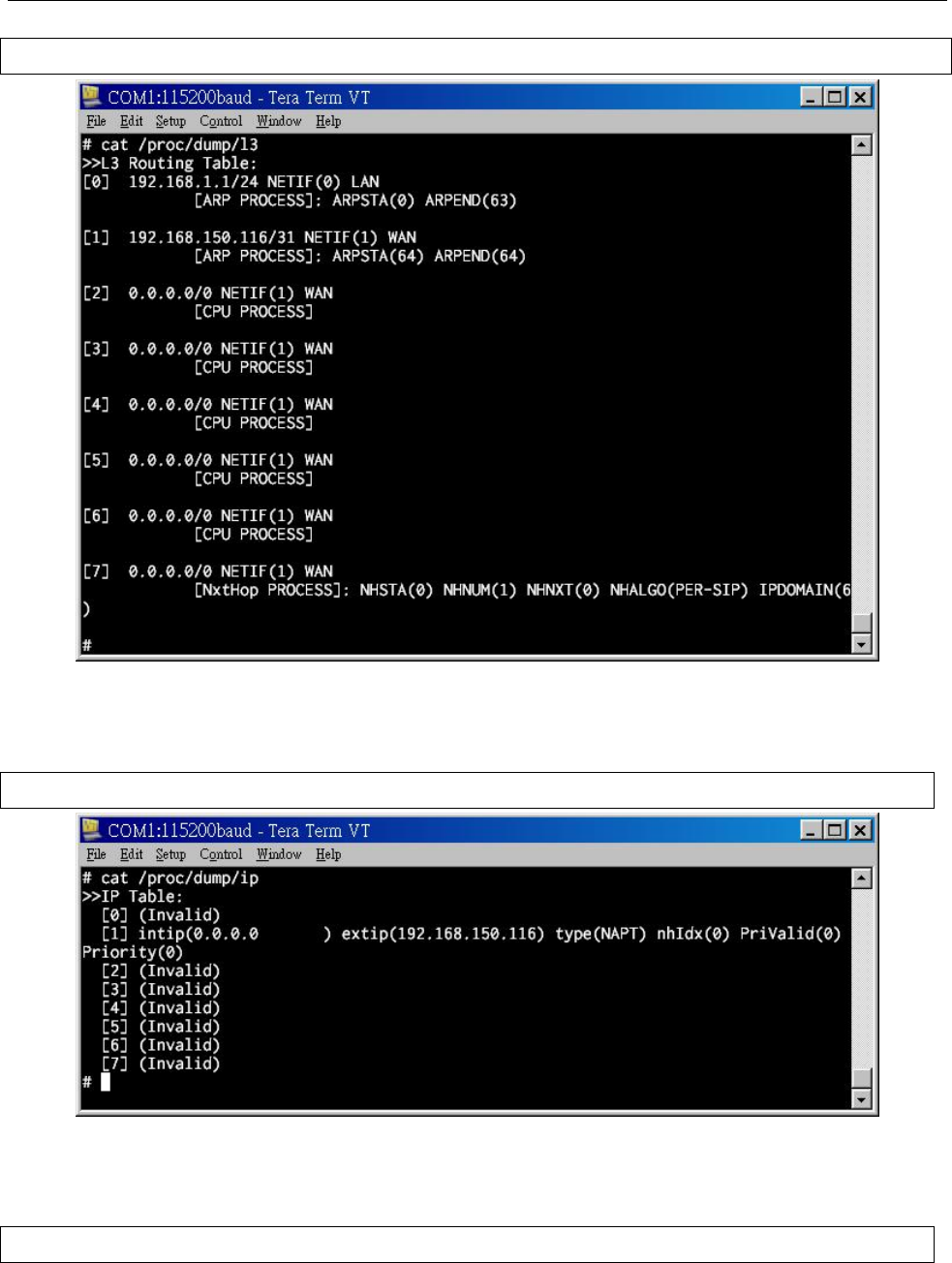

# cat /proc/dump/l3 <Show Network Routing Table >
Once LAN/WAN is set up, two Interface Route[0],[1] and one Default Route[7] should be showed.
# cat /proc/dump/ip <Show Network Interface Table >
Once LAN/WAN is set up, one set of WAN IP should be set in NAPT, and IP Table Index should
refer to Network Interface Table Index.

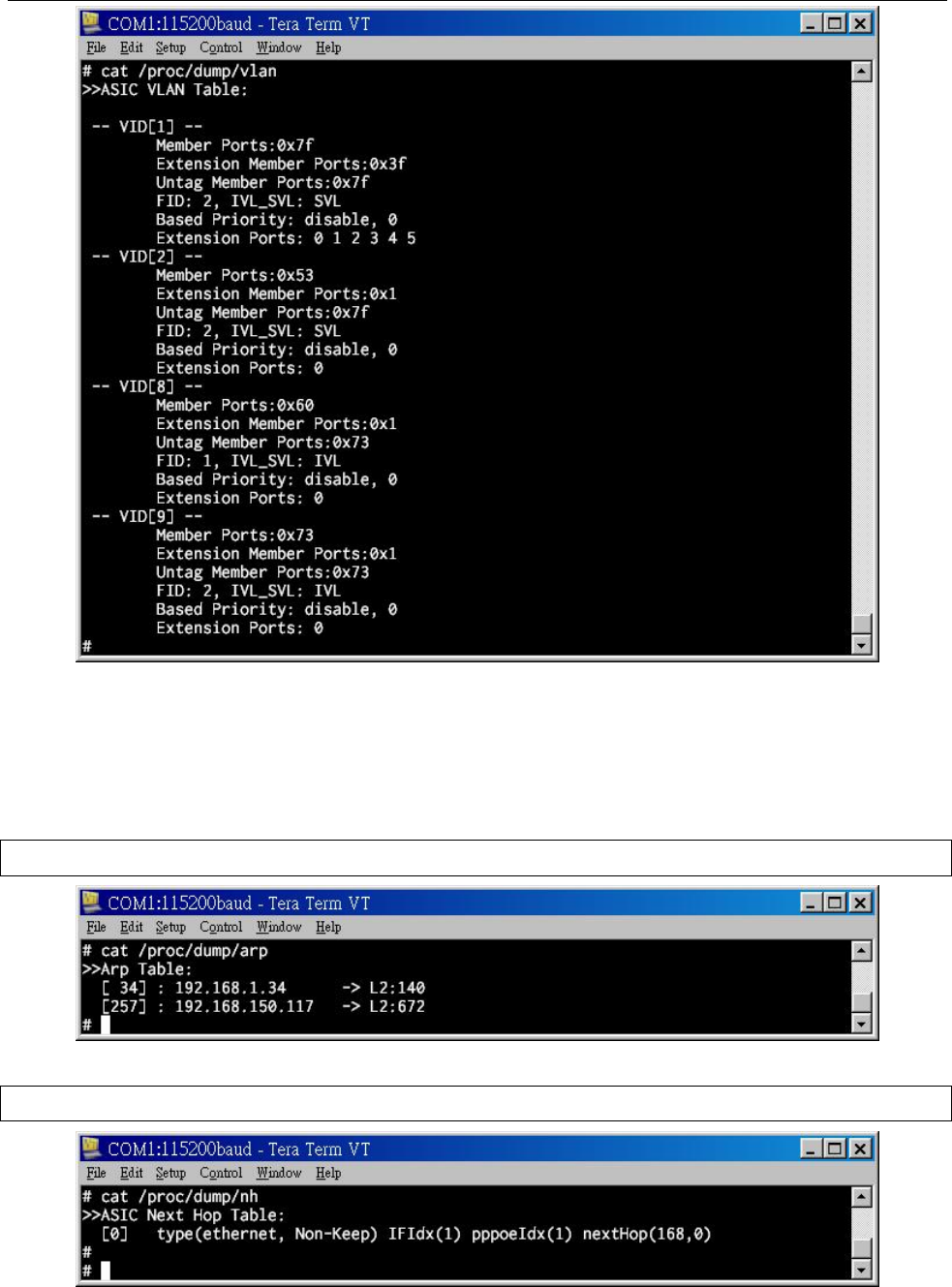

# cat /proc/dump/vlan <Show VLAN Interface Table >
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
83
VID1 is all VLAN member port of LAN & WAN.
VID2 is all VLAN member port of LAN Interface.
VID8 is USER added VLAN member port of WAN Interface.
VID9 is USER added VLAN member port of LAN Interface.
# cat /proc/dump/arp <Show ARP Table >
# cat /proc/dump/nh <Show NextHop Table >
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
84

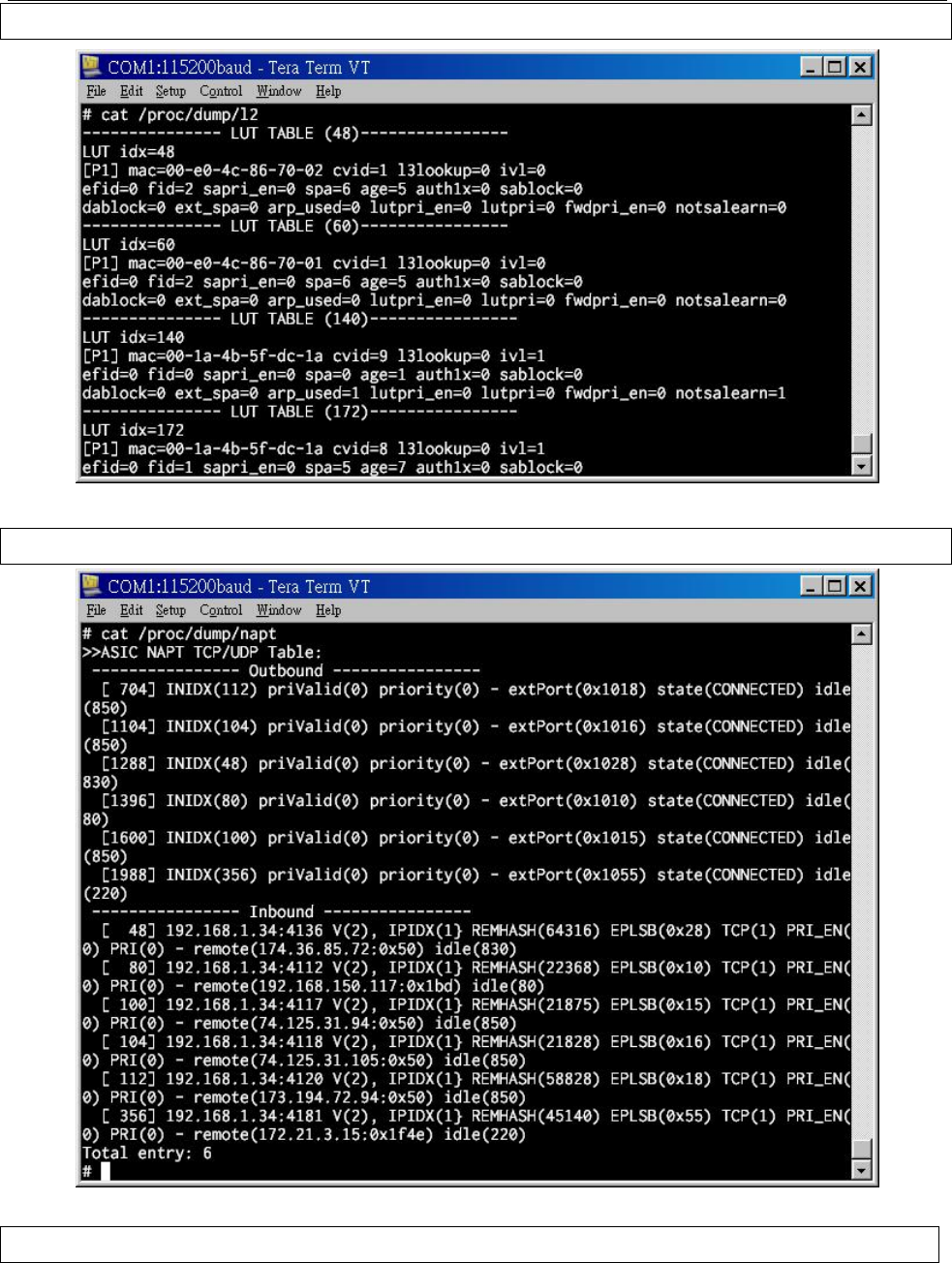

# cat /proc/dump/l2 <Show MAC Table >
# cat /proc/dump/napt <Show NAPT Table >

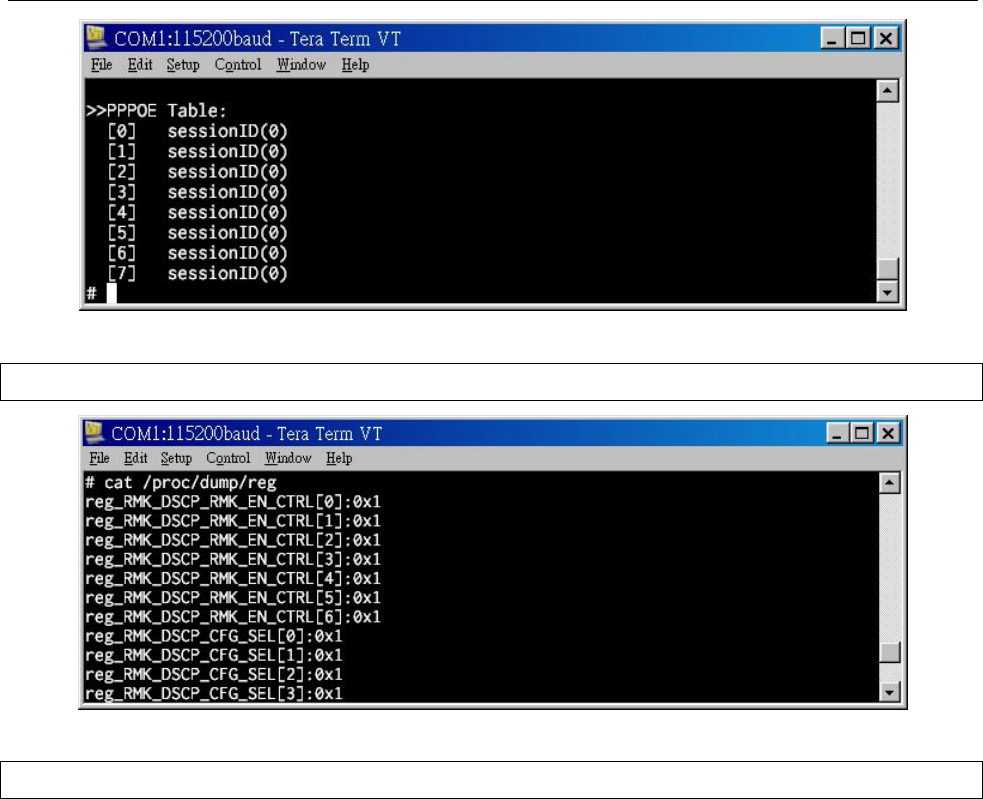

# cat /proc/dump/pppoe <Show PPPoE Table >
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
85
# cat /proc/dump/reg <Show Register >

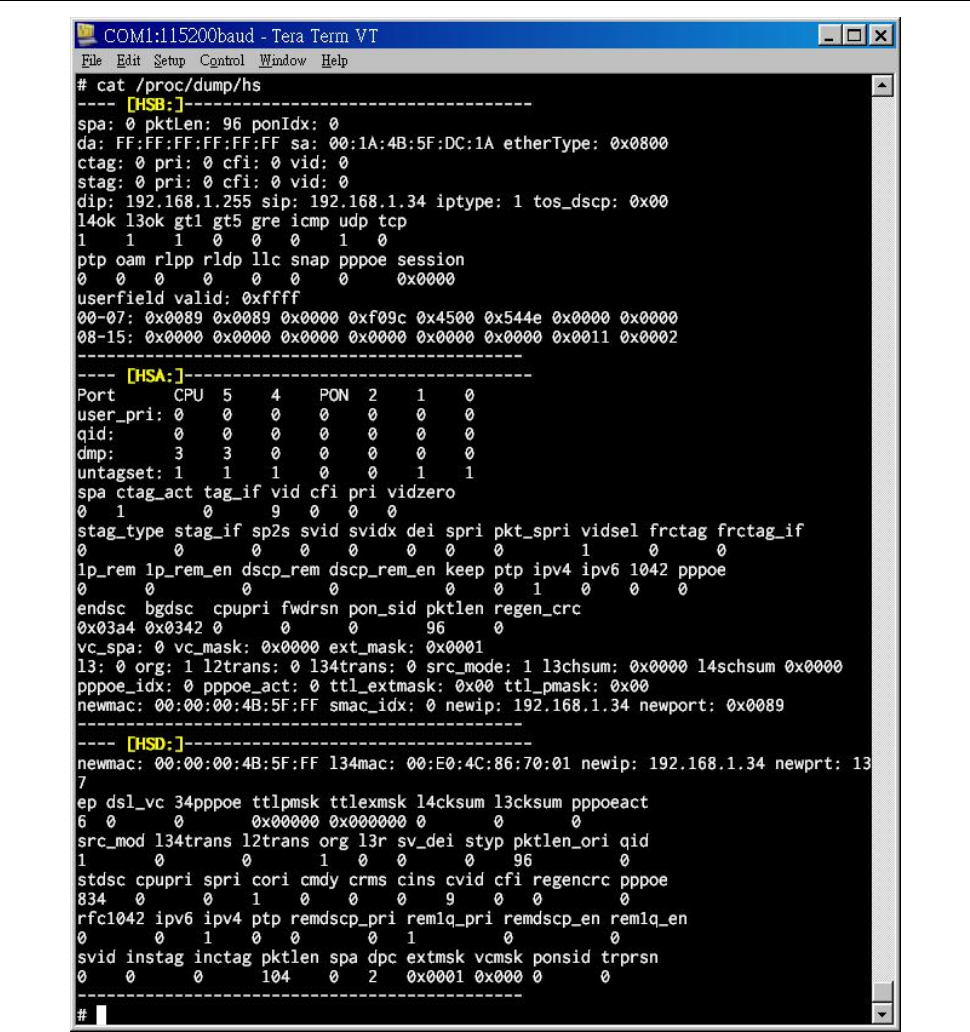

# cat /proc/dump/hs <Show Hardware Detail Information for Bug Report>
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
86
11. Test Report
11.1. Chariot-LAN to LAN Bridge Mode-TCP
Throughput
Using High_Performance_Throughput.scr Script, 2 LAN to LAN TCP connections speed is at
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
87
902Mbps. Because the speed of Chariot related to Testing Computer efficiency, this test result
should be treated as reference for LAN to WAN speed and only.

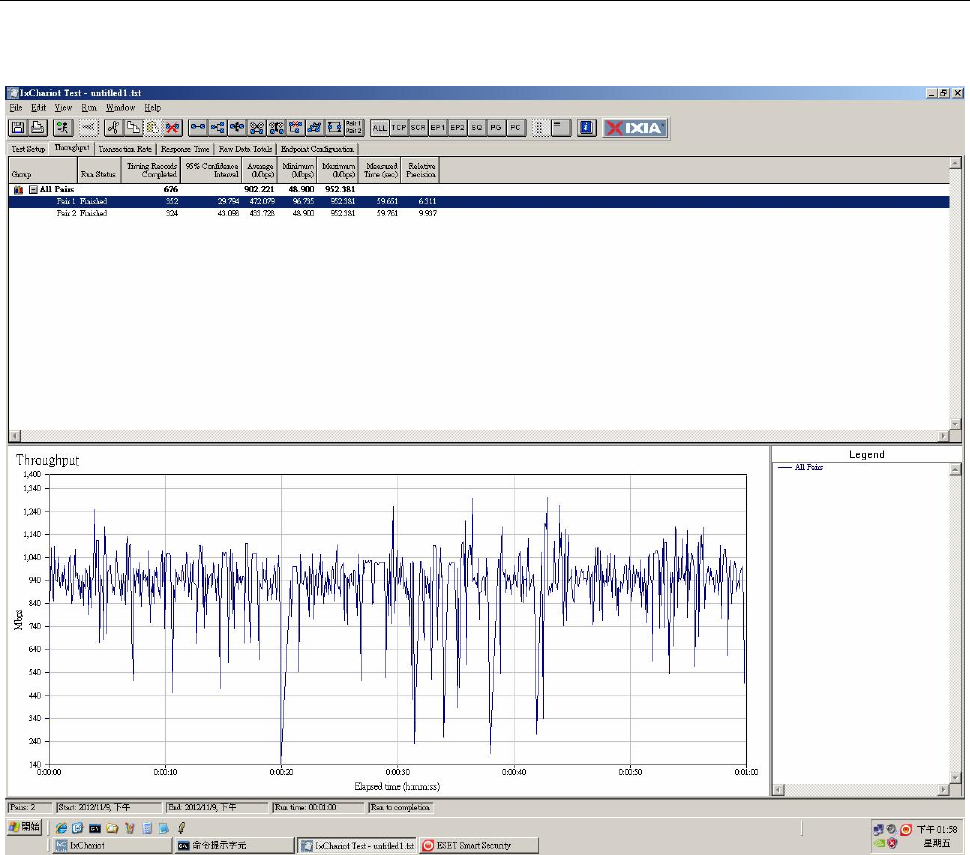

Figure18. Chariot LAN to LAN TCP connection
11.2. Chariot-LAN to WAN NAPT Mode-TCP
Throughput
Using High_Performance_Throughput.scr Script, 2 LAN to WAN TCP connections speed is at
905Mbps. Because the speed of Chariot related to Testing Computer efficiency, this test result
should be treated as reference for LAN to LAN speed and only.
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
88

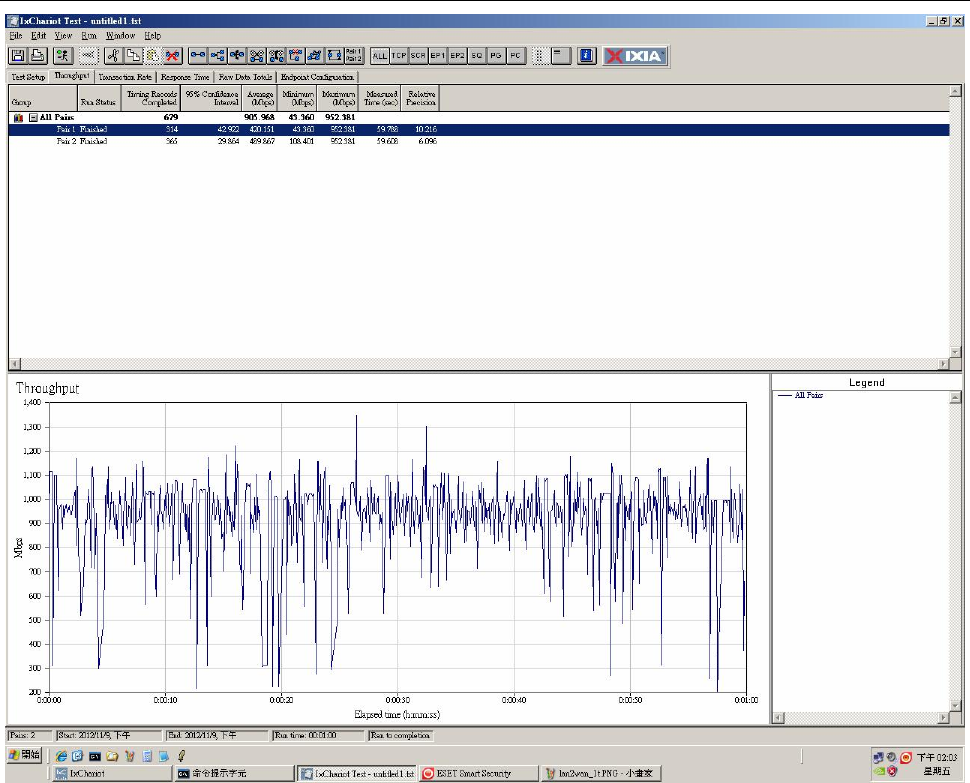

Figure19. Chariot LAN to WAN TCP connection
11.3. IXIA-LAN to LAN Bridge Mode-TCP(Packet
Size:1518Bytes)
Data Bit Rate: 986.962Mbps
Total Packets/Sec:81486.31fps
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
89

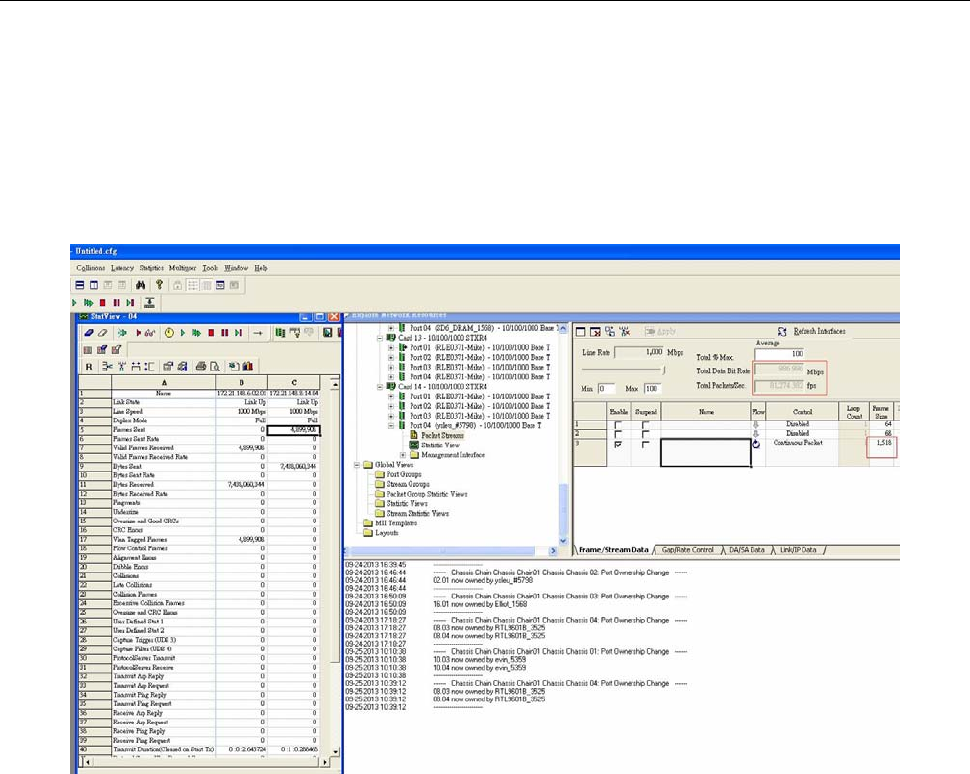

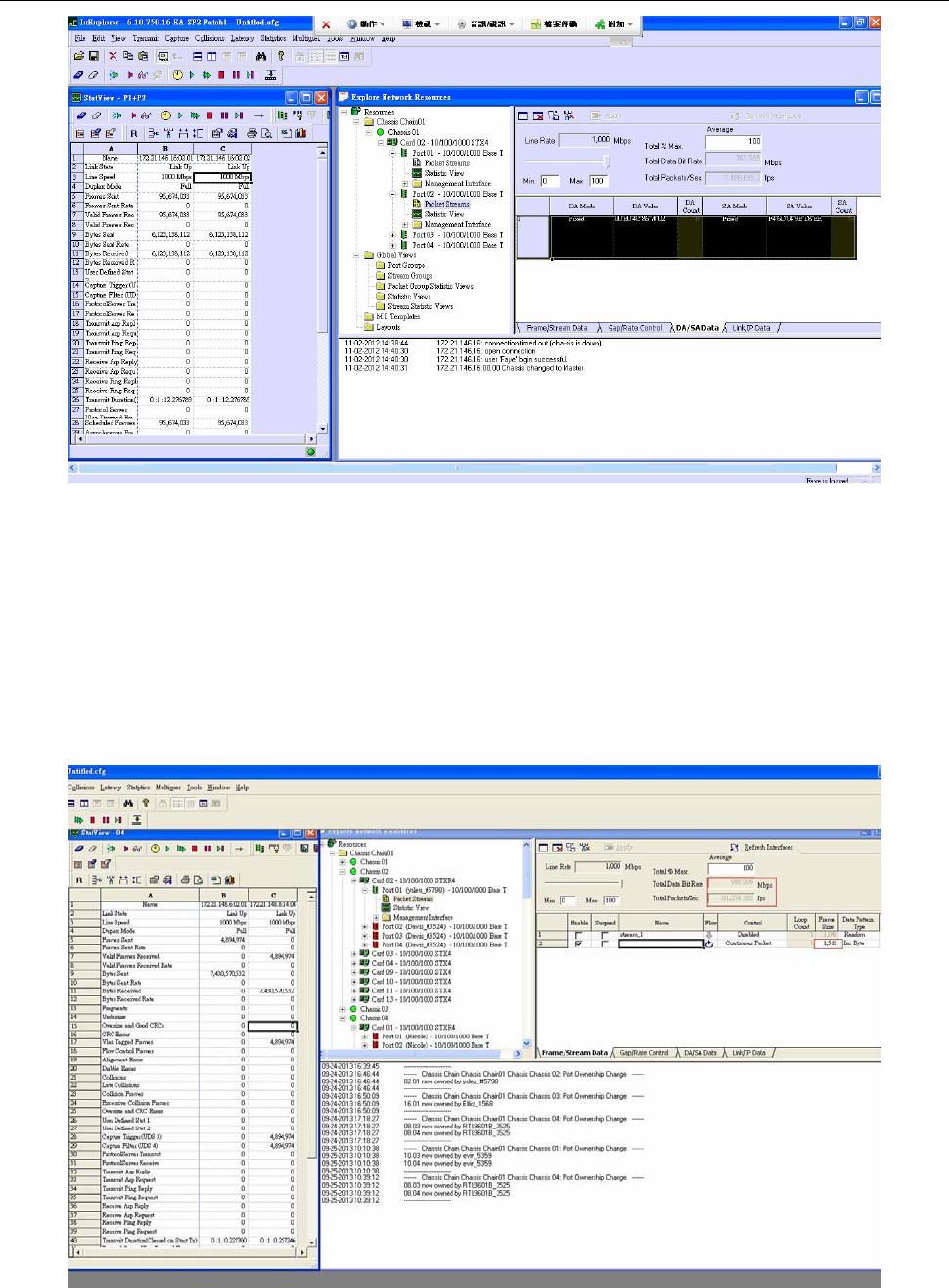

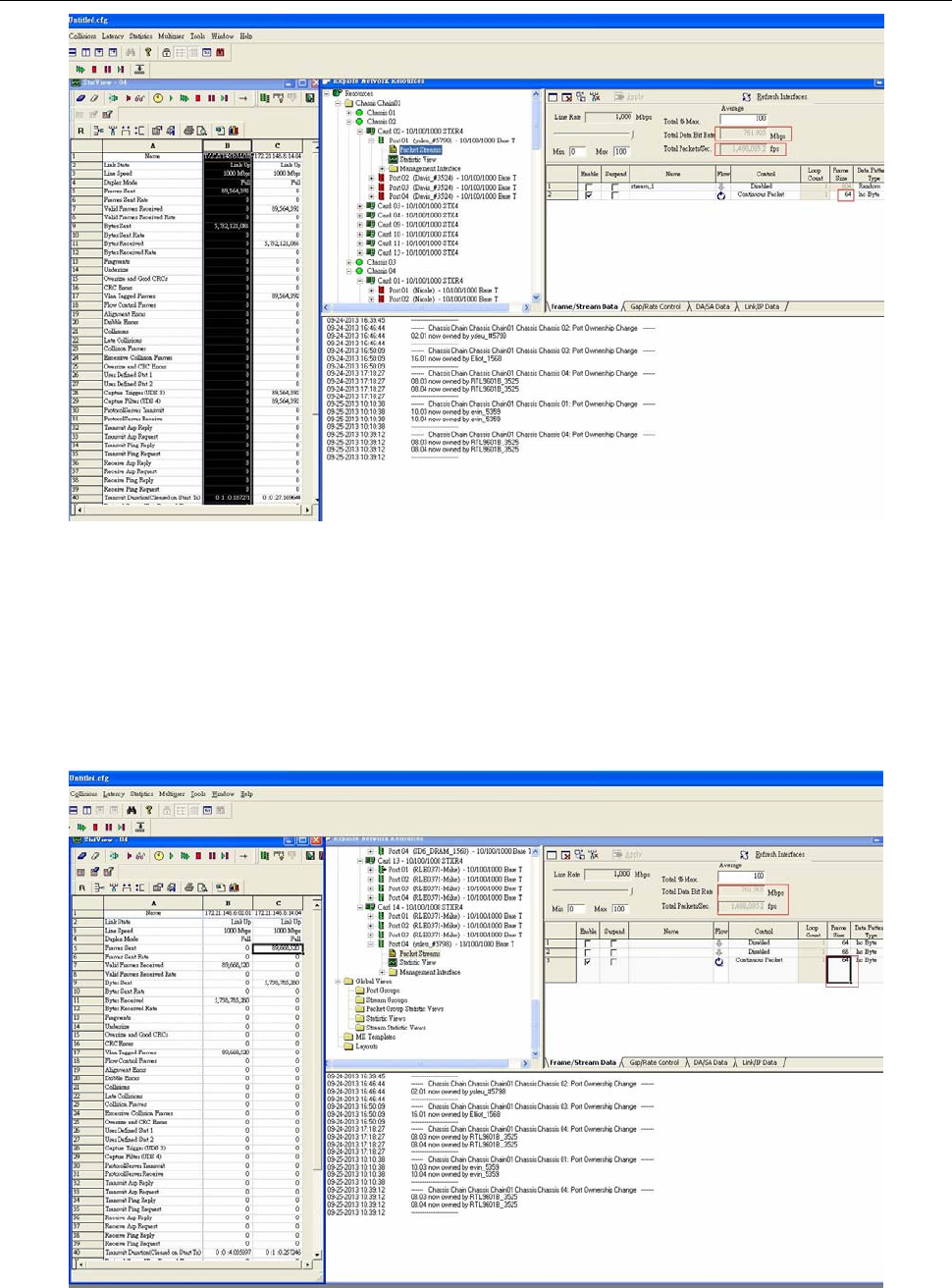

Figure20. IXIA LAN to LAN TCP connection(Large Packet)
11.4. IXIA-LAN to LAN Bridge Mode-TCP(Packet
Size:64Bytes)
Data Bit Rate: 761.905Mbps
Total Packets/Sec:1488095.2fps

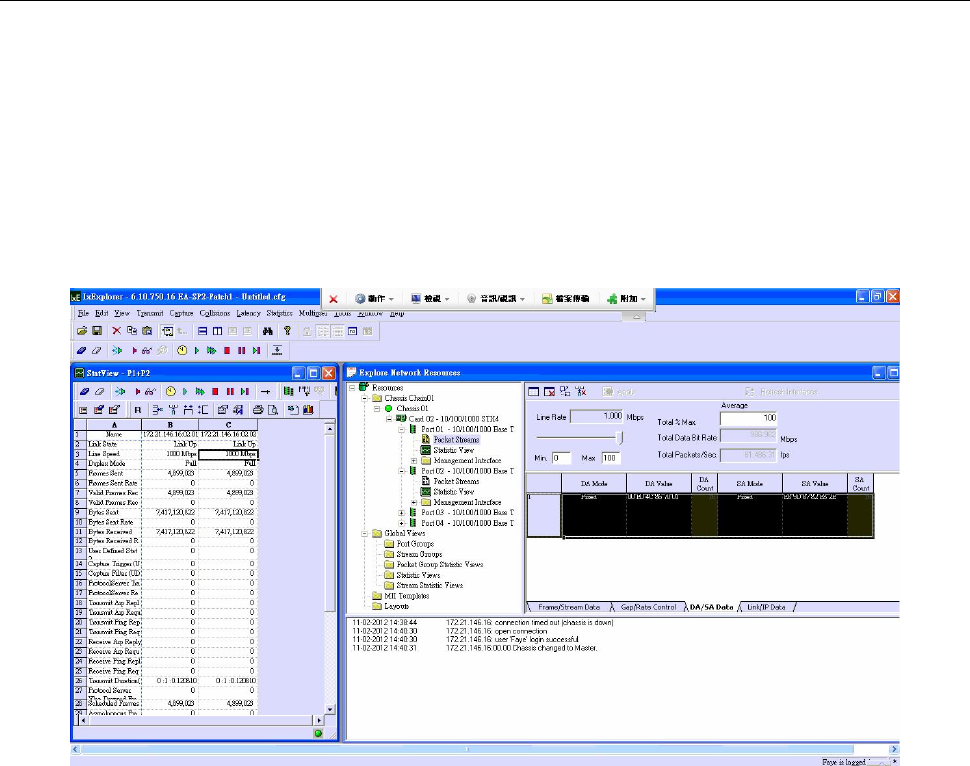

Figure21. IXIA LAN to LAN TCP connection(Small Packet)
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
90
11.5. IXIA-LAN to UTP WAN NAPT
Mode-TCP(Packet Size:1518Bytes)
Data Bit Rate: 986.962Mbps
Total Packets/Sec:81486.31fps

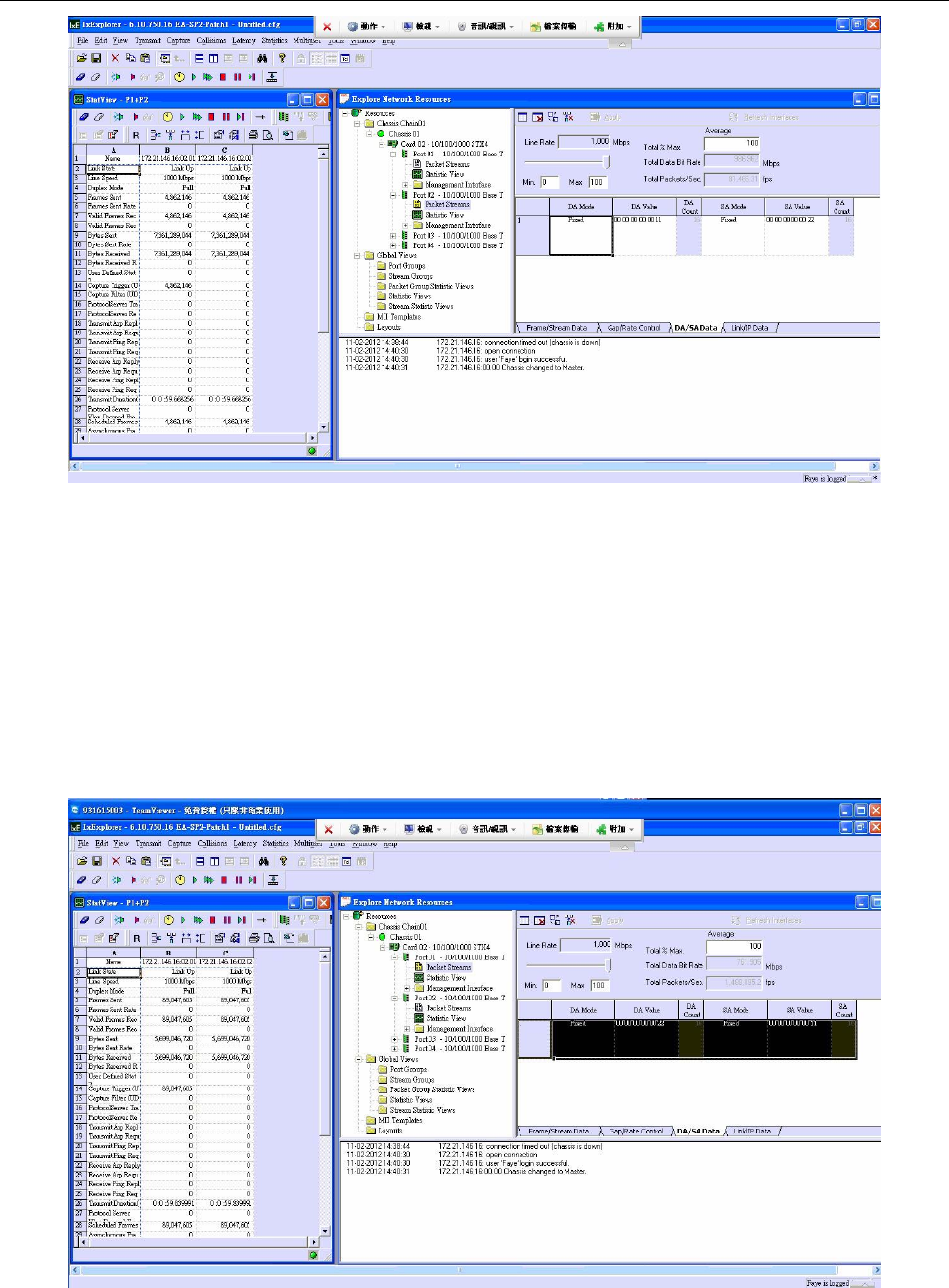

Figure22. IXIA LAN to WAN TCP connection(Large Packet)
11.6. IXIA-LAN to UTP WAN NAPT
Mode-TCP(Packet Size:64Bytes)
Data Bit Rate: 761.905Mbps
Total Packets/Sec:1488095.2fps
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
91
Figure23. IXIA LAN to WAN TCP connection(Small Packet)
11.7. IXIA-LAN to GPON WAN NAPT
Mode-UDP(Packet Size:1518Bytes)
Up-stream Data Bit Rate: 986.996Mbps
Total Packets/Sec: 81,274,382ps
Figure24. IXIA LAN to GPON WAN UDP connection (Large Packet)
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
92
11.8. IXIA-GPON WAN to LAN NAPT
Mode-UDP(Packet Size:1518Bytes)
Down-stream Data Bit Rate: 986.996Mbps
Total Packets/Sec: 81,274,382ps
Figure25. IXIA GPON WAN to LAN UDP connection (Large Packet)
11.9. IXIA-LAN to GPON WAN NAPT
Mode-UDP(Packet Size:64Bytes)
Up-stream Data Bit Rate: 761.905Mbps
Total Packets/Sec: 1,488,095.2ps
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
93
Figure26. IXIA LAN to GPON WAN UDP connection(Small Packet)
11.10. IXIA-GPON WAN to LAN NAPT
Mode-UDP(Packet Size:64Bytes)
Down-stream Data Bit Rate: 761.905Mbps
Total Packets/Sec: 1,488,095.2ps
Figure27. IXIA GPON WAN to LAN UDP connection(Small Packet)
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
94
11.11. IXIA(veriwave)-WIFI to WAN Bridge
Mode-UDP
Veriwave Configuration:
Learning Time 2 sec
Achieved Transmit Time 10 sec
Settle Time 2 sec
Aging Time 5 sec
Acceptable Loss 1.00%
Protocol UDP
Wifi Configuration:
Protocol 802.11n
MCS Rate 15
Channel Width 40 MHz
AMPDU on
DUT Configuration
GMAC Ring Size 512
Wifi IC 8192ER
Channel 11

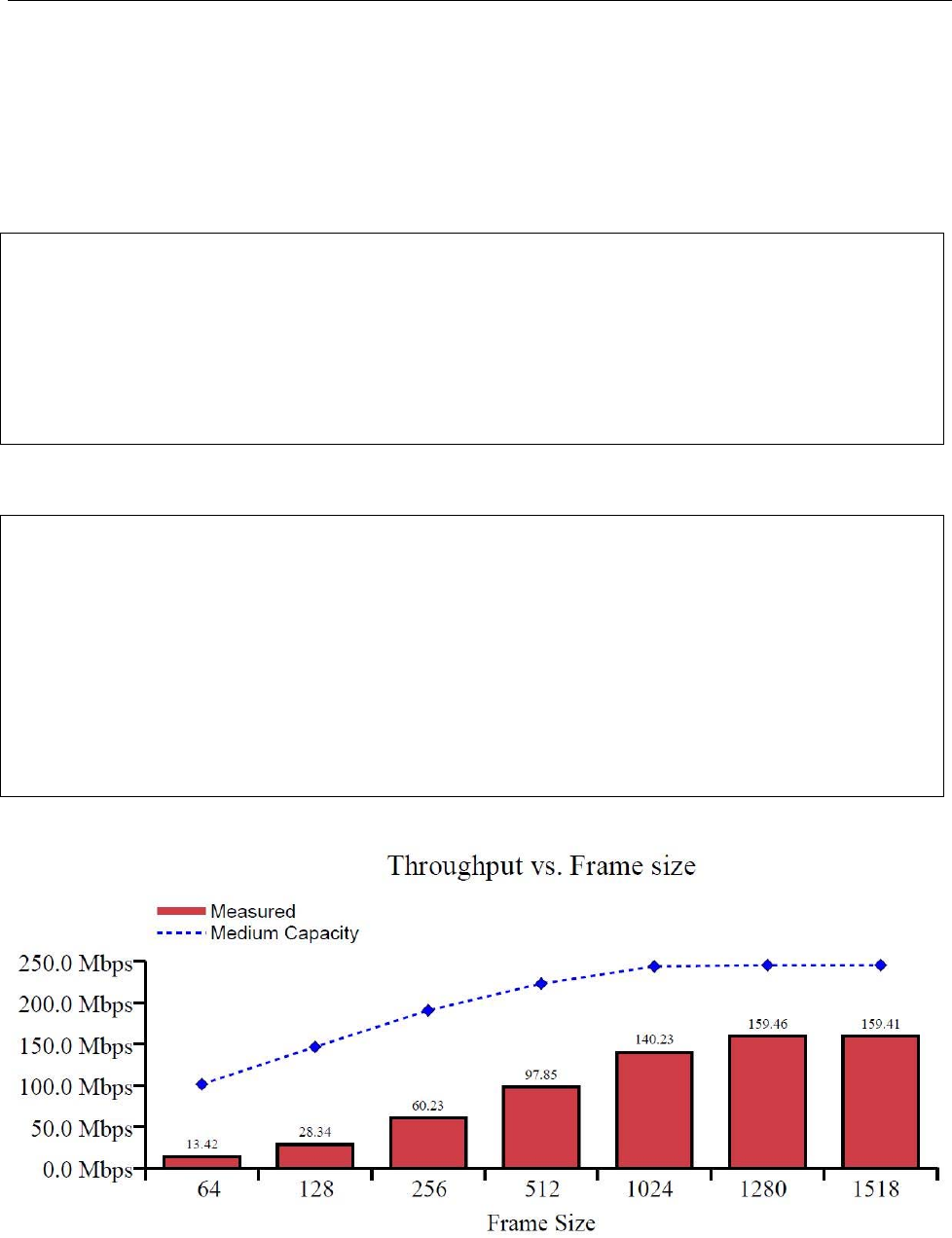

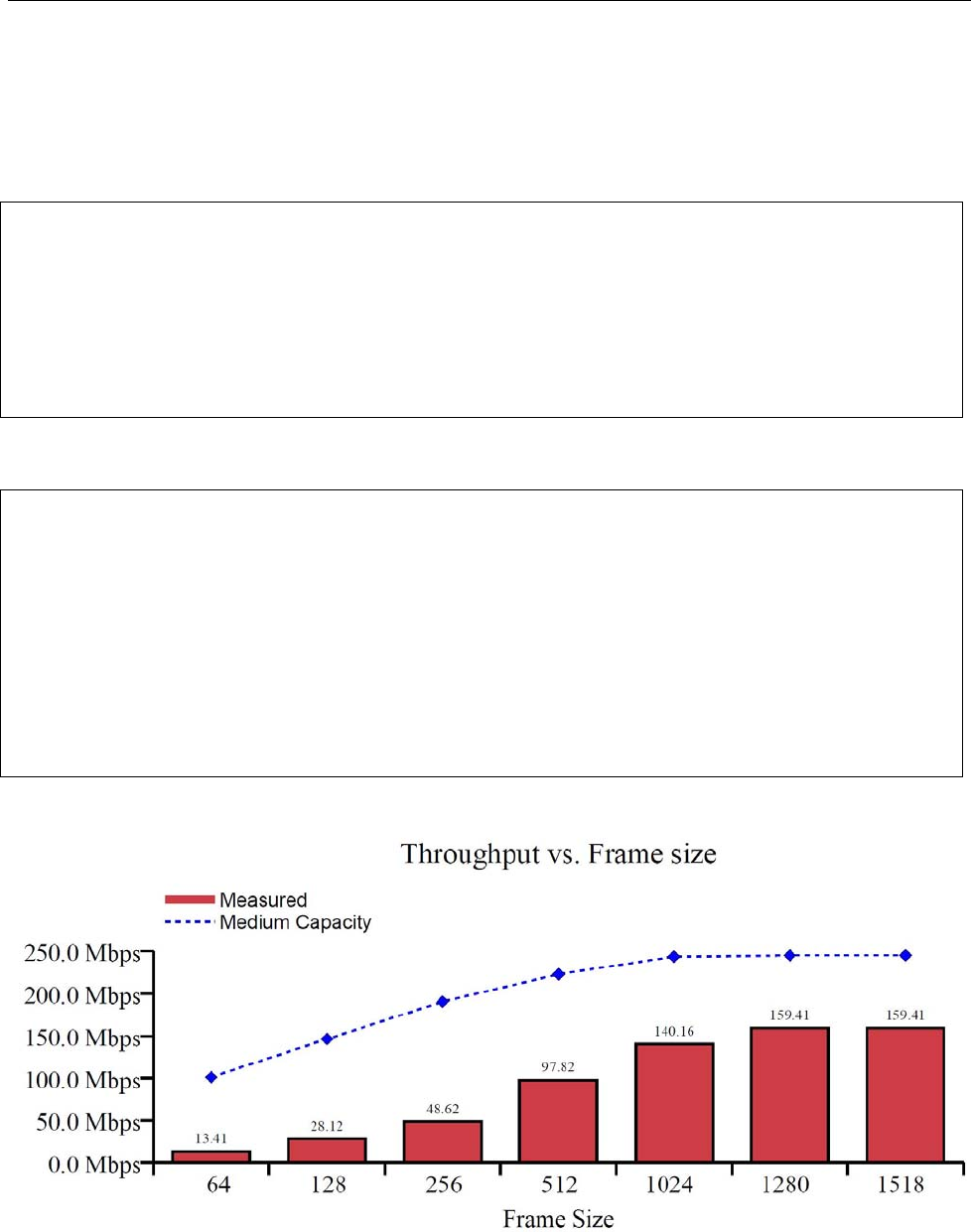

Figure28. IXIA WIFI to WAN(Bridge) UDP connection
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
95
11.12. IXIA(veriwave)-WIFI to WAN NAPT
Mode-UDP
Veriwave Configuration:
Learning Time 2 sec
Achieved Transmit Time 10 sec
Settle Time 2 sec
Aging Time 5 sec
Acceptable Loss 1.00%
Protocol UDP
Wifi Configuration:
Protocol 802.11n
MCS Rate 15
Channel Width 40 MHz
AMPDU on
DUT Configuration
GMAC Ring Size 512
Wifi IC 8192ER
Channel 11
Figure29. IXIA WIFI to WAN(NAPT) UDP connection
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
96
12. RTK RG APIs Prototype
12.1. rtk_rg_driverVersion_get
int32 rtk_rg_driverVersion_get(rtk_rg_VersionString_t *version_string)
Get the RG rome driver version number.
Defined in: rtk_rg_liteRomeDriver.h
*version_string
[in] The pointer of version structure.
[out] The pointer to the stucture with version string.
version_string.version_string - the char string of version, at most 20 characters.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the buffer parameter may be NULL
12.2. rtk_rg_initParam_get
int32 rtk_rg_initParam_get(rtk_rg_initParams_t *init_param)
Get the initialized call-back functions.
Defined in: rtk_rg_liteRomeDriver.h
*init_param
[in] The instance of rtk_rg_initParams_t.
[out] The instance of rtk_rg_initParams_t with saved call
igmpSnoopingEnable - control IGMP snooping should on or off.
macBasedTagDecision - control tag decision based on MAC should on or off.
wanPortGponMode - indicate if the switch configure as GPON mode or not.
init_param.arpAddByHwCallBack - this call-back function pointer should be called when
ARP entry added.
init_param.arpDelByHwCallBack - this call-back function pointer should be called when ARP
entry deleted.
init_param.macAddByHwCallBack - this call-back function pointer should be called when
MAC entry added.
init_param.macDelByHwCallBack - this call-back function pointer should be called when
MAC entry deleted.
init_param.routingAddByHwCallBack - this call-back function pointer should be called when
Routing entry added.
init_param.routingDelByHwCallBack - this call-back function pointer should be called when
Routing entry deleted.
init_param.naptAddByHwCallBack - this call-back function pointer should be called when
NAPT entry added.
init_param.naptDelByHwCallBack - this call-back function pointer should be called when
NAPT entry deleted. init_param.bindingAddByHwCallBack - this call-back function pointer
should be called when Binding entry added.
init_param.bindingDelByHwCallBack - this call-back function pointer should be called when
Binding entry added.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the buffer parameter may be NULL
RT_ERR_RG_INITPM_UNINIT init parameter structure are all NULL pointers
Parameters
Comments
Return Codes
Parameters
Comments
Retu
r
n Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
97
12.3. rtk_rg_initParam_set
int32 rtk_rg_initParam_set(rtk_rg_initParams_t *init_param)
Set the initialized call-back functions, and reset all Global variables.
Defined in: rtk_rg_liteRomeDriver.h
*init_param
[in] The instance of rtk_rg_initParams_t with saved call
This function should be called before any other RG APIs.
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT The RG module is failed to initialize
RT_ERR_RG_VLAN_SET_FAIL Set up default CPU VLAN or LAN VLAN failed
12.4. rtk_rg_lanInterface_add
int32 rtk_rg_lanInterface_add(rtk_rg_lanIntfConf_t *lan_info, int *intf_idx)
Create one new LAN interface, add related entries into HW tables and Global variables.
Defined in: rtk_rg_liteRomeDriver.h
*lan_info
[in] LAN interface configuration structure.
*intf_idx
[out] Return the index of new created LAN interface.
lan_info.gmac - the gateway MAC address of this LAN interface.
lan_info.ip_addr - the IP address of this LAN interface.
lan_info.ip_network_mask - the mask decides how many hosts in this LAN.
lan_info.port_mask - which ports belong to this LAN.
lan_info.untag_mask - which ports in this LAN should be egress untag.
lan_info.extport_mask - which extension ports belong to this LAN.
lan_info.intf_vlan_id - the default VLAN ID of this LAN.
lan_info.vlan_based_pri - indicate what VLAN priority this WAN interface should carry.
lan_info.vlan_based_pri_enable - indicate VLAN-based priority enable or not.
lan_info.mtu - the maximum transmission unit of this LAN interface.
lan_info.isIVL - how to learning layer2 record, IVL or SVL.
This function should be called after rtk_rg_initParam_set and before any WAN interface
creation.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the input parameter may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_NOT_INIT the RG module didn't init
RT_ERR_RG_ENTRY_FULL the interface number is beyond predefined limitation
RT_ERR_RG_MODIFY_LAN_AT_WA
N_EXIST
the LAN interface can not add after WAN interface
exist
RT_ERR_RG_PORT_USED the interface has port overlap with other interface
RT_ERR_RG_ARP_FULL ARP table is not available for this new interface
RT_ERR_RG_INTF_GET_FAIL
RT_ERR_RG_VLAN_SET_FAIL
RT_ERR_RG_INTF_SET_FAIL
RT_ERR_RG_ROUTE_SET_FAIL
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
98
12.5. rtk_rg_wanInterface_add
int32 rtk_rg_wanInterface_add(rtk_rg_wanIntfConf_t *wanintf, int *wan_intf_idx)
Add WAN interface.
Defined in: rtk_rg_liteRomeDriver.h
*wanintf
[in] The configuration structure of WAN interface.
*wan_intf_idx
[out] The created new WAN interface index.
wanintf.wan_type - this WAN interface type, can be Bridge mode, DHCP mode, PPPoE mode,
etc.
wanintf.gmac - the gateway MAC address of this WAN interface.
wanintf.wan_port_idx - indicate which port this WAN interface belong to.
wanintf.port_binding_mask - indicate which ports and extension ports should be bound to this
WAN interface.
wanintf.egress_vlan_tag_on - indicate the egress packet should carry VLAN CTAG or not.
wanintf.egress_vlan_id - indicate what VLAN ID this WAN interface should carry.
wanintf.vlan_based_pri_enable - indicate VLAN-based priority enable or not.
wanintf.vlan_based_pri - indicate what VLAN priority this WAN interface should carry.
When adding WAN interface except Bridge mode, this function should be called before
each sub function like rtk_rg_staticInfo_set, rtk_rg_dhcpClientInfo_set,
rtk_rg_pppoeClientInfoBeforeDial_set, and rtk_rg_pppoeClientInfoAfterDial_set.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_NOT_INIT the RG module didn't init
RT_ERR_RG_ENTRY_FULL the table is full
RT_ERR_RG_DEF_ROUTE_EXIST the default internet WAN is exist
RT_ERR_RG_LAN_NOT_EXIST WAN interface should be add after LAN interface
created
RT_ERR_RG_PON_INVALID for chip A1, the PON port can not be set as WAN
port
RT_ERR_RG_CHIP_NOT_SUPPORT the function is not support for the chip
RT_ERR_RG_UNBIND_BDWAN_SH
OULD_EQUAL_LAN_VLAN
unbind bridge WAN can't assign VLAN id different
than LAN interface
RT_ERR_RG_BIND_WITH_UNBIND_
WAN
the global switch macBasedTagDecision didn't turn
on
RT_ERR_RG_PORT_BIND_GET_FAI
L
RT_ERR_RG_ROUTE_GET_FAIL
RT_ERR_RG_INTF_GET_FAIL
RT_ERR_RG_INTF_SET_FAIL
RT_ERR_RG_VLAN_GET_FAIL
RT_ERR_RG_VLAN_SET_FAIL
RT_ERR_RG_PPPOE_SET_FAIL
RT_ERR_RG_NXP_SET_FAIL
RT_ERR_RG_WANTYPE_SET_FAIL
RT_ERR_RG_PORT_BIND_SET_FAIL
12.6. rtk_rg_staticInfo_set
int32 rtk_rg_staticInfo_set(int wan_intf_idx, rtk_rg_ipStaticInfo_t *static_info)
Set static mode information to the indexed WAN interface.
Defined in: rtk_rg_liteRomeDriver.h
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
99
wan_intf_idx
[in] The interface index of previous setup for static mode.
*static_info
[in] The configuration related to static mode.
static_info.napt_enable - indicate this WAN interface should turn on napt or not.
static_info.ip_addr - the IP address of this WAN interface.
static_info.ip_network_mask - the mask decides how many hosts in this WAN.
static_info.default_gateway_on - indicate this WAN interface is default internet interface or
not.
static_info.gateway_ip_addr - indicate which gateway this WAN interface is heading to.
static_info.mtu - the maximum transmission unit of this LAN interface.
static_info.gw_mac_auto_learn - switch to turn on auto-ARP request for gateway MAC.
static_info.gateway_mac_addr - pointer to gateway's mac if the auto_learn switch is off.
The interface index should point to a valid WAN interface with matched type.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_ENTRY_NOT_EXIST the wan interface was not added before
RT_ERR_RG_ARP_FULL ARP table is not available for this new interface
RT_ERR_RG_ARP_NOT_FOUND the remote gateway is not found or time
RT_ERR_RG_GW_MAC_NOT_SET gateway mac should be set for Lite RomeDriver
RT_ERR_RG_ENTRY_FULL for chip A1, the PON port can not be set as WAN
port
RT_ERR_RG_ROUTE_GET_FAIL the function is not support for the chip
RT_ERR_RG_ROUTE_SET_FAIL unbind bridge WAN can't assign VLAN id different
than LAN interface
RT_ERR_RG_EXTIP_GET_FAIL the global switch macBasedTagDecision didn't turn
on
RT_ERR_RG_EXTIP_SET_FAIL
12.7. rtk_rg_dhcpRequest_set
int32 rtk_rg_dhcpRequest_set(int wan_intf_idx)
Set DHCP request for the indexed WAN interface.
Defined in: rtk_rg_liteRomeDriver.h
wan_intf_idx
[in] The interface index of previous setup for DHCP mode.
None
RT_ERR_RG_OK
12.8. rtk_rg_dhcpClientInfo_set
int32 rtk_rg_dhcpClientInfo_set(int wan_intf_idx, rtk_rg_ipDhcpClientInfo_t
*dhcpClient_info)
Set DHCP mode information to the indexed WAN interface.
Defined in: rtk_rg_liteRomeDriver.h
wan_intf_idx
[in] The interface index of previous setup for DHCP mode.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
100
*dhcpClient_info
[in] The configuration related to the interface.
dhcpClient_info.hw_info - the static_info sturcture of this DHCP mode WAN interface.
dhcpClient_info.status - the status of DHCP mode WAN interface as client, leased or released.
The client_info contains the Hardware information which contains static mode settings, and
the interface index should point to a WAN interface with matched type.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_ENTRY_NOT_EXIST the wan interface was not added before
RT_ERR_RG_ARP_FULL ARP table is not available for this new interface
RT_ERR_RG_ARP_NOT_FOUND the remote gateway is not found or time
RT_ERR_RG_GW_MAC_NOT_SET gateway mac should be set for Lite RomeDriver
RT_ERR_RG_INTF_GET_FAIL for chip A1, the PON port can not be set as WAN
port
RT_ERR_RG_ROUTE_GET_FAIL the function is not support for the chip
RT_ERR_RG_ENTRY_FULL unbind bridge WAN can't assign VLAN id different
than LAN interface
RT_ERR_RG_ROUTE_SET_FAIL the global switch macBasedTagDecision didn't turn
on
RT_ERR_RG_EXTIP_GET_FAIL
RT_ERR_RG_EXTIP_SET_FAIL
12.9. rtk_rg_pppoeClientInfoBeforeDial_set
int32 rtk_rg_pppoeClientInfoBeforeDial_set(int wan_intf_idx,
rtk_rg_pppoeClientInfoBeforeDial_t *app_info)
Set PPPoE mode information to the indexed WAN interface before dial.
Defined in: rtk_rg_liteRomeDriver.h
wan_intf_idx
[in] The interface index of previous setup for PPPoE mode.
*app_info
[in] The configuration related to PPPoE mode.
app_info.username - saved user account information for PPPoE server.
app_info.password - saved account password for PPPoE server.
app_info.auth_type - indicate the PPPoE server use PAP or CHAP.
app_info.pppoe_proxy_enable - indicate the proxy of PPPoE server enable or not.
app_info.max_pppoe_proxy_num - how many PPPoE proxy at most.
app_info.auto_reconnect - indicate that we reconnect automatically no matter what.
app_info.dial_on_demond - indicate that we connect only on demand.
app_info.idle_timeout_secs - indicate how long we should turn off connection after idle.
app_info.stauts - indicate the status of connection.
app_info.dialOnDemondCallBack - this function would be called when the interface has
traffic flow.
app_info.idleTimeOutCallBack - this function would be called when the interface didn't have
traffic for indicated timeout period.
The required account information is kept and this function should be called before
rtk_rg_pppoeClientInfoAfterDial_set.
The interface index should point to a WAN interface with matched type.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
101
12.10. rtk_rg_pppoeClientInfoAfterDial_set
int32 rtk_rg_pppoeClientInfoAfterDial_set(int wan_intf_idx,
rtk_rg_pppoeClientInfoAfterDial_t *clientPppoe_info)
Set PPPoE mode information to the indexed WAN interface after dial.
Defined in: rtk_rg_liteRomeDriver.h
wan_intf_idx
[in] The interface index of previous setup for PPPoE mode.
*clientPppoe_info
[in] The configuration related to PPPoE mode.
clientPppoe_info.hw_info - the static_info sturcture of this PPPoE mode WAN interface.
clientPppoe_info.sessionId - stored PPPoE session ID currently used.
The client_info contains the Hardware information which contains static mode settings, and
the interface index should point to a WAN interface with matched type.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_ENTRY_NOT_EXIST the wan interface was not added before
RT_ERR_RG_ARP_FULL ARP table is not available for this new interface
RT_ERR_RG_ARP_NOT_FOUND the remote gateway is not found or time
RT_ERR_RG_GW_MAC_NOT_SET gateway mac should be set for Lite RomeDriver
RT_ERR_RG_ROUTE_GET_FAIL for chip A1, the PON port can not be set as WAN
port
RT_ERR_RG_ENTRY_FULL the function is not support for the chip
RT_ERR_RG_ROUTE_SET_FAIL unbind bridge WAN can't assign VLAN id different
than LAN interface
RT_ERR_RG_EXTIP_GET_FAIL the global switch macBasedTagDecision didn't turn
on
RT_ERR_RG_EXTIP_SET_FAIL
12.11. rtk_rg_interface_del
int32 rtk_rg_interface_del(int lan_or_wan_intf_idx)
Delete the indicated interface, may be LAN or WAN interface.
Defined in: rtk_rg_liteRomeDriver.h
lan_or_wan_intf_idx
[in] The index of interface.
Before deleting any interface, it should be created first.
RT_ERR_RG_OK
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_MODIFY_LAN_AT_WA
N_EXIST
LAN interface should not be deleted when WAN
interface existed
RT_ERR_RG_INTF_GET_FAIL the wan interface was not added before
RT_ERR_RG_ROUTE_GET_FAIL ARP table is not available for this new interface
RT_ERR_RG_ROUTE_SET_FAIL the remote gateway is not found or time
RT_ERR_RG_NXP_GET_FAIL gateway mac should be set for Lite RomeDriver
RT_ERR_RG_PPPOE_SET_FAIL for chip A1, the PON port can not be set as WAN
port
RT_ERR_RG_NXP_SET_FAIL the function is not support for the chip
RT_ERR_RG_ROUTE_SET_FAIL unbind bridge WAN can't assign VLAN id different
than LAN interface
RT_ERR_RG_EXTIP_GET_FAIL the global switch macBasedTagDecision didn't turn
on
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
102
RT_ERR_RG_EXTIP_SET_FAIL
RT_ERR_RG_WANTYPE_GET_FAIL
RT_ERR_RG_WANTYPE_SET_FAIL
RT_ERR_RG_INTF_SET_FAIL
RT_ERR_RG_PORT_BIND_GET_FAI
L
RT_ERR_RG_PORT_BIND_SET_FAIL
12.12. rtk_rg_intfInfo_find
int32 rtk_rg_intfInfo_find(rtk_rg_intfInfo_t *intf_info, int *valid_lan_or_wan_intf_idx)
Return the information structure of interface, eithor LAN or WAN.
Defined in: rtk_rg_liteRomeDriver.h
*intf_info
[in] An empty buffer for storing the structure.
[out] Returned valid interface information structure, eithor LAN or Wint
*valid_lan_or_wan_intf_idx
[in] The index of interface to find.
[out] Return the index of the valid record.
intf_info.intf_name - the name of found interface.
intf_info.is_wan - indicate this interface is WAN interface or LAN interface.
intf_info.lan_intf - if is_wan is 0, this structure contain all information about the LAN
interface.
intf_info.wan_intf - if is_wan is 1, this structure contain all information about the WAN
interface.
intf_info.ingress_packet_count - the count of how many packet had passed into this interface.
intf_info.ingress_byte_count - the count of how many data had passed into this interface in
bytes.
intf_info.egress_packet_count - the count of how many packet had passed through this
interface out.
intf_info.egress_byte_count - the count of how many data had passed through this interface
out in bytes.
If the input idx interface is not exist, it will auto incress to next index, until return a valid one
or meet end.
Besides, if the input idx is -1, intf_info.lan_intf.ip_addr or intf_info.lan_intf.ipv6_addr is
given,
the matching interface information and it's index will be return. Bridge WAN interface could
not be found
through this mode.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_ENTRY_NOT_EXIST the wan interface was not added before
12.13. rtk_rg_cvlan_add
int32 rtk_rg_cvlan_add(rtk_rg_cvlan_info_t *cvlan_info)
Add customer VLAN setting.
Defined in: rtk_rg_liteRomeDriver.h
*cvlan_info
Parameters
Comments
Return Codes
Parameters
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
103
[in] The VLAN configuration.
cvlan_info.vlanId - which VLAN identifier need to create, between 0 and 4095.
cvlan_info.isIVL - how to learning layer2 record, by SVL or by IVL setting.
cvlan_info.memberPortMask - which port contained in this VLAN identifier.
cvlan_info.untagPortMask - which port contained in this VLAN identifier should be untag.
cvlan_info.vlan_based_pri_enable - indicate VLAN-based priority enable or not.
cvlan_info.vlan_based_pri - indicate what VLAN priority this VLAN should carry.
RT_ERR_RG_OK
RT_ERR_RG_INVALID_PARAM the input parameters may be NULL
RT_ERR_RG_NOT_INIT the input parameter contains illegal information or
range
RT_ERR_RG_VLAN_USED_BY_INTE
RFACE
the prefered VLAN ID had been used as interface
VLAN ID
RT_ERR_RG_VLAN_USED_BY_VLA
NBINDING
the prefered VLAN ID had been used as VLAN
RT_ERR_RG_CVLAN_CREATED the VLAN ID had been created as customer VLAN
before
RT_ERR_RG_CVLAN_RESERVED the VLAN ID is reserved for system use
RT_ERR_RG_VLAN_SET_FAIL for chip A1, the PON port can not be set as WAN
port
12.14. rtk_rg_cvlan_del
int32 rtk_rg_cvlan_del(int cvlan_id)
Delete customer VLAN setting.
Defined in: rtk_rg_liteRomeDriver.h
cvlan_id
[in] The VLAN identifier needed to be deleted.
Here can not delete VLAN identifier used for interface or VLAN binding. Only the VLAN
identifier created by rtk_rg_1qVlan_add can be deleted this way.
RT_ERR_RG_OK
RT_ERR_RG_VLAN_NOT_CREATED
_BY_CVLAN
the deleting VLAN ID was not added as customer
VLAN ID
12.15. rtk_rg_vlanBinding_add
int32 rtk_rg_vlanBinding_add(rtk_rg_vlanBinding_t *vlan_binding_info, int
*vlan_binding_idx)
Add Port-VLAN binding rule.
Defined in: rtk_rg_liteRomeDriver.h
*vlan_binding_info
[in] The VLAN binding configuration about port index, interface, and VLAN ID
*vlan_binding_idx
[out] The index of added VLAN binding rule.
vlan_binding_idx.port_idx - each VLAN binding rule can only assign one single port or
extension port (not CPU port).
vlan_binding_idx.ingress_vid - the VLAN ID used to compare for binding.
vlan_binding_idx.wan_intf_idx - which WAN interface the matched packet should go.
The VLAN-binding rule can add only after the binding WAN interface is created at first.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
104
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_NOT_INIT the RG module is not init
RT_ERR_RG_ENTRY_FULL the prefered VLAN ID had been used as VLAN
RT_ERR_RG_VLAN_USED_BY_INTE
RFACE
the VLAN id can't used by interface
RT_ERR_RG_VLAN_USED_BY_1QV
LAN
the VLAN id can't used by 1QVLAN api
RT_ERR_RG_BIND_WITH_UNBIND_
WAN
the global switch macBasedTagDecision didn't turn
on
12.16. rtk_rg_vlanBinding_del
int32 rtk_rg_vlanBinding_del(int vlan_binding_idx)
Delete Port-VLAN binding rule.
Defined in: rtk_rg_liteRomeDriver.h
vlan_binding_idx
[in] The index of VLAN binding rule.
None
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_VLAN_BIND_UNINIT there is no vlan
12.17. rtk_rg_vlanBinding_find
int32 rtk_rg_vlanBinding_find(rtk_rg_vlanBinding_t *vlan_binding_info, int *valid_idx)
Find Port-VLAN binding rule if any.
Defined in: rtk_rg_liteRomeDriver.h
*vlan_binding_info
[in] The binding configuration of port and VLAN ID.
*valid_idx
[in] The index of the VLAN binding entry.
[out] The index of first valid VLAN binding entry.
If the input parameter do not point to a valid record, it will continue to look for next valid one
until end, and return the valid index by the passed input pointer.
RT_ERR_RG_OK
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_VLAN_BIND_UNINIT there is no vlan
12.18. rtk_rg_algServerInLanAppsIpAddr_add
int32 rtk_rg_algServerInLanAppsIpAddr_add(rtk_rg_alg_serverIpMapping_t
*srvIpMapping)
Add ServerInLan ALG function IP mapping.
Defined in: rtk_rg_liteRomeDriver.h
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
105
*srvIpMapping
[in] The mapping of bitmask of ALG ServerInLan functions and server IP address.
srvIpMapping.algType - indicate which ALG service should assign to the serverAddress.
srvIpMapping.serverAddress - indicate the server IP address.
Before call rtk_rg_algApps_set to setup Server In Lan service, this IP mapping should be enter
at first, otherwise rtk_rg_algApps_set will return failure.
RT_ERR_RG_OK
RT_ERR_RG_INVALID_PARAM the input parameters may be NULL
RT_ERR_RG_ALG_SRV_IN_LAN_EX
IST
the server ip address had been assigned
12.19. rtk_rg_algServerInLanAppsIpAddr_del
int32 rtk_rg_algServerInLanAppsIpAddr_del(rtk_rg_alg_type_t delServerMapping)
Delete ServerInLan ALG function IP mapping.
Defined in: rtk_rg_liteRomeDriver.h
delServerMapping
[in] Delete the server IP address mapping.
None
RT_ERR_RG_OK
RT_ERR_RG_INVALID_PARAM the input parameters may be NULL
12.20. rtk_rg_algApps_set
int32 rtk_rg_algApps_set(rtk_rg_alg_type_t alg_app)
Set ALG functions by bitmask.
Defined in: rtk_rg_liteRomeDriver.h
alg_app
[in] The bitmask setting for all ALG functions.
Althrough the bitmask list all ALG functions here, the implemented functions depend on
romeDriver's version. Please refer user document.
RT_ERR_RG_OK
RT_ERR_RG_ALG_SRV_IN_LAN_NO
_IP
before turn on Server In Lan services, the server ip
has to be added by
rtk_rg_algServerInLanAppsIpAddr_add
12.21. rtk_rg_algApps_get
int32 rtk_rg_algApps_get(rtk_rg_alg_type_t *alg_app)
Get ALG functions by bitmask.
Defined in: rtk_rg_liteRomeDriver.h
*alg_app
[out] Return the bitmask setting for ALG functions.
Althrough the bitmask list all ALG functions here, the implemented functions depend on
romeDriver's version. Please refer user document.
RT_ERR_RG_OK
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
106
12.22. rtk_rg_dmzHost_set
int32 rtk_rg_dmzHost_set(int wan_intf_idx, rtk_rg_dmzInfo_t *dmz_info)
Add DMZ connection rule.
Defined in: rtk_rg_liteRomeDriver.h
wan_intf_idx
[in] the DMZ enabled wan interface index.
*dmz_info
[in] the DMZ setting.
dmz_info->enabled - Enable/disable DMZ rule.
dmz_info->mac_mapping_enabled - The DMZ rule is using MAC mapping or not.
dmz_info->private_ip - The redirected DMZ internal host IP.
RT_ERR_RG_OK
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
12.23. rtk_rg_dmzHost_get
int32 rtk_rg_dmzHost_get(int wan_intf_idx, rtk_rg_dmzInfo_t *dmz_info)
Get configured DMZ rule.
Defined in: rtk_rg_liteRomeDriver.h
wan_intf_idx
[in] the DMZ enabled wan interface index.
*dmz_info
[in] the DMZ rule setting.
dmz_info->enabled - Enable/disable DMZ rule.
dmz_info->mac_mapping_enabled - The DMZ rule is using MAC mapping or not.
dmz_info->private_ip - The redirected DMZ internal host IP.
RT_ERR_RG_OK
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
12.24. rtk_rg_virtualServer_add
int32 rtk_rg_virtualServer_add(rtk_rg_virtualServer_t *virtual_server, int
*virtual_server_idx)
Add virtual server connection rule.
Defined in: rtk_rg_liteRomeDriver.h
*virtual_server
[in] the svirtual server data structure.
*virtual_server_idx
[in] the index of virtual server table.
virtual_server.is_tcp - Layer 4 protocol is TCP or not.
virtual_server.wan_intf_idx - Wan interface index of server.
virtual_server.gateway_port_start - Gateway external port mapping start number.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
107
virtual_server.local_ip - The translating local IP address.
virtual_server.local_port_start - The translating internal port mapping start number.
virtual_server.mappingRangeCnt - The port mapping range count.
virtual_server.valid - This entry is valid or not.
RT_ERR_RG_OK
RT_ERR_RG_INITPM_UNINIT the virtual server table uninitialized.
RT_ERR_RG_ENTRY_FULL the virtual server table is full.
12.25. rtk_rg_virtualServer_del
int32 rtk_rg_virtualServer_del(int virtual_server_idx)
Delete one server port connection rule.
Defined in: rtk_rg_liteRomeDriver.h
virtual_server_idx
[in] the index of virtual server entry for deleting.
None.
RT_ERR_RG_OK
RT_ERR_RG_INVALID_PARAM illegal server port rule index.
12.26. rtk_rg_virtualServer_find
int32 rtk_rg_virtualServer_find(rtk_rg_virtualServer_t *virtual_server, int *valid_idx)
Find entire virtual server table from valid_idx till valid one.
Defined in: rtk_rg_liteRomeDriver.h
*virtual_server
[in] An empty buffer for storing the virtual server entry data structure.
[out] The data structure of found virtual sint
*valid_idx
[in] The index which find from.
[out] The existing entry index.
virtual_server.is_tcp - Layer 4 protocol is TCP or not.
virtual_server.wan_intf_idx - Wan interface index of server.
virtual_server.gateway_port_start - Gateway external port mapping start number.
virtual_server.local_ip - The translating local IP address.
virtual_server.local_port_start - The translating internal port mapping start number.
virtual_server.mappingRangeCnt - The port mapping range count.
virtual_server.valid - This entry is valid or not.
RT_ERR_RG_OK
RT_ERR_RG_INITPM_UNINIT the virtual server table uninitialized.
RT_ERR_RG_SVRPORT_SW_ENTRY
_NOT_FOUND
can't find entry in virtual server table.
12.27. rtk_rg_aclFilterAndQos_add
int32 rtk_rg_aclFilterAndQos_add(rtk_rg_aclFilterAndQos_t *acl_filter, int
*acl_filter_idx)
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
108
Add acl rule.
Defined in: rtk_rg_liteRomeDriver.h
*acl_filter
[in] assign the patterns which need to be filtered, and assign the related action(include
drop, permit, Qos, and Trap to CPUint
*acl_filter_idx
[out] the index of the added acl rule.
acl_filter.filter_fields - use to enable the filtered patterns. Each pattern bit should be "or"
together.
acl_filter.ingress_port_mask - assign the packet ingress physical port pattern(valid when
INGRESS_PORT_BIT is enable)
acl_filter.ingress_dscp - assign the packet ingress dscp(valid when INGRESS_DSCP_BIT is
enable)
acl_filter.ingress_intf_idx - assign the packet ingress interface index(valid when
INGRESS_INTF_BIT is enable)
acl_filter.egress_intf_idx - assign the packet egress interface index(valid when
EGRESS_INTF_BIT is enable)
acl_filter.ingress_ethertype - assign the packet ingress ethertype pattern(valid when
INGRESS_ETHERTYPE_BIT is enable)
acl_filter.ingress_ctag_vid - assign the packet ingress vlan id pattern(valid when
INGRESS_CTAG_VID_BIT is enable)
acl_filter.ingress_ctag_pri - assign the packet ingress vlan priority pattern(valid when
INGRESS_CTAG_PRI_BIT is enable)
acl_filter.ingress_smac - assign the packet ingress source mac pattern(valid when
INGRESS_SMAC_BIT is enable)
acl_filter.ingress_dmac - assign the packet ingress destination mac pattern(valid when
INGRESS_DMAC_BIT is enable)
acl_filter.ingress_src_ipv4_addr_start - assign the packet ingress source ipv4 lower
bound(valid when INGRESS_IPV4_SIP_RANGE_BIT is enable)
acl_filter.ingress_src_ipv4_addr_end - assign the packet ingress source ipv4 upper
bound(valid when INGRESS_IPV4_SIP_RANGE_BIT is enable)
acl_filter.ingress_dest_ipv4_addr_start - assign the packet ingress destination ipv4 lower
bound(valid when INGRESS_IPV4_DIP_RANGE_BIT is enable)
acl_filter.ingress_dest_ipv4_addr_end - assign the packet ingress destination ipv4 upper
bound(valid when INGRESS_IPV4_DIP_RANGE_BIT is enable)
acl_filter.ingress_src_ipv6_addr_start - assign the packet ingress source ipv6 lower
bound(valid when INGRESS_IPV6_SIP_RANGE_BIT is enable)
acl_filter.ingress_src_ipv6_addr_end - assign the packet ingress source ipv6 upper
bound(valid when INGRESS_IPV6_SIP_RANGE_BIT is enable)
acl_filter.ingress_dest_ipv6_addr_start - assign the packet ingress destination ipv6 lower
bound(valid when INGRESS_IPV6_DIP_RANGE_BIT is enable)
acl_filter.ingress_dest_ipv6_addr_end - assign the packet ingress destination ipv6 upper
bound(valid when INGRESS_IPV6_DIP_RANGE_BIT is enable)
acl_filter.ingress_src_l4_port_start - assign the packet ingress layer4 source port lower
bound(valid when INGRESS_L4_SPORT_RANGE_BIT is enable)
acl_filter.ingress_src_l4_port_end - assign the packet ingress layer4 source port upper
bound(valid when INGRESS_L4_SPORT_RANGE_BIT is enable)
acl_filter.ingress_dest_l4_port_start - assign the packet ingress layer4 destination port lower
bound(valid when INGRESS_L4_DPORT_RANGE_BIT is enable)
acl_filter.ingress_dest_l4_port_end - assign the packet ingress layer4 destination port upper
bound(valid when INGRESS_L4_DPORT_RANGE_BIT is enable)
acl_filter.egress_src_ipv4_addr_start - assign the packet egress source ipv4 lower bound(valid
when EGRESS_IPV4_SIP_RANGE_BIT is enable)
acl_filter.egress_src_ipv4_addr_end - assign the packet egress source ipv4 upper bound(valid
when EGRESS_IPV4_SIP_RANGE_BIT is enable)
acl_filter.egress_dest_ipv4_addr_start - assign the packet egress destination ipv4 lower
Parameters
Comments
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
109
bound(valid when EGRESS_IPV4_DIP_RANGE_BIT is enable)
acl_filter.egress_dest_ipv4_addr_end - assign the packet egress destination ipv4 pattern(upper
bound)(valid when EGRESS_IPV4_DIP_RANGE_BIT is enable)
acl_filter.egress_src_l4_port_start - assign the packet egress layer4 source port lower
bound(valid when EGRESS_L4_SPORT_RANGE_BIT is enable)
acl_filter.egress_src_l4_port_end - assign the packet egress layer4 source port upper
bound(valid when EGRESS_L4_SPORT_RANGE_BIT is enable)
acl_filter.egress_dest_l4_port_start - assign the packet egress layer4 destination port lower
bound(valid when EGRESS_L4_DPORT_RANGE_BIT is enable)
acl_filter.egress_dest_l4_port_end - assign the packet egress layer4 destination port upper
bound(valid when EGRESS_L4_DPORT_RANGE_BIT is enable)
acl_filter.action_type - assign the action to the packets which satisfy the assgned patterns
acl_filter.qos_actions - assign the qos action. Each action bit should be "or" together (triggered
while action_type==ACL_ACTION_TYPE_QOS)
acl_filter.action_dot1p_remarking_pri - assign the vlan priority value for remarking(vlaid
when while ACL_ACTION_1P_REMARKING_BIT is enable)
acl_filter.action_ip_precedence_remarking_pri - assign the ip precedence value for
remarking(vlaid when ACL_ACTION_IP_PRECEDENCE_REMARKING_BIT is enable)
acl_filter.action_dscp_remarking_pri - assign the dscp value for remarking(vlaid when
ACL_ACTION_DSCP_REMARKING_BIT is enable)
acl_filter.action_queue_id - assign the qid(vlaid when ACL_ACTION_QUEUE_ID_BIT is
enable)
acl_filter.action_share_meter - assign the sharemeter(vlaid when
ACL_ACTION_SHARE_METER_BIT is enable)
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT the rg has not been init. (rtk_rg_initParam_set()
should be called first)
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_ACL_CF_FIELD_CONF
LICT
acl_filter assigned some conflict patterns
RT_ERR_RG_ACL_CF_FLOW_DIREC
TION_ERROR
the assigned ingress interface and egress interface
are not upstream or downstream
RT_ERR_RG_ACL_ENTRY_FULL the hardware ACL asic entry is full
RT_ERR_RG_ACL_ENTRY_ACCESS
_FAILED
access the hardware ACL asic entry failed
RT_ERR_RG_ACL_IPTABLE_FULL the hardware asic ACL IP_RANGE_TABLE entry
is full
RT_ERR_RG_ACL_IPTABLE_ACCES
S_FAILED
access the hardware asic ACL IP_RANGE_TABLE
entry failed
RT_ERR_RG_ACL_PORTTABLE_FU
LL
the hardware asic ACL PORT_RANGE_TABLE
entry is full
RT_ERR_RG_ACL_PORTTABLE_AC
CESS_FAILED
access the hardware ACL asic
PORT_RANGE_TABLE entry failed
RT_ERR_RG_CF_ENTRY_FULL the hardware Classification asic entry is full
RT_ERR_RG_CF_ENTRY_ACCESS_F
AILED
access the hardware Classification asic entry failed
RT_ERR_RG_CF_IPTABLE_FULL the hardware Classification asic
IP_RANGE_TABLE entry is full
RT_ERR_RG_CF_IPTABLE_ACCESS
_FAILED
access the hardware Classification asic
IP_RANGE_TABLE entry failed
RT_ERR_RG_CF_PORTTABLE_FULL the hardware Classification
PORT_RANGE_TABLE asic entry is full
RT_ERR_RG_CF_PORTTABLE_ACC
ESS_FAILED
access the hardware Classification asic
PORT_RANGE_TABLE entry failed
RT_ERR_RG_CF_DSCPTABLE_FULL the hardware Classification
DSCP_REMARKING_TABLE asic entry is full
RT_ERR_RG_CF_DSCPTABLE_ACC
ESS_FAILED
access the hardware Classification asic
DSCP_REMARKING_TABLE entry failed
RT_ERR_RG_ACL_SW_ENTRY_FUL the software ACL entry is full
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
110
L
RT_ERR_RG_ACL_SW_ENTRY_ACC
ESS_FAILED
access the software ACL entry failed
12.28. rtk_rg_aclFilterAndQos_del
int32 rtk_rg_aclFilterAndQos_del(int acl_filter_idx)
Delete acl rule.
Defined in: rtk_rg_liteRomeDriver.h
acl_filter_idx
[in] the index of the acl rule which need to be delete
None
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT the rg has not been init. (rtk_rg_initParam_set()
should be called first)
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_ACL_ENTRY_ACCESS
_FAILED
access the hardware ACL asic entry failed
RT_ERR_RG_ACL_IPTABLE_ACCES
S_FAILED
access the hardware asic ACL IP_RANGE_TABLE
entry failed
RT_ERR_RG_ACL_PORTTABLE_AC
CESS_FAILED
access the hardware ACL asic
PORT_RANGE_TABLE entry failed
RT_ERR_RG_CF_ENTRY_ACCESS_F
AILED
access the hardware Classification asic entry failed
RT_ERR_RG_CF_IPTABLE_ACCESS
_FAILED
access the hardware Classification asic
IP_RANGE_TABLE entry failed
RT_ERR_RG_CF_PORTTABLE_ACC
ESS_FAILED
access the hardware Classification asic
PORT_RANGE_TABLE entry failed
RT_ERR_RG_CF_DSCPTABLE_ACC
ESS_FAILED
access the hardware Classification asic
DSCP_REMARKING_TABLE entry failed
RT_ERR_RG_ACL_SW_ENTRY_ACC
ESS_FAILED
access the software ACL entry failed
12.29. rtk_rg_aclFilterAndQos_find
int32 rtk_rg_aclFilterAndQos_find(rtk_rg_aclFilterAndQos_t *acl_filter, int *valid_idx)
fine acl rule.
Defined in: rtk_rg_liteRomeDriver.h
*acl_filter
the index of the acl rule which start to search
*valid_idx
[out] the acl rule which be found
this API search the software acl entry start from acl_filter_idx, and find the first exist acl entry.
If all entry after the acl_filter_idx are empty, it will return
RT_ERR_RG_ACL_SW_ENTRY_NOT_FOUND
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT the rg has not been init. (rtk_rg_initParam_set()
should be called first)
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
RT_ERR_RG_ACL_SW_ENTRY_ACC
ESS_FAILED
access the software ACL entry failed
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
111
RT_ERR_RG_ACL_SW_ENTRY_NOT
_FOUND
can not find the assigned ACL entry
12.30. rtk_rg_macFilter_add
int32 rtk_rg_macFilter_add(rtk_rg_macFilterEntry_t *macFilterEntry, int
*mac_filter_idx)
add mac filter rule
Defined in: rtk_rg_liteRomeDriver.h
*macFilterEntry
[in] the mac address which need to be add to mac filter rule.
*mac_filter_idx
[in] the mac address which shouuld be filter in SMAC, DMAC, or BOTH.
None
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT the rg has not been init. (rtk_rg_initParam_set()
should be called first)
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
12.31. rtk_rg_macFilter_del
int32 rtk_rg_macFilter_del(int mac_filter_idx)
delete mac filter rule
Defined in: rtk_rg_liteRomeDriver.h
mac_filter_idx
[in] the index of the mac filter rule which need to be deleted.
None
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT the rg has not been init. (rtk_rg_initParam_set()
should be called first)
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
12.32. rtk_rg_macFilter_find
int32 rtk_rg_macFilter_find(rtk_rg_macFilterEntry_t *macFilterEntry, int *valid_idx)
find mac filter rule
Defined in: rtk_rg_liteRomeDriver.h
*macFilterEntry
[out] the mac address which be found.
*valid_idx
[out] filter for SMAC, DMAC, or BOTH.
None
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT the rg has not been init. (rtk_rg_initParam_set()
should be called first)
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
112
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
12.33. rtk_rg_urlFilterString_add
int32 rtk_rg_urlFilterString_add(rtk_rg_urlFilterString_t *filter, int *url_idx)
add url filter rule
Defined in: rtk_rg_liteRomeDriver.h
*filter
[in] the url rule which need to be added to url filter rule.
*url_idx
[out] the index of added url filter rule.
filter.url_filter_string - the string which need to be filtered in url string.(ex: in url
"http://www.sample.com/explain", "www.sample.com" is the url string)
filter.path_filter_string - the string which need to be filtered in url path string.(ex: in url
"http://www.sample.com/explain", "/explain" is the url path string)
filter.path_exactly_match - the urlFilter will execute even the path_filter_string is part of url
path string while path_exactly_match is 0. Else, the path_filter_string must exactly match the
url path string to trigger urlFilter execution.
filter.wan_intf - the index of the wan interface which should limited by this urlFilter.
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT the rg has not been init. (rtk_rg_initParam_set()
should be called first)
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
12.34. rtk_rg_urlFilterString_del
int32 rtk_rg_urlFilterString_del(int url_idx)
delete url filter rule
Defined in: rtk_rg_liteRomeDriver.h
url_idx
[in] the index of the url filter rule which need to be deleted.
None
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT the rg has not been init. (rtk_rg_initParam_set()
should be called first)
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
12.35. rtk_rg_urlFilterString_find
int32 rtk_rg_urlFilterString_find(rtk_rg_urlFilterString_t *filter, int *valid_idx)
find url filter rule
Defined in: rtk_rg_liteRomeDriver.h
*filter
[out] the url filter rule which be found.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
113
*valid_idx
[in] the index fo url filter rule which start to search.
[out] the index of found url filter rule.
filter.url_filter_string - the string which need to be filtered in url string.(ex: in url
"http://www.sample.com/explain", "www.sample.com" is the url string)
filter.path_filter_string - the string which need to be filtered in url path string.(ex: in url
"http://www.sample.com/explain", "/explain" is the url path string)
filter.path_exactly_match - the urlFilter will execute even the path_filter_string is part of url
path string while path_exactly_match is 0. Else, the path_filter_string must exactly match the
url path string to trigger urlFilter execution.
filter.wan_intf - the index of the wan interface which should be limited by this urlFilter.
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT the rg has not been init. (rtk_rg_initParam_set()
should be called first)
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information or
range
12.36. rtk_rg_upnpConnection_add
int32 rtk_rg_upnpConnection_add(rtk_rg_upnpConnection_t *upnp, int *upnp_idx)
Add UPNP connection rule.
Defined in: rtk_rg_liteRomeDriver.h
*upnp
[in] the UPNP connection data structure.
*upnp_idx
[in] the index of UPNP table.
upnp.is_tcp - Layer 4 protocol is TCP or not.
upnp.valid - The UNPN mapping is valid or not.
upnp.wan_intf_idx - Wan interface index.
upnp.gateway_port - Gateway external port number.
upnp.local_ip - Internal ip address.
upnp.local_port - Internal port number.
upnp.limit_remote_ip - The Restricted remote IP address.
upnp.limit_remote_port - The Restricted remote port number.
upnp.remote_ip - Remote IP address. upnp.type - One shot or persist.
upnp.timeout - timeout value for auto-delete. Set 0 to disable auto-delete.
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT the rg has not been init. (rtk_rg_initParam_set()
should be called first)
RT_ERR_RG_INITPM_UNINIT the UPNP table uninitialized.
RT_ERR_RG_ENTRY_FULL the UPNP mapping table is full.
12.37. rtk_rg_upnpConnection_del
int32 rtk_rg_upnpConnection_del(int upnp_idx)
Delete UPNP connection rule.
Defined in: rtk_rg_liteRomeDriver.h
upnp_idx
[in] the index of UPNP table entry to be deleted.
None.
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
114
RT_ERR_RG_OK
RT_ERR_RG_INVALID_PARAM illegal UPNP rule index.
12.38. rtk_rg_upnpConnection_find
int32 rtk_rg_upnpConnection_find(rtk_rg_upnpConnection_t *upnp, int *valid_idx)
Find entire UPNP mapping table from upnp_idx till valid one.
Defined in: rtk_rg_liteRomeDriver.h
*upnp
[in] An empty buffer for storing the UPNP mapping entry data structure.
[out] The data structure of found UPNP mappinint
*valid_idx
[in] The index which find from.
[out] The existing entry index.
upnp.is_tcp - Layer 4 protocol is TCP or not.
upnp.valid - The UNPN mapping is valid or not.
upnp.wan_intf_idx - Wan interface index.
upnp.gateway_port - Gateway external port number.
upnp.local_ip - Internal ip address.
upnp.local_port - Internal port number.
upnp.limit_remote_ip - The Restricted remote IP address.
upnp.limit_remote_port - The Restricted remote port number.
upnp.remote_ip - Remote IP address. upnp.type - One shot or persist.
upnp.timeout - timeout value for auto-delete. Set 0 to disable auto-delete. The condition fields
will be ignore while it was set to zero.
RT_ERR_RG_OK
RT_ERR_RG_INITPM_UNINIT the UPNP table uninitialized.
RT_ERR_RG_NULL_POINTER the input parameters may be NULL
RT_ERR_RG_UPNP_SW_ENTRY_NO
T_FOUND
can't find entry in UPNP mapping table.
12.39. rtk_rg_naptConnection_add
int32 rtk_rg_naptConnection_add(rtk_rg_naptEntry_t *naptFlow, int *flow_idx)
Add NAPT connection flow.
Defined in: rtk_rg_liteRomeDriver.h
*naptFlow
[in] the NAPT connection flow data structure.
*flow_idx
[out] the NAPT flow index.
naptFlow.is_tcp - Layer 4 protocol is TCP or not.
naptFlow.local_ip - Internal IP address.
naptFlow.remote_ip - Remote IP address.
naptFlow.wan_intf_idx - Wan interface index.
naptFlow.local_port - Internal port number.
naptFlow.remote_port - Remote port number.
naptFlow.external_port - Gateway external port number.
naptFlow.pri_valid - NAPT priority remarking enable.
naptFlow.priority - NAPT priority remarking value.
RT_ERR_RG_OK
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
115
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_INVALID_PARAM illegal NAPT connection flow index.
RT_ERR_RG_EXTIP_GET_FAIL illegal wan_intf_idx.
RT_ERR_RG_NAPT_FLOW_DUPLIC
ATE
duplicate NAPT flow.
RT_ERR_RG_NAPTR_OVERFLOW NAPTR table collision.
RT_ERR_RG_NAPT_OVERFLOW NAPT table collision.
RT_ERR_RG_NAPTR_SET_FAIL write to NAPTR table failed.
RT_ERR_RG_NAPT_SET_FAIL write to NAPT table failed.
12.40. rtk_rg_naptConnection_del
int32 rtk_rg_naptConnection_del(int flow_idx)
Delete NAPT connection flow.
Defined in: rtk_rg_liteRomeDriver.h
flow_idx
[in] The index of NAPT connection flow table.
None.
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_INVALID_PARAM illegal NAPT connection flow index.
RT_ERR_RG_NAPT_SW_ENTRY_NO
T_FOUND
the NAPT entry can not be found.
RT_ERR_RG_NAPTR_SET_FAIL write to NAPTR table failed.
RT_ERR_RG_NAPT_SET_FAIL write to NAPT table failed.
12.41. rtk_rg_naptConnection_find
int32 rtk_rg_naptConnection_find(rtk_rg_naptInfo_t *naptInfo, int *valid_idx)
Find entire NAPT table from index valid_idx till valid one.
Defined in: rtk_rg_liteRomeDriver.h
*naptInfo
[in] An empty buffer for storing the NAPT entry data structure.
[out] The data structure of found NAPT entry.
*valid_idx
[in] The index which find from.
[out] The existing entry index.
naptInfo.is_tcp - Layer 4 protocol is TCP or not.
naptInfo.local_ip - Internal IP address.
naptInfo.remote_ip - Remote IP address.
naptInfo.wan_intf_idx - Wan interface index.
naptInfo.local_port - Internal port number.
naptInfo.remote_port - Remote port number.
naptInfo.external_port - Gateway external port number.
naptInfo.pri_valid - NAPT priority remarking enable.
naptInfo.priority - NAPT priority remarking value.
naptInfo.idleSecs - NAPT flow idle seconds.
naptInfo.state - NAPT connection state, 0:INVALID 1:SYN_RECV 2:SYN_ACK_RECV
3:CONNECTED 4:FIN_RECV 5:RST_RECV
RT_ERR_RG_OK
RT_ERR_RG_NOT_INIT system is not initiated.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
116
RT_ERR_RG_INVALID_PARAM illegal NAPT connection flow index.
RT_ERR_RG_NAPT_SW_ENTRY_NO
T_FOUND
the NAPT entry can not be found.
12.42. rtk_rg_multicastFlow_add
int32 rtk_rg_multicastFlow_add(rtk_rg_multicastFlow_t *mcFlow, int *flow_idx)
Add a Multicast flow entry into ASIC.
Defined in: rtk_rg_liteRomeDriver.h
*mcFlow
[in] Multicast flow entry content structure.
*flow_idx
[out] Returned Multicast flow index.
mcFlow.multicast_ipv4_addr - The destination IP address of packet, it must be class D address.
mcFlow.port_mask - This MC packet will forward to those MAC ports.
mcFlow.ext_port_mask - This MC packet will forward to those Extension ports.
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT System is not initiated.
RT_ERR_RG_INVALID_PARAM The params is not accpeted.
RT_ERR_RG_ENTRY_FULL The MC entry is full.
RT_ERR_FAILED failed
RT_ERR_NOT_INIT The module is not initial
RT_ERR_IPV4_ADDRESS Invalid IPv4 address
RT_ERR_VLAN_VID invalid vlan id
RT_ERR_NULL_POINTER input parameter may be null pointer
RT_ERR_INPUT invalid input parameter
access the software ACL entry failed
12.43. rtk_rg_multicastFlow_del
int32 rtk_rg_multicastFlow_del(int flow_idx)
Delete an Multicast flow ASIC entry.
Defined in: rtk_rg_liteRomeDriver.h
flow_idx
[in] The Multicast flow entry index for deleting.
None
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_INDEX_OUT_OF_RAN
GE
the index out of range.
RT_ERR_RG_ENTRY_NOT_EXIST the index is not exist.
RT_ERR_FAILED failed
RT_ERR_L2_EMPTY_ENTRY Empty LUT entry.
RT_ERR_INPUT Invalid input parameters.
RT_ERR_L2_HASH_KEY invalid L2 Hash key
RT_ERR_L2_EMPTY_ENTRY the entry is empty(invalid)
12.44. rtk_rg_multicastFlow_find
int32 rtk_rg_multicastFlow_find(rtk_rg_multicastFlow_t *mcFlow, int *valid_idx)
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
117
Find an exist Multicast flow ASIC entry.
Defined in: rtk_rg_liteRomeDriver.h
*mcFlow
[in] An empty buffer for storing the structure.
[out] An exist entry structure which index is valid_idx.
*valid_idx
[in] The index which find from.
[out] The exist entry index.
None
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_INDEX_OUT_OF_RAN
GE
the index out of range.
RT_ERR_RG_NO_MORE_ENTRY_FO
UND
no more exist entry is found.
RT_ERR_FAILED failed
RT_ERR_L2_EMPTY_ENTRY Empty LUT entry.
RT_ERR_INPUT Invalid input parameters.
12.45. rtk_rg_macEntry_add
int32 rtk_rg_macEntry_add(rtk_rg_macEntry_t *macEntry, int *entry_idx)
Add a MAC Entry into ASIC
Defined in: rtk_rg_liteRomeDriver.h
*macEntry
[in] MAC entry content structure.
*entry_idx
[out] this MAC entry index.
macEntry.mac - The MAC address.
macEntry.isIVL - The MAC is for IVL or SVL.
macEntry.fid - The fid, only used in SVL.
macEntry.vlan_id - The VLAN id.
macEntry.port_idx - The port index,0~5 for phy. port, 6 for CPU port, 7~11 for ext. port.
macEntry.arp_used - The entry is used for NAT/NAPT.
macEntry.static_entry - The MAC is static or not.
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
12.46. rtk_rg_macEntry_del
int32 rtk_rg_macEntry_del(int entry_idx)
Delete an ASIC MAC Entry.
Defined in: rtk_rg_liteRomeDriver.h
entry_idx
[in] The MAC entry index for deleting.
None
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_INDEX_OUT_OF_RAN
GE
the index out of range.
RT_ERR_RG_ENTRY_NOT_EXIST the index is not exist.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
118
12.47. rtk_rg_macEntry_find
int32 rtk_rg_macEntry_find(rtk_rg_macEntry_t *macEntry, int *valid_idx)
Find an exist ASIC MAC Entry.
Defined in: rtk_rg_liteRomeDriver.h
*macEntry
[in] An empty buffer for storing the MAC entry data structure.
[out] The data structure of found MAC entry.
*valid_idx
[in] The index which find from.
[out] The existing entry index.
macEntry.mac - The MAC address.
macEntry.isIVL - The MAC is for IVL or SVL.
macEntry.fid - The fid, only used in SVL.
macEntry.vlan_id - The VLAN id.
macEntry.port_idx - The port index,0~5 for phy. port, 6 for CPU port, 7~11 for ext. port.
macEntry.arp_used - The entry is used for NAT/NAPT.
macEntry.static_entry - The MAC is static or not.
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_INDEX_OUT_OF_RAN
GE
the index out of range.
RT_ERR_RG_NO_MORE_ENTRY_FO
UND
no more exist entry is found.
RT_ERR_RG_NULL_POINTER Input parameter is NULL pointer.
12.48. rtk_rg_arpEntry_add
int32 rtk_rg_arpEntry_add(rtk_rg_arpEntry_t *arpEntry, int *arp_entry_idx)
Add an ARP Entry into ASIC
Defined in: rtk_rg_liteRomeDriver.h
*arpEntry
[in] Fill rtk_rg_arpEntry_t each fields for adding.
*arp_entry_idx
[out] Return ARP entry index.
arpEntry.macEntryIdx - this MAC entry index of this ARP entry.
arpEntry.ipv4Addr - the IPv4 IP address of this ARP entry.
arpEntry.static_entry - this entry is static ARP, and it will never age out.
If the arpEntry.static_entry is set. The MAC entry must set static, too.
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information.
RT_ERR_RG_L2_ENTRY_NOT_FOU
ND
L2 entry not found.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
119
12.49. rtk_rg_arpEntry_del
int32 rtk_rg_arpEntry_del(int arp_entry_idx)
Delete an ASIC ARP Entry.
Defined in: rtk_rg_liteRomeDriver.h
arp_entry_idx
[out] The ARP entry index for deleting.
None
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_INDEX_OUT_OF_RAN
GE
the index out of range.
RT_ERR_RG_ENTRY_NOT_EXIST the index is not exist.
12.50. rtk_rg_arpEntry_find
int32 rtk_rg_arpEntry_find(rtk_rg_arpInfo_t *arpInfo, int *arp_valid_idx)
Find the entire ASIC ARP table from index arp_valid_idx till valid one.
Defined in: rtk_rg_liteRomeDriver.h
*arpInfo
[in] An empty buffer for storing the ARP entry data structure.
[out] The data structure of found ARP entry.
*arp_valid_idx
[in] The index which find from.
[out] The existing entry index.
arpInfo.arpEntry - The ARP entry data structure.
arpInfo.valid - The ARP entry is valid or not.
arpEntry.idleSecs - The ARP entry idle time in seconds.
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_NULL_POINTER input buffer pointer is NULL.
RT_ERR_RG_INDEX_OUT_OF_RAN
GE
the index out of range
RT_ERR_RG_NO_MORE_ENTRY_FO
UND
no more exist entry is found.
12.51. rtk_rg_neighborEntry_add
int32 rtk_rg_neighborEntry_add(rtk_rg_neighborEntry_t *neighborEntry, int
*neighbor_idx)
Add an Neighbor Entry into ASIC
Defined in: rtk_rg_liteRomeDriver.h
*neighborEntry
[in] Fill rtk_rg_neighborEntry_t each fields for adding.
*neighbor_idx
[out] Return Neighbor entry index.
neighborEntry.l2Idx - this MAC entry index of this Neighbor entry.
neighborEntry.matchRouteIdx - the routing entry idx that match the ip address.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
120
neighborEntry.interfaceId - the 64 bits interface identifier of this IPv6 address.
neighborEntry.staticEntry - this entry is static ARP, and it will never age out.
neighborEntry.valid - this entry is valid.
If the neighborEntry.static_entry is set. The MAC entry must set static, too.
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information.
RT_ERR_RG_L2_ENTRY_NOT_FOU
ND
L2 entry not found.
RT_ERR_RG_NEIGHBOR_FULL neighbor table is full
12.52. rtk_rg_neighborEntry_del
int32 rtk_rg_neighborEntry_del(int neighbor_idx)
Delete an ASIC Neighbor Entry.
Defined in: rtk_rg_liteRomeDriver.h
neighbor_idx
[out] The Neighbor entry index for deleting.
None
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_INDEX_OUT_OF_RAN
GE
the index out of range.
RT_ERR_RG_ENTRY_NOT_EXIST the index is not exist.
12.53. rtk_rg_neighborEntry_find
int32 rtk_rg_neighborEntry_find(rtk_rg_neighborInfo_t *neighborInfo, int
*neighbor_valid_idx)
Find the entire ASIC Neighbor table from index neighbor_valid_idx till valid one.
Defined in: rtk_rg_liteRomeDriver.h
*neighborInfo
[in] An empty buffer for storing the Neighbor entry data structure.
[out] The data structure of found Neighbor entry.int
*neighbor_valid_idx
[in] The index which find from.
[out] The existing entry index.
neighborInfo.arpEntry - The Neighbor entry data structure.
neighborInfo.idleSecs - The Neighbor entry idle time in seconds.
RT_ERR_RG_OK Success
RT_ERR_RG_NOT_INIT system is not initiated.
RT_ERR_RG_NULL_POINTER input buffer pointer is NULL.
RT_ERR_RG_INDEX_OUT_OF_RAN
GE
the index out of range
RT_ERR_RG_NO_MORE_ENTRY_FO
UND
no more exist entry is found.
RT_ERR_RG_NEIGHBOR_NOT_FOU
ND
the indicated neighbor ifid is not found.
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
121
12.54. rtk_rg_softwareSourceAddrLearningLimit_
set
int32 rtk_rg_softwareSourceAddrLearningLimit_set(rtk_rg_saLearningLimitInfo_t
sa_learnLimit_info, rtk_rg_port_idx_t port_idx)
Set source address learning limit and action when using software learning.
Defined in: rtk_rg_liteRomeDriver.h
sa_learnLimit_info
[in] The information entered for the dedicated port.
port_idx
[in] The port number to set source address learning information.
sa_learnLimit_info.learningLimitNumber - the maximum number can be learned in the port.
sa_learnLimit_info.action - what to do if a packet is exceed the learning limit.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM system is not initiated.
12.55. rtk_rg_softwareSourceAddrLearningLimit_
get
int32 rtk_rg_softwareSourceAddrLearningLimit_get(rtk_rg_saLearningLimitInfo_t
*sa_learnLimit_info, rtk_rg_port_idx_t port_idx)
Get source address learning limit and action when using software learning by port number.
Defined in: rtk_rg_liteRomeDriver.h
*sa_learnLimit_info
[out] The information contained of the dedicated port.
port_idx
[in] The port number to get source address learning information.
None
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM system is not initiated.
12.56. rtk_rg_dosPortMaskEnable_set
int32 rtk_rg_dosPortMaskEnable_set(rtk_rg_mac_portmask_t dos_port_mask)
Enable/Disable denial of service security port.
Defined in: rtk_rg_liteRomeDriver.h
dos_port_mask
[in] Security MAC port mask.
None
RT_ERR_RG_OK Success
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
122
12.57. rtk_rg_dosPortMaskEnable_get
int32 rtk_rg_dosPortMaskEnable_get(rtk_rg_mac_portmask_t *dos_port_mask)
Get denial of service port security port state.
Defined in: rtk_rg_liteRomeDriver.h
*dos_port_mask
[out] Security MAC port mask.
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input port mask pointer is NULL.
12.58. rtk_rg_dosType_set
int32 rtk_rg_dosType_set(rtk_rg_dos_type_t dos_type, int dos_enabled,
rtk_rg_dos_action_t dos_action)
Set denial of service type function.
Defined in: rtk_rg_liteRomeDriver.h
dos_type
[in] Port security type.
dos_enabled
[in] Port security function enabled/disabled.
dos_action
[in] Port security action.
dos_type.RTK_RG_DAEQSA_DENY - packets while SMAC is the same as DMAC.
dos_type.RTK_RG_LAND_DENY - packets while SIP is the same as DIP(support IPv4 only).
dos_type.RTK_RG_BLAT_DENY - packets while the TCP/UDP SPORT is the same as
DPORT destination TCP/UDP port. dos_type.RTK_RG_SYNFIN_DENY - TCP packets while
SYN and FIN bits are set. dos_type.RTK_RG_XMA_DENY - TCP packets while sequence
number is zero and FIN,URG,PSH bits are set. dos_type.RTK_RG_NULLSCAN_DENY -
TCP packets while sequence number is zero and all contorl bits are zeros.
dos_type.RTK_RG_SYN_SPORTL1024_DENY - TCP SYN packets with source port less than
1024. dos_type.RTK_RG_TCPHDR_MIN_CHECK - the length of a TCP header carried in an
unfragmented IP(IPv4 and IPv6) datagram or the first fragment of a fragmented IP(IPv4)
datagram is less than MIN_TCP_Header_Size(20 bytes).
dos_type.RTK_RG_TCP_FRAG_OFF_MIN_CHECK - the Frangment_Offset=1 in
anyfragment of a fragmented IP datagram carrying part of TCP data.
dos_type.RTK_RG_ICMP_FRAG_PKTS_DENY - ICMPv4/ICMPv6 data unit carried in a
fragmented IP datagram. dos_type.RTK_RG_POD_DENY - IP packet size > 65535 bytes, ((IP
offset *8) + (IP length) ¡V (IPIHL*4))>65535. dos_type.RTK_RG_UDPDOMB_DENY - UDP
length > IP payload length. dos_type.RTK_RG_SYNWITHDATA_DENY - 1. IP length > IP
header + TCP header length while SYN flag is set 1. 2. IP More Fragment and Offset > 0 while
SYN is set to 1. dos_action.RTK_RG_DOS_ACTION_DROP - Drop packet while hit DoS
criteria. dos_action.RTK_RG_DOS_ACTION_TRAP - Trap packet to CPU while hit DoS
criteria.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
123
12.59. rtk_rg_dosType_get
int32 rtk_rg_dosType_get(rtk_rg_dos_type_t dos_type, int *dos_enabled,
rtk_rg_dos_action_t *dos_action)
Get denial of service type function.
Defined in: rtk_rg_liteRomeDriver.h
dos_type
[in] Port security type.
*dos_enabled
[out] Port security function enabled/disabled.
*dos_action
[out] Port security action.
dos_type.RTK_RG_DAEQSA_DENY - packets while SMAC is the same as DMAC.
dos_type.RTK_RG_LAND_DENY - packets while SIP is the same as DIP(support IPv4 only).
dos_type.RTK_RG_BLAT_DENY - packets while the TCP/UDP SPORT is the same as
DPORT destination TCP/UDP port. dos_type.RTK_RG_SYNFIN_DENY - TCP packets while
SYN and FIN bits are set. dos_type.RTK_RG_XMA_DENY - TCP packets while sequence
number is zero and FIN,URG,PSH bits are set. dos_type.RTK_RG_NULLSCAN_DENY -
TCP packets while sequence number is zero and all contorl bits are zeros.
dos_type.RTK_RG_SYN_SPORTL1024_DENY - TCP SYN packets with source port less than
1024. dos_type.RTK_RG_TCPHDR_MIN_CHECK - the length of a TCP header carried in an
unfragmented IP(IPv4 and IPv6) datagram or the first fragment of a fragmented IP(IPv4)
datagram is less than MIN_TCP_Header_Size(20 bytes).
dos_type.RTK_RG_TCP_FRAG_OFF_MIN_CHECK - the Frangment_Offset=1 in
anyfragment of a fragmented IP datagram carrying part of TCP data.
dos_type.RTK_RG_ICMP_FRAG_PKTS_DENY - ICMPv4/ICMPv6 data unit carried in a
fragmented IP datagram. dos_type.RTK_RG_POD_DENY - IP packet size > 65535 bytes, ((IP
offset *8) + (IP length) ¡V (IPIHL*4))>65535. dos_type.RTK_RG_UDPDOMB_DENY - UDP
length > IP payload length. dos_type.RTK_RG_SYNWITHDATA_DENY - 1. IP length > IP
header + TCP header length while SYN flag is set 1. 2. IP More Fragment and Offset > 0 while
SYN is set to 1. dos_action.RTK_RG_DOS_ACTION_DROP - Drop packet while hit DoS
criteria. dos_action.RTK_RG_DOS_ACTION_TRAP - Trap packet to CPU while hit DoS
criteria.
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input port mask pointer is NULL.
12.60. rtk_rg_dosFloodType_set
int32 rtk_rg_dosFloodType_set(rtk_rg_dos_type_t dos_type, int dos_enabled,
rtk_rg_dos_action_t dos_action, int dos_threshold)
Set denial of service flooding attack protection function.
Defined in: rtk_rg_liteRomeDriver.h
dos_type
[in] Port security type.
dos_enabled
[in] Port security function enabled/disabled.
dos_action
[in] Port security action.
dos_threshold
[in] System
dos_type.RTK_RG_SYNFLOOD_DENY - Receiving TCP SYN packet number is over
Parameters
Comments
Return Codes
Parameters
Comments
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
124
threshold. dos_type.RTK_RG_FINFLOOD_DENY - Receiving TCP FIN packet number is
over threshold. dos_type.RTK_RG_ICMPFLOOD_DENY - Receiving ICMP packet number is
over threshold. dos_action.RTK_RG_DOS_ACTION_DROP - Drop packet while hit DoS
criteria. dos_action.RTK_RG_DOS_ACTION_TRAP - Trap packet to CPU while hit DoS
criteria. dos_threshold - Allowable SYN/FIN/ICMP packet frame rate. The forwarding rate is
dos_threshold*1k packets per second.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information.
12.61. rtk_rg_dosFloodType_get
int32 rtk_rg_dosFloodType_get(rtk_rg_dos_type_t dos_type, int *dos_enabled,
rtk_rg_dos_action_t *dos_action, int *dos_threshold)
Get denial of service port security setting.
Defined in: rtk_rg_liteRomeDriver.h
dos_type
[in] Port security type.
*dos_enabled
[out] Port security function enabled/disabled.
*dos_action
[out] Port security action.
*dos_threshold
[out] System
dos_type.RTK_RG_SYNFLOOD_DENY - Receiving TCP SYN packet number is over
threshold. dos_type.RTK_RG_FINFLOOD_DENY - Receiving TCP FIN packet number is
over threshold. dos_type.RTK_RG_ICMPFLOOD_DENY - Receiving ICMP packet number is
over threshold. dos_action.RTK_RG_DOS_ACTION_DROP - Drop packet while hit DoS
criteria. dos_action.RTK_RG_DOS_ACTION_TRAP - Trap packet to CPU while hit DoS
criteria. dos_threshold - Allowable SYN/FIN/ICMP packet frame rate. The forwarding rate is
dos_threshold*1k packets per second.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information.
RT_ERR_RG_NULL_POINTER input port mask pointer is NULL.
12.62. rtk_rg_portMirror_set
int32 rtk_rg_portMirror_set(rtk_rg_portMirrorInfo_t portMirrorInfo)
Enable portMirror for monitor Tx/Rx packet.
Defined in: rtk_rg_liteRomeDriver.h
portMirrorInfo
[in] assign monitor port
None
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information.
RT_ERR_RG_NULL_POINTER input port mask pointer is NULL.
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
125
12.63. rtk_rg_portMirror_get
int32 rtk_rg_portMirror_get(rtk_rg_portMirrorInfo_t *portMirrorInfo)
Get portMirror for monitor Tx/Rx packet information.
Defined in: rtk_rg_liteRomeDriver.h
*portMirrorInfo
[out] assigned monitor port
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input port mask pointer is NULL.
12.64. rtk_rg_portMirror_clear
int32 rtk_rg_portMirror_clear( void)
clear port mirror setting
Defined in: rtk_rg_liteRomeDriver.h
void
None
RT_ERR_RG_OK Success
12.65. rtk_rg_portEgrBandwidthCtrlRate_set
int32 rtk_rg_portEgrBandwidthCtrlRate_set(rtk_rg_mac_port_idx_t port, uint32 rate)
Set egress rate limitation for physical port.
Defined in: rtk_rg_liteRomeDriver.h
port
[in] assigned rate limit port
rate
[in] assigned rate, unit Kbps
(1) The rate unit is 1 kbps and the range is from 8k to 1048568k.
(2) The granularity of rate is 8 kbps
(3) rate set 0, means unlimit
RT_ERR_RG_OK Success
12.66. rtk_rg_portIgrBandwidthCtrlRate_set
int32 rtk_rg_portIgrBandwidthCtrlRate_set(rtk_rg_mac_port_idx_t port, uint32 rate)
Set ingress rate limitation for physical port.
Defined in: rtk_rg_liteRomeDriver.h
port
[in] assigned rate limit port
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
126
rate
[in] assigned rate, unit Kbps
(1) The rate unit is 1 kbps and the range is from 8k to 1048568k.
(2) The granularity of rate is 8 kbps
(3) rate set 0, means unlimit
RT_ERR_RG_OK Success
12.67. rtk_rg_portEgrBandwidthCtrlRate_get
int32 rtk_rg_portEgrBandwidthCtrlRate_get(rtk_rg_mac_port_idx_t port, uint32 *rate)
Get egress rate limitation of physical port.
Defined in: rtk_rg_liteRomeDriver.h
port
[in] assigned rate limit port
*rate
[out] assigned rate, unit Kbps
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input rate pointer is NULL.
12.68. rtk_rg_portIgrBandwidthCtrlRate_get
int32 rtk_rg_portIgrBandwidthCtrlRate_get(rtk_rg_mac_port_idx_t port, uint32 *rate)
Get ingress rate limitation of physical port.
Defined in: rtk_rg_liteRomeDriver.h
port
[in] assigned rate limit port
*rate
[out] assigned rate, unit Kbps
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input rate pointer is NULL.
12.69. rtk_rg_phyPortForceAbility_set
int32 rtk_rg_phyPortForceAbility_set(rtk_rg_mac_port_idx_t port,
rtk_rg_phyPortAbilityInfo_t ability)
Force Set physical port status & ability.
Defined in: rtk_rg_liteRomeDriver.h
port
[in] assigned physical port
ability
[in] ENABLED:force link
None
RT_ERR_RG_OK Success
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
127
12.70. rtk_rg_phyPortForceAbility_get
int32 rtk_rg_phyPortForceAbility_get(rtk_rg_mac_port_idx_t port,
rtk_rg_phyPortAbilityInfo_t *ability)
Get physical port status & ability.
Defined in: rtk_rg_liteRomeDriver.h
port
[in] assigned physical port
*ability
[out] ENABLED:force link
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input ability pointer is NULL.
12.71. rtk_rg_portMibInfo_get
int32 rtk_rg_portMibInfo_get(rtk_rg_mac_port_idx_t port, rtk_rg_port_mib_info_t
*mibInfo)
Get physical port mib data.
Defined in: rtk_rg_liteRomeDriver.h
port
[in] assigned physical port
*mibInfo
[out] Enabled/Disabled Force assigned phyPort ability
mibInfo->ifInOctets - The total number of octets received on the interface¡A including framing
characters. mibInfo->ifInUcastPkts - The number of packets, delivered by this sub-layer to a
higher (sub-)layer, which were not addressed to a multicast or broadcast address at this
sub-layer. mibInfo->ifInMulticastPkts - The number of packets¡A delivered by this sub-layer to
a higher (sub-)layer¡A which were addressed to a multicast address at this sub-layer. For a
MAC layer protocol¡A this includes both Group and Functional addresses.
mibInfo->ifInBroadcastPkts - The number of packets¡A delivered by this sub-layer to a higher
(sub-)layer¡A which were addressed to a broadcast address at this sub-layer.
mibInfo->ifInDiscards - The number of inbound packets which were chosen to be discarded
even though no errors had been detected to prevent their being transmitted. One possible reason
for discarding such a packet could be to free up buffer space. mibInfo->ifOutOctets - The total
number of octets transmitted out of the interface¡A including framing characters.
mibInfo->ifOutDiscards - The number of outbound packets which were chosen to be discarded
even though no errors had been detected to prevent their being transmitted. One possible reason
for discarding such a packet could be to free up buffer space. mibInfo->ifOutUcastPkts - The
total number of packets that higher-level protocols requested be transmitted, and which were
not addressed to a multicast or broadcast address at this sub-layer, including those that were
discarded or not sent. mibInfo->ifOutMulticastPkts - The total number of packets that
higher-level protocols requested be transmitted, and which were addressed to a multicast
address at this sub-layer, including those that were discarded or not sent.
mibInfo->ifOutBrocastPkts - The total number of packets that higher-level protocols requested
be transmitted, and which were addressed to a broadcast address at this sub-layer, including
those that were discarded or not sent. mibInfo->dot1dBasePortDelayExceededDiscards - The
number of transmitted frames that were discarded due to the maximum bridge transit delay
being exceeded. mibInfo->dot1dTpPortInDiscards - Count of valid frames received which were
Parameters
Comments
Return Codes
Parameters
Comments
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
128
discarded (i.e., filtered) by the Forwarding Process. mibInfo->dot1dTpHcPortInDiscards - The
total number of Forwarding Database entries¡A which have been or would have been learnt¡A
but have been discarded due to lack of space to store them in the Forwarding Database.
mibInfo->dot3InPauseFrames - A count of MAC Control frames received on this interface with
an opcode indicating the PAUSE operation. mibInfo->dot3OutPauseFrames - A count of MAC
control frames transmitted on this interface with an opcode indicating the PAUSE operation.
mibInfo->dot3StatsAligmentErrors - The total number of bits of a received frame is not
divisible by eight. mibInfo->dot3StatsFCSErrors - The number of received frame that frame
check sequence error. mibInfo->dot3StatsSingleCollisionFrames - A count of frames that are
involved in a single collision¡A and are subsequently transmitted successfully.
mibInfo->dot3StatsMultipleCollisionFrames - A count of frames that are involved in more than
one collision and are subsequently transmitted successfully.
mibInfo->dot3StatsDeferredTransmissions - A count of frames for which the first transmission
attempt on a particular interface is delayed because the medium is busy.
mibInfo->dot3StatsLateCollisions - The number of times that a collision is detected on a
particular interface later than one slotTime into the transmission of a packet.
mibInfo->dot3StatsExcessiveCollisions - A count of frames for which transmission on a
particular interface fails due to excessive collisions. mibInfo->dot3StatsFrameTooLongs -
RX_etherStatsOversizePkt - RX_etherStatsPkts1519toMaxOctets.
mibInfo->dot3StatsSymbolErrors - Number of data symbol errors.
mibInfo->dot3ControlInUnknownOpcodes - A count of MAC Control frames received on this
interface that contain an opcode that is not supported by this device.
mibInfo->etherStatsDropEvents - Number of received packets dropped due to lack of resource.
mibInfo->etherStatsOctets - ifInOctets(bad+good) + ifOutOctets(bad+good).
mibInfo->etherStatsBcastPkts - The total number of packets that were directed to the broadcast
address. Note that this does not include multicast packets. mibInfo->etherStatsMcastPkts - The
total number of packets that were directed to a multicast address. Note that this number does
not include packets directed to the broadcast address. mibInfo->etherStatsUndersizePkts - The
total number of packets that were less than 64 octets long (excluding framing bits, but including
FCS octets) and were otherwise well formed. mibInfo->etherStatsOversizePkts - Number of
valid packets whose size are more than 1518 bytes¡A including MAC header and FCS¡A
excluding preamble and SFD. mibInfo->etherStatsFragments - Number of invalid (FCS error /
alignment error) packets whose size are less than 64 bytes¡A including MAC header and
FCS¡A excluding preamble and SFD. mibInfo->etherStatsJabbers - Number of invalid (FCS
error / alignment error) packets whose size are more than 1518 bytes¡A including MAC header
and FCS¡A excluding preamble and SFD. mibInfo->etherStatsCollisions - The best estimate of
the total number of collisions on this Ethernet segment. mibInfo->etherStatsCRCAlignErrors -
The total number of packets that had a length (excluding framing bits, but including FCS octets)
of between 64 and 1518 octets, inclusive, but had either a bad Frame Check Sequence (FCS)
with an integral number of mibInfo->etherStatsPkts64Octets - Number of all packets
whose size are exactly 64 bytes¡Aincluding MAC header and FCS¡A excluding preamble and
SFD. mibInfo->etherStatsPkts65to127Octets - Number of all packets whose size are between
65 ~ 127 bytes¡A including MAC header and FCS¡A excluding preamble and SFD.
mibInfo->etherStatsPkts128to255Octets - Number of all packets whose size are between 128 ~
255 bytes¡A including MAC header and FCS¡A excluding preamble and SFD.
mibInfo->etherStatsPkts256to511Octets - Number of all packets whose size are between 256 ~
511 bytes¡A including FCS¡A excluding MAC header¡A preamble and SFD.
mibInfo->etherStatsPkts512to1023Octets - Number of all packets whose size are between 512
~ 1023 bytes¡A including MAC header and FCS¡A excluding preamble and SFD.
mibInfo->etherStatsPkts1024to1518Octets - Number of all packets whose size are between
1024 ~ 1518 bytes¡A including MAC header and FCS¡A excluding preamble and SFD.
mibInfo->etherStatsTxOctets - ifOutOctets. mibInfo->etherStatsTxUndersizePkts - The total
number of packets transmitted that were less than 64 octets long (excluding framing bits, but
including FCS octets) and were otherwise well formed. mibInfo->etherStatsTxOversizePkts -
Number of transmitted valid packets whose size are more than 1518 bytes¡A including MAC
header and FCS¡A excluding preamble and SFD. mibInfo->etherStatsTxPkts64Octets - Number
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
129
of all transmitted packets whose size are exactly 64 bytes¡Aincluding MAC header and FCS¡A
excluding preamble and SFD. mibInfo->etherStatsTxPkts65to127Octets - Number of all
transmitted packets whose size are between 65 ~ 127 bytes¡A including MAC header and
FCS¡A excluding preamble and SFD. mibInfo->etherStatsTxPkts128to255Octets - Number of
all transmitted packets whose size are between 128 ~ 255 bytes¡A including MAC header and
FCS¡A excluding preamble and SFD. mibInfo->etherStatsTxPkts256to511Octets - Number of
all transmitted packets whose size are between 256 ~ 511 bytes¡A including FCS¡A excluding
MAC header¡A preamble and SFD. mibInfo->etherStatsTxPkts512to1023Octets - Number of
all transmitted packets whose size are between 512 ~ 1023 bytes¡A including MAC header and
FCS¡A excluding preamble and SFD. mibInfo->etherStatsTxPkts1024to1518Octets - - Number
of all transmitted packets whose size are between 1024 ~ 1518 bytes¡A including MAC header
and FCS¡A excluding preamble and SFD. mibInfo->etherStatsTxPkts1519toMaxOctets - The
total number of packets (including bad packets) transmitted that were between 1519 and Max
octets in length inclusive (excluding framing bits but including FCS octets).
mibInfo->etherStatsTxBcastPkts - The total number of good packets transmitted that were
directed to the broadcast address. Note that this does not include multicast packets.
mibInfo->etherStatsTxMcastPkts - The total number of good packets transmitted that were
directed to a multicast address. Note that this number does not include packets directed to the
broadcast address. mibInfo->etherStatsTxFragments - Number of transmitted invalid (FCS
error / alignment error) packets whose size are less than 64 bytes¡A including MAC header and
FCS¡A excluding preamble and SFD. mibInfo->etherStatsTxJabbers - Number of transmitted
invalid (FCS error / alignment error) packets whose size are more than 1518 bytes¡A including
MAC header and FCS¡A excluding preamble and SFD. mibInfo->etherStatsTxCRCAlignErrors
- The total number of packets transmitted that had a length (excluding framing bits, but
including FCS octets) of between 64 and 1518 octets, inclusive, but had either a bad Frame
Check Sequence (FCS) with an integ mibInfo->etherStatsRxUndersizePkts - The total
number of packets received that were less than 64 octets long (excluding framing bits, but
including FCS octets) and were otherwise well formed.
mibInfo->etherStatsRxUndersizeDropPkts - The total number of packets received that were less
than 64 octets long (excluding framing bits, but including FCS octets) and were otherwise well
formed. mibInfo->etherStatsRxOversizePkts - Number of received valid packets whose size are
more than 1518 bytes¡A including MAC header and FCS¡A excluding preamble and SFD.
mibInfo->etherStatsRxPkts64Octets - Number of all received packets whose size are exactly 64
bytes¡Aincluding MAC header and FCS¡A excluding preamble and SFD.
mibInfo->etherStatsRxPkts65to127Octets - Number of all received packets whose size are
between 65 ~ 127 bytes¡A including MAC header and FCS¡A excluding preamble and SFD.
mibInfo->etherStatsRxPkts128to255Octets - Number of all received packets whose size are
between 128 ~ 255 bytes¡A including MAC header and FCS¡A excluding preamble and SFD.
mibInfo->etherStatsRxPkts256to511Octets - Number of all received packets whose size are
between 256 ~ 511 bytes¡A including FCS¡A excluding MAC header¡A preamble and SFD.
mibInfo->etherStatsRxPkts512to1023Octets - Number of all received packets whose size are
between 512 ~ 1023 bytes¡A including MAC header and FCS¡A excluding preamble and SFD.
mibInfo->etherStatsRxPkts1024to1518Octets - Number of all received packets whose size are
between 1024 ~ 1518 bytes¡A including MAC header and FCS¡A excluding preamble and SFD.
mibInfo->etherStatsRxPkts1519toMaxOctets - The total number of packets (including bad
packets) received that were between 1519 and Max octets in length inclusive (excluding
framing bits but including FCS octets). mibInfo->inOampduPkts - Number of received
OAMPDUs. mibInfo->outOampduPkts - A count of OAMPDUs transmitted on this interface.
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input ability pointer is NULL.
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information.
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
130
12.72. rtk_rg_portMibInfo_clear
int32 rtk_rg_portMibInfo_clear(rtk_rg_mac_port_idx_t port)
Clear physical port mib data.
Defined in: rtk_rg_liteRomeDriver.h
port
[in] assigned physical port
None
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM the input parameter contains illegal information.
12.73. rtk_rg_stormControl_add
int32 rtk_rg_stormControl_add(rtk_rg_stormControlInfo_t *stormInfo, int
*stormInfo_idx)
Add stormControl.
Defined in: rtk_rg_liteRomeDriver.h
*stormInfo
[in] enable stormCtrol
*stormInfo_idx
[in] assigned port
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER parameter is null.
RT_ERR_RG_INVALID_PARAM parameters value is out of range.
RT_ERR_RG_STORMCONTROL_EN
TRY_HAS_BEEN_SET
same stormInfo has been set before .
RT_ERR_RG_STORMCONTROL_TYP
E_FULL
add stormType full(ASIC support at most 4 different
types)
12.74. rtk_rg_stormControl_del
int32 rtk_rg_stormControl_del(int stormInfo_idx)
Delete stormControl.
Defined in: rtk_rg_liteRomeDriver.h
stormInfo_idx
[out] The index of stormInfo which should be delete.
None
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameters value is out of range.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
131
12.75. rtk_rg_stormControl_find
int32 rtk_rg_stormControl_find(rtk_rg_stormControlInfo_t *stormInfo, int
*stormInfo_idx)
Find stormInfo index.
Defined in: rtk_rg_liteRomeDriver.h
*stormInfo
[in] assigned compare port
*stormInfo_idx
[in] assigned compare stormType
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER parameter is null.
RT_ERR_RG_INVALID_PARAM parameters value is out of range.
RT_ERR_RG_STORMCONTROL_EN
TRY_NOT_FOUND
assigned stormInfo not found
12.76. rtk_rg_shareMeter_set
int32 rtk_rg_shareMeter_set(uint32 index, uint32 rate, rtk_rg_enable_t ifgInclude)
Set shareMeter rate.
Defined in: rtk_rg_liteRomeDriver.h
index
[in] shared meter index
rate
[in] rate of share meter
ifgInclude
[in] include IFG or not, ENABLE:include DISABLE:exclude
The API can set shared meter rate and ifg include for each meter. The rate unit is 1 kbps and the
range is from 8k to 1048568k. The granularity of rate is 8 kbps. The ifg_include parameter is
used for rate calculation with/without inter-frame-gap and preamble.
RT_ERR_RG_OK Success
12.77. rtk_rg_shareMeter_get
int32 rtk_rg_shareMeter_get(uint32 index, uint32 *pRate, rtk_rg_enable_t *pIfgInclude)
Get shareMeter rate.
Defined in: rtk_rg_liteRomeDriver.h
index
[in] shared meter index
*pRate
[out] pointer of rate of share meter
*pIfgInclude
[out] include IFG or not, ENABLE:include DISABLE:exclude
The API can get shared meter rate and ifg include for each meter. The rate unit is 1 kbps and
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
132
the granularity of rate is 8 kbps. The ifg_include parameter is used for rate calculation
with/without inter-frame-gap and preamble
RT_ERR_RG_OK Success
12.78. rtk_rg_qosStrictPriorityOrWeightFairQueu
e_set
int32 rtk_rg_qosStrictPriorityOrWeightFairQueue_set(rtk_rg_mac_port_idx_t port_idx,
rtk_rg_qos_queue_weights_t q_weight)
Set the scheduling types and weights of queues on specific port in egress scheduling.
Defined in: rtk_rg_liteRomeDriver.h
port_idx
[in] The port index
q_weight
[in] The array of weights for WRR/WFQ queue (valid:1~128, 0 for
STRICT_PRIORITY queue)
The types of queue are: WFQ_WRR_PRIORITY or STRICT_PRIORITY. If the weight is 0
then the type is STRICT_PRIORITY, else the type is WFQ_WRR_PRIORITY.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_FAILED parameters value is out of range.
12.79. rtk_rg_qosStrictPriorityOrWeightFairQueu
e_get
int32 rtk_rg_qosStrictPriorityOrWeightFairQueue_get(rtk_rg_mac_port_idx_t port_idx,
rtk_rg_qos_queue_weights_t *pQ_weight)
Get the scheduling types and weights of queues on specific port in egress scheduling.
Defined in: rtk_rg_liteRomeDriver.h
port_idx
[in] The port index.
*pQ_weight
[in] Pointer to the array of weights for WRR/WFQ queue (valid:1~128, 0 for
STRICT_PRIORITY queue)
The types of queue are: WFQ_WRR_PRIORITY or STRICT_PRIORITY. If the weight is 0
then the type is STRICT_PRIORITY, else the type is WFQ_WRR_PRIORITY.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER parameters value is out of range.
RT_ERR_RG_FAILED assigned stormInfo not found
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
133
12.80. rtk_rg_qosInternalPriMapToQueueId_set
int32 rtk_rg_qosInternalPriMapToQueueId_set(int int_pri, int queue_id)
Set the entry of internal priority to QID mapping table.
Defined in: rtk_rg_liteRomeDriver.h
int_pri
[in] Internal priority
queue_id
[in] Mapping queue Id.
Below is an example of internal priority to QID mapping table.
-
- Priority 0 1 2 3 4 5 6 7
- ====================
- queue 0 0 1 1 2 2 3 3
-for table index 0
- pPri2qid[0] = 0 internal priority 0 map to queue 0
- pPri2qid[1] = 0 internal priority 1 map to queue 0
- pPri2qid[2] = 1 internal priority 2 map to queue 1
- pPri2qid[3] = 1 internal priority 3 map to queue 1
- pPri2qid[4] = 2 internal priority 4 map to queue 2
- pPri2qid[5] = 2 internal priority 5 map to queue 2
- pPri2qid[6] = 3 internal priority 6 map to queue 3
- pPri2qid[7] = 3 internal priority 7 map to queue 3
RT_ERR_RG_INVALID_PARAM Success
RT_ERR_OK ok
12.81. rtk_rg_qosInternalPriMapToQueueId_get
int32 rtk_rg_qosInternalPriMapToQueueId_get(int int_pri, int *pQueue_id)
Get the entry of internal priority to QID mapping table.
Defined in: rtk_rg_liteRomeDriver.h
int_pri
[in] Internal priority
*pQueue_id
[out] Pointer to mapping queue Id.
None
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER parameters value is out of range.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
134
12.82. rtk_rg_qosInternalPriDecisionByWeight_s
et
int32 rtk_rg_qosInternalPriDecisionByWeight_set(rtk_rg_qos_priSelWeight_t
weightOfPriSel)
Set weight of each priority assignment.
Defined in: rtk_rg_liteRomeDriver.h
weightOfPriSel
[in] weight of each priority assignment
None
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
12.83. rtk_rg_qosInternalPriDecisionByWeight_g
et
int32 rtk_rg_qosInternalPriDecisionByWeight_get(rtk_rg_qos_priSelWeight_t
*pWeightOfPriSel)
Get weight of each priority assignment.
Defined in: rtk_rg_liteRomeDriver.h
*pWeightOfPriSel
[out] weight of each priority assignment
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER parameter is null.
12.84. rtk_rg_qosDscpRemapToInternalPri_set
int32 rtk_rg_qosDscpRemapToInternalPri_set(uint32 dscp, uint32 int_pri)
Set remapped internal priority of DSCP.
Defined in: rtk_rg_liteRomeDriver.h
dscp
[in] DSCP
int_pri
[in] internal priority
Apollo only support group 0
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
135
12.85. rtk_rg_qosDscpRemapToInternalPri_get
int32 rtk_rg_qosDscpRemapToInternalPri_get(uint32 dscp, uint32 *pInt_pri)
Get remapped internal priority of DSCP.
Defined in: rtk_rg_liteRomeDriver.h
dscp
[in] DSCP
*pInt_pri
[out] internal priority
Apollo only support group 0
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER parameters value is out of range.
12.86. rtk_rg_qosPortBasedPriority_set
int32 rtk_rg_qosPortBasedPriority_set(rtk_rg_mac_port_idx_t port_idx, uint32 int_pri)
Set internal priority of one port.
Defined in: rtk_rg_liteRomeDriver.h
port_idx
[in] Port index, including extension port.
int_pri
[in] Priorities assigment for specific port.
None
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
12.87. rtk_rg_qosPortBasedPriority_get
int32 rtk_rg_qosPortBasedPriority_get(rtk_rg_mac_port_idx_t port_idx, uint32 *pInt_pri)
Get internal priority of one port.
Defined in: rtk_rg_liteRomeDriver.h
port_idx
[in] Port index, including extension port.
*pInt_pri
[out] Priorities assigment for specific port.
None
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER parameters value is out of range.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
136
12.88. rtk_rg_qosDot1pPriRemapToInternalPri_se
t
int32 rtk_rg_qosDot1pPriRemapToInternalPri_set(uint32 dot1p, uint32 int_pri)
Set remapped internal priority of 802.1p priority.
Defined in: rtk_rg_liteRomeDriver.h
dot1p
[in] 802.1p priority
int_pri
[in] internal priority
Apollo only support group 0
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
12.89. rtk_rg_qosDot1pPriRemapToInternalPri_ge
t
int32 rtk_rg_qosDot1pPriRemapToInternalPri_get(uint32 dot1p, uint32 *pInt_pri)
Get remapped internal priority of 802.1p priority.
Defined in: rtk_rg_liteRomeDriver.h
dot1p
[in] 802.1p priority
*pInt_pri
[out] internal priority
Apollo only support group 0
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER parameters value is out of range.
12.90. rtk_rg_qosDscpRemarkEgressPortEnable
AndSrcSelect_set
int32 rtk_rg_qosDscpRemarkEgressPortEnableAndSrcSelect_set(rtk_rg_mac_port_idx_t
rmk_port, rtk_rg_enable_t rmk_enable, rtk_rg_qos_dscpRmkSrc_t rmk_src_select)
Set remark DSCP enable/disable port.
Defined in: rtk_rg_liteRomeDriver.h
rmk_port
[in] Enable/Dsiable DSCP remarking port
rmk_enable
[in] Enable/Disable DSCP remark
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
137
rmk_src_select
[in] DSCP remarking source
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
12.91. rtk_rg_qosDscpRemarkEgressPortEnable
AndSrcSelect_get
int32 rtk_rg_qosDscpRemarkEgressPortEnableAndSrcSelect_get(rtk_rg_mac_port_idx_t
rmk_port, rtk_rg_enable_t *pRmk_enable, rtk_rg_qos_dscpRmkSrc_t *pRmk_src_select)
Get remark DSCP enable/disable port and remarking source.
Defined in: rtk_rg_liteRomeDriver.h
rmk_port
[in] DSCP remarking port
*pRmk_enable
[in] Pointer to DSCP remarking port enabled/disabled
*pRmk_src_select
[in] Pointer to DSCP remarking source
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER parameters value is out of range.
RT_ERR_RG_FAILED assigned stormInfo not found
12.92. rtk_rg_qosDscpRemarkByInternalPri_set
int32 rtk_rg_qosDscpRemarkByInternalPri_set(int int_pri, int rmk_dscp)
Set Internal priority/User priority to DSCP remarking mapping.
Defined in: rtk_rg_liteRomeDriver.h
int_pri
[in] Internal/User priority
rmk_dscp
[in] DSCP remarking value
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
138
12.93. rtk_rg_qosDscpRemarkByInternalPri_get
int32 rtk_rg_qosDscpRemarkByInternalPri_get(int int_pri, int *pRmk_dscp)
Get Internal priority/User priority to DSCP remarking mapping.
Defined in: rtk_rg_liteRomeDriver.h
int_pri
[in] Internal/User priority
*pRmk_dscp
[out] Pointer to remarking DSCP
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER parameters value is out of range.
12.94. rtk_rg_qosDscpRemarkByDscp_set
int32 rtk_rg_qosDscpRemarkByDscp_set(int dscp, int rmk_dscp)
Set DSCP to DSCP remarking mapping.
Defined in: rtk_rg_liteRomeDriver.h
dscp
[in] DSCP source
rmk_dscp
[in] DSCP remarking value
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
12.95. rtk_rg_qosDscpRemarkByDscp_get
int32 rtk_rg_qosDscpRemarkByDscp_get(int dscp, int *pRmk_dscp)
Get DSCP to DSCP remarking mapping.
Defined in: rtk_rg_liteRomeDriver.h
dscp
[in] DSCP source
*pRmk_dscp
[out] Pointer to DSCP remarking value
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
139
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER parameters value is out of range.
12.96. rtk_rg_qosDot1pPriRemarkByInternalPriE
gressPortEnable_set
int32
rtk_rg_qosDot1pPriRemarkByInternalPriEgressPortEnable_set(rtk_rg_mac_port_idx_t
rmk_port, rtk_rg_enable_t rmk_enable)
Set remark 802.1p priority port.
Defined in: rtk_rg_liteRomeDriver.h
rmk_port
[in] Enable/Dsiable 802.1p remarking port.
rmk_enable
[in] Enable/Disable 1p remark.
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
12.97. rtk_rg_qosDot1pPriRemarkByInternalPriE
gressPortEnable_get
int32
rtk_rg_qosDot1pPriRemarkByInternalPriEgressPortEnable_get(rtk_rg_mac_port_idx_t
rmk_port, rtk_rg_enable_t *pRmk_enable)
Get remark 802.1p priority port.
Defined in: rtk_rg_liteRomeDriver.h
rmk_port
[out] Pointer to 802.1p remarking port.
*pRmk_enable
[in] Enable/Disable 1p remark.
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER parameters value is out of range.
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
140
12.98. rtk_rg_qosDot1pPriRemarkByInternalPri_s
et
int32 rtk_rg_qosDot1pPriRemarkByInternalPri_set(int int_pri, int rmk_dot1p)
Set Internal priority to 802.1p remarking mapping.
Defined in: rtk_rg_liteRomeDriver.h
int_pri
[in] Internal priority
rmk_dot1p
[in] 802.1p priority remarking value
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
12.99. rtk_rg_qosDot1pPriRemarkByInternalPri_g
et
int32 rtk_rg_qosDot1pPriRemarkByInternalPri_get(int int_pri, int *pRmk_dot1p)
Get Internal priority to 802.1p remarking mapping.
Defined in: rtk_rg_liteRomeDriver.h
int_pri
[in] Internal priority
*pRmk_dot1p
[out] Pointer to 802.1p priority remarking value
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER parameters value is out of range.
12.100. rtk_rg_portBasedCVlanId_set
int32 rtk_rg_portBasedCVlanId_set(rtk_rg_mac_port_idx_t port_idx, int pvid)
Set port vlan ID.
Defined in: rtk_rg_liteRomeDriver.h
port_idx
[in] Port index
pvid
[in] Wished port vlan id.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
141
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_ENTRY_NOT_EXIST VlanID not exist
12.101. rtk_rg_portBasedCVlanId_get
int32 rtk_rg_portBasedCVlanId_get(rtk_rg_mac_port_idx_t port_idx, int *pPvid)
Get port vlan ID.
Defined in: rtk_rg_liteRomeDriver.h
port_idx
[in] Port index
*pPvid
[in] Pointer to port vlan id.
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER VlanID not exist
12.102. rtk_rg_portStatus_get
int32 rtk_rg_portStatus_get(rtk_rg_mac_port_idx_t port, rtk_rg_portStatusInfo_t
*portInfo)
Get port linkup status.
Defined in: rtk_rg_liteRomeDriver.h
port
[in] Port index
*portInfo
[out] port linkup information.
rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_INT_PRI - Using internal priority as
DSCP remarking source. rtk_rg_qos_dscpRmkSrc_t.RTK_RG_DSCP_RMK_SRC_DSCP -
Using DSCP as DSCP remarking source.
RT_ERR_RG_OK Success
RT_ERR_RG_INVALID_PARAM parameter is null.
RT_ERR_RG_NULL_POINTER VlanID not exist
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
142
12.103. rtk_rg_naptExtPortGet
int32 rtk_rg_naptExtPortGet(int isTcp, uint16 *pPort)
Find a usable external port.
Defined in: rtk_rg_liteRomeDriver.h
isTcp
[in] TCP or UDP
*pPort
[out] Pointer to a specific wish port
Apollo only support group 0
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER parameter is null.
12.104. rtk_rg_naptExtPortFree
int32 rtk_rg_naptExtPortFree(int isTcp, uint16 port)
Free external port.
Defined in: rtk_rg_liteRomeDriver.h
isTcp
[in] TCP or UDP
port
[out] L4 port number
Apollo only support group 0
RT_ERR_RG_OK Success
12.105. rtk_rg_gpon_infoSettings_set
int32 rtk_rg_gpon_infoSettings_set(rtk_rg_gpon_infoSettings_t gpon_info)
Set GPON MAC informations.
Defined in: rtk_rg_liteRomeDriver.h
gpon_info
[in] MAC serialNumber, password, and LOID.
None
RT_ERR_RG_OK Success
RT_ERR_RG_GPON_SET_INFO_FAIL
ED
parameter is null.
12.106. rtk_rg_gpon_infoSettings_get
int32 rtk_rg_gpon_infoSettings_get(rtk_rg_gpon_infoSettings_t *gpon_info)
Get GPON MAC informations.
Defined in: rtk_rg_liteRomeDriver.h
Parameters
Comments
Return Codes
Paramete
r
s
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
143
*gpon_info
[out] MAC serialNumber, password, and LOID.
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input gpon_info is NULL.
RT_ERR_RG_GPON_GET_INFO_FAI
LED
VlanID not exist
12.107. rtk_rg_gpon_status_get
int32 rtk_rg_gpon_status_get(rtk_rg_gpon_status_t *gpon_status)
Get GPON ONU status.
Defined in: rtk_rg_liteRomeDriver.h
*gpon_status
[out] FSM status.
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input gpon_status is NULL.
RT_ERR_RG_GPON_GET_STATUS_F
AILED
VlanID not exist
12.108. rtk_rg_epon_infoSettings_set
int32 rtk_rg_epon_infoSettings_set(int llid_idx, rtk_rg_epon_infoSettings_t epon_info)
Set EPON MAC informations.
Defined in: rtk_rg_liteRomeDriver.h
llid_idx
[in] LLID index want to set.
epon_info
[in] LLID MAC mappings, and LOID.
None
RT_ERR_RG_OK Success
RT_ERR_RG_GPON_SET_INFO_FAIL
ED
input gpon_status is NULL.
12.109. rtk_rg_epon_infoSettings_get
int32 rtk_rg_epon_infoSettings_get(int llid_idx, rtk_rg_epon_infoSettings_t *epon_info)
Get EPON MAC informations.
Defined in: rtk_rg_liteRomeDriver.h
llid_idx
[in] LLID index want to get.
*epon_info
[out] LLID MAC mappings, and LOID.
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input epon_info is NULL.
RT_ERR_RG_EPON_GET_INFO_FAI VlanID not exist
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
144
LED
12.110. rtk_rg_pon_transceiverInfo_get
int32 rtk_rg_pon_transceiverInfo_get(rtk_rg_transceiverType_t type,
rtk_rg_transceiverBuf_t *transc_info)
Get PON transceiver informations.
Defined in: rtk_rg_liteRomeDriver.h
type
[in] parameter type want to get.
*transc_info
[out] parameter data.
None
RT_ERR_RG_OK Success
RT_ERR_RG_NULL_POINTER input transc_info is NULL.
RT_ERR_RG_PON_GET_INFO_FAIL
ED
VlanID not exist
12.111. rtk_rg_classifyEntry_add
int32 rtk_rg_classifyEntry_add(rtk_rg_classifyEntry_t *classifyFilter)
Add an classification entry to ASIC
Defined in: rtk_rg_liteRomeDriver.h
*classifyFilter
The classification configuration that this function will add comparison rule
None.
RT_ERR_OK ok
RT_ERR_FAILED failed
RT_ERR_NULL_POINTER Pointer classifyFilter point to NULL.
RT_ERR_INPUT Invalid input parameters.
12.112. rtk_rg_classifyEntry_find
int32 rtk_rg_classifyEntry_find(int index, rtk_rg_classifyEntry_t *classifyFilter)
Get an classification entry from ASIC
Defined in: rtk_rg_liteRomeDriver.h
index
The Index of classification entry
*classifyFilter
The classification configuration
None.
RT_ERR_OK ok
RT_ERR_FAILED failed
RT_ERR_NULL_POINTER Pointer pClassifyCfg point to NULL.
RT_ERR_INPUT Invalid input parameters.
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Parameters
Comments
Return Codes
Realtek RG RomeDriver Programming Guide
Realtek confidential documentation Rev 1.1.2
145
12.113. rtk_rg_classifyEntry_del
int32 rtk_rg_classifyEntry_del(int index)
Delete an classification configuration from ASIC
Defined in: rtk_rg_liteRomeDriver.h
index
index of classification entry.
None.
RT_ERR_OK ok
RT_ERR_FAILED failed
RT_ERR_ENTRY_INDEX Invalid classification index .
Parameters
Comments
Return Codes
