The Water Heater

Guide 2006

Preferred Parts

The premium line

approved for replacement in

• Rheem®and Ruud®residential

• Rheem®-Ruud®commercial

• Richmond®residential

• PerfectFit™commercial

• GE and Hotpoint

water heaters

plus

Universal Parts

The value line

for all your replacement

parts needs

NATIONAL PARTS SERVICE CENTER

LISTINGS |DIAGRAMS |REFERENCE GUIDE |DISPLAYS |& MORE!

Contractor’s

Reference

Rheem Advantages

It is the goal of Rheem Parts to set the standard for the plumbing industry we serve,

and to be the organization against which others are measured. We are market driven,

and will continue to explore products and services that offer our customers a

competitive advantage in the marketplace.

Technology - Rheem has significant research and development

capability which allows us to offer the latest technology and product reliability

to our customers.

Patented Products - Rheem has a number of patented

products that allow us to offer the highest quality replacement parts.

Customer Service - Rheem has an industry leading customer

service team that can provide fast and convenient answers to our customer’s questions.

Brand Equity - The Rheem and Ruud names are synonymous with quality

and customer service and allows Rheem Parts and our partners to capitalize

on this brand recognition with professional plumbers.

Business Partner - Rheem is a proven business partner

to our customers.

Sales Professionals - Rheem Water Heating has an exceptional

network of sales professionals to help our customers sell replacement parts.

Merchandising Opportunities - Rheem Parts has taken

the opportunity to complement our factory authorized Preferred Parts with new

Universal Parts and differentiate these by branding each with unique packaging and

selling messages.

NATIONAL PARTS SERVICE CENTER

To place your order call 1-800-621-5622; fax 1-800-535-9538

General Terms and Conditions

Table of Contents

FREIGHT ALLOWANCE

F.O.B. Plant, Montgomery, Alabama. Full freight allowed on ground shipping,

within Continental United States on Preferred Parts orders of $500.00 or more.

TAXES

Prices are subject to the addition of any tax imposed by any present or future

Federal, State, County or Municipal law on the sale of such material, unless we

have a tax exemption certificate on file.

ACCEPTANCE OF ORDERS

All orders are subject to final approval on the terms and conditions contained

in our standard customer acknowledgment form.

MATERIALS RETURN

Saleable, current component parts in a new or unused condition must have

prior authorization by the Parts Packaging Supervisor before being returned.

All new and unused parts returned without prior authorization will be sent back

to the sender. Acceptance of such returns will be subject to our inspection and

a 25% restocking charge. Parts being returned in accordance with warranty

claim provisions do not require prior authorization, but will be subject to our

inspection.

Preferred Parts for Residential Water Heaters

Elements ...........................................................................................................................................................................................2-3

Preferred Parts Plumber’s Pack...........................................................................................................................................................4

Thermostats .........................................................................................................................................................................................5

Replacement Parts..........................................................................................................................................................................6-13

Preferred Parts for Commercial Water Heaters

Elements.............................................................................................................................................................................................14

Replacement Parts .......................................................................................................................................................................15-24

Universal Parts for Residential Water Heaters

Elements .......................................................................................................................................................................................25-26

Universal Plumber’s Pack ..................................................................................................................................................................27

Replacement Parts .......................................................................................................................................................................28-30

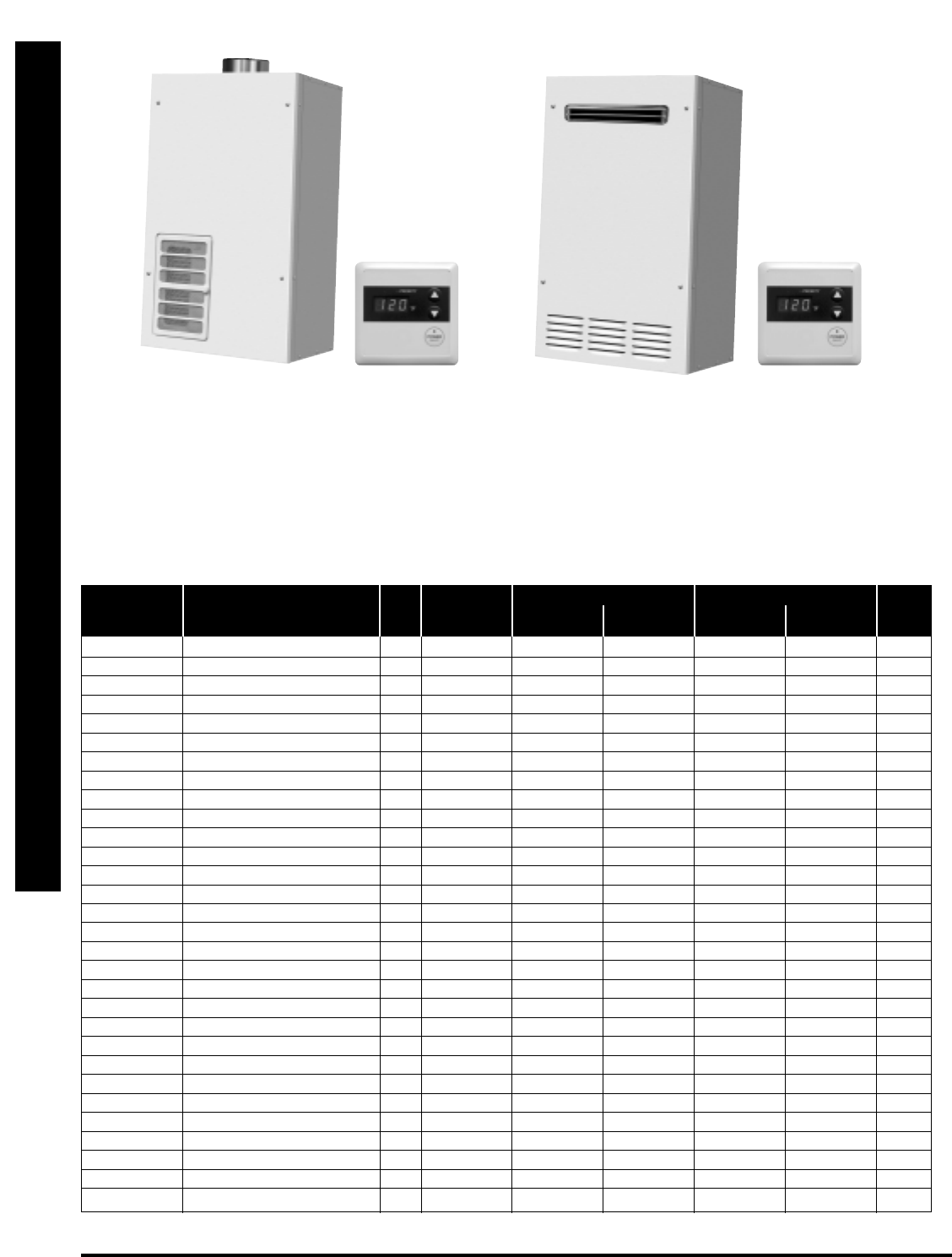

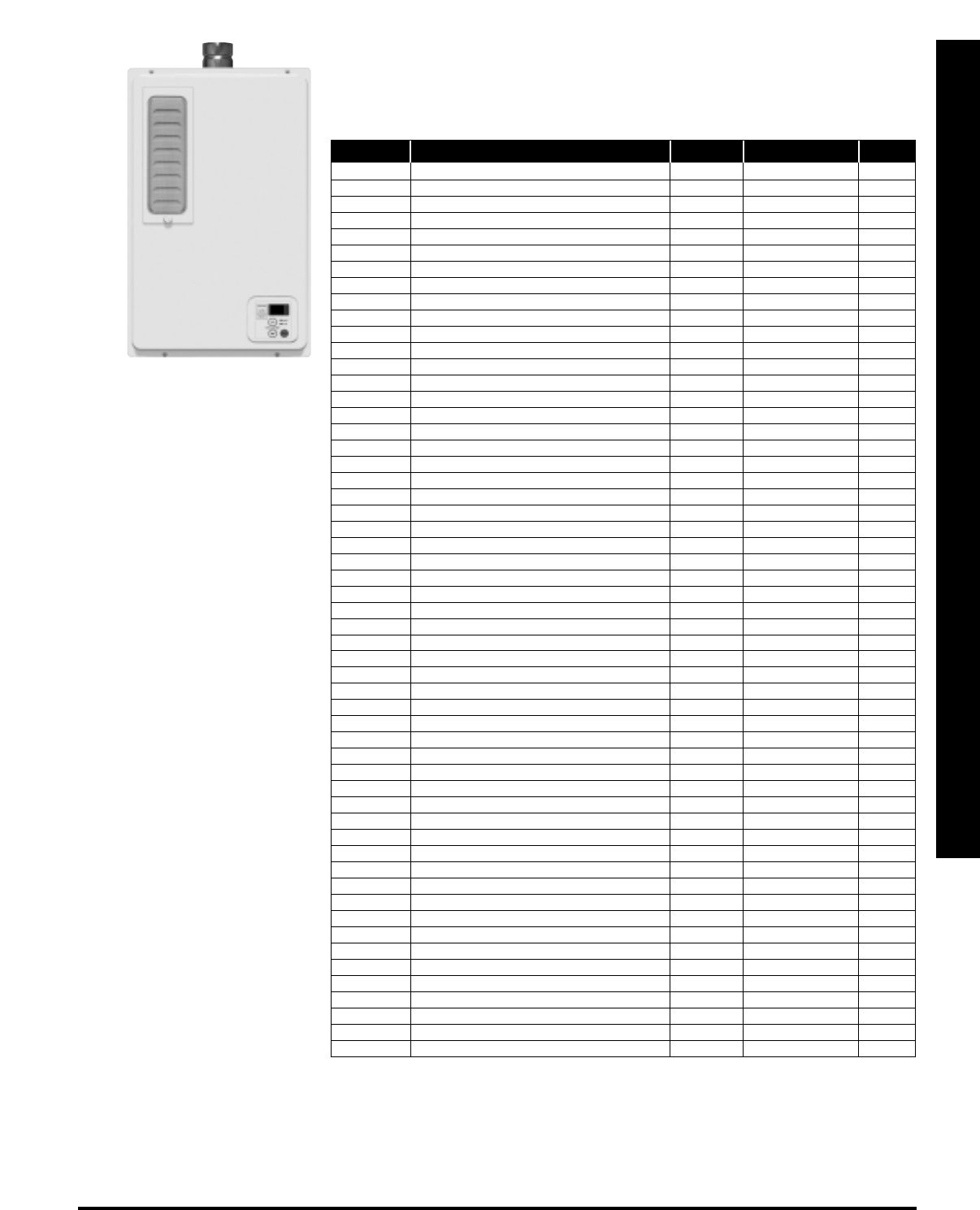

Universal Parts for Residential and Commercial Tankless Gas Water Heaters ............................................................................31-34

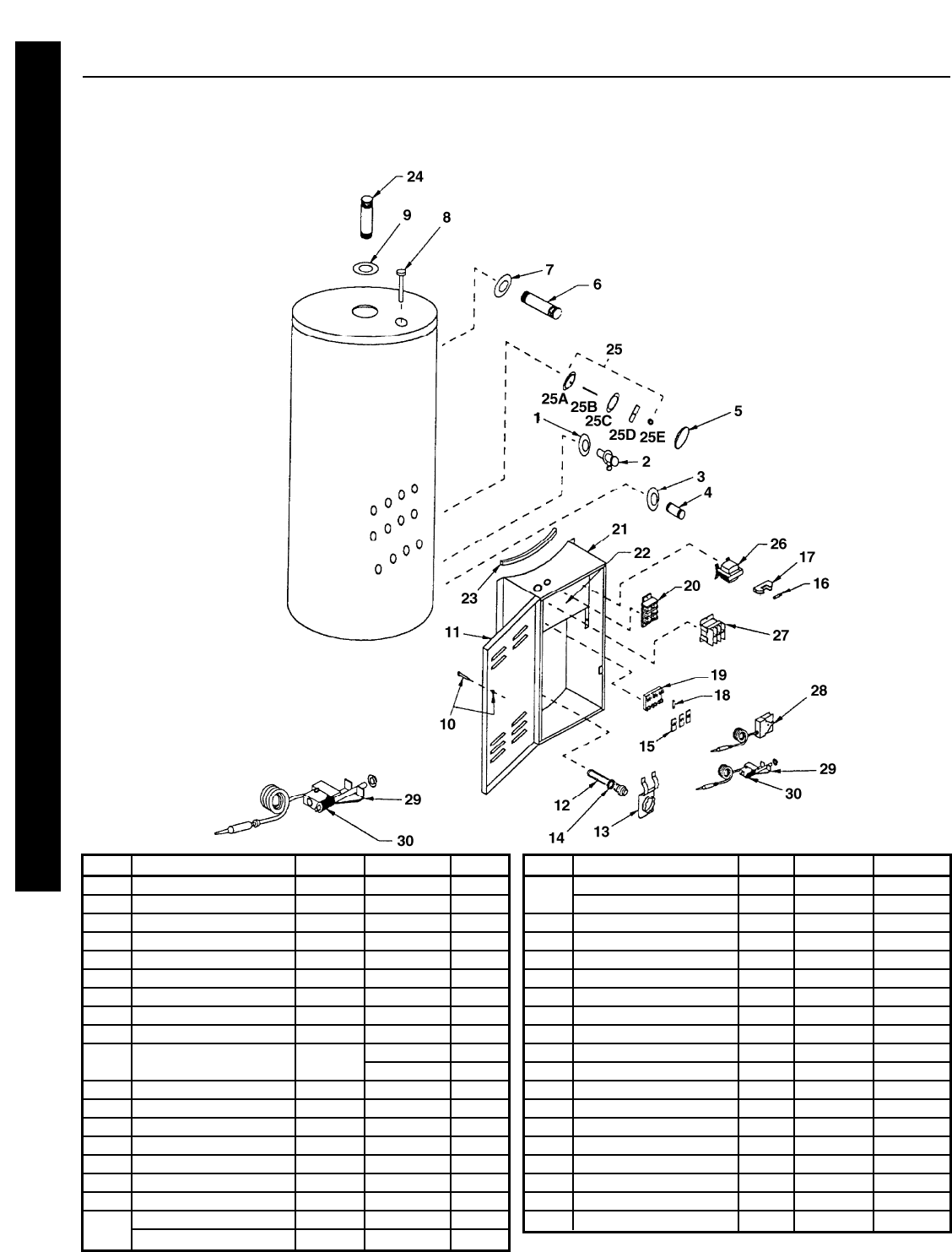

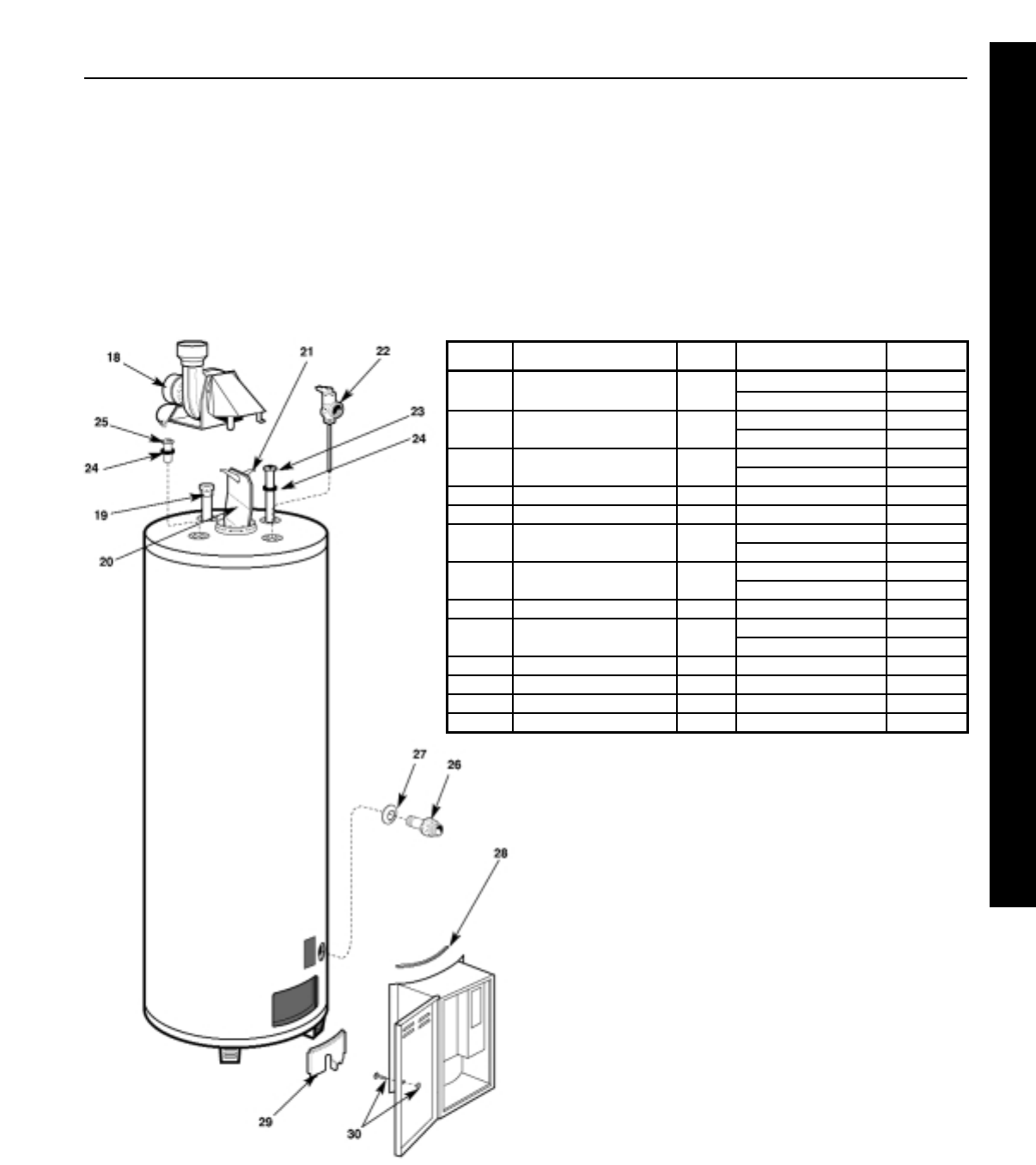

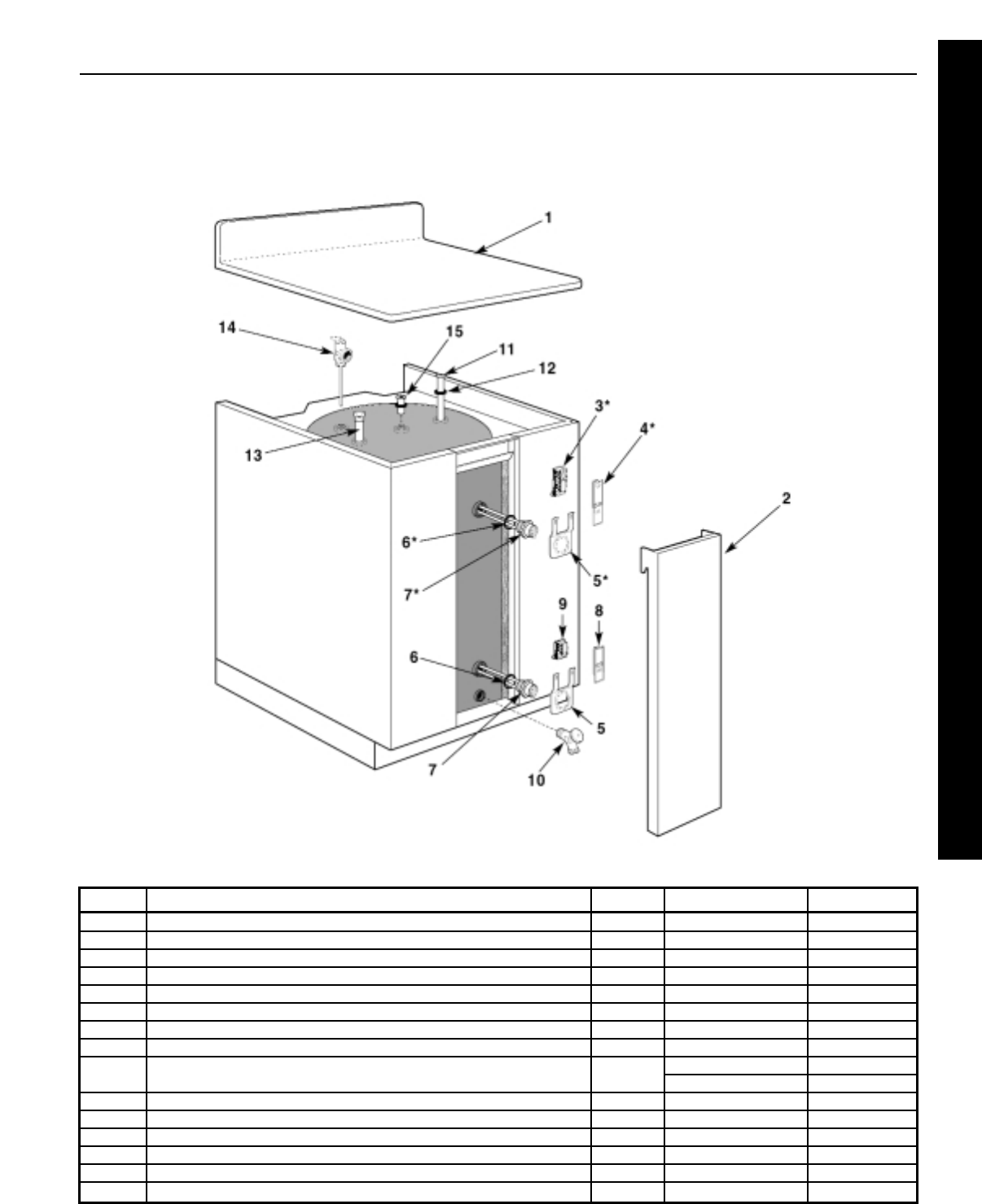

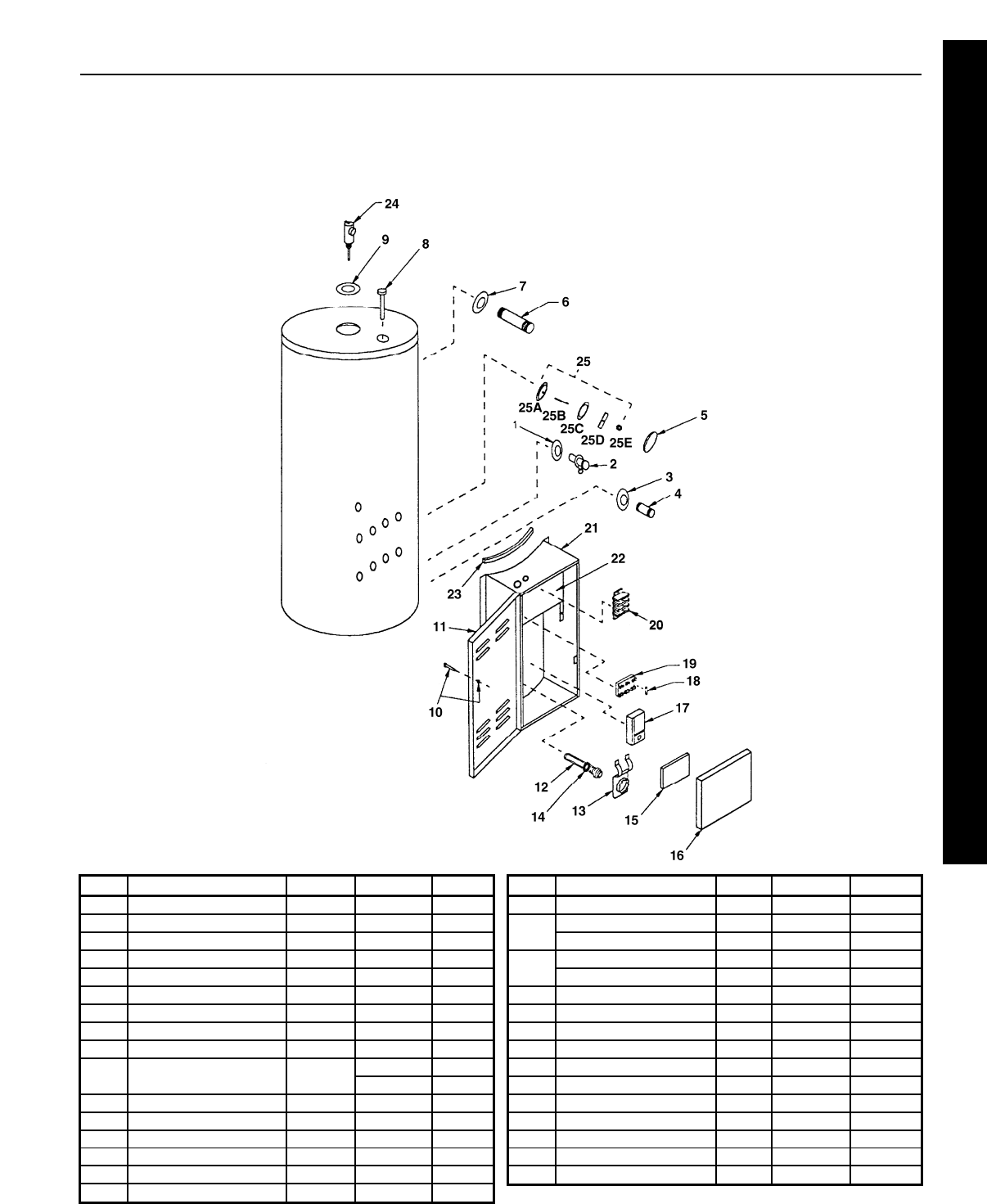

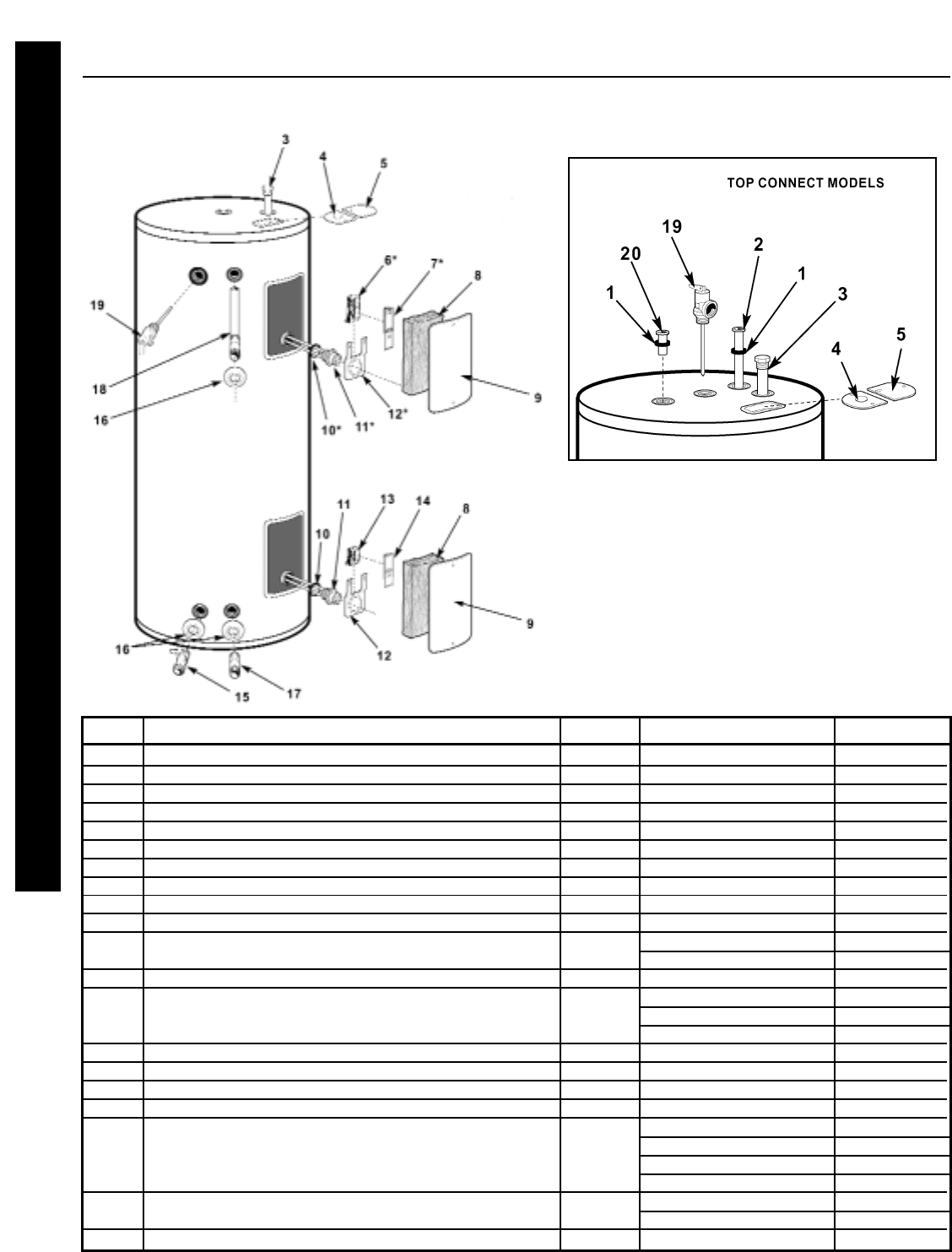

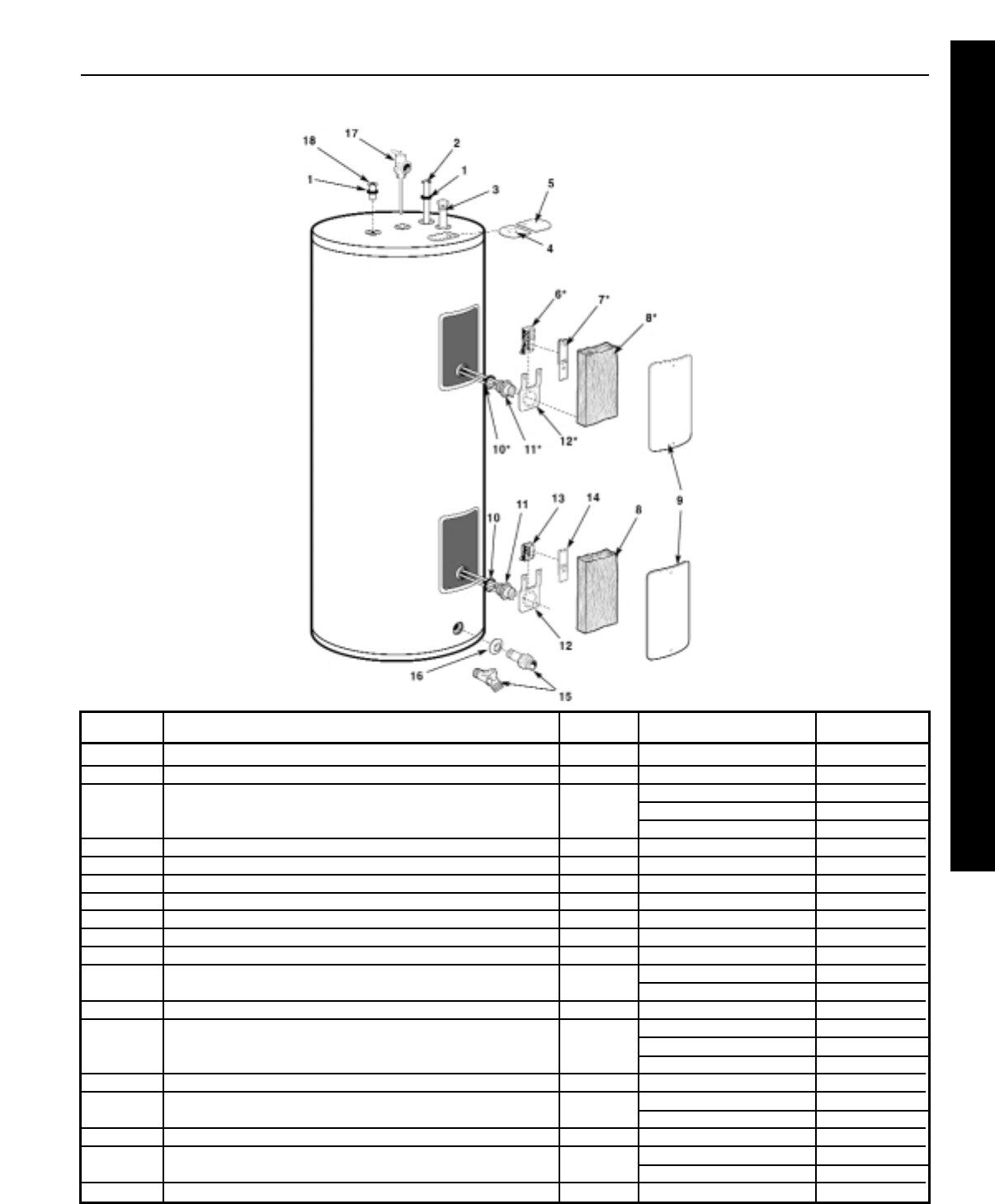

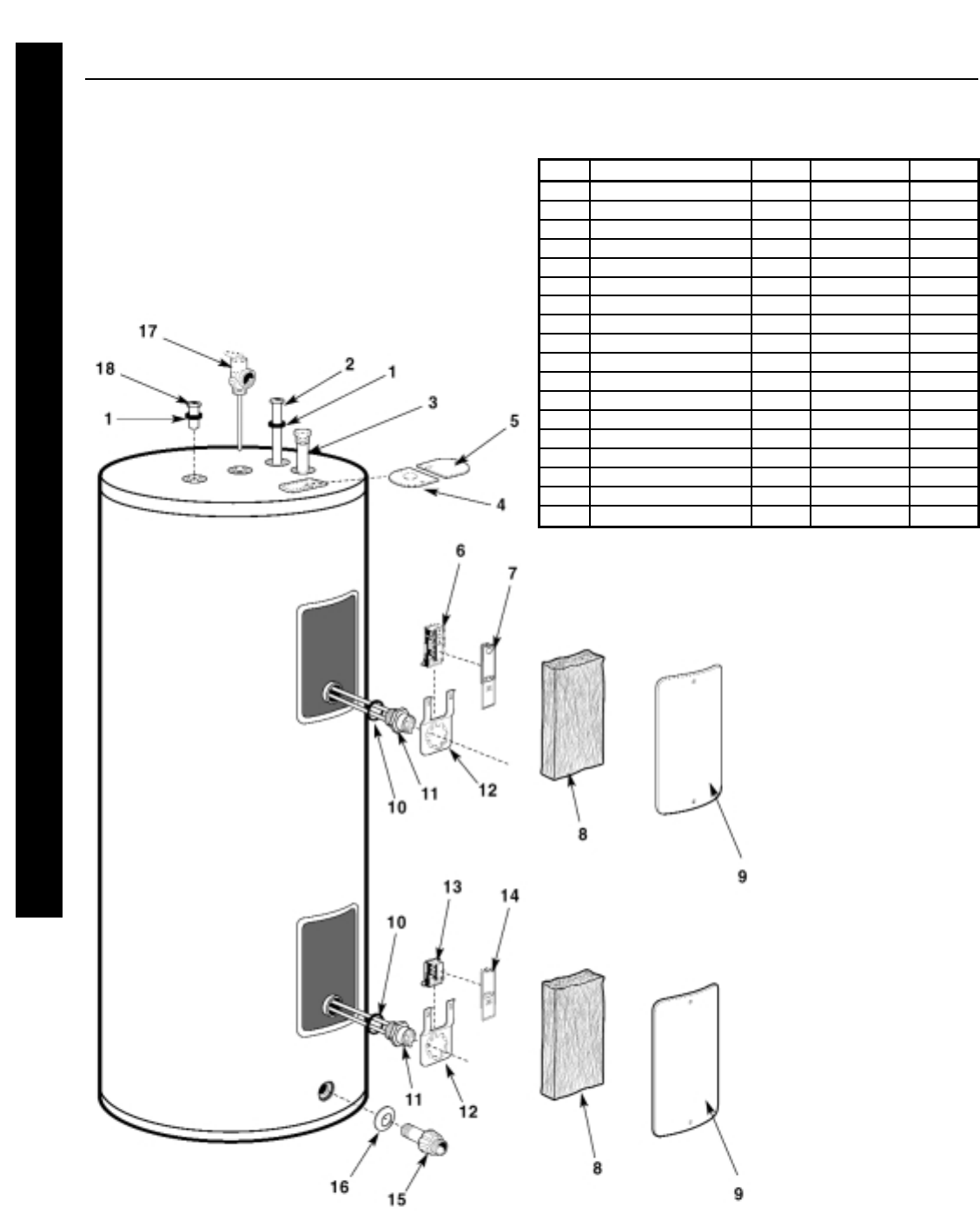

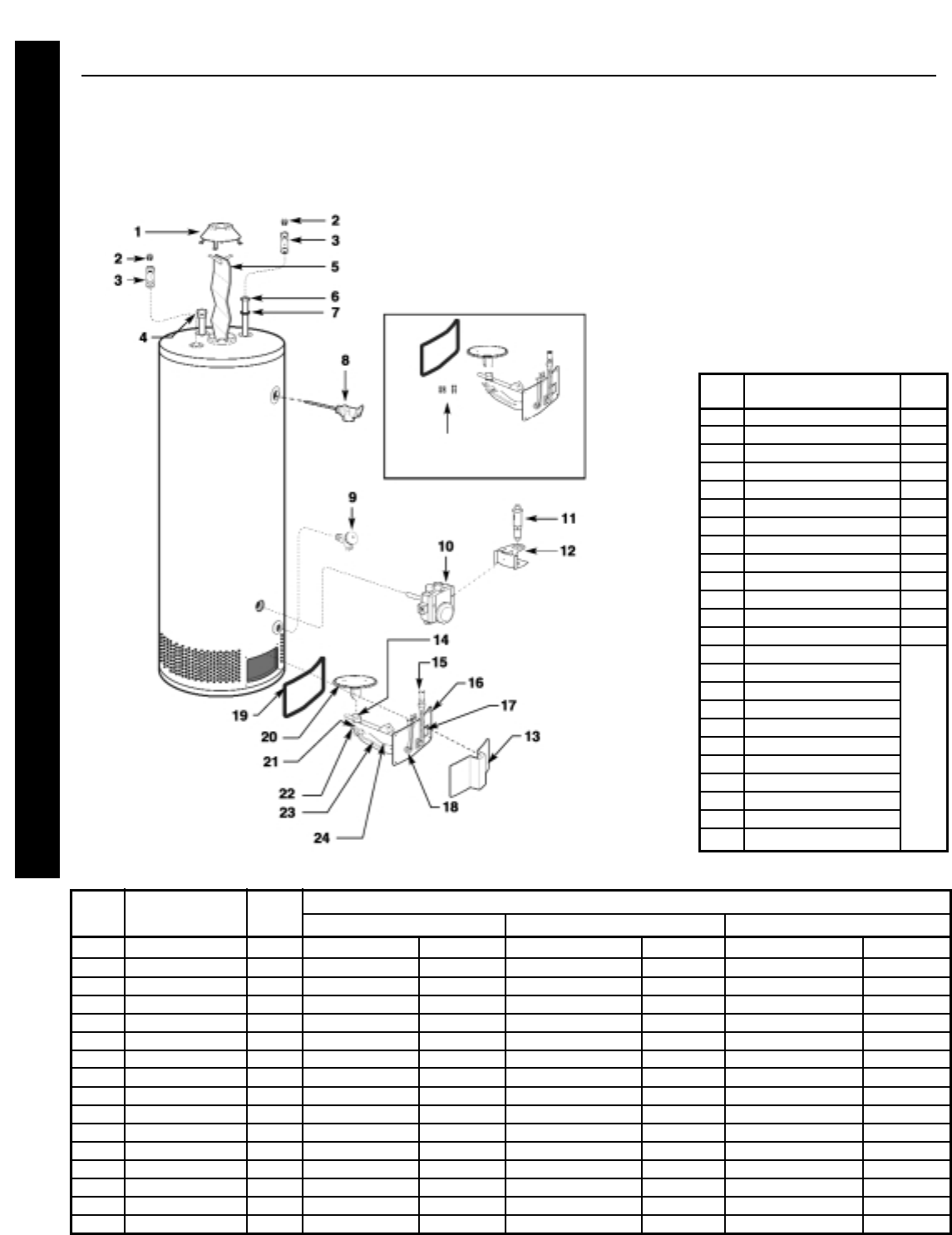

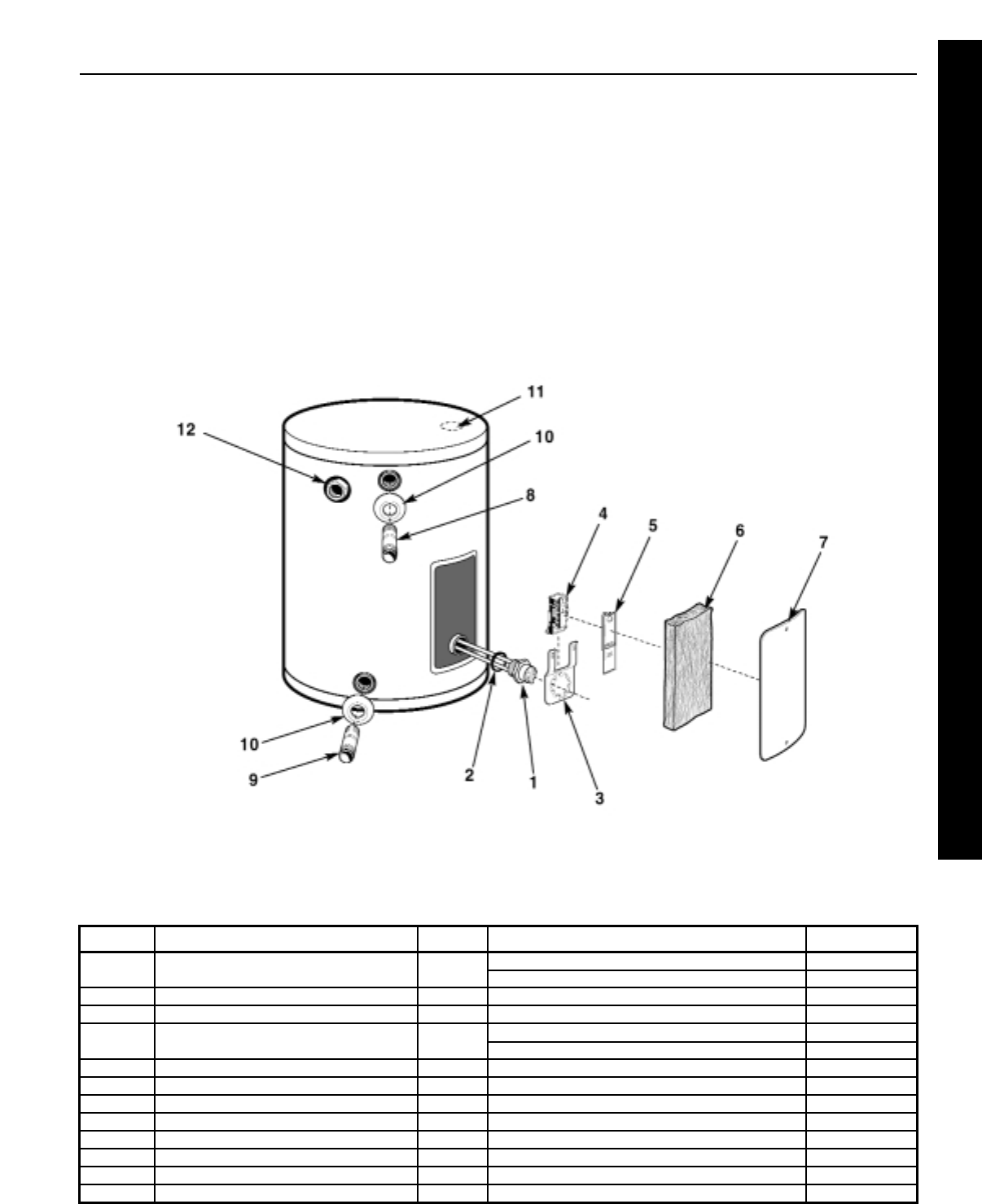

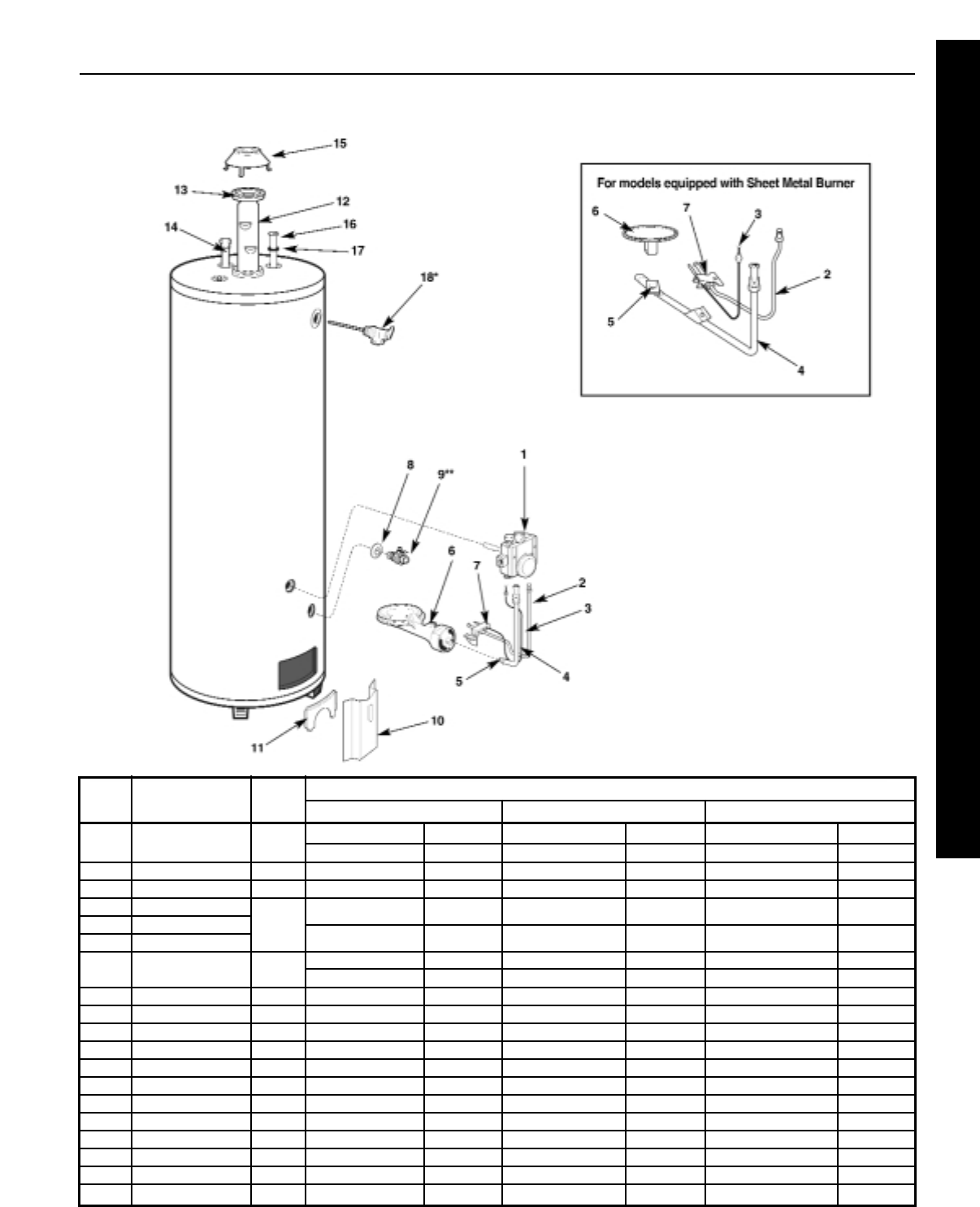

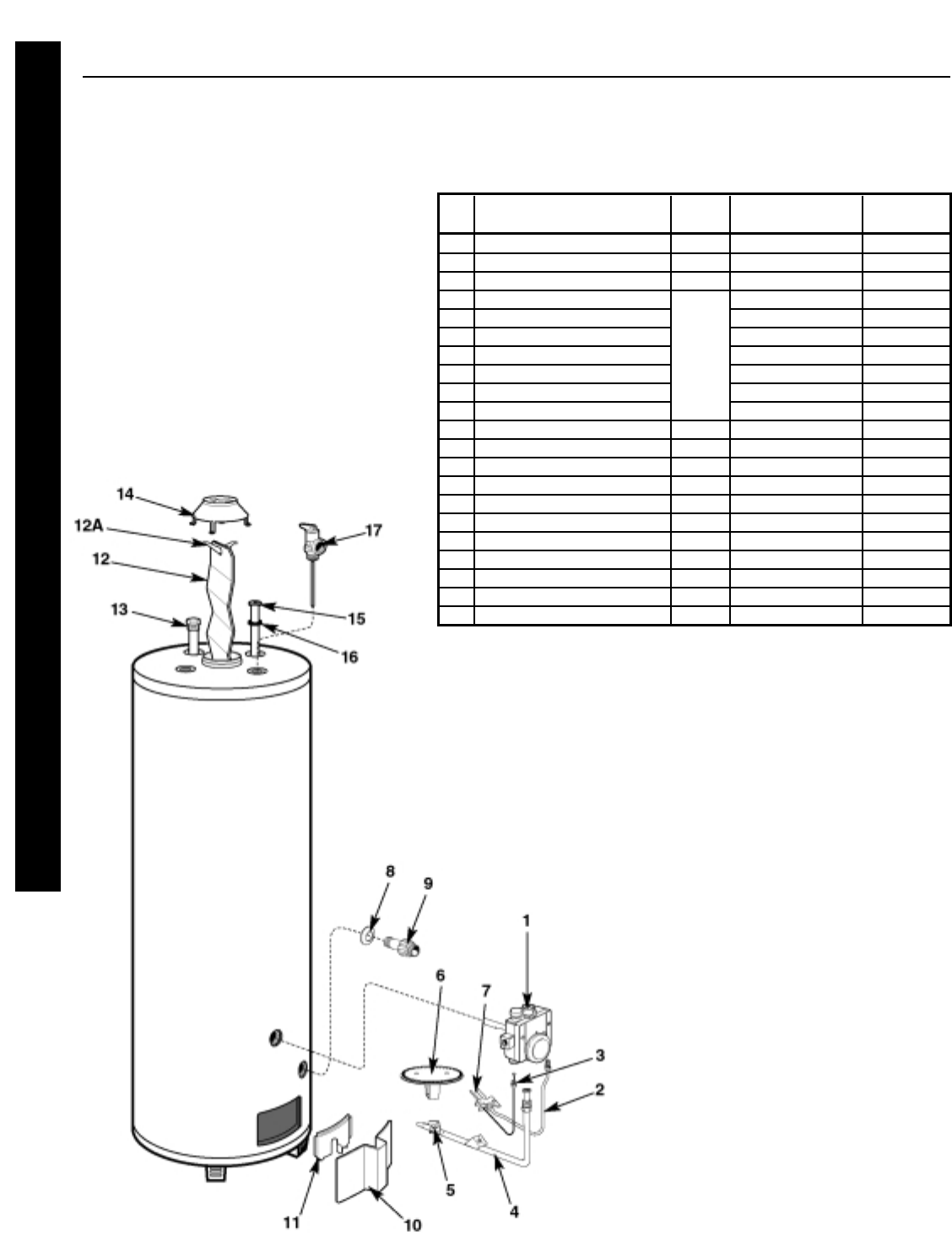

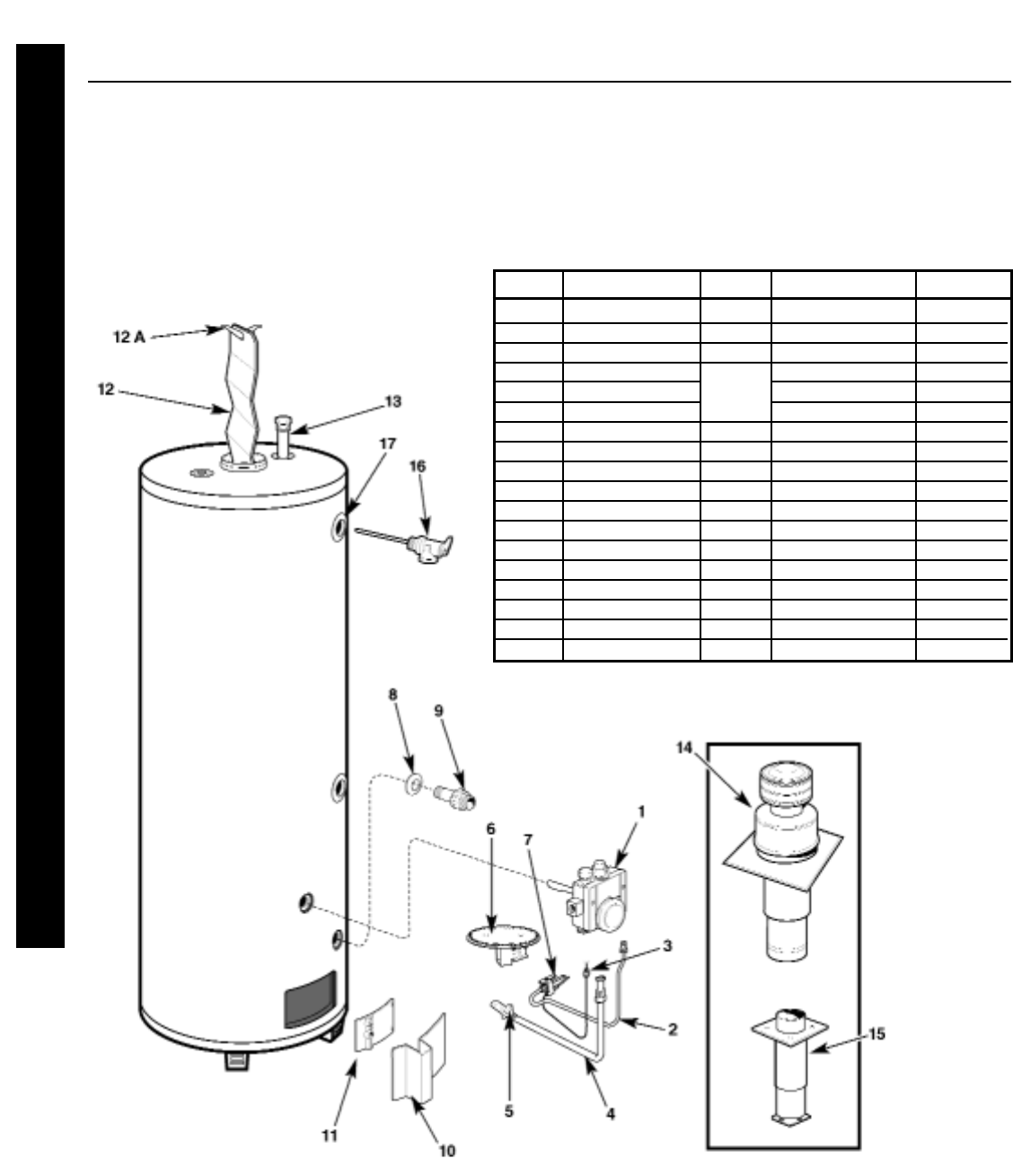

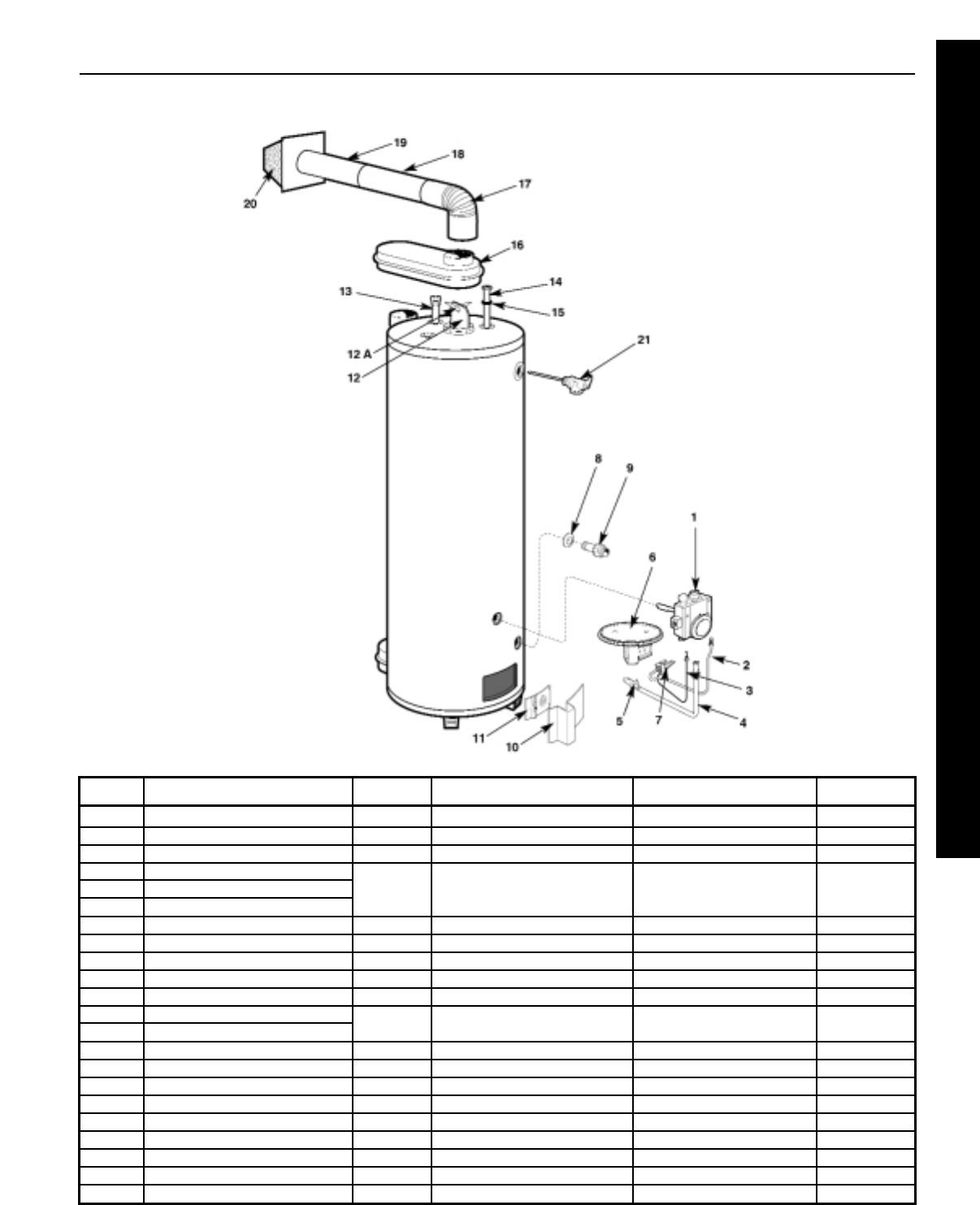

Parts Diagrams with Parts Lists

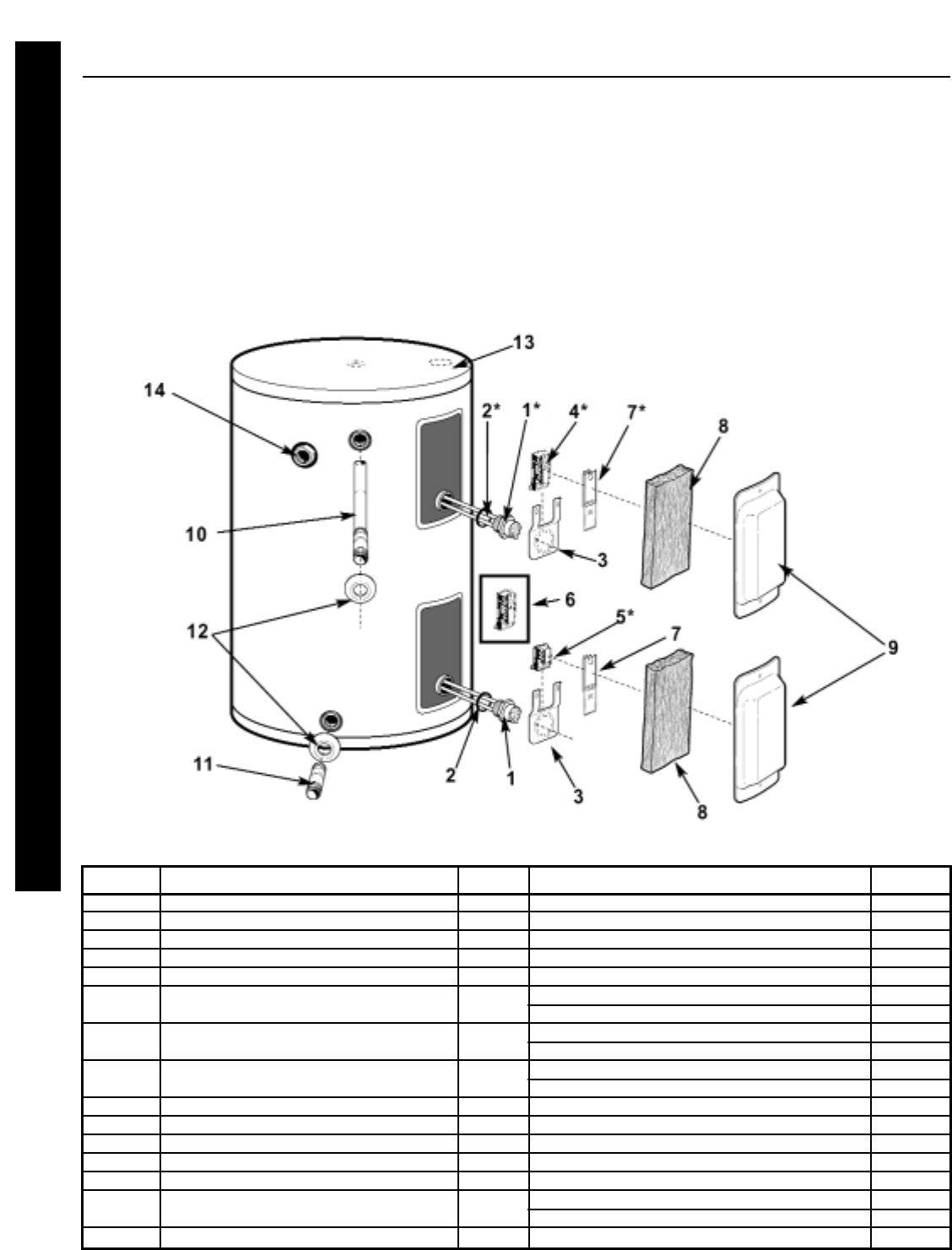

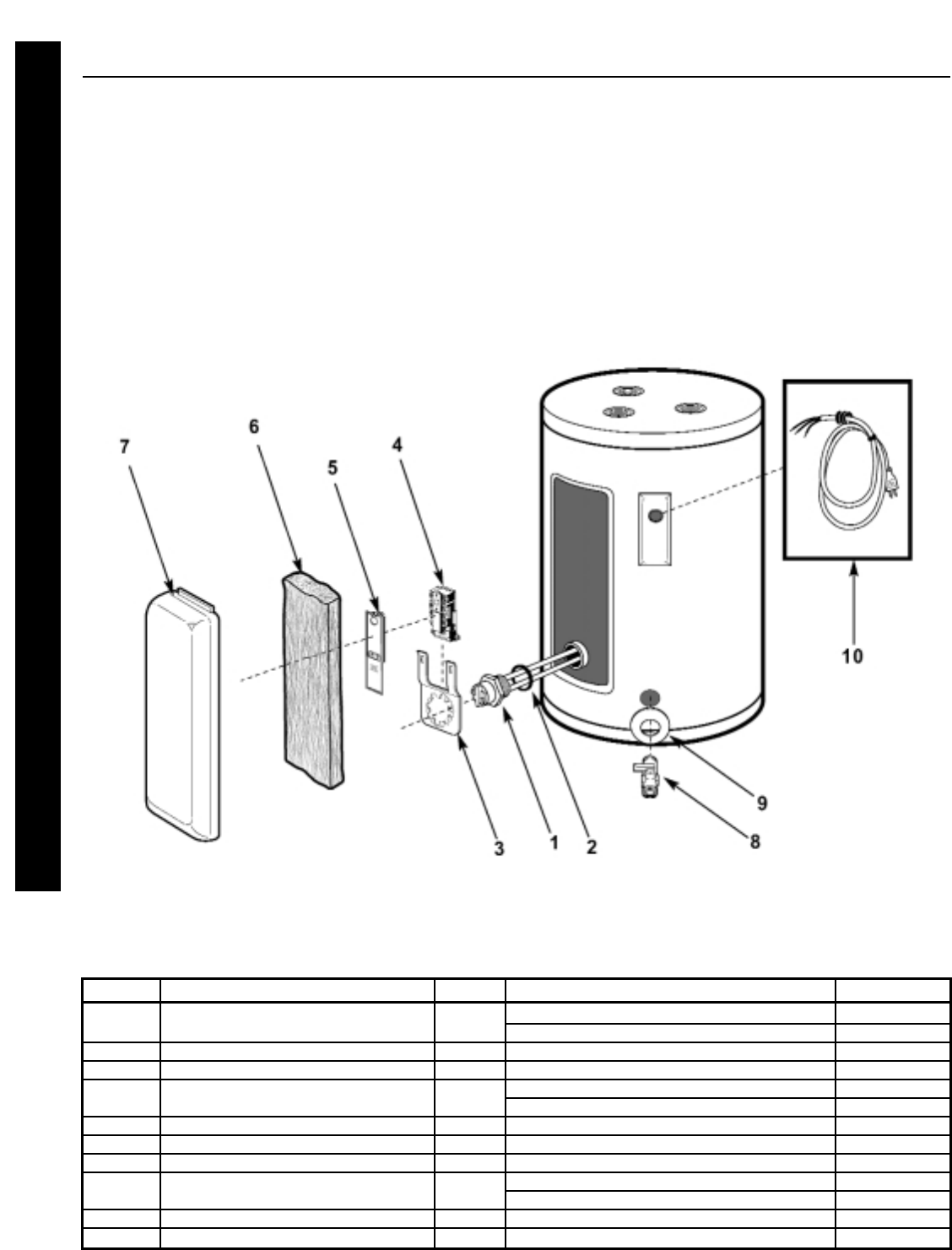

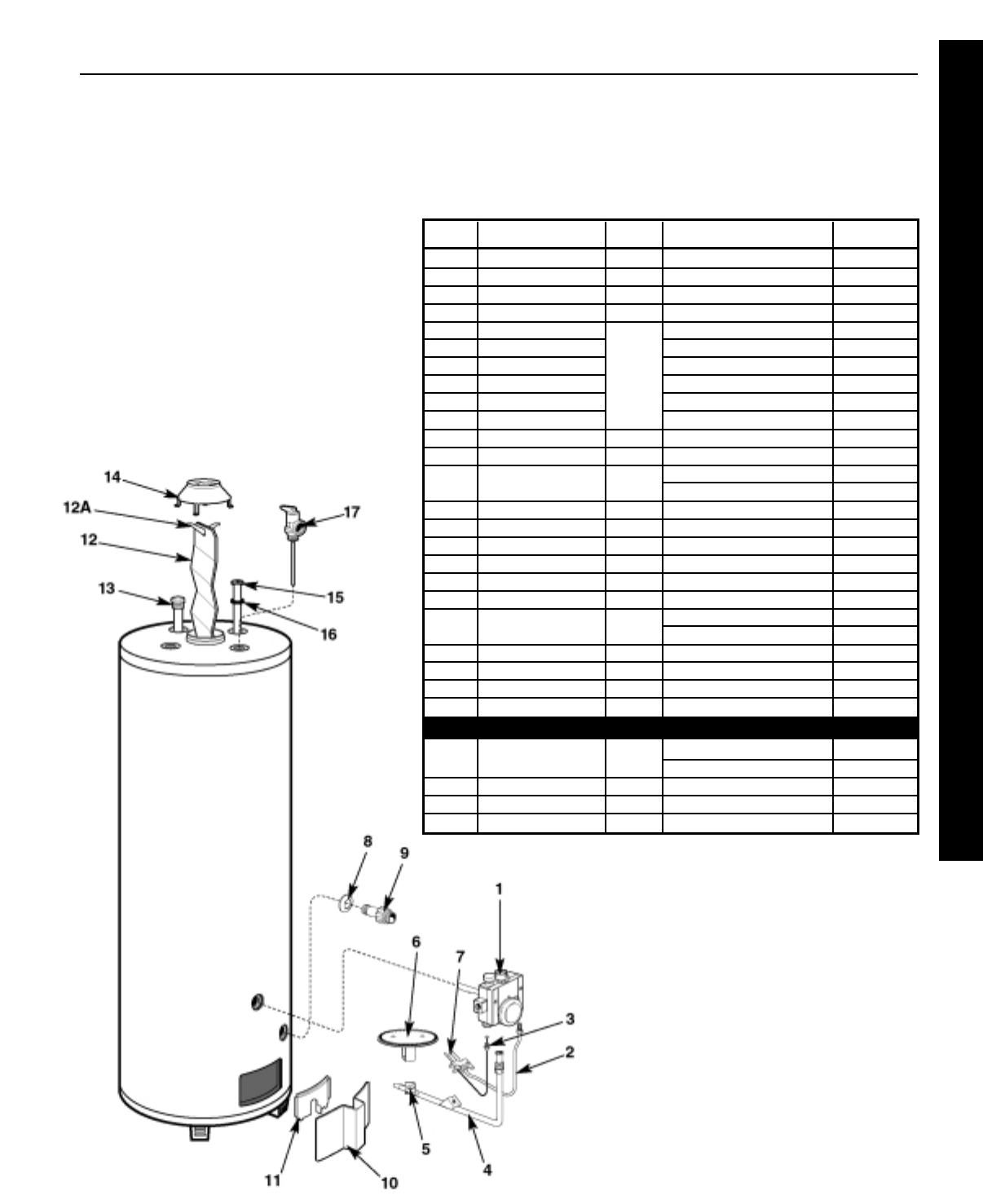

Residential Water Heaters ............................................................................................................................................................35-55

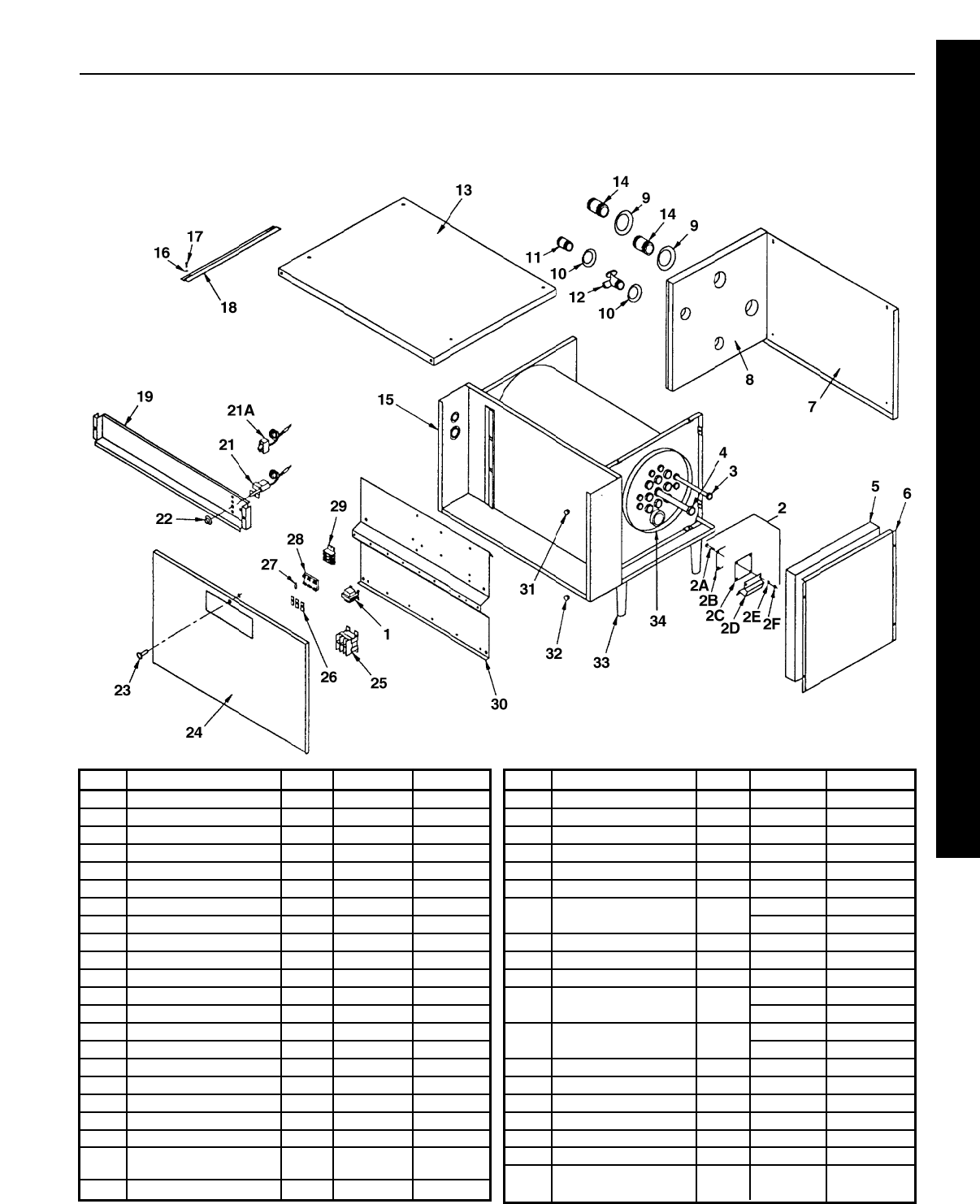

Commercial Water Heaters...........................................................................................................................................................56-65

Parts Reference Guide

Residential Water Heaters ............................................................................................................................................................66-71

Commercial Water Heaters...........................................................................................................................................................72-75

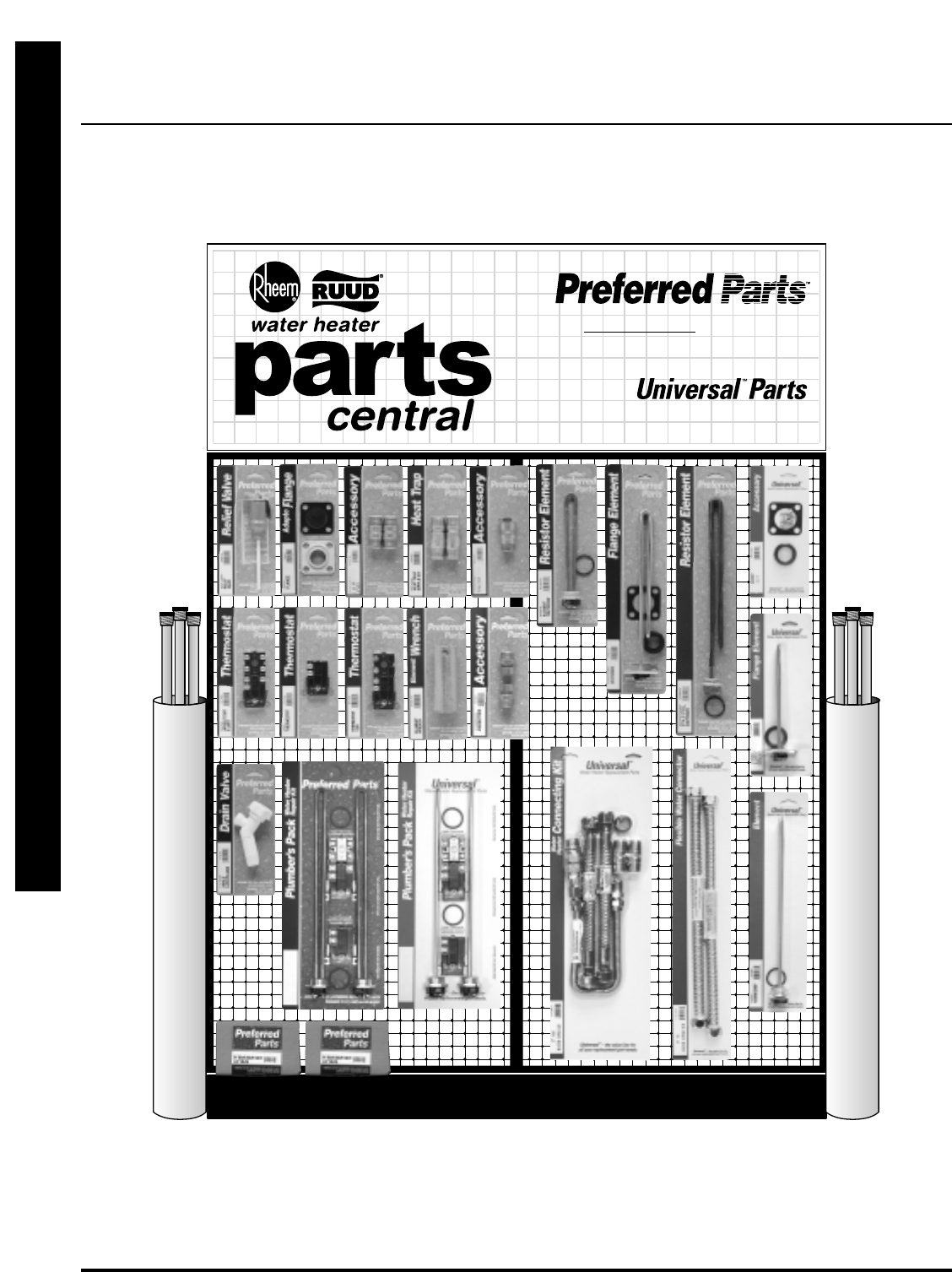

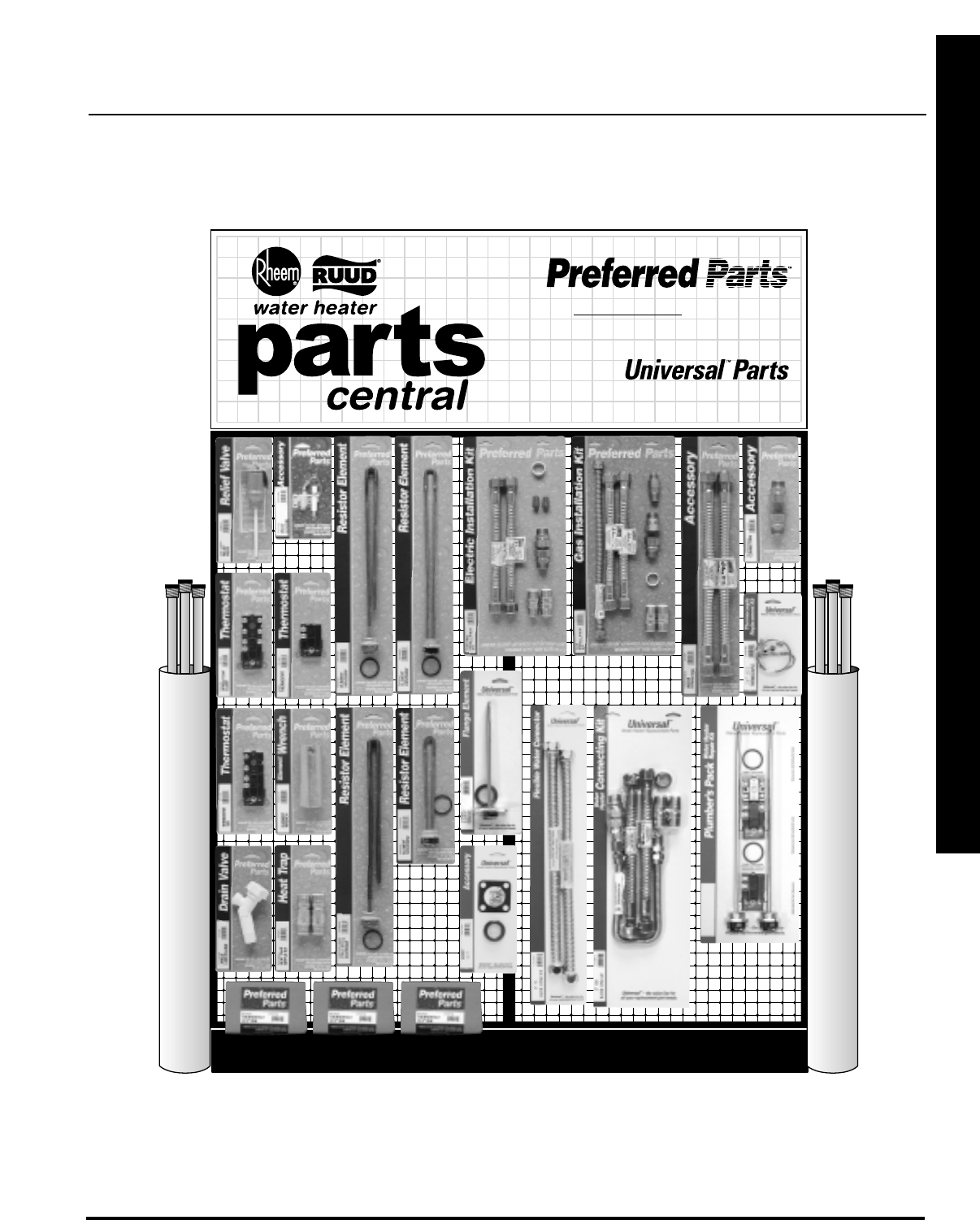

Display and Planograms ....................................................................................................................................................................76-79

Parts Warranty Claim Form.....................................................................................................................................................................80

A comprehensive catalog of approved replacement parts for Rheem®and Ruud®, Richmond®, PerfectFit™, and all GE and Hotpoint water heaters.

The Water Heater

PARTS

Guide 2006

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Elements may be ordered

in bulk. Box consists of

50 elements and 50

gaskets of the same

part number.

Resistored Stainless Steel Heating Elements

Preferred Parts resistored stainless steel elements feature a low watt density design with an

outer sheath of Incology®800 to resist failure from “dry firing”. Built in resistor helps prolong

anode life for greater tank protection and longer working life.

SCREW-IN ELEMENTS

• 480V/2000W, 9-1/2", LWD

SP10870GL (Single)

AP10870GL-3 (Bulk*: 50)

• 480V/3000W, 12-5/8", LWD

SP10870JL (Single)

AP10870JL-3 (Bulk*: 50)

• 480V/4000W, 16-1/4", LWD

SP10870LL (Single)

AP10870LL-3 (Bulk*: 50)

• 480V/4500W, 17-1/2", LWD

SP10870ML (Single)

AP10870ML-3 (Bulk*: 50)

• 480V/5000W, 19-1/8", LWD

SP10870NL (Single)

AP10870NL-3 (Bulk*: 50)

• 480V/6000W, 19-1/8", LWD

SP10870QL (Single)

AP10870QL-3 (Bulk*: 50)

• 277V/2000W, 19-1/2", LWD

SP10871GL (Single)

AP10871GL-3 (Bulk*: 50)

• 277V/3000W, 12-3/8", LWD

SP10871JL (Single)

AP10871JL-3 (Bulk*: 50)

• 277V/4000W, 16-1/4", LWD

SP10871LL (Single)

AP10871LL-3 (Bulk*: 50)

• 277V/4500W, LWD

SP10871ML (Single)

AP10871ML-3 (Bulk*: 50)

• 277V/5000W, 19-1/8", LWD

SP10871NL (Single)

AP10871NL-3 (Bulk*: 50)

• 277V/6000W, 19-1/8", LWD

SP10871QL (Single)

AP10871-QL-3 (Bulk*: 50)

• 240V/2000W, 9-1/2", LWD

SP10869GL (Single)

AP10869GL-5 (Bulk*: 50)

• 240V/2500W, 9-15/16", LWD

SP10869HL (Single)

AP10869HL-5 (Bulk*: 50)

• 240V/3000W, 12-3/8", LWD

SP10869JL (Single)

AP10869JL-5 (Bulk*: 50)

• 240V/3500W, 13-1/2", LWD

SP10869KL (Single)

AP10869KL-5 (Bulk*: 50)

• 240V/4000W, 16-1/4", LWD

SP10869LL (Single)

AP10869LL-5 (Bulk*: 50)

• 240V/4500W, 15-1/2", LWD

SP10869ML (Single)

AP10869ML-5 (Bulk*: 50)

• 240V/4500W, 13-1/2", MWD

SP10869MM (Single)

AP10869MM-5 (Bulk*: 50)

• 240V/5000W, 19-1/8", LWD

SP10869NL (Single)

AP10869NL-5 (Bulk*: 50)

• 240V/5500W, 13-1/2", HWD

SP10869PH (Single)

AP10869PH-5 (Bulk*: 50)

• 240V/6000W, 19-1/8", LWD

SP10869QL (Single)

AP10869QL-5 (Bulk*: 50)

• 208V/2000W, 9-1/2", LWD

SP10867GL (Single)

AP10867GL-3 (Bulk*: 50)

• 208V/3000W, 12-5/8", LWD

SP10867JL (Single)

AP10867JL-3 (Bulk*: 50)

• 208V/4000W, 16-1/4", LWD

SP10867LL (Single)

AP10867LL-3 (Bulk*: 50)

• 208V/4500W, 17-1/2", LWD

SP10867ML (Single)

AP10867ML-3 (Bulk*: 50)

• 208V/5000W, 19-1/8", LWD

SP10867NL (Single)

AP10867NL-3 (Bulk*: 50)

• 208V/6000W, 19-1/8", LWD

SP10867QL (Single)

AP10867QL-3 (Bulk*: 50)

• 120V/1440W, 7-11/16", HWD

SP10868LH (Single)

AP10868LH-5 (Bulk*: 50)

• 120V/1700W, 13-1/2", LWD

SP10868KL(Single)

AP10868KL-5(Bulk*: 50)

• 120V/2000W, 9-1/2", LWD

SP10868GL (Single)

AP10868GL-5 (Bulk*: 50)

PREFERRED PARTS / RESIDENTIAL ELEMENTS

HWD = High Watt Density

MWD = Medium Watt Density

LWD = Low Watt Density

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

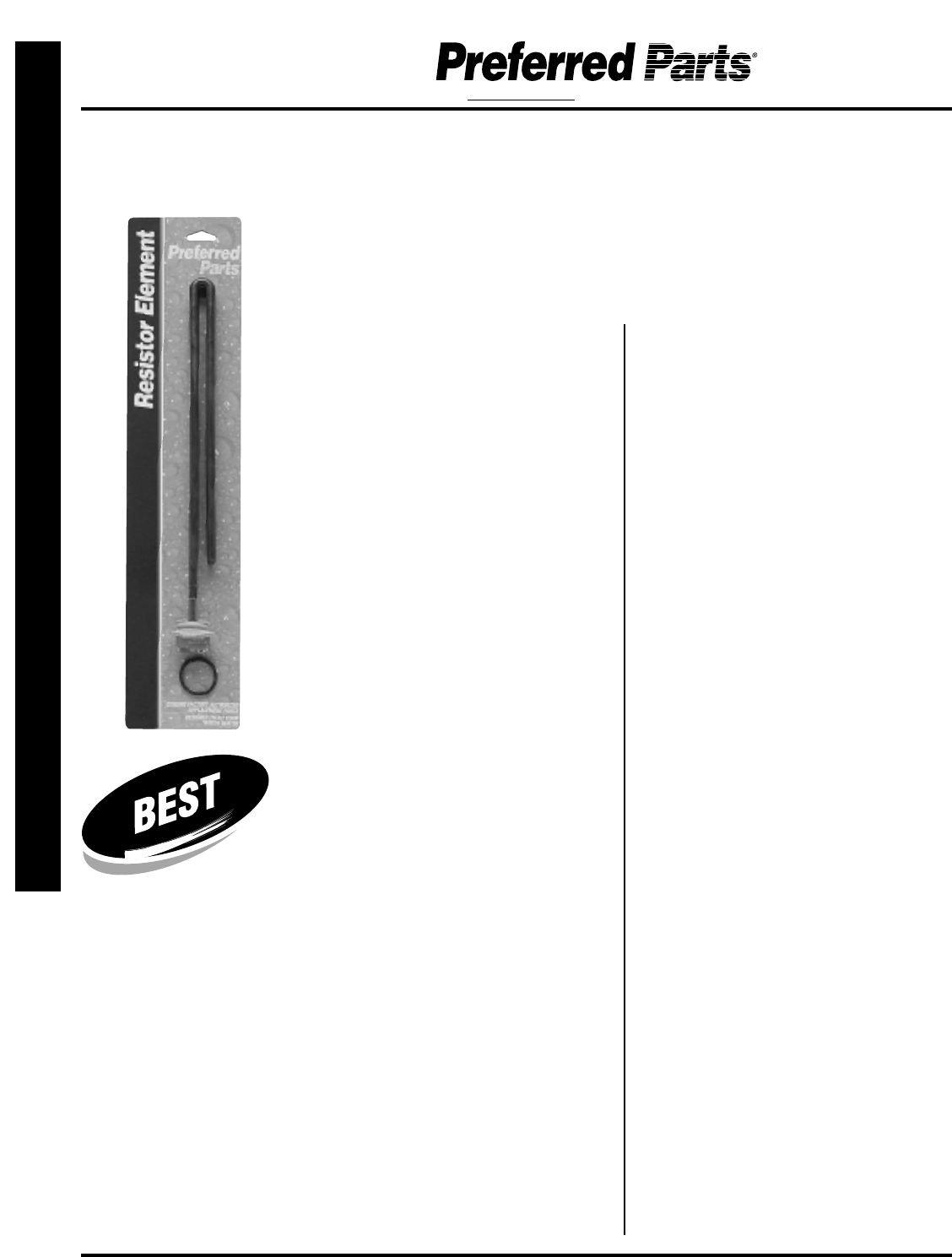

Resistored Copper Heating Elements

Preferred Parts energy efficient resistor copper heating elements help fight lime

build up and the resistor feature helps prolong the tank life of the water heater.

SCREW-IN ELEMENTS

• 240V/1500W, 10-5/8", LWD

SP10552FL (Single)

AP10552FL-3 (Bulk*: 50)

• 240V/2000W, 7-11/16", HWD

SP10552GH (Single)

AP10552GH-3 (Bulk*: 50)

• 240V/2000W, 13-5/8", LWD

SP10552GL (Single)

AP10552GL-3 (Bulk*: 50)

• 240V/2500W, 9-7/16", HWD

SP10552HH (Single)

AP10552HH-3 (Bulk*: 50)

• 240V/3000W, 10-5/8", HWD

SP10552JH (Single)

AP10552JH-3 (Bulk*: 50)

• 240V/3000W, 11-11/16", LWD

SP10552JL (Single)

AP10552JL-3 (Bulk*: 50)

• 240V/3500W, 13-3/8", LWD

SP10552KL (Single)

AP10552KL-3 (Bulk*: 50)

• 240V/4000W, 13-3/8", LWD

SP10552LL (Single)

AP10552LL-3 (Bulk*: 50)

• 240V/4500W, 13-5/8", HWD

SP10552MH (Single)

AP10552MH-3 (Bulk*: 50)

• 240V/4500W, 13-3/4", LWD

SP10552ML (Single)

AP10552ML-3 (Bulk*: 50)

• 240V/5000W, 13-3/4", LWD

SP10552NL (Single)

AP10552NL-3 (Bulk*: 50)

• 240V/5500W, 13-1/2", HWD

SP10552PH (Single)

AP10552PH-3 (Bulk*: 50)

• 240V/5500W

SP10552PL (Single)

AP10552PL-3 (Bulk*: 50)

• 240V/6000W, 11-3/4", HWD

SP10552QH (Single)

AP10552QH-3 (Bulk*: 50)

• 240V/6000W

SP10552QL (Single)

AP10552QL-3 (Bulk*: 50)

• 208V/2000W, 7-11/16", HWD

SP10872GH (Single)

AP10872GH-2 (Bulk*: 50)

• 208V/2000W, 13-5/8", LWD

SP10872GL (Single)

AP10872GL-2 (Bulk*: 50)

• 208V/2500W, 9-7/16", HWD

SP10872HH (Single)

AP10872HH-2 (Bulk*: 50)

• 208V/3000W

SP10872JH (Single)

AP10872JH-2 (Bulk*: 50)

• 208V/3000W, 11-11/16", LWD

SP10872JL (Single)

AP10872JL-2 (Bulk*: 50)

• 208V/4000W, 13-3/8", LWD

SP10872LL (Single)

AP10872LL-2 (Bulk*: 50)

• 208V/4500W

SP10872MH (Single)

AP10872MH-2 (Bulk*: 50)

• 208V/4500W, 13-3/4", LWD

SP10872ML (Single)

AP10872ML-2 (Bulk*: 50)

• 208V/5000W, 13-3/4", LWD

SP10872NL (Single)

AP10872NL-2 (Bulk*: 50)

• 208V/5500W, 13-7/16", LWD

SP10872PL (Single)

AP10872PL-2 (Bulk*: 50)

• 208V/6000W, 11-3/4", HWD

SP10872QH (Single)

AP10872QH-2 (Bulk*: 50)

• 208V/6000W, 15-1-16", LWD

SP10872QL (Single)

AP10872QL-2V (Bulk*: 50)

• 120V/1500W, 7-11/16", HWD

SP10874FH (Single)

AP10874FH-2 (Bulk*: 50)

• 120V/1700W, 11-1/2", LWD

SP10874KL (Single)

AP10874KL-2 (Bulk*: 50)

• 120V/2000W, 7-11/16", HWD

SP10874GH (Single)

AP10874GH-2 (Bulk*: 50)

• 120V/2500W, 9-7/16", HWD

SP10874HH (Single)

AP10874HH-2 (Bulk*: 50)

• 120V/3000W, 10-5/8", HWD

SP10874JH (Single)

AP10874JH-2 (Bulk*: 50)

OPEN COIL ELEMENTS

• 120V/1500W

AP13169

• 120V/2000W

AP13170

• 240V/1500W

AP13171

• 240V/2000W

AP13172

PREFERRED PARTS / RESIDENTIAL ELEMENTS

Elements may be ordered

in bulk. Box consists of

50 elements and 50

gaskets of the same

part number.

HWD = High Watt Density

MWD = Medium Watt Density

LWD = Low Watt Density

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Plumber’s Pack Kit - includes two resistored 4500 watt screw-in

copper heating elements, two heating element gaskets, and

upper & lower thermostats (all of which are factory preferred

replacement quality)

SP20060 (single)

Now available…

an all-in-one tune-up kit for

the plumbing professional!

Preferred Parts Plumber’s Pack

The plumber’s pack is an all-inclusive “tune-up” kit for electric water

heaters featuring the most popular replacement parts on the market.

• Factory preferred copper heating elements for longer element life

• Patented R-tech Technology helps prolong tank life

• Upper and lower thermostats are included for a complete

“tune-up” for the water heater

• Faster Recovery

• Energy efficient resistor heating elements help fight

lime build-up and prolong tank life

PREFERRED PARTS / RESIDENTIAL PLUMBER’S PACK

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Electric thermostats may be ordered in bulk. Box consists of 50 thermostats of the

same part number. Bulk pricing is less than the single price. Please call for pricing.

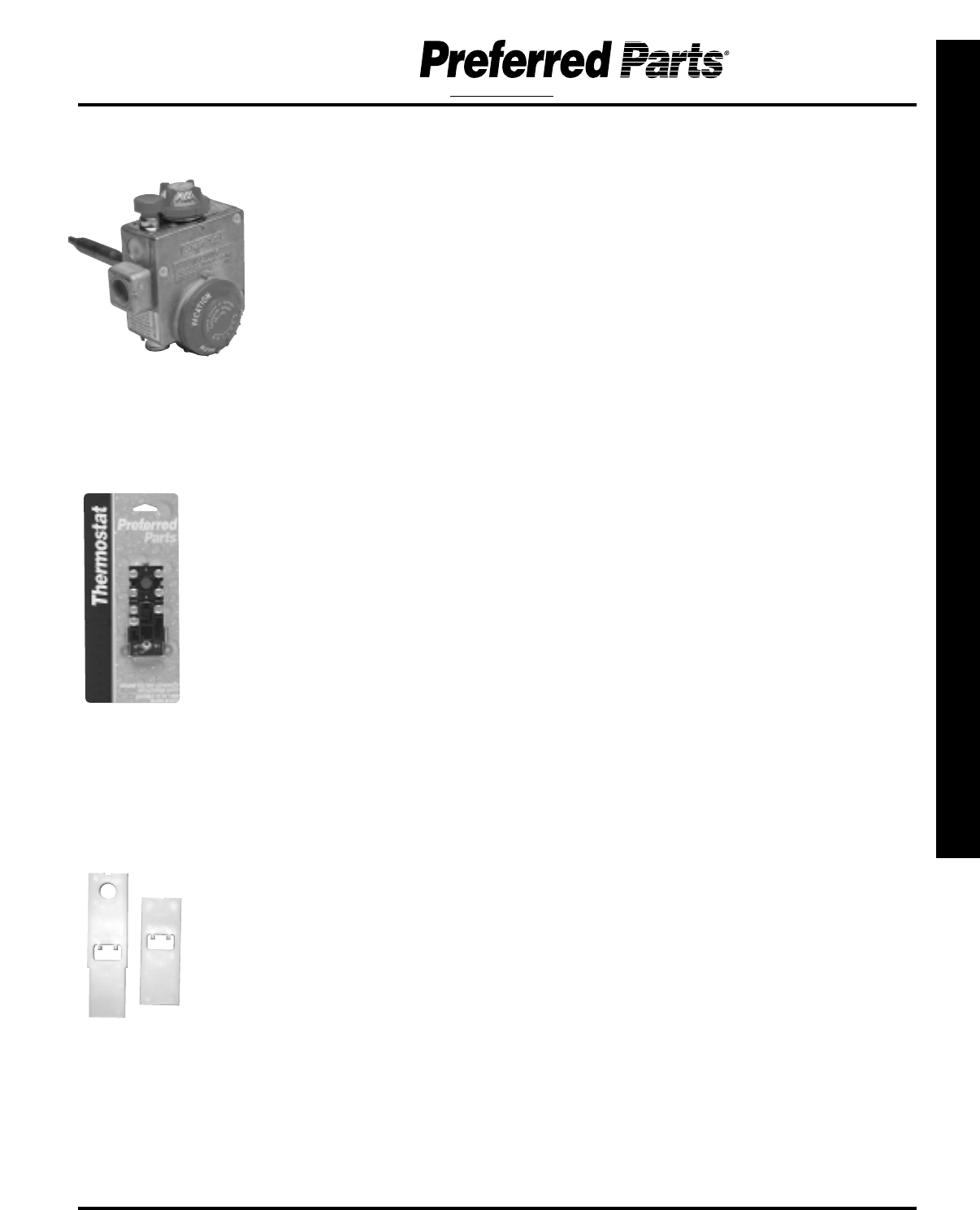

Gas Thermostats:

• Designed to sense the water

temperature inside the tank, and

control on/off function of the main

burner assembly

Electric Thermostats:

• Temperature range of 100° F

to 150° F

• Models are available for upper and

lower heating elements on double

element 240V and single element

120V water heaters

Preferred Parts™Electric

Thermostat Covers

Gas Thermostats

• Robertshaw LP Gas Thermostat

(57-160 degrees) control

valve with left hand main burner outlet threads with 1 1/4"

shank - single use high limit (200 degrees) - 1/2" inlet & outlet

SP12258B (single)

SP12258N (single)

• Robertshaw Convertible Natural and LP Gas Thermostat

(

150 degree max) for Manufactured Housing with 1 1/4"

shank - single use high limit (195 degree)

SP9051B (single)

• Robertshaw Natural Gas Thermostat - (57-160 degrees)

control valve with 1 1/4" shank - single use high limit

(200 degrees) - 1/2" inlet & outlet

SP8555B (single)

• Robertshaw Natural Gas Thermostat - (57-160 degrees)

control valve with 2 7/8" shank - single use high limit

(200 degrees) - 1/2" inlet & outlet

SP8555P (single)

Electric Thermostats*

• Therm-O-Disc Upper Thermostat (max 150 degree) & High

Limit (170 degree) - Two element non-simultaneous 208,

240, 277, 480 volt

SP11698 (single)

• Therm-O-Disc Upper Thermostat (max 150 degree) & High

Limit (170 degree) - Two element simultaneous 208, 240,

277, 480 volt

SP11699 (single)

• Therm-O-Disc Upper Thermostat (max 150 degree) & High Limit

(170 degree) - Single element 120 volt

SP11700 (single)

• Therm-O-Disc Lower Thermostat (max 150 degrees)

simultaneous and non-simultaneous 208,240,277,480 volt

SP11695 (single)

• Adapter Kit

(1) flat gasket, (1) round gasket, (1) element adapter

SP6830 (single)

Electric Thermostat Covers

• Upper Thermostat Cover

AP8313-9 (single)

• Lower Thermostat Cover

AP8314-9 (single)

PREFERRED PARTS / RESIDENTIAL THERMOSTATS

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Thermocouple

This bi-metal device

detects pilot flame heat

and carries millivolt

current to the magnet

assembly in the gas

control valve which

sends gas to the

burner assembly to

ignite the burner.

Pilot Burner

Designed to light the

main burner when the

thermostat senses the

demand for more heat.

T & P Relief

Valve:

Safety device that

allows water to

escape from the

tank in the unlikely

event that the

temperature or

pressure becomes

excessive. Designed

to operate at

approx. 150 PSI

and 210º F.

Drain Valve:

Used to drain hot

water from the tank

when performing

periodic cleaning or

replacing a part.

PREFERRED PARTS / RESIDENTIAL COMMON REPLACEMENT PARTS

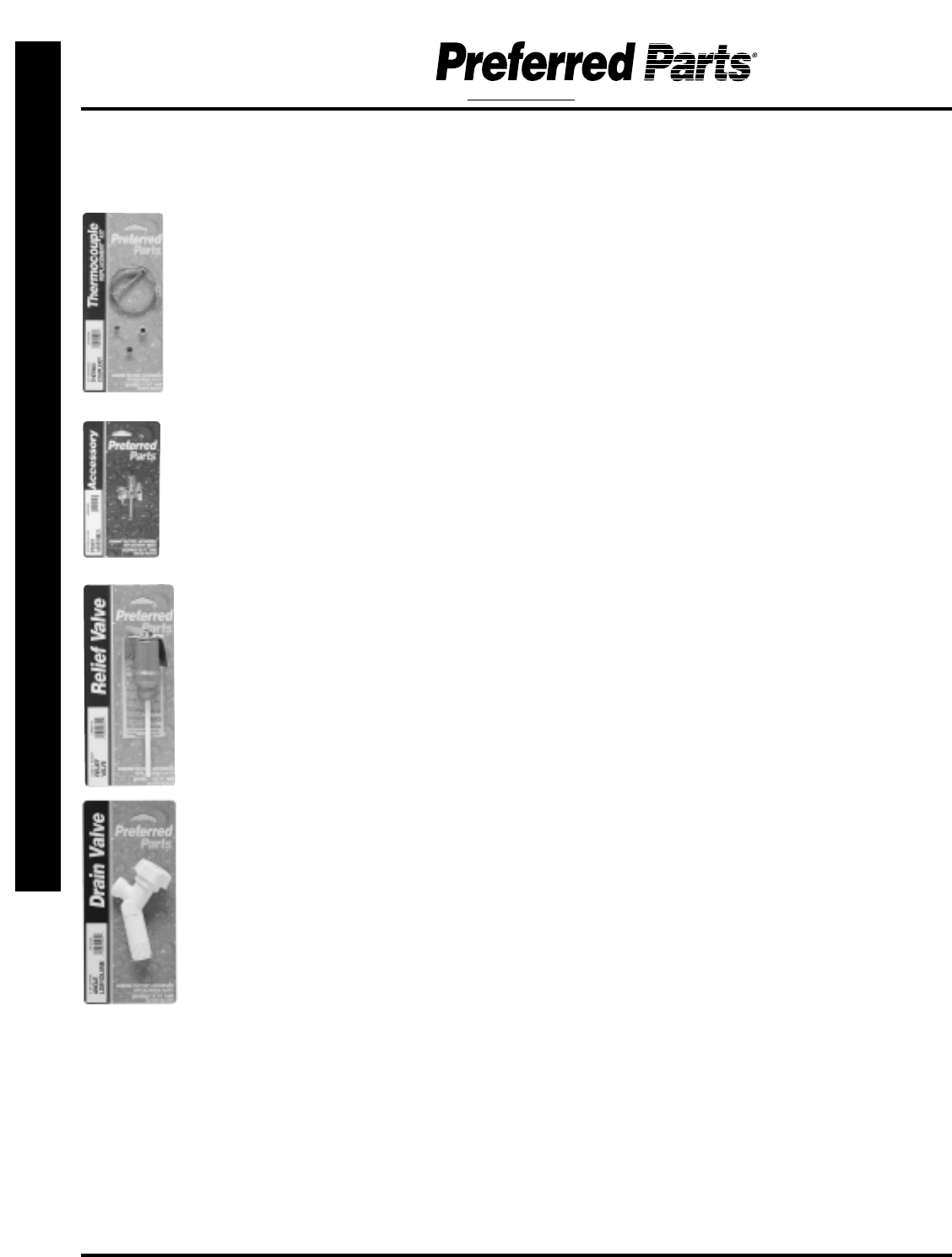

Thermocouples

• 15” Thermocouple

SP6379E (single)

• 17” Thermocouple

SP6379K (single)

• 21” Thermocouple

SP6379C (single)

• 24” Thermocouple

SP6379R (single)

• 30” Thermocouple

SP6379H (single)

Pilot Burner Assemblies

• Natural Gas Pilot Burner Assembly - .0115 orifice

SP8980B (single)

• LP Gas Pilot Burner Assembly - .008 orifice - colored red for

easy LP identification

SP8980C (single)

Temperature & Pressure Relief Valves

• Watts 100XL-4; 3/4" inlet x 3/4" discharge - M150# (150 PSI

pressure / 210 degree temperature) up to 100,000 BTU

SP12574 (single)

• Watts 100XL; 3/4" inlet x 3/4" discharge (150 PSI pressure /

210 degree temperature) - long shank up to 100,000 BTU

SP8346 (single)

• T&P Extender; 3/4" x 2-1/2" Poly Liner

SP11620 (single)

Drain Valves

• Brass Drain Valve; 3/4" x 2 1/4" shank

SP6070G (single)

• Brass Drain Valve; 3/4" x 3" shank - Commercial Light Duty

SP6070S (single)

• Standard Melet; 3/4" NPT x 2 1/4" shank

SP12039 (single)

• Brass Drain Valve; 3/4" x 2 1/4" shank – Residential

SP12112G (single)

Gas Connectors

• 12” Stainless Steel Gas Connector MIPXMIP

AP13140A

• 18” Stainless Steel Gas Connector MIPXMIP

AP13140B

• 24” Stainless Steel Gas Connector MIPXMIP

AP13140C

Pro Coat Gas Connectors

• 12” Pro Coat Gas Connector

AP13318A

• 18” Pro Coat Gas Connector

AP13318B

• 24” Pro Coat Gas Connector

AP13318C

• 48” Pro Coat Gas Connector

AP13318D

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Flexible Link

Anode Rod:

Metallic rod installed

inside the tank to

protect against

corrosion. The

“R-Tech”®anode rod

is made of magnesium

and is designed to

offer the longest

lasting tank protection.

Dip Tube

Non-metallic. Runs from

the cold water inlet to

deliver cold water to the

bottom of the tank as

hot water is drawn out.

Basic Installation Kit

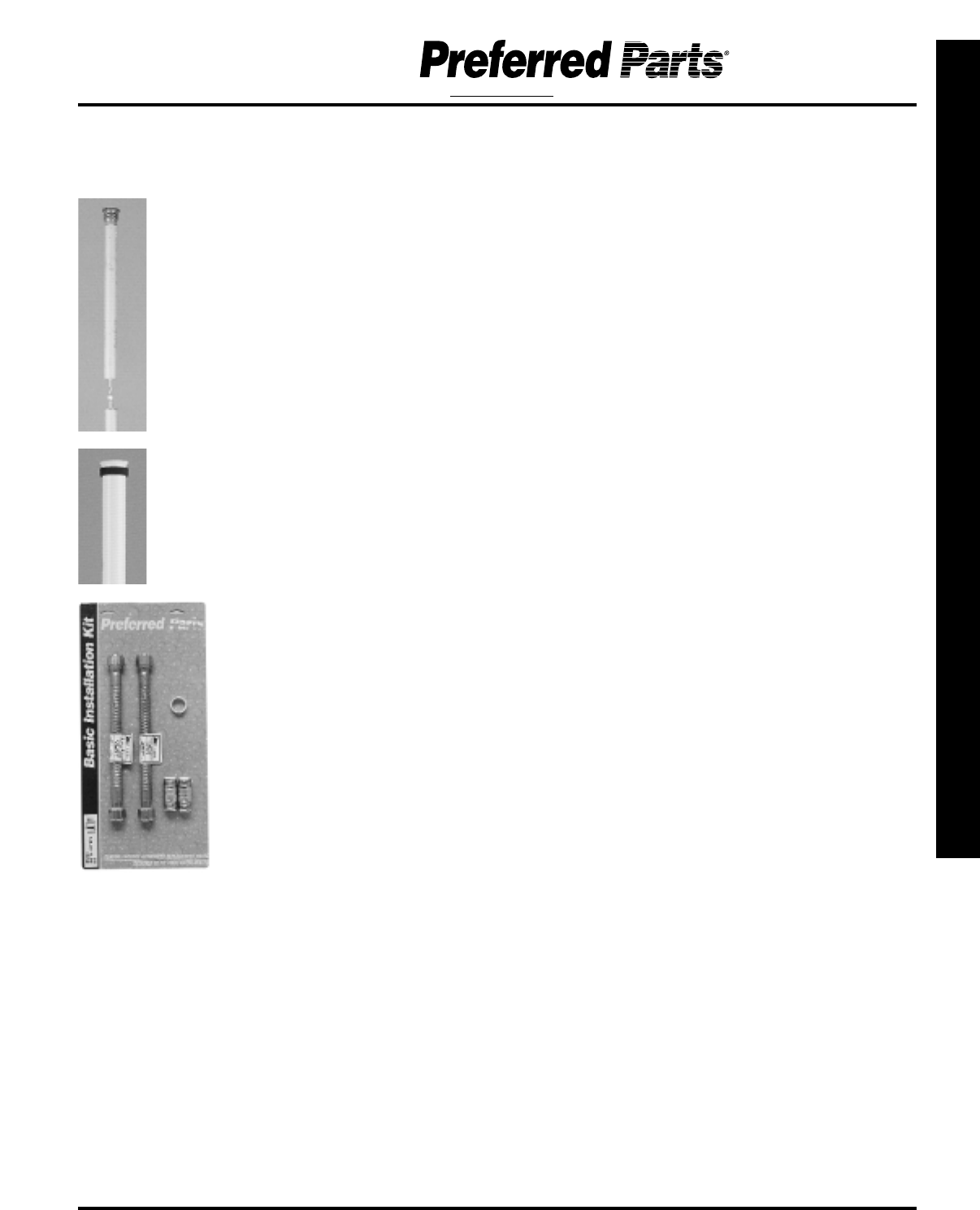

Anode Rods

• R Tech Resistor Magnesium Anode Rod 44" long x .700 dia

SP11309C (single)

• Galvo Magnesium 44" long x .840 dia

SP11345C (single)

• Magnesium Anode Rod 44" long x .840 dia

SP11524C (single)

• Magnesium Anode Rod 58" long x .840 dia

SP11524Z (single

• R Tech Resistor Magnesium Anode Rod 44" long x .900 dia

SP11526C (single)

• R Tech Resistor Magnesium flexible link Anode Rod

52" long - 12" sections

SP8371B (single)

• Aluminum Anode Rod 42" long x .625 dia

AP12938 (single)

Dip Tubes*

• Dip Tube with anti-siphon hole - 3/4” x 54” long - clear

(North Carolina code) with gasket

SP11251R (single)

• Dip Tube with anti-siphon hole - 1” x 26” long with gasket

SP11269C (single)

• Dip Tube with anti-siphon hole - 3/4” x 54” long with gasket

SP11248R (single)

* Due to the unique application of the EverKleen Dip Tube, please

call for part number and pricing. Have the model number and

serial number of the water heater on hand.

Installation Kits

• Basic Installation Kit

SP20009

• Gas Installation Kit

SP20010

• Electric Installation Kit

SP20011

PREFERRED PARTS / RESIDENTIAL COMMON REPLACEMENT PARTS

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

• Pilot Assembly (21V30-30F)

SP20065(single)

• Pilot Assembly (21V30S-30, 21V30S-30TF,

41V40-40F, 41V40-40HF, 22V30-30F)

SP20069 (single)

• Pilot Assembly (41V40-36PF, 41V40-36PHF,

22V30-27PF)

SP20070 (single)

• Pilot Assembly (41V40S-40F, 41V50-40F,

41V50-40HF)

SP20071 (single)

• Pilot Assembly (41V40S-36PF, 41V40S-36PHF,

41V50-36PF, 41V50-36PHF)

SP20072 (single)

• Pilot Assembly (41VR40-40F, 41VR40-40HF,

41VR50-40F, 41VR50-40HF, 22V30S-30F,

42V40S-34F, 42V40S-36F, 42V40S-40F,

42V40S-40PROF, 42V38-40F, 42V38-40PROF,

42V40-40F, 42V40-40HF, 42V40-40PROF,

42V40-40PROHF,42V50-36F, 42V50-40F,

42V50-40HF, 42V50-40PRO, 42V50-40PROHF)

SP20075 (single)

• Pilot Assembly (41VR40-36PF, 41VR50-36PF,

42V40S-36PF, 42V40S-36PROPF, 42V38-34PF,

40V40-34PF, 42V40-34PHF, 42V50-36PF,

42V50-36PHF, 42V50-40PROPF,

42V50-36PROPHF)

SP20076 (single)

• Gasket Kit (Fits all)

SP20063

(single)

• Thermocouple Kit

SP20064

(single)

• Heat Traps

SP20003

(single)

• Drain Valve

SP12112G

(single)

• Relief Valve

SP12575B

(single)

• Gas Valve - Natural Gas (21DV50, 21V40S,

22V30, 22V50, 25V30, 25V30S, 25V40, 25V40S,

25V50-4, 25V50)

SP8555B

• Gas Valve - Natural Gas (22V30FV, 22V30SFV,

42V38FV, 42V40FV, 42V40SFV, 42V50FV)

SP8555R

• Gas Valve - Natural Gas (22DV40S, 22DV50)

SP8555U

• Gas Valve - Natural Gas (42V50FV)

SP8555W

• Gas Valve - Natural Gas (42VR40FV, 42VR50FV)

SP8555T

• Gas Valve - LP Gas (21V40S, 22V30, 22V50,

25V30, 25V30S, 25V40, 25V40S, 25V50-4,

25V50)

SP12258B

• Gas Valve - LP Gas (22V30FV, 42V38FV,

42V40FV, 42V40SFV, 42V50FV)

SP13160E

• Gas Valve - LP Gas (42VR40FV, 42VR50FV)

SP13160D

* All kits include a #20 Torx screwdriver

PREFERRED PARTS / RESIDENTIAL FVIR WATER HEATER

FVIR (Flammable Vapor Ignition Resistant) Parts

PARTS DIAGRAM

ON PAGE 38

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential 60-50 Gas Parts

• Thermostat (Natural)

SP20085K (single)

• Thermocouple

SP6379K (single)

• Burner Assy Natural (#30 Orifice)

SP20084A (single)

• Burner Assy Low Nox(#30 Orifice)

SP20084D (single)

• Burner Assy LP High Altitude (#47 Orifice)

SP20084F (single)

• Drain Valve Shroud

AP9167 (single)

• Drain Valve

SP12112G (single)

• Jacket Door

SP20084K

(single)

• Inner Door

SP20084H

(single)

• Flue Baffle

SP20084G

(single)

• Anode Rod

SP11526S

(single)

• Draft Hood

SP20084J

(single)

• Dip Tube (30” Polysulfone)

AP11251G-2

(single)

• Dip Tube (36” Polysulfone)

AP11625Q

(single)

• Dip Tube Gasket

AP6948-3

(single)

• T&P Relief Valve

SP12574

(single)

PREFERRED PARTS / RESIDENTIAL 60-50 WATER HEATER

PARTS DIAGRAM

ON PAGE 36

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

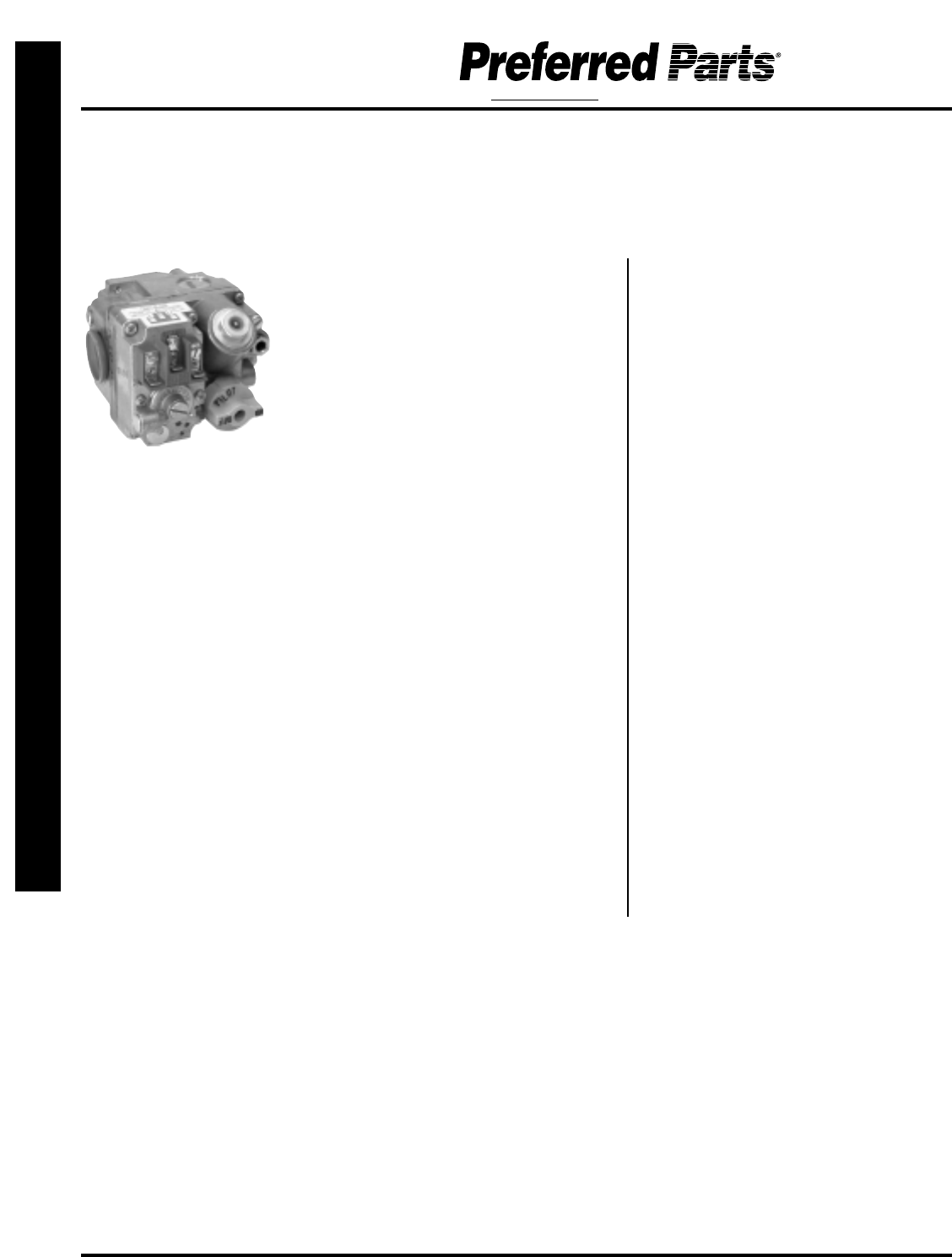

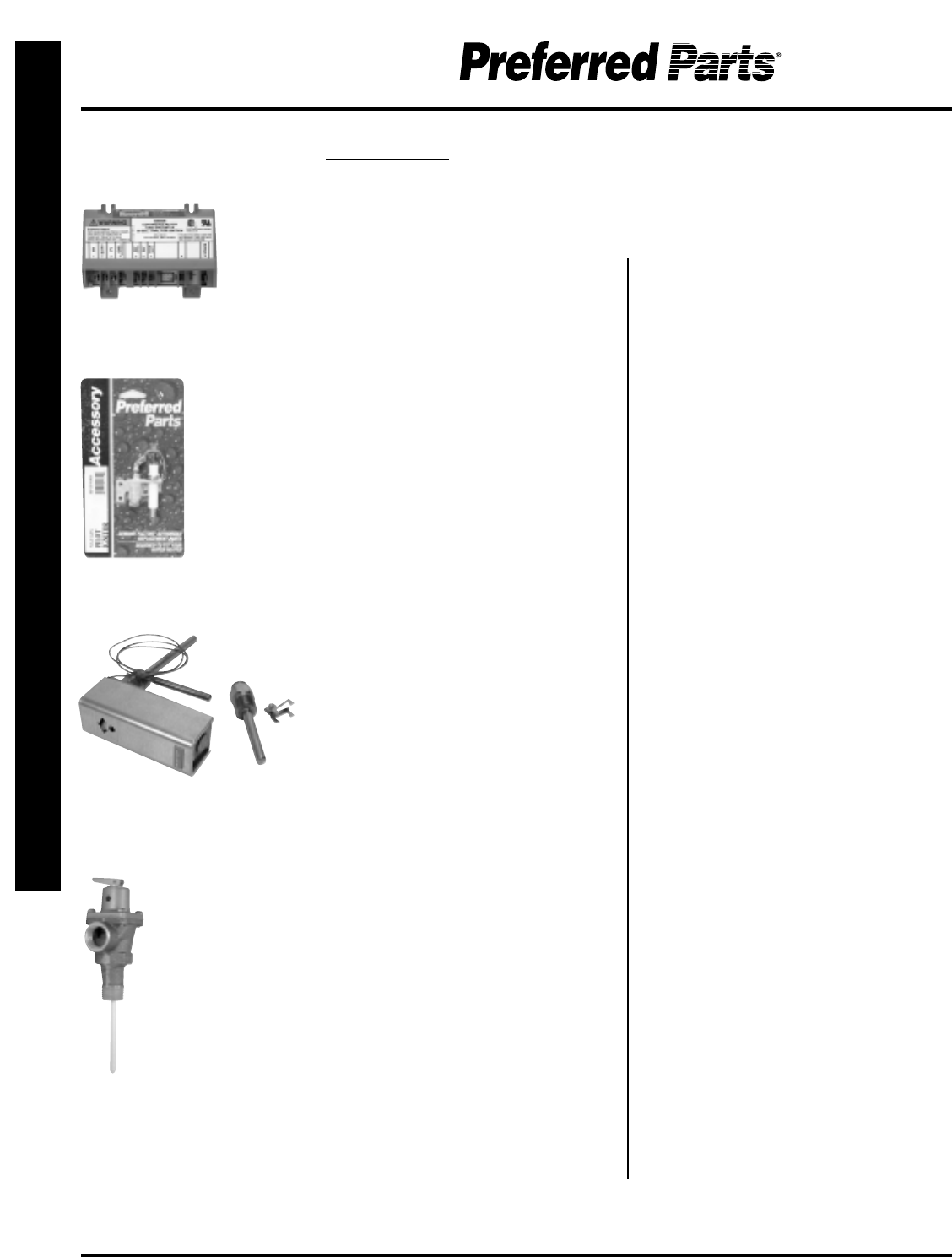

Natural Gas Control Valve

Ignition Control

Blower Motor Assembly

Pilot Burner

and Ignitor

Sensor:

PREFERRED PARTS / RESIDENTIAL POWERVENT

PowerVent Replacement Parts

• Honeywell 24V Natural Gas Control Valve,

PowerVent Series, 1/2” inlet x 3/8” outlet - 40/50/75

gallon Residential and Commercial models

SP11652B (single)

• Natural Gas Valve (1992-1995)

SP10886B (single)

• Honeywell 24V LP Gas Control Valve, PowerVent

Series, 1/2” inlet x 3/8” outlet - 40/50/75 gallon

Residential and Commercial models

SP11652C (single)

• LP Gas Valve (1992-1995)

SP10886C (single)

•

Honeywell Ignition Control - S8600M - Continuous

Retry - 24V - used with electronic ignition system

SP10763B

(single)

•

Honeywell Ignition Cable - 25 inch - 1/4”

disconnect with rubber boot on pilot end

SP8828D

(single)

•

Three Try Ignition Control for Hot Surface Ignition

Models

SP10758

(single)

•

Therm-O-Disc Residential Thermostat (max 140

degrees) and high limit (180 degrees) 40, 50 & 75

gallon residential

SP12390 (single)

• Therm-O-Disc Residential Thermostat (max 160

degrees) and high limit (190 degrees)75 gallon

commercial only

SP12391 (single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - Natural Gas - 40-50 gallon

SP12049B (single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - LP Gas - 40-50 gallon

SP12049C

(single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - Natural Gas - 75 gallon

SP12049D

(single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - LP Gas - 75 gallon

SP12049E

(single)

•

Hot Surface Ignitor - 115V, 1800 degree F, with 19”

female quick connect leads - Natural or LP

SP10972

(single)

•

Vacuum Switch

SP11875

(single)

•

Vacuum Switch (Prior to June, 1991)

SP10887K

(single)

•

Transformer, 120VAC to 24VAC

SP11787

(single)

•

Blower Motor Assembly 40, 50 gallon standard

AP10983-4

(single)

•

Blower Motor Assembly 40, 50 gallon - High

Altitude only

AP10984-3

(single)

•

Blower Motor Assembly 75 gallon residential or

commercial

SP11608

(single)

PARTS DIAGRAM

ON PAGES 40-41

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Blower Assembly

Wiper Control and Gas

Valve Assembly

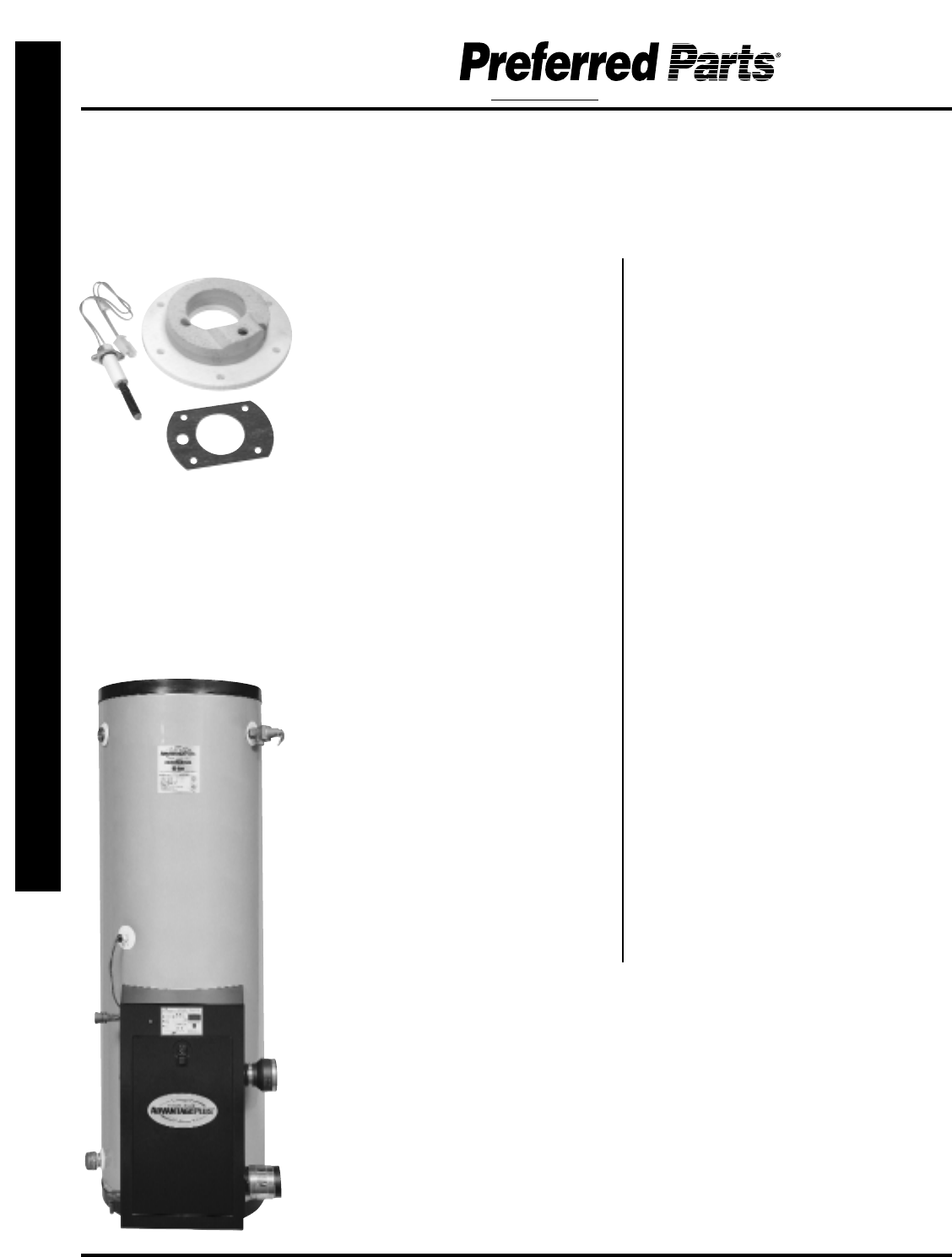

PREFERRED PARTS / RESIDENTIAL POWERVENT 2

PowerVent 2 Replacement Parts

• Blower Assembly - Integrated vent hood, includes

installed vacuum switch (SP12766), power cord,

and vent coupling (SP12638). This fits the

PowerVent 2 product only.

SP12562

(single)

• Anode Rod

SP11309C

(single)

•

Flue Baffle with hanger (has extra resistors)

AM39341

(single)

•

Temperature & Pressure Relief Valve

SP8346

(single)

•

Dip Tube

SP11251R

(single)

•

Dip Tube Gasket

AP6948-3

(single)

•

Drain Valve

SP12112S

(single

•

Drain Valve Shroud

AP9167

(single)

•

Inner Door

AM29501

(single)

•

Outer Door

AM29254-4C

(single)

•

Protective Cover (cover for wiper control)

AP12558

(single)

•

Burner Assembly (40 Gal Natural Gas - Low NOx)

AM39503RY

(single)

•

Burner Assembly (40 Gal LP Gas)

AM39504RM

(single)

•

Burner Assembly (50 Gal Natural Gas - Low NOx)

AM39503SY

(single)

•

Burner Assembly (50 Gal LP Gas)

AM39504SM

(single)

•

Heat Trap Kit

SP20003

(single)

•

Terminal Vent Assembly

AM39508

(single)

• 2-inch

45 Degree PVC

AP12646

(single)

•

Vacuum Tube

AP12768

(single)

• Vent Coupling, 2” rubber coupling with clamps.

Connects blower to 2” PVC pipe.

This fits the

PowerVent 2 product only.

SP12638

(single)

• Spark Ignitor and Pilot Assembly - Natural Gas.

This fits the PowerVent 2 product only.

SP12560B

(single)

• Spark Ignitor and Pilot Assembly - LP Gas.

This fits the PowerVent 2 product only.

SP12560C

(single)

• Wiper Control and Gas Valve Assembly - Natural

Gas, includes wire cover.

This fits the PowerVent 2

product only.

SP12556

(single)

• Wiper Control and Gas Valve Assembly - LP Gas,

includes wire cover.

This fits the PowerVent 2

product only.

SP12557

(single)

• Vacuum Switch.

This fits the PowerVent 2 product

only.

SP12766

(single)

• On/Off Switch

AP12767

(single)

• Blower Motor

(VR units only)

AP13194 (single) (For 41VRP50-55 only)

• Blower Motor

(22VRP75)

AP13211

(single)

PARTS DIAGRAM

ON PAGE 43

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

PREFERRED PARTS / RESIDENTIAL MARATHON

Marathon Replacement Parts

HEATING ELEMENTS

•Lower Element (3800W), MR30, MR40 gallon

models

SP212700 (single)

•Lower Element (3000W), MR50, MSR50, MR75,

MR85, and MR105 gallon models

SP212750 (single)

•Lower Element (3800W), MR50 gallon model

SP212760 (single)

•Lower Element (3800W), MSR50, MR75, MR85,

MR105 gallon models

SP212770 (single)

•Lower Element (4500W), MR50 gallon model

SP212780 (single)

•Lower Element (4500W), MSR50, MR75, MR85,

MR105 gallon models

SP212790 (single)

•Heating Element (3000W/240V)

SP213480 (single)

•Heating Element (2000W/120V)

SP213540 (single)

•Upper Element (3800W)

SP610130 (single)

•Upper Element (3000W)

SP610150 (single)

•Upper Element (4500W)

SP610160 (single)

•Lower element (4500W), MR30, MR40 gallon

SP610680 (single)

•Lower Element (3000W), MR30, MR40 gallon

SP610690 (single)

•Heating Element (5500W)

SP10698PH (single)

•Heating Element (4500W/240V)

SP10698MH (single)

•Heating Element (5500W/240V)

SP10698RL (single)

REPLACEMENT PARTS

•Knock Out Bracket

SP213070 (single)

•Lower Access Panel Cover

SP213090 (single)

•Use and Care Manual

SP213270 (single)

•Access Panel Cover Insulation

SP213340 (single)

•Thermostat Insulation

SP213350 (single)

•Use and Care Manual Supplement

SP213360 (single)

•120V Temperature Control Thermostat

SP213590 (single)

•240V Temperature Control Thermostat

SP213600 (single)

•Use and Care Manual

SP213620 (single)

•Use and Care Manual Supplement

SP213630 (single)

•Vacuum Relief Assembly

SP221790 (single)

•Dip Tube (MR85, MR105 gallon models)

SP230018 (single)

•Dip Tube (MSR50 gallon short model)

SP230019 (single)

•Dip Tube (MR15, MR20 gallon models)

SP230021 (single)

•Dip Tube (MR30 gallon model)

SP230023 (single)

•Dip Tube (MR75 gallon model)

SP230024 (single)

•Dip Tube (MR40, MR50 gallon models)

SP230025 (single)

•Seal Ring (MR30, MR40, MR50, MSR50,

MR75, MR80 gallon models)

SP230090 (single)

•Seal Ring Hot Side (MR105 gallon model only)

SP230110 (single)

•Pipe Wrap Energy Kit

SP231520 (single)

•Lock Washer

SP231710 (single)

•Cap Screw

SP240420 (single)

•Grommet Hot Side (MR105 gallon model only)

SP240480 (single)

•Grommet Hot Side (MR30, MR40, MR50,

MSR50, MR75, MR85 gallon models)

SP240490 (single)

•Lower Protector

SP310010 (single)

•Lower Thermostat

SP310020 (single)

•Upper Protector

SP310040 (single)

•Element Gasket

SP310060 (single)

•Upper Temperature Control Thermostat

SP310230 (single)

•Screw #10-32 x 3/8

SP310240 (single)

•Drain Valve

SP310270 (single)

•Screw #10-16 x 5/8

SP330020 (single)

•Reducer Bushing 1” x 3/4” (MR105)

SP330030 (single)

•T & P Valve

SP330040 (single)

•Drain Valve

SP330090 (single)

•Screw #8

SP330180 (single)

•Reducer 1” x 3/4” Cold Side

SP330200 (single)

•Tee 3/4” x 3/4” x 3/4”

SP330210 (single)

•Nipple 3/4” x 3”

SP330230 (single)

•Junction Box Cover

SP410910 (single)

•Upper Access Panel

SP411800 (single)

•Lower Access Panel

SP411810 (single)

•Access Panel

SP412050 (single)

•Element Wrench

SP610070 (single)

RESIDENTIAL The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Lime Eater

Accessories

• Lime Eater, 1 gallon jug

SP11237B (single)

• Mobile Home Straps

AP11154 (single)

• Earthquake Straps

SP13345 (single)

• Heat Traps

SP20003 (single)

• Water Heater Stand, 21” X 21” X 16”

SP13044

•

ProtectionPlus 4-Yr. Limited Warranty Extension Kits* -

Pkg. of 6 (no single kit orders)

SP20079

* For use on: Professional, Fury, Pacemaker, Heavy Duty, PowerVent and Direct Vent models.

Not for use on: Warrior, Warrior DV, Marathon, Point-of-Use or Table Top models.

Expansion Tanks

PREFERRED PARTS / RESIDENTIAL ACCESSORIES

Thermal Expansion Tanks

Save Energy and Money

Expanded (heated) water is absorbed by a Thermal

Expansion Tank which means...

• Water heater and fixtures are protected

• Eliminates BTU and water waste, saving money and energy

• No dangerous pressure build up in the system

• Relief valves will not be triggered

• Potential safety hazard reduced

• RRT Therm-X-Guard Expansion Tank 2.5 Gal

RRT-5 (Single)

• RRT Therm-X-Guard Expansion Tank 5 Gal

RRT-12 (Single)

• RRT Therm-X-Guard Expansion Tank 10 Gal

RRT-25 (Single)

ProtectionPlus

Kit

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

Resistored Stainless

Steel Screw-in Elements

feature:

• Low watt density design

• Outer sheath of Incoloy®800 to

resist failure from “dry firing”

• Built in resistor to help prolong

tank life for greater tank

protection and longer

working life

Resistored Stainless Steel Heating Elements

Preferred Parts energy efficient resistor copper heating elements help fight lime

build up and the resistor feature helps prolong the tank life of the water heater.

SCREW-IN ELEMENTS

• 480V/2000W, 9-1/2", LWD

SP10870GL (Single)

AP10870GL-3 (Bulk*: 50)

• 480V/3000W, 12-5/8", LWD

SP10870JL (Single)

AP10870JL-3 (Bulk*: 50)

• 480V/4000W, 16-1/4", LWD

SP10870LL (Single)

AP10870LL-3 (Bulk*: 50)

• 480V/4000W (PowerPack)

AP12879LL (Bulk*: 50)

• 480V/4500W (PowerPack)

AP12879ML (Bulk*: 50)

• 480V/4500W, 17-1/2", LWD

SP10870ML (Single)

AP10870ML-3 (Bulk*: 50)

• 480V/5000W, 19-1/8", LWD

SP10870NL (Single)

AP10870NL-3 (Bulk*: 50)

• 480V/5000W (PowerPack)

AP12879NH (Bulk*: 50)

• 480V/6000W, 19-

1/8", LWD

SP10870QL (Single)

AP10870QL-3 (Bulk*: 50)

• 480V/4000W (PowerPack)

AP12879QH (Bulk*: 50)

• 277V/4000W (PowerPack)

AP12880LL (Bulk*: 50)

• 277V/4500W (PowerPack)

AP12880ML (Bulk*: 50)

• 277V/5000W (PowerPack)

AP12880NH (Bulk*: 50)

• 277V/6000W (PowerPack)

AP12880QH (Bulk*: 50)

• 240V/2000W, 9-1/2", LWD

SP10869GL (Single)

AP10869GL-5 (Bulk*: 50)

• 240V/2500W, 9-15/16", LWD

SP10869HL (Single)

AP10869HL-5 (Bulk*: 50)

• 240V/3000W, 12-3/8", LWD

SP10869JL (Single)

AP10869JL-5 (Bulk*: 50)

• 240V/3500W, 13-1/2", LWD

SP10869KL (Single)

AP10869KL-5 (Bulk*: 50)

• 240V/4000W, 16-1/4", LWD

SP10869LL (Single)

AP10869LL-5 (Bulk*: 50)

• 240V/4000W (PowerPack)

AP12878LL (Bulk*: 50)

• 240V/4500W, 15-1/2", LWD

SP10869ML (Single)

AP10869ML-5 (Bulk*: 50)

• 240V/4500W, 13-1/2", MWD

SP10869MM (Single)

AP10869MM-5 (Bulk*: 50)

• 240V/5000W, 19-1/8", LWD

SP10869NL (Single)

AP10869NL-5 (Bulk*: 50)

• 240V/45000W (PowerPack)

AP12878NH (Bulk*: 50)

• 240V/5500W, 13-1/2", HWD

SP10869PH (Single)

AP10869PH-5 (Bulk*: 50)

• 240V/6000W, 19-1/8", LWD

SP10869QL (Single)

AP10869QL-5 (Bulk*: 50)

• 240V/6000W (PowerPack)

AP12878QH (Bulk*: 50)

• 208V/2000W, 9-1/2", LWD

SP10867GL (Single)

AP10867GL-3 (Bulk*: 50)

• 208V/3000W, 12-5/8", LWD

SP10867JL (Single)

AP10867JL-3 (Bulk*: 50)

• 208V/4000W, 16-1/4", LWD

SP10867LL (Single)

AP10867LL-3 (Bulk*: 50)

• 208V/4000W (PowerPack)

AP12877LL (Bulk*: 50)

• 208V/4500W, 17-1/2", LWD

SP10867ML (Single)

AP10867ML-3 (Bulk*: 50)

• 208V/4500W (PowerPack)

AP12877ML (Bulk*: 50)

• 208V/5000W, 19-1/8", LWD

SP10867NL (Single)

AP10867NL-3 (Bulk*: 50)

• 208V/5000W (PowerPack)

AP12877NH (Bulk*: 50)

• 208V/6000W, 19-1/8", LWD

SP10867QL (Single)

AP10867QL-3 (Bulk*: 50)

• 208V/6000W (PowerPack)

AP12877QH (Bulk*: 50)

• 120V/1440W, 7-11/16", HWD

SP10868LH (Single)

AP10868LH-5 (Bulk*: 50)

• 120V/1700W, 13-1/2", LWD

SP10868KL (Single)

AP10868KL-5 (Bulk*: 50)

• 120V/2000W, 9-1/2", LWD

SP10868GL (Single)

AP10868GL-5 (Bulk*: 50)

PREFERRED PARTS / COMMERCIAL ELEMENTS

Elements may be ordered

in bulk. Box consists of

50 elements and 50

gaskets of the same

part number.

HWD = High Watt Density

MWD = Medium Watt Density

LWD = Low Watt Density

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

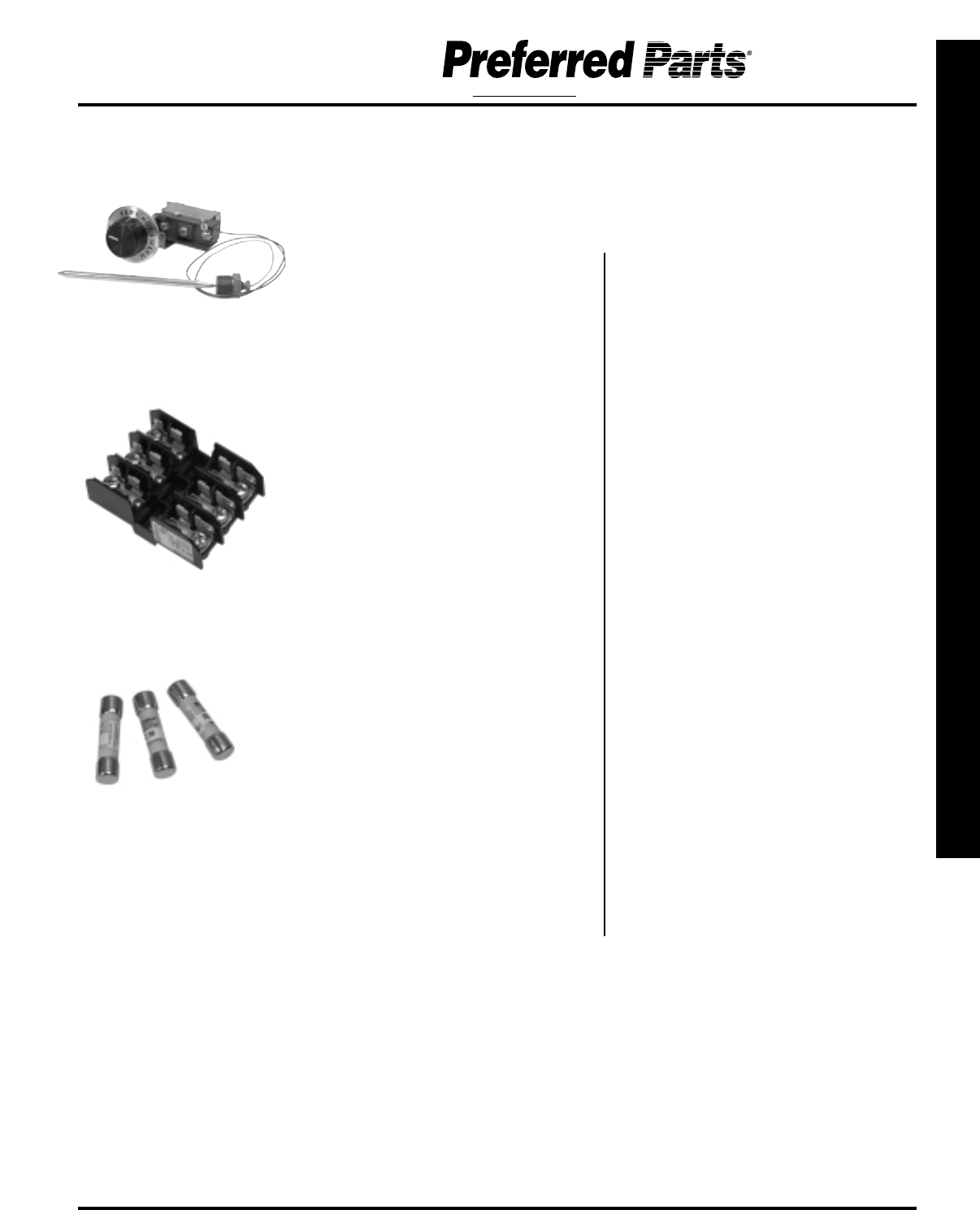

Immersion Thermostat

3-Pole Fuse Block

Fuses

ELECTRIC THERMOSTATS

• Therm-O-Disc Upper Thermostat (max 150

degree) & High Limit (170 degree) - 50 Gallon

Surface Mount

SP11234 (single)

• Therm-O-Disc Upper Thermostat (max 170

degree) & High Limit (190 degree) - 85 & 120

Gallon Surface Mount

SP11231 (single)

• Immersion Thermostat - White Rogers

(110 - 190 degrees) 60” capillary tube

SP11805 (single)

• Immersion High Limit - White Rogers

(200 degrees) manual reset - 60” capillary tube

SP11806 (single)

• Immersion Thermostat (80 - 190 degrees) - 24”

capillary tube

SP8260 (single)

• Immersion High Limit - (205 degrees) manual

reset - 15” capillary tube

SP5411 (single)

• Therm-O-Disc Upper Thermostat

(110-170 degree) & High Limit (190 degree)

ELD models only

SP8293 (single)

• Therm-O-Disc Lower Thermostat (110-170

degree) ELD models only

SP8295 (single)

• Hand Hole Gasket Kit

SP22079 (single)

CONTACTORS AND TRANSFORMERS

• Contactor - 3 pole; 120V; 35 amp; I-F-G Class G

SP12841 (single)

• Transformer with Jumper

SP10006 (single)

• Copper Conductor

AM25285 (single)

FUSES AND FUSE BLOCKS

• Fuse Block - 3 pole; holds 1 5/8 L x 13/32 dia

fuses Class G - 30 amp

SP8311E (single)

• Fuse Block - Class G - 35 amp Fuse

SP11112 (single)

• Fuse - 30 amp 1 5/8 L x 13/32 dia Class G

SP8264M (single)

• Fuse - 35 amp Class G

SP8264K (single)

TEMPERATURE AND PRESSURE RELIEF VALVES

• Watts 100XL-4; 3/4”inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) 6-27 KW (100,000BTU)

SP12574 (single)

• Watts 40XL-5; 3/4” inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) 30-54 KW (200,000 BTU)

SP9013D (single)

Commercial Electric Water Heaters

PREFERRED PARTS / COMMERCIAL ELECTRIC WATER HEATERS

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

The premium line of approved replacement parts.

Honeywell Ignition Control

Pilot Burner and

Ignitor Sensor

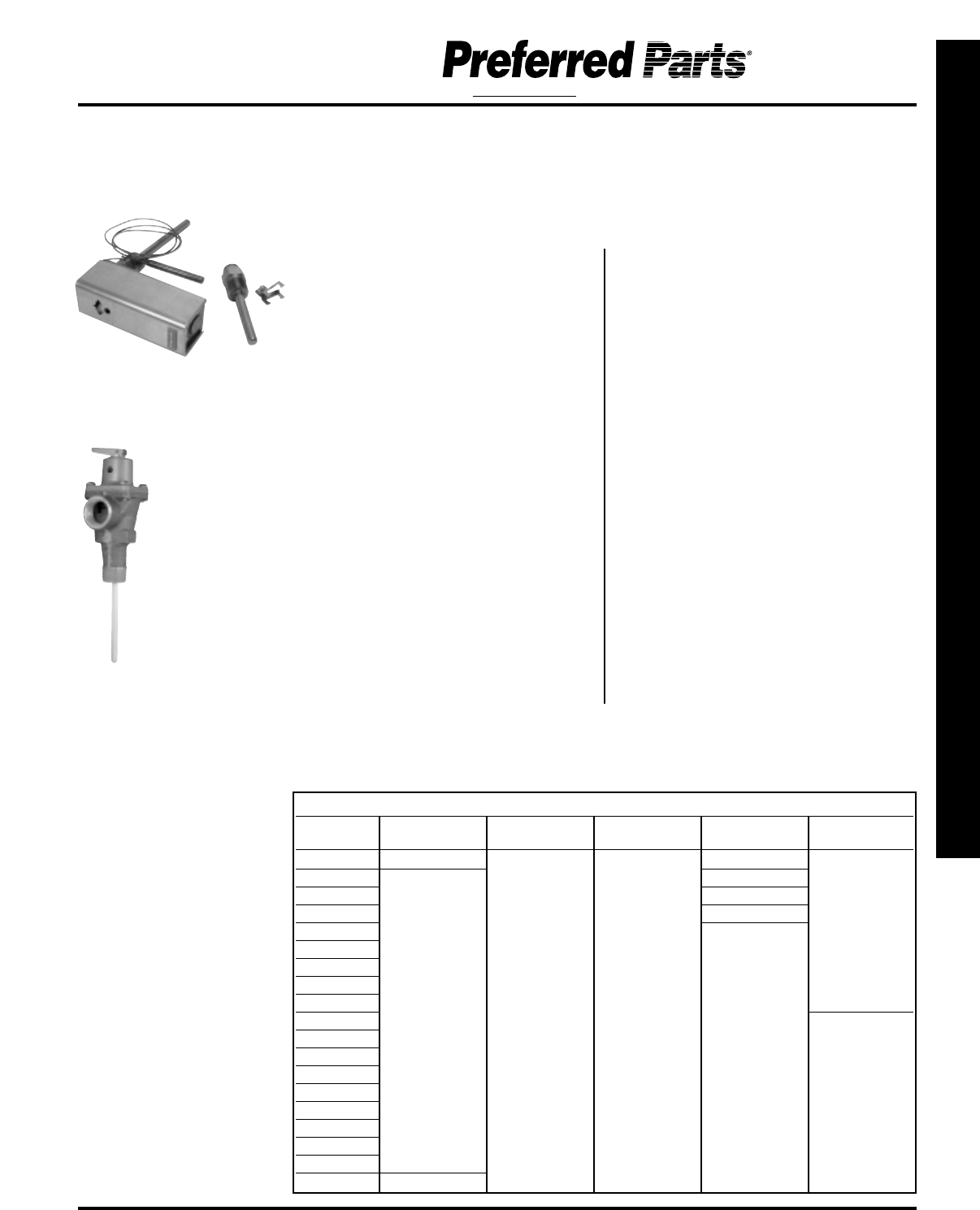

Watts Temperature

& Pressure Relief

Valve

Immersion

Thermostat & High Limit

GAS VALVES

• Honeywell 1/2 Inlet x 3/4 Outlet Gas Valve -

Natural Gas - 24V

SP10963B

(single)

• Honeywell 1/2 Inlet x 3/4 Outlet Gas Valve -

LP Gas - 24V

SP10963C (single)

• Honeywell 3/4 Inlet x 3/4 Outlet Gas Valve -

Natural Gas - 24V

SP10963D (single)

• Honeywell 3/4 Inlet x 3/4 Outlet Gas Valve -

LP Gas- 24V

SP10963E (single)

• Robertshaw High Capacity Natural Gas Valve

1” Inlet x 1” Outlet Slow Opening Valve

SP8099N (single)

• Robertshaw High Capacity LP Gas Valve

1” Inlet x 1” Outlet - Slow Opening Valve

SP8099P (single)

IGNITION CONTROL MODULE & CABLE

• Honeywell Ignition Control S8600M -

Continuous Retry - 24V - used with electronic

ignition system

SP10763B (single)

• Honeywell Ignition Cable - 25 inch - 1/4”

disconnect with rubber boot on pilot end

SP8828D (single)

PILOT SENSOR

• Honeywell Pilot Burner and Ignitor Sensor -

Natural Gas - Electronic Ignition

SP10764B (single)

• Honeywell Pilot Burner and Ignitor Sensor -

LP Gas - Electronic Ignition

SP10764C (single)

TRANSFORMER

• Bassler - 120 VAC to 240 VAC

SP10550B (single)

LEG EXTENSIONS REQUIRED FOR N.S.F.

APPROVAL

• Leg Extension Kit for N.S.F. Approval for

Models: G50-98, G67-114, G82-156, G37-160,

G76-180, G76-200, G91-200, G100-200,

G72-250(A), G100-250(A), G100-270(A),

G72-300(A), G91-300(A), G65-360(A),

G65-400(A), G85-400(A), G77-500(A)

AM35450 (single)

THERMOSTATS AND HIGH LIMITS

• Honeywell Immersion Thermostat - (100-180

degrees) & High Limit - single immersion well -

1 13/16” shank x 3/4” NPT

SP11799 (single)

• Honeywell Immersion Thermostat - (100-180

degrees) & High Limit (200 degrees) - dual

immersion well with 39 1/4” capillary - 1 13/16”

shank x 3/4” NPT

SP11798B (single)

• Honeywell Immersion Thermostat - (100-180

degrees) & High Limit (200 degrees) - dual

immersion well with 42” capillary - 1 13/16”

shank x 3/4” NPT

SP11798D (single)

• White-Rogers Manual Re-Set Immersion

Thermostat (100-180 degrees) & High Limit

dual immersion well with 46” capillary -

3/4” NPT

AP12015-1 (single)

DAMPER ASSEMBLY

• Due to the unique application of damper

assemblies, please call for part numbers and

pricing. Have the model number and serial

number of the water heater on hand.

TEMPERATURE AND PRESSURE RELIEF VALVES

• Watts 100XL-4; 3/4”inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) up to 100,000 BTU

SP9013E (single)

• Watts 40XL-5; 3/4” inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) up to 200,000 BTU

SP9013D (single)

• Watts L40XL-6; 1” inlet x 1” discharge (150 PSI

pressure/ 210 degree temperature) up to

500,000 BTU

SP9012B (single)

DIAGNOSTIC SYSTEM

• System Sentinel

AM38875 (single)

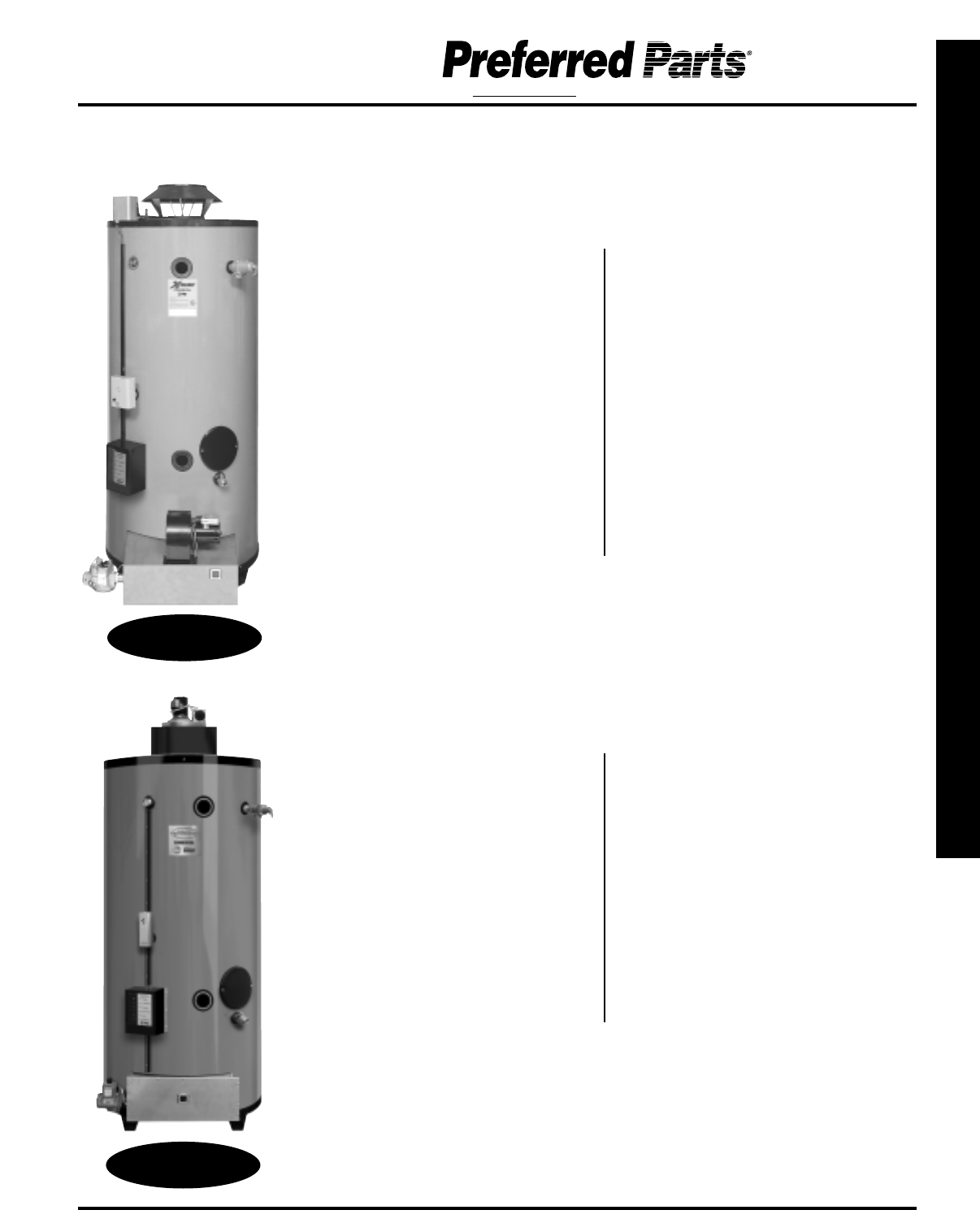

Commercial Heavy Duty Gas Water Heaters

PREFERRED PARTS / COMMERCIAL HEAVY DUTY GAS WATER HEATERS

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

PREFERRED PARTS / COMMERCIAL LOW NOxWATER HEATERS

HONEYWELL GAS VALVES

• GN37-200, GN65-360, GN72-250, GN75-125,

GN76-200, GN82-156, GN91-200, GN100-200,

GN100-250, GN100-270

SP12541B (single)

• GN100-400 SP12543 (single)

BURNER ASSEMBLIES

(Includes gas valve and blower assembly)

• GN37-200 AM39755 (single)

• GN65-360 AM39768 (single)

• GN72-250 AM40021 (single)

• GN75-125 AM39731 (single)

• GN76-200 AM39741 (single)

• GN82-156 AM39760 (single)

• GN91-200 AM39189 (single)

• GN100-200 AM39732 (single)

• GN100-250 AM39737 (single)

• GN100-270 AM39738 (single)

• GN100-400 AM40016 (single)

BURNER/MANIFOLD ASSEMBLIES

(Without gas valve and blower assembly)

• GN37-200 AM39188 (single)

• GN65-360 AM39767 (single)

• GN72-250 AM40020 (single)

• GN75-125 AM39245-3 (single)

• GN76-200 AM39188 (single)

• GN82-156 AM39759 (single)

• GN91-200 AM39342 (single)

• GN100-200 AM39718-3 (single)

• GN100-250 AM39764 (single)

• GN100-270 AM39246 (single)

• GN100-400 AM39526 (single)

BLOWER ASSEMBLIES

• GN37-200 AM39729 (single)

• GN65-360 AM39766 (single)

• GN72-250 AM39734 (single)

• GN75-125 AM39728 (single)

• GN76-200 AM39740 (single)

• GN82-156 AM39761 (single)

• GN91-200 AM39739 (single)

• GN100-200 AM39729 (single)

• GN100-250 AM39729 (single)

• GN100-270 AM39753 (single)

• GN100-400 AM39733 (single)

IGNITORS

• GN37-200, GN75-125, GN76-200, GN82-156,

GN91-200, GN100-200, GN65-360, GN72-250,

GN100-250, GN100-270, GN100-400

AM39758 (single)

PRESSURE SWITCHES

• GN75-125LN, GN72-250LN

SP12755A

• GN100-200LN, GN76-200LN, GN37-200LN

SP12755B

• GN91-200LN SP12755C

• GN82-156LN, GN100-250LN

SP12755D

• GN100-270LN SP12755E

• GN65-360LN SP12755F

• GN100-400LN AP12755G-1

VENT DAMPERS

• GN37-200 AP13155-1 (single)

• GN65-360 AP13143-1 (single)

• GN72-250 AM38386-H (single)

• GN75-125 AM38220-H (single)

• GN76-200 AP13146-I (single)

• GN82-156 AM36424B-H (single)

• GN91-200 AP13145 (single)

• GN100-200 AP13721 (single)

• GN100-250 AM40018 (single)

• GN100-270 AM40018 (single)

• GN100-400 AM38753-H (single)

• White Rogers Relay

SP12732 (single)

• Baffle Assembly

AM39581 (single)

• Pilot Assembly

SP20058 (single)

• Burner Tray and Manifold - (GN75-125)

AM39245-3 (single)

• Burner Tray and Manifold - (GN100-200)

AM39718-3 (single)

• SMC South Blower Cage

AP12712 (single)

• QNI Wiring Harness

AP12594B-3 (single)

• Honeywell Ignition Cable

AP12761 (single)

Commercial Low NOxWater Heaters

PARTS DIAGRAM

ON PAGE 60

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

PREFERRED PARTS / COMMERCIAL LIGHT DUTY, STANDING PILOT

• Robertshaw Natural Gas Thermostat

(180 degrees) control valve with 2 3/8” shank -

single use high limit (200 degrees) - 75,000 BTU

- 1/2” inlet & outlet

SP12234B (single)

• Robertshaw Natural Gas Thermostat (180

degrees) control valve with 1 5/8” shank - single

use high limit (200 degrees) - 75,000 BTU - 1/2”

inlet & outlet

SP12234C (single)

• Robertshaw Natural Gas Thermostat (180

degrees) control valve with 2 7/8” shank - single

use high limit (200 degrees) - 75,000 BTU - 1/2”

inlet & outlet

SP12234E (single)

• Natural Gas Pilot Burner Assembly -

.0115 orifice

SP8384B (single)

• LP Pilot Burner Assembly .008 orifice (colored

red for easy identification)

SP8384D (single)

• 24” Thermocouple

SP6379R (single)

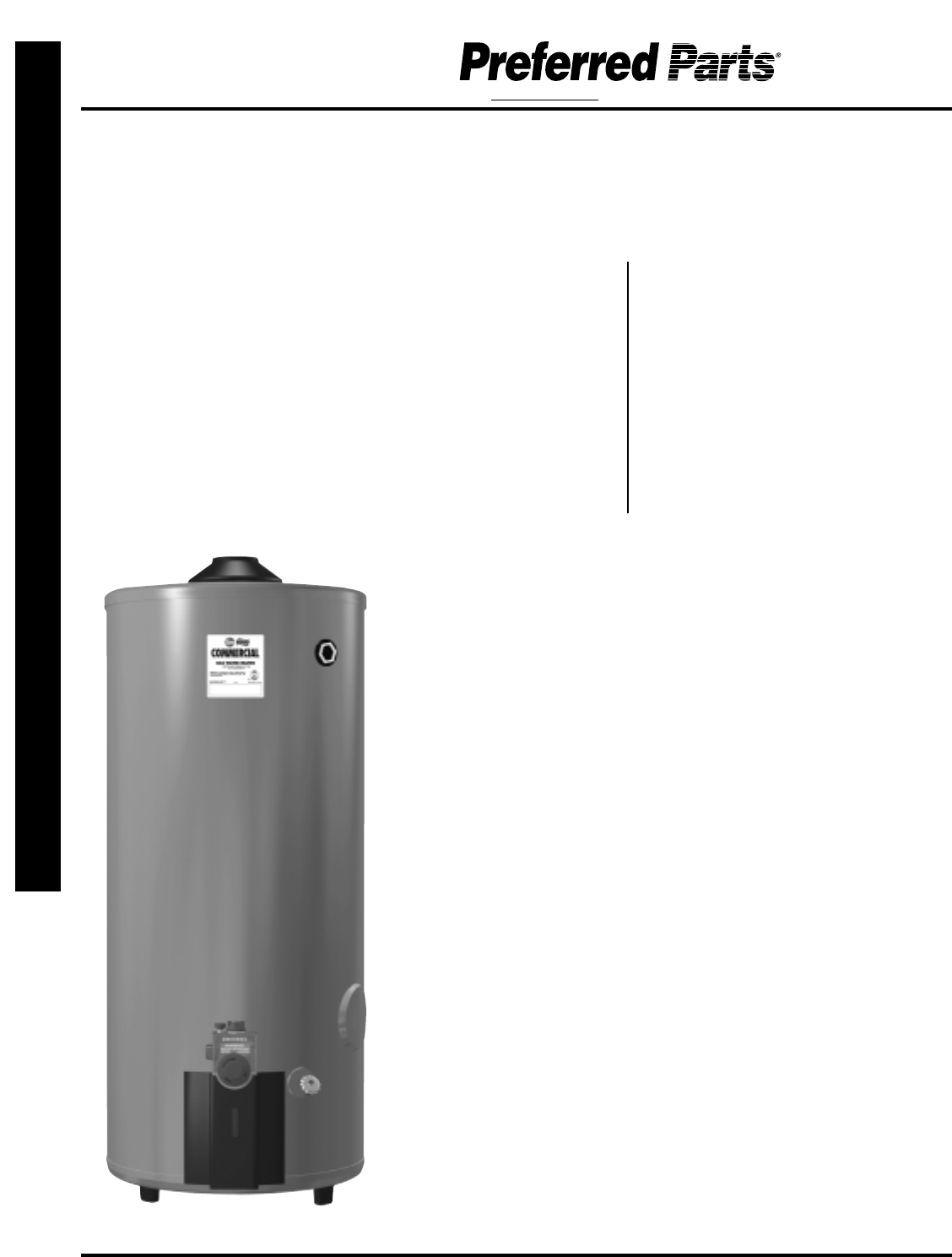

Commercial Gas – Light Duty, Standing Pilot

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

PREFERRED PARTS / COMMERCIAL ECLIPSE

• Terminal Block 175 AMP

SP13407 (single)

• Transformer 50 VA

SP13408 (single)

• Vacuum Relief Valve

SP221790 (single)

• Switch

SP13411 (single)

• T&P Relief Valve

SP330040

• Thermostat

SP13410

ELEMENTS

• 3100W / 208V

SP13409AL (single)

AP13409AL (bulk*: 50)

• 4500W / 6000W 208V / 240V

SP13409BL (single)

AP13409BL (bulk*: 50)

• 6000W / 208V

SP13409CL (single)

AP13409CL (bulk*: 50)

• 3100W / 240V

SP13409DL (single)

AP13409DL (bulk*: 50)

• 4500W / 6000W 240V / 277V

SP13409EL (single)

AP13409EL (bulk*: 50)

• 3100W / 277V

SP13409FL (single)

AP13409FL (bulk*: 50)

• 4500W / 277V

SP13409GL (single)

AP13409GL (bulk*: 50)

• 3100W / 480V

SP13409HL (single)

AP13409HL (bulk*: 50)

• 4500W / 480V

SP13409JL (single)

AP13409JL (bulk*: 50)

• 6000W / 480V

SP13409KL (single)

AP13409KL (bulk*: 50)

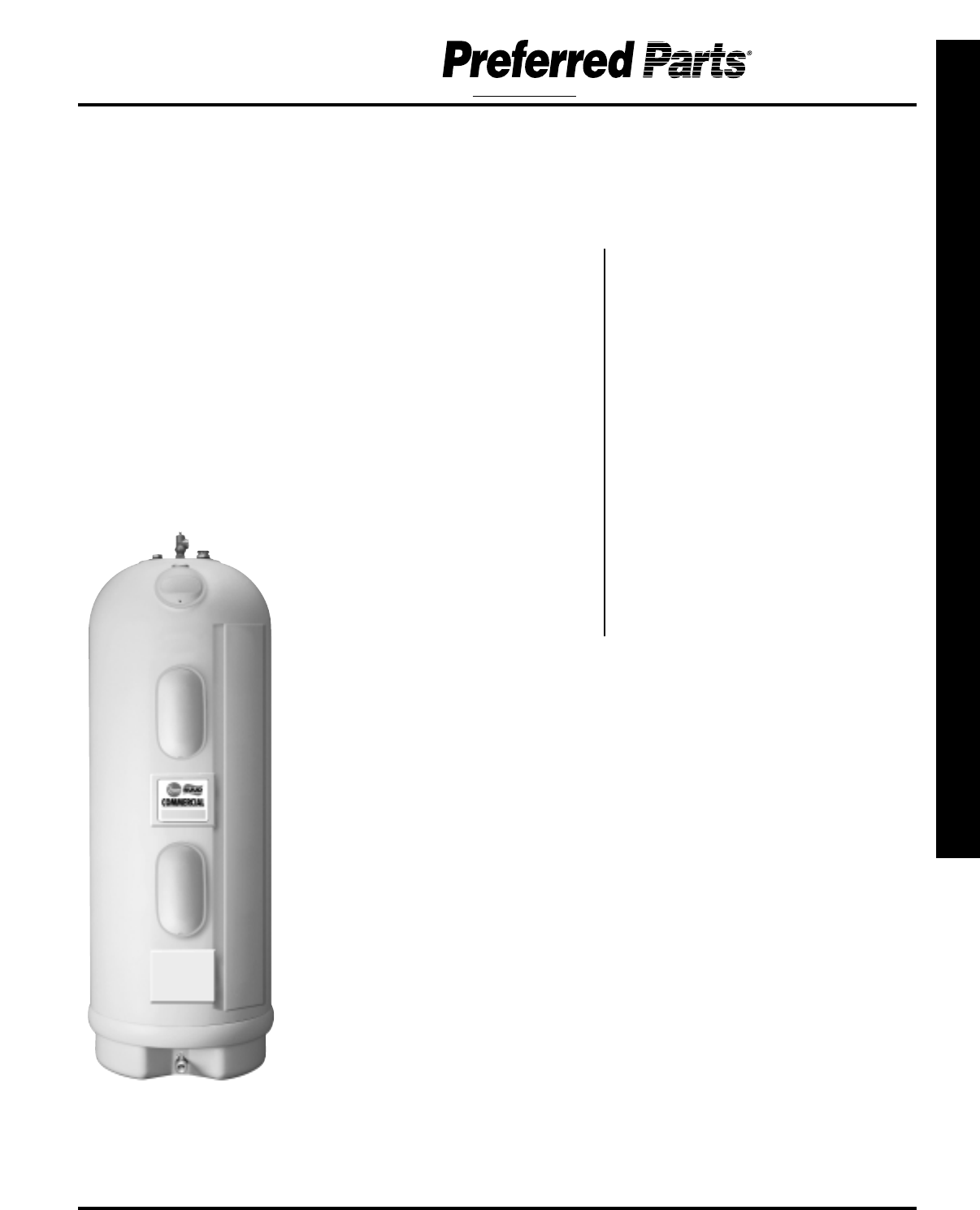

Commercial Eclipse Water Heaters

Elements may be ordered

in bulk. Box consists of

50 elements and 50

gaskets of the same

part number.

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

Robertshaw Standing

Pilot Gas Valve

GAS VALVES

• Natural Gas Valve Kit with Honeywell gas valve,

thermocouple adaptor, pilot tube and safety

labels - 24V

SP10962DK (single)

• LP Gas Valve Kit with Honeywell gas valve,

thermocouple adaptor, pilot tube and safety

labels - 24V

SP10962EK (single)

• Honeywell Natural Gas Valve

1/2 inlet x 3/4 outlet - 24V

SP10963B (single)

• Honeywell LP Gas Valve

1/2 inlet x 3/4 outlet - 24V

SP10963C (single)

• Natural Gas Valve Kit with Honeywell gas valve,

pilot tube and safety labels - 24V

SP10963DK (single)

• LP Gas Valve Kit with Honeywell gas valve, pilot

tube and safety labels - 24V

SP10963EK (single)

• Robertshaw High Capacity Natural Gas Valve -

1” inlet x 1” outlet - Slow Opening Valve

SP8099N

(single)

• Robertshaw High Capacity LP Gas Valve -

1” inlet x 1” outlet - Slow Opening Valve

SP8099P (single)

• Robertshaw Standing Pilot LP Gas Valve -

1/2” inlet x 3/4” outlet - Millivolt

SP5870C (single)

• Robertshaw Standing Pilot Natural Gas Valve -

1/2” inlet x 3/4” outlet - Millivolt

SP5870E (single)

• Robertshaw Standing Pilot Natural Gas Valve -

3/4” inlet x 3/4” outlet - Millivolt

SP5870F (single)

IGNITION CONTROL MODULE AND CABLE

• Honeywell Ignition Control - S8600M -

Continuous Retry - 24V - used with electronic

ignition system

SP10763B (single)

• Honeywell Ignition Cable - 25 inch - 1/4”

disconnect with rubber boot on pilot end - 24V

SP8828D (single)

PILOT SENSORS AND STANDING PILOTS

• Honeywell Pilot Burner and Ignitor Sensor -

Natural Gas - Electronic Ignition

SP10764B (single)

• Honeywell Pilot Burner and Ignitor Sensor

- LP Gas - Electronic Ignition

SP10764C (single)

• Robertshaw Standing Pilot

- Natural Gas .014 orifice

SP10399B (single)

• Robertshaw Standing Pilot - LP Gas -

.010 orifice(red identification coating on LP

models only)

SP10399C (single)

THERMOCOUPLES AND THERMOPILES

• 24” Thermocouple - secured with type A

spring clip

SP8242J (single)

• Honeywell 23” Thermopile Generator

SP10100B (single)

Commercial Gas – R, RF and RFD Series

PREFERRED PARTS / COMMERCIAL R, RF and RFD GAS SERIES

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

Honeywell Immersion

Thermostat & High Limit

Watts

Temperature &

Pressure Relief

Valve:

• Safety device that

allows water to

escape from the tank

in the unlikely event

that the temperature

or pressure becomes

excessive.

THERMOSTATS AND HIGH LIMITS

• Honeywell Immersion Thermostat (100-180

degrees) & High Limit - single immersion well -

1 13/16” shank x 3/4” NPT

SP11799 (single)

• Honeywell Immersion Thermostat (100-180

degrees) & High Limit (200 degrees) - dual

immersion well with 39 1/4” capillary - 1 13/16”

shank x 3/4” NPT

SP11798B (single)

• White-Rogers Manual Re-Set Immersion

Thermostat (100-180 degrees) & High Limit

dual immersion well with 46” capillary -

3/4” NPT

AP12015-1 (single)

• Honeywell Immersion Thermostat (100-180

degrees) & High Limit (200 degrees) - dual

immersion well with 42” capillary

SP8824B (single)

DAMPER ASSEMBLY

• Due to the unique application of damper

assemblies, please call for part numbers and

pricing. Have the model number and serial

number of the water heater on hand.

• Damper Drive Motor

SP11617 (single)

• Effikal Damper Motor

AP13798 (single)

LEG EXTENSIONS REQUIRED FOR N.S.F.

APPROVAL

• Leg extension kit for N.S.F. Approval for

models: G50-98, G67-114, G82-156, G37-160,

G76-180, G76-200, G91-200, G100-200,

G72-250(A), G100-250(A), G100-270(A),

G72-300(A), G91-300(A), G65-360(A),

G65-400(A), G85-400(A), G77-500(A)

AM35450 (single)

TEMPERATURE & PRESSURE RELIEF VALVES

• Watts 100XL-4 - 3/4”inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) up to 100,000 BTU

SP12574 (single)

• Watts 40XL-5 - 3/4” inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) up to 200,000 BTU

SP9013D (single)

• Watts L40XL-6 - 1” inlet x 1” discharge

(150 PSI pressure/ 210 degree temperature)

up to 500,000 BTU

SP9012B (single)

Commercial Gas – R, RF and RFD Series (CONT.)

PREFERRED PARTS / COMMERCIAL R, RF and RFD GAS SERIES

Nine basic commercial gas parts fix all

19 Universal water heaters

Universal Product Spark Ignition with Effikal Damper

Model Gas Valve Ignition Control Pilot Sensor Thermostat T&P Valve

Module

G50-98 SP10963B SP11799

G75-125 SP11798B

G82-156 SP11798B

G37-160 SP11799

G37-200

G76-180

G76-200

G91-200

G100-200

G72-250

G100-250

G100-270

G72-300

G91-300

G100-310

G65-360

G65-400

G85-400

G100-400 SP8099N

SP10963D

SP10763B

SP10764B

SP11798B

SP9013DSP9012B

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

110 Volt Ignitor Kit

PREFERRED PARTS / COMMERCIAL ADVANTAGE PLUS

GAS THERMOSTATS

• Interconnecting Ribbon Cable to PC Board

SP12139 (single)

• Pressure Switch

SP12140 (single)

• Transformer with Ignition Cable

SP12141 (single)

• ECO/Temperature Probe

SP12142 (single)

• 110V Ignitor Kit

SP12143K (single)

• Flame Rectification Probe

SP12144 (single)

• Gas Valve

SP12145 (single)

• Low Voltage Cable

SP12146 (single)

• Line Cable

SP12147 (single)

• Over Temperature Switch (Exhaust Outlet)

SP12149 (single)

• Glass Sight Window

SP12150 (single)

• Neutralizer Condensate

SP12151 (single)

• Gasket Burner Mounting Flange

SP12152 (single)

• Gasket Blower Outlet Flange

SP12153 (single)

• Gasket Air Inlet

SP12154 (single)

• Gasket Sight Window

SP12156 (single)

• Main Control PC Board, 160 deg., 130,000 BTU

SP12136 (single)

• Main Control PC Board, 160 deg., 160,000 BTU

SP12137 (single)

• Display PC Board

SP12138 (single)

• Main Control PC Board, 160 deg., 199,000 BTU

SP12186 (single)

• Main Control PC Board, 160 deg., 100,000 BTU

AP12416 (single)

• Main Control PC Board, 180 deg., 160,000 BTU

AP12418 (single)

• Main Control PC Board, 180 deg., 199,000 BTU

AP12419 (single)

ADVANTAGEPLUS ACCESSORIES

• Combustion Blower

SP12189 (single)

• Concentric Vent Termination Kit 3”

SP12161 (single)

• Aluminum Outside Termination Vent Kit

SP12162 (single)

• Mesh Screen 3-1/2” Size Stainless for 3” Pipe

SP12163 (single)

• Model 450 CO Meter

AP12516 (single)

AdvantagePlus Water Heaters

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

XTREME Water Heaters

PREFERRED PARTS / COMMERCIAL XTREME & VENTMASTER

• Thermostat and High Limit

AP12015-1 (single)

• Pressure Switch (GX90-500, GX90-550,

GX90-600, GX90-680)

SP12756 (single)

SP13698 (GX90-640, GX90-715)

• Gas Valve

SP12866P (single, LP)

SP12866N (single, NG)

• Pilot / Ignitor Assembly

SP12305 (single, LP)

SP12237 (single, NG)

• Relief Valve (GX90-715, GX90-680)

AP12323-1 (single)

• Relief Valve (GX90-640, GX90-600, GX90-550)

AP12035 (single)

• Relief Valve (GX90-500)

SP9012B (single)

• Full Flow Drain Valve

AP12231B-1 (single)

• Damper Assembly

AM39825 (single)

• Blower Motor

SP12525 (single)

• Gasket Plenum

AP12382-1 (single)

• Gasket Set/Fan

AP12383 (single)

VentMaster Water Heaters

• Anode Rod - 42” long x .840 dia

SP11345S

• Thermostat and High Limit

SP11789B

• Blower

AP13192

• Relief Valve (GP100-200, GP100-150)

SP9013D

• Baffle

AM40134

• Pilot Ignitor Assembly

SP13185

• Gas Valve

SP13714

• System Sentinel Panel

AM38875

• Control Module

AM40782

• Relay

SP12732

• On/Off Switch

SP8825

• Transformer

SP10550B

• Drain Valve

AP12231B-1

• Ignition Control

SP10763B

PARTS DIAGRAM

ON PAGE 61

PARTS DIAGRAM

ON PAGE 58

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL The premium line of approved replacement parts.

Light Duty Brass Drain Valve:

R-Tech Resistor

Magnesium Flexible

Link Anode Rod:

PREFERRED PARTS / COMMERCIAL COMMON REPLACEMENT PARTS

DRAIN VALVES

• Brass Drain Valve - 3/4” x 2 1/4” shank

SP6070G (single)

• Brass Drain Valve - 3/4” x 3” shank -

Commercial Light Duty

SP12112S (single)

• Standard Melet - 3/4” NPT x 2 1/4” shank

SP12039 (single)

• Brass Drain Valve - 3/4” x 2 1/4” shank

SP12112G (single)

• Brass Full Flow Drain Valve 3.1” (gas)

AP12231B-1 (single)

• Brass Full Flow Drain Valve 3.1” (electric)

AP12231C-1 (single)

ANODE RODS

• R Tech Resistor Magnesium Anode Rod -

44” long x .700 dia

SP11309C (single)

• Galvo Magnesium - 44” long x .840 dia

SP11345C (single)

• Magnesium Anode Rod - 44” long x .840 dia

SP11524C (single)

• Magnesium Anode Rod - 58” long x .840 dia

SP11524Z (single)

• R Tech Resistor Magnesium Anode Rod -

44” long x .900 dia

SP11526C (single)

• R Tech Resistor Magnesium Flexible Link

Anode Rod - 52” long - 12” sections

SP8371B (single)

DIP TUBES

• Dip Tube with anti-siphon hole - 3/4” x 54” long

- clear (North Carolina code) with gasket

SP11251R (single)

• Dip Tube with anti-siphon hole - 1” x 26” long

with gasket

SP11269C (single)

• Dip Tube with anti-siphon hole - 3/4” x 54” long

with gasket

SP11248R (single)

GASKETS

• Hand Hole Gasket

SP5886 (single)

Common Replacement Parts

Universal ™Parts

To place your order call 1-800-621-5622; fax 1-800-535-9538

RESIDENTIAL The value line for all your replacement parts needs.

Universal Copper

Screw-In Element

Universal Copper

Flange Element

Please call for Master Carton

pricing. Note: add MC to end

of stock number.

Non-Resistored Heating Elements

COPPER SCREW-IN ELEMENTS

• 120V/1500W, 7-5/8”, HWD

UV12890 (Single)

AP12890 (Bulk*: 50)

• 120V/2000W, 7-5/8”, HWD

UV12892 (Single)

AP12892 (Bulk*: 50)

• 240V/1500W, 7-5/8”, HWD

UV12891 (Single)

AP12891 (Bulk*: 50)

• 240V/2000W, 7-5/8”, HWD

UV12893 (Single)

AP12893 (Bulk*: 50)

• 240V/2500W, 9-3/8”, HWD

UV12894 (Single)

AP12894 (Bulk*: 50)

• 240V/3000W, 10-9/16”, HWD

UV12895 (Single)

AP12895 (Bulk*: 50)

• 240V/3500W, 12-9/16”, HWD

UV12896 (Single)

AP12896 (Bulk*: 50)

• 240V/3800W, 13-7/16”, HWD

UV12897 (Single)

AP12897 (Bulk*: 50)

• 240V/4000W, 13-9/16”, HWD

UV12898 (Single)

AP12898 (Bulk*: 50)

• 240V/4500W, 13-9/16”, HWD

UV12899 (Single)

AP12899 (Bulk*: 50)

• 240V/4500W, 10”, MWD

UV13049 (Single)

AP13049 (Bulk*: 50)

• 240V/5500W, 10-1/8”, LWD

UV12900 (Single)

AP12900 (Bulk*: 50)

• 240V/4500W, 11-3/4”, LWD

UV12901 (Single)

AP12901 (Bulk*: 50)

COPPER 1-3/8” SCREW-IN ELEMENTS

• 240V/4500W, 11-9/16”, LWD

UV12902 (Single)

AP12902 (Bulk*: 50)

COPPER FLANGE ELEMENTS

• 120V/1500W, 7-5/8”, HWD

UV12944 (Single)

AP12944 (Bulk*: 50)

• 240V/1500W, 7-5/8”, HWD

UV12908 (Single)

AP12908 (Bulk*: 50)

• 240V/2500W, 10”, HWD

UV13047D (Single)

AP13047D (Bulk*: 50)

• 240V/3500W, 12-9/16”, HWD

UV12909 (Single)

AP12909 (Bulk*: 50)

• 240V/4500W, 13-9/16”, HWD

UV12910 (Single)

AP12910 (Bulk*: 50)

• 240V/3000W, 10”, HWD

UV13047A (Single)

AP13047A (Bulk*: 50)

• 240V/5500W, 12”, HWD

UV13047B (Single)

AP13047B (Bulk*: 50)

• 240V/4500W, 9”, MWD

UV13047C (Single)

AP13047C (Bulk*: 50)

COPPER FLAT FLANGE ELEMENTS

• 240V/4500W, 13-9/16”, HWD

UV12907 (Single)

AP12907 (Bulk*: 50)

• 240V/4500W, 14”, LWD

UV13051 (Single)

AP13051 (Bulk*: 50)

SLIP-IN ELEMENTS

• 240V/3000W, HWD

UV13066A (Single)

AP13066A (Bulk*: 50)

•240V/3500W, HWD

UV13066B (Single)

AP13066B (Bulk*: 50)

• 240V/4500W, HWD

UV13066C (Single)

AP13066C (Bulk*: 50)

STAINLESS STEEL SCREW-IN ELEMENTS

• 240V/3500W, 13-7/8”, LWD

UV12903 (Single)

AP12903 (Bulk*: 50)

• 240V/4500W, 13-1/2”, LWD

UV12904 (Single)

AP12904 (Bulk*: 50)

• 240V/5500W, 13-1/2”, LWD

UV12905 (Single)

AP12905 (Bulk*: 50)

• 120V/1500W, 12”, HWD

UV13050B (Single)

AP13050B (Bulk*: 50)

• 240V/2500W, 11”, HWD

UV13050A (Single)

AP13050A (Bulk*: 50)

• 240V/4500W, 14”, HWD

UV13048 (Single)

AP13048 (Bulk*: 50)

STAINLESS STEEL FLANGE ELEMENT

• 240V/2500W, 11”, LWD

UV12911 (Single)

AP12911 (Bulk*: 50)

HWD = High Watt Density

MWD = Medium Watt Density

LWD = Low Watt Density

UNIVERSAL PARTS / RESIDENTIAL HEATING ELEMENTS

Note: Elements listed not

recommended with Rheem, Ruud,

and GE products. Use of this

component may lead to premature

failure of the product and voiding

of manufacturers warranties.

Universal ™Parts

To place your order call 1-800-621-5622; fax 1-800-535-9538

RESIDENTIAL The value line for all your replacement parts needs.

Universal Gasket Kit

5” Heavy duty

element wrench

Please call for Master Carton

pricing. Note: add MC to end

of stock number.

Element Accessories

• Gaskets for screw-in elements

AP6708-9

(Bulk: 50)

• 1/2” Round Gasket for flange elements

AP6614J

(Bulk: 50)

• 4-hole Gasket for flange elements

AP10363

(Bulk: 50)

• Gasket Kit - (1) screw-in gasket, (1) flange,

(1) 4-hole gasket, (4) 1/4” - 20 x 3/4” hex slot

UV12914

(Single)

• Universal Adapter Kit - (1) flat gasket, (1) round

gasket, (1) element adapter

UV6830

(Single)

• 4” Heavy Duty Element Wrench

UV38628

(Single)

UNIVERSAL PARTS / RESIDENTIAL ELEMENT ACCESSORIES

Universal ™Parts

To place your order call 1-800-621-5622; fax 1-800-535-9538

RESIDENTIAL The value line for all your replacement parts needs.

Now available: an all-in-one

tune-up kit for the plumbing

professional!

Plumber’s Pack Kit - includes two non-resistored 4500 watt screw-in

heating elements, two heating element gaskets, and

upper & lower thermostats

UV20018 (single)

Universal Parts Plumber’s Pack

The plumber’s pack is an all-inclusive “tune-up” kit for electric water

heaters featuring the most popular replacement parts on the market.

• Two non-resistored heating elements and gaskets

• Upper and lower thermostats

• Economy package that includes all the major components for a

complete “tune-up” for the water heater

UNIVERSAL PARTS / RESIDENTIAL PLUMBER’S PACK

Universal ™Parts

To place your order call 1-800-621-5622; fax 1-800-535-9538

RESIDENTIAL The value line for all your replacement parts needs.

Thermocouple Kit

Thermostat Bracket

Please call for Master Carton

pricing. Note: add MC to end

of stock number.

Electric Thermostats*

• APCOM Upper Thermostat

(max 150 degrees) & High Limit (170 degree)

- Two element non-simultaneous 208, 240,

277, 480 volt

UV13359 (single)

• Therm-O-Disc Upper Thermostat

(max 150 degrees) & High Limit (170 degree)

- Two element simultaneous 208, 240,

277, 480 volt

UV11699 (single)

• Therm-O-Disc Upper Thermostat

(max 150 degrees) & High Limit (170 degree)

- Single element 120 volt

UV11700 (single)

• APCOM Lower Thermostat

(max 150 degrees)simultaneous and

non-simultaneous 208, 240, 277, 480 volt

UV13360 (single)

• Therm-O-Disc Lower Thermostat

(max 150 degrees) & High Limit (170 degree)

- Two element non-simultaneous 208, 240,

277, 480 volt

UV11695 (single)

• Therm-O-Disc Upper Thermostat

(max 150 degrees)simultaneous and

non-simultaneous 208, 240, 277, 480 volt

UV11698 (single)

Gas Replacement Parts

• 18” Thermocouple Kit

UV6379L

(Single)

• 24” Thermocouple Kit

UV6379R

(Single)

• 30” Thermocouple Kit

UV6379H

(Single)

• 36” Thermocouple Kit

UV6379S

(Single)

• 48” Thermocouple Kit

UV6379T

(Single)

Common Replacement

Parts

• Flared Dip Tube

SP11248R

(Bulk: Qty. 12)

• Threaded Dip Tube

AP12933

(Bulk: Qty. 12)

• Screw-In Thermostat Bracket

AM23557

(Bulk: Qty. 50)

• Heat Traps (flapper type)

UV12992

(Single: 2/pkg.)

• Watts 100XL-4; 3/4" inlet x 3/4" discharge -

M150# (150 PSI pressure / 210 degree

temperature) up to 100,000 BTU

SP12574 (single)

• Watts 100XL; 3/4" inlet x 3/4" discharge

(150 PSI pressure / 210 degree temperature) -

long shank up to 100,000 BTU

SP8346 (single)

• Drain Valve; Standard Melet

3/4" NPT x 2 1/4" shank

UV12039 (single)

UNIVERSAL PARTS / RESIDENTIAL COMMON REPLACEMENT PARTS

Electric thermostats may be ordered in bulk. Box consists of 50 thermostats of the

same part number. Bulk pricing is less than the single price. Please call for pricing.

Universal ™Parts

To place your order call 1-800-621-5622; fax 1-800-535-9538

RESIDENTIAL The value line for all your replacement parts needs.

* Gas connector kits contain (2) 3/4” nipples, (2) 3/4” x 12”, 15”, 18” flex water connectors, (1) teflon tape, (2) 3/4” comp. fittings, (1) 18” flex. gas connector.

Electric connector kits contain (2) 3/4” x 2” nipples, (2) 3/4” x 12”, 15”, 18” flex water connectors, (1) teflon tape, (2) 3/4” MPT comp. fittings.

Water connector kits contain (2) 3/4” x 2” nipples, (2) 3/4” x 12”, 15”, 18” flex water connectors, (1) teflon tape.

Flexible Copper

Water Connector:

• Durable and flexible water

connector allows for easy

hook up to existing water

lines.

Stainless Steel

Water Connect

Compression Fittings:

• High quality brass fittings

ensure a positive leakproof

connection.

Drain Pan with Fittings:

• Available in plastic or

aluminum in a variety of sizes.

Please call for Master Carton

pricing. Note: add MC to end

of stock number.

Accessories

WATER CONNECTORS

• 12” Flexible Copper Water Connector 3/4”

UV10351 (Single: 2/Pkg.)

AP10351 (Bulk: 25)

• 15” Flexible Copper Water Connector 3/4”

UV10505 (Single: 2/Pkg.)

AP10505 (Bulk: 25)

• 18” Flexible Copper Water Connector 3/4”

UV10506 (Single: 2/Pkg.)

AP10506 (Bulk: 25)

• 24” Flexible Copper Water Connector 3/4”

AP13006 (Bulk: 25)

• 18” Flexible Copper Water Connector

3/4” FIP x 3/4” Sweat

AP13012 (Bulk: 25)

• 24” Flexible Copper Water Connector

3/4” FIP x 3/4” Sweat

AP13015 (Bulk: 25)

• Stainless Steel 3/4” Water Connector 12”

UV12927 (Single: 2/Pkg.)

AP12927 (Bulk: 25)

• Stainless Steel 3/4” Water Connector 15”

UV12928 (Single: 2/Pkg.)

AP12928 (Bulk: 25)

• Stainless Steel 3/4” Water Connector 18”

UV12929 (Single: 2/Pkg.)

AP12929 (Bulk: 25)

GAS CONNECTORS

• 12” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

AP10349 (Bulk: 25)

• 18” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

AP10350 (Bulk: 25)

• 24” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

AP13014 (Bulk: 25)

• 48” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

AP13013

(Bulk: 25)

INSTALLATION KITS

• 15” Water Connector Kit 3/4”*

UV20010 (Single: 2/Pkg.)

• 15” Gas Connector Kit 3/4”*

UV20016 (Single: 2/Pkg.)

• 15” Electric Connector Kit 3/4”*

UV20013 (Single: 2/Pkg.)

• 18” Water Connector Kit 3/4”*

UV20011 (Single: 2/Pkg.)

• 18” Gas Connector Kit 3/4”*

UV20017 (Single: 2/Pkg.)

• 18” Electric Connector Kit 3/4”*

UV20014 (Single: 2/Pkg.)

• 12” Water Connector Kit 3/4”*

UV20009 (Single: 2/Pkg.)

• 12” Gas Connector Kit 3/4”*

UV20015 (Single: 2/Pkg.)

• 12” Electric Connector Kit 3/4”*

UV20012 (Single: 2/Pkg.)

FITTINGS

• 3/4” Compression Fitting x 3/4” MPT

UV10374 (Single: 2/Pkg.)

• 1/2” Compression Fitting x 3/4” MPT

UV10354 (Single: 2/Pkg.)

• Nipples 3/4” x 2-1/4” PP Lined

UV8397G (Single: 2/Pkg.)

AP8397G-8 (Bulk: 100)

• Nipples 3/4” x 3” PP Lined

AP8397N-8 (Bulk: 100)

• Dielectric Union

AP13045 (Single)

OTHER ACCESSORIES

• Center Top Run-Off Tube

SP11956B (Bulk: 12)

• 20” Plastic Drain Pan with Fittings (Electric)

AP12934 (Bulk: 20)

• 22” Plastic Drain Pan with Fittings (Electric)

AP12937 (Bulk: 20)

• 24” Plastic Drain Pan with Fittings (Electric)

AP12935 (Bulk: 20)

• 26” Plastic Drain Pan with Fittings (Electric)

AP12936 (Bulk: 10)

• 30” Plastic Drain Pan with Fittings

AP13319 (Bulk: 5)

• 20” Aluminum Drain Pan with Fittings

AP12939 (Bulk: 10)

• 22” Aluminum Drain Pan with Fittings

AP12941 (Bulk: 10)

• 24” Aluminum Drain Pan with Fittings

AP12942 (Bulk: 10)

• 26” Aluminum Drain Pan with Fittings

AP12940 (Bulk: 10)

• 30” Aluminum Drain Pan with Fittings

AP13325 (Bulk: 5)

• Gas Control Extender

AP11620-1 (Bulk: 50)

EXPANSION TANKS

• RRT Therm-X-Guard Expansion Tank 2.5 Gal

RRT-5 (Single)

• RRT Therm-X-Guard Expansion Tank 5 Gal

RRT-12 (Single)

• RRT Therm-X-Guard Expansion Tank 10 Gal

RRT-25 (Single)

UNIVERSAL PARTS / RESIDENTIAL ACCESSORIES

Universal ™Parts

To place your order call 1-800-621-5622; fax 1-800-535-9538

RESIDENTIAL The value line for all your replacement parts needs.

UNIVERSAL PARTS / RESIDENTIAL ACCESSORIES

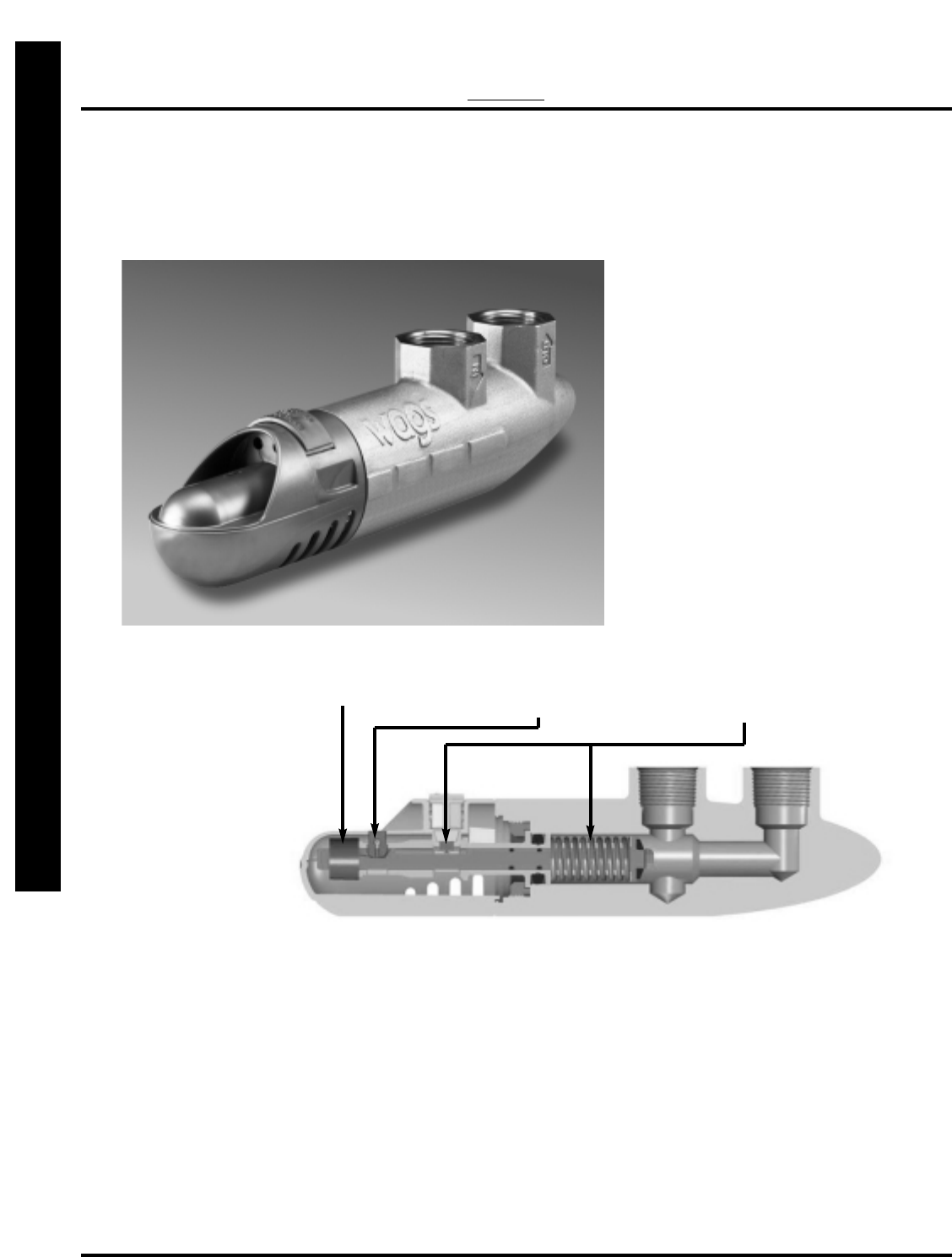

Emergency Cutoff Device - The WAGS Valve

• WAGS Valve Cutoff Device

AP13320

The WAGS Valve

A drip pan is installed under your water heater. The

WAGS valve is attached to the water source, then to

the water heater. If a leak occurs, a water-soluble disc

in the WAGS dissolves, releasing a powerful spring-

loaded piston that closes the flow of water to the

tank. In gas-fired water heaters, this action also

breaks a fuse that shuts off the gas supply to the

heater.

WAGS is based on patented fiber element technology

developed for the British Royal Air Force to inflate life

jackets automatically. It’s highly reliable, totally

mechanical, and requires no additional power source.

How the WAGS valve works.

When leaking water reaches a depth of 3/4”, a

specially engineered fiber element dissolves to

activate a spring-loaded piston that shuts off the

water supply. The gas supply is also automatically

shut off if the valve is attached to a gas-fired heater.

1. Patented fiber element

dissolves in 3/4” of water 2. Red flag pops up to tell

you the WAGS has been

fired

3. The dissolved fiber element releases

a spring loaded piston to shut off

water and gas supply

To place your order call 1-800-621-5622; fax 1-800-535-9538

UNIVERSAL PARTS TANKLESS GAS PARTS

RTG20000A Gas Filter 102 01-86103

RTG20000B Flame Current Detector 954 04-05009

RTG20000C Short-Circuit Lead Wire 951 07-71058

RTG20000D Cord for flame rod failure 953 07-71059

RTG20000E Multimeter Lead Cramp 950 07-71060

RTG20000F Multimeter Needle Set 952 07-71061

RTG20000G Packing 26 x 32 (5 pieces/pack) 105 09-03511

RTG20000H O-Ring P-12 (5 pieces/pack) 409 09-06132

RTG20000J O-Ring P-9 (5 pieces/pack) 429 09-06213

RTG20000K O-Ring P-4 (5 pieces/pack) 716 09-06214

RTG20000L O-Ring P-16 (5 pieces/pack) 427 09-06215

RTG20000M O-Ring P-14 (5 pieces/pack) 426 09-06219

RTG20000N O-Ring P-22.4 (5 pieces/pack) 402 09-06331

RTG20000P O-Ring P-18 (5 pieces/pack) 104 09-61180

RTG20000R Fuse 3A 775 09-73259

RTG20000S Thermo-Switch 725 09-73664

RTG20000T Heat Exchanger Thermistor 715 09-76885

RTG20000U Hot Water Outlet Thermistor 717 10-58754

RTG20000V Water Inlet Thermistor 713 10-58755

RTG20000W Multimeter CDM-03 956 16-00956

RTG20000X Electrode 736 21-12791

RTG20000Y Plate 016 21-13636

RTG20000Z Fuse Board Assembly 750 21-35750

RTG20000AA Drain Valve Assembly with water filter 405 21-98655

RTG20000AB Air Filter Assembly 046 31-15350

RTG20000AC Air Filter Switch Assembly 726 31-15359

RTG20000AD Bypass Pipe 462 31-15387

RTG20000AE Gas Control Assembly (LP) 103 31-15465

RTG20000AF Gas Control Assembly (NAT) 103 31-15466

RTG20000AH Fan Set 728 31-16646

RTG20000BD Sea Level Altitude Chip (NAT) 0 to 3,280 feet 751 31-16944

RTG20000BE Sea Level Altitude Chip (LP) 0 to 3,280 feet 751 31-16943

RTG20000AJ High Altitude Chip (LP) 3,280 – 6,560 feet 901 31-16683

RTG20000AK High Altitude Chip (NAT) 3,280 – 6,560 feet 902 31-16684

RTG20000AL High Altitude Chip (LP) 6,560 – 9,840 feet 903 31-16685

RTG20000AM High Altitude Chip (NAT) 6,560 – 9,840 feet 904 31-16686

RTG20000AP Lower Burner Assembly (LP) 120 31-16706

RTG20000AR Lower Burner Assembly (NAT) 120 31-16711

RTG20000AS Upper Burner Assembly 111 31-16715

RTG20000AT Front Cover Assembly 001 31-16821

RTG20000AU Operation Panel Assembly 010 31-16830

RTG20000AV Operation Board Assembly 742 31-16832

RTG20000AW Gas Inlet Connector Assembly (1/2") 100 31-16861

RTG20000AX Bypass Body Assembly 461 31-16871

RTG20000AY Drain Valve B Assembly (for bypass body) 465 31-16873

RTG20000AZ Hot Water Outlet Connector (3/4") 430 31-16875

RTG20000BA Water Inlet Connector (3/4") 401 31-16878

RTG20000BB Voltage Transformer Assembly 741 31-16909

RTG20000BC Burner Control Assembly 745 31-16922

RTG20000BF Ignitor Assembly 735 31-29145

RTG20000BG Water Control Assembly 410 31-29171

RTG20000BH IC Assembly 723 54-01027

RTG20000BJ Transformer Assembly 740 61-05227

RTG20000BK Air Flow Switch Assembly 733 61-06105

RTG20000BL Electromotive Force Detector 955 61-06389

Part Number Description Reference No. Cross Reference No. Price

Tankless Gas Replacement Parts for

Residential Models RTG-42PV and RUTG-42PV

RTG-42PV and RUTG-42PV

Indoor Tankless Water Heater

To place your order call 1-800-621-5622; fax 1-800-535-9538

UNIVERSAL PARTS TANKLESS GAS PARTS

Indoor Tankless

Gas Water Heater

Waterproof

Remote Control

Tankless Gas Replacement Parts for

Residential Models RTG-74PV, RTG-74X, RUTG-74PV and RUTG-74X;

Commercial Models GT-199PV and GT-199X

Outdoor Tankless

Gas Water Heater

Waterproof

Remote Control

RTG20006C Air Filter Assembly 7 31-63028-00 74PV 199PV

RTG20006F Gas Control Valve Assembly 103 31-50250-00 74X 74PV 199X 199PV

RTG20006G O-Ring P-26 104 09-61260-00 74X 74PV 199X 199PV

RTG20006J Upper Burner Assembly 112 31-51409-00 74X 199X

RTG20006K Upper Burner Assembly 112 31-50409-00 74PV 199PV

RTG20006L Lower Burner Assembly R (NAT) 113 31-51419-00 74X (NAT) 199X (NAT)

RTG20006M Lower Burner Assembly R (LP) 113 31-51426-00 74X (LP) 199X (LP)

RTG20006N Lower Burner Assembly R (LP) 113 31-50441-00 74PV (LP) 199PV (LP)

RTG20006P Lower Burner Assembly R (NAT) 113 31-50442-00 74PV (NAT) 199PV (NAT)

RTG20006R Lower Burner Assembly L (NAT) 114 31-51425-00 74X (NAT) 199X (NAT)

RTG20006S Lower Burner Assembly L (LP) 114 31-51427-00 74X (LP) 199X (LP)

RTG20006T Lower Burner Assembly L (LP) 114 31-50446-00 74PV (LP) 199PV (LP)

RTG20006U Lower Burner Assembly L (NAT) 114 31-50447-00 74PV (NAT) 199PV (NAT)

RTG20006AA Ignitor Assembly 123 31-50702-00 74X 74PV 199X 199PV

RTG20006AC Electrode (flame rod) 132 31-50419-00 74X 74PV 199X 199PV

RTG20006AD Electrode (spark) 133 31-53440-00 74X 74PV 199X 199PV

RTG20006AE Isolated Tube 134 09-77638-00 74X 74PV 199X 199PV

RTG20006AF Hot Water Outlet Connector 3/4 NPT 137 31-50380-00 74X 74PV 199X 199PV

RTG20006AL

Water Inlet Connector Assembly 3/4 NPT

142 31-16868-00 74X 74PV 199X 199PV

RTG20006AN Gas Inlet Connector Assembly 3/4 NPT 144 31-50379-00 74X 74PV 199X 199PV

RTG20006AP O-Ring P-10 204 09-61100-00 74X 74PV 199X 199PV

RTG20006AR Water Inlet Thermistor 400 09-76931-00 74X 74PV 199X 199PV

RTG20006AS Drain Valve Assembly 405 21-98655-00 74X 74PV 199X 199PV

RTG20006AT O-ring P-8 408 09-61080-00 74X 74PV 199X 199PV

RTG20006AU Res Water Control Assembly 410 31-50230-00 74X 74PV

RTG20006JA Comm Water Control Assembly 410 31-52731-00 199X 199PV

RTG20006AV Drain Valve A with O-ring 411 04-38888-00 74X 199X

RTG20006AW Drain Valve A with O-ring 411 10-36316-00 74PV 199PV

RTG20006AY O-Ring P-6 (EPT) 416 09-06115-00 74X 74PV 199X 199PV

RTG20006BB Hot Water Outlet Thermistor 420 09-76932-00 74X 74PV 199X 199PV

RESIDENTIAL COMMERCIAL

Ref. Cross 74X 74PV GT-199X GT-199PV

Part Number Description No. Reference No. Outdoor Models Indoor Models Outdoor Models Indoor Models Price

To place your order call 1-800-621-5622; fax 1-800-535-9538

UNIVERSAL PARTS TANKLESS GAS PARTS

Tankless Gas Replacement Parts for

Residential Models RTG-74PV, RTG-74X, RUTG-74PV and RUTG-74X;

Commercial Models GT-199PV and GT-199X (continued)

RTG20006BC Heat Exchanger Thermistor 421 09-76934-00 74X 74PV 199X 199PV

RTG20006BE O-Ring P-12.7 EPT 429 09-06376-00 74X 74PV 199X 199PV

RTG20000L O-Ring P-16 EPT 451 09-06215-00 74X 74PV 199X 199PV

RTG20006BV Thermistor Assembly 711 31-63727-00 74X 74PV 199X 199PV

RTG20006BW FR Connector Cord Assembly 720 31-50777-00 74X 74PV 199X 199PV

RTG20006BY Over Heat Limiter Assembly 722 31-50584-00 74X 74PV 199X 199PV

RTG20006BZ-1 Res Burner Control Assembly (PCB) 723 31-51511-0S 74X

RTG20006CA-1 Res Burner Control Assembly (PCB) 723 31-51531-0S 74PV

RTG20006JB Comm Burner Control Assembly (PCB) 723 31-51515-0S 199X

RTG20006JC Comm Burner Control Assembly (PCB) 723 31-51535-0S 199PV

RTG20006CB Transformer Assembly 724 31-50704-00 74X 74PV 199X 199PV

RTG20006CC Fan Assembly 728 31-50547-00 74X 74PV 199X 199PV

RTG20006CG Thermostat Assembly 734 61-10192-00 74X 74PV 199X 199PV

RTG20006CJ Filter SW Connector Cord Assembly 748 31-50775-00 74PV 199PV

RTG20006CK Filter SW Assembly 749 31-15359-00 74PV 199PV

RTG20006CL Power Cord Connector Assembly 755 31-50766-00 74X 199X

RTG20006CM Wiring Assembly A 756 31-50711-00 74X 74PV 199X 199PV

RTG20006CN Signing Connector Cord Assembly 757 31-50715-00 74X 74PV 199X 199PV

RTG20006CP Relay Cord Assembly 758 31-50719-00 74X 74PV 199X 199PV

RTG20000R Fuse 3A (power) 759 09-73259-00 74X 74PV 199X 199PV

RTG20006CS Fuse 5A (PCB) 760 09-73211-00 74X 74PV 199X 199PV

RTG20006DF-1 Sea Level Altitude Chip (LP) 0-3280 feet 900 31-51694-00 74PV (LP)

RTG20006DG

Sea Level Altitude Chip (NAT) 0-3280 feet

900 31-51547-00 74PV (NAT)

RTG20006DK-1 High Altitude Chip (LP) 3281-6560 feet 900 31-51682-00 74PV (LP)

RTG20006DM-1 High Altitude Chip (NAT) 3281-6560 feet 900 31-51688-00 74PV (NAT)

RTG20006DL-1 High Altitude Chip (LP) 6561-9840 feet 900 31-51685-00 74PV (LP)

RTG20006DN-1 High Altitude Chip (NAT) 6561-9840 feet 900 31-51691-00 74PV (NAT)

RTG20006EM Sea Level Altitude Chip (LP) 0-3280 feet 900 31-51714-00 74X (LP)

RTG20006EN Sea Level Altitude Chip (NAT) 0-3280 feet 900 31-51717-00 74X (NAT)

RTG20006EH High Altitude Chip (LP) 3281-6560 feet 900 31-51702-00 74X (LP)

RTG20006EK High Aaltitude Chip (NAT) 3281-6560 feet 900 31-51708-00 74X (NAT)

RTG20006EJ High Altitude Chip (LP) 6561-9840 feet 900 31-51705-00 74X (LP)

RTG20006EL High Altitude Chip (NAT) 6561-9840 feet 900 31-51711-00 74X (NAT)

RTG20006JD Sea Level Altitude Chip (LP) 0-3280 feet 900 31-52921 199PV (LP)

RTG20006JE Sea Level Altitude Chip (NAT) 0-3280 feet 900 31-52922 199PV (NAT)

RTG20006JF High Altitude Chip (LP) 3281-6560 feet 900 31-52923 199PV (LP)

RTG20006JG High Altitude Chip (NAT) 3281-6560 feet 900 31-52924 199PV (NAT)

RTG20006JH High Altitude Chip (LP) 6561-9840 feet 900 31-52925 199PV (LP)

RTG20006JJ High Altitude Chip (NAT) 6561-9840 feet 900 31-52926 199PV (NAT)

RTG20006JK Sea Level Altitude Chip (LP) 0-3280 feet 900 31-52931 199X (LP)

RTG20006JL Sea Level Altitude Chip (NAT) 0-3280 feet 900 31-52932 199X (NAT)

RTG20006JM High Altitude Chip (LP) 3281-6560 feet 900 31-52933 199X (LP)

RTG20006JN High Altitude Chip (NAT) 3281-6560 feet 900 31-52934 199X (NAT)

RTG20006JP High Altitude Chip (LP) 6561-9840 feet 900 31-52935 199X (LP)

RTG20006JR High Altitude Chip (NAT) 6561-9840 feet 900 31-52936 199X (NAT)

RTG20006DU Rheem Bath1 Control (USC1-117) 700 74X 74PV 199X 199PV

RTG20006DV Rheem Bath2 Control (USC2-117) 903 74X 74PV

RTG20006DW Rheem Main Control (UMC-117) 901 74X 74PV

RTG20006DX Ruud Bath1 Control (USC1-117) 700 74X 74PV

RTG20006DY Ruud Bath2 Control (USC2-117) 903 74X 74PV

RTG20006DZ Ruud Main Control (UMC-117) 901 74X 74PV

RESIDENTIAL COMMERCIAL

Ref. Cross 74X Outdoor 74PV Indoor GT-199X GT-199PV

Part Number Description No. Reference # Models Models Outdoor Models Indoor Models Price

To place your order call 1-800-621-5622; fax 1-800-535-9538

UNIVERSAL PARTS TANKLESS GAS PARTS

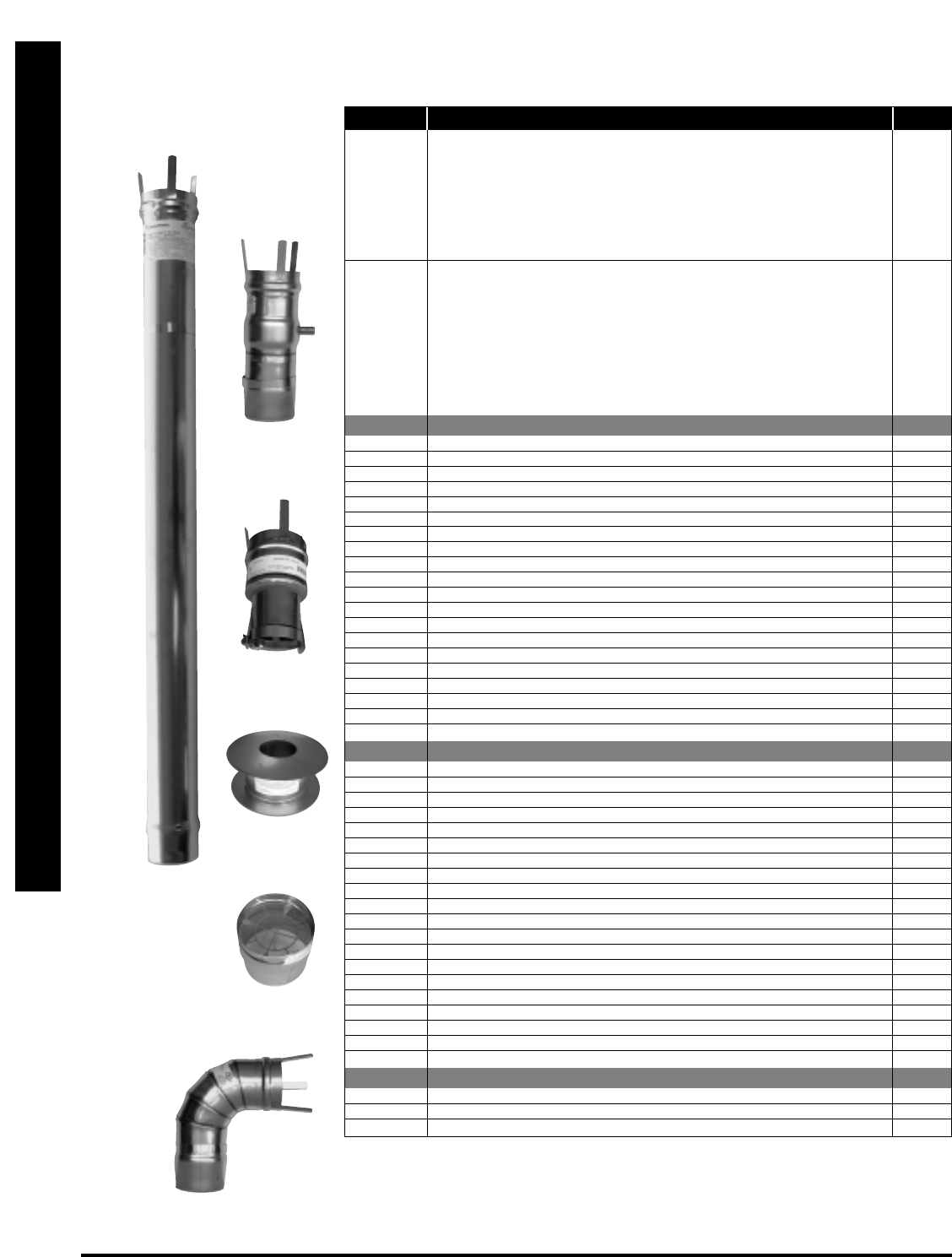

Tankless Gas Venting Parts

All tankless water heater venting material is made from Category III stainless

steel for durability and safety. All components are UL 1738 certified.

RTG20003 3” Installation Vent Kit (Stainless Steel Components) -for horizontal termination only

Fits models RTG-42PV, RUTG-42PV, PTG-42PV and RMTG-42PV

Kit includes: • (1) Adapter - RTG20000BM

• (2) 90 degree elbows - RTG20001C

• (1) 12” length vent pipe - RTG20001D

• (1) 2-piece 6”-19” adjustable length pipe - RTG20001F

• (1) 2-piece horizontal wall thimble - RTG20001B

• (1) 90 degree termination elbow with vent screen - RTG20001H

• (1) Pressure relief valve - AP12993C

RTG20007 4” Installation Vent Kit (Stainless Steel Components) -for horizontal termination only

Fits models RTG-74PV, RUTG-74PV, PTG-74PV and RMTG-74PV and GT-199PV

Kit includes: • (1) Adapter - RTG20002B

• (2) 90 degree elbows - RTG20002E

• (1) 12” length vent pipe - RTG20002C

• (1) 2-piece round wall thimble plate - RTG20002N

• (1) 2-piece 6”-19” adjustable length pipe - RTG20002L

• (1) 90 degree termination elbow with vent screen - RTG20002F

• (1) Pressure relief valve - AP12993C

• (1) 18 AWG, 2 conductor thermostat wire for remote control

connection - RTG20009

3” Venting Parts

RTG20000BM Vent Adapter

RTG20001C 90 Degree Elbow

RTG20001J 45 Degree Elbow

RTG20001D 12” Length Vent Pipe

RTG20001K 24” Length Vent Pipe

RTG20001E 37.5” Length Vent Pipe

RTG20001F 2-piece 6”-19” Adjustable Length Pipe

RTG20001B 2-piece Horizontal Wall Thimble

RTG20001H 90 Degree Termination Elbow with vent screen

RTG20001A Horizontal/Vertical In-Line Condensate Trap

RTG20001G Screen Termination

RTG20001M Support Clamp

RTG20001L 2” Clearance Horizontal Support

RTG20001N Pitched Cone Vent Flashing for vertical termination

RTG20001P Roof Jack Support System for vertical termination on flat roof

RTG20001R Storm Collar

RTG20001S Rain Cap w/ storm collar for vertical vent termination

RTG20001T 16” x 16” Fire Stop

RTG20001U Conduit Tee

RTG20001V Tee Cover with drain fitting

4” Venting Parts

RTG20002B Vent Adapter

RTG20002E 90 Degree Elbow

RTG20002R 45 Degree Elbow

RTG20002C 12” Length Vent Pipe

RTG20002S 24” Length Vent Pipe

RTG20002D 37.5” Length Vent Pipe

RTG20002L 2-piece 6”-19” Adjustable Length Pipe

RTG20002N Round Face 2-piece Horizontal Wall Thimble

RTG20002F 90 Degree Termination Ebow with vent screen

RTG20002K Horizontal/Vertical In-Line Condensate Trap

RTG20002M Screen Termination

RTG20002U Support Clamp

RTG20002T 2” Clearance Horizontal Support

RTG20002V Pitched Cone Vent Flashing for vertical termination

RTG20002W Roof Jack Support System for vertical termination on flat roof

RTG20002X Storm Collar

RTG20002Y Rain Cap w/ storm collar for vertical vent termination

RTG20002Z 16” x 16” Fire Stop

RTG20002G Conduit Tee

RTG20002J Tee Cover with drain

Other Parts

AP12993C Pressure Relief Valve

RTG20009 18 AWG Thermostat Wire for remote control connection

RTG20002A 10 ft. Condensate Drain Tube Hose Kit

Part Number Description Price

90 Degree

Elbow

2-Piece

Horizontal

Wall Thimble

Screen

Termination

Adapter

(required for all

installations)

Horizontal/

Vertical

In-Line Drain

37.5” Length

Vent Pipe

Residential Replacement Parts List

All standing pilot models except direct vent and PowerVent

NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Thermostat 1 (NAT) SP8555B

(LP) SP12258B

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379K

4. Burner Supply Tube (30 Gal NAT) AM35050CNN

(30 Gal LP) AM36336IJ

5. Burner Orifice (40 Gal NAT) AM35050DT

(40 Gal LP) AM36336DZZ

6. Burner (50 Gal NAT) AM35050EFF

(50 Gal LP) AM36336EZZ

7. Pilot Burner 1 SP8980B

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 SP12039

SP12112E (brass)

10. Jacket Door 1 AM29254-4C

11. Inner Door 1 AM29501

12. Flue Baffle 1 (30 Gal) AM25812-1

(40 Gal) AM25812-1

(50 Gal) AM25816

12A. Flue Baffle Hanger 1 AM20622C

13. Anode Rod 1 (5 Year) SP11309C

(10 Year) SP11526C

14. Draft Hood 1 AM36352H

15. Dip Tube 1 SP112481Q

16. Dip Tube Gasket 1 AP6948-1

17. T&P Relief Valve 1 SP12574

40 and 50 Gal VR Models

1. Thermostat 1 (NAT) SP8555P

(LP) SP12258P

9. Drain Valve 1 SP12112S

12. Flue Baffle 1 AM38876

14. Draft Hood 1 AM36333H

Burner

Assembly

WATER HEATER PARTS DIAGRAMS

To place your order call 1-800-621-5622; fax 1-800-535-9538

Units manufactured prior to January, 2004

Residential Replacement Parts List

All standing pilot models except direct vent and PowerVent

60-50 GALLON NATURAL OR LP GAS

Ref.

No. Part Description Qty. Req. Part Number

1. Thermostat 1 (NAT) SP20085K

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379K

4. Burner Supply Tube N/A

5. Burner Orifice N/A

6. Burner Assembly NAT (#30 orifice) SP20084A

6A. Assembly Low NOx (#30 orifice) SP20084D

6B. Burner Assembly LP (#46 orifice) SP20084E

6C. Assy LP High Altitude (#47 orifice) SP20084F

7. Pilot Burner N/A

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 SP12112G

10. Jacket Door 1 SP20084K

11. Inner Door 1 SP20084H

12. Flue Baffle 1 SP20084G

13. Anode Rod 1 AP11526S

14. Draft Hood 1 SP20084J

15. Dip Tube (30” Polysulfone) 1 AP11251G

15. Dip Tube (36” Polysulfone) 1 AP11625Q

16. Dip Tube Gasket 1 AP6948-3

17. T&P Relief Valve 1 SP12574

Burner

Assembly

WATER HEATER PARTS DIAGRAMS

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

50-6, 75 & 100 GALLON MODELS: NATURAL OR LP GAS

Part Number

Ref. No. Part Description Qty. Req. 50-6 75VR 100 Gal

1. Thermostat 1 (NAT) SP10022P (NAT) SP12491D (NAT) SP10022F

(LP) SP12258P (LP) SP12258N (LP) SP12258F

2. Pilot Supply Tube 1 N/A N/A N/A

3. Thermocouple 1 SP6379K SP6379C SP6379K

4. Burner Supply Tube (NAT) AM29602STT AM39178BC (NAT) AM29602FRR

5. Burner Orifice (LP) AM36419SN (LP) AM36419RKK (LP) AM36419FKK

6. Burner

7. Pilot Burner 1 (NAT) SP8384B (NAT) SP8980B (NAT) SP8384B

(LP) SP8384D (LP) SP8384D (LP) SP8384D

8. Drain Valve Shroud 1 AP9167 AP9167 AP9167

9. Drain Valve 1 SP12112S SP12112S SP12112E

10. Jacket Door 1 AM21658C AM21658C AM21658C

11. Inner Door 1 AM27902-2 AM27902-2 AM27902-2

12. Flue Baffle 1 AM26055 AM26053 AM26054

12A. Flue Baffle Hanger 1 N/A N/A N/A

13. Flue Baffle Collar 1 AM25187 AM25187 AM25187

14. Anode Rod 1 SP11309C AP11525C AP11525BD

15. Draft Hood 1 AM25206 AM25206 AM25206

16. Dip Tube 1 SP11269C AP11273G SP11269C

17. Dip Tube Gasket 1 AP9060-1 AP9060-1 AP9060-1

18. T&P Relief Valve 1 AP12575B-1 SP12575B AP12576B-1

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

30, 40 AND 50 GALLON FVIR MODELS

(Flammable Vapor Ignition Resistant System)

NATURAL OR LP GAS

WATER HEATER PARTS DIAGRAMS

To place orders call

1-800-621-5622

All parts orders should include:

1. The model and serial number of the water

heater from the rating plate.

2. Specify type of gas (natural or LP) as

marked on the rating plate.

3. Part description (as noted below) and

number of parts desired.

Ref. Qty.

No. Part Description Req.

1. Draft Hood 1

2. Heat Traps 1

3. Lined Nipples 1

4. Anode Rod 1

5. Flue Baffle & Hanger 1

6. Dip Tube 1

7. Dip Tube Gasket 1

8. T&P Relief Valve 1

9. Drain Valve 1

10. Gas Control (thermostat) 1

11. Piezo Ignition Ignitor 1

12. Mounting Bracket 1

13. Jacket Door 1

14. Burner Orifice

15. Burner Supply Tube

16. Burner Access Door

17. Sight Glass

18. Burner Access Door Grommet

19. Burner Access Door Gasket

20. Burner

21.

Pilot Burner and Piezo Electrode

22. Thermocouple

23. Pilot Supply Tube

24. Piezo Ignitor Wire

Burner Assembly

Burner Assembly Kit provides extra

speed clips and tamper resistant screws.

Burner Assembly Kit

To place your order call 1-800-621-5622; fax 1-800-535-9538

Part Number

Ref. No. Part Description Qty. Req. 30 gallon models 40 gallon models 50 gallon models

1. Draft Hood 1 AM36352-H AM36352-H AM36352-H

2. Heat Traps 1 SP20003 N/A N/A

3. Lined Nipples 1 N/A SP11623B (VR models only) SP11623B (VR models only)

4. Anode Rod 1 SP11309C SP11309C SP11309C

5. Flue Baffle & Hanger 1 Call for Application Call for Application Call for Application

6. Dip Tube 1 AP11625G-1 AP11625F-1 AP11625P

7. Dip Tube Gasket 1 AP6948-3 AP6948-3 AP6948-3

8. T&P Relief Valve 1 SP12574 SP12574 SP12574

9. Drain Valve 1 SP12112E SP12112E SP12159B

10.

Gas Control (thermostat) 1

SP8555B (NAT) SP12258B (LP) SP12258B (LP)

11. Piezo Ignition Ignitor 1 SP20055 SP20055 SP20055

12. Mounting Bracket 1 SP20055 SP20055 SP20055

13. Jacket Door 1 AS39789-2C AS39789-2C AS39789-2C

Burner Kit 1 Call for Application Call for Application Call for Application

Gasket Kit 1 SP20063 SP20063 SP20063

Thermocouple Kit 1 SP20064 SP20064 SP20064

Units manufactured between July, 2003 – December, 2003

Residential Replacement Parts List

30, 40 AND 50 GALLON FVIR MODELS

(Flammable Vapor Ignition Resistant System)

NATURAL OR LP GAS

WATER HEATER PARTS DIAGRAMS

To place your order call 1-800-621-5622; fax 1-800-535-9538

Part Number

Ref. No. Part Description Qty. Req. 30 gallon models 40 gallon models 50 gallon models

1. Draft Hood 1 AM36352-H AM36352-H AM36352-H

4. Anode Rod 1 SP11309C (6-YR) SP11309C(6-YR) SP11309C(6-YR)

SP11526C (12-YR) SP11526C (12-YR SP11526C (12-YR

5. Flue Baffle & Hanger 1 Call for Application Call for Application Call for Application

6. Dip Tube 1 Call for Application Call for Application Call for Application

7. Dip Tube Gasket 1 AP6948-3 AP6948-3 AP6948-3

8. T&P Relief Valve 1 AP12575B-1 AP12575B-1 AP12575B-1

9. Drain Valve 1 SP12112S SP12112S SP12112S

10.

Gas Control (thermostat) 1

SP8555T (NAT) SP8555T (NAT) SP8555T (NAT)

SP13160D (LP) SP13160D (LP) SP13160D (LP)

13. Jacket Door 1 AS39789-2C AS39789-2C AS39789-2C

Drain Valve Shroud 1 AP9167 AP9167 AP9167

Burner Kit 1 Call for Application Call for Application Call for Application

Pilot Assembly Kit 1 SP20075 (NAT) SP20075 (NAT) SP20075 (NAT)

SP20076 (LP) SP20076 (LP) SP20076 (LP)

Thermocouple Kit 1 SP20064 SP20064 SP20064

For NAECA V-PLUS units manufactured starting January, 2004

Part Number

Ref. No. Part Description Qty. Req. 30 gallon models 40 gallon models . 50 gallon models

1. Draft Hood 1 AM36333-H AM36352-H AM36352-H

4. Anode Rod 1 SP11309C SP11309C SP11309C

5. Flue Baffle & Hanger 1 Call for Application Call for Application Call for Application

6. Dip Tube 1 Call for Application Call for Application Call for Application

7. Dip Tube Gasket 1 AP6948-3 AP6948-3 AP6948-3

8. T&P Relief Valve 1 SP8346 SP8346 SP8346

9. Drain Valve 1 SP12112G SP12112G SP12112G

10.

Gas Control (thermostat) 1

SP8555R (NAT) SP8555R (NAT) SP8555R (NAT)

SP13160E (LP) SP13160E (LP) SP13160E (LP)

13. Jacket Door 1 AS39789-2C AS39789-2C AS39789-2C

Drain Valve Shroud 1 AP9167 AP9167 AP9167

Burner Kit 1 Call for Application Call for Application Call for Application

Pilot Assembly Kit 1 SP20075 (NAT) SP20075 (NAT) SP20075 (NAT)

SP20076 (LP) SP20076 (LP) SP20076 (LP)

Thermocouple Kit 1 SP20064 SP20064 SP20064

For NAECA Non-VR units manufactured starting January, 2004

For NAECA V-PLUS units manufactured starting January, 2004

Residential Replacement Parts List

Hot Surface Ignition

POWER VENTED NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Regulator/Solenoid 1 (NAT) SP10886B

(LP) SP10886C

2. Assembly – Comp Enclosure 1 N/A

3. Transformer 1 SP10894

4. On/Off Switch 1 SP10778

5. Assembly – Power Cord 1 AM36917

6. Thermostat Bracket 1 AM37830

7. Composite Edge Grommet 1 AP10780-1

8. Ignition Control 1 SP10758

9. Vinyl Vacuum Tube 1 AP10723-2

10. Vacuum Switch 1 (Up to 1991) SP10887K

(After 1991) SP11875

11. Thermostat 1 SP12390

12. Burner 1 N/A

13. Inverted Flare Nut 1 AP10691-2

14. Hot Surface Ignitor 1 SP10972

15. Anode Assembly 1 SP11526C

16. Flue Baffle Assembly 1 AM25812

17. Dip Tube 1 AP10768C-4

18. Dip Tube Gasket 1 AP6948-1

19.

T&P Relief Valve 1 SP12574

20. Inner Door 1 AM29501

21. Drain Valve Shroud 1 AP2480-3

22. Drain Valve 1 SP12039 / 12112G

23. Captive Screw w/ Retainer 1 AP8162B-1

24. Enclosure Box Door 1 N/A

25. Enclosure Box Gasket 1 N/A

26. Hot Outlet Heat Trap 1 AP8910-1

27. Vent Fan Assembly 1 AP10983-4

28. Baffle Hanger 1 AM20622C

29 Adapters 1 AP10751-3

30. Vent Terminal w/ Screen 1 AM36755

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

18. Vent Fan Assembly 1 (40/50 Gal) AP10983-4

(75 Gal) AP11608-1

19. Anode 1 (40/50 Gal) SP11309C

(75 Gal) 11526C

20. Flue Baffle Assembly 1 (40/50 Gal) AM20622C

(75 Gal) AM38168

21 Flue Baffle Hanger 1 (All models) AM20622C

22. T & P Relief Valve 1 (All models) SP6571B

23. Heat Trap Dip Tube 1 (40/50 Gal) AP10768C-4

(75 Gal) SP11269C

24. Dip Tube Gasket 1 (40/50 Gal) AP6948-3

(75 Gal) AP9060-1

25. Hot Outlet Heat Trap 1 (40/50 Gal) AP8910-1

26. Drain Valve 1 (40/50 Gal) SP12039

(75 Gal) SP12112G

27. Drain Valve Shroud 1 (All models) AP2480-3

28. Enclosure Box Gasket 1 N/A

29. Inner door 1 (All models) AM29501

30. Captive Screw w/ Retainer 1 (All models) AP8162B-1

Spark Ignition

POWER VENTED MODELS: NATURAL OR LP GAS

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1. Gas Control Valve 1 (NAT) SP11652B

(LP) SP11652C

2. Assembly, Control Enclosure 1 N/A

3. Transformer 1 SP11787

4 On/Off Switch 1 SP10778

5. Assembly, Power Cord 1 AM36917

6. Thermostat Bracket 1 AM37830

7. Composite Edge Grommet 1 AP10780-1

8. Ignition Control 1 SP10763B

9. Vinyl Vacuum Tubing 1 AP10723-2

10. Vacuum Switch 1 SP11875

11. Thermostat 1 SP12390

12. Burner 1 (40 Gal NAT) AM38380C

(40 Gal LP) AM38379C

(50 Gal NAT) AM38380B

(50 Gal LP) AM38379B

(75 Gal NAT) AM38140

(75 Gal LP) AM38142

13. Burner Supply Tube 1 N/A

14. Inverted Flare Nut 1 AP10691-2

15. Pilot Supply Tube 1 N/A

16. Ignitor Cable 1 SP8828D

17. Pilot / Electrode Assembly 1 (before September 1998: NAT) SP10764B

(before September 1998: LP) SP10764C

(after September 1998: 40/50 Gal NAT) SP12049B

(after September 1998: 40/50 Gal LP) SP12049C

(after September 1998: 75 Gal NAT) SP12049D

(after September 1998: 75 Gal LP) SP12049E

Spark Ignition

POWER VENTED MODELS: NATURAL OR LP GAS

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

POWER VENTED - 2 IN. VENT: 40 AND 50 GALLON MODELS

NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Blower Assembly 1 SP12562

2. Anode Rod 1 SP11309C

3. Flue Baffle Assembly 1 AM39341

4. Flue Baffle Hanger 1 N/A

5. T & P Relief Valve 1 SP8346

6. Dip Tube 1 SP11251R

7. Dip Tube Gasket 1 AP6948-1

8. Drain Valve 1 SP12112S

9. Drain Valve Shroud 1 AP9167

10. Inner Door 1 AM29501

11. Outer Door 1 AM29254-4C

12. Protective Cover 1 AP12558

13. Thermostat 1 (NAT) SP12556

(LP) SP12557

14. Spark Ignitor Assembly 1 (NAT) SP12560B

(LP) SP12560C

15. Main Burner Assembly 1 (40 Gal NAT Low NOx) AM39503RY

(40 Gal LP) AM39504RM

(50 Gal NAT Low NOx) AM395035Y

(50 Gal LP) AM39504SM

16. Heat Trap Hot 1 SP20003 Kit

17. Heat Trap Cold 1 SP20003 Kit

18. Burner Supply Tube 1 N/A

19. Pressure Switch 1 SP12766

20. Rubber Coupling 1 SP12658

21. On/Off Switch 1 AP12767

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

75 GALLON POWERVENT

NATURAL OR LP GAS

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Ref. No. Part Description Qty. Req. Part Number

1. Blower Assembly 1 AP13211

2. Anode Rod 1 AP11525C

3. Heat Trap Nipple (Hot) 1 AP13163-1

3. Heat Trap Nipple (Cold) 1 AP13164-1

5. Dip Tube with Gasket 1 AP13226A

6. T & P Relief Valve 1 SP12575B

7. Flue Baffle with Hanger 1 (NAT) AM40182

(LP) AM40427

8. Drain Valve 1 SP12112S

9. Gas Control (Thermostat) 1 (NAT) SP12556

(LP) SP12557

10. Burner Assembly 1 (NAT) AM40195BA

(LP) AM40448

11. Pilot Ignitor Assembly 1 (NAT) SP12560B

(LP) SP12049E

12. Jacket Door 1 AM21658-2C

13. Inner Door 1 AM27902-2

Residential Replacement Parts List

POWERVENT (FVIR COMPLIANT)

EFFECTIVE JANUARY 2006

40 AND 50 GALLON MODELS: NATURAL OR LP GAS

WATER HEATER PARTS DIAGRAMS

To place your order call 1-800-621-5622; fax 1-800-535-9538

FOR PARTS CHART – SEE NEXT PAGE.

Residential Replacement Parts List

POWERVENT (FVIR COMPLIANT)

EFFECTIVE JANUARY 2006

40 AND 50 GALLON MODELS: NATURAL OR LP GAS CONTINUED

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Ref. No. Part Description Qty. Req. Part Number

1. Blower Assembly (Tall) 1 SP13416

Blower Assembly (Short) 1 SP13605

1a. Blower Gasket Kit (not shown) 1 SP20122

1b. Hose – Pressure Switch 1 SP20120

1c. Temperature Switch – 180 degree 1 SP20119

2. Coupling 1 SP12638

3. Pressure Switch (Tall) 1 SP20116

Pressure Switch (Short) 1 SP20117

4. Anode Rod 1 SP11309C

5. Heat Trap Nipples 1 SP20003

6. Flue Baffle with Hanger (Tall) 1 AM38876

Flue Baffle with Hanger (Short) 1 AM40889

7. Dip Tube with Gasket 1 AP11625R

8. T&P Relief Valve (Tall) 1 SP8346

T&P Relief Valve (Short) 1 AP12574E

9. Drain Valve 1 SP12112G

10.

Gas Control (Thermostat and Electronic Module)

Control – NAT, 2.375 Shank, 160 degrees 1 SP13458

Control – NAT, 1.500 Shank, 160 degrees 1 SP13458B

Control – NAT, 1.500 Shank, 140 degrees 1 SP13458C

Control – LP, 2.375 Shank, 160 degrees 1 SP13459

Control – LP, 1.500 Shank, 160 degrees 1 SP13459B

10a. Control – Electronics 1 SP20123

11. Burner Assembly

40 Gallon NAT (42VP40) 1 AM40796

40 Gallon NAT (42VP40S) 1 AM40798

40 Gallon LP (42VP40P) 1 AM40801

40 Gallon LP (42VP40SP) 1 AM40803

50 Gallon NAT (42VP50) 1 AM40797

50 Gallon NAT (42VP50S) 1 AM40799

50 Gallon LP (42VP50P) 1 AM40802

50 Gallon LP (42VP50SP) 1 AM40804

12. Pilot Ignitor Assy Kit (Ignitor, Gasket, Screws)

Pilot Assy 16 in. Chamber Nat 1.875 Cavity 1 SP13418

Pilot Assy 16 in. Chamber LP 1.875 Cavity 1 SP13419

Pilot Assy 18 in. Chamber Nat 1.125 Cavity 1 SP13420

Pilot Assy 18 in. Chamber LP 1.125 Cavity 1 SP13421

Pilot Assy 18 in. Chamber Nat 1.875 Cavity 1 SP13422

Pilot Assy 18 in. Chamber LP 1.875 Cavity 1 SP13423

Pilot Assy 20 in. Chamber Nat 1.125 Cavity 1 SP13424

Pilot Assy 20 in. Chamber LP 1.125 Cavity 1 SP13425

13. Inner Door Gasket Kit 1 SP20063

14. Jacket Door 1 AM39789-2C

Flammable Vapor Sensor None Not a Replacement Part

Residential Replacement Parts List

30 & 40 GALLON MODELS FOR

MANUFACTURED HOUSING, WITH CONVERTIBLE

GAS CONTROL FOR NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part No.

1. Thermostat 1 SP9051B

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379E

4. Burner Supply Tube

5. Burner Orifice

6. Burner

7. Pilot Burner 1 SP8980B

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 AP12039

10. Jacket Door 1 AM29254-4C

11. Inner Door 1 AM29501

12. Flue Baffle 1

12A. Flue Baffle Hanger 1 AM20622C

13. Anode Rod 1 SP11309C

14. Draft Hood 1 AM36352H

15. T&P Relief Valve 1 SP12574

Burner

Assembly

(30 Gal) AM35050CT

(40 Gal) AM35050DT

(30 Gal) AM25812

(40 Gal) AM29068

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

30, 40 & 50 GALLON DIRECT VENT MODELS

FOR MANUFACTURED HOUSING, WITH CONVERTIBLE

GAS CONTROL FOR NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Thermostat 1 SP9051B

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379R

4. Burner Supply Tube

(30 Gal) AM28804BHH

5. Burner Orifice

(40 Gal) AM38804CHH

6. Burner

(50 Gal) AM38804DNN

7. Pilot Burner 1 SP8384E

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 SP12039

10. Jacket Door 1 AM35622

11. Inner Door 1 AM38692

12. Flue Baffle 1 AM29201

12A. Flue Baffle Hanger 1 AM20622C

13. Anode Rod 1 SP11309C

14. Roof Jack Assembly 1 As Required

15. Air Inlet Assembly 1 AP12019B

16. T&P Relief Valve 1 SP12574

17. Shroud, Relief Valve 1 AP9167

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

DIRECT VENT MODELS: NATURAL GAS ONLY

Ref. No. Part Description Qty. Req. 21DV Model Part Number 22DV Model Part Number

1. Thermostat 1 SP8555B SP8555U

2. Pilot Supply Tube 1 N/A N/A

3. Thermocouple 1 SP6379R SP6379R

4. Burner Supply Tube

5. Burner Orifice AM35651DY AM40497EY

6. Burner

7. Pilot Burner 1

SP8980B SP12380B

8. Drain Valve Shroud 1 AP9167 AP9167

9. Drain Valve 1 SP12039 AP12159C-1

10. Jacket Door 1 AM35622 AM35622

11. Inner Door 1 AM38692 AM40615

12. Flue Baffle AE35629D-2 AE35629D-2

12A. Flue Baffle Hanger

13. Anode Rod 1 SP11309C SP11309C

14. Dip Tube 1 SP11248R AP11251H-2

15. Dip Tube Gasket 1 AP6948-1 AP6948-1

16. Upper Air Inlet Box 1 AM35613-H AM40290-H

17. Air Tube Elbow 1 AP10197-1 AP10197-1

18. Sliding Air Tube 1 AP11126B-1 AP11126B-1

19. Main Air Tube 1 AP11126C-1 AP11126C-1

20. Vent Terminal Cap 1 AP11498 AP11498

21. T&P Relief Valve 1 SP12574 SP8346

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

GALLON MODELS

120 OR 240 VOLT OPERATION

Ref. No. Part Description Qty. Req. Part Number

1. Heating Element 1 (120V) SP10868LH

(240V) SP10869FH

2. Heating Element Gasket 1 AP6708-9

3. Thermostat Bracket 1 AM23557

4. Thermostat 1 (120V) SP11700

(240V) SP11699

5. Thermostat Protective Cover 1 AP8413-9

6. Cavity Insulation 1 AP9184-7

7. Jacket Access Panel 1 AM38409-1C

8. Drain Valve 1 (PVC) SP12039

(Brass) SP12112G

9. Drain Valve Shroud 1 AP2480-3

10. Electrical Cord Set (120 VAC models ONLY) 1 AP10883-2

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

6 – 20 GALLON MODELS

120 OR 240 VOLT OPERATION

Ref. No. Part Description Qty. Req. Part Number

1. Heating Element 1 (120V) SP10874GH

(240V) SP10552GH

2. Heating Element Gasket 1 AP6708-9

3. Thermostat Bracket 1 AM23557

4. Thermostat 1 (120V) SP11700

(240V) SP11699

5. Thermostat Protective Cover 1 AP8313-9

6. Cavity Insulation 1 AP9184-7

7. Jacket Access Panel 1 AM38409-1C

8. Nipple, Hot Outlet 1 AP11623F

9. Nipple, Cold Inlet 1 AP11623F

10. Shroud As Required AP2480-3

11. Anode Rod 1 SP11309C

12. Snap Bushing 1 AP7733-2

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

30 GALLON MODELS

120 OR 240 VOLT OPERATION

Ref. No. Part Description Qty. Req. Part Number

1. Heating Element As Required (120V) SP10874GH

(240V) SP10552GH

2. Heating Element Gasket As Required AP6708-9

3. Thermostat Bracket As Required AM23557

4. Thermostat, Upper (on double element models only) 1 SP11698

5. Thermostat, Lower 1 (120V) SP11700

(240V) SP11695

6. Thermostat (single element models only) 1 (120V) SP11700

(240V) SP11699

7. Thermostat Protective Cover As Required AP8313-9 (Double element upper and Single element lower)

AP8314-9 (Double element lower)

8. Cavity Insulation As Required AP9184-7

9. Jacket Access Panel As Required AM38409-1C

10. J-Tube, Hot Outlet 1 AP8877E-12

11. Nipple, Cold Inlet 1 AP11623F

12. Shroud As Required AP2480-3

13. Anode Rod 1 (5 Year) SP11309C

(10 Year) SP11526C

14. Snap Bushing 1 AP7733-2

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

20 – 120 GALLON MODELS: SINGLE AND DOUBLE ELEMENT

Ref. No. Part Description Qty. Req. Part Number

1. Dip Tube Gasket – 3/4” 1 AP6948-3

2. Dip Tube – 3/4” 1 SP11248R

3. Anode Rod 1 (5 Year, 44”) SP11309C

(10 Year, 44”) SP11526C

(10 Year, 58”) SP11526Z

4. Plate Cover 1 AM29892

5. Junction Box Cover 1 AM29893

6. Upper Thermostat (on double element models only) 1 SP11698

7. Thermostat Protective Cover (on double element models only) 1 AP8313-9

8. Cavity Insulation 2 AP9184-7

9. Jacket Access Panel (Rheem Blue) As Required AM38409-1C

10. Heating Element Gasket As Required AP6708-9

11. Heating Element As Required (240V) SP10552MH

(120V) SP10874GH

12. Thermostat Bracket As Required AM23557

13. Lower Thermostat 1 (DE) SP11695

(SE-240V) SP11699

(SE120V) SP11700

14. Lower Thermostat Protective Cover 1 AP8314-9

15. Drain Valve 1 (PVC) SP12039

AP12112G

16. Drain Valve Shroud 1 AP2480-3

17. Relief Valve 1 (Top) SP12574

(Side) SP8346

18. Hot Outlet Heat Trap or Dip Cup Insert (HT Kit) 1 SP20003 or AP12992

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

20 – 52 GALLON MODELS: SINGLE AND DOUBLE ELEMENT

Ref. No. Part Description Qty. Req. Part Number

1. Dip Tube Gasket (on top connect models only) 1 AP6948-1

2. Dip Tube (on top connect models only) 1 SP11248R

3. Anode Rod 1 SP11309C

4. Plate Cover (hole) 1 AM29892

5. Junction Box Cover (no hole) 1 AM29893

6. Upper Thermostat (on double element models only) 1 SP11698

7. Upper Thermostat Protective Cover (on double element models only) 1 AP8313-9

8. Cavity Insulation 2 AP9184-7

9. Jacket Access Panel As Required AM38409-1C

10. Heating Element Gasket As Required AP6708-9

11. Heating Element As Required (240V) SP10552MH

(120V) SP10874GH

12. Thermostat Bracket As Required SP23557

13. Lower Thermostat 1 (DE) SP11695

(SE-240V) SP11699

(SE120V) SP11700

14. Lower Thermostat Protective Cover 1 AP8314-9

15. Drain Valve 1 SP12039

16. Drain Valve Shroud As Required AP2480

17. Cold Inlet Nipple (on side connect models only) 1 AP8397N-8

18. Hot Outlet Tube (on side connect models only) 1 (71V20S) AP8877K-12

(71V30D) AP8877K-12

(71V40D) AP8877J-12

(71V50D) AP8877J-12

19. Relief Valve 1 (Top) SP12574

(Side) SP8346

20. Hot Outlet Heat Trap or Dip Cup Insert 1 AP12992

To place your order call 1-800-621-5622; fax 1-800-535-9538

* These parts are supplied only on double element models.

WATER HEATER PARTS DIAGRAMS

Residential Replacement Parts List

40 GALLON TABLE TOP MODELS

SINGLE AND DOUBLE ELEMENT

Ref. No. Part Description Qty. Req. Part Number

1. Splash Top 1 AP68410-5

2. Front Center Panel 1 AM28677-A

3. Upper Thermostat (on double element models only) 1 SP11698

4. Upper Thermostat Protective Cover (on double element models only) 1 AP8313-9

5. Thermostat Bracket As Required AM23557

6. Heating Element Gasket As Required AP6708-9

7. Heating Element As Required SP10552MH

8. Lower Thermostat Protective Cover 1 AP8314-9

9. Lower Thermostat 1 (DE) SP11695

(SE) SP11699

10. Drain Valve 1 AP12112L

11. Dip Tube 1 SP11248P

12. Dip Tube Gasket 2 AP6948-1

13. Anode 1 AP11525V

14. Relief Valve 1 SP12574

15. Hot Outlet Heat Trap or Dip Cup Insert (Kit) 1 SP20003

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Commercial Replacement Parts List

UNIVERSAL SPARK IGNITION: NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Drain Valve Bushing 1 AP7733-2

2. Drain Valve Nipple 1

3. Drain Valve 1 AP12231B-1

4. Jacket Handhole Cover 1 AM3459-H

5. Tank Handhole Assembly 1 SP22079

5A. Yoke 1 AS24346-1

5B. Nut 1 AP2247-1

5C. Gasket 1 AP5886-1

5D. Stud 1 AP5983-2

5E. Seal Plate 1 AS22078-2

6. Outlet Nipple Assembly 1 call for size

7. Inlet/Outlet Bushing 2 AP12421

8. Relief Valve Bushing 1 AP9078

9. Relief Valve Nipple 1

10. Relief Valve 1 SP9013D

11. Auto-Vent Damper Assembly 1 ***

12. Damper Motor 1 AP11617-1

13. Damper Drive Wiring 1 AP11314C-3

14. T’stat/T’well Bushing 1 AP9078-1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

15. Thermostat Hi-Limit 1 SP11798B

16. Gas Manifold Assembly 1

16A. Gas Valve (NAT) 1 SP10963D

16A. Gas Valve (LP) 1 SP10963E

17. Pilot Tube (straight) 1 AP7033L-14

18. Gas Manifold Assembly 1

18A Burner Orifice 1

18B. Burner Bracket (front) 1

18C. Burner 1

18D Burner Bracket (rear) 1

19. Pilot (NAT) 1 SP10764B

19. Pilot (LP) 1 SP10764C

20. Ignition Cable 1 SP8828D

21. Ignition Control 1 SP10763B

22. On/Off Switch 1 AP8825

23. Transformer 1 SP10550B

24. Inlet Nipple 1 call for size

25. Flue Baffle & Hanger 1 ***

26. Anode As Required AP11524C

Sold as burner

tray assembly

Call for

application

***Call for application ***Call for application

WATER HEATER PARTS DIAGRAMS

Commercial Replacement Parts List

“R” AND “RF” SERIES: NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Tank Assembly 1

2. Tank Handhole Assembly 1 SP22079

2A. Yoke 1 AS24346-1

2B. Hex Nut 1 AP2247-1

2C. Gasket 1 AP5886-1

2D. Stud 1 AP5983-2

2E. Seal Plate 1 AS22078-2

3. Anode Assembly As Required AP11524C

4. Leg Assembly 3

6A. Bottom Pan Assembly 1

6B. Inner Floor Shield 1

6C. Insulation Block - Front & Rear 2

6D. Insulation Block - Sides 2

7. Flue Baffle Assembly 1

7A. Flue Baffle 1

8. Assembly - Collector Pan 1

9. Jacket Insulation 1

10. Jacket 1

11. Top Pan 1

12. Nipple - Inlet & Outlet 2

13. Shroud - Inlet & Outlet 2

14. Nipple - Relief Valve 1

15. Shroud - Relief Valve 1

16. Cover - Jacket Handhole 1 AM3459-H

17. Drain Valve 1 SP6070S

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

18. Nipple Drain Valve 1

19. Shroud - Drain Valve 1

N/S Pipe Plug 1

21. Assembly - Burner Tray &

Manifold 1

21A. Burner Orifice (NAT) 1

21A. Burner Orifice (LP) 1

21B. Burner 1 AP11537

21C. Bracket - Burner Holddown

(rear) 1

21D. Bracket - Burner Holddown

(front) 1

22. Gas Manifold Assembly

22A. Gas Valve (NAT) 1 SP5870E

SP5870F

22A. Gas Valve (LP) 1 SP5870C

23. Thermostat/Hi Limit 1 SP8824B

(modify) SP11799B

N/S Shroud - Thermostat &

Thermowell 2

25. Pilot (NAT) 1 SP10399B

25. Pilot (LP) 1 SP10399C

26. Thermopile 1 SP10100B

27. Pilot Tube (straight) 1 AP7033L-14

36. Assembly - Vent Hood 1

37. Wire Harness 1 AP11327-5

Call for

application

WATER HEATER PARTS DIAGRAMS

Commercial Replacement Parts List

VENTMASTER COMMERCIAL GAS MODEL

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Ref. No. Part Description Qty. Req. Part Number

1. Pilot Ignitor Assembly 1 SP13185

2. Burner Assembly 1 Call for Quote

3. Gas Valve 1 SP13714

4. System Sentinel Panel 1 AM38875

5. Ignition Control Assembly 1 AM40782

5A. Control Module 1 SP10763B

5B. Relay 1 SP12732

5C. On/Off Switch 1 AP8825

5D. Transformer 1 SP10550B

6. Blower Assembly 1 AP13192

7. Temperature & Pressure Relief Valve 1 SP9013D

8. Hand Hole Cover Gasket 1 AP5886-1

9. Thermostat 1 SP11798

10. Drain Valve 1 AP12231B-1

Commercial Replacement Parts List

“RD”, “RCD”, & “RFD” SERIES: NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

2. Tank Handhole Assembly 1 SP22079

2A. Yoke 1 AS24346-1

2B. Hex Nut 1 AP2247-1

2C. Gasket 1 AP5886-1

2D. Stud 1 AP5983-2

2E. Seal Plate 1 AP11262B-1

3. Anode Assembly 1 AP11524BD

4. Leg Assembly 3 AE-23468-1H

N/S Inner Ring Assembly 1

6A. Bottom Pan Assembly 1

6B. Inner Floor Shield 1

6C. Insulation Block - Front & Rear 2

6D. Insulation Block - Sides 2

7. Flue Baffle Assembly 1

8. Collector Pan Assembly 1

9. Jacket Insulation 1

10. Jacket 1

11. Top Pan 1

12. Inlet & Outlet Nipple 2 AP10009-4

13. Inlet & Outlet Shroud 2 AP6334-1

14. Relief Valve Nipple 1 AP10003

15. Relief Valve Shroud 1 AP9167

16. Jacket Handhole Cover 1 AM3459-H

17. Drain Valve 1 SP6070E

18. Drain Valve Nipple 1

19. Drain Valve Shroud 1 AP9167

N/S Pipe Plug 1

21. Burner Tray &

Manifold Assembly 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

21A. Burner Orifice (NAT) 1

21A. Burner Orifice (LP) 1

21B. Burner 1 AP11537

21C. Burner Holddown Bracket

(rear) 1

21D. Burner Holddown Bracket

(front) 1

22. Gas Manifold Assembly 1

22A. Gas Valve (NAT) 1 SP10963D

22A. Gas Valve (LP) 1 SP10963E

23. Thermostat/Hi Limit

(jumper removed) 1 SP11798B

N/S T’stat & T’well Shroud 2 AP7733-2

25. Pilot (NAT)

Spark Ignition 1 SP10764B

Standing Pilot 1 SP10399B

25. Pilot (LP)

Spark Ignition 1 SP10764C

Standing Pilot 1 SP10399C

27. Pilot Tube 1 AP70332-14

80. Automatic Vent Damper

Assembly

81. Damper Drive Wiring

Assembly 1 AP11314C-1

82. Damper Motor

83. Switch Micro

84. Ignition Control 1 SP10763B

85. Transformer 1 SP10550B

86. On/Off Switch 1 AP8825

87. Ignition Cable 1 SP88280

***Call for application ***Call for application

WATER HEATER PARTS DIAGRAMS

Commercial Replacement Parts List

LOW NOX COMMERCIAL GAS MODEL

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Ref. No. Part Description Qty. Req. Part Number

1. Vent Damper Assembly 1 Call for quote

Damper Drive Motor - SP11617

2. Temperature & Pressure Relief Valve 1 BTU Dependent

3. Thermostat Hi-Limit 1 SP11798B

4. System Sentinel Panel 1 AM38875

5. Ignition Control 1 SP10763B

6. Relay 1 SP12732

7. Transformer 1 SP10550B

8. On/Off Switch 1 AP8825

9. Pressure Switch 1 BTU Dependent

10. Gas Valve (NAT) 1 SP12541B

Gas Valve (NAT 400,000 BTU Only) - SP12543

11. Blower Motor 1 BTU Dependent

12. Blower Motor Protection Cage 1 AP12712

13. Pilot Ignitor (NAT 200K and below) 1 AM39758

Pilot Ignitor (NAT above 200K) - AM40023

14. Drain Valve 1 AP12231B-1

15. Hand Hole Gasket 1 AP5886-1

Commercial Replacement Parts List

XTREME COMMERCIAL GAS MODEL

To place your order call 1-800-621-5622; fax 1-800-535-9538

WATER HEATER PARTS DIAGRAMS

Ref. No. Part Description Qty. Req. Part Number

1. Vent Damper Assembly 1 AM39825

2. Temperature & Pressure Relief Valve 1 BTU Dependent

3. Thermostat Hi-Limit 1 AP12015-1

4. System Sentinel Panel 1 AM38875

5. Ignition Control 1 SP10763B

6. Relay 1 SP12732

7. Transformer 1 SP10550B

8. On/Off Switch 1 AP8825

9. Pressure Switch 1 SP12576 / SP13698

10. Gas Valve (NAT) 1 SP12866N

Gas Valve (LP) 1 SP12866P

11. Blower Motor 1 SP12525

- Blower Motor Protection Cage 1 AP13017

12. Pilot Ignitor (NAT) 1 SP12237

Pilot Ignitor (LP) 1 SP12305

13. Drain Valve 1 AP12231B-1

14. Hand Hole Gasket 1 AP5886-1

15. Burner Assembly 1 Call for quote

Commercial Replacement Parts List

208, 240,277 OR 480 VOLT OPERATION –

50, 85, 120 GALLON MODELS: IMMERSION THERMOSTAT

Ref. No. Part Description Qty. Req. Part Number

1. Drain Valve Shroud 1 AP7733-2

2. Drain Valve 1 AP12231C-1

3. Inlet Nipple Shroud 1 AP12421

4. Inlet Nipple 1 AP11179B

5. Jacket Handhole Cover 1 AM3459-H

6. Outlet Nipple 1 AP11179C

7. Outlet Nipple Shroud 1 AP12421

8. Anode 1 SP11524C

9. T&P Valve Shroud 1 AP7733-2

10. Captive Screw with Retainer 1 AP8162B-1

AP8162-1

11. Door 1

12. Element As Required

13. Thermostat Retainer 1

14. Element Gasket As Required AP6708-9

15. Copper Connectors 3 AM25285

16. Transformer Fuse 1 SP8264R

17. Transformer Fuse Block 1 SP8889

18. Fuse (goes with SP8311E) 3 SP8264M

Fuse (goes with SP11112) 3 SP8264K

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

19. Fuse Block 1 SP8311E

Fuse Block (36, 45 & 54 KW) 1 SP11112

20. Terminal Block 1 SP10260

21. Control Encl Frame 1

22. Controls Mount Panel 1

23. Seal Strip 1

24. Outlet Nipple 1 AP11179C

25. Handhole Assembly 1 SP22079

25A. Seal Plate 1 AS22078-2

25B. Stud 1 AP5983-2

25C. Handhole Gasket 1 AP5886-1

25D. Yoke 1 AS24346-1

25E. Nut 1 AP2247-1

26. Transformer 1 SP10006

27. Contactor 1 SP12841

28. Limit 1

29. Thermostat Bracket 1

30. Thermostat 1 SP11805

31. Relief Valve N/S 1 SP9013E

WATER HEATER PARTS DIAGRAMS

Commercial Replacement Parts List

208, 240,277 OR 480 VOLT OPERATION –

50, 85, AND 120 GALLON MODELS:

SURFACE MOUNTED THERMOSTAT

Ref. No. Part Description Qty. Req. Part Number

1. Drain Valve Shroud 1 AP7733-2

2. Drain Valve 1 AP12231C-1

3. Inlet Nipple Shroud 1 AP12421

4. Inlet Nipple 1 AP11179B

5. Jacket Handhole Cover 1 AM3459-H

6. Outlet Nipple 1 AP11179C

7. Outlet Nipple Shroud 1 AP12421

8. Anode Assembly 1 SP11524C

9. T&P Valve Shroud 1 AP7733-2

10. Captive Screw with Retainer 1 AP8162B-1

AP8162-1

11. Door 1

12. Element As Required

13. Thermostat Retainer 1 AM23557

14. Element Gasket As Required AP6708-9

15. Insulation - Controls 1

16. Insulation - Controls 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

17. Thermostat 1 AP11231-1

18. Fuse (goes with SP8311E) 3 SP8264M

Fuse (goes with SP11112) 3 SP8264K

19. Fuse Block 1 SP8311E

Fuse Block (36, 45 & 54 KW) 1 SP11112

20. Terminal Block 1 SP10260

21. Control Encl Frame 1

22. Controls Mount Panel 1

23. Seal Strip 1

24. Relief Valve 1 SP9013E

25. Handhole Assembly 1 SP22079

25A. Seal Plate 1 AS22078-2

25B. Stud 1 AP5983-2

25C. Handhole Gasket 1 AP5886-1

25D. Yoke 1 AS24346-1

25E. Nut 1 AP2247-1

WATER HEATER PARTS DIAGRAMS

Commercial Replacement Parts List

ELECTRIC LIGHT DUTY (ELD) SERIES

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1. Gasket 1 AP6948-3

2. Diptube 1 SP11251R

3. Anode 1 SP11526C

4. Field Connect Plate 1 AM29892

5. Junction Box Cover 1 AM29893

6. Thermostat, Upper 1 SP8293

7. Thermostat Cover - Upper 1 AP8313-9

8. Cavity Opening Insulation 1 AP9184-7

9. Front Panel 2 AM38409-1C

10. Gasket, Heating Element 1 AP6708-9

11. Heating Element 2 SP10552ML

12. Thermostat Bracket 1 AM23557

13. Thermostat, Lower 1 SP8295

14. Thermostat Cover - Lower 1 AP8314-9

15. Drain Valve 1 SP12112S

16. Drain Valve Shroud 1 AP9167

17. T & P Valve 1

18. Hot Outlet Heat Trap 1 SP20003 (kit)

WATER HEATER PARTS DIAGRAMS

Commercial Replacement Parts List

208, 240,277 OR 480 VOLT OPERATION:

10 GALLON BOOSTER MODELS

Ref. No. Part Description Qty. Req. Part Number

1. Transformer 1 SP10006

2. Cleanout Assembly 1

2A. Bolt 1

2B. Gasket 1

2C. Cover 1

2D. Tank Holddown Bracket 1

2E. Lock Washer 1

2F. Nut 1

3. Anode Assembly 1 SP11524C

4. Element 1

5. Element Insulation 1

6. Side Panel 1

7. Side & Back Panel 1

8. Inlet-Outlet Insulation 1

9. Shroud 2 AP9167C

10. Shroud 2 AP6334-1

11. Nipple 3/4 inch NPT 1 AP508C-8

12. Drain Valve 1 SP6070G

13. Top Pan

14. Nipple 1-1/4 inch NPT 2 AP12012B

15. Assembly - bottom tank

supports & enclosure 1

16. Washer 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

17. Cap Screw 1

18. Support Bracket 1

19. Upper Control Panel 1

20. Thermostat 1 SP8260

21. Limit 1 SP5411

22. Thermostat Dial 1 AP8339

23. Captive Screw 1 AP8162B-1

AP8162-1

24. Front Door 1

25. Contactors 1 SP12841

26. Copper Connector 1 AM25285

27. Element Fuse 1 SP8264M

SP8264K

28. Element Fuse Block 1 SP8311E

SP11112

29. Terminal Block 1 SP10127

30. Control Mounting Panel 1

31. Snap Bushing 1 AP5316B-4

32. Snap Bushing 1 AP5316C-4

33. Leg 4 AP7803

34. Rubber Channel 1 AP7475D-5

35. Relief Valve (not shown) 1 AP9013E

WATER HEATER PARTS DIAGRAMS

21DV40 PDV40 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379C

21DV50 PDV50 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379C

21DX40 MDV40 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379C

21DX50 MDV50 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379C

21DX50N MDV50N SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379C

21I30-6 PI30-6 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21I30-6P PI30-6P SP11309C SP11248R SP12039 NONE SP12258B SP8980B SP8980C SP6379K

21I30-7/P PI30-7P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21I30DV PI30DV SP11309C SP11248R SP12039 SP9051B SP9051B SP8980B SP8384F SP6379C

21I30S-2/P PI30S-2/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21I40-7/P PI40-7/P SP11309C SP11248R SP12039 NONE SP12258B SP8980B SP8980C SP6379K

21I40DV PI40DV SP11309C SP11248R SP12039 SP9051B SP9051B SP8980B SP8980C SP6379C

21I40S-2/P PI40S-2/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21I50-2/P PI50-2/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21IR30DV N/A AP6240C-11 N/A SP12159C SP9051D N/A AP11944D N/A SP6379C

21IR40DV N/A AP6240C-11 N/A SP12159C SP9051D N/A AP11944D N/A SP6379C

21IR40T N/A AP6240C-11 N/A SP12159C SP9051D N/A AP11944K N/A SP6379C

21IR50DV N/A AP6240C-11 N/A SP12159C SP9051D N/A AP11944E N/A SP6379C

21V100 P100 SP11526C SP11269C SP12039 SP10022F SP12258B SP8384B SP8384D SP6379K

21V20 PI20 SP11309C SP11248R SP12039 SP8555B SP12258B SP8384B SP8384D SP6379K

21V30-5N P30-5N SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V30-6 P30-6 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V30-6P P30-6P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V30-7/P P30-7/P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V30-7N P30-7N SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V30DV PX30DV SP11309C SP11248R SP12039 SP9051B SP9051B SP8384E SP8384F SP6379C

21V30S-2/P P30S-2/P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V30S-2N P30S-2N SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V30S-3/P P30S-3/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V30T PV30-T SP11309C SP11248R SP12039 SP9051B SP9051B SP8980B SP8980C SP6379K

21V40-36P P40-36P SP11309C SP11248R SP12112E NONE SP12258B NONE SP8980C SP6379E

21V40-36P P40-36P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V40-38 P40-38 SP11309C SP11248R SP12112E SP8555B NONE SP8980B NONE SP6379E

21V40-38 P40-38 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V40-5N P40-5N SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V40-7/P P40-7/P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V40-7N P40-7N SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V40DV P40-DV SP11309C SP11248R SP12039 SP9051B SP9051B SP8384E SP8384F SP6379C

21V40S-2/P P40S-2/P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V40S-2N P40S-2N SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V40S-3/P P40S-3P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V40S-8A P40S-8-A SP11309C SP11248R SP12039 SP8555J NONE SP8980B NONE SP6379K

21V40T PV40T SP11309C SP11248R SP12039 SP9051B SP9051B SP8980B SP8980C SP6379K

21V50-2/P P50-2/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V50-4/P P50-4/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V50-6 P50-6 SP11309C SP11248R SP12039 SP10022N SP11879F SP8384B SP8384 SP6379K

21V50-6 P50-6 SP11526C SP11269C SP12039 SP10022P SP12258P SP8384B SP8384D SP6379K

21V50-6-A P50-6-A SP11526C SP11269C SP12039 SP10022N SP12258B SP8384B SP8384D SP6379K

21VR30-5/P PR30-51P SP11309C SP11269C SP6070E NONE SP12258N NONE SP8980C SP6379K

21VR30-5N PR30-5N SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR30-6 PR30-6 SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR30-6-A PR30-6-A SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR30-6P PR30-6P SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR30-7N-A PR30-7N-A SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR30-7P-A PR30-7P-A SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR30DV N/A SP11309C N/A SP12159C SP9051D N/A AP11944D N/A SP6379C

21VR30T N/A SP11309C N/A SP12159C SP9051D N/A AP11944K N/A SP6379C

21VR40-5/P PR40-5/P SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR40-5N PR40-5N SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR40-7/P PR40-7/P SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR40-7N-A PR40-7N-A SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR40-7P PR40-7P SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR40-7P-A PR40-7 SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR40DV N/A SP11309C N/A SP12159C SP9051D N/A AP11944D N/A SP6379C

21VR40T N/A SP11309C N/A SP12159C SP9051D N/A AP11944K N/A SP6379C

21VR50-2/P-A PR50-21P-A SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR50-2N-A PR50-2N-A SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR50-2P PR50-2P SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

REFERENCE GUIDE

Residential Gas

Thermo- Thermo-

Rheem Model Ruud Model Dip Drain stat stat Pilot Pilot Thermo

Number Number Anode Tube Valve Nat LP Nat LP Couple

21VR50DV N/A SP11309C N/A SP12159C SP9051D N/A AP11944E N/A SP6379C

21VR75/P PR75/P SP11309C SP11269C SP12039 NONE SP12258N NONE SP8384D SP6379K

21VR75-1 PR75-1 SP11309C SP11269C SP12039 SP10022N NONE SP8384B NONE SP6379K

21X30-6 M30-6 SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21X30-6P M30-6P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X30-7/P M30-7/P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X30-7N M30-7N SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21X30S-2/P M30-2/P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X30S-2N M30S-2N SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21X40-7/P M40-7/P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X40-7N M40-7N SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21X40S-2/P M40S-2/P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X40S-2N M40S-2N SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21X40S-2P M40S-2/P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X50-2/P M50-2/P SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21X50-4 M50-4 SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21X50-6 M50-6 SP11309C SP11269C SP12039 SP10022P SP12258P SP8384B SP8384D SP6379K

21X50-6 M50-6 SP11526C SP11269C SP12039 SP10022P SP12258P SP8384B SP8384D SP6379K

21X50-6A M50-6A SP11526C SP11269B SP6070S SP10022P SP12258P SP8384B SP8384D SP6379K

21X75 M75 SP11309C SP11269C SP12039 SP8555B SP12258F SP8384B SP8384D SP6379K

21Xl00 M100 SP11309C SP11269C SP6070E SP10022F SP12258F SP8384B SP8384D SP6379K

21XR75 MR75 SP11526C SP11269B SP6070S SP8555N SP12258N SP8384B SP8384C SP6379K

22DV40S-36 PH2DV40S-36 AP11309Y AP11251Q-2 SP12159C SP8555U N/A AP11944K N/A SP6379C

22DV50-40 PH2DV50-40 SP11309C AP11251H-2 SP12159C SP8555U N/A AP11944K N/A SP6379C

22I40SDVX N/A AP6240Y-11 AP11251C-1 SP12159C SP9051D N/A AP11944K N/A SP6379C

22I50DVX N/A AP6240C-11 AP11251BC SP12159C SP9051D N/A AP11944K N/A SP6379C

22V30-27PF P2-30-27PF SP11309C AP11625G-1 SP12112G N/A SP13160E N/A SP20070 SP20064

22V30-30F P2-30-30F SP11309C AP11625G-1 SP12112G SP8555R N/A SP20069 N/A SP20064

22V30S-30F P2-30S-30F AP11309Y AP11625D-1 SP12112G SP8555R N/A SP20075 N/A SP20064

22V40F1 P2-40F1 SP11309C AP11625H-1 SP12112E SP8555S N/A SP20075 N/A SP20064

22V40SDVX N/A AP11309Y AP11251C-1 SP12159C SP9051D N/A AP11944K N/A SP6379C

22V50DVX N/A SP11309C AP11248S SP12159C SP9051D N/A AP11944K N/A SP6379C

22V50F1 P2-50F1 SP11309C AP11625H-1 SP12112E SP8555S N/A SP20075 N/A SP20064

22VR75-69P PR75P-69P AP11525C AP11237G SP12112S N/A SP12258N N/A SP8980C SP6379C

22VR75-70N PR75-70N AP11525C AP11237G SP12112S SP12941D N/A SP8980B N/A SP6379C

22X40F1 M2-40F1 SP11526C AP11625H-1 SP12112E SP8555S N/A SP20075 N/A SP20064

22X50F1 M2-50F1 SP11526C AP11625H-1 SP12112E SP8555S N/A SP20075 N/A SP20064

22XR75-69P MR75-69P SP11526C AP11237G SP12112S N/A SP12258N N/A SP8980C SP6379C

22XR75-70N MR75-70N SP11526C AP11237G SP12112S SP12941D N/A SP8980B N/A SP6379C

41V30, T/P PH30, T/P SP11309C SP11269C SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V30LB PH30LB SP11309C SP11269C SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V30S PH30S SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V30SP PH30SP SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V40 PH40 SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V40LB PH40LB SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V40P PH40P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V40S PH40S SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V40SP PH40SP SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V50 PH50 SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V50-4/P PH50-4/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V50P PH50 SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980G SP6379K

41V50S PH50S SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379F

41VR40 PHR40 SP11309C SP11248R SP12039 SP8555P SP12258P SP8980B SP8980C SP6379F

41VR40N PHR40N SP11309C SP11248R SP12039 SP8555P SP12258P SP8980B SP8980C SP6379F

41VR50 PHR50 SP11309C SP11248R SP12039 SP8555P SP12258P SP8980B SP8980C SP6379F

41VR50N PHR50N SP11309C SP11248R SP12039 SP8555P SP12258P SP8980B SP8980C SP6379F

41X30S MH30S SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379F

41X30SP MH30SP SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379F

41X40 MH40 SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379F

41X40P MH40P SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379F

41X40S MH40S SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379F

41X40SP MH40SP SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379F

41X50 MH50 SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379F

41X50-6 MH50-6 SP11526C SP11269C SP12039 SP10022P SP12258P SP8384B SP8384D SP6379F

41X50-6-A MH50-6-A SP11526C SP11269C SP12039 SP10022P SP12258P SP8384B SP8384D SP6379F

41X50N MH50N SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379F

41X50P MH50P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379F

41X75 MH75 SP11526C SP11269C SP12039 SP8555B SP12258N SP8384B SP8384D SP6379F

41XR40 MR40 SP11526C SP11624G SP12039 SP8555P SP12258P SP8980B SP8980C SP6379F

41XR40N MR40N SP11526C SP11624G SP12039 SP8555P SP12258P SP8980B SP8980C SP6379F

41XR50 MR50 SP11526C SP11624G SP12039 SP8555P SP12258P SP8980B SP8980C SP6379F

PREFERRED PARTS REFERENCE CONTINUED

Residential Gas – Continued

Thermo- Thermo-

Rheem Model Ruud Model Dip Drain stat stat Pilot Pilot Thermo

Number Number Anode Tube Valve Nat LP Nat LP Couple

41XR50N MR50N SP11526C SP11624G SP12039 SP8555P SP12258P SP8980B SP8980C SP6379F

41XR75 MR75 SP11526C SP11269C SP12039 SP8555N SP12258N SP8384B SP8384D SP6379F

41XR75-1 MR75-1 SP11526C SP11269C SP12039 SP8555N NONE SP8384B NONE SP6379F

42V38-34PROPF PH2-38-34PROPF SP11526C AP11625G-1 SP12112G N/A SP13160E N/A SP20076 SP20064

42V40F PH2-40F SP11309C AP11625G-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42V40PF PH2-40PF SP11309C AP11625G-1 SP12112G N/A SP13160E N/A SP20076 SP20064

42V40PROF PH2-40PROF SP11526C AP11625G-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42V40S-36PF PH2-40S-36PF AP11309Y AP11625E-1 SP12112G N/A SP13160E N/A SP20076 SP20064

42V40S-36PROPF PH2-40S-36PROPF AP11526Y AP11625E-1 SP12112G N/A SP13160E N/A SP20076 SP20064

42V40S-40F PH2-40S-40F AP11309Y AP11625E-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42V40S-40PROF PH2-40S-40PROF AP11526Y AP11625E-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42V50-36PF PH2-50-36PF SP11309C AP11625P SP12112G N/A SP13160E N/A SP20076 SP20064

42V50-36PROPF PH2-50-36PROPF SP11526C AP11625P SP12112G N/A SP13160E N/A SP20076 SP20064

42V50-40F PH2-50-40F SP11309C AP11625P SP12112G SP8555R N/A SP20075 N/A SP20064

42V50-40PROF PH2-50-PROF SP11526C AP11625P SP12112G SP8555R N/A SP20075 N/A SP20064

42V60-50T PH2-60-50T AP11526S AP11251G SP12112G SP20085 N/A N/A N/A SP6379K

42VR40-34PF PH2R40-34PF SP11309C AP11625F-1 SP12112S N/A SP13160D N/A SP20076 SP20064

42VR40-40F PH2R40-40F SP11309C AP11625F-1 SP12112S SP8555T N/A SP20075 N/A SP20064

42VR50-36PF PH2R50-36PF SP11309C AP11625P SP12112S N/A SP13160D N/A SP20076 SP20064

42VR50-40F PH2R50-40F SP11309C AP11625P SP12112S SP8555T N/A SP20075 N/A SP20064

42X40F MH2-40F SP11526C AP11625G-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42X40S-40F MH2-40S-40F AP11526Y AP11625E-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42X50-40F MH2-50-40F SP11526C AP11625P SP12112G SP8555R N/A SP20075 N/A SP20064

42XR40-40F MH240-40F SP11526C AP11625F-1 SP12112S SP8555T N/A SP20075 N/A SP20064

42XR50-40F MH2R50-40F SP11526C AP11625P SP12112S SP8555T N/A SP20075 N/A SP20064

44V40 PT40 SP11526C SP11248R SP12039 SP8555F SP12258F SP8980B SP8980C SP6379F

44V40-1 PT40-1 SP11526C SP11248R SP12039 SP8555F SP12258F SP8980B SP8980C SP6379F

44V40-1 P PT40-1 P SP11526C SP11248R SP12039 SP8555F SP12258F SP8980B SP8980C SP6379F

44V40-2 PT40-2 SP11526C SP11248R SP12039 SP8555F NONE SP8980B NONE SP6379F

44V40P PT40P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379F

44V50 PT50 SP11526C SP11248R SP12039 SP8555F SP12258F SP8980B SP8980C SP6379F

44V50-1 PT50-1 SP11526C SP11248R SP12039 SP8555F NONE SP8980B NONE SP6379F

44V50-2 PT50-2 SP11526C SP11248R SP12039 SP10022F NONE SP8384B NONE SP6379C

44V50P PT50P SP11526C SP11248R SP12039 NONE SP12258F NONE SP8980C SP6379K

44V62 PT62 SP11309C SP11269C SP12039 SP8555B NONE SP8384B NONE SP6379C

44V76 PT76 SP11309C SP11269C SP12039 SP8555B NONE SP8384B NONE SP6379C

44V91 PT91 SP11309C SP11269C SP12039 SP10022F NONE SP8384B NONE SP6379C

44X40 MT40 AP10377D SP11248R SP12039 SP10022F NONE SP8384B NONE SP6379L

44X40-1 MT40-1 AP10377D SP11248R SP12039 SP8555F NONE SP8980B NONE SP6379K

44X40-1 P MT40-1 P AP10377D SP11248R SP12039 NONE SP12258F NONE SP8980C SP6379K

44X40-2 MT40-2 AP10377D SP11248R SP12039 SP8555F NONE SP8980E NONE SP6379K

44X50-2 MT50-2 AP10377D SP11248R SP12039 SP10022F NONE SP8384B NONE SP6379L

44X50P MT50P AP10377D SP11248R SP12039 NONE SP12258F NONE SP8980C SP6379K

44X62 MT62 SP11309C SP11248R SP12039 SP8555B NONE SP8384B NONE SP6379C

44X76 MT76 SP11309C SP11269C SP12039 SP8555B NONE SP8384B NONE SP6379C

44X91 MT91 SP11309C SP11269C SP12039 SP10022F NONE SP8384B NONE SP6379C

RHGPRO100-75* RUGPRO100-75* SP11526C SP11269C SP6070E SP10022F SP12258F SP8384B SP8384D SP6379K

RHGPRO40-34PF RUGPRO40-34PF SP11526C AP11625F-1 SP12112S N/A SP13160D N/A SP20076 SP20064

RHGPRO40-37* RUGPRO40-37* SP11526C SP11624G SP6070S SP8555P SP12258B SP8980B SP8980C SP6379K

RHGPRO40-40* RUGPRO40-40* SP11526C SP11624G SP6070S SP8555P SP12258P SP8980B SP8980C SP6379K

RHGPRO40-40F RUGPRO40-40F SP11526C AP11625F-1 SP12112S SP8555T N/A SP20075 N/A SP20064

RHGPRO40S-37* RUGPRO40S-37* SP11526C SP11624G SP6070E SP8555B SP12258B SP8980B SP8980C SP6379K

RHGPRO50-34PF RUGPRO50-34PF SP11526C AP11625P SP12112S N/A SP13160D N/A SP20076 SP20064

RHGPRO50-40* RUGPRO50-40* SP11526C SP11624G SP6070S SP8555P SP12258P SP8980B SP8980C SP6379K

RHGPRO50-40F RUGPRO50-40F SP11526C AP11625P SP12112S SP8555T N/A SP20075 N/A SP20064

RHGPRO50-50* RUGPRO50-50* SP11526C SP11624G SP6070S SP8555P SP12258B SP8980B SP8980C SP6379K

RHGPRO50-50F RUGPRO50-50F SP11526C AP11625P SP12112G AP8555W-1 N/A SP20075 N/A SP20064

RHGPRO50-60* RUGPRO50-60* SP11526C SP11269C SP6070S SP8555P SP12258P SP8384B SP8384D SP6379K

RHGPRO75-69P RUGPRO75-69P SP11526C AP11237G SP12112S N/A SP12258N N/A SP8980C SP6379C

RHGPRO75-70N RUGPRO75-70N SP11526C AP11237G SP12112S SP12941D N/A SP8980B N/A SP6379C

RHGPRO75-75* RUGPRO75-75* SP11526C SP11269C SP6070S SP10022N SP12258N SP8384B SP8384D SP6379K

RMGPRO40* RDG-PRO40* SP11526C SP11248R SP6070E SP8555P NONE SP8980B NONE SP6379K

RMGPRO40P* RDG-PRO40P* SP11526C SP11248R SP6070E NONE SP12258B NONE SP8980C SP6379K

RMGPRO40S* RUGPRO40S* SP11526C SP11248R SP6070E SP8555B SP12258B SP8980B SP8980C SP6379K

RMGPRO40SP* RDG-PRO40SP* SP11526C SP11248R SP6070E SP8555B SP12258B SP8980B SP8980C SP6379K

RMGPRO50P* RDG-PRO50P* SP11526C SP11248R SP6070E SP8555P SP12258P SP8980B SP8980C SP6379K

RMGVRPRO40* RDGVR-PRO40* SP11526C SP11248R SP6070S SP8555P NONE SP8980B NONE SP6379K

RMGVRPRO40P* RDGVR-PRO40P* SP11526C SP11248R SP6070S NONE SP12258P NONE SP8980C SP6379K

RMGVRPRO50* RDGVR-PRO50* SP11526C SP11248R SP6070S SP8555P NONE SP8980B NONE SP6379K

RMGVRPRO50P* RDGVR-PRO50P* SP11526C SP11248R SP6070S NONE SP12258P NONE SP8980C SP6379K

* EverKleen dip tubes available for PRO models

PREFERRED PARTS REFERENCE CONTINUED

Residential Gas – Continued

Thermo- Thermo-

Rheem Model Ruud Model Dip Drain stat stat Pilot Pilot Thermo

Number Number Anode Tube Valve Nat LP Nat LP Couple

68V30S/D PESC30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

71V40-B PM40-B SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

71V52-B PM52-B SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

72-20-1 N/A N/A N/A N/A N/A SP11700 N/A AP6240V-11 SP12159C

72-30-1 N/A N/A N/A N/A N/A SP11700 SP11699 AP6240T-11 SP12159F

72-30-2 N/A SP11698 N/A SP11695 N/A N/A SP11699 AP6240T-11 SP12159F

72-40-1 N/A N/A N/A N/A N/A N/A SP11699 AP6240T-11 SP12159F

72-40-2 N/A SP11698 N/A SP11695 N/A N/A N/A AP6240T-11 SP12159F

72-52-1 N/A N/A N/A N/A N/A N/A SP11699 AP6240BD SP12159F

72-52-2 N/A SP11698 N/A SP11695 N/A N/A N/A AP6240BD SP12159F

72V20-1 N/A N/A N/A N/A N/A SP11700 SP11699 AP11309V SP12159C

72V30 N/A SP11698 N/A SP11695 N/A N/A SP11699 AP11309T SP12159F

72V40-2 N/A SP11698 N/A SP11695 N/A N/A N/A SP12525T SP12159F

72V52-2 N/A SP11698 N/A SP11695 N/A N/A N/A AP11309BD SP12159F

81VR100-1/-T RSPER100-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81166S/D PEI66-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81180S/D PEI80-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81GX30 MEG30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81GX40-B MEG40-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81GX52-8 MEG52-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81GX66S/D MEG66-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81GX80S/D MEG80-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81MV30-A PEM30-A SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81MV52-B PEB52-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81MVR52S/D PEM52-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81MX30D MEM30-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81MX52D MEM52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81SV20S/D PES20-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV30D PES30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV30-D PES30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV40-A PES40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV40D PES40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV50D PES50-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV52-B PES52-2B SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV52D PES52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SX20S/D MES20-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SX30D MES30-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SX40D MES40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

Residential Electric

Non-Sim Sim Non-Sim Sim

Thermo- Thermo- Thermo- Thermo- S/E

Rheem Model Ruud Model stat stat stat stat 208- Drain

Number Number Upper Upper Lower Lower S/E 120V 480V Anode Valve

22VRP75 PVRP75 AP13211 AP13266A SP12112S SP12556 N/A SP12560B N/A N/A

22VRP75P PVRP75P AP13211 AP13266A SP12112S N/A SP12557 N/A SP12560C

41VRP40N PVRP40N SP12562 AP11251Q-2 SP12112S SP12556 N/A SP12560B N/A N/A

41VRP40-P PVRP40-P SP12562 AP11251Q-2 SP12112S N/A SP12557 N/A SP12560C

41VRP50-55N PVRP50-55N AP13194 AP11251Q-2 SP12112S SP12556 N/A SP12560B N/A N/A

41VRP50N PVRP50N SP12562 AP11251Q-2 SP12112S SP12556 N/A SP12560B N/A N/A

41VRP50-P PVRP50-P SP12562 AP11251Q-2 SP12112S N/A SP12557 N/A SP12560C N/A

GPV75-75E GPV75-75E AP11608 SP11269F SP6070S SP11652B SP11652C SP12049D SP12049E SP10763B

Obsolete Models

21VP40-1 PVP40-1 AP10983*** SP10768C SP12039 SP10886B N/A SP10972 N/A SP10758

21VP40-1 /P-A PVP40-1/P-A AP10983*** SP10768C SP12039 N/A SP10886C N/A SP10972 SP10758

21VP40E-1 PVP40-E1-A AP10983*** SP11248R SP12039 SP11652B N/A SP12049B N/A SP10763B

21VP40E-1P PVP40E-1P AP10983*** SP11248R SP12039 N/A SP11652C N/A SP12049C SP10763B

21VP40H-1/P-A PVP40H-1/P-A AP10983*** SP10768C SP12039 N/A SP10886C NA SP10972 SP10758

21VP40HE-1 PVP40HE-1 AP10983*** SP11248R SP12039 SP11652B N/A SP12049B N/A SP10763B

21VP40HE-1P PVP40HE-1P AP10983*** SP11248R SP12039 N/A SP11652C N/A SP12049C SP10763B

21VP50-1 PVP50-1 AP10983*** SP10768C SP12039 SP10886B N/A SP10972 N/A SP10758

21VP50-1 /P-A PVP50-1/P-A AP10983*** SP10768C SP12039 N/A SP10886C N/A SP10972 SP10758

21VP50E-1 PVP50E-1 AP10983*** SP11248R SP12039 SP11652B N/A SP12049B N/A SP10763B

21VP50E-1P PVP50E-1P AP10983*** SP11248R SP12039 N/A SP11652C N/A SP12049C SP10763B

21VP50H-1/P-A PVP50H-1/P-A AP10983*** SP10768C SP12039 N/A SP10886C N/A SP10972 SP10758

21VP50HE-1 PVP50HE-1 AP10983*** SP11248R SP12039 SP11652B N/A SP12049B N/A SP10763B

21VP50HE-1P PVP50HE-1P AP10983*** SP11248R SP12039 N/A SP11652C N/A SP12049C SP10763B

21VP75E-1 PVP75E-1 AP11608 SP11269C SP6070S SP11652B N/A SP12049D N/A SP10763B

21VP75E-1 PVP75E-1 AP11608 SP11269F SP6070S SP11652B SP11652C SP12049D SP12049E SP10763B

21VP75E-1P PVP75E-1P AP11608 SP11269C SP6070S N/A SP11652C N/A SP12049E SP10763B

• Surface Mounted Thermostat –SP12390 – all residential models, SP12391 all commercial models

• ** Vacuum Switch – SP11875 – all models

• *** High Altitude Blower Assembly, 40 & 50 Gallon, use AP10984-3

PowerVents – Residential and Commercial

Gas Gas Pilot Pilot Ignition

Rheem Model Ruud Model Blower Dip Drain Valve Valve Ignitor Ignitor Control

Number Number Motor Tube Valve Nat LP Nat LP Module

81SX50D MES-50-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SX52D MES-52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81V-100HE-1/-T RSPE-100HE-1/-T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12040

81V120-B PE120-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12043

81V-120HE-1/-T RSPE-120HE-1/-T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12041

81V30-A PE30-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12044

81V40-A PE40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12045

81V40-C PE40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12046

81V52-B PE52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12047

81V66-A PE66-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12048

81V-80HE-1/-T RSPE-80HE-1/-T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12042

81V80S/D PE80-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12049

81VP10S PEP10-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C NONE

81VP15S PEP15-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C NONE

81VP20S PEP20-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C NONE

81VP2S PEP2-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

81VP4S PEP4-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

81VP6S PEP6-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

81VR100TC-1/-T RSPER100-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR120-1 RSPER120-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR120-1/-T RSPER120-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR120TC-1/-T RSPER120-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR30-A PER30-A SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

81VR30S/D PER30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81VR40-C PER40-C SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

81VR52S/D PER52-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81VR66-1/-T RSPER66-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR66S/D PER66-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR66TC-1/-T RSPER66TC-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR80-1/-T RSPER80-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR80S/D PER80-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR80TC-1/-T RSPER80TC-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81X120D ME120-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X30D ME30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X40D ME40-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X52D ME52-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X66D ME66-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X66S/D ME66-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X80D ME80-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526S SP12039

81X80S/D ME80-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81XH52D MEH52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82IP30-1 N/A N/A N/A N/A N/A SP11700 SP11699 AP6240BH N/A

82IP30-2 N/A SP11698 N/A SP11695 N/A N/A N/A AP6240BH N/A

82MV30-2 PE2M-30-2 SP11698 N/A SP11695 N/A N/A N/A AP11525BC SP12112G

82MV52-1 PE2M-52-1 N/A N/A N/A N/A N/A SP11699 AP11525T SP12112G

82MV52-2 PE2M-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11525T SP12112G

82MVR52-2 EMV52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82MXR52-2 EMVR52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82SV20-1 PE2S20-1 N/A N/A N/A N/A SP11700 SP11699 AP11309V SP12112G

82SV20-2 PES20-2 SP11698 N/A SP11695 N/A N/A N/A AP11309V SP12112G

82SV30-1 PES30-1 N/A N/A N/A N/A SP11700 SP11699 AP11525BH SP12112G

82SV30-2 PES30-2 SP11698 N/A SP11695 N/A N/A N/A AP11525BH SP12112G

82SV40-1 PE2S40-1 N/A N/A N/A N/A SP11700 SP11699 AP11525V SP12112G

82SV40-2 PE2S40-2 SP11698 N/A SP11695 N/A N/A N/A AP11525V SP12112G

82SV50-1 PES250-1 N/A N/A N/A N/A N/A SP11699 AP11525V SP12112S

82SV50-2 PE2S50-2 SP11698 N/A SP11695 N/A N/A N/A AP11525V SP12112S

82V30-1 PE2-30-1 N/A N/A N/A N/A SP11700 SP11699 AP11309T SP12112G

82V30-2 PE2-30-2 SP11698 N/A SP11695 N/A N/A N/A AP11309T SP12159F

82V40-1 PE2-40-1 N/A N/A N/A N/A SP11700 SP11699 AP11525T SP12112G

82V40-2 PE2-40-2 SP11698 N/A SP11695 N/A N/A N/A AP11525T SP12112G

82V52-1 PE2-52-1 N/A N/A N/A N/A N/A SP11699 AP11309BD SP12112G

82V52-2 PE2-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11309BD SP12112G

82V66-1 PE2-66-1 N/A N/A N/A N/A N/A SP11699 AP11525W SP12112G

82V66-2 PE2-66-2 SP11698 N/A SP11695 N/A N/A N/A AP11525W SP12112G

82V80-2 PE2-80-2 SP11698 N/A SP11695 N/A N/A N/A AP11525W SP12112G

82VH40-1 PE2H-40-1 N/A N/A N/A N/A N/A SP11699 AP11309W SP12112G

82VH40-2 PE2H-40-2 SP11698 N/A SP11695 N/A N/A N/A AP11309W SP12112G

82VP30-1 PEP30-1 N/A N/A N/A N/A SP11700 SP11699 AP11525BH N/A

82VP30-2 PEP30-2 SP11698 N/A SP11695 N/A N/A N/A AP11525BH N/A

82VR30-2 EVR30-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

82VR40-2 EVR40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82VR52-2 EVR52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82VR66-2 EVR66-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

PREFERRED PARTS REFERENCE CONTINUED

Residential Electric – Continued

Non-Sim Sim Non-Sim Sim

Thermo- Thermo- Thermo- Thermo- S/E

Rheem Model Ruud Model stat stat stat stat 208- Drain

Number Number Upper Upper Lower Lower S/E 120V 480V Anode Valve

82VR80-2 EVR80-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82XR30-2 EXR30-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82XR40-2 EXR40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82XR52-2 EXR52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82XR66-2 EXR66-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82XR80-2 EXR80-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

83MVR52-2 PE3MR-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11525T SP12112T

83MXR52-2 ME3MR-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11526T SP12112T

83VR40-2 PE3R-40-2 SP11698 N/A SP11695 N/A N/A N/A AP11526T SP12112T

83VR52-2 PE3R-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11309BD SP12112T

83VR66-2 PE3R-66-2 SP11698 N/A SP11695 N/A N/A N/A AP11525W SP12112S

83VR80-2 PE3R-80-2 SP11698 N/A SP11695 N/A N/A N/A AP11525W SP12112S

83XR40-2 ME3R-40-2 SP11698 N/A SP11695 N/A N/A N/A AP11526T SP12112T

83XR52-2 ME3R-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11526BD SP12112T

83XR66-2 ME3R-66-2 SP11698 N/A SP11695 N/A N/A N/A AP11526W SP12112S

83XR80-2 ME3R-80-2 SP11698 N/A SP11695 N/A N/A N/A AP11526W SP12112S

8lXl20S/D ME120-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

RHEHPRO40-2* RUEHPRO40-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070G

RHEHPRO40-2-A RUEHPRO40-2-A SP11698 N/A SP11695 N/A N/A N/A AP11525W SP12112G

RHEMPRO30-2* RUEHPRO30-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070S

RHEMPRO30-2-A RUEMPRO30-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526BC SP12112G

RHEMPRO52-2* RUEMPRO52-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070S

RHEMPRO52-2-A RUEHPRO52-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526T SP12112T

RHEPRO30-2* RUEPRO30-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070S

RHEPRO40-2* RUEPRO40-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070S

RHEPRO40-2-A RUEHPRO40-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526T SP12112T

RHEPRO52-2* RUEPRO52-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070S

RHEPRO52-2-A RUEPRO52-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526BD SP12112T

RHEPRO66-2* RUEPRO66-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070S

RHEPRO66-2-A RUEPRO66-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526W SP12112S

RHEPRO80-2* RUEPRO80-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070S

RHEPRO80-2-A RUEPRO80-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526W SP12112S

RHESPRO30-2* RUESPRO30-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070G

RHESPRO30-2-A RUESPRO30-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526BH SP12112G

RHESPRO40-2* RUESPRO40-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070G

RHESPRO40-2-A RUESPRO40-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526V SP12112G

RHESPRO50-2-A RUESPRO50-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526V SP12112S

RHESPRO52-2* RUESPRO52-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070S

PREFERRED PARTS REFERENCE CONTINUED

Residential Electric – Continued

Non-Sim Sim Non-Sim Sim

Thermo- Thermo- Thermo- Thermo- S/E

Rheem Model Ruud Model stat stat stat stat 208- Drain

Number Number Upper Upper Lower Lower S/E 120V 480V Anode Valve

* EverKleen dip tubes available for PRO models

G100-200 G100-200 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13144 SP10763B

G100-250 G100-250 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13149 SP10763B

G100-270/A G100-270/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13149 SP10763B

G100-310/A G100-310/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13152 SP10763B

G100-400/A G100-400/A SP6070E SP8099N SP8099P AP12015-1 SP10764B SP10764C AP13150 SP10763B

G100-75 G100-75 SP6070E SP12234C SP12233C NONE SP8384B SP8384D NONE NONE

G37-200-1 G37-200-1 AP12231B-1 SP10963D SP10963E SP11799 SP10764B SP10764C AP13155-1 SP10763B

G50-98 G50-98 SP6070E SP10963B SP10963C SP11799 SP10764B SP10764C AM36431BH SP10763B

G65-360/A G65-360/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13143 SP10763B

G65-400/A G65-400/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AM36426CH SP10763B

G72-250/A G72-250/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13153 SP10763B

G72-300/A G72-300/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13151 SP10763B

G75-125 G75-125 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13147 SP10763B

G75-75 G75-75 SP6070E SP12234B SP12233B NONE SP8384B SP8384D NONE NONE

G82-156 G82-156 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13148 SP10763B

G85-300-1 G85-300-1 AP12231B-1 SP10963D SP10963E SP11798B SP10764B SP10764C AP13142 SP10763B

G85-400/A G85-400/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13154 SP10763B

G91-200 G91-200 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13145 SP10763B

GX90-500 GX90-500 AP12231B-1 N/A SP12866P SP12015-1 N/A SP12305 AM39825 SP10763B

GX90-550 GX90-550 AP12231B-1 SP12866N N/A SP12015-1 SP12237 N/A AM39825 SP10763B

GX90-600 GX90-600 AP12231B-1 N/A SP12866P SP12015-1 N/A SP12305 AM39825 SP10763B

GX90-640 GX90-640 AP12231B-1 SP12866N N/A SP12015-1 SP12237 N/A AM39825 SP10763B

GX90-680 GX90-680 AP12231B-1 N/A SP12866P SP12015-1 N/A SP12305 AM39825 SP10763B

GX90-715 GX90-715 AP12231B-1 SP12866N N/A SP12015-1 SP12237 N/A AM39825 SP10763B

Gas Gas

Rheem Model Ruud Model Drain Valve Value Thermo- Pilot Pilot Blower Ignition

Number Number Valve Nat LP stat Nat LP Assy Control

VentMaster

GP100-200 GP100-200 AP12231B-1 AP13714 N/A SP11798B AP13185-1 N/A AP13192 SP10763B

GP100-150 GP100-150 AP12231B-1 AP13714 N/A SP11798B AP13185-1 N/A AP13192 SP10763B

Gas Gas Vent

Rheem Model Ruud Model Drain Valve Value Thermo- Pilot Pilot Damper Ignition

Number Number Valve Nat LP stat Nat LP Assy Control

Obsolete Models

G37-160 G37-160 SP6070E SP10963D SP10963E SP11799 SP10764B SP10764C AP13146 SP10763B

G50-60 G50-60 SP6070G SP12234B SP12233E NONE SP8384B SP8384D NONE NONE

G58-50 GL50-58 SP6070E SP12234C SP12233C SP8980B SP8980C NONE NONE

G600-77/-A GL77-600-A SP6070E SP8099N NONE AP12015-1 SP10764B NONE AM38836H SP10763B

G60-50C GL50-60C SP6070G SP12234B SP12233B NONE SP8980B SP8980C NONE NONE

G63-100B GL100-63B SP6070E SP12234C SP12233C NONE SP8384B SP8384D NONE NONE

G63-50B GL50-63B SP6070E SP11823D SP12232D NONE SP8384B SP8384D NONE NONE

G76-100B GL100-76B SP6070E SP12234C SP12233C NONE SP8384B SP8384D NONE NONE

G76-180 G76-180 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13145 SP10763B

G76-200 G76-200 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13146 SP10763B

G76-50 GL50-76 SP12039 SP12234C NONE NONE SP8384B NONE NONE NONE

G76-62 GL62-76 SP6070E SP10022D NONE NONE SP8384B NONE NONE NONE

G76-76 GL76-76 SP6070E SP12234B SP12233B NONE SP8384B SP8384D NONE NONE

G76-91 GL91-76 SP6070E SP11823D NONE NONE SP8384B NONE NONE NONE

G77-500/A G77-500/A SP6070E SP8099N SP8099P AP12015-1 SP10764B SP10764C AM36428BH SP10763B

G67-114 G67-114 SP6070E SP10963B SP10963C SP11799 SP10764B SP10764C AM36431BH SP10763B

G91-300/A G91-300/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13142 SP10763B

GD500-77/-A GLD77-500-A SP6070E SP8099N SP8099P AP12015-1 SP10764B SP10764C AM36428BH SP10763B

GD600-77/-A GLD77-600-A SP6070E SP8099N NONE AP12015-1 SP10764B NONE AM36428BH SP10763B

R160-37 R37-160 SP6070E SP5870E SP5870C SP11799 SP10399B SP10399C NONE NONE

R360-65 R65-360 SP6070E SP5870F SP5870D SP8824B SP10399B SP10399C NONE NONE

R400-85 R85-400 SP6070E SP8099M/K SP5870D SP8824B SP10399B SP10399C NONE NONE

RCD156-82 RCD82-156 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424BH SP10763B

RCD156-82-1 RCD82-156-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424BH NONE

RCD180-98 RCD98-180 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424DH SP10763B

RCD180-98-1 RCD98-180-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424DH NONE

RCD200-100-1 RCD100-200-1 SP6070K SP10962D/K SP10962E/K SP8824C SP10399B SP10399C AM38634H NONE

RCD200-76 RCD76-200 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424DH SP10763B

RCD200-76-1 RCD76-200-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424DH NONE

RCD200-91 RCD91-200 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424CH SP10763B

RCD200-91-1 RCD91-200-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424CH NONE

RCD200-92-1 RCD92-200-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424BH NONE

RCD250-100-1 RCD100-250-1 SP6070K SP10962D/K SP10962E/K SP8824C SP10399B SP10399C AM36632H NONE

RCD250-76-1 RCD76-250-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36425BH NONE

RCD250-86 RCD86-250 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36432BH SP10763B

RCD250-86-1 RCD86-250-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36432BH NONE

RCD300-100-1 RCD-100-300-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36633H NONE

RCD300-91 RCD91-300 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36426CH SP10763B

RCD300-91 -1 RCD91-300-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36426CH NONE

RCD300-92-1 RCD92-300-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36426BH NONE

RD156-40 RD40-156 SP6070E SP10963D/K SP10963E/K SP11799 SP10764B SP10764C AM36424DH SP10763B

PREFERRED PARTS REFERENCE CONTINUED

Commercial Gas

Gas Gas Vent

Rheem Model Ruud Model Drain Valve Value Thermo- Pilot Pilot Damper Ignition

Number Number Valve Nat LP stat Nat LP Assy Control

ELDS30 ELDS30 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (24 3/8) SP6070S

ELDS40 ELDS40 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (25 3/8) SP6070S

ELD40 ELD40 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (39 3/8) SP6070S

ELDS50 ELDS50 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (32 3/8) SP6070S

ELD52 ELD52 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (50 3/8) SP6070S

ELD66 ELD66 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (53 3/8) SP6070S

ELD80 ELD80 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (53 3/8) SP6070S

ELD120 ELD120 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (56 3/8) SP6070S

Obsolete Models

ELD40 ELDR40 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (39 3/8) SP6070S

ELD52 ELDR52 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (50 3/8) SP6070S

ELD80 ELDR80 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (53 3/8) SP6070S

ELD120 ELDR120 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (56 3/8) SP6070S

ELDS30 ELDRS30 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (24 3/8) SP6070S

ELDS40 ELDRS40 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (25 3/8) SP6070S

ELDS52 ELDRS52 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (32 3/8) SP6070S

Light Duty Commercial Electric

Non-Sim Sim Non-Sim Sim

Thermo- Thermo- Thermo- Thermo- S/E

Rheem Model Ruud Model stat stat stat stat 208- Drain

Number Number Upper Upper Lower Lower S/E 120V 480V Anode Valve

EGSP2 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP6 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP10 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP15 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP20 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP30 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

Obsolete Models

EGSP6S EGLSP65 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP20S EGLSP20S SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (20 3/8) None

EGSP15S EGLSP15S SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (20 3/8) None

EGSP10S EGLSP10S SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (20 3/8) None

EGSP – Commercial Electric

Non-Sim Sim Non-Sim Sim

Thermo- Thermo- Thermo- Thermo- S/E

Rheem Model Ruud Model stat stat stat stat 208- Drain

Number Number Upper Upper Lower Lower S/E 120V 480V Anode Valve

RD160-37 RD37-160 SP6070E SP10963D/K SP10963E/K SP11799 SP10764B SP10764C AM36424DH SP10763B

RD360-65 RD65-360 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36426BH SP10763B

RD400-85 RD85-400 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36427BH SP10763B

RF200-91 RF91-200 SP6070E SP5870E SP5870C SP11798B SP10399B SP10399C NONE NONE

RF250-86 RF86-250 SP6070E SP5870F SP5870C SP11798B SP10399B SP10399C NONE NONE

RF300-91 RF91-300 SP6070E SP5870F SP5870C SP11798B SP10399B SP10399C NONE NONE

RF98-50 RF50-98 SP6070E SP11823D SP12232D NONE SP10399B SP10399C NONE NONE

RFD120-67 RFD67-120 SP6070E SP10963B SP10963C SP11799 SP10764B SP10764C AM36431BH SP10763B

RFD120-67-1 RFD67-120-1 SP6070E SP10962D/K SP10962E/K SP11799 SP10399C SP10399C AM36431BH NONE

RFD156-82 RFD82-156 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424BH SP10763B

RFD156-82-1 RFD82-156-1 SP6070E SP1096 2D/K SP10962E/K SP11798B SP10399B SP10399C AM36424BH NONE

RFD180-98 RFD98-180 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424DH SP10763B

RFD180-98-1 RFD98-180-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424DH NONE

RFD200-76 RFD76-200 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424DH SP10763B

RFD200-76-1 RFD76-200-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424DH NONE

RFD200-91 RFD91-200 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424CH SP10763B

RFD200-91-1 RFD91-200-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424CH NONE

RFD200-92-1 RFD92-900-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424BH NONE

RFD250-76-1 RFD76-250-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36425BH NONE

RFD250-76A-1 RFD76A-250-1 SP6070E SP10962D/K SP10962E/K AP12015-1 SP10399B SP10399C AM36425BH NONE

RFD250-86 RFD86-250 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36432BH SP10763B

RFD250-86-1 RFD86-250-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36432BH NONE

RFD300-91 RFD91-300 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36426CH SP10763B

RFD300-91 -1 RFD91-300-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36426CH SP10763B

RFD300-92-1 RFD92-300-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36426BH SP10763B

RFD300-92A-1 RFD92A-300-1 SP6070E SP10962D/K SP10962E/K AP12015-1 SP10399B SP10399C AM36426BH SP10763B

RFD98-50 RFD50-98 SP6070E SP10963B SP10963C SP11799 SP10764B SP10764C AM36431BH SP10763B

RFD98-50-1 RFD50-98-1 SP6070E SP10962D/K SP10962E/K SP11799 SP10399B SP10399C AM36431BH SP10763B

PREFERRED PARTS REFERENCE CONTINUED

Commercial Gas – Continued

Gas Gas

Rheem Model Ruud Model Drain Valve Value Thermo- Pilot Pilot Blower Ignition

Number Number Valve Nat LP stat Nat LP Assy Control

Heavy Duty Commercial Electric

* Heaters manufactured after 10-95 use SP11805 - Thermostat

** Heaters manufactured after 10-95 use SP11806 - High Limit

Rheem Trans- Relief Relief

Model Ruud Drain Therm- High Trans- Element former Valve Valve

Number Model Number Valve ostat Limit former Contactor Fuse Fuse 6-27KW 30-81KW

E(18-36KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(18-36KW)-120G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(18-36KW)-50G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(24-36KW)-85G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(3-18KW)-20G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264K SP8264R SP12575B NONE

E(3-36KW)-30G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264K SP8264R NONE SP9013E

E(3-36KW)-40G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264M SP8264R NONE SP9013E

E(36-54KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

E(36-54KW)-120G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

E(36-54KW)-50G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

E(36-54KW)-85G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

E(3-9KW)-12G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264M SP8264R SP12575B NONE

E(6-18KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

E(6-18KW)-120G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(6-18KW)-50G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R NONE SP12574

E(6-18KW)-85G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(81KW)-120G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264K SP8264R NONE SP9013E

E(81KW)-85G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264K SP8264R NONE SP9013E

ES(18-36)KW-85G SP6070G SP11231 NONE SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

ES(18-36KW)-120G SP6070G SP11231 NONE SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

ES(18-36KW)-50G SP6070G SP11231 NONE SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

ES(36-54KW)-120G SP6070G SP11231 NONE SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

ES(36-54KW)-50G SP6070G SP11231 NONE SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

ES(36-54KW)-85G SP6070G SP11231 NONE SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

ES(6-18KW)-120G SP6070G SP11231 NONE SP10006 SP7861B SP8264M SP8264R SP12574 NONE

ES(6-18KW)-50G SP6070G SP11231 NONE SP10006 SP7861B SP8264M SP8264R SP12574 NONE

ES(6-18KW)-85G SP6070G SP11231 NONE SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

Obsolete Models

EG(06-18KW)-10G EGL(06-18KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-18KW)-10G,GN EGL(06-18KW)-10G,GN SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-18KW)-10T EGL(06-18KW)-10T SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 NONE

EG(06-18KW)-120G EGL(06-18KW)-120G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-I8KW)-120G EGL(06-I8KW)-120G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-18KW)-120GN EGL(06-18KW)-120GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 NONE

EG(06-18KW)-120T EGL(06-18KW) SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 NONE

EG(06-18KW)-120TN EGL(06-18KW) SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 NONE

EG(06-18KW)-50G EGL(06-18KW)-50G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-18KW)-50GN EGL(06-18KW)-50GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 NONE

EG(06-18KW)-50T EGL(06-18KW)-50T SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 NONE

EG(06-18KW)-50TN EGL(06-18KW)-50TN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 NONE

EG(06-18KW)-85G EGL(06-18KW)-85G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-18KW)-85GN EGL(06-18KW)-85GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 NONE

EG(06-18KW)-85T EGL(06-18KW)-85T SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 NONE

EG(06-18KW)-85TN EGL(06-18KW)-85TN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 NONE

EG(18-36KW)-10G EGL(18-36KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

EG(18-36KW)-10G,GN EGL(18-36KW)-10G,GN SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-10GN EGL(18-36KW)-10GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-10GS EGL(18-36KW)-10GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

EG(18-36KW)-10GSN EGL(18-36KW)-10GSN SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-10T EGL(18-36KW)-10T SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 SP9013D

EG(18-36KW)-10TS EGL(18-36KW)-10TS SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 SP9013D

EG(18-36KW)-120G EGL(18-36KW)-120G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-120GN EGL(18-36KW)-120GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-120GS EGL(18-36KW)-120GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-120GSN EGL(18-36KW)-120GSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-120T EGL(18-36KW)-120T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EG(18-36KW)-120TS EGL(18-36KW)-120TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EG(18-36KW)-50G EGL(18-36KW)-50G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-50GN EGL(18-36KW)-50GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-50GS EGL(18-36KW)-50GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

PREFERRED PARTS REFERENCE CONTINUED

EG(18-36KW)-50GS EGL(18-36KW)-50GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

EG(18-36KW)-50GSN EGL(18-36KW)-50GSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-50T EGL(18-36KW)-50T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EG(18-36KW)-50TS EGL(18-36KW)-50TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EG(18-36KW)-85G EGL(18-36KW)-85G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-85GS EGL(18-36KW)-85GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-85GSN EGL(18-36KW)-85GSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-85T EGL(l8-36KW)-85T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892E SP8892C SP12574 SP9013D

EG(18-36KW)-85TS EGL(18-36KW)-85TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8264R SP12574 SP9013D

EG(24-36KW)-10GSN EGL(24-36KW)-10GSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-10TSN EGL(24-36KW)-10TSN SP6070G SP8260 SP5411 SP10006 SP8266K NONE SP8264R SP12574 SP9013D

EG(24-36KW)-120TN EGL(24-36KW)-120TN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-120TSN EGL(24-36KW)-120TSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-50TN EGL(24-36KW)-50TN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-50TSN EGL(24-36KW)-50TSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-85TN EGL(24-36KW)-85TN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-85TSN EGL(24-36KW)-85TSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(36-54KW)-10G EGL(36-54KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-10GS EGL(36-54KW)-10GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-120G EGL(36-54KW)-120G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-120GS EGL(36-54KW)-120GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-50G EGL(36-54KW)-50G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-50GS EGL(36-54KW)-50GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-85G EGL(36-54KW)-85G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-85GS EGL(36-54KW)-85GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(45-54KW)-I0T EGL(45-54KW)-I0T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-10TS EGL(45-54KW)-10TS SP6070G SP8260 SP5411 SP10006 SP8266K SP8892C SP8892E NONE SP9013D

EG(45-54KW)-120T EGL(45-54KW)-120T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-120TS EGL(45-54KW)-120TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-50T EGL(45-54KW)-50T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-50TS EGL(45-54KW)-50TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-85T EGL(45-54KW)-85T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-85TS EGL(45-54KW)-85TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(36-54KW)-50GS EGL(36-54KW)-50GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EGS(06-18KW)-120G EGLS(06-18KW)-120G SP6070G SP11231 NONE NONE NONE SP8264M NONE SP12574 NONE

EGS(06-18KW)-120G EGLS(06-18KW)-120G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R SP12574 NONE

EGS(06-18KW)-120T EGLS(06-18KW)-120T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8892E SP12574 NONE

EGS(06-18KW)-50G EGLS(06-18KW)-50G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R SP12574 NONE

EGS(06-18KW)-50G EGLS(06-18KW)-50G SP6070G SP11234 NONE SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EGS(06-18KW)-50T EGLS(06-18KW)-50T SP6070G SP11234 NONE SP10006 SP7861B SP8892C SP8892E SP12574 NONE

EGS(16-18KW)-85G EGLS(16-18KW)-85G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R SP12574 NONE

EGS(06-18KW)-85G EGLS(06-18KW)-85G SP6070G SP11231 NONE SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EGS(06-18KW)-85T EGLS(06-18KW)-85T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8892E SP12574 NONE

EGS(18-36KW)-120G EGLS(18-36KW)-120G SP6070G SP11231 NONE NONE NONE SP8264K SP8264R SP12574 SP9013D

EGS(18-36KW)-120G EGLS(18-36KW)-120G SP6070G SP11231 NONE SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

EGS(18-36KW)-120T EGLS(18-36KW)-120T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EGS(18-36KW)-50G EGLS(18-36KW)-50G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R SP12574 SP9013D

EGS(18-36KW)-50G EGLS(18-36KW)-50G SP6070G SP11234 NONE SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EGS(18-36KW)-50T EGLS(18-36KW)-50T SP6070G SP11234 NONE SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EGS(18-36KW)-85G EGLS(18-36KW)-85G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R SP12574 SP9013D

EGS(L 8-36KW)-85G EGLS(L 8-36KW)-85G SP6070G SP11231 NONE SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EGS(18-36KW)-85T EGLS(18-36KW)-85T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EGS(36-54KW)-120G EGLS(36-54KW)-120G SP6070G SP11231 NONE NONE NONE SP8264K SP8264R NONE SP9013D

EGS(36-54KW)-120G EGLS(36-54KW)-120G SP6070G SP11231 NONE SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EGS(36-54KW)-50G EGLS(36-54KW)-50G SP6070G SP11234 NONE SP10006 SP7861B SP8264M SP8264R NONE SP9013D

EGS(36-54KW)-85G EGLS(36-54KW)-85G SP6070G SP11231 NONE SP10006 SP7861B SP8264M SP8264R NONE SP9013D

EGS(36-54KW)-85G EGLS(36-54KW)-85G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R NONE SP9013D

EGS(45-54KW)-120T EGLS(45-54KW)-120T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8264R NONE SP9013D

EGS(45-54KW)-50T EGLS(45-54KW)-50T SP6070G SP11234 NONE SP10006 SP7861B SP8264M SP8264R NONE SP9013D

EGS(45-54KW)-85T EGLS(45-54KW)-85T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8264R NONE SP9013D

PREFERRED PARTS REFERENCE CONTINUED

Heavy Duty Commercial Electric – Continued

Rheem Trans- Relief Relief

Model Ruud Drain Therm- High Trans- Element former Valve Valve

Number Model Number Valve ostat Limit former Contactor Fuse Fuse 6-27KW 30-81KW

4’ x 4’ PARTS DISPLAY FOR

GAS AND ELECTRIC MARKET

PREFERRED PARTS / UNIVERSAL PARTS DISPLAYS

AP13266 Display unit (Empty)

Preferred Gas and Electric Parts

SP13266 (with parts shown below)

SP6571B Relief Valve .................................................3 each

SP12039 Melet Drain Valve ........................................3 each

SP20009 Basic Install Kit 12" .....................................3 each

SP20011 Installation Kit Electric ................................3 each

SP11695 Lower Electric T'stat ...................................3 each

SP11698 Upper Electric T'stat ...................................3 each

SP10552ML 4500W 240V LWD Resistor ........................3 each

SP11699 Single Element Thermostat..........................3 each

SP10552KH 3500W 240V High Watt ...............................3 each

SP35871AB Element wrench ...........................................3 each

SP10374 Compression Fitting3/4................................3 each

SP10354 Compression Fitting 1/2...............................3 each

SP20003 Heat Trap Nipple Kit ....................................3 each

SP10552PL 5500W 240V Low Watt................................3 each

SP10972 Hot surface Ignitor.......................................3 each

SP6379R Thermocouple 24"........................................3 each

SP6379K Thermocouple 17"........................................3 each

SP8379G Plastic Lined Nipple 2 1/4"...........................3 each

SP8346 Relief Valve Long Shank ..............................3 each

SP8980B Gas Pilot (Natural) .......................................3 each

SP8980C Gas Pilot (LP) ..............................................3 each

SP8555B Gas Thermostat-Natural...............................3 each

SP12258B Gas Thermostat-LP......................................3 each

SP10552MH 4500W 240V HWD Resistor .......................3 each

SP10869MM 4500W 240V SS Resistor ...........................3 each

SP20010 Installation Kit-Gas .....................................3 each

SP20060 Plumbers Pack ............................................3 each

SP6830 Adapt-o-Flange ...........................................3 each

Universal Gas and Electric Parts

UV13266 (with parts shown below)

UV12899 4500W 240V HWD Non-resistor..................3 each

UV12901 4500W 240V LWD Non-resistor ..................3 each

UV12904 4500W 240V SS Non-Resistor ...................3 each

UV20016 Installation Kit-Gas.......................................3 each

UV20010 Basic Installation Kit 15" ..............................3 each

UV13359 Upper Electric T'stat ...................................3 each

UV13360 Lower Electric T'stat ...................................3 each

UV20015 Installation Kit 12" Gas ................................3 each

UV12039 Melet Drain Valve ........................................3 each

UV12927 Stainless Steel Water Conn 12" ...................3 each

UV6830 Adapt-o-Flange ...........................................3 each

UV8555B Gas Thermostat-Natural...............................3 each

UV6379L Thermocouple Kit 18" ..................................3 each

UV6379H Thermocouple Kit30"....................................3 each

UV6379R Thermocouple Kit 24" ..................................3 each

UV6379S Thermocouple Kit36"....................................3 each

UV10351 Copper Flex Water Conn 12" ........................3 each

UV20014 Installation Kit 18" Electric ...........................3 each

UV6371B Relief Valve .................................................3 each

UV12992 Heat Trap Nipple Kit ....................................3 each

UV20018 Plumbers Pack.............................................3 each

UV38628 Element Wrench .........................................3 each

UV12914 Gasket Kit ...................................................3 each

UV12258B Gas Thermostat-LP......................................3 each

UV10374 3/4" Compression Fitting ............................3 each

UV10354 1/2" Compression Fitting ............................3 each

The premium line of approved

replacement parts.

The value line for all your

replacement parts needs.

To place your order call 1-800-621-5622; fax 1-800-535-9538

4’ x 4’ PLANOGRAM FOR

GAS PREDOMINANT MARKET

PREFERRED PARTS / UNIVERSAL PARTS PLANOGRAMS

4’ x 4’ PLANOGRAM FOR

ELECTRIC PREDOMINANT MARKET

The premium line of approved

replacement parts.

The value line for all your

replacement parts needs.

To place your order call 1-800-621-5622; fax 1-800-535-9538

PREFERRED PARTS / UNIVERSAL PARTS PLANOGRAMS

The premium line of approved

replacement parts.

The value line for all your

replacement parts needs.

4’ x 4’ PLANOGRAM FOR

GAS & ELECTRIC MARKET

To place your order call 1-800-621-5622; fax 1-800-535-9538

PREFERRED PARTS / UNIVERSAL PARTS PLANOGRAMS

PARTS

WARRANTY CLAIM FORM

To be used when you are NOT required to return the defective component part(s) to Rheem

RHEEM WATER HEATING

WARRANTY PARTS DEPARTMENT

2773 Gunter Park Drive West, Montgomery, AL 36109

Distributor Name_______________________________________________ Date Sent to Rheem______________________________

Distributor Location (City and State)_________________________________________________ Branch Number ________________

Form Completed by (Employee’s Name)_____________________________ Business Telephone (_____) ______________________

Additional Debit Memo/Claim Number/Other Reference _______________________________________________________________

MAKE SURE THE INFORMATION PROVIDED IS COMPLETE, ACCURATE, AND LEGIBLE

RHEEM DATE OF DATE OF

AUTHORIZED WATER HEATER WATER HEATER INSTALL FAILURE DESCRIPTION

PART PART NUMBER MODEL NUMBER SERIAL NUMBER MO. YR. MO. YR. OF DEFECT

Water Heating Water Heating

BASIC INSTRUCTIONS FOR SUBMITTING A COMPONENT PART WARRANTY CLAIM –

Use this form to submit warranty claims for defective in-warranty

Rheem or Ruud residential water heater component parts not appearing on the Rheem Warranty Parts Return List on the date they failed. Hold all unre-

turned defective in-warranty residential water heater component parts at your place of business for thirty (30) days after you receive credit for them.

Then destroy them and dispose of them. (Warranty claims for all defective in-warranty commercial water heater and residential water heater component parts

appearing on Rheem’s current Warranty Parts Return List – or including a request for warranty labor compensation – must be submitted on a Warranty Parts

Return Form and returned to the Rheem Warranty Parts Dept.) Submit a Parts Warranty Claim Form at least once each calendar month in which you have a

claim. Send this form (with all the required attachments) to the Rheem Warranty Parts Dept. at the address listed above. Refer to Rheem Water Heaters’

Warranty Policies and Procedures Manual for complete instructions for the completion of this form.

TO RECEIVE PROMPT WARRANTY COMPENSATION, ATTACH AND/OR PROVIDE:

1) Your Debit Memo/Claim Number (in the upper right corner of this form).

2) The complete Rheem Authorized Part Number for each defective component part being claimed.

3) The complete model number and the complete serial number of the water heater from which each defective component part was removed.

4) The date (month and year) the water heater from which each defective component part was removed, was installed or the date of purchase of each

defective component part (if it was purchased separately). If the date of installation of the water heater is more than ninety (90) days after the date of

manufacture or the defective component part was purchased separately – provide documentary proof of this date.

5) The date (month and year) the defective component part failed.

RHEEM RESERVES THE RIGHT TO DENY ANY WARRANTY CLAIM RECEIVED MORE THAN NINETY (90) DAYS AFTER THE FAILURE DATE OR THAT

DOES NOT FULFILL ALL THE REQUIREMENTS OF ITS WARRANTY POLICY AND PROCEDURES.

Printed in USA FORM NO. WCF-P Rev. 10/04

Debit Memo/Claim Number_________________________

NOTE: If you believe any of the defective component parts listed may become part of a liability (insurance) claim, secure the defective

component part at your place of business, and call the Rheem Technical Service Dept. at (800) 432-8373 to notify them as soon as possible.
