RIGOL
Programming Guide
DS1000Z Series Digital Oscilloscope
Dec. 2013
RIGOL Technologies, Inc.
RIGOL
DS1000Z Programming Guide I
Guaranty and Declaration
Copyright
© 2013 RIGOL Technologies, Inc. All Rights Reserved.
Trademark Information
RIGOL is a registered trademark of RIGOL Technologies, Inc.
Publication Number
PGA17104-1110
Notices
- RIGOL products are protected by patent law in and outside of P.R.C.
- RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at
company’s sole decision.
- Information in this publication replaces all previously corresponding material.
- RIGOL shall not be liable for losses caused by either incidental or consequential in connection with
the furnishing, use or performance of this manual as well as any information contained.
- Any part of this document is forbidden to be copied or photocopied or rearranged without prior written
approval of RIGOL.
Product Certification
RIGOL guarantees this product conforms to the national and industrial standards in China as well as the
ISO9001:2008 standard and the ISO14001:2004 standard. Other international standard conformance
certification is in progress.
Contact Us
If you have any problem or requirement when using our products or this manual, please contact RIGOL.
E-mail: service@rigol.com
Website: www.rigol.com
RIGOL
II DS1000Z Programming Guide
Document Overview
This manual guides users to control RIGOL DS1000Z series digital oscilloscope remotely by programming
using SCPI commands through the remote interface. DS1000Z can build communication with the PC
through the USB, LAN or GPIB (option) interface.
Main Topics in this Manual:
Chapter 1 Programming Overview
This chapter introduces how to build the remote communication between DS1000Z series digital
oscilloscope and the PC. It also introduces the remote control method and the SCPI commands.
Chapter 2 Command System
This chapter introduces the syntax, function, parameter and using instruction of each command.
Chapter 3 Programming Demos
This chapter lists some programming demos to illustrate how to use commands to realize the common

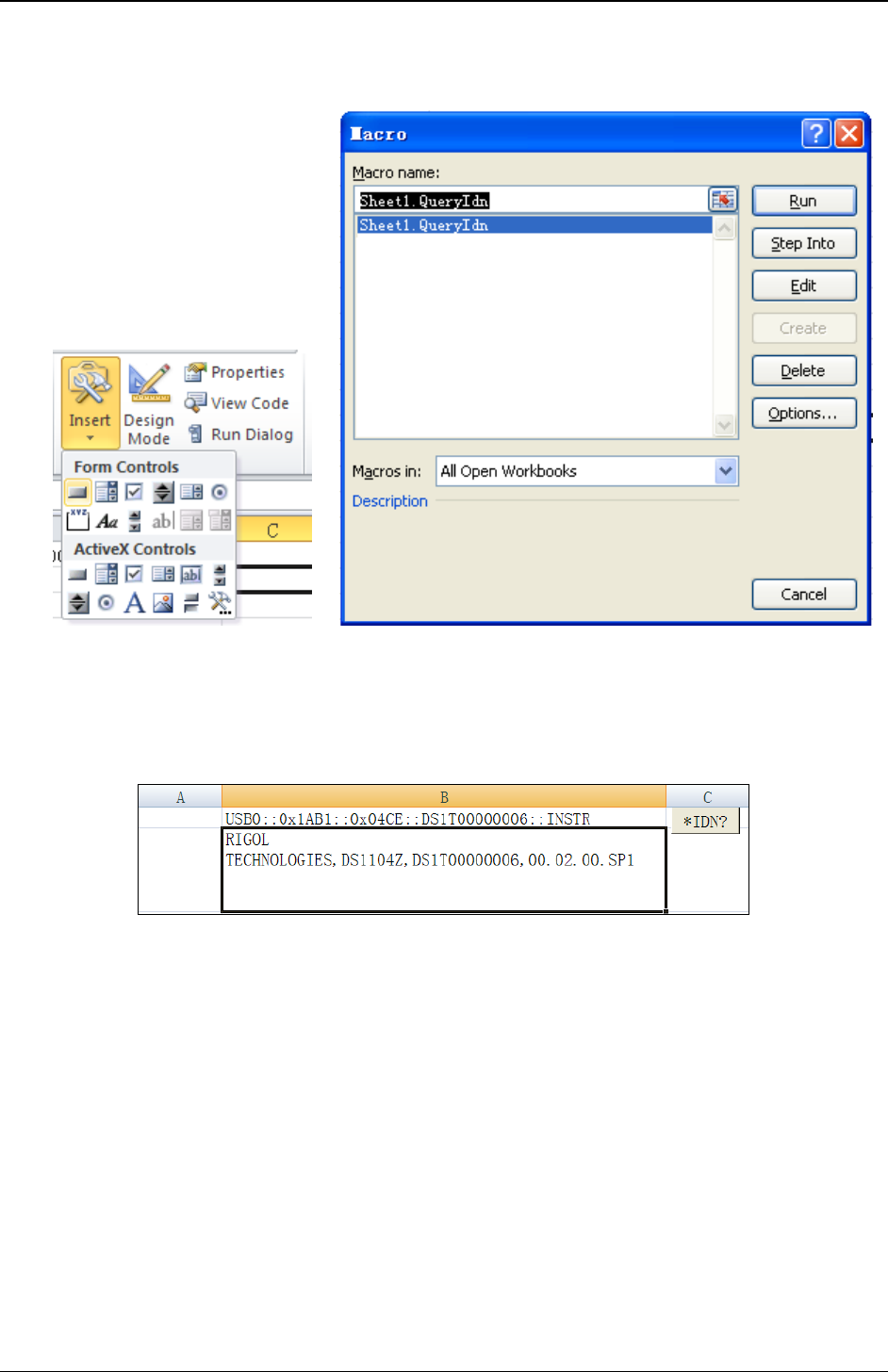

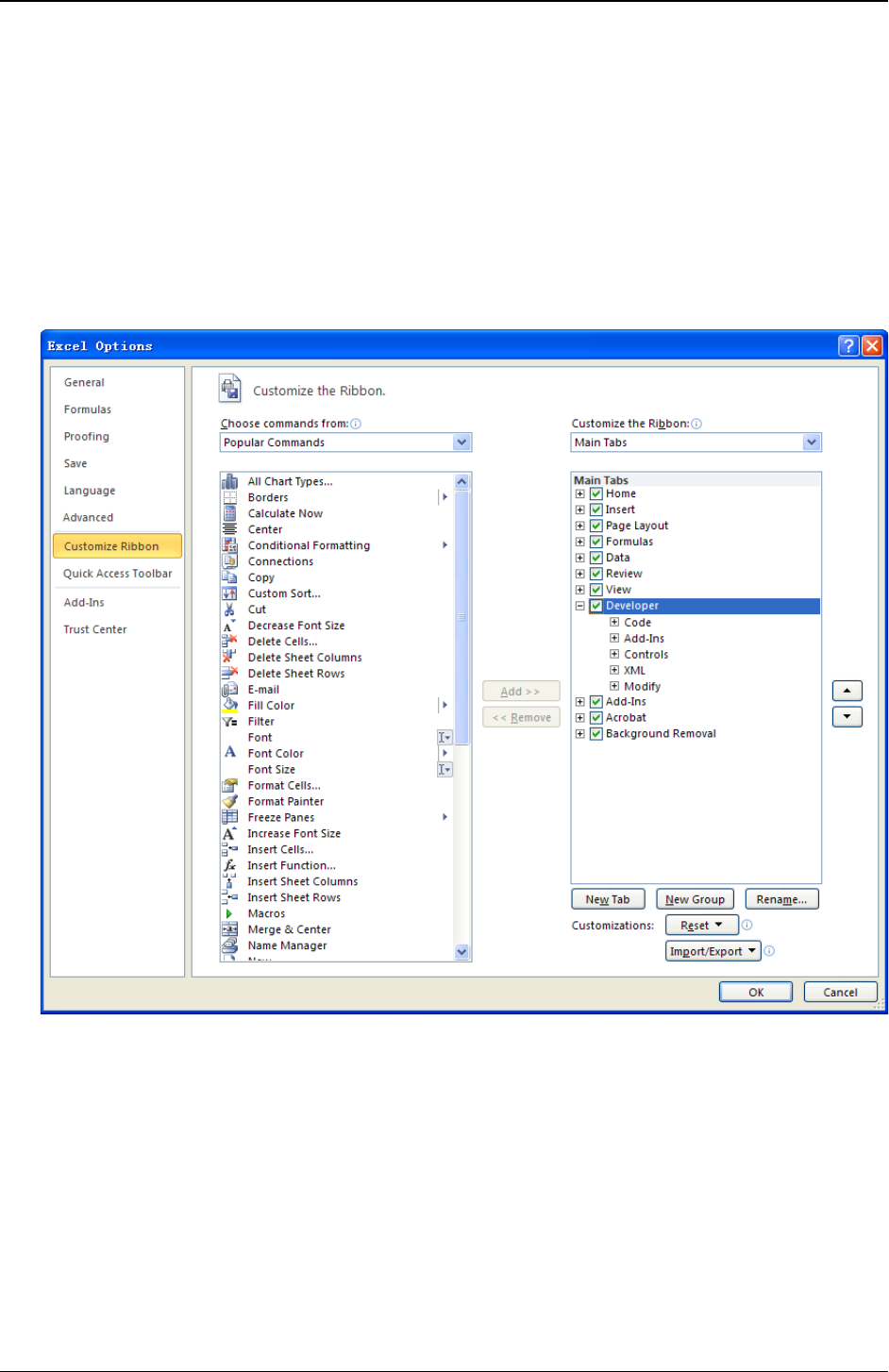

functions of the oscilloscope in the development environments of Excel, LabVIEW, Matlab, Visual Basic 6.0

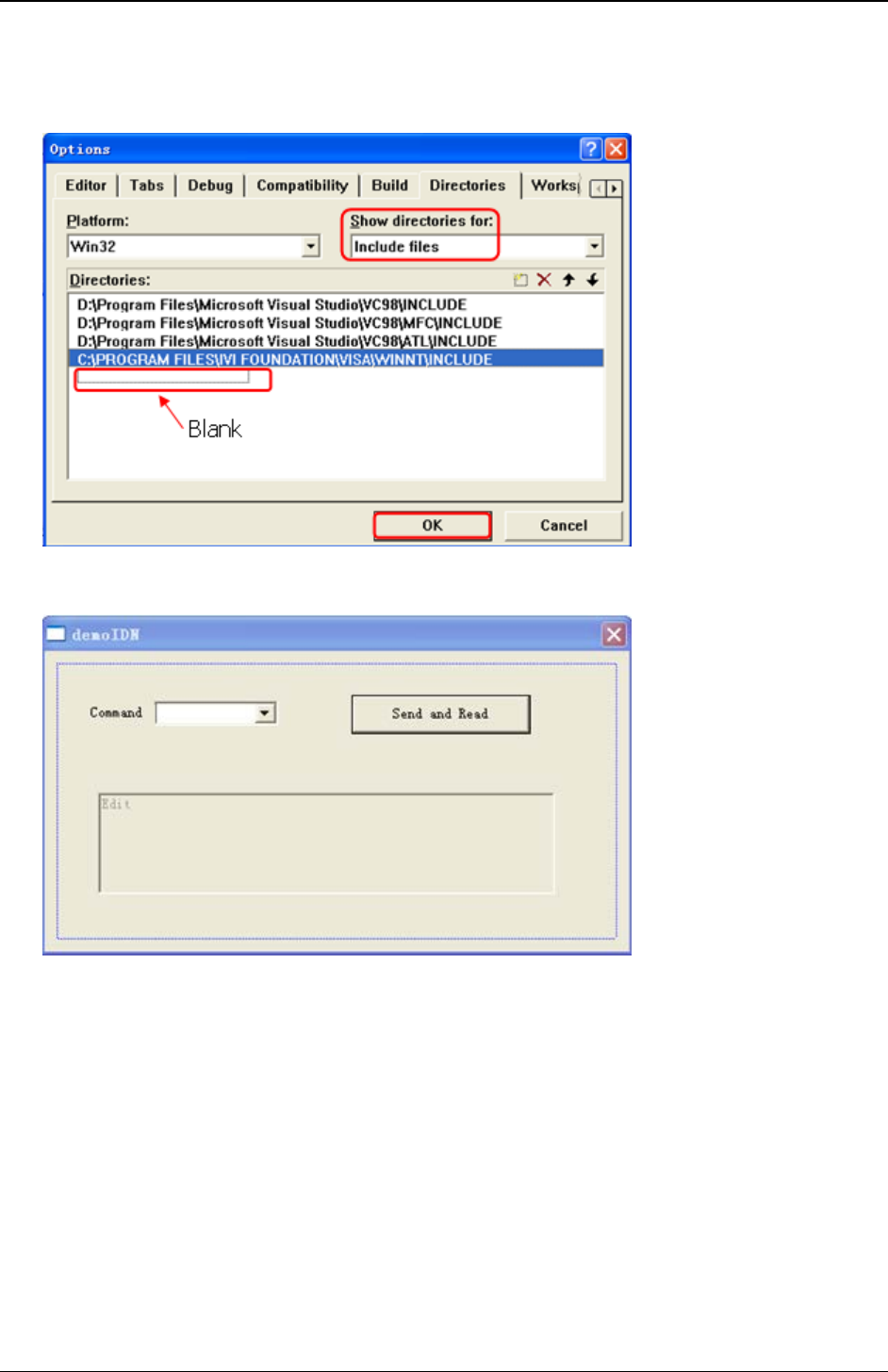

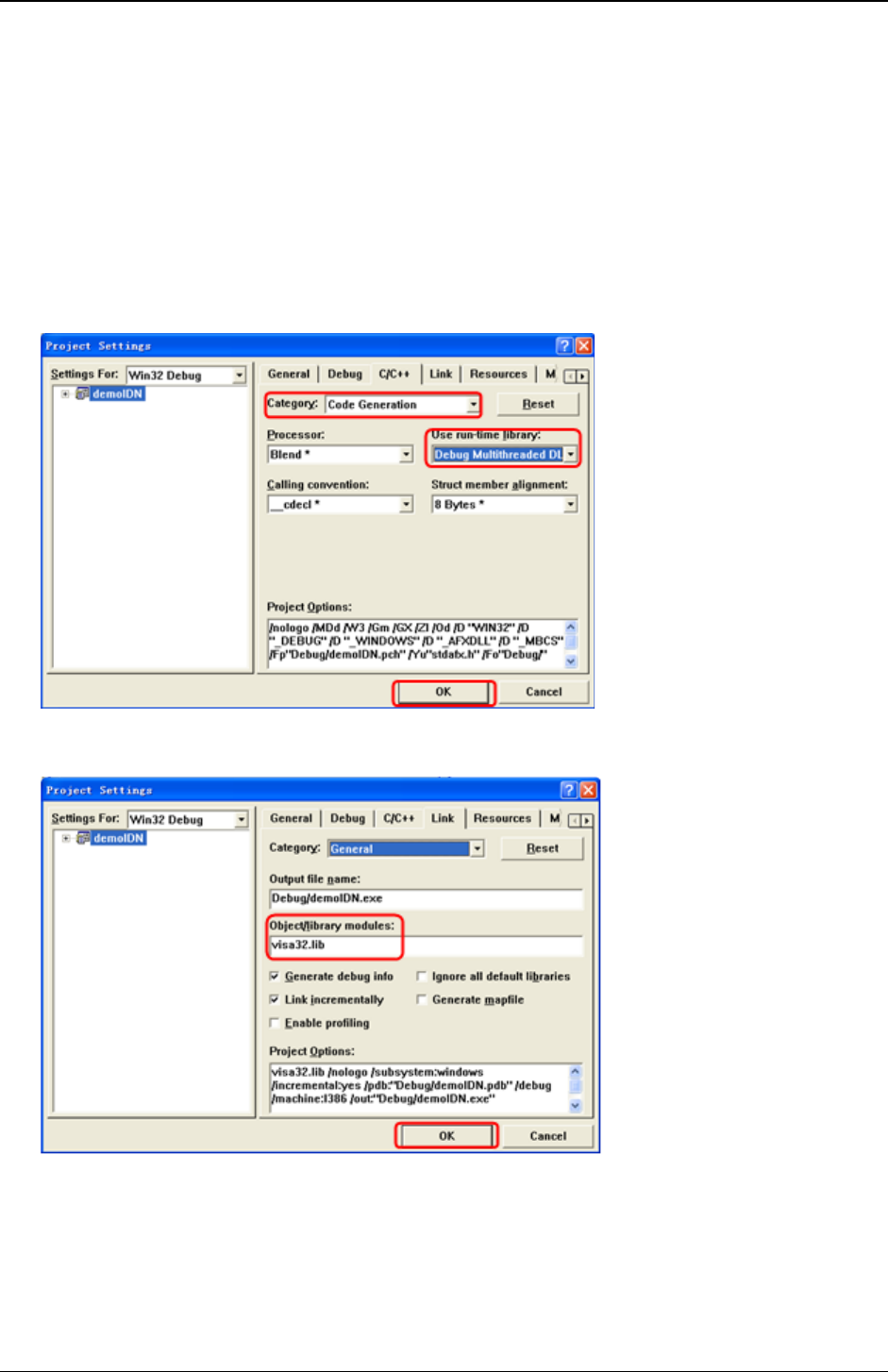

and Visual C++ 6.0.
Tip
For the newest version of this manual, please download it from www.rigol.com.
Format Conventions in this Manual:
1. Button
The function key at the front panel is denoted by the format of “Button Name (Bold) + Text Box” in the
manual, for example, Utility denotes the “Utility” key.
2. Menu
The menu item is denoted by the format of “Menu Word (Bold) + Character Shading” in the manual,
for example, System denotes the “System” item under Utility.
3. Operation Step
The next step of the operation is denoted by an arrow “” in the manual. For example, Utility
System denotes pressing Utility at the front panel and then pressing System.
Content Conventions in this Manual:
DS1000Z series includes the following models. Unless otherwise noted, this manual takes DS1104Z-S as an
example to illustrate the command system of DS1000Z series.
Model
Analog Bandwidth
Channel
Source Channel
DS1104Z
100 MHz
4
None
DS1074Z
70 MHz
4
None
DS1104Z-S
100 MHz
4
2
DS1074Z-S
70 MHz
4
2
Contents RIGOL
DS1000Z Programming Guide III
Contents
Guaranty and Declaration ......................................................................................................... I
Document Overview ................................................................................................................. II
Chapter 1 Programming Overview...................................................................................... 1-1
To Build Remote Communication ............................................................................................... 1-2
Remote Control Methods ........................................................................................................... 1-4
SCPI Command Overview .......................................................................................................... 1-5
Syntax ............................................................................................................................... 1-5
Symbol Description ............................................................................................................ 1-5
Parameter Type .................................................................................................................. 1-6
Command Abbreviation ...................................................................................................... 1-6
Chapter 2 Command System ............................................................................................... 2-1
:AUToscale ............................................................................................................................... 2-2
:CLEar...................................................................................................................................... 2-2
:RUN ........................................................................................................................................ 2-2
:STOP ...................................................................................................................................... 2-2
:SINGle .................................................................................................................................... 2-3
:TFORce ................................................................................................................................... 2-3
:ACQuire Commands ................................................................................................................. 2-4
:ACQuire:AVERages ............................................................................................................ 2-4
:ACQuire:MDEPth ............................................................................................................... 2-5
:ACQuire:TYPE ................................................................................................................... 2-6
:ACQuire:SRATe? ................................................................................................................ 2-7
:CALibrate Commands ............................................................................................................... 2-8
:CALibrate:QUIT ................................................................................................................ 2-8
:CALibrate:STARt ............................................................................................................... 2-8
:CHANnel<n> Commands ......................................................................................................... 2-9
:CHANnel<n>:BWLimit ....................................................................................................... 2-9
:CHANnel<n>:COUPling ................................................................................................... 2-10
:CHANnel<n>:DISPlay ..................................................................................................... 2-10
:CHANnel<n>:INVert ....................................................................................................... 2-10
:CHANnel<n>:OFFSet ...................................................................................................... 2-11
:CHANnel<n>:RANGe ...................................................................................................... 2-11
:CHANnel<n>:TCAL ......................................................................................................... 2-12
:CHANnel<n>:SCALe ....................................................................................................... 2-13
:CHANnel<n>:PROBe ....................................................................................................... 2-13
:CHANnel<n>:UNITs ........................................................................................................ 2-14
:CHANnel<n>:VERNier ..................................................................................................... 2-14
:CURSor Commands ............................................................................................................... 2-15
:CURSor:MODE ................................................................................................................ 2-15
:CURSor:MANual .............................................................................................................. 2-16
:CURSor:TRACk ............................................................................................................... 2-21
:CURSor:AUTO:ITEM ........................................................................................................ 2-25
:CURSor:XY ..................................................................................................................... 2-26
:DISPlay Commands ............................................................................................................... 2-29
:DISPlay:CLEar ................................................................................................................ 2-29
:DISPlay:DATA? ............................................................................................................... 2-30
:DISPlay:TYPE ................................................................................................................. 2-31
:DISPlay:GRADing:TIME ................................................................................................... 2-31
:DISPlay:WBRightness ...................................................................................................... 2-31
:DISPlay:GRID ................................................................................................................. 2-32
:DISPlay:GBRightness ...................................................................................................... 2-32
IEEE488.2 Common Commands ............................................................................................... 2-33
*CLS ............................................................................................................................... 2-33
*ESE ............................................................................................................................... 2-33
RIGOL Contents
IV DS1000Z Programming Guide
*ESR? .............................................................................................................................. 2-34
*IDN? .............................................................................................................................. 2-34
*OPC ............................................................................................................................... 2-34
*RST ............................................................................................................................... 2-34
*SRE ............................................................................................................................... 2-34
*STB? .............................................................................................................................. 2-35
*TST? .............................................................................................................................. 2-35
*WAI ............................................................................................................................... 2-35
:MATH Commands .................................................................................................................. 2-36
:MATH:DISPlay ................................................................................................................. 2-37
:MATH:OPERator .............................................................................................................. 2-37
:MATH:SOURce1 .............................................................................................................. 2-37
:MATH:SOURce2 .............................................................................................................. 2-38
:MATH:SCALe ................................................................................................................... 2-38
:MATH:OFFSet ................................................................................................................. 2-39
:MATH:INVert ................................................................................................................... 2-39
:MATH:RESet ................................................................................................................... 2-39
:MATH:FFT:WINDow ......................................................................................................... 2-40
:MATH:FFT:SPLit .............................................................................................................. 2-40
:MATH:FFT:UNIT .............................................................................................................. 2-41
:MATH:FFT:HSCale ........................................................................................................... 2-41
:MATH:FFT:HCENter ......................................................................................................... 2-42
:MATH:OPTion:STARt........................................................................................................ 2-42
:MATH:OPTion:END .......................................................................................................... 2-43
:MATH:OPTion:INVert ....................................................................................................... 2-43
:MATH:OPTion:SENSitivity ................................................................................................. 2-44
:MATH:OPTion:DIStance ................................................................................................... 2-44
:MATH:OPTion:ASCale ...................................................................................................... 2-44
:MATH:OPTion:THReshold1 ............................................................................................... 2-45
:MATH:OPTion:THReshold2 ............................................................................................... 2-45
:MASK Commands ................................................................................................................... 2-46
:MASK:ENABle .................................................................................................................. 2-46
:MASK:SOURce................................................................................................................. 2-47
:MASK:OPERate................................................................................................................ 2-47
:MASK:MDISplay .............................................................................................................. 2-48
:MASK:SOOutput .............................................................................................................. 2-48
:MASK:OUTPut ................................................................................................................. 2-49
:MASK:X .......................................................................................................................... 2-49
:MASK:Y .......................................................................................................................... 2-49
:MASK:CREate .................................................................................................................. 2-50
:MASK:PASSed? ................................................................................................................ 2-50
:MASK:FAILed? ................................................................................................................. 2-50
:MASK:TOTal? .................................................................................................................. 2-50
:MASK:RESet .................................................................................................................... 2-50
:MEASure Commands .............................................................................................................. 2-51
:MEASure:SOURce ............................................................................................................ 2-54
:MEASure:COUNter:SOURce .............................................................................................. 2-54
:MEASure:COUNter:VALue? ............................................................................................... 2-54
:MEASure:CLEar ............................................................................................................... 2-55
:MEASure:RECover ........................................................................................................... 2-55
:MEASure:ADISplay .......................................................................................................... 2-56
:MEASure:AMSource ......................................................................................................... 2-56
:MEASure:SETup:MAX ....................................................................................................... 2-57
:MEASure:SETup:MID ....................................................................................................... 2-57
:MEASure:SETup:MIN ....................................................................................................... 2-58
:MEASure:SETup:PSA ........................................................................................................ 2-58
:MEASure:SETup:PSB ........................................................................................................ 2-59
:MEASure:SETup:DSA ....................................................................................................... 2-59
Contents RIGOL
DS1000Z Programming Guide V
:MEASure:SETup:DSB ....................................................................................................... 2-59
:MEASure:STATistic:DISPlay.............................................................................................. 2-60
:MEASure:STATistic:MODE ................................................................................................ 2-60
:MEASure:STATistic:RESet ................................................................................................ 2-61
:MEASure:STATistic:ITEM ................................................................................................. 2-61
:MEASure:ITEM ............................................................................................................... 2-62
:REFerence Commands ........................................................................................................... 2-63
:REFerence:DISPlay ......................................................................................................... 2-63
:REFerence<n>:ENABle ................................................................................................... 2-63
:REFerence<n>:SOURce .................................................................................................. 2-64
:REFerence<n>:VSCale .................................................................................................... 2-64
:REFerence<n>:VOFFset .................................................................................................. 2-65
:REFerence<n>:RESet ..................................................................................................... 2-65
[:SOURce[<n>]] Commands (DS1000Z-S Only) ........................................................................ 2-66
[:SOURce[<n>]]:OUTPut[<n>][:STATe] ............................................................................ 2-67
[:SOURce[<n>]]:OUTPut[<n>]:IMPedance ....................................................................... 2-67
[:SOURce[<n>]]:FREQuency[:FIXed] ................................................................................ 2-68
[:SOURce[<n>]]:PHASe[:ADJust] ..................................................................................... 2-68
[:SOURce[<n>]]:PHASe:INITiate ...................................................................................... 2-69
[:SOURce[<n>]]:FUNCtion[:SHAPe] .................................................................................. 2-69
[:SOURce[<n>]]:FUNCtion:RAMP:SYMMetry ..................................................................... 2-70
[:SOURce[<n>]]:VOLTage[:LEVel][:IMMediate][:AMPLitude] .............................................. 2-70
[:SOURce[<n>]]:VOLTage[:LEVel][:IMMediate]:OFFSet...................................................... 2-71
[:SOURce[<n>]]:PULSe:DCYCle ....................................................................................... 2-71
[:SOURce[<n>]]:MOD[:STATe] ......................................................................................... 2-72
[:SOURce[<n>]]:MOD:TYPe ............................................................................................. 2-72
[:SOURce[<n>]]:MOD:AM[:DEPTh] .................................................................................. 2-73
[:SOURce[<n>]]:MOD:AM:INTernal:FREQuency ................................................................ 2-73
[:SOURce[<n>]]:MOD:FM:INTernal:FREQuency ................................................................ 2-73
[:SOURce[<n>]]:MOD:AM:INTernal:FUNCtion ................................................................... 2-74
[:SOURce[<n>]]:MOD:FM:INTernal:FUNCtion ................................................................... 2-74
[:SOURce[<n>]]:MOD:FM[:DEVIation] .............................................................................. 2-74
[:SOURce[<n>]]:APPLy? .................................................................................................. 2-75
[:SOURce[<n>]]:APPLy:NOISe ......................................................................................... 2-75
[:SOURce[<n>]]:APPLy:PULSe ......................................................................................... 2-75
[:SOURce[<n>]]:APPLy:RAMP .......................................................................................... 2-75
[:SOURce[<n>]]:APPLy:SINusoid...................................................................................... 2-75
[:SOURce[<n>]]:APPLy:SQUare........................................................................................ 2-75
[:SOURce[<n>]]:APPLy:USER ........................................................................................... 2-75
:SYSTem Commands ............................................................................................................... 2-77
:SYSTem:AUToscale.......................................................................................................... 2-77
:SYSTem:BEEPer .............................................................................................................. 2-77
:SYSTem:ERRor[:NEXT]? .................................................................................................. 2-78
:SYSTem:GPIB ................................................................................................................. 2-78
:SYSTem:LANGuage ......................................................................................................... 2-78
:SYSTem:LOCKed ............................................................................................................. 2-78
:SYSTem:PON .................................................................................................................. 2-79
:SYSTem:OPTion:INSTall .................................................................................................. 2-79
:SYSTem:OPTion:UNINSTall .............................................................................................. 2-79
:TIMebase Commands ............................................................................................................ 2-80
:TIMebase:DELay:ENABle ................................................................................................. 2-80
:TIMebase:DELay:OFFSet ................................................................................................. 2-80
:TIMebase:DELay:SCALe .................................................................................................. 2-81
:TIMebase[:MAIN]:OFFSet................................................................................................ 2-81
:TIMebase[:MAIN]:SCALe ................................................................................................. 2-82
:TIMebase:MODE ............................................................................................................. 2-82
:TRIGger Commands .............................................................................................................. 2-83
:TRIGger:MODE ............................................................................................................... 2-83
RIGOL Contents
VI DS1000Z Programming Guide
:TRIGger:COUPling ........................................................................................................... 2-84
:TRIGger:STATus? ............................................................................................................ 2-84
:TRIGger:SWEep .............................................................................................................. 2-84
:TRIGger:HOLDoff ............................................................................................................ 2-85
:TRIGger:NREJect ............................................................................................................ 2-85
:TRIGger:EDGe ................................................................................................................ 2-86
:TRIGger:PULSe ............................................................................................................... 2-88
:TRIGger:SLOPe ............................................................................................................... 2-91
:TRIGger:VIDeo ............................................................................................................... 2-96
:TRIGger:PATTern ............................................................................................................. 2-99
:TRIGger:DURATion ........................................................................................................ 2-101
:TRIGger:TIMeout (Option) ............................................................................................. 2-104
:TRIGger:RUNT (Option) ................................................................................................. 2-106
:TRIGger:WINDows (Option)........................................................................................... 2-110
:TRIGger:DELay (Option) ................................................................................................ 2-113
:TRIGger:SHOLd (Option) ............................................................................................... 2-116
:TRIGger:NEDGe (Option) ............................................................................................... 2-119
:TRIGger:RS232 (Option) ................................................................................................ 2-121
:TRIGger:IIC (Option)..................................................................................................... 2-125
:TRIGger:SPI (Option) .................................................................................................... 2-129
:WAVeform Commands .......................................................................................................... 2-133
:WAVeform:SOURce ........................................................................................................ 2-134
:WAVeform:MODE .......................................................................................................... 2-135
:WAVeform:FORMat ........................................................................................................ 2-135
:WAVeform:DATA? .......................................................................................................... 2-136
:WAVeform:XINCrement? ................................................................................................ 2-137
:WAVeform:XORigin? ...................................................................................................... 2-137
:WAVeform:XREFerence? ................................................................................................ 2-137
:WAVeform:YINCrement? ................................................................................................ 2-138
:WAVeform:YORigin? ...................................................................................................... 2-138
:WAVeform:YREFerence? ................................................................................................ 2-138
:WAVeform:STARt ........................................................................................................... 2-139
:WAVeform:STOP ........................................................................................................... 2-139
:WAVeform:PREamble? ................................................................................................... 2-140
Chapter 3 Programming Demos ......................................................................................... 3-1
Programming Preparations ......................................................................................................... 3-2
Excel Programming Demo .......................................................................................................... 3-3

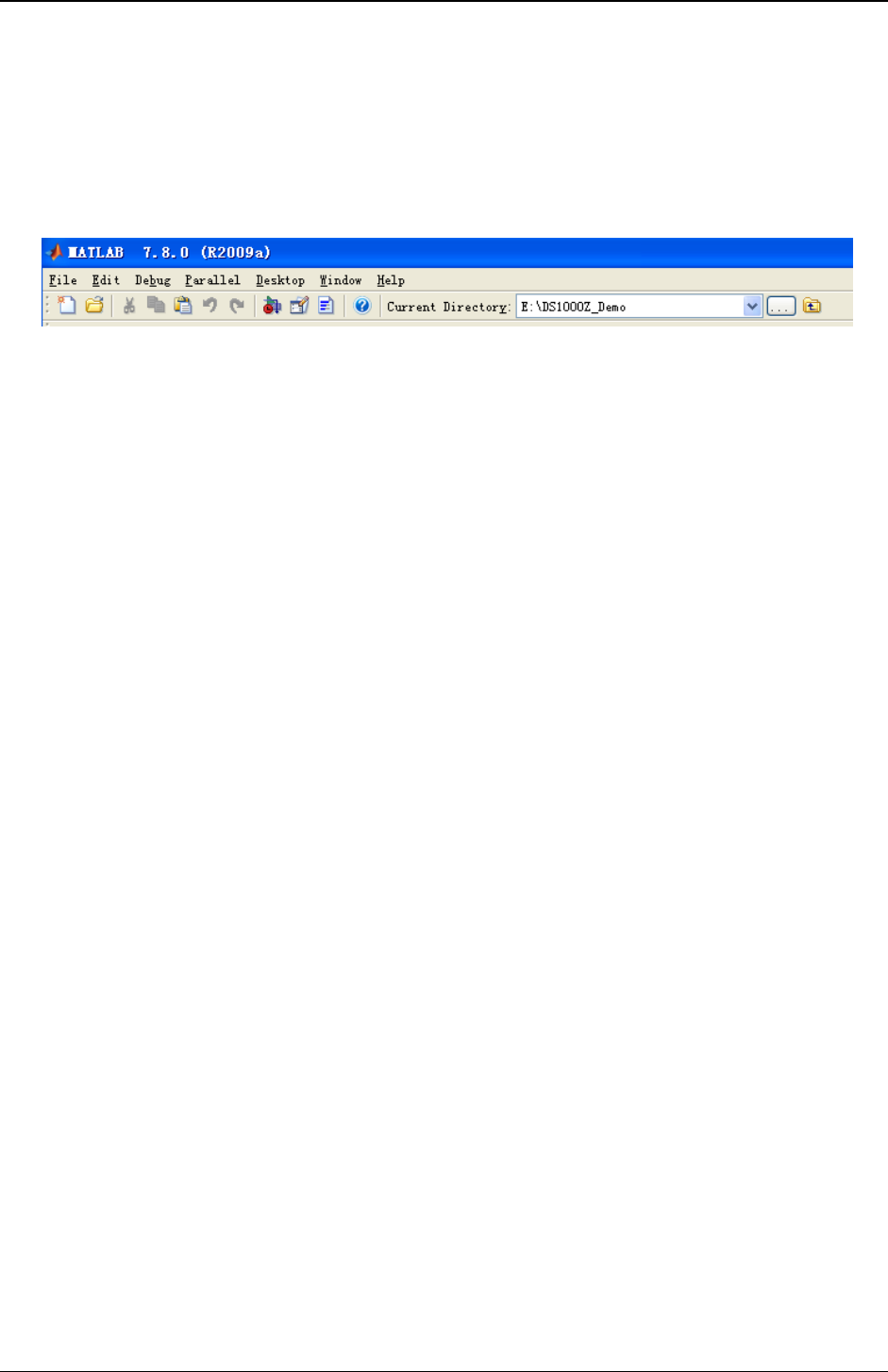

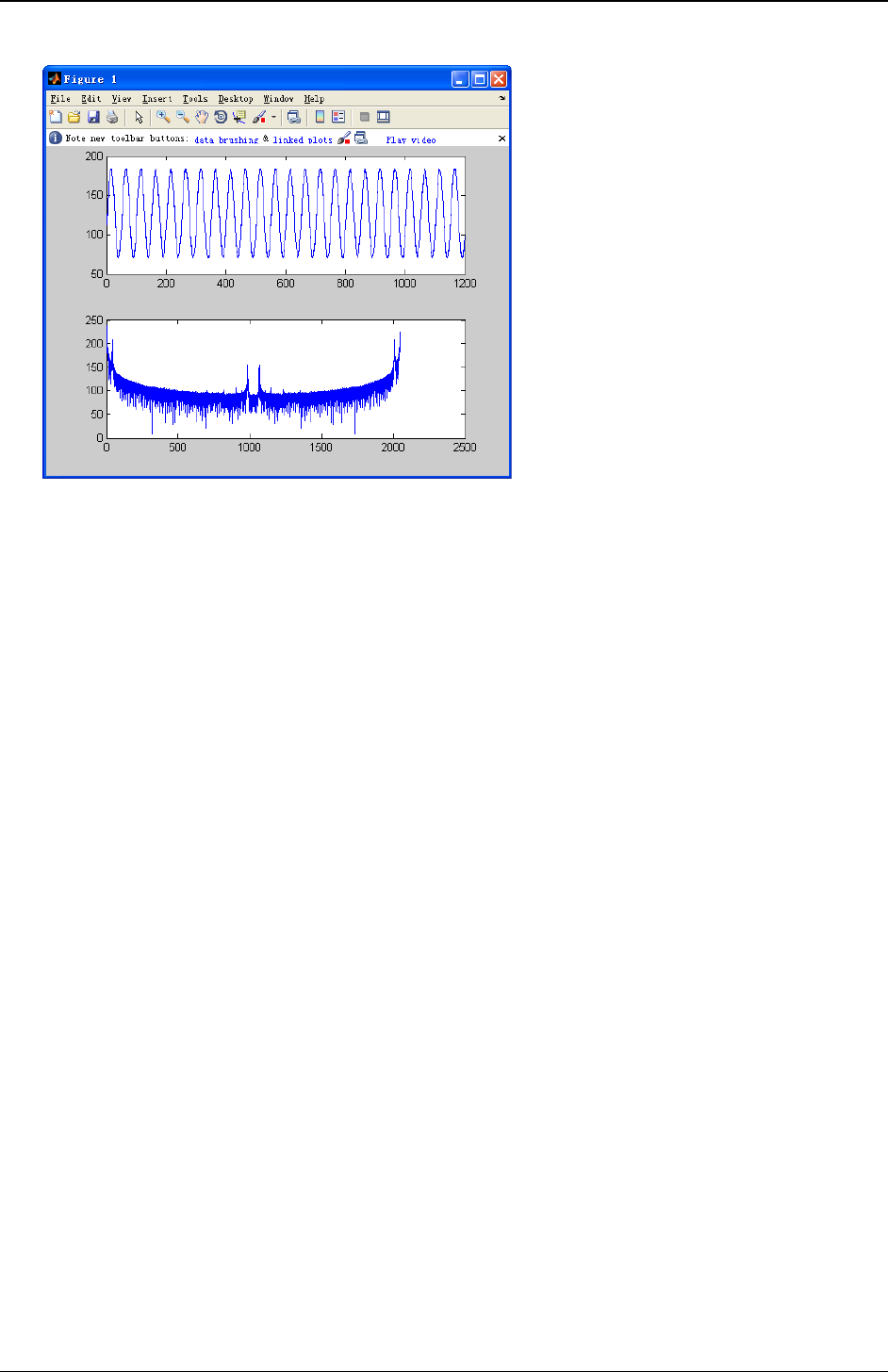

Matlab Programming Demo........................................................................................................ 3-7

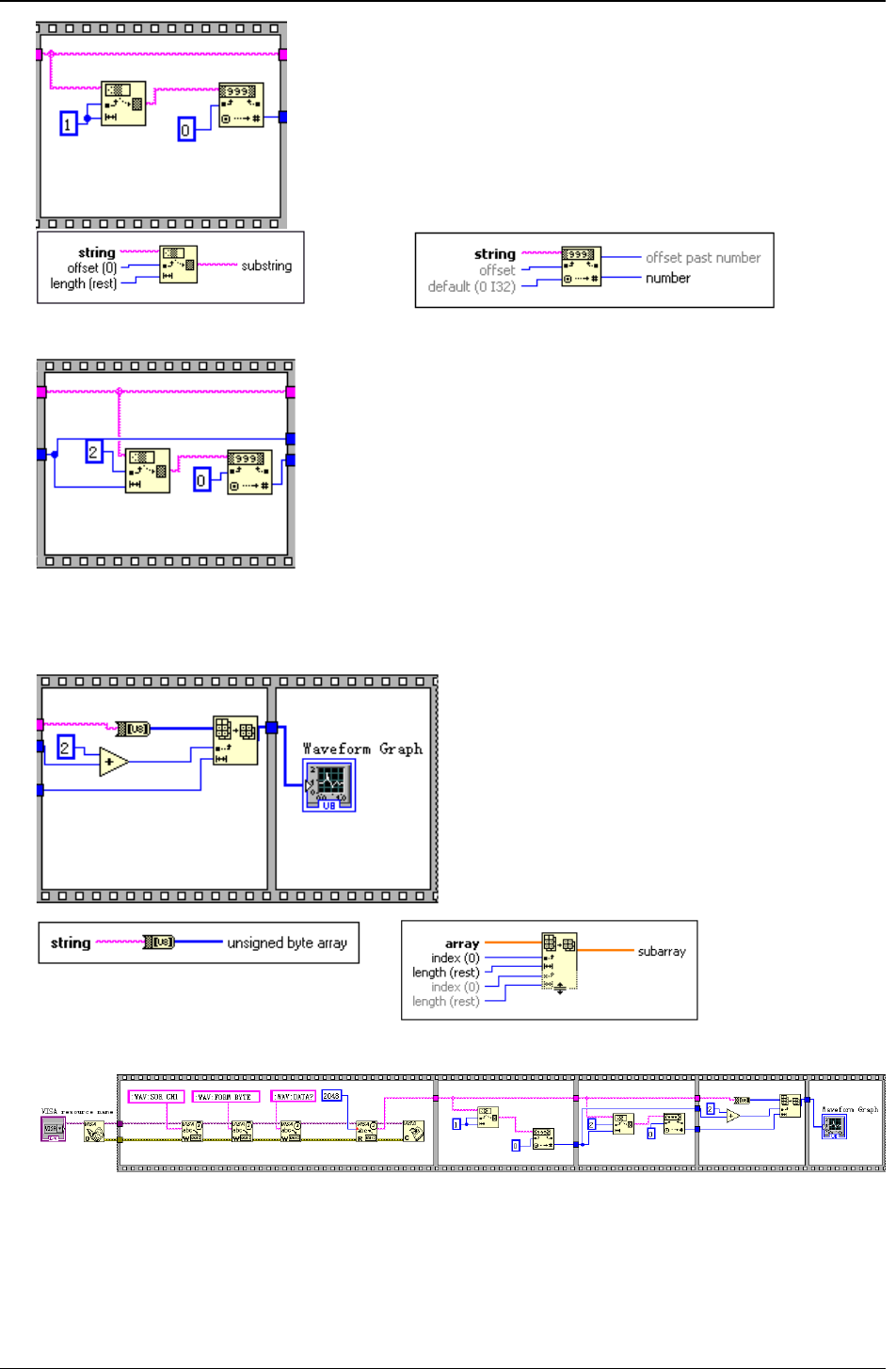

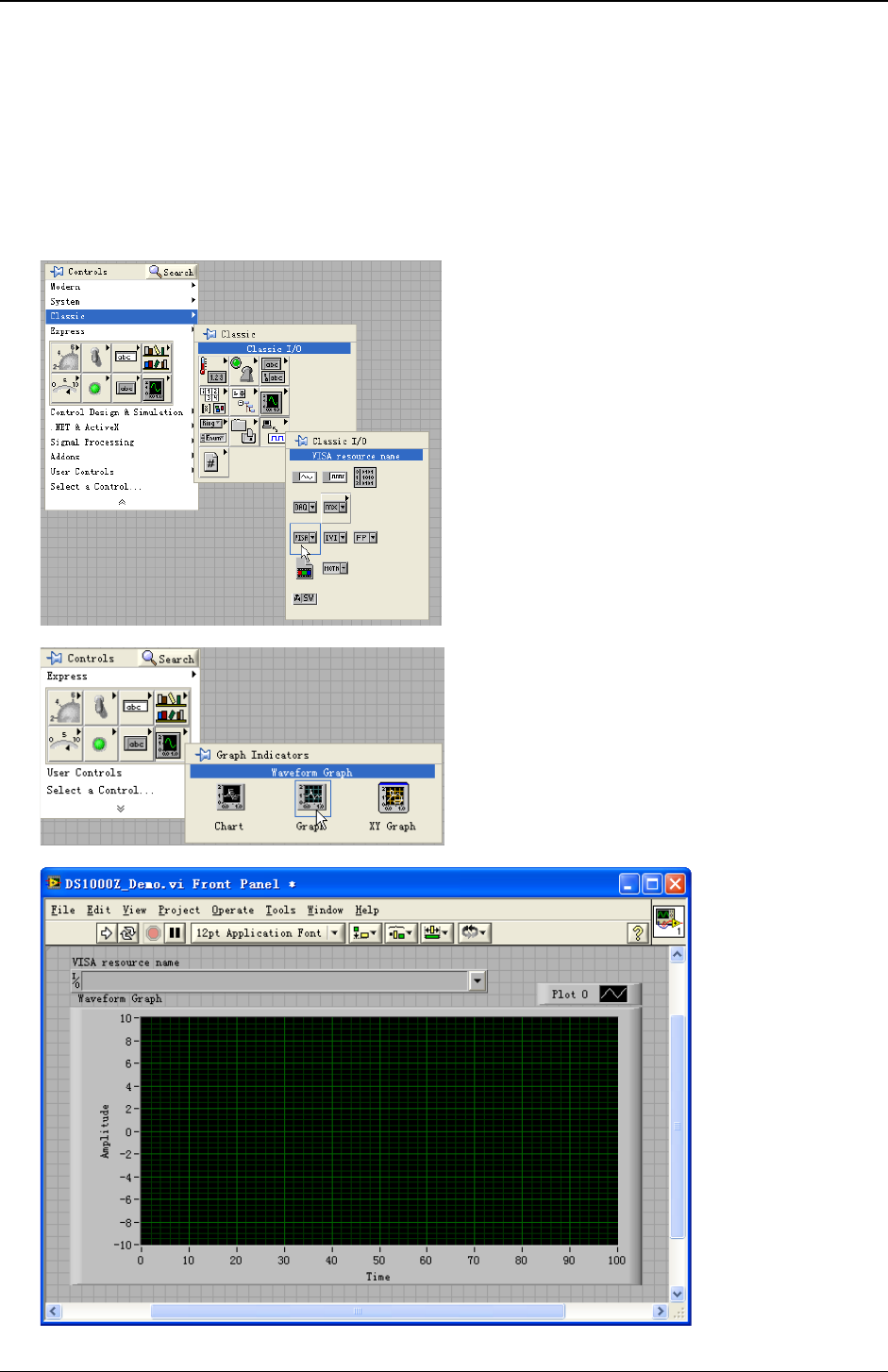

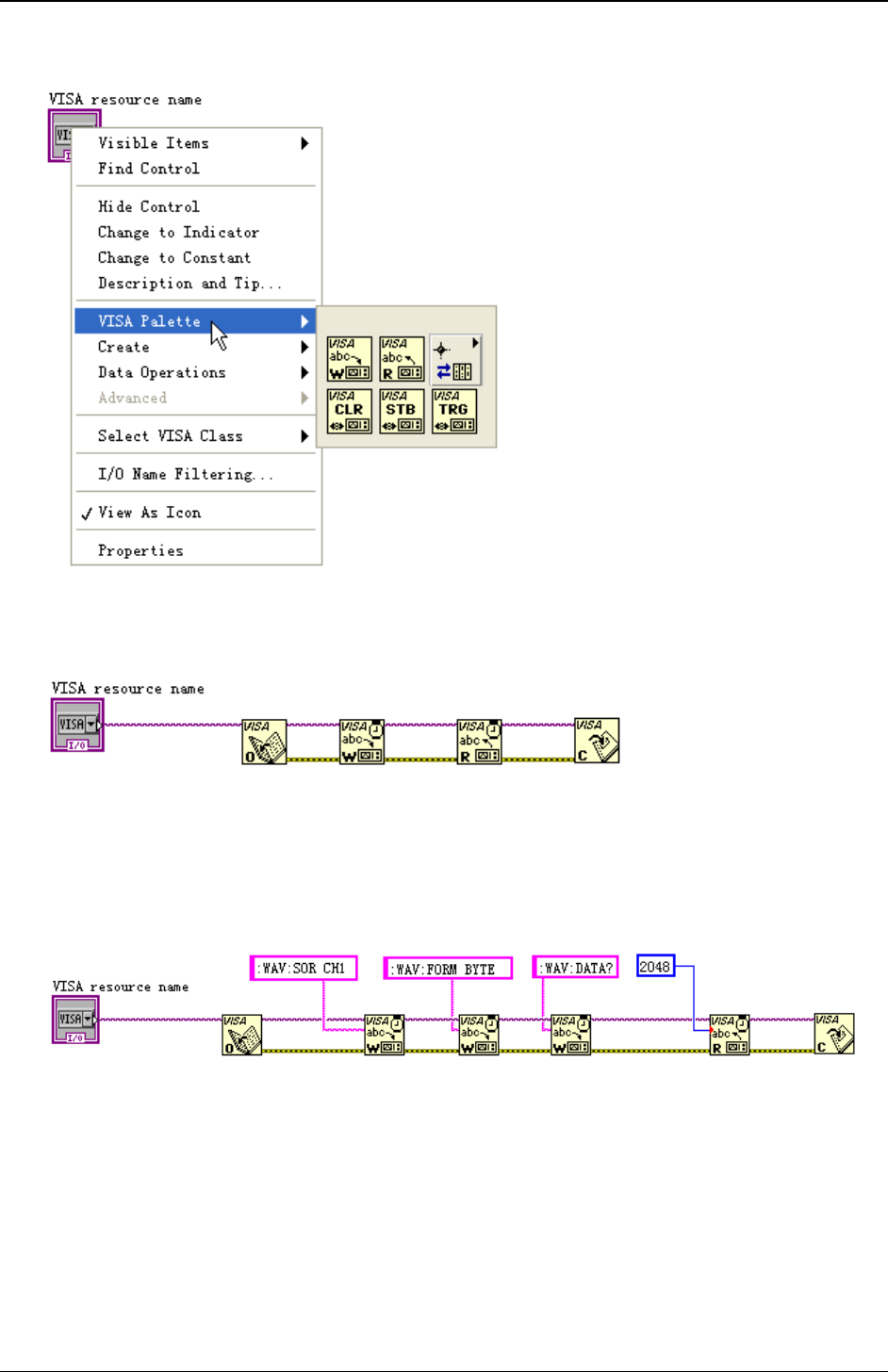

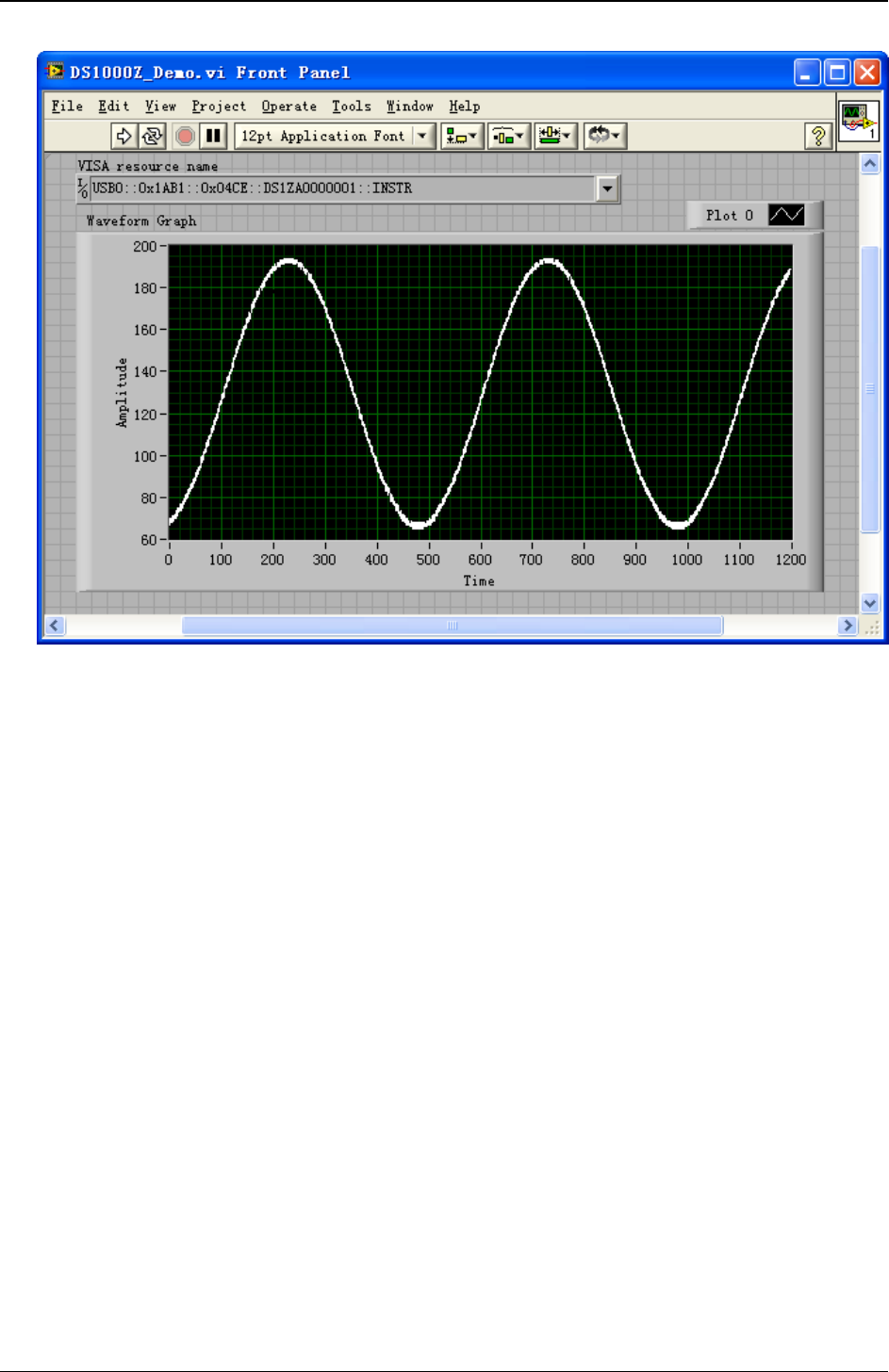

LabVIEW Programming Demo .................................................................................................... 3-9

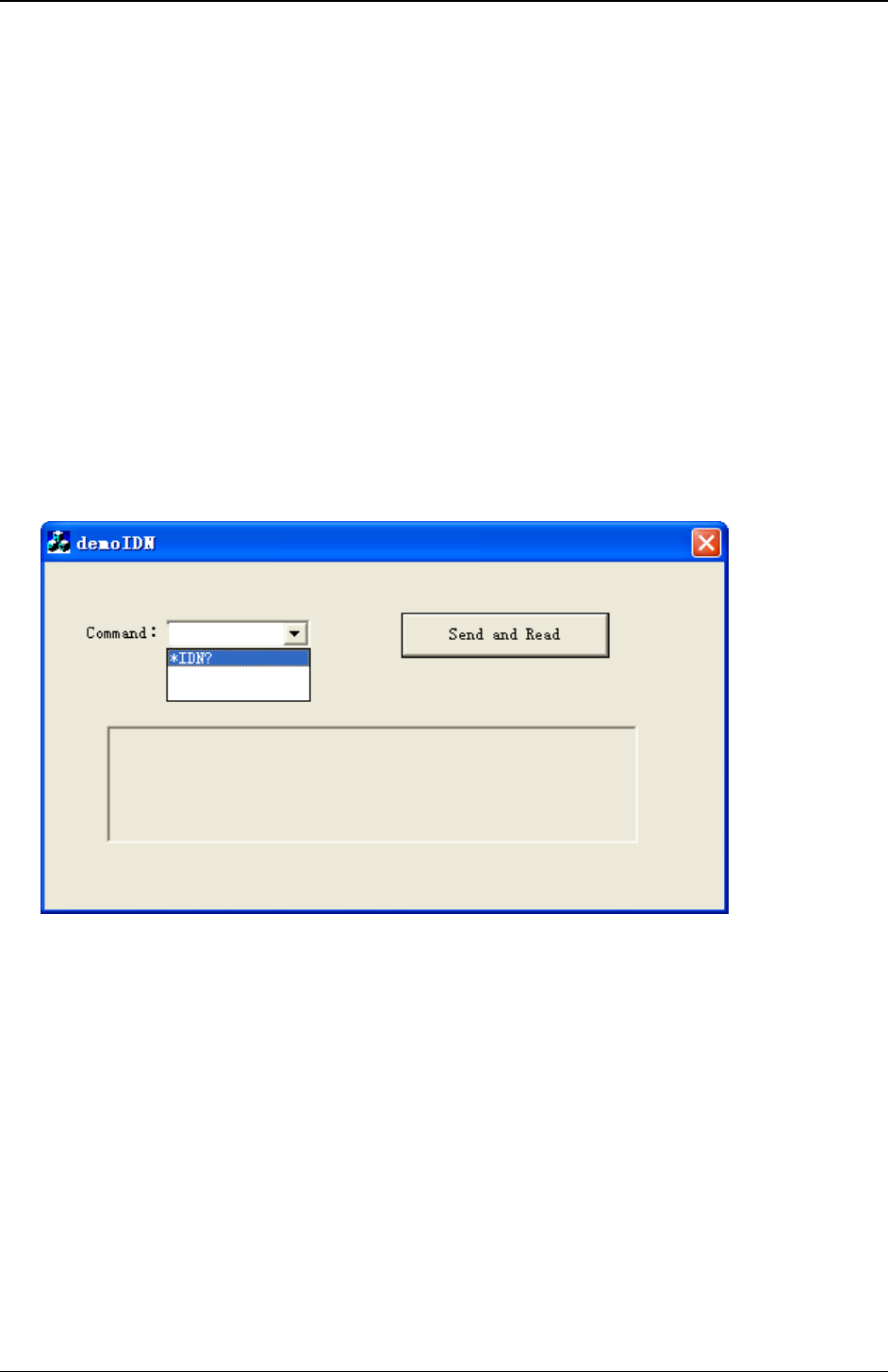

Visual Basic Programming Demo .............................................................................................. 3-13

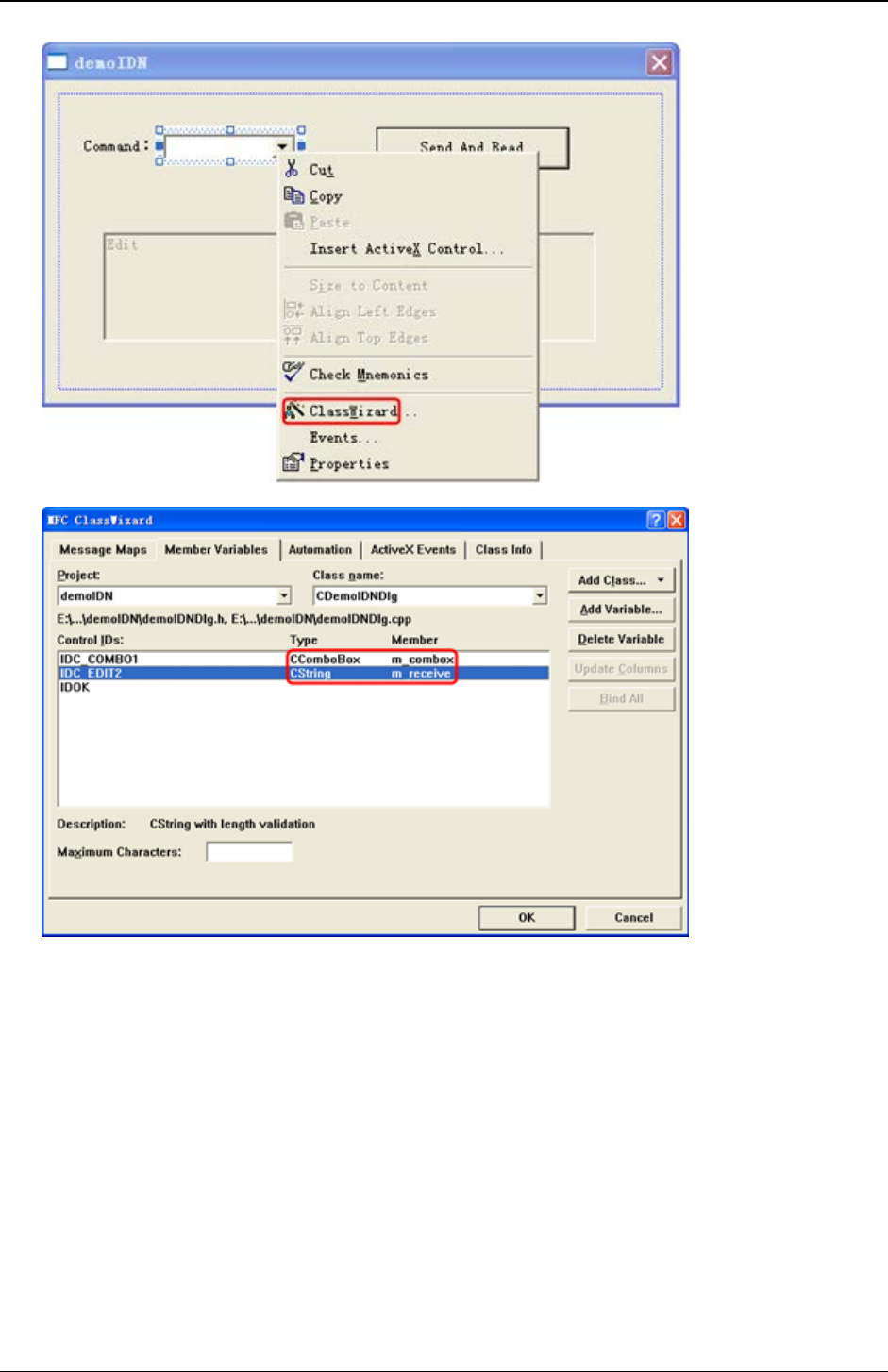

Visual C++ Programming Demo ............................................................................................... 3-15
Chapter 1 Programming Overview RIGOL
DS1000Z Programming Guide 1-1
Chapter 1 Programming Overview
This chapter introduces how to build the remote communication between the PC and instrument and
provides an overview of the syntax, symbol, parameter type and abbreviation rules of the SCPI commands.
Main topics of this chapter:
To Build Remote Communication
Remote Control Methods
SCPI Command Overview
RIGOL Chapter 1 Programming Overview
1-2 DS1000Z Programming Guide
To Build Remote Communication
This oscilloscope can build communication with the PC through the USB, LAN or GPIB (option) interface.
This section introduces how to control the oscilloscope remotely through the USB interface using Ultra
Sigma in details.
Operation Steps:

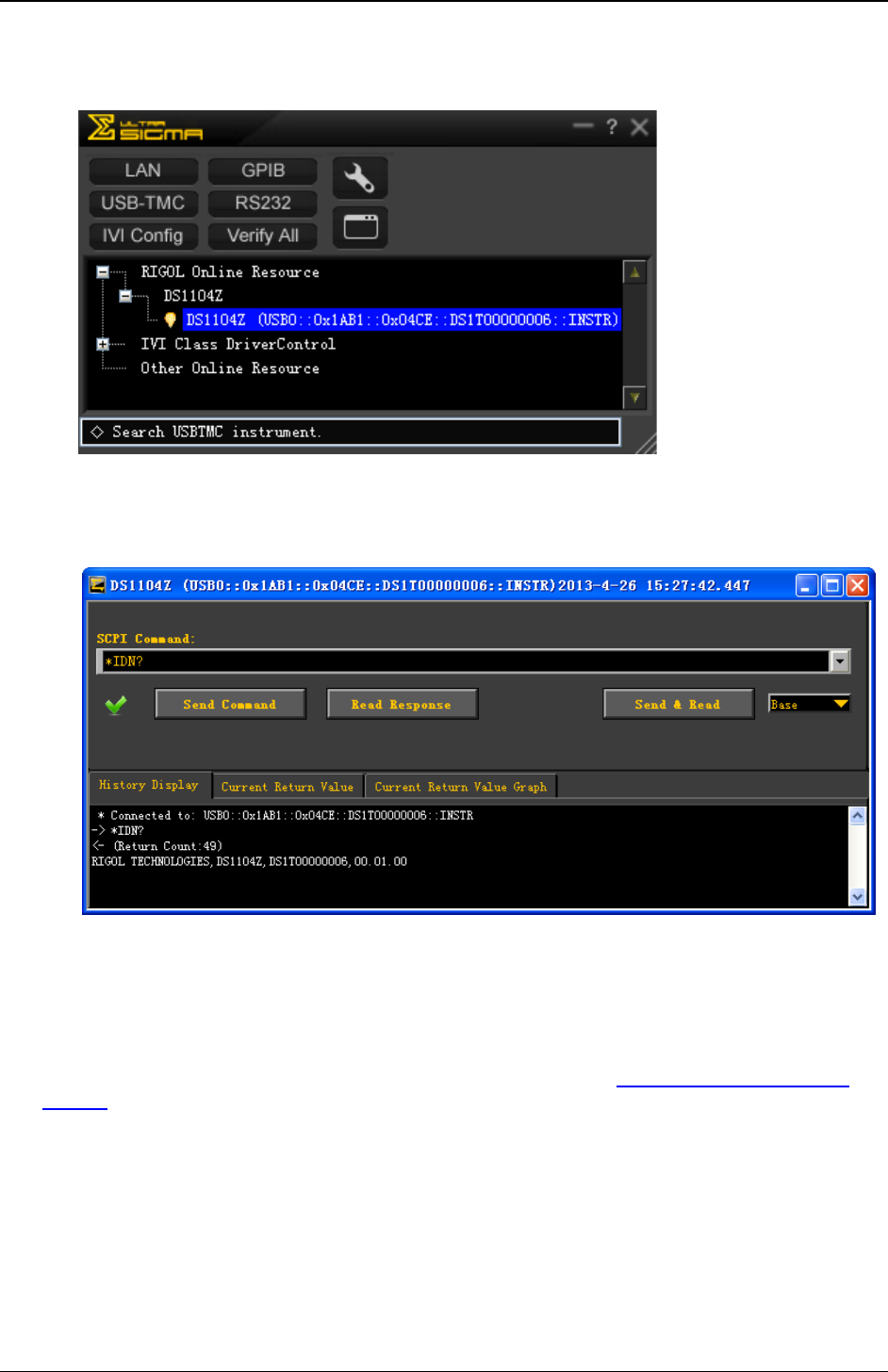

1. Install the Ultra Sigma common PC software
Download the Ultra Sigma common PC software from www.rigol.com or acquire it from the resource
CD supplied with the accessories and install it according to the instructions.
2. Connect the instrument and PC and configure the interface parameters of the instrument
DS1000Z can build communication with the PC through the USB, LAN or GPIB (option) interface. This
manual takes the USB interface as an example.
(1) Connect the devices
Connect the USB DEVICE interface at the real panel of the oscilloscope and the USB Host interface
of the PC using a USB cable.

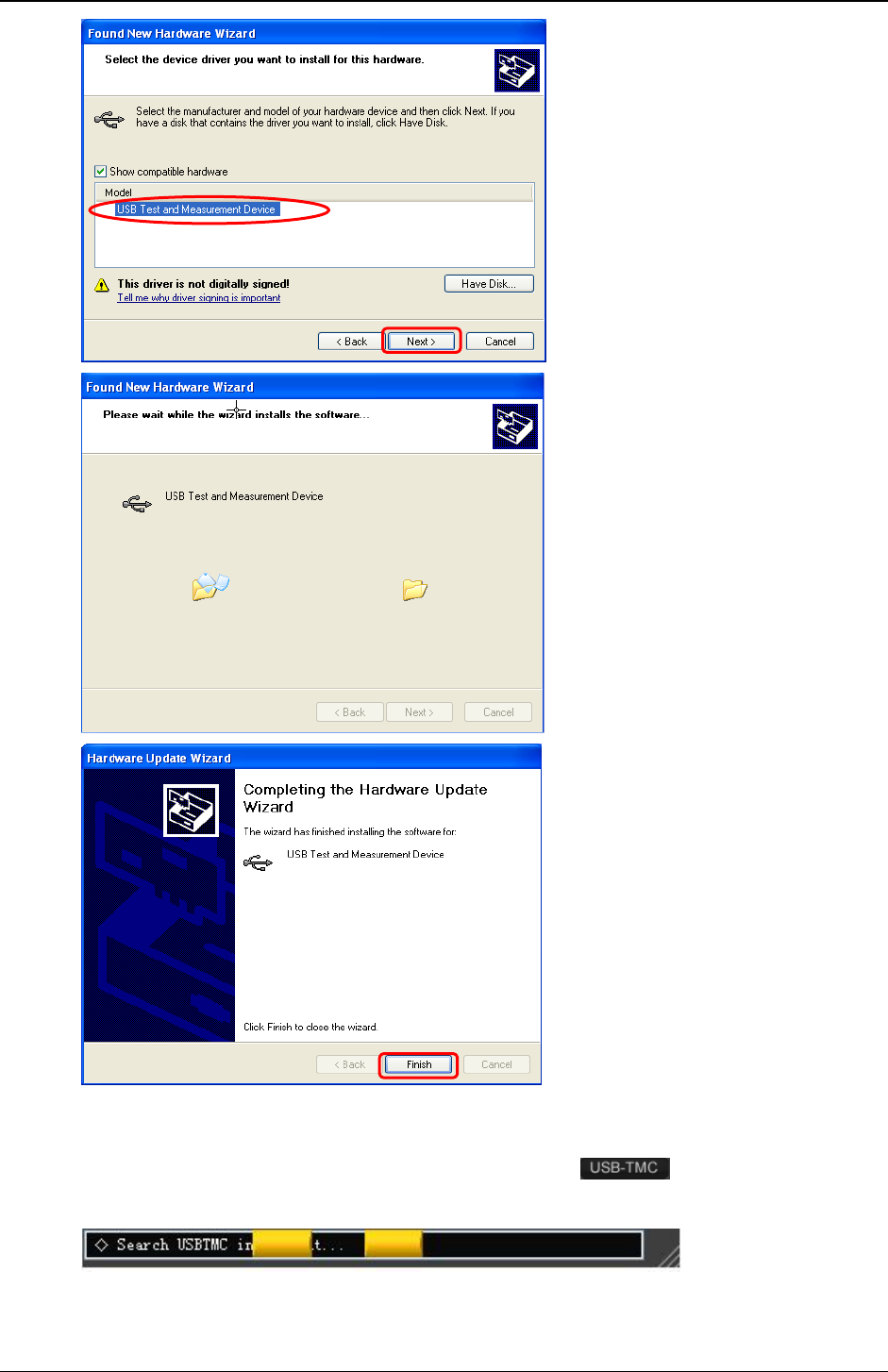

(2) Install the USB driver
This oscilloscope is a USBTMC device. Assuming that your PC has already been installed with
Ultra Sigma, after you connect the oscilloscope to the PC and turn both on for the first time (the
oscilloscope is automatically configured to the USB interface), the New Hardware Wizard as
shown in the figure below is displayed on the PC. Please install the “USB Test and Measurement
Device” driver following the directions in the wizard. The steps are as follows.
1
2
3
4
Chapter 1 Programming Overview RIGOL
DS1000Z Programming Guide 1-3
(3) Search for device resource
Start up the Ultra Sigma and the software will automatically search for the oscilloscope
resources currently connected to the PC. You can also click to search for the
resources. During the search, the status bar of the software is as shown in the figure below.
5
6
7
RIGOL Chapter 1 Programming Overview
1-4 DS1000Z Programming Guide
(4) View the device resources
The resources found will appear under the “RIGOL Online Resource” directory and the model
number and USB interface information of the instrument will also be displayed as shown in the
figure below.
(5) Communication test
Right click the resource name “DS1104Z (USB0::0x1AB1::0x04CE::DS1T0000000006::INSTR)”
and select “SCPI Panel Control” to turn on the remote command control panel (as shown in the
figure below) through which you can send commands and read data.
Remote Control Methods
1. User-defined Programming
Users can use the SCPI (Standard Commands for Programmable Instruments) commands to program
and control the oscilloscope. For details, refer to the introductions in Chapter 3 Programming
Demos.
2. Send SCPI Commands via the PC Software
You can control the oscilloscope remotely by sending SCPI commands via the PC software (Ultra Sigma)
provided by RIGOL. Besides, you can also control the instrument using the “Measurement &
Automation Explorer” of NI (National Instruments Corporation) or the “Agilent IO Libraries Suite” of
Agilent (Agilent Technologies, Inc.).
Chapter 1 Programming Overview RIGOL
DS1000Z Programming Guide 1-5
SCPI Command Overview
SCPI (Standard Commands for Programmable Instruments) is a standardized instrument programming
language that is built upon the standard IEEE488.1 and IEEE 488.2 and conforms to various standards
(such as the floating point operation rule in IEEE754 standard, ISO646 7-bit coded character for
information interchange (equivalent to ASCll programming)). The SCPI commands provide a hierarchical
tree structure. Each command subsystem consists of a root keyword and on or more sub-keywords.
Syntax
The command string usually starts with ":"; the keywords are separated by ":" and are followed by the
parameter settings available; "?" is added at the end of the command string to indicate query; the
command and parameter are separated by space.
For example,
:ACQuire:TYPE <type>
:ACQuire:TYPE?
ACQuire is the root keyword of the command. TYPE is the second-level keyword. The command string starts
with ":" which is also used to separate the multiple-level keywords. <type> represents the parameters
available for setting. "?" represents query. The command :ACQuire:TYPE and parameter <type> are
separated by space.
"," is generally used for separating multiple parameters contained in the same command, for example,
:TRIGger:PATTern:PATTern <pattern1>,<pattern2>,<pattern3>,<pattern4>
Symbol Description
The following symbols will not be sent with the commands.
1. Braces {}
The parameters enclosed in the braces are optional and are usually separated by the vertical bar "|".
When using the command, one of the parameters must be selected.
2. Vertical Bar |
The vertical bar is used to separate multiple parameters and one of the parameters must be selected
when using the command.
3. Square Brackets []
The content in the square brackets can be omitted.
4. Triangle Brackets <>
The parameter enclosed in the triangle brackets must be replaced by an effective value.
RIGOL Chapter 1 Programming Overview
1-6 DS1000Z Programming Guide
Parameter Type
1. Bool
The parameter could be OFF, ON, 0 or 1. For example,
:MEASure:ADISplay <bool>
:MEASure:ADISplay?
Wherein,
<bool> can be set to {{0|OFF}|{1|ON}}.
The query returns 0 or 1.
2. Discrete
The parameter could be any of the values listed. For example,
:ACQuire:TYPE <type>
:ACQuire:TYPE?
Wherein,
<type> can be set to NORMal|AVERages|PEAK|HRESolution.
The query returns the abbreviations (NORM, AVER, PEAK or HRES).
3. Integer
Unless otherwise noted, the parameter can be any integer (NR1 format) within the effective value
range. Note that do not set the parameter to a decimal, otherwise errors will occur. For example,
:DISPlay:GBRightness <brightness>
:DISPlay:GBRightness?
Wherein,
<brightness> can be set to any integer between 0 and 100.
The query returns an integer between 0 and 100.
4. Real
The parameter can be any real number within the effective value range and this command accepts
decimal (NR2 format) and scientific notation (NR3 format) parameter input. For example,
:TRIGger:TIMeout:TIMe <NR3>
:TRIGger:TIMeout:TIMe?
Wherein,
<NR3> can be set to any real number between 1.600000e-08 (namely 16ns) to 0.1e+02 (namely 10s).
The query returns a real number in scientific notation.
5. ASCII String
The parameter should be the combinations of ASCII characters.
For example,
:SYSTem:OPTion:INSTall <license>
Wherein,
<license> can be set to PDUY9N9QTS9PQSWPLAETRD3UJHYA.
Command Abbreviation
All the commands are case-insensitive and you can use any of them. If abbreviation is used, all the capital
letters in the command must be written completely. For example, the :MEASure:ADISplay? command can
be abbreviated to :MEAS:ADIS?.
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-1
Chapter 2 Command System
This chapter introduces the syntax, function, parameter and using instruction of each DS1000Z command.
Main topics of this chapter:
:AUToscale
:CLEar
:RUN
:STOP
:SINGle
:TFORce
:ACQuire Commands
:CALibrate Commands
:CHANnel<n> Commands
:CURSor Commands
:DISPlay Commands
IEEE488.2 Common Commands
:MATH Commands
:MASK Commands
:MEASure Commands
:REFerence Commands
[:SOURce[<n>]] Commands (DS1000Z-S Only)
:SYSTem Commands
:TIMebase Commands
:TRIGger Commands
:WAVeform Commands
Note:
1. Unless otherwise noted, this manual takes DS1104Z-S as an example to introduce the commands.
2. For parameter setting commands (for example, the time, frequency and amplitude), the oscilloscope
can only accept numbers and set the parameters using the default units; it cannot recognize the units
sent with the parameters. For the default unit of each parameter, please refer to the description in each
command in the following introductions.
RIGOL Chapter 2 Command System
2-2 DS1000Z Programming Guide
:AUToscale
Syntax
:AUToscale
Description Enable the waveform auto setting function. The oscilloscope will automatically adjust the
vertical scale, horizontal timebase and trigger mode according to the input signal to
realize optimum waveform display. This command is equivalent to pressing the AUTO key
at the front panel.
Explanation Theoretically, waveform auto setting function requires that the frequency of sine is no
lower than 41Hz; the duty cycle should be greater than 1% and the amplitude must
be at least 20mVpp for square.
When the pass/fail function is enabled (see the :MASK:ENABle command), if you sent
this command, the oscilloscope will disable the pass/fail function firstly and then
execute the waveform auto setting function.
When the waveform record function is enabled or during the playback of the
recorded waveform, this command is invalid.
:CLEar
Syntax
:CLEar
Description Clear all the waveforms on the screen. If the oscilloscope is in the RUN state, waveform
will still be displayed. This command is equivalent to pressing the CLEAR key at the front
panel.
Related
Command
:DISPlay:CLEar
:RUN
:STOP
Syntax :RUN
:STOP
Description The :RUN command makes the oscilloscope start running and the :STOP command makes
the oscilloscope stop running. These commands are equivalent to pressing the
RUN/STOP key at the front panel.
Explanation When the waveform record function is enabled or during the playback of the recorded
waveform, this command is invalid.
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-3
:SINGle
Syntax
:SINGle
Description Set the oscilloscope to the single trigger mode. This command is equivalent to the
following two operations: pressing the SINGLE key at the front panel and sending
the :TRIGger:SWEep SINGle command.
Explanation In the single trigger mode, the oscilloscope triggers once when the trigger conditions
are met and then stops.
When the waveform record function is enabled or during the playback of the
recorded waveform, this command is invalid.
Related
Commands :TFORce
:RUN
:STOP
:TFORce
Syntax
:TFORce
Description Generate a trigger signal forcefully. This command is only applicable to the normal and
single trigger modes (see the :TRIGger:SWEep command) and is equivalent to pressing
the FORCE key at the front panel.
Related
Command
:TRIGger:SWEep
RIGOL Chapter 2 Command System
2-4 DS1000Z Programming Guide
:ACQuire Commands
The :ACQuire commands are used to set and query the memory depth, acquisition mode and the current
sample rate of the oscilloscope as well as to set the number of averages under the average acquisition
mode.
Command List [1] :
:ACQuire:AVERages
:ACQuire:MDEPth
:ACQuire:TYPE
:ACQuire:SRATe?
Note[1]: In the “Command List” in this manual, the parameters in the setting commands and the query
commands are not included and you can refer to the complete introductions of the commands in the text
according to the keyword.
:ACQuire:AVERages
Syntax :ACQuire:AVERages <count>
:ACQuire:AVERages?
Description
Set or query the number of averages under the average acquisition mode.
Parameter
Name
Type
Range
Default
<count>
Integer
2
n
(n is an integer from 1 to 10)
2
Explanation You can sent the :ACQuire:TYPE command to set the acquisition mode.
In the average acquisition mode, the greater the number of averages is, the lower
the noise will be and the higher the vertical resolution will be but the slower the
response of the displayed waveform to the waveform changes will be.
Return
Format
The query returns an integer between 2 and 1024.
Example :ACQuire:AVERages 128 /*Set the number of averages to 128*/
:ACQuire:AVERages? /*The query returns 128*/
Related
Command :ACQuire:TYPE
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-5
:ACQuire:MDEPth
Syntax :ACQuire:MDEPth <mdep>
:ACQuire:MDEPth?
Description Set or query the memory depth of the oscilloscope namely the number of waveform
points that can be stored in a single trigger sample. The default unit is pts (points).
Parameter
Name
Type
Range
Default
<mdep> Discrete Refer to the Explanation AUTO
Explanation When a single channel is on: {AUTO|12000|120000|1200000|12000000|24000000}
When dual channels are on: {AUTO|6000|60000|600000|6000000|12000000}
When four channels are on: {AUTO|3000|30000|300000|3000000|6000000}
Wherein, 24000000, 12000000 and 6000000 are options.
The relationship among the memory depth, sample rate and waveform length
satisfies the following equation:
Memory Depth ＝ Sample Rate × Waveform Length
Wherein, the Waveform Length is the product of the horizontal timebase (set by
the :TIMebase[:MAIN]:SCALe command) times the number of the horizontal scales
(12 for DS1000Z).
When AUTO is selected, the oscilloscope will select the memory depth automatically
according to the current sample rate.
Return
Format
The query returns the actual number of points (integer) or AUTO.
Example :ACQuire:MDEPth 12000 /*Set the memory depth to 12000*/
:ACQuire:MDEPth? /*The query returns 12000*/
Related
Commands :ACQuire:SRATe?
:TIMebase[:MAIN]:SCALe
RIGOL Chapter 2 Command System
2-6 DS1000Z Programming Guide
:ACQuire:TYPE
Syntax :ACQuire:TYPE <type>
:ACQuire:TYPE?
Description
Set or query the acquisition mode when the oscilloscope samples.
Parameter
Name
Type
Range
Default
<type>
Discrete
{NORMal|AVERages|PEAK|HRESolution}
NORMal
Explanation NORMal: in this mode, the oscilloscope samples the signal at equal time interval to
rebuild the waveform. For most of the waveforms, the best display effect can be
obtained using this mode.
AVERages: in this mode, the oscilloscope averages the waveforms from multiple
samples to reduce the random noise of the input signal and improve the vertical
resolution. The number of averages can be set by the:ACQuire:AVERages command.
The greater the number of averages is, the lower the noise will be and the higher the
vertical resolution will be but the slower the response of the displayed waveform to
the waveform changes will be.
PEAK (Peak Detect): in this mode, the oscilloscope acquires the maximum and
minimum values of the signal within the sample interval to get the envelope of the
signal or the narrow pulse of the signal that might be lost. In this mode, signal
confusion can be prevented but the noise displayed would be larger.
HRESolution (High Resolution): this mode uses a kind of ultra-sample technique to
average the neighboring points of the sample waveform to reduce the random noise
on the input signal and generate much smoother waveforms on the screen. This is
generally used when the sample rate of the digital converter is higher than the
storage rate of the acquisition memory.
Return
Format
The query returns NORM, AVER, PEAK or HRES.
Example
:ACQuire:TYPE AVERages /*Select the average acquisition mode*/
Related
Command
:ACQuire:AVERages
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-7
:ACQuire:SRATe?
Syntax
:ACQuire:SRATe?
Description
Query the current sample rate. The default unit is Sa/s.
Explanation Sample rate is the sample frequency of the oscilloscope, namely the waveform points
sampled per second.
The relationship among the memory depth, sample rate and waveform length
satisfies the following equation:
Memory Depth ＝ Sample Rate × Waveform Length
Wherein, the Memory Depth can be set using the :ACQuire:MDEPth command, and
the Waveform Length is the product of the horizontal timebase (set by
the :TIMebase[:MAIN]:SCALe command) times the number of the horizontal scales
(12 for DS1000Z).
Return
Format
The query returns the sample rate in scientific notation.
Example
:ACQuire:SRATe? /*The query returns 2.000000e+09*/
Related
Commands :ACQuire:MDEPth
:TIMebase[:MAIN]:SCALe
RIGOL Chapter 2 Command System
2-8 DS1000Z Programming Guide
:CALibrate Commands
Command List:
:CALibrate:QUIT
:CALibrate:STARt
:CALibrate:QUIT
Syntax
:CALibrate:QUIT
Description
Exit the calibration at any time.
Related
Command
:CALibrate:STARt
:CALibrate:STARt
Syntax
:CALibrate:STARt
Description The oscilloscope starts to execute the self-calibration.
Explanation The self-calibration can make the oscilloscope quickly reach its optimum working
state to obtain the most accurate measurement values.
During the self-calibration, all the channels of the oscilloscope must be disconnected
from the inputs.
The functions of most of the keys are disabled during the self-calibration. You can
send the :CALibrate:QUIT command to quit the self-calibration.
Related
Command
:CALibrate:QUIT
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-9
:CHANnel<n> Commands
The :CHANnel<n> commands are used to set or query the vertical system parameters, such as the
bandwidth limit, coupling, vertical scale and vertical offset.
Command List:
:CHANnel<n>:BWLimit
:CHANnel<n>:COUPling
:CHANnel<n>:DISPlay
:CHANnel<n>:INVert
:CHANnel<n>:OFFSet
:CHANnel<n>:RANGe
:CHANnel<n>:TCAL
:CHANnel<n>:SCALe
:CHANnel<n>:PROBe
:CHANnel<n>:UNITs
:CHANnel<n>:VERNier
:CHANnel<n>:BWLimit
Syntax :CHANnel<n>:BWLimit <type>
:CHANnel<n>:BWLimit?
Description
Set or query the bandwidth limit parameter of the specified channel.
Parameter
Name
Type
Range
Default
<n>
Discrete
{1|2|3|4}
--
<type>
Discrete
{20M|OFF}
OFF
Explanation OFF: disable the bandwidth limit and the high frequency components of the signal
under test can pass the channel.
20M: enable the bandwidth limit and the high frequency components that exceed 20
MHz are attenuated.
Enabling the bandwidth limit can reduce the noise, but can also attenuate the high
frequency components.
Return
Format
The query returns 20M or OFF.
Example
:CHANnel1:BWLimit 20M /*Enable the 20MHz bandwidth limit*/
RIGOL Chapter 2 Command System
2-10 DS1000Z Programming Guide
:CHANnel<n>:COUPling
Syntax :CHANnel<n>:COUPling <coupling>
:CHANnel<n>:COUPling?
Description
Set or query the coupling mode of the specified channel.
Parameter
Name
Type
Range
Default
<n>
Discrete
{1|2|3|4}
--
<coupling>
Discrete
{AC|DC|GND}
DC
Explanation AC: the DC components of the signal under test are blocked.
DC: the DC and AC components of the signal under test can both pass the channel.
GND:
the DC and AC components of the signal under test are both blocked.
Return
Format
The query returns AC, DC or GND.
Example
:CHANnel1:COUPling AC /*Select the AC coupling mode*/
:CHANnel<n>:DISPlay
Syntax :CHANnel<n>:DISPlay <bool>
:CHANnel<n>:DISPlay?
Description
Enable or disable the specified channel or query the status of the specified channel.
Parameter
Name
Type
Range
Default
<n>
Discrete
{1|2|3|4}
--
<bool> Bool {{0|OFF}|{1|ON}} CH1: 1|ON
Others: 0|OFF
Return
Format
The query returns 0 or 1.
Example
:CHANnel1:DISPlay ON /*Enable CH1*/
:CHANnel<n>:INVert
Syntax :CHANnel<n>:INVert <bool>
:CHANnel<n>:INVert?
Description Enable or disable the inverted display mode of the specified channel or query the status of
the inverted display mode of the specified channel.
Parameter
Name
Type
Range
Default
<n> Discrete {1|2|3|4} --
<bool> Bool {{0|OFF}|{1|ON}} 0|OFF
Explanation When the inverted display mode is enabled, the oscilloscope displays the waveform
inverted taking the vertical offset horizontal line as reference.
Return
Format
The query returns 0 or 1.
Example :CHANnel1:INVert ON /*Enable the inverted display mode of CH1*/
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-11
:CHANnel<n>:OFFSet
Syntax :CHANnel<n>:OFFSet <offset>
:CHANnel<n>:OFFSet?
Description
Set or query the vertical offset of the specified channel. The default unit is V.
Parameter
Name
Type
Range
Default
<n>
Discrete
{1|2|3|4}
--
<offset> Real
Related to the current vertical scale and probe
ratio. When the probe ratio is 1,
vertical scale≥500mV/div: -100V to +100V
vertical scale<500mV/div: -2V to +2V
0V
Return
Format
The query returns the vertical offset in scientific notation.
Example :CHANnel1:OFFSet 0.01 /*Set the vertical offset of CH1 to 10mV*/
:CHANnel1:OFFSet? /*The query returns 1.000000e-02*/
:CHANnel<n>:RANGe
Syntax :CHANnel<n>:RANGe <range>
:CHANnel<n>:RANGe?
Description
Set or query the vertical range of the specified channel. The default unit is V.
Parameter
Name
Type
Range
Default
<n> Discrete {1|2|3|4} --
<range> Real Related to the current vertical scale and probe
ratio. When the probe ratio is 1,
8mV to 80V
8V
Explanation This command indirectly modifies the vertical scale of the specified channel (vertical
range=8*vertical scale). The vertical scale can be set by the :CHANnel<n>:SCALe
command.
Return
Format
The query returns the vertical range in scientific notation.
Example :CHANnel1:RANGe 8 /*Set the vertical range of CH1 to 8V*/
:CHANnel1:RANGe? /*The query returns 8.000000e+00*/
Related
Command
:CHANnel<n>:SCALe
RIGOL Chapter 2 Command System
2-12 DS1000Z Programming Guide
:CHANnel<n>:TCAL
Syntax :CHANnel<n>:TCAL <val>
:CHANnel<n>:TCAL?
Description Set or query the delay calibration time of the specified channel to calibrate the zero offset
of the corresponding channel. The default unit is s.
Parameter
Name
Type
Range
Default
<n>
Discrete
{1|2|3|4}
--
<val> Real -100ns to 100ns 0.00ns
Explanation <val> can only be set to the specific values in the specified step. If the parameter you
sent is not one of the specific values, the parameter will be set to the nearest specific
values automatically. The step varies with the horizontal timebase (set by
the :TIMebase[:MAIN]:SCALe command).
Horizontal Timebase
Step of the Delay Calibration Time
5ns
100ps
10ns 200ps
20ns
400ps
50ns
1ns
100ns
2ns
200ns 4ns
500ns
10ns
1μs and above
20ns
Return
Format
The query returns the delay calibration time in scientific notation.
Example :CHANnel1:TCAL 0.00002 /*Set the delay calibration time to 20ns*/
:CHANnel1:TCAL? /*The query returns2.000000e-05*/
Related
Command
:TIMebase[:MAIN]:SCALe
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-13
:CHANnel<n>:SCALe
Syntax :CHANnel<n>:SCALe <scale>
:CHANnel<n>:SCALe?
Description
Set or query the vertical scale of the specified channel. The default unit is V.
Parameter
Name
Type
Range
Default
<n> Discrete {1|2|3|4} --
<scale> Real Related to the current probe ratio.
probe ratio = 1: 1mV to 10V
probe ratio = 10 (default): 10mV to 100V
1V (the probe
ratio is 10)
Explanation The range of the vertical scale is related to the current probr ratio (set by
the :CHANnel<n>:PROBe command). As the default probe ratio of DS1000Z is 10,
the default value of <scale> is the value when the probe ratio is 10.
You can use the :CHANnel<n>:VERNier command to enable or disable the fine
adjustment of the vertical scale. By default, the fine adjustment is off. At this point,
you can only set the vertical scale in 1-2-5 step, namely 1mV, 2mV, 5mV, 10mV, …,
10V. When the fine adjustment is on, you can further adjust the vertical scale within
a relatively smaller range to improve the vertical resolution. If the amplitude of the
input waveform is a little bit greater than the full scale under the current scale and
the amplitude would be a little bit lower if the next scale is used, fine adjustment can
be used to improve the display amplitude of the waveform to view the signal details.
Return
Format
The query returns the vertical scale in scientific notation.
Example :CHANnel1:SCALe 1 /*Set the vertical scale of CH1 to 1V*/
:CHANnel1:SCALe? /*The query returns 1.000000e+00*/
Related
Command :CHANnel<n>:PROBe
:CHANnel<n>:VERNier
:CHANnel<n>:PROBe
Syntax :CHANnel<n>:PROBe <atten>
:CHANnel<n>:PROBe?
Description
Set or query the probe ratio of the specified channel.
Parameter
Name
Type
Range
Default
<n> Discrete {1|2|3|4} --
<atten> Discrete {0.01|0.02|0.05|0.1|0.2|0.5|1|2|5|10|20|50|1
00|200|500|1000}
10
Explanation Setting the probe ratio refers to multiply the signal sampled with the specified ratio
and then display the result (the actual amplitude of the signal will be not affected).
Setting the probe ratio will affect the range of the vertical scale.
Return
Format
The query returns the probe ratio in scientific notation.
Example :CHANnel1:PROBe 10 /*Set the probe ratio to 10*/
:CHANnel1:PROBe? /*The query returns 1.000000e+01*/
Related
Command
:CHANnel<n>:SCALe
RIGOL Chapter 2 Command System
2-14 DS1000Z Programming Guide
:CHANnel<n>:UNITs
Syntax :CHANnel<n>:UNITs <units>
:CHANnel<n>:UNITs?
Description
Set or query the amplitude display unit of the specified channel.
Parameter
Name
Type
Range
Default
<n>
Discrete
{1|2|3|4}
--
<units> Discrete {VOLTage|WATT|AMPere|UNKNown} VOLTage
Return
Format
The query returns VOLT, WATT, AMP or UNKN.
Example
:CHANnel1:UNITs VOLTage /*Set the amplitude display unit of CH1 to V*/
:CHANnel<n>:VERNier
Syntax :CHANnel<n>:VERNier <bool>
:CHANnel<n>:VERNier?
Description Enable or disable the fine adjustment of the vertical scale of the specified channel, or
query the fine adjustment status of the vertical scale of the specified channel.
Parameter
Name
Type
Range
Default
<n>
Discrete
{1|2|3|4}
--
<bool> Bool {{0|OFF}|{1|ON}} 0|OFF
Explanation By default, the fine adjustment is off. At this point, you can only set the vertical scale in
1-2-5 step, namely 1mV, 2mV, 5mV, 10mV…10V. When the fine adjustment is on, you can
further adjust the vertical scale within a relatively smaller range to improve the vertical
resolution. If the amplitude of the input waveform is a little bit greater than the full scale
under the current scale and the amplitude would be a little bit lower if the next scale is
used, fine adjustment can be used to improve the display amplitude of the waveform to
view the signal details.
Return
Format
The query returns 0 or 1.
Example
:CHANnel1:VERNier ON /*Enable the fine adjustment of the vertical scale of CH1*/
Related
Command
:CHANnel<n>:SCALe
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-15
:CURSor Commands
The :CURSor commands are used to measure the X-axis value (such as time) and Y-axis value (such as
voltage) of the waveform displayed on the screen.
Command List:
:CURSor:MODE
:CURSor:MANual
:CURSor:TRACk
:CURSor:AUTO:ITEM
:CURSor:XY
:CURSor:MODE
Syntax :CURSor:MODE <mode>
:CURSor:MODE?
Description
Set or query the cursor measurement mode.
Parameter
Name
Type
Range
Default
<mode>
Discrete
{OFF|MANual|TRACk|AUTO|XY}
OFF
Explanation OFF: disable the cursor measurement function.
MANual: enable the manual cursor measurement mode.
TRACk: enable the track cursor measurement mode.
AUTO: enable the auto cursor measurement mode.
XY: enable the XY cursor measurement mode. This mode is valid only when the
horizontal timebase mode is XY.
Return
Format
The query returns OFF, MAN, TRAC, AUTO or XY.
Example :CURSor:MODE MANual /*Enable the manual cursor measurement mode*/
Related
Commands :CURSor:MANual
:CURSor:TRACk
:CURSor:XY
:TIMebase:MODE
RIGOL Chapter 2 Command System
2-16 DS1000Z Programming Guide
:CURSor:MANual
Command List:
:CURSor:MANual:TYPE
:CURSor:MANual:SOURce
:CURSor:MANual:TUNit
:CURSor:MANual:VUNit
:CURSor:MANual:AX
:CURSor:MANual:BX
:CURSor:MANual:AY
:CURSor:MANual:BY
:CURSor:MANual:AXValue?
:CURSor:MANual:AYValue?
:CURSor:MANual:BXValue?
:CURSor:MANual:BYValue?
:CURSor:MANual:XDELta?
:CURSor:MANual:IXDELta?
:CURSor:MANual:YDELta?
:CURSor:MANual:TYPE
Syntax :CURSor:MANual:TYPE <type>
:CURSor:MANual:TYPE?
Description
Set or query the cursor type in manual cursor measurement mode.
Parameter
Name
Type
Range
Default
<type>
Discrete
{X|Y}
X
Explanation X: select the X type cursors. The X type cursors are a vertical solid line (cursor A) and
a vertical dotted line (cursor B) and are usually used to measure the time
parameters.
Y: select the Y type cursors. The Y type cursors are a horizontal solid line (cursor A)
and a horizontal dotted line (cursor B) and are usually used to measure the voltage
parameters.
Return
Format
The query returns X or Y.
Example :CURSor:MANual:TYPE Y /*select the Y type cursors*/
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-17
:CURSor:MANual:SOURce
Syntax :CURSor:MANual:SOURce <source>
:CURSor:MANual:SOURce?
Description
Set or query the channel source of the manual cursor measurement mode.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|
CHANnel3|CHANnel4|MATH}
CHANnel1
Explanation
Only the channel that is enabled currently can be selected.
Return
Format
The query returns CHAN1, CHAN2, CHAN3, CHAN4 or MATH.
Example :CURSor:MANual:SOURce CHANnel2 /*Set the channel source of the manual cursor
measurement mode to CH2*/
:CURSor:MANual:TUNit
Syntax :CURSor:MANual:TUNit <unit>
:CURSor:MANual:TUNit?
Description
Set or query the horizontal unit in the manual cursor measurement mode.
Parameter
Name
Type
Range
Default
<unit>
Discrete
{S|HZ|DEGRee|PERCent}
S
Explanation S: AX, BX and BX-AX in the measurement results are in “s” and 1/|dX| is in “Hz”.
HZ: AX, BX and BX-AX in the measurement results are in “Hz” and 1/|dX| is in “s”.
DEGRee: AX, BX and BX-AX are in “degree”.
PERCent: AX, BX and BX-AX are in “%”.
Return
Format
The query returns S, HZ, DEGR or PERC.
Example
:CURSor:MANual:TUNit DEGRee /*Set the horizontal unit to “degree”*/
:CURSor:MANual:VUNit
Syntax :CURSor:MANual:VUNit <unit>
:CURSor:MANual:VUNit?
Description
Set or query the vertical unit in the manual cursor measurement mode.
Parameter
Name
Type
Range
Default
<unit>
Discrete
{PERCent|SOURce}
SOURce
Explanation PERCent: AY, BY and BY-AY in the measurement results are in “%”.
SOURce: the units of AY, BY and BY-AY in the measurement results will be
automatically set to the unit of the current source.
Return
Format
The query returns PERC or SOUR.
Example
:CURSor:MANual:VUNit PERCent /*Set the vertical unit to %*/
Related
Command
:CHANnel<n>:UNITs
RIGOL Chapter 2 Command System
2-18 DS1000Z Programming Guide
:CURSor:MANual:AX
Syntax :CURSor:MANual:AX <x>
:CURSor:MANual:AX?
Description
Set or query the horizontal position of cursor A in the manual cursor measurement mode.
Parameter
Name
Type
Range
Default
<x> Integer 5 to 594 100
Explanation The horizontal and vertical positions of the cursor are defined by the pixel coordinate of
the screen. The pixel coordinate of the screen ranges from (0,0) to (600,400). Wherein,
(0,0) is located at the left top corner of the screen and (600,400) is located at the right
bottom corner of the screen. The horizontal pixel range is from 0 to 600 and the vertical
pixel range is from 0 to 400.
Return
Format
The query returns an integer between 5 and 594.
Example
:CURSor:MANual:AX 200 /*Set the horizontal position of cursor A to 200*/
:CURSor:MANual:BX
Syntax :CURSor:MANual:BX <x>
:CURSor:MANual:BX?
Description
Set or query the horizontal position of cursor B in the manual cursor measurement mode.
Parameter
Name
Type
Range
Default
<x>
Integer
5 to 594
500
Explanation The horizontal and vertical positions of the cursor are defined by the pixel coordinate of
the screen. The pixel coordinate of the screen ranges from (0,0) to (600,400). Wherein,
(0,0) is located at the left top corner of the screen and (600,400) is located at the right
bottom corner of the screen. The horizontal pixel range is from 0 to 600 and the vertical
pixel range is from 0 to 400.
Return
Format
The query returns an integer between 5 and 594.
Example
:CURSor:MANual:BX 200 /*Set the horizontal position of cursor B to 200*/
:CURSor:MANual:AY
Syntax :CURSor:MANual:AY <y>
:CURSor:MANual:AY?
Description
Set or query the vertical position of cursor A in the manual cursor measurement mode.
Parameter
Name
Type
Range
Default
<y>
Integer
5 to 394
100
Explanation The horizontal and vertical positions of the cursor are defined by the pixel coordinate of
the screen. The pixel coordinate of the screen ranges from (0,0) to (600,400). Wherein,
(0,0) is located at the left top corner of the screen and (600,400) is located at the right
bottom corner of the screen. The horizontal pixel range is from 0 to 600 and the vertical
pixel range is from 0 to 400.
Return
Format
The query returns an integer between 5 and 394.
Example :CURSor:MANual:AY 200 /*Set the vertical position of cursor A to 200*/
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-19
:CURSor:MANual:BY
Syntax :CURSor:MANual:BY <y>
:CURSor:MANual:BY?
Description
Set or query the vertical position of cursor B in the manual cursor measurement mode.
Parameter
Name
Type
Range
Default
<y> Integer 5 to 394 300
Explanation The horizontal and vertical positions of the cursor are defined by the pixel coordinate of
the screen. The pixel coordinate of the screen ranges from (0,0) to (600,400). Wherein,
(0,0) is located at the left top corner of the screen and (600,400) is located at the right
bottom corner of the screen. The horizontal pixel range is from 0 to 600 and the vertical
pixel range is from 0 to 400.
Return
Format
The query returns an integer between 5 and 394.
Example
:CURSor:MANual:BY 200 /*Set the vertical position of cursor B to 200*/
:CURSor:MANual:AXValue?
Syntax
:CURSor:MANual:AXValue?
Description Query the X value of cursor A in the manual cursor measurement mode. The unit depends
on the horizontal unit currently selected.
Return
Format
The query returns the X value of cursor A in scientific notation.
Example
:CURSor:MANual:AXValue? /*The query returns -3.000000e-06*/
Related
Commands :CURSor:MANual:AX
:CURSor:MANual:TUNit
:CURSor:MANual:AYValue?
Syntax
:CURSor:MANual:AYValue?
Description Query the Y value of cursor A in the manual cursor measurement mode. The unit depends
on the vertical unit currently selected.
Return
Format
The query returns the Y value of cursor A in scientific notation.
Example
:CURSor:MANual:AYValue? /*The query returns -4.000000e-06*/
Related
Commands :CURSor:MANual:AY
:CURSor:MANual:VUNit
:CURSor:MANual:BXValue?
Syntax
:CURSor:MANual:BXValue?
Description Query the X value of cursor B in the manual cursor measurement mode. The unit depends
on the horizontal unit currently selected.
Return
Format
The query returns the X value of cursor B in scientific notation.
Example
:CURSor:MANual:BXValue? /*The query returns -3.000000e-06*/
Related
Commands :CURSor:MANual:BX
:CURSor:MANual:TUNit
RIGOL Chapter 2 Command System
2-20 DS1000Z Programming Guide
:CURSor:MANual:BYValue?
Syntax
:CURSor:MANual:BYValue?
Description Query the Y value of cursor B in the manual cursor measurement mode. The unit depends
on the vertical unit currently selected.
Return
Format
The query returns the Y value of cursor B in scientific notation.
Example
:CURSor:MANual:BYValue? /*The query returns-4.000000e-06*/
Related
Commands :CURSor:MANual:BY
:CURSor:MANual:VUNit
:CURSor:MANual:XDELta?
Syntax
:CURSor:MANual:XDELta?
Description Query the difference between the X values of cursor A and cursor B (BX-AX) in the manual
cursor measurement mode. The unit depends on the horizontal unit currently selected.
Return
Format
The query returns the difference in scientific notation.
Example
:CURSor:MANual:XDELta? /*The query returns 6.120000e-06*/
Related
Commands :CURSor:MANual:AX
:CURSor:MANual:BX
:CURSor:MANual:TUNit
:CURSor:MANual:IXDELta?
Syntax
:CURSor:MANual:IXDELta?
Description Query the reciprocal of the absolute value of the difference between the X values of cursor
A and cursor B (1/|dX|) in the manual cursor measurement mode. The unit depends on
the horizontal unit currently selected.
Return
Format
The query returns 1/|dX| in scientific notation.
Example
:CURSor:MANual:IXDELta? /*The query returns 1.120000e+05*/
Related
Commands :CURSor:MANual:AX
:CURSor:MANual:BX
:CURSor:MANual:TUNit
:CURSor:MANual:YDELta?
Syntax
:CURSor:MANual:YDELta?
Description Query the difference between the Y values of cursor A and cursor B (BY-AY) in the manual
cursor measurement mode. The unit depends on the vertical unit currently selected.
Return
Format
The query returns the difference in scientific notation.
Example
:CURSor:MANual:YDELta? /*The query returns -4.700000e+00*/
Related
Commands :CURSor:MANual:AY
:CURSor:MANual:BY
:CURSor:MANual:VUNit
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-21
:CURSor:TRACk
Command List:
:CURSor:TRACk:SOURce1
:CURSor:TRACk:SOURce2
:CURSor:TRACk:AX
:CURSor:TRACk:BX
:CURSor:TRACk:AY?
:CURSor:TRACk:BY?
:CURSor:TRACk:AXValue?
:CURSor:TRACk:AYValue?
:CURSor:TRACk:BXValue?
:CURSor:TRACk:BYValue?
:CURSor:TRACk:XDELta?
:CURSor:TRACk:IXDELTA?
:CURSor:TRACk:SOURce1
Syntax :CURSor:TRACk:SOURce1 <source>
:CURSor:TRACk:SOURce1?
Description
Set or query the channel source of cursor A in the track cursor measurement mode.
Parameter
Name
Type
Range
Default
<source> Discrete {OFF|CHANnel1|CHANnel2|
CHANnel3|CHANnel4|MATH}
CHANnel1
Explanation
Only the channels enabled can be selected as the channel source.
Return
Format
The query returns OFF, CHAN1, CHAN2, CHAN3, CHAN4 or MATH.
Example
:CURSor:TRACk:SOURce1 CHANnel2 /*Set the channel source to CH2*/
:CURSor:TRACk:SOURce2
Syntax :CURSor:TRACk:SOURce2 <source>
:CURSor:TRACk:SOURce2?
Description
Set or query the channel source of cursor B in the track cursor measurement mode.
Parameter
Name
Type
Range
Default
<source> Discrete {OFF|CHANnel1|CHANnel2|
CHANnel3|CHANnel4|MATH}
CHANnel1
Explanation
Only the channels enabled can be selected as the channel source.
Return
Format
The query returns OFF, CHAN1, CHAN2, CHAN3, CHAN4 or MATH.
Example
:CURSor:TRACk:SOURce2 CHANnel2 /*Set the channel source to CH2*/
RIGOL Chapter 2 Command System
2-22 DS1000Z Programming Guide
:CURSor:TRACk:AX
Syntax :CURSor:TRACk:AX <x>
:CURSor:TRACk:AX?
Description
Set or query the horizontal position of cursor A in the track cursor measurement mode.
Parameter
Name
Type
Range
Default
<x>
Integer
5 to 594
100
Explanation The horizontal and vertical positions of the cursor are defined by the pixel coordinate of
the screen. The pixel coordinate of the screen ranges from (0,0) to (600,400). Wherein,
(0,0) is located at the left top corner of the screen and (600,400) is located at the right
bottom corner of the screen. The horizontal pixel range is from 0 to 600 and the vertical
pixel range is from 0 to 400.
Return
Format
The query returns an integer between 5 and 594.
Example :CURSor:TRACk:AX 200 /*Set the horizontal position of cursor A to 200*/
:CURSor:TRACk:BX
Syntax :CURSor:TRACk:BX <x>
:CURSor:TRACk:BX?
Description
Set or query the horizontal position of cursor B in the track cursor measurement mode.
Parameter
Name
Type
Range
Default
<x>
Integer
5 to 594
500
Explanation The horizontal and vertical positions of the cursor are defined by the pixel coordinate of
the screen. The pixel coordinate of the screen ranges from (0,0) to (600,400). Wherein,
(0,0) is located at the left top corner of the screen and (600,400) is located at the right
bottom corner of the screen. The horizontal pixel range is from 0 to 600 and the vertical
pixel range is from 0 to 400.
Return
Format
The query returns an integer between 5 and 594.
Example
:CURSor:TRACk:BX 200 /*Set the horizontal position of cursor B to 200*/
:CURSor:TRACk:AY?
Syntax :CURSor:TRACk:AY?
Description
Query the vertical position of cursor A in the track cursor measurement mode.
Explanation The horizontal and vertical positions of the cursor are defined by the pixel coordinate
of the screen. The pixel coordinate of the screen ranges from (0,0) to (600,400).
Wherein, (0,0) is located at the left top corner of the screen and (600,400) is located
at the right bottom corner of the screen. The horizontal pixel range is from 0 to 600
and the vertical pixel range is from 0 to 400.
The setting is invalid when cursor A exceeds the vertical range of the screen display.
At this point, 4294967295 will be returned.
Return
Format
The query returns an integer.
Example
:CURSor:TRACk:AY? /*The query returns 284*/
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-23
:CURSor:TRACk:BY?
Syntax
:CURSor:TRACk:BY?
Description
Query the vertical position of cursor B in the track cursor measurement mode.
Explanation The horizontal and vertical positions of the cursor are defined by the pixel coordinate
of the screen. The pixel coordinate of the screen ranges from (0,0) to (600,400).
Wherein, (0,0) is located at the left top corner of the screen and (600,400) is located
at the right bottom corner of the screen. The horizontal pixel range is from 0 to 600
and the vertical pixel range is from 0 to 400.
The setting is invalid when cursor B exceeds the vertical range of the screen display.
At this point, 4294967295 will be returned.
Return
Format
The query returns an integer.
Example
:CURSor:TRACk:BY? /*The query returns 200*/
:CURSor:TRACk:AXValue?
Syntax
:CURSor:TRACk:AXValue?
Description
Query the X value of cursor A in the track cursor measurement mode. The default unit is s.
Return
Format
The query returns the X value of cursor A in scientific notation.
Example
:CURSor:TRACk:AXValue? /*The query returns -3.000000e-06*/
Related
Command
:CURSor:TRACk:AX
:CURSor:TRACk:AYValue?
Syntax
:CURSor:TRACk:AYValue?
Description Query the Y value of cursor A in the track cursor measurement mode. The unit is the same
as the channel unit currently selected.
Return
Format
The query returns the Y value of cursor A in scientific notation.
Example
:CURSor:TRACk:AYValue? /*The query returns -4.000000e-06*/
Related
Commands :CHANnel<n>:UNITs
:CURSor:TRACk:AY?
:CURSor:TRACk:BXValue?
Syntax
:CURSor:TRACk:BXValue?
Description
Query the X value of cursor B in the track cursor measurement mode. The default unit is s.
Return
Format
The query returns the X value of cursor B in scientific notation.
Example
:CURSor:TRACk:BXValue? /*The query returns -3.000000e-06*/
Related
Command
:CURSor:TRACk:BX
RIGOL Chapter 2 Command System
2-24 DS1000Z Programming Guide
:CURSor:TRACk:BYValue?
Syntax
:CURSor:TRACk:BYValue?
Description Query the Y value of cursor B in the track cursor measurement mode. The unit is the same
as the channel unit currently selected.
Return
Format
The query returns the Y value of cursor B in scientific notation.
Example
:CURSor:TRACk:BYValue? /*The query returns -4.000000e-06*/
Related
Commands :CHANnel<n>:UNITs
:CURSor:TRACk:BY?
:CURSor:TRACk:XDELta?
Syntax
:CURSor:TRACk:XDELta?
Description Query the difference between the X values of cursor A and cursor B (BX-AX) in the track
cursor measurement mode. The default unit is s.
Return
Format
The query returns the difference in scientific notation.
Example :CURSor:TRACk:XDELta? /*The query returns 6.120000e-06*/
Related
Commands :CURSor:TRACk:AX
:CURSor:TRACk:BX
:CURSor:TRACk:IXDELTA?
Syntax
:CURSor:TRACk:IXDELTA?
Description Query the reciprocal of the absolute value of the difference between the X values of cursor
A and cursor B (1/|dX|) in the track cursor measurement mode. The default unit is Hz.
Return
Format
The query returns 1/|dX| in scientific notation.
Example
:CURSor:TRACk:IXDELTA? /*The query returns 1.120000e+05*/
Related
Commands :CURSor:TRACk:AX
:CURSor:TRACk:BX
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-25
:CURSor:AUTO:ITEM
Syntax :COUSor:AUTO:ITEM <item>
:CURSor:AUTO:ITEM?
Description The auto cursor function can measure 24 waveform parameters. Using this command,
you can select the parameters to be measured by the auto cursor from the five
parameters enabled last or query the parameters currently measured by the auto cursor.
Parameter
Name
Type
Range
Default
<item>
Discrete
{OFF|ITEM1|ITEM2|ITEM3|ITEM4|ITEM5}
OFF
Explanation You can select the auto cursor measurement mode using the :CURSor:MODE
command.
The 24 waveform parameters are listed below (see the detailed introduction
in :MEASure Commands). The parameters can be enabled by the :MEASure:ITEM
command.
Period, Frequency, Rise Time, Fall Time, + Width, -Width, +Duty, -Duty, Delay
1→2, Delay 1→2, Phase 1→2, Phase 1→2, Vmax, Vmin, Vpp, Vtop, Vbase,
Vamp, Vavg, Vrms, Overshoot, Preshoot, Area, Period Area.
Return
Format
The query returns OFF, ITEM1, ITEM2, ITEM3, ITEM4 or ITEM5.
Example
:COUSor:AUTO:ITEM ITEM3
Related
Commands :CURSor:MODE
:MEASure:ITEM
RIGOL Chapter 2 Command System
2-26 DS1000Z Programming Guide
:CURSor:XY
The :CURSor:XY commands can only be used when the horizontal timebase mode is XY.
Command List:
:CURSor:XY:AX
:CURSor:XY:BX
:CURSor:XY:AY
:CURSor:XY:BY
:CURSor:XY:AXValue?
:CURSor:XY:AYValue?
:CURSor:XY:BXValue?
:CURSor:XY:BYValue?
:CURSor:XY:AX
Syntax :CURSor:XY:AX <x>
:CURSor:XY:AX?
Description
Set or query the horizontal position of cursor A in the XY cursor measurement mode.
Parameter
Name
Type
Range
Default
<x> Integer 5 to 394 100
Explanation In the XY timebase mode, the horizontal and vertical positions of the cursor are defined
by the pixel coordinate of the XY display area. The pixel coordinate of the screen ranges
from (0,0) to (400,400). Wherein, (0,0) is located at the right top corner and (400,400) is
located at the left bottom corner. The horizontal and vertical pixel ranges are both from 0
to 400.
Return
Format
The query returns an integer between 5 and 394.
Example
:CURSor:XY:AX 200
:CURSor:XY:BX
Syntax :CURSor:XY:BX <x>
:CURSor:XY:BX?
Description
Set or query the horizontal position of cursor B in the XY cursor measurement mode.
Parameter Name Type Range Default
<x> Integer 5 to 394 300
Explanation In the XY timebase mode, the horizontal and vertical positions of the cursor are defined
by the pixel coordinate of the XY display area. The pixel coordinate of the screen ranges
from (0,0) to (400,400). Wherein, (0,0) is located at the right top corner and (400,400) is
located at the left bottom corner. The horizontal and vertical pixel ranges are both from 0
to 400.
Return
Format
The query returns an integer between 5 and 394.
Example
:CURSor:XY:BX 200
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-27
:CURSor:XY:AY
Syntax :CURSor:XY:AY <y>
:CURSor:XY:AY?
Description
Set or query the vetical position of cursor A in the XY cursor measurement mode.
Parameter
Name
Type
Range
Default
<x>
Integer
5 to 394
100
Explanation In the XY timebase mode, the horizontal and vertical positions are defined by the pixel
coordinate of the XY display area. The pixel coordinate of the screen ranges from (0,0) to
(400,400). Wherein, (0,0) is located at the right top corner and (400,400) is located at the
left bottom corner. The horizontal and vertical pixel ranges are both from 0 to 400.
Return
Format
The query returns an integer between 5 and 394.
Example
:CURSor:XY:AY 200
:CURSor:XY:BY
Syntax :CURSor:XY:BY <y>
:CURSor:XY:BY?
Description
Set or query the vertical position of cursor B in the XY cursor measurement mode.
Parameter
Name
Type
Range
Default
<x>
Integer
5 to 394
300
Explanation In the XY timebase mode, the horizontal and vertical positions are defined by the pixel
coordinate of the XY display area. The pixel coordinate of the XY display area ranges from
(0,0) to (400,400). Wherein, (0,0) is located at the right top corner and (400,400) is
located at the left bottom corner. The horizontal and vertical pixel ranges are both from 0
to 400.
Return
Format
The query returns an integer between 5 and 394.
Example
:CURSor:XY:BY 200
:CURSor:XY:AXValue?
Syntax
:CURSor:XY:AXValue?
Description Query the X value of cursor A in the XY cursor measurement mode. The unit depends on
the amplitude unit of the corresponding channel.
Return
Format
The query returns the X value of cursor A in scientific notation.
Example
:CURSor:XY:AXValue? /*The query returns 3.800000e-01*/
Related
Command
:CHANnel<n>:UNITs
RIGOL Chapter 2 Command System
2-28 DS1000Z Programming Guide
:CURSor:XY:AYValue?
Syntax
:CURSor:XY:AYValue?
Description Query the Y value of cursor A in the XY cursor measurement mode. The unit depends on
the amplitude unit of the corresponding channel.
Return
Format
The query returns the Y value of cursor A in scientific notation.
Example
:CURSor:XY:AYValue? /*The query returns 4.000000e-01*/
Related
Command
:CHANnel<n>:UNITs
:CURSor:XY:BXValue?
Syntax
:CURSor:XY:BXValue?
Description Query the X value of cursor B in the XY cursor measurement mode. The unit depends on
the amplitude unit of the corresponding channel.
Return
Format
The query returns the X value of cursor B in scientific notation.
Example
:CURSor:XY:BXValue? /*The query returns -4.200000e-01*/
Related
Command
:CHANnel<n>:UNITs
:CURSor:XY:BYValue?
Syntax
:CURSor:XY:BYValue?
Description Query the Y value of cursor B in the XY cursor measurement mode. The unit depends on
the amplitude unit of the corresponding channel.
Return
Format
The query returns the Y value of cursor B in scientific notation.
Example
:CURSor:XY:BYValue? /*The query returns -4.000000e-01*/
Related
Command
:CHANnel<n>:UNITs
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-29
:DISPlay Commands
The :DISPlay commands can be used to set the waveform display mode, persistence time, waveform
intensity, screen grid type and grid brightness.
Command List:
:DISPlay:CLEar
:DISPlay:DATA?
:DISPlay:TYPE
:DISPlay:GRADing:TIME
:DISPlay:WBRightness
:DISPlay:GRID
:DISPlay:GBRightness
:DISPlay:CLEar
Syntax
:DISPlay:CLEar
Description
Clear all the waveforms on the screen.
Explanation If the oscilloscope is in the RUN state, waveform will still be displayed.
This command is equivalent to pressing the CLEAR key at the front panel. Sending
the :CLEar command can also clear all the waveforms on the screen.
Related
Commands :RUN
:CLEar
RIGOL Chapter 2 Command System
2-30 DS1000Z Programming Guide

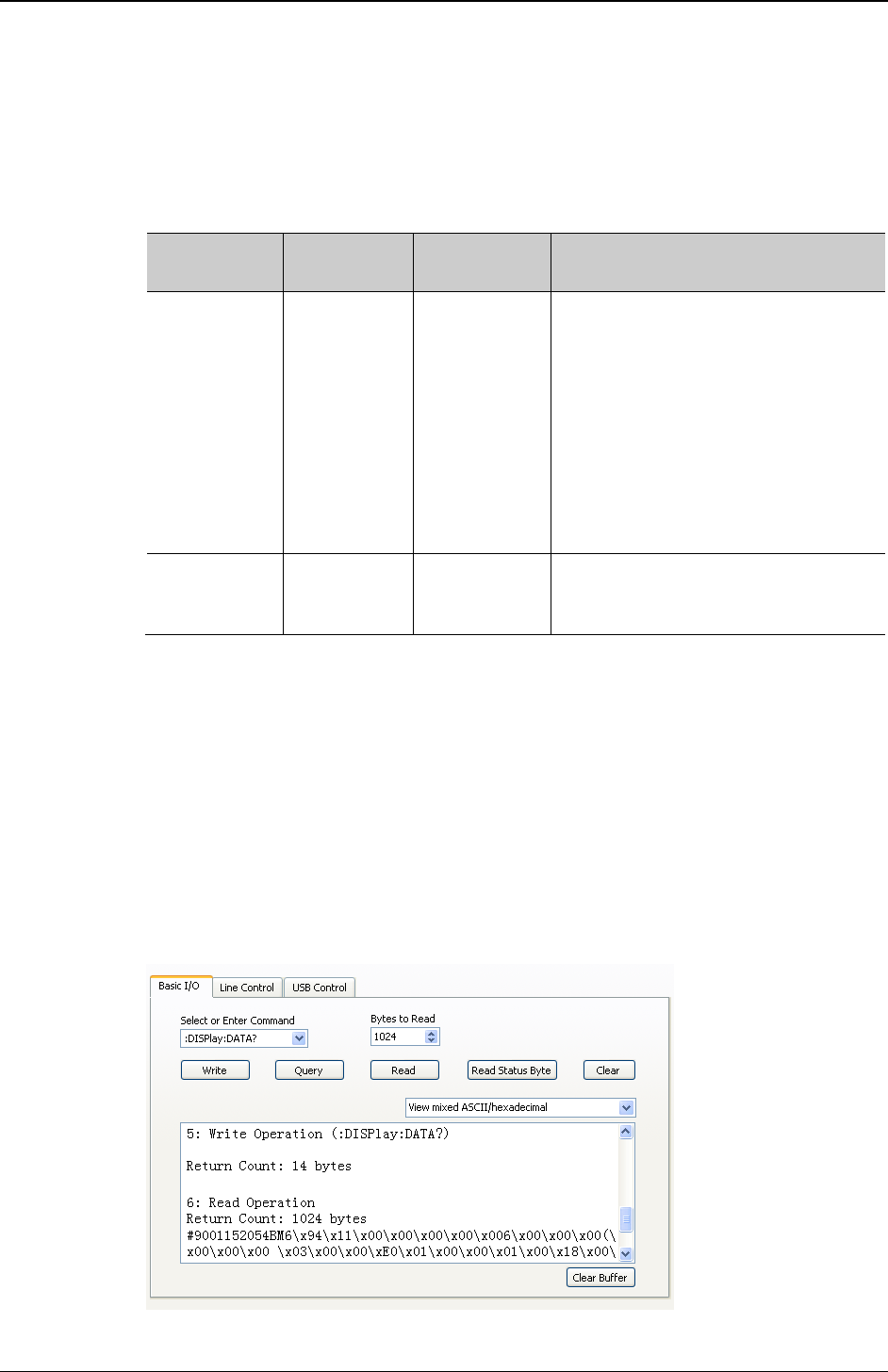

:DISPlay:DATA?
Syntax
:DISPlay:DATA?
Description
Read the bitmap data stream of the image currently displayed.
Explanation The command is sent from the PC to the instrument through the VISA interface. The
instrument responds to the command and directly returns the bitmap data stream of the
image currently displayed to the buffer area of the PC.
Return
Format Th format of the bitmap data stream is as follows.
Component Size
(length)
Example Explanation
TMC
Blockheader N[1]+2 #9001152054
TMC Blockheader ::= #NXXXXXX is
used to describe the length of the
data stream. Wherein, # is the start
denoter of the data stream; N is less
than or equal to 9 and the N figures
following it denote the length of the
data stream in bytes. For example,
#9001152054; wherein, N is 9 and
001152054 denotes that the data
stream contains 1152054 bytes of
effective data.
TMC
Blockheader
800*480*3+
54=1152054
[2]
BM… Specific bitmap data.
Note[1]: N is the width used to describe the data length in the TMC header. For example,
#90000.
Note[2]: The width is 800, the height is 480, the bit depth is 24 bit = 3 byte, 54 is the size
of the bitmap file header.
Example 1. Make sure that the buffer is large enough to receive the data stream, otherwise the
program might be abnormal when reading the data stream.
2. The returned data stream contains the TMC data header which should be removed to
make the data stream a standard bitmap data stream.
3. When the data size is larger than 1 M and the communication speed of the interface
is not fast enough, you need to set an appropriate timeout time.
4. The terminator '\n'(0X0A) at the end of the data should be removed.
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-31
:DISPlay:TYPE
Syntax :DISPlay:TYPE <type>
:DISPlay:TYPE?
Description
Set or query the display mode of the waveform on the screen.
Parameter
Name
Type
Range
Default
<type>
Discrete
{VECTors|DOTS}
VECTors
Explanation VECTors: the sample points are connected by lines. Normally, this mode can provide
the most vivid waveform to view the steep edge of the waveform (such as the square
waveform).
DOTS: display the sample points directly. You can directly view each sample point
and use the cursor to measure the X and Y values of the sample point.
Return
Format
The query returns VECT or DOTS.
Example
:DISPlay:TYPE DOTS
:DISPlay:GRADing:TIME
Syntax :DISPlay:GRADing:TIME <time>
:DISPlay:GRADing:TIME?
Description
Set or query the persistence time. The default unit is s.
Parameter
Name
Type
Range
Default
<time>
Discrete
{MIN|0.1|0.2|0.5|1|5|10|INFinite}
MIN
Explanation MIN: set the persistence time to its minimum to view the waveform changing in high
refresh rate.
Specific Values: set the persistence time to one of the values listed above to observe
glitch that changes relatively slowly or glitch with low occurrence probability.
INFinite: in this mode, the oscilloscope displays the newly acquired waveform
without clearing the waveform formerly acquired. Enable to measure noise and jitter
as well as capture incidental events.
Return
Format
The query returns the persistence time currently set.
Example
:DISPlay:GRADing:TIME 0.1 /*Set the persistence time to 0.1s*/
:DISPlay:WBRightness
Syntax :DISPlay:WBRightness <time>
:DISPlay:WBRightness?
Description Set or query the waveform brightness. The default unit is %.
Parameter
Name
Type
Range
Default
<time>
Integer
0 to 100
50
Return
Format
The query returns an integer between 0 and 100.
Example
:DISPlay:WBRightness 60
RIGOL Chapter 2 Command System
2-32 DS1000Z Programming Guide
:DISPlay:GRID
Syntax :DISPlay:GRID <grid>
:DISPlay:GRID?
Description
Set or query the grid type of screen display.
Parameter
Name
Type
Range
Default
<grid>
Discrete
{FULL|HALF|NONE}
FULL
Explanation FULL: turn the background grid and coordinate on.
HALF: turn the background grid off.
NONE: turn the background grid and coordinate off.
Return
Format
The query returns FULL, HALF or NONE.
Example :DISPlay:GRID NONE
:DISPlay:GBRightness
Syntax :DISPlay:GBRightness <brightness>
:DISPlay:GBRightness?
Description
Set or query the brightness of the screen grid. The default unit is %.
Parameter
Name
Type
Range
Default
<brightness> Integer 0 to 100 50
Return
Format
The query returns an integer between 0 and 100.
Example
:DISPlay:GBRightness 60
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-33
IEEE488.2 Common Commands
The IEEE 488.2 standard defines some common commands used for querying the basic information of the
instrument or executing the basic operations. These commands usually start with "*" and the keyword of
the command is usually 3-character long.
Command List:
*CLS
*ESE
*ESR?
*IDN?
*OPC
*RST
*SRE
*STB?
*TST?
*WAI
*CLS
Syntax
*CLS
Description
Clear all the event registers in the register set and clear the error queue.
*ESE
Syntax *ESE <value>
*ESE?
Description
Set or query the enable register for the standard event status register set.
Parameter
Name
Type
Range
Default
<value>
Integer
0 to 255
0
Explanation The bit 1 and bit 6 of the standard event status register are not used and are always
treated as 0, therefore, the range of <value> are the decimal numbers corresponding to
the binary numbers ranging from 00000000 (0 in decimal) to 11111111 (255 in decimal)
and of which the bit 1 and bit 6 are 0.
Return
Format
The query returns an integer which equals the sum of the weights of all the bits that have
already been set in the register.
Example *ESE 16 /*Enable the bit 4 (16 in decimal) of the standard event status register */
*ESE? /*The query returns 16*/
RIGOL Chapter 2 Command System
2-34 DS1000Z Programming Guide
*ESR?
Syntax
*ESR?
Description
Query and clear the event register for the standard event status register.
Explanation The bit 1 and bit 6 of the standard event status register are not used and are always
treated as 0. The range of the return value are the decimal numbers corresponding to
the binary numbers ranging from 00000000 (0 in decimal) to 11111111 (255 in decimal)
and of which the bit 1 and bit 6 are 0.
Return
Format
The query returns an integer between 0 and 255.
*IDN?
Syntax
*IDN?
Description
Query the ID string of the instrument.
Return
Format
The query returns the ID string of the instrument, such as RIGOL
TECHNOLOGIES,DS1104Z,DS1T00000006,00.02.00.
*OPC
Syntax *OPC?
*OPC
Description The *OPC? command is used to query whether the current operation is finished. The
*OPC command is used to set the Operation Complete bit (bit 0) in the standard event
status register to 1 after the current operation is finished.
Return
Format The query returns 1 if the current operation is finished; otherwise, returns 0.
*RST
Syntax
*RST
Description
Restore the instrument to the default state.
*SRE
Syntax *SRE <value>
*SRE?
Description
Set or query the enable register for the status byte register set.
Parameter
Name
Type
Range
Default
<value>
Integer
0 to 255
0
Explanation The bit 0 and bit 1 of the status byte register are not used and are always treated as 0,
therefore, the range of <value> are the decimal numbers corresponding to the binary
numbers ranging from 00000000 (0 in decimal) to 11111111 (255 in decimal) and of
which the bit 0 and bit 1 are 0.
Return
Format
The query returns an integer which equals the sum of the weights of all the bits that
have already been set in the register.
Example *SRE 16 /*Enable the bit 4 (16 in decimal) of the status byte register*/
*SRE? /*The query returns 16*/
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-35
*STB?
Syntax
*STB?
Description Query the event
register for the status byte register. The value of the status byte register
is set to 0 after this command is executed.
Explanation The bit 0 and bit 1 of the status byte register are not used and are always treated as 0.
The query returns the decimal numbers corresponding to the binary numbers ranging
from 00000000 (0 in decimal) to 11111111 (255 in decimal) and of which the bit 0 and bit
1 are 0.
Return
Format
The query returns an integer between 0 and 255.
*TST?
Syntax
*TST?
Description
Perform a self-test and then returns the seilf-test results.
Return
Format
The query returns a decimal integer.
*WAI
Syntax
*WAI
Description
Wait for the operation to finish.
Explanation The subsequent command can only be carried out after the current command has been
executed.
RIGOL Chapter 2 Command System
2-36 DS1000Z Programming Guide
:MATH Commands
The :MATH commands are used to set the operations between the waveforms of multiple channels.
Note:
The operations can be divided into two types.
Analog Operations: A+B, A-B, A×B, A/B, FFT, intg, diff, sqrt, lg, ln, exp and abs
Logic Operation: A&&B, A||B, A^B and !A
For the logic operation, the waveform data to be operated is compared with the preset threshold and is
converted to 0 or 1. Thus, the result will also be 0 or 1.
For the analog operation or logic operation which needs only one source, only the :MATH:SOURce1
command will be used.
Command List:
:MATH:DISPlay
:MATH:OPERator
:MATH:SOURce1
:MATH:SOURce2
:MATH:SCALe
:MATH:OFFSet
:MATH:INVert
:MATH:RESet
:MATH:FFT:WINDow
:MATH:FFT:SPLit
:MATH:FFT:UNIT
:MATH:FFT:HSCale
:MATH:FFT:HCENter
:MATH:OPTion:STARt
:MATH:OPTion:END
:MATH:OPTion:INVert
:MATH:OPTion:SENSitivity
:MATH:OPTion:DIStance
:MATH:OPTion:ASCale
:MATH:OPTion:THReshold1
:MATH:OPTion:THReshold2
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-37
:MATH:DISPlay
Syntax :MATH:DISPlay <bool>
:MATH:DISPlay?
Description
Enable or disable the math operation function or query the math operation status.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Return
Format
The query returns 0 or 1.
Example :MATH:DISPlay ON
:MATH:OPERator
Syntax :MATH:OPERator <opt>
:MATH:OPERator?
Description
Set or query the operator of the math operation.
Parameter
Name
Type
Range
Default
<opt> Discrete {ADD|SUBTract|MULTiply|DIVision|AND|OR|XOR|
NOT|FFT|INTG|DIFF|SQRT|LOG|LN|EXP|ABS} ADD
Return
Format
The query returns ADD, SUBT, MULT, DIV, AND, OR, XOR, NOT, FFT, INTG, DIFF, SQRT,
LOG, LN, EXP or ABS.
Example
:MATH:OPERator INTG
:MATH:SOURce1
Syntax :MATH:SOURce1 <src>
:MATH:SOURce1?
Description
Set or query the source of the math operation.
Parameter
Name
Type
Range
Default
<src>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Explanation For the operations which needs only one source, just this command will be used.
For the operations which needs two sources, this command is used to set source A.
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:MATH:SOURce1 CHANnel3
RIGOL Chapter 2 Command System
2-38 DS1000Z Programming Guide
:MATH:SOURce2
Syntax :MATH:SOURce2 <src>
:MATH:SOURce2?
Description
Set or query the source of the math operation.
Parameter
Name
Type
Range
Default
<src>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Explanation This command is only applicable to the operations which needs two source and it is used
to set source B.
Return
Format
The query returnsCHAN1, CHAN2, CHAN3 or CHAN4.
Example
:MATH:SOURce2 CHANnel3
:MATH:SCALe
Syntax :MATH:SCALe <scale>
:MATH:SCALe?
Description Set or query the vertical scale of the operation result. The unit depends on the operator
currently selected and the unit of the source.
Parameter
Name
Type
Range
Default
<scale> Real The max range is from 1p to 5T (in 1-2-5 step) 1.00V
Explanation The range of the vertical scale is related to the operator currently selected and the vertical
scale of the source channel. For the integration (intg) and differential (diff) operations, it
is also related to the current horizontal timebase.
Return
Format
The query returns the vertical scale of the operation result in scientific notation.
Example :MATH:SCALe 2 /*Set the vertical scale to 2*/
:MATH:SCALe? /*The query returns 2.000000e+00*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:UNITs
:MATH:OPERator
:TIMebase[:MAIN]:SCALe
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-39
:MATH:OFFSet
Syntax :MATH:OFFSet <offs>
:MATH:OFFSet?
Description Set or query the vertical offset of the operation result. The unit depends on the operator
currently selected and the unit of the source.
Parameter
Name
Type
Range
Default
<offs> Real
Related to the vertical scale of the operation result.
Range: -1000*MathVerticalScale to
1000*MathVerticalScale
Step: MathVerticalScale/50
0.00V
Explanation MathVerticalScale is the vertical scale of the operation result and can be set by
the :MATH:SCALe command.
Return
Format
The query returns the vertical offset of the operation result in scientific notation.
Example :MATH:OFFSet 8 /*Set the vertical offset to 8V*/
:MATH:OFFSet? /*The query returns 8.000000e+00*/
Related
Commands :MATH:OPERator
:MATH:SCALe
:CHANnel<n>:UNITs
:MATH:INVert
Syntax :MATH:INVert <bool>
:MATH:INVert?
Description Enable or disable the inverted display mode of the operation result, or query the inverted
display mode status of the operation result.
Parameter
Name
Type
Range
Default
<bool> Bool {{0|OFF}|{1|ON}} 0|OFF
Explanation This command is invalid for the FFT operation.
This command has the same function as the :MATH:OPTion:INVert command.
Return
Format
The query returns 0 or 1.
Example
:MATH:INVert ON
Related
Commands :MATH:OPERator
:MATH:OPTion:INVert
:MATH:RESet
Syntax
:MATH:RESet
Description Sending this command, the instrument adjusts the vertical scale of the operation result to
the most proper value according to the current operator and the horizontal timebase of
the source.
Related
Commands :MATH:OPERator
:MATH:SCALe
:TIMebase[:MAIN]:SCALe
RIGOL Chapter 2 Command System
2-40 DS1000Z Programming Guide
:MATH:FFT:WINDow
Syntax :MATH:FFT:WINDow <wnd>
:MATH:FFT:WINDow?
Description
Set or query the window function of the FFT operation.
Parameter
Name
Type
Range
Default
<wnd> Discrete {RECTangle|BLACkman|HANNing|HAMMing|
FLATtop|TRIangle}
RECTangle
Explanation Spectral leakage can be considerably decreased when a window function is used.
Different window functions are applicable to measure different waveforms. You need
to select the window function according to waveform to be measured and its
characteristics.
Return
Format
The query returns RECT, BLAC, HANN, HAMM, FLAT or TRI.
Example
:MATH:FFT:WINDow BLACkman
Related
Command :MATH:OPERator
:MATH:FFT:SPLit
Syntax :MATH:FFT:SPLit <bool>
:MATH:FFT:SPLit?
Description Enable or disable the half-screen display mode of the FFT operation, or query the status
of the half display mode of the FFT operation.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
1|ON
Explanation Enable the half-screen display mode: the source channel and the FFT operation
results are displayed separately. The time domain and frequency domain signals are
displayed clearly.
Disable the half-screen display mode (full-screen display mode): the source channel
and the FFT operation results are displayed in the same window to view the
frequency spectrum more clearly and to perform more precise measurement.
Return
Format
The query returns 0 or 1.
Example
:MATH:FFT:SPLit OFF
Related
Command
:MATH:OPERator
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-41
:MATH:FFT:UNIT
Syntax :MATH:FFT:UNIT <unit>
:MATH:FFT:UNIT?
Description
Set or query the vertical unit of the FFT operation result.
Parameter
Name
Type
Range
Default
<unit>
Discrete
{VRMS|DB}
DB
Return
Format
The query returns DB or VRMS.
Example
:MATH:FFT:UNIT VRMS
Related
Command :MATH:OPERator
:MATH:FFT:HSCale
Syntax :MATH:FFT:HSCale <hsc>
:MATH:FFT:HSCale?
Description
Set or query the horizontal scale of the FFT operation result. The default unit is Hz.
Parameter
Name
Type
Range
Default
<hsc> Real Refer to Explanation 5.00MHz
Explanation <hsc> can be set to 1/20, 1/40, 1/100 and 1/200 of the current screen sample rate
(current screen sample rate=100/current horizontal timebase).
For example, if the horizontal timebase of the instrument is 1μs, the current screen
sample rate is 100/1μs=100MHz. Thus, the horizontal scale can be set to 5MHz,
2.5MHz, 1MHz or 500kHz.
You can view the detailed information of the spectrum by reducing the horizontal
scale.
Return
Format
The query returns the horizontal scale in scientific notation.
Example :MATH:FFT:HSCale 500000 /*Set the horizontal scale to 500kHz*/
:MATH:FFT:HSCale? /*The query returns 5.000000e+05*/
Related
Commands :MATH:OPERator
:TIMebase[:MAIN]:SCALe
RIGOL Chapter 2 Command System
2-42 DS1000Z Programming Guide
:MATH:FFT:HCENter
Syntax :MATH:FFT:HCENter <cent>
:MATH:FFT:HCENter?
Description Set or query the center frequency of the FFT operation result, namely the frequency
relative to the horizontal center of the screen. The default unit is Hz.
Parameter
Name
Type
Range
Default
<cent>
Real
0 to (current screen sample rate×2/5)
5MHz
Explanation Current screen sample rate = 100/current horizontal timebase.
Step = horizontal scale of the FFT operation result/50.
Return
Format
The query returns the current center frequency in scientific notation.
Example :MATH:FFT:HCENter 10000000 /*Set the center frequency to 10MHz*/
:MATH:FFT:HCENter? /*The query returns 1.000000e+07*/
Related
Commands :MATH:OPERator
:MATH:FFT:HSCale
:TIMebase[:MAIN]:SCALe
:MATH:OPTion:STARt
Syntax :MATH:OPTion:STARt <sta>
:MATH:OPTion:STARt?
Description
Set or query the start point of the waveform math operation.
Parameter
Name
Type
Range
Default
<sta> Integer 0 to (End point currently set-1) 0
Explanation This command is invalid for the FFT operation. Sending this command will modify the
start points of all the operations (except FFT).
The horizontal axis of the source selected is equally divided into 1200 parts, in which
the leftmost is 0 and the rightmost is 1199.
Return
Format
The query returns an integer.
Example
:MATH:OPTion:STARt 50
Related
Command
:MATH:OPTion:END
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-43
:MATH:OPTion:END
Syntax :MATH:OPTion:END <end>
:MATH:OPTion:END?
Description
Set or query the end point of the waveform math operation.
Parameter
Name
Type
Range
Default
<end> Discrete (Start point currently set+1) to 1199 1199
Explanation This command is invalid for the FFT operation. Sending this command will modify the
end points of all the operations (except FFT).
The horizontal axis of the source selected is equally divided into 1200 parts, in which
the leftmost is 0 and the rightmost is 1199.
Return
Format
The query returns an integer.
Example
:MATH:OPTion:END 200
Related
Command
:MATH:OPTion:STARt
:MATH:OPTion:INVert
Syntax :MATH:OPTion:INVert <bool>
:MATH:OPTion:INVert?
Description Enable or disable the inverted display mode of the operation result, or query the inverted
display mode status of the operation result.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Explanation This command is invalid for the FFT operation. Sending this command will modify the
inverted display mode status of all the operations (except FFT).
This command has the same function as the :MATH:INVert command.
Return
Format
The query returns 0 or 1.
Example
:MATH:OPTion:INVert ON
Related
Command
:MATH:INVert
RIGOL Chapter 2 Command System
2-44 DS1000Z Programming Guide
:MATH:OPTion:SENSitivity
Syntax :MATH:OPTion:SENSitivity <sens>
:MATH:OPTion:SENSitivity?
Description Set or query the sensitivity of the logic operation. The default unit is div (namely the
current vertical scale).
Parameter
Name
Type
Range
Default
<sens> Real 0 to 0.96div, the step is 0.08div 0
Explanation
This command is only applicable to the logic operations (A&&B, A||B, A^B and !A).
Return Format
The query returns the sensitivity in scientific notation.
Example :MATH:OPTion:SENSitivity 0.24 /*Set the sensitivity to 0.24div*/
:MATH:OPTion:SENSitivity? /*The query returns 2.400000e-01*/
Related
Commands :CHANnel<n>:SCALe
:MATH:OPERator
:MATH:OPTion:DIStance
Syntax :MATH:OPTion:DIStance <dist>
:MATH:OPTion:DIStance?
Description
Set or query the smoothing window width of the differential operation (diff).
Parameter
Name
Type
Range
Default
<dist> Integer 3 to 201 3
Explanation
This command is only applicable to the differential operation (diff).
Return Format
The query returns an integer between 3 and 201.
Example :MATH:OPTion:DIStance 25
Related
Command
:MATH:OPERator
:MATH:OPTion:ASCale
Syntax :MATH:OPTion:ASCale <opt>
:MATH:OPTion:ASCale?
Description Enable or disable the auto scale setting of the operation result or query the status of
the auto scale setting.
Parameter Name Type Range Default
<opt> Bool {{0|OFF}|{1|ON}} 0|OFF
Explanation When the auto scale is enabled, the instrument will automatically calculate the
vertical scale range according to the current operator, the vertical scale and the
horizontal timebase. If the current scale is out of the range, it will adjust the
vertical scale to the best value automatically.
Sending this command will modify the auto scale status of all the operations.
Return Format
The query returns 0 or 1.
Example
:MATH:OPTion:ASCale ON
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-45
:MATH:OPTion:THReshold1
Syntax :MATH:OPTion:THReshold1 <thre>
:MATH:OPTion:THReshold1?
Description
Set or query the threshold level of source A in the logic operation. The default unit is V.
Parameter
Name
Type
Range
Default
<thre> Real (-4*Vertical Scale – Vertical Offset) to
(4*Vertical Scale – Vertical Offset) 0.00V
Explanation This command is only applicable to the logic operations (A&&B, A||B, A^B and !A).
Vertical Scale refers to the vertical scale of source A
Vetical Offset refers to the vertical offset of source A
The step is Vertical Scale/25
Return
Format
The query returns the threshold level in scientific notation.
Example :MATH:OPTion:THReshold1 0.8 /*Set the threshold level to 800mV*/
:MATH:OPTion:THReshold1? /*The query returns 8.000000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
:MATH:OPTion:THReshold2
Syntax :MATH:OPTion:THReshold2 <thre>
:MATH:OPTion:THReshold2?
Description
Set or query the threshold level of source B in the logic operation. The default unit is V.
Parameter
Name
Type
Range
Default
<thre> Real (-4*Vertical Scale–Vertical Offset) to
(4*Vertical Scale–Vertical Offset) 0.00V
Explanation This command is only applicable to the logic operations (A&&B, A||B, A^B and !A).
Vertical Scale refers to the vertical scale of source B
Vetical Offset refers to the vertical offset of source B
The step is Vertical Scale/25
Return
Format
The query returns the threshold level in scientific notation.
Example
:MATH:OPTion:THReshold2 0.5
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
RIGOL Chapter 2 Command System
2-46 DS1000Z Programming Guide
:MASK Commands
The :MASK commands are used to set and query the pass/fail test parameters.
Command List:
:MASK:ENABle
:MASK:SOURce
:MASK:OPERate
:MASK:MDISplay
:MASK:SOOutput
:MASK:OUTPut
:MASK:X
:MASK:Y
:MASK:CREate
:MASK:PASSed?
:MASK:FAILed?
:MASK:TOTal?
:MASK:RESet
:MASK:ENABle
Syntax :MASK:ENABle <bool>
:MASK:ENABle?
Description
Enable or disable the pass/fail test or query the status of the past/fail test.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Explanation The pass/fail test is invalid in the following conditions: the horizontal timebase is XY or
ROLL, in the slow sweep mode (namely when the horizontal timebase is YT, the horizontal
timebase is set to 200ms/div or slower) as well as during waveform record.
Return
Format
The query returns 0 or 1.
Example
:MASK:ENABle ON
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-47
:MASK:SOURce
Syntax :MASK:SOURce <source>
:MASK:SOURce?
Description
Set or query the source of the pass/fail test.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Explanation Only the channel enabled can be selected as the source. You can sent
the :CHANnel<n>:DISPlay command to enable the desired channel.
Return
Format
The query returnsCHAN1, CHAN2, CHAN3 or CHAN4.
Example
:MASK:SOURce CHANnel2
Related
Command :CHANnel<n>:DISPlay
:MASK:OPERate
Syntax :MASK:OPERate <oper>
:MASK:OPERate?
Description
Run or stop the pass/fail test, or query the status of the pass/fail test.
Parameter
Name
Type
Range
Default
<oper>
Discrete
{RUN|STOP}
STOP
Explanation Before executing this command, you need to send the :MASK:ENABle command to enable
the pass/fail test.
Return
Format
The query returns RUN or STOP.
Example
:MASK:OPERate RUN
Related
Command
:MASK:ENABle
RIGOL Chapter 2 Command System
2-48 DS1000Z Programming Guide
:MASK:MDISplay
Syntax :MASK:MDISplay <bool>
:MASK:MDISplay?
Description Enable or disable the statistic information when the pass/fail test is enabled, or query the
status of the statistic information.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Explanation Before executing this command, you need to send the :MASK:ENABle command to
enable the pass/fail test.

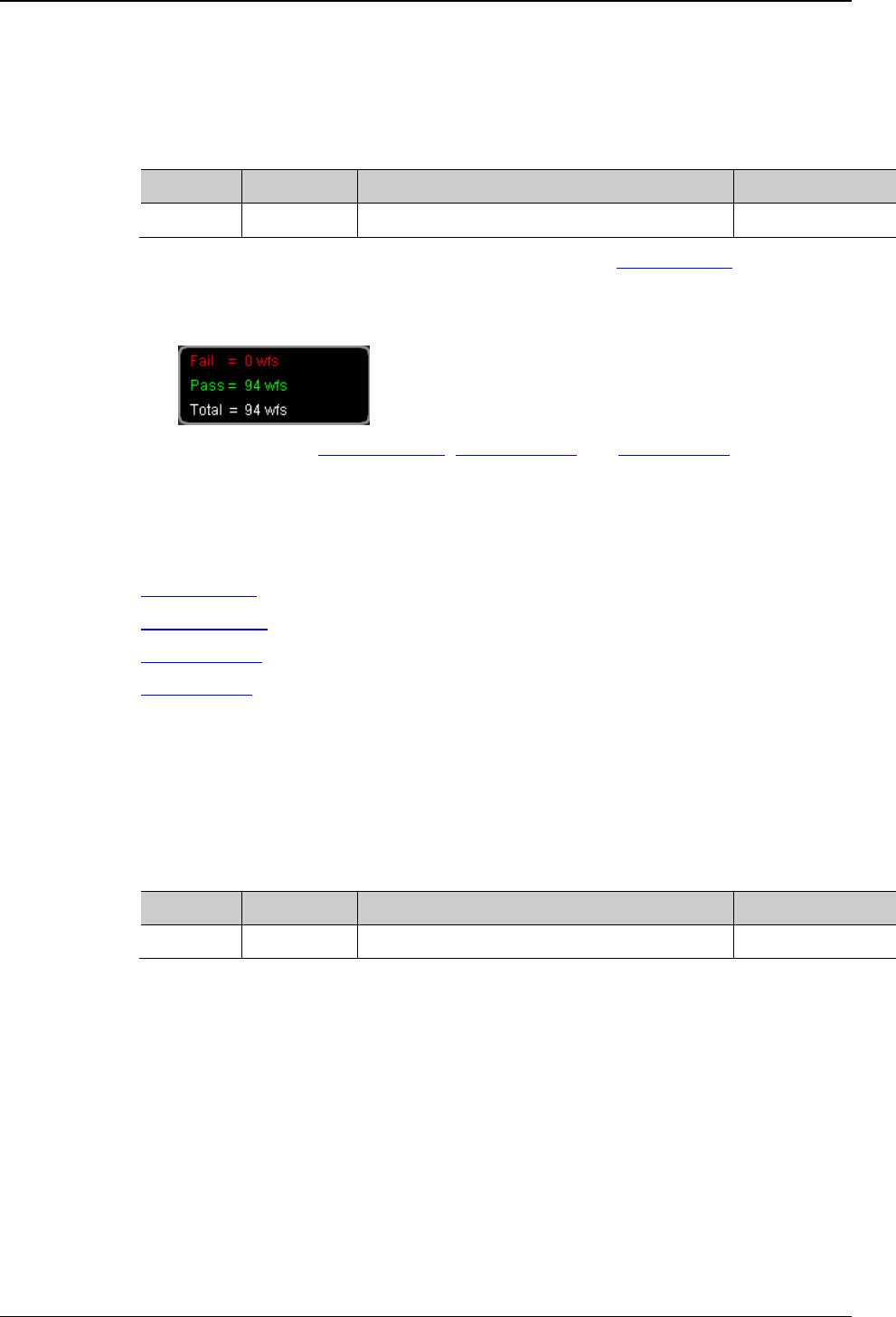

When the statistic information is on, the test results as shown in the figure below will
be displayed at the upper right corner of the screen.
You can sent the :MASK:PASSed?, :MASK:FAILed? and :MASK:TOTal? commands to
query the test results.
Return
Format
The query returns 0 or 1.
Example
:MASK:MDISplay ON
Related
Commands :MASK:ENABle
:MASK:PASSed?
:MASK:FAILed?
:MASK:TOTal?
:MASK:SOOutput
Syntax :MASK:SOOutput <bool>
:MASK:SOOutput?
Description Turn the “Stop on Fail” function on or off, or query the status of the “Stop on Fail”
function.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Explanation ON: when failed waveforms are detected, the oscilloscope will stop the test and enter
the “STOP” state. At this point, the results of the test remain the same on the screen
(if the display is turned on) and the [Trigger Out] connector (if enabled) at the rear
panel outputs a single pulse.
OFF: the oscilloscope will continue with the test even though failed waveforms are
detected. The test results on the screen will update continuously and the [Trigger
Out] connector at the rear panel outputs a pulse each time a failed waveform is
detected.
Return
Format
The query returns 0 or 1.
Example
:MASK:SOOutput ON
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-49
:MASK:OUTPut
Syntax :MASK:OUTPut <bool>
:MASK:OUTPut?
Description Enable or disable the sound prompt when the failed waveforms are detected, or query the
status of the sound prompt.
Parameter Name Type Range Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Explanation OFF: when failed waveforms are detected, there are display and output but the
beeper does not sound.
ON: when failed waveforms are detected, there are display and output and the
beeper sounds (not related to the on/off state of the sound).
Return
Format
The query returns 0 or 1.
Example
:MASK:OUTPut ON
:MASK:X
Syntax :MASK:X <x>
:MASK:X?
Description
Set or query the horizontal adjustment parameter in the pass/fail test mask.
Parameter
Name
Type
Range
Default
<x> Real 0.02 to 4 0.24
Explanation
The step is 0.02 within the range.
Return
Format
The query returns the horizontal adjustment parameter in scientific notation.
Example :MASK:X 0.28 /*Set the horizontal adjustment parameter to 0.28div*/
:MASK:X? /*The query returns 2.800000e-01*/
:MASK:Y
Syntax :MASK:Y <y>
:MASK:Y?
Description
Set or query the vertical adjustment parameter in the pass/fail test mask.
Parameter
Name
Type
Range
Default
<y>
Real
0.04 to 5.12
0.48
Explanation
The step is 0.04 within the range.
Return
Format
The query returns the vertical adjustment parameter in scientific notation.
Example :MASK:Y 0.36 /*Set the vertical adjustment parameter to 0.36div*/
:MASK:Y? /*The query returns 3.600000e-01*/
RIGOL Chapter 2 Command System
2-50 DS1000Z Programming Guide
:MASK:CREate
Syntax
:MASK:CREate
Description Create the pass/fail test mask using the current horizontal adjustment parameter and
vertical adjustment parameter.
Explanation This command is valid only when the pass/fail test is enabled (:MASK:ENABle) and is not
in the run state (:MASK:OPERate).
Related
Commands :MASK:ENABle
:MASK:OPERate
:MASK:X
:MASK:Y
:MASK:PASSed?
Syntax
:MASK:PASSed?
Description
Query the number of the passed frames in the pass/fail test.
Return
Format
The query returns an integer.
:MASK:FAILed?
Syntax
:MASK:FAILed?
Description
Query the number of the failed frames in the pass/fail test.
Return
Format The query returns an integer.
:MASK:TOTal?
Syntax
:MASK:TOTal?
Description
Query the total number of the frames in the pass/fail test.
Return
Format
The query returns an integer.
:MASK:RESet
Syntax
:MASK:RESet
Description Reset the numbers of the passed frames and failed frames as well asthe total number of
frames in the pass/fail test to 0.
Related
Commands :MASK:PASSed?
:MASK:FAILed?
:MASK:TOTal?
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-51
:MEASure Commands
DS1000Z supports the auto measurement of the following 24 waveform parameters and provide the
statistic function for the measurement results. In additional, you can use the frequency counter to make
more precise frequency measurement. The :MEASure commands are used to set and query the
measurement parameters.

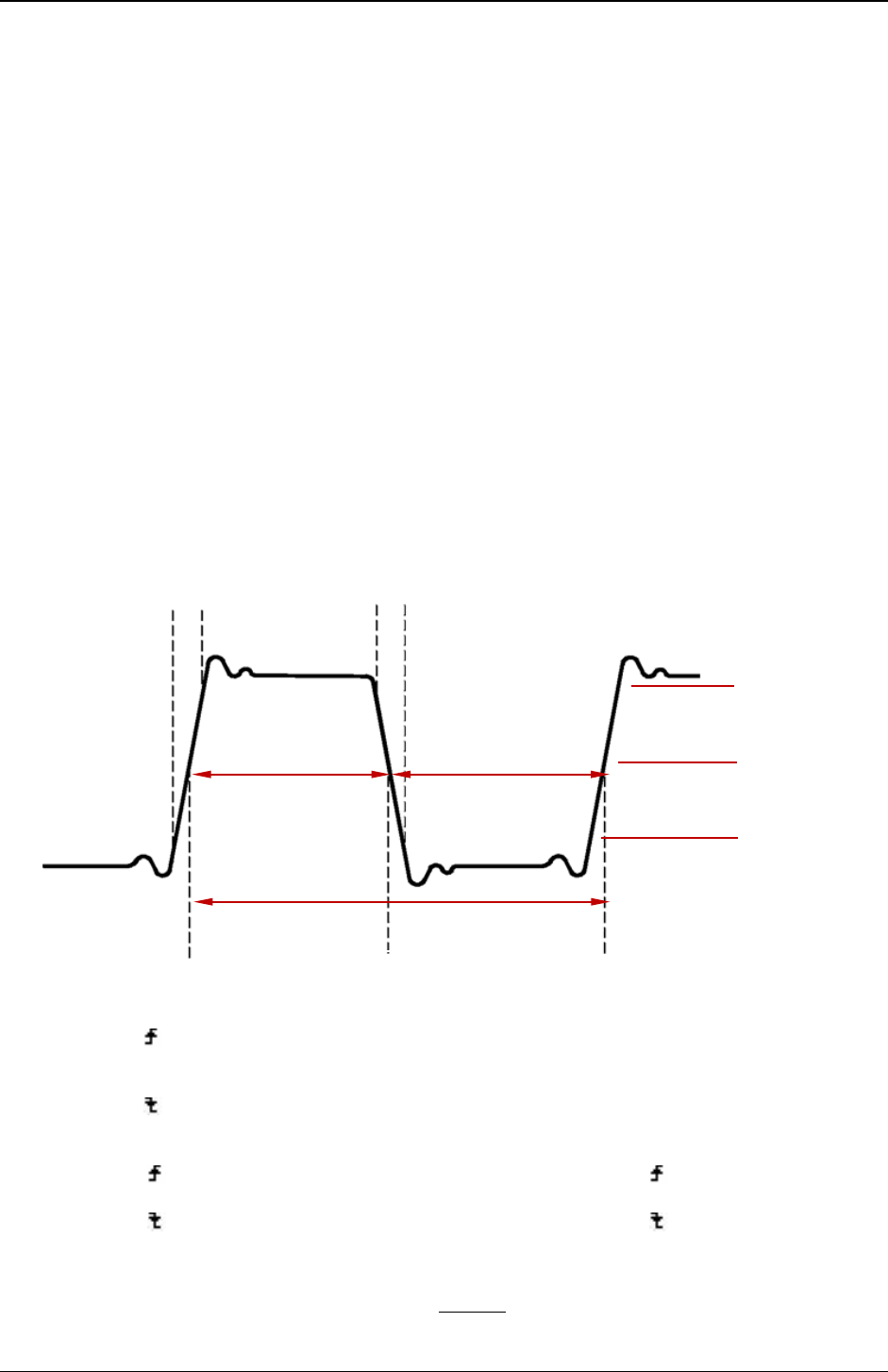

Time Parameters
Period:
Defined as the time between the threshold middle points of two consecutive,
like-polarity edges.
Frequency:
Defined as the reciprocal of period.
Rise Time:
The time for the signal amplitude to rise from the lower limit to the upper limit of
the threshod.
Fall Time:
The time for the signal amplitude to fall from the upper limit to the lower limit of the
threshod.
+ Width:
The time difference between the threshold middle points of a rising edge to the
next falling edge of the pulse.
- Width:
The time difference between the threshold middle points of a falling edge to the
next rising edge of the pulse.
+ Duty:
The ratio of the positive pulse width to the period.
- Duty:
The ratio of the negative pulse width to the period.

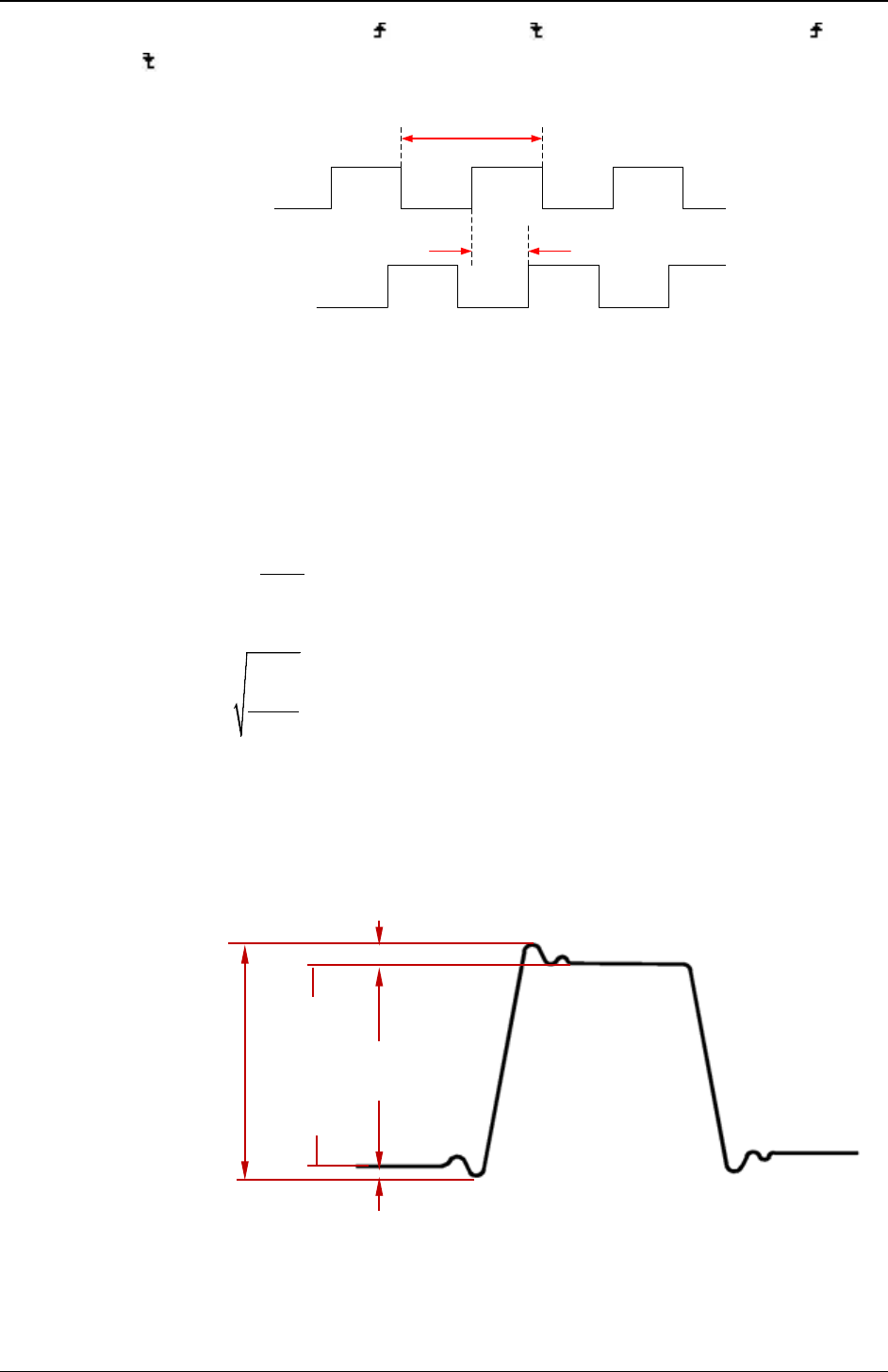

Delay and Phase
Delay 1→2 :
The time difference between the rising edges of source 1 and source 2. Negative
delay indicates that the selected rising edge of source 1 occurred after the selected
rising edge of source 2.
Delay 1→2 :
The time difference between the falling edges of source 1 and source 2. Negative
delay indicates that the selected falling edge of source 1 occurred after the selected
falling edge of source 2.
Phase 1→2 :
Phase difference calculated according to “Delay 1→2” and the period of source
1, expressed in degree. The calculation formula is as shown below.
Phase 1→2 :
Phase difference calculated according to “Delay 1→2” and the period of source
1, expressed in degree.The calculation formula is as shown below.
360
1
Delay
Phase Period
= ×°
RiseTime
FallTime
Threshold Upper Limit
Threshold Middle Point
Threshold Lower Limit
+Width
-Width
Period
RIGOL Chapter 2 Command System
2-52 DS1000Z Programming Guide
Wherein,
Phase
denotes “Phase 1→2 ” or “Phase 1→2 ”,
Delay
denotes “Delay 1→2 ” or
“Delay 1→2” and
1Period
denotes the period of source 1.
Source 1
Source 2
Period
Delay
Voltage Parameters
Vmax:
the voltage value from the highest point of the waveform to the GND.
Vmin:
the voltage value from the lowest point of the waveform to the GND.
Vpp:
the voltage value from the highest point to the lowest point of the waveform.
Vtop:
the voltage value from the flat top of the waveform to the GND.
Vbase:
the voltage value from the flat base of the waveform to the GND.
Vamp:
the voltage value from the top of the waveform to the base of the waveform.
Vavg:
the arithmetic average value on the whole waveform or on the gating area.
i
x
Average n
=
∑
, wherein,
i
x
is the
ith
point being measured,
n
is the number of
points being measured.
Vrms:
the root mean square value on the whole waveform or the gating area.
2
1
n
i
i
x
RMS n
=
=
∑
, where,
i
x
is the
ith
point being measured,
n
is the number of
points being measured.
Overshoot:
the ratio of the difference between the maximum value and top value of the waveform
to the amplitude value.
Preshoot:
the ratio of the difference between the minimum value and base value of the waveform
to the amplitude value.
Preshoot
Overshoot
Vamp
Vmax
Vmin
Vpp
Vtop
Vbase
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-53
Other Parameters
Area :
The area of the whole waveform within the screen and the unit is voltage-second. The area meadured
above the zero reference (namely the vertical offset) is positive and the area measured below the zero
reference is negative. The area measured is the algebraic sum of the area of the whole waveform
within the screen.
Period Area :
The area of the first period of the waveform on the screen and the unit is voltage-second. The area
above the zero reference (namely the vertical offset) is positive and the area below the zero reference
is negative. The area measured is the algeraic sum of the area of the waveform within the whole period.
Note that when the waveform on the screen is less than a period, the period area measured is 0.
Command List:
:MEASure:SOURce
:MEASure:COUNter:SOURce
:MEASure:COUNter:VALue?
:MEASure:CLEar
:MEASure:RECover
:MEASure:ADISplay
:MEASure:AMSource
:MEASure:SETup:MAX
:MEASure:SETup:MID
:MEASure:SETup:MIN
:MEASure:SETup:PSA
:MEASure:SETup:PSB
:MEASure:SETup:DSA
:MEASure:SETup:DSB
:MEASure:STATistic:DISPlay
:MEASure:STATistic:MODE
:MEASure:STATistic:RESet
:MEASure:STATistic:ITEM
:MEASure:ITEM
RIGOL Chapter 2 Command System
2-54 DS1000Z Programming Guide
:MEASure:SOURce
Syntax :MEASure:SOURce <sour>
:MEASure:SOURce?
Description
Set or query the source of the current measurement parameter.
Parameter
Name
Type
Range
Default
<sour>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Explanation This command is used to set the source for the measurement parameters (except the
delay and phase). The delay and phase measurements requires two sources which can be
set by the :MEASure:SETup:DSA and :MEASure:SETup:DSB, :MEASure:SETup:PSA
and :MEASure:SETup:PSB commands respectively.
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:MEASure:SOURce CHANnel2
Related
Commands :MEASure:SETup:PSA
:MEASure:SETup:PSB
:MEASure:SETup:DSA
:MEASure:SETup:DSB
:MEASure:ITEM
:MEASure:COUNter:SOURce
Syntax :MEASure:COUNter:SOURce <sour>
:MEASure:COUNter:SOURce?
Description
Set or query the source of the frequency counter, or disable the frequency counter.
Parameter
Name
Type
Range
Default
<sour> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4|OFF} OFF
Return
Format
The query returns CHAN1, CHAN2, CHAN3, CHAN4 or OFF.
Example
:MEASure:COUNter:SOURce CHANnel2
Related
Command :MEASure:COUNter:VALue?
:MEASure:COUNter:VALue?
Syntax
:MEASure:COUNter:VALue?
Description
Query the measurement result of the frequency counter. The default unit is Hz.
Return
Format
The query returns the measurement result in scientific notation. If the frequency counter
is disabled, 0.0000000e+00 will be returned.
Example
:MEASure:COUNter:VALue? /*The query returns 1.000004e+03*/
Related
Command
:MEASure:COUNter:SOURce
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-55
:MEASure:CLEar
Syntax
:MEASure:CLEar <item>
Description
Clear one or all of the last five measurement items enabled.
Parameter
Name
Type
Range
Default
<item>
Discrete
{ITEM1|ITEM2|ITEM3|ITEM4|ITEM5|ALL}
--
Explanation You can use the :MEASure:ITEM command to enable the desired parameters of the
24 waveform parameters. Note that the last five parameters are determined
according to the order in which you turned them on and they will not change as you
delete one or more measurement items.
You can send the :MEASure:RECover command to recover the item which has been
cleared.
Example
:MEASure:CLEar ITEM1
Related
Commands :MEASure:RECover
:MEASure:ITEM
:MEASure:RECover
Syntax
:MEASure:RECover <item>
Description
Recover the measurement item which has been cleared.
Parameter
Name
Type
Range
Default
<item>
Discrete
{ITEM1|ITEM2|ITEM3|ITEM4|ITEM5|ALL}
--
Explanation You can use the :MEASure:ITEM command to enable the desired parameters of the
24 waveform parameters. Note that the last five parameters are determined
according to the order in which you turned them on and they will not change as you
delete one or more measurement items.
You can send the :MEASure:CLEar command to clear the items again after one or all
of the measurement items are recovered.
Related
Commands :MEASure:CLEar
:MEASure:ITEM
RIGOL Chapter 2 Command System
2-56 DS1000Z Programming Guide
:MEASure:ADISplay
Syntax :MEASure:ADISplay <bool>
:MEASure:ADISplay?
Description Enable or disable the all measurement function, or query the status of the all
measurement function.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Explanation The all measurement function can measure the following 20 parameters of the
source at the same time:
Voltage Parameters: Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot
and Peshoot
Time Parameters: Period, Frequency, Rise Time, Fall Time, + Width, - Width, + Duty
and - Duty
Other Parameters: Area and Period Area.
The all measurement function can measure CH1, CH2, CH3 and CH4 at the same
time. You can send the :MEASure:AMSource command to set the source of the all
measurement function.
Return
Format
The query returns 0 or 1.
Example
:MEASure:ADISplay ON
Related
Command
:MEASure:AMSource
:MEASure:AMSource
Syntax :MEASure:AMSource <src>[,<src>[,<src>[,<src>]]]
:MEASure:AMSource?
Description
Set or query the source of the all measurement function.
Parameter
Name
Type
Range
Default
<src>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example :MEASure:AMSource CHANnel1,CHANnel3
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-57
:MEASure:SETup:MAX
Syntax :MEASure:SETup:MAX <value>
:MEASure:SETup:MAX?
Description Set or query the upper limit of the threshold in the time, delay and phase measurements.
The default unit is %.
Parameter
Name
Type
Range
Default
<value> Integer 7 to 95 90
Explanation The upper limit, middle point and lower limit of the threshold (expressed in %) are
used to define the time, delay and phase parameters. Setting these values will affect
the measurement results of the time, delay and phase parameters.
Setting the upper limit lower than the middle point will automatically reduce the
middle point to keep it lower than the upper limit.
Return
Format
The query returns an integer between 7 and 95.
Example
:MEASure:SETup:MAX 95
Related
Commands :MEASure:SETup:MID
:MEASure:SETup:MIN
:MEASure:ITEM
:MEASure:SETup:MID
Syntax :MEASure:SETup:MID <value>
:MEASure:SETup:MID?
Description Set or query the middle point of the threshold in the time, delay and phase
measurements. The default unit is %.
Parameter
Name
Type
Range
Default
<value>
Integer
6 to 94
50
Explanation The upper limit, middle point and lower limit of the threshold (expressed in %) are
used to define the time, delay and phase parameters. Setting these values will affect
the measurement results of the time, delay and phase parameters.
The middle point must be lower than the upper limit and greater than the lower limit.
Return
Format
The query returns an integer between 6 and 94.
Example
:MEASure:SETup:MID 89
Related
Commands :MEASure:SETup:MAX
:MEASure:SETup:MIN
:MEASure:ITEM
RIGOL Chapter 2 Command System
2-58 DS1000Z Programming Guide
:MEASure:SETup:MIN
Syntax :MEASure:SETup:MIN <value>
:MEASure:SETup:MIN?
Description Set or query the lower limit of the threshold in the time, delay and phase measurements.
The default unit is %.
Parameter
Name
Type
Range
Default
<value>
Integer
5 to 93
10
Explanation The upper limit, middle point and lower limit of the threshold (expressed in %) are
used to define the time, delay and phase parameters. Setting these values will affect
the measurement results of the time, delay and phase parameters.
Setting the lower limit greater than the middle point will automatically increase the
middle point to keep it greater than the upper limit.
Return
Format
The query returns an integer between 5 and 93.
Example
:MEASure:SETup:MIN 93
Related
Commands :MEASure:SETup:MAX
:MEASure:SETup:MID
:MEASure:ITEM
:MEASure:SETup:PSA
Syntax :MEASure:SETup:PSA <source>
:MEASure:SETup:PSA?
Description Set or query source A of the Phase 1→2 and Phase 1→2 measurements.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4} CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:MEASure:SETup:PSA CHANnel1
Related
Command
:MEASure:ITEM
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-59
:MEASure:SETup:PSB
Syntax :MEASure:SETup:PSB <source>
:MEASure:SETup:PSB?
Description
Set or query source B of the Phase 1
→
2 and Phase 1
→
2 measurements.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4} CHANnel2
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:MEASure:SETup:PSB CHANnel1
Related
Command :MEASure:ITEM
:MEASure:SETup:DSA
Syntax :MEASure:SETup:DSA <source>
:MEASure:SETup:DSA?
Description Set or query source A of the Delay 1→2 and Delay 1→2 measurements.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:MEASure:SETup:DSA CHANnel1
Related
Command
:MEASure:ITEM
:MEASure:SETup:DSB
Syntax :MEASure:SETup:DSB <source>
:MEASure:SETup:DSB?
Description Set or query source B of the Delay 1→2 and Delay 1→2 measurements.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4} CHANnel2
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:MEASure:SETup:DSB CHANnel1
Related
Command
:MEASure:ITEM
RIGOL Chapter 2 Command System
2-60 DS1000Z Programming Guide
:MEASure:STATistic:DISPlay
Syntax :MEASure:STATistic:DISPlay <bool>
:MEASure:STATistic:DISPlay?
Description
Enable or disable the statistic function, or query the status of the statistic function.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Explanation When the statistic function is enabled, the oscilloscope makes statistic and displays the
statistic results of at most 5 measurement items that are turned on last.
Return
Format
The query returns 0 or 1.
Example
:MEASure:STATistic:DISPlay ON
Related
Commands :MEASure:STATistic:MODE
:MEASure:STATistic:RESet
:MEASure:STATistic:ITEM
:MEASure:ITEM
:MEASure:STATistic:MODE
Syntax :MEASure:STATistic:MODE <mode>
:MEASure:STATistic:MODE?
Description
Set or query the statistic mode.
Parameter
Name
Type
Range
Default
<mode>
Discrete
{DIFFerence|EXTRemum}
EXTRemum
Explanation DIFFerence: select the difference mode. The statistic results contain the current
value, average value, standard deviation and counts.
EXTRemum: select the extremum mode. The statistic results contain the current
value, average value, minimum and maximum.
Sending the :MEASure:STATistic:DISPlay command can enable the statistic function.
When the statistic function is enabled, the oscilloscope makes statistic and displays
the statistic results of at most 5 measurement items that are turned on last.
Return
Format
The query returns DIFF or EXTR.
Example :MEASure:STATistic:MODE DIFFerence /*Select the difference mode*/
:MEASure:STATistic:MODE? /*The query returns DIFF*/
Related
Commands :MEASure:STATistic:DISPlay
:MEASure:STATistic:RESet
:MEASure:STATistic:ITEM
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-61
:MEASure:STATistic:RESet
Syntax
:MEASure:STATistic:RESet
Description
Clear the history data and make statistic again.
Related
Commands :MEASure:STATistic:DISPlay
:MEASure:STATistic:MODE
:MEASure:STATistic:ITEM
:MEASure:STATistic:ITEM
Syntax :MEASure:STATistic:ITEM <item>[,<src>[,<src>]]
:MEASure:STATistic:ITEM? <type>,<item>[,<src>[,<src>]]
Description Enable the statistic function of any waveform parameter of the specified source, or query
the statistic result of any waveform parameter of the specified source.
Parameter Name Type Range Default
<item> Discrete
{VMAX|VMIN|VPP|VTOP|VBASe|VAMP|VAVG|
VRMS|OVERshoot|PREShoot|MARea|MPARea|
PERiod|FREQuency|RTIMe|FTIMe|PWIDth|
NWIDth|PDUTy|NDUTy|RDELay|FDELay|
RPHase|FPHase}
--
<src> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4} Refer to
Explanation
<type> Discrete {MAXimum|MINimum|CURRent|AVERages|
DEViation}
--
Explanation [,<src>[,<src>]] sets the source of the parameter to be measured.
If the parameter to be measured only needs a single source (such as VMAX, VMIN,
VPP, VTOP, VBASe, VAMP, VAVG, VRMS, OVERshoot, MARea, MPARea, PREShoot,
PERiod, FREQuency, RTIMe, FTIMe, PWIDth, NWIDth, PDUTy and NDUTy), you only
need to set one source. If [,<src>[,<src>]] is omitted, the source is the one selected
by the :MEASure:SOURce command by default.
If the parameter to be measured needs two sources (such as RDELay, FDELay,
RPHase and FPHase), the command needs to include two sources; otherwise, the
command is invalid. If [,<src>[,<src>]] is omitted, the sources are the ones selected
by the :MEASure:SETup:DSA and :MEASure:SETup:DSB or :MEASure:SETup:PSA
and :MEASure:SETup:PSB commands by default.
Return
Format
The query returns the statistic result in scientific notation.
Example :MEASure:STATistic:ITEM VPP,CHANnel2 /*Enable the Vpp statistic function of CH2*/
:MEASure:STATistic:ITEM? MAXimum,VPP /*The query returns 9.120000e-01*/
Related
Commands :MEASure:SOURce
:MEASure:SETup:DSA
:MEASure:SETup:DSB
:MEASure:SETup:PSA
:MEASure:SETup:PSB
RIGOL Chapter 2 Command System
2-62 DS1000Z Programming Guide
:MEASure:ITEM
Syntax :MEASure:ITEM <item>[,<src>[,<src>]]
:MEASure:ITEM? <item>[,<src>[,<src>]]
Description Measure any waveform parameter of the specified source, or query the measurement
result of any waveform parameter of the specified source.
Parameter
Name
Type
Range
Default
<item> Discrete {VMAX|VMIN|VPP|VTOP|VBASe|VAMP|VAVG|
VRMS|OVERshoot|PREShoot|MARea|MPARea|
PERiod|FREQuency|RTIMe|FTIMe|PWIDth|
NWIDth|PDUTy|NDUTy|RDELay|FDELay|
RPHase|FPHase|}
--
<src> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4} --
Explanation [,<src>[,<src>]] sets the source of the parameter to be measured.
If the parameter to be measured only needs a single source (such as VMAX, VMIN,
VPP, VTOP, VBASe, VAMP, VAVG, VRMS, OVERshoot, MARea, MPARea, PREShoot,
PERiod, FREQuency, RTIMe, FTIMe, PWIDth, NWIDth, PDUTy and NDUTy), you only
need to set one source. If [,<src>[,<src>]] is omitted, the source is the one selected
by the :MEASure:SOURce command by default.
If the parameter to be measured needs two sources (such as RDELay, FDELay,
RPHase and FPHase), the command needs to include two sources; otherwise, the
command is invalid. If [,<src>[,<src>]] is omitted, the sources are the ones selected
by the :MEASure:SETup:DSA and :MEASure:SETup:DSB or :MEASure:SETup:PSA
and :MEASure:SETup:PSB commands by default.
Return
Format
The query returns the measurement result in scientific notation.
Example :MEASure:ITEM OVERshoot,CHANnel2 /*Enable the overshoot measurement of CH2*/
:MEASure:ITEM? OVERshoot,CHANnel2 /*The query returns 8.888889e-03*/
Related
Commands :MEASure:SOURce
:MEASure:SETup:DSA
:MEASure:SETup:DSB
:MEASure:SETup:PSA
:MEASure:SETup:PSB
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-63
:REFerence Commands
Command List:
:REFerence:DISPlay
:REFerence<n>:ENABle
:REFerence<n>:SOURce
:REFerence<n>:VSCale
:REFerence<n>:VOFFset
:REFerence<n>:RESet
:REFerence:DISPlay
Syntax :REFerence:DISPlay <onoff>
:REFerence:DISPlay?
Description
Enable or disable the REF function, or query the status of the REF function.
Parameter
Name
Type
Range
Default
<onoff> Bool {{0|OFF}|{1|ON}}
0|OFF
Return
Format
The query returns 0 or 1.
Example
:REFerence:DISPlay ON
:REFerence<n>:ENABle
Syntax :REFerence<n>:ENABle <bool>
:REFerence<n>:ENABle?
Description Enable or disable the specified reference channel, or query the status of the specified
reference channel.
Parameter
Name
Type
Range
Default
<n>
Discrete
{1|2|3|4|5|6|7|8|9|10}
1
<bool> Bool {{0|OFF}|{1|ON}} Ref1: 1|ON
Others: 0|OFF
Return
Format
The query returns 0 or 1.
Example
:REFerence1:ENABle ON
RIGOL Chapter 2 Command System
2-64 DS1000Z Programming Guide
:REFerence<n>:SOURce
Syntax :REFerence<n>:SOURce <source>
:REFerence<n>:SOURce?
Description
Set or query the source of the specified reference channel.
Parameter
Name
Type
Range
Default
<n> Discrete {1|2|3|4|5|6|7|8|9|10} None
<source> Discrete {CHANnel1|CHANnel2|
CHANnel3|CHANnel4|MATH}
CHANnel1
Explanation Among CH1, CH2, CH3, CH4 and MATH, only the channel currently enabled can be
selected as the source or the specified reference channel.
Return
Format
The query returns CHAN1, CHAN2, CHAN3, CHAN4 or MATH.
Example :REFerence1:SOURce CHANnel1
:REFerence<n>:VSCale
Syntax :REFerence<n>:VSCale <scale>
:REFerence<n>:VSCale?
Description Set or query the vertical scale of the specified reference channel. The unit is the same
as the unit of the source.
Parameter
Name
Type
Range
Default
<n> Discrete {1|2|3|4|5|6|7|8|9|10} None
<scale> Real
Related to the probe ratio:
when probe ratio is 1: 1mV to 10V The vertical scale of
the source when saving
the reference
waveform
Explanation This command is valid only when the specified reference channel has stored reference
waveform. Otherwise, the oscilloscope will display “No reference data!” when sending
this command.
Return Format
The query returns the vertical scale in scientific notation.
Example
:REFerence1:VSCale 2
Related
Command
:REFerence<n>:SOURce
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-65
:REFerence<n>:VOFFset
Syntax :REFerence<n>:VOFFset <offset>
:REFerence<n>:VOFFset?
Description Set or query the vertical offset of the specified reference channel. The unit is the
same as the unit of the source.
Parameter
Name
Type
Range
Default
<n>
Discrete
{1|2|3|4|5|6|7|8|9|10}
None
<offset>
Real
-10*RefVerticalScale to 10*RefVerticalScale
0
Explanation
RefVerticalScale refers to the vertical scale of the reference channel.
Return Format
The query returns the vertical offset in scientific notation.
Example
:REFerence1:VOFFset 10
Related
Commands :REFerence<n>:SOURce
:REFerence<n>:VSCale
:REFerence<n>:RESet
Syntax
:REFerence<n>:RESet
Description Reset the vertical scale and vertical offset of the specified reference channel to their
default values.
Parameter
Name
Type
Range
Default
<n>
Discrete
{1|2|3|4|5|6|7|8|9|10}
None
RIGOL Chapter 2 Command System
2-66 DS1000Z Programming Guide
[:SOURce[<n>]] Commands (DS1000Z-S Only)
Command List:
[:SOURce[<n>]]:OUTPut[<n>][:STATe]
[:SOURce[<n>]]:OUTPut[<n>]:IMPedance
[:SOURce[<n>]]:FREQuency[:FIXed]
[:SOURce[<n>]]:PHASe[:ADJust]
[:SOURce[<n>]]:PHASe:INITiate
[:SOURce[<n>]]:FUNCtion[:SHAPe]
[:SOURce[<n>]]:FUNCtion:RAMP:SYMMetry
[:SOURce[<n>]]:VOLTage[:LEVel][:IMMediate][:AMPLitude]
[:SOURce[<n>]]:VOLTage[:LEVel][:IMMediate]:OFFSet
[:SOURce[<n>]]:PULSe:DCYCle
[:SOURce[<n>]]:MOD[:STATe]
[:SOURce[<n>]]:MOD:TYPe
[:SOURce[<n>]]:MOD:AM[:DEPTh]
[:SOURce[<n>]]:MOD:AM:INTernal:FREQuency
[:SOURce[<n>]]:MOD:FM:INTernal:FREQuency
[:SOURce[<n>]]:MOD:AM:INTernal:FUNCtion
[:SOURce[<n>]]:MOD:FM:INTernal:FUNCtion
[:SOURce[<n>]]:MOD:FM[:DEVIation]
[:SOURce[<n>]]:APPLy?
[:SOURce[<n>]]:APPLy:NOISe
[:SOURce[<n>]]:APPLy:PULSe
[:SOURce[<n>]]:APPLy:RAMP
[:SOURce[<n>]]:APPLy:SINusoid
[:SOURce[<n>]]:APPLy:SQUare
[:SOURce[<n>]]:APPLy:USER
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-67
[:SOURce[<n>]]:OUTPut[<n>][:STATe]
Syntax [:SOURce[<n>]]:OUTPut[<n>][:STATe] <bool>
[:SOURce[<n>]]:OUTPut[<n>][:STATe]?
Description Turn on or off the output of the specified source channel, or query the status of the output
of the specified source channel.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Explanation [:SOURce[<n>]] and [<n>] are used to specify the source channel. The former enjoys
higher priority over the latter, namely if [:SOURce[<n>]] is omitted, the channel is
specified by [<n>] and if [:SOURce[<n>]] is not omitted, the channel is specified by
[:SOURce[<n>]]. If both are omitted, the operation is performed on source 1 by default.
Return
Format
The query returns OFF or ON.
Example
:OUTPut 1
[:SOURce[<n>]]:OUTPut[<n>]:IMPedance
Syntax [:SOURce[<n>]]:OUTPut[<n>]:IMPedance <impedance>
[:SOURce[<n>]]:OUTPut[<n>]:IMPedance?
Description
Set or query the impedance of the specified source channel.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
<impedance>
Discrete
{OMEG|FIFTy}
OMEG
Explanation OMEG: high impedance; FIFTy: 50Ω
[:SOURce[<n>]] and [<n>] are used to specify the source channel. The former
enjoys higher priority over the latter, namely if [:SOURce[<n>]] is omitted, the
channel is specified by [<n>] and if [:SOURce[<n>]] is not omitted, the channel is
specified by [:SOURce[<n>]]. If both are omitted, the operation is performed on
source 1 by default.
Return
Format
The query returns OMEG or FIFT.
Example :OUTPut:IMPedance FIFTy
RIGOL Chapter 2 Command System
2-68 DS1000Z Programming Guide
[:SOURce[<n>]]:FREQuency[:FIXed]
Syntax [:SOURce[<n>]]:FREQuency[:FIXed] <frequency>
[:SOURce[<n>]]:FREQuency[:FIXed]?
Description Set or query the output frequency of the specified source channel if the modulation is not
enabled or the carrier frequency if the modulation is enabled. The default unit is Hz.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
<frequency> Real
Sine: 0.1Hz to 25MHz
Square: 0.1Hz to 15MHz
Pulse: 0.1Hz to 1MHz
Ramp: 0.1Hz to 100kHz
Arbitrary waveform: 0.1Hz to
10MHz
100kHz
Return
Format
The query returns the frequency in scientific notation, such as 2.0000000e+05.
Example
:FREQuency 1000
Related
Commands [:SOURce[<n>]]:MOD[:STATe]
[:SOURce[<n>]]:MOD:TYPe
[:SOURce[<n>]]:PHASe[:ADJust]
Syntax [:SOURce[<n>]]:PHASe[:ADJust] <phase>
[:SOURce[<n>]]:PHASe[:ADJust]?
Description Set or query the start phase of the specified source channel. The default unit is degree
(°).
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
<phase>
Real
0 to 360
0
Return
Format
The query returns the start phase in scientific notation, such as 0.0000000e+00.
Example
:PHASe 90
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-69
[:SOURce[<n>]]:PHASe:INITiate
Syntax
[:SOURce[<n>]]:PHASe:INITiate
Description
Execute the align phase operation.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
Explanation When the align phase operation is performed, the instrument re-configures the two
channels to make them output with the specified frequency and phase.
For two signals whose frequencies are the same or in multiple, this operation will align
their phases. For example, assume Source1 output a 1kHz, 5Vpp, 0° sine waveform and
Source2 outputs a 1kHz, 5Vpp, 180° sine waveform. Sample the two waveforms using
another oscilloscope and display them stably; you will see that the waveforms shown on
the oscilloscope do not always have a phase deviation of 180°. At this point, execute the
align phase operation and the waveforms shown on the oscilloscope will have a phase
deviation of 180° without any manual adjustment of the start phase of the generator.

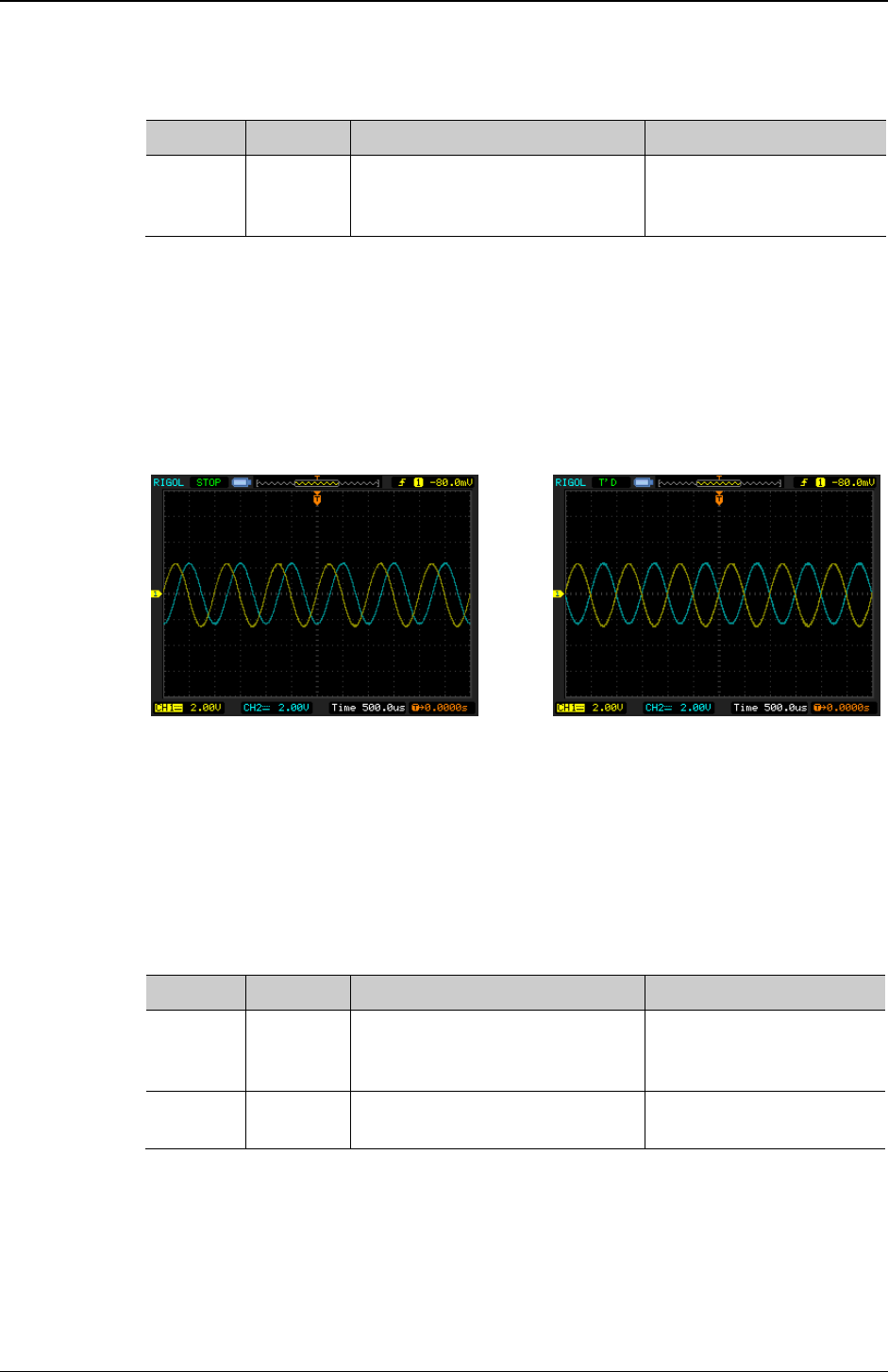

Before Aligning Phase After Aligning Phase
[:SOURce[<n>]]:FUNCtion[:SHAPe]
Syntax [:SOURce[<n>]]:FUNCtion[:SHAPe] <wave>
[:SOURce[<n>]]:FUNCtion[:SHAPe]?
Description Select or query the output waveform when the modulation of the specified source channel
is not enabled. Select or query the carrier waveform when the modulation is enabled. At
this point, if PULSe, NOISe or DC is selected, the modulation will turn off automatically.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
<wave> Discrete {SINusoid|SQUare|RAMP|PULSe
|NOISe|DC|INTErnal|EXTernal}
SINusoid
Explanation INTErnal: built-in waveforms (7 built-in waveforms are provided by DS1000Z,
including Sinc, Exp.Rise, Exp.Fall, ECG, Gauss, Lorentz and Haversine)
EXTernal: arbitrary waveform
Return
Format
The query returns SIN, SQU, RAMP, PULS, NOIS, DC, INTE or EXT.
Example
:FUNCtion SQUare
RIGOL Chapter 2 Command System
2-70 DS1000Z Programming Guide
[:SOURce[<n>]]:FUNCtion:RAMP:SYMMetry
Syntax [:SOURce[<n>]]:FUNCtion:RAMP:SYMMetry <val>
[:SOURce[<n>]]:FUNCtion:RAMP:SYMMetry?
Description Set or query the ramp symmetry (the percentage that the rising period takes up in the
whole period) of the specified source channel. The default unit is %.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
<val> Real 0 to 100 10
Return
Format
The query returns the symmetry in scientific notation, such as 5.000000e+01.
Example
:FUNCtion:RAMP:SYMMetry 50
Related
Command
[:SOURce[<n>]]:FUNCtion[:SHAPe]
[:SOURce[<n>]]:VOLTage[:LEVel][:IMMediate][:AMPLitude]
Syntax [:SOURce[<n>]]:VOLTage[:LEVel][:IMMediate][:AMPLitude] <Amplitude>
[:SOURce[<n>]]:VOLTage[:LEVel][:IMMediate][:AMPLitude]?
Description
Set or query the output amplitude of the specified source channel. The default unit is Vpp.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
<Ampliude> Real
Related to the output
impedance:
HighZ: 20mVpp to 5Vpp
50Ω: 10mVpp to 2.5Vpp
1Vpp
Explanation You can use the [:SOURce[<n>]]:OUTPut[<n>]:IMPedance command to set the output
impedance.
Return
Format
The query returns the amplitude in scientific notation, such as 1.0000000e+00.
Example :VOLTage 2
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-71
[:SOURce[<n>]]:VOLTage[:LEVel][:IMMediate]:OFFSet
Syntax [:SOURce[<n>]]:VOLTage[:LEVel] [:IMMediate]:OFFSet <offset>
[:SOURce[<n>]]:VOLTage[:LEVel] [:IMMediate]:OFFSet?
Description
Set or query the DC offset of the specified source channel. The default unit is V.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation
is performed on source 1
by default
<offset> Real
Related to the output impedance
and amplitude:
HighZ: ±(2.5V-current amplitude/2)
50Ω: ±(1.25V-current amplitude/2)
0V
Explanation You can use the [:SOURce[<n>]]:OUTPut[<n>]:IMPedance command to set the
output impedance.
You can use the [:SOURce[<n>]]:VOLTage[:LEVel][:IMMediate][:AMPLitude]
command to set the output amplitude.
Return
Format
The query returns the DC offset in scientific notation, such as 1.0000000e+00.
Example :VOLTage:OFFSet 0.5
[:SOURce[<n>]]:PULSe:DCYCle
Syntax [:SOURce[<n>]]:PULSe:DCYCle <percent>
[:SOURce[<n>]]:PULSe:DCYCle?
Description Set or query the pulse duty cycle (the percentage that the high level takes up in the whole
period) of the specified source channel. The default unit is %.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
<percent>
Real
10 to 90
20
Return
Format
The query returns the duty cycle in scientific notation, such as 5.000000e+01.
Example
:PULSe:DCYCle 50
Related
Command [:SOURce[<n>]]:FUNCtion[:SHAPe]
RIGOL Chapter 2 Command System
2-72 DS1000Z Programming Guide
[:SOURce[<n>]]:MOD[:STATe]
Syntax [:SOURce[<n>]]:MOD[:STATe] <bool>
[:SOURce[<n>]]:MOD[:STATe]?
Description Enable or disable the modulation of the specified source channel, or query the status
of the modulation of the specified source channel.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by default
<bool>
Bool
{{1|ON}|{0|OFF}}
0|OFF
Explanation The signal source of DS1000Z provides two types of modulations (Amplitude
Modulation (AM) and Frequency Modulation (FM)) which can be selected by
sending the [:SOURce[<n>]]:MOD:TYPe command.
Sine, Square, Ramp, Built-in waveforms or Arb waveform (except DC) can be used
as the carrier waveform.
You can use the [:SOURce[<n>]]:MOD:AM:INTernal:FUNCtion or
[:SOURce[<n>]]:MOD:FM:INTernal:FUNCtion command to selelct Sine, Square,
Ramp or Noise as the modulating waveform.
Return Format
The query returns OFF or ON.
Example
:MOD ON
Related
Commands
[:SOURce[<n>]]:FUNCtion[:SHAPe]
[:SOURce[<n>]]:MOD:TYPe
[:SOURce[<n>]]:MOD:AM:INTernal:FUNCtion
[:SOURce[<n>]]:MOD:FM:INTernal:FUNCtion
[:SOURce[<n>]]:MOD:TYPe
Syntax [:SOURce[<n>]]:MOD:TYPe <type>
[:SOURce[<n>]]:MOD:TYPe?
Description
Set or query the modulation type of the specified source channel.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by default
<type>
Discrete
{AM|FM}
AM
Explanation AM: amplitude modulation. The amplitude of the carrier waveform varies with the
amplitude of the modulating waveform.
FM: frequency modulation. The frequency of the carrier waveform varies with the
amplitude of the modulating waveform.
Sine, Square, Ramp, Built-in waveforms or Arb waveform (except DC) can be used
as the carrier waveform.
You can use the [:SOURce[<n>]]:MOD:AM:INTernal:FUNCtion or
[:SOURce[<n>]]:MOD:FM:INTernal:FUNCtion command to selelct Sine, Square,
Ramp or Noise as the modulating waveform.
Return Format
The query returns AM or FM.
Example
:MOD:TYPe AM
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-73
[:SOURce[<n>]]:MOD:AM[:DEPTh]
Syntax [:SOURce[<n>]]:MOD:AM[:DEPTh] <depth>
[:SOURce[<n>]]:MOD:AM[:DEPTh]?
Description Set or query the AM modulation depth (indicates the amplitude variation degree and is
expressed as a percentage) of the specified source channel. The default unit is %.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by default
<depth>
Real
0 to 120
100
Explanation In 0% modulation, the output amplitude is half of the carrier waveform amplitude.
In 100% modulation, the output amplitude is equal to the carrier waveform amplitude.
In >100% modulation, envelop distortion which should be avoided in the real circuit will
occur and the output amplitude of the instrument would not exceed 5Vpp (50Ω load).
Return
Format
The query returns an integer.
Example
:MOD:AM 80
[:SOURce[<n>]]:MOD:AM:INTernal:FREQuency
[:SOURce[<n>]]:MOD:FM:INTernal:FREQuency
Syntax [:SOURce[<n>]]:MOD:AM:INTernal:FREQuency <frequency>
[:SOURce[<n>]]:MOD:AM:INTernal:FREQuency?
[:SOURce[<n>]]:MOD:FM:INTernal:FREQuency <frequency>
[:SOURce[<n>]]:MOD:FM:INTernal:FREQuency?
Description Set or query the modulating waveform frequency of AM or FM of the specified source
channel. The default unit is Hz.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by default
<frequency> Real 1Hz to 50kHz 1kHz
Explanation Sending the [:SOURce[<n>]]:MOD:TYPe command can set the modulation type.
AM: amplitude modulation. The amplitude of the carrier waveform varies with the
amplitude of the modulating waveform.
FM: frequency modulation. The frequency of the carrier waveform varies with the
amplitude of the modulating waveform.
Sending [:SOURce[<n>]]:MOD:AM:INTernal:FUNCtion or
[:SOURce[<n>]]:MOD:FM:INTernal:FUNCtion can selelct Sine, Square, Ramp or
Noise as the modulating waveform.
Return
Format
The query returns an integer.
Example
:MOD:AM:INTernal:FREQuency 100
RIGOL Chapter 2 Command System
2-74 DS1000Z Programming Guide
[:SOURce[<n>]]:MOD:AM:INTernal:FUNCtion
[:SOURce[<n>]]:MOD:FM:INTernal:FUNCtion
Syntax [:SOURce[<n>]]:MOD:AM:INTernal:FUNCtion <wave>
[:SOURce[<n>]]:MOD:AM:INTernal:FUNCtion?
[:SOURce[<n>]]:MOD:FM:INTernal:FUNCtion <wave>
[:SOURce[<n>]]:MOD:FM:INTernal:FUNCtion?
Description
Set or query the modulating waveform of AM or FM of the specified source channel.
Parameter Name Type Range Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
<wave> Discrete {SINusoid|SQUare|RAMP|NOISe} SINusoid
Explanation Sine (SINusoid), Square (SQUare), Ramp (RAMP) or Noise (NOISe) can be selected
as the modulating waveform. You can set the frequency of the modulating
waveform by sending [:SOURce[<n>]]:MOD:AM:INTernal:FREQuency or
[:SOURce[<n>]]:MOD:FM:INTernal:FREQuency.
Sending the [:SOURce[<n>]]:MOD:TYPe command can set the modulation type.
AM: amplitude modulation. The amplitude of the carrier waveform varies with the
amplitude of the modulating waveform.
FM: frequency modulation. The frequency of the carrier waveform varies with the
amplitude of the modulating waveform.
Return Format
The query returns SIN, SQU, RAMP or NOIS.
Example
:MOD:AM:INTernal:FUNCtion SQUare
[:SOURce[<n>]]:MOD:FM[:DEVIation]
Syntax [:SOURce[<n>]]:MOD:FM[:DEVIation] <dev>
[:SOURce[<n>]]:MOD:FM[:DEVIation]?
Description Set or query the FM frequency deviation of the specified source channel. The default unit
is Hz.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is
performed on source 1 by
default
<dev> Real 0Hz to the carrier waveform
frequency
10kHz
Explanation Sending [:SOURce[<n>]]:FREQuency[:FIXed] can set the carrier waveform
frequency and sending [:SOURce[<n>]]:MOD:FM:INTernal:FREQuency can set the
FM modulation frequency.
When the modulating waveform amplitude reaches its maximum, the carrier
waveform frequency increases by the “frequency deviation”. When the modulating
waveform amplitude reaches its minimum, the carrier waveform frequency
decreases by the “frequency deviation”.
Return Format
The query returns an integer.
Example
:MOD:FM 100
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-75
[:SOURce[<n>]]:APPLy?
Syntax
[:SOURce[<n>]]:APPLy?
Description
Query the output configurations of the specified source channel.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2} If omitted, the operation is performed on
source 1 by default
Return
Format The query returns the output configurations in “<waveform
name>,<frequency>,<amplitude>,<offset>,<start phase>” format. If the
corresponding parameter does not exist, it will be replaced by "DEF".
Example
:APPLy? /*The query returns SIN,1000.000000,1.000000,0.000000,0.000000*/
[:SOURce[<n>]]:APPLy:NOISe
[:SOURce[<n>]]:APPLy:PULSe
[:SOURce[<n>]]:APPLy:RAMP
[:SOURce[<n>]]:APPLy:SINusoid
[:SOURce[<n>]]:APPLy:SQUare
[:SOURce[<n>]]:APPLy:USER
Syntax [:SOURce[<n>]]:APPLy:NOISe [<amp>[,<offset>]]
[:SOURce[<n>]]:APPLy:PULSe [<freq>[,<amp>[,<offset>[,<phase>]]]]
[:SOURce[<n>]]:APPLy:RAMP [<freq>[,<amp>[,<offset>[,<phase>]]]]
[:SOURce[<n>]]:APPLy:SINusoid [<freq>[,<amp>[,<offset>[,<phase>]]]]
[:SOURce[<n>]]:APPLy:SQUare [<freq>[,<amp>[,<offset>[,<phase>]]]]
[:SOURce[<n>]]:APPLy:USER [<freq>[,<amp>[,<offset>[,<phase>]]]]
Description Configure the specified source channel to output the signal with the specified waveform
and parameters.
Parameter
Name
Type
Range
Default
[<n>] Discrete {1|2}
If omitted, the
operation is
performed on source
1 by default
<freq> Real
Sine: 0.1Hz to 25MHz
Square: 0.1Hz to 15MHz
Pulse: 0.1Hz to 1MHz
Ramp: 0.1Hz to 100kHz
Arbitrary waveform: 0.1Hz to 10MHz
100kHz
<amp> Real Related to the output impedance:
HighZ: 20mVpp to 5Vpp
50Ω: 10mVpp to 2.5Vpp 1Vpp
<offset> Real
Related to the output impedance and
amplitude:
HighZ: ±(2.5V-current amplitude/2)
50Ω: ±(1.25V-current amplitude/2)
0mV
<phase> Real 0° to 360°
0°
RIGOL Chapter 2 Command System
2-76 DS1000Z Programming Guide
Explanation These commands are used to select the waveform shape.
NOISe: select Noise
PULSe: select Pulse
RAMP: select Ramp
SINusoid: select Sine
SQUare: select Square
USER: select Arbitrary waveform
<freq>: set the frequency of the specified waveform (Noise does not have this
parameter). The default unit is Hz
<amp>: set the amplitude of the specified waveform. The default unit is Vpp
<offset>: set the DC offset of the specified waveform. The default unit is V
<phase>: set the start phase of the specified waveform (Noise does not have this
parameter). The default unit is degree (°).
Users can omit one or multiple parameters. When all of the parameters are omitted,
the commands only select the waveform shape but do not modify the parameters.
The four parameters (<freq>, <amp>, <offset> and <phase>) are in order. You can
not omit one parameter and set the one/ones behind it. For example, you can not
omit <freq> and set <amp> directly.
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-77
:SYSTem Commands
The :SYSTem commands are used to set the system-related parameters, such as the sound and language.
Command List:
:SYSTem:AUToscale
:SYSTem:BEEPer
:SYSTem:ERRor[:NEXT]?
:SYSTem:GPIB
:SYSTem:LANGuage
:SYSTem:LOCKed
:SYSTem:PON
:SYSTem:OPTion:INSTall
:SYSTem:OPTion:UNINSTall
:SYSTem:AUToscale
Syntax :SYSTem:AUToscale <bool>
:SYSTem:AUToscale?
Description Enable or disable the AUTO key at the front panel, or query the status of the AUTO key.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
1|ON
Explanation Users can disable the AUTO key by sending this command or pressing Utility
Auto Options Lock and enable it by sending this command.
After the AUTO key is disabled, the Auto Scale operation is invalid. The :AUToscale
command will be invalid.
Return
Format
The query returns 0 or 1.
Example
:SYSTem:AUToscale ON
:SYSTem:BEEPer
Syntax :SYSTem:BEEPer <bool>
:SYSTem:BEEPer?
Description
Enable or disable the beeper, or query the status of the beeper.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Return
Format
The query returns 0 or 1.
Example
:SYSTem:BEEPer ON
RIGOL Chapter 2 Command System
2-78 DS1000Z Programming Guide
:SYSTem:ERRor[:NEXT]?
Syntax
:SYSTem:ERRor[:NEXT]?
Description
Query and delete the last system error message.
Return
Format The query returns the error message in “<message number>,<message content>”
format. Wherein, <message number> is an integer and <message content> is a ASCII
string. For example, -113,"Undefined header; command cannot be found".
:SYSTem:GPIB
Syntax :SYSTem:GPIB <adr>
:SYSTem:GPIB?
Description
Set or query the GPIB address.
Parameter
Name
Type
Range
Default
<adr>
Integer
1 to 30
2
Explanation
The GPIB address is not affected by sending *RST.
Return
Format
The query returns an integer.
Example
:SYSTem:GPIB 7
:SYSTem:LANGuage
Syntax :SYSTem:LANGuage <lang>
:SYSTem:LANGuage?
Description
Set or query the system language.
Parameter
Name
Type
Range
Default
<lang>
Discrete
{SCHinese|ENGLish}
SCHinese
Explanation
The system language is not affected by sending *RST.
Return
Format
The query returns SCH or ENGL.
Example
:SYSTem:LANGuage SCHinese
:SYSTem:LOCKed
Syntax :SYSTem:LOCKed <bool>
:SYSTem:LOCKed?
Description Enable or disable the keyboard lock function, or query the status of the keyboard lock
function.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Return
Format
The query returns 0 or 1.
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-79
:SYSTem:PON
Syntax :SYSTem:PON <pon>
:SYSTem:PON?
Description Set or query the system configuration to be recalled when the oscilloscope is powered on
again after power-off.
Parameter
Name
Type
Range
Default
<pon>
Discrete
{LATest|DEFault}
LATest
Return
Format
The query returns LAT or DEF.
Example
:SYSTem:PON LATest
:SYSTem:OPTion:INSTall
Syntax
:SYSTem:OPTion:INSTall <license>
Description
Install the option.
Parameter
Name
Type
Range
Default
<license> ASCII String Option serial number supplied by RIGOL
No spaces between characters.
None
Example
:SYSTem:OPTion:INSTall PDUY9N9QTS9PQSWPLAETRD3UJHYA
:SYSTem:OPTion:UNINSTall
Syntax
:SYSTem:OPTion:UNINSTall
Description
Uninstall the options installed.
RIGOL Chapter 2 Command System
2-80 DS1000Z Programming Guide
:TIMebase Commands
The :TIMebase commands are used to set the horizontal parameters, such as enabling the delayed sweep
and setting the horizontal timebase mode.
Command List:
:TIMebase:DELay:ENABle
:TIMebase:DELay:OFFSet
:TIMebase:DELay:SCALe
:TIMebase[:MAIN]:OFFSet
:TIMebase[:MAIN]:SCALe
:TIMebase:MODE
:TIMebase:DELay:ENABle
Syntax :TIMebase:DELay:ENABle <bool>
:TIMebase:DELay:ENABle?
Description
Enable or disable the delayed sweep, or query the status of the delayed sweep.
Parameter
Name
Type
Range
Default
<bool>
Bool
{{0|OFF}|{1|ON}}
0|OFF
Explanation Delayed sweep can be used to enlarge a length of waveform horizontally to view the
waveform details.
Return Format
The query returns 0 or 1.
Example
:TIMebase:DELay:ENABle ON
:TIMebase:DELay:OFFSet
Syntax :TIMebase:DELay:OFFSet <offset>
:TIMebase:DELay:OFFSet?
Description
Set or query the delayed timebase offset. The default unit is s.
Parameter
Name
Type
Range
Default
<offset> Real -(LeftTime - DelayRange/2) to
(RightTime - DelayRange/2) 0
Explanation LeftTime = 6×MainScale – MainOffset
RightTime = 6×MainScale + MainOffset
DelayRange = 12×DelayScale
Return Format
The query returns the offset in scientific notation.
Example :TIMebase:DELay:OFFSet 0.000002 /*Set the delayed timebase offset to 2μs*/
:TIMebase:DELay:OFFSet? /*The query returns 2.0000000e-06*/
Related
Commands :TIMebase:DELay:SCALe
:TIMebase[:MAIN]:OFFSet
:TIMebase[:MAIN]:SCALe
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-81
:TIMebase:DELay:SCALe
Syntax :TIMebase:DELay:SCALe <scale_value>
:TIMebase:DELay:SCALe?
Description
Set or query the delayed timebase scale. The default unit is s/div.
Parameter
Name
Type
Range
Default
<scale_value> Real See Explanation 500ns
Explanation The maximum of <scale_value> is the main timebase scale currently set and the
minimum is related to the current sample rate (satisfying the inequality: current
sample rate * delayed timebase scale * 7 ≥ 14) and is no less than 1ns.
The delayed timebase scale can only be the maximum or the value decreased
from the maximum in 1-2-5 step. If the minimum calculated by the inequality
mentioned above is not a settable value, the larger settable value that is nearest
to the calculated value will be used as the minimum. If the value set is between
two settable values, the smaller one will be used as the delayed timebase scale
automatically.
For example, when the main timebase scale currently set is 10.00μs and the
sample rate is 500MSa/s, the maximum of <scale_value> is 10.00μs. The
minimum is calculated using the inequality: ≥ 14 / (500MSa/s * 7) = 40ns. Taking
the larger settable value that is nearest to the calculated value, the minimum is
50ns. At this point, if 0.000009 (namely 9μs) is set, the instrument sets the
delayed timebase scale to 5μs.
Return Format
The query returns the scale in scientific notation.
Example :TIMebase:DELay:SCALe 0.00000005 /*Set the delayed timebase scale to 50ns*/
:TIMebase:DELay:SCALe? /*The query returns 5.0000000e-08*/
Related
Command
:TIMebase[:MAIN]:SCALe
:TIMebase[:MAIN]:OFFSet
Syntax :TIMebase[:MAIN]:OFFSet <offset>
:TIMebase[:MAIN]:OFFSet?
Description
Set or query the main timebase offset. The default unit is s.
Parameter
Name
Type
Range
Default
<offset>
Real
-Screen/2 to 1s or -Screen/2 to 5000s
0
Explanation This command is invalid when the horizontal timebase mode is Roll and the
oscilloscope is in the Run state.
When the horizontal timebase mode is YT and the horizontal timebase is 20ms
or larger (namely the “Slow Sweep” mode), this command is invalid when the
oscilloscope in the Stoping state.
Return Format
The query returns the offset in scientific notation.
Example
:TIMebase:MAIN:OFFSet 0.0002 /*Set the main timebase offset to 20ms*/
Related
Commands :TIMebase:MODE
:TIMebase[:MAIN]:SCALe
:RUN
:STOP
RIGOL Chapter 2 Command System
2-82 DS1000Z Programming Guide
:TIMebase[:MAIN]:SCALe
Syntax :TIMebase[:MAIN]:SCALe <scale_value>
:TIMebase[:MAIN]:SCALe?
Description
Set or query the main timebase scale. The default unit is s/div.
Parameter
Name
Type
Range
Default
<scale_value> Real Normal: 5ns to 50s in 1-2-5 step
Roll: 200ms to 50s in 1-2-5 step 1μs
Explanation When the horizontal timebase mode is YT and the horizontal timebase is 20ms or
larger (namely the “Slow Sweep” mode), this command is invalid when the
oscilloscope in the Stoping state.
Return Format
The query returns the main timebase scale in scientific notation.
Example :TIMebase:MAIN:SCALe 0.0002 /*Set the main timebase scale to 200μs*/
:TIMebase:MAIN:SCALe? /*The query returns 2.0000000e-04*/
Related
Command :TIMebase:MODE
:TIMebase:MODE
Syntax :TIMebase:MODE <mode>
:TIMebase:MODE?
Description
Set or query the mode of the horizontal timebase.
Parameter
Name
Type
Range
Default
<mode>
Discrete
{MAIN|XY|ROLL}
MAIN
Return Format The query returns MAIN, XY or ROLL.
Example
:TIMebase:MODE XY
Related
Commands :TIMebase:DELay:OFFSet
:TIMebase:DELay:SCALe
:TIMebase[:MAIN]:OFFSet
:TIMebase[:MAIN]:SCALe
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-83
:TRIGger Commands
The :TRIGger commands are used to set the trigger system of the oscilloscope.
Command List:
:TRIGger:MODE
:TRIGger:COUPling
:TRIGger:STATus?
:TRIGger:SWEep
:TRIGger:HOLDoff
:TRIGger:NREJect
:TRIGger:EDGe
:TRIGger:PULSe
:TRIGger:SLOPe
:TRIGger:VIDeo
:TRIGger:PATTern
:TRIGger:DURATion
:TRIGger:TIMeout (Option)
:TRIGger:RUNT (Option)
:TRIGger:WINDows (Option)
:TRIGger:DELay (Option)
:TRIGger:SHOLd
:TRIGger:NEDGe (Option)
:TRIGger:RS232 (Option)
:TRIGger:IIC (Option)
:TRIGger:SPI (Option)
:TRIGger:MODE
Syntax :TRIGger:MODE <mode>
:TRIGger:MODE?
Description
Select or query the trigger type.
Parameter Name Type Range Default
<mode> Discrete {EDGE|PULSe|RUNT|WIND|NEDG|SLOPe|VIDeo|
PATTern|DELay|TIMeout|DURation|SHOLd|RS232
|IIC|SPI}
EDGE
Return
Format
The query returns EDGE, PULS, RUNT, WIND, NEDG, SLOP, VID, PATT, DEL, TIM, DUR,
SHOL, RS232, IIC or SPI.
Example
:TRIGger:MODE SLOPe
RIGOL Chapter 2 Command System
2-84 DS1000Z Programming Guide
:TRIGger:COUPling
Syntax :TRIGger:COUPling <couple>
:TRIGger:COUPling?
Description
Select or query the trigger coupling type.
Parameter
Name
Type
Range
Default
<couple>
Discrete
{AC|DC|LFReject|HFReject}
DC
Explanation This command is only applicable to the edge trigger.
AC: block all the DC components and attenuate signals lower than 75 kHz.
DC: allow DC and AC components into the trigger path.
LFReject: block the DC components and reject the low frequency components (lower
than 75 kHz).
HFReject: reject the high frequency components (higher than 75 kHz).
Return
Format
The query returns AC, DC, LFR or HFR.
Example
:TRIGger:COUPling LFReject
:TRIGger:STATus?
Syntax :TRIGger:STATus?
Description
Query the current trigger status.
Return
Format
The query returns TD, WAIT, RUN, AUTO or STOP.
:TRIGger:SWEep
Syntax :TRIGger:SWEep <sweep>
:TRIGger:SWEep?
Description
Set or query the trigger mode.
Parameter Name Type Range Default
<sweep>
Discrete
{AUTO|NORMal|SINGle}
AUTO
Explanation AUTO: auto trigger. No matter whether the trigger condition is met, there is always
waveform display.
NORMal: normal trigger. Display waveform when the trigger condition is met;
otherwise, the oscilloscope holds the original waveform and waits for the next trigger.
SINGle: single trigger. The oscilloscope waits for a trigger and displays the waveform
when the trigger condition is met and then stops.
Return
Format
The query returns AUTO, NORM or SING.
Example
:TRIGger:SWEep SINGle
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-85
:TRIGger:HOLDoff
Syntax :TRIGger:HOLDoff <value>
:TRIGger:HOLDoff?
Description
Set or query the trigger holdoff time. The default unit is s.
Parameter
Name
Type
Range
Default
<value>
Real
16ns to 10s
16ns
Explanation Trigger holdoff can be used to stably trigger the complex waveforms (such as pulse
series). Holdoff time is the time that the oscilloscope waits before re-arming the
trigger circuitry. The oscilloscope will not trigger until the holdoff time expires.
When the trigger type is video, RS232, I2C or SPI, this setting will be not available.
Return
Format
The query retuns the trigger holdoff time in scientific notation.
Example :TRIGger:HOLDoff 0.0000002 /*Set the trigger holdoff time to 200ns*/
:TRIGger:HOLDoff? /*The query returns 2.000000e-07*/
:TRIGger:NREJect
Syntax :TRIGger:NREJect <bool>
:TRIGger:NREJect?
Description
Enable or disable the noise rejection, or query the status of the noise rejection.
Parameter
Name
Type
Range
Default
<bool> Bool {{0|OFF}|{1|ON}} 0|OFF
Explanation
Noise rejection reduces the possibility of noise trigger.
Return
Format The query returns 0 or 1.
Example
:TRIGger:NREJect ON
RIGOL Chapter 2 Command System
2-86 DS1000Z Programming Guide
:TRIGger:EDGe
Command List:
:TRIGger:EDGe:SOURce
:TRIGger:EDGe:SLOPe
:TRIGger:EDGe:LEVel
:TRIGger:EDGe:SOURce
Syntax :TRIGger:EDGe:SOURce <source>
:TRIGger:EDGe:SOURce?
Description
Set or query the trigger source in edge trigger.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4|AC} CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3, CHAN4 or AC.
Example
:TRIGger:EDGe:SOURce CHANnel1
:TRIGger:EDGe:SLOPe
Syntax :TRIGger:EDGe:SLOPe <slope>
:TRIGger:EDGe:SLOPe?
Description
Set or query the edge type in edge trigger.
Parameter
Name
Type
Range
Default
<slope>
Discrete
{POSitive|NEGative|RFALl}
POSitive
Return
Format
The query returns POS, NEG or RFAL.
Example
:TRIGger:EDGe:SLOPe NEGative
Related
Command
:TRIGger:MODE
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-87
:TRIGger:EDGe:LEVel
Syntax :TRIGger:EDGe:LEVel <level>
:TRIGger:EDGe:LEVel?
Description Set or query the trigger level in edge trigger. The unit is the same as the current
amplitude unit.
Parameter
Name
Type
Range
Default
<level> Real (± 5 × VerticalScale from the screen center) - OFFSet 0
Explanation For VerticalScale, refer to the :CHANnel<n>:SCALe command. For OFFSet, refer to
the :CHANnel<n>:OFFSet command.
Return
Format
The query returns the trigger level in scientific notation.
Example
:TRIGger:EDGe:LEVel 0.16
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
RIGOL Chapter 2 Command System
2-88 DS1000Z Programming Guide
:TRIGger:PULSe
Command List:
:TRIGger:PULSe:SOURce
:TRIGger:PULSe:WHEN
:TRIGger:PULSe:WIDTh
:TRIGger:PULSe:UWIDth
:TRIGger:PULSe:LWIDth
:TRIGger:PULSe:LEVel
:TRIGger:PULSe:SOURce
Syntax :TRIGger:PULSe:SOURce <source>
:TRIGger:PULSe:SOURce?
Description
Set or query the trigger source in pulse width trigger.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4} CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example :TRIGger:PULSe:SOURce CHANnel1 /*Set the trigger source to CH1*/
:TRIGger:PULSe:WHEN
Syntax :TRIGger:PULSe:WHEN <when>
:TRIGger:PULSe:WHEN?
Description
Set or query the trigger condition in pulse width trigger.
Parameter
Name
Type
Range
Default
<when>
Discrete
{PGReater|PLESs|NGReater|NLESs|PGLess|NGLess}
PGReater
Explanation PGReater/PLESs: you need to specify a pulse width (refer
to :TRIGger:PULSe:WIDTh). The oscilloscope triggers when the positive pulse width
of the input signal is greater/lower than the specified Pulse Width.
NGReater/NLESs: you need to specify a pulse width (refer
to :TRIGger:PULSe:WIDTh). The oscilloscope triggers when the negative pulse width
of the input signal is greater/lower than the specified Pulse Width.
PGLess/NGLess: you need to specify an upper (refer to :TRIGger:PULSe:UWIDth)
and a lower (refer to :TRIGger:PULSe:LWIDth) pulse width. The oscilloscope triggers
when the positive/negative pulse width of the input signal is greater than the
specified lower pulse width and lower than the upper pulse width.
Return
Format
The query returns PGR, PLES, NGR, NLES, PGL or NGL.
Example
:TRIGger:PULSe:WHEN NLESs /*Set the trigger condition to NLESs*/
Related
Commands :TRIGger:PULSe:WIDTh
:TRIGger:PULSe:UWIDth
:TRIGger:PULSe:LWIDth
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-89
:TRIGger:PULSe:WIDTh
Syntax :TRIGger:PULSe:WIDTh <width>
:TRIGger:PULSe:WIDTh?
Description
Set or query the pulse width in pulse width trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<width> Real 8ns to 10s PGReater, NGReater: 1μs
PLESs, NLESs: 2μs
Explanation This command is available when the trigger condition (refer to :TRIGger:PULSe:WHEN) is
PGReater, PLESs, NGReater and NLESs.
Return
Format
The query returns the pulse width in scientific notation.
Example :TRIGger:PULSe:WIDTh 0.000003 /*Set the pulse width to 3μs*/
:TRIGger:PULSe:WIDTh? /*The query returns3.000000e-06*/
Related
Command :TRIGger:PULSe:WHEN
:TRIGger:PULSe:UWIDth
Syntax :TRIGger:PULSe:UWIDth <width>
:TRIGger:PULSe:UWIDth?
Description
Set or query the upper pulse width in pulse width trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<width>
Real
16ns to 10s
1μs
Explanation This command is available when the trigger condition (refer to :TRIGger:PULSe:WHEN) is
PGLess and NGLess.
Return
Format The query returns the upper pulse width in scientific notation.
Example :TRIGger:PULSe:UWIDth 0.000003 /*Set the upper pulse width to 3μs*/
:TRIGger:PULSe:UWIDth? /*The query returns3.000000e-06*/
Related
Commands :TRIGger:PULSe:WHEN
:TRIGger:PULSe:LWIDth
RIGOL Chapter 2 Command System
2-90 DS1000Z Programming Guide
:TRIGger:PULSe:LWIDth
Syntax :TRIGger:PULSe:LWIDth <width>
:TRIGger:PULSe:LWIDth?
Description
Set or query the lower pulse width in pulse width trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<width>
Real
8ns to 9.99s
992ns
Explanation This command is available when the trigger condition (refer to :TRIGger:PULSe:WHEN) is
PGLess and NGLess.
Return
Format
The query returns the lower pulse width in scientific notation.
Example :TRIGger:PULSe:LWIDth 0.000003 /*Set the lower pulse width to 3μs*/
:TRIGger:PULSe:LWIDth? /*The query returns 3.000000e-06*/
Related
Commands :TRIGger:PULSe:WHEN
:TRIGger:PULSe:UWIDth
:TRIGger:PULSe:LEVel
Syntax :TRIGger:PULSe:LEVel <level>
:TRIGger:PULSe:LEVel?
Description Set or query the trigger level in pulse width trigger. The unit is the same as the current
amplitude unit.
Parameter
Name
Type
Range
Default
<level> Real (± 5 × VerticalScale from the screen center) -
OFFSet
0
Explanation For VerticalScale, refer to the :CHANnel<n>:SCALe command. For OFFSet, refer to
the :CHANnel<n>:OFFSet command.
Return
Format
The query returns the trigger level in scientific notation.
Example :TRIGger:PULSe:LEVel 0.16 /*Set the trigger level to 160mV*/
:TRIGger:PULSe:LEVel? /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-91
:TRIGger:SLOPe
Command List:
:TRIGger:SLOPe:SOURce
:TRIGger:SLOPe:WHEN
:TRIGger:SLOPe:TIME
:TRIGger:SLOPe:TUPPer
:TRIGger:SLOPe:TLOWer
:TRIGger:SLOPe:WINDow
:TRIGger:SLOPe:ALEVel
:TRIGger:SLOPe:BLEVel
:TRIGger:SLOPe:SOURce
Syntax :TRIGger:SLOPe:SOURce <source>
:TRIGger:SLOPe:SOURce?
Description
Set or query the trigger source in slope trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:SLOPe:SOURce CHANnel2
RIGOL Chapter 2 Command System
2-92 DS1000Z Programming Guide
:TRIGger:SLOPe:WHEN
Syntax :TRIGger:SLOPe:WHEN <when>
:TRIGger:SLOPe:WHEN?
Description
Set or query the trigger condition in slope trigger.
Parameter
Name
Type
Range
Default
<when>
Discrete
{PGReater|PLESs|NGReater|NLESs|PGLess|NGLess}
PGReater
Explanation PGReater/PLESs: you need to specify a time value (refer to :TRIGger:SLOPe:TIME).
The oscilloscope triggers when the positive slope time of the input signal is
greater/lower than the specified time.
NGReater/NLESs: you need to specify a time value (refer to :TRIGger:SLOPe:TIME).
The oscilloscope triggers when the negative slope time of the input signal is
greater/lower than the specified time.
PGLess/NGLess: you need to specify an upper limit (refer
to :TRIGger:SLOPe:TUPPer) and a lower limit (refer to :TRIGger:SLOPe:TLOWer) of
the time. The oscilloscope triggers when the positive/negative slope time of the input
signal is greater than the specified lower limit and lower than the specified upper
limit.
Return
Format
The query returns PGR, PLES, NGR, NLES, PGL or NGL.
Example
:TRIGger:SLOPe:WHEN NLESs /*Set the trigger condition to NLESs*/
Related
Commands :TRIGger:SLOPe:TIME
:TRIGger:SLOPe:TUPPer
:TRIGger:SLOPe:TLOWer
:TRIGger:SLOPe:TIME
Syntax :TRIGger:SLOPe:TIME <time>
:TRIGger:SLOPe:TIME?
Description
Set or query the time value in slope trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<time> Real 8ns to 10s PGReater, NGReater: 1μs
PLESs, NLESs: 2μs
Explanation This command is available when the trigger condition (refer to :TRIGger:SLOPe:WHEN) is
PGReater, PLESs, NGReater and NLESs.
Return
Format
The query returns the time value in scientific notation.
Example :TRIGger:SLOPe:TIME 0.000003 /*Set the time value to 3μs*/
:TRIGger:SLOPe:TIME? /*The query returns 3.000000e-06*/
Related
Command
:TRIGger:SLOPe:WHEN
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-93
:TRIGger:SLOPe:TUPPer
Syntax :TRIGger:SLOPe:TUPPer <time>
:TRIGger:SLOPe:TUPPer?
Description
Set or query the upper limit of the time in slope trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<time>
Real
16ns to 10s
1μs
Explanation This command is available when the trigger condition (refer to :TRIGger:SLOPe:WHEN) is
PGLess and NGLess.
Return
Format
The query returns the upper limit of the time in scientific notation.
Example :TRIGger:SLOPe:TUPPer 0.000003 /*Set the upper limit of the time to 3μs*/
:TRIGger:SLOPe:TUPPer? /*The query returns 3.000000e-06*/
Related
Commands :TRIGger:SLOPe:WHEN
:TRIGger:SLOPe:TLOWer
:TRIGger:SLOPe:TLOWer
Syntax :TRIGger:SLOPe:TLOWer <time>
:TRIGger:SLOPe:TLOWer?
Description
Set or query the lower limit of the time in slope trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<time>
Real
8ns to 9.99s
992ns
Explanation This command is available when the trigger condition (refer to :TRIGger:SLOPe:WHEN) is
PGLess and NGLess.
Return
Format
The query returns the lower limit of the time in scientific notation.
Example :TRIGger:SLOPe:TLOWer 0.000000020 /*Set the lower limit of the time to 20ns*/
:TRIGger:SLOPe:TUPPer? /*The query returns 2.000000e-08*/
Related
Commands :TRIGger:SLOPe:WHEN
:TRIGger:SLOPe:TUPPer
RIGOL Chapter 2 Command System
2-94 DS1000Z Programming Guide
:TRIGger:SLOPe:WINDow
Syntax :TRIGger:SLOPe:WINDow <window>
:TRIGger:SLOPe:WINDow?
Description
Set or query the vertical window type in slope trigger.
Parameter
Name
Type
Range
Default
<window>
Discrete
{TA|TB|TAB}
TA
Explanation TA: only adjust the upper limit of the trigger level, refer to :TRIGger:SLOPe:ALEVel.
TB: only adjust the lower limit of the trigger level, refer to :TRIGger:SLOPe:BLEVel.
TAB: adjust the upper and lower limits of the trigger level at the same time, refer
to :TRIGger:SLOPe:ALEVel and :TRIGger:SLOPe:BLEVel.
Return
Format
The query returns TA, TB or TAB.
Example
:TRIGger:SLOPe:WINDow TB
Related
Commands :TRIGger:SLOPe:ALEVel
:TRIGger:SLOPe:BLEVel
:TRIGger:SLOPe:ALEVel
Syntax :TRIGger:SLOPe:ALEVel <level>
:TRIGger:SLOPe:ALEVel?
Description Set or query the upper limit of the trigger level in slope trigger. The unit is the same as the
current amplitude unit.
Parameter
Name
Type
Range
Default
<level> Real (± 5 × VerticalScale from the screen center) -
OFFSet
2V
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return
Format
The query returns the upper limit of the trigger level in scientific notation.
Example :TRIGger:SLOPe:ALEVel 0.16 /*Set the upper limit of the trigger level to 160mV*/
:TRIGger:SLOPe:ALEVel /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
:TRIGger:SLOPe:BLEVel
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-95
:TRIGger:SLOPe:BLEVel
Syntax :TRIGger:SLOPe:BLEVel <level>
:TRIGger:SLOPe:BLEVel?
Description Set or query the lower limit of the trigger level in slope trigger. The unit is the same as the
current amplitude unit.
Parameter
Name
Type
Range
Default
<level>
Real
(± 5 × VerticalScale from the screen center) - OFFSet
0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return
Format
The query returns the lower limit of the trigger level in scientific notation.
Example :TRIGger:SLOPe:BLEVel 0.16 /*Set the lower limit of the trigger level to 160mV*/
:TRIGger:SLOPe:BLEVel /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
:TRIGger:SLOPe:ALEVel
RIGOL Chapter 2 Command System
2-96 DS1000Z Programming Guide
:TRIGger:VIDeo
Command List:
:TRIGger:VIDeo:SOURce
:TRIGger:VIDeo:POLarity
:TRIGger:VIDeo:MODE
:TRIGger:VIDeo:LINE
:TRIGger:VIDeo:STANdard
:TRIGger:VIDeo:LEVel
:TRIGger:VIDeo:SOURce
Syntax :TRIGger:VIDeo:SOURce <source>
:TRIGger:VIDeo:SOURce?
Description
Select or query the trigger source in video trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:VIDeo:SOURce CHANnel2
:TRIGger:VIDeo:POLarity
Syntax :TRIGger:VIDeo:POLarity <polarity>
:TRIGger:VIDeo:POLarity?
Description
Select or query the video polarity in video trigger.
Parameter
Name
Type
Range
Default
<polarity> Discrete {POSitive|NEGative} POSitive
Return
Format
The query returns POS or NEG.
Example
:TRIGger:VIDeo:POLarity POSitive
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-97
:TRIGger:VIDeo:MODE
Syntax :TRIGger:VIDeo:MODE <mode>
:TRIGger:VIDeo:MODE?
Description
Set or query the sync type in video trigger.
Parameter
Name
Type
Range
Default
<mode> Discrete {ODDField|EVENfield|LINE|ALINes} ALINes
Explanation ODDField: trigger on the rising edge of the first ramp waveform pulse in the odd
field. This type is available when the video standard is NTSC or PAL/SECAM.
EVENfield: trigger on the rising edge of the first ramp waveform pulse in the even
field. This type is available when the video standard is NTSC or PAL/SECAM.
LINE: for the NTSC and PAL/SECAM video standards, trigger on the specified line in
the odd or even field; for the 480P and 576P video standards, trigger on the specified
line.
ALINes: trigger on all the horizontal sync pulses.
Return
Format
The query returns ODDF, EVEN, LINE or ALIN.
Example
:TRIGger:VIDeo:MODE ODDField
Related
Commands :TRIGger:VIDeo:LINE
:TRIGger:VIDeo:STANdard
:TRIGger:VIDeo:LINE
Syntax :TRIGger:VIDeo:LINE <line>
:TRIGger:VIDeo:LINE?
Description
Set or query the line number when the sync type in video trigger is LINE.
Parameter Name Type Range Default
<line> Integer Refer to Explanation 1
Explanation NTSC: 1 to 525
PAL/SECAM: 1 to 625
480P: 1 to 525
576P: 1 to 625
Return
Format
The query returns an integer.
Example
:TRIGger:VIDeo:LINE 100
Related
Command
:TRIGger:VIDeo:MODE
RIGOL Chapter 2 Command System
2-98 DS1000Z Programming Guide
:TRIGger:VIDeo:STANdard
Syntax :TRIGger:VIDeo:STANdard <standard>
:TRIGger:VIDeo:STANdard?
Description
Set or query the video standard in video trigger.
Parameter
Name
Type
Range
Default
<standard>
Discrete
{PALSecam|NTSC|480P|576P}
NTSC
Explanation PALSecam:
PAL: the frame frequency is 25 frames per second. The TV sweep line is 625 with the
odd field goes first and the even field follows behind.
Secam: the frame frequency is 25 frames per second. The sweep line is 625 with
interlacing sweep.
NTSC: the field frequency is 60 fields per second and the frame frequency is 30
frames per second. The TV sweep line is 525 with the even field goes first and the
odd field follows behind.
480P: the frame frequency is 60 frames per second; the TV sweep line is 525;
line-by-line sweep; the line frequency is 31.5 kHz.
576P: the frame frequency is 60 frames per second; the TV sweep line is 625;
line-by-line sweep.
Return
Format
The query returns PALS, NTSC, 480P or 576P.
Example
:TRIGger:VIDeo:STANdard NTSC
Related
Commands :TRIGger:VIDeo:LINE
:TRIGger:VIDeo:MODE
:TRIGger:VIDeo:LEVel
Syntax :TRIGger:VIDeo:LEVel <level>
:TRIGger:VIDeo:LEVel?
Description Set or query the trigger level in video trigger. The unit is the same as the current
amplitude unit.
Parameter
Name
Type
Range
Default
<level> Real (± 5 × VerticalScale from the screen center) - OFFSet 0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe.
For OFFSet, refer to :CHANnel<n>:OFFSet.
Return
Format
The query returns the trigger level in scientific notation.
Example :TRIGger:VIDeo:LEVel 0.16 /*Set the trigger level to 160mV*/
:TRIGger:VIDeo:LEVel /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-99
:TRIGger:PATTern
Command List:
:TRIGger:PATTern:PATTern
:TRIGger:PATTern:LEVel
:TRIGger:PATTern:PATTern
Syntax :TRIGger:PATTern:PATTern <pattern1>,<pattern2>,<pattern3>,<pattern4>
:TRIGger:PATTern:PATTern?
Description
Set or query the pattern of each channel in pattern trigger.
Parameter
Name
Type
Range
Default
<pattern1>
Discrete
{H|L|X|R|F}
X
<pattern2>
Discrete
{H|L|X|R|F}
X
<pattern3>
Discrete
{H|L|X|R|F}
X
<pattern4>
Discrete
{H|L|X|R|F}
X
Explanation H: set the pattern of the channel selected to “H”, namely the voltage level is higher
than the threshold level of the channel.
L: set the pattern of the channel selected to “L”, namely the voltage level is lower
than the threshold level of the channel.
X: set the pattern of the channel selected to “Don’t Care”, namely this channel is not
used as a part of the pattern. When all the four channels in the pattern are set to
“Don’t Care”, the oscilloscope will not trigger.
R/F: set the pattern to the rising or falling edge of the channel selected.
You can not to specify the patterns of two channels to the rising edge or falling edge
at the same time. If one edge item is currently defined and then another edge item is
defined in another channel in the pattern, the former edge item defined will be
replaced by X.
The four parameters from left to right in the command set the patterns of CH1, CH2,
CH3 and CH4 respectively.
Return
Format The query returns the patterns of all the channels.
Example
:TRIGger:PATTern:PATTern H,R,L,X
RIGOL Chapter 2 Command System
2-100 DS1000Z Programming Guide
:TRIGger:PATTern:LEVel
Syntax :TRIGger:PATTern:LEVel <chan>,<level>
:TRIGger:PATTern:LEVel? <chan>
Description Set or query the trigger level of the specified channel in pattern trigger. The unit is the
same as the current amplitude unit.
Parameter
Name
Type
Range
Default
<chan>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
<level> Real (± 5 × VerticalScale from the screen center) -
OFFSet
0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return
Format
The query returns the trigger level in scientific notation.
Example
:TRIGger:PATTern:LEVel CHANnel2,0.16 /*Set the trigger level of CH2 to 160mV*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-101
:TRIGger:DURATion
Command List:
:TRIGger:DURATion:SOURce
:TRIGger:DURATion:TYPe
:TRIGger:DURATion:WHEN
:TRIGger:DURATion:TUPPer
:TRIGger:DURATion:TLOWer
:TRIGger:DURATion:SOURce
Syntax :TRIGger:DURATion:SOURce <source>
:TRIGger:DURATion:SOURce?
Description
Set or query the trigger source in duration trigger.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4} CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:DURATion:SOURce CHANnel2
:TRIGger:DURATion:TYPe
Syntax :TRIGger:DURATion:TYPe <type1>,<type2>,<type3>,<type4>
:TRIGger:DURATion:TYPe?
Description
Set or query the pattern of each channel in duration trigger.
Parameter
Name
Type
Range
Default
<type1>
Discrete
{H|L|X}
X
<type2>
Discrete
{H|L|X}
X
<type3>
Discrete
{H|L|X}
X
<type4> Discrete {H|L|X} X
Explanation H: set the pattern of the channel selected to “H”, namely the voltage level is higher
than the threshold level of the channel.
L: set the pattern of the channel selected to “L”, namely the voltage level is lower
than the threshold level of the channel.
X: set the pattern of the channel selected to “Don’t Care”, namely this channel is not
used as a part of the pattern. When all the four channels in the pattern are set to
“Don’t Care”, the oscilloscope will not trigger.
The four parameters from left to right in the command set the patterns of CH1, CH2,
CH3 and CH4 respectively.
Return
Format
The query returns the patterns of the four channels.
Example
:TRIGger:DURATion:TYPe L,X,H,L
RIGOL Chapter 2 Command System
2-102 DS1000Z Programming Guide
:TRIGger:DURATion:WHEN
Syntax :TRIGger:DURATion:WHEN <when>
:TRIGger:DURATion:WHEN?
Description
Set or query the trigger condition in duration trigger.
Parameter
Name
Type
Range
Default
<when>
Discrete
{GREater|LESS|GLESs}
GREater
Explanation GREater: you need to specify a time (refer to :TRIGger:DURATion:TLOWer). The
oscilloscope triggers when the duration of the pattern is greater than the preset time.
LESS: you need to specify a time (refer to :TRIGger:DURATion:TUPPer). The
oscilloscope triggers when the duration of the pattern is lower than the preset time.
GLESs: you need to specify an upper limit of the time (refer
to :TRIGger:DURATion:TUPPer) and lower limit of the time (refer
to :TRIGger:DURATion:TLOWer). The oscilloscope triggers when the duration of the
pattern is lower than the preset upper limit of the time and greater than the preset
lower limit of the time.
Return
Format
The query returns GRE, LESS or GLES.
Example :TRIGger:DURATion:WHEN LESS
Related
Commands :TRIGger:DURATion:TLOWer
:TRIGger:DURATion:TUPPer
:TRIGger:DURATion:TUPPer
Syntax :TRIGger:DURATion:TUPPer <NR3>
:TRIGger:DURATion:TUPPer?
Description Set or query the duration time upper limit in duration trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<NR3> Real Related to the trigger condition
LESS: 8ns to 10s
GLESs: 16ns to 10s 2μs
Explanation This command is available when the trigger condition (:TRIGger:DURATion:WHEN) is
LESS or GLESs.
Return
Format
The query returns the duration time upper limit in scientific notation.
Example :TRIGger:DURATion:TUPPer 0.000003 /*Set the duration time upper limit to 3μs*/
:TRIGger:DURATion:TUPPer? /*The query returns 3.000000e-06*/
Related
Commands :TRIGger:DURATion:WHEN
:TRIGger:DURATion:TLOWer
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-103
:TRIGger:DURATion:TLOWer
Syntax :TRIGger:DURATion:TLOWer <NR3>
:TRIGger:DURATion:TLOWer?
Description
Set or query the duration time lower limit in duration trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<NR3>
Real
8ns to 9.99s
1μs
Explanation This command is available when the trigger condition (:TRIGger:DURATion:WHEN) is
GREater or GLESs.
Return
Format
The query returns the duration time lower limit in scientific notation.
Example :TRIGger:DURATion:TLOWer 0.000003 /*Set the duration time lower limit to 3μs*/
:TRIGger:DURATion:TLOWer? /*The query returns 3.000000e-06*/
Related
Commands :TRIGger:DURATion:WHEN
:TRIGger:DURATion:TUPPer
RIGOL Chapter 2 Command System
2-104 DS1000Z Programming Guide
:TRIGger:TIMeout (Option)
Command List:
:TRIGger:TIMeout:SOURce
:TRIGger:TIMeout:SLOPe
:TRIGger:TIMeout:TIMe
:TRIGger:TIMeout:SOURce
Syntax :TRIGger:TIMeout:SOURce <source>
:TRIGger:TIMeout:SOURce?
Description
Set or query the trigger source in timeout trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example :TRIGger:TIMeout:SOURce CHANnel2
:TRIGger:TIMeout:SLOPe
Syntax :TRIGger:TIMeout:SLOPe <slope>
:TRIGger:TIMeout:SLOPe?
Description
Set or query the edge type in timeout trigger.
Parameter
Name
Type
Range
Default
<slope>
Discrete
{POSitive|NEGative|RFALl}
POSitive
Explanation POSitive: start timing when the rising edge of the input signal passes through the
trigger level.
NEGative: start timing when the falling edge of the input signal passes through the
trigger level.
RFALl: start timing when any edge of the input signal passes through the trigger
level.
Return
Format
The query returns POS, NEG or RFAL.
Example
:TRIGger:TIMeout:SLOPe NEGative
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-105
:TRIGger:TIMeout:TIMe
Syntax :TRIGger:TIMeout:TIMe <NR3>
:TRIGger:TIMeout:TIMe?
Description
Set or query the timeout time in timeout trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<NR3> Real 16ns to 10s 16ns
Return
Format
The query returns the timeout time in scientific notation.
Example :TRIGger:TIMeout:TIMe 0.002 /*Set the timeout time to 2ms*/
:TRIGger:TIMeout:TIMe? /*The query returns 2.000000e-03*/
Related
Command :TRIGger:TIMeout:TIMe
RIGOL Chapter 2 Command System
2-106 DS1000Z Programming Guide
:TRIGger:RUNT (Option)
Command List:
:TRIGger:RUNT:SOURce
:TRIGger:RUNT:POLarity
:TRIGger:RUNT:WHEN
:TRIGger:RUNT:WUPPer
:TRIGger:RUNT:WLOWer
:TRIGger:RUNT:ALEVel
:TRIGger:RUNT:BLEVel
:TRIGger:RUNT:SOURce
Syntax :TRIGger:RUNT:SOURce <source>
:TRIGger:RUNT:SOURce?
Description
Set or query the trigger source in runt trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example :TRIGger:RUNT:SOURce CHANnel2
:TRIGger:RUNT:POLarity
Syntax :TRIGger:RUNT:POLarity <polarity>
:TRIGger:RUNT:POLarity?
Description
Set or query the pulse polarity in runt trigger.
Parameter
Name
Type
Range
Default
<polarity>
Discrete
{POSitive|NEGative}
POSitive
Explanation POSitive: the instrument triggers on the positive runt pulse.
NEGative: the instrument triggers on the negative runt pulse.
Return
Format
The query returns POS or NEG.
Example
:TRIGger:RUNT:POLarity NEGative
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-107
:TRIGger:RUNT:WHEN
Syntax :TRIGger:RUNT:WHEN <when>
:TRIGger:RUNT:WHEN?
Description
Set or query the qualifier in runt trigger.
Parameter
Name
Type
Range
Default
<when> Discrete {NONE|GREater|LESS|GLESs} NONE
Explanation NONE: do not set the trigger condition in runt trigger.
GREater: trigger when the runt pulse width is greater than the lower limit of the pulse
width (refer to :TRIGger:RUNT:WLOWer).
LESS: trigger when the runt pulse width is lower than the upper limit of the pulse
width (refer to :TRIGger:RUNT:WUPPer).
GLESs: trigger when the runt pulse width is greater than the lower limit (refer
to :TRIGger:RUNT:WLOWer) and lower than the upper limit of the pulse width (refer
to :TRIGger:RUNT:WUPPer). Note: the lower limit of the pulse width must be lower
than the upper limit.
Return
Format
The query returns NONE, GRE, LESS or GLES.
Example
:TRIGger:RUNT:WHEN LESS
Related
Commands :TRIGger:RUNT:WUPPer
:TRIGger:RUNT:WLOWer
:TRIGger:RUNT:WUPPer
Syntax :TRIGger:RUNT:WUPPer <NR3>
:TRIGger:RUNT:WUPPer?
Description
Set or query the pulse width upper limit in runt trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<NR3>
Discrete
16ns to 10s
2μs
Explanation This command is only available when the qualifier (refer to :TRIGger:RUNT:WHEN) is
LESS or GLESs.
Return
Format
The query returns the pulse width upper limit in scientific notation.
Example :TRIGger:RUNT:WUPPer 0.02 /*Set the pulse width upper limit to 20ms*/
:TRIGger:RUNT:WUPPer? /*The query returns 2.000000e-02*/
Related
Commands :TRIGger:RUNT:WHEN
:TRIGger:RUNT:WLOWer
RIGOL Chapter 2 Command System
2-108 DS1000Z Programming Guide
:TRIGger:RUNT:WLOWer
Syntax :TRIGger:RUNT:WLOWer <NR3>
:TRIGger:RUNT:WLOWer?
Description
Set or query the pulse width lower limit in runt trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<NR3> Discrete 8ns to 9.99s 1μs
Explanation This command is only available when the qualifier (refer to :TRIGger:RUNT:WHEN) is
GREater or GLESs.
Return
Format
The query returns the pulse width lower limit in scientific notation.
Example :TRIGger:RUNT:WLOWer 0.01 /*Set the pulse width lower limit to 1ms*/
:TRIGger:RUNT:WLOWer? /*The query returns 1.000000e-03*/
Related
Commands :TRIGger:RUNT:WUPPer
:TRIGger:RUNT:WHEN
:TRIGger:RUNT:ALEVel
Syntax :TRIGger:RUNT:ALEVel <level>
:TRIGger:RUNT:ALEVel?
Description Set or query the trigger level upper limit in runt trigger. The unit is the same as the
current amplitude unit.
Parameter
Name
Type
Range
Default
<level>
Real
(± 5 × VerticalScale from the screen center) - OFFSet
2V
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return
Format
The query returns the trigger level upper limit in scientific notation.
Example :TRIGger:RUNT:ALEVel 0.16 /*Set the trigger level upper limit to 160mV*/
:TRIGger:RUNT:ALEVel? /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-109
:TRIGger:RUNT:BLEVel
Syntax :TRIGger:RUNT:BLEVel <level>
:TRIGger:RUNT:BLEVel?
Description Set or query the trigger level lower limit in runt trigger. The unit is the same as the current
amplitude unit.
Parameter
Name
Type
Range
Default
<level>
Real
(± 5 × VerticalScale from the screen center) - OFFSet
0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return
Format
The query returns the trigger level lower limit in scientific notation.
Example :TRIGger:RUNT:BLEVel 0.16 /*Set the trigger level lower limit to 160mV*/
:TRIGger:RUNT:BLEVel? /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
RIGOL Chapter 2 Command System
2-110 DS1000Z Programming Guide
:TRIGger:WINDows (Option)
Command List:
:TRIGger:WINDows:SOURce
:TRIGger:WINDows:SLOPe
:TRIGger:WINDows:POSition
:TRIGger:WINDows:TIMe
:TRIGger:WINDows:ALEVel
:TRIGger:WINDows:BLEVel
:TRIGger:WINDows:SOURce
Syntax :TRIGger:WINDows:SOURce <source>
:TRIGger:WINDows:SOURce?
Description
Set or query the trigger source in windows trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:WINDows:SOURce CHANnel2
:TRIGger:WINDows:SLOPe
Syntax :TRIGger:WINDows:SLOPe <type>
:TRIGger:WINDows:SLOPe?
Description
Set or query the windows type in windows trigger.
Parameter
Name
Type
Range
Default
<type>
Discrete
{POSitive|NEGative|RFALl}
POSitive
Explanation POSitive: trigger on the rising edge of the input signal when the voltage level is
greater than the preset high trigger level.
NEGative: trigger on the falling edge of the input signal when the voltage level is
lower than the preset low trigger level.
RFALl: trigger on any edge of the input signal when the voltage level meets the
preset trigger level.
Return
Format
The query returns POS, NEG or RFAL.
Example
:TRIGger:WINDows:SLOPe NEGative
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-111
:TRIGger:WINDows:POSition
Syntax :TRIGger:WINDows:POSition <pos>
:TRIGger:WINDows:POSition?
Description
Set or query the trigger position in windows trigger.
Parameter
Name
Type
Range
Default
<type>
Discrete
{EXIT|ENTER|TIMe}
ENTER
Explanation EXIT: trigger when the input signal exits the specified trigger level range.
ENTER: trigger when the trigger signal enters the specified trigger level range.
TIMe: used to specify the hold time of the input signal after it enters the specified
trigger level range. The instrument triggers when the accumulated hold time equals
the windows time.
Return
Format
The query returns EXIT, ENTER or TIM.
Example
:TRIGger:WINDows:POSition ENTER
:TRIGger:WINDows:TIMe
Syntax :TRIGger:WINDows:TIMe <NR3>
:TRIGger:WINDows:TIMe?
Description
Set or query the hold time in windows trigger.
Parameter
Name
Type
Range
Default
<NR3>
Real
8ns to 10s
1μs
Return
Format
The query returns the hold time in scientific notation.
Example :TRIGger:WINDows:TIMe 0.002 /*Set the hold time to 2ms*/
:TRIGger:WINDows:TIMe? /*The query returns 2.000000e-03*/
Related
Command
:TRIGger:WINDows:POSition
RIGOL Chapter 2 Command System
2-112 DS1000Z Programming Guide
:TRIGger:WINDows:ALEVel
Syntax :TRIGger:WINDows:ALEVel <level>
:TRIGger:WINDows:ALEVel?
Description Set or query the trigger level upper limit in windows trigger. The unit is the same as the
current amplitude unit.
Parameter
Name
Type
Range
Default
<level> Real (± 5 × VerticalScale from the screen center) - OFFSet 2V
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return
Format The query returns the trigger level upper limit in scientific notation.
Example :TRIGger:WINDows:ALEVel 0.16 /*Set the trigger level upper limit to 160mV*/
:TRIGger:WINDows:ALEVel? /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
:TRIGger:WINDows:BLEVel
Syntax :TRIGger:WINDows:BLEVel <level>
:TRIGger:WINDows:BLEVel?
Description Set or query the tigger level lower limit in windows trigger. The unit is the same as the
current amplitude unit.
Parameter Name Type Range Default
<level>
Real
(± 5 × VerticalScale from the screen center) - OFFSet
0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return
Format
The query returns the tigger level lower limit in scientific notation.
Example
:TRIGger:WINDows:BLEVel 0.05
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-113
:TRIGger:DELay (Option)
Command List:
:TRIGger:DELay:SA
:TRIGger:DELay:SLOPA
:TRIGger:DELay:SB
:TRIGger:DELay:SLOPB
:TRIGger:DELay:TYPe
:TRIGger:DELay:TUPPer
:TRIGger:DELay:TLOWer
:TRIGger:DELay:SA
Syntax :TRIGger:DELay:SA <Source>
:TRIGger:DELay:SA?
Description
Set or query the trigger source A in delay trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:DELay:SA CHANnel2
:TRIGger:DELay:SLOPA
Syntax :TRIGger:DELay:SLOPA <slope>
:TRIGger:DELay:SLOPA?
Description
Set or query the edge type of the trigger source A in delay trigger.
Parameter Name Type Range Default
<slope> Discrete {POSitive|NEGative} POSitive
Return
Format
The query returns POS or NEG.
Example
:TRIGger:DELay:SLOPA NEGative
:TRIGger:DELay:SB
Syntax :TRIGger:DELay:SB <source>
:TRIGger:DELay:SB?
Description
Set or query the trigger source B in delay trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel2
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:DELay:SB CHANnel2
RIGOL Chapter 2 Command System
2-114 DS1000Z Programming Guide
:TRIGger:DELay:SLOPB
Syntax :TRIGger:DELay:SLOPB <slope>
:TRIGger:DELay:SLOPB?
Description
Set or query the edge type of the trigger source B in delay trigger.
Parameter
Name
Type
Range
Default
<slope>
Discrete
{POSitive|NEGative}
POSitive
Return
Format
The query returns POS or NEG.
Example :TRIGger:DELay:SLOPB NEGative
:TRIGger:DELay:TYPe
Syntax :TRIGger:DELay:TYPe <type>
:TRIGger:DELay:TYPe?
Description
Set or query the delay type in delay trigger.
Parameter Name Type Range Default
<type>
Discrete
{GREater|LESS|GLESs |GOUT}
GREater
Explanation GREater: trigger when the time difference (
△
T) between the specified edges of tigger
source A and tigger source B is greater than the preset time limit.
LESS: trigger when the time difference (△T) between the specified edges of tigger
source A and tigger source B is lower than the preset time limit.
GLESs: trigger when the time difference (△T) between the specified edges of tigger
source A and tigger source B is greater than the lower limit of the preset time and
lower than the upper limit of the preset time. Note that the time lower limit must be
lower than the time upper limit.
GOUT: trigger when the time difference (△T) between the specified edges of tigger
source A and tigger source B is lower than the lower limit of the preset time or
greater than the upper limit of the preset time. Note that the time lower limit must be
lower than the time upper limit.
Return
Format
The query returns GOUT, GRE, LESS or GLES.
Example
:TRIGger:DELay:TYPe GOUT
Related
Commands :TRIGger:DELay:TUPPer
:TRIGger:DELay:TLOWer
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-115
:TRIGger:DELay:TUPPer
Syntax :TRIGger:DELay:TUPPer <NR3>
:TRIGger:DELay:TUPPer?
Description
Set or query the upper limit of the delay time in delay trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<NR3>
Real
16ns to 10s
2μs
Explanation This command is only available when the delay type (refer to :TRIGger:DELay:TYPe) is
LESS, GOUT or GLESs.
Return
Format
The query returns the upper limit of the delay time in scientific notation.
Example :TRIGger:DELay:TUPPer 0.002 /*Set the upper limit of the delay time to 2ms*/
:TRIGger:DELay:TUPPer? /*The query returns 2.000000e-03*/
Related
Command
:TRIGger:DELay:TYPe
:TRIGger:DELay:TLOWer
Syntax :TRIGger:DELay:TLOWer <NR3>
:TRIGger:DELay:TLOWer?
Description
Set or query the lower limit of the delay time in delay trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<NR3> Real Related to the delay type:
GREater: 8ns to 10s
GOUT or GLESs: 8ns to 9.99s 1μs
Explanation This command is only available when the delay type (refer to :TRIGger:DELay:TYPe) is
GREater, GOUT or GLESs.
Return
Format
The query returns the lower limit of the delay time in scientific notation.
Example :TRIGger:DELay:TLOWer 0.002 /*Set the lower limit of the delay time to 2ms*/
:TRIGger:DELay:TLOWer? /*The query returns 2.000000e-03*/
Related
Commands :TRIGger:DELay:TYPe
:TRIGger:DELay:TUPPer
RIGOL Chapter 2 Command System
2-116 DS1000Z Programming Guide
:TRIGger:SHOLd (Option)
Command List:
:TRIGger:SHOLd:DSrc
:TRIGger:SHOLd:CSrc
:TRIGger:SHOLd:SLOPe
:TRIGger:SHOLd:PATTern
:TRIGger:SHOLd:TYPe
:TRIGger:SHOLd:STIMe
:TRIGger:SHOLd:HTIMe
:TRIGger:SHOLd:DSrc
Syntax :TRIGger:SHOLd:DSrc <source>
:TRIGger:SHOLd:DSrc?
Description
Set or query the data source in setup/hold trigger.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4} CHANnel1
Return
Format The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:SHOLd:DSrc CHANnel1
:TRIGger:SHOLd:CSrc
Syntax :TRIGger:SHOLd:CSrc <source>
:TRIGger:SHOLd:CSrc?
Description
Set or query the clock source in setup/hold trigger.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4} CHANnel2
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:SHOLd:CSrc CHANnel2
:TRIGger:SHOLd:SLOPe
Syntax :TRIGger:SHOLd:SLOPe <slope>
:TRIGger:SHOLd:SLOPe?
Description
Set or query the edge type in setup/hold trigger.
Parameter
Name
Type
Range
Default
<slope>
Discrete
{POSitive|NEGative}
POSitive
Return
Format
The query returns POS or NEG.
Example
:TRIGger:SHOLd:SLOPe NEGative
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-117
:TRIGger:SHOLd:PATTern
Syntax :TRIGger:SHOLd:PATTern <pattern>
:TRIGger:SHOLd:PATTern?
Description
Set or query the data type in setup/hold trigger.
Parameter
Name
Type
Range
Default
<pattern>
Discrete
{H|L}
H
Explanation H: high level
L: low level
Return
Format
The query returns H or L.
Example
:TRIGger:SHOLd:PATTern L
:TRIGger:SHOLd:TYPe
Syntax :TRIGger:SHOLd:TYPe <type>
:TRIGger:SHOLd:TYPe?
Description
Set or query the setup type in setup/hold trigger.
Parameter
Name
Type
Range
Default
<type> Discrete {SETup|HOLd|SETHOLd} SETup
Explanation SETup: set the time that the data stays stable and constant before the clock edge
appears (:TRIGger:SHOLd:STIMe).
HOLd: set the time that the data stays stable and constant after the clock edge
appears (:TRIGger:SHOLd:HTIMe).
SETHOLd: set the time that the data stays stable and constant before and after the
clock edge appears (:TRIGger:SHOLd:STIMe and :TRIGger:SHOLd:HTIMe).
Return
Format
The query returns SET, HOL or SETHOL.
Example
:TRIGger:SHOLd:TYPe SETHOLd
Related
Commands :TRIGger:SHOLd:HTIMe
:TRIGger:SHOLd:STIMe
RIGOL Chapter 2 Command System
2-118 DS1000Z Programming Guide
:TRIGger:SHOLd:STIMe
Syntax :TRIGger:SHOLd:STIMe <NR3>
:TRIGger:SHOLd:STIMe?
Description
Set or query the setup time in setup/hold trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<NR3> Real 8ns to 1s 1μs
Explanation This command is only available when the setup type (refer to :TRIGger:SHOLd:TYPe) is
SETup or SETHOLd.
Return
Format
The query returns the setup time in scientific notation.
Example :TRIGger:SHOLd:STIMe 0.002 /*Set the setup time to 2ms*/
:TRIGger:SHOLd:STIMe? /*The query returns 2.000000e-03*/
Related
Commands :TRIGger:SHOLd:TYPe
:TRIGger:SHOLd:HTIMe
:TRIGger:SHOLd:HTIMe
Syntax :TRIGger:SHOLd:HTIMe <NR3>
:TRIGger:SHOLd:HTIMe?
Description
Set or query the hold time in setup/hold trigger. The default unit is s.
Parameter Name Type Range Default
<NR3>
Real
8ns to 1s
1μs
Explanation This command is only available when the setup type (refer to :TRIGger:SHOLd:TYPe) is
HOLd or SETHOLd.
Return
Format
The query returns the hold time in scientific notation.
Example :TRIGger:SHOLd:HTIMe 0.002 /*Set the hold time to 2ms*/
:TRIGger:SHOLd:HTIMe? /*The query returns 2.000000e-03*/
Related
Commands :TRIGger:SHOLd:TYPe
:TRIGger:SHOLd:STIMe
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-119
:TRIGger:NEDGe (Option)
Command List:
:TRIGger:NEDGe:SOURce
:TRIGger:NEDGe:SLOPe
:TRIGger:NEDGe:IDLE
:TRIGger:NEDGe:EDGE
:TRIGger:NEDGe:LEVel
:TRIGger:NEDGe:SOURce
Syntax :TRIGger:NEDGe:SOURce <source>
:TRIGger:NEDGe:SOURce?
Description
Set or query the trigger source in Nth edge trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:NEDGe:SOURce CHANnel2
:TRIGger:NEDGe:SLOPe
Syntax :TRIGger:NEDGe:SLOPe <slope>
:TRIGger:NEDGe:SLOPe?
Description
Set or query the edge type in Nth edge trigger.
Parameter
Name
Type
Range
Default
<slope>
Discrete
{POSitive|NEGative}
POSitive
Explanation POSitive: trigger on the rising edge of the input signal when the voltage level meets
the specified trigger level.
NEGative: trigger on the falling edge of the input signal when the voltage level meets
the specified trigger level.
Return
Format
The query returns POS or NEG.
Example
:TRIGger:NEDGe:SLOPe NEGative
RIGOL Chapter 2 Command System
2-120 DS1000Z Programming Guide
:TRIGger:NEDGe:IDLE
Syntax :TRIGger:NEDGe:IDLE <NR3>
:TRIGger:NEDGe:IDLE?
Description
Set or query the idle time in Nth edge trigger. The default unit is s.
Parameter
Name
Type
Range
Default
<NR3>
Real
16ns to 10s
1μs
Return Format
The query returns the idle time in scientific notation.
Example :TRIGger:NEDGe:IDLE 0.002 /*Set the idle time to 2ms*/
:TRIGger:NEDGe:IDLE? /*The query returns 2.000000e-03*/
:TRIGger:NEDGe:EDGE
Syntax :TRIGger:NEDGe:EDGE <NR1>
:TRIGger:NEDGe:EDGE?
Description
Set or query the edge number in Nth edge trigger.
Parameter Name Type Range Default
<NR1>
Integer
1 to 65535
2
Return Format
The query returns an integer between 1 and 65535.
Example
:TRIGger:NEDGe:EDGE 20
:TRIGger:NEDGe:LEVel
Syntax :TRIGger:NEDGe:LEVel <level>
:TRIGger:NEDGe:LEVel?
Description Set or query the trigger level in Nth edge trigger. The unit is the same as the current
amplitude unit.
Parameter
Name
Type
Range
Default
<level> Real (± 5 × VerticalScale from the screen center) -
OFFSet
0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return Format
The query returns the trigger level in scientific notation.
Example :TRIGger:NEDGe:LEVel 0.16 /*Set the the trigger level to 160mV*/
:TRIGger:NEDGe:LEVel? /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-121
:TRIGger:RS232 (Option)
Command List:
:TRIGger:RS232:SOURce
:TRIGger:RS232:WHEN
:TRIGger:RS232:PARity
:TRIGger:RS232:STOP
:TRIGger:RS232:DATA
:TRIGger:RS232:WIDTh
:TRIGger:RS232:BAUD
:TRIGger:RS232:BUSer
:TRIGger:RS232:LEVel
:TRIGger:RS232:SOURce
Syntax :TRIGger:RS232:SOURce <source>
:TRIGger:RS232:SOURce?
Description
Set or query the trigger source in RS232 trigger.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|CHANnel3|CHANnel4} CHANnel1
Return Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:RS232:SOURce CHANnel2
:TRIGger:RS232:WHEN
Syntax :TRIGger:RS232:WHEN <when>
:TRIGger:RS232:WHEN?
Description
Set or query the trigger condition in RS232 trigger.
Parameter
Name
Type
Range
Default
<when>
Discrete
{STARt|ERRor|PARity|DATA}
STARt
Explanation STARt: trigger on the start frame position.
ERRor: trigger when error frame is detected.
PARity: trigger when check error is detected.
DATA: trigger on the last bit of the preset data bits and even-odd check bits.
Return Format
The query returns STAR, ERR, PAR or DATA.
Example
:TRIGger:RS232:WHEN ERRor
Related
Command
:TRIGger:RS232:DATA
RIGOL Chapter 2 Command System
2-122 DS1000Z Programming Guide
:TRIGger:RS232:PARity
Syntax :TRIGger:RS232:PARity <parity>
:TRIGger:RS232:PARity?
Description Set or query the parity type when the trigger condition is ERRor or PARity in RS232
trigger.
Parameter
Name
Type
Range
Default
<parity>
Discrete
{EVEN|ODD|NONE}
NONE
Explanation When the trigger condition is PARity, the parity type cannot be set to NONE. At this
point, the default parity type is ODD.
Return Format
The query returns EVEN, ODD or NONE.
Example
:TRIGger:RS232:PARity EVEN
Related
Command
:TRIGger:RS232:WHEN
:TRIGger:RS232:STOP
Syntax :TRIGger:RS232:STOP <bit>
:TRIGger:RS232:STOP?
Description
Set or query the stop bit when the trigger condition is ERRor in RS232 trigger.
Parameter
Name
Type
Range
Default
<bit> Discrete {1|2} 1
Return Format
The query returns 1 or 2.
Example
:TRIGger:RS232:STOP 2
Related
Command
:TRIGger:RS232:WHEN
:TRIGger:RS232:DATA
Syntax :TRIGger:RS232:DATA <data>
:TRIGger:RS232:DATA?
Description
Set or query the data when the trigger condition is DATA in RS232 trigger.
Parameter
Name
Type
Range
Default
<data>
Integer
0 to 2
n
-1
90
Explanation In 2n-1, n is the current data bits and can be 5, 6, 7 or 8.
Return Format
The query returns an integer.
Example
:TRIGger:RS232:DATA 10
Related
Commands :TRIGger:RS232:WIDTh
:TRIGger:RS232:WHEN
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-123
:TRIGger:RS232:WIDTh
Syntax :TRIGger:RS232:WIDTh <width>
:TRIGger:RS232:WIDTh?
Description
Set or query the data bits when the trigger condition is DATA in RS232 trigger.
Parameter
Name
Type
Range
Default
<width> Discrete {5|6|7|8} 8
Return Format
The query returns 5, 6, 7 or 8.
Example
:TRIGger:RS232:WIDTh 6
Related
Command
:TRIGger:RS232:WHEN
:TRIGger:RS232:BAUD
Syntax :TRIGger:RS232:BAUD <baud_rate>
:TRIGger:RS232:BAUD?
Description
Set or query the baud rate in RS232 trigger. The default unit is bps.
Parameter
Name
Type
Range
Default
<baud_rate> Discrete {2400|4800|9600|19200|38400|57600|11
5200|230400|460800|921600|1000000|U
SER}
2400
Return Format
The query returns an integer.
Example
:TRIGger:RS232:BAUD 4800
Related
Command
:TRIGger:RS232:BUSer
:TRIGger:RS232:BUSer
Syntax :TRIGger:RS232:BUSer <user baud>
:TRIGger:RS232:BUSer?
Description
Set or query the user-defined baud rate in RS232 trigger. The default unit is bps.
Parameter
Name
Type
Range
Default
<user baud>
Integer
1 to 900000
9600
Return Format
The query returns an integer.
Example
:TRIGger:RS232:BUSer 50000
Related
Command
:TRIGger:RS232:BAUD
RIGOL Chapter 2 Command System
2-124 DS1000Z Programming Guide
:TRIGger:RS232:LEVel
Syntax :TRIGger:RS232:LEVel <level>
:TRIGger:RS232:LEVel?
Description Set or query the trigger level in RS232 trigger. The unit is the same as the current
amplitude unit.
Parameter
Name
Type
Range
Default
<level> Real (± 5 × VerticalScale from the screen center) - OFFSet 0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return Format
The query returns the trigger level in scientific notation.
Example :TRIGger:RS232:LEVel 0.16 /*Set the trigger level to 160mV*/
:TRIGger:RS232:LEVel? /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-125
:TRIGger:IIC (Option)
Command List:
:TRIGger:IIC:SCL
:TRIGger:IIC:SDA
:TRIGger:IIC:WHEN
:TRIGger:IIC:AWIDth
:TRIGger:IIC:ADDRess
:TRIGger:IIC:DIRection
:TRIGger:IIC:DATA
:TRIGger:IIC:CLEVel
:TRIGger:IIC:DLEVel
:TRIGger:IIC:SCL
Syntax :TRIGger:IIC:SCL <source>
:TRIGger:IIC:SCL?
Description
Set or query the channel source of SCL in I2C trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:IIC:SCL CHANnel2
:TRIGger:IIC:SDA
Syntax :TRIGger:IIC:SDA <source>
:TRIGger:IIC:SDA?
Description Set or query the channel source of SDA in I2C trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel2
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:IIC:SDA CHANnel2
RIGOL Chapter 2 Command System
2-126 DS1000Z Programming Guide
:TRIGger:IIC:WHEN
Syntax :TRIGger:IIC:WHEN <trig_type>
:TRIGger:IIC:WHEN?
Description
Set or query the trigger condition in I2C trigger.
Parameter
Name
Type
Range
Default
<trig_type> Discrete {STARt|RESTart|STOP|NACKnowledge|ADD
Ress|DATA|ADATa}
STARt
Explanation STARt: trigger when the SDA data transitions from high to low while the SCL is
high.
RESTart: trigger when another start condition occurs before a stop condition.
STOP: trigger when the SDA data transitions from low to high while the SCL is
high.
NACKnowledge: trigger when the SDA data is high during any acknowledgement
of the SCL clock position.
ADDRess: trigger on the clock (SCL) edge corresponding to the byte of data
(SDA) behind the preset address (Write, Read or R/W direction).
DATA: the trigger searches for the control byte value on the data line (SDA)
following which there is a reading bit and an acknowledgement bit and then
searches for the specified data value. When this event occurs, the oscilloscope
will trigger on the clock edge of the acknowledgement bit behind the data byte.
ADATa: trigger when the “Address” and “Data” conditions are met at the same
time.
Return Format
The query returns STAR, STOP, NACK, REST, ADDR, DATA or ADAT.
Example
:TRIGger:IIC:WHEN RESTart
:TRIGger:IIC:AWIDth
Syntax :TRIGger:IIC:AWIDth <bits>
:TRIGger:IIC:AWIDth?
Description Set or query the address bits when the trigger condition is ADDRess or ADATa in I2C
trigger.
Parameter
Name
Type
Range
Default
<bits>
Discrete
{7|8|10}
7
Return Format
The query returns 7, 8 or 10.
Example
:TRIGger:IIC:AWIDth 10
Related
Commands :TRIGger:IIC:DIRection
:TRIGger:IIC:ADDRess
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-127
:TRIGger:IIC:ADDRess
Syntax :TRIGger:IIC:ADDRess <adr>
:TRIGger:IIC:ADDRess?
Description Set or query the address when the trigger condition is ADDRess or ADATa in I2C
trigger.
Parameter
Name
Type
Range
Default
<adr>
Integer
0 to 2
n
– 1: 0 to 127, 0 to 255 or 0 to 1023
1
Explanation
In 2
n
– 1, n is the current address bits.
Return Format
The query returns an integer.
Example
:TRIGger:IIC:ADDRess 100
Related
Command
:TRIGger:IIC:AWIDth
:TRIGger:IIC:DIRection
Syntax :TRIGger:IIC:DIRection <dir>
:TRIGger:IIC:DIRection?
Description Set or query the data direction when the trigger condition is ADDRess or ADATa in I2C
trigger.
Parameter
Name
Type
Range
Default
<dir>
Discrete
{READ|WRITe|RWRite}
READ
Explanation
This command is invalid when the address bits is 8.
Return Format
The query returns READ, WRIT or RWR.
Example
:TRIGger:IIC:DIRection RWRite
Related
Command
:TRIGger:IIC:AWIDth
:TRIGger:IIC:DATA
Syntax :TRIGger:IIC:DATA <data>
:TRIGger:IIC:DATA?
Description
Set or query the data when the trigger condition is DATA or ADATa in I2C trigger.
Parameter
Name
Type
Range
Default
<data>
Integer
0 to 2
40
- 1
82
Explanation The range of <data> is related to the byte length. The maximum byte length is 5,
namely 40 bits binary data. Thus, the range of <data> is from 0 to 2
40
– 1.
Return Format
The query returns an integer.
Example
:TRIGger:IIC:DATA 64
Related
Command
:TRIGger:IIC:WHEN
RIGOL Chapter 2 Command System
2-128 DS1000Z Programming Guide
:TRIGger:IIC:CLEVel
Syntax :TRIGger:IIC:CLEVel <level>
:TRIGger:IIC:CLEVel?
Description Set or query the trigger level of SCL in I2C trigger. The unit is the same as the
current amplitude unit.
Parameter
Name
Type
Range
Default
<level> Real (± 5 × VerticalScale from the screen center) - OFFSet 0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return Format
The query returns the trigger level of SCL in scientific notation.
Example :TRIGger:IIC:CLEVel 0.16 /*Set the trigger level of SCL to 160mV*/
:TRIGger:IIC:CLEVel? /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
:TRIGger:IIC:DLEVel
Syntax :TRIGger:IIC:DLEVel <level>
:TRIGger:IIC:DLEVel?
Description Set or query the trigger level of SDA in I2C trigger. The unit is the same as the
current amplitude unit.
Parameter Name Type Range Default
<level>
Real
(± 5 × VerticalScale from the screen center) - OFFSet
0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return Format
The query returns the trigger level of SDA in scientific notation.
Example :TRIGger:IIC:DLEVel 0.16 /*Set the trigger level of SDA to 160mV*/
:TRIGger:IIC:DLEVel? /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-129
:TRIGger:SPI (Option)
Command List:
:TRIGger:SPI:SCL
:TRIGger:SPI:SDA
:TRIGger:SPI:WHEN
:TRIGger:SPI:WIDTh
:TRIGger:SPI:DATA
:TRIGger:SPI:TIMeout
:TRIGger:SPI:SLOPe
:TRIGger:SPI:CLEVel
:TRIGger:SPI:DLEVel
:TRIGger:SPI:SCL
Syntax :TRIGger:SPI:SCL <source>
:TRIGger:SPI:SCL?
Description
Set or query the channel source of SCL in SPI trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel1
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:SPI:SCL CHANnel1 /*Set the channel source of SCL to CH1*/
:TRIGger:SPI:SDA
Syntax :TRIGger:SPI:SDA <source>
:TRIGger:SPI:SDA?
Description
Set or query the channel source of SDA in SPI trigger.
Parameter
Name
Type
Range
Default
<source>
Discrete
{CHANnel1|CHANnel2|CHANnel3|CHANnel4}
CHANnel2
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:TRIGger:SPI:SDA CHANnel2 /*Set the channel source of SDA to CH2*/
RIGOL Chapter 2 Command System
2-130 DS1000Z Programming Guide
:TRIGger:SPI:WHEN
Syntax :TRIGger:SPI:WHEN <trig_type>
:TRIGger:SPI:WHEN?
Description
Set or query the trigger condition in SPI trigger.
Parameter
Name
Type
Range
Default
<trig_type> Discrete {CS|TIMeout} CS
Explanation When the trigger condition is set to TIMeout, you can use the :TRIGger:SPI:TIMeout
command to set the timeout value.
Return
Format
The query returns CS or TIM.
Example
:TRIGger:SPI:WHEN TIMeout /*Set the trigger condition to TIMeout*/
Related
Command
:TRIGger:SPI:TIMeout
:TRIGger:SPI:WIDTh
Syntax :TRIGger:SPI:WIDTh <width>
:TRIGger:SPI:WIDTh?
Description
Set or query the data bits of the SDA channel in SPI trigger.
Parameter
Name
Type
Range
Default
<width> Integer 4 to 32 8
Return
Format
The query returns an integer.
Example
:TRIGger:SPI:WIDTh 10 /*Set the data bits of the SDA channel to 10*/
Related
Command
:TRIGger:SPI:DATA
:TRIGger:SPI:DATA
Syntax :TRIGger:SPI:DATA <data>
:TRIGger:SPI:DATA?
Description
Set or query the data in SPI trigger.
Parameter
Name
Type
Range
Default
<data> Integer 0 to 232-1 0
Explanation The range of <data> is related to the data bits. The maximum data bits is 32. Thus, the
range of <data> is from 0 to 2
32
-1.
Return
Format The query returns an integer.
Example
:TRIGger:SPI:DATA 5 /*Set the data to 5*/
Related
Command
:TRIGger:SPI:WIDTh
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-131
:TRIGger:SPI:TIMeout
Syntax :TRIGger:SPI:TIMeout <time_value>
:TRIGger:SPI:TIMeout?
Description Set or query the timeout value when the trigger condition is TIMeout in SPI trigger. The
default unit is s.
Parameter
Name
Type
Range
Default
<time_value>
Real
100ns to 1s
1μs
Return
Format
The query returns the timeout value in scientific notation.
Example :TRIGger:SPI:TIMeout 0.001 /*Set the timeout value to 1ms*/
:TRIGger:SPI:TIMeout? /*The query returns 1.000000e-03*/
Related
Command
:TRIGger:SPI:WHEN
:TRIGger:SPI:SLOPe
Syntax :TRIGger:SPI:SLOPe <slope>
:TRIGger:SPI:SLOPe?
Description
Set or query the clock edge in SPI trigger.
Parameter
Name
Type
Range
Default
<slope> Discrete {POSitive|NEGative} POSitive
Explanation POSitive: sample the SDA data on the rising edge of the clock.
NEGative: sample the SDA data on the falling edge of the clock.
Return
Format
The query returns POS or NEG.
Example
:TRIGger:SPI:SLOPe POSitive /*Set the clock edge to POSitive*/
:TRIGger:SPI:CLEVel
Syntax :TRIGger:SPI:CLEVel <level>
:TRIGger:SPI:CLEVel?
Description Set or query the trigger level of the SCL channel in SPI trigger. The unit is the same as the
current amplitude unit.
Parameter
Name
Type
Range
Default
<level>
Real
(± 5 × VerticalScale from the screen center) - OFFSet
0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return
Format
The query returns the trigger level in scientific notation.
Example :TRIGger:SPI:CLEVel 0.16 /*Set the trigger level to 160mV*/
:TRIGger:SPI:CLEVel? /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
RIGOL Chapter 2 Command System
2-132 DS1000Z Programming Guide
:TRIGger:SPI:DLEVel
Syntax :TRIGger:SPI:DLEVel <level>
:TRIGger:SPI:DLEVel?
Description Set or query the trigger level of the SDA channel in SPI trigger. The unit is the same as the
current amplitude unit.
Parameter
Name
Type
Range
Default
<level> Real (± 5 × VerticalScale from the screen center) - OFFSet 0
Explanation For VerticalScale, refer to :CHANnel<n>:SCALe. For OFFSet, refer
to :CHANnel<n>:OFFSet.
Return
Format
The query returns the trigger level in scientific notation.
Example :TRIGger:SPI:DLEVel 0.16 /*Set the trigger level to 160mV*/
:TRIGger:SPI:DLEVel? /*The query returns 1.600000e-01*/
Related
Commands :CHANnel<n>:SCALe
:CHANnel<n>:OFFSet
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-133
:WAVeform Commands
The :WAVeform commands are used to read the waveform data and its related settings. :WAVeform:MODE
is used to set the reading mode of the waveform data. In different mode, the definition of each parameter
is different, as shown in Figure 2-1 and Figure 2-2.
Figure 2-1 Parameter Definitions in NORMAL Mode
Figure 2-2 Paramter Definitions in RAW Mode
XORigion
YORigion
YREFerence
YINCrement=Verticalscale/25
XINCrement=TimeScale/100 XREFerence
XORigion
YORigion
YREFerence
YINCrement=Vscale/2
XINCrement=1/SampleRate
XREFerence
RIGOL Chapter 2 Command System
2-134 DS1000Z Programming Guide
Command List:
:WAVeform:SOURce
:WAVeform:MODE
:WAVeform:FORMat
:WAVeform:DATA?
:WAVeform:XINCrement?
:WAVeform:XORigin?
:WAVeform:XREFerence?
:WAVeform:YINCrement?
:WAVeform:YORigin?
:WAVeform:YREFerence?
:WAVeform:STARt
:WAVeform:STOP
:WAVeform:PREamble?
:WAVeform:SOURce
Syntax :WAVeform:SOURce <source>
:WAVeform:SOURce?
Description
Set or query the channel of which the waveform data will be read.
Parameter
Name
Type
Range
Default
<source> Discrete {CHANnel1|CHANnel2|
CHANnel3|CHANnel4|MATH} CHANnel1
Explanation
If the MATH channel is selected, only NORMal can be selected in :WAVeform:MODE.
Return
Format
The query returns CHAN1, CHAN2, CHAN3 or CHAN4.
Example
:WAVeform:SOURce CHANnel2 /*Set the channel to CH2*/
Related
Command
:WAVeform:MODE
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-135
:WAVeform:MODE
Syntax :WAVeform:MODE <mode>
:WAVeform:MODE?
Description
Set or query the reading mode used by :WAVeform:DATA?.
Parameter
Name
Type
Range
Default
<mode> Discrete {NORMal|MAXimum|RAW} NORMal
Explanation NORMal: read the waveform data displayed on the screen.
MAXimum: read the waveform data displayed on the screen when the instrument is
in the run state and the waveform data in the internal memory in the stop state.
RAW: read the waveform data in the internal memory. Note that the waveform data
in the internal memory can only be read when the oscilloscope is in the stop state
and the oscilloscope can not be operated.
If the MATH channel is selected, only the NORMal mode is valid.
Return
Format
The query returns NORM, MAX or RAW.
Example
:WAVeform:MODE RAW /*Set the reading mode to RAW*/
Related
Command :WAVeform:DATA?
:WAVeform:FORMat
Syntax :WAVeform:FORMat <format>
:WAVeform:FORMat?
Description
Set or query the return format of the waveform data.
Parameter
Name
Type
Range
Default
<format> Discrete {WORD|BYTE|ASCii} BYTE
Explanation BYTE: a waveform point occupies one byte (namely 8 bits).
WORD: a waveform point occupies two bytes (namely 16 bits) in which the lower 8
bits are valid and the higher 8 bits are 0.
ASCii: return the waveform points in chara
cter number. Waveform points are retuned
in scientific notation and separated by commas.
Return
Format
The query returns WORD, BYTE or ASC.
Example
:WAVeform:FORMat WORD /*Set the return format to WORD*/
RIGOL Chapter 2 Command System
2-136 DS1000Z Programming Guide
:WAVeform:DATA?
Syntax
:WAVeform:DATA?
Description
Read the waveform data.
Explanation Procedures of the screen waveform data reading:
1) Set the channel: :WAV:SOURce CHAN1
2) Select the NORMal mode: :WAV:MODE NORM
3) Read the screen waveform data: :WAV:DATA?
Procedures of the internal memory waveform data reading:
1) Set to the STOP state: :STOP
2) Set the channel: :WAV:SOURce CHAN1
3) Select the RAW mode: :WAV:MODE RAW
4) Read the waveform data in the internal memory: :WAV:DATA?
Return
Format The data returned contains 2 parts: the TMC data description header and the
waveform data. The format of the TMC data description header is #900000dddd
which is followed the waveform data. Wherein, dddd denotes the number of bytes of
the effective waveform data. For example, as shown in the figure below,
#9000015865 is the TMC data description header. Wherein, 15865 denotes that
there are 15 865 bytes of effective data and it is followed by the waveform data read.
The return format of the data is ASCii.
When the return format of the waveform data is ASCii (refer to :WAVeform:FORMat),
the query returns the actual voltage of each point on the screen in scientific notation.
When reading the waveform data in the internal memory, the data returned each
time may be the data in one area in the internal memory (you can set the start point
and stop point using :WAVeform:STARt and :WAVeform:STOP). Each part of the
data returned contains the TMC data description header and the waveform data from
two adjacent parts are continuous.
Related
Commands :WAVeform:SOURce
:WAVeform:MODE
:WAVeform:FORMat
:WAVeform:STARt
:WAVeform:STOP
:WAVeform:YREFerence?
TMC
D
ata Description Header
Waveform Data
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-137
:WAVeform:XINCrement?
Syntax
:WAVeform:XINCrement?
Description Query the time difference between two neighboring points of the specified channel source
in the X direction.
Explanation The returned value is related to the current data reading mode:
In the NORMal mode, XINCrement = TimeScale/100;
In the RAW mode, XINCrement = 1/SampleRate
The unit is related to the current channel source:
when the channel source is one from CHANnel1 to CHANnel4, the unit is s;
when the channel source is MATH and the operation type is FFT, the unit is Hz.
Return
Format
The query returns the XINCrement in scientific notation.
Example
:WAVeform:XINCrement? /*The query returns 1.000000e-08*/
Related
Command
:WAVeform:SOURce
:WAVeform:XORigin?
Syntax
:WAVeform:XORigin?
Description Query the time from the trigger point to the reference time of the specified channel
source in the X direction.
Explanation The unit is related to the current channel source:
when the channel source is one from CHANnel1 to CHANnel4, the unit is s;
when the channel source is MATH and the operation type is FFT, the unit is Hz.
Return
Format
The query returns the XORigin in scientific notation.
Example
:WAVeform:XORigin? /*The query returns -6.000000e-06*/
Related
Commands :WAVeform:SOURce
:WAVeform:XREFerence?
:WAVeform:XREFerence?
Syntax
:WAVeform:XREFerence?
Description
Query the reference time of the specified channel source in the X direction
Return
Format
The query returns 0 (namely the first point on the screen or in the internal memory).
Related
Command :WAVeform:SOURce
RIGOL Chapter 2 Command System
2-138 DS1000Z Programming Guide
:WAVeform:YINCrement?
Syntax
:WAVeform:YINCrement?
Description Query the waveform increment of the specified channel source in the Y direction. The unit
is the same as the current amplitude unit.
Explanation YINCrement= VerticalScale/25
Return
Format
The query returns the YINCrement in scientific notation.
Example
:WAVeform:YINCrement? /*The query returns 8.000000e-03*/
Related
Command
:WAVeform:SOURce
:WAVeform:YORigin?
Syntax
:WAVeform:YORigin?
Description Query the vertical offset relative to the vertical reference position of the specified channel
source in the Y direction.
Explanation
YORigin = VerticalOffset/YINCrement.
Return
Format
The query returns an integer.
Example
:WAVeform:YORigin? /*The query returns 0*/
Related
Commands :WAVeform:SOURce
:WAVeform:YREFerence?
:WAVeform:YREFerence?
Syntax
:WAVeform:YREFerence?
Description
Query the vertical reference position of the specified channel source in the Y direction.
Explanation
The YREFerence is fixed at 127 (the bottom of the screen is 0 and the top is 255).
Return
Format
The query returns an integer.
Related
Command
:WAVeform:SOURce
Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-139
:WAVeform:STARt
Syntax :WAVeform:STARt <sta>
:WAVeform:STARt?
Description
Set or query the start position of internal memory waveform reading.
Parameter
Name
Type
Range
Default
<sta> Integer
NORMal: 1 to 1200
MAX: 1 to the number of effective points currently
on the screen
RAW: 1 to the current maximum memory depth
1
Return
Format
The query returns an integer.
Example :WAVeform:STARt 100 /*Set the start position to 100*/
:WAVeform:STARt? /*The query returns 100*/
Related
Commands :ACQuire:MDEPth
:WAVeform:MODE
:WAVeform:STOP
Syntax :WAVeform:STOP <stop>
:WAVeform:STOP?
Description
Set or query the stop position of internal memory waveform reading.
Parameter Name Type Range Default
<stop> Integer
NORMal: 1 to 1200
MAX: 1 to the number of effective point currently
on the screen
RAW: 1 to the current maximum memory depth
1200
Return
Format
The query returns an integer.
Example :WAVeform:STOP 500 /*Set the stop position to 500*/
:WAVeform:STOP? /*The query returns 500*/
Related
Commands :ACQuire:MDEPth
:WAVeform:MODE
RIGOL Chapter 2 Command System
2-140 DS1000Z Programming Guide
:WAVeform:PREamble?
Syntax
:WAVeform:PREamble?
Description
Query and return all the waveform parameters.
Return
Format The query returns 10 waveform parameters separated by “,”:
<format>,<type>,<points>,<count>,<xincrement>,<xorigin>,<xreference>,<yincrem
ent>,<yorigin>,<yreference>
Wherein,
<format>: 0 (BYTE), 1 (WORD) or 2 (ASC).
<type>: 0 (NORMal), 1 (MAXimum) or 2 (RAW).
<points>: an integer between 1 and 12000000.
<count>: the number of averages in the average sample mode and 1 in other modes.
<xincrement>: the time difference between two neighboring points in the X direction.
<xorigin>: the time from the trigger point to the "Reference Time" in the X direction.
<xreference>: the reference time of the data point in the X direction.
<yincrement>: the waveform increment in the Y direction.
<yorigin>: the vertical offset relative to the "Vertical Reference Position" in the Y
direction.
<yreference>: the vertical reference position in the Y direction.
Example :WAVeform:PREamble? /*The query returns
0,2,600,2,0.000000,-0.000006,0,0.008000,50,127*/
Related
Commands :WAVeform:FORMat
:WAVeform:MODE
:ACQuire:AVERages
:WAVeform:XINCrement?
:WAVeform:XREFerence?
:WAVeform:YINCrement?
:WAVeform:YORigin?
:WAVeform:YREFerence?
Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-1
Chapter 3 Programming Demos
This chapter lists some programming demos to illustrate how to use commands to realize the common
functions of the oscilloscope in the development environments of Excel, LabVIEW, Matlab, Visual Basic 6.0
and Visual C++ 6.0. All the demos are based on VISA (Virtual Instrument Software Architecture).
The main topics of this chapter:
Programming Preparations
Excel Programming Demo
Matlab Programming Demo
LabVIEW Programming Demo
Visual Basic Programming Demo
Visual C++ Programming Demo
RIGOL Chapter 3 Programming Demos
3-2 DS1000Z Programming Guide
Programming Preparations
Before programming, you need to make the following preparations:
Make sure that your PC has installed the NI-VISA library (can be downloaded from NI website:
http://www.ni.com/visa/). Here, the default installation path is C:\Program Files\IVI Foundation\VISA.
Here, the USB interface of the oscilloscope is used to communicate with the PC and please use a USB cable
to connect the USB Device interface at the rear panel of the oscilloscope to the PC. After successful
connection, turn on the instrument. A "Found New Hardware Wizard" dialog box appears on the PC at
the first connection. Please follow the instructions to install the "USB Test and Measurement Device".
By now, the programming preparations are finished. In the following part, detailed introductions are given
about the programming demos in the Excel, Labview, Matlab, Visual Basic 6.0 and Visual C++ 6.0
development environments.
Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-3
Excel Programming Demo
The program used in this demo: Microsoft Excel 2010
The function realized in this demo: send the *IDN? Command to read the device information.
1. Create a new Excel file that enables the Macros. In this demo, the file is named as
DS1000Z_Demo_Excel.xlsm.
2. Run the DS1000Z_Demo_Excel.xlsm file. Click FileOptions at the upper-left corner of the Excel file
to open the interface as shown in the figure below. Click Customize Ribbon at the right, check
Developer and click OK. At this point, the Excel menu bar displays the Developer menu.
RIGOL Chapter 3 Programming Demos
3-4 DS1000Z Programming Guide
3. Enter the VISA descriptor into a cell of the file as shown in the figure below. For example, the VISA
descriptor is USB0::0x1AB1::0x04CE::DS1T00000006::INSTR. Input it into SHEET1.CELLS(1,2)
(namely the B1 cell in Sheet1). Click the Developer menu and select the Visual Basic option to open
the Microsoft Visual Basic.
4. Select Tools(T) in the Microsoft Visual Basic menu bar and click References.
Select VISA Library in the pop-up dialog box and click OK to refer to the VISA Library.
Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-5
Explanation:
If you cannot find the VISA Library in the list at the left of the figure above, please follow the
method below to find it.
(1) Make sure that your PC has installed the NI-VISA library.
(2) Click Browse… at the right and set the search range to C:\WINDOWS\system32 and the
filename to visa32.dll, as shown in the figure below.
5. Click View Code in the Developer menu to enter the Microsoft Visual Basic interface. Add the
following codes and save the file.
Note: If the Excel file created at step 2 does not enable the Macros, at this point, the prompt message
“The following features cannot be saved in macro-free workbooks” will be displayed. In this situation,
please save the Excel file as a file using the Macros (the filename suffix changes to .xlsm).
Sub QueryIdn()
Dim viDefRm As Long
Dim viDevice As Long
Dim viErr As Long
Dim cmdStr As String
Dim idnStr As String * 128
Dim ret As Long
‘Turn on the device, the device resource descriptor is in CELLS(1,2) of SHEET1’
viErr = visa.viOpenDefaultRM(viDefRm)
viErr = visa.viOpen(viDefRm, Sheet1.Cells(1, 2), 0, 5000, viDevice)
‘Send request, read the data, the return value is in CELLS(2,2) of SHEET1’
cmdStr = "*IDN?"
viErr = visa.viWrite(viDevice, cmdStr, Len(cmdStr), ret)
viErr = visa.viRead(viDevice, idnStr, 128, ret)
Sheet1.Cells(2, 2) = idnStr
‘Turn off the device’
visa.viClose (viDevice)
visa.viClose (viDefRm)
End Sub
RIGOL Chapter 3 Programming Demos
3-6 DS1000Z Programming Guide
6. Add button control: click Insert in the Developer menu, select the desired button in Form Controls
and put it into the cell of the Excel. At this point, the Assign Macro interface is displayed, select
“Sheet1.QueryIdn” and click “OK”.
By default, the button mane is “Button 1”. Right-click the button and select Edit Text in the pop-up
menu to change the button name to “*IDN?”.
7. Click the “*IDN?” button to send request and read data. The returned data will be displayed in SHEET1
CELLS (2,2), as shown in the figure below.
Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-7
Matlab Programming Demo
The program used in this demo: MATLAB R2009a
The function realized in this demo: make FFT operation on the waveform data and draw the
waveform.
1. Run the Matlab software and modify the current directory (namely modify the Current Directory at
the top of the software). In this demo, the current directory is modified to E:\DS1000Z_Demo.
2. Click File New Blank M-File in the Matlab interface to create an empty M file.
3. Add the following codes in the M file:
% Create VISA object
DS1000z = visa('ni','USB0::0x1AB1::0x04CE::DS1T00000006::INSTR');
% Set the device property. In this demo, the length of the input buffer is set to 2048.
DS1000z.InputBufferSize = 2048;
% Open the VISA object created
fopen(DS1000z);
% Read the waveform data
fprintf(DS1000z, ':wav:data?' );
% Request the data
[data,len]= fread(DS1000z,2048);
% Close the VISA object
fclose(DS1000z);
delete(DS1000z);
clear DS1000z;
% Data processing. The waveform data read contains the TMC header. The length of the header is 11
bytes, wherein, the first 2 bytes are the TMC header denoter (#) and the width descriptor (9)
respectively, the 9 bytes following are the length of the data which is followed by the waveform data
and the last byte is the terminator (0x0A). Therefore, the effective waveform points read is from the
12nd to the next to last.
wave = data(12:len-1);
wave = wave';
subplot(211);
plot(wave);
fftSpec = fft(wave',2048);
fftRms = abs(fftSpec');
fftLg = 20*log(fftRms);
subplot(212);
plot(fftLg);
4. Save the M file under the current directory. In this demo, the M file is named as
DS1000Z_Demo_MATLAB.m.
Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-9
LabVIEW Programming Demo
The program used in this demo: LabVIEW 2009
The functions realized in this demo: read the waveform data of CH1 on the screen.
1. Run LabVIEW 2009, create a VI file and name it as DS1000Z_Demo.
2. Add controls. Right-click in the Front Panel interface, select and add VISA resource name and
Waveform Graph from the Controls column, as shown in the figures below.
RIGOL Chapter 3 Programming Demos
3-10 DS1000Z Programming Guide
3. Open the Block Diagram interface. Right-click on the VISA resource name and you can select and
add the following functions from VISA Palette from the pop-up menu: VISA Write, VISA Read,
VISA Open and VISA Close.
4. Connect the VISA resource name with the VISA Open. Then, connect the VISA resource name
outputs of all the functions with the VISA resource name and connect the error output with the
error input as shown in the figure below.
5. Add text boxes in the write buffer areas of the VISA Write control and input “:WAV:SOR CH1”,
":WAV:FORM BYTE" and ":WAV:DATA CHAN1" respectively. The first sets the channel source to CH1,
the second sets the waveform reading format to BYTE and the last reads the screen waveform data.
Waveform data is read through the VISA Read function which requires users to input the total
number of bytes to be read. In this example, the total number of bytes of waveform data to be read is
less than 2048. Close the VISA resource after the VISA operation is finished.
6. The data format is TMC header + waveform data points + terminator. The TMC header is in #NXXXXXX
format, wherein, # is the TMC header denoter, N represents that there are N bytes following. The
length of the waveform data points is described in ASCII character, and the terminator represents the
ending of the communication. For example, for #9000001200XXXX, 9 bytes are used to describe the
length of the data, 000001200 represents the length of the waveform data (namely 1200 bytes). Use
the String Subset and Decimal String To Number functions to get the value of N.
Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-11
Get the length of the effective waveform data.
7. Convert the character data into array format using the String To Byte Array, namely display the
waveform data on the Waveform Graph control and then remove the TMC data header using the
Array Subset function.
8. The complete program block diagram is as shown in the figure below.
Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-13
Visual Basic Programming Demo
The program used in this demo: Visual Basic 6.0
The function realized in this demo: control the on/off state of any channel.
Enter Visual Basic 6.0 and operate according to the following steps:
1. Build a standard application program project (Standard EXE) and name it as Demo.
2. Click the Existing tab of ProjectAdd Module. Search for the visa32.bas file in the include folder
under the NI-VISA installation path and add the file.
3. Add four CommandButton controls to represent CH to CH4 respectively. Add four Label controls
(Label1(0), Label1(1), Label1(2) and Label1(3)) to represent the status of CH1 to CH4 respectively
(when the channel is enabled, it dispays the color of the channel; when the channel is disabled, it
displays gray).The layout of the controls is as shown in the figure below.
4. Open the General tab in ProjectProject1 Properties and select Form1 in the Startup Object
dropdown box.
5. Double-click CH1 to enter the programming environment. Add the following codes to control CH1 to
CH4. The codes of CH1 are as shown below; the codes of other channels are similar.
Dim defrm As Long
Dim vi As Long
Dim strRes As String * 200
Dim list As Long
Dim nmatches As Long
RIGOL Chapter 3 Programming Demos
3-14 DS1000Z Programming Guide
Dim matches As String * 200 ' keep the device number acquired
Dim s32Disp As Integer
' acquire the usb source of visa
Call viOpenDefaultRM(defrm)
Call viFindRsrc(defrm, "USB?*", list, nmatches, matches)
' Open the device
Call viOpen(defrm, matches, 0, 0, vi)
' Send the command to query the status of CH1
Call viVPrintf(vi, ":CHAN1:DISP?" + Chr$(10), 0)
' Acquire the status of CH1
Call viVScanf(vi, "%t", strRes)
s32Disp = CInt(strRes)
If (s32Disp = 1) Then
' Send the setting command
Call viVPrintf(vi, ":CHAN1:DISP 0" + Chr$(10), 0)
Label1(0).ForeColor = &H808080 'Gray
Else
Call viVPrintf(vi, ":CHAN1:DISP 1" + Chr$(10), 0)
Label1(0).ForeColor = &HFFFF& 'Yellow
End If
' Close the device
Call viClose(vi)
Call viClose(defrm)
6. Save and run the project and a single exe program will be obtained. When the oscilloscope is correctly
connected to the PC, the ON/OFF control of any channel can be realized.
Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-15
Visual C++ Programming Demo
The program used in this demo: Microsoft Visual C++ 6.0
The functions realized in this demo: search for the instrument address, connect the instrument, send
command and read the return value.
Enter Visual C++6.0 and operate accoding to the following steps:
1. Create a MFC project based on dialog box.
2. Open the C/C++ tab in ProjectSettings, select Code Generation in Category and Debug
Multithreaded DLL in Use run-time library. Then, click OK to close the dialog box.
3. Open the Link tab in ProjectSettings and add visa32.lib to the Object/library modules
manually.
RIGOL Chapter 3 Programming Demos
3-16 DS1000Z Programming Guide
4. Open the Directories tab in ToolsOptions.
Select Include files in Show directories for and double-click the blank in Directories to add the
path of Include: C:\Program Files\IVI Foundation\VISA\WinNT\include.
Select Library files in Show directories for and double-click the blank in Directories to add the
path of Lib: C:\Program Files\IVI Foundation\VISA\WinNT\lib\msc.
Note: at present, VISA library has been added.
5. Add the Text, Combo Box, Button and Edit Box controls as shown in the figure below.
6. Modify the control attribute.
1) Name Text as "Command".
2) Open the Data item in Combo Box attribute and input *IDN? Manually.
3) Open the General item in Edit Box attribute and select Disabled.
4) Name Button as Send and Read.
Chapter 3 Programming Demos RIGOL
DS1000Z Programming Guide 3-17
7. Add the variables m_combox and m_receive for the Combo Box and Edit controls respectively.
8. Add codes.
Double-click Send and Read to enter the programming environment. Declare the #include
<visa.h> of the visa library in the header file and then add the following codes.
ViSession defaultRM, vi;
char buf [256] = {0};
CString s,strTemp;
char* stringTemp;
ViChar buffer [VI_FIND_BUFLEN];
ViRsrc matches=buffer;
ViUInt32 nmatches;
ViFindList list;
viOpenDefaultRM (&defaultRM);
//Acquire the USB resource of visa
RIGOL Chapter 3 Programming Demos
3-18 DS1000Z Programming Guide
viFindRsrc(defaultRM, "USB?*", &list,&nmatches, matches);
viOpen (defaultRM,matches,VI_NULL,VI_NULL,&vi);
// Send the command received
m_combox.GetLBText(m_combox.GetCurSel(),strTemp);
strTemp = strTemp + "\n";
stringTemp = (char*)(LPCTSTR)strTemp;
viPrintf (vi,stringTemp);
// Read the result
viScanf (vi, "%t\n", &buf);
// Display the result
UpdateData (TRUE);
m_receive = buf;
UpdateData (FALSE);
viClose (vi);
viClose (defaultRM);
9. Save, compile and run the project and a single exe file can be obtained. When the oscilloscope is
correctly connected to the PC, you can select the command *IDN? and click Send and Read to
display the return result of the oscilloscope.
