Russell RL060P
User’s Guide
Analyze • Detect • Measure • Control™
For Sales & Service Contact
2650 E. 40th Ave. • Denver, CO 80205
Phone 303-320-4764 • Fax 303-322-7242
1-800-833-7958
www.geotechenv.com
ROSS and the COIL trade dress are trademarks of Thermo Electron Corporation.
AQUAfast, Cahn, EZ Flash, Ionalyzer, ionplus, KNIpHE, No Cal, ORION, perpHect, PerpHecT, PerpHecTion, pHISA,
pHuture, Pure Water, Sage, Sensing the Future, SensorLink, ROSS Ultra, Sure-Flow, TEA Analyzer, Titrator PLUS,
TURBO2 and Wine Master are registered trademarks of Thermo.
1-888-pHAX-ION, A+, All in One, Aplus, AQUAsnap, AssuredAccuracy, AUTO-BAR, AUTO-CAL, AUTO DISPENSER,
Auto-ID, AUTO-LOG, AUTO-READ, AUTO-STIR, Auto-Test, BOD AutoE Z, Cable-Free, CERTI-CAL, CISA, DataCOLLECT,
DataPLUS, digital LogR, DirectCal, DuraProbe, Environmental Product Authority, Extra Easy/Extra Value, FAST
QC, Flash Titration, Flash Titrator, GAP, GLPcal, GLPcheck, GLPdoc, ISEasy, KAP, LabConnect, LogR, Low
Maintenance Triode, Minimum Stir Requirement, MSR, NISS, One-Touch, One-Touch Calibration, One-Touch
Measurement, Optimum Results, Orion Constellation Software, Pentrode, pHuture MMS, pHuture Pentrode,
pHuture Quatrode, pHuture Triode, Quatrode, QuiKcheK, rf link, ROSS, ROSS Resolution, SAOB, SMART
AVERAGING, Smart CheK, SMART STABILITY, Stacked, Stat Face, The Enhanced Lab, ThermaSense, Triode,
TRIUMpH, Unbreakable pH, Universal Access are trademarks of Thermo.
Guaranteed Success and The Technical Edge are service marks of Thermo.
PerpHecT meters are protected by U.S. patent 6,168,707.
PerpHecT ROSS are protected by U.S. patent 6,168,707.
ORION Series A meters and 900A printer are protected by U.S. patents 5,198,093, D334,208 and D346,753.
ionplus electrodes and Optimum Results solutions are protected by US Patent 5,830,338.
ROSS Ultra electrodes are protected by US patents pending 6,793,787.
Orion ORP Standard is protected by US Patent 6,350,367.
Orion NoCal electrodes have patent pending.
© Copyright 2005, Thermo Electron Corporation. All rights reserved. Question everything, and
Analyze.Detect.Measure.Control are trademarks of Thermo Electron Corporation.
The specifications, descriptions, drawings, ordering information and part numbers within this document are
subject to change without notice.
This publication supersedes all previous publications on this subject.
Table of Contents
Chapter I
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Chapter II
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chapter III
Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter IV
Measurement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Chapter V
Electrode Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chapter VI
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter VII
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Chapter VIII
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Chapter IX
Terms and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Chapter X
Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Chapter XI
Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Chapter XI
WEEE Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1
Russell RL060P
Thermo Electron Corporation
Chapter I
Introduction
Thank you for purchasing the pH RL060P meter. This microprocessor-based handheld
meter is economical and easy to use. It has a large custom LCD (Liquid Crystal
Display) for clear and easy reading.
The pH RL060P measures pH and temperature (˚C).
Included with your meter are 4 alkaline “AAA” batteries, temperature sensor,
instruction manual and a warranty card. Some models also include a rubber armor. To
order other accessories and buffer calibration or standard solutions, please refer to
Chapter VIII, Accessories for more information.
Thermo Electron Corporation2Russell RL060P
Chapter II
Getting Started
Description of Keypad Functions
pH RL060P has four keys on its splash-proof keypad
with tactile feedback. The common keys include
, , and .
: Powers meter on and off. Meter starts up
in the mode that you last switched off from.
: Selects measurement mode for mV, pH and
Temperature.
: Allows calibration for pH, mV or Temperature,
and will also abort the calibration without
confirming any set value.
(hold): Freezes the measured reading for easy
viewing.
(enter): Confirms the calibration value.
Description of LCD Annunciators
The meter has a large custom LCD that consists
of 31⁄2-digit segments and operation annunciators
for pH, mV or °C (Temperature). Other annunciators
include “HO” (when the HOLD function is
activated) and “LO” (low battery condition).
3
Russell RL060P
Thermo Electron Corporation

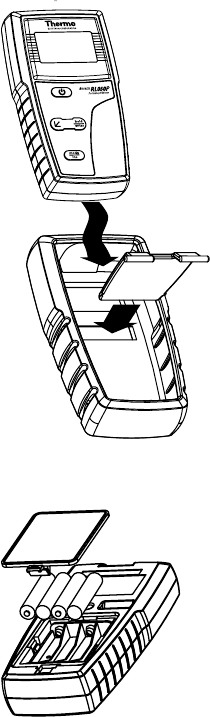

Inserting & Removing the Rubber Armor
Some models also include a rubber armor
1. To remove the meter from the rubber armor, push
the bottom edges of meter out until it is completely
separated from the armor. Ensure that the cables
on the pH electrode or the temperature probe are
not connected.
2. To insert the meter into the rubber armor, slide in
from the top of meter before pushing the bottom
edges down and set it into position. Lift up the
stand at the back of the meter for bench top
applications if necessary.
Inserting New Batteries
The battery compartment is found at the back of
instrument. To open the battery compartment, push
in the direction of the arrow and lift up the cover.
Note the polarity of the battery before inserting it
into position. After replacement, place the cover
back and press down until it locks tight.
Thermo Electron Corporation4Russell RL060P
Battery Replacement
A “LO” annunciator in the LCD alerts you when
battery power is running low. The replacement
batteries are 4 alkaline “AAA”.
Caution: Power off the meter when changing
batteries. ▲

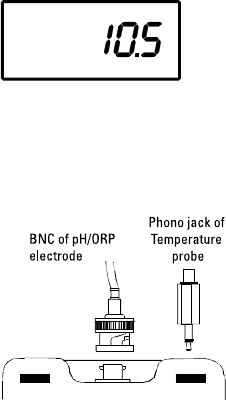

Connecting the Electrode and Temperature Sensor
To connect the electrode into meter, align the
connector slots with the posts of meter’s socket
and rotate the connector clockwise until it locks.
Do not force when connecting. To remove, simply
rotate the connector in anti-clockwise direction until
it unlocks, and slide the connector off the socket.
Insert the mini phono jack of the temperature
sensor into the socket on the meter. Unplug the
phono jack when it is not in use or if you measure
pH without any temperature compensation.
Condition the pH Electrode
Condition the pH electrode before use or if it has not been in use for a long time. This
can be done by soaking it into a container filled with pH 4 buffer solution for at least
1 hour. Rinse with water before proceeding to calibrate the electrode with
the meter.
LO
5
Russell RL060P
Thermo Electron Corporation
Switching the Meter On
1. Press to power up your meter. All LCD
segments display momentarily as the meter
performs a self-diagnostic test
2. Press to choose your desired mode of
measurement. The corresponding annunciator
displays in the LCD.
In temperature mode, the measured reading
can be 25.0 ˚C (factory default). The last
calibrated temperature value will appear if there
is no temperature probe connected, or current
measured value will appear if a temperature
probe is connected.

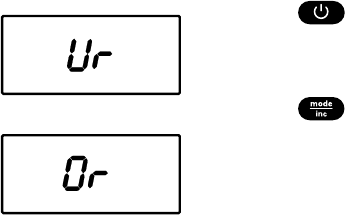

3. The LCD displays “Or” if the meter reading
exceeds the maximum or “Ur” if under minimum
measurement range. Refer to Chapter VII,
Specification.
Thermo Electron Corporation6Russell RL060P
Chapter III
Calibration
pH Calibration
The meter is capable of calibrating up to 3 points using USA or NIST (nSt) pH buffer
standards or 2 points with Low Ionic (Pb) pH buffer standard. All new calibration
values will automatically override existing data.
USA pH 4.01, 7.00 and 10.01
NIST pH 4.01, 6.86 and 9.18
Pb pH 4.10 and 6.97
It is recommended that you perform at least a 2-point calibration at room temperature
(25 ˚C) using standard buffers, starting with the first buffer at pH 7.00 (USA), pH 6.86
(NIST) or pH 6.97 (Pb) followed by other buffer values.
A 1-point calibration should be performed with a pH buffer value closest to the
expected sample value being measured. Otherwise calibrating at pH 7.00, pH 6.86 or
pH 6.97 is advisable.
The meter has automatic buffer recognition that identifies the correct pH buffer values
during calibration. If non-standard pH buffers other than the above standards are
used, or the electrode has worn out, the LCD will flash “Er1”. Press the to abort
calibration and resume measurement. In general all pH buffer values have the window
of up to ± 1 pH tolerance during calibration.
Ensure that you use new pH buffer solutions or sachets during calibration. Do not
reuse buffer solutions as it may be contaminated and affect the calibration and
accuracy of measurements. Always store buffer solutions in a dry, cool environment.
Before use, remove the plastic protective cap of pH electrode and condition the glass
bulb by soaking it in tap water for 1-2 hours. This hydrates the glass bulb if electrode
is too dry or has not been used for a long period of time. Always rinse the probes with
tap water or rinse solution before and after each calibration/sample measurement
to avoid cross-contamination. For details refer to Chapter V, Electrode care and
maintenance.
7
Russell RL060P
Thermo Electron Corporation

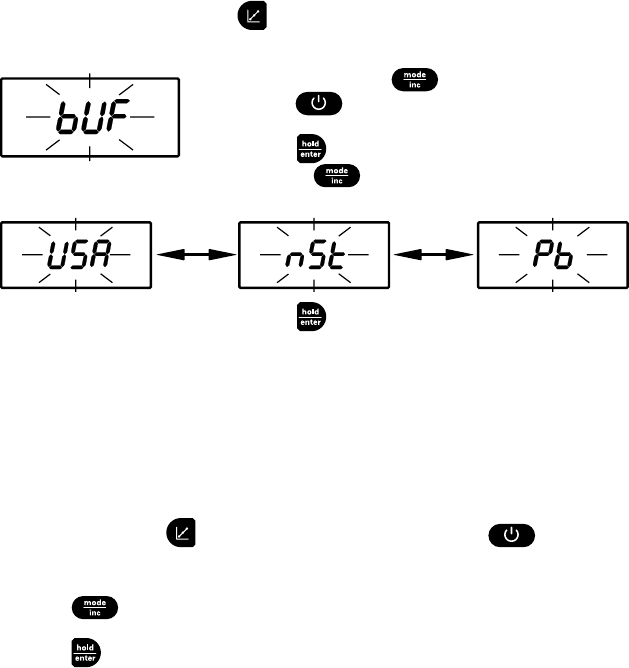

Selection of pH buffer standards
You must set the meter to accept either USA, NIST (nSt) or Low Ionic (Pb) pH buffer
standard values before calibration. The factory default is USA standard. If you wish
to abort this operation press the at any sequence and the meter reverts to pH
measurement mode.
1. Press and hold the . Switch on the meter
using . The display shows “bUF” blinking.
2. Press to get into the buffer selection mode.
Use the to toggle between USA, NIST or Pb
standards as shown.
3. Press to confirm your choice of buffer standard
to be used. The display then reverts to the pH
measurement mode.
Resetting the User Calibrated Values
If you need to have a new set of Ion or pH measurements or mV offset (in pH 6) taken,
you may wish to reset the last Ion/pH/mV calibrated values. Note only temperature
offset (if set) will not be erased.
1. Press and hold the while switching on the meter using the . The LCD
shows “rSt” blinking.
2. Press to abort this operation if you do not wish to reset.
3. Press to confirm. The meter automatically clears all stored pH calibration or
mV offset values and reverts to measurement mode.
Thermo Electron Corporation8Russell RL060P

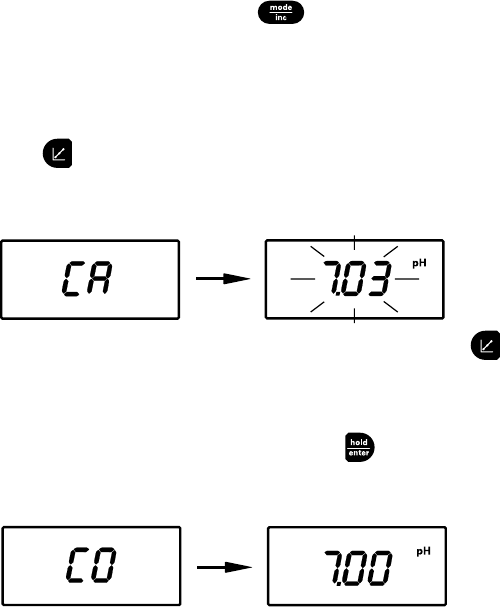

pH Calibration using USA standard buffers
1. Pour a known pH buffer standard solution into a clean, dry container, e.g. pH
7.00. Power on the meter and it automatically enters into the measurement
mode. Select pH mode by pressing if necessary.
2. Dip both pH electrode and temperature probe into pH 7.00 buffer solution. Swirl
gently and wait for reading to stabilize (approx. 30 seconds depending on your
electrode condition).
3. Press to enter pH calibration mode. A “CA” displays momentarily and the
display shows the current uncalibrated reading flashing while in the calibration
mode.
4. To abort or cancel calibration without accepting new value, press . The meter
then reverts to pH measurement mode.
5. To proceed calibration, allow the reading to stabilize. The meter automatically
recognizes pH 4.01, 7.00 or 10.01 buffers. Press to confirm calibration and
the LCD displays “CO” momentarily. The meter reverts to the measurement
mode.
6. For 2 or 3-point calibration, repeat step 3 with other pH buffer values of 4.01
and/or 10.01 for higher accuracy.
9
Russell RL060P
Thermo Electron Corporation

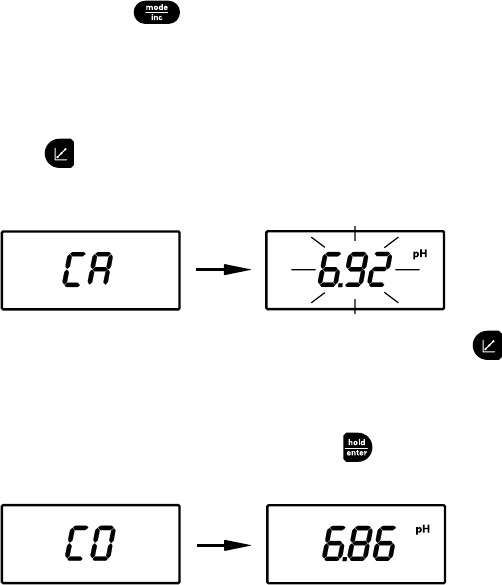

pH Calibration using NIST standard buffers
1. Pour a known pH buffer standard solution into a clean container, e.g. pH 6.86.
Power on meter, and it automatically enters into measurement mode. Select pH
mode by pressing if necessary.
2. Dip both pH electrode and temperature probe into pH 6.86 buffer solution. Swirl
gently and wait for reading to stabilize (approx. 30 seconds depending on your
electrode condition).
3. Press to enter pH calibration mode. A “CA” displays momentarily and the
display shows the current uncalibrated reading flashing while in the calibration
mode.
4. To abort or cancel calibration without accepting new value, press . The meter
then reverts to pH measurement mode.
5. To proceed calibration, allow reading to stabilize. The meter automatically
recognizes pH 4.01, 6.86 or 9.18 buffers. Press to confirm calibration and the
LCD displays “CO” momentarily. The meter reverts to measurement mode.
6. For 2 or 3-point calibration, repeat step 3 with other pH buffer values of 4.01 and/or
9.18 for higher accuracy.
Thermo Electron Corporation10 Russell RL060P

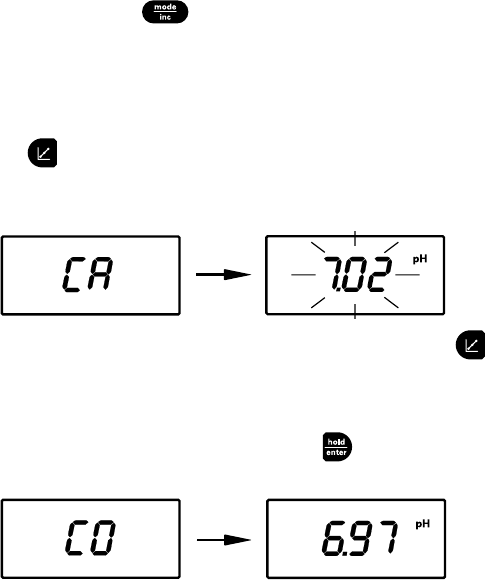

pH Calibration using Pb standard buffers
1. Pour a known pH buffer standard solution into a clean container, e.g. pH 6.97.
Power on the meter, and it automatically enters into measurement mode. Select
pH mode by pressing .
2. Dip both pH electrode and temperature probe into pH 6.97 buffer solution. Swirl
gently and wait for reading to stabilize (approx. 30 seconds depending on your
electrode condition).
3. Press to enter pH calibration mode. A “CA” displays momentarily and the
display shows the current uncalibrated reading flashing while in the calibration
mode.
4. To abort or cancel calibration without accepting new value, press . The meter
then reverts to pH measurement mode.
5. To proceed calibration, allow reading to stabilize first. The meter automatically
recognizes either pH 4.10 or 6.97 buffer. Press to confirm calibration and the
LCD displays “CO” momentarily. The meter reverts to measurement mode.
6. For 2-point calibration, repeat step 3 with pH 4.10 buffer for better accuracy.
11
Russell RL060P
Thermo Electron Corporation
Millivolt (mV) Calibration
mV calibration is performed for ORP or Redox measurements, where you can adjust
its mV value as a base value for measurements.
1. Press to enter mV mode, the LCD displays “mV”.
2. Dip the ORP electrode into a known standard solution, e.g. Quinhydrone 255
and swirl it until the reading stabilizes.
3. Press to enter mV calibration. The LCD shows “CA” momentarily followed
by displayed reading flashes.
4. To abort calibration press . Meter reverts to measurement mode.
5. To proceed with the calibration use to adjust the reading to your desired
value. The maximum adjustment you can make is ± 50 mV. Pressing
continuously allows you to scroll to the maximum allowable value and then loops
back to the minimum allowable value.
6. Press to confirm calibration. The display shows “CO” momentarily and
meter reverts to measurement mode showing the current set value.
Thermo Electron Corporation12 Russell RL060P
Temperature Calibration
With Temperature probe
The temperature probe provided with the meter is factory-calibrated. Over time,
temperature calibration may drift and require calibration. If there is a need to replace
with the new probe you should calibrate the temperature probe prior to pH calibration.
1. Connect your temperature probe to the meter. Press to enter the
Temperature mode until “°C” annunciator appears in the LCD.
2. Compare the displayed value to a NIST certified thermometer or other
thermometer known to be accurate. For best accuracy, place both the probe and
thermometer in a constant temperature bath.
3. Press to enter temperature calibration mode. The LCD shows “CA”
momentarily and displayed reading flashes.
4. Press until the LCD display shows the desired temperature. The meter
allows an adjustable maximum value of ± 5 ˚C from factory default.
5. To cancel or abort this operation, press . Note no new value will be stored
into the meter‘s non-volatile memory. To confirm calibration, press . The LCD
displays “CO” momentarily, and the meter reverts to measurement mode.
13
Russell RL060P
Thermo Electron Corporation
Without Temperature probe (no ATC)
If no temperature probe is used, the meter compensates for pH response based on a
new calibrated temperature value manually set by you or at 25.0 °C (factory default).
1. Press to enter into Temperature mode until “°C” shows in LCD.
2. Compare the displayed value to NIST certified thermometer or a thermometer
known to be accurate (dipped into a constant temperature bath).
3. Press to enter temperature calibration mode. The LCD shows “CA”
momentarily and displayed reading flashes. Note that this displayed value should
either be 25.0 °C or the last set temperature value.
4. Press (for pH 5/6) until the displays shows the desired temperature. You can
set any value from 0 to 100 °C.
5. To cancel or abort this operation, press . Note no new value will be stored
into the meter‘s non-volatile memory. To confirm calibration, press . The LCD
displays “CO” momentarily, and the meter reverts to measurement mode.
Thermo Electron Corporation14 Russell RL060P
Chapter IV
Measurement
Taking Measurements
1. Before taking a measurement, rinse the pH/ORP electrode and temperature probe
thoroughly with tap or distilled water to remove any impurities stuck onto the
bodies of probes.
2. Power on the meter using . Press to select your desired mode of
operation (pH, mV, Ion or Temperature).
3. Dip and stir both probes gently into an aqueous test sample, swirl gently and wait
for the reading to stabilize. Note the reading. Freeze the display if necessary, for
details refer to Releasing a Held Reading.
4. Rinse the probes with tap water or rinse water thoroughly before taking the next
sample measurement or storing them.
Holding a Reading
To freeze or hold your displayed reading
momentarily, press once. The LCD displays
”HO” annunciator to indicate the HOLD function is
activated.
Releasing a Held Reading
Press once again to deactivate the HOLD function or to release your frozen
reading. The meter reverts to the current measurement mode, and the “HO”
annunciator disappears from the LCD.
HO pH
15
Russell RL060P
Thermo Electron Corporation
Chapter V
Electrode Care and Maintenance
For best results, always keep the pH/ORP electrode bulb wet. Store the pH/ORP glass
bulb with pH electrode storage solution. Other pH buffers are also suitable. NEVER
use deionized water for storage. Wash the probe thoroughly with distilled water after
each use. Because your pH electrode is susceptible to contamination or dirt, clean it
every 1 to 2 months depending on the extent and condition of use.
Clean the pH/ORP electrode using a mild detergent. Wipe the probe with a soft tissue
paper. Avoid touching the glass membrane with your fingers. Wash thoroughly in tap
water and then in distilled water. Recalibrate the meter after cleaning the electrode.
Thermo Electron Corporation16 Russell RL060P
Chapter VI
Troubleshooting
Problem Cause Solution
No display Batteries not in place a. Insert batteries
b. Re-insert batteries in
correct polarity
“LO” displays in
the LCD
Low battery Replace batteries with
fresh ones
Unstable reading a. Electrode not deep
enough in sample
b. Dirty electrode
c. Broken electrode
a. Place electrode deeper
in sample
b. Clean electrode and
recalibrate.
c. Replace electrode
“Er1” display Buffer value out of
tolerance
Use new pH buffer solution
and recalibrate
“Er2” display Single point calibration Perform at least 2 point
calibration
Not able to calibrate a. Display freezes
b. Faulty electrode
a. Release reading by
pressing HOLD key
b. Replace electrode
17
Russell RL060P
Thermo Electron Corporation
Chapter VII
Specification
Specification
pH Range 0.00 to 14.00 pH
Resolution 0.01 pH
Accuracy ± 0.01 pH
pH Slope Range 80 to 120%
No. of Calibration Pts 1 to 3 points (push-button)
Buffer Options pH 4.01, 7.00, 10.01 (USA)
pH 4.01, 6.86, 9.18 (NIST)
pH 4.10, 6.97 (Pb)
Temperature Range 0.0 to 100.0 °C
Resolution 0.1 °C
Accuracy ± 0.5 °C
Temperature Comp. Automatic / Manual (0 to 100 °C)
Millivolt Range -1000 to +1000 mV
Resolution 1 mV
Accuracy ± 2 mV
Features
Auto-Buffer Recognition as above pH buffer options
Hold Function “HO”
Auto Shut Off After 17 minutes
Low Battery Indication “LO”
Display Single Custom LCD
Operating Temperature 0 to 50 oC
Power Requirements 4 x “AAA” Alkaline Batteries
Battery Life 500 hours
Meter Dim./Weight 14 x 7 x 3.5 cm / 200 g
Thermo Electron Corporation18 Russell RL060P
Chapter VIII
Accessories
Replacement Meter Accessories
Cat. No. Item
9142BN Glass-body pH Combination Reference Electrode,
Single Junction, 12 x 120 mm* (1 m cable length).
9146BN Epoxy-body pH Combination Electrode,
Single Junction, 12 x 120 mm* (1 m cable length)
9147BN Epoxy-body pH/Temperature Combination Gel Electrode, Single
Junction, 12 x 90 mm (1 m cable length)
917004 Epoxy-body pH/Temperature Combination Electrode, Double
Junction, 3 x 80 mm (1 m cable length)
910001 pH Electrode Storage Solution, 475 mL
900020 pH Electrode Cleaning Solution Kit, includes one bottle each of
A, B, C, D cleaner, 15 mL beaker & pipette
900011 Ag/AgCl Reference Filling Solution,
5 x 60 mL (for 9142BN)
* Dimensions are from bottom of cap.
19
Russell RL060P
Thermo Electron Corporation
Replacement Solution
Cat. No. Item
910104 pH 4.01 buffer, 475 mL bottle (1 pint)
910107 pH 7.00 buffer, 475 mL bottle (1 pint)
910110 pH 10.01 buffer, 475 mL bottle (1 pint)
910686 pH 6.86 buffer, Din, 475 mL bottle (1 pint)
910918 pH 9.18 buffer, Din, 475 mL bottle (1 pint)
910460 pH 4.01 buffer, 60 mL x 5 bottles
910760 pH 7.00 buffer, 60 mL x 5 bottles
9116860 pH 1.68 buffer, Din, 60 mL x 5 bottles
9191860 pH 9.18 buffer, Din, 60 mL x 5 bottles
911060 pH 10.01 buffer, Din, 60 mL x 5 bottles
700402 pH 4.10 buffer, 475 mL x 4 bottles
700702 pH 6.97 buffer, 475 mL x 4 bottles
911110 pH rinse solution pouches, 15 mL x 10 pcs.
911125 pH rinse solution pouches, 15 mL x 25 pcs.
910410 pH 4.01 buffer pouches, 15 mL x 10 pcs.
910425 pH 4.01 buffer pouches, 15 mL x 25 pcs
910725 pH 7.00 buffer pouches, 15 mL x 25 pcs
911025 pH 10.01 buffer pouches, 15 mL x 25 pcs
Thermo Electron Corporation20 Russell RL060P
Chapter IV
Terms and Conditions
General
Seller hereby offers for sale to the buyer (“Buyer”) the products herein (the
“Products”) on the express condition that Buyer agrees to accept and be bound by
the terms and conditions set forth herein. Any provisions contained in any document
issued by Buyer are expressly rejected and if the terms and conditions in this
Agreement differ from the terms of Buyer’s offer, this document shall be construed
as a counter offer and shall not be effective as an acceptance of Buyer’s document.
Buyer’s receipt of Products or Seller’s commencement of the services provided
hereunder will constitute Buyer’s acceptance of this Agreement. This is the complete
and exclusive statement of the contract between Seller and Buyer with respect to
Buyer’s purchase of the Products. No waiver, consent, modification, amendment or
change of the terms contained herein shall be binding unless in writing and signed
by Seller and Buyer. Seller’s failure to object to terms contained in any subsequent
communication from Buyer will not be a waiver or modification of the terms set forth
herein. All orders are subject to acceptance in writing by an authorized representative
of Seller.
21
Russell RL060P
Thermo Electron Corporation
Warranty
Thermo Electron warranty for Russell products covers failures due to manufacturer’s
workmanship or material defects from the date of purchase by the user. User
should return the warranty card to Thermo Electron and retain proof of purchase.
Warranty is void if product has been abused, misused, or repairs attempted by
unauthorized persons.
Warranties herein are for product sold/installed by Thermo Electron or its
authorized dealers.
Any product sold by a U.S. or Canadian distributor must be returned to Thermo
Electron for any warranty work. Please contact our Technical Service department for
further information. A Return Authorization Number must be obtained from Thermo
Electron Technical Service before returning any product for in-warranty repair or
replacement.In the event of failure within the warranty period, Thermo Electron will at
Thermo Electron’s option, repair or replace product not conforming to this warranty.
There may be additional charges, including freight, for warranty service performed
in some countries. For service, call Thermo Electron (or its authorized dealer outside
the United States and Canada). Thermo Electron reserves the right to ask for proof of
purchase, such as the original invoice or packing slip.
The following products are warranted to be free from defects in material and
workmanship in the period listed below from the date of purchase from the user
or from the date of shipment from Thermo Electron, whichever is earlier, provided
use is in accordance with the operating limitations and maintenance procedures in
the instruction manual and when not having been subjected to accident, alteration,
misuse, abuse or breakage of electrodes:
Twenty-four months from date of purchase by the user (or thirty-six
months from date of shipment from Thermo Electron)
All Russell RL060P and RL060C meters.
Six months from date of purchase by the user
Thermo Electron pH probes 9142BN, 9146BN, 9147BN; ATC probe 917004;
conductivity probe 014005.
Thermo Electron Corporation22 Russell RL060P
Warranty also includes failure for any reason (excluding breakage), except abuse,
provided the electrode is not used in solutions containing silver, sulfide, perchlorate,
or hydrofluoric acid; or in solutions more than one (1) Molar in strong acid or base at
temperatures above 50 °C.
“Out-of-Box” Warranty - Should any of the following products fail to work when first
used, contact Thermo Electron immediately for replacement.
THE WARRANTIES DESCRIBED ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES WHETHER STATUTORY, EXPRESS OR IMPLIED INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE AND ALL WARRANTIES ARISING
FROM THE COURSE OF DEALING OR USAGE OF TRADE. THE BUYER’S SOLE
AND EXCLUSIVE REMEDY IS FOR REPAIR OR REPLACEMENT OF THE NON-
CONFORMING PRODUCT OR PART THEREOF, OR REFUND OF THE PURCHASE
PRICE, BUT IN NO EVENT SHALL THERMO ELECTRON (ITS CONTRACTORS AND
SUPPLIERS OF ANY TIER) BE LIABLE TO THE BUYER OR ANY PERSON FOR ANY
SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES WHETHER
THE CLAIMS ARE BASED IN CONTRACT, IN TORT (INCLUDING NEGLIGENCE), OR
OTHERWISE WITH RESPECT TO OR ARISING OUT OF THE PRODUCT FURNISHED
HEREUNDER. REPRESENTATION AND WARRANTIES MADE BY ANY PERSON,
INCLUDING ITS AUTHORIZED DEALERS, REPRESENTATIVES AND EMPLOYEES
OF THERMO ELECTRON WHICH ALTER OR ARE IN ADDITION TO THE TERMS OF
THIS WARRANTY SHALL NOT BE BINDING UPON THERMO ELECTRON UNLESS IN
WRITING AND SIGNED BY ONE OF ITS OFFICERS.
23
Russell RL060P
Thermo Electron Corporation
Limitation of Liability
NOTWITHSTANDING ANYTHING TO THE CONTRARY CONTAINED HEREIN, THE
LIABILITY OF SELLER UNDER THESE TERMS AND CONDITIONS (WHETHER BY
REASON OF BREACH OF CONTRACT, TORT, INDEMNIFICATION, OR OTHERWISE,
BUT EXCLUDING LIABILITY OF SELLER FOR BREACH OF WARRANTY (THE SOLE
REMEDY FOR WHICH SHALL BE AS PROVIDED UNDER SECTION 2 ABOVE))
SHALL NOT EXCEED AN AMOUNT EQUAL TO THE LESSER OF (A) THE TOTAL
PURCHASE PRICE THERETOFORE PAID BY BUYER TO SELLER WITH RESPECT TO
THE PRODUCT(S) GIVING RISE TO SUCH LIABILITY OR (B) ONE MILLION DOLLARS
($1,000,000). NOTWITHSTANDING ANYTHING TO THE CONTRARY CONTAINED
HEREIN, IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL OR INCIDENTAL DAMAGES (INCLUDING WITHOUT LIMITATION
DAMAGES FOR LOSS OF USE OF FACILITIES OR EQUIPMENT, LOSS OF REVENUE,
LOSS OF DATA, LOSS OF PROFITS OR LOSS OF GOODWILL), REGARDLESS OF
WHETHER SELLER (A) HAS BEEN INFORMED OF THE POSSIBILITY OF SUCH
DAMAGES OR (B) IS NEGLIGENT.
Miscellaneous
(a) The rights and obligations of the parties hereunder shall be governed by and
construed in accordance with the laws of the Commonwealth of Massachusetts,
without reference to its choice of law provisions. Each party hereby irrevocably
consents to the exclusive jurisdiction of the state and federal courts located in Suffolk
County, Massachusetts, in any action arising out of or relating to this Agreement and
waives any other venue to which it may be entitled by domicile or otherwise. (b)
In the event of any legal proceeding between the Seller and Buyer relating to this
Agreement, neither party may claim the right to a trial by jury, and both parties waive
any right they may have under applicable law or otherwise to a right to a trial by jury.
Any action arising under this Agreement must be brought within one (1) year from the
date that the cause of action arose.
Thermo Electron Corporation24 Russell RL060P
Chapter X
Declaration of Conformity
Manufacturer: Thermo Electron Corporation
Address: 166 Cummings Center
Beverly, MA 01915
USA
The above named Manufacturer hereby declares that the product(s) described below
conforms to the Standards and Directives listed below:
pH RL060P portable meter
Directive / Standard
89/336/EEC Electromagnetic Compatibility (EMC) Directive
EMC essential requirements for measurement device:
EN 50081-1 /1992: EN 55011
EN 50082-1 /1997: EN 61000-4-2/-3
These products have been manufactured in compliance with the provisions of the
relevant Thermo Electron manufacturing and test documents and processes. Further,
these documents and processes are recognized as complying with ISO 9001:2000 by
QMI, listed as File #001911.
Place and date of issue:
Beverly, MA, Robert Manning
November 10, 2005 Manager of Quality
25
Russell RL060P
Thermo Electron Corporation
Chapter XI
Assistance
After troubleshooting all components of your measurement system, contact The
Technical EdgeSM for Orion products. Within the United States call 1.800.225.1480,
outside the United States call 978.232.6000 or fax 978.232.6031. In Europe, the
Middle East and Africa, contact your local authorized dealer. For the most current
contact information, visit www.thermo.com/water or email info.water@thermo.com.
Thermo Electron Corporation26 Russell RL060P
Chapter XII
WEEE Compliance
This product is required to comply with the European Union’s Waste
Electrical & Electronic Equipment (WEEE) Directive 2002/96/EC . It is
marked with the following symbol:
Thermo Electron has contracted with one or more recycling/disposal companies in
each EU Member State and this product should be disposed of or recycled through
them. Further information on Thermo Electron’s compliance with these Directives,
the recyclers in your country, and information on Thermo Electron products which may
assist the detection of substances subject to the RoHS Directive are available at www.
thermo.com/WEEERoHS.
Thermo Electron Corporation
Environmental Instruments
Water Analysis Instruments
166 Cummings Center
Beverly, MA 01915 USA
Tel: 978-232-6000
Toll Free: 800-225-1480
Dom. Fax: 978-232-6015
Int’l. Fax: 978-232-6031
www.thermo.com/water
251587-001 Rev.A
