SAL User Guide

Page 1 of 55

Large Synoptic Survey Telescope (LSST)

LSST Service Abstraction Layer (SAL)

Software SDK Users Manual

Page 2 of 55

Change Record

Version

Date

Description

Owner name

V1.0

12/13/2013

Initial Draft

D. Mills

V2.0

06/06/2014

First Release

D. Mills

V2.3

06/05/2015

Added detail about large-file handling

D. Mills

V2.4

07/27/2015

Major revision to document XML schema use

D. Mills

V3.0

04/29/2016

Revisions for SAL V3 release

D. Mills

V3.5

02/23/2016

Revisions for SAL V3.5 release

D.Mills

V3.6

03/09/2018

Add lists of generic commands and events

D. Mills

Page 3 of 55

Table of Contents

LSST Service Abstraction Layer (SAL) 1

Software SDK Users Manual 1

1 Introduction 5

2. Installation 6

2.0.1 Installation from a tar archive release 6

2.0.2 Installation from Git repositories 7

2.0.3 Install location customization 7

2.1 Installation in a virtual machine 8

2.2 Standard usage 9

3. Data Definition 9

3.1 Telemetry Definition 10

3.2 Command Definition 11

3.3 Log Event Definition 12

3.4 Updating the XML definitions 13

4. Using the SDK 14

4.1 Recommend sequence of operations 15

4.1.1 Step 1 – Definition 16

4.1.2 Step 2 – Validation 16

4.1.3 Step 3 – Update Structure and documentation 16

4.1.4 Step 4 – Code Generation 17

4.2 salgenerator Options 22

4.3 SAL API examples 23

5. Testing 24

5.1 Environment 24

5.2 Telemetry 25

5.3 Commands 25

27

5.4 Events 28

Page 4 of 55

6. Application programming Interfaces 29

6.1. C++ 29

6.2 Java 30

6.3 Python (pybind11 bindings) 31

7.0 SAL XML Schema 32

7.1 Telemetry 32

7.1.1 telemetrySetType 32

32

7.1.2 telemetryType 32

32

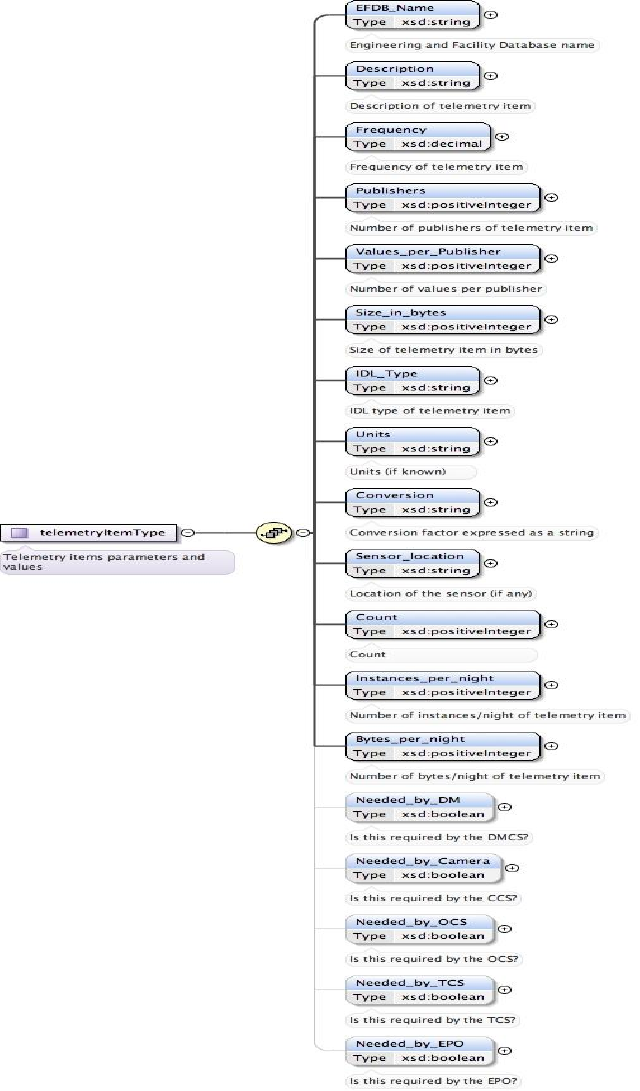

7.1.3 telemetryItemType 33

33

7.2 Commands 34

7.2.1 commandSetType 34

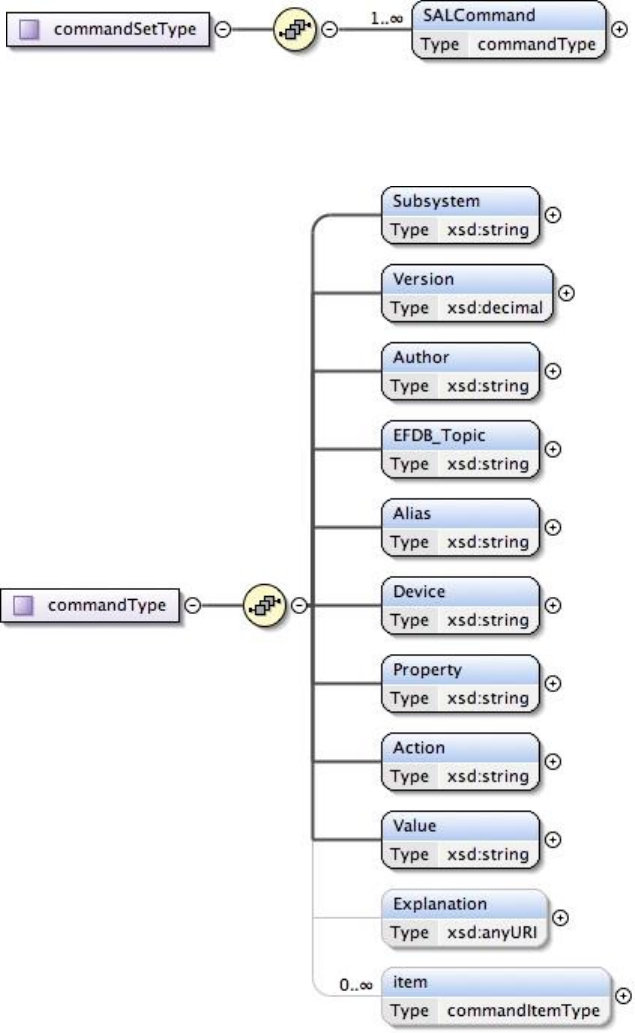

34

7.2.2 commandType 34

34

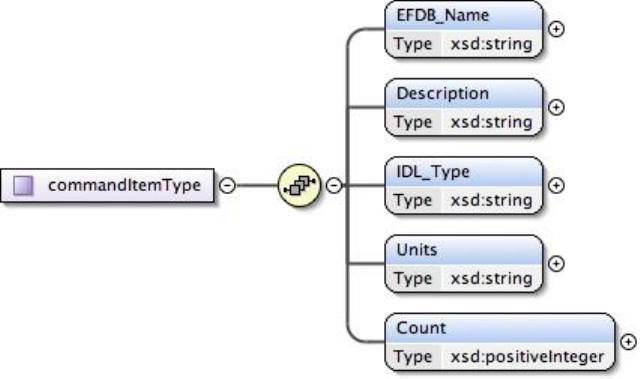

7.2.3 commandItemType 35

35

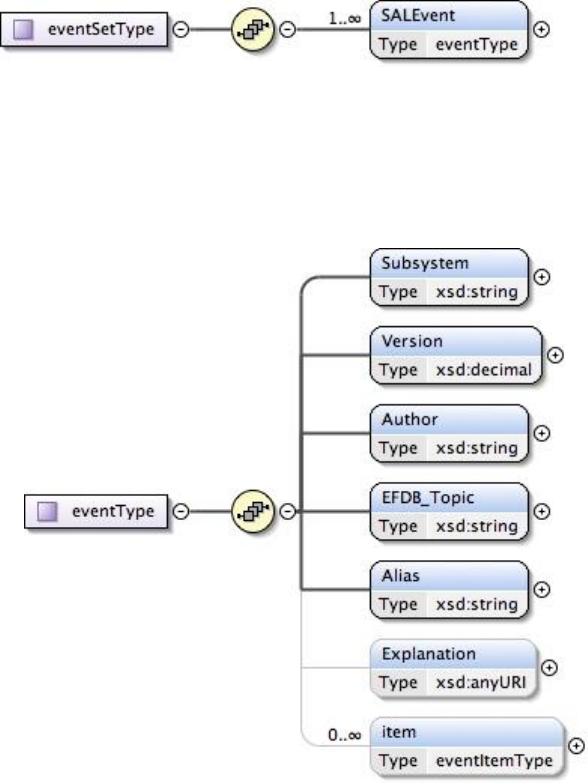

7.3 Events 36

7.3.1 eventSetType 36

7.3.2 eventType 36

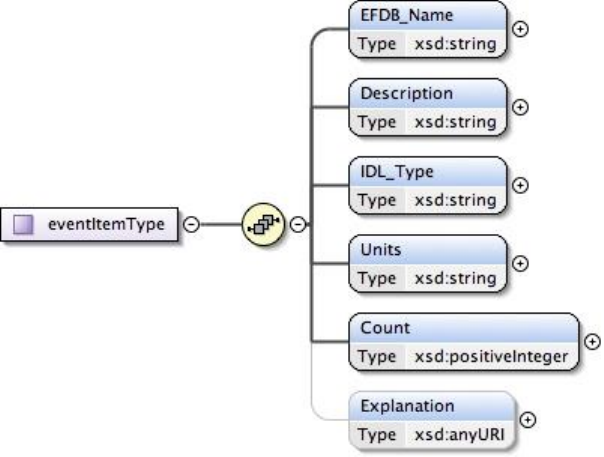

7.3.3 eventItemType 37

8.0 Compiler Options and Link Libraries 38

Page 5 of 55

1 Introduction

This document briefly describes how to use the SAL SDK to generate application

level code to utilize the supported services (Commanding, Telemetry and Events).

The SAL SDK should be installed on a modern (x86_64) Linux computer.

The current baseline recommended configuration is 64-bit CentOS 7.3.

The following packages should also be installed prior to working with the SDK

(use either the rpm or yum package managers for CentOS, and apt-get , dpkg,

or synaptic for Debian based systems). Installation of system packages must be

done using sudo (eg sudo yum install , or sudo apt-get install).

- gcc-c++

- make

- ncurses-libs or ncurses-dev

- xterm

- xorg-x11-fonts-misc

- java-1.7.0-openjdk-devel

- maven

- python-devel

- swig

- git

- tk-devel

The distribution includes dedicated versions of the following packages

- OpenSplice

All the services are built upon a framework of OpenSplice DDS. Code may be autogenerated for

a variety of compiled and scripting languages, as well as template documentation, and

components appropriate for ingest by other software engineering tools.

A comprehensive description of the SAL can be found in doc/LSE74-html, navigate

to the directory with a web browser to view the hyper-linked documentation.

e.g.

firefox file:///path-to-installation/doc/LSE74-html/index.html

Page 6 of 55

2. Installation

A minimum of 800Mb of disk space is required, and at least 1Gb is recommended

to leave some space for building the test programs.

The default OpenSplice configuration requires that certain firewall rules are added,

alternatively, shut down the firewall whilst testing.

For iptables : this can be done(as root) with the following command

sudo /etc/init.d/iptables stop

For Ubuntu: use sudo ufw disable

firewalld : this can be done (as root) with the following commands

First, run the following command to find the default zone:

firewall-cmd --get-default-zone

Next, issue the following commands:

firewall-cmd --zone=public --add-port=250-251/udp --permanent

firewall-cmd --zone=public --add-port=7400-7413/udp --permanent

firewall-cmd --reload

Replace public with whatever the default zone says, if it is different.

The location of the OpenSplice configuration file is stored in the

environment variable OSPL_URI, and an extensive configuration tool

exists (osplconf), should customization be necessary.

2.0.1 Installation from a tar archive release

The tar archive format release includes a compatible version of OpenSplice

as well as the SAL toolkit.

Unpack the SAL tar archive in a location of choice (/opt is recommended),

e.g. in a terminal, replacing x.y.z with the appropriate version id

cd /opt

tar xzf [location-of-sdk-archive]/salSDK-x.y.z_x86_64.tgz

and then add the SDK setup command.

source /opt/setup.env

Page 7 of 55

to your bash login profile.

2.0.2 Installation from Git repositories

Use a git client of your preference to check out the required branch of the following repositories

https://github.com/lsst-ts/ts_sal

https://github.com/lsst-ts/ts_opensplice

and then add the SDK setup command.

source /opt/setup.env

to your bash login profile.

2.0.3 Install location customization

If you chose to install the SDK in a location other than /opt, then you will need

to edit the first line of the setup.env script to reflect the actual location.

e.g.

LSST_SDK_INSTALL=/home/saltester

The standard location for the OpenSplice package is in the same directory as the SDK,

But you can install it elsewhere as long as you edit the OSPL_HOME environment variable to

reference the actual path.

Another important environment variable is SAL_WORK_DIR. This is the directory

in which you will run the SAL tools, and in which all the output files and libraries

will be generated. By default this will be the “test” subdirectory in LSST_SDK_INSTALL, but

you can change SAL_WORK_DIR to redefine it if required.

ALL THE salgenerator STEPS MUST BE RUN FROM THE SAL_WORK_DIR DIRECTORY

If you will be running SAL applications in parallel with other users on your subnet, it is

advisable to partition your network traffic so as not to interfere with each others activities.

This can be done by setting the environment variable LSST_DDS_DOMAIN to a unique

string value for each user.

Also retrieve ts_xml and copy the appropriate subsystem definitions to your working directory.

e.g. cp ts_xml-master/sal_interfaces/mysubsystem/*.xml test/.

Page 8 of 55

Where test is the working directory specified by the SAL_WORK_DIR environment variable.

Add the invocation of setup.env to your bash login profile

source /sal-install-directory-path/setup.env

The most common SDK usage consists of simple steps :

1) Define Telemetry, Command or Log activity (either using the SAL VM, or manually

with an ascii text editor). For details of the SAL VM interface , please refer to

Document-xxxxx.

The current prototypes for each subsystem can be used as a baseline, eg for the dome

subsystem

cd $SAL_WORK_DIR

cp $SAL_HOME/scripts/xml-templates/dome/*.xml .

2) Generate the interface code using 'salgenerator'

3) Modify the autogenerated sample code to fit the application required.

4) Build if necessary, and test the sample programs

Example makefiles are provided for all the test programs. The list of

libraries required to link with the middleware can be found in section 8.0

2.1 Installation in a virtual machine

The SDK has been tested in a Virtual Machine environment (VirtualBox).

To set up a VM appropriately for this usage :

1. In VM configuration , choose Bridged Adaptor for the network device

2. Add a sal user account during OS installation, the user should be an administrator

3. Choose Gnome Desktop + Development tools during OS installation

4. From VM menu , install Guest Additions

Page 9 of 55

5. Once the OS has booted, enable the network

6. Verify the network is ok.

7. sudo yum install xterm xorg-x11-fonts-misc java-1.7.0-openjdk-devel boost-python

boost-python-devel maven python-devel tk-devel

8. Configure (or disable) iptables and firewalld

eg systemctl disable iptables

systemctl disable firewalld

system stop iptables

system stop firewalld

2.2 Standard usage

Normal usage of the SDK comprise four main steps

1.Define Telemetry, Command, and Event datatypes (either using the SAL VM website

interface, or an asci or XML editor). In some cases the XML from another subsystem might

provide a useful bootstrap. See the ts_xml repository.

2. Generate the interface code using the ‘salgenerator’

3. Modify the autogenerated sample code to fit the application required

4. Build and test the sample programs

Example makefiles are provided for all the test programs. The list of libraries required to link an

application with the middleware can be found in section 8.0

3. Data Definition

In all XML data definition files the IDL_Type keyword is used to specify the datatype of each

field. The following datatypes are supported:

 short

 long (this is a 4 byte integer, and is represented as int on Linux 64-bit)

 long long (8 byte integer)

 unsigned short

 unsigned long (this is a 4 byte integer, and is represented as int on Linux 64-bit)

Page 10 of 55

 unsigned long long (8 byte integer)

 float

 double

 char , specify length using the Count tag

 boolean

 octet (sequence of unsigned bytes)

 string, specify length using the Count tag

 numeric arrays, use the Count tag with any numeric type

If there is a time-of-data associated with an item, then it should be named “timestamp”,

and be of type double. The time should be TAI time as returned by the getCurrentTime

method. If more than one timestamp is needed in a topic, then they should be named

“timestamp-name1, timestamp-name2 etc”. If an array of times is required, then the type

should be “double timestamp[size]”.

3.1 Telemetry Definition

A very simple XML schema is used to define a telemetry topic.

The topic is the smallest unit of information which can be exchanged using the SAL

mechanisms.

The following Reserved words may NOT be used in names and will flag an error at

the validation phase (once the SAL System Dictionary is finalized, the item names

will also be validated for compliance with the dictionary).

Reserved words : bstract any attribute boolean case char component const consumes context

custom dec default double emits enum eventtype exception factory false finder fixed float

getraises home import in inout interface limit local long module multiple native object octet

oneway out primarykey private provides public publishes raises readonly sequence setraises

short string struct supports switch true truncatable typedef typeid typeprefix union unsigned uses

valuebase valuetype void wchar wstring

Page 11 of 55

e.g.

<Subsystem>hexapod</Subsystem>

<Author>A Developer</Author>

<EFDB_Topic>hexapod_LimitSensors</EFDB_Topic>

<item>

<EFDB_Name>liftoff</EFDB_Name>

<IDL_Type>short</IDL_Type>

</item>

<item>

<EFDB_Name>limit</EFDB_Name>

<IDL_Type>short</IDL_Type>

</item>

</SALTelemetry>

3.2 Command Definition

Page 12 of 55

The process of defining supported commands is similar to Telemetry using XML.

The command aliases correspond to the ones listed in the relevant subsystem ICD.

e.g.

<Subsystem>hexapod</Subsystem>

<Author>salgenerator</Author>

<EFDB_Topic>hexapod_command_configureAcceleration</EFDB_Topic>

<Alias>configureAcceleration</Alias>

<Device>drive</Device>

<Property>acceleration</Property>

<Explanation>http://sal.lsst.org/SAL/Commands/hexapod_command_configureAcceleration.html</Explan

ation>

<item>

<EFDB_Name>xmin</EFDB_Name>

<IDL_Type>double</IDL_Type>

</item>

<item>

<EFDB_Name>xmax</EFDB_Name>

<IDL_Type>double</IDL_Type>

</item>

<item>

</SALCommand>

Note : The generic lifecycle commands should NOT be included , they are automatically generated during the

salgenerator validation and/or UML to XML processing. The current generic command set is {start, stop, enable,

disable, abort, enterControl, exitControl, standby,SetValue}

3.3 Log Event Definition

Events are defined in a similar fashion to commands. e.g

The Log Event aliases are as defined in the relevant ICD.

e.g.

Page 13 of 55

<Subsystem>hexapod</Subsystem>

<Author>salgenerator</Author>

<EFDB_Topic>hexapod_logevent_limit</EFDB_Topic>

<Alias>limit</Alias>

<Explanation>http://sal.lsst.org/SAL/Events/hexapod_logevent_limit.html</Explanation>

<item>

<EFDB_Name>priority</EFDB_Name>

<Description>Severity of the event</Description>

<IDL_Type>long</IDL_Type>

</item>

<item>

<EFDB_Name>axis</EFDB_Name>

<IDL_Type>string</IDL_Type>

</item>

<item>

<EFDB_Name>limit</EFDB_Name>

<IDL_Type>string</IDL_Type>

</item>

<item>

<EFDB_Name>type</EFDB_Name>

<IDL_Type>string</IDL_Type>

</item>

</SALEvent>

Note : The generic lifecycle events should NOT be included , they are automatically generated

during the salgenerator validation and/or UML to XML processing. The current generic event

set is SettingVersions, SummaryState, DetailedState, ErrorCode, AppliedSettingsMatchStart.

3.4 Updating the XML definitions

The XML definitions of the SAL objects for each subsystem are maintained in

a github repository (https://github.com/lsst-ts/ts_xml).

Page 14 of 55

When subsystem developers update the XML definitions for their interfaces, they should create a

new feature branch in the github repository and put the modified version into it. Once the

feature(s) have been fully tested, the corresponding changes are made made to the appropriate

ICD. Once the ICD has been approved by the Change Control Board, the modified XML will be

merged into the master branch and assigned an official release number. The master (release)

branch is used to generate the SAL runtime libraries which can be used by other subsystems for

integration testing. The master branch is also used by the Continuous Integration Unit

Testing framework.

The XML definition files for the subsystem you are developing should be checked out of the

github repository to ensure you are working with the latest version.

For convenience the full set of current definition files in also included in each SAL SDK

Release (in lsstsal/scripts/xml-templates).

The XML definition files should be copied to the SAL_WORK_DIR directory before

using the SAL tools.

The SAL tools must be run from the SAL_WORK_DIR directory.

4. Using the SDK

Before using the SDK , make sure that all the directories in the SAL_WORK_DIR and

The SAL installation directory are owned by you

e.g.

cd $SAL_WORK_DIR

chown –R <username>:<username> *

Once Telemetry/Command/Events have been defined , either using the SAL VM or hand edited,

e.g. for skycam, interface code and usage samples can

be generated using the salgenerator tool. e.g.

salgenerator skycam validate

salgenerator skycam sal cpp

would generate the c++ communications libraries to be linked with any user code which needs

to interface with the skycam subsystem.

Page 15 of 55

The "sal" keyword indicates SAL code generation is the required operation,

the selected wrapper is cpp (GNU G++ compatible code is generated, other options

are java, isocpp and python).

C++ code generation produces a shared library for type support and another

for the SAL API. It also produces test executables to publish and subscribe to all

defined Telemetry streams, and to send all defined Commands and log Events.

Java code generation produces a .jar class library for type support and another

for the SAL API. It also produces .jar libraries to test publishing and subscribing to

all defined Telemetry streams, and to send all defined Commands and log Events.

The “python” option generates an import'able library. Simple example scripts to perform the

major functions can be found later in this document.

The “labview” keyword indicates that a LabVIEW compatible shared library and Monitor task

should be built (the “sal cpp” step must previously have been run).

The “maven” keyword indicates that a Maven project should be built for the subsystem. This will

be placed in $SAL_WORK_DIR/maven/[subsystem]_[version], The “sal java” step must

previously have been run).

4.1 Recommend sequence of operations

1. Create the XML Telemetry , Command, and Event definitions

2. Use the salgenerator validate operation

3. Use the salgenerator html operation

4. Use the salgenerator sal operation

5. Verify test programs run correctly

6. Build the SAL shared library / JAR for the subsystem

7. Begin simulation/implementation and testing

Page 16 of 55

4.1.1 Step 1 – Definition

Use an XML editor to create/modify the set of subsystem xml files. Each file should be

appropriately named and consists of a either Telemetry, Command,

or Event definitions. The current prototypes for each subsystem can be

found at https://github.com/lsst-ts/ts_xml.

4.1.2 Step 2 – Validation

Run the salgenerator tool validate option for the appropriate subsystem.

e.g. salgenerator mount validate

The successful completion of the validation phase results in the

creation of the following files and directories.

idl-templates – Corresponding IDL DDS topic definitions

idl-templates/validated – validated and standardized idl

idl-templates/validated/sal – idl modules for use with OpenSplice

sql – database table definitions for telemetry

xml – XML versions of the all telemetry definitions

4.1.3 Step 3 – Update Structure and documentation

Run the salgenerator html option for the appropriate subsystem.

e.g. salgenerator mount html

The successful completion of the html phase results in the

creation of the following files and directories which may be

Page 17 of 55

used to update the SAL online configuration website. (See SAL VM

documentation for upload details).

html – a set of directories, one per .idl file, with web forms for editing online

a set of index-dbsimulate web page forms

a set of index-simulate web page forms

a set of sal-generator web page forms

4.1.4 Step 4 – Code Generation

Run the salgenerator tool using the sal option for the appropriate subsystem.

The sal option requires at least one target language to also be specified.

The current target languages are cpp, isocpp, java and python.

Depending upon the target language , successful completion of the code

generation results in the following output directories (e.g for mount)

e.g. salgenerator mount sal cpp

cpp -

mount: - common mount support files

cpp

isocpp

java

mount/cpp:

ccpp_sal_mount.h - main include file

libsacpp_mount_types.so - dds type support library

Makefile.sacpp_mount_types - type support makefile

sal_mount.cpp - item access support

sal_mountDcps_impl.cpp - type class implementation

sal_mount.idl - type definition idl

sal_mountDcps.cpp - type support interface

sal_mountDcps_impl.h - type implementation headers

sal_mountSplDcps.cpp - type support I/O

Page 18 of 55

sal_mountDcps.h - type interface headers

sal_mount.h - type support class

sal_mountSplDcps.h - type I/O headers

src

mount/cpp/src:

CheckStatus.cpp - test dds status returns

CheckStatus.h - test dds status headers

mountCommander.cpp - command generator

mountController.cpp - command processor

mountEvent.cpp - event generator

mountEventLogger.cpp - event logger

Makefile.sacpp_mount_cmd - command support makefile

Makefile.sacpp_mount_event - event support makefile

sacpp_mount_cmd - test program

sacpp_mount_ctl - test program

sacpp_mount_event - test program

sacpp_mount_eventlog - test program

sal_mount.h - SAL class headers

sal_mountC.h - SAL C support

sal_mount.cpp - SAL class

mount_TC: - specific to particular telemetry stream

cpp

isocpp

java

python

mount_TC/cpp:

src

standalone

mount_TC/cpp/src:

Page 19 of 55

CheckStatus.cpp - check dds status class

CheckStatus.h - check dds status header

mount_TCDataPublisher.cpp - Actuators data publisher

mount_TCDataSubscriber.cpp - Actuators data subscriber

mount_TC/cpp/standalone:

Makefile

Makefile.sacpp_mount_TC_sub - subscriber makefile

Makefile.sacpp_mount_TC_pub - publisher makefile

sacpp_mount_sub - test program

sacpp_mount_pub - test program

src

mount_TC/cpp/standalone/src:

e.g. salgenerator mount sal java

java -

mount/java:

classes - compiled type classes

mount - generated java types

Makefile.saj_mount_types - makefile fior types

saj_mount_types.jar - type support classes

sal_mount.idl - validated sal idl

src

mount/java/classes:

full set of java .class type support files

mount saj_mount_types.manifest

Page 20 of 55

mount/java/classes/mount:

full set of .java type support files

mount/java/mount:

mount/java/src :

ErrorHandler.java

mount_cmdctl.run - run command tester

mount_event.run - run event tester

mountCommander.java - commander source

mountController.java - command processor source

mountEvent.java - event generator source

mount_EventLogger.java - event logger source

Makefile.saj_mount_cmdctl - command class makefile

Makefile.saj_mount_event - event class makefile

mount_TC/java: - specific to particular telemetry stream

Makefile

src

standalone

mount_TC/java/src:

ErrorHandler.java - error handler class source

mount_TCDataPublisher.java - publisher class source

mount_TCDataSubscriber.java - subscriber class source

org

mount_TC/java/src/org:

Page 21 of 55

lsst

mount_TC/java/src/org/lsst:

sal

mount_TC/java/src/org/lsst/sal:

sal_mount.java - sal class for mount

mount_TC/java/src/org/lsst/sal/mount:

Actuators

mount_TC/java/src/org/lsst/sal/mount/Actuators:

mount_TC/java/standalone:

mount_TC.run - run test programs

Makefile

Makefile.saj_mount_TC_pub - publication class makefile

Makefile.saj_mount_TC_sub - subscription class makefile

saj_mount_TC_pub.jar - telemetry publication class

saj_mount_TC_sub.jar - telemetry subscription class

Once the java has been generated it is also possible to create a Maven project for ease of

distribution. Use the command e.g.

salgenerator mount maven

will create and build a maven project and save it in

$SAL_WORK_DIR/maven/mount_[sal-version-number]

e.g. salgenerator mount sal python

mount/cpp/src :

Page 22 of 55

Makefile_sacpp_mount_python

SALPY_mount.cpp - Boost.python wrapper

SALPY_mount.so - import'able python library

4.2 salgenerator Options

The salgenerator executes a variety of processes, depending upon the options

selected.

validate - check the XML files, generate validated IDL

html - generate web form interfaces and documentation

labview - generate LabVIEW interface

sal [lang] - generate SAL C++, Java, or Python wrappers

lib - generate the SAL shared library for a subsystem

sim - generate simulation configuration

tcl - generate tcl interface

icd - generate ICD document

maven - generate a maven project (per subsystem)

verbose - be more verbose ;-)

db - generate telemetry database table

for db the arguments required are

db start-time end-time interval

where the times are formatted like “2008-11-12 16:20:01“

and the interval is in seconds

Page 23 of 55

4.3 SAL API examples

The SAL code generation process also generates a comprehensive set of test programs so that

correct operation of the interfaces can be verified.

Sample code is generated for the C++, Java, and Python target languages currently.

The sample code provides a simple command line test for

publishing and subscription for each defined Telemetry type

issuing and receiving each defined Command type

generating and logging for each defined Event type.

In addition , GUI interfaces are provided to simplify the launching of Command and Event

tests.

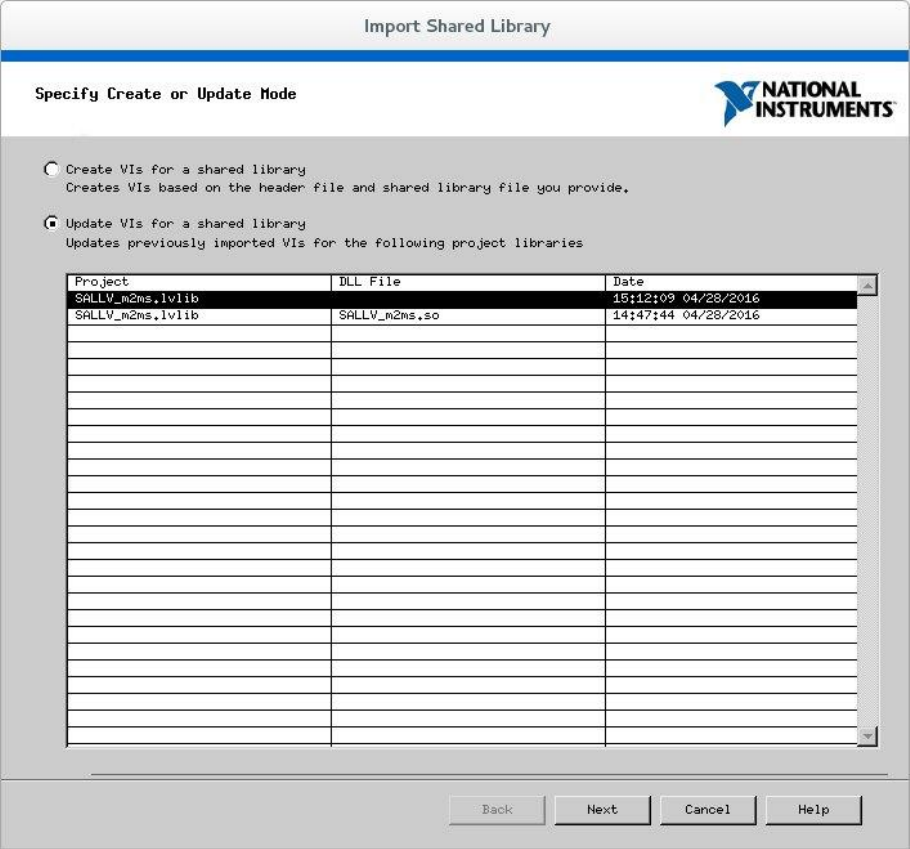

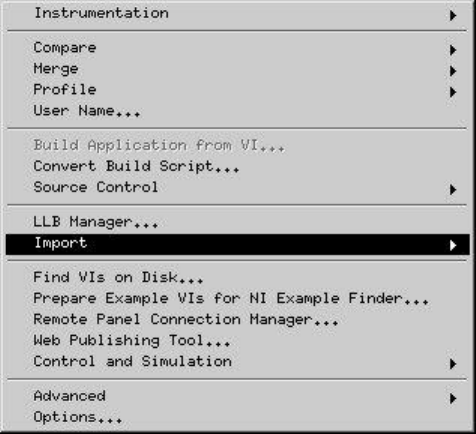

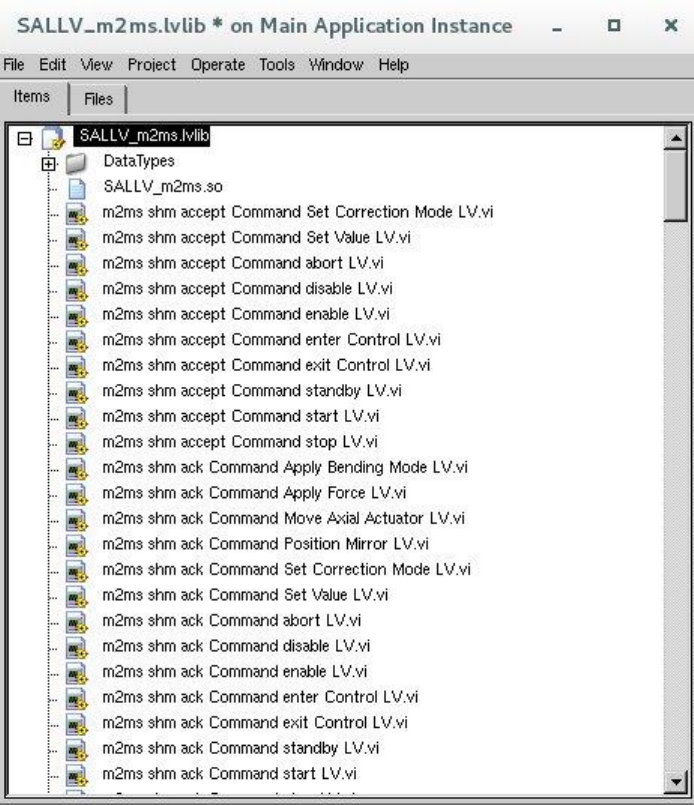

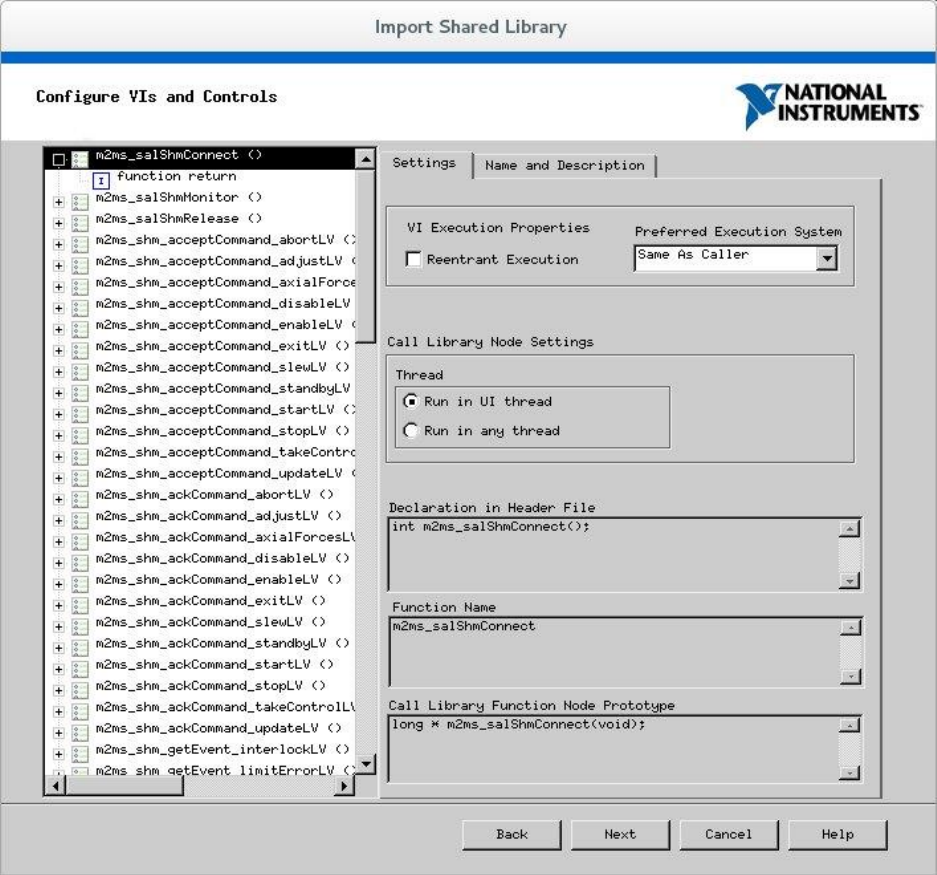

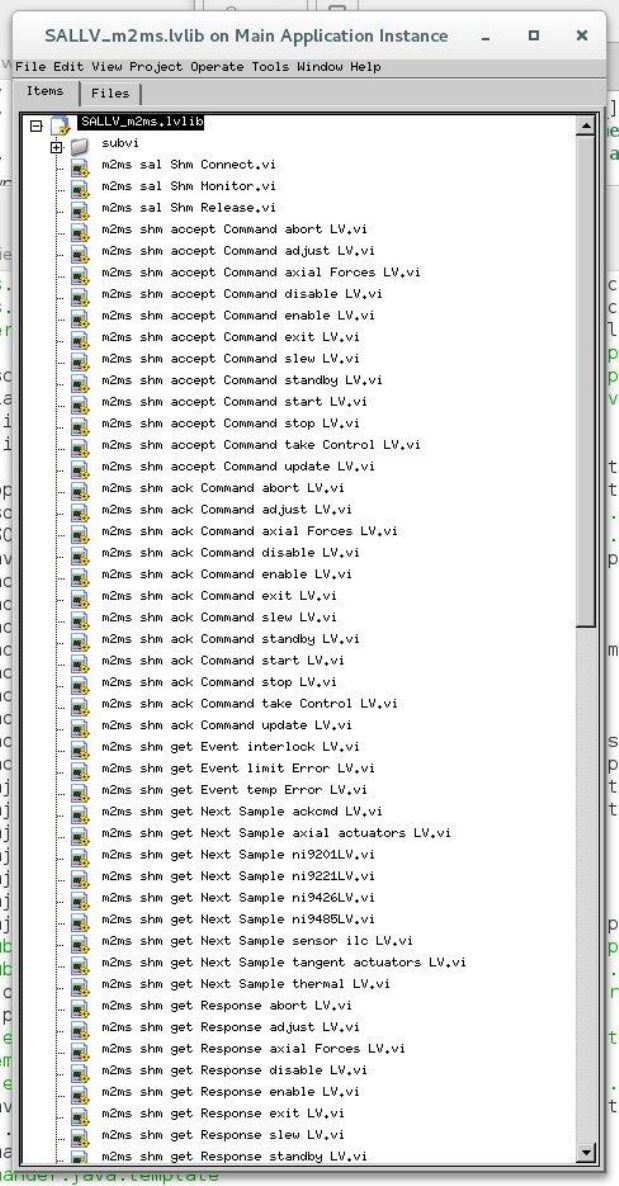

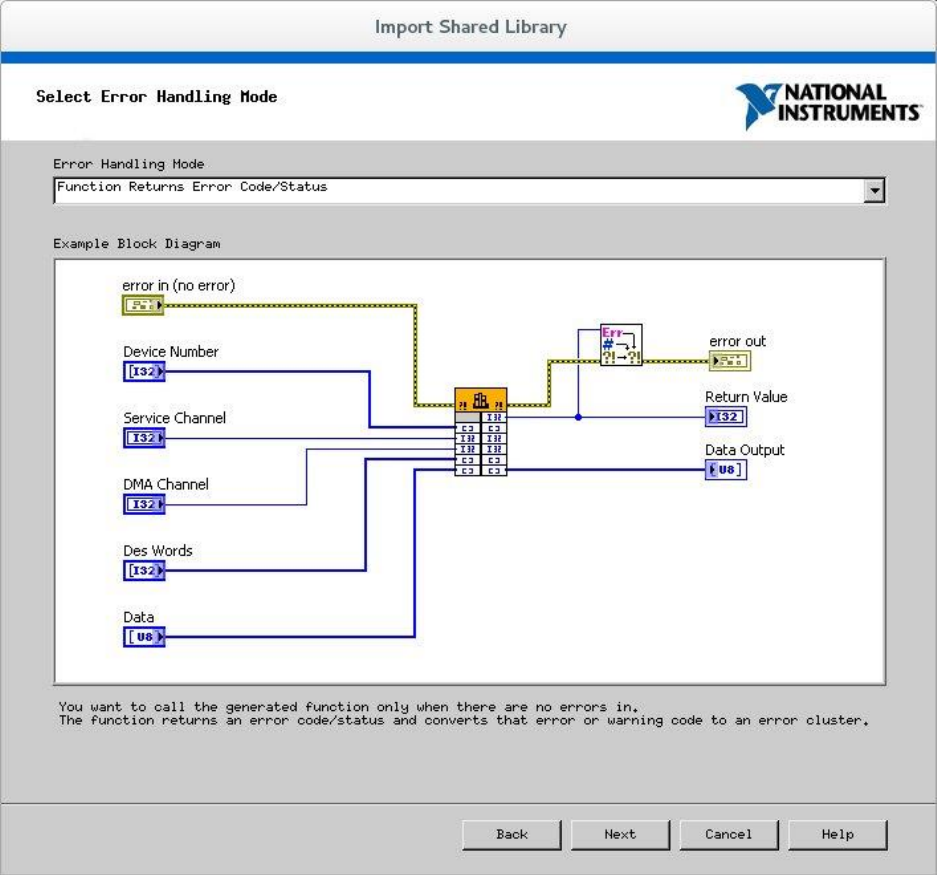

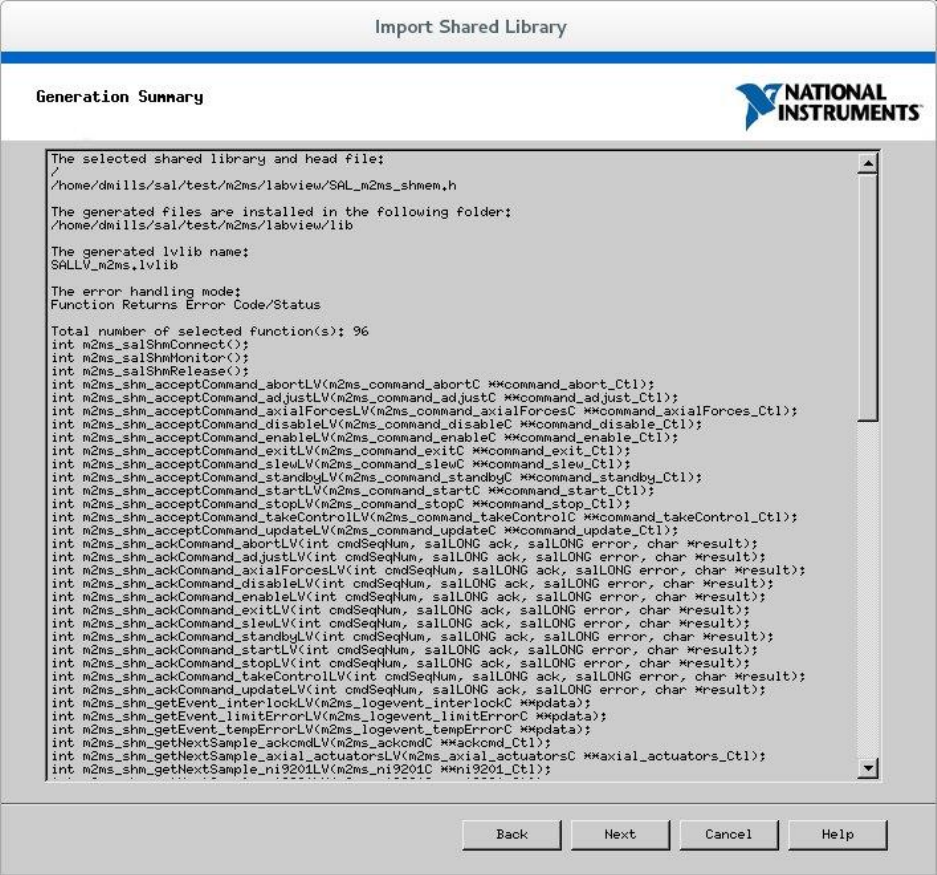

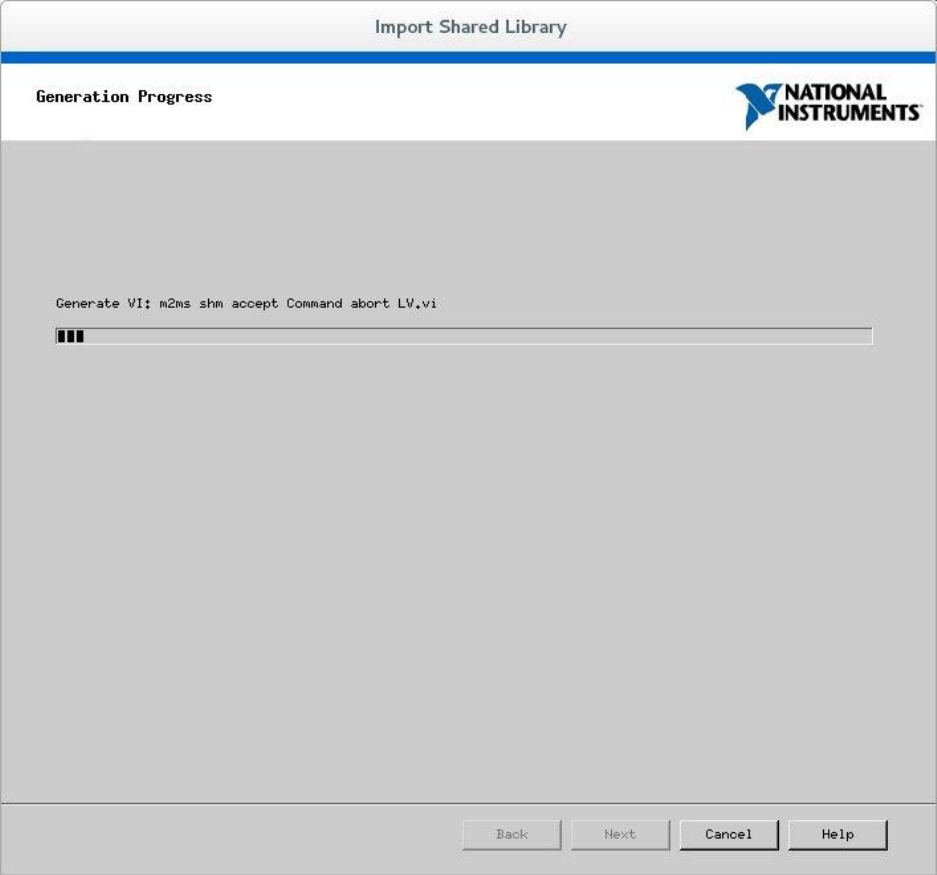

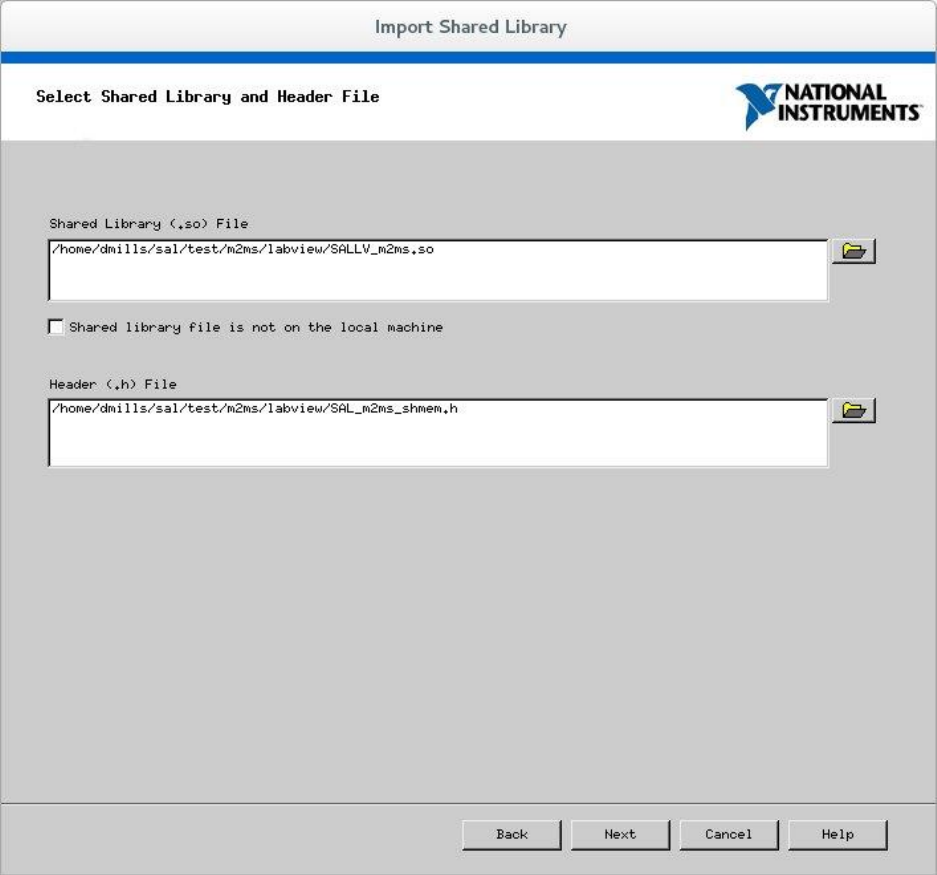

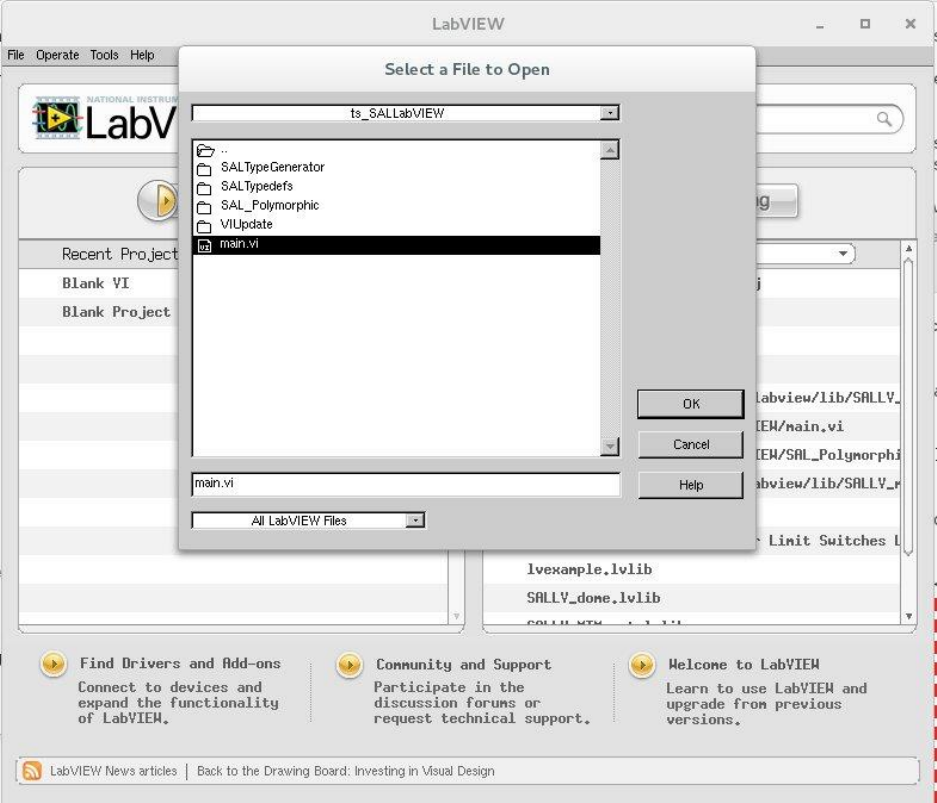

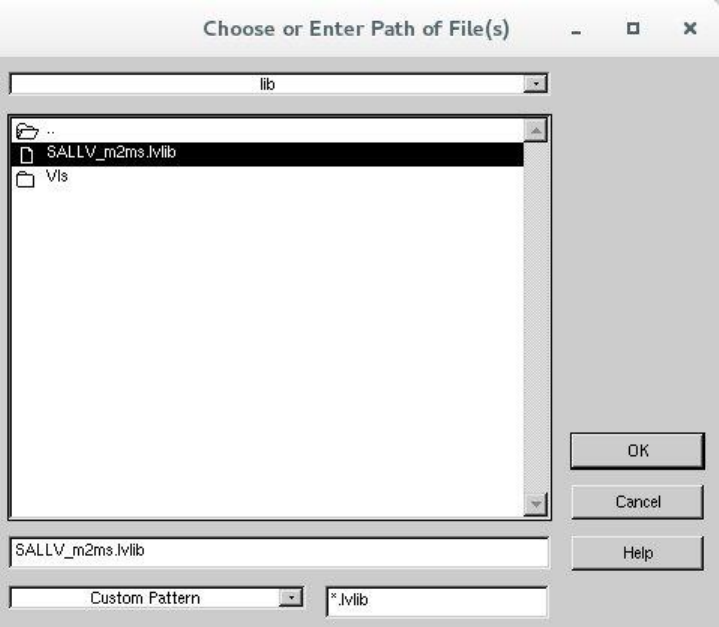

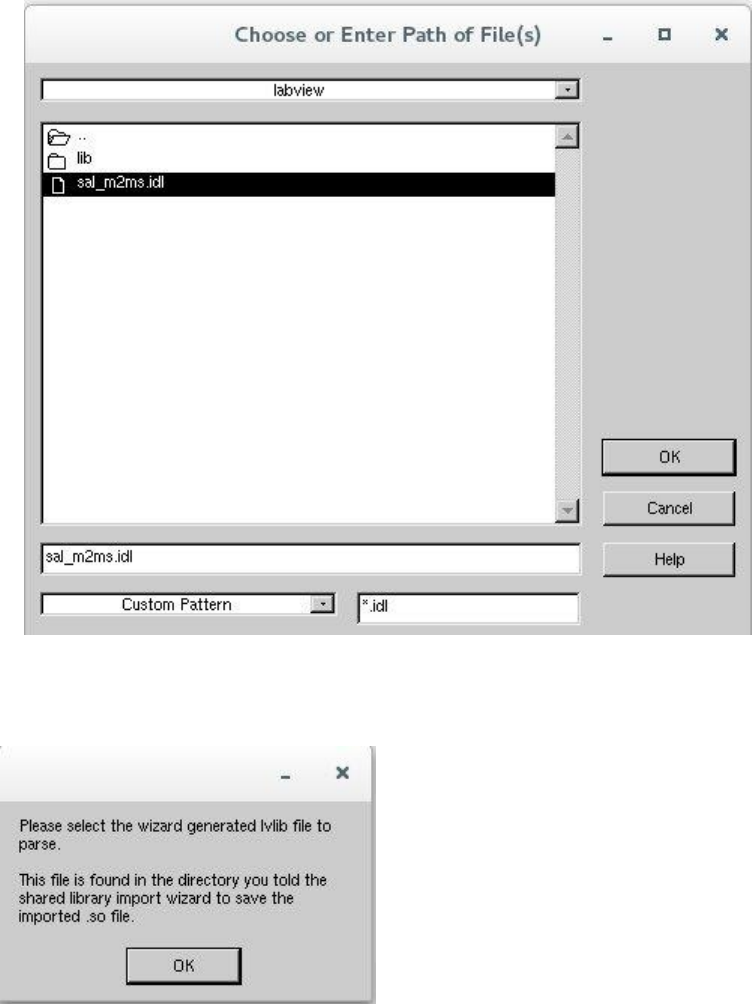

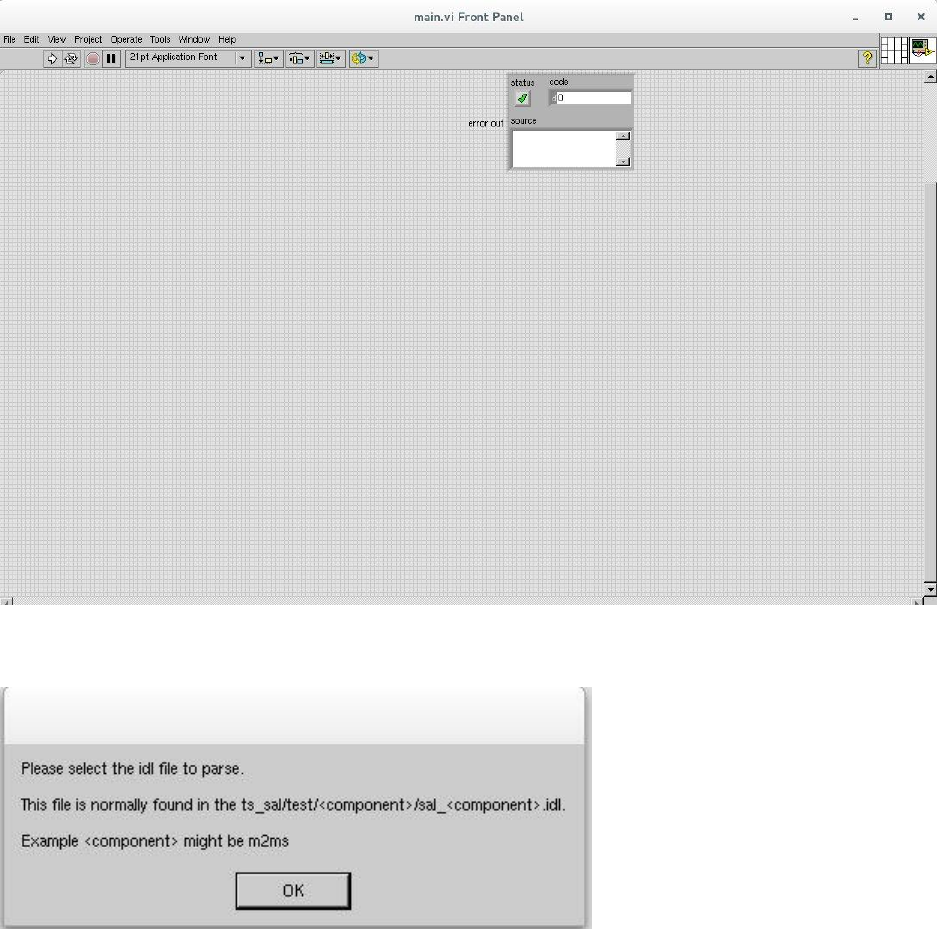

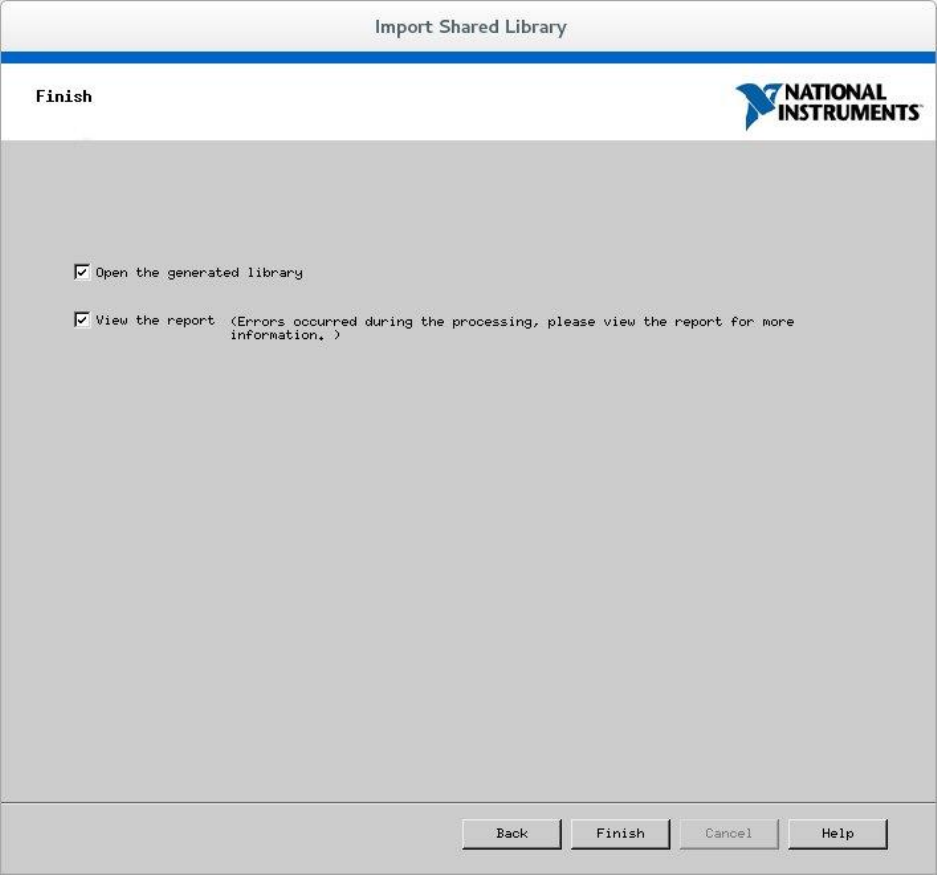

The procedure for generating test VI’s for the LabVIEW interface is detailed in Appendix X.

At present this is an interactive process, involving lots of LabVIEW dialogs.

Page 24 of 55

5. Testing

5.1 Environment

To check that the OpenSplice environment has been correctly initialized; in a terminal, type

idlpp

should produce

Usage: idlpp [-c preprocessor-path] [-b ORB-template-path]

[-n <include-suffix] [-I path] [-D macro[=definition]] [-S] [-C]

[-l (c | c++ \ cpp \ isocpp \ cs \ java)] [-j [old]:<new>] [-d directory] [-i]

[-P dll_macro_name[,<h-file>]] [-o (dds-types | custom-psm | no-equality)] <filename>

To check that the SAL environment has been correctly initialized; in a terminal type

salgenerator

should produce

SAL generator tool - Usage :

salgenerator subsystem flag(s)

where flag(s) may be

validate - check the XML Telemetry/Command/LogEvent definitions

sal - generate SAL wrappers for cpp, java, isocpp, python

lib - generate shared library

tcl - generate tcl interface

html - generate web form interfaces

labview - generate LabVIEW low-level interface

maven - generate a maven repository

db - generate telemetry database table

Arguments required are

db start-time end-time interval

where the times are formatted like "2008-11-12 16:20:01"

and the interval is in seconds

sim - generate simulation configuration

icd - generate ICD document

link - link a SAL program

Page 25 of 55

verbose - be more verbose ;-)

Verify that the network interface is configured and operating correctly.

Make sure that Firewalld is properly configured (or disabled by issuing

the systemctl stop firewalld command as root).

5.2 Telemetry

Once the salgenerator has been used to validate the definition files and generate the

support libraries, there will be automatically built test programs available.

In all cases , log and diagnostic output from OpenSplice will be written to the

files

ospl-info.log and ospl-error.log

in the directory where the test is run.

The following locations assume code has been built for the skycam subsystem support,

there will be separate subdirectories for each Telemetry stream type.

For C++

skycam_<telemetryType>/cpp/standalone/sacpp_skycam_pub - publisher

skycam_<telemetryType>/cpp/standalone/sacpp_skycam_sub - subscriber

start the subscriber first, then the publisher.

For java

skycam_<telemetryType>/java/standalone/skycam_<telemetryType>.run

- start publisher and subscriber

5.3 Commands

The following locations assume code has been built for mount subsystem support

For C++

mount/cpp/src/sacpp_mount_[command]_commander - to send commands

mount/cpp/src/sacpp_mount_[command]_controller - to process commands

start the controller first, wait for it to print Ready, then run the commander

Page 26 of 55

For java

mount/java/src/mount_cmdctl.run - starts command processor

In addition a gui can be used to send all supported subsystem commands (with am associated

processor to demonstrate reception of same). To start the gui e.g. for hexapod subsystem

For C++

command_test_gui hexapod

This script is on the PATH, so you should be able to run it from the command line.

The gui provides a window to select the command to run. If a command has optional values

/modifiers, then a subwindow will open to allow their values to be entered.

A terminal window show the messages from a demo command processor which simply

prints the contents of commands as they are received.

Page 27 of 55

Page 28 of 55

5.4 Events

The following locations assume code has been built for mount subsystem support

For C++

mount/cpp/src/sacpp_mount_[event]_send - to generate events

mount/cpp/src/sacpp_mount_[event]_log - to log the events

start the event logger first and then the send.

For java

mount/java/src/mount_events.run - starts events processor

In addition a gui can be used to send all supported subsystem commands (with an associated

processor to demonstrate reception of same). To start the gui e.g. for hexapod subsystem

For C++

logevent_test_gui hexapod

This script is on the PATH so you should be able to run it from the command line.

Page 29 of 55

The gui provides a window to select the event to generate.. If an event has optional values

/modifiers, then a subwindow will open to allow their values to be entered.

A terminal window show the messages from a demo event processor which simply

prints the contents of events as they are received.

6. Application programming Interfaces

6.1. C++

Includes :

#include <string>

#include <sstream>

#include <iostream>

#include "SAL_mount.h"

#include "ccpp_sal_mount.h"

#include "os.h"

#include "example_main.h"

using namespace DDS;

using namespace <subssytem>; // substitute the actual subsystem name here

Public :

int putSample(<subsystem::telemetryType> data); - publish telemetry sample

int getSample(<subsystem::telemetryTypeSeq> data); - read next telemetry sample

int putSample_<telemetryType>( <subsystem::telemetryTypeC>*data); - publish telemetry sample (C)

int getSample_<telemetryType>(<subsystem::telemetryTypeC>*data); - read next telemetry sample (C)

void salTypeSupport(char *topicName); - initialize type support

void salTelemetryPub(char *topicName); - create telemetry publisher object

void salTelemetrySub(char *topicName); - create telemetry subscriber object

void salEvent(char *topicName); - create event object

int getResponse(<subsystem>::ackcmdSeq data); - read command ack

int getEvent(<subsystem>::logeventSeq data); - read event data

void salShutdown(); - tidyup

void salCommand(); - create command object

void salProcessor(); - create command processor object

Page 30 of 55

int issueCommand( <subsystem>::command data); - send a command

int issueCommandC( <subsystem>_commandC *data); - send a command (C)

int ackCommand( int cmdSeqNum, long ack, - acknowledge a command

long error, char *result );

int acceptCommand( <subsystem>::commandSeq data); - read next command

int acceptCommandC( <subsystem>_commandC *data); - read next command (C)

int checkCommand( int cmdSeqNum ); - check command status

int cancelCommand( int cmdSeqNum ); - cancel command

int abortCommand( int cmdSeqNum ); - abort all commands

int waitForCompletion( int cmdSeqNum ,unsigned int timeout ); - wait for command to complete

int setDebugLevel( int level ); - change debug info level

int getDebugLevel( int level ); - get current debug info level

int getOrigin(); - get origin descriptor

int getProperty(stringproperty, stringvalue); - get configuration item

int setProperty(stringproperty, stringvalue); - set configuration item

int getPolicy(stringpolicy, stringvalue); - get middleware policy item

int setPolicy(stringpolicy, stringvalue); - set middleware policy item

void logError(int status); - log middleware error

salTIME currentTime(); - get current timestamp

int logEvent( char *message, int priority ); - generate a log event

6.2 Java

Includes :

import <subsystem>.*; //substitute actual subsystem name here

import org.lsst.sal.<SAL_subsystem>; //substitute actual subsystem name here

Public :

public void salTypeSupport(String topicName) - initialize type support

public int putSample(<telemetryType> data) - publish a telemetry sample

public int getSample(<telemetryType> data) - read next telemetry sample

public void salTelemetryPub(String topicName) - create telemetry publisher

public void salTelemetrySub(String topicName) - create telemetry subscriber

public void logError(int status) - log middleware error

public SAL_<subsystem>() - create SAL object

public int issueCommand( command data ) - send a command

public int ackCommand( int cmdId, int ack, int error, String result ) - acknowledge a command

public int acceptCommand( <subsystem>.command data ) - read next command

public int checkCommand( int cmdSeqNum ) - check command status

public int getResponse(ackcmdSeqHolder data) - read command ack

public int cancelCommand( int cmdSeqNum ) - cancel a command

public int abortCommand( int cmdSeqNum ) - abort all commands

public int waitForCompletion( int cmdSeqNum , int timeout ) - wait for command to complete

public int getEvent(logeventSeqHolder data) - read next event data

public int logEvent( String message, int priority ) - generate an event

public int setDebugLevel( int level ) - set debug info level

public int getDebugLevel( int level ) - get debug info level

public int getOrigin() - get origin descriptor

Page 31 of 55

public int getProperty(String property, String value) - get configuration item

public int setProperty(String property, String value) - set configuration item

public void salCommand() - create a command object

public void salProcessor() - create command processor object

public void salShutdown() - tidyup

public void salEvent(String topicName) - create event object

6.3 Python (pybind11 bindings)

Each Telemetry/Command/Event datatype is wrapped like this

(arrays are mapped to numpy arrays).

py::class_<atcs_command_OffsetC>(m,"atcs_command_OffsetC")

.def(py::init<>())

.def_readwrite("device", &atcs_command_OffsetC::device)

.def_readwrite("property", &atcs_command_OffsetC::property)

.def_readwrite("action", &atcs_command_OffsetC::action)

.def_readwrite("value", &atcs_command_OffsetC::value)

.def_readwrite("offsetX", &atcs_command_OffsetC::offsetX)

.def_readwrite("offsetY", &atcs_command_OffsetC::offsetY)

;

Commands , Events, and Telemetry calls are wrapped like this, every C++ method has a

corresponding python binding.

.def( "issueCommand_enable", &SAL_atcs::issueCommand_enable )

.def( "acceptCommand_enable", &SAL_atcs::acceptCommand_enable )

.def( "ackCommand_enable", &SAL_atcs::ackCommand_enable )

.def( "waitForCompletion_enable", &SAL_atcs::waitForCompletion_enable

)

Page 32 of 55

7.0 SAL XML Schema

7.1 Telemetry

7.1.1 telemetrySetType

7.1.2 telemetryType

Page 33 of 55

7.1.3 telemetryItemType

Page 34 of 55

7.2 Commands

7.2.1 commandSetType

7.2.2 commandType

Page 35 of 55

7.2.3 commandItemType

Page 36 of 55

7.3 Events

7.3.1 eventSetType

7.3.2 eventType

Page 37 of 55

7.3.3 eventItemType

Page 38 of 55

8.0 Compiler Options and Link Libraries

The following compiler options are required when compiling application code

For subsequent linking with the SAL and DDS middleware.

CFLAGS/CXXFLAGS : -m64 -D_REENTRANT –fPIC –Wno-write-strings

Subsystems with duplicate instantiations (e.g. Hexapods) also require

-DSAL_SUBSYSTEM_IS_KEYED

and the following include paths will be required

-I$(OSPL_HOME)/include

-I$(OSPL_HOME)/include/sys

-I$(OSPL_HOME)/include/dcps/C++/SACPP

-I$(SAL_HOME)/include

-I$(SAL_WORK_DIR)/include

-I../../-subsys-/cppsrc

Where -subsys- is the subsystem name e.g. hexapod

The following libraries are required when linking an application to use the SAL

and DDS middleware. For an application that communicates with multiple

subsystems, the SAL libraries for each must be included.

SAL : libSAL_[subsystem-name].so , libsacpp_[subsystem-name]_types.so

DDS : libdcpssacpp.so , libdcpsgapi.so , libddsuser.so , libddskernel.so ,

libddsserialization.so , libddsconfparser.so , libddsdatabase.so , libddsutil.so,

libddsos.so, libddsconf.so

Other : libdl.so , libpthread.so

Appropriate linker path directives are

-L$(OSPL_HOME)/lib -L$(SAL_HOME)/lib

Page 39 of 55

9.0 LabVIEW test VI generation

If you have multiple LabVIEW verisons installed, or if LabVIEW is installed in a non default

location, you can use the environment variable LABVIEW_HOME to control where the SDK

looks for the LabVIEW header files.

e.g. export LABVIEW_HOME=/opt/natinst

would expect to find headers in /opt/natinst/LabVIEW_20[xx]_64

Run the salgenerator steps in order

salgenerator [subsystem] validate

salgenerator [subsystem] sal cpp

salgenerator [subsystem] labview

The generation of the LabVIEW test VI’s is an interactive process. The LabVIEW

Shared library import is used to automatically generate VI’s to interact with the

Salgenerator produced SALLV_[subsystem].so library.

NOTE : It is vital to COMPLETELY DELETE the entire destination directory and it’s

Contents so that wizard can create it’s output directory afresh. For example if you choose

To place the results in /home/me/sal/test/tcs/labview/lib, then you should run the following command

BEFORE starting the LabVIEW tools.

rm –fr /home/me/sal/test/tcs/labview/lib

Page 40 of 55

1. Start LabVIEW and select the Tools->Import->Shared Library (.so) option

2. Choose either New or Update option and specify the path to the library

and then click Next. Proceed through the rest of the dialogs as illustrated below.

Generally selecting the default and clicking Next is appropriate.

The only non-standard option is in the “Configure Include Paths…” dialog

where you must enter the

BUILD_FOR_LV=1

Option in the Preprocessor options section.

Page 41 of 55

Page 42 of 55

Page 43 of 55

Page 44 of 55

Page 45 of 55

Page 46 of 55

Page 47 of 55

Page 48 of 55

Click Finish on the dialog.

Page 49 of 55

Page 50 of 55

When the LabVIEW import library wizard has completed it is necessary to run another

LSST provided VI to finish the generation process.

Use the LabVIEW File->Open dialog to locate ts_SALLabVIEW/main.vi

Click OK to run the main.vi VI. It will open a mostly empty interface.

Page 51 of 55

Click the Run icon.

Click OK and select the subsystem IDL file. The correct file should be found in the

[subsystem]/labview directory of the SAL_WORK_DIR tree.

Page 52 of 55

Click OK to select it.

Click OK

Another file dialog then appears for you to select the .lvlib containing the VI’s.

This should be located in the [subsystem]/labview/lib directory of the SAL_WORK_DIR

tree.

Page 53 of 55

Click OK.

There will then be an extensive period where multiple windows flash on the screen as

each VI is individually processed. Finally a library contents window will appear.

Page 54 of 55

Another extensive period will follow where each VI is processed again (you will see

them being removed and re-added to the list one-by-one.

Finally the process completes and the main LabVIEW window will reappear.

Once the VI’s has been built, you can manually test them by running them against

either each other , or against the C++/Java/Python test programs.

Regardless of which option you choose, the LabVIEW environment must be

set up first by

Page 55 of 55

1. Running the SALLV_[subsystem]_Monitor daemon in a terminal

(this executable manages the shared memory used to mediate

the transfer of data to and from LabVIEW). The daemon will have been

built in the [SAL_WORK_DIR]/[subsystem]/labview directory.

2. Run the [subsystem]_shm_connect VI and leave it open

3. Depending upon the required function, an initialization VI should be run

i.e. for command receivers , run [subsystem]_shm_salProcessor_[name],

for event receivers , run [subsystem]_shm_salEvent_[name],

and for Telemetry receivers , run [subsystem]_shm_salTelemetrySub.

4. After an application has completed all it’s SAL mediated communications, it

is essential to call the [subsystem]_shm_release VI to clean up.

SAL User Guide

SAL_User_Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
