ef_vi User Guide

SF-114063-CD , Issue 5

2017/05/25 15:51:40

Solarﬂare Communications Inc

ef_vi User Guide

The software and hardware as applicable (the “Product”) described in this document, and this document, are pro-

tected by copyright laws, patents and other intellectual property laws and international treaties. The Product de-

scribed in this document is provided pursuant to a license agreement, evaluation agreement and/or non-disclosure

agreement. The Product may be used only in accordance with the terms of such agreement. The software as

applicable may be copied only in accordance with the terms of such agreement.

Onload is licensed under the GNU General Public License (Version 2, June 1991). See the LICENSE ﬁle in the

distribution for details. The Onload Extensions Stub Library is Copyright licensed under the BSD 2-Clause License.

Onload contains algorithms and uses hardware interface techniques which are subject to Solarﬂare Communica-

tions Inc patent applications. Parties interested in licensing Solarﬂare’s IP are encouraged to contact Solarﬂare’s

Intellectual Property Licensing Group at:

Director of Intellectual Property Licensing

Intellectual Property Licensing Group

Solarﬂare Communications Inc,// 7505 Irvine Center Drive

Suite 100

Irvine, California 92618

You will not disclose to a third party the results of any performance tests carried out using Onload or EnterpriseOn-

load without the prior written consent of Solarﬂare.

The furnishing of this document to you does not give you any rights or licenses, express or implied, by estoppel

or otherwise, with respect to any such Product, or any copyrights, patents or other intellectual property rights

covering such Product, and this document does not contain or represent any commitment of any kind on the part of

SOLARFLARE Communications, Inc. or its afﬁliates.

The only warranties granted by SOLARFLARE Communications, Inc. or its afﬁliates in connection with the Product

described in this document are those expressly set forth in the license agreement, evaluation agreement and/or

non-disclosure agreement pursuant to which the Product is provided. EXCEPT AS EXPRESSLY SET FORTH

IN SUCH AGREEMENT, NEITHER SOLARFLARE COMMUNICATIONS, INC. NOR ITS AFFILIATES MAKE ANY

REPRESENTATIONS OR WARRANTIES OF ANY KIND (EXPRESS OR IMPLIED) REGARDING THE PRODUCT

OR THIS DOCUMENTATION AND HEREBY DISCLAIM ALL IMPLIED WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT, AND ANY WARRANTIES THAT MAY

ARISE FROM COURSE OF DEALING, COURSE OF PERFORMANCE OR USAGE OF TRADE. Unless otherwise

expressly set forth in such agreement, to the extent allowed by applicable law (a) in no event shall SOLARFLARE

Communications, Inc. or its afﬁliates have any liability under any legal theory for any loss of revenues or proﬁts,

loss of use or data, or business interruptions, or for any indirect, special, incidental or consequential damages, even

if advised of the possibility of such damages; and (b) the total liability of SOLARFLARE Communications, Inc. or

its afﬁliates arising from or relating to such agreement or the use of this document shall not exceed the amount

received by SOLARFLARE Communications, Inc. or its afﬁliates for that copy of the Product or this document which

is the subject of such liability.

The Product is not intended for use in medical, life saving, life sustaining, critical control or safety systems, or in

nuclear facility applications.

SF-114063-CD

Last Revised: 52017

Issue 5

ef_vi User Guide

Contents

1 ef_vi 1

1.1 Introduction .............................................. 1

2 Overview 3

2.1 Capabilities .............................................. 3

2.2 Flexibility ................................................ 3

2.3 Scalability ............................................... 4

2.4 Use cases ............................................... 4

2.4.1 Sockets acceleration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.4.2 Packet capture ........................................ 4

2.4.3 Packet replay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.4.4 Application as an end-station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.4.5 Software deﬁned bridging, switching and routing . . . . . . . . . . . . . . . . . . . . . . . 5

3 Concepts 7

3.1 Virtual Interface ............................................ 7

3.1.1 Virtual Interface Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.1.2 Event queue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.1.3 Transmit descriptor ring .................................... 8

3.1.4 Receive descriptor ring .................................... 8

3.2 Protection Domain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.3 Memory Region ............................................ 9

3.4 Packet Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.4.1 Jumbo Packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.4.2 Packet Buffer Descriptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.5 Programmed I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.6 Filters ................................................. 10

3.6.1 Multiple Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.7 Virtual LANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.8 TX Alternatives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

ef_vi User Guide

Contents

4 Example Applications 13

4.1 eﬂatency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.1.1 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.2 efsend ................................................. 14

4.3 efsink ................................................. 14

4.3.1 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.4 efforward ............................................... 15

4.5 efsend_timestamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.6 efsend_pio ............................................... 15

4.7 efsink_packed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.8 efforward_packed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.9 efrss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.10 efdelegated_client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.10.1 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.11 efdelegated_server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.11.1 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.12 Building the Example Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5 Using ef_vi 19

5.1 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.2 Compiling and Linking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.3 Setup ................................................. 20

5.3.1 Using Virtual Interface Sets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.4 Creating packet buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.5 Transmitting Packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.5.1 Transmitting Jumbo Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.5.2 Programmed I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.5.3 TX Alternatives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.6 Handling Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.6.1 Blocking on a ﬁle descriptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

ef_vi User Guide

Contents

5.7 Receiving packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.7.1 Finding the Packet Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.7.2 Receiving Jumbo Packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.8 Adding Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.9 Filters available per Firmware Variant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.10 Freeing Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.11 Design Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.11.1 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.11.2 Thread Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.11.3 Packet Buffer Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.11.4 Virtual machines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.12 Known Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.12.1 Timestamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.12.2 Minimum Fill Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.13 Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6 Worked Example 33

6.1 Setup ................................................. 33

6.2 Creating Packet buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

6.3 Adding Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

6.4 Receiving packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.5 Handling Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6.6 Transmitting packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

7 Data Structure Index 37

7.1 Data Structures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

8 File Index 39

8.1 File List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

ef_vi User Guide

Contents

9 Data Structure Documentation 41

9.1 ef_event Union Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

9.1.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1.2.1 generic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1.2.2 rx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1.2.3 rx_discard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1.2.4 rx_multi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1.2.5 rx_multi_discard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

9.1.2.6 rx_no_desc_trunc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9.1.2.7 rx_packed_stream . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9.1.2.8 sw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9.1.2.9 tx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9.1.2.10 tx_alt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9.1.2.11 tx_error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9.1.2.12 tx_timestamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9.2 ef_eventq_state Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.2.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.2.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.2.2.1 evq_ptr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.2.2.2 sync_ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.2.2.3 sync_timestamp_major . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

9.2.2.4 sync_timestamp_minimum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

9.2.2.5 sync_timestamp_minor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

9.2.2.6 sync_timestamp_synchronised . . . . . . . . . . . . . . . . . . . . . . . . . . 46

9.3 ef_ﬁlter_cookie Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

9.3.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.3.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.3.2.1 ﬁlter_id . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

ef_vi User Guide

Contents

9.3.2.2 ﬁlter_type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.4 ef_ﬁlter_spec Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

9.4.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

9.4.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

9.4.2.1 data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

9.4.2.2 ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

9.4.2.3 type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

9.5 ef_iovec Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.5.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.5.2 Member Function Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.5.2.1 EF_VI_ALIGN() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.5.3 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.5.3.1 iov_len . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

9.6 ef_memreg Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

9.6.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

9.6.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

9.6.2.1 mr_dma_addrs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

9.6.2.2 mr_dma_addrs_base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

9.7 ef_packed_stream_packet Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

9.7.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

9.7.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

9.7.2.1 ps_cap_len . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

9.7.2.2 ps_ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

9.7.2.3 ps_next_offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

9.7.2.4 ps_orig_len . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

9.7.2.5 ps_pkt_start_offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

9.7.2.6 ps_ts_nsec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

9.7.2.7 ps_ts_sec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

9.8 ef_packed_stream_params Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

ef_vi User Guide

Contents

9.8.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.8.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.8.2.1 psp_buffer_align . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.8.2.2 psp_buffer_size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

9.8.2.3 psp_max_usable_buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.8.2.4 psp_start_offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.9 ef_pd Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.9.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.9.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

9.9.2.1 pd_cluster_dh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

9.9.2.2 pd_cluster_name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

9.9.2.3 pd_cluster_sock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

9.9.2.4 pd_cluster_viset_index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

9.9.2.5 pd_cluster_viset_resource_id . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

9.9.2.6 pd_ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

9.9.2.7 pd_intf_name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

9.9.2.8 pd_resource_id . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

9.10 ef_pio Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

9.10.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

9.10.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

9.10.2.1 pio_buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

9.10.2.2 pio_io . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

9.10.2.3 pio_len . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

9.10.2.4 pio_resource_id . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

9.11 ef_vi Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

9.11.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

9.11.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

9.11.2.1 ep_state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

9.11.2.2 evq_base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

ef_vi User Guide

Contents

9.11.2.3 evq_mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

9.11.2.4 inited . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

9.11.2.5 io . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

9.11.2.6 linked_pio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

9.11.2.7 nic_type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

9.11.2.8 ops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

9.11.2.9 rx_buffer_len . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

9.11.2.10 rx_discard_mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

9.11.2.11 rx_preﬁx_len . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

9.11.2.12 rx_ts_correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

9.11.2.13 timer_quantum_ns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

9.11.2.14 tx_alt_hw2id . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

9.11.2.15 tx_alt_id2hw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

9.11.2.16 tx_alt_num . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

9.11.2.17 tx_push_thresh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

9.11.2.18 tx_ts_correction_ns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

9.11.2.19 vi_clustered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

9.11.2.20 vi_ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

9.11.2.21 vi_i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

9.11.2.22 vi_io_mmap_bytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

9.11.2.23 vi_io_mmap_ptr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9.11.2.24 vi_is_normal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9.11.2.25 vi_is_packed_stream . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9.11.2.26 vi_mem_mmap_bytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9.11.2.27 vi_mem_mmap_ptr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

9.11.2.28 vi_out_ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

9.11.2.29 vi_ps_buf_size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

9.11.2.30 vi_qs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

9.11.2.31 vi_qs_n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

ef_vi User Guide

Contents

9.11.2.32 vi_resource_id . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

9.11.2.33 vi_rxq . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

9.11.2.34 vi_stats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

9.11.2.35 vi_txq . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

9.12 ef_vi_layout_entry Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

9.12.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.12.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.12.2.1 evle_description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.12.2.2 evle_offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.12.2.3 evle_type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.13 ef_vi_nic_type Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.13.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

9.13.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

9.13.2.1 arch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

9.13.2.2 revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

9.13.2.3 variant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

9.14 ef_vi_rxq Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

9.14.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

9.14.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

9.14.2.1 descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

9.14.2.2 ids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

9.14.2.3 mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

9.15 ef_vi_rxq_state Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

9.15.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

9.15.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

9.15.2.1 added . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

9.15.2.2 bytes_acc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

9.15.2.3 in_jumbo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

9.15.2.4 last_desc_i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

ef_vi User Guide

Contents

9.15.2.5 posted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

9.15.2.6 removed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

9.15.2.7 rx_ps_credit_avail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

9.16 ef_vi_set Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

9.16.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

9.16.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

9.16.2.1 vis_pd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

9.16.2.2 vis_res_id . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

9.17 ef_vi_state Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

9.17.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

9.17.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

9.17.2.1 evq . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

9.17.2.2 rxq . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

9.17.2.3 txq . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

9.18 ef_vi_stats Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

9.18.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

9.18.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

9.18.2.1 evq_gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.18.2.2 rx_ev_bad_desc_i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.18.2.3 rx_ev_bad_q_label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.18.2.4 rx_ev_lost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.19 ef_vi_stats_ﬁeld_layout Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

9.19.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

9.19.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

9.19.2.1 evsﬂ_name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

9.19.2.2 evsﬂ_offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

9.19.2.3 evsﬂ_size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

9.20 ef_vi_stats_layout Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

9.20.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

ef_vi User Guide

Contents

9.20.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

9.20.2.1 evsl_data_size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

9.20.2.2 evsl_ﬁelds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

9.20.2.3 evsl_ﬁelds_num . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

9.21 ef_vi_transmit_alt_overhead Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

9.21.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

9.21.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

9.21.2.1 mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

9.21.2.2 post_round . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

9.21.2.3 pre_round . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

9.22 ef_vi_txq Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

9.22.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

9.22.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

9.22.2.1 descriptors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

9.22.2.2 ids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

9.22.2.3 mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

9.23 ef_vi_txq_state Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

9.23.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

9.23.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

9.23.2.1 added . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

9.23.2.2 previous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

9.23.2.3 removed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

9.23.2.4 ts_nsec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

9.24 ef_vi::ops Struct Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

9.24.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

9.24.2 Field Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

9.24.2.1 eventq_poll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

9.24.2.2 eventq_prime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

9.24.2.3 eventq_timer_clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

ef_vi User Guide

Contents

9.24.2.4 eventq_timer_prime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

9.24.2.5 eventq_timer_run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

9.24.2.6 eventq_timer_zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

9.24.2.7 receive_init . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

9.24.2.8 receive_push . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

9.24.2.9 transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

9.24.2.10 transmit_alt_discard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

9.24.2.11 transmit_alt_go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

9.24.2.12 transmit_alt_select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

9.24.2.13 transmit_alt_select_default . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

9.24.2.14 transmit_alt_stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

9.24.2.15 transmit_copy_pio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

9.24.2.16 transmit_copy_pio_warm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

9.24.2.17 transmit_pio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

9.24.2.18 transmit_pio_warm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

9.24.2.19 transmit_push . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

9.24.2.20 transmitv . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

9.24.2.21 transmitv_init . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

10 File Documentation 89

10.1 000_main.dox File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

10.1.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

10.2 010_overview.dox File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

10.2.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

10.3 020_concepts.dox File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

10.3.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

10.4 030_apps.dox File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

10.4.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

10.5 040_using.dox File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

10.5.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

ef_vi User Guide

Contents

10.6 050_examples.dox File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

10.6.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

10.7 base.h File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

10.7.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

10.7.2 Function Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

10.7.2.1 ef_driver_close() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

10.7.2.2 ef_driver_open() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

10.7.2.3 ef_eventq_wait() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

10.8 capabilities.h File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

10.8.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

10.8.2 Enumeration Type Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

10.8.2.1 ef_vi_capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

10.8.3 Function Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

10.8.3.1 ef_vi_capabilities_get() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

10.8.3.2 ef_vi_capabilities_max() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

10.8.3.3 ef_vi_capabilities_name() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

10.9 ef_vi.h File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

10.9.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

10.9.2 Macro Deﬁnition Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

10.9.2.1 EF_EVENT_RX_MULTI_CONT . . . . . . . . . . . . . . . . . . . . . . . . . . 105

10.9.2.2 EF_EVENT_RX_MULTI_SOP . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

10.9.2.3 EF_EVENT_RX_PS_NEXT_BUFFER . . . . . . . . . . . . . . . . . . . . . . . 106

10.9.2.4 ef_eventq_poll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

10.9.2.5 ef_eventq_prime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

10.9.2.6 ef_vi_receive_init . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

10.9.2.7 ef_vi_receive_push . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

10.9.2.8 ef_vi_transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

10.9.2.9 ef_vi_transmit_alt_discard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

10.9.2.10 ef_vi_transmit_alt_go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

ef_vi User Guide

Contents

10.9.2.11 ef_vi_transmit_alt_select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

10.9.2.12 ef_vi_transmit_alt_select_normal . . . . . . . . . . . . . . . . . . . . . . . . . 110

10.9.2.13 ef_vi_transmit_alt_stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

10.9.2.14 ef_vi_transmit_copy_pio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

10.9.2.15 ef_vi_transmit_copy_pio_warm . . . . . . . . . . . . . . . . . . . . . . . . . . 112

10.9.2.16 ef_vi_transmit_pio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

10.9.2.17 ef_vi_transmit_pio_warm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

10.9.2.18 ef_vi_transmit_push . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

10.9.2.19 ef_vi_transmitv . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

10.9.2.20 ef_vi_transmitv_init . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

10.9.3 Typedef Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

10.9.3.1 ef_request_id . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

10.9.3.2 ef_vi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

10.9.4 Enumeration Type Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

10.9.4.1 anonymous enum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

10.9.4.2 anonymous enum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

10.9.4.3 anonymous enum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

10.9.4.4 ef_vi_arch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

10.9.4.5 ef_vi_ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

10.9.4.6 ef_vi_layout_type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

10.9.4.7 ef_vi_out_ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

10.9.4.8 ef_vi_rx_discard_err_ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

10.9.5 Function Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

10.9.5.1 ef_eventq_capacity() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

10.9.5.2 ef_eventq_current() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

10.9.5.3 ef_eventq_has_event() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

10.9.5.4 ef_eventq_has_many_events() . . . . . . . . . . . . . . . . . . . . . . . . . . 122

10.9.5.5 ef_vi_driver_interface_str() . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

10.9.5.6 ef_vi_ﬂags() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

ef_vi User Guide

Contents

10.9.5.7 ef_vi_instance() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

10.9.5.8 ef_vi_receive_buffer_len() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

10.9.5.9 ef_vi_receive_capacity() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

10.9.5.10 ef_vi_receive_ﬁll_level() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

10.9.5.11 ef_vi_receive_get_bytes() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

10.9.5.12 ef_vi_receive_get_timestamp() . . . . . . . . . . . . . . . . . . . . . . . . . . 126

10.9.5.13 ef_vi_receive_get_timestamp_with_sync_ﬂags() . . . . . . . . . . . . . . . . . 127

10.9.5.14 ef_vi_receive_post() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

10.9.5.15 ef_vi_receive_preﬁx_len() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

10.9.5.16 ef_vi_receive_query_layout() . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

10.9.5.17 ef_vi_receive_set_buffer_len() . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

10.9.5.18 ef_vi_receive_set_discards() . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

10.9.5.19 ef_vi_receive_space() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

10.9.5.20 ef_vi_receive_unbundle() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

10.9.5.21 ef_vi_resource_id() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

10.9.5.22 ef_vi_set_tx_push_threshold() . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

10.9.5.23 ef_vi_transmit_alt_num_ids() . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

10.9.5.24 ef_vi_transmit_alt_query_overhead() . . . . . . . . . . . . . . . . . . . . . . . 133

10.9.5.25 ef_vi_transmit_alt_usage() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

10.9.5.26 ef_vi_transmit_capacity() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

10.9.5.27 ef_vi_transmit_ﬁll_level() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

10.9.5.28 ef_vi_transmit_init() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

10.9.5.29 ef_vi_transmit_init_undo() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

10.9.5.30 ef_vi_transmit_space() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

10.9.5.31 ef_vi_transmit_unbundle() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

10.9.5.32 ef_vi_version_str() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

10.10memreg.h File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

10.10.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

10.10.2 Function Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

ef_vi User Guide

Contents

10.10.2.1 ef_memreg_alloc() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

10.10.2.2 ef_memreg_dma_addr() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

10.10.2.3 ef_memreg_free() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

10.11packedstream.h File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

10.11.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

10.11.2 Macro Deﬁnition Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

10.11.2.1 EF_VI_PS_FLAG_BAD_IP_CSUM . . . . . . . . . . . . . . . . . . . . . . . . 142

10.11.3 Function Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

10.11.3.1 ef_vi_packed_stream_get_params() . . . . . . . . . . . . . . . . . . . . . . . . 142

10.11.3.2 ef_vi_packed_stream_unbundle() . . . . . . . . . . . . . . . . . . . . . . . . . 142

10.12pd.h File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

10.12.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

10.12.2 Enumeration Type Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

10.12.2.1 ef_pd_ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

10.12.3 Function Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

10.12.3.1 ef_pd_alloc() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

10.12.3.2 ef_pd_alloc_by_name() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

10.12.3.3 ef_pd_alloc_with_vport() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

10.12.3.4 ef_pd_free() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

10.12.3.5 ef_pd_interface_name() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

10.13pio.h File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

10.13.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

10.13.2 Function Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

10.13.2.1 ef_pio_free() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

10.13.2.2 ef_pio_link_vi() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

10.13.2.3 ef_pio_memcpy() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

10.13.2.4 ef_pio_unlink_vi() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

10.13.2.5 ef_vi_get_pio_size() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

10.14timer.h File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

ef_vi User Guide

Contents

10.14.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

10.14.2 Macro Deﬁnition Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

10.14.2.1 ef_eventq_timer_clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

10.14.2.2 ef_eventq_timer_prime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

10.14.2.3 ef_eventq_timer_run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

10.14.2.4 ef_eventq_timer_zero . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

10.15vi.h File Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

10.15.1 Detailed Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

10.15.2 Enumeration Type Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

10.15.2.1 anonymous enum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

10.15.2.2 ef_ﬁlter_ﬂags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

10.15.3 Function Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

10.15.3.1 ef_eventq_put() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

10.15.3.2 ef_ﬁlter_spec_init() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

10.15.3.3 ef_ﬁlter_spec_set_block_kernel() . . . . . . . . . . . . . . . . . . . . . . . . . 159

10.15.3.4 ef_ﬁlter_spec_set_block_kernel_multicast() . . . . . . . . . . . . . . . . . . . . 160

10.15.3.5 ef_ﬁlter_spec_set_block_kernel_unicast() . . . . . . . . . . . . . . . . . . . . . 160

10.15.3.6 ef_ﬁlter_spec_set_eth_local() . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

10.15.3.7 ef_ﬁlter_spec_set_eth_type() . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

10.15.3.8 ef_ﬁlter_spec_set_ip4_full() . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

10.15.3.9 ef_ﬁlter_spec_set_ip4_local() . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

10.15.3.10ef_ﬁlter_spec_set_ip6_full() . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

10.15.3.11ef_ﬁlter_spec_set_ip6_local() . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

10.15.3.12ef_ﬁlter_spec_set_ip_proto() . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

10.15.3.13ef_ﬁlter_spec_set_multicast_all() . . . . . . . . . . . . . . . . . . . . . . . . . 166

10.15.3.14ef_ﬁlter_spec_set_multicast_mismatch() . . . . . . . . . . . . . . . . . . . . . 167

10.15.3.15ef_ﬁlter_spec_set_port_sniff() . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

10.15.3.16ef_ﬁlter_spec_set_tx_port_sniff() . . . . . . . . . . . . . . . . . . . . . . . . . 168

10.15.3.17ef_ﬁlter_spec_set_unicast_all() . . . . . . . . . . . . . . . . . . . . . . . . . . 169

ef_vi User Guide

Contents

10.15.3.18ef_ﬁlter_spec_set_unicast_mismatch() . . . . . . . . . . . . . . . . . . . . . . 169

10.15.3.19ef_ﬁlter_spec_set_vlan() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

10.15.3.20ef_vi_alloc_from_pd() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

10.15.3.21ef_vi_alloc_from_set() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

10.15.3.22ef_vi_ﬁlter_add() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

10.15.3.23ef_vi_ﬁlter_del() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

10.15.3.24ef_vi_ﬂush() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

10.15.3.25ef_vi_free() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

10.15.3.26ef_vi_get_mac() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

10.15.3.27ef_vi_mtu() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

10.15.3.28ef_vi_pace() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

10.15.3.29ef_vi_prime() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

10.15.3.30ef_vi_set_alloc_from_pd() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

10.15.3.31ef_vi_set_ﬁlter_add() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

10.15.3.32ef_vi_set_ﬁlter_del() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

10.15.3.33ef_vi_set_free() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

10.15.3.34ef_vi_stats_query() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

10.15.3.35ef_vi_stats_query_layout() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

10.15.3.36ef_vi_transmit_alt_alloc() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

10.15.3.37ef_vi_transmit_alt_free() . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

10.15.3.38ef_vi_transmit_alt_query_buffering() . . . . . . . . . . . . . . . . . . . . . . . . 182

Index 185

ef_vi User Guide

Contents

ef_vi User Guide

ef_vi

Chapter 1

ef_vi

Solarﬂare's ef_vi API is a ﬂexible interface for passing Ethernet frames between applications and the network. It is

the internal API used by Onload for sending and receiving packets.

1.1 Introduction

ef_vi grants an application direct access to the Solarﬂare network adapter datapath to deliver lower latency and

reduced per message processing overheads. It can be used directly by applications that want the very lowest

latency send and receive API, and that do not require a POSIX socket interface.

The key features of ef_vi are:

•User-space: Ef_vi can be used by unprivileged user-space applications.

•Kernel bypass: Data path operations do not require system calls.

•Low CPU overhead: Data path operations consume very few CPU cycles.

•Low latency: Suitable for ultra-low latency applications.

•High packet rates: Supports millions of packets per second per core.

•Zero-copy: Particularly efﬁcient for ﬁltering and forwarding applications.

•Flexibility: Supports many use cases (see Use cases).

•Redistributable: ef_vi is free software distributed under a LGPL license.

Each ef_vi instance provides a Virtual Interface for an application to use:

• Each virtual interface provides a TX channel for passing packets to the adapter. Packets may be transmitted

onto the wire, or looped-back in the adapter for delivery back into the host, or both.

• Each virtual interface also provides an RX channel for receiving packets from the adapter. These can be

packets received from the wire, or looped-back from the TX path.

ef_vi User Guide

ef_vi

ef_vi User Guide

Overview

Chapter 2

Overview

This part of the documentation gives an overview of ef_vi and how it is often used.

2.1 Capabilities

Ef_vi is a low level OSI level 2 interface which sends and receives raw Ethernet frames. It is essentially a thin

wrapper around the VNIC (virtual network interface controller) interface offered by the network adapters. It exposes,

and can be used with, many of the advanced capabilities of Solarﬂare network adapters, including:

• Checksum ofﬂoads

• Hardware time stamping (RX and TX)

• Switching functions, including:

–multicast replication

–loopback

–VLAN tag insert/strip

• Load spreading by hashing (also known as receive-side scaling) and ﬂow steering

• Data path snifﬁng

• PIO mode for ultra-low latency

• Scatter gather transmit and receive

• PCI pass-through and SR-IOV for virtualised environments.

But because the ef_vi API operates at this low level, any application using it must implement the higher layer

protocols itself, and also deal with any exceptions or other unusual conditions.

2.2 Flexibility

A key advantage of ef_vi when compared to other similar technologies is the ﬂexibility it offers. Each ef_vi instance

can be thought of as a virtual port on the network adapter's switch. Ef_vi can be used to handle all packets

associated with a physical port, or just a subset. This means that ef_vi can be used in parallel with the standard Linux

kernel network stack and other acceleration technologies such as Solarﬂare's OpenOnload sockets acceleration.

For example, a trading application might use ef_vi to receive UDP market data, but use Onload sockets to make

TCP trades.

ef_vi User Guide

Overview

2.3 Scalability

Ef_vi is also very scalable. Each physical network port on Solarﬂare's network adapters supports up to 1024 VNIC

interfaces. There can be many independent channels between software and the adapter, which can be used to

spread load over many cores, or to accelerate large numbers of virtual machines and applications simultaneously.

2.4 Use cases

This section gives some examples of how ef_vi can and is being used:

2.4.1 Sockets acceleration

Ef_vi can be used to replace the BSD sockets API, or another API, for sending and receiving streams of trafﬁc. A

common example is handling multicast UDP datagrams in electronic trading systems, where low latency is needed

and message rates can be very high.

In this scenario the application establishes an ef_vi instance, and speciﬁes which packets it would like to receive via

this path. For example, an application can select UDP packets with a given destination IP address and port number.

All other packets arriving at the network interface continue to be delivered to the regular driver in the kernel stack

via a separate path, so only the packets that need to be accelerated are handled by ef_vi.

Applications can create multiple ef_vi instances if needed to handle different streams of packets, or to spread load

over multiple threads. If transmitting threads each have their own ef_vi instance then they can transmit packets

concurrently without interlocking and without sharing state. This improves efﬁciency considerably.

2.4.2 Packet capture

Solarﬂare's SolarCapture software is built on top of the ef_vi API. Like traditional capture APIs ef_vi can be used to

capture all of the packets arriving at a network port, or a subset. Ef_vi can capture trafﬁc from a 10 gigabit link at

line rate at all packet sizes with a single core, and can provide a hardware timestamp for each captured packet.

In "snifﬁng" mode an ef_vi instance receives a copy of packets transmitted and/or received by other applications on

the host.

2.4.3 Packet replay

Ef_vi can transmit packets from host memory to the network at very high rates, so can be used to construct high

performance packet replay applications. (This is another feature of the SolarCapture software).

2.4.4 Application as an end-station

Ef_vi can select packets by destination MAC address, which allows an application to behave as if it were a separate

end-station on the Ethernet network. This can be used to implement arbitrary protocols over Ethernet, or to develop

applications that simulate behaviour of an end station for benchmarking or test purposes.

Other applications and virtual machines on the host can use the adapter at the same time, via kernel stack, via

ef_vi or via OpenOnload. The application simulating an end-station can communicate with those applications via

the adapter, as well as with other remote applications over the physical network.

ef_vi User Guide

Overview

2.4.5 Software deﬁned bridging, switching and routing

Ef_vi is ideally suited to applications that forward packets between physical or virtual network ports. Zero-copy

makes the forwarding path very efﬁcient, and forwarding can be achieved with very low latency.

An ef_vi instance can be conﬁgured to receive "mismatching" packets. That is, all packets not wanted by other

applications or virtual machines on the same host. This makes it possible to forward packets to another network

segment without knowing the MAC addresses involved, and without cutting the host OS off from the network.

Applications include: High performance ﬁrewall applications, network monitoring, intrusion detection, and custom

switching and routing. Packets can be forwarded between physical ports and/or between virtual ports. (Virtual ports

are logical network ports associated with virtual machines using PCI pass-through).

Ef_vi is particularly well suited to Network Functions Virtualization (NFV).

ef_vi User Guide

Overview

ef_vi User Guide

Concepts

Chapter 3

Concepts

This part of the documentation describes the concepts involved in ef_vi.

3.1 Virtual Interface

Each ef_vi instance provides a virtual interface to the network adapter.

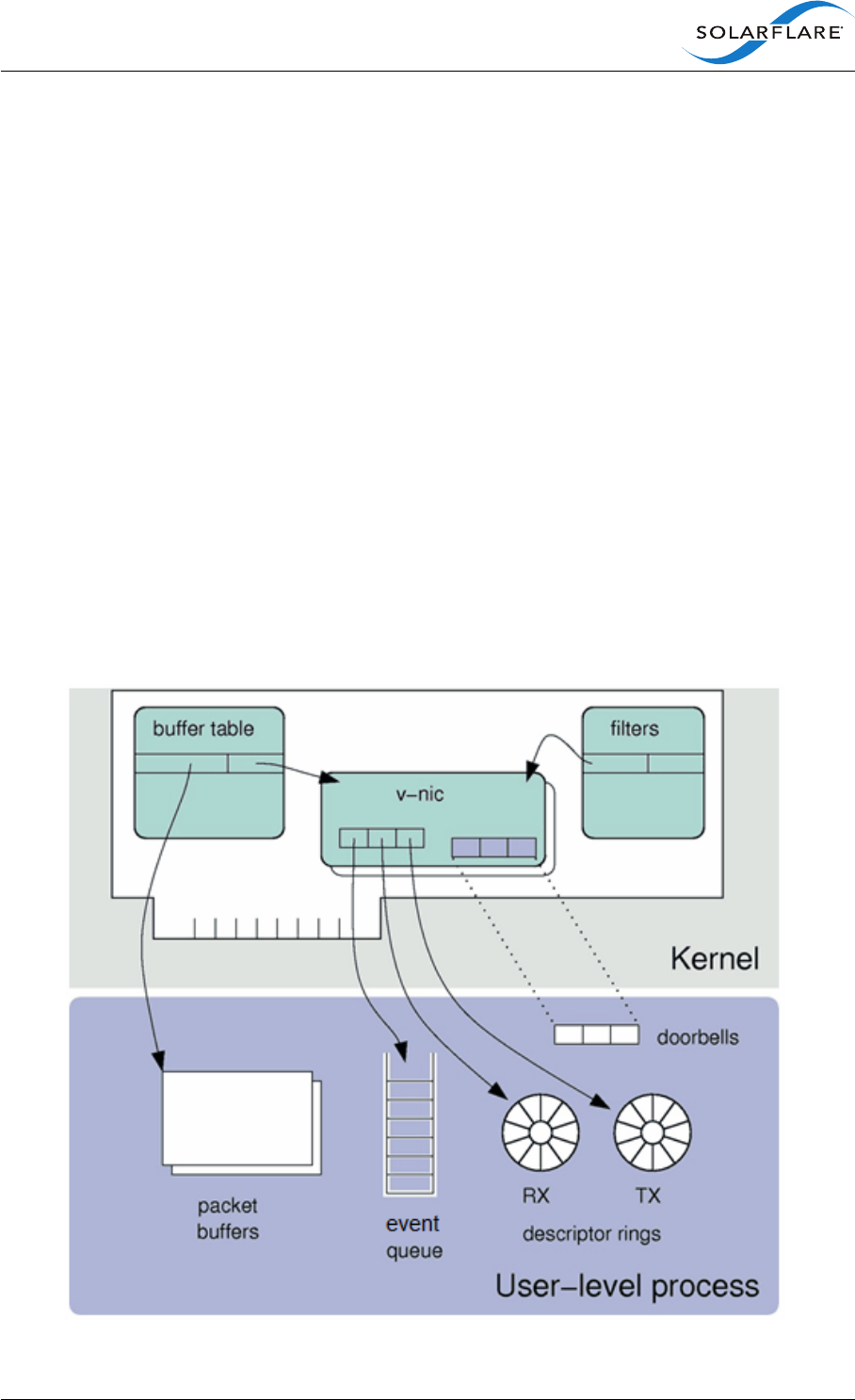

Figure 3.1 Virtual Interface Components

ef_vi User Guide

Concepts

A virtual interface includes the following components:

• an Event queue

• a Transmit descriptor ring

• a Receive descriptor ring.

A virtual interface can be allocated one of each of these components, but if the event queue is omitted an alternative

virtual interface that has an event queue must be speciﬁed.

A virtual interface also has a few hardware resources:

• a doorbell register to inform the card that new RX buffers are available for it to use

• a doorbell register to inform the card that new TX buffers are ready for it to send

• some timers

• a share of an interrupt.

3.1.1 Virtual Interface Set.

A set of virtual interfaces can be created, to distribute load on the matching ﬁlters automatically, via receive side

scaling (RSS).

Note

For this to be of use, multiple ﬁlters or a wildcard ﬁlter are required. A single stream ﬁlter will have the same

RSS hash for all packets. See Filters.

3.1.2 Event queue

An event queue is a channel for passing information from the network adapter to the application. It is used to notify

the application of events such as the arrival of packets.

3.1.3 Transmit descriptor ring

The transmit descriptor ring is used to pass packets from the application to the adapter. Each entry in the ring is a

descriptor which references a buffer containing packet data. Each packet is described by one or more descriptors.

The transmission of packets proceeds in the background, and the adapter notiﬁes the application when they have

ﬁnished via the event queue.

3.1.4 Receive descriptor ring

The receive descriptor ring is used to pass packets from the adapter to the application. The application must pre-

allocate buffers and post them to the receive descriptor ring. Each entry in the ring is a descriptor which references

a 'free' buffer that the adapter can place a packet into.

When the adapter delivers a packet to an ef_vi instance, it copies the packet data into the next available receive

buffer and notiﬁes the application via the event queue. Large packets can be scattered over multiple receive buffers.

ef_vi User Guide

Concepts

3.2 Protection Domain

Aprotection domain identiﬁes a separate address space for the DMA addresses passed to the adapter. It is used

to protect multiple ef_vi applications from one another, or to allow them to share resources:

• Each Virtual Interface is associated with one protection domain.

• Multiple VIs can be associated with the same protection domain.

• Each Memory Region is registered with one or more protection domains.

• A memory region can only be used by a virtual interface that is in the same protection domain.

• Memory regions that are registered with multiple protection domains can be used as a shared resource, for

example for zero-copy forwarding. See also Packet Buffer Addressing.

Note

Traditionally device drivers pass the physical addresses of memory buffers to I/O devices. This is usually

acceptable because device drivers run within the privileged kernel, and so are isolated from untrusted user-

space applications.

Applications using ef_vi cannot in general use unprotected physical addresses, because by manipulating

those addresses prior to passing them to the adapter it would be possible to access memory and devices not

otherwise accessible by the application. Protection domains are used to solve this problem.

3.3 Memory Region

Any memory region used for transmit or receive buffers must be registered using the ef_memreg interface. This

ensures the memory region meets the requirements of ef_vi:

• The memory is pinned, so that it can't be swapped out to disk.

• The memory is mapped for DMA, so that the network adapter can access it. The adapter translates the DMA

addresses provided by the application to I/O addresses used on the PCIe bus.

• The memory region is page-aligned, for performance.

• The size of the memory region is a multiple of the packet buffer size, so no memory is wasted.

3.4 Packet Buffer

Apacket buffer is a memory allocations on the host which the card will read from when sending packets, or write to

when receiving packets. They are usually 2KB in size.

Packets buffers are mapped by the card in such a way that only virtual interfaces in the same protection domain can

access them, unless physical addressing mode is explicitly requested. (This feature can only be granted to a group

of users by the root user setting an option on the driver.)

ef_vi User Guide

Concepts

3.4.1 Jumbo Packets

Typically, some portion of a packet buffer will be used for meta-data, leaving enough space for a standard sized

packet. On receive, large packets will be spread out over multiple packet buffers.

When sending, multiple buffers may be used either to accommodate larger sends, or for convenience (for example:

splitting off a standard header that is common to multiple packets).

3.4.2 Packet Buffer Descriptor

Each packet buffer is referred to by a descriptor, which contains:

• a pointer

• an offset

• a length.

It is those descriptors which are actually placed onto the receive and transmit descriptor rings.

3.5 Programmed I/O

The ef_pio interface exposes a region of memory on the network adapter that can be used for low-latency sends.

When using this interface packet data is pushed to the adapter using CPU instructions, instead of being pulled by

the adapter using DMA. This reduces latency because it avoids the latency associated with a DMA read.

Applications can get even better latency by writing packet data to the adapter in advance, before the latency critical

path. On the critical path the packet data can optionally be updated before being transmitted. This improves latency

because it reduces the amount of data that needs to be passed to the adapter on the critical path.

3.6 Filters

Filters select which packets are delivered to a virtual interface. Packets that are not selected are ignored and allowed

to pass on to the kernel.

Each ﬁlter speciﬁes the characteristics of packets for selection. These characteristics are typically packet header

ﬁelds, including Ethernet MAC address, VLAN tags, IP addresses and port numbers.

A selected packet can be:

• Stolen: the packet is delivered to the virtual interface, but not to the kernel stack.

• Replicated: a copy is delivered to the virtual interface, and might also be delivered to other consumers. Used

for multicast packets.

• Sniffed: the packet is delivered to the virtual interface, and to the kernel stack.

Note

The set of header ﬁelds and ﬁlter modes that are available vary between adapter model and ﬁrmware variant.

ef_vi User Guide

Concepts

3.6.1 Multiple Filters

An ef_vi application can set multiple types of ﬁlters on the same virtual interface. Setting an invalid ﬁlter or combi-

nation of ﬁlters causes an error.

3.7 Virtual LANs

Ef_vi only has limited support for Virtual LANs (VLANs). This is because ef_vi operates at the Ethernet frame level,

whereas VLANs are usually handled at a higher level:

• Received packets can be ﬁltered by VLAN, but this requires a recent adapter running full feature ﬁrmware.

There are also limitations on what other ﬁlters can simultaneously be used. For more details, see ef_ﬁlter_←-

spec_set_vlan().

• Transmitted packets can have their VLAN set by adding the desired VLAN tag to the extended header. Unlike

checksums, ef_vi does not provide an ofﬂoad for this.

3.8 TX Alternatives

TX alternatives is a feature available on Solarﬂare SFN8000 series adapters to provide multiple alternative queues

for transmission, that can be used to minimize latency. Different possible responses can be pushed through the

TX path on the NIC, and held in different queues ready to transmit. When it is decided which response to transmit,

the appropriate alternative queue is selected, and the queued packets are sent. Because the packets are already

prepared, and are held close to the wire, latency is greatly reduced.

ef_vi User Guide

Concepts

ef_vi User Guide

Example Applications

Chapter 4

Example Applications

Solarﬂare ef_vi comes with a range of example applications - including source code and make ﬁles. This is a quick

guide to using them, both for testing ef_vi's effectiveness in an environment, and as starting points for developing

applications.

Not all of these applications are available in the current Onload release; but source code is available on request.

Most of these applications have additional options to test physical addressing mode, or hardware timestamping.

Run with "--help" to check this.

Application Description

eﬂatency Measure latency by pinging a simple message between two interfaces.

efsend Send UDP packets on a speciﬁed interface.

efsink Receive streams of packets on a single interface.

efforward Forward packets between two interfaces without modiﬁcation.

efsend_timestamping Send UDP packets on a speciﬁed interface, with TX timestamping.

efsend_pio Send UDP packets on a speciﬁed interface using Programmed I/O.

efsink_packed Receive streams of packets on a single interface using packed streams.

efforward_packed Forward packets between two interfaces without modiﬁcation using packed stream

mode for receive.

efrss Forward packets between two interfaces without modiﬁcation, spreading the load over

multiple virtual interfaces and threads.

efdelegated_client Delegate TCP sends to the ef_vi layer-2 API in order to get lower latency.

efdelegated_server Server application used together with efdelegated_client.

4.1 eﬂatency

The eﬂatency application echoes a single packet back and forth repeatedly, measuring the round-trip time.

This is the most useful example application for testing lowest possible latency. It is not a very good sample for

building an application, because:

• it uses only one ﬁlter

ef_vi User Guide

Example Applications

• it operates knowing that there is only ever a single packet on the wire, and so:

–does not need to reﬁll the rings

–does not handle multiple event types.

4.1.1 Usage

Server: eflatency pong interface

Client: eflatency ping interface

where:

•interface is the multicast interface on the server or client machine (e.g. eth0)

There are various additional options. See the help text for details.

4.2 efsend

The efsend application sends UDP packets on a speciﬁed interface.

The application sends a UDP packet, waits for transmission of the packet to ﬁnish and then sends the next.

The number of packets sent, the size of the packet, the amount of time to wait between sends can be controlled.

4.3 efsink

The efsink application is a demonstration of capturing packets, and the ﬂexibility of ﬁlters.

It supports all ﬁlter types that ef_vi supports. By default it just reports the amount of data captured, but it also

demonstrates simple actions upon the packet data, with the option to hexdump incoming packets.

It is a very useful jumping off point as it shows:

• creation of a virtual interface

• creation and installation of ﬁlters

• polling the event queue.

ef_vi User Guide

Example Applications

4.3.1 Usage

To receive a single multicast group:

efsink _local interface_ udp:<multicast-addr>:port

To receive multiple multicast groups:

efsink _interface_ udp:<multicast-addr>:port udp:<multicast-group>:port

To receive all multicast trafﬁc:

efsink _interface_ multicast-all

The efsink application does not send packets.

4.4 efforward

The efforward application listens for trafﬁc on one interface and echoes it out of a second; and vice versa. It

demonstrates a very simple high-performance bridge.

Some route conﬁguration on the clients might be necessary to get this working, but it is a very simple example, and

is very easy to start adding packet re-writing rules etc.

Although this is a viable starting point for a bridging application, a better option might be the SolarCapture API,

which includes a more complete pre-made bridging application.

4.5 efsend_timestamping

The efsend_timestamping application sends UDP packets on a speciﬁed interface.

The application sends a UDP packet, waits for transmission of the packet to ﬁnish and then sends the next.

This application requests tx timestamping, allowing it to report the time each packet was transmitted.

The number of packets sent, the size of the packet, the amount of time to wait between sends can be controlled.

4.6 efsend_pio

The efsend_pio application that sends UDP packets on a speciﬁed interface.

Packet data is copied to the NIC's PIO buffer before being sent, which typically results in lower latency sends

compared to accessing packet data stored on the host via DMA, which is the method used by the efsend sample

app.

The application sends a UDP packet, waits for transmission of the packet to ﬁnish and then sends the next.

The number of packets sent, the size of the packet, the amount of time to wait between sends can be controlled.

ef_vi User Guide

Example Applications

4.7 efsink_packed

The efsink_packed application is a variant of efsink that demonstrates usage of the packed-stream ﬁrmware.

4.8 efforward_packed

The efforward_packed application is a variant of efforward that demonstrates usage of the packed-stream ﬁrmware.

4.9 efrss

The efrss application is a variant of efforward. It demonstrates automatically spreading the load over multiple

threads, using a vi_set and RSS.

4.10 efdelegated_client

The efdelegated_client application demonstrates usage of OpenOnload's "Delegated Sends" feature. This API

allows you to do delegate TCP sends for a particular socket to some other mechanism. For example, this sample

uses the ef_vi layer-2 API in order to get lower latency than is possible with a normal send() call.

The API essentially boils down to ﬁrst retrieving the packet headers, adding your own payload to form a raw packet,

sending the packet and ﬁnally telling Onload what it was you sent so it can update the internal TCP state of the

socket.

This sample application allows you to compare the performance of normal sends using the kernel stack, using

OpenOnload and using ef_vi with the delegated sends API. It establishes a TCP connection to the server process,

which starts sending UDP multicast messages. The client receives these messages, and replies to a subset of them

with a TCP message. The server measures the latency from the UDP send to the TCP receive.

4.10.1 Usage

For normal socket-based sends, run as follows:

Server: onload -p latency ./efdelegated_server mcast-intf Client: onload -p

latency ./efdelegated_client mcast-intf server

For "delegated" sends, run as follows:

Server: onload -p latency ./efdelegated_server mcast-intf Client: onload -p

latency ./efdelegated_client -d mcast-intf server

where:

•mcast-intf is the multicast interface on the server or client machine (e.g. eth0)

•server is the IP address of the server machine (e.g. 192.168.0.10)

There are various additional options. See the help text for details.

ef_vi User Guide

Example Applications

4.11 efdelegated_server

The efdelegated_server application is used together with efdelegated_client to measure the performance of Open←-

Onload's "Delegated Sends" feature.

This application is a very basic simulation of an exchange: It accepts a TCP connection from a client. It sends

UDP multicast messages, and expects that the client will send a message over the TCP connection in response

to a subset of the UDP messages. It measures the time taken from sending a UDP message to receiving the

corresponding reply.

When used with OpenOnload this application uses hardware timestamps taken on the adapter so that the latency

measured is very accurate. (Note that for 7000-series adapters this requires a Performance Monitor license).

4.11.1 Usage

See Usage for efdelegated_client.

4.12 Building the Example Applications

The ef_vi example applications are built along with the Onload installation and will be present in the /←-

Onload-<version>/build/gnu_x86_64/tests/ef_vi subdirectory. In the build directory there will

be gnu,gnu_x86_64,x86_64_linux-<kernel version>directories:

• ﬁles under the gnu directory are 32-bit (if these are built)

• ﬁles under the gnu_x86_64 directory are 64-bit.

Source code ﬁles for the example applications exist in the /Onload-<version>/src/tests/ef_vi sub-

directory.

After running the onload_install command, example applications exist in the /Onload-<version>/build/gnu←-

_x86_64/tests/ef_vi subdirectory.

To rebuild the example applications you must have the Onload-<version>/scripts subdirectory in your

path and use the following procedure:

[root@server01 Onload-<version>]# cd scripts/

[root@server01 scripts]# export PATH="$PWD:$PATH"

[root@server01 scripts]# cd ../build/gnu_x86_64/tests/ef_vi/

[root@server01 ef_vi]# make clean

[root@serverr01 ef_vi]# make

ef_vi User Guide

Example Applications

ef_vi User Guide

Using ef_vi

Chapter 5

Using ef_vi

This part of the documentation gives information on using ef_vi to write and build applications.

5.1 Components

All components required to build and link a user application with the Solarﬂare ef_vi API are distributed with Onload.

When Onload is installed all required directories/ﬁles are located under the Onload distribution directory:

5.2 Compiling and Linking

Applications or libraries using ef_vi will need to include the header ﬁles in src/include/etherfabric/

The application will need to be linked with libciul1.a or libciul.so, which can be found under the "build" directory after

running scripts/onload_build or scripts/onload_install.

If compiling your application against one version of Onload, and running on a system with a different version of

Onload, some care is required. Onload currently preserves compatibility and provides a stable API between the

ef_vi user-space and the kernel drivers, so that applications compiled using an older ef_vi library will work when

run with newer drivers. Compatibility in the other direction (newer ef_vi libraries running with older drivers) is not

guaranteed. Finally, Onload does not currently maintain compatibility between compiling against one version of the

ef_vi libraries, and then running against another.

The simplest approach is to link statically to libciul, as this ensures that the version of the library used will match the

one you have compiled against. If linking dynamically, it is recommended that you keep libciul.so and the application

binary together. onload_install does not install libciul.so into system directories to avoid the installed version being

used in place of the version you compiled against.

For those wishing to use ef_vi in combination with Onload there should be no problem linking statically to libciul and

dynamically to the other libraries to allow the Onload intercepts to take effect. The ef_delegated example application

does exactly this.

ef_vi User Guide

Using ef_vi

5.3 Setup

Applications requiring speciﬁc features can check the versions of software:

• use ef_vi_version_str() to get the version of ef_vi

• use ef_vi_driver_interface_str() to get the char driver interface required by this build of ef_vi.

Applications can also check for speciﬁc capabilities:

• use ef_vi_capabilities_get() to get the value of a given capability

• use ef_vi_capabilities_max() to get the number of available capabilities

• use ef_vi_capabilities_name() to get a human-readable string describing a given capability.

Users of ef_vi must do the following to setup:

1. Obtain a driver handle by calling ef_driver_open().

2. Allocate a protection domain by calling one of the following:

•ef_pd_alloc()

•ef_pd_alloc_by_name()

•ef_pd_alloc_with_vport().

3. Allocate a virtual interface (VI), encapsulated by the type ef_vi, by calling ef_vi_alloc_from_pd().

/*Allocate a protection domain */

int ef_pd_alloc(ef_pd *pd,

ef_driver_handle pd_dh,

int ifindex,

enum ef_pd_flags flags);

int ef_pd_alloc_by_name(ef_pd *pd,

ef_driver_handle pd_dh,

const char*cluster_or_intf_name,

enum ef_pd_flags flags);

/*Get the interface for a protection domain. */

const char*ef_pd_interface_name(ef_pd *pd);

Figure: Create a Protection Domain

/*Allocate a virtual interface */

int ef_vi_alloc_from_pd(ef_vi *vi, ef_driver_handle vi_dh,

ef_pd *pd, ef_driver_handle pd_dh,

int eventq_cap, int rxq_cap, int txq_cap,

ef_vi *opt_evq, ef_driver_handle opt_evq_dh,

enum ef_vi_flags flags));

Figure: Allocate a Virtual Interface

ef_vi User Guide

Using ef_vi

5.3.1 Using Virtual Interface Sets.

A virtual interface set can be used instead of a single virtual interface, to distribute load using RSS. Functionality is

almost the same as working with a single virtual interface:

• To allocate the virtual interfaces:

–use ef_vi_set_alloc_from_pd() to allocate the set

–then use ef_vi_alloc_from_set() to allocate each virtual interface in the set

• To add a ﬁlter:

–use ef_vi_set_ﬁlter_add() to add the ﬁlter onto the set, rather than adding it to each virtual interface

individually (which would cause replication on a 7000-series NIC).

The efrss sample gives an example of usage.

5.4 Creating packet buffers

Memory used for packet buffers is allocated using standard functions such as posix_memalign(). A packet buffer

should be at least as large as the value returned from ef_vi_receive_buffer_len().

The packet buffers must be pinned so that they cannot be paged, and they must be registered for DMA with the

network adapter. These requirements are enforced by calling ef_memreg_alloc() to register the allocated memory

for use with ef_vi.

The type ef_iovec encapsulates a set of buffers. The adapter uses a special address space to identify locations

in these buffers, and such addresses are designated by the type ef_addr.

/*Allocate a memory region */

int ef_memreg_alloc(ef_memreg*mr, ef_driver_handle mr_dh,

ef_pd*pd, ef_driver_handle pd_dh,

void*p_mem, int len_bytes);

Figure: Allocate a Memory Region

To improve performance, registered memory regions for packet buffers should be aligned on (minimum) 4KB bound-

aries for regular pages or 2MB boundaries when using use huge pages.

5.5 Transmitting Packets

To transmit packets, the basic process is:

1. Write the packet contents (including all headers) into one or more packet buffers.

The packet buffer memory must have been previously registered with the protection domain.

ef_vi User Guide

Using ef_vi

2. Post a descriptor for the ﬁlled packet buffer onto the TX descriptor ring, by calling ef_vi_transmit_init() and

ef_vi_transmit_push(),oref_vi_transmit().

A doorbell is "rung" to inform the adapter that the transmit ring is non-empty. If the transmit descriptor ring

is empty when the doorbell is rung, 'TX PUSH' is used. In 'TX_PUSH', the doorbell is rung and the address

of the packet buffer is written in one shot improving latency. TX_PUSH can cause ef_vi to poll for events, to

check if the transmit descriptor ring is empty, before sending which can lead to a latency versus throughput

trade off in some scenarios.

3. Poll the event queue to ﬁnd out when the transmission is complete.

See Handling Events.

When transmitting, polling the event queue is less critical; but does still need to be done. The events of inter-

est are EF_EVENT_TYPE_TX or EF_EVENT_TYPE_TX_WITH_TIMESTAMP telling you that a transmit

completed, and EF_EVENT_TYPE_TX_ERROR telling you that a transmit failed. EF_EVENT_TX_Q_ID()

can be used to extract the id of the referenced packet, or you can just rely on the fact that ef_vi always

transmits packets in the order they are submitted.

4. Handle the resulting event.

Reclaim the packet buffer for re-use.

// construct packet with proper headers

// Post on the transmit ring

ef_vi_transmit_init(&vi, addr, len, id);

// Ring doorbell

ef_vi_transmit_push(&vi);

Figure: Transmit Packets

5.5.1 Transmitting Jumbo Frames

Packets of a size smaller than the interface MTU but larger than the packet buffer size must be sent from multiple

buffers as jumbo packets. A single EF_EVENT_TYPE_TX (or EF_EVENT_TYPE_TX_ERROR) event is raised

for the entire transmit:

• Use ef_vi_transmitv() to chain together multiple segments with a higher total length.

• MTU is not enforced. If the transmit is to remain within MTU, the application must check and enforce this.

• The segments must at least split along natural (4k packet) boundaries, but smaller segments can be used if

desired..

5.5.2 Programmed I/O

Programmed IO is usable only on 7000-series cards, not on the older cards. It allows for faster transmit, especially

of small packets, but the hardware resources available for it are limited.

For this reason, a PIO buffer must be explicitly allocated and associated with a virtual interface before use, by calling

ef_pio_link_vi().

Data is copied into the PIO buffer with ef_pio_memcpy().

When the PIO buffer is no longer required it should be unlinked by calling ef_pio_unlink_vi(), and then freed by

calling ef_pio_free().

ef_vi User Guide

Using ef_vi

5.5.3 TX Alternatives

TX alternatives is a features available on Solarﬂare SFN8000 series adapters. To use TX alternatives for a given

virtual interface, you must set the EF_VI_TX_ALT ﬂag when you allocate the virtual interface. You must then allocate

a set of TX alternatives for the virtual interface by calling ef_vi_transmit_alt_alloc().

int ef_vi_transmit_alt_alloc(struct ef_vi*vi,

ef_driver_handle vi_dh,

int num_alts, int buf_space);

This creates a set of TX alternatives. The TX alternatives remain allocated until the virtual interface is freed.

The TX alternatives in the set are given sequential IDs, from 0 upwards. You can get the number of TX alternatives

in a set by calling ef_vi_transmit_alt_num_ids().

unsigned ef_vi_transmit_alt_num_ids(ef_vi*vi);

You can then buffer responses on the different TX alternatives, choose which to transmit, and discard any that are

no longer required:

• All TX alternatives are initially in the STOP state, and any packets sent to them are buffered.

• To send packets to a particular TX alternative, select the TX alternative by calling ef_vi_transmit_alt_select(),

and then send the packets to the virtual interface using normal send calls such as ef_vi_transmit().

• To transmit the packets that are buffered on a TX alternative, call ef_vi_transmit_alt_go().

This transitions the TX alternative to the GO state. While the TX alternative remains in this state, any further

packets sent to it are transmitted immediately.

• To transition the TX alternative back to the STOP state, call ef_vi_transmit_alt_stop().

• To discard the packets buffered on a TX alternative, transition it to the DISCARD state by calling ef_vi_←-

transmit_alt_discard().

int ef_vi_transmit_alt_select(struct ef_vi*,unsigned alt_id);

int ef_vi_transmit_alt_stop(struct ef_vi*,unsigned alt_id);

int ef_vi_transmit_alt_go(struct ef_vi*,unsigned alt_id);

int ef_vi_transmit_alt_discard(struct ef_vi*,unsigned alt_id);

As packets are transmitted or discarded, events of type EF_EVENT_TYPE_TX_ALT are returned to your application.

Your application should normally wait until all packets have been processed before transitioning to a different state.

5.6 Handling Events

The event queue is a channel from the adapter to software which notiﬁes software when packets arrive from the

network, and when transmits complete (so that the buffers can be freed or reused). Application threads retrieve

these events in one of the following ways:

• A thread can busy-wait for an event notiﬁcation by calling ef_eventq_poll() repeatedly in a tight loop. This

gives the lowest latency.

• A thread can block until event notiﬁcations arrive (or a timeout expires) by calling ef_eventq_wait(). This frees

the CPU for other usage.

The batch size for polling must be at least EF_VI_EVENT_POLL_MIN_EVS. It should be greater than the batch

size for reﬁlling to detect when the receive descriptor ring is going empty.

When timestamping is enabled, a number of timestamps per second are added to the event queue, even when no

packets are being received. It is important that the application regularly polls the VI event queue, to avoid an event

queue overﬂow (EF_EVENT_TYPE_OFLOW) which can result in an undetermined state for the VI.

ef_vi User Guide

Using ef_vi

5.6.1 Blocking on a ﬁle descriptor

Ef_vi supports integration with other types of I/O via the select, poll and epoll interfaces. Each virtual interface is

associated with a ﬁle descriptor. The ef_vi layer supports blocking on a ﬁle descriptor until it has events ready, when

it becomes readable. This feature provides the functionality that is already provided by ef_eventq_wait() with the

added beneﬁt that as you are blocking on a ﬁle descriptor, you can block for events on a virtual interface along with

other ﬁle descriptors at the same time.

The ﬁle descriptor to use for blocking is the driver handle that was used to allocate the virtual interface.

Before you can block on the ﬁle descriptor, you need to prime interrupts on the virtual interface. This is done by

calling ef_vi_prime().

int ef_vi_prime(ef_vi*vi, ef_driver_handle dh,

unsigned current_ptr);

When this function is called, you must tell it how many events you've read from the eventq which can be retrieved

by using ef_eventq_current(). Then you can simply block on the ﬁle descriptor becoming readable by using select(),

poll(), epoll(), etc. When the ﬁle descriptor is returned as readable, you can then get the associated events by polling

the eventq in the normal way. Note that at this point, you must call ef_vi_prime() again (with the current value from

ef_eventq_current()) before blocking on the ﬁle descriptor again.

The efpingpong example code has been updated to offer a simple example.

5.7 Receiving packets

To receive packets, the basic process is:

1. Post descriptors for empty packet buffers onto the RX descriptor ring, by calling ef_vi_receive_init() and ef←-

_vi_receive_push(),oref_vi_receive_post().

Receive descriptors should be posted in multiples of 8. When an application pushes 10 descriptors, ef_vi will

push 8 and ef_vi will ignore descriptor batch sizes <8. Users should beware that if the ring is empty and the

application pushes <8 descriptors before blocking on the event queue, the application will remain blocked as

there are no descriptors available to receive packets so nothing gets posted to the event queue.

Posting descriptors is relatively slow. It should ideally be done in batches, by a thread that is not on the critical

path. A small batch size means that the ring is kept more full, but a large batch size is more efﬁcient. A size

of 8, 16 or 32 is probably the best compromise.

2. Poll the event queue to see that they are now ﬁlled.

See Handling Events.

Packets are written into the buffers in FIFO order.

3. Handle the resulting event and the incoming packet.

Since the adapter is cut-through, errors in receiving packets like multicast mismatch, CRC errors, etc. are

delivered along with the packet. The software must detect these errors and recycle the associated packet

buffers.

ef_vi User Guide

Using ef_vi

5.7.1 Finding the Packet Data

• If you're using the ef_sfw wrapper, then RX_PKT_PTR() returns a pointer to the start of the payload of the

packet. (Remember that this includes the headers, as ef_vi does not do any protocol handling.)

• Otherwise, you'll need to create similar functionality yourself. Use the queue ID to ﬁnd the packet, and ef_←-

vi_receive_preﬁx_len() to ﬁnd the offset for the packet data.

5.7.2 Receiving Jumbo Packets

Packets of a size smaller than the interface MTU but larger than the packet buffer size are delivered in multiple

buffers as jumbo packets. An event is raised for each packet buffer that is ﬁlled:

• The EF_EVENT_RX_CONT() macro can be used to check if this is not the last part of the packet, and that

the next receive (on this RX descriptor ring) should also be examined as being part of this jumbo frame.

• The length given in each event is the total length of the packet so far (so the length in the last part of the frame

is the total packet length.)

• If EF_EVENT_RX_DISCARD_TRUNC is set, this indicates that the packet buffer has been dropped, and so

the jumbo packet has been truncated. But there might still be more parts of the jumbo packet that arrive after

the drop. All packet buffers should be discarded until one is received with EF_EVENT_RX_SOP set, marking

the start of a new packet.

5.8 Adding Filters

Filters are the means by which the adapter decides where to deliver packets it receives from the network. By default

all packets are delivered to the kernel network stack. Filters are added by an ef_vi application to direct received

packets to a given virtual interface.

• If a ﬁlter cannot be added, for example because an incompatible ﬁlter already exists, an error is returned.

• By default the 'all' ﬁlters are sending everything to the kernel. They are equivalent to setting promiscuous

mode on the NIC, and super-user rights (speciﬁcally CAP_NET_ADMIN) are needed to use this ﬁlter.

• On SFN5000 and SFN6000 series NICs each ﬁlter can only exist for one virtual interface, and so each packet

which arrives can be forwarded only to a single application (unless two applications share a stack). Only the

ﬁrst application to insert a speciﬁc ﬁlter will succeed; other applications will then get an error.

Note that this includes ﬁlters inserted both by other ef_vi applications and by Onload - which typically uses

only fully connected and listen ﬁlters.

• The SFN7000 and SFN8000 series NICs are not subject to this restriction. If two applications insert the same

ﬁlter, a copy of the packets is delivered to each application and applications remain unaware of each other.

• IP ﬁlters do not match IP fragments, which are therefore received by the kernel stack. If this is an issue, layer

2 ﬁlters should be installed by the user.

• There are no ranges, or other local wildcard support. To ﬁlter on a range of values, one of the following is

required:

–insert multiple ﬁlters, one per value in the range (NICs support upwards of a thousand ﬁlters easily)

–have the interesting trafﬁc sent to a speciﬁc MAC address, and use a MAC address ﬁlter

ef_vi User Guide

Using ef_vi

–have the interesting trafﬁc sent to a speciﬁc VLAN, and use a VLAN ﬁlter.

• Cookies are used to remove ﬁlters.

• De-allocating a virtual interface removes any ﬁlters set for the virtual interface.

Filters are checked in the following order, which is roughly most-speciﬁc ﬁrst:

1. Fully connected TCP/UDP. (Speciﬁes local and remote port and IP)

2. Listen socket. (Speciﬁes local port and IP, but allows any remote IP/port)

3. Destination MAC address, and optionally VLAN. (Useful for multicast reception, though IP can be used instead

if preferred. Also useful for custom protocols.)

4. Everything else. (All unicast, all multicast.)

void ef_filter_spec_init(ef_filter_spec*fs,

enum ef_filter_flags flags);

int ef_filter_spec_set_ip4_local(ef_filter_spec*fs,

int protocol,

unsigned host_be32, int port_be16);

int ef_filter_spec_set_ip4_full(ef_filter_spec*fs,

int protocol,

unsigned host_be32, int port_be16,

unsigned rhost_be32, int rport_be16);

int ef_filter_spec_set_vlan(ef_filter_spec*fs,

int vlan_id);

int ef_filter_spec_set_eth_local(ef_filter_spec*fs,

int vlan_id,

const void *mac);

int ef_filter_spec_set_unicast_all(ef_filter_spec*fs);

int ef_filter_spec_set_multicast_all(

ef_filter_spec*fs);

int ef_filter_spec_set_unicast_mismatch(

ef_filter_spec*fs);

int ef_filter_spec_set_multicast_mismatch(

ef_filter_spec*fs);

int ef_filter_spec_set_port_sniff(ef_filter_spec*fs,

int promiscuous);

int ef_filter_spec_set_tx_port_sniff(

ef_filter_spec*fs);

int ef_filter_spec_set_block_kernel(

ef_filter_spec*fs);

int ef_filter_spec_set_block_kernel_multicast(

ef_filter_spec*fs);

int ef_filter_spec_set_block_kernel_unicast(

ef_filter_spec*fs);

int ef_vi_filter_add(ef_vi*vi,ef_driver_handle dh,

const ef_filter_spec*fs,

ef_filter_cookie*filter_cookie_out);

int ef_vi_filter_del(ef_vi*vi, ef_driver_handle dh,

ef_filter_cookie*filter_cookie);

int ef_vi_set_filter_add(ef_vi_set*,

ef_driver_handle dh,

const ef_filter_spec*fs,

ef_filter_cookie*filter_cookie_out);

int ef_vi_set_filter_del(ef_vi_set*,

ef_driver_handle dh,

ef_filter_cookie*filter_cookie);

Figure: Creating Filters

ef_vi User Guide

Using ef_vi

5.9 Filters available per Firmware Variant

The kernel will install a destination MAC address ﬁlter for each Solarﬂare interface. The kernel will install a broadcast

MAC address ﬁlter for each Solarﬂare interface.

A broadcast MAC address is treated like any other MAC address. Multiple applications can insert the same ﬁlter

and all will receive a copy of the received trafﬁc.

As a rule, more-speciﬁc ﬁlters will capture trafﬁc over less-speciﬁc ﬁlters.

When the Solarﬂare adapter is conﬁgured to use the full_featured ﬁrmware variant ﬁlters are applied in the following

order:

• MATCH_ETHER_TYPE

• MATCH_SRC_IP

• MATCH_SRC_PORT

• MATCH_DST_IP

• MATCH_DST_PORT

• MATCH_IP_PROTO

• MATCH_OUTER_VLAN

• MATCH_INNER_VLAN

• MATCH_DST_MAC

• MATCH_OUTER_VLAN

• MATCH_INNER_VLAN

• MATCH_DST_MAC

• MATCH_OUTER_VLAN

• MATCH_DST_MAC

• MATCH_UNKNOWN_UCAST_DST

• MATCH_OUTER_VLAN

• MATCH_INNER_VLAN

• MATCH_UNKNOWN_MCAST

• MATCH_OUTER_VLAN

• MATCH_INNER_VLAN

• MATCH_UNKNOWN_UCAST_DST

ef_vi User Guide

Using ef_vi

• MATCH_OUTER_VLAN

• MATCH_UNKNOWN_MCAST_DST

• MATCH_OUTER_VLAN

• MATCH_UNKNOWN_UCAST_DST

• MATCH_UNKNOWN_MCAST_DST

When the Solarﬂare adapter is conﬁgured to use the low_latency ﬁrmware variant ﬁlters are applied in the following

order:

• MATCH_ETHER_TYPE

• MATCH_SRC_IP

• MATCH_SRC_PORT

• MATCH_DST_IP

• MATCH_DST_PORT

• MATCH_IP_PROTO

• MATCH_ETHER_TYPE

• MATCH_DST_IP

• MATCH_DST_PORT

• MATCH_IP_PROTO

• MATCH_DST_MAC

• MATCH_OUTER_VLAN

• MATCH_DST_MAC

• MATCH_UNKNOWN_UCAST_DST

• MATCH_UNKNOWN_MCAST_DST

When the Solarﬂare adapter is conﬁgured to use the packed_stream ﬁrmware variant ﬁlters are applied in the

following order:

• MATCH_ETHER_TYPE

ef_vi User Guide

Using ef_vi

• MATCH_DST_IP

• MATCH_DST_PORT

• MATCH_IP_PROTO

• MATCH_DST_MAC

• MATCH_UNKNOWN_UCAST_DST

• MATCH_OUTER_VLAN

• MATCH_UNKNOWN_MCAST_DST

• MATCH_OUTER_VLAN

• MATCH_UNKNOWN_UCAST_DST

• MATCH_UNKNOWN_MCAST_DST

5.10 Freeing Resources

Users of ef_vi must do the following to free resources:

1. Release and free memory regions by calling ef_memreg_free().

2. Release and free a virtual interface by calling ef_vi_free().

3. Release and free a protection domain by calling ef_pd_free().

4. Close a driver handle by calling ef_driver_close().

/*Release and free a memory region */

int ef_memreg_free(ef_memreg*mr,

ef_driver_handle mr_dh);

Figure: Release and Free a Memory Region

/*Release and free a virtual interface */

int ef_vi_free(ef_vi*vi,

ef_driver_handle vi_dh);

Figure: Release and Free a Virtual Interface

/*Release and free a protection domain */

int ef_pd_free(ef_pd *pd,

ef_driver_handle pd_dh);

Figure: Release and Free a Protection Domain

ef_vi User Guide

Using ef_vi

5.11 Design Considerations

This section outlines some considerations that are required when designing an ef_vi application.

5.11.1 Interrupts

Interrupts are not enabled by ef_vi by default.

Interrupts are enabled only if ef_eventq_wait() is called. If there are no events immediately ready, then this function

will enable an interrupt, and sleep until that interrupt ﬁres. Interrupts are then disabled again.

5.11.2 Thread Safety

There is no thread-safety on ef_vi functions. This is for speed. If thread-safety is required, it must be provided by

the ef_vi application.

The usual use-case is to have multiple virtual interface structures for independent operation. There is then no need

to lock.

5.11.3 Packet Buffer Addressing

Different conﬁguration modes are available for addressing packet buffers.

•Network Adapter Buffer Table Mode uses a block of memory on the adapter to store a translation table

mapping between buffer IDs and physical addresses:

–When using a SFN5000 or SFN6000 series adapter there are 65536 entries in the buffer table. Each

entry maps a 4KB page of memory that holds two 2KB packet buffers, and so a maxiumum of 131072

packet buffers are available. The kernel uses some of these, leaving about 120,000 packet buffers

available for ef_vi.

–The SFN7000 series adapters have Large Buffer Table Support. Each entry can map a larger region of

memory, or a huge page, enabling them to support many more packet buffers without the need to use

Scalable Packet Buffer Mode.

This is the default mode.

•Scalable Packet Buffer Mode allocates packet buffers from the kernel IOMMU. It uses Single Root I/O Virtual-

ization (SR-IOV) virtual functions (VF) to provide memory protection and translation. This removes the buffer

limitation of the buffer table.

–SR-IOV must be enabled

–the kernel must support an IOMMU.

An ef_vi application can enable this mode by setting the environment variable EF_VI_PD_FLAGS=vf.

•Physical Addressing Mode uses actual physical addresses to identify packet buffers. An ef_vi application can

therefore direct the adapter to access memory that is not in the application address space. For example, this

can be used for zero-copy from the kernel buffer cache. any piece of memory.

Physical Addressing Mode allows stacks to use large amounts of packet buffer memory, avoiding address

translation limitations on some adapters and without the need to conﬁgure and use SR-IOV virtual functions.

ef_vi User Guide

Using ef_vi

–No memory protection is provided. Physical addressing mode removes memory protection from the

network adapter's access of packet buffers. Unprivileged user-level code is provided and directly han-

dles the raw physical memory addresses of packet buffers. User-level code provides physical memory

addresses directly to the adapter with the ability to read or write arbitrary memory locations.

–It is important to ensure that packet buffers are page aligned.

An ef_vi application can enable this mode by setting the environment variable EF_VI_PD_FLAGS=phys.

The sfc_char module option must also be enabled in a ﬁle in the /etc/modprobe.d directory where N is the

integer group ID of the user running the ef_vi application. Set to -1 means ALL users are permitted access.:

options sfc_char phys_mode_gid=<N>

For more information about these conﬁguration modes, see the chapter titled Packet Buffers in the Onload User

Guide (SF-104474-CD).

5.11.4 Virtual machines

Ef_vi can be used in virtual machines provided PCI passthrough is used. With PCI passthrough a slice of the

network adapter is mapped directly into the address space of the virtual machine so that device drivers in the

VM OS can access the network adapter directly. To isolate VMs from one another and from the hypervisor, I/O

addresses are also virtualised. I/O addresses generated by the network adapter are translated to physical memory

addresses by the system IOMMU.

When ef_vi is used in virtual machines two levels of address translation are performed by default. Firstly a translation

from DMA address to I/O address, performed by the adapter to isolate the application from other applications and

the kernel. Then a translation from I/O address to physical address by the system IOMMU, isolating the virtual

machines. Physical address mode can also be used in virtual machines, in which case the adapter translation is

omitted.

5.12 Known Limitations

5.12.1 Timestamping

When timestamping is enabled, the VI must be polled regularly (even when no packets are available). Timestamps

consume four event queue slots per second and failing to poll the VI can result in event queue overﬂow. When there

are no packets to receive, stale timestamps are not returned to the application, but polling ensures that they are

cleared from the event queue.

5.12.2 Minimum Fill Level

You must poll for at least EF_VI_EVENT_POLL_MIN_EVS at a time. You will also need to initially ﬁll the RX ring with

at least 16 packet buffers to ensure that the card begins acquiring packets. (It's OK to underrun once the application

has started; although of course doing so risks drops.)

It's (very slightly) more efﬁcient to reﬁll the ring in batch sizes of 8/16/32 or 64 anyway.

ef_vi User Guide

Using ef_vi

5.13 Example

Below is a simple example showing a starting framework for an ef_vi application. This is not a complete program.

There is no initialization, and much of the other required code is only indicated by comments.

static void handle_poll(ef_vi *vi)

{

ef_event events[POLL_BATCH_SIZE];

int n_ev = ef_eventq_poll(&vi, events, POLL_BATCH_SIZE);

for(i=O;i<n_ev;++i){

switch(EF_EVENT_TYPE(events[i]) ) {

case EF_EVENT_TYPE_RX:

// Accumulate used buffer

break;

case EF_EVENT_TYPE_TX:

/*Each EF_EVENT_TYPE_TX can signal multiple completed sends */

int num_completed = ef_vi_transmit_unbundle(vi, events[i], &dma_id);

break;

case EF_EVENT_TYPE_RX_DISCARD:

case EF_EVENT_TYPE_RX_NO_DESC_TRUNC:

/*Discard events also use up buffers */

// Accumulate buffer in user space

break;

default:

/*Other error types */

}

static void refill_rx_ring(ef_vi *vi)

{

if(ef_vi_receive_space(&vi) < REFILL_BATCH_SIZE )

return;

int refill_count = REFILL_BATCH_SIZE;

/*Falling too low? */

if(ef_vi_receive_space(&vi) > ef_vi_receive_capacity(&vi) / 2 )

refill_count = ef_vi_receive_space(&vi);

/*Enough free buffers? */

if( refill_count > free_bufs_in_sw )

refill_count = free_bufs_in_sw;

/*Round down to batch size */

refill_count &= ~(REFILL_BATCH_SIZE - 1);

if( refill_count ) {

while( refill_count ) {

ef_vi_receive_init(...);

--refill_count;

}

ef_vi_receive_push(&vi);

}

int main(int argc, char argv[]) (

while(1){

poll_events(&vi);

refill_rx_ring(&vi);

}

ef_vi User Guide

Worked Example

Chapter 6

Worked Example

This part of the documentation examines a simpliﬁed version of eﬂatency. This is a small application which listens

for packets and replies, with as low latency as possible.

This documentation discusses the tradeoffs that have been chosen, some performance issues to avoid, and some

possible additions that have been omitted for clarity.

See also the supplied code for eﬂatency , which includes many of these improvements.

6.1 Setup

The ﬁrst step is to set up ef_vi:

• #include the various headers we need (etherfabric/pd.h,vi.h,memreg.h)

• open the driver

• allocate a protection domain

• allocate a virtual interface from the protection domain.

ef_driver_handle driver_handle;

ef_vi vi;

ef_pd pd;

static void do_init(int ifindex){

ef_driver_open(&driver_handle);

ef_pd_alloc(&pd, driver_handle, ifindex, EF_PD_DEFAULT );

ef_vi_alloc_from_pd(&vi, driver_handle, &pd, driver_handle,

-1, -1, -1, NULL, -1, 0);

The following improvements could be made:

• check the return values from these functions, in case the card has run out of resources and is unable to

allocate more virtual interfaces

• offer physical buffer mode here.

ef_vi User Guide

Worked Example

6.2 Creating Packet buffers

The next step is to allocate a memory region and register it for packet buffers.

const int BUF_SIZE = 2048; /*Hardware always wants 2k buffers */

int bytes = N_BUFS *BUF_SIZE;

void*p;

posix_memalign(&p, 4096, bytes) /*allocate aligned memory */

ef_memreg_alloc(&memreg, driver_handle, &pd, driver_handle,

p, bytes); /*Make it available to ef_vi */

This is all that is strictly necessary to set up the packet buffers.

However, the packet buffer is 2048 bytes long, whereas the normal MTU size for a transmitted packet is only 1500

bytes. There is some spare memory in each packet buffer. Performance can be improved by using this space to

cache some of the packet meta-data, so that it does not have to be recalculated:

• The DMA address of the packet is cached. It is determined by getting the DMA address of the base of the

memory chunk, and then incrementing in 2KB chunks.

• The packet ID is also cached.

A structure is used to store the cached meta-data and a few pointers in the buffer. An array is used to track all the

buffers:

#define MEMBER_OFFSET(c_type, mbr_name) \

((uint32_t) (uintptr_t)(&((c_type*)0)->mbr_name))

#define CACHE_ALIGN __attribute__((aligned(EF_VI_DMA_ALIGN)))

struct pkt_buf {

struct pkt_buf*next;

/*We’re not actually going to use this;

but chaining multiple buffers together is a common and useful trick. */

ef_addr dma_buf_addr;

int id;

uint8_t dma_buf[1] CACHE_ALIGN;

/*Not strictly required, but cache aligning the payload is a speed

boost, so do it. */

};

/*We’re also going to want to keep track of all our buffers, so have an

array of them. Not strictly needed, but convenient. */

struct pkt_buf*pkt_bufs [N_BUFS];

for( i = 0; i < N_BUFS; ++i ) {

struct pkt_buf*pb = (struct pkt_buf*) ((char*)p+i*2048);

pb->id = i;

pb->dma_buf_addr = ef_memreg_dma_addr(&memreg, i *2048);

pb->dma_buf_addr += MEMBER_OFFSET(struct pkt_buf, dma_buf);

pkt_bufs[i] = pb;

}

Note

When receiving, the hardware will only ﬁll up to 1824 bytes per buffer. Larger jumbo frames are split across

multiple buffers.

6.3 Adding Filters

Next, a ﬁlter is speciﬁed and added, so that the virtual interface receives trafﬁc. Assuming there is a sockaddr to

work from:

struct sockaddr_in sa_local; /*TODO: Fill this out somehow */

ef_filter_spec_init(&filter_spec, EF_FILTER_FLAG_NONE);

TRY(ef_filter_spec_set_ip4_local(&filter_spec, IPPROTO_UDP,

sa_local.sin_addr.s_addr,

sa_local.sin_port));

TRY(ef_vi_filter_add(&vi, driver_handle, &filter_spec, NULL));

ef_vi User Guide

Worked Example

6.4 Receiving packets

At this point, packets will start arriving at the interface, be diverted to the application, and immediately be dropped.

So the next step is to push some packet buffers to the RX descriptor ring, to receive the incoming packets.

For efﬁciency, the code pushes packet buffers eight at a time.

unsigned rx_posted = 0; /*We need to keep track of which buffers are

already on the ring */

void rx_post( int n){

for(int i=0;i<n;++i){

struct pkt_buf*pb = pkt_bufs[rx_posted % N_RX_BUFS];

ef_vi_receive_init(&vi, pb->dma_buf_addr, pb->id);

++rx_posted;

}

ef_vi_receive_push(&vi);

}

So now, there are packet buffers on the descriptor ring. But once they are ﬁlled, the application will start dropping

again.

6.5 Handling Events

The next step is to handle these incoming packets, by polling the event queue.

void rx_wait(void) {

/*Again, for efficiency, poll multiple events at once. */

ef_event evs[NUM_POLL_EVENTS];

int n_ev, i;

while(1){

n_ev = ef_eventq_poll(&vi, evs, NUM_POLL_EVENTS);

if( n_ev > 0 )

for( i = 0; i < n_ev; ++i )

switch(EF_EVENT_TYPE(evs[i]) ) {

case EF_EVENT_TYPE_RX:

handle_rx_packet(EF_EVENT_RX_RQ_ID(evs[i]),

EF_EVENT_RX_BYTES(evs[i]) );

break;

case EF_EVENT_TYPE_RX_DISCARD:

/*Interesting to print out the cause of the discard */

fprintf(stderr, "ERROR: RX_DISCARD type=%d",

EF_EVENT_RX_DISCARD_TYPE(evs[i]));

/*but let’s handle it like a normal packet anyway */

handle_rx_packet(EF_EVENT_RX_RQ_ID(evs[i]),

EF_EVENT_RX_BYTES(evs[i]) );

break;

}}}

This code is calling a handle_rx_packet() function, passing it the packet id (which corresponds directly to

the pkt_bufs array - see Creating Packet buffers) and the length of data. The body of this function is not shown,

but it should do the following:

• note that this packet buffer has been consumed, and so is ready to be re-posted:

–the rx_post() function(see Receiving packets) must also be updated to use this information, so a

buffer is not re-posted until it is marked as consumed

• ensure that the received packet is processed according to the purpose of the application:

–if the application can always process incoming packets as fast as they are received, then it can do its

work inline, and immediately repost the buffer on the ring

–otherwise, the application should probably post an item on a work queue for another thread to act upon,

and arrange for the reﬁll to come from a larger pool of buffers

• optionally, handle discards in some different way (perhaps not raising the work event).

ef_vi User Guide

Worked Example

6.6 Transmitting packets

The next step is to implement the transmit side. The hard part is ﬁlling out the payload, and getting all the ﬁelds of

IP and UDP correct. (ef_vi is usually used to transmit UDP, as it's a much simpler protocol to implement than TCP.)

There's some sample code to ﬁll out the headers in the functions ci_∗_hdr_init(), which can be found in

src/lib/citools/ippacket.c.

After that, to transmit one of the pb structures (see Creating Packet buffers), a single function call is needed:

ef_vi_transmit(&vi, pb->dma_buf_addr, frame_length, 0);

But the application must also keep track of when that buffer is used, and when it is free. This means adding some

complexity to the poll loop (see Handling Events). The absolute minimum is:

case EF_EVENT_TYPE_TX:

ef_vi_transmit_unbundle(&vi, &evs[i], ids);

break;

This is only sufﬁcient if the TX buffers and the RX buffers are from different pools.

Note

In ping pong there is only ever one outstanding send. The application does not transmit another packet until

the remote side has processed the current one, and so the application does not even need to keep track of its

state.

One option would be to free up sent buffers, to a pool ready to be ﬁlled with data. Other applications may instead

ﬁll a few packet buffers with data, and then transmit them as and when, only keeping track to make sure that the TX

ring never overﬁlls.

ef_vi User Guide

Data Structure Index

Chapter 7

Data Structure Index

7.1 Data Structures

Here are the data structures with brief descriptions:

ef_event

A token that identiﬁes something that has happened . . . . . . . . . . . . . . . . . . . . . . . 41

ef_eventq_state

State of event queue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

ef_ﬁlter_cookie

Cookie identifying a ﬁlter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

ef_ﬁlter_spec

Speciﬁcation of a ﬁlter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

ef_iovec

Ef_iovec is similar to the standard struct iovec. An array of these is used to designate a scat-

ter/gather list of I/O buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

ef_memreg

Memory that has been registered for use with ef_vi ....................... 50

ef_packed_stream_packet

Per-packet meta-data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

ef_packed_stream_params

Packed-stream mode parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

ef_pd

A protection domain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

ef_pio

A Programmed I/O region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

ef_vi

A virtual interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

ef_vi_layout_entry

Layout of the data that is delivered into receive buffers . . . . . . . . . . . . . . . . . . . . . 66

ef_vi_nic_type

The type of NIC in use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

ef_vi_rxq

RX descriptor ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

ef_vi_rxq_state

State of RX descriptor ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

ef_vi_set

A virtual interface set within a protection domain . . . . . . . . . . . . . . . . . . . . . . . . . 72

ef_vi User Guide

Data Structure Index

ef_vi_state

State of a virtual interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

ef_vi_stats

Statistics for a virtual interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

ef_vi_stats_ﬁeld_layout

Layout for a ﬁeld of statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

ef_vi_stats_layout

Layout for statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

ef_vi_transmit_alt_overhead

Per-packet overhead information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

ef_vi_txq

TX descriptor ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

ef_vi_txq_state

State of TX descriptor ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

ef_vi::ops

Driver-dependent operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

ef_vi User Guide

File Index

Chapter 8

File Index

8.1 File List

Here is a list of all documented ﬁles with brief descriptions:

base.h

Base deﬁnitions for EtherFabric Virtual Interface HAL . . . . . . . . . . . . . . . . . . . . . . 92

capabilities.h

Capabilities API for EtherFabric Virtual Interface HAL . . . . . . . . . . . . . . . . . . . . . . 94

cluster_protocol.h ............................................. ??

ef_vi.h

Virtual Interface deﬁnitions for EtherFabric Virtual Interface HAL . . . . . . . . . . . . . . . . 98

internal.h .................................................. ??

memreg.h

Registering memory for EtherFabric Virtual Interface HAL . . . . . . . . . . . . . . . . . . . . 138

packedstream.h

Packed streams for EtherFabric Virtual Interface HAL . . . . . . . . . . . . . . . . . . . . . . 141

pd.h

Protection Domains for EtherFabric Virtual Interface HAL . . . . . . . . . . . . . . . . . . . . 143

pio.h

Programmed Input/Output for EtherFabric Virtual Interface HAL . . . . . . . . . . . . . . . . . 148

timer.h

Timers for EtherFabric Virtual Interface HAL . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

vi.h

Virtual packet / DMA interface for EtherFabric Virtual Interface HAL . . . . . . . . . . . . . . . 155

ef_vi User Guide

File Index

ef_vi User Guide

Data Structure Documentation

Chapter 9

Data Structure Documentation

9.1 ef_event Union Reference

A token that identiﬁes something that has happened.

#include <ef_vi.h>

Data Fields

• struct {

unsigned type:16

}generic

• struct {

unsigned type:16

unsigned q_id:16

unsigned rq_id:32

unsigned len:16

unsigned ﬂags:16

}rx

• struct {

unsigned type:16

unsigned q_id:16

unsigned rq_id:32

unsigned len:16

unsigned ﬂags:16

unsigned subtype:16

}rx_discard

• struct {

unsigned type:16

unsigned q_id:16

unsigned desc_id:16

}tx

ef_vi User Guide

Data Structure Documentation

• struct {

unsigned type:16

unsigned q_id:16

unsigned desc_id:16

unsigned subtype:16

}tx_error

• struct {

unsigned type:16

unsigned q_id:16

unsigned rq_id:32

unsigned ts_sec:32

unsigned ts_nsec:32

}tx_timestamp

• struct {

unsigned type:16

unsigned q_id:16

unsigned alt_id:16

}tx_alt

• struct {

unsigned type:16

unsigned q_id:16

}rx_no_desc_trunc

• struct {

unsigned type:16

unsigned q_id:16

unsigned ﬂags:16

unsigned n_pkts:16

unsigned ps_ﬂags:8

}rx_packed_stream

• struct {

unsigned type:16

unsigned data

}sw

• struct {

unsigned type:16

unsigned q_id:16

unsigned n_descs:16

unsigned ﬂags:16

}rx_multi

• struct {

unsigned type:16

unsigned q_id:16

unsigned n_descs:16

unsigned ﬂags:16

unsigned subtype:16

}rx_multi_discard

ef_vi User Guide

Data Structure Documentation

9.1.1 Detailed Description

A token that identiﬁes something that has happened.

Examples include packets received, packets transmitted, and errors.

Users should not access this structure, but should instead use the macros provided.

Deﬁnition at line 155 of ﬁle ef_vi.h.

9.1.2 Field Documentation

9.1.2.1 generic

struct { ... } generic

A generic event, to query the type when it is unknown

9.1.2.2 rx

struct { ... } rx

An event of type EF_EVENT_TYPE_RX

9.1.2.3 rx_discard

struct { ... } rx_discard

An event of type EF_EVENT_TYPE_RX_DISCARD

9.1.2.4 rx_multi

struct { ... } rx_multi

An event of type EF_EVENT_TYPE_RX_MULTI

9.1.2.5 rx_multi_discard

struct { ... } rx_multi_discard

An event of type EF_EVENT_TYPE_RX_MULTI_DISCARD

ef_vi User Guide

Data Structure Documentation

9.1.2.6 rx_no_desc_trunc

struct { ... } rx_no_desc_trunc

An event of type EF_EVENT_TYPE_RX_NO_DESC_TRUNC

9.1.2.7 rx_packed_stream

struct { ... } rx_packed_stream

An event of type EF_EVENT_TYPE_RX_PACKED_STREAM

9.1.2.8 sw

struct { ... } sw

An event of type EF_EVENT_TYPE_SW

9.1.2.9 tx

struct { ... } tx

An event of type EF_EVENT_TYPE_TX

9.1.2.10 tx_alt

struct { ... } tx_alt

An event of type EF_EVENT_TYPE_TX_ALT

9.1.2.11 tx_error

struct { ... } tx_error

An event of type EF_EVENT_TYPE_TX_ERROR

9.1.2.12 tx_timestamp

struct { ... } tx_timestamp

An event of type EF_EVENT_TYPE_TX_WITH_TIMESTAMP

The documentation for this union was generated from the following ﬁle:

•ef_vi.h

ef_vi User Guide

Data Structure Documentation

9.2 ef_eventq_state Struct Reference

State of event queue.

#include <ef_vi.h>

Data Fields

•ef_eventq_ptr evq_ptr

• int32_t evq_clear_stride

• uint32_t sync_timestamp_major

• uint32_t sync_timestamp_minor

• uint32_t sync_timestamp_minimum

• uint32_t sync_timestamp_synchronised

• uint32_t sync_ﬂags

9.2.1 Detailed Description

State of event queue.

Users should not access this structure.

Deﬁnition at line 570 of ﬁle ef_vi.h.

9.2.2 Field Documentation

9.2.2.1 evq_ptr

ef_eventq_ptr evq_ptr

Event queue pointer

Deﬁnition at line 572 of ﬁle ef_vi.h.

9.2.2.2 sync_ﬂags

uint32_t sync_flags

Time synchronisation ﬂags

Deﬁnition at line 584 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.2.2.3 sync_timestamp_major

uint32_t sync_timestamp_major

Timestamp (major part)

Deﬁnition at line 576 of ﬁle ef_vi.h.

9.2.2.4 sync_timestamp_minimum

uint32_t sync_timestamp_minimum

Smallest possible seconds value for given sync_timestamp_major

Deﬁnition at line 580 of ﬁle ef_vi.h.

9.2.2.5 sync_timestamp_minor

uint32_t sync_timestamp_minor

Timestamp (minor part)

Deﬁnition at line 578 of ﬁle ef_vi.h.

9.2.2.6 sync_timestamp_synchronised

uint32_t sync_timestamp_synchronised

Timestamp synchronised with adapter

Deﬁnition at line 582 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

9.3 ef_ﬁlter_cookie Struct Reference

Cookie identifying a ﬁlter.

#include <vi.h>

ef_vi User Guide

Data Structure Documentation

Data Fields

• int ﬁlter_id

• int ﬁlter_type

9.3.1 Detailed Description

Cookie identifying a ﬁlter.

Deﬁnition at line 485 of ﬁle vi.h.

9.3.2 Field Documentation

9.3.2.1 ﬁlter_id

int filter_id

ID of the ﬁlter

Deﬁnition at line 487 of ﬁle vi.h.

9.3.2.2 ﬁlter_type

int filter_type

Type of the ﬁlter

Deﬁnition at line 489 of ﬁle vi.h.

The documentation for this struct was generated from the following ﬁle:

•vi.h

9.4 ef_ﬁlter_spec Struct Reference

Speciﬁcation of a ﬁlter.

#include <vi.h>

ef_vi User Guide

Data Structure Documentation

Data Fields

• unsigned type

• unsigned ﬂags

• unsigned data [12]

9.4.1 Detailed Description

Speciﬁcation of a ﬁlter.

Deﬁnition at line 469 of ﬁle vi.h.

9.4.2 Field Documentation

9.4.2.1 data

unsigned data[12]

Data for ﬁlter

Deﬁnition at line 475 of ﬁle vi.h.

9.4.2.2 ﬂags

unsigned flags

Flags for ﬁlter

Deﬁnition at line 473 of ﬁle vi.h.

9.4.2.3 type

unsigned type

Type of ﬁlter

Deﬁnition at line 471 of ﬁle vi.h.

The documentation for this struct was generated from the following ﬁle:

•vi.h

ef_vi User Guide

Data Structure Documentation

9.5 ef_iovec Struct Reference

ef_iovec is similar to the standard struct iovec. An array of these is used to designate a scatter/gather list of I/O

buffers.

#include <ef_vi.h>

Public Member Functions

•ef_addr iov_base EF_VI_ALIGN (8)

Data Fields

• unsigned iov_len

9.5.1 Detailed Description

ef_iovec is similar to the standard struct iovec. An array of these is used to designate a scatter/gather list of I/O

buffers.

Deﬁnition at line 413 of ﬁle ef_vi.h.

9.5.2 Member Function Documentation

9.5.2.1 EF_VI_ALIGN()

ef_addr iov_base EF_VI_ALIGN (

8 )

base address of the buffer

9.5.3 Field Documentation

9.5.3.1 iov_len

unsigned iov_len

length of the buffer

Deﬁnition at line 417 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

ef_vi User Guide

Data Structure Documentation

9.6 ef_memreg Struct Reference

Memory that has been registered for use with ef_vi.

#include <memreg.h>

Data Fields

•ef_addr ∗mr_dma_addrs

•ef_addr ∗mr_dma_addrs_base

9.6.1 Detailed Description

Memory that has been registered for use with ef_vi.

Deﬁnition at line 46 of ﬁle memreg.h.

9.6.2 Field Documentation

9.6.2.1 mr_dma_addrs

ef_addr∗mr_dma_addrs

Addresses of DMA buffers within the reserved system memory

Deﬁnition at line 48 of ﬁle memreg.h.

9.6.2.2 mr_dma_addrs_base

ef_addr∗mr_dma_addrs_base

Base addresses of reserved system memory

Deﬁnition at line 50 of ﬁle memreg.h.

The documentation for this struct was generated from the following ﬁle:

•memreg.h

ef_vi User Guide

Data Structure Documentation

9.7 ef_packed_stream_packet Struct Reference

Per-packet meta-data.

#include <packedstream.h>

Data Fields

• uint16_t ps_next_offset

• uint8_t ps_pkt_start_offset

• uint8_t ps_ﬂags

• uint16_t ps_cap_len

• uint16_t ps_orig_len

• uint32_t ps_ts_sec

• uint32_t ps_ts_nsec

9.7.1 Detailed Description

Per-packet meta-data.

Deﬁnition at line 47 of ﬁle packedstream.h.

9.7.2 Field Documentation

9.7.2.1 ps_cap_len

uint16_t ps_cap_len

Number of bytes of packet payload stored.

Deﬁnition at line 55 of ﬁle packedstream.h.

9.7.2.2 ps_ﬂags

uint8_t ps_flags

EF_VI_PS_FLAG_∗ﬂags.

Deﬁnition at line 53 of ﬁle packedstream.h.

ef_vi User Guide

Data Structure Documentation

9.7.2.3 ps_next_offset

uint16_t ps_next_offset

Offset of next packet from start of this struct.

Deﬁnition at line 49 of ﬁle packedstream.h.

9.7.2.4 ps_orig_len

uint16_t ps_orig_len

Length of the frame on the wire.

Deﬁnition at line 57 of ﬁle packedstream.h.

9.7.2.5 ps_pkt_start_offset

uint8_t ps_pkt_start_offset

Offset of packet payload from start of this struct.

Deﬁnition at line 51 of ﬁle packedstream.h.

9.7.2.6 ps_ts_nsec

uint32_t ps_ts_nsec

Hardware timestamp (nanoseconds).

Deﬁnition at line 61 of ﬁle packedstream.h.

9.7.2.7 ps_ts_sec

uint32_t ps_ts_sec

Hardware timestamp (seconds).

Deﬁnition at line 59 of ﬁle packedstream.h.

The documentation for this struct was generated from the following ﬁle:

•packedstream.h

ef_vi User Guide

Data Structure Documentation

9.8 ef_packed_stream_params Struct Reference

Packed-stream mode parameters.

#include <packedstream.h>

Data Fields

• int psp_buffer_size

• int psp_buffer_align

• int psp_start_offset

• int psp_max_usable_buffers

9.8.1 Detailed Description

Packed-stream mode parameters.

The application should query these parameters using ef_vi_packed_stream_get_params() to determine buffer size

etc.

Deﬁnition at line 90 of ﬁle packedstream.h.

9.8.2 Field Documentation

9.8.2.1 psp_buffer_align

int psp_buffer_align

Alignment requirement for start of packed-stream buffers.

Deﬁnition at line 95 of ﬁle packedstream.h.

9.8.2.2 psp_buffer_size

int psp_buffer_size

Size of each packed-stream buffer.

Deﬁnition at line 92 of ﬁle packedstream.h.

ef_vi User Guide

Data Structure Documentation

9.8.2.3 psp_max_usable_buffers

int psp_max_usable_buffers

The maximum number of packed-stream buffers that the adapter can deliver packets into without software con-

suming any completion events. The application can post more buffers, but they will only be used as events are

consumed.

Deﬁnition at line 107 of ﬁle packedstream.h.

9.8.2.4 psp_start_offset

int psp_start_offset

Offset from the start of a packed-stream buffer to where the ﬁrst packet will be delivered.

Deﬁnition at line 100 of ﬁle packedstream.h.

The documentation for this struct was generated from the following ﬁle:

•packedstream.h

9.9 ef_pd Struct Reference

A protection domain.

#include <pd.h>

Data Fields

• enum ef_pd_ﬂags pd_ﬂags

• unsigned pd_resource_id

• char ∗pd_intf_name

• char ∗pd_cluster_name

• int pd_cluster_sock

•ef_driver_handle pd_cluster_dh

• unsigned pd_cluster_viset_resource_id

• int pd_cluster_viset_index

9.9.1 Detailed Description

A protection domain.

Deﬁnition at line 75 of ﬁle pd.h.

ef_vi User Guide

Data Structure Documentation

9.9.2 Field Documentation

9.9.2.1 pd_cluster_dh

ef_driver_handle pd_cluster_dh

Driver handle for the application cluster associated with the protection domain

Deﬁnition at line 91 of ﬁle pd.h.

9.9.2.2 pd_cluster_name

char∗pd_cluster_name

Name of the application cluster associated with the protection domain

Deﬁnition at line 85 of ﬁle pd.h.

9.9.2.3 pd_cluster_sock

int pd_cluster_sock

Socket for the application cluster associated with the protection domain

Deﬁnition at line 88 of ﬁle pd.h.

9.9.2.4 pd_cluster_viset_index

int pd_cluster_viset_index

Index of VI wanted within a cluster.

Deﬁnition at line 96 of ﬁle pd.h.

ef_vi User Guide

Data Structure Documentation

9.9.2.5 pd_cluster_viset_resource_id

unsigned pd_cluster_viset_resource_id

Resource ID of the virtual interface set for the application cluster associated with the protection domain

Deﬁnition at line 94 of ﬁle pd.h.

9.9.2.6 pd_ﬂags

enum ef_pd_flags pd_flags

Flags for the protection domain

Deﬁnition at line 77 of ﬁle pd.h.

9.9.2.7 pd_intf_name

char∗pd_intf_name

Name of the interface associated with the protection domain

Deﬁnition at line 81 of ﬁle pd.h.

9.9.2.8 pd_resource_id

unsigned pd_resource_id

Resource ID of the protection domain

Deﬁnition at line 79 of ﬁle pd.h.

The documentation for this struct was generated from the following ﬁle:

•pd.h

9.10 ef_pio Struct Reference

A Programmed I/O region.

#include <pio.h>

ef_vi User Guide

Data Structure Documentation

Data Fields

• uint8_t ∗pio_buffer

• uint8_t ∗pio_io

• unsigned pio_resource_id

• unsigned pio_len

9.10.1 Detailed Description

A Programmed I/O region.

Deﬁnition at line 47 of ﬁle pio.h.

9.10.2 Field Documentation

9.10.2.1 pio_buffer

uint8_t∗pio_buffer

The buffer for the Programmed I/O region

Deﬁnition at line 49 of ﬁle pio.h.

9.10.2.2 pio_io

uint8_t∗pio_io

The I/O region of the virtual interface that is linked with the Programmed I/O region

Deﬁnition at line 52 of ﬁle pio.h.

9.10.2.3 pio_len

unsigned pio_len

The length of the Programmed I/O region

Deﬁnition at line 56 of ﬁle pio.h.

ef_vi User Guide

Data Structure Documentation

9.10.2.4 pio_resource_id

unsigned pio_resource_id

The resource ID for the Programmed I/O region

Deﬁnition at line 54 of ﬁle pio.h.

The documentation for this struct was generated from the following ﬁle:

•pio.h

9.11 ef_vi Struct Reference

A virtual interface.

#include <ef_vi.h>

Data Structures

• struct ops

Driver-dependent operations.

Data Fields

• unsigned inited

• unsigned vi_resource_id

• unsigned vi_i

• unsigned rx_buffer_len

• unsigned rx_preﬁx_len

• uint64_t rx_discard_mask

• int rx_ts_correction

• int tx_ts_correction_ns

• char ∗vi_mem_mmap_ptr

• int vi_mem_mmap_bytes

• char ∗vi_io_mmap_ptr

• int vi_io_mmap_bytes

• int vi_clustered

• int vi_is_packed_stream

• int vi_is_normal

• unsigned vi_ps_buf_size

•ef_vi_ioaddr_t io

• struct ef_pio ∗linked_pio

• char ∗evq_base

• unsigned evq_mask

• unsigned timer_quantum_ns

• unsigned tx_push_thresh

•ef_vi_txq vi_txq

ef_vi User Guide

Data Structure Documentation

•ef_vi_rxq vi_rxq

•ef_vi_state ∗ep_state

• enum ef_vi_ﬂags vi_ﬂags

• enum ef_vi_out_ﬂags vi_out_ﬂags

•ef_vi_stats ∗vi_stats

• struct ef_vi ∗vi_qs [EF_VI_MAX_QS]

• int vi_qs_n

• unsigned tx_alt_num

• unsigned ∗tx_alt_id2hw

• unsigned ∗tx_alt_hw2id

• struct ef_vi_nic_type nic_type

• struct ef_vi::ops ops

9.11.1 Detailed Description

A virtual interface.

An ef_vi represents a virtual interface on a speciﬁc NIC. A virtual interface is a collection of an event queue and two

DMA queues used to pass Ethernet frames between the transport implementation and the network.

Users should not access this structure.

Deﬁnition at line 685 of ﬁle ef_vi.h.

9.11.2 Field Documentation

9.11.2.1 ep_state

ef_vi_state∗ep_state

The state of the virtual interface

Deﬁnition at line 742 of ﬁle ef_vi.h.

9.11.2.2 evq_base

char∗evq_base

Base of the event queue for the virtual interface

Deﬁnition at line 727 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.11.2.3 evq_mask

unsigned evq_mask

Mask for offsets within the event queue for the virtual interface

Deﬁnition at line 729 of ﬁle ef_vi.h.

9.11.2.4 inited

unsigned inited

True if the virtual interface has been initialized

Deﬁnition at line 687 of ﬁle ef_vi.h.

9.11.2.5 io

ef_vi_ioaddr_t io

I/O address for the virtual interface

Deﬁnition at line 721 of ﬁle ef_vi.h.

9.11.2.6 linked_pio

struct ef_pio∗linked_pio

Programmed I/O region linked to the virtual interface

Deﬁnition at line 724 of ﬁle ef_vi.h.

9.11.2.7 nic_type

struct ef_vi_nic_type nic_type

The type of NIC hosting the virtual interface

Deﬁnition at line 763 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.11.2.8 ops

struct ef_vi::ops ops

Driver-dependent operations.

9.11.2.9 rx_buffer_len

unsigned rx_buffer_len

The length of a receive buffer

Deﬁnition at line 694 of ﬁle ef_vi.h.

9.11.2.10 rx_discard_mask

uint64_t rx_discard_mask

The mask to select which errors cause a discard event

Deﬁnition at line 698 of ﬁle ef_vi.h.

9.11.2.11 rx_preﬁx_len

unsigned rx_prefix_len

The length of the preﬁx at the start of a received packet

Deﬁnition at line 696 of ﬁle ef_vi.h.

9.11.2.12 rx_ts_correction

int rx_ts_correction

The timestamp correction (ticks) for received packets

Deﬁnition at line 700 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.11.2.13 timer_quantum_ns

unsigned timer_quantum_ns

The timer quantum for the virtual interface, in nanoseconds

Deﬁnition at line 731 of ﬁle ef_vi.h.

9.11.2.14 tx_alt_hw2id

unsigned∗tx_alt_hw2id

Mapping from hardware TX alternative IDs to end-user IDs

Deﬁnition at line 760 of ﬁle ef_vi.h.

9.11.2.15 tx_alt_id2hw

unsigned∗tx_alt_id2hw

Mapping from end-user TX alternative IDs to hardware IDs

Deﬁnition at line 758 of ﬁle ef_vi.h.

9.11.2.16 tx_alt_num

unsigned tx_alt_num

Number of TX alternatives for the virtual interface

Deﬁnition at line 756 of ﬁle ef_vi.h.

9.11.2.17 tx_push_thresh

unsigned tx_push_thresh

The threshold at which to switch from using TX descriptor push to using a doorbell

Deﬁnition at line 735 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.11.2.18 tx_ts_correction_ns

int tx_ts_correction_ns

The timestamp correction (ns) for transmitted packets

Deﬁnition at line 702 of ﬁle ef_vi.h.

9.11.2.19 vi_clustered

int vi_clustered

True if the virtual interface is in a cluster

Deﬁnition at line 712 of ﬁle ef_vi.h.

9.11.2.20 vi_ﬂags

enum ef_vi_flags vi_flags

The ﬂags for the virtual interface

Deﬁnition at line 744 of ﬁle ef_vi.h.

9.11.2.21 vi_i

unsigned vi_i

The instance ID of the virtual interface

Deﬁnition at line 691 of ﬁle ef_vi.h.

9.11.2.22 vi_io_mmap_bytes

int vi_io_mmap_bytes

Length of virtual interface I/O region

Deﬁnition at line 710 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.11.2.23 vi_io_mmap_ptr

char∗vi_io_mmap_ptr

Pointer to virtual interface I/O region

Deﬁnition at line 708 of ﬁle ef_vi.h.

9.11.2.24 vi_is_normal

int vi_is_normal

True if no special mode is enabled for the virtual interface

Deﬁnition at line 716 of ﬁle ef_vi.h.

9.11.2.25 vi_is_packed_stream

int vi_is_packed_stream

True if packed stream mode is enabled for the virtual interface

Deﬁnition at line 714 of ﬁle ef_vi.h.

9.11.2.26 vi_mem_mmap_bytes

int vi_mem_mmap_bytes

Length of virtual interface memory

Deﬁnition at line 706 of ﬁle ef_vi.h.

9.11.2.27 vi_mem_mmap_ptr

char∗vi_mem_mmap_ptr

Pointer to virtual interface memory

Deﬁnition at line 704 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.11.2.28 vi_out_ﬂags

enum ef_vi_out_flags vi_out_flags

Flags returned when the virtual interface is allocated

Deﬁnition at line 746 of ﬁle ef_vi.h.

9.11.2.29 vi_ps_buf_size

unsigned vi_ps_buf_size

The packed stream buffer size for the virtual interface

Deﬁnition at line 718 of ﬁle ef_vi.h.

9.11.2.30 vi_qs

struct ef_vi∗vi_qs[EF_VI_MAX_QS]

Virtual queues for the virtual interface

Deﬁnition at line 751 of ﬁle ef_vi.h.

9.11.2.31 vi_qs_n

int vi_qs_n

Number of virtual queues for the virtual interface

Deﬁnition at line 753 of ﬁle ef_vi.h.

9.11.2.32 vi_resource_id

unsigned vi_resource_id

The resource ID of the virtual interface

Deﬁnition at line 689 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.11.2.33 vi_rxq

ef_vi_rxq vi_rxq

The RX descriptor ring for the virtual interface

Deﬁnition at line 740 of ﬁle ef_vi.h.

9.11.2.34 vi_stats

ef_vi_stats∗vi_stats

Statistics for the virtual interface

Deﬁnition at line 748 of ﬁle ef_vi.h.

9.11.2.35 vi_txq

ef_vi_txq vi_txq

The TX descriptor ring for the virtual interface

Deﬁnition at line 738 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

9.12 ef_vi_layout_entry Struct Reference

Layout of the data that is delivered into receive buffers.

#include <ef_vi.h>

Data Fields

• enum ef_vi_layout_type evle_type

• int evle_offset

• const char ∗evle_description

ef_vi User Guide

Data Structure Documentation

9.12.1 Detailed Description

Layout of the data that is delivered into receive buffers.

Deﬁnition at line 1913 of ﬁle ef_vi.h.

9.12.2 Field Documentation

9.12.2.1 evle_description

const char∗evle_description

Description of the layout

Deﬁnition at line 1919 of ﬁle ef_vi.h.

9.12.2.2 evle_offset

int evle_offset

Offset to the data

Deﬁnition at line 1917 of ﬁle ef_vi.h.

9.12.2.3 evle_type

enum ef_vi_layout_type evle_type

The type of layout

Deﬁnition at line 1915 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

9.13 ef_vi_nic_type Struct Reference

The type of NIC in use.

#include <ef_vi.h>

ef_vi User Guide

Data Structure Documentation

Data Fields

• unsigned char arch

• char variant

• unsigned char revision

9.13.1 Detailed Description

The type of NIC in use.

Users should not access this structure.

Deﬁnition at line 646 of ﬁle ef_vi.h.

9.13.2 Field Documentation

9.13.2.1 arch

unsigned char arch

Architecture of the NIC

Deﬁnition at line 648 of ﬁle ef_vi.h.

9.13.2.2 revision

unsigned char revision

Revision of the NIC

Deﬁnition at line 652 of ﬁle ef_vi.h.

9.13.2.3 variant

char variant

Variant of the NIC

Deﬁnition at line 650 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

ef_vi User Guide

Data Structure Documentation

9.14 ef_vi_rxq Struct Reference

RX descriptor ring.

#include <ef_vi.h>

Data Fields

• uint32_t mask

• void ∗descriptors

• uint32_t ∗ids

9.14.1 Detailed Description

RX descriptor ring.

Users should not access this structure.

Deﬁnition at line 604 of ﬁle ef_vi.h.

9.14.2 Field Documentation

9.14.2.1 descriptors

void∗descriptors

Pointer to descriptors

Deﬁnition at line 608 of ﬁle ef_vi.h.

9.14.2.2 ids

uint32_t∗ids

Pointer to IDs

Deﬁnition at line 610 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.14.2.3 mask

uint32_t mask

Mask for indexes within ring, to wrap around

Deﬁnition at line 606 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

9.15 ef_vi_rxq_state Struct Reference

State of RX descriptor ring.

#include <ef_vi.h>

Data Fields

• uint32_t posted

• uint32_t added

• uint32_t removed

• uint32_t in_jumbo

• uint32_t bytes_acc

• uint16_t last_desc_i

• uint16_t rx_ps_credit_avail

9.15.1 Detailed Description

State of RX descriptor ring.

Users should not access this structure.

Deﬁnition at line 549 of ﬁle ef_vi.h.

9.15.2 Field Documentation

9.15.2.1 added

uint32_t added

Descriptors added to the ring

Deﬁnition at line 553 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.15.2.2 bytes_acc

uint32_t bytes_acc

Bytes received as part of a jumbo (7000-series only)

Deﬁnition at line 559 of ﬁle ef_vi.h.

9.15.2.3 in_jumbo

uint32_t in_jumbo

Packets received as part of a jumbo (7000-series only)

Deﬁnition at line 557 of ﬁle ef_vi.h.

9.15.2.4 last_desc_i

uint16_t last_desc_i

Last descriptor index completed (7000-series only)

Deﬁnition at line 561 of ﬁle ef_vi.h.

9.15.2.5 posted

uint32_t posted

Descriptors posted to the nic

Deﬁnition at line 551 of ﬁle ef_vi.h.

9.15.2.6 removed

uint32_t removed

Descriptors removed from the ring

Deﬁnition at line 555 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.15.2.7 rx_ps_credit_avail

uint16_t rx_ps_credit_avail

Credit for packed stream handling (7000-series only)

Deﬁnition at line 563 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

9.16 ef_vi_set Struct Reference

A virtual interface set within a protection domain.

#include <vi.h>

Data Fields

• unsigned vis_res_id

• struct ef_pd ∗vis_pd

9.16.1 Detailed Description

A virtual interface set within a protection domain.

Deﬁnition at line 328 of ﬁle vi.h.

9.16.2 Field Documentation

9.16.2.1 vis_pd

struct ef_pd∗vis_pd

Protection domain from which the virtual interface set is allocated

Deﬁnition at line 332 of ﬁle vi.h.

ef_vi User Guide

Data Structure Documentation

9.16.2.2 vis_res_id

unsigned vis_res_id

Resource ID for the virtual interface set

Deﬁnition at line 330 of ﬁle vi.h.

The documentation for this struct was generated from the following ﬁle:

•vi.h

9.17 ef_vi_state Struct Reference

State of a virtual interface.

#include <ef_vi.h>

Data Fields

•ef_eventq_state evq

•ef_vi_txq_state txq

•ef_vi_rxq_state rxq

9.17.1 Detailed Description

State of a virtual interface.

Users should not access this structure.

Deﬁnition at line 617 of ﬁle ef_vi.h.

9.17.2 Field Documentation

9.17.2.1 evq

ef_eventq_state evq

Event queue state

Deﬁnition at line 619 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.17.2.2 rxq

ef_vi_rxq_state rxq

RX descriptor ring state

Deﬁnition at line 623 of ﬁle ef_vi.h.

9.17.2.3 txq

ef_vi_txq_state txq

TX descriptor ring state

Deﬁnition at line 621 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

9.18 ef_vi_stats Struct Reference

Statistics for a virtual interface.

#include <ef_vi.h>

Data Fields

• uint32_t rx_ev_lost

• uint32_t rx_ev_bad_desc_i

• uint32_t rx_ev_bad_q_label

• uint32_t evq_gap

9.18.1 Detailed Description

Statistics for a virtual interface.

Users should not access this structure.

Deﬁnition at line 631 of ﬁle ef_vi.h.

9.18.2 Field Documentation

ef_vi User Guide

Data Structure Documentation

9.18.2.1 evq_gap

uint32_t evq_gap

Gaps in the event queue (empty slot followed by event)

Deﬁnition at line 639 of ﬁle ef_vi.h.

9.18.2.2 rx_ev_bad_desc_i

uint32_t rx_ev_bad_desc_i

RX events with a bad descriptor

Deﬁnition at line 635 of ﬁle ef_vi.h.

9.18.2.3 rx_ev_bad_q_label

uint32_t rx_ev_bad_q_label

RX events with a bad queue label

Deﬁnition at line 637 of ﬁle ef_vi.h.

9.18.2.4 rx_ev_lost

uint32_t rx_ev_lost

RX events lost

Deﬁnition at line 633 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

9.19 ef_vi_stats_ﬁeld_layout Struct Reference

Layout for a ﬁeld of statistics.

#include <vi.h>

ef_vi User Guide

Data Structure Documentation

Data Fields

• char ∗evsﬂ_name

• int evsﬂ_offset

• int evsﬂ_size

9.19.1 Detailed Description

Layout for a ﬁeld of statistics.

Deﬁnition at line 994 of ﬁle vi.h.

9.19.2 Field Documentation

9.19.2.1 evsﬂ_name

char∗evsfl_name

Name of statistics ﬁeld

Deﬁnition at line 996 of ﬁle vi.h.

9.19.2.2 evsﬂ_offset

int evsfl_offset

Offset of statistics ﬁel, in bytesd

Deﬁnition at line 998 of ﬁle vi.h.

9.19.2.3 evsﬂ_size

int evsfl_size

Size of statistics ﬁeld, in bytes

Deﬁnition at line 1000 of ﬁle vi.h.

The documentation for this struct was generated from the following ﬁle:

•vi.h

ef_vi User Guide

Data Structure Documentation

9.20 ef_vi_stats_layout Struct Reference

Layout for statistics.

#include <vi.h>

Data Fields

• int evsl_data_size

• int evsl_ﬁelds_num

•ef_vi_stats_ﬁeld_layout evsl_ﬁelds [ ]

9.20.1 Detailed Description

Layout for statistics.

Deﬁnition at line 1004 of ﬁle vi.h.

9.20.2 Field Documentation

9.20.2.1 evsl_data_size

int evsl_data_size

Size of data for statistics

Deﬁnition at line 1006 of ﬁle vi.h.

9.20.2.2 evsl_ﬁelds

ef_vi_stats_field_layout evsl_fields[ ]

Array of ﬁelds of statistics

Deﬁnition at line 1010 of ﬁle vi.h.

ef_vi User Guide

Data Structure Documentation

9.20.2.3 evsl_ﬁelds_num

int evsl_fields_num

Number of ﬁelds of statistics

Deﬁnition at line 1008 of ﬁle vi.h.

The documentation for this struct was generated from the following ﬁle:

•vi.h

9.21 ef_vi_transmit_alt_overhead Struct Reference

Per-packet overhead information.

#include <ef_vi.h>

Data Fields

• uint32_t pre_round

• uint32_t mask

• uint32_t post_round

9.21.1 Detailed Description

Per-packet overhead information.

This structure is used by ef_vi_transmit_alt_usage() to calculate the amount of buffering needed to store a packet. It

should be ﬁlled in by ef_vi_transmit_alt_query_overhead() or similar. Its members are not intended to be meaningful

to the application and should not be obtained or interpreted in any other way.

Deﬁnition at line 663 of ﬁle ef_vi.h.

9.21.2 Field Documentation

9.21.2.1 mask

uint32_t mask

Rounding mask

Deﬁnition at line 667 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.21.2.2 post_round

uint32_t post_round

Bytes to add after rounding

Deﬁnition at line 669 of ﬁle ef_vi.h.

9.21.2.3 pre_round

uint32_t pre_round

Bytes to add before rounding

Deﬁnition at line 665 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

9.22 ef_vi_txq Struct Reference

TX descriptor ring.

#include <ef_vi.h>

Data Fields

• uint32_t mask

• void ∗descriptors

• uint32_t ∗ids

9.22.1 Detailed Description

TX descriptor ring.

Users should not access this structure.

Deﬁnition at line 591 of ﬁle ef_vi.h.

9.22.2 Field Documentation

ef_vi User Guide

Data Structure Documentation

9.22.2.1 descriptors

void∗descriptors

Pointer to descriptors

Deﬁnition at line 595 of ﬁle ef_vi.h.

9.22.2.2 ids

uint32_t∗ids

Pointer to IDs

Deﬁnition at line 597 of ﬁle ef_vi.h.

9.22.2.3 mask

uint32_t mask

Mask for indexes within ring, to wrap around

Deﬁnition at line 593 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

9.23 ef_vi_txq_state Struct Reference

State of TX descriptor ring.

#include <ef_vi.h>

Data Fields

• uint32_t previous

• uint32_t added

• uint32_t removed

• uint32_t ts_nsec

ef_vi User Guide

Data Structure Documentation

9.23.1 Detailed Description

State of TX descriptor ring.

Users should not access this structure.

Deﬁnition at line 534 of ﬁle ef_vi.h.

9.23.2 Field Documentation

9.23.2.1 added

uint32_t added

Descriptors added to the ring

Deﬁnition at line 538 of ﬁle ef_vi.h.

9.23.2.2 previous

uint32_t previous

Previous slot that has been handled

Deﬁnition at line 536 of ﬁle ef_vi.h.

9.23.2.3 removed

uint32_t removed

Descriptors removed from the ring

Deﬁnition at line 540 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.23.2.4 ts_nsec

uint32_t ts_nsec

Timestamp in nanoseconds

Deﬁnition at line 542 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

9.24 ef_vi::ops Struct Reference

Driver-dependent operations.

#include <ef_vi.h>

Data Fields

• int(∗transmit )(struct ef_vi ∗,ef_addr base, int len, ef_request_id)

• int(∗transmitv )(struct ef_vi ∗, const ef_iovec ∗, int iov_len, ef_request_id)

• int(∗transmitv_init )(struct ef_vi ∗, const ef_iovec ∗, int iov_len, ef_request_id)

• void(∗transmit_push )(struct ef_vi ∗)

• int(∗transmit_pio )(struct ef_vi ∗, int offset, int len, ef_request_id dma_id)

• int(∗transmit_copy_pio )(struct ef_vi ∗, int pio_offset, const void ∗src_buf, int len, ef_request_id dma_id)

• void(∗transmit_pio_warm )(struct ef_vi ∗)

• void(∗transmit_copy_pio_warm )(struct ef_vi ∗, int pio_offset, const void ∗src_buf, int len)

• int(∗transmit_alt_select )(struct ef_vi ∗, unsigned alt_id)

• int(∗transmit_alt_select_default )(struct ef_vi ∗)

• int(∗transmit_alt_stop )(struct ef_vi ∗, unsigned alt_id)

• int(∗transmit_alt_go )(struct ef_vi ∗, unsigned alt_id)

• int(∗transmit_alt_discard )(struct ef_vi ∗, unsigned alt_id)

• int(∗receive_init )(struct ef_vi ∗,ef_addr,ef_request_id)

• void(∗receive_push )(struct ef_vi ∗)

• int(∗eventq_poll )(struct ef_vi ∗,ef_event ∗, int evs_len)

• void(∗eventq_prime )(struct ef_vi ∗)

• void(∗eventq_timer_prime )(struct ef_vi ∗, unsigned v)

• void(∗eventq_timer_run )(struct ef_vi ∗, unsigned v)

• void(∗eventq_timer_clear )(struct ef_vi ∗)

• void(∗eventq_timer_zero )(struct ef_vi ∗)

9.24.1 Detailed Description

Driver-dependent operations.

Deﬁnition at line 767 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.24.2 Field Documentation

9.24.2.1 eventq_poll

int(∗eventq_poll) (struct ef_vi ∗,ef_event ∗, int evs_len)

Poll an event queue

Deﬁnition at line 807 of ﬁle ef_vi.h.

9.24.2.2 eventq_prime

void(∗eventq_prime) (struct ef_vi ∗)

Prime a virtual interface allowing you to go to sleep blocking on it

Deﬁnition at line 809 of ﬁle ef_vi.h.

9.24.2.3 eventq_timer_clear

void(∗eventq_timer_clear) (struct ef_vi ∗)

Stop an event-queue timer

Deﬁnition at line 815 of ﬁle ef_vi.h.

9.24.2.4 eventq_timer_prime

void(∗eventq_timer_prime) (struct ef_vi ∗, unsigned v)

Prime an event queue timer with a new timeout

Deﬁnition at line 811 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.24.2.5 eventq_timer_run

void(∗eventq_timer_run) (struct ef_vi ∗, unsigned v)

Start an event queue timer running

Deﬁnition at line 813 of ﬁle ef_vi.h.

9.24.2.6 eventq_timer_zero

void(∗eventq_timer_zero) (struct ef_vi ∗)

Prime an event queue timer to expire immediately

Deﬁnition at line 817 of ﬁle ef_vi.h.

9.24.2.7 receive_init

int(∗receive_init) (struct ef_vi ∗,ef_addr,ef_request_id)

Initialize an RX descriptor on the RX descriptor ring

Deﬁnition at line 803 of ﬁle ef_vi.h.

9.24.2.8 receive_push

void(∗receive_push) (struct ef_vi ∗)

Submit newly initialized RX descriptors to the NIC

Deﬁnition at line 805 of ﬁle ef_vi.h.

9.24.2.9 transmit

int(∗transmit) (struct ef_vi ∗,ef_addr base, int len, ef_request_id)

Transmit a packet from a single packet buffer

Deﬁnition at line 769 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.24.2.10 transmit_alt_discard

int(∗transmit_alt_discard) (struct ef_vi ∗, unsigned alt_id)

Transition a TX alternative to the DISCARD state

Deﬁnition at line 801 of ﬁle ef_vi.h.

9.24.2.11 transmit_alt_go

int(∗transmit_alt_go) (struct ef_vi ∗, unsigned alt_id)

Transition a TX alternative to the GO state

Deﬁnition at line 799 of ﬁle ef_vi.h.

9.24.2.12 transmit_alt_select

int(∗transmit_alt_select) (struct ef_vi ∗, unsigned alt_id)

Select a TX alternative as the destination for future sends

Deﬁnition at line 793 of ﬁle ef_vi.h.

9.24.2.13 transmit_alt_select_default

int(∗transmit_alt_select_default) (struct ef_vi ∗)

Select the "normal" data path as the destination for future sends

Deﬁnition at line 795 of ﬁle ef_vi.h.

9.24.2.14 transmit_alt_stop

int(∗transmit_alt_stop) (struct ef_vi ∗, unsigned alt_id)

Transition a TX alternative to the STOP state

Deﬁnition at line 797 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.24.2.15 transmit_copy_pio

int(∗transmit_copy_pio) (struct ef_vi ∗, int pio_offset, const void ∗src_buf, int len, ef_←-

request_id dma_id)

Copy a packet to Programmed I/O region and transmit it

Deﬁnition at line 784 of ﬁle ef_vi.h.

9.24.2.16 transmit_copy_pio_warm

void(∗transmit_copy_pio_warm) (struct ef_vi ∗, int pio_offset, const void ∗src_buf, int len)

Copy a packet to Programmed I/O region and warm transmit path

Deﬁnition at line 790 of ﬁle ef_vi.h.

9.24.2.17 transmit_pio

int(∗transmit_pio) (struct ef_vi ∗, int offset, int len, ef_request_id dma_id)

Transmit a packet already resident in Programmed I/O

Deﬁnition at line 781 of ﬁle ef_vi.h.

9.24.2.18 transmit_pio_warm

void(∗transmit_pio_warm) (struct ef_vi ∗)

Warm Programmed I/O transmit path for subsequent transmit

Deﬁnition at line 788 of ﬁle ef_vi.h.

9.24.2.19 transmit_push

void(∗transmit_push) (struct ef_vi ∗)

Submit newly initialized TX descriptors to the NIC

Deﬁnition at line 779 of ﬁle ef_vi.h.

ef_vi User Guide

Data Structure Documentation

9.24.2.20 transmitv

int(∗transmitv) (struct ef_vi ∗, const ef_iovec ∗, int iov_len, ef_request_id)

Transmit a packet from a vector of packet buffers

Deﬁnition at line 772 of ﬁle ef_vi.h.

9.24.2.21 transmitv_init

int(∗transmitv_init) (struct ef_vi ∗, const ef_iovec ∗, int iov_len, ef_request_id)

Initialize TX descriptors on the TX descriptor ring, for a vector of packet buffers

Deﬁnition at line 776 of ﬁle ef_vi.h.

The documentation for this struct was generated from the following ﬁle:

•ef_vi.h

ef_vi User Guide

Data Structure Documentation

ef_vi User Guide

File Documentation

Chapter 10

File Documentation

10.1 000_main.dox File Reference

Additional Doxygen-format documentation for ef_vi.

10.1.1 Detailed Description

Additional Doxygen-format documentation for ef_vi.

Author

Solarﬂare Communications, Inc.

Date

2016/06/13

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.2 010_overview.dox File Reference

Additional Doxygen-format documentation for ef_vi.

ef_vi User Guide

File Documentation

10.2.1 Detailed Description

Additional Doxygen-format documentation for ef_vi.

Author

Solarﬂare Communications, Inc.

Date

2016/06/13

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.3 020_concepts.dox File Reference

Additional Doxygen-format documentation for ef_vi.

10.3.1 Detailed Description

Additional Doxygen-format documentation for ef_vi.

Author

Solarﬂare Communications, Inc.

Date

2016/06/13

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.4 030_apps.dox File Reference

Additional Doxygen-format documentation for ef_vi.

ef_vi User Guide

File Documentation

10.4.1 Detailed Description

Additional Doxygen-format documentation for ef_vi.

Author

Solarﬂare Communications, Inc.

Date

2016/06/13

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.5 040_using.dox File Reference

Additional Doxygen-format documentation for ef_vi.

10.5.1 Detailed Description

Additional Doxygen-format documentation for ef_vi.

Author

Solarﬂare Communications, Inc.

Date

2017/02/21

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.6 050_examples.dox File Reference

Additional Doxygen-format documentation for ef_vi.

ef_vi User Guide

File Documentation

10.6.1 Detailed Description

Additional Doxygen-format documentation for ef_vi.

Author

Solarﬂare Communications, Inc.

Date

2016/06/13

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.7 base.h File Reference

Base deﬁnitions for EtherFabric Virtual Interface HAL.

#include <etherfabric/ef_vi.h>

Macros

• #deﬁne EF_VI_NIC_PAGE_SHIFT 12

How much to shift an address to get the page number.

• #deﬁne EF_VI_NIC_PAGE_SIZE (1<<EF_VI_NIC_PAGE_SHIFT)

The size of a page of memory on the NIC, in bytes.

• #deﬁne EF_ADDR_FMT "%" CI_PRIx64

Format for outputting an ef_addr.

• #deﬁne EF_INVALID_ADDR ((ef_addr) -1)

An address that is always invalid.

Typedefs

• typedef int ef_driver_handle

An ef_driver_handle is needed to allocate resources.

Functions

• int ef_eventq_wait (ef_vi ∗vi, ef_driver_handle vi_dh, unsigned current_ptr, const struct timeval ∗timeout)

Block, waiting until the event queue is non-empty.

• int ef_driver_open (ef_driver_handle ∗dh_out)

Obtain a driver handle.

• int ef_driver_close (ef_driver_handle dh)

Close a driver handle.

ef_vi User Guide

File Documentation

10.7.1 Detailed Description

Base deﬁnitions for EtherFabric Virtual Interface HAL.

Author

Solarﬂare Communications, Inc.

Date

2017/02/21

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.7.2 Function Documentation

10.7.2.1 ef_driver_close()

int ef_driver_close (

ef_driver_handle dh )

Close a driver handle.

Parameters

dh The handle to the driver to close.

Returns

0 on success, or a negative error code.

Close a driver handle.

This should be called to free up resources when the driver handle is no longer needed, but the application is to

contimue running.

Any associated virtual interface, protection domain, or driver structures must not be used after this call has been

made.

Note

Resources are also freed when the application exits, and so this function does not need to be called on exit.

ef_vi User Guide

File Documentation

10.7.2.2 ef_driver_open()

int ef_driver_open (

ef_driver_handle ∗dh_out )

Obtain a driver handle.

Parameters

dh_out Pointer to an ef_driver_handle, that is updated on return with the new driver handle.

Returns

0 on success, or a negative error code.

Obtain a driver handle.

10.7.2.3 ef_eventq_wait()

int ef_eventq_wait (

ef_vi ∗vi,

ef_driver_handle vi_dh,

unsigned current_ptr,

const struct timeval ∗timeout )

Block, waiting until the event queue is non-empty.

Parameters

vi The virtual interface on which to wait.

vi_dh Driver handle associated with the virtual interface.

current_ptr Must come from ef_eventq_current().

timeout Maximum time to wait for, or 0 to wait forever.

Returns

0 on success, or a negative error code:

-ETIMEDOUT on time-out).

Block, waiting until the event queue is non-empty. This enables interrupts.

Note that when this function returns it is not guaranteed that an event will be present in the event queue, but in most

cases there will be.

10.8 capabilities.h File Reference

Capabilities API for EtherFabric Virtual Interface HAL.

#include <etherfabric/base.h>

ef_vi User Guide

File Documentation

Enumerations

• enum ef_vi_capability {

EF_VI_CAP_PIO = 0, EF_VI_CAP_PIO_BUFFER_SIZE,EF_VI_CAP_PIO_BUFFER_COUNT,EF_VI_C←-

AP_HW_MULTICAST_LOOPBACK,

EF_VI_CAP_HW_MULTICAST_REPLICATION,EF_VI_CAP_HW_RX_TIMESTAMPING,EF_VI_CAP_H←-

W_TX_TIMESTAMPING,EF_VI_CAP_PACKED_STREAM,

EF_VI_CAP_PACKED_STREAM_BUFFER_SIZES,EF_VI_CAP_VPORTS,EF_VI_CAP_PHYS_MODE,

EF_VI_CAP_BUFFER_MODE,

EF_VI_CAP_MULTICAST_FILTER_CHAINING,EF_VI_CAP_MAC_SPOOFING,EF_VI_CAP_RX_FILTE←-

R_TYPE_UDP_LOCAL,EF_VI_CAP_RX_FILTER_TYPE_TCP_LOCAL,

EF_VI_CAP_RX_FILTER_TYPE_UDP_FULL,EF_VI_CAP_RX_FILTER_TYPE_TCP_FULL,EF_VI_CAP←-

_RX_FILTER_TYPE_IP_VLAN,EF_VI_CAP_RX_FILTER_TYPE_UDP6_LOCAL,

EF_VI_CAP_RX_FILTER_TYPE_TCP6_LOCAL,EF_VI_CAP_RX_FILTER_TYPE_UDP6_FULL,EF_VI_←-

CAP_RX_FILTER_TYPE_TCP6_FULL,EF_VI_CAP_RX_FILTER_TYPE_IP6_VLAN,

EF_VI_CAP_RX_FILTER_TYPE_ETH_LOCAL,EF_VI_CAP_RX_FILTER_TYPE_ETH_LOCAL_VLAN,E←-

F_VI_CAP_RX_FILTER_TYPE_UCAST_ALL,EF_VI_CAP_RX_FILTER_TYPE_MCAST_ALL,

EF_VI_CAP_RX_FILTER_TYPE_UCAST_MISMATCH,EF_VI_CAP_RX_FILTER_TYPE_MCAST_MISM←-

ATCH,EF_VI_CAP_RX_FILTER_TYPE_SNIFF,EF_VI_CAP_TX_FILTER_TYPE_SNIFF,

EF_VI_CAP_RX_FILTER_IP4_PROTO,EF_VI_CAP_RX_FILTER_ETHERTYPE,EF_VI_CAP_RXQ_SIZ←-

ES,EF_VI_CAP_TXQ_SIZES,

EF_VI_CAP_EVQ_SIZES,EF_VI_CAP_ZERO_RX_PREFIX,EF_VI_CAP_TX_PUSH_ALWAYS,EF_VI_←-

CAP_NIC_PACE,

EF_VI_CAP_RX_MERGE,EF_VI_CAP_TX_ALTERNATIVES,EF_VI_CAP_TX_ALTERNATIVES_VFIFOS,

EF_VI_CAP_TX_ALTERNATIVES_CP_BUFFERS,

EF_VI_CAP_RX_FW_VARIANT,EF_VI_CAP_TX_FW_VARIANT,EF_VI_CAP_MAX }

Possible capabilities.

Functions

• int ef_vi_capabilities_get (ef_driver_handle handle, int iﬁndex, enum ef_vi_capability cap, unsigned long

∗value)

Get the value of the given capability.

• int ef_vi_capabilities_max (void)

Gets the maximum supported value of ef_vi_capability.

• const char ∗ef_vi_capabilities_name (enum ef_vi_capability cap)

Gets a human-readable string describing the given capability.

10.8.1 Detailed Description

Capabilities API for EtherFabric Virtual Interface HAL.

Author

Solarﬂare Communications, Inc.

Date

2015/06/08

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

ef_vi User Guide

File Documentation

10.8.2 Enumeration Type Documentation

10.8.2.1 ef_vi_capability

enum ef_vi_capability

Possible capabilities.

Enumerator

EF_VI_CAP_PIO Hardware capable of PIO

EF_VI_CAP_PIO_BUFFER_SIZE PIO buffer size supplied to each VI

EF_VI_CAP_PIO_BUFFER_COUNT Total number of PIO buffers

EF_VI_CAP_HW_MULTICAST_LOOPBACK Can packets be looped back by hardware

EF_VI_CAP_HW_MULTICAST_REPLICATION Can mcast be delivered to many VIs

EF_VI_CAP_HW_RX_TIMESTAMPING Hardware timestamping of received packets

EF_VI_CAP_HW_TX_TIMESTAMPING Hardware timestamping of transmitted packets

EF_VI_CAP_PACKED_STREAM Is ﬁrmware capable of packed stream mode

EF_VI_CAP_PACKED_STREAM_BUFFER_SIZES Packed stream buffer sizes supported in kB, bitmask

EF_VI_CAP_VPORTS NIC switching, ef_pd_alloc_with_vport

EF_VI_CAP_PHYS_MODE Is physical addressing mode supported?

EF_VI_CAP_BUFFER_MODE Is buffer addressing mode (NIC IOMMU) supported

EF_VI_CAP_MULTICAST_FILTER_CHAINING Chaining of multicast ﬁlters

EF_VI_CAP_MAC_SPOOFING Can functions create ﬁlters for 'wrong' MAC addr

EF_VI_CAP_RX_FILTER_TYPE_UDP_LOCAL Filter on local IP + UDP port

EF_VI_CAP_RX_FILTER_TYPE_TCP_LOCAL Filter on local IP + TCP port

EF_VI_CAP_RX_FILTER_TYPE_UDP_FULL Filter on local and remote IP + UDP port

EF_VI_CAP_RX_FILTER_TYPE_TCP_FULL Filter on local and remote IP + TCP port

EF_VI_CAP_RX_FILTER_TYPE_IP_VLAN Filter on any of above four types with addition of VLAN

EF_VI_CAP_RX_FILTER_TYPE_UDP6_LOCAL Filter on local IP + UDP port

EF_VI_CAP_RX_FILTER_TYPE_TCP6_LOCAL Filter on local IP + TCP port

EF_VI_CAP_RX_FILTER_TYPE_UDP6_FULL Filter on local and remote IP + UDP port

EF_VI_CAP_RX_FILTER_TYPE_TCP6_FULL Filter on local and remote IP + TCP port

EF_VI_CAP_RX_FILTER_TYPE_IP6_VLAN Filter on any of above four types with addition of VLAN

EF_VI_CAP_RX_FILTER_TYPE_ETH_LOCAL Filter on local MAC address

EF_VI_CAP_RX_FILTER_TYPE_ETH_LOCAL_VLAN Filter on local MAC+VLAN

EF_VI_CAP_RX_FILTER_TYPE_UCAST_ALL Filter on "all unicast"

EF_VI_CAP_RX_FILTER_TYPE_MCAST_ALL Filter on "all multicast"

EF_VI_CAP_RX_FILTER_TYPE_UCAST_MISMATCH Filter on "unicast mismatch"

EF_VI_CAP_RX_FILTER_TYPE_MCAST_MISMATCH Filter on "multicast mismatch"

EF_VI_CAP_RX_FILTER_TYPE_SNIFF Availability of RX sniff ﬁlters

EF_VI_CAP_TX_FILTER_TYPE_SNIFF Availability of TX sniff ﬁlters

EF_VI_CAP_RX_FILTER_IP4_PROTO Filter on IPv4 protocol

EF_VI_CAP_RX_FILTER_ETHERTYPE Filter on ethertype

EF_VI_CAP_RXQ_SIZES Available RX queue sizes, bitmask

ef_vi User Guide

File Documentation

Enumerator

EF_VI_CAP_TXQ_SIZES Available TX queue sizes, bitmask

EF_VI_CAP_EVQ_SIZES Available event queue sizes, bitmask

EF_VI_CAP_ZERO_RX_PREFIX Availability of zero length RX packet preﬁx

EF_VI_CAP_TX_PUSH_ALWAYS Is always enabling TX push supported?

EF_VI_CAP_NIC_PACE Availability of NIC pace feature

EF_VI_CAP_RX_MERGE Availability of RX event merging mode

EF_VI_CAP_TX_ALTERNATIVES Availability of TX alternatives

EF_VI_CAP_TX_ALTERNATIVES_VFIFOS Number of TX alternatives vFIFOs

EF_VI_CAP_TX_ALTERNATIVES_CP_BUFFERS Number of TX alternatives common pool buffers

EF_VI_CAP_RX_FW_VARIANT RX ﬁrmware variant

EF_VI_CAP_TX_FW_VARIANT TX ﬁrmware variant

EF_VI_CAP_MAX Maximum value of capabilities enumeration

Deﬁnition at line 62 of ﬁle capabilities.h.

10.8.3 Function Documentation

10.8.3.1 ef_vi_capabilities_get()

int ef_vi_capabilities_get (

ef_driver_handle handle,

int ifindex,

enum ef_vi_capability cap,

unsigned long ∗value )

Get the value of the given capability.

Parameters

handle The ef_driver_handle associated with the interface that you wish to query.

iﬁndex The index of the interface that you wish to query. You can use if_nametoindex() to obtain this. This

should be the underlying physical interface, rather than a bond, VLAN, or similar.

cap The capability to get.

value Pointer to location at which to store the value.

Returns

0 on success (capability is supported and value ﬁeld is updated), or a negative error code:

-EOPNOTSUPP if the capability is not supported

-ENOSYS if the API does not know how to retreive support for the supplied capability

other negative error if support could not be retrieved

ef_vi User Guide

File Documentation

10.8.3.2 ef_vi_capabilities_max()

int ef_vi_capabilities_max (

void )

Gets the maximum supported value of ef_vi_capability.

Returns

The maximum capability value, or a negative error code.

This function returns the maximum supported value of ef_vi_capability, so that all capabilities can be iterated. For

example:

max = ef_vi_capabilities_max();

for( cap = 0; cap <= max; ++cap ) {

rc=ef_vi_capabilities_get(driver_handle, ifindex, cap, &val);

if( rc == 0 ) printf("%s %d\n",ef_vi_capabilities_name(cap), val);

}

10.8.3.3 ef_vi_capabilities_name()

const char∗ef_vi_capabilities_name (

enum ef_vi_capability cap )

Gets a human-readable string describing the given capability.

Parameters

cap The capability for which to get the description.

Returns

A string describing the capability, or a negative error code.

10.9 ef_vi.h File Reference

Virtual Interface deﬁnitions for EtherFabric Virtual Interface HAL.

Data Structures

• union ef_event

A token that identiﬁes something that has happened.

• struct ef_iovec

ef_vi User Guide

File Documentation

ef_iovec is similar to the standard struct iovec. An array of these is used to designate a scatter/gather list of I/O

buffers.

• struct ef_vi_txq_state

State of TX descriptor ring.

• struct ef_vi_rxq_state

State of RX descriptor ring.

• struct ef_eventq_state

State of event queue.

• struct ef_vi_txq

TX descriptor ring.

• struct ef_vi_rxq

RX descriptor ring.

• struct ef_vi_state

State of a virtual interface.

• struct ef_vi_stats

Statistics for a virtual interface.

• struct ef_vi_nic_type

The type of NIC in use.

• struct ef_vi_transmit_alt_overhead

Per-packet overhead information.

• struct ef_vi

A virtual interface.

• struct ef_vi::ops

Driver-dependent operations.

• struct ef_vi_layout_entry

Layout of the data that is delivered into receive buffers.

Macros

• #deﬁne EF_VI_DMA_ALIGN 64

Cache line sizes for alignment purposes.

• #deﬁne EF_VI_MAX_QS 32

The maximum number of queues per virtual interface.

• #deﬁne EF_VI_EVENT_POLL_MIN_EVS 2

The minimum size of array to pass when polling the event queue.

• #deﬁne EF_REQUEST_ID_MASK 0xffffffff

Mask to use with an ef_request_id.

• #deﬁne EF_EVENT_TYPE(e) ((e).generic.type)

Type of event in an ef_event e.

• #deﬁne EF_EVENT_RX_BYTES(e) ((e).rx.len)

Get the number of bytes received.

• #deﬁne EF_EVENT_RX_Q_ID(e) ((e).rx.q_id)

Get the RX descriptor ring ID used for a received packet.

• #deﬁne EF_EVENT_RX_RQ_ID(e) ((e).rx.rq_id)

Get the dma_id used for a received packet.

• #deﬁne EF_EVENT_RX_CONT(e) ((e).rx.ﬂags & EF_EVENT_FLAG_CONT)

True if the CONTinuation Of Packet ﬂag is set for an RX event.

• #deﬁne EF_EVENT_RX_SOP(e) ((e).rx.ﬂags & EF_EVENT_FLAG_SOP)

ef_vi User Guide

File Documentation

True if the Start Of Packet ﬂag is set for an RX event.

• #deﬁne EF_EVENT_RX_PS_NEXT_BUFFER(e)

True if the next buffer ﬂag is set for a packed stream event.

• #deﬁne EF_EVENT_RX_ISCSI_OKAY(e) ((e).rx.ﬂags & EF_EVENT_FLAG_ISCSI_OK)

True if the iSCSIOK ﬂag is set for an RX event.

• #deﬁne EF_EVENT_FLAG_SOP 0x1

Start Of Packet ﬂag.

• #deﬁne EF_EVENT_FLAG_CONT 0x2

CONTinuation Of Packet ﬂag.

• #deﬁne EF_EVENT_FLAG_ISCSI_OK 0x4

iSCSI CRC validated OK ﬂag.

• #deﬁne EF_EVENT_FLAG_MULTICAST 0x8

Multicast ﬂag.

• #deﬁne EF_EVENT_FLAG_PS_NEXT_BUFFER 0x10

Packed Stream Next Buffer ﬂag.

• #deﬁne EF_EVENT_TX_Q_ID(e) ((e).tx.q_id)

Get the TX descriptor ring ID used for a transmitted packet.

• #deﬁne EF_EVENT_RX_DISCARD_Q_ID(e) ((e).rx_discard.q_id)

Get the RX descriptor ring ID used for a discarded packet.

• #deﬁne EF_EVENT_RX_DISCARD_RQ_ID(e) ((e).rx_discard.rq_id)

Get the dma_id used for a discarded packet.

• #deﬁne EF_EVENT_RX_DISCARD_CONT(e) ((e).rx_discard.ﬂags&EF_EVENT_FLAG_CONT)

True if the CONTinuation Of Packet ﬂag is set for an RX_DISCARD event.

• #deﬁne EF_EVENT_RX_DISCARD_SOP(e) ((e).rx_discard.ﬂags&EF_EVENT_FLAG_SOP)

True if the Start Of Packet ﬂag is set for an RX_DISCARD event.

• #deﬁne EF_EVENT_RX_DISCARD_TYPE(e) ((e).rx_discard.subtype)

Get the reason for an EF_EVENT_TYPE_RX_DISCARD event.

• #deﬁne EF_EVENT_RX_DISCARD_BYTES(e) ((e).rx_discard.len)

Get the length of a discarded packet.

• #deﬁne EF_EVENT_RX_MULTI_Q_ID(e) ((e).rx_multi.q_id)

Get the RX descriptor ring ID used for a received packet.

• #deﬁne EF_EVENT_RX_MULTI_CONT(e)

True if the CONTinuation Of Packet ﬂag is set for an RX HT event.

• #deﬁne EF_EVENT_RX_MULTI_SOP(e)

True if the Start Of Packet ﬂag is set for an RX HT event.

• #deﬁne EF_EVENT_TX_ERROR_Q_ID(e) ((e).tx_error.q_id)

Get the TX descriptor ring ID used for a transmit error.

• #deﬁne EF_EVENT_TX_ERROR_TYPE(e) ((e).tx_error.subtype)

Get the reason for a TX_ERROR event.

• #deﬁne EF_VI_SYNC_FLAG_CLOCK_SET 1

The adapter clock has previously been set in sync with the system.

• #deﬁne EF_VI_SYNC_FLAG_CLOCK_IN_SYNC 2

The adapter clock is in sync with the external clock (PTP)

• #deﬁne EF_EVENT_TX_WITH_TIMESTAMP_Q_ID(e) ((e).tx_timestamp.q_id)

Get the TX descriptor ring ID used for a timestamped packet.

• #deﬁne EF_EVENT_TX_WITH_TIMESTAMP_RQ_ID(e) ((e).tx_timestamp.rq_id)

Get the dma_id used for a timestamped packet.

• #deﬁne EF_EVENT_TX_WITH_TIMESTAMP_SEC(e) ((e).tx_timestamp.ts_sec)

Get the number of seconds from the timestamp of a transmitted packet.

ef_vi User Guide

File Documentation

• #deﬁne EF_EVENT_TX_WITH_TIMESTAMP_NSEC(e) ((e).tx_timestamp.ts_nsec)

Get the number of nanoseconds from the timestamp of a transmitted packet.

• #deﬁne EF_EVENT_TX_WITH_TIMESTAMP_SYNC_MASK (EF_VI_SYNC_FLAG_CLOCK_SET |EF_V←-

I_SYNC_FLAG_CLOCK_IN_SYNC)

Mask for the sync ﬂags in the timestamp of a transmitted packet.

• #deﬁne EF_EVENT_TX_WITH_TIMESTAMP_SYNC_FLAGS(e) ((e).tx_timestamp.ts_nsec & EF_EVENT←-

_TX_WITH_TIMESTAMP_SYNC_MASK)

Get the sync ﬂags from the timestamp of a transmitted packet.

• #deﬁne EF_EVENT_TX_ALT_Q_ID(e) ((e).tx_alt.q_id)

Get the TX descriptor ring ID used for a TX alternative packet.

• #deﬁne EF_EVENT_TX_ALT_ALT_ID(e) ((e).tx_alt.alt_id)

Get the TX alternative ID used for a TX alternative packet.

• #deﬁne EF_EVENT_RX_NO_DESC_TRUNC_Q_ID(e) ((e).rx_no_desc_trunc.q_id)

Get the RX descriptor ring ID used for a received packet that was truncated due to a lack of descriptors.

• #deﬁne EF_EVENT_SW_DATA_MASK 0xffff

Mask for the data in a software generated event.

• #deﬁne EF_EVENT_SW_DATA(e) ((e).sw.data)

Get the data for an EF_EVENT_TYPE_SW event.

• #deﬁne EF_EVENT_FMT "[ev:%x]"

Output format for an ef_event.

• #deﬁne EF_EVENT_PRI_ARG(e) (unsigned) (e).generic.type

Get the type of an event.

• #deﬁne ef_vi_receive_init(vi, addr, dma_id) (vi)->ops.receive_init((vi), (addr), (dma_id))

Initialize an RX descriptor on the RX descriptor ring.

• #deﬁne ef_vi_receive_push(vi) (vi)->ops.receive_push((vi))

Submit newly initialized RX descriptors to the NIC.

• #deﬁne EF_VI_RECEIVE_BATCH 15

Maximum number of receive completions per receive event.

• #deﬁne ef_vi_transmitv_init(vi, iov, iov_len, dma_id) (vi)->ops.transmitv_init((vi), (iov), (iov_len), (dma_id))

Initialize TX descriptors on the TX descriptor ring, for a vector of packet buffers.

• #deﬁne ef_vi_transmit_push(vi) (vi)->ops.transmit_push((vi))

Submit newly initialized TX descriptors to the NIC.

• #deﬁne ef_vi_transmit(vi, base, len, dma_id) (vi)->ops.transmit((vi), (base), (len), (dma_id))

Transmit a packet from a single packet buffer.

• #deﬁne ef_vi_transmitv(vi, iov, iov_len, dma_id) (vi)->ops.transmitv((vi), (iov), (iov_len), (dma_id))

Transmit a packet from a vector of packet buffers.

• #deﬁne ef_vi_transmit_pio(vi, offset, len, dma_id) (vi)->ops.transmit_pio((vi), (offset), (len), (dma_id))

Transmit a packet already resident in Programmed I/O.

• #deﬁne ef_vi_transmit_copy_pio(vi, pio_offset, src_buf, len, dma_id)

Transmit a packet by copying it into the Programmed I/O region.

• #deﬁne ef_vi_transmit_pio_warm(vi) (vi)->ops.transmit_pio_warm((vi))

Warm Programmed I/O transmit path for subsequent transmit.

• #deﬁne ef_vi_transmit_copy_pio_warm(vi, pio_offset, src_buf, len) (vi)->ops.transmit_copy_pio_warm((vi),

(pio_offset), (src_buf), (len))

Copy a packet to Programmed I/O region and warm transmit path.

• #deﬁne EF_VI_TRANSMIT_BATCH 64

Maximum number of transmit completions per transmit event.

• #deﬁne ef_vi_transmit_alt_select(vi, alt_id) (vi)->ops.transmit_alt_select((vi), (alt_id))

Select a TX alternative as the destination for future sends.

ef_vi User Guide

File Documentation

• #deﬁne ef_vi_transmit_alt_select_normal(vi) (vi)->ops.transmit_alt_select_default((vi))

Select the "normal" data path as the destination for future sends.

• #deﬁne ef_vi_transmit_alt_stop(vi, alt_id) (vi)->ops.transmit_alt_stop((vi), (alt_id))

Transition a TX alternative to the STOP state.

• #deﬁne ef_vi_transmit_alt_go(vi, alt_id) (vi)->ops.transmit_alt_go((vi), (alt_id))

Transition a TX alternative to the GO state.

• #deﬁne ef_vi_transmit_alt_discard(vi, alt_id) (vi)->ops.transmit_alt_discard((vi), (alt_id))

Transition a TX alternative to the DISCARD state.

• #deﬁne ef_eventq_prime(vi) (vi)->ops.eventq_prime((vi))

Prime a virtual interface allowing you to go to sleep blocking on it.

• #deﬁne ef_eventq_poll(evq, evs, evs_len) (evq)->ops.eventq_poll((evq), (evs), (evs_len))

Poll an event queue.

Typedefs

• typedef uint32_t ef_eventq_ptr

A pointer to an event queue.

• typedef uint64_t ef_addr

An address.

• typedef char ∗ef_vi_ioaddr_t

An address of an I/O area for a virtual interface.

• typedef int ef_request_id

A DMA request identiﬁer.

• typedef struct ef_vi ef_vi

A virtual interface.

Enumerations

• enum {

EF_EVENT_TYPE_RX,EF_EVENT_TYPE_TX,EF_EVENT_TYPE_RX_DISCARD,EF_EVENT_TYPE_T←-

X_ERROR,

EF_EVENT_TYPE_RX_NO_DESC_TRUNC,EF_EVENT_TYPE_SW,EF_EVENT_TYPE_OFLOW,EF_E←-

VENT_TYPE_TX_WITH_TIMESTAMP,

EF_EVENT_TYPE_RX_PACKED_STREAM,EF_EVENT_TYPE_RX_MULTI,EF_EVENT_TYPE_TX_ALT,

EF_EVENT_TYPE_RX_MULTI_DISCARD }

Possible types of events.

• enum {

EF_EVENT_RX_DISCARD_CSUM_BAD,EF_EVENT_RX_DISCARD_MCAST_MISMATCH,EF_EVENT←-

_RX_DISCARD_CRC_BAD,EF_EVENT_RX_DISCARD_TRUNC,

EF_EVENT_RX_DISCARD_RIGHTS,EF_EVENT_RX_DISCARD_EV_ERROR,EF_EVENT_RX_DISCA←-

RD_OTHER }

The reason for an EF_EVENT_TYPE_RX_DISCARD event.

• enum { EF_EVENT_TX_ERROR_RIGHTS,EF_EVENT_TX_ERROR_OFLOW,EF_EVENT_TX_ERROR←-

_2BIG,EF_EVENT_TX_ERROR_BUS }

The reason for an EF_EVENT_TYPE_TX_ERROR event.

ef_vi User Guide

File Documentation

• enum ef_vi_ﬂags {

EF_VI_FLAGS_DEFAULT = 0x0, EF_VI_ISCSI_RX_HDIG = 0x2, EF_VI_ISCSI_TX_HDIG = 0x4, EF_VI_←-

ISCSI_RX_DDIG = 0x8,

EF_VI_ISCSI_TX_DDIG = 0x10, EF_VI_TX_PHYS_ADDR = 0x20, EF_VI_RX_PHYS_ADDR = 0x40, EF_←-

VI_TX_IP_CSUM_DIS = 0x80,

EF_VI_TX_TCPUDP_CSUM_DIS = 0x100, EF_VI_TX_TCPUDP_ONLY = 0x200, EF_VI_TX_FILTER_IP =

0x400, EF_VI_TX_FILTER_MAC = 0x800,

EF_VI_TX_FILTER_MASK_1 = 0x1000, EF_VI_TX_FILTER_MASK_2 = 0x2000, EF_VI_TX_FILTER_MA←-

SK_3 = (0x1000 |0x2000), EF_VI_TX_PUSH_DISABLE = 0x4000,

EF_VI_TX_PUSH_ALWAYS = 0x8000, EF_VI_RX_TIMESTAMPS = 0x10000, EF_VI_TX_TIMESTAMPS =

0x20000, EF_VI_RX_PACKED_STREAM = 0x80000,

EF_VI_RX_PS_BUF_SIZE_64K = 0x100000, EF_VI_RX_EVENT_MERGE = 0x200000, EF_VI_TX_ALT =

0x400000, EF_VI_ENABLE_EV_TIMER = 0x800000 }

Flags that can be requested when allocating an ef_vi.

• enum ef_vi_out_ﬂags {EF_VI_OUT_CLOCK_SYNC_STATUS = 0x1 }

Flags that can be returned when an ef_vi has been allocated.

• enum ef_vi_rx_discard_err_ﬂags {

EF_VI_DISCARD_RX_L4_CSUM_ERR = 0x1, EF_VI_DISCARD_RX_L3_CSUM_ERR = 0x2, EF_VI_DIS←-

CARD_RX_ETH_FCS_ERR = 0x4, EF_VI_DISCARD_RX_ETH_LEN_ERR = 0x8,

EF_VI_DISCARD_RX_TOBE_DISC = 0x10 }

Flags that deﬁne which errors will cause RX_DISCARD events.

• enum ef_vi_arch {EF_VI_ARCH_FALCON,EF_VI_ARCH_EF10 }

NIC architectures that are supported.

• enum ef_vi_layout_type {EF_VI_LAYOUT_FRAME,EF_VI_LAYOUT_MINOR_TICKS,EF_VI_LAYOUT_←-

PACKET_LENGTH }

Types of layout that are used for receive buffers.

Functions

• ef_vi_inline unsigned ef_vi_resource_id (ef_vi ∗vi)

Return the resource ID of the virtual interface.

• ef_vi_inline enum ef_vi_ﬂags ef_vi_ﬂags (ef_vi ∗vi)

Return the ﬂags of the virtual interface.

• ef_vi_inline unsigned ef_vi_instance (ef_vi ∗vi)

Return the instance ID of the virtual interface.

• const char ∗ef_vi_version_str (void)

Return a string that identiﬁes the version of ef_vi.

• const char ∗ef_vi_driver_interface_str (void)

Returns a string that identiﬁes the char driver interface required.

• ef_vi_inline int ef_vi_receive_preﬁx_len (ef_vi ∗vi)

Returns the length of the preﬁx at the start of a received packet.

• ef_vi_inline int ef_vi_receive_buffer_len (ef_vi ∗vi)

Returns the length of a receive buffer.

• ef_vi_inline void ef_vi_receive_set_buffer_len (ef_vi ∗vi, unsigned buf_len)

Sets the length of receive buffers.

• ef_vi_inline int ef_vi_receive_space (ef_vi ∗vi)

Returns the amount of free space in the RX descriptor ring.

• ef_vi_inline int ef_vi_receive_ﬁll_level (ef_vi ∗vi)

Returns the ﬁll level of the RX descriptor ring.

• ef_vi_inline int ef_vi_receive_capacity (ef_vi ∗vi)

ef_vi User Guide

File Documentation

Returns the total capacity of the RX descriptor ring.

• int ef_vi_receive_post (ef_vi ∗vi, ef_addr addr, ef_request_id dma_id)

Initialize an RX descriptor on the RX descriptor ring, and submit it to the NIC.

• int ef_vi_receive_get_timestamp (ef_vi ∗vi, const void ∗pkt, struct timespec ∗ts_out)

Deprecated: use ef_vi_receive_get_timestamp_with_sync_ﬂags() instead.

• int ef_vi_receive_get_timestamp_with_sync_ﬂags (ef_vi ∗vi, const void ∗pkt, struct timespec ∗ts_out, un-

signed ∗ﬂags_out)

Retrieve the UTC timestamp associated with a received packet, and the clock sync status ﬂags.

• int ef_vi_receive_get_bytes (ef_vi ∗vi, const void ∗pkt, uint16_t ∗bytes_out)

Retrieve the number of bytes in a received packet in RX event merge mode.

• int ef_vi_receive_unbundle (ef_vi ∗ep, const ef_event ∗event, ef_request_id ∗ids)

Unbundle an event of type EF_EVENT_TYPE_RX_MULTI.

• int ef_vi_receive_set_discards (ef_vi ∗vi, unsigned discard_err_ﬂags)

Set which errors cause an EF_EVENT_TYPE_RX_DISCARD event.

• ef_vi_inline int ef_vi_transmit_space (ef_vi ∗vi)

Returns the amount of free space in the TX descriptor ring.

• ef_vi_inline int ef_vi_transmit_ﬁll_level (ef_vi ∗vi)

Returns the ﬁll level of the TX descriptor ring.

• ef_vi_inline int ef_vi_transmit_capacity (ef_vi ∗vi)

Returns the total capacity of the TX descriptor ring.

• int ef_vi_transmit_init (ef_vi ∗vi, ef_addr addr, int bytes, ef_request_id dma_id)

Initialize a TX descriptor on the TX descriptor ring, for a single packet buffer.

• void ef_vi_transmit_init_undo (ef_vi ∗vi)

Remove all TX descriptors from the TX descriptor ring that have been initialized since last transmit.

• int ef_vi_transmit_unbundle (ef_vi ∗ep, const ef_event ∗event, ef_request_id ∗ids)

Unbundle an event of type of type EF_EVENT_TYPE_TX or EF_EVENT_TYPE_TX_ERROR.

• unsigned ef_vi_transmit_alt_num_ids (ef_vi ∗vi)

Return the number of TX alternatives allocated for a virtual interface.

• int ef_vi_transmit_alt_query_overhead (ef_vi ∗vi, struct ef_vi_transmit_alt_overhead ∗params)

Query per-packet overhead parameters.

• ef_vi_inline ef_vi_pure uint32_t ef_vi_transmit_alt_usage (const struct ef_vi_transmit_alt_overhead ∗params,

uint32_t pkt_len)

Calculate a packet's buffer usage.

• void ef_vi_set_tx_push_threshold (ef_vi ∗vi, unsigned threshold)

Set the threshold at which to switch from using TX descriptor push to using a doorbell.

• int ef_eventq_has_event (const ef_vi ∗vi)

Returns true if ef_eventq_poll() will return event(s)

• int ef_eventq_has_many_events (const ef_vi ∗evq, int n_events)

Returns true if there are a given number of events in the event queue.

• int ef_eventq_capacity (ef_vi ∗vi)

Returns the capacity of an event queue.

• ef_vi_inline unsigned ef_eventq_current (ef_vi ∗evq)

Get the current offset into the event queue.

• int ef_vi_receive_query_layout (ef_vi ∗vi, const ef_vi_layout_entry ∗∗const layout_out, int ∗layout_len_out)

Gets the layout of the data that the adapter delivers into receive buffers.

ef_vi User Guide

File Documentation

10.9.1 Detailed Description

Virtual Interface deﬁnitions for EtherFabric Virtual Interface HAL.

Author

Solarﬂare Communications, Inc.

Date

2017/02/21

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.9.2 Macro Deﬁnition Documentation

10.9.2.1 EF_EVENT_RX_MULTI_CONT

#define EF_EVENT_RX_MULTI_CONT(

Value:

((e).rx_multi.flags & \

EF_EVENT_FLAG_CONT)

True if the CONTinuation Of Packet ﬂag is set for an RX HT event.

Deﬁnition at line 322 of ﬁle ef_vi.h.

10.9.2.2 EF_EVENT_RX_MULTI_SOP

#define EF_EVENT_RX_MULTI_SOP(

Value:

((e).rx_multi.flags & \

EF_EVENT_FLAG_SOP)

True if the Start Of Packet ﬂag is set for an RX HT event.

Deﬁnition at line 325 of ﬁle ef_vi.h.

ef_vi User Guide

File Documentation

10.9.2.3 EF_EVENT_RX_PS_NEXT_BUFFER

#define EF_EVENT_RX_PS_NEXT_BUFFER(

Value:

((e).rx_packed_stream.flags & \

EF_EVENT_FLAG_PS_NEXT_BUFFER)

True if the next buffer ﬂag is set for a packed stream event.

Deﬁnition at line 286 of ﬁle ef_vi.h.

10.9.2.4 ef_eventq_poll

#define ef_eventq_poll(

evq,

evs,

evs_len ) (evq)->ops.eventq_poll((evq), (evs), (evs_len))

Poll an event queue.

Parameters

evq The event queue to poll.

evs Array in which to return polled events.

evs_len Length of the evs array, must be >= EF_VI_EVENT_POLL_MIN_EVS.

Returns

The number of events retrieved.

Poll an event queue. Any events that have been raised are added to the given array. Most events correspond to

packets arriving, or packet transmission completing. This function is critical to latency, and must be called as often

as possible.

This function returns immediately, even if there are no outstanding events. The array might not be full on return.

Deﬁnition at line 1857 of ﬁle ef_vi.h.

10.9.2.5 ef_eventq_prime

#define ef_eventq_prime(

vi ) (vi)->ops.eventq_prime((vi))

Prime a virtual interface allowing you to go to sleep blocking on it.

ef_vi User Guide

File Documentation

Parameters

vi The virtual interface to prime.

Returns

None.

Prime a virtual interface allowing you to go to sleep blocking on it.

Deﬁnition at line 1837 of ﬁle ef_vi.h.

10.9.2.6 ef_vi_receive_init

#define ef_vi_receive_init(

vi,

addr,

dma_id ) (vi)->ops.receive_init((vi), (addr), (dma_id))

Initialize an RX descriptor on the RX descriptor ring.

Parameters

vi The virtual interface for which to initialize an RX descriptor.

addr DMA address of the packet buffer to associate with the descriptor, as obtained from

ef_memreg_dma_addr().

dma←-

_id

DMA id to associate with the descriptor. This is completely arbitrary, and can be used for subsequent

tracking of buffers.

Returns

0 on success, or a negative error code.

Initialize an RX descriptor on the RX descriptor ring, and prepare the associated packet buffer (identiﬁed by its DMA

address) to receive packets. This function only writes a few bytes into host memory, and is very fast.

Deﬁnition at line 1030 of ﬁle ef_vi.h.

10.9.2.7 ef_vi_receive_push

#define ef_vi_receive_push(

vi ) (vi)->ops.receive_push((vi))

Submit newly initialized RX descriptors to the NIC.

ef_vi User Guide

File Documentation

Parameters

vi The virtual interface for which to push descriptors.

Returns

None.

Submit newly initialized RX descriptors to the NIC. The NIC can then receive packets into the associated packet

buffers.

For Solarﬂare 7000-series NICs, this function submits RX descriptors only in multiples of 8. This is to conform with

hardware requirements. If the number of newly initialized RX descriptors is not exactly divisible by 8, this function

does not submit any remaining descriptors (up to 7 of them).

Deﬁnition at line 1049 of ﬁle ef_vi.h.

10.9.2.8 ef_vi_transmit

#define ef_vi_transmit(

vi,

base,

len,

dma_id ) (vi)->ops.transmit((vi), (base), (len), (dma_id))

Transmit a packet from a single packet buffer.

Parameters

vi The virtual interface for which to initialize and push a TX descriptor.

base DMA address of the packet buffer to associate with the descriptor, as obtained from

ef_memreg_dma_addr().

len The size of the packet to transmit.

dma←-

_id

DMA id to associate with the descriptor. This is completely arbitrary, and can be used for subsequent

tracking of buffers.

Returns

0 on success, or a negative error code:

-EAGAIN if the descriptor ring is full.

Transmit a packet from a single packet buffer. This Initializes a TX descriptor on the TX descriptor ring, and submits

it to the NIC. The NIC can then transmit a packet from the associated packet buffer.

This function simply wraps ef_vi_transmit_init() and ef_vi_transmit_push(). It is provided as a convenience. It is less

efﬁcient than submitting the descriptors in batches by calling the functions separately, but unless there is a batch of

packets to transmit, calling this function is often the right thing to do.

Deﬁnition at line 1388 of ﬁle ef_vi.h.

ef_vi User Guide

File Documentation

10.9.2.9 ef_vi_transmit_alt_discard

#define ef_vi_transmit_alt_discard(

vi,

alt_id ) (vi)->ops.transmit_alt_discard((vi), (alt_id))

Transition a TX alternative to the DISCARD state.

Parameters

vi The virtual interface associated with the TX alternative.

alt←-

_id

The TX alternative to transition to the DISCARD state.

Returns

0 on success, or a negative error code.

Transitions a TX alternative to the DISCARD state. Packets buffered in the alternative are discarded.

As packets are discarded, events of type EF_EVENT_TYPE_TX_ALT are returned to the application. The applica-

tion should normally wait until all packets have been discarded before transitioning to a different state.

Memory for the TX alternative remains allocated, and is not freed until the virtual interface is freed.

Deﬁnition at line 1712 of ﬁle ef_vi.h.

10.9.2.10 ef_vi_transmit_alt_go

#define ef_vi_transmit_alt_go(

vi,

alt_id ) (vi)->ops.transmit_alt_go((vi), (alt_id))

Transition a TX alternative to the GO state.

Parameters

vi The virtual interface associated with the TX alternative.

alt←-

_id

The TX alternative to transition to the GO state.

Returns

0 on success, or a negative error code.

Transitions a TX alternative to the GO state. Packets buffered in the alternative are transmitted to the network.

ef_vi User Guide

File Documentation

As packets are transmitted events of type EF_EVENT_TYPE_TX_ALT are returned to the application. The applica-

tion should normally wait until all packets have been sent before transitioning to a different state.

Deﬁnition at line 1691 of ﬁle ef_vi.h.

10.9.2.11 ef_vi_transmit_alt_select

#define ef_vi_transmit_alt_select(

vi,

alt_id ) (vi)->ops.transmit_alt_select((vi), (alt_id))

Select a TX alternative as the destination for future sends.

Parameters

vi The virtual interface associated with the TX alternative.

alt←-

_id

The TX alternative to select.

Returns

0 on success, or a negative error code.

Selects a TX alternative as the destination for future sends. Packets can be sent to it using normal send calls such

as ef_vi_transmit(). The action then taken depends on the state of the TX alternative:

• if the TX alternative is in the STOP state, the packet is buffered for possible future transmission

• if the TX alternative is in the GO state, the packet is immediately transmitted.

Deﬁnition at line 1647 of ﬁle ef_vi.h.

10.9.2.12 ef_vi_transmit_alt_select_normal

#define ef_vi_transmit_alt_select_normal(

vi ) (vi)->ops.transmit_alt_select_default((vi))

Select the "normal" data path as the destination for future sends.

Parameters

vi A virtual interface associated with a TX alternative.

Selects the "normal" data path as the destination for future sends. The virtual interface then transmits packets to

ef_vi User Guide

File Documentation

the network immediately, in the normal way. This call undoes the effect of ef_vi_transmit_alt_select().

Deﬁnition at line 1661 of ﬁle ef_vi.h.

10.9.2.13 ef_vi_transmit_alt_stop

#define ef_vi_transmit_alt_stop(

vi,

alt_id ) (vi)->ops.transmit_alt_stop((vi), (alt_id))

Transition a TX alternative to the STOP state.

Parameters

vi The virtual interface associated with the TX alternative.

alt←-

_id

The TX alternative to transition to the STOP state.

Transitions a TX alternative to the STOP state. Packets that are sent to a TX alternative in the STOP state are

buffered on the adapter.

Deﬁnition at line 1673 of ﬁle ef_vi.h.

10.9.2.14 ef_vi_transmit_copy_pio

#define ef_vi_transmit_copy_pio(

vi,

pio_offset,

src_buf,

len,

dma_id )

Value:

(vi)->ops.transmit_copy_pio((vi), (pio_offset), (src_buf), \

(len), (dma_id))

Transmit a packet by copying it into the Programmed I/O region.

Parameters

vi The virtual interface from which to transmit.

pio_offset The offset within its Programmed I/O region to the start of the packet. This must be aligned to at

least a 64-byte boundary.

src_buf The source buffer from which to read the packet.

len Length of the packet to transmit. This must be at least 16 bytes.

dma_id DMA id to associate with the descriptor. This is completely arbitrary, and can be used for

subsequent tracking of buffers.

ef_vi User Guide

File Documentation

Returns

0 on success, or a negative error code:

-EAGAIN if the descriptor ring is full.

Transmit a packet by copying it into the Programmed I/O region.

The src_buf parameter must point at a complete packet that is copied to the adapter and transmitted. The source

buffer need not be registered, and is available for re-use immediately after this call returns.

This call does not copy the packet data into the local copy of the adapter's Programmed I/O buffer. As a result it is

slightly faster than calling ef_pio_memcpy() followed by ef_vi_transmit_pio().

The Programmed I/O region used by this call must not be reused until an event indicating TX completion is handled

(see Transmitting Packets), thus completing the transmit operation for the packet. Failure to do so might corrupt an

ongoing transmit.

The Programmed I/O region can hold multiple smaller packets, referenced by different offset parameters. All other

constraints must still be observed, including:

• alignment

• minimum size

• maximum size

• avoiding reuse until transmission is complete.

Deﬁnition at line 1503 of ﬁle ef_vi.h.

10.9.2.15 ef_vi_transmit_copy_pio_warm

#define ef_vi_transmit_copy_pio_warm(

vi,

pio_offset,

src_buf,

len ) (vi)->ops.transmit_copy_pio_warm((vi), (pio_offset), (src_buf), (len))

Copy a packet to Programmed I/O region and warm transmit path.

Parameters

vi The virtual interface from which transmit is planned.

pio_offset The offset within its Programmed I/O region to the start of the packet. This must be aligned to at

least a 64-byte boundary.

src_buf The source buffer from which to read the packet.

len Length of the packet to transmit. This must be at least 16 bytes.

ef_vi User Guide

File Documentation

Returns

None

Copy a packet to Programmed I/O region and warm transmit path

The application can call this function in advance of calls to ef_vi_transmit_copy_pio() to reduce latency jitter caused

by code and state being evicted from cache during delays between transmits. This is also effective before the ﬁrst

transmit using Programmed I/O.

No data is sent but this function will copy data to the Programmed I/O region. Therefore all constraints regarding

copying to the Programmed I/O region must be met. This includes not reusing a region previously transmitted

from until the corresponding TX completion has been handled. See ef_vi_transmit_copy_pio() for full details of the

constraints.

While this may also beneﬁt a subsequent call to ef_vi_transmit_pio(), it follows a different code path. See ef_vi_←-

transmit_pio_warm() for a warming function designed to warm for ef_vi_transmit_pio().

Deﬁnition at line 1559 of ﬁle ef_vi.h.

10.9.2.16 ef_vi_transmit_pio

#define ef_vi_transmit_pio(

vi,

offset,

len,

dma_id ) (vi)->ops.transmit_pio((vi), (offset), (len), (dma_id))

Transmit a packet already resident in Programmed I/O.

Parameters

vi The virtual interface from which to transmit.

offset The offset within its Programmed I/O region to the start of the packet. This must be aligned to at

least a 64-byte boundary.

len Length of the packet to transmit. This must be at least 16 bytes.

dma←-

_id

DMA id to associate with the descriptor. This is completely arbitrary, and can be used for subsequent

tracking of buffers.

Returns

0 on success, or a negative error code:

-EAGAIN if the descriptor ring is full.

Transmit a packet already resident in Programmed I/O.

The Programmed I/O region used by this call must not be reused until an event indicating TX completion is handled

(see Transmitting Packets), thus completing the transmit operation for the packet. Failure to do so might corrupt an

ongoing transmit.

The Programmed I/O region can hold multiple packets, referenced by different offset parameters. All other con-

straints must still be observed, including:

ef_vi User Guide

File Documentation

• alignment

• minimum size

• maximum size

• avoiding reuse until transmission is complete.

Deﬁnition at line 1460 of ﬁle ef_vi.h.

10.9.2.17 ef_vi_transmit_pio_warm

#define ef_vi_transmit_pio_warm(

vi ) (vi)->ops.transmit_pio_warm((vi))

Warm Programmed I/O transmit path for subsequent transmit.

Parameters

vi The virtual interface from which transmit is planned.

Returns

None

Warm Programmed I/O transmit path for a subsequent transmit.

The application can call this function in advance of calls to ef_vi_transmit_pio() to reduce latency jitter caused by

code and state being evicted from cache during delays between transmits. This is also effective before the ﬁrst

transmit using Programmed I/O.

While this may also beneﬁt a subsequent call to ef_vi_transmit_copy_pio(), it follows a different code path. See

ef_vi_transmit_copy_pio_warm() for a warming function designed to warm for ef_vi_transmit_copy_pio().

Deﬁnition at line 1525 of ﬁle ef_vi.h.

10.9.2.18 ef_vi_transmit_push

#define ef_vi_transmit_push(

vi ) (vi)->ops.transmit_push((vi))

Submit newly initialized TX descriptors to the NIC.

Parameters

vi The virtual interface for which to push descriptors.

ef_vi User Guide

File Documentation

Returns

None.

Submit newly initialized TX descriptors to the NIC. The NIC can then transmit packets from the associated packet

buffers.

New TX descriptors must have been initialized using ef_vi_transmit_init() or ef_vi_transmitv_init() before calling this

function, and so in particular it is not legal to call this function more than once without initializing new descriptors in

between those calls.

Deﬁnition at line 1361 of ﬁle ef_vi.h.

10.9.2.19 ef_vi_transmitv

#define ef_vi_transmitv(

vi,

iov,

iov_len,

dma_id ) (vi)->ops.transmitv((vi), (iov), (iov_len), (dma_id))

Transmit a packet from a vector of packet buffers.

Parameters

vi The virtual interface for which to initialize a TX descriptor.

iov Start of the iovec array describing the packet buffers.

iov_len Length of the iovec array.

dma←-

_id

DMA id to associate with the descriptor. This is completely arbitrary, and can be used for subsequent

tracking of buffers.

Returns

0 on success, or a negative error code:

-EAGAIN if the descriptor ring is full.

Transmit a packet from a vector of packet buffers. This initializes a TX descriptor on the TX descriptor ring, and

submits it to the NIC. The NIC can then transmit a packet from the associated packet buffers.

This function simply wraps ef_vi_transmitv_init() and ef_vi_transmit_push(). It is provided as a convenience. It is

less efﬁcient than submitting the descriptors in batches by calling the functions separately, but unless there is a

batch of packets to transmit, calling this function is often the right thing to do.

Building a packet by concatenating a vector of buffers allows:

• sending a packet that is larger than a packet buffer

–the packet is split across multiple buffers in a vector

ef_vi User Guide

File Documentation

• optimizing sending packets with only small differences:

–the packet is split into those parts that are constant, and those that vary between transmits

–each part is written into its own buffer

–after each transmit, the buffers containing varying data must be updated, but the buffers containing

constant data are re-used

–this minimizes the amount of data written between transmits.

Deﬁnition at line 1426 of ﬁle ef_vi.h.

10.9.2.20 ef_vi_transmitv_init

#define ef_vi_transmitv_init(

vi,

iov,

iov_len,

dma_id ) (vi)->ops.transmitv_init((vi), (iov), (iov_len), (dma_id))

Initialize TX descriptors on the TX descriptor ring, for a vector of packet buffers.

Parameters

vi The virtual interface for which to initialize a TX descriptor.

iov Start of the iovec array describing the packet buffers.

iov_len Length of the iovec array.

dma←-

_id

DMA id to associate with the descriptor. This is completely arbitrary, and can be used for subsequent

tracking of buffers.

Returns

0 on success, or a negative error code:

-EAGAIN if the descriptor ring is full.

Initialize TX descriptors on the TX descriptor ring, for a vector of packet buffers. The associated packet buffers

(identiﬁed in the iov vector) must contain the packet to transmit. This function only writes a few bytes into host

memory, and is very fast.

Building a packet by concatenating a vector of buffers allows:

• sending a packet that is larger than a packet buffer

–the packet is split across multiple buffers in a vector

• optimizing sending packets with only small differences:

–the packet is split into those parts that are constant, and those that vary between transmits

–each part is written into its own buffer

–after each transmit, the buffers containing varying data must be updated, but the buffers containing

constant data are re-used

–this minimizes the amount of data written between transmits.

Deﬁnition at line 1343 of ﬁle ef_vi.h.

ef_vi User Guide

File Documentation

10.9.3 Typedef Documentation

10.9.3.1 ef_request_id

typedef int ef_request_id

A DMA request identiﬁer.

This is an integer token speciﬁed by the transport and associated with a DMA request. It is returned to the VI user

with DMA completion events. It is typically used to identify the buffer associated with the transfer.

Deﬁnition at line 141 of ﬁle ef_vi.h.

10.9.3.2 ef_vi

typedef struct ef_vi ef_vi

A virtual interface.

An ef_vi represents a virtual interface on a speciﬁc NIC. A virtual interface is a collection of an event queue and two

DMA queues used to pass Ethernet frames between the transport implementation and the network.

Users should not access this structure.

10.9.4 Enumeration Type Documentation

10.9.4.1 anonymous enum

anonymous enum

Possible types of events.

Enumerator

EF_EVENT_TYPE_RX Good data was received.

EF_EVENT_TYPE_TX Packets have been sent.

EF_EVENT_TYPE_RX_DISCARD Data received and buffer consumed, but something is wrong.

EF_EVENT_TYPE_TX_ERROR Transmit of packet failed.

EF_EVENT_TYPE_RX_NO_DESC_TRUNC Received packet was truncated due to a lack of descriptors.

EF_EVENT_TYPE_SW Software generated event.

EF_EVENT_TYPE_OFLOW Event queue overﬂow.

EF_EVENT_TYPE_TX_WITH_TIMESTAMP TX timestamp event.

EF_EVENT_TYPE_RX_PACKED_STREAM A batch of packets was received in a packed stream.

EF_EVENT_TYPE_RX_MULTI A batch of packets was received on a RX event merge vi.

EF_EVENT_TYPE_TX_ALT Packet has been transmitted via a "TX alternative".

EF_EVENT_TYPE_RX_MULTI_DISCARD A batch of packets was received with error condition set.

ef_vi User Guide

File Documentation

Deﬁnition at line 245 of ﬁle ef_vi.h.

10.9.4.2 anonymous enum

anonymous enum

The reason for an EF_EVENT_TYPE_RX_DISCARD event.

Enumerator

EF_EVENT_RX_DISCARD_CSUM_BAD IP header or TCP/UDP checksum error

EF_EVENT_RX_DISCARD_MCAST_MISMATCH Hash mismatch in a multicast packet

EF_EVENT_RX_DISCARD_CRC_BAD Ethernet CRC error

EF_EVENT_RX_DISCARD_TRUNC Frame was truncated

EF_EVENT_RX_DISCARD_RIGHTS No ownership rights for the packet

EF_EVENT_RX_DISCARD_EV_ERROR Event queue error, previous RX event has been lost

EF_EVENT_RX_DISCARD_OTHER Other unspeciﬁed reason

Deﬁnition at line 329 of ﬁle ef_vi.h.

10.9.4.3 anonymous enum

anonymous enum

The reason for an EF_EVENT_TYPE_TX_ERROR event.

Enumerator

EF_EVENT_TX_ERROR_RIGHTS No ownership rights for the packet

EF_EVENT_TX_ERROR_OFLOW TX pacing engine work queue was full

EF_EVENT_TX_ERROR_2BIG Oversized transfer has been indicated by the descriptor

EF_EVENT_TX_ERROR_BUS Bus or descriptor protocol error occurred when attempting to read the

memory referenced by the descriptor

Deﬁnition at line 380 of ﬁle ef_vi.h.

10.9.4.4 ef_vi_arch

enum ef_vi_arch

NIC architectures that are supported.

ef_vi User Guide

File Documentation

Enumerator

EF_VI_ARCH_FALCON 5000 and 6000-series NICs

EF_VI_ARCH_EF10 7000 and 8000-series NICs

Deﬁnition at line 523 of ﬁle ef_vi.h.

10.9.4.5 ef_vi_ﬂags

enum ef_vi_flags

Flags that can be requested when allocating an ef_vi.

Enumerator

EF_VI_FLAGS_DEFAULT Default setting

EF_VI_ISCSI_RX_HDIG Receive iSCSI header digest enable: hardware veriﬁes header digest

(CRC) when packet is iSCSI.

EF_VI_ISCSI_TX_HDIG Transmit iSCSI header digest enable: hardware calculates and inserts

header digest (CRC) when packet is iSCSI.

EF_VI_ISCSI_RX_DDIG Receive iSCSI data digest enable: hardware veriﬁes data digest (CRC)

when packet is iSCSI.

EF_VI_ISCSI_TX_DDIG Transmit iSCSI data digest enable: hardware calculates and inserts data

digest (CRC) when packet is iSCSI.

EF_VI_TX_PHYS_ADDR Use physically addressed TX descriptor ring

EF_VI_RX_PHYS_ADDR Use physically addressed RX descriptor ring

EF_VI_TX_IP_CSUM_DIS IP checksum calculation and replacement is disabled

EF_VI_TX_TCPUDP_CSUM_DIS TCP/UDP checksum calculation and replacement is disabled

EF_VI_TX_TCPUDP_ONLY Drop transmit packets that are not TCP or UDP

EF_VI_TX_FILTER_IP Drop packets with a mismatched IP source address (5000 and 6000

series only)

EF_VI_TX_FILTER_MAC Drop packets with a mismatched MAC source address (5000 and 6000

series only)

EF_VI_TX_FILTER_MASK_1 Set lowest bit of queue ID to 0 when matching within ﬁlter block (5000

and 6000 series only)

EF_VI_TX_FILTER_MASK_2 Set lowest 2 bits of queue ID to 0 when matching within ﬁlter block (5000

and 6000 series only)

EF_VI_TX_FILTER_MASK_3 Set lowest 3 bits of queue ID to 0 when matching within ﬁlter block (5000

and 6000 series only)

EF_VI_TX_PUSH_DISABLE Disable using TX descriptor push, so always use doorbell for transmit

EF_VI_TX_PUSH_ALWAYS Always use TX descriptor push, so never use doorbell for transmit (7000

series and newer)

EF_VI_RX_TIMESTAMPS Add timestamp to received packets (7000 series and newer)

EF_VI_TX_TIMESTAMPS Add timestamp to transmitted packets (7000 series and newer)

EF_VI_RX_PACKED_STREAM Enable packed stream mode for received packets (7000 series or newer)

EF_VI_RX_PS_BUF_SIZE_64K Use 64KiB packed stream buffers, instead of the 1024KiB default (7000

series and newer).

ef_vi User Guide

File Documentation

Enumerator

EF_VI_RX_EVENT_MERGE Enable RX event merging mode for received packets See

ef_vi_receive_unbundle() and ef_vi_receive_get_bytes() for more details

on using RX event merging mode.

EF_VI_TX_ALT Enable the "TX alternatives" feature (8000 series and newer).

EF_VI_ENABLE_EV_TIMER Controls, on 8000 series and newer, whether the hardware event timer is

enabled

Deﬁnition at line 426 of ﬁle ef_vi.h.

10.9.4.6 ef_vi_layout_type

enum ef_vi_layout_type

Types of layout that are used for receive buffers.

Enumerator

EF_VI_LAYOUT_FRAME An Ethernet frameo

EF_VI_LAYOUT_MINOR_TICKS Hardware timestamp (minor ticks) - 32 bits

EF_VI_LAYOUT_PACKET_LENGTH Packet length - 16 bits

Deﬁnition at line 1902 of ﬁle ef_vi.h.

10.9.4.7 ef_vi_out_ﬂags

enum ef_vi_out_flags

Flags that can be returned when an ef_vi has been allocated.

Enumerator

EF_VI_OUT_CLOCK_SYNC_STATUS Clock sync status

Deﬁnition at line 498 of ﬁle ef_vi.h.

10.9.4.8 ef_vi_rx_discard_err_ﬂags

enum ef_vi_rx_discard_err_flags

Flags that deﬁne which errors will cause RX_DISCARD events.

ef_vi User Guide

File Documentation

Enumerator

EF_VI_DISCARD_RX_L4_CSUM_ERR TCP or UDP checksum error

EF_VI_DISCARD_RX_L3_CSUM_ERR IP checksum error

EF_VI_DISCARD_RX_ETH_FCS_ERR Ethernet FCS error

EF_VI_DISCARD_RX_ETH_LEN_ERR Ethernet frame length error

EF_VI_DISCARD_RX_TOBE_DISC To be discard in software (includes frame length error)

Deﬁnition at line 505 of ﬁle ef_vi.h.

10.9.5 Function Documentation

10.9.5.1 ef_eventq_capacity()

int ef_eventq_capacity (

ef_vi ∗vi )

Returns the capacity of an event queue.

Parameters

vi The event queue to query.

Returns

The capacity of an event queue.

Returns the capacity of an event queue. This is the maximum number of events that can be stored into the event

queue before overﬂow.

It is up to the application to avoid event queue overﬂow by ensuring that the maximum number of events that can

be delivered into an event queue is limited to its capacity. In general each RX descriptor and TX descriptor posted

can cause an event to be generated.

In addition, when time-stamping is enabled time-sync events are generated at a rate of 4 per second. When TX

timestamps are enabled you may get up to one event for each descriptor plus two further events per packet.

10.9.5.2 ef_eventq_current()

ef_vi_inline unsigned ef_eventq_current (

ef_vi ∗evq )

Get the current offset into the event queue.

ef_vi User Guide

File Documentation

Parameters

evq The event queue to query.

Returns

The current offset into the eventq.

Get the current offset into the event queue.

Deﬁnition at line 1891 of ﬁle ef_vi.h.

10.9.5.3 ef_eventq_has_event()

int ef_eventq_has_event (

const ef_vi ∗vi )

Returns true if ef_eventq_poll() will return event(s)

Parameters

vi The virtual interface to query.

Returns

True if ef_eventq_poll() will return event(s).

Returns true if ef_eventq_poll() will return event(s).

10.9.5.4 ef_eventq_has_many_events()

int ef_eventq_has_many_events (

const ef_vi ∗evq,

int n_events )

Returns true if there are a given number of events in the event queue.

Parameters

evq The event queue to query.

n_events Number of events to check.

ef_vi User Guide

File Documentation

Returns

True if the event queue contains at least n_events events.

Returns true if there are a given number of events in the event queue.

This looks ahead in the event queue, so has the property that it will not ping-pong a cache-line when it is called

concurrently with events being delivered.

This function returns quickly. It is useful for an application to determine whether it is falling behind in its event

processing.

10.9.5.5 ef_vi_driver_interface_str()

const char∗ef_vi_driver_interface_str (

void )

Returns a string that identiﬁes the char driver interface required.

Returns

A string that identiﬁes the char driver interface required by this build of ef_vi.

Returns a string that identiﬁes the char driver interface required by this build of ef_vi.

Returns the current version of the drivers that are running - useful to check that it is new enough.

10.9.5.6 ef_vi_ﬂags()

ef_vi_inline enum ef_vi_flags ef_vi_flags (

ef_vi ∗vi )

Return the ﬂags of the virtual interface.

Parameters

vi The virtual interface to query.

Returns

The ﬂags of the virtual interface.

Return the ﬂags of the virtual interface.

Deﬁnition at line 845 of ﬁle ef_vi.h.

ef_vi User Guide

File Documentation

10.9.5.7 ef_vi_instance()

ef_vi_inline unsigned ef_vi_instance (

ef_vi ∗vi )

Return the instance ID of the virtual interface.

Parameters

vi The virtual interface to query.

Returns

The instance ID of the virtual interface.

Return the instance ID of the virtual interface.

Deﬁnition at line 860 of ﬁle ef_vi.h.

10.9.5.8 ef_vi_receive_buffer_len()

ef_vi_inline int ef_vi_receive_buffer_len (

ef_vi ∗vi )

Returns the length of a receive buffer.

Parameters

vi The virtual interface to query.

Returns

The length of a receive buffer.

Returns the length of a receive buffer.

When a packet arrives that does not ﬁt within a single receive buffer, it is spread over multiple buffers.

The application must ensure that receive buffers are at least as large as the value returned by this function, else

there is a risk that a DMA may overrun the buffer.

Deﬁnition at line 938 of ﬁle ef_vi.h.

10.9.5.9 ef_vi_receive_capacity()

ef_vi_inline int ef_vi_receive_capacity (

ef_vi ∗vi )

Returns the total capacity of the RX descriptor ring.

ef_vi User Guide

File Documentation

Parameters

vi The virtual interface to query.

Returns

The total capacity of the RX descriptor ring, as slots for descriptor entries.

Returns the total capacity of the RX descriptor ring.

Deﬁnition at line 1007 of ﬁle ef_vi.h.

10.9.5.10 ef_vi_receive_ﬁll_level()

ef_vi_inline int ef_vi_receive_fill_level (

ef_vi ∗vi )

Returns the ﬁll level of the RX descriptor ring.

Parameters

vi The virtual interface to query.

Returns

The ﬁll level of the RX descriptor ring, as slots for descriptor entries.

Returns the ﬁll level of the RX descriptor ring. This is the number of slots that hold a descriptor (and an associated

unﬁlled packet buffer). The ﬁll level should be kept as high as possible, so there are enough slots available to handle

a burst of incoming packets.

Deﬁnition at line 991 of ﬁle ef_vi.h.

10.9.5.11 ef_vi_receive_get_bytes()

int ef_vi_receive_get_bytes (

ef_vi ∗vi,

const void ∗pkt,

uint16_t ∗bytes_out )

Retrieve the number of bytes in a received packet in RX event merge mode.

ef_vi User Guide

File Documentation

Parameters

vi The virtual interface that received the packet.

pkt The ﬁrst packet buffer for the received packet.

bytes_out Pointer to a uint16_t, that is updated on return with the number of bytes in the packet.

Note that this function returns the number of bytes in a received packet, not received into a single buffer, ie it must

only be called for the ﬁrst buffer in a packet. For jumbos it will return the full length of the jumbo. Buffers prior to the

last buffer in the packet will be ﬁlled completely.

The length does not include the length of the packet preﬁx.

Returns

0 on success, or a negative error code

10.9.5.12 ef_vi_receive_get_timestamp()

int ef_vi_receive_get_timestamp (

ef_vi ∗vi,

const void ∗pkt,

struct timespec ∗ts_out )

Deprecated: use ef_vi_receive_get_timestamp_with_sync_ﬂags() instead.

Parameters

vi The virtual interface that received the packet.

pkt The received packet.

ts_out Pointer to a timespec, that is updated on return with the UTC timestamp for the packet.

Returns

0 on success, or a negative error code.

This function is now deprecated. Use ef_vi_receive_get_timestamp_with_sync_ﬂags() instead.

Retrieve the UTC timestamp associated with a received packet.

This function must be called after retrieving the associated RX event via ef_eventq_poll(), and before calling ef_←-

eventq_poll() again.

If the virtual interface does not have RX timestamps enabled, the behavior of this function is undeﬁned.

ef_vi User Guide

File Documentation

10.9.5.13 ef_vi_receive_get_timestamp_with_sync_ﬂags()

int ef_vi_receive_get_timestamp_with_sync_flags (

ef_vi ∗vi,

const void ∗pkt,

struct timespec ∗ts_out,

unsigned ∗flags_out )

Retrieve the UTC timestamp associated with a received packet, and the clock sync status ﬂags.

Parameters

vi The virtual interface that received the packet.

pkt The ﬁrst packet buffer for the received packet.

ts_out Pointer to a timepsec, that is updated on return with the UTC timestamp for the packet.

ﬂags_out Pointer to an unsigned, that is updated on return with the sync ﬂags for the packet.

Returns

0 on success, or a negative error code:

• ENOMSG - Synchronisation with adapter has not yet been achieved.

This only happens with old ﬁrmware.

• ENODATA - Packet does not have a timestamp.

On current Solarﬂare adapters, packets that are switched from TX to RX do not get timestamped.

• EL2NSYNC - Synchronisation with adapter has been lost.

This should never happen!

Retrieve the UTC timestamp associated with a received packet, and the clock sync status ﬂags.

This function:

• must be called after retrieving the associated RX event via ef_eventq_poll(), and before calling ef_eventq_←-

poll() again

• must only be called for the ﬁrst segment of a jumbo packet

• must not be called for any events other than RX.

If the virtual interface does not have RX timestamps enabled, the behavior of this function is undeﬁned.

This function will also fail if the virtual interface has not yet synchronized with the adapter clock. This can take from

a few hundred milliseconds up to several seconds from when the virtual interface is allocated.

On success the ts_out and ﬂags_out ﬁelds are updated, and a value of zero is returned. The ﬂags_out ﬁeld contains

the following ﬂags:

• EF_VI_SYNC_FLAG_CLOCK_SET is set if the adapter clock has ever been set (in sync with system)

• EF_VI_SYNC_FLAG_CLOCK_IN_SYNC is set if the adapter clock is in sync with the external clock (PTP).

In case of error the timestamp result (∗ts_out) is set to zero, and a non-zero error code is returned (see Return

value above).

ef_vi User Guide

File Documentation

10.9.5.14 ef_vi_receive_post()

int ef_vi_receive_post (

ef_vi ∗vi,

ef_addr addr,

ef_request_id dma_id )

Initialize an RX descriptor on the RX descriptor ring, and submit it to the NIC.

Parameters

vi The virtual interface for which to initialize and push an RX descriptor.

addr DMA address of the packet buffer to associate with the descriptor, as obtained from

ef_memreg_dma_addr().

dma←-

_id

DMA id to associate with the descriptor. This is completely arbitrary, and can be used for subsequent

tracking of buffers.

Returns

0 on success, or a negative error code.

Initialize an RX descriptor on the RX descriptor ring, and submit it to the NIC. The NIC can then receive a packet

into the associated packet buffer.

This function simply wraps ef_vi_receive_init() and ef_vi_receive_push(). It is provided as a convenience, but is less

efﬁcient than submitting the descriptors in batches by calling the functions separately.

Note that for Solarﬂare 7000-series NICs, this function submits RX descriptors only in multiples of 8. This is to

conform with hardware requirements. If the number of newly initialized RX descriptors is not exactly divisible by 8,

this function does not submit any remaining descriptors (including, potentially, the RX descriptor initialized in this

call).

10.9.5.15 ef_vi_receive_preﬁx_len()

ef_vi_inline int ef_vi_receive_prefix_len (

ef_vi ∗vi )

Returns the length of the preﬁx at the start of a received packet.

Parameters

vi The virtual interface to query.

Returns

The length of the preﬁx at the start of a received packet.

Returns the length of the preﬁx at the start of a received packet.

ef_vi User Guide

File Documentation

The NIC may be conﬁgured to deliver meta-data in a preﬁx before the packet payload data. This call returns the

size of the preﬁx.

When a large packet is received that is scattered over multiple packet buffers, the preﬁx is only present in the ﬁrst

buffer.

Deﬁnition at line 917 of ﬁle ef_vi.h.

10.9.5.16 ef_vi_receive_query_layout()

int ef_vi_receive_query_layout (

ef_vi ∗vi,

const ef_vi_layout_entry ∗∗const layout_out,

int ∗layout_len_out )

Gets the layout of the data that the adapter delivers into receive buffers.

Parameters

vi The virtual interface to query.

layout_out Pointer to an ef_vi_layout_entry∗, that is updated on return with a reference to the layout table.

layout_len_out Pointer to an int, that is updated on return with the length of the layout table.

Returns

0 on success, or a negative error code.

Gets the layout of the data that the adapter delivers into receive buffers. Depending on the adapter type and options

selected, there can be a meta-data preﬁx in front of each packet delivered into memory. Note that this preﬁx is

per-packet, not per buffer, ie for jumbos the preﬁx will only be present in the ﬁrst buffer of the packet.

The ﬁrst entry is always of type EF_VI_LAYOUT_FRAME, and the offset is the same as the value returned by

ef_vi_receive_preﬁx_len().

10.9.5.17 ef_vi_receive_set_buffer_len()

ef_vi_inline void ef_vi_receive_set_buffer_len (

ef_vi ∗vi,

unsigned buf_len )

Sets the length of receive buffers.

Parameters

vi The virtual interface for which to set the length of receive buffers.

buf_len The length of receive buffers.

ef_vi User Guide

File Documentation

Sets the length of receive buffers for this VI. The new length is used for subsequent calls to ef_vi_receive_init() and

ef_vi_receive_post().

This call has no effect for 5000 and 6000-series (Falcon) adapters.

Deﬁnition at line 955 of ﬁle ef_vi.h.

10.9.5.18 ef_vi_receive_set_discards()

int ef_vi_receive_set_discards (

ef_vi ∗vi,

unsigned discard_err_flags )

Set which errors cause an EF_EVENT_TYPE_RX_DISCARD event.

Parameters

vi The virtual interface to conﬁgure.

discard_err_ﬂags Flags which indicate which errors will cause discard events

Returns

0 on success, or a negative error code.

Set which errors cause an EF_EVENT_TYPE_RX_DISCARD event

10.9.5.19 ef_vi_receive_space()

ef_vi_inline int ef_vi_receive_space (

ef_vi ∗vi )

Returns the amount of free space in the RX descriptor ring.

Parameters

vi The virtual interface to query.

Returns

The amount of free space in the RX descriptor ring, as slots for descriptor entries.

Returns the amount of free space in the RX descriptor ring. This is the number of slots that are available for pushing

a new descriptor (and an associated unﬁlled packet buffer).

Deﬁnition at line 972 of ﬁle ef_vi.h.

ef_vi User Guide

File Documentation

10.9.5.20 ef_vi_receive_unbundle()

int ef_vi_receive_unbundle (

ef_vi ∗ep,

const ef_event ∗event,

ef_request_id ∗ids )

Unbundle an event of type EF_EVENT_TYPE_RX_MULTI.

Parameters

ep The virtual interface that has raised the event.

event The event, of type EF_EVENT_TYPE_RX_MULTI.

ids Array of size EF_VI_RECEIVE_BATCH, that is updated on return with the DMA ids that were used in

the original ef_vi_receive_init() call.

Returns

The number of valid ef_request_ids (can be zero).

Unbundle an event of type EF_EVENT_TYPE_RX_MULTI.

In RX event merge mode the NIC will coalesce multiple packet receptions into a single RX event. This reduces PCIe

load, enabling higher potential throughput at the cost of latency.

This function returns the number of descriptors whose reception has completed, and updates the ids array with the

ef_request_ids for each completed DMA request.

After calling this function, the RX descriptors for the completed RX event are ready to be re-used.

In order to determine the length of each packet ef_vi_receive_get_bytes() must be called, or the length examined in

the packet preﬁx (see ef_vi_receive_query_layout()).

10.9.5.21 ef_vi_resource_id()

ef_vi_inline unsigned ef_vi_resource_id (

ef_vi ∗vi )

Return the resource ID of the virtual interface.

Parameters

vi The virtual interface to query.

Returns

The resource ID of the virtual interface.

Return the resource ID of the virtual interface.

ef_vi User Guide

File Documentation

Deﬁnition at line 831 of ﬁle ef_vi.h.

10.9.5.22 ef_vi_set_tx_push_threshold()

void ef_vi_set_tx_push_threshold (

ef_vi ∗vi,

unsigned threshold )

Set the threshold at which to switch from using TX descriptor push to using a doorbell.

Parameters

vi The virtual interface for which to set the threshold.

threshold The threshold to set, as the number of outstanding transmits at which to switch.

Returns

0 on success, or a negative error code.

Set the threshold at which to switch from using TX descriptor push to using a doorbell. TX descriptor push has

better latency, but a doorbell is more efﬁcient.

The default value for this is controlled using the EF_VI_TX_PUSH_DISABLE and EF_VI_TX_PUSH_ALWAYS ﬂags

to ef_vi_init().

This is not supported by all Solarﬂare NICs. At the time of writing, 7000-series NICs support this, but it is ignored

by earlier NICs.

10.9.5.23 ef_vi_transmit_alt_num_ids()

unsigned ef_vi_transmit_alt_num_ids (

ef_vi ∗vi )

Return the number of TX alternatives allocated for a virtual interface.

Parameters

vi The virtual interface to query.

Returns

The number of TX alternatives, or a negative error code.

Gets the number of TX alternatives for the given virtual interface.

ef_vi User Guide

File Documentation

10.9.5.24 ef_vi_transmit_alt_query_overhead()

int ef_vi_transmit_alt_query_overhead (

ef_vi ∗vi,

struct ef_vi_transmit_alt_overhead ∗params )

Query per-packet overhead parameters.

Parameters

vi Interface to be queried

params Returned overhead parameters

Returns

0 on success or -EINVAL if this VI doesn't support alternatives.

This function returns parameters which are needed by the ef_vi_transmit_alt_usage() function below.

10.9.5.25 ef_vi_transmit_alt_usage()

ef_vi_inline ef_vi_pure uint32_t ef_vi_transmit_alt_usage (

const struct ef_vi_transmit_alt_overhead ∗params,

uint32_t pkt_len )

Calculate a packet's buffer usage.

Parameters

params Parameters returned by ef_vi_transmit_alt_query_overhead

pkt_len Packet length in bytes

Returns

Packet buffer usage in bytes including per-packet overhead

This function calculates the number of bytes of buffering which will be used by the NIC to store a packet with the

given length.

The returned value includes per-packet overheads, but does not include any other overhead which may be incurred

by the hardware. Note that if the application has successfully requested N bytes of buffering using ef_vi_transmit←-

_alt_alloc() then it is guaranteed to be able to store at least N bytes of packet data + per-packet overhead as

calculated by this function.

It is possible that the application may be able to use more space in some situations if the non-per-packet overheads

are low enough.

It is important that callers do not use ef_vi_capabilities_get() to query the available buffering. That function does not

take into account non-per-packet overheads and so is likely to return more space than can actually be used by the

application. This function is provided instead to allow applications to calculate their buffer usage accurately.

Deﬁnition at line 1761 of ﬁle ef_vi.h.

ef_vi User Guide

File Documentation

10.9.5.26 ef_vi_transmit_capacity()

ef_vi_inline int ef_vi_transmit_capacity (

ef_vi ∗vi )

Returns the total capacity of the TX descriptor ring.

Parameters

vi The virtual interface to query.

Returns

The total capacity of the TX descriptor ring, as slots for descriptor entries.

Returns the total capacity of the TX descriptor ring.

Deﬁnition at line 1283 of ﬁle ef_vi.h.

10.9.5.27 ef_vi_transmit_ﬁll_level()

ef_vi_inline int ef_vi_transmit_fill_level (

ef_vi ∗vi )

Returns the ﬁll level of the TX descriptor ring.

Parameters

vi The virtual interface to query.

Returns

The ﬁll level of the TX descriptor ring, as slots for descriptor entries.

Returns the ﬁll level of the TX descriptor ring. This is the number of slots that hold a descriptor (and an associated

ﬁlled packet buffer). The ﬁll level should be low or 0, unless a large number of packets have recently been posted

for transmission. A consistently high ﬁll level should be investigated.

Deﬁnition at line 1267 of ﬁle ef_vi.h.

10.9.5.28 ef_vi_transmit_init()

int ef_vi_transmit_init (

ef_vi ∗vi,

ef_vi User Guide

File Documentation

ef_addr addr,

int bytes,

ef_request_id dma_id )

Initialize a TX descriptor on the TX descriptor ring, for a single packet buffer.

Parameters

vi The virtual interface for which to initialize a TX descriptor.

addr DMA address of the packet buffer to associate with the descriptor, as obtained from

ef_memreg_dma_addr().

bytes The size of the packet to transmit.

dma←-

_id

DMA id to associate with the descriptor. This is completely arbitrary, and can be used for subsequent

tracking of buffers.

Returns

0 on success, or a negative error code:

-EAGAIN if the descriptor ring is full.

Initialize a TX descriptor on the TX descriptor ring, for a single packet buffer. The associated packet buffer (identiﬁed

by its DMA address) must contain the packet to transmit. This function only writes a few bytes into host memory,

and is very fast.

10.9.5.29 ef_vi_transmit_init_undo()

void ef_vi_transmit_init_undo (

ef_vi ∗vi )

Remove all TX descriptors from the TX descriptor ring that have been initialized since last transmit.

Parameters

vi The virtual interface for which to remove initialized TX descriptors from the TX descriptor ring.

Returns

None

Remove all TX descriptors from the TX descriptor ring that have been initialized since last transmit. This will undo

the effects of calls made to ef_vi_transmit_init or ef_vi_transmitv_init since the last "push".

Initializing and then removing descriptors can have a warming effect on the transmit code path for subsequent

transmits. This can reduce latency jitter caused by code and state being evicted from cache during delays between

transmitting packets. This technique is also effective before the ﬁrst transmit.

ef_vi User Guide

File Documentation

10.9.5.30 ef_vi_transmit_space()

ef_vi_inline int ef_vi_transmit_space (

ef_vi ∗vi )

Returns the amount of free space in the TX descriptor ring.

ef_vi User Guide

File Documentation

Parameters

vi The virtual interface to query.

Returns

The amount of free space in the TX descriptor ring, as slots for descriptor entries.

Returns the amount of free space in the TX descriptor ring. This is the number of slots that are available for pushing

a new descriptor (and an associated ﬁlled packet buffer).

Deﬁnition at line 1247 of ﬁle ef_vi.h.

10.9.5.31 ef_vi_transmit_unbundle()

int ef_vi_transmit_unbundle (

ef_vi ∗ep,

const ef_event ∗event,

ef_request_id ∗ids )

Unbundle an event of type of type EF_EVENT_TYPE_TX or EF_EVENT_TYPE_TX_ERROR.

Parameters

ep The virtual interface that has raised the event.

event The event, of type EF_EVENT_TYPE_TX or EF_EVENT_TYPE_TX_ERROR

ids Array of size EF_VI_TRANSMIT_BATCH, that is updated on return with the DMA ids that were used in the

originating ef_vi_transmit_∗() calls.

Returns

The number of valid ef_request_ids (can be zero).

Unbundle an event of type of type EF_EVENT_TYPE_TX or EF_EVENT_TYPE_TX_ERROR.

The NIC might coalesce multiple packet transmissions into a single TX event in the event queue. This function

returns the number of descriptors whose transmission has completed, and updates the ids array with the ef_←-

request_ids for each completed DMA request.

After calling this function, the TX descriptors for the completed TX event are ready to be re-initialized. The associ-

ated packet buffers are no longer in use by ef_vi. Each buffer can then be freed, or can be re-used (for example as

a packet buffer for a descriptor on the TX ring, or on the RX ring).

10.9.5.32 ef_vi_version_str()

const char∗ef_vi_version_str (

void )

Return a string that identiﬁes the version of ef_vi.

ef_vi User Guide

File Documentation

Returns

A string that identiﬁes the version of ef_vi.

Return a string that identiﬁes the version of ef_vi. This should be treated as an unstructured string. At time of writing

it is the version of OpenOnload or EnterpriseOnload in which ef_vi is distributed.

Note that Onload will check this is a version that it recognizes. It recognizes the version strings generated by itself,

and those generated by older ofﬁcial releases of Onload (when the API hasn't changed), but not those generated

by older patched releases of Onload. Consequently, ef_vi applications built against patched versions of Onload will

not be supported by future versions of Onload.

10.10 memreg.h File Reference

Registering memory for EtherFabric Virtual Interface HAL.

#include <etherfabric/base.h>

Data Structures

• struct ef_memreg

Memory that has been registered for use with ef_vi.

Typedefs

• typedef struct ef_memreg ef_memreg

Memory that has been registered for use with ef_vi.

Functions

• int ef_memreg_alloc (ef_memreg ∗mr, ef_driver_handle mr_dh, struct ef_pd ∗pd, ef_driver_handle pd_dh,

void ∗p_mem, size_t len_bytes)

• int ef_memreg_free (ef_memreg ∗mr, ef_driver_handle mr_dh)

Unregister a memory region.

• ef_vi_inline ef_addr ef_memreg_dma_addr (ef_memreg ∗mr, size_t offset)

Return the DMA address for the given offset within a registered memory region.

10.10.1 Detailed Description

Registering memory for EtherFabric Virtual Interface HAL.

Author

Solarﬂare Communications, Inc.

Date

2015/02/16

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

ef_vi User Guide

File Documentation

10.10.2 Function Documentation

10.10.2.1 ef_memreg_alloc()

int ef_memreg_alloc (

ef_memreg ∗mr,

ef_driver_handle mr_dh,

struct ef_pd ∗pd,

ef_driver_handle pd_dh,

void ∗p_mem,

size_t len_bytes )

Parameters

mr The ef_memreg object to initialize.

mr_dh Driver handle for the ef_memreg.

pd Protection domain in which to register memory.

pd_dh Driver handle for the protection domain.

p_mem Start of memory region to be registered. This must be page-aligned, and so be on a 4K boundary.

len_bytes Length of memory region to be registered. This must be a multiple of the packet buffer size

(currently 2048 bytes).

Returns

0 on success, or a negative error code.

Before calling this function, the memory must be allocated. using malloc or similar.

After calling this function, the memory is registered, and can be used for DMA buffers. ef_memreg_dma_addr() can

then be used to obtain DMA addresses for buffers within the registered area.

Registered memory is associated with a particular protection domain, and the DMA addresses can be used only

with virtual interfaces that are associated with the same protection domain. Memory can be registered with multiple

protection domains so that a single pool of buffers can be used with multiple virtual interfaces.

Memory that is registered is pinned, and therefore it cannot be swapped out to disk.

Note

If an application that has registered memory forks, then copy-on-write semantics can cause new pages to be

allocated which are not registered. This problem can be solved either by ensuring that the registered memory

regions are shared by parent and child (e.g. by using MAP_SHARED), or by using madvise(MADV_DONT←-

FORK) to prevent the registered memory from being accessible in the child.

ef_vi User Guide

File Documentation

10.10.2.2 ef_memreg_dma_addr()

ef_vi_inline ef_addr ef_memreg_dma_addr (

ef_memreg ∗mr,

size_t offset )

Return the DMA address for the given offset within a registered memory region.

Parameters

mr The ef_memreg object to query.

offset The offset within the ef_memreg object.

Returns

The DMA address for the given offset within a registered memory region.

Return the DMA address for the given offset within a registered memory region.

Note that DMA addresses are only contiguous within each 4K block of a memory region.

Deﬁnition at line 130 of ﬁle memreg.h.

10.10.2.3 ef_memreg_free()

int ef_memreg_free (

ef_memreg ∗mr,

ef_driver_handle mr_dh )

Unregister a memory region.

Parameters

mr The ef_memreg object to unregister.

mr_dh Driver handle for the ef_memreg.

Returns

0 on success, or a negative error code.

Unregister a memory region.

Note

To free all the resources, the driver handle associated with the memory must also be closed by calling ef_←-

driver_close().

ef_vi User Guide

File Documentation

10.11 packedstream.h File Reference

Packed streams for EtherFabric Virtual Interface HAL.

#include <etherfabric/base.h>

Data Structures

• struct ef_packed_stream_packet

Per-packet meta-data.

• struct ef_packed_stream_params

Packed-stream mode parameters.

Macros

• #deﬁne EF_VI_PS_FLAG_CLOCK_SET 0x1

Set if the adapter clock has ever been set (in sync with system).

• #deﬁne EF_VI_PS_FLAG_CLOCK_IN_SYNC 0x2

Set if the adapter clock is in sync with the external clock (PTP).

• #deﬁne EF_VI_PS_FLAG_BAD_FCS 0x4

Set if a bad Frame Check Sequence has occurred.

• #deﬁne EF_VI_PS_FLAG_BAD_L4_CSUM 0x8

Set if a layer-4 (TCP/UDP) checksum error is detected, or if a good layer-4 checksum is not detected (depending on

adapter).

• #deﬁne EF_VI_PS_FLAG_BAD_L3_CSUM 0x10

Set if a layer-3 (IPv4) checksum error is detected, or if a good layer-3 checksum is not detected (depending on

adapter).

• #deﬁne EF_VI_PS_FLAG_BAD_IP_CSUM

Retained for backwards compatibility. Do not use.

Functions

• int ef_vi_packed_stream_get_params (ef_vi ∗vi, ef_packed_stream_params ∗psp_out)

Get the parameters for packed-stream mode.

• int ef_vi_packed_stream_unbundle (ef_vi ∗vi, const ef_event ∗ev, ef_packed_stream_packet ∗∗pkt_iter, int

∗n_pkts_out, int ∗n_bytes_out)

Unbundle an event of type EF_EVENT_TYPE_RX_PACKED_STREAM.

10.11.1 Detailed Description

Packed streams for EtherFabric Virtual Interface HAL.

Author

Solarﬂare Communications, Inc.

Date

2015/02/16

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

ef_vi User Guide

File Documentation

10.11.2 Macro Deﬁnition Documentation

10.11.2.1 EF_VI_PS_FLAG_BAD_IP_CSUM

#define EF_VI_PS_FLAG_BAD_IP_CSUM

Value:

(EF_VI_PS_FLAG_BAD_L4_CSUM |\

EF_VI_PS_FLAG_BAD_L3_CSUM)

Retained for backwards compatibility. Do not use.

Deﬁnition at line 81 of ﬁle packedstream.h.

10.11.3 Function Documentation

10.11.3.1 ef_vi_packed_stream_get_params()

int ef_vi_packed_stream_get_params (

ef_vi ∗vi,

ef_packed_stream_params ∗psp_out )

Get the parameters for packed-stream mode.

Parameters

vi The virtual interface to query.

psp_out Pointer to an ef_packed_stream_params, that is updated on return with the parameters for

packed-stream mode.

Returns

0 on success, or a negative error code:

-EINVAL if the virtual interface is not in packed-stream mode.

Get the parameters for packed-stream mode.

10.11.3.2 ef_vi_packed_stream_unbundle()

int ef_vi_packed_stream_unbundle (

ef_vi ∗vi,

ef_vi User Guide

File Documentation

const ef_event ∗ev,

ef_packed_stream_packet ∗∗ pkt_iter,

int ∗n_pkts_out,

int ∗n_bytes_out )

Unbundle an event of type EF_EVENT_TYPE_RX_PACKED_STREAM.

Parameters

vi The virtual interface that has raised the event.

ev The event, of type EF_EVENT_TYPE_RX_PACKED_STREAM.

pkt_iter Pointer to an ef_packed_stream_packet∗, that is updated on return with the value for the next

call to this function. See below for more details.

n_pkts_out Pointer to an int, that is updated on return with the number of packets unpacked.

n_bytes_out Pointer to an int, that is updated on return with the number of bytes unpacked.

Returns

0 on success, or a negative error code.

Unbundle an event of type EF_EVENT_TYPE_RX_PACKED_STREAM.

This function should be called once for each EF_EVENT_TYPE_RX_PACKED_STREAM event received.

If EF_EVENT_RX_PS_NEXT_BUFFER(∗ev) is true, ∗pkt_iter should be initialized to the value returned by ef_←-

packed_stream_packet_ﬁrst().

When EF_EVENT_RX_PS_NEXT_BUFFER(∗ev) is not true, ∗pkt_iter should contain the value left by the previous

call. After each call ∗pkt_iter points at the location where the next packet will be delivered.

The return value is 0, or a negative error code. If the error code is -ENOMSG, -ENODATA or -EL2NSYNC then

there was a problem with the hardware timestamp: see ef_vi_receive_get_timestamp_with_sync_ﬂags() for details.

10.12 pd.h File Reference

Protection Domains for EtherFabric Virtual Interface HAL.

#include <etherfabric/base.h>

Data Structures

• struct ef_pd

A protection domain.

Macros

• #deﬁne EF_PD_VLAN_NONE -1

May be passed to ef_pd_alloc_with_vport() to indicate that the PD is not associated with a particular VLAN.

ef_vi User Guide

File Documentation

Typedefs

• typedef struct ef_pd ef_pd

A protection domain.

Enumerations

• enum ef_pd_ﬂags {

EF_PD_DEFAULT = 0x0, EF_PD_VF = 0x1, EF_PD_PHYS_MODE = 0x2, EF_PD_RX_PACKED_STREAM

= 0x4,

EF_PD_VPORT = 0x8, EF_PD_MCAST_LOOP = 0x10, EF_PD_MEMREG_64KiB = 0x20 }

Flags for a protection domain.

Functions

• int ef_pd_alloc (ef_pd ∗pd, ef_driver_handle pd_dh, int iﬁndex, enum ef_pd_ﬂags ﬂags)

Allocate a protection domain.

• int ef_pd_alloc_by_name (ef_pd ∗pd, ef_driver_handle pd_dh, const char ∗cluster_or_intf_name, enum ef←-

_pd_ﬂags ﬂags)

Allocate a protection domain for a named interface or cluster.

• int ef_pd_alloc_with_vport (ef_pd ∗pd, ef_driver_handle pd_dh, const char ∗intf_name, enum ef_pd_ﬂags

ﬂags, int vlan_id)

Allocate a protection domain with vport support.

• const char ∗ef_pd_interface_name (ef_pd ∗pd)

Look up the interface being used by the protection domain.

• int ef_pd_free (ef_pd ∗pd, ef_driver_handle pd_dh)

Free a protection domain.

10.12.1 Detailed Description

Protection Domains for EtherFabric Virtual Interface HAL.

Author

Solarﬂare Communications, Inc.

Date

2015/02/16

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.12.2 Enumeration Type Documentation

10.12.2.1 ef_pd_ﬂags

enum ef_pd_flags

Flags for a protection domain.

ef_vi User Guide

File Documentation

Enumerator

EF_PD_DEFAULT Default ﬂags

EF_PD_VF Protection domain uses a virtual function and the system IOMMU instead

of NIC buffer table.

EF_PD_PHYS_MODE Protection domain uses physical addressing mode

EF_PD_RX_PACKED_STREAM Protection domain supports packed stream mode

EF_PD_VPORT Protection domain supports virtual ports

EF_PD_MCAST_LOOP Protection domain supports HW multicast loopback

EF_PD_MEMREG_64KiB Protection domain uses >= 64KB registered memory mappings

Deﬁnition at line 48 of ﬁle pd.h.

10.12.3 Function Documentation

10.12.3.1 ef_pd_alloc()

int ef_pd_alloc (

ef_pd ∗pd,

ef_driver_handle pd_dh,

int ifindex,

enum ef_pd_flags flags )

Allocate a protection domain.

Parameters

pd Memory to use for the allocated protection domain.

pd_dh The ef_driver_handle to associate with the protection domain.

iﬁndex Index of the interface to use for the protection domain.

ﬂags Flags to specify protection domain properties.

Returns

0 on success, or a negative error code.

Allocate a protection domain.

Allocates a 'protection domain' which speciﬁes how memory should be protected for your VIs. For supported modes

- see Packet Buffer Addressing

Note

If you are using a 'hardened' kernel (e.g. Gentoo-hardened) then this is the ﬁrst call which will probably fail.

Currently, the only workaround to this is to run as root.

Use "if_nametoindex" to ﬁnd the index of an interface, which needs to be the physical interface (i.e. eth2, not eth2.6

or bond0 or similar.)

ef_vi User Guide

File Documentation

10.12.3.2 ef_pd_alloc_by_name()

int ef_pd_alloc_by_name (

ef_pd ∗pd,

ef_driver_handle pd_dh,

const char ∗cluster_or_intf_name,

enum ef_pd_flags flags )

Allocate a protection domain for a named interface or cluster.

Parameters

pd Memory to use for the allocated protection domain.

pd_dh An ef_driver_handle.

cluster_or_intf_name Name of cluster, or name of interface.

ﬂags Flags to specify protection domain properties.

Returns

0 on success, or a negative error code.

Allocate a protection domain, trying ﬁrst from a cluster of the given name, or if no cluster of that name exists assume

that cluster_or_intf_name is the name of an interface.

When cluster_or_intf_name gives the name of a cluster it may optionally be preﬁxed with a channel number.

For example: "0@cluster". In this case the speciﬁed channel instance within the cluster is allocated.

10.12.3.3 ef_pd_alloc_with_vport()

int ef_pd_alloc_with_vport (

ef_pd ∗pd,

ef_driver_handle pd_dh,

const char ∗intf_name,

enum ef_pd_flags flags,

int vlan_id )

Allocate a protection domain with vport support.

Parameters

pd Memory to use for the allocated protection domain.

pd_dh The ef_driver_handle to associate with the protection domain.

intf_name Name of interface to use for the protection domain.

ﬂags Flags to specify protection domain properties.

vlan_id The vlan id to associate with the protection domain.

ef_vi User Guide

File Documentation

Returns

0 on success, or a negative error code.

Allocate a protection domain with vport support.

10.12.3.4 ef_pd_free()

int ef_pd_free (

ef_pd ∗pd,

ef_driver_handle pd_dh )

Free a protection domain.

Parameters

pd Memory used by the protection domain.

pd_dh The ef_driver_handle associated with the protection domain.

Returns

0 on success, or a negative error code.

Free a protection domain.

To free up all resources, you must also close the associated driver handle.

You should call this when you're ﬁnished; although they will be cleaned up when the application exits, if you don't.

Be very sure that you don't try and re-use the vi/pd/driver structure after it has been freed.

10.12.3.5 ef_pd_interface_name()

const char∗ef_pd_interface_name (

ef_pd ∗pd )

Look up the interface being used by the protection domain.

Parameters

pd Memory used by the protection domain.

Returns

The interface being used by the protection domain.

Look up the interface being used by the protection domain.

ef_vi User Guide

File Documentation

10.13 pio.h File Reference

Programmed Input/Output for EtherFabric Virtual Interface HAL.

#include <etherfabric/base.h>

Data Structures

• struct ef_pio

A Programmed I/O region.

Typedefs

• typedef struct ef_pio ef_pio

A Programmed I/O region.

Functions

• int ef_vi_get_pio_size (ef_vi ∗vi)

Get the size of the Programmed I/O region.

• int ef_pio_free (ef_pio ∗pio, ef_driver_handle pio_dh)

Free a Programmed I/O region.

• int ef_pio_link_vi (ef_pio ∗pio, ef_driver_handle pio_dh, struct ef_vi ∗vi, ef_driver_handle vi_dh)

Link a Programmed I/O region with a virtual interface.

• int ef_pio_unlink_vi (ef_pio ∗pio, ef_driver_handle pio_dh, struct ef_vi ∗vi, ef_driver_handle vi_dh)

Unlink a Programmed I/O region from a virtual interface.

• int ef_pio_memcpy (ef_vi ∗vi, const void ∗base, int offset, int len)

Copy data from memory into a Programmed I/O region.

10.13.1 Detailed Description

Programmed Input/Output for EtherFabric Virtual Interface HAL.

Author

Solarﬂare Communications, Inc.

Date

2015/02/16

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

ef_vi User Guide

File Documentation

10.13.2 Function Documentation

10.13.2.1 ef_pio_free()

int ef_pio_free (

ef_pio ∗pio,

ef_driver_handle pio_dh )

Free a Programmed I/O region.

Parameters

pio The Programmed I/O region.

pio_dh The ef_driver_handle for the Programmed I/O region.

Returns

0 on success, or a negative error code.

Free a Programmed I/O region.

The Programmed I/O region must not be linked when this function is called. See ef_pio_unlink_vi().

To free up all resources, the associated driver handle must then be closed by calling ef_driver_close()).

10.13.2.2 ef_pio_link_vi()

int ef_pio_link_vi (

ef_pio ∗pio,

ef_driver_handle pio_dh,

struct ef_vi ∗vi,

ef_driver_handle vi_dh )

Link a Programmed I/O region with a virtual interface.

Parameters

pio The Programmed I/O region.

pio_dh The ef_driver_handle for the Programmed I/O region.

vi The virtual interface to link with the Programmed I/O region.

vi_dh The ef_driver_handle for the virtual interface.

Returns

0 on success, or a negative error code.

ef_vi User Guide

File Documentation

Link a Programmed I/O region with a virtual interface.

10.13.2.3 ef_pio_memcpy()

int ef_pio_memcpy (

ef_vi ∗vi,

const void ∗base,

int offset,

int len )

Copy data from memory into a Programmed I/O region.

Parameters

vi The virtual interface for the Programmed I/O region.

base The base address of the memory to copy.

offset The offset into the Programmed I/O region at which to copy the data to. You shouldn't try to copy

memory to part of the PIO region that is already in use for an ongoing send as this may result in

corruption.

len The number of bytes to copy.

Returns

0 on success, or a negative error code.

This function copies data from the user buffer to the adapter's PIO buffer. It goes via an intermediate buffer to meet

any alignment requirements that the adapter may have.

Please refer to the PIO transmit functions (e.g.: ef_vi_transmit_pio() and ef_vi_transmit_copy_pio()) for alignment

requirements of packets.

The Programmed I/O region can hold multiple smaller packets, referenced by different offset parameters. All other

constraints must still be observed, including:

• alignment

• minimum size

• maximum size

• avoiding reuse until transmission is complete.

10.13.2.4 ef_pio_unlink_vi()

int ef_pio_unlink_vi (

ef_pio ∗pio,

ef_driver_handle pio_dh,

struct ef_vi ∗vi,

ef_driver_handle vi_dh )

Unlink a Programmed I/O region from a virtual interface.

ef_vi User Guide

File Documentation

Parameters

pio The Programmed I/O region.

pio_dh The ef_driver_handle for the Programmed I/O region.

vi The virtual interface to unlink from the Programmed I/O region.

vi_dh The ef_driver_handle for the virtual interface.

Returns

0 on success, or a negative error code.

Unlink a Programmed I/O region from a virtual interface.

10.13.2.5 ef_vi_get_pio_size()

int ef_vi_get_pio_size (

ef_vi ∗vi )

Get the size of the Programmed I/O region.

Parameters

vi The virtual interface to query.

Returns

The size of the Programmed I/O region.

Get the size of the Programmed I/O region.

10.14 timer.h File Reference

Timers for EtherFabric Virtual Interface HAL.

Macros

• #deﬁne ef_eventq_timer_prime(q, v) (q)->ops.eventq_timer_prime(q, v)

Prime an event queue timer with a new timeout.

• #deﬁne ef_eventq_timer_run(q, v) (q)->ops.eventq_timer_run(q, v)

Start an event queue timer running.

• #deﬁne ef_eventq_timer_clear(q) (q)->ops.eventq_timer_clear(q)

Stop an event queue timer.

• #deﬁne ef_eventq_timer_zero(q) (q)->ops.eventq_timer_zero(q)

Prime an event queue timer to expire immediately.

ef_vi User Guide

File Documentation

10.14.1 Detailed Description

Timers for EtherFabric Virtual Interface HAL.

Author

Solarﬂare Communications, Inc.

Date

2015/02/16

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.14.2 Macro Deﬁnition Documentation

10.14.2.1 ef_eventq_timer_clear

#define ef_eventq_timer_clear(

q) (q)->ops.eventq_timer_clear(q)

Stop an event queue timer.

Parameters

qPointer to ef_vi structure for the event queue.

Returns

None.

Stop an event queue timer.

The timer is stopped if it is already running, and no timeout-event is delivered.

The timer will not run when the next event arrives on the event queue.

Note

This is implemented as a macro, that calls the relevant function from the ef_vi::ops structure.

Deﬁnition at line 111 of ﬁle timer.h.

ef_vi User Guide

File Documentation

10.14.2.2 ef_eventq_timer_prime

#define ef_eventq_timer_prime(

v) (q)->ops.eventq_timer_prime(q, v)

Prime an event queue timer with a new timeout.

Parameters

qPointer to ef_vi structure for the event queue.

vInitial value for timer (speciﬁed in µs).

Returns

None.

Prime an event queue timer with a new timeout.

The timer is stopped if it is already running, and no timeout-event is delivered.

The speciﬁed timeout is altered slightly, to avoid lots of timers going off in the same tick (bug1317). The timer is

then primed with this new timeout.

The timer is then ready to run when the next event arrives on the event queue. When the timer-value reaches zero,

a timeout-event will be delivered.

Note

This is implemented as a macro, that calls the relevant function from the ef_vi::ops structure.

Deﬁnition at line 70 of ﬁle timer.h.

10.14.2.3 ef_eventq_timer_run

#define ef_eventq_timer_run(

v) (q)->ops.eventq_timer_run(q, v)

Start an event queue timer running.

Parameters

qPointer to ef_vi structure for the event queue.

vInitial value for timer (speciﬁed in µs).

ef_vi User Guide

File Documentation

Returns

None.

Start an event queue timer running.

The timer is stopped if it is already running, and no timeout-event is delivered.

The speciﬁed timeout is altered slightly, to avoid lots of timers going off in the same tick (bug1317). The timer is

then primed with this new timeout., and starts running immediately.

When the timer-value reaches zero, a timeout-event will be delivered.

Note

This is implemented as a macro, that calls the relevant function from the ef_vi::ops structure.

Deﬁnition at line 93 of ﬁle timer.h.

10.14.2.4 ef_eventq_timer_zero

#define ef_eventq_timer_zero(

q) (q)->ops.eventq_timer_zero(q)

Prime an event queue timer to expire immediately.

Parameters

qPointer to ef_vi structure for the event queue.

Returns

None.

Prime an event queue timer to expire immediately.

The timer is stopped if it is already running, and no timeout-event is delivered.

The timer is then primed with a new timeout of 0.

When the next event arrives on the event queue, a timeout-event will be delivered.

Note

This is implemented as a macro, that calls the relevant function from the ef_vi::ops structure.

Deﬁnition at line 132 of ﬁle timer.h.

ef_vi User Guide

File Documentation

10.15 vi.h File Reference

Virtual packet / DMA interface for EtherFabric Virtual Interface HAL.

#include <etherfabric/ef_vi.h>

#include <etherfabric/base.h>

Data Structures

• struct ef_vi_set

A virtual interface set within a protection domain.

• struct ef_ﬁlter_spec

Speciﬁcation of a ﬁlter.

• struct ef_ﬁlter_cookie

Cookie identifying a ﬁlter.

• struct ef_vi_stats_ﬁeld_layout

Layout for a ﬁeld of statistics.

• struct ef_vi_stats_layout

Layout for statistics.

Enumerations

• enum ef_ﬁlter_ﬂags {EF_FILTER_FLAG_NONE = 0x0, EF_FILTER_FLAG_MCAST_LOOP_RECEIVE =

0x2 }

Flags for a ﬁlter.

• enum { EF_FILTER_VLAN_ID_ANY = -1 }

Virtual LANs for a ﬁlter.

Functions

• int ef_vi_alloc_from_pd (ef_vi ∗vi, ef_driver_handle vi_dh, struct ef_pd ∗pd, ef_driver_handle pd_dh, int evq←-

_capacity, int rxq_capacity, int txq_capacity, ef_vi ∗evq_opt, ef_driver_handle evq_dh, enum ef_vi_ﬂags ﬂags)

Allocate a virtual interface from a protection domain.

• int ef_vi_free (ef_vi ∗vi, ef_driver_handle nic)

Free a virtual interface.

• int ef_vi_transmit_alt_alloc (struct ef_vi ∗vi, ef_driver_handle vi_dh, int num_alts, size_t buf_space)

Allocate a set of TX alternatives.

• int ef_vi_transmit_alt_free (struct ef_vi ∗vi, ef_driver_handle vi_dh)

Free a set of TX alternatives.

• int ef_vi_transmit_alt_query_buffering (struct ef_vi ∗vi, int iﬁndex, ef_driver_handle vi_dh, int n_alts)

Query available buffering.

• int ef_vi_ﬂush (ef_vi ∗vi, ef_driver_handle nic)

Flush the virtual interface.

• int ef_vi_pace (ef_vi ∗vi, ef_driver_handle nic, int val)

Pace the virtual interface.

• unsigned ef_vi_mtu (ef_vi ∗vi, ef_driver_handle vi_dh)

ef_vi User Guide

File Documentation

Return the virtual interface MTU.

• int ef_vi_get_mac (ef_vi ∗vi, ef_driver_handle vi_dh, void ∗mac_out)

Get the Ethernet MAC address for the virtual interface.

• int ef_eventq_put (unsigned resource_id, ef_driver_handle evq_dh, unsigned ev_bits)

Send a software-generated event to an event queue.

• int ef_vi_set_alloc_from_pd (ef_vi_set ∗vi_set, ef_driver_handle vi_set_dh, struct ef_pd ∗pd, ef_driver_←-

handle pd_dh, int n_vis)

Allocate a virtual interface set within a protection domain.

• int ef_vi_set_free (ef_vi_set ∗vi_set, ef_driver_handle vi_set_dh)

Free a virtual interface set.

• int ef_vi_alloc_from_set (ef_vi ∗vi, ef_driver_handle vi_dh, ef_vi_set ∗vi_set, ef_driver_handle vi_set_dh, int

index_in_vi_set, int evq_capacity, int rxq_capacity, int txq_capacity, ef_vi ∗evq_opt, ef_driver_handle evq_dh,

enum ef_vi_ﬂags ﬂags)

Allocate a virtual interface from a virtual interface set.

• int ef_vi_prime (ef_vi ∗vi, ef_driver_handle dh, unsigned current_ptr)

Prime a virtual interface.

• void ef_ﬁlter_spec_init (ef_ﬁlter_spec ∗ﬁlter_spec, enum ef_ﬁlter_ﬂags ﬂags)

Initialize an ef_ﬁlter_spec.

• int ef_ﬁlter_spec_set_ip4_local (ef_ﬁlter_spec ∗ﬁlter_spec, int protocol, unsigned host_be32, int port_be16)

Set an IP4 Local ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_ip4_full (ef_ﬁlter_spec ∗ﬁlter_spec, int protocol, unsigned host_be32, int port_be16,

unsigned rhost_be32, int rport_be16)

Set an IP4 Full ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_ip6_local (ef_ﬁlter_spec ∗ﬁlter_spec, int protocol, const struct in6_addr ∗host, int port←-

_be16)

Set an IP6 Local ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_ip6_full (ef_ﬁlter_spec ∗ﬁlter_spec, int protocol, const struct in6_addr ∗host, int port←-

_be16, const struct in6_addr ∗rhost, int rport_be16)

Set an IP6 Full ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_vlan (ef_ﬁlter_spec ∗ﬁlter_spec, int vlan_id)

Add a Virtual LAN ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_eth_local (ef_ﬁlter_spec ∗ﬁlter_spec, int vlan_id, const void ∗mac)

Set an Ethernet MAC Address ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_unicast_all (ef_ﬁlter_spec ∗ﬁlter_spec)

Set a Unicast All ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_multicast_all (ef_ﬁlter_spec ∗ﬁlter_spec)

Set a Multicast All ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_unicast_mismatch (ef_ﬁlter_spec ∗ﬁlter_spec)

Set a Unicast Mismatch ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_multicast_mismatch (ef_ﬁlter_spec ∗ﬁlter_spec)

Set a Multicast Mismatch ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_port_sniff (ef_ﬁlter_spec ∗ﬁlter_spec, int promiscuous)

Set a Port Sniff ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_tx_port_sniff (ef_ﬁlter_spec ∗ﬁlter_spec)

Set a TX Port Sniff ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_block_kernel (ef_ﬁlter_spec ∗ﬁlter_spec)

Set a Block Kernel ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_block_kernel_multicast (ef_ﬁlter_spec ∗ﬁlter_spec)

Set a Block Kernel Multicast ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_eth_type (ef_ﬁlter_spec ∗ﬁlter_spec, uint16_t ether_type_be16)

ef_vi User Guide

File Documentation

Add an EtherType ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_ip_proto (ef_ﬁlter_spec ∗ﬁlter_spec, uint8_t ip_proto)

Add an IP protocol ﬁlter on the ﬁlter speciﬁcation.

• int ef_ﬁlter_spec_set_block_kernel_unicast (ef_ﬁlter_spec ∗ﬁlter_spec)

Set a Block Kernel Unicast ﬁlter on the ﬁlter speciﬁcation.

• int ef_vi_ﬁlter_add (ef_vi ∗vi, ef_driver_handle vi_dh, const ef_ﬁlter_spec ∗ﬁlter_spec, ef_ﬁlter_cookie

∗ﬁlter_cookie_out)

Add a ﬁlter to a virtual interface.

• int ef_vi_ﬁlter_del (ef_vi ∗vi, ef_driver_handle vi_dh, ef_ﬁlter_cookie ∗ﬁlter_cookie)

Delete a ﬁlter from a virtual interface.

• int ef_vi_set_ﬁlter_add (ef_vi_set ∗vi_set, ef_driver_handle vi_set_dh, const ef_ﬁlter_spec ∗ﬁlter_spec, ef←-

_ﬁlter_cookie ∗ﬁlter_cookie_out)

Add a ﬁlter to a virtual interface set.

• int ef_vi_set_ﬁlter_del (ef_vi_set ∗vi_set, ef_driver_handle vi_set_dh, ef_ﬁlter_cookie ∗ﬁlter_cookie)

Delete a ﬁlter from a virtual interface set.

• int ef_vi_stats_query_layout (ef_vi ∗vi, const ef_vi_stats_layout ∗∗const layout_out)

Retrieve layout for available statistics.

• int ef_vi_stats_query (ef_vi ∗vi, ef_driver_handle vi_dh, void ∗data, int do_reset)

Retrieve a set of statistic values.

10.15.1 Detailed Description

Virtual packet / DMA interface for EtherFabric Virtual Interface HAL.

Author

Solarﬂare Communications, Inc.

Date

2015/02/16

EnterpriseOnload are trademarks of Solarﬂare Communications, Inc.

10.15.2 Enumeration Type Documentation

10.15.2.1 anonymous enum

anonymous enum

Virtual LANs for a ﬁlter.

ef_vi User Guide

File Documentation

Enumerator

EF_FILTER_VLAN_ID_ANY Any Virtual LAN

Deﬁnition at line 479 of ﬁle vi.h.

10.15.2.2 ef_ﬁlter_ﬂags

enum ef_filter_flags

Flags for a ﬁlter.

Enumerator

EF_FILTER_FLAG_NONE No ﬂags

EF_FILTER_FLAG_MCAST_LOOP_RECEIVE If set, the ﬁlter will receive looped back packets for matching

(see ef_ﬁlter_spec_set_tx_port_sniff())

Deﬁnition at line 460 of ﬁle vi.h.

10.15.3 Function Documentation

10.15.3.1 ef_eventq_put()

int ef_eventq_put (

unsigned resource_id,

ef_driver_handle evq_dh,

unsigned ev_bits )

Send a software-generated event to an event queue.

Parameters

resource←-

_id

The ID of the event queue.

evq_dh The ef_driver_handle for the event queue.

ev_bits Data for the event. The lowest 16 bits only are used, and all other bits must be clear.

Returns

0 on success, or a negative error code.

ef_vi User Guide

File Documentation

Send a software-generated event to an event queue.

An application can use this feature to put its own signals onto the event queue. For example, a thread might block

waiting for events. An application could use a software-generated event to wake up the thread, so the thread could

then process some non-ef_vi resources.

10.15.3.2 ef_ﬁlter_spec_init()

void ef_filter_spec_init (

ef_filter_spec ∗filter_spec,

enum ef_filter_flags flags )

Initialize an ef_ﬁlter_spec.

Parameters

ﬁlter_spec The ef_ﬁlter_spec to initialize.

ﬂags The ﬂags to set in the ef_ﬁlter_spec.

Returns

None.

Initialize an ef_ﬁlter_spec.

This function must be called to initialize a ﬁlter before calling the other ﬁlter functions.

The EF_FILTER_FLAG_MCAST_LOOP_RECEIVE ﬂag does the following:

• if set, the ﬁlter will receive looped back packets for matching (see ef_ﬁlter_spec_set_tx_port_sniff())

• otherwise, the ﬁlter will not receive looped back packets.

10.15.3.3 ef_ﬁlter_spec_set_block_kernel()

int ef_filter_spec_set_block_kernel (

ef_filter_spec ∗filter_spec )

Set a Block Kernel ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

ef_vi User Guide

File Documentation

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set a Block Kernel ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter blocks all packets from reaching the kernel.

This ﬁlter is not supported by 5000-series and 6000-series adapters.

10.15.3.4 ef_ﬁlter_spec_set_block_kernel_multicast()

int ef_filter_spec_set_block_kernel_multicast (

ef_filter_spec ∗filter_spec )

Set a Block Kernel Multicast ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set a Block Kernel Multicast ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter blocks all multicast packets from reaching the kernel.

This ﬁlter is not supported by 5000-series and 6000-series adapters.

10.15.3.5 ef_ﬁlter_spec_set_block_kernel_unicast()

int ef_filter_spec_set_block_kernel_unicast (

ef_filter_spec ∗filter_spec )

Set a Block Kernel Unicast ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

ef_vi User Guide

File Documentation

Set a Block Kernel Unicast ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter blocks all unicast packets from reaching the kernel.

This ﬁlter is not supported by 5000-series and 6000-series adapters.

10.15.3.6 ef_ﬁlter_spec_set_eth_local()

int ef_filter_spec_set_eth_local (

ef_filter_spec ∗filter_spec,

int vlan_id,

const void ∗mac )

Set an Ethernet MAC Address ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

vlan_id The ID of the virtual LAN on which to ﬁlter, or EF_FILTER_VLAN_ID_ANY to match all VLANs.

mac The MAC address on which to ﬁlter, as a six-byte array.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set an Ethernet MAC Address ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter intercepts all packets that match the given MAC address and VLAN.

10.15.3.7 ef_ﬁlter_spec_set_eth_type()

int ef_filter_spec_set_eth_type (

ef_filter_spec ∗filter_spec,

uint16_t ether_type_be16 )

Add an EtherType ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

ether_type_be16 The EtherType on which to ﬁlter, in network order.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

ef_vi User Guide

File Documentation

Add an EtherType ﬁlter on the ﬁlter speciﬁcation

The EtherType ﬁlter can be combined with other ﬁlters as follows:

• Ethernet MAC Address ﬁlters: supported. See ef_ﬁlter_spec_set_eth_local().

• Other ﬁlters: not supported, -EPROTONOSUPPORT is returned.

This ﬁlter is not supported by 5000-series and 6000-series adapters. 7000-series adapters require a ﬁrmware

version of at least v4.6 for full support for these ﬁlters. v4.5 ﬁrmware supports such ﬁlters only when not combined

with a MAC address. Insertion of such ﬁlters on ﬁrmware versions that do not support them will fail.

Due to a current ﬁrmware limitation, this method does not support ether_type IP or IPv6 and will return no error if

these values are speciﬁed.

10.15.3.8 ef_ﬁlter_spec_set_ip4_full()

int ef_filter_spec_set_ip4_full (

ef_filter_spec ∗filter_spec,

int protocol,

unsigned host_be32,

int port_be16,

unsigned rhost_be32,

int rport_be16 )

Set an IP4 Full ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

protocol The protocol on which to ﬁlter (IPPROTO_UDP or IPPROTO_TCP).

host_be32 The local host address on which to ﬁlter, as a 32-bit big-endian value (e.g. the output of htonl()).

port_be16 The local port on which to ﬁlter, as a 16-bit big-endian value (e.g. the output of htons()).

rhost_be32 The remote host address on which to ﬁlter, as a 32-bit big-endian value (e.g. the output of htonl()).

rport_be16 The remote port on which to ﬁlter, as a 16-bit big-endian value (e.g. the output of htons()).

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set an IP4 Full ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter intercepts all packets that match the given protocol and host/port combinations.

Note

You cannot specify a range, or a wildcard, for any parameter.

ef_vi User Guide

File Documentation

10.15.3.9 ef_ﬁlter_spec_set_ip4_local()

int ef_filter_spec_set_ip4_local (

ef_filter_spec ∗filter_spec,

int protocol,

unsigned host_be32,

int port_be16 )

Set an IP4 Local ﬁlter on the ﬁlter speciﬁcation.

Set various types of ﬁlters on the ﬁlter spec

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

protocol The protocol on which to ﬁlter (IPPROTO_UDP or IPPROTO_TCP).

host_be32 The local host address on which to ﬁlter, as a 32-bit big-endian value (e.g. the output of htonl()).

port_be16 The local port on which to ﬁlter, as a 16-bit big-endian value (e.g. the output of htons()).

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set an IP4 Local ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter intercepts all packets that match the given protocol and host/port combination.

Note

You cannot specify a range, or a wildcard, for any parameter.

10.15.3.10 ef_ﬁlter_spec_set_ip6_full()

int ef_filter_spec_set_ip6_full (

ef_filter_spec ∗filter_spec,

int protocol,

const struct in6_addr ∗host,

int port_be16,

const struct in6_addr ∗rhost,

int rport_be16 )

Set an IP6 Full ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

protocol The protocol on which to ﬁlter (IPPROTO_UDP or IPPROTO_TCP).

host The local host address on which to ﬁlter, as a pointer to a struct in6_addr.

port_be16 The local port on which to ﬁlter, as a 16-bit big-endian value (e.g. the output of htons()).

rhost The remote host address on which to ﬁlter, as a pointer to a struct in6_addr.

rport_be16 The remote port on which to ﬁlter, as a 16-bit big-endian value (e.g. the output of htons()).

ef_vi User Guide

File Documentation

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set an IP6 Full ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter intercepts all packets that match the given protocol and host/port combinations.

Note

You cannot specify a range, or a wildcard, for any parameter.

10.15.3.11 ef_ﬁlter_spec_set_ip6_local()

int ef_filter_spec_set_ip6_local (

ef_filter_spec ∗filter_spec,

int protocol,

const struct in6_addr ∗host,

int port_be16 )

Set an IP6 Local ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

protocol The protocol on which to ﬁlter (IPPROTO_UDP or IPPROTO_TCP).

host The local host address on which to ﬁlter, as a pointer to a struct in6_addr.

port_be16 The local port on which to ﬁlter, as a 16-bit big-endian value (e.g. the output of htons()).

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set an IP6 Local ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter intercepts all packets that match the given protocol and host/port combination.

Note

You cannot specify a range, or a wildcard, for any parameter.

ef_vi User Guide

File Documentation

10.15.3.12 ef_ﬁlter_spec_set_ip_proto()

int ef_filter_spec_set_ip_proto (

ef_filter_spec ∗filter_spec,

uint8_t ip_proto )

Add an IP protocol ﬁlter on the ﬁlter speciﬁcation.

ef_vi User Guide

File Documentation

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

ip_proto The IP protocol on which to ﬁlter.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Add an IP protocol ﬁlter on the ﬁlter speciﬁcation

The IP protocol ﬁlter can be combined with other ﬁlters as follows:

• Ethernet MAC Address ﬁlters: supported. See ef_ﬁlter_spec_set_eth_local().

• Other ﬁlters: not supported, -EPROTONOSUPPORT is returned.

This ﬁlter is not supported by 5000-series and 6000-series adapters. Other adapters require a ﬁrmware version of

at least v4.5. Insertion of such ﬁlters on ﬁrmware versions that do not support them will fail.

Due to a current ﬁrmware limitation, this method does not support ip_proto=6 (TCP) or ip_proto=17 (UDP) and will

return no error if these values are used.

10.15.3.13 ef_ﬁlter_spec_set_multicast_all()

int ef_filter_spec_set_multicast_all (

ef_filter_spec ∗filter_spec )

Set a Multicast All ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set a Multicast All ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter must be used with caution. It intercepts all multicast packets that arrive, including IGMP group membership

queries, which must normally be handled by the kernel to avoid any membership lapses.

ef_vi User Guide

File Documentation

10.15.3.14 ef_ﬁlter_spec_set_multicast_mismatch()

int ef_filter_spec_set_multicast_mismatch (

ef_filter_spec ∗filter_spec )

Set a Multicast Mismatch ﬁlter on the ﬁlter speciﬁcation.

ef_vi User Guide

File Documentation

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set a Multicast Mismatch ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter intercepts all multicast trafﬁc that would otherwise be discarded; that is, all trafﬁc that does not match

either an existing multicast ﬁlter or a kernel subscription.

This ﬁlter is not supported by 5000-series and 6000-series adapters.

10.15.3.15 ef_ﬁlter_spec_set_port_sniff()

int ef_filter_spec_set_port_sniff (

ef_filter_spec ∗filter_spec,

int promiscuous )

Set a Port Sniff ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

promiscuous True to enable promiscuous mode on any virtual interface using this ﬁlter.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set a Port Sniff ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter enables sniff mode for the virtual interface. All ﬁltering on that interface then copies packets instead of

intercepting them. Consequently, the kernel receives the ﬁltered packets; otherwise it would not.

If promiscuous mode is enabled, this ﬁlter copies all packets, instead of only those matched by other ﬁlters.

This ﬁlter is not supported by 5000-series and 6000-series adapters.

10.15.3.16 ef_ﬁlter_spec_set_tx_port_sniff()

int ef_filter_spec_set_tx_port_sniff (

ef_filter_spec ∗filter_spec )

Set a TX Port Sniff ﬁlter on the ﬁlter speciﬁcation.

ef_vi User Guide

File Documentation

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set a TX Port Sniff ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter loops back a copy of all outgoing packets, so that your application can process them.

This ﬁlter is not supported by 5000-series and 6000-series adapters.

10.15.3.17 ef_ﬁlter_spec_set_unicast_all()

int ef_filter_spec_set_unicast_all (

ef_filter_spec ∗filter_spec )

Set a Unicast All ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set a Unicast All ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter must be used with caution. It intercepts all unicast packets that arrive, including ARP resolutions, which

must normally be handled by the kernel for routing to work.

10.15.3.18 ef_ﬁlter_spec_set_unicast_mismatch()

int ef_filter_spec_set_unicast_mismatch (

ef_filter_spec ∗filter_spec )

Set a Unicast Mismatch ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

ef_vi User Guide

File Documentation

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Set a Unicast Mismatch ﬁlter on the ﬁlter speciﬁcation.

This ﬁlter intercepts all unicast trafﬁc that would otherwise be discarded; that is, all trafﬁc that does not match either

an existing unicast ﬁlter or a kernel subscription.

This ﬁlter is not supported by 5000-series and 6000-series adapters.

10.15.3.19 ef_ﬁlter_spec_set_vlan()

int ef_filter_spec_set_vlan (

ef_filter_spec ∗filter_spec,

int vlan_id )

Add a Virtual LAN ﬁlter on the ﬁlter speciﬁcation.

Parameters

ﬁlter_spec The ef_ﬁlter_spec on which to set the ﬁlter.

vlan_id The ID of the virtual LAN on which to ﬁlter.

Returns

0 on success, or a negative error code:

-EPROTONOSUPPORT indicates that a ﬁlter is already set that is incompatible with the new ﬁlter.

Add a Virtual LAN ﬁlter on the ﬁlter speciﬁcation.

The Virtual LAN ﬁlter can be combined with other ﬁlters as follows:

• Ethernet MAC Address ﬁlters: supported. See ef_ﬁlter_spec_set_eth_local().

• EtherType ﬁlters: supported.

• IP protocol ﬁlters: supported.

• IP4 ﬁlters:

–7000-series adapter with full feature ﬁrmware: supported. Packets that match the IP4 ﬁlter will be

received only if they also match the VLAN.

–Otherwise: not supported. Packets that match the IP4 ﬁlter will always be received, whatever the VLAN.

• Other ﬁlters: not supported, -EPROTONOSUPPORT is returned.

ef_vi User Guide

File Documentation

10.15.3.20 ef_vi_alloc_from_pd()

int ef_vi_alloc_from_pd (

ef_vi ∗vi,

ef_driver_handle vi_dh,

struct ef_pd ∗pd,

ef_driver_handle pd_dh,

int evq_capacity,

int rxq_capacity,

int txq_capacity,

ef_vi ∗evq_opt,

ef_driver_handle evq_dh,

enum ef_vi_flags flags )

Allocate a virtual interface from a protection domain.

Parameters

vi Memory for the allocated virtual interface.

vi_dh The ef_driver_handle to associate with the virtual interface.

pd The protection domain from which to allocate the virtual interface.

pd_dh The ef_driver_handle to associate with the protection domain.

evq_capacity The number of events in the event queue (maximum 4096), or:

• 0 for no event queue

• -1 for the default size (EF_VI_EVQ_SIZE if set, otherwise it is rxq_capacity +

txq_capacity + extra bytes if timestamps are enabled).

rxq_capacity The number of slots in the RX descriptor ring, or:

• 0 for no event queue

• -1 for the default size (EF_VI_RXQ_SIZE if set, otherwise 512).

txq_capacity The number of slots in the TX descriptor ring, or:

• 0 for no TX descriptor ring

• -1 for the default size (EF_VI_TXQ_SIZE if set, otherwise 512).

evq_opt event queue to use if evq_capacity=0.

evq_dh The ef_driver_handle of the evq_opt event queue.

ﬂags Flags to select hardware attributes of the virtual interface.

Returns

>= 0 on success (value is Q_ID), or a negative error code.

ef_vi User Guide

File Documentation

Allocate a virtual interface from a protection domain.

This allocates an RX and TX descriptor ring, an event queue, timers and interrupt etc. on the card. It also initializes

the (opaque) structures needed to access them in software.

An existing virtual interface can be speciﬁed, to resize its descriptor rings and event queue.

When setting the sizes of the descriptor rings and event queue for a new or existing virtual interface:

• the event queue should be left at its default size unless extra rings are added

• if extra descriptor rings are added, the event queue should also be made correspondingly larger

• the maximum size of the event queue effectively limits how many descriptor ring slots can be supported

without risking the event queue overﬂowing.

10.15.3.21 ef_vi_alloc_from_set()

int ef_vi_alloc_from_set (

ef_vi ∗vi,

ef_driver_handle vi_dh,

ef_vi_set ∗vi_set,

ef_driver_handle vi_set_dh,

int index_in_vi_set,

int evq_capacity,

int rxq_capacity,

int txq_capacity,

ef_vi ∗evq_opt,

ef_driver_handle evq_dh,

enum ef_vi_flags flags )

Allocate a virtual interface from a virtual interface set.

Parameters

vi Memory for the allocated virtual interface.

vi_dh The ef_driver_handle to associate with the virtual interface.

vi_set The virtual interface set from which to allocate the virtual interface.

vi_set_dh The ef_driver_handle to associate with the virtual interface set.

index_in_vi_set Index of the virtual interface within the set to allocate, or -1 for any.

evq_capacity The number of events in the event queue (maximum 4096), or:

• 0 for no event queue

• -1 for the default size.

ef_vi User Guide

File Documentation

Parameters

rxq_capacity The number of slots in the RX descriptor ring, or:

• 0 for no RX queue

• -1 for the default size (EF_VI_RXQ_SIZE if set, otherwise 512).

txq_capacity The number of slots in the TX descriptor ring, or:

• 0 for no TX queue

• -1 for the default size (EF_VI_TXQ_SIZE if set, otherwise 512).

evq_opt event queue to use if evq_capacity=0.

evq_dh The ef_driver_handle of the evq_opt event queue.

ﬂags Flags to select hardware attributes of the virtual interface.

Returns

>= 0 on success (value is Q_ID), or a negative error code.

Allocate a virtual interface from a virtual interface set.

This allocates an RX and TX descriptor ring, an event queue, timers and interrupt etc. on the card. It also initializes

the (opaque) structures needed to access them in software.

An existing virtual interface can be speciﬁed, to resize its descriptor rings and event queue.

When setting the sizes of the descriptor rings and event queue for a new or existing virtual interface:

• the event queue should be left at its default size unless extra rings are added

• if extra descriptor rings are added, the event queue should also be made correspondingly larger

• the maximum size of the event queue effectively limits how many descriptor ring slots can be supported

without risking the event queue overﬂowing.

10.15.3.22 ef_vi_ﬁlter_add()

int ef_vi_filter_add (

ef_vi ∗vi,

ef_driver_handle vi_dh,

const ef_filter_spec ∗filter_spec,

ef_filter_cookie ∗filter_cookie_out )

Add a ﬁlter to a virtual interface.

ef_vi User Guide

File Documentation

Parameters

vi The virtual interface on which to add the ﬁlter.

vi_dh The ef_driver_handle for the virtual interface.

ﬁlter_spec The ﬁlter to add.

ﬁlter_cookie_out Optional pointer to an ef_ﬁlter_cookie, that is updated on return with a cookie for the ﬁlter.

Returns

0 on success, or a negative error code.

Add a ﬁlter to a virtual interface.

ﬁlter_cookie_out can be NULL. If not null, then the returned value can be used in ef_vi_ﬁlter_del() to remove this

ﬁlter.

After calling this function, any local copy of the ﬁlter can be deleted.

10.15.3.23 ef_vi_ﬁlter_del()

int ef_vi_filter_del (

ef_vi ∗vi,

ef_driver_handle vi_dh,

ef_filter_cookie ∗filter_cookie )

Delete a ﬁlter from a virtual interface.

Parameters

vi The virtual interface from which to delete the ﬁlter.

vi_dh The ef_driver_handle for the virtual interface.

ﬁlter_cookie The ﬁlter cookie for the ﬁlter to delete, as set on return from ef_vi_ﬁlter_add().

Returns

0 on success, or a negative error code.

Delete a ﬁlter from a virtual interface.

10.15.3.24 ef_vi_ﬂush()

int ef_vi_flush (

ef_vi ∗vi,

ef_driver_handle nic )

Flush the virtual interface.

ef_vi User Guide

File Documentation

Parameters

vi The virtual interface to ﬂush.

nic The ef_driver_handle for the NIC hosting the interface.

Returns

0 on success, or a negative error code.

Flush the virtual interface.

After this function returns, it is safe to reuse all buffers which have been pushed onto the NIC.

10.15.3.25 ef_vi_free()

int ef_vi_free (

ef_vi ∗vi,

ef_driver_handle nic )

Free a virtual interface.

Parameters

vi The virtual interface to free.

nic The ef_driver_handle for the NIC hosting the interface.

Returns

0 on success, or a negative error code.

Free a virtual interface.

This should be called when a virtual interface is no longer needed.

To free up all resources, you must also close the associated driver handle using ef_driver_close and free up memory

from the protection domain ef_pd_free. See Freeing Resources

If successful:

• the memory for state provided for this virtual interface is no longer required

• no further events from this virtual interface will be delivered to its event queue.

10.15.3.26 ef_vi_get_mac()

int ef_vi_get_mac (

ef_vi ∗vi,

ef_driver_handle vi_dh,

void ∗mac_out )

Get the Ethernet MAC address for the virtual interface.

ef_vi User Guide

File Documentation

Parameters

vi The virtual interface to query.

vi_dh The ef_driver_handle for the NIC hosting the interface.

mac_out Pointer to a six-byte buffer, that is updated on return with the Ethernet MAC address.

Returns

0 on success, or a negative error code.

Get the Ethernet MAC address for the virtual interface.

This is not a cheap call, so cache the result if you care about performance.

10.15.3.27 ef_vi_mtu()

unsigned ef_vi_mtu (

ef_vi ∗vi,

ef_driver_handle vi_dh )

Return the virtual interface MTU.

Parameters

vi The virtual interface to query.

vi_dh The ef_driver_handle for the NIC hosting the interface.

Returns

The virtual interface Maximum Transmission Unit.

Return the virtual interface MTU. (This is the maximum size of Ethernet frames that can be transmitted through, and

received by the interface).

The returned value is the total frame size, including all headers, but not including the Ethernet frame check.

10.15.3.28 ef_vi_pace()

int ef_vi_pace (

ef_vi ∗vi,

ef_driver_handle nic,

int val )

Pace the virtual interface.

Parameters

vi The virtual interface to pace.

nic The ef_driver_handle for the NIC hosting the interface.

val The minimum inter-packet gap for the TXQ.

ef_vi User Guide

File Documentation

Returns

0 on success, or a negative error code.

Pace the virtual interface.

This sets a minimum inter-packet gap for the TXQ:

• if val is -1 then the TXQ is put into the "pacing" bin, but no gap is enforced

• otherwise, the gap is (2∧val)∗100ns.

This can be used to give priority to latency sensitive trafﬁc over bulk trafﬁc.

10.15.3.29 ef_vi_prime()

int ef_vi_prime (

ef_vi ∗vi,

ef_driver_handle dh,

unsigned current_ptr )

Prime a virtual interface.

Parameters

vi The virtual interface to prime.

dh The ef_driver_handle to associate with the virtual interface.

current_ptr Value returned from ef_eventq_current().

Returns

0 on success, or a negative error code.

Prime a virtual interface. This enables interrupts so you can block on the ﬁle descriptor associated with the ef_←-

driver_handle using select/poll/epoll, etc.

Passing the current event queue pointer ensures correct handling of any events that occur between this prime and

the epoll_wait call.

10.15.3.30 ef_vi_set_alloc_from_pd()

int ef_vi_set_alloc_from_pd (

ef_vi_set ∗vi_set,

ef_driver_handle vi_set_dh,

struct ef_pd ∗pd,

ef_driver_handle pd_dh,

int n_vis )

Allocate a virtual interface set within a protection domain.

ef_vi User Guide

File Documentation

Parameters

vi_set Memory for the allocated virtual interface set.

vi_set_dh The ef_driver_handle to associate with the virtual interface set.

pd The protection domain from which to allocate the virtual interface set.

pd_dh The ef_driver_handle of the associated protection domain.

n_vis The number of virtual interfaces in the virtual interface set.

Returns

0 on success, or a negative error code.

Allocate a virtual interface set within a protection domain.

A virtual interface set is usually used to spread the load of handling received packets. This is sometimes called

receive-side scaling, or RSS.

10.15.3.31 ef_vi_set_ﬁlter_add()

int ef_vi_set_filter_add (

ef_vi_set ∗vi_set,

ef_driver_handle vi_set_dh,

const ef_filter_spec ∗filter_spec,

ef_filter_cookie ∗filter_cookie_out )

Add a ﬁlter to a virtual interface set.

Parameters

vi_set The virtual interface set on which to add the ﬁlter.

vi_set_dh The ef_driver_handle for the virtual interface set.

ﬁlter_spec The ﬁlter to add.

ﬁlter_cookie_out Optional pointer to an ef_ﬁlter_cookie, that is updated on return with a cookie for the ﬁlter.

Returns

0 on success, or a negative error code:

Add a ﬁlter to a virtual interface set.

ﬁlter_cookie_out can be NULL. If not null, then the returned value can be used in ef_vi_ﬁlter_del() to delete this

ﬁlter.

After calling this function, any local copy of the ﬁlter can be deleted.

10.15.3.32 ef_vi_set_ﬁlter_del()

int ef_vi_set_filter_del (

ef_vi_set ∗vi_set,

ef_vi User Guide

File Documentation

ef_driver_handle vi_set_dh,

ef_filter_cookie ∗filter_cookie )

Delete a ﬁlter from a virtual interface set.

ef_vi User Guide

File Documentation

Parameters

vi_set The virtual interface set from which to delete the ﬁlter.

vi_set_dh The ef_driver_handle for the virtual interface set.

ﬁlter_cookie The ﬁlter cookie for the ﬁlter to delete.

Returns

0 on success, or a negative error code.

Delete a ﬁlter from a virtual interface set.

10.15.3.33 ef_vi_set_free()

int ef_vi_set_free (

ef_vi_set ∗vi_set,

ef_driver_handle vi_set_dh )

Free a virtual interface set.

Parameters

vi_set Memory for the allocated virtual interface set.

vi_set_dh The ef_driver_handle to associate with the virtual interface set.

Returns

0 on success, or a negative error code.

Free a virtual interface set.

To free up all resources, you must also close the associated driver handle.

10.15.3.34 ef_vi_stats_query()

int ef_vi_stats_query (

ef_vi ∗vi,

ef_driver_handle vi_dh,

void ∗data,

int do_reset )

Retrieve a set of statistic values.

Parameters

vi The virtual interface to query.

vi_dh The ef_driver_handle for the virtual interface.

data Pointer to a buffer, into which the statistics are retrieved.

The size of this buffer should be equal to the evsl_data_bytes ﬁeld of the layout description, that

can be fetched using ef_vi_stats_query_layout().

do_reset True to reset the statistics after retrieving them.

ef_vi User Guide

File Documentation

Returns

0 on success, or a negative error code.

Retrieve a set of statistic values.

If do_reset is true, the statistics are reset after reading.

10.15.3.35 ef_vi_stats_query_layout()

int ef_vi_stats_query_layout (

ef_vi ∗vi,

const ef_vi_stats_layout ∗∗const layout_out )

Retrieve layout for available statistics.

Parameters

vi The virtual interface to query.

layout_out Pointer to an ef_vi_stats_layout∗, that is updated on return with the layout for available statistics.

Returns

0 on success, or a negative error code.

Retrieve layout for available statistics.

10.15.3.36 ef_vi_transmit_alt_alloc()

int ef_vi_transmit_alt_alloc (

struct ef_vi ∗vi,

ef_driver_handle vi_dh,

int num_alts,

size_t buf_space )

Allocate a set of TX alternatives.

Parameters

vi The virtual interface that is to use the TX alternatives.

vi_dh The ef_driver_handle for the NIC hosting the interface.

num_alts The number of TX alternatives for which to allocate space.

buf_space The buffer space required for the set of TX alternatives, in bytes.

Returns

0 Success.

ef_vi User Guide

File Documentation

-EINVAL The num_alts or buf_space parameters are invalid, or the VI was allocated without EF_VI_TX_ALT

set.

-EALREADY A set of TX alternatives has already been allocated for use with this VI.

-ENOMEM Insufﬁcient memory was available (either host memory or packet buffers on the adapter).

-EBUSY Too many alternatives requested, or alternatives requested on too many distinct VIs.

Allocate a set of TX alternatives for use with a virtual interface. The virtual interface must have been allocated with

the EF_VI_TX_ALT ﬂag.

The space remains allocated until ef_vi_transmit_alt_free() is called or the virtual interface is freed.

TX alternatives provide a mechanism to send with very low latency. They work by pre-loading packets into the

adapter in advance, and then calling ef_vi_transmit_alt_go() to transmit the packets.

Packets are pre-loaded into the adapter using normal send calls such as ef_vi_transmit(). Use ef_vi_transmit_alt←-

_select() to select which "alternative" to load the packet into.

Each alternative has three states: STOP, GO and DISCARD. The ef_vi_transmit_alt_stop(),ef_vi_transmit_alt_go()

and ef_vi_transmit_alt_discard() calls transition between the states. Typically an alternative is placed in the STOP

state, selected, pre-loaded with one or more packets, and then later on the critical path placed in the GO state.

When packets are transmitted via TX alternatives, events of type EF_EVENT_TYPE_TX_ALT are returned to the

application. The application is responsible for ensuring that all of the packets in an alternative have been sent before

transitioning from GO or DISCARD to the STOP state.

The buf_space parameter gives the amount of buffering to allocate for this set of TX alternatives, in bytes. Note

that if this buffering is exceeded then packets sent to TX alternatives may be truncated or dropped, and no error is

reported in this case.

10.15.3.37 ef_vi_transmit_alt_free()

int ef_vi_transmit_alt_free (

struct ef_vi ∗vi,

ef_driver_handle vi_dh )

Free a set of TX alternatives.

Parameters

vi The virtual interface whose alternatives are to be freed.

vi_dh The ef_driver_handle for the NIC hosting the interface.

Returns

0 on success, or a negative error code.

Release the set of TX alternatives allocated by ef_vi_transmit_alt_alloc().

10.15.3.38 ef_vi_transmit_alt_query_buffering()

int ef_vi_transmit_alt_query_buffering (

struct ef_vi ∗vi,

ef_vi User Guide

File Documentation

int ifindex,

ef_driver_handle vi_dh,

int n_alts )

Query available buffering.

Parameters

vi Interface to be queried

iﬁndex The index of the interface that you wish to query. You can use if_nametoindex() to obtain this. This

should be the underlying physical interface, rather than a bond, VLAN, or similar.

vi_dh The ef_driver_handle for the NIC hosting the interface.

n_alts Intended number of alternatives

Returns

-EINVAL if this VI doesn't support alternatives, else the number of bytes available

Owing to per-packet and other overheads, the amount of data which can be stored in TX alternatives is generally

slightly less than the amount of memory available on the hardware.

This function allows the caller to ﬁnd out how much user-visible buffering will be available if the given number of

alternatives are allocated on the given VI.

ef_vi User Guide

File Documentation

ef_vi User Guide

Index

000_main.dox, 89

010_overview.dox, 89

020_concepts.dox, 90

030_apps.dox, 90

040_using.dox, 91

050_examples.dox, 91

added

ef_vi_rxq_state, 70

ef_vi_txq_state, 81

arch

ef_vi_nic_type, 68

base.h, 92

ef_driver_close, 93

ef_driver_open, 93

ef_eventq_wait, 94

bytes_acc

ef_vi_rxq_state, 70

capabilities.h, 94

ef_vi_capabilities_get, 97

ef_vi_capabilities_max, 97

ef_vi_capabilities_name, 98

ef_vi_capability, 96

data

ef_ﬁlter_spec, 48

descriptors

ef_vi_rxq, 69

ef_vi_txq, 79

EF_EVENT_RX_MULTI_CONT

ef_vi.h, 105

EF_EVENT_RX_MULTI_SOP

ef_vi.h, 105

EF_EVENT_RX_PS_NEXT_BUFFER

ef_vi.h, 105

EF_VI_ALIGN

ef_iovec, 49

EF_VI_PS_FLAG_BAD_IP_CSUM

packedstream.h, 142

ef_driver_close

base.h, 93

ef_driver_open

base.h, 93

ef_event, 41

generic, 43

rx, 43

rx_discard, 43

rx_multi, 43

rx_multi_discard, 43

rx_no_desc_trunc, 43

rx_packed_stream, 44

sw, 44

tx, 44

tx_alt, 44

tx_error, 44

tx_timestamp, 44

ef_eventq_capacity

ef_vi.h, 121

ef_eventq_current

ef_vi.h, 121

ef_eventq_has_event

ef_vi.h, 122

ef_eventq_has_many_events

ef_vi.h, 122

ef_eventq_poll

ef_vi.h, 106

ef_eventq_prime

ef_vi.h, 106

ef_eventq_put

vi.h, 158

ef_eventq_state, 45

evq_ptr, 45

sync_ﬂags, 45

sync_timestamp_major, 45

sync_timestamp_minimum, 46

sync_timestamp_minor, 46

sync_timestamp_synchronised, 46

ef_eventq_timer_clear

timer.h, 152

ef_eventq_timer_prime

timer.h, 152

ef_eventq_timer_run

timer.h, 153

ef_eventq_timer_zero

timer.h, 154

ef_eventq_wait

base.h, 94

ef_ﬁlter_cookie, 46

ﬁlter_id, 47

ﬁlter_type, 47

ef_ﬁlter_ﬂags

vi.h, 158

ef_vi User Guide

Index

ef_ﬁlter_spec, 47

data, 48

ﬂags, 48

type, 48

ef_ﬁlter_spec_init

vi.h, 159

ef_ﬁlter_spec_set_block_kernel

vi.h, 159

ef_ﬁlter_spec_set_block_kernel_multicast

vi.h, 160

ef_ﬁlter_spec_set_block_kernel_unicast

vi.h, 160

ef_ﬁlter_spec_set_eth_local

vi.h, 161

ef_ﬁlter_spec_set_eth_type

vi.h, 161

ef_ﬁlter_spec_set_ip4_full

vi.h, 162

ef_ﬁlter_spec_set_ip4_local

vi.h, 162

ef_ﬁlter_spec_set_ip6_full

vi.h, 163

ef_ﬁlter_spec_set_ip6_local

vi.h, 164

ef_ﬁlter_spec_set_ip_proto

vi.h, 164

ef_ﬁlter_spec_set_multicast_all

vi.h, 166

ef_ﬁlter_spec_set_multicast_mismatch

vi.h, 166

ef_ﬁlter_spec_set_port_sniff

vi.h, 168

ef_ﬁlter_spec_set_tx_port_sniff

vi.h, 168

ef_ﬁlter_spec_set_unicast_all

vi.h, 169

ef_ﬁlter_spec_set_unicast_mismatch

vi.h, 169

ef_ﬁlter_spec_set_vlan

vi.h, 170

ef_iovec, 49

EF_VI_ALIGN, 49

iov_len, 49

ef_memreg, 50

mr_dma_addrs, 50

mr_dma_addrs_base, 50

ef_memreg_alloc

memreg.h, 139

ef_memreg_dma_addr

memreg.h, 139

ef_memreg_free

memreg.h, 140

ef_packed_stream_packet, 51

ps_cap_len, 51

ps_ﬂags, 51

ps_next_offset, 51

ps_orig_len, 52

ps_pkt_start_offset, 52

ps_ts_nsec, 52

ps_ts_sec, 52

ef_packed_stream_params, 53

psp_buffer_align, 53

psp_buffer_size, 53

psp_max_usable_buffers, 53

psp_start_offset, 54

ef_pd, 54

pd_cluster_dh, 55

pd_cluster_name, 55

pd_cluster_sock, 55

pd_cluster_viset_index, 55

pd_cluster_viset_resource_id, 55

pd_ﬂags, 56

pd_intf_name, 56

pd_resource_id, 56

ef_pd_alloc

pd.h, 145

ef_pd_alloc_by_name

pd.h, 145

ef_pd_alloc_with_vport

pd.h, 146

ef_pd_ﬂags

pd.h, 144

ef_pd_free

pd.h, 147

ef_pd_interface_name

pd.h, 147

ef_pio, 56

pio_buffer, 57

pio_io, 57

pio_len, 57

pio_resource_id, 57

ef_pio_free

pio.h, 149

ef_pio_link_vi

pio.h, 149

ef_pio_memcpy

pio.h, 150

ef_pio_unlink_vi

pio.h, 150

ef_request_id

ef_vi.h, 117

ef_vi, 58

ef_vi.h, 117

ep_state, 59

evq_base, 59

evq_mask, 59

inited, 60

io, 60

linked_pio, 60

nic_type, 60

ops, 60

rx_buffer_len, 61

ef_vi User Guide

Index

rx_discard_mask, 61

rx_preﬁx_len, 61

rx_ts_correction, 61

timer_quantum_ns, 61

tx_alt_hw2id, 62

tx_alt_id2hw, 62

tx_alt_num, 62

tx_push_thresh, 62

tx_ts_correction_ns, 62

vi_clustered, 63

vi_ﬂags, 63

vi_i, 63

vi_io_mmap_bytes, 63

vi_io_mmap_ptr, 63

vi_is_normal, 64

vi_is_packed_stream, 64

vi_mem_mmap_bytes, 64

vi_mem_mmap_ptr, 64

vi_out_ﬂags, 64

vi_ps_buf_size, 65

vi_qs, 65

vi_qs_n, 65

vi_resource_id, 65

vi_rxq, 65

vi_stats, 66

vi_txq, 66

ef_vi.h, 98

EF_EVENT_RX_MULTI_CONT, 105

EF_EVENT_RX_MULTI_SOP, 105

EF_EVENT_RX_PS_NEXT_BUFFER, 105

ef_eventq_capacity, 121

ef_eventq_current, 121

ef_eventq_has_event, 122

ef_eventq_has_many_events, 122

ef_eventq_poll, 106

ef_eventq_prime, 106

ef_request_id, 117

ef_vi, 117

ef_vi_arch, 118

ef_vi_driver_interface_str, 123

ef_vi_ﬂags, 119,123

ef_vi_instance, 123

ef_vi_layout_type, 120

ef_vi_out_ﬂags, 120

ef_vi_receive_buffer_len, 124

ef_vi_receive_capacity, 124

ef_vi_receive_ﬁll_level, 125

ef_vi_receive_get_bytes, 125

ef_vi_receive_get_timestamp, 126

ef_vi_receive_get_timestamp_with_sync_ﬂags,

126

ef_vi_receive_init, 107

ef_vi_receive_post, 127

ef_vi_receive_preﬁx_len, 128

ef_vi_receive_push, 107

ef_vi_receive_query_layout, 129

ef_vi_receive_set_buffer_len, 129

ef_vi_receive_set_discards, 130

ef_vi_receive_space, 130

ef_vi_receive_unbundle, 130

ef_vi_resource_id, 131

ef_vi_rx_discard_err_ﬂags, 120

ef_vi_set_tx_push_threshold, 132

ef_vi_transmit, 108

ef_vi_transmit_alt_discard, 108

ef_vi_transmit_alt_go, 109

ef_vi_transmit_alt_num_ids, 132

ef_vi_transmit_alt_query_overhead, 132

ef_vi_transmit_alt_select, 110

ef_vi_transmit_alt_select_normal, 110

ef_vi_transmit_alt_stop, 111

ef_vi_transmit_alt_usage, 133

ef_vi_transmit_capacity, 133

ef_vi_transmit_copy_pio, 111

ef_vi_transmit_copy_pio_warm, 112

ef_vi_transmit_ﬁll_level, 134

ef_vi_transmit_init, 134

ef_vi_transmit_init_undo, 135

ef_vi_transmit_pio, 113

ef_vi_transmit_pio_warm, 114

ef_vi_transmit_push, 114

ef_vi_transmit_space, 135

ef_vi_transmit_unbundle, 137

ef_vi_transmitv, 115

ef_vi_transmitv_init, 116

ef_vi_version_str, 137

ef_vi::ops, 82

eventq_poll, 83

eventq_prime, 83

eventq_timer_clear, 83

eventq_timer_prime, 83

eventq_timer_run, 83

eventq_timer_zero, 84

receive_init, 84

receive_push, 84

transmit, 84

transmit_alt_discard, 84

transmit_alt_go, 85

transmit_alt_select, 85

transmit_alt_select_default, 85

transmit_alt_stop, 85

transmit_copy_pio, 85

transmit_copy_pio_warm, 86

transmit_pio, 86

transmit_pio_warm, 86

transmit_push, 86

transmitv, 86

transmitv_init, 87

ef_vi_alloc_from_pd

vi.h, 170

ef_vi_alloc_from_set

vi.h, 172

ef_vi User Guide

Index

ef_vi_arch

ef_vi.h, 118

ef_vi_capabilities_get

capabilities.h, 97

ef_vi_capabilities_max

capabilities.h, 97

ef_vi_capabilities_name

capabilities.h, 98

ef_vi_capability

capabilities.h, 96

ef_vi_driver_interface_str

ef_vi.h, 123

ef_vi_ﬁlter_add

vi.h, 173

ef_vi_ﬁlter_del

vi.h, 174

ef_vi_ﬂags

ef_vi.h, 119,123

ef_vi_ﬂush

vi.h, 174

ef_vi_free

vi.h, 175

ef_vi_get_mac

vi.h, 175

ef_vi_get_pio_size

pio.h, 151

ef_vi_instance

ef_vi.h, 123

ef_vi_layout_entry, 66

evle_description, 67

evle_offset, 67

evle_type, 67

ef_vi_layout_type

ef_vi.h, 120

ef_vi_mtu

vi.h, 176

ef_vi_nic_type, 67

arch, 68

revision, 68

variant, 68

ef_vi_out_ﬂags

ef_vi.h, 120

ef_vi_pace

vi.h, 176

ef_vi_packed_stream_get_params

packedstream.h, 142

ef_vi_packed_stream_unbundle

packedstream.h, 142

ef_vi_prime

vi.h, 177

ef_vi_receive_buffer_len

ef_vi.h, 124

ef_vi_receive_capacity

ef_vi.h, 124

ef_vi_receive_ﬁll_level

ef_vi.h, 125

ef_vi_receive_get_bytes

ef_vi.h, 125

ef_vi_receive_get_timestamp

ef_vi.h, 126

ef_vi_receive_get_timestamp_with_sync_ﬂags

ef_vi.h, 126

ef_vi_receive_init

ef_vi.h, 107

ef_vi_receive_post

ef_vi.h, 127

ef_vi_receive_preﬁx_len

ef_vi.h, 128

ef_vi_receive_push

ef_vi.h, 107

ef_vi_receive_query_layout

ef_vi.h, 129

ef_vi_receive_set_buffer_len

ef_vi.h, 129

ef_vi_receive_set_discards

ef_vi.h, 130

ef_vi_receive_space

ef_vi.h, 130

ef_vi_receive_unbundle

ef_vi.h, 130

ef_vi_resource_id

ef_vi.h, 131

ef_vi_rx_discard_err_ﬂags

ef_vi.h, 120

ef_vi_rxq, 69

descriptors, 69

ids, 69

mask, 69

ef_vi_rxq_state, 70

added, 70

bytes_acc, 70

in_jumbo, 71

last_desc_i, 71

posted, 71

removed, 71

rx_ps_credit_avail, 71

ef_vi_set, 72

vis_pd, 72

vis_res_id, 72

ef_vi_set_alloc_from_pd

vi.h, 177

ef_vi_set_ﬁlter_add

vi.h, 178

ef_vi_set_ﬁlter_del

vi.h, 178

ef_vi_set_free

vi.h, 180

ef_vi_set_tx_push_threshold

ef_vi.h, 132

ef_vi_state, 73

evq, 73

rxq, 73

ef_vi User Guide

Index

txq, 74

ef_vi_stats, 74

evq_gap, 74

rx_ev_bad_desc_i, 75

rx_ev_bad_q_label, 75

rx_ev_lost, 75

ef_vi_stats_ﬁeld_layout, 75

evsﬂ_name, 76

evsﬂ_offset, 76

evsﬂ_size, 76

ef_vi_stats_layout, 77

evsl_data_size, 77

evsl_ﬁelds, 77

evsl_ﬁelds_num, 77

ef_vi_stats_query

vi.h, 180

ef_vi_stats_query_layout

vi.h, 181

ef_vi_transmit

ef_vi.h, 108

ef_vi_transmit_alt_alloc

vi.h, 181

ef_vi_transmit_alt_discard

ef_vi.h, 108

ef_vi_transmit_alt_free

vi.h, 182

ef_vi_transmit_alt_go

ef_vi.h, 109

ef_vi_transmit_alt_num_ids

ef_vi.h, 132

ef_vi_transmit_alt_overhead, 78

mask, 78

post_round, 78

pre_round, 79

ef_vi_transmit_alt_query_buffering

vi.h, 182

ef_vi_transmit_alt_query_overhead

ef_vi.h, 132

ef_vi_transmit_alt_select

ef_vi.h, 110

ef_vi_transmit_alt_select_normal

ef_vi.h, 110

ef_vi_transmit_alt_stop

ef_vi.h, 111

ef_vi_transmit_alt_usage

ef_vi.h, 133

ef_vi_transmit_capacity

ef_vi.h, 133

ef_vi_transmit_copy_pio

ef_vi.h, 111

ef_vi_transmit_copy_pio_warm

ef_vi.h, 112

ef_vi_transmit_ﬁll_level

ef_vi.h, 134

ef_vi_transmit_init

ef_vi.h, 134

ef_vi_transmit_init_undo

ef_vi.h, 135

ef_vi_transmit_pio

ef_vi.h, 113

ef_vi_transmit_pio_warm

ef_vi.h, 114

ef_vi_transmit_push

ef_vi.h, 114

ef_vi_transmit_space

ef_vi.h, 135

ef_vi_transmit_unbundle

ef_vi.h, 137

ef_vi_transmitv

ef_vi.h, 115

ef_vi_transmitv_init

ef_vi.h, 116

ef_vi_txq, 79

descriptors, 79

ids, 80

mask, 80

ef_vi_txq_state, 80

added, 81

previous, 81

removed, 81

ts_nsec, 81

ef_vi_version_str

ef_vi.h, 137

ep_state

ef_vi, 59

eventq_poll

ef_vi::ops, 83

eventq_prime

ef_vi::ops, 83

eventq_timer_clear

ef_vi::ops, 83

eventq_timer_prime

ef_vi::ops, 83

eventq_timer_run

ef_vi::ops, 83

eventq_timer_zero

ef_vi::ops, 84

evle_description

ef_vi_layout_entry, 67

evle_offset

ef_vi_layout_entry, 67

evle_type

ef_vi_layout_entry, 67

evq

ef_vi_state, 73

evq_base

ef_vi, 59

evq_gap

ef_vi_stats, 74

evq_mask

ef_vi, 59

evq_ptr

ef_vi User Guide

Index

ef_eventq_state, 45

evsﬂ_name

ef_vi_stats_ﬁeld_layout, 76

evsﬂ_offset

ef_vi_stats_ﬁeld_layout, 76

evsﬂ_size

ef_vi_stats_ﬁeld_layout, 76

evsl_data_size

ef_vi_stats_layout, 77

evsl_ﬁelds

ef_vi_stats_layout, 77

evsl_ﬁelds_num

ef_vi_stats_layout, 77

ﬁlter_id

ef_ﬁlter_cookie, 47

ﬁlter_type

ef_ﬁlter_cookie, 47

ﬂags

ef_ﬁlter_spec, 48

generic

ef_event, 43

ids

ef_vi_rxq, 69

ef_vi_txq, 80

in_jumbo

ef_vi_rxq_state, 71

inited

ef_vi, 60

iov_len

ef_iovec, 49

last_desc_i

ef_vi_rxq_state, 71

linked_pio

ef_vi, 60

mask

ef_vi_rxq, 69

ef_vi_transmit_alt_overhead, 78

ef_vi_txq, 80

memreg.h, 138

ef_memreg_alloc, 139

ef_memreg_dma_addr, 139

ef_memreg_free, 140

mr_dma_addrs

ef_memreg, 50

mr_dma_addrs_base

ef_memreg, 50

nic_type

ef_vi, 60

ops

ef_vi, 60

packedstream.h, 141

EF_VI_PS_FLAG_BAD_IP_CSUM, 142

ef_vi_packed_stream_get_params, 142

ef_vi_packed_stream_unbundle, 142

pd.h, 143

ef_pd_alloc, 145

ef_pd_alloc_by_name, 145

ef_pd_alloc_with_vport, 146

ef_pd_ﬂags, 144

ef_pd_free, 147

ef_pd_interface_name, 147

pd_cluster_dh

ef_pd, 55

pd_cluster_name

ef_pd, 55

pd_cluster_sock

ef_pd, 55

pd_cluster_viset_index

ef_pd, 55

pd_cluster_viset_resource_id

ef_pd, 55

pd_ﬂags

ef_pd, 56

pd_intf_name

ef_pd, 56

pd_resource_id

ef_pd, 56

pio.h, 148

ef_pio_free, 149

ef_pio_link_vi, 149

ef_pio_memcpy, 150

ef_pio_unlink_vi, 150

ef_vi_get_pio_size, 151

pio_buffer

ef_pio, 57

pio_io

ef_pio, 57

pio_len

ef_pio, 57

pio_resource_id

ef_pio, 57

post_round

ef_vi_transmit_alt_overhead, 78

posted

ef_vi_rxq_state, 71

pre_round

ef_vi_transmit_alt_overhead, 79

ef_vi_txq_state, 81

ps_cap_len

ef_packed_stream_packet, 51

ps_ﬂags

ef_packed_stream_packet, 51

ps_next_offset

ef_vi User Guide

Index

ef_packed_stream_packet, 51

ps_orig_len

ef_packed_stream_packet, 52

ps_pkt_start_offset

ef_packed_stream_packet, 52

ps_ts_nsec

ef_packed_stream_packet, 52

ps_ts_sec

ef_packed_stream_packet, 52

psp_buffer_align

ef_packed_stream_params, 53

psp_buffer_size

ef_packed_stream_params, 53

psp_max_usable_buffers

ef_packed_stream_params, 53

psp_start_offset

ef_packed_stream_params, 54

receive_init

ef_vi::ops, 84

receive_push

ef_vi::ops, 84

removed

ef_vi_rxq_state, 71

ef_vi_txq_state, 81

revision

ef_vi_nic_type, 68

ef_event, 43

rx_buffer_len

ef_vi, 61

rx_discard

ef_event, 43

rx_discard_mask

ef_vi, 61

rx_ev_bad_desc_i

ef_vi_stats, 75

rx_ev_bad_q_label

ef_vi_stats, 75

rx_ev_lost

ef_vi_stats, 75

rx_multi

ef_event, 43

rx_multi_discard

ef_event, 43

rx_no_desc_trunc

ef_event, 43

rx_packed_stream

ef_event, 44

rx_preﬁx_len

ef_vi, 61

rx_ps_credit_avail

ef_vi_rxq_state, 71

rx_ts_correction

ef_vi, 61

rxq

ef_vi_state, 73

ef_event, 44

sync_ﬂags

ef_eventq_state, 45

sync_timestamp_major

ef_eventq_state, 45

sync_timestamp_minimum

ef_eventq_state, 46

sync_timestamp_minor

ef_eventq_state, 46

sync_timestamp_synchronised

ef_eventq_state, 46

timer.h, 151

ef_eventq_timer_clear, 152

ef_eventq_timer_prime, 152

ef_eventq_timer_run, 153

ef_eventq_timer_zero, 154

timer_quantum_ns

ef_vi, 61

transmit

ef_vi::ops, 84

transmit_alt_discard

ef_vi::ops, 84

transmit_alt_go

ef_vi::ops, 85

transmit_alt_select

ef_vi::ops, 85

transmit_alt_select_default

ef_vi::ops, 85

transmit_alt_stop

ef_vi::ops, 85

transmit_copy_pio

ef_vi::ops, 85

transmit_copy_pio_warm

ef_vi::ops, 86

transmit_pio

ef_vi::ops, 86

transmit_pio_warm

ef_vi::ops, 86

transmit_push

ef_vi::ops, 86

transmitv

ef_vi::ops, 86

transmitv_init

ef_vi::ops, 87

ts_nsec

ef_vi_txq_state, 81

ef_event, 44

tx_alt

ef_event, 44

tx_alt_hw2id

ef_vi, 62

tx_alt_id2hw

ef_vi User Guide

Index

ef_vi, 62

tx_alt_num

ef_vi, 62

tx_error

ef_event, 44

tx_push_thresh

ef_vi, 62

tx_timestamp

ef_event, 44

tx_ts_correction_ns

ef_vi, 62

txq

ef_vi_state, 74

type

ef_ﬁlter_spec, 48

variant

ef_vi_nic_type, 68

vi.h, 155

ef_eventq_put, 158

ef_ﬁlter_ﬂags, 158

ef_ﬁlter_spec_init, 159

ef_ﬁlter_spec_set_block_kernel, 159

ef_ﬁlter_spec_set_block_kernel_multicast, 160

ef_ﬁlter_spec_set_block_kernel_unicast, 160

ef_ﬁlter_spec_set_eth_local, 161

ef_ﬁlter_spec_set_eth_type, 161

ef_ﬁlter_spec_set_ip4_full, 162

ef_ﬁlter_spec_set_ip4_local, 162

ef_ﬁlter_spec_set_ip6_full, 163

ef_ﬁlter_spec_set_ip6_local, 164

ef_ﬁlter_spec_set_ip_proto, 164

ef_ﬁlter_spec_set_multicast_all, 166

ef_ﬁlter_spec_set_multicast_mismatch, 166

ef_ﬁlter_spec_set_port_sniff, 168

ef_ﬁlter_spec_set_tx_port_sniff, 168

ef_ﬁlter_spec_set_unicast_all, 169

ef_ﬁlter_spec_set_unicast_mismatch, 169

ef_ﬁlter_spec_set_vlan, 170

ef_vi_alloc_from_pd, 170

ef_vi_alloc_from_set, 172

ef_vi_ﬁlter_add, 173

ef_vi_ﬁlter_del, 174

ef_vi_ﬂush, 174

ef_vi_free, 175

ef_vi_get_mac, 175

ef_vi_mtu, 176

ef_vi_pace, 176

ef_vi_prime, 177

ef_vi_set_alloc_from_pd, 177

ef_vi_set_ﬁlter_add, 178

ef_vi_set_ﬁlter_del, 178

ef_vi_set_free, 180

ef_vi_stats_query, 180

ef_vi_stats_query_layout, 181

ef_vi_transmit_alt_alloc, 181

ef_vi_transmit_alt_free, 182

ef_vi_transmit_alt_query_buffering, 182

vi_clustered

ef_vi, 63

vi_ﬂags

ef_vi, 63

vi_i

ef_vi, 63

vi_io_mmap_bytes

ef_vi, 63

vi_io_mmap_ptr

ef_vi, 63

vi_is_normal

ef_vi, 64

vi_is_packed_stream

ef_vi, 64

vi_mem_mmap_bytes

ef_vi, 64

vi_mem_mmap_ptr

ef_vi, 64

vi_out_ﬂags

ef_vi, 64

vi_ps_buf_size

ef_vi, 65

vi_qs

ef_vi, 65

vi_qs_n

ef_vi, 65

vi_resource_id

ef_vi, 65

vi_rxq

ef_vi, 65

vi_stats

ef_vi, 66

vi_txq

ef_vi, 66

vis_pd

ef_vi_set, 72

vis_res_id

ef_vi_set, 72
