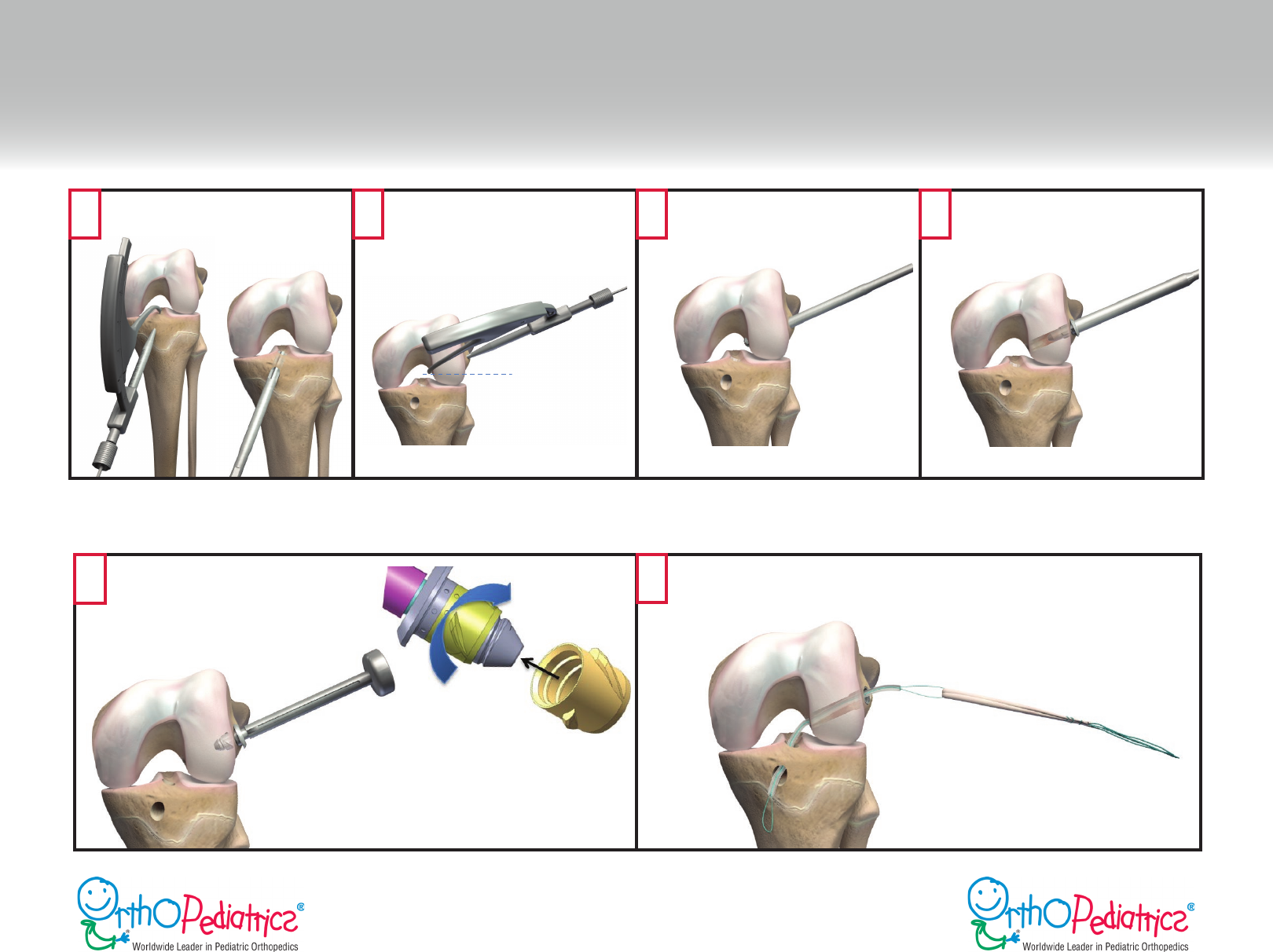

ACL Reconstruction System Overview

Drill & Ream Tibia

Fluoroscopy recommended for all drilling

Pass graft (Femur to Tibia; loop in Tibia)

Insert Sleeve into

Femoral tunnel

Counterbore Femur

Ream FemurDrill Femur

1 2 34

56

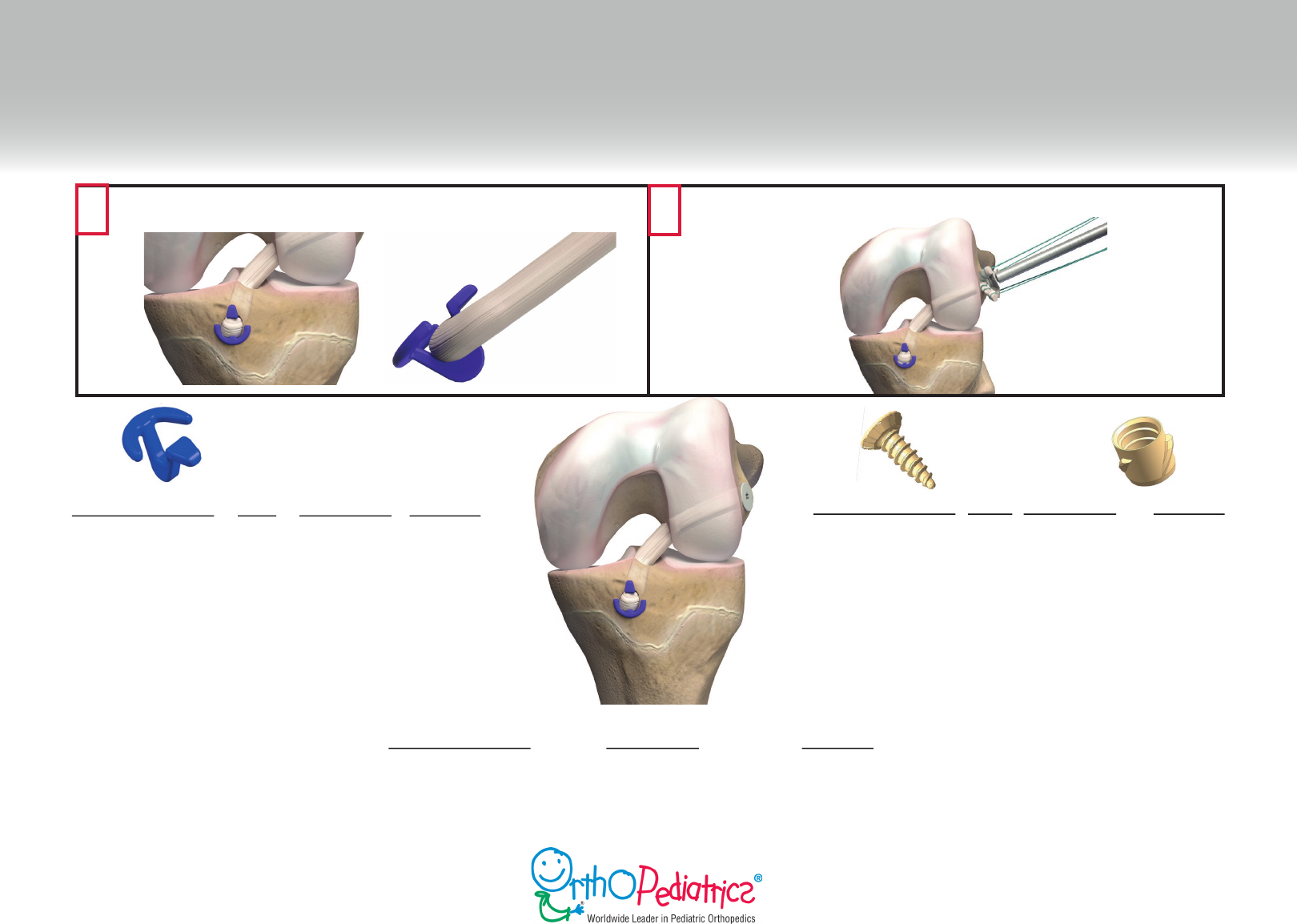

ACL Reconstruction System Overview

78

Insert

ArmorLink

xation (tibia) Insert

ShieldLoc

screw (femur)

ArmorLink™

(Sterile Packed)

Product Description Color

Part Number

Size (mm)

6mm ArmorLink Blue

10

-1008-1060 6

6.5mm ArmorLink Bronze

10

-1008-1065 6.5

7mm ArmorLink Green

10

-1008-1070 7

7.5mm ArmorLink Dark Blue

10

-1008-1075 7.5

8mm ArmorLink Magenta

10

-1008-1080 8

8.5mm ArmorLink Teal

10

-1008-1085 8.5

9mm ArmorLink Aqua

10

-1008-1090 9

10mm ArmorLink Purple

10

-1008-1100 10 ACL Disposable Items

Product Description Part Number Packaging

ACL Disposable Kit 11-1008-5000 Sterile Packed

Contents: 0.5mm Guide Wire -qty 1, 2.5mm Drill Tip Guide Pin -qty 2, Tunnel Plug -qty 2, Graft Passer -qty 1

0.5mm x 250mm Guide Wire 01-1008-0050 Non-Sterile Loose Inventory

2.5mm Drill Tip Guide Pin 01-1008-0051 Non-Sterile Loose Inventory

ShieldLoc™

(Sterile Packed)

Product Description Driver Part Number Size (mm)

6mm ShieldLoc T15 10-1008-4060 6

6.5mm ShieldLoc T15 10-1008-4065 6.5

7mm ShieldLoc T20 10-1008-4070 7

7.5mm ShieldLoc T25 10-1008-4075 7.5

8mm ShieldLoc T25 10-1008-4080 8

8.5mm ShieldLoc T25 10-1008-4085 8.5

9mm ShieldLoc T25 10-1008-4090 9

10mm ShieldLoc T25 10-1008-4100 10

OrthoPediatrics, Children Are Not Just Small Adults, PediPlates, PediLoc, PediFlex, PLEO, PediNail, Response, Scwire, ShieldLoc, ArmorLink and the Pedi logo are trademarks of OrthoPediatrics Corp.

OrthoPediatrics, Children Are Not Just Small Adults, PediPlates, PediLoc, Scwire and the Pedi logo are registered trademarks in the United States. The Pedi logo is a registered trademark in Australia and New Zealand, and a registered Community Trade Mark.

2850 Frontier Drive • Warsaw, IN 46582 • ph: 574.268.6379 or 877.268.6339 • fax: 574.268.6302 • www.OrthoPediatrics.com

OrthoPediatrics Corp. ©2014 SA-1008-01-02 Rev A

Indications: The OrthoPediatrics ACL Reconstruction System is intended

for fixation of tendons and ligaments during orthopedic reconstruction

procedures such as Anterior Cruciate Ligament (ACL) Reconstruction.

IFU, cleaning instructions and surgical techniques may be obtained by calling

OrthoPediatrics® Customer Service at 574-268-6379. Read and understand

indications, warnings and adverse effects explained in IFU’s prior to use.
